Sexual reproduction in humans — Paper 1 · IGCSE Sciences - Co-ordinated (Double) 0654

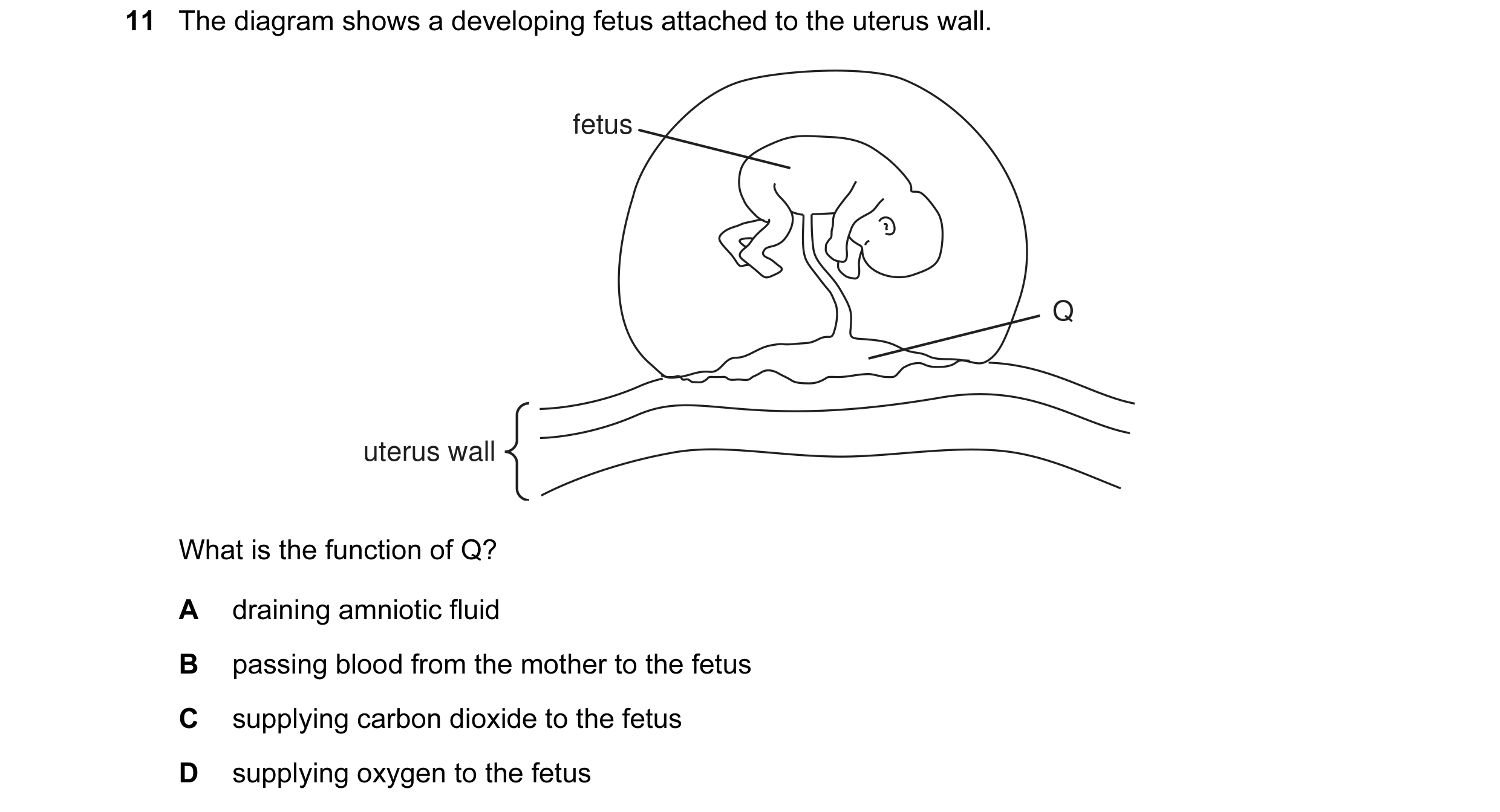

11 The diagram shows a developing fetus attached to the uterus wall. fetus Q uterus wall What is the function of Q? A draining amniotic fluid B passing blood from the mother to the fetus C supplying carbon dioxide to the fetus D supplying oxygen to the fetus

1 marks

Answer: D

This question in 0654/11 May/June 2005

10 The diagram shows the male reproductive system. In which structure are hormones produced that control adolescence? A B C D

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2006

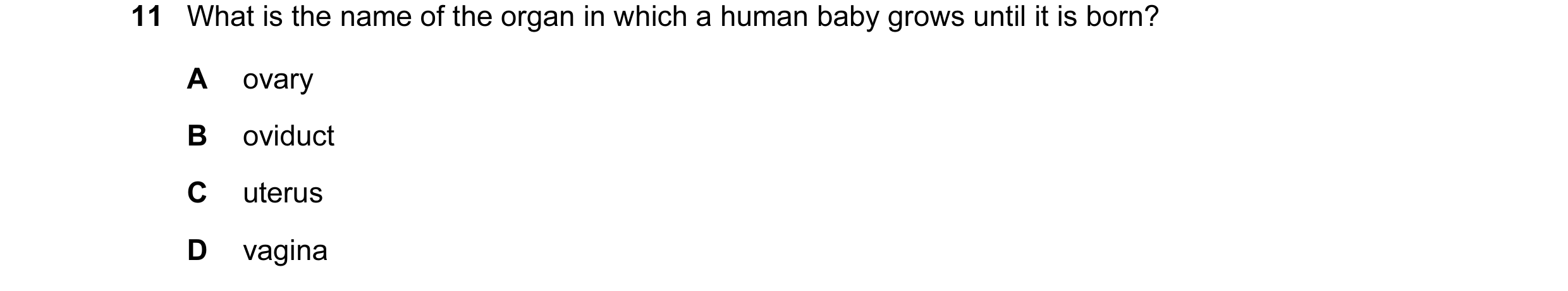

11 What is the name of the organ in which a human baby grows until it is born? A ovary B oviduct C uterus D vagina

1 marks

Answer: C

This question in 0654/11 May/June 2007

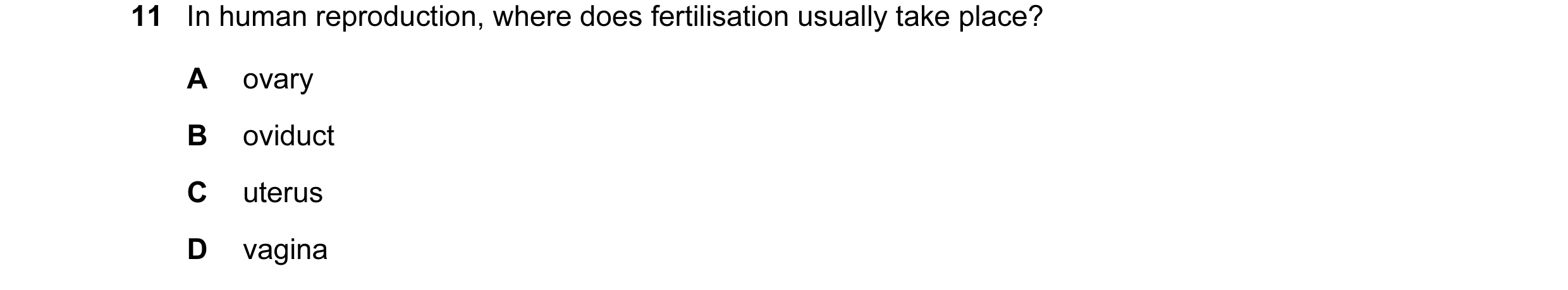

11 In human reproduction, where does fertilisation usually take place? A ovary B oviduct C uterus D vagina

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2007

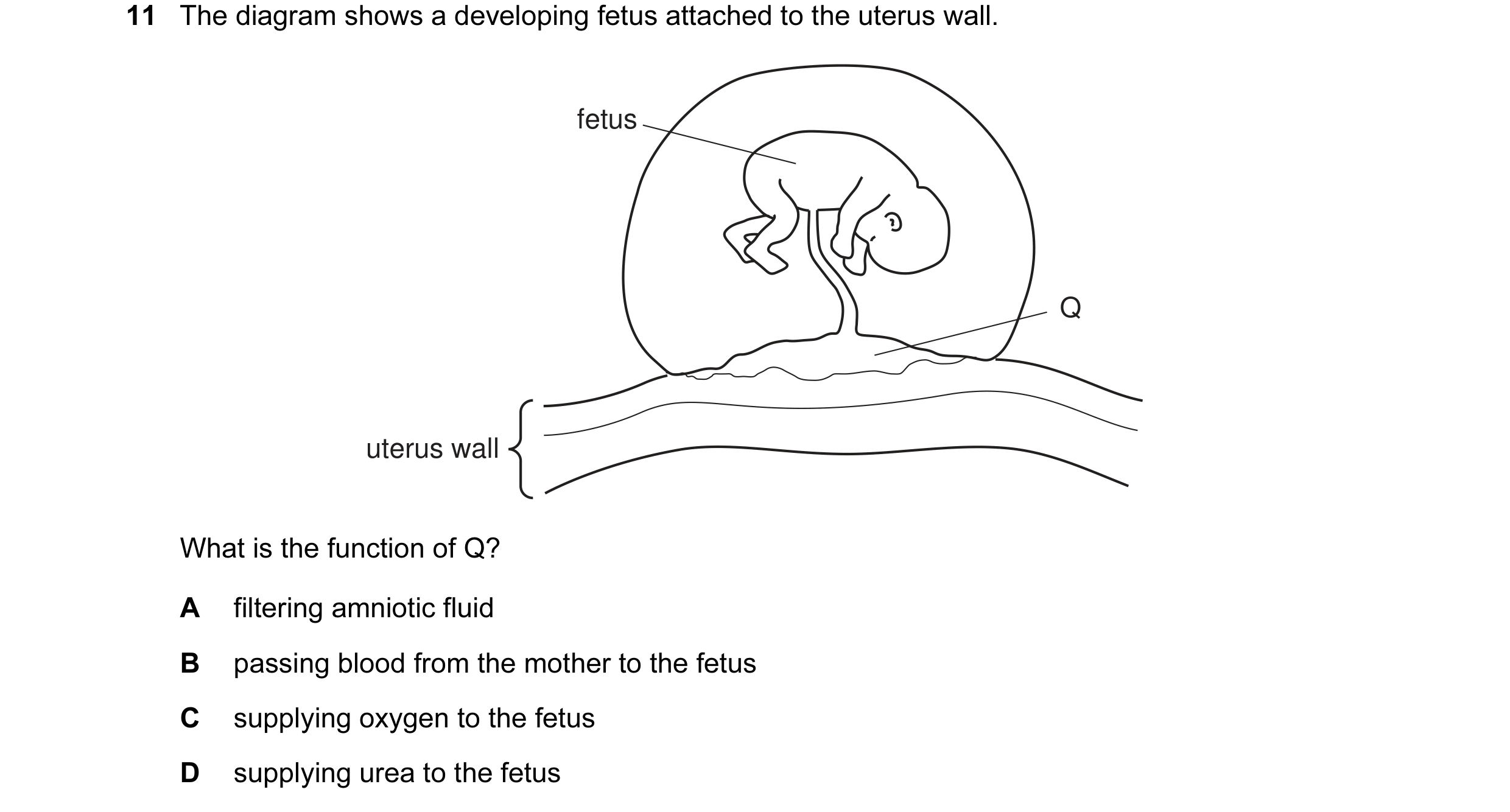

11 The diagram shows a developing fetus attached to the uterus wall. fetus Q uterus wall What is the function of Q? A filtering amniotic fluid B passing blood from the mother to the fetus C supplying oxygen to the fetus D supplying urea to the fetus

1 marks

Answer: C

This question in 0654/11 May/June 2008

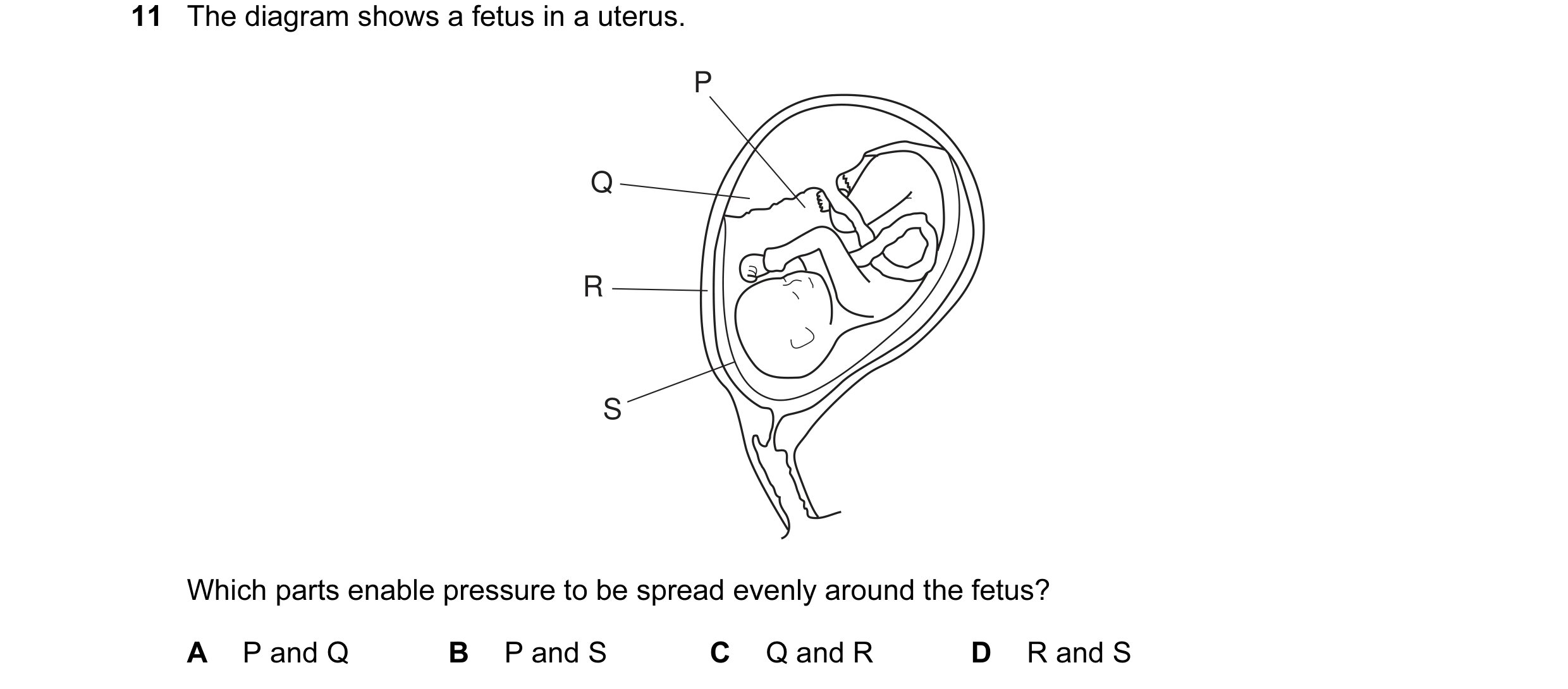

11 The diagram shows a fetus in a uterus. P Q R S Which parts enable pressure to be spread evenly around the fetus? A P and Q B P and S C Q and R D R and S

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2008

10 The diagram shows the male reproductive system. In which structure are the hormones that control adolescence produced? A B C D

1 marks

Answer: D

This question in 0654/11 May/June 2009

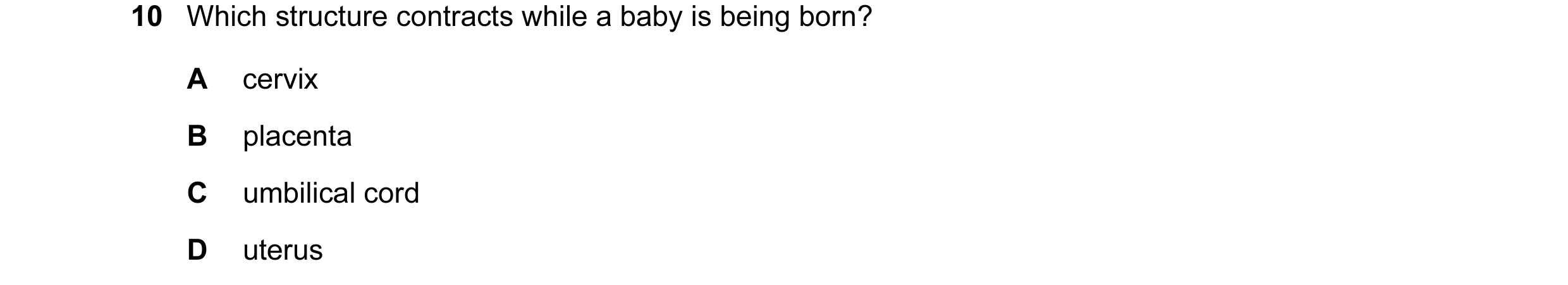

10 Which structure contracts while a baby is being born? A cervix B placenta C umbilical cord D uterus

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2009

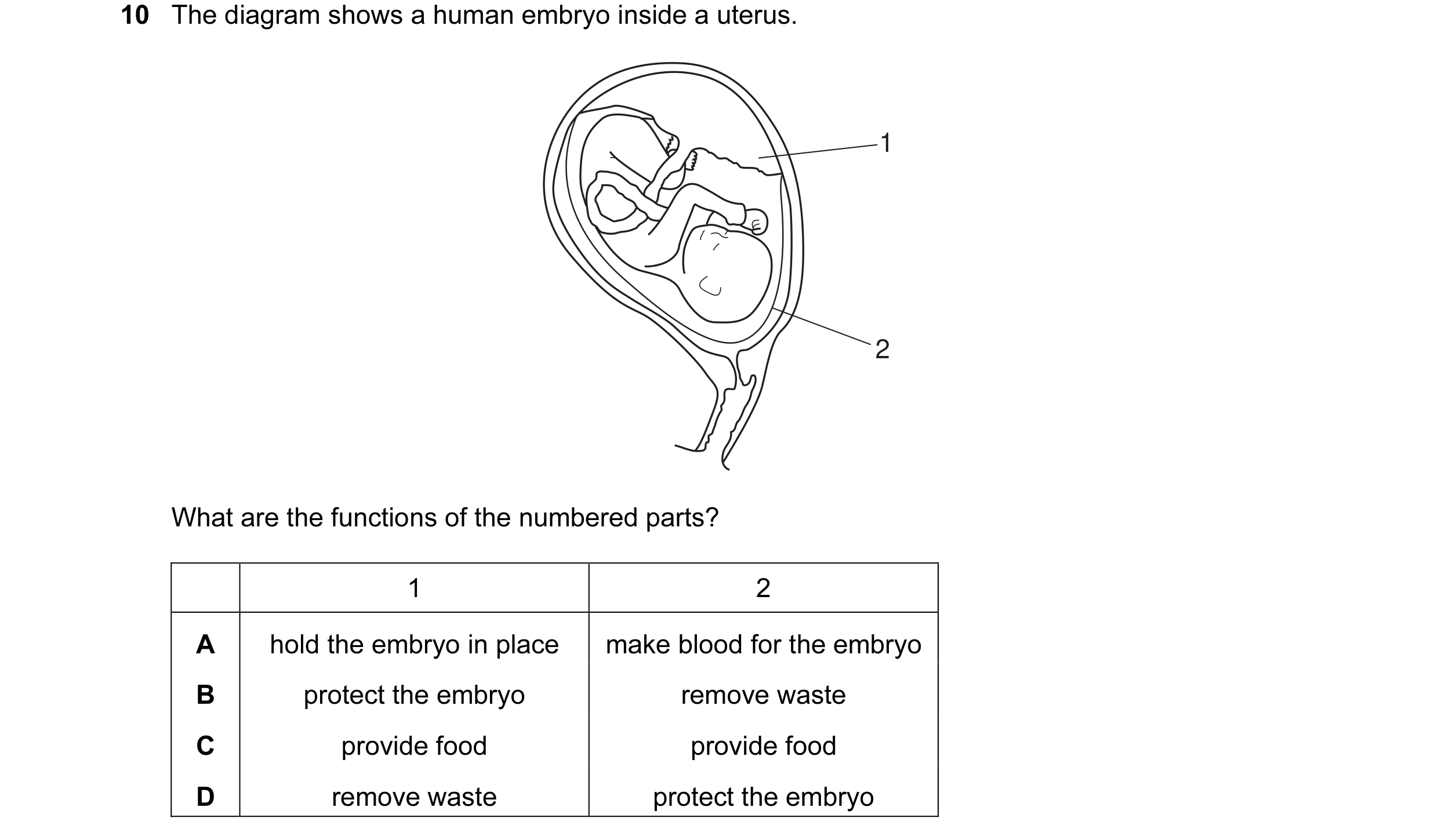

10 The diagram shows a human embryo inside a uterus. 1 2 What are the functions of the numbered parts? 1 2 A hold the embryo in place make blood for the embryo B protect the embryo remove waste C provide food provide food D remove waste protect the embryo

1 marks

Answer: D

This question in 0654/11 May/June 2010

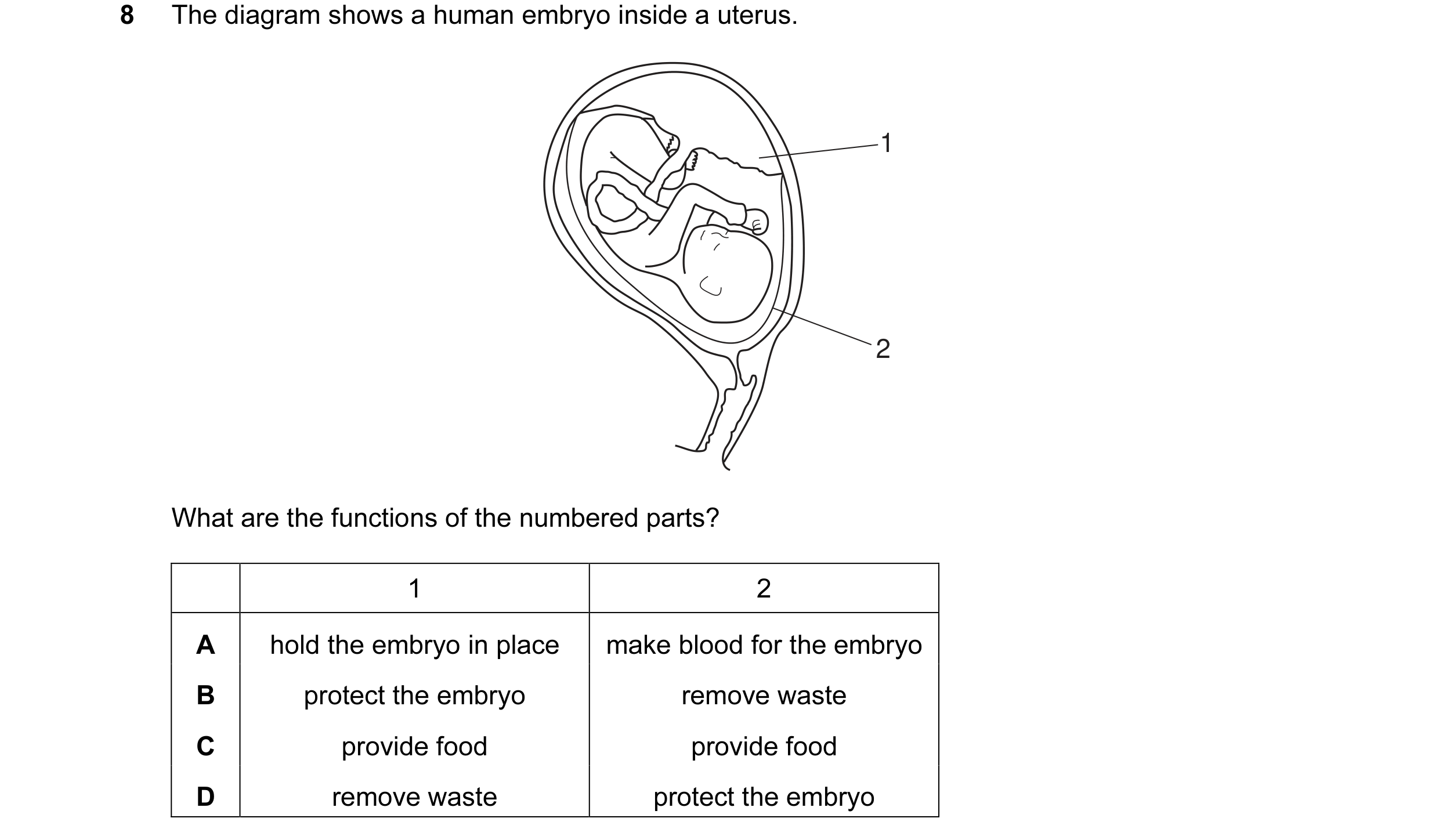

8 The diagram shows a human embryo inside a uterus. 1 2 What are the functions of the numbered parts? 1 2 A hold the embryo in place make blood for the embryo B protect the embryo remove waste C provide food provide food D remove waste protect the embryo

1 marks

Answer: D

This question in 0654/12 May/June 2010

11 The diagram shows a developing fetus. Where does the fetal blood become oxygenated? D uterus wall C A umbilical cord placenta B lungs

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2010

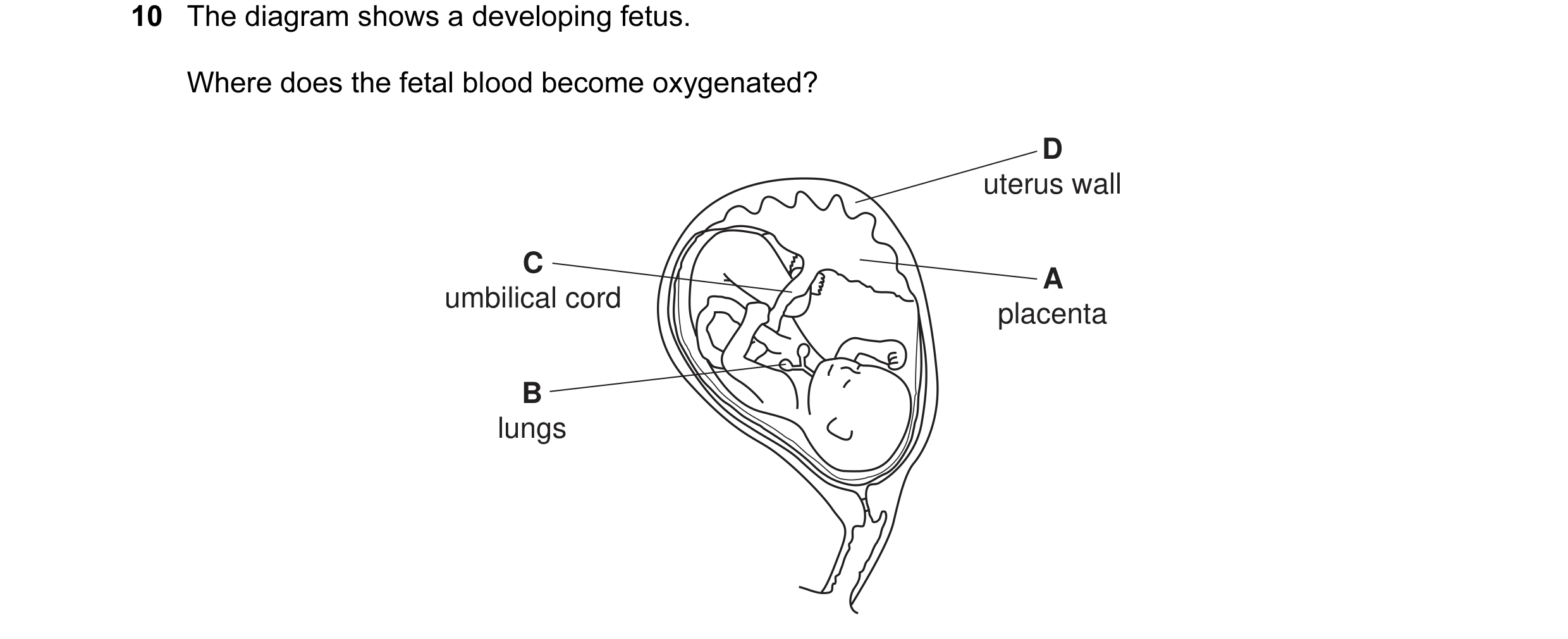

10 The diagram shows a developing fetus. Where does the fetal blood become oxygenated? D uterus wall C A umbilical cord placenta B lungs

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2010

13 The diagram shows a developing fetus. Where does the fetal blood become oxygenated? D uterus wall C A umbilical cord placenta B lungs

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2010

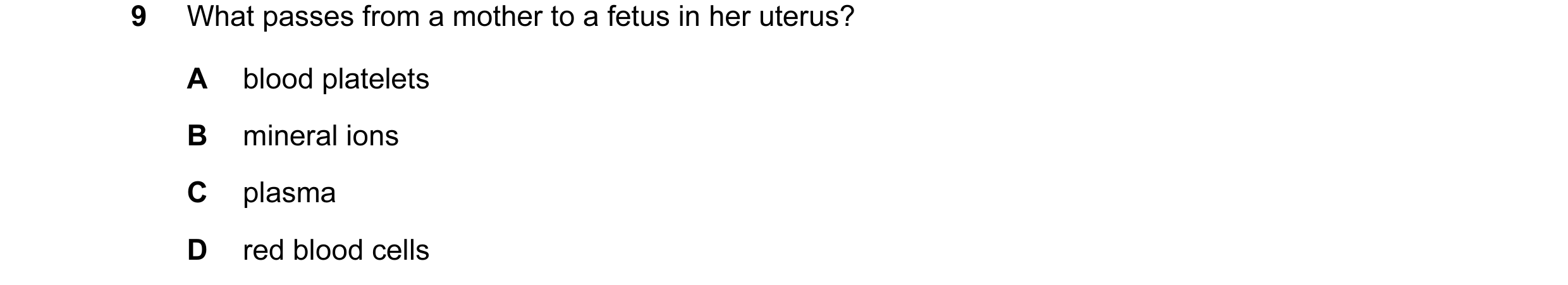

9 What passes from a mother to a fetus in her uterus? A blood platelets B mineral ions C plasma D red blood cells

1 marks

Answer: B

This question in 0654/11 May/June 2011

13 What passes from a mother to a fetus in her uterus? A blood platelets B mineral ions C plasma D red blood cells

1 marks

Answer: B

This question in 0654/12 May/June 2011

13 What passes from a mother to a fetus in her uterus? A blood platelets B mineral ions C plasma D red blood cells

1 marks

Answer: B

This question in 0654/13 May/June 2011

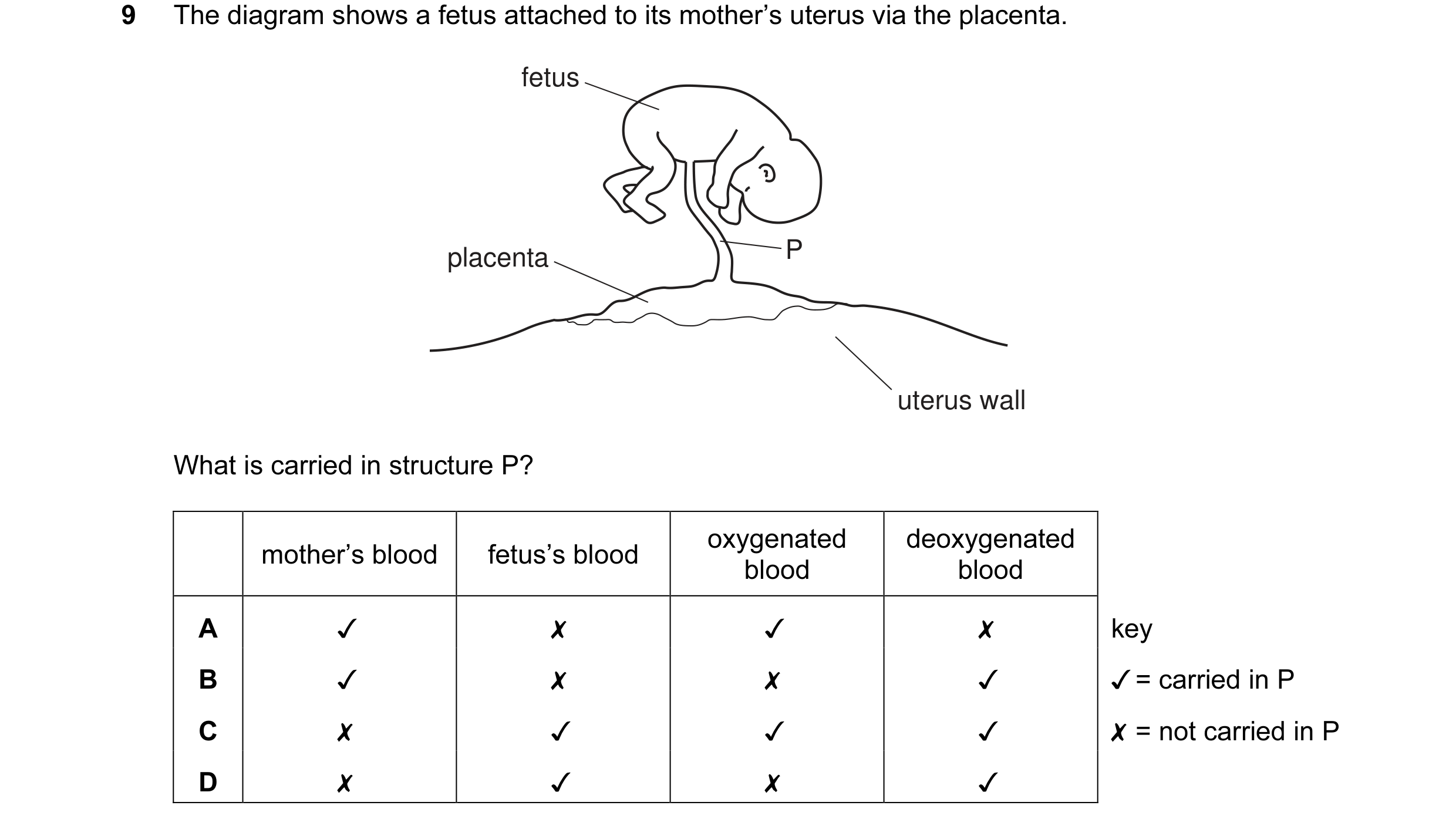

9 The diagram shows a fetus attached to its mother’s uterus via the placenta. fetus placenta P uterus wall What is carried in structure P? mother’s blood | fetus’s blood oxygenated deoxygenated blood blood D x JY x W, key / = carried in P X = not carried in P

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2011

10 The diagram shows a fetus attached to its mother’s uterus via the placenta. fetus placenta P uterus wall What is carried in structure P? mother’s blood fetus’s blood oxygenated deoxygenated blood blood A Jv x J x B Jv x x J Cc x Jv Jv Jv D x J x Jv key Y = carried in P X = not carried in P

1 marks

Answer: C

This question in 0654/12 Oct/Nov 2011

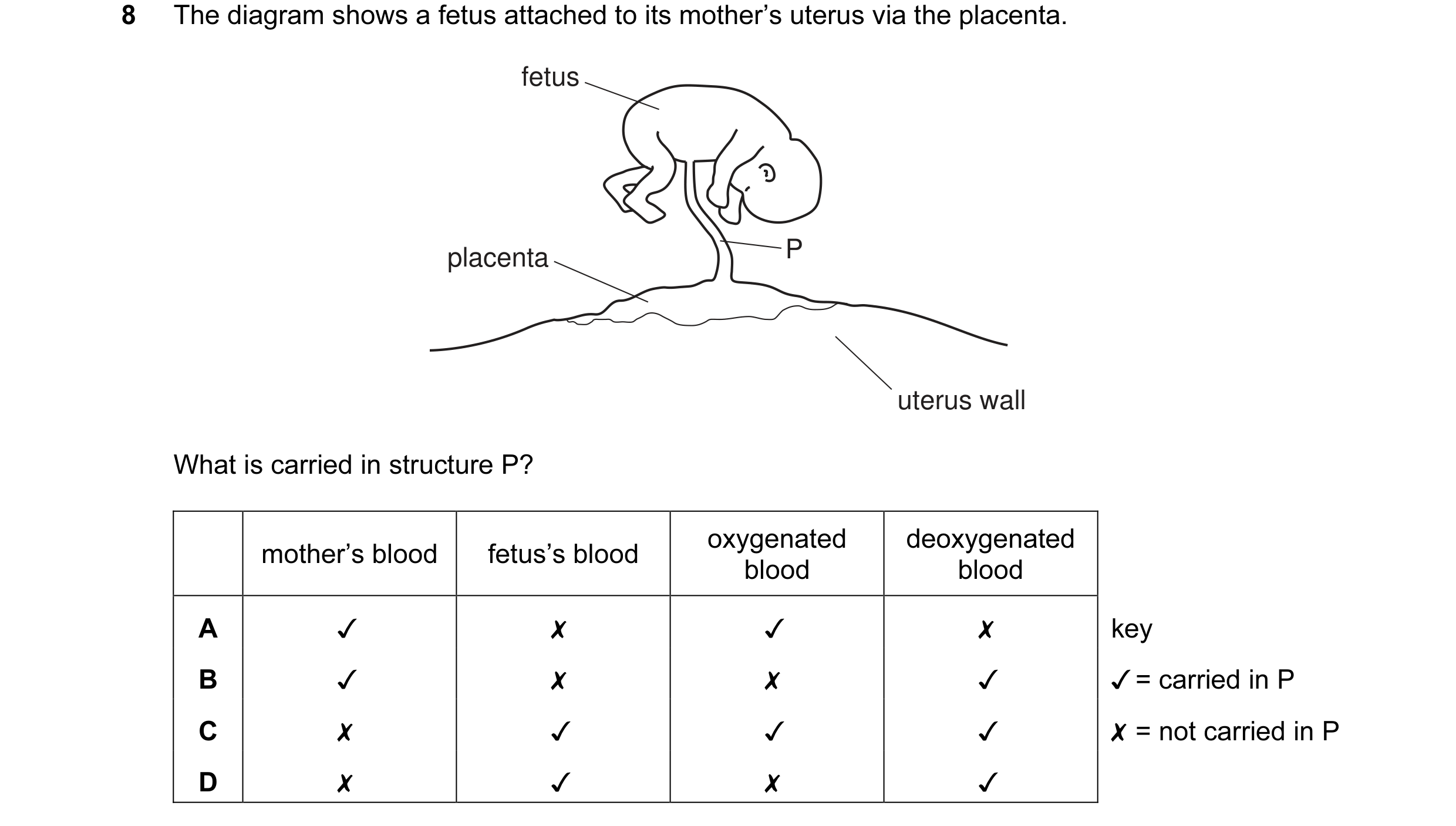

8 The diagram shows a fetus attached to its mother’s uterus via the placenta. fetus placenta P uterus wall What is carried in structure P? mother’s blood fetus’s blood oxygenated deoxygenated blood blood A Jv x J x B Jv x x J Cc x Jv Jv Jv D x J x Jv key Y = carried in P X = not carried in P

1 marks

Answer: C

This question in 0654/13 Oct/Nov 2011

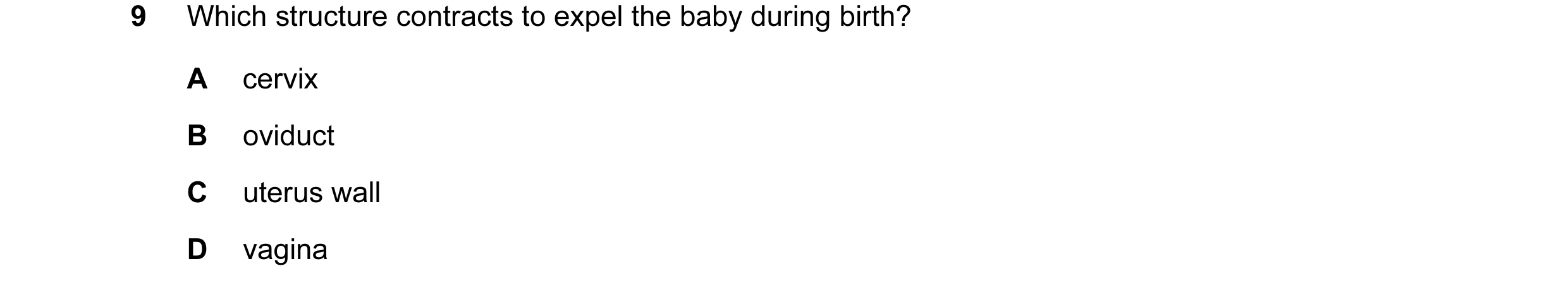

9 Which structure contracts to expel the baby during birth? A cervix B oviduct C uterus wall D vagina

1 marks

Answer: C

This question in 0654/11 May/June 2012

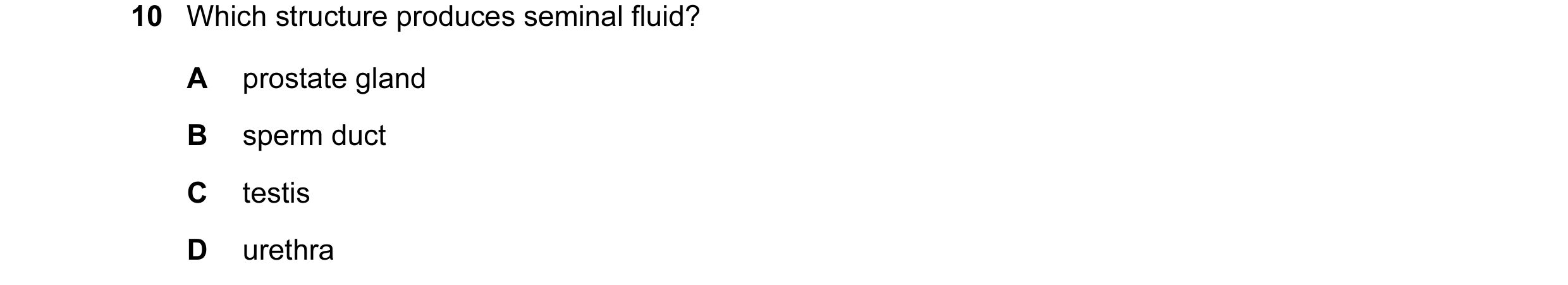

10 Which structure produces seminal fluid? A prostate gland B sperm duct C testis D urethra

1 marks

Answer: A

This question in 0654/12 May/June 2012

10 Which structure produces seminal fluid? A prostate gland B sperm duct C testis D urethra

1 marks

Answer: A

This question in 0654/13 May/June 2012

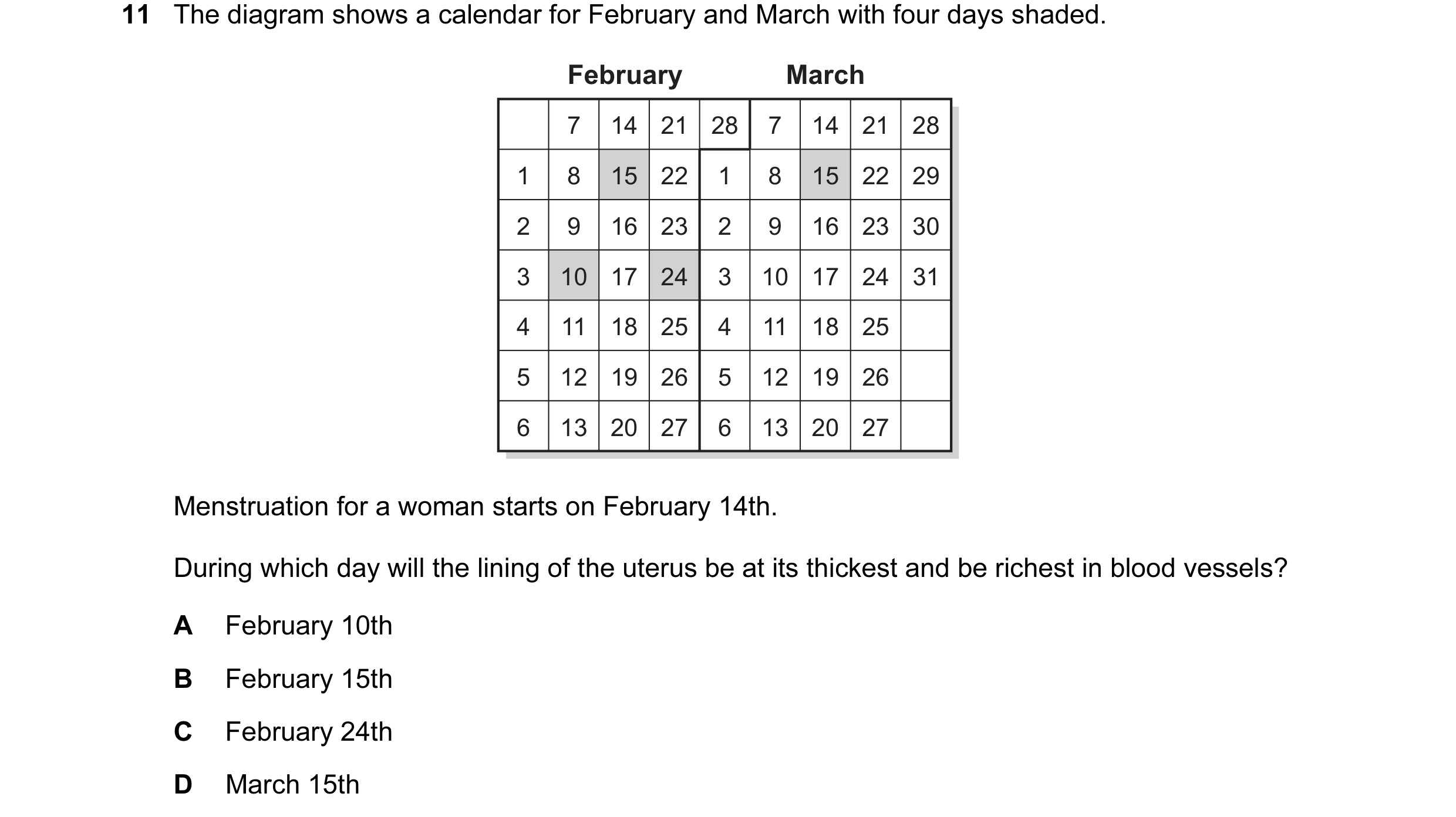

10 The diagram shows a calendar for February and March with four days shaded. February March 7 14 21 28 7 14 21 28 1 8 15 22 1 8 15 22 29 2 9 16 23 2 9 16 23 30 3 10 17 24 3 10 17 24 31 4 11 18 25 4 11 18 25 5 12 19 26 5 12 19 26 6 13 20 27 6 13 20 27 Menstruation for a woman starts on February 14th. During which day will the lining of the uterus be at its thickest and be richest in blood vessels? A February 10th B February 15th C February 24th D March 15th

1 marks

Answer: A

This question in 0654/11 May/June 2013

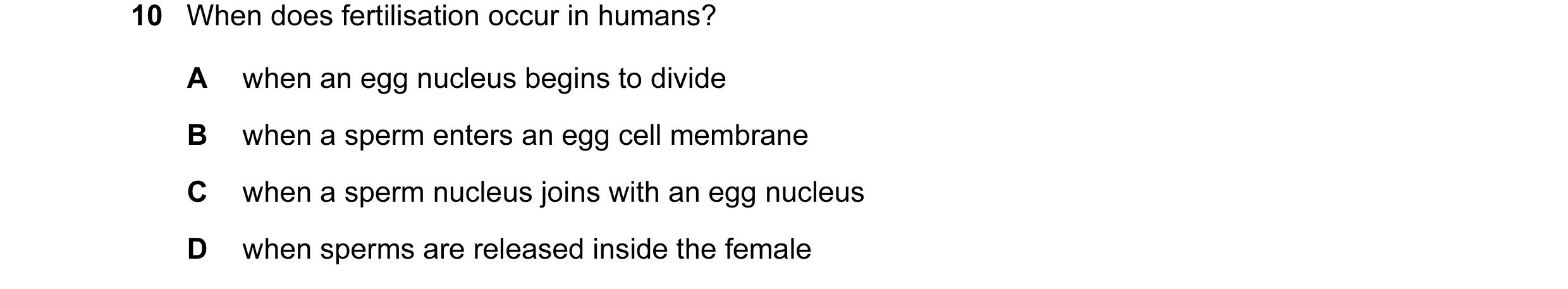

10 When does fertilisation occur in humans? A when an egg nucleus begins to divide B when a sperm enters an egg cell membrane C when a sperm nucleus joins with an egg nucleus D when sperms are released inside the female

1 marks

Answer: C

This question in 0654/12 May/June 2013

11 The diagram shows a calendar for February and March with four days shaded. February March 7 14 21 28 7 14 21 28 1 8 15 22 1 8 15 22 29 2 9 16 23 2 9 16 23 30 3 10 17 24 3 10 17 24 31 4 11 18 25 4 11 18 25 5 12 19 26 5 12 19 26 6 13 20 27 6 13 20 27 Menstruation for a woman starts on February 14th. During which day will the lining of the uterus be at its thickest and be richest in blood vessels? A February 10th B February 15th C February 24th D March 15th

1 marks

Answer: A

This question in 0654/13 May/June 2013

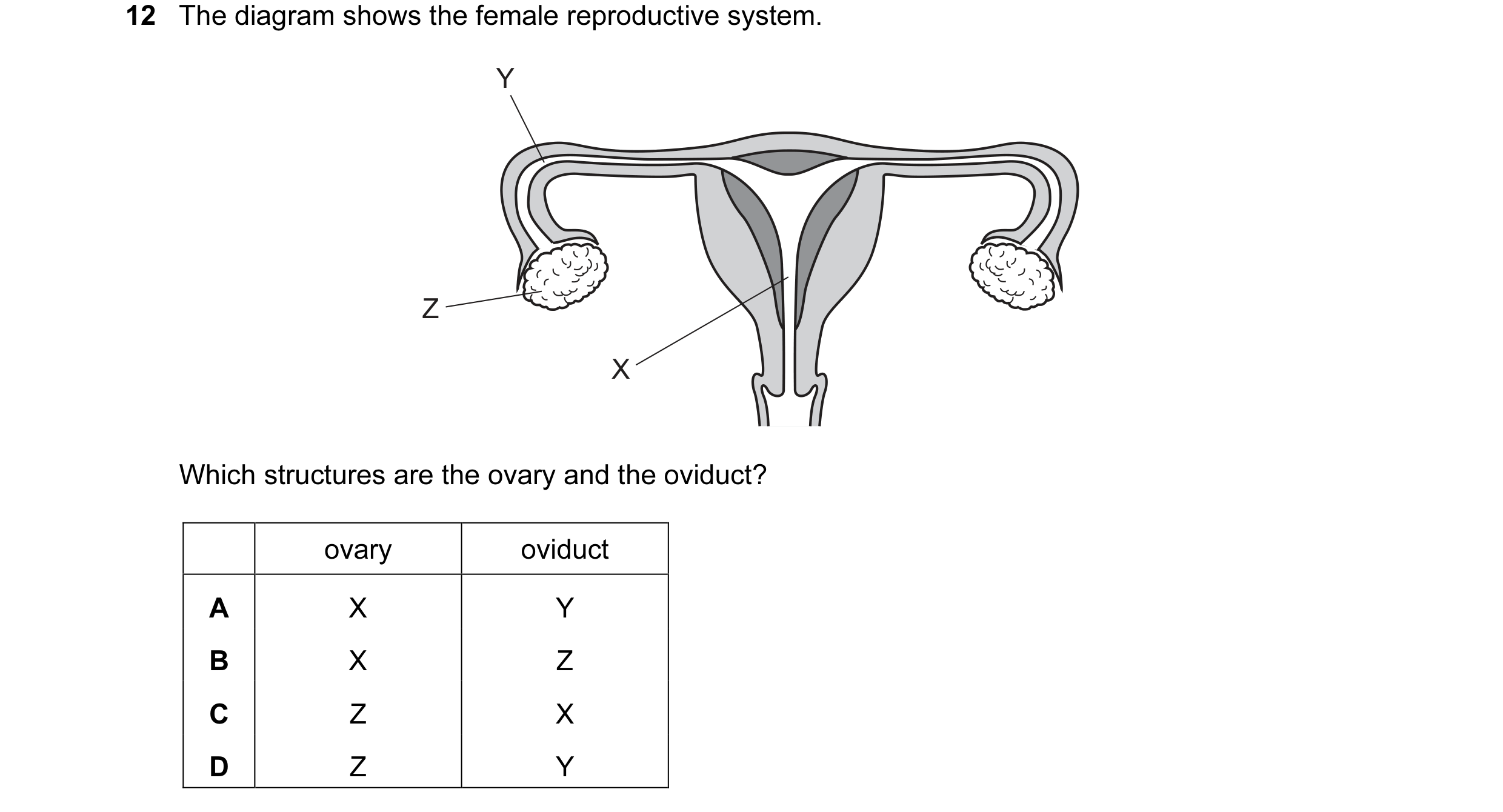

10 The diagram shows the female reproductive system. Y Z X Which structures are the ovary and the oviduct? ovary oviduct A X Y B X Z C Z X D Z Y

1 marks

Answer: D

This question in 0654/11 May/June 2014

12 What does a human male inherit from his father? A an X allele B an X sperm C a Y chromosome D a Y gene

1 marks

Answer: C

This question in 0654/12 May/June 2014

12 The diagram shows the female reproductive system. Y Z X Which structures are the ovary and the oviduct? ovary oviduct A X Y B X Z C Z X D Z Y

1 marks

Answer: D

This question in 0654/13 May/June 2014

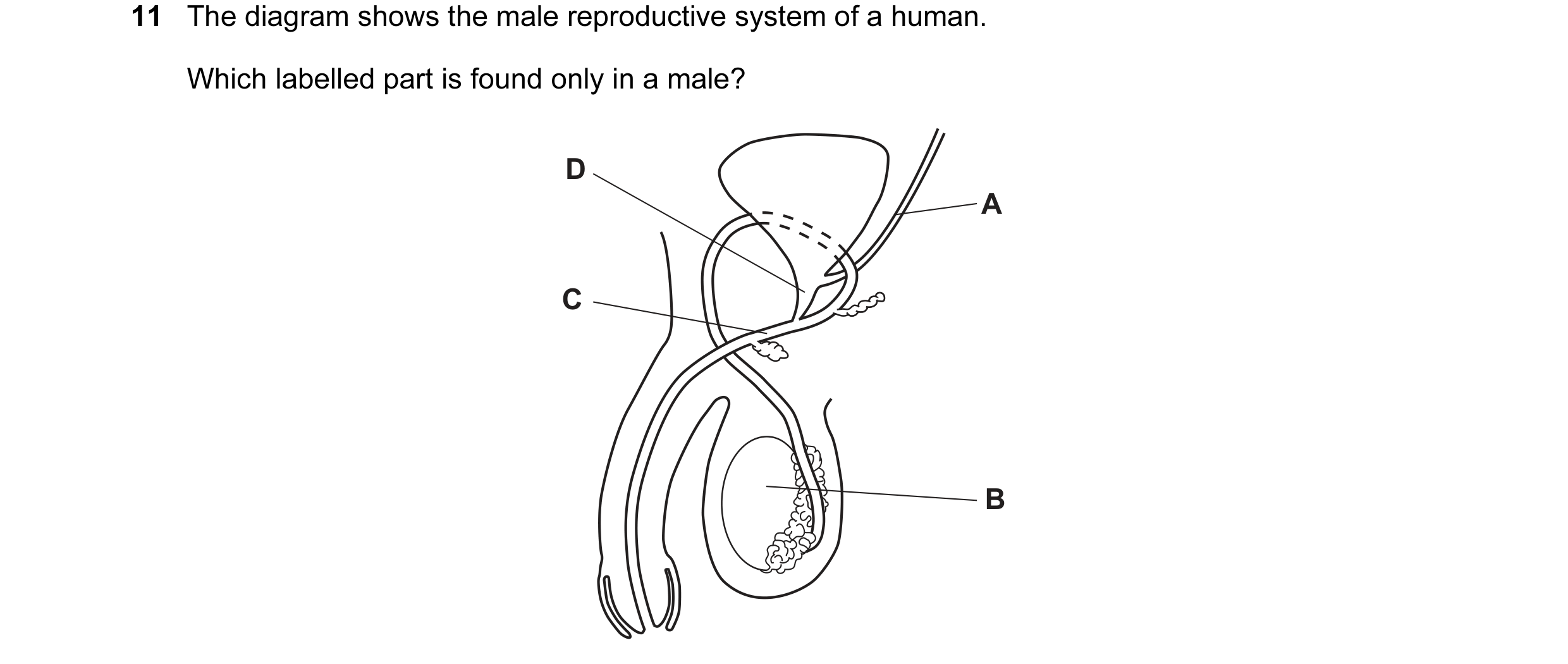

9 The diagram shows the male reproductive system of a human. Which labelled part is found only in a male? D A C B

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2014

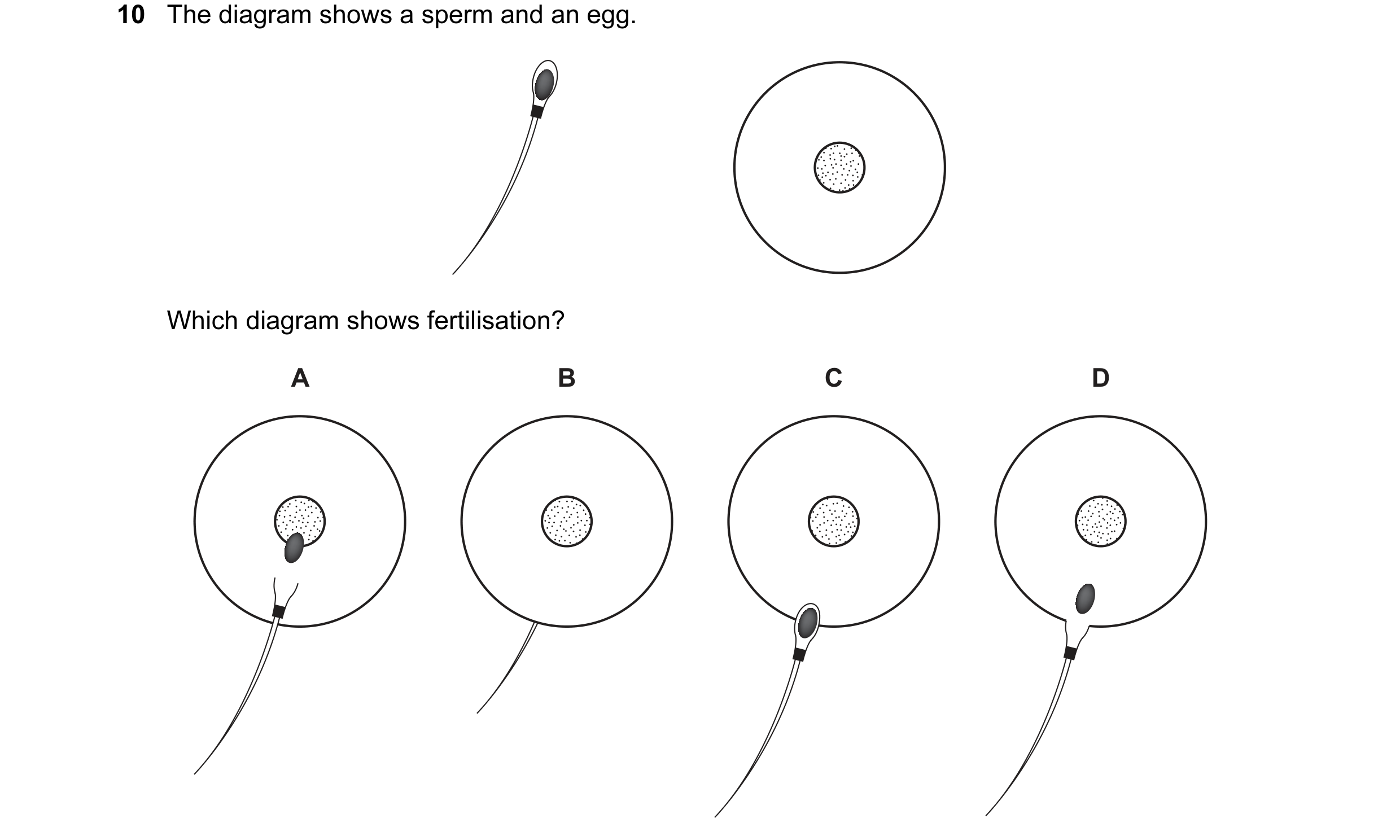

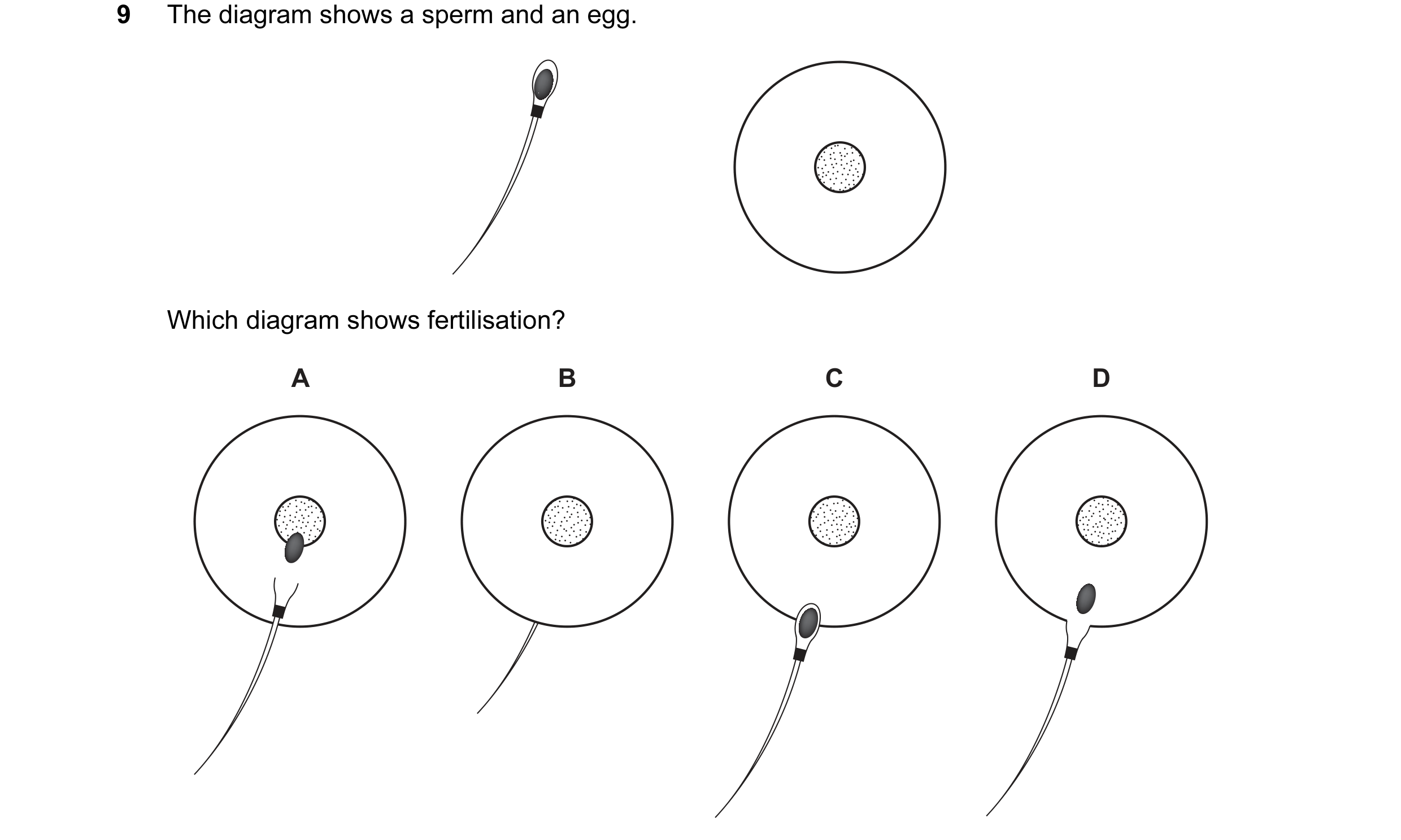

10 The diagram shows a sperm and an egg. Which diagram shows fertilisation? A B C D

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2014

9 The diagram shows a sperm and an egg. Which diagram shows fertilisation? A B C D

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2014

11 The diagram shows the male reproductive system of a human. Which labelled part is found only in a male? D A C B

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2014

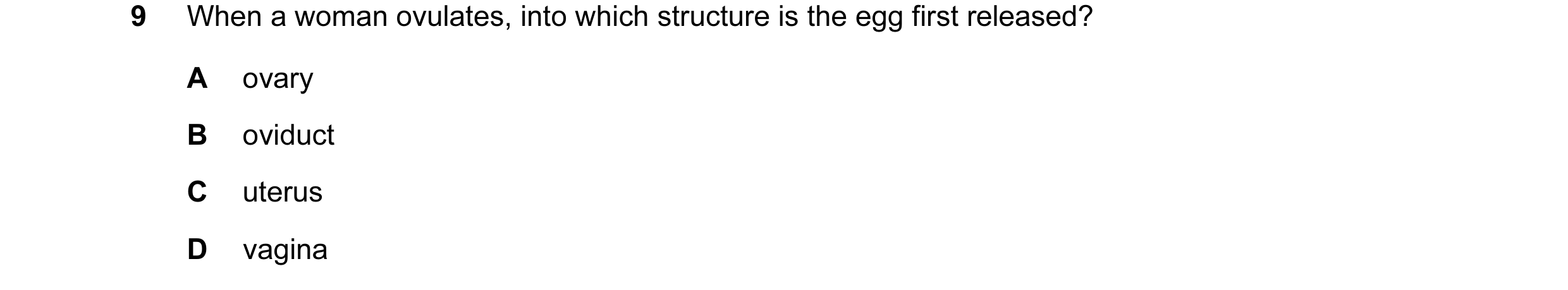

9 When a woman ovulates, into which structure is the egg first released? A ovary B oviduct C uterus D vagina

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2014

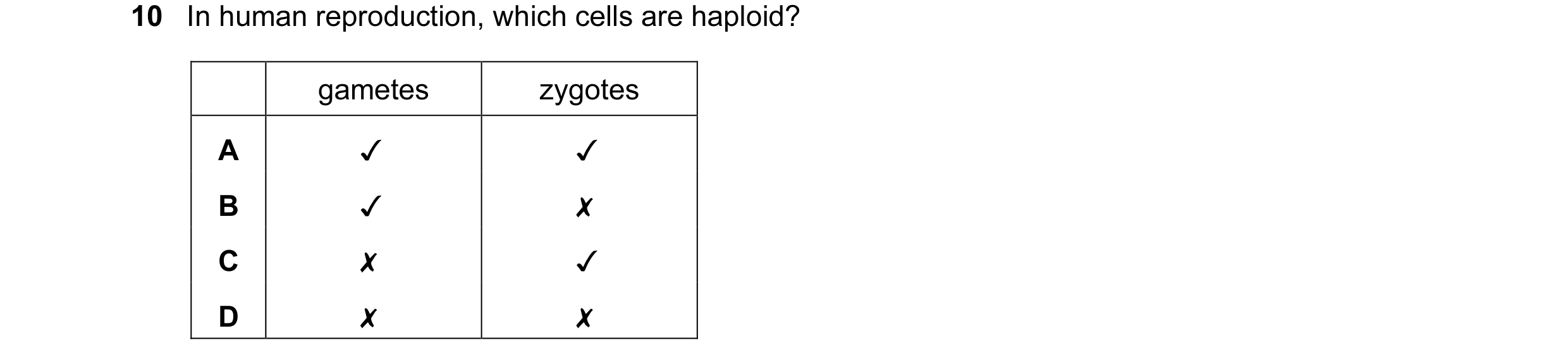

10 In human reproduction, which cells are haploid? gametes zygotes v v loom > v x x v x x

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2014

11 Which statement about human gametes is correct? A 50% of egg cells contain a Y chromosome. B 50% of sperm cells contain a Y chromosome. C 100% of egg cells contain a Y chromosome. D 100% of sperm cells contain a Y chromosome.

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2014

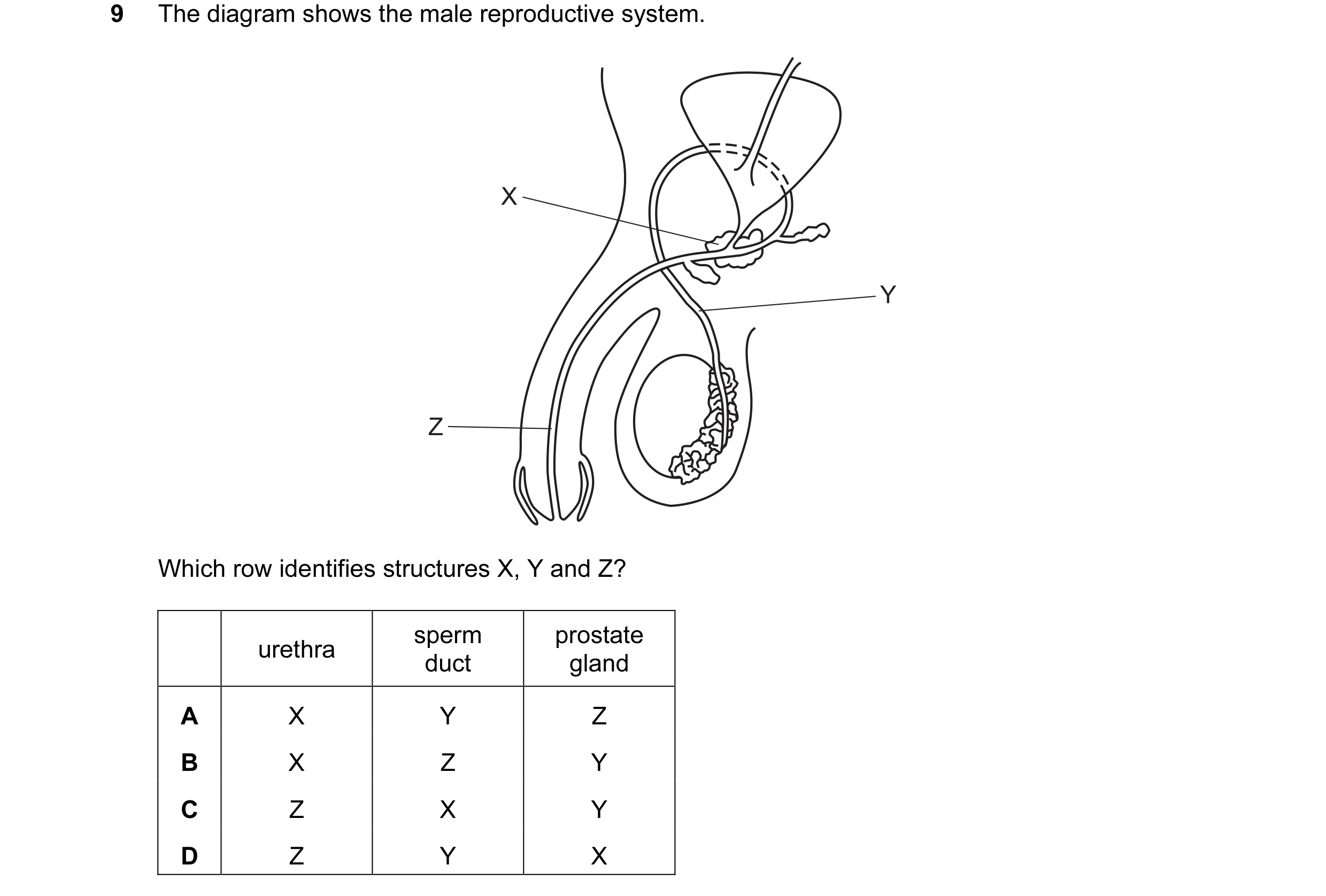

9 The diagram shows the male reproductive system. X Y Z Which row identifies structures X, Y and Z? sperm prostate urethra duct gland A X Y Z B X Z Y C Z X Y D Z Y X

1 marks

Answer: D

This question in 0654/11 May/June 2015

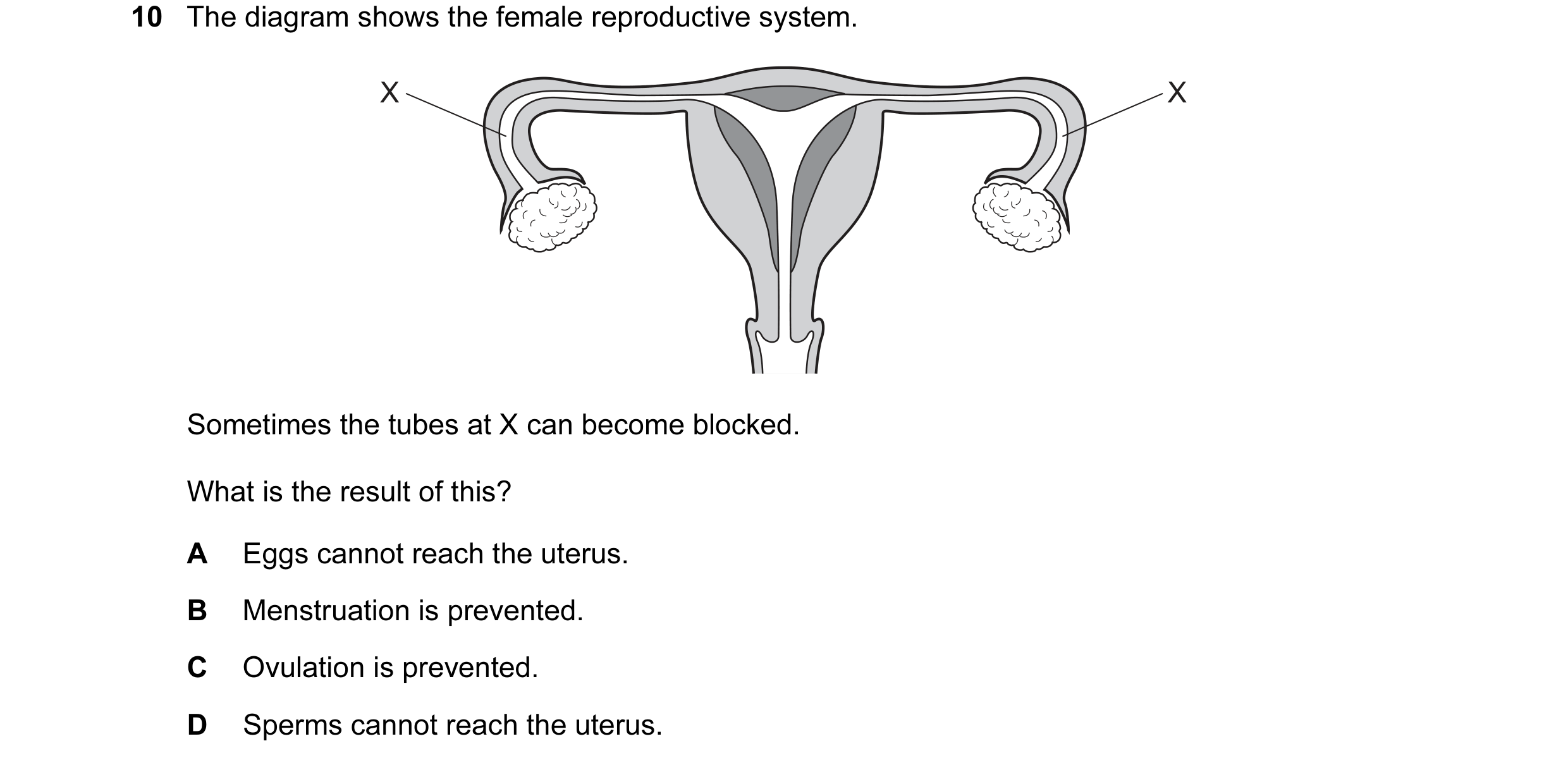

10 The diagram shows the female reproductive system. X X Sometimes the tubes at X can become blocked. What is the result of this? A Eggs cannot reach the uterus. B Menstruation is prevented. C Ovulation is prevented. D Sperms cannot reach the uterus.

1 marks

Answer: A

This question in 0654/12 May/June 2015

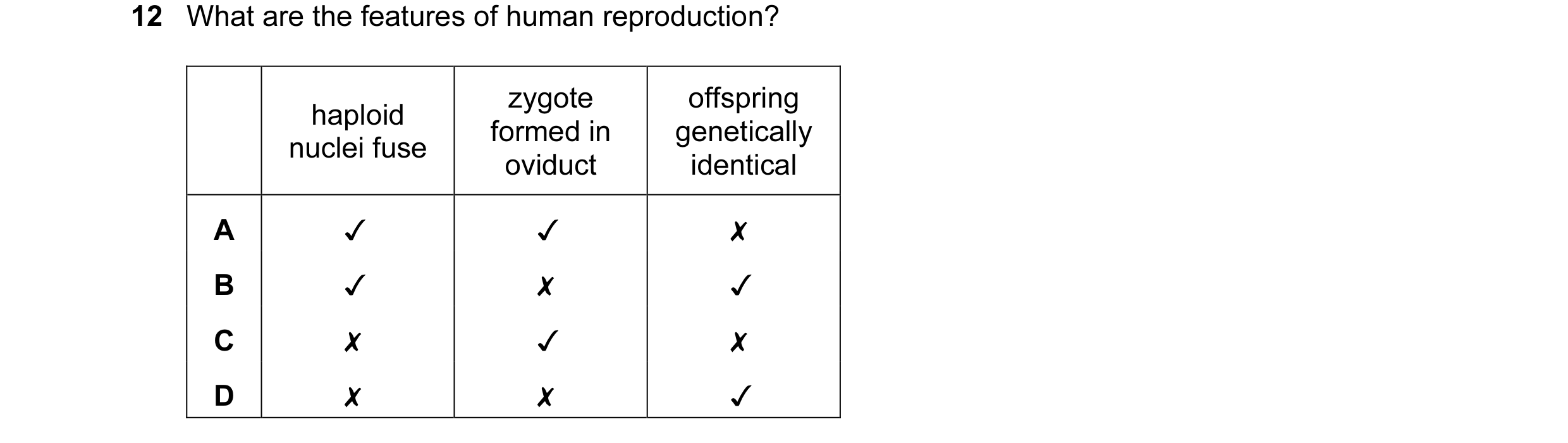

12 What are the features of human reproduction? haploid zygote offspring ; formed in genetically nuclei fuse . ; oviduct identical A v v x B v x v Cc x v x D x x v

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2015

10 The diagram shows the male reproductive system. Which structure produces the hormones that control adolescence? A D C B

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2015

10 The diagram shows the male reproductive system. Which structure produces the hormones that control adolescence? A D C B

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2015

7 The diagram shows what happens to glucose in the body. glucose synthesis of enzymes energy Y contraction of muscles release oxygen Z What are processes Y and Z? Y Z A photosynthesis growth B photosynthesis respiration C respiration growth D respiration photosynthesis

1 marks

Answer: C

This question in 0654/13 May/June 2016

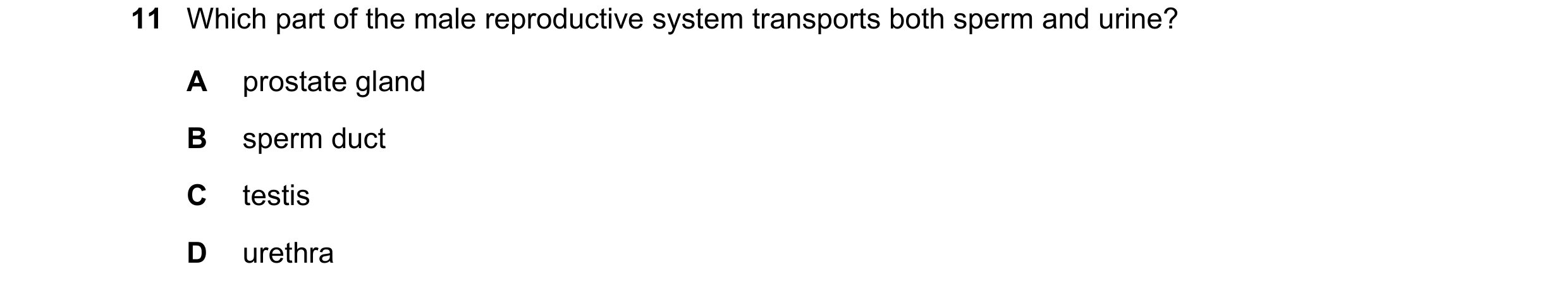

11 Which part of the male reproductive system transports both sperm and urine? A prostate gland B sperm duct C testis D urethra

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2016

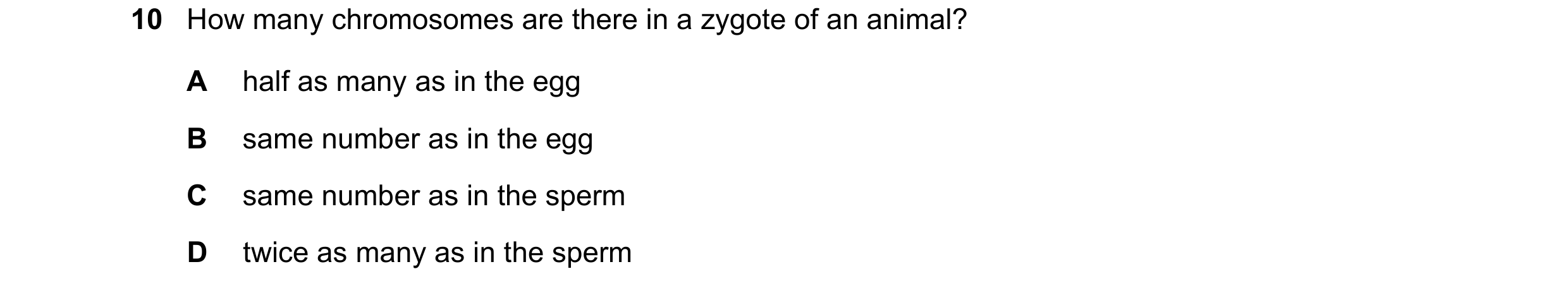

10 How many chromosomes are there in a zygote of an animal? A half as many as in the egg B same number as in the egg C same number as in the sperm D twice as many as in the sperm

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2016

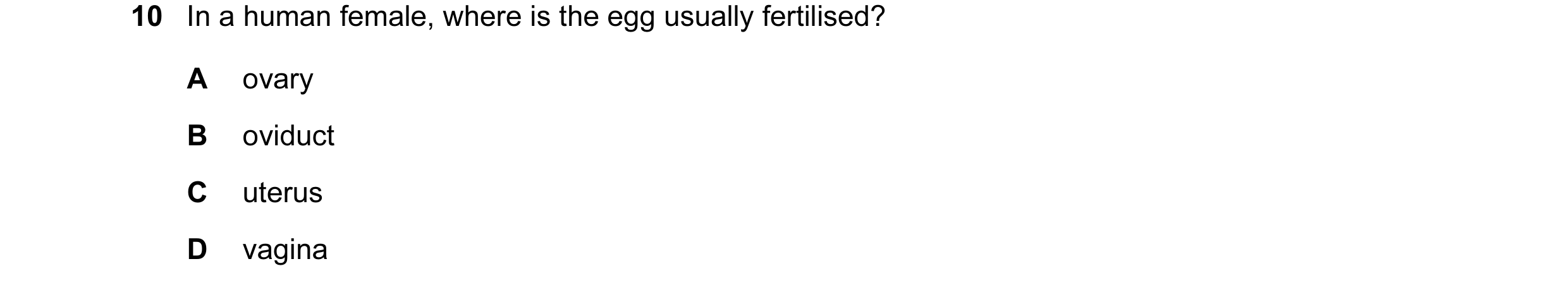

10 In a human female, where is the egg usually fertilised? A ovary B oviduct C uterus D vagina

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2016

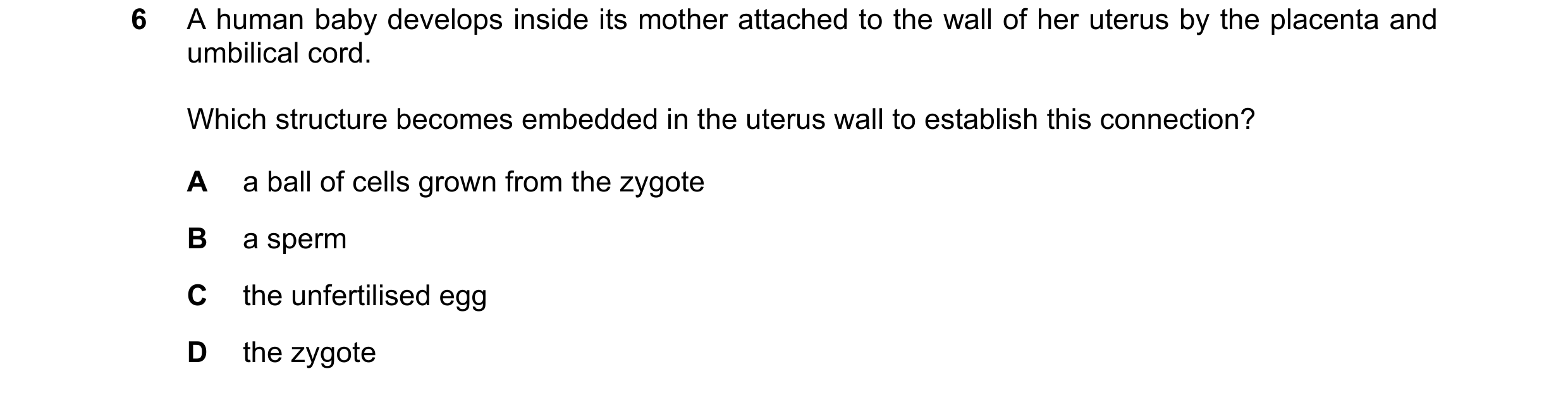

6 A human baby develops inside its mother attached to the wall of her uterus by the placenta and umbilical cord. Which structure becomes embedded in the uterus wall to establish this connection? A a ball of cells grown from the zygote B a sperm C the unfertilised egg D the zygote

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2017

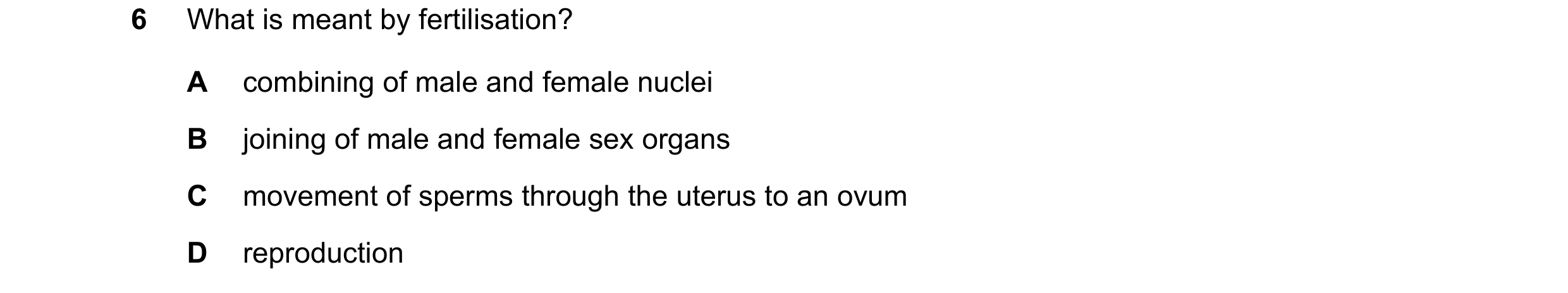

6 What is meant by fertilisation? A combining of male and female nuclei B joining of male and female sex organs C movement of sperms through the uterus to an ovum D reproduction

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2017

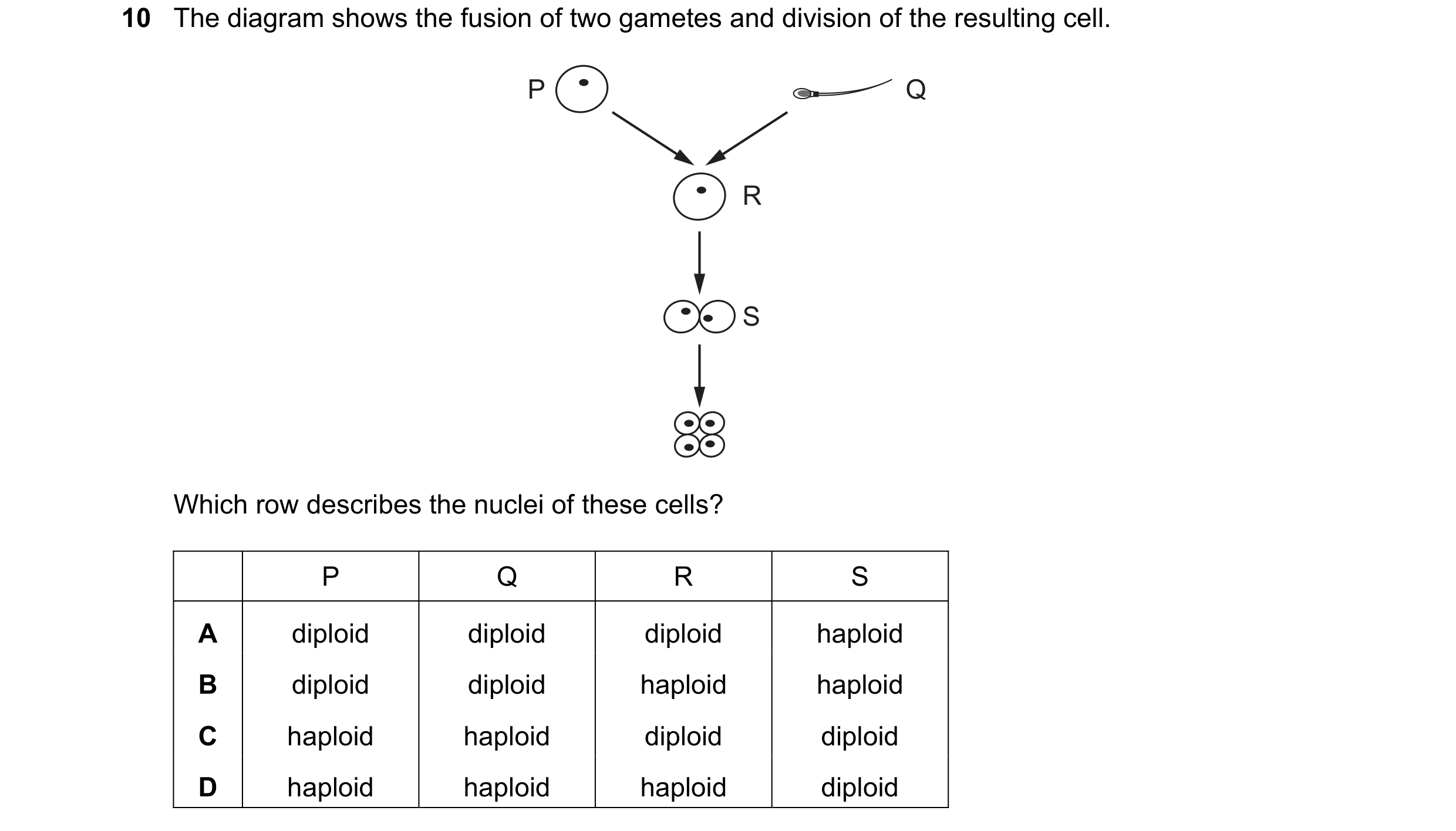

10 The diagram shows the fusion of two gametes and division of the resulting cell. P Q R S Which row describes the nuclei of these cells? P Q R S A diploid diploid diploid haploid B diploid diploid haploid haploid C haploid haploid diploid diploid D haploid haploid haploid diploid

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2018

11 Which sex chromosomes need to be present in a sperm cell to produce a male zygote? A X only B Y only C XX D XY

1 marks

Answer: B

This question in 0654/12 May/June 2019

11 Which sex chromosomes need to be present in a sperm cell to produce a male zygote? A X only B Y only C XX D XY

1 marks

Answer: B

This question in 0654/13 May/June 2019

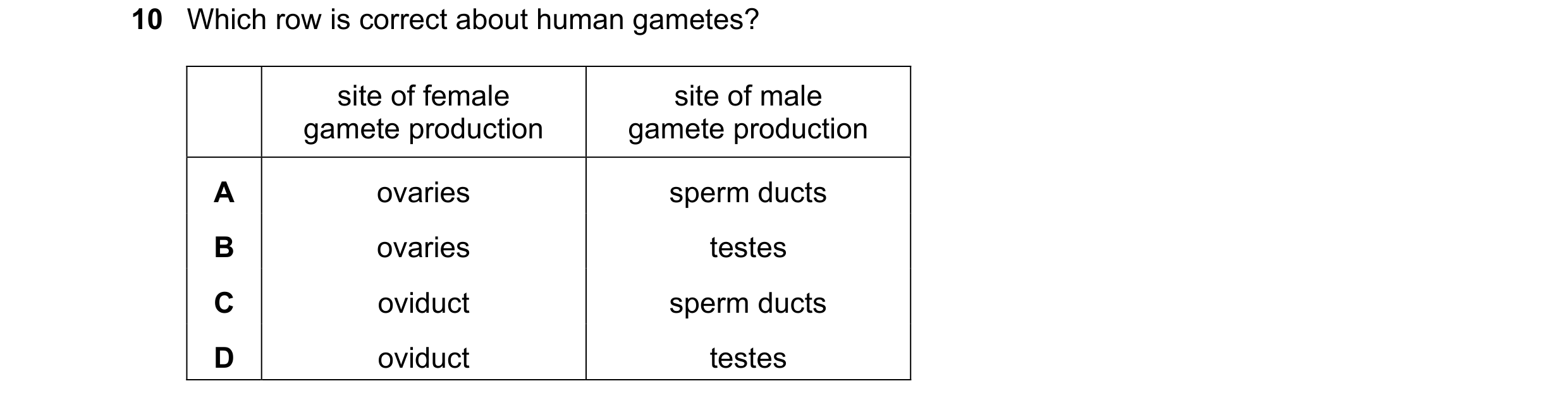

10 Which row is correct about human gametes? site of female site of male gamete production gamete production A ovaries sperm ducts B ovaries testes C oviduct sperm ducts D oviduct testes

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2019

11 Which statement about human gametes is correct? A Only 50% of egg cells contain an X chromosome. B Only 50% of sperm cells contain a Y chromosome. C 100% of egg cells contain a Y chromosome. D 100% of sperm cells contain an X chromosome.

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2019

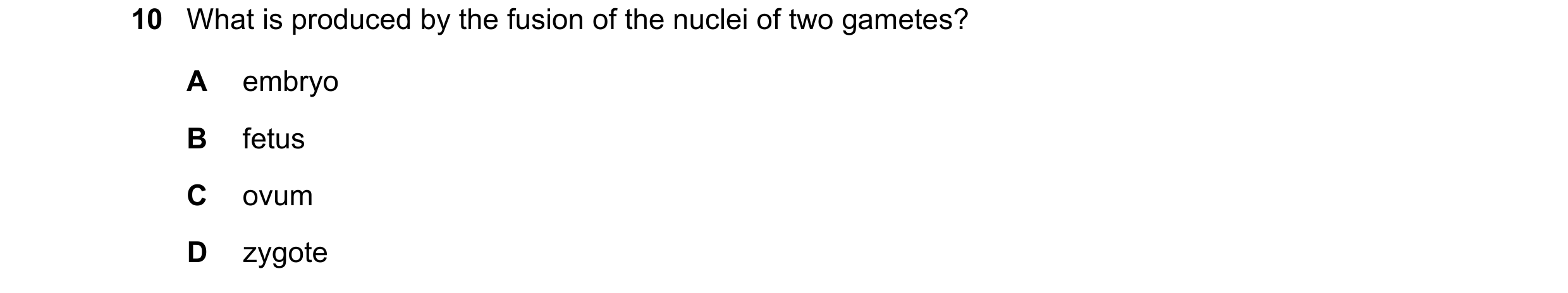

10 What is produced by the fusion of the nuclei of two gametes? A embryo B fetus C ovum D zygote

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2020

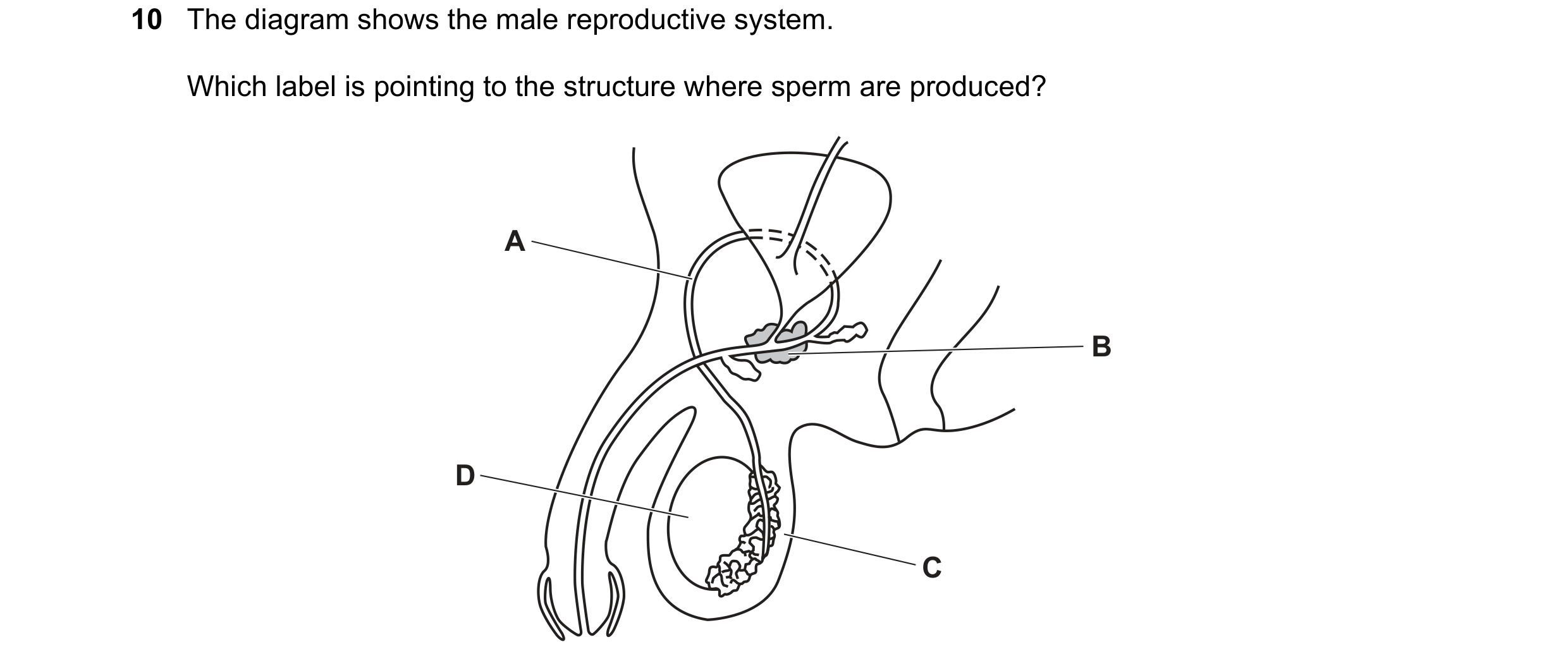

10 The diagram shows the male reproductive system. Which label is pointing to the structure where sperm are produced? A B D C

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2020

10 What is meant by fertilisation? A combining of male and female nuclei B joining of male and female sex organs C movement of sperms through the uterus to an ovum D reproduction

1 marks

Answer: A

This question in 0654/12 Feb/March 2021

11 Which statement about human gametes is correct? A There is an X chromosome in all egg cells. B There is a Y chromosome in all egg cells. C There is an X chromosome in all sperm cells. D There is a Y chromosome in all sperm cells.

1 marks

Answer: A

This question in 0654/12 Feb/March 2021

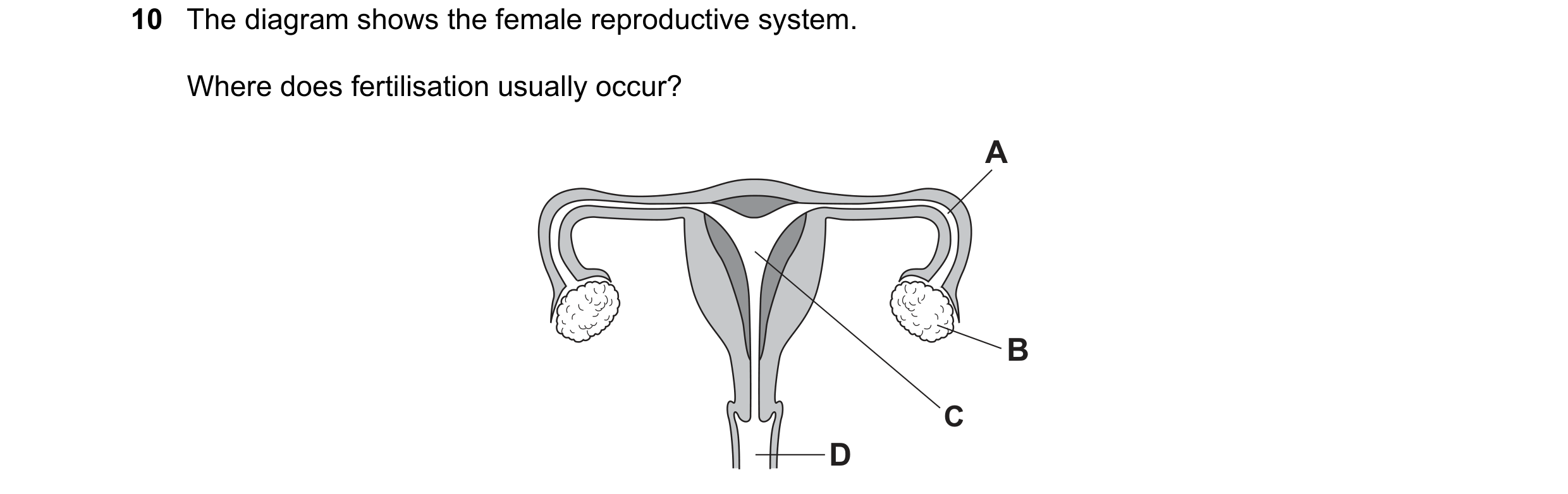

10 The diagram shows the female reproductive system. Where does fertilisation usually occur? A B C D

1 marks

Answer: A

This question in 0654/11 May/June 2021

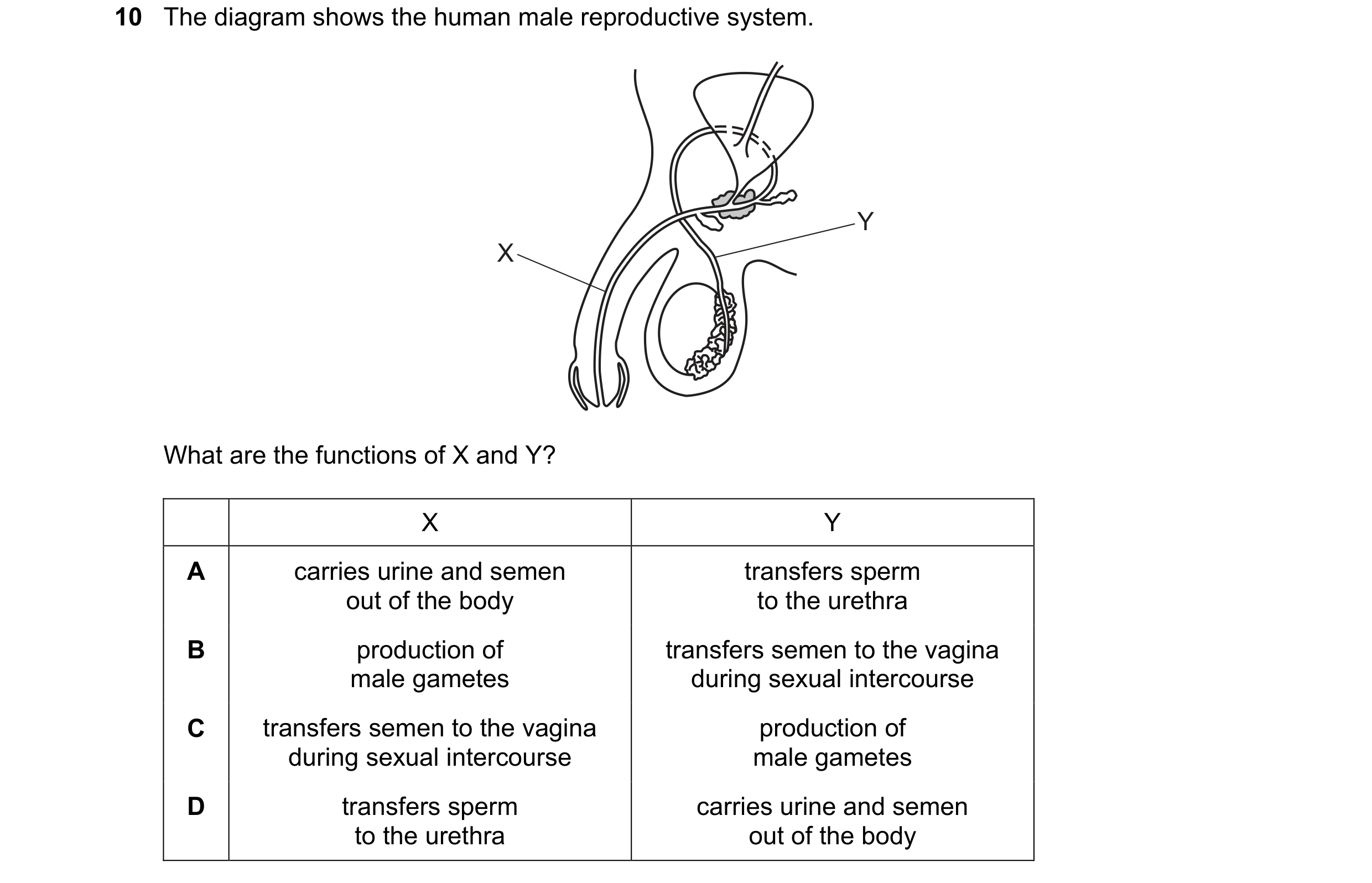

10 The diagram shows the human male reproductive system. Y X What are the functions of X and Y? X Y A carries urine and semen transfers sperm out of the body to the urethra B production of transfers semen to the vagina male gametes during sexual intercourse C transfers semen to the vagina production of during sexual intercourse male gametes D transfers sperm carries urine and semen to the urethra out of the body

1 marks

Answer: A

This question in 0654/12 May/June 2021

10 The diagram shows the human male reproductive system. Y X What are the functions of X and Y? X Y A carries urine and semen transfers sperm out of the body to the urethra B production of transfers semen to the vagina male gametes during sexual intercourse C transfers semen to the vagina production of during sexual intercourse male gametes D transfers sperm carries urine and semen to the urethra out of the body

1 marks

Answer: A

This question in 0654/13 May/June 2021

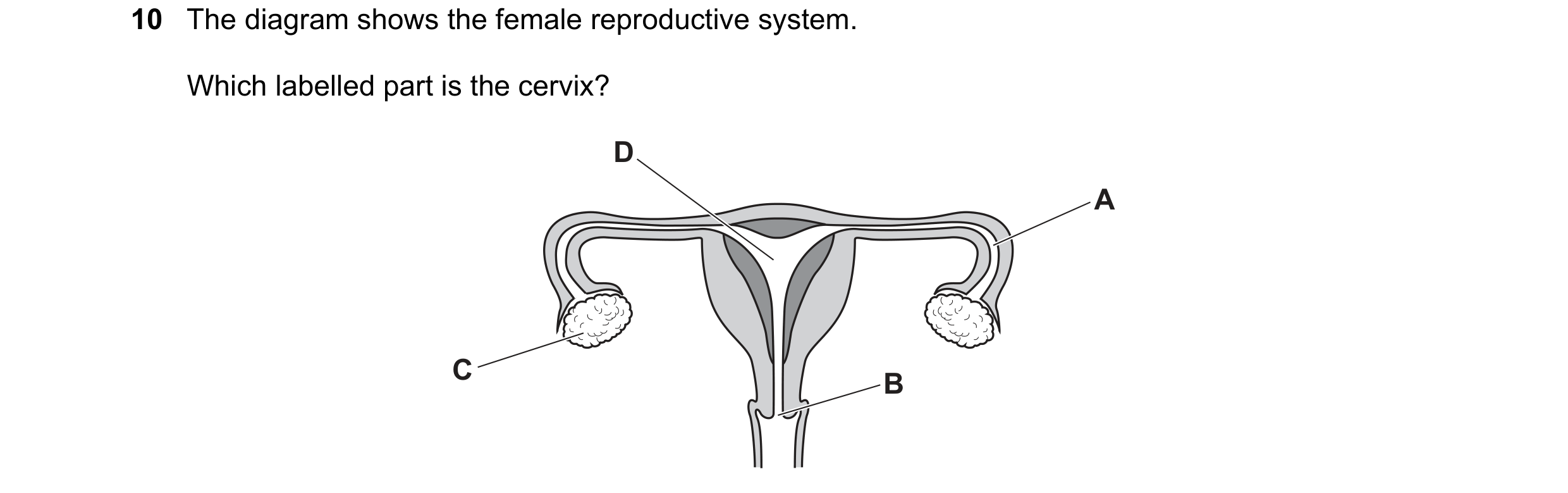

10 The diagram shows the female reproductive system. Which labelled part is the cervix? D A C B

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2021

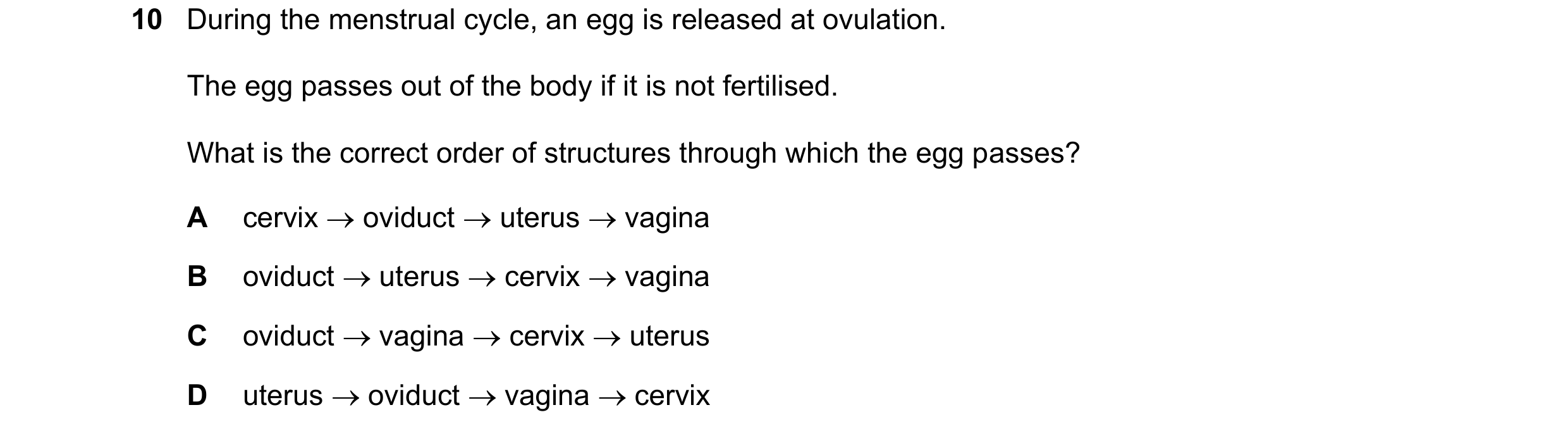

10 During the menstrual cycle, an egg is released at ovulation. The egg passes out of the body if it is not fertilised. What is the correct order of structures through which the egg passes? A cervix  oviduct  uterus  vagina B oviduct  uterus  cervix  vagina C oviduct  vagina  cervix  uterus D uterus  oviduct  vagina  cervix

1 marks

Answer: B

This question in 0654/12 Feb/March 2022

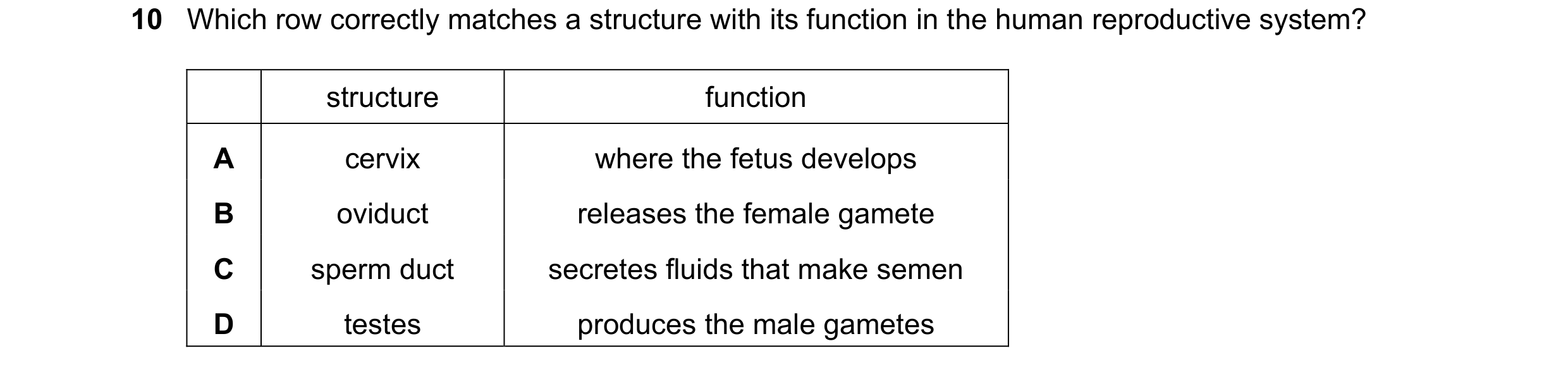

10 Which row correctly matches a structure with its function in the human reproductive system? structure function A cervix where the fetus develops B oviduct releases the female gamete C sperm duct secretes fluids that make semen D testes produces the male gametes

1 marks

Answer: D

This question in 0654/12 Feb/March 2023

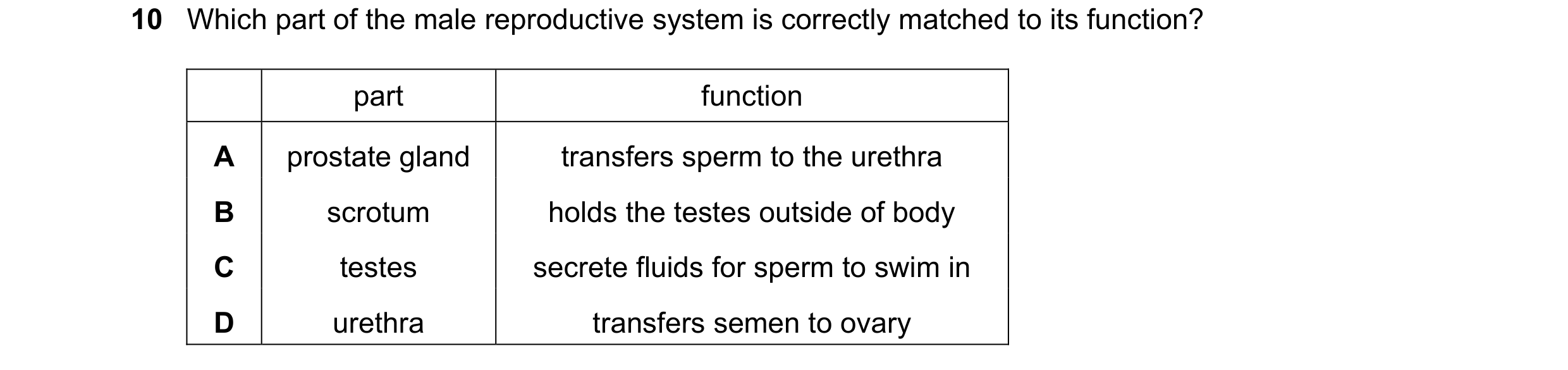

10 Which part of the male reproductive system is correctly matched to its function? part function A prostate gland transfers sperm to the urethra B scrotum holds the testes outside of body C testes secrete fluids for sperm to swim in D urethra transfers semen to ovary

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2023

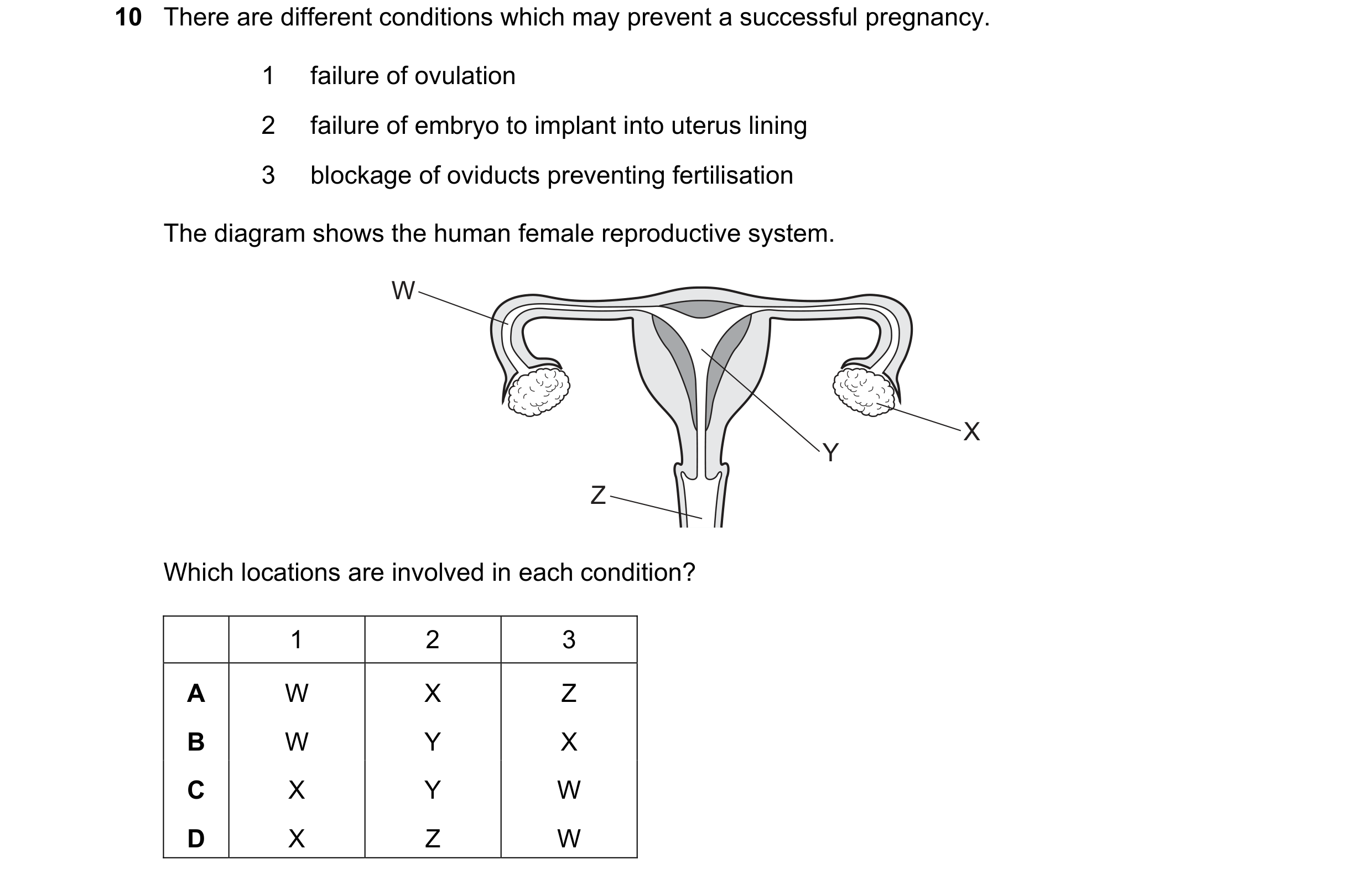

10 There are different conditions which may prevent a successful pregnancy. 1 failure of ovulation 2 failure of embryo to implant into uterus lining 3 blockage of oviducts preventing fertilisation The diagram shows the human female reproductive system. W X Y Z Which locations are involved in each condition? 1 2 3 A W X Z B W Y X C X Y W D X Z W

1 marks

Answer: C

This question in 0654/13 Oct/Nov 2023

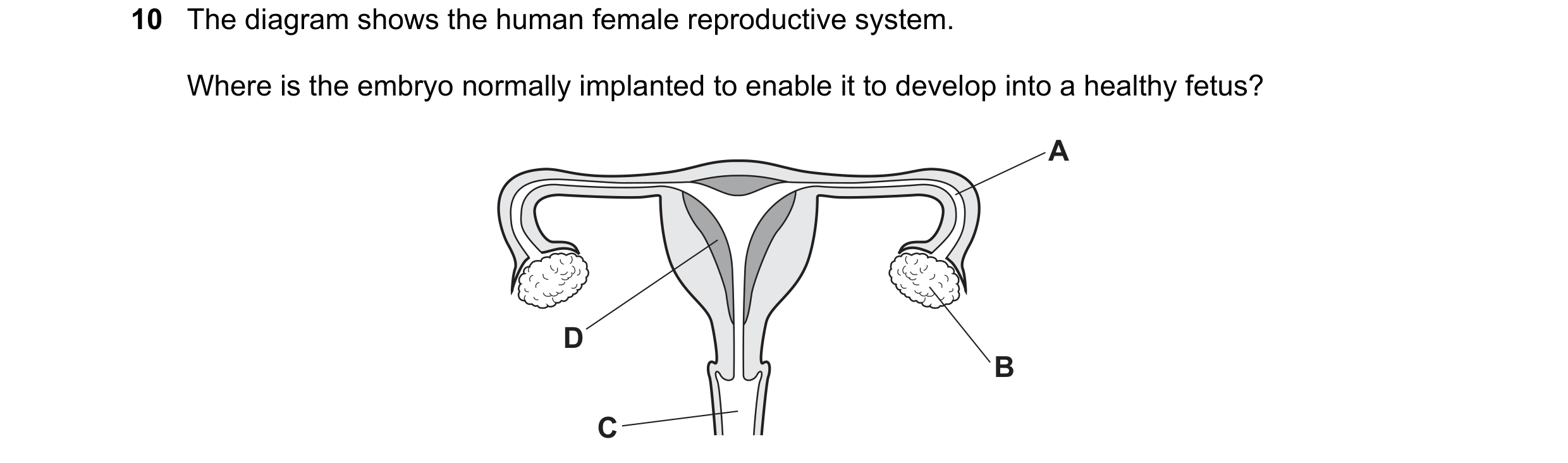

10 The diagram shows the human female reproductive system. Where is the embryo normally implanted to enable it to develop into a healthy fetus? A D B C

1 marks

Answer: D

This question in 0654/12 May/June 2024

10 The diagram shows the human female reproductive system. Where is the embryo normally implanted to enable it to develop into a healthy fetus? A D B C

1 marks

Answer: D

This question in 0654/13 May/June 2024

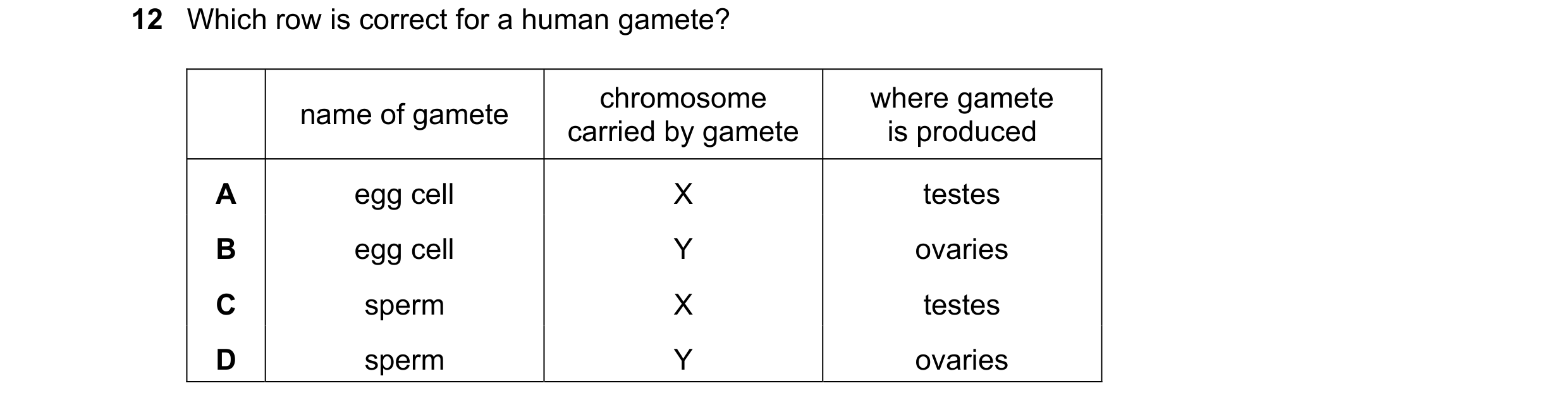

12 Which row is correct for a human gamete? chromosome where gamete name of gamete carried by gamete is produced A egg cell X testes B egg cell Y ovaries C sperm X testes D sperm Y ovaries

1 marks

Answer: C

This question in 0654/12 May/June 2025

12 Which row is correct for a human gamete? chromosome where gamete name of gamete carried by gamete is produced A egg cell X testes B egg cell Y ovaries C sperm X testes D sperm Y ovaries

1 marks

Answer: C

This question in 0654/13 May/June 2025
