C9.6· 47 questions · 47 marks · 56 min · 2005–2024· Multiple choice
Every Cambridge IGCSE Sciences - Co-ordinated (Double) Paper 1 question on extraction of metals, laid out as 13 A4 pages with the mark scheme below. Nothing is left out. Free to read, no account.




1 / 13



2 / 13

3 / 13
4 / 13
5 / 13

6 / 13


7 / 13




8 / 13

9 / 13

10 / 13



11 / 13


12 / 13
13 / 13Answers below. Sit the paper first if you are practising.
Pastlit
Sciences - Co-ordinated (Double) 0654 · Extraction of metals — Paper 1
IGCSE · topical answer key — answer key (teacher use)
Question
Answer
Marks
| Question | Answer | Marks | From |
|---|---|---|---|
| 1 | B | 1 | 0654/11 May/June 2005 |
| 2 | D | 1 | 0654/11 May/June 2008 |
| 3 | D | 1 | 0654/11 Oct/Nov 2008 |
| 4 | D | 1 | 0654/11 Oct/Nov 2008 |
| 5 | D | 1 | 0654/11 Oct/Nov 2009 |
| 6 | B | 1 | 0654/11 Oct/Nov 2010 |
| 7 | B | 1 | 0654/12 Oct/Nov 2010 |
| 8 | B | 1 | 0654/13 Oct/Nov 2010 |
| 9 | D | 1 | 0654/11 May/June 2011 |
| 10 | D | 1 | 0654/12 May/June 2011 |
| 11 | D | 1 | 0654/13 May/June 2011 |
| 12 | D | 1 | 0654/11 Oct/Nov 2011 |
| 13 | D | 1 | 0654/12 Oct/Nov 2011 |
| 14 | D | 1 | 0654/13 Oct/Nov 2011 |
| 15 | A | 1 | 0654/11 May/June 2012 |
| 16 | D | 1 | 0654/11 May/June 2013 |
| 17 | D | 1 | 0654/12 May/June 2013 |
| 18 | D | 1 | 0654/13 May/June 2013 |
| 19 | D | 1 | 0654/12 May/June 2014 |
| 20 | D | 1 | 0654/11 Oct/Nov 2014 |
| 21 | D | 1 | 0654/12 Oct/Nov 2014 |
| 22 | C | 1 | 0654/12 May/June 2015 |
| 23 | B | 1 | 0654/12 Oct/Nov 2015 |
| 24 | C | 1 | 0654/11 May/June 2016 |
| 25 | A | 1 | 0654/13 May/June 2016 |
| 26 | A | 1 | 0654/11 May/June 2017 |
| 27 | A | 1 | 0654/12 May/June 2017 |
| 28 | A | 1 | 0654/12 Oct/Nov 2018 |
| 29 | D | 1 | 0654/11 May/June 2021 |
| 30 | B | 1 | 0654/12 May/June 2021 |
| 31 | B | 1 | 0654/13 May/June 2021 |
| 32 | A | 1 | 0654/12 Feb/March 2022 |
| 33 | D | 1 | 0654/11 May/June 2022 |
| 34 | D | 1 | 0654/12 May/June 2022 |
| 35 | D | 1 | 0654/13 May/June 2022 |
| 36 | B | 1 | 0654/11 Oct/Nov 2022 |
| 37 | B | 1 | 0654/12 Oct/Nov 2022 |
| 38 | B | 1 | 0654/13 Oct/Nov 2022 |
| 39 | D | 1 | 0654/12 May/June 2023 |
| 40 | D | 1 | 0654/13 May/June 2023 |
| 41 | A | 1 | 0654/11 Oct/Nov 2023 |
| 42 | D | 1 | 0654/12 Oct/Nov 2023 |
| 43 | A | 1 | 0654/12 Oct/Nov 2023 |
| 44 | B | 1 | 0654/13 Oct/Nov 2023 |
| 45 | B | 1 | 0654/12 Feb/March 2024 |
| 46 | D | 1 | 0654/12 Oct/Nov 2024 |
| 47 | D | 1 | 0654/13 Oct/Nov 2024 |

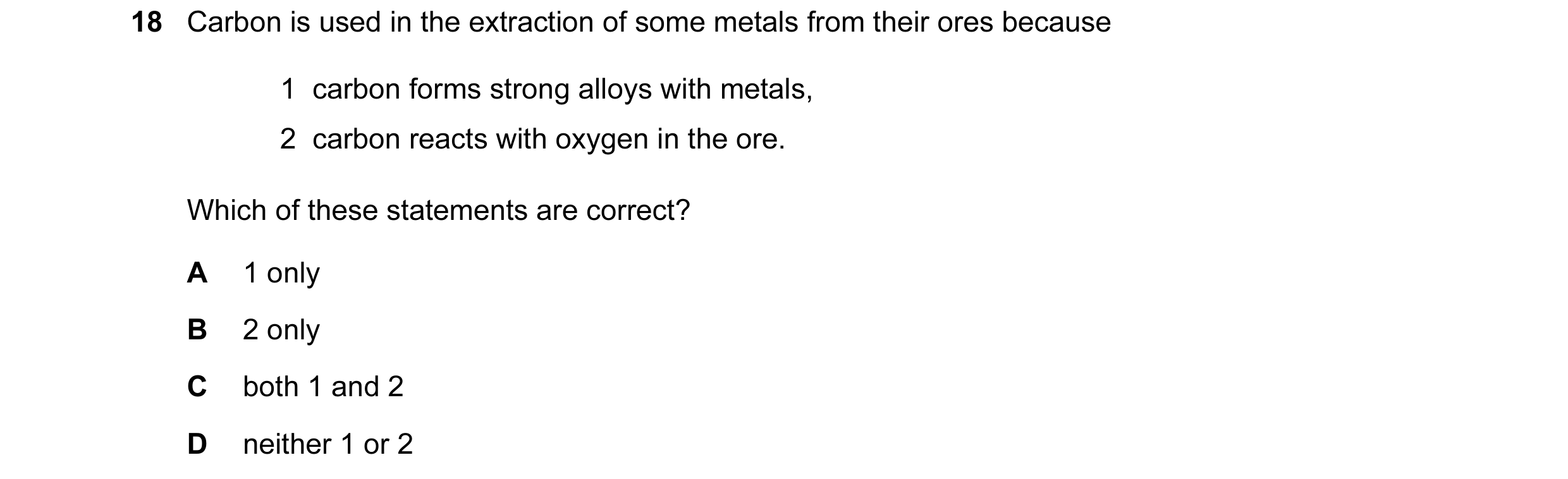

18 Carbon is used in the extraction of some metals from their ores because 1 carbon forms strong alloys with metals, 2 carbon reacts with oxygen in the ore. Which of these statements are correct? A 1 only B 2 only C both 1 and 2 D neither 1 or 2
1 marks
Answer: B

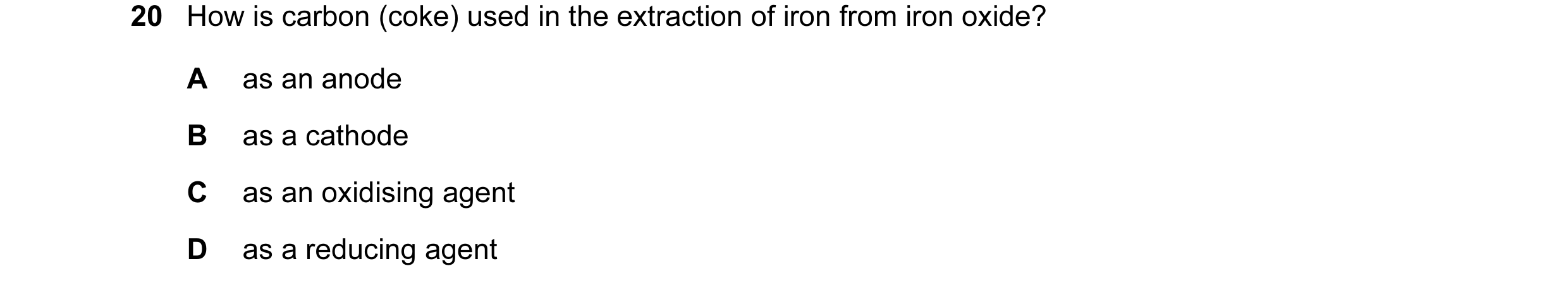

20 How is carbon (coke) used in the extraction of iron from iron oxide? A as an anode B as a cathode C as an oxidising agent D as a reducing agent
1 marks
Answer: D
19 The table shows information about some minerals in rocks. name chemical formula bauxite Al2O3 galena PbS hematite Fe2O3 rutile TiO2 From which two minerals can a transition element be extracted? A bauxite and galena B bauxite and hematite C galena and rutile D hematite and rutile
1 marks
Answer: D

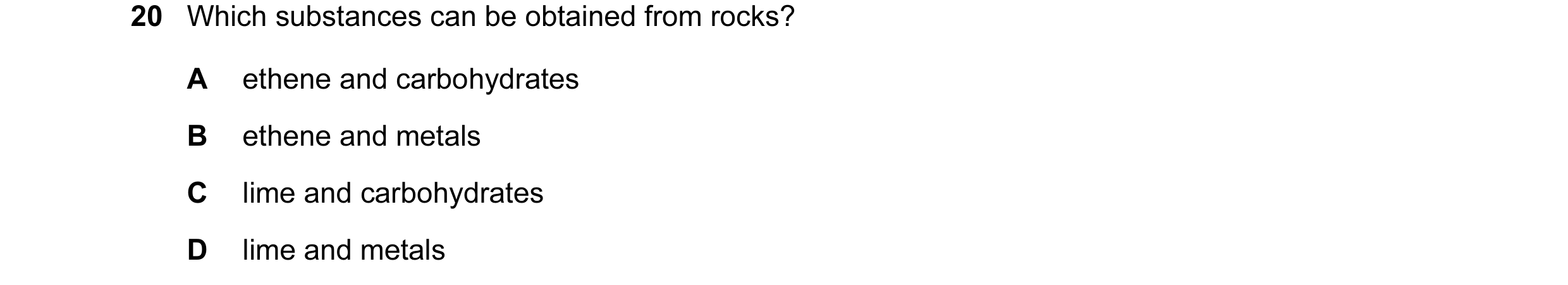

20 Which substances can be obtained from rocks? A ethene and carbohydrates B ethene and metals C lime and carbohydrates D lime and metals
1 marks
Answer: D

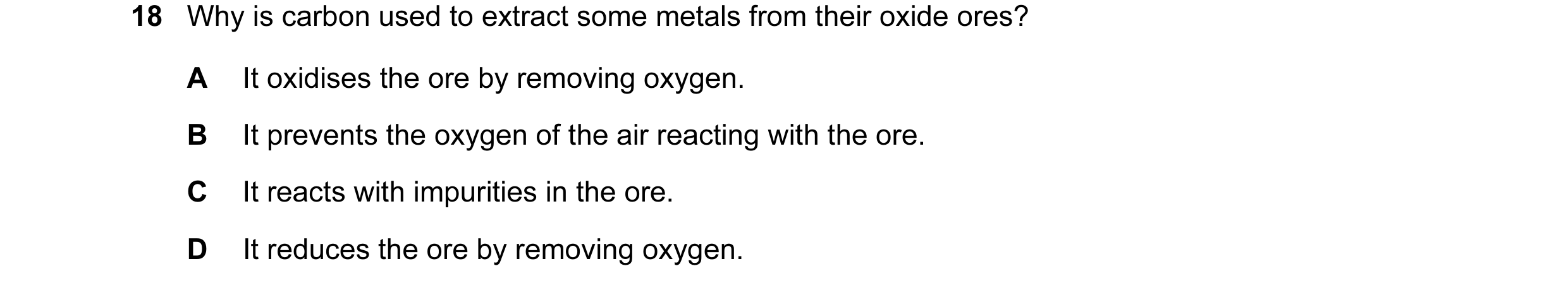

18 Why is carbon used to extract some metals from their oxide ores? A It oxidises the ore by removing oxygen. B It prevents the oxygen of the air reacting with the ore. C It reacts with impurities in the ore. D It reduces the ore by removing oxygen.
1 marks
Answer: D
19 Carbon is used in the extraction of some metals from their ores because 1 carbon forms strong alloys with metals, 2 carbon reacts with oxygen in the ore. Which of these statements are correct? A 1 only B 2 only C both 1 and 2 D neither 1 nor 2
1 marks
Answer: B

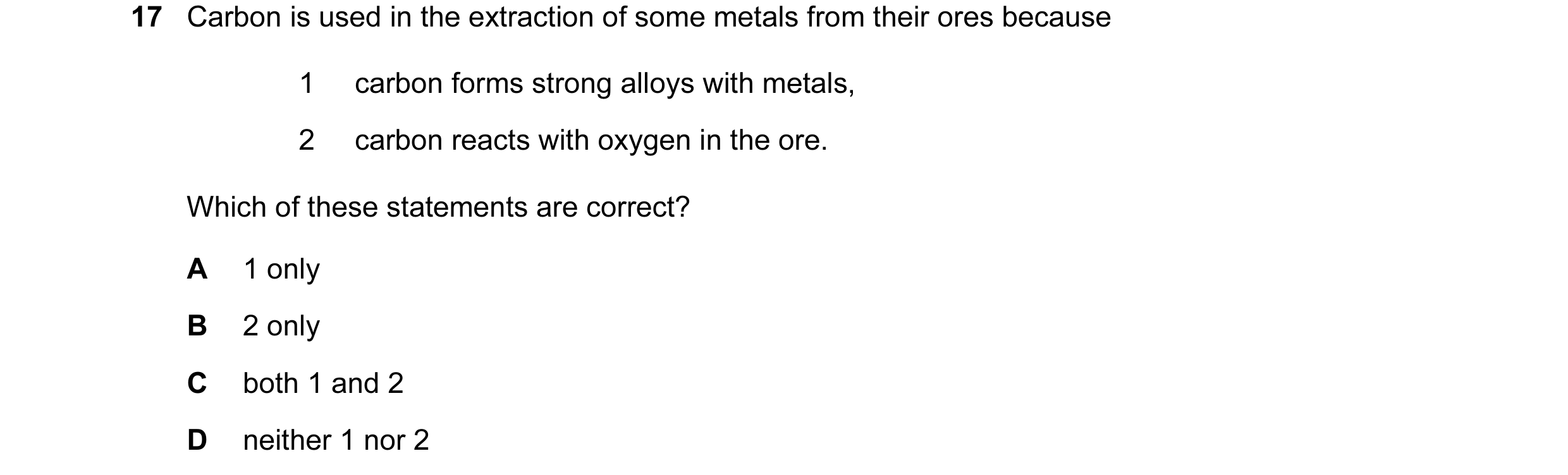

17 Carbon is used in the extraction of some metals from their ores because 1 carbon forms strong alloys with metals, 2 carbon reacts with oxygen in the ore. Which of these statements are correct? A 1 only B 2 only C both 1 and 2 D neither 1 nor 2
1 marks
Answer: B
21 Carbon is used in the extraction of some metals from their ores because 1 carbon forms strong alloys with metals, 2 carbon reacts with oxygen in the ore. Which of these statements are correct? A 1 only B 2 only C both 1 and 2 D neither 1 nor 2
1 marks
Answer: B

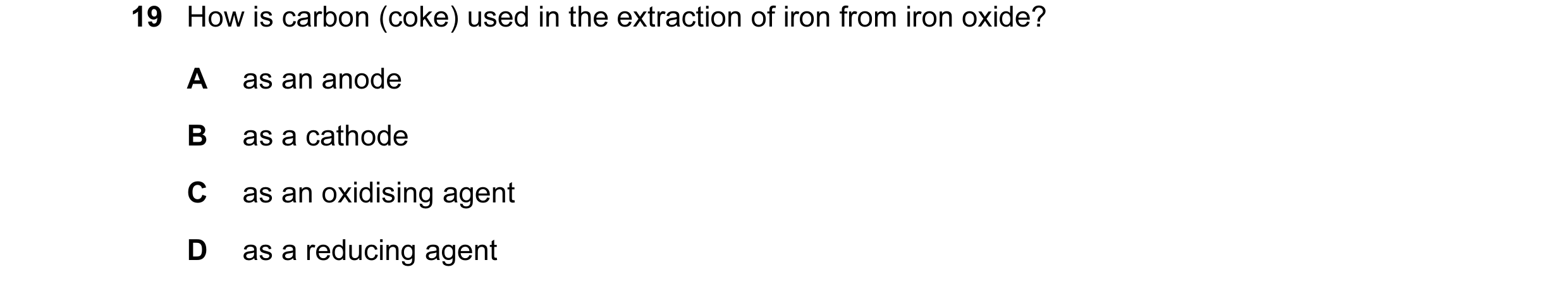

19 How is carbon (coke) used in the extraction of iron from iron oxide? A as an anode B as a cathode C as an oxidising agent D as a reducing agent
1 marks
Answer: D

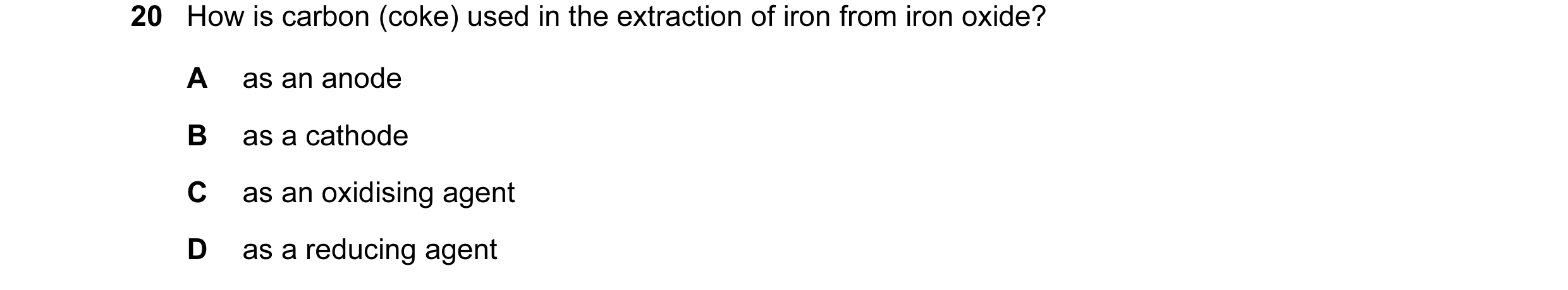

20 How is carbon (coke) used in the extraction of iron from iron oxide? A as an anode B as a cathode C as an oxidising agent D as a reducing agent
1 marks
Answer: D
20 How is carbon (coke) used in the extraction of iron from iron oxide? A as an anode B as a cathode C as an oxidising agent D as a reducing agent
1 marks
Answer: D
19 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D

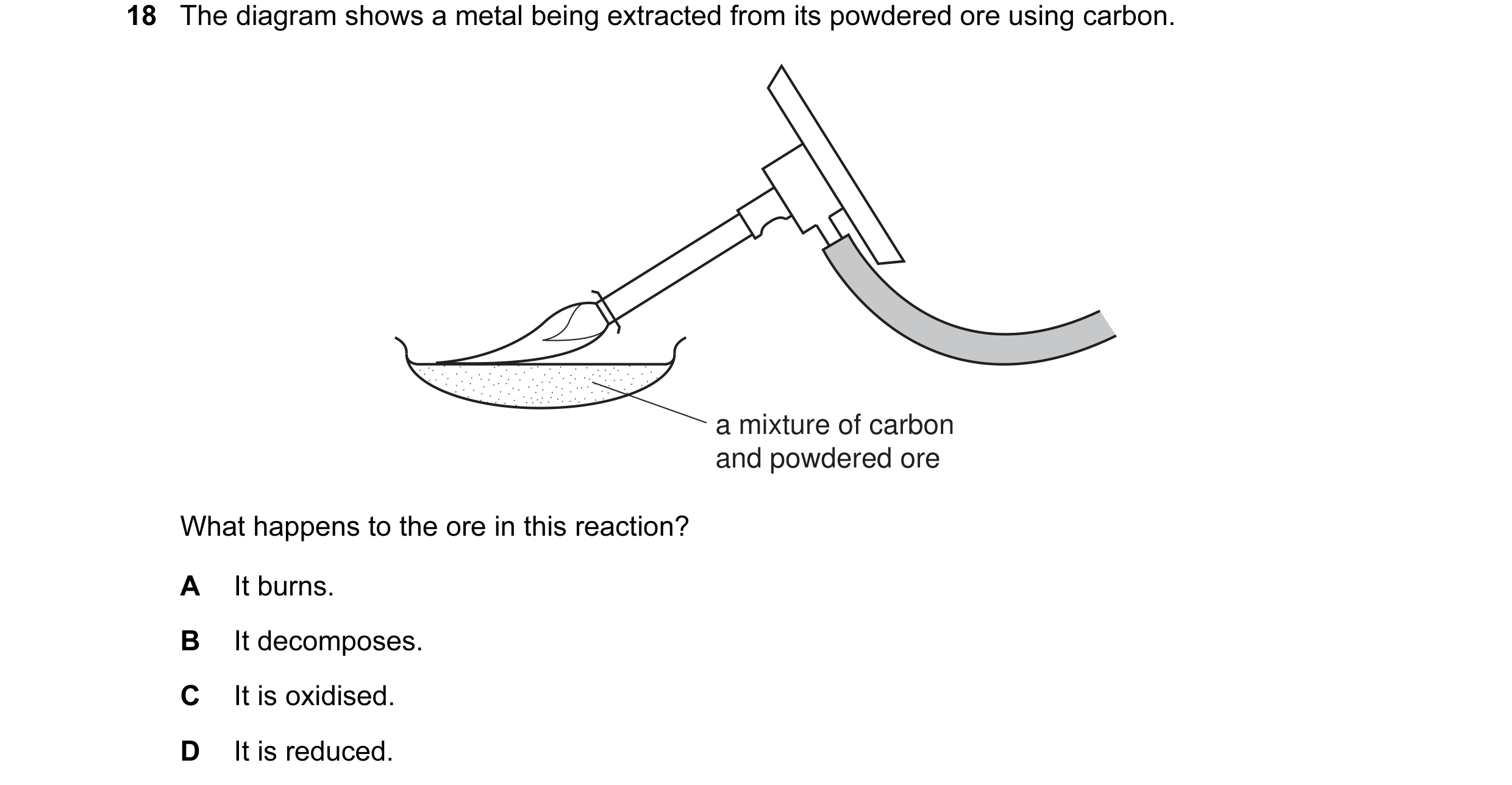

18 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D
20 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D

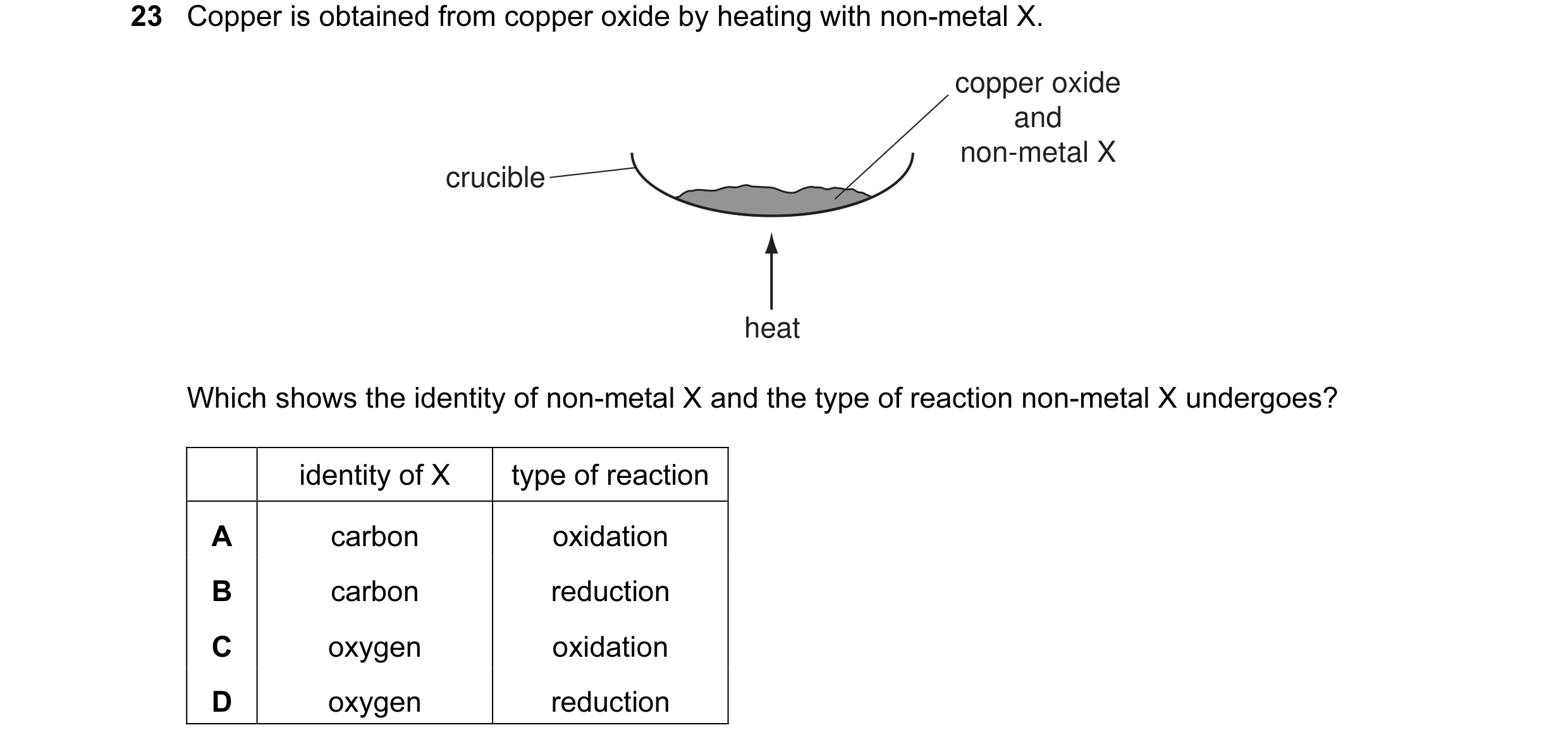

23 Copper is obtained from copper oxide by heating with non-metal X. copper oxide and non-metal X crucible heat Which shows the identity of non-metal X and the type of reaction non-metal X undergoes? identity of X type of reaction A carbon oxidation B carbon reduction C oxygen oxidation D oxygen reduction
1 marks
Answer: A

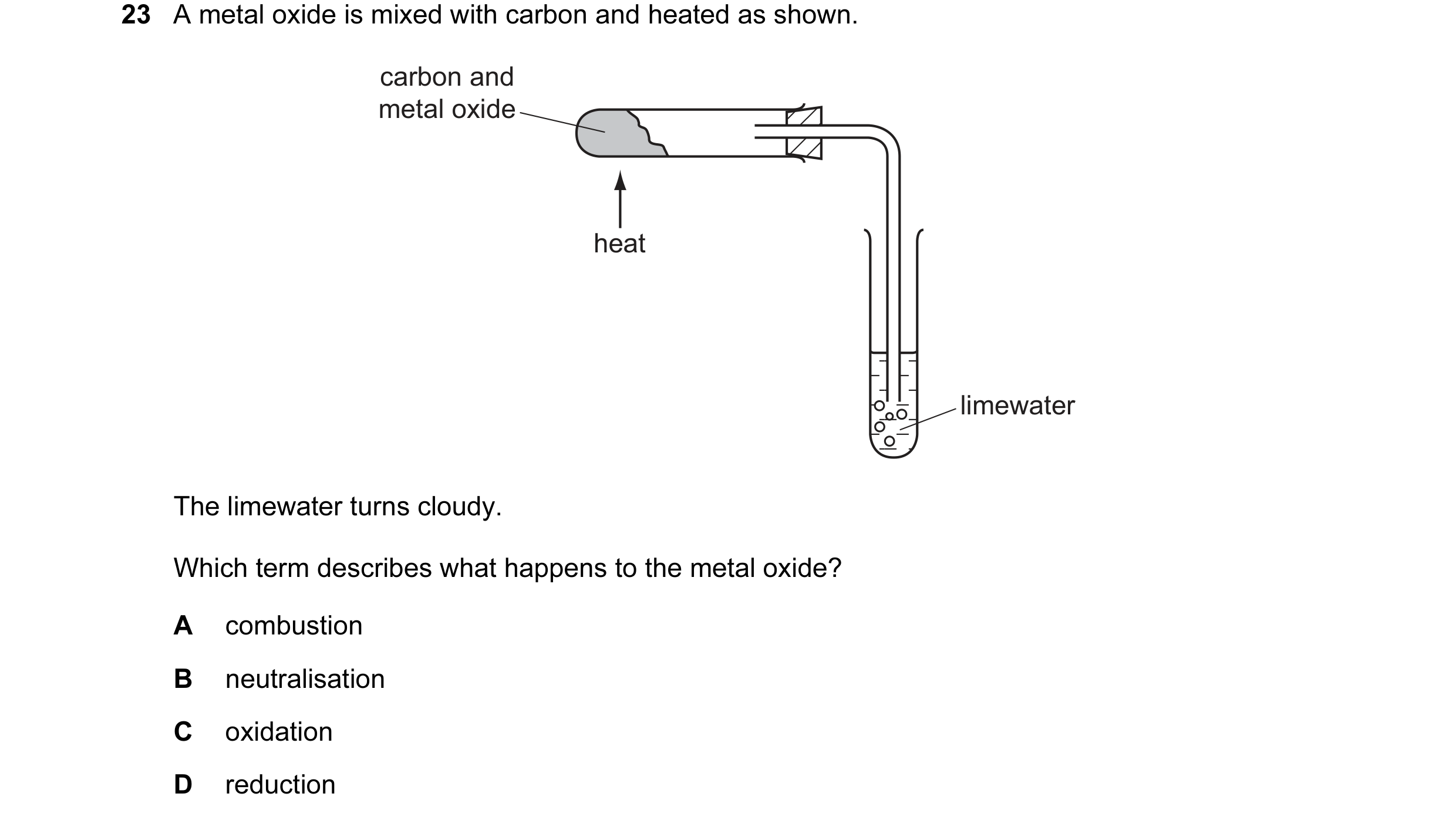

23 A metal oxide is mixed with carbon and heated as shown. carbon and metal oxide heat limewater The limewater turns cloudy. Which term describes what happens to the metal oxide? A combustion B neutralisation C oxidation D reduction
1 marks
Answer: D
23 A metal oxide is mixed with carbon and heated as shown. carbon and metal oxide heat limewater The limewater turns cloudy. Which term describes what happens to the metal oxide? A combustion B neutralisation C oxidation D reduction
1 marks
Answer: D

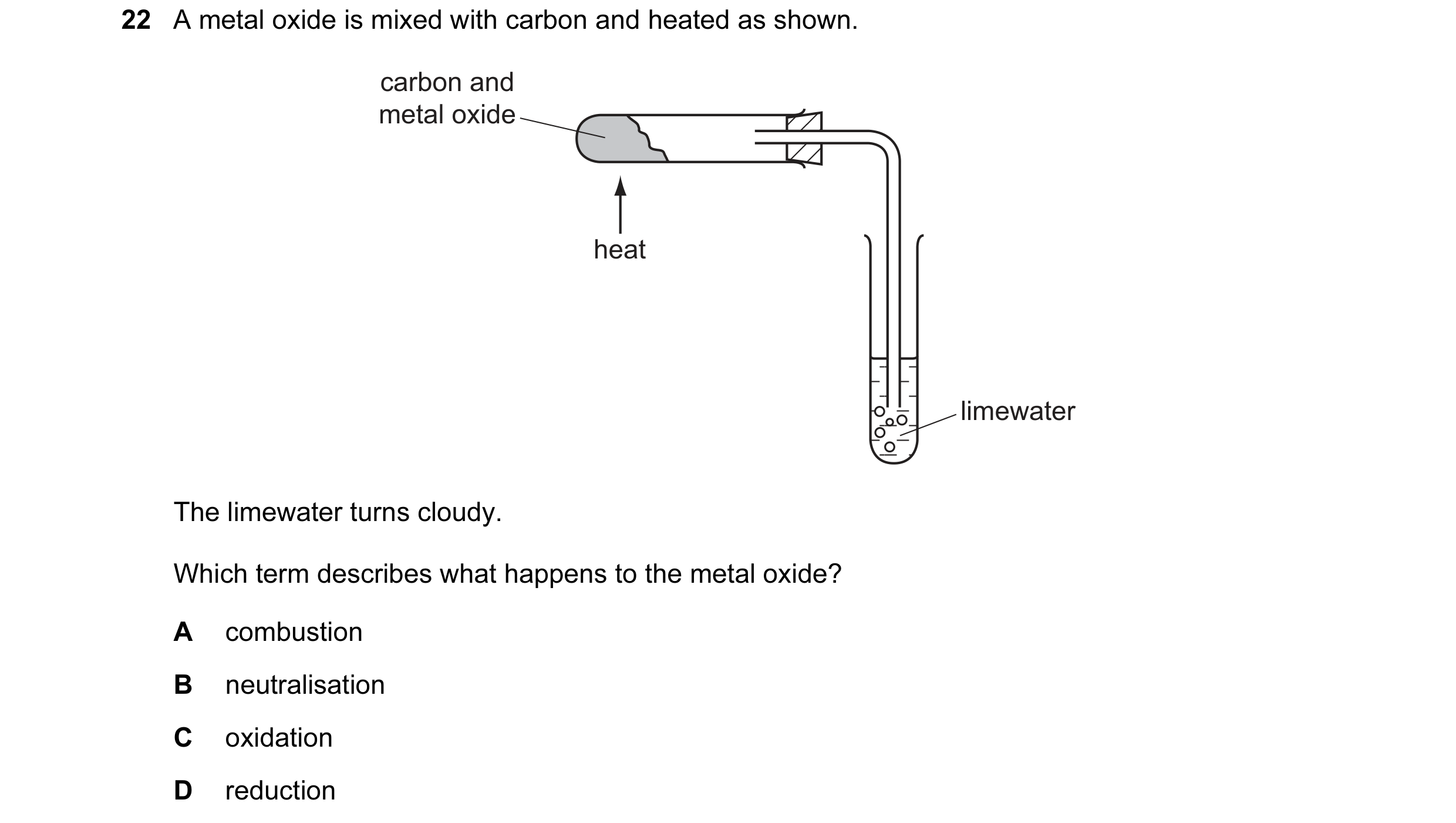

22 A metal oxide is mixed with carbon and heated as shown. carbon and metal oxide heat limewater The limewater turns cloudy. Which term describes what happens to the metal oxide? A combustion B neutralisation C oxidation D reduction
1 marks
Answer: D

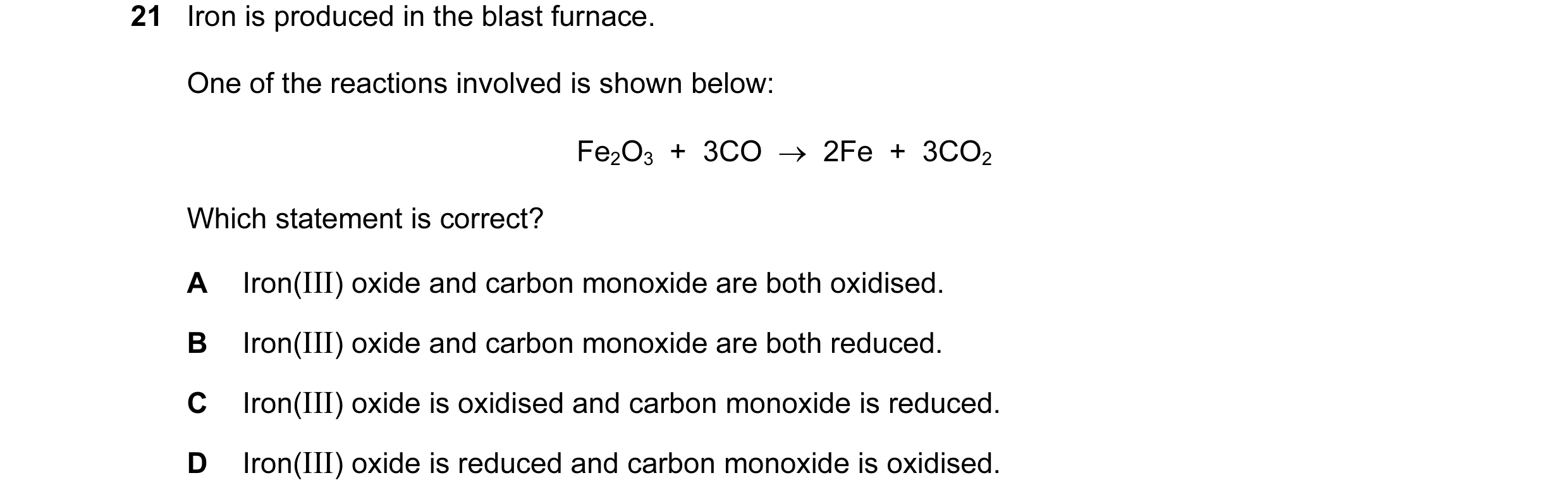

21 Iron is produced in the blast furnace. One of the reactions involved is shown below: Fe2O3 + 3CO → 2Fe + 3CO2 Which statement is correct? A Iron(III) oxide and carbon monoxide are both oxidised. B Iron(III) oxide and carbon monoxide are both reduced. C Iron(III) oxide is oxidised and carbon monoxide is reduced. D Iron(III) oxide is reduced and carbon monoxide is oxidised.
1 marks
Answer: D
20 Metal X is extracted from its oxide by heating with carbon. The oxide of X reacts with hydrochloric acid. Which row shows the type of oxide and the type of reaction that occurs to the oxide when it is heated with carbon? type of oxide type of reaction A acidic oxidation B acidic reduction C basic oxidation D basic reduction
1 marks
Answer: D
19 Metal X is extracted from its oxide by heating with carbon. The oxide of X reacts with hydrochloric acid. Which row shows the type of oxide and the type of reaction that occurs to the oxide when it is heated with carbon? type of oxide type of reaction A acidic oxidation B acidic reduction C basic oxidation D basic reduction
1 marks
Answer: D

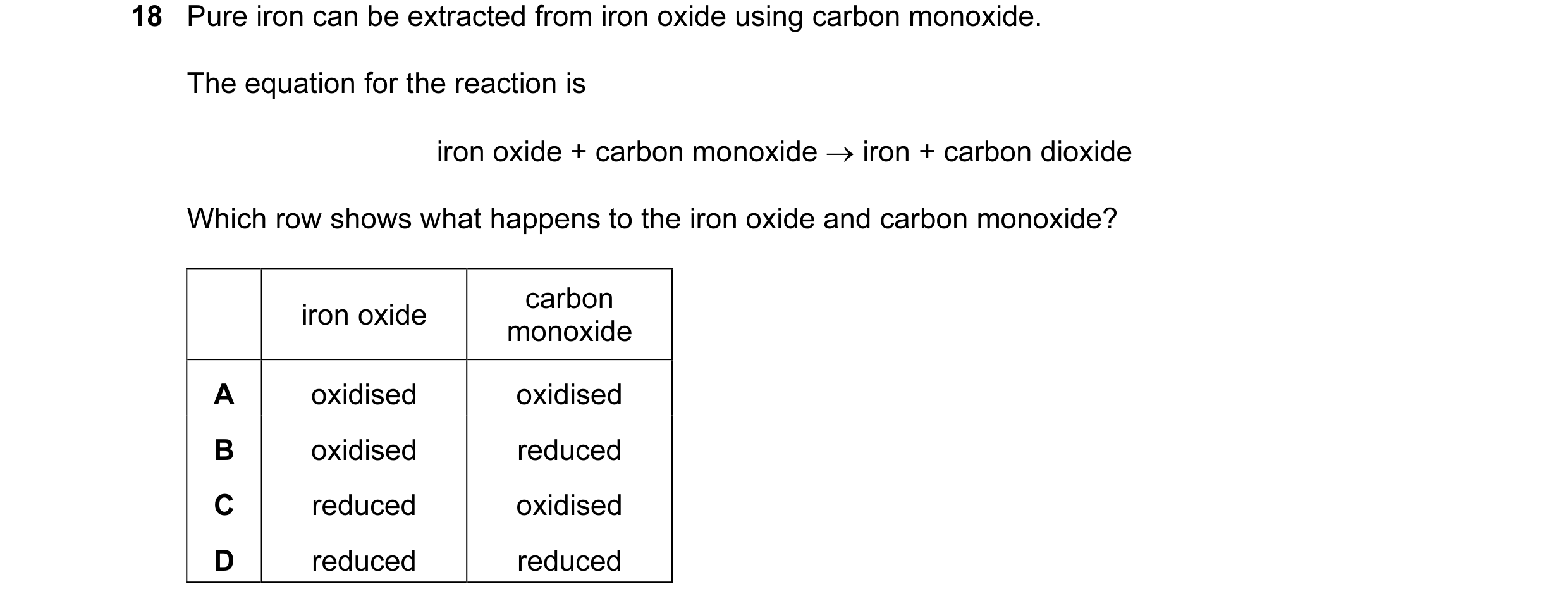

18 Pure iron can be extracted from iron oxide using carbon monoxide. The equation for the reaction is iron oxide + carbon monoxide → iron + carbon dioxide Which row shows what happens to the iron oxide and carbon monoxide? carbon iron oxide monoxide A oxidised oxidised B oxidised reduced C reduced oxidised D reduced reduced
1 marks
Answer: C

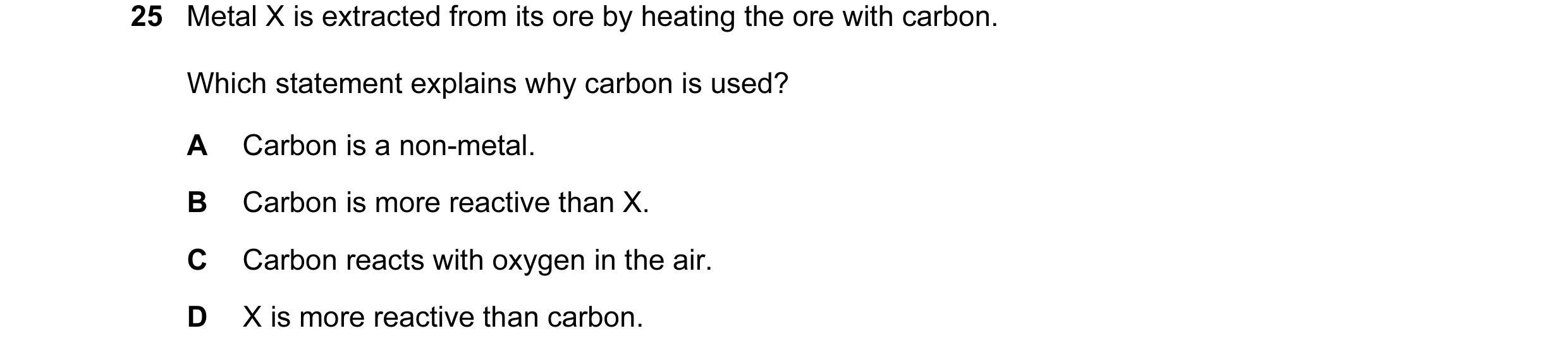

25 Metal X is extracted from its ore by heating the ore with carbon. Which statement explains why carbon is used? A Carbon is a non-metal. B Carbon is more reactive than X. C Carbon reacts with oxygen in the air. D X is more reactive than carbon.
1 marks
Answer: B

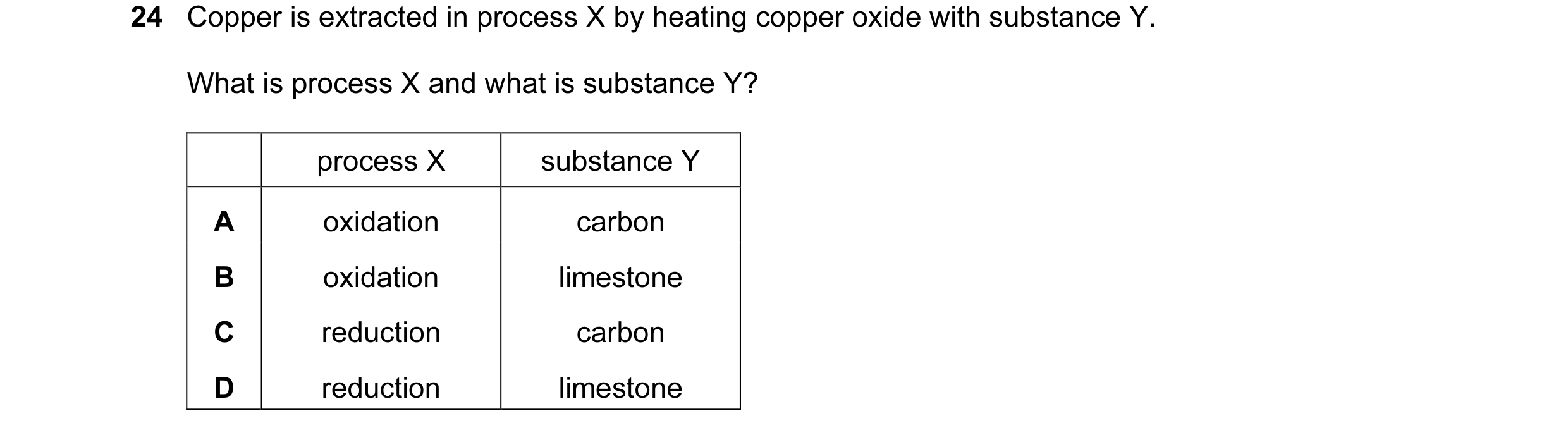

24 Copper is extracted in process X by heating copper oxide with substance Y. What is process X and what is substance Y? process X substance Y A oxidation carbon B oxidation limestone C reduction carbon D reduction limestone
1 marks
Answer: C

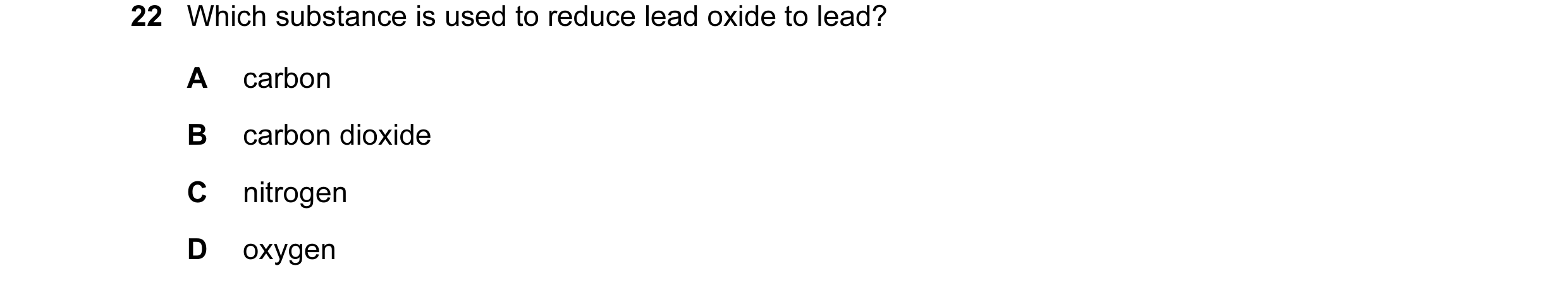

22 Which substance is used to reduce lead oxide to lead? A carbon B carbon dioxide C nitrogen D oxygen
1 marks
Answer: A

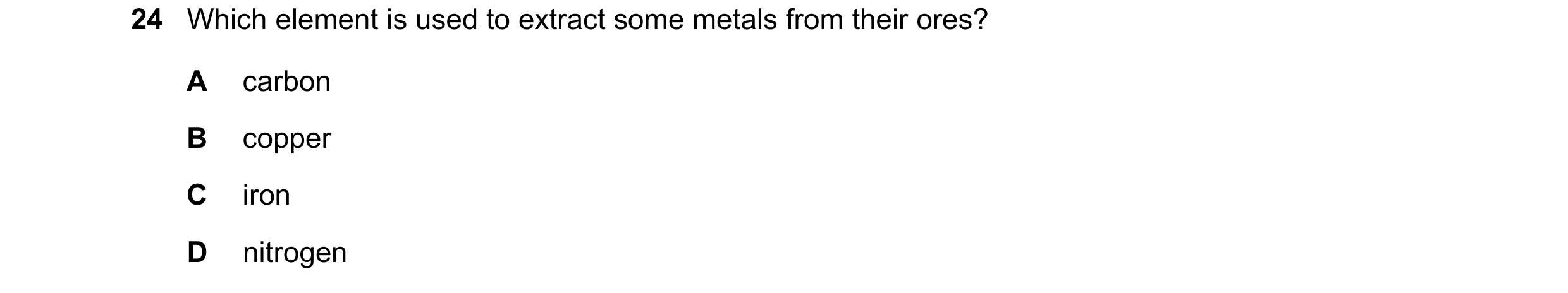

24 Which element is used to extract some metals from their ores? A carbon B copper C iron D nitrogen
1 marks
Answer: A
24 Which metal is extracted from its ore by heating with carbon? A copper B magnesium C potassium D sodium
1 marks
Answer: A

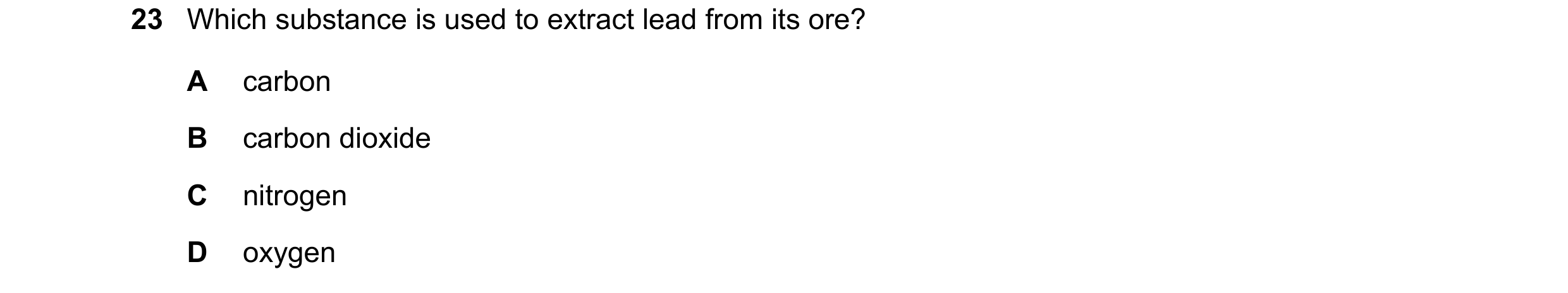

23 Which substance is used to extract lead from its ore? A carbon B carbon dioxide C nitrogen D oxygen
1 marks
Answer: A

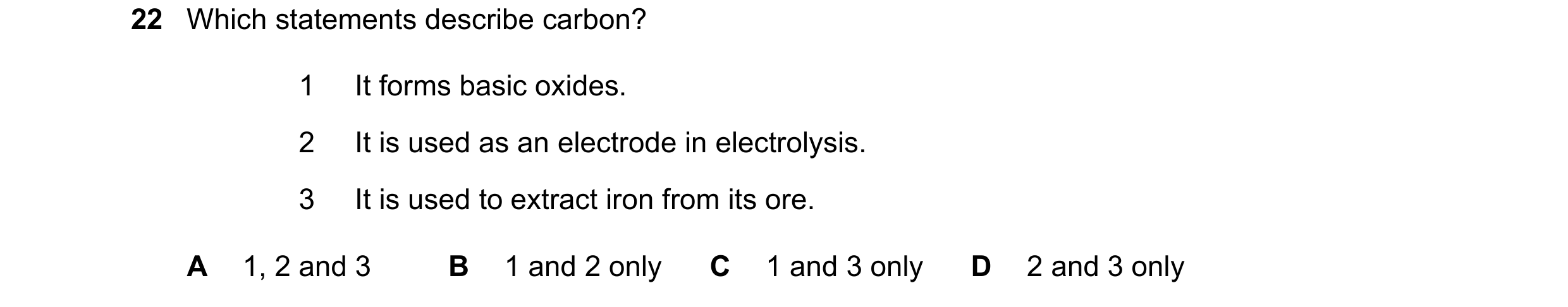

22 Which statements describe carbon? 1 It forms basic oxides. 2 It is used as an electrode in electrolysis. 3 It is used to extract iron from its ore. A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only
1 marks
Answer: D
22 Bauxite is the main ore of aluminium. Which method is used to extract pure aluminium from bauxite? A fractional distillation B electrolysis C neutralisation D thermal decomposition
1 marks
Answer: B
22 Bauxite is the main ore of aluminium. Which method is used to extract pure aluminium from bauxite? A fractional distillation B electrolysis C neutralisation D thermal decomposition
1 marks
Answer: B

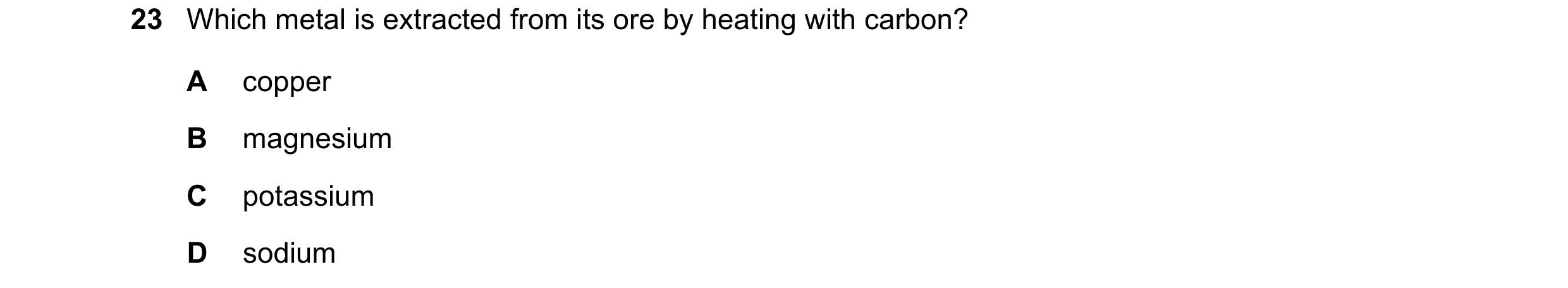

23 Which metal is extracted from its ore by heating with carbon? A copper B magnesium C potassium D sodium
1 marks
Answer: A

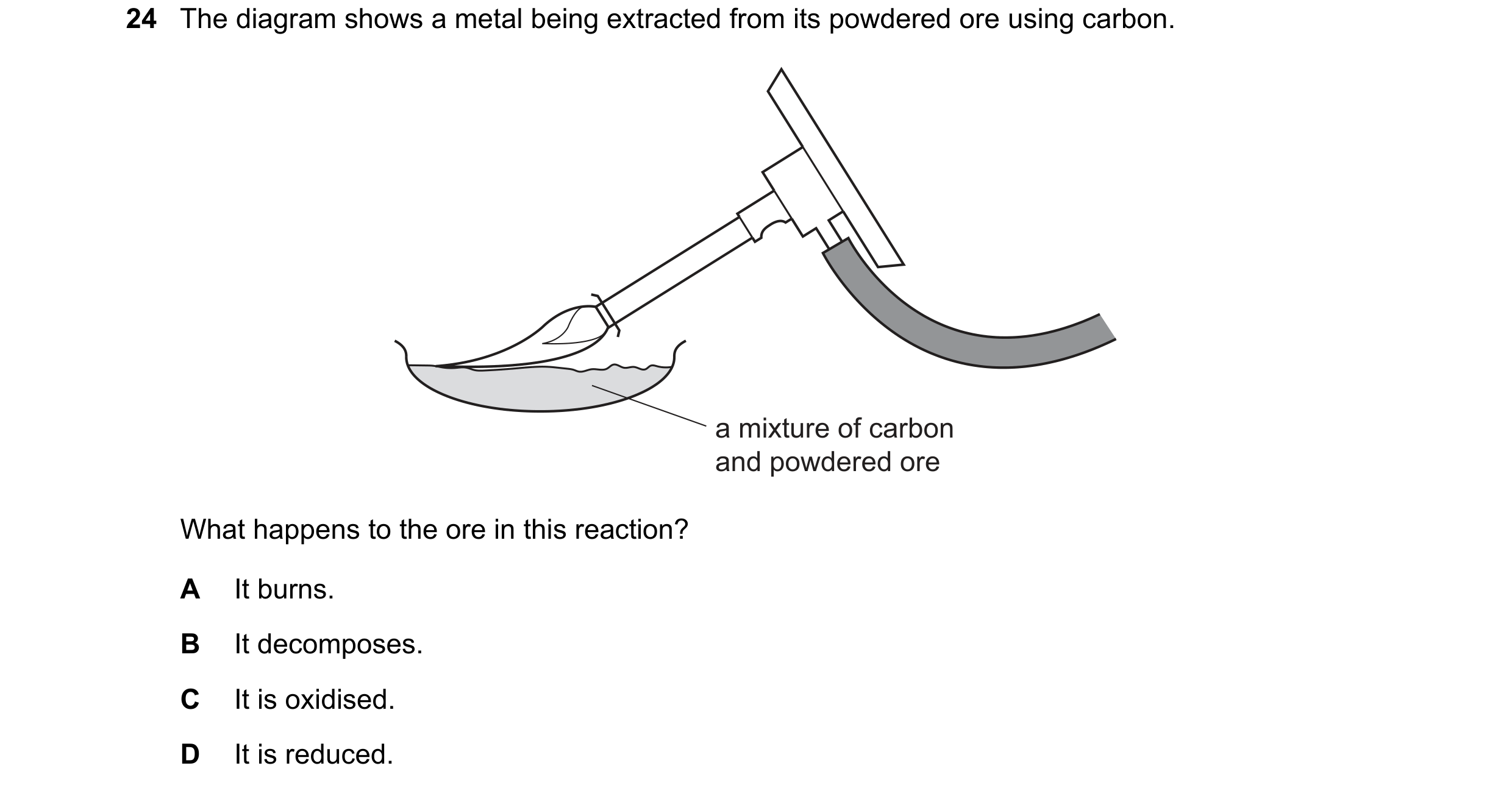

24 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D
24 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D
24 The diagram shows a metal being extracted from its powdered ore using carbon. a mixture of carbon and powdered ore What happens to the ore in this reaction? A It burns. B It decomposes. C It is oxidised. D It is reduced.
1 marks
Answer: D

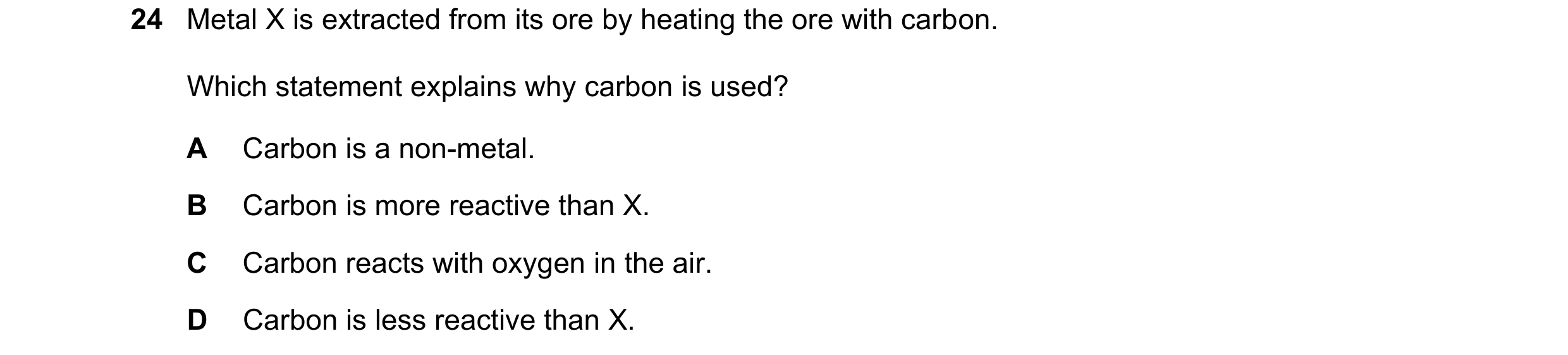

24 Metal X is extracted from its ore by heating the ore with carbon. Which statement explains why carbon is used? A Carbon is a non-metal. B Carbon is more reactive than X. C Carbon reacts with oxygen in the air. D Carbon is less reactive than X.
1 marks
Answer: B
24 Metal X is extracted from its ore by heating the ore with carbon. Which statement explains why carbon is used? A Carbon is a non-metal. B Carbon is more reactive than X. C Carbon reacts with oxygen in the air. D Carbon is less reactive than X.
1 marks
Answer: B
24 Metal X is extracted from its ore by heating the ore with carbon. Which statement explains why carbon is used? A Carbon is a non-metal. B Carbon is more reactive than X. C Carbon reacts with oxygen in the air. D Carbon is less reactive than X.
1 marks
Answer: B

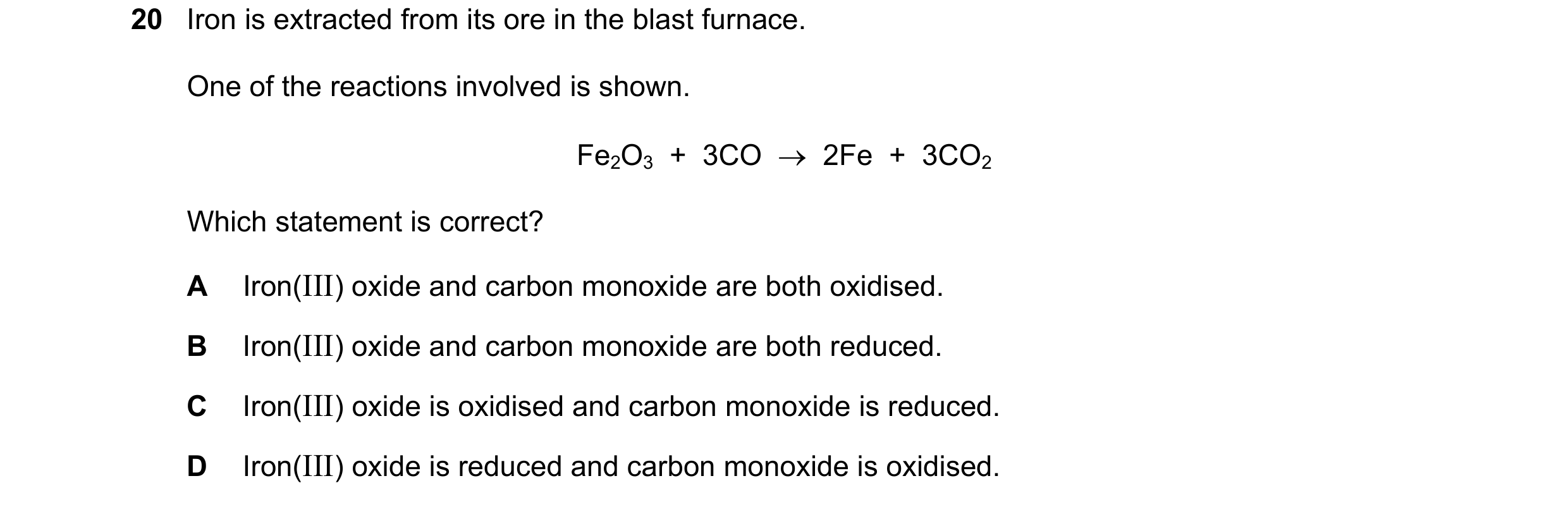

20 Iron is extracted from its ore in the blast furnace. One of the reactions involved is shown. Fe2O3 + 3CO 2Fe + 3CO2 Which statement is correct? A Iron(III) oxide and carbon monoxide are both oxidised. B Iron(III) oxide and carbon monoxide are both reduced. C Iron(III) oxide is oxidised and carbon monoxide is reduced. D Iron(III) oxide is reduced and carbon monoxide is oxidised.
1 marks
Answer: D
20 Iron is extracted from its ore in the blast furnace. One of the reactions involved is shown. Fe2O3 + 3CO → 2Fe + 3CO2 Which statement is correct? A Iron(III) oxide and carbon monoxide are both oxidised. B Iron(III) oxide and carbon monoxide are both reduced. C Iron(III) oxide is oxidised and carbon monoxide is reduced. D Iron(III) oxide is reduced and carbon monoxide is oxidised.
1 marks
Answer: D

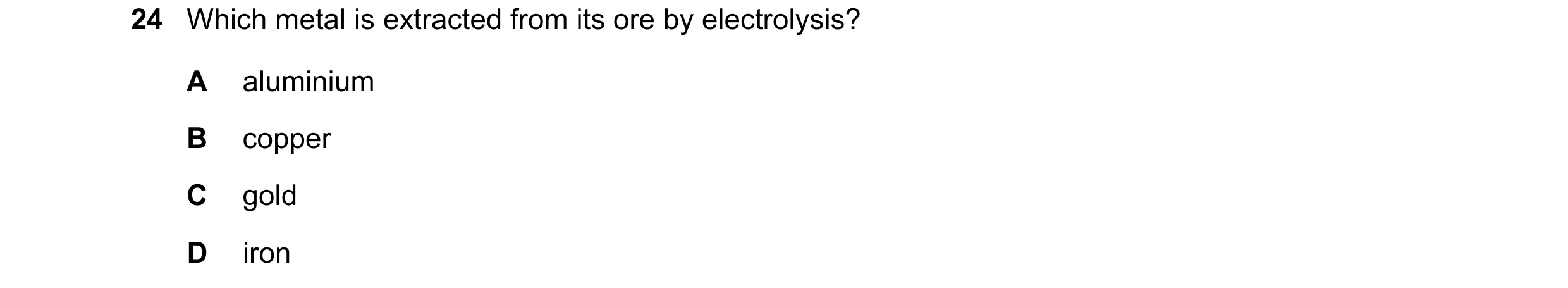

24 Which metal is extracted from its ore by electrolysis? A aluminium B copper C gold D iron
1 marks
Answer: A

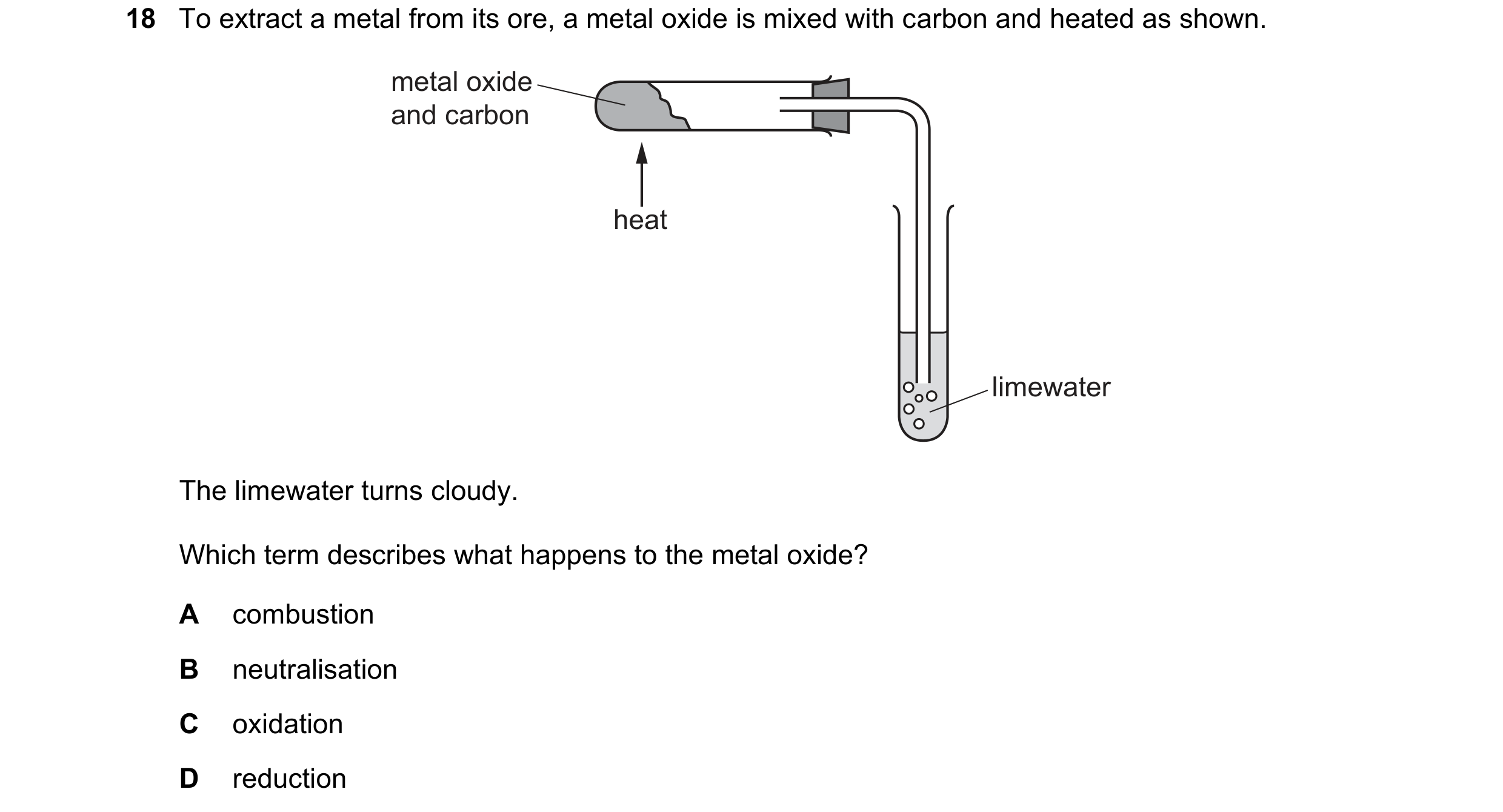

18 To extract a metal from its ore, a metal oxide is mixed with carbon and heated as shown. metal oxide and carbon heat limewater The limewater turns cloudy. Which term describes what happens to the metal oxide? A combustion B neutralisation C oxidation D reduction
1 marks
Answer: D

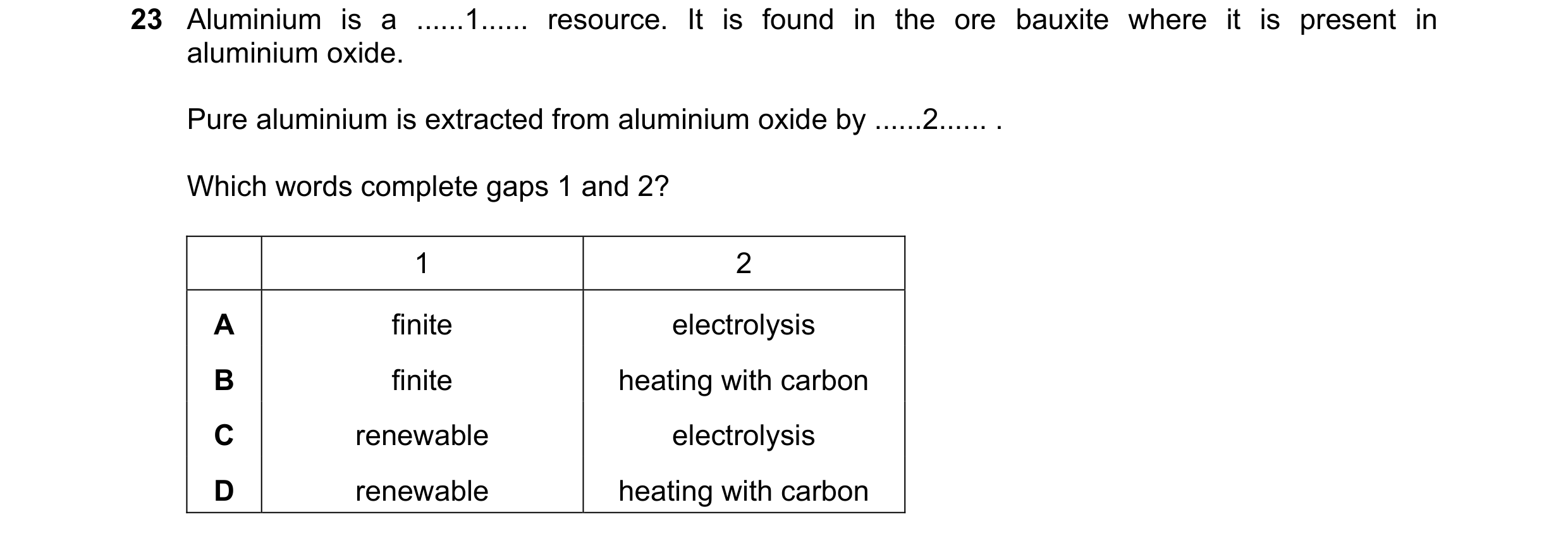

23 Aluminium is a … 1 … resource. It is found in the ore bauxite where it is present in aluminium oxide. Pure aluminium is extracted from aluminium oxide by … 2 … . Which words complete gaps 1 and 2? 1 2 A finite electrolysis B finite heating with carbon C renewable electrolysis D renewable heating with carbon
1 marks
Answer: A

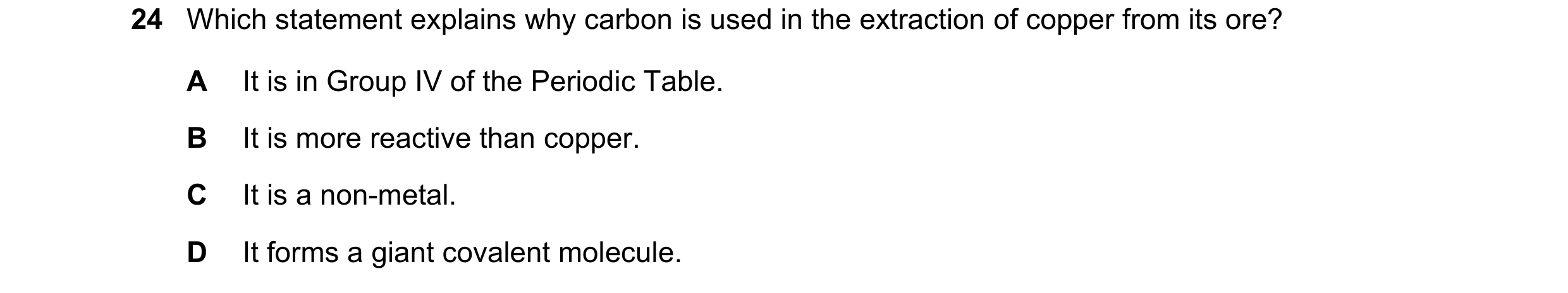

24 Which statement explains why carbon is used in the extraction of copper from its ore? A It is in Group IV of the Periodic Table. B It is more reactive than copper. C It is a non-metal. D It forms a giant covalent molecule.
1 marks
Answer: B

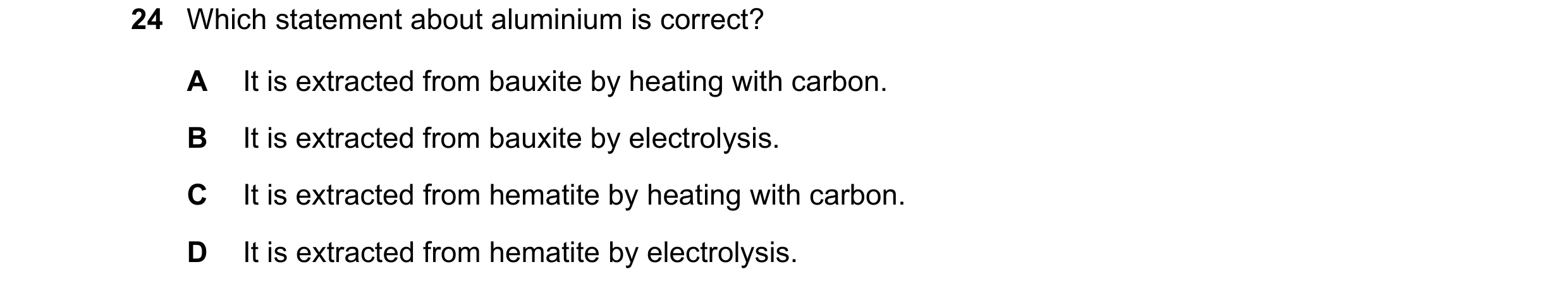

24 Which statement about aluminium is correct? A It is extracted from bauxite by heating with carbon. B It is extracted from bauxite by electrolysis. C It is extracted from hematite by heating with carbon. D It is extracted from hematite by electrolysis.
1 marks
Answer: B

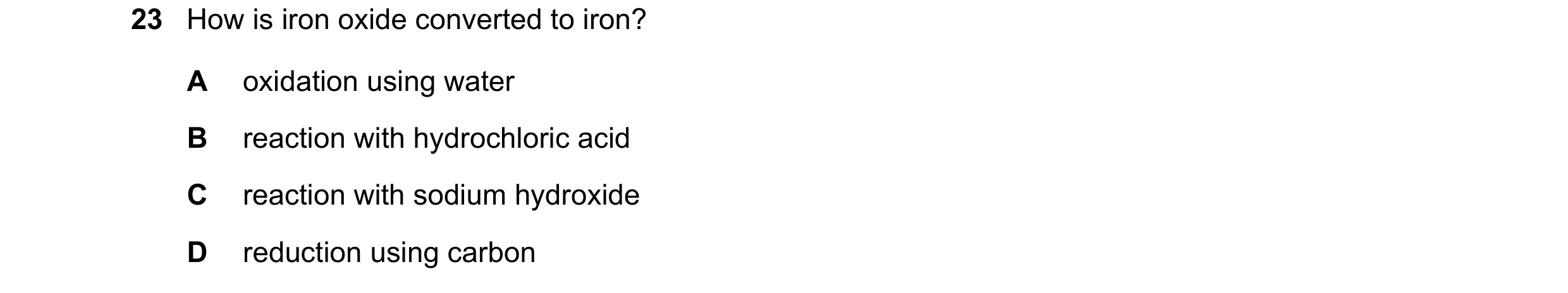

23 How is iron oxide converted to iron? A oxidation using water B reaction with hydrochloric acid C reaction with sodium hydroxide D reduction using carbon
1 marks
Answer: D
23 How is iron oxide converted to iron? A oxidation using water B reaction with hydrochloric acid C reaction with sodium hydroxide D reduction using carbon
1 marks
Answer: D
