Digestive system — Paper 1 · IGCSE Sciences - Co-ordinated (Double) 0654

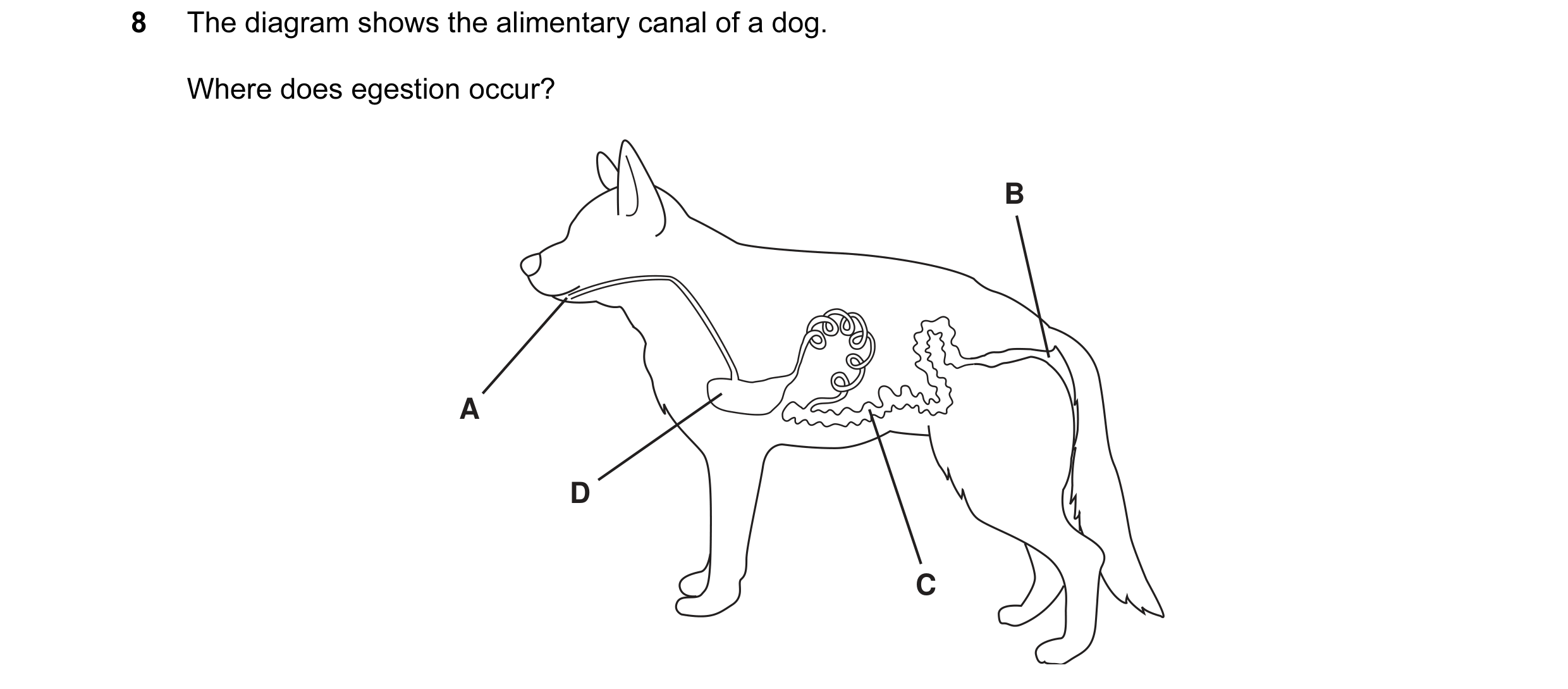

8 The diagram shows the alimentary canal of a dog. Where does egestion occur? B A D C

1 marks

Answer: B

This question in 0654/11 May/June 2005

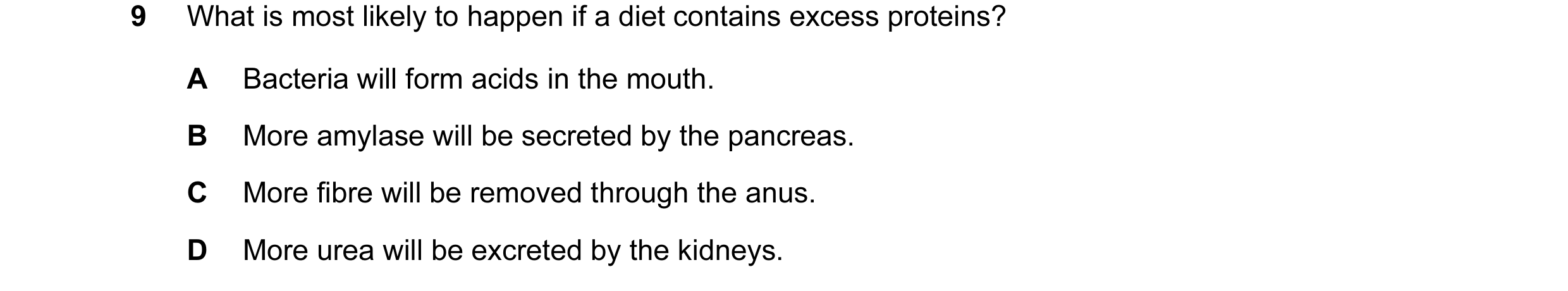

9 What is most likely to happen if a diet contains excess proteins? A Bacteria will form acids in the mouth. B More amylase will be secreted by the pancreas. C More fibre will be removed through the anus. D More urea will be excreted by the kidneys.

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2007

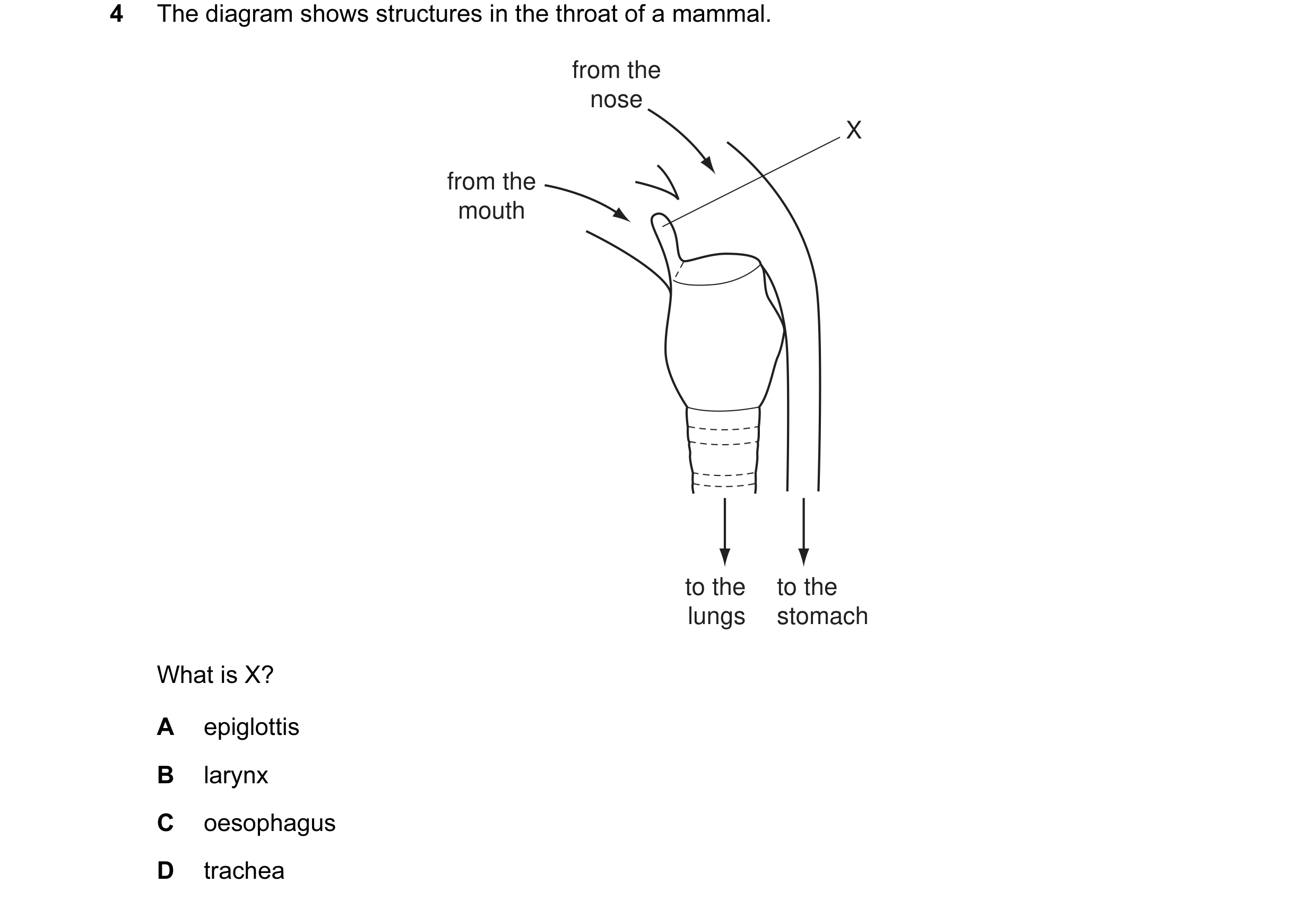

4 The diagram shows structures in the throat of a mammal. from the nose X from the mouth to the to the lungs stomach What is X? A epiglottis B larynx C oesophagus D trachea

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2008

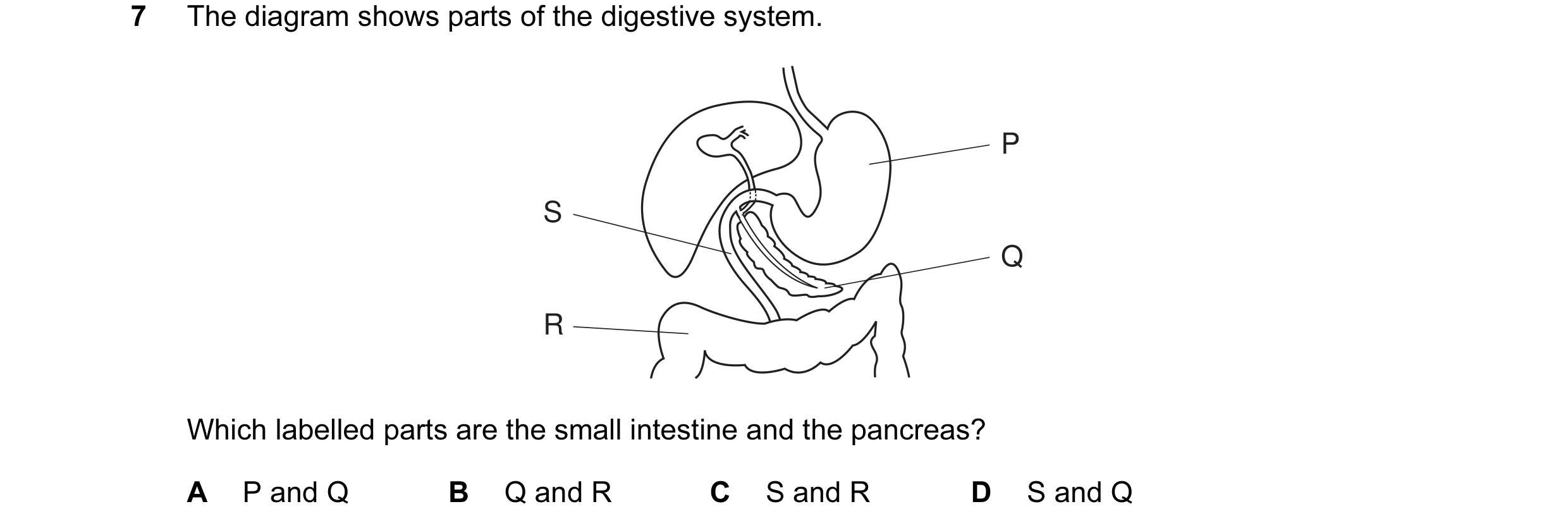

7 The diagram shows parts of the digestive system. P S Q R Which labelled parts are the small intestine and the pancreas? A P and Q B Q and R C S and R D S and Q

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2009

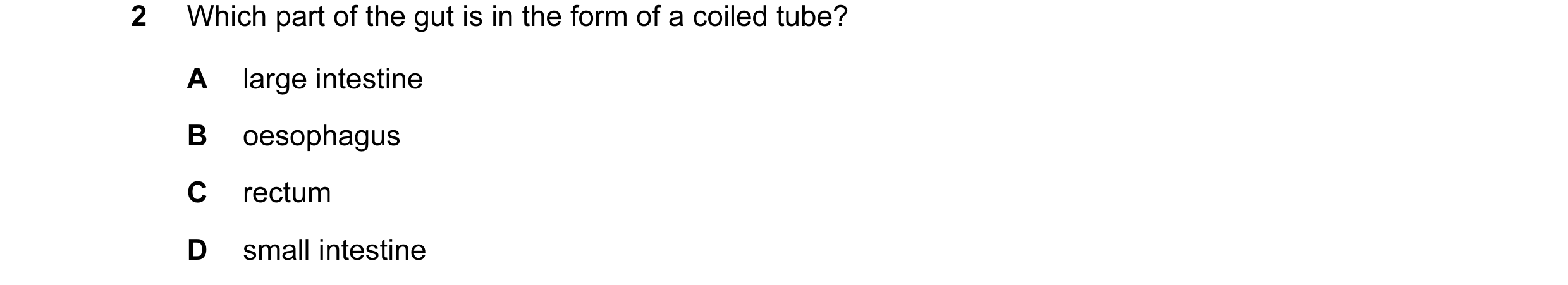

4 Which part of the gut is in the form of a coiled tube? A large intestine B oesophagus C rectum D small intestine

1 marks

Answer: D

This question in 0654/11 May/June 2010

2 Which part of the gut is in the form of a coiled tube? A large intestine B oesophagus C rectum D small intestine

1 marks

Answer: D

This question in 0654/12 May/June 2010

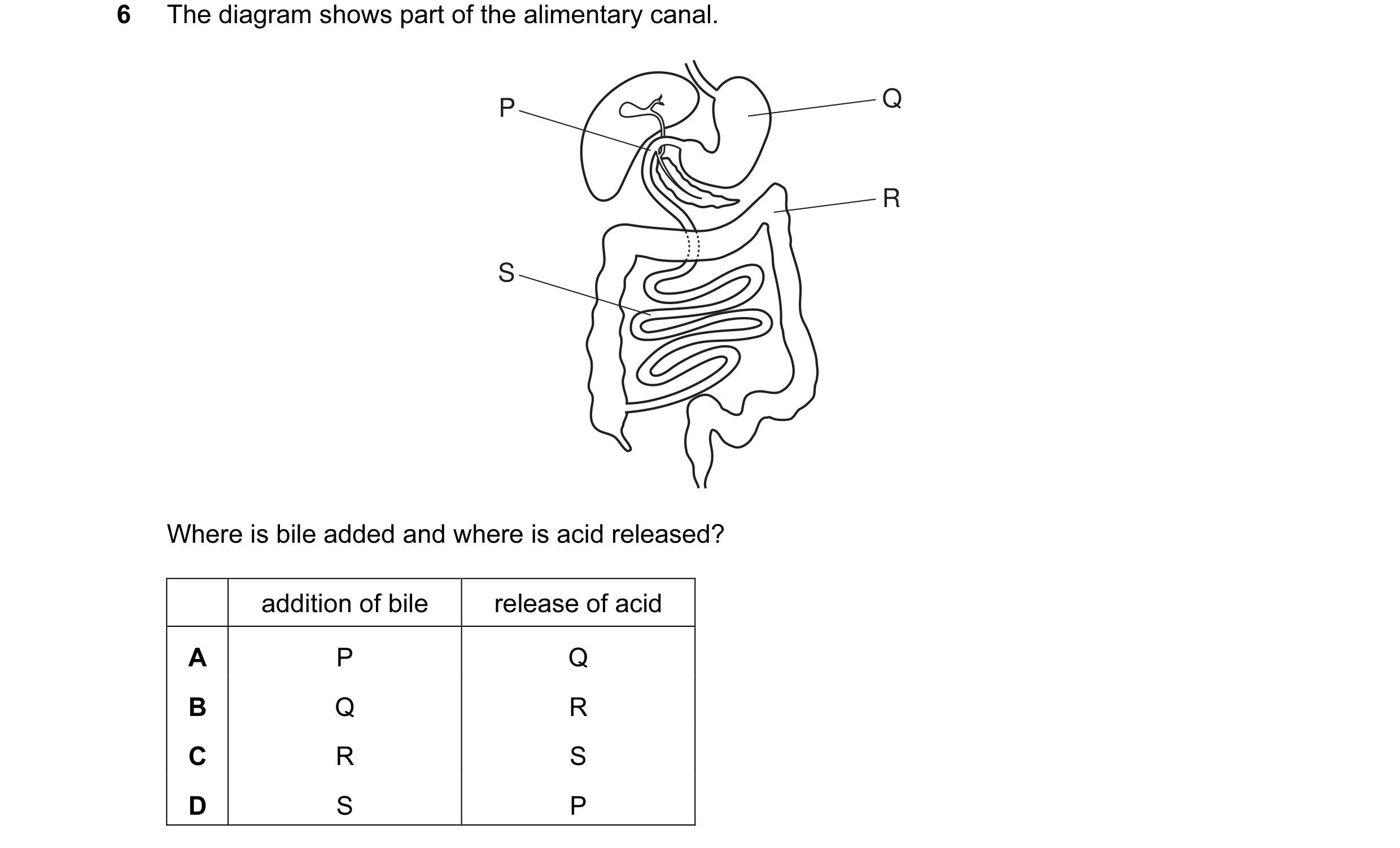

6 The diagram shows part of the alimentary canal. P Q R S Where is bile added and where is acid released? addition of bile release of acid A P Q B Q R C R S D S P

1 marks

Answer: A

This question in 0654/12 May/June 2011

6 The diagram shows part of the alimentary canal. P Q R S Where is bile added and where is acid released? addition of bile release of acid A P Q B Q R C R S D S P

1 marks

Answer: A

This question in 0654/13 May/June 2011

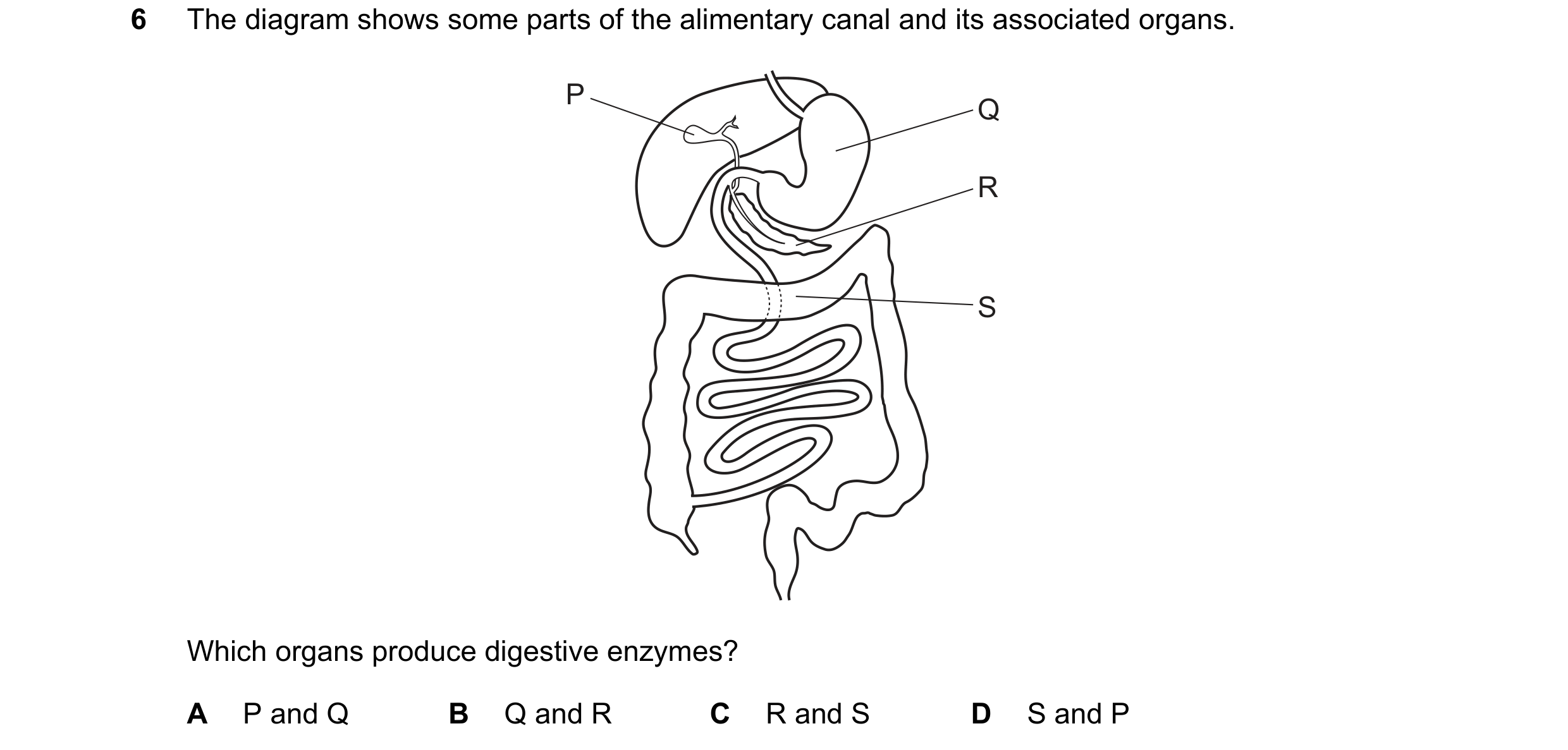

7 The diagram shows some parts of the alimentary canal and its associated organs. P Q R S Which organs produce digestive enzymes? A P and Q B Q and R C R and S D S and P

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2011

8 The diagram shows some parts of the alimentary canal and its associated organs. P Q R S Which organs produce digestive enzymes? A P and Q B Q and R C R and S D S and P

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2011

10 The diagram shows some parts of the alimentary canal and its associated organs. P Q R S Which organs produce digestive enzymes? A P and Q B Q and R C R and S D S and P

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2011

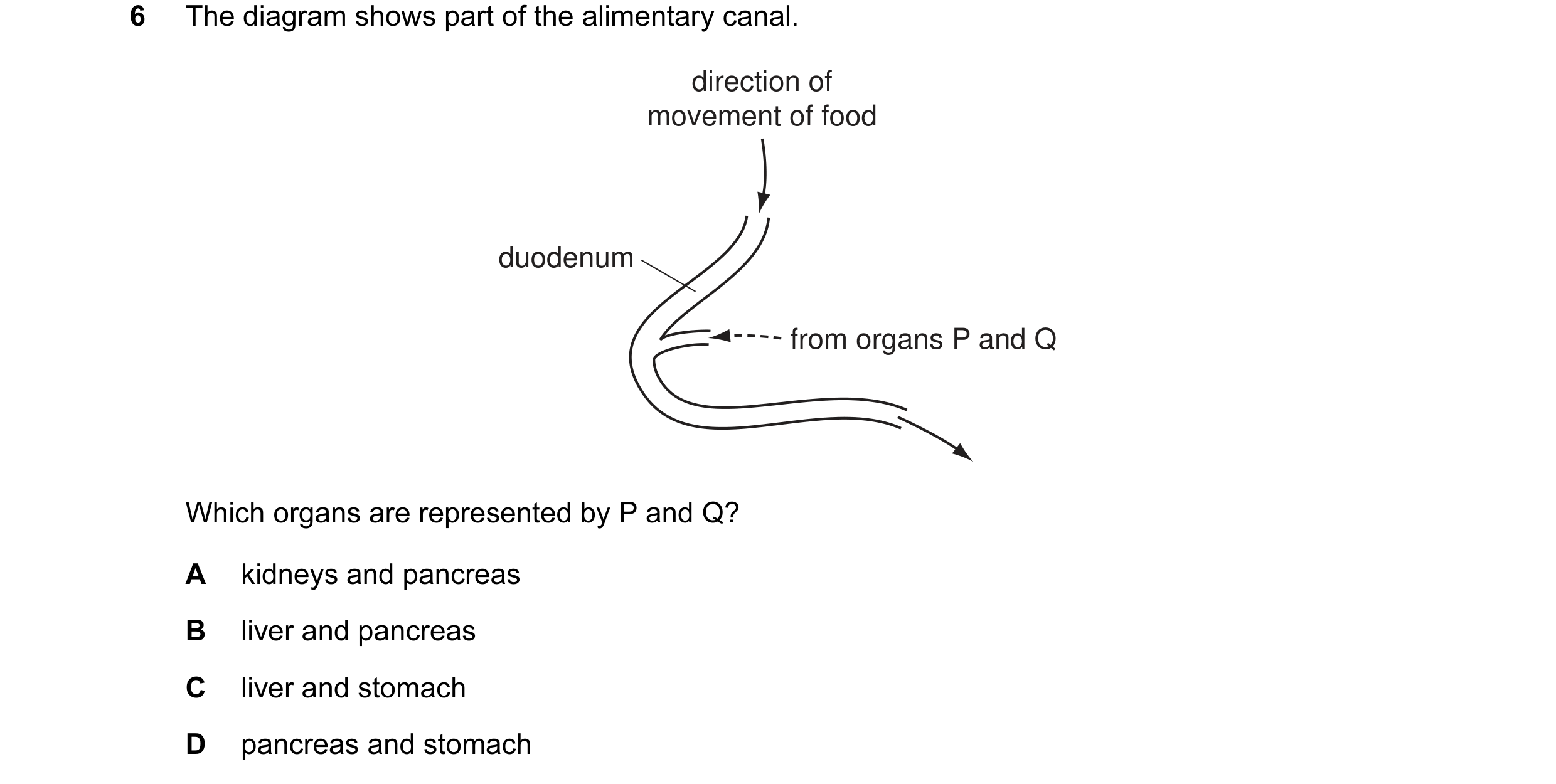

6 The diagram shows part of the alimentary canal. direction of movement of food duodenum from organs P and Q Which organs are represented by P and Q? A kidneys and pancreas B liver and pancreas C liver and stomach D pancreas and stomach

1 marks

Answer: B

This question in 0654/11 May/June 2012

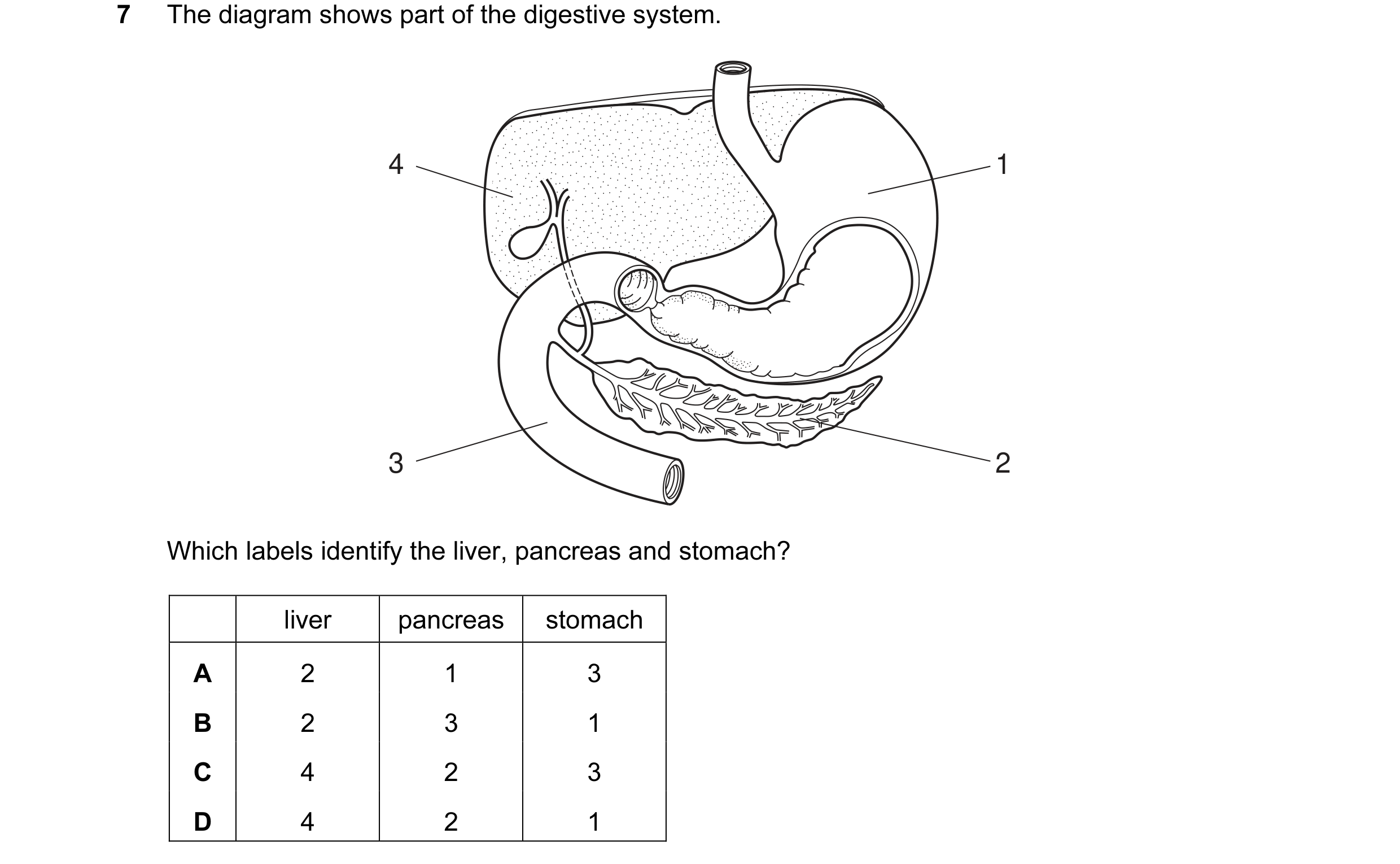

7 The diagram shows part of the digestive system. 4 1 3 2 Which labels identify the liver, pancreas and stomach? liver pancreas stomach A 2 1 3 B 2 3 1 C 4 2 3 D 4 2 1

1 marks

Answer: D

This question in 0654/12 May/June 2012

7 The diagram shows part of the digestive system. 4 1 3 2 Which labels identify the liver, pancreas and stomach? liver pancreas stomach A 2 1 3 B 2 3 1 C 4 2 3 D 4 2 1

1 marks

Answer: D

This question in 0654/13 May/June 2012

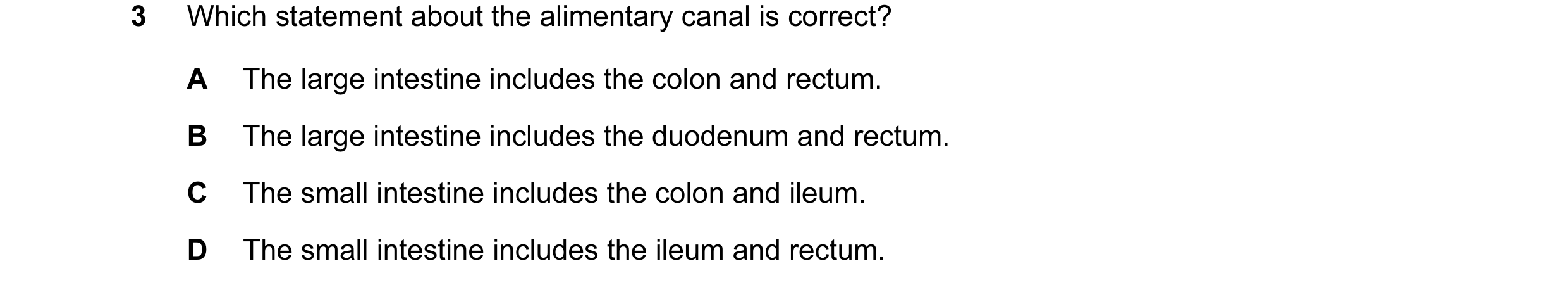

4 Which statement about the alimentary canal is correct? A The large intestine includes the colon and rectum. B The large intestine includes the duodenum and rectum. C The small intestine includes the colon and ileum. D The small intestine includes the ileum and rectum.

1 marks

Answer: A

This question in 0654/11 May/June 2013

3 Which statement about the alimentary canal is correct? A The large intestine includes the colon and rectum. B The large intestine includes the duodenum and rectum. C The small intestine includes the colon and ileum. D The small intestine includes the ileum and rectum.

1 marks

Answer: A

This question in 0654/13 May/June 2013

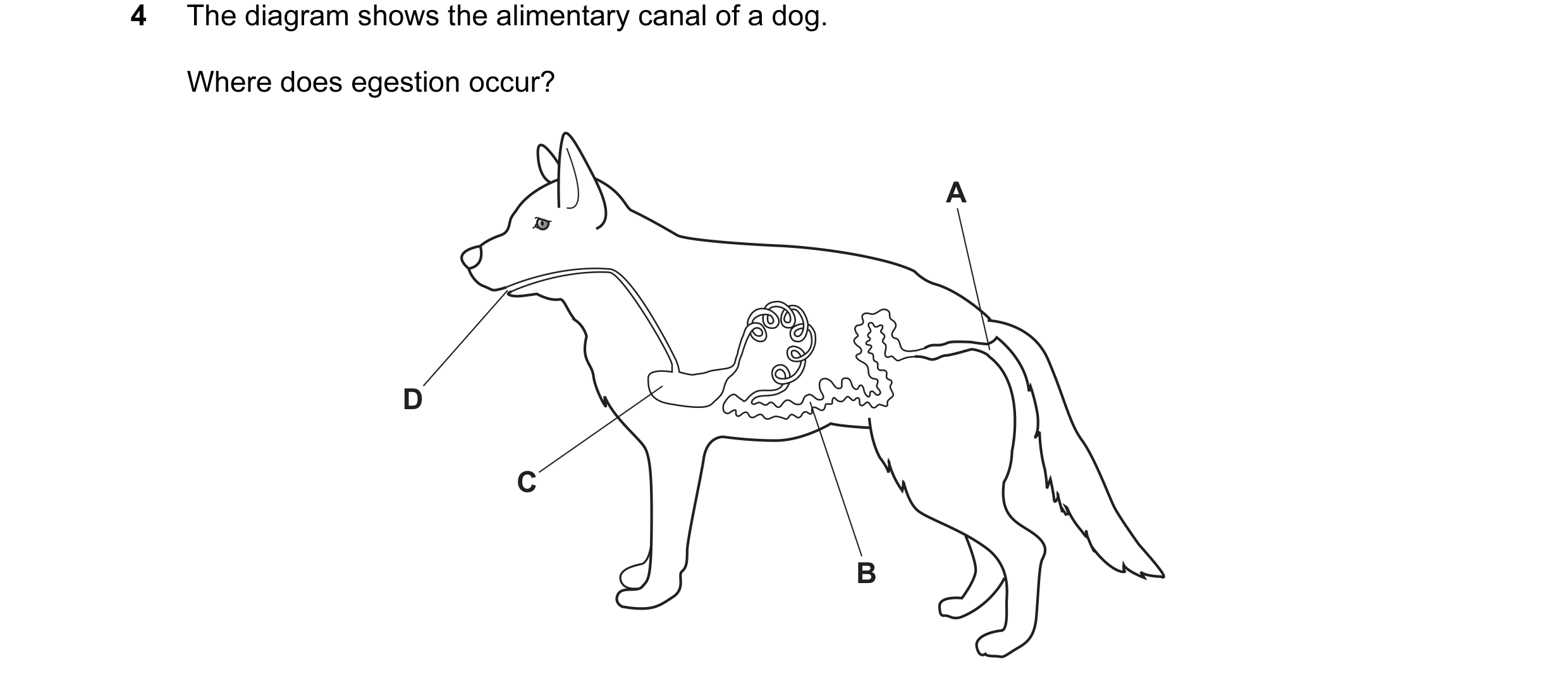

4 The diagram shows the alimentary canal of a dog. Where does egestion occur? A D C B

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2013

5 The diagram shows the alimentary canal of a dog. Where does egestion occur? A D C B

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2013

4 The diagram shows the alimentary canal of a dog. Where does egestion occur? A D C B

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2013

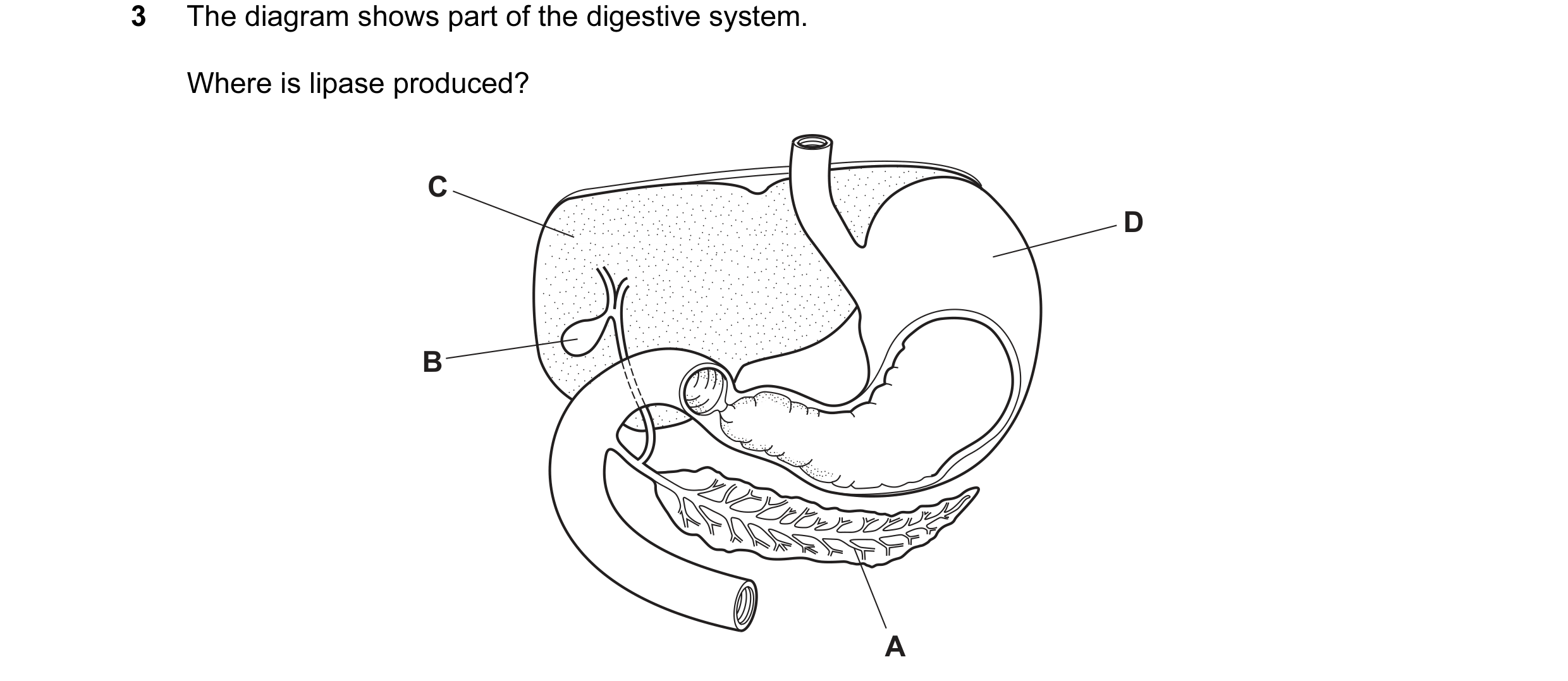

3 The diagram shows part of the digestive system. Where is lipase produced? C D B A

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2014

4 The diagram shows part of the digestive system. Where is lipase produced? C D B A

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2014

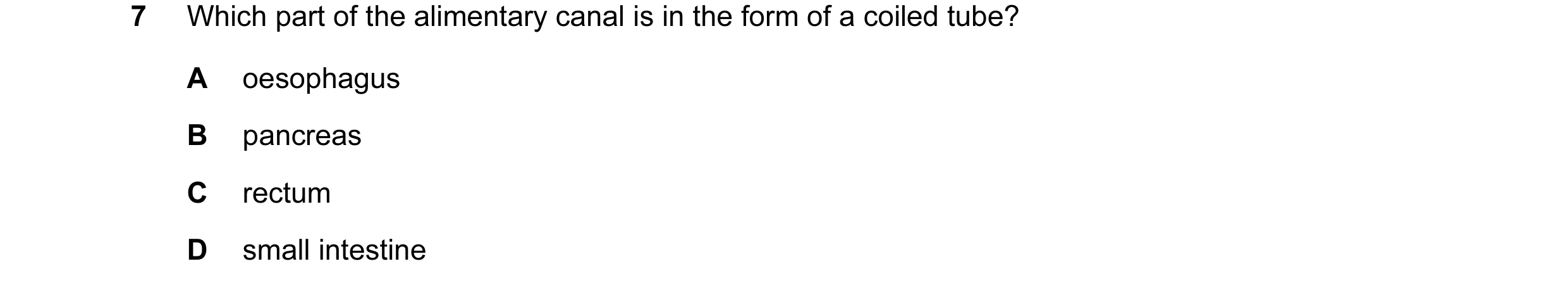

8 Which part of the alimentary canal is in the form of a coiled tube? A oesophagus B pancreas C rectum D small intestine

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2015

7 Which part of the alimentary canal is in the form of a coiled tube? A oesophagus B pancreas C rectum D small intestine

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2015

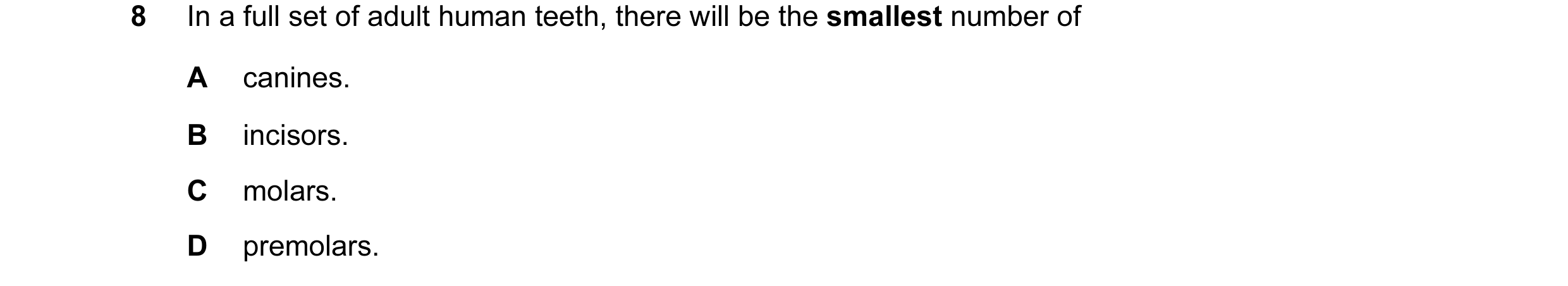

8 In a full set of adult human teeth, there will be the smallest number of A canines. B incisors. C molars. D premolars.

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2015

7 Which part of the alimentary canal is in the form of a coiled tube? A oesophagus B pancreas C rectum D small intestine

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2015

3 Which statement about the alimentary canal is correct? A The large intestine includes the colon and rectum. B The large intestine includes the duodenum and rectum. C The small intestine includes the colon and ileum. D The small intestine includes the ileum and rectum.

1 marks

Answer: A

This question in 0654/11 May/June 2016

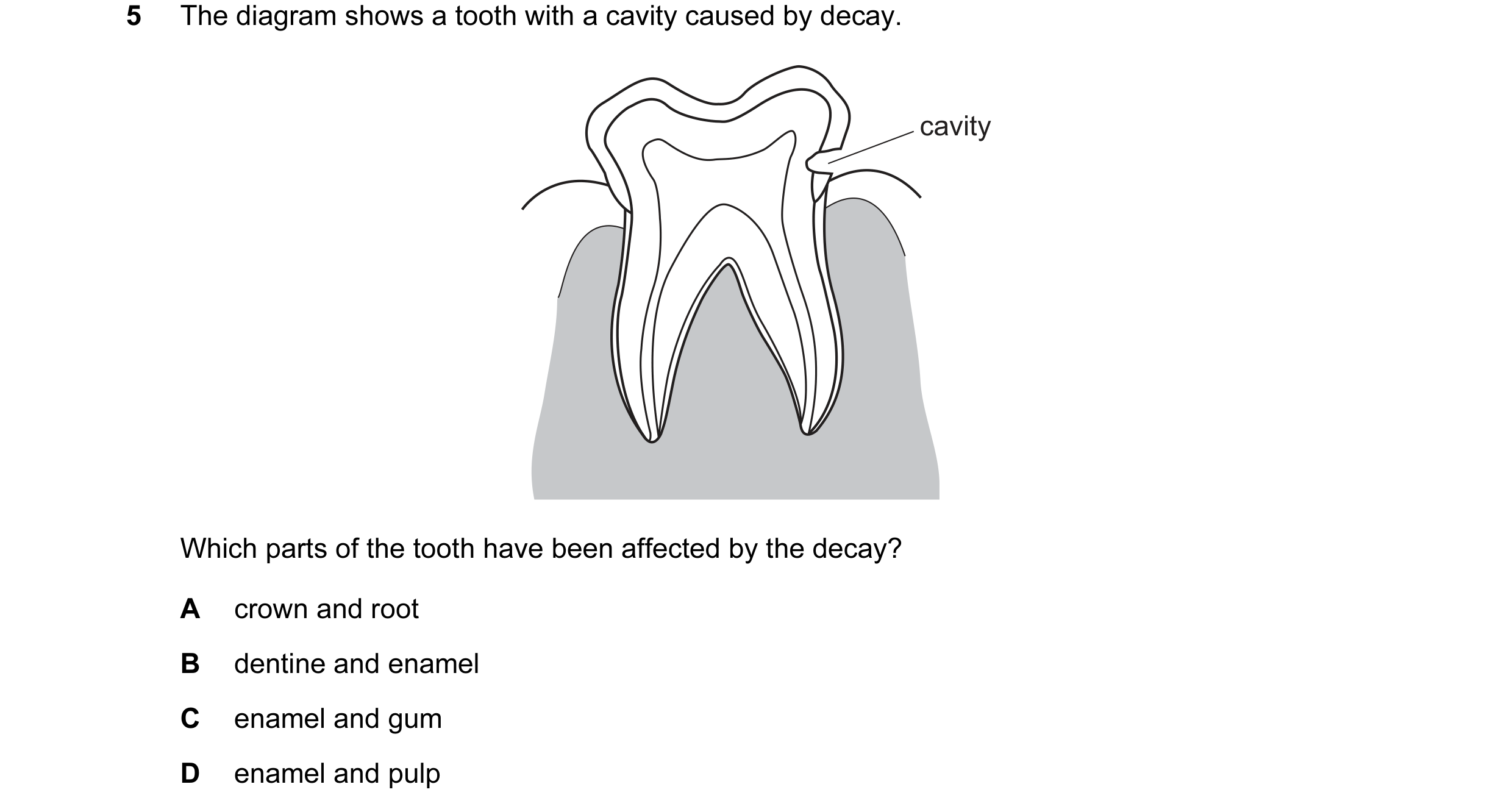

5 The diagram shows a tooth with a cavity caused by decay. cavity Which parts of the tooth have been affected by the decay? A crown and root B dentine and enamel C enamel and gum D enamel and pulp

1 marks

Answer: B

This question in 0654/12 May/June 2016

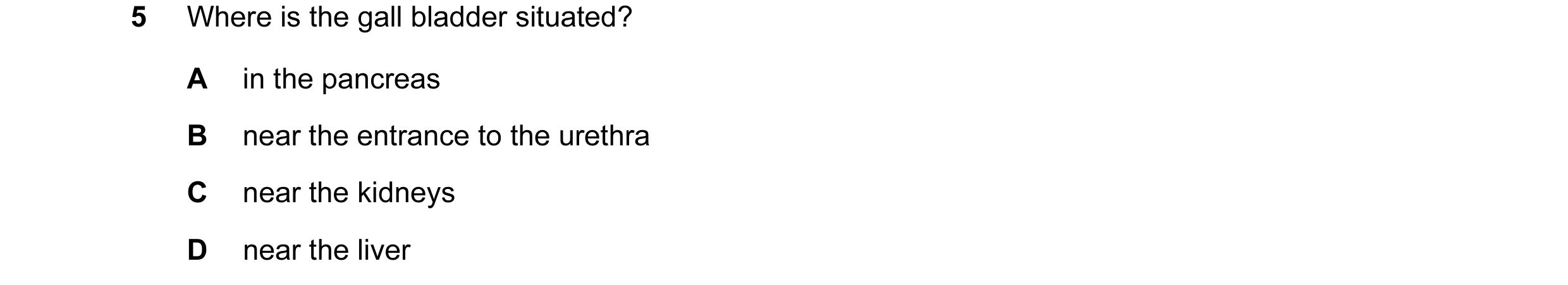

5 Where is the gall bladder situated? A in the pancreas B near the entrance to the urethra C near the kidneys D near the liver

1 marks

Answer: D

This question in 0654/13 May/June 2016

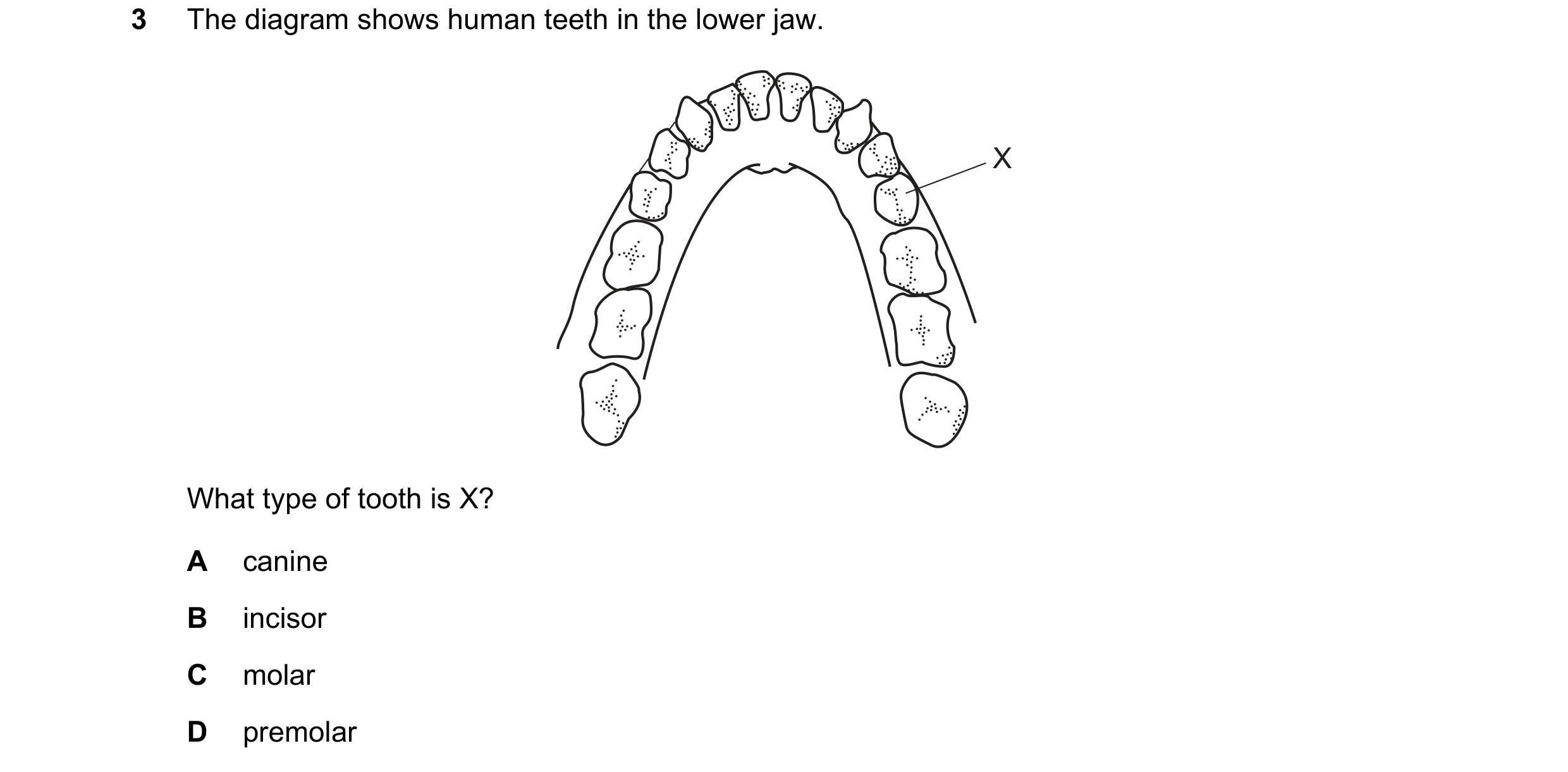

3 The diagram shows human teeth in the lower jaw. X What type of tooth is X? A canine B incisor C molar D premolar

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2016

4 The diagram shows part of the digestive system. P Q R S Which of the labelled parts produce digestive enzymes, absorb water and store bile? produce digestive absorb water store bile enzymes A P Q R B Q R P C R S P D S P R

1 marks

Answer: C

This question in 0654/12 Oct/Nov 2018

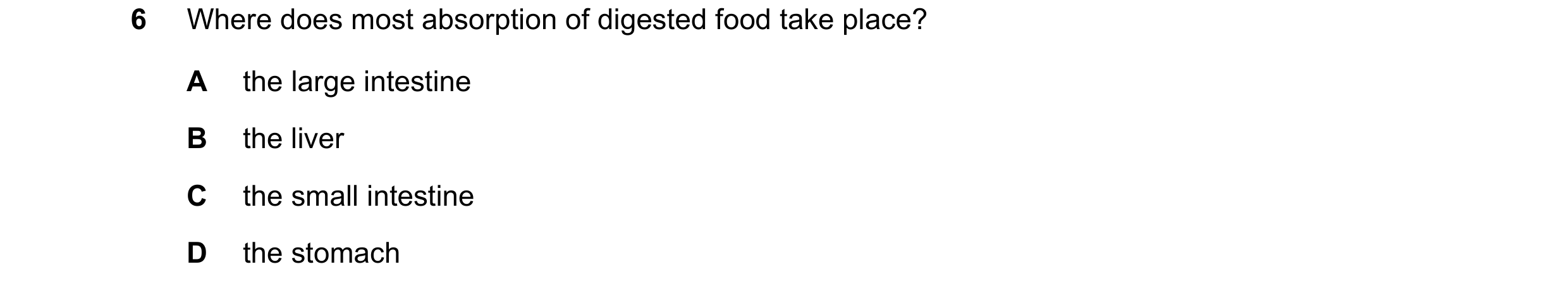

6 Where does most absorption of digested food take place? A the large intestine B the liver C the small intestine D the stomach

1 marks

Answer: C

This question in 0654/11 May/June 2019

6 The diagram shows some parts of the alimentary canal and its associated organs. P Q R S Which organs produce digestive enzymes? A P and Q B Q and R C R and S D S and P

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2019

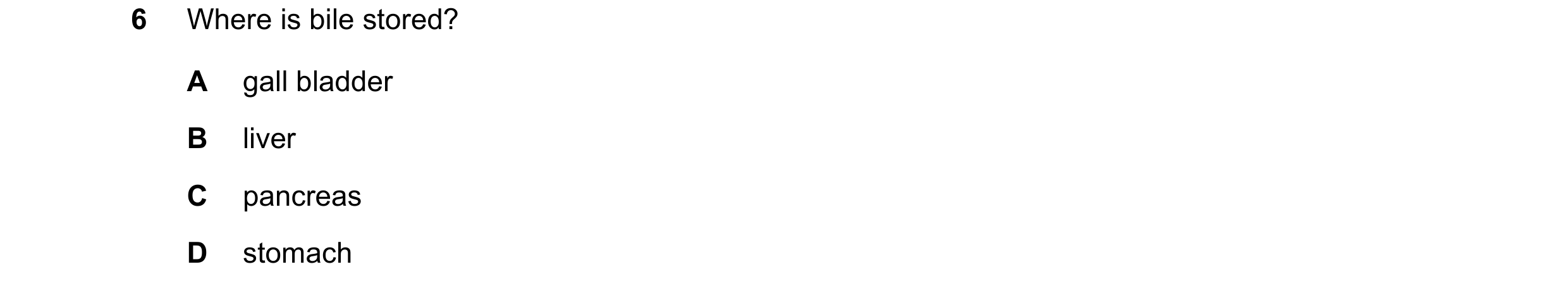

6 Where is bile stored? A gall bladder B liver C pancreas D stomach

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2019

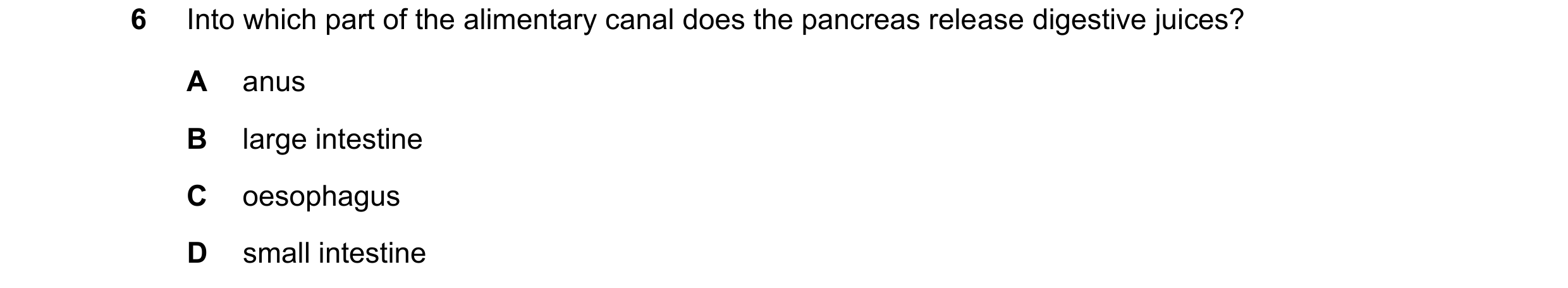

6 Into which part of the alimentary canal does the pancreas release digestive juices? A anus B large intestine C oesophagus D small intestine

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2020

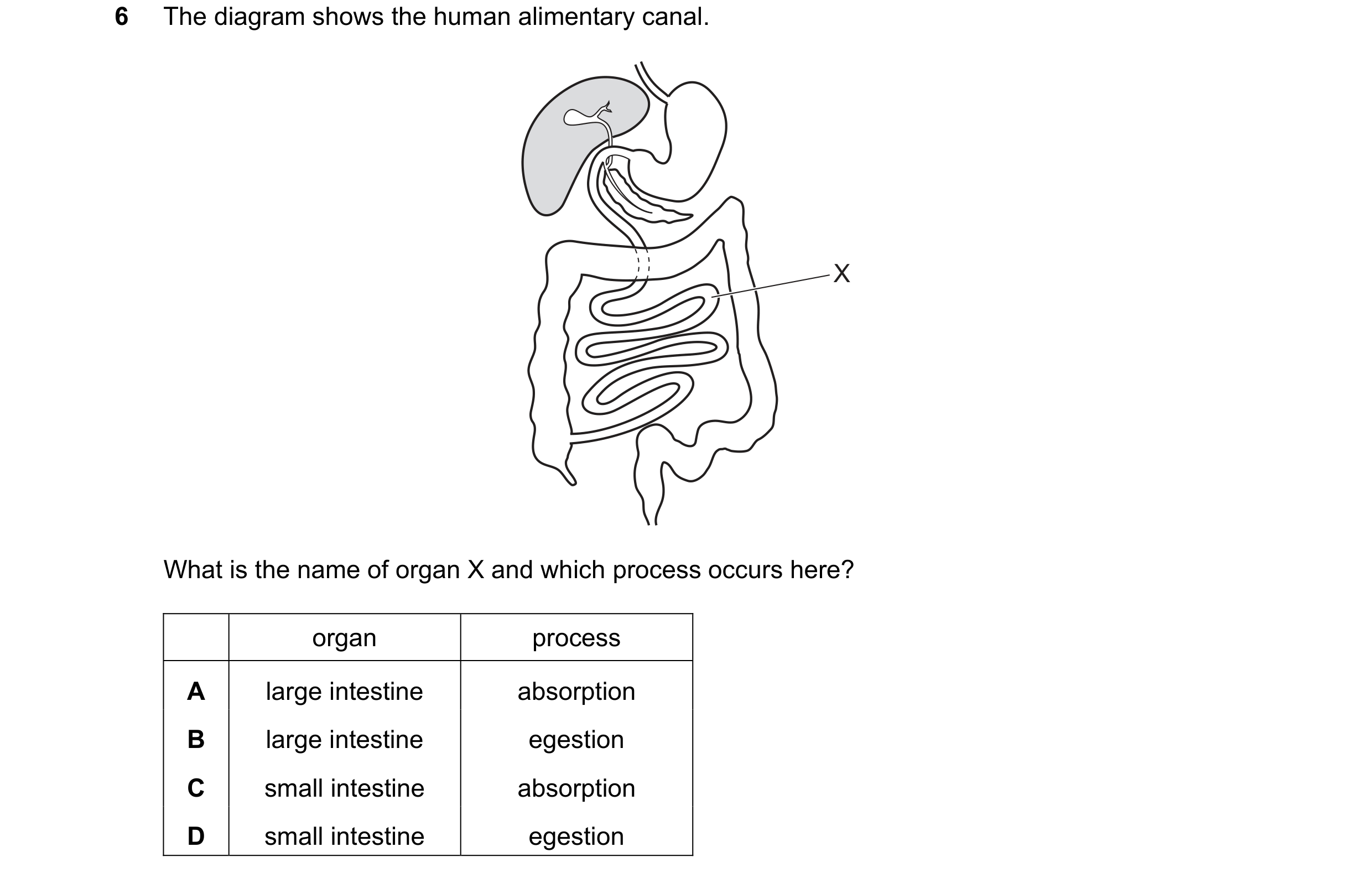

6 The diagram shows the human alimentary canal. X What is the name of organ X and which process occurs here? organ process A large intestine absorption B large intestine egestion C small intestine absorption D small intestine egestion

1 marks

Answer: C

This question in 0654/13 Oct/Nov 2020

6 The diagram shows human teeth in the lower jaw. X What type of tooth is X? A canine B incisor C molar D premolar

1 marks

Answer: D

This question in 0654/12 Feb/March 2021

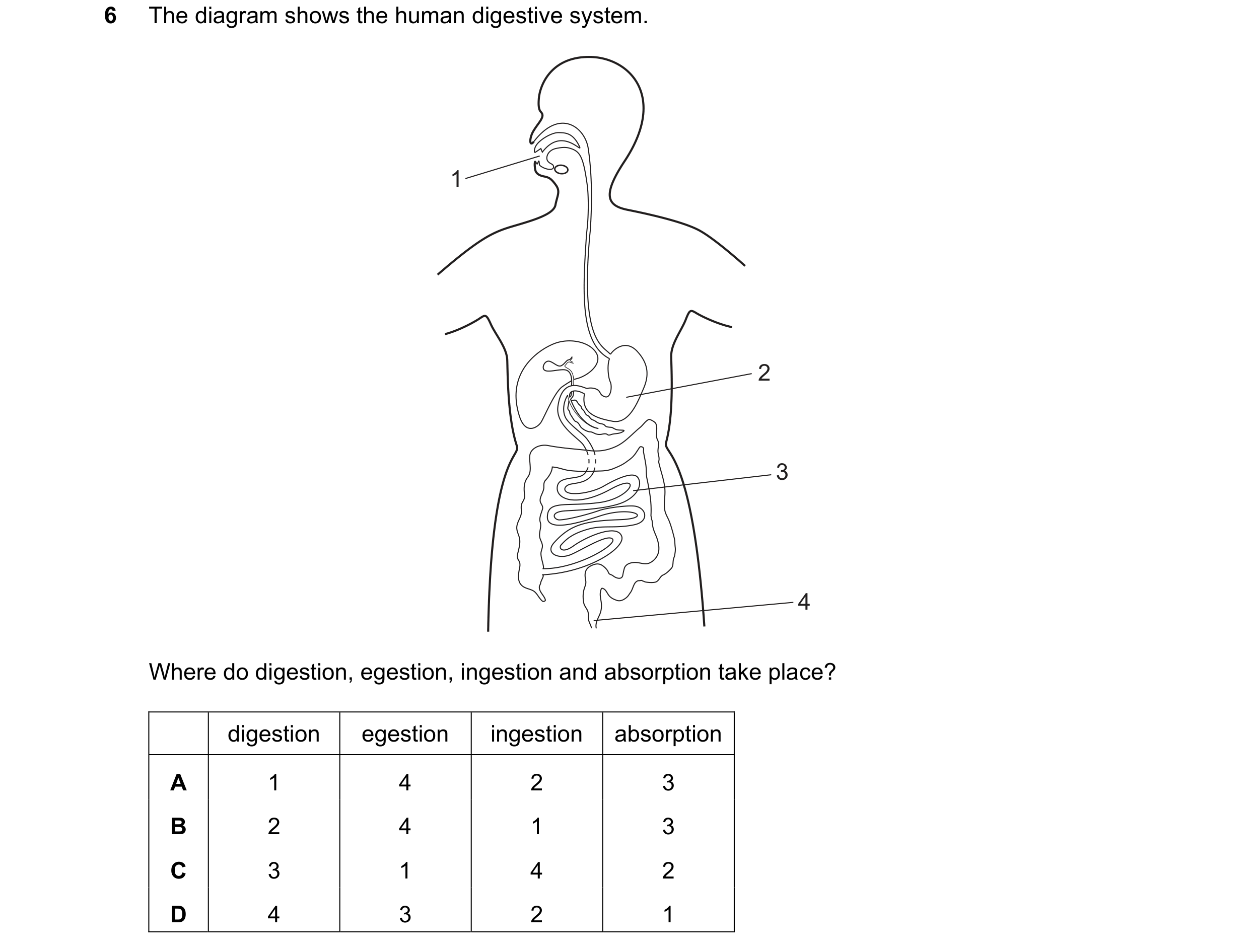

6 The diagram shows the human digestive system. 1 2 3 4 Where do digestion, egestion, ingestion and absorption take place? digestion egestion ingestion absorption A 1 4 2 3 B 2 4 1 3 C 3 1 4 2 D 4 3 2 1

1 marks

Answer: B

This question in 0654/12 May/June 2021

6 The diagram shows the human digestive system. 1 2 3 4 Where do digestion, egestion, ingestion and absorption take place? digestion egestion ingestion absorption A 1 4 2 3 B 2 4 1 3 C 3 1 4 2 D 4 3 2 1

1 marks

Answer: B

This question in 0654/13 May/June 2021

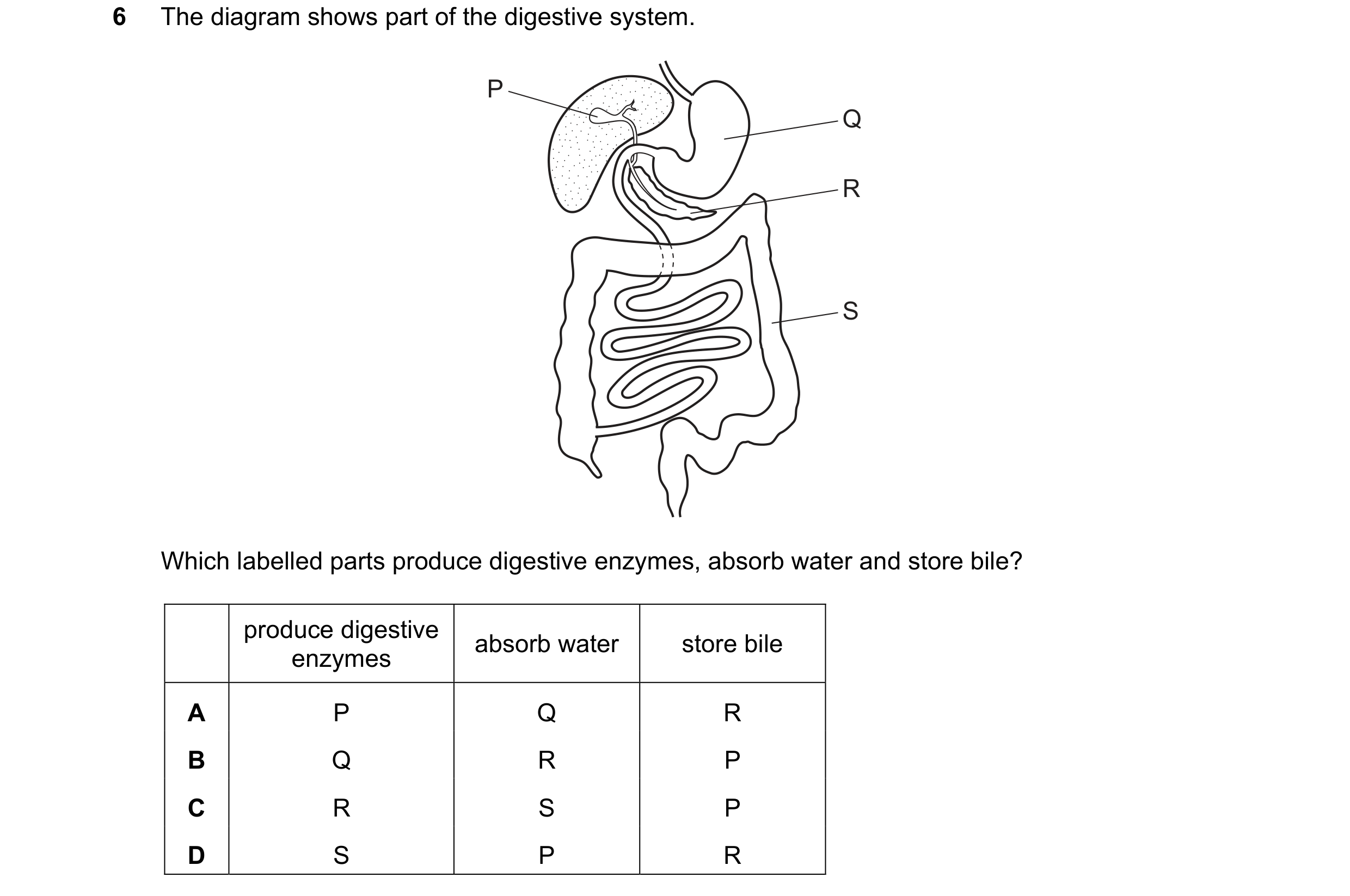

6 The diagram shows part of the digestive system. P Q R S Which labelled parts produce digestive enzymes, absorb water and store bile? produce digestive absorb water store bile enzymes A P Q R B Q R P C R S P D S P R

1 marks

Answer: C

This question in 0654/11 May/June 2022

6 The diagram shows part of the digestive system. P Q R S Which labelled parts produce digestive enzymes, absorb water and store bile? produce digestive absorb water store bile enzymes A P Q R B Q R P C R S P D S P R

1 marks

Answer: C

This question in 0654/12 May/June 2022

6 The diagram shows part of the digestive system. P Q R S Which labelled parts produce digestive enzymes, absorb water and store bile? produce digestive absorb water store bile enzymes A P Q R B Q R P C R S P D S P R

1 marks

Answer: C

This question in 0654/13 May/June 2022

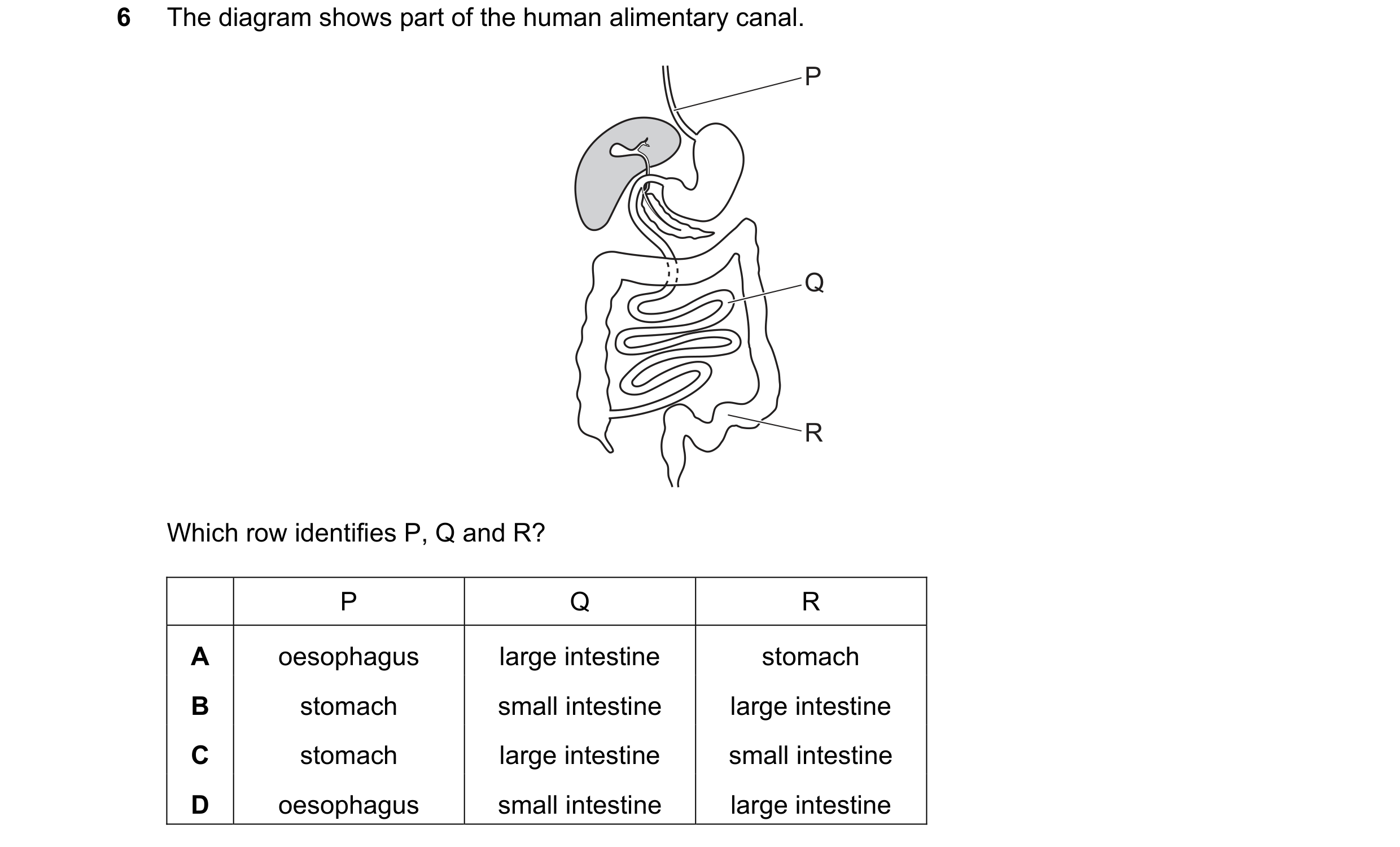

6 The diagram shows part of the human alimentary canal. P Q R Which row identifies P, Q and R? P Q R A oesophagus large intestine stomach B stomach small intestine large intestine C stomach large intestine small intestine D oesophagus small intestine large intestine

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2022

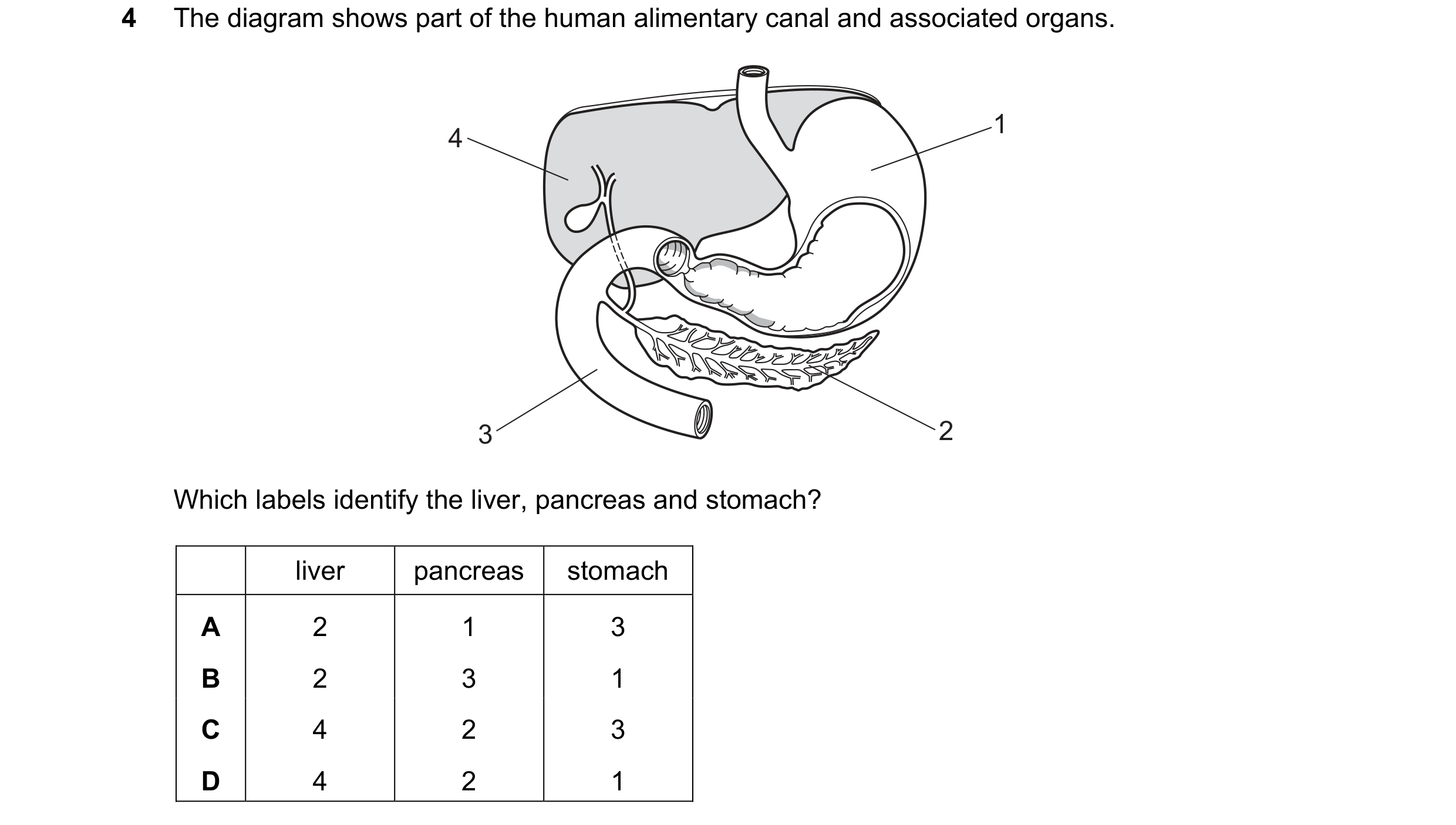

4 The diagram shows part of the human alimentary canal and associated organs. 1 4 3 2 Which labels identify the liver, pancreas and stomach? liver pancreas stomach A 2 1 3 B 2 3 1 C 4 2 3 D 4 2 1

1 marks

Answer: D

This question in 0654/12 May/June 2024

4 The diagram shows part of the human alimentary canal and associated organs. 1 4 3 2 Which labels identify the liver, pancreas and stomach? liver pancreas stomach A 2 1 3 B 2 3 1 C 4 2 3 D 4 2 1

1 marks

Answer: D

This question in 0654/13 May/June 2024

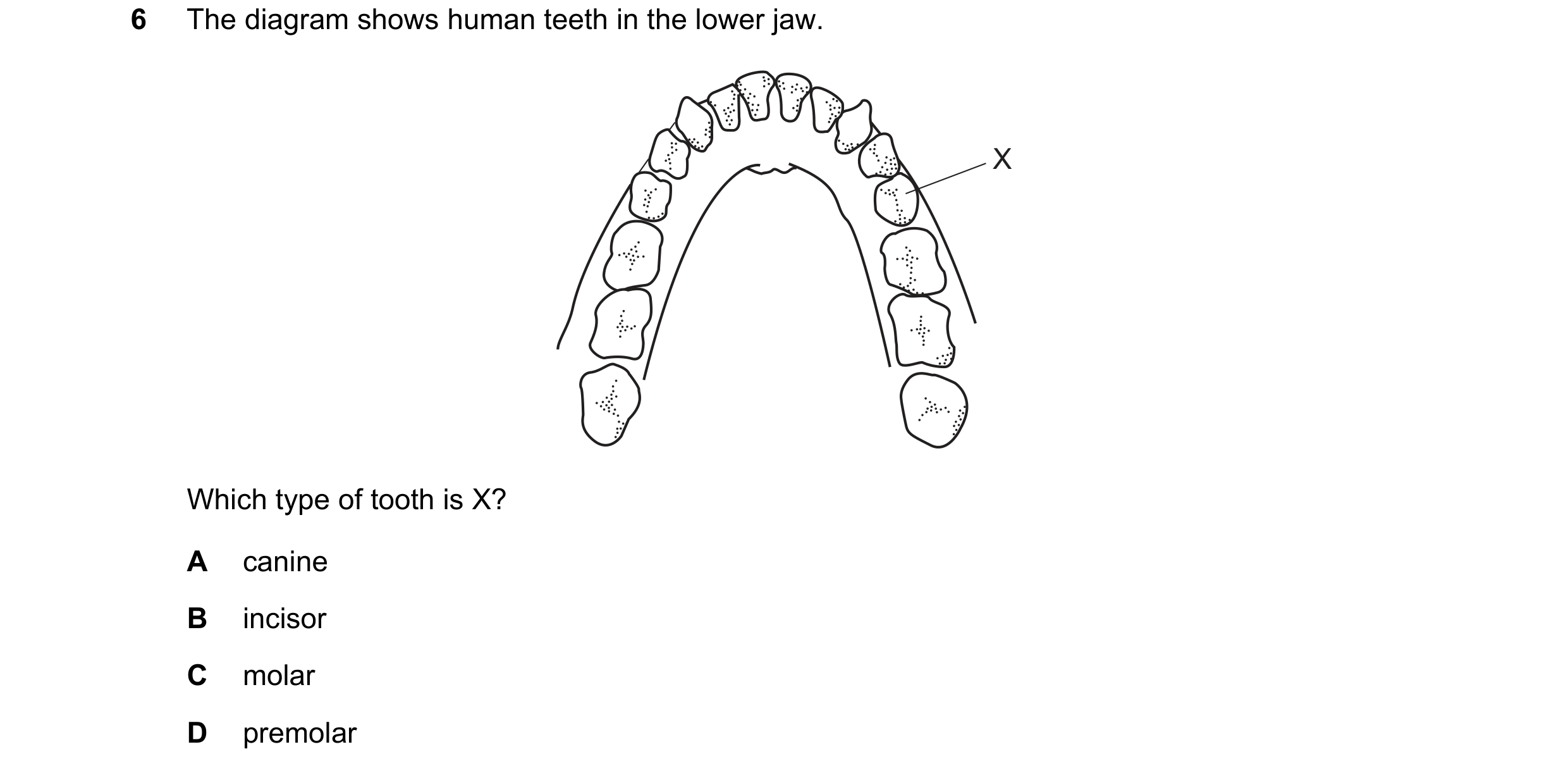

6 The diagram shows human teeth in the lower jaw. X Which type of tooth is X? A canine B incisor C molar D premolar

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2024

6 The diagram shows human teeth in the lower jaw. X Which type of tooth is X? A canine B incisor C molar D premolar

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2024

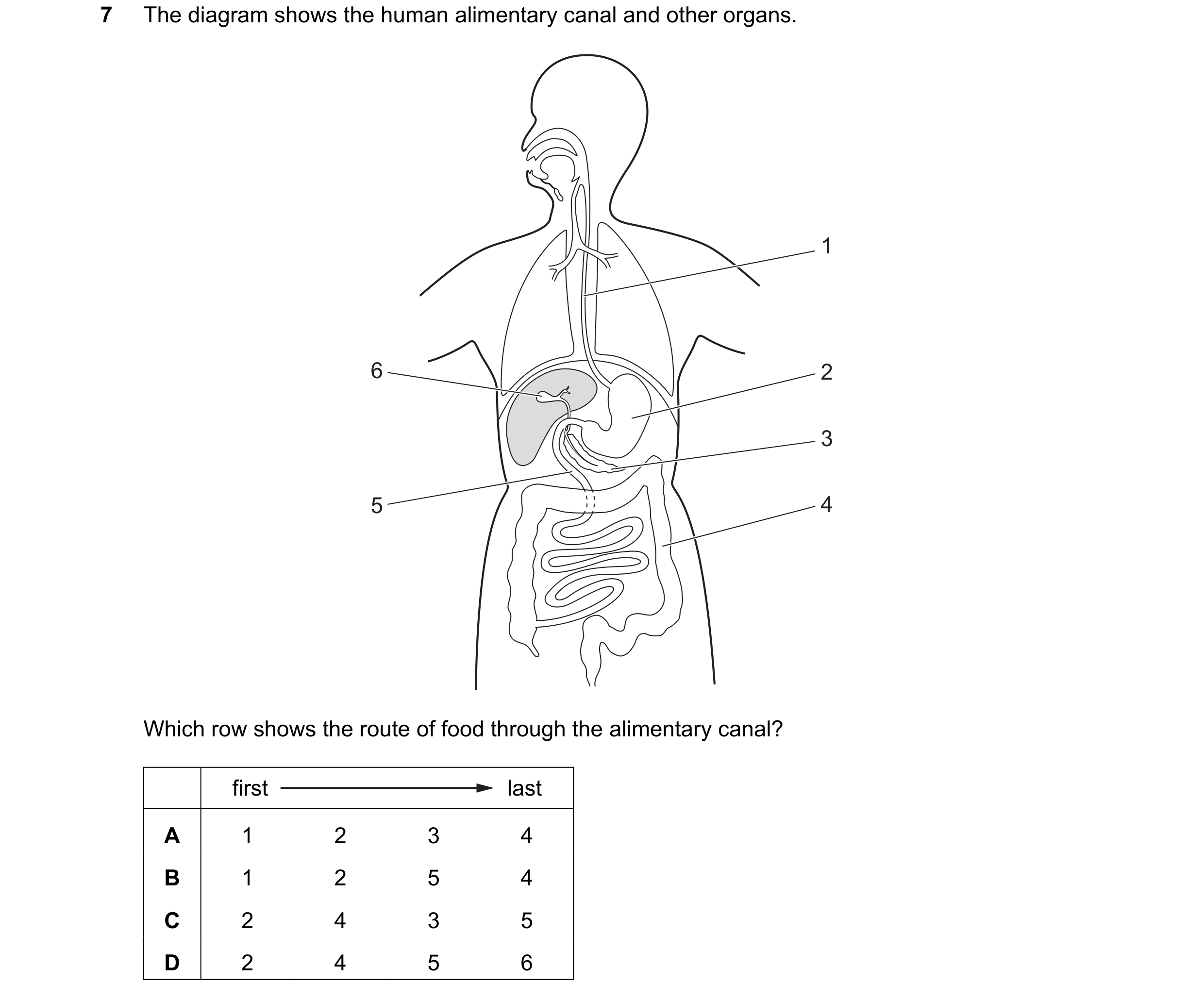

7 The diagram shows the human alimentary canal and other organs. 1 6 2 3 5 4 Which row shows the route of food through the alimentary canal? first last A 1 2 3 4 B 1 2 5 4 C 2 4 3 5 D 2 4 5 6

1 marks

Answer: B

This question in 0654/11 May/June 2025

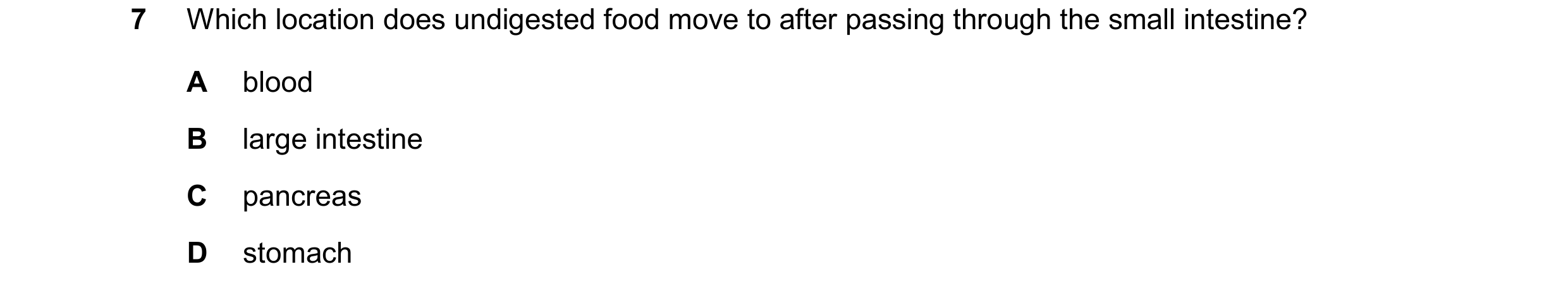

7 Which location does undigested food move to after passing through the small intestine? A blood B large intestine C pancreas D stomach

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2025
