Hormones — Paper 1 · IGCSE Sciences - Co-ordinated (Double) 0654

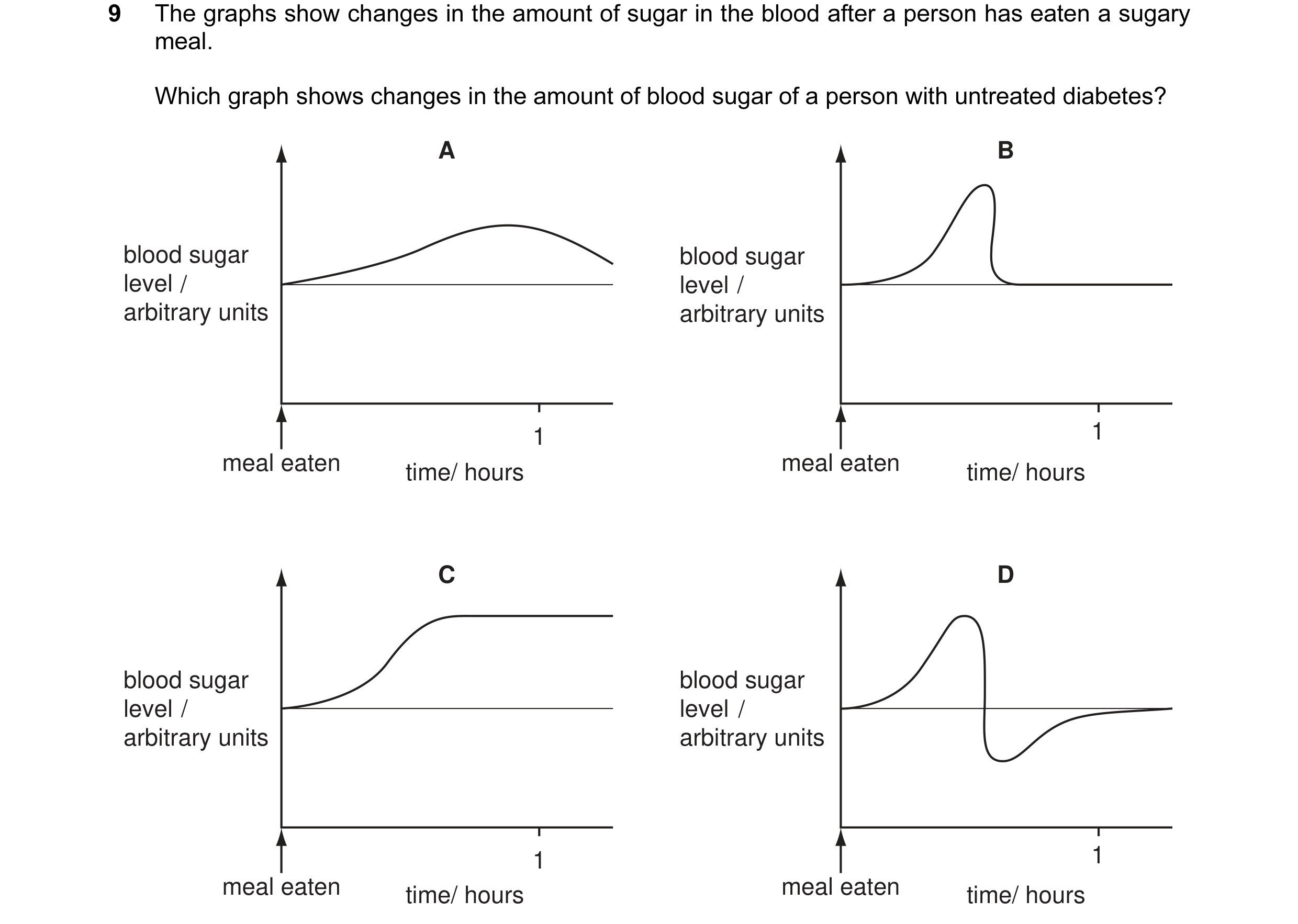

9 The graphs show changes in the amount of sugar in the blood after a person has eaten a sugary meal. Which graph shows changes in the amount of blood sugar of a person with untreated diabetes? A B blood sugar blood sugar level / level / arbitrary units arbitrary units 1 1 meal eaten time/ hours meal eaten time/ hours C D blood sugar blood sugar level / level / arbitrary units arbitrary units 1 1 meal eaten time/ hours meal eaten time/ hours

1 marks

Answer: C

This question in 0654/11 May/June 2006

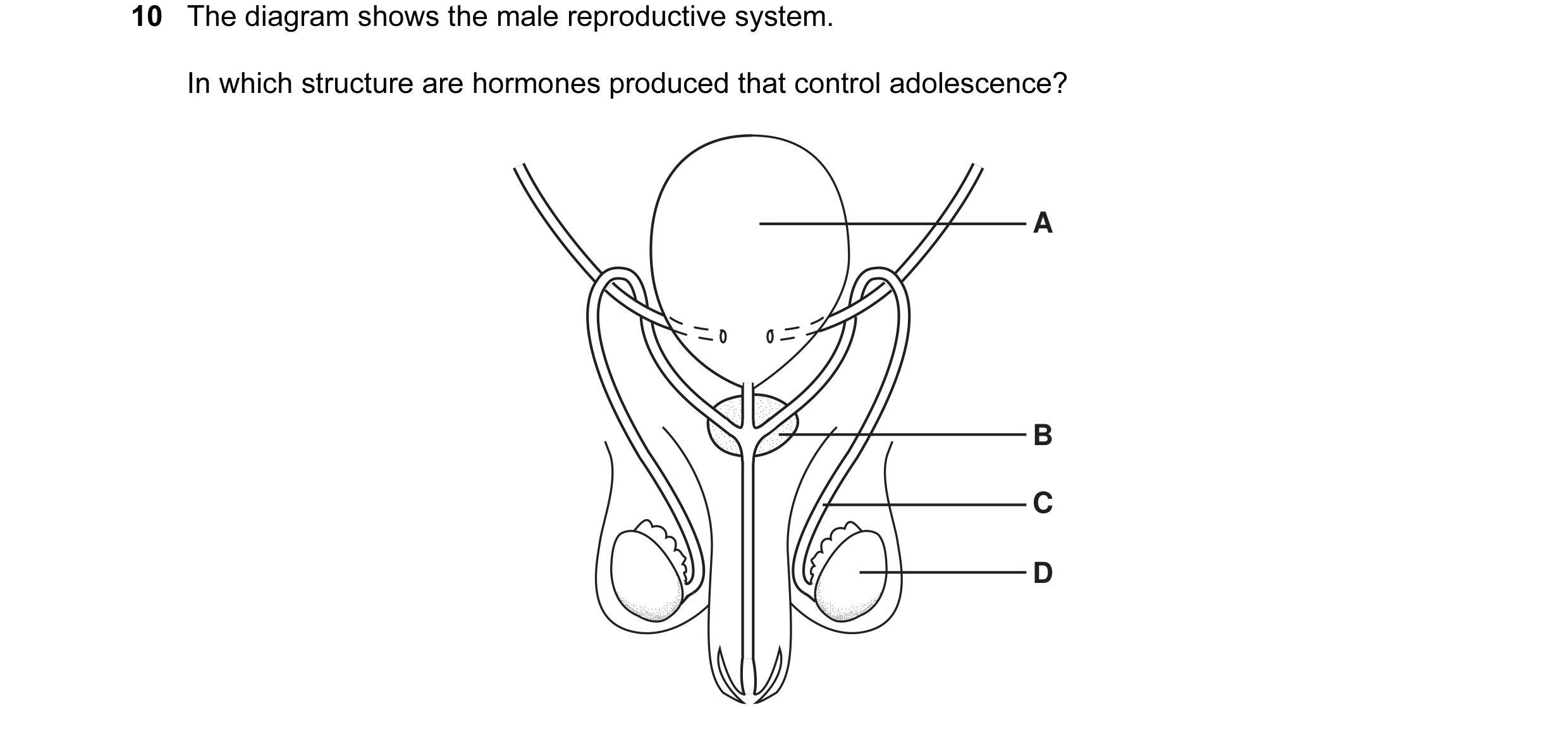

10 The diagram shows the male reproductive system. In which structure are hormones produced that control adolescence? A B C D

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2006

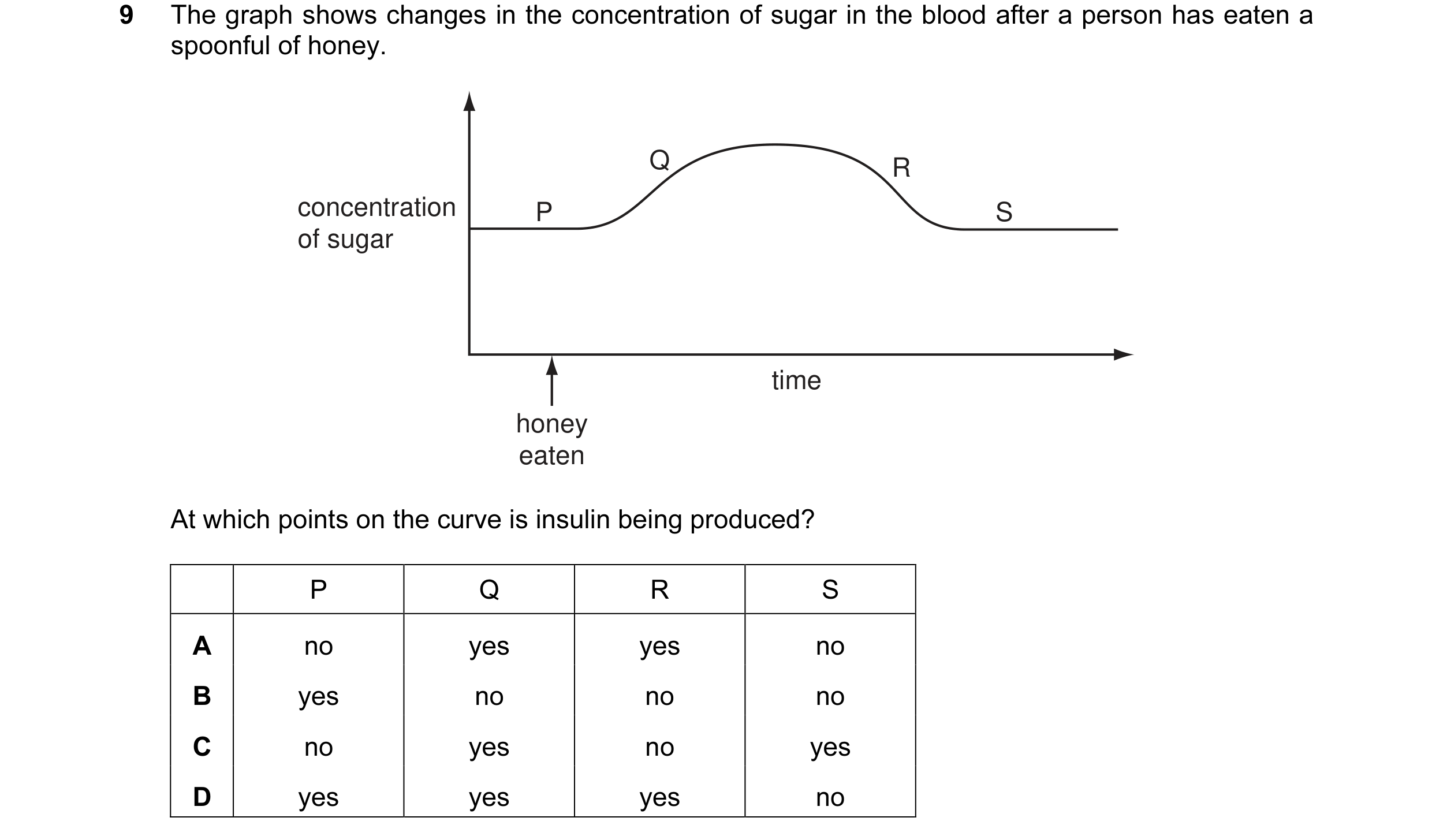

9 The graph shows changes in the concentration of sugar in the blood after a person has eaten a spoonful of honey. Q R concentration P S of sugar time honey eaten At which points on the curve is insulin being produced? P Q R S A no yes yes no B yes no no no C no yes no yes D yes yes yes no

1 marks

Answer: A

This question in 0654/11 May/June 2008

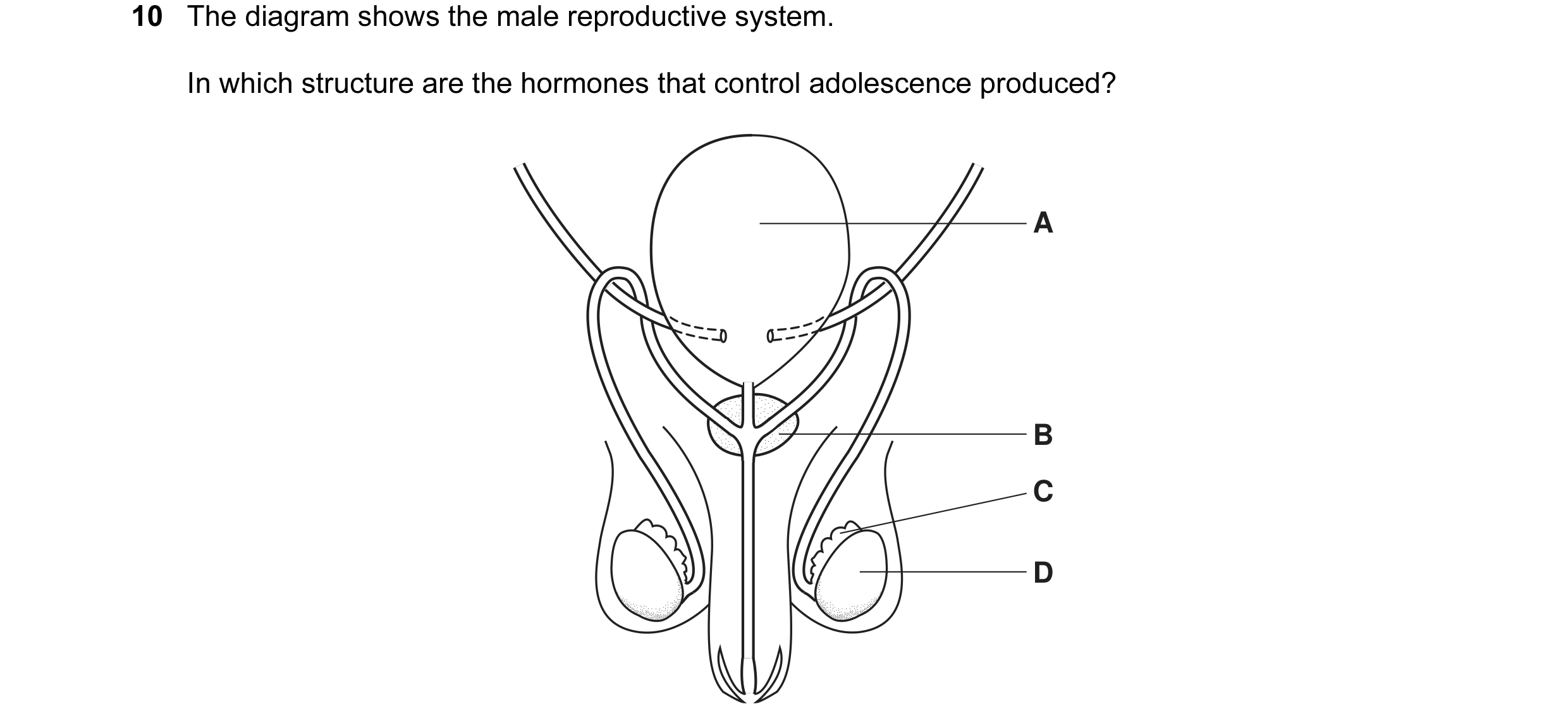

10 The diagram shows the male reproductive system. In which structure are the hormones that control adolescence produced? A B C D

1 marks

Answer: D

This question in 0654/11 May/June 2009

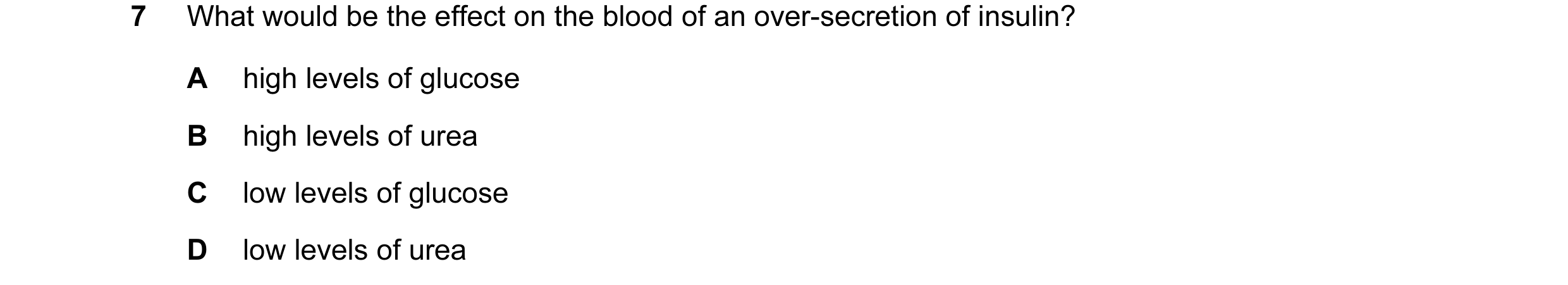

7 What would be the effect on the blood of an over-secretion of insulin? A high levels of glucose B high levels of urea C low levels of glucose D low levels of urea

1 marks

Answer: C

This question in 0654/11 May/June 2010

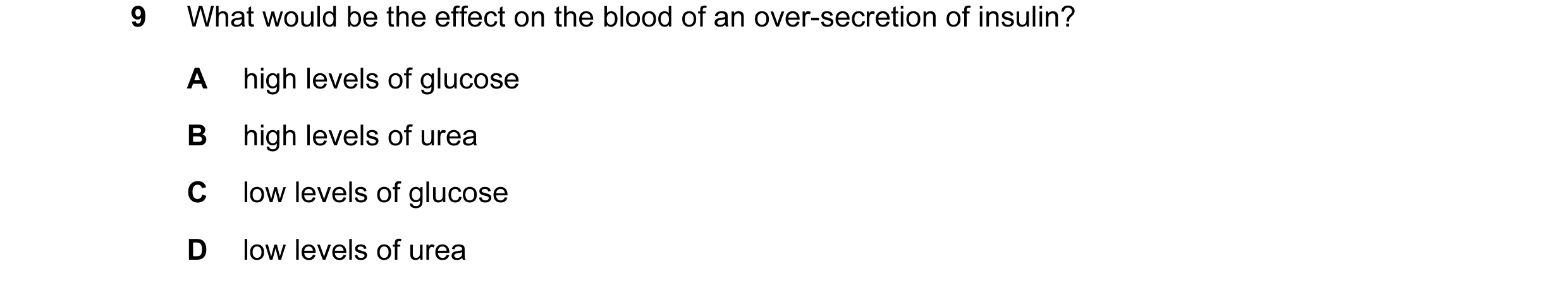

9 What would be the effect on the blood of an over-secretion of insulin? A high levels of glucose B high levels of urea C low levels of glucose D low levels of urea

1 marks

Answer: C

This question in 0654/12 May/June 2010

8 What is a function of adrenaline? A to increase the concentration of blood sugar B to raise the level of oxygen in the blood C to reduce the rate of heart beat D to remove urea from the blood

1 marks

Answer: A

This question in 0654/11 May/June 2014

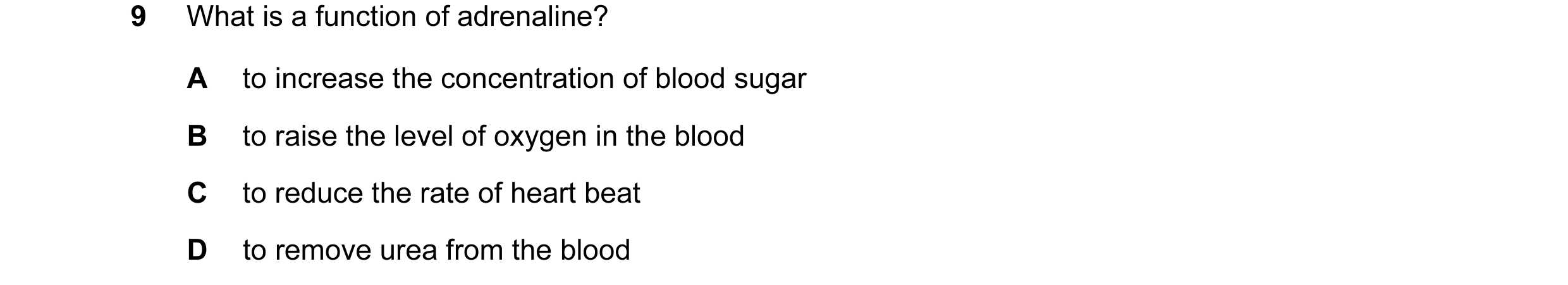

9 What is a function of adrenaline? A to increase the concentration of blood sugar B to raise the level of oxygen in the blood C to reduce the rate of heart beat D to remove urea from the blood

1 marks

Answer: A

This question in 0654/13 May/June 2014

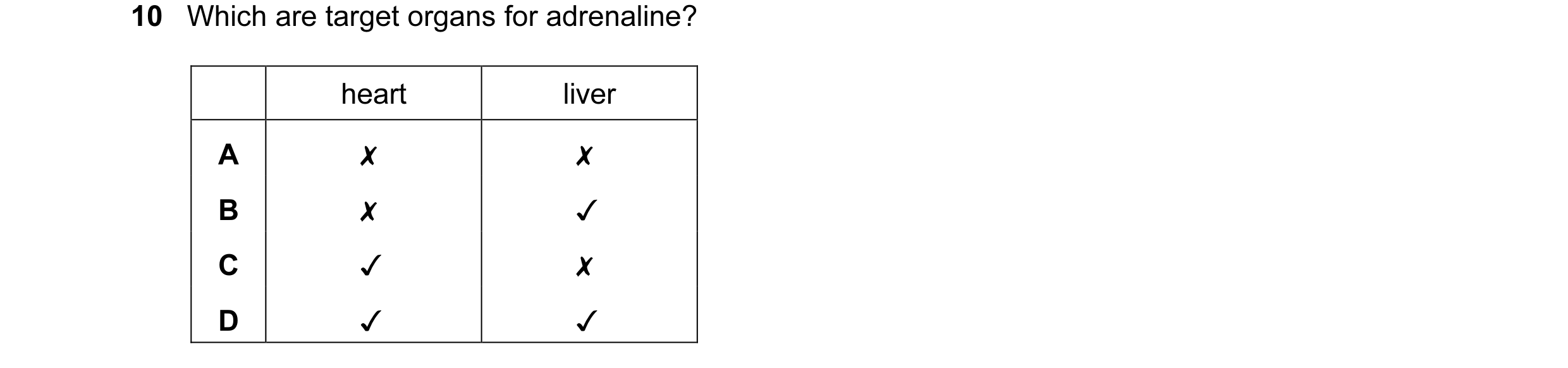

10 Which are target organs for adrenaline? heart liver x x loom > x v v x v v

1 marks

Answer: D

This question in 0654/13 May/June 2015

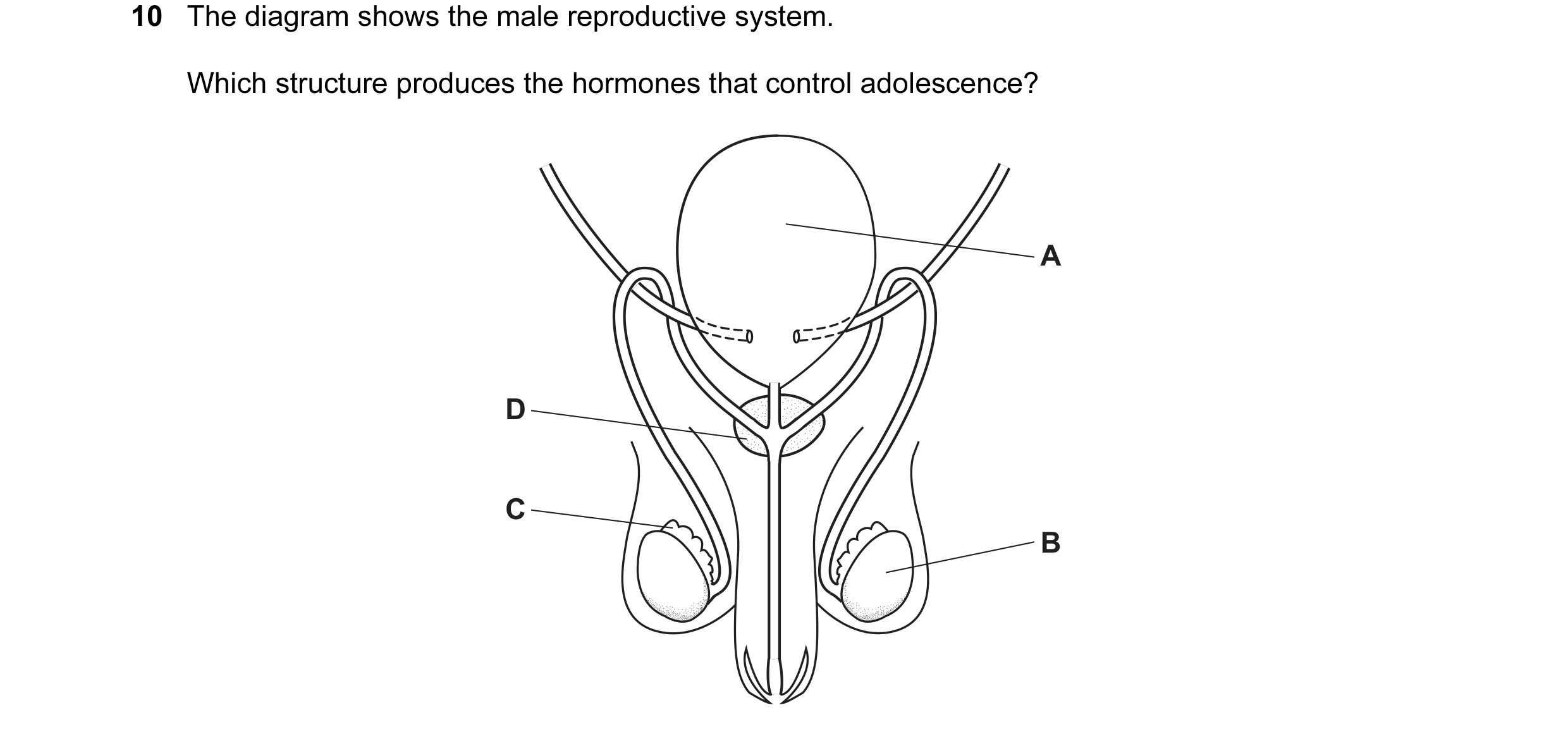

11 The diagram shows the male reproductive system. Which structure produces the hormones that control adolescence? A D C B

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2015

10 The diagram shows the male reproductive system. Which structure produces the hormones that control adolescence? A D C B

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2015

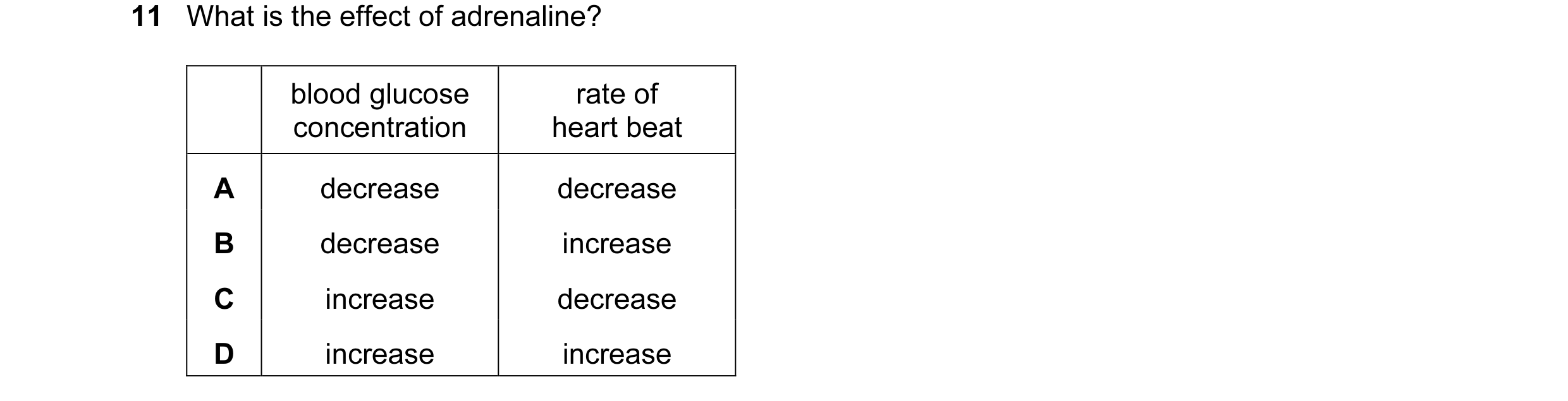

11 What is the effect of adrenaline? blood glucose rate of concentration heart beat A decrease decrease B decrease increase C increase decrease D increase increase

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2015

10 The diagram shows the male reproductive system. Which structure produces the hormones that control adolescence? A D C B

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2015

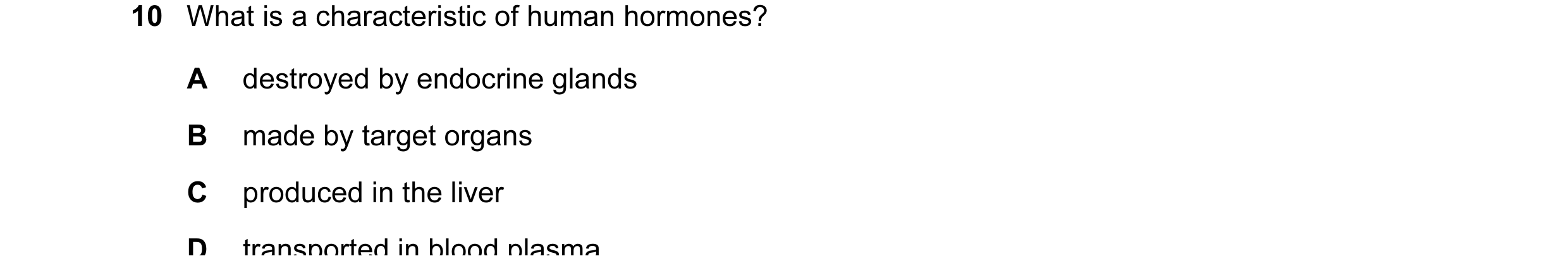

10 What is a characteristic of human hormones? A destroyed by endocrine glands B made by target organs C produced in the liver D transported in blood plasma

1 marks

Answer: D

This question in 0654/11 May/June 2016

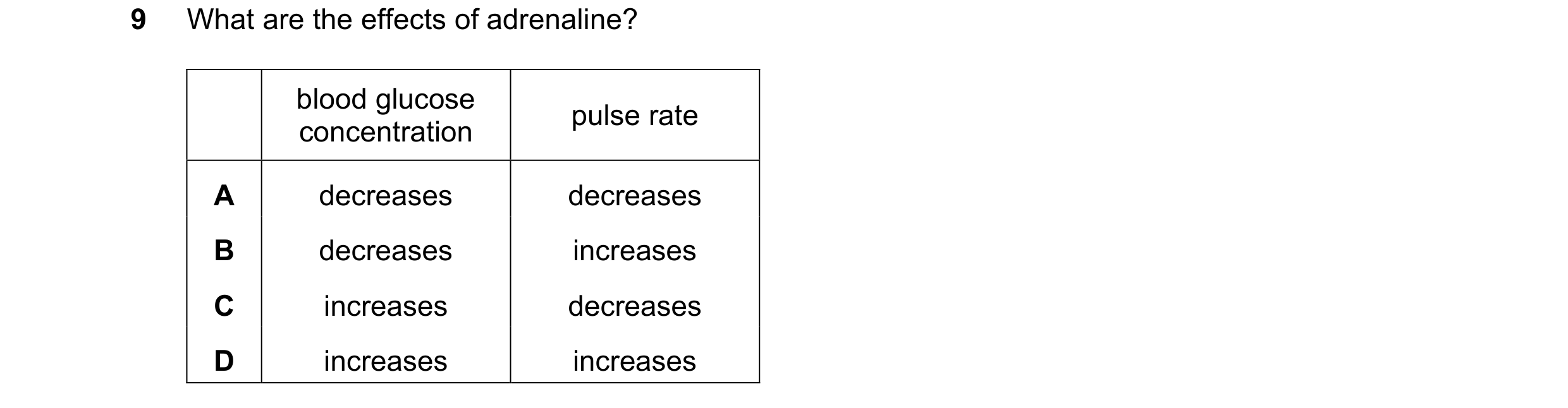

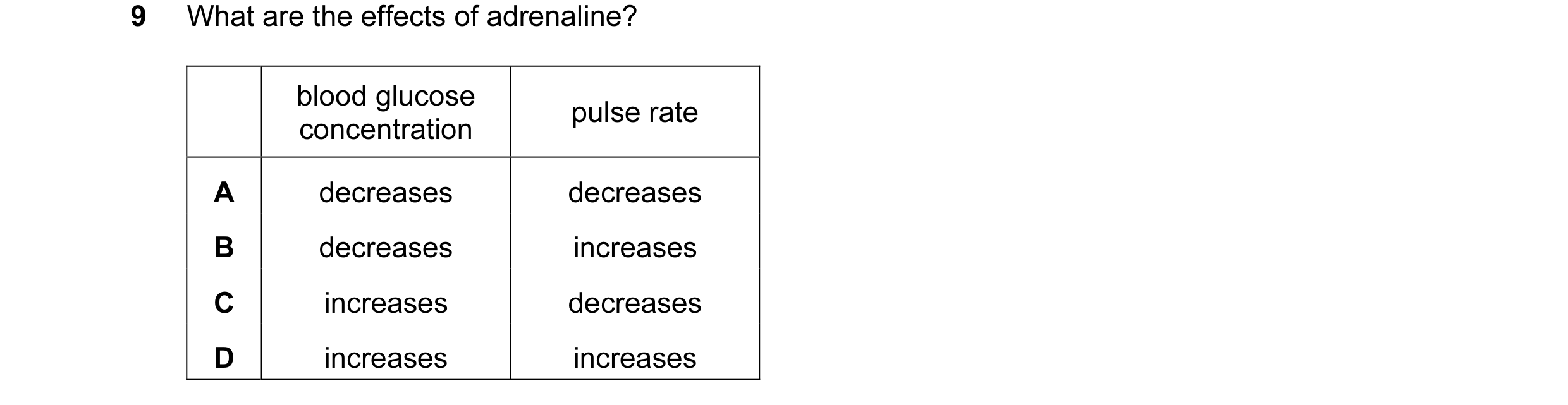

9 What are the effects of adrenaline? blood glucose pulse rate concentration A decreases decreases B decreases increases C increases decreases D increases increases

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2016

9 What are the effects of adrenaline? blood glucose pulse rate concentration A decreases decreases B decreases increases C increases decreases D increases increases

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2016

9 What are the effects of adrenaline? blood glucose pulse rate concentration A decreases decreases B decreases increases C increases decreases D increases increases

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2016

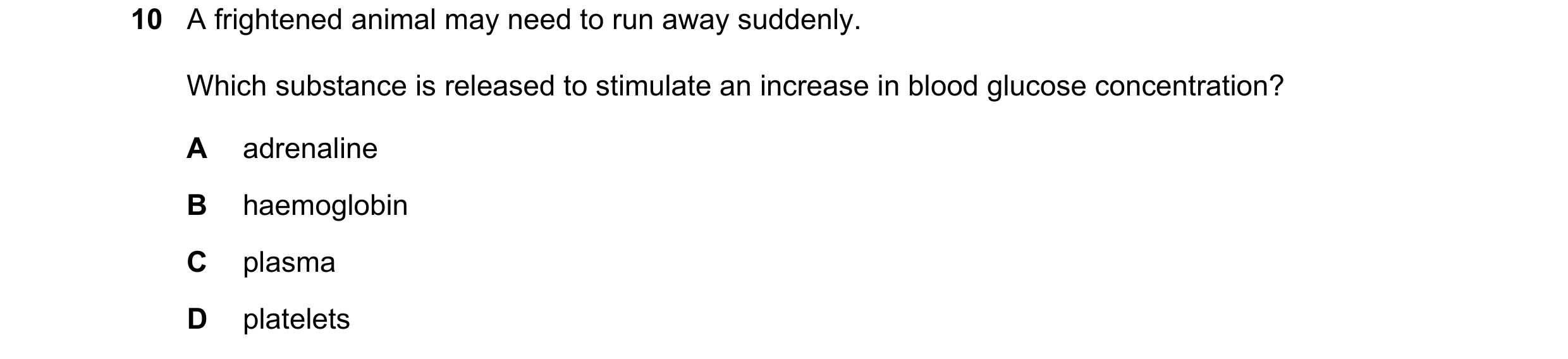

10 A frightened animal may need to run away suddenly. Which substance is released to stimulate an increase in blood glucose concentration? A adrenaline B haemoglobin C plasma D platelets

1 marks

Answer: A

This question in 0654/11 May/June 2017

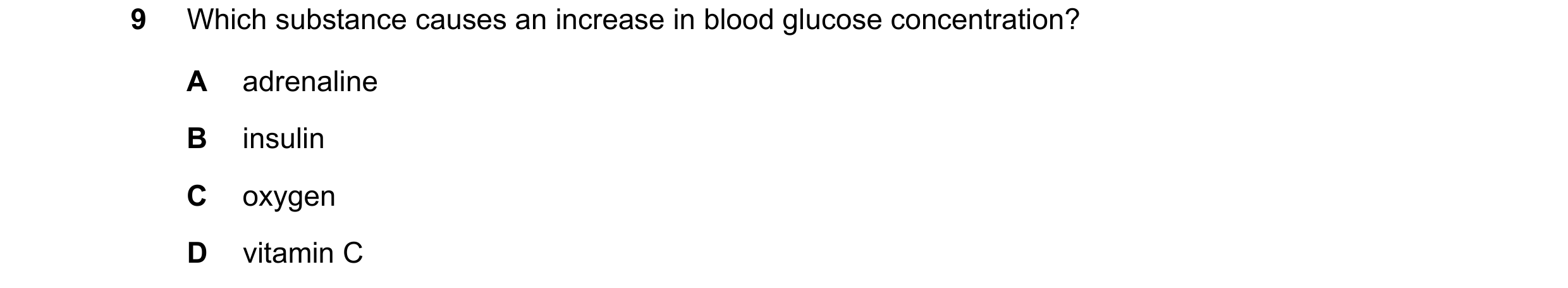

9 Which substance causes an increase in blood glucose concentration? A adrenaline B insulin C oxygen D vitamin C

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2017

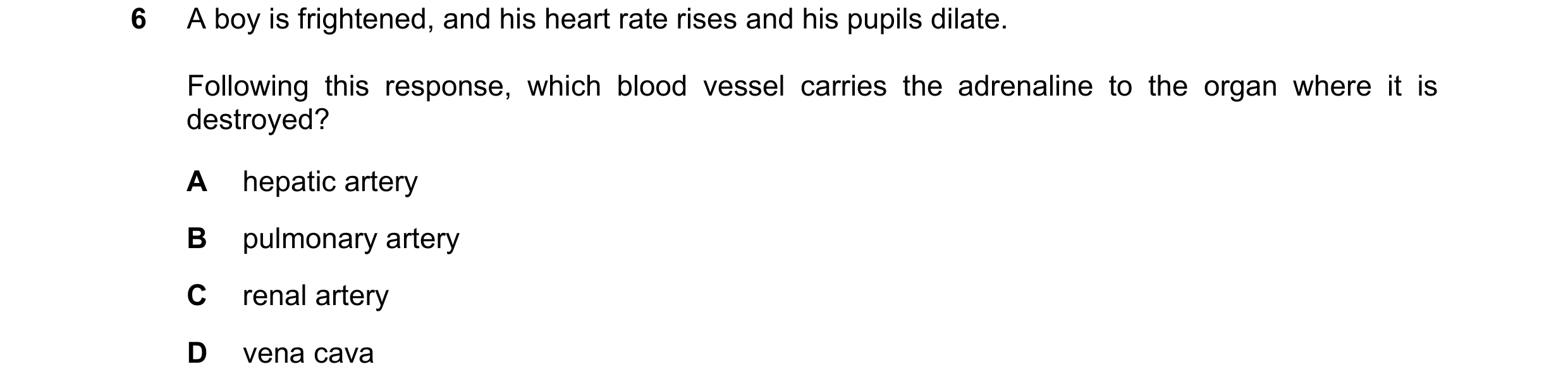

6 A boy is frightened, and his heart rate rises and his pupils dilate. Following this response, which blood vessel carries the adrenaline to the organ where it is destroyed? A hepatic artery B pulmonary artery C renal artery D vena cava

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2018

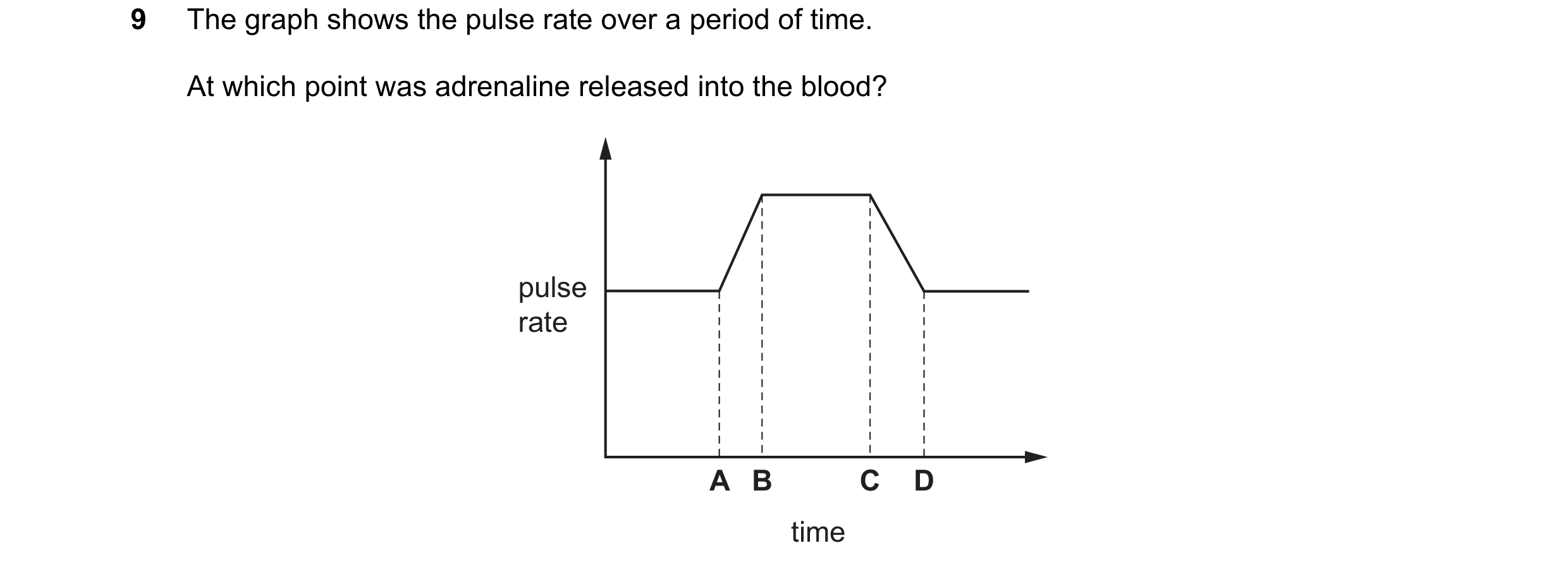

9 The graph shows the pulse rate over a period of time. At which point was adrenaline released into the blood? pulse rate A B C D time

1 marks

Answer: A

This question in 0654/11 Oct/Nov 2019

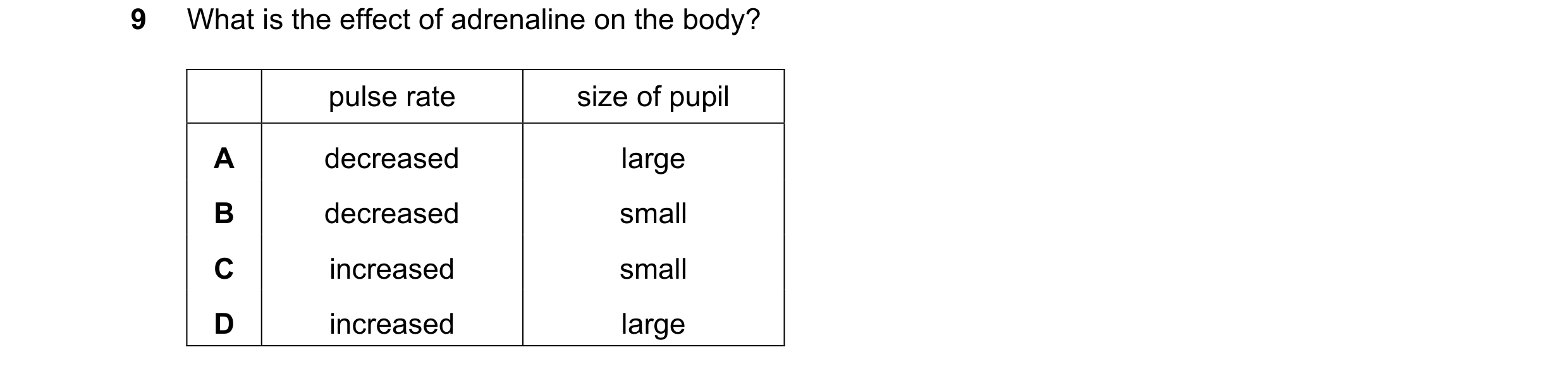

9 What is the effect of adrenaline on the body? pulse rate size of pupil A decreased large B decreased small C increased small D increased large

1 marks

Answer: D

This question in 0654/12 Feb/March 2021

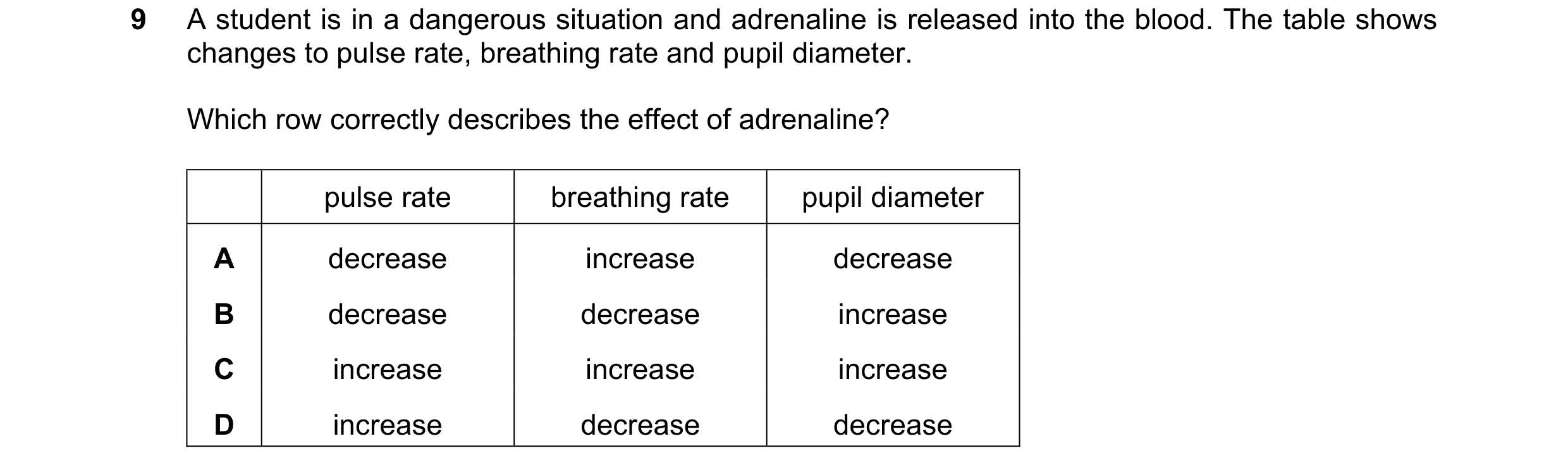

9 A student is in a dangerous situation and adrenaline is released into the blood. The table shows changes to pulse rate, breathing rate and pupil diameter. Which row correctly describes the effect of adrenaline? pulse rate breathing rate pupil diameter A decrease increase decrease B decrease decrease increase C increase increase increase D increase decrease decrease

1 marks

Answer: C

This question in 0654/12 May/June 2021

9 A student is in a dangerous situation and adrenaline is released into the blood. The table shows changes to pulse rate, breathing rate and pupil diameter. Which row correctly describes the effect of adrenaline? pulse rate breathing rate pupil diameter A decrease increase decrease B decrease decrease increase C increase increase increase D increase decrease decrease

1 marks

Answer: C

This question in 0654/13 May/June 2021

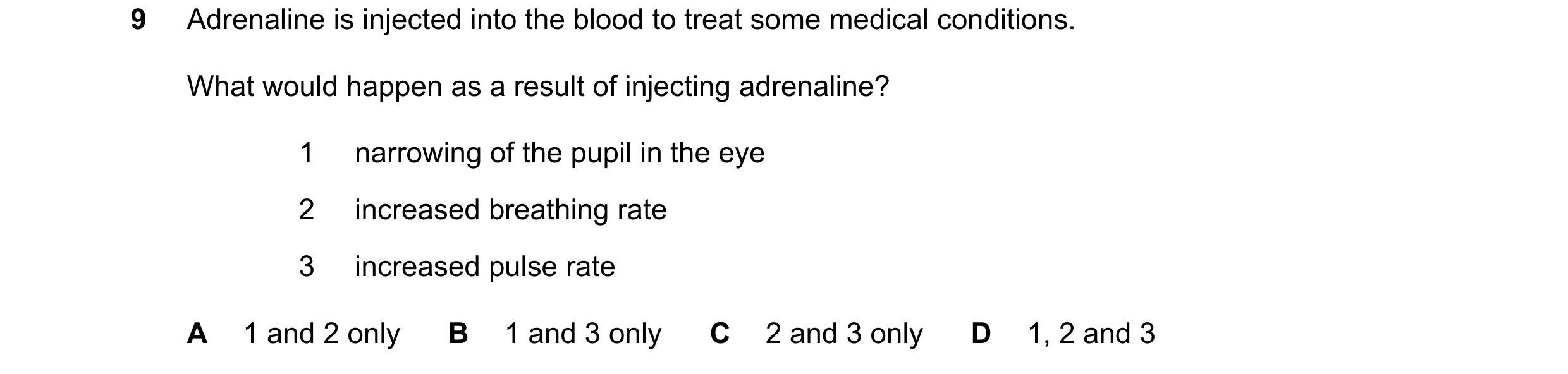

9 Adrenaline is injected into the blood to treat some medical conditions. What would happen as a result of injecting adrenaline? 1 narrowing of the pupil in the eye 2 increased breathing rate 3 increased pulse rate A 1 and 2 only B 1 and 3 only C 2 and 3 only D 1, 2 and 3

1 marks

Answer: C

This question in 0654/12 Oct/Nov 2021

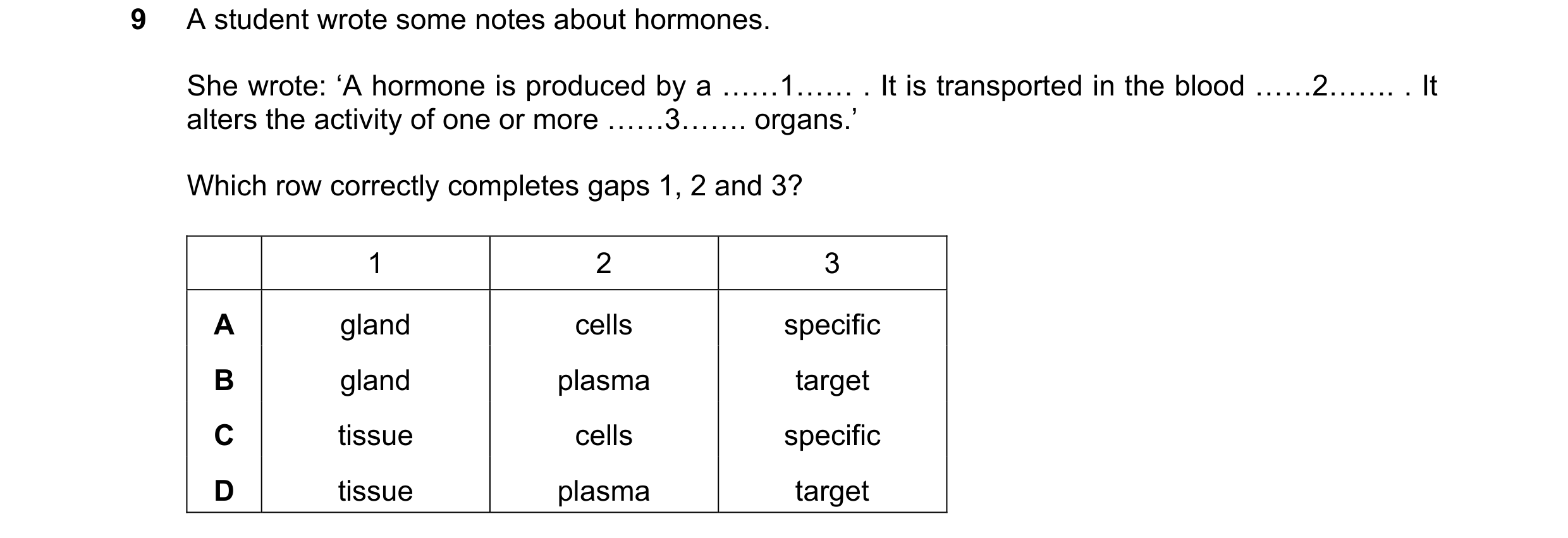

9 A student wrote some notes about hormones. She wrote: ‘A hormone is produced by a ……1…… . It is transported in the blood ……2……. . It alters the activity of one or more ……3……. organs.’ Which row correctly completes gaps 1, 2 and 3? 1 2 3 A gland cells specific B gland plasma target C tissue cells specific D tissue plasma target

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2021

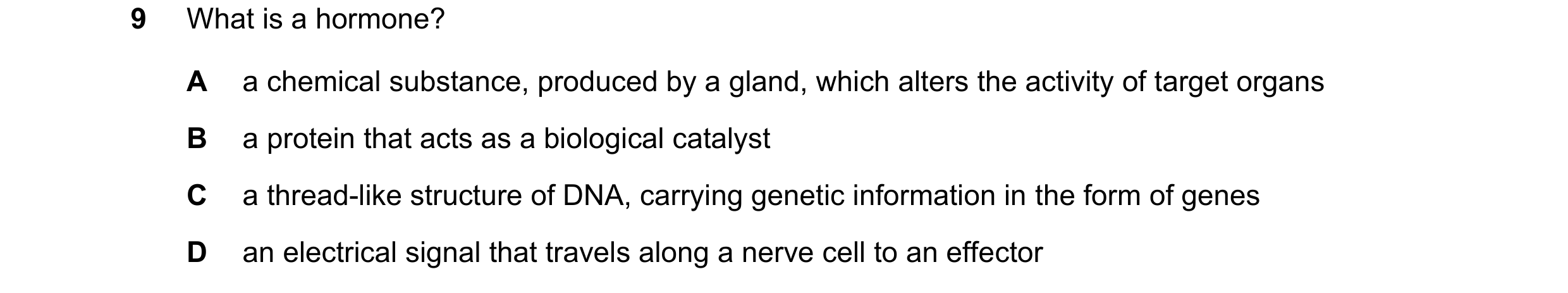

9 What is a hormone? A a chemical substance, produced by a gland, which alters the activity of target organs B a protein that acts as a biological catalyst C a thread-like structure of DNA, carrying genetic information in the form of genes D an electrical signal that travels along a nerve cell to an effector

1 marks

Answer: A

This question in 0654/12 May/June 2022

9 What is a hormone? A a chemical substance, produced by a gland, which alters the activity of target organs B a protein that acts as a biological catalyst C a thread-like structure of DNA, carrying genetic information in the form of genes D an electrical signal that travels along a nerve cell to an effector

1 marks

Answer: A

This question in 0654/13 May/June 2022

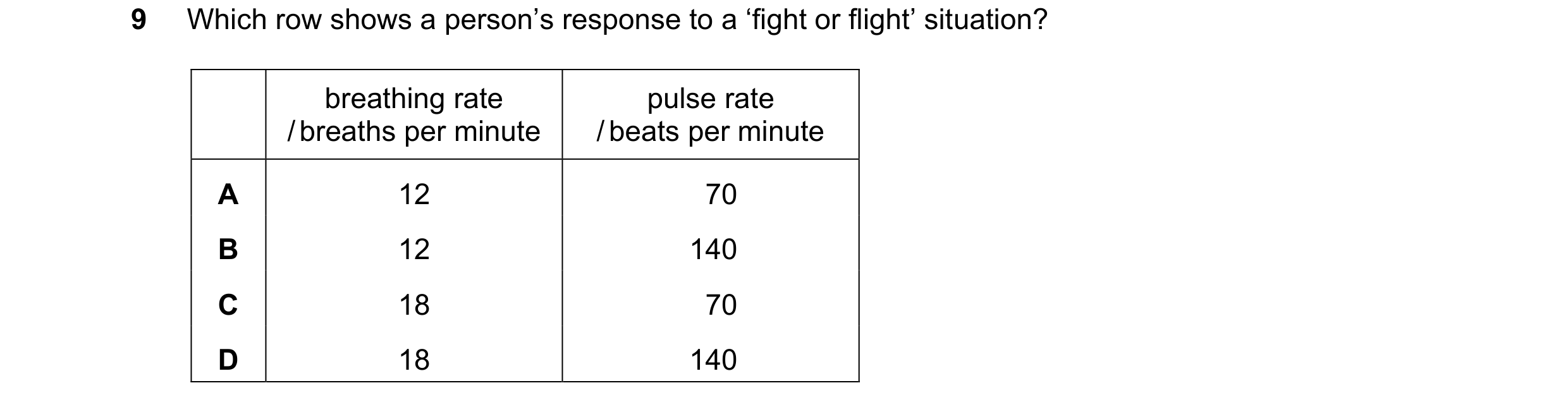

9 Which row shows a person’s response to a ‘fight or flight’ situation? breathing rate pulse rate / breaths per minute / beats per minute A 12 70 B 12 140 C 18 70 D 18 140

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2022

9 The graph shows the pulse rate over a period of time. At which point is adrenaline released into the blood? pulse rate A B C D time

1 marks

Answer: A

This question in 0654/12 Feb/March 2023

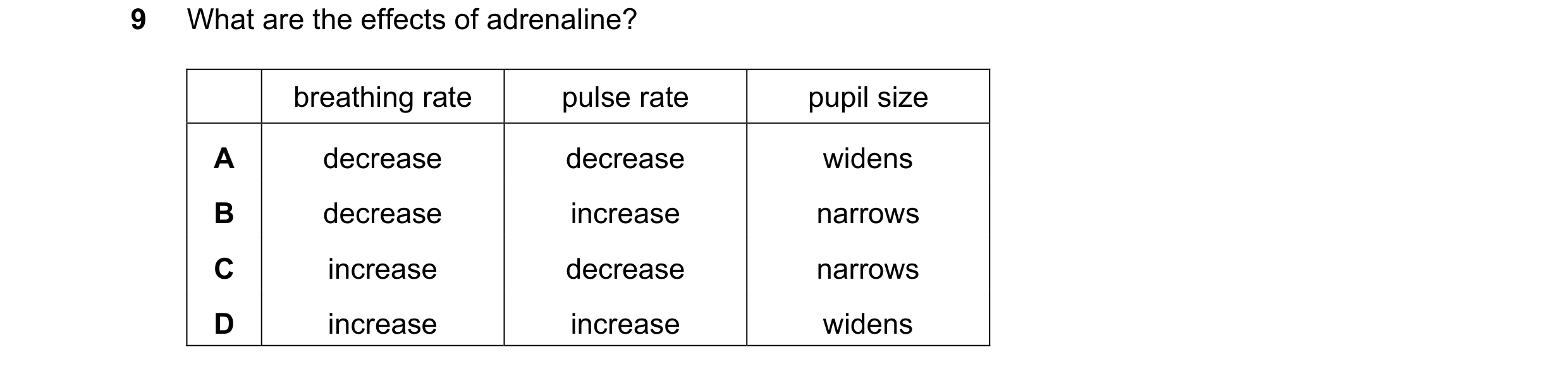

9 What are the effects of adrenaline? breathing rate pulse rate pupil size A decrease decrease widens B decrease increase narrows C increase decrease narrows D increase increase widens

1 marks

Answer: D

This question in 0654/11 May/June 2023

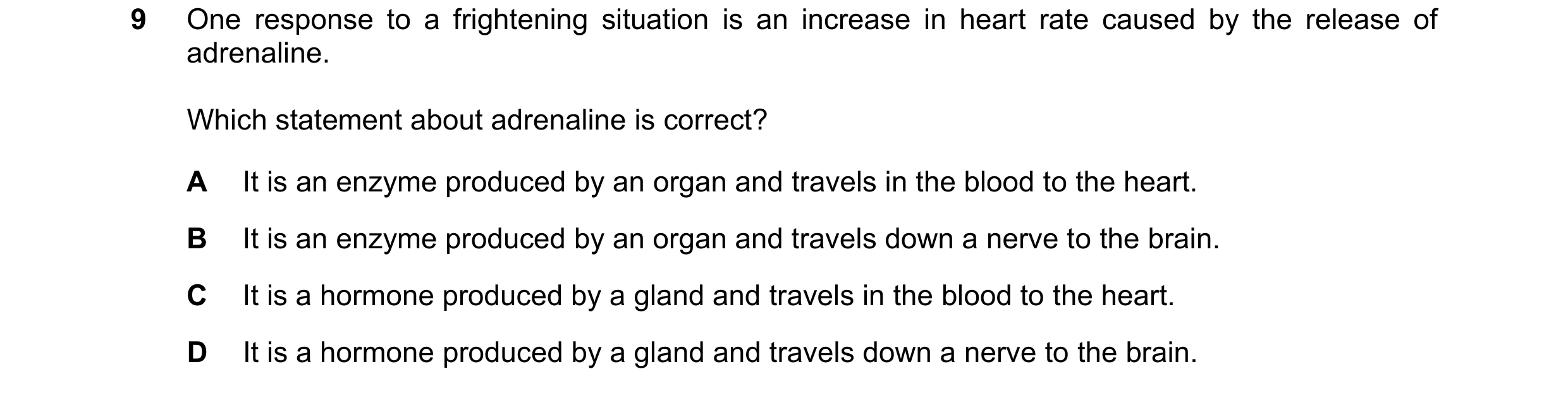

9 One response to a frightening situation is an increase in heart rate caused by the release of adrenaline. Which statement about adrenaline is correct? A It is an enzyme produced by an organ and travels in the blood to the heart. B It is an enzyme produced by an organ and travels down a nerve to the brain. C It is a hormone produced by a gland and travels in the blood to the heart. D It is a hormone produced by a gland and travels down a nerve to the brain.

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2023

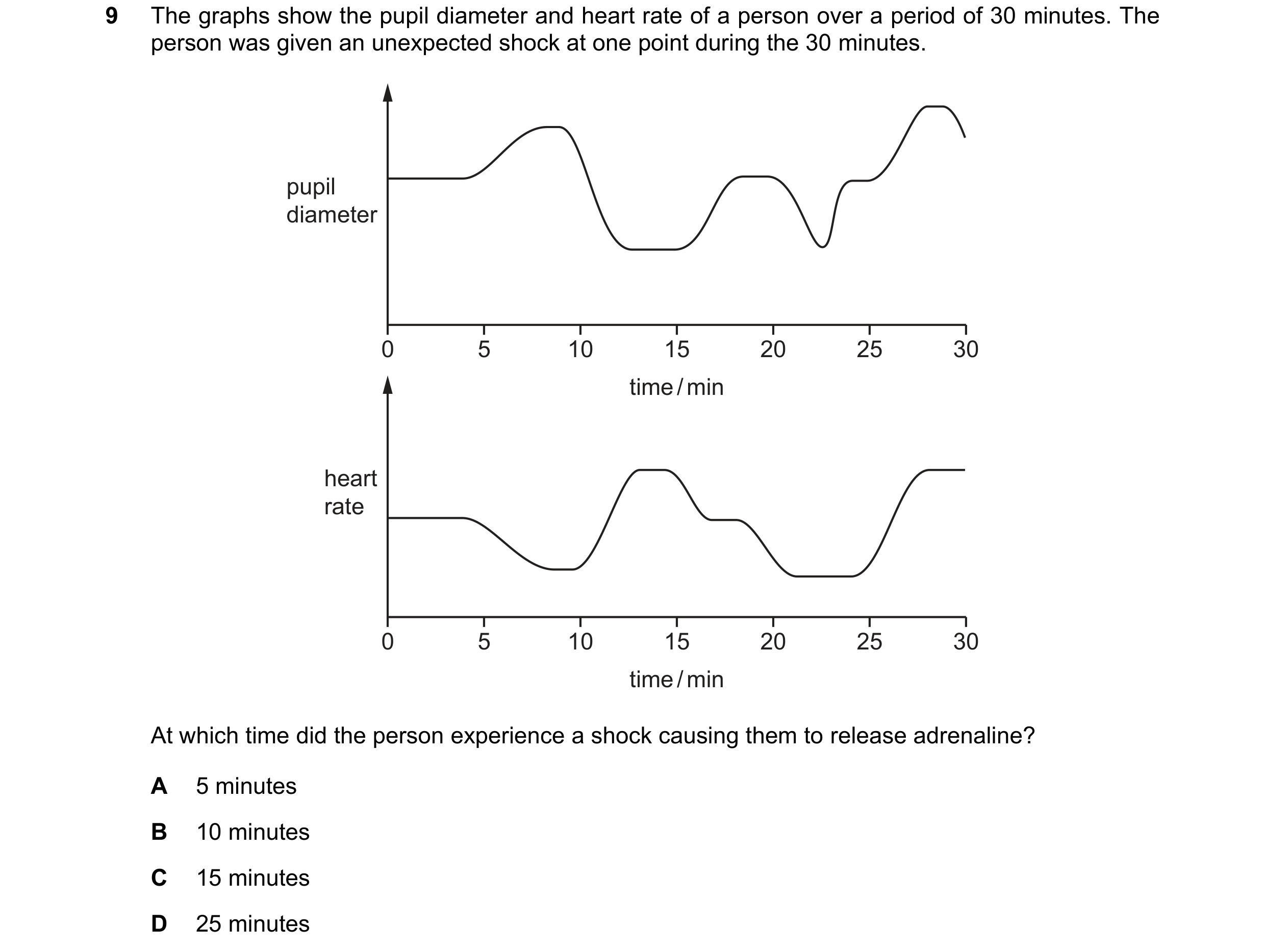

9 The graphs show the pupil diameter and heart rate of a person over a period of 30 minutes. The person was given an unexpected shock at one point during the 30 minutes. pupil diameter 0 5 10 15 20 25 30 time / min heart rate 0 5 10 15 20 25 30 time / min At which time did the person experience a shock causing them to release adrenaline? A 5 minutes B 10 minutes C 15 minutes D 25 minutes

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2023

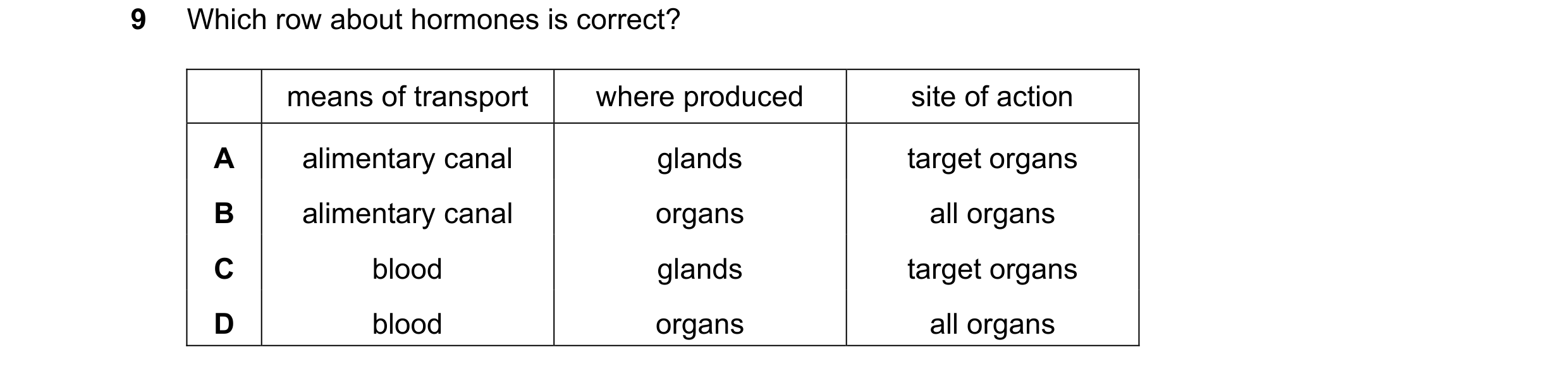

9 Which row about hormones is correct? means of transport where produced site of action A alimentary canal glands target organs B alimentary canal organs all organs C blood glands target organs D blood organs all organs

1 marks

Answer: C

This question in 0654/12 May/June 2024

9 Which row about hormones is correct? means of transport where produced site of action A alimentary canal glands target organs B alimentary canal organs all organs C blood glands target organs D blood organs all organs

1 marks

Answer: C

This question in 0654/13 May/June 2024

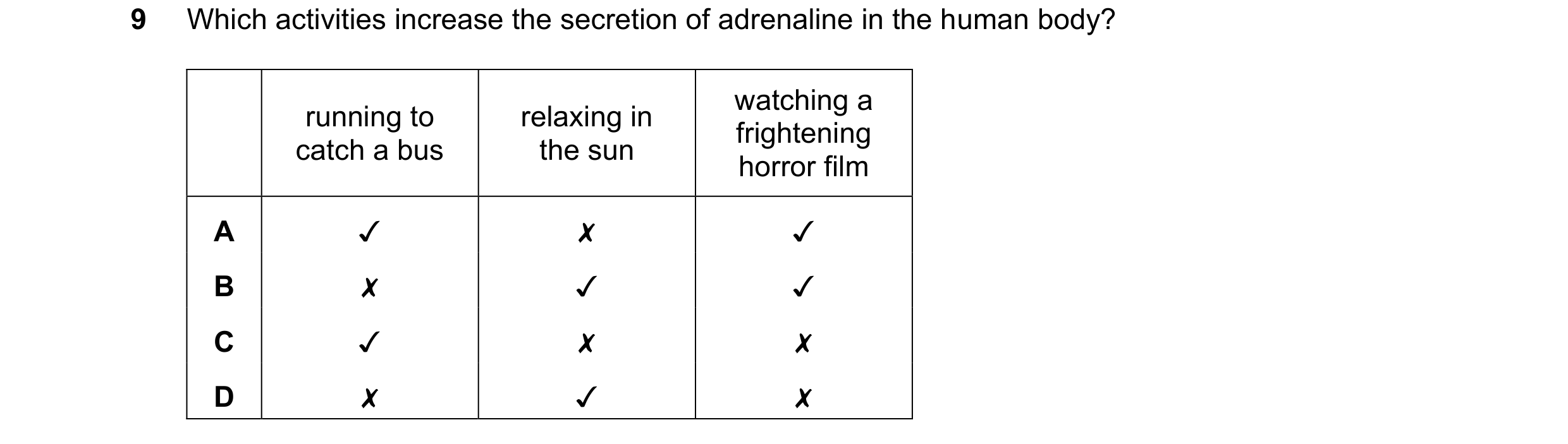

9 Which activities increase the secretion of adrenaline in the human body? running to relaxing in Wrightentag catch a bus the sun horror film A v x v B x v v Cc J x x D x v x

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2024

9 Which activities increase the secretion of adrenaline in the human body? running to relaxing in Wrightentag catch a bus the sun horror film A v x v B x v v Cc J x x D x v x

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2024

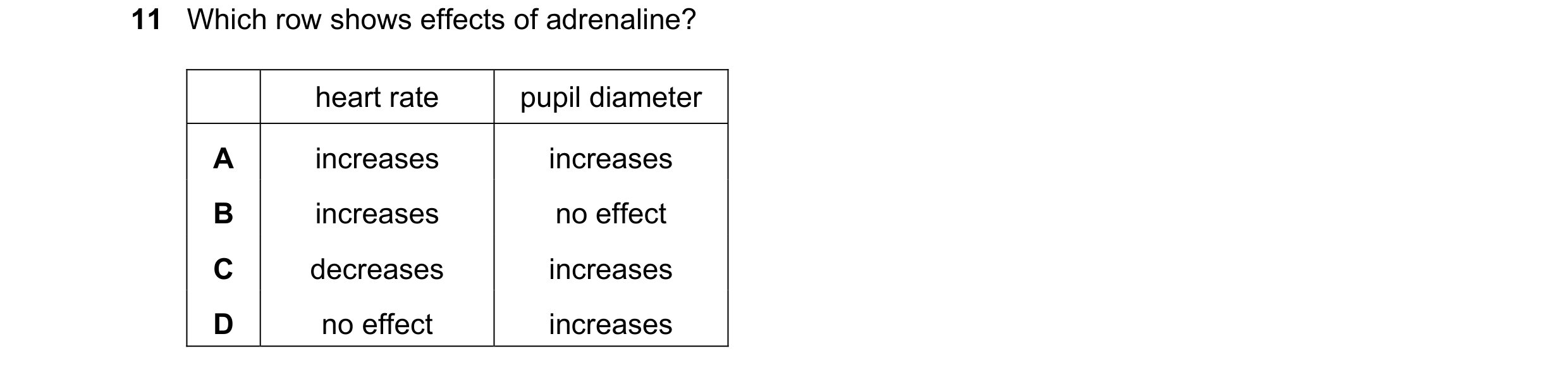

11 Which row shows effects of adrenaline? heart rate pupil diameter A increases increases B increases no effect C decreases increases D no effect increases

1 marks

Answer: A

This question in 0654/11 May/June 2025

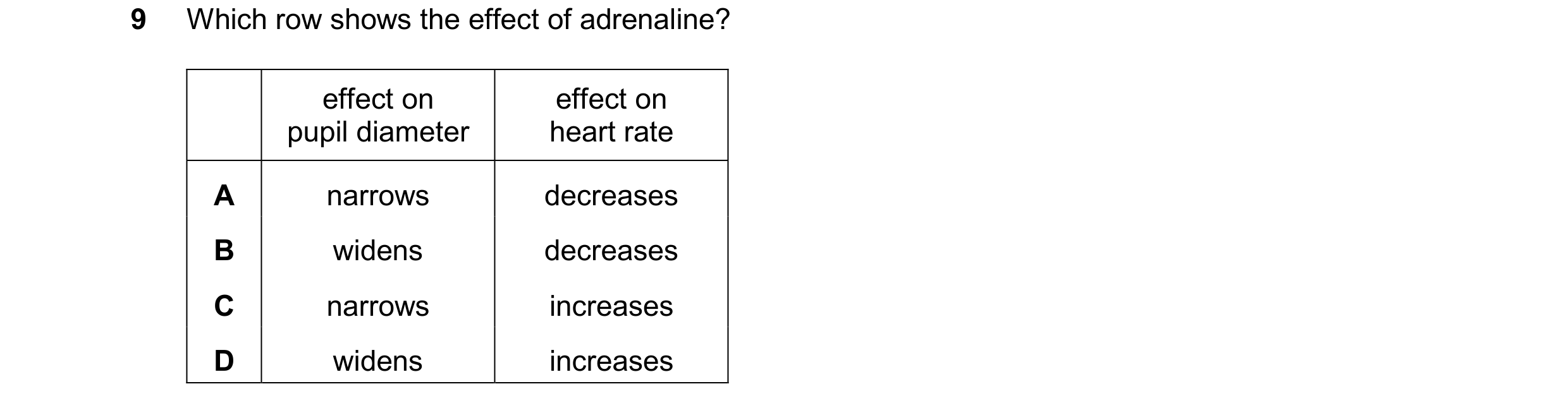

9 Which row shows the effect of adrenaline? effect on effect on pupil diameter heart rate A narrows decreases B widens decreases C narrows increases D widens increases

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2025

9 Which row shows the effect of adrenaline? effect on effect on pupil diameter heart rate A narrows decreases B widens decreases C narrows increases D widens increases

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2025
