Blood vessels — Paper 1 · IGCSE Sciences - Co-ordinated (Double) 0654

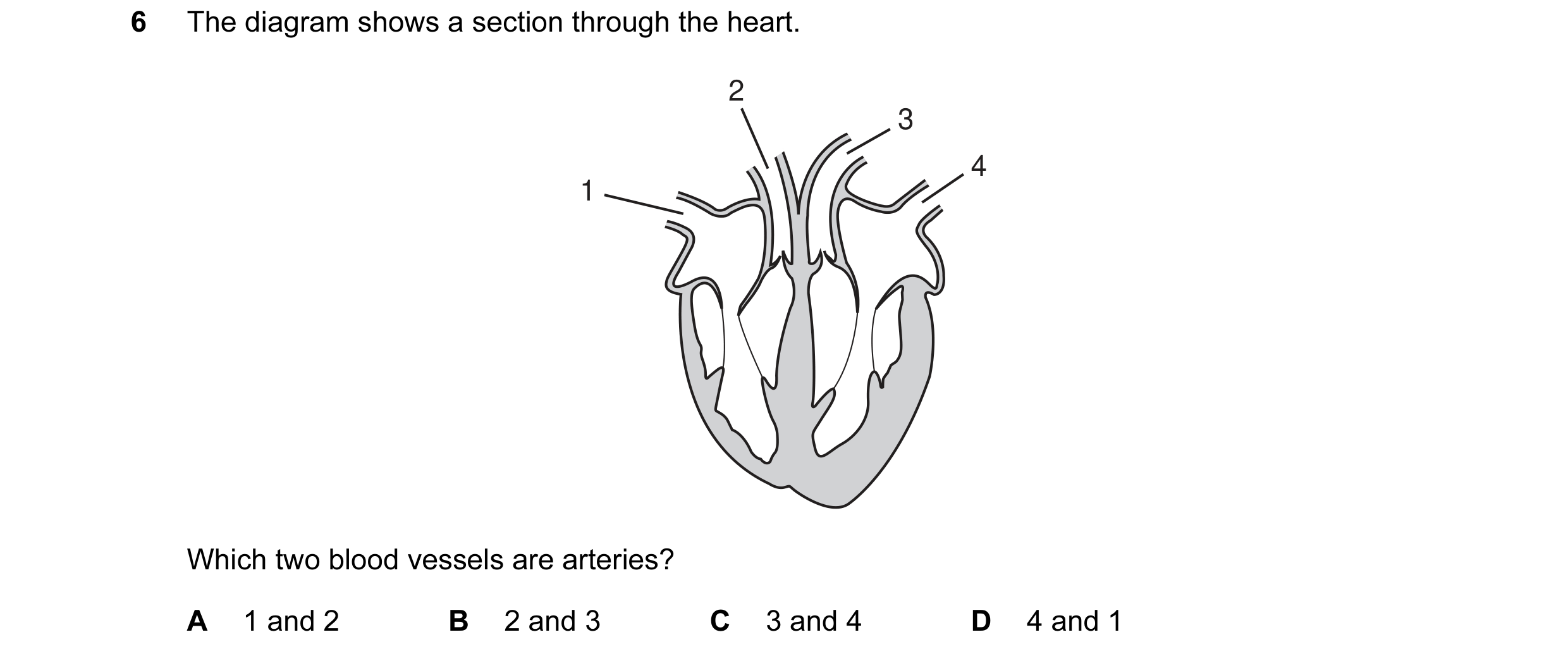

6 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/11 May/June 2005

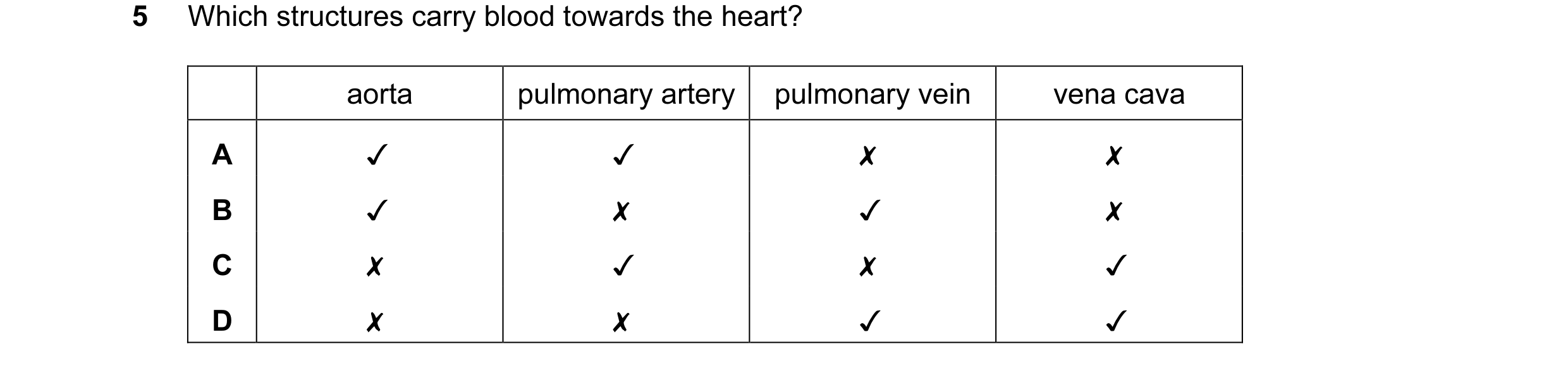

5 Which structures carry blood towards the heart? aorta pulmonary artery | pulmonary vein vena cava v x x x v x

1 marks

Answer: D

This question in 0654/11 May/June 2007

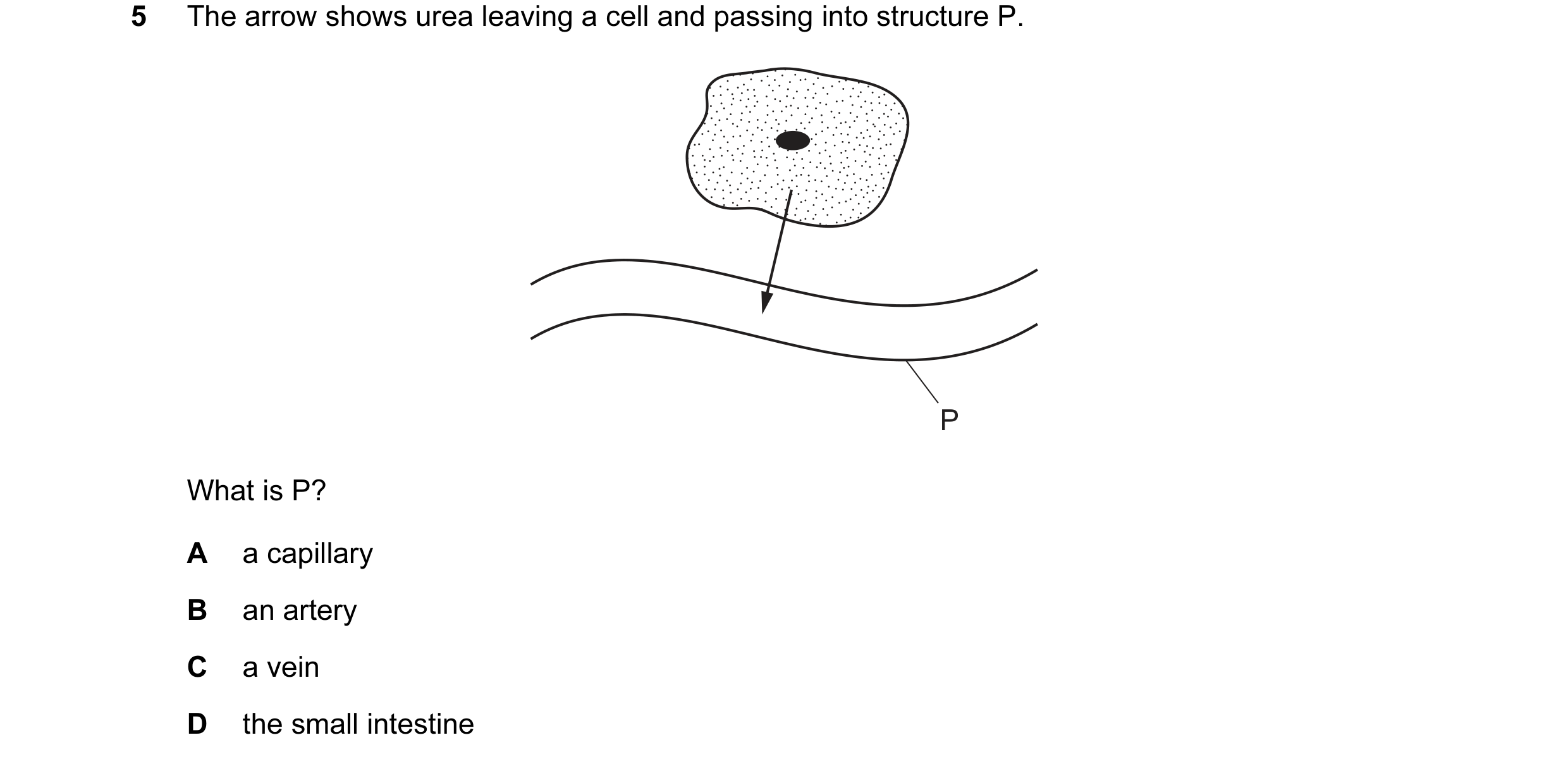

5 The arrow shows urea leaving a cell and passing into structure P. P What is P? A a capillary B an artery C a vein D the small intestine

1 marks

Answer: A

This question in 0654/11 May/June 2008

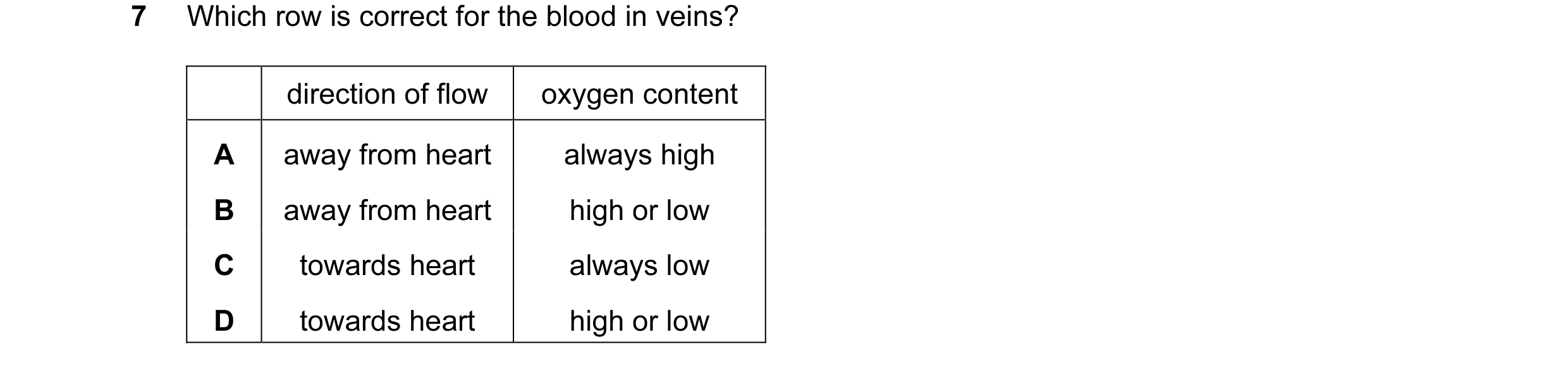

7 Which row is correct for the blood in veins? direction of flow oxygen content A away from heart always high B away from heart high or low C towards heart always low D towards heart high or low

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2010

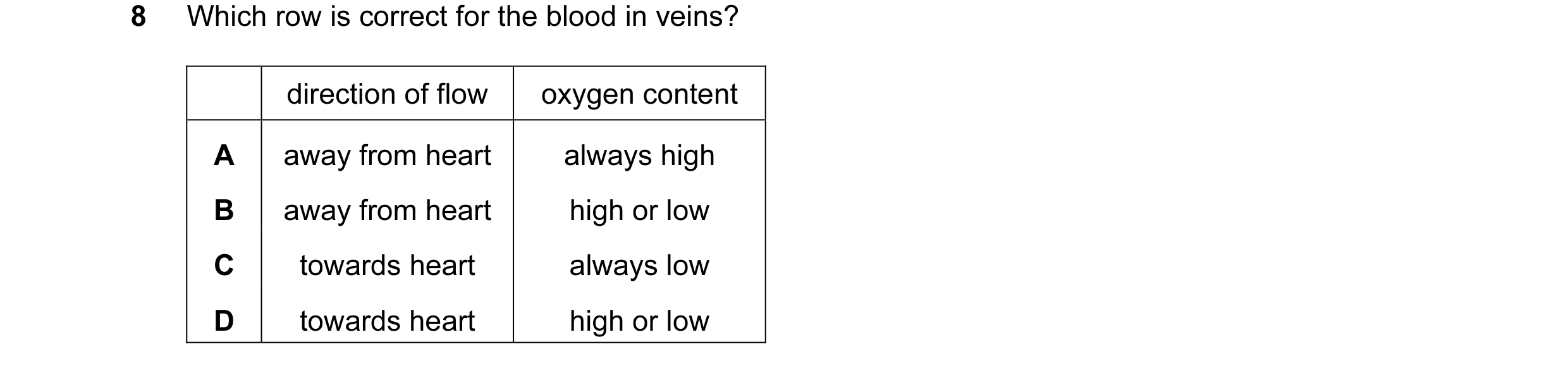

8 Which row is correct for the blood in veins? direction of flow oxygen content A away from heart always high B away from heart high or low C towards heart always low D towards heart high or low

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2010

2 Which row is correct for the blood in veins? direction of flow oxygen content A away from heart always high B away from heart high or low C towards heart always low D towards heart high or low

1 marks

Answer: D

This question in 0654/13 Oct/Nov 2010

4 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/11 May/June 2011

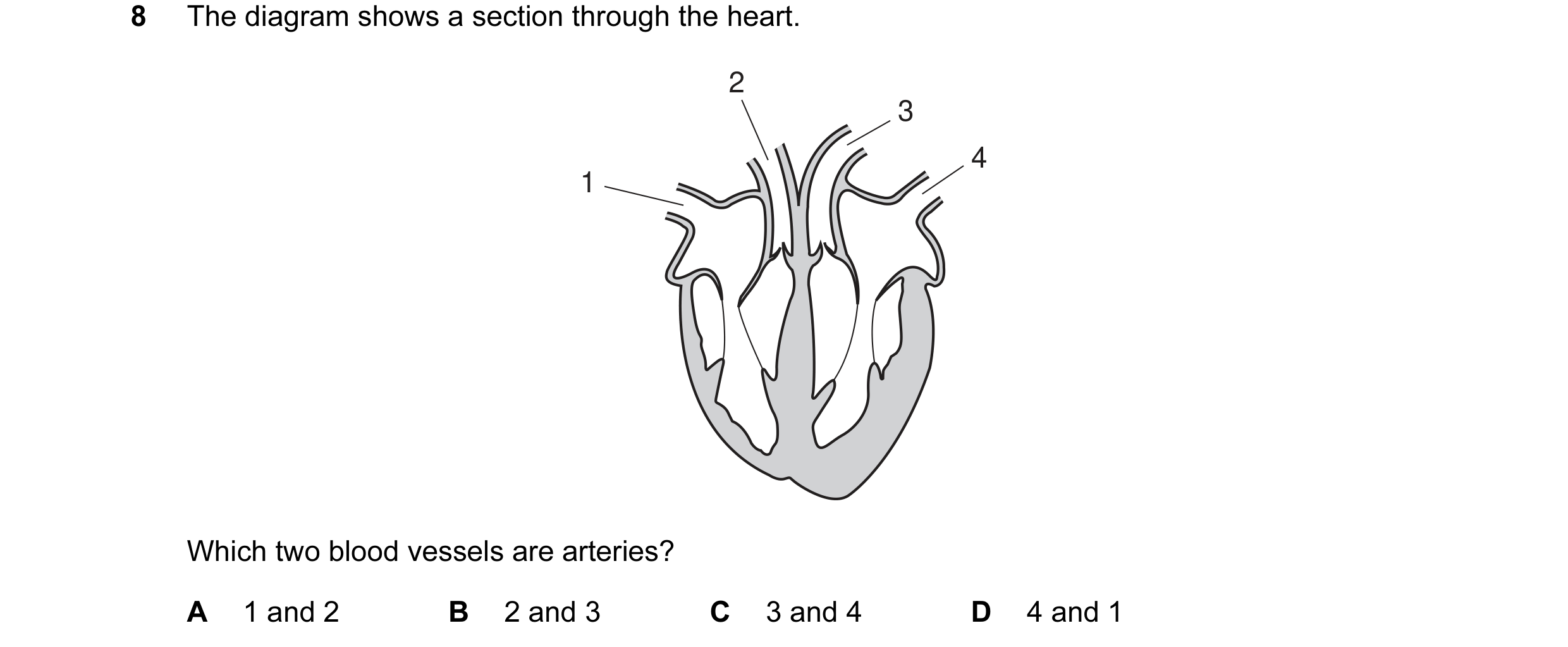

8 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/12 May/June 2011

8 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/13 May/June 2011

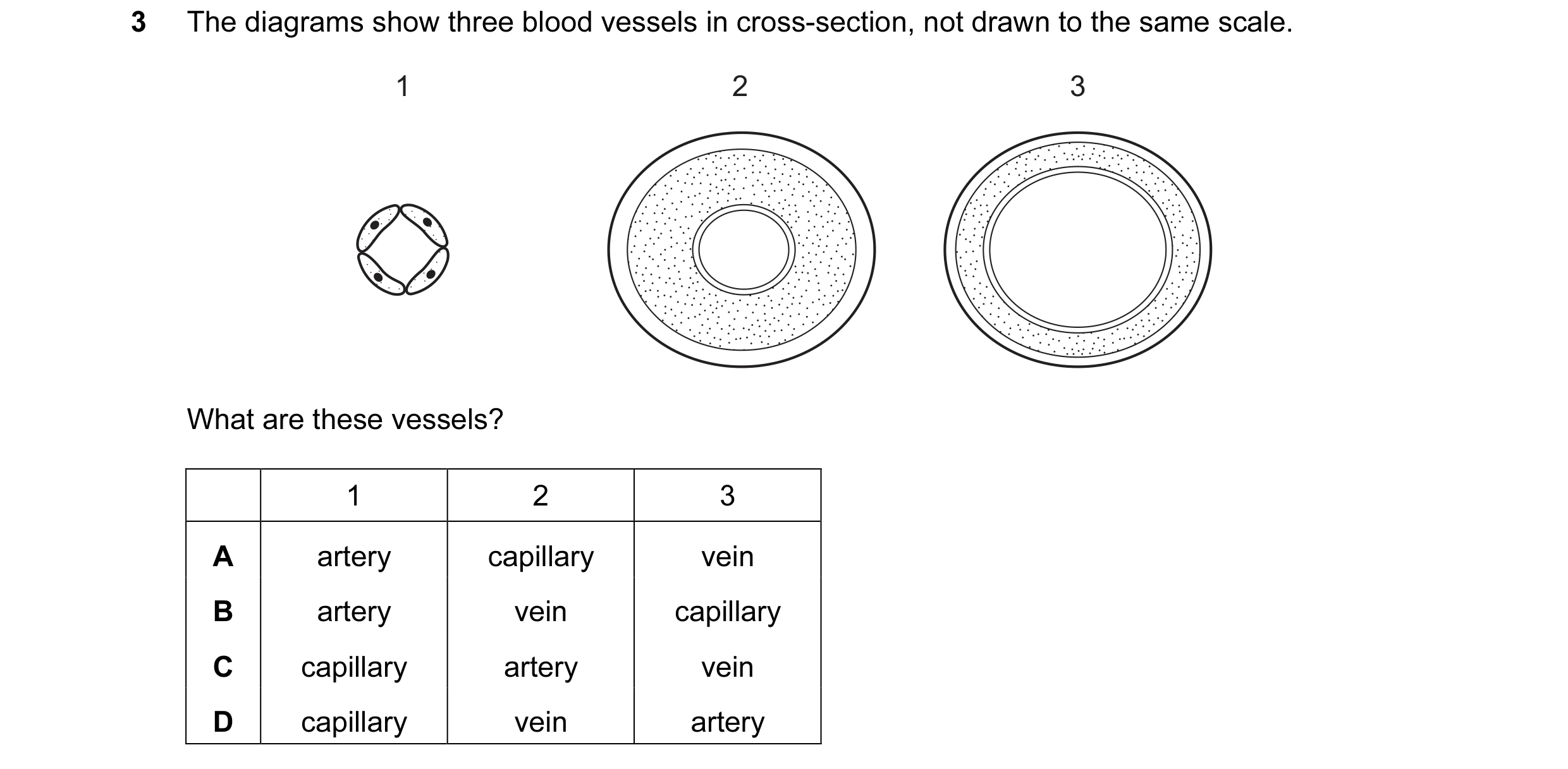

3 The diagrams show three blood vessels in cross-section, not drawn to the same scale. 1 2 3 What are these vessels? 1 2 3 A artery capillary vein B artery vein capillary C capillary artery vein D capillary vein artery

1 marks

Answer: C

This question in 0654/12 May/June 2013

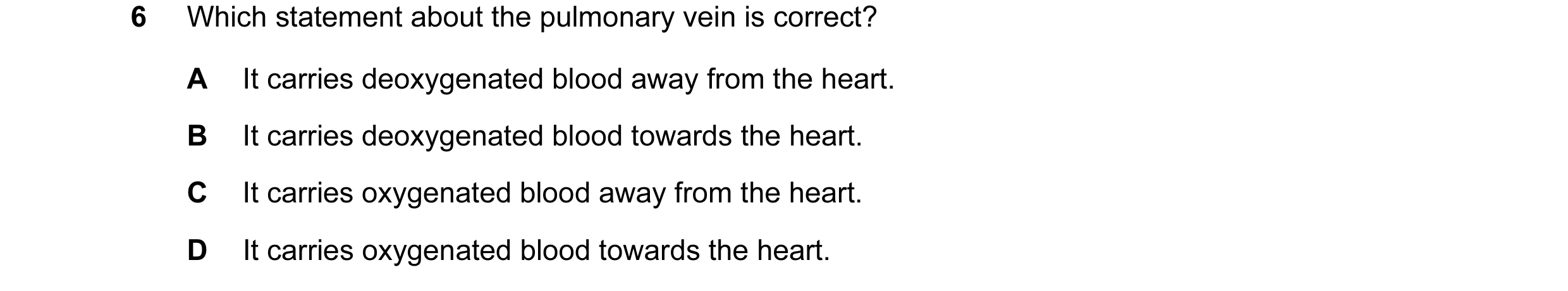

6 Which statement about the pulmonary vein is correct? A It carries deoxygenated blood away from the heart. B It carries deoxygenated blood towards the heart. C It carries oxygenated blood away from the heart. D It carries oxygenated blood towards the heart.

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2014

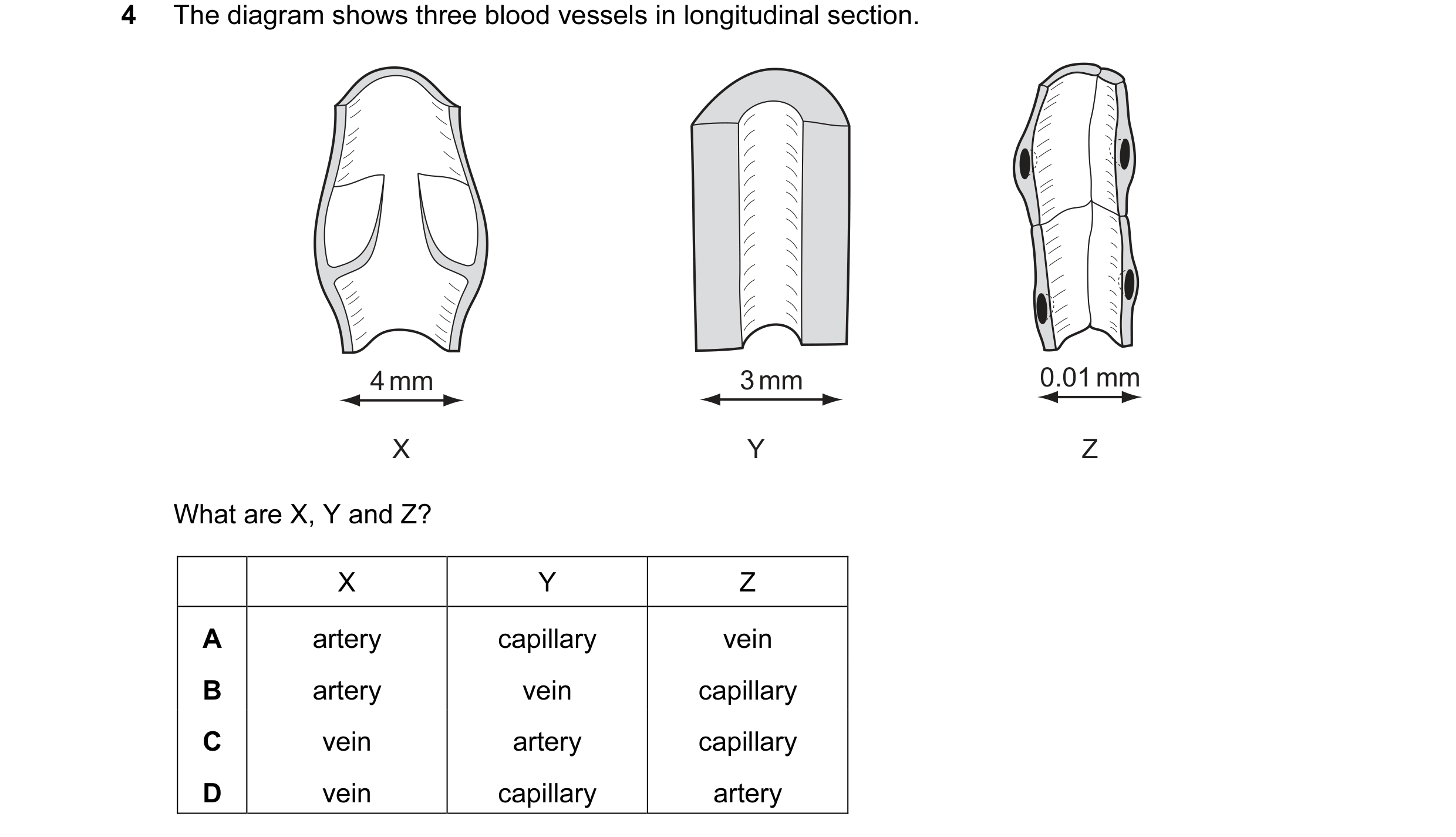

4 The diagram shows three blood vessels in longitudinal section. 4 mm 3 mm 0.01 mm X Y Z What are X, Y and Z? X Y Z A artery capillary vein B artery vein capillary C vein artery capillary D vein capillary artery

1 marks

Answer: C

This question in 0654/13 Oct/Nov 2014

7 The arrow shows urea leaving a cell and passing into structure P. P What is P? A a capillary B an artery C a vein D the small intestine

1 marks

Answer: A

This question in 0654/11 May/June 2015

5 The arrow shows urea leaving a cell and passing into structure P. P What is P? A a capillary B an artery C a vein D the small intestine

1 marks

Answer: A

This question in 0654/12 May/June 2015

7 The arrow shows urea leaving a cell and passing into structure P. P What is P? A a capillary B an artery C a vein D the small intestine

1 marks

Answer: A

This question in 0654/13 May/June 2015

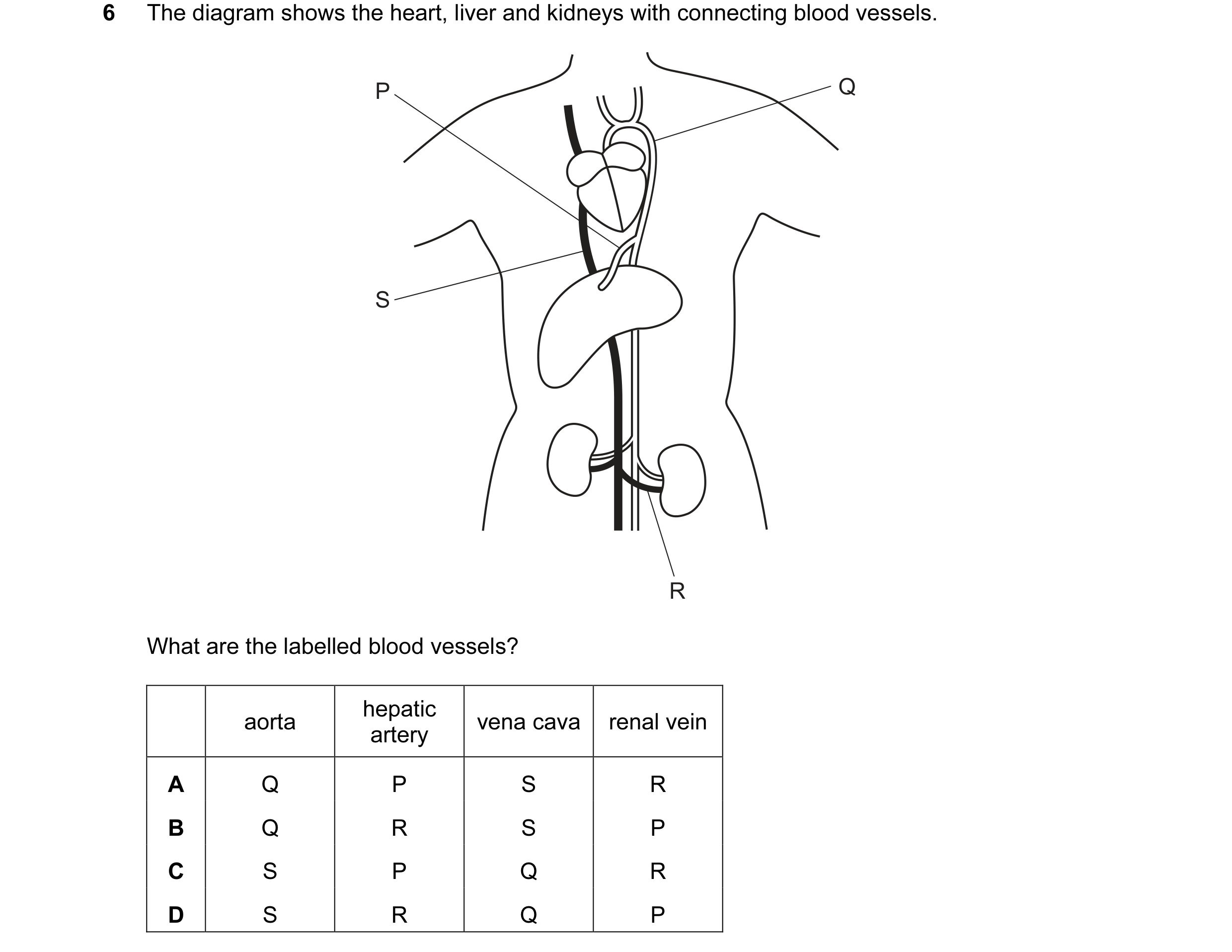

6 The diagram shows the heart, liver and kidneys with connecting blood vessels. P Q S R What are the labelled blood vessels? hepatic aorta vena cava renal vein artery A Q P S R B Q R S P C S P Q R D S R Q P

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2015

5 The diagram shows the heart, liver and kidneys with connecting blood vessels. P Q S R What are the labelled blood vessels? hepatic aorta vena cava renal vein artery A Q P S R B Q R S P C S P Q R D S R Q P

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2015

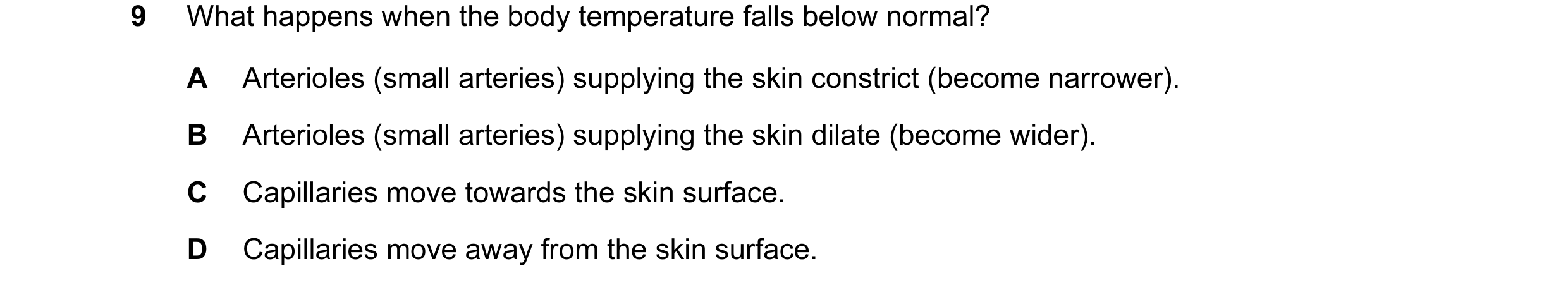

9 What happens when the body temperature falls below normal? A Arterioles (small arteries) supplying the skin constrict (become narrower). B Arterioles (small arteries) supplying the skin dilate (become wider). C Capillaries move towards the skin surface. D Capillaries move away from the skin surface.

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2015

5 The diagrams show the cross-section of three blood vessels, not drawn to the same scale. 1 2 3 What are these vessels? 1 2 3 A artery capillary vein B artery vein capillary C capillary artery vein D capillary vein artery

1 marks

Answer: C

This question in 0654/11 May/June 2016

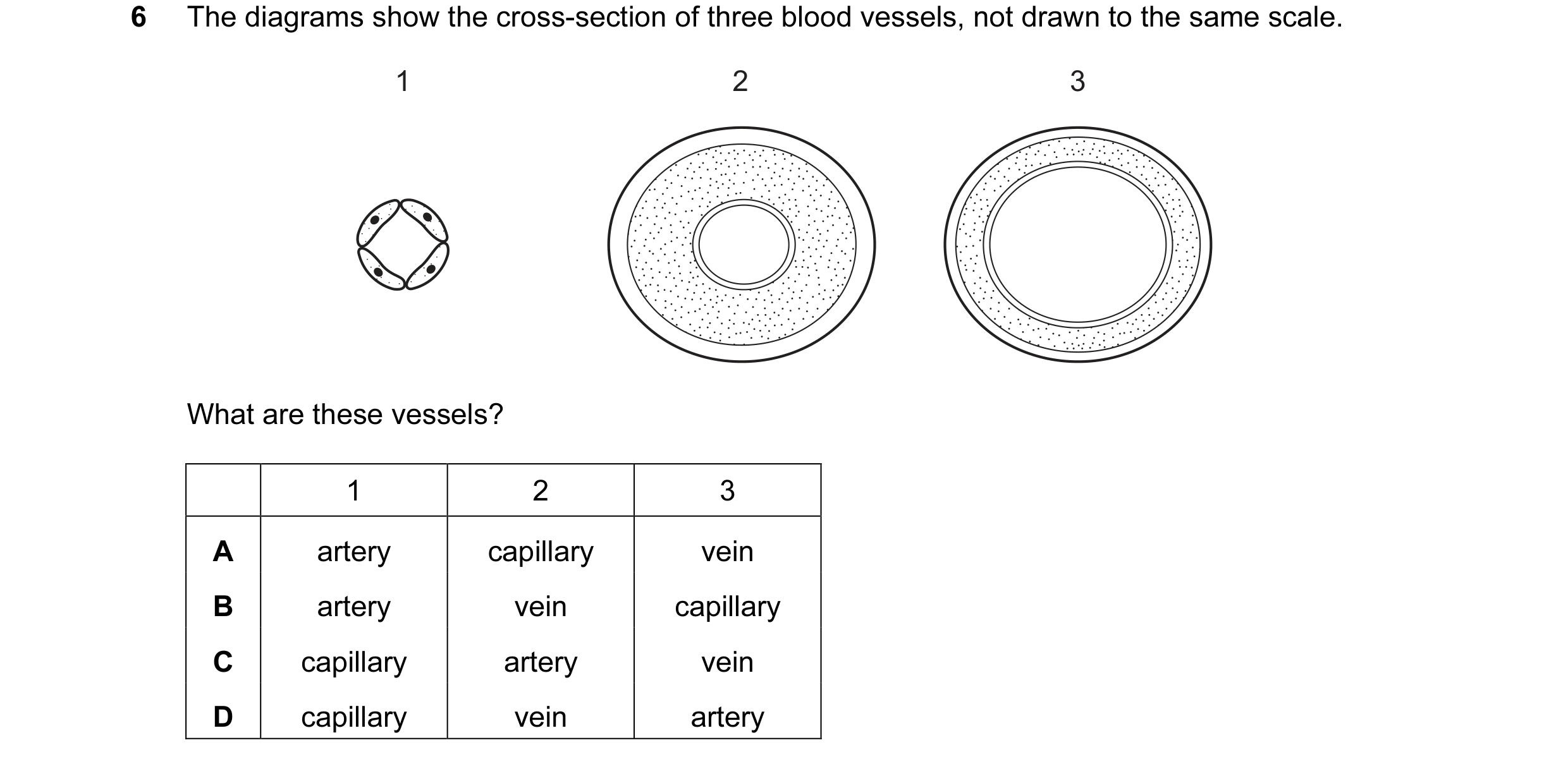

6 The diagrams show the cross-section of three blood vessels, not drawn to the same scale. 1 2 3 What are these vessels? 1 2 3 A artery capillary vein B artery vein capillary C capillary artery vein D capillary vein artery

1 marks

Answer: C

This question in 0654/12 May/June 2016

6 The diagrams show the cross-section of three blood vessels, not drawn to the same scale. 1 2 3 What are these vessels? 1 2 3 A artery capillary vein B artery vein capillary C capillary artery vein D capillary vein artery

1 marks

Answer: C

This question in 0654/13 May/June 2016

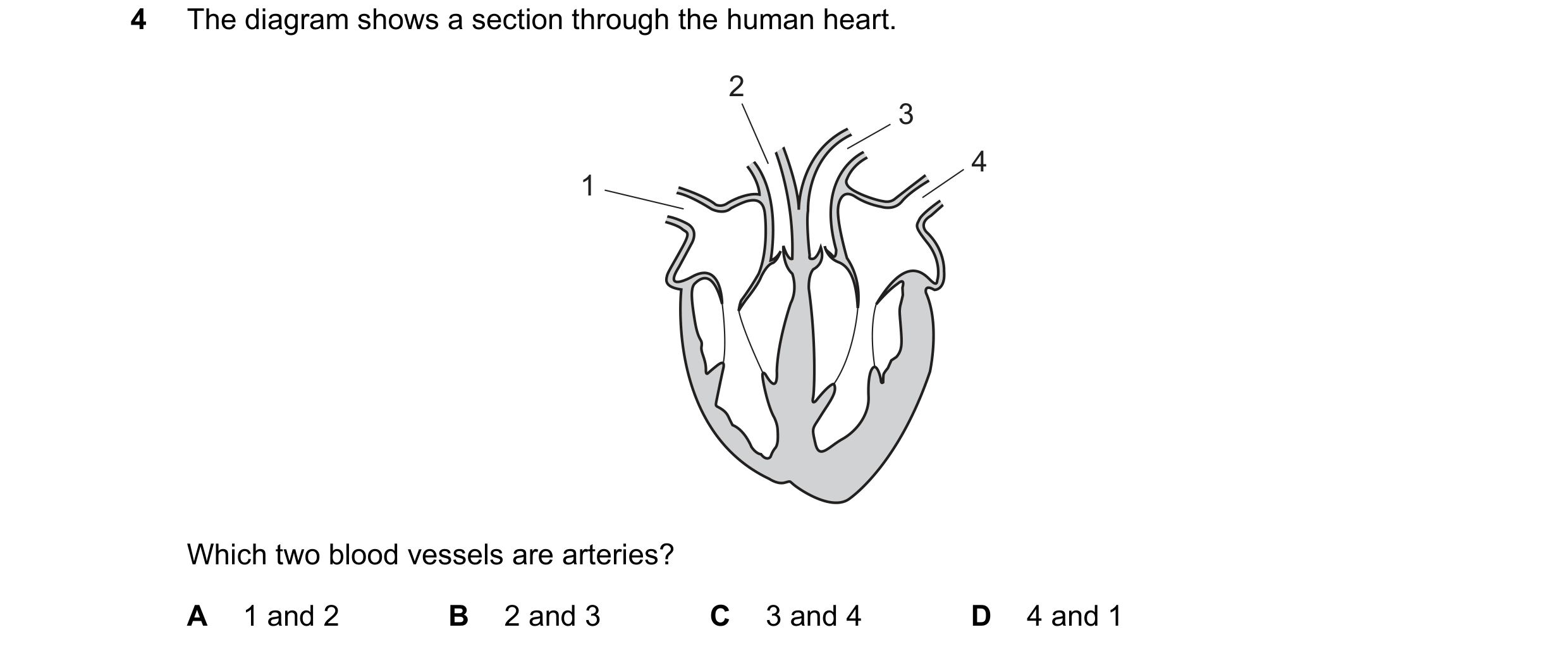

4 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2016

6 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2016

4 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2016

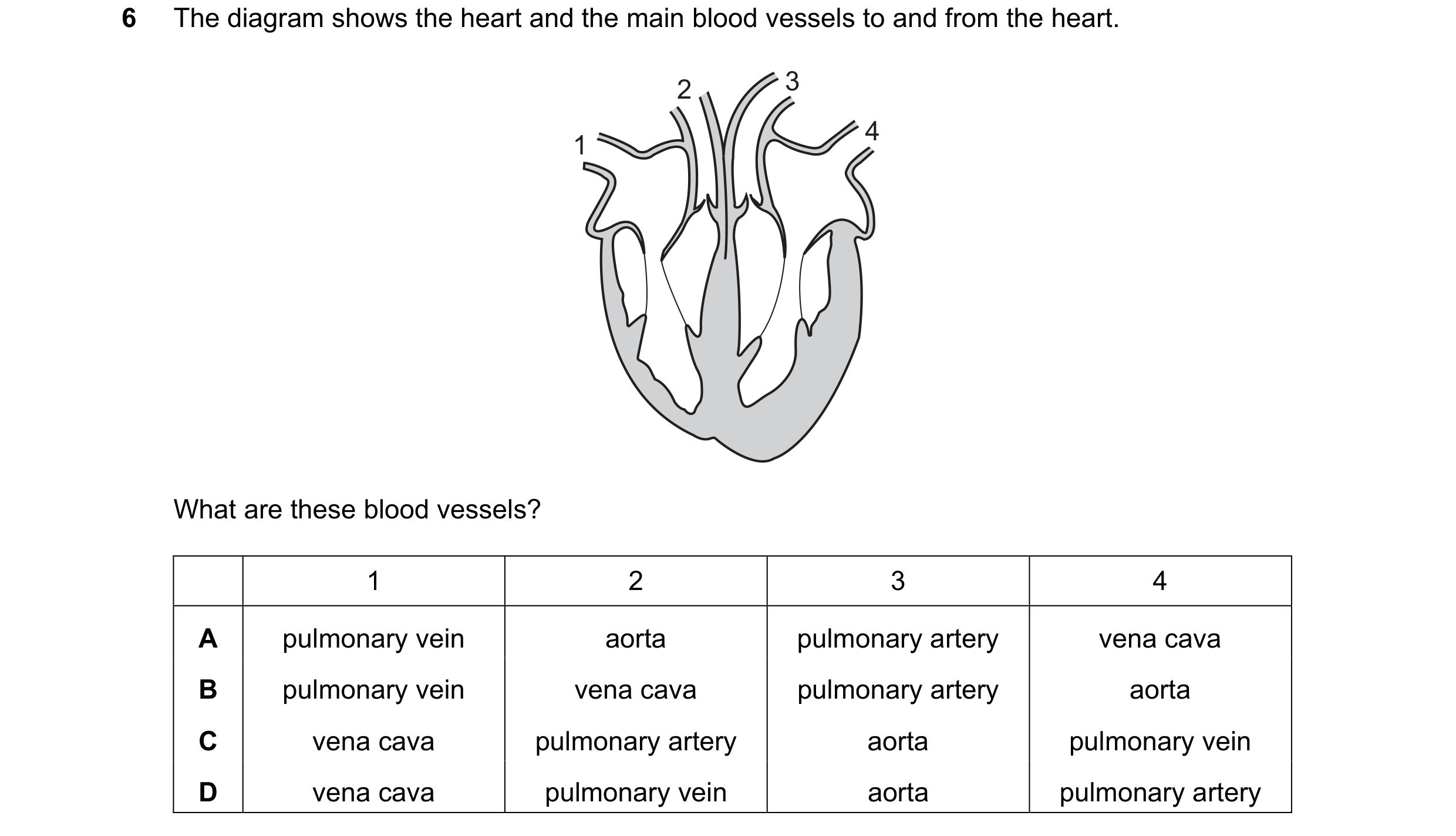

6 The diagram shows the heart and the main blood vessels to and from the heart. 2 3 4 1 What are these blood vessels? 1 2 3 4 A pulmonary vein aorta pulmonary artery vena cava B pulmonary vein vena cava pulmonary artery aorta C vena cava pulmonary artery aorta pulmonary vein D vena cava pulmonary vein aorta pulmonary artery

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2018

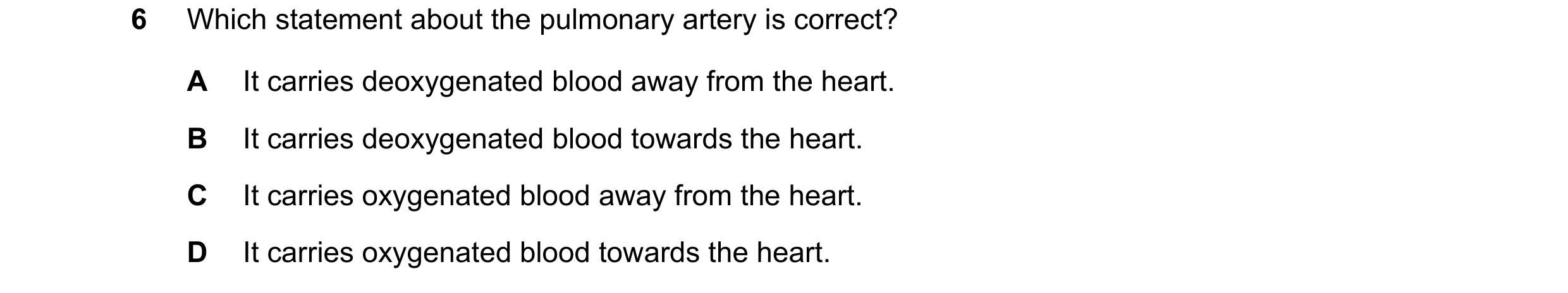

6 Which statement about the pulmonary artery is correct? A It carries deoxygenated blood away from the heart. B It carries deoxygenated blood towards the heart. C It carries oxygenated blood away from the heart. D It carries oxygenated blood towards the heart.

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2018

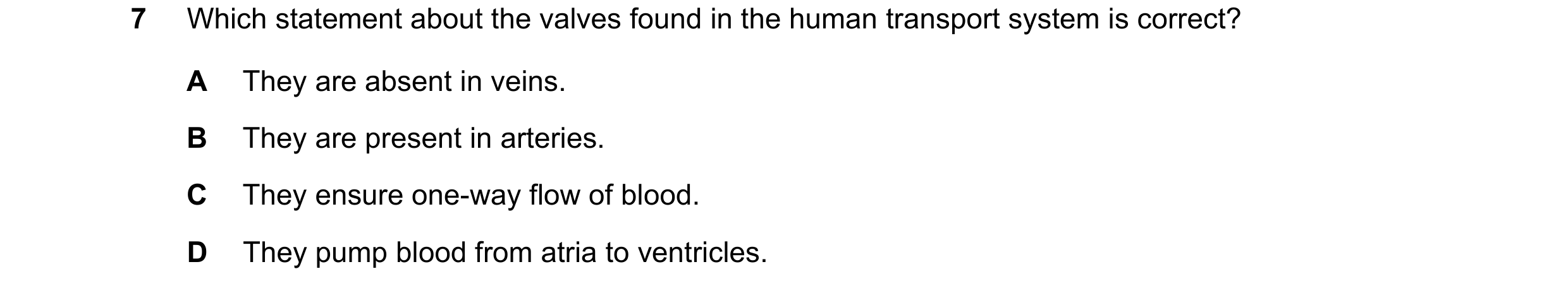

7 Which statement about the valves found in the human transport system is correct? A They are absent in veins. B They are present in arteries. C They ensure one-way flow of blood. D They pump blood from atria to ventricles.

1 marks

Answer: C

This question in 0654/12 May/June 2019

7 Which statement about the valves found in the human transport system is correct? A They are absent in veins. B They are present in arteries. C They ensure one-way flow of blood. D They pump blood from atria to ventricles.

1 marks

Answer: C

This question in 0654/13 May/June 2019

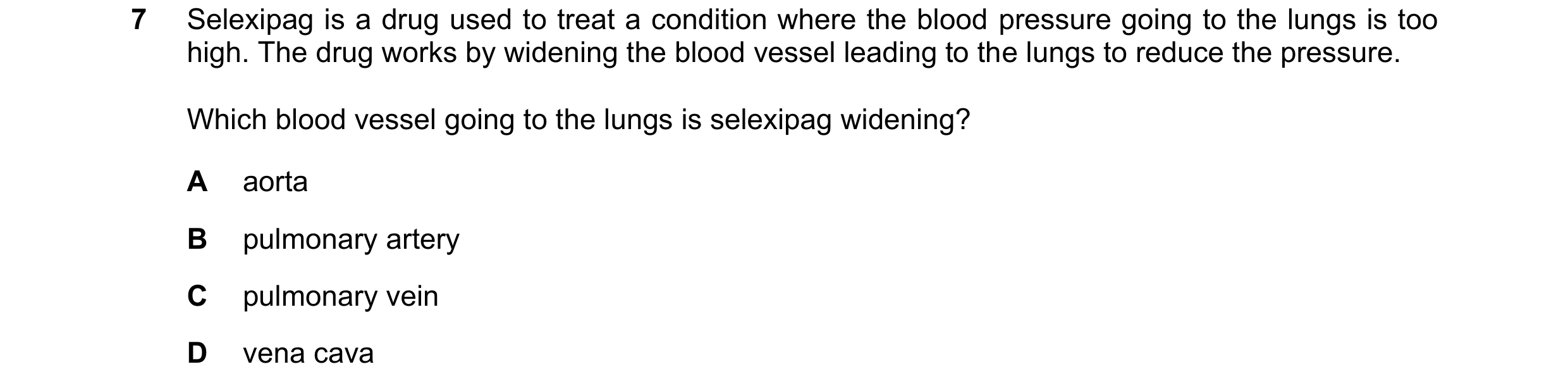

7 Selexipag is a drug used to treat a condition where the blood pressure going to the lungs is too high. The drug works by widening the blood vessel leading to the lungs to reduce the pressure. Which blood vessel going to the lungs is selexipag widening? A aorta B pulmonary artery C pulmonary vein D vena cava

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2024

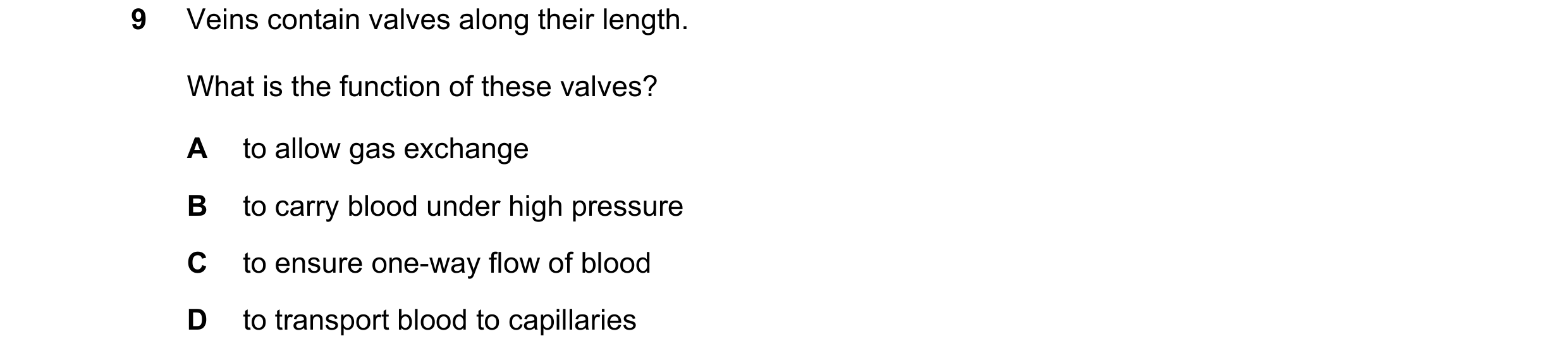

9 Veins contain valves along their length. What is the function of these valves? A to allow gas exchange B to carry blood under high pressure C to ensure one-way flow of blood D to transport blood to capillaries

1 marks

Answer: C

This question in 0654/11 May/June 2025
