Heart — Paper 1 · IGCSE Sciences - Co-ordinated (Double) 0654

6 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/11 May/June 2005

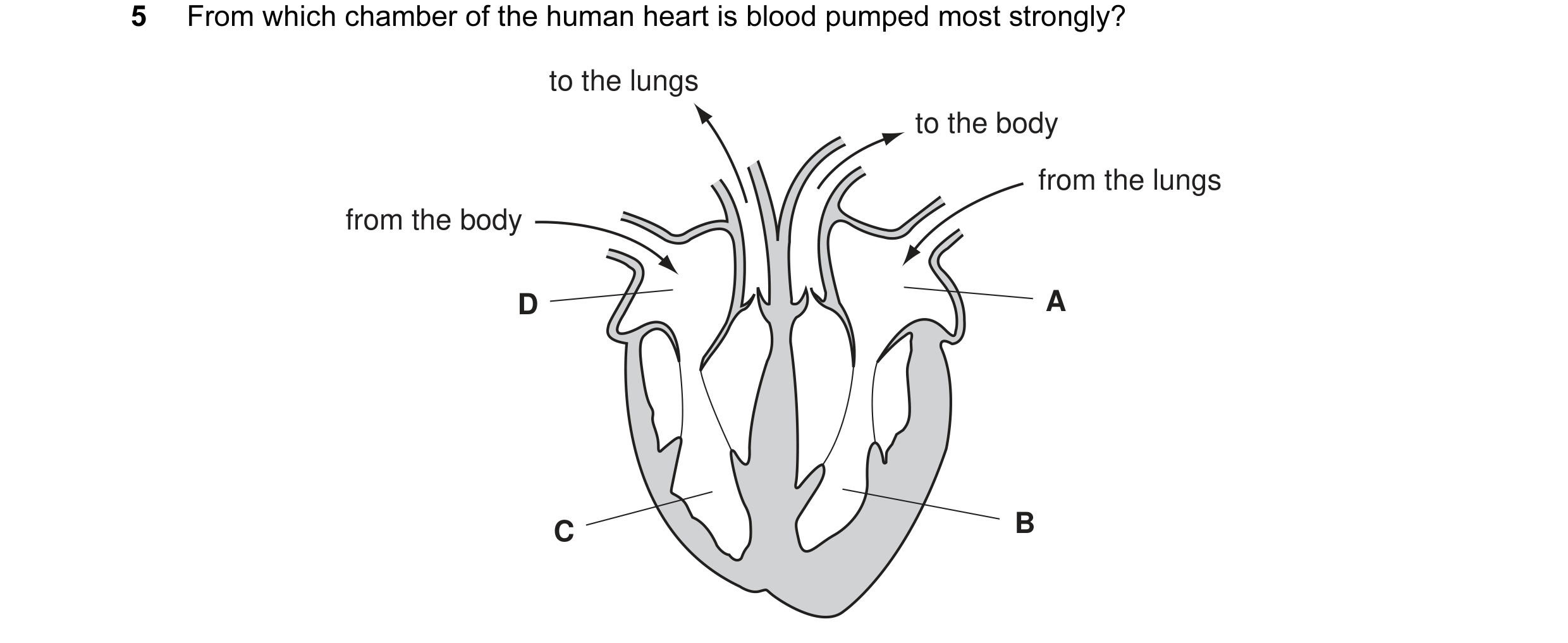

5 From which chamber of the human heart is blood pumped most strongly? to the lungs to the body from the lungs from the body D A C B

1 marks

Answer: B

This question in 0654/11 May/June 2006

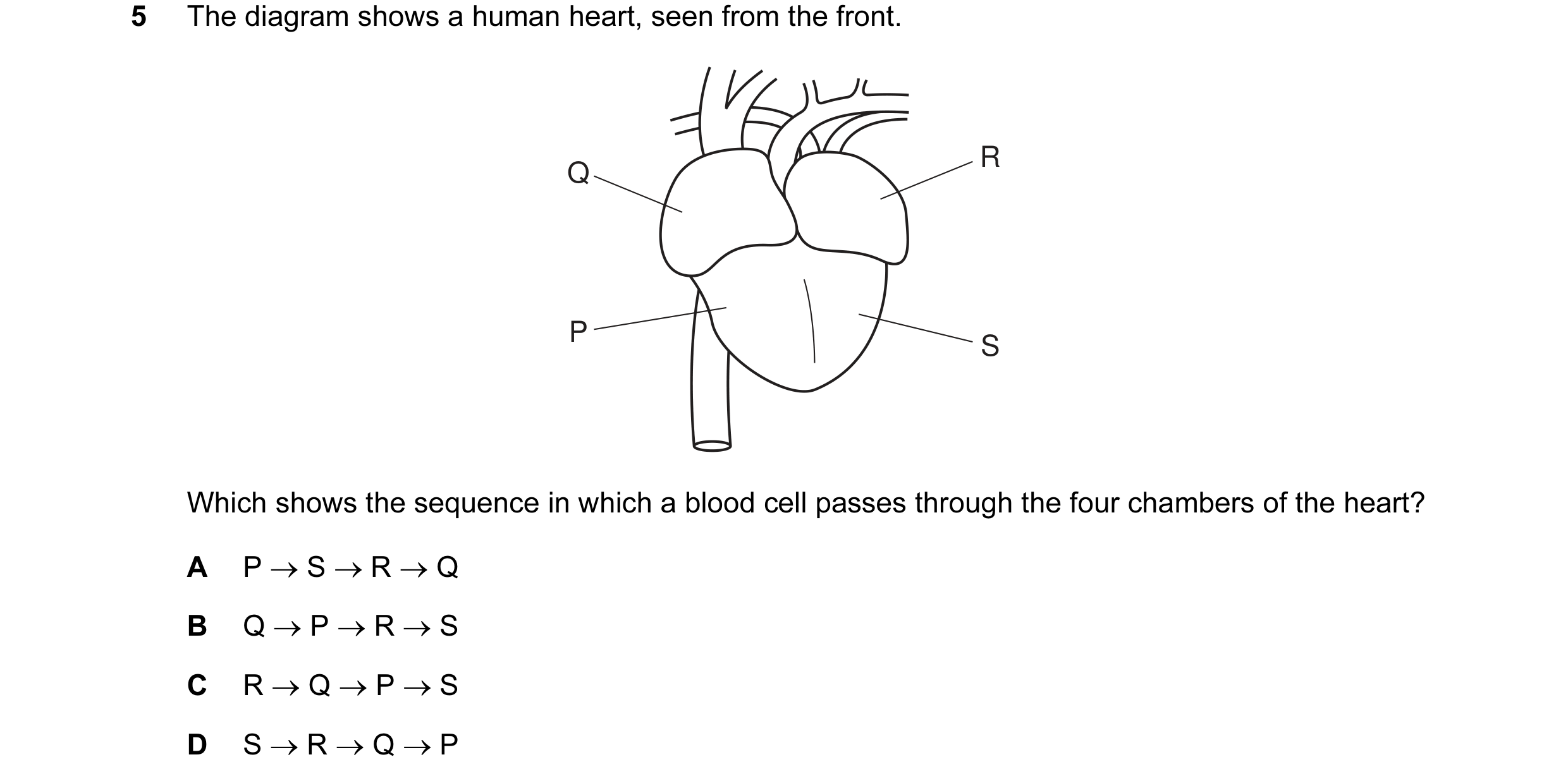

5 The diagram shows a human heart, seen from the front. R Q P S Which shows the sequence in which a blood cell passes through the four chambers of the heart? A P → S → R → Q B Q → P → R → S C R → Q → P → S D S → R → Q → P

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2007

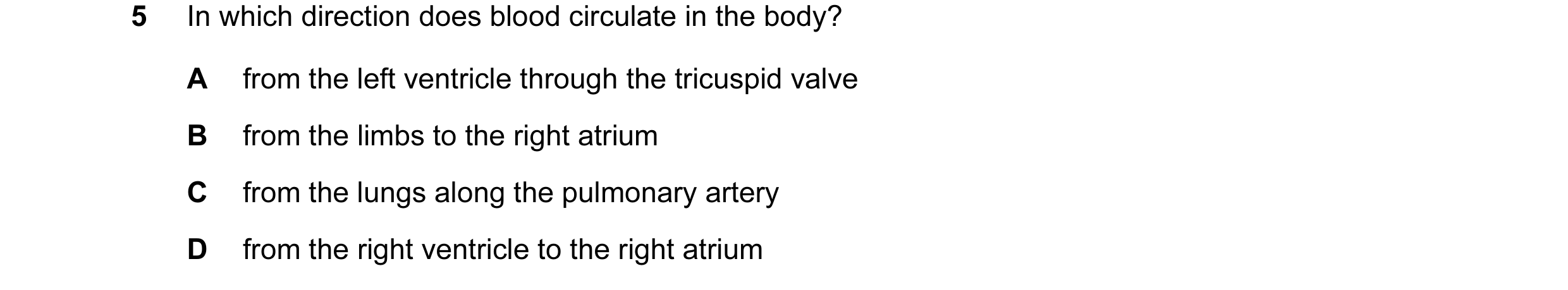

5 In which direction does blood circulate in the body? A from the left ventricle through the tricuspid valve B from the limbs to the right atrium C from the lungs along the pulmonary artery D from the right ventricle to the right atrium

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2008

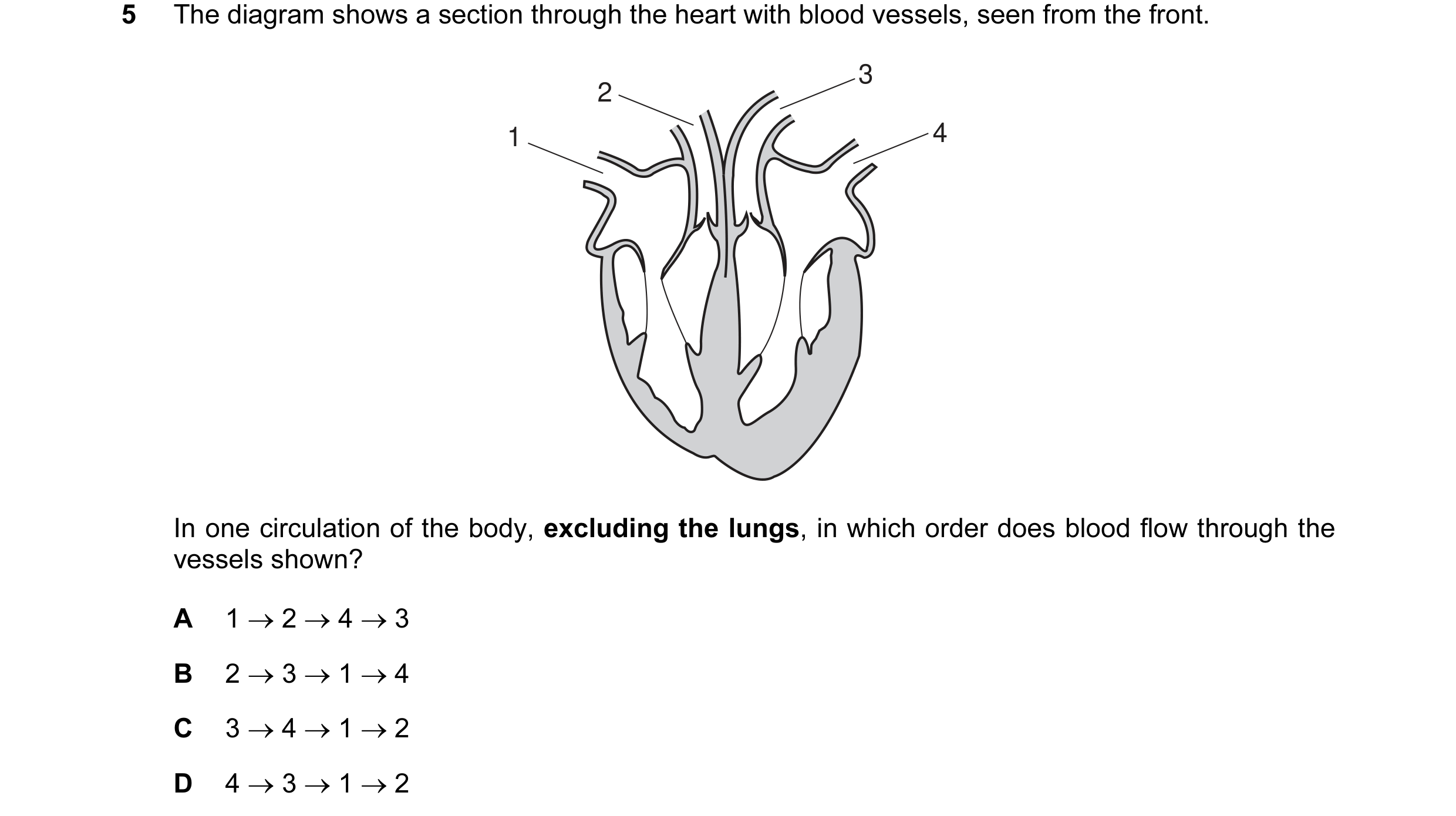

5 The diagram shows a section through the heart with blood vessels, seen from the front. 3 2 1 4 In one circulation of the body, excluding the lungs, in which order does blood flow through the vessels shown? A 1 → 2 → 4 → 3 B 2 → 3 → 1 → 4 C 3 → 4 → 1 → 2 D 4 → 3 → 1 → 2

1 marks

Answer: D

This question in 0654/11 Oct/Nov 2009

8 The diagram shows a section through the heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/12 May/June 2011

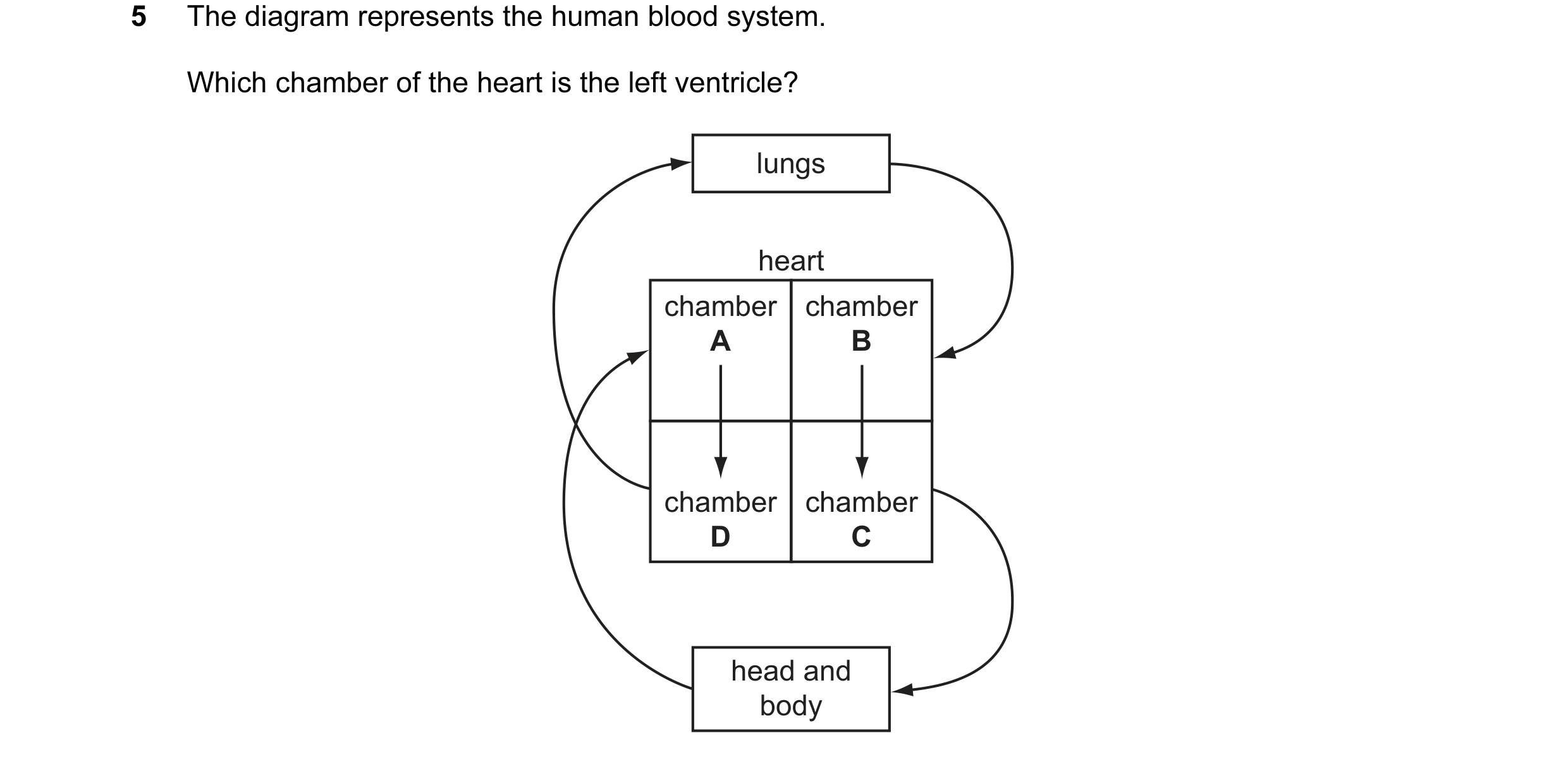

5 The diagram represents the human blood system. Which chamber of the heart is the left ventricle? lungs heart chamber chamber A B chamber chamber D C head and body

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2014

6 The diagram represents the human blood system. Which chamber of the heart is the left ventricle? lungs heart chamber chamber A B chamber chamber D C head and body

1 marks

Answer: C

This question in 0654/12 Oct/Nov 2014

5 The diagram represents the human blood system. Which chamber of the heart is the left ventricle? lungs heart chamber chamber A B chamber chamber D C head and body

1 marks

Answer: C

This question in 0654/13 Oct/Nov 2014

4 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/11 Oct/Nov 2016

6 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2016

4 The diagram shows a section through the human heart. 2 3 4 1 Which two blood vessels are arteries? A 1 and 2 B 2 and 3 C 3 and 4 D 4 and 1

1 marks

Answer: B

This question in 0654/13 Oct/Nov 2016

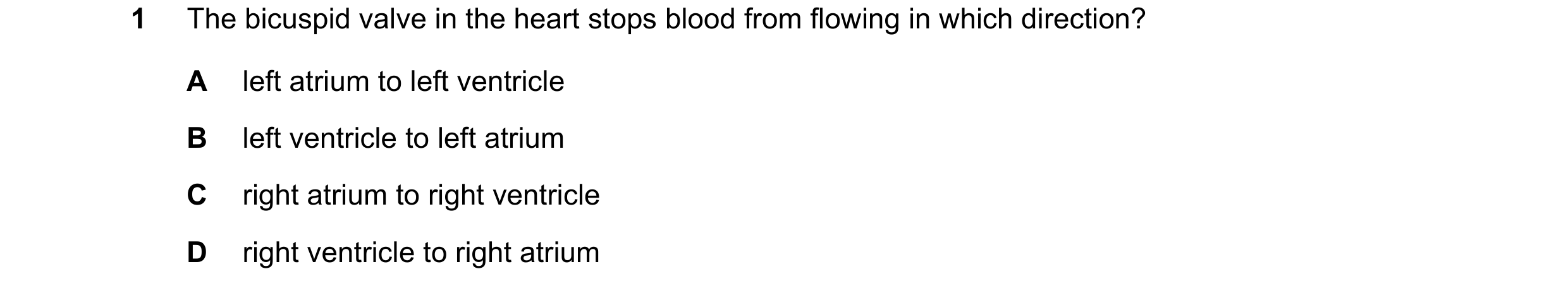

1 The bicuspid valve in the heart stops blood from flowing in which direction? A left atrium to left ventricle B left ventricle to left atrium C right atrium to right ventricle D right ventricle to right atrium

1 marks

Answer: B

This question in 0654/12 Oct/Nov 2017

6 The diagram shows the heart and the main blood vessels to and from the heart. 2 3 4 1 What are these blood vessels? 1 2 3 4 A pulmonary vein aorta pulmonary artery vena cava B pulmonary vein vena cava pulmonary artery aorta C vena cava pulmonary artery aorta pulmonary vein D vena cava pulmonary vein aorta pulmonary artery

1 marks

Answer: C

This question in 0654/11 Oct/Nov 2018

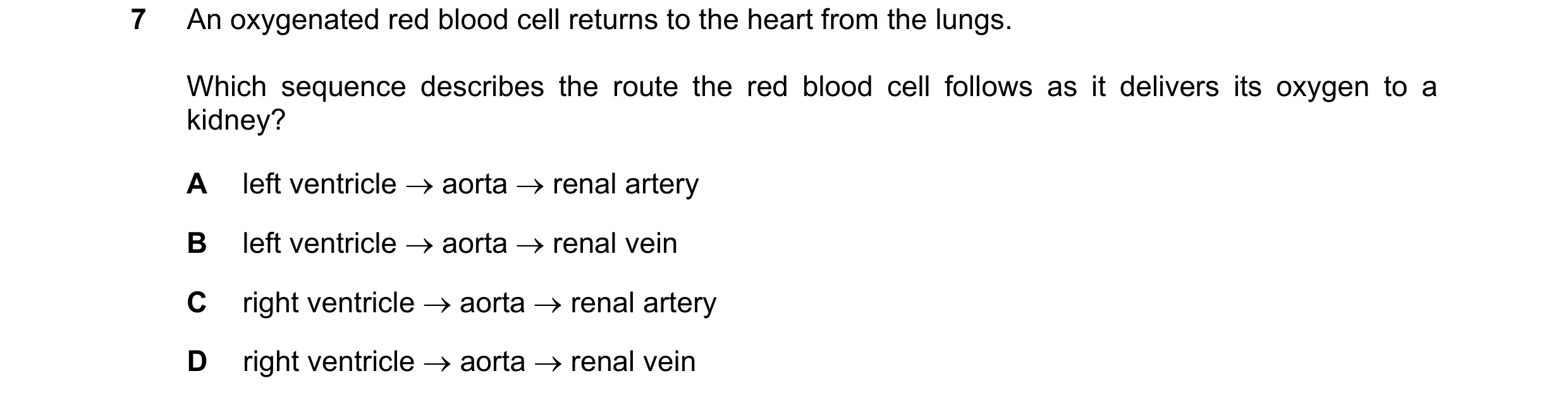

7 An oxygenated red blood cell returns to the heart from the lungs. Which sequence describes the route the red blood cell follows as it delivers its oxygen to a kidney? A left ventricle → aorta → renal artery B left ventricle → aorta → renal vein C right ventricle → aorta → renal artery D right ventricle → aorta → renal vein

1 marks

Answer: A

This question in 0654/13 May/June 2020

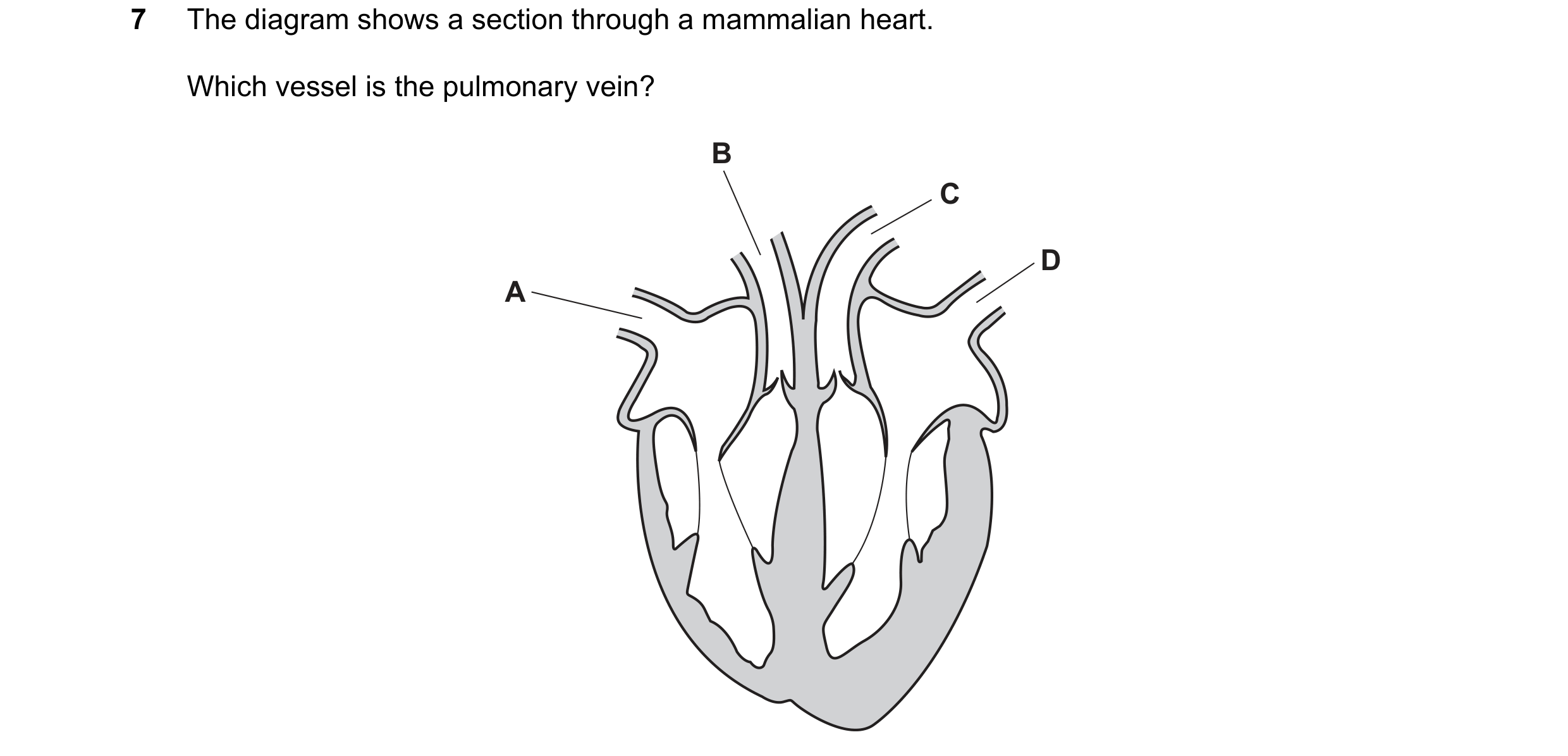

7 The diagram shows a section through a mammalian heart. Which vessel is the pulmonary vein? B C D A

1 marks

Answer: D

This question in 0654/12 Oct/Nov 2021

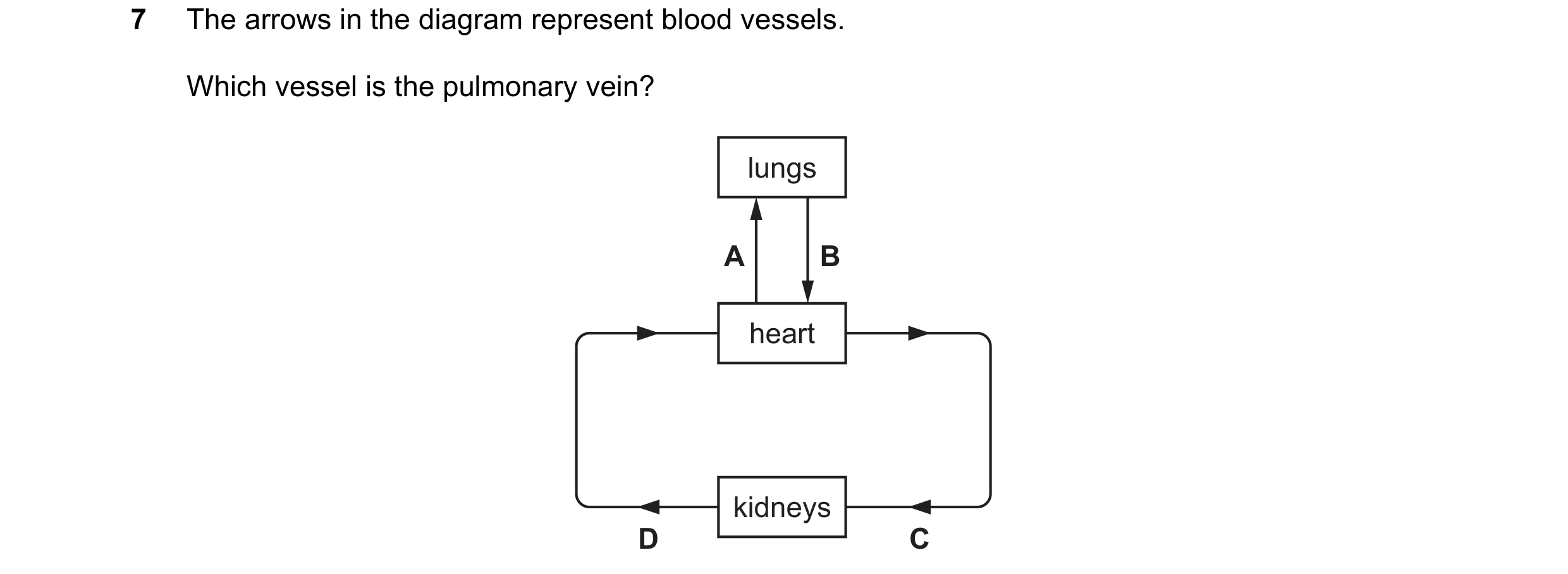

7 The arrows in the diagram represent blood vessels. Which vessel is the pulmonary vein? lungs A B heart kidneys D C

1 marks

Answer: B

This question in 0654/12 Feb/March 2023

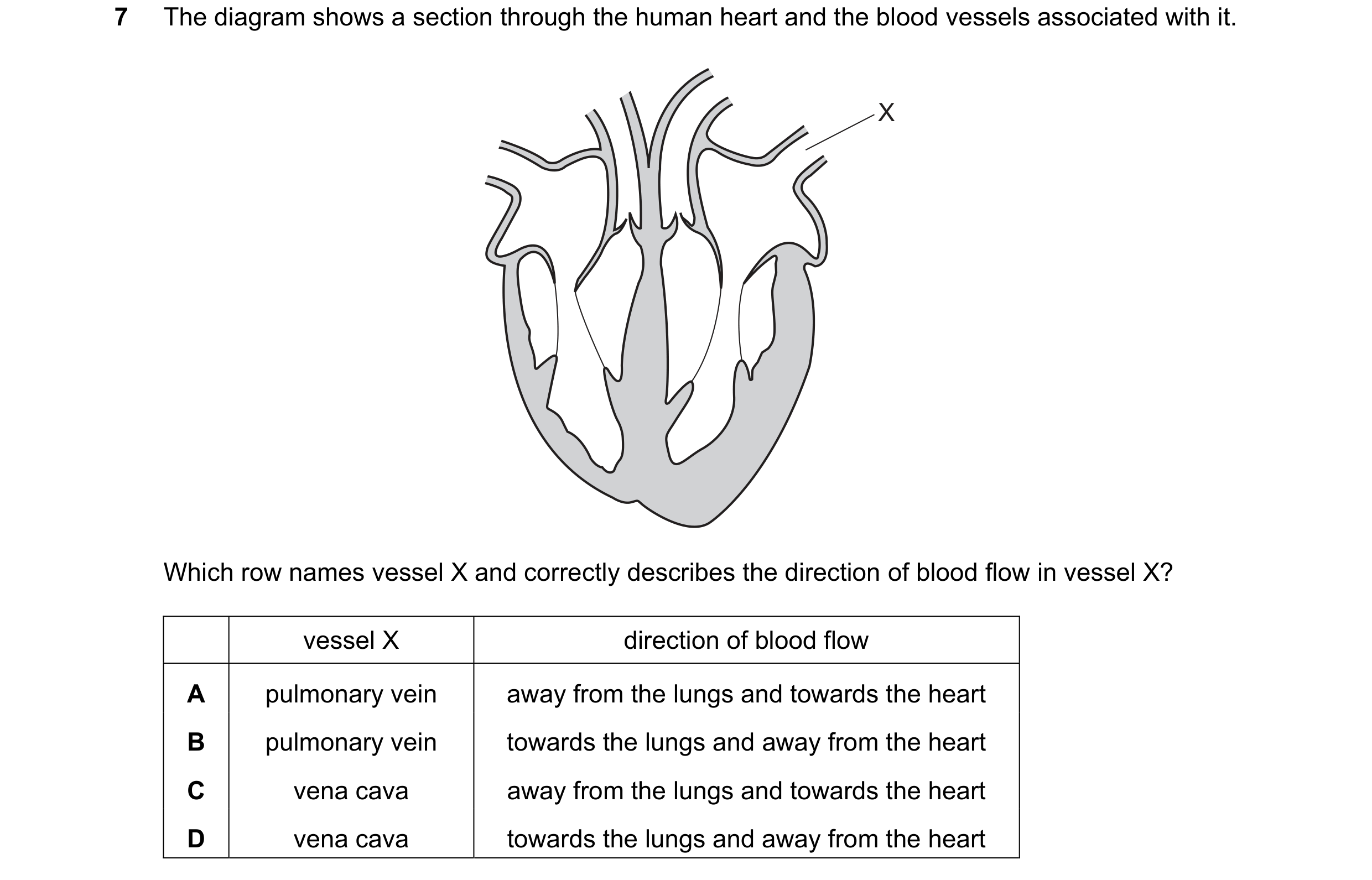

7 The diagram shows a section through the human heart and the blood vessels associated with it. X Which row names vessel X and correctly describes the direction of blood flow in vessel X? vessel X direction of blood flow A pulmonary vein away from the lungs and towards the heart B pulmonary vein towards the lungs and away from the heart C vena cava away from the lungs and towards the heart D vena cava towards the lungs and away from the heart

1 marks

Answer: A

This question in 0654/12 Feb/March 2024

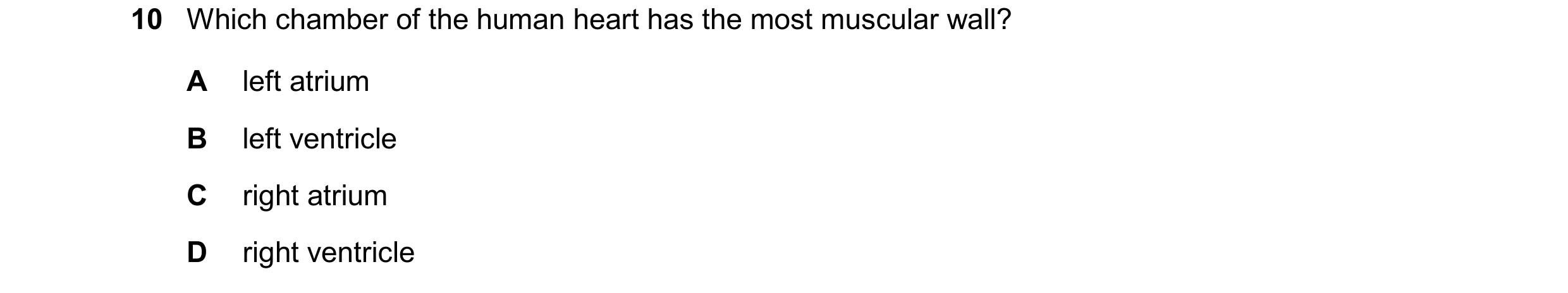

10 Which chamber of the human heart has the most muscular wall? A left atrium B left ventricle C right atrium D right ventricle

1 marks

Answer: B

This question in 0654/12 Feb/March 2025

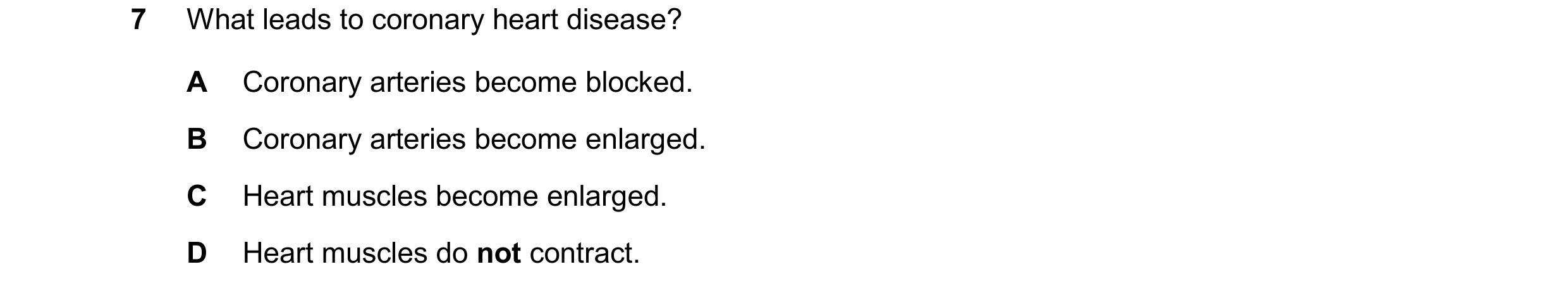

7 What leads to coronary heart disease? A Coronary arteries become blocked. B Coronary arteries become enlarged. C Heart muscles become enlarged. D Heart muscles do not contract.

1 marks

Answer: A

This question in 0654/12 Oct/Nov 2025

7 What leads to coronary heart disease? A Coronary arteries become blocked. B Coronary arteries become enlarged. C Heart muscles become enlarged. D Heart muscles do not contract.

1 marks

Answer: A

This question in 0654/13 Oct/Nov 2025
