Chromatography — Paper 1 · IGCSE Science - Combined 0653

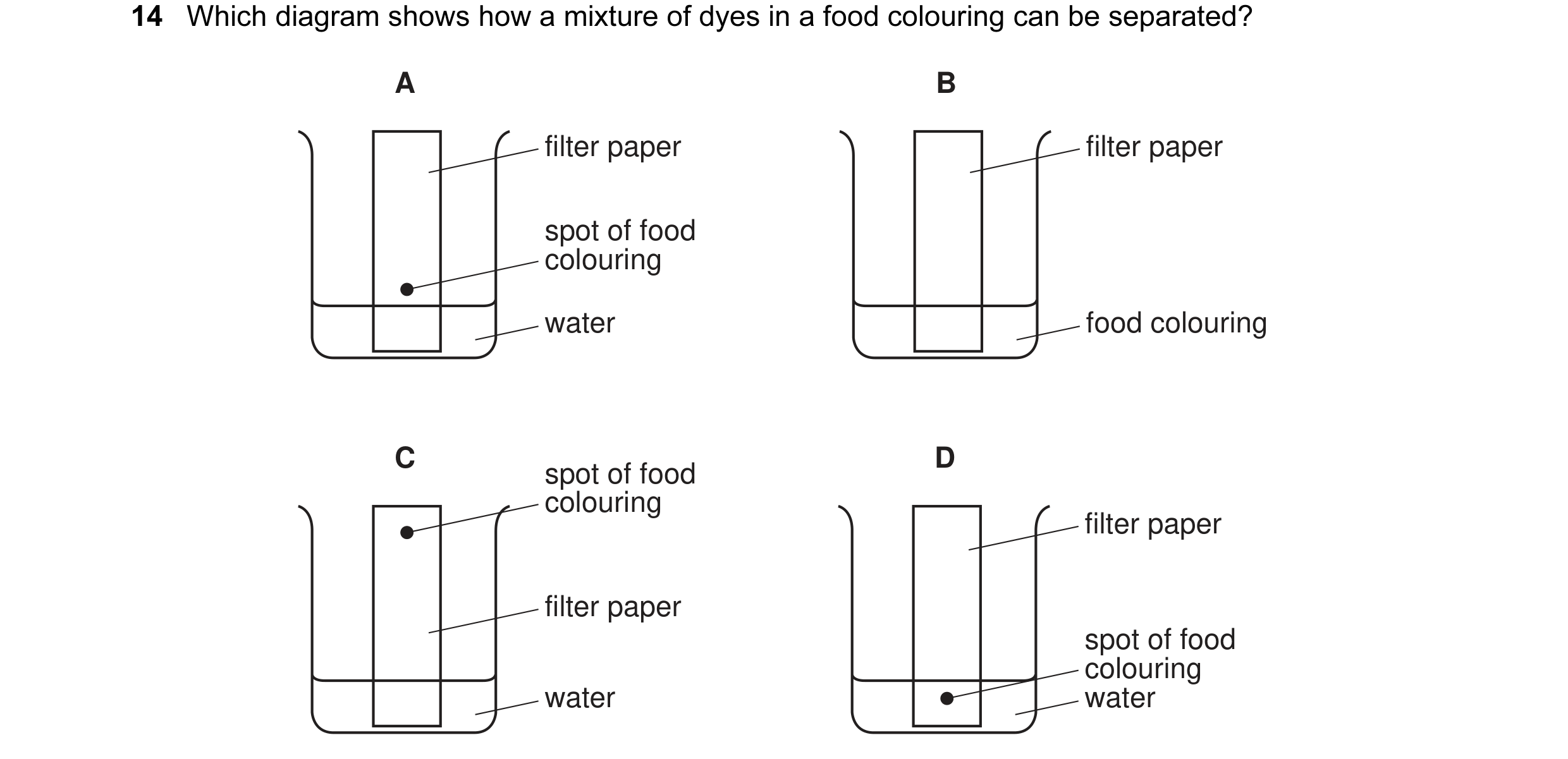

14 Which diagram shows how a mixture of dyes in a food colouring can be separated? A B filter paper filter paper spot of food colouring water food colouring C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: A

This question in 0653/11 May/June 2007

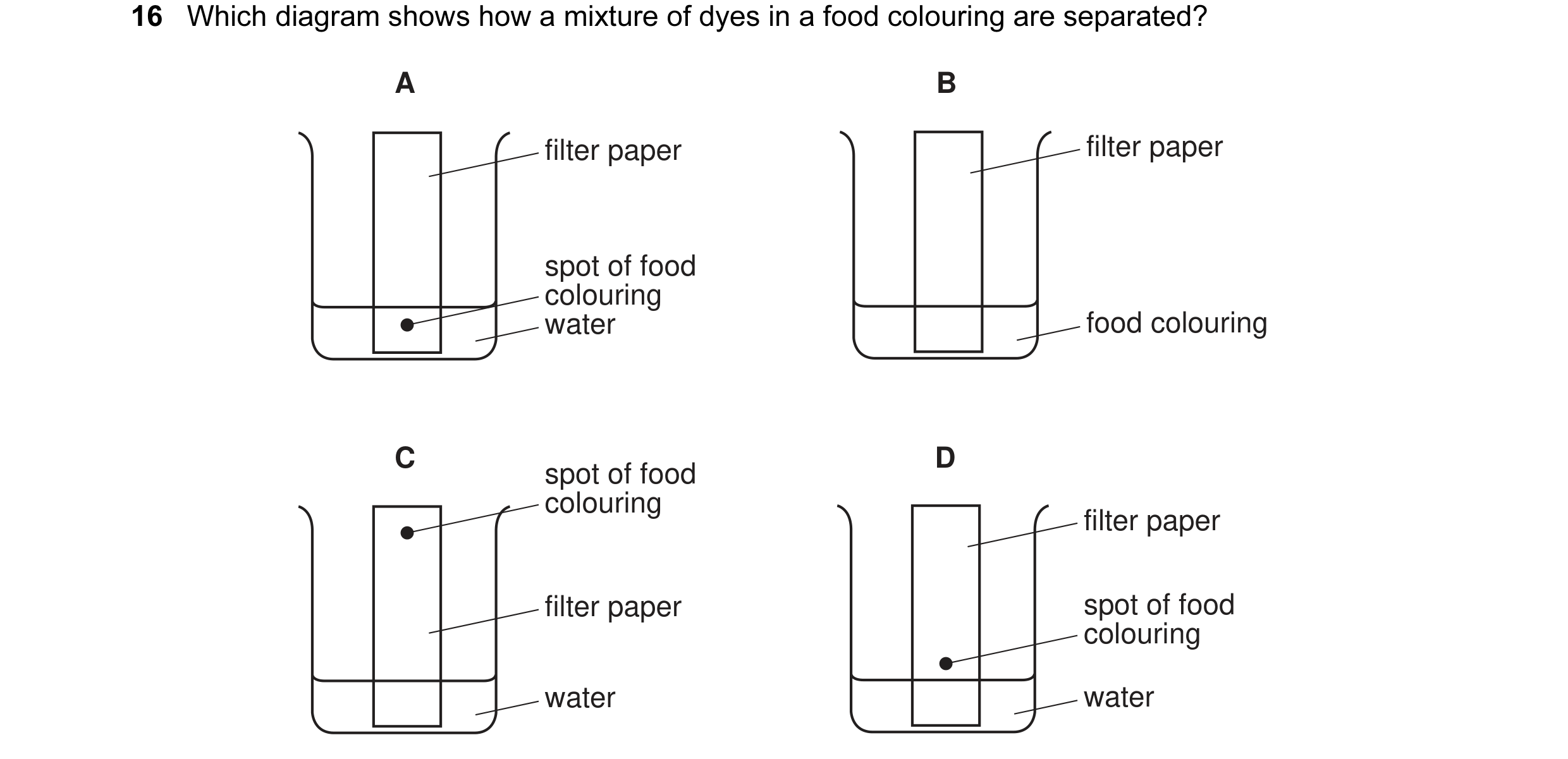

16 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring water food colouring C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/11 Oct/Nov 2011

16 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring water food colouring C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/12 Oct/Nov 2011

21 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring water food colouring C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2011

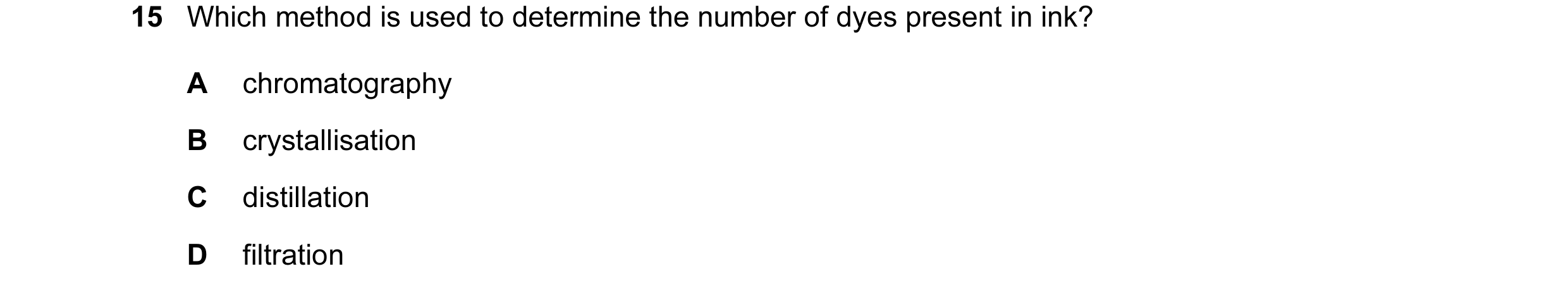

15 Which method is used to determine the number of dyes present in ink? A chromatography B crystallisation C distillation D filtration

1 marks

Answer: A

This question in 0653/13 May/June 2015

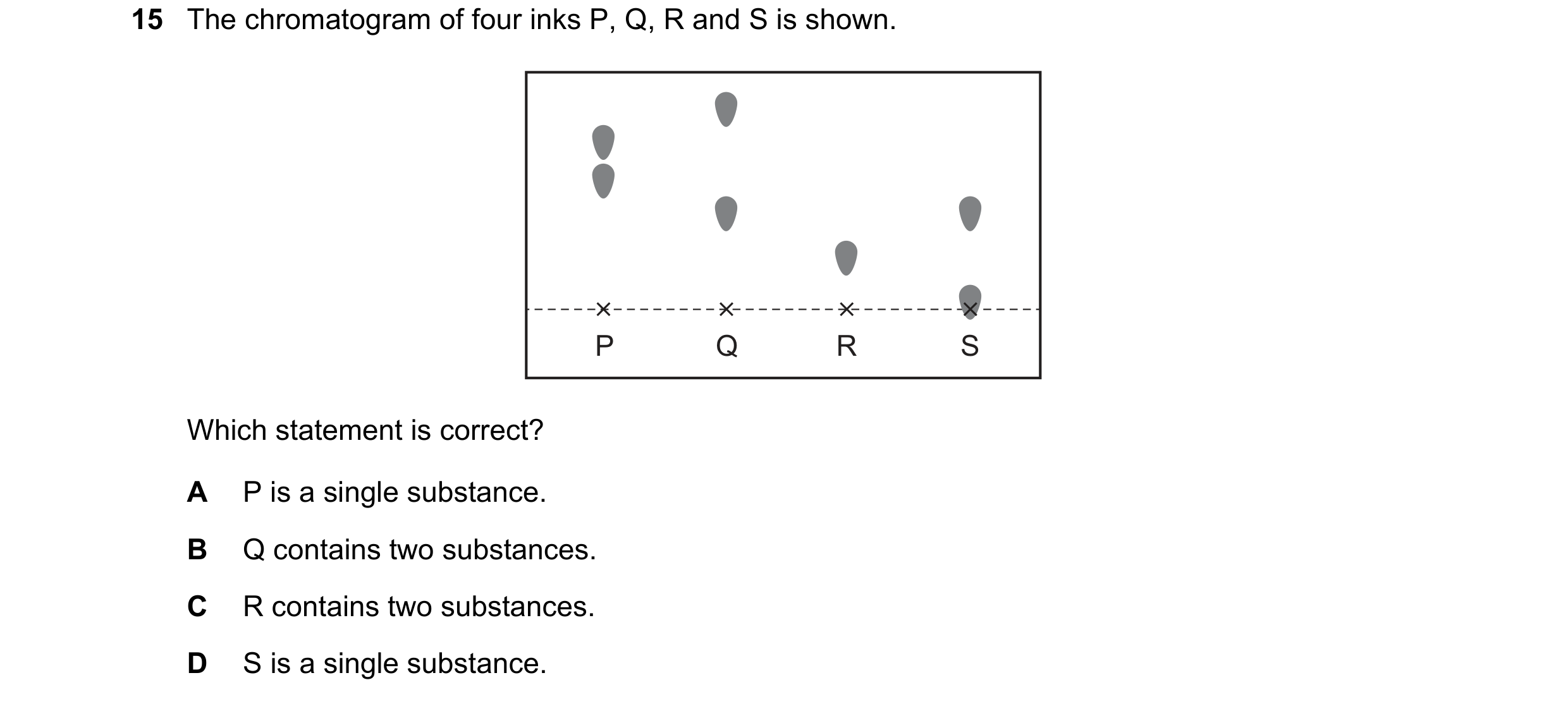

15 The chromatogram of four inks P, Q, R and S is shown. P Q R S Which statement is correct? A P is a single substance. B Q contains two substances. C R contains two substances. D S is a single substance.

1 marks

Answer: B

This question in 0653/11 Oct/Nov 2016

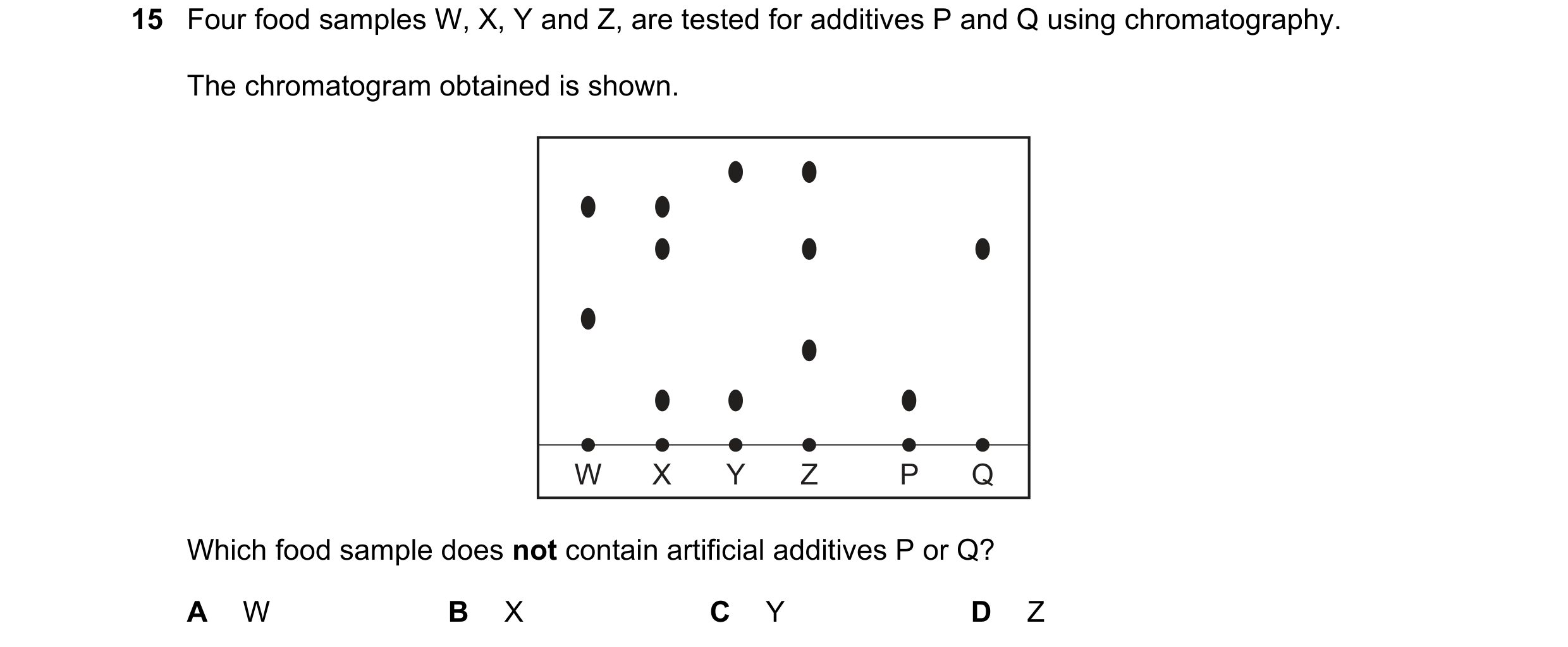

15 Four food samples W, X, Y and Z, are tested for additives P and Q using chromatography. The chromatogram obtained is shown. W X Y Z P Q Which food sample does not contain artificial additives P or Q? A W B X C Y D Z

1 marks

Answer: A

This question in 0653/13 Oct/Nov 2016

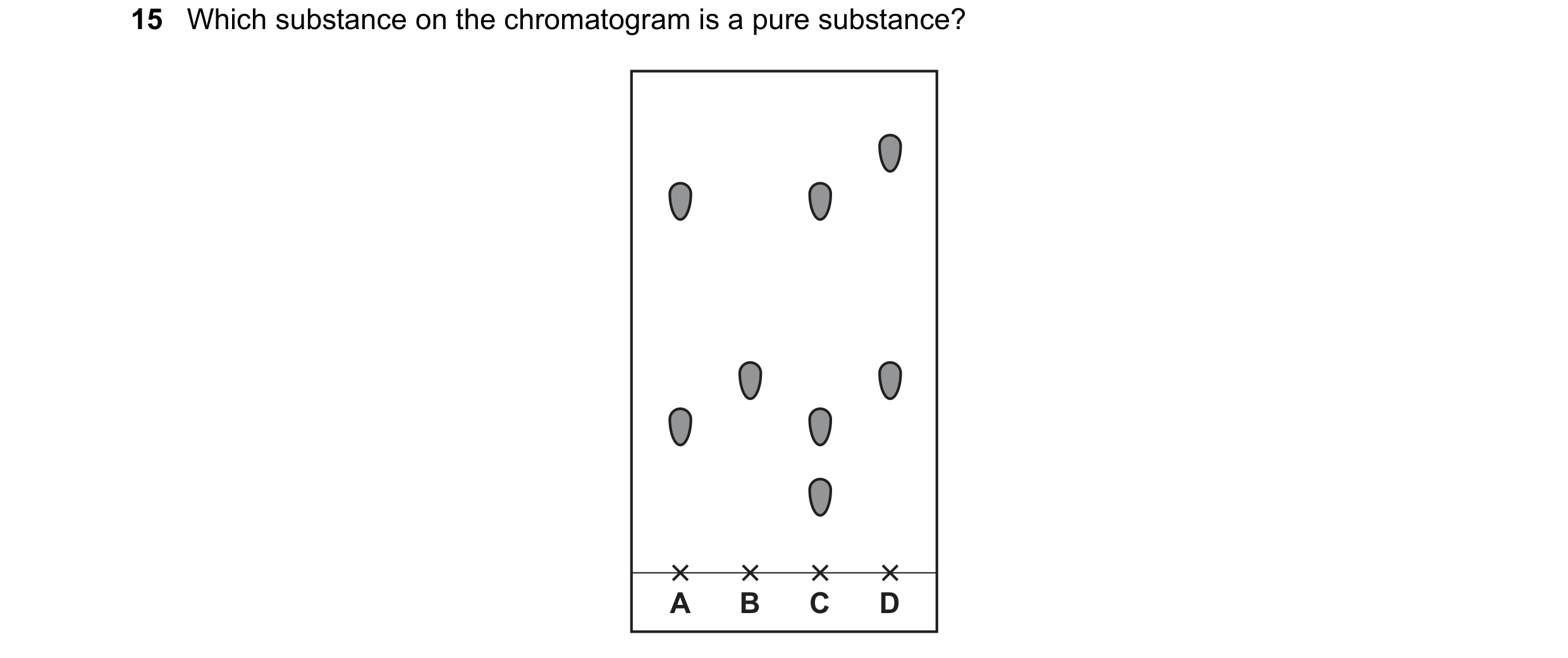

15 Which substance on the chromatogram is a pure substance? A B C D

1 marks

Answer: B

This question in 0653/12 Feb/March 2017

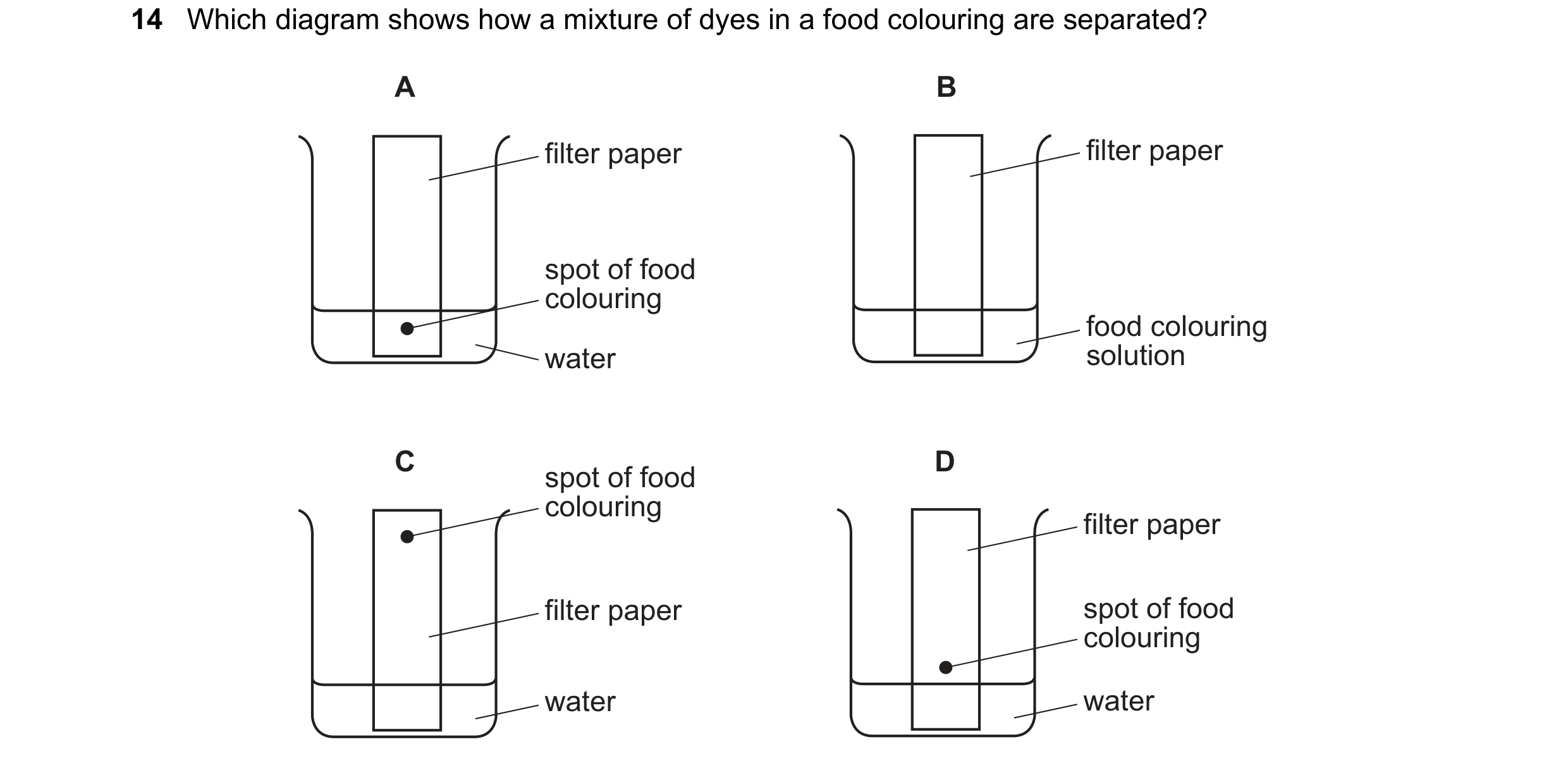

14 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring food colouring water solution C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/11 May/June 2017

14 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring food colouring water solution C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/12 May/June 2017

14 Which diagram shows how a mixture of dyes in a food colouring are separated? A B filter paper filter paper spot of food colouring food colouring water solution C D spot of food colouring filter paper filter paper spot of food colouring water water

1 marks

Answer: D

This question in 0653/13 May/June 2017

15 Chromatography separates ink into different colours. Which diagram shows how the apparatus is set up? A B beaker beaker paper ink ink paper water water C D beaker beaker paper paper ink ink water water

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2017

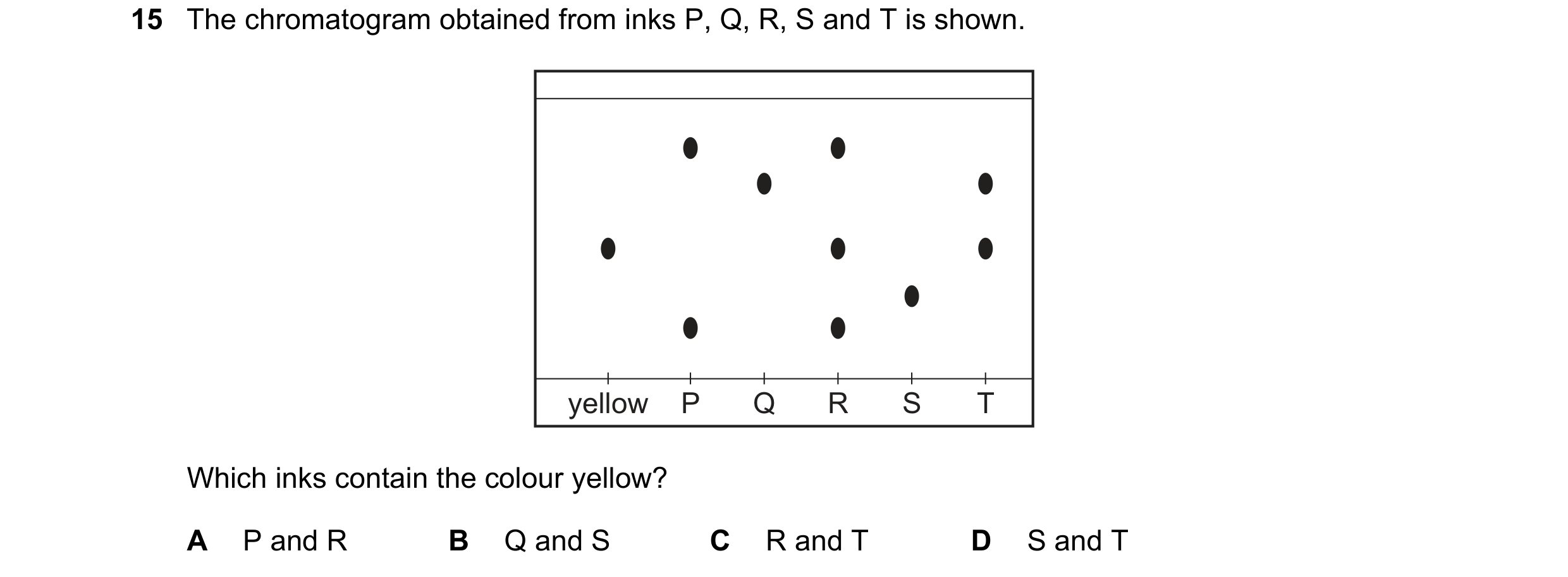

15 The chromatogram obtained from inks P, Q, R, S and T is shown. yellow P Q R S T Which inks contain the colour yellow? A P and R B Q and S C R and T D S and T

1 marks

Answer: C

This question in 0653/12 Feb/March 2018

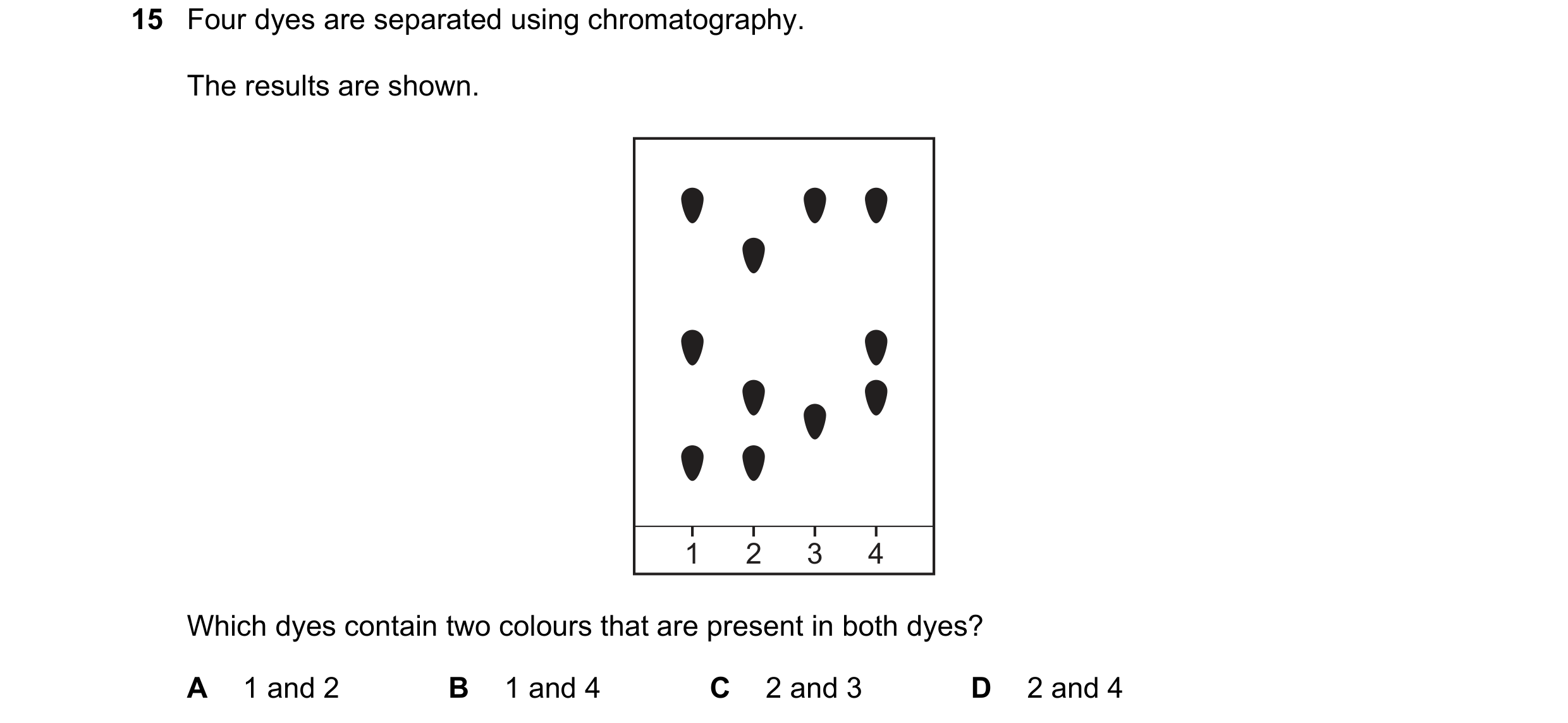

15 Four dyes are separated using chromatography. The results are shown. 1 2 3 4 Which dyes contain two colours that are present in both dyes? A 1 and 2 B 1 and 4 C 2 and 3 D 2 and 4

1 marks

Answer: B

This question in 0653/11 Oct/Nov 2018

15 The apparatus used for chromatography is shown. beaker chromatography paper sample pencil line spots solvent Which statement about the method used for chromatography is not correct? A The beaker is swirled to help the solvent to rise. B The chromatography paper is placed in the beaker after the solvent has been added. C The chromatography paper is removed before the solvent reaches the top of the paper. D The sample spots are placed on the pencil line above the level of the solvent.

1 marks

Answer: A

This question in 0653/12 Oct/Nov 2018

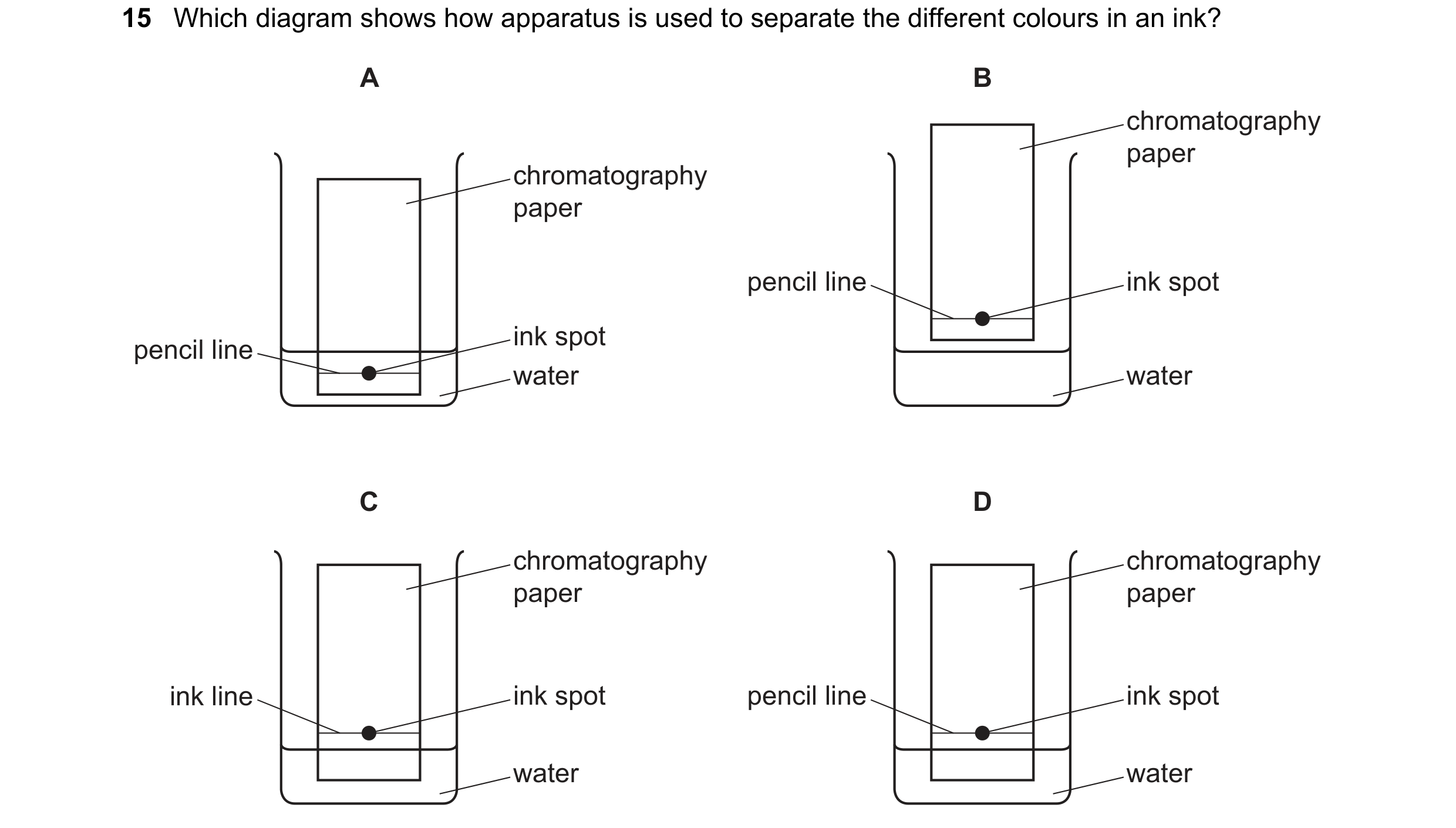

15 Which diagram shows how apparatus is used to separate the different colours in an ink? A B chromatography paper chromatography paper pencil line ink spot ink spot pencil line water water C D chromatography chromatography paper paper ink line ink spot pencil line ink spot water water

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2018

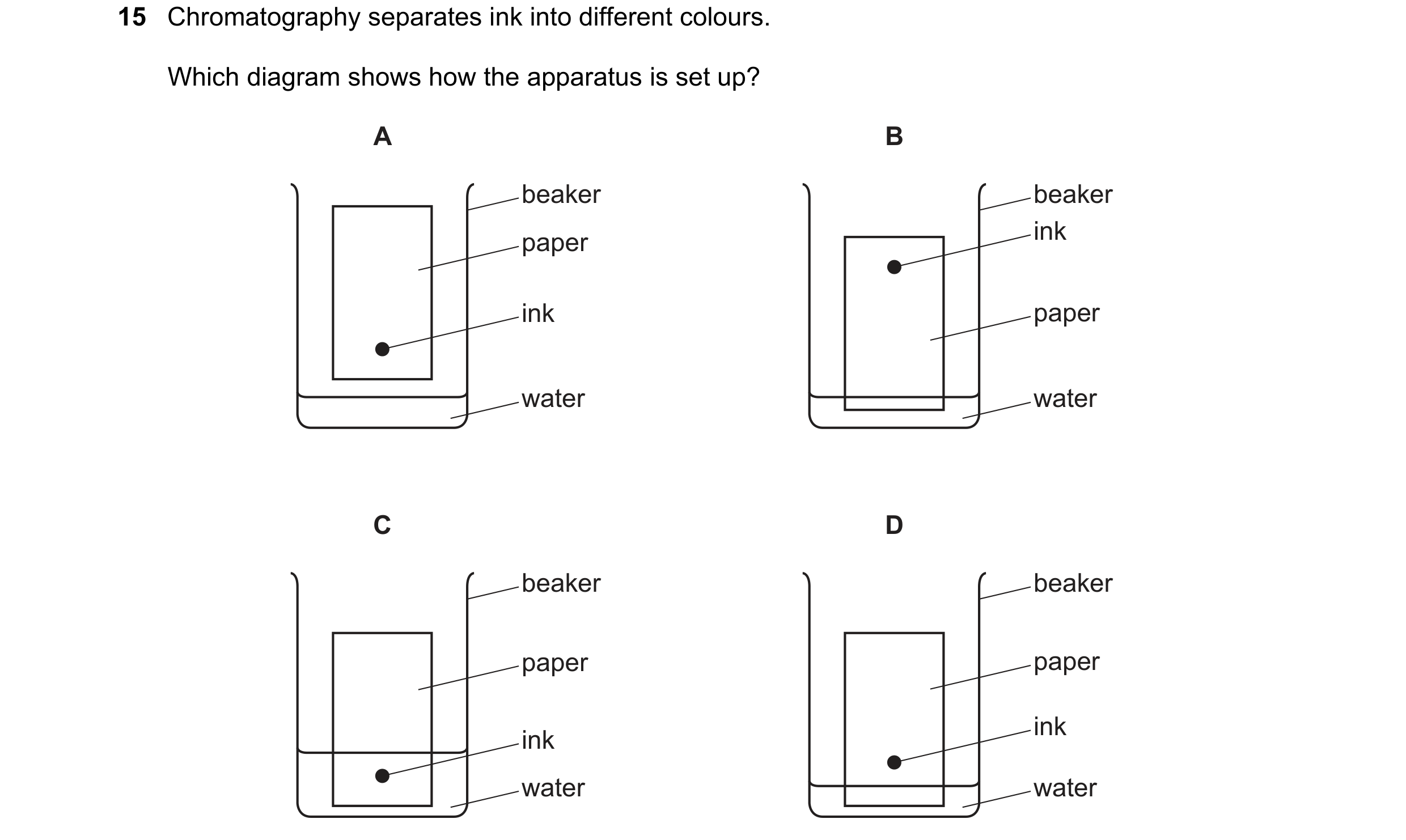

15 Chromatography separates ink into different colours. Which diagram shows how the apparatus is set up? A B beaker beaker paper ink ink paper water water C D beaker beaker paper paper ink ink water water

1 marks

Answer: D

This question in 0653/11 Oct/Nov 2020

15 Chromatography separates ink into different colours. Which diagram shows how the apparatus is set up? A B beaker beaker paper ink ink paper water water C D beaker beaker paper paper ink ink water water

1 marks

Answer: D

This question in 0653/12 Oct/Nov 2020

15 Chromatography separates ink into different colours. Which diagram shows how the apparatus is set up? A B beaker beaker paper ink ink paper water water C D beaker beaker paper paper ink ink water water

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2020

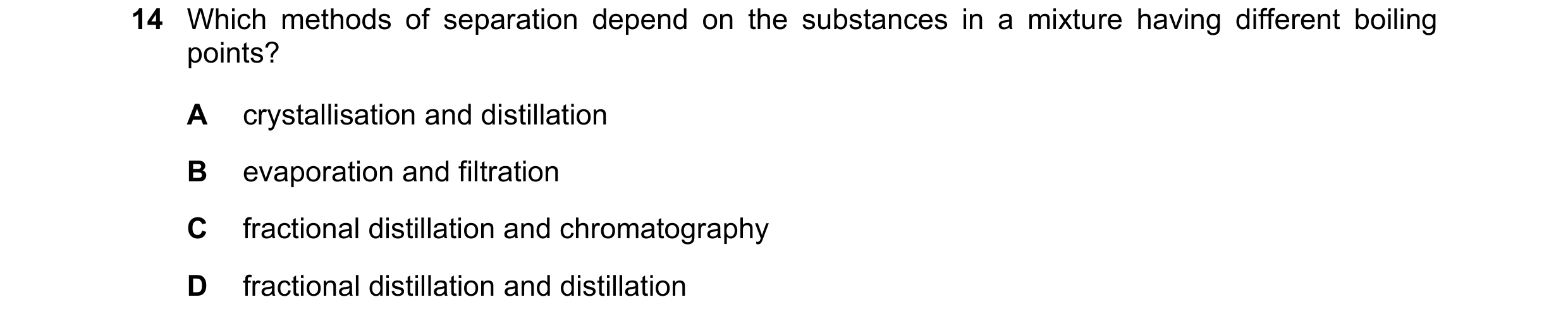

14 Which methods of separation depend on the substances in a mixture having different boiling points? A crystallisation and distillation B evaporation and filtration C fractional distillation and chromatography D fractional distillation and distillation

1 marks

Answer: D

This question in 0653/12 Feb/March 2021

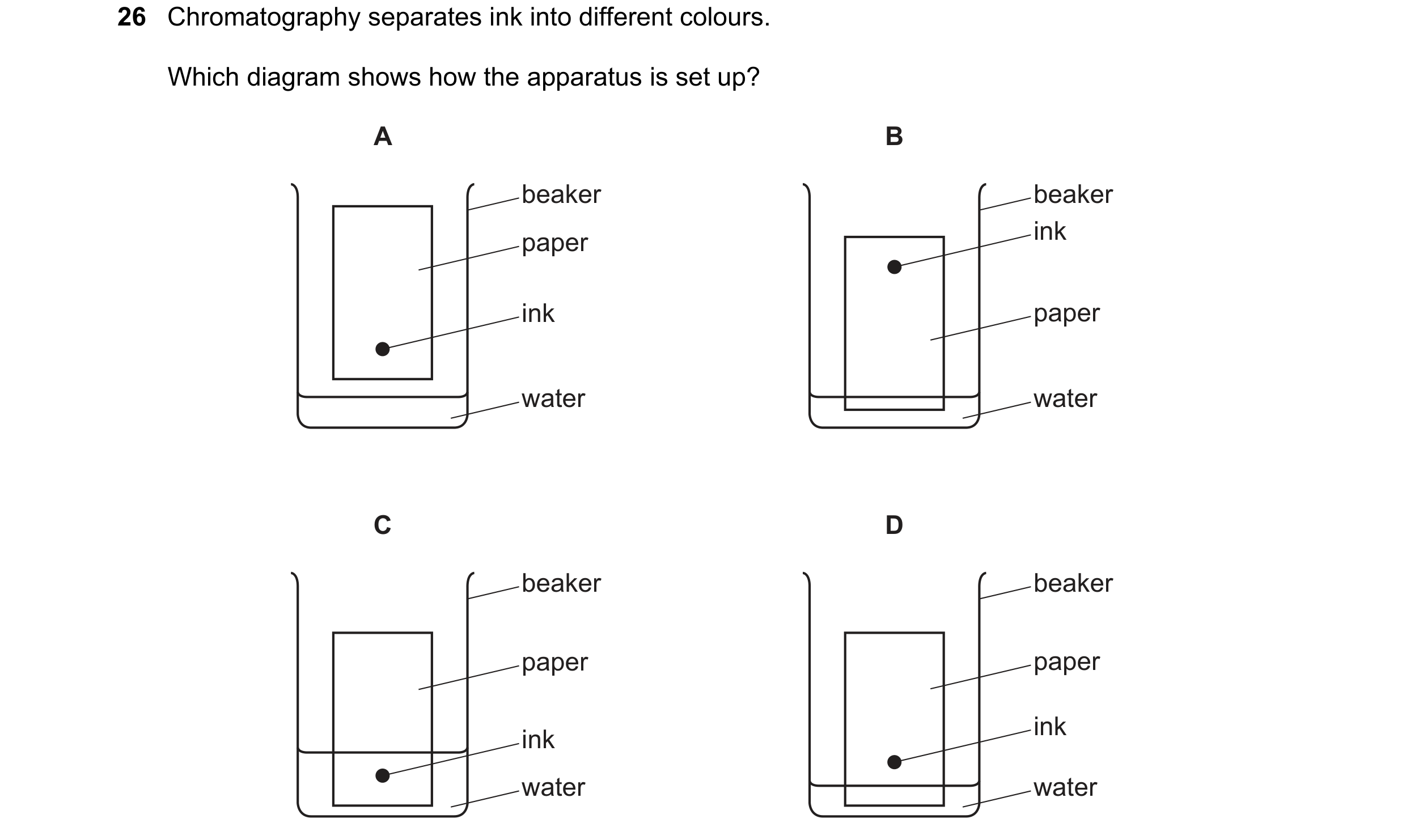

26 Chromatography separates ink into different colours. Which diagram shows how the apparatus is set up? A B beaker beaker paper ink ink paper water water C D beaker beaker paper paper ink ink water water

1 marks

Answer: D

This question in 0653/11 May/June 2025
