8 In a healthy person, which shows the correct relationship between blood sugar level, insulin level in the blood, and liver activity? blood sugar level insulin level liver activity A high high removes glucose from the blood B high low releases glucose into the blood C low high releases glucose into the blood D low low removes glucose from the blood

1 marks

Answer: A

This question in 0653/11 Oct/Nov 2006

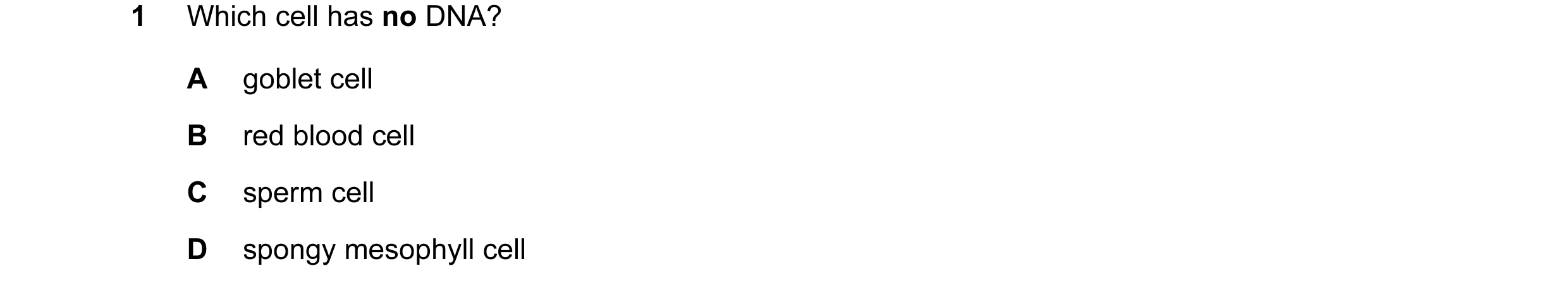

1 Which cell has no DNA? A goblet cell B red blood cell C sperm cell D spongy mesophyll cell

1 marks

Answer: B

This question in 0653/11 Oct/Nov 2007

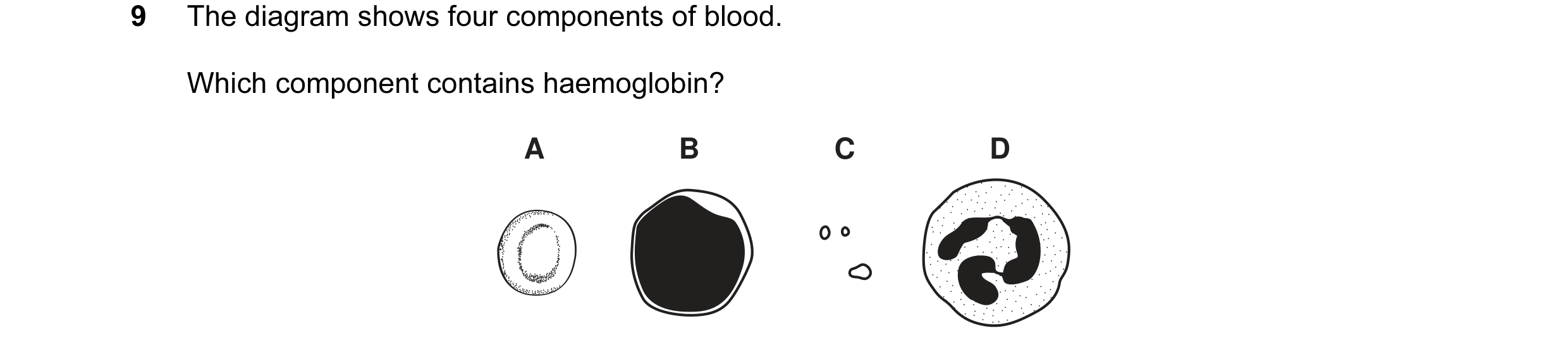

7 The diagram shows four components of blood. Which component contains haemoglobin? A B C D

1 marks

Answer: A

This question in 0653/11 May/June 2010

9 The diagram shows four components of blood. Which component contains haemoglobin? A B C D

1 marks

Answer: A

This question in 0653/12 May/June 2010

9 The diagram shows four components of blood. Which component contains haemoglobin? A B C D

1 marks

Answer: A

This question in 0653/13 May/June 2010

5 Which nutrient, when deficient in the diet, causes a lack of haemoglobin in red blood cells? A calcium B iron C vitamin C D vitamin D

1 marks

Answer: B

This question in 0653/11 Oct/Nov 2010

12 Which variation amongst humans is not affected by diet? A blood group B bone strength C height D speed of wound healing

1 marks

Answer: A

This question in 0653/11 Oct/Nov 2010

5 Which nutrient, when deficient in the diet, causes a lack of haemoglobin in red blood cells? A calcium B iron C vitamin C D vitamin D

1 marks

Answer: B

This question in 0653/12 Oct/Nov 2010

9 Which nutrient, when deficient in the diet, causes a lack of haemoglobin in red blood cells? A calcium B iron C vitamin C D vitamin D

1 marks

Answer: B

This question in 0653/13 Oct/Nov 2010

7 The statements describe events that occur when glucose is absorbed from the alimentary canal. 1 Blood sugar level falls. 2 Blood sugar level rises. 3 Insulin is released. 4 Liver removes glucose from the blood. Which is the correct order of events? A 2 → 3 → 4 → 1 B 2 → 4 → 3 → 1 C 3 → 2 → 4 → 1 D 4 → 1 → 3 → 2

1 marks

Answer: A

This question in 0653/12 May/June 2011

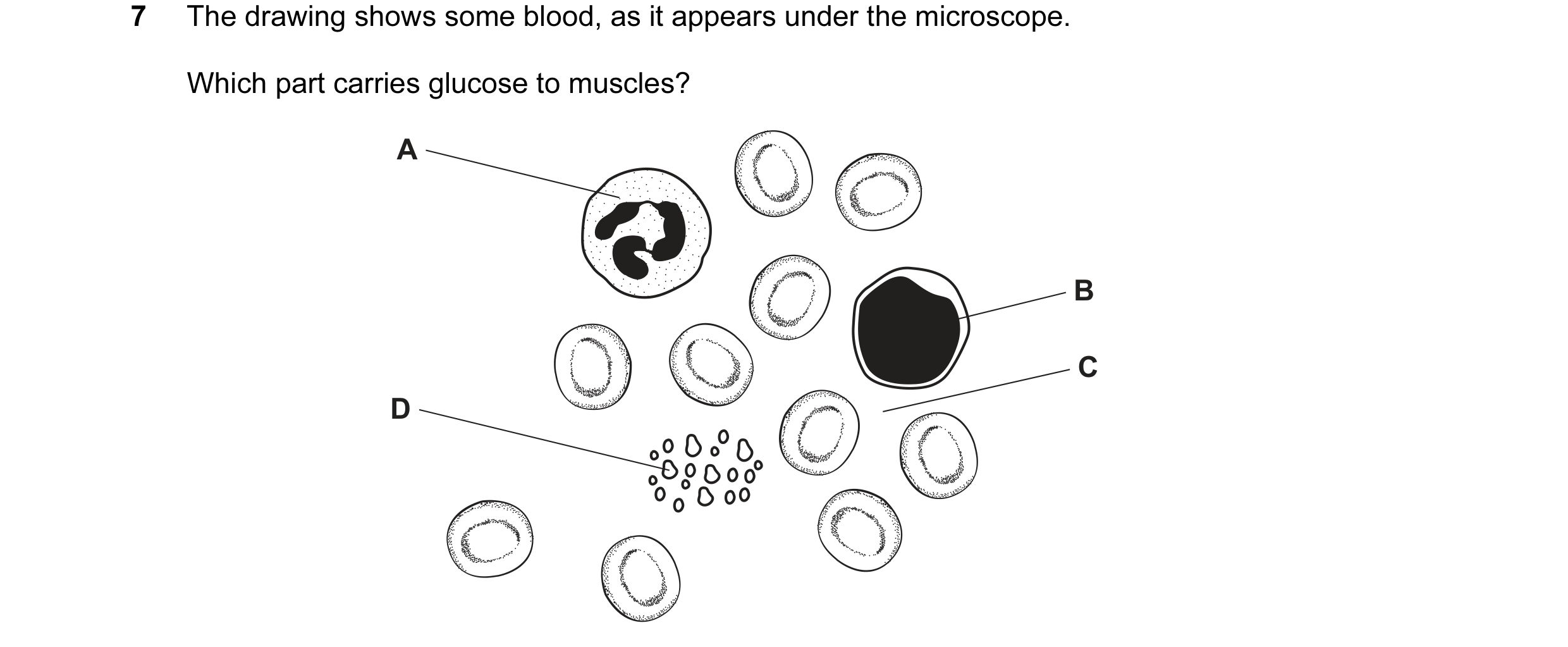

7 The drawing shows some blood, as it appears under the microscope. Which part carries glucose to muscles? A B C D

1 marks

Answer: C

This question in 0653/11 Oct/Nov 2015

7 The drawing shows some blood, as it appears under the microscope. Which part carries glucose to muscles? A B C D

1 marks

Answer: C

This question in 0653/12 Oct/Nov 2015

6 The drawing shows some blood, as it appears under the microscope. Which part carries glucose to muscles? A B C D

1 marks

Answer: C

This question in 0653/13 Oct/Nov 2015

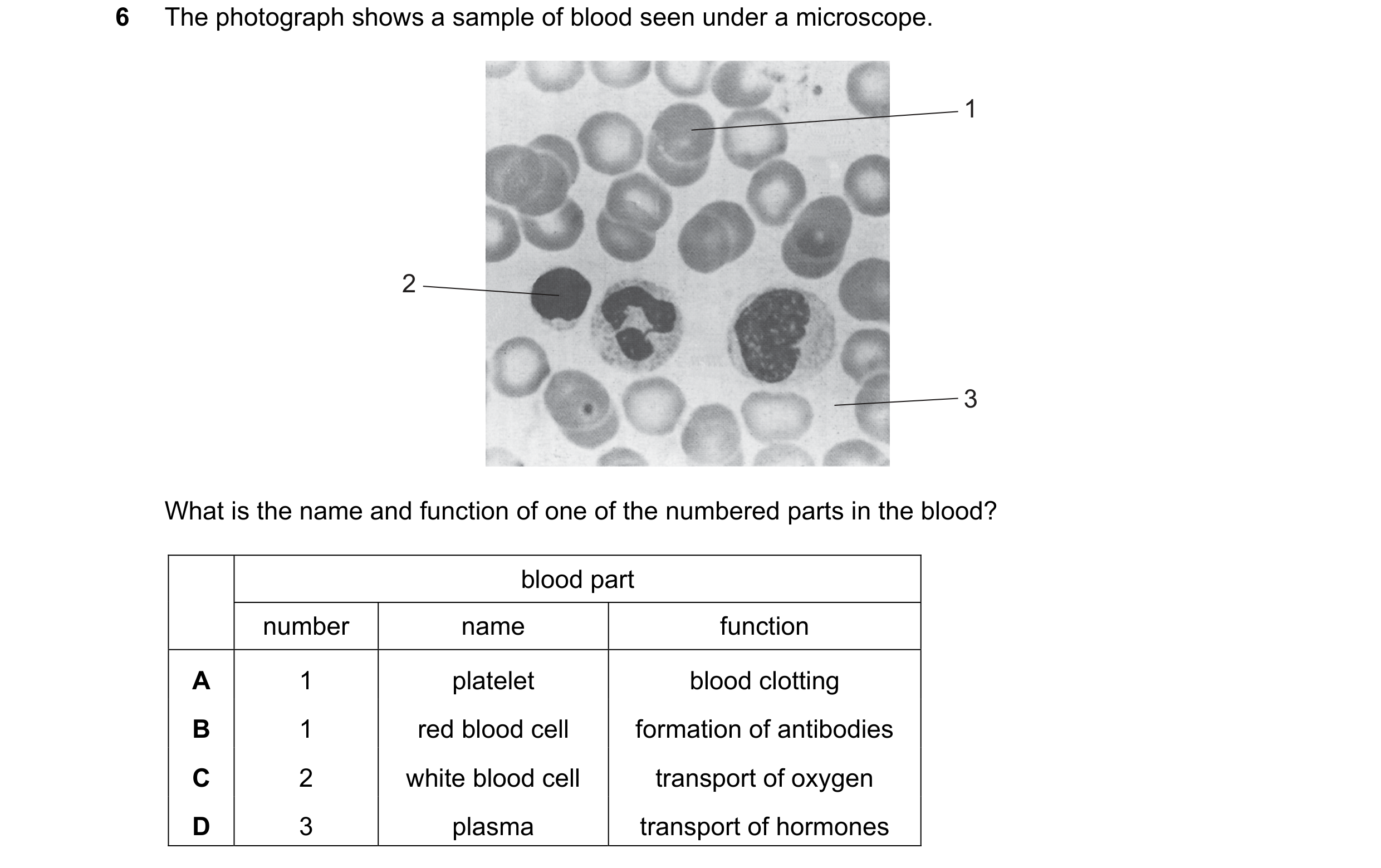

6 The photograph shows a sample of blood seen under a microscope. 1 2 3 What is the name and function of one of the numbered parts in the blood? blood part number name function A 1 platelet blood clotting B 1 red blood cell formation of antibodies C 2 white blood cell transport of oxygen D 3 plasma transport of hormones

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2016

7 The photomicrograph shows a sample of human blood. X What is the function of the cells marked X? A antibody formation B clotting of blood C phagocytosis D transport of oxygen

1 marks

Answer: D

This question in 0653/11 Oct/Nov 2017

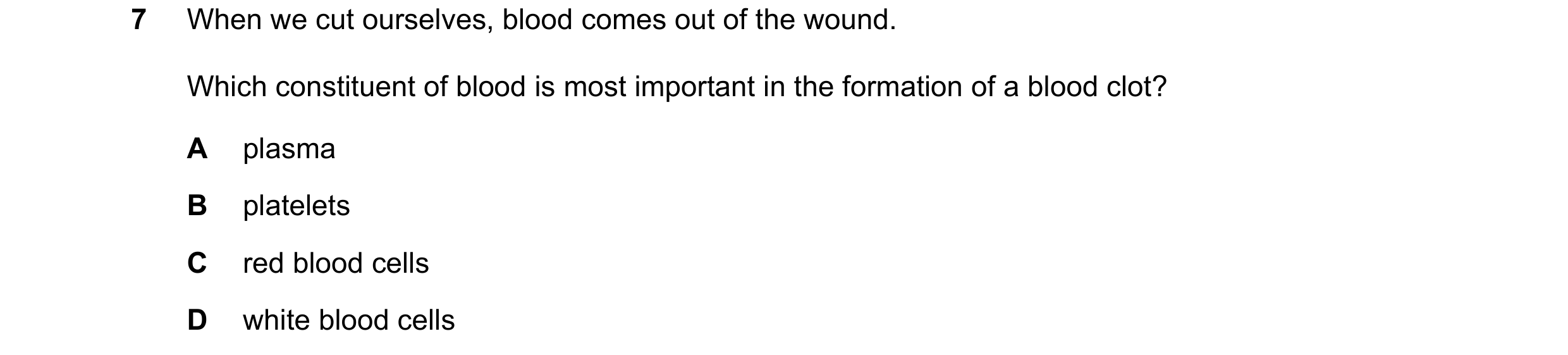

7 When we cut ourselves, blood comes out of the wound. Which constituent of blood is most important in the formation of a blood clot? A plasma B platelets C red blood cells D white blood cells

1 marks

Answer: B

This question in 0653/12 Oct/Nov 2017

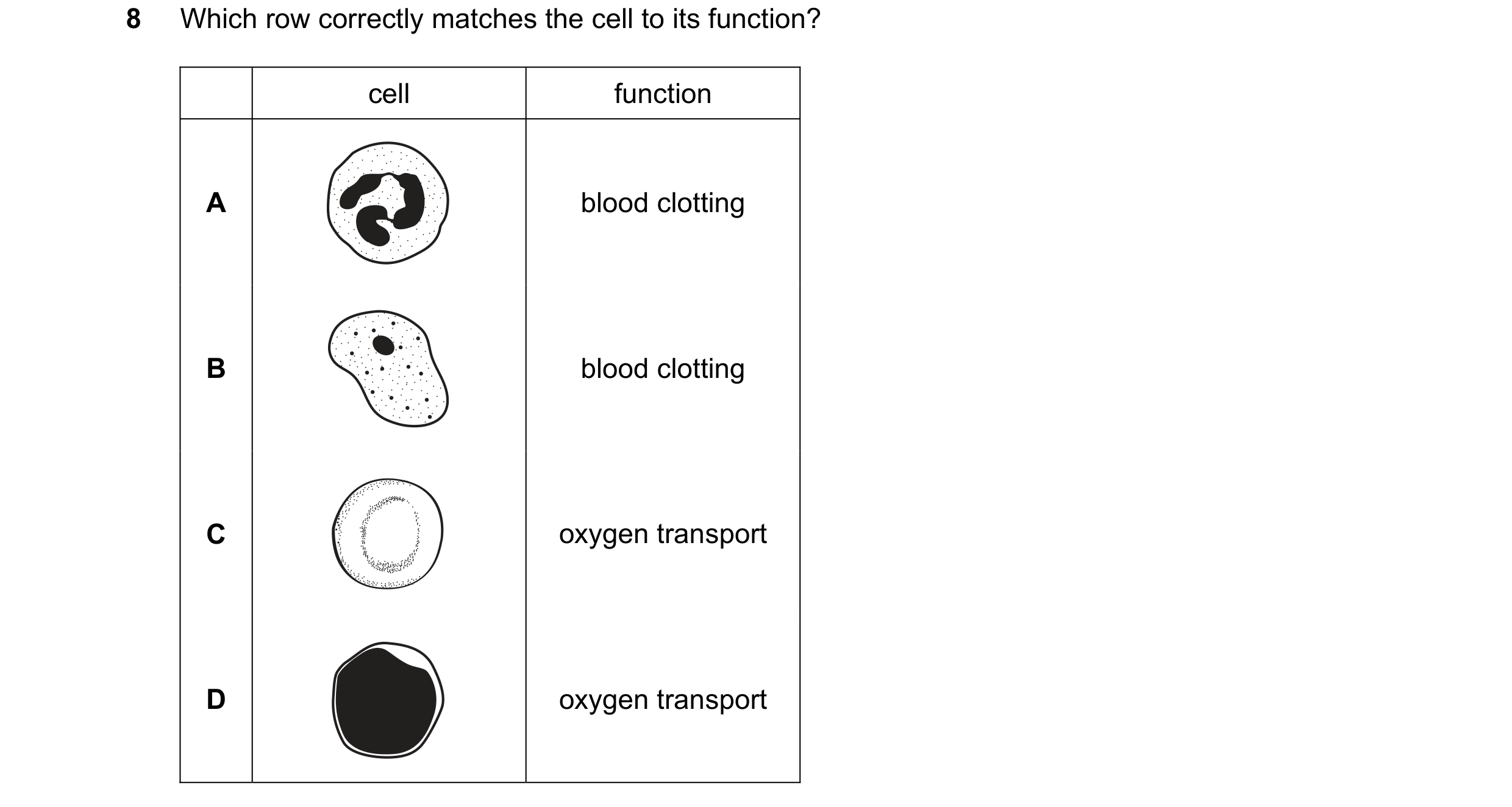

8 Which row correctly matches the cell to its function? cell function A blood clotting B blood clotting C oxygen transport D oxygen transport

1 marks

Answer: C

This question in 0653/13 Oct/Nov 2017

6 The table shows components of blood and their functions. Which row is correct? blood component function of component A plasma antibody formation B platelets transport of carbon dioxide C red blood cells blood clotting D white blood cells phagocytosis

1 marks

Answer: D

This question in 0653/12 Oct/Nov 2018

6 Which component of the blood produces antibodies? A plasma B platelets C red blood cells D white blood cells

1 marks

Answer: D

This question in 0653/13 Oct/Nov 2018

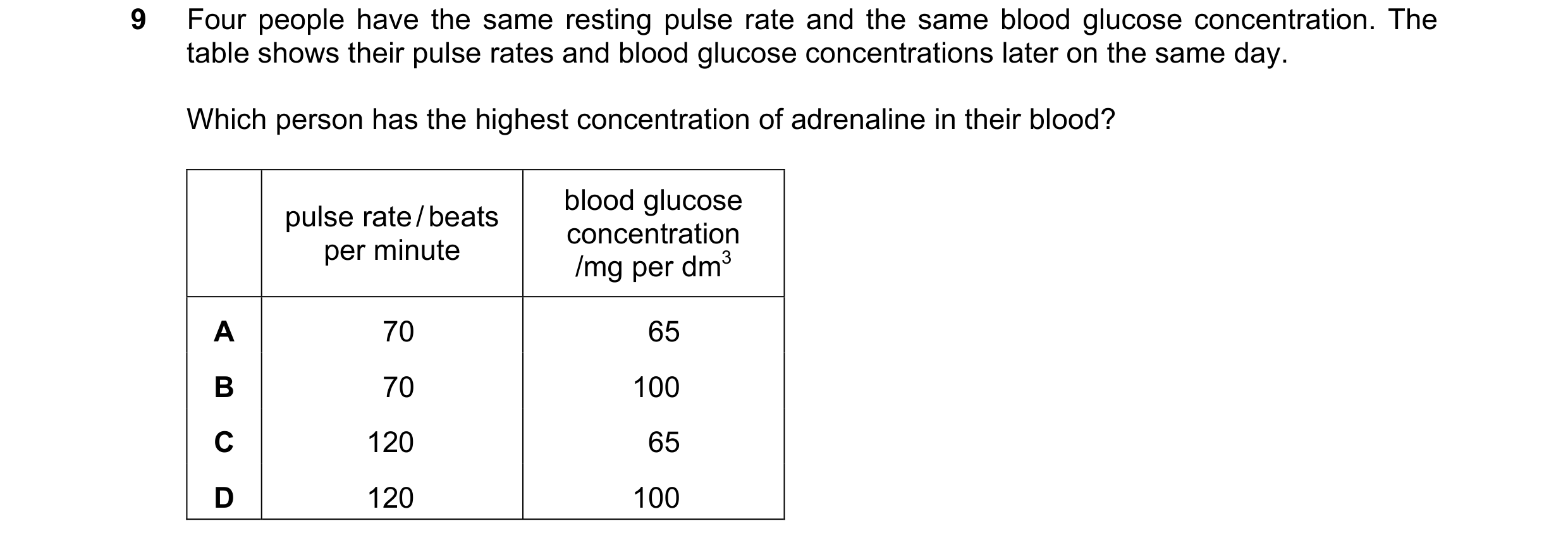

9 Four people have the same resting pulse rate and the same blood glucose concentration. The table shows their pulse rates and blood glucose concentrations later on the same day. Which person has the highest concentration of adrenaline in their blood? blood glucose pulse rate / beats concentration per minute /mg per dm3 A 70 65 B 70 100 C 120 65 D 120 100

1 marks

Answer: D

This question in 0653/11 May/June 2020

7 The diagram shows components of blood as seen with a light microscope. Which component produces antibodies? B C A D

1 marks

Answer: B

This question in 0653/12 Oct/Nov 2022

7 The diagram shows components of blood as seen with a light microscope. Which component produces antibodies? B C A D

1 marks

Answer: B

This question in 0653/13 Oct/Nov 2022

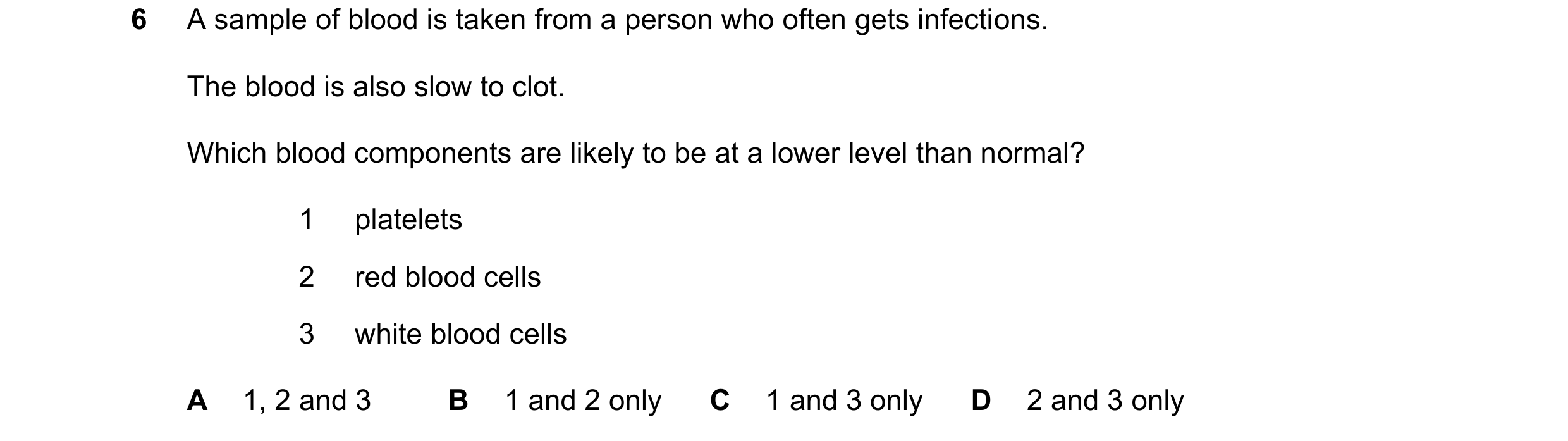

6 A sample of blood is taken from a person who often gets infections. The blood is also slow to clot. Which blood components are likely to be at a lower level than normal? 1 platelets 2 red blood cells 3 white blood cells A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: C

This question in 0653/12 May/June 2023

6 What should be added to the diet of a person who has too few red blood cells? A calcium B iron C fats D glucose

1 marks

Answer: B

This question in 0653/12 Feb/March 2024

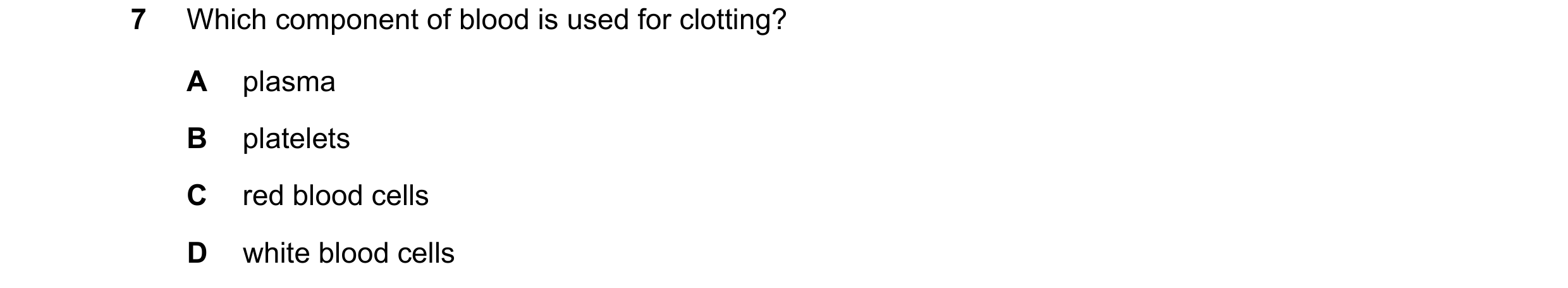

7 Which component of blood is used for clotting? A plasma B platelets C red blood cells D white blood cells

1 marks

Answer: B

This question in 0653/11 Oct/Nov 2024

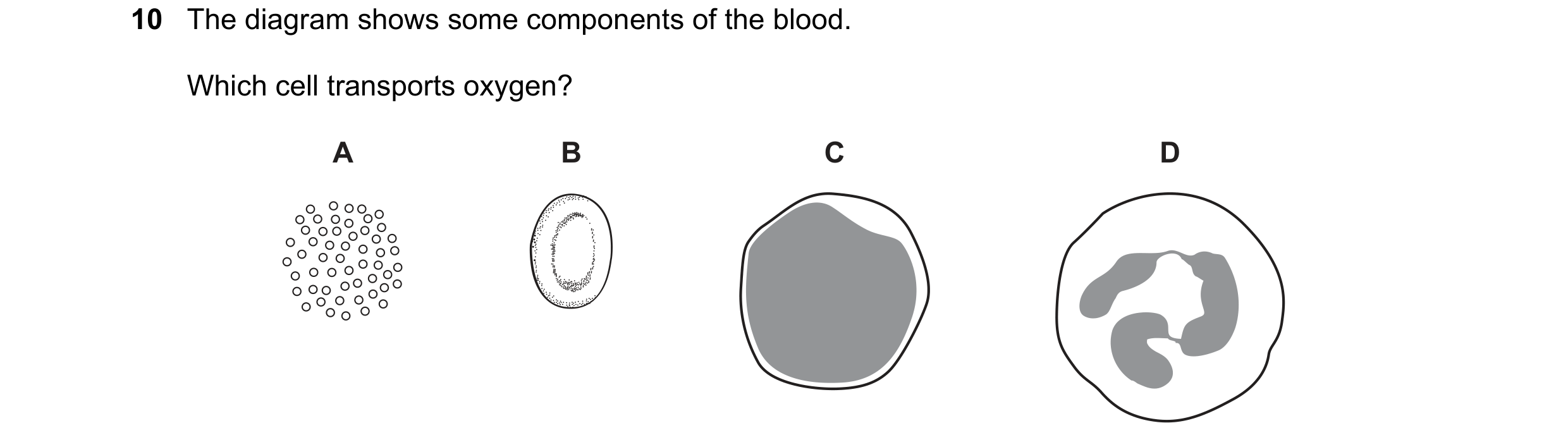

10 The diagram shows some components of the blood. Which cell transports oxygen? A B C D

1 marks

Answer: B

This question in 0653/12 Feb/March 2025
