Fuels — Paper 1 · IGCSE Physical Science 0652

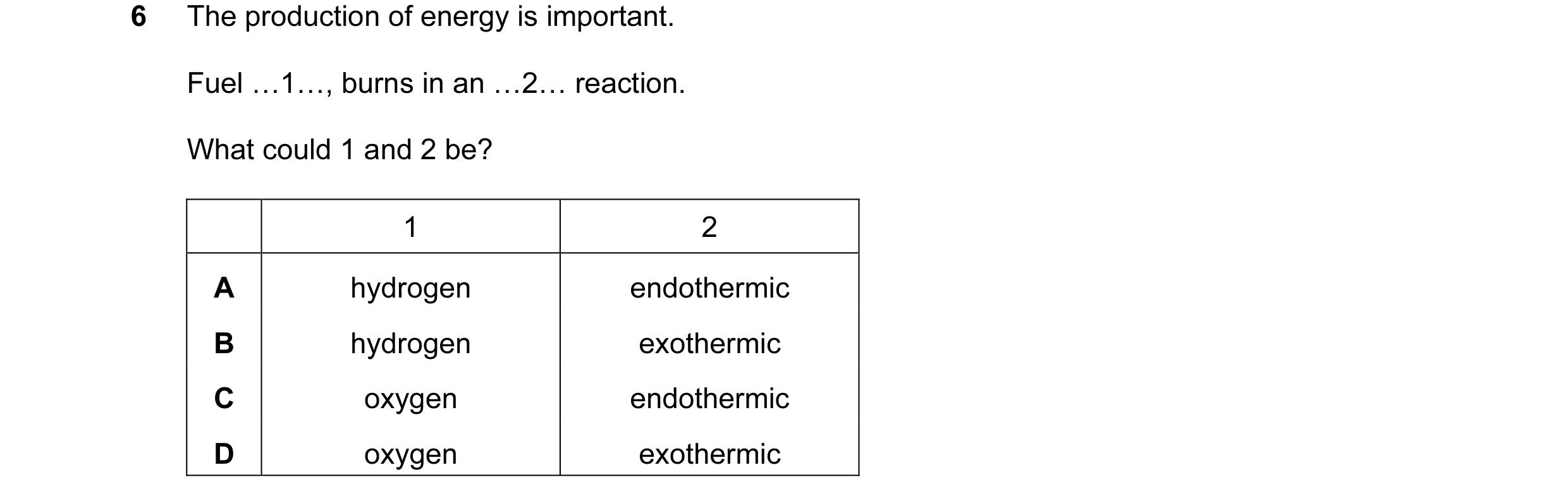

6 The production of energy is important. Fuel …1…, burns in an …2… reaction. What could 1 and 2 be? 1 2 A hydrogen endothermic B hydrogen exothermic C oxygen endothermic D oxygen exothermic

1 marks

Answer: B

This question in 0652/11 Oct/Nov 2007

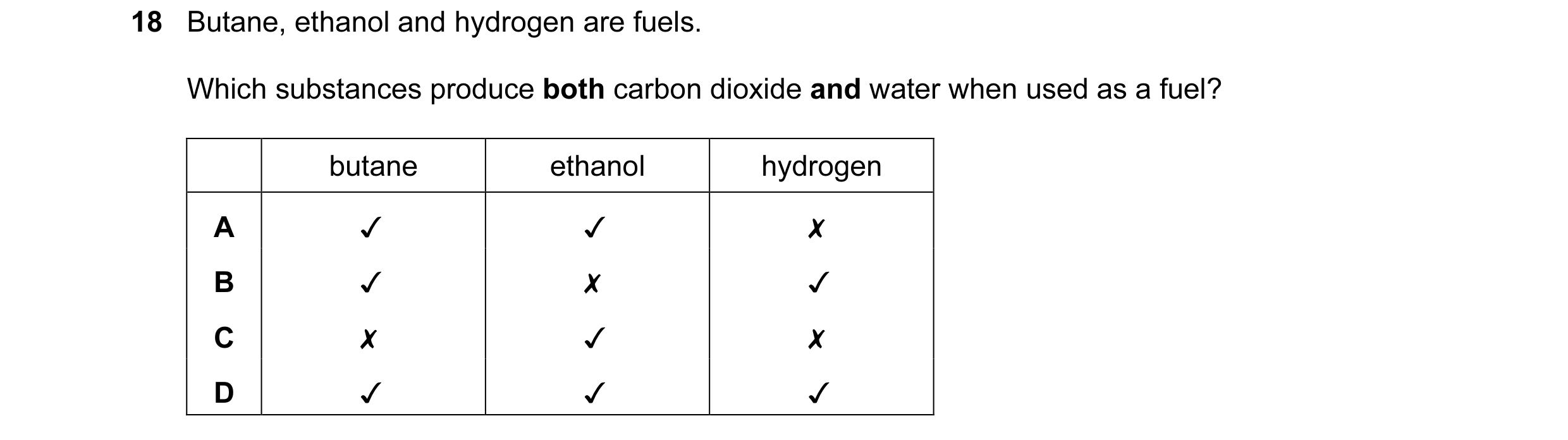

18 Butane, ethanol and hydrogen are fuels. Which substances produce both carbon dioxide and water when used as a fuel? butane ethanol hydrogen v v x 0 0O DW > v x v x v x v v v

1 marks

Answer: A

This question in 0652/11 Oct/Nov 2007

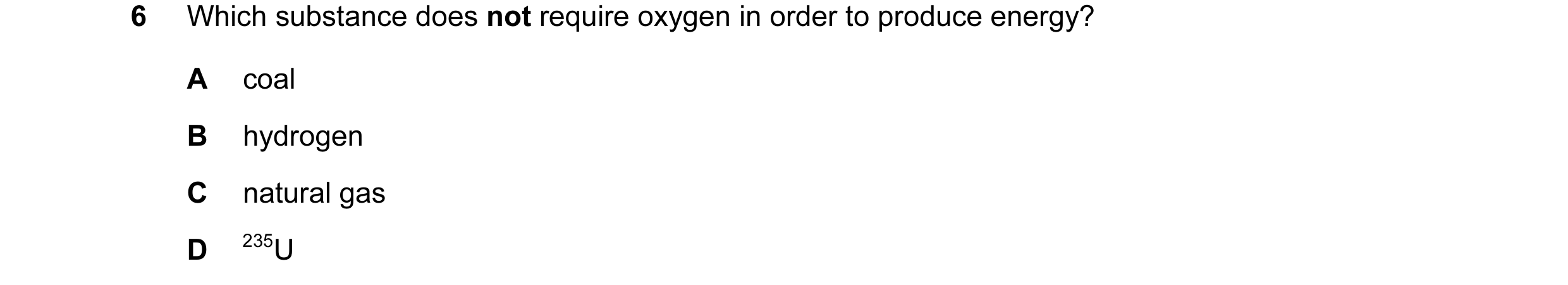

6 Which substance does not require oxygen in order to produce energy? A coal B hydrogen C natural gas D 235U

1 marks

Answer: D

This question in 0652/11 Oct/Nov 2008

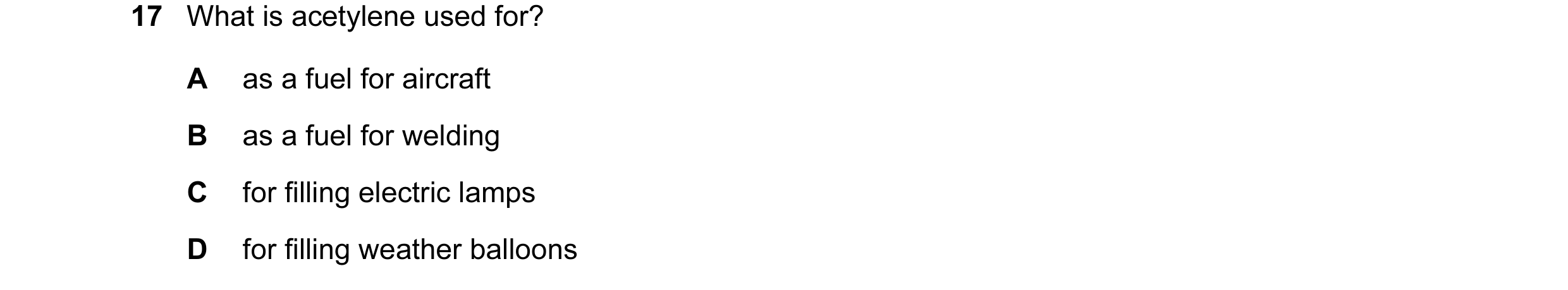

17 What is acetylene used for? A as a fuel for aircraft B as a fuel for welding C for filling electric lamps D for filling weather balloons

1 marks

Answer: B

This question in 0652/11 Oct/Nov 2008

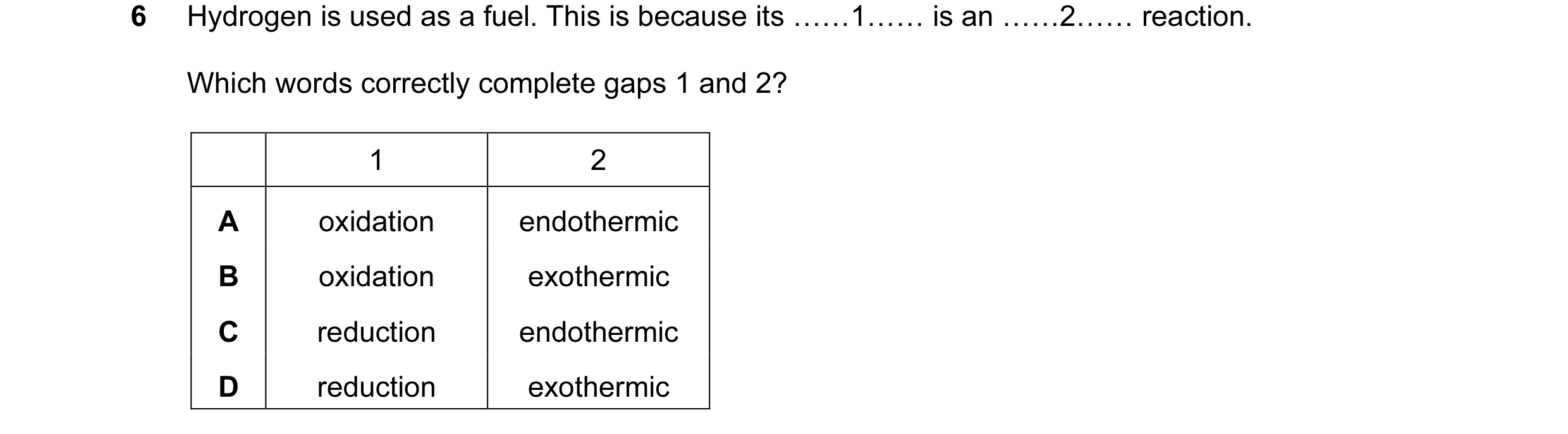

6 Hydrogen is used as a fuel. This is because its ……1…… is an ……2…… reaction. Which words correctly complete gaps 1 and 2? 1 2 A oxidation endothermic B oxidation exothermic C reduction endothermic D reduction exothermic

1 marks

Answer: B

This question in 0652/11 Oct/Nov 2009

18 The diagram shows the separation of crude oil into fractions. petrol X Y crude oil Z bitumen What could X, Y and Z represent? X Y Z A diesel lubricating oil paraffin B lubricating oil diesel paraffin C paraffin lubricating oil diesel D paraffin diesel lubricating oil

1 marks

Answer: D

This question in 0652/11 Oct/Nov 2010

18 The diagram represents an apparatus used in the fractional distillation of crude oil. From which position is methane obtained? A B crude oil C heater at 400 °C D

1 marks

Answer: A

This question in 0652/11 Oct/Nov 2011

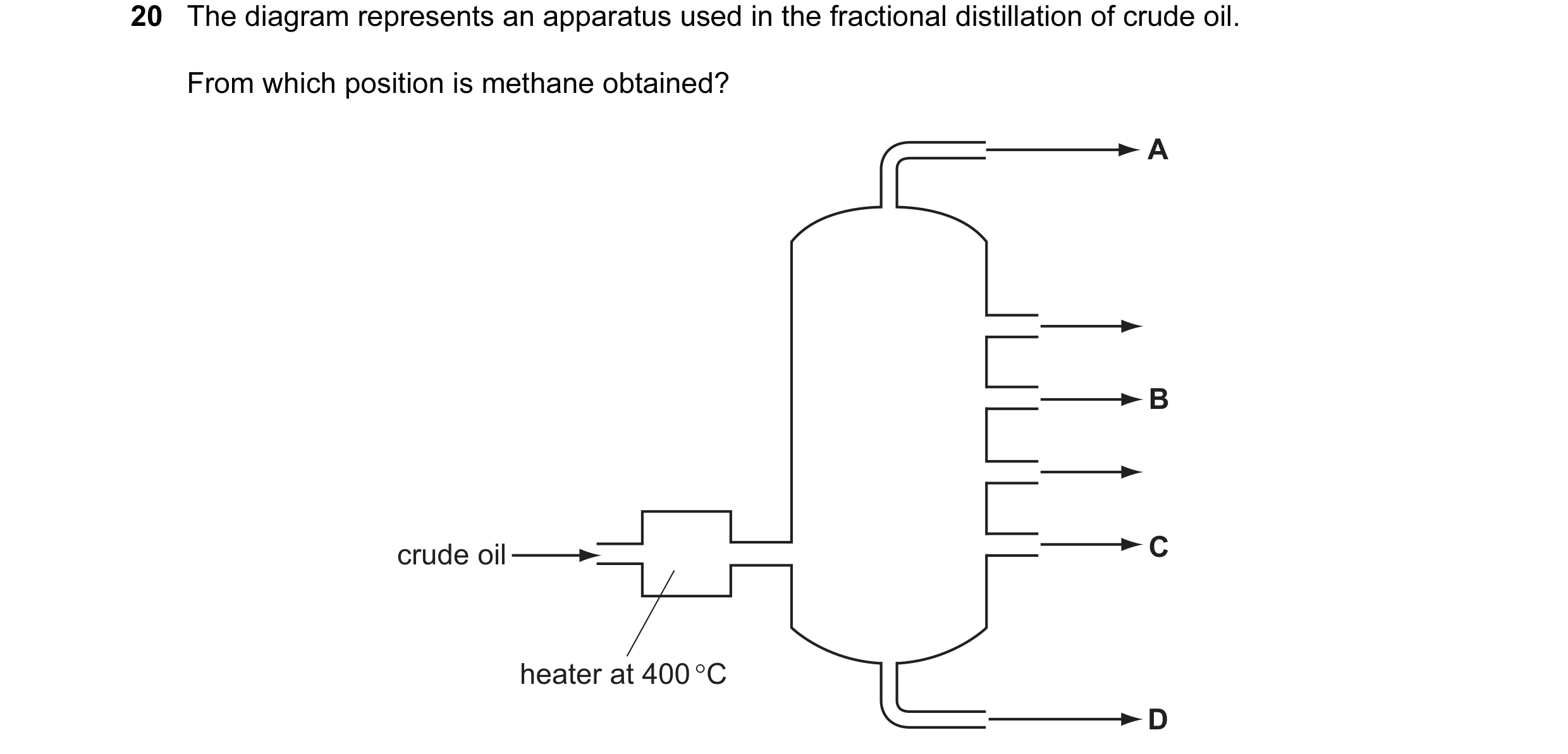

20 The diagram represents an apparatus used in the fractional distillation of crude oil. From which position is methane obtained? A B crude oil C heater at 400 °C D

1 marks

Answer: A

This question in 0652/12 Oct/Nov 2011

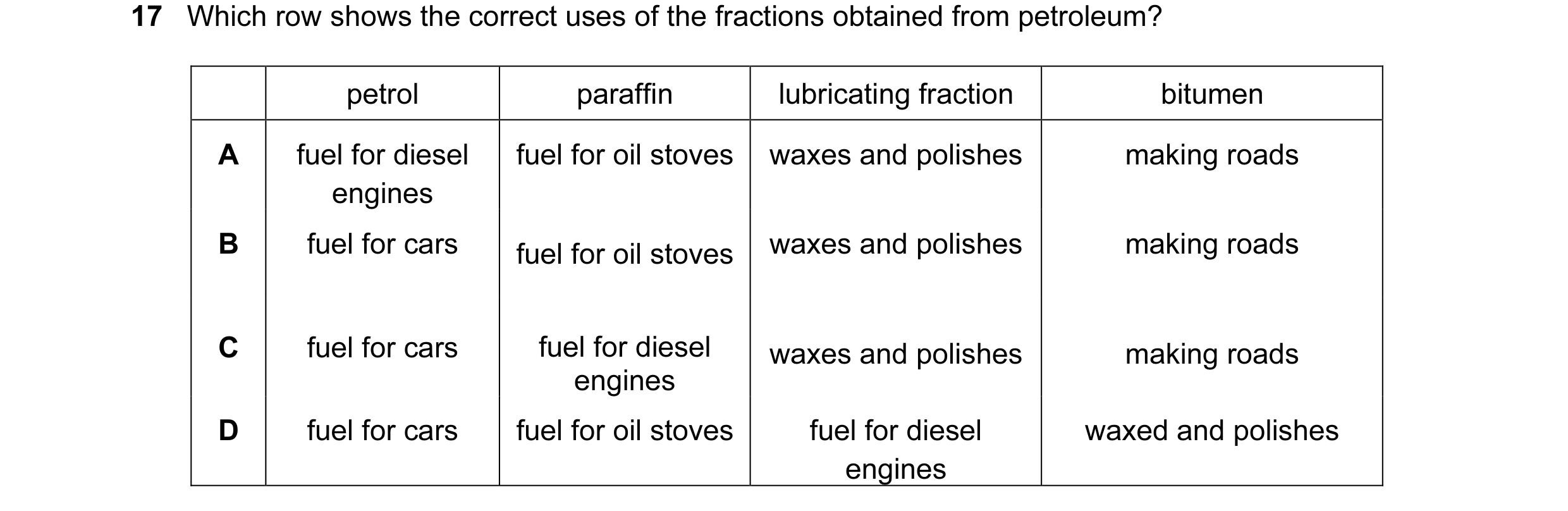

17 Which row shows the correct uses of the fractions obtained from petroleum? petrol paraffin lubricating fraction bitumen A fuel for diesel fuel for oil stoves waxes and polishes making roads engines B fuel for cars fuel for oil stoves waxes and polishes making roads C fuel for cars fuel for diesel waxes and polishes making roads engines D fuel for cars fuel for oil stoves fuel for diesel waxed and polishes engines

1 marks

Answer: B

This question in 0652/11 Oct/Nov 2013

17 Which row shows the correct uses of the fractions obtained from petroleum? petrol paraffin lubricating fraction bitumen A fuel for diesel fuel for oil stoves waxes and polishes making roads engines B fuel for cars fuel for oil stoves waxes and polishes making roads C fuel for cars fuel for diesel waxes and polishes making roads engines D fuel for cars fuel for oil stoves fuel for diesel waxed and polishes engines

1 marks

Answer: B

This question in 0652/12 Oct/Nov 2013

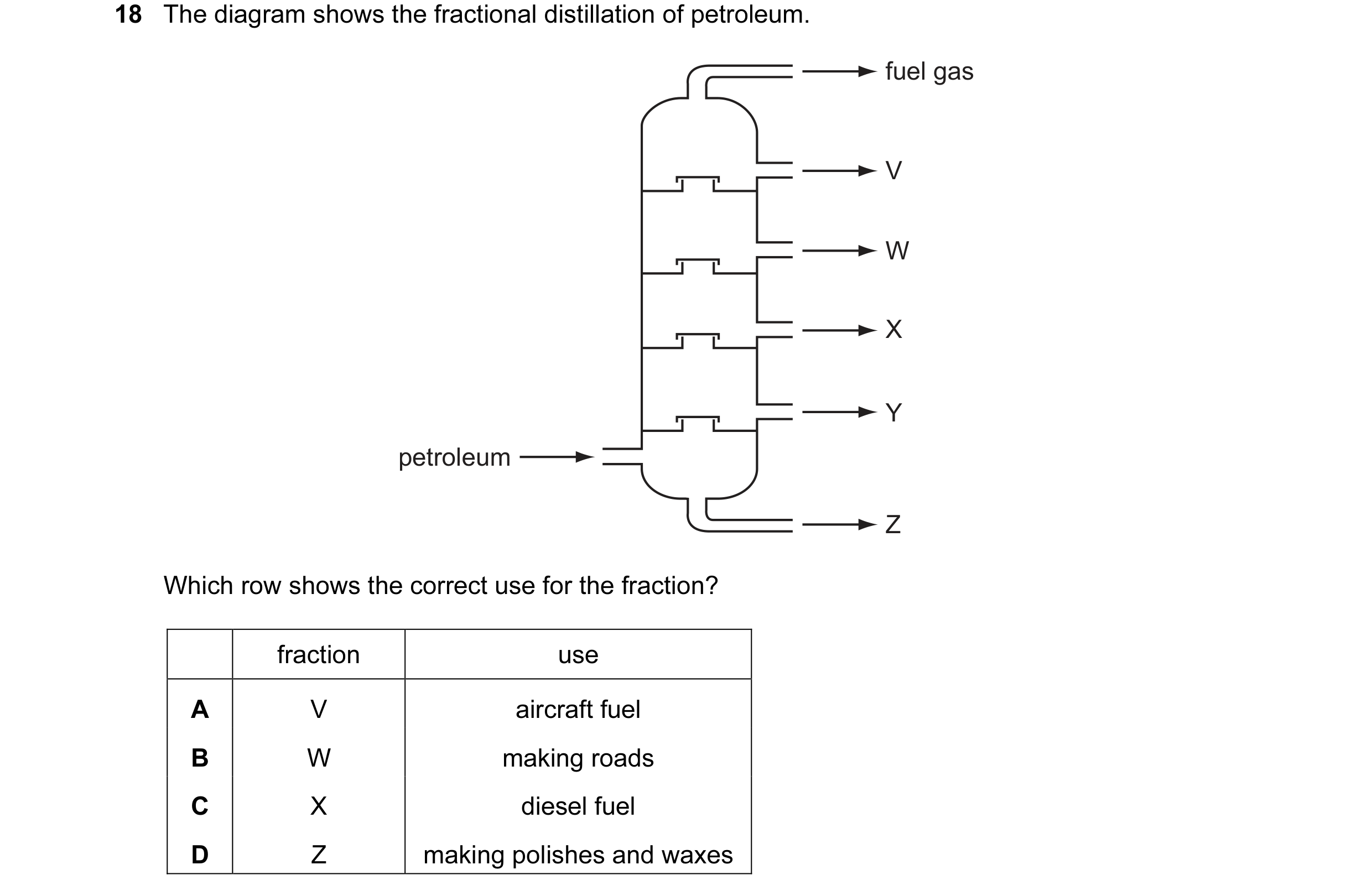

18 The diagram shows the fractional distillation of petroleum. fuel gas V W X Y petroleum Z Which row shows the correct use for the fraction? fraction use A V aircraft fuel B W making roads C X diesel fuel D Z making polishes and waxes

1 marks

Answer: C

This question in 0652/11 Oct/Nov 2014

18 The diagram shows the fractional distillation of petroleum. fuel gas V W X Y petroleum Z Which row shows the correct use for the fraction? fraction use A V aircraft fuel B W making roads C X diesel fuel D Z making polishes and waxes

1 marks

Answer: C

This question in 0652/12 Oct/Nov 2014

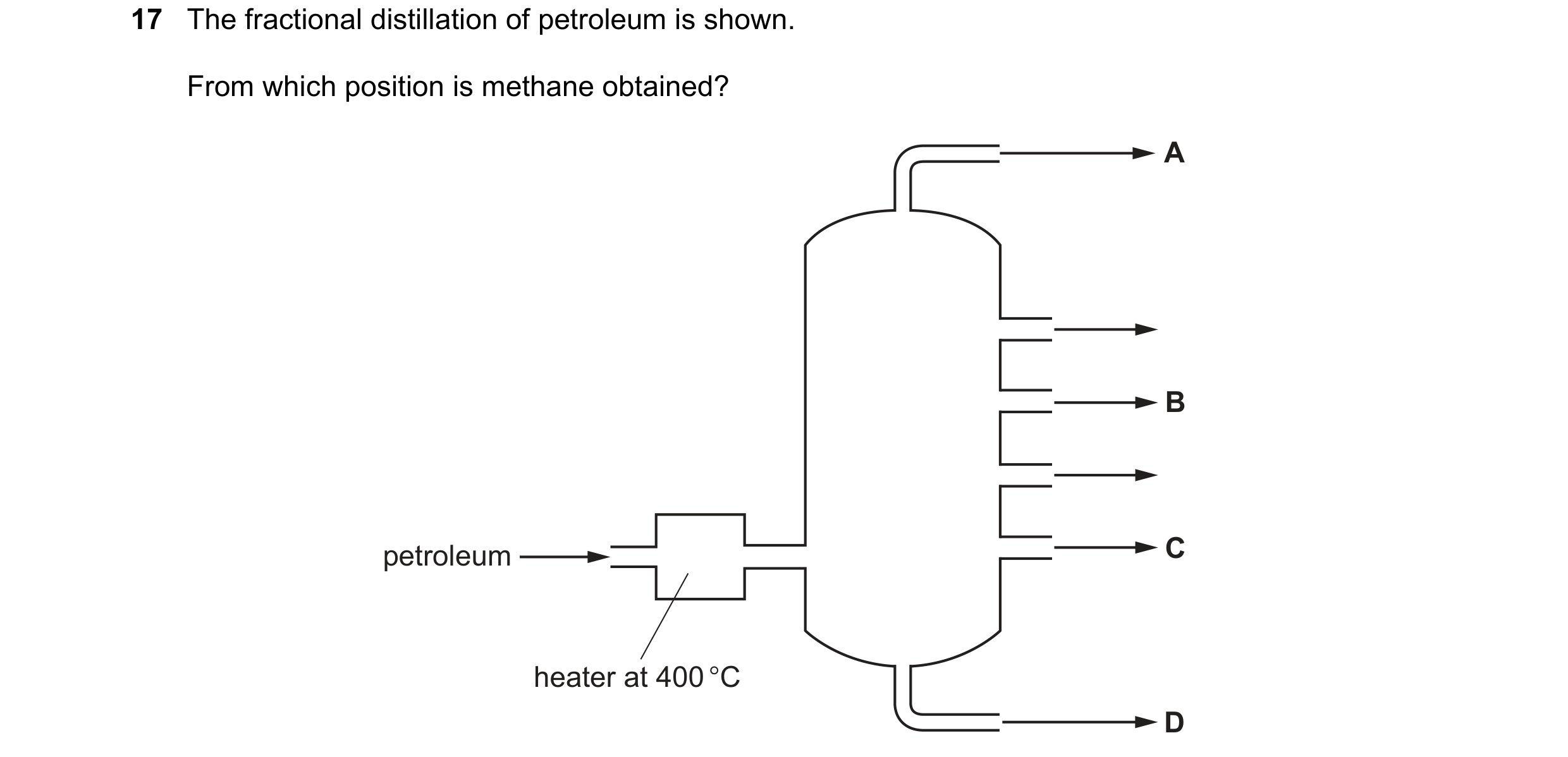

17 The fractional distillation of petroleum is shown. From which position is methane obtained? A B C petroleum heater at 400 °C D

1 marks

Answer: A

This question in 0652/11 Oct/Nov 2017

17 The fractional distillation of petroleum is shown. From which position is methane obtained? A B C petroleum heater at 400 °C D

1 marks

Answer: A

This question in 0652/12 Oct/Nov 2017

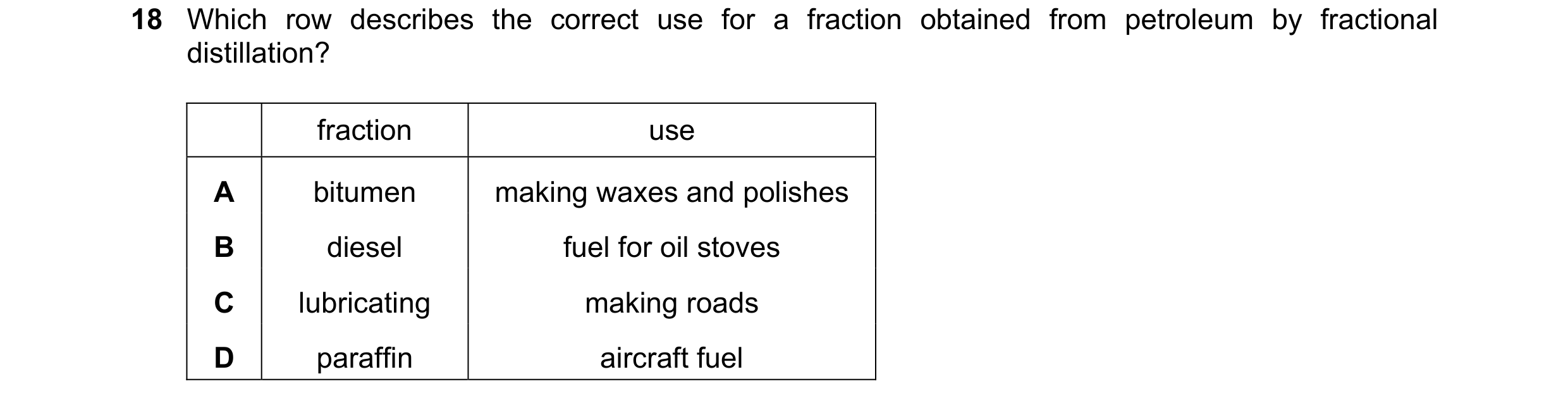

18 Which row describes the correct use for a fraction obtained from petroleum by fractional distillation? fraction use A bitumen making waxes and polishes B diesel fuel for oil stoves C lubricating making roads D paraffin aircraft fuel

1 marks

Answer: D

This question in 0652/11 Oct/Nov 2018

18 Which row describes the correct use for a fraction obtained from petroleum by fractional distillation? fraction use A bitumen making waxes and polishes B diesel fuel for oil stoves C lubricating making roads D paraffin aircraft fuel

1 marks

Answer: D

This question in 0652/12 Oct/Nov 2018

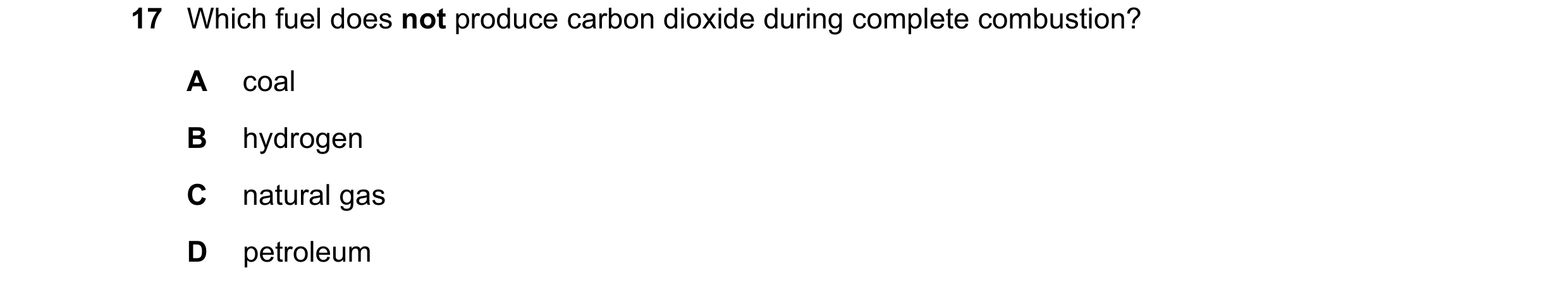

17 Which fuel does not produce carbon dioxide during complete combustion? A coal B hydrogen C natural gas D petroleum

1 marks

Answer: B

This question in 0652/11 Oct/Nov 2019

27 The diagram shows a power station used to generate electricity. turbine generator cooling tower steam + cold hot water water What is the source of the energy transferred by the electric current? A coal B gas C hot rocks D oil

1 marks

Answer: C

This question in 0652/11 Oct/Nov 2019

20 Ethanol is an alcohol with the formula C2H5OH. It is used as a solvent in the manufacture of varnishes and perfumes. What is another use of ethanol? A as a fuel B as the monomer unit in the formation of poly(ethene) C manufacture of natural gas D neutralising acidic soil

1 marks

Answer: A

This question in 0652/12 Oct/Nov 2019

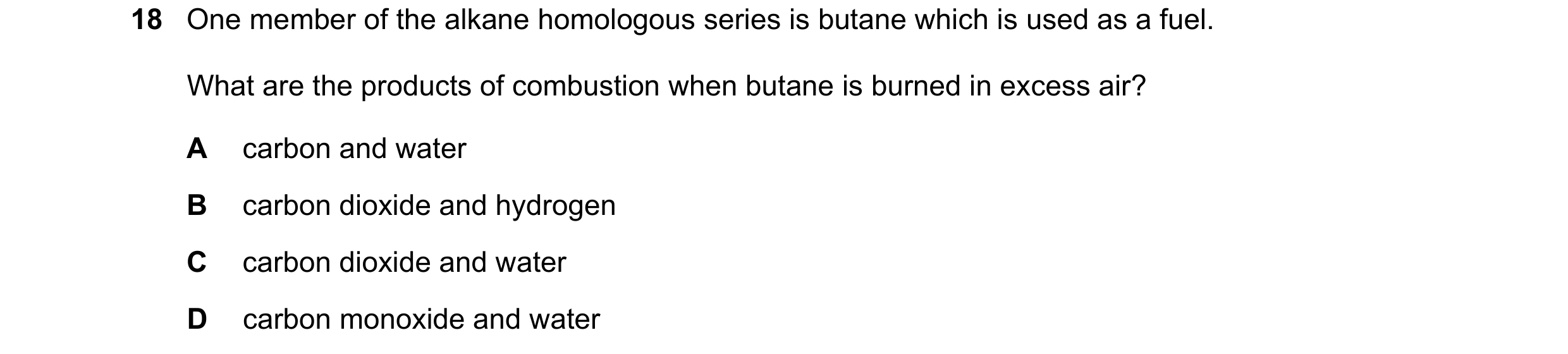

18 One member of the alkane homologous series is butane which is used as a fuel. What are the products of combustion when butane is burned in excess air? A carbon and water B carbon dioxide and hydrogen C carbon dioxide and water D carbon monoxide and water

1 marks

Answer: C

This question in 0652/11 Oct/Nov 2020

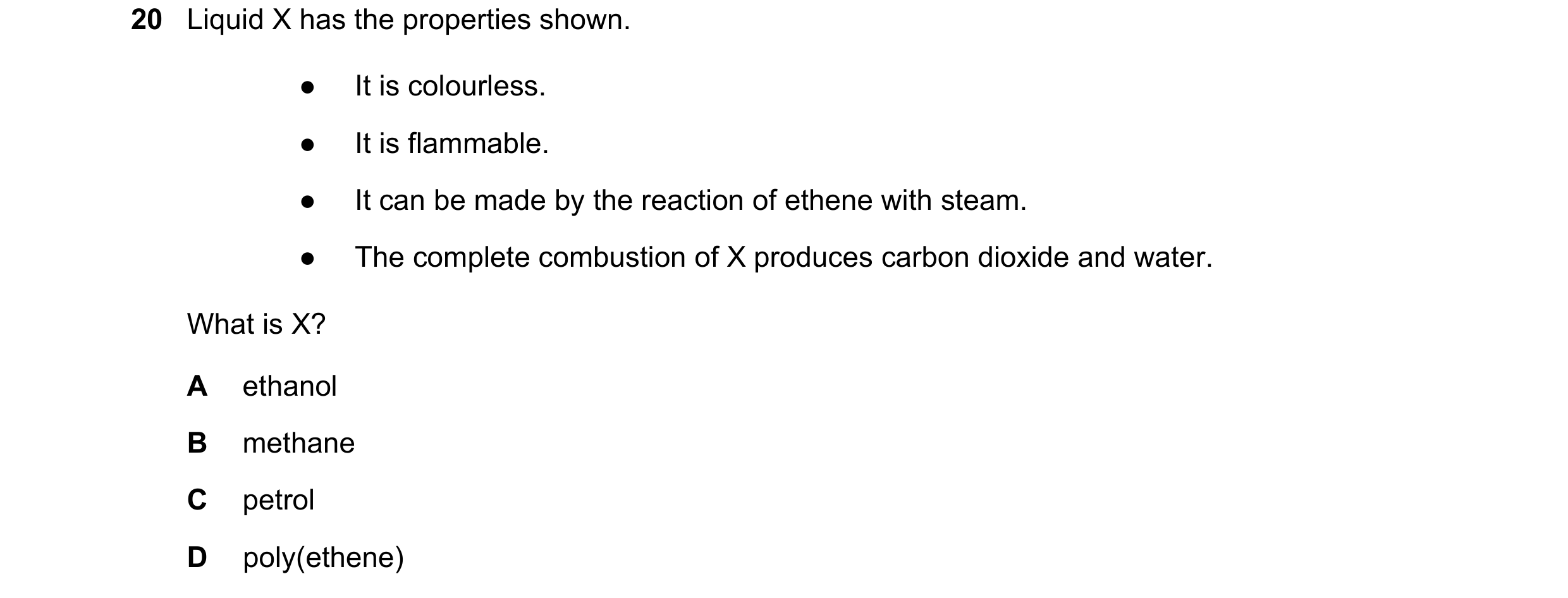

20 Liquid X has the properties shown. ● It is colourless. ● It is flammable. ● It can be made by the reaction of ethene with steam. ● The complete combustion of X produces carbon dioxide and water. What is X? A ethanol B methane C petrol D poly(ethene)

1 marks

Answer: A

This question in 0652/11 Oct/Nov 2020

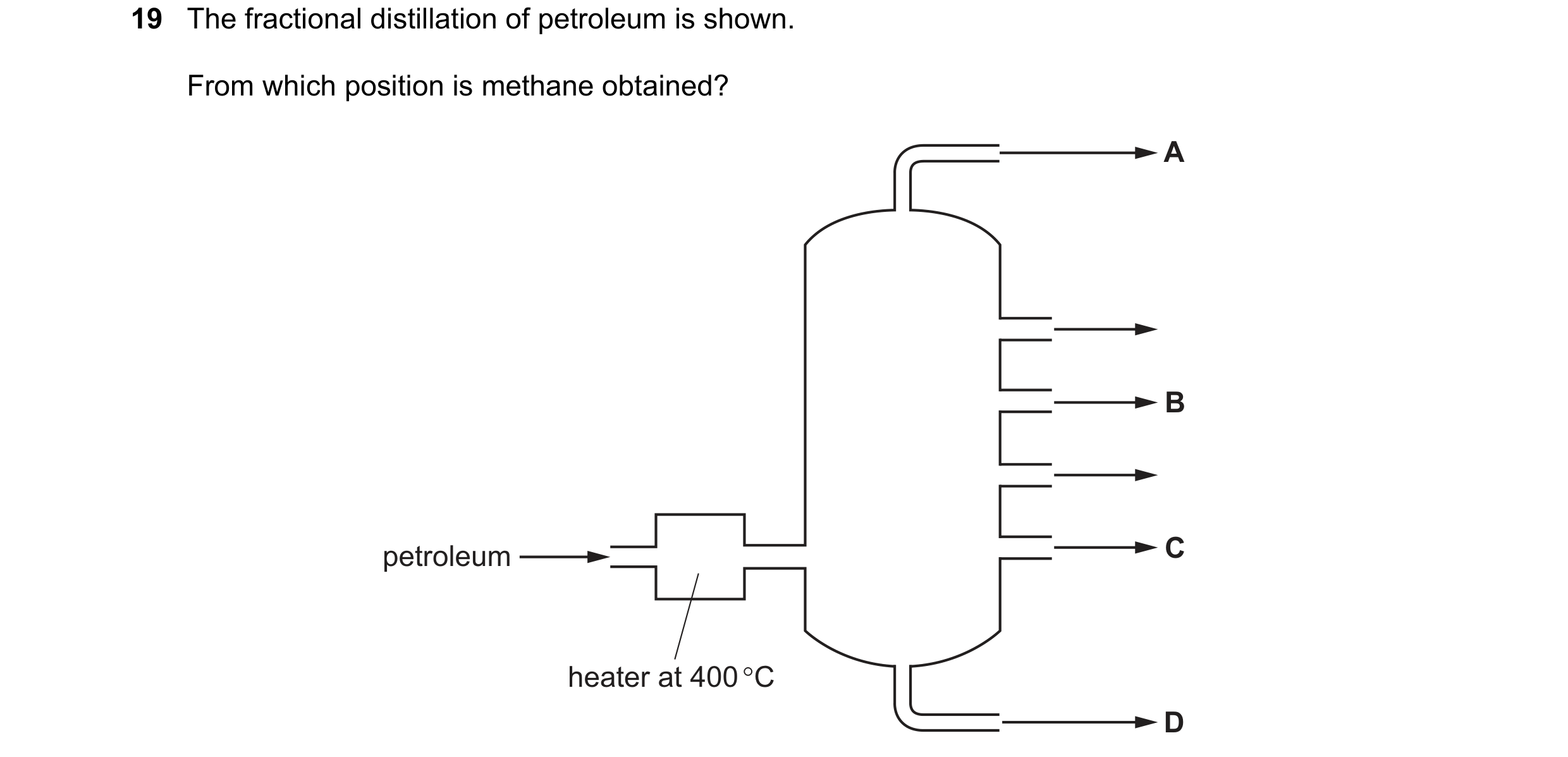

19 The fractional distillation of petroleum is shown. From which position is methane obtained? A B C petroleum heater at 400 °C D

1 marks

Answer: A

This question in 0652/11 Oct/Nov 2021

19 The diagram shows the fractional distillation of petroleum. fuel gas V W X Y petroleum Z Which row shows the correct use for the fraction? fraction use A V aircraft fuel B W making roads C X diesel fuel D Z making polishes and waxes

1 marks

Answer: C

This question in 0652/11 Oct/Nov 2022

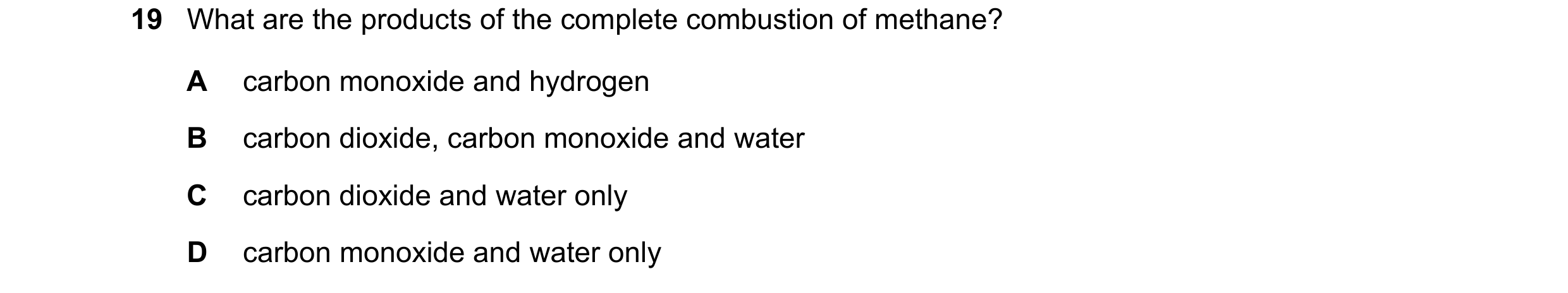

19 What are the products of the complete combustion of methane? A carbon monoxide and hydrogen B carbon dioxide, carbon monoxide and water C carbon dioxide and water only D carbon monoxide and water only

1 marks

Answer: C

This question in 0652/11 Oct/Nov 2023

19 What are the products of the complete combustion of methane? A carbon monoxide and hydrogen B carbon dioxide, carbon monoxide and water C carbon dioxide and water only D carbon monoxide and water only

1 marks

Answer: C

This question in 0652/12 Oct/Nov 2023
