Cell structure — Paper 1 · IGCSE Biology (9-1) 0970

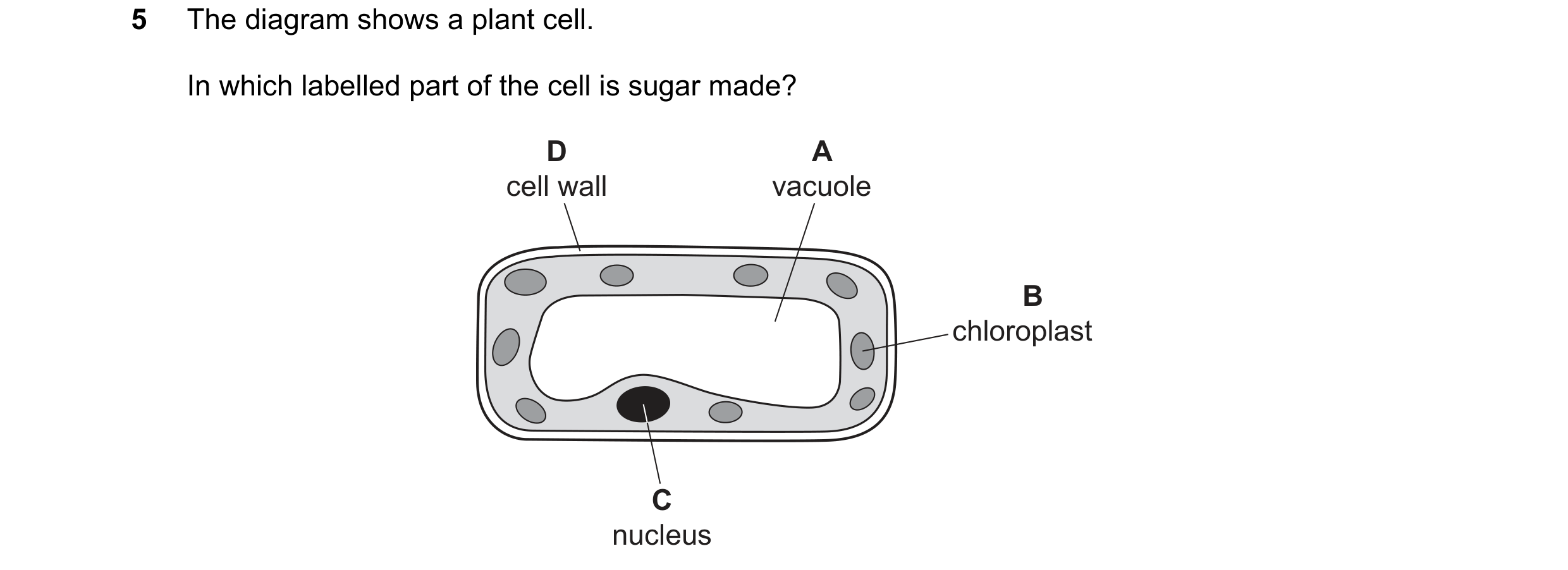

5 The diagram shows a plant cell. In which labelled part of the cell is sugar made? D A cell wall vacuole B chloroplast C nucleus

1 marks

Answer: B

This question in 0970/11 May/June 2018

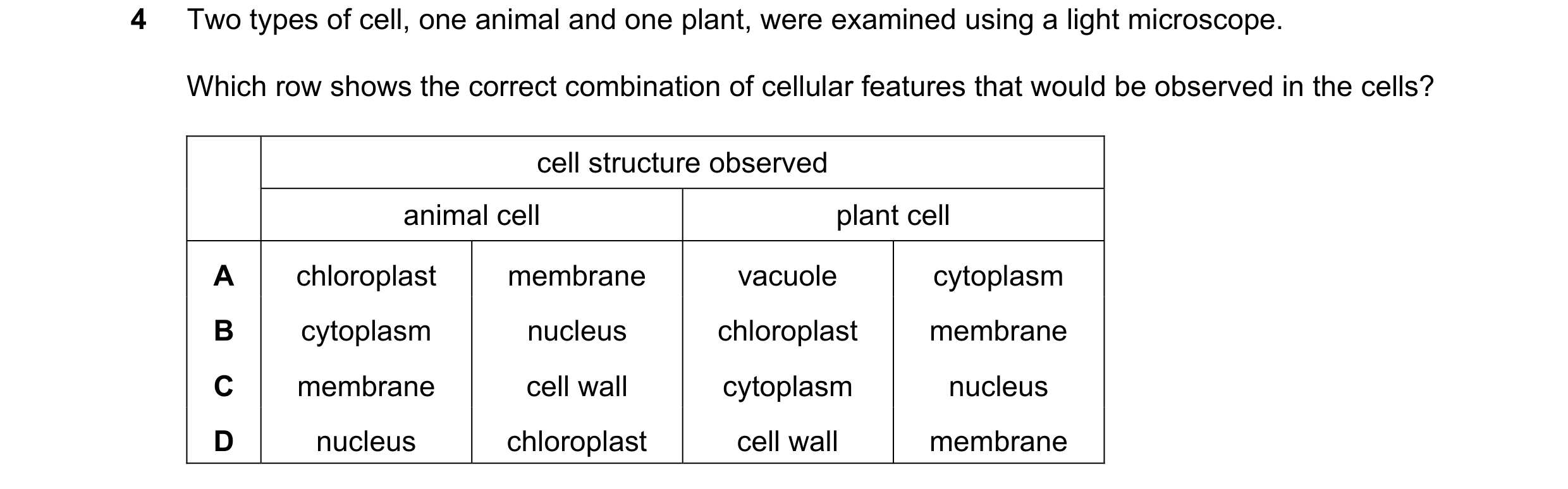

4 Two types of cell, one animal and one plant, were examined using a light microscope. Which row shows the correct combination of cellular features that would be observed in the cells? cell structure observed animal cell plant cell A chloroplast membrane vacuole cytoplasm B cytoplasm nucleus chloroplast membrane C membrane cell wall cytoplasm nucleus D nucleus chloroplast cell wall membrane

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2018

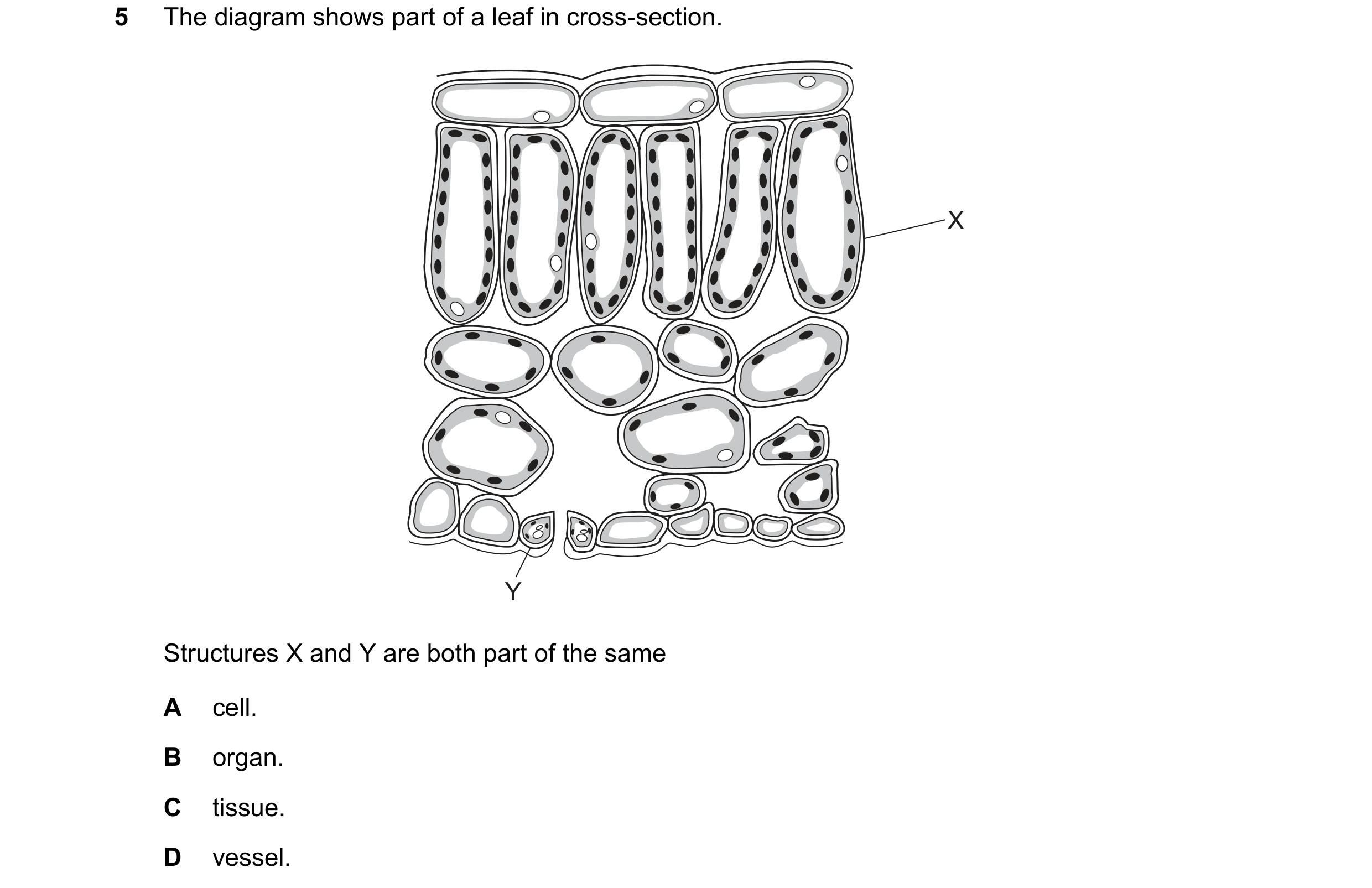

5 The diagram shows part of a leaf in cross-section. X Y Structures X and Y are both part of the same A cell. B organ. C tissue. D vessel.

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2018

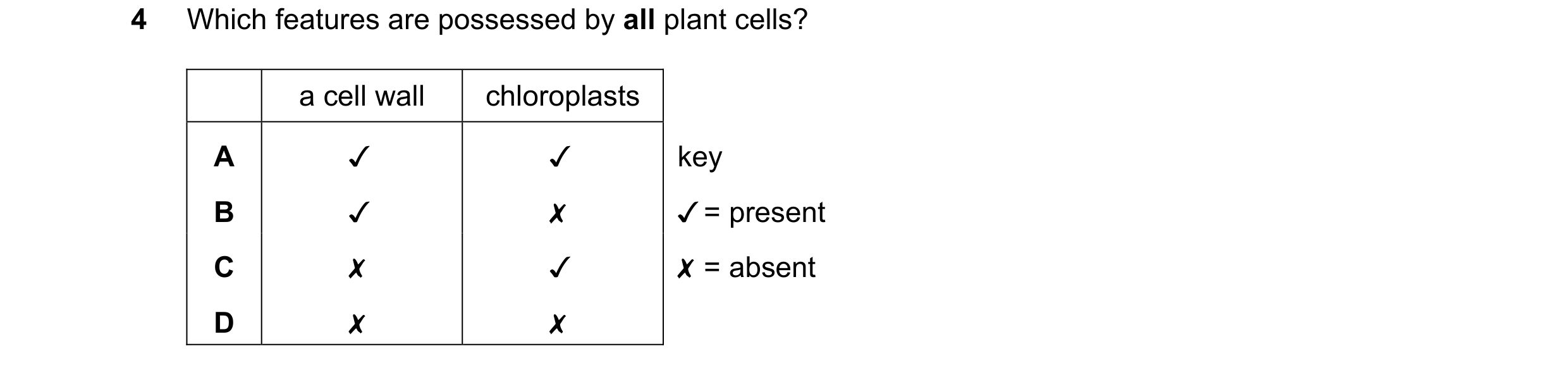

4 Which features are possessed by all plant cells? 0 0O WwW D> a cell wall ~ Kw & chloroplasts x < x key J/ = present X = absent

1 marks

Answer: B

This question in 0970/11 May/June 2019

12 The diagram shows a cross-section of a leaf as seen under a microscope. Which structure is a palisade mesophyll cell? A B C D

1 marks

Answer: B

This question in 0970/11 May/June 2019

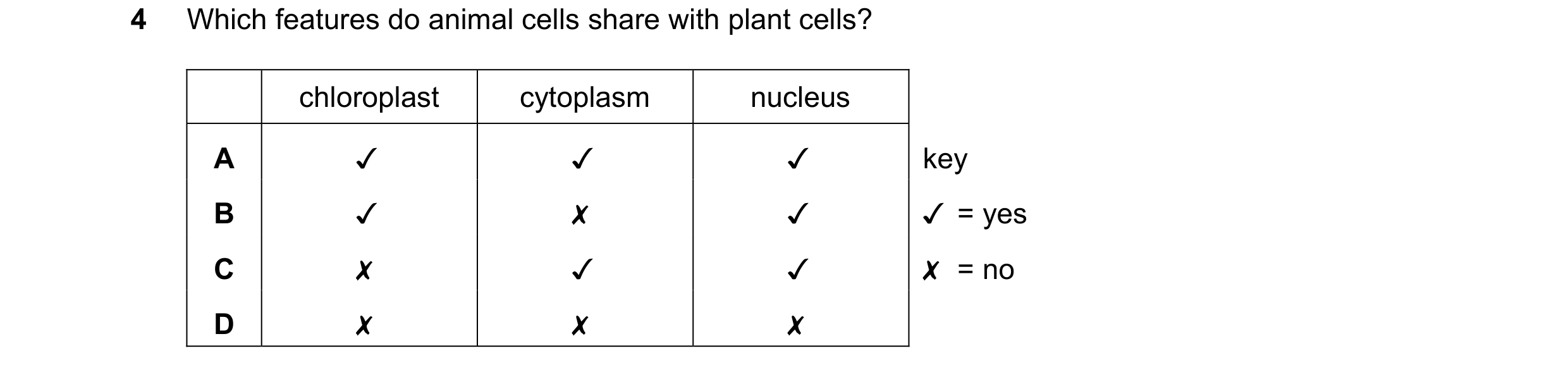

4 Which features do animal cells share with plant cells? chloroplast cytoplasm nucleus A Jv J J key B Jv x J J/ =yes Cc x v v X =no D x x x

1 marks

Answer: C

This question in 0970/12 Oct/Nov 2019

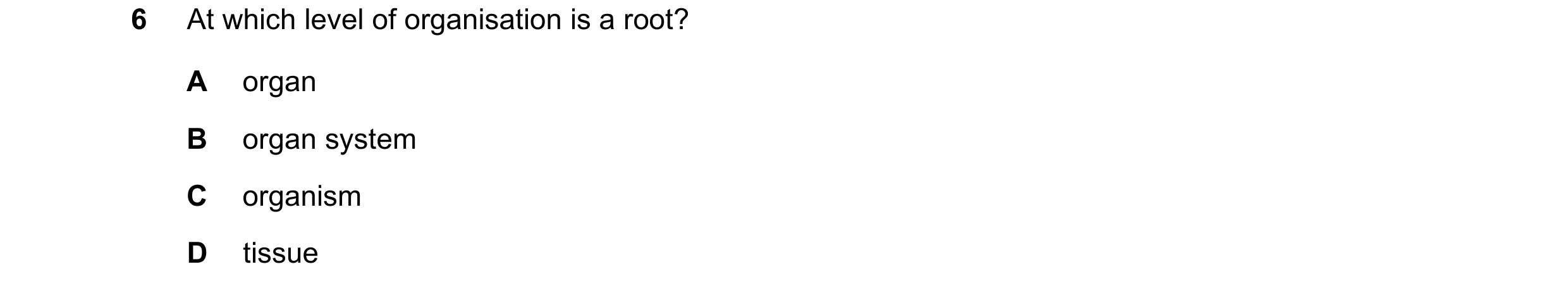

6 At which level of organisation is a root? A organ B organ system C organism D tissue

1 marks

Answer: A

This question in 0970/12 Oct/Nov 2019

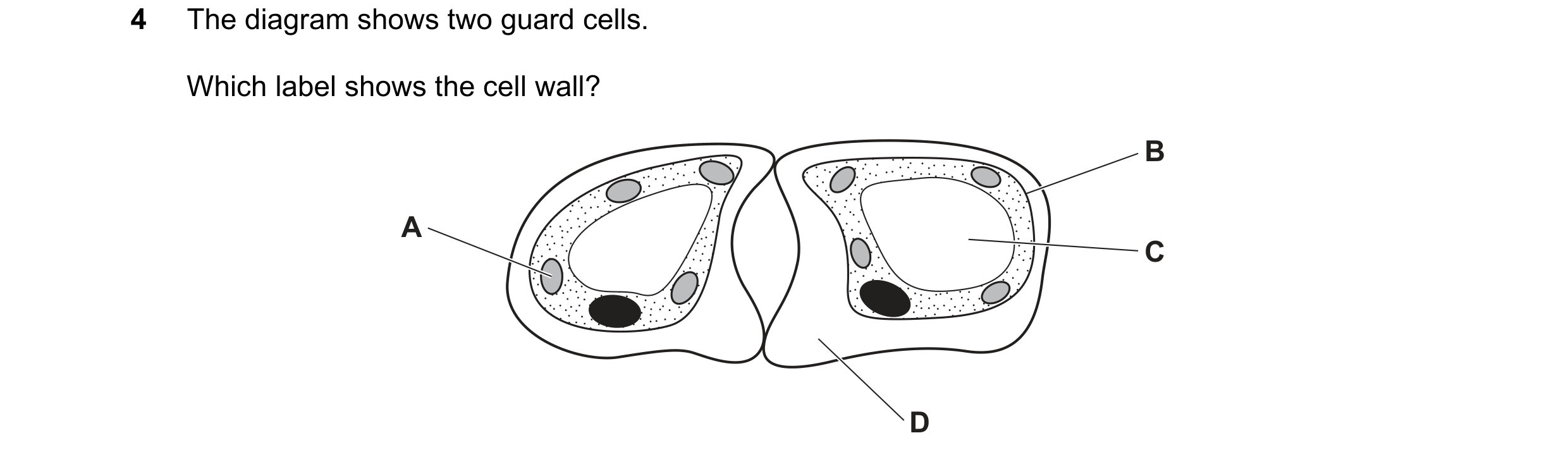

4 The diagram shows two guard cells. Which label shows the cell wall? B A C D

1 marks

Answer: D

This question in 0970/11 May/June 2020

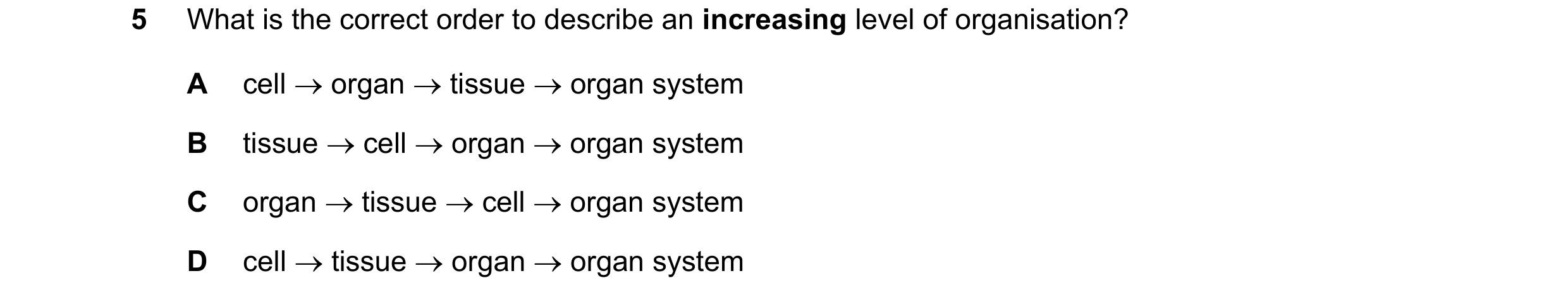

5 What is the correct order to describe an increasing level of organisation? A cell → organ → tissue → organ system B tissue → cell → organ → organ system C organ → tissue → cell → organ system D cell → tissue → organ → organ system

1 marks

Answer: D

This question in 0970/11 May/June 2020

6 Which diagram shows the appearance of a plant cell several minutes after it has been placed in a concentrated solution of sugar? A B C D

1 marks

Answer: A

This question in 0970/11 May/June 2020

4 The diagram shows a plant cell. A biologist wants to find out the number of chromosomes it contains. Which labelled part should be examined more closely? B C A D

1 marks

Answer: A

This question in 0970/12 May/June 2020

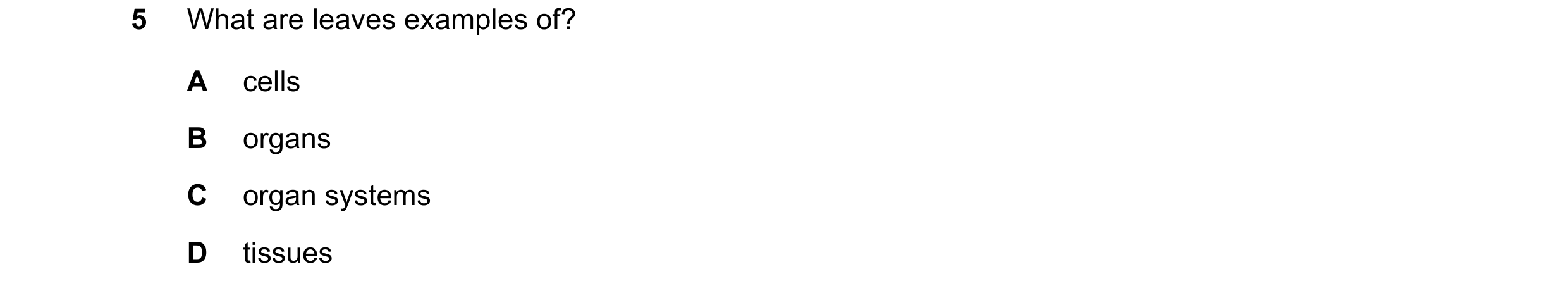

5 What are leaves examples of? A cells B organs C organ systems D tissues

1 marks

Answer: B

This question in 0970/12 May/June 2020

6 Which diagram shows the appearance of a plant cell several minutes after it has been placed in a concentrated solution of sugar? A B C D

1 marks

Answer: A

This question in 0970/12 May/June 2020

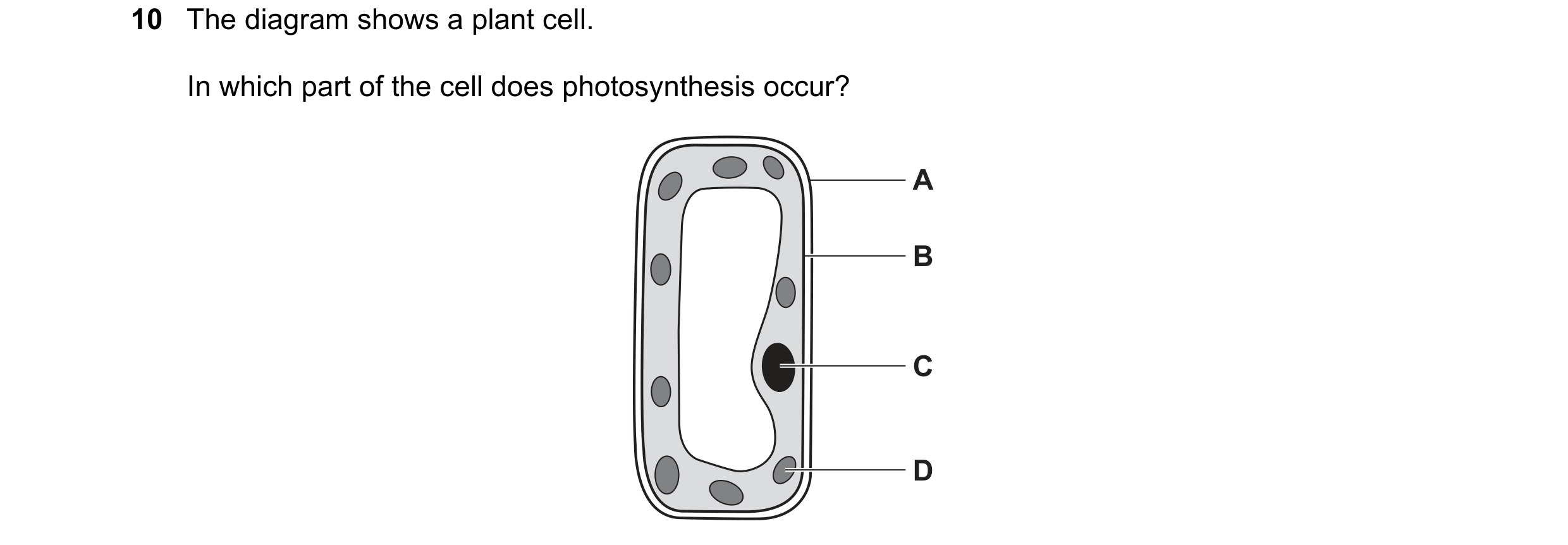

10 The diagram shows a plant cell. In which part of the cell does photosynthesis occur? A B C D

1 marks

Answer: D

This question in 0970/12 May/June 2020

3 Some of the structures found in cells are listed:  cytoplasm  cell membrane  cell wall  chloroplast. How many of these structures are found in the cells of all living organisms? A 1 B 2 C 3 D 4

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2020

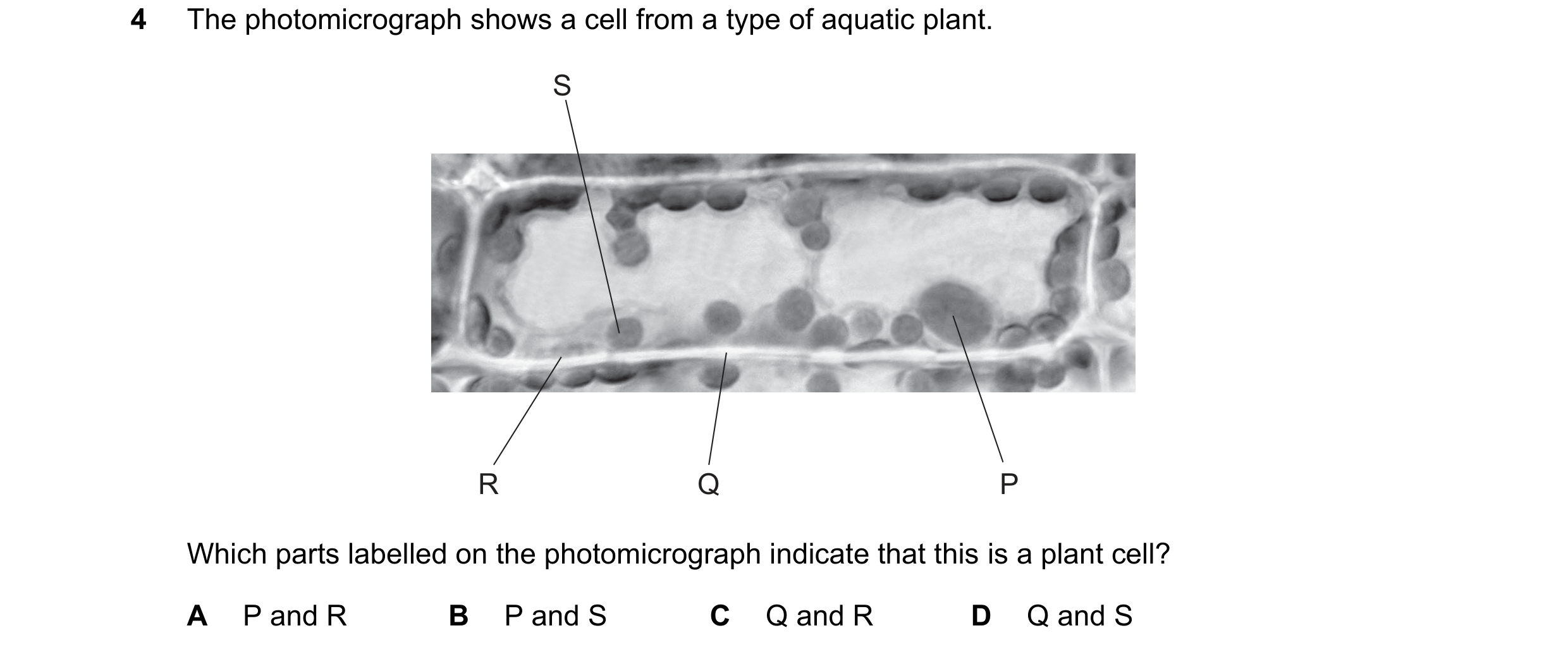

4 The photomicrograph shows a cell from a type of aquatic plant. S R Q P Which parts labelled on the photomicrograph indicate that this is a plant cell? A P and R B P and S C Q and R D Q and S

1 marks

Answer: D

This question in 0970/12 Oct/Nov 2020

5 Which type of cell transports oxygen? A ciliated B nerve C palisade mesophyll D red blood

1 marks

Answer: D

This question in 0970/12 Oct/Nov 2020

4 The diagram shows a single-celled organism called Euglena. cytoplasm cell membrane nucleus large permanent vacuole chloroplasts Which labelled structures would also be found in an animal cell? A cell membrane, chloroplast, nucleus B chloroplast, cytoplasm, nucleus C cell membrane, cytoplasm, nucleus D cell membrane, cytoplasm, large permanent vacuole

1 marks

Answer: C

This question in 0970/11 May/June 2021

5 The diagram shows some of the blood vessels and other structures in the human body. The blood vessels shown are all parts of the same A cell. B organ. C organ system. D tissue.

1 marks

Answer: C

This question in 0970/11 May/June 2021

13 The diagram shows a section through the leaf of a plant. Which label shows a palisade mesophyll cell? A B C D

1 marks

Answer: B

This question in 0970/11 May/June 2021

4 The diagram shows some tissues in part of a plant root. The arrows represent the movement of water into and across the plant root tissues. How many different tissues are shown? A 2 B 4 C 5 D 7

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2021

5 The diagram shows some cells. cilia cytoplasm nucleus Where are these cells found? A alimentary canal B blood C bronchus D plant roots

1 marks

Answer: C

This question in 0970/12 Oct/Nov 2021

13 The diagram shows the surface view of part of the epidermis of a leaf. How many guard cells are present? A 0 B 3 C 6 D 12

1 marks

Answer: C

This question in 0970/12 Oct/Nov 2021

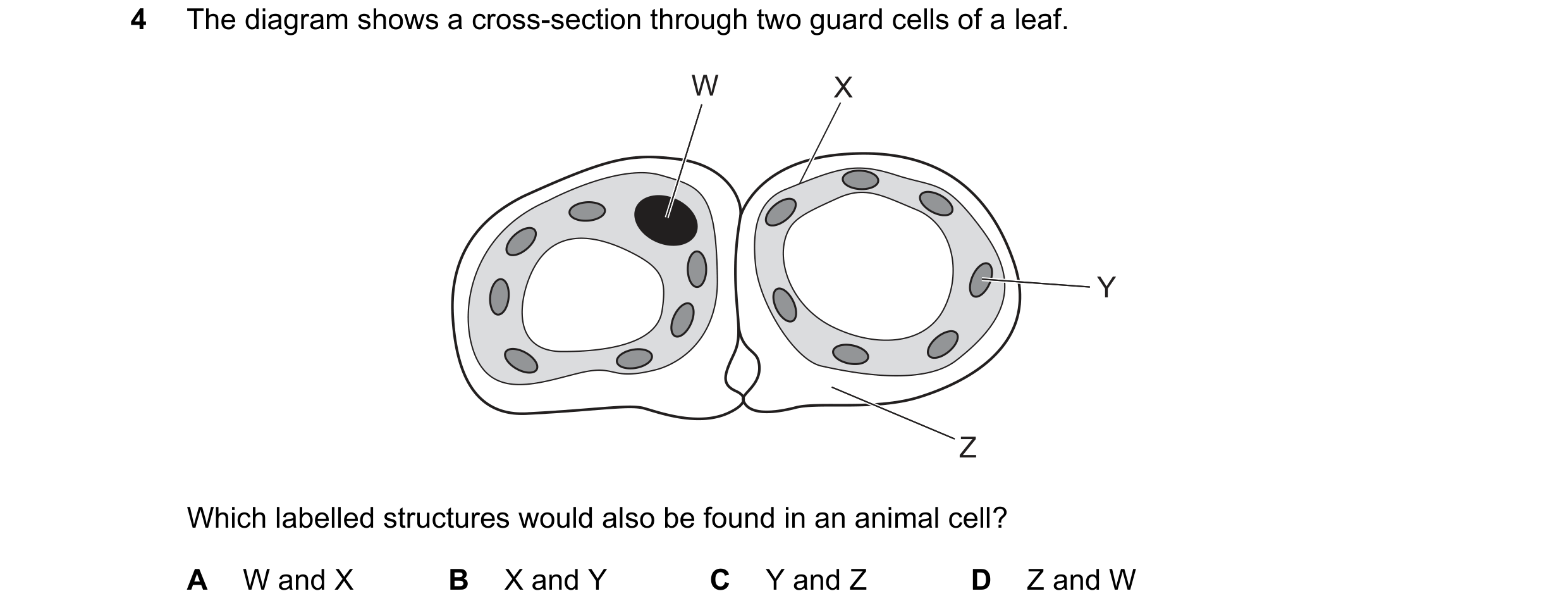

4 The diagram shows a cross-section through two guard cells of a leaf. W X Y Z Which labelled structures would also be found in an animal cell? A W and X B X and Y C Y and Z D Z and W

1 marks

Answer: A

This question in 0970/11 May/June 2022

5 The diagram shows a cross-section through a leaf. Which label shows a tissue? B A C D

1 marks

Answer: C

This question in 0970/11 May/June 2022

8 The diagram shows a section through a mesophyll cell of a leaf. Which part is partially permeable? A B C D

1 marks

Answer: B

This question in 0970/11 May/June 2022

4 The diagram shows a cross-section through two guard cells of a leaf. W X Y Z Which labelled structures would also be found in an animal cell? A W and X B X and Y C Y and Z D Z and W

1 marks

Answer: A

This question in 0970/12 May/June 2022

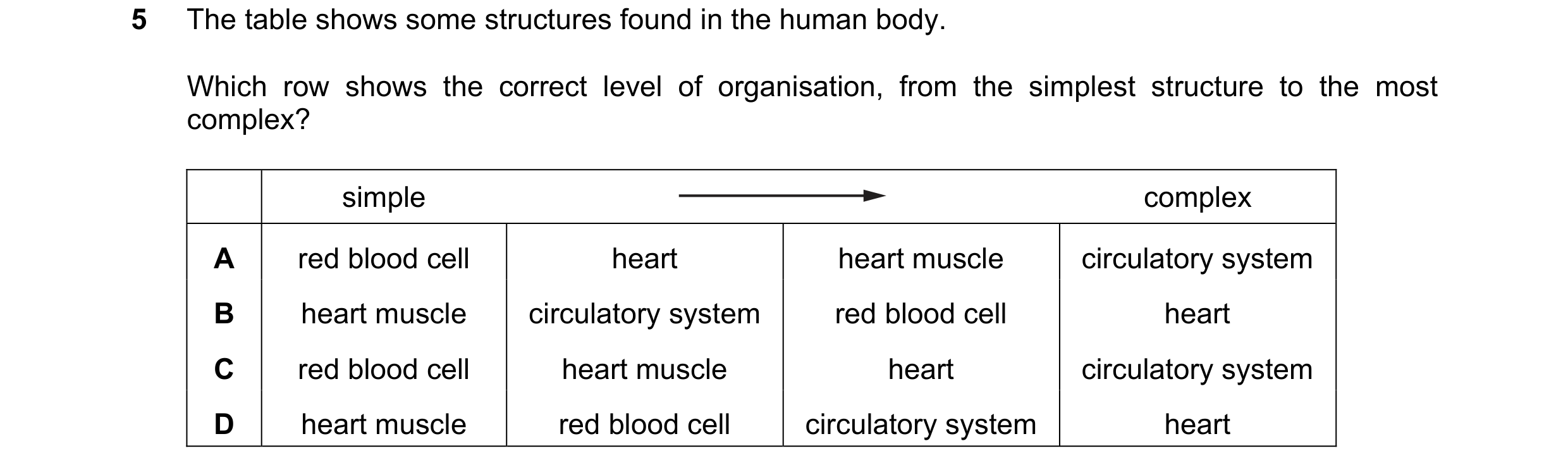

5 The table shows some structures found in the human body. Which row shows the correct level of organisation, from the simplest structure to the most complex? simple complex A red blood cell heart heart muscle circulatory system B heart muscle circulatory system red blood cell heart C red blood cell heart muscle heart circulatory system D heart muscle red blood cell circulatory system heart

1 marks

Answer: C

This question in 0970/12 May/June 2022

8 The diagram shows a section through a mesophyll cell of a leaf. Which part is partially permeable? A B C D

1 marks

Answer: B

This question in 0970/12 May/June 2022

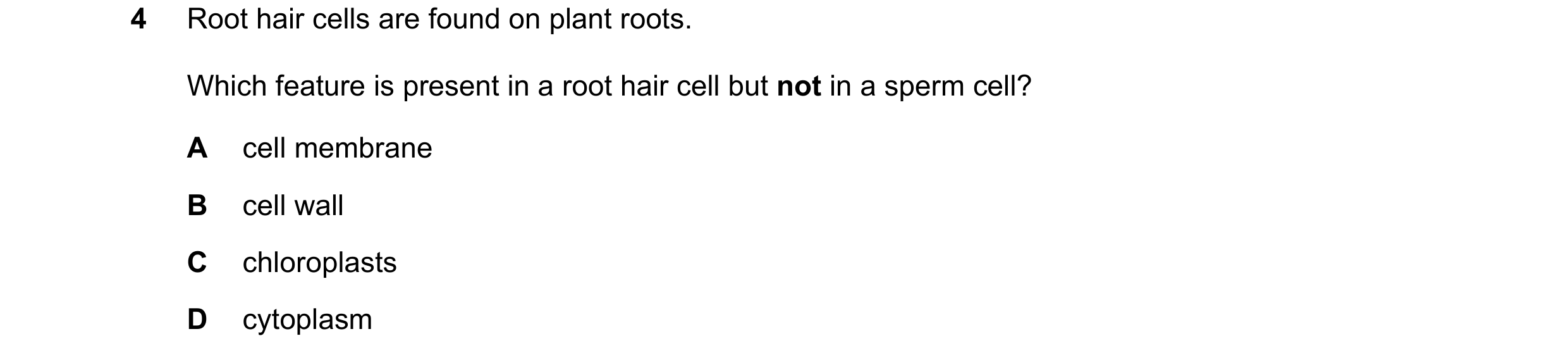

4 Root hair cells are found on plant roots. Which feature is present in a root hair cell but not in a sperm cell? A cell membrane B cell wall C chloroplasts D cytoplasm

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2022

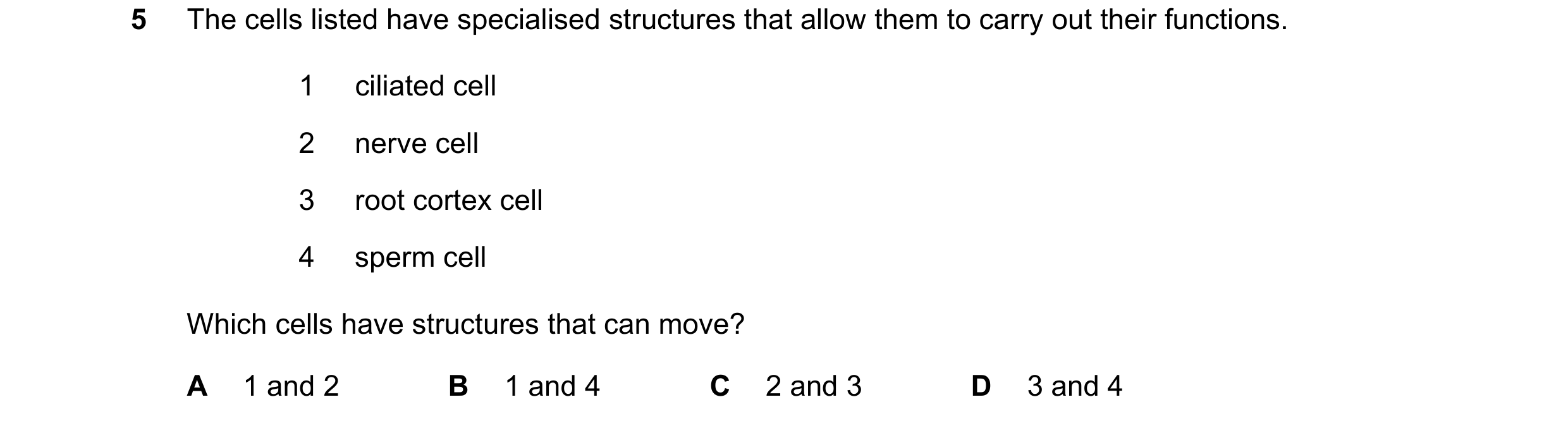

5 The cells listed have specialised structures that allow them to carry out their functions. 1 ciliated cell 2 nerve cell 3 root cortex cell 4 sperm cell Which cells have structures that can move? A 1 and 2 B 1 and 4 C 2 and 3 D 3 and 4

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2022

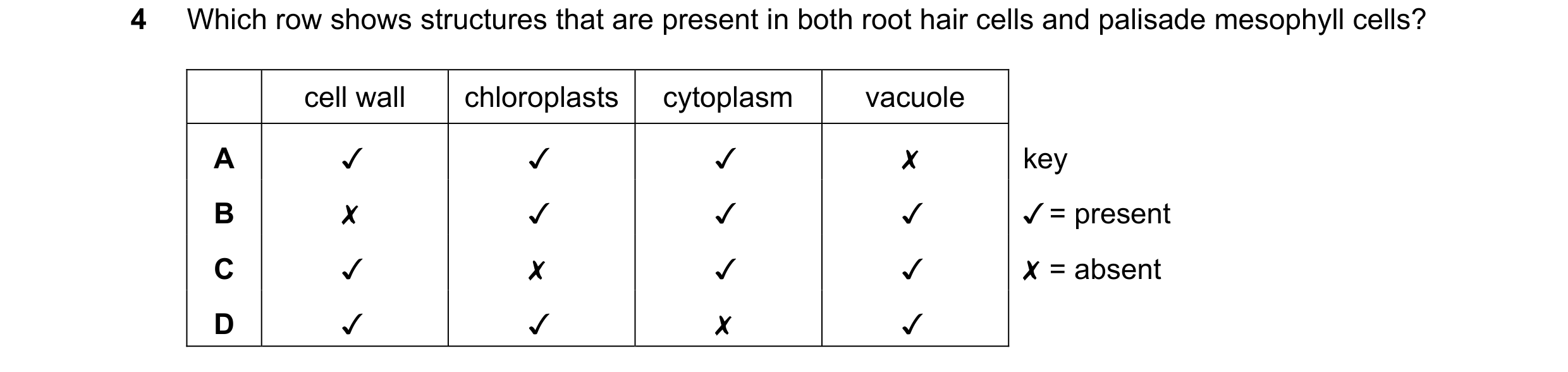

4 Which row shows structures that are present in both root hair cells and palisade mesophyll cells? cell wall chloroplasts | cytoplasm vacuole v v v x key / = present x J J J Jv x Jv Jv X = absent J J x J 0 0O WwW >

1 marks

Answer: C

This question in 0970/11 May/June 2023

4 Which structures are found in the cells of all living organisms? 1 cell membrane 2 chloroplast 3 cytoplasm A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: C

This question in 0970/12 May/June 2023

40 Bacteria are useful for manufacturing products for human use. Which statement explains why they are useful? A Bacteria can be grown without nutrients. B Bacteria do not have a nucleus. C Bacteria infect human cells. D Bacteria reproduce very rapidly.

1 marks

Answer: D

This question in 0970/12 May/June 2023

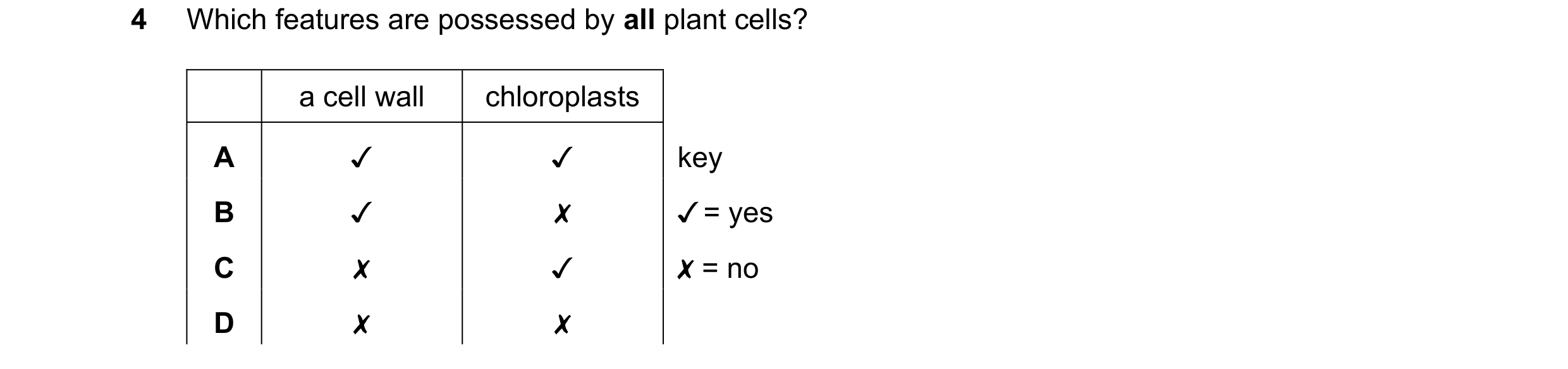

4 Which features are possessed by all plant cells? a cell wall chloroplasts v v key /=yes 0 0O WwW > J x x Jv X=no x x

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2023

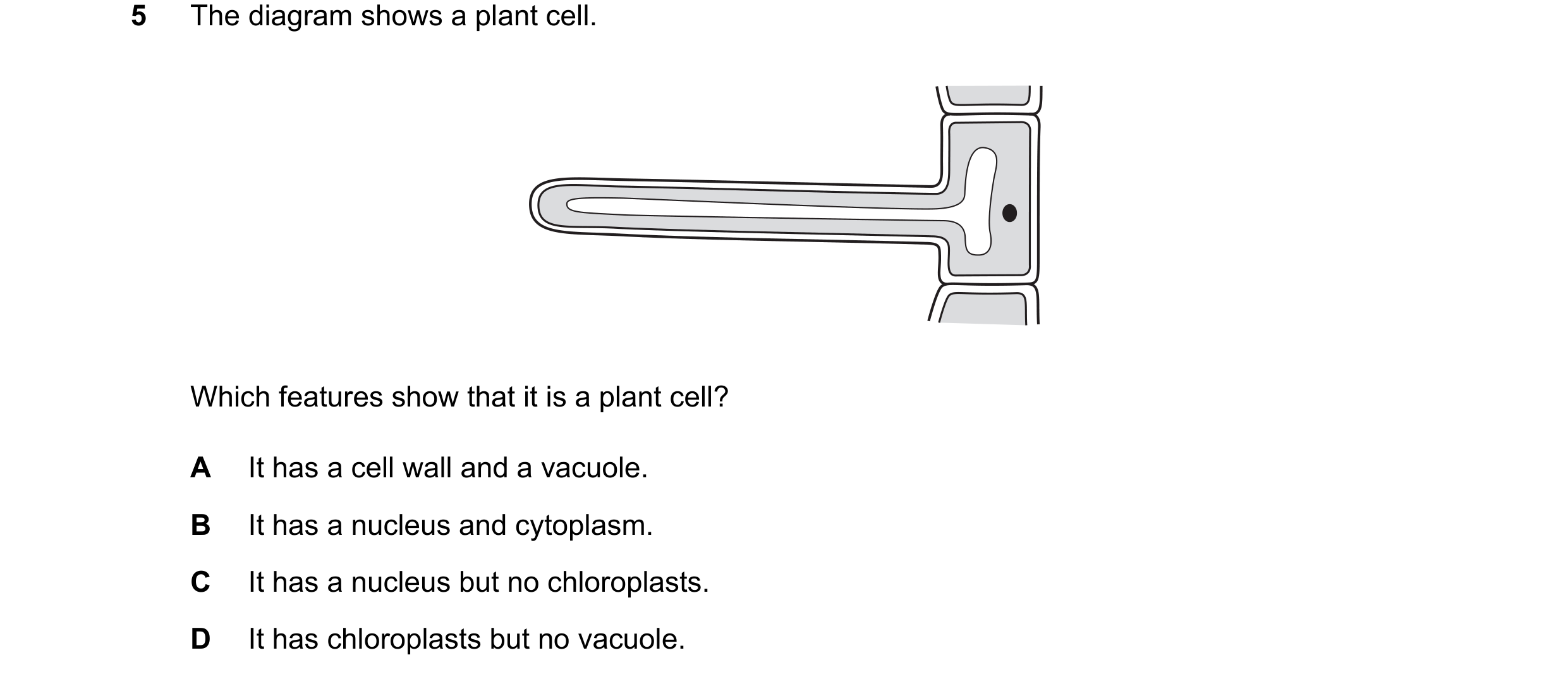

5 The diagram shows a plant cell. Which features show that it is a plant cell? A It has a cell wall and a vacuole. B It has a nucleus and cytoplasm. C It has a nucleus but no chloroplasts. D It has chloroplasts but no vacuole.

1 marks

Answer: A

This question in 0970/11 May/June 2024

6 A scientist investigates the effect of two types of antibiotics on bacteria. The table shows the results. type of antibiotic effect on bacteria penicillin cells burst tetracycline stops protein synthesis Which cell structure does each antibiotic affect? A Penicillin affects the cell wall and tetracycline affects the ribosomes. B Penicillin affects the nucleus and tetracycline affects the cytoplasm. C Penicillin affects the ribosomes and tetracycline affects the cell wall. D Penicillin affects the vacuole and tetracycline affects the nucleus.

1 marks

Answer: A

This question in 0970/11 May/June 2024

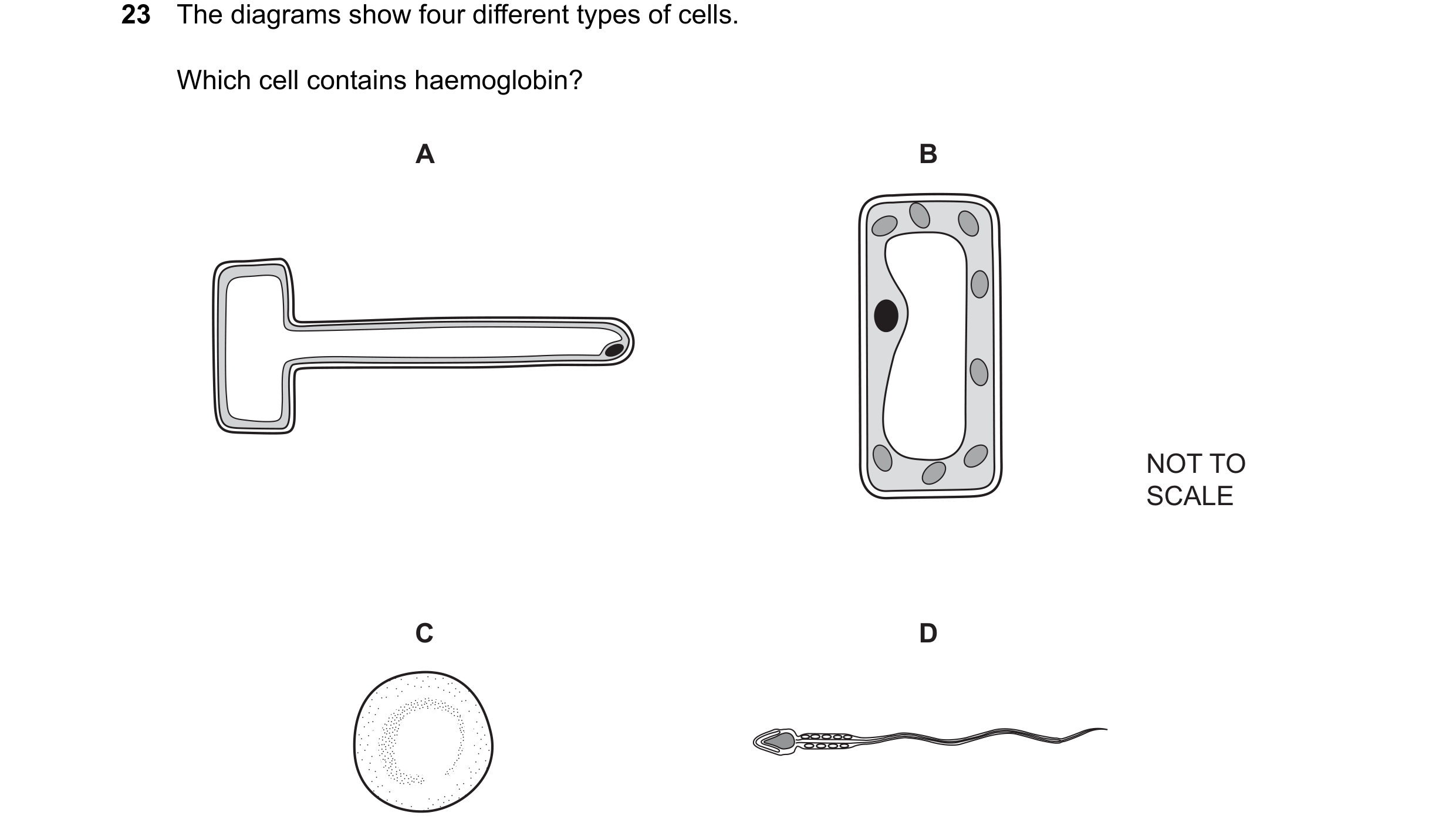

23 The diagrams show four different types of cells. Which cell contains haemoglobin? A B NOT TO SCALE C D

1 marks

Answer: C

This question in 0970/11 May/June 2024

33 Which adaptive feature of sperm provides the energy that enables it to swim? A the acrosome B the cell membrane C the flagellum D the mitochondria

1 marks

Answer: D

This question in 0970/11 May/June 2024

40 Why are bacteria used in biotechnology? A Bacteria reproduce rapidly. B Bacterial cells contain a nucleus. C Bacterial cells contain cytoplasm. D Bacterial cells do not produce complex molecules.

1 marks

Answer: A

This question in 0970/11 May/June 2024

5 Heart muscle cells have a high rate of metabolism. Which structure do they require to be present in high numbers? A chloroplasts B mitochondria C cell walls D vacuoles

1 marks

Answer: B

This question in 0970/12 May/June 2024

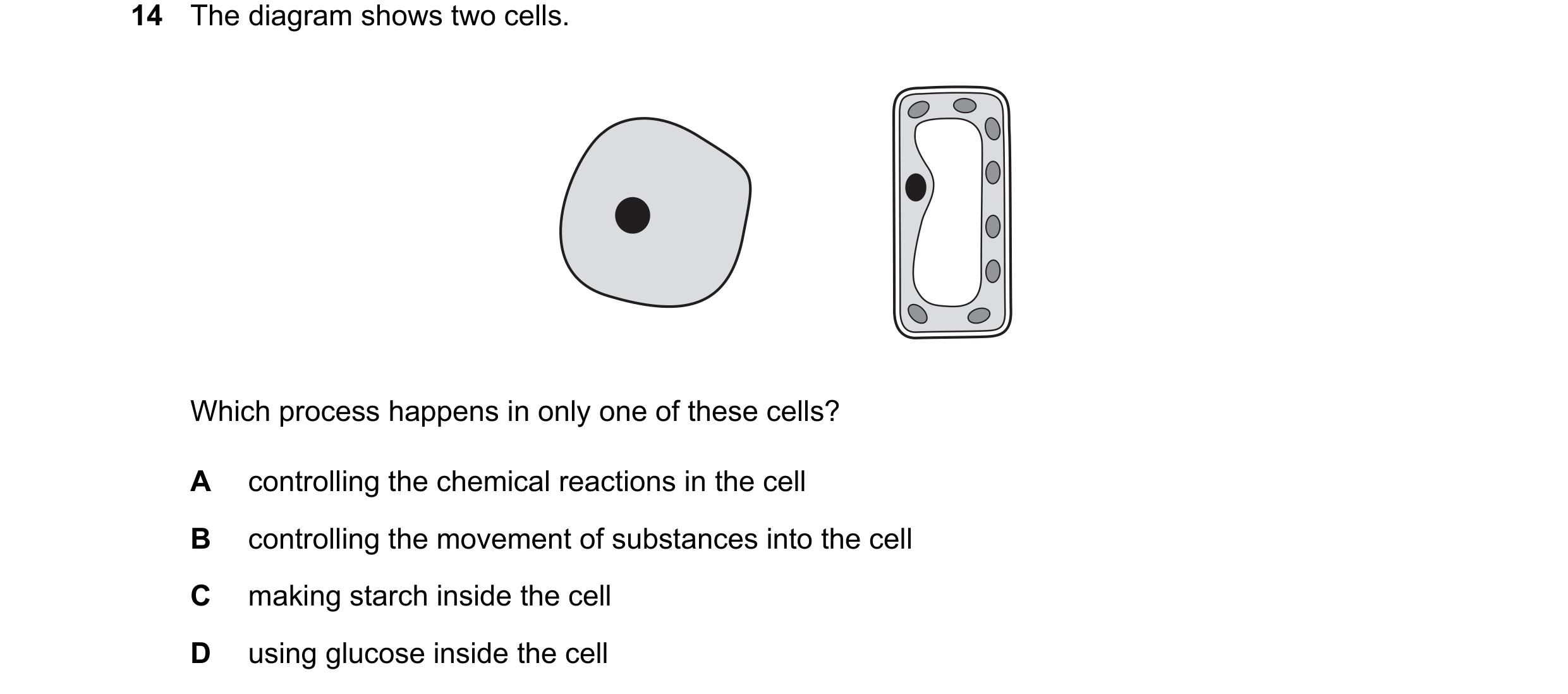

14 The diagram shows two cells. Which process happens in only one of these cells? A controlling the chemical reactions in the cell B controlling the movement of substances into the cell C making starch inside the cell D using glucose inside the cell

1 marks

Answer: C

This question in 0970/12 May/June 2024

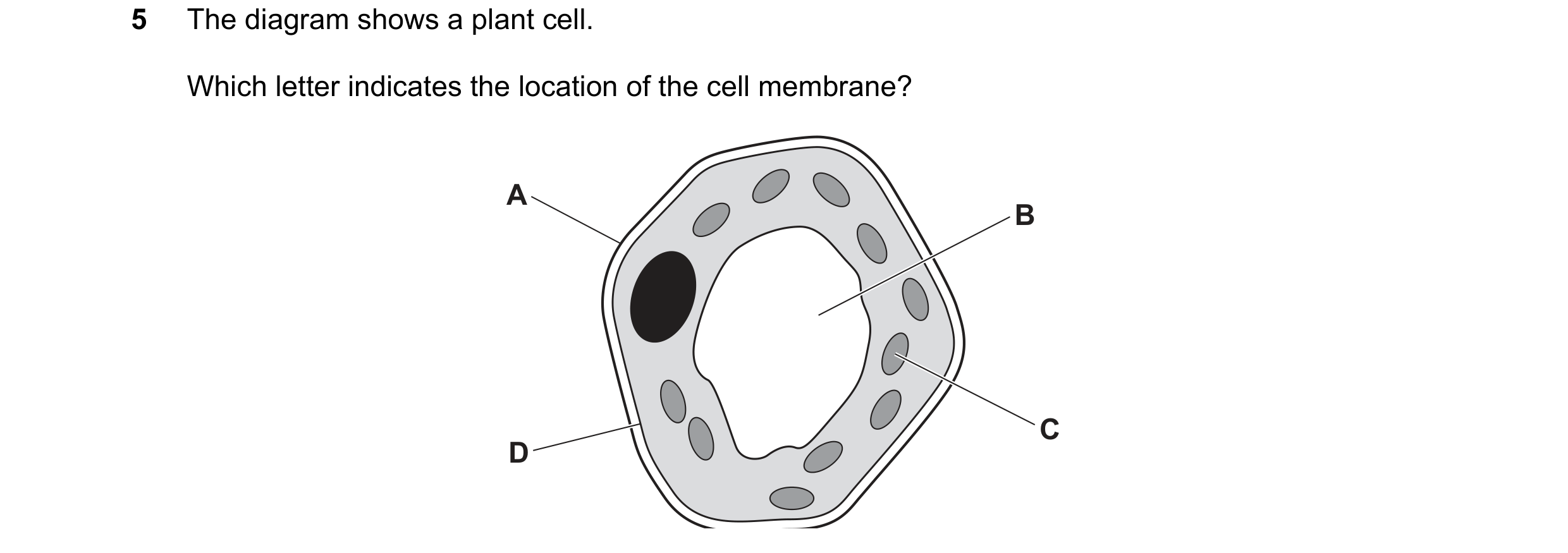

5 The diagram shows a plant cell. Which letter indicates the location of the cell membrane? A B C D

1 marks

Answer: D

This question in 0970/12 Oct/Nov 2024

14 Which carbohydrate is used to make cell walls? A cellulose B glycogen C starch D sucrose

1 marks

Answer: A

This question in 0970/12 Oct/Nov 2024

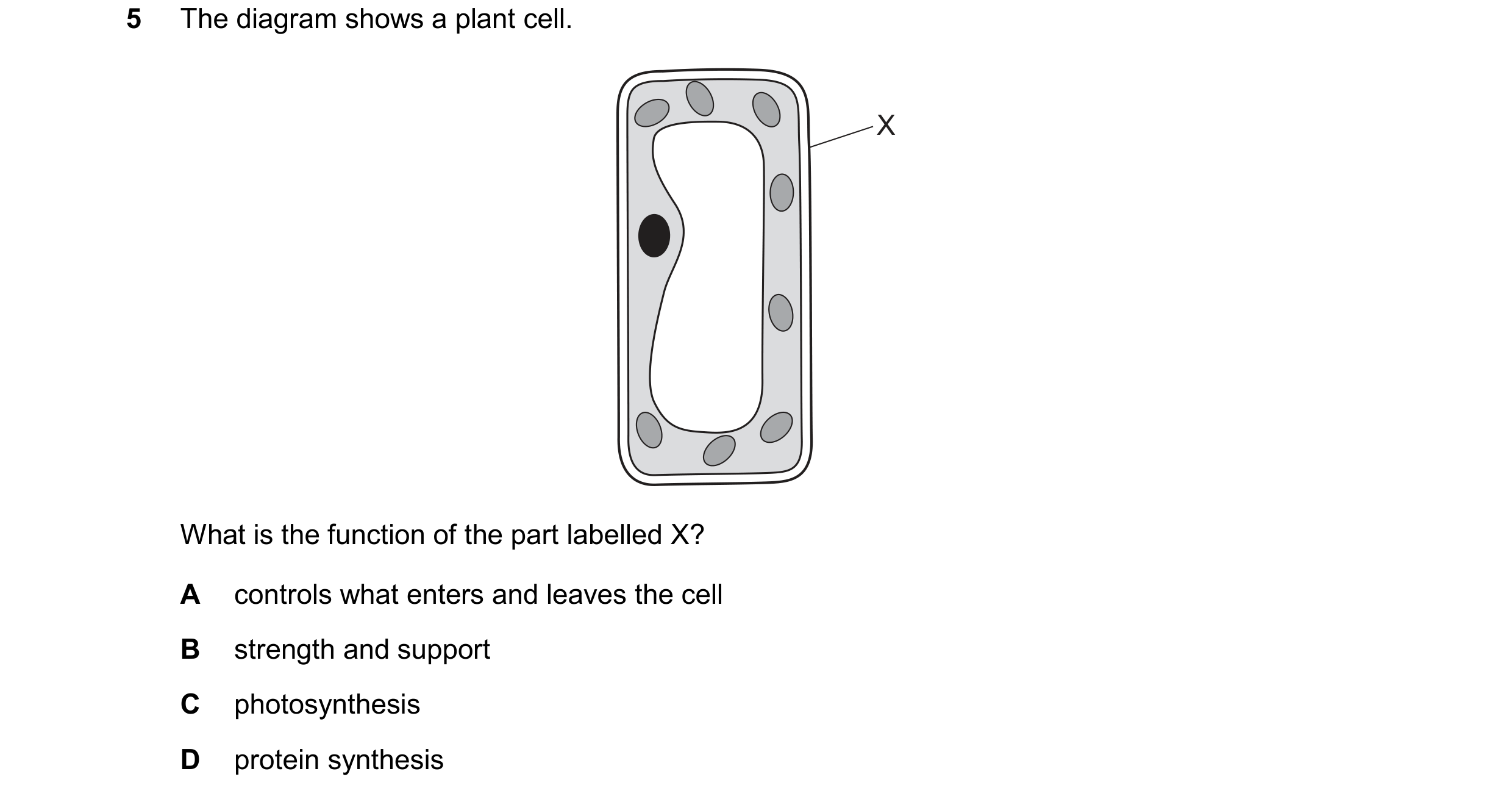

5 The diagram shows a plant cell. X What is the function of the part labelled X? A controls what enters and leaves the cell B strength and support C photosynthesis D protein synthesis

1 marks

Answer: B

This question in 0970/11 May/June 2025

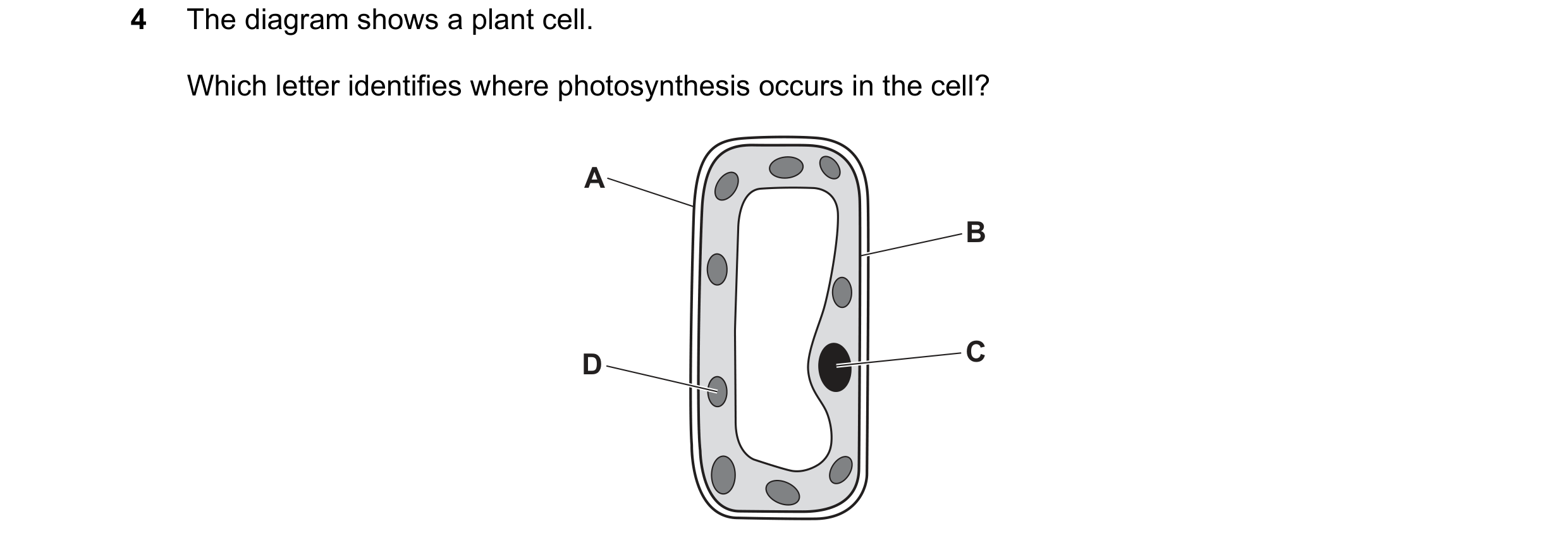

4 The diagram shows a plant cell. Which letter identifies where photosynthesis occurs in the cell? A B D C

1 marks

Answer: D

This question in 0970/12 May/June 2025

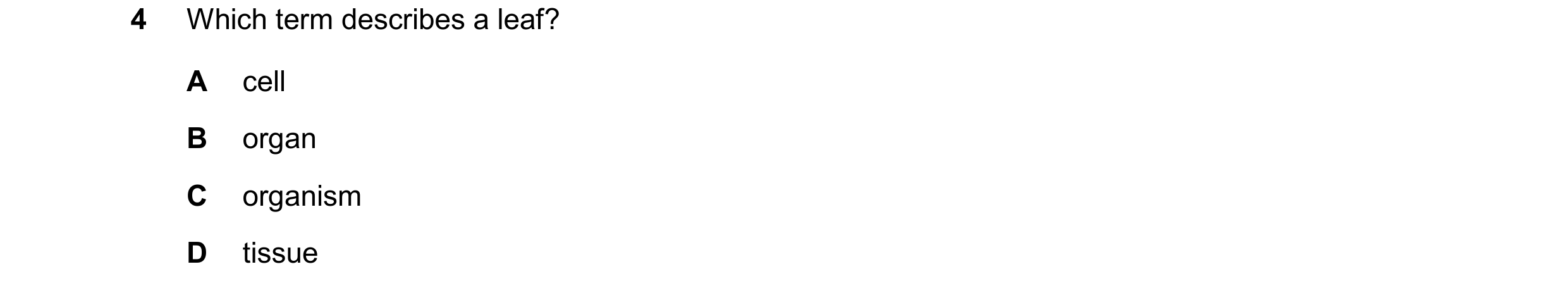

4 Which term describes a leaf? A cell B organ C organism D tissue

1 marks

Answer: B

This question in 0970/12 Oct/Nov 2025
