Capacitors and capacitance — Paper 4 · A Level Physics 9702

6 An alternating supply of frequency 50 Hz and having an output of 6.0 V r.m.s. is to be rectified so as to provide direct current for a resistor R. The circuit of Fig. 6.1 is used. A 50 Hz R 6.0 V r.m.s B Fig. 6.1 The diode is ideal. The Y-plates of a cathode-ray oscilloscope (c.r.o.) are connected between points A and B. (a) (i) Calculate the maximum potential difference across the diode during one cycle. potential difference = ………………………… V [2] (ii) State the potential difference across R when the diode has maximum potential difference across it. Give a reason for your answer. … … [1] Use (b) The Y-plate sensitivity of the c.r.o. is set at 2.0 V cm–1 and the time-base at 5.0 ms cm–1. On Fig. 6.2, draw the waveform that is seen on the screen of the c.r.o. [3] 1.0 cm 1.0 cm Fig. 6.2 (c) A capacitor of capacitance 180 µF is connected into the circuit to provide smoothing of the potential difference across the resistor R. (i) On Fig. 6.1, show the position of the capacitor in the circuit. [1] (ii) Calculate the energy stored in the fully-charged capacitor. energy = ………………………… J [3] Use (iii) During discharge, the potential difference across the capacitor falls to 0.43 V0, where V0 is the maximum potential difference across the capacitor. Calculate the fraction of the total energy that remains in the capacitor after the discharge. fraction = ………………………… [2]

12 marks

Mark scheme: 6 (a) (i) peak voltage = 6√2 C1 peak voltage = 8.48 V A1 [2] (ii) zero because either no current in circuit (and V = IR) or all p.d. across diode B1 [1] (b) waveform: half-wave rectification B1 peak height at about 4.25 cm B1 half-period spacing of 2.0 cm B1 [3] (allow ±¼ square for height and half-period) (c) (i) capacitor shown in parallel with resistor B1 [1] (ii) either energy = ½CV2 or = ½QV and Q = CV C1 = ½ x 180 x 10–6 x (6√2)2 C1 = 6.48 x 10–3 J A1 [3] (iii) either fraction = 0.432 or final energy = 1.2 mJ C1 fraction = 0.18 A1 [2]

This question in 9702/41 Oct/Nov 2006

5 (a) State one function of capacitors in simple circuits. … … [1] (b) A capacitor is charged to a potential difference of 15 V and then connected in series with a switch, a resistor of resistance 12 kΩ and a sensitive ammeter, as shown in Fig. 5.1. 12 kΩ A Fig. 5.1 The switch is closed and the variation with time t of the current I in the circuit is shown in Fig. 5.2. 1.5 I/mA 1.0 0.5 0 0 5 10 15 20 t /s Fig. 5.2 Examiner’s Use (i) State the relation between the current in a circuit and the charge that passes a point in the circuit. … … [1] (ii) The area below the graph line of Fig. 5.2 represents charge. Use Fig. 5.2 to determine the initial charge stored in the capacitor. charge = … µC [4] (iii) Initially, the potential difference across the capacitor was 15 V. Calculate the capacitance of the capacitor. capacitance = … µF [2] (c) The capacitor in (b) discharges one half of its initial energy. Calculate the new potential difference across the capacitor. potential difference = … V [3]

11 marks

Mark scheme: 5 (a) e.g. separate charges, store energy, smoothing circuit. etc. … B1 [1] (allow ‘stores charge’) (b) (i) charge = current × time … B1 [1] (ii) area is 21.2 cm2 (allow ±0.5 cm2) … C2 (allow 1 mark if outside ±0.5 cm2 but within ±1.0 cm2) 1.0 cm2 represents (0.125 × 10-3 × 1.25 =) 156 µC … C1 charge = 3300 µC … A1 [4] (iii) capacitance = Q/V … C1 = (3300 × 10-6) / 15 = 220 µF … A1 [2] (c) either energy = ½CV2 or energy = ½QV and C = Q/V … C1 ½ × C × 152 = 2 × ½ × C × V2 … C1 V = 10.6 V … A1 [3]

This question in 9702/41 Oct/Nov 2007

5 A capacitor C is charged using a supply of e.m.f. 8.0 V. It is then discharged through a For resistor R. Examiner’s The circuit is shown in Fig. 5.1. Use 8.0V R C Fig. 5.1 The variation with time t of the potential difference V across the resistor R during the discharge of the capacitor is shown in Fig. 5.2. 8 V / V 6 4 2 0 0 0.5 1.0 1.5 2.0 t / s Fig. 5.2 (a) During the first 1.0 s of the discharge of the capacitor, 0.13 J of energy is transferred to the resistor R. Show that the capacitance of the capacitor C is 4500 µF. [3] (b) Some capacitors, each of capacitance 4500 µF with a maximum working voltage of 6 V, For are available. Examiner’s Use Draw an arrangement of these capacitors that could provide a total capacitance of 4500 µF for use in the circuit of Fig. 5.1. [2]

5 marks

Mark scheme: 5 (a) at t = 1.0 s, V = 2.5 V C1 energy = ½CV 2 C1 0.13 = ½ × C × (8.02 – 2.52) M1 C = 4500 µF A0 [3] (b) use of two capacitors in series in all branches of combination M1 connected into correct parallel arrangement A1 [2] GCE A/AS LEVEL – May/June 2008 9702 04

This question in 9702/41 May/June 2008

5 A solid metal sphere, of radius r, is insulated from its surroundings. The sphere has For charge +Q. Examiner’s This charge is on the surface of the sphere but it may be considered to be a point charge at Use its centre, as illustrated in Fig. 5.1. +Q r Fig. 5.1 (a) (i) Define capacitance. … … [1] (ii) Show that the capacitance C of the sphere is given by the expression C = 4πε0r. [1] (b) The sphere has radius 36 cm. Determine, for this sphere, (i) the capacitance, capacitance = … F [1] (ii) the charge required to raise the potential of the sphere from zero to 7.0 × 105 V. For Examiner’s Use charge = … C [1] (c) Suggest why your calculations in (b) for the metal sphere would not apply to a plastic sphere. … … … … [3] (d) A spark suddenly connects the metal sphere in (b) to the Earth, causing the potential of the sphere to be reduced from 7.0 × 105 V to 2.5 × 105 V. Calculate the energy dissipated in the spark. energy = … J [3]

10 marks

Mark scheme: 5 (a) (i) ratio of charge (on body) and its potential B1 [1] (do not allow reference to plates of a capacitor) (ii) (potential at surface of sphere =) V = Q / 4πε0r M1 C = Q / V = 4πε0r A0 [1] (b) (i) C = 4 × π × 8.85 × 10–12 × 0.36 = 4.0 × 10–11 F (allow 1 s.f.) A1 [1] (ii) Q = CV = 4.0 × 10–11 × 7.0 × 105 = 2.8 × 10–5 C A1 [1] (c) plastic is an insulator / not a conductor / has no free electrons B1 charges do not move (on an insulator) B1 either so no single value for the potential or charge cannot be considered to be at centre B1 [3] (d) either energy = ½CV2 or energy = ½QV and C = Q/V C1 energy = ½ × 4 × 10–11 × {(7.0 × 105)2 – (2.5 × 105)2)} C1 = 8.6 J A1 [3] GCE A/AS LEVEL – May/June 2009 9702 04

This question in 9702/41 May/June 2009

7 A sinusoidal alternating voltage is to be rectified. For Examiner’s (a) Suggest one advantage of full-wave rectification as compared with half-wave Use rectification. … … [1] (b) The rectification is produced using the circuit of Fig. 7.1. A R B Fig. 7.1 All the diodes may be considered to be ideal. The variation with time t of the alternating voltage applied to the circuit is shown in Fig. 7.2 and in Fig. 7.3. voltage 00 t Fig. 7.2 voltage 00 t Fig. 7.3 (i) On the axes of Fig. 7.2, draw a graph to show the variation with time t of the potential For difference across diode A. [1] Examiner’s Use (ii) On the axes of Fig. 7.3, draw a graph to show the variation with time t of the potential difference across diode B. [1] (c) (i) On Fig. 7.1, draw the symbol for a capacitor, connected into the circuit so as to provide smoothing. [1] (ii) Fig. 7.4 shows the variation with time t of the smoothed potential difference across the resistor R in Fig. 7.1. potential difference t Fig. 7.4 1. State how the amount of smoothing may be increased. … … [1] 2. On Fig. 7.4, draw the variation with time t of the potential difference across resistor R for increased smoothing. [2]

7 marks

Mark scheme: 7 (a) e.g. more (output) power available e.g. less ripple for same smoothing capacitor any sensible suggestion … B1 [1] (b) (i) curve showing half-wave rectification … B1 [1] (ii) similar to (i) but phase shift of 180° … B1 [1] (c) (i) correct symbol, connected in parallel with R … B1 [1] (ii) 1 larger capacitor / second capacitor in parallel with R … B1 [1] (not increase R) 2 same peak values … B1 correct shape giving less ripple … B1 [2] [Total: 7] GCE A/AS LEVEL – October/November 2009 9702 41

This question in 9702/41 Oct/Nov 2009

4 (a) Define capacitance. For Examiner’s … Use … [1] (b) An isolated metal sphere of radius R has a charge +Q on it. The charge may be considered to act as a point charge at the centre of the sphere. Show that the capacitance C of the sphere is given by the expression C = 4 0R where is the permittivity of free space. 0 [1] (c) In order to investigate electrical discharges (lightning) in a laboratory, an isolated metal sphere of radius 63 cm is charged to a potential of 1.2 × 106 V. At this potential, there is an electrical discharge in which the sphere loses 75% of its energy. Calculate (i) the capacitance of the sphere, stating the unit in which it is measured, capacitance = … [3] (ii) the potential of the sphere after the discharge has taken place. For Examiner’s Use potential = … V [3]

8 marks

Mark scheme: 4 (a) charge / potential ………(ratio must be clear) … B1 [1] (b) potential (at surface of sphere) = Q / 4πε0R … M1 C = Q / V = 4πε0R … A0 [1] (c) (i) C = 4π × 8.85 × 10-12 × 0.63 … C1 = 7.0 × 10-11 … A1 farad / F … B1 [3] 2 (ii) energy = ½CV … C1 2 0.25 × ½C × (1.2 × 106)2 = ½CV … C1 V = 6.0 × 105 V … A1 [3] (use of 0.75 rather than 0.25, allow max 2 marks) [Total: 8]

This question in 9702/42 Oct/Nov 2009

5 (a) State two functions of capacitors in electrical circuits. For Examiner’s 1. … Use 2. … [2] (b) Three capacitors, each marked ‘30 μF, 6 V max’, are arranged as shown in Fig. 5.1. A B Fig. 5.1 Determine, for the arrangement shown in Fig. 5.1, (i) the total capacitance, capacitance = … μF [2] (ii) the maximum potential difference that can safely be applied between points A and B. potential difference = … V [2] (c) A capacitor of capacitance 4700 μF is charged to a potential difference of 18 V. It is then For partially discharged through a resistor. The potential difference is reduced to 12 V. Examiner’s Calculate the energy dissipated in the resistor during the discharge. Use energy = … J [3]

9 marks

Mark scheme: 5 (a) e.g. ‘storage of charge’ / storage of energy blocking of direct current producing of electrical oscillations smoothing (any two, 1 mark each) B2 [2] (b) (i) capacitance of parallel combination = 60 µF C1 total capacitance = 20 µF A1 [2] (ii) p.d. across parallel combination = ½ × p.d. across single capacitor C1 maximum is 9V A1 [2] (c) either energy = ½CV 2 or energy = ½QV and Q = CV C1 energy = ½ × 4700 × 10–6 × (182 – 122) C1 = 0.42 J A1 [3] GCE AS/A LEVEL – May/June 2010 9702 42

This question in 9702/42 May/June 2010

5 (a) State two functions of capacitors in electrical circuits. For Examiner’s 1. … Use 2. … [2] (b) Three capacitors, each marked ‘30 μF, 6 V max’, are arranged as shown in Fig. 5.1. A B Fig. 5.1 Determine, for the arrangement shown in Fig. 5.1, (i) the total capacitance, capacitance = … μF [2] (ii) the maximum potential difference that can safely be applied between points A and B. potential difference = … V [2] (c) A capacitor of capacitance 4700 μF is charged to a potential difference of 18 V. It is then For partially discharged through a resistor. The potential difference is reduced to 12 V. Examiner’s Calculate the energy dissipated in the resistor during the discharge. Use energy = … J [3]

9 marks

Mark scheme: 5 (a) e.g. ‘storage of charge’ / storage of energy blocking of direct current producing of electrical oscillations smoothing (any two, 1 mark each) B2 [2] (b) (i) capacitance of parallel combination = 60 µF C1 total capacitance = 20 µF A1 [2] (ii) p.d. across parallel combination = ½ × p.d. across single capacitor C1 maximum is 9V A1 [2] (c) either energy = ½CV 2 or energy = ½QV and Q = CV C1 energy = ½ × 4700 × 10–6 × (182 – 122) C1 = 0.42 J A1 [3] GCE AS/A LEVEL – May/June 2010 9702 43

This question in 9702/43 May/June 2010

4 (a) Define capacitance. For Examiner’s … Use … [1] (b) An isolated metal sphere has a radius r. When charged to a potential V, the charge on the sphere is q. The charge may be considered to act as a point charge at the centre of the sphere. (i) State an expression, in terms of r and q, for the potential V of the sphere. … [1] (ii) This isolated sphere has capacitance. Use your answers in (a) and (b)(i) to show that the capacitance of the sphere is proportional to its radius. [1] (c) The sphere in (b) has a capacitance of 6.8 pF and is charged to a potential of 220 V. Calculate (i) the radius of the sphere, radius = … m [3] (ii) the charge, in coulomb, on the sphere. For Examiner’s Use charge = … C [1] (d) A second uncharged metal sphere is brought up to the sphere in (c) so that they touch. The combined capacitance of the two spheres is 18 pF. Calculate (i) the potential of the two spheres, potential = … V [1] (ii) the change in the total energy stored on the spheres when they touch. change = … J [3]

11 marks

Mark scheme: 4 (a) charge / potential (difference) (ratio must be clear) B1 [1] (b) (i) V = Q / 4πε0r B1 [1] (ii) C = Q / V = 4πε0r and 4πε0 is constant M1 so C ∝ r A0 [1] (c) (i) r = C / 4πε0r C1 r = (6.8 × 10–12) / (4π × 8.85 × 10–12) C1 = 6.1 × 10–2 m A1 [3] (ii) Q = CV = 6.8 × 10–12 × 220 = 1.5 × 10–9 C A1 [1] (d) (i) V = Q/C = (1.5 × 10–9) / (18 × 10–12) = 83 V A1 [1] (ii) either energy = ½CV 2 C1 ∆E = ½ × 6.8 × 10–12 × 2202 – ½ × 18 × 10–12 × 832 C1 = 1.65 × 10–7 – 6.2 × 10–8 = 1.03 × 10–7 J A1 [3] or energy = ½QV (C1) ∆E = ½ × 1.5 × 10–9 × 220 – ½ × 1.5 × 10–9 × 83 (C1) = 1.03 × 10–7 J (A1) GCE AS/A LEVEL – October/November 2010 9702 41

This question in 9702/41 Oct/Nov 2010

4 (a) Define capacitance. For Examiner’s … Use … [1] (b) An isolated metal sphere has a radius r. When charged to a potential V, the charge on the sphere is q. The charge may be considered to act as a point charge at the centre of the sphere. (i) State an expression, in terms of r and q, for the potential V of the sphere. … [1] (ii) This isolated sphere has capacitance. Use your answers in (a) and (b)(i) to show that the capacitance of the sphere is proportional to its radius. [1] (c) The sphere in (b) has a capacitance of 6.8 pF and is charged to a potential of 220 V. Calculate (i) the radius of the sphere, radius = … m [3] (ii) the charge, in coulomb, on the sphere. For Examiner’s Use charge = … C [1] (d) A second uncharged metal sphere is brought up to the sphere in (c) so that they touch. The combined capacitance of the two spheres is 18 pF. Calculate (i) the potential of the two spheres, potential = … V [1] (ii) the change in the total energy stored on the spheres when they touch. change = … J [3]

11 marks

Mark scheme: 4 (a) charge / potential (difference) (ratio must be clear) B1 [1] (b) (i) V = Q / 4πε0r B1 [1] (ii) C = Q / V = 4πε0r and 4πε0 is constant M1 so C ∝ r A0 [1] (c) (i) r = C / 4πε0r C1 r = (6.8 × 10–12) / (4π × 8.85 × 10–12) C1 = 6.1 × 10–2 m A1 [3] (ii) Q = CV = 6.8 × 10–12 × 220 = 1.5 × 10–9 C A1 [1] (d) (i) V = Q/C = (1.5 × 10–9) / (18 × 10–12) = 83 V A1 [1] (ii) either energy = ½CV 2 C1 ∆E = ½ × 6.8 × 10–12 × 2202 – ½ × 18 × 10–12 × 832 C1 = 1.65 × 10–7 – 6.2 × 10–8 = 1.03 × 10–7 J A1 [3] or energy = ½QV (C1) ∆E = ½ × 1.5 × 10–9 × 220 – ½ × 1.5 × 10–9 × 83 (C1) = 1.03 × 10–7 J (A1) GCE AS/A LEVEL – October/November 2010 9702 42

This question in 9702/42 Oct/Nov 2010

4 (a) (i) State what is meant by electric potential at a point. For Examiner’s … Use … … [2] (ii) Define capacitance. … … [1] (b) The variation of the potential V of an isolated metal sphere with charge Q on its surface is shown in Fig. 4.1. 200 150 V / kV 100 50 0 0 0.5 1.0 1.5 2.0 2.5 3.0 Q / µC Fig. 4.1 An isolated metal sphere has capacitance. For Examiner’s Use Fig. 4.1 to determine Use (i) the capacitance of the sphere, capacitance = … F [2] (ii) the electric potential energy stored on the sphere when charged to a potential of 150 kV. energy = … J [2] (c) A spark reduces the potential of the sphere from 150 kV to 75 kV. Calculate the energy lost from the sphere. energy = … J [2]

9 marks

Mark scheme: 4 (a) (i) work done moving unit positive charge M1 from infinity to the point A1 [2] (ii) charge / potential (difference) (ratio must be clear) B1 [1] (b) (i) capacitance = (2.7 × 10–6) / (150 × 103) C1 (allow any appropriate values) capacitance = 1.8 × 10–11 (allow 1.8 ±0.05) A1 [2] (ii) either energy = ½CV 2 or energy = ½QV and Q = CV C1 energy = ½ × 1.8 × 10–11 × (150 × 103)2 or ½ × 2.7 × 10–6 × 150 × 103 = 0.20 J A1 [2] (c) either since energy ∝ V 2, capacitor has (½)2 of its energy left or full formula treatment C1 energy lost = 0.15 J A1 [2] GCE A LEVEL – October/November 2010 9702 43

This question in 9702/43 Oct/Nov 2010

3 A capacitor consists of two metal plates separated by an insulator, as shown in Fig. 3.1. For Examiner’s Use metal plate insulator metal plate Fig. 3.1 The potential difference between the plates is V. The variation with V of the magnitude of the charge Q on one plate is shown in Fig. 3.2. 20 15 Q / mC 10 5 00 5 10 15 V / V Fig. 3.2 (a) Explain why the capacitor stores energy but not charge. … … … … [3] (b) Use Fig. 3.2 to determine For Examiner’s (i) the capacitance of the capacitor, Use capacitance = … μF [2] (ii) the loss in energy stored in the capacitor when the potential difference V is reduced from 10.0 V to 7.5 V. energy = … mJ [2] (c) Three capacitors X, Y and Z, each of capacitance 10 μF, are connected as shown in For Fig. 3.3. Examiner’s Use Y X A B Z Fig. 3.3 Initially, the capacitors are uncharged. A potential difference of 12 V is applied between points A and B. Determine the magnitude of the charge on one plate of capacitor X. charge = … μC [3]

10 marks

Mark scheme: 3 (a) charges on plates are equal and opposite M1 so no resultant charge A1 energy stored because there is charge separation B1 [3] (b) (i) capacitance = Q / V C1 = (18 × 10–3) / 10 = 1800 µF A1 [2] (ii) use of area under graph or energy = ½CV2 C1 energy = 2.5 × 15.7 × 10–3 or energy = ½ × 1800 × 10–6 × (102 – 7.52) = 39 mJ A1 [2] (c) combined capacitance of Y & Z = 20 µF or total capacitance = 6.67 µF C1 p.d. across capacitor X = 8 V or p.d. across combination = 12 V C1 charge = 10 × 10–6 × 8 or 6.67 × 10–6 × 12 = 80 µC A1 [3] GCE AS/A LEVEL – May/June 2011 9702 42

This question in 9702/42 May/June 2011

3 A capacitor consists of two metal plates separated by an insulator, as shown in Fig. 3.1. For Examiner’s Use metal plate insulator metal plate Fig. 3.1 The potential difference between the plates is V. The variation with V of the magnitude of the charge Q on one plate is shown in Fig. 3.2. 20 15 Q / mC 10 5 00 5 10 15 V / V Fig. 3.2 (a) Explain why the capacitor stores energy but not charge. … … … … [3] (b) Use Fig. 3.2 to determine For Examiner’s (i) the capacitance of the capacitor, Use capacitance = … μF [2] (ii) the loss in energy stored in the capacitor when the potential difference V is reduced from 10.0 V to 7.5 V. energy = … mJ [2] (c) Three capacitors X, Y and Z, each of capacitance 10 μF, are connected as shown in For Fig. 3.3. Examiner’s Use Y X A B Z Fig. 3.3 Initially, the capacitors are uncharged. A potential difference of 12 V is applied between points A and B. Determine the magnitude of the charge on one plate of capacitor X. charge = … μC [3]

10 marks

Mark scheme: 3 (a) charges on plates are equal and opposite M1 so no resultant charge A1 energy stored because there is charge separation B1 [3] (b) (i) capacitance = Q / V C1 = (18 × 10–3) / 10 = 1800 µF A1 [2] (ii) use of area under graph or energy = ½CV2 C1 energy = 2.5 × 15.7 × 10–3 or energy = ½ × 1800 × 10–6 × (102 – 7.52) = 39 mJ A1 [2] (c) combined capacitance of Y & Z = 20 µF or total capacitance = 6.67 µF C1 p.d. across capacitor X = 8 V or p.d. across combination = 12 V C1 charge = 10 × 10–6 × 8 or 6.67 × 10–6 × 12 = 80 µC A1 [3] GCE AS/A LEVEL – May/June 2011 9702 43

This question in 9702/43 May/June 2011

4 (a) State two functions of capacitors in electrical circuits. For Examiner’s 1. … Use … 2. … … [2] (b) Three uncharged capacitors of capacitance C1, C2 and C3 are connected in series, as shown in Fig. 4.1. plate A C1 C2 C3 Fig. 4.1 A charge of +Q is put on plate A of the capacitor of capacitance C1. (i) State and explain the charges that will be observed on the other plates of the capacitors. You may draw on Fig. 4.1 if you wish. … … … [2] (ii) Use your answer in (i) to derive an expression for the combined capacitance of the capacitors. [2] (c) A capacitor of capacitance 12 μF is charged using a battery of e.m.f. 9.0 V, as shown in For Fig. 4.2. Examiner’s Use S1 S2 12 μF 20 μF 9.0 V Fig. 4.2 Switch S1 is closed and switch S2 is open. (i) The capacitor is now disconnected from the battery by opening S1. Calculate the energy stored in the capacitor. energy = … J [2] (ii) The 12 μF capacitor is now connected to an uncharged capacitor of capacitance 20 μF by closing S2. Switch S1 remains open. The total energy now stored in the two capacitors is 1.82 × 10–4 J. Suggest why this value is different from your answer in (i). … … [1]

9 marks

Mark scheme: 4 (a) e.g. storing energy separating charge blocking d.c. producing electrical oscillations tuning circuits smoothing preventing sparks timing circuits (any two sensible suggestions, 1 each, max 2) B2 [2] (b) (i) –Q (induced) on opposite plate of C1 B1 by charge conservation, charges are –Q, +Q, –Q, +Q, –Q B1 [2] (ii) total p.d. V = V1 + V2 + V3 B1 Q/C = Q/C1 + Q/C2 + Q/C3 B1 1/C = 1/C1 + 1/C2 + 1/C3 A0 [2] (c) (i) energy = ½CV 2 or energy = ½ QV and C = Q/V C1 = ½ × 12 × 10–6 × 9.02 = 4.9 × 10–4 J A1 [2] (ii) energy dissipated in (resistance of) wire/as a spark B1 [1] GCE AS/A LEVEL – October/November 2011 9702 43

This question in 9702/43 Oct/Nov 2011

5 (a) (i) Define capacitance. For Examiner’s … Use … [1] (ii) A capacitor is made of two metal plates, insulated from one another, as shown in Fig. 5.1. insulation metal plate Fig. 5.1 Explain why the capacitor is said to store energy but not charge. … … … … … [4] (b) Three uncharged capacitors X, Y and Z, each of capacitance 12 μF, are connected as shown in Fig. 5.2. Y X 12 ȝF A B Z 12 ȝF 12 ȝF Fig. 5.2 A potential difference of 9.0 V is applied between points A and B. (i) Calculate the combined capacitance of the capacitors X, Y and Z. For Examiner’s Use capacitance = … μF [2] (ii) Explain why, when the potential difference of 9.0 V is applied, the charge on one plate of capacitor X is 72 μC. … … … [2] (iii) Determine 1. the potential difference across capacitor X, potential difference = … V [1] 2. the charge on one plate of capacitor Y. charge = … μC [2]

12 marks

Mark scheme: 5 (a) (i) ratio of charge and potential (difference) / voltage (ratio must be clear) B1 [1] (ii) capacitor has equal magnitudes of (+)ve and (-)ve charge B1 total charge on capacitor is zero (so does not store charge) B1 (+)ve and (-)ve charges to be separated M1 work done to achieve this so stores energy A1 [4] (b) (i) capacitance of Y and Z together is 24 µF C1 1 / C = 1 / 24 + 1 / 12 C = 8.0 µF (allow 1 s.f.) A1 [2] (ii) some discussion as to why all charge of one sign on one plate of X B1 Q = (CV =) 8.0 × 10–6 × 9.0 M1 = 72 µC A0 [2] (iii) 1. V = (72 × 10–6) / (12 × 10–6) = 6.0 V (allow 1 s.f.) (allow 72/12) A1 [1] 2. either Q = 12 × 10–6 × 3.0 or charge is shared between Y and Z C1 charge = 36 µC A1 [2] Must have correct voltage in (iii)1 if just quote of 36 µC in (iii)2.

This question in 9702/41 Oct/Nov 2012

5 (a) (i) Define capacitance. For Examiner’s … Use … [1] (ii) A capacitor is made of two metal plates, insulated from one another, as shown in Fig. 5.1. insulation metal plate Fig. 5.1 Explain why the capacitor is said to store energy but not charge. … … … … … [4] (b) Three uncharged capacitors X, Y and Z, each of capacitance 12 μF, are connected as shown in Fig. 5.2. Y X 12 ȝF A B Z 12 ȝF 12 ȝF Fig. 5.2 A potential difference of 9.0 V is applied between points A and B. (i) Calculate the combined capacitance of the capacitors X, Y and Z. For Examiner’s Use capacitance = … μF [2] (ii) Explain why, when the potential difference of 9.0 V is applied, the charge on one plate of capacitor X is 72 μC. … … … [2] (iii) Determine 1. the potential difference across capacitor X, potential difference = … V [1] 2. the charge on one plate of capacitor Y. charge = … μC [2]

12 marks

Mark scheme: 5 (a) (i) ratio of charge and potential (difference) / voltage (ratio must be clear) B1 [1] (ii) capacitor has equal magnitudes of (+)ve and (-)ve charge B1 total charge on capacitor is zero (so does not store charge) B1 (+)ve and (-)ve charges to be separated M1 work done to achieve this so stores energy A1 [4] (b) (i) capacitance of Y and Z together is 24 µF C1 1 / C = 1 / 24 + 1 / 12 C = 8.0 µF (allow 1 s.f.) A1 [2] (ii) some discussion as to why all charge of one sign on one plate of X B1 Q = (CV =) 8.0 × 10–6 × 9.0 M1 = 72 µC A0 [2] (iii) 1. V = (72 × 10–6) / (12 × 10–6) = 6.0 V (allow 1 s.f.) (allow 72/12) A1 [1] 2. either Q = 12 × 10–6 × 3.0 or charge is shared between Y and Z C1 charge = 36 µC A1 [2] Must have correct voltage in (iii)1 if just quote of 36 µC in (iii)2.

This question in 9702/42 Oct/Nov 2012

4 (a) An insulated metal sphere of radius R is situated in a vacuum. The charge q on the For sphere may be considered to be a point charge at the centre of the sphere. Examiner’s Use (i) State a formula, in terms of R and q, for the potential V on the surface of the sphere. … [1] (ii) Define capacitance and hence show that the capacitance C of the sphere is given by the expression C = 4πε0R. [1] (b) An isolated metal sphere has radius 45 cm. (i) Use the expression in (a)(ii) to calculate the capacitance, in picofarad, of the sphere. capacitance = … pF [2] (ii) The sphere is charged to a potential of 9.0 × 105 V. A spark occurs, partially discharging the sphere so that its potential is reduced to 3.6 × 105 V. Determine the energy of the spark. energy = … J [3]

7 marks

Mark scheme: 4 (a) (i) V = q / 4πε0R B1 [1] (ii) (capacitance is) ratio of charge and potential or q/V M1 C = q/V = 4πε0R A0 [1] (b) (i) C = 4π × 8.85 × 10–12 × 0.45 C1 = 50 pF A1 [2] (ii) either energy = ½ CV2 or energy = ½ QV and Q = CV C1 energy of spark = ½ × 50 × 10–12 {(9.0 × 105)2 – (3.6 × 105)2} C1 = 17 J A1 [3]

This question in 9702/42 May/June 2013

4 (a) State two functions of capacitors connected in electrical circuits. For Examiner’s 1. … Use … 2. … … [2] (b) Three capacitors are connected in parallel to a power supply as shown in Fig. 4.1. V C1 C2 C3 Fig. 4.1 The capacitors have capacitances C1, C2 and C3. The power supply provides a potential difference V. (i) Explain why the charge on the positive plate of each capacitor is different. … … … [1] (ii) Use your answer in (i) to show that the combined capacitance C of the three capacitors is given by the expression C = C1 + C2 + C3. [2] (c) A student has available three capacitors, each of capacitance 12 μF. For Draw circuit diagrams, one in each case, to show how the student connects the three Examiner’s capacitors to provide a combined capacitance of Use (i) 8 μF, [1] (ii) 18 μF. [1]

7 marks

Mark scheme: 4 (a) e.g. store energy (do not allow ‘store charge’) in smoothing circuits blocking d.c. in oscillators any sensible suggestions, one each, max. 2 B2 [2] (b) (i) potential across each capacitor is the same and Q = CV B1 [1] (ii) total charge Q = Q1 + Q2 + Q3 M1 CV = C1V + C2V + C3V M1 (allow Q = CV here or in (i)) so C = C1 + C2 + C3 A0 [2] (c) (i) A1 [1] (ii) A1 [1]

This question in 9702/43 Oct/Nov 2013

6 An uncharged capacitor is connected in series with a battery, a switch and a resistor, as shown in Fig. 6.1. 9.0 V 4700 +F Fig. 6.1 The battery has e.m.f. 9.0 V and negligible internal resistance. The capacitance of the capacitor is 4700 μF. The switch is closed at time t = 0. During the time interval t = 0 to t = 4.0 s, the charge passing through the resistor is 22 mC. (a) (i) Calculate the energy transfer in the battery during the time interval t = 0 to t = 4.0 s. energy transfer = … J [2] (ii) Determine, for the capacitor at time t = 4.0 s, 1. the potential difference V across the capacitor, V = … V [2] 2. the energy stored in the capacitor. energy = … J [2] (b) Suggest why your answers in (a)(i) and (a)(ii) part 2 are different. … … [1]

7 marks

Mark scheme: 6 (a) (i) energy = EQ C1 = 9.0 × 22 × 10–3 = 0.20 J A1 [2] (ii) 1. C = Q / V V = (22 × 10–3)/(4700 × 10–6) C1 = 4.7 V A1 [2] 2. either E = ½CV 2 C1 = ½ × 4700 × 10–6 × 4.72 = 5.1 × 10–2 J A1 [2] or E = ½QV (C1) = ½ × 22 × 10–3 × 4.7 = 5.1 × 10–2 J (A1) or E = ½Q2/C (C1) = ½ × (22 × 10–3)2/4700 ×10–6 = 5.1 × 10–2 J (A1) GCE AS/A LEVEL – May/June 2014 9702 41 (b) energy lost (as thermal energy) in resistance/wires/battery/resistor B1 [1] (award only if answer in (a)(i) > answer in (a)(ii)2)

This question in 9702/41 May/June 2014

6 An uncharged capacitor is connected in series with a battery, a switch and a resistor, as shown in Fig. 6.1. 9.0 V 4700 +F Fig. 6.1 The battery has e.m.f. 9.0 V and negligible internal resistance. The capacitance of the capacitor is 4700 μF. The switch is closed at time t = 0. During the time interval t = 0 to t = 4.0 s, the charge passing through the resistor is 22 mC. (a) (i) Calculate the energy transfer in the battery during the time interval t = 0 to t = 4.0 s. energy transfer = … J [2] (ii) Determine, for the capacitor at time t = 4.0 s, 1. the potential difference V across the capacitor, V = … V [2] 2. the energy stored in the capacitor. energy = … J [2] (b) Suggest why your answers in (a)(i) and (a)(ii) part 2 are different. … … [1]

7 marks

Mark scheme: 6 (a) (i) energy = EQ C1 = 9.0 × 22 × 10–3 = 0.20 J A1 [2] (ii) 1. C = Q / V V = (22 × 10–3)/(4700 × 10–6) C1 = 4.7 V A1 [2] 2. either E = ½CV 2 C1 = ½ × 4700 × 10–6 × 4.72 = 5.1 × 10–2 J A1 [2] or E = ½QV (C1) = ½ × 22 × 10–3 × 4.7 = 5.1 × 10–2 J (A1) or E = ½Q2/C (C1) = ½ × (22 × 10–3)2/4700 ×10–6 = 5.1 × 10–2 J (A1) GCE AS/A LEVEL – May/June 2014 9702 43 (b) energy lost (as thermal energy) in resistance/wires/battery/resistor B1 [1] (award only if answer in (a)(i) > answer in (a)(ii)2)

This question in 9702/43 May/June 2014

5 (a) Define electric potential at a point. … … … [2] (b) An isolated metal sphere is charged to a potential V . The charge on the sphere is q. The charge on the sphere may be considered to act as a point charge at the centre of the sphere. The variation with potential V of the charge q on the sphere is shown in Fig. 5.1. 6 q / 10–8 C 4 2 0 0 5 10 15 20 25 30 V / kV Fig. 5.1 Use Fig. 5.1 to determine (i) the radius of the sphere, radius = … m [2] (ii) the energy required to increase the potential of the sphere from zero to 24 kV. energy = … J [3] (c) The sphere in (b) discharges by causing sparks when the electric field strength at the surface of the sphere is greater than 2.0 × 106 V m−1. Use your answer in (b)(i) to calculate the maximum potential to which the sphere can be charged. potential = … V [3]

10 marks

Mark scheme: 5 (a) work done / energy in moving unit positive charge M1 from infinity (to the point) A1 [2] (b) (i) V = q / 4πε0r at 16 kV, q = 3.0 × 10–8 C r = (3.0 × 10–8) / (4π × 8.85 × 10–12 × 16 × 103) C1 = 1.69 × 10–2 m (allow 2 s.f.) A1 [2] (allow any answer which rounds to 1.7 × 10–2) (ii) energy is / represented by area ‘below’ line C1 energy = ½qV = ½ × 24 × 103 × 4.5 × 10–8 C1 = 5.4 × 10–4 J A1 [3] (c) V = q / 4πε0r and E = q / 4πε0r 2 giving Er = V B1 2.0 × 106 × 1.7 × 10–2 = V C1 V = 3.4 × 104 V A1 [3]

This question in 9702/43 Oct/Nov 2014

6 Three capacitors, each of capacitance 48 μF, are connected as shown in Fig. 6.1. 48 +F A 48 +F B 48 +F Fig. 6.1 (a) Calculate the total capacitance between points A and B. capacitance = … μF [2] (b) The maximum safe potential difference that can be applied across any one capacitor is 6 V. Determine the maximum safe potential difference that can be applied between points A and B. potential difference = … V [2]

4 marks

Mark scheme: 6 (a) for the two capacitors in parallel, capacitance = 96 µF C1 for complete arrangement, 1 / CT = 1 / 96 + 1 / 48 CT = 32 µF A1 [2] (b) p.d. across parallel combination is one half p.d. across single capacitor C1 total p.d. = 9 V A1 [2]

This question in 9702/43 Oct/Nov 2014

12 (a) Distinguish between an analogue signal and a digital signal. analogue signal: … … digital signal: … … [2] (b) An analogue-to-digital converter (ADC) converts whole decimal numbers between 0 and 23 into digital numbers. State (i) the minimum number of bits in each digital number, number of bits = … [1] (ii) the digital number representing decimal 13. … [1] (c) An analogue signal is digitised before transmission. It is then converted back to an analogue signal after reception. State and explain the effect on the reproduction of the signal when the number of bits in the analogue-to-digital converter (ADC) and the digital-to-analogue converter (DAC) is increased. … … … … [3]

7 marks

Mark scheme: 12 (a) analogue: continuously variable B1 digital: two / distinct levels only or 1 s and 0 s or highs and lows B1 [2] (b) (i) 5 A1 [1] (ii) 1 1 0 1 A1 [1] (c) greater number of voltage / signal levels B1 smaller step heights in reproduced signal B1 smaller voltage / signal changes can be seen B1 [3]

This question in 9702/43 Oct/Nov 2014

5 A charged metal sphere is isolated in space. Measurements of the electric potential V are made for different distances x from the centre of the sphere. The variation with distance x of the potential V is shown in Fig. 5.1. 4.0 3.0 V / 103 V 2.0 1.0 0 0 2.0 4.0 6.0 8.0 10.0 x / cm Fig. 5.1 (a) Use Fig. 5.1 to determine the electric field strength, in N C−1, at a point where x = 4.0 cm. Explain your working. electric field strength = … N C−1 [3] (b) The charge on the sphere is 8.0 × 10−9 C. (i) Use Fig. 5.1 to state the electric potential at the surface of the sphere. potential = … V [1] (ii) The sphere acts as a capacitor. Determine the capacitance of the sphere. capacitance = … F [2]

6 marks

Mark scheme: 5 (a) (magnitude of electric field strength is the potential gradient B1 use of gradient at x = 4.0 cm M1 gradient = 4.5 × 104 N C–1 (allow ± 0.3 × 10 4) A1 or Q Q V V = and E = 2 leading to E = (B1) 4πε 0 x 4 πε 0 x x E = 1.8 × 103 / 0.04 (M1) = 4.5 × 104 N C–1 (A1) [3] (b) (i) 3.6 × 103 V A1 [1] (ii) capacitance = Q / V C1 = (8.0 × 10–9) / (3.6 × 103) = 2.2 × 10–12 F A1 [2]

This question in 9702/41 May/June 2015

5 A charged metal sphere is isolated in space. Measurements of the electric potential V are made for different distances x from the centre of the sphere. The variation with distance x of the potential V is shown in Fig. 5.1. 4.0 3.0 V / 103 V 2.0 1.0 0 0 2.0 4.0 6.0 8.0 10.0 x / cm Fig. 5.1 (a) Use Fig. 5.1 to determine the electric field strength, in N C−1, at a point where x = 4.0 cm. Explain your working. electric field strength = … N C−1 [3] (b) The charge on the sphere is 8.0 × 10−9 C. (i) Use Fig. 5.1 to state the electric potential at the surface of the sphere. potential = … V [1] (ii) The sphere acts as a capacitor. Determine the capacitance of the sphere. capacitance = … F [2]

6 marks

Mark scheme: 5 (a) (magnitude of electric field strength is the potential gradient B1 use of gradient at x = 4.0 cm M1 gradient = 4.5 × 104 N C–1 (allow ± 0.3 × 10 4) A1 or Q Q V V = and E = 2 leading to E = (B1) 4πε 0 x 4 πε 0 x x E = 1.8 × 103 / 0.04 (M1) = 4.5 × 104 N C–1 (A1) [3] (b) (i) 3.6 × 103 V A1 [1] (ii) capacitance = Q / V C1 = (8.0 × 10–9) / (3.6 × 103) = 2.2 × 10–12 F A1 [2]

This question in 9702/43 May/June 2015

7 (a) Define capacitance. … … [1] (b) Three capacitors of capacitances C1, C2 and C3 are initially uncharged. They are then connected in series to a battery, as shown in Fig. 7.1. C1 C2 C3 V Fig. 7.1 The battery applies a potential difference V across the three capacitors. Show that the combined capacitance C of the capacitors is given by 1 1 1 1 = + + . C C1 C2 C3 [2] (c) A battery of e.m.f. 12 V and negligible internal resistance is connected to a network of two capacitors and a resistor, as shown in Fig. 7.2. 200 +F A B 12 V 600 +F Fig. 7.2 The capacitors have capacitances of 200 μF and 600 μF. The switch has two positions, A and B. (i) The switch is moved to position A. Calculate 1. the combined capacitance of the two capacitors, combined capacitance = … μF [1] 2. the charge on the 600 μF capacitor, charge = … C [1] 3. the potential difference across the 600 μF capacitor. potential difference = … V [1] (ii) The switch is now moved from position A to position B. Calculate the potential difference across the 600 μF capacitor when it has discharged 50% of its initial energy. potential difference = … V [3] [Total: 9]

9 marks

Mark scheme: 7 (a) (capacitance =) charge / potential (difference) B1 [1] (b) V = V1 + V2 + V3 B1 either Q / C = Q / C1 + Q / C2 + Q / C3 or V / Q = V1 / Q + V2 / Q + V3 / Q and so 1 / C = 1 / C1 + 1 / C2+ 1 / C3 B1 [2] (c) (i) 1. 1 / CT = (1 / 200) + (1 / 600) CT = 150 µF A1 [1] 2. Q = CV = 150 × 10–6 × 12 or 600 × 10–6 × 3.0 or 200 × 10–6 × 9.0 = 1.8 × 10–3 C A1 [1] 3. V = Q / C = 1.8 × 10–3 / 600 × 10–6 or V = [200 / (200 + 600)] × 12 = 3(.0) V A1 [1] (ii) energy = ½CV 2 or energy = ½QV and C = Q / V C1 1/2 × C × 32 = 2 × 1/2 × C × V 2 C1 V = 2.1 V A1 [3]

This question in 9702/42 Feb/March 2016

7 A student sets up the circuit shown in Fig. 7.1 to measure the charge on a capacitor C for different values of potential difference across the capacitor. C meter to V measure charge Fig. 7.1 The variation with potential difference V of the charge Q stored on the capacitor is shown in Fig. 7.2. 15 Q / mC 10 5 0 0 1 2 3 4 5 6 V / V Fig. 7.2 (a) State and explain how Fig. 7.2 indicates that there is a systematic error in the readings of one of the meters. … … … [2] (b) Use Fig. 7.2 to determine the capacitance, in μF, of capacitor C. capacitance = … μF [3] (c) Use your answer in (b) to determine the additional energy stored in the capacitor C when the potential difference across it is increased from 6.0 V to 9.0 V. energy = … J [3] [Total: 8]

8 marks

Mark scheme: 7 (a) line has non-zero intercept/line does not pass through origin B1 charge is/should be proportional to potential (difference) or charge is/should be zero when p.d. is zero (therefore there is a systematic error) B1 [2] (b) reasonable attempt at line of best fit B1 use of gradient of line of best fit clear M1 C = 2800 µF (allow ± 200 µF) A1 [3] (c) energy = ½ CV 2 or energy = ½ QV and C = Q / V C1 ∆ energy = ½ × 2800 × 10–6 × (9.02 – 6.02) C1 = 6.3 × 10–2 J A1 [3]

This question in 9702/41 May/June 2016

7 (a) State two uses of capacitors in electrical circuits, other than for the smoothing of direct current. 1. … 2. … [2] (b) The combined capacitance between terminals A and B of the arrangement shown in Fig. 7.1 is 4.0 μF. & & A B Fig. 7.1 Two capacitors each have capacitance C and the remaining capacitors each have capacitance 3.0 μF. The potential difference (p.d.) between terminals A and B is 12 V. (i) Determine the capacitance C. C = … μF [2] (ii) Calculate the magnitude of the total positive charge transferred to the arrangement. charge = … μC [2] (iii) Use your answer in (ii) to state the magnitude of the charge on one plate of 1. a capacitor of capacitance C, charge = … μC 2. a capacitor of capacitance 3.0 μF. charge = … μC [2] [Total: 8]

8 marks

Mark scheme: 7 (a) e.g. storing energy blocking d.c. in oscillator circuits in tuning circuits in timing circuits any two B2 [2] (b) (i) 1 / 6 + 1 / C + 1 / C = 1 / 4 C1 C = 24 µF A1 [2] (ii) Q = CV = 4.0 × 10–6 × 12 C1 = 48 µC A1 [2] (iii) 1. 48 µC A1 2. 24 µC A1 [2]

This question in 9702/42 May/June 2016

11 A bridge rectifier contains four ideal diodes A, B, C and D, as shown in Fig. 11.1. % input $ 9 ' & / 1 Fig. 11.1 The output of the rectifier is connected to a load L of resistance 2.4 kΩ. (a) On Fig. 11.1, mark with the letter P the positive terminal of the load. [1] (b) The variation with time t of the potential difference V across the input to the rectifier is shown in Fig. 11.2. 8 6 LQSXW 9 / V 4 2 0 W –2 –4 –6 –8 Fig. 11.2 Calculate the root-mean-square (r.m.s.) current in the load L. r.m.s. current = … A [2] (c) The potential difference across the load L is to be smoothed using a capacitor. (i) On Fig. 11.1, draw the symbol for a capacitor, connected to produce smoothing. [1] (ii) The minimum potential difference across the load L with the smoothing capacitor connected is 3.0 V. On Fig. 11.2, sketch the variation with time t of the potential difference across the load L. [3] [Total: 7]

7 marks

Mark scheme: 11 (a) point P shown at ‘lower end’ of load B1 [1] (b) Vr.m.s. = 6.0 / √2 = 4.24 V C1 Ir.m.s. = 4.24 / (2.4 × 103) = 1.8 × 10–3 A A1 [2] (c) (i) capacitor in parallel with load B1 [1] (ii) line from peak to curve at 3.0 V for either half- or full-wave rectified M1 correct curvature on line (gradient becoming more shallow) A1 line drawn as for full-wave rectified A1 [3]

This question in 9702/42 May/June 2016

7 A student sets up the circuit shown in Fig. 7.1 to measure the charge on a capacitor C for different values of potential difference across the capacitor. C meter to V measure charge Fig. 7.1 The variation with potential difference V of the charge Q stored on the capacitor is shown in Fig. 7.2. 15 Q / mC 10 5 0 0 1 2 3 4 5 6 V / V Fig. 7.2 (a) State and explain how Fig. 7.2 indicates that there is a systematic error in the readings of one of the meters. … … … [2] (b) Use Fig. 7.2 to determine the capacitance, in μF, of capacitor C. capacitance = … μF [3] (c) Use your answer in (b) to determine the additional energy stored in the capacitor C when the potential difference across it is increased from 6.0 V to 9.0 V. energy = … J [3] [Total: 8]

8 marks

Mark scheme: 7 (a) line has non-zero intercept/line does not pass through origin B1 charge is/should be proportional to potential (difference) or charge is/should be zero when p.d. is zero (therefore there is a systematic error) B1 [2] (b) reasonable attempt at line of best fit B1 use of gradient of line of best fit clear M1 C = 2800 µF (allow ± 200 µF) A1 [3] (c) energy = ½ CV 2 or energy = ½ QV and C = Q / V C1 ∆ energy = ½ × 2800 × 10–6 × (9.02 – 6.02) C1 = 6.3 × 10–2 J A1 [3]

This question in 9702/43 May/June 2016

7 (a) (i) Define capacitance. … … [1] (ii) Use the expression for the electric potential due to a point charge to show that an isolated metal sphere of diameter 25 cm has a capacitance of 1.4 × 10–11 F. [2] (b) Three capacitors of capacitances 2.0 μF, 3.0 μF and 4.0 μF are connected as shown in Fig. 7.1 to a battery of e.m.f. 9.0 V. 4.0 μF 3.0 μF 2.0 μF 9.0 V Fig. 7.1 Determine (i) the combined capacitance of the three capacitors, capacitance = … μF [1] (ii) the potential difference across the capacitor of capacitance 3.0 μF, potential difference = … V [2] (iii) the positive charge stored on the capacitor of capacitance 2.0 μF. charge = … μC [2] [Total: 8]

8 marks

Mark scheme: 7 (a) (i) charge / potential (difference) or charge per (unit) potential (difference) B1 [1] (ii) (V = Q / 4πε0r and C = Q / V) for sphere, C (= Q / V) = 4πε0r C1 C = 4π × 8.85 × 10–12 × 12.5 × 10–2 = 1.4 × 10–11 F A1 [2] (b) (i) 1 / CT = 1 / 3.0 + 1 / 6.0 CT = 2.0 µF A1 [1] (ii) total charge = charge on 3.0 µF capacitor = 2.0 (µ) × 9.0 = 18 (µC) C1 potential difference = Q / C = 18 (µ)C / 3.0 (µ)F = 6.0 V A1 [2] or argument based on equal charges: 3.0 × V = 6.0 × (9.0 – V) (C1) V = 6.0 V (A1) (iii) potential difference (= 9.0 – 6.0) = 3.0 V C1 charge (= 3.0 × 2.0 (µ)) = 6.0 µC A1 [2]

This question in 9702/42 Oct/Nov 2016

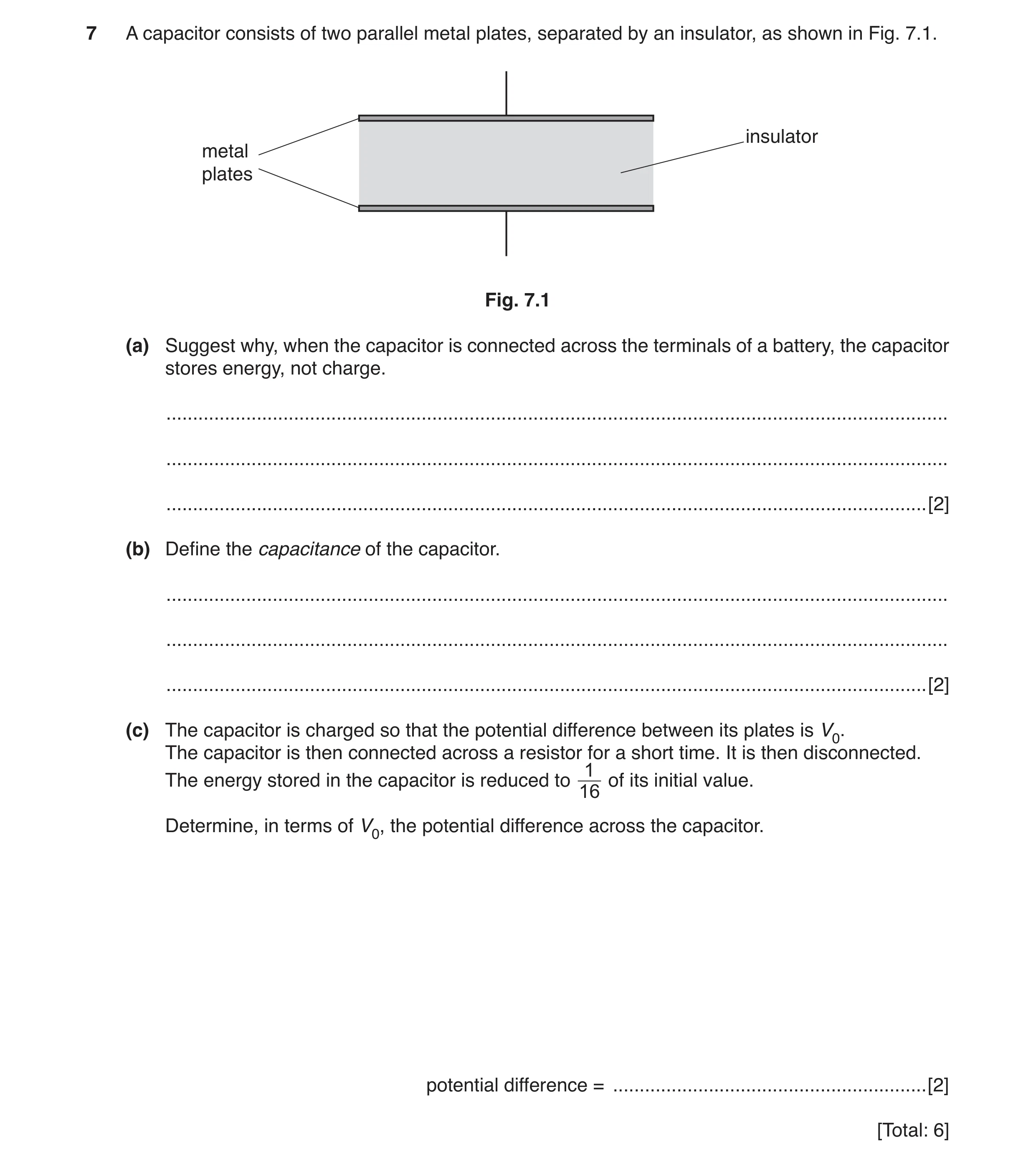

7 A capacitor consists of two parallel metal plates, separated by an insulator, as shown in Fig. 7.1. insulator metal plates Fig. 7.1 (a) Suggest why, when the capacitor is connected across the terminals of a battery, the capacitor stores energy, not charge. … … … [2] (b) Define the capacitance of the capacitor. … … … [2] (c) The capacitor is charged so that the potential difference between its plates is V0. The capacitor is then connected across a resistor for a short time. It is then disconnected. 1 The energy stored in the capacitor is reduced to of its initial value. 16 Determine, in terms of V0, the potential difference across the capacitor. potential difference = … [2] [Total: 6]

6 marks

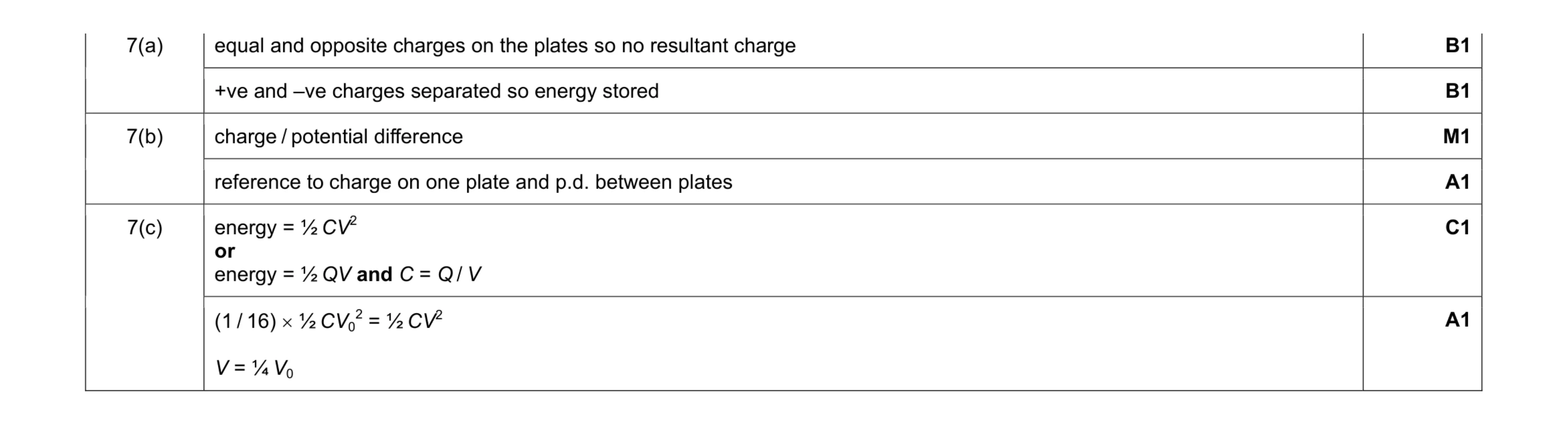

Mark scheme: 7(a) equal and opposite charges on the plates so no resultant charge B1 +ve and –ve charges separated so energy stored B1 7(b) charge / potential difference M1 reference to charge on one plate and p.d. between plates A1 7(c) energy = ½ CV2 or energy = ½ QV and C = Q / V C1 (1 / 16) × ½ CV0 2 = ½ CV2 V = ¼ V0 A1

This question in 9702/42 May/June 2017

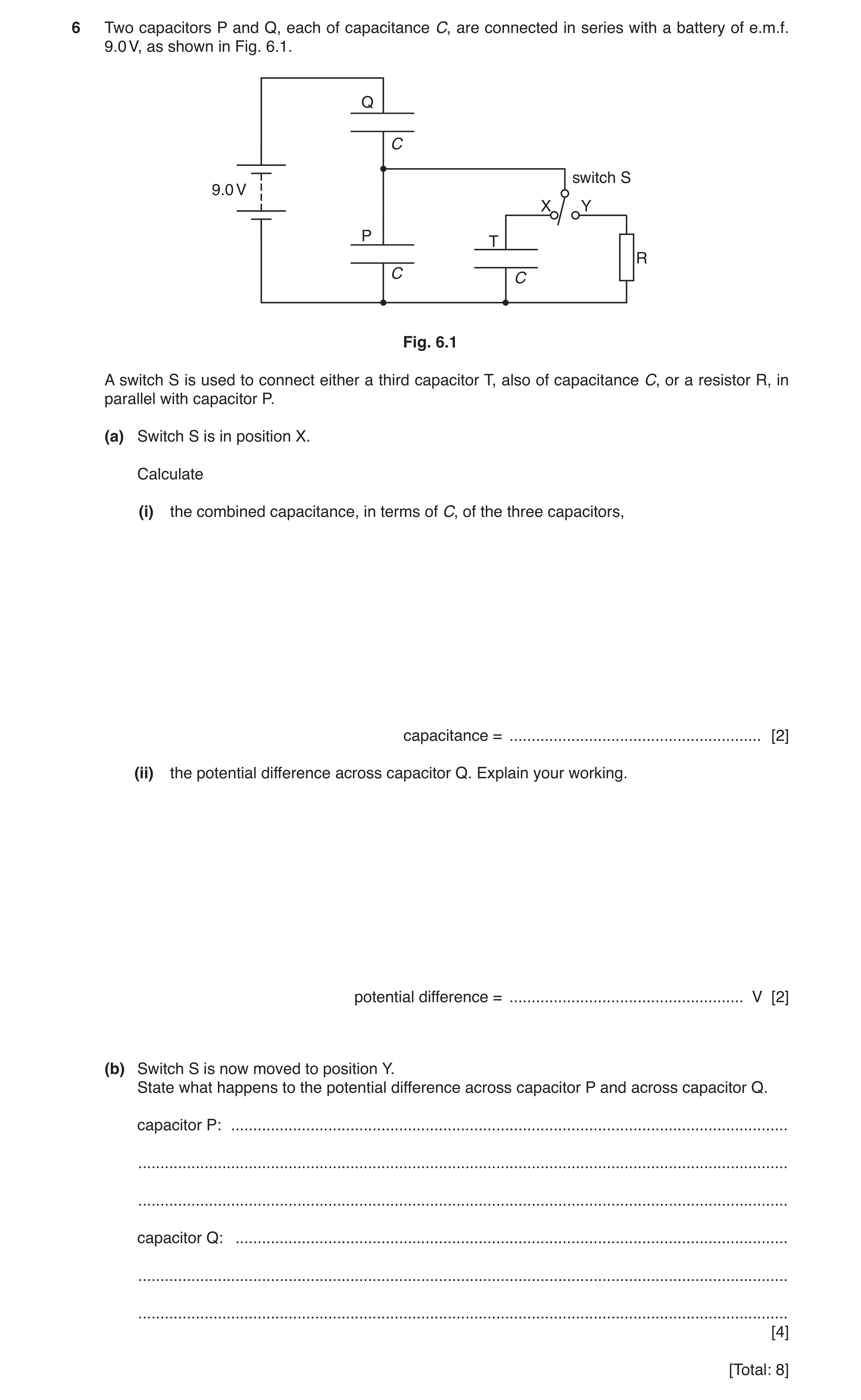

6 Two capacitors P and Q, each of capacitance C, are connected in series with a battery of e.m.f. 9.0 V, as shown in Fig. 6.1. Q C switch S 9.0 V X Y P T R C C Fig. 6.1 A switch S is used to connect either a third capacitor T, also of capacitance C, or a resistor R, in parallel with capacitor P. (a) Switch S is in position X. Calculate (i) the combined capacitance, in terms of C, of the three capacitors, capacitance = … [2] (ii) the potential difference across capacitor Q. Explain your working. potential difference = … V [2] (b) Switch S is now moved to position Y. State what happens to the potential difference across capacitor P and across capacitor Q. capacitor P: … … … capacitor Q: … … … [4] [Total: 8]

8 marks

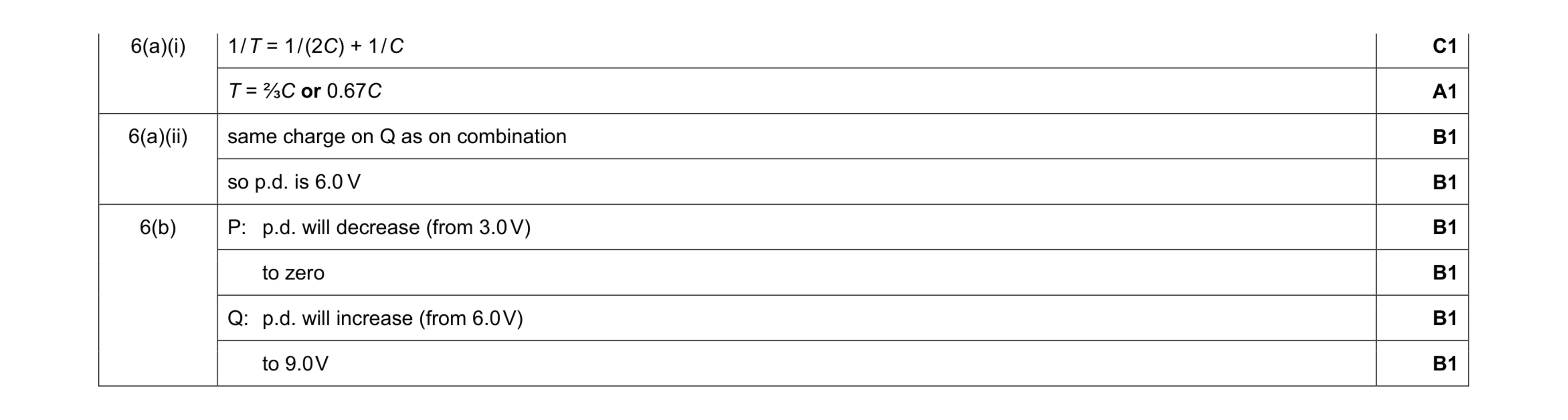

Mark scheme: 6(a)(i) 1 / T = 1 / (2C) + 1 / C C1 T = ⅔C or 0.67C A1 6(a)(ii) same charge on Q as on combination B1 so p.d. is 6.0 V B1 6(b) P: p.d. will decrease (from 3.0 V) B1 to zero B1 Q: p.d. will increase (from 6.0 V) B1 to 9.0 V B1

This question in 9702/41 Oct/Nov 2017

6 Two capacitors P and Q, each of capacitance C, are connected in series with a battery of e.m.f. 9.0 V, as shown in Fig. 6.1. Q C switch S 9.0 V X Y P T R C C Fig. 6.1 A switch S is used to connect either a third capacitor T, also of capacitance C, or a resistor R, in parallel with capacitor P. (a) Switch S is in position X. Calculate (i) the combined capacitance, in terms of C, of the three capacitors, capacitance = … [2] (ii) the potential difference across capacitor Q. Explain your working. potential difference = … V [2] (b) Switch S is now moved to position Y. State what happens to the potential difference across capacitor P and across capacitor Q. capacitor P: … … … capacitor Q: … … … [4] [Total: 8]

8 marks

Mark scheme: 6(a)(i) 1 / T = 1 / (2C) + 1 / C C1 T = ⅔C or 0.67C A1 6(a)(ii) same charge on Q as on combination B1 so p.d. is 6.0 V B1 6(b) P: p.d. will decrease (from 3.0 V) B1 to zero B1 Q: p.d. will increase (from 6.0 V) B1 to 9.0 V B1

This question in 9702/43 Oct/Nov 2017

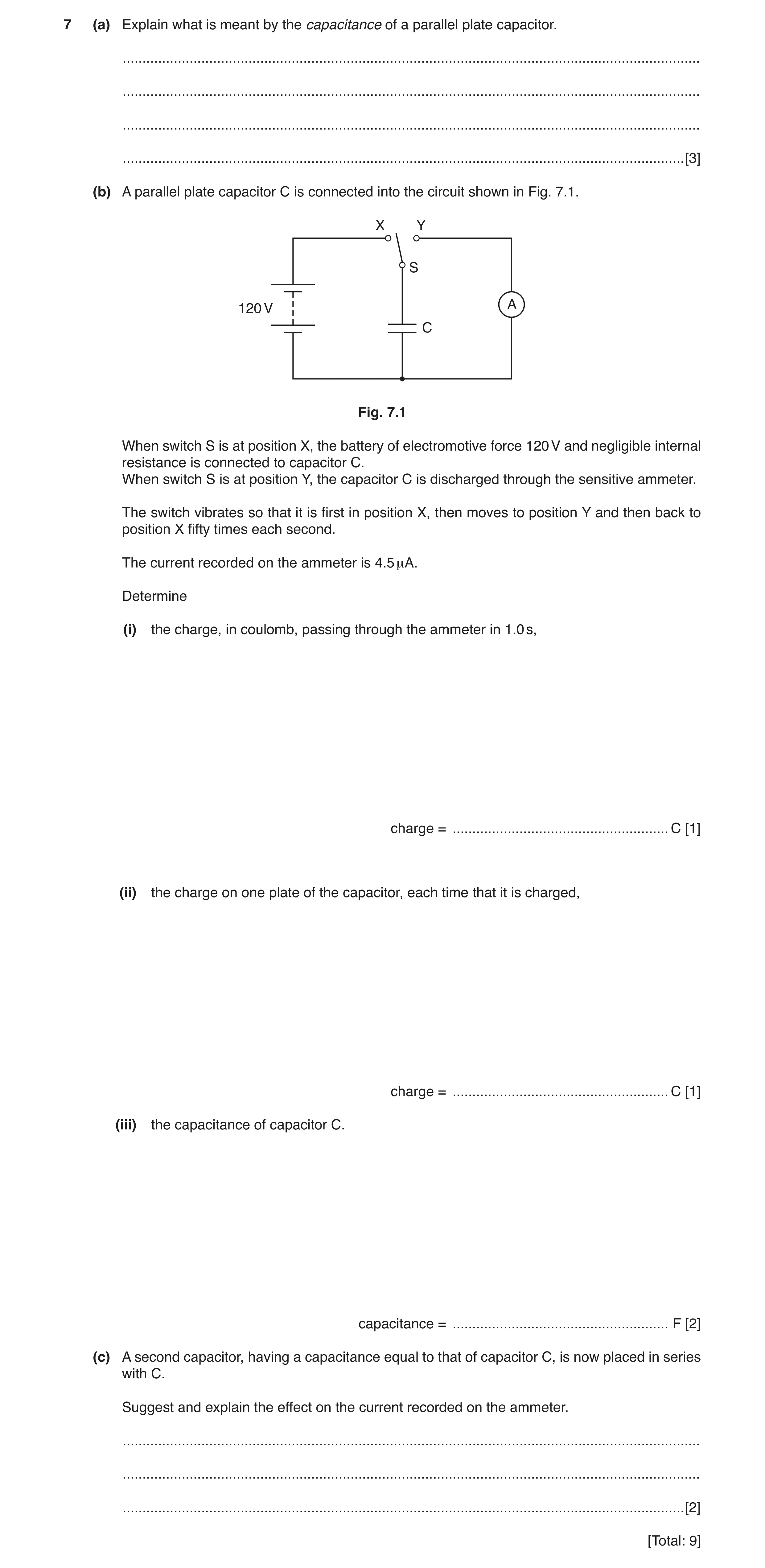

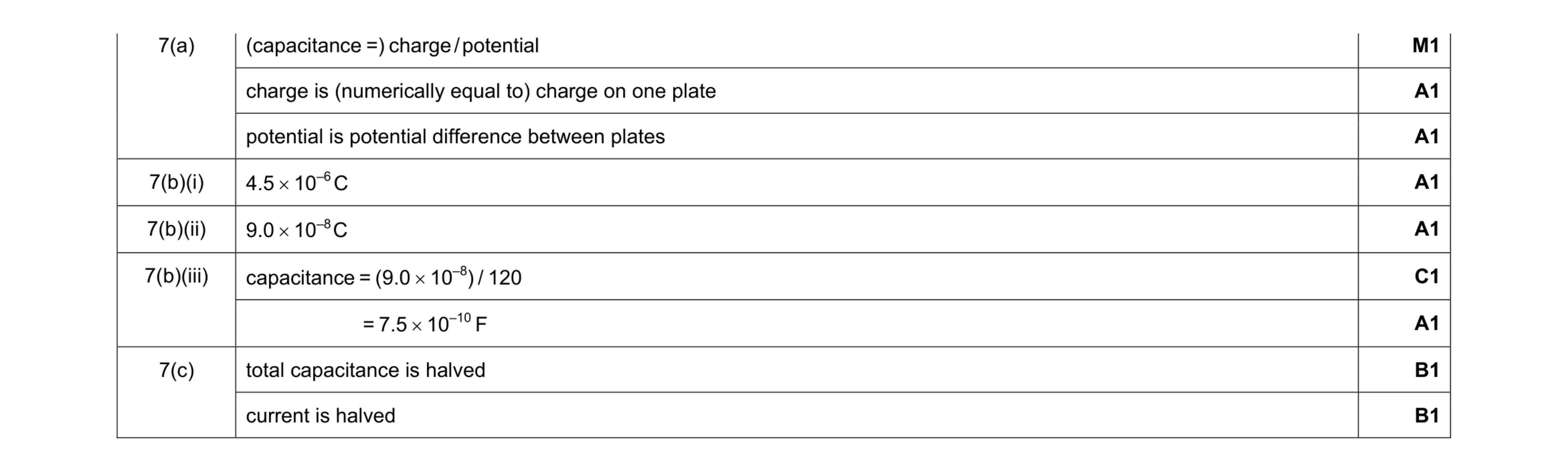

7 (a) Explain what is meant by the capacitance of a parallel plate capacitor. … … … … [3] (b) A parallel plate capacitor C is connected into the circuit shown in Fig. 7.1. X Y S A 120 V C Fig. 7.1 When switch S is at position X, the battery of electromotive force 120 V and negligible internal resistance is connected to capacitor C. When switch S is at position Y, the capacitor C is discharged through the sensitive ammeter. The switch vibrates so that it is first in position X, then moves to position Y and then back to position X fifty times each second. The current recorded on the ammeter is 4.5 μA. Determine (i) the charge, in coulomb, passing through the ammeter in 1.0 s, charge = … C [1] (ii) the charge on one plate of the capacitor, each time that it is charged, charge = … C [1] (iii) the capacitance of capacitor C. capacitance = … F [2] (c) A second capacitor, having a capacitance equal to that of capacitor C, is now placed in series with C. Suggest and explain the effect on the current recorded on the ammeter. … … … [2] [Total: 9]

9 marks

Mark scheme: 7(a) (capacitance =) charge / potential M1 charge is (numerically equal to) charge on one plate A1 potential is potential difference between plates A1 7(b)(i) 4.5 × 10–6 C A1 7(b)(ii) 9.0 × 10–8 C A1 7(b)(iii) capacitance = (9.0 × 10–8) / 120 C1 = 7.5 × 10–10 F A1 7(c) total capacitance is halved B1 current is halved B1

This question in 9702/41 May/June 2018

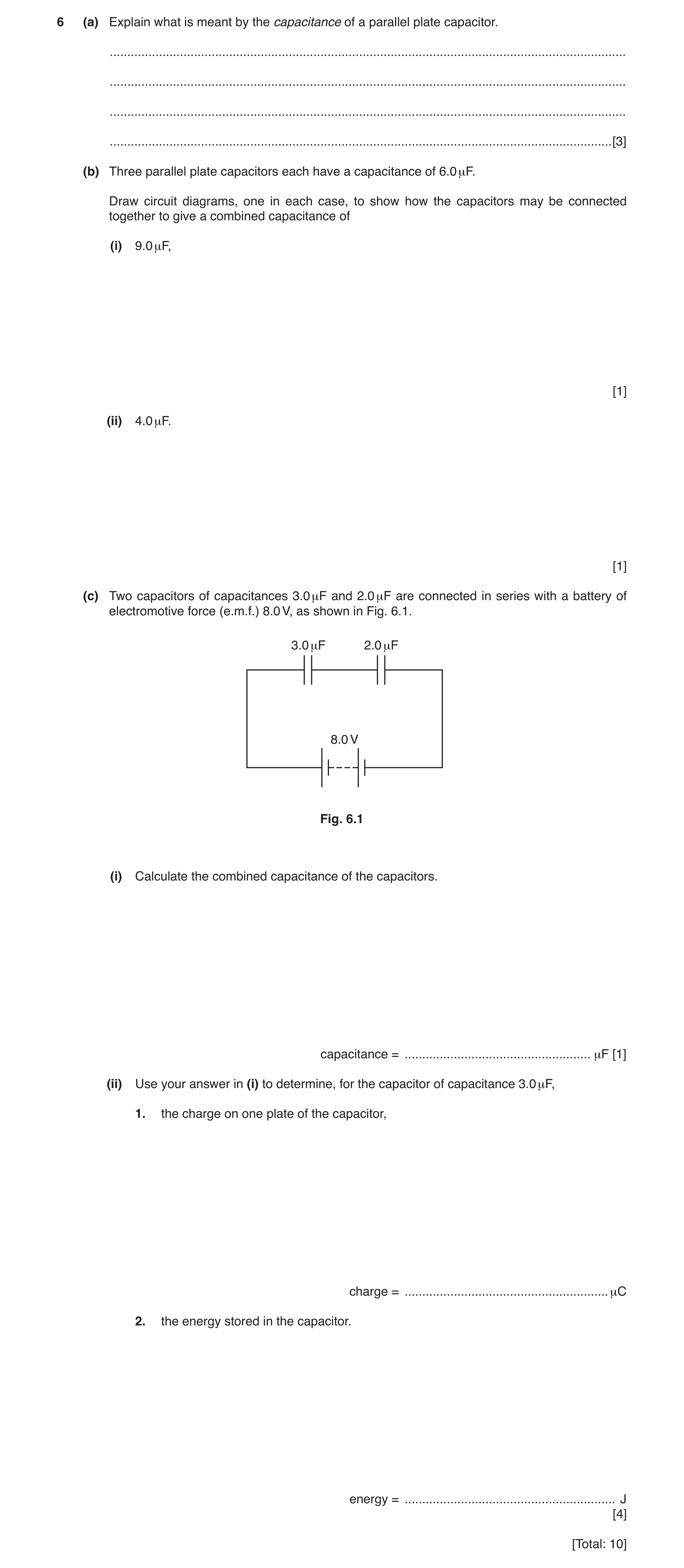

6 (a) Explain what is meant by the capacitance of a parallel plate capacitor. … … … … [3] (b) Three parallel plate capacitors each have a capacitance of 6.0 μF. Draw circuit diagrams, one in each case, to show how the capacitors may be connected together to give a combined capacitance of (i) 9.0 μF, [1] (ii) 4.0 μF. [1] (c) Two capacitors of capacitances 3.0 μF and 2.0 μF are connected in series with a battery of electromotive force (e.m.f.) 8.0 V, as shown in Fig. 6.1. 3.0 μF 2.0 μF 8.0 V Fig. 6.1 (i) Calculate the combined capacitance of the capacitors. capacitance = … μF [1] (ii) Use your answer in (i) to determine, for the capacitor of capacitance 3.0 μF, 1. the charge on one plate of the capacitor, charge = … μC 2. the energy stored in the capacitor. energy = … J [4] [Total: 10]

10 marks

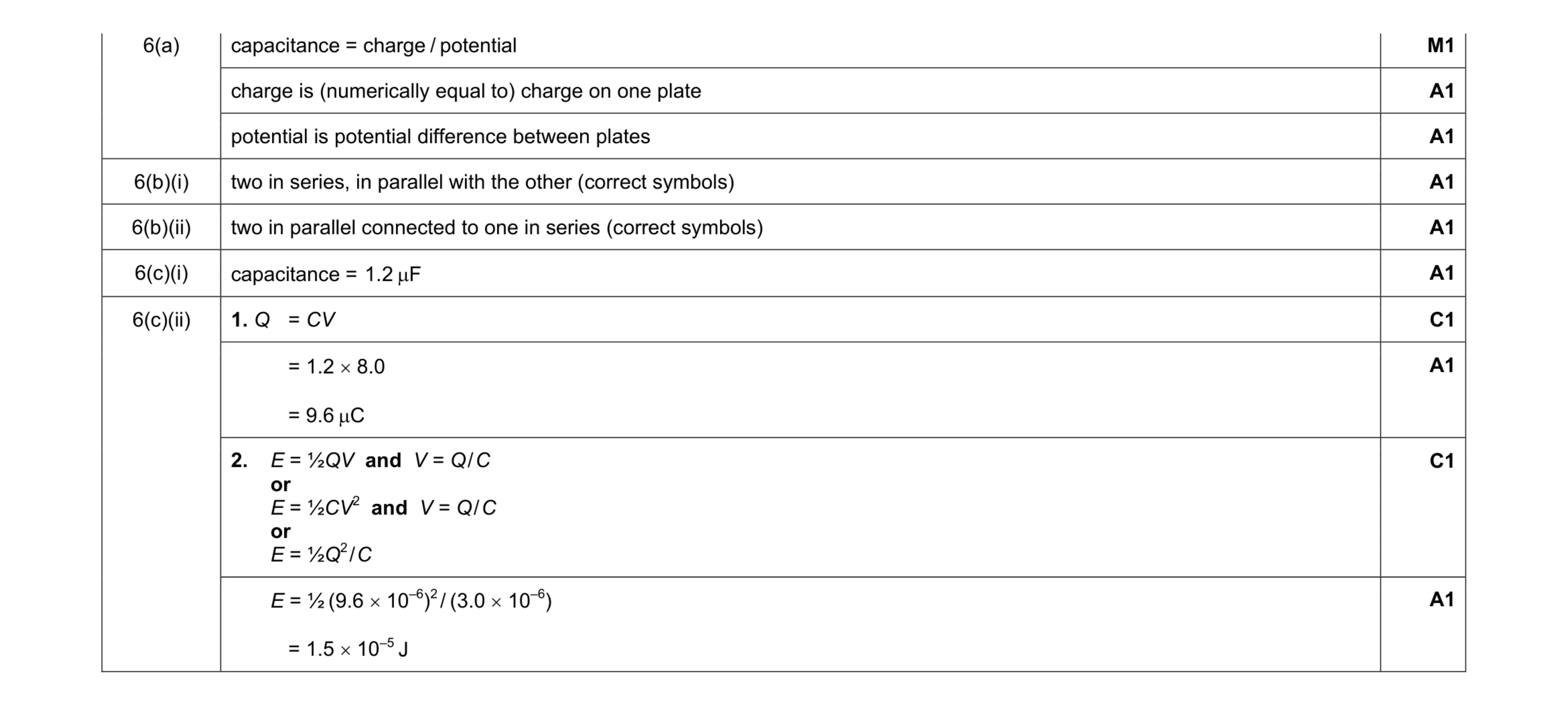

Mark scheme: 6(a) capacitance = charge / potential M1 charge is (numerically equal to) charge on one plate A1 potential is potential difference between plates A1 6(b)(i) two in series, in parallel with the other (correct symbols) A1 6(b)(ii) two in parallel connected to one in series (correct symbols) A1 6(c)(i) capacitance = 1.2 µF A1 6(c)(ii) 1. Q = CV C1 = 1.2 × 8.0 = 9.6 µC A1 2. E = ½QV and V = Q / C or E = ½CV2 and V = Q / C or E = ½Q2 / C C1 E = ½ (9.6 × 10–6)2 / (3.0 × 10–6) = 1.5 × 10–5 J A1

This question in 9702/42 May/June 2018

7 (a) Explain what is meant by the capacitance of a parallel plate capacitor. … … … … [3] (b) A parallel plate capacitor C is connected into the circuit shown in Fig. 7.1. X Y S A 120 V C Fig. 7.1 When switch S is at position X, the battery of electromotive force 120 V and negligible internal resistance is connected to capacitor C. When switch S is at position Y, the capacitor C is discharged through the sensitive ammeter. The switch vibrates so that it is first in position X, then moves to position Y and then back to position X fifty times each second. The current recorded on the ammeter is 4.5 μA. Determine (i) the charge, in coulomb, passing through the ammeter in 1.0 s, charge = … C [1] (ii) the charge on one plate of the capacitor, each time that it is charged, charge = … C [1] (iii) the capacitance of capacitor C. capacitance = … F [2] (c) A second capacitor, having a capacitance equal to that of capacitor C, is now placed in series with C. Suggest and explain the effect on the current recorded on the ammeter. … … … [2] [Total: 9]

9 marks

Mark scheme: 7(a) (capacitance =) charge / potential M1 charge is (numerically equal to) charge on one plate A1 potential is potential difference between plates A1 7(b)(i) 4.5 × 10–6 C A1 7(b)(ii) 9.0 × 10–8 C A1 7(b)(iii) capacitance = (9.0 × 10–8) / 120 C1 = 7.5 × 10–10 F A1 7(c) total capacitance is halved B1 current is halved B1

This question in 9702/43 May/June 2018

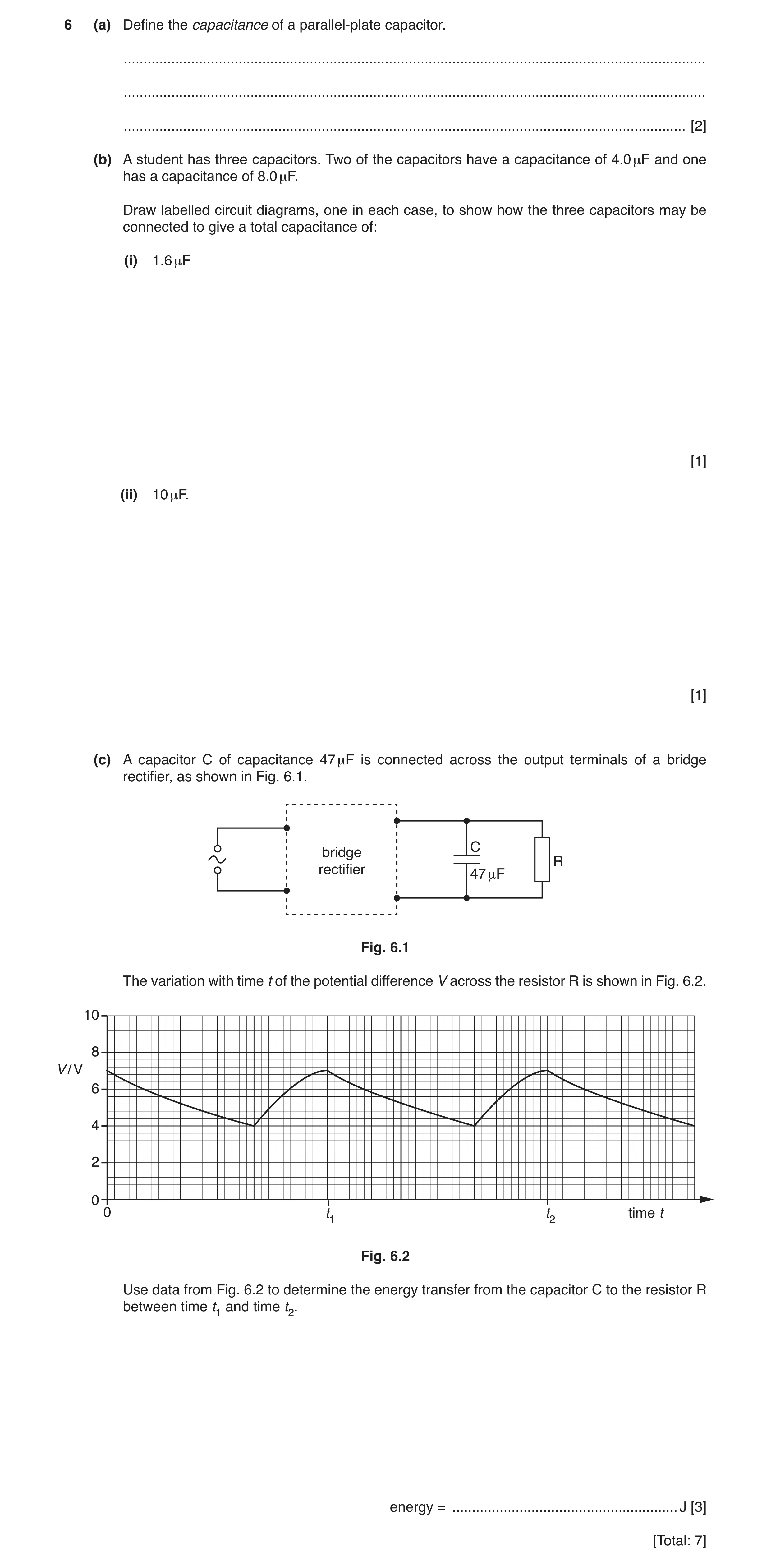

6 (a) Define the capacitance of a parallel-plate capacitor. … … … [2] (b) A student has three capacitors. Two of the capacitors have a capacitance of 4.0 μF and one has a capacitance of 8.0 μF. Draw labelled circuit diagrams, one in each case, to show how the three capacitors may be connected to give a total capacitance of: (i) 1.6 μF [1] (ii) 10 μF. [1] (c) A capacitor C of capacitance 47 μF is connected across the output terminals of a bridge rectifier, as shown in Fig. 6.1. C bridge R rectifier 47 μF Fig. 6.1 The variation with time t of the potential difference V across the resistor R is shown in Fig. 6.2. 10 8 V / V 6 4 2 0 0 t1 t2 time t Fig. 6.2 Use data from Fig. 6.2 to determine the energy transfer from the capacitor C to the resistor R between time t1 and time t2. energy = … J [3] [Total: 7]

7 marks

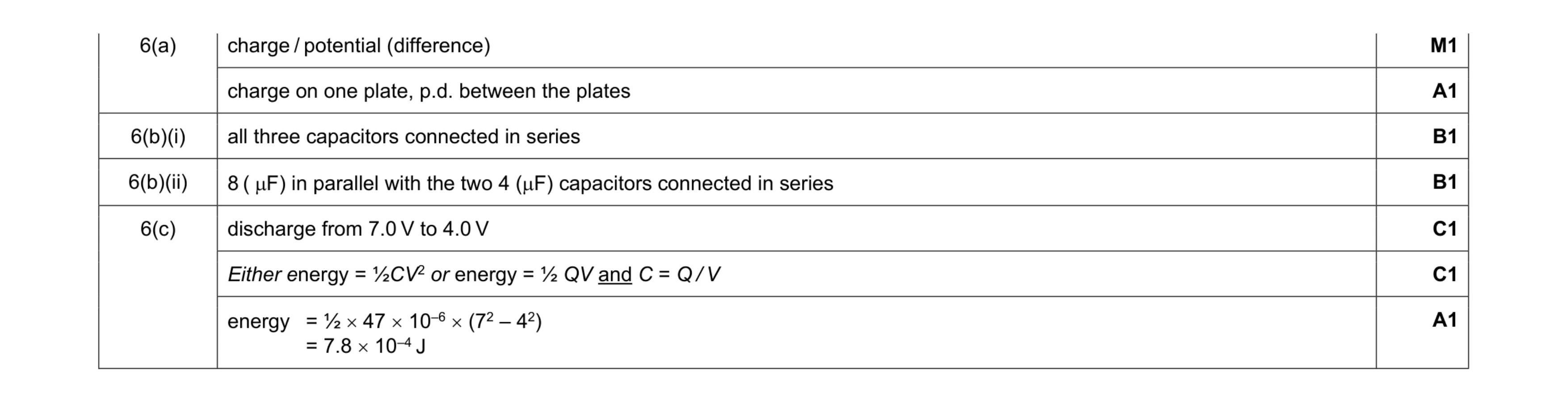

Mark scheme: 6(a) charge / potential (difference) M1 charge on one plate, p.d. between the plates A1 6(b)(i) all three capacitors connected in series B1 6(b)(ii) 8 ( µF) in parallel with the two 4 (µF) capacitors connected in series B1 6(c) discharge from 7.0 V to 4.0 V C1 Either energy = ½CV2 or energy = ½ QV and C = Q / V C1 energy = ½ × 47 × 10–6 × (72 – 42) = 7.8 × 10–4 J A1

This question in 9702/42 Feb/March 2019

6 (a) State two different functions of capacitors in electrical circuits. 1. … … 2. … … [2] (b) Three uncharged capacitors of capacitances C1, C2 and C3 are connected in series with a battery of electromotive force (e.m.f.) E and a switch, as shown in Fig. 6.1. E C1 C2 C3 plate P charge +q Fig. 6.1 When the switch is closed, there is a charge + q on plate P of the capacitor of capacitance C1. Show that the combined capacitance C of the three capacitors is given by the expression 1 1 1 1 = + + . C C1 C2 C3 [3] (c) A student has available four capacitors, each of capacitance 20 μF. Draw circuit diagrams, one in each case, to show how the student may connect some or all of the capacitors to produce a combined capacitance of: (i) 60 μF [1] (ii) 15 μF. [1] [Total: 7]

7 marks

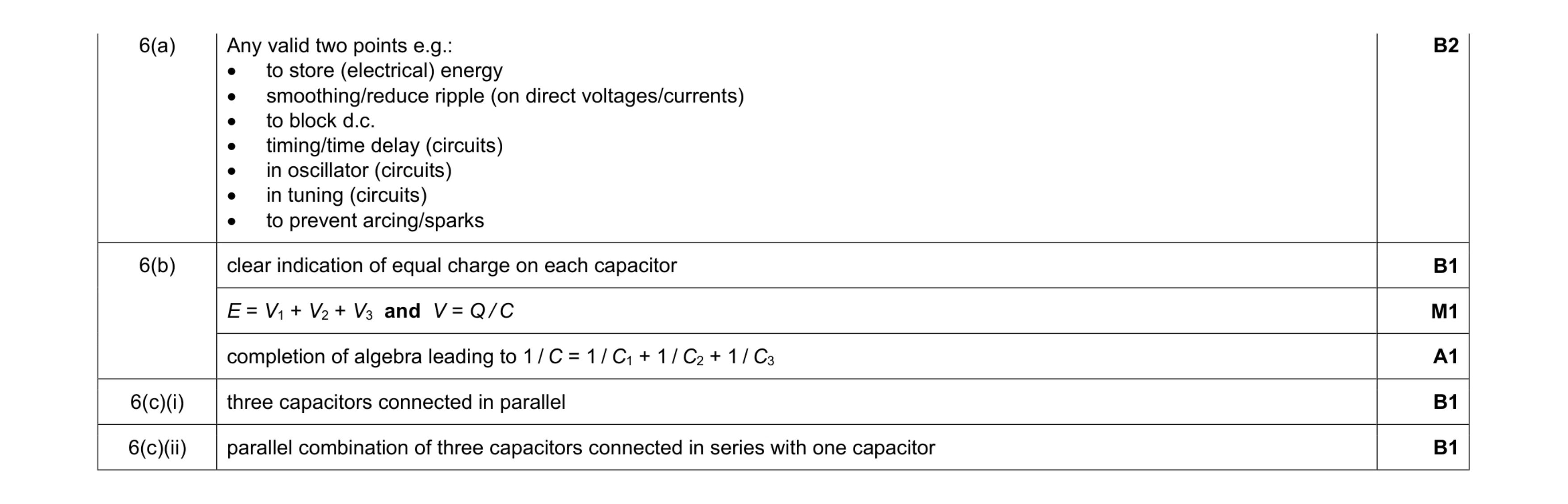

Mark scheme: 6(a) Any valid two points e.g.: • to store (electrical) energy • smoothing/reduce ripple (on direct voltages/currents) • to block d.c. • timing/time delay (circuits) • in oscillator (circuits) • in tuning (circuits) • to prevent arcing/sparks B2 6(b) clear indication of equal charge on each capacitor B1 E = V1 + V2 + V3 and V = Q / C M1 completion of algebra leading to 1 / C = 1 / C1 + 1 / C2 + 1 / C3 A1 6(c)(i) three capacitors connected in parallel B1 6(c)(ii) parallel combination of three capacitors connected in series with one capacitor B1

This question in 9702/41 May/June 2019

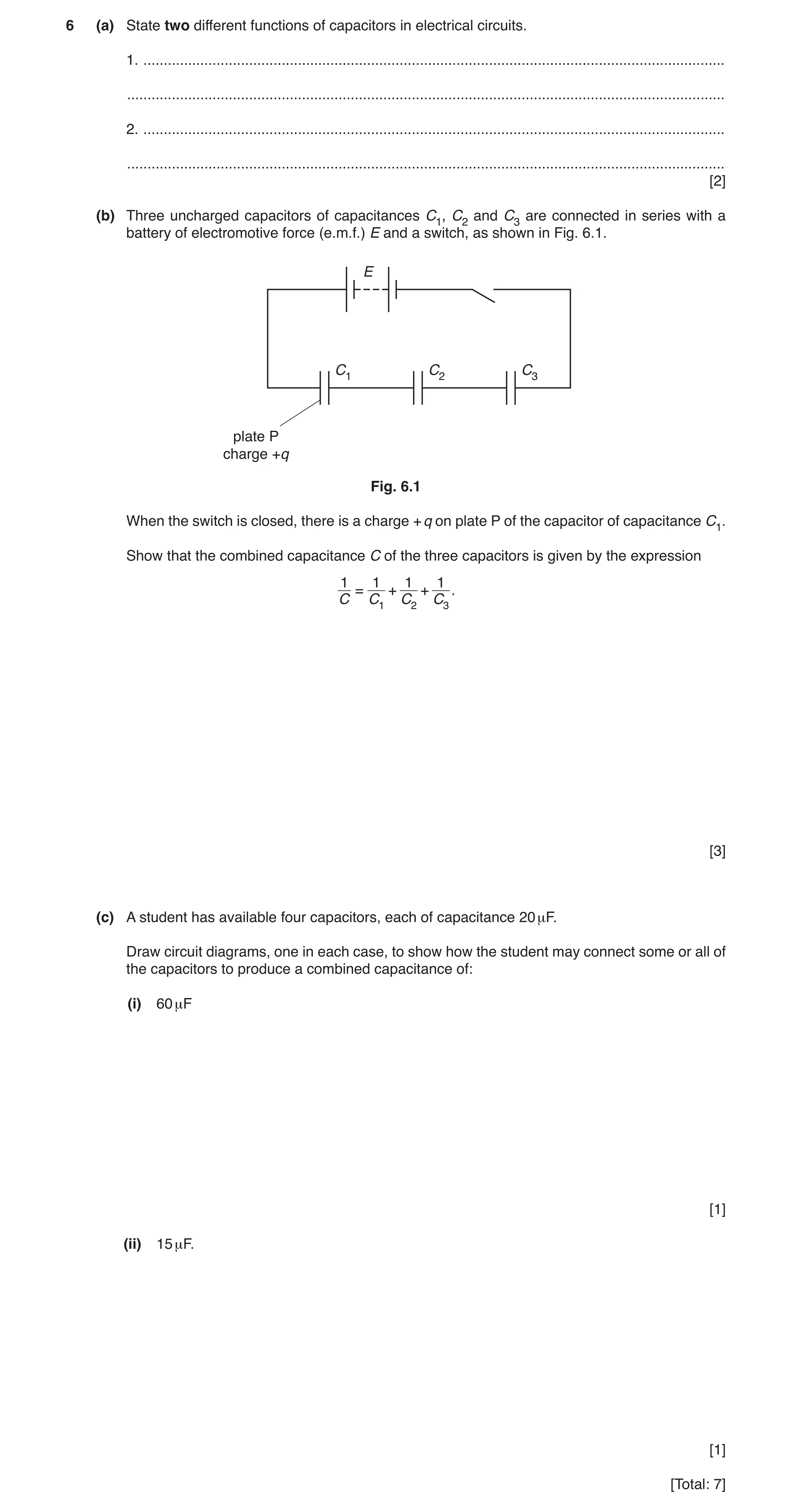

6 (a) State two different functions of capacitors in electrical circuits. 1. … … 2. … … [2] (b) Three uncharged capacitors of capacitances C1, C2 and C3 are connected in series with a battery of electromotive force (e.m.f.) E and a switch, as shown in Fig. 6.1. E C1 C2 C3 plate P charge +q Fig. 6.1 When the switch is closed, there is a charge + q on plate P of the capacitor of capacitance C1. Show that the combined capacitance C of the three capacitors is given by the expression 1 1 1 1 = + + . C C1 C2 C3 [3] (c) A student has available four capacitors, each of capacitance 20 μF. Draw circuit diagrams, one in each case, to show how the student may connect some or all of the capacitors to produce a combined capacitance of: (i) 60 μF [1] (ii) 15 μF. [1] [Total: 7]

7 marks

Mark scheme: 6(a) Any valid two points e.g.: • to store (electrical) energy • smoothing/reduce ripple (on direct voltages/currents) • to block d.c. • timing/time delay (circuits) • in oscillator (circuits) • in tuning (circuits) • to prevent arcing/sparks B2 6(b) clear indication of equal charge on each capacitor B1 E = V1 + V2 + V3 and V = Q / C M1 completion of algebra leading to 1 / C = 1 / C1 + 1 / C2 + 1 / C3 A1 6(c)(i) three capacitors connected in parallel B1 6(c)(ii) parallel combination of three capacitors connected in series with one capacitor B1

This question in 9702/43 May/June 2019

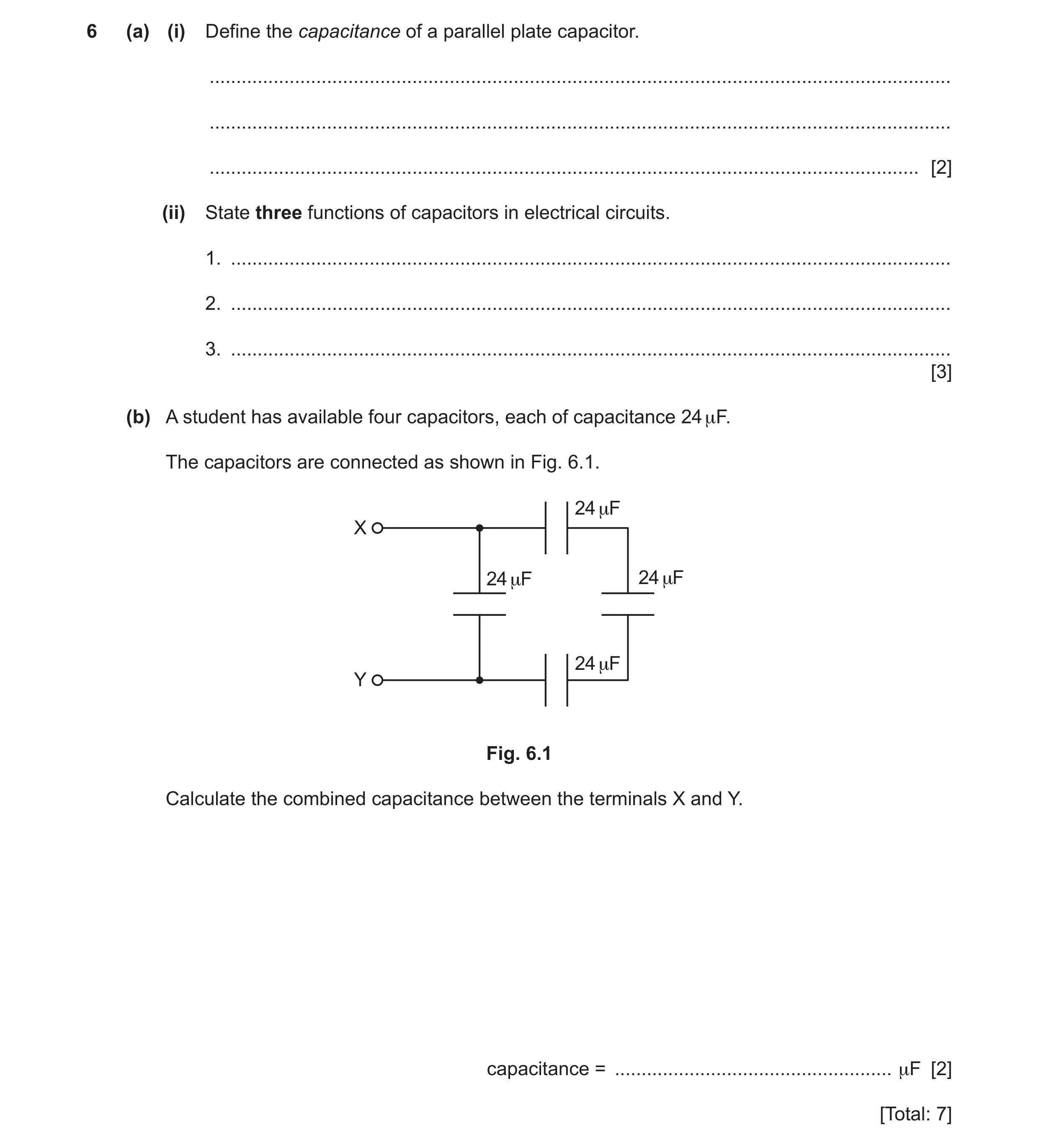

6 (a) (i) Define the capacitance of a parallel plate capacitor. … … … [2] (ii) State three functions of capacitors in electrical circuits. 1. … 2. … 3. … [3] (b) A student has available four capacitors, each of capacitance 24 μF. The capacitors are connected as shown in Fig. 6.1. 24 μF X 24 μF 24 μF 24 μF Y Fig. 6.1 Calculate the combined capacitance between the terminals X and Y. capacitance = … μF [2] [Total: 7]

7 marks

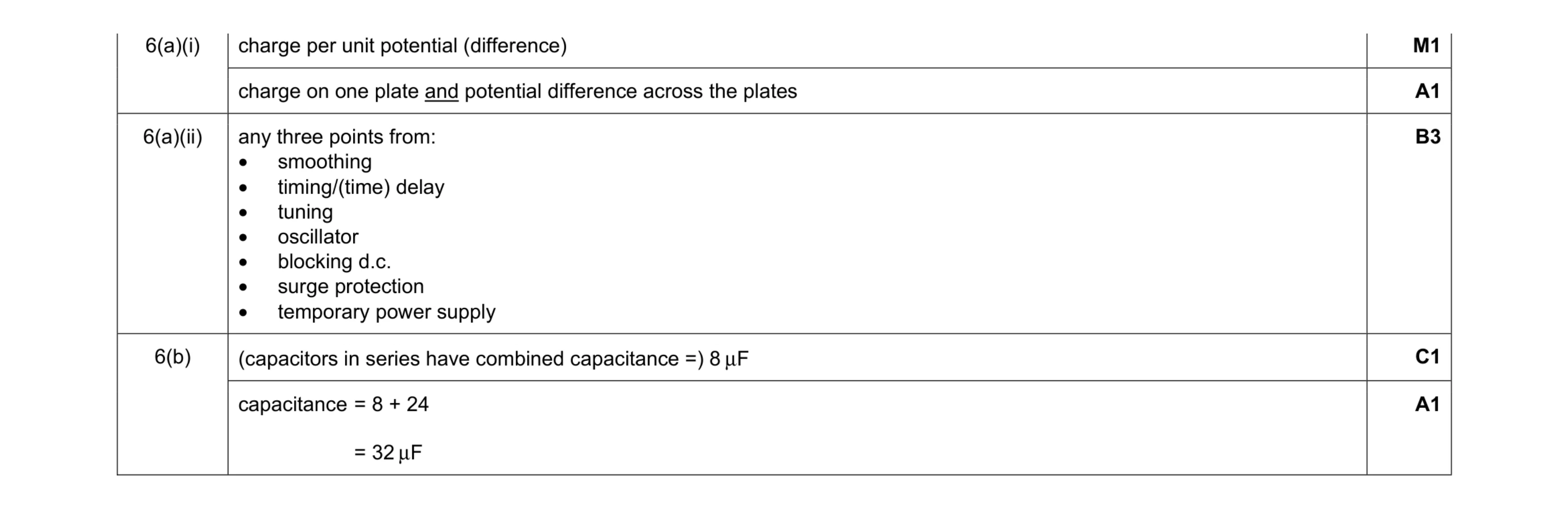

Mark scheme: 6(a)(i) charge per unit potential (difference) M1 charge on one plate and potential difference across the plates A1 6(a)(ii) any three points from: • smoothing • timing/(time) delay • tuning • oscillator • blocking d.c. • surge protection • temporary power supply B3 6(b) (capacitors in series have combined capacitance =) 8 μF C1 capacitance = 8 + 24 = 32 μF A1

This question in 9702/41 Oct/Nov 2020

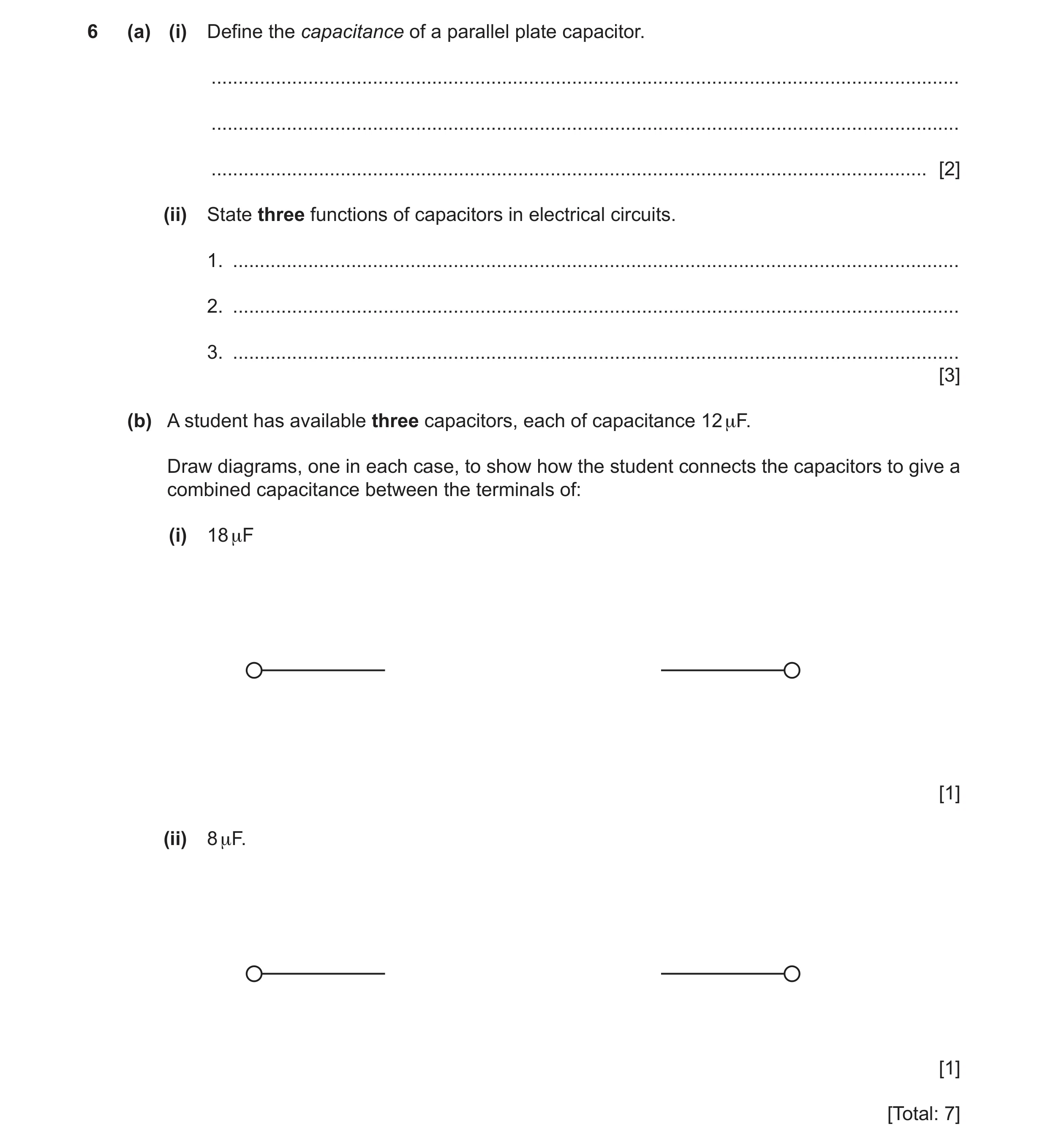

6 (a) (i) Define the capacitance of a parallel plate capacitor. … … … [2] (ii) State three functions of capacitors in electrical circuits. 1. … 2. … 3. … [3] (b) A student has available three capacitors, each of capacitance 12 μF. Draw diagrams, one in each case, to show how the student connects the capacitors to give a combined capacitance between the terminals of: (i) 18 μF [1] (ii) 8 μF. [1] [Total: 7]

7 marks

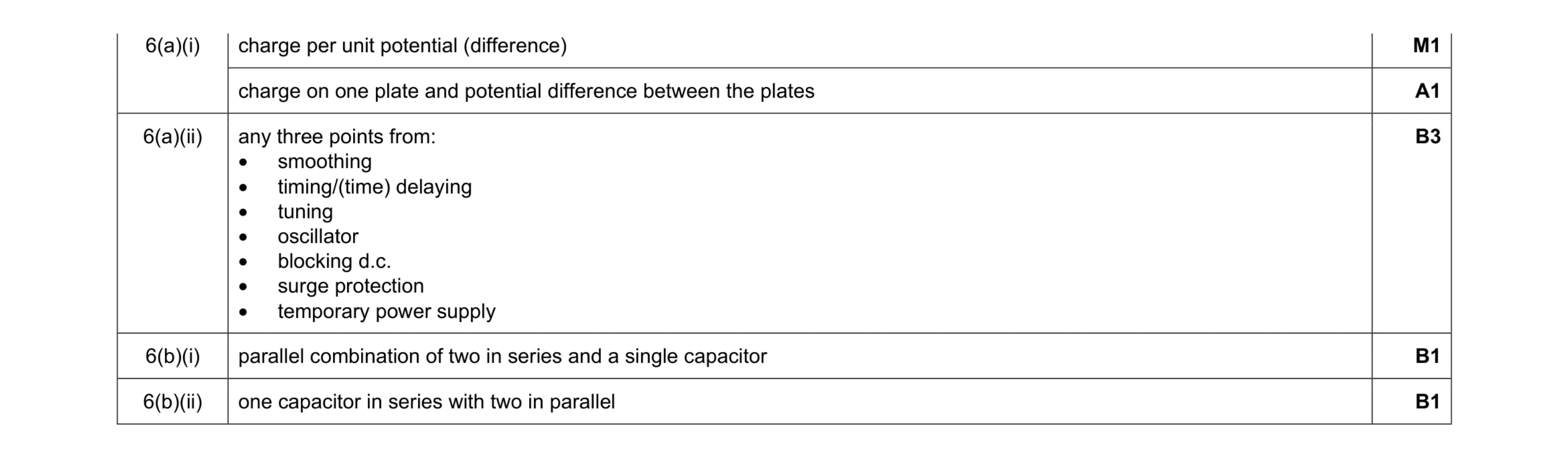

Mark scheme: 6(a)(i) charge per unit potential (difference) M1 charge on one plate and potential difference between the plates A1 6(a)(ii) any three points from: • smoothing • timing/(time) delaying • tuning • oscillator • blocking d.c. • surge protection • temporary power supply B3 6(b)(i) parallel combination of two in series and a single capacitor B1 6(b)(ii) one capacitor in series with two in parallel B1

This question in 9702/42 Oct/Nov 2020

6 (a) (i) Define the capacitance of a parallel plate capacitor. … … … [2] (ii) State three functions of capacitors in electrical circuits. 1. … 2. … 3. … [3] (b) A student has available four capacitors, each of capacitance 24 μF. The capacitors are connected as shown in Fig. 6.1. 24 μF X 24 μF 24 μF 24 μF Y Fig. 6.1 Calculate the combined capacitance between the terminals X and Y. capacitance = … μF [2] [Total: 7]

7 marks

Mark scheme: 6(a)(i) charge per unit potential (difference) M1 charge on one plate and potential difference across the plates A1 6(a)(ii) any three points from: • smoothing • timing/(time) delay • tuning • oscillator • blocking d.c. • surge protection • temporary power supply B3 6(b) (capacitors in series have combined capacitance =) 8 μF C1 capacitance = 8 + 24 = 32 μF A1

This question in 9702/43 Oct/Nov 2020

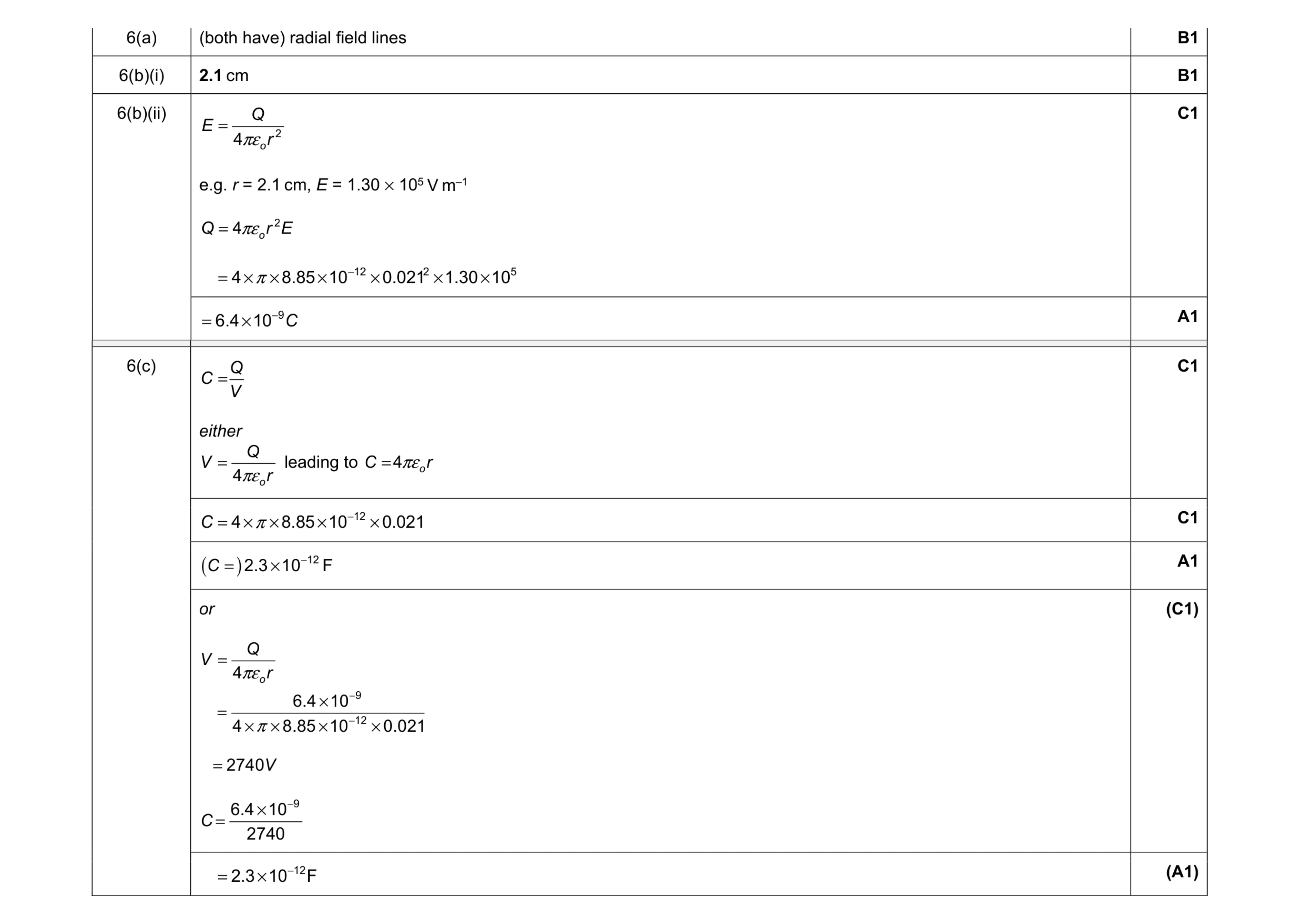

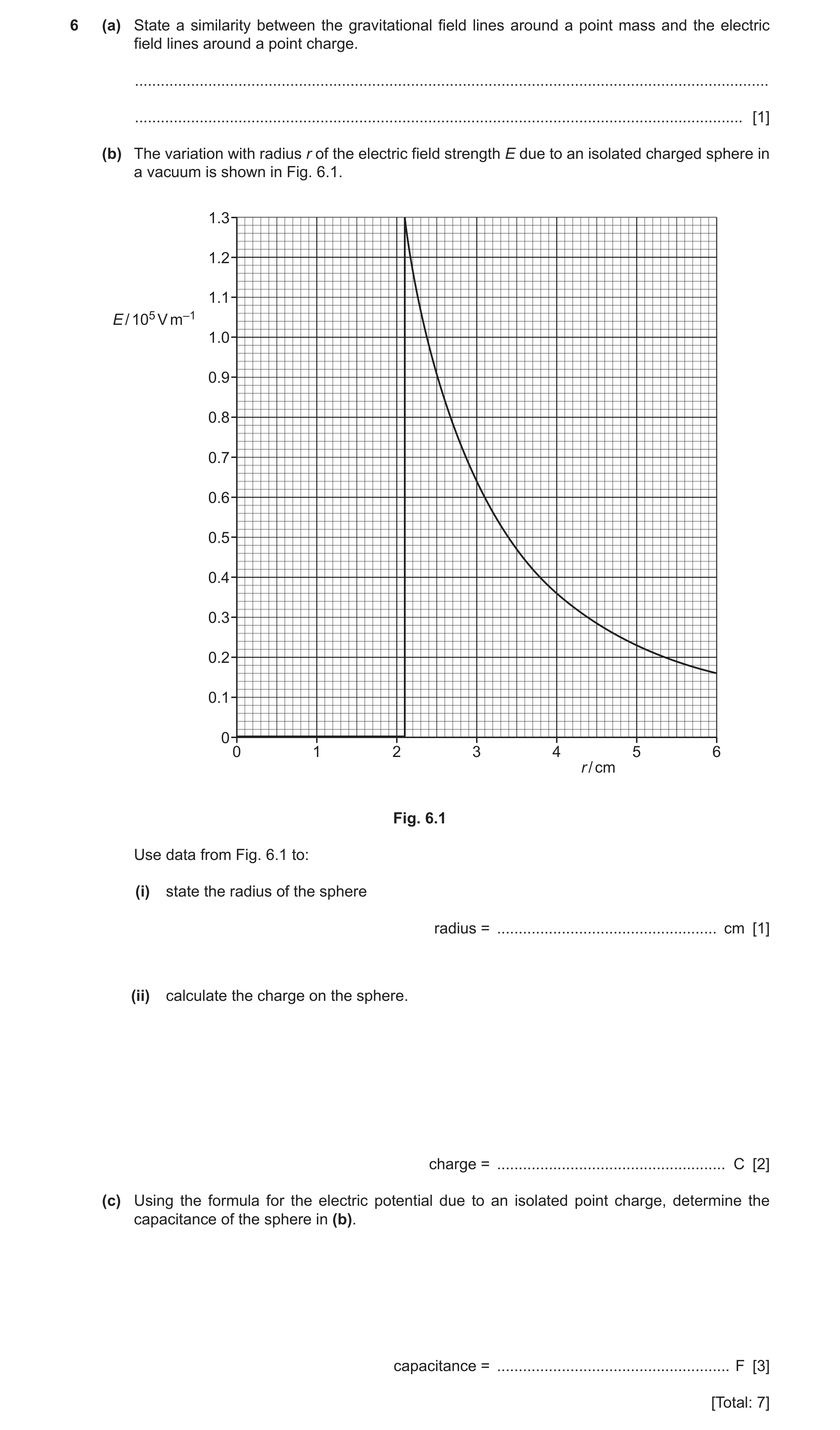

6 (a) State a similarity between the gravitational field lines around a point mass and the electric field lines around a point charge. … … [1] (b) The variation with radius r of the electric field strength E due to an isolated charged sphere in a vacuum is shown in Fig. 6.1. 1.3 1.2 1.1 E / 105 V m–1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 1 2 3 4 5 6 r / cm Fig. 6.1 Use data from Fig. 6.1 to: (i) state the radius of the sphere radius = … cm [1] (ii) calculate the charge on the sphere. charge = … C [2] (c) Using the formula for the electric potential due to an isolated point charge, determine the capacitance of the sphere in (b). capacitance = … F [3] [Total: 7]

7 marks

Mark scheme: 6(a) (both have) radial field lines B1 6(b)(i) 2.1 cm B1 6(b)(ii) 2 4 o Q E r πε = e.g. r = 2.1 cm, E = 1.30 × 105 V m–1 2 4 o Q r E πε = 12 2 5 4 8.85 10 0.021 1.30 10 π − = × × × × × × C1 9 6.4 10 C − = × A1 Question Answer Marks 6(c) Q C V = either 4 o Q V r πε = leading to 4 o C r πε = C1 12 4 8.85 10 0.021 C π − = × × × × C1 ( ) 12 2.3 10 C − = × F A1 or 4 o Q V r πε = 9 12 6.4 10 4 8.85 10 0.021 π − − × = × × × × 2740 V = 9 6.4 10 2740 C − × = (C1) 12 2.3 10 F − = × (A1)

This question in 9702/42 Feb/March 2021

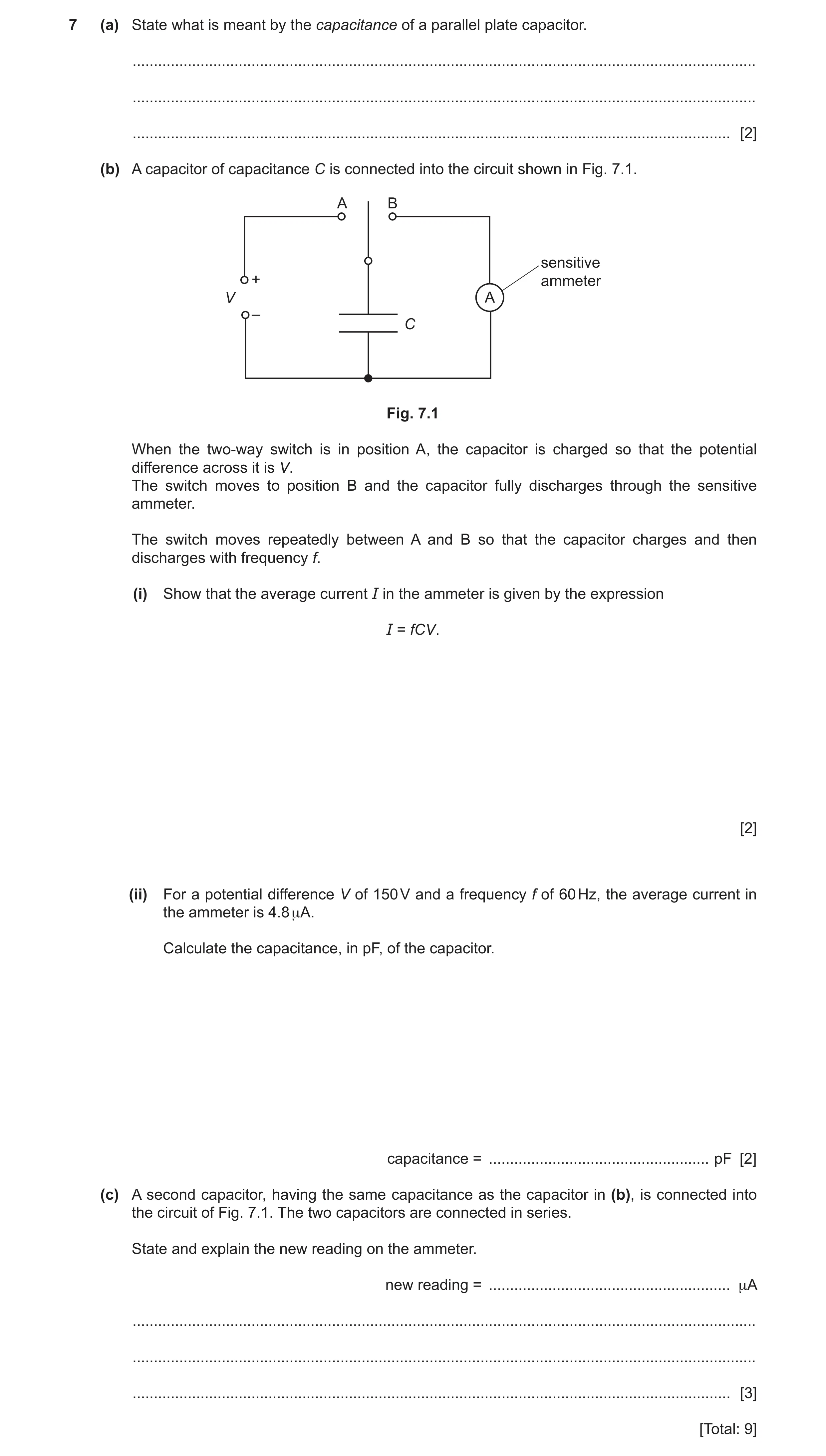

7 (a) State what is meant by the capacitance of a parallel plate capacitor. … … … [2] (b) A capacitor of capacitance C is connected into the circuit shown in Fig. 7.1. A B sensitive + ammeter V A – C Fig. 7.1 When the two-way switch is in position A, the capacitor is charged so that the potential difference across it is V. The switch moves to position B and the capacitor fully discharges through the sensitive ammeter. The switch moves repeatedly between A and B so that the capacitor charges and then discharges with frequency f. (i) Show that the average current I in the ammeter is given by the expression I = fCV. [2] (ii) For a potential difference V of 150 V and a frequency f of 60 Hz, the average current in the ammeter is 4.8 μA. Calculate the capacitance, in pF, of the capacitor. capacitance = … pF [2] (c) A second capacitor, having the same capacitance as the capacitor in (b), is connected into the circuit of Fig. 7.1. The two capacitors are connected in series. State and explain the new reading on the ammeter. new reading = … μA … … … [3] [Total: 9]

9 marks

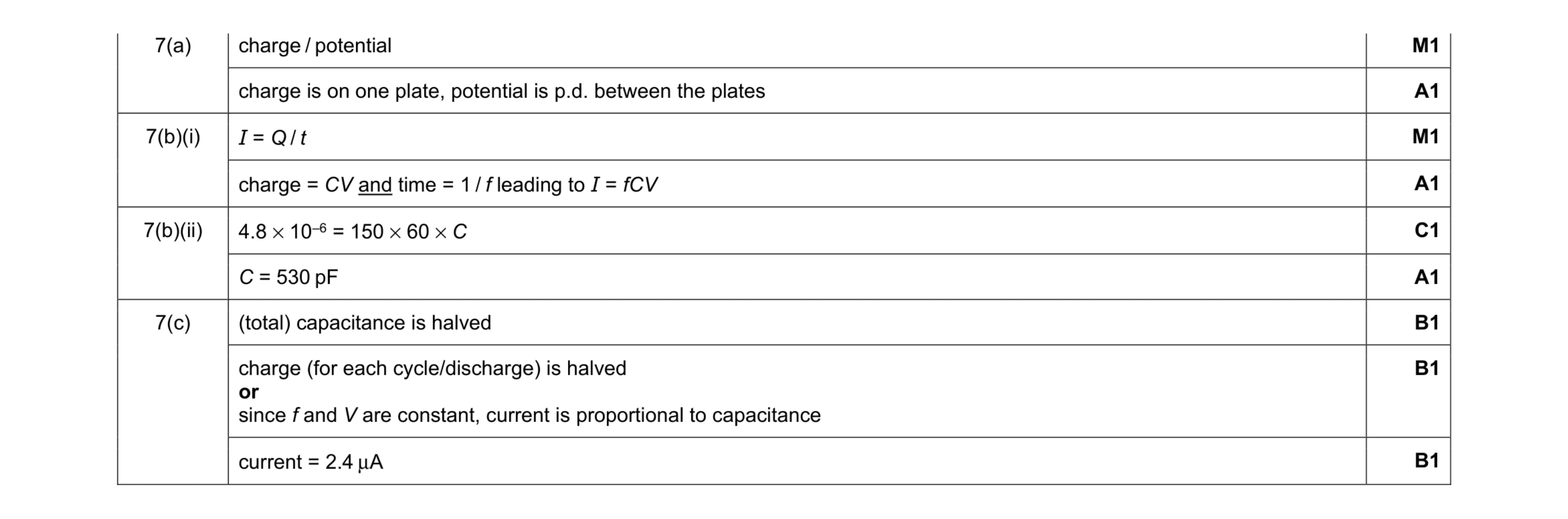

Mark scheme: 7(a) charge / potential M1 charge is on one plate, potential is p.d. between the plates A1 7(b)(i) I = Q / t M1 charge = CV and time = 1 / f leading to I = fCV A1 7(b)(ii) 4.8 × 10–6 = 150 × 60 × C C1 C = 530 pF A1 7(c) (total) capacitance is halved B1 charge (for each cycle/discharge) is halved or since f and V are constant, current is proportional to capacitance B1 current = 2.4 μA B1

This question in 9702/41 May/June 2021

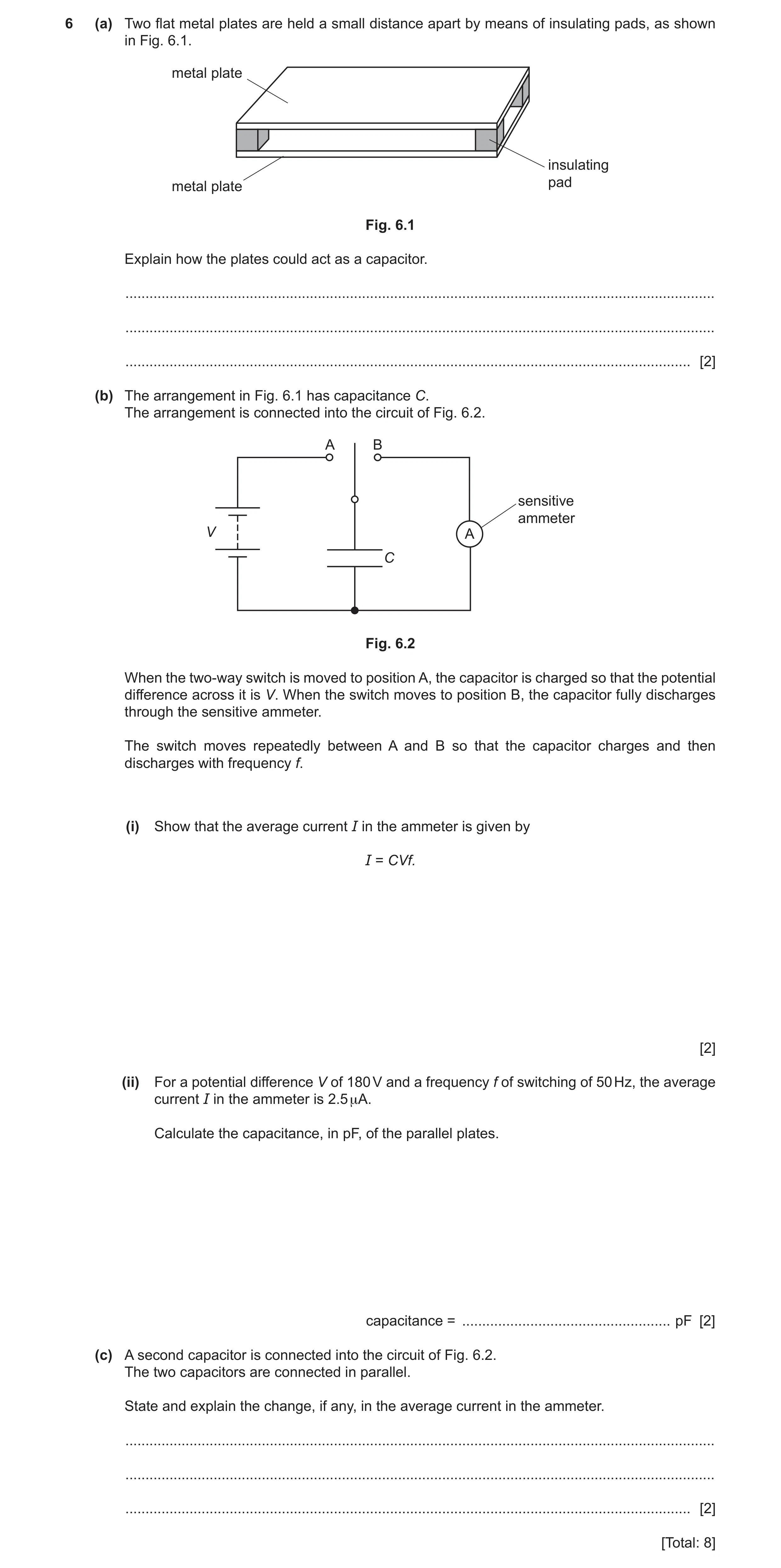

6 (a) Two flat metal plates are held a small distance apart by means of insulating pads, as shown in Fig. 6.1. metal plate insulating pad metal plate Fig. 6.1 Explain how the plates could act as a capacitor. … … … [2] (b) The arrangement in Fig. 6.1 has capacitance C. The arrangement is connected into the circuit of Fig. 6.2. A B sensitive ammeter V A C Fig. 6.2 When the two-way switch is moved to position A, the capacitor is charged so that the potential difference across it is V. When the switch moves to position B, the capacitor fully discharges through the sensitive ammeter. The switch moves repeatedly between A and B so that the capacitor charges and then discharges with frequency f. (i) Show that the average current I in the ammeter is given by I = CVf. [2] (ii) For a potential difference V of 180 V and a frequency f of switching of 50 Hz, the average current I in the ammeter is 2.5 μA. Calculate the capacitance, in pF, of the parallel plates. capacitance = … pF [2] (c) A second capacitor is connected into the circuit of Fig. 6.2. The two capacitors are connected in parallel. State and explain the change, if any, in the average current in the ammeter. … … … [2] [Total: 8]

8 marks

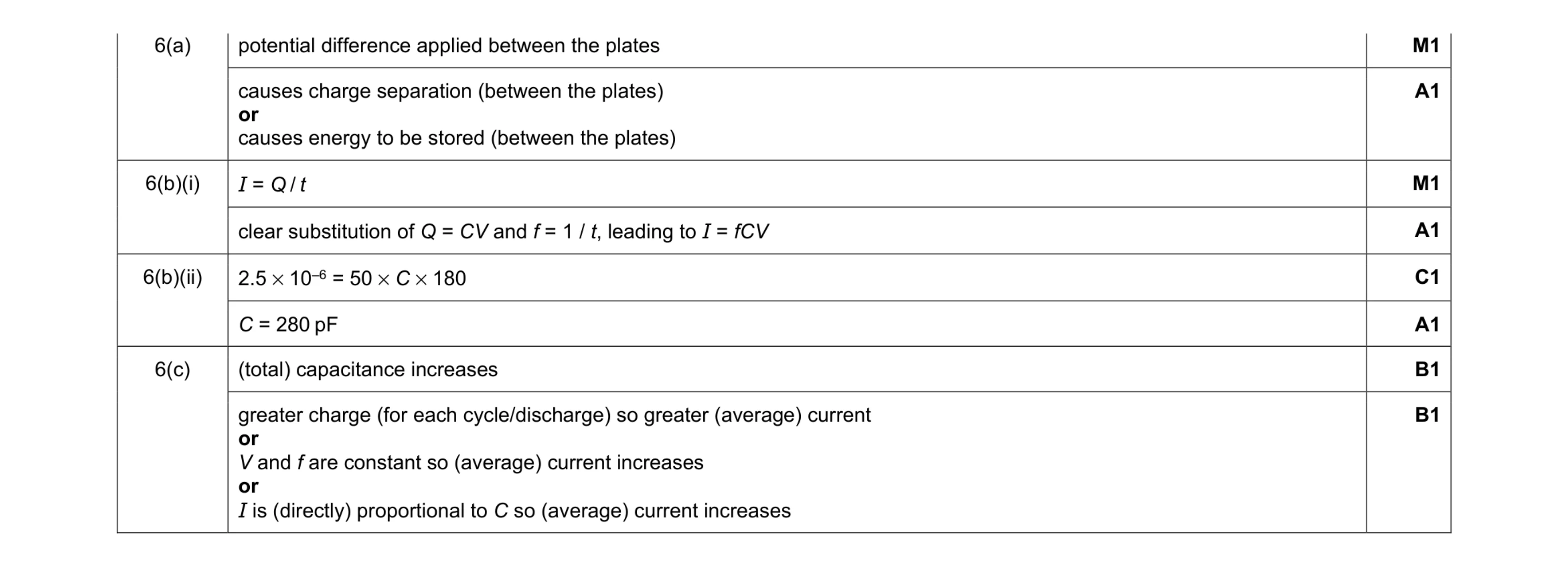

Mark scheme: 6(a) potential difference applied between the plates M1 causes charge separation (between the plates) or causes energy to be stored (between the plates) A1 6(b)(i) I = Q / t M1 clear substitution of Q = CV and f = 1 / t, leading to I = fCV A1 6(b)(ii) 2.5 × 10–6 = 50 × C × 180 C1 C = 280 pF A1 6(c) (total) capacitance increases B1 greater charge (for each cycle/discharge) so greater (average) current or V and f are constant so (average) current increases or I is (directly) proportional to C so (average) current increases B1

This question in 9702/42 May/June 2021

7 (a) State what is meant by the capacitance of a parallel plate capacitor. … … … [2] (b) A capacitor of capacitance C is connected into the circuit shown in Fig. 7.1. A B sensitive + ammeter V A – C Fig. 7.1 When the two-way switch is in position A, the capacitor is charged so that the potential difference across it is V. The switch moves to position B and the capacitor fully discharges through the sensitive ammeter. The switch moves repeatedly between A and B so that the capacitor charges and then discharges with frequency f. (i) Show that the average current I in the ammeter is given by the expression I = fCV. [2] (ii) For a potential difference V of 150 V and a frequency f of 60 Hz, the average current in the ammeter is 4.8 μA. Calculate the capacitance, in pF, of the capacitor. capacitance = … pF [2] (c) A second capacitor, having the same capacitance as the capacitor in (b), is connected into the circuit of Fig. 7.1. The two capacitors are connected in series. State and explain the new reading on the ammeter. new reading = … μA … … … [3] [Total: 9]

9 marks

Mark scheme: 7(a) charge / potential M1 charge is on one plate, potential is p.d. between the plates A1 7(b)(i) I = Q / t M1 charge = CV and time = 1 / f leading to I = fCV A1 7(b)(ii) 4.8 × 10–6 = 150 × 60 × C C1 C = 530 pF A1 7(c) (total) capacitance is halved B1 charge (for each cycle/discharge) is halved or since f and V are constant, current is proportional to capacitance B1 current = 2.4 μA B1

This question in 9702/43 May/June 2021

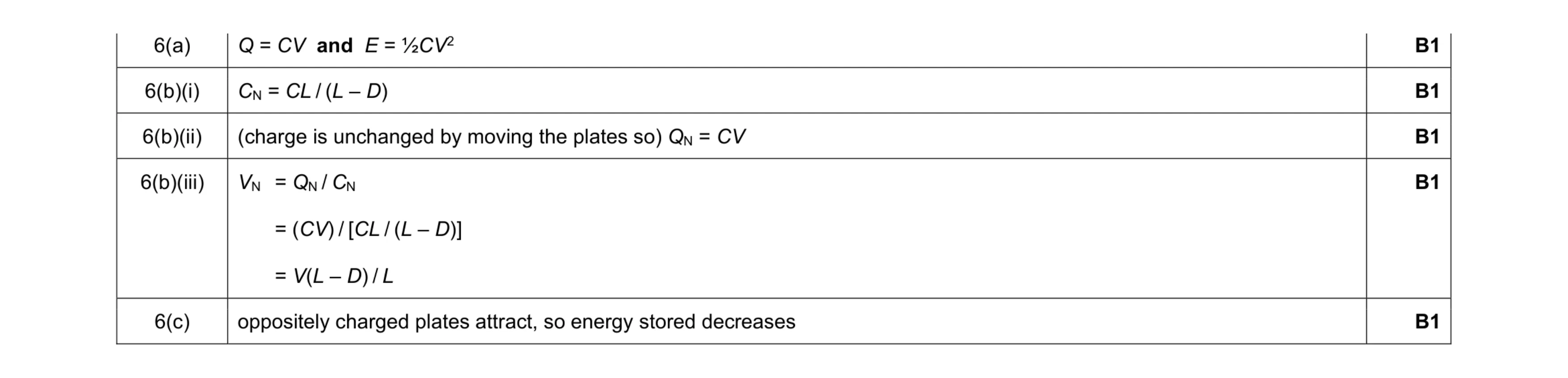

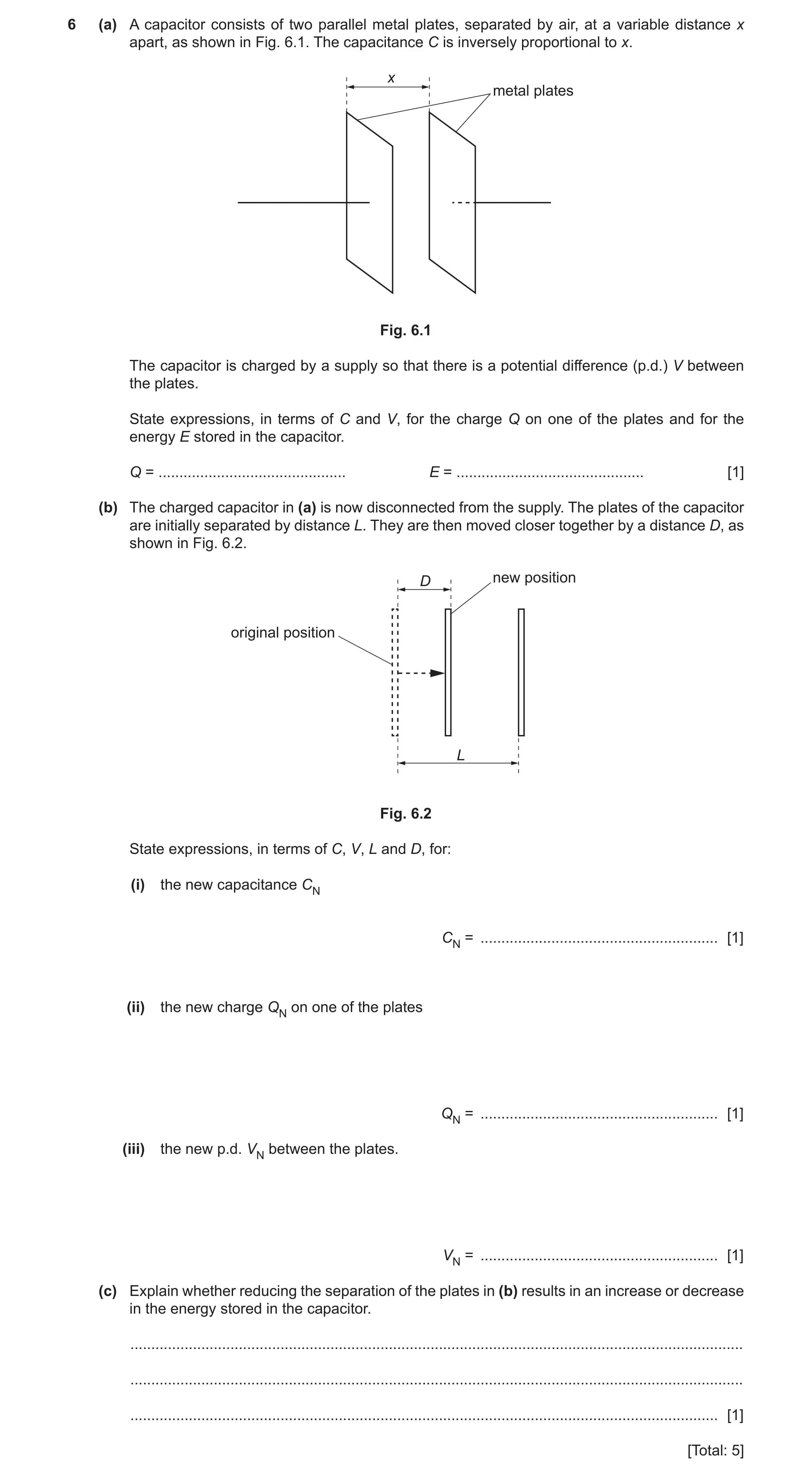

6 (a) A capacitor consists of two parallel metal plates, separated by air, at a variable distance x apart, as shown in Fig. 6.1. The capacitance C is inversely proportional to x. x metal plates Fig. 6.1 The capacitor is charged by a supply so that there is a potential difference (p.d.) V between the plates. State expressions, in terms of C and V, for the charge Q on one of the plates and for the energy E stored in the capacitor. Q = … E = … [1] (b) The charged capacitor in (a) is now disconnected from the supply. The plates of the capacitor are initially separated by distance L. They are then moved closer together by a distance D, as shown in Fig. 6.2. D new position original position L Fig. 6.2 State expressions, in terms of C, V, L and D, for: (i) the new capacitance CN CN = … [1] (ii) the new charge QN on one of the plates QN = … [1] (iii) the new p.d. VN between the plates. VN = … [1] (c) Explain whether reducing the separation of the plates in (b) results in an increase or decrease in the energy stored in the capacitor. … … … [1] [Total: 5]

5 marks

Mark scheme: 6(a) Q = CV and E = ½CV2 B1 6(b)(i) CN = CL / (L – D) B1 6(b)(ii) (charge is unchanged by moving the plates so) QN = CV B1 6(b)(iii) VN = QN / CN = (CV) / [CL / (L – D)] = V(L – D) / L B1 6(c) oppositely charged plates attract, so energy stored decreases B1

This question in 9702/41 Oct/Nov 2021

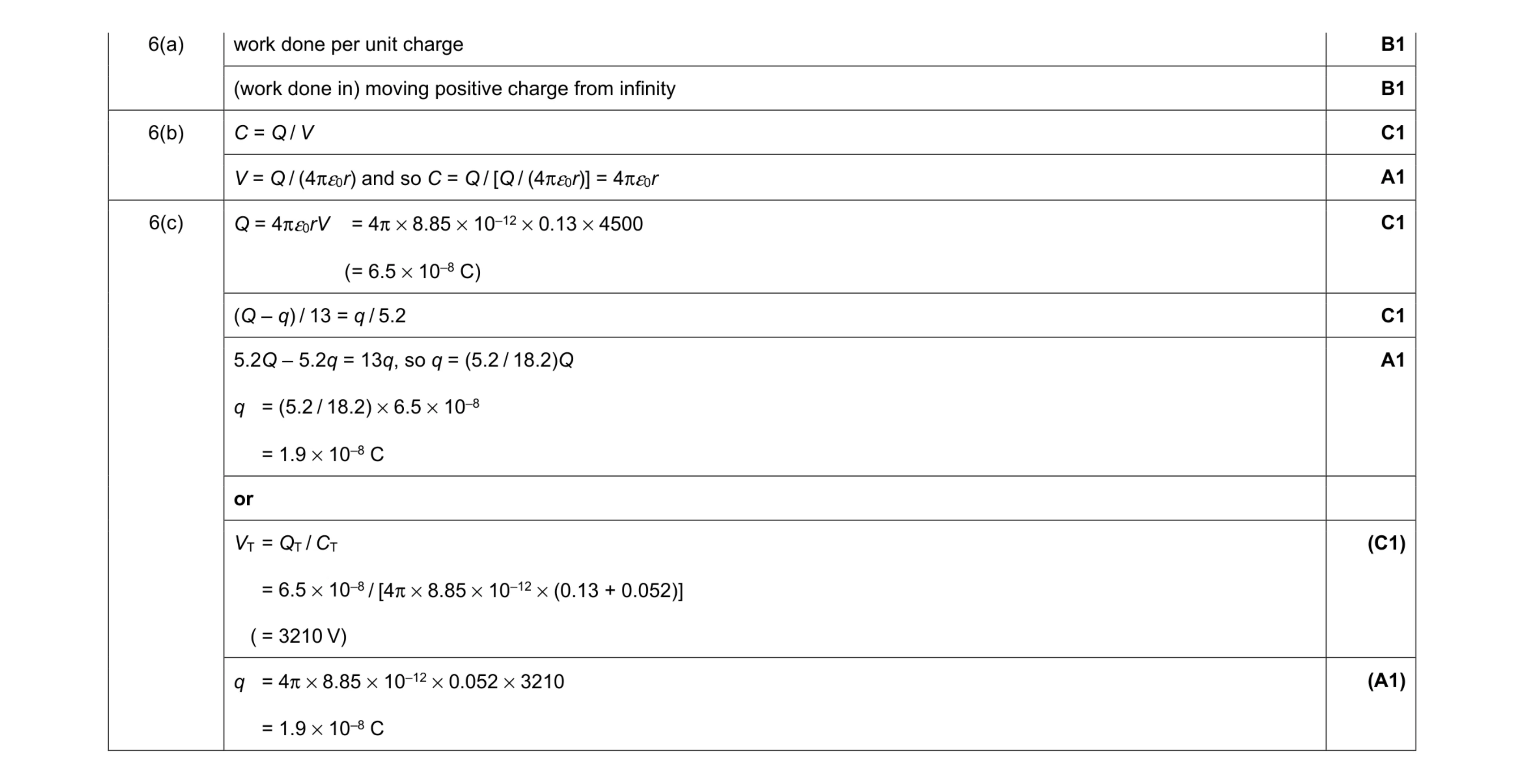

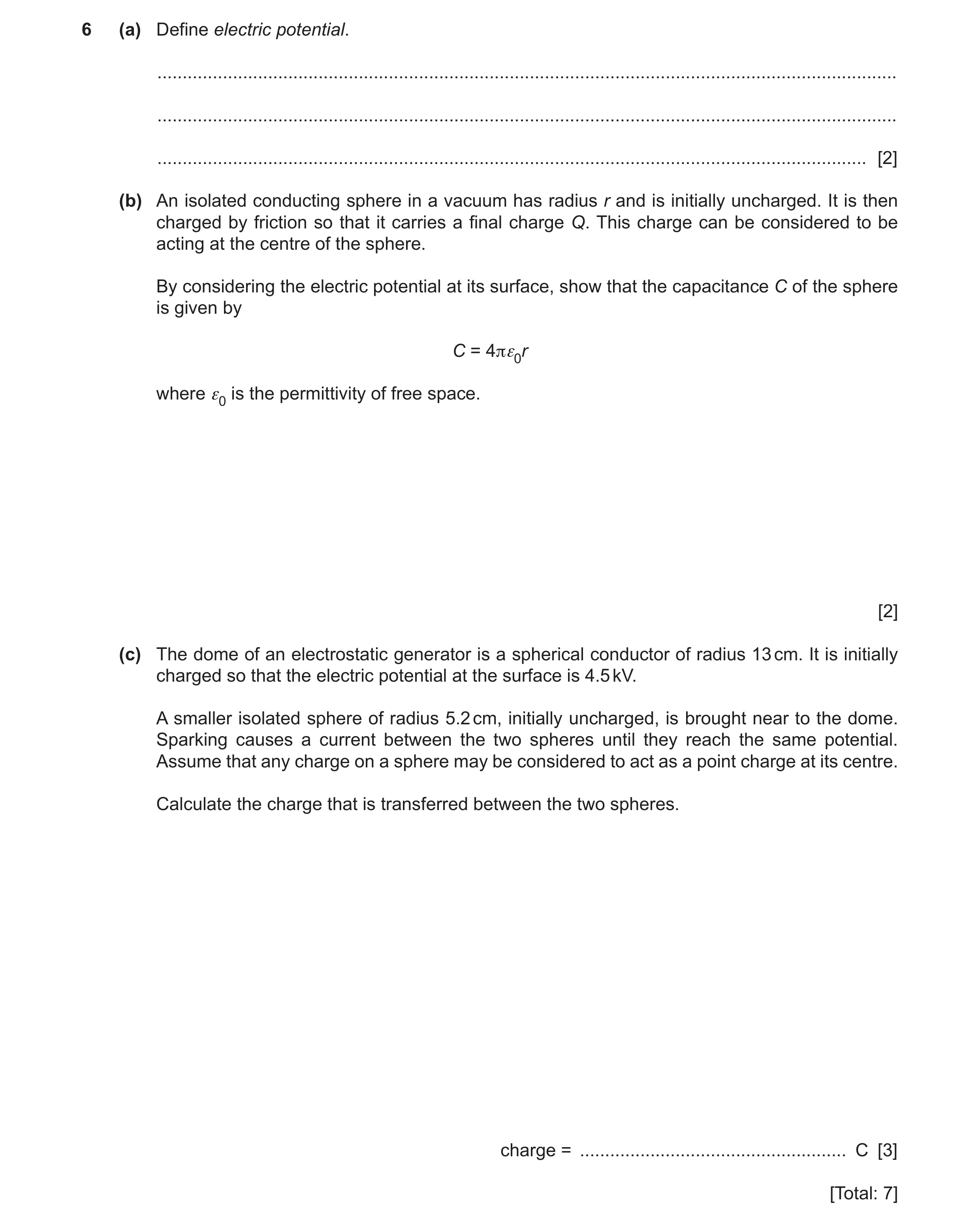

6 (a) Define electric potential. … … … [2] (b) An isolated conducting sphere in a vacuum has radius r and is initially uncharged. It is then charged by friction so that it carries a final charge Q. This charge can be considered to be acting at the centre of the sphere. By considering the electric potential at its surface, show that the capacitance C of the sphere is given by C = 4πε0r where ε0 is the permittivity of free space. [2] (c) The dome of an electrostatic generator is a spherical conductor of radius 13 cm. It is initially charged so that the electric potential at the surface is 4.5 kV. A smaller isolated sphere of radius 5.2 cm, initially uncharged, is brought near to the dome. Sparking causes a current between the two spheres until they reach the same potential. Assume that any charge on a sphere may be considered to act as a point charge at its centre. Calculate the charge that is transferred between the two spheres. charge = … C [3] [Total: 7]

7 marks

Mark scheme: 6(a) work done per unit charge B1 (work done in) moving positive charge from infinity B1 6(b) C = Q / V C1 V = Q / (4πε0r) and so C = Q / [Q / (4πε0r)] = 4πε0r A1 6(c) Q = 4πε0rV = 4π × 8.85 × 10–12 × 0.13 × 4500 ( = 6.5 × 10–8 C) C1 (Q – q) / 13 = q / 5.2 C1 5.2Q – 5.2q = 13q, so q = (5.2 / 18.2)Q q = (5.2 / 18.2) × 6.5 × 10–8 = 1.9 × 10–8 C A1 or VT = QT / CT = 6.5 × 10–8 / [4π × 8.85 × 10–12 × (0.13 + 0.052)] ( = 3210 V) (C1) q = 4π × 8.85 × 10–12 × 0.052 × 3210 = 1.9 × 10–8 C (A1)

This question in 9702/42 Oct/Nov 2021

6 (a) A capacitor consists of two parallel metal plates, separated by air, at a variable distance x apart, as shown in Fig. 6.1. The capacitance C is inversely proportional to x. x metal plates Fig. 6.1 The capacitor is charged by a supply so that there is a potential difference (p.d.) V between the plates. State expressions, in terms of C and V, for the charge Q on one of the plates and for the energy E stored in the capacitor. Q = … E = … [1] (b) The charged capacitor in (a) is now disconnected from the supply. The plates of the capacitor are initially separated by distance L. They are then moved closer together by a distance D, as shown in Fig. 6.2. D new position original position L Fig. 6.2 State expressions, in terms of C, V, L and D, for: (i) the new capacitance CN CN = … [1] (ii) the new charge QN on one of the plates QN = … [1] (iii) the new p.d. VN between the plates. VN = … [1] (c) Explain whether reducing the separation of the plates in (b) results in an increase or decrease in the energy stored in the capacitor. … … … [1] [Total: 5]

5 marks

Mark scheme: 6(a) Q = CV and E = ½CV2 B1 6(b)(i) CN = CL / (L – D) B1 6(b)(ii) (charge is unchanged by moving the plates so) QN = CV B1 6(b)(iii) VN = QN / CN = (CV) / [CL / (L – D)] = V(L – D) / L B1 6(c) oppositely charged plates attract, so energy stored decreases B1

This question in 9702/43 Oct/Nov 2021

5 (a) Define the capacitance of a parallel plate capacitor. … … … [2] (b) Two capacitors, of capacitances C1 and C2, are connected in parallel to a power supply of electromotive force (e.m.f.) E, as shown in Fig. 5.1. E C1 C2 Fig. 5.1 Show that the combined capacitance CT of the two capacitors is given by CT = C1 + C2. Explain your reasoning. You may draw on Fig. 5.1 if you wish. [3] (c) Two capacitors of capacitances 22 μF and 47 μF, and a resistor of resistance 2.7 MΩ, are connected into the circuit of Fig. 5.2. 12 V X S 2.7 MΩ Y 22 μF 47 μF Fig. 5.2 The battery has an e.m.f. of 12 V. (i) Show that the combined capacitance of the two capacitors is 15 μF. [1] (ii) The two-way switch S is initially at position X, so that the capacitors are fully charged. Use the information in (c)(i) to calculate the total energy stored in the two capacitors. total energy = … J [2] (iii) The two-way switch is now moved to position Y. Determine the time taken for the potential difference (p.d.) across the 22 μF capacitor to become 6.0 V. time = … s [3] [Total: 11]

11 marks

Mark scheme: 5(a) charge / potential (difference) M1 charge is charge on one plate, and potential is p.d. across the plates A1 5(b) p.d. across both capacitors = E B1 QT = Q1 + Q2 B1 CTE = C1E + C2E hence CT = C1 + C2 B1 5(c)(i) [(1 / 22) + (1 / 47)]–1 = 15 F A1 5(c)(ii) energy = ½CV 2 C1 = ½  15  10–6  122 = 1.1  10–3 J A1 5(c)(iii) initial p.d. (across 22 F) = 12  (15 / 22) = 8.2 V or final p.d. across both capacitors = 6.0  (22 / 15) = 8.8 V C1 V = V0 exp [– t / (2.7  106  15  10–6)] C1 6.0 = 8.2 exp [– t / (2.7  106  15  10–6)] or 8.8 = 12 exp [– t / (2.7  106  15  10–6)] t = 13 s A1

This question in 9702/42 May/June 2022

5 A capacitor of capacitance 470 μF is connected to a battery of electromotive force (e.m.f.) 24 V in the circuit of Fig. 5.1. X Y S 24 V V 470 μF P Q 5.6 kΩ 5.6 kΩ Fig. 5.1 The two-way switch S is initially at position X. P and Q are identical long straight wires, each with a resistance of 5.6 kΩ. These wires are placed near to, and parallel to, each other. Wire Q is connected to a voltmeter. At time t = 0, switch S is moved to position Y so that the capacitor discharges through wire P. (a) (i) Calculate the charge Q0 on the capacitor at time t = 0. Q0 = … C [2] (ii) Calculate the current I0 in wire P at time t = 0. I0 = … A [1] (iii) Calculate the time constant τ of the discharge circuit. τ = … s [2] (iv) On Fig. 5.2, sketch a line to show the variation with t of the current I in wire P as the capacitor discharges. I0 I 0 0 t Fig. 5.2 [2] (b) (i) Explain why there is an induced e.m.f. across wire Q during the discharge of the capacitor. … … … … [3] (ii) On Fig. 5.3, sketch a line to suggest the variation with t of the voltmeter reading V. V 0 0 t Fig. 5.3 [1] [Total: 11]

11 marks

Mark scheme: 5(a)(i) Q = CV C1 Q0 = 24  470  10–6 A1 = 0.011 C 5(a)(ii) I0 = 24 / 5600 A1 = 4.3  10–3 A 5(a)(iii) = RC C1 = 5600  470  10–6 A1 = 2.6 s 5(a)(iv) line with negative gradient throughout passing through (0, I0) B1 exponential decay curve asymptotic to t-axis B1 5(b)(i) current in wire P gives rise to a magnetic field B1 as current (in P) changes, wire Q cuts (magnetic) flux (of wire P) B1 cutting magnetic flux causes induced e.m.f. (across Q) B1 5(b)(ii) sketch shows line with a negative gradient throughout B1

This question in 9702/41 Oct/Nov 2022

6 A capacitor of capacitance C and a resistor of resistance R are connected as shown in Fig. 6.1. C R Fig. 6.1 Initially, the capacitor is charged and the switch is open. The switch is closed at time t = 0. Fig. 6.2 and Fig. 6.3 show, respectively, the variations with t of the charge Q on the capacitor and the potential difference (p.d.) V across the resistor. 1.0 10 Q / mC V / V 0.5 5 0 0 0 5 10 15 0 5 10 15 t / s t / s Fig. 6.2 Fig. 6.3 (a) Explain the shape of the line in Fig. 6.3 representing the variation of V with t. … … … … … [3] (b) Use Fig. 6.2 to show that the time constant of the circuit in Fig. 6.1 is 5.5 s. [3] (c) Use Fig. 6.2, Fig. 6.3 and the information in (b) to determine: (i) capacitance C, in μF C = … μF [2] (ii) resistance R, in kΩ. R = … kΩ [2] [Total: 10]

10 marks

Mark scheme: 6(a) • p.d. across resistor = p.d. across capacitor B2 • current (in resistor) proportional to p.d. across it • current causes capacitor to lose charge • charge (on capacitor) proportional to p.d. so p.d. decreases Any two points, 1 mark each rate of change of p.d. decreases as p.d. decreases B1 6(b) Q0 = 0.90 mC and at t = one time constant, Q = Q0 exp (–1) B1 at t = one time constant, Q = 0.90 exp (–1) = 0.33 mC M1 evidence of graph reading: when Q = 0.33 mC, t = 5.5 s A1 or evidence of two correct sets of readings for Q and t from the graph (B1) correct substitution of Q and t values into Q2 = Q1 exp [(t1 – t2) / ] (M1) calculation to give = 5.5 s (A1) or read-off of half-life as 3.75 s (B1) use of Q = Q0 exp (–t / ) to show that = half-life / ln 2 (M1) = 3.75 / ln 2 = 5.4 s (A1) 6(b) or tangent drawn on Q–t graph and value of Q at exact same time as tangent read from graph (M1) gradient of tangent correctly calculated (A1) = Q / gradient used to correctly calculate a value for as 5.5 s (A1) 6(c)(i) C = Q / V C1 = [(0.90  10–3) / 7.5] = 1.2  10–4 C A1 = 120 F 6(c)(ii) R = τ / C C1 = 5.5 / (1.2  10–4) (= 45 800 ) A1 = 46 k

This question in 9702/42 Oct/Nov 2022

5 A capacitor of capacitance 470 μF is connected to a battery of electromotive force (e.m.f.) 24 V in the circuit of Fig. 5.1. X Y S 24 V V 470 μF P Q 5.6 kΩ 5.6 kΩ Fig. 5.1 The two-way switch S is initially at position X. P and Q are identical long straight wires, each with a resistance of 5.6 kΩ. These wires are placed near to, and parallel to, each other. Wire Q is connected to a voltmeter. At time t = 0, switch S is moved to position Y so that the capacitor discharges through wire P. (a) (i) Calculate the charge Q0 on the capacitor at time t = 0. Q0 = … C [2] (ii) Calculate the current I0 in wire P at time t = 0. I0 = … A [1] (iii) Calculate the time constant τ of the discharge circuit. τ = … s [2] (iv) On Fig. 5.2, sketch a line to show the variation with t of the current I in wire P as the capacitor discharges. I0 I 0 0 t Fig. 5.2 [2] (b) (i) Explain why there is an induced e.m.f. across wire Q during the discharge of the capacitor. … … … … [3] (ii) On Fig. 5.3, sketch a line to suggest the variation with t of the voltmeter reading V. V 0 0 t Fig. 5.3 [1] [Total: 11]

11 marks

Mark scheme: 5(a)(i) Q = CV C1 Q0 = 24  470  10–6 A1 = 0.011 C 5(a)(ii) I0 = 24 / 5600 A1 = 4.3  10–3 A 5(a)(iii) = RC C1 = 5600  470  10–6 A1 = 2.6 s 5(a)(iv) line with negative gradient throughout passing through (0, I0) B1 exponential decay curve asymptotic to t-axis B1 5(b)(i) current in wire P gives rise to a magnetic field B1 as current (in P) changes, wire Q cuts (magnetic) flux (of wire P) B1 cutting magnetic flux causes induced e.m.f. (across Q) B1 5(b)(ii) sketch shows line with a negative gradient throughout B1

This question in 9702/43 Oct/Nov 2022

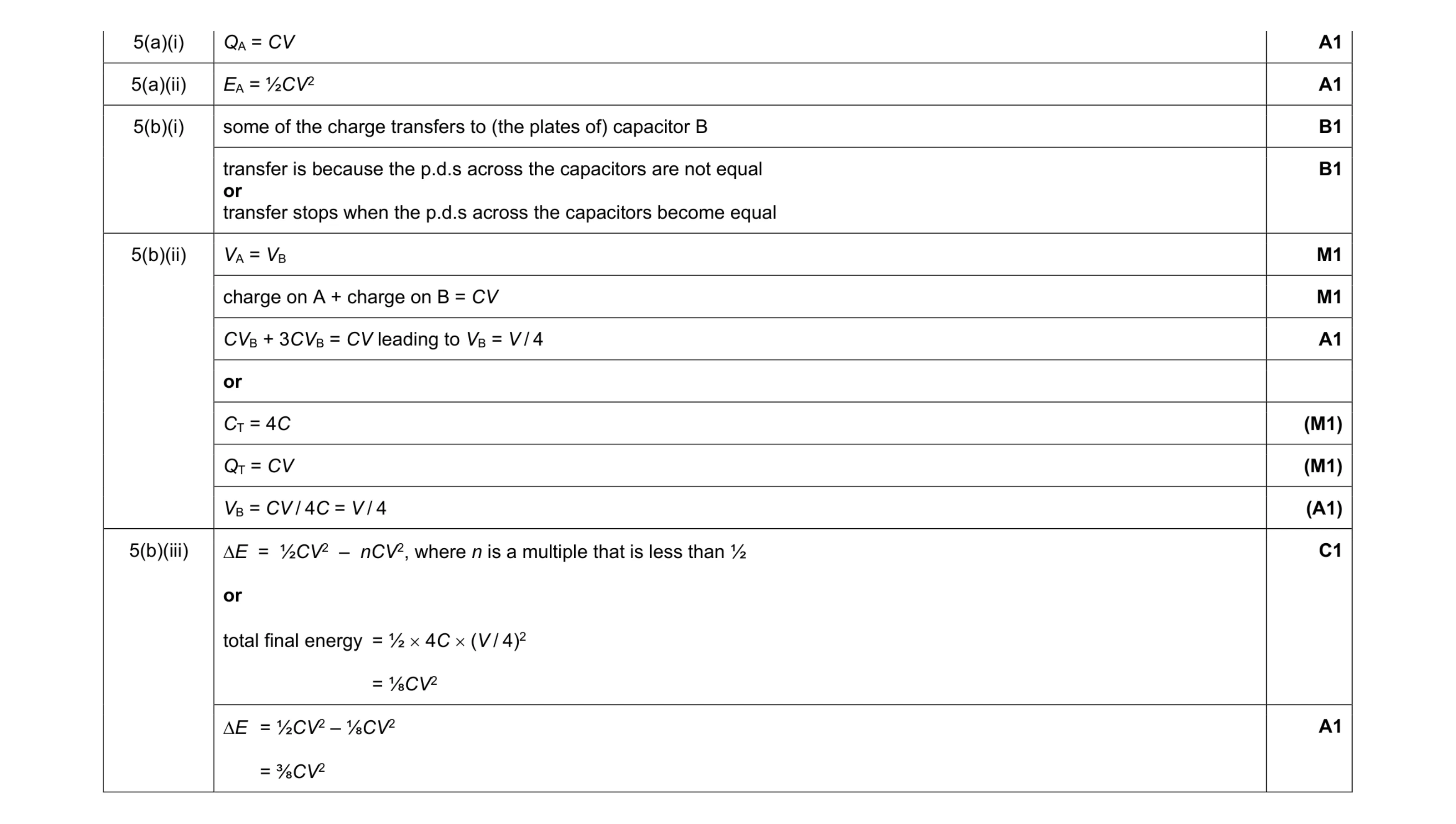

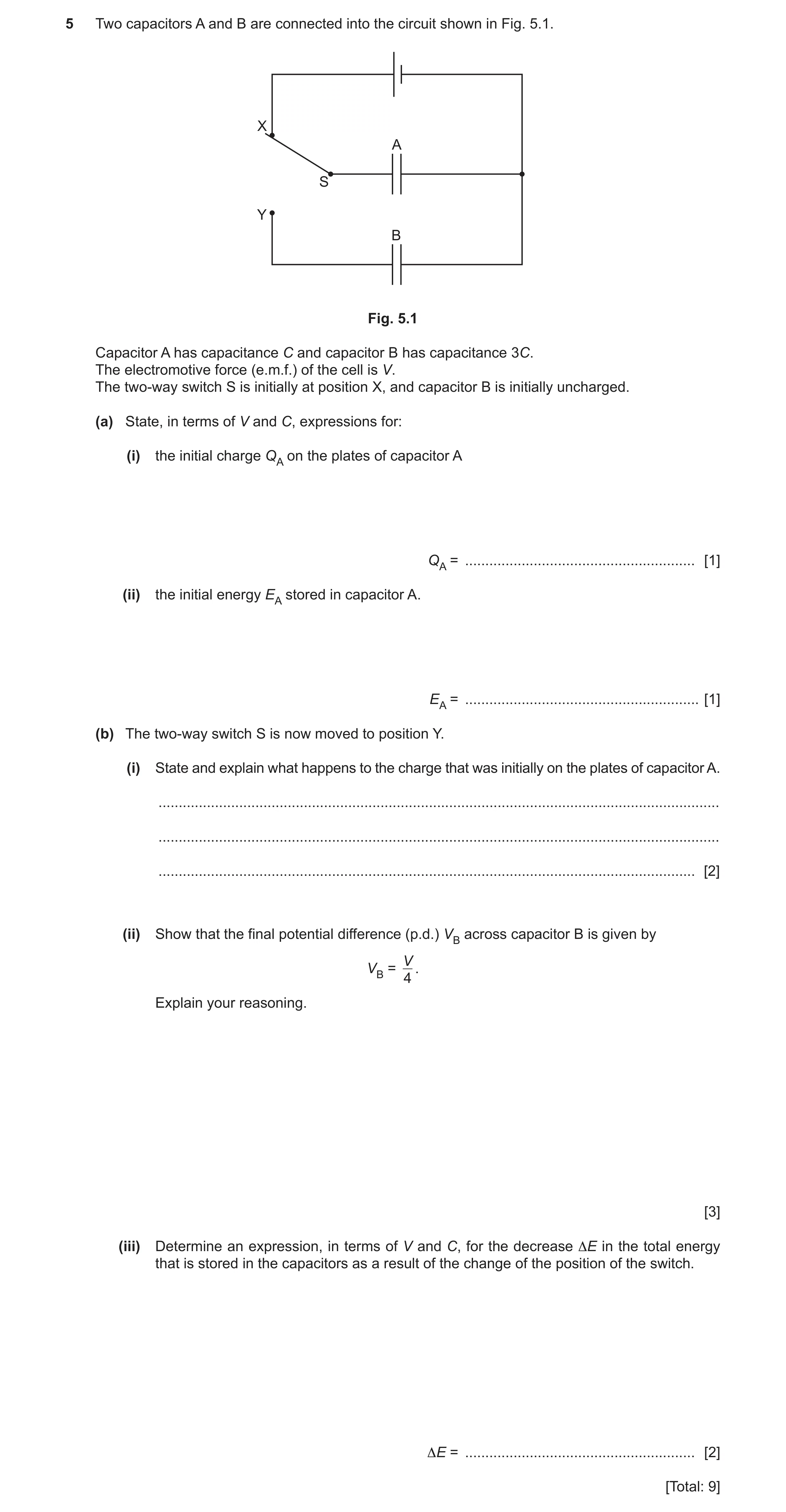

5 Two capacitors A and B are connected into the circuit shown in Fig. 5.1. X A S Y B Fig. 5.1 Capacitor A has capacitance C and capacitor B has capacitance 3C. The electromotive force (e.m.f.) of the cell is V. The two-way switch S is initially at position X, and capacitor B is initially uncharged. (a) State, in terms of V and C, expressions for: (i) the initial charge QA on the plates of capacitor A QA = … [1] (ii) the initial energy EA stored in capacitor A. EA = … [1] (b) The two-way switch S is now moved to position Y. (i) State and explain what happens to the charge that was initially on the plates of capacitor A. … … … [2] (ii) Show that the final potential difference (p.d.) VB across capacitor B is given by V VB = . 4 Explain your reasoning. [3] (iii) Determine an expression, in terms of V and C, for the decrease ΔE in the total energy that is stored in the capacitors as a result of the change of the position of the switch. ΔE = … [2] [Total: 9]

9 marks

Mark scheme: 5(a)(i) QA = CV A1 5(a)(ii) EA = ½CV2 A1 5(b)(i) some of the charge transfers to (the plates of) capacitor B B1 transfer is because the p.d.s across the capacitors are not equal or transfer stops when the p.d.s across the capacitors become equal B1 5(b)(ii) VA = VB M1 charge on A + charge on B = CV M1 CVB + 3CVB = CV leading to VB = V / 4 A1 or CT = 4C (M1) QT = CV (M1) VB = CV / 4C = V / 4 (A1) 5(b)(iii) E = ½CV2 – nCV2, where n is a multiple that is less than ½ or total final energy = ½  4C  (V / 4)2 = ⅛CV2 C1 E = ½CV2 – ⅛CV2 = ⅜CV2 A1

This question in 9702/42 May/June 2023

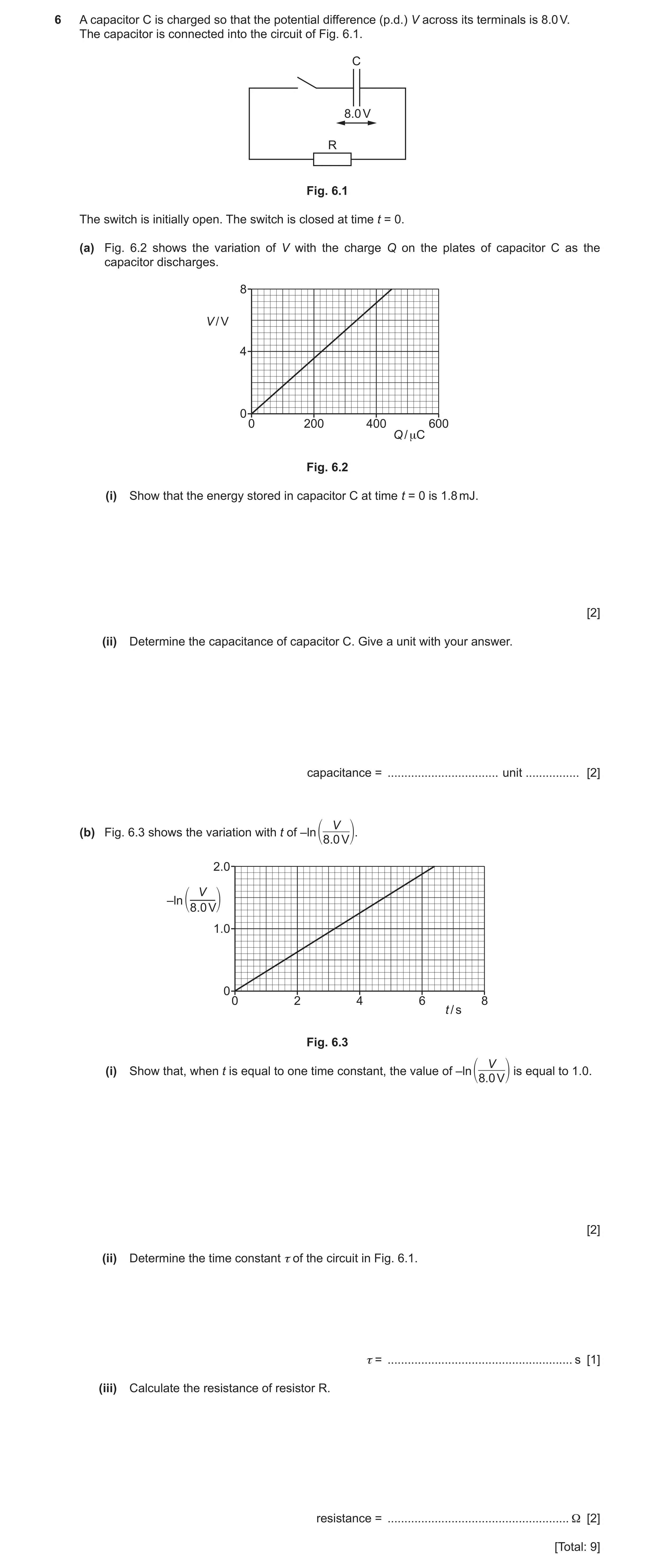

6 A capacitor C is charged so that the potential difference (p.d.) V across its terminals is 8.0 V. The capacitor is connected into the circuit of Fig. 6.1. C 8.0 V R Fig. 6.1 The switch is initially open. The switch is closed at time t = 0. (a) Fig. 6.2 shows the variation of V with the charge Q on the plates of capacitor C as the capacitor discharges. 8 V / V 4 0 0 200 400 600 Q / μC Fig. 6.2 (i) Show that the energy stored in capacitor C at time t = 0 is 1.8 mJ. [2] (ii) Determine the capacitance of capacitor C. Give a unit with your answer. capacitance = … unit … [2] V(b) Fig. 6.3 shows the variation with t of –ln  8.0 V. 2.0 V –ln 1 8.0 V2 1.0 0 0 2 4 6 8 t / s Fig. 6.3 V (i) Show that, when t is equal to one time constant, the value of –ln is equal to 1.0.  8.0 V [2] (ii) Determine the time constant τ of the circuit in Fig. 6.1. τ = … s [1] (iii) Calculate the resistance of resistor R. resistance = … Ω [2] [Total: 9]

9 marks

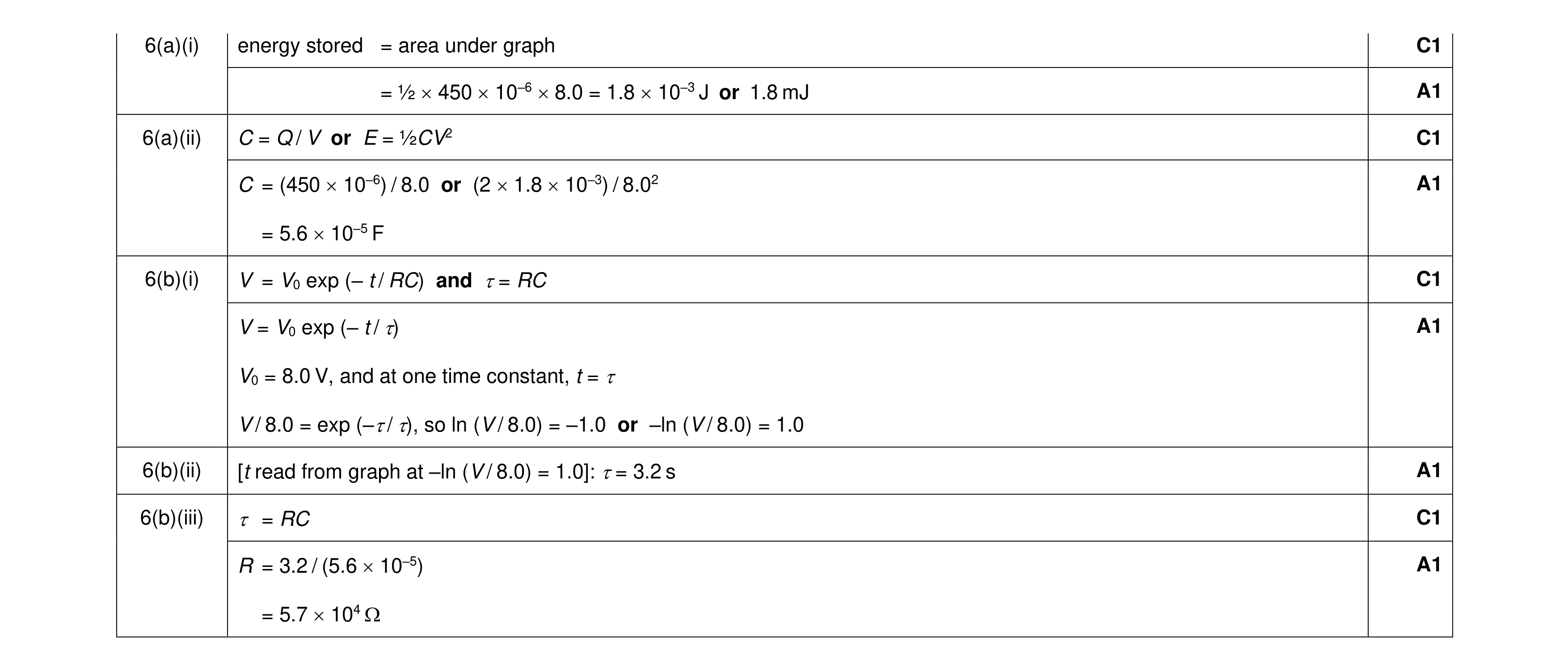

Mark scheme: 6(a)(i) energy stored = area under graph C1 = ½  450  10–6  8.0 = 1.8  10–3 J or 1.8 mJ A1 6(a)(ii) C = Q / V or E = ½CV2 C1 C = (450  10–6) / 8.0 or (2  1.8  10–3) / 8.02 A1 = 5.6  10–5 F 6(b)(i) V = V0 exp (– t / RC) and = RC C1 V = V0 exp (– t / ) A1 V0 = 8.0 V, and at one time constant, t =  V / 8.0 = exp (– / ), so ln (V / 8.0) = –1.0 or –ln (V / 8.0) = 1.0 6(b)(ii) [t read from graph at –ln (V / 8.0) = 1.0]: = 3.2 s A1 6(b)(iii)  = RC C1 R = 3.2 / (5.6  10–5) A1 = 5.7  104 

This question in 9702/42 Oct/Nov 2023

6 Fig. 6.1 shows a capacitor of capacitance C connected in series with a resistor of resistance R. C R Fig. 6.1 Initially the switch is open and there is a p.d. of 12 V across the capacitor. At time t = 0, the switch is closed so that there is a current I in the resistor. Fig. 6.2 shows the variation of I with t. 0.2 I / mA 0.1 0 0 2 4 6 8 t / s Fig. 6.2 (a) Explain the shape of the line in Fig. 6.2. … … … … … [3] (b) Use Fig. 6.2 to determine: (i) resistance R R = … Ω [2] (ii) the time constant τ of the circuit in Fig. 6.1. τ = … s [3] (c) Use your answers in (b) to determine capacitance C. C = … F [2] [Total: 10]

10 marks

Mark scheme: 6(a) p.d. across capacitor proportional to charge on capacitor  p.d. across capacitor = p.d. across resistor  current in resistor proportional to p.d. across resistor  current in resistor = rate of decrease of charge on capacitor Any two points, 1 mark each B2 charge proportional to current so rate of decrease of current decreases as current decreases (therefore exponential shape) B1 6(b)(i) R = V / I = 12 / (0.13  10–3) C1 = 9.2  104  A1 6(b)(ii) correct read-off of at least one pair of values for I and t C1 attempted read-off of t when I = 0.048 mA or substitution of a correct pair of values of I and t into I = 0.13 exp (– t / ) C1  = 4.3 s A1 6(c)  = RC C1 C =  / R = 4.3 / (9.2  104) = 4.7  10–5 F A1

This question in 9702/41 May/June 2024

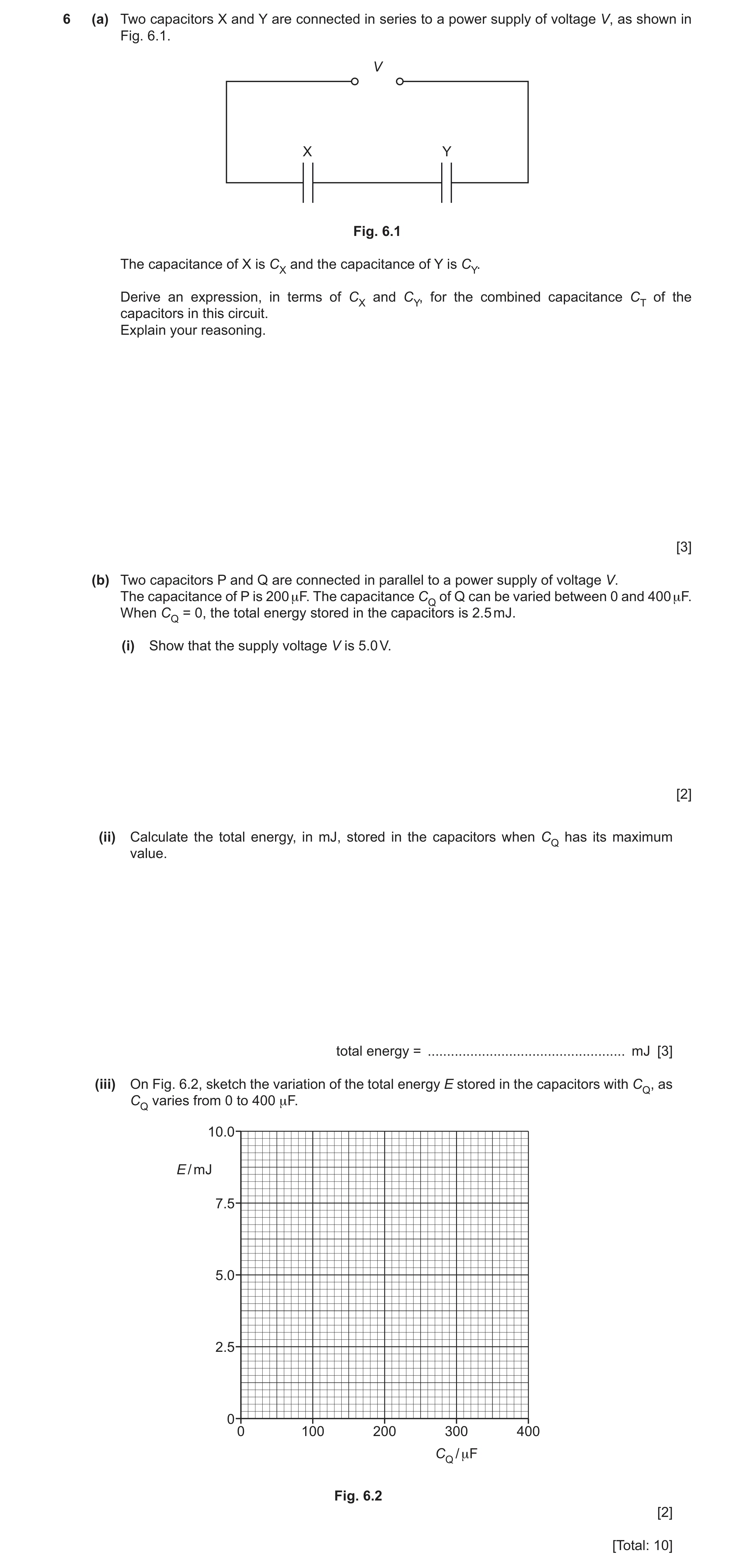

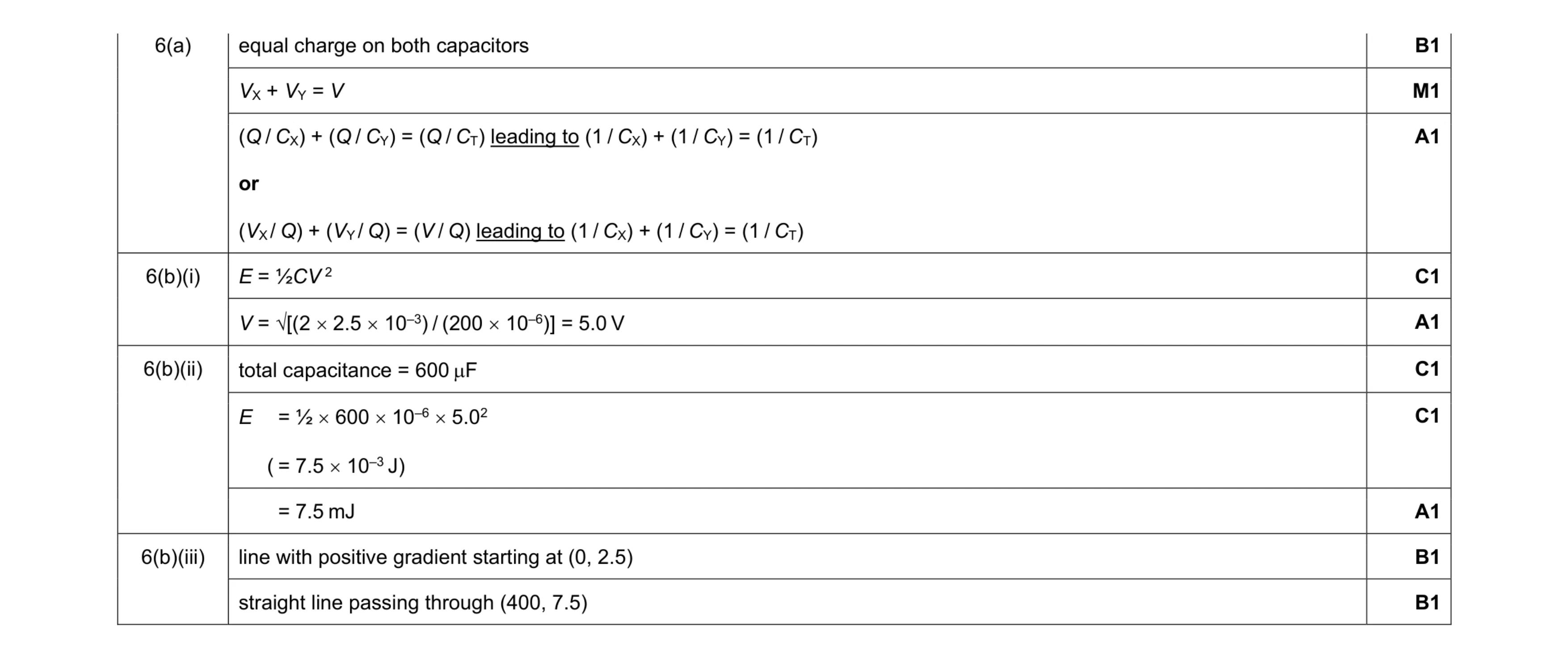

6 (a) Two capacitors X and Y are connected in series to a power supply of voltage V, as shown in Fig. 6.1. V X Y Fig. 6.1 The capacitance of X is CX and the capacitance of Y is CY. Derive an expression, in terms of CX and CY, for the combined capacitance CT of the capacitors in this circuit. Explain your reasoning. [3] (b) Two capacitors P and Q are connected in parallel to a power supply of voltage V. The capacitance of P is 200 μF. The capacitance CQ of Q can be varied between 0 and 400 μF. When CQ = 0, the total energy stored in the capacitors is 2.5 mJ. (i) Show that the supply voltage V is 5.0 V. [2] (ii) Calculate the total energy, in mJ, stored in the capacitors when CQ has its maximum value. total energy = … mJ [3] (iii) On Fig. 6.2, sketch the variation of the total energy E stored in the capacitors with CQ, as CQ varies from 0 to 400 μF. 10.0 E / mJ 7.5 5.0 2.5 0 0 100 200 300 400 CQ / μF Fig. 6.2 [2] [Total: 10]

10 marks

Mark scheme: 6(a) equal charge on both capacitors B1 VX + VY = V M1 (Q / CX) + (Q / CY) = (Q / CT) leading to (1 / CX) + (1 / CY) = (1 / CT) or (VX/ Q) + (VY/ Q) = (V / Q) leading to (1 / CX) + (1 / CY) = (1 / CT) A1 6(b)(i) E = ½CV 2 C1 V = √[(2  2.5  10–3) / (200  10–6)] = 5.0 V A1 6(b)(ii) total capacitance = 600 F C1 E = ½  600  10–6  5.02 ( = 7.5  10–3 J) C1 = 7.5 mJ A1 6(b)(iii) line with positive gradient starting at (0, 2.5) B1 straight line passing through (400, 7.5) B1

This question in 9702/42 May/June 2024

6 Fig. 6.1 shows a capacitor of capacitance C connected in series with a resistor of resistance R. C R Fig. 6.1 Initially the switch is open and there is a p.d. of 12 V across the capacitor. At time t = 0, the switch is closed so that there is a current I in the resistor. Fig. 6.2 shows the variation of I with t. 0.2 I / mA 0.1 0 0 2 4 6 8 t / s Fig. 6.2 (a) Explain the shape of the line in Fig. 6.2. … … … … … [3] (b) Use Fig. 6.2 to determine: (i) resistance R R = … Ω [2] (ii) the time constant τ of the circuit in Fig. 6.1. τ = … s [3] (c) Use your answers in (b) to determine capacitance C. C = … F [2] [Total: 10]

10 marks

Mark scheme: 6(a) p.d. across capacitor proportional to charge on capacitor  p.d. across capacitor = p.d. across resistor  current in resistor proportional to p.d. across resistor  current in resistor = rate of decrease of charge on capacitor Any two points, 1 mark each B2 charge proportional to current so rate of decrease of current decreases as current decreases (therefore exponential shape) B1 6(b)(i) R = V / I = 12 / (0.13  10–3) C1 = 9.2  104  A1 6(b)(ii) correct read-off of at least one pair of values for I and t C1 attempted read-off of t when I = 0.048 mA or substitution of a correct pair of values of I and t into I = 0.13 exp (– t / ) C1  = 4.3 s A1 6(c)  = RC C1 C =  / R = 4.3 / (9.2  104) = 4.7  10–5 F A1

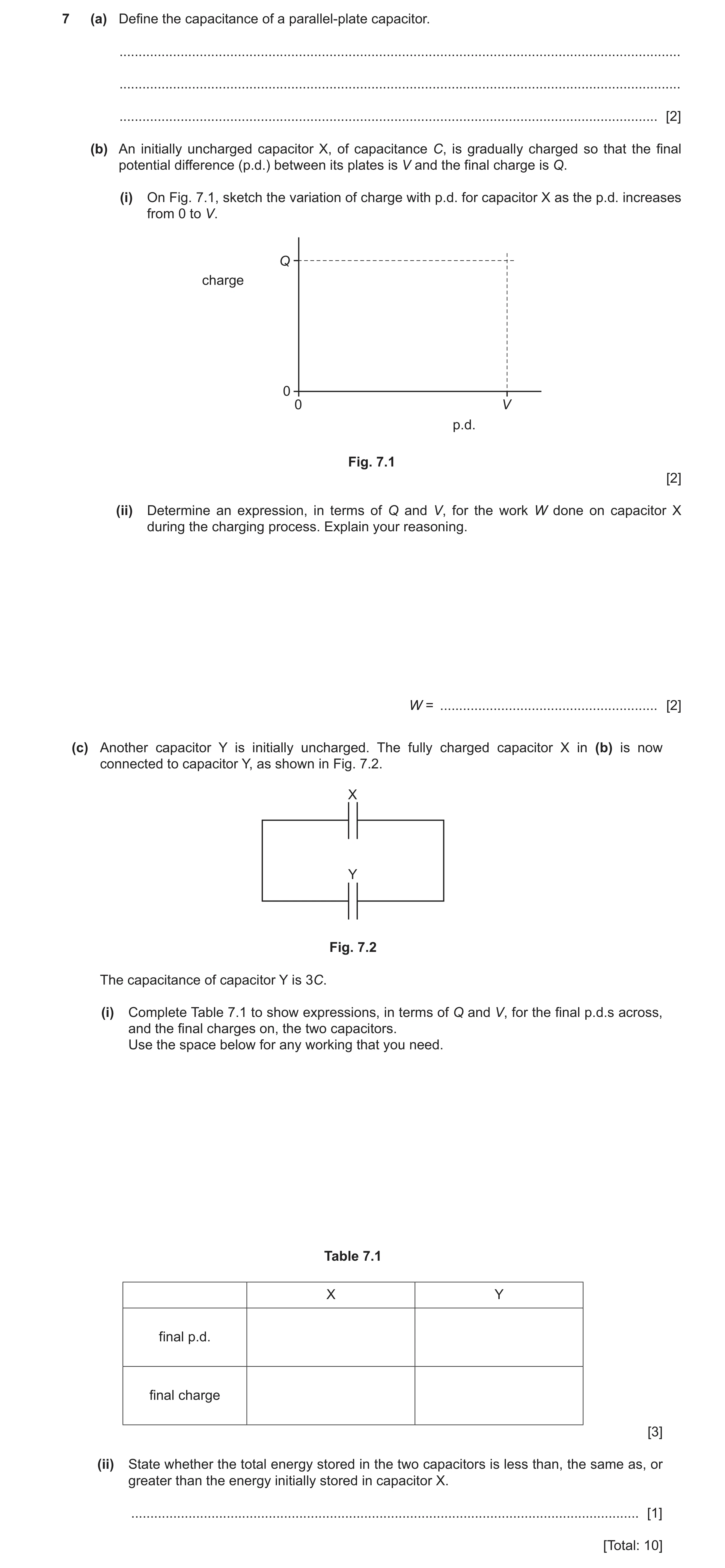

This question in 9702/43 May/June 2024

7 (a) Define the capacitance of a parallel‑plate capacitor. … … … [2] (b) An initially uncharged capacitor X, of capacitance C, is gradually charged so that the final potential difference (p.d.) between its plates is V and the final charge is Q. (i) On Fig. 7.1, sketch the variation of charge with p.d. for capacitor X as the p.d. increases from 0 to V. Q charge 0 0 V p.d. Fig. 7.1 [2] (ii) Determine an expression, in terms of Q and V, for the work W done on capacitor X during the charging process. Explain your reasoning. W = … [2] (c) Another capacitor Y is initially uncharged. The fully charged capacitor X in (b) is now connected to capacitor Y, as shown in Fig. 7.2. X Y Fig. 7.2 The capacitance of capacitor Y is 3C. (i) Complete Table 7.1 to show expressions, in terms of Q and V, for the final p.d.s across, and the final charges on, the two capacitors. Use the space below for any working that you need. Table 7.1 X Y final p.d. final charge [3] (ii) State whether the total energy stored in the two capacitors is less than, the same as, or greater than the energy initially stored in capacitor X. … [1] [Total: 10]

10 marks

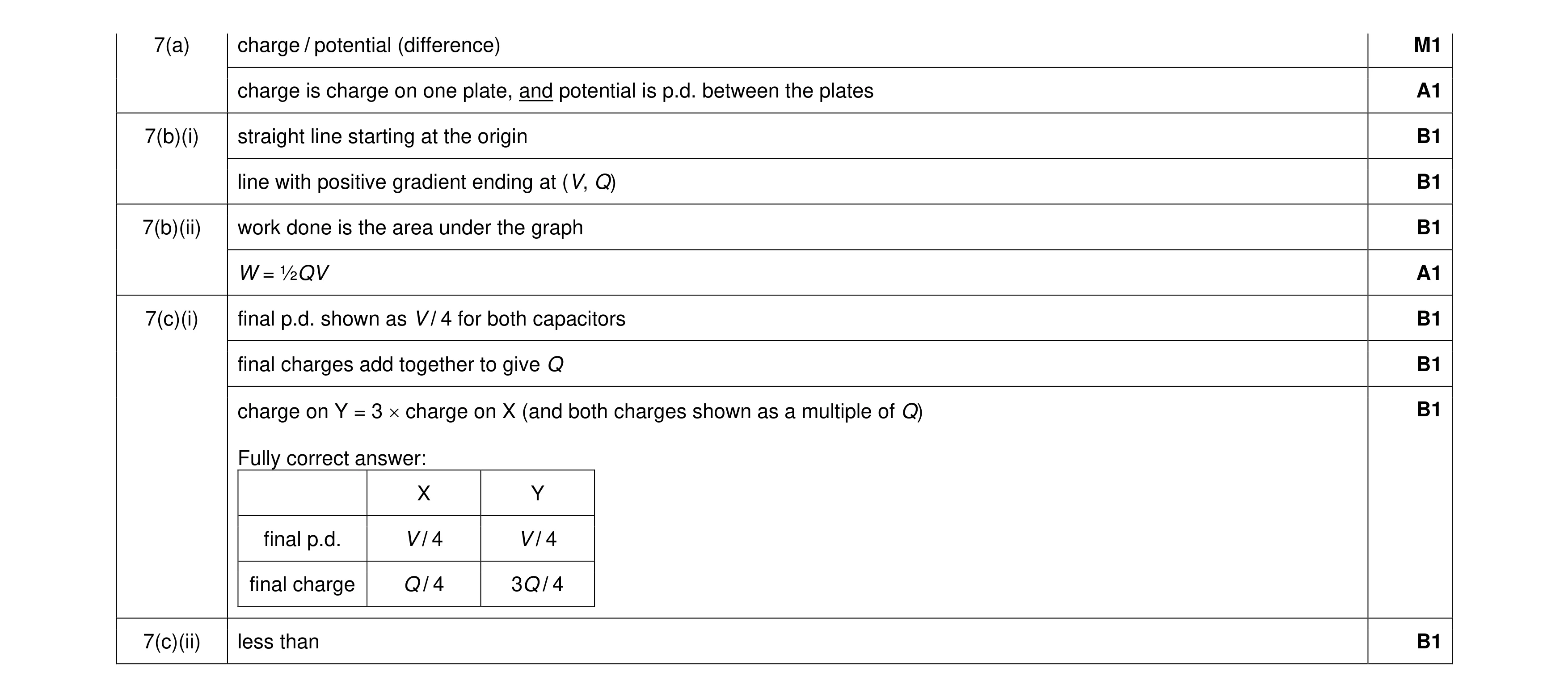

Mark scheme: 7(a) charge / potential (difference) M1 charge is charge on one plate, and potential is p.d. between the plates A1 7(b)(i) straight line starting at the origin B1 line with positive gradient ending at (V, Q) B1 7(b)(ii) work done is the area under the graph B1 W = ½QV A1 7(c)(i) final p.d. shown as V / 4 for both capacitors B1 final charges add together to give Q B1 charge on Y = 3  charge on X (and both charges shown as a multiple of Q) B1 Fully correct answer: X Y final p.d. V / 4 V / 4 final charge Q / 4 3Q / 4 7(c)(ii) less than B1

This question in 9702/42 Oct/Nov 2024

5 (a) A capacitor of capacitance C1 is connected in series with a second capacitor of capacitance C2. Show that the combined capacitance C of the two capacitors is given by 1 1 1 = + . C C1 C2 [2] (b) Three identical capacitors, each of capacitance C, are connected in a network as shown in Fig. 5.1. C X Y C C Fig. 5.1 The variation of the charge Q with the potential difference (p.d.) V between the terminals X and Y is shown in Fig. 5.2. 400 Q / μC 200 0 0 2 4 6 V / V Fig. 5.2 Show that C is equal to 44 µF. [3] (c) The capacitor network in Fig. 5.1 is charged and then connected to a resistor of resistance 54 kΩ. The capacitor network discharges through the resistor. (i) Determine the time constant τ of the circuit. Give a unit with your answer. τ = … unit … [2] (ii) Determine the time taken for the discharge current to reduce to 15% of the initial discharge current. time = … s [2] [Total: 9]

9 marks

Mark scheme: 5(a) Q = Q1 = Q2 and V = V1 + V2 M1 V = Q / C so: A1 Q / C = Q / C1 + Q / C2 leading to 1 / C = 1 / C1 + 1 / C2 5(b) total capacitance = C + ½C = (3 / 2)C C1 total capacitance = gradient C1 = 400  10–6 / 6.0 either: C = (2  400  10–6) / (3  6.0) = 4.4  10–5 F = 44 F A1 or: C = (2  400) / (3  6.0) = 44 F 5(c)(i) τ = RC C1 = 54  103  (3/2)  44  10–6 A1 = 3.6 s 5(c)(ii) 0.15 = exp(–t / 3.6) C1 t = 6.8 s A1

This question in 9702/42 Feb/March 2025

7 Fig. 7.1 shows a circuit containing a capacitor of capacitance C and a resistor of resistance R. C R Fig. 7.1 Initially, the switch is open and the potential difference (p.d.) across the capacitor is 12 V. The switch is closed at time t = 0 and the capacitor discharges through the resistor. Fig. 7.2 shows the variation of the charge Q on the capacitor with the p.d. VC across the capacitor as the capacitor discharges. Fig. 7.3 shows the variation of the current I in the resistor with the p.d. VR across the resistor as the capacitor discharges. 8 2 Q / mC I / mA 4 1 0 0 0 4 8 12 0 4 8 12 VC / V VR / V Fig. 7.2 Fig. 7.3 (a) State the relationship between VC and VR. … [1] (b) Determine: (i) the capacitance C, in μF C = … μF [2] (ii) the resistance R, in kΩ R = … kΩ [2] (iii) the time constant τ of the circuit. τ = … s [2] (c) Use Fig. 7.2, Fig. 7.3 and your answer in (a) to explain why the variation of Q with t is exponential in nature. … … … … … [3] [Total: 10]

10 marks

Mark scheme: 7(a) VC = VR B1 7(b)(i) C = Q / V C1 = (7.2 × 10–3) / 12 (= 6.0 × 10–4 F) A1 = 600 F 7(b)(ii) R = V / I C1 = 12 / (1.5 × 10–3) (= 8000 ) A1 = 8.0 k 7(b)(iii)  = RC C1 = 8000 × 6.0 × 10–4 A1 = 4.8 s 7(c) Any two points from: B2 • charge and current are both (directly) proportional to voltage • charge is (directly) proportional to current • current is the rate of change of charge Q is proportional to the rate of change of Q (so exponential variation) B1

This question in 9702/42 May/June 2025

6 (a) Two parallel plate capacitors C1 and C2 are connected to a supply that has a potential difference (p.d.) VS. The capacitors may be connected in series or in parallel. The supply provides charge QS and the plates of the two capacitors acquire charges Q1 and Q2 respectively. The p.d.s across the plates of the capacitors are V1 and V2 respectively. Complete Table 6.1 to indicate how QS, Q1 and Q2 relate to each other, and how VS, V1 and V2 relate to each other, for series and parallel connections of the capacitors to the supply. Table 6.1 relationship between charges relationship between p.d.s series parallel [4] (b) An isolated capacitor of capacitance 470 μF stores 19 mJ of energy. (i) Calculate the p.d. across the capacitor. p.d. = … V [2] (ii) Calculate the charge on the capacitor. charge = … C [2] (iii) The capacitor is now connected in parallel with a capacitor of capacitance 180 μF that is initially uncharged. Determine the total energy, in mJ, now stored in the two capacitors. energy = … mJ [3] [Total: 11]

11 marks

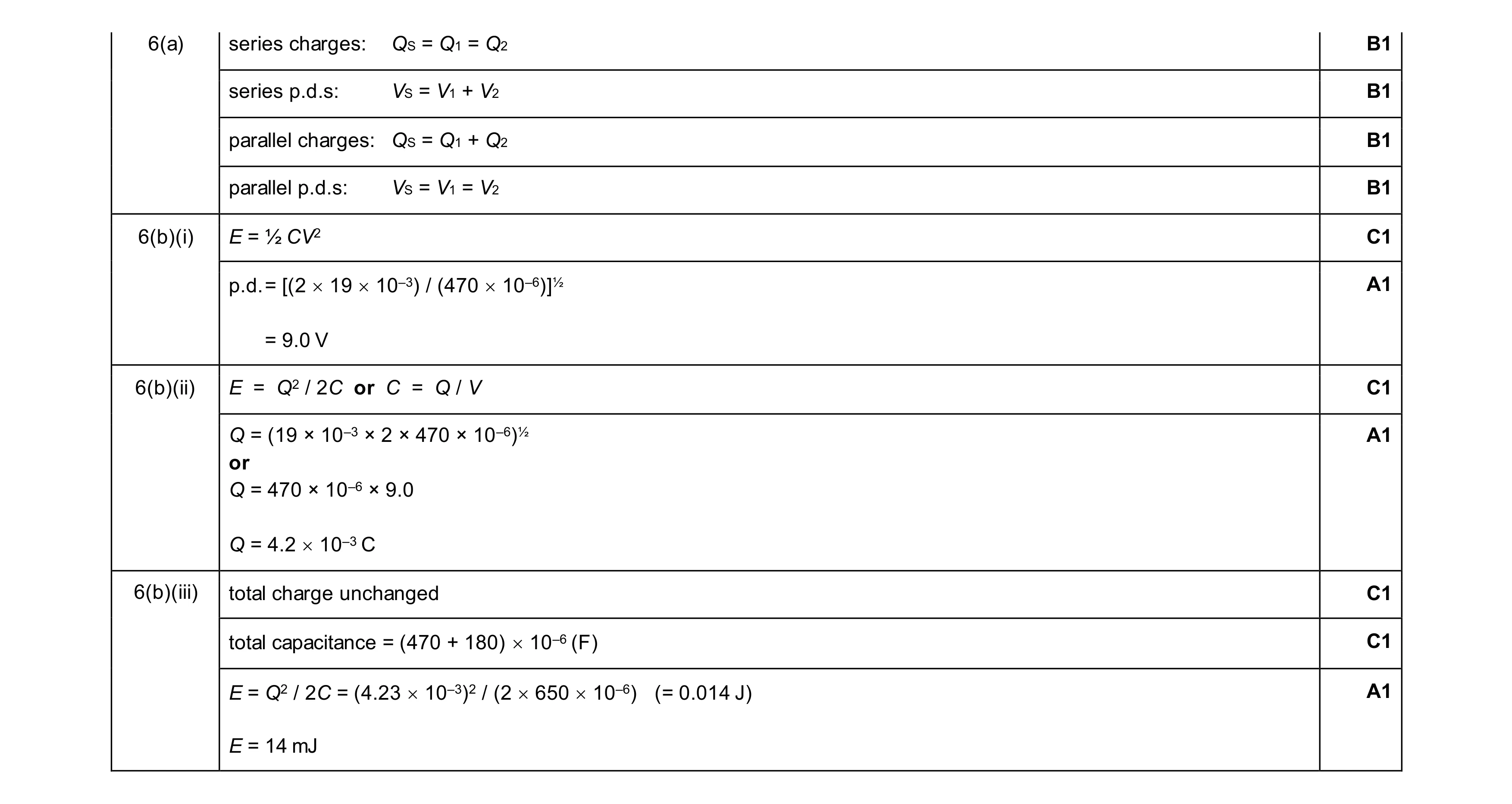

Mark scheme: 6(a) series charges: QS = Q1 = Q2 B1 series p.d.s: VS = V1 + V2 B1 parallel charges: QS = Q1 + Q2 B1 parallel p.d.s: VS = V1 = V2 B1 6(b)(i) E = ½ CV2 C1 p.d. = [(2  19  10–3) / (470  10–6)]½ A1 = 9.0 V 6(b)(ii) E = Q2 / 2C or C = Q / V C1 Q = (19 × 10–3 × 2 × 470 × 10–6)½ A1 or Q = 470 × 10–6 × 9.0 Q = 4.2  10–3 C 6(b)(iii) total charge unchanged C1 total capacitance = (470 + 180)  10–6 (F) C1 E = Q2 / 2C = (4.23  10–3)2 / (2  650  10–6) (= 0.014 J) A1 E = 14 mJ

This question in 9702/41 Oct/Nov 2025

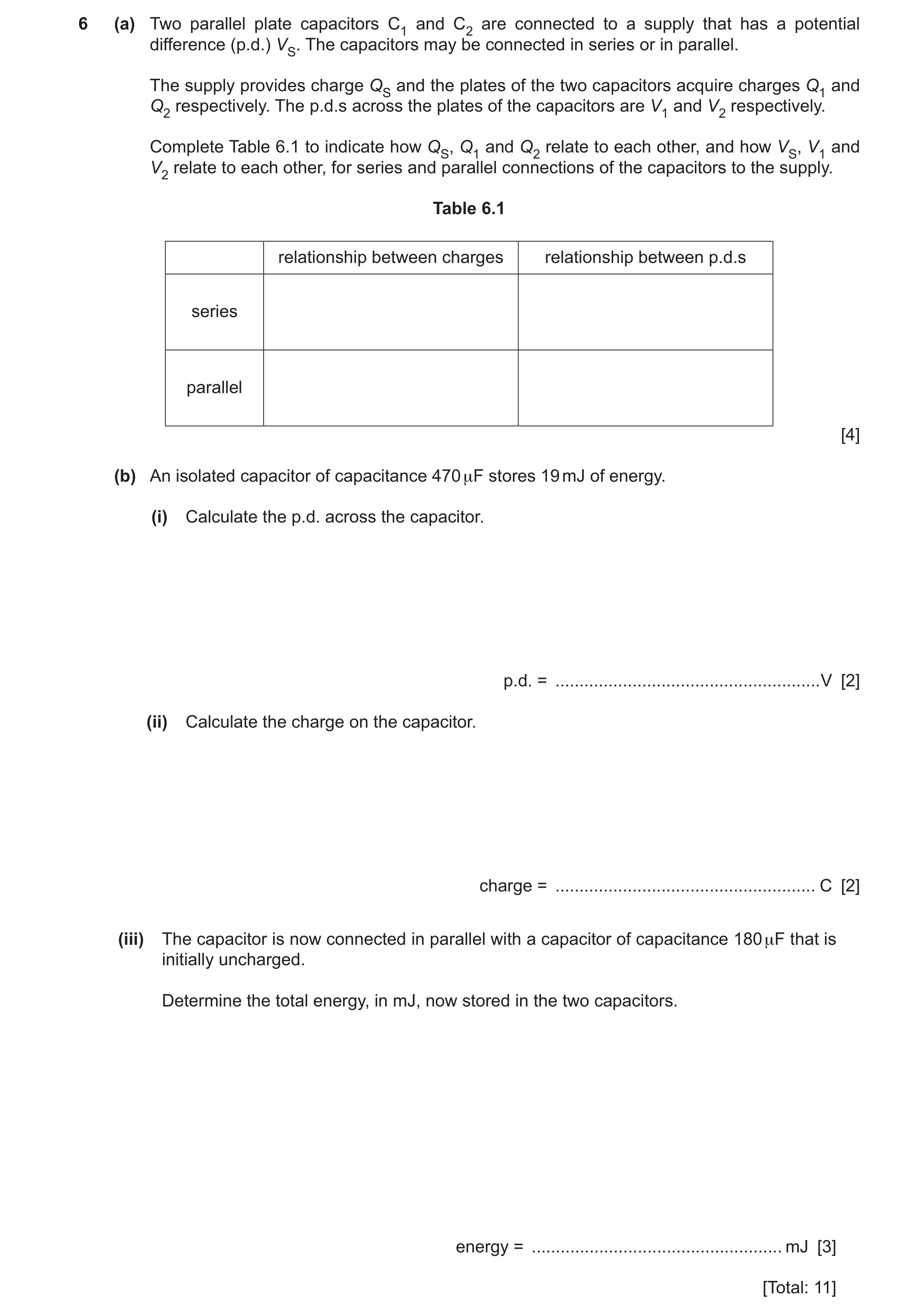

6 (a) Two parallel plate capacitors C1 and C2 are connected to a supply that has a potential difference (p.d.) VS. The capacitors may be connected in series or in parallel. The supply provides charge QS and the plates of the two capacitors acquire charges Q1 and Q2 respectively. The p.d.s across the plates of the capacitors are V1 and V2 respectively. Complete Table 6.1 to indicate how QS, Q1 and Q2 relate to each other, and how VS, V1 and V2 relate to each other, for series and parallel connections of the capacitors to the supply. Table 6.1 relationship between charges relationship between p.d.s series parallel [4] (b) An isolated capacitor of capacitance 470 μF stores 19 mJ of energy. (i) Calculate the p.d. across the capacitor. p.d. = … V [2] (ii) Calculate the charge on the capacitor. charge = … C [2] (iii) The capacitor is now connected in parallel with a capacitor of capacitance 180 μF that is initially uncharged. Determine the total energy, in mJ, now stored in the two capacitors. energy = … mJ [3] [Total: 11]

11 marks

Mark scheme: 6(a) series charges: QS = Q1 = Q2 B1 series p.d.s: VS = V1 + V2 B1 parallel charges: QS = Q1 + Q2 B1 parallel p.d.s: VS = V1 = V2 B1 6(b)(i) E = ½ CV2 C1 p.d. = [(2  19  10–3) / (470  10–6)]½ A1 = 9.0 V 6(b)(ii) E = Q2 / 2C or C = Q / V C1 Q = (19 × 10–3 × 2 × 470 × 10–6)½ A1 or Q = 470 × 10–6 × 9.0 Q = 4.2  10–3 C 6(b)(iii) total charge unchanged C1 total capacitance = (470 + 180)  10–6 (F) C1 E = Q2 / 2C = (4.23  10–3)2 / (2  650  10–6) (= 0.014 J) A1 E = 14 mJ

This question in 9702/43 Oct/Nov 2025
