Questions as text

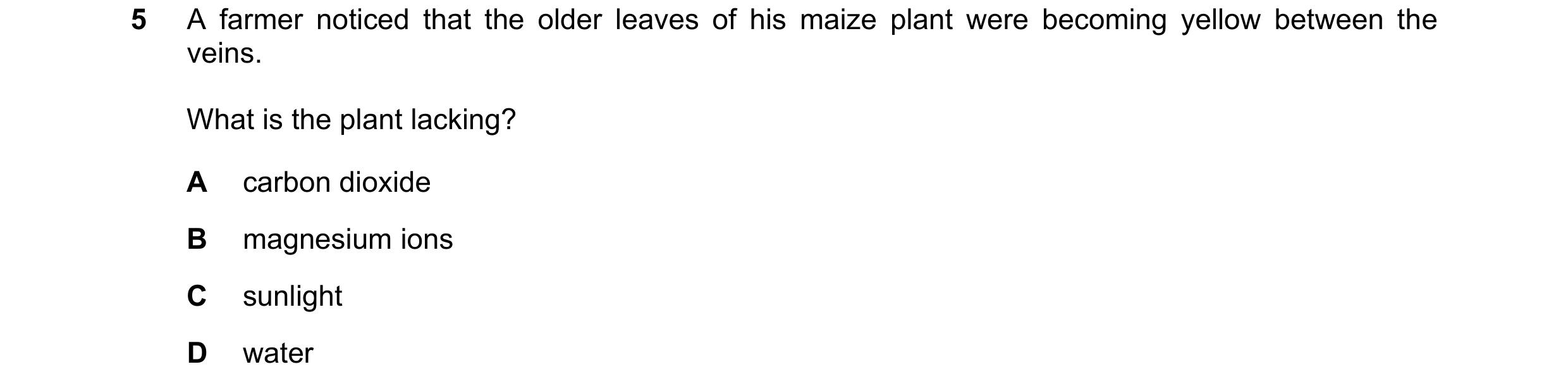

Q1 · A farmer noticed that the older leaves of his maize plant were becoming yellow between… 0654/21 May/June 2019
5 A farmer noticed that the older leaves of his maize plant were becoming yellow between the veins. What is the plant lacking? A carbon dioxide B magnesium ions C sunlight D water
1 marks
Answer: B
This question in 0654/21 May/June 2019

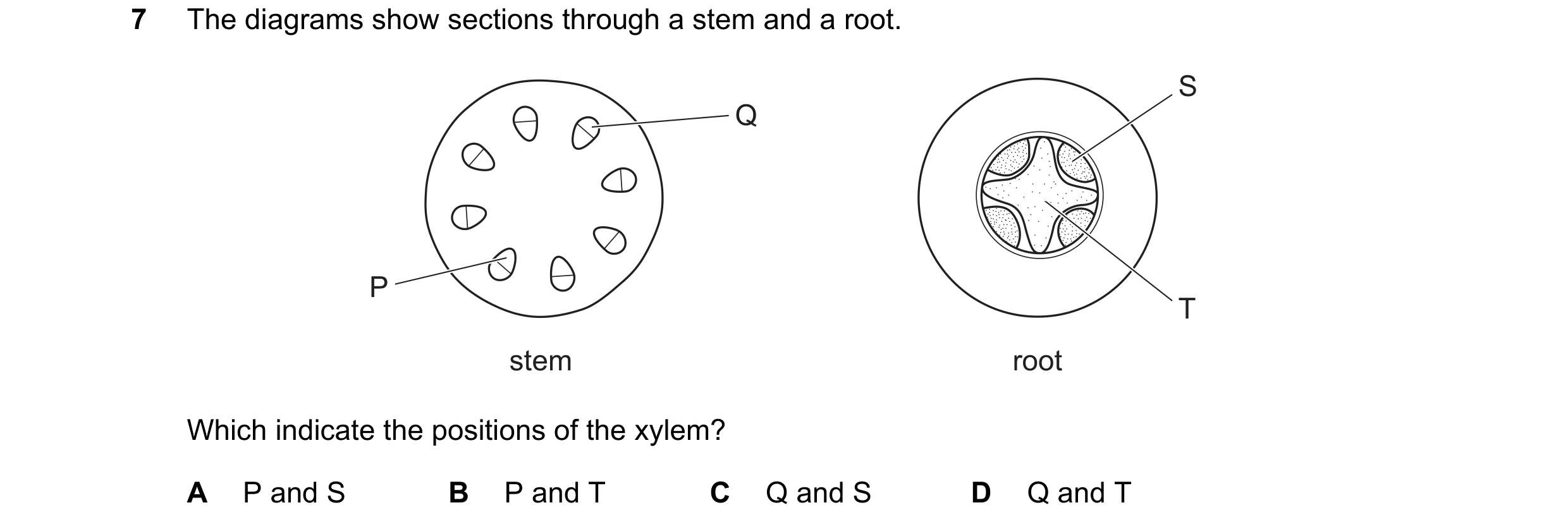

Q2 · The diagrams show sections through a stem and a root 0654/21 Oct/Nov 2019
7 The diagrams show sections through a stem and a root. S Q P T stem root Which indicate the positions of the xylem? A P and S B P and T C Q and S D Q and T
1 marks
Answer: B
This question in 0654/21 Oct/Nov 2019
Q3 · The diagrams show sections through a stem and a root 0654/22 Oct/Nov 2019
7 The diagrams show sections through a stem and a root. S Q P T stem root Which indicate the positions of the xylem? A P and S B P and T C Q and S D Q and T
1 marks
Answer: B
This question in 0654/22 Oct/Nov 2019
Q4 · The diagrams show sections through a stem and a root 0654/23 Oct/Nov 2019
7 The diagrams show sections through a stem and a root. S Q P T stem root Which indicate the positions of the xylem? A P and S B P and T C Q and S D Q and T
1 marks
Answer: B
This question in 0654/23 Oct/Nov 2019

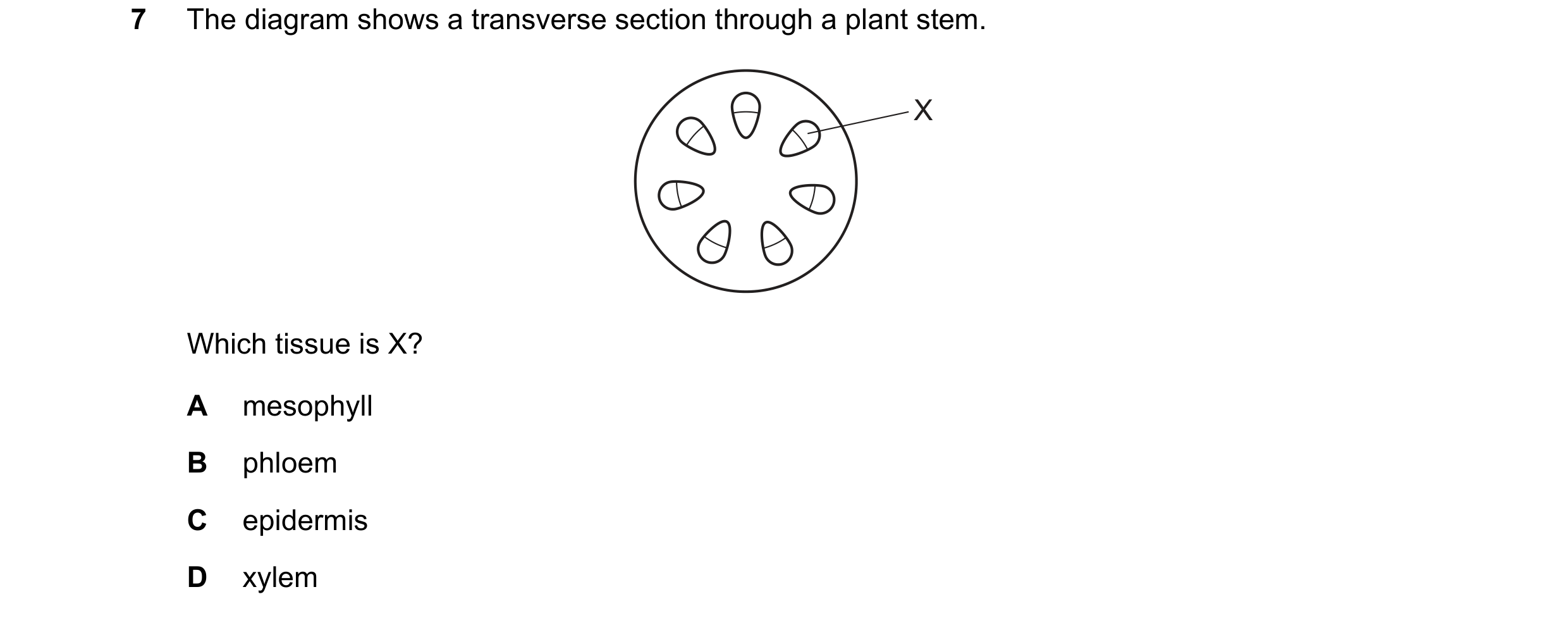

Q5 · The diagram shows a transverse section through a plant stem 0654/23 Oct/Nov 2021
7 The diagram shows a transverse section through a plant stem. X Which tissue is X? A mesophyll B phloem C epidermis D xylem
1 marks
Answer: B
This question in 0654/23 Oct/Nov 2021

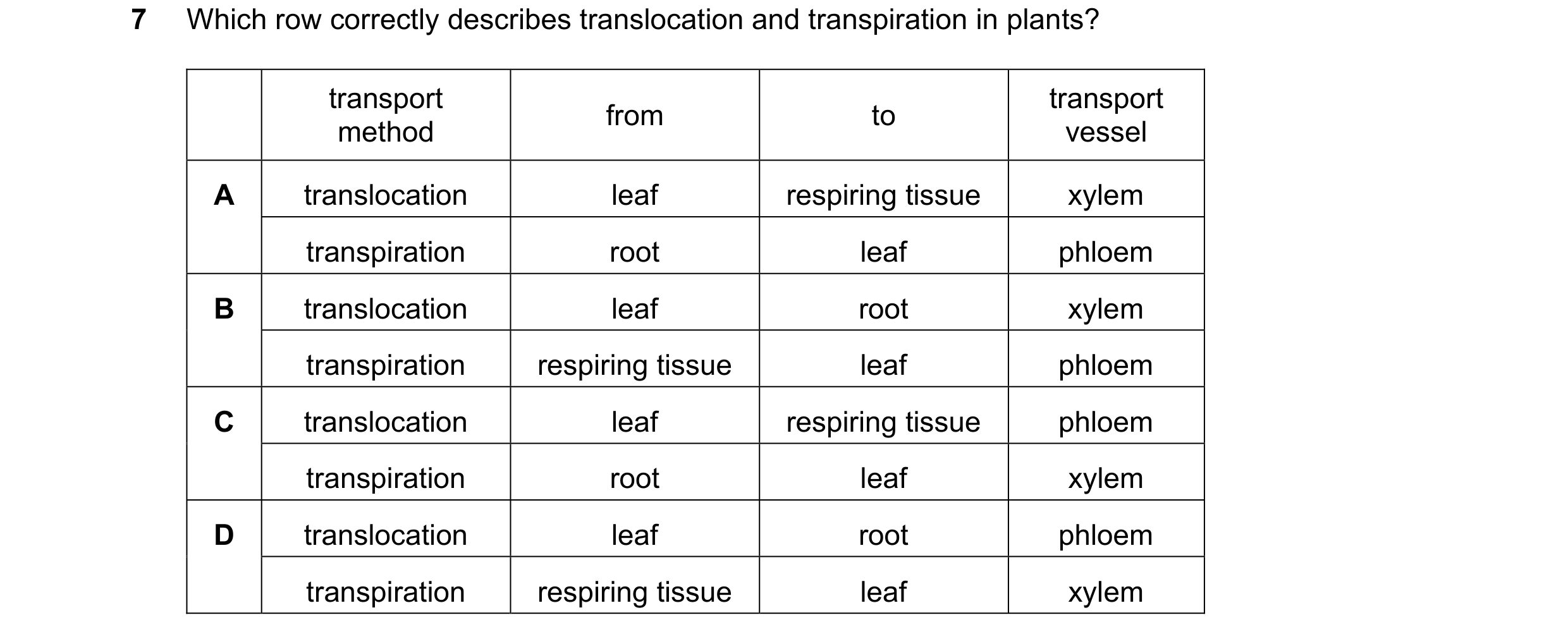

Q6 · Which row correctly describes translocation and transpiration in plants? 0654/21 Oct/Nov 2022
7 Which row correctly describes translocation and transpiration in plants? transport transport from to method vessel A translocation leaf respiring tissue xylem transpiration root leaf phloem B translocation leaf root xylem transpiration respiring tissue leaf phloem C translocation leaf respiring tissue phloem transpiration root leaf xylem D translocation leaf root phloem transpiration respiring tissue leaf xylem
1 marks
Answer: C
This question in 0654/21 Oct/Nov 2022

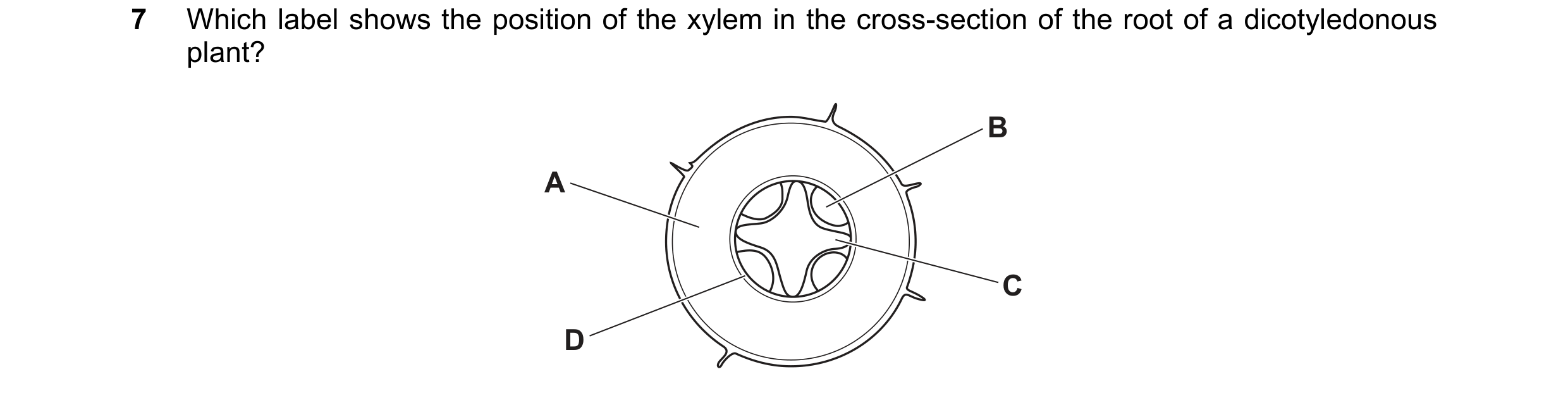

Q7 · Which label shows the position of the xylem in the cross-section of the root of a… 0654/21 Oct/Nov 2023
7 Which label shows the position of the xylem in the cross-section of the root of a dicotyledonous plant? B A C D
1 marks
Answer: C
This question in 0654/21 Oct/Nov 2023

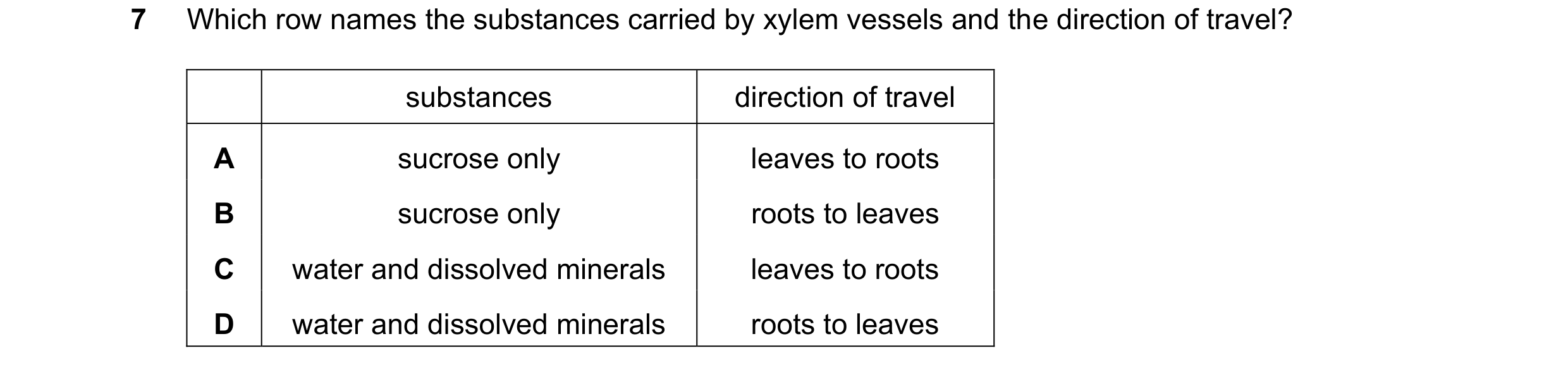

Q8 · Which row names the substances carried by xylem vessels and the direction of travel? 0654/23 Oct/Nov 2023
7 Which row names the substances carried by xylem vessels and the direction of travel? substances direction of travel A sucrose only leaves to roots B sucrose only roots to leaves C water and dissolved minerals leaves to roots D water and dissolved minerals roots to leaves
1 marks
Answer: D
This question in 0654/23 Oct/Nov 2023
Q9 · Which statement is correct? 0654/22 Feb/March 2024
7 Which statement is correct? A Xylem vessels are living and are involved in translocation. B Xylem vessels are living and are involved in transpiration. C Xylem vessels are dead and are involved in translocation. D Xylem vessels are dead and are involved in transpiration.
1 marks
Answer: D
This question in 0654/22 Feb/March 2024

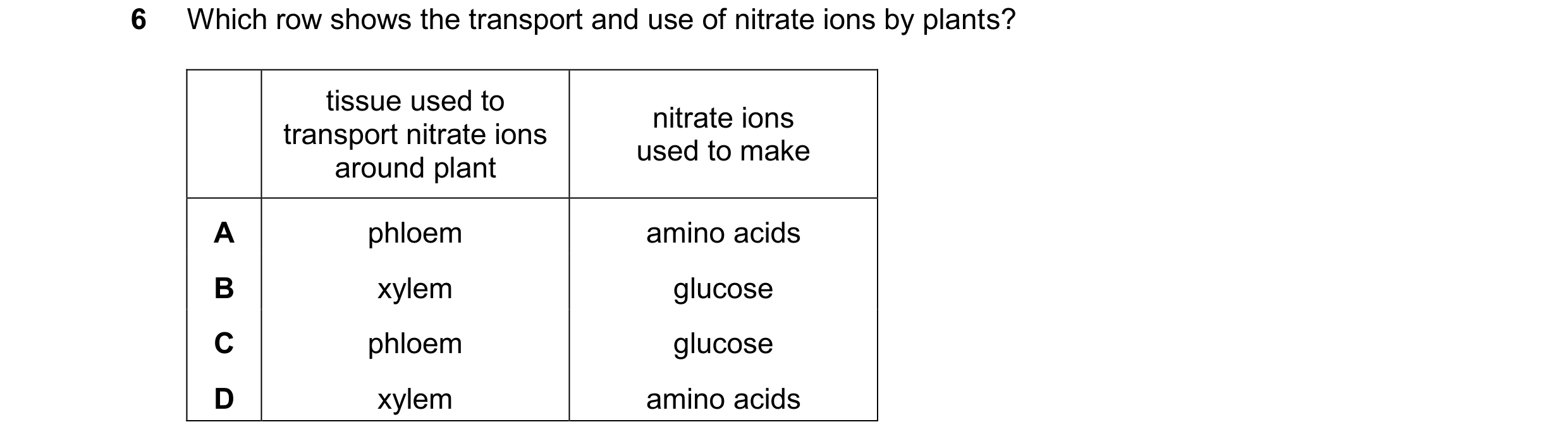

Q10 · Which row shows the transport and use of nitrate ions by plants? 0654/22 May/June 2025
6 Which row shows the transport and use of nitrate ions by plants? tissue used to nitrate ions transport nitrate ions used to make around plant A phloem amino acids B xylem glucose C phloem glucose D xylem amino acids
1 marks
Answer: D
This question in 0654/22 May/June 2025

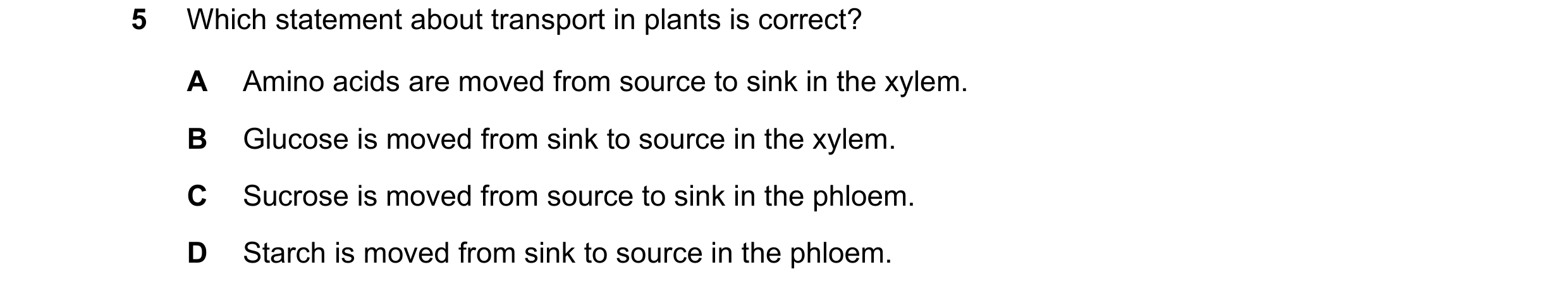

Q11 · Which statement about transport in plants is correct? 0654/23 Oct/Nov 2025
5 Which statement about transport in plants is correct? A Amino acids are moved from source to sink in the xylem. B Glucose is moved from sink to source in the xylem. C Sucrose is moved from source to sink in the phloem. D Starch is moved from sink to source in the phloem.
1 marks
Answer: C
This question in 0654/23 Oct/Nov 2025
