Differentiation — Paper 4 · A Level Mathematics 9709

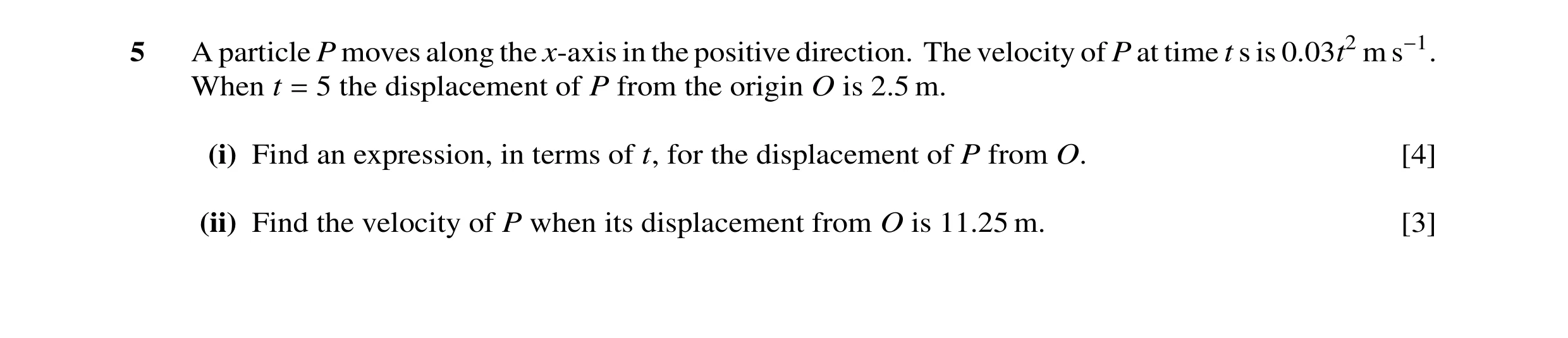

5 A particle P moves along the x-axis in the positive direction. The velocity of P at time t s is 0.03t2 m s−1. When t = 5 the displacement of P from the origin O is 2.5 m. (i) Find an expression, in terms of t, for the displacement of P from O. [4] (ii) Find the velocity of P when its displacement from O is 11.25 m. [3]

7 marks

Mark scheme: 5 (i) M1 For attempting to use x ( t ) = ∫ vdt x = 0.01t3 (+C) A1 2.5 = 0.01×53 + C DM1 For substituting x = 2.5 and t = 5 and attempting to find C x = 0.01t3 + 1.25 A1 ft 4 ft candidate’s a where x = at3 + C (ii) 0.01t3 + 1.25 = 11.25 M1 For attempting to solve x(t) = 11.25 (equation needs to be of the form at3 = b) t = 10 A1 Velocity is 3ms-1 B1ft 3 ft for value of 0.03t2

This question in 9709/41 May/June 2005

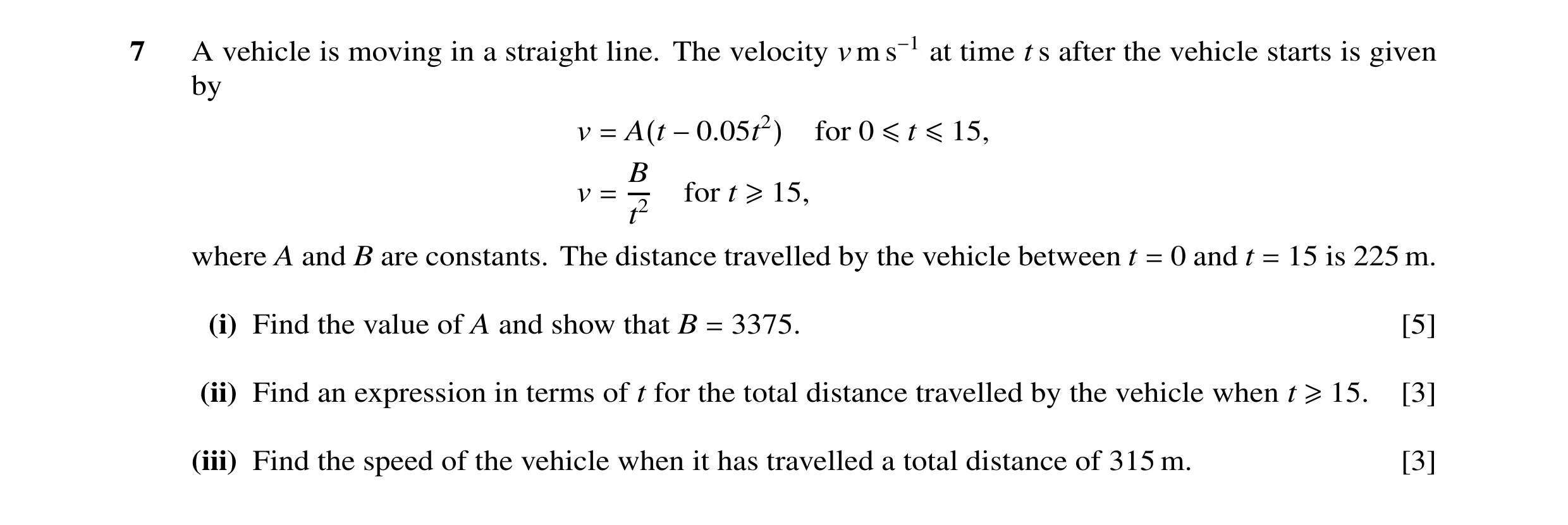

7 A vehicle is moving in a straight line. The velocity v m s−1 at time t s after the vehicle starts is given by v = A(t −0.05t2) for 0 ≤t ≤15, B v = for t ≥15, t2 where A and B are constants. The distance travelled by the vehicle between t = 0 and t = 15 is 225 m. (i) Find the value of A and show that B = 3375. [5] (ii) Find an expression in terms of t for the total distance travelled by the vehicle when t ≥15. [3] (iii) Find the speed of the vehicle when it has travelled a total distance of 315 m. [3]

11 marks

Mark scheme: 7 (i) M1 For integrating v1 to find s1 15 dt = 225 A1 1 ∫ 0 v A[(152/2 – 0.05 × 153/3) – (0 – 0)] = 225 A = 4 A1 [4(15 – 0.05 × 152) = B/152] M1 For using v1(15) = v2(15) B = 3375 A1 AG [5] (ii) s2(t) = Bt–1/(–1) (+ C) B1 [–3375/15 + C = 225] M1 For using s2(15) = 225 to find C Distance travelled is [450 – 3375/t] m A1 (for t [ 15) [3] (iii) [450 – 3375/t = 315] M1 For attempting to solve s2(t) = 315 [v = 3375/252] M1 For substituting into v = 3375/t2 Speed is 5.4 ms–1 A1 [3] Alternative for 7(ii) t − 2 1 1 s = ∫ 3375 t dt = − 3375 ( t − 15 ) B1 15 = 225 – 3375/t Distance travelled = 225 + (225 – 3375/t) M1 Distance travelled is [450 – 3375/t] m A1 (for t [ 15)

This question in 9709/41 May/June 2010

7 A car driver makes a journey in a straight line from A to B, starting from rest. The speed of the car increases to a maximum, then decreases until the car is at rest at B. The distance travelled by the car t seconds after leaving A is 0.000 011 7 400t3 −3t4 metres. (i) Find the distance AB. [3] (ii) Find the maximum speed of the car. [4] (iii) Find the acceleration of the car (a) as it starts from A, (b) as it arrives at B. [2] (iv) Sketch the velocity-time graph for the journey. [2]

11 marks

Mark scheme: 7 (i) [0.0000117(1200t2 – 12t3) For differentiating and solving ds/dt = 0 = 0] M1 1200t2 = 12t3 t = 0, 100 A1 Accept just t = 100, if it is used to find distance AB. Distance AB = 1170 m A1 [3] (ii) M1 For differentiating again and solving d2s/dt2 = 0 2400t – 36t2 = 0 t = 0, 200/3 A1 Accept just t = 200/3, if it is used to find vmax. [vmax = 0.0000117{1200(200/3)2 – 12(200/3)3}] M1 For substituting into v(t) Maximum speed is 20.8 ms–1 A1 [4] (iii) At A a(t) = 0 B1 At B a(t) = 0.0000117(2400 × 100 – 36 × 1002) = –1.40 ms–2 (–1.404 exact) B1 [2] (iv) Sketch has v increasing from 0 to maximum and decreasing to 0, with maximum closer to t = 100 than t = 0. B1 Sketch has zero gradient at t = 0 and inflexion closer to t = 0 than t = 100. B1 [2]

This question in 9709/41 May/June 2013

7 v m s−1 O t s 3 5 15 The diagram shows the velocity-time graph for the motion of a particle P which moves on a straight line BAC. It starts at A and travels to B taking 5 s. It then reverses direction and travels from B to C taking 10 s. For the first 3 s of P’s motion its acceleration is constant. For the remaining 12 s the velocity of P is v m s−1 at time t s after leaving A, where v = −0.2t2 + 4t −15 for 3 ≤t ≤15. (i) Find the value of v when t = 3 and the magnitude of the acceleration of P for the first 3 s of its motion. [3] (ii) Find the maximum velocity of P while it is moving from B to C. [3] (iii) Find the average speed of P, (a) while moving from A to B, (b) for the whole journey. [6]

12 marks

Mark scheme: 7 (i) v = – 4.8 B1 [± 4.8 = 3a] M1 For using v = 0 + at Magnitude of acceleration is 1.6 ms–2 A1 3 (ii) [–0.4t + 4 (= 0 when t = 10)] M1 For finding the value of t when dv/dt = 0 M1 For evaluating v(10) as vmax (the graph excludes the possibility of v(10) as vmin) vmax = –0.2 × 100 + 4 × 10 – 15 → Maximum velocity is 5 ms–1 A1 3 (iii) (a) Distance 0 to 3 s = ½ × 3 × 4.8 ( = 7.2) B1 d t M1 Attempt to integrate and use limits 2.0t 2 + 4t − 15 ) Distance 3 to 5s = − ∫35(− Distance = ± 4.5333…m A1 Average speed = (7.2 + 4.533) ÷ 5 = 2.35 ms–1 B1 (b) Distance BC M1 ft for errors in coefficients in cubic  2.0t 3 2  15 expression =  − + 2t − 15t  3 5   and Av speed = (AB + BC) ÷ 15 Av speed = (45.066 ÷ 15) = 3.00 ms–1 A1 6

This question in 9709/42 Oct/Nov 2014

6 A particle P moves in a straight line. It starts at a point O on the line and at time t s after leaving O it has a velocity v m s−1, where v = 6t2 −30t + 24. (i) Find the set of values of t for which the acceleration of the particle is negative. [2] (ii) Find the distance between the two positions at which P is at instantaneous rest. [4] (iii) Find the two positive values of t at which P passes through O. [3]

9 marks

Mark scheme: 6 (i) a = 12t – 30 M1 For differentiating v to find a t< 2.5 A1 [2] (ii) v = 0 at t = 1 and t = 4 B1 Using v = 6(t – 4)(t – 1) s = ∫ ( 6t 2 − 30t + 24 ) dt M1 For using integration to find s 6 3 30 2 = t − t + 24t 3 2 3 2 4 M1 For using limits s =  2t − 15t + 24t   1 Distance = 27 m A1 [4] (iii) 3 2 2t − 15t + 24t = 0 M1 State s = 0 2t 2 − 15t + 24 = 0 M1 Reduce to a quadratic and attempt to solve t = 2.31 and t = 5.19 A1 [3]

This question in 9709/41 May/June 2016

5 A particle P moves in a straight line starting from a point O and comes to rest 35 s later. At time t s after leaving O, the velocity v m s−1 of P is given by v = 45t2 0 ≤t ≤5, v = 2t + 10 5 ≤t ≤15, v = a + bt2 15 ≤t ≤35, where a and b are constants such that a > 0 and b < 0. (i) Show that the values of a and b are 49 and −0.04 respectively. [3] … … … … … … … … … … … … … … … … … … … … … (ii) Sketch the velocity-time graph. [4] v (m s−1) t (s) 0 5 10 15 20 25 30 35 (iii) Find the total distance travelled by P during the 35 s. [5] … … … … … … … … … … … … … … … …

12 marks

Mark scheme: 5(i) 0= a + b × 352 M1 For matching velocities at 40 = a + b × 152 t = 15 and using v = 0 at t = 35 [1000b = -40 → b = –0.04] M1 Solve for a and b [a = 0.04 × 352 = 49] a = 49 and b = -0.04 AG A1 Total: 3 5(ii) 0 ⩽ t ⩽ 5 correct B1 Increasing quadratic, from (0,0) to (5,20), concave up 5 ⩽ t ⩽ 15 correct B1 Line from (5,20) to (15,40) 15 ⩽ t ⩽ 35 correct B1 Decreasing quadratic, from (15,40) to (35,0), concave down 20 and 40 seen correct on v-axis B1 Total: 4 5(iii) 5 B1 2 100 0.8t d t = A1 = ∫ 0 3 1 M1 Using trapezium rule or integration for A2 = ( 20 + 40 ) × 10 = 300 t = 5 to t = 15 2 35 M1 Attempt to integrate the quadratic a + bt 2 d t function ) A3 = ∫ ( 15 from t = 15 to t = 35 0.04 3 = 49t − t 3 A3 = 453.3333 = 1360/3 A1 Total Distance = 2360/3 = 787 m A1 Total: 5

This question in 9709/42 Feb/March 2017

7 A particle starts from rest and moves in a straight line. The velocity of the particle at time t s after the start is v m s−1, where v = −0.01t3 + 0.22t2 −0.4t. (i) Find the two positive values of t for which the particle is instantaneously at rest. [2] … … … … … (ii) Find the time at which the acceleration of the particle is greatest. [3] … … … … … … … … … … … … … … … … (iii) Find the distance travelled by the particle while its velocity is positive. [4] … … … … … … … … … … … … … … … … … … … … … … … … …

9 marks

Mark scheme: 7(i) –0.01t(t2 – 22t + 40) = 0 M1 Attempting to solve v = 0 for t for a –0.01t(t – 20)(t – 2) = 0 solvable quadratic using factors or quadratic formula and obtaining two non- zero solutions t = 2 or t = 20 A1 2 7(ii) a = – 0.03t2 + 0.44t – 0.4 M1 For differentiation a is greatest (maximum) when M1 For differentiation or finding values of 0.44 – 0.06t = 0 t = t1 and t = t2 where a = 0 and using t = ½(t1 + t2) or completing the square or other method to find maximum value Max acceleration when t = 7.33 A1 22 Allow t = 3 3 7(iii) ∫− 0.01t 3 + 0.22t 2 − 0.4t d t *M1 For using integration. ( ) 0.01 4 0.22 3 2 A1 Correct Integration s ( t ) = − t + t − 0.2t Allow + C included 4 3 s ( 20 ) − s ( 2 ) DM1 Limits 2 and 20 used correctly Dependent on previous M1 having been scored Distance = 107 m A1 2673 Distance = = 106.92 25 4

This question in 9709/42 Oct/Nov 2017

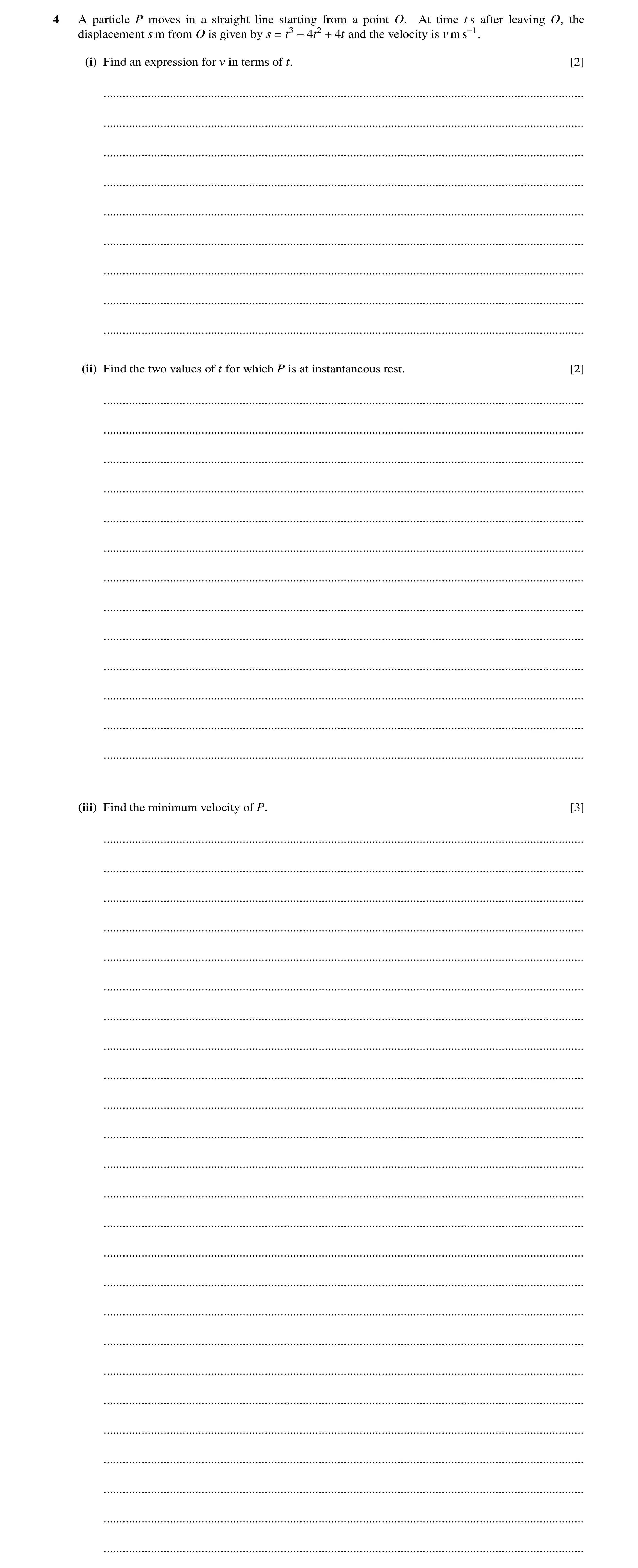

4 A particle P moves in a straight line starting from a point O. At time t s after leaving O, the displacement s m from O is given by s = t3 −4t2 + 4t and the velocity is v m s−1. (i) Find an expression for v in terms of t. [2] … … … … … … … … … (ii) Find the two values of t for which P is at instantaneous rest. [2] … … … … … … … … … … … … … (iii) Find the minimum velocity of P. [3] … … … … … … … … … … … … … … … … … … … … … … … … …

7 marks

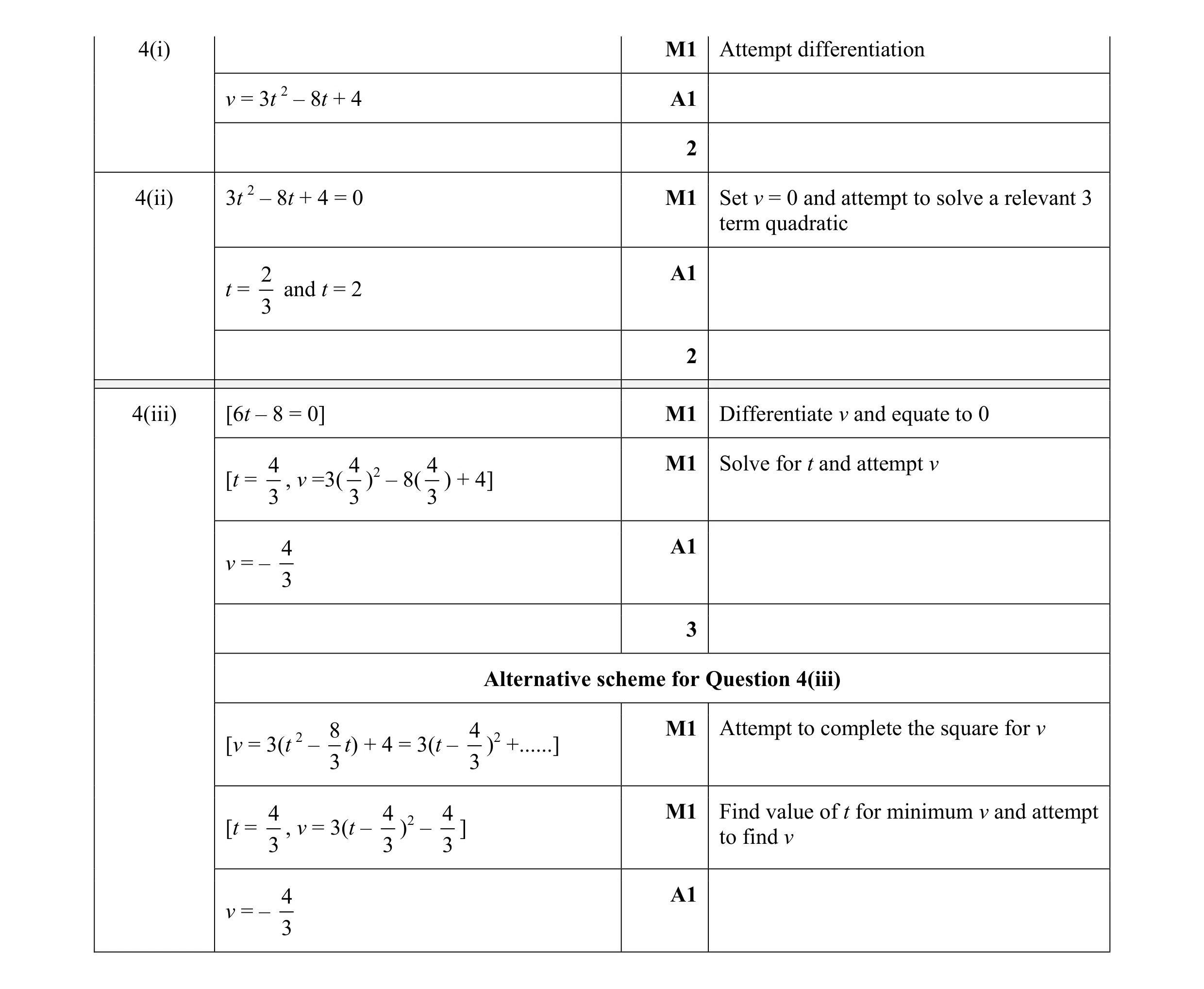

Mark scheme: 4(i) M1 Attempt differentiation v = 3t 2 – 8t + 4 A1 2 4(ii) 3t 2 – 8t + 4 = 0 M1 Set v = 0 and attempt to solve a relevant 3 term quadratic 2 A1 t = and t = 2 3 2 4(iii) [6t – 8 = 0] M1 Differentiate v and equate to 0 4 4 4 M1 Solve for t and attempt v [t = , v =3( )2 – 8( ) + 4] 3 3 3 4 A1 v = – 3 3 Alternative scheme for Question 4(iii) 8 4 M1 Attempt to complete the square for v [v = 3(t 2 – t) + 4 = 3(t – )2 + … ] 3 3 4 4 4 M1 Find value of t for minimum v and attempt [t = , v = 3(t – )2 – ] to find v 3 3 3 4 A1 v = – 3

This question in 9709/41 May/June 2018

7 A particle P moves in a straight line starting from a point O. The velocity v m s−1 of P at time t s is given by v = 12t −4t2 for 0 ≤t ≤2, v = 16 −4t for 2 ≤t ≤4. (i) Find the maximum velocity of P during the first 2 s. [3] … … … … … … … … … … … (ii) Determine, with justification, whether there is any instantaneous change in the acceleration of P when t = 2. [2] … … … … … … … … … … (iii) Sketch the velocity-time graph for 0 ≤t ≤4. [3] v (m s−1) t (s) 0 2 4 (iv) Find the distance travelled by P in the interval 0 ≤t ≤4. [5] … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …

13 marks

Mark scheme: 7(i) [ d 12 8 d v t t = − ] or e.g. [–4[(t – 1.5)2 – 2.25]] M1 For attempted differentiation of 2 12 4 t t − (or for alternative e.g. completing the square) [Maximum v when 2 1.5 12 1.5 4 1.5 t v = ⇒ = × −× ] M1 For finding and using t Maximum velocity is 9 (m s–1) A1 Total: 3 7(ii) [ d 12 8 d v t t = − = –4] M1 Finding acceleration for 0 ⩽ t ⩽ 2 when t = 2 Acceleration for 2 ⩽ t ⩽ 4 is –4 No instantaneous change A1 Both values correct, with correct statement Total: 2 Question Answer Marks Guidance 7(iii) B1 Quadratic shape (with max) for 0 ⩽ t ⩽ 2 B1 Line with negative gradient from (2, …) to (4,0) B1 All correct, smooth join and key values indicated Total: 3 7(iv) Area of triangle is 8 B1 (May be obtained by integrating 16 – 4t or use of uvast) [ 2 2 3 4 3 (12 4 ) d 6 t t t t t − = − ∫ ] M1 Integration attempt for 0 ⩽ t ⩽ 2 [ 2 3 2 3 4 4 3 3 6 2 2 6 0 0 × − × − × + × ] DM1 Use of limits 0 and 2; condone absence of zero terms Area under curve is 40 3 or 13.3 A1 Distance travelled is 64 (m) 3 or 21.3 (m) A1 Total: 5

This question in 9709/43 May/June 2018

5 A particle P moves in a straight line from a fixed point O. The velocity v m s−1 of P at time t s is given by v = t2 −8t + 12 for 0 ≤t ≤8. (i) Find the minimum velocity of P. [3] … … … … … … … … … … … … (ii) Find the total distance travelled by P in the interval 0 ≤t ≤8. [7] … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …

10 marks

Mark scheme: 5(i) a = 2t - 8 M1 Differentiate to find a a = 0 → t = 4 M1 Set a = 0 and solve for t Minimum v = –4 ms-1 A1 Full marks available for correct use of a v-t graph or correct use of “t = -b/2a” Alternative method for question 5(i) v = (t – 4)2 – 4 M1 Attempt to complete the square for v [t = 4] M1 Choose the t value which gives minimum v Minimum v = –4 ms–1 A1 3 5(ii) v = 0 when (t – 2)(t – 6) = 0 M1 Find values of t when v = 0, factorise or formula t = 2 or t = 6 A1 [s = ⅓ t3 – 4t2 + 12t (+c)] M1 Integrate v to find s A1 Correct integration 0 ≤ t ≤ 2 s1 = 8/3 – 16 + 24 = 32/3 2 ≤ t ≤ 6 s2 = (216/3 – 144 + 72) – (8/3 – 16 + 24)= -32/3 6 ≤ t ≤ 8 s3 = (512/3 – 4 × 82 + 12 × 8) – (216/3 – 144 + 72) = 32/3 M1 Attempt to find s1, s2 and s3 Look for consideration of the need for 3 intervals Allow use of symmetry when finding s1, and s3 A1 2 correct values of displacement Total distance = 32 m A1 All correct 7

This question in 9709/41 May/June 2019

7 Particles P and Q leave a fixed point A at the same time and travel in the same straight line. The velocity of P after t seconds is 6t t −3 m s−1 and the velocity of Q after t seconds is 10 −2t m s−1. (i) Sketch, on the same axes, velocity-time graphs for P and Q for 0 ≤t ≤5. [3] (ii) Verify that P and Q meet after 5 seconds. [4] … … … … … … … … … … … … … … … … … (iii) Find the greatest distance between P and Q for 0 ≤t ≤5. [4] … … … … … … … … … … … … … … … … … …

11 marks

Mark scheme: 7(i) Straight line, reaching positive v-axis and positive t-axis (negative gradient) B1 Quadratic (U shape, through (0,0) and cutting t-axis at t < 5) B1 Fully correct graphs with correct labelling with t = 3, t = 5, v = 10, v = 60 seen B1 3 7(ii) ( ) 2 10 2 d 10 = ∫ − = − s t t t t (+ c) or use area of a triangle ½ × 10 × 5 [= 25] B1 Use either integration to find s for Q or use a correct formula to find the area under the relevant triangle M1 Use integration to find the displacement for P ( ) ( ) 2 3 2 6 18 d 2 9 = ∫ − = − + s t t t t t c A1 Correct integration for P (unsimplified) ( ) 5 3 2 0 2 9 25   = − =   s P t t or solve 2 3 2 10 2 9 − = − t t t t B1 Either evaluation of s(P) at t = 5 and show that at t = 5, s(P) = s(Q) = 25 or show that t = 5 is a solution of the cubic by solving or verify t = 5 is a solution of the cubic by substitution. 4 Question Answer Marks Guidance 7(iii) Distance PQ = |sP – sQ| = ±(2t 3 – 8t 2 – 10t) M1 Find the distance between P and Q Allow either sign sP and sQ must have been found by integration Maximum s if 6t 2 – 16t – 10 = 0 M1 Differentiate to obtain an equation in t and attempt to solve t = 3.19 A1 Maximum Distance PQ = (–)48.4 m A1 Alternative method for question 7(iii) 6t 2 – 18t = 10 – 2t M1 State that greatest distance between P and Q occurs when vP = vQ 6t 2 – 16t – 10 = 0 M1 Rearrange and attempt to solve for t t = 3.19 A1 Maximum Distance PQ = (–)48.4 m A1 4

This question in 9709/42 May/June 2019

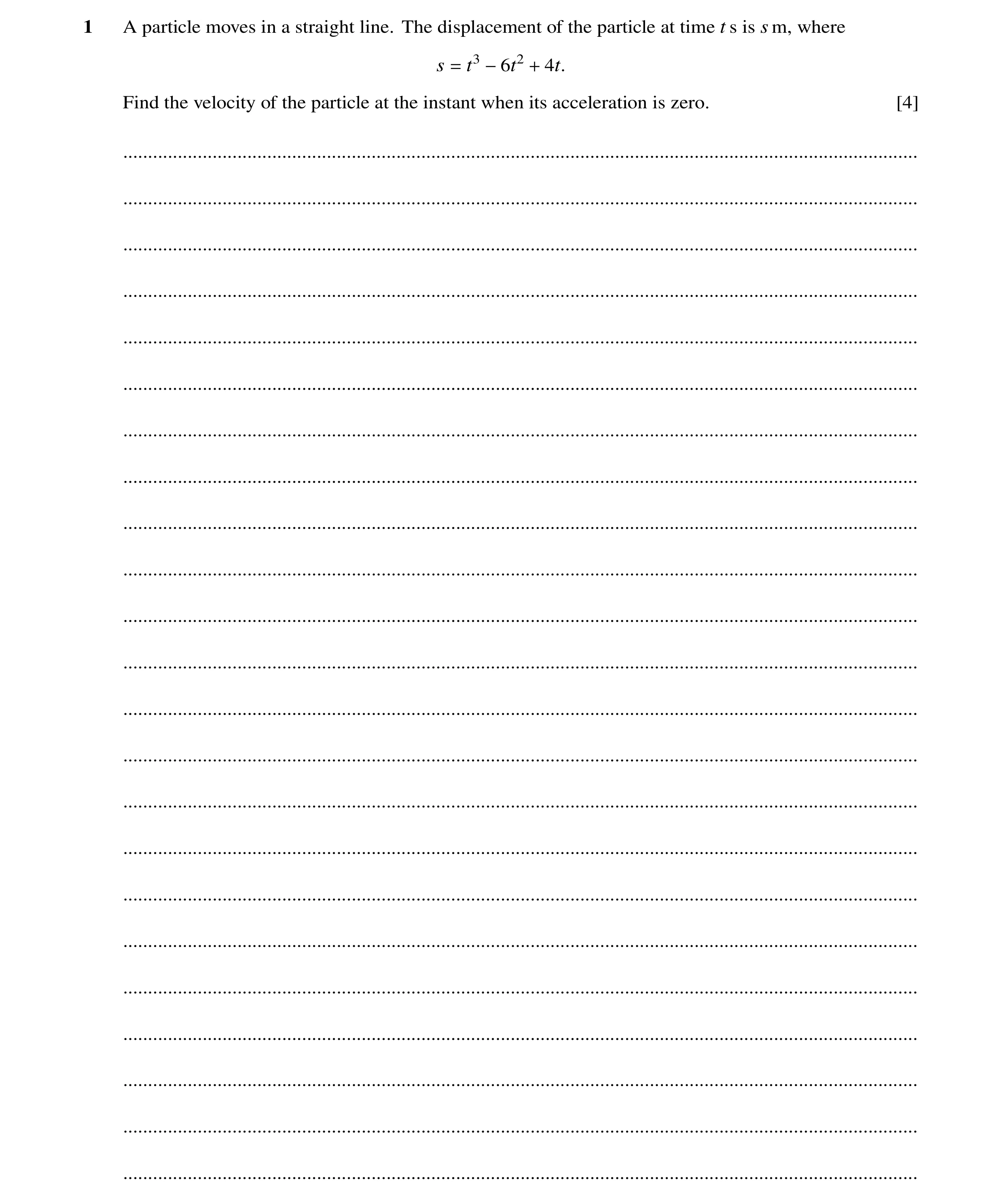

1 A particle moves in a straight line. The displacement of the particle at time t s is s m, where s = t3 −6t2 + 4t. Find the velocity of the particle at the instant when its acceleration is zero. [4] … … … … … … … … … … … … … … … … … … … … … … …

4 marks

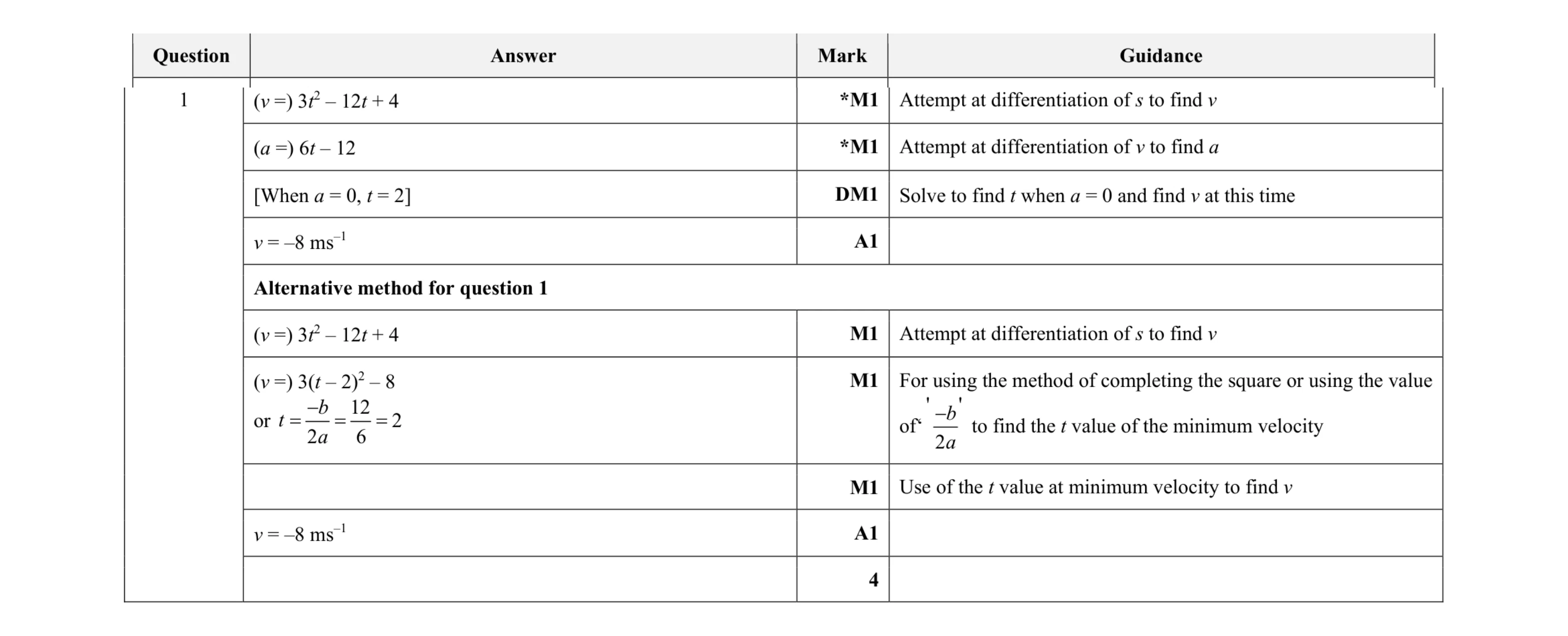

Mark scheme: 1 *M1 Attempt at differentiation of s to find v (a =) 6t – 12 *M1 Attempt at differentiation of v to find a [When a = 0, t = 2] DM1 Solve to find t when a = 0 and find v at this time v = –8 ms–1 A1 Alternative method for question 1 (v =) 3t2 – 12t + 4 M1 Attempt at differentiation of s to find v (v =) 3(t – 2)2 – 8 or 12 2 2 6 − = = = b t a M1 For using the method of completing the square or using the value of‘ ' ' 2 b a − to find the t value of the minimum velocity M1 Use of the t value at minimum velocity to find v v = –8 ms–1 A1 4

This question in 9709/42 Oct/Nov 2019

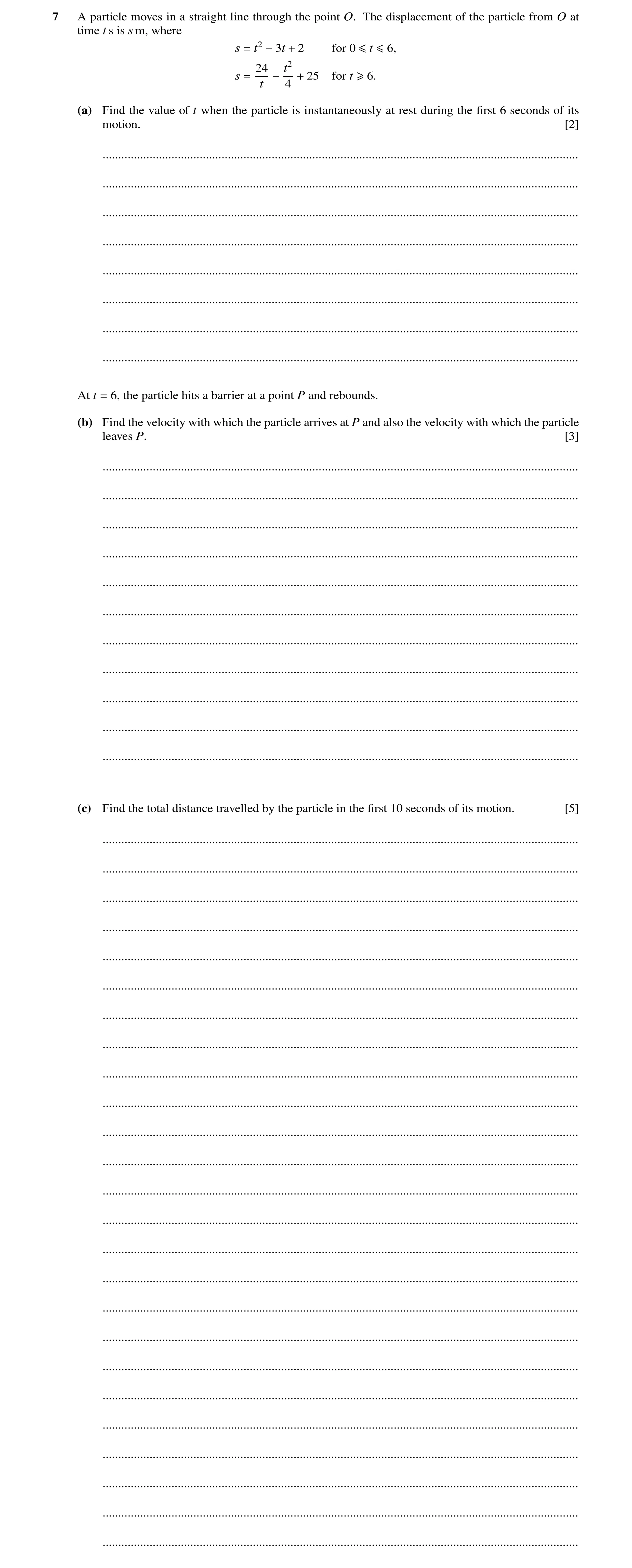

7 A particle moves in a straight line through the point O. The displacement of the particle from O at time t s is s m, where s = t2 −3t + 2 for 0 ≤t ≤6, 24 s = −t2 + 25 for t ≥6. t 4 (a) Find the value of t when the particle is instantaneously at rest during the first 6 seconds of its motion. [2] … … … … … … … … At t = 6, the particle hits a barrier at a point P and rebounds. (b) Find the velocity with which the particle arrives at P and also the velocity with which the particle leaves P. [3] … … … … … … … … … … … (c) Find the total distance travelled by the particle in the first 10 seconds of its motion. [5] … … … … … … … … … … … … … … … … … … … … … … … … …

10 marks

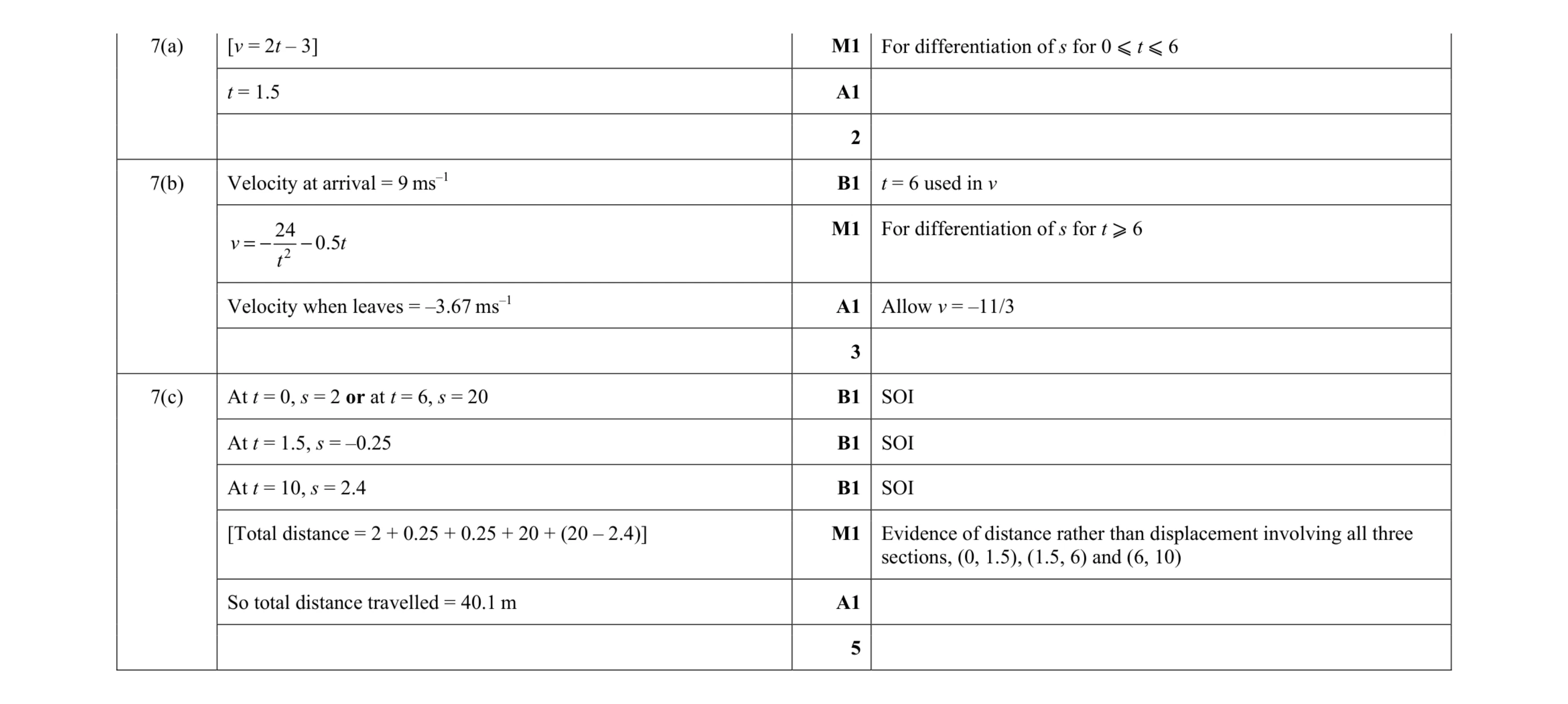

Mark scheme: 7(a) [v = 2t – 3] t = 1.5 A1 2 7(b) Velocity at arrival = 9 ms–1 B1 t = 6 used in v 2 24 0.5 v t t = − − M1 For differentiation of s for t ⩾ 6 Velocity when leaves = –3.67 ms–1 A1 Allow v = –11/3 3 7(c) At t = 0, s = 2 or at t = 6, s = 20 B1 SOI At t = 1.5, s = –0.25 B1 SOI At t = 10, s = 2.4 B1 SOI [Total distance = 2 + 0.25 + 0.25 + 20 + (20 – 2.4)] M1 Evidence of distance rather than displacement involving all three sections, (0, 1.5), (1.5, 6) and (6, 10) So total distance travelled = 40.1 m A1 5

This question in 9709/42 Feb/March 2020

6 A particle moves in a straight line AB. The velocity v m s−1 of the particle t s after leaving A is given by v = k t2 −10t + 21 , where k is a constant. The displacement of the particle from A, in the direction towards B, is 2.85 m when t = 3 and is 2.4 m when t = 6. (a) Find the value of k. Hence find an expression, in terms of t, for the displacement of the particle from A. [7] … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … (b) Find the displacement of the particle from A when its velocity is a minimum. [4] … … … … … … … … … … … … … … … … …

11 marks

Mark scheme: 6(a) ( ) 2 10 21 d k t t t − + M1 3 2 1 5 21 C 3 s k t t t   = + + +     A1 3 2 1 2.85 3 5 3 21 3 C 3 k   = × −× + × +     or 3 2 1 2.4 6 5 6 21 6 C 3 k   = × −× + × +     M1 2.85 = 27k + C, 2.4 = 18k + C (A1 for both) A1 Solving for k M1 k = 0.05 A1 3 2 1 0.05 5 21 1.5 3 s t t t   = − + +     A1 7 6(b) Differentiating v or completing the square for v M1 a = 0.05(2t –10) A1 Min value of v is at t = 5. M1 Displacement at t = 5 is 2.58 m (2.5833...) A1 4

This question in 9709/41 May/June 2020

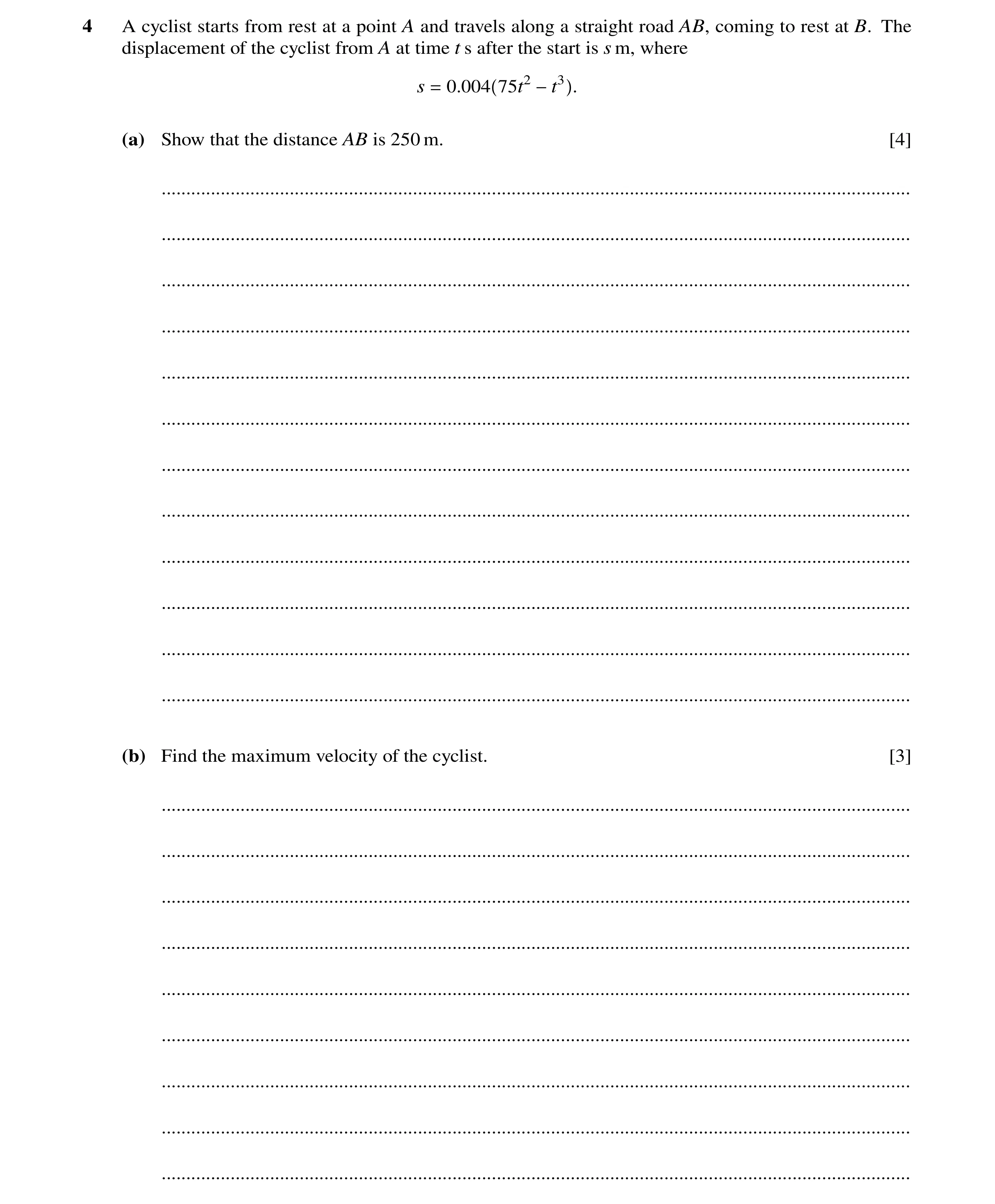

4 A cyclist starts from rest at a point A and travels along a straight road AB, coming to rest at B. The displacement of the cyclist from A at time t s after the start is s m, where s = 0.004 75t2 −t3 . (a) Show that the distance AB is 250 m. [4] … … … … … … … … … … … … (b) Find the maximum velocity of the cyclist. [3] … … … … … … … … …

7 marks

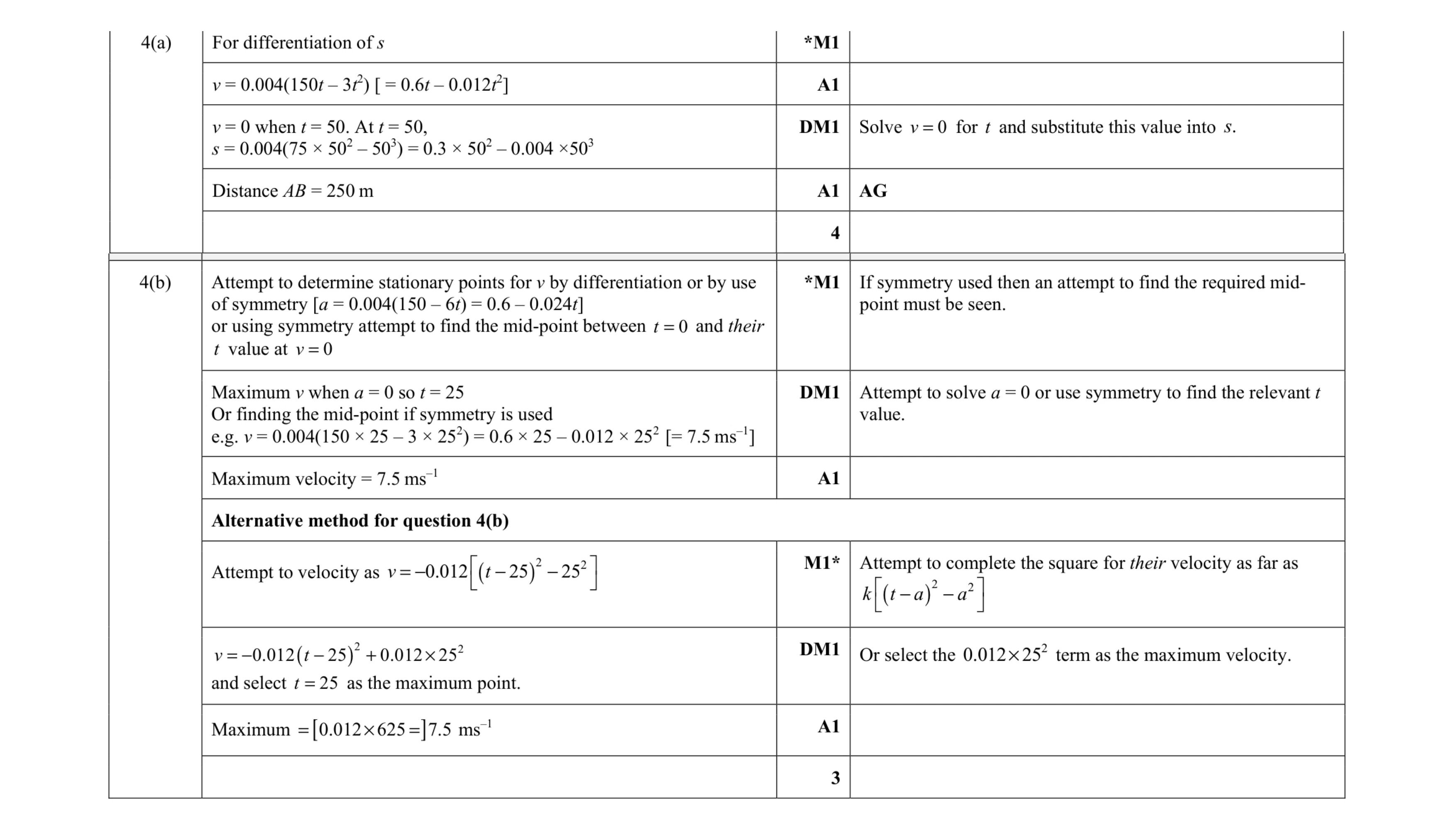

Mark scheme: 4(a) For differentiation of s *M1 v = 0.004(150t – 3t2) [ = 0.6t – 0.012t2] A1 v = 0 when t = 50. At t = 50, s = 0.004(75 × 502 – 503) = 0.3 × 502 – 0.004 ×503 DM1 Solve 0 = v for t and substitute this value into .s Distance AB = 250 m A1 AG 4 Question Answer Marks Guidance 4(b) Attempt to determine stationary points for v by differentiation or by use of symmetry [a = 0.004(150 – 6t) = 0.6 – 0.024t] or using symmetry attempt to find the mid-point between 0 = t and their t value at 0 = v *M1 If symmetry used then an attempt to find the required mid- point must be seen. Maximum v when a = 0 so t = 25 Or finding the mid-point if symmetry is used e.g. v = 0.004(150 × 25 – 3 × 252) = 0.6 × 25 – 0.012 × 252 [= 7.5 ms–1] DM1 Attempt to solve a = 0 or use symmetry to find the relevant t value. Maximum velocity = 7.5 ms–1 A1 Alternative method for question 4(b) Attempt to velocity as ( ) 2 2 0.012 25 25   = − − −   v t M1* Attempt to complete the square for their velocity as far as ( ) 2 2   − −   k t a a ( ) 2 2 0.012 25 0.012 25 = − − + × v t and select 25 = t as the maximum point. DM1 Or select the 2 0.012 25 × term as the maximum velocity. Maximum [ ] 0.012 625 7.5 = × = ms–1 A1 3

This question in 9709/42 Oct/Nov 2021

7 A particle P travels in a straight line, starting at rest from a point O. The acceleration of P at time t s after leaving O is denoted by ams−2, where 1 a = 0.3t 2 for 0 ≤t ≤4, a = −kt−3 2 for 4 < t ≤T, where k and T are constants. (a) Find the velocity of P at t = 4. [2] … … … … … … … (b) It is given that there is no change in the velocity of P at t = 4 and that the velocity of P at t = 16 is 0.3ms−1. Show that k = 2.6 and find an expression, in terms of t, for the velocity of P for 4 ≤t ≤T. [4] … … … … … … … … … … … … (c) Given that P comes to instantaneous rest at t = T, find the exact value of T. [2] … … … … … … … (d) Find the total distance travelled between t = 0 and t = T. [4] … … … … … … … … … … … … … … … … …

12 marks

Mark scheme: 7(a) 0.3 32  32  M1 For integration (do not penalise missing c) v = t ( + c )  = 0.2t ( + c )  The power of t must increase by 1 with a change of 1.5   coefficient. Use of v = at scores M0.  8  A1 ISW any extra work using the second equation for a. Velocity = 1.6 = ms−1    5  2 17(b) −  *M1 For integration. No need for constant. Allow use of − k − 12  2 v = t  + d   = 2 kt  + d   given value of k = 2.6 . −0.5   The power of t must increase by 1 with a change of coefficient. Use of v = at scores M0. 1 −  A1 FT For both equations in k and d ( Allow unsimplified ) . − k − 12  2 Their 1.6 =  4 + d  = 2 k  4 + d  Their 1.6 = k + d  −0.5   −   k  − k − 12  1 2 0.3 =  16 + d  = 2 k  16 + d   0.3 = + d  −0.5    2  Attempt to solve for k or d DM1 Or substitute k = 2.6 into both equations and solve both for d (with d  0 ). Must get to ‘ k = ’ or ‘ d = ’. 1 − −2.6 − 12 A1 AG (AG for k, not for the expression). 2 k = 2.6 v =  5.2t − 1 or  v =  t − 1 Allow unsimplified expression for v and/or in terms of −0.5 k. If k is substituted then both equations must be shown 1 − to give a value of d = −1 and getting v = 5.2t 2 − 1 SC B1 for solving the correct equations simultaneously with no working seen and getting correct expression for v . SC A1 for correct expression for v if only the first M1 is scored. 7(b) Alternative method for question 7(b) from using limits 1 −  *M1 For integration No need for constant. Allow use of − k − 12  2 v = t  + d   = 2 kt  + d   given value of k = 2.6 . −0.5   The power of t must increase by 1 with a change of coefficient. Use of v = at scores M0. 1 1 1 − − − A1 FT OE For correct unsimplified equation in k from using − k − 12 − k 2 2 2  4 −  16 = 1.6 − 0.3 or 2 k  4 − 2 k  16 = 1.6 − 0.3 limits for v as their 1.6 and 0.3 and limits for t as 4 and −0.5 −0.5 16. Attempt to solve for k DM1 Must be an equation using 0.3 and their k, and 16 and 4, Must be subtracting the limits to form the equation in k , but may have sign errors in their 1.6 − 0.3 . 1 − 2 −2.6 − 12 A1 AG (AG for k, not for the expression). k = 2.6, v = 5.2t − 1 or v = t − 1 Allow unsimplified expression for v and/or in terms of −0.5 k. 4 7(c) − 1 M1 For solving for T. Must get to ‘ T = ’. Must come from 5.2T 2 − their 1 = 0 integration, with their 1 from part (b) or found here not equal to zero. Do not allow made up value of d. 676 A1 OE Must be exact. Allow both marks as long as T = or 27.04 expression for v is correct, however obtained in 25 Q7(b). 2 3 1 3 5 1 17(d) 4 M1 − 27.04   0.2 5.2 For integration of 0.2t 2 oe or 5.2t −− 0.2t 2 dt = t 2 or 2 − their 1 t 2 − their 1  t  5.2t  dt =  2.5    0.5 2 their 1 . May 0 4   be in terms of k. Not from any other expression. Their 1 may be zero (or replaced by zero). Their 1 may came from either part (b) or part (c) The power of t must increase by 1 with a change of coefficient in at least one term. 4 5 1 27.04  5 4 1 27.04  A1ft For both integrals (unsimplified) No need for limits         0.2 5.2  FT non-zero value of d. May be in terms of k. = t 2 t 2 − t  =   +    0.08t 2  + 10.4t 2 − t  Their 1 may came from either part (b) or part (c).  2.5  0  0.5  4     0   4  = 0.08  32 + (10.4  5.2 − 27.04 ) − (10.4  2 − 4 )  = 2.56 + 10.24  M1 For correct use of limits (0 and 4 then 4 and their 27.04) in both of their integrals, which have come from 3 1 integration of 0.2t 2 and 5.2t −− 2 their 1 . Not from any other expression. Their 1 may be zero (or replaced by zero). Their 1 may came from either part (b) or part (c). Allow M1 for d = 0 (the final answer is 35.8 ). 64 A1 oe Awrt 12.8 Allow if using 27(.0) rather than 27.04 = or 12.8 Allow all 4 marks as long as expression for v is 5 correct, however obtained in Q7(b). 7(d) SC for using a calculator to integrate. 4 3 B1 AWRT 2.56 Either 0.2t 2 dt = 2.56 Allow 10.2  0 Must use 27.04 or 27(.0) if latter integral. 27.04  − 1  Or   5.2t 2 − 1  dt = 10.24 4   Total distance = 12.8 m B1 AWRT 12.8. Allow if using 27(.0) rather than 27.04 Allow both B marks as long as expression for v is correct, however obtained in Q7(b). 4

This question in 9709/42 Oct/Nov 2022

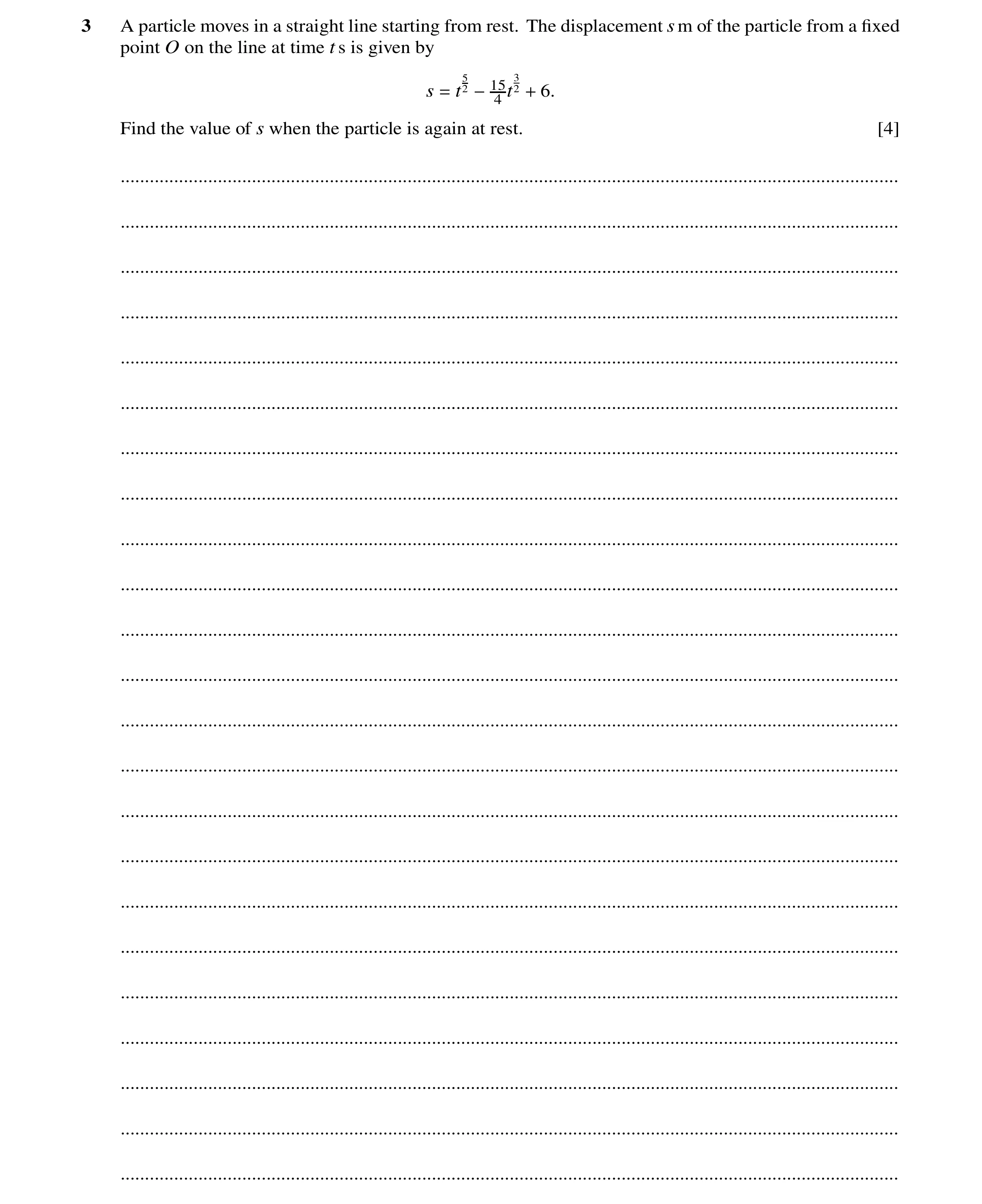

3 A particle moves in a straight line starting from rest. The displacement sm of the particle from a fixed point O on the line at time t s is given by 5 3 2 + 6. s = t 2 −15 t 4 Find the value of s when the particle is again at rest. [4] … … … … … … … … … … … … … … … … … … … … … … …

4 marks

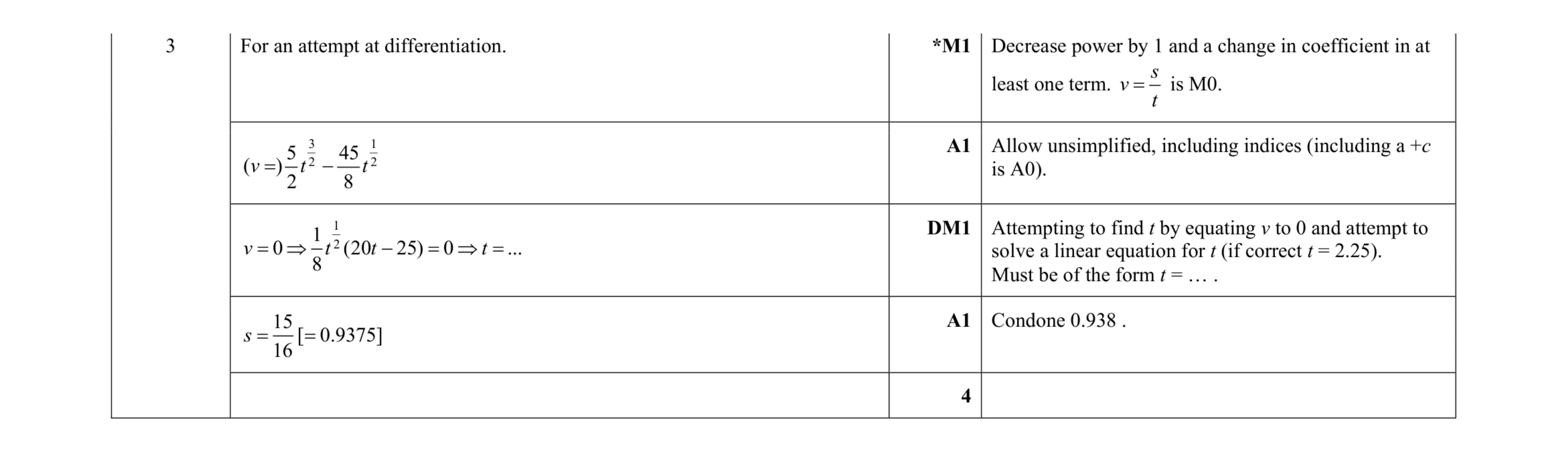

Mark scheme: 3 *M1 Decrease power by 1 and a change in coefficient in at least one term. s v t is M0. 3 1 2 2 5 45 ( ) 2 8   v t t A1 Allow unsimplified, including indices (including a +c is A0). 1 2 1 0 (20 25) 0 ... 8      v t t t DM1 Attempting to find t by equating v to 0 and attempt to solve a linear equation for t (if correct t = 2.25). Must be of the form t = … . 15 [ 0.9375] 16   s A1 Condone 0.938 . 4

This question in 9709/41 May/June 2023

4 A particle travels in a straight line. The velocity of the particle at time t s after leaving a point O is v m s -1 , where v = kt 2 - t4 + 3 . The distance travelled by the particle in the first 2 s of its motion is 6 m. You may assume that v 2 0 in the first 2 s of its motion. (a) Find the value of k. [4] … … … … … … … … … … … … … (b) Find the value of the minimum velocity of the particle. You do not need to show that this velocity is a minimum. [3] … … … … … … … … …

7 marks

Mark scheme: 4(a) For attempt at integration M1* The power of t must increase by 1 with a change of coefficient in the same term. Use of  s vt scores M0.   2 1 1 1 3 2 1 4 1 3 2 3 2 1 2 3                kt t t kt t t c A1 Allow unsimplified.   3 2 1 2 2 2 3 2 0 6 3       k DM1 Use of limits 0 and 2 with 6 to form an equation in k only (without c but allow with  c c ). 3  k A1 4 Question Answer Marks Guidance 4(b) 2 3 4   t Or at min value 4 2 2 3     b t a M1 For attempt at differentiation. Must have expression of the form  at b with 3, a  unless their k = 3 2 . Allow 2 4. kt    2 3 4 0     t 2 3  t A1FT OE FT their k 2 . t their k  Allow without working. 2 2 2 5 3 4 3 3 3 3                   v m s-1 A1 OE Allow 1.67 or better for v. Alternative Method for Question 4(b): Using completing the square Attempt at completing the square (M1) Must have 2 2 3 t       OE, or 2 . 2 t their k        2 2 4 3 3 3 3          t (A1FT) FT their k 2 2 4 3. k t k k          5 3  v m s-1 (A1) OE Allow 1.67 or better. 3

This question in 9709/43 May/June 2024

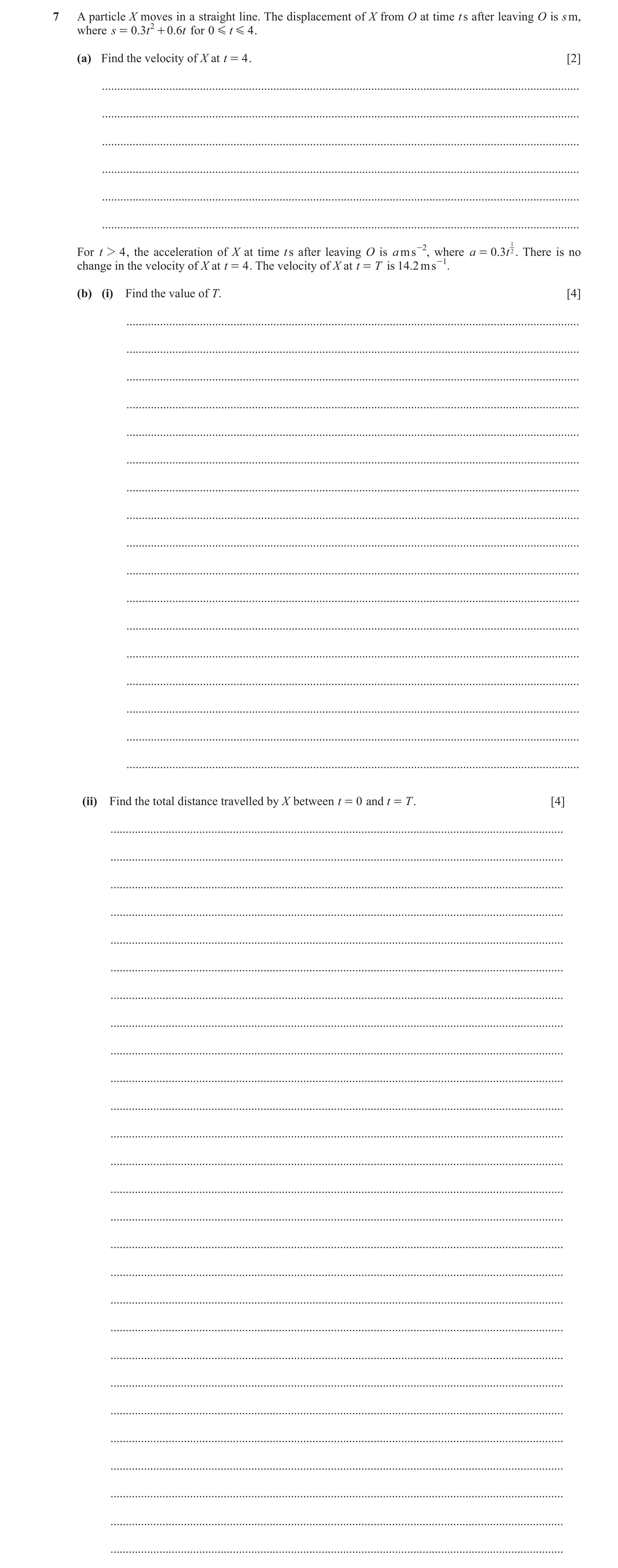

7 A particle X moves in a straight line. The displacement of X from O at time t s after leaving O is s m, where s = 0.3t 2 + 0.6t for 0 G t G 4 . (a) Find the velocity of X at t = 4 . [2] … … … … … … -2 21 For t 2 4 , the acceleration of X at time t s after leaving O is a ms , where a = 0.3 t . There is no change in the velocity of X at t = 4 . The velocity of X at t = T is 14.2 ms -1 . (b) (i) Find the value of T. [4] … … … … … … … … … … … … … … … … … (ii) Find the total distance travelled by X between t = 0 and t = T . [4] … … … … … … … … … … … … … … … … … … … … … … … … … … …

10 marks

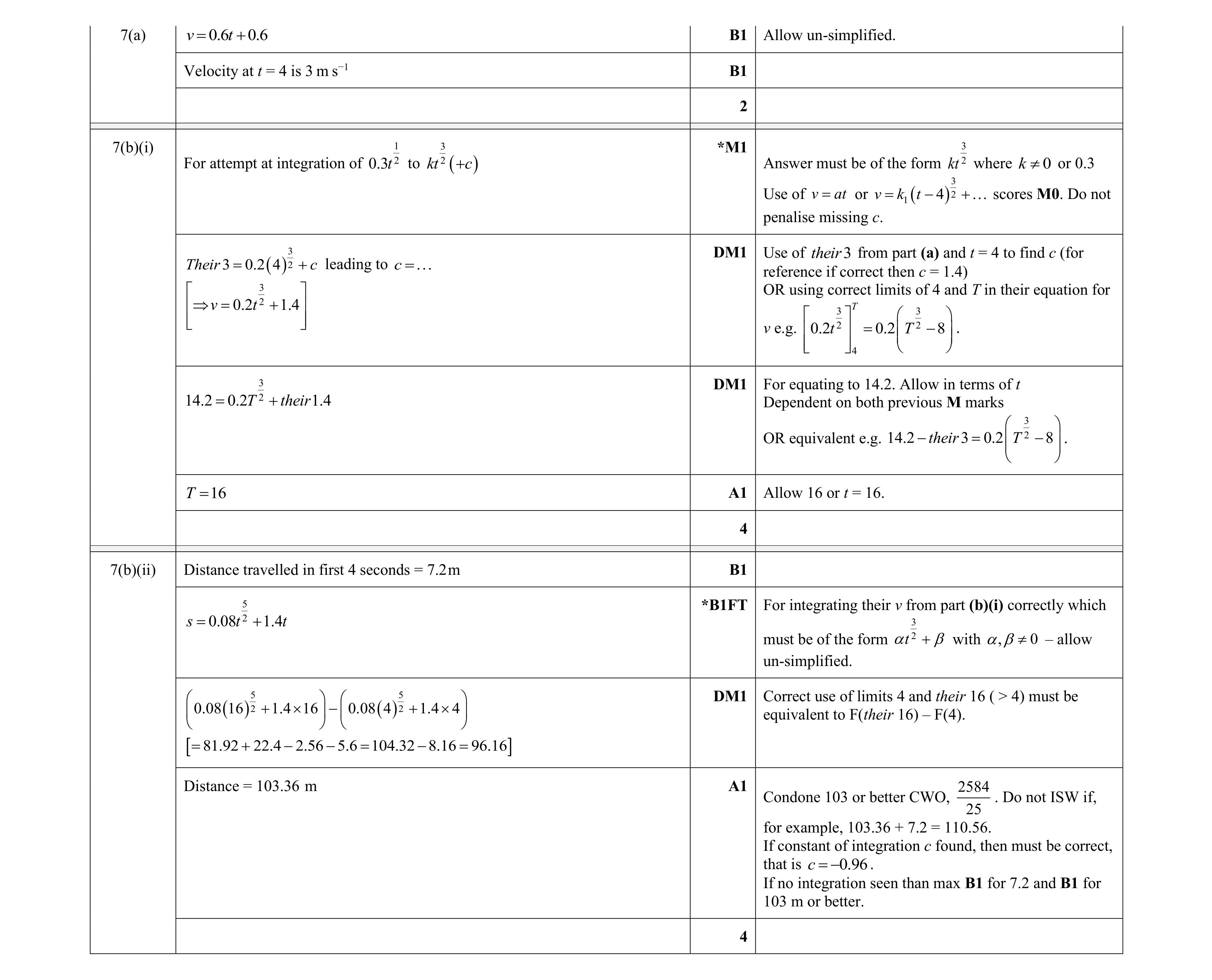

Mark scheme: 7(a) v = 0.6t + 0.6 B1 Allow un-simplified. Velocity at t = 4 is 3 m s−1 B1 2 7(b)(i) 1 3 *M1 3 2 where k  0 or 0.3 For attempt at integration of 0.3t 2 to kt 2 ( + c ) Answer must be of the form kt 3 2 + scores M0. Do not Use of v = at or v = k1 ( t − 4 ) penalise missing c. 3 DM1 Use of their 3 from part (a) and t = 4 to find c (for 2 + c leading to c = Their 3 = 0.2 ( 4 ) reference if correct then c = 1.4)  3  OR using correct limits of 4 and T in their equation for T  =v 0.2t 2 + 1.4  3    3    2 2 v e.g.  0.2t  = 0.2  T − 8  .     4   3 DM1 For equating to 14.2. Allow in terms of t 14.2 = 0.2T 2 + their 1.4 Dependent on both previous M marks  3  OR equivalent e.g. 14.2 − their 3 = 0.2  T 2 − 8  .     T = 16 A1 Allow 16 or t = 16. 4 7(b)(ii) Distance travelled in first 4 seconds = 7.2 m B1 5 *B1FT For integrating their v from part (b)(i) correctly which s = 0.08t 2 + 1.4t 3 must be of the form t 2 +  with , 0 – allow un-simplified.  5   5  DM1 Correct use of limits 4 and their 16 ( > 4) must be 2 + 1.4  16 − 2 + 1.4  4 16 ) 4 )  0.08 (   0.08 (  equivalent to F(their 16) – F(4).      = 81.92 + 22.4 − 2.56 − 5.6 = 104.32 − 8.16 = 96.16 Distance = 103.36 m A1 2584 Condone 103 or better CWO, . Do not ISW if, 25 for example, 103.36 + 7.2 = 110.56. If constant of integration c found, then must be correct, that is c = −0.96 . If no integration seen than max B1 for 7.2 and B1 for 103 m or better. 4

This question in 9709/43 May/June 2025
