Cambridge A Level Mathematics 9709 — 2017 Feb/March Paper 4 · Variant 2

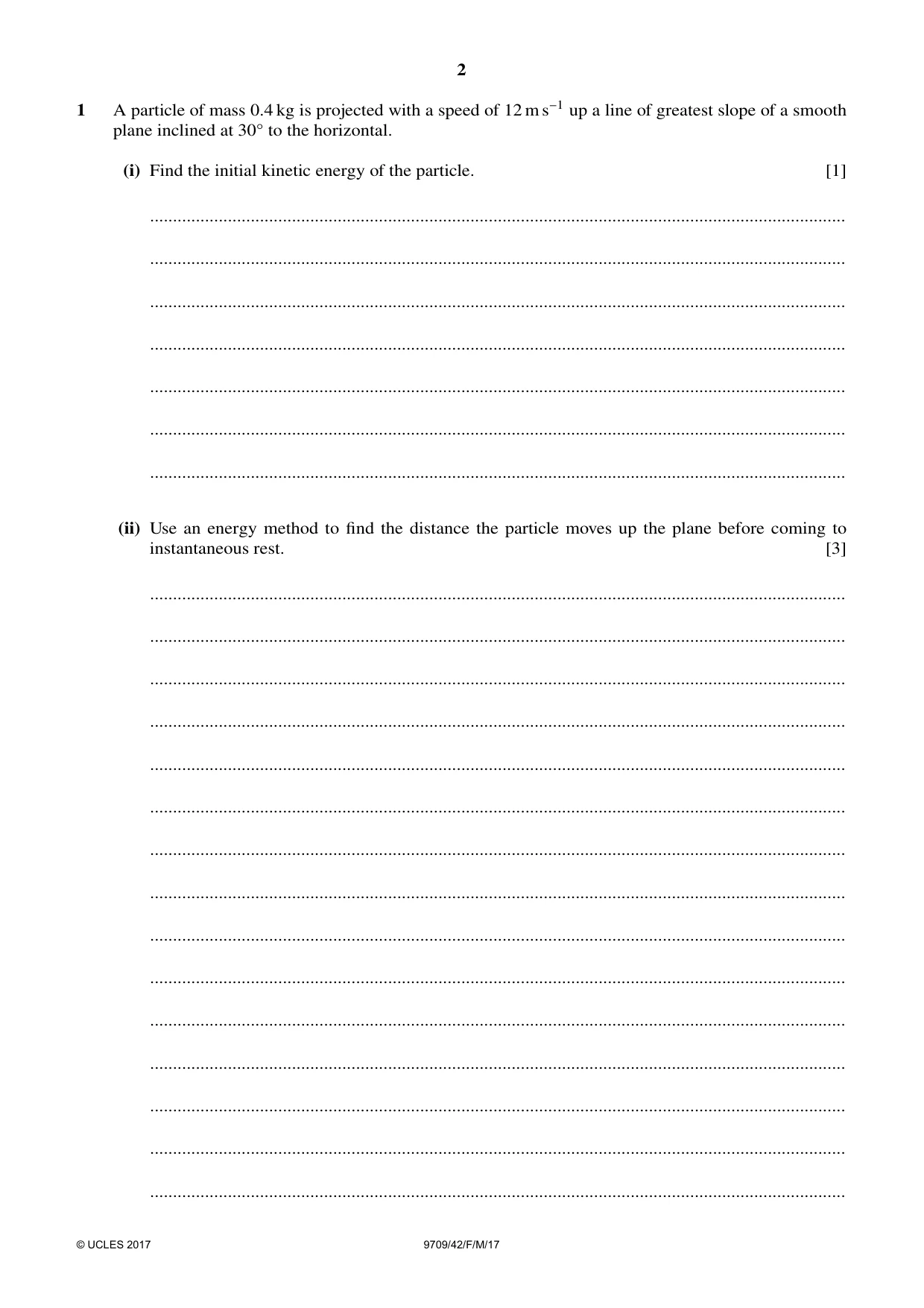

1 A particle of mass 0.4 kg is projected with a speed of 12 m s−1 up a line of greatest slope of a smooth plane inclined at 30Å to the horizontal. (i) Find the initial kinetic energy of the particle. [1] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Use an energy method to find the distance the particle moves up the plane before coming to instantaneous rest. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

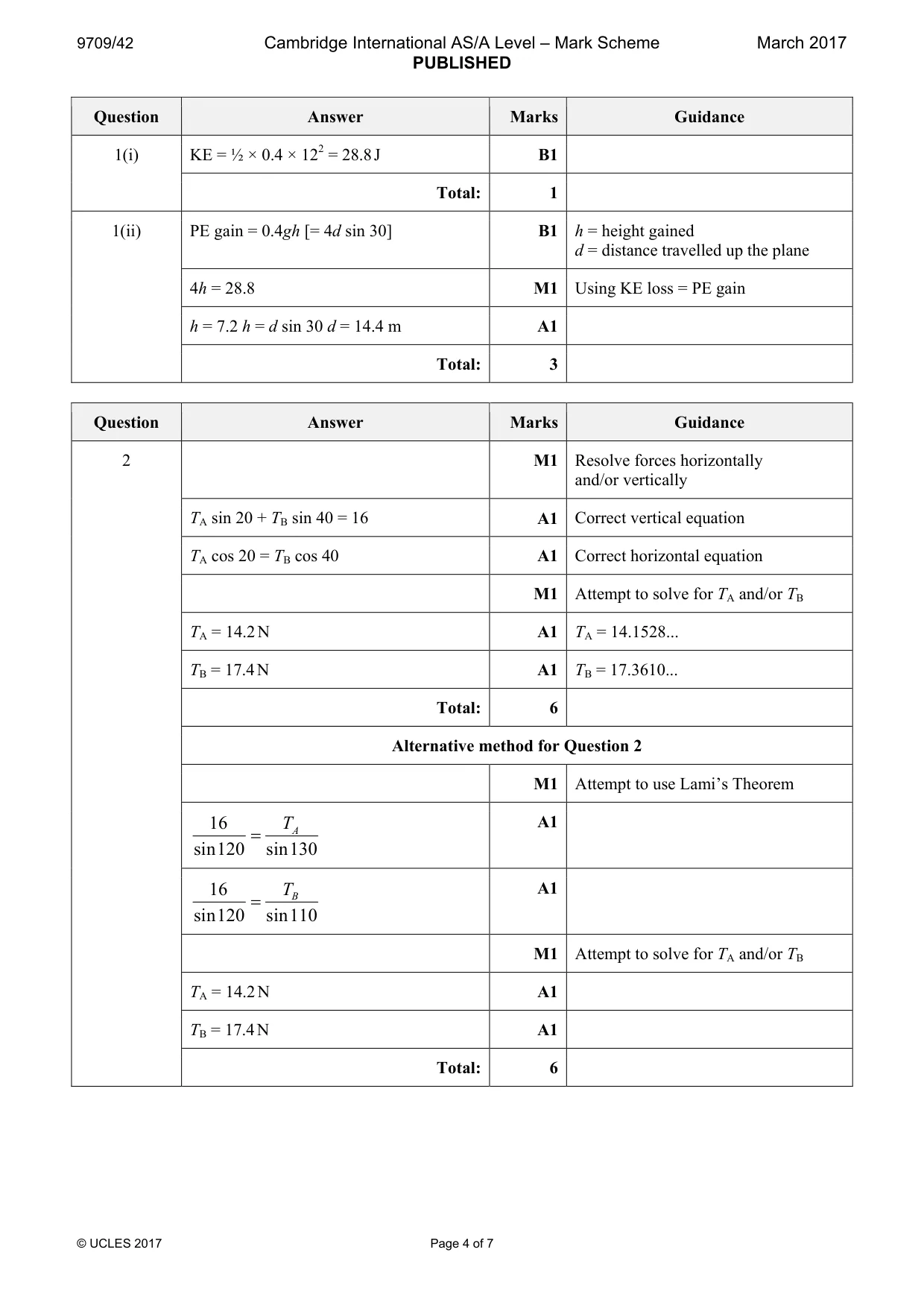

Mark scheme: Question Answer Marks Guidance 1(i) KE = ½ × 0.4 × 122 = 28.8 J B1 Total: 1 1(ii) PE gain = 0.4gh [= 4d sin 30] B1 h = height gained d = distance travelled up the plane 4h = 28.8 M1 Using KE loss = PE gain h = 7.2 h = d sin 30 d = 14.4 m A1 Total: 3

More questions on Energy, work and power

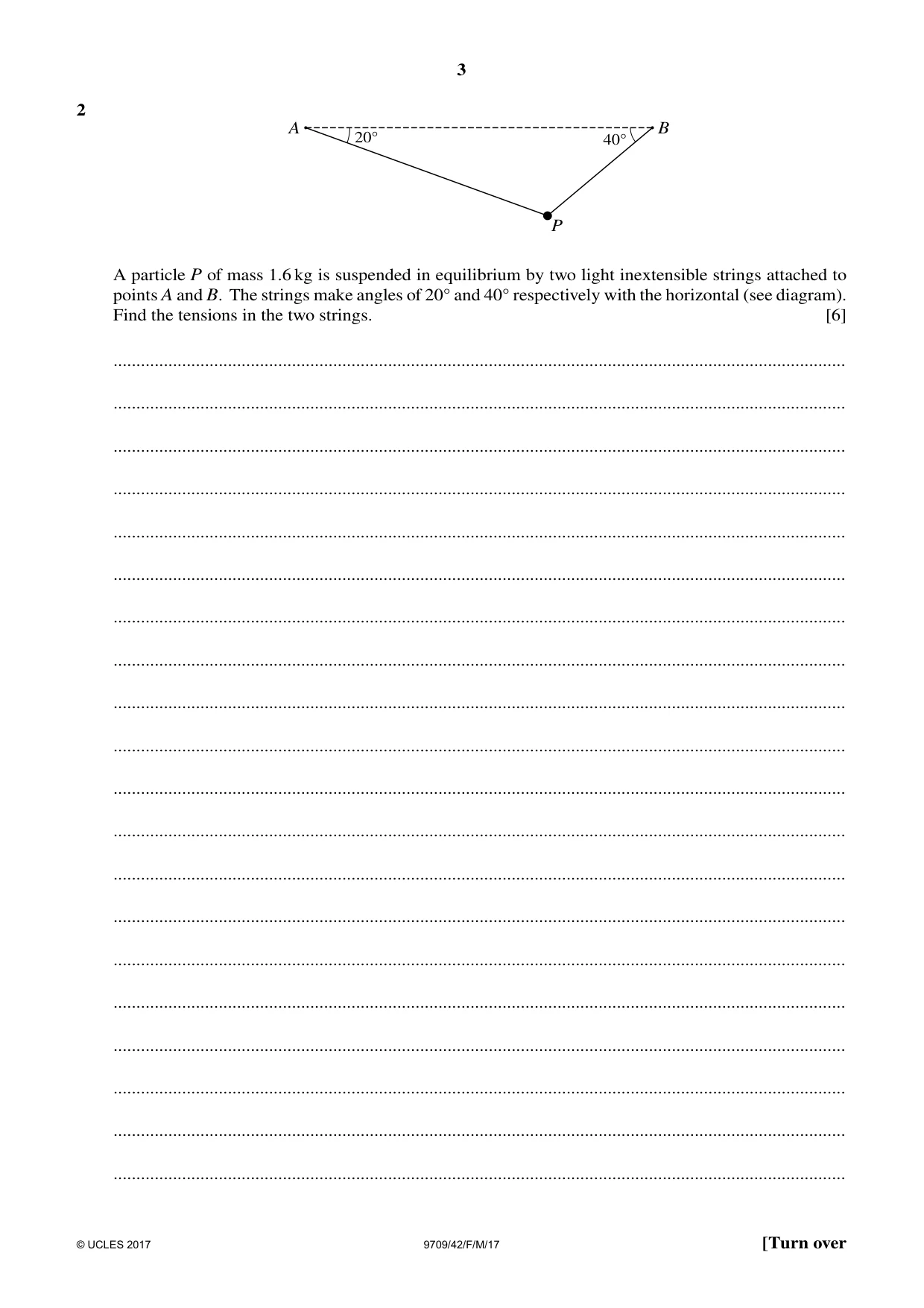

2 A B 20Å 40Å P A particle P of mass 1.6 kg is suspended in equilibrium by two light inextensible strings attached to points A and B. The strings make angles of 20Å and 40Å respectively with the horizontal (see diagram). Find the tensions in the two strings. [6] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

Mark scheme: 2 M1 Resolve forces horizontally and/or vertically TA sin 20 + TB sin 40 = 16 A1 Correct vertical equation TA cos 20 = TB cos 40 A1 Correct horizontal equation M1 Attempt to solve for TA and/or TB TA = 14.2 N A1 TA = 14.1528... TB = 17.4 N A1 TB = 17.3610... Total: 6 Alternative method for Question 2 M1 Attempt to use Lami’s Theorem 16 TA A1 = sin120 sin130 16 TB A1 = sin120 sin110 M1 Attempt to solve for TA and/or TB TA = 14.2 N A1 TB = 17.4 N A1 Total: 6

More questions on Forces and equilibrium

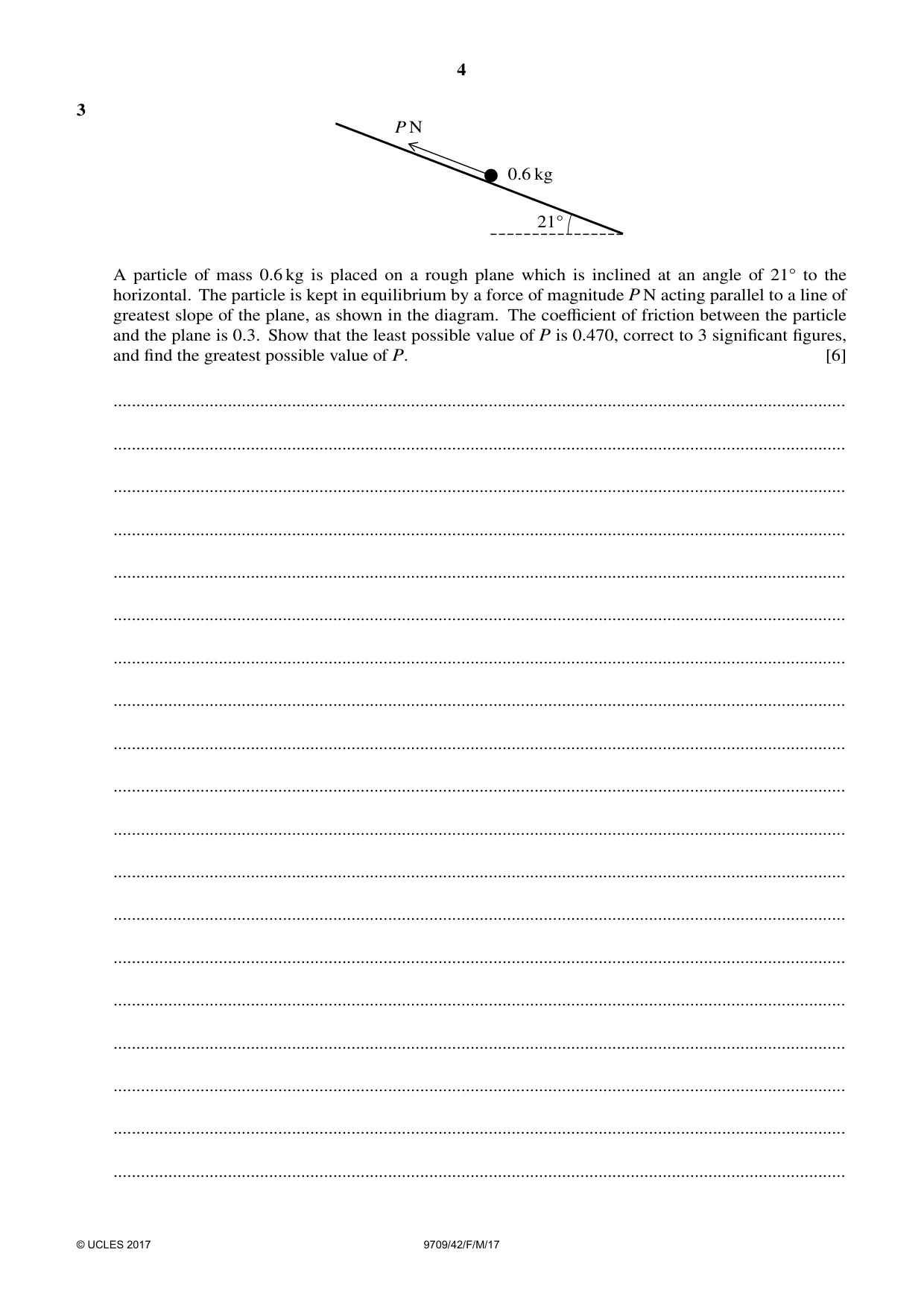

3 P N 0.6 kg 21Å A particle of mass 0.6 kg is placed on a rough plane which is inclined at an angle of 21Å to the horizontal. The particle is kept in equilibrium by a force of magnitude P N acting parallel to a line of greatest slope of the plane, as shown in the diagram. The coefficient of friction between the particle and the plane is 0.3. Show that the least possible value of P is 0.470, correct to 3 significant figures, and find the greatest possible value of P. [6] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

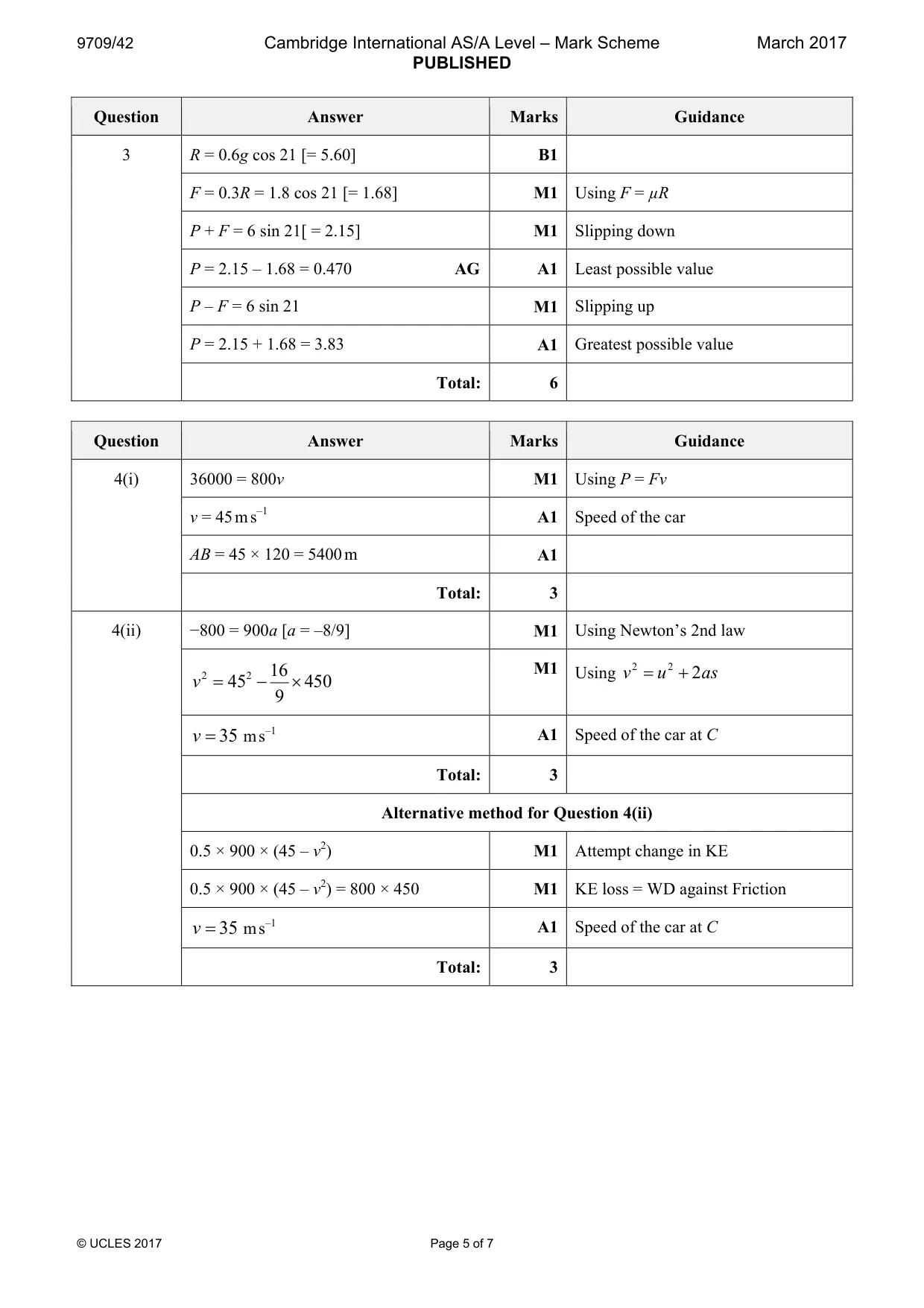

Mark scheme: 3 R = 0.6g cos 21 [= 5.60] B1 F = 0.3R = 1.8 cos 21 [= 1.68] M1 Using F = µR P + F = 6 sin 21[ = 2.15] M1 Slipping down P = 2.15 – 1.68 = 0.470 AG A1 Least possible value P – F = 6 sin 21 M1 Slipping up P = 2.15 + 1.68 = 3.83 A1 Greatest possible value Total: 6

More questions on Forces and equilibrium

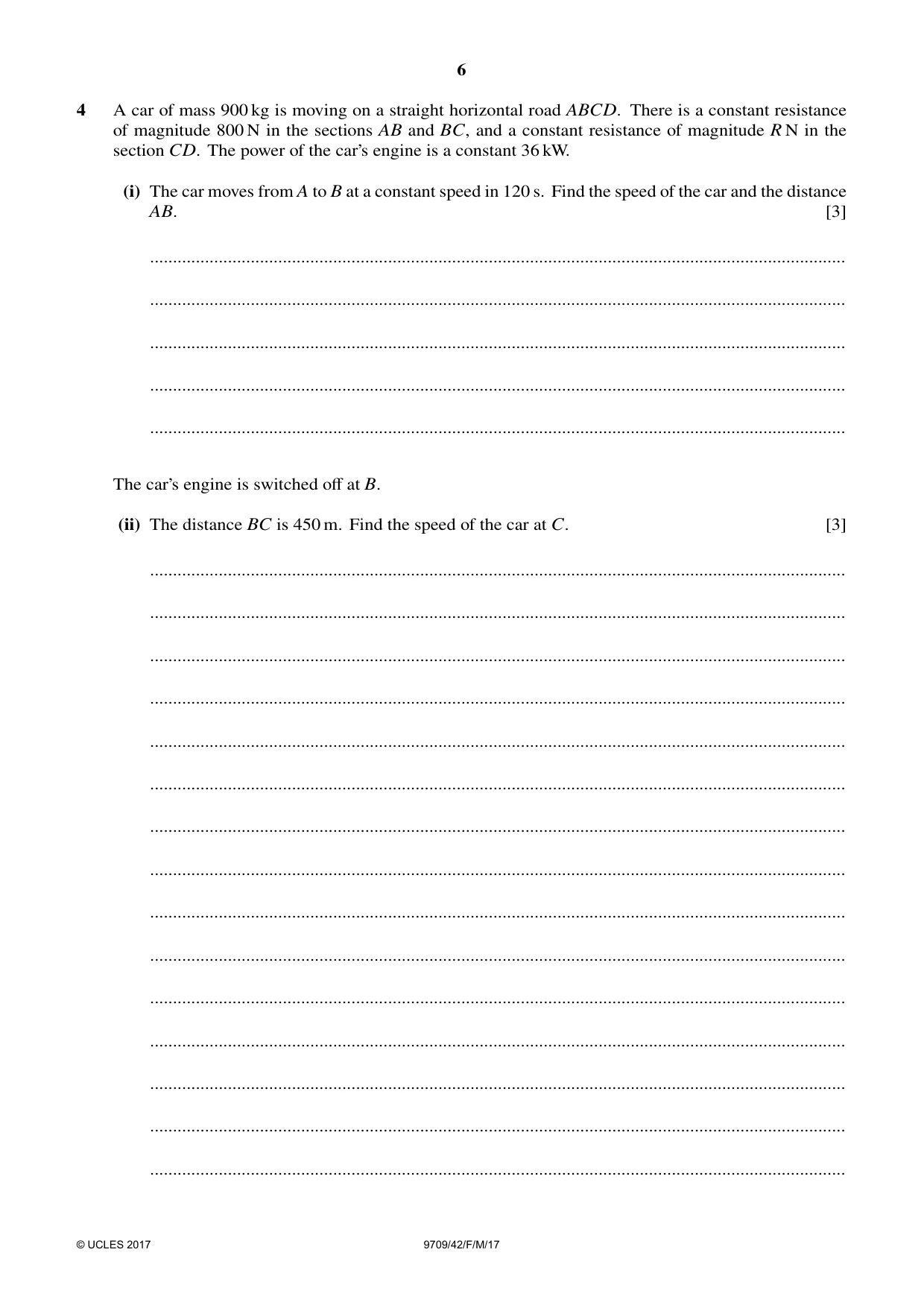

4 A car of mass 900 kg is moving on a straight horizontal road ABCD. There is a constant resistance of magnitude 800 N in the sections AB and BC, and a constant resistance of magnitude R N in the section CD. The power of the car’s engine is a constant 36 kW. (i) The car moves from A to B at a constant speed in 120 s. Find the speed of the car and the distance AB. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The car’s engine is switched offat B. (ii) The distance BC is 450 m. Find the speed of the car at C. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) The car comes to rest at D. The distance AD is 6637.5 m. Find the deceleration of the car and the value of R. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 4(i) 36000 = 800v M1 Using P = Fv v = 45 m s–1 A1 Speed of the car AB = 45 × 120 = 5400 m A1 Total: 3 4(ii) −800 = 900a [a = –8/9] M1 Using Newton’s 2nd law 2 2 16 M1 Using v 2 = u 2 + 2 as v = 45 − × 450 9 v = 35 m s–1 A1 Speed of the car at C Total: 3 Alternative method for Question 4(ii) 0.5 × 900 × (45 – v2) M1 Attempt change in KE 0.5 × 900 × (45 – v2) = 800 × 450 M1 KE loss = WD against Friction v = 35 m s–1 A1 Speed of the car at C Total: 3 4(iii) CD = 6637.5 – 5400 – 450 = 787.5 B1 0 = 352 – 2d × 787.5 M1 Using v 2 = u 2 + 2 as , a = –d d = 7/9 = 0.778 m s–2 A1 d = deceleration P = 900 × (7/9) = 700 A1 Using F = ma Total: 4

More questions on Kinematics of motion in a straight line

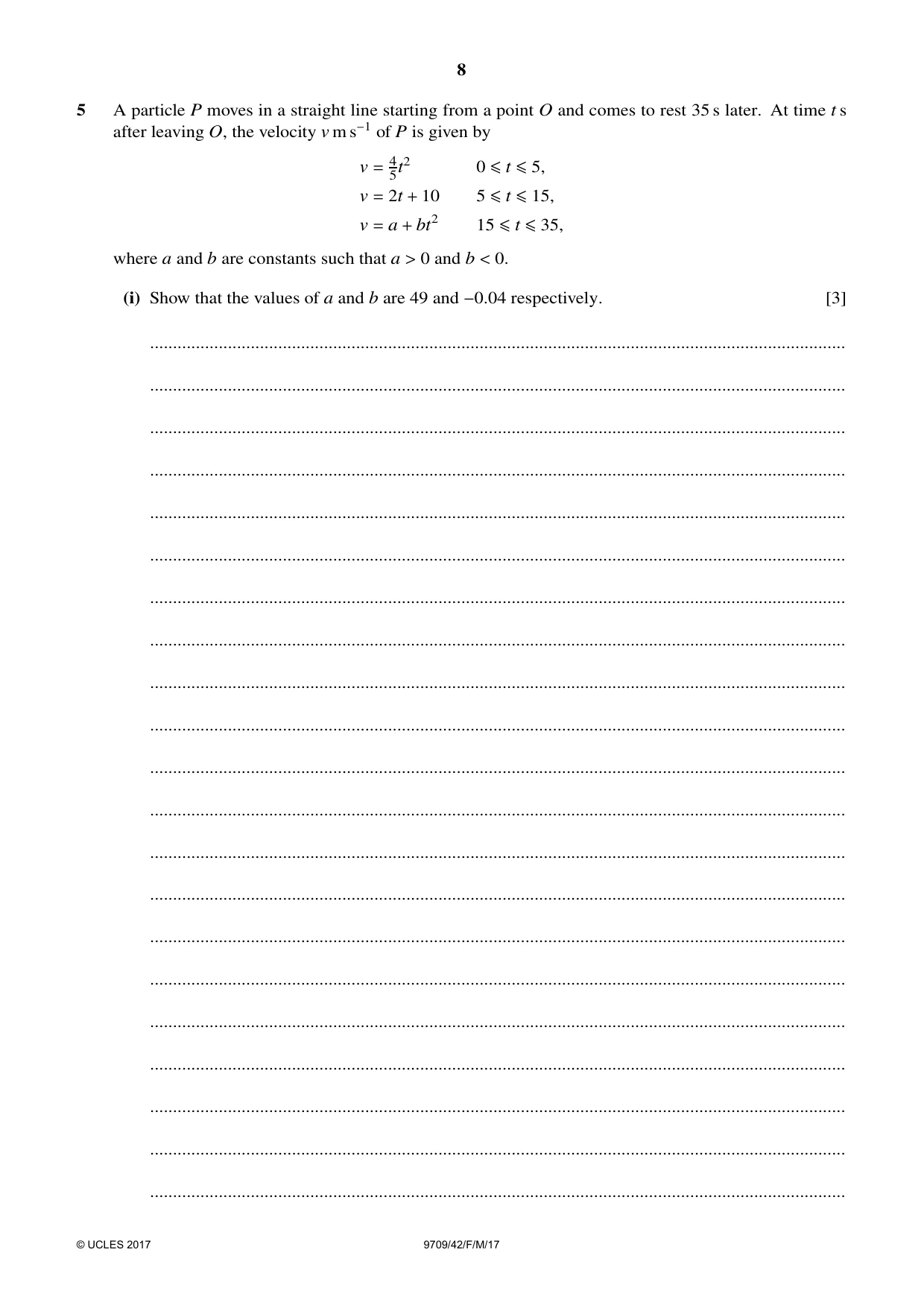

5 A particle P moves in a straight line starting from a point O and comes to rest 35 s later. At time t s after leaving O, the velocity v m s−1 of P is given by v = 45t2 0 ≤t ≤5, v = 2t + 10 5 ≤t ≤15, v = a + bt2 15 ≤t ≤35, where a and b are constants such that a > 0 and b < 0. (i) Show that the values of a and b are 49 and −0.04 respectively. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Sketch the velocity-time graph. [4] v (m s−1) t (s) 0 5 10 15 20 25 30 35 (iii) Find the total distance travelled by P during the 35 s. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 5(i) 0= a + b × 352 M1 For matching velocities at 40 = a + b × 152 t = 15 and using v = 0 at t = 35 [1000b = -40 → b = –0.04] M1 Solve for a and b [a = 0.04 × 352 = 49] a = 49 and b = -0.04 AG A1 Total: 3 5(ii) 0 ⩽ t ⩽ 5 correct B1 Increasing quadratic, from (0,0) to (5,20), concave up 5 ⩽ t ⩽ 15 correct B1 Line from (5,20) to (15,40) 15 ⩽ t ⩽ 35 correct B1 Decreasing quadratic, from (15,40) to (35,0), concave down 20 and 40 seen correct on v-axis B1 Total: 4 5(iii) 5 B1 2 100 0.8t d t = A1 = ∫ 0 3 1 M1 Using trapezium rule or integration for A2 = ( 20 + 40 ) × 10 = 300 t = 5 to t = 15 2 35 M1 Attempt to integrate the quadratic a + bt 2 d t function ) A3 = ∫ ( 15 from t = 15 to t = 35 0.04 3 = 49t − t 3 A3 = 453.3333 = 1360/3 A1 Total Distance = 2360/3 = 787 m A1 Total: 5

More questions on Differentiation

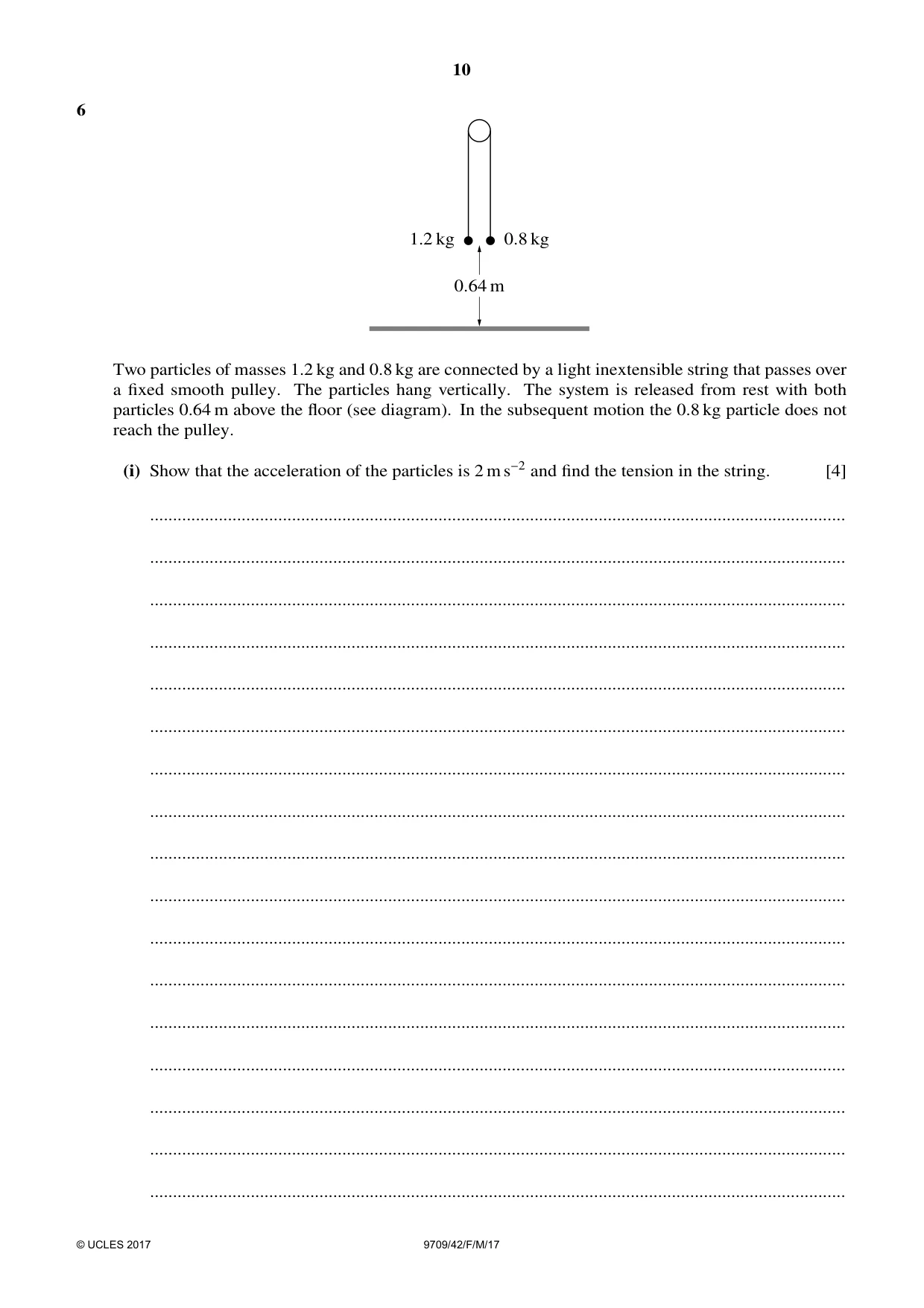

6 1.2 kg 0.8 kg 0.64 m Two particles of masses 1.2 kg and 0.8 kg are connected by a light inextensible string that passes over a fixed smooth pulley. The particles hang vertically. The system is released from rest with both particles 0.64 m above the floor (see diagram). In the subsequent motion the 0.8 kg particle does not reach the pulley. (i) Show that the acceleration of the particles is 2 m s−2 and find the tension in the string. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the total distance travelled by the 0.8 kg particle during the first second after the particles are released. [8] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

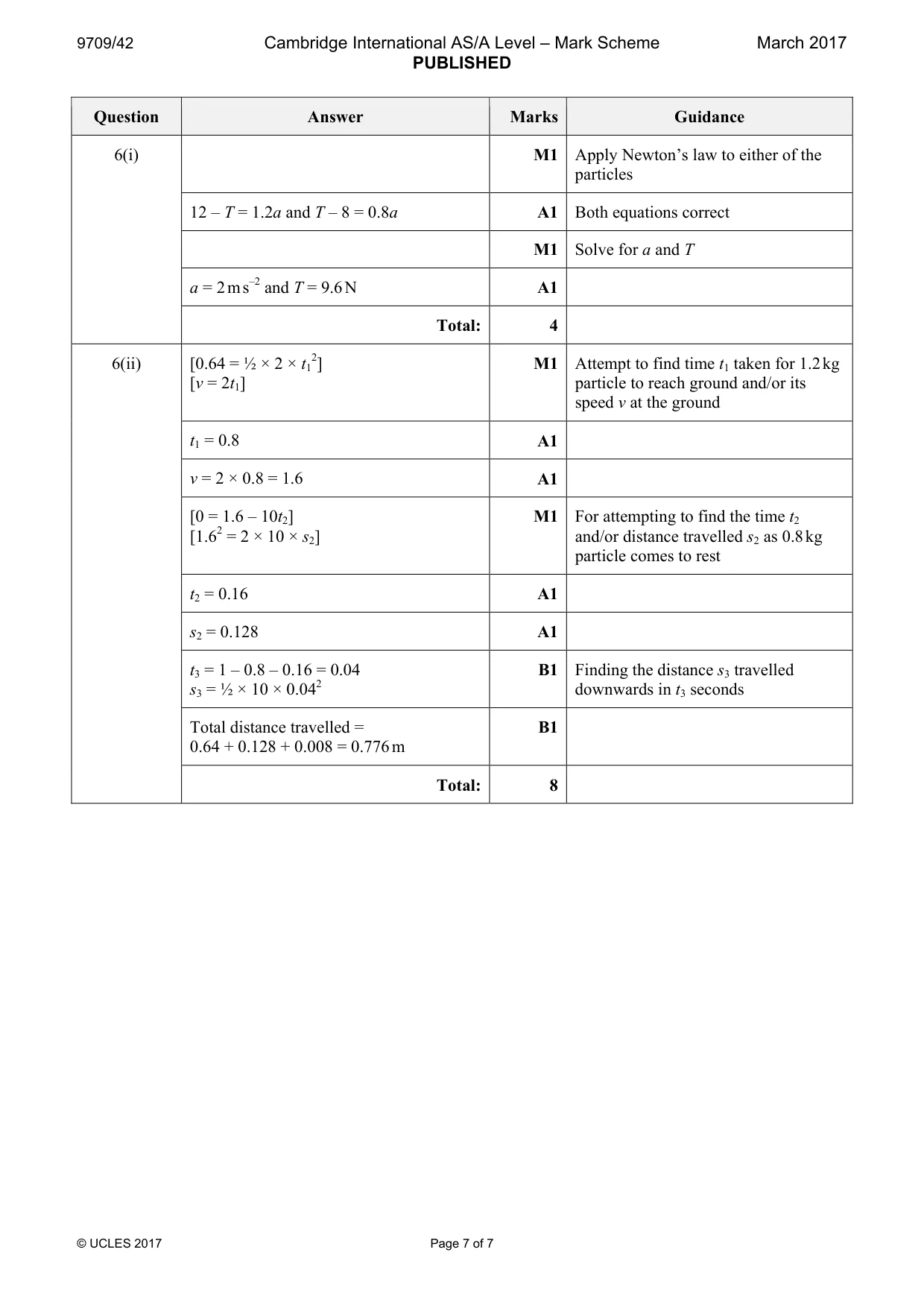

Mark scheme: 6(i) M1 Apply Newton’s law to either of the particles 12 – T = 1.2a and T – 8 = 0.8a A1 Both equations correct M1 Solve for a and T a = 2 m s–2 and T = 9.6 N A1 Total: 4 6(ii) [0.64 = ½ × 2 × t1 2] M1 Attempt to find time t1 taken for 1.2 kg [v = 2t1] particle to reach ground and/or its speed v at the ground t1 = 0.8 A1 v = 2 × 0.8 = 1.6 A1 [0 = 1.6 – 10t2] M1 For attempting to find the time t2 [1.62 = 2 × 10 × s2] and/or distance travelled s2 as 0.8 kg particle comes to rest t2 = 0.16 A1 s2 = 0.128 A1 t3 = 1 – 0.8 – 0.16 = 0.04 B1 Finding the distance s3 travelled s3 = ½ × 10 × 0.042 downwards in t3 seconds Total distance travelled = B1 0.64 + 0.128 + 0.008 = 0.776 m Total: 8
