Respiration — Paper 1 · A Level Biology 9700

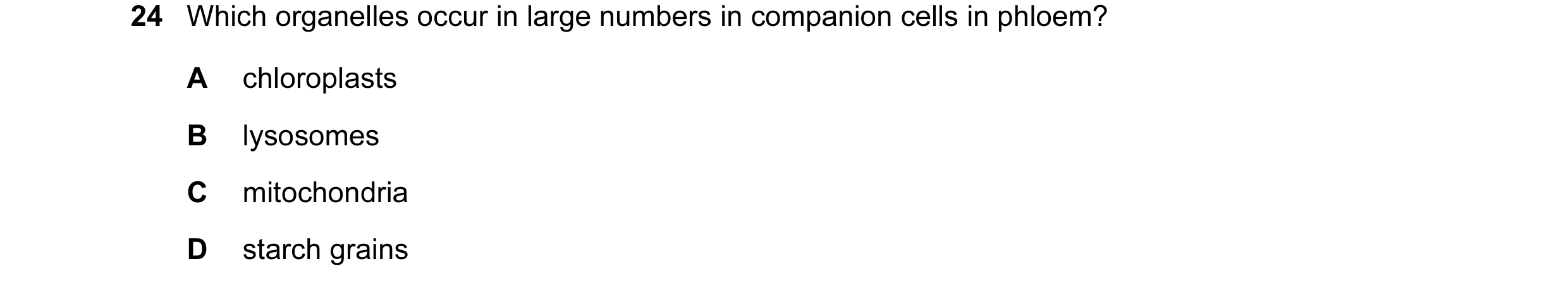

24 Which organelles occur in large numbers in companion cells in phloem? A chloroplasts B lysosomes C mitochondria D starch grains

1 marks

Answer: C

This question in 9700/11 Oct/Nov 2006

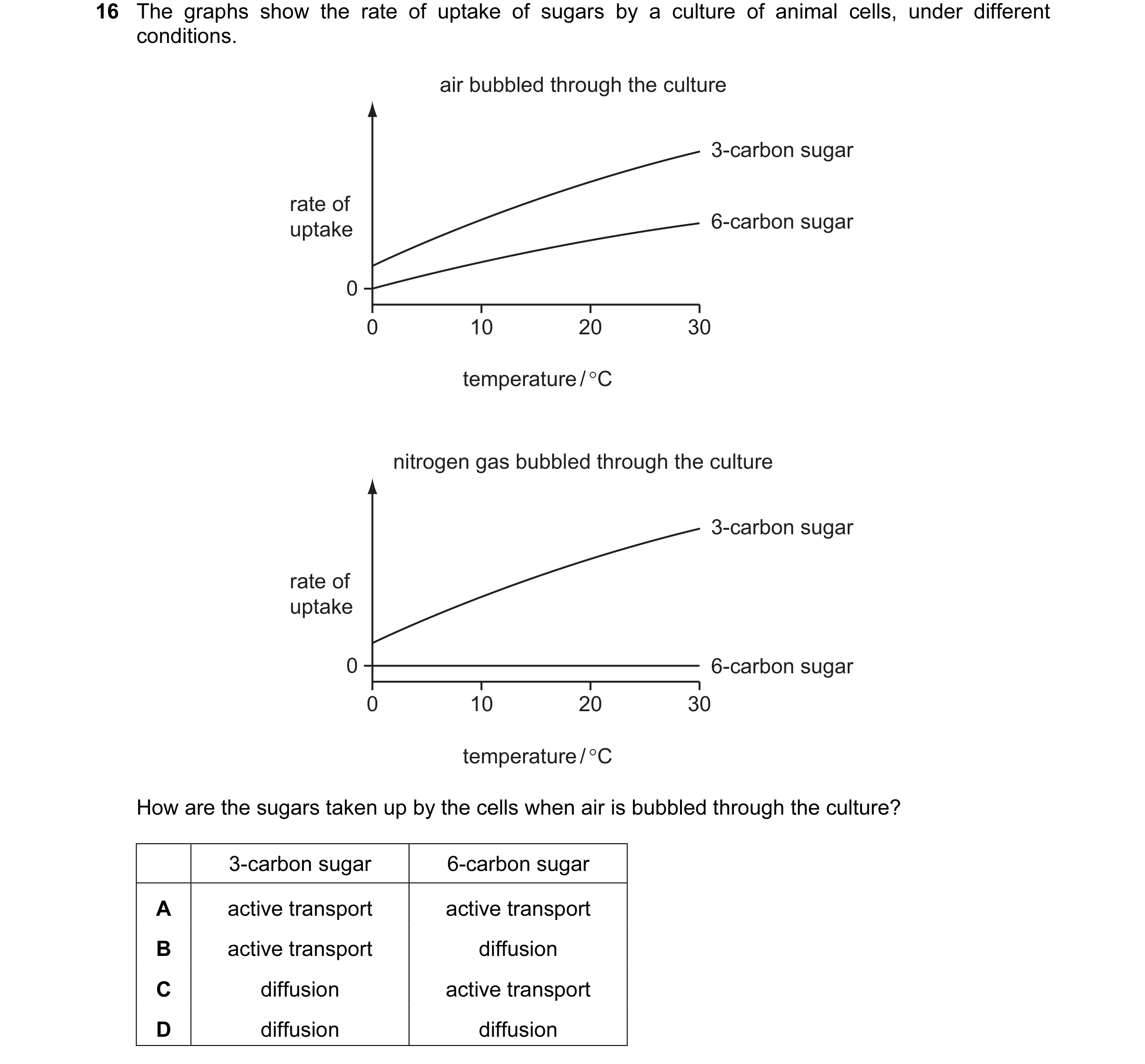

16 The graphs show the rate of uptake of sugars by a culture of animal cells, under different conditions. air bubbled through the culture 3-carbon sugar rate of uptake 6-carbon sugar 0 0 10 20 30 temperature / °C nitrogen gas bubbled through the culture 3-carbon sugar rate of uptake 0 6-carbon sugar 0 10 20 30 temperature / °C How are the sugars taken up by the cells when air is bubbled through the culture? 3-carbon sugar 6-carbon sugar A active transport active transport B active transport diffusion C diffusion active transport D diffusion diffusion

1 marks

Answer: C

This question in 9700/11 May/June 2012

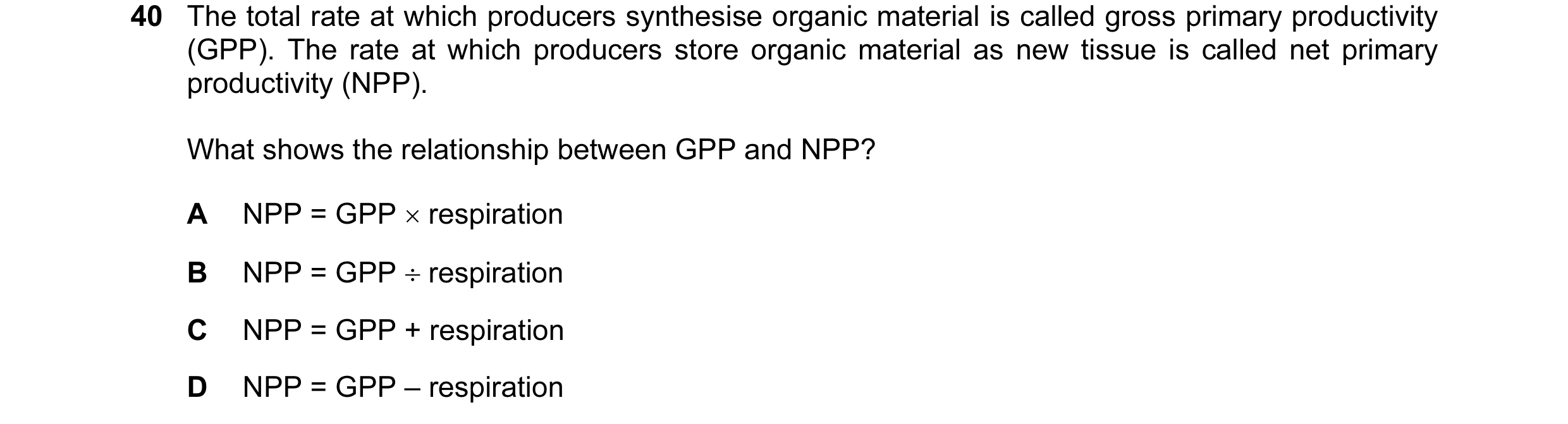

40 The total rate at which producers synthesise organic material is called gross primary productivity (GPP). The rate at which producers store organic material as new tissue is called net primary productivity (NPP). What shows the relationship between GPP and NPP? A NPP = GPP × respiration B NPP = GPP ÷ respiration C NPP = GPP + respiration D NPP = GPP – respiration

1 marks

Answer: D

This question in 9700/12 Oct/Nov 2012

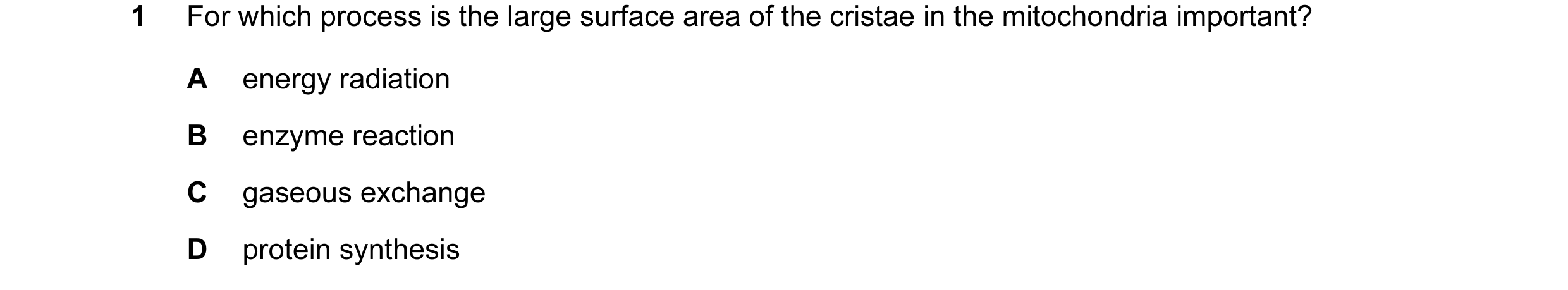

1 For which process is the large surface area of the cristae in the mitochondria important? A energy radiation B enzyme reaction C gaseous exchange D protein synthesis

1 marks

Answer: B

This question in 9700/13 Oct/Nov 2013

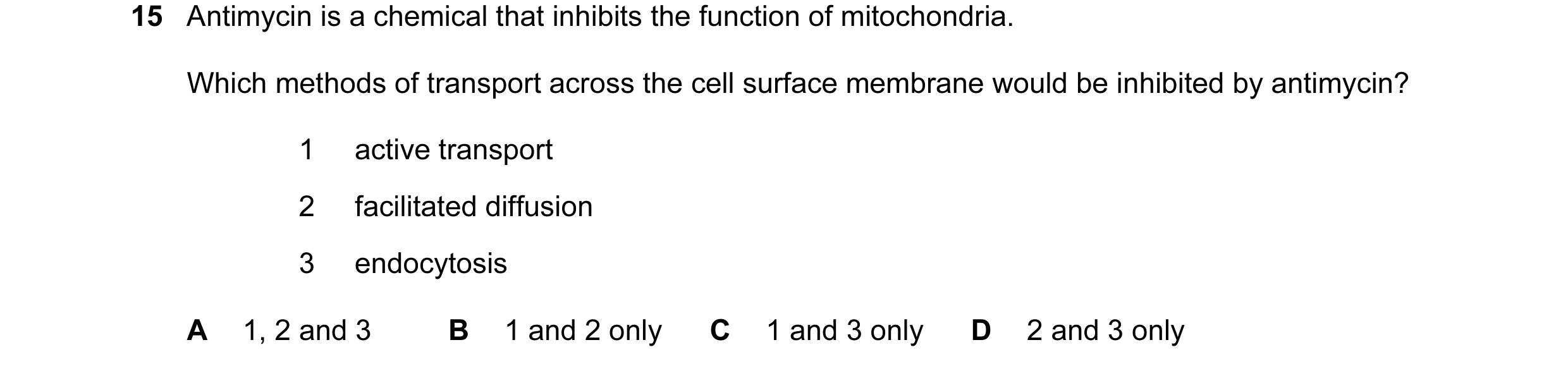

15 Antimycin is a chemical that inhibits the function of mitochondria. Which methods of transport across the cell surface membrane would be inhibited by antimycin? 1 active transport 2 facilitated diffusion 3 endocytosis A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: C

This question in 9700/12 Feb/March 2016

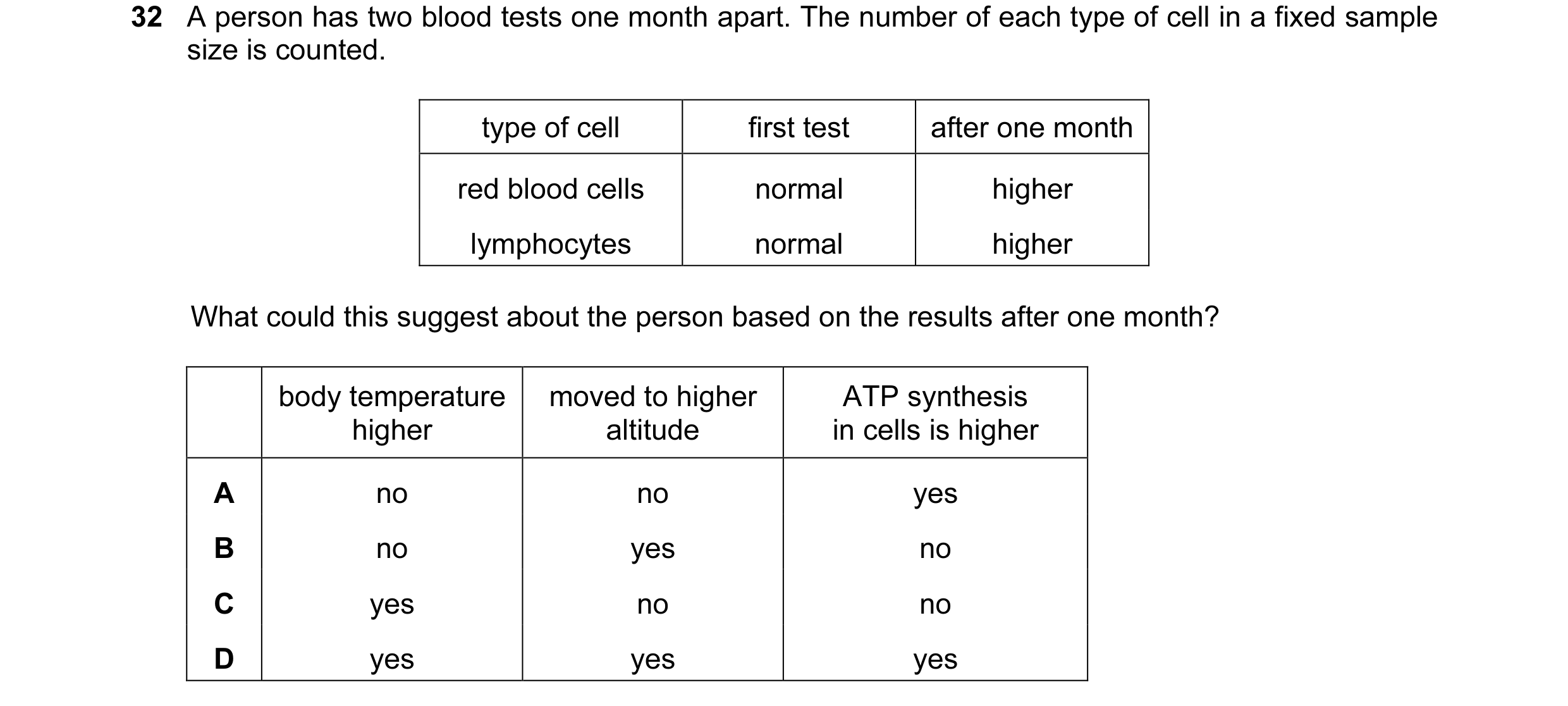

32 A person has two blood tests one month apart. The number of each type of cell in a fixed sample size is counted. type of cell first test after one month red blood cells normal higher lymphocytes normal higher What could this suggest about the person based on the results after one month? body temperature moved to higher ATP synthesis higher altitude in cells is higher A no no yes B no yes no C yes no no D yes yes yes

1 marks

This question in 9700/13 May/June 2016

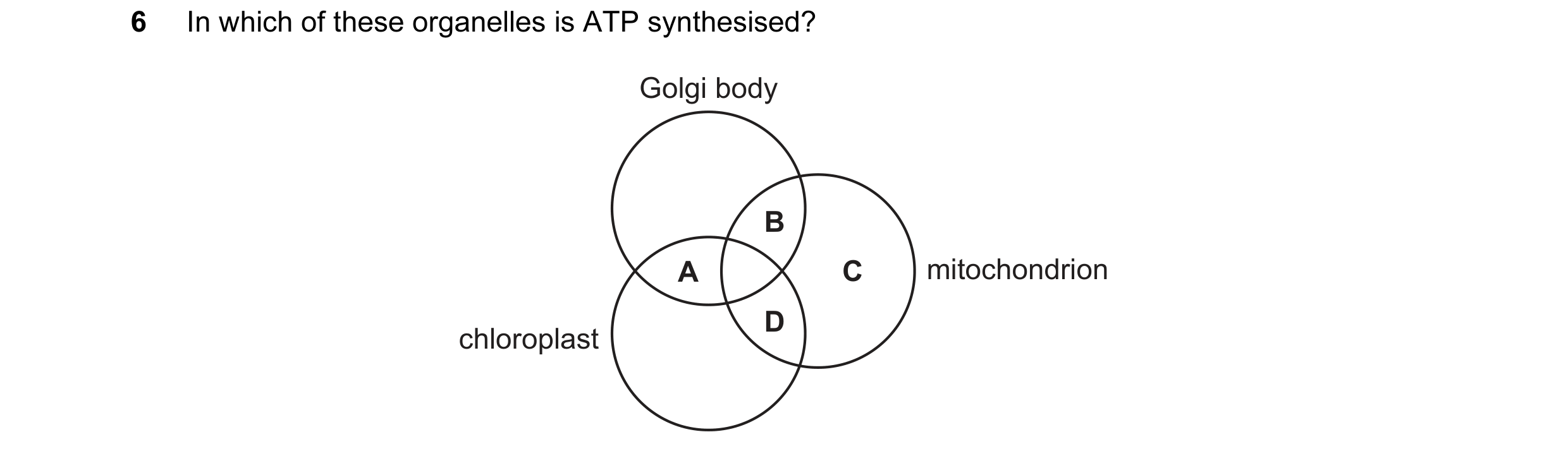

6 In which of these organelles is ATP synthesised? Golgi body B A C mitochondrion D chloroplast

1 marks

Answer: D

This question in 9700/12 Feb/March 2017

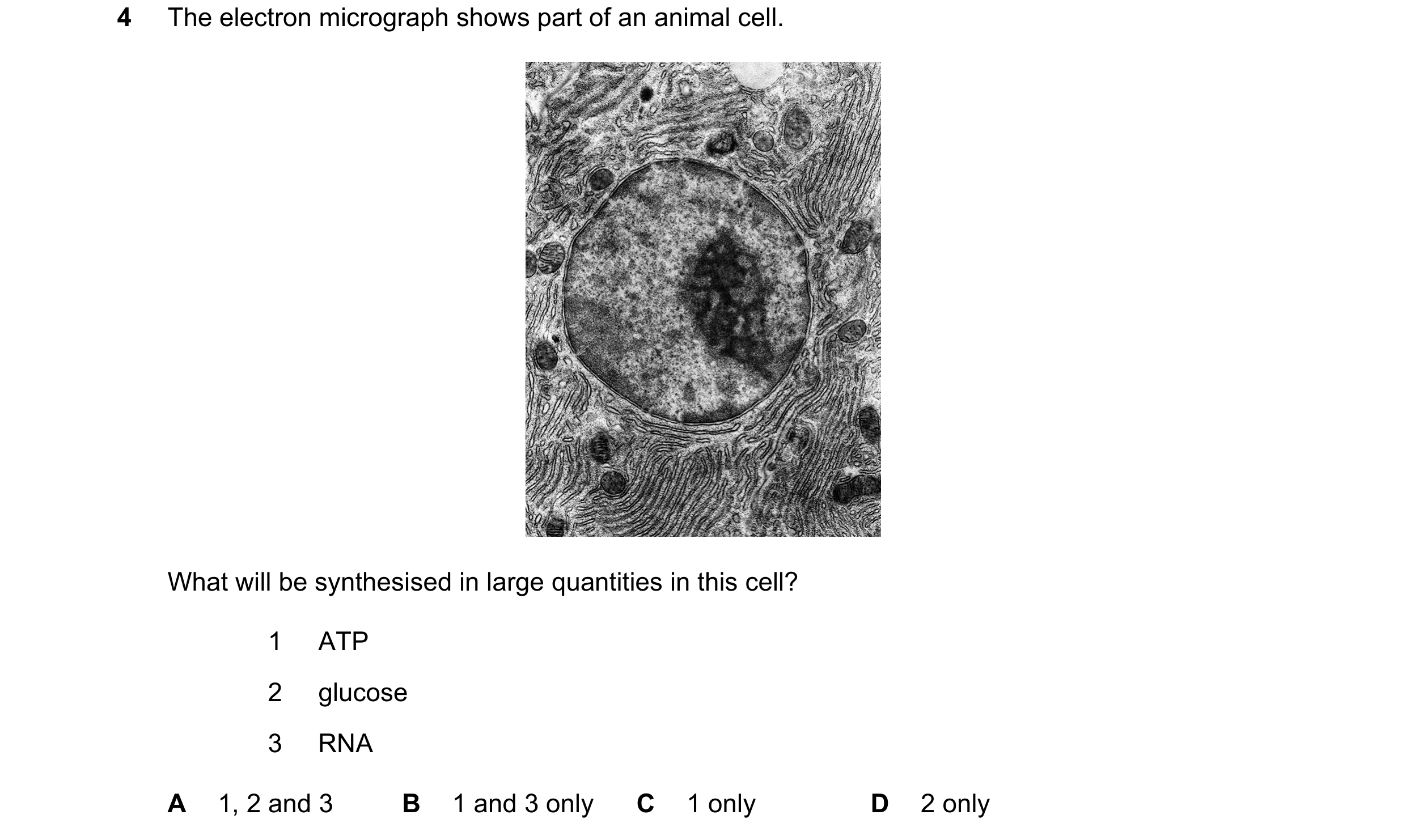

4 The electron micrograph shows part of an animal cell. What will be synthesised in large quantities in this cell? 1 ATP 2 glucose 3 RNA A 1, 2 and 3 B 1 and 3 only C 1 only D 2 only

1 marks

Answer: B

This question in 9700/12 Oct/Nov 2017

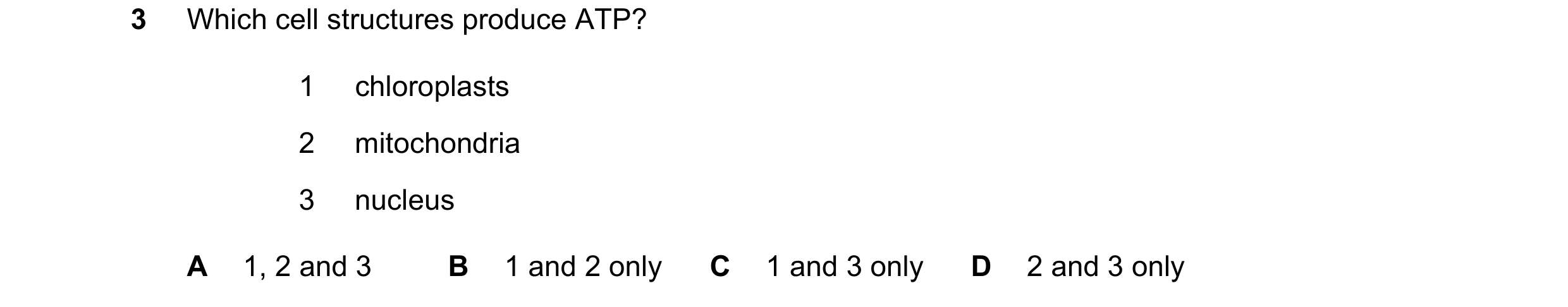

3 Which cell structures produce ATP? 1 chloroplasts 2 mitochondria 3 nucleus A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: B

This question in 9700/13 May/June 2018

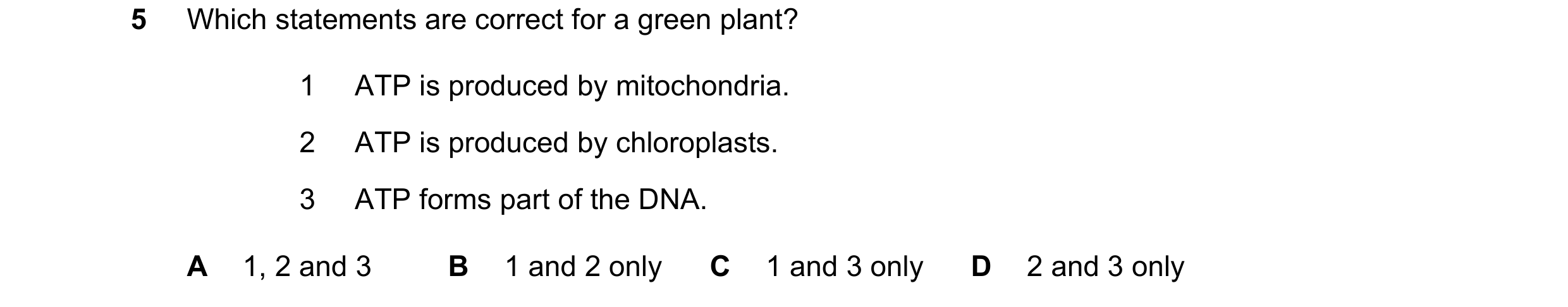

5 Which statements are correct for a green plant? 1 ATP is produced by mitochondria. 2 ATP is produced by chloroplasts. 3 ATP forms part of the DNA. A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: B

This question in 9700/12 Oct/Nov 2018

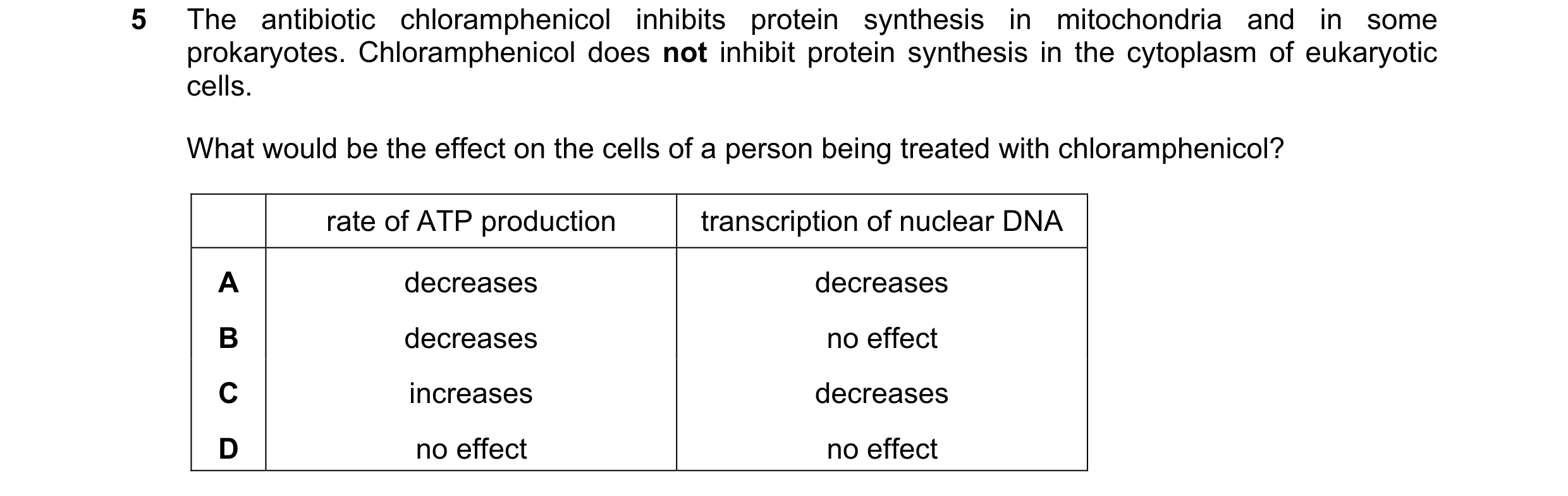

5 The antibiotic chloramphenicol inhibits protein synthesis in mitochondria and in some prokaryotes. Chloramphenicol does not inhibit protein synthesis in the cytoplasm of eukaryotic cells. What would be the effect on the cells of a person being treated with chloramphenicol? rate of ATP production transcription of nuclear DNA A decreases decreases B decreases no effect C increases decreases D no effect no effect

1 marks

Answer: A

This question in 9700/11 Oct/Nov 2019

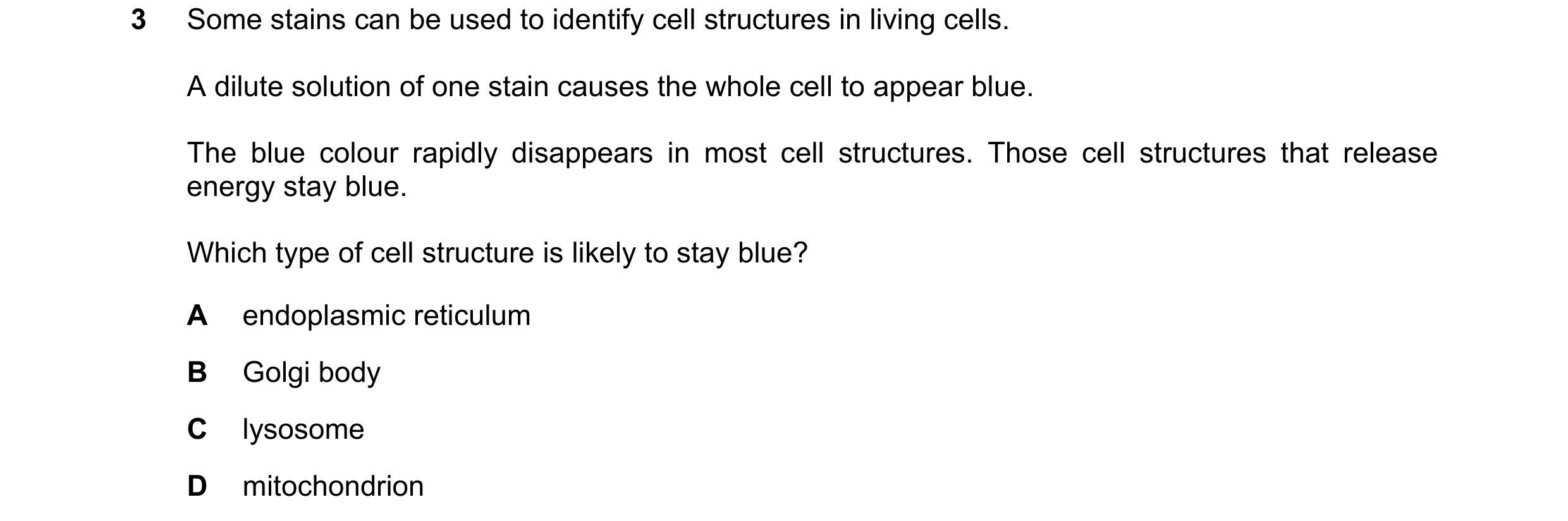

3 Some stains can be used to identify cell structures in living cells. A dilute solution of one stain causes the whole cell to appear blue. The blue colour rapidly disappears in most cell structures. Those cell structures that release energy stay blue. Which type of cell structure is likely to stay blue? A endoplasmic reticulum B Golgi body C lysosome D mitochondrion

1 marks

Answer: D

This question in 9700/13 May/June 2020

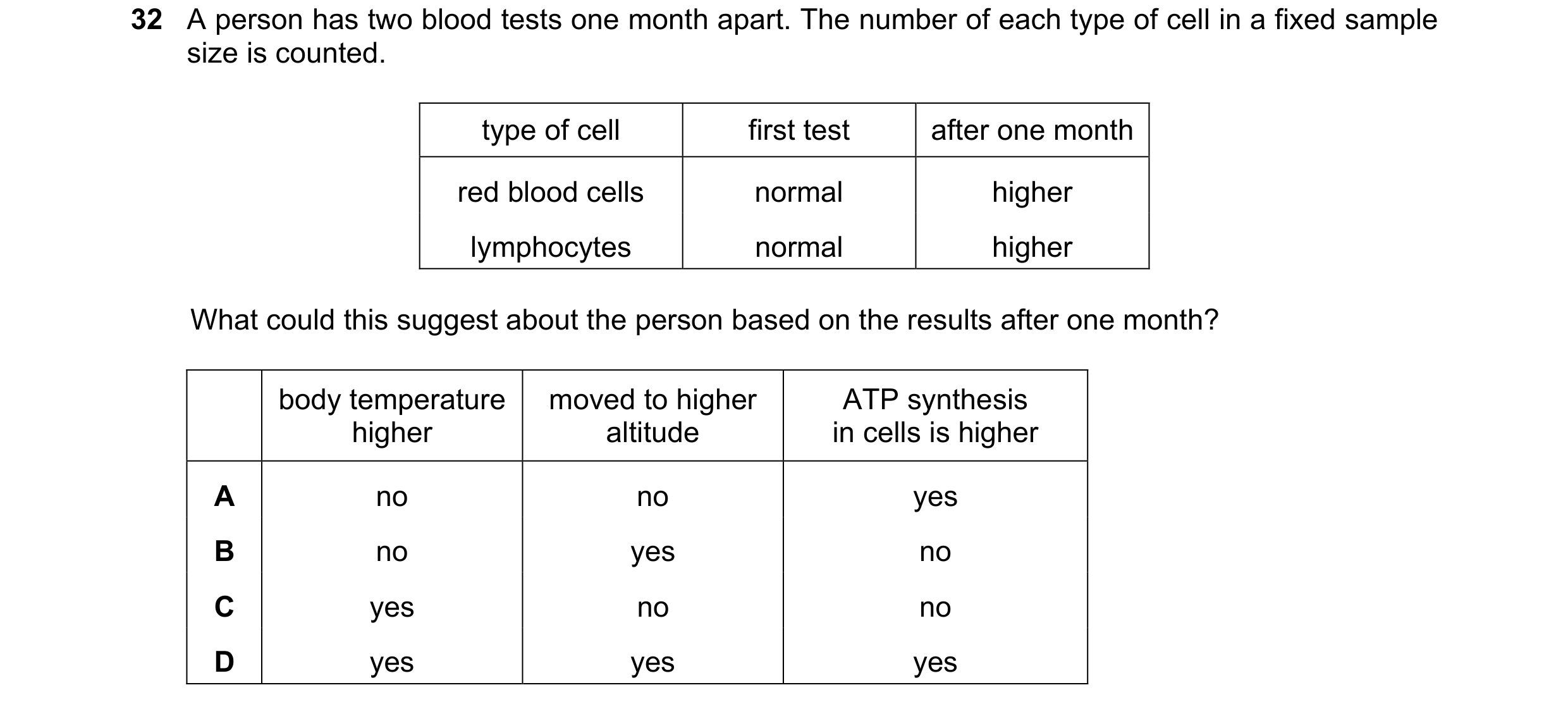

32 A person has two blood tests one month apart. The number of each type of cell in a fixed sample size is counted. type of cell first test after one month red blood cells normal higher lymphocytes normal higher What could this suggest about the person based on the results after one month? body temperature moved to higher ATP synthesis higher altitude in cells is higher A no no yes B no yes no C yes no no D yes yes yes

1 marks

Answer: D

This question in 9700/13 May/June 2020

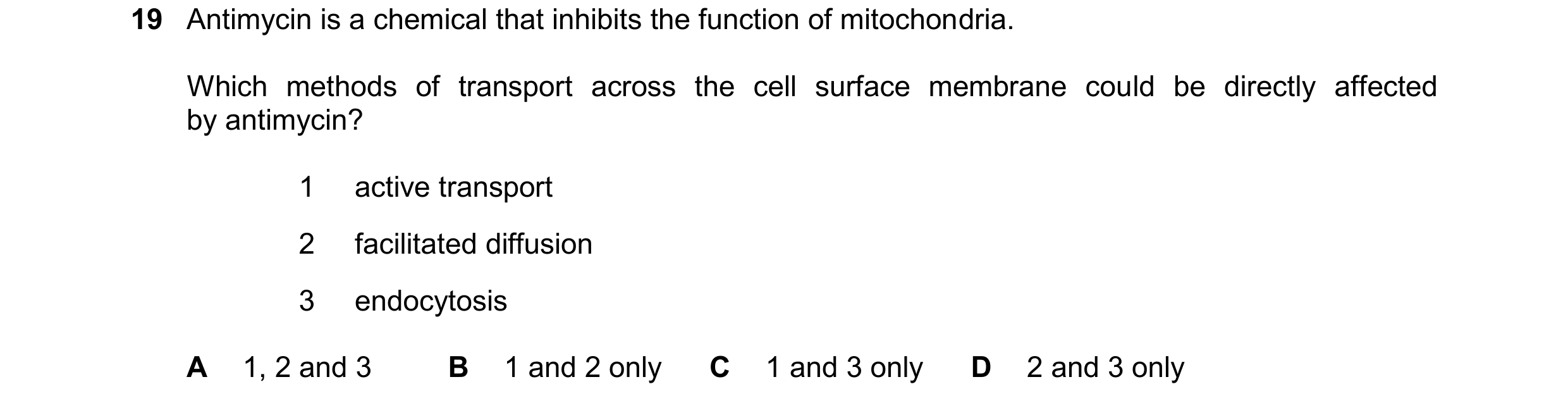

19 Antimycin is a chemical that inhibits the function of mitochondria. Which methods of transport across the cell surface membrane could be directly affected by antimycin? 1 active transport 2 facilitated diffusion 3 endocytosis A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

1 marks

Answer: C

This question in 9700/13 May/June 2025
