Questions as text

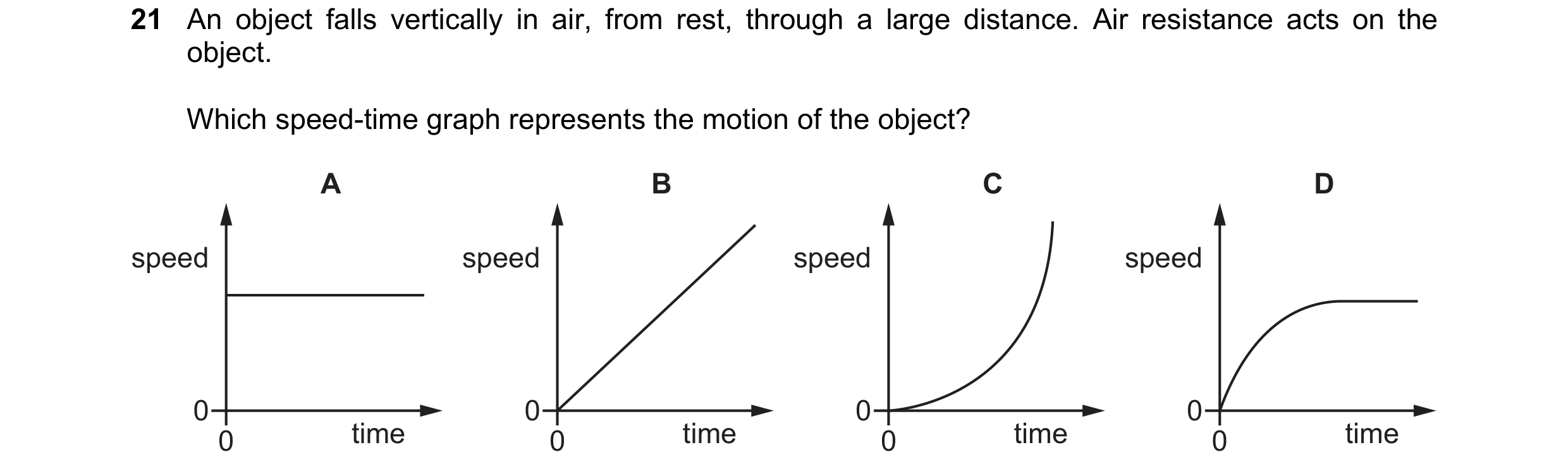

Q1 · An object falls vertically in air, from rest, through a large distance 0652/21 Oct/Nov 2017
21 An object falls vertically in air, from rest, through a large distance. Air resistance acts on the object. Which speed-time graph represents the motion of the object? A B C D speed speed speed speed 0 0 0 0 0 time 0 time 0 time 0 time
1 marks
Answer: D
This question in 0652/21 Oct/Nov 2017
Q2 · An object falls vertically in air, from rest, through a large distance 0652/22 Oct/Nov 2017
21 An object falls vertically in air, from rest, through a large distance. Air resistance acts on the object. Which speed-time graph represents the motion of the object? A B C D speed speed speed speed 0 0 0 0 0 time 0 time 0 time 0 time
1 marks
Answer: D
This question in 0652/22 Oct/Nov 2017

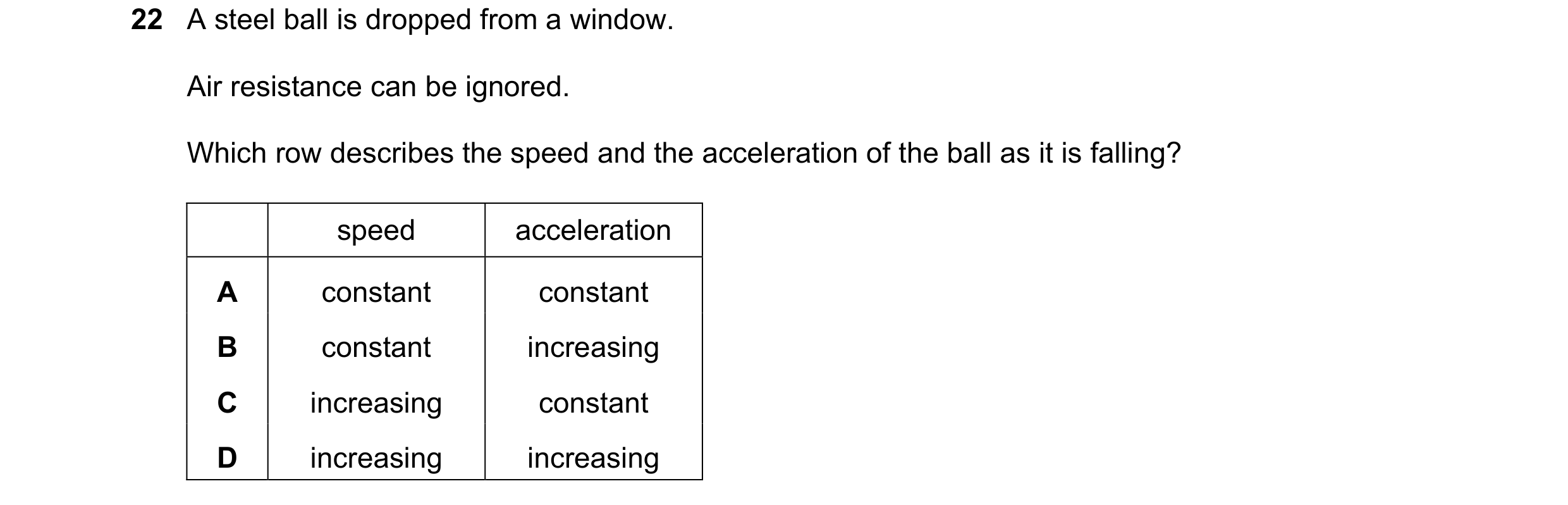

Q3 · A steel ball is dropped from a window 0652/21 Oct/Nov 2018
22 A steel ball is dropped from a window. Air resistance can be ignored. Which row describes the speed and the acceleration of the ball as it is falling? speed acceleration A constant constant B constant increasing C increasing constant D increasing increasing
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2018
Q4 · A stone is at rest at a height of 3.2 m above the ground 0652/21 Oct/Nov 2018
25 A stone is at rest at a height of 3.2 m above the ground. It is released and falls to the ground. The acceleration of free fall g is 10 m / s2. Air resistance can be ignored. At what speed does the stone hit the ground? A 3.2 m / s B 8.0 m / s C 32 m / s D 64 m / s
1 marks
Answer: B
This question in 0652/21 Oct/Nov 2018
Q5 · A steel ball is dropped from a window 0652/22 Oct/Nov 2018
22 A steel ball is dropped from a window. Air resistance can be ignored. Which row describes the speed and the acceleration of the ball as it is falling? speed acceleration A constant constant B constant increasing C increasing constant D increasing increasing
1 marks
Answer: C
This question in 0652/22 Oct/Nov 2018

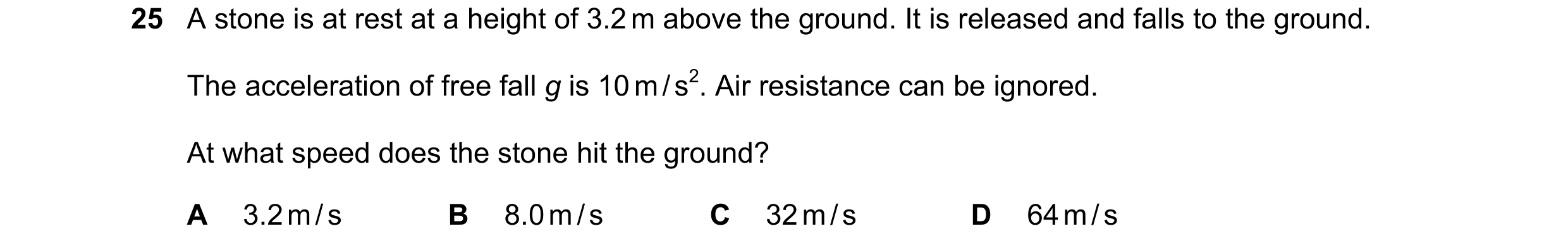

Q6 · A stone is at rest at a height of 3.2 m above the ground 0652/22 Oct/Nov 2018
25 A stone is at rest at a height of 3.2 m above the ground. It is released and falls to the ground. The acceleration of free fall g is 10 m / s2. Air resistance can be ignored. At what speed does the stone hit the ground? A 3.2 m / s B 8.0 m / s C 32 m / s D 64 m / s
1 marks
Answer: B
This question in 0652/22 Oct/Nov 2018

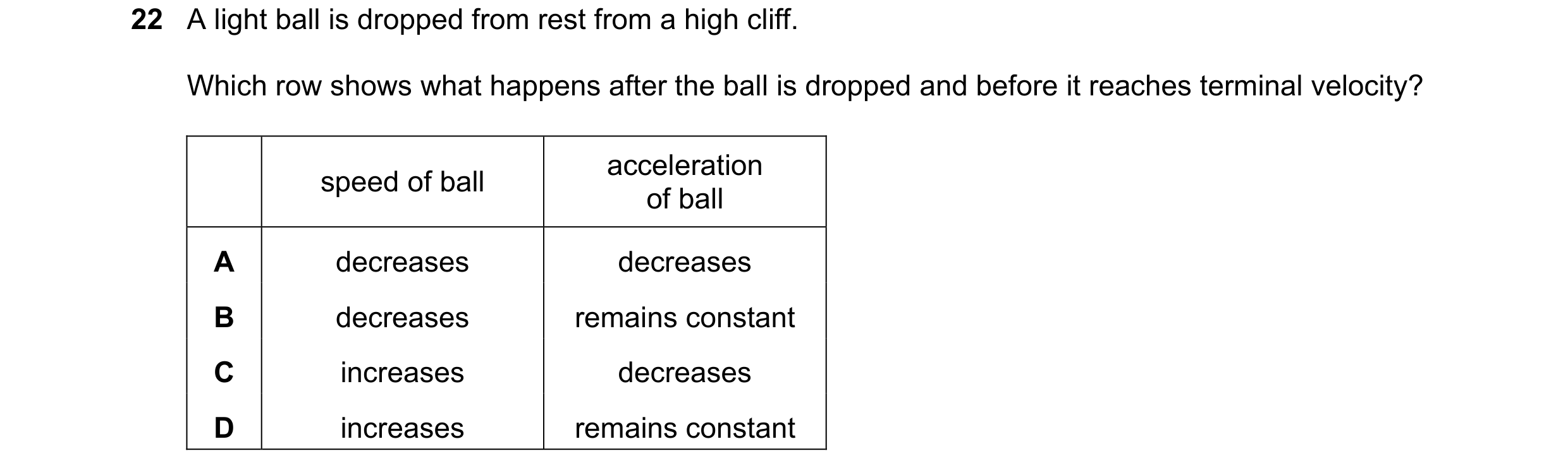

Q7 · A light ball is dropped from rest from a high cliff 0652/21 Oct/Nov 2019
22 A light ball is dropped from rest from a high cliff. Which row shows what happens after the ball is dropped and before it reaches terminal velocity? acceleration speed of ball of ball A decreases decreases B decreases remains constant C increases decreases D increases remains constant
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2019
Q8 · A light ball is dropped from rest from a high cliff 0652/22 Oct/Nov 2019
22 A light ball is dropped from rest from a high cliff. Which row shows what happens after the ball is dropped and before it reaches terminal velocity? acceleration speed of ball of ball A decreases decreases B decreases remains constant C increases decreases D increases remains constant
1 marks
Answer: C
This question in 0652/22 Oct/Nov 2019
Q9 · Light from the Sun takes 8.3 minutes to reach the Earth 0652/22 Oct/Nov 2020
32 Light from the Sun takes 8.3 minutes to reach the Earth. How far apart are the Sun and the Earth? A 6.0 105 m B 3.6 107 m C 2.5 109 m D 1.5 1011 m
1 marks
Answer: D
This question in 0652/22 Oct/Nov 2020

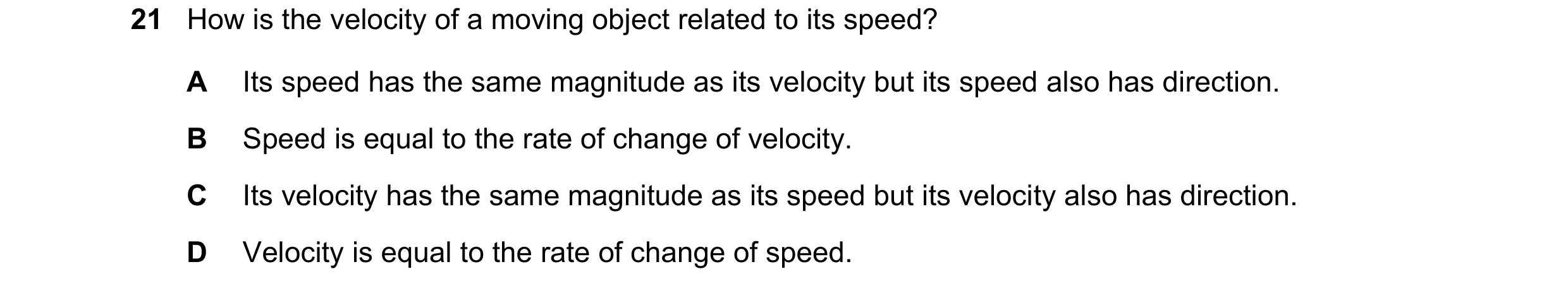

Q10 · How is the velocity of a moving object related to its speed? 0652/21 Oct/Nov 2021
21 How is the velocity of a moving object related to its speed? A Its speed has the same magnitude as its velocity but its speed also has direction. B Speed is equal to the rate of change of velocity. C Its velocity has the same magnitude as its speed but its velocity also has direction. D Velocity is equal to the rate of change of speed.
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2021

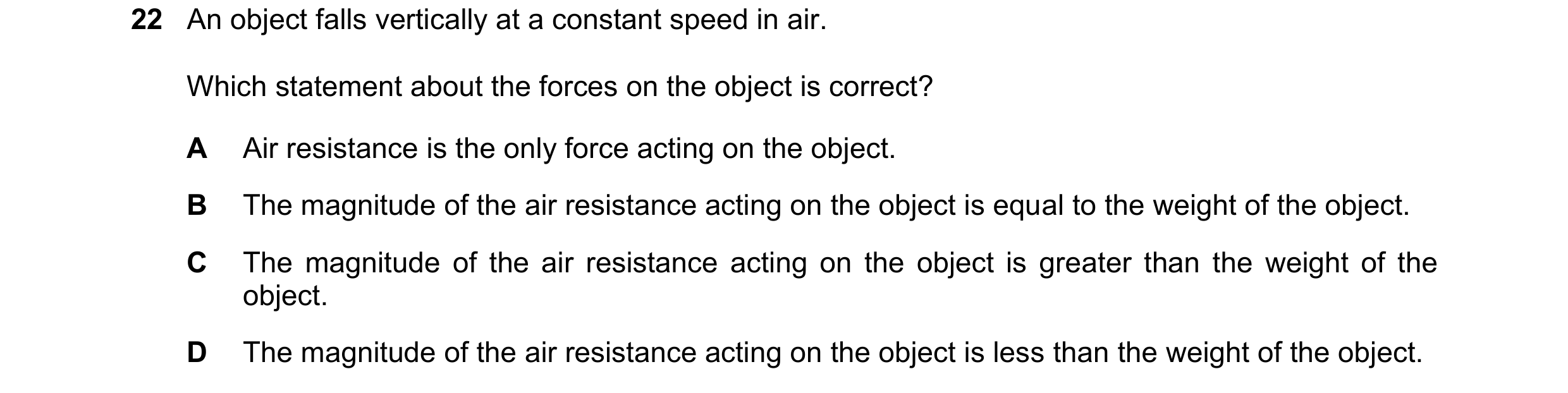

Q11 · An object falls vertically at a constant speed in air 0652/21 Oct/Nov 2021
22 An object falls vertically at a constant speed in air. Which statement about the forces on the object is correct? A Air resistance is the only force acting on the object. B The magnitude of the air resistance acting on the object is equal to the weight of the object. C The magnitude of the air resistance acting on the object is greater than the weight of the object. D The magnitude of the air resistance acting on the object is less than the weight of the object.
1 marks
Answer: B
This question in 0652/21 Oct/Nov 2021

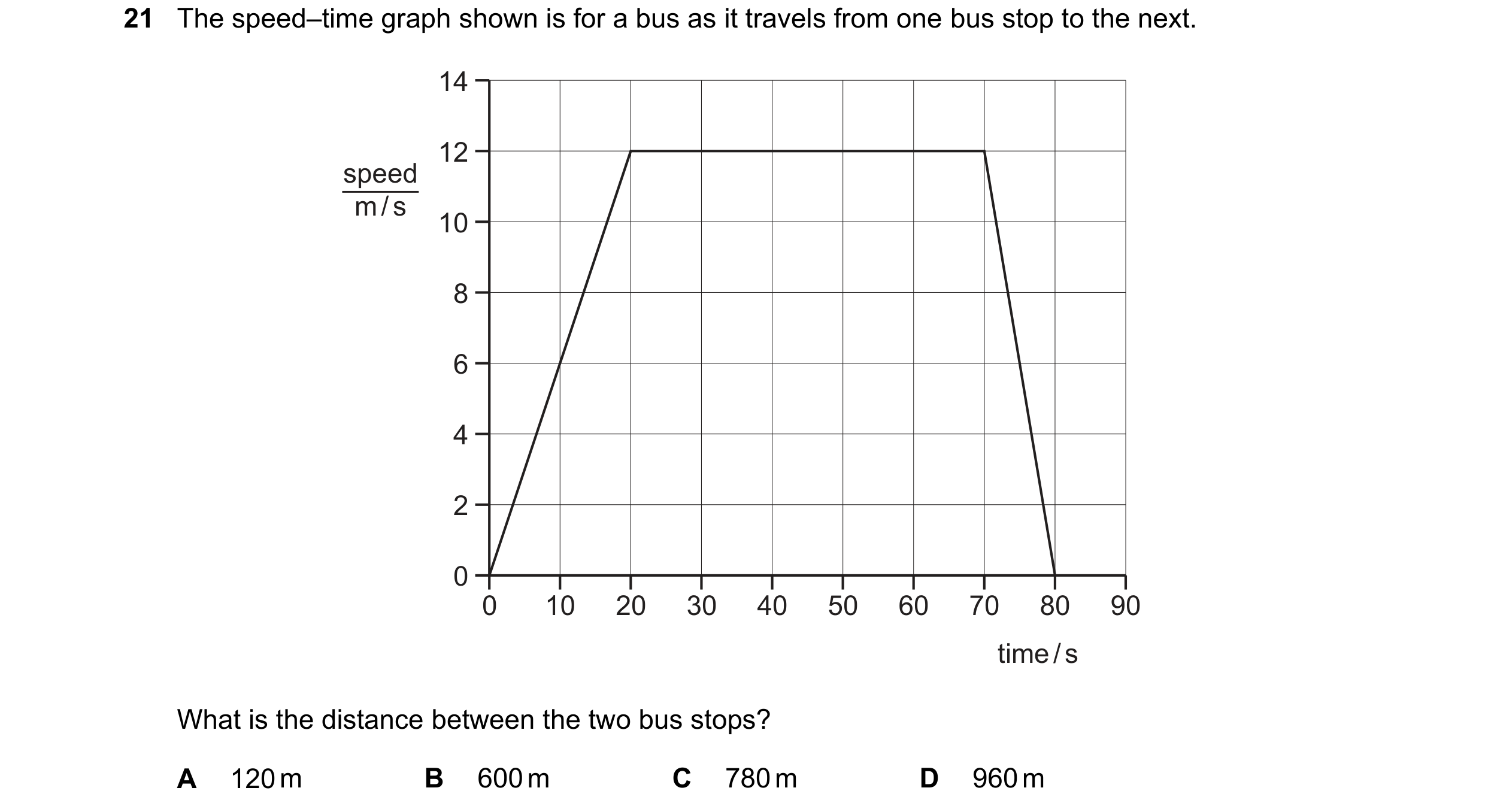

Q12 · The speed–time graph shown is for a bus as it travels from one bus stop to the next 0652/21 Oct/Nov 2022
21 The speed–time graph shown is for a bus as it travels from one bus stop to the next. 14 12 speed m / s 10 8 6 4 2 0 0 10 20 30 40 50 60 70 80 90 time / s What is the distance between the two bus stops? A 120 m B 600 m C 780 m D 960 m
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2022

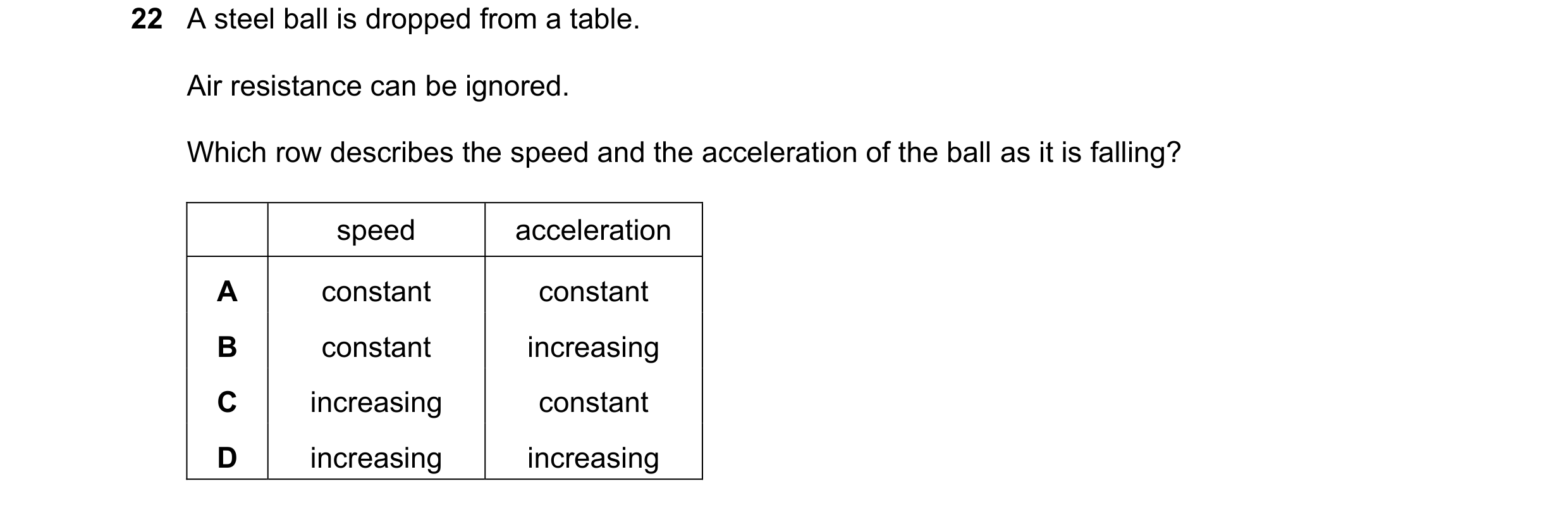

Q13 · A steel ball is dropped from a table 0652/21 Oct/Nov 2022
22 A steel ball is dropped from a table. Air resistance can be ignored. Which row describes the speed and the acceleration of the ball as it is falling? speed acceleration A constant constant B constant increasing C increasing constant D increasing increasing
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2022

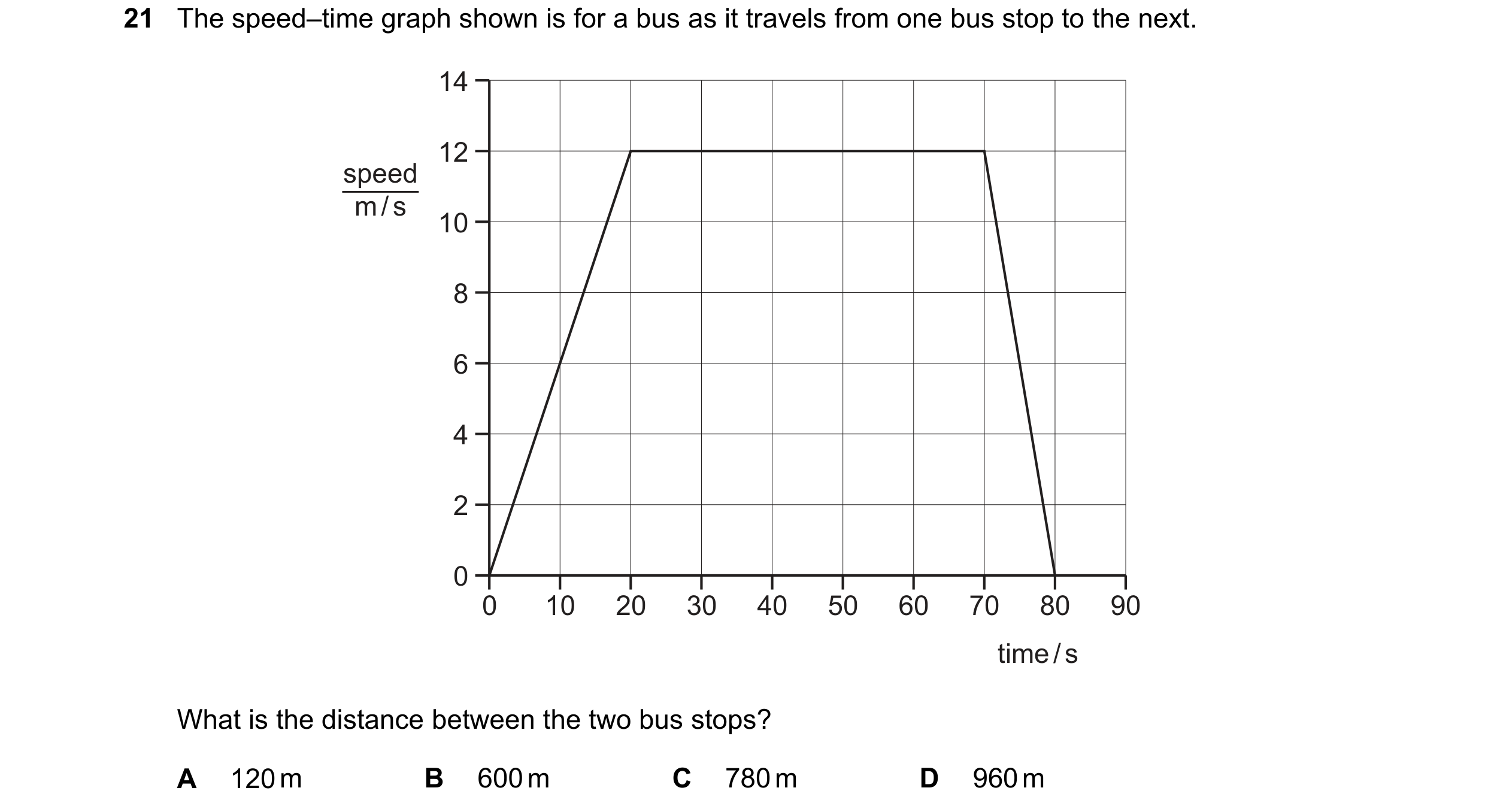

Q14 · The speed–time graph shown is for a bus as it travels from one bus stop to the next 0652/22 Oct/Nov 2022
21 The speed–time graph shown is for a bus as it travels from one bus stop to the next. 14 12 speed m / s 10 8 6 4 2 0 0 10 20 30 40 50 60 70 80 90 time / s What is the distance between the two bus stops? A 120 m B 600 m C 780 m D 960 m
1 marks
Answer: C
This question in 0652/22 Oct/Nov 2022
Q15 · A steel ball is dropped from a table 0652/22 Oct/Nov 2022
22 A steel ball is dropped from a table. Air resistance can be ignored. Which row describes the speed and the acceleration of the ball as it is falling? speed acceleration A constant constant B constant increasing C increasing constant D increasing increasing
1 marks
Answer: C
This question in 0652/22 Oct/Nov 2022

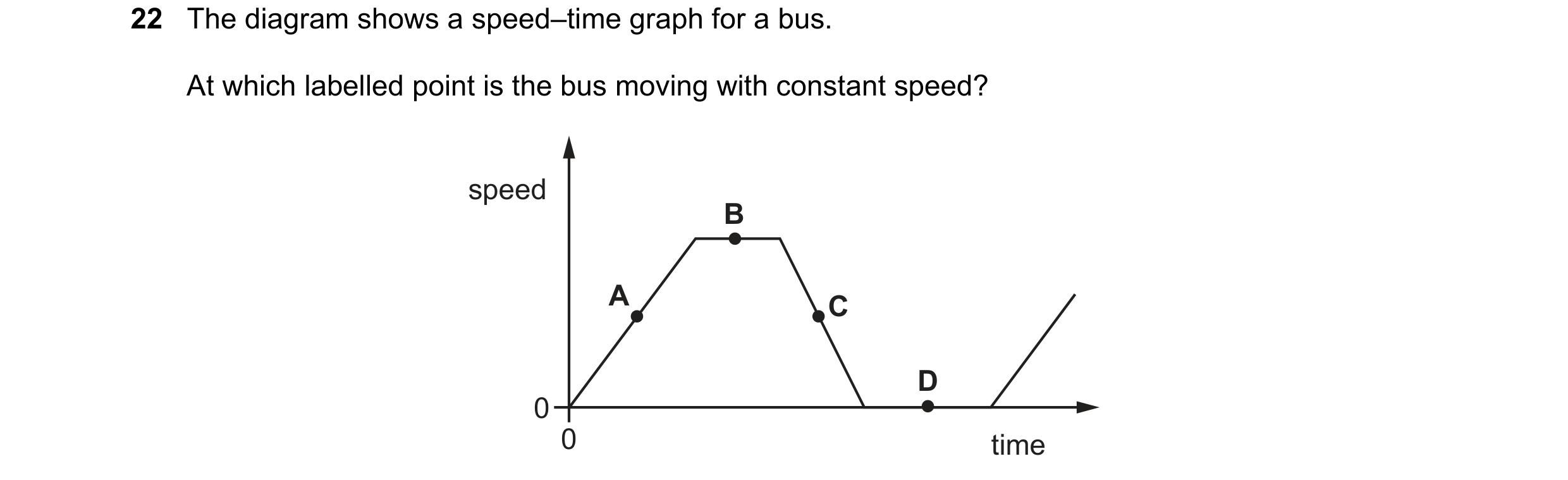

Q16 · The diagram shows a speed–time graph for a bus 0652/21 Oct/Nov 2023
22 The diagram shows a speed–time graph for a bus. At which labelled point is the bus moving with constant speed? speed B A C D 0 0 time
1 marks
Answer: B
This question in 0652/21 Oct/Nov 2023
Q17 · The diagram shows a speed–time graph for a bus 0652/22 Oct/Nov 2023
22 The diagram shows a speed–time graph for a bus. At which labelled point is the bus moving with constant speed? speed B A C D 0 0 time
1 marks
Answer: B
This question in 0652/22 Oct/Nov 2023
Q18 · Light from the Sun takes 8.3 minutes to reach the Earth through the vacuum of space 0652/22 Oct/Nov 2023
31 Light from the Sun takes 8.3 minutes to reach the Earth through the vacuum of space. What is the distance between the Sun and the Earth? A 6.0 105 m B 3.6 107 m C 2.5 109 m D 1.5 1011 m
1 marks
Answer: D
This question in 0652/22 Oct/Nov 2023

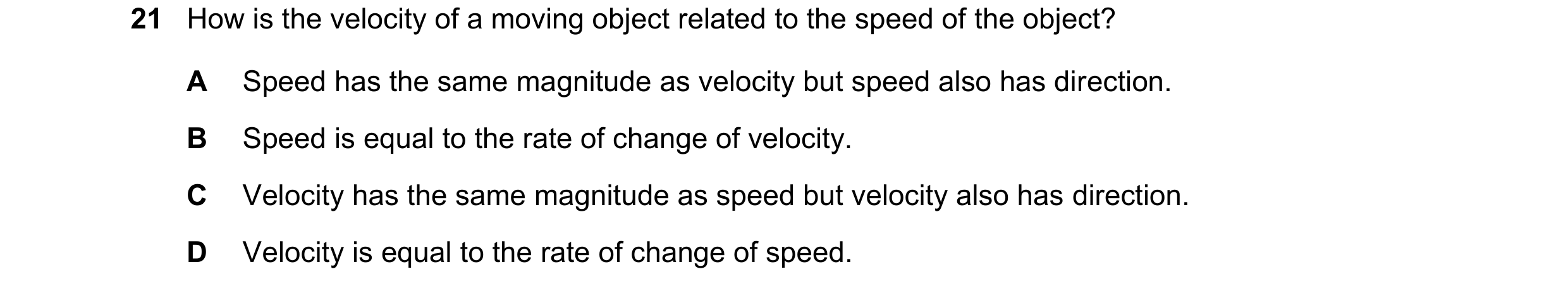

Q19 · How is the velocity of a moving object related to the speed of the object? 0652/21 Oct/Nov 2024
21 How is the velocity of a moving object related to the speed of the object? A Speed has the same magnitude as velocity but speed also has direction. B Speed is equal to the rate of change of velocity. C Velocity has the same magnitude as speed but velocity also has direction. D Velocity is equal to the rate of change of speed.
1 marks
Answer: C
This question in 0652/21 Oct/Nov 2024

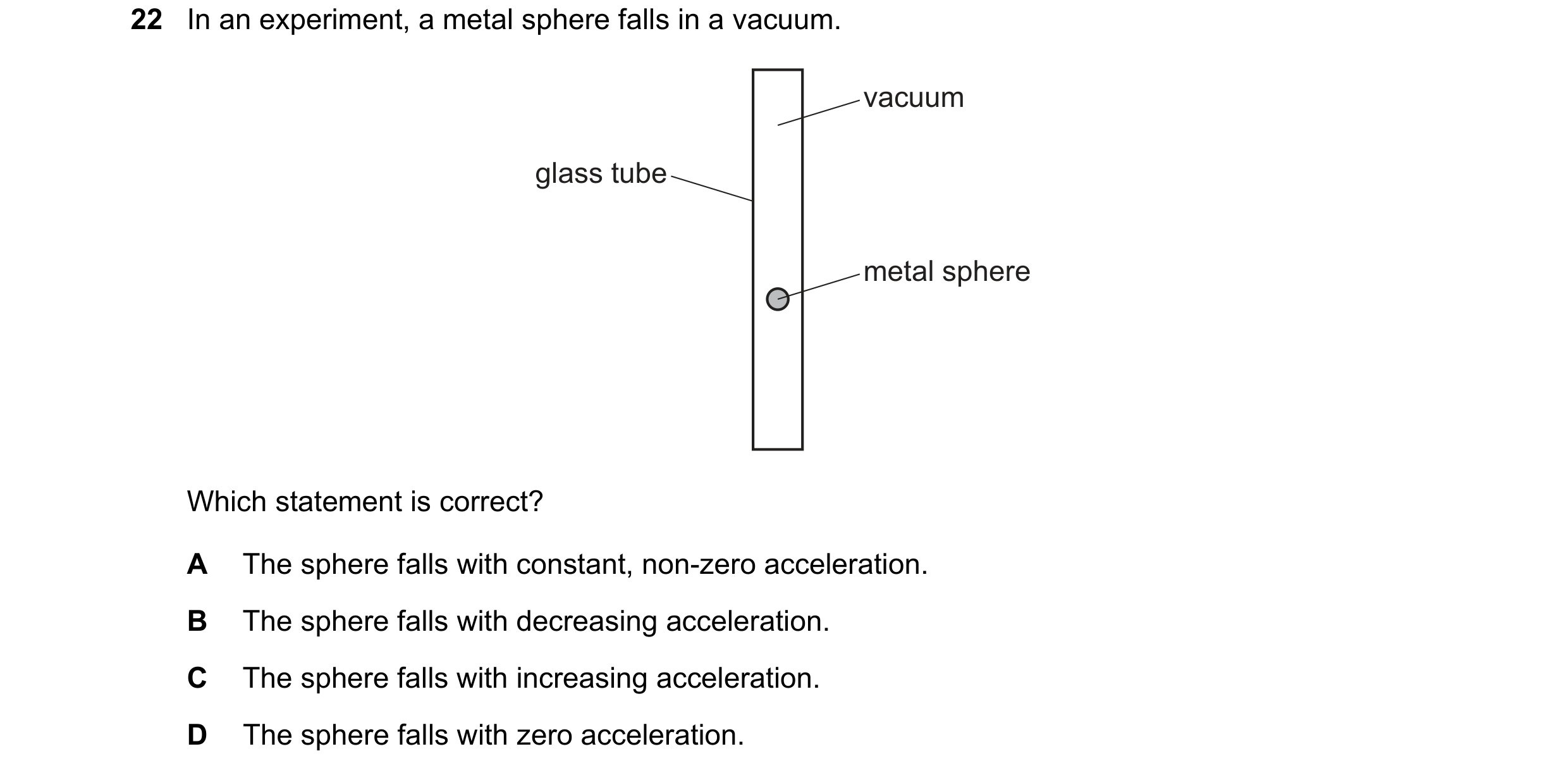

Q20 · In an experiment, a metal sphere falls in a vacuum 0652/21 Oct/Nov 2024
22 In an experiment, a metal sphere falls in a vacuum. vacuum glass tube metal sphere Which statement is correct? A The sphere falls with constant, non-zero acceleration. B The sphere falls with decreasing acceleration. C The sphere falls with increasing acceleration. D The sphere falls with zero acceleration.
1 marks
Answer: A
This question in 0652/21 Oct/Nov 2024
