Cambridge A Level Physics 9702 — 2023 Oct/Nov Paper 1 · Variant 1

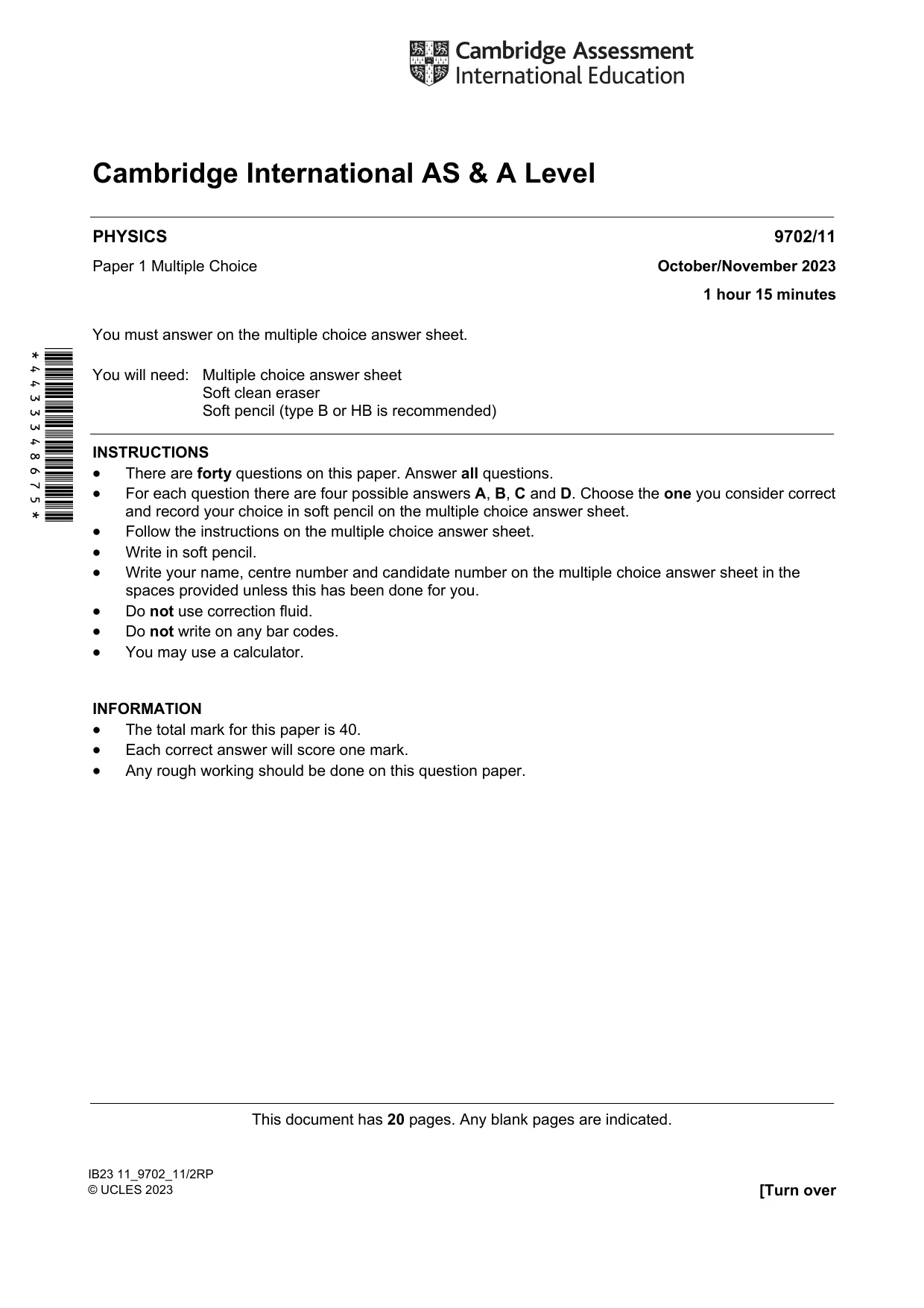

This document has 20 pages. Any blank pages are indicated. IB23 11_9702_11/2RP © UCLES 2023 [Turn over *4433348675* Cambridge International AS & A Level PHYSICS 9702/11 Paper 1 Multiple Choice October/November 2023 1 hour 15 minutes You must answer on the multiple choice answer sheet. You will need: Multiple choice answer sheet Soft clean eraser Soft pencil (type B or HB is recommended) INSTRUCTIONS • There are forty questions on this paper. Answer all questions. • For each question there are four possible answers A, B, C and D. Choose the one you consider correct and record your choice in soft pencil on the multiple choice answer sheet. • Follow the instructions on the multiple choice answer sheet. • Write in soft pencil. • Write your name, centre number and candidate number on the multiple choice answer sheet in the spaces provided unless this has been done for you. • Do not use correction fluid. • Do not write on any bar codes. • You may use a calculator. INFORMATION • The total mark for this paper is 40. • Each correct answer will score one mark. • Any rough working should be done on this question paper.

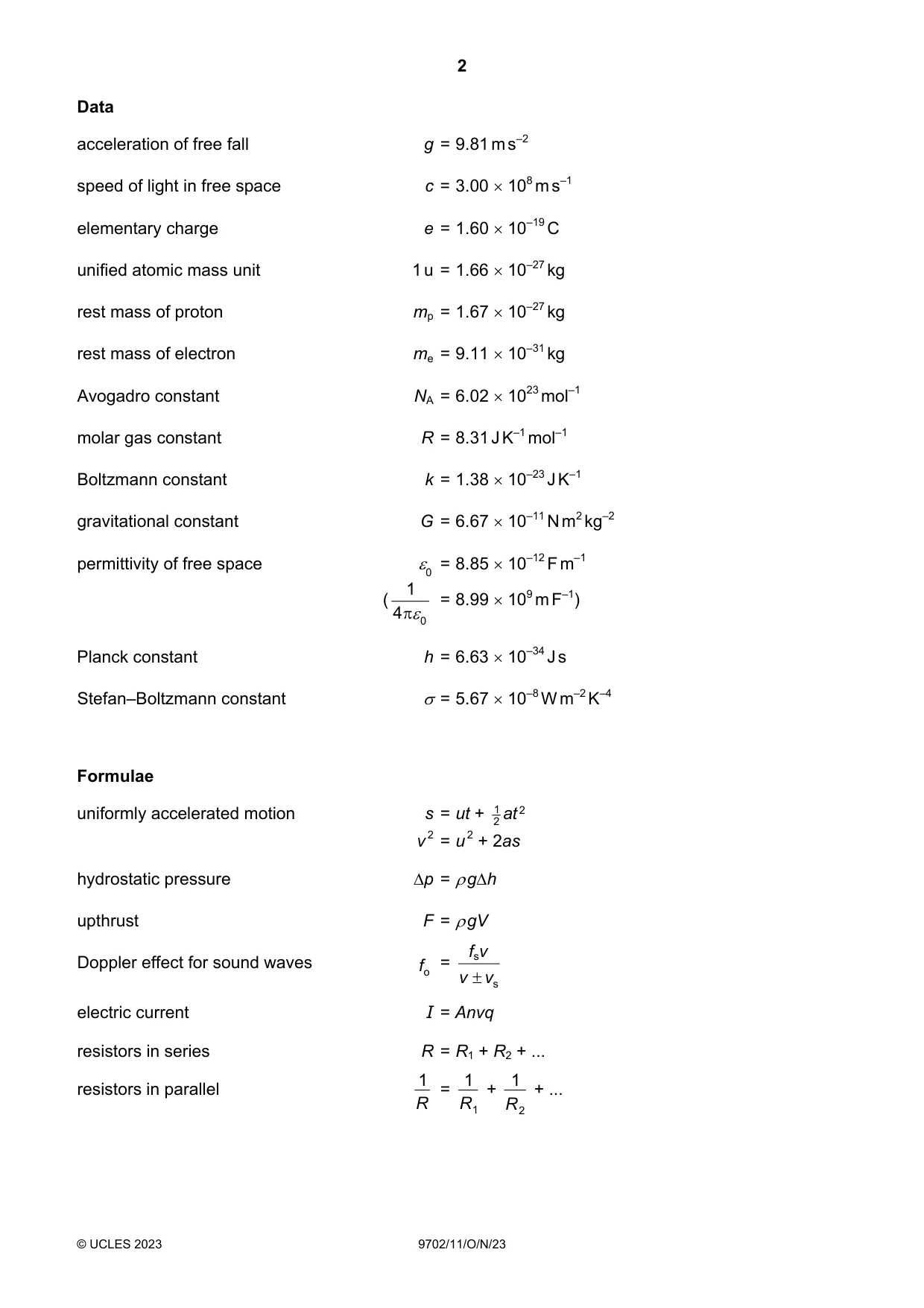

2 © UCLES 2023 9702/11/O/N/23 Data acceleration of free fall g = 9.81 m s–2 speed of light in free space c = 3.00 × 108 m s–1 elementary charge e = 1.60 × 10–19 C unified atomic mass unit 1 u = 1.66 × 10–27 kg rest mass of proton mp = 1.67 × 10–27 kg rest mass of electron me = 9.11 × 10–31 kg Avogadro constant NA = 6.02 × 1023 mol–1 molar gas constant R = 8.31 J K–1 mol–1 Boltzmann constant k = 1.38 × 10–23 J K–1 gravitational constant G = 6.67 × 10–11 N m2 kg–2 permittivity of free space ε0 = 8.85 × 10–12 F m–1 ( 0 4 1 ε π = 8.99 × 109 m F–1) Planck constant h = 6.63 × 10–34 J s Stefan–Boltzmann constant σ = 5.67 × 10–8 W m–2 K–4 Formulae uniformly accelerated motion s = ut + 2 2 1 at v 2 = u 2 + 2as hydrostatic pressure ∆p = ρ g∆h upthrust F = ρ gV Doppler effect for sound waves of = s s v v v f ± electric current I = Anvq resistors in series R = R1 + R2 + ... resistors in parallel R 1 = 1 1 R + 2 1 R + ...

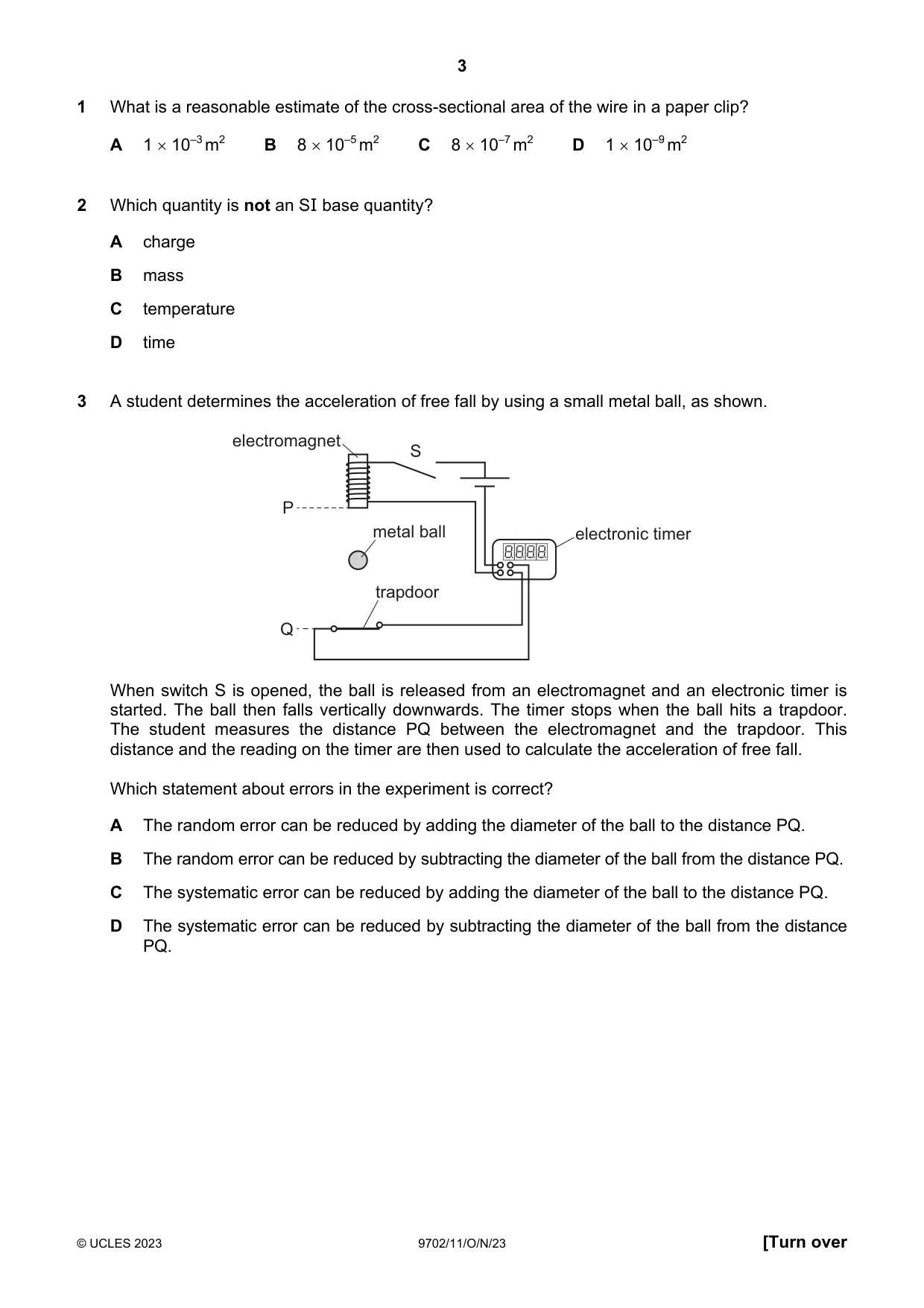

3 © UCLES 2023 9702/11/O/N/23 [Turn over 1 What is a reasonable estimate of the cross-sectional area of the wire in a paper clip? A 1 × 10–3 m2 B 8 × 10–5 m2 C 8 × 10–7 m2 D 1 × 10–9 m2 2 Which quantity is not an SI base quantity? A charge B mass C temperature D time 3 A student determines the acceleration of free fall by using a small metal ball, as shown. S electromagnet P Q metal ball electronic timer trapdoor When switch S is opened, the ball is released from an electromagnet and an electronic timer is started. The ball then falls vertically downwards. The timer stops when the ball hits a trapdoor. The student measures the distance PQ between the electromagnet and the trapdoor. This distance and the reading on the timer are then used to calculate the acceleration of free fall. Which statement about errors in the experiment is correct? A The random error can be reduced by adding the diameter of the ball to the distance PQ. B The random error can be reduced by subtracting the diameter of the ball from the distance PQ. C The systematic error can be reduced by adding the diameter of the ball to the distance PQ. D The systematic error can be reduced by subtracting the diameter of the ball from the distance PQ.

4 © UCLES 2023 9702/11/O/N/23 4 The diagram shows two coplanar forces, P and Q, drawn to scale. P Q Force R is given by R = Q – P. Which diagram represents R ? A B C D

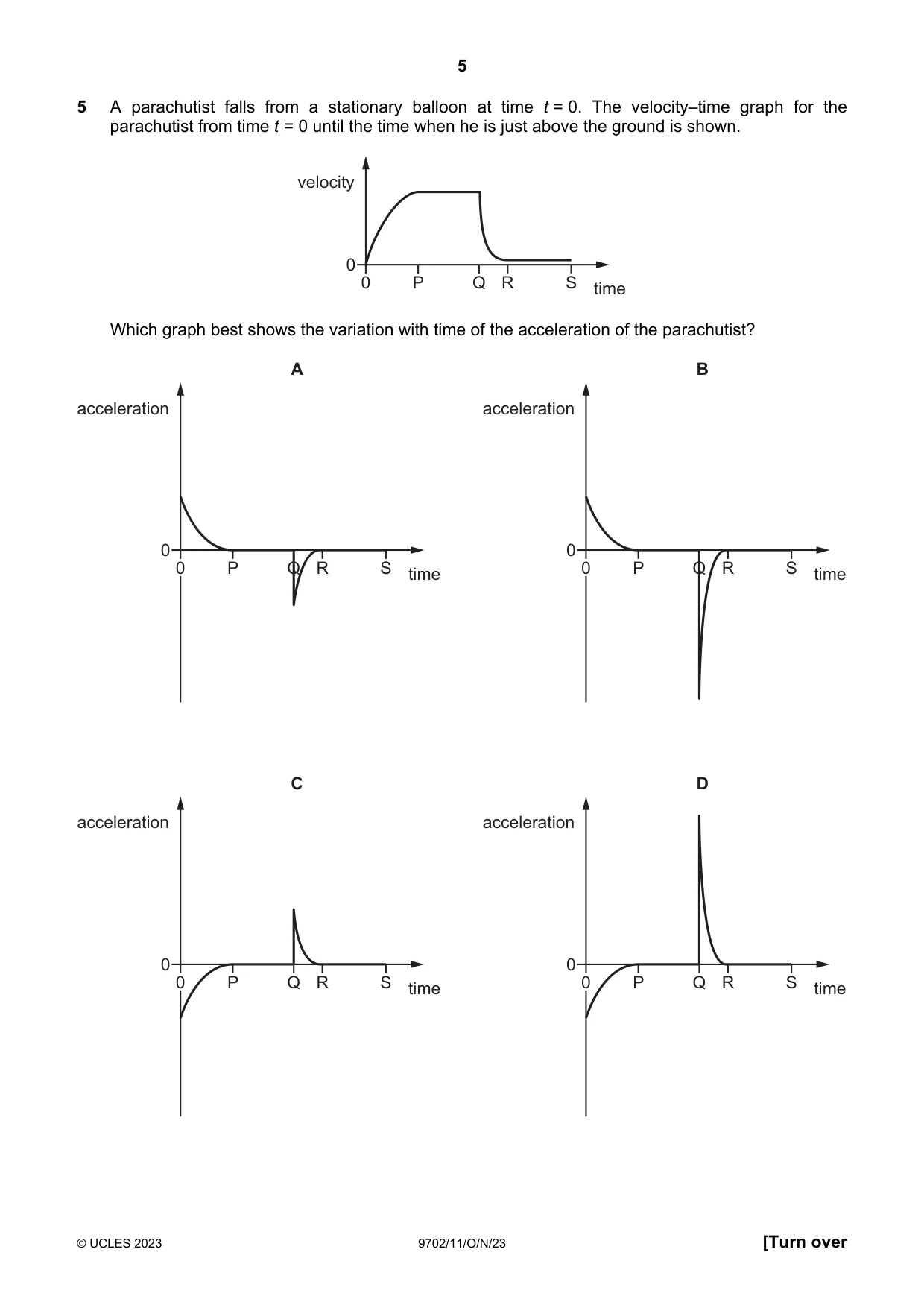

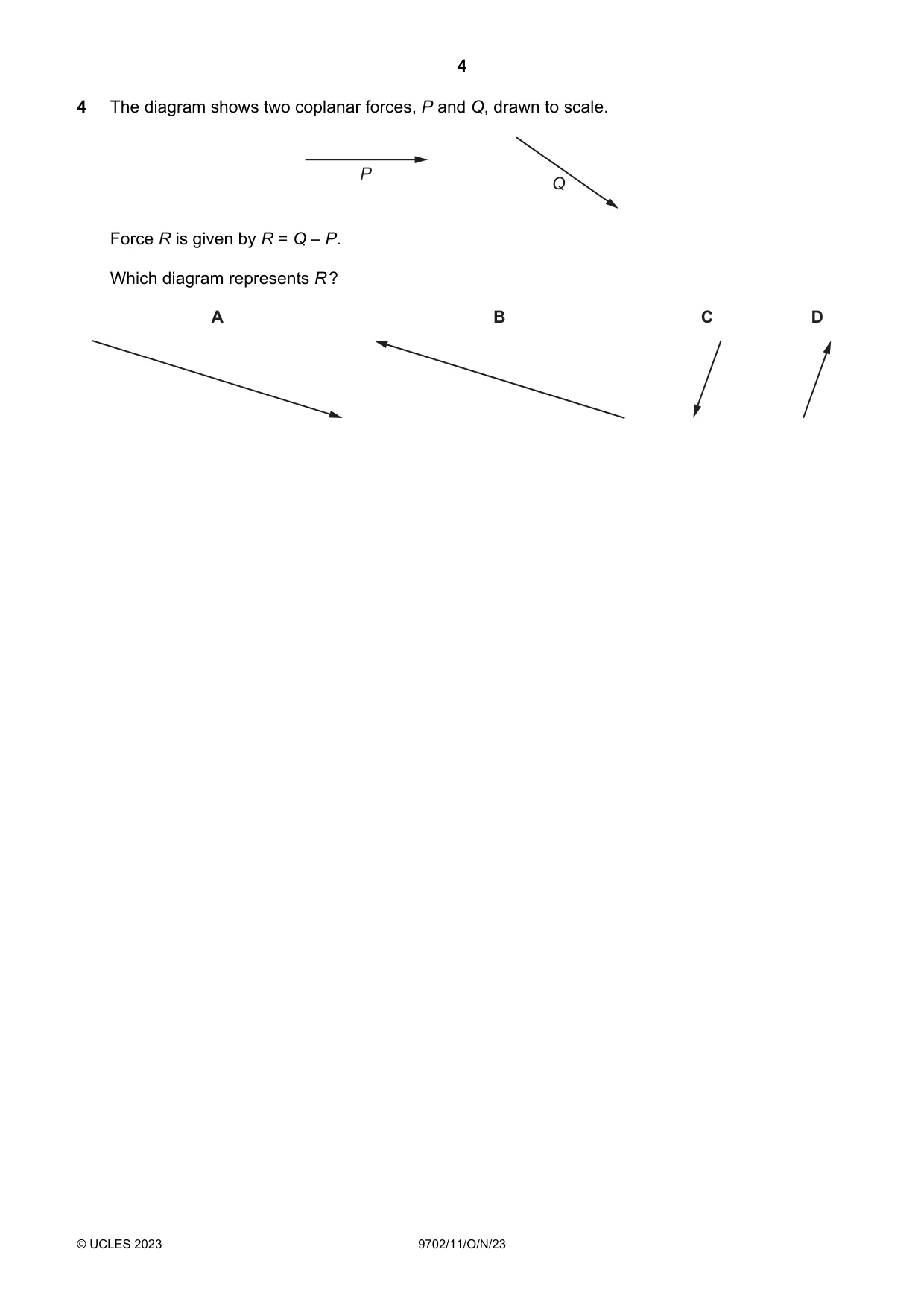

5 © UCLES 2023 9702/11/O/N/23 [Turn over 5 A parachutist falls from a stationary balloon at time t = 0. The velocity–time graph for the parachutist from time t = 0 until the time when he is just above the ground is shown. velocity 0 P Q R S 0 time Which graph best shows the variation with time of the acceleration of the parachutist? acceleration 0 P Q A R S 0 time acceleration 0 P Q B R S 0 time acceleration 0 P Q C R S 0 time acceleration 0 P Q D R S 0 time

6 © UCLES 2023 9702/11/O/N/23 6 A projectile is fired from point P with velocity V at an angle θ to the horizontal. It lands at point Q, a horizontal distance R from P, after time T. P Q

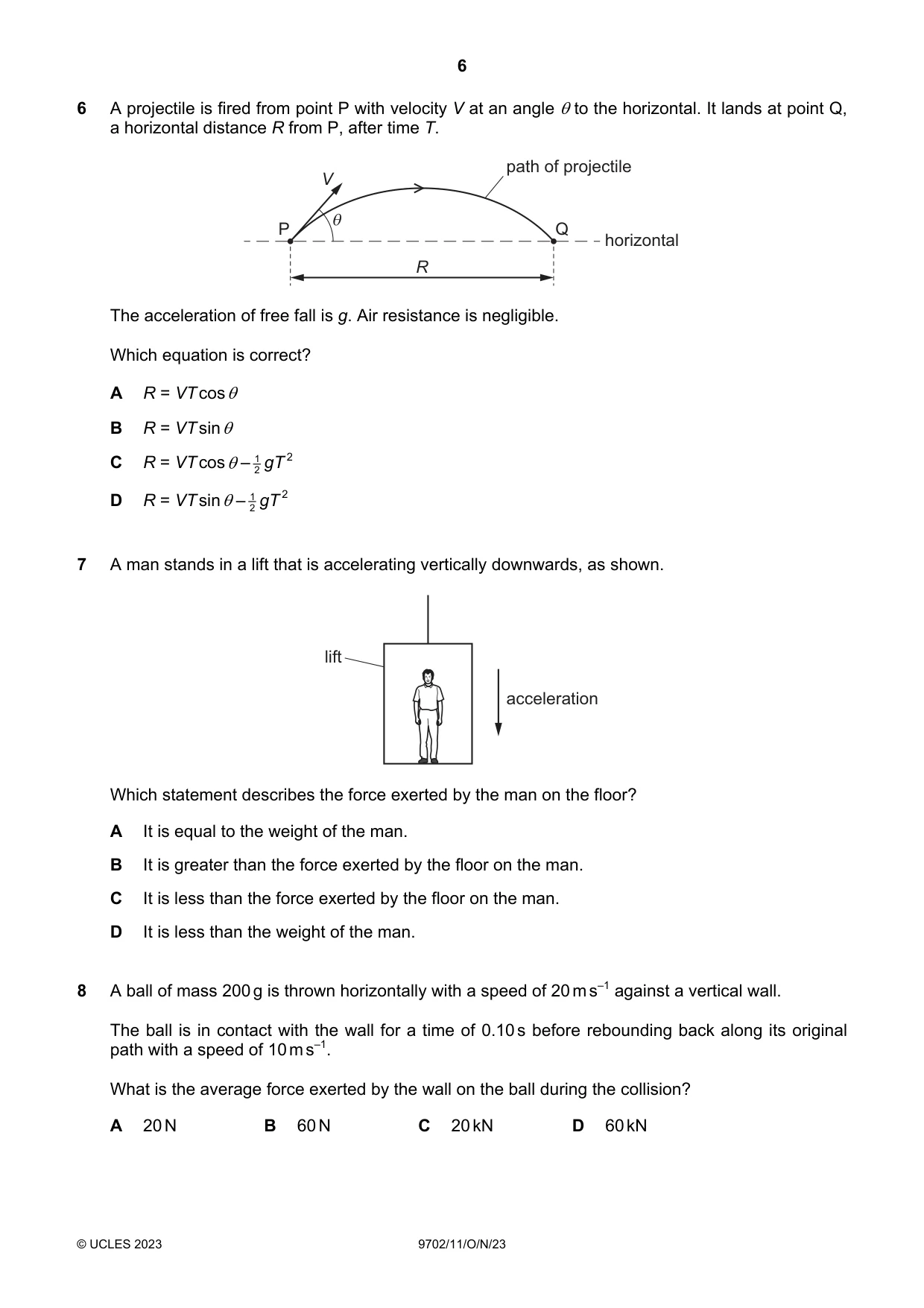

path of projectile horizontal V R The acceleration of free fall is g. Air resistance is negligible. Which equation is correct? A R = VT cos θ B R = VT sin θ C R = VT cos θ – 1 2 gT 2 D R = VT sin θ – 1 2 gT 2 7 A man stands in a lift that is accelerating vertically downwards, as shown. lift acceleration Which statement describes the force exerted by the man on the floor? A It is equal to the weight of the man. B It is greater than the force exerted by the floor on the man. C It is less than the force exerted by the floor on the man. D It is less than the weight of the man. 8 A ball of mass 200 g is thrown horizontally with a speed of 20 m s–1 against a vertical wall. The ball is in contact with the wall for a time of 0.10 s before rebounding back along its original path with a speed of 10 m s–1. What is the average force exerted by the wall on the ball during the collision? A 20 N B 60 N C 20 kN D 60 kN

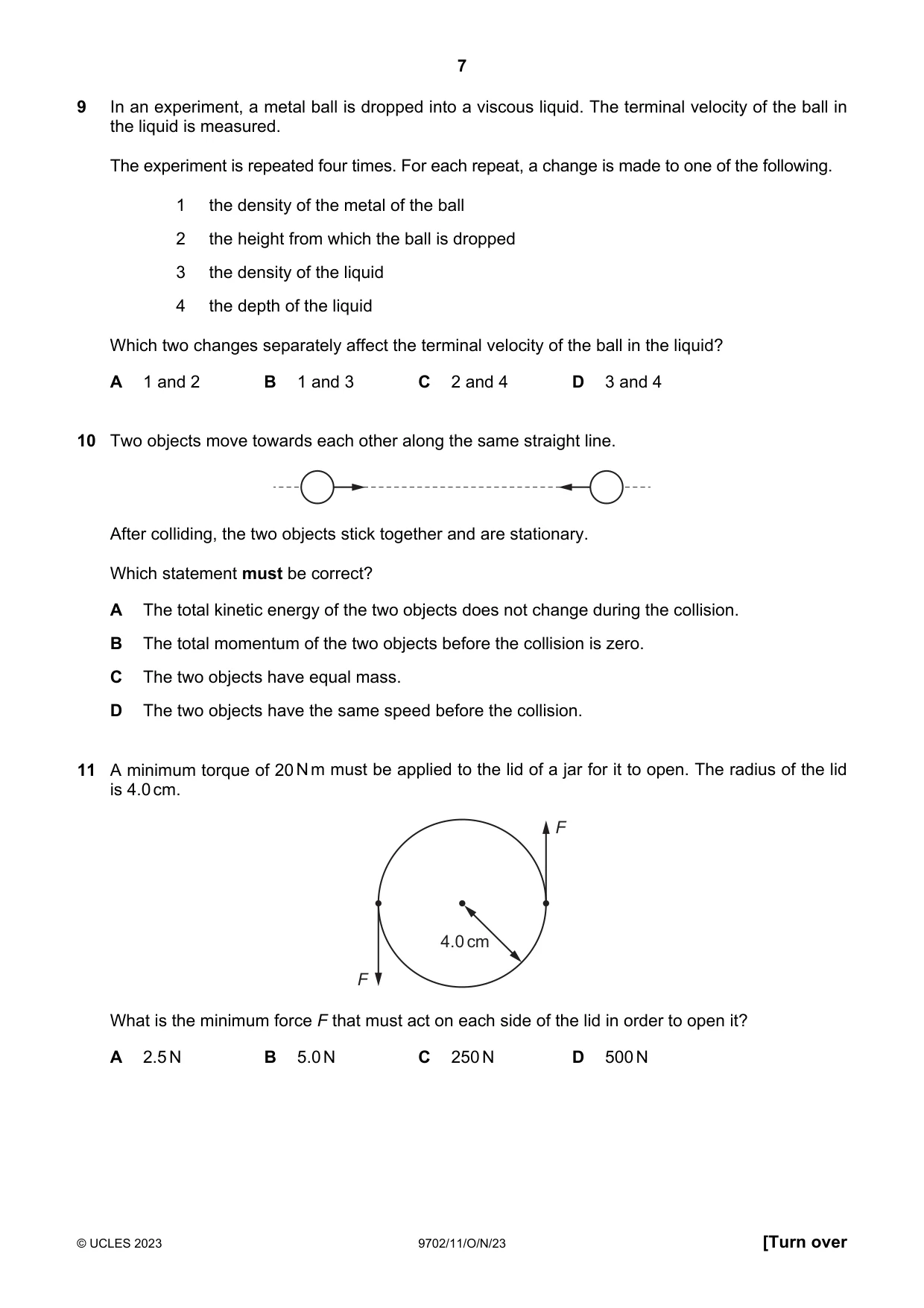

7 © UCLES 2023 9702/11/O/N/23 [Turn over 9 In an experiment, a metal ball is dropped into a viscous liquid. The terminal velocity of the ball in the liquid is measured. The experiment is repeated four times. For each repeat, a change is made to one of the following. 1 the density of the metal of the ball 2 the height from which the ball is dropped 3 the density of the liquid 4 the depth of the liquid Which two changes separately affect the terminal velocity of the ball in the liquid? A 1 and 2 B 1 and 3 C 2 and 4 D 3 and 4 10 Two objects move towards each other along the same straight line. After colliding, the two objects stick together and are stationary. Which statement must be correct? A The total kinetic energy of the two objects does not change during the collision. B The total momentum of the two objects before the collision is zero. C The two objects have equal mass. D The two objects have the same speed before the collision. 11 A minimum torque of 20 N m must be applied to the lid of a jar for it to open. The radius of the lid is 4.0 cm. F F 4.0 cm What is the minimum force F that must act on each side of the lid in order to open it? A 2.5 N B 5.0 N C 250 N D 500 N

8 © UCLES 2023 9702/11/O/N/23 12 A uniform bar of length L and weight W rests horizontally on two supports X and Y. L 6 RX W support X RY support Y Support X exerts a vertical force RX at a distance of 6 L from one end of the bar. Support Y exerts a vertical force RY at the other end of the bar. The bar is in equilibrium. What is the ratio Y X R R ? A 2 3 B 3 2 C 5 3 D 5 2 13 A type of firework is made by connecting two rockets, facing in opposite directions, to a rod, as shown. The rod is attached to a frictionless pivot so that the firework can rotate in a vertical plane. The firework has weight W. The pivot exerts a force R on the rod that is equal and opposite to W. F F d d R W pivot rocket rod rocket Each rocket exerts a force of magnitude F on the rod at a perpendicular distance d from the pivot. The forces exerted by the rockets are always in opposite directions. Air resistance is negligible. Which statement is correct? A The firework is in equilibrium because the resultant force acting on it is zero. B The firework is in equilibrium because the resultant torque acting on it is zero. C The firework is not in equilibrium because the resultant force acting on it is not zero. D The firework is not in equilibrium because the resultant torque acting on it is not zero.

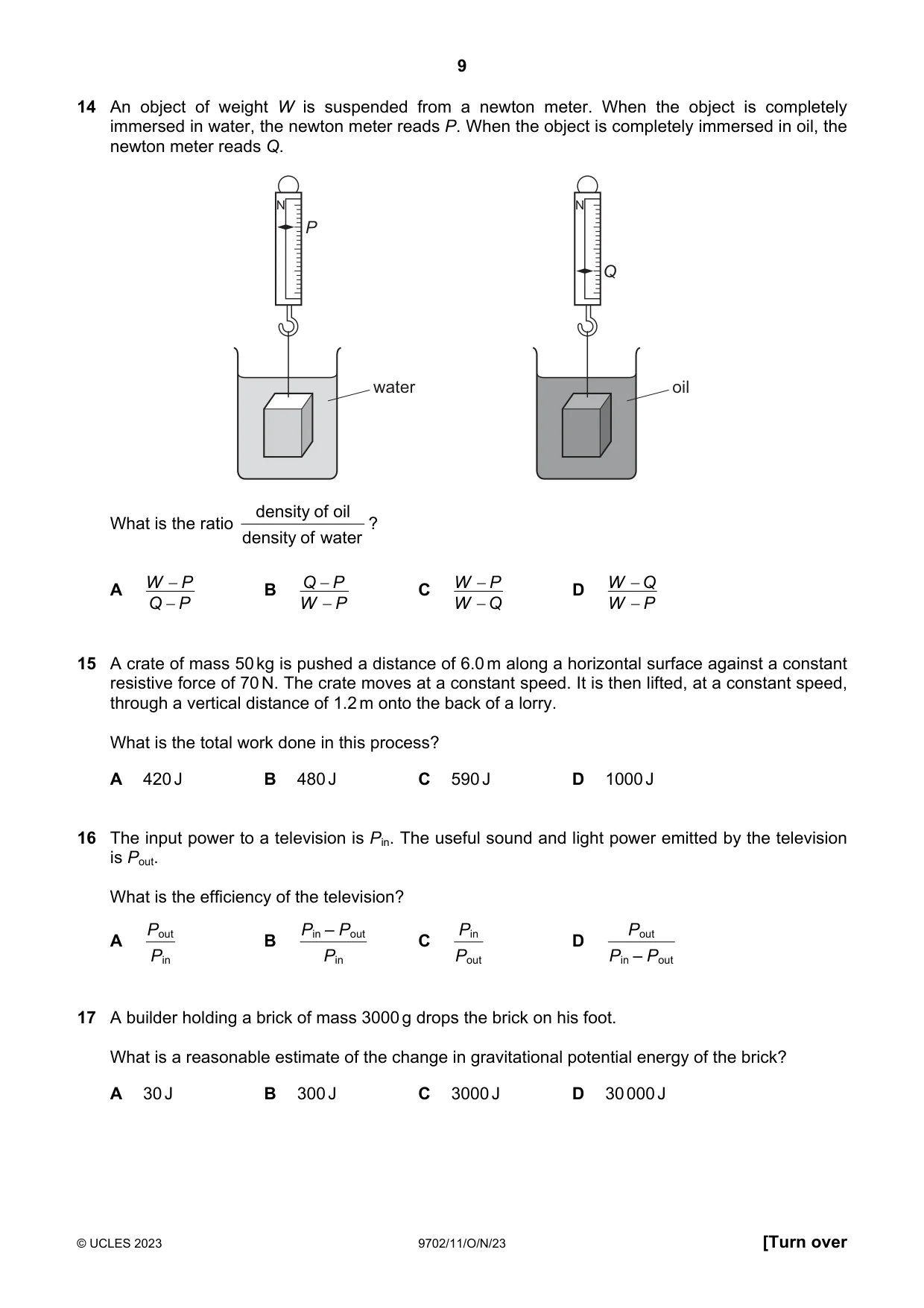

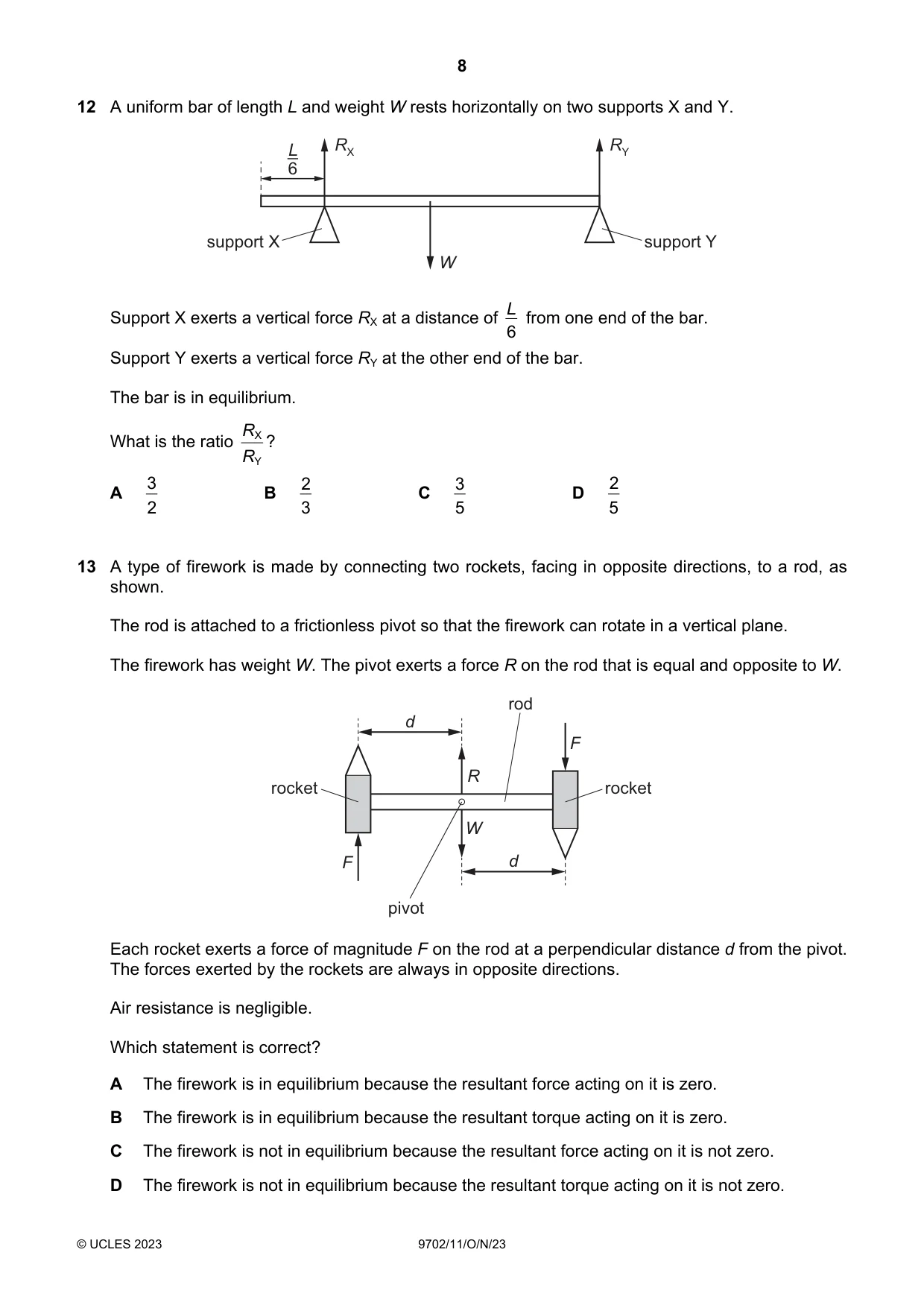

9 © UCLES 2023 9702/11/O/N/23 [Turn over 14 An object of weight W is suspended from a newton meter. When the object is completely immersed in water, the newton meter reads P. When the object is completely immersed in oil, the newton meter reads Q. N water N oil P Q What is the ratio water of density oil of density ? A W P Q P − − B Q P W P − − C W P W Q − − D W Q W P − − 15 A crate of mass 50 kg is pushed a distance of 6.0 m along a horizontal surface against a constant resistive force of 70 N. The crate moves at a constant speed. It is then lifted, at a constant speed, through a vertical distance of 1.2 m onto the back of a lorry. What is the total work done in this process? A 420 J B 480 J C 590 J D 1000 J 16 The input power to a television is Pin. The useful sound and light power emitted by the television is Pout. What is the efficiency of the television? A in out P P B in out in – P P P C out in P P D out in out – P P P 17 A builder holding a brick of mass 3000 g drops the brick on his foot. What is a reasonable estimate of the change in gravitational potential energy of the brick? A 30 J B 300 J C 3000 J D 30 000 J

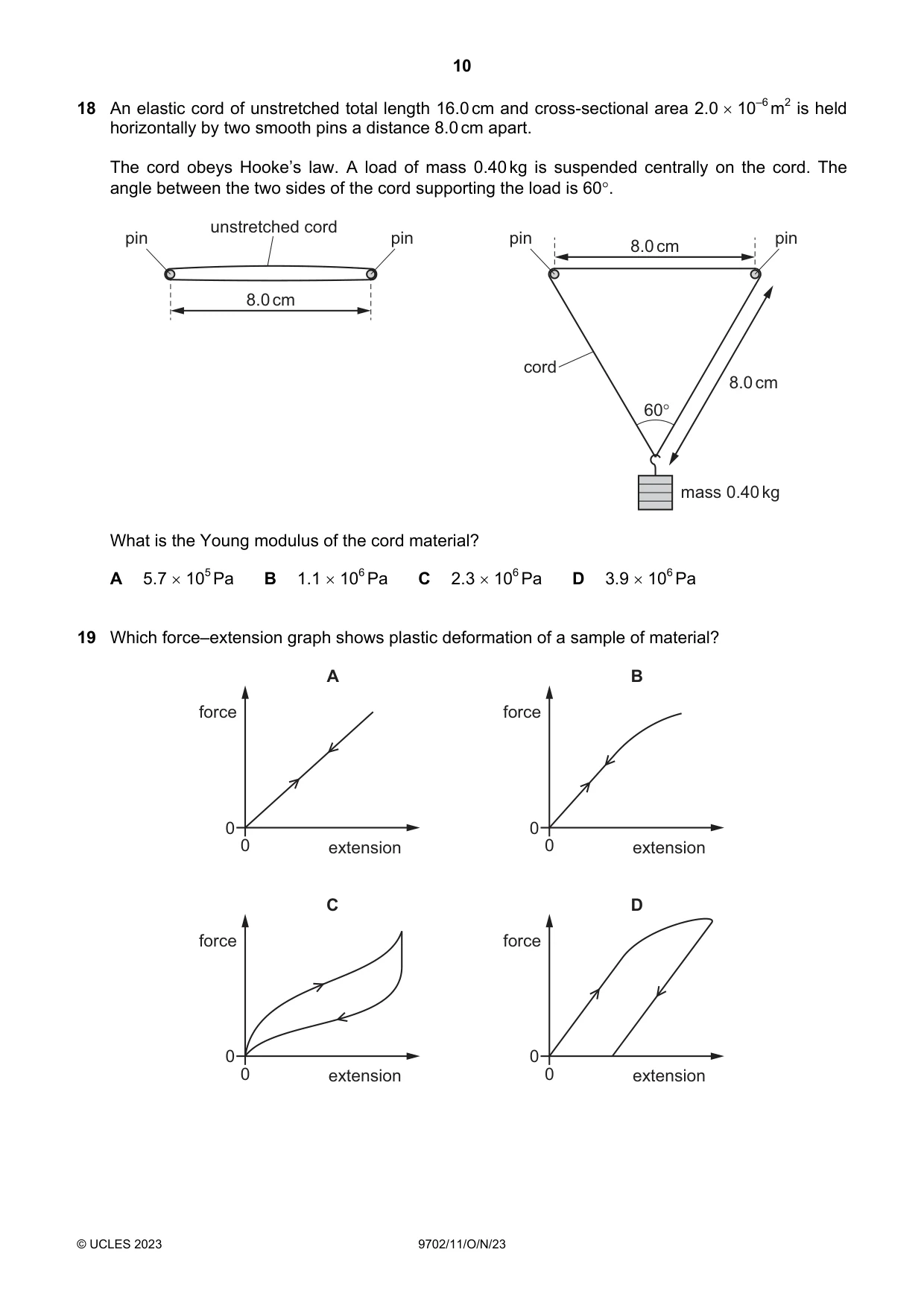

10 © UCLES 2023 9702/11/O/N/23 18 An elastic cord of unstretched total length 16.0 cm and cross-sectional area 2.0 × 10–6 m2 is held horizontally by two smooth pins a distance 8.0 cm apart. The cord obeys Hooke’s law. A load of mass 0.40 kg is suspended centrally on the cord. The angle between the two sides of the cord supporting the load is 60°. 8.0 cm 8.0 cm 8.0 cm mass 0.40 kg unstretched cord cord pin pin pin pin 60 What is the Young modulus of the cord material? A 5.7 × 105 Pa B 1.1 × 106 Pa C 2.3 × 106 Pa D 3.9 × 106 Pa 19 Which force–extension graph shows plastic deformation of a sample of material? 0 0 A force extension 0 0 B force extension 0 0 C force extension 0 0 D force extension

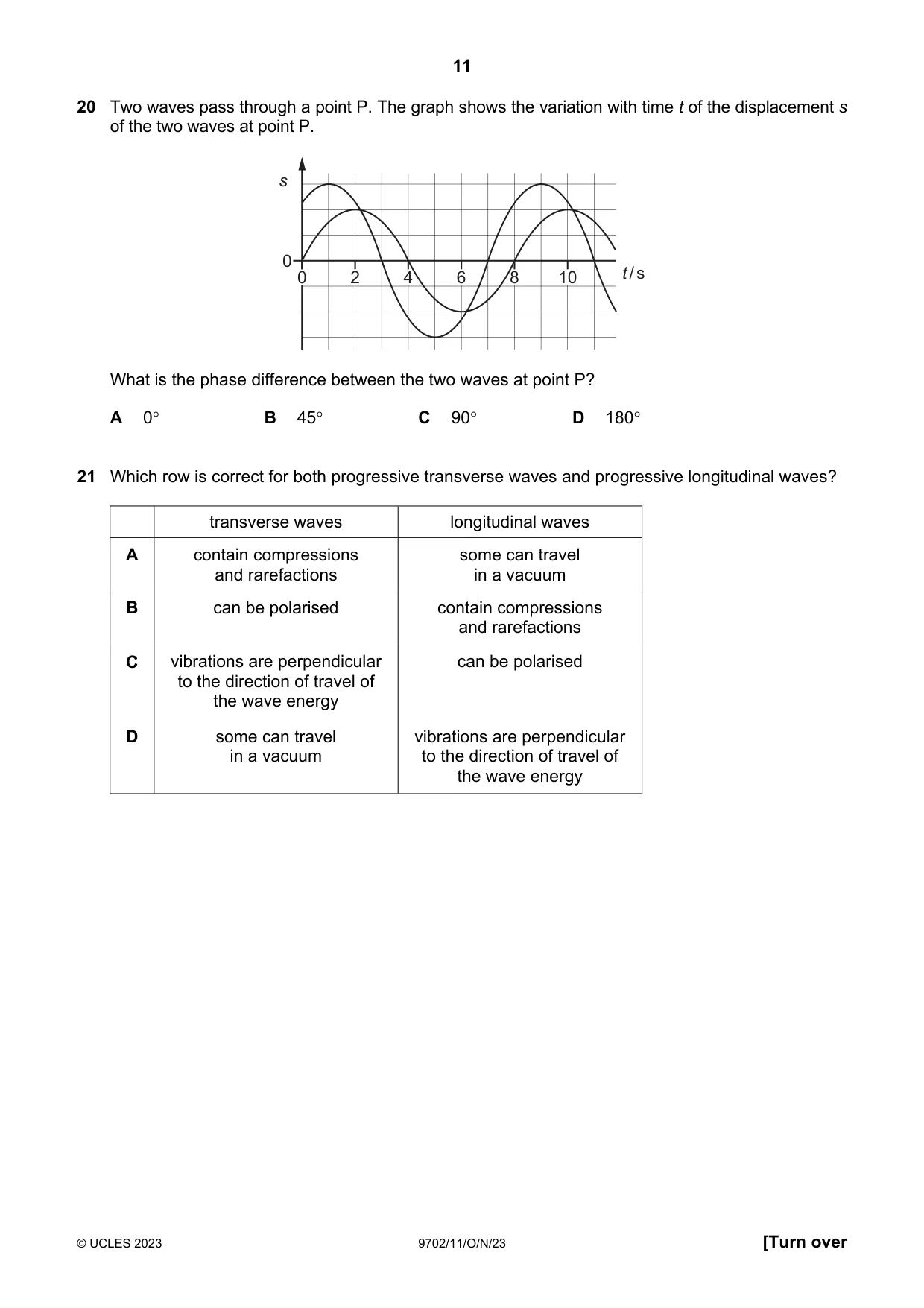

11 © UCLES 2023 9702/11/O/N/23 [Turn over 20 Two waves pass through a point P. The graph shows the variation with time t of the displacement s of the two waves at point P. s t / s 0 2 4 6 8 10 0 What is the phase difference between the two waves at point P? A 0° B 45° C 90° D 180° 21 Which row is correct for both progressive transverse waves and progressive longitudinal waves? transverse waves longitudinal waves A contain compressions and rarefactions some can travel in a vacuum B can be polarised contain compressions and rarefactions C vibrations are perpendicular to the direction of travel of the wave energy can be polarised D some can travel in a vacuum vibrations are perpendicular to the direction of travel of the wave energy

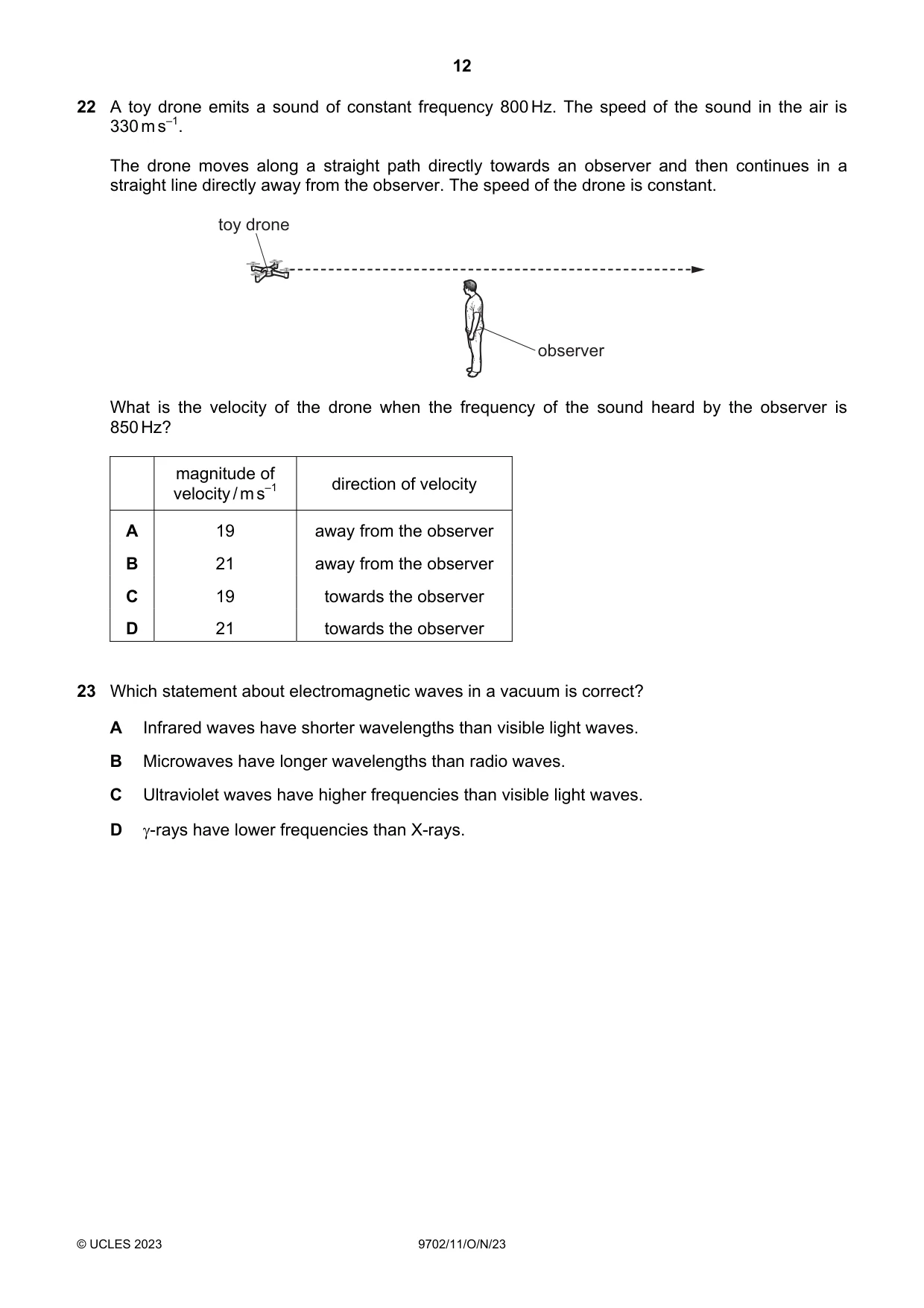

12 © UCLES 2023 9702/11/O/N/23 22 A toy drone emits a sound of constant frequency 800 Hz. The speed of the sound in the air is 330 m s–1. The drone moves along a straight path directly towards an observer and then continues in a straight line directly away from the observer. The speed of the drone is constant. observer toy drone What is the velocity of the drone when the frequency of the sound heard by the observer is 850 Hz? magnitude of velocity / m s–1 direction of velocity A 19 away from the observer B 21 away from the observer C 19 towards the observer D 21 towards the observer 23 Which statement about electromagnetic waves in a vacuum is correct? A Infrared waves have shorter wavelengths than visible light waves. B Microwaves have longer wavelengths than radio waves. C Ultraviolet waves have higher frequencies than visible light waves. D γ-rays have lower frequencies than X-rays.

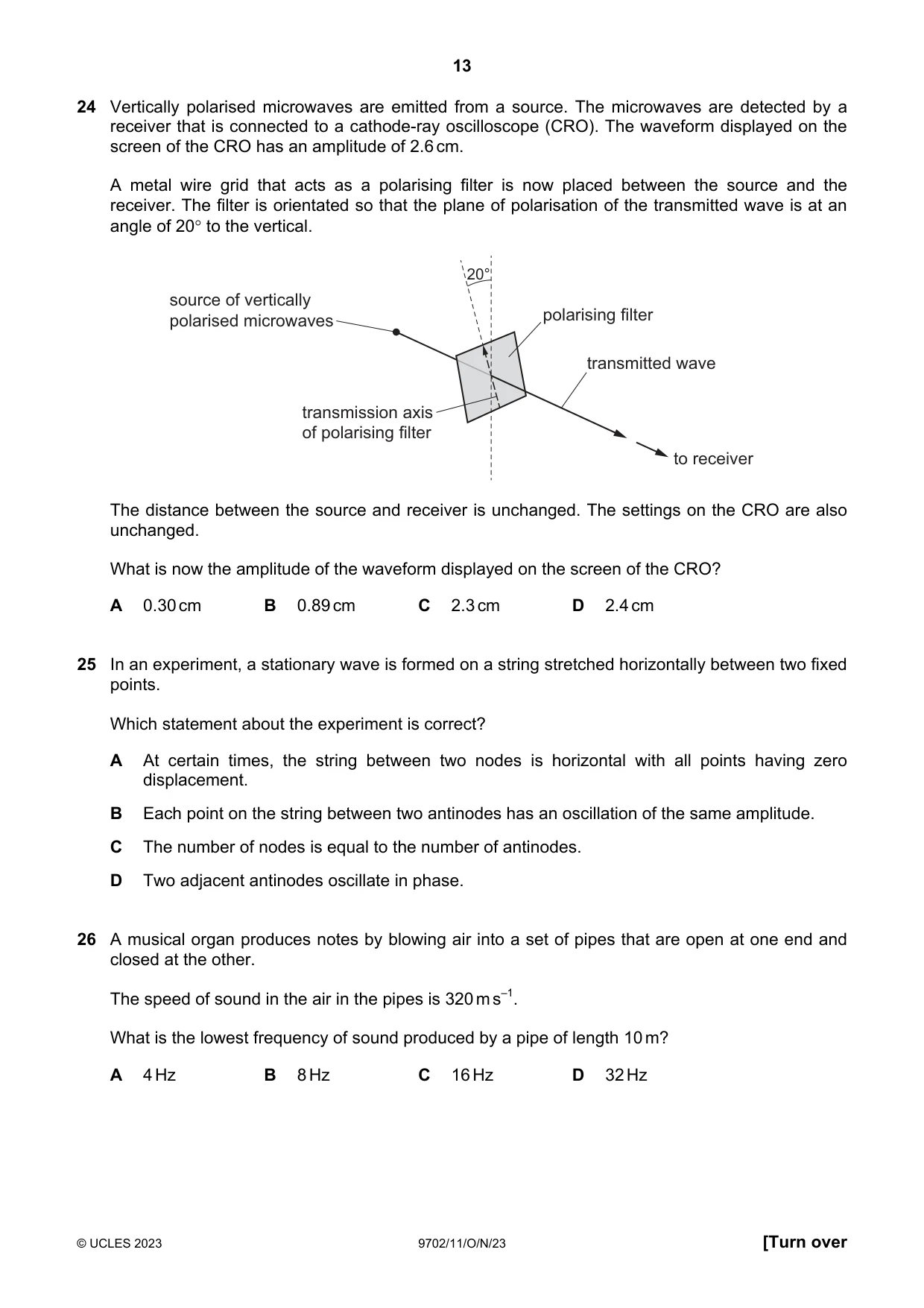

13 © UCLES 2023 9702/11/O/N/23 [Turn over 24 Vertically polarised microwaves are emitted from a source. The microwaves are detected by a receiver that is connected to a cathode-ray oscilloscope (CRO). The waveform displayed on the screen of the CRO has an amplitude of 2.6 cm. A metal wire grid that acts as a polarising filter is now placed between the source and the receiver. The filter is orientated so that the plane of polarisation of the transmitted wave is at an angle of 20° to the vertical. 20° transmission axis of polarising filter transmitted wave to receiver polarising filter source of vertically polarised microwaves The distance between the source and receiver is unchanged. The settings on the CRO are also unchanged. What is now the amplitude of the waveform displayed on the screen of the CRO? A 0.30 cm B 0.89 cm C 2.3 cm D 2.4 cm 25 In an experiment, a stationary wave is formed on a string stretched horizontally between two fixed points. Which statement about the experiment is correct? A At certain times, the string between two nodes is horizontal with all points having zero displacement. B Each point on the string between two antinodes has an oscillation of the same amplitude. C The number of nodes is equal to the number of antinodes. D Two adjacent antinodes oscillate in phase. 26 A musical organ produces notes by blowing air into a set of pipes that are open at one end and closed at the other. The speed of sound in the air in the pipes is 320 m s–1. What is the lowest frequency of sound produced by a pipe of length 10 m? A 4 Hz B 8 Hz C 16 Hz D 32 Hz

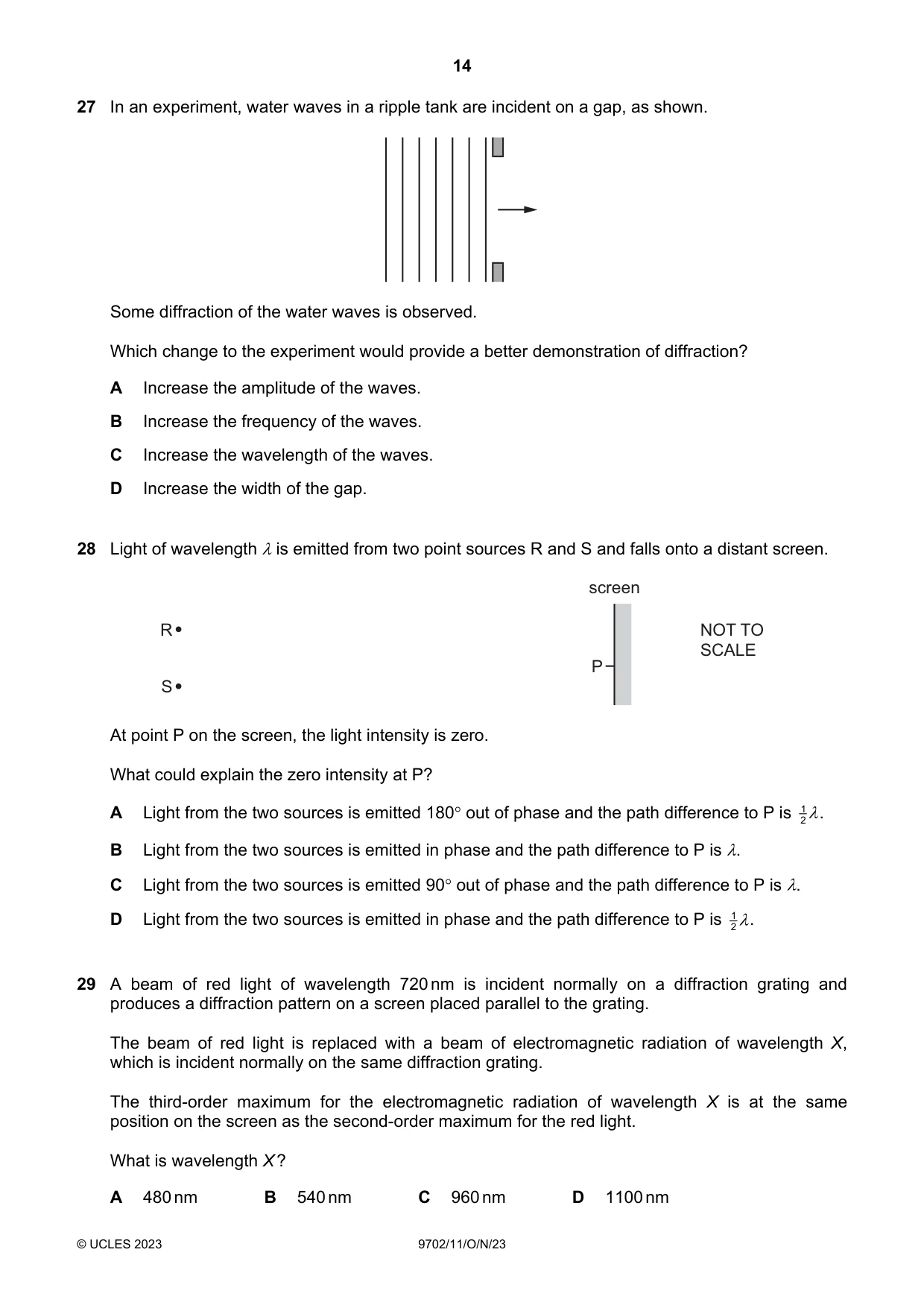

14 © UCLES 2023 9702/11/O/N/23 27 In an experiment, water waves in a ripple tank are incident on a gap, as shown. Some diffraction of the water waves is observed. Which change to the experiment would provide a better demonstration of diffraction? A Increase the amplitude of the waves. B Increase the frequency of the waves. C Increase the wavelength of the waves. D Increase the width of the gap. 28 Light of wavelength λ is emitted from two point sources R and S and falls onto a distant screen. screen P S R NOT TO SCALE At point P on the screen, the light intensity is zero. What could explain the zero intensity at P? A Light from the two sources is emitted 180° out of phase and the path difference to P is 1 2 . λ B Light from the two sources is emitted in phase and the path difference to P is λ. C Light from the two sources is emitted 90° out of phase and the path difference to P is λ. D Light from the two sources is emitted in phase and the path difference to P is 1 2 . λ 29 A beam of red light of wavelength 720 nm is incident normally on a diffraction grating and produces a diffraction pattern on a screen placed parallel to the grating. The beam of red light is replaced with a beam of electromagnetic radiation of wavelength X, which is incident normally on the same diffraction grating. The third-order maximum for the electromagnetic radiation of wavelength X is at the same position on the screen as the second-order maximum for the red light. What is wavelength X ? A 480 nm B 540 nm C 960 nm D 1100 nm

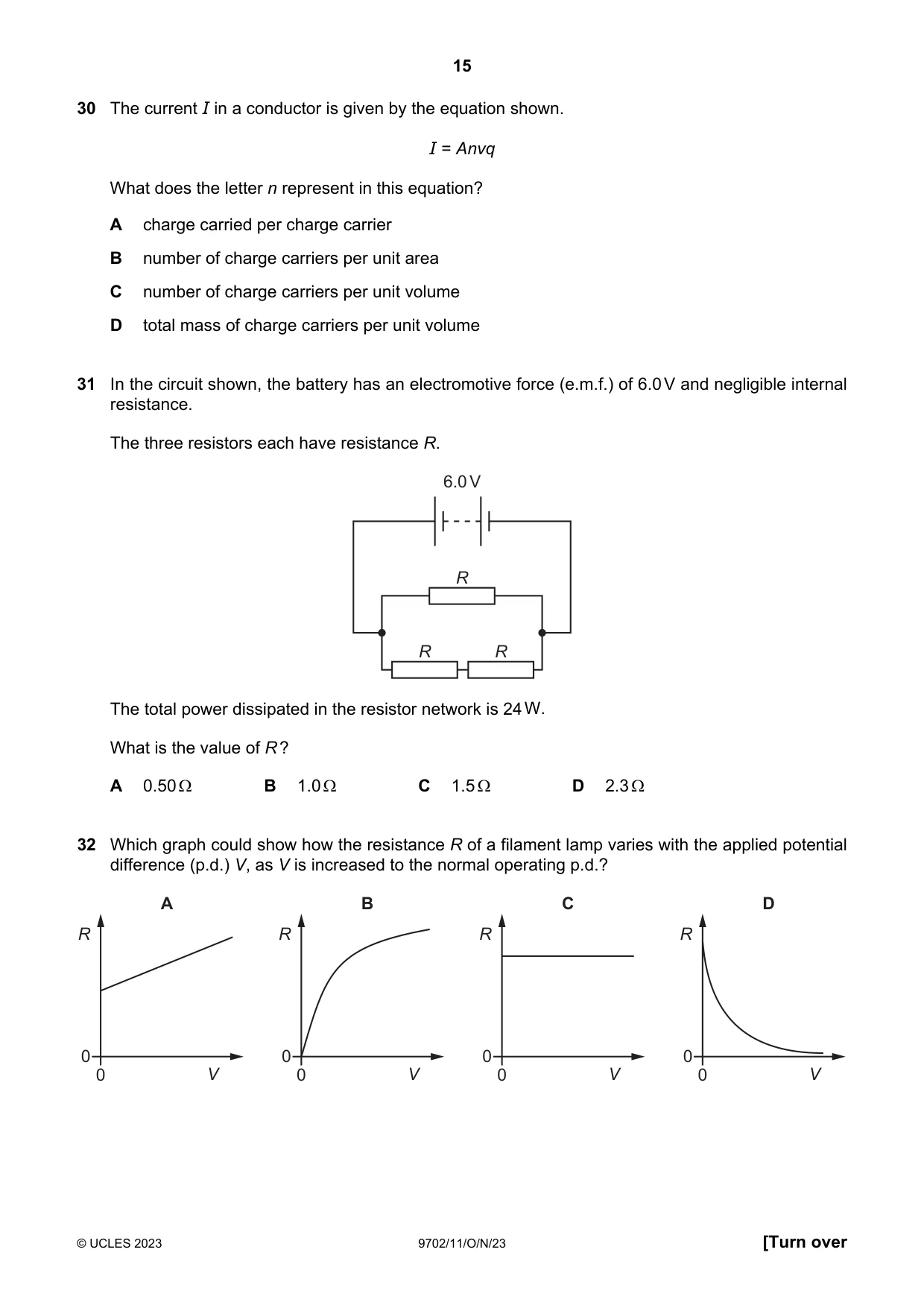

15 © UCLES 2023 9702/11/O/N/23 [Turn over 30 The current I in a conductor is given by the equation shown. I = Anvq What does the letter n represent in this equation? A charge carried per charge carrier B number of charge carriers per unit area C number of charge carriers per unit volume D total mass of charge carriers per unit volume 31 In the circuit shown, the battery has an electromotive force (e.m.f.) of 6.0 V and negligible internal resistance. The three resistors each have resistance R. R R R 6.0 V The total power dissipated in the resistor network is 24 W. What is the value of R ? A 0.50 Ω B 1.0 Ω C 1.5 Ω D 2.3 Ω 32 Which graph could show how the resistance R of a filament lamp varies with the applied potential difference (p.d.) V, as V is increased to the normal operating p.d.? R V 0 0 A R V 0 0 B R V 0 0 C R V 0 0 D

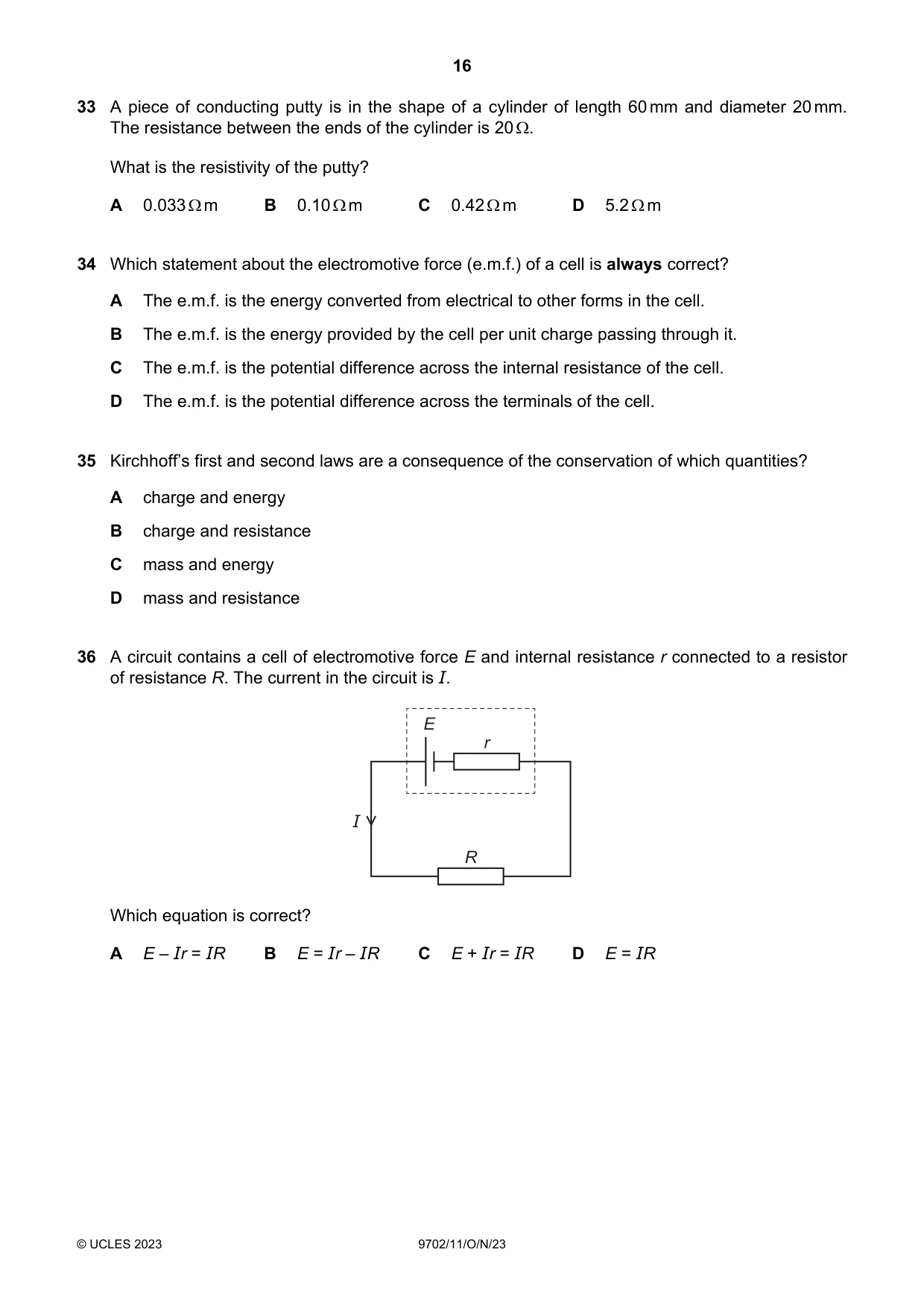

16 © UCLES 2023 9702/11/O/N/23 33 A piece of conducting putty is in the shape of a cylinder of length 60 mm and diameter 20 mm. The resistance between the ends of the cylinder is 20 Ω. What is the resistivity of the putty? A 0.033 Ω m B 0.10 Ω m C 0.42 Ω m D 5.2 Ω m 34 Which statement about the electromotive force (e.m.f.) of a cell is always correct? A The e.m.f. is the energy converted from electrical to other forms in the cell. B The e.m.f. is the energy provided by the cell per unit charge passing through it. C The e.m.f. is the potential difference across the internal resistance of the cell. D The e.m.f. is the potential difference across the terminals of the cell. 35 Kirchhoff’s first and second laws are a consequence of the conservation of which quantities? A charge and energy B charge and resistance C mass and energy D mass and resistance 36 A circuit contains a cell of electromotive force E and internal resistance r connected to a resistor of resistance R. The current in the circuit is I. R I r E Which equation is correct? A E – Ir = IR B E = Ir – IR C E + Ir = IR D E = IR

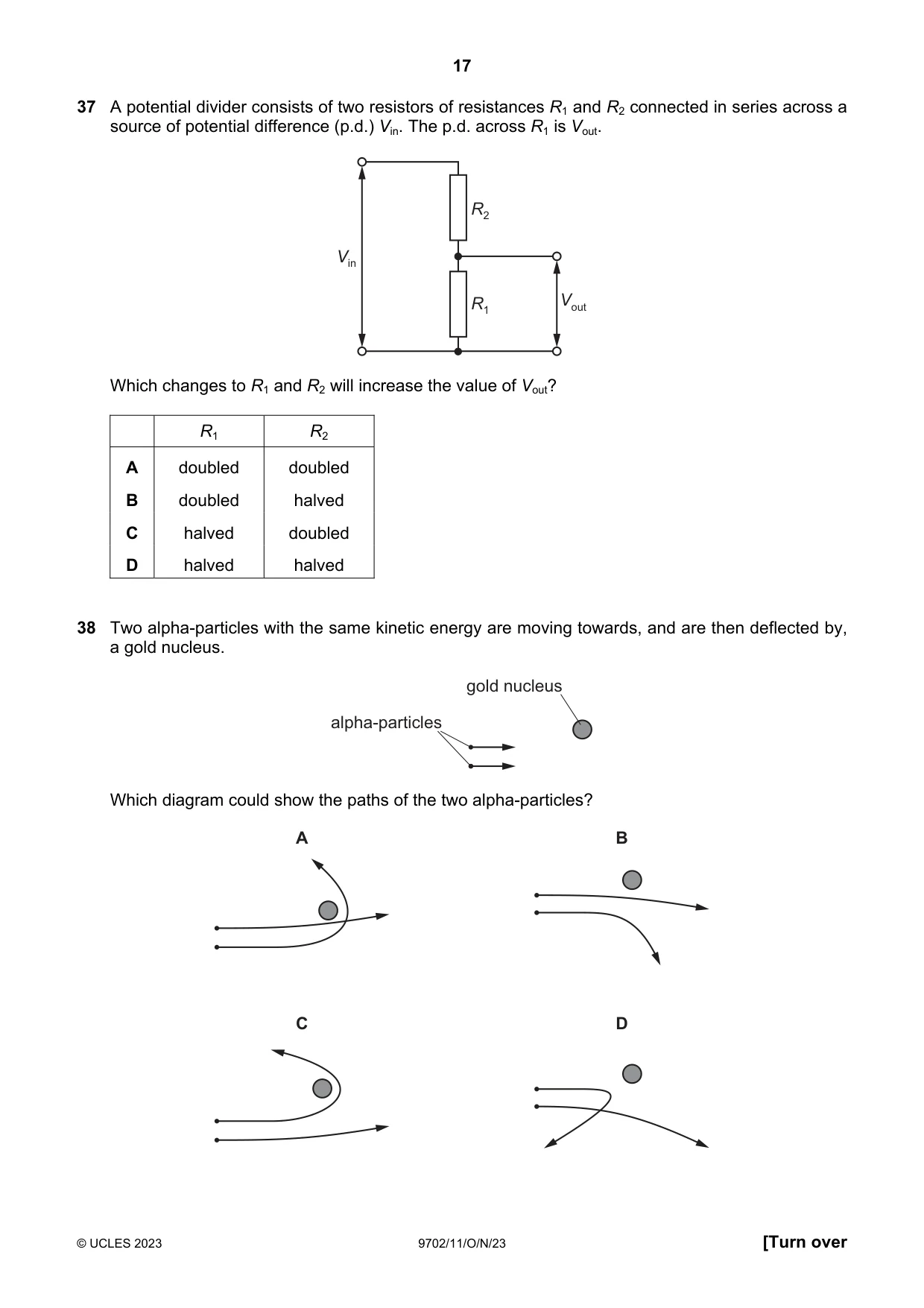

17 © UCLES 2023 9702/11/O/N/23 [Turn over 37 A potential divider consists of two resistors of resistances R1 and R2 connected in series across a source of potential difference (p.d.) Vin. The p.d. across R1 is Vout. R2 R1 Vin Vout Which changes to R1 and R2 will increase the value of Vout? R1 R2 A doubled doubled B doubled halved C halved doubled D halved halved 38 Two alpha-particles with the same kinetic energy are moving towards, and are then deflected by, a gold nucleus. alpha-particles gold nucleus Which diagram could show the paths of the two alpha-particles? A C B D

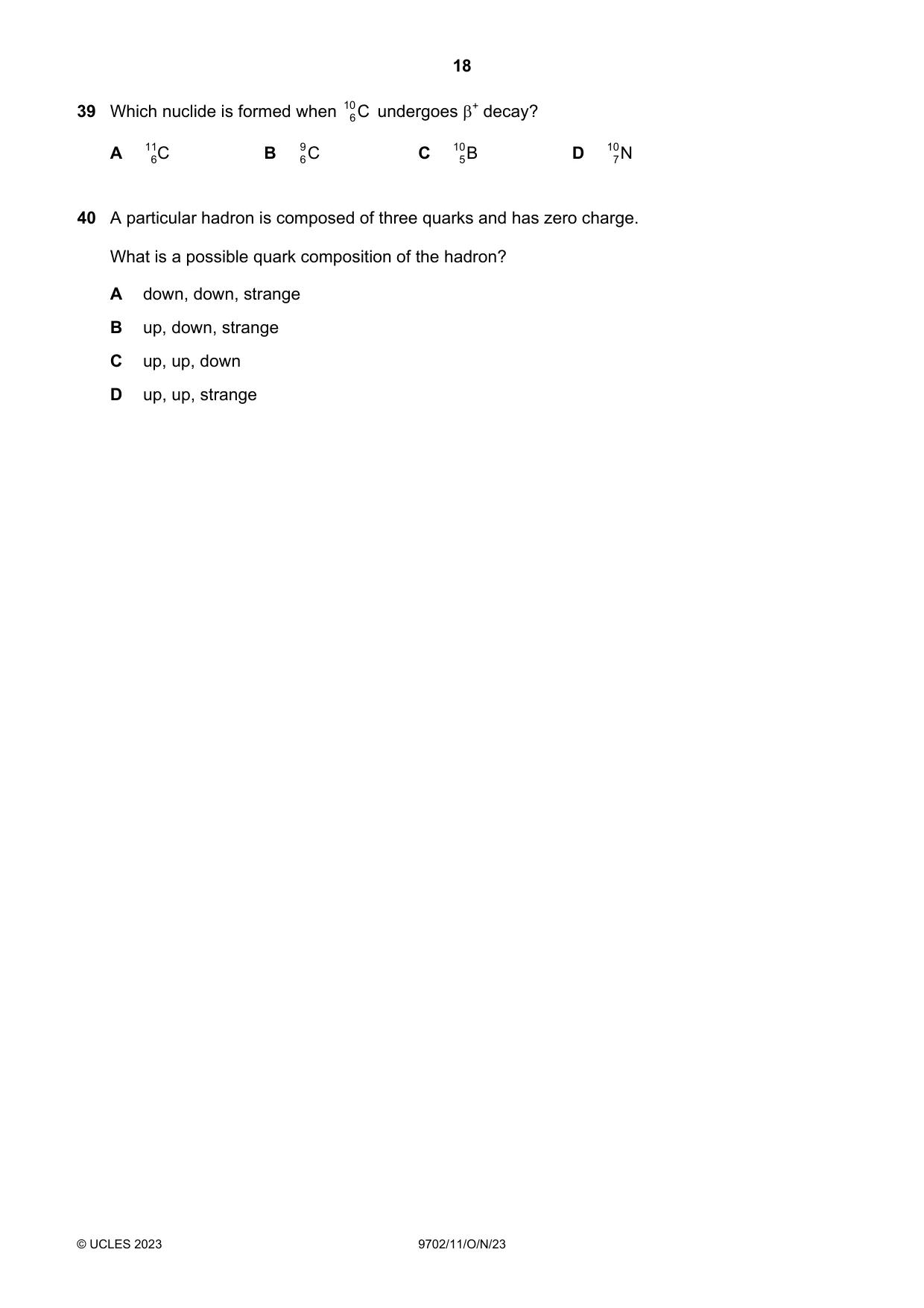

18 © UCLES 2023 9702/11/O/N/23 39 Which nuclide is formed when C 10 6 undergoes β+ decay? A C 11 6 B C 9 6 C B 10 5 D N 10 7 40 A particular hadron is composed of three quarks and has zero charge. What is a possible quark composition of the hadron? A down, down, strange B up, down, strange C up, up, down D up, up, strange

19 © UCLES 2023 9702/11/O/N/23 BLANK PAGE

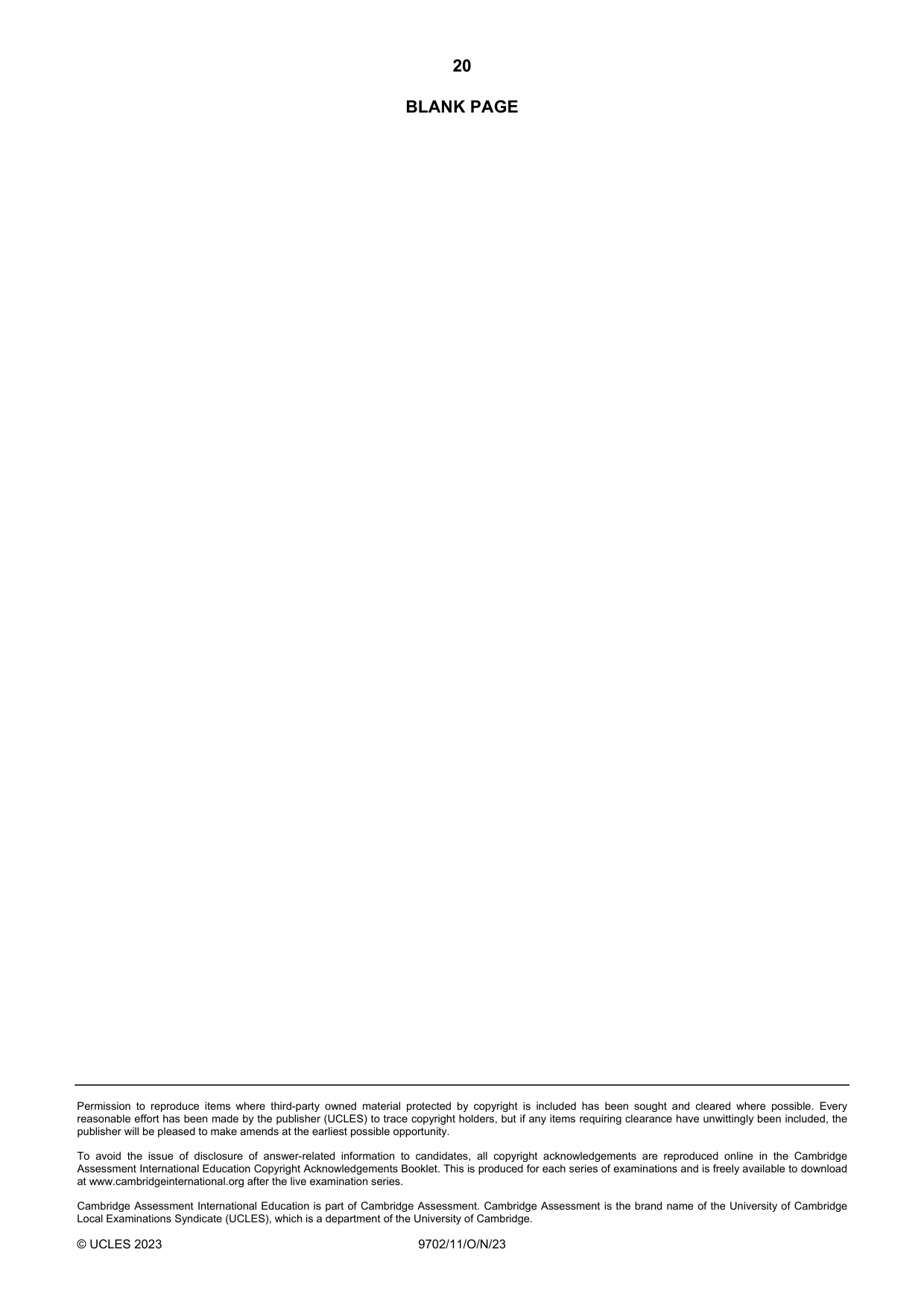

20 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. © UCLES 2023 9702/11/O/N/23 BLANK PAGE

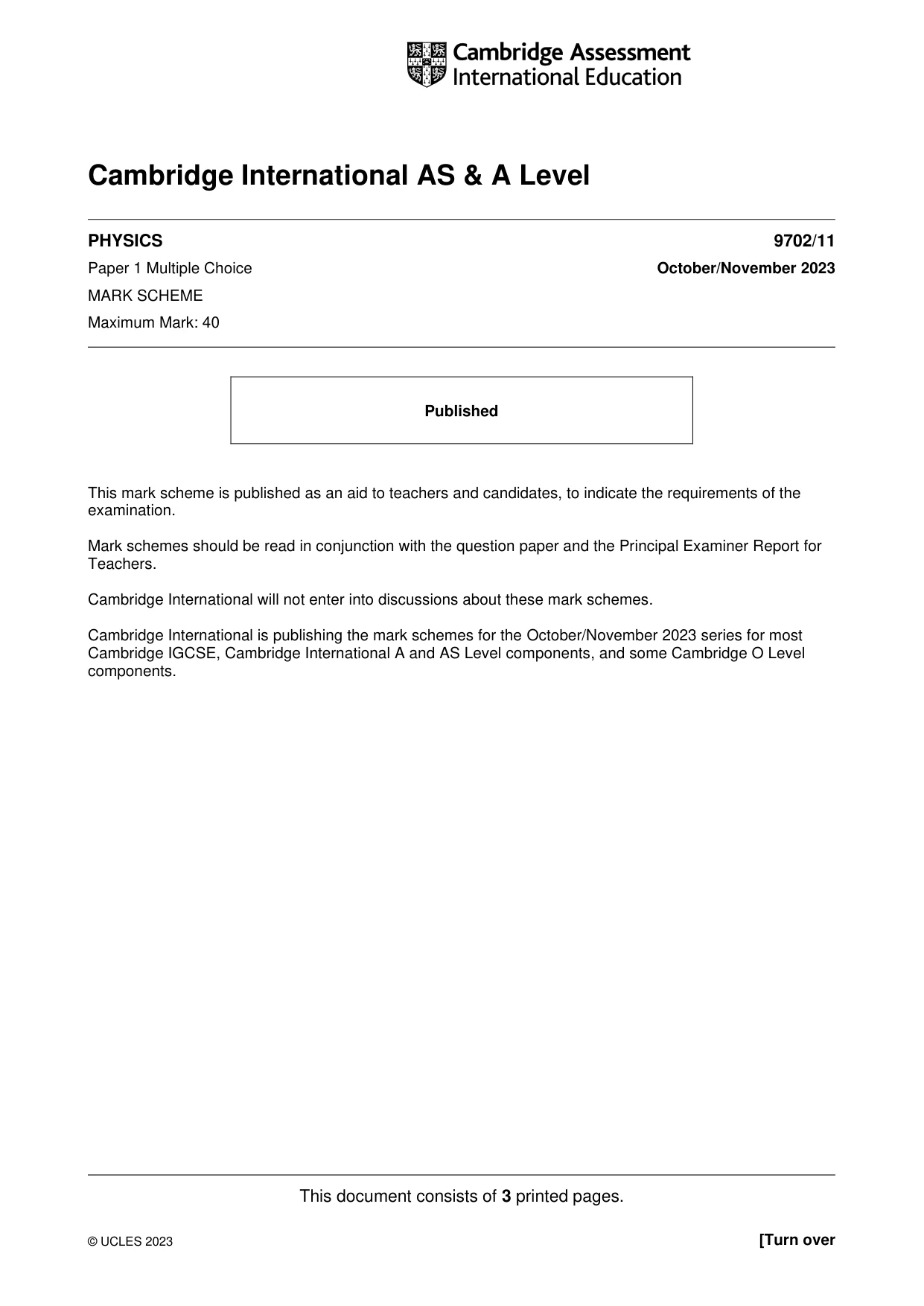

This document consists of 3 printed pages. © UCLES 2023 [Turn over Cambridge International AS & A Level PHYSICS 9702/11 Paper 1 Multiple Choice October/November 2023 MARK SCHEME Maximum Mark: 40 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

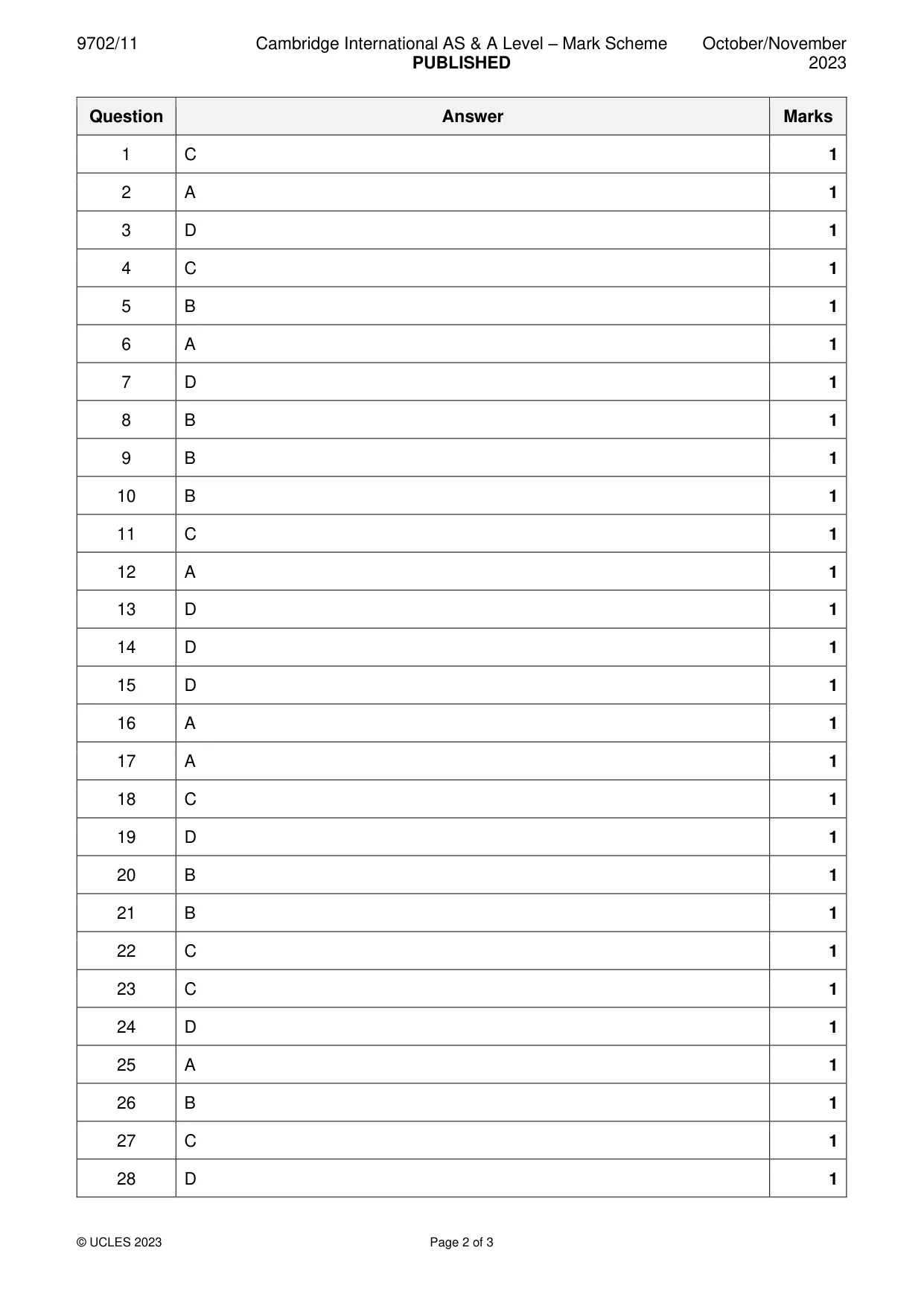

9702/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 3 Question Answer Marks 1 C 1 2 A 1 3 D 1 4 C 1 5 B 1 6 A 1 7 D 1 8 B 1 9 B 1 10 B 1 11 C 1 12 A 1 13 D 1 14 D 1 15 D 1 16 A 1 17 A 1 18 C 1 19 D 1 20 B 1 21 B 1 22 C 1 23 C 1 24 D 1 25 A 1 26 B 1 27 C 1 28 D 1

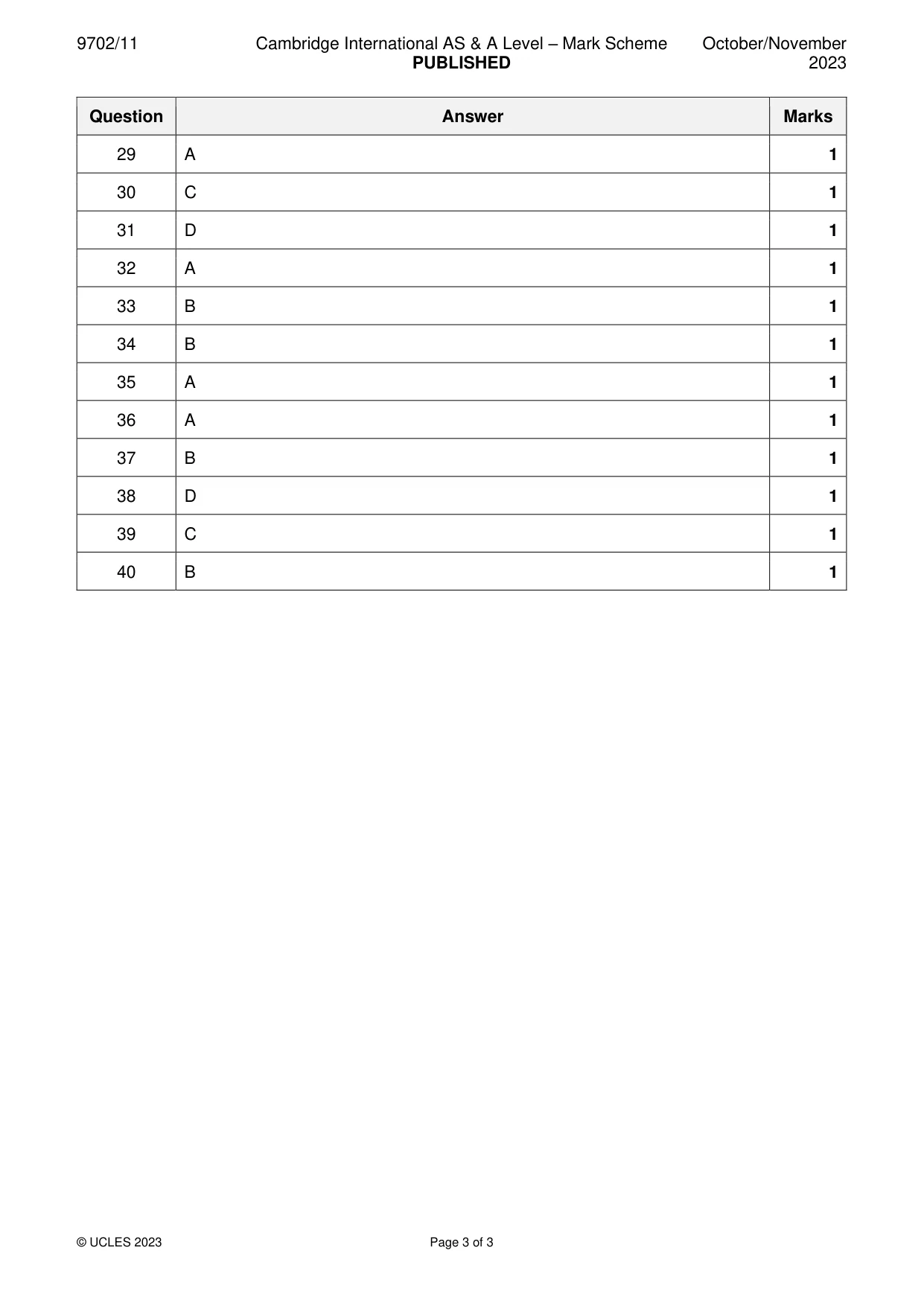

9702/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 3 Question Answer Marks 29 A 1 30 C 1 31 D 1 32 A 1 33 B 1 34 B 1 35 A 1 36 A 1 37 B 1 38 D 1 39 C 1 40 B 1
