Cambridge IGCSE Physics 0625 — 2009 Oct/Nov Paper 3 · Variant 2

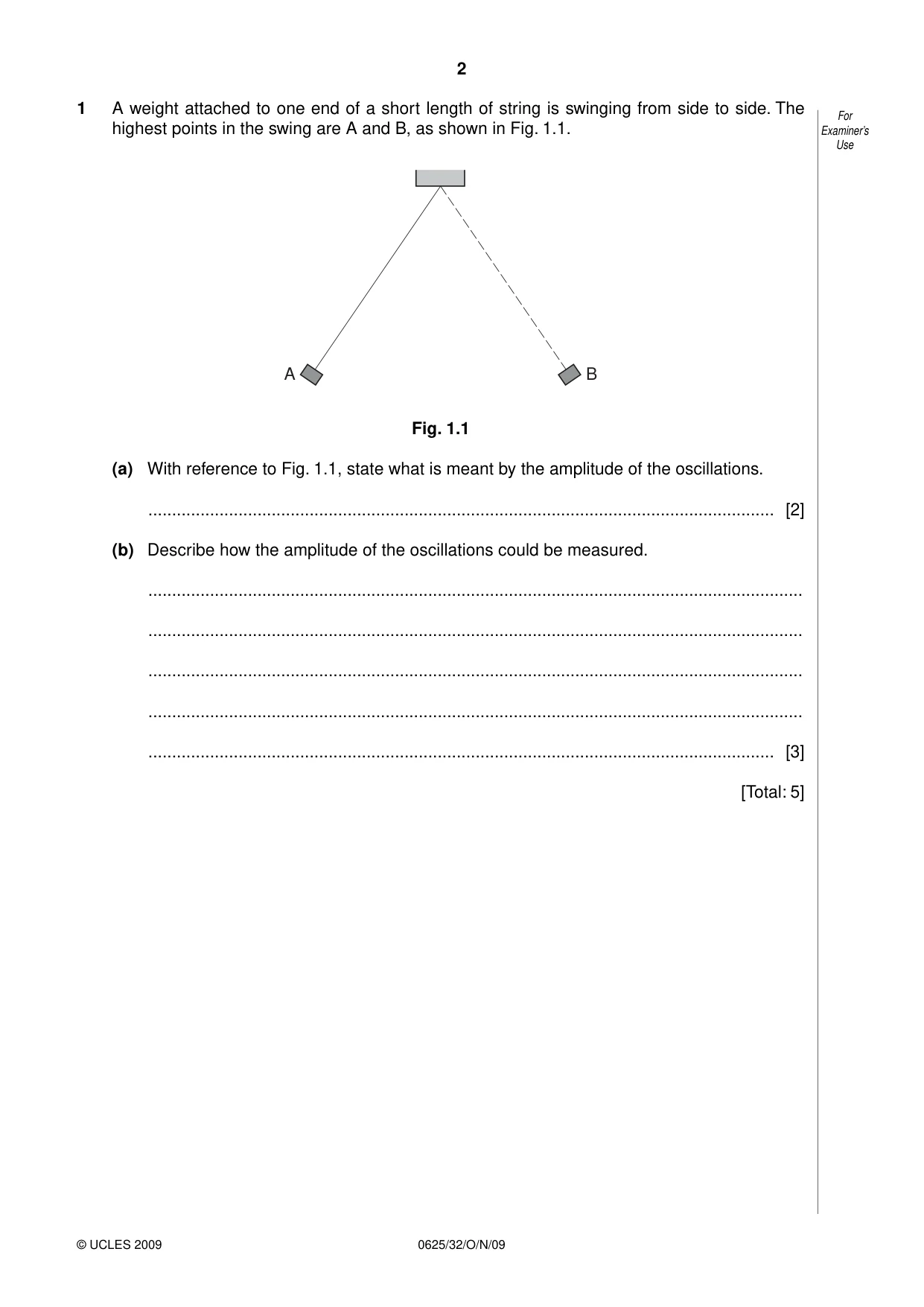

1 A weight attached to one end of a short length of string is swinging from side to side. The For highest points in the swing are A and B, as shown in Fig. 1.1. Examiner’s Use A B Fig. 1.1 (a) With reference to Fig. 1.1, state what is meant by the amplitude of the oscillations. .................................................................................................................................... [2] (b) Describe how the amplitude of the oscillations could be measured. .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .................................................................................................................................... [3] [Total: 5]

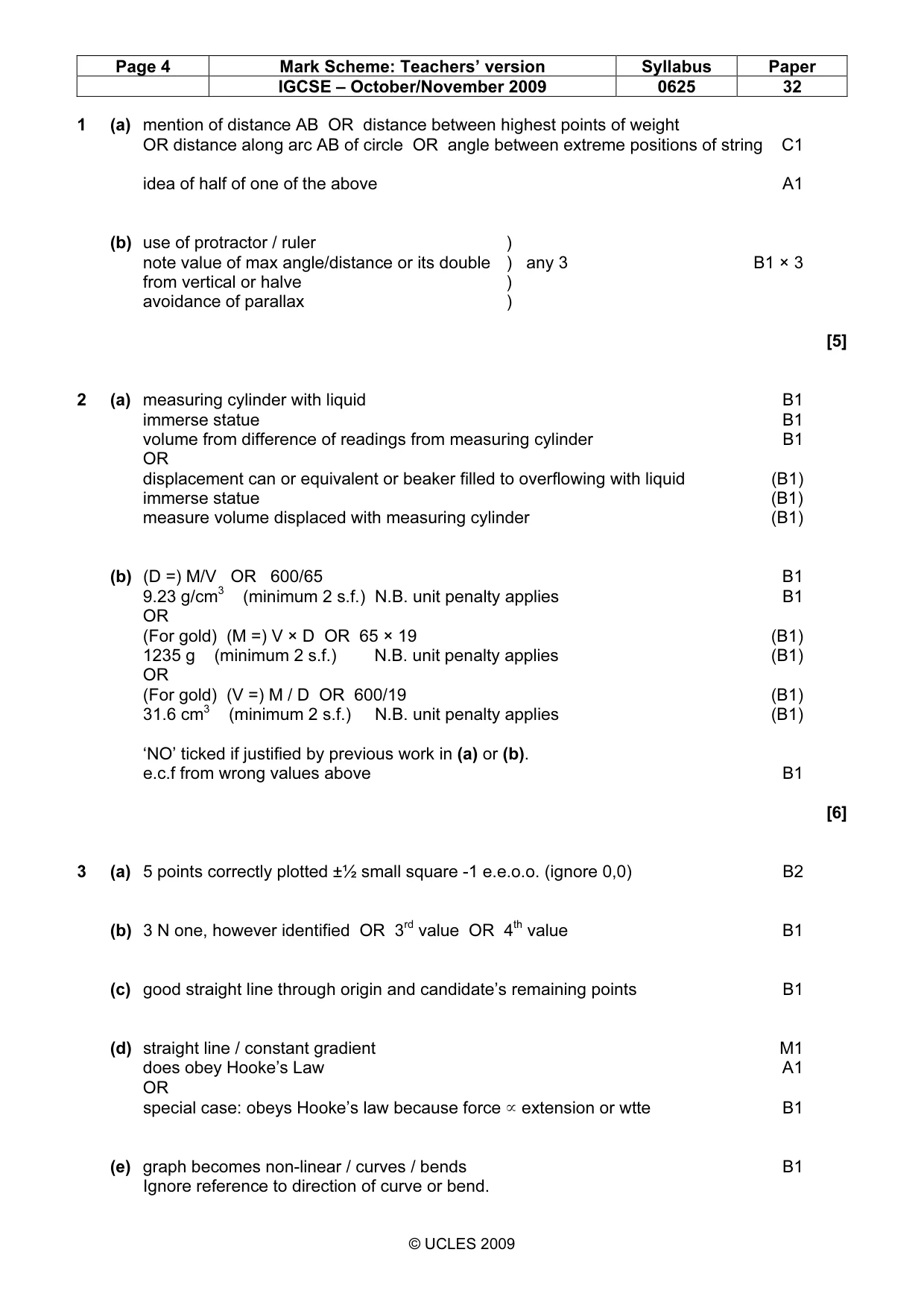

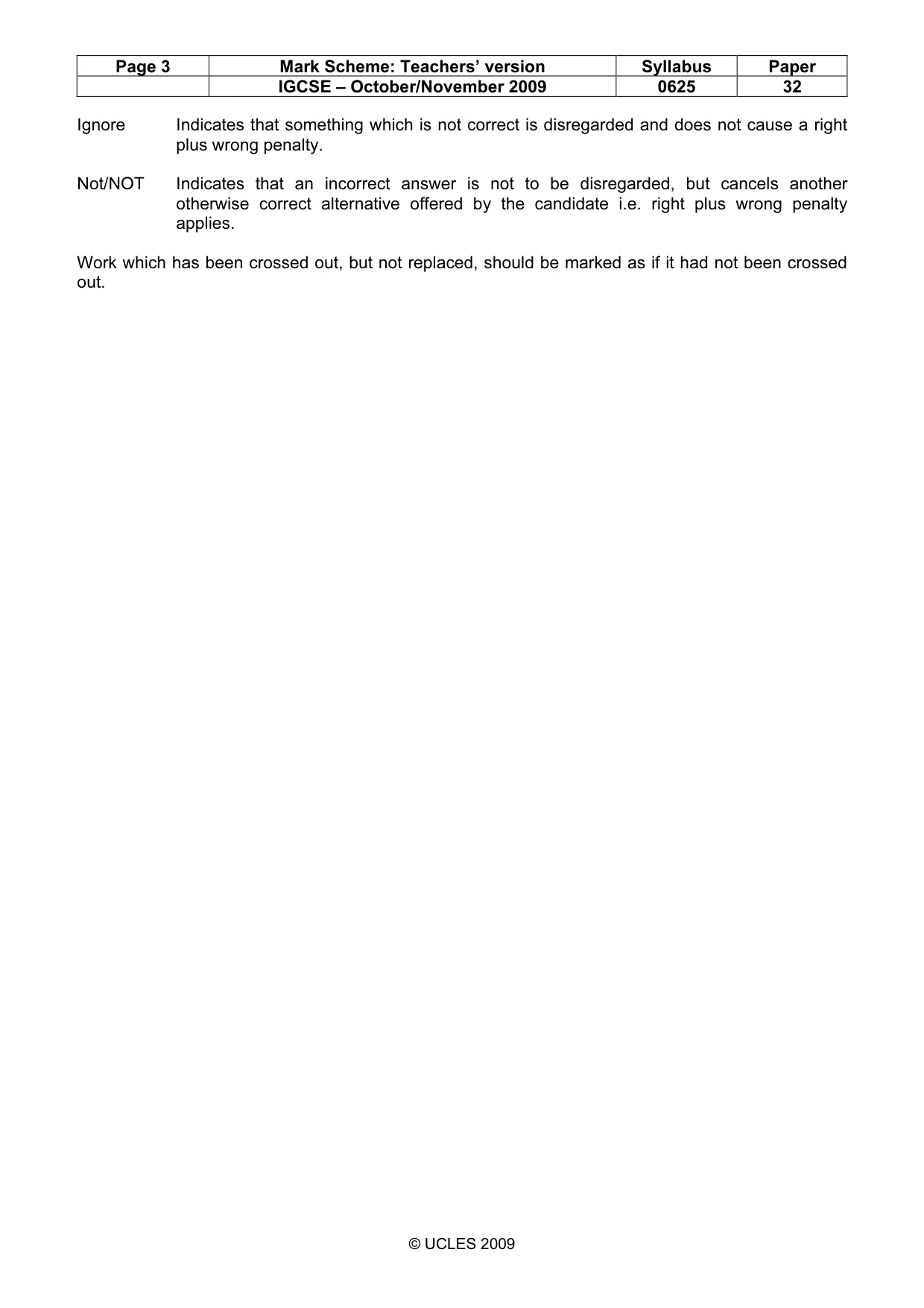

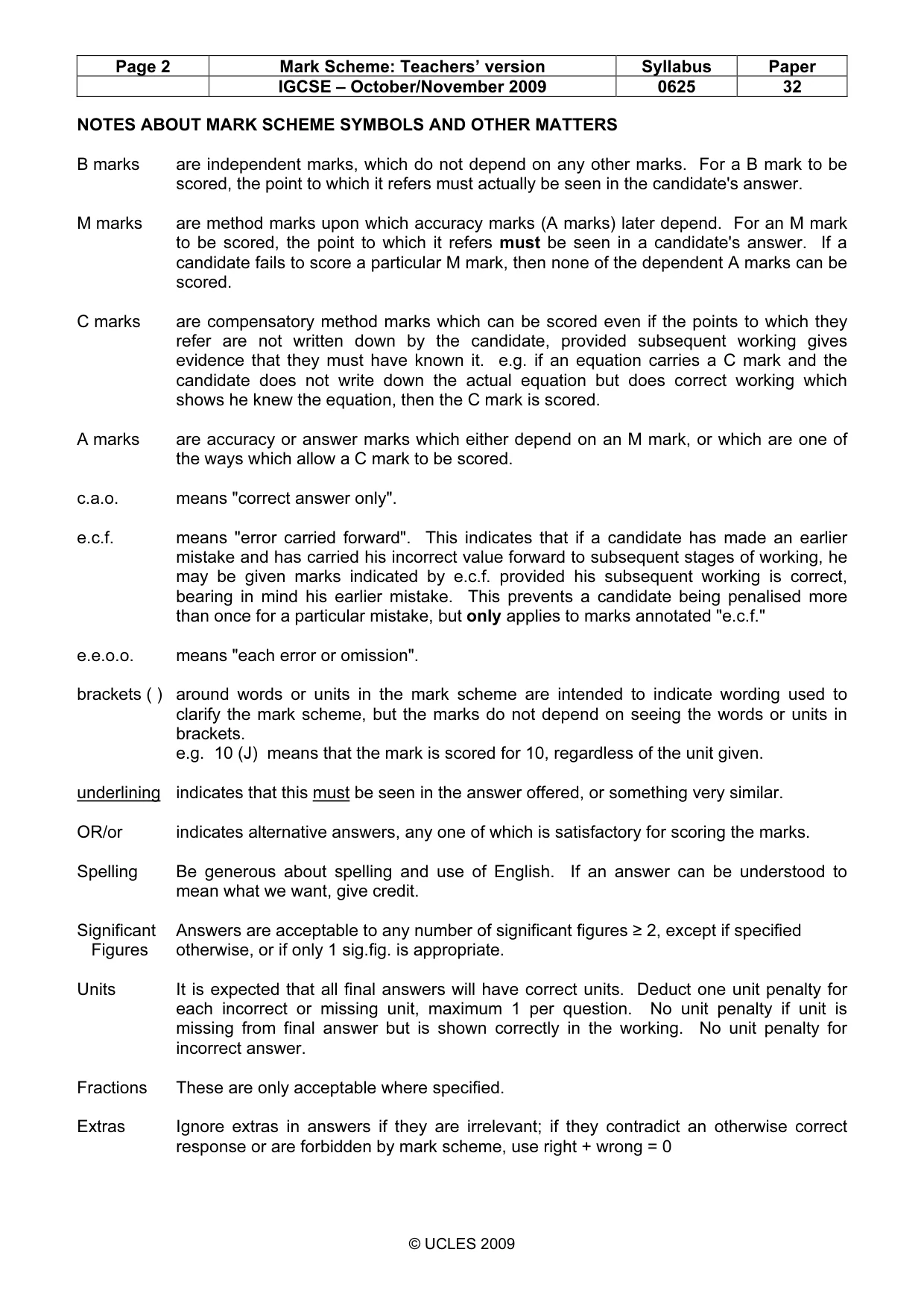

Mark scheme: 1 (a) mention of distance AB OR distance between highest points of weight OR distance along arc AB of circle OR angle between extreme positions of string C1 idea of half of one of the above A1 (b) use of protractor / ruler ) note value of max angle/distance or its double ) any 3 B1 × 3 from vertical or halve ) avoidance of parallax ) [5]

More questions on General properties of waves

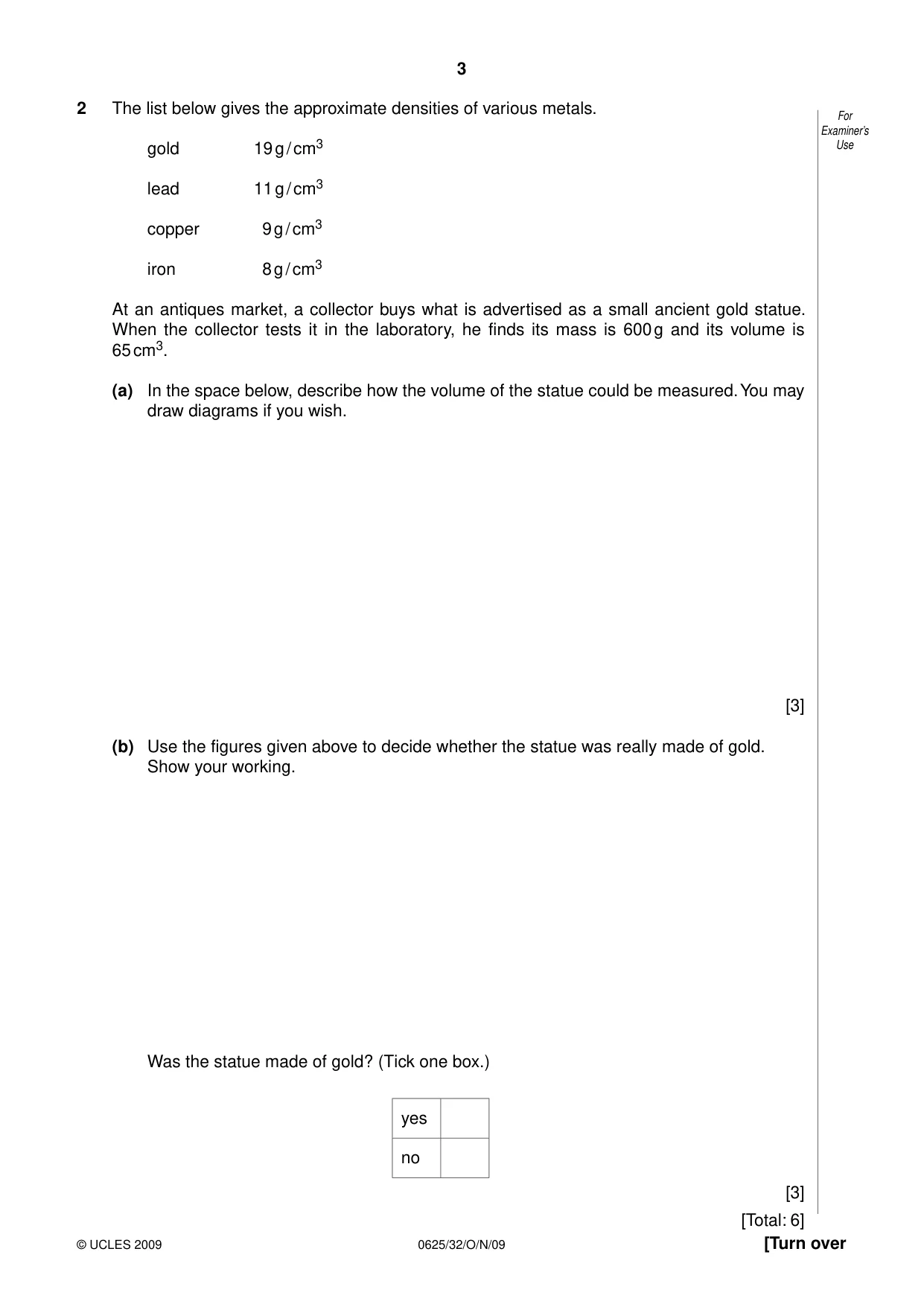

2 The list below gives the approximate densities of various metals. For Examiner’s gold 19 g / cm3 Use lead 11 g / cm3 copper 9 g / cm3 iron 8 g / cm3 At an antiques market, a collector buys what is advertised as a small ancient gold statue. When the collector tests it in the laboratory, he finds its mass is 600 g and its volume is 65 cm3. (a) In the space below, describe how the volume of the statue could be measured. You may draw diagrams if you wish. [3] (b) Use the figures given above to decide whether the statue was really made of gold. Show your working. Was the statue made of gold? (Tick one box.) yes no [3] [Total: 6]

Mark scheme: 2 (a) measuring cylinder with liquid B1 immerse statue B1 volume from difference of readings from measuring cylinder B1 OR displacement can or equivalent or beaker filled to overflowing with liquid (B1) immerse statue (B1) measure volume displaced with measuring cylinder (B1) (b) (D =) M/V OR 600/65 B1 9.23 g/cm3 (minimum 2 s.f.) N.B. unit penalty applies B1 OR (For gold) (M =) V × D OR 65 × 19 (B1) 1235 g (minimum 2 s.f.) N.B. unit penalty applies (B1) OR (For gold) (V =) M / D OR 600/19 (B1) 31.6 cm3 (minimum 2 s.f.) N.B. unit penalty applies (B1) ‘NO’ ticked if justified by previous work in (a) or (b). e.c.f from wrong values above B1 [6]

More questions on Physical quantities and measurement techniques

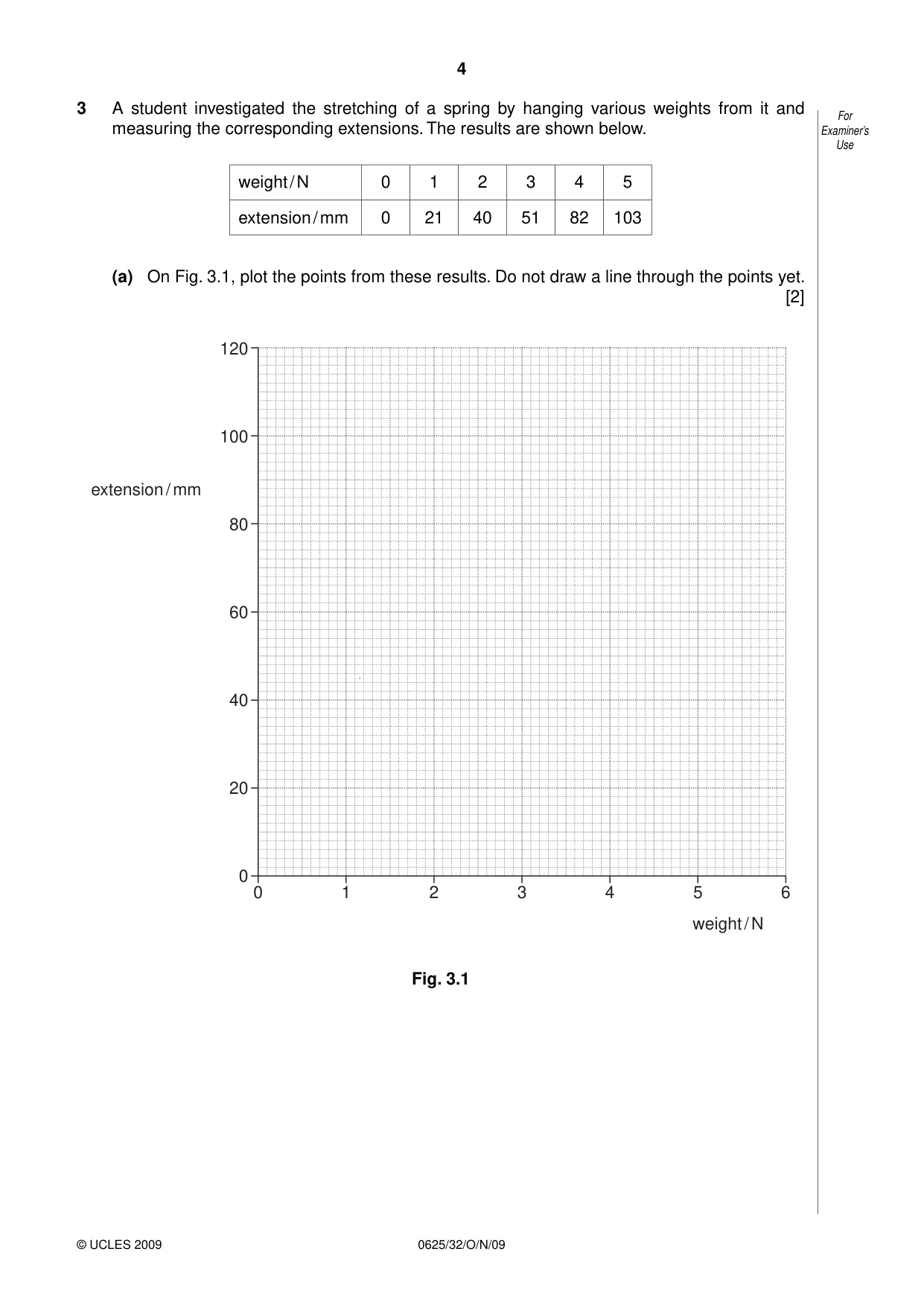

3 A student investigated the stretching of a spring by hanging various weights from it and For measuring the corresponding extensions. The results are shown below. Examiner’s Use weight / N 0 1 2 3 4 5 extension / mm 0 21 40 51 82 103 (a) On Fig. 3.1, plot the points from these results. Do not draw a line through the points yet. [2] 120 100 extension / mm 80 60 40 20 0 0 1 2 3 4 5 6 weight / N Fig. 3.1 (b) The student appears to have made an error in recording one of the results. For Examiner’s Which result is this? Use .................................................................................................................................... [1] (c) Ignoring the incorrect result, draw the best straight line through the remaining points. [1] (d) State and explain whether this spring is obeying Hooke’s Law. .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .................................................................................................................................... [2] (e) Describe how the graph might be shaped if the student continued to add several more weights to the spring. .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .................................................................................................................................... [1] (f) The student estimates that if he hangs a 45 N load on the spring, the extension will be 920 mm. Explain why this estimate may be unrealistic. .......................................................................................................................................... .......................................................................................................................................... .......................................................................................................................................... .................................................................................................................................... [1] [Total: 8]

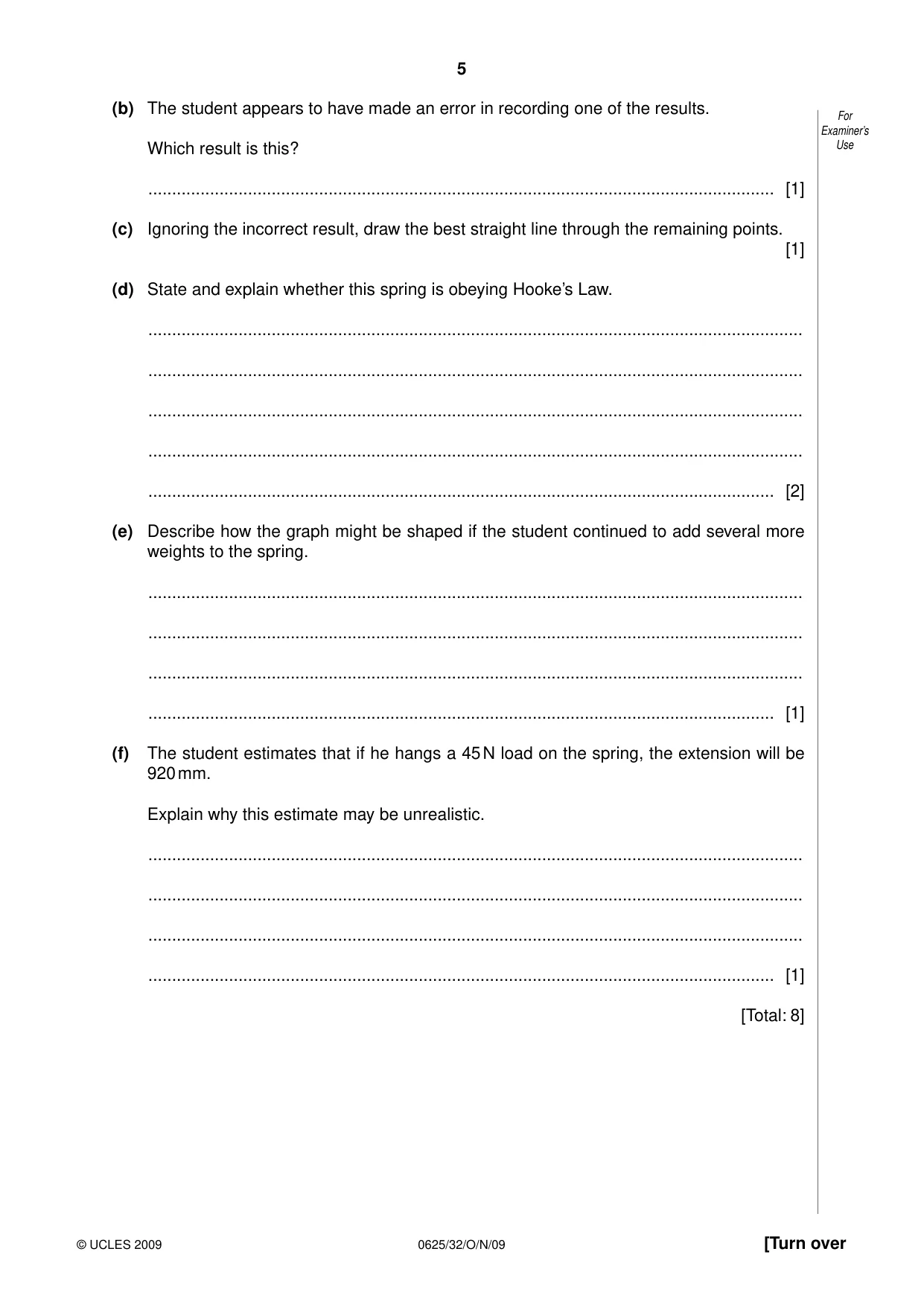

Mark scheme: 3 (a) 5 points correctly plotted ±½ small square -1 e.e.o.o. (ignore 0,0) B2 (b) 3 N one, however identified OR 3rd value OR 4th value B1 (c) good straight line through origin and candidate’s remaining points B1 (d) straight line / constant gradient M1 does obey Hooke’s Law A1 OR special case: obeys Hooke’s law because force ú extension or wtte B1 (e) graph becomes non-linear / curves / bends B1 Ignore reference to direction of curve or bend. IGCSE – October/November 2009 0625 32 (f) will have exceeded / reached proportional / elastic limit OR permanently deformed or equiv OR straightened OR will have broken OR no longer elastic or wtte B1 [8]

More questions on Physical quantities and measurement techniques

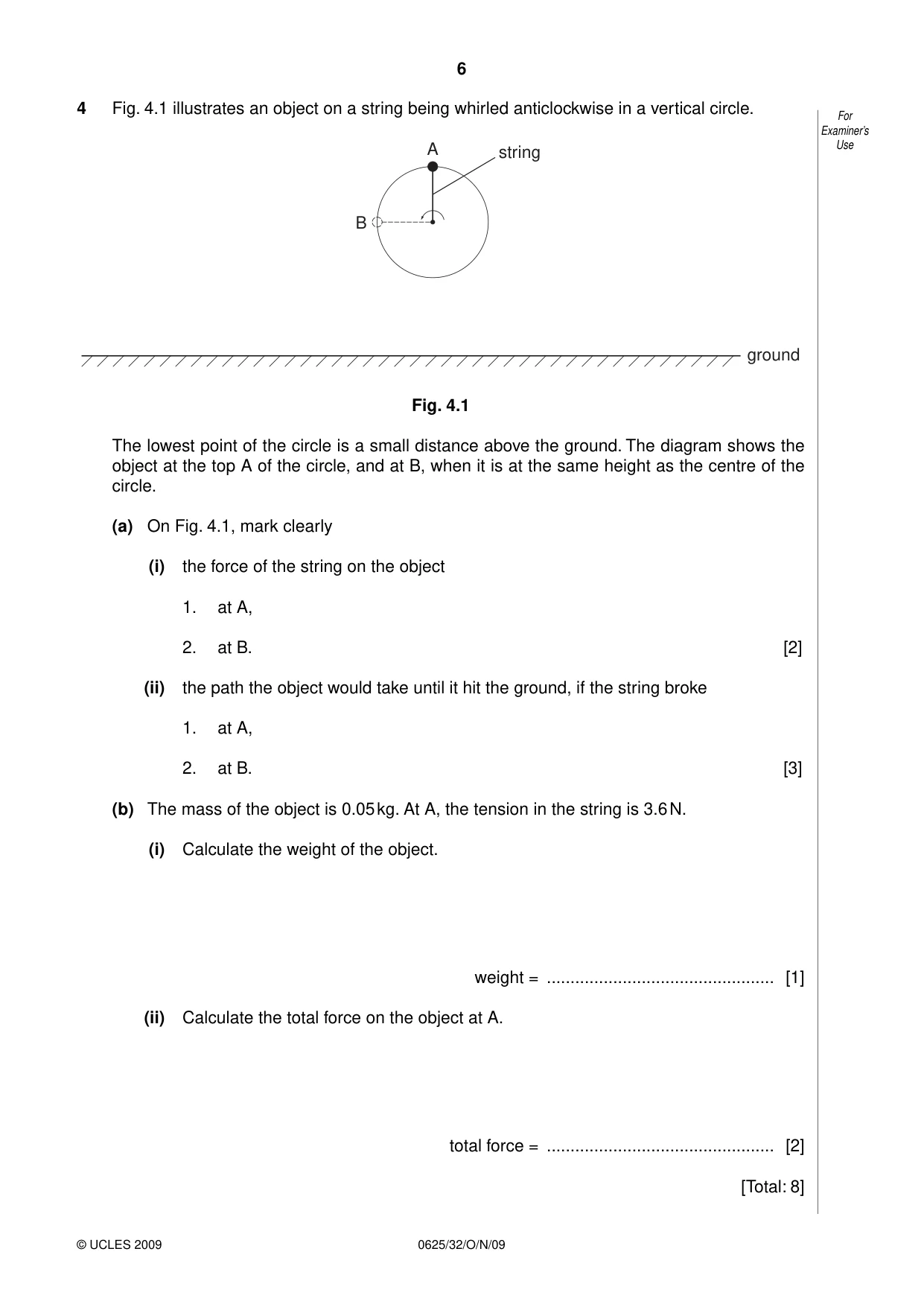

4 Fig. 4.1 illustrates an object on a string being whirled anticlockwise in a vertical circle. For Examiner’s A string Use B ground Fig. 4.1 The lowest point of the circle is a small distance above the ground. The diagram shows the object at the top A of the circle, and at B, when it is at the same height as the centre of the circle. (a) On Fig. 4.1, mark clearly (i) the force of the string on the object 1. at A, 2. at B. [2] (ii) the path the object would take until it hit the ground, if the string broke 1. at A, 2. at B. [3] (b) The mass of the object is 0.05 kg. At A, the tension in the string is 3.6 N. (i) Calculate the weight of the object. weight = ................................................ [1] (ii) Calculate the total force on the object at A. total force = ................................................ [2] [Total: 8]

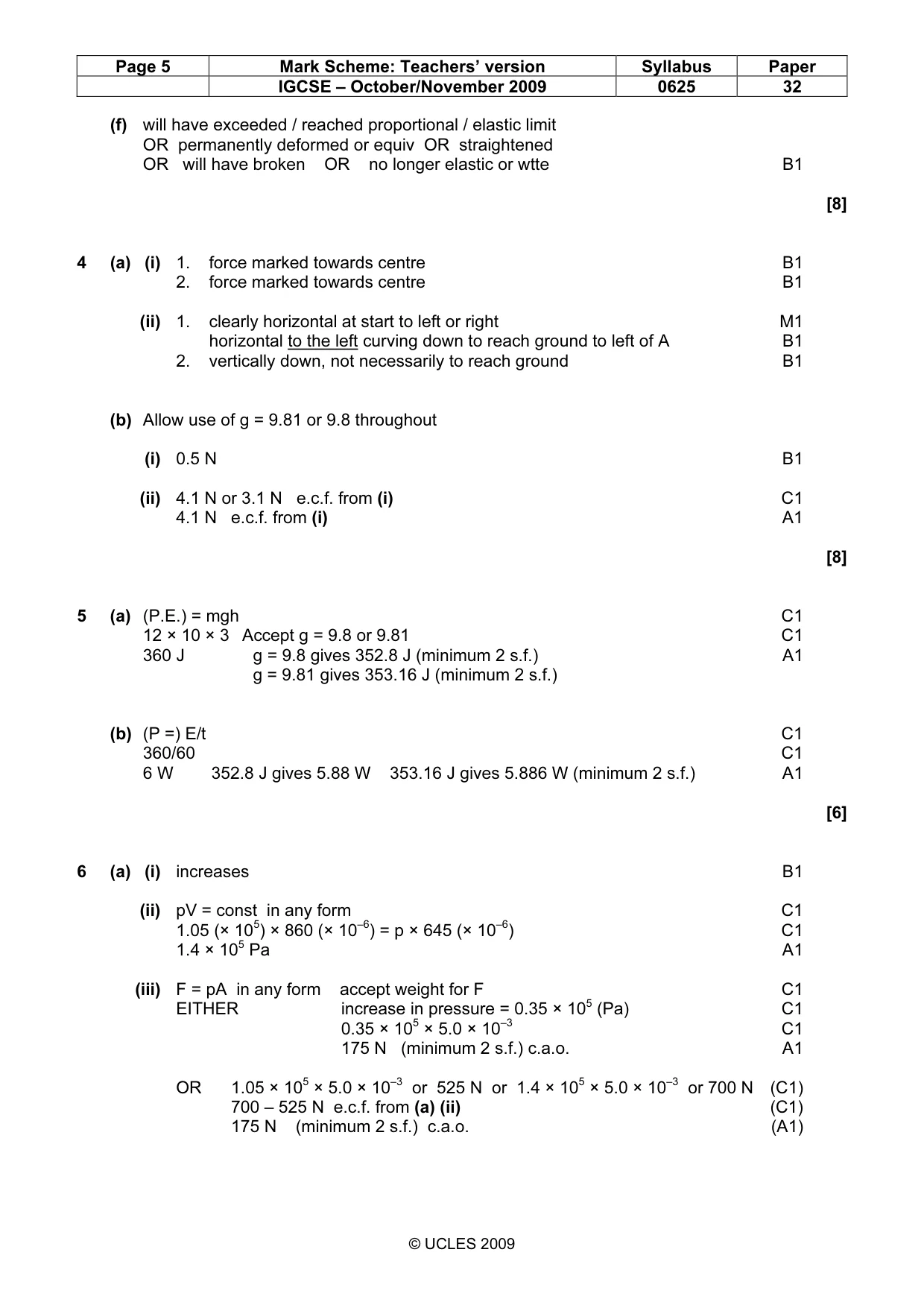

Mark scheme: 4 (a) (i) 1. force marked towards centre B1 2. force marked towards centre B1 (ii) 1. clearly horizontal at start to left or right M1 horizontal to the left curving down to reach ground to left of A B1 2. vertically down, not necessarily to reach ground B1 (b) Allow use of g = 9.81 or 9.8 throughout (i) 0.5 N B1 (ii) 4.1 N or 3.1 N e.c.f. from (i) C1 4.1 N e.c.f. from (i) A1 [8]

More questions on Forces

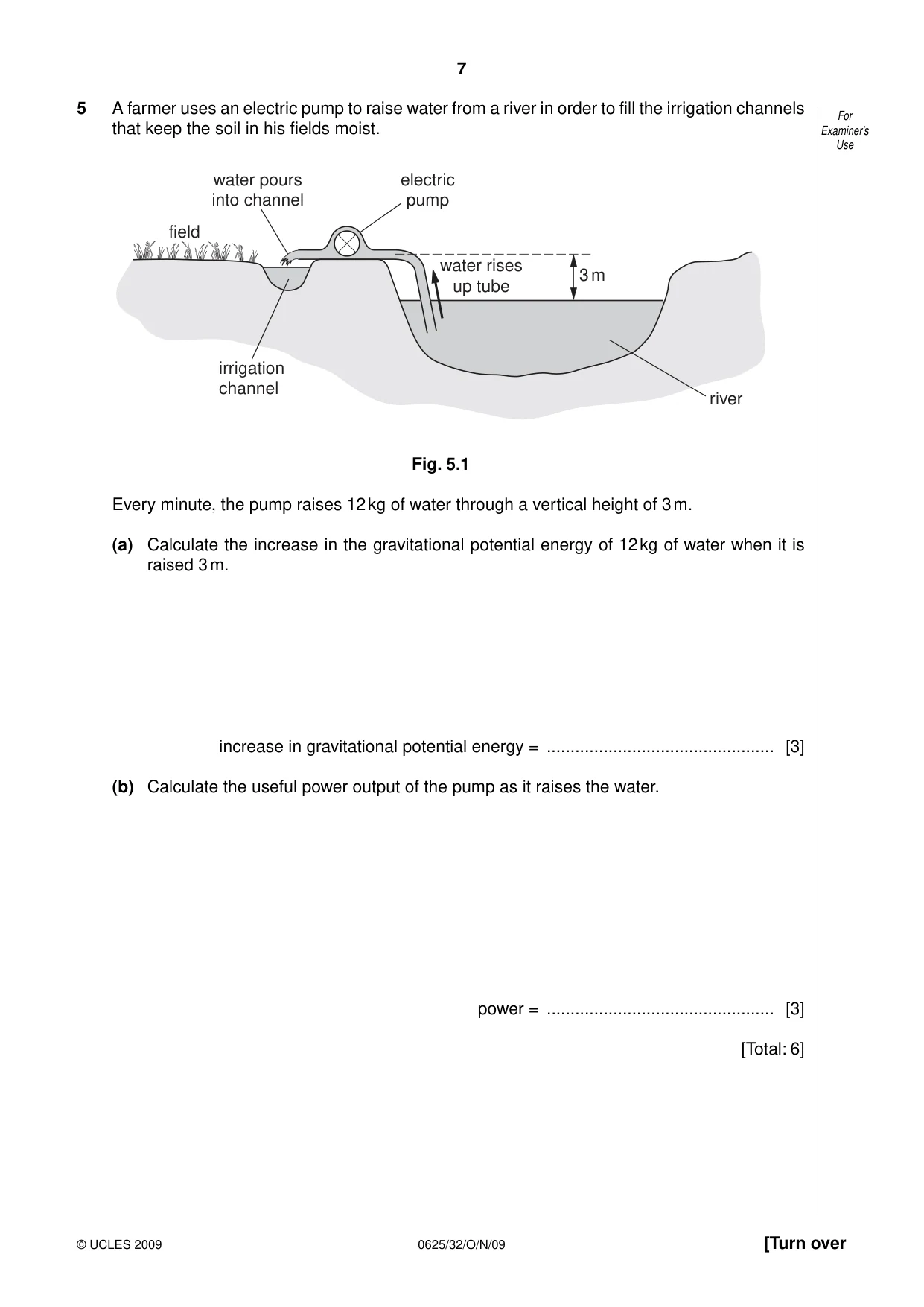

5 A farmer uses an electric pump to raise water from a river in order to fill the irrigation channels For that keep the soil in his fields moist. Examiner’s Use water pours electric into channel pump field water rises 3 m up tube irrigation channel river Fig. 5.1 Every minute, the pump raises 12 kg of water through a vertical height of 3 m. (a) Calculate the increase in the gravitational potential energy of 12 kg of water when it is raised 3 m. increase in gravitational potential energy = ................................................ [3] (b) Calculate the useful power output of the pump as it raises the water. power = ................................................ [3] [Total: 6]

Mark scheme: 5 (a) (P.E.) = mgh C1 12 × 10 × 3 Accept g = 9.8 or 9.81 C1 360 J g = 9.8 gives 352.8 J (minimum 2 s.f.) A1 g = 9.81 gives 353.16 J (minimum 2 s.f.) (b) (P =) E/t C1 360/60 C1 6 W 352.8 J gives 5.88 W 353.16 J gives 5.886 W (minimum 2 s.f.) A1 [6]

More questions on Energy, work and power

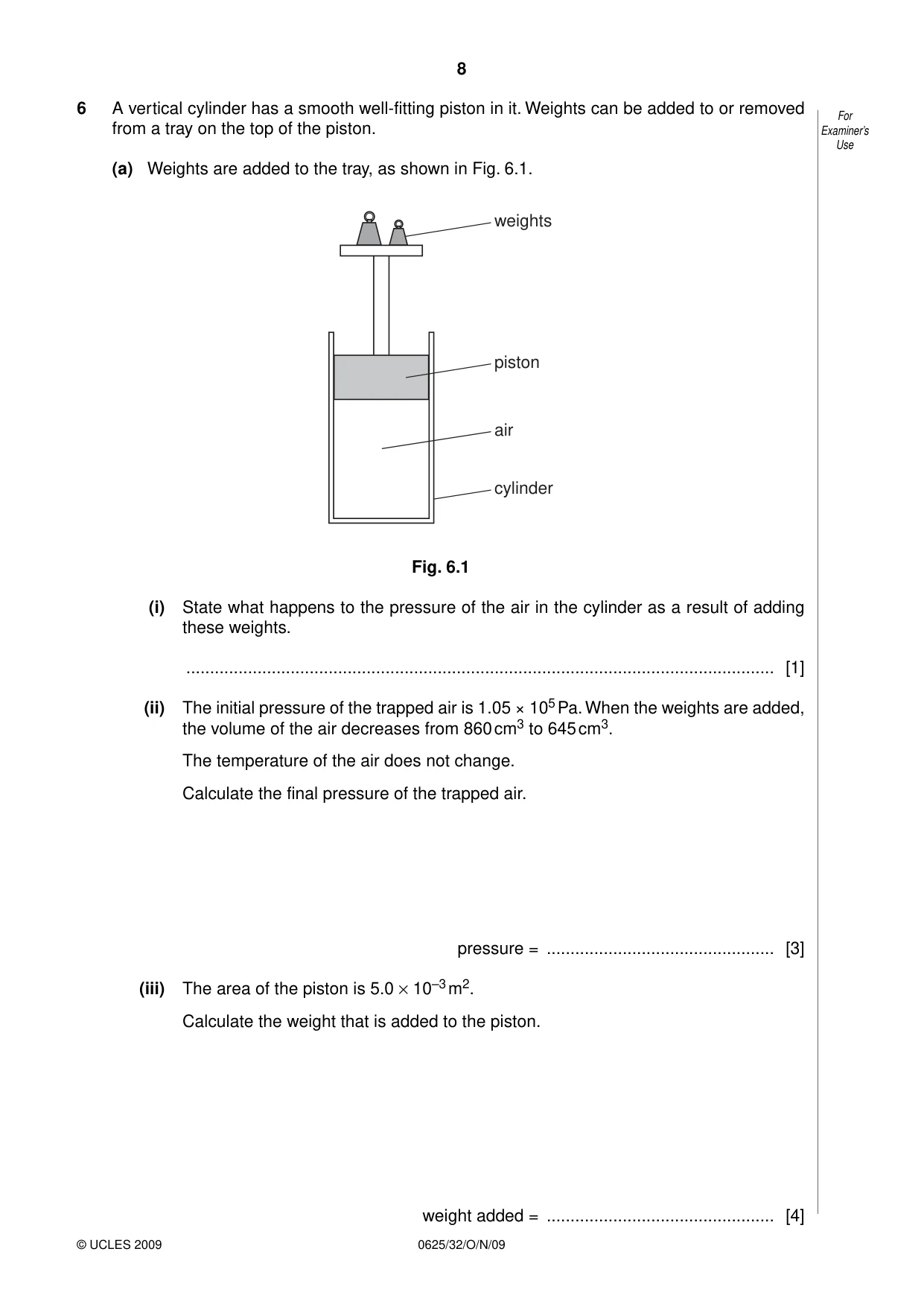

6 A vertical cylinder has a smooth well-fitting piston in it. Weights can be added to or removed For from a tray on the top of the piston. Examiner’s Use (a) Weights are added to the tray, as shown in Fig. 6.1. weights piston air cylinder Fig. 6.1 (i) State what happens to the pressure of the air in the cylinder as a result of adding these weights. ............................................................................................................................ [1] (ii) The initial pressure of the trapped air is 1.05 × 105 Pa. When the weights are added, the volume of the air decreases from 860 cm3 to 645 cm3. The temperature of the air does not change. Calculate the final pressure of the trapped air. pressure = ................................................ [3] (iii) The area of the piston is 5.0 × 10–3 m2. Calculate the weight that is added to the piston. weight added = ................................................ [4] (b) The weights are kept as shown in Fig. 6.1. The temperature of the air in the cylinder is For increased. Examiner’s Use (i) State what happens to the volume of the air in the cylinder as a result of this temperature rise. ............................................................................................................................ [1] (ii) State how, if at all, the pressure of the air changes as the temperature changes. ............................................................................................................................ [1] (iii) State what must be done to prevent the volume change in (b)(i). ............................................................................................................................ [1] (iv) The volume change in (b)(i) is prevented. State what happens to the pressure of the air in the cylinder. ............................................................................................................................ [1] [Total: 12]

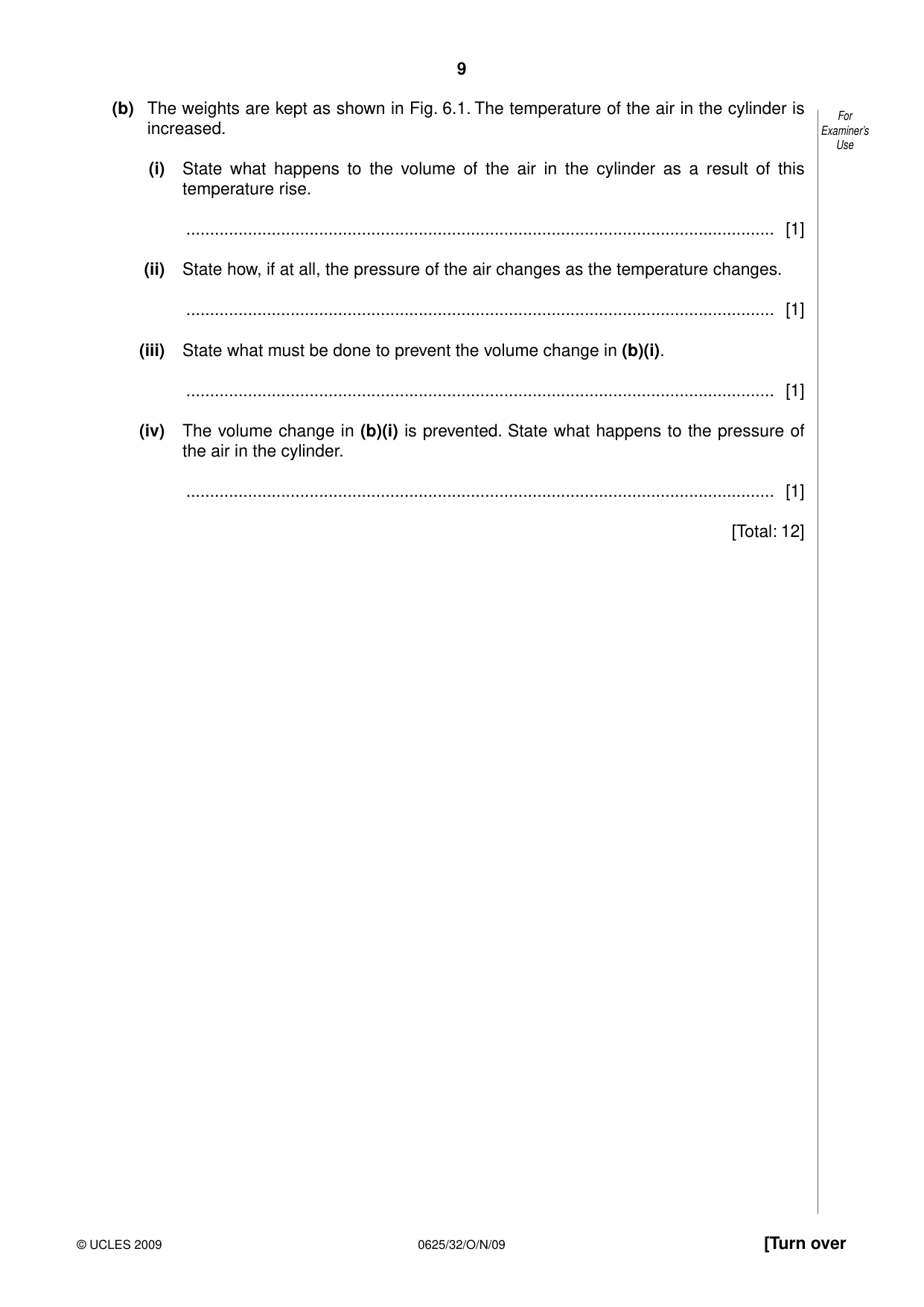

Mark scheme: 6 (a) (i) increases B1 (ii) pV = const in any form C1 1.05 (× 105) × 860 (× 10–6) = p × 645 (× 10–6) C1 1.4 × 105 Pa A1 (iii) F = pA in any form accept weight for F C1 EITHER increase in pressure = 0.35 × 105 (Pa) C1 0.35 × 105 × 5.0 × 10–3 C1 175 N (minimum 2 s.f.) c.a.o. A1 OR 1.05 × 105 × 5.0 × 10–3 or 525 N or 1.4 × 105 × 5.0 × 10–3 or 700 N (C1) 700 – 525 N e.c.f. from (a) (ii) (C1) 175 N (minimum 2 s.f.) c.a.o. (A1) IGCSE – October/November 2009 0625 32 (b) (i) increases B1 (ii) no change B1 (iii) extra weight (on tray/piston) B1 (iv) increases B1 [12]

More questions on Pressure

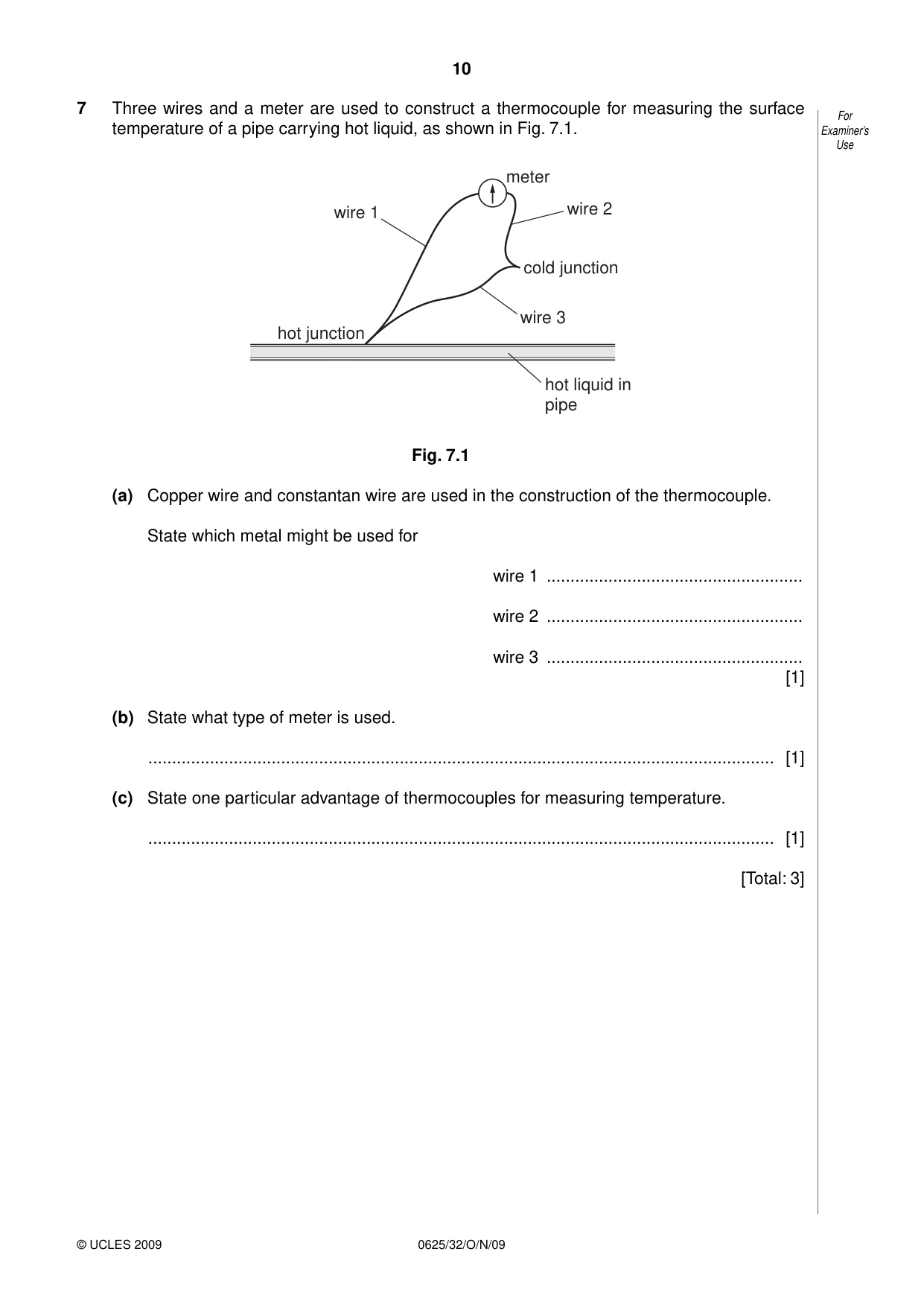

7 Three wires and a meter are used to construct a thermocouple for measuring the surface For temperature of a pipe carrying hot liquid, as shown in Fig. 7.1. Examiner’s Use meter wire 1 wire 2 cold junction wire 3 hot junction hot liquid in pipe Fig. 7.1 (a) Copper wire and constantan wire are used in the construction of the thermocouple. State which metal might be used for wire 1 ...................................................... wire 2 ...................................................... wire 3 ...................................................... [1] (b) State what type of meter is used. .................................................................................................................................... [1] (c) State one particular advantage of thermocouples for measuring temperature. .................................................................................................................................... [1] [Total: 3]

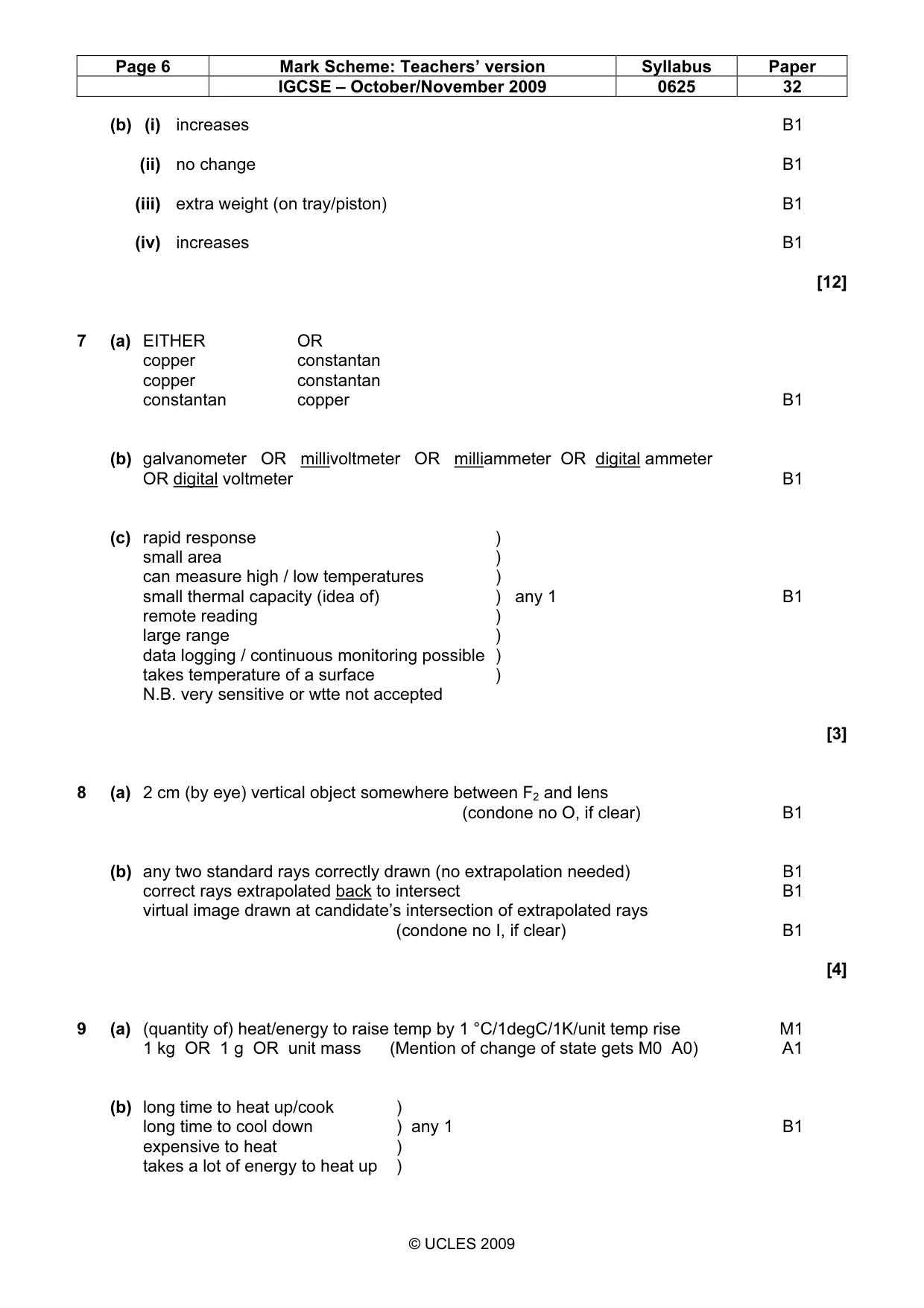

Mark scheme: 7 (a) EITHER OR copper constantan copper constantan constantan copper B1 (b) galvanometer OR millivoltmeter OR milliammeter OR digital ammeter OR digital voltmeter B1 (c) rapid response ) small area ) can measure high / low temperatures ) small thermal capacity (idea of) ) any 1 B1 remote reading ) large range ) data logging / continuous monitoring possible ) takes temperature of a surface ) N.B. very sensitive or wtte not accepted [3]

More questions on Physical quantities and measurement techniques

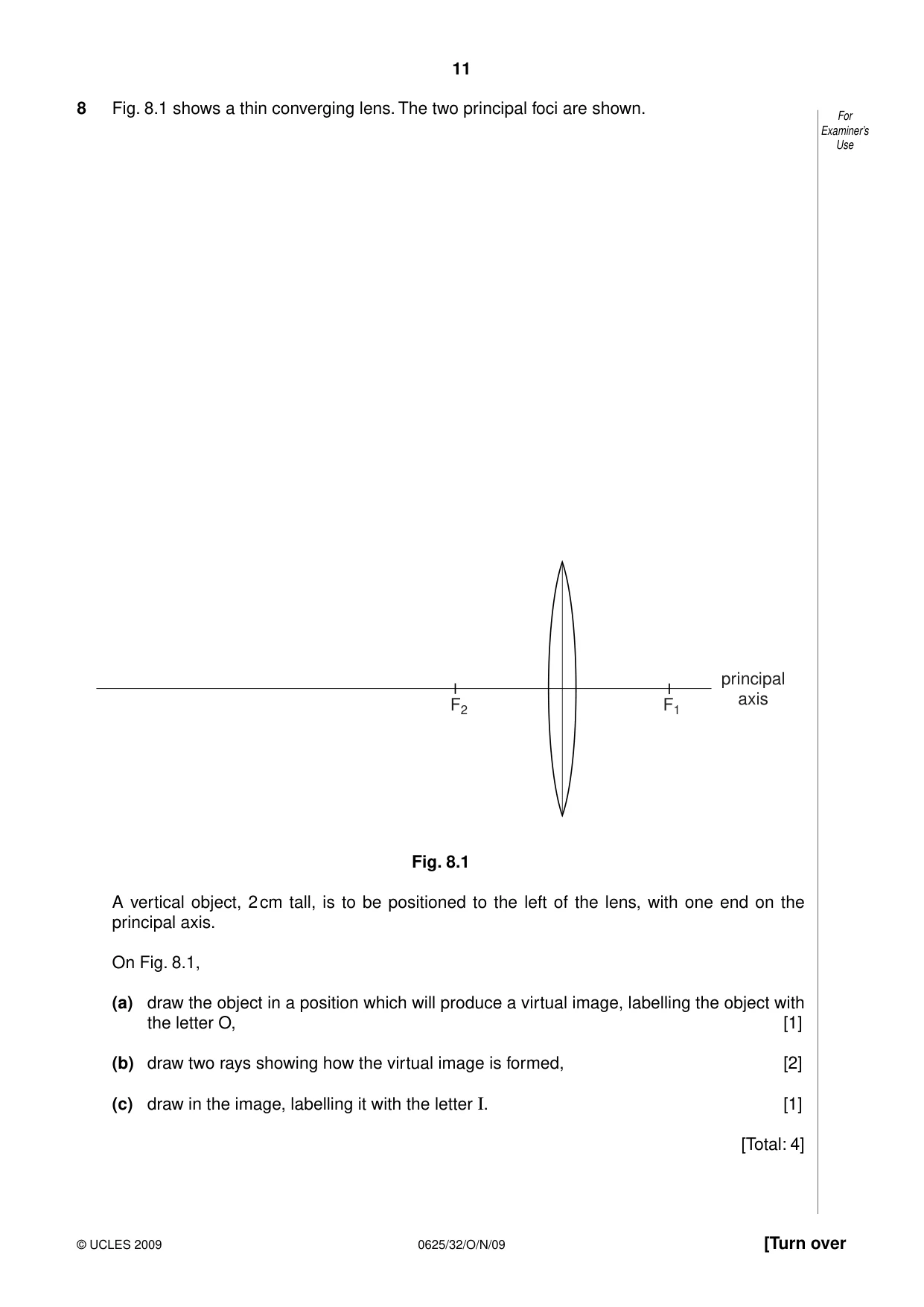

8 Fig. 8.1 shows a thin converging lens. The two principal foci are shown. For Examiner’s Use principal axis F2 F1 Fig. 8.1 A vertical object, 2 cm tall, is to be positioned to the left of the lens, with one end on the principal axis. On Fig. 8.1, (a) draw the object in a position which will produce a virtual image, labelling the object with the letter O, [1] (b) draw two rays showing how the virtual image is formed, [2] (c) draw in the image, labelling it with the letter I. [1] [Total: 4]

Mark scheme: 8 (a) 2 cm (by eye) vertical object somewhere between F2 and lens (condone no O, if clear) B1 (b) any two standard rays correctly drawn (no extrapolation needed) B1 correct rays extrapolated back to intersect B1 virtual image drawn at candidate’s intersection of extrapolated rays (condone no I, if clear) B1 [4]

More questions on Light

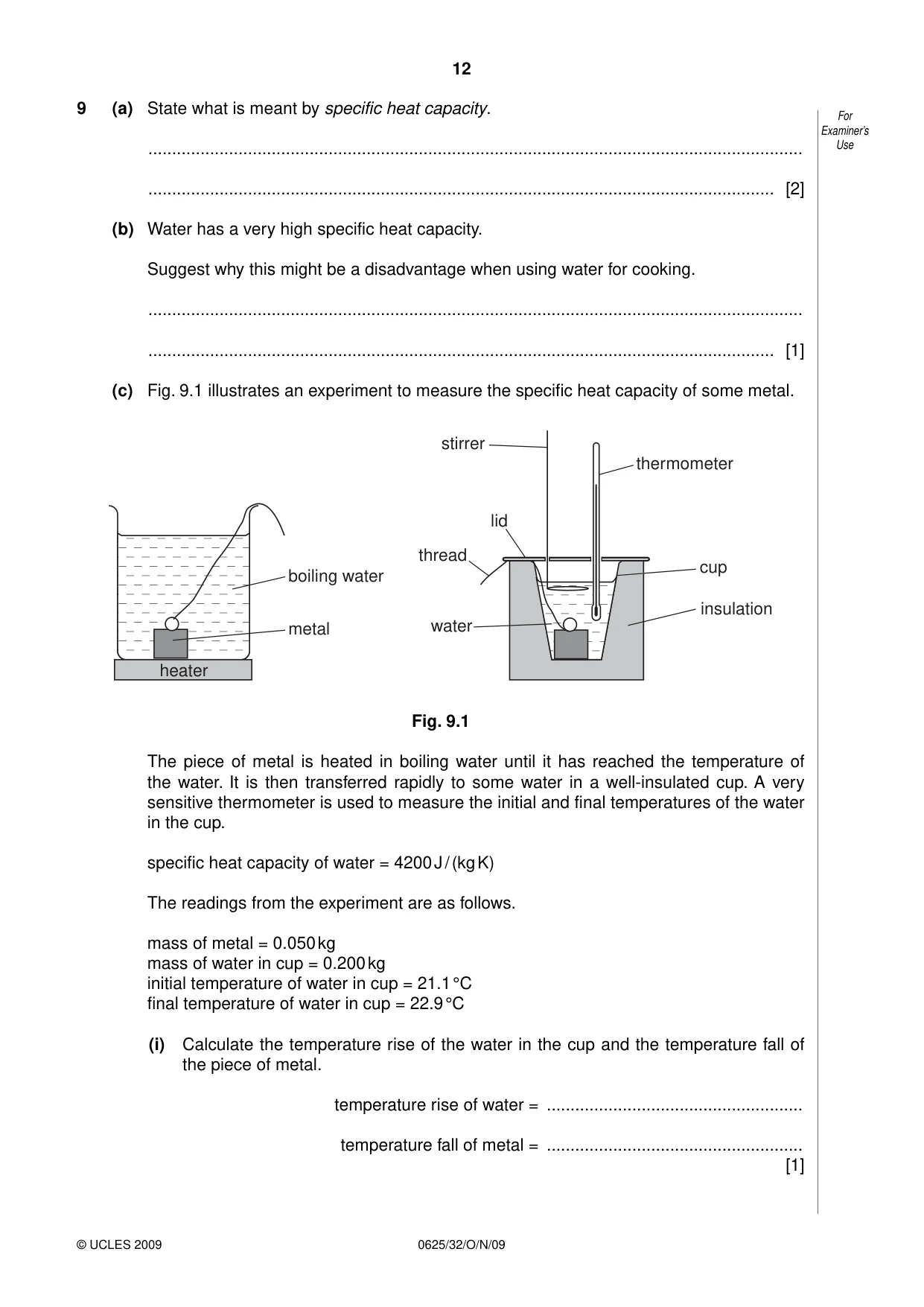

9 (a) State what is meant by specific heat capacity. For Examiner’s .......................................................................................................................................... Use .................................................................................................................................... [2] (b) Water has a very high specific heat capacity. Suggest why this might be a disadvantage when using water for cooking. .......................................................................................................................................... .................................................................................................................................... [1] (c) Fig. 9.1 illustrates an experiment to measure the specific heat capacity of some metal. stirrer thermometer lid thread cup boiling water insulation metal water heater Fig. 9.1 The piece of metal is heated in boiling water until it has reached the temperature of the water. It is then transferred rapidly to some water in a well-insulated cup. A very sensitive thermometer is used to measure the initial and final temperatures of the water in the cup. specific heat capacity of water = 4200 J / (kg K) The readings from the experiment are as follows. mass of metal = 0.050 kg mass of water in cup = 0.200 kg initial temperature of water in cup = 21.1 °C final temperature of water in cup = 22.9 °C (i) Calculate the temperature rise of the water in the cup and the temperature fall of the piece of metal. temperature rise of water = ...................................................... temperature fall of metal = ...................................................... [1] (ii) Calculate the thermal energy gained by the water in the cup. State the equation For that you use. Examiner’s Use thermal energy gained = ................................................ [3] (iii) Assume that only the water gained thermal energy from the piece of metal. Making use of your answers to (c)(i) and (c)(ii), calculate the value of the specific heat capacity of the metal. Give your answer to 3 significant figures. specific heat capacity = ................................................ [2] (iv) Suggest one reason why the experiment might not have given a correct value for the specific heat capacity of the metal. .................................................................................................................................. ............................................................................................................................ [1] [Total: 10]

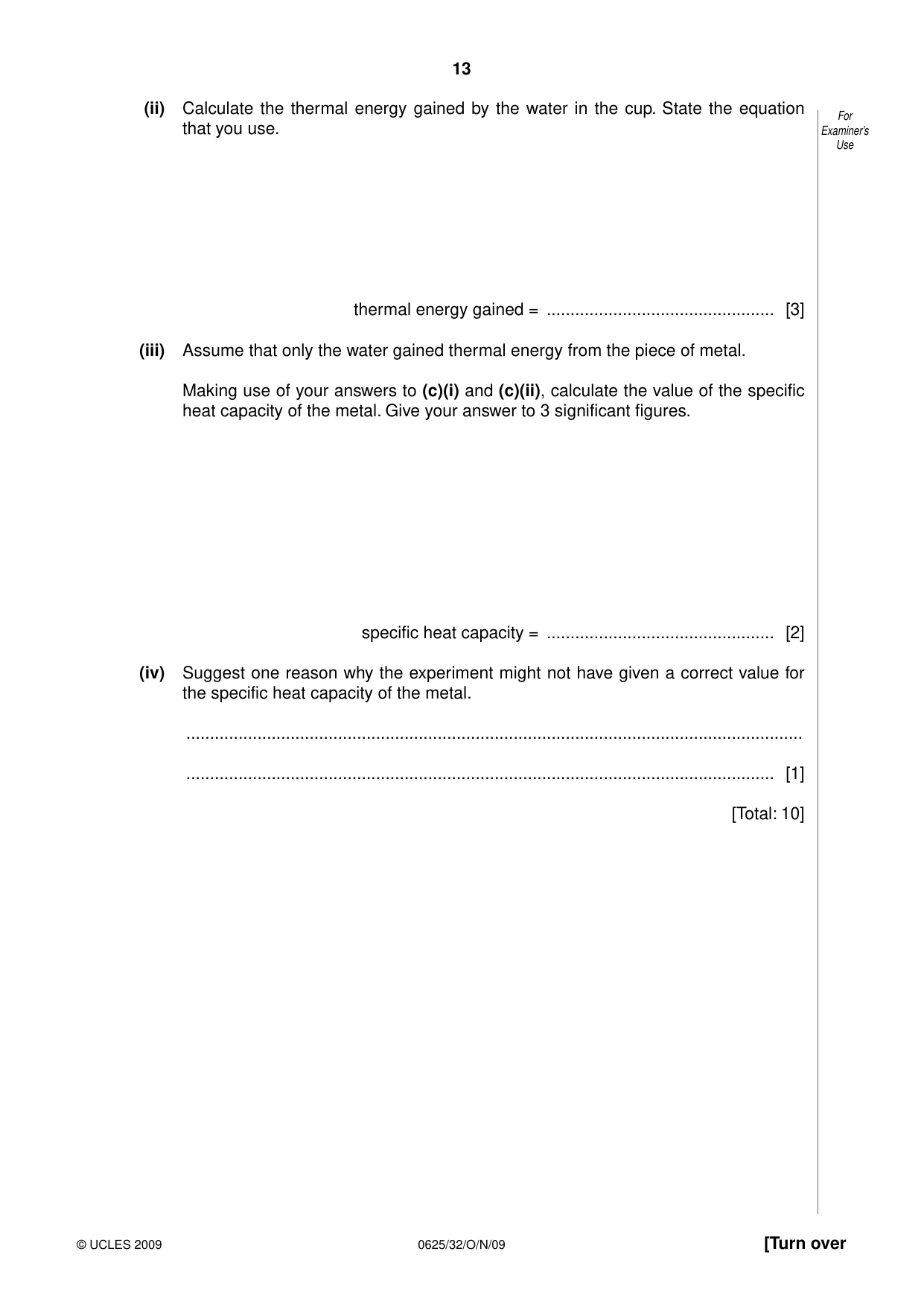

Mark scheme: 9 (a) (quantity of) heat/energy to raise temp by 1 °C/1degC/1K/unit temp rise M1 1 kg OR 1 g OR unit mass (Mention of change of state gets M0 A0) A1 (b) long time to heat up/cook ) long time to cool down ) any 1 B1 expensive to heat ) takes a lot of energy to heat up ) IGCSE – October/November 2009 0625 32 (c) (i) 1.8 degC OR 1.8 °C OR 1.8 K AND 77.1 degC OR 77.1 °C OR 77.1K B1 (ii) (Q =) mcT in any form, seen anywhere B1 0.2 × 4200 × 1.8 e.c.f. from (c) (i) C1 1512 J (minimum 2 s.f.) c.a.o. A1 (iii) 1512 = 0.05 × c × 77.1 in any form e.c.f. from (c) (i) and/or (c) (ii) C1 392 J/kg K (N.B. must be to 3 sf ; A0 for wrong s.f.) e.c.f. A1 (iv) heat lost during transfer ) boiling water not at 100 °C / reason for not boiling at 100 °C e.g. water not pure/ not standard pressure ) energy lost to cup etc. / surroundings ) any 1 B1 thermometer not accurate / sensitive enough ) temperature / mass(es) not accurately measured ) [10]

More questions on Thermal properties and temperature

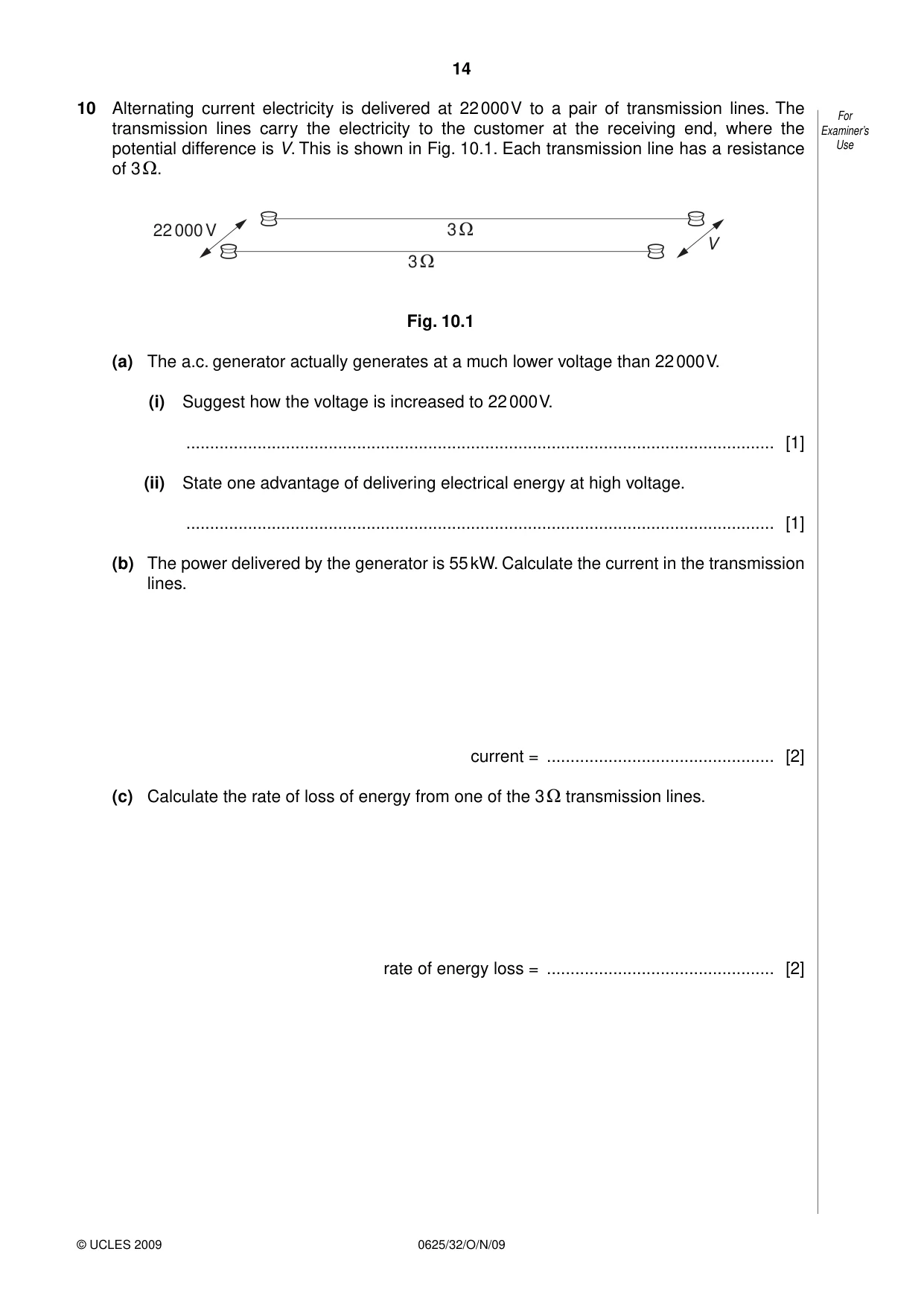

10 Alternating current electricity is delivered at 22 000 V to a pair of transmission lines. The For transmission lines carry the electricity to the customer at the receiving end, where the Examiner’s potential difference is V. This is shown in Fig. 10.1. Each transmission line has a resistance Use of 3 . 22 000 V 3 X V 3 X Fig. 10.1 (a) The a.c. generator actually generates at a much lower voltage than 22 000 V. (i) Suggest how the voltage is increased to 22 000 V. ............................................................................................................................ [1] (ii) State one advantage of delivering electrical energy at high voltage. ............................................................................................................................ [1] (b) The power delivered by the generator is 55 kW. Calculate the current in the transmission lines. current = ................................................ [2] (c) Calculate the rate of loss of energy from one of the 3 transmission lines. rate of energy loss = ................................................ [2] (d) Calculate the voltage drop across one of the transmission lines. For Examiner’s Use voltage drop = ................................................ [2] (e) Calculate the potential difference V at the receiving end of the transmission lines. V = ................................................ [2] [Total: 10] Question 11 is on the next page.

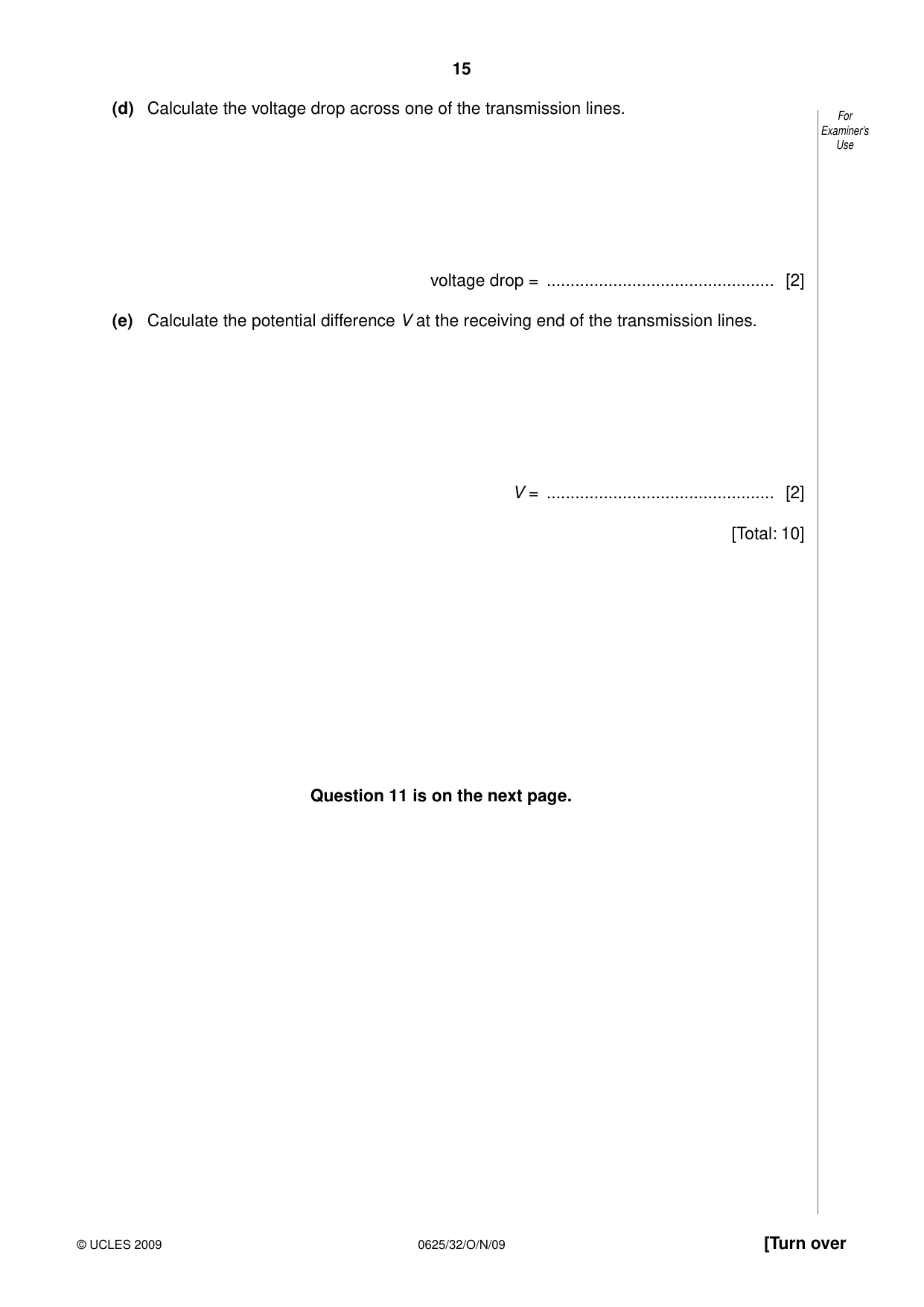

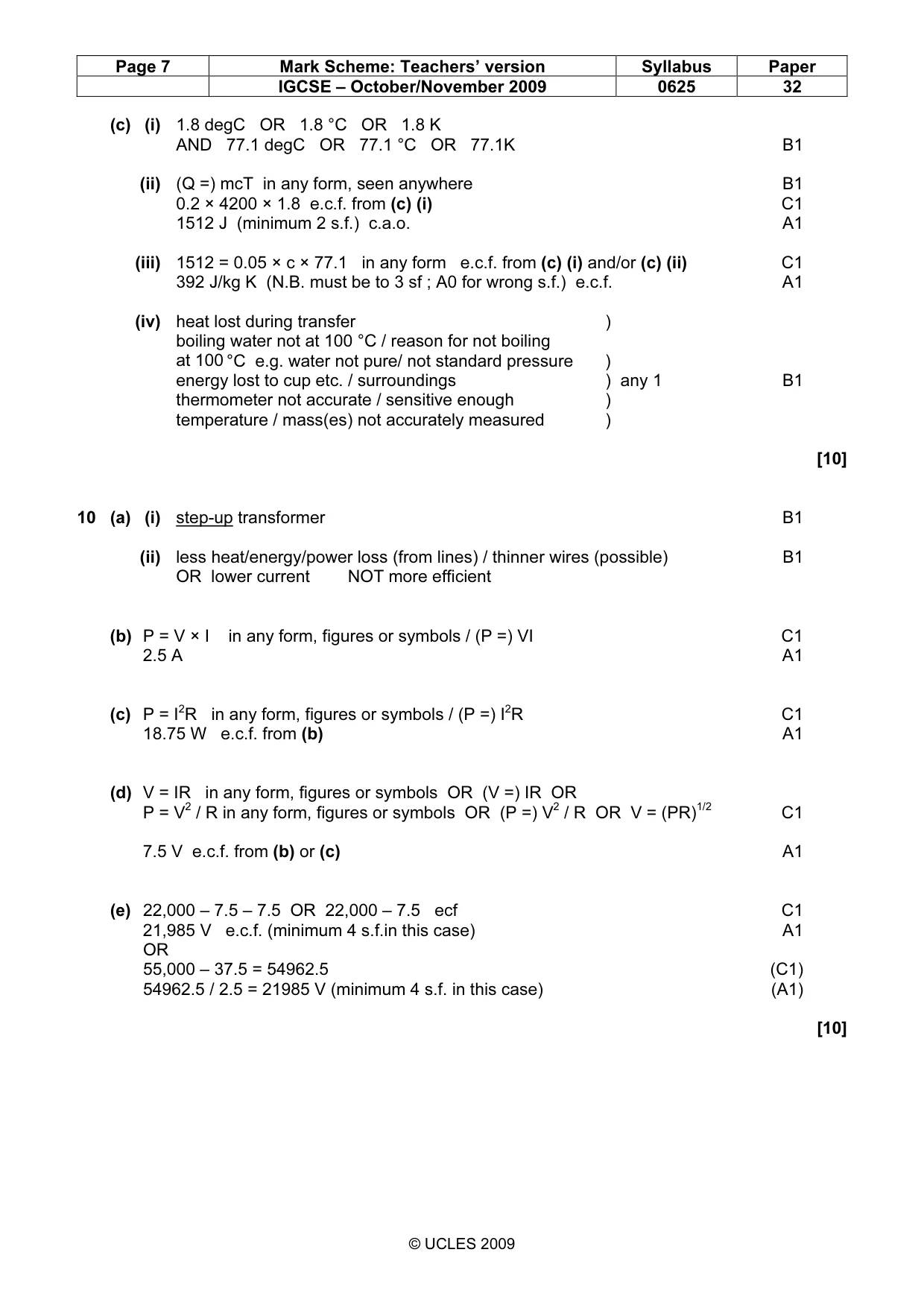

Mark scheme: 10 (a) (i) step-up transformer B1 (ii) less heat/energy/power loss (from lines) / thinner wires (possible) B1 OR lower current NOT more efficient (b) P = V × I in any form, figures or symbols / (P =) VI C1 2.5 A A1 (c) P = I2R in any form, figures or symbols / (P =) I2R C1 18.75 W e.c.f. from (b) A1 (d) V = IR in any form, figures or symbols OR (V =) IR OR P = V2 / R in any form, figures or symbols OR (P =) V2 / R OR V = (PR)1/2 C1 7.5 V e.c.f. from (b) or (c) A1 (e) 22,000 – 7.5 – 7.5 OR 22,000 – 7.5 ecf C1 21,985 V e.c.f. (minimum 4 s.f.in this case) A1 OR 55,000 – 37.5 = 54962.5 (C1) 54962.5 / 2.5 = 21985 V (minimum 4 s.f. in this case) (A1) [10] IGCSE – October/November 2009 0625 32

More questions on Electrical quantities

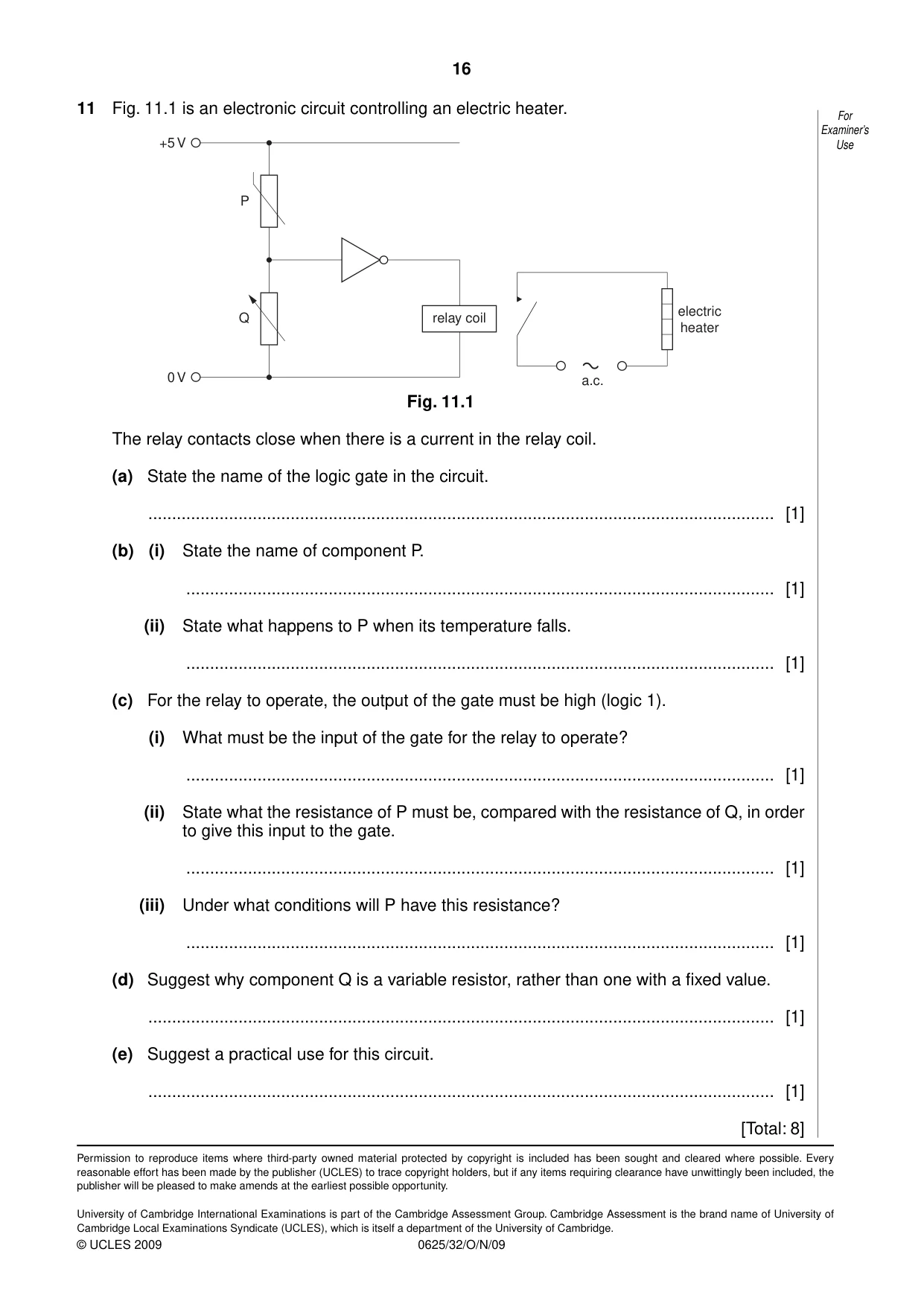

11 Fig. 11.1 is an electronic circuit controlling an electric heater. For Examiner’s +5 V Use P electric Q relay coil heater 0 V a.c. Fig. 11.1 The relay contacts close when there is a current in the relay coil. (a) State the name of the logic gate in the circuit. .................................................................................................................................... [1] (b) (i) State the name of component P. ............................................................................................................................ [1] (ii) State what happens to P when its temperature falls. ............................................................................................................................ [1] (c) For the relay to operate, the output of the gate must be high (logic 1). (i) What must be the input of the gate for the relay to operate? ............................................................................................................................ [1] (ii) State what the resistance of P must be, compared with the resistance of Q, in order to give this input to the gate. ............................................................................................................................ [1] (iii) Under what conditions will P have this resistance? ............................................................................................................................ [1] (d) Suggest why component Q is a variable resistor, rather than one with a fixed value. .................................................................................................................................... [1] (e) Suggest a practical use for this circuit. .................................................................................................................................... [1] [Total: 8]

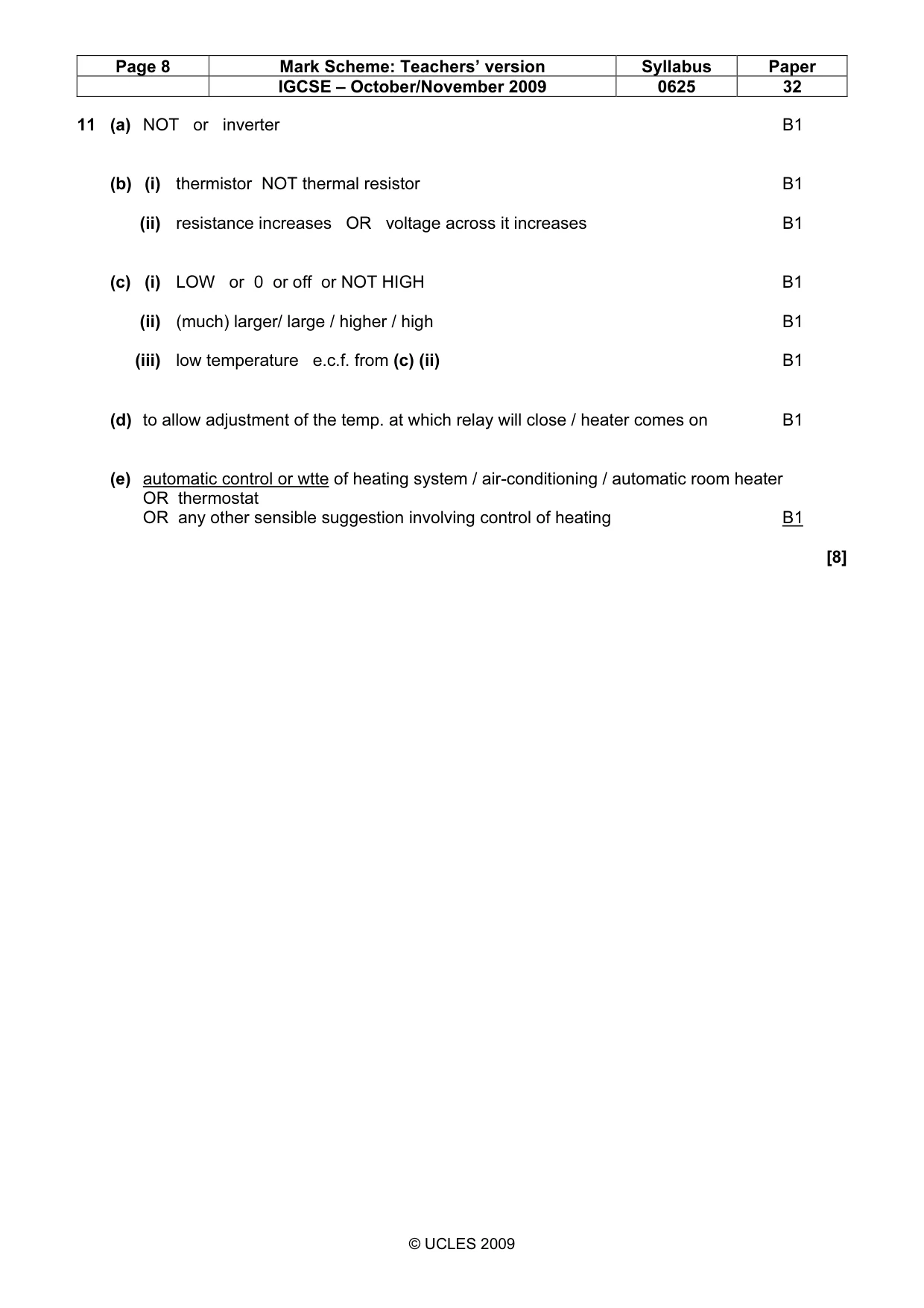

Mark scheme: 11 (a) NOT or inverter B1 (b) (i) thermistor NOT thermal resistor B1 (ii) resistance increases OR voltage across it increases B1 (c) (i) LOW or 0 or off or NOT HIGH B1 (ii) (much) larger/ large / higher / high B1 (iii) low temperature e.c.f. from (c) (ii) B1 (d) to allow adjustment of the temp. at which relay will close / heater comes on B1 (e) automatic control or wtte of heating system / air-conditioning / automatic room heater OR thermostat OR any other sensible suggestion involving control of heating B1 [8]
