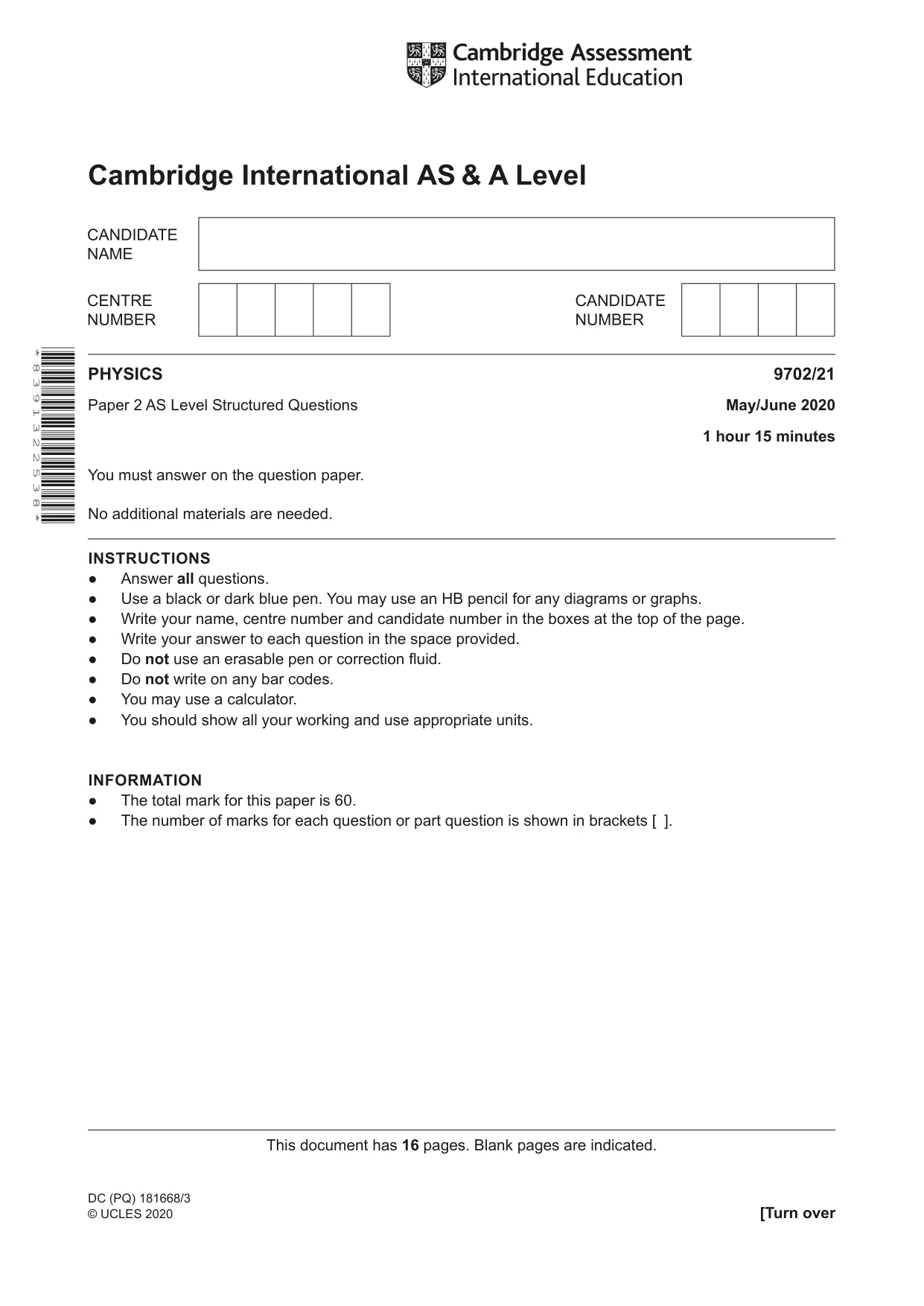

Cambridge A Level Physics 9702 — 2020 May/June Paper 2 · Variant 1

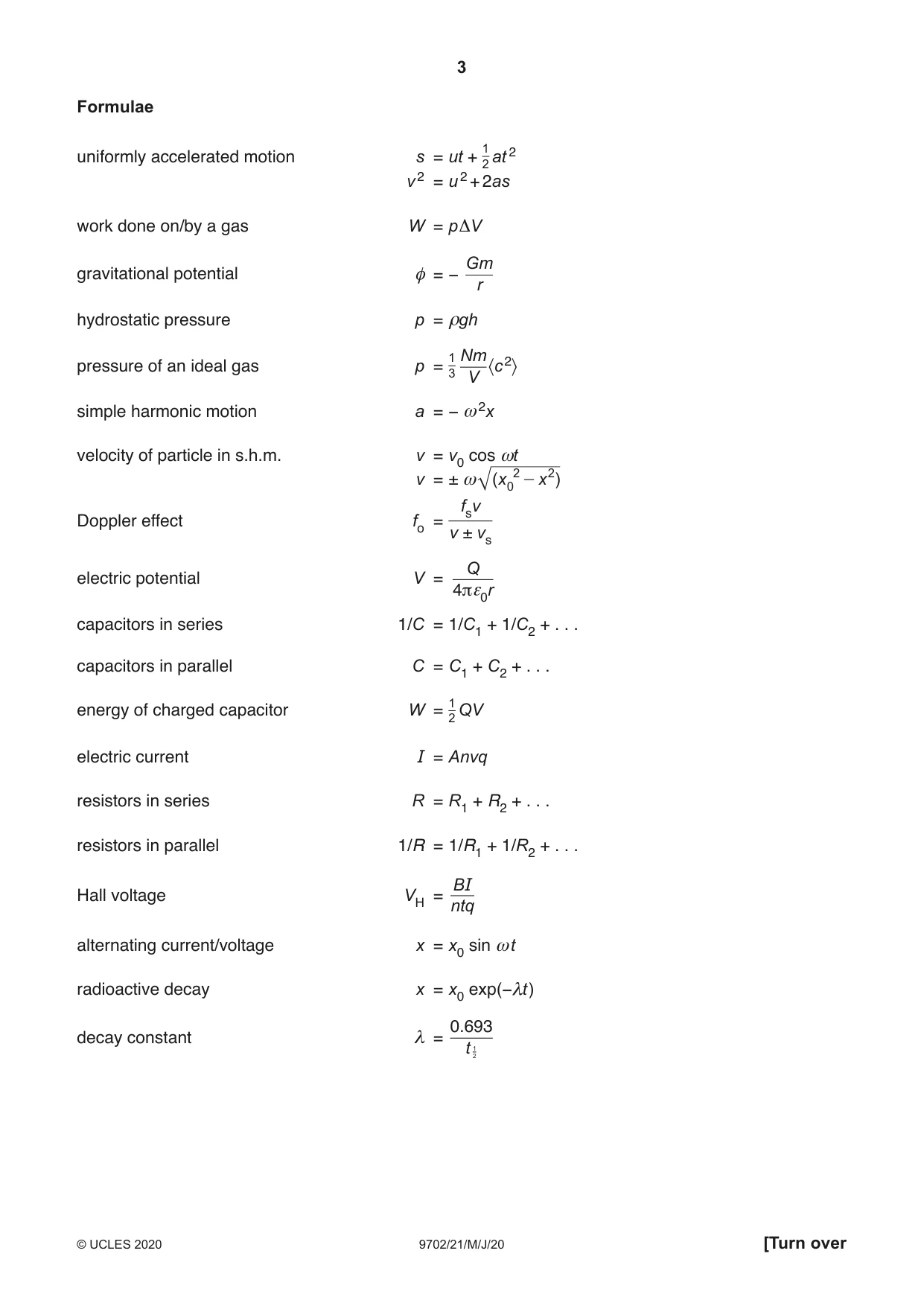

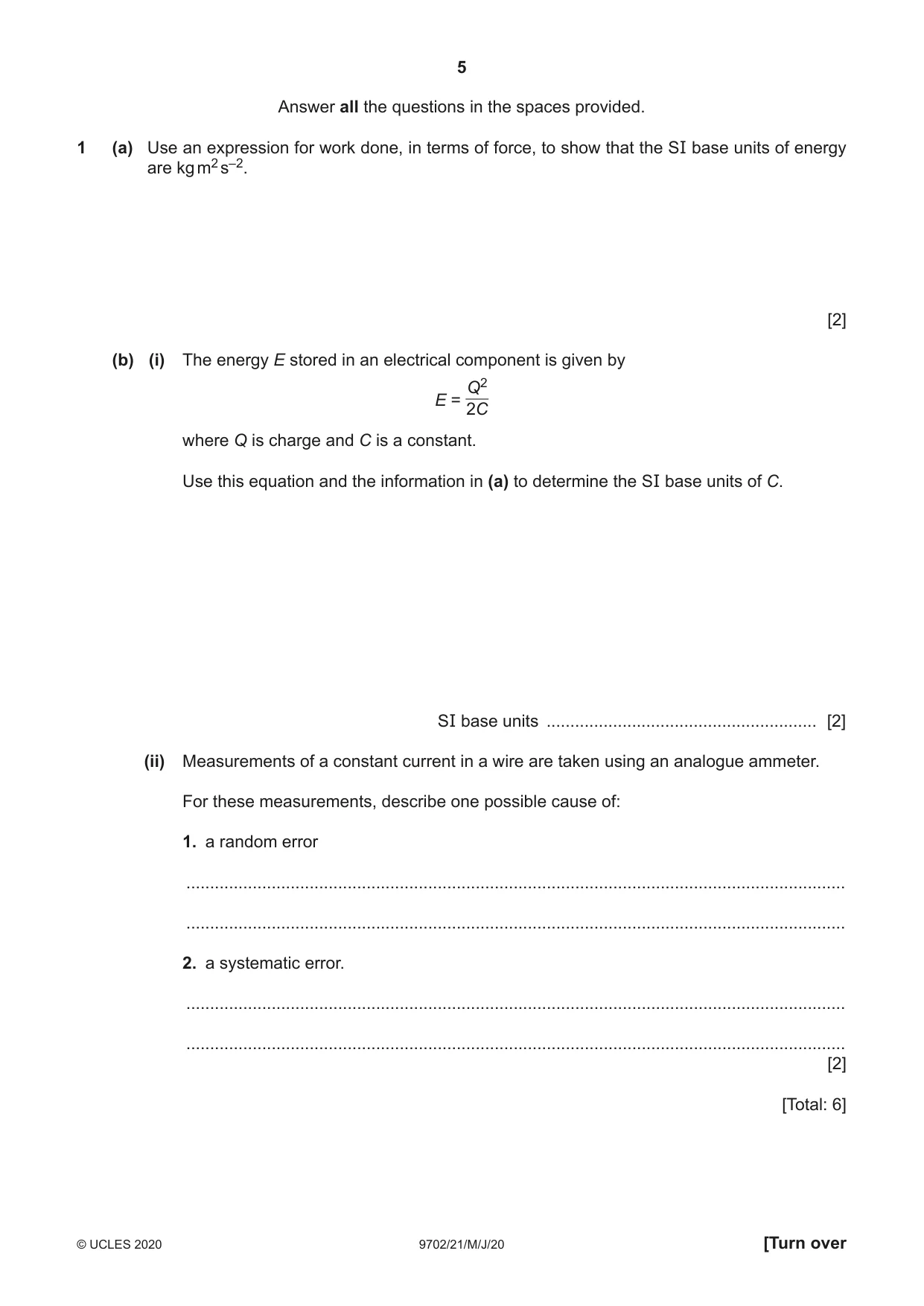

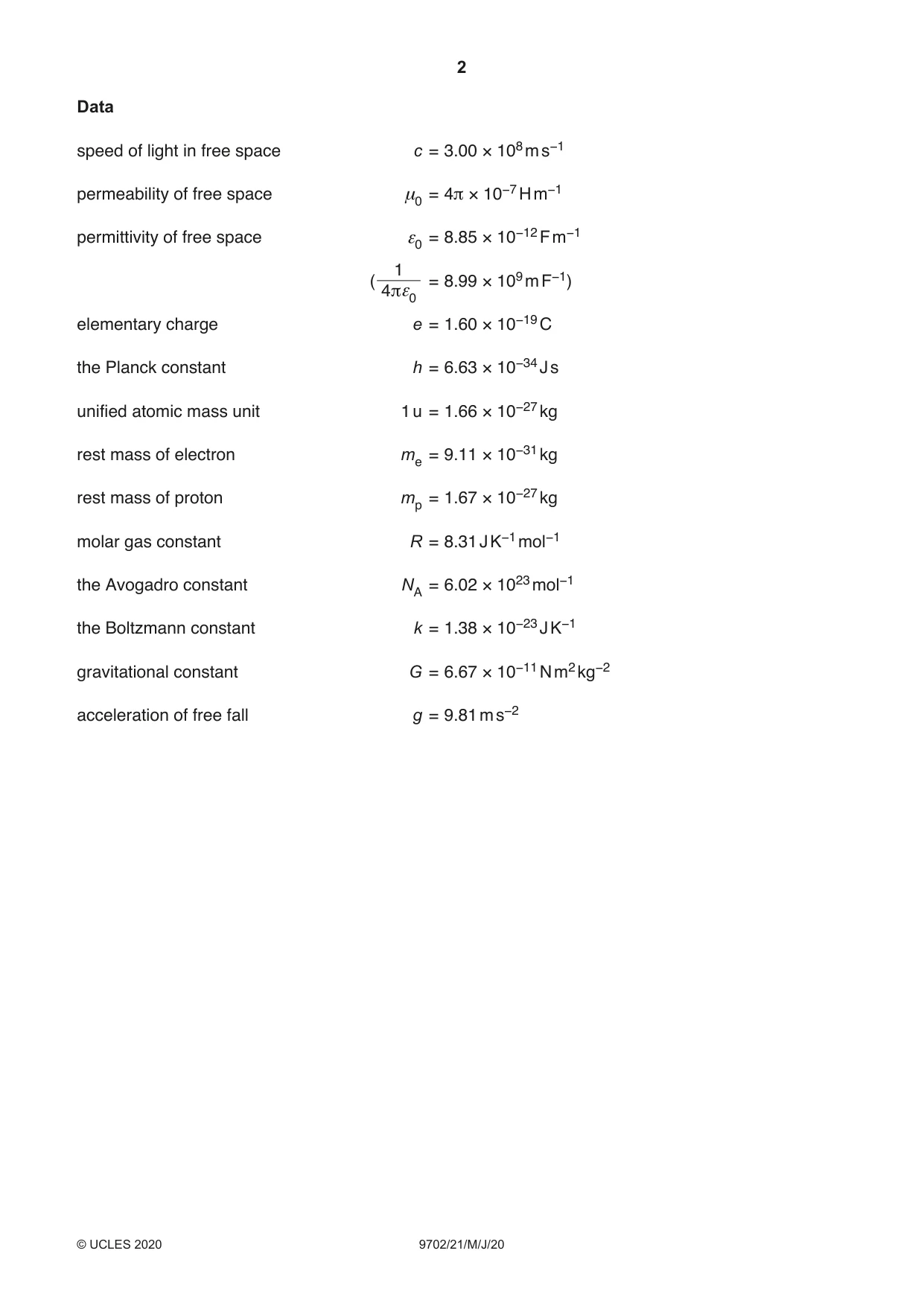

1 (a) Use an expression for work done, in terms of force, to show that the SI base units of energy are kg m2 s–2. [2] (b) (i) The energy E stored in an electrical component is given by Q2 E = 2C where Q is charge and C is a constant. Use this equation and the information in (a) to determine the SI base units of C. SI base units ......................................................... [2] (ii) Measurements of a constant current in a wire are taken using an analogue ammeter. For these measurements, describe one possible cause of: 1. a random error ........................................................................................................................................... ........................................................................................................................................... 2. a systematic error. ........................................................................................................................................... ........................................................................................................................................... [2] [Total: 6]

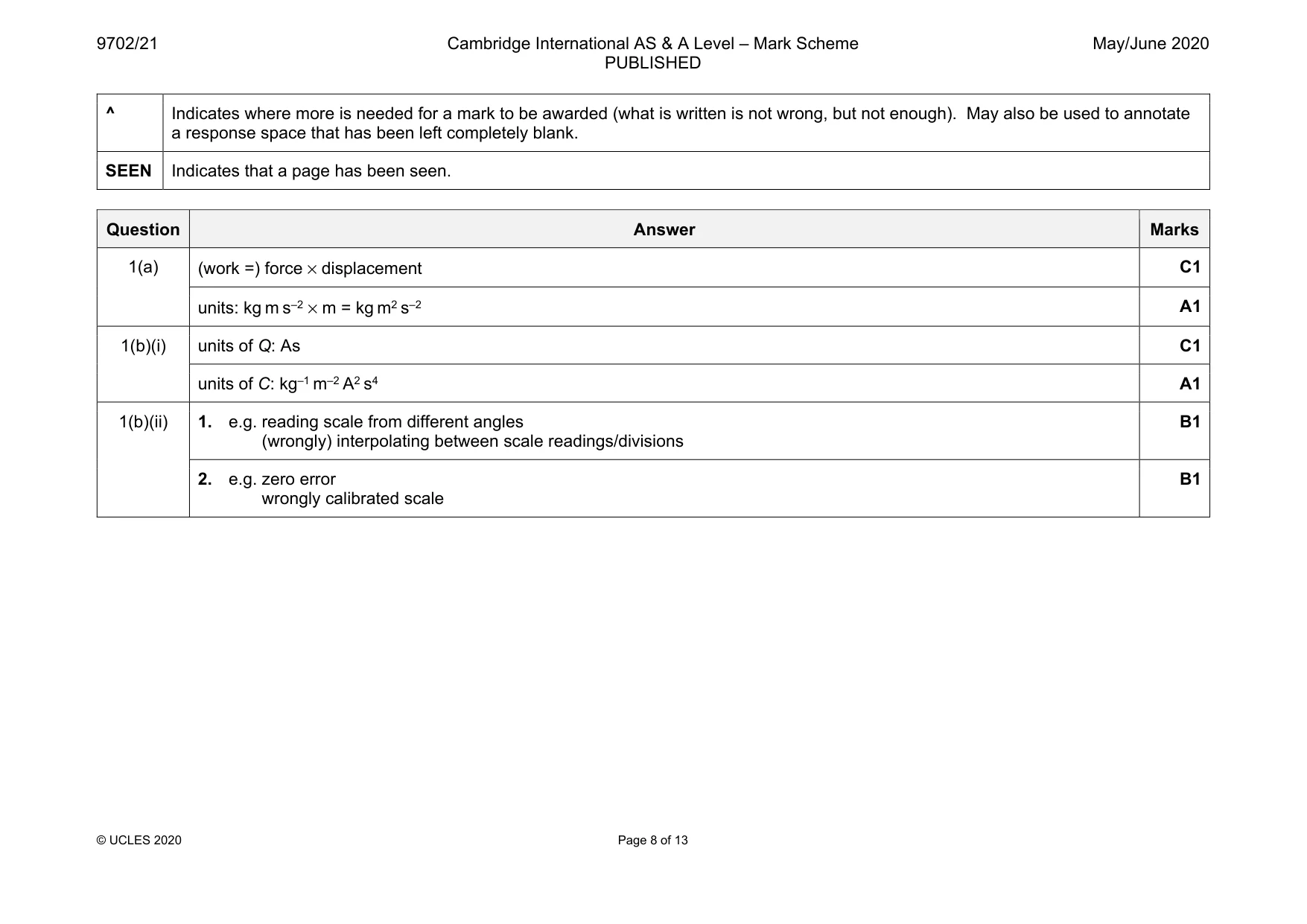

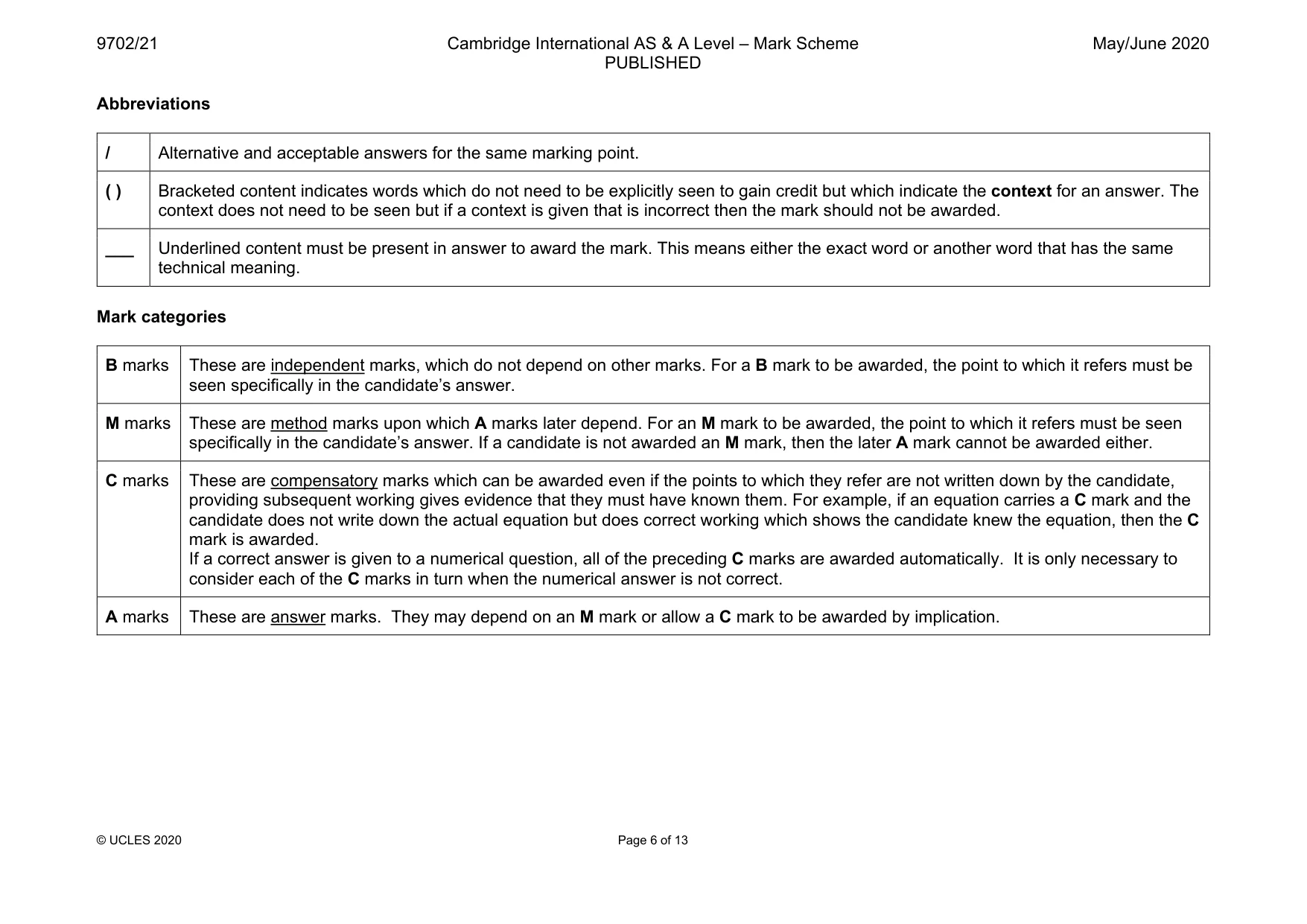

Mark scheme: 1(a) (work =) force × displacement C1 units: kg m s–2 × m = kg m2 s–2 A1 1(b)(i) units of Q: As C1 units of C: kg–1 m–2 A2 s4 A1 1(b)(ii) 1. e.g. reading scale from different angles (wrongly) interpolating between scale readings/divisions B1 2. e.g. zero error wrongly calibrated scale B1

More questions on SI units

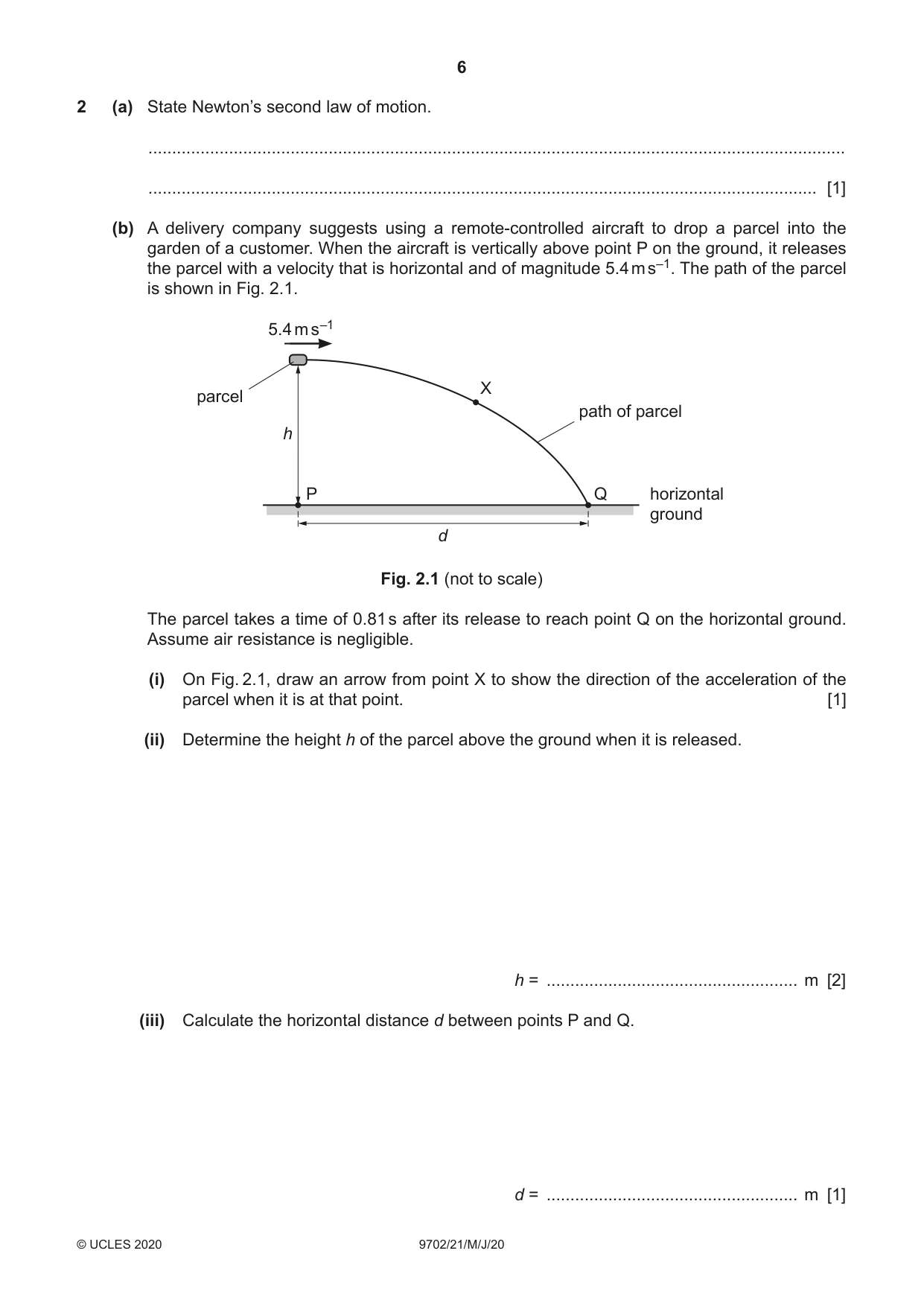

2 (a) State Newton’s second law of motion. ................................................................................................................................................... ............................................................................................................................................. [1] (b) A delivery company suggests using a remote-controlled aircraft to drop a parcel into the garden of a customer. When the aircraft is vertically above point P on the ground, it releases the parcel with a velocity that is horizontal and of magnitude 5.4 m s–1. The path of the parcel is shown in Fig. 2.1. 5.4 m s–1 X parcel path of parcel h P Q horizontal ground d Fig. 2.1 (not to scale) The parcel takes a time of 0.81 s after its release to reach point Q on the horizontal ground. Assume air resistance is negligible. (i) On Fig. 2.1, draw an arrow from point X to show the direction of the acceleration of the parcel when it is at that point. [1] (ii) Determine the height h of the parcel above the ground when it is released. h = ..................................................... m [2] (iii) Calculate the horizontal distance d between points P and Q. d = ..................................................... m [1] (c) Another parcel is accidentally released from rest by a different aircraft when it is hovering at a great height above the ground. Air resistance is now significant. (i) On Fig. 2.2, draw arrows to show the directions of the forces acting on the parcel as it falls vertically downwards. Label each arrow with the name of the force. parcel velocity Fig. 2.2 [2] (ii) By considering the forces acting on the parcel, state and explain the variation, if any, of the acceleration of the parcel as it moves downwards before it reaches constant (terminal) speed. ........................................................................................................................................... ........................................................................................................................................... ........................................................................................................................................... ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [3] (iii) Describe the energy conversion that occurs when the parcel is falling through the air at constant (terminal) speed. ........................................................................................................................................... ..................................................................................................................................... [1] [Total: 11]

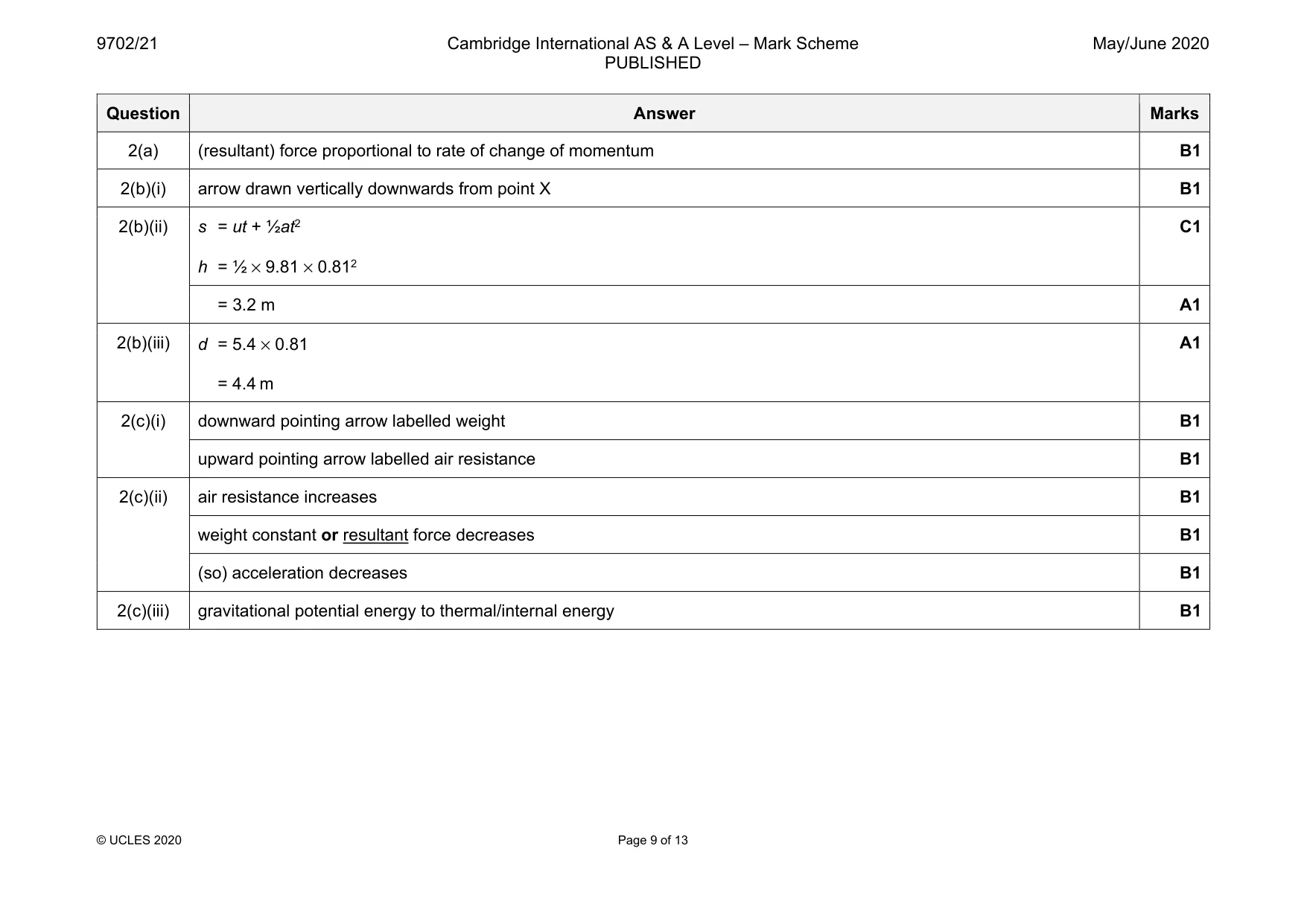

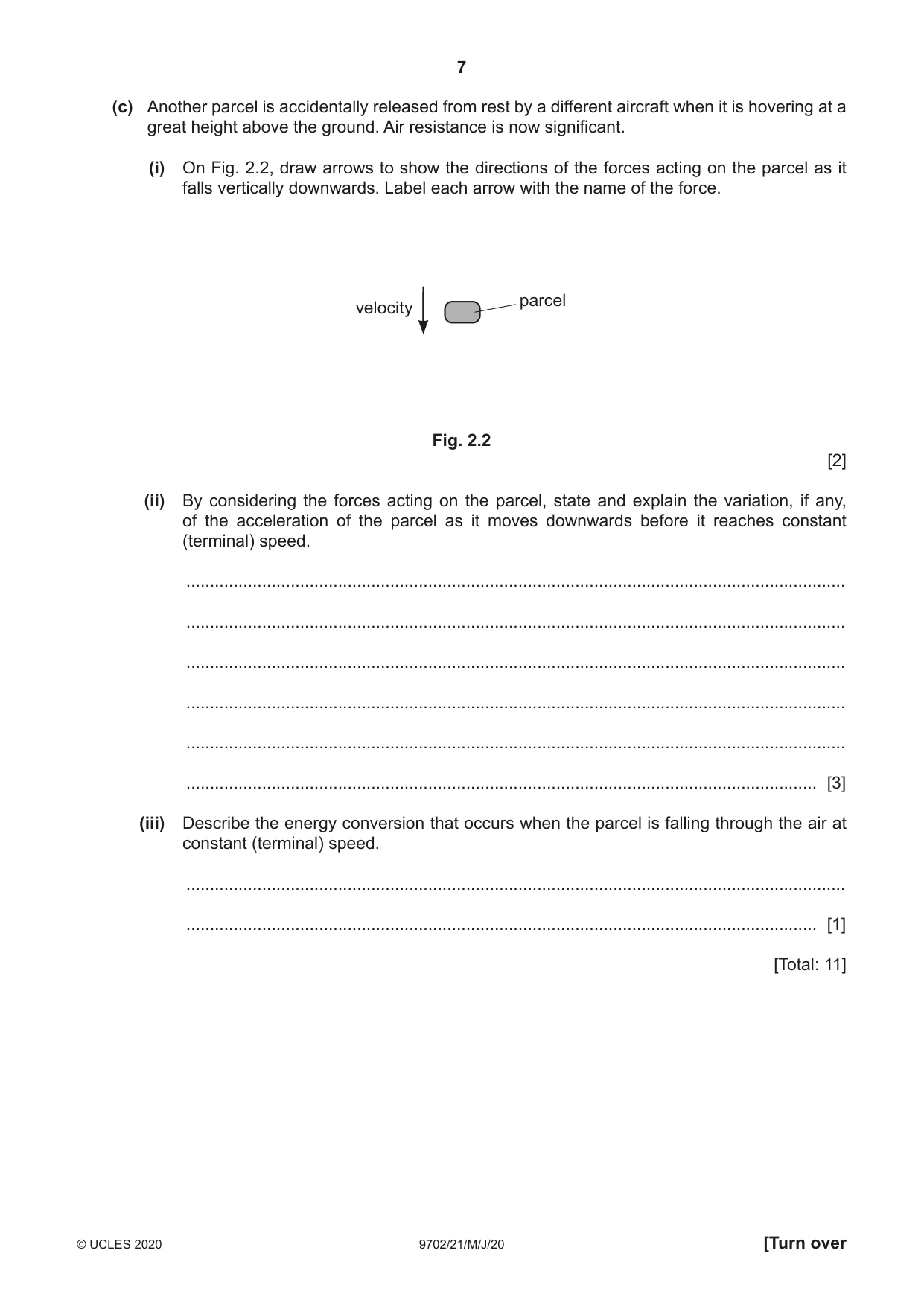

Mark scheme: 2(a) (resultant) force proportional to rate of change of momentum B1 2(b)(i) arrow drawn vertically downwards from point X B1 2(b)(ii) s = ut + ½at2 h = ½ × 9.81 × 0.812 C1 = 3.2 m A1 2(b)(iii) d = 5.4 × 0.81 = 4.4 m A1 2(c)(i) downward pointing arrow labelled weight B1 upward pointing arrow labelled air resistance B1 2(c)(ii) air resistance increases B1 weight constant or resultant force decreases B1 (so) acceleration decreases B1 2(c)(iii) gravitational potential energy to thermal/internal energy B1

More questions on Equations of motion

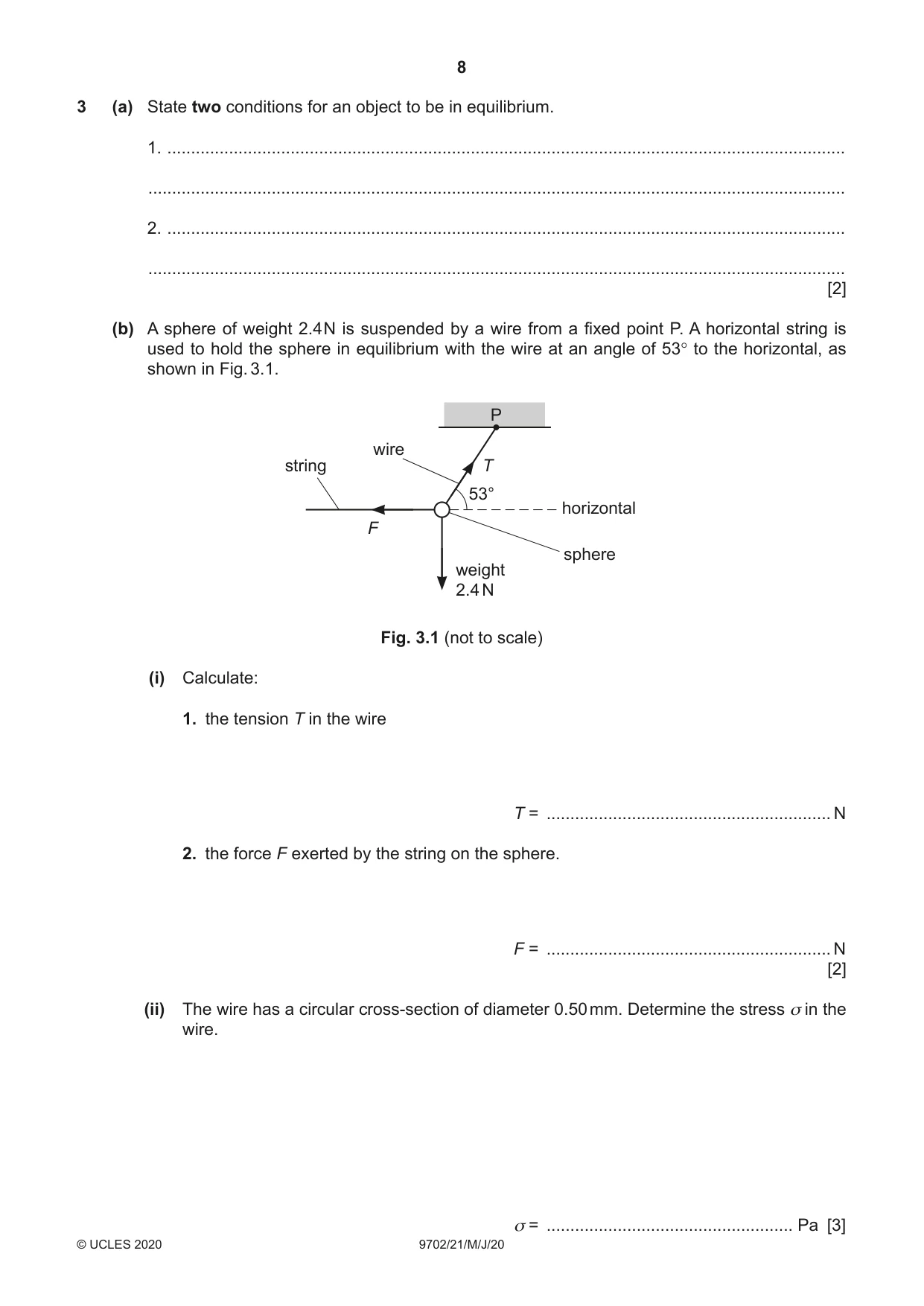

3 (a) State two conditions for an object to be in equilibrium. 1. ............................................................................................................................................... ................................................................................................................................................... 2. ............................................................................................................................................... ................................................................................................................................................... [2] (b) A sphere of weight 2.4 N is suspended by a wire from a fixed point P. A horizontal string is used to hold the sphere in equilibrium with the wire at an angle of 53° to the horizontal, as shown in Fig. 3.1. P wire string T 53° horizontal F sphere weight 2.4 N Fig. 3.1 (not to scale) (i) Calculate: 1. the tension T in the wire T = ............................................................ N 2. the force F exerted by the string on the sphere. F = ............................................................ N [2] (ii) The wire has a circular cross-section of diameter 0.50 mm. Determine the stress σ in the wire. σ = .................................................... Pa [3] (c) The string is disconnected from the sphere in (b). The sphere then swings from its initial rest position A, as illustrated in Fig. 3.2. P 75 cm 53° A h B Fig. 3.2 (not to scale) The sphere reaches maximum speed when it is at the bottom of the swing at position B. The distance between P and the centre of the sphere is 75 cm. Air resistance is negligible and energy losses at P are negligible. (i) Show that the vertical distance h between A and B is 15 cm. [1] (ii) Calculate the change in gravitational potential energy of the sphere as it moves from A to B. change in gravitational potential energy = ...................................................... J [2] (iii) Use your answer in (c)(ii) to determine the speed of the sphere at B. Show your working. speed = ................................................ m s–1 [3] [Total: 13]

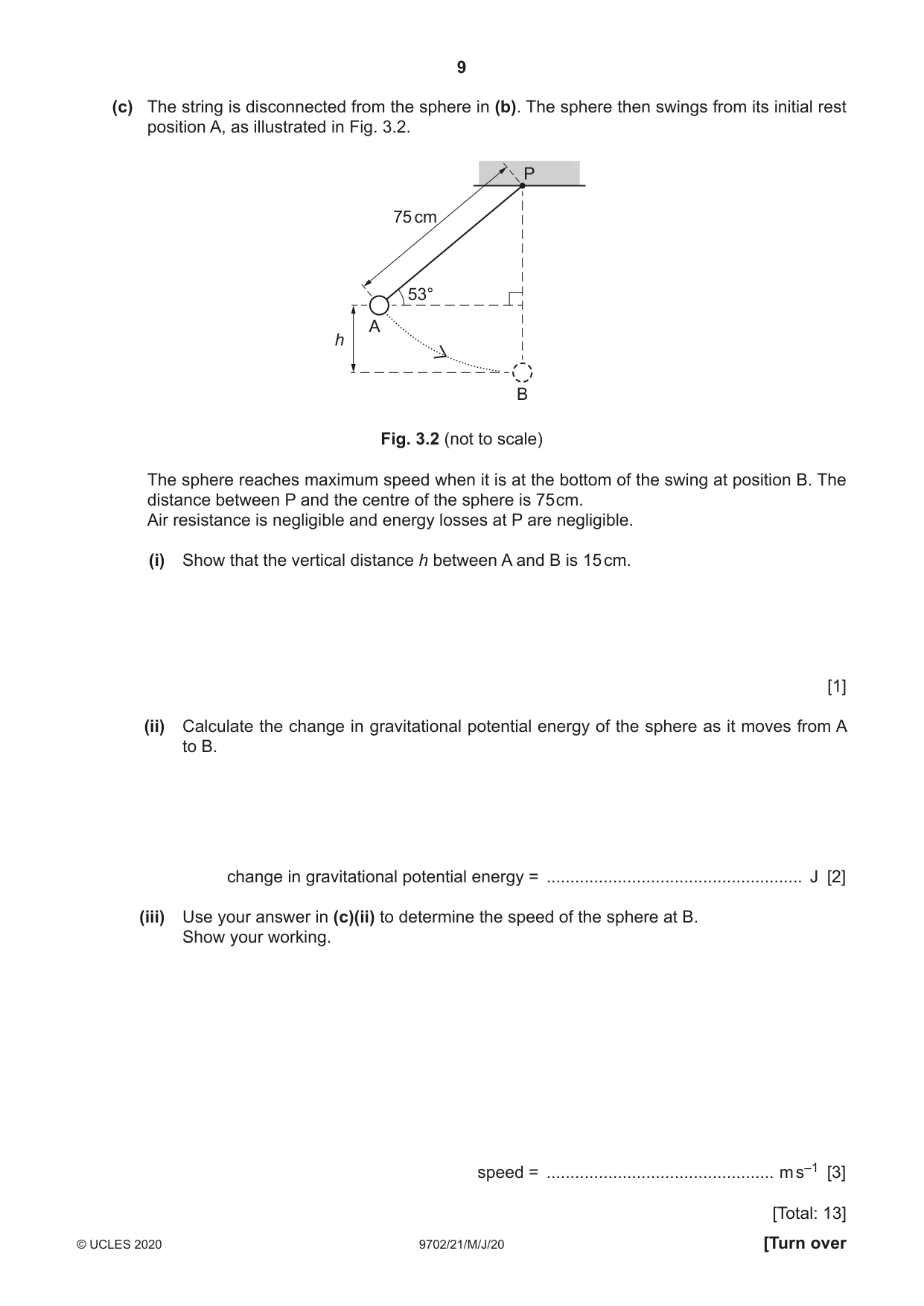

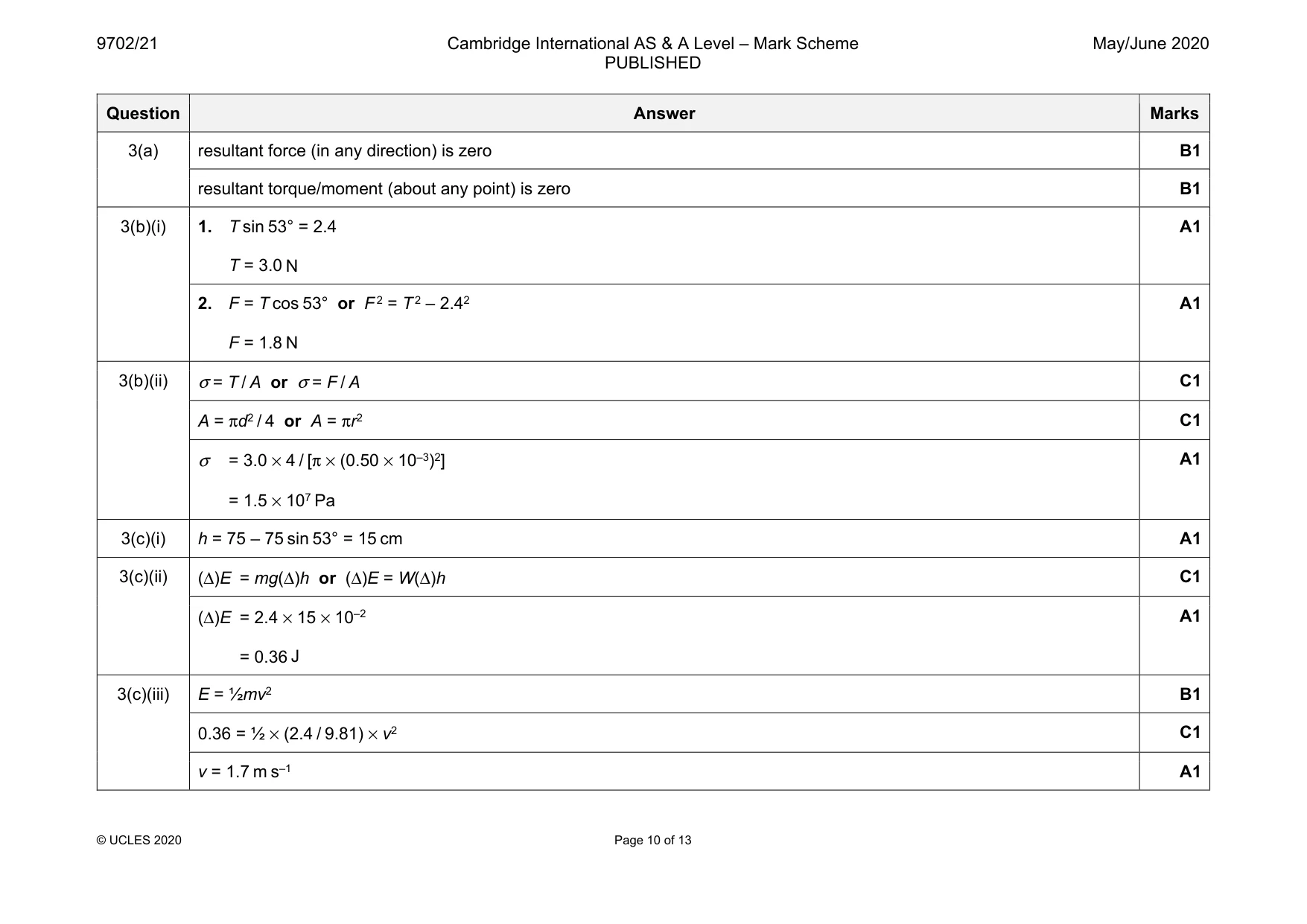

Mark scheme: 3(a) resultant force (in any direction) is zero B1 resultant torque/moment (about any point) is zero B1 3(b)(i) 1. T sin 53° = 2.4 T = 3.0 N A1 2. F = T cos 53° or F 2 = T 2 – 2.42 F = 1.8 N A1 3(b)(ii) σ = T / A or σ = F / A C1 A = πd2 / 4 or A = πr2 C1 σ = 3.0 × 4 / [π × (0.50 × 10–3)2] = 1.5 × 107 Pa A1 3(c)(i) h = 75 – 75 sin 53° = 15 cm A1 3(c)(ii) (Δ)E = mg(Δ)h or (Δ)E = W(Δ)h C1 (Δ)E = 2.4 × 15 × 10–2 = 0.36 J A1 3(c)(iii) E = ½mv2 B1 0.36 = ½ × (2.4 / 9.81) × v2 C1 v = 1.7 m s–1 A1

More questions on Equilibrium of forces

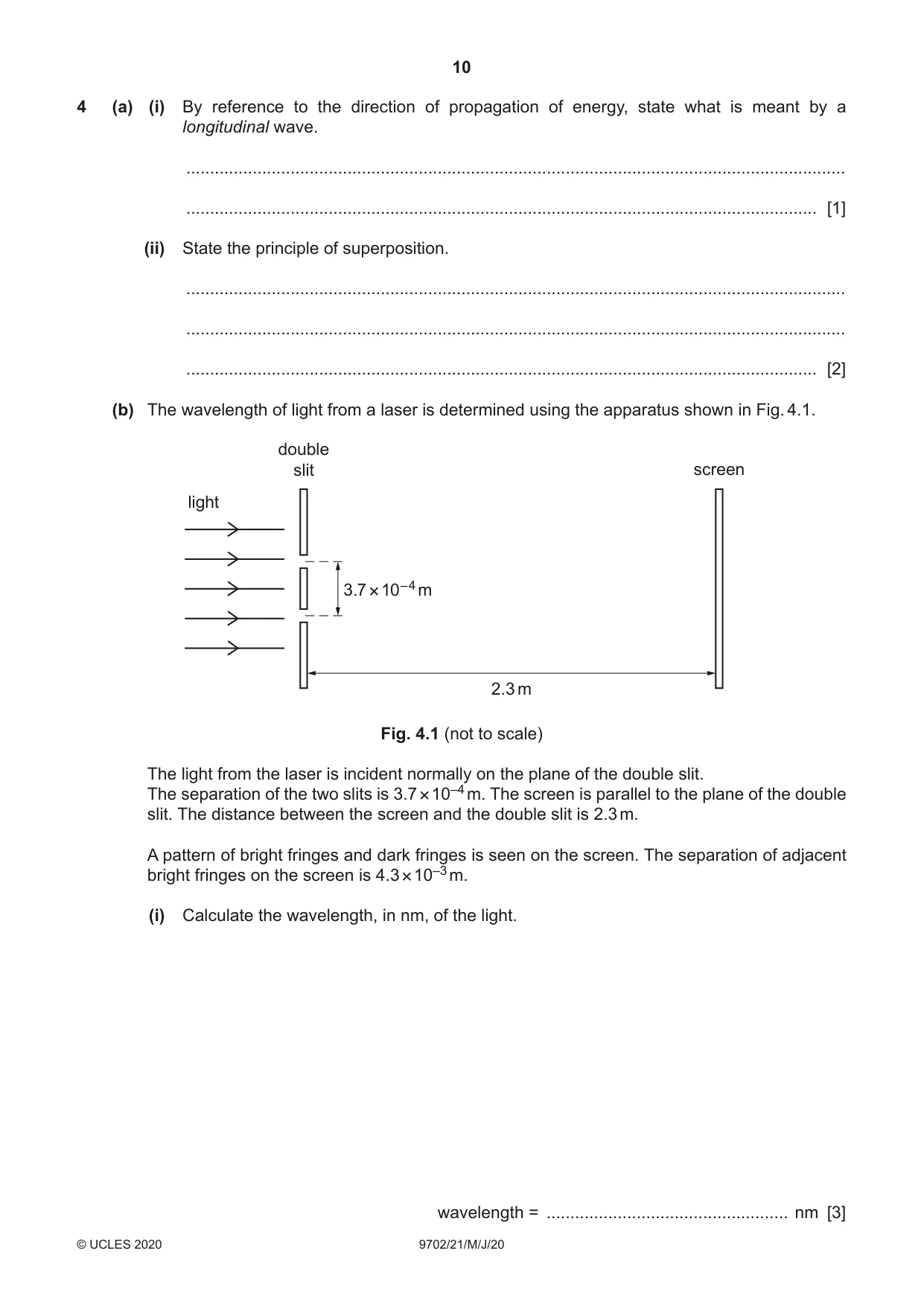

4 (a) (i) By reference to the direction of propagation of energy, state what is meant by a longitudinal wave. ........................................................................................................................................... ..................................................................................................................................... [1] (ii) State the principle of superposition. ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [2] (b) The wavelength of light from a laser is determined using the apparatus shown in Fig. 4.1. double slit screen light 3.7 × 10–4 m 2.3 m Fig. 4.1 (not to scale) The light from the laser is incident normally on the plane of the double slit. The separation of the two slits is 3.7 × 10–4 m. The screen is parallel to the plane of the double slit. The distance between the screen and the double slit is 2.3 m. A pattern of bright fringes and dark fringes is seen on the screen. The separation of adjacent bright fringes on the screen is 4.3 × 10–3 m. (i) Calculate the wavelength, in nm, of the light. wavelength = ................................................... nm [3] (ii) The intensity of the light passing through each slit was initially the same. The intensity of the light through one of the slits is now reduced. Compare the appearance of the fringes before and after the change of intensity. ........................................................................................................................................... ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [2] [Total: 8]

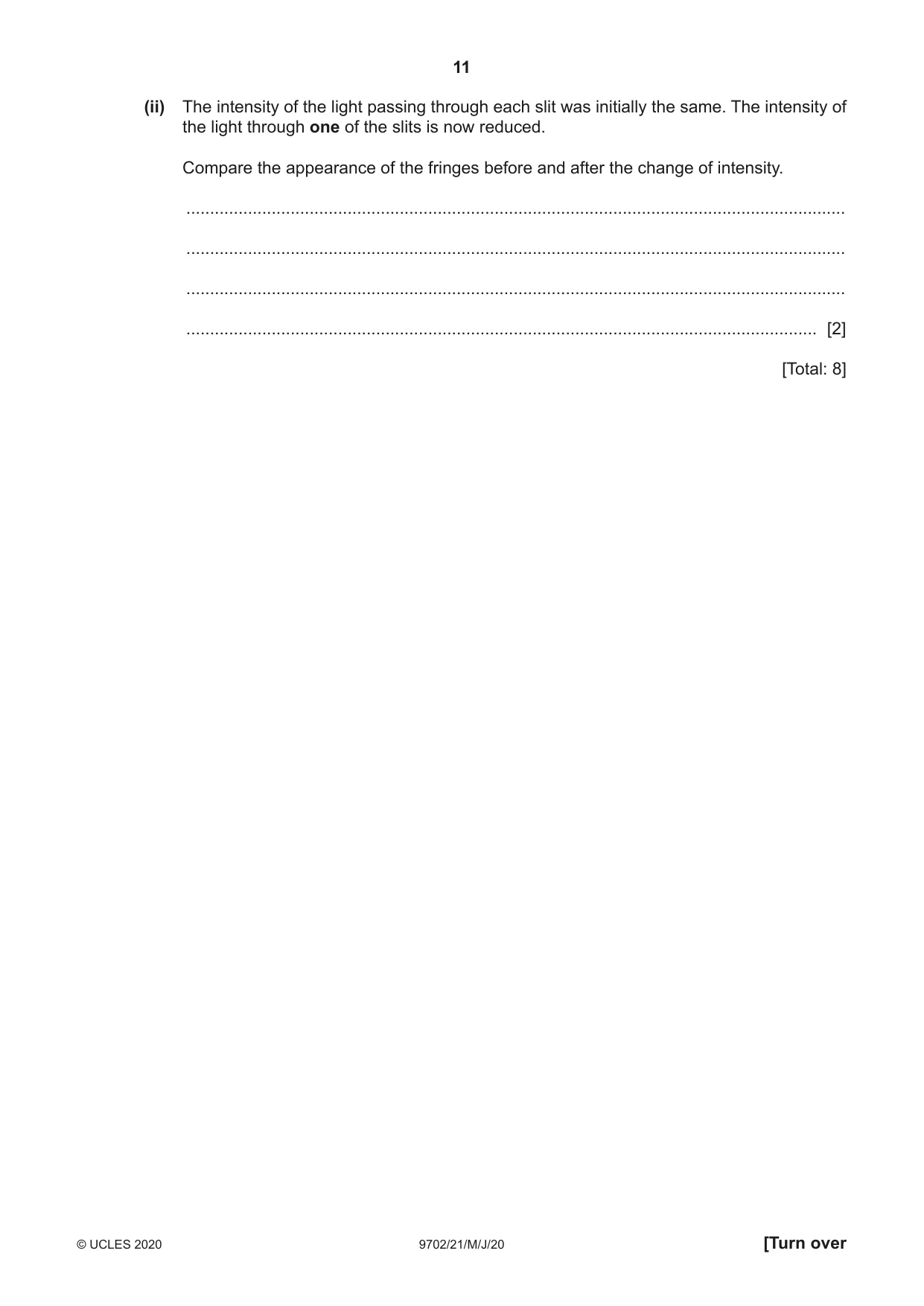

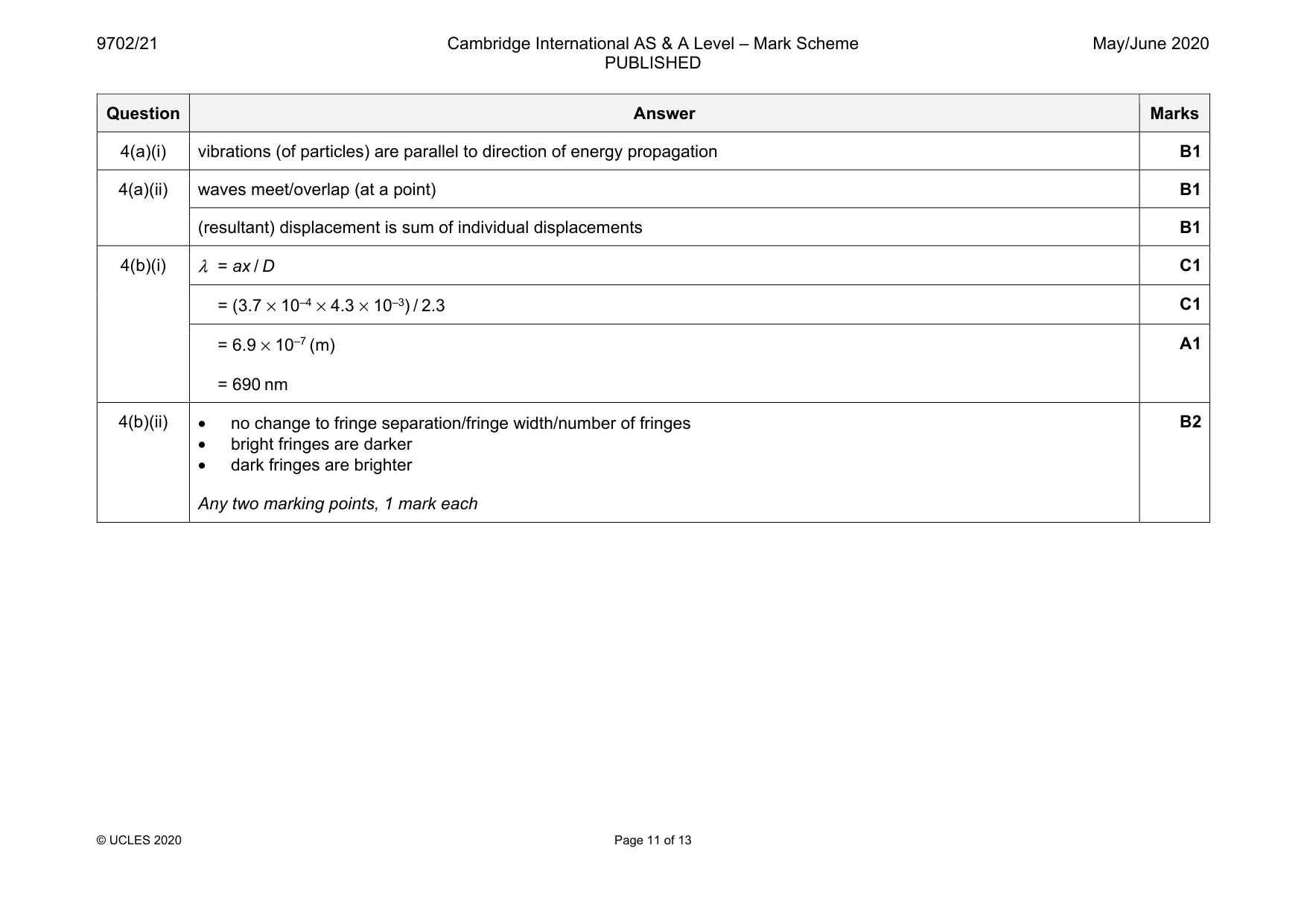

Mark scheme: 4(a)(i) vibrations (of particles) are parallel to direction of energy propagation B1 4(a)(ii) waves meet/overlap (at a point) B1 (resultant) displacement is sum of individual displacements B1 4(b)(i) λ = ax / D C1 = (3.7 × 10–4 × 4.3 × 10–3) / 2.3 C1 = 6.9 × 10–7 (m) = 690 nm A1 4(b)(ii) • no change to fringe separation/fringe width/number of fringes • bright fringes are darker • dark fringes are brighter Any two marking points, 1 mark each B2

More questions on Interference

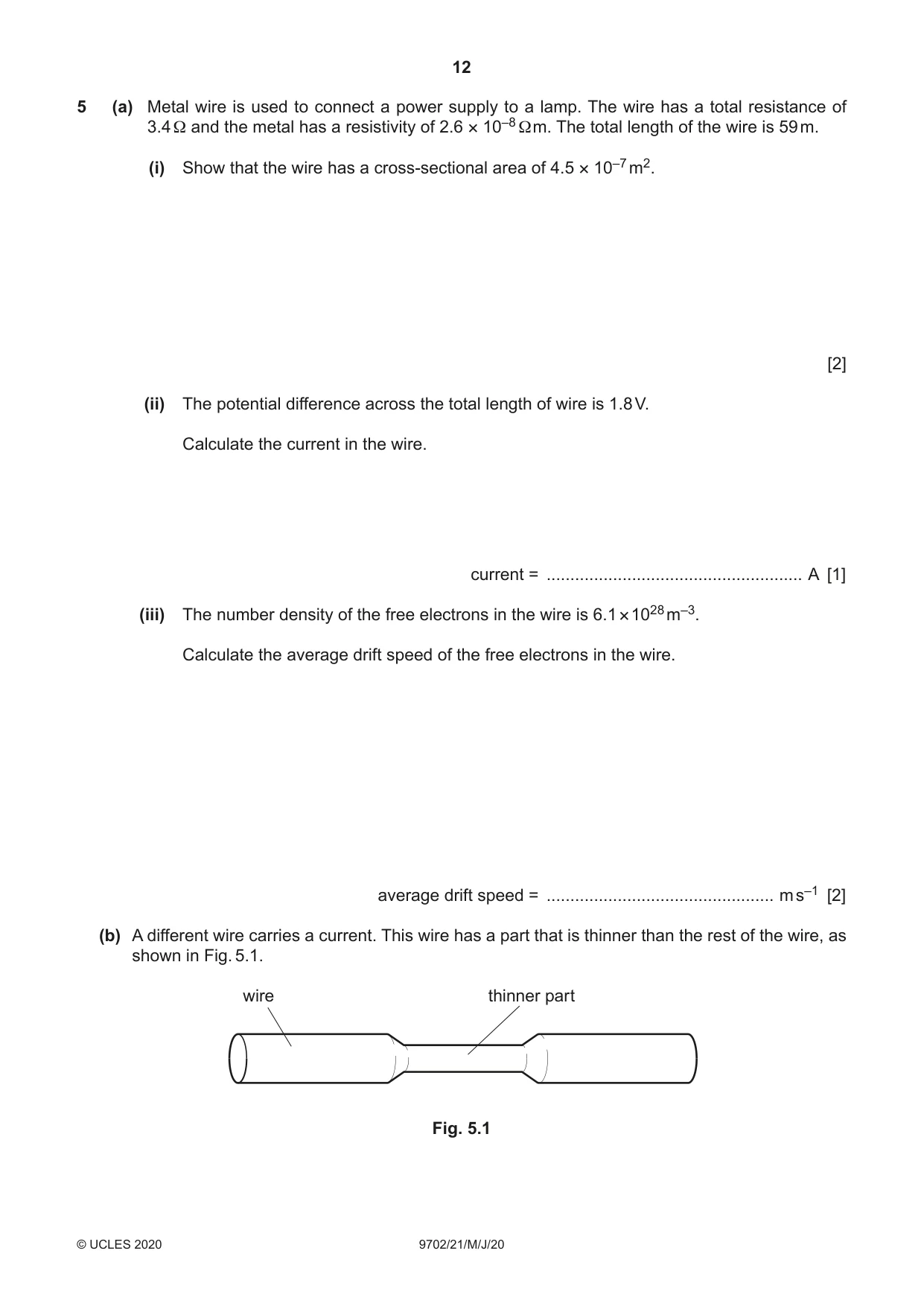

5 (a) Metal wire is used to connect a power supply to a lamp. The wire has a total resistance of 3.4 Ω and the metal has a resistivity of 2.6 × 10–8 Ω m. The total length of the wire is 59 m. (i) Show that the wire has a cross-sectional area of 4.5 × 10–7 m2. [2] (ii) The potential difference across the total length of wire is 1.8 V. Calculate the current in the wire. current = ...................................................... A [1] (iii) The number density of the free electrons in the wire is 6.1 × 1028 m–3. Calculate the average drift speed of the free electrons in the wire. average drift speed = ................................................ m s–1 [2] (b) A different wire carries a current. This wire has a part that is thinner than the rest of the wire, as shown in Fig. 5.1. wire thinner part Fig. 5.1 (i) State and explain qualitatively how the average drift speed of the free electrons in the thinner part compares with that in the rest of the wire. ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [2] (ii) State and explain whether the power dissipated in the thinner part is the same, less or more than the power dissipated in an equal length of the rest of the wire. ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [2] (c) Three resistors have resistances of 180 Ω, 90 Ω and 30 Ω. (i) Sketch a diagram showing how two of these three resistors may be connected together to give a combined resistance of 60 Ω between the terminals shown. Ensure you label the values of the resistances in your diagram. [1] (ii) A potential divider circuit is produced by connecting the three resistors to a battery of electromotive force (e.m.f.) 12 V and negligible internal resistance. The potential divider circuit provides an output potential difference VOUT of 8.0 V. Fig. 5.2 shows the circuit diagram. 12 V Fig. 5.2 On Fig. 5.2, label the resistances of all three resistors and the potential difference VOUT. [2] [Total: 12]

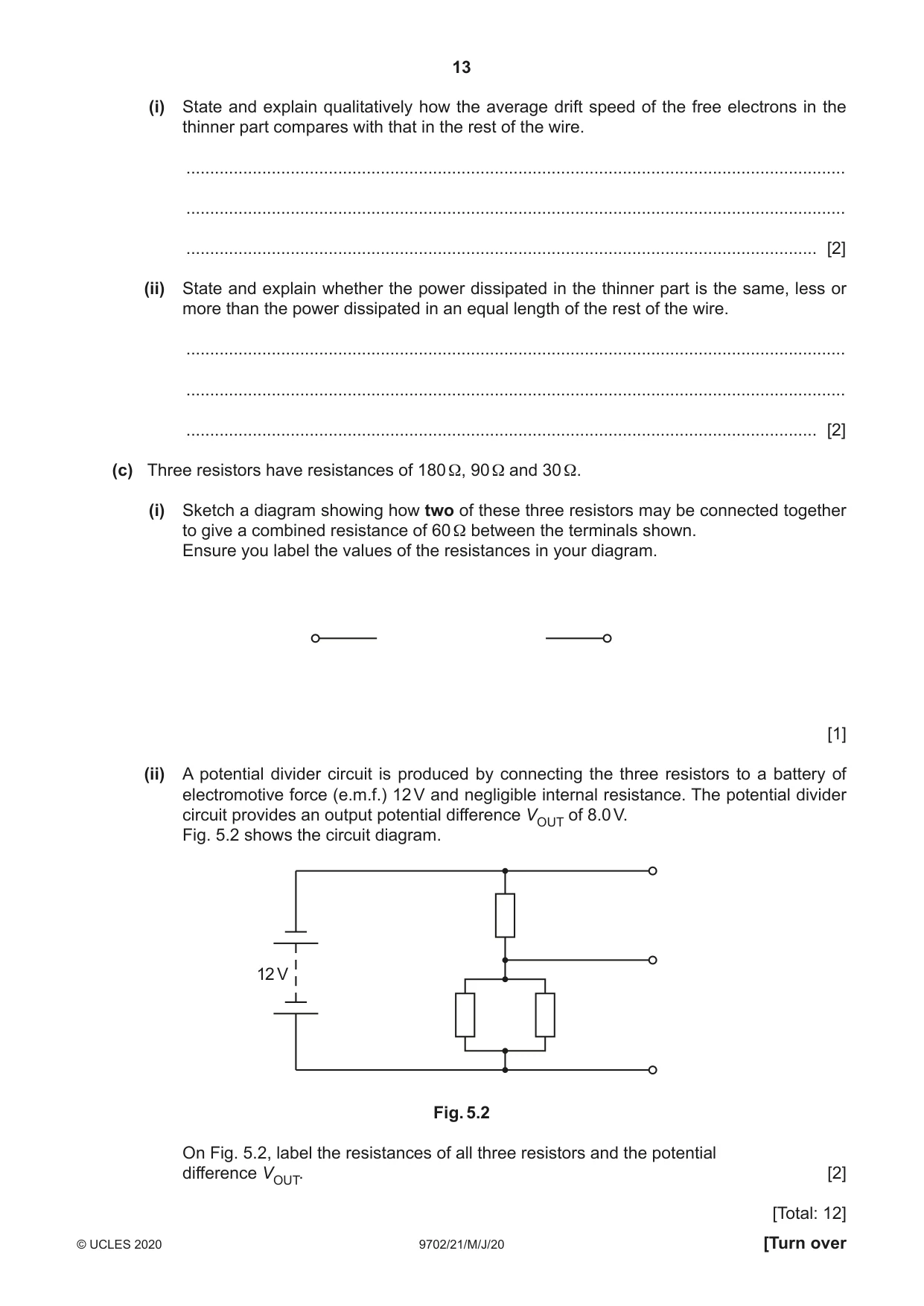

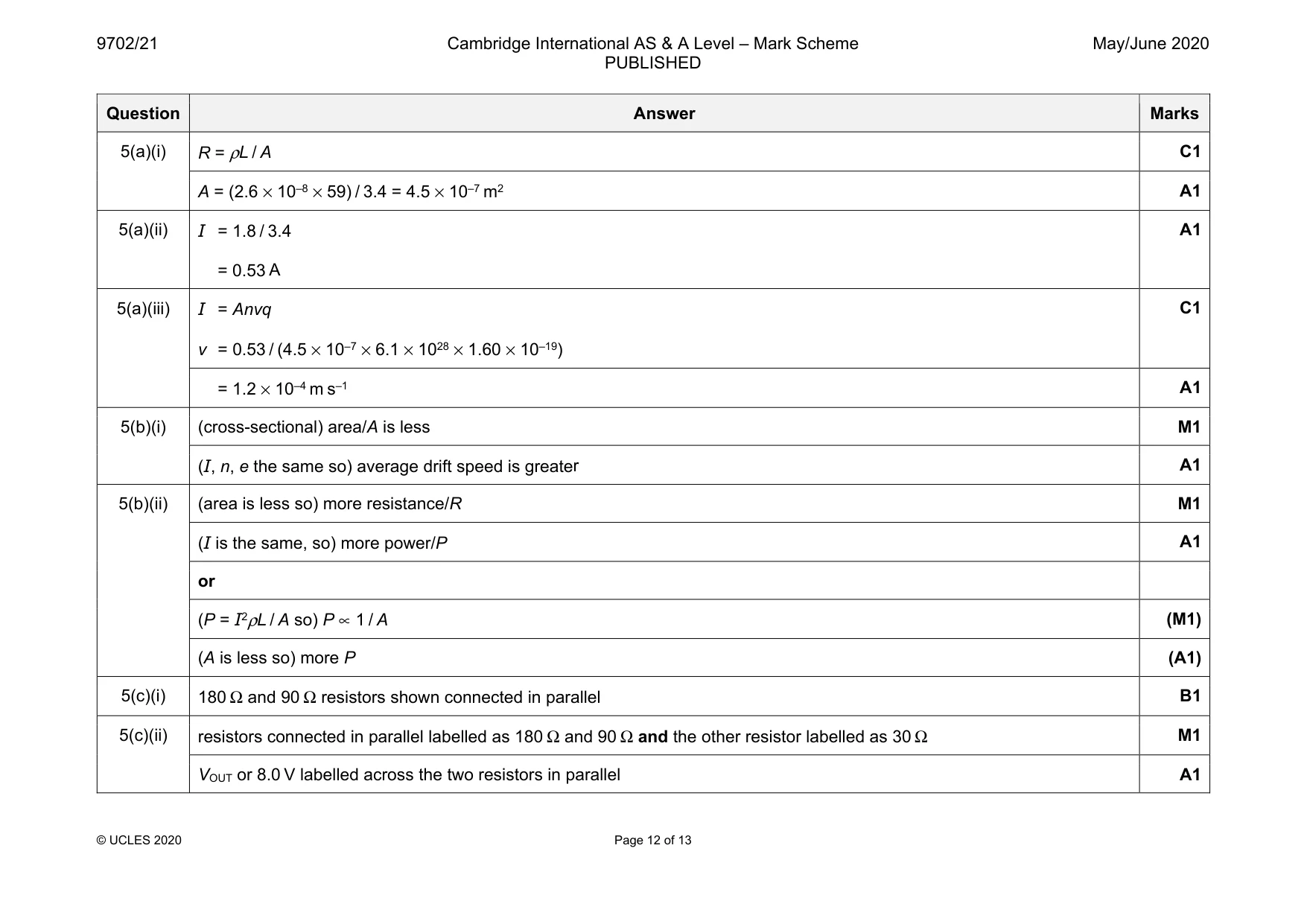

Mark scheme: 5(a)(i) R = ρL / A A = (2.6 × 10–8 × 59) / 3.4 = 4.5 × 10–7 m2 A1 5(a)(ii) I = 1.8 / 3.4 = 0.53 A A1 5(a)(iii) I = Anvq v = 0.53 / (4.5 × 10–7 × 6.1 × 1028 × 1.60 × 10–19) C1 = 1.2 × 10–4 m s–1 A1 5(b)(i) (cross-sectional) area/A is less M1 (I, n, e the same so) average drift speed is greater A1 5(b)(ii) (area is less so) more resistance/R M1 (I is the same, so) more power/P A1 or (P = I2ρL / A so) P ∝ 1 / A (M1) (A is less so) more P (A1) 5(c)(i) 180 Ω and 90 Ω resistors shown connected in parallel B1 5(c)(ii) resistors connected in parallel labelled as 180 Ω and 90 Ω and the other resistor labelled as 30 Ω M1 VOUT or 8.0 V labelled across the two resistors in parallel A1

More questions on Resistance and resistivity

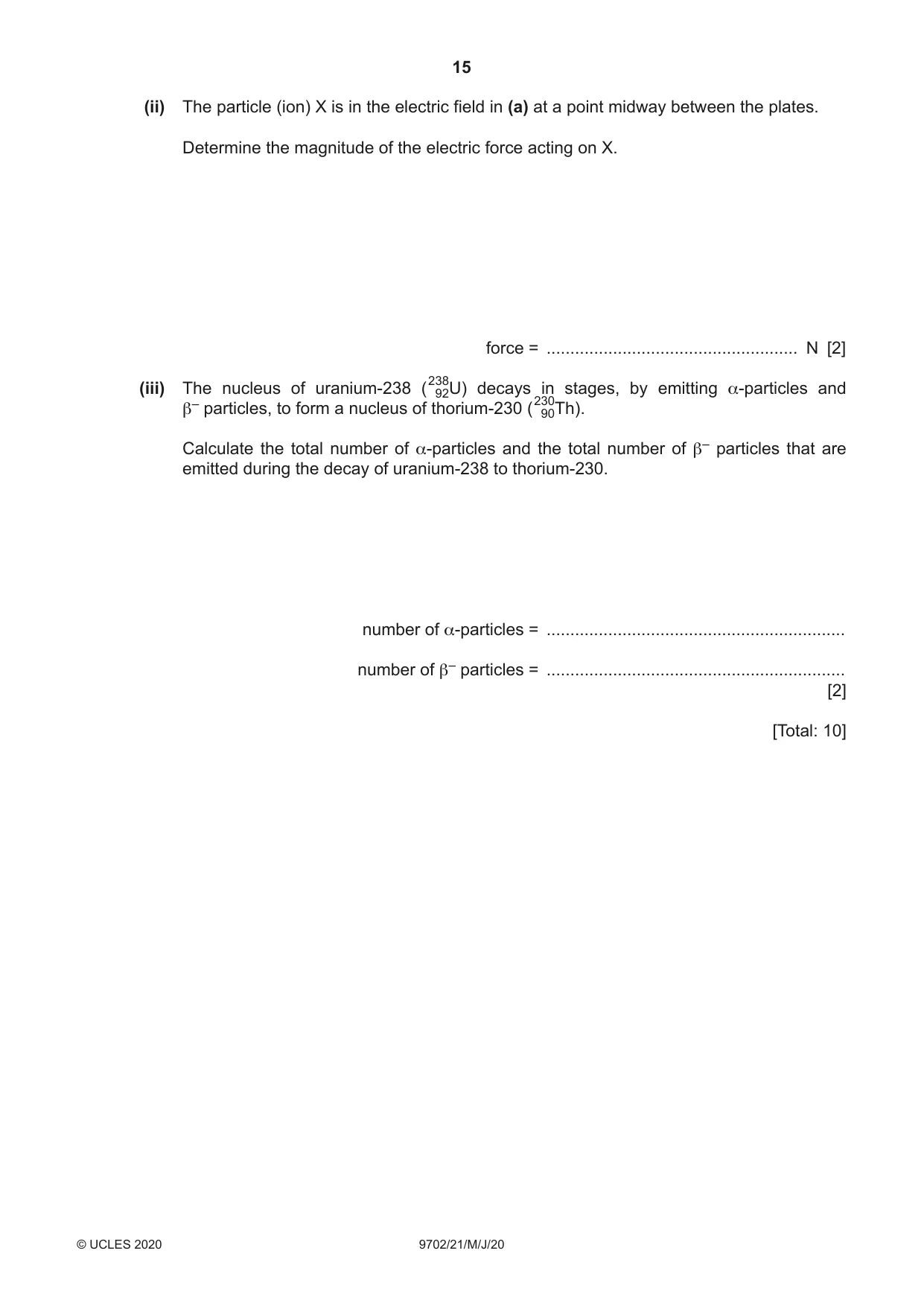

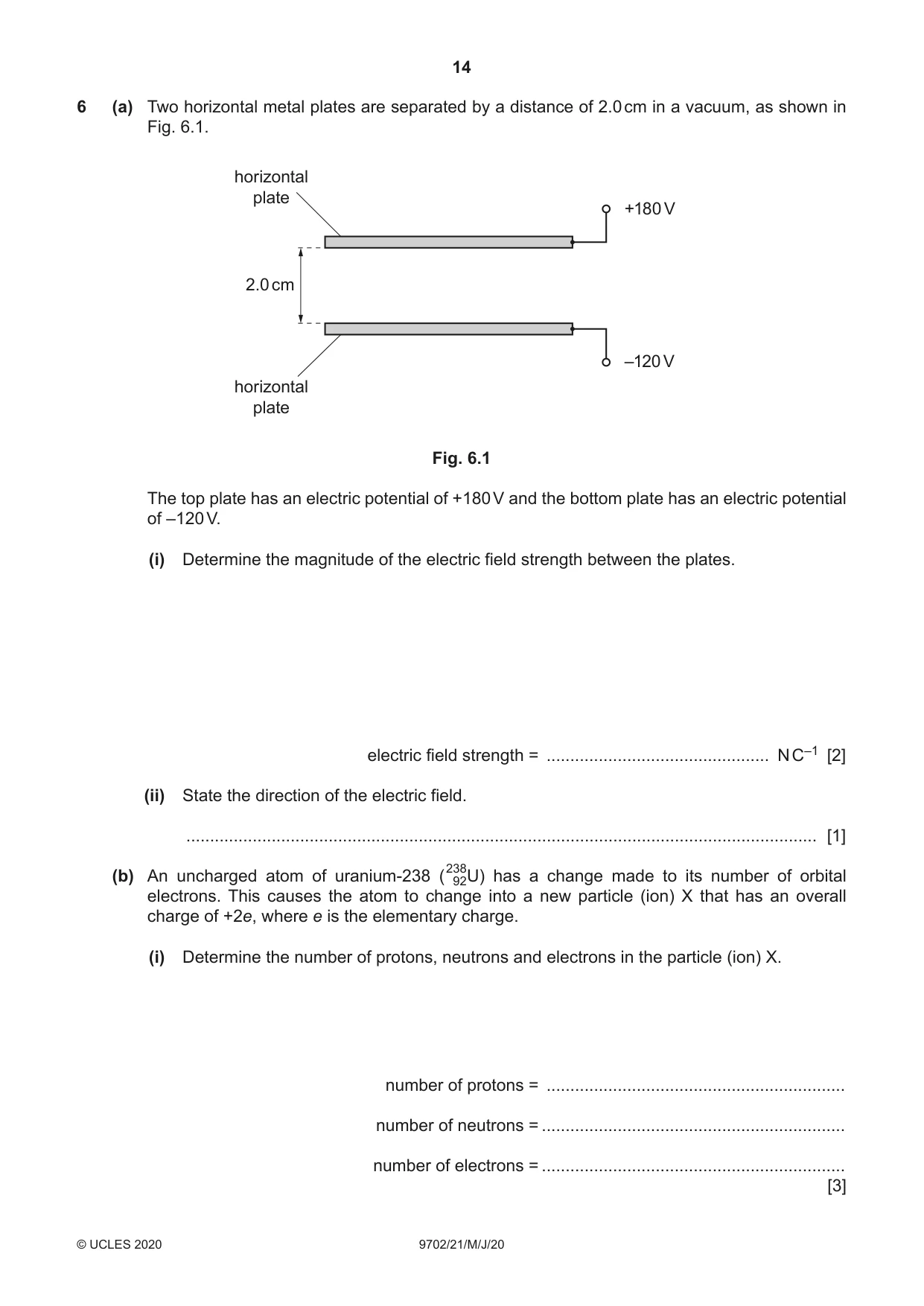

6 (a) Two horizontal metal plates are separated by a distance of 2.0 cm in a vacuum, as shown in Fig. 6.1. horizontal plate +180 V 2.0 cm –120 V horizontal plate Fig. 6.1 The top plate has an electric potential of +180 V and the bottom plate has an electric potential of –120 V. (i) Determine the magnitude of the electric field strength between the plates. electric field strength = ............................................... N C–1 [2] (ii) State the direction of the electric field. ..................................................................................................................................... [1] (b) An uncharged atom of uranium-238 (23892U) has a change made to its number of orbital electrons. This causes the atom to change into a new particle (ion) X that has an overall charge of +2e, where e is the elementary charge. (i) Determine the number of protons, neutrons and electrons in the particle (ion) X. number of protons = ............................................................... number of neutrons = ................................................................ number of electrons = ................................................................ [3] (ii) The particle (ion) X is in the electric field in (a) at a point midway between the plates. Determine the magnitude of the electric force acting on X. force = ..................................................... N [2] (iii) The nucleus of uranium-238 (23892U) decays in stages, by emitting α-particles and β– particles, to form a nucleus of thorium-230 (23090Th). Calculate the total number of α-particles and the total number of β– particles that are emitted during the decay of uranium-238 to thorium-230. number of α-particles = ............................................................... number of β– particles = ............................................................... [2] [Total: 10]

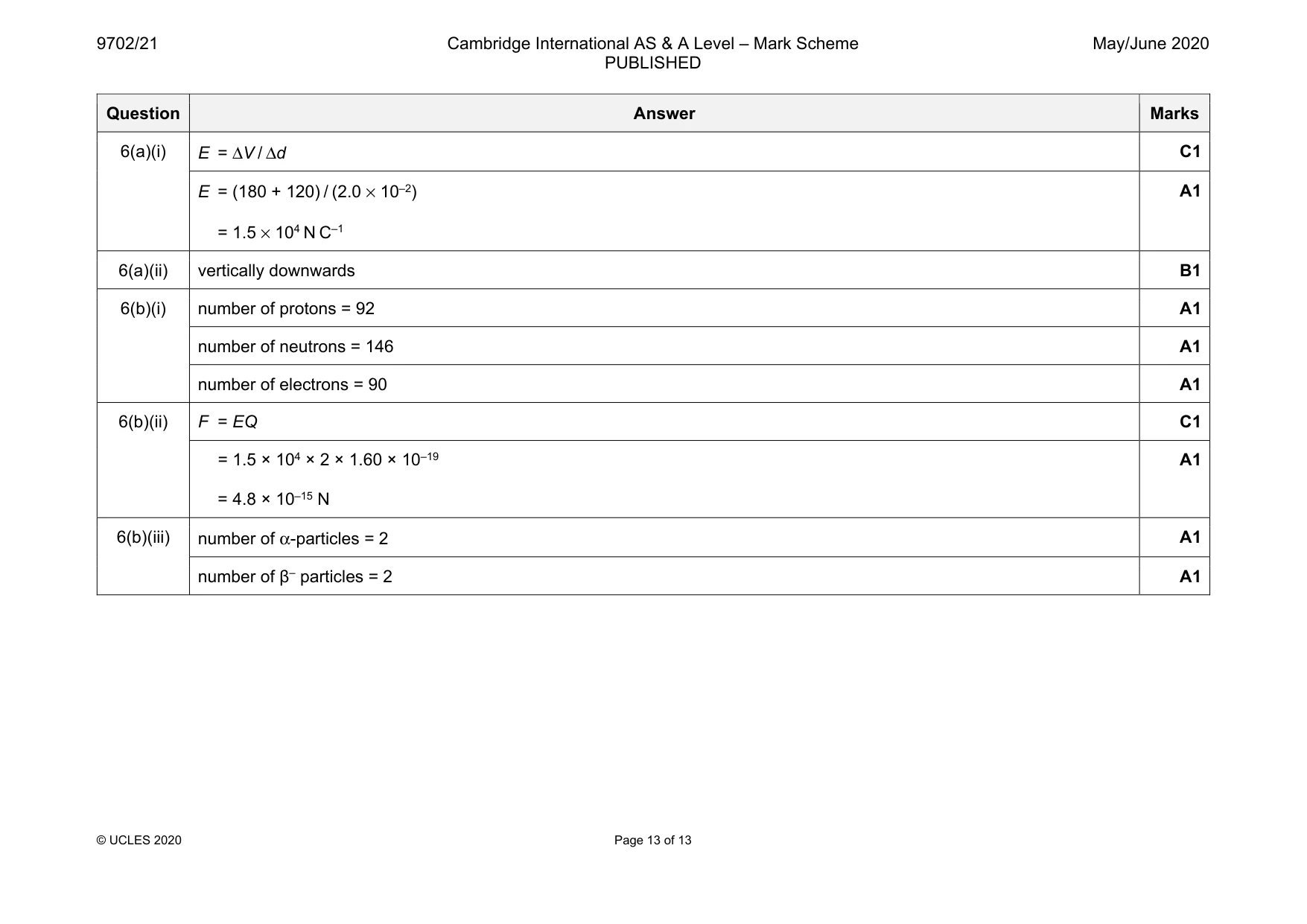

Mark scheme: 6(a)(i) E = ΔV / Δd C1 E = (180 + 120) / (2.0 × 10–2) = 1.5 × 104 N C–1 A1 6(a)(ii) vertically downwards B1 6(b)(i) number of protons = 92 A1 number of neutrons = 146 A1 number of electrons = 90 A1 6(b)(ii) F = EQ C1 = 1.5 × 104 × 2 × 1.60 × 10–19 = 4.8 × 10–15 N A1 6(b)(iii) number of α-particles = 2 A1 number of β– particles = 2 A1

More questions on Atoms, nuclei and radiation
