Cambridge A Level Physics 9702 — 2010 Oct/Nov Paper 1 · Variant 1

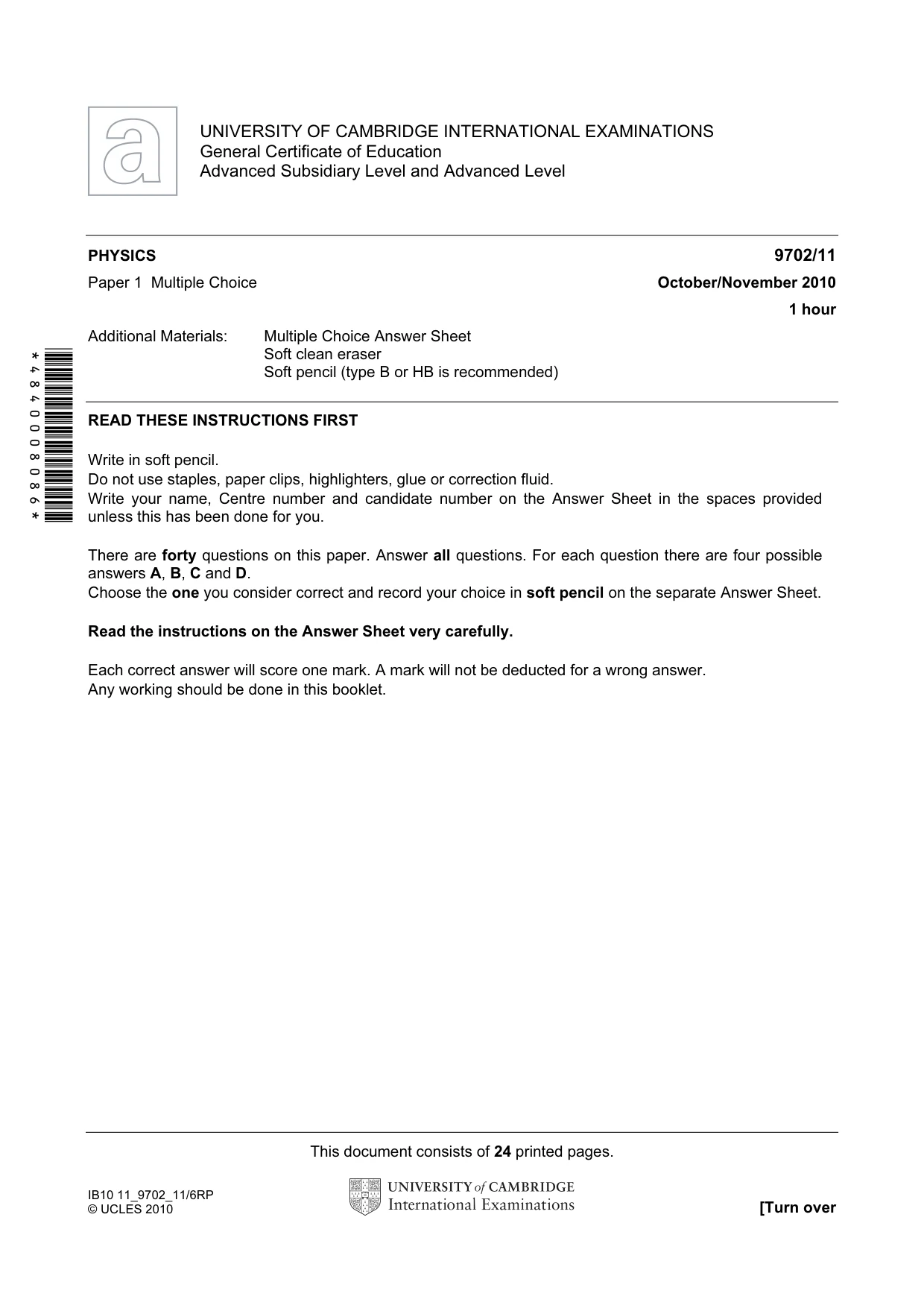

This document consists of 24 printed pages. IB10 11_9702_11/6RP © UCLES 2010 [Turn over *4840008086* UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Subsidiary Level and Advanced Level PHYSICS 9702/11 Paper 1 Multiple Choice October/November 2010 1 hour Additional Materials: Multiple Choice Answer Sheet Soft clean eraser Soft pencil (type B or HB is recommended) READ THESE INSTRUCTIONS FIRST Write in soft pencil. Do not use staples, paper clips, highlighters, glue or correction fluid. Write your name, Centre number and candidate number on the Answer Sheet in the spaces provided unless this has been done for you. There are forty questions on this paper. Answer all questions. For each question there are four possible answers A, B, C and D. Choose the one you consider correct and record your choice in soft pencil on the separate Answer Sheet. Read the instructions on the Answer Sheet very carefully. Each correct answer will score one mark. A mark will not be deducted for a wrong answer. Any working should be done in this booklet.

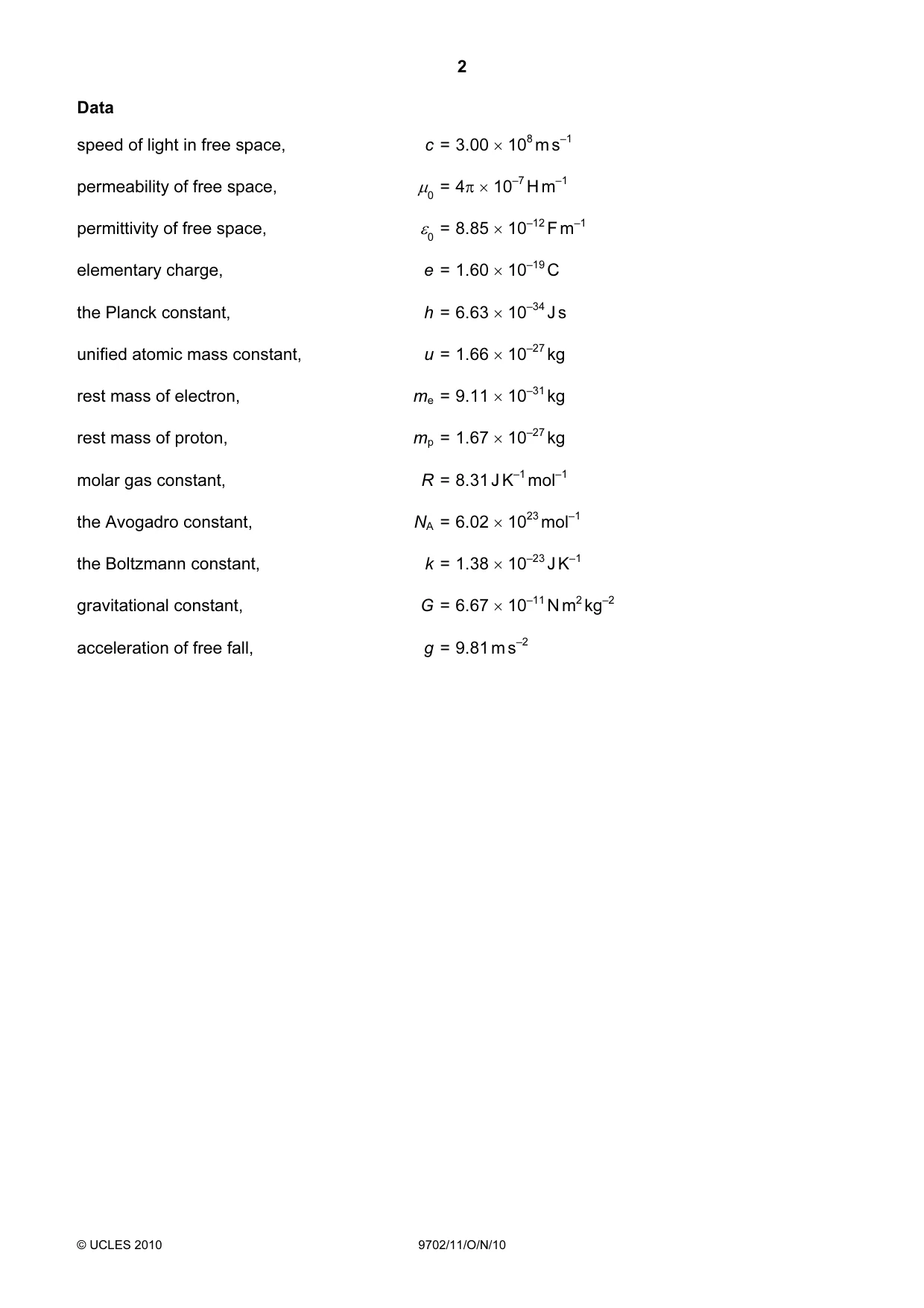

2 © UCLES 2010 9702/11/O/N/10 Data speed of light in free space, c = 3.00 × 108 m s–1 permeability of free space, µ0 = 4π × 10–7 H m–1 permittivity of free space, ε0 = 8.85 × 10–12 F m–1 elementary charge, e = 1.60 × 10–19 C the Planck constant, h = 6.63 × 10–34 J s unified atomic mass constant, u = 1.66 × 10–27 kg rest mass of electron, me = 9.11 × 10–31 kg rest mass of proton, mp = 1.67 × 10–27 kg molar gas constant, R = 8.31 J K–1 mol–1 the Avogadro constant, NA = 6.02 × 1023 mol–1 the Boltzmann constant, k = 1.38 × 10–23 J K–1 gravitational constant, G = 6.67 × 10–11 N m2 kg–2 acceleration of free fall, g = 9.81 m s–2

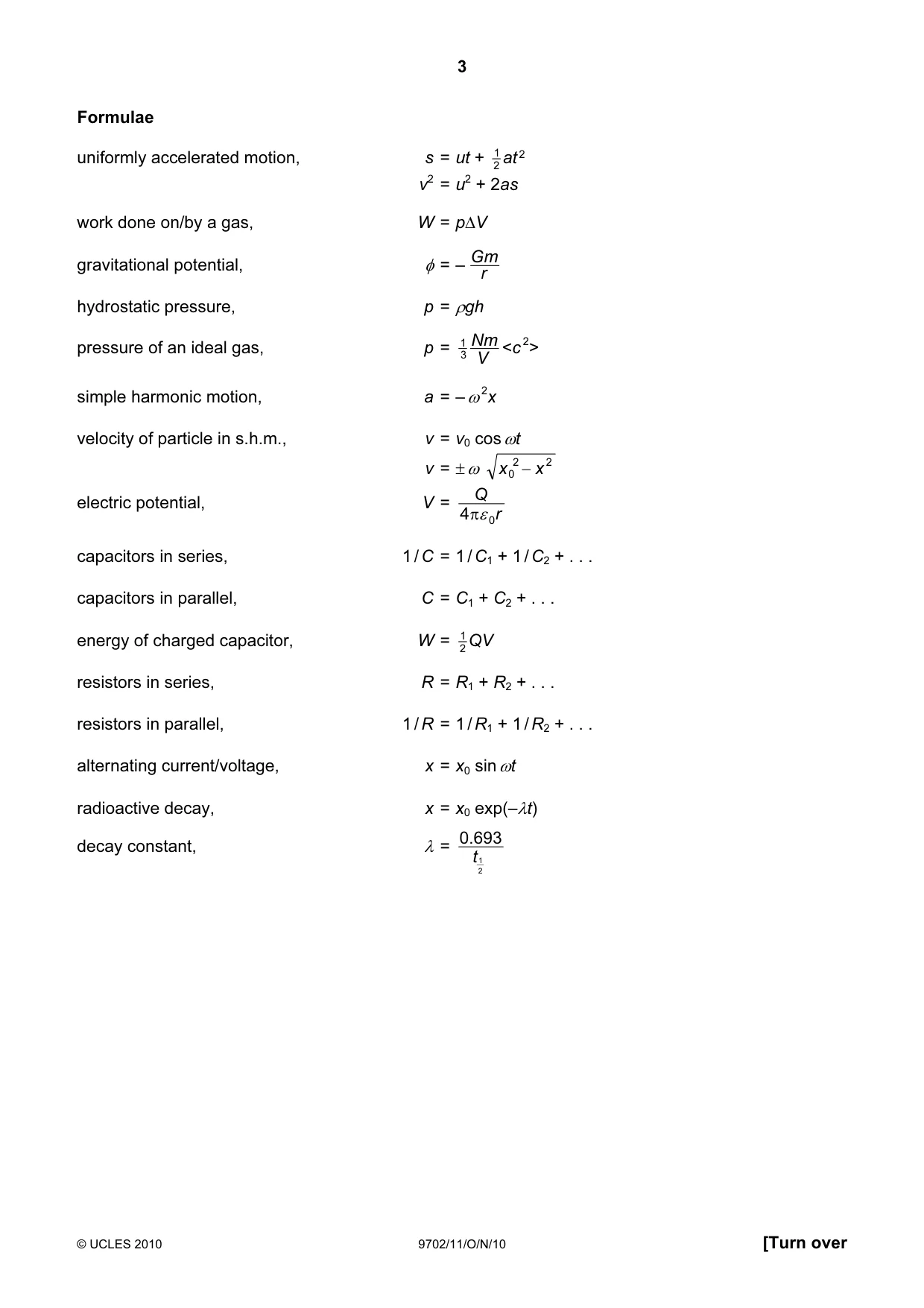

3 © UCLES 2010 9702/11/O/N/10 [Turn over Formulae uniformly accelerated motion, s = ut + 2 2 1 at v2 = u2 + 2as work done on/by a gas, W = p∆V gravitational potential, φ = – r Gm hydrostatic pressure, p = ρgh pressure of an ideal gas, p = V Nm 3 1 <c 2> simple harmonic motion, a = – ω 2x velocity of particle in s.h.m., v = v0 cos ωt v = ± ω 2 2 0 x x − electric potential, V = r Q 0 4 ε π capacitors in series, 1 / C = 1 / C1 + 1 / C2 + . . . capacitors in parallel, C = C1 + C2 + . . . energy of charged capacitor, W = QV 2 1 resistors in series, R = R1 + R2 + . . . resistors in parallel, 1 / R = 1 / R1 + 1 / R2 + . . . alternating current/voltage, x = x0 sin ωt radioactive decay, x = x0 exp(–λt) decay constant, λ = 2 1 0.693 t

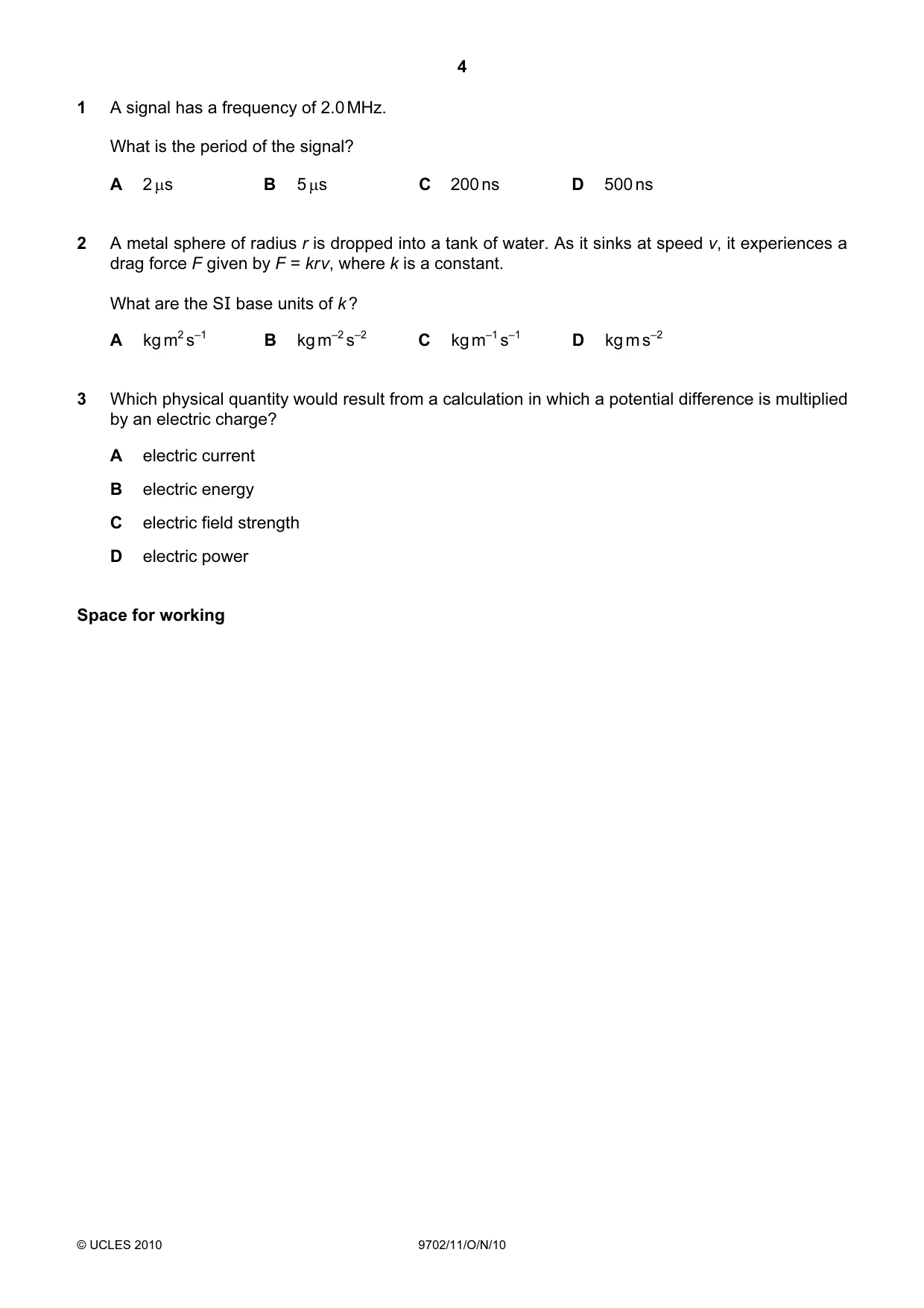

4 © UCLES 2010 9702/11/O/N/10 1 A signal has a frequency of 2.0 MHz. What is the period of the signal? A 2 µs B 5 µs C 200 ns D 500 ns 2 A metal sphere of radius r is dropped into a tank of water. As it sinks at speed v, it experiences a drag force F given by F = kr v, where k is a constant. What are the SI base units of k ? A kg m2 s–1 B kg m–2 s–2 C kg m–1 s–1 D kg m s–2 3 Which physical quantity would result from a calculation in which a potential difference is multiplied by an electric charge? A electric current B electric energy C electric field strength D electric power Space for working

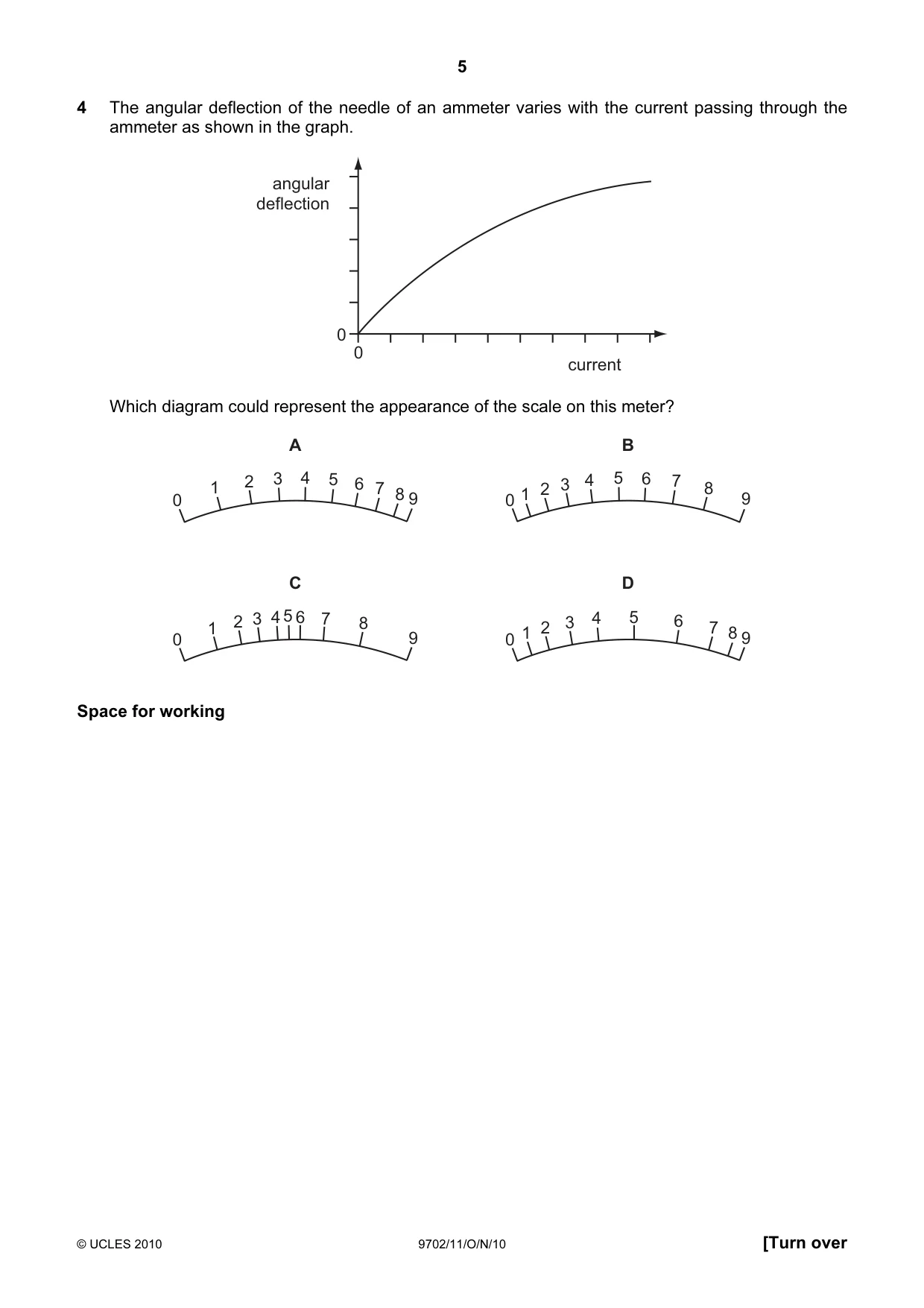

5 © UCLES 2010 9702/11/O/N/10 [Turn over 4 The angular deflection of the needle of an ammeter varies with the current passing through the ammeter as shown in the graph. 0 0 angular deflection current Which diagram could represent the appearance of the scale on this meter? A B C D 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 45 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Space for working

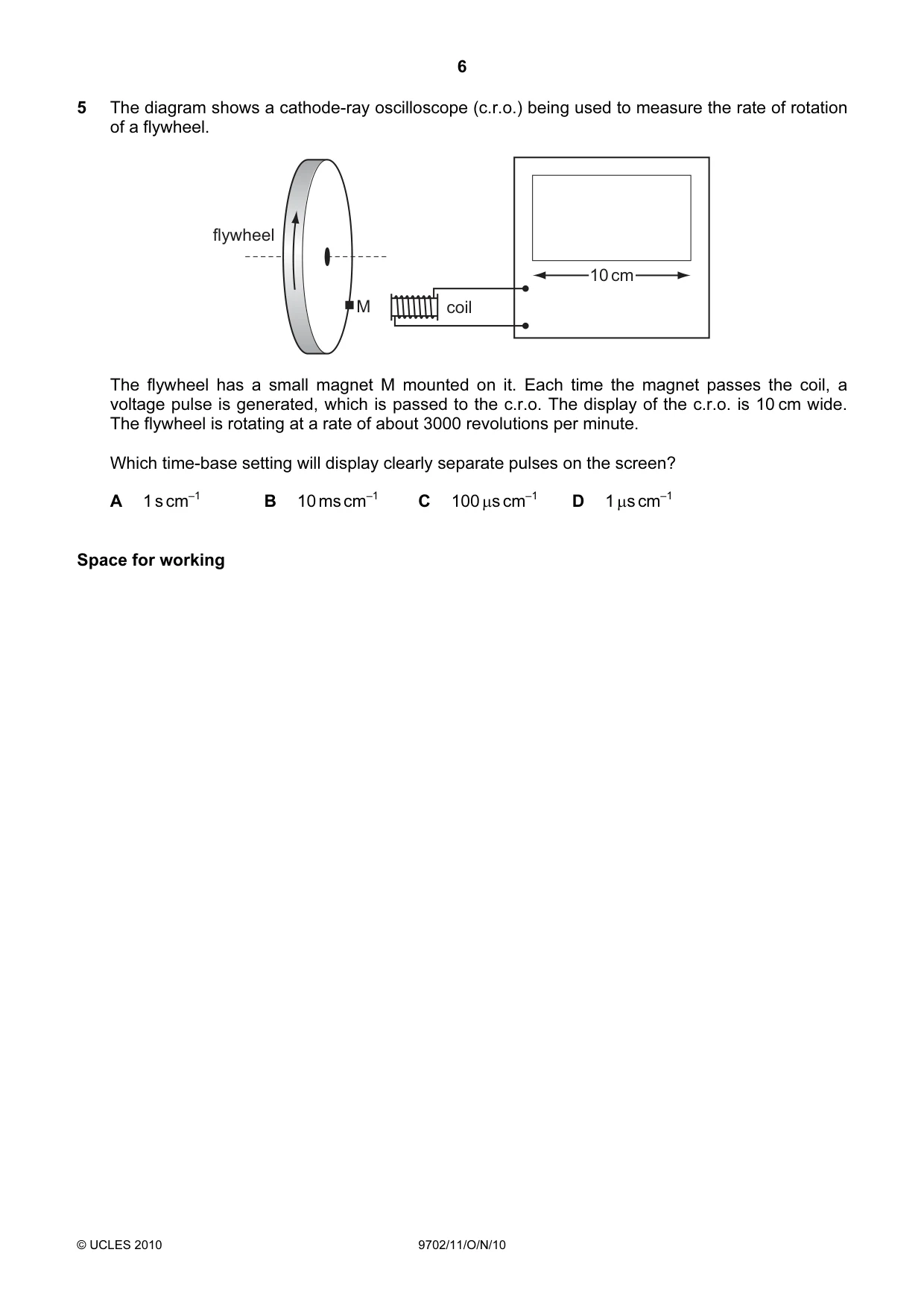

6 © UCLES 2010 9702/11/O/N/10 5 The diagram shows a cathode-ray oscilloscope (c.r.o.) being used to measure the rate of rotation of a flywheel. 10 cm coil flywheel M The flywheel has a small magnet M mounted on it. Each time the magnet passes the coil, a voltage pulse is generated, which is passed to the c.r.o. The display of the c.r.o. is 10 cm wide. The flywheel is rotating at a rate of about 3000 revolutions per minute. Which time-base setting will display clearly separate pulses on the screen? A 1 s cm–1 B 10 ms cm–1 C 100 µs cm–1 D 1 µs cm–1 Space for working

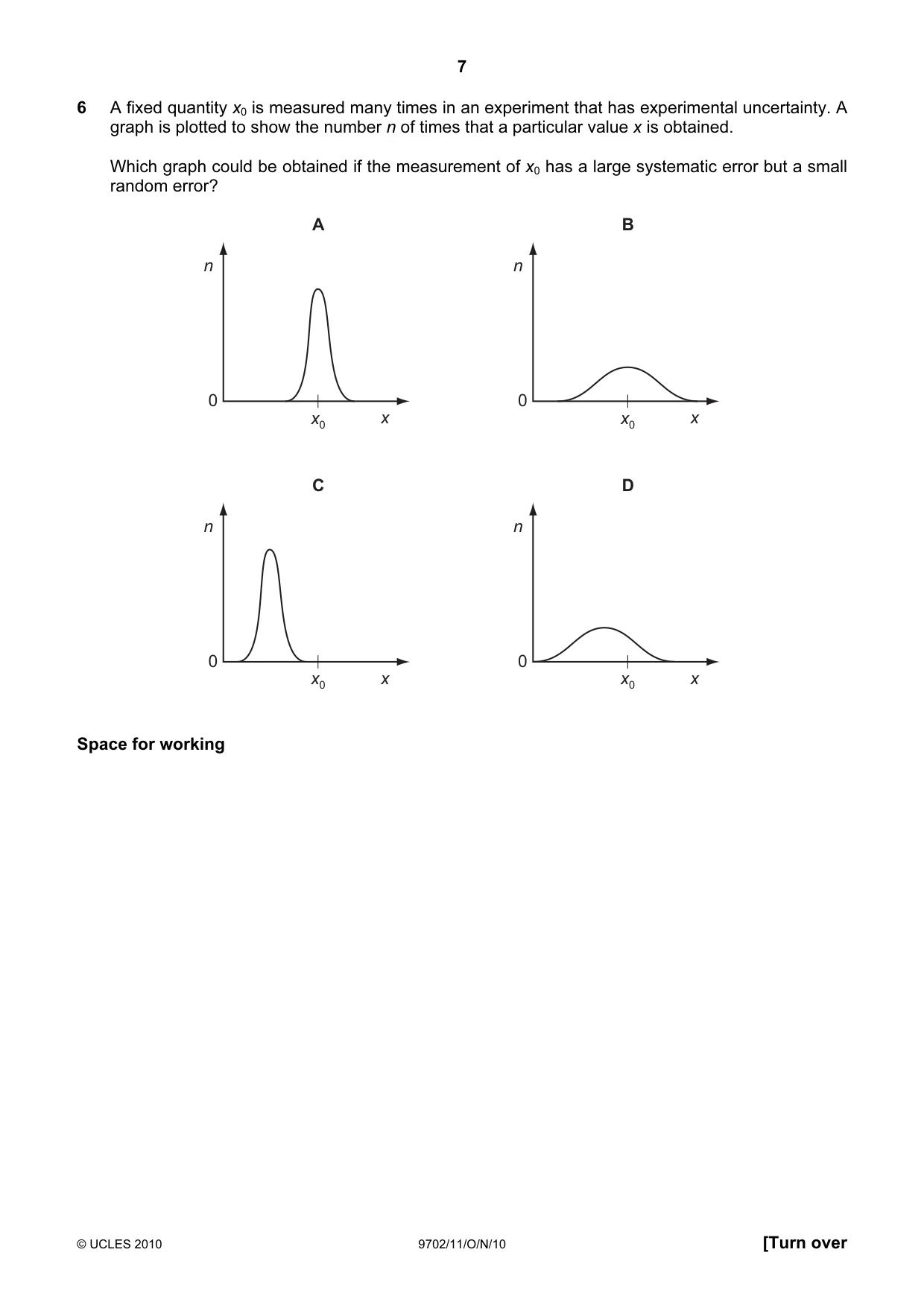

7 © UCLES 2010 9702/11/O/N/10 [Turn over 6 A fixed quantity x0 is measured many times in an experiment that has experimental uncertainty. A graph is plotted to show the number n of times that a particular value x is obtained. Which graph could be obtained if the measurement of x0 has a large systematic error but a small random error? A n x x0 0 B n x x0 0 C n x x0 0 D n x x0 0 Space for working

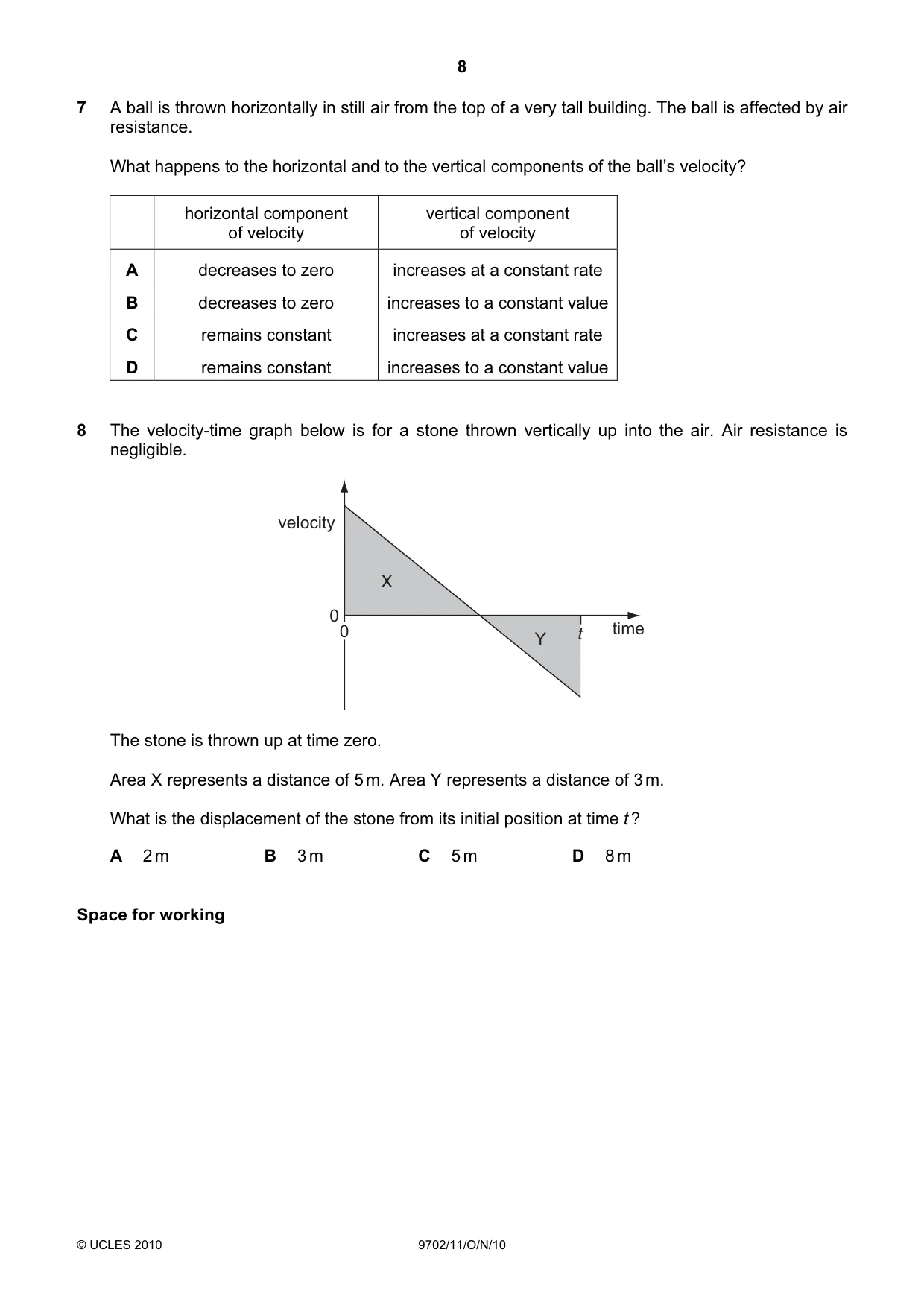

8 © UCLES 2010 9702/11/O/N/10 7 A ball is thrown horizontally in still air from the top of a very tall building. The ball is affected by air resistance. What happens to the horizontal and to the vertical components of the ball’s velocity? horizontal component of velocity vertical component of velocity A decreases to zero increases at a constant rate B decreases to zero increases to a constant value C remains constant increases at a constant rate D remains constant increases to a constant value 8 The velocity-time graph below is for a stone thrown vertically up into the air. Air resistance is negligible. 0 0 X Y t time velocity The stone is thrown up at time zero. Area X represents a distance of 5 m. Area Y represents a distance of 3 m. What is the displacement of the stone from its initial position at time t ? A 2 m B 3 m C 5 m D 8 m Space for working

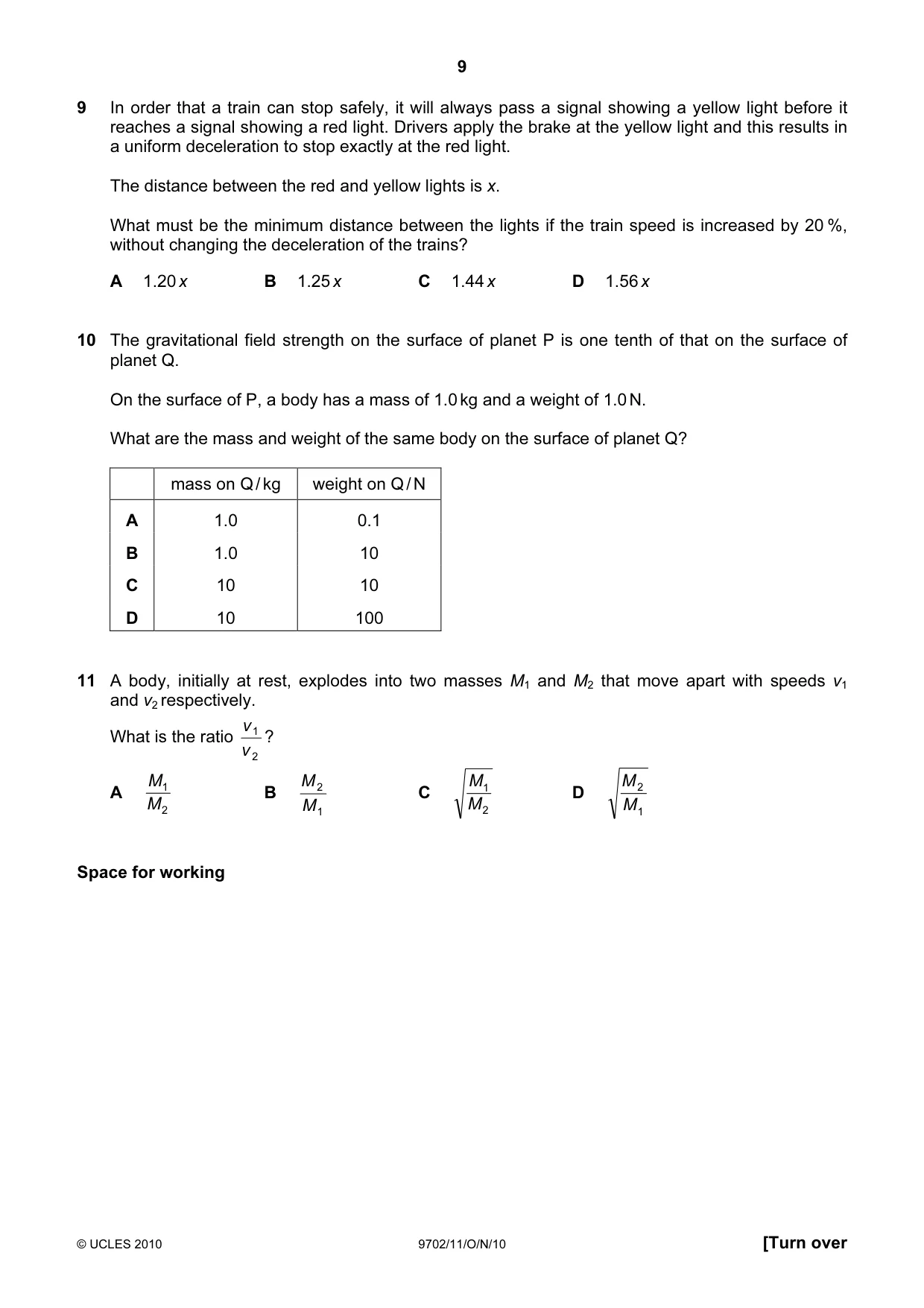

9 © UCLES 2010 9702/11/O/N/10 [Turn over 9 In order that a train can stop safely, it will always pass a signal showing a yellow light before it reaches a signal showing a red light. Drivers apply the brake at the yellow light and this results in a uniform deceleration to stop exactly at the red light. The distance between the red and yellow lights is x. What must be the minimum distance between the lights if the train speed is increased by 20 %, without changing the deceleration of the trains? A 1.20 x B 1.25 x C 1.44 x D 1.56 x 10 The gravitational field strength on the surface of planet P is one tenth of that on the surface of planet Q. On the surface of P, a body has a mass of 1.0 kg and a weight of 1.0 N. What are the mass and weight of the same body on the surface of planet Q? mass on Q / kg weight on Q / N A 1.0 0.1 B 1.0 10 C 10 10 D 10 100 11 A body, initially at rest, explodes into two masses M1 and M2 that move apart with speeds v1 and v2 respectively. What is the ratio 2 1 v v ? A 2 1 M M B 1 2 M M C 2 1 M M D 1 2 M M Space for working

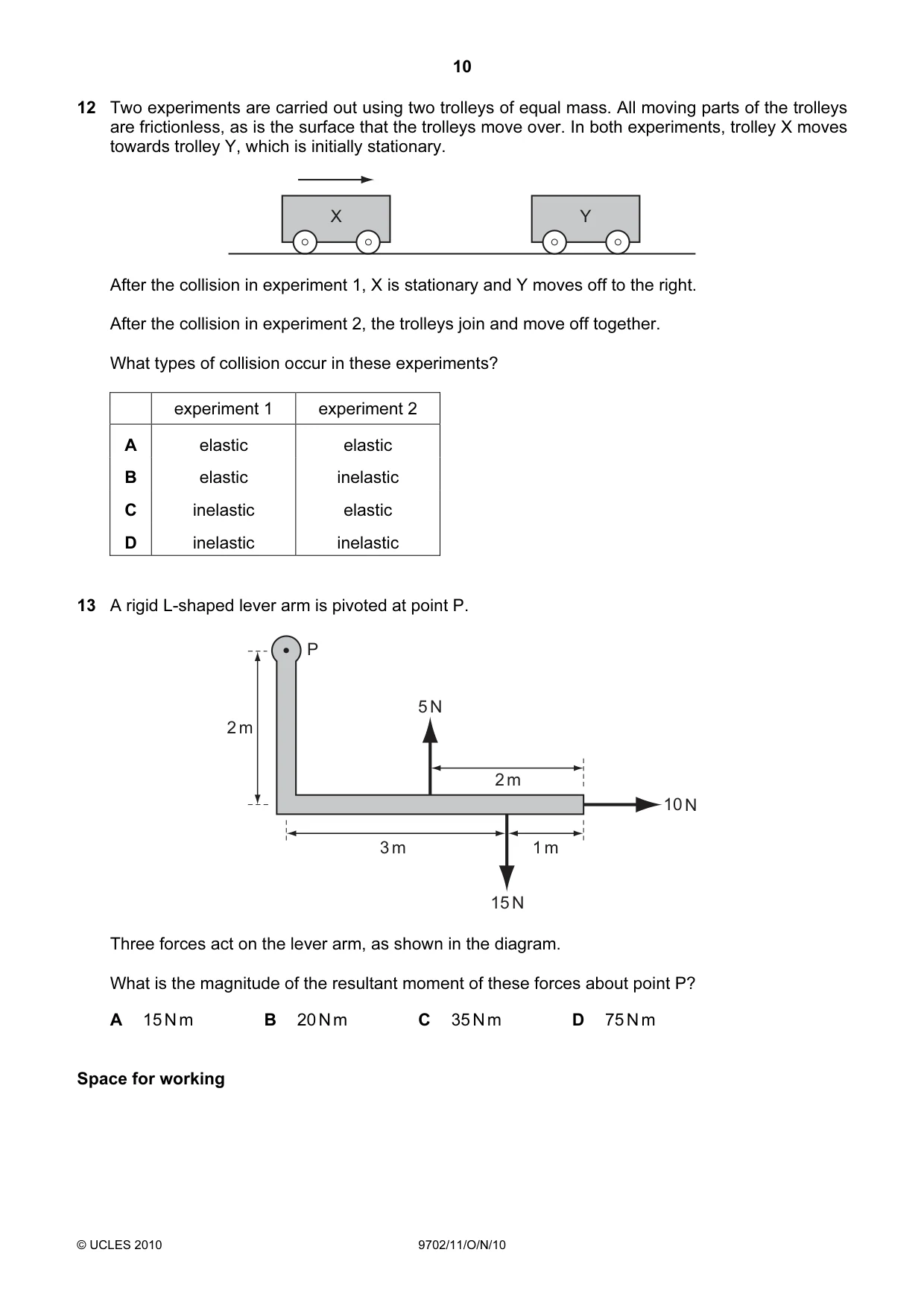

10 © UCLES 2010 9702/11/O/N/10 12 Two experiments are carried out using two trolleys of equal mass. All moving parts of the trolleys are frictionless, as is the surface that the trolleys move over. In both experiments, trolley X moves towards trolley Y, which is initially stationary. X Y After the collision in experiment 1, X is stationary and Y moves off to the right. After the collision in experiment 2, the trolleys join and move off together. What types of collision occur in these experiments? experiment 1 experiment 2 A elastic elastic B elastic inelastic C inelastic elastic D inelastic inelastic 13 A rigid L-shaped lever arm is pivoted at point P. 3 m 2 m 1 m 2 m 5 N 15 N 10 N P Three forces act on the lever arm, as shown in the diagram. What is the magnitude of the resultant moment of these forces about point P? A 15 N m B 20 N m C 35 N m D 75 N m Space for working

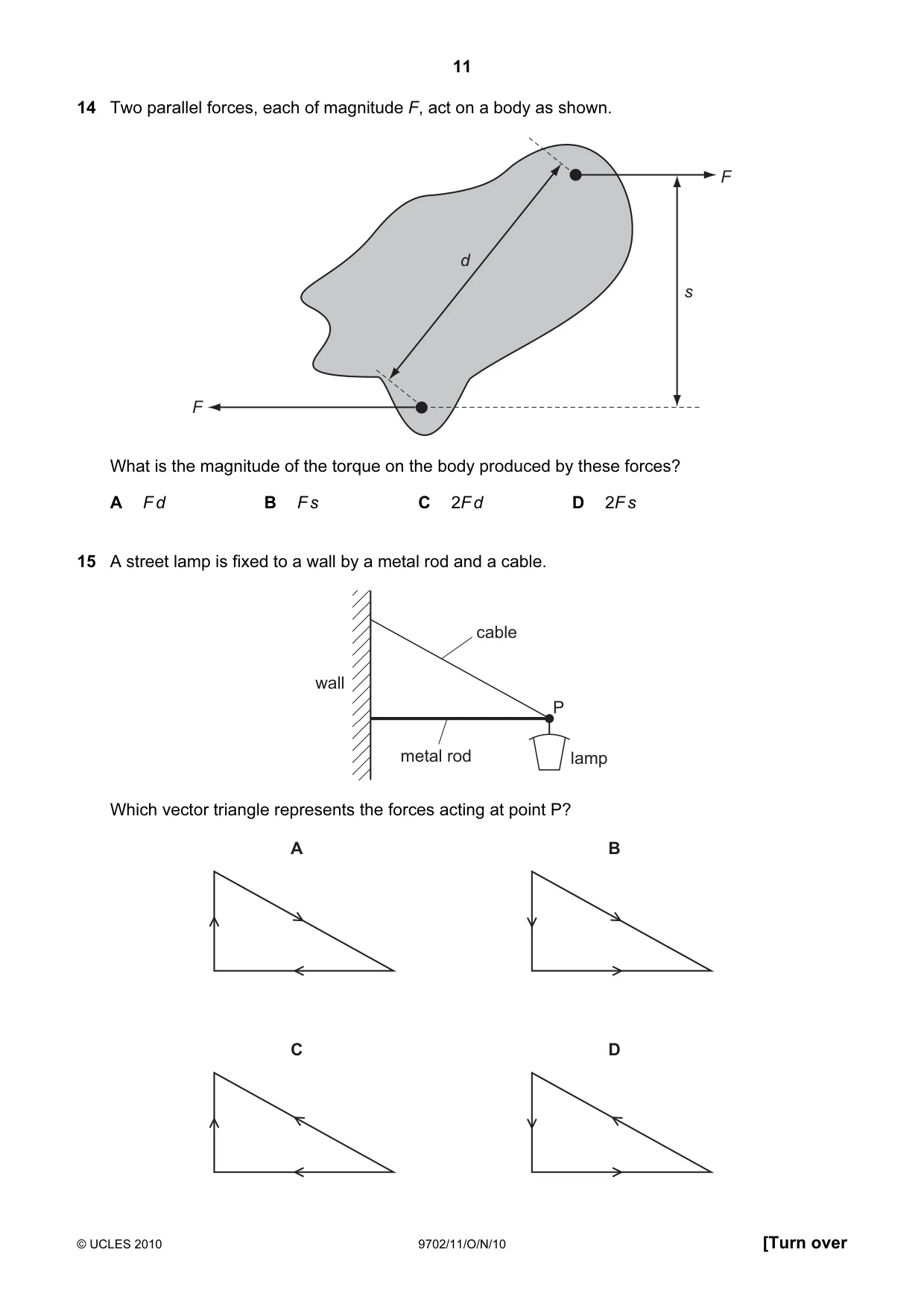

11 © UCLES 2010 9702/11/O/N/10 [Turn over 14 Two parallel forces, each of magnitude F, act on a body as shown. F d s F What is the magnitude of the torque on the body produced by these forces? A F d B F s C 2F d D 2F s 15 A street lamp is fixed to a wall by a metal rod and a cable. wall cable metal rod lamp P Which vector triangle represents the forces acting at point P? A B C D

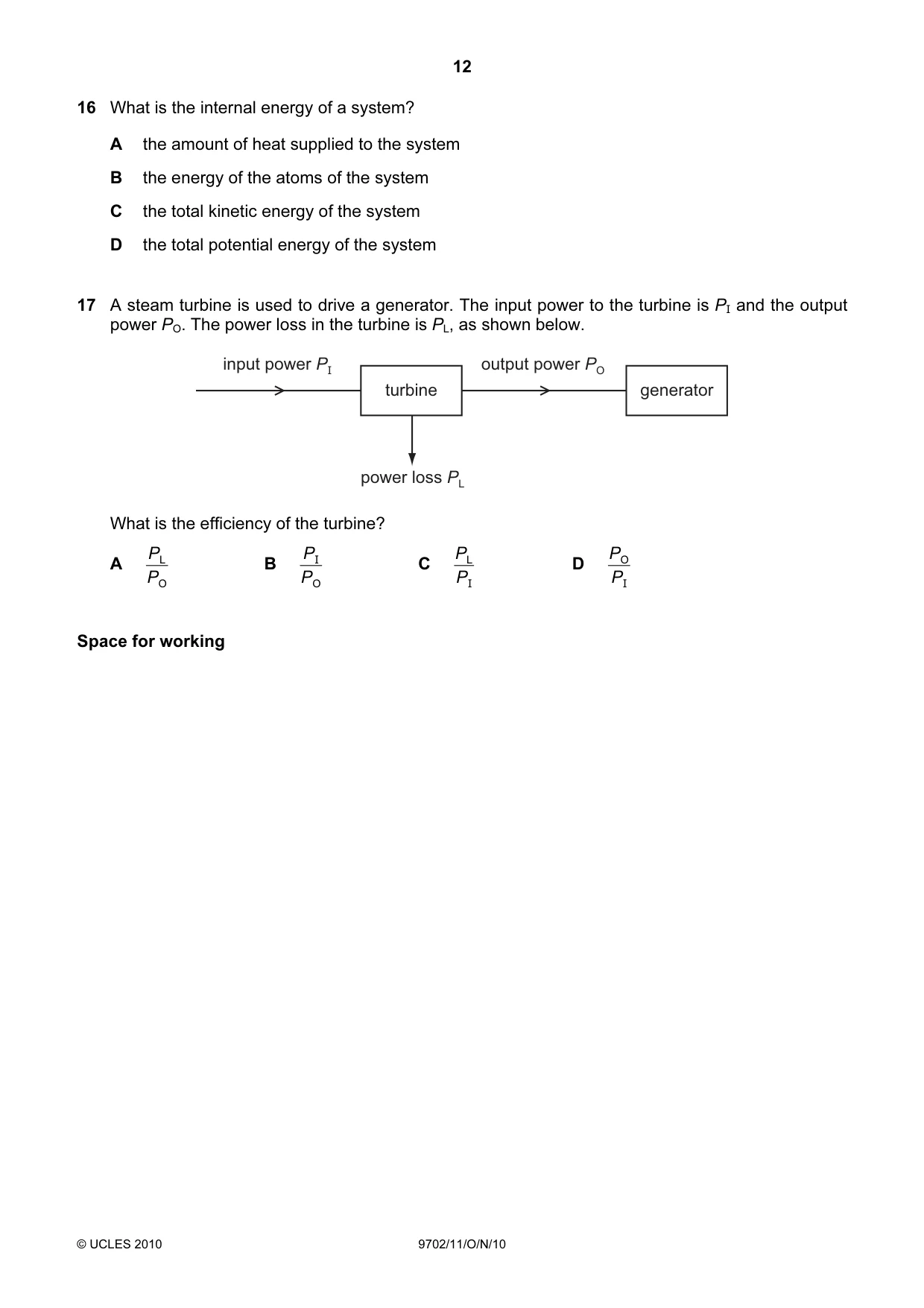

12 © UCLES 2010 9702/11/O/N/10 16 What is the internal energy of a system? A the amount of heat supplied to the system B the energy of the atoms of the system C the total kinetic energy of the system D the total potential energy of the system 17 A steam turbine is used to drive a generator. The input power to the turbine is PI and the output power PO. The power loss in the turbine is PL, as shown below. input power PI turbine output power PO power loss PL generator What is the efficiency of the turbine? A O L P P B O P PI C I P PL D I P PO Space for working

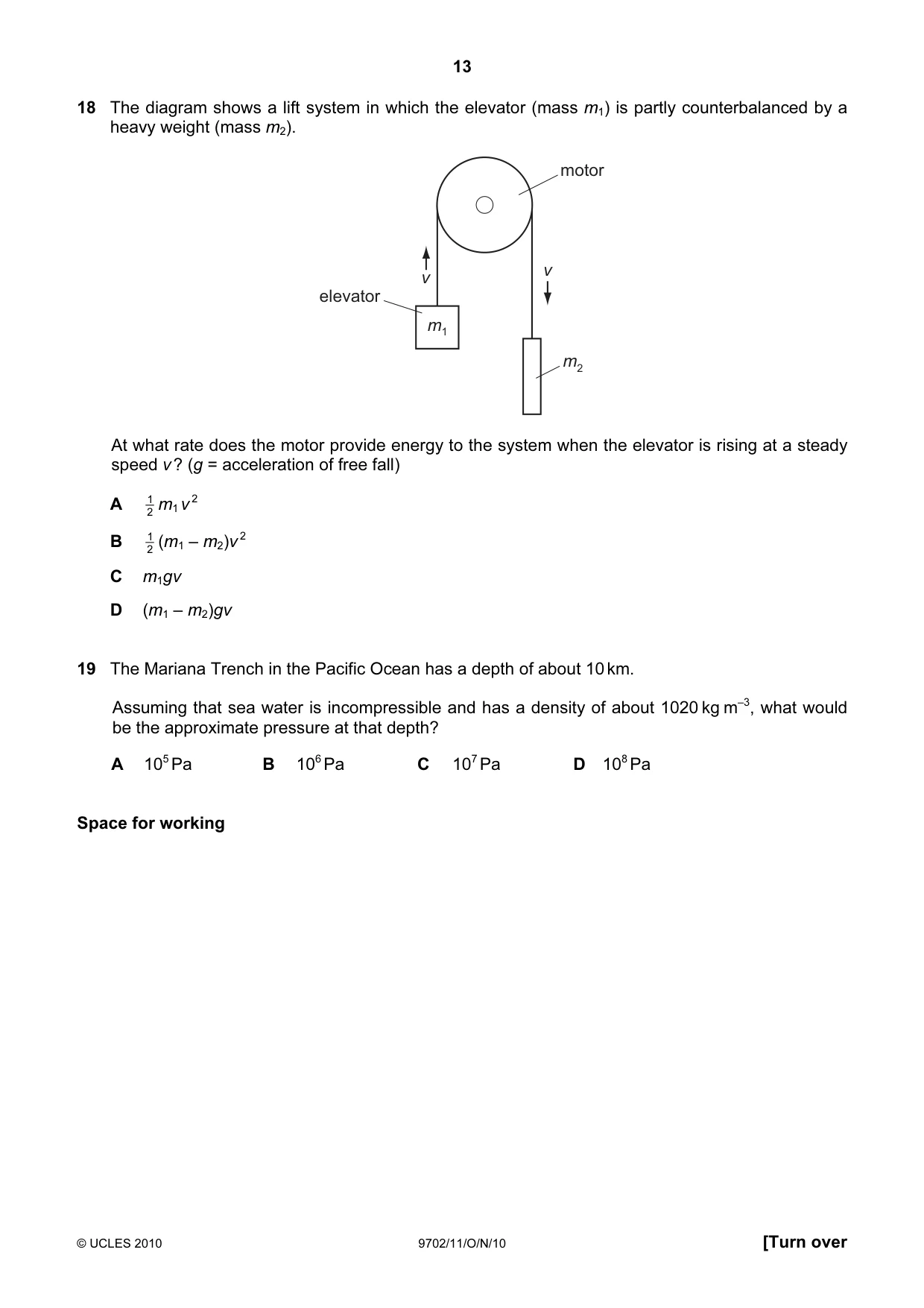

13 © UCLES 2010 9702/11/O/N/10 [Turn over 18 The diagram shows a lift system in which the elevator (mass m1) is partly counterbalanced by a heavy weight (mass m2). m1 m2 v v motor elevator At what rate does the motor provide energy to the system when the elevator is rising at a steady speed v ? (g = acceleration of free fall) A 2 1 m1 v 2 B 2 1 (m1 – m2)v 2 C m1gv D (m1 – m2)gv 19 The Mariana Trench in the Pacific Ocean has a depth of about 10 km. Assuming that sea water is incompressible and has a density of about 1020 kg m–3, what would be the approximate pressure at that depth? A 105 Pa B 106 Pa C 107 Pa D 108 Pa Space for working

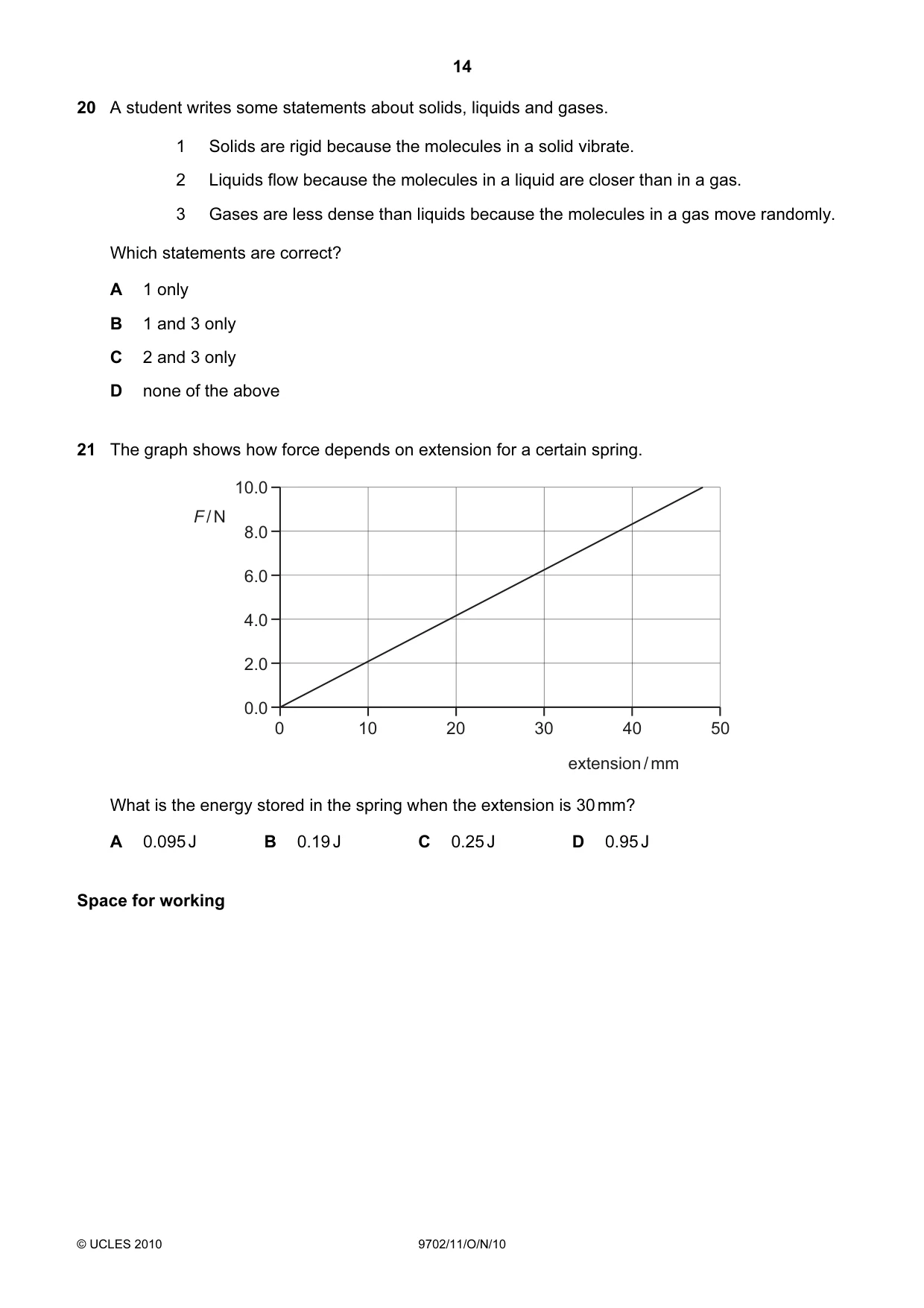

14 © UCLES 2010 9702/11/O/N/10 20 A student writes some statements about solids, liquids and gases. 1 Solids are rigid because the molecules in a solid vibrate. 2 Liquids flow because the molecules in a liquid are closer than in a gas. 3 Gases are less dense than liquids because the molecules in a gas move randomly. Which statements are correct? A 1 only B 1 and 3 only C 2 and 3 only D none of the above 21 The graph shows how force depends on extension for a certain spring. 10.0 8.0 6.0 4.0 2.0 0.0 0 10 20 30 40 50 F / N extension / mm What is the energy stored in the spring when the extension is 30 mm? A 0.095 J B 0.19 J C 0.25 J D 0.95 J Space for working

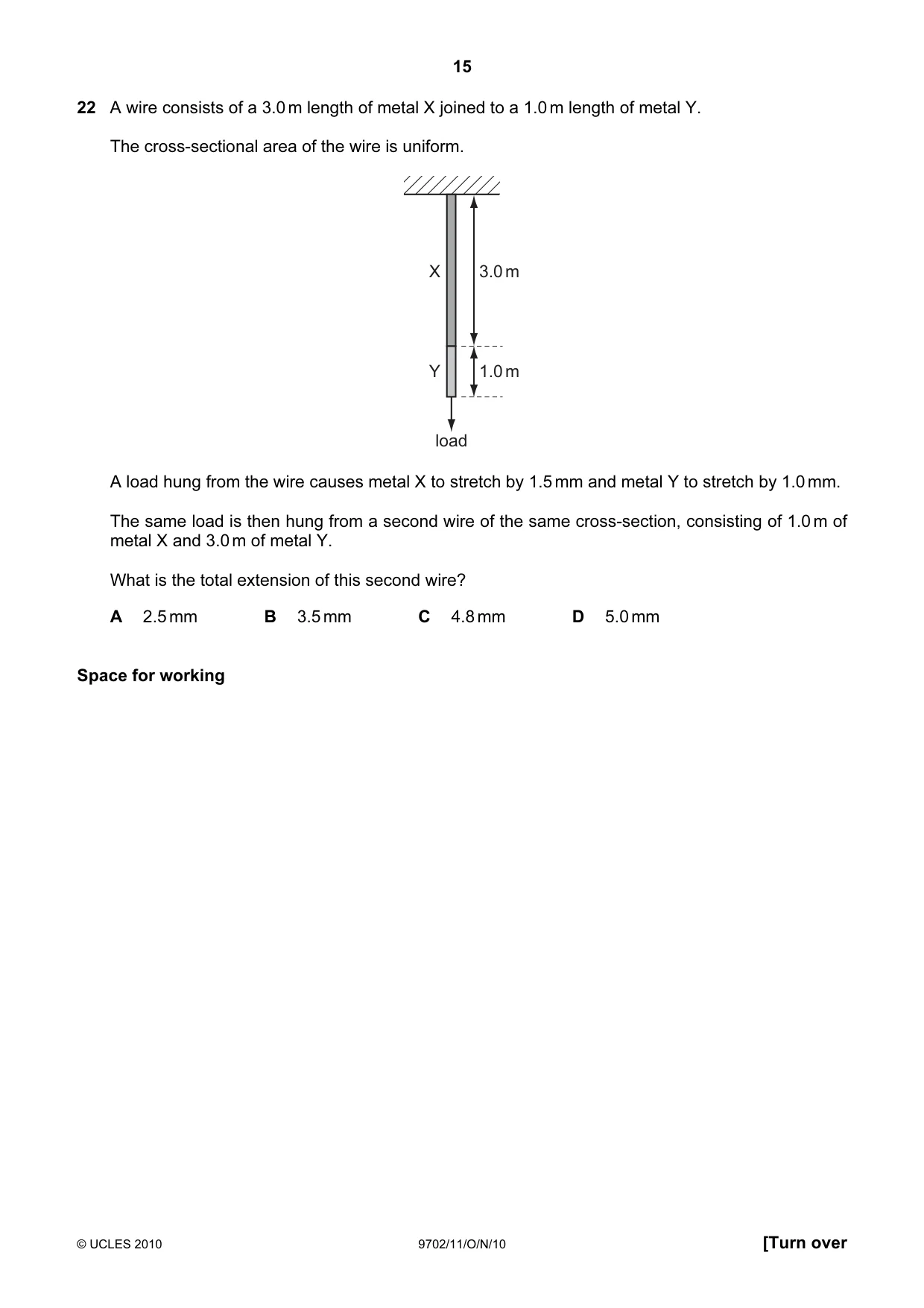

15 © UCLES 2010 9702/11/O/N/10 [Turn over 22 A wire consists of a 3.0 m length of metal X joined to a 1.0 m length of metal Y. The cross-sectional area of the wire is uniform. 3.0 m 1.0 m X Y load A load hung from the wire causes metal X to stretch by 1.5 mm and metal Y to stretch by 1.0 mm. The same load is then hung from a second wire of the same cross-section, consisting of 1.0 m of metal X and 3.0 m of metal Y. What is the total extension of this second wire? A 2.5 mm B 3.5 mm C 4.8 mm D 5.0 mm Space for working

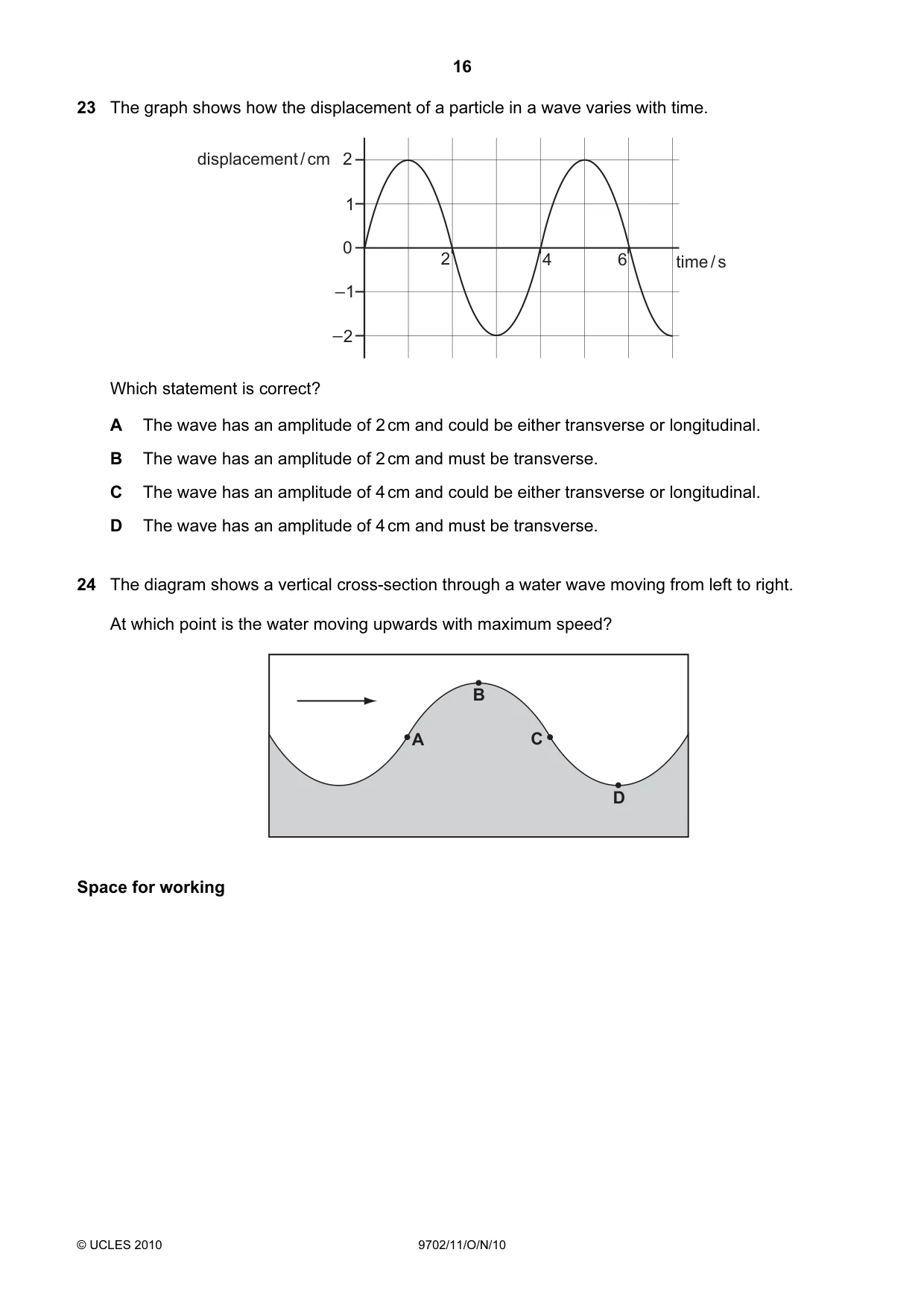

16 © UCLES 2010 9702/11/O/N/10 23 The graph shows how the displacement of a particle in a wave varies with time. displacement / cm time / s 2 1 0 1 2 _ _ 2 4 6 Which statement is correct? A The wave has an amplitude of 2 cm and could be either transverse or longitudinal. B The wave has an amplitude of 2 cm and must be transverse. C The wave has an amplitude of 4 cm and could be either transverse or longitudinal. D The wave has an amplitude of 4 cm and must be transverse. 24 The diagram shows a vertical cross-section through a water wave moving from left to right. At which point is the water moving upwards with maximum speed? A B C D Space for working

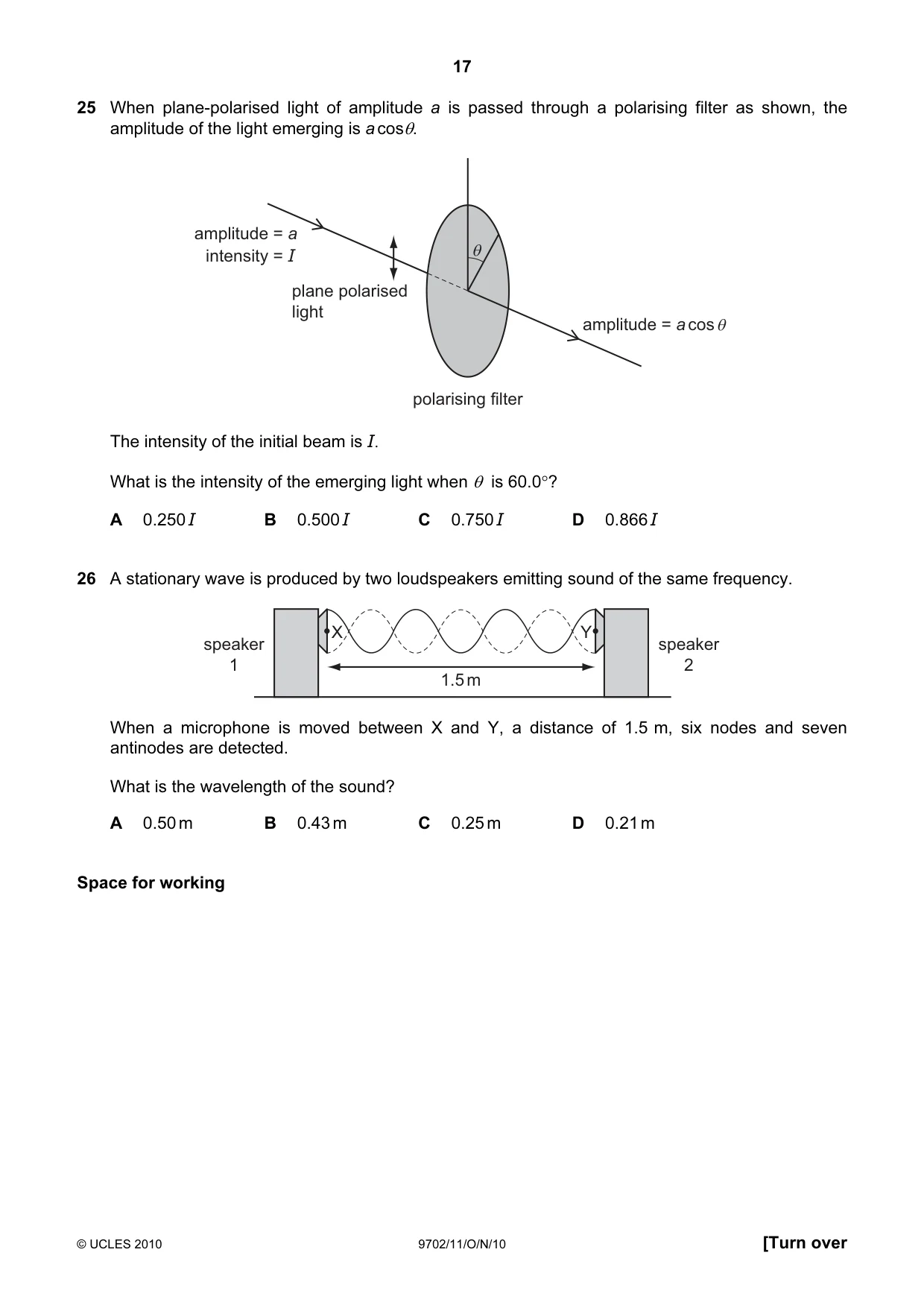

17 © UCLES 2010 9702/11/O/N/10 [Turn over 25 When plane-polarised light of amplitude a is passed through a polarising filter as shown, the amplitude of the light emerging is a cosθ. θ θ plane polarised light amplitude = a intensity = I amplitude = a cos polarising filter The intensity of the initial beam is I. What is the intensity of the emerging light when θ is 60.0°? A 0.250 I B 0.500 I C 0.750 I D 0.866 I 26 A stationary wave is produced by two loudspeakers emitting sound of the same frequency. speaker 1 speaker 2 X Y 1.5 m When a microphone is moved between X and Y, a distance of 1.5 m, six nodes and seven antinodes are detected. What is the wavelength of the sound? A 0.50 m B 0.43 m C 0.25 m D 0.21 m Space for working

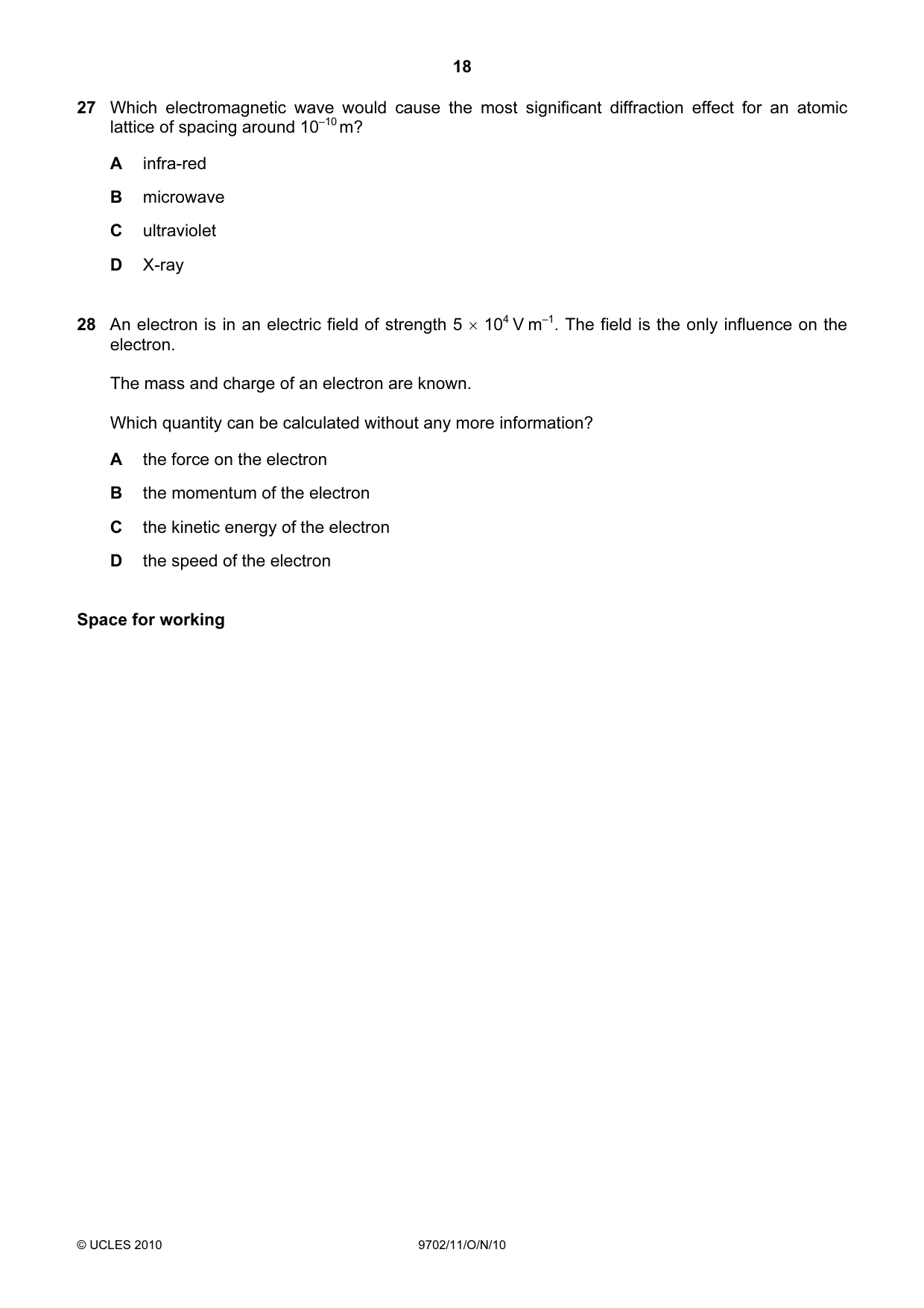

18 © UCLES 2010 9702/11/O/N/10 27 Which electromagnetic wave would cause the most significant diffraction effect for an atomic lattice of spacing around 10–10 m? A infra-red B microwave C ultraviolet D X-ray 28 An electron is in an electric field of strength 5 × 104 V m–1. The field is the only influence on the electron. The mass and charge of an electron are known. Which quantity can be calculated without any more information? A the force on the electron B the momentum of the electron C the kinetic energy of the electron D the speed of the electron Space for working

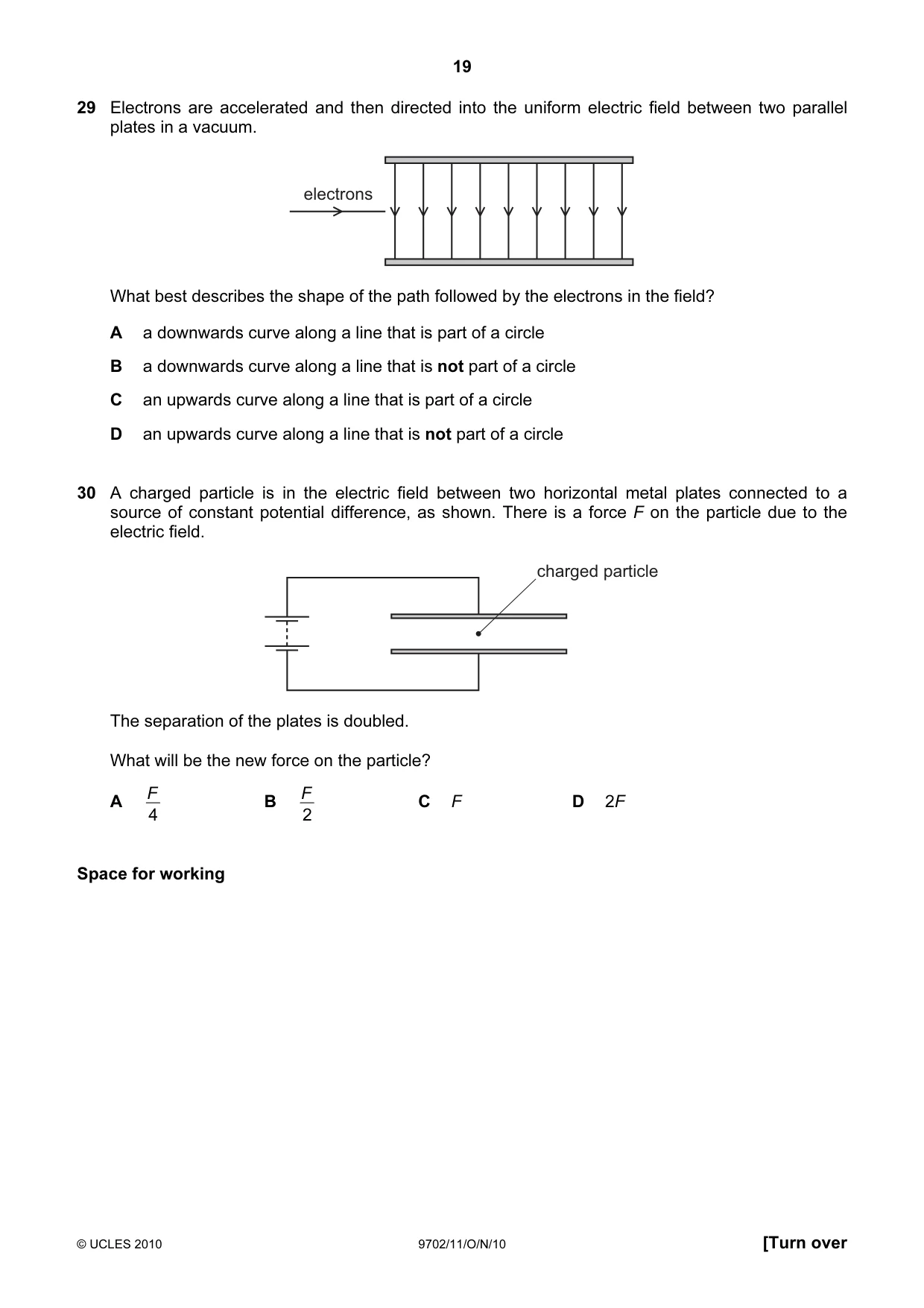

19 © UCLES 2010 9702/11/O/N/10 [Turn over 29 Electrons are accelerated and then directed into the uniform electric field between two parallel plates in a vacuum. electrons What best describes the shape of the path followed by the electrons in the field? A a downwards curve along a line that is part of a circle B a downwards curve along a line that is not part of a circle C an upwards curve along a line that is part of a circle D an upwards curve along a line that is not part of a circle 30 A charged particle is in the electric field between two horizontal metal plates connected to a source of constant potential difference, as shown. There is a force F on the particle due to the electric field. charged particle The separation of the plates is doubled. What will be the new force on the particle? A 4 F B 2 F C F D 2F Space for working

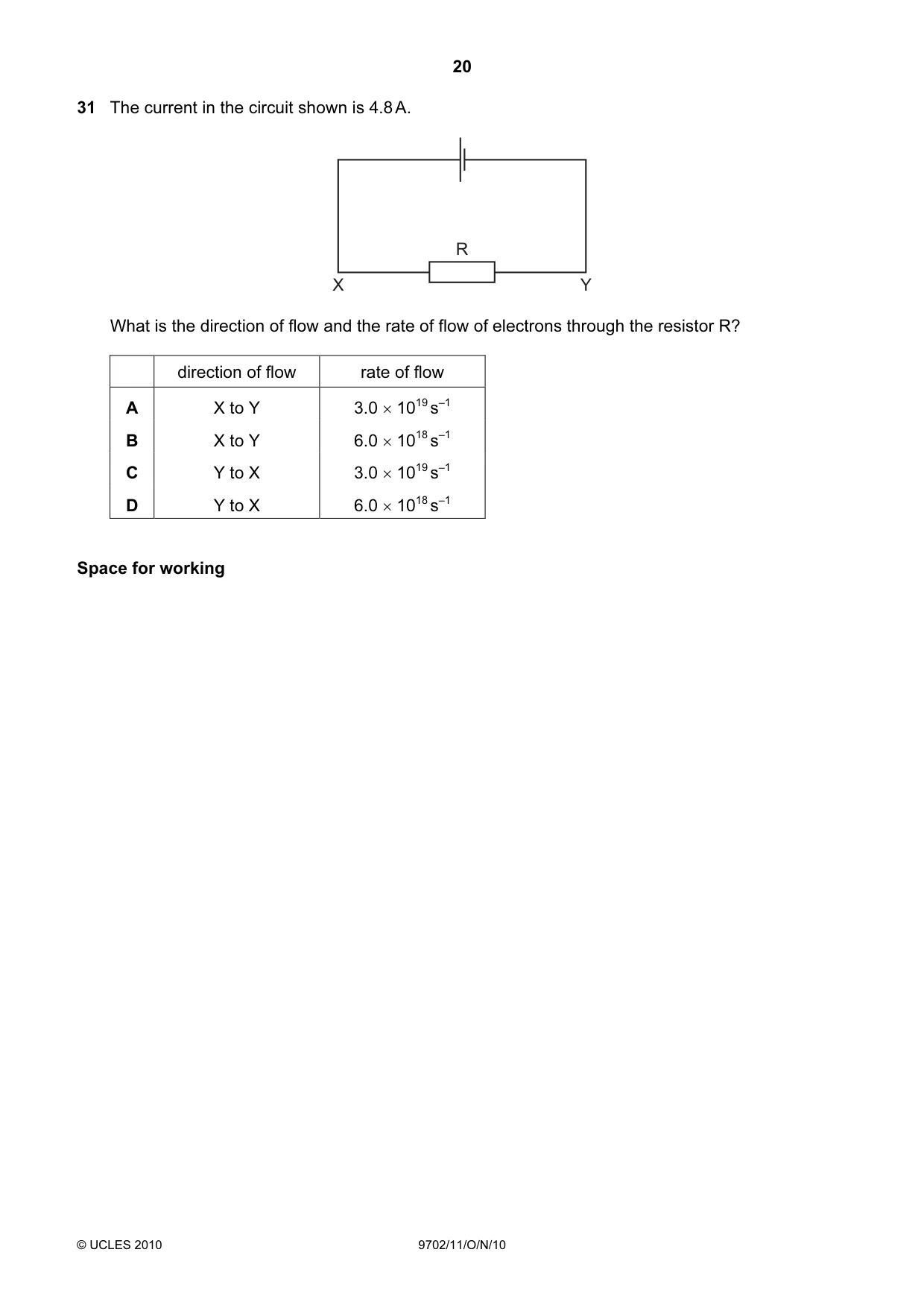

20 © UCLES 2010 9702/11/O/N/10 31 The current in the circuit shown is 4.8 A. R X Y What is the direction of flow and the rate of flow of electrons through the resistor R? direction of flow rate of flow A X to Y 3.0 × 1019 s–1 B X to Y 6.0 × 1018 s–1 C Y to X 3.0 × 1019 s–1 D Y to X 6.0 × 1018 s–1 Space for working

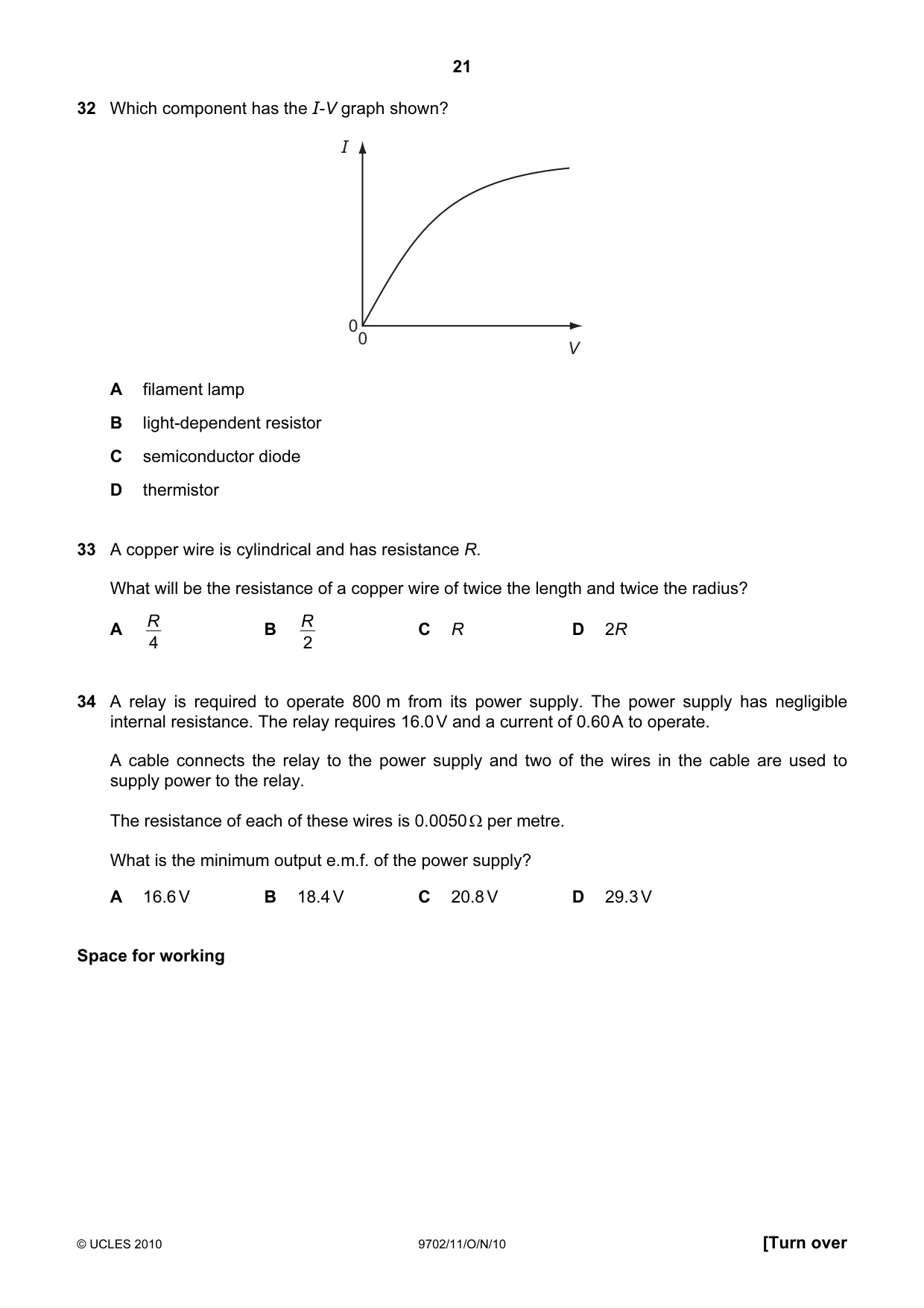

21 © UCLES 2010 9702/11/O/N/10 [Turn over 32 Which component has the I-V graph shown? I V 0 0 A filament lamp B light-dependent resistor C semiconductor diode D thermistor 33 A copper wire is cylindrical and has resistance R. What will be the resistance of a copper wire of twice the length and twice the radius? A 4 R B 2 R C R D 2R 34 A relay is required to operate 800 m from its power supply. The power supply has negligible internal resistance. The relay requires 16.0 V and a current of 0.60 A to operate. A cable connects the relay to the power supply and two of the wires in the cable are used to supply power to the relay. The resistance of each of these wires is 0.0050 Ω per metre. What is the minimum output e.m.f. of the power supply? A 16.6 V B 18.4 V C 20.8 V D 29.3 V Space for working

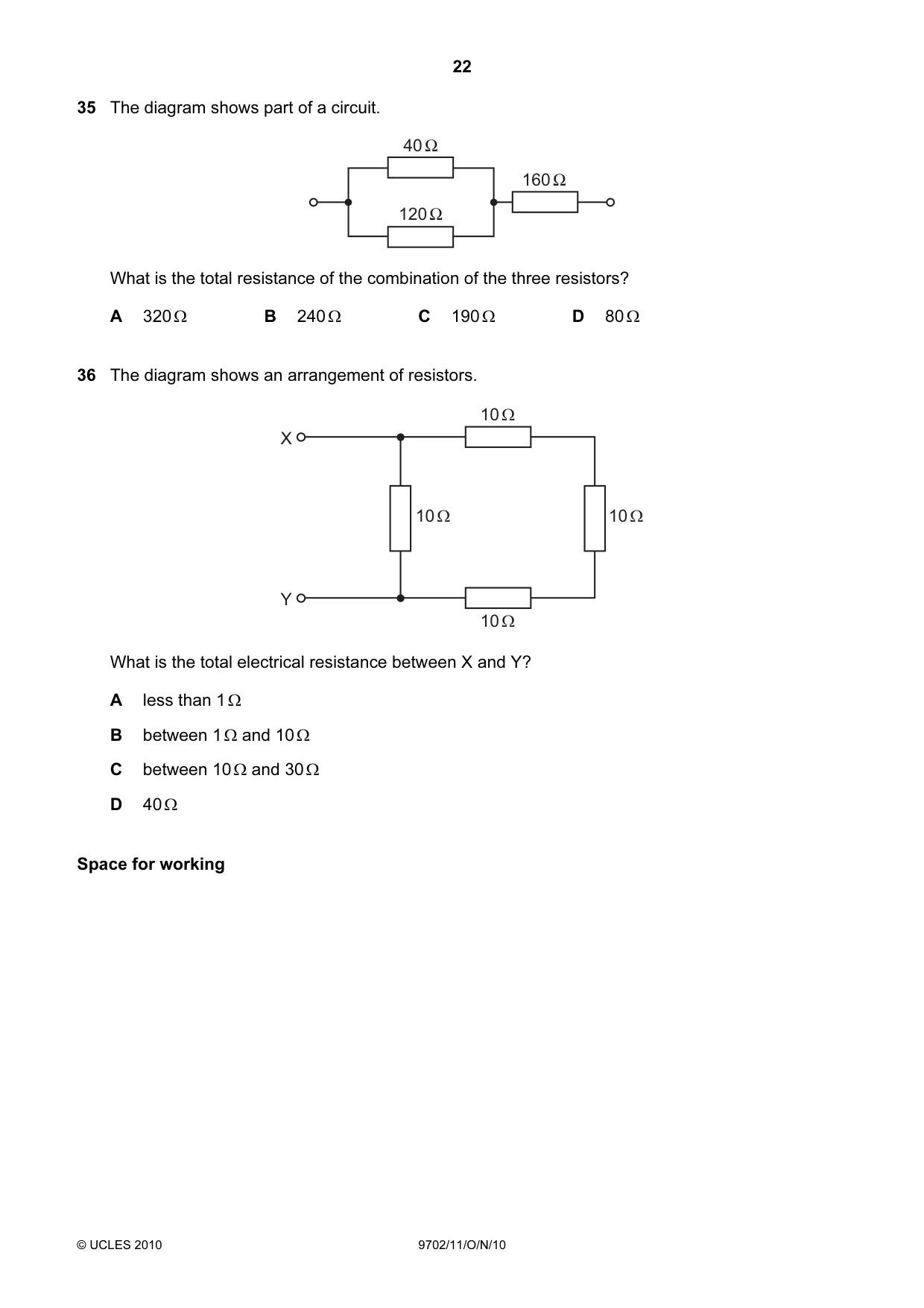

22 © UCLES 2010 9702/11/O/N/10 35 The diagram shows part of a circuit. 120 Ω 40 Ω 160 Ω What is the total resistance of the combination of the three resistors? A 320 Ω B 240 Ω C 190 Ω D 80 Ω 36 The diagram shows an arrangement of resistors. Y X 10 Ω 10 Ω 10 Ω 10 Ω What is the total electrical resistance between X and Y? A less than 1 Ω B between 1 Ω and 10 Ω C between 10 Ω and 30 Ω D 40 Ω Space for working

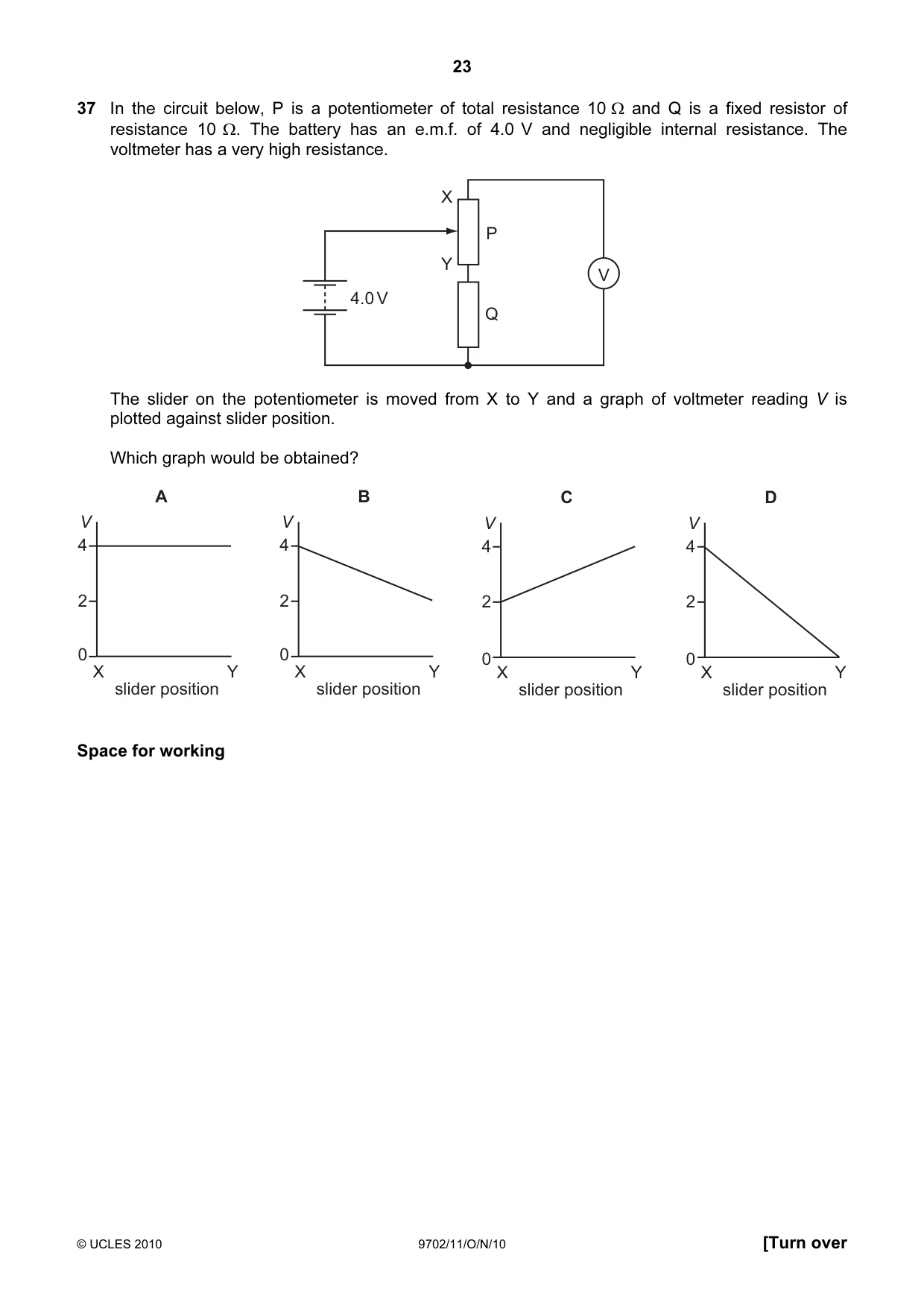

23 © UCLES 2010 9702/11/O/N/10 [Turn over 37 In the circuit below, P is a potentiometer of total resistance 10 Ω and Q is a fixed resistor of resistance 10 Ω. The battery has an e.m.f. of 4.0 V and negligible internal resistance. The voltmeter has a very high resistance. 4.0 V X Y P Q V The slider on the potentiometer is moved from X to Y and a graph of voltmeter reading V is plotted against slider position. Which graph would be obtained? 0 X A slider position Y V 4 2 0 X B slider position Y V 4 2 0 X D slider position Y V 4 2 0 X C slider position Y V 4 2 Space for working

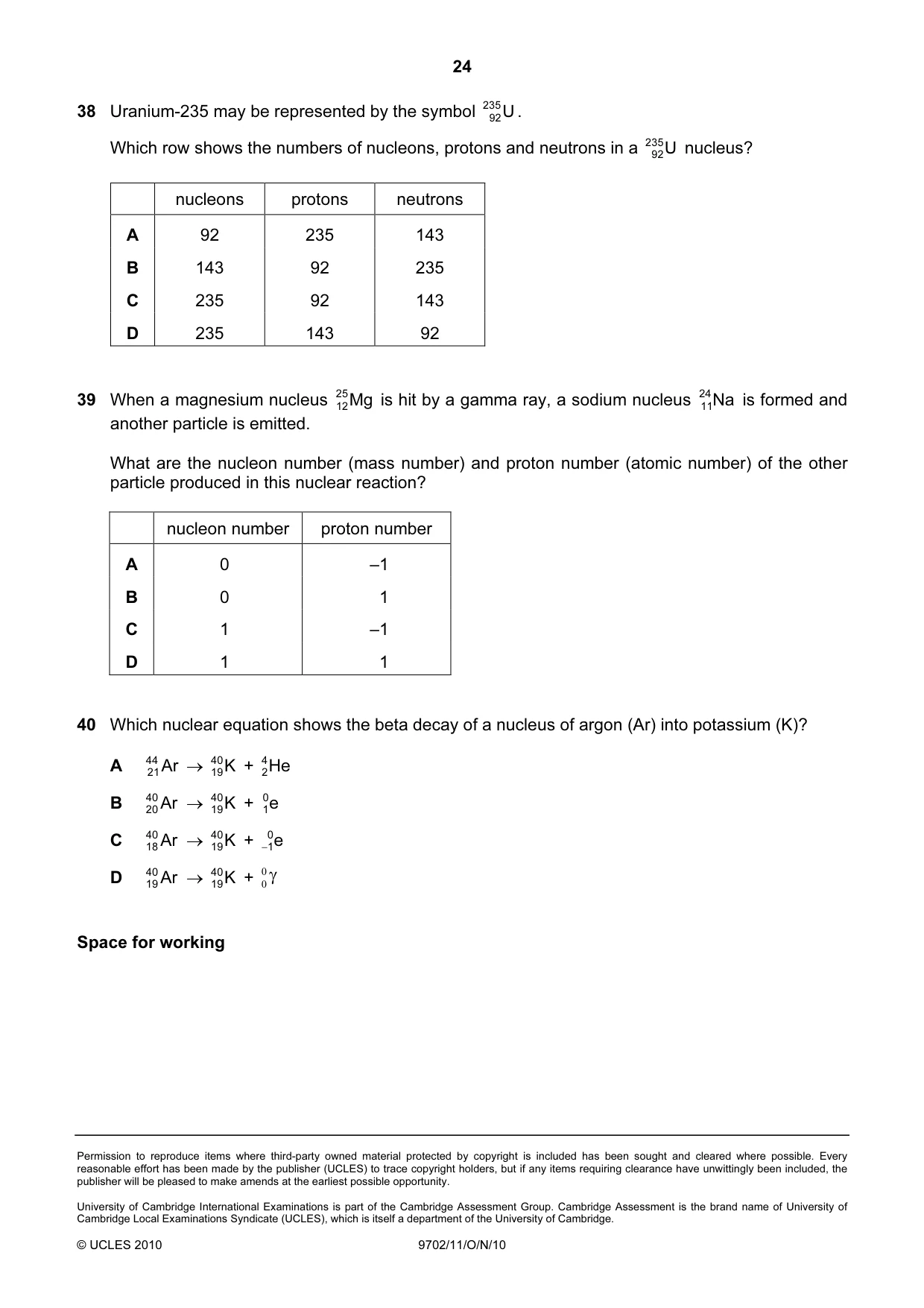

24 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. © UCLES 2010 9702/11/O/N/10 38 Uranium-235 may be represented by the symbol U 235 92 . Which row shows the numbers of nucleons, protons and neutrons in a 235 92U nucleus? nucleons protons neutrons A 92 235 143 B 143 92 235 C 235 92 143 D 235 143 92 39 When a magnesium nucleus Mg 25 12 is hit by a gamma ray, a sodium nucleus Na 24 11 is formed and another particle is emitted. What are the nucleon number (mass number) and proton number (atomic number) of the other particle produced in this nuclear reaction? nucleon number proton number A 0 –1 B 0 1 C 1 –1 D 1 1 40 Which nuclear equation shows the beta decay of a nucleus of argon (Ar) into potassium (K)? A Ar 44 21 → K 40 19 + He 4 2 B Ar 40 20 → K 40 19 + e 0 1 C Ar 40 18 → K 40 19 + e 0 1 − D Ar 40 19 → K 40 19 + γ 0 0 Space for working

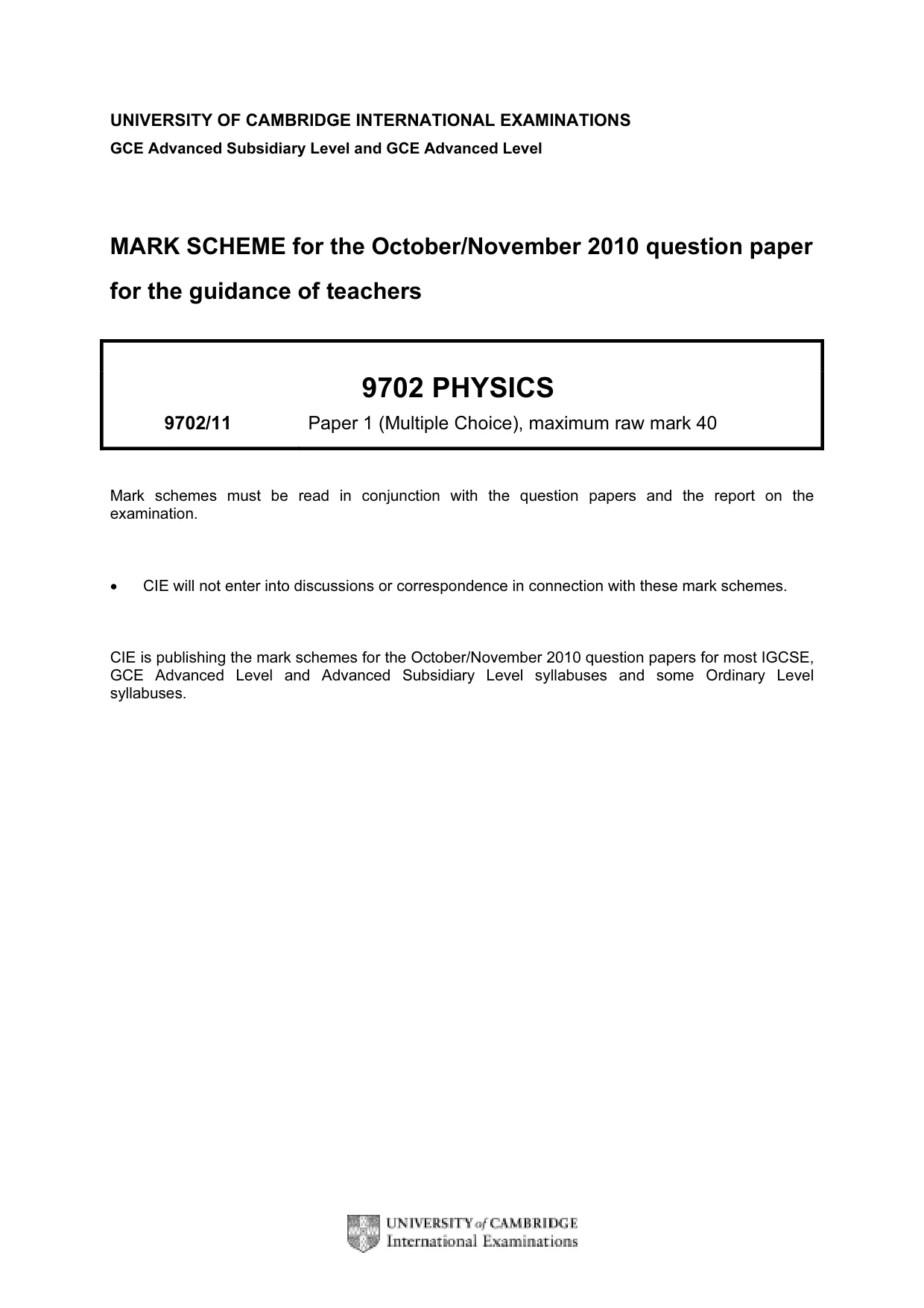

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS GCE Advanced Subsidiary Level and GCE Advanced Level MARK SCHEME for the October/November 2010 question paper for the guidance of teachers 9702 PHYSICS 9702/11 Paper 1 (Multiple Choice), maximum raw mark 40 Mark schemes must be read in conjunction with the question papers and the report on the examination. • CIE will not enter into discussions or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the October/November 2010 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses.

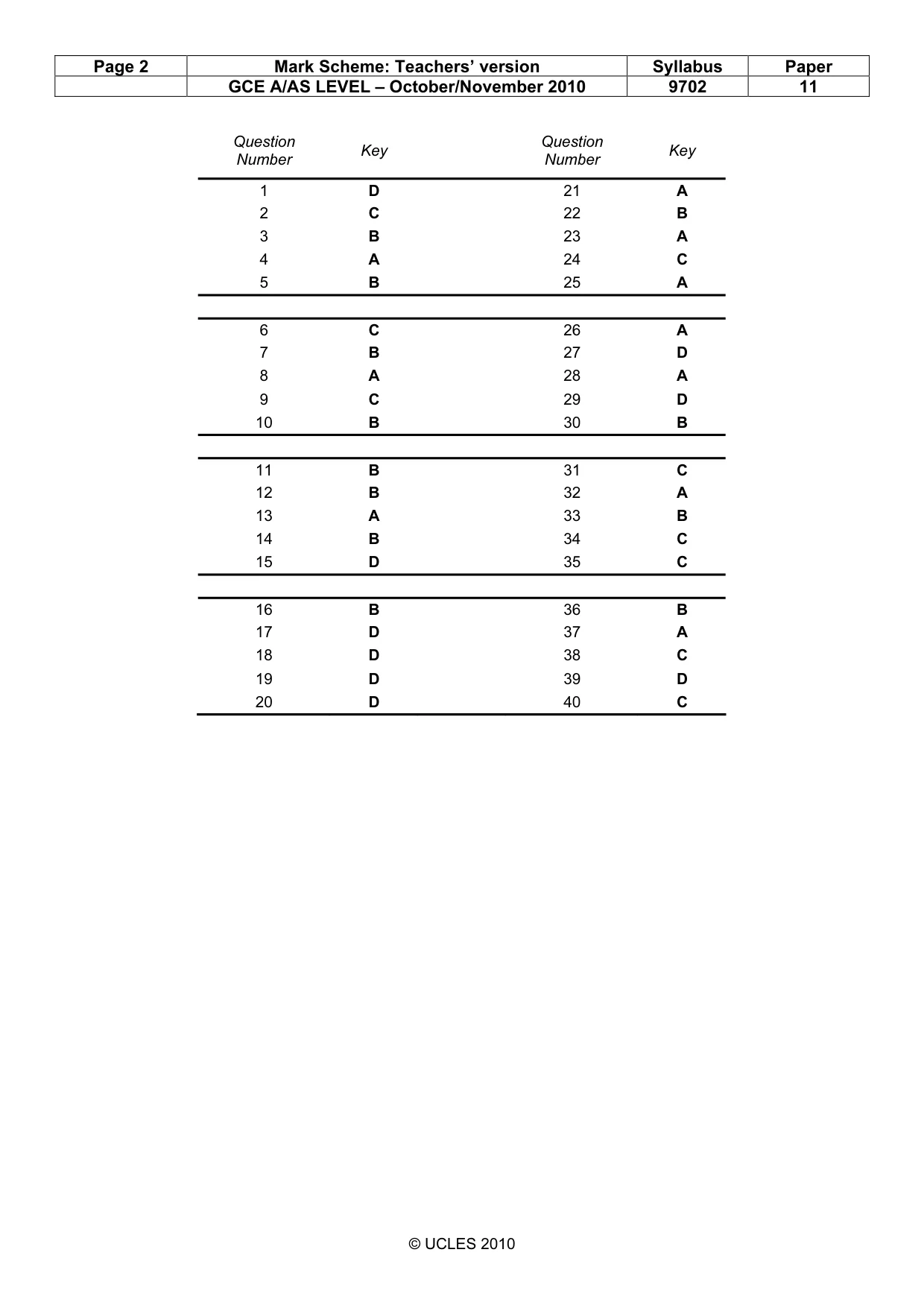

Page 2 Mark Scheme: Teachers’ version Syllabus Paper GCE A/AS LEVEL – October/November 2010 9702 11 © UCLES 2010 Question Number Key Question Number Key 1 D 21 A 2 C 22 B 3 B 23 A 4 A 24 C 5 B 25 A 6 C 26 A 7 B 27 D 8 A 28 A 9 C 29 D 10 B 30 B 11 B 31 C 12 B 32 A 13 A 33 B 14 B 34 C 15 D 35 C 16 B 36 B 17 D 37 A 18 D 38 C 19 D 39 D 20 D 40 C
