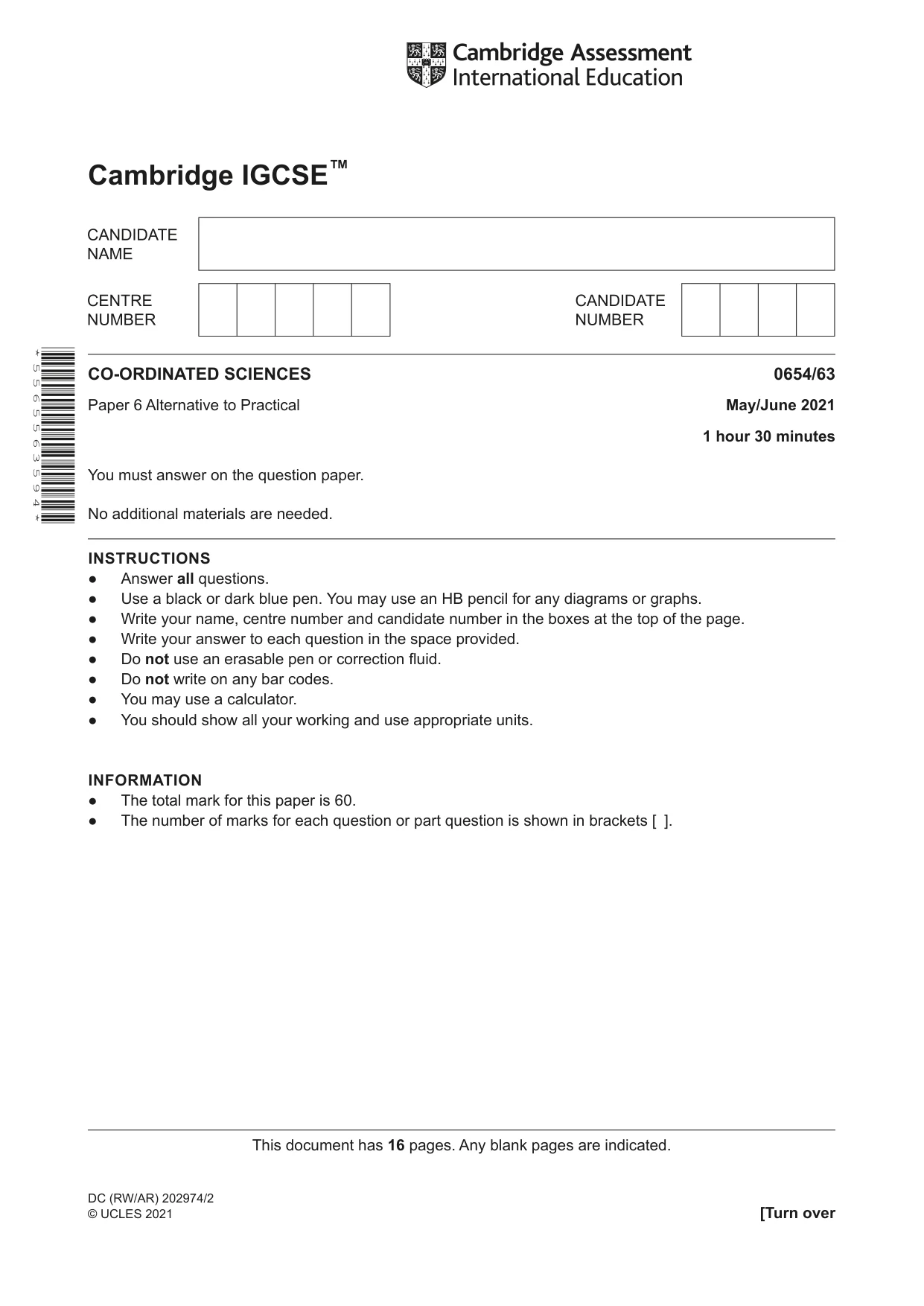

Cambridge IGCSE Sciences - Co-ordinated (Double) 0654 — 2021 May/June Paper 6 · Variant 3

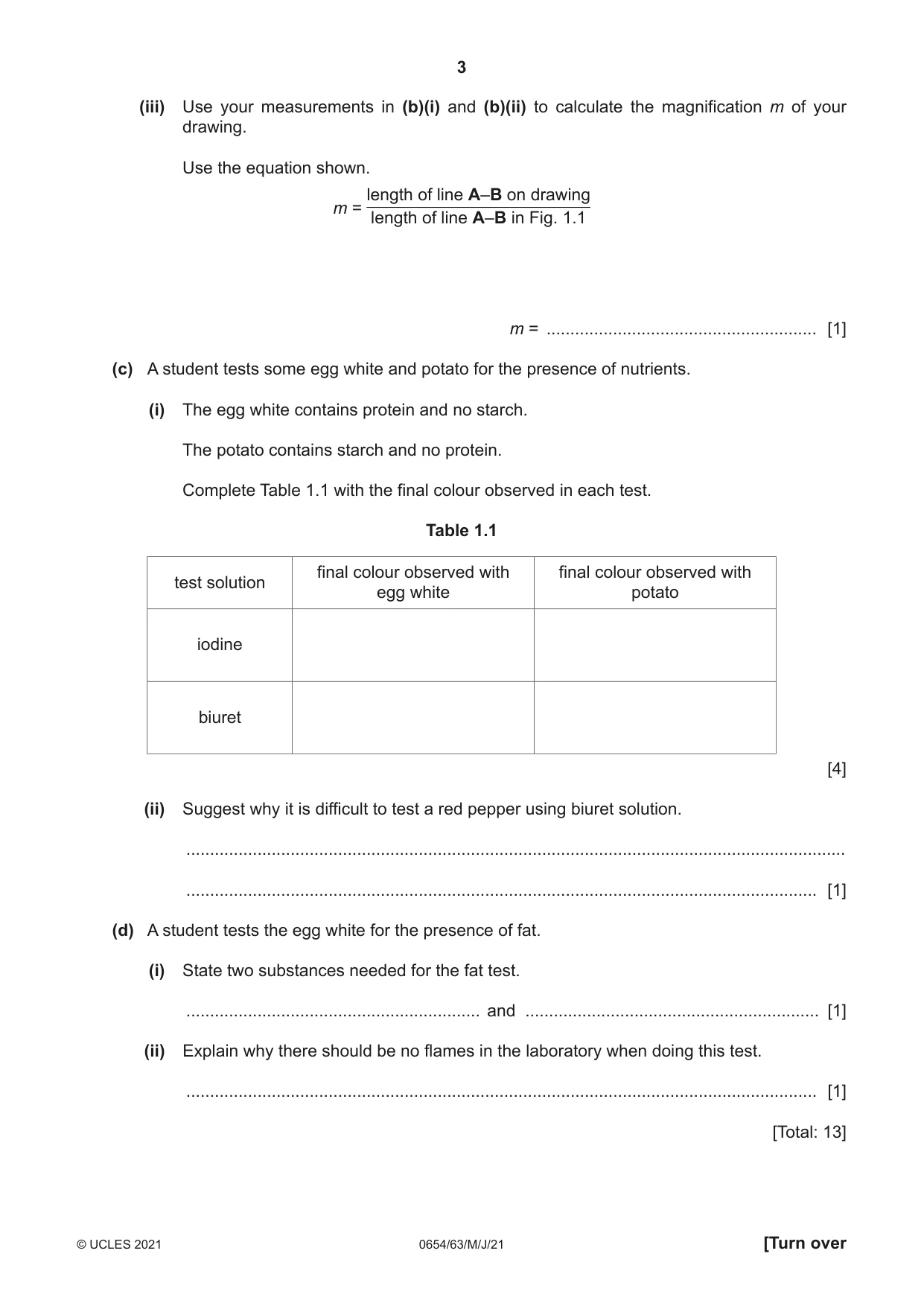

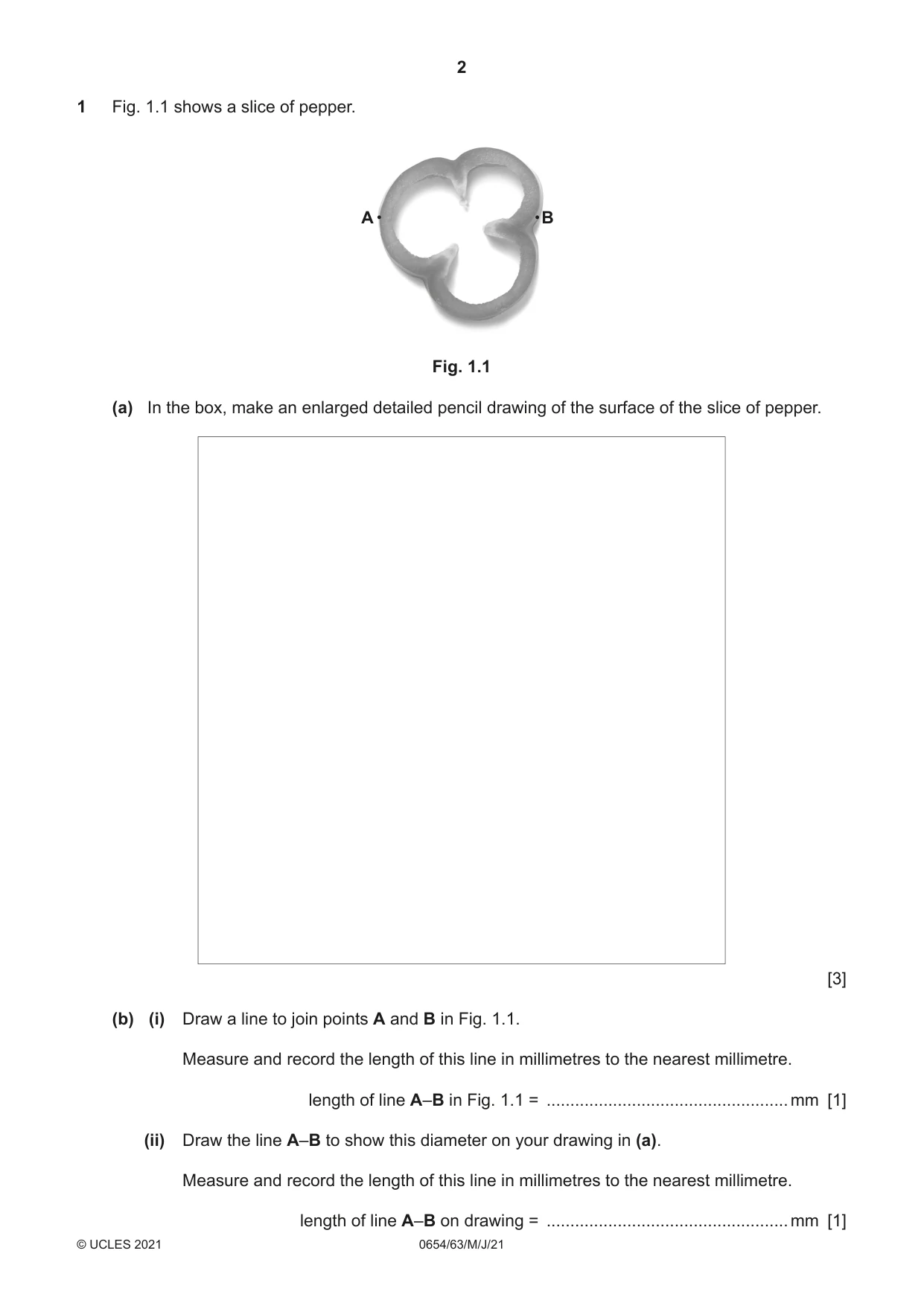

1 Fig. 1.1 shows a slice of pepper. A B Fig. 1.1 (a) In the box, make an enlarged detailed pencil drawing of the surface of the slice of pepper. [3] (b) (i) Draw a line to join points A and B in Fig. 1.1. Measure and record the length of this line in millimetres to the nearest millimetre. length of line A–B in Fig. 1.1 = ................................................... mm [1] (ii) Draw the line A–B to show this diameter on your drawing in (a). Measure and record the length of this line in millimetres to the nearest millimetre. length of line A–B on drawing = ................................................... mm [1] (iii) Use your measurements in (b)(i) and (b)(ii) to calculate the magnification m of your drawing. Use the equation shown. length of line A–B on drawing m = length of line A–B in Fig. 1.1 m = ......................................................... [1] (c) A student tests some egg white and potato for the presence of nutrients. (i) The egg white contains protein and no starch. The potato contains starch and no protein. Complete Table 1.1 with the final colour observed in each test. Table 1.1 final colour observed with final colour observed with test solution egg white potato iodine biuret [4] (ii) Suggest why it is difficult to test a red pepper using biuret solution. ........................................................................................................................................... ..................................................................................................................................... [1] (d) A student tests the egg white for the presence of fat. (i) State two substances needed for the fat test. .............................................................. and .............................................................. [1] (ii) Explain why there should be no flames in the laboratory when doing this test. ..................................................................................................................................... [1] [Total: 13]

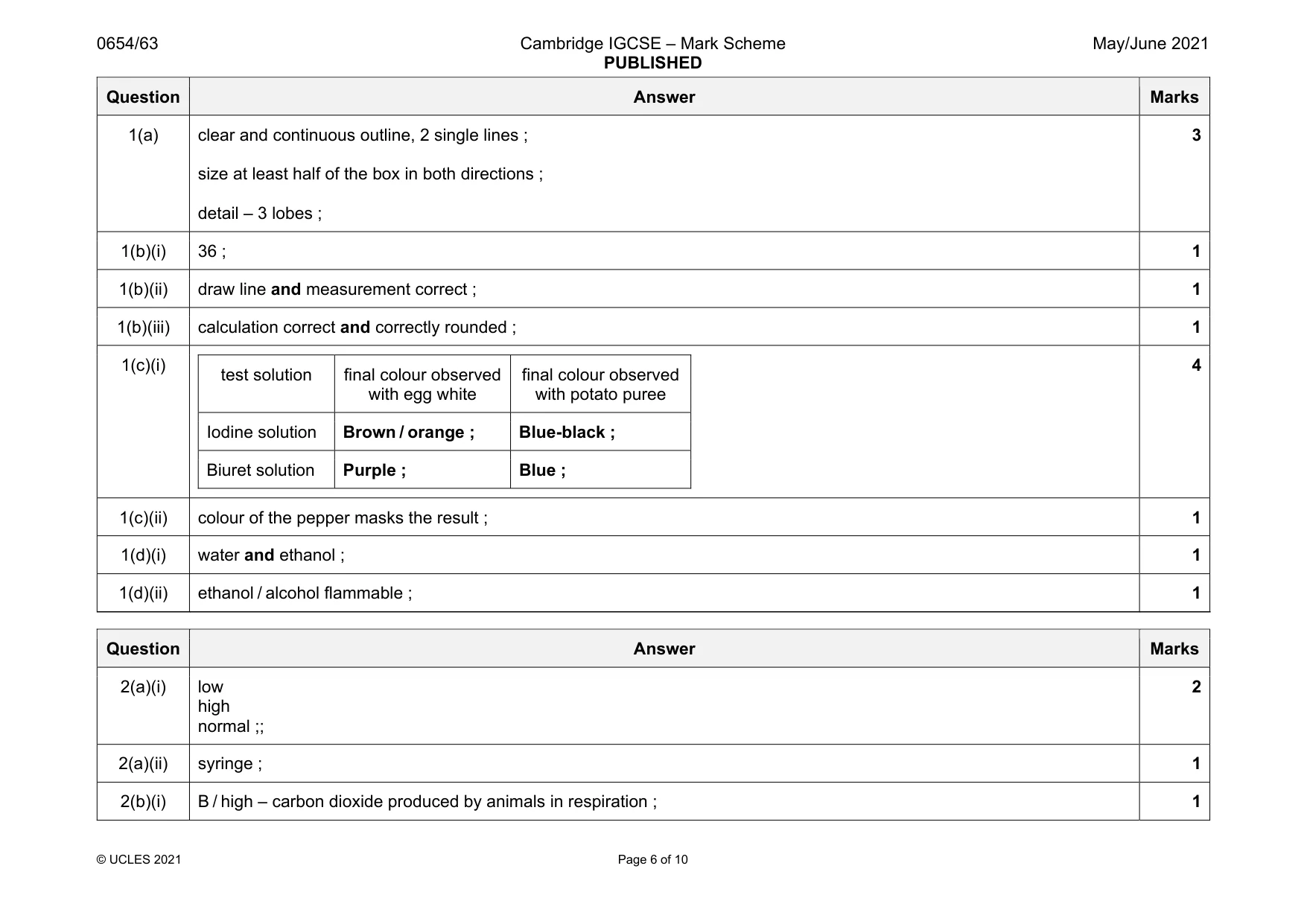

Mark scheme: 1(a) clear and continuous outline, 2 single lines ; size at least half of the box in both directions ; detail – 3 lobes ; 3 1(b)(i) 36 ; 1 1(b)(ii) draw line and measurement correct ; 1 1(b)(iii) calculation correct and correctly rounded ; 1 1(c)(i) test solution final colour observed with egg white final colour observed with potato puree Iodine solution Brown / orange ; Blue-black ; Biuret solution Purple ; Blue ; 4 1(c)(ii) colour of the pepper masks the result ; 1 1(d)(i) water and ethanol ; 1 1(d)(ii) ethanol / alcohol flammable ; 1

More questions on Biological molecules

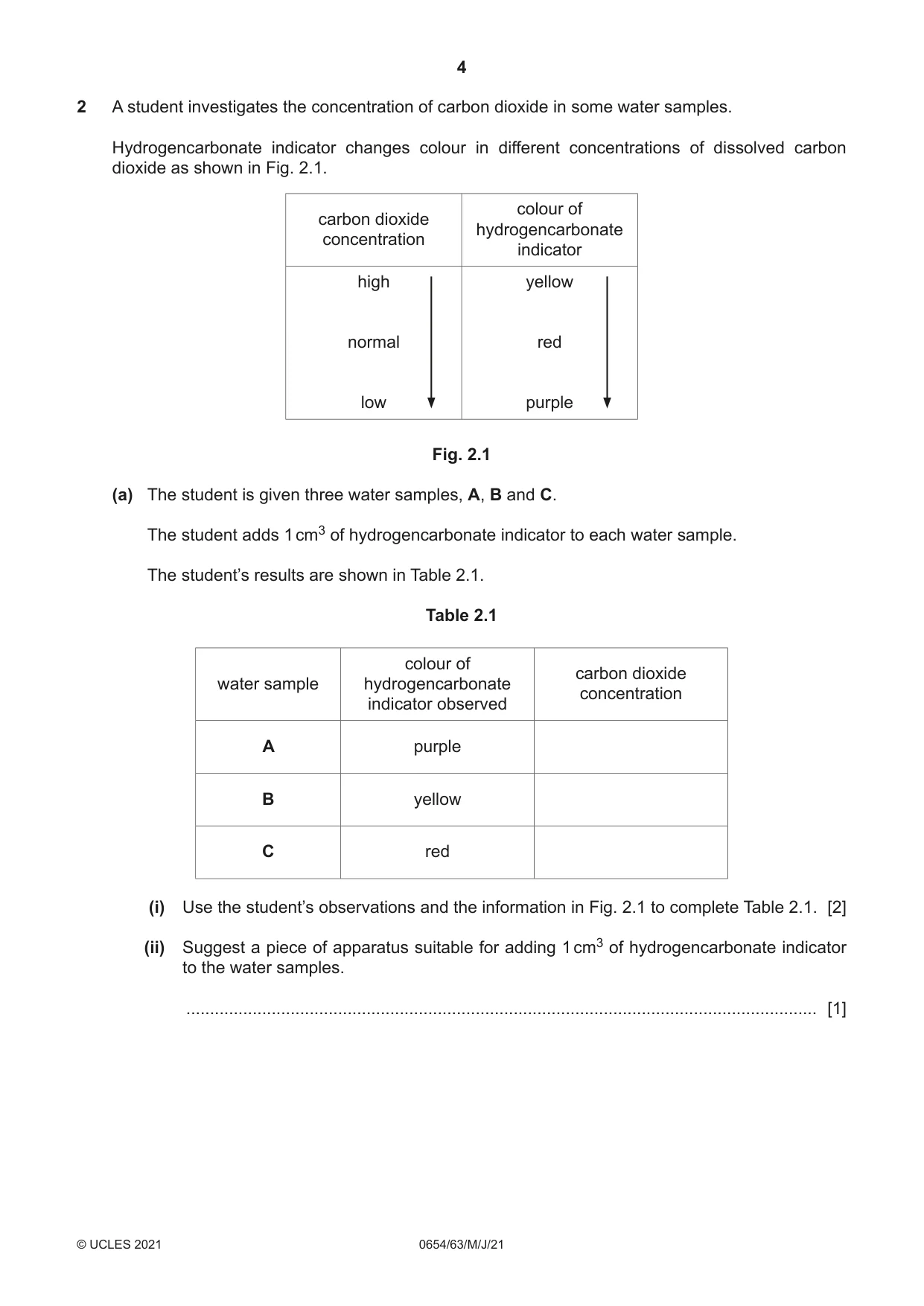

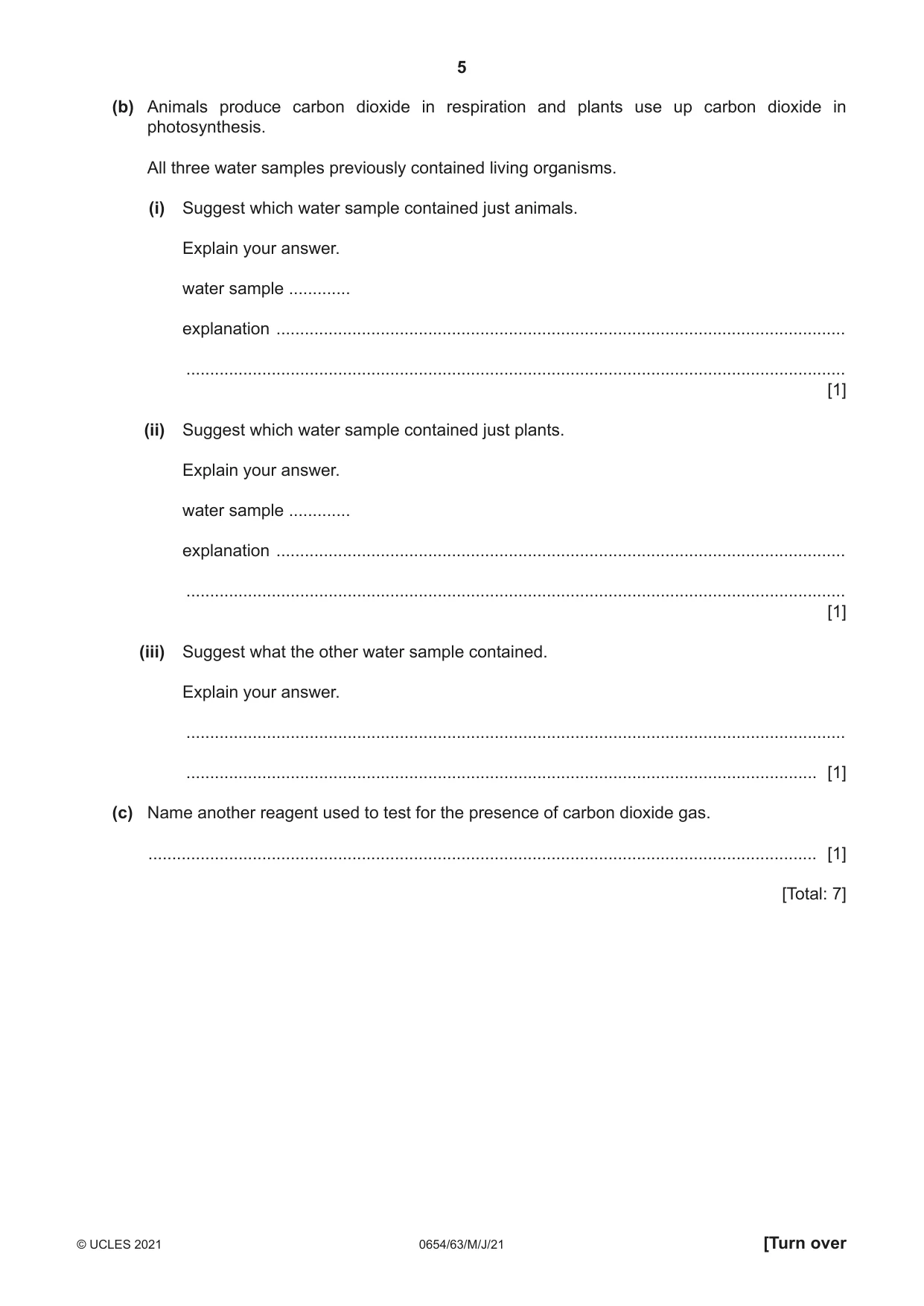

2 A student investigates the concentration of carbon dioxide in some water samples. Hydrogencarbonate indicator changes colour in different concentrations of dissolved carbon dioxide as shown in Fig. 2.1. colour of carbon dioxide hydrogencarbonate concentration indicator high yellow normal red low purple Fig. 2.1 (a) The student is given three water samples, A, B and C. The student adds 1 cm3 of hydrogencarbonate indicator to each water sample. The student’s results are shown in Table 2.1. Table 2.1 colour of carbon dioxide water sample hydrogencarbonate concentration indicator observed A purple B yellow C red (i) Use the student’s observations and the information in Fig. 2.1 to complete Table 2.1. [2] (ii) Suggest a piece of apparatus suitable for adding 1 cm3 of hydrogencarbonate indicator to the water samples. ..................................................................................................................................... [1] (b) Animals produce carbon dioxide in respiration and plants use up carbon dioxide in photosynthesis. All three water samples previously contained living organisms. (i) Suggest which water sample contained just animals. Explain your answer. water sample ............. explanation ........................................................................................................................ ........................................................................................................................................... [1] (ii) Suggest which water sample contained just plants. Explain your answer. water sample ............. explanation ........................................................................................................................ ........................................................................................................................................... [1] (iii) Suggest what the other water sample contained. Explain your answer. ........................................................................................................................................... ..................................................................................................................................... [1] (c) Name another reagent used to test for the presence of carbon dioxide gas. ............................................................................................................................................. [1] [Total: 7]

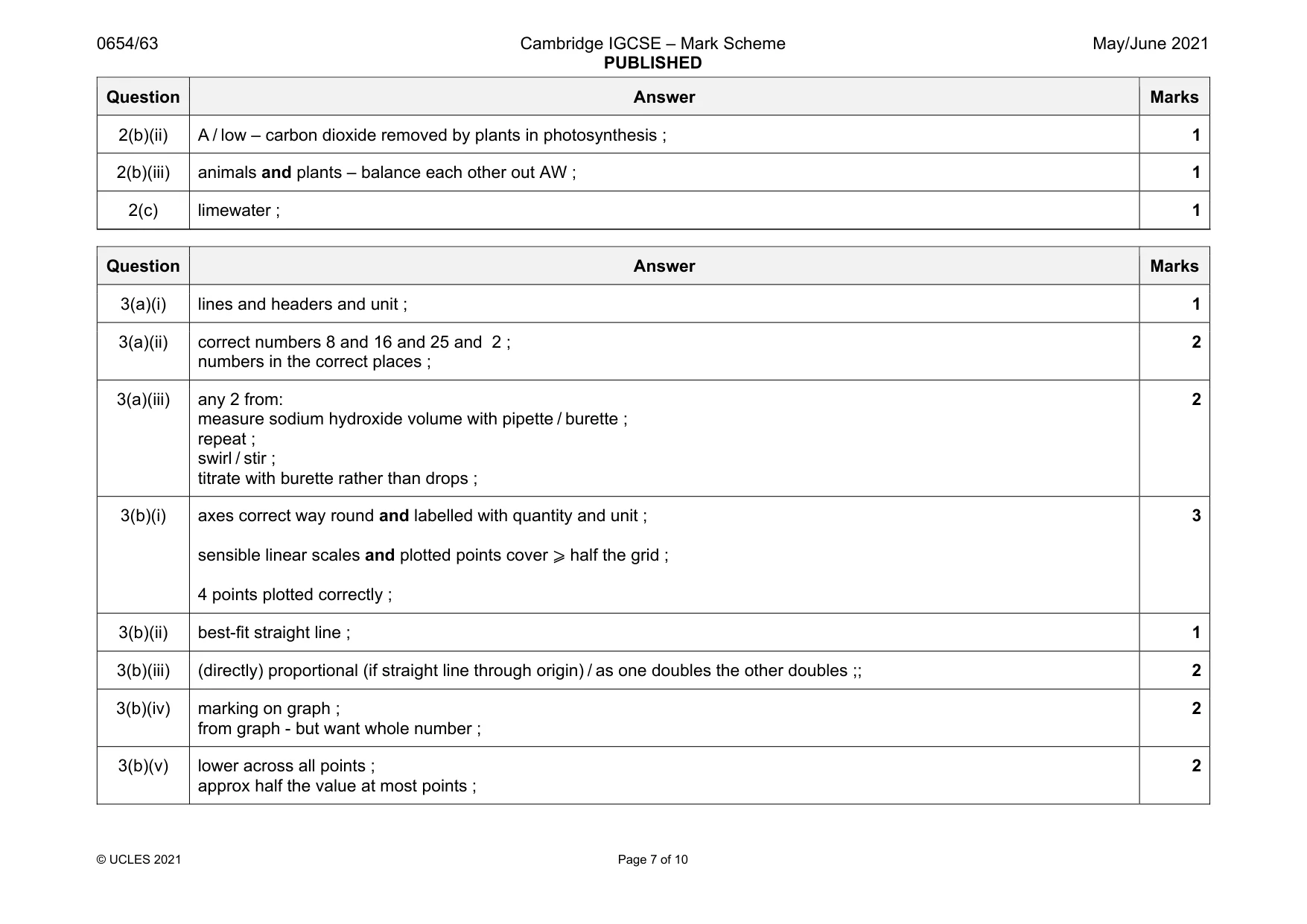

Mark scheme: 2(a)(i) low high normal ;; 2 2(a)(ii) syringe ; 1 2(b)(i) B / high – carbon dioxide produced by animals in respiration ; 1 Question Answer Marks 2(b)(ii) A / low – carbon dioxide removed by plants in photosynthesis ; 1 2(b)(iii) animals and plants – balance each other out AW ; 1 2(c) limewater ; 1

More questions on Experimental design

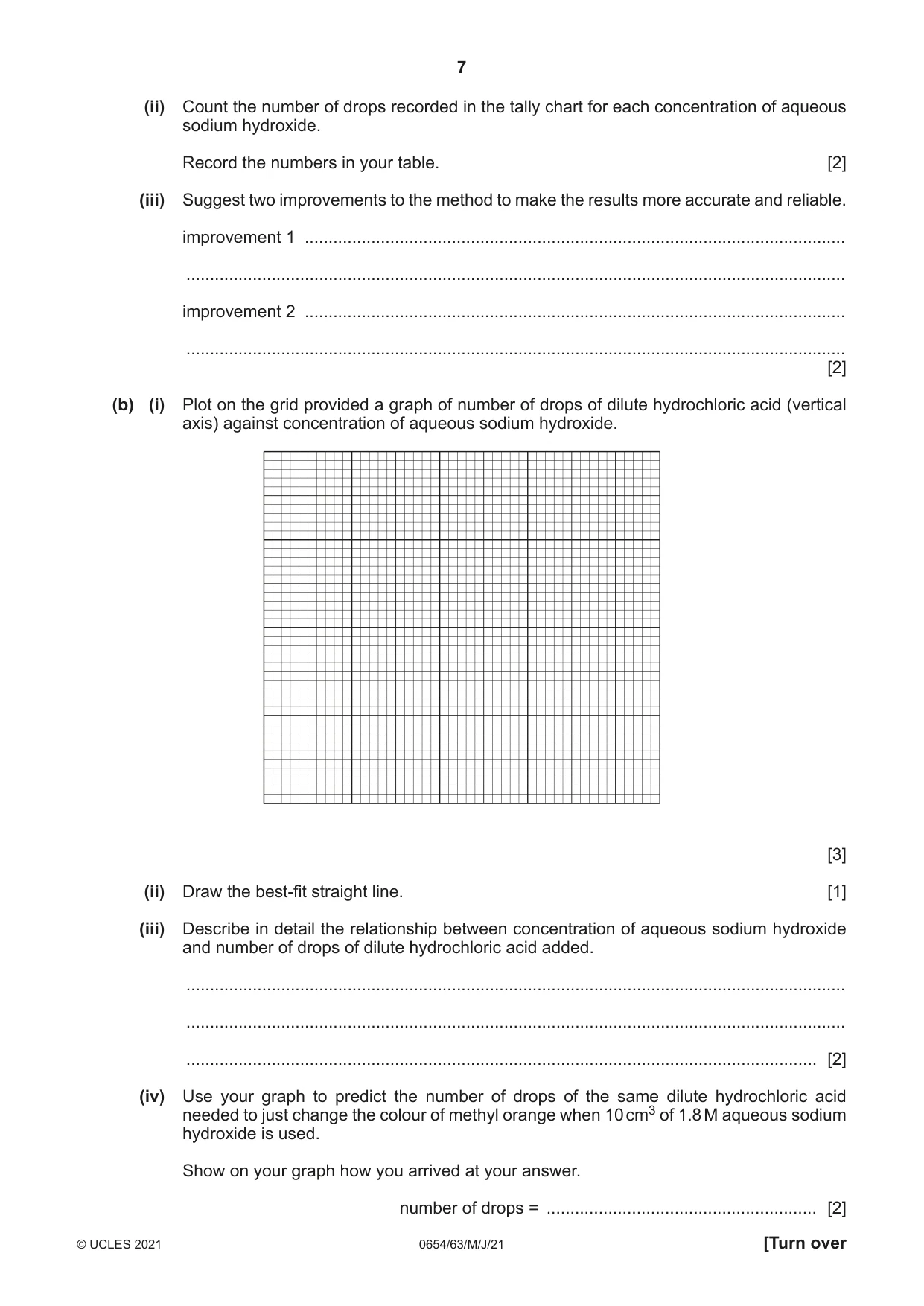

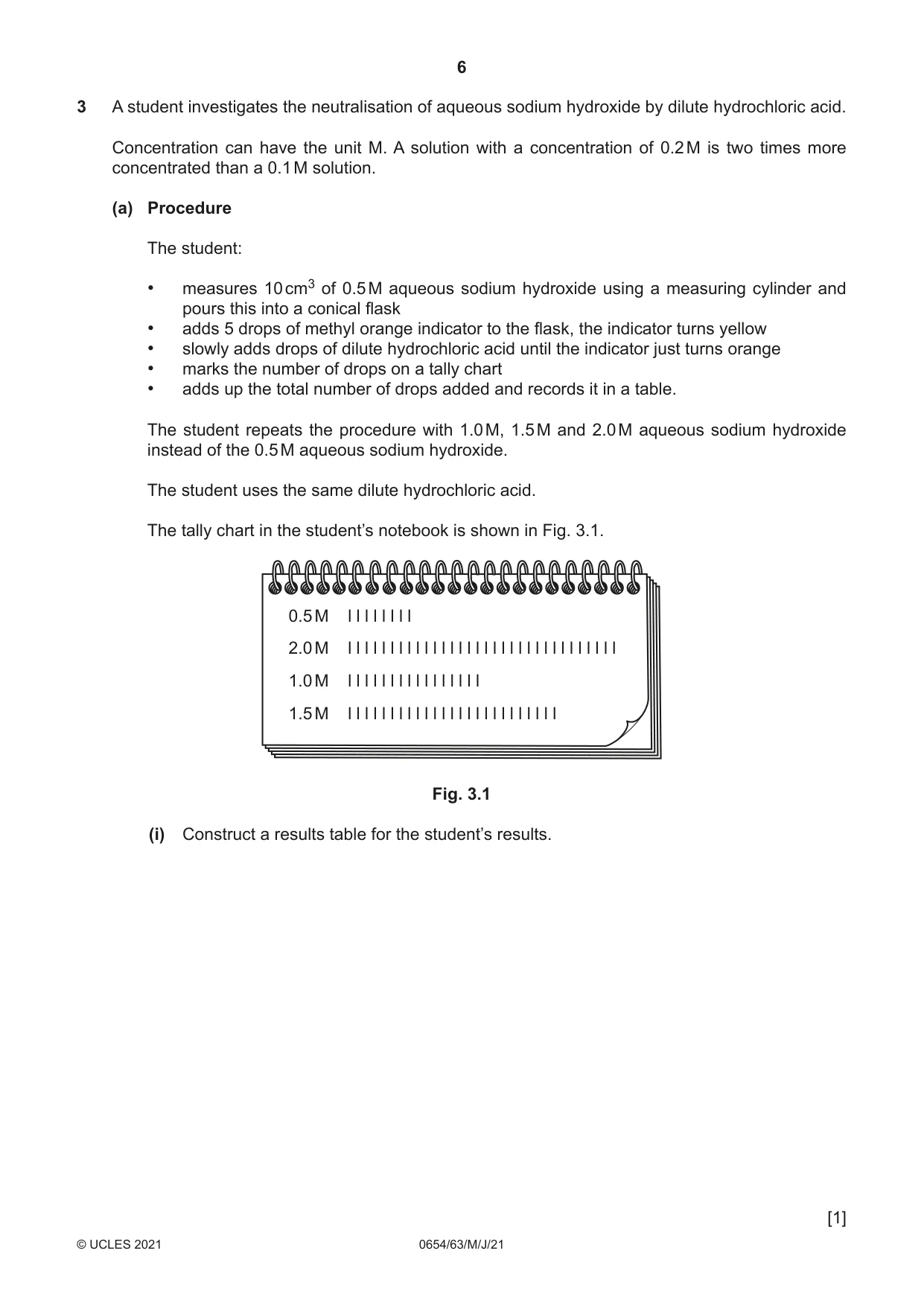

3 A student investigates the neutralisation of aqueous sodium hydroxide by dilute hydrochloric acid. Concentration can have the unit M. A solution with a concentration of 0.2 M is two times more concentrated than a 0.1 M solution. (a) Procedure The student: • measures 10 cm3 of 0.5 M aqueous sodium hydroxide using a measuring cylinder and pours this into a conical flask • adds 5 drops of methyl orange indicator to the flask, the indicator turns yellow • slowly adds drops of dilute hydrochloric acid until the indicator just turns orange • marks the number of drops on a tally chart • adds up the total number of drops added and records it in a table. The student repeats the procedure with 1.0 M, 1.5 M and 2.0 M aqueous sodium hydroxide instead of the 0.5 M aqueous sodium hydroxide. The student uses the same dilute hydrochloric acid. The tally chart in the student’s notebook is shown in Fig. 3.1. 0.5 M l l l l l l l l 2.0 M l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l 1.0 M l l l l l l l l l l l l l l l l 1.5 M l l l l l l l l l l l l l l l l l l l l l l l l l Fig. 3.1 (i) Construct a results table for the student’s results. [1] (ii) Count the number of drops recorded in the tally chart for each concentration of aqueous sodium hydroxide. Record the numbers in your table. [2] (iii) Suggest two improvements to the method to make the results more accurate and reliable. improvement 1 .................................................................................................................. ........................................................................................................................................... improvement 2 .................................................................................................................. ........................................................................................................................................... [2] (b) (i) Plot on the grid provided a graph of number of drops of dilute hydrochloric acid (vertical axis) against concentration of aqueous sodium hydroxide. [3] (ii) Draw the best‑fit straight line. [1] (iii) Describe in detail the relationship between concentration of aqueous sodium hydroxide and number of drops of dilute hydrochloric acid added. ........................................................................................................................................... ........................................................................................................................................... ..................................................................................................................................... [2] (iv) Use your graph to predict the number of drops of the same dilute hydrochloric acid needed to just change the colour of methyl orange when 10 cm3 of 1.8 M aqueous sodium hydroxide is used. Show on your graph how you arrived at your answer. number of drops = ......................................................... [2] (v) The student repeats the four experiments but this time uses hydrochloric acid that is twice as concentrated. Draw a line on the grid to show the results the student should expect to get. Label this line E. [2] (c) The mixture in the conical flask is a solution of the salt called sodium chloride. Fig. 3.2 shows drawings of apparatus. A B NOT TO SCALE Fig. 3.2 (i) Name the pieces of apparatus shown in Fig. 3.2 labelled A and B. A is .................................................................................................................................... B is .................................................................................................................................... [2] (ii) A student wants to separate the salt from the aqueous salt solution. Choose the apparatus from Fig. 3.2 needed to separate quickly the salt from the aqueous salt solution. Draw a large, clear, labelled diagram of the assembled apparatus used to get the salt. Use a ruler. [3] [Total: 20]

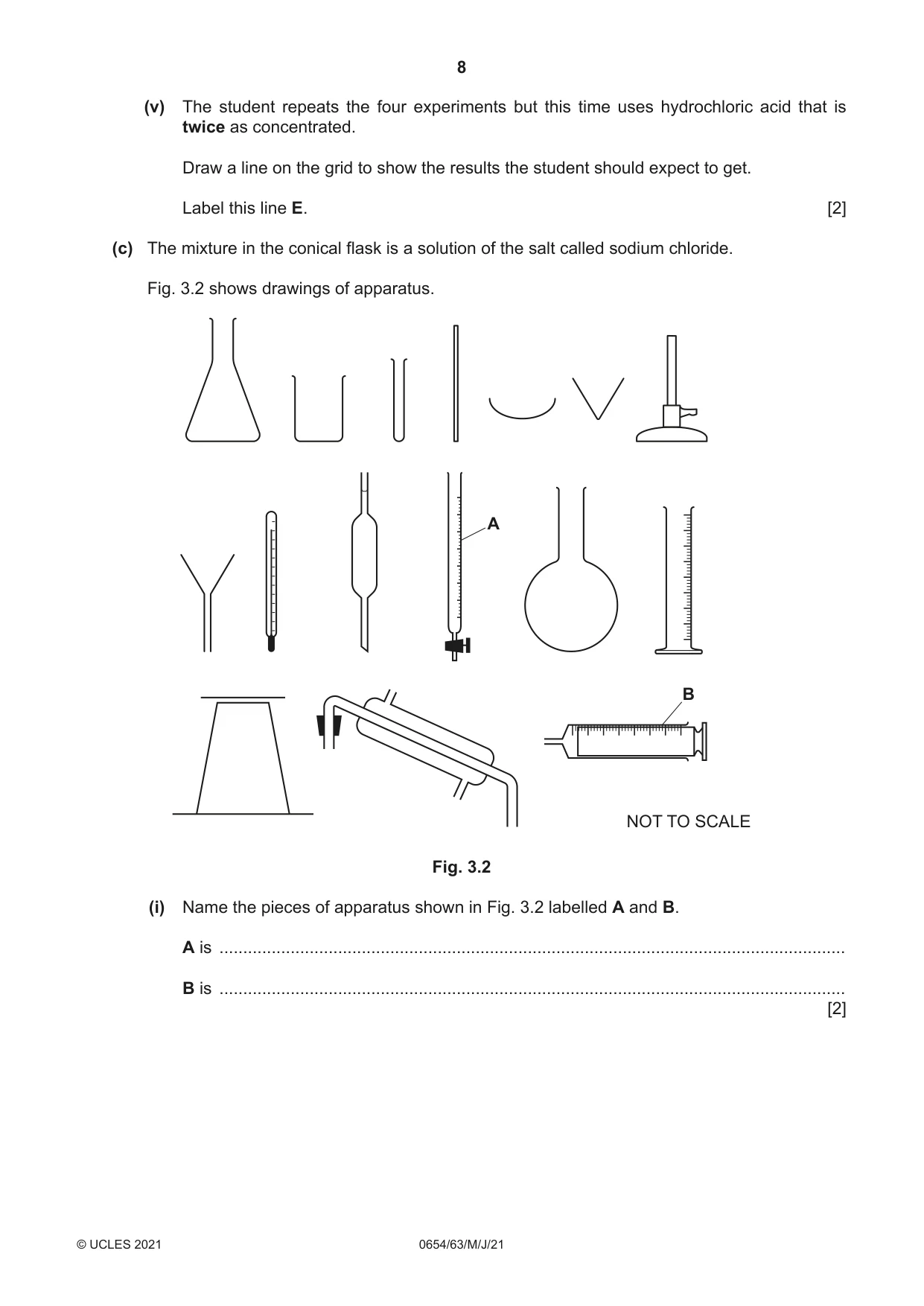

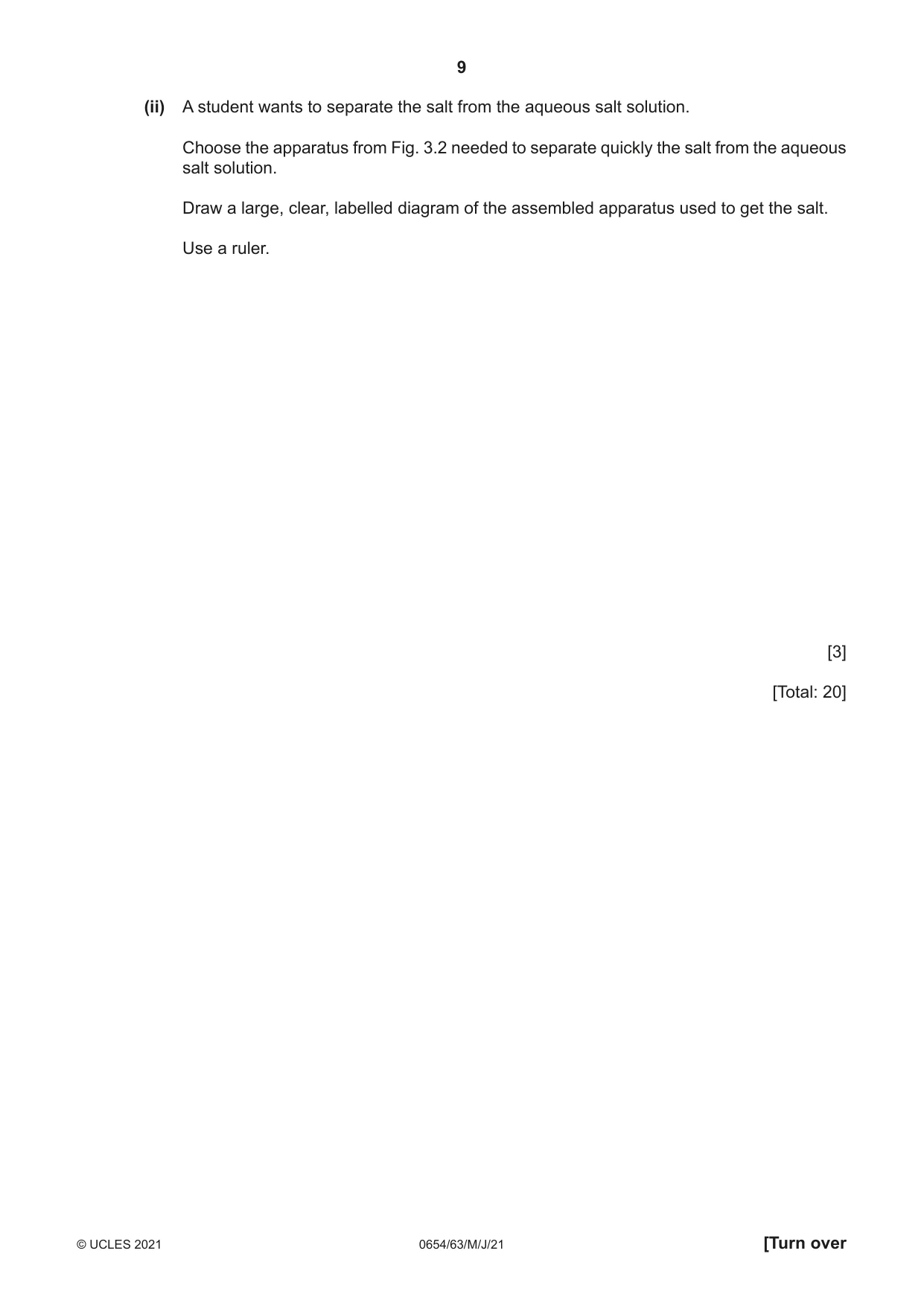

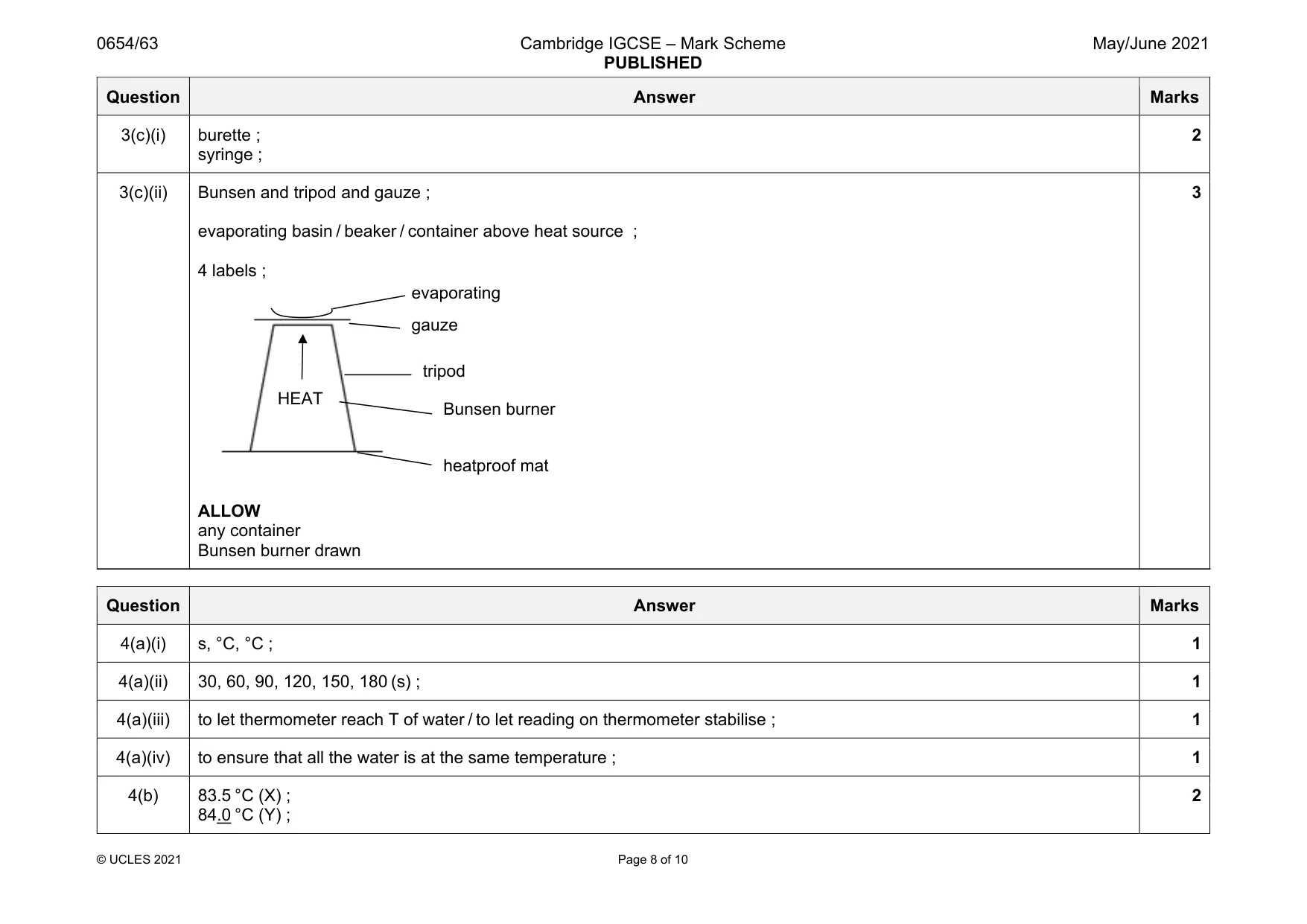

Mark scheme: 3(a)(i) lines and headers and unit ; 1 3(a)(ii) correct numbers 8 and 16 and 25 and 2 ; numbers in the correct places ; 2 3(a)(iii) any 2 from: measure sodium hydroxide volume with pipette / burette ; repeat ; swirl / stir ; titrate with burette rather than drops ; 2 3(b)(i) axes correct way round and labelled with quantity and unit ; sensible linear scales and plotted points cover ⩾ half the grid ; 4 points plotted correctly ; 3 3(b)(ii) best-fit straight line ; 1 3(b)(iii) (directly) proportional (if straight line through origin) / as one doubles the other doubles ;; 2 3(b)(iv) marking on graph ; from graph - but want whole number ; 2 3(b)(v) lower across all points ; approx half the value at most points ; 2 Question Answer Marks 3(c)(i) burette ; syringe ; 2 3(c)(ii) Bunsen and tripod and gauze ; evaporating basin / beaker / container above heat source ; 4 labels ; ALLOW any container Bunsen burner drawn 3 HEAT evaporating gauze tripod heatproof mat Bunsen burner

More questions on Experimental design

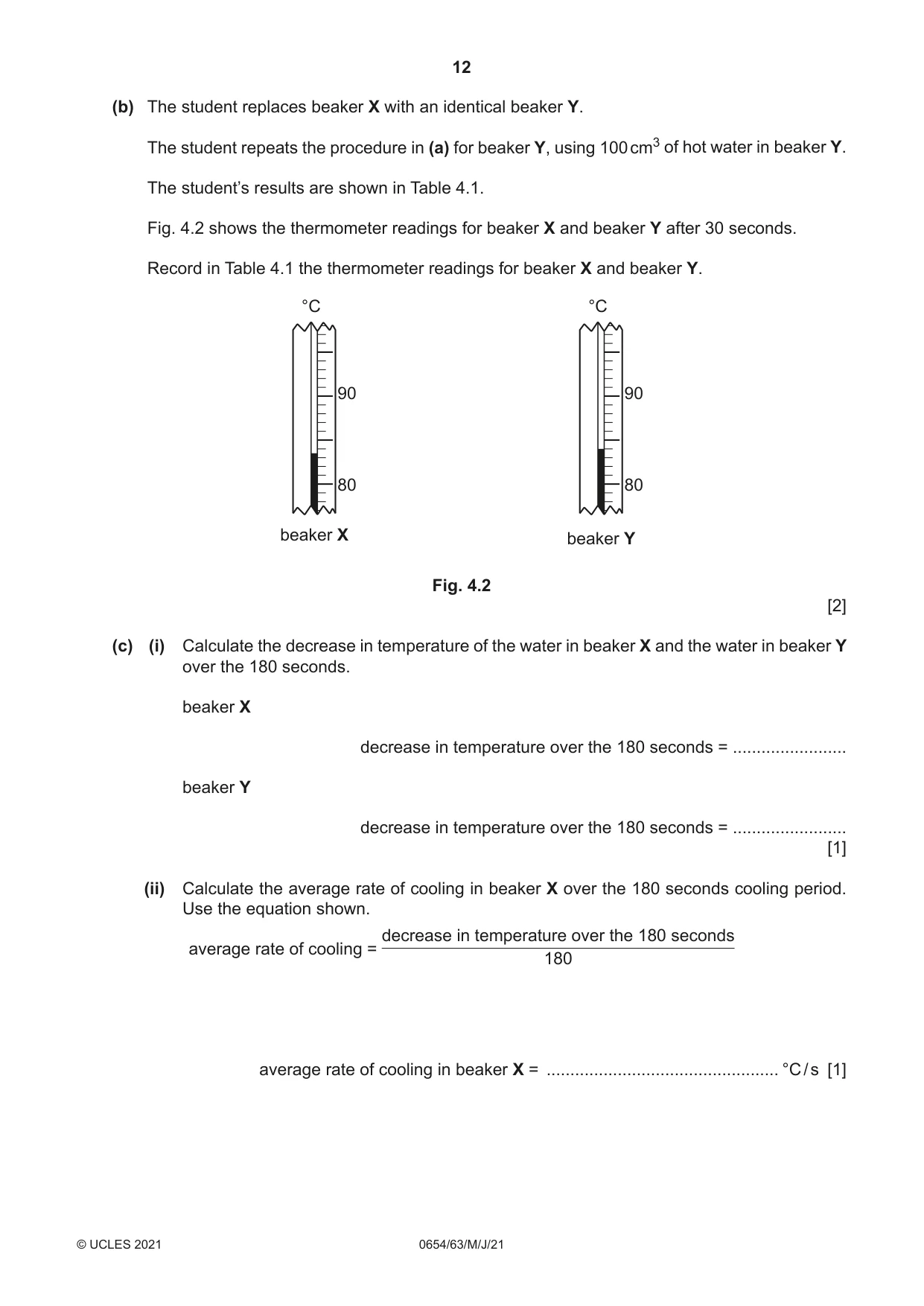

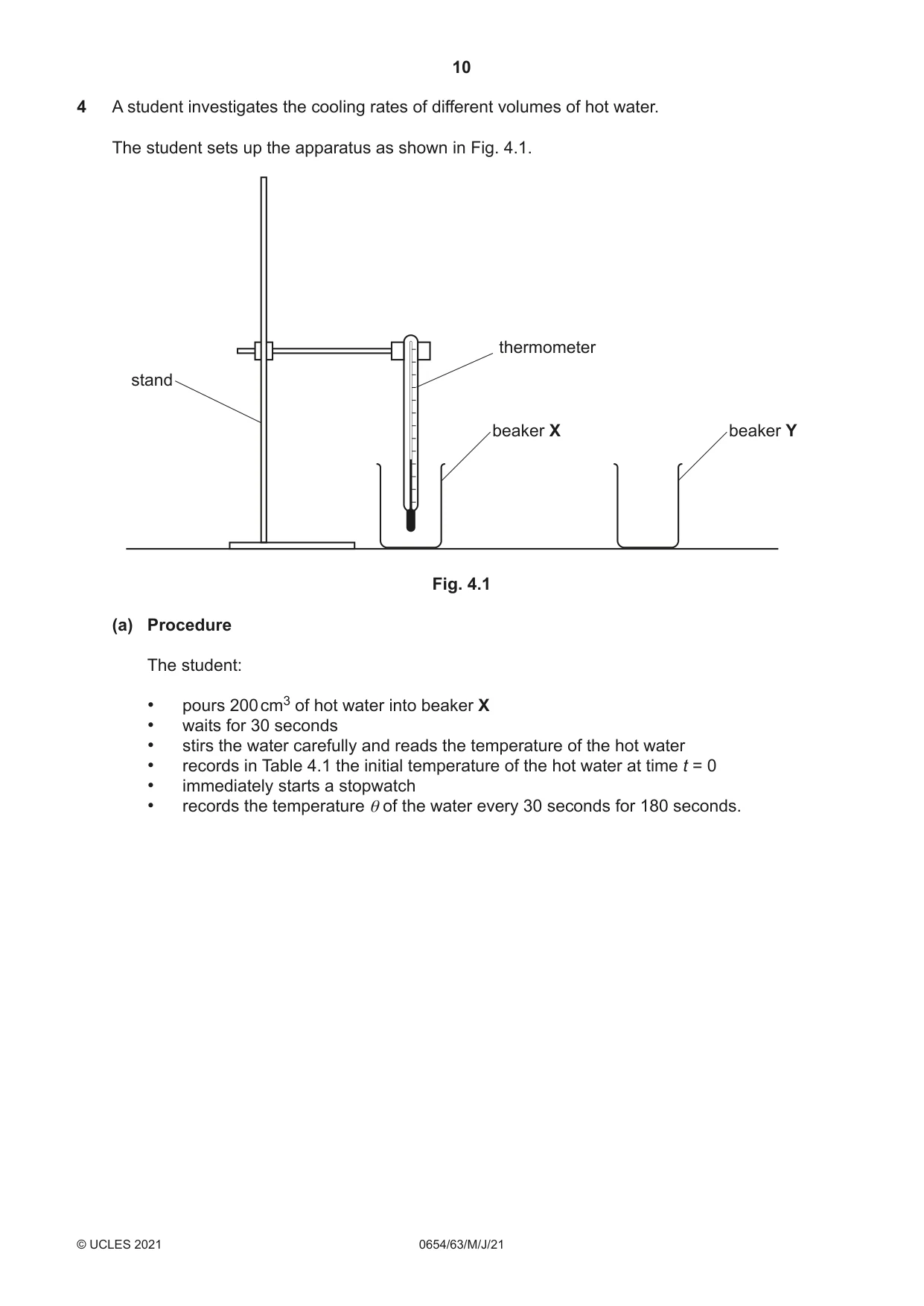

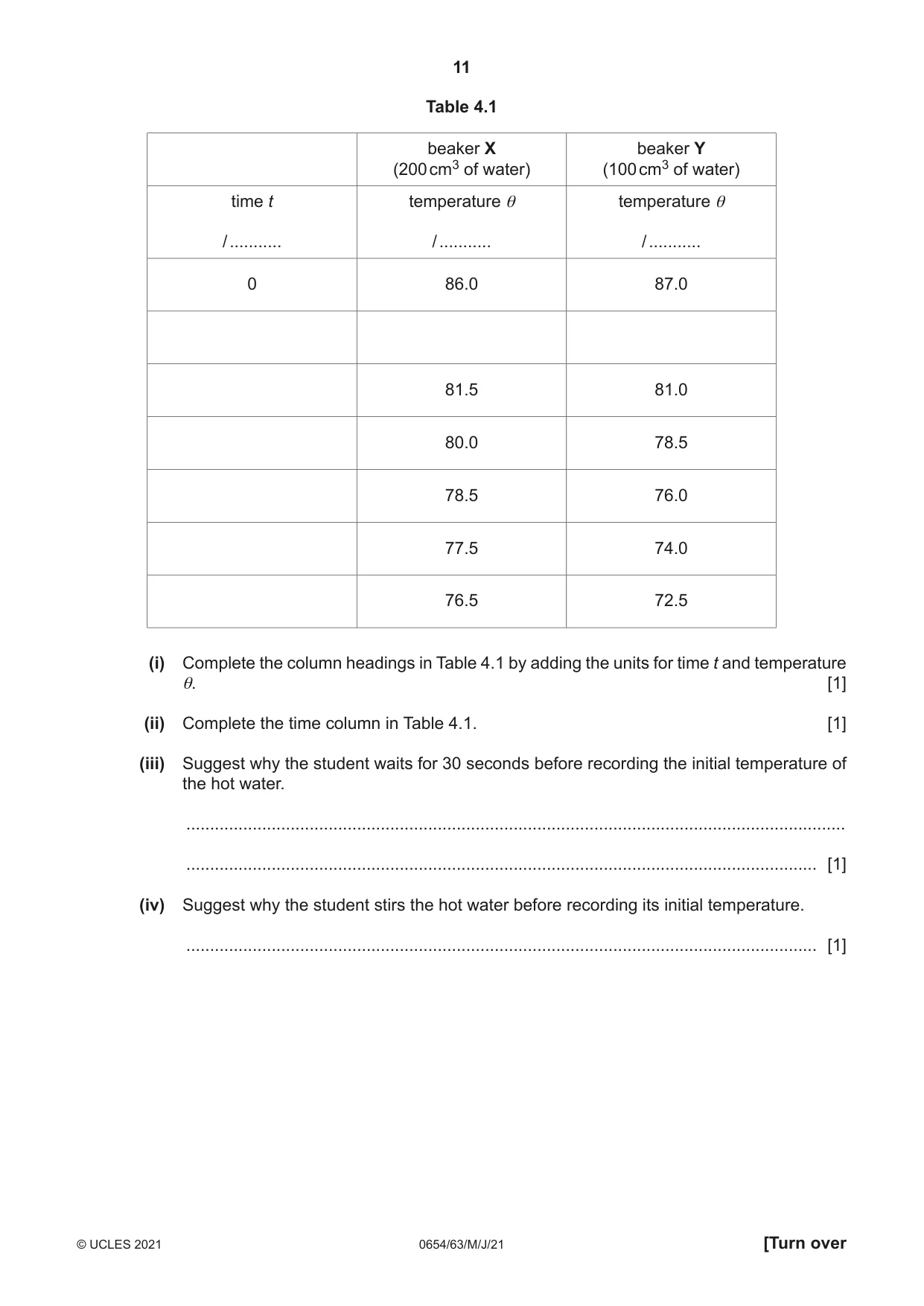

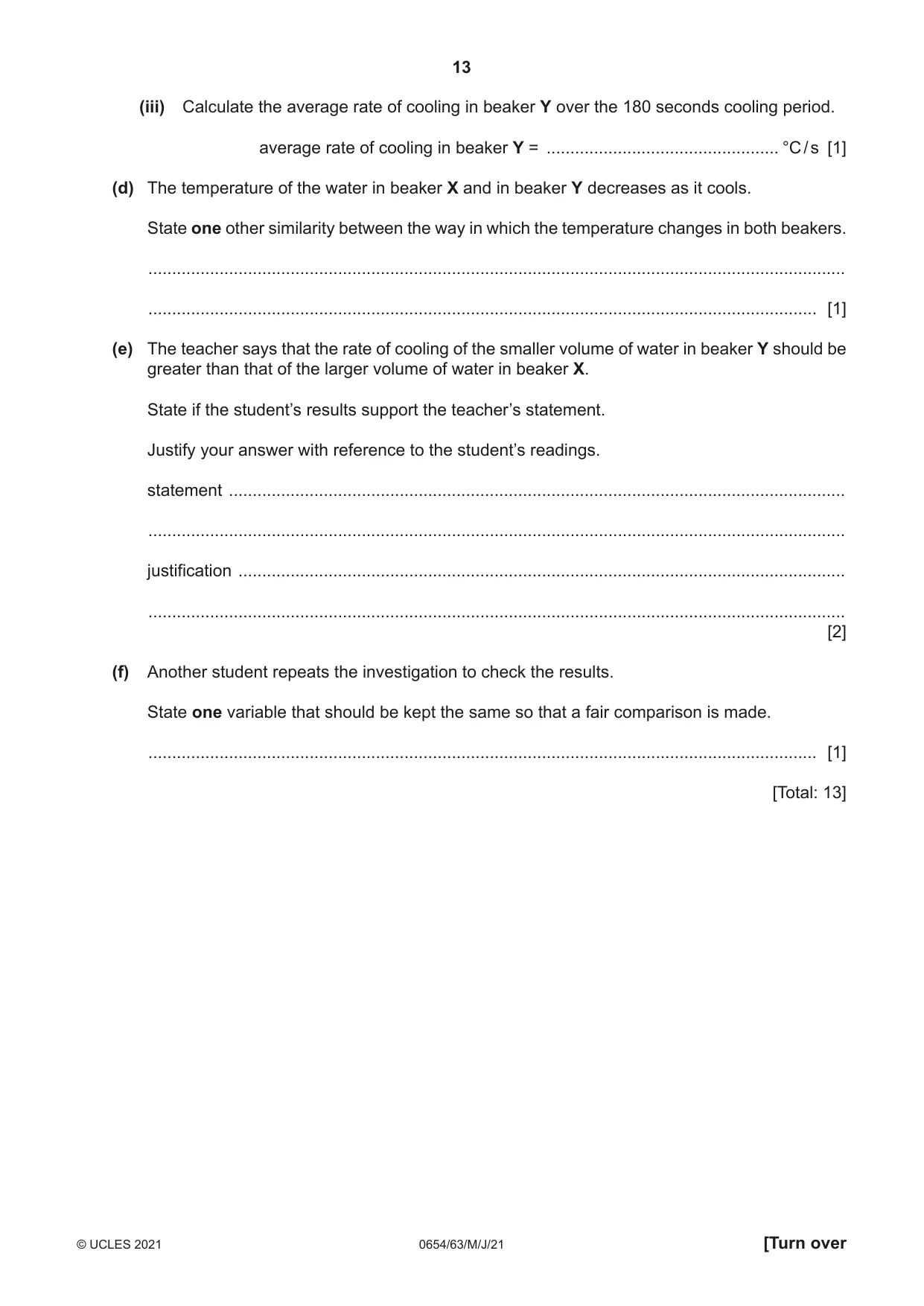

4 A student investigates the cooling rates of different volumes of hot water. The student sets up the apparatus as shown in Fig. 4.1. thermometer stand beaker X beaker Y Fig. 4.1 (a) Procedure The student: • pours 200 cm3 of hot water into beaker X • waits for 30 seconds • stirs the water carefully and reads the temperature of the hot water • records in Table 4.1 the initial temperature of the hot water at time t = 0 • immediately starts a stopwatch • records the temperature θ of the water every 30 seconds for 180 seconds. Table 4.1 beaker X beaker Y (200 cm3 of water) (100 cm3 of water) time t temperature θ temperature θ / ........... / ........... / ........... 0 86.0 87.0 81.5 81.0 80.0 78.5 78.5 76.0 77.5 74.0 76.5 72.5 (i) Complete the column headings in Table 4.1 by adding the units for time t and temperature θ. [1] (ii) Complete the time column in Table 4.1. [1] (iii) Suggest why the student waits for 30 seconds before recording the initial temperature of the hot water. ........................................................................................................................................... ..................................................................................................................................... [1] (iv) Suggest why the student stirs the hot water before recording its initial temperature. ..................................................................................................................................... [1] (b) The student replaces beaker X with an identical beaker Y. The student repeats the procedure in (a) for beaker Y, using 100 cm3 of hot water in beaker Y. The student’s results are shown in Table 4.1. Fig. 4.2 shows the thermometer readings for beaker X and beaker Y after 30 seconds. Record in Table 4.1 the thermometer readings for beaker X and beaker Y. °C °C 90 90 80 80 beaker X beaker Y Fig. 4.2 [2] (c) (i) Calculate the decrease in temperature of the water in beaker X and the water in beaker Y over the 180 seconds. beaker X decrease in temperature over the 180 seconds = ........................ beaker Y decrease in temperature over the 180 seconds = ........................ [1] (ii) Calculate the average rate of cooling in beaker X over the 180 seconds cooling period. Use the equation shown. decrease in temperature over the 180 seconds average rate of cooling = 180 average rate of cooling in beaker X = ................................................. °C / s [1]

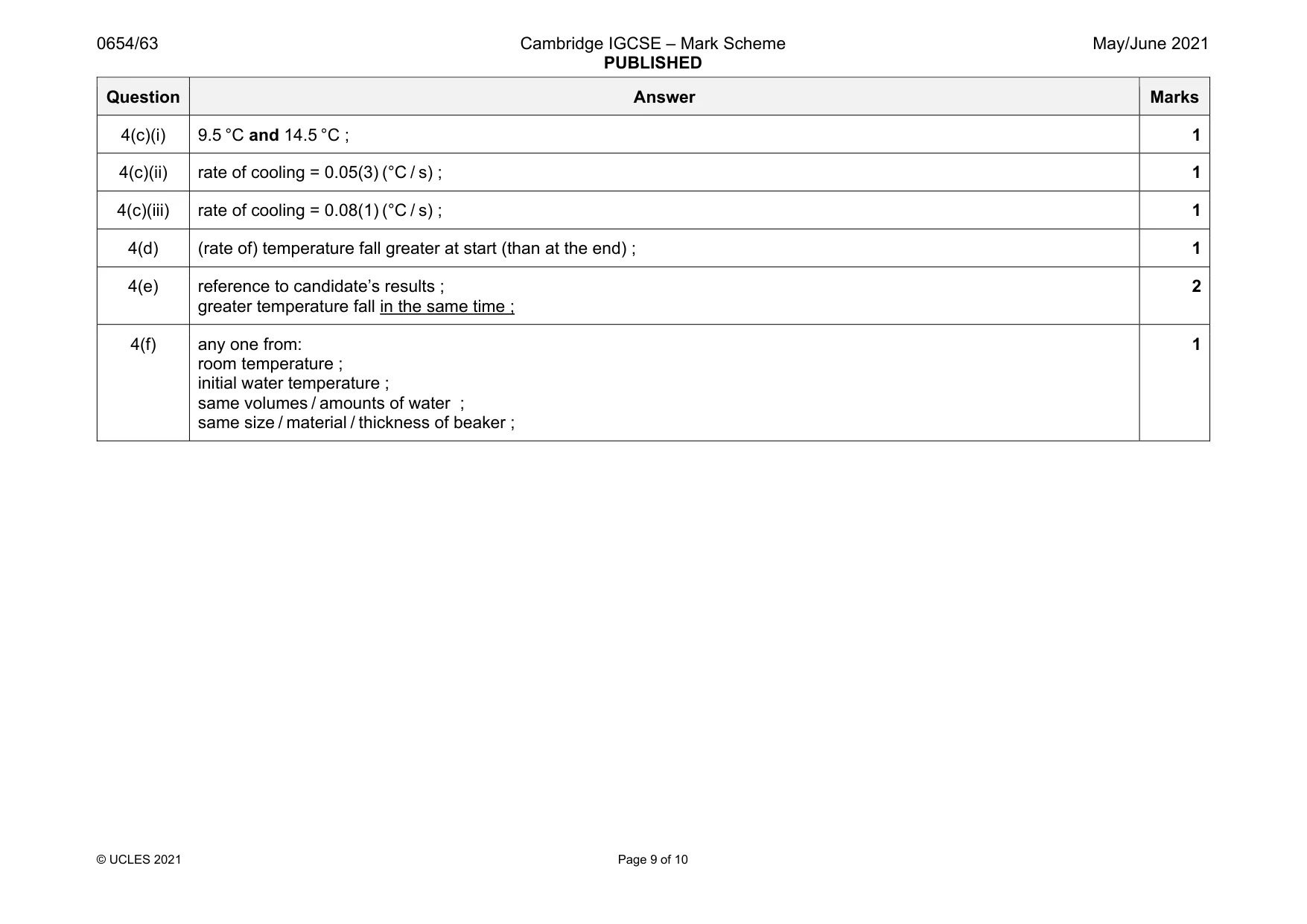

Mark scheme: 4(a)(i) s, °C, °C ; 1 4(a)(ii) 30, 60, 90, 120, 150, 180 (s) ; 1 4(a)(iii) to let thermometer reach T of water / to let reading on thermometer stabilise ; 1 4(a)(iv) to ensure that all the water is at the same temperature ; 1 4(b) 83.5 °C (X) ; 84.0 °C (Y) ; 2 Question Answer Marks 4(c)(i) 9.5 °C and 14.5 °C ; 1 4(c)(ii) rate of cooling = 0.05(3) (°C / s) ; 1 4(c)(iii) rate of cooling = 0.08(1) (°C / s) ; 1 4(d) (rate of) temperature fall greater at start (than at the end) ; 1 4(e) reference to candidate’s results ; greater temperature fall in the same time ; 2 4(f) any one from: room temperature ; initial water temperature ; same volumes / amounts of water ; same size / material / thickness of beaker ; 1

More questions on Physical quantities and measurement techniques

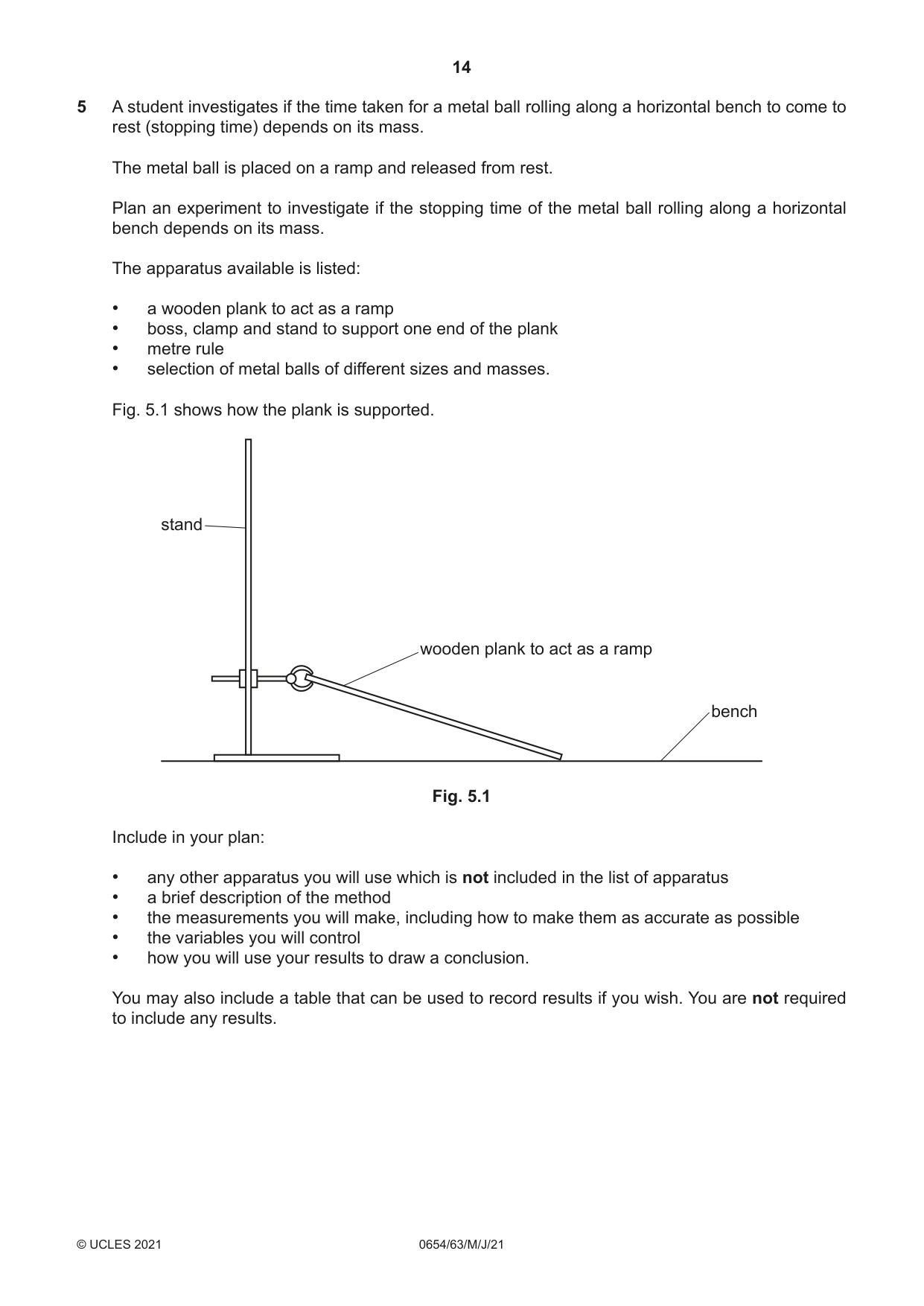

5 A student investigates if the time taken for a metal ball rolling along a horizontal bench to come to rest (stopping time) depends on its mass. The metal ball is placed on a ramp and released from rest. Plan an experiment to investigate if the stopping time of the metal ball rolling along a horizontal bench depends on its mass. The apparatus available is listed: • a wooden plank to act as a ramp • boss, clamp and stand to support one end of the plank • metre rule • selection of metal balls of different sizes and masses. Fig. 5.1 shows how the plank is supported. stand wooden plank to act as a ramp bench Fig. 5.1 Include in your plan: • any other apparatus you will use which is not included in the list of apparatus • a brief description of the method • the measurements you will make, including how to make them as accurate as possible • the variables you will control • how you will use your results to draw a conclusion. You may also include a table that can be used to record results if you wish. You are not required to include any results. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... ..........................................................................................................................................................

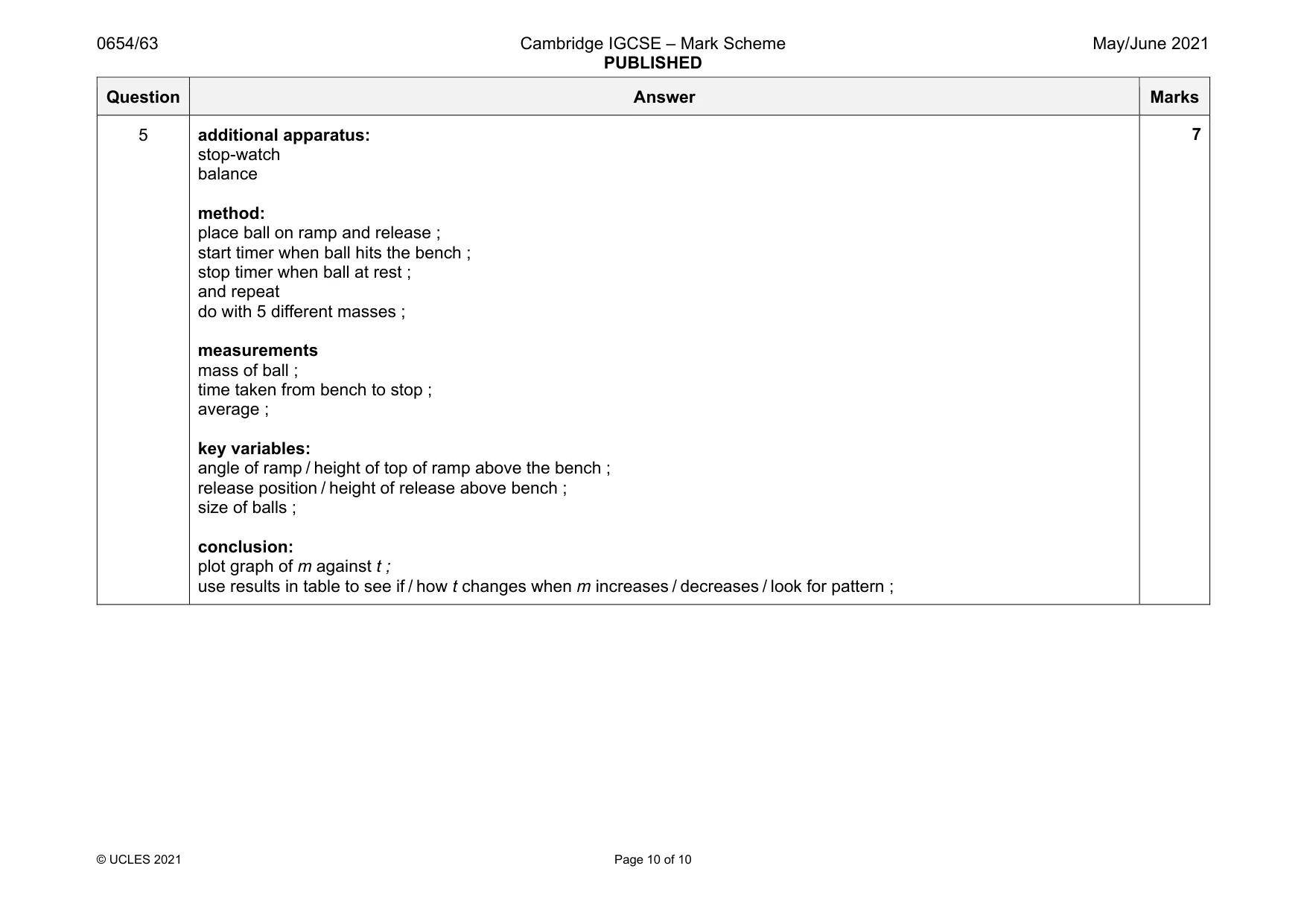

Mark scheme: 5 additional apparatus: stop-watch balance method: place ball on ramp and release ; start timer when ball hits the bench ; stop timer when ball at rest ; and repeat do with 5 different masses ; measurements mass of ball ; time taken from bench to stop ; average ; key variables: angle of ramp / height of top of ramp above the bench ; release position / height of release above bench ; size of balls ; conclusion: plot graph of m against t ; use results in table to see if / how t changes when m increases / decreases / look for pattern ;
