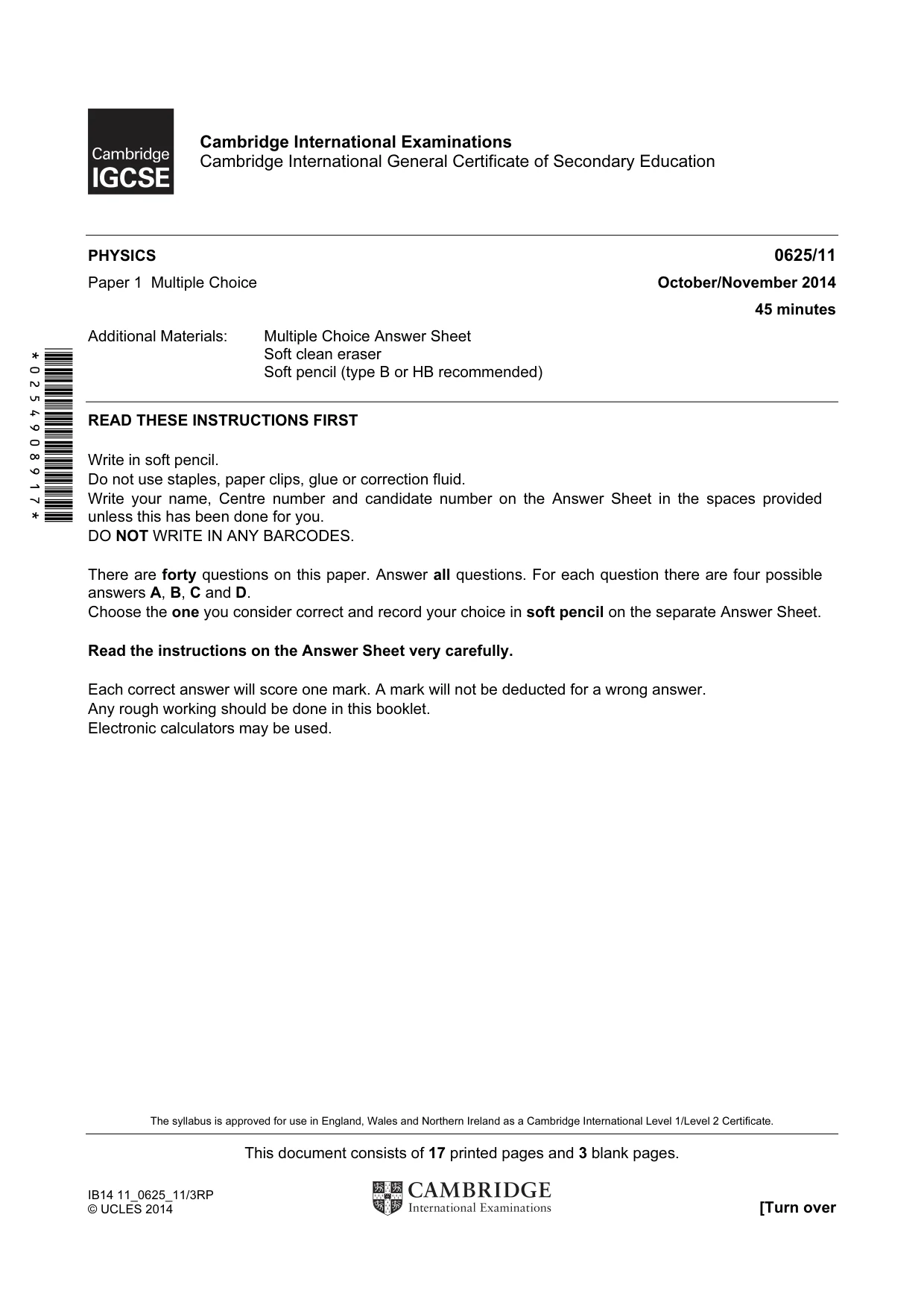

Cambridge IGCSE Physics 0625 — 2014 Oct/Nov Paper 1 · Variant 1

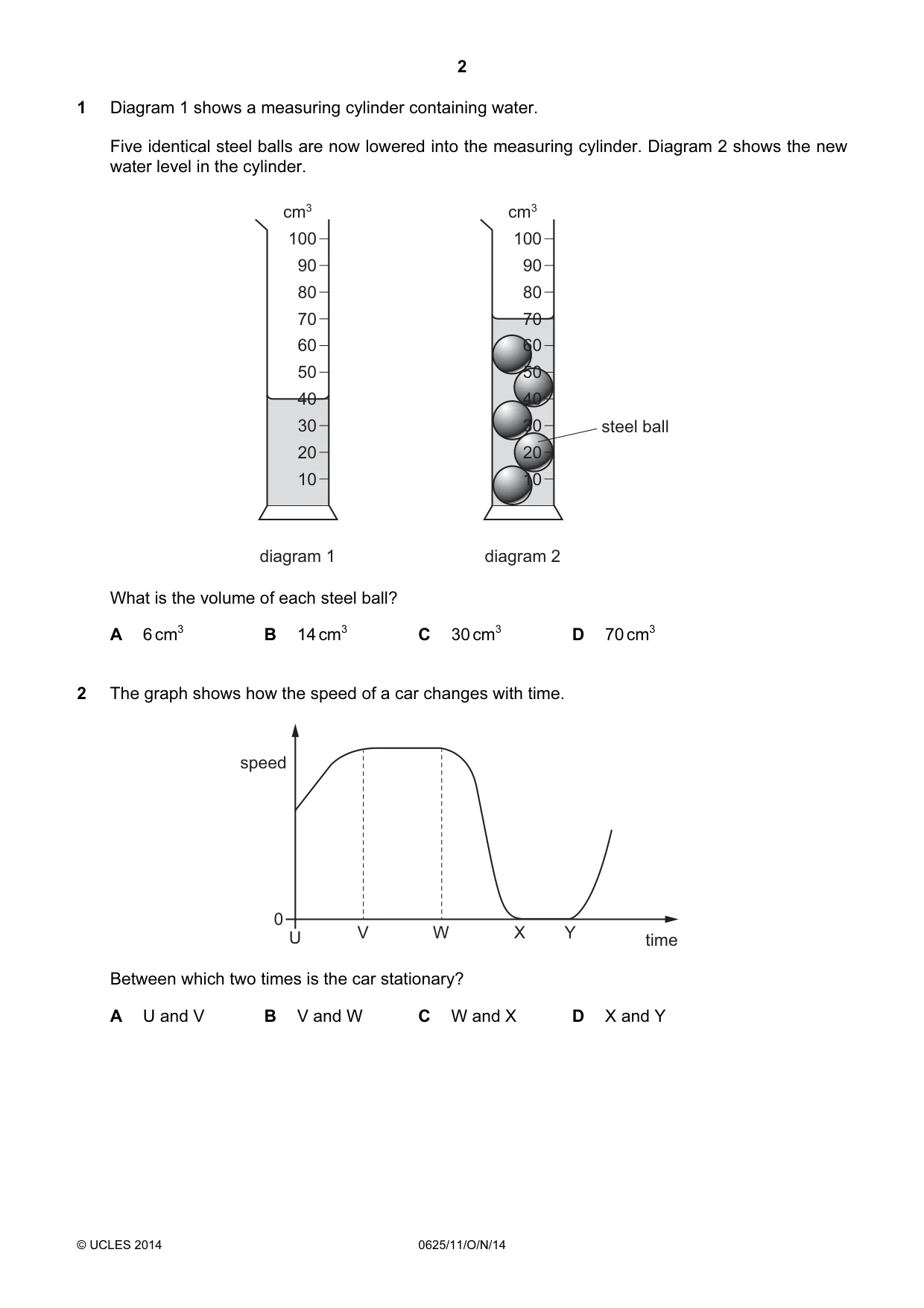

1 Diagram 1 shows a measuring cylinder containing water. Five identical steel balls are now lowered into the measuring cylinder. Diagram 2 shows the new water level in the cylinder. cm3 cm3 100 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 steel ball 20 20 10 10 diagram 1 diagram 2 What is the volume of each steel ball? A 6 cm3 B 14 cm3 C 30 cm3 D 70 cm3

Mark scheme: A

More questions on Physical quantities and measurement techniques

2 The graph shows how the speed of a car changes with time. speed 0 U V W X Y time Between which two times is the car stationary? A U and V B V and W C W and X D X and Y

Mark scheme: D

More questions on Motion

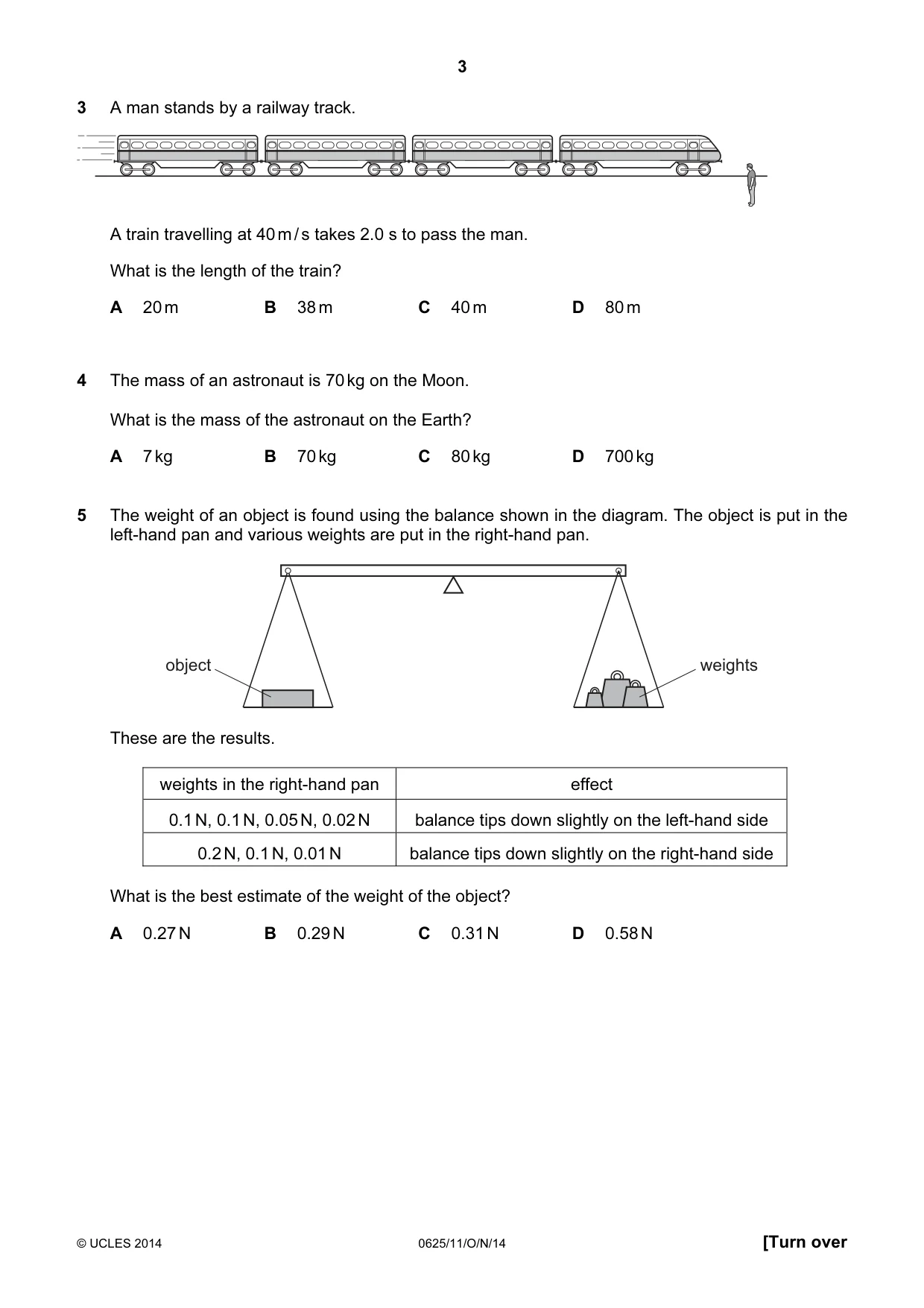

3 A man stands by a railway track. A train travelling at 40 m / s takes 2.0 s to pass the man. What is the length of the train? A 20 m B 38 m C 40 m D 80 m

Mark scheme: D

More questions on Motion

4 The mass of an astronaut is 70 kg on the Moon. What is the mass of the astronaut on the Earth? A 7 kg B 70 kg C 80 kg D 700 kg

Mark scheme: B

More questions on Mass and weight

5 The weight of an object is found using the balance shown in the diagram. The object is put in the left-hand pan and various weights are put in the right-hand pan. object weights These are the results. weights in the right-hand pan effect 0.1 N, 0.1 N, 0.05 N, 0.02 N balance tips down slightly on the left-hand side 0.2 N, 0.1 N, 0.01 N balance tips down slightly on the right-hand side What is the best estimate of the weight of the object? A 0.27 N B 0.29 N C 0.31 N D 0.58 N

Mark scheme: B

More questions on Mass and weight

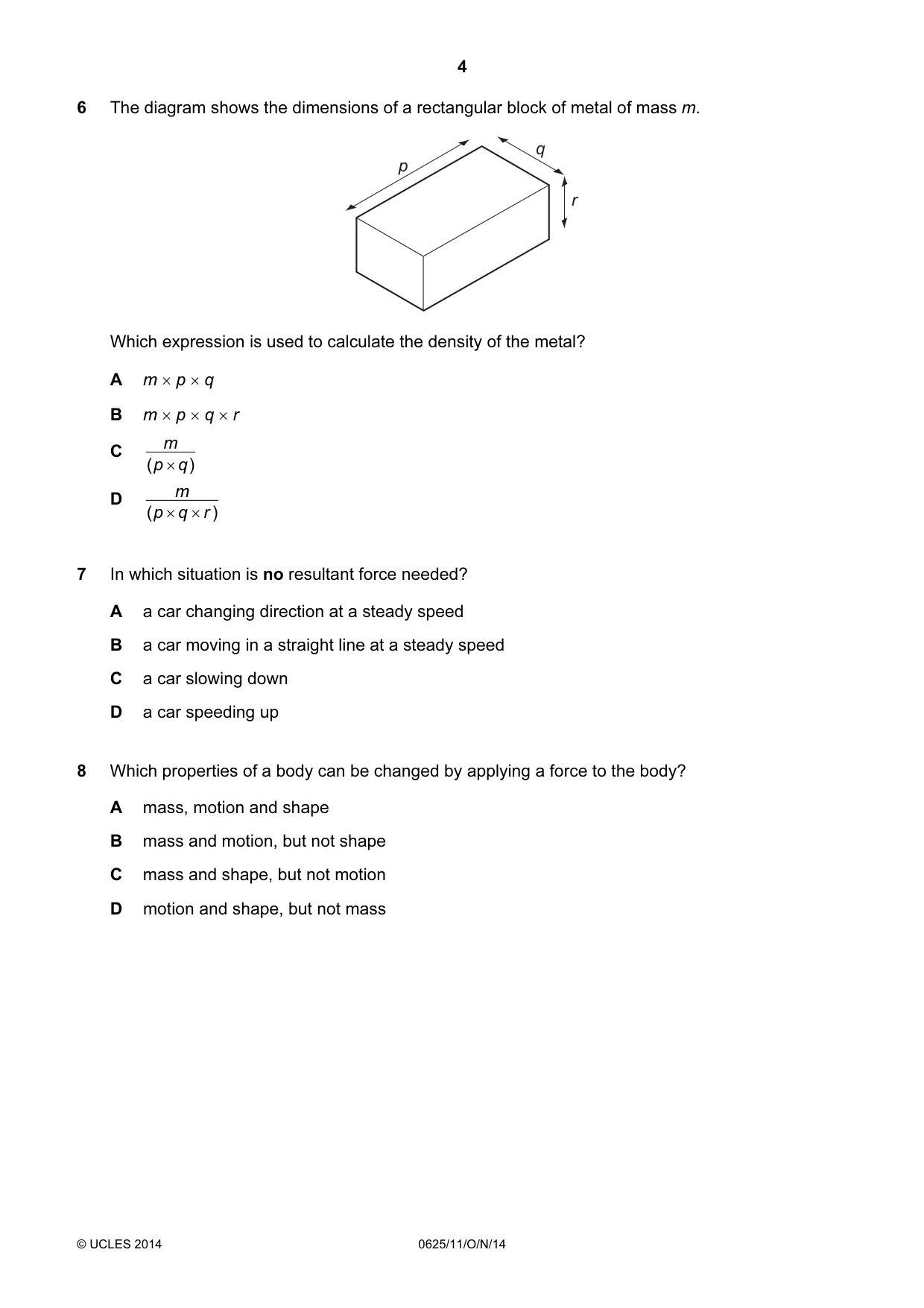

6 The diagram shows the dimensions of a rectangular block of metal of mass m. q p r Which expression is used to calculate the density of the metal? A m × p × q B m × p × q × r C m ( p × q ) D m ( p × q × r )

Mark scheme: D

More questions on Density

7 In which situation is no resultant force needed? A a car changing direction at a steady speed B a car moving in a straight line at a steady speed C a car slowing down D a car speeding up

Mark scheme: B

More questions on Forces

8 Which properties of a body can be changed by applying a force to the body? A mass, motion and shape B mass and motion, but not shape C mass and shape, but not motion D motion and shape, but not mass

Mark scheme: D

More questions on Forces

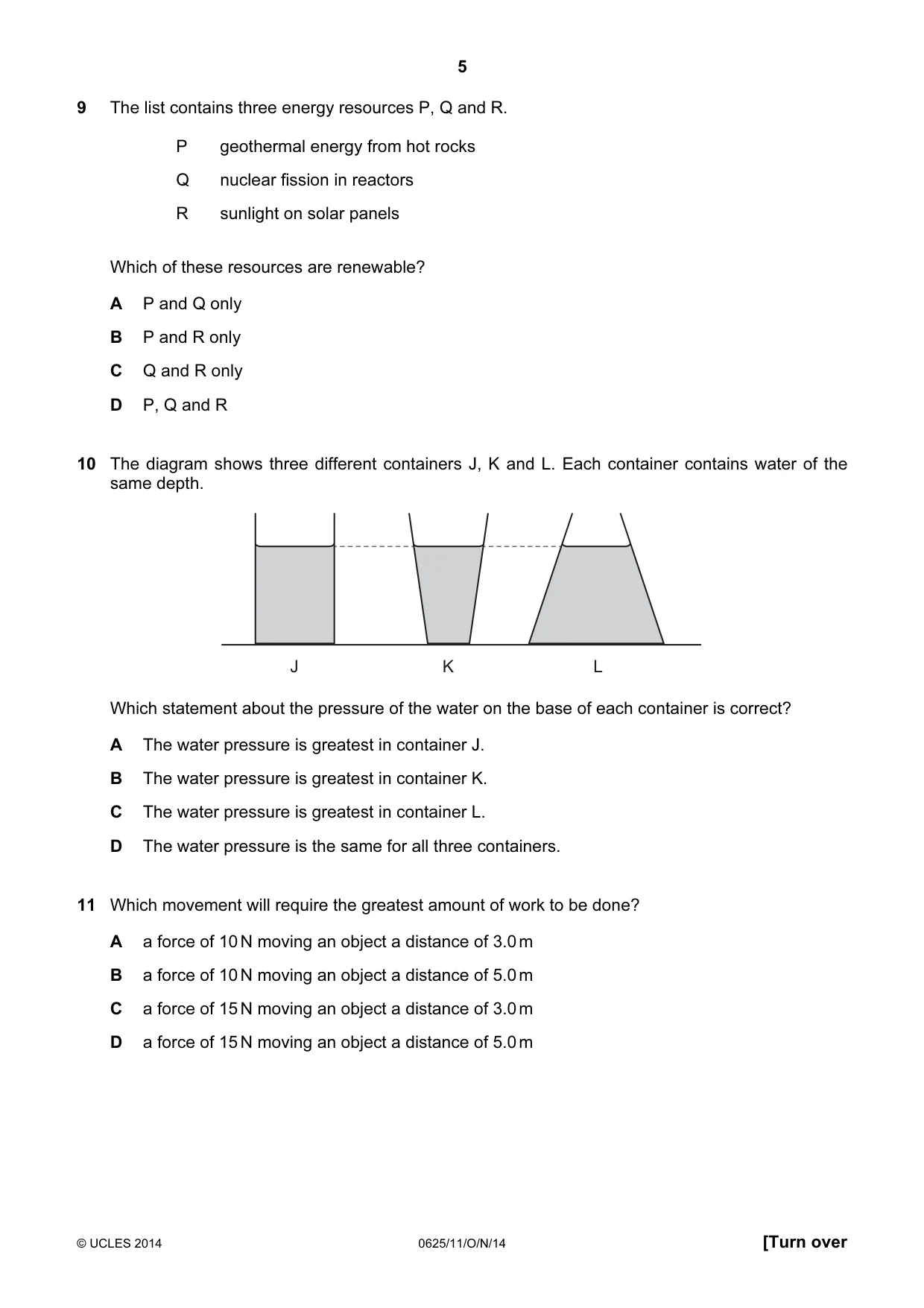

9 The list contains three energy resources P, Q and R. P geothermal energy from hot rocks Q nuclear fission in reactors R sunlight on solar panels Which of these resources are renewable? A P and Q only B P and R only C Q and R only D P, Q and R

Mark scheme: B

More questions on Energy, work and power

10 The diagram shows three different containers J, K and L. Each container contains water of the same depth. J K L Which statement about the pressure of the water on the base of each container is correct? A The water pressure is greatest in container J. B The water pressure is greatest in container K. C The water pressure is greatest in container L. D The water pressure is the same for all three containers.

Mark scheme: D

More questions on Pressure

11 Which movement will require the greatest amount of work to be done? A a force of 10 N moving an object a distance of 3.0 m B a force of 10 N moving an object a distance of 5.0 m C a force of 15 N moving an object a distance of 3.0 m D a force of 15 N moving an object a distance of 5.0 m

Mark scheme: D

More questions on Energy, work and power

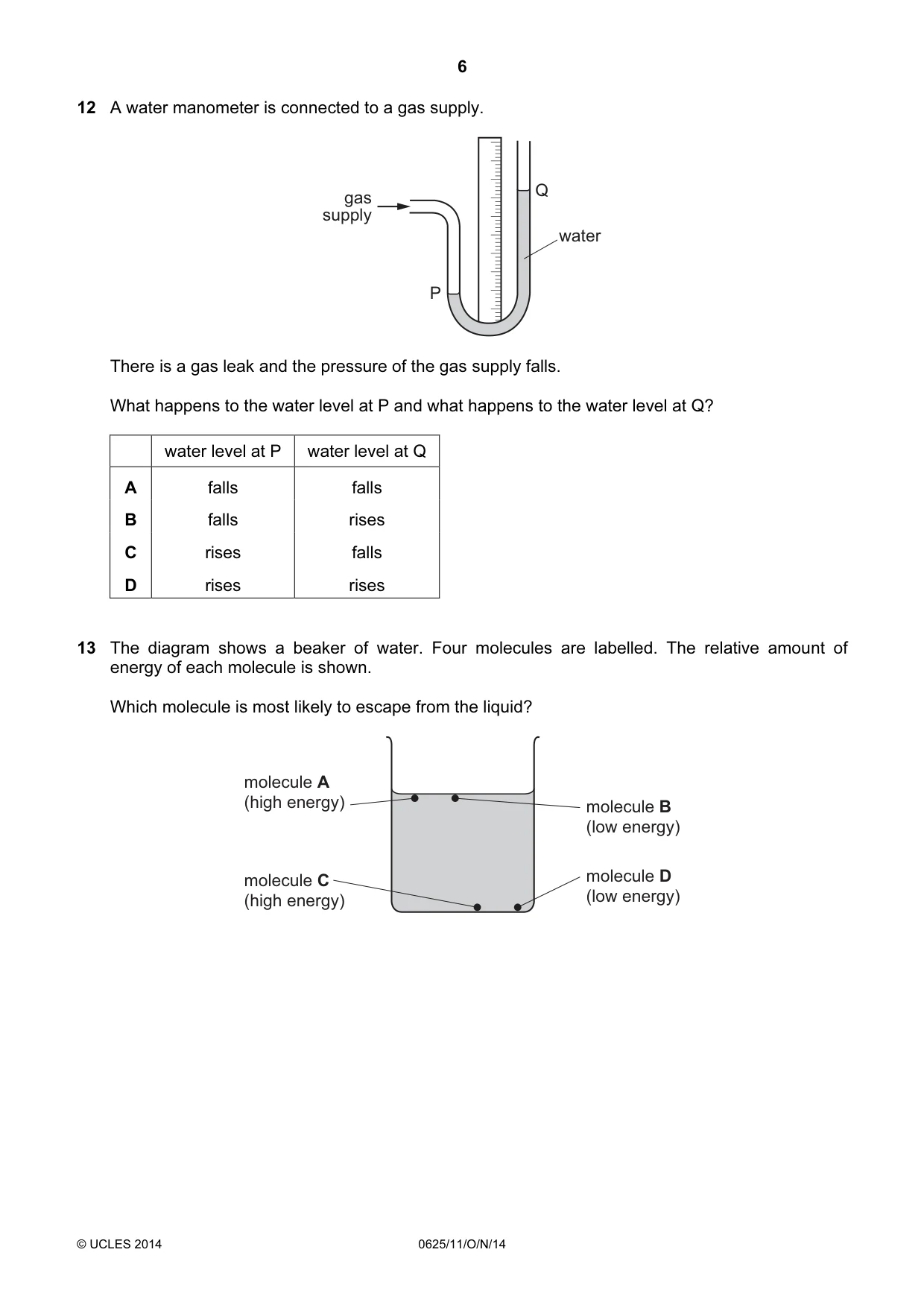

12 A water manometer is connected to a gas supply. Q gas supply water P There is a gas leak and the pressure of the gas supply falls. What happens to the water level at P and what happens to the water level at Q? water level at P water level at Q A falls falls B falls rises C rises falls D rises rises

Mark scheme: C

More questions on Pressure

13 The diagram shows a beaker of water. Four molecules are labelled. The relative amount of energy of each molecule is shown. Which molecule is most likely to escape from the liquid? molecule A (high energy) molecule B (low energy) molecule C molecule D (high energy) (low energy)

Mark scheme: A

More questions on Kinetic particle model of matter

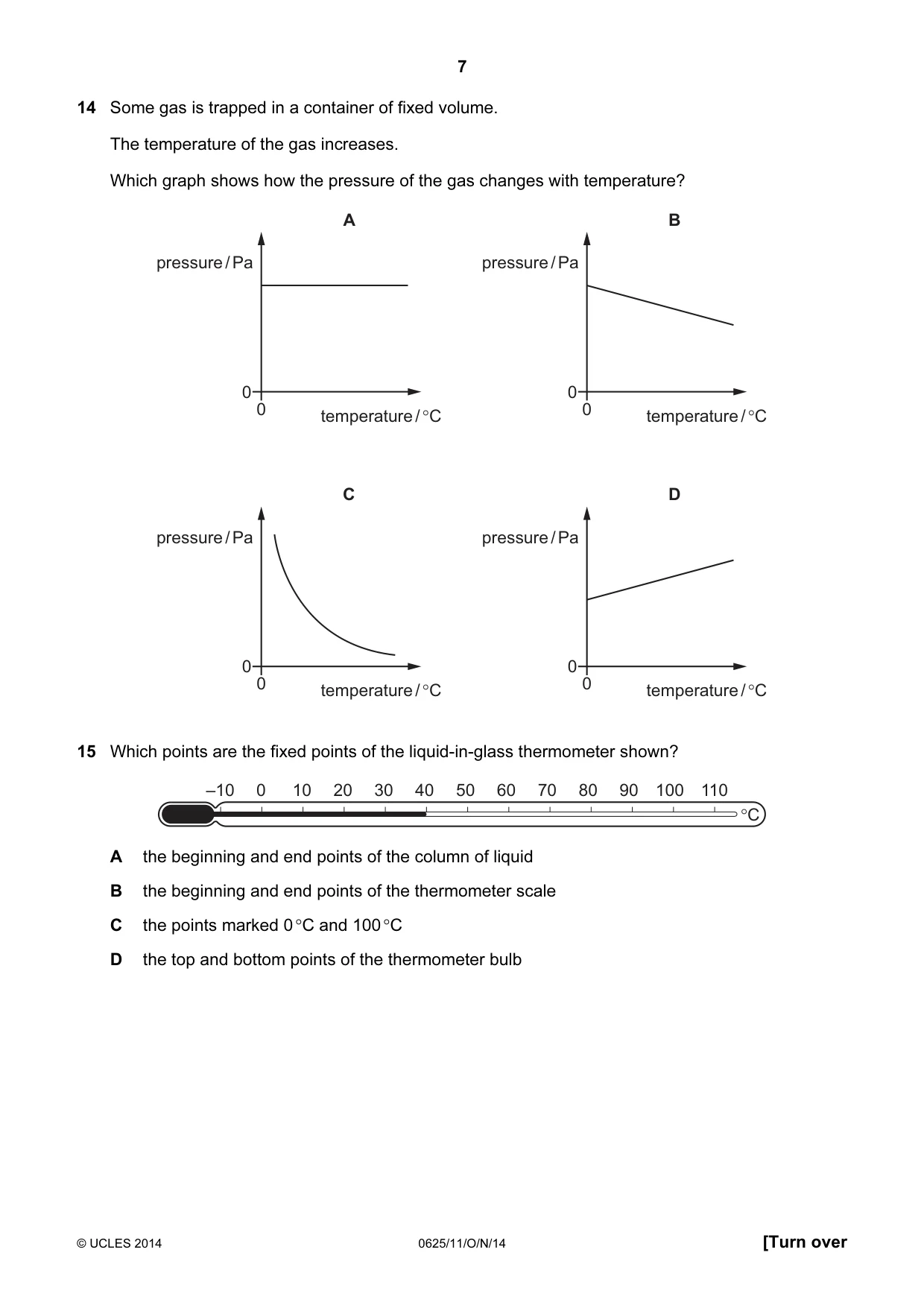

14 Some gas is trapped in a container of fixed volume. The temperature of the gas increases. Which graph shows how the pressure of the gas changes with temperature? A B pressure / Pa pressure / Pa 0 0 0 temperature / °C 0 temperature / °C C D pressure / Pa pressure / Pa 0 0 0 temperature / °C 0 temperature / °C

Mark scheme: D

More questions on Kinetic particle model of matter

15 Which points are the fixed points of the liquid-in-glass thermometer shown? –10 0 10 20 30 40 50 60 70 80 90 100 110 °C A the beginning and end points of the column of liquid B the beginning and end points of the thermometer scale C the points marked 0 °C and 100 °C D the top and bottom points of the thermometer bulb

Mark scheme: C

More questions on Thermal properties and temperature

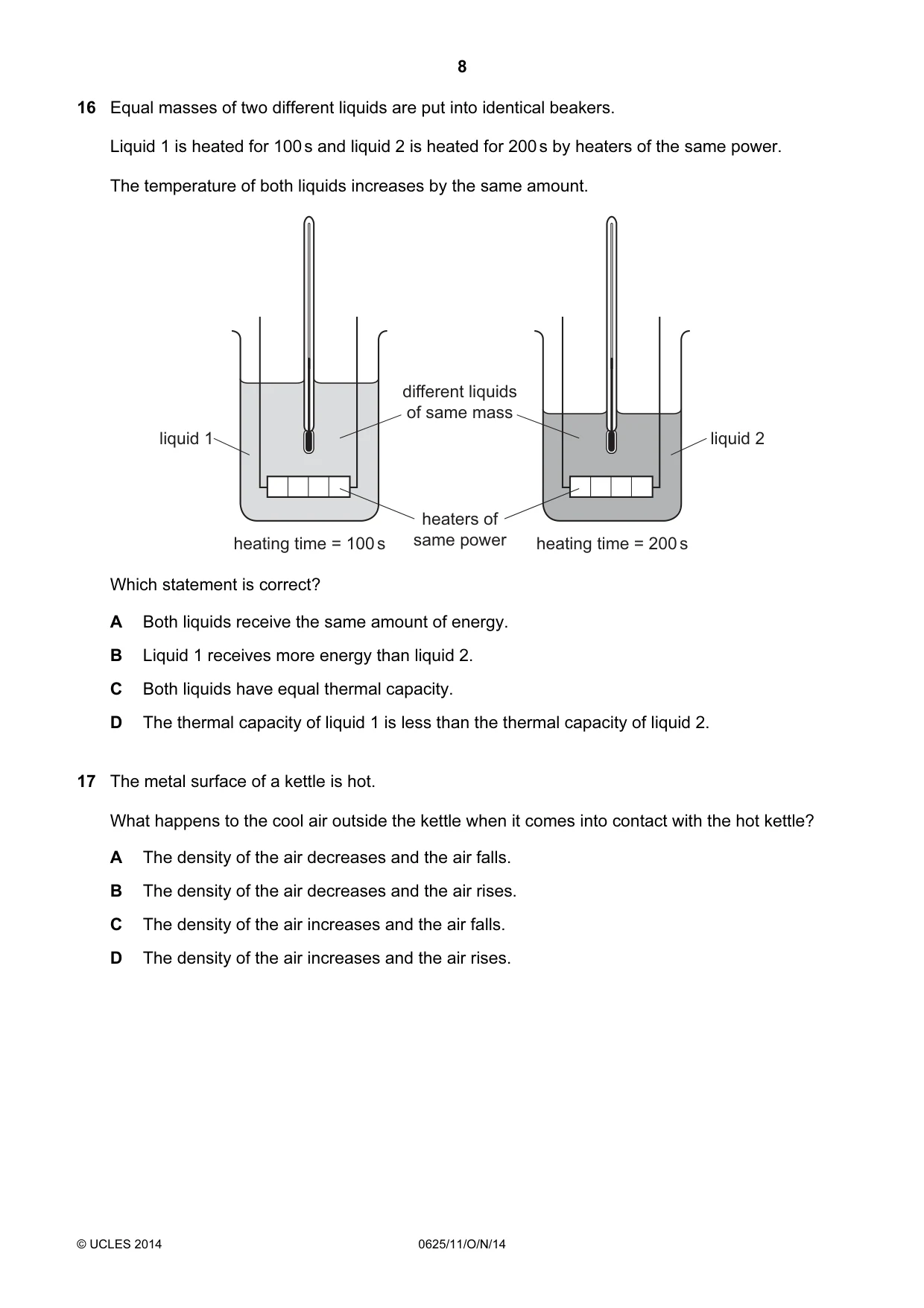

16 Equal masses of two different liquids are put into identical beakers. Liquid 1 is heated for 100 s and liquid 2 is heated for 200 s by heaters of the same power. The temperature of both liquids increases by the same amount. different liquids of same mass liquid 1 liquid 2 heaters of heating time = 100 s same power heating time = 200 s Which statement is correct? A Both liquids receive the same amount of energy. B Liquid 1 receives more energy than liquid 2. C Both liquids have equal thermal capacity. D The thermal capacity of liquid 1 is less than the thermal capacity of liquid 2.

Mark scheme: D

More questions on Thermal properties and temperature

17 The metal surface of a kettle is hot. What happens to the cool air outside the kettle when it comes into contact with the hot kettle? A The density of the air decreases and the air falls. B The density of the air decreases and the air rises. C The density of the air increases and the air falls. D The density of the air increases and the air rises.

Mark scheme: B

More questions on Transfer of thermal energy

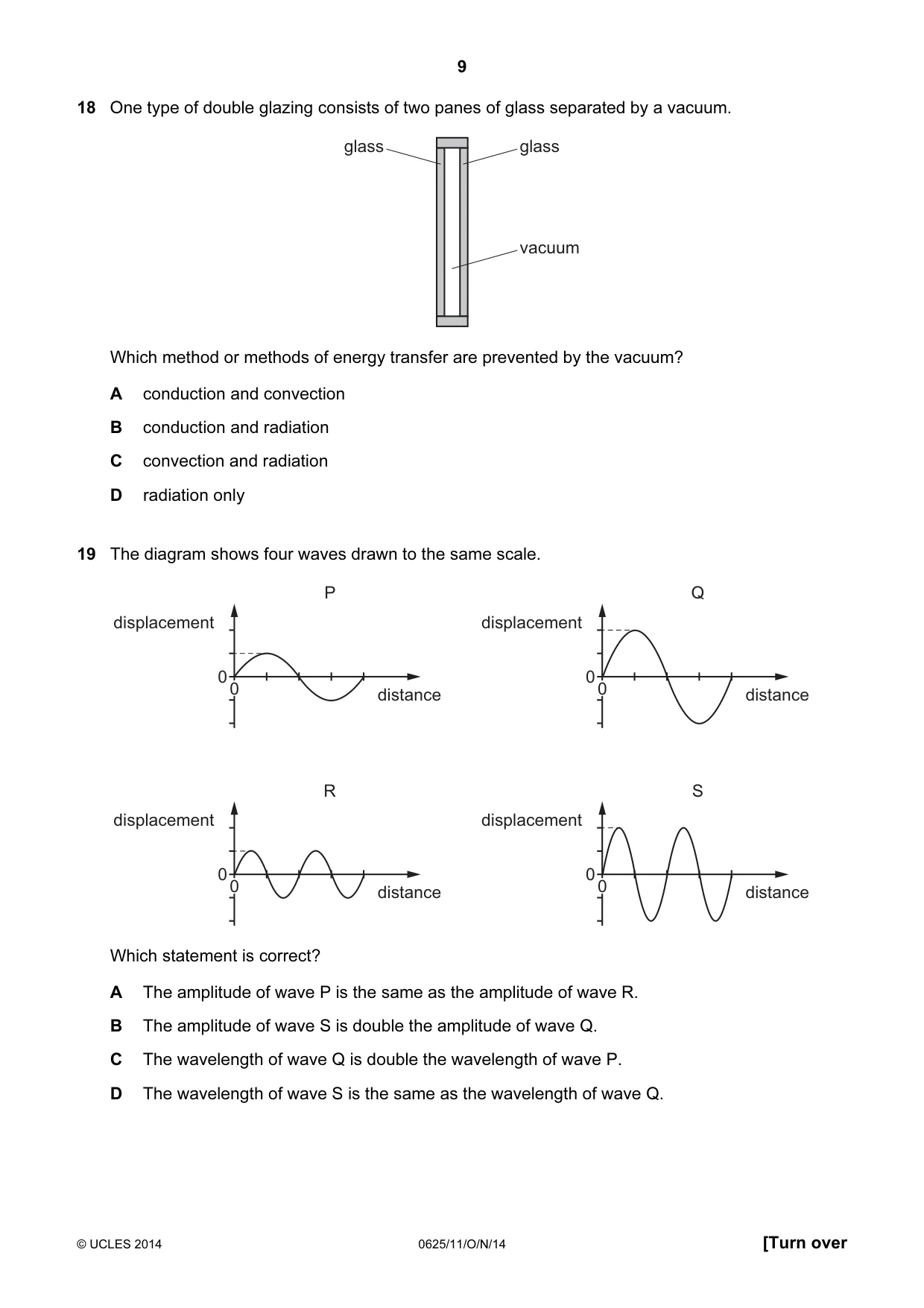

18 One type of double glazing consists of two panes of glass separated by a vacuum. glass glass vacuum Which method or methods of energy transfer are prevented by the vacuum? A conduction and convection B conduction and radiation C convection and radiation D radiation only

Mark scheme: A

More questions on Transfer of thermal energy

19 The diagram shows four waves drawn to the same scale. P Q displacement displacement 00 00 distance distance R S displacement displacement 00 00 distance distance Which statement is correct? A The amplitude of wave P is the same as the amplitude of wave R. B The amplitude of wave S is double the amplitude of wave Q. C The wavelength of wave Q is double the wavelength of wave P. D The wavelength of wave S is the same as the wavelength of wave Q.

Mark scheme: A

More questions on General properties of waves

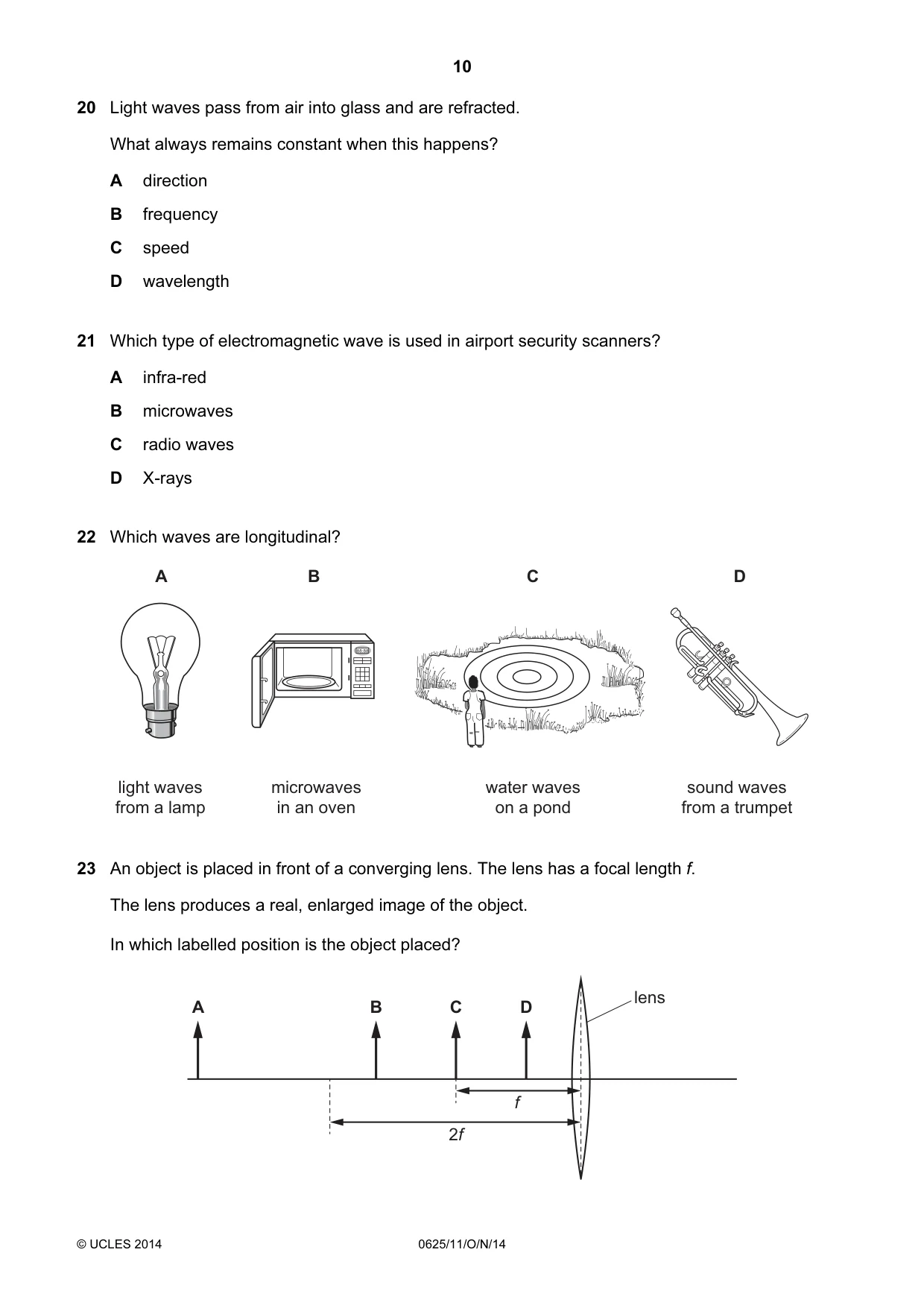

20 Light waves pass from air into glass and are refracted. What always remains constant when this happens? A direction B frequency C speed D wavelength

Mark scheme: B

More questions on Light

21 Which type of electromagnetic wave is used in airport security scanners? A infra-red B microwaves C radio waves D X-rays

Mark scheme: D

More questions on Electromagnetic spectrum

22 Which waves are longitudinal? A B C D 88:88 light waves microwaves water waves sound waves from a lamp in an oven on a pond from a trumpet

Mark scheme: D

More questions on Sound

23 An object is placed in front of a converging lens. The lens has a focal length f. The lens produces a real, enlarged image of the object. In which labelled position is the object placed? lens A B C D f 2f

Mark scheme: B

More questions on Light

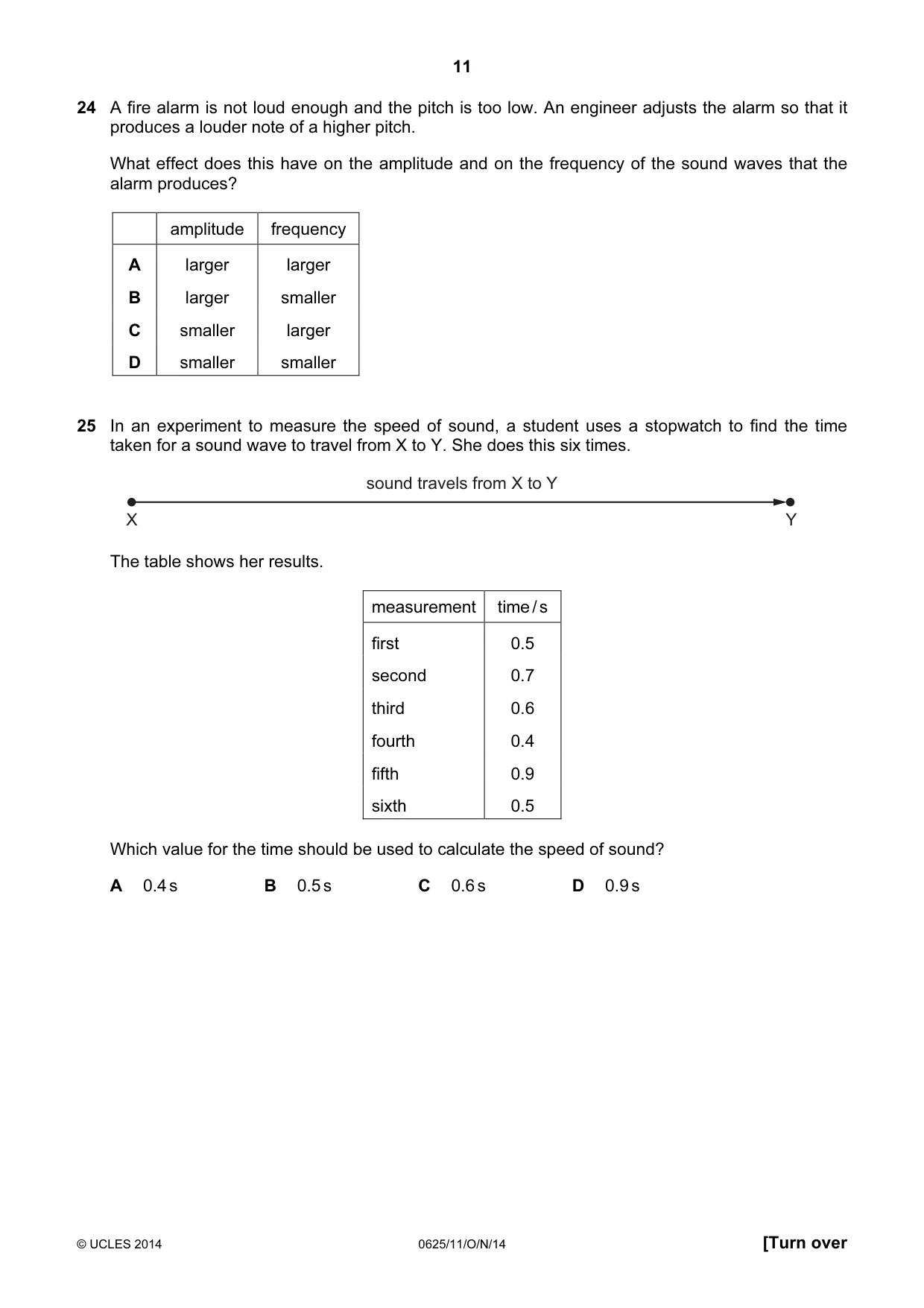

24 A fire alarm is not loud enough and the pitch is too low. An engineer adjusts the alarm so that it produces a louder note of a higher pitch. What effect does this have on the amplitude and on the frequency of the sound waves that the alarm produces? amplitude frequency A larger larger B larger smaller C smaller larger D smaller smaller

Mark scheme: A

More questions on Sound

25 In an experiment to measure the speed of sound, a student uses a stopwatch to find the time taken for a sound wave to travel from X to Y. She does this six times. sound travels from X to Y X Y The table shows her results. measurement time / s first 0.5 second 0.7 third 0.6 fourth 0.4 fifth 0.9 sixth 0.5 Which value for the time should be used to calculate the speed of sound? A 0.4 s B 0.5 s C 0.6 s D 0.9 s

Mark scheme: C

More questions on Sound

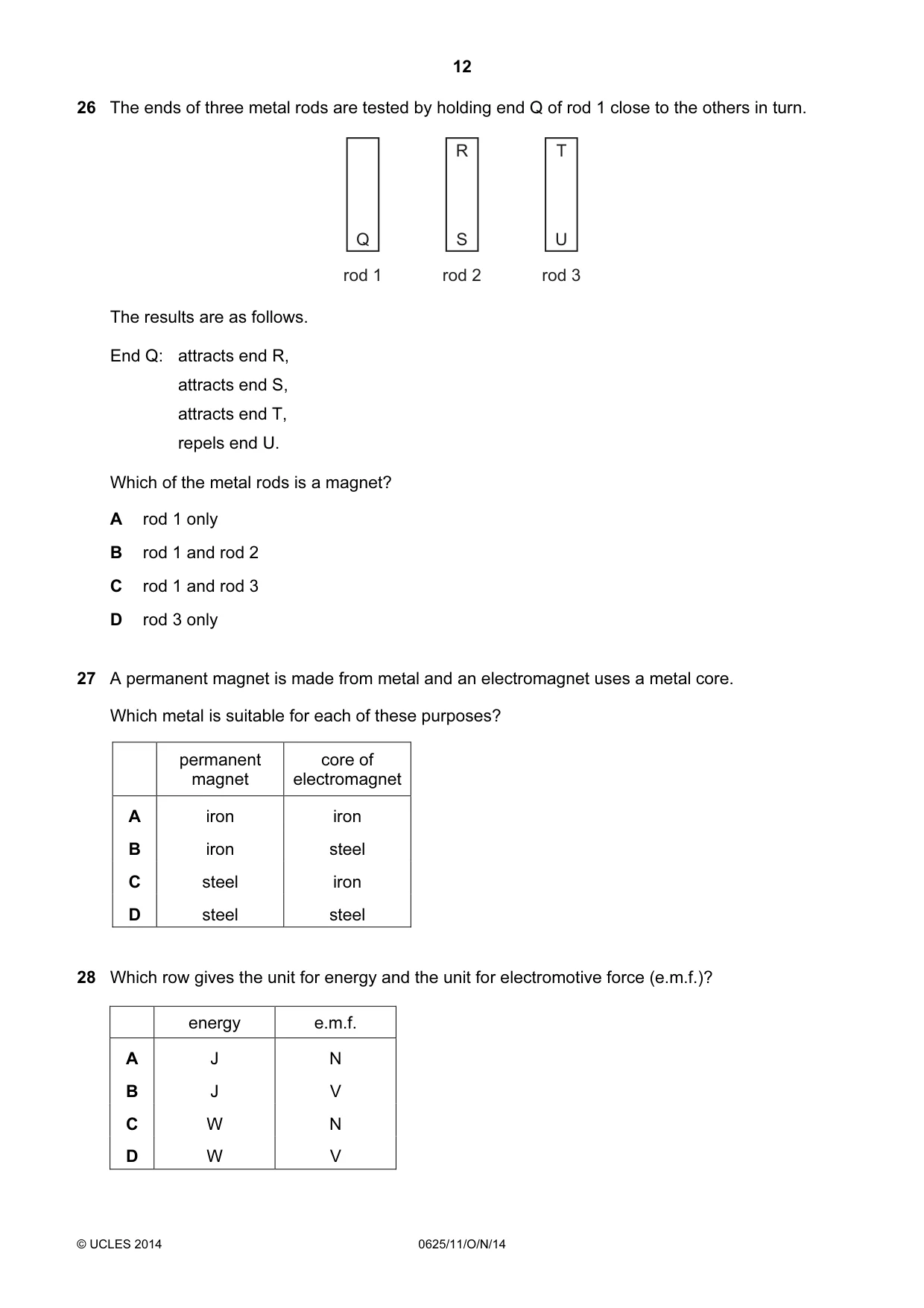

26 The ends of three metal rods are tested by holding end Q of rod 1 close to the others in turn. R T Q S U rod 1 rod 2 rod 3 The results are as follows. End Q: attracts end R, attracts end S, attracts end T, repels end U. Which of the metal rods is a magnet? A rod 1 only B rod 1 and rod 2 C rod 1 and rod 3 D rod 3 only

Mark scheme: C

More questions on Simple phenomena of magnetism

27 A permanent magnet is made from metal and an electromagnet uses a metal core. Which metal is suitable for each of these purposes? permanent core of magnet electromagnet A iron iron B iron steel C steel iron D steel steel

Mark scheme: C

More questions on Simple phenomena of magnetism

28 Which row gives the unit for energy and the unit for electromotive force (e.m.f.)? energy e.m.f. A J N B J V C W N D W V

Mark scheme: B

More questions on Electrical quantities

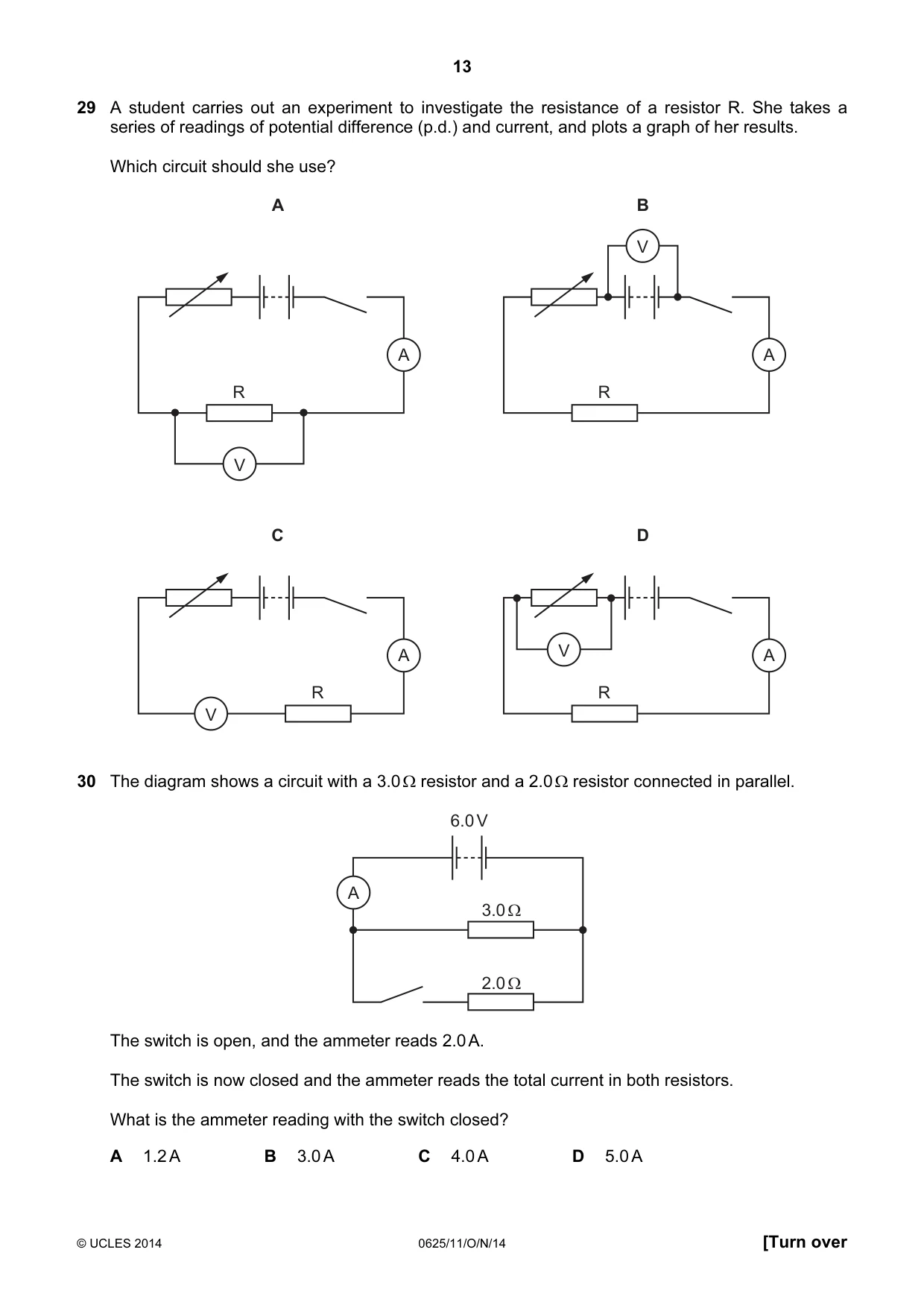

29 A student carries out an experiment to investigate the resistance of a resistor R. She takes a series of readings of potential difference (p.d.) and current, and plots a graph of her results. Which circuit should she use? A B V A A R R V C D A V A R R V

Mark scheme: A

More questions on Electric circuits

30 The diagram shows a circuit with a 3.0 Ω resistor and a 2.0 Ω resistor connected in parallel. 6.0 V A 3.0 Ω 2.0 Ω The switch is open, and the ammeter reads 2.0 A. The switch is now closed and the ammeter reads the total current in both resistors. What is the ammeter reading with the switch closed? A 1.2 A B 3.0 A C 4.0 A D 5.0 A

Mark scheme: D

More questions on Electric circuits

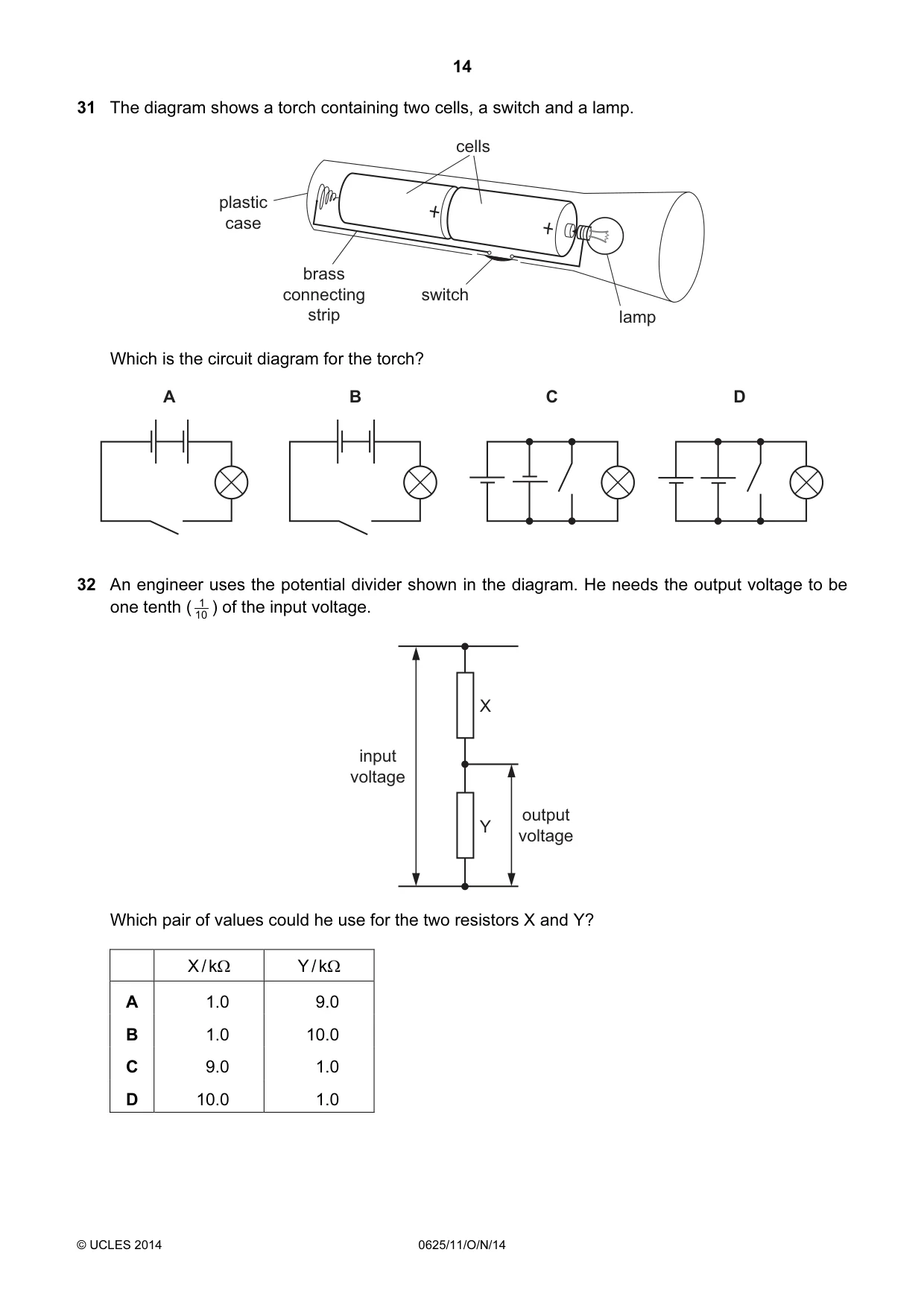

31 The diagram shows a torch containing two cells, a switch and a lamp. cells plastic case brass connecting switch strip lamp Which is the circuit diagram for the torch? A B C D

Mark scheme: A

More questions on Electric circuits

32 An engineer uses the potential divider shown in the diagram. He needs the output voltage to be one tenth ( 10 1 ) of the input voltage. X input voltage output Y voltage Which pair of values could he use for the two resistors X and Y? X / kΩ Y / kΩ A 1.0 9.0 B 1.0 10.0 C 9.0 1.0 D 10.0 1.0

Mark scheme: C

More questions on Electric circuits

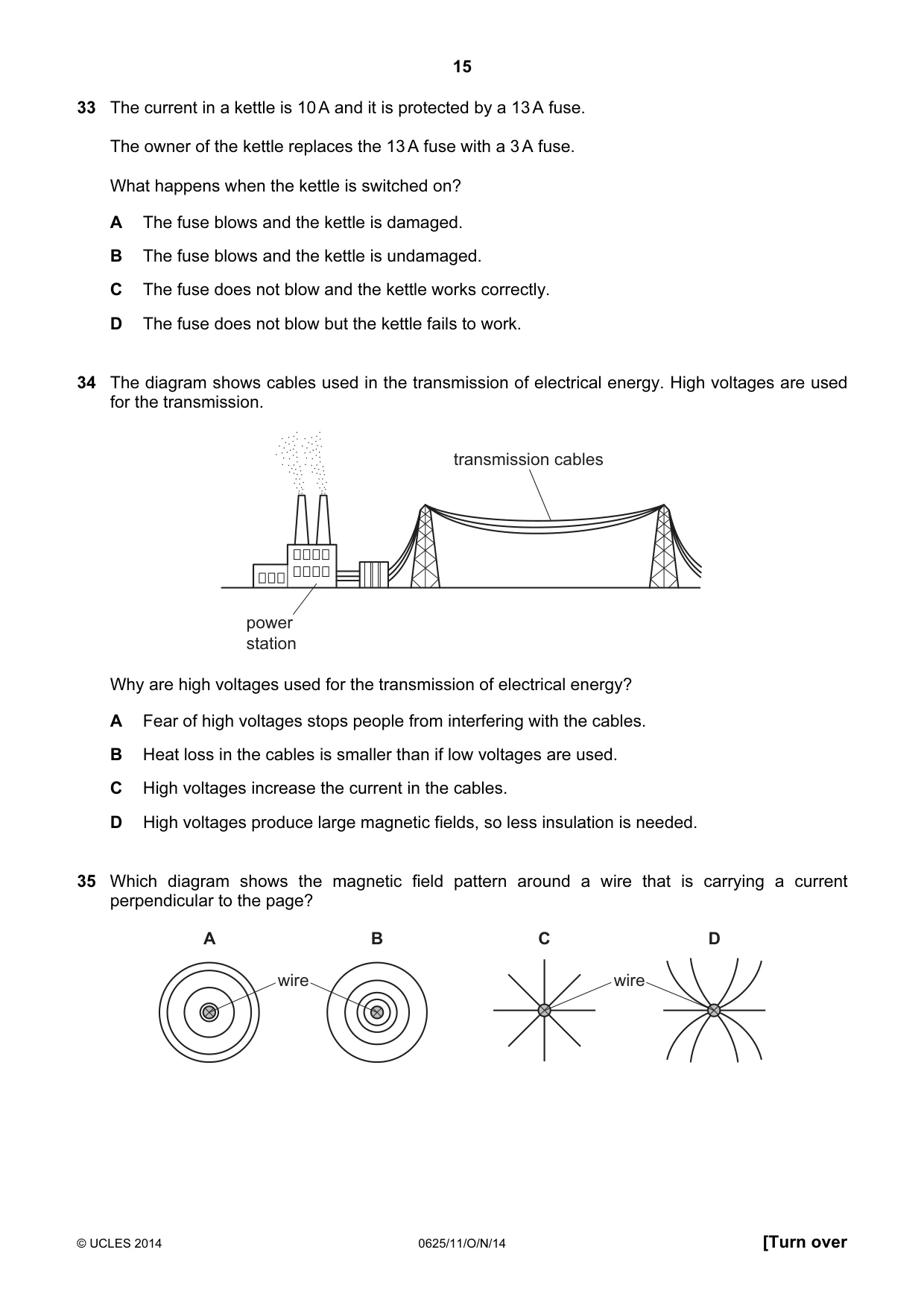

33 The current in a kettle is 10 A and it is protected by a 13 A fuse. The owner of the kettle replaces the 13 A fuse with a 3 A fuse. What happens when the kettle is switched on? A The fuse blows and the kettle is damaged. B The fuse blows and the kettle is undamaged. C The fuse does not blow and the kettle works correctly. D The fuse does not blow but the kettle fails to work.

Mark scheme: B

More questions on Electrical safety

34 The diagram shows cables used in the transmission of electrical energy. High voltages are used for the transmission. transmission cables power station Why are high voltages used for the transmission of electrical energy? A Fear of high voltages stops people from interfering with the cables. B Heat loss in the cables is smaller than if low voltages are used. C High voltages increase the current in the cables. D High voltages produce large magnetic fields, so less insulation is needed.

Mark scheme: B

More questions on Electromagnetic effects

35 Which diagram shows the magnetic field pattern around a wire that is carrying a current perpendicular to the page? A B C D wire wire

Mark scheme: B

More questions on Electromagnetic effects

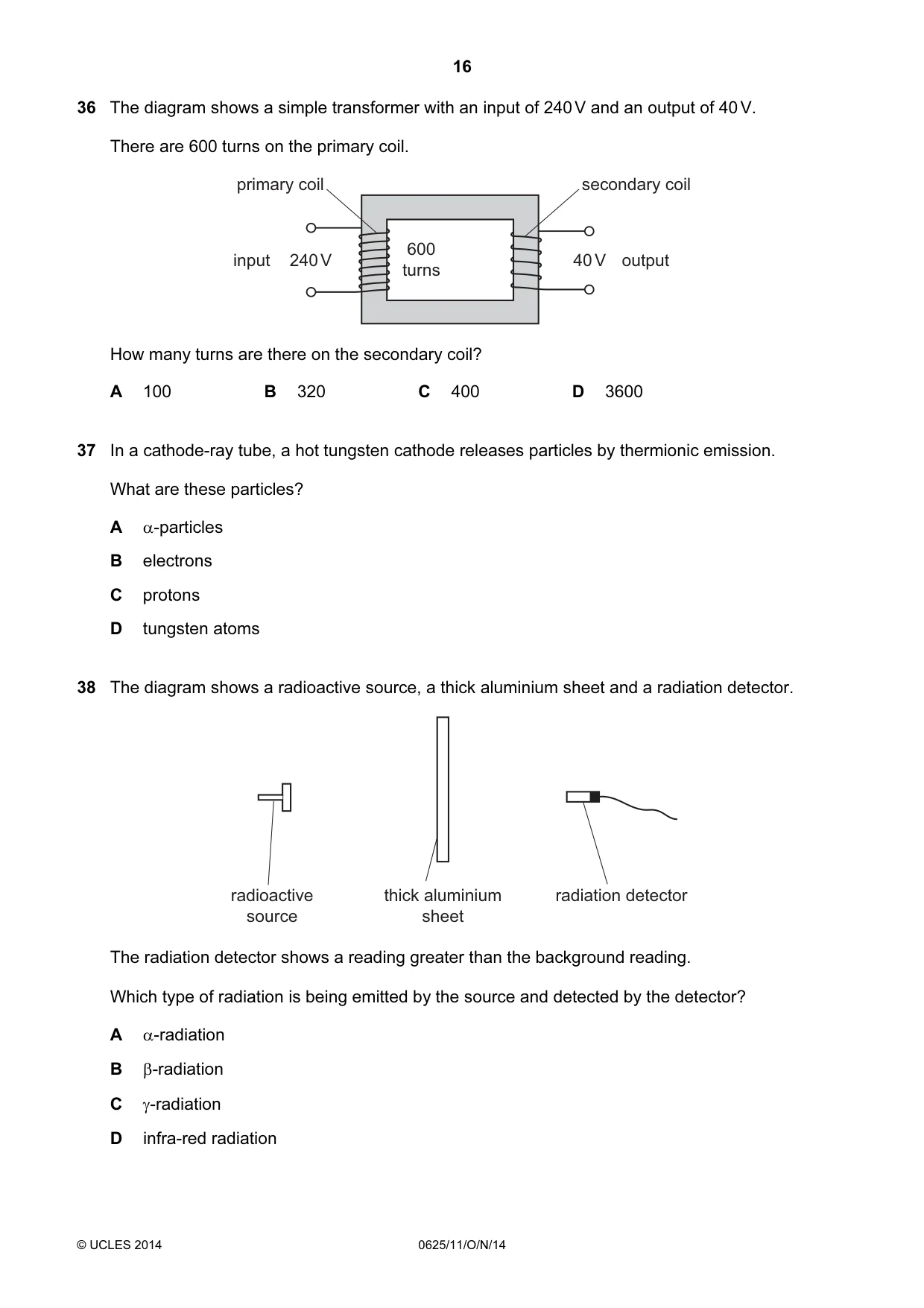

36 The diagram shows a simple transformer with an input of 240 V and an output of 40 V. There are 600 turns on the primary coil. primary coil secondary coil 600 input 240 V 40 V output turns How many turns are there on the secondary coil? A 100 B 320 C 400 D 3600

Mark scheme: A

More questions on Electromagnetic effects

37 In a cathode-ray tube, a hot tungsten cathode releases particles by thermionic emission. What are these particles? A α-particles B electrons C protons D tungsten atoms

Mark scheme: B

More questions on The nuclear model of the atom

38 The diagram shows a radioactive source, a thick aluminium sheet and a radiation detector. radioactive thick aluminium radiation detector source sheet The radiation detector shows a reading greater than the background reading. Which type of radiation is being emitted by the source and detected by the detector? A α-radiation B β-radiation C γ-radiation D infra-red radiation

Mark scheme: C

More questions on Radioactivity

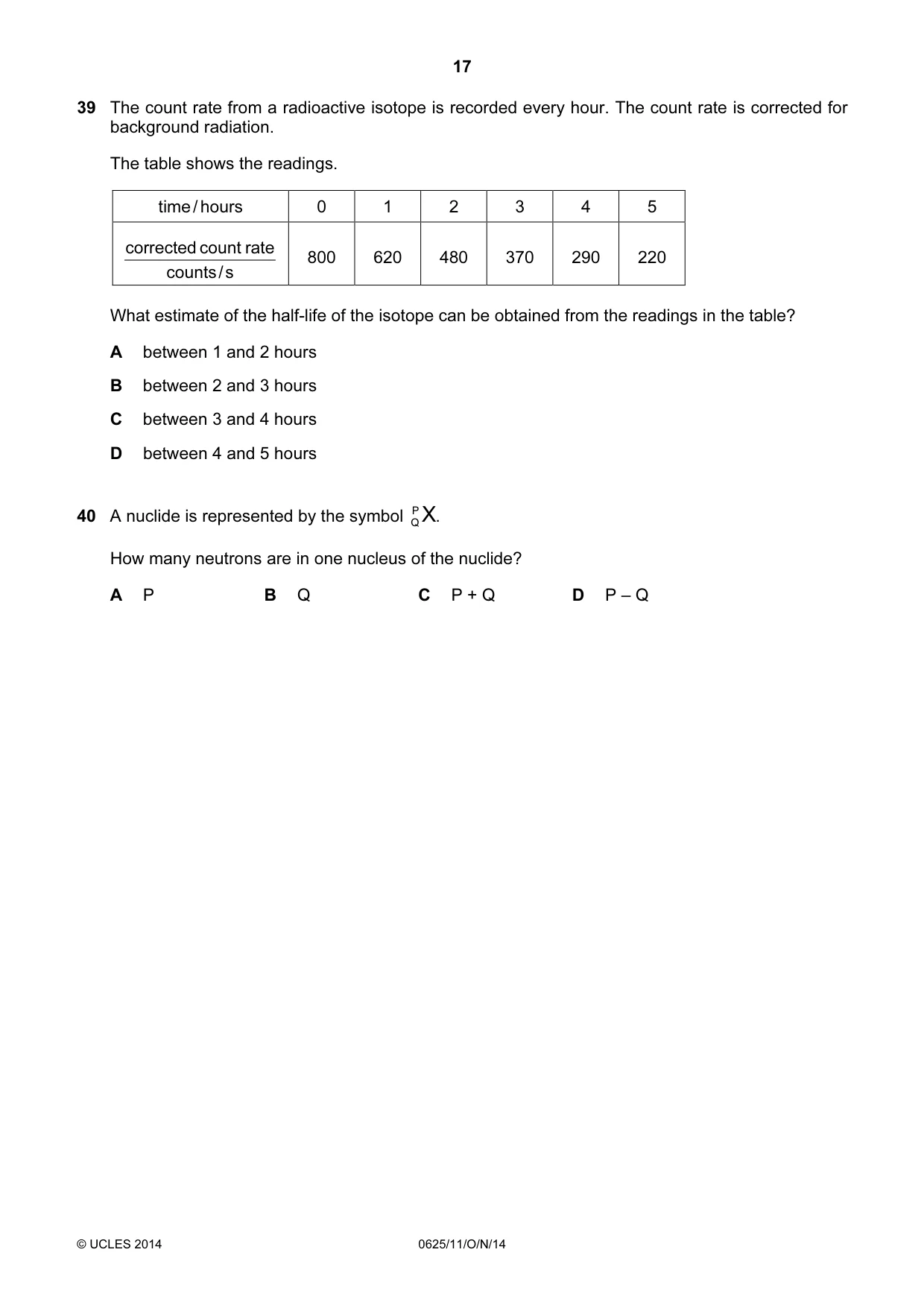

39 The count rate from a radioactive isotope is recorded every hour. The count rate is corrected for background radiation. The table shows the readings. time / hours 0 1 2 3 4 5 corrected count rate 800 620 480 370 290 220 counts / s What estimate of the half-life of the isotope can be obtained from the readings in the table? A between 1 and 2 hours B between 2 and 3 hours C between 3 and 4 hours D between 4 and 5 hours

Mark scheme: B

More questions on Radioactivity

40 A nuclide is represented by the symbol P X . Q How many neutrons are in one nucleus of the nuclide? A P B Q C P + Q D P – Q

Mark scheme: D

More questions on The nuclear model of the atom
