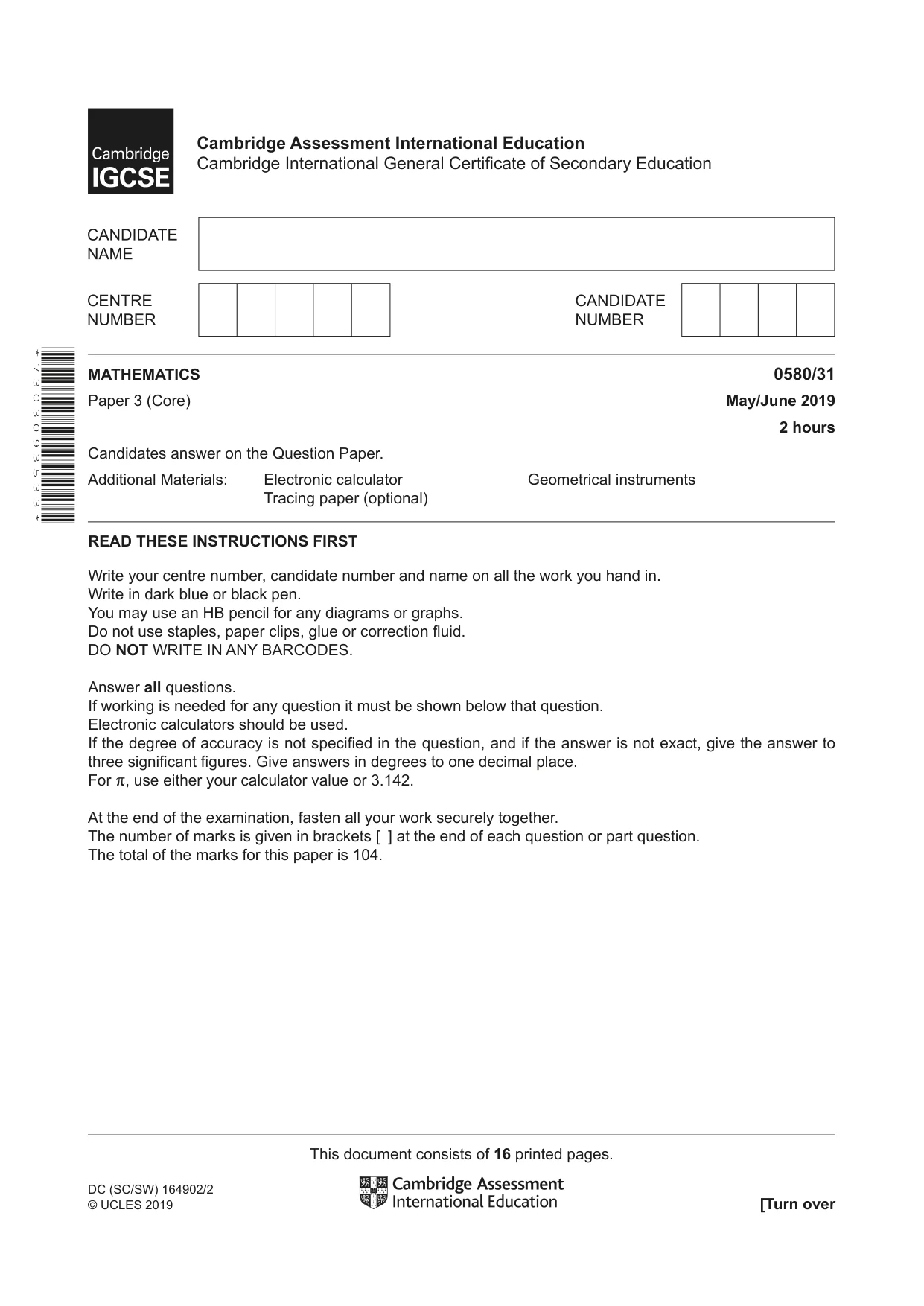

Cambridge IGCSE Mathematics 0580 — 2019 May/June Paper 3 · Variant 1

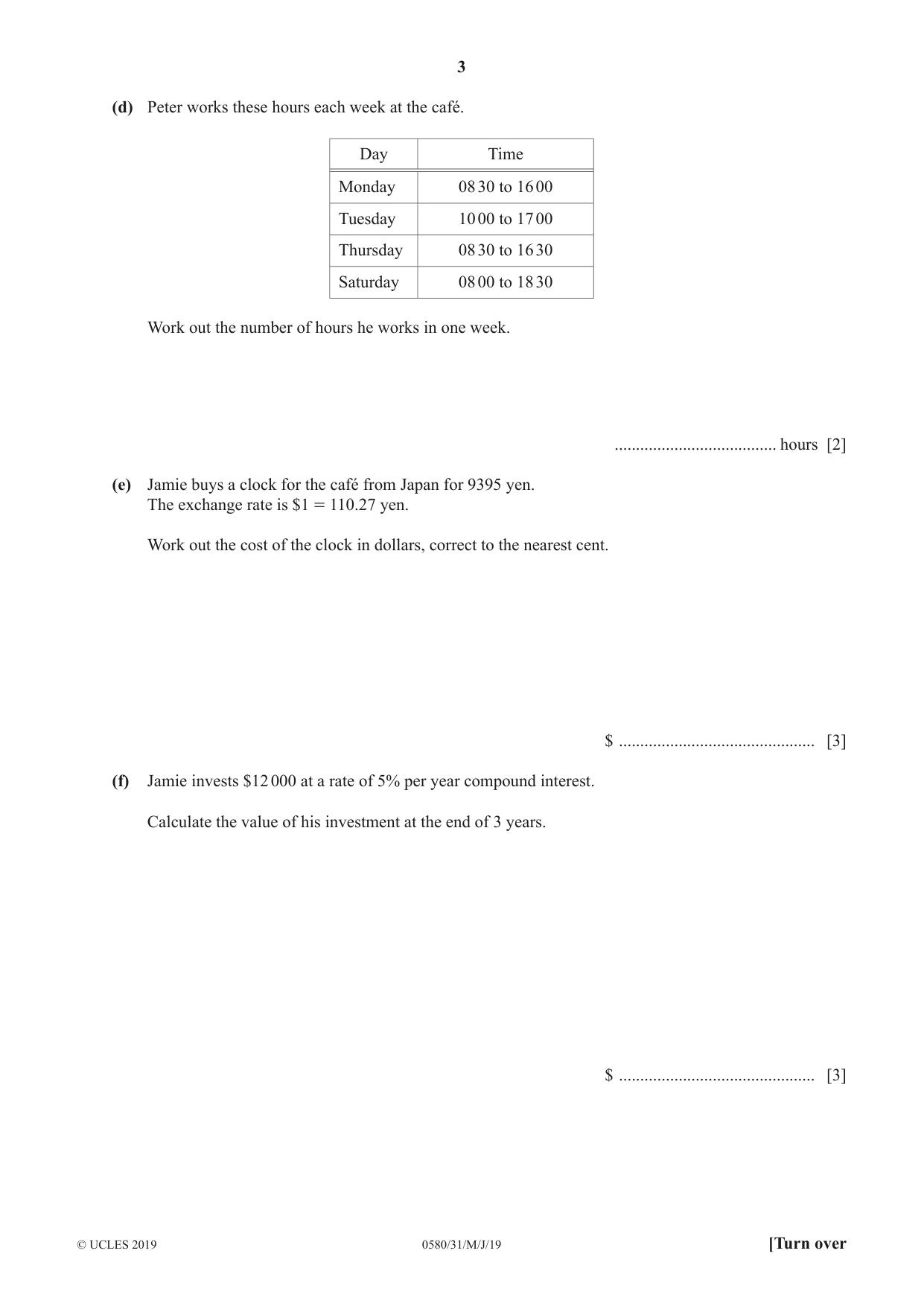

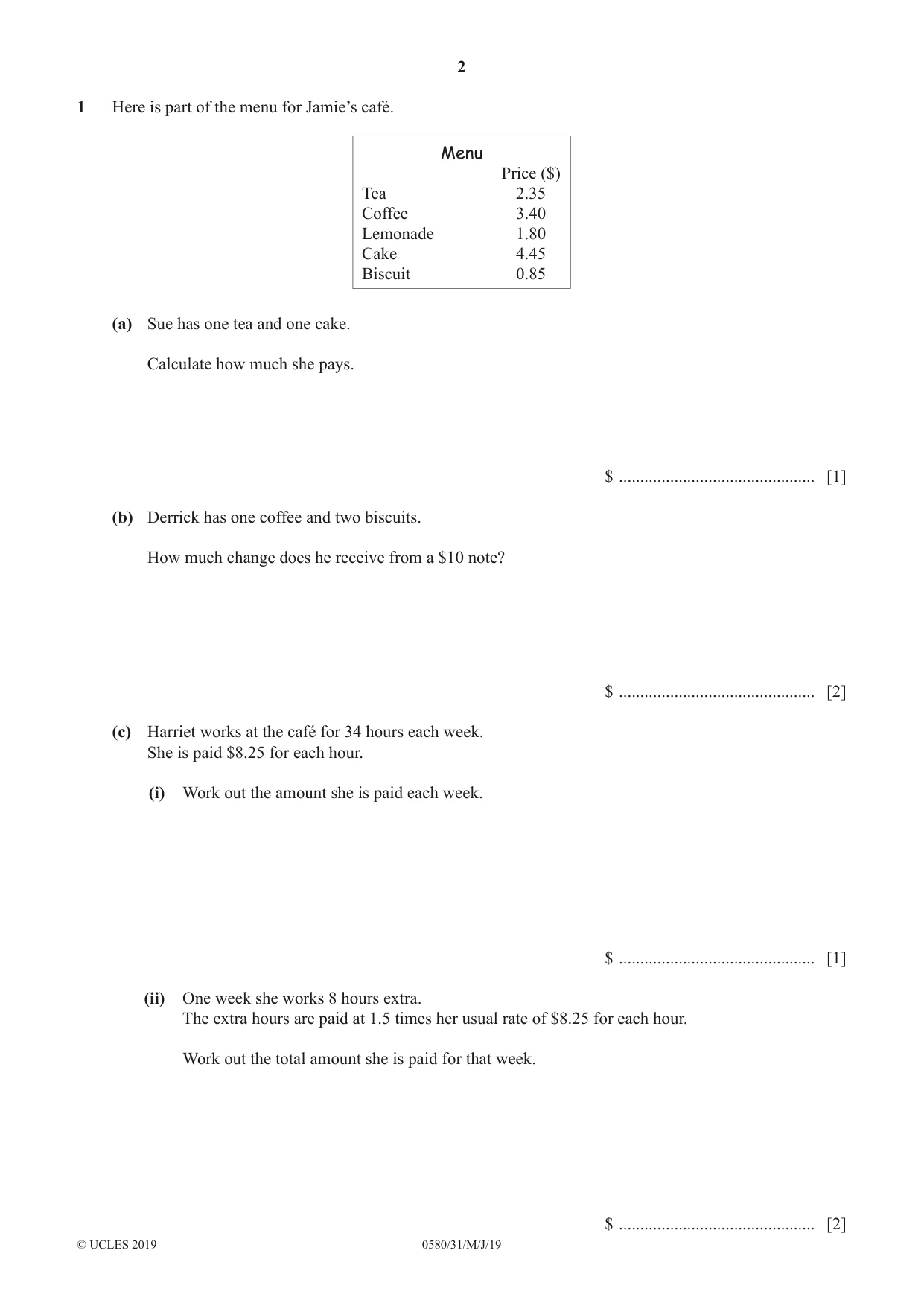

1 Here is part of the menu for Jamie’s café. Menu Price ($) Tea 2.35 Coffee 3.40 Lemonade 1.80 Cake 4.45 Biscuit 0.85 (a) Sue has one tea and one cake. Calculate how much she pays. $ .............................................. [1] (b) Derrick has one coffee and two biscuits. How much change does he receive from a $10 note? $ .............................................. [2] (c) Harriet works at the café for 34 hours each week. She is paid $8.25 for each hour. (i) Work out the amount she is paid each week. $ .............................................. [1] (ii) One week she works 8 hours extra. The extra hours are paid at 1.5 times her usual rate of $8.25 for each hour. Work out the total amount she is paid for that week. $ .............................................. [2] (d) Peter works these hours each week at the café. Day Time Monday 08 30 to 16 00 Tuesday 10 00 to 17 00 Thursday 08 30 to 16 30 Saturday 08 00 to 18 30 Work out the number of hours he works in one week. ...................................... hours [2] (e) Jamie buys a clock for the café from Japan for 9395 yen. The exchange rate is $1 = 110.27 yen. Work out the cost of the clock in dollars, correct to the nearest cent. $ .............................................. [3] (f) Jamie invests $12 000 at a rate of 5% per year compound interest. Calculate the value of his investment at the end of 3 years. $ .............................................. [3]

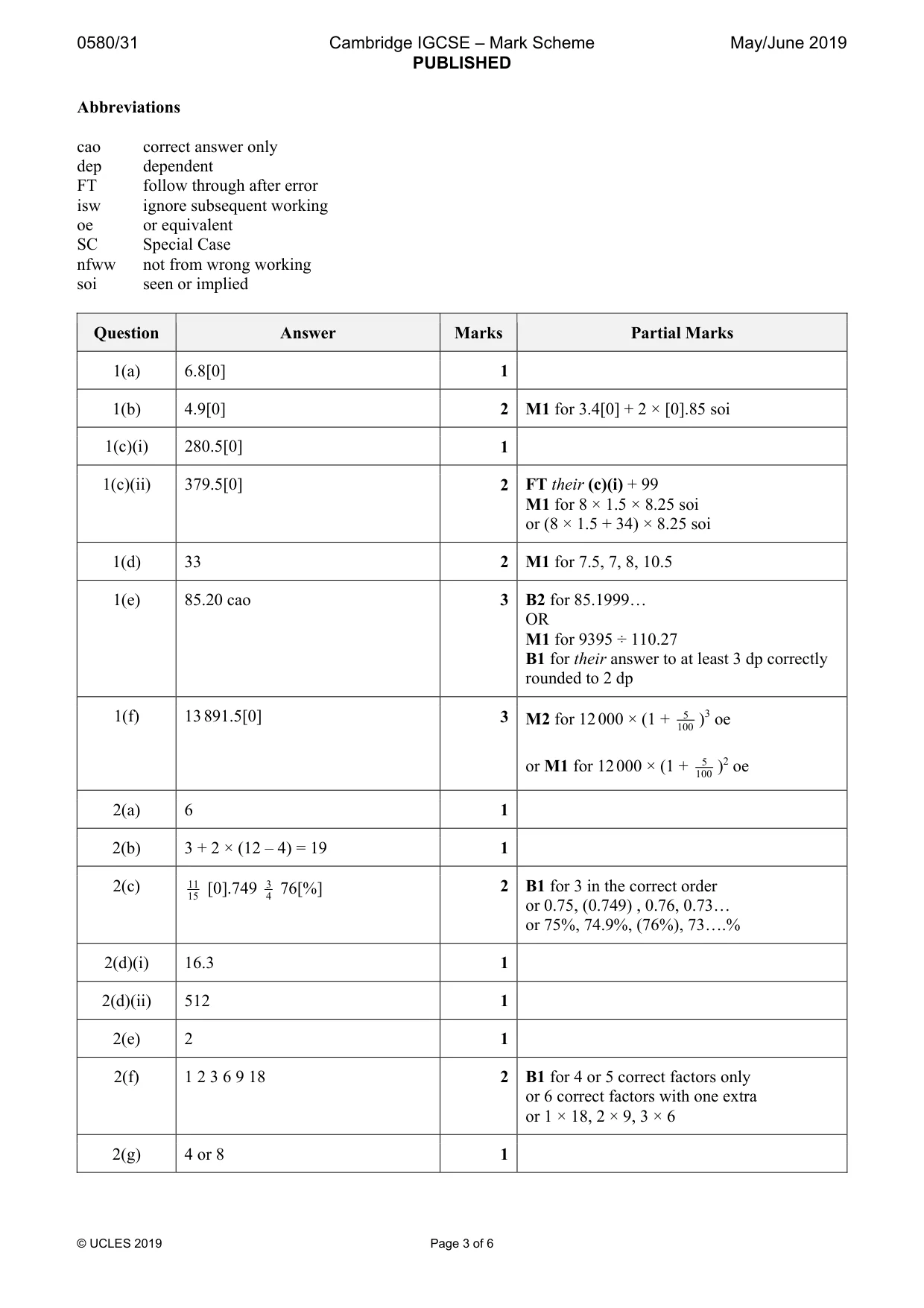

Mark scheme: Question Answer Marks Partial Marks 1(a) 6.8[0] 1 1(b) 4.9[0] 2 M1 for 3.4[0] + 2 × [0].85 soi 1(c)(i) 280.5[0] 1 1(c)(ii) 379.5[0] 2 FT their (c)(i) + 99 M1 for 8 × 1.5 × 8.25 soi or (8 × 1.5 + 34) × 8.25 soi 1(d) 33 2 M1 for 7.5, 7, 8, 10.5 1(e) 85.20 cao 3 B2 for 85.1999… OR M1 for 9395 ÷ 110.27 B1 for their answer to at least 3 dp correctly rounded to 2 dp 1(f) 13 891.5[0] 3 M2 for 12 000 × (1 + 1005 )3 oe or M1 for 12 000 × (1 + 1005 )2 oe

More questions on Rates

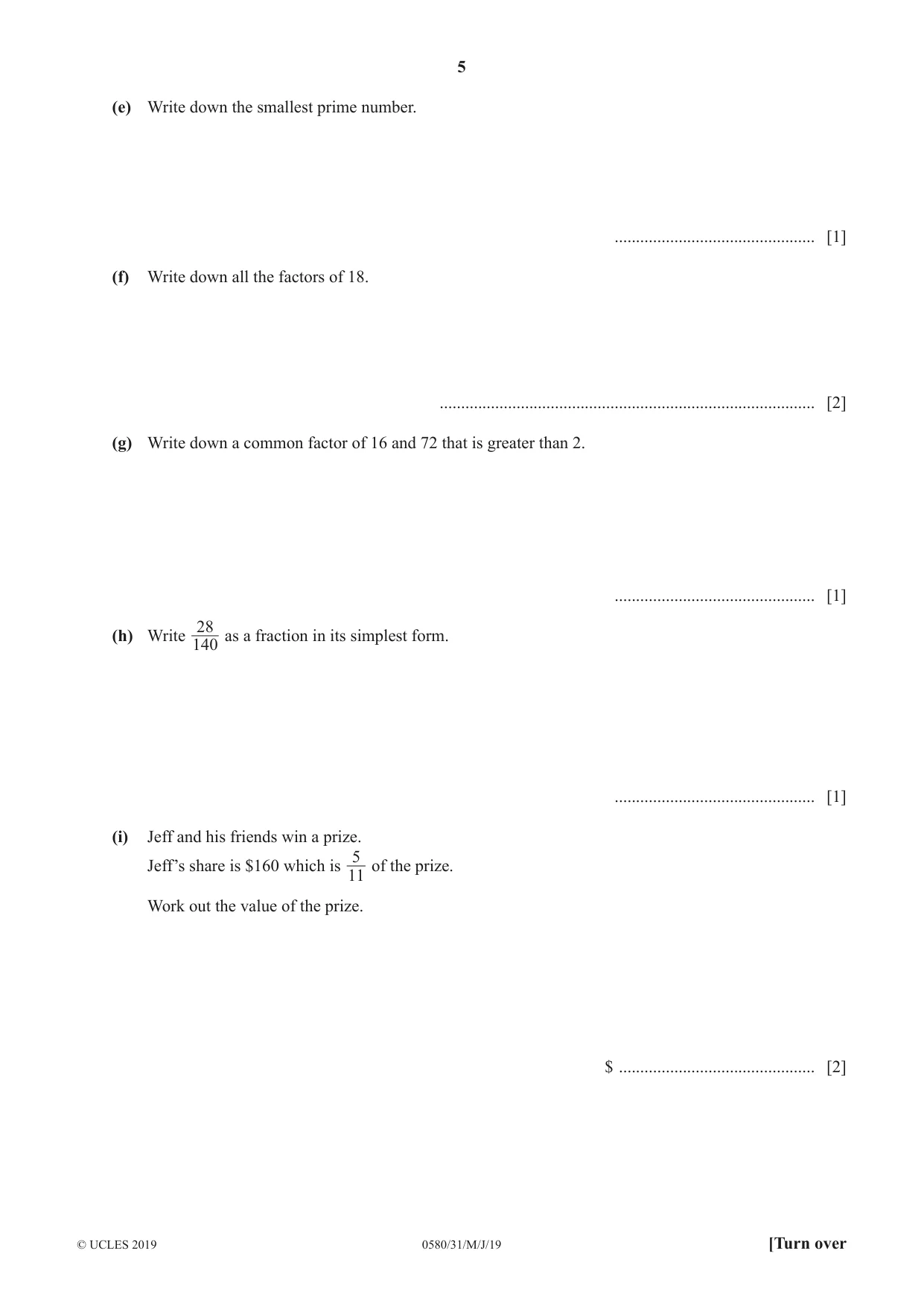

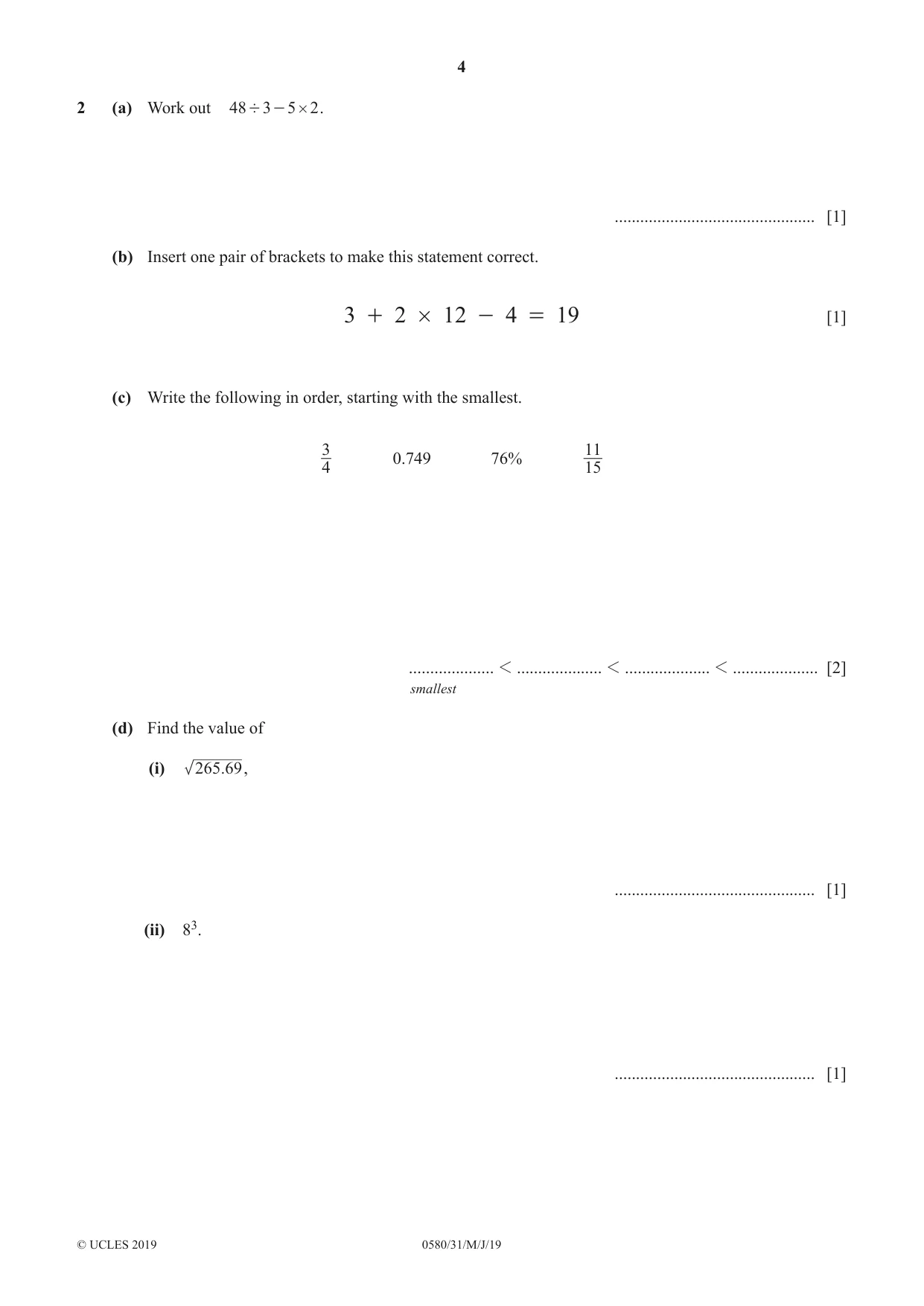

2 (a) Work out 48 ' 3 - 5 # 2 . ............................................... [1] (b) Insert one pair of brackets to make this statement correct. 3 + 2 # 12 - 4 = 19 [1] (c) Write the following in order, starting with the smallest. 3 11 0.749 76% 4 15 .................... 1 .................... 1 .................... 1 .................... [2] smallest (d) Find the value of (i) 265.69, ............................................... [1] (ii) 83. ............................................... [1] (e) Write down the smallest prime number. ............................................... [1] (f) Write down all the factors of 18. ........................................................................................ [2] (g) Write down a common factor of 16 and 72 that is greater than 2. ............................................... [1] 28(h) Write as a fraction in its simplest form. 140 ............................................... [1] (i) Jeff and his friends win a prize. 5 Jeff’s share is $160 which is of the prize. 11 Work out the value of the prize. $ .............................................. [2]

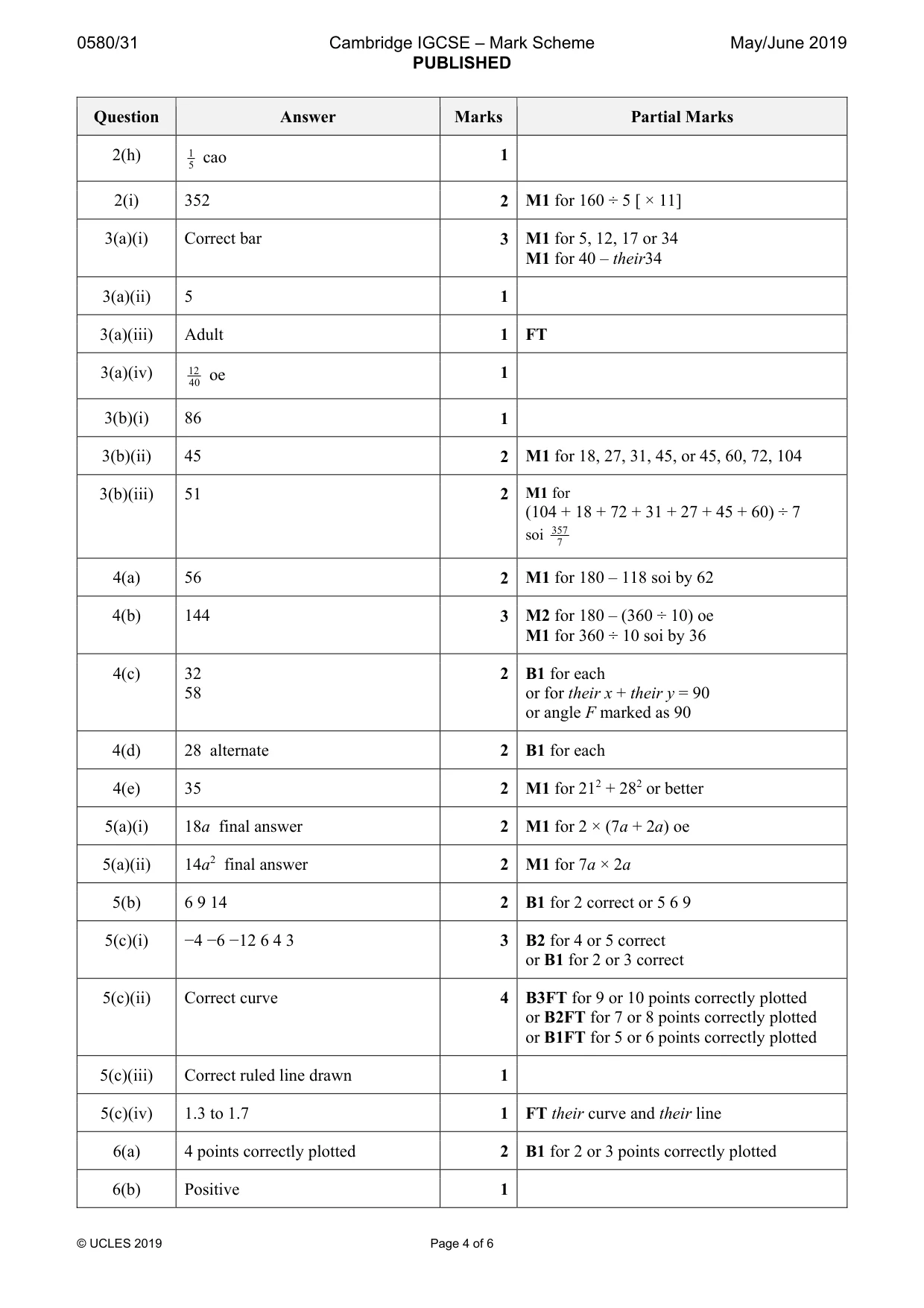

Mark scheme: 2(a) 6 1 2(b) 3 + 2 × (12 – 4) = 19 1 2(c) 15 11 [0].749 34 76[%] 2 B1 for 3 in the correct order or 0.75, (0.749) , 0.76, 0.73… or 75%, 74.9%, (76%), 73….% 2(d)(i) 16.3 1 2(d)(ii) 512 1 2(e) 2 1 2(f) 1 2 3 6 9 18 2 B1 for 4 or 5 correct factors only or 6 correct factors with one extra or 1 × 18, 2 × 9, 3 × 6 2(g) 4 or 8 1 2(h) 1 5 cao 1 2(i) 352 2 M1 for 160 ÷ 5 [ × 11]

More questions on Types of number

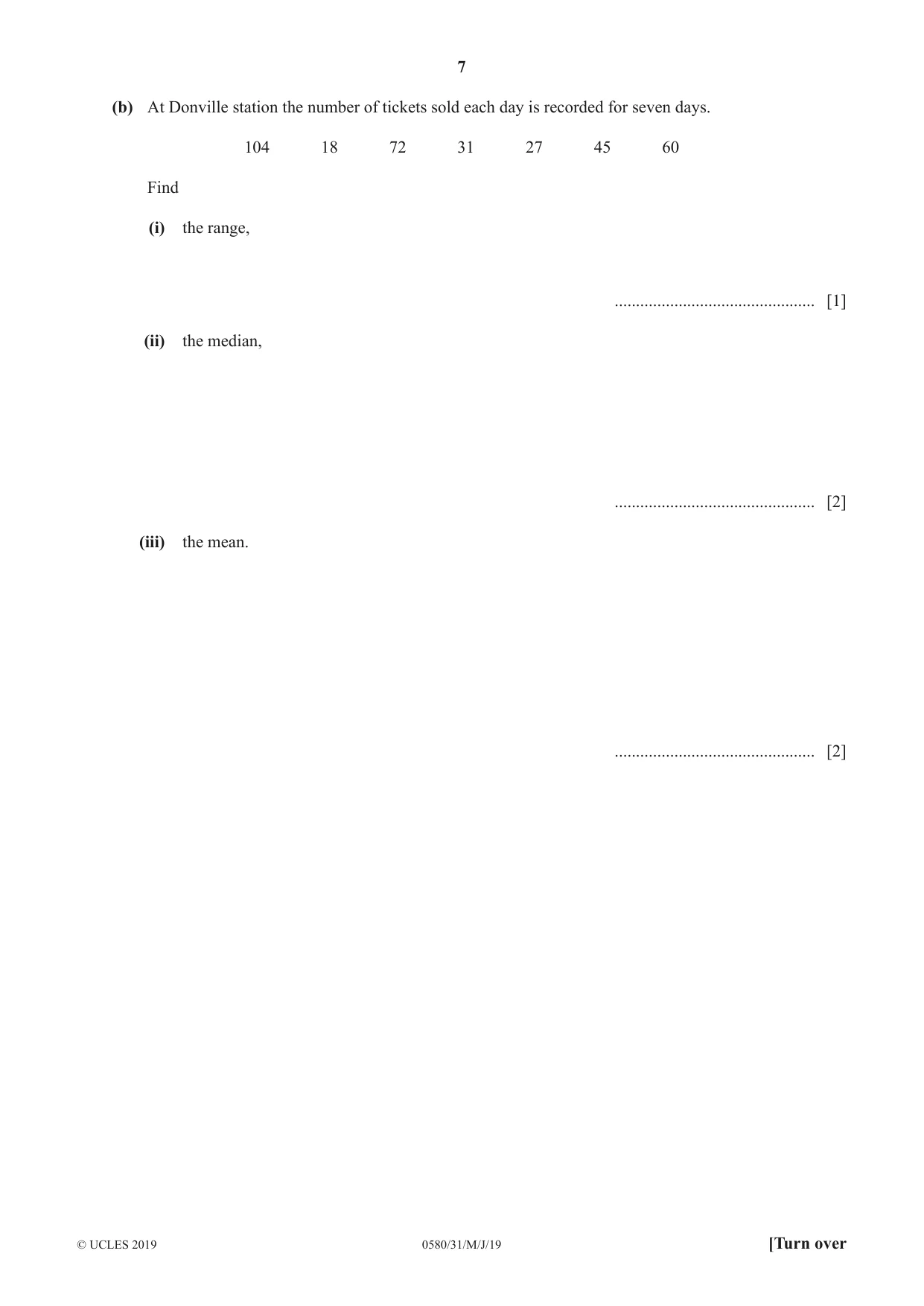

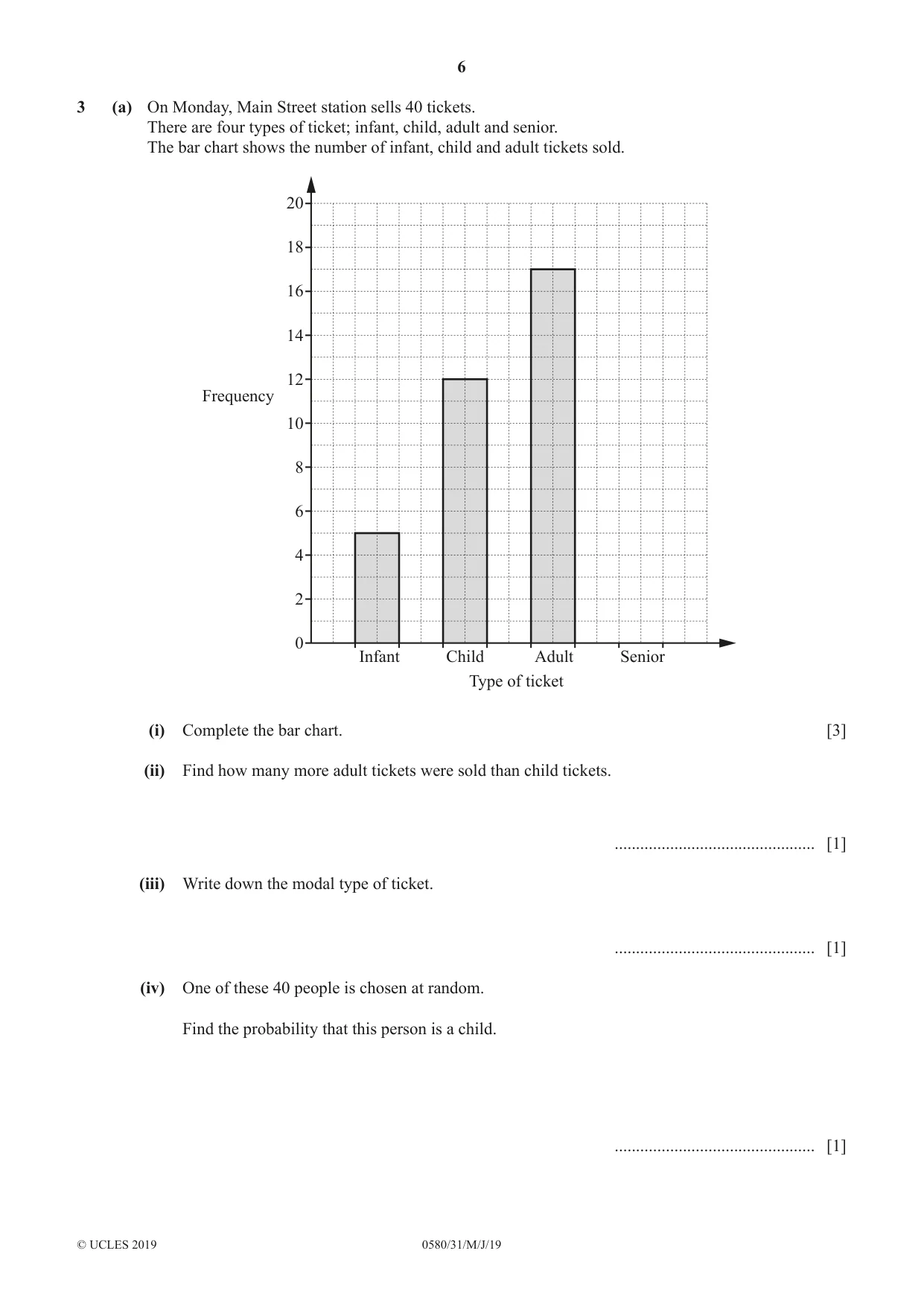

3 (a) On Monday, Main Street station sells 40 tickets. There are four types of ticket; infant, child, adult and senior. The bar chart shows the number of infant, child and adult tickets sold. 20 18 16 14 12 Frequency 10 8 6 4 2 0 Infant Child Adult Senior Type of ticket (i) Complete the bar chart. [3] (ii) Find how many more adult tickets were sold than child tickets. ............................................... [1] (iii) Write down the modal type of ticket. ............................................... [1] (iv) One of these 40 people is chosen at random. Find the probability that this person is a child. ............................................... [1] (b) At Donville station the number of tickets sold each day is recorded for seven days. 104 18 72 31 27 45 60 Find (i) the range, ............................................... [1] (ii) the median, ............................................... [2] (iii) the mean. ............................................... [2]

Mark scheme: 3(a)(i) Correct bar 3 M1 for 5, 12, 17 or 34 M1 for 40 – their34 3(a)(ii) 5 1 3(a)(iii) Adult 1 FT 3(a)(iv) 12 40 oe 1 3(b)(i) 86 1 3(b)(ii) 45 2 M1 for 18, 27, 31, 45, or 45, 60, 72, 104 3(b)(iii) 51 2 M1 for (104 + 18 + 72 + 31 + 27 + 45 + 60) ÷ 7 soi 357 7

More questions on Statistical charts and diagrams

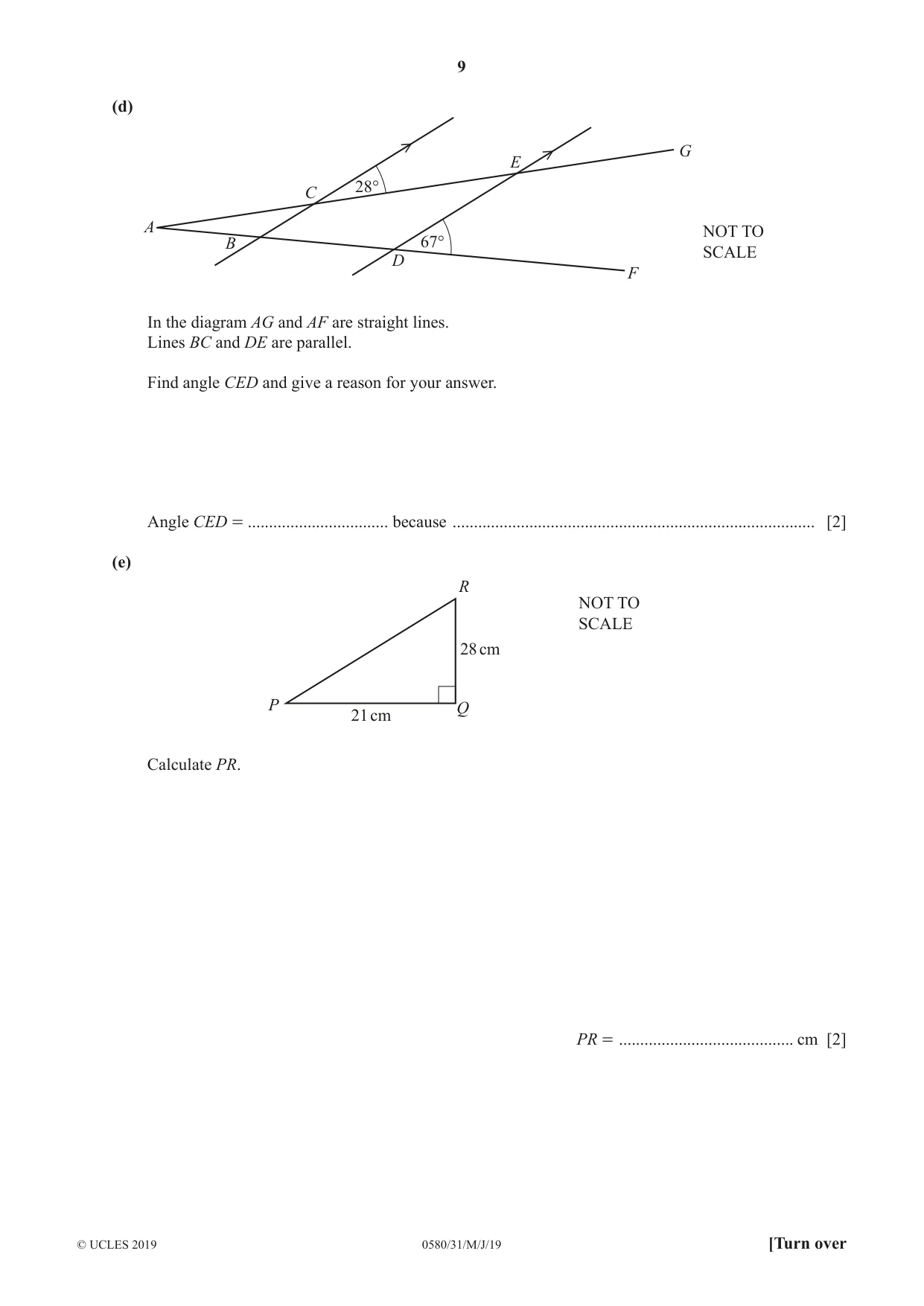

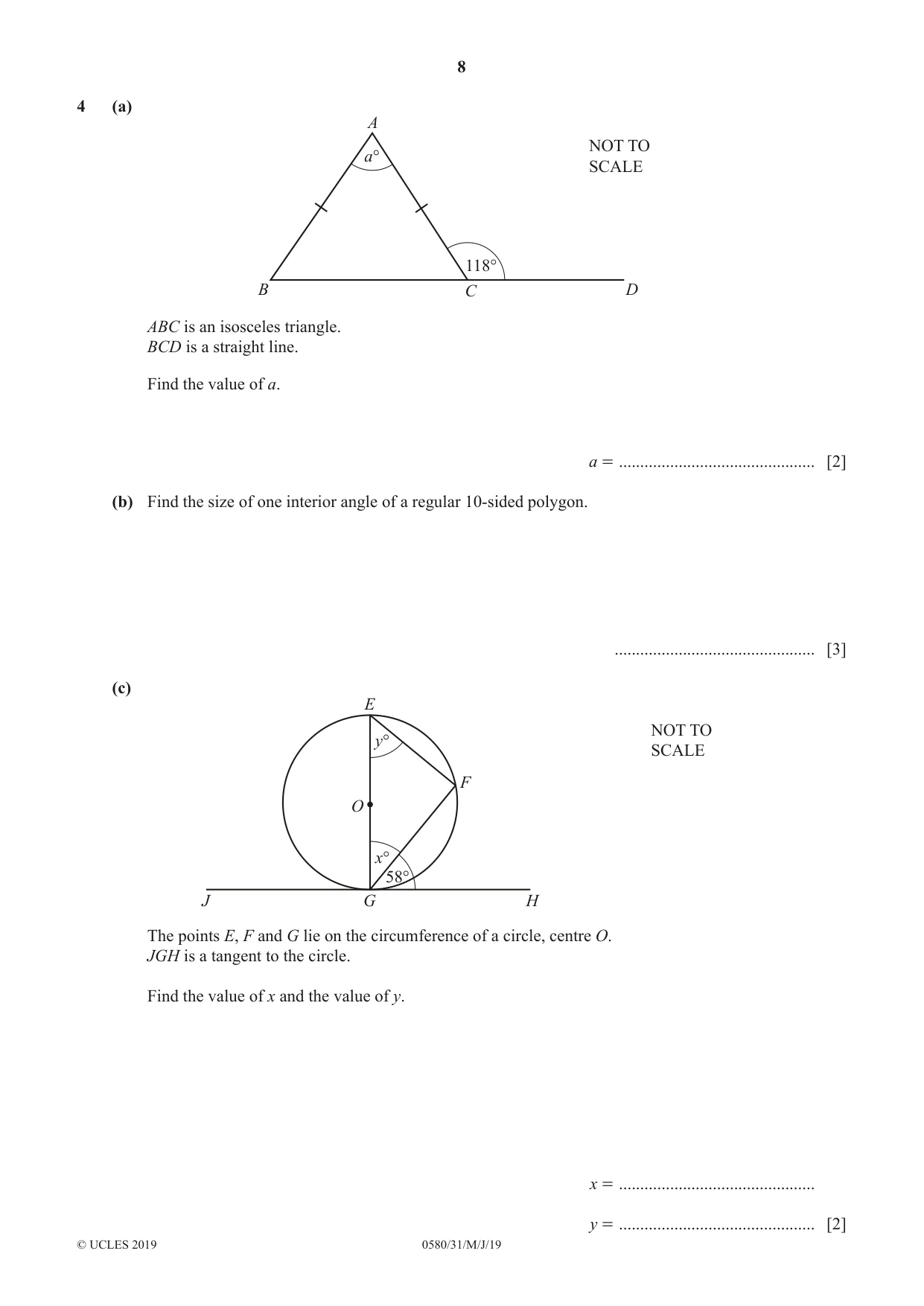

4 (a) A NOT TO a° SCALE 118° B C D ABC is an isosceles triangle. BCD is a straight line. Find the value of a. a = .............................................. [2] (b) Find the size of one interior angle of a regular 10-sided polygon. ............................................... [3] (c) E NOT TO y° SCALE F O x° 58° J G H The points E, F and G lie on the circumference of a circle, centre O. JGH is a tangent to the circle. Find the value of x and the value of y. x = .............................................. y = .............................................. [2] (d) G E 28° C A NOT TO B 67° SCALE D F In the diagram AG and AF are straight lines. Lines BC and DE are parallel. Find angle CED and give a reason for your answer. Angle CED = ................................. because ..................................................................................... [2] (e) R NOT TO SCALE 28 cm P Q 21 cm Calculate PR. PR = ......................................... cm [2]

Mark scheme: 4(a) 56 2 M1 for 180 – 118 soi by 62 4(b) 144 3 M2 for 180 – (360 ÷ 10) oe M1 for 360 ÷ 10 soi by 36 4(c) 32 2 B1 for each 58 or for their x + their y = 90 or angle F marked as 90 4(d) 28 alternate 2 B1 for each 4(e) 35 2 M1 for 212 + 282 or better

More questions on Angles

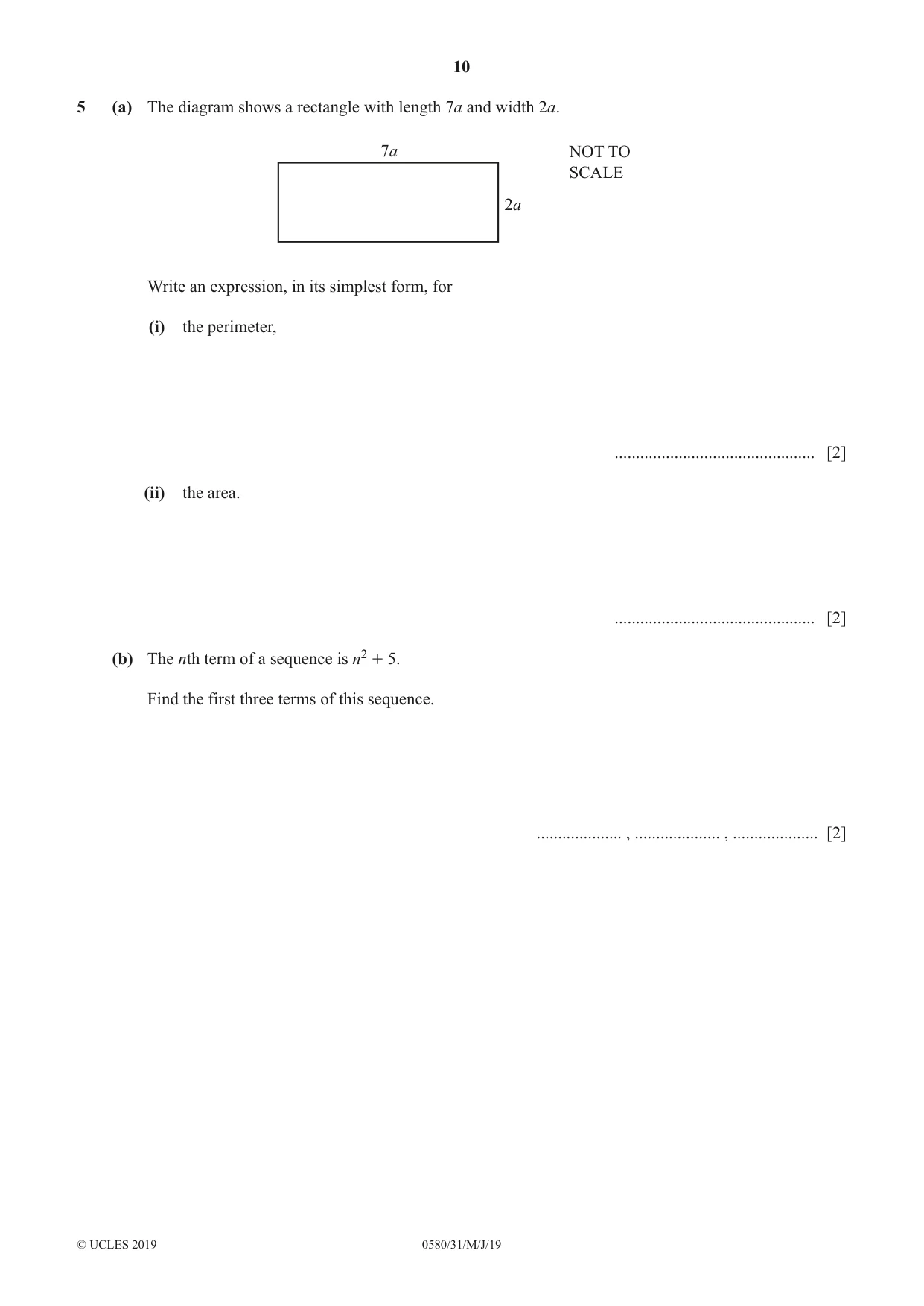

5 (a) The diagram shows a rectangle with length 7a and width 2a. 7a NOT TO SCALE 2a Write an expression, in its simplest form, for (i) the perimeter, ............................................... [2] (ii) the area. ............................................... [2] (b) The nth term of a sequence is n2 + 5. Find the first three terms of this sequence. .................... , .................... , .................... [2] 12(c) (i) Complete the table of values for y = , x ! 0 . x x -6 -4 -3 -2 -1 1 2 3 4 6 y -2 -3 12 2 [3] 12 (ii) On the grid, draw the graph of y = for -6 G x G -1 and 1 G x G 6. x y 12 10 8 6 4 2 – 6 – 5 – 4 – 3 – 2 – 1 0 1 2 3 4 5 6 x – 2 – 4 – 6 – 8 – 10 –12 [4] (iii) On the grid, draw the line y = 8. [1] 12 (iv) Use your graph to solve = 8. x x = .............................................. [1]

Mark scheme: 5(a)(i) 18a final answer 2 M1 for 2 × (7a + 2a) oe 5(a)(ii) 14a2 final answer 2 M1 for 7a × 2a 5(b) 6 9 14 2 B1 for 2 correct or 5 6 9 5(c)(i) −4 −6 −12 6 4 3 3 B2 for 4 or 5 correct or B1 for 2 or 3 correct 5(c)(ii) Correct curve 4 B3FT for 9 or 10 points correctly plotted or B2FT for 7 or 8 points correctly plotted or B1FT for 5 or 6 points correctly plotted 5(c)(iii) Correct ruled line drawn 1 5(c)(iv) 1.3 to 1.7 1 FT their curve and their line

More questions on Sequences

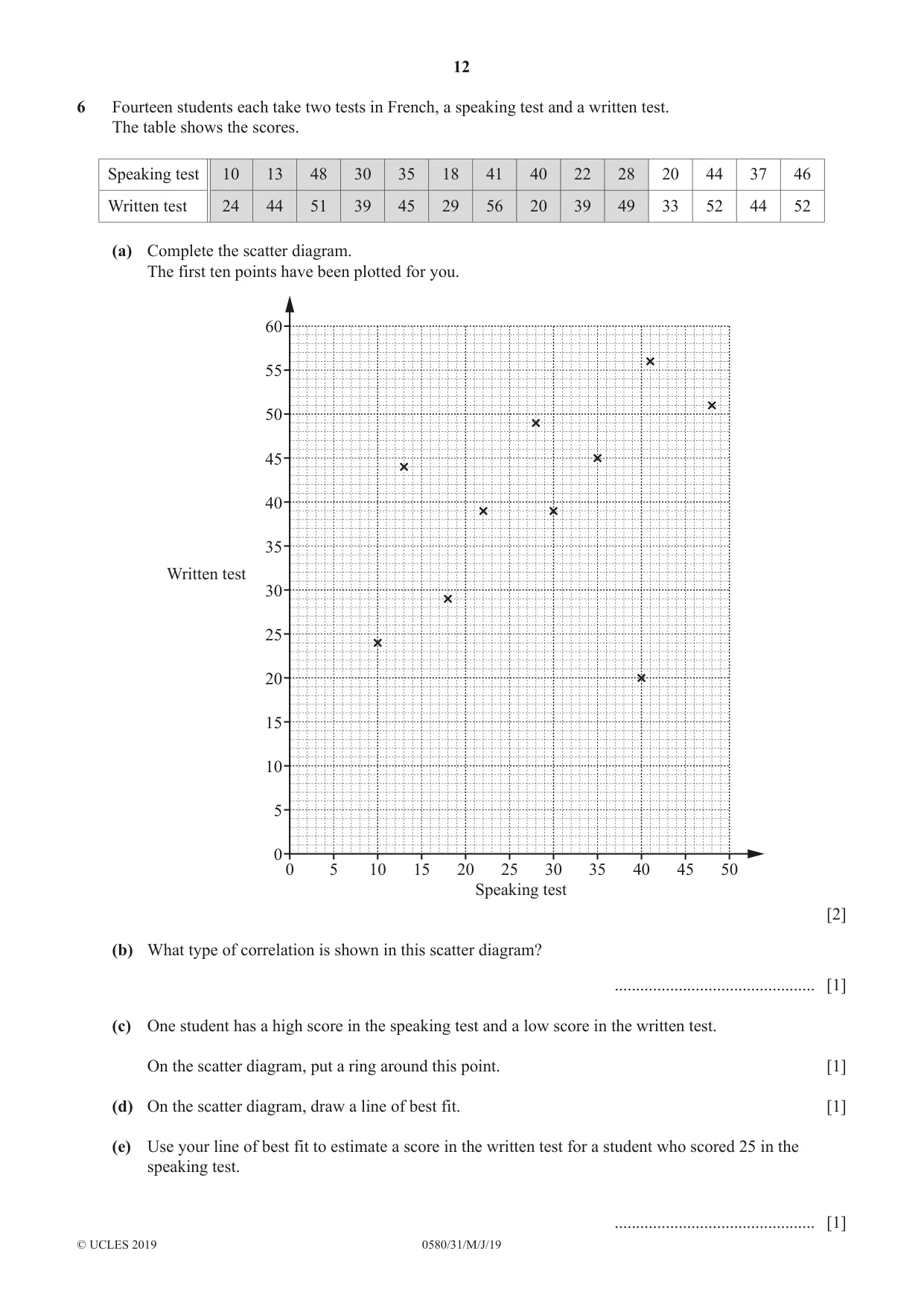

6 Fourteen students each take two tests in French, a speaking test and a written test. The table shows the scores. Speaking test 10 13 48 30 35 18 41 40 22 28 20 44 37 46 Written test 24 44 51 39 45 29 56 20 39 49 33 52 44 52 (a) Complete the scatter diagram. The first ten points have been plotted for you. 60 55 50 45 40 35 Written test 30 25 20 15 10 5 0 0 5 10 15 20 25 30 35 40 45 50 Speaking test [2] (b) What type of correlation is shown in this scatter diagram? ............................................... [1] (c) One student has a high score in the speaking test and a low score in the written test. On the scatter diagram, put a ring around this point. [1] (d) On the scatter diagram, draw a line of best fit. [1] (e) Use your line of best fit to estimate a score in the written test for a student who scored 25 in the speaking test. ............................................... [1]

Mark scheme: 6(a) 4 points correctly plotted 2 B1 for 2 or 3 points correctly plotted 6(b) Positive 1 6(c) (40, 20) indicated 1 6(d) Ruled line of best fit 1 6(e) 33 to 42 1 FT their positive line

More questions on Scatter diagrams

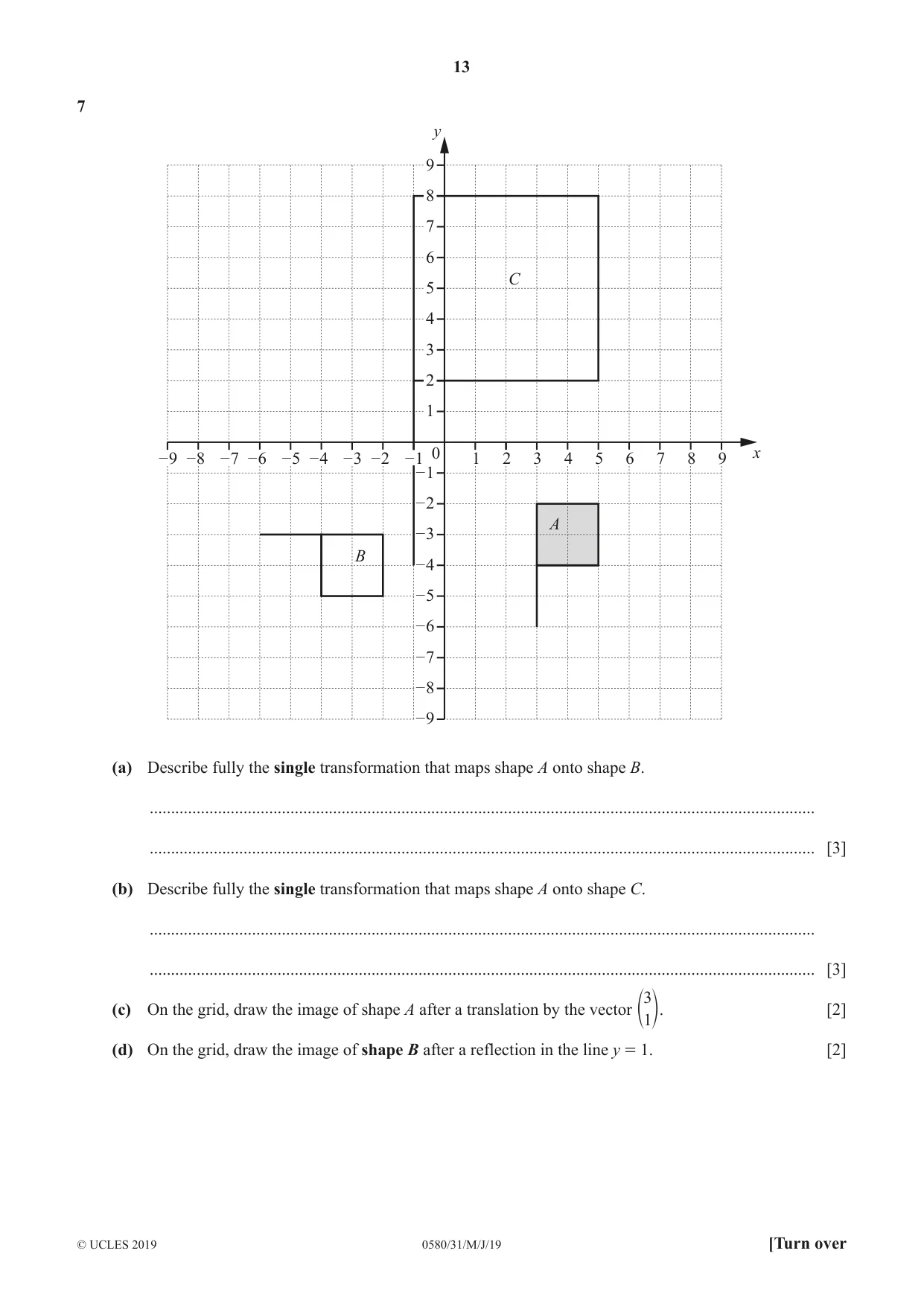

7 y 9 8 7 6 C 5 4 3 2 1 – 9 – 8 – 7 – 6 – 5 – 4 – 3 – 2 – 1 0 1 2 3 4 5 6 7 8 9 x – 1 – 2 A – 3 B – 4 – 5 – 6 – 7 – 8 – 9 (a) Describe fully the single transformation that maps shape A onto shape B. ............................................................................................................................................................ ............................................................................................................................................................ [3] (b) Describe fully the single transformation that maps shape A onto shape C. ............................................................................................................................................................ ............................................................................................................................................................ [3] 3 (c) On the grid, draw the image of shape A after a translation by the vector [2] e1o. (d) On the grid, draw the image of shape B after a reflection in the line y = 1. [2]

Mark scheme: 7(a) Rotation 3 B1 for each [centre] (0, 0) oe 90[°] clockwise oe 7(b) Enlargement 3 B1 for each [centre] (5, −7) [sf=] 3 7(c) Correct shape plotted with points 2 3 k (6, −1) (8, −1) (6, −3) (8, −3) B1 for a correct translation of  or  k 1 (6, −5) 7(d) Correct shape plotted with points 2 B1 for reflection in y = k or x = 1 (−2, 5) (−6, 5) (−2, 7) (−4, 5) (−4, 7)

More questions on Transformations

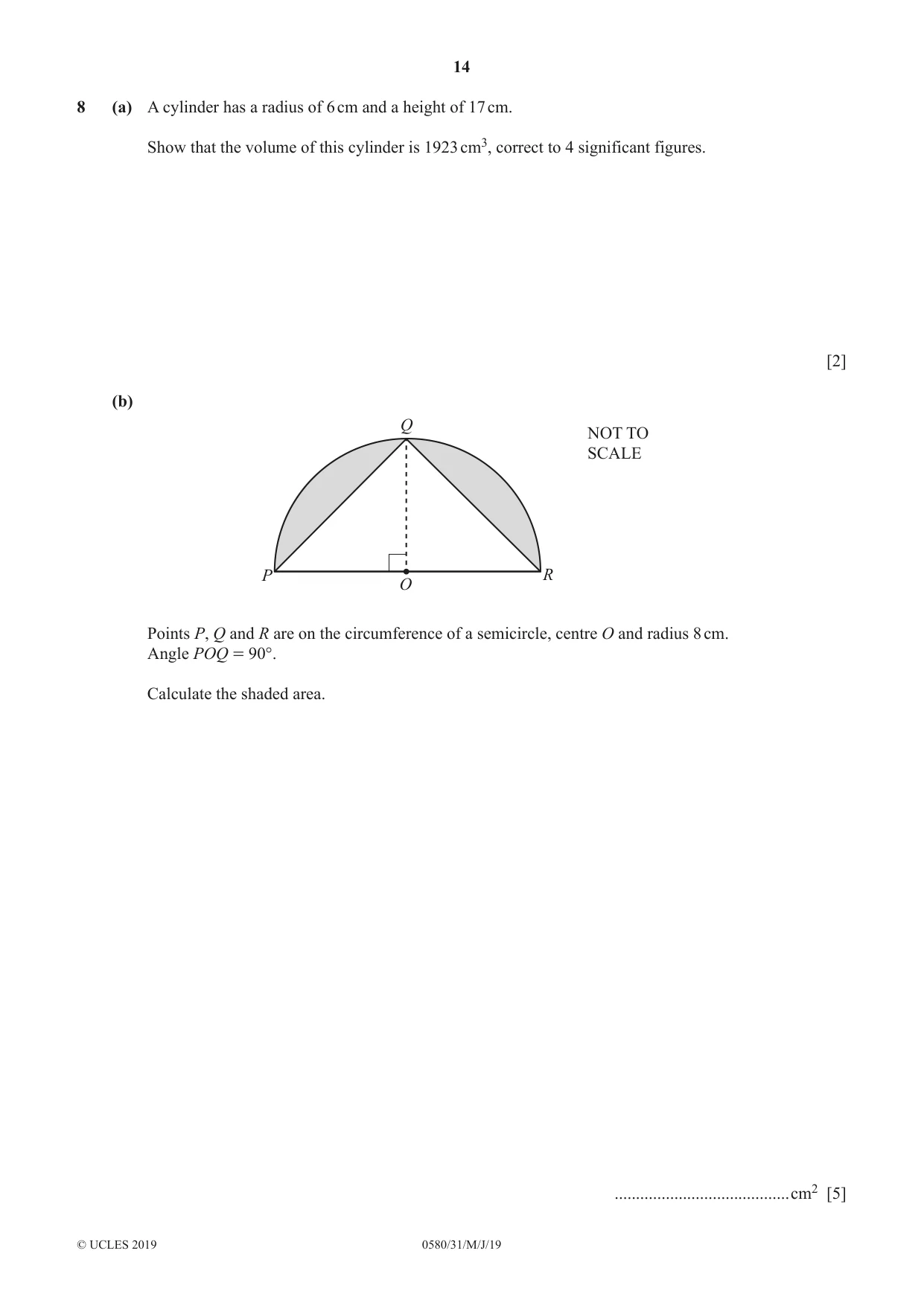

8 (a) A cylinder has a radius of 6 cm and a height of 17 cm. Show that the volume of this cylinder is 1923 cm3, correct to 4 significant figures. [2] (b) Q NOT TO SCALE P R O Points P, Q and R are on the circumference of a semicircle, centre O and radius 8 cm. Angle POQ = 90°. Calculate the shaded area. .........................................cm2 [5]

Mark scheme: 8(a) π × 62 × 17 M1 1922.6 to 1922.91 A1 8(b) 36.5 or 36.53 to 36.54… 5 B2 for 100.53 to 100.54… or 32π or M1 for [0.5 ×] π × 82 oe and B2 for 64 or M1 for [0.5 ×] 16 × 8 oe

More questions on Circles, arcs and sectors

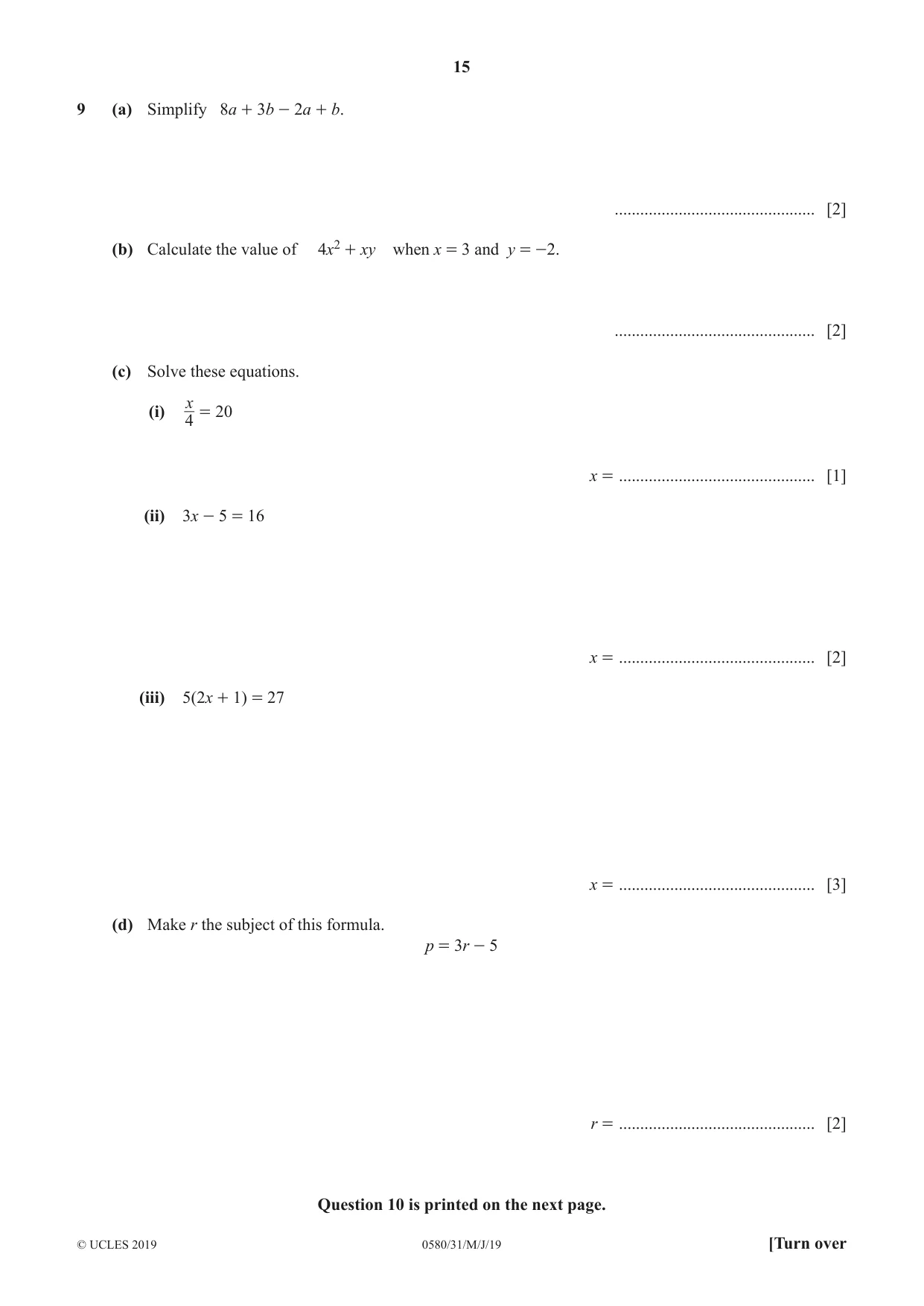

9 (a) Simplify 8a + 3b - 2a + b. ............................................... [2] (b) Calculate the value of 4x2 + xy when x = 3 and y = -2. ............................................... [2] (c) Solve these equations. x (i) = 20 4 x = .............................................. [1] (ii) 3x - 5 = 16 x = .............................................. [2] (iii) 5(2x + 1) = 27 x = .............................................. [3] (d) Make r the subject of this formula. p = 3r - 5 r = .............................................. [2] Question 10 is printed on the next page.

Mark scheme: 9(a) 6a + 4b final answer 2 B1 for 6a + kb or ka + 4b 9(b) 30 2 M1 for 4 × 32 + 3 × −2 or better 9(c)(i) 80 1 9(c)(ii) 7 2 M1 for 3x = 16 + 5 or x – 53 = 163 or better 9(c)(iii) 2.2 oe 3 M1 for 10x + 5 [= 27] or 2 x + 1 = 275 M1 for second correct step 9(d) p + 5 p 5 2 p 5 or + final answer M1 for p + 5 = 3r oe or = r − 3 3 3 3 3

More questions on Equations

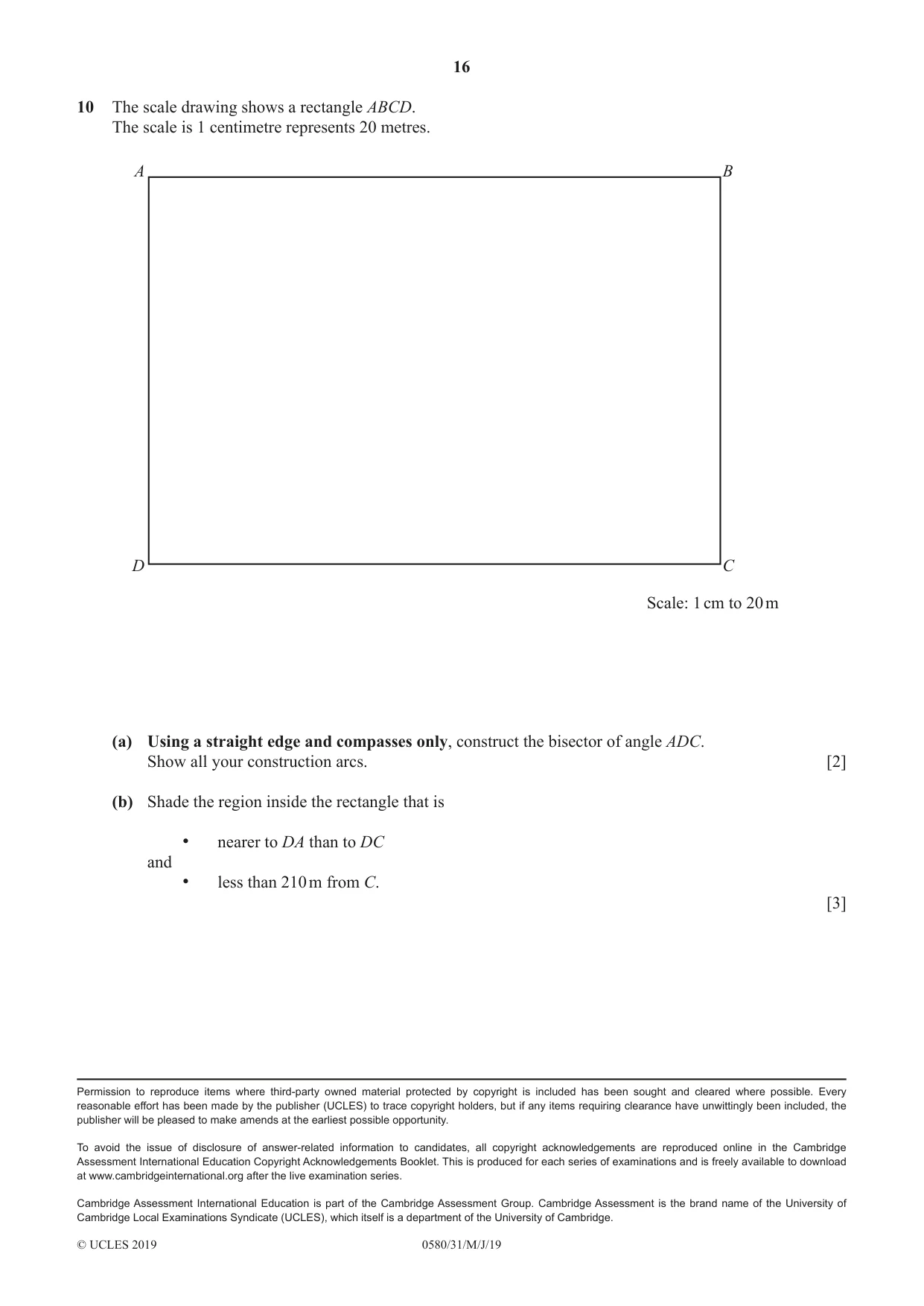

10 The scale drawing shows a rectangle ABCD. The scale is 1 centimetre represents 20 metres. A B D C Scale: 1 cm to 20 m (a) Using a straight edge and compasses only, construct the bisector of angle ADC. Show all your construction arcs. [2] (b) Shade the region inside the rectangle that is • nearer to DA than to DC and • less than 210 m from C. [3]

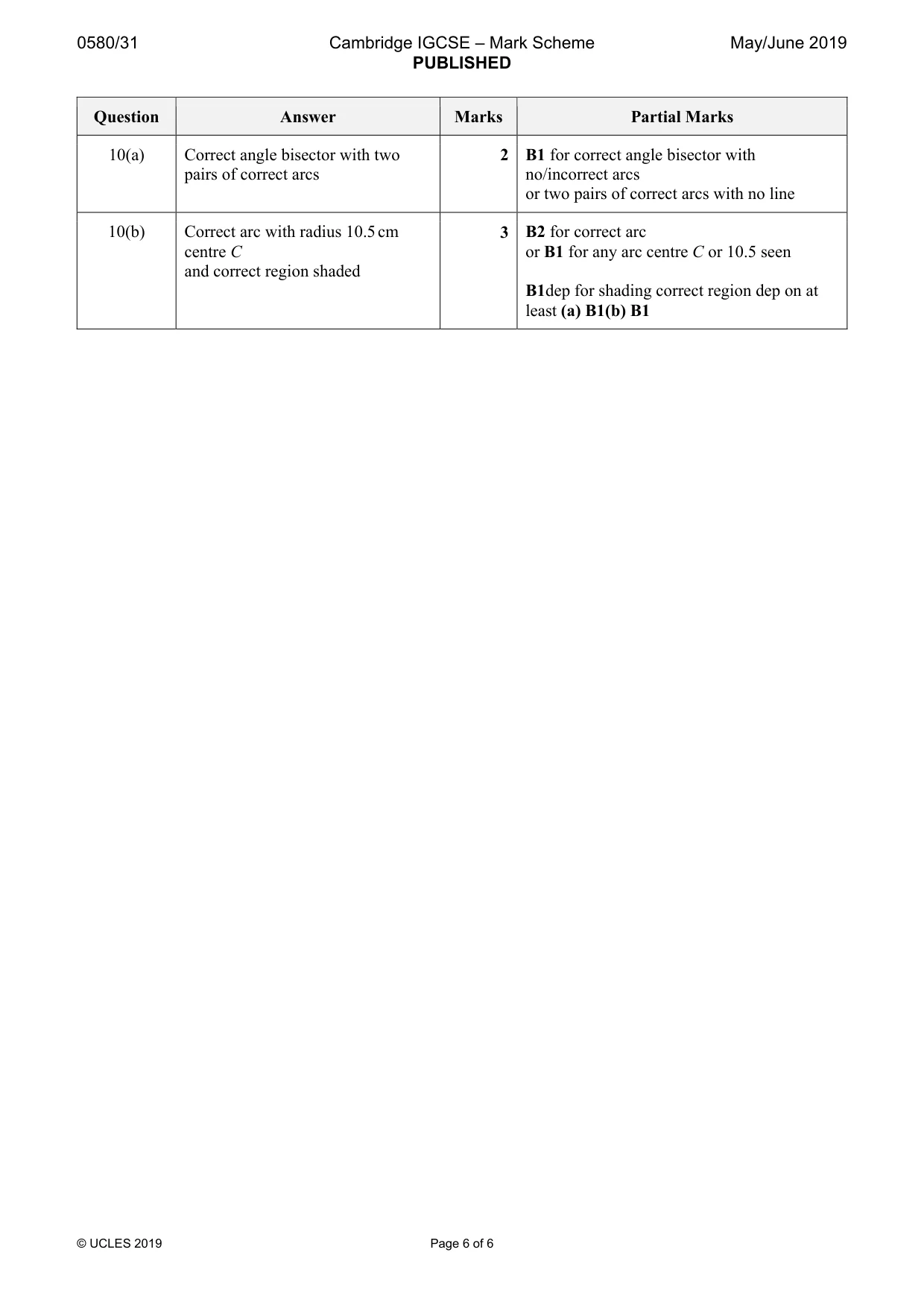

Mark scheme: 10(a) Correct angle bisector with two 2 B1 for correct angle bisector with pairs of correct arcs no/incorrect arcs or two pairs of correct arcs with no line 10(b) Correct arc with radius 10.5 cm 3 B2 for correct arc centre C or B1 for any arc centre C or 10.5 seen and correct region shaded B1dep for shading correct region dep on at least (a) B1(b) B1
