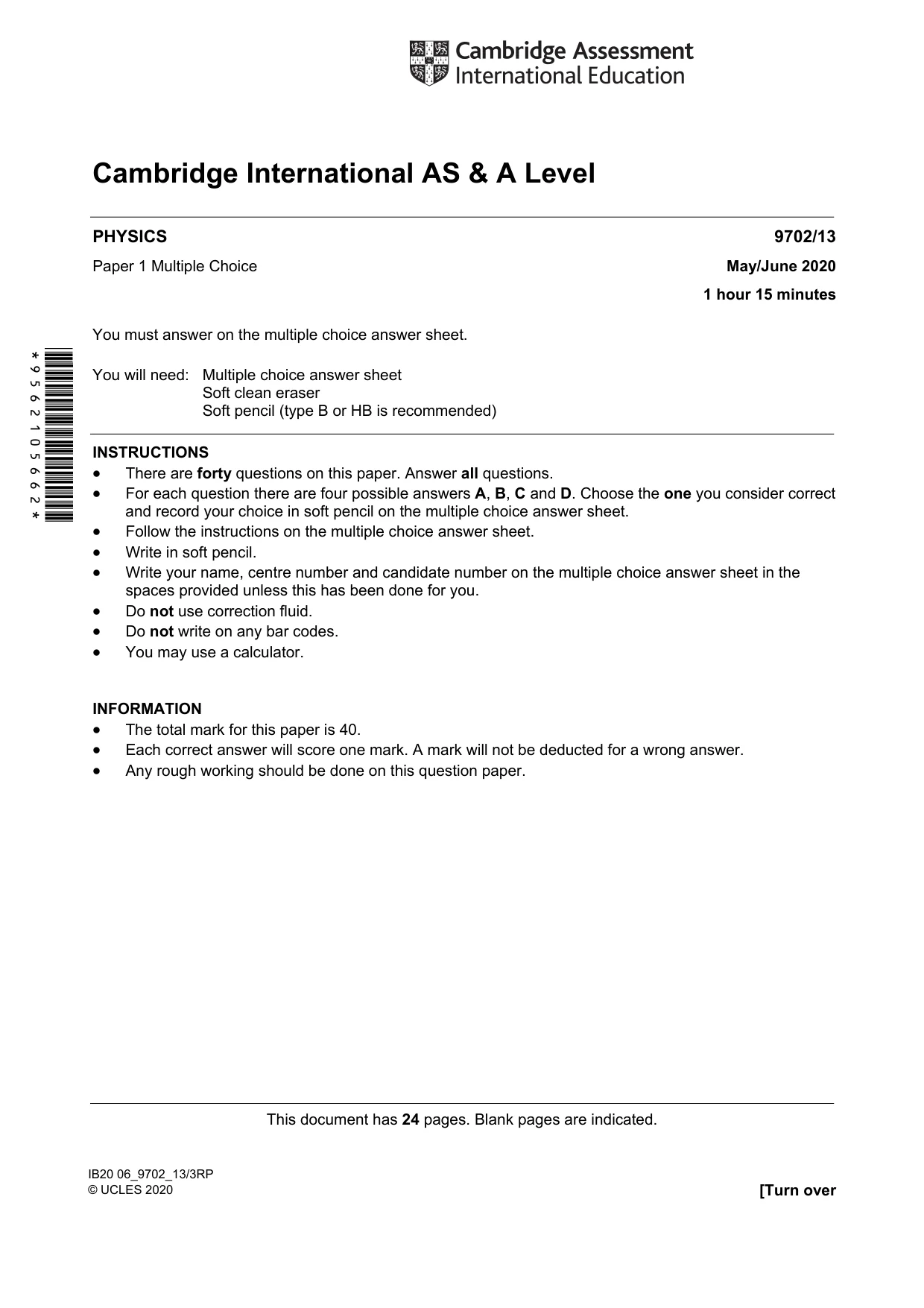

Cambridge A Level Physics 9702 — 2020 May/June Paper 1 · Variant 3

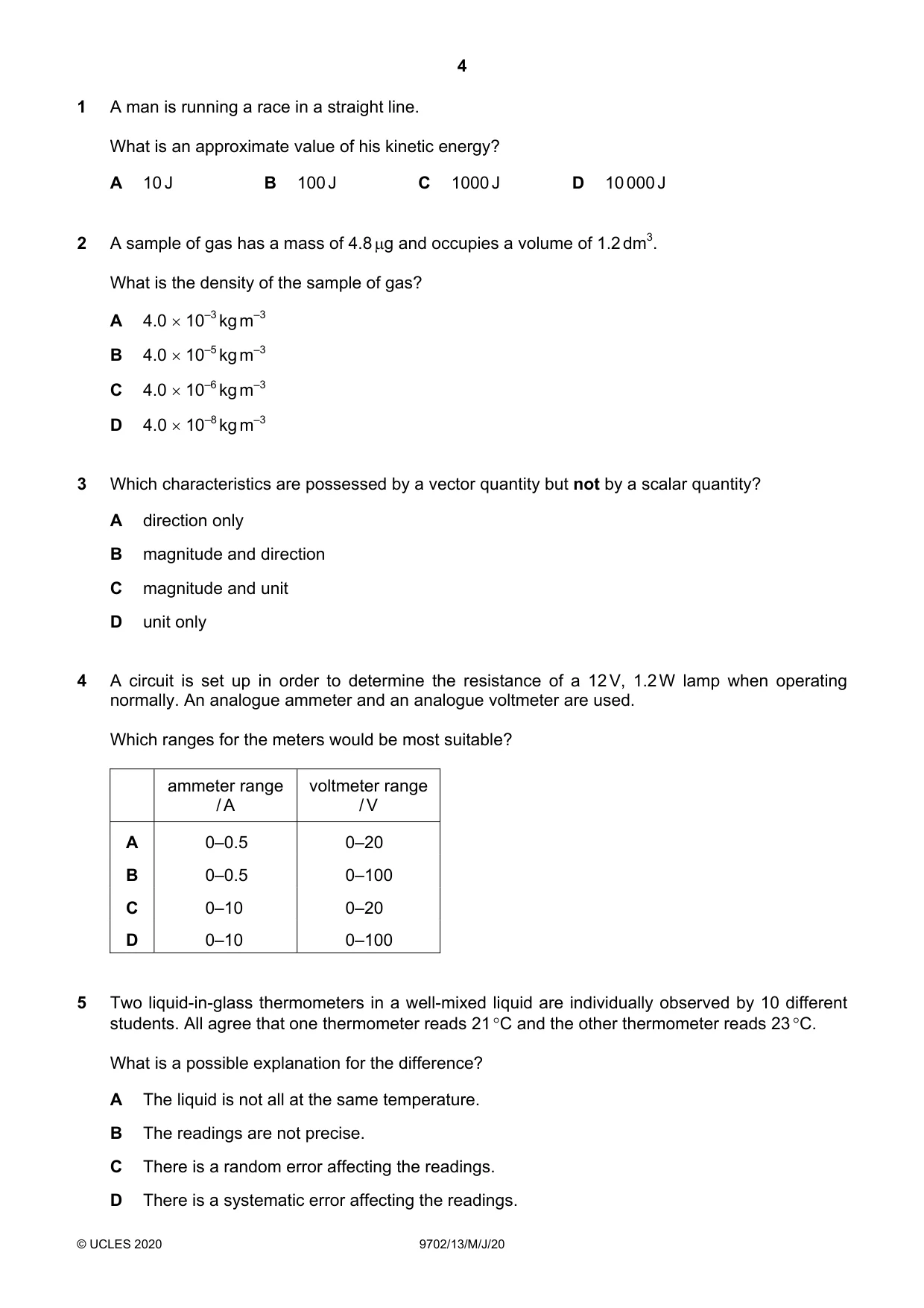

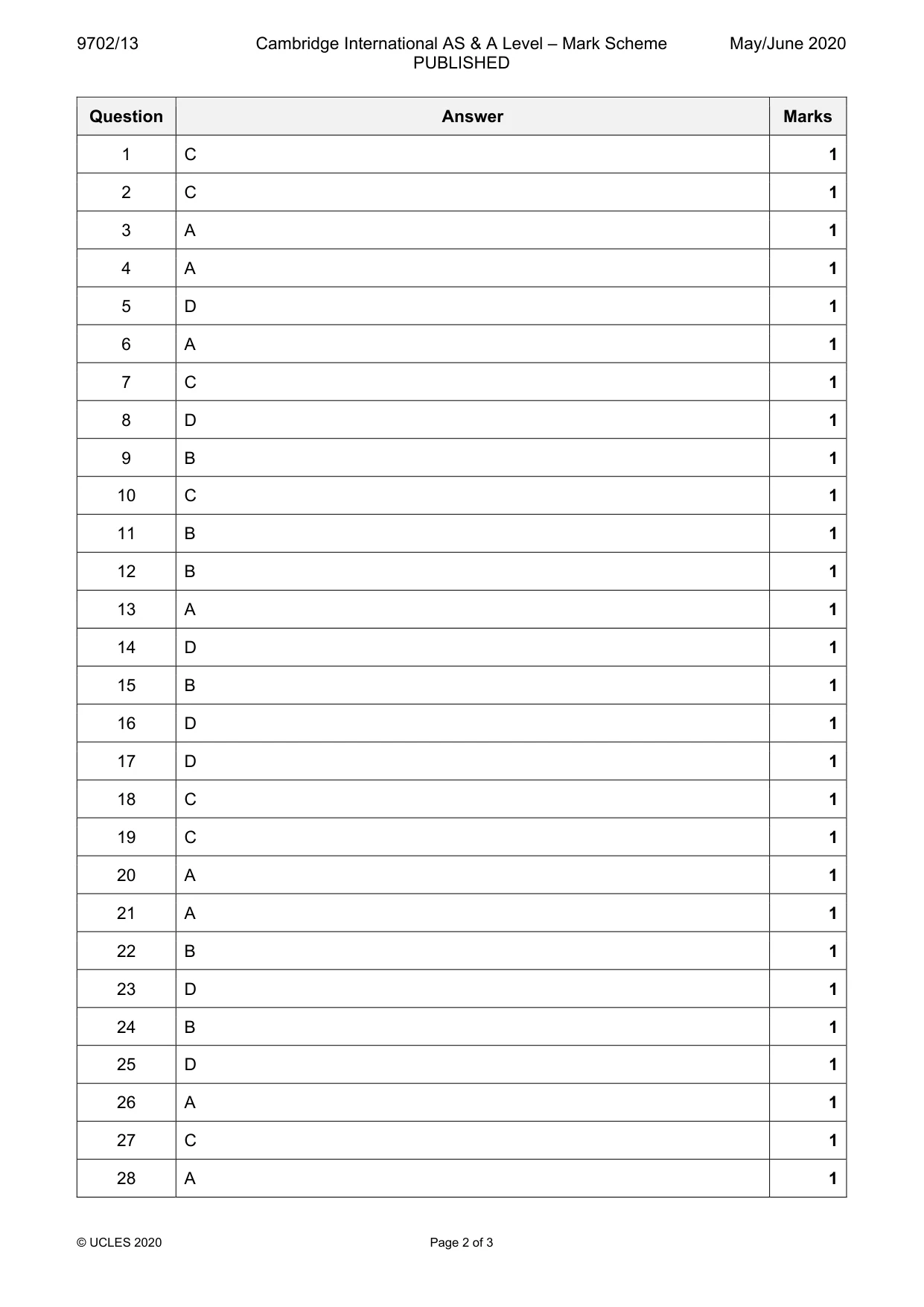

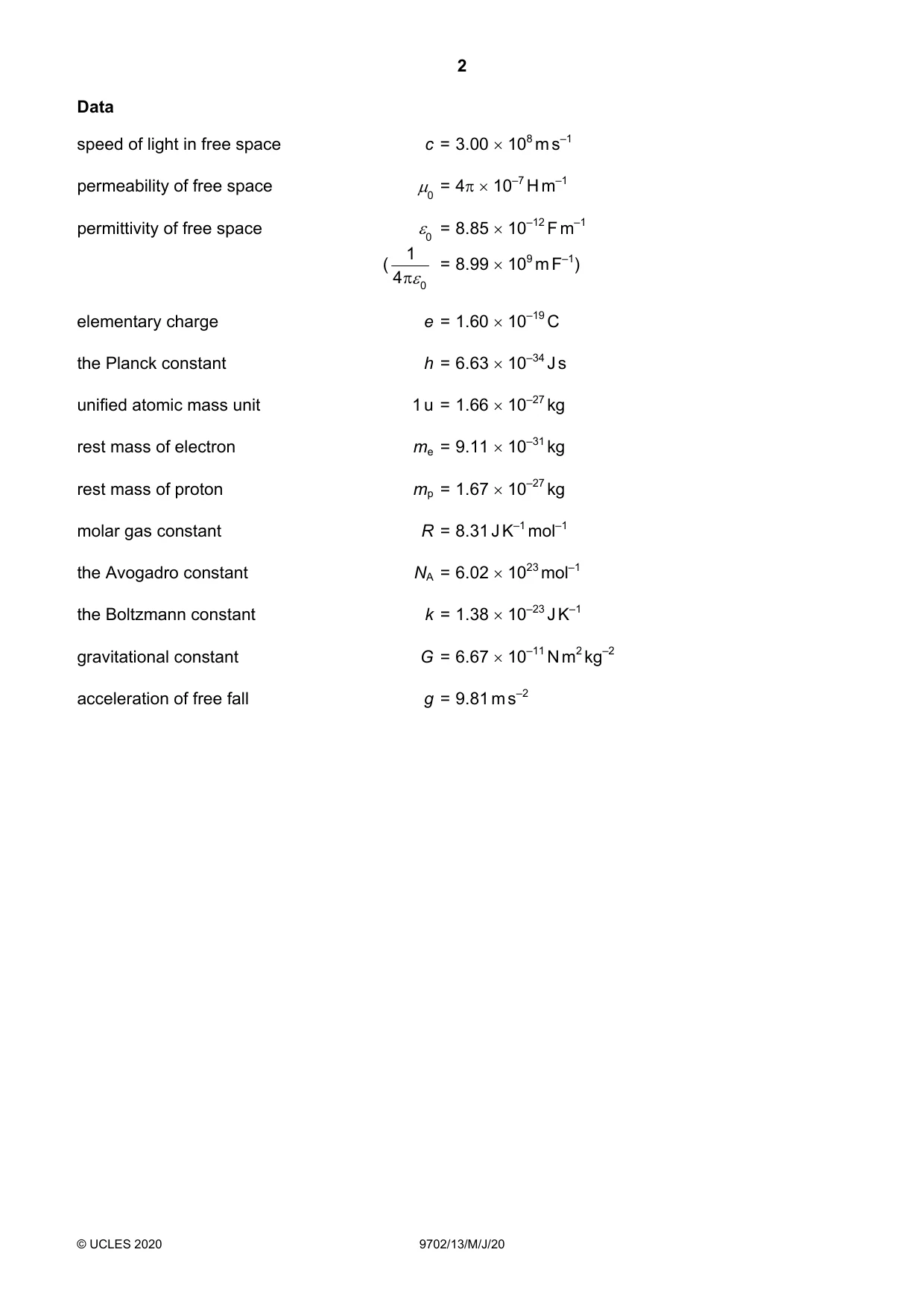

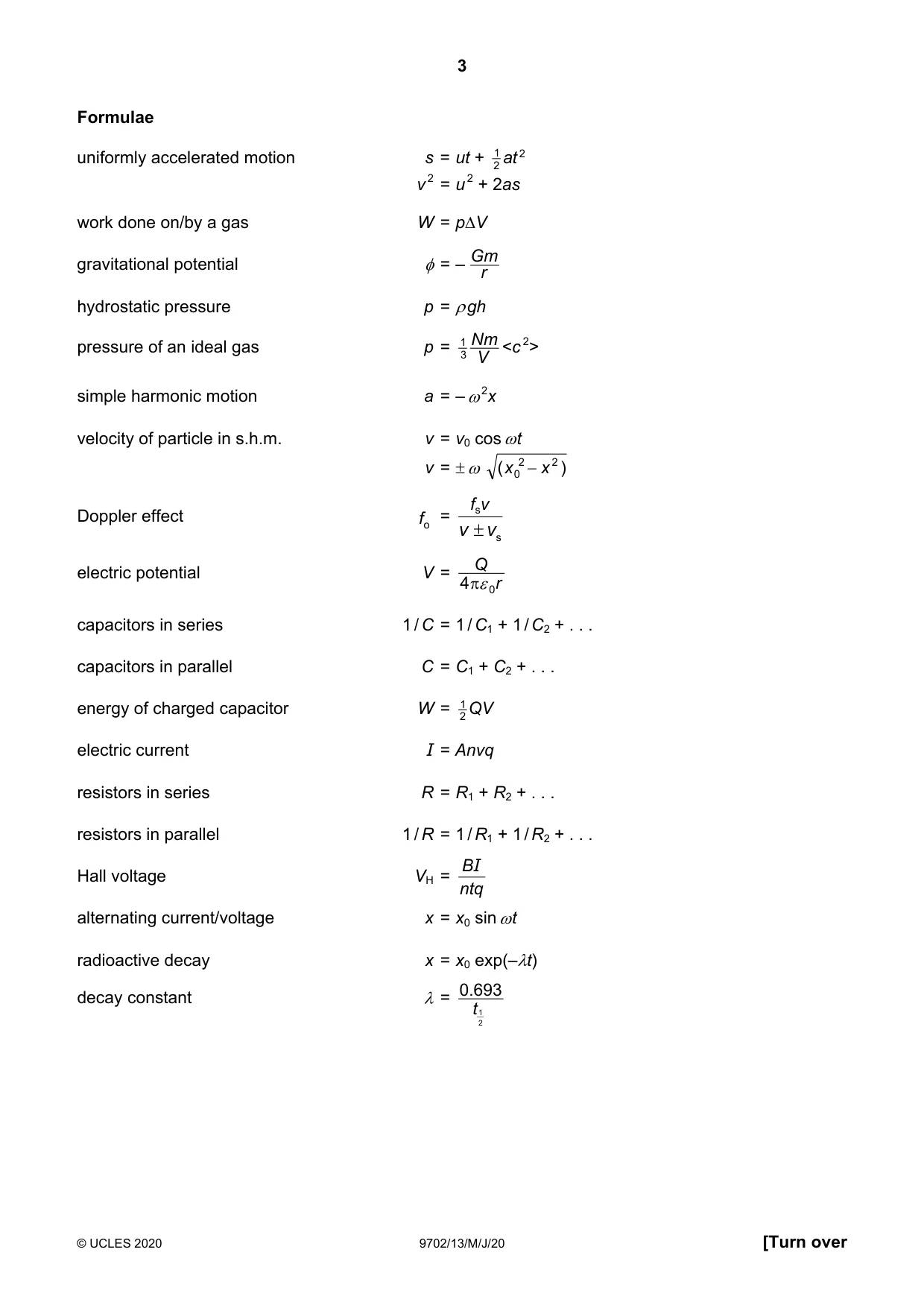

1 A man is running a race in a straight line. What is an approximate value of his kinetic energy? A 10 J B 100 J C 1000 J D 10 000 J

Mark scheme: C

More questions on Gravitational potential energy and kinetic energy

2 A sample of gas has a mass of 4.8 µg and occupies a volume of 1.2 dm3. What is the density of the sample of gas? A 4.0 × 10–3 kg m–3 B 4.0 × 10–5 kg m–3 C 4.0 × 10–6 kg m–3 D 4.0 × 10–8 kg m–3

Mark scheme: C

More questions on Density and pressure

3 Which characteristics are possessed by a vector quantity but not by a scalar quantity? A direction only B magnitude and direction C magnitude and unit D unit only

Mark scheme: A

More questions on Scalars and vectors

4 A circuit is set up in order to determine the resistance of a 12 V, 1.2 W lamp when operating normally. An analogue ammeter and an analogue voltmeter are used. Which ranges for the meters would be most suitable? ammeter range voltmeter range / A / V A 0–0.5 0–20 B 0–0.5 0–100 C 0–10 0–20 D 0–10 0–100

Mark scheme: A

More questions on Practical circuits

5 Two liquid-in-glass thermometers in a well-mixed liquid are individually observed by 10 different students. All agree that one thermometer reads 21 °C and the other thermometer reads 23 °C. What is a possible explanation for the difference? A The liquid is not all at the same temperature. B The readings are not precise. C There is a random error affecting the readings. D There is a systematic error affecting the readings.

Mark scheme: D

More questions on Errors and uncertainties

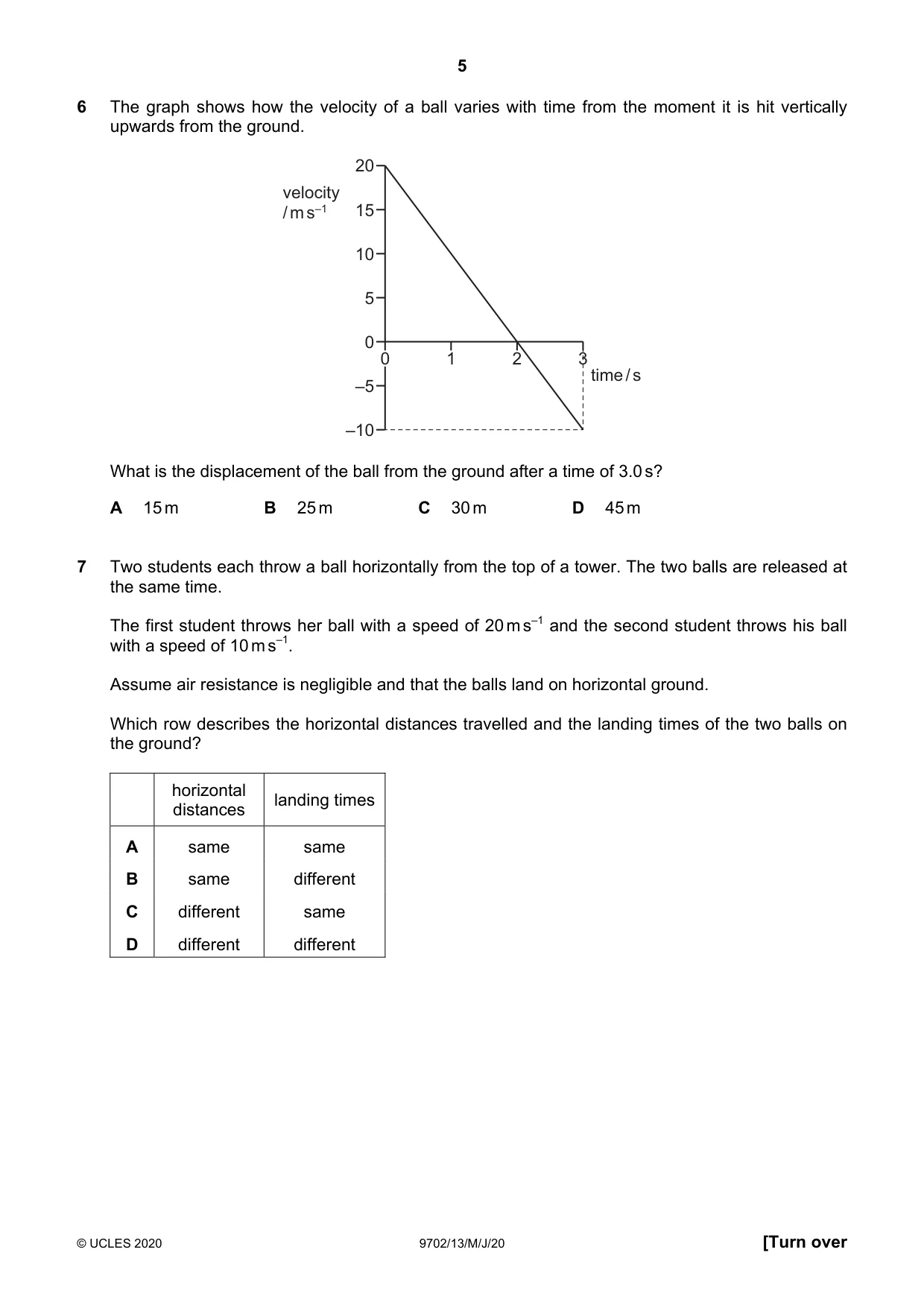

6 The graph shows how the velocity of a ball varies with time from the moment it is hit vertically upwards from the ground. 20 velocity / m s–1 15 10 5 0 0 1 2 3 time / s –5 –10 What is the displacement of the ball from the ground after a time of 3.0 s? A 15 m B 25 m C 30 m D 45 m

Mark scheme: A

More questions on Equations of motion

7 Two students each throw a ball horizontally from the top of a tower. The two balls are released at the same time. The first student throws her ball with a speed of 20 m s–1 and the second student throws his ball with a speed of 10 m s–1. Assume air resistance is negligible and that the balls land on horizontal ground. Which row describes the horizontal distances travelled and the landing times of the two balls on the ground? horizontal landing times distances A same same B same different C different same D different different

Mark scheme: C

More questions on Equations of motion

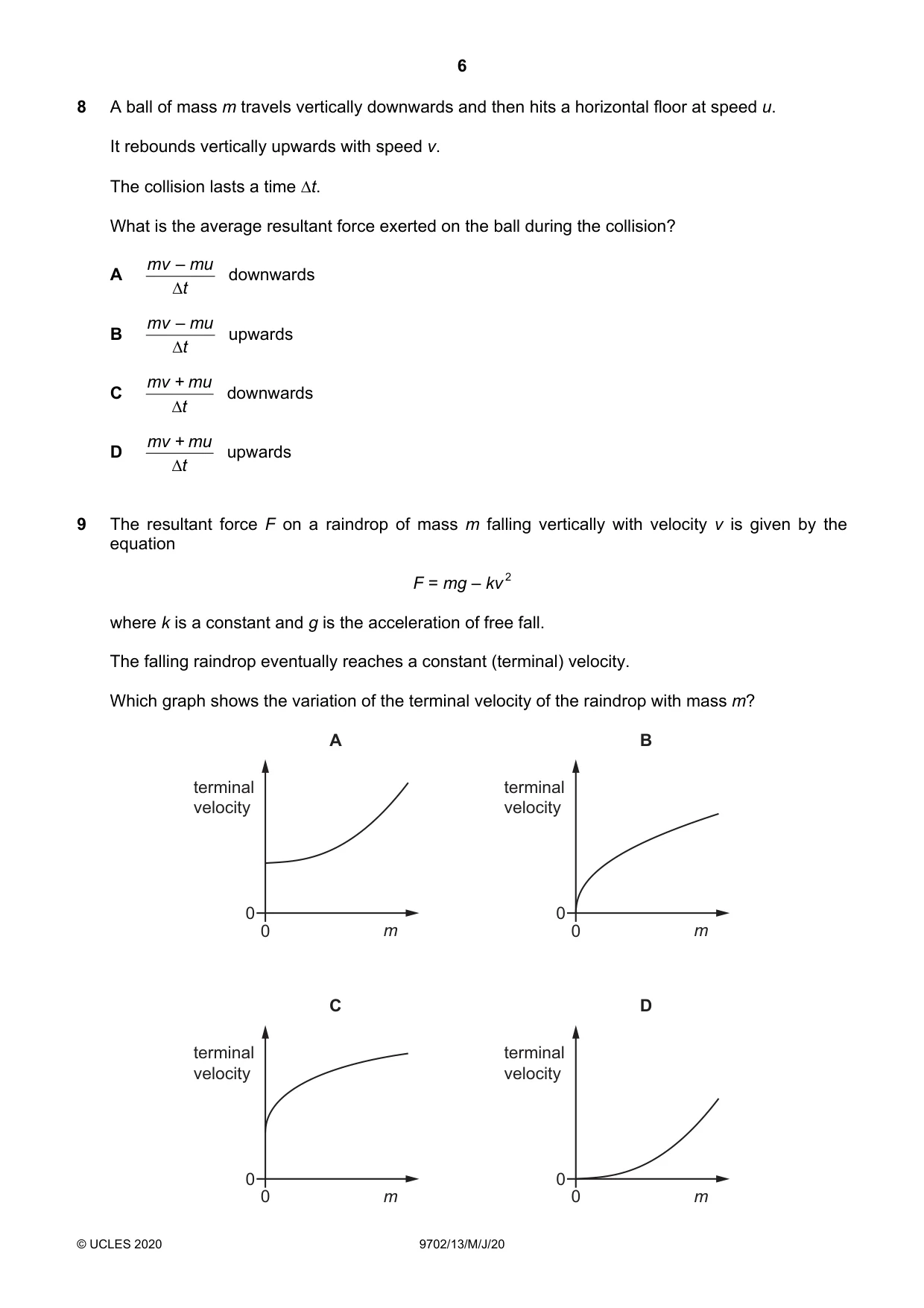

8 A ball of mass m travels vertically downwards and then hits a horizontal floor at speed u. It rebounds vertically upwards with speed v. The collision lasts a time ∆t. What is the average resultant force exerted on the ball during the collision? mv mu downwards – A ∆ t mv mu upwards – B ∆ t mv mu downwards + C ∆ t mv mu upwards + D ∆ t

Mark scheme: D

More questions on Linear momentum and its conservation

9 The resultant force F on a raindrop of mass m falling vertically with velocity v is given by the equation F = mg – kv 2 where k is a constant and g is the acceleration of free fall. The falling raindrop eventually reaches a constant (terminal) velocity. Which graph shows the variation of the terminal velocity of the raindrop with mass m? A B terminal terminal velocity velocity 0 0 0 m 0 m C D terminal terminal velocity velocity 0 0 0 m 0 m

Mark scheme: B

More questions on Non-uniform motion

10 A ball of mass m, moving at a velocity v, collides with a stationary ball of mass 2m. The two balls stick together. Which fraction of the initial kinetic energy is lost on impact? 1 1 2 8 A 9 B 3 C 3 D 9

Mark scheme: C

More questions on Linear momentum and its conservation

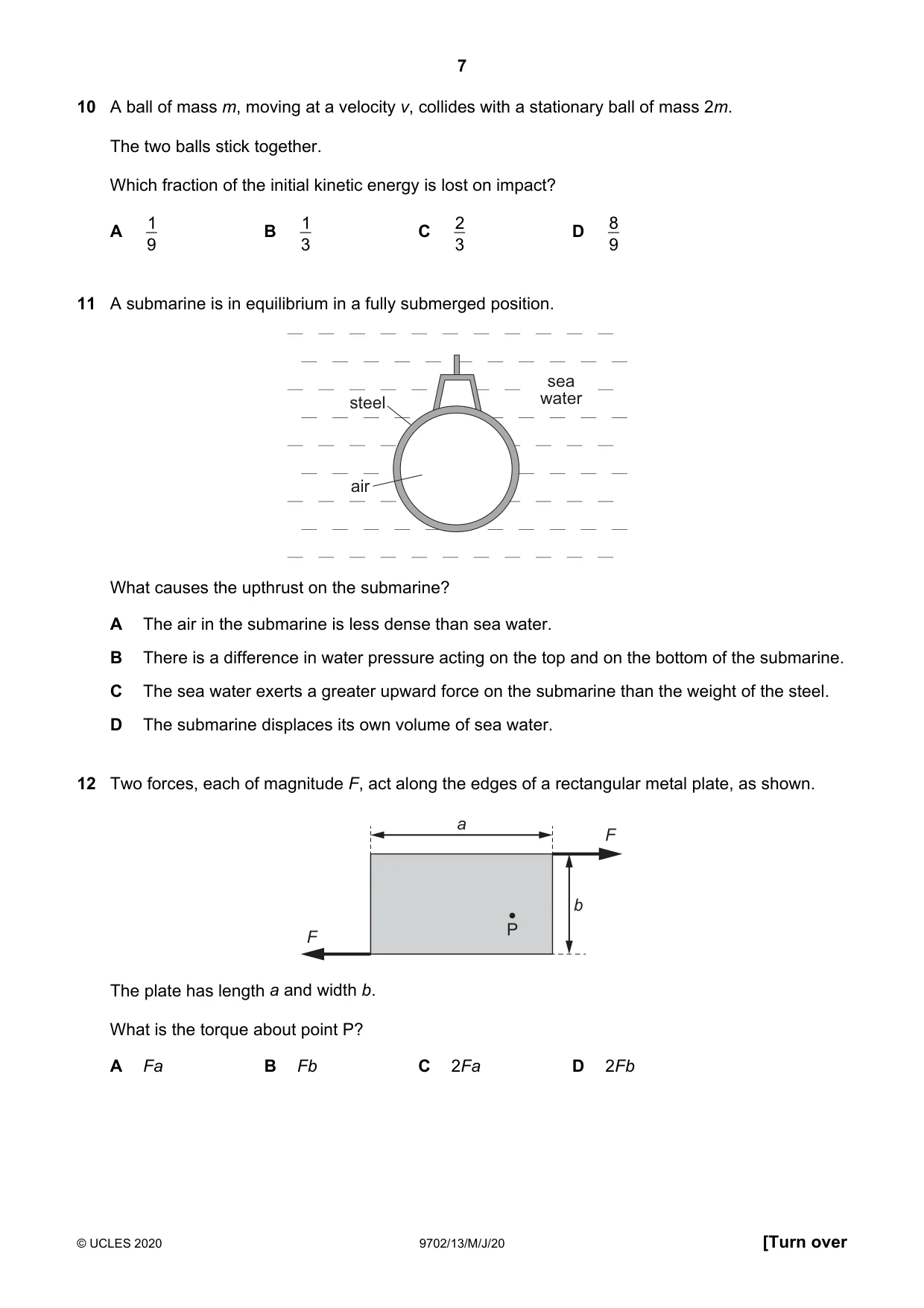

11 A submarine is in equilibrium in a fully submerged position. sea steel water air What causes the upthrust on the submarine? A The air in the submarine is less dense than sea water. B There is a difference in water pressure acting on the top and on the bottom of the submarine. C The sea water exerts a greater upward force on the submarine than the weight of the steel. D The submarine displaces its own volume of sea water.

Mark scheme: B

More questions on Density and pressure

12 Two forces, each of magnitude F, act along the edges of a rectangular metal plate, as shown. a F b F P The plate has length a and width b. What is the torque about point P? A Fa B Fb C 2Fa D 2Fb

Mark scheme: B

More questions on Turning effects of forces

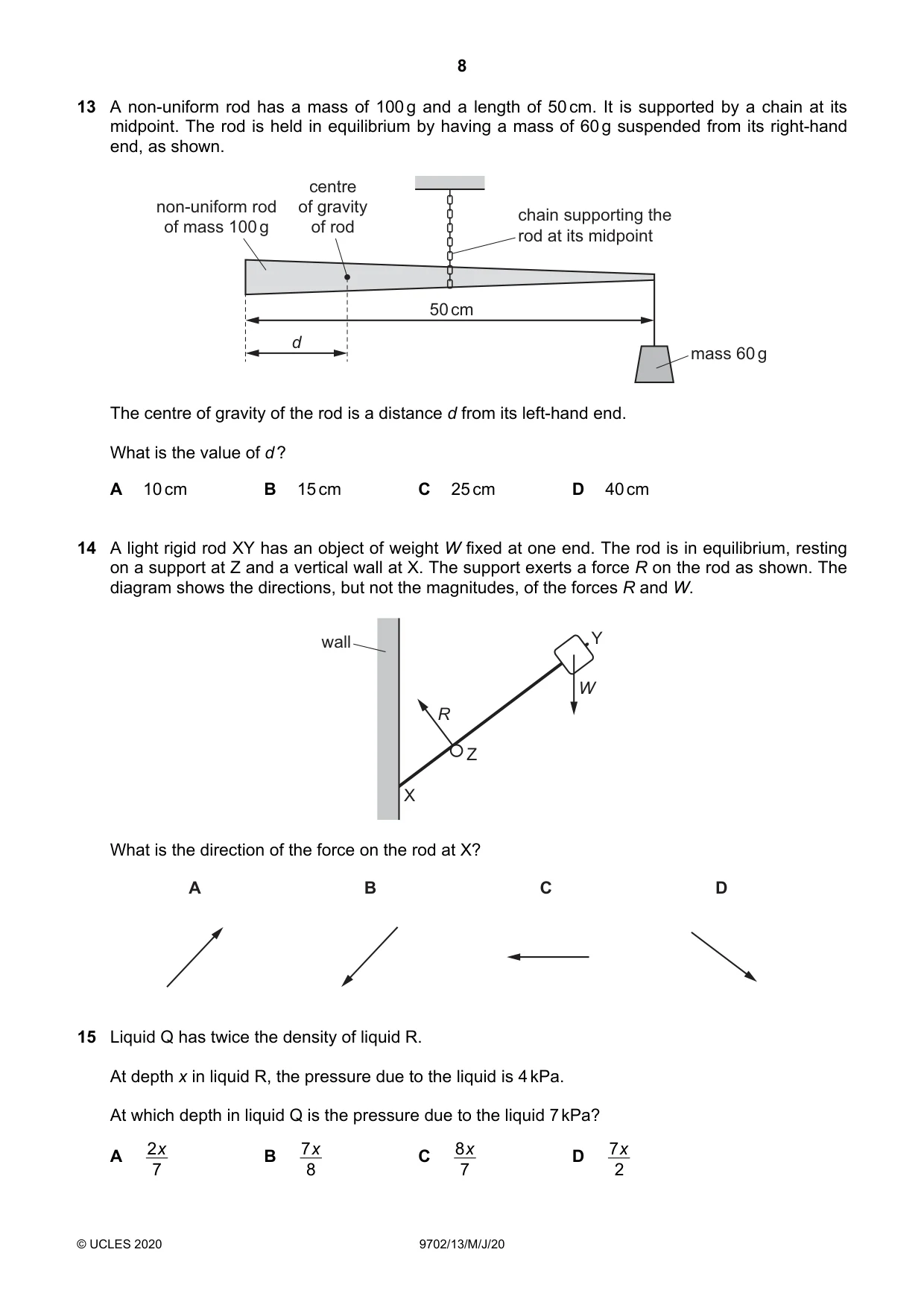

13 A non-uniform rod has a mass of 100 g and a length of 50 cm. It is supported by a chain at its midpoint. The rod is held in equilibrium by having a mass of 60 g suspended from its right-hand end, as shown. centre non-uniform rod of gravity chain supporting the of mass 100 g of rod rod at its midpoint 50 cm d mass 60 g The centre of gravity of the rod is a distance d from its left-hand end. What is the value of d ? A 10 cm B 15 cm C 25 cm D 40 cm

Mark scheme: A

More questions on Equilibrium of forces

14 A light rigid rod XY has an object of weight W fixed at one end. The rod is in equilibrium, resting on a support at Z and a vertical wall at X. The support exerts a force R on the rod as shown. The diagram shows the directions, but not the magnitudes, of the forces R and W. wall Y W R Z X What is the direction of the force on the rod at X? A B C D

Mark scheme: D

More questions on Equilibrium of forces

15 Liquid Q has twice the density of liquid R. At depth x in liquid R, the pressure due to the liquid is 4 kPa. At which depth in liquid Q is the pressure due to the liquid 7 kPa? A 2x B 7x C 8x D 7x 7 8 7 2

Mark scheme: B

More questions on Density and pressure

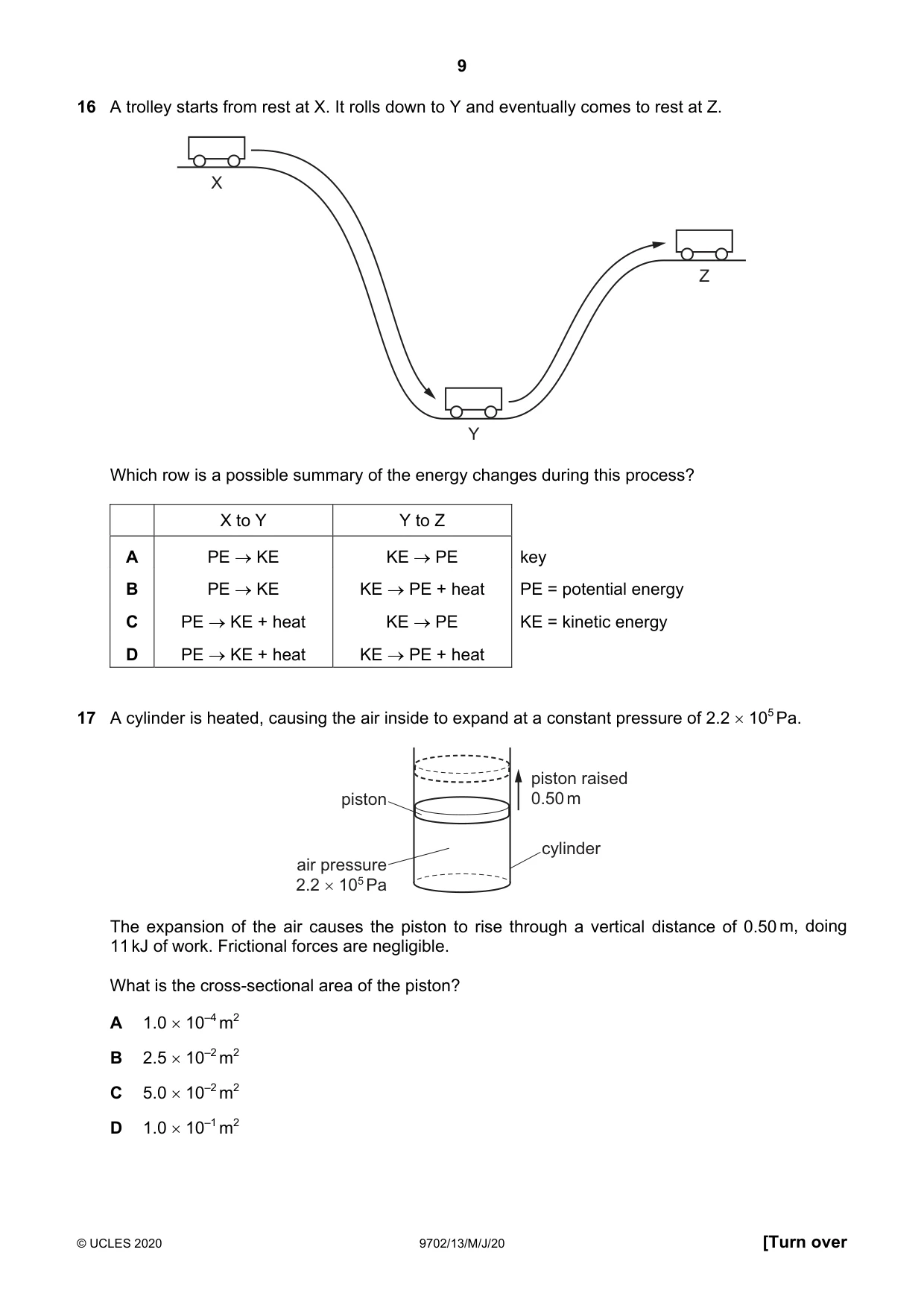

16 A trolley starts from rest at X. It rolls down to Y and eventually comes to rest at Z. X Z Y Which row is a possible summary of the energy changes during this process? X to Y Y to Z A PE → KE KE → PE key B PE → KE KE → PE + heat PE = potential energy C PE → KE + heat KE → PE KE = kinetic energy D PE → KE + heat KE → PE + heat

Mark scheme: D

More questions on Energy conservation

17 A cylinder is heated, causing the air inside to expand at a constant pressure of 2.2 × 105 Pa. piston raised piston 0.50 m cylinder air pressure 2.2 × 105 Pa The expansion of the air causes the piston to rise through a vertical distance of 0.50 m, doing 11 kJ of work. Frictional forces are negligible. What is the cross-sectional area of the piston? A 1.0 × 10–4 m2 B 2.5 × 10–2 m2 C 5.0 × 10–2 m2 D 1.0 × 10–1 m2

Mark scheme: D

More questions on Energy conservation

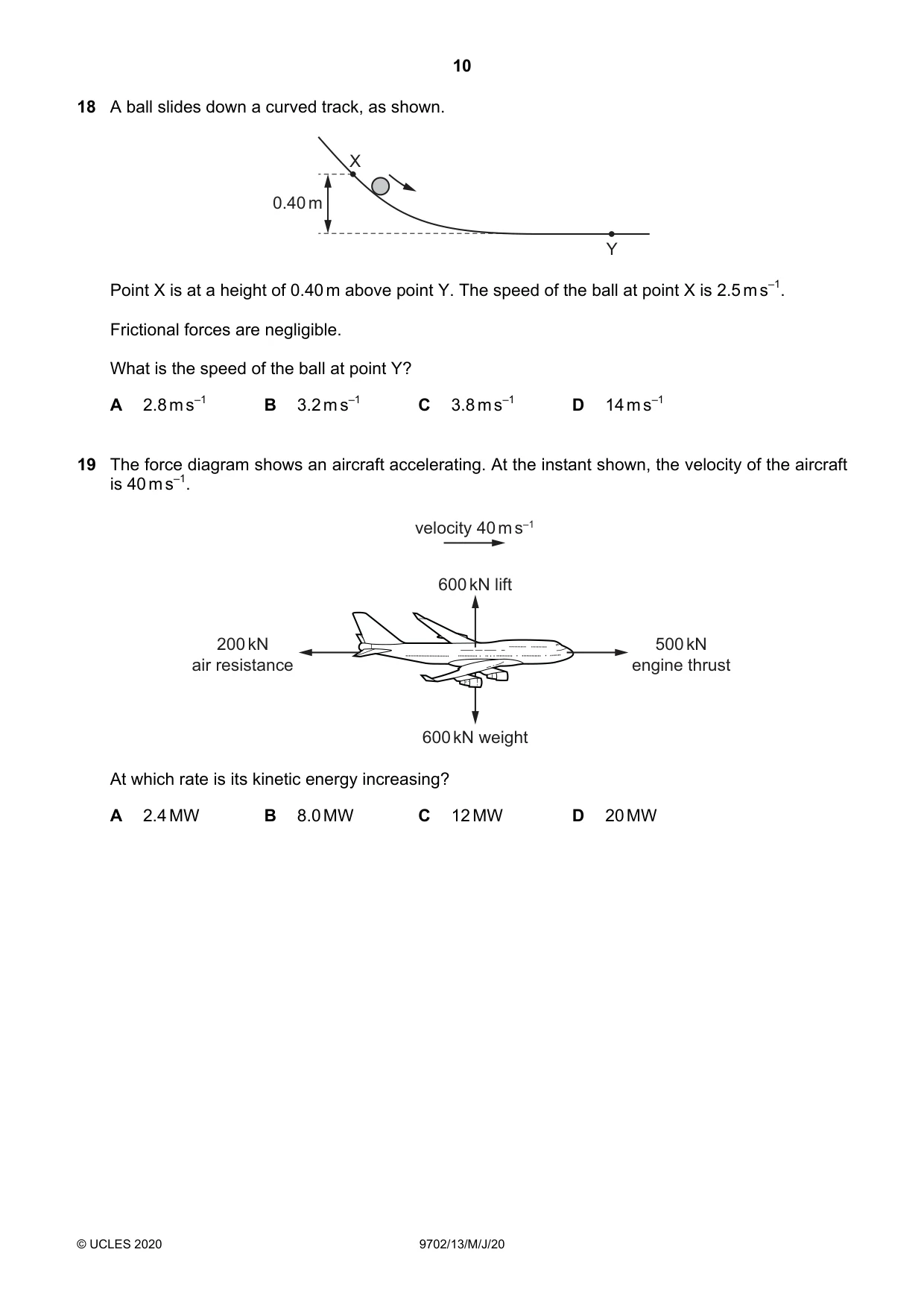

18 A ball slides down a curved track, as shown. X 0.40 m Y Point X is at a height of 0.40 m above point Y. The speed of the ball at point X is 2.5 m s–1. Frictional forces are negligible. What is the speed of the ball at point Y? A 2.8 m s–1 B 3.2 m s–1 C 3.8 m s–1 D 14 m s–1

Mark scheme: C

More questions on Gravitational potential energy and kinetic energy

19 The force diagram shows an aircraft accelerating. At the instant shown, the velocity of the aircraft is 40 m s–1. velocity 40 m s–1 600 kN lift 200 kN 500 kN air resistance engine thrust 600 kN weight At which rate is its kinetic energy increasing? A 2.4 MW B 8.0 MW C 12 MW D 20 MW

Mark scheme: C

More questions on Energy conservation

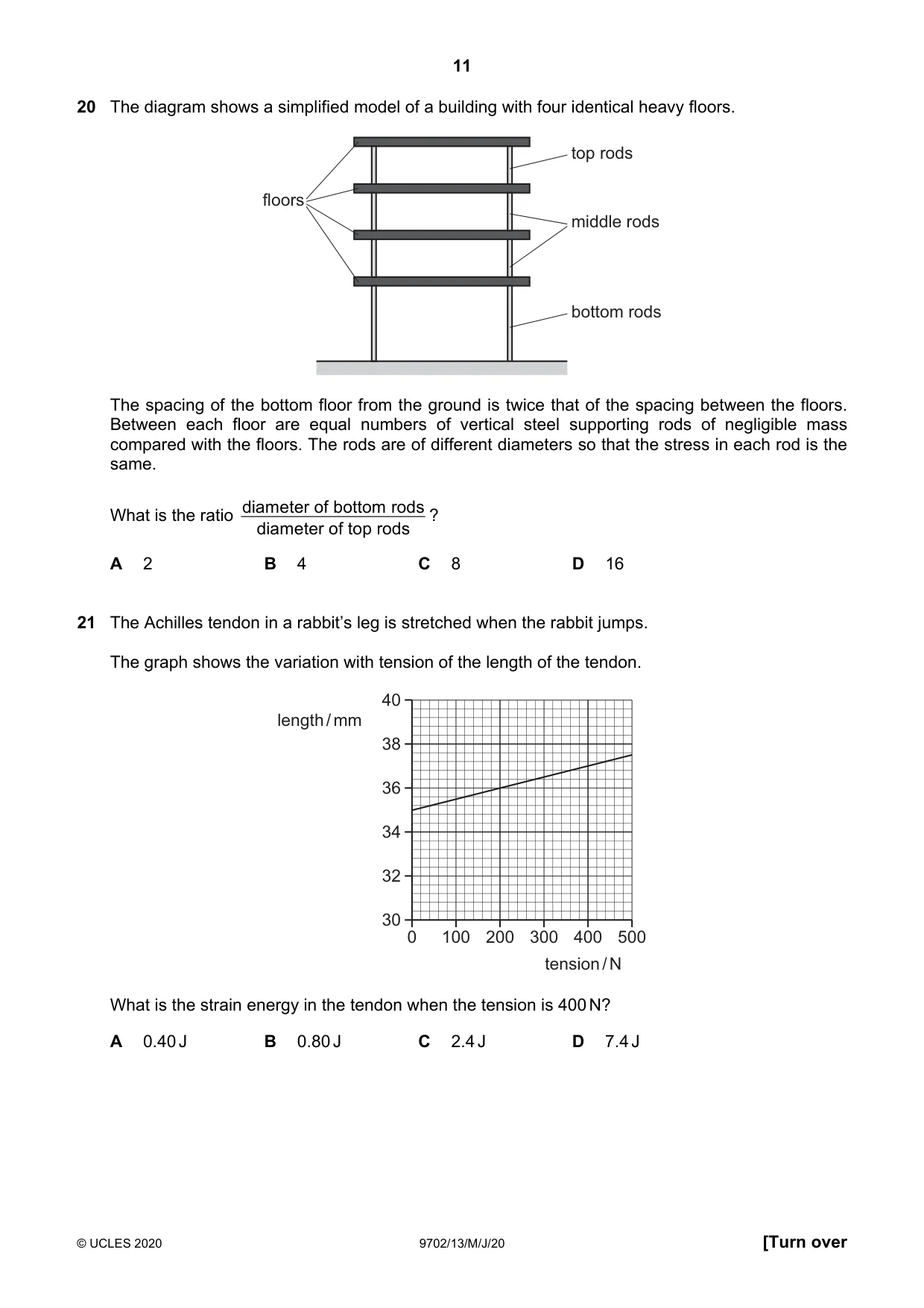

20 The diagram shows a simplified model of a building with four identical heavy floors. top rods floors middle rods bottom rods The spacing of the bottom floor from the ground is twice that of the spacing between the floors. Between each floor are equal numbers of vertical steel supporting rods of negligible mass compared with the floors. The rods are of different diameters so that the stress in each rod is the same. What is the ratio diameter of bottom rods ? diameter of top rods A 2 B 4 C 8 D 16

Mark scheme: A

More questions on Stress and strain

21 The Achilles tendon in a rabbit’s leg is stretched when the rabbit jumps. The graph shows the variation with tension of the length of the tendon. 40 length / mm 38 36 34 32 30 0 100 200 300 400 500 tension / N What is the strain energy in the tendon when the tension is 400 N? A 0.40 J B 0.80 J C 2.4 J D 7.4 J

Mark scheme: A

More questions on Elastic and plastic behaviour

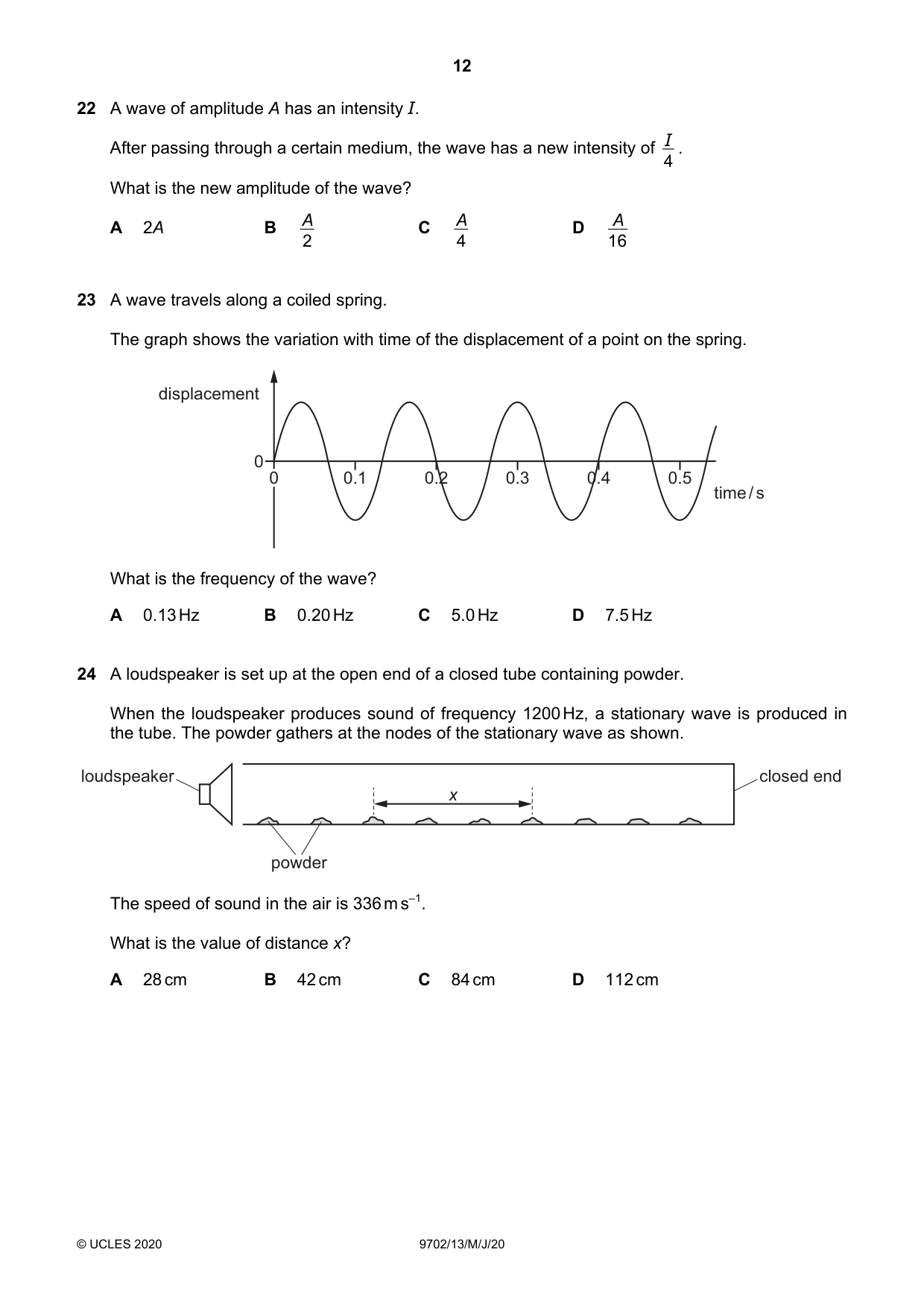

22 A wave of amplitude A has an intensity I. I . After passing through a certain medium, the wave has a new intensity of 4 What is the new amplitude of the wave? A 2A B A C A D A 2 4 16

Mark scheme: B

More questions on Progressive waves

23 A wave travels along a coiled spring. The graph shows the variation with time of the displacement of a point on the spring. displacement 0 0 0.1 0.2 0.3 0.4 0.5 time / s What is the frequency of the wave? A 0.13 Hz B 0.20 Hz C 5.0 Hz D 7.5 Hz

Mark scheme: D

More questions on Progressive waves

24 A loudspeaker is set up at the open end of a closed tube containing powder. When the loudspeaker produces sound of frequency 1200 Hz, a stationary wave is produced in the tube. The powder gathers at the nodes of the stationary wave as shown. loudspeaker closed end x powder The speed of sound in the air is 336 m s–1. What is the value of distance x? A 28 cm B 42 cm C 84 cm D 112 cm

Mark scheme: B

More questions on Stationary waves

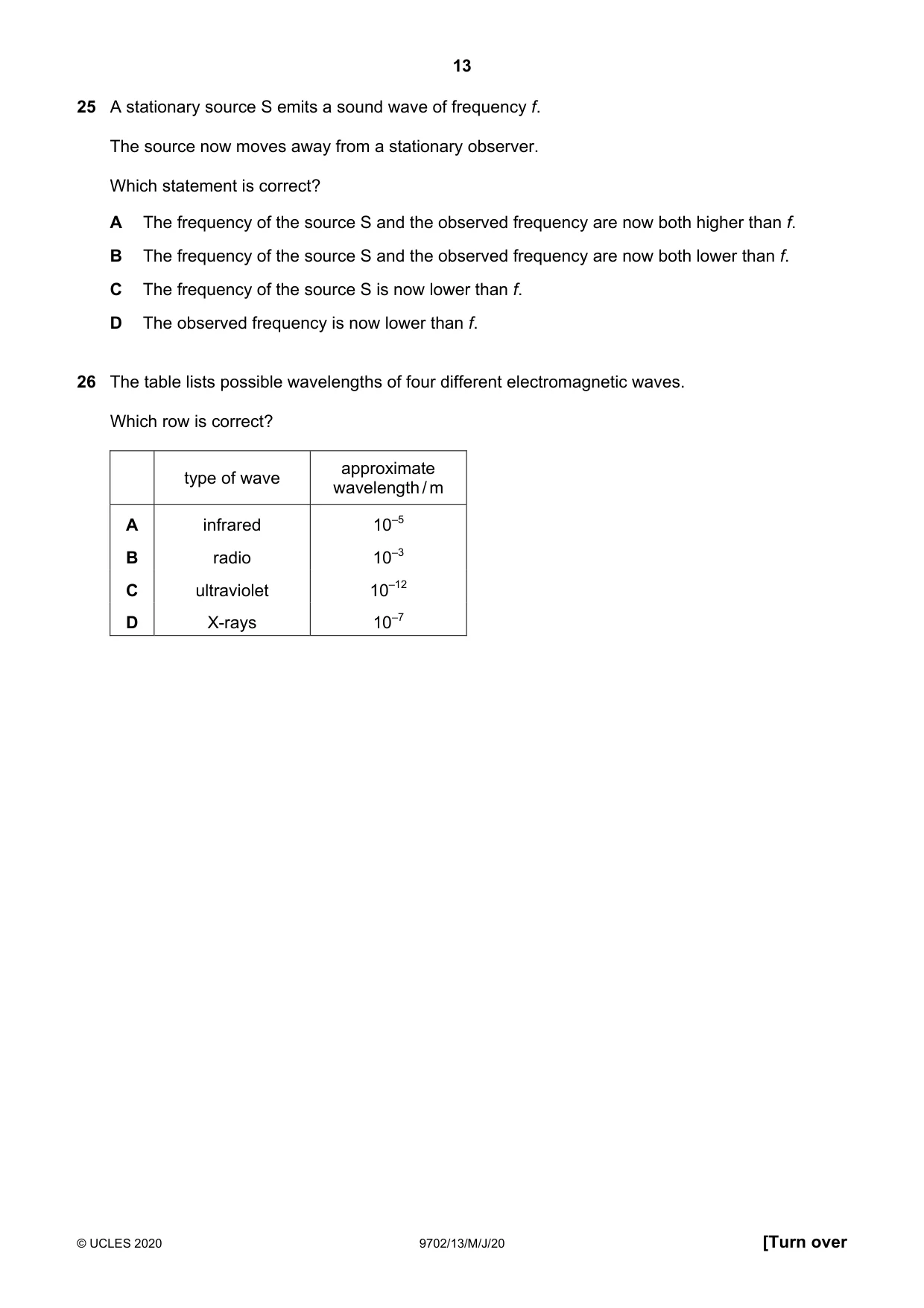

25 A stationary source S emits a sound wave of frequency f. The source now moves away from a stationary observer. Which statement is correct? A The frequency of the source S and the observed frequency are now both higher than f. B The frequency of the source S and the observed frequency are now both lower than f. C The frequency of the source S is now lower than f. D The observed frequency is now lower than f.

Mark scheme: D

More questions on Doppler effect for sound waves

26 The table lists possible wavelengths of four different electromagnetic waves. Which row is correct? approximate type of wave wavelength / m A infrared 10–5 B radio 10–3 C ultraviolet 10–12 D X-rays 10–7

Mark scheme: A

More questions on Electromagnetic spectrum

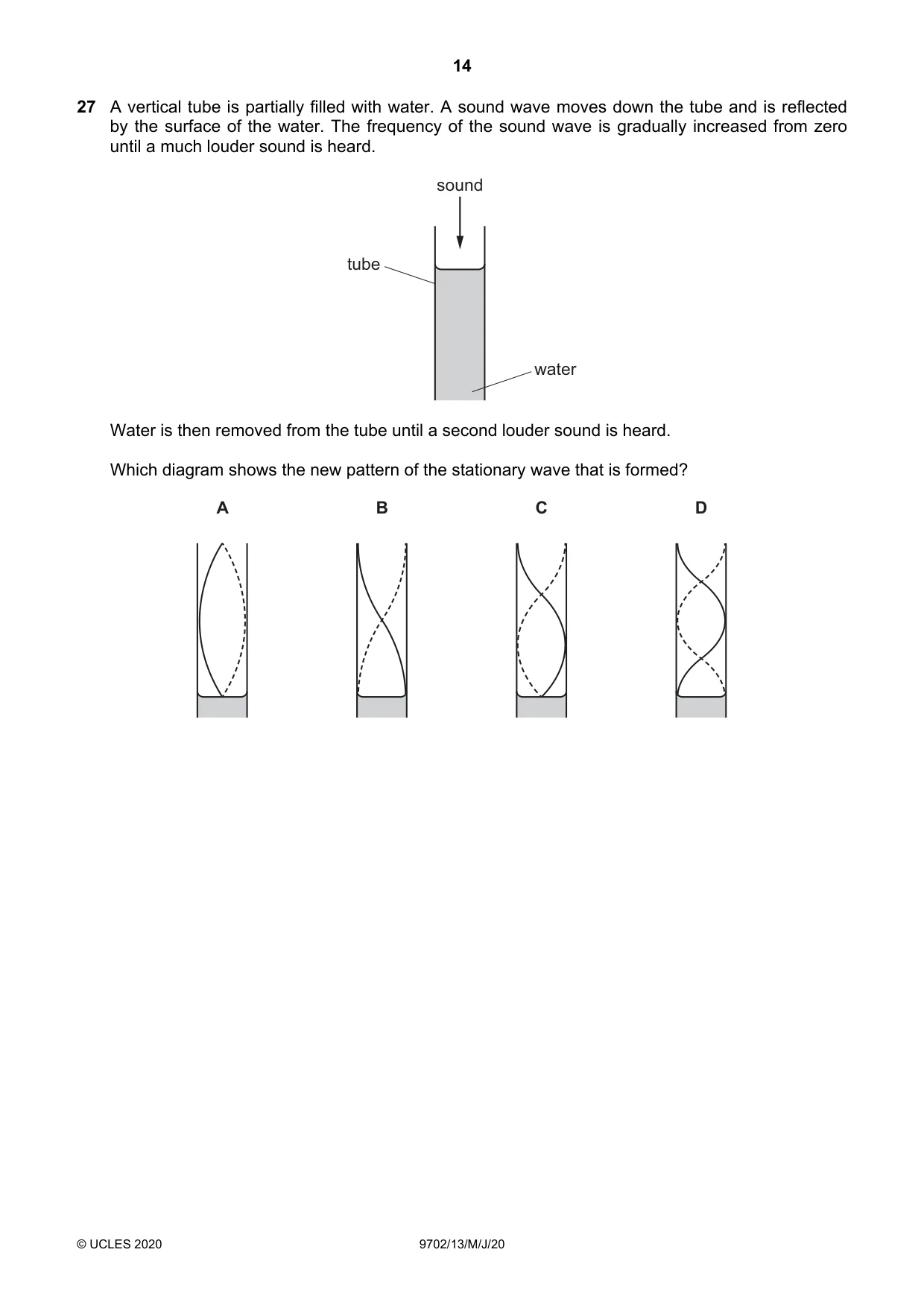

27 A vertical tube is partially filled with water. A sound wave moves down the tube and is reflected by the surface of the water. The frequency of the sound wave is gradually increased from zero until a much louder sound is heard. sound tube water Water is then removed from the tube until a second louder sound is heard. Which diagram shows the new pattern of the stationary wave that is formed? A B C D

Mark scheme: C

More questions on Stationary waves

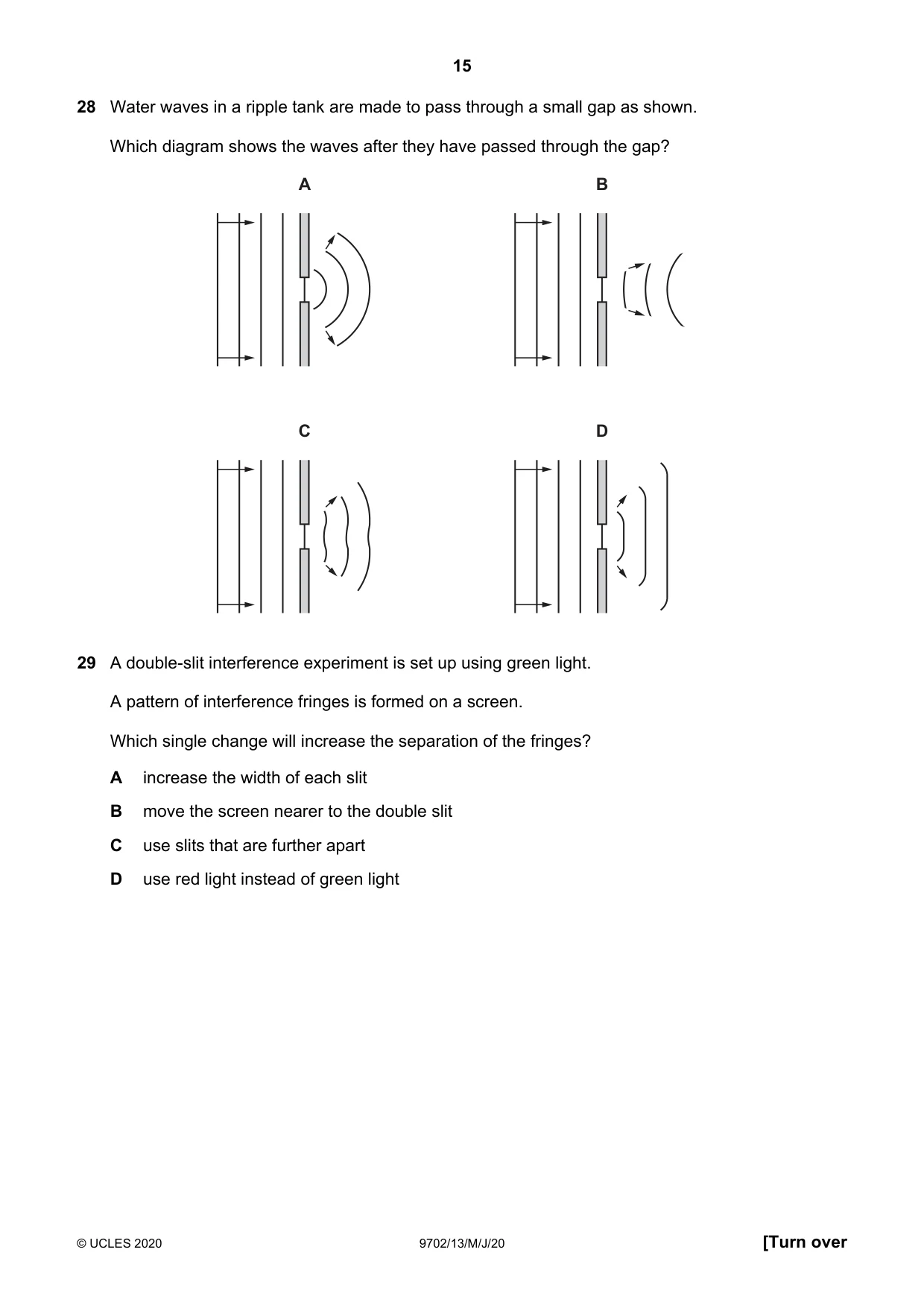

28 Water waves in a ripple tank are made to pass through a small gap as shown. Which diagram shows the waves after they have passed through the gap? A B C D

Mark scheme: A

More questions on Diffraction

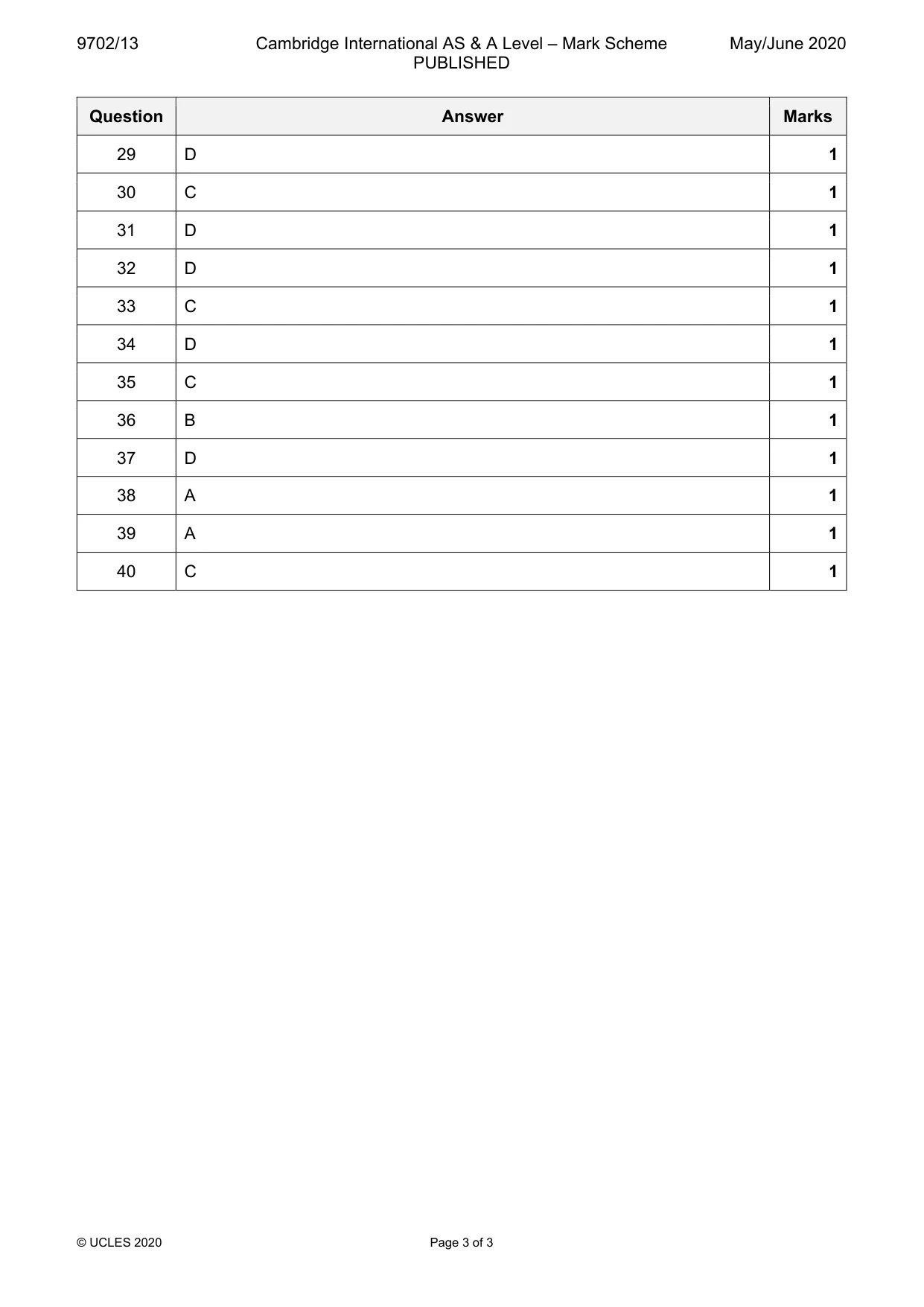

29 A double-slit interference experiment is set up using green light. A pattern of interference fringes is formed on a screen. Which single change will increase the separation of the fringes? A increase the width of each slit B move the screen nearer to the double slit C use slits that are further apart D use red light instead of green light

Mark scheme: D

More questions on Interference

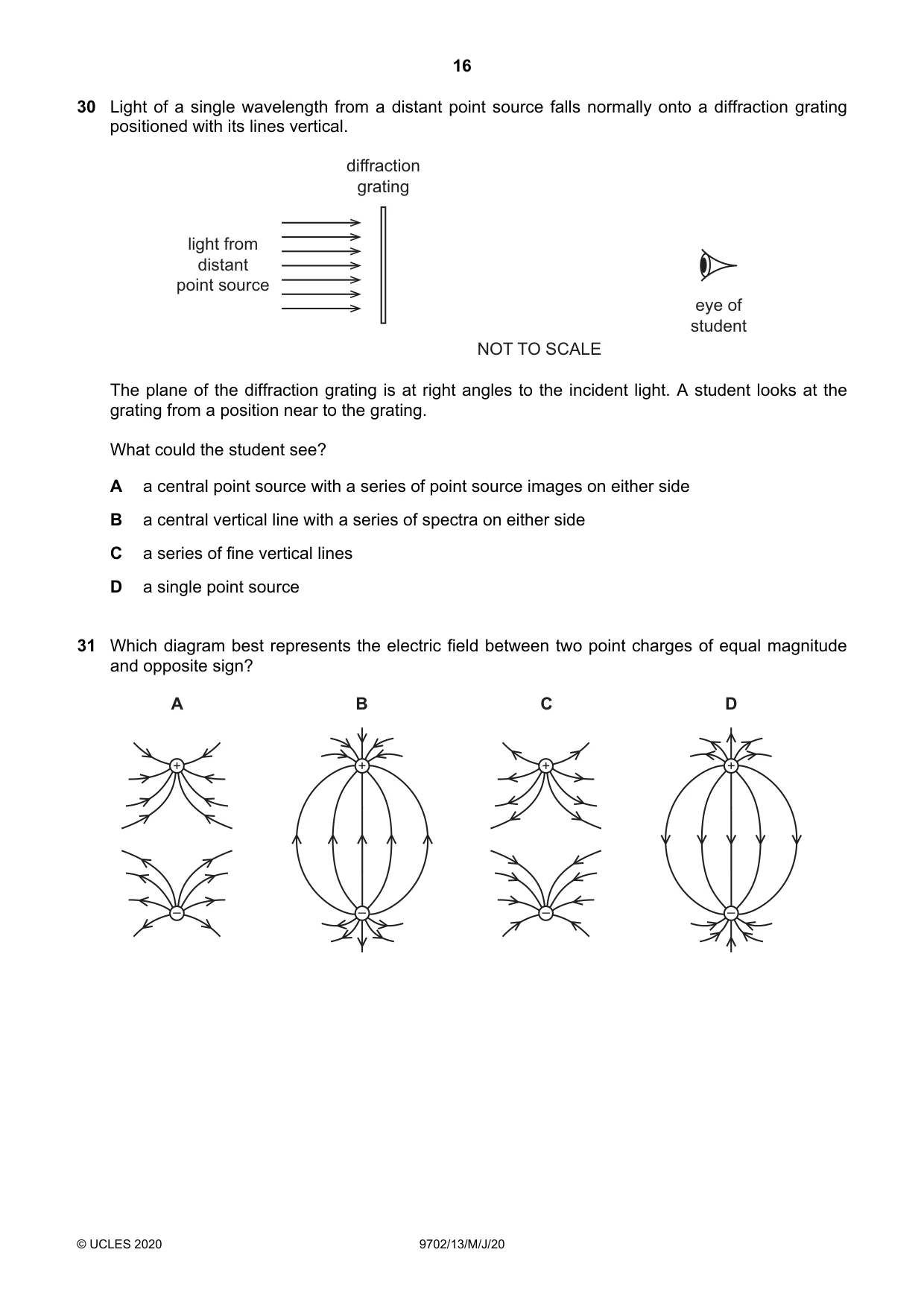

30 Light of a single wavelength from a distant point source falls normally onto a diffraction grating positioned with its lines vertical. diffraction grating light from distant point source eye of student NOT TO SCALE The plane of the diffraction grating is at right angles to the incident light. A student looks at the grating from a position near to the grating. What could the student see? A a central point source with a series of point source images on either side B a central vertical line with a series of spectra on either side C a series of fine vertical lines D a single point source

Mark scheme: C

More questions on The diffraction grating

31 Which diagram best represents the electric field between two point charges of equal magnitude and opposite sign? A B C D + + + + – – – –

Mark scheme: D

More questions on Electric fields and field lines

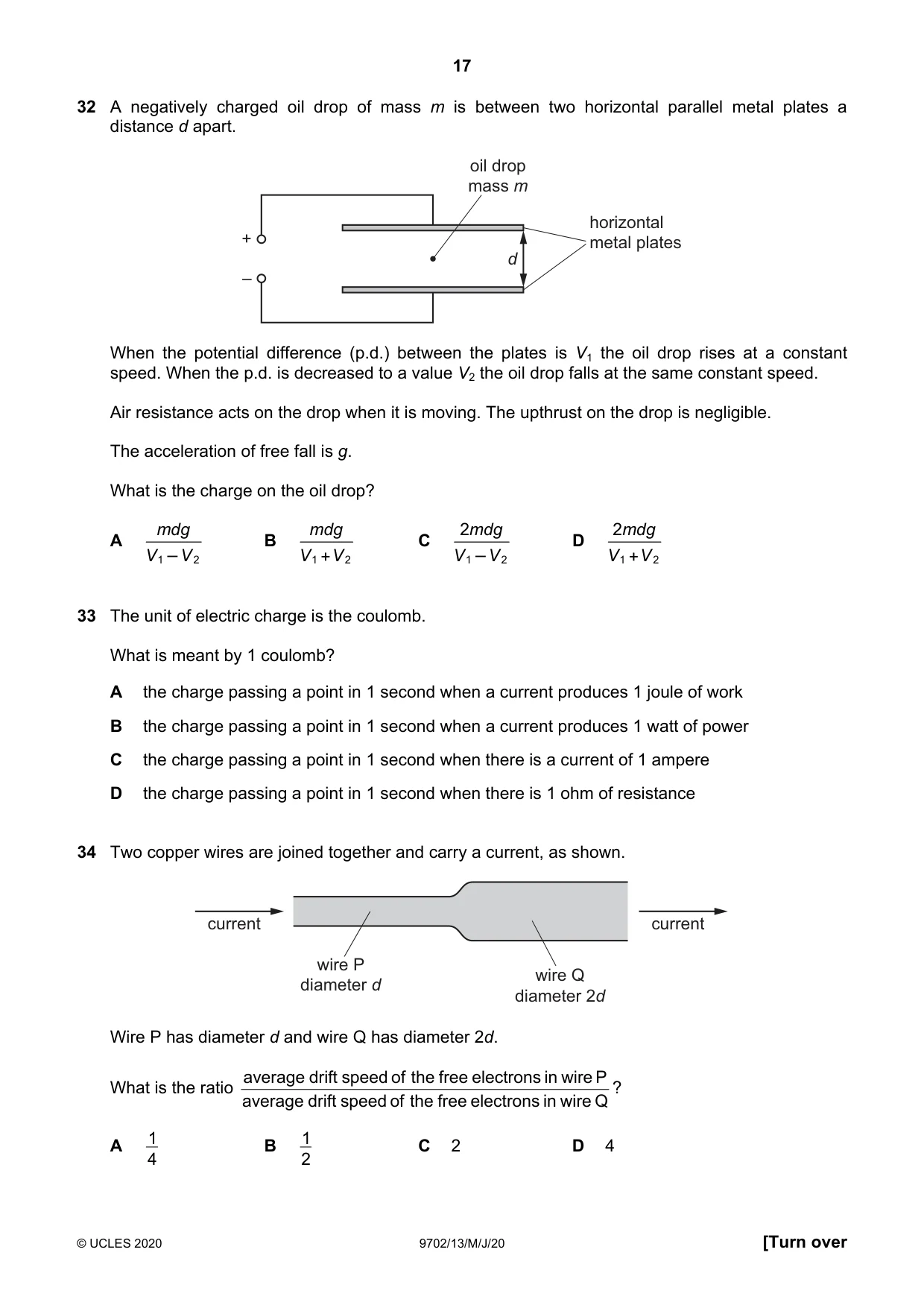

32 A negatively charged oil drop of mass m is between two horizontal parallel metal plates a distance d apart. oil drop mass m horizontal + metal plates d – When the potential difference (p.d.) between the plates is V1 the oil drop rises at a constant speed. When the p.d. is decreased to a value V2 the oil drop falls at the same constant speed. Air resistance acts on the drop when it is moving. The upthrust on the drop is negligible. The acceleration of free fall is g. What is the charge on the oil drop? mdg mdg 2 mdg 2 mdg A B C D V – V V + V V – V V + V 1 2 1 2 1 2 1 2

Mark scheme: D

More questions on Uniform electric fields

33 The unit of electric charge is the coulomb. What is meant by 1 coulomb? A the charge passing a point in 1 second when a current produces 1 joule of work B the charge passing a point in 1 second when a current produces 1 watt of power C the charge passing a point in 1 second when there is a current of 1 ampere D the charge passing a point in 1 second when there is 1 ohm of resistance

Mark scheme: C

More questions on Electric current

34 Two copper wires are joined together and carry a current, as shown. current current wire P diameter d wire Q diameter 2d Wire P has diameter d and wire Q has diameter 2d. average drift speed of the free electrons in wire P What is the ratio ? average drift speed of the free electrons in wire Q A 1 B 1 C 2 D 4 4 2

Mark scheme: D

More questions on Electric current

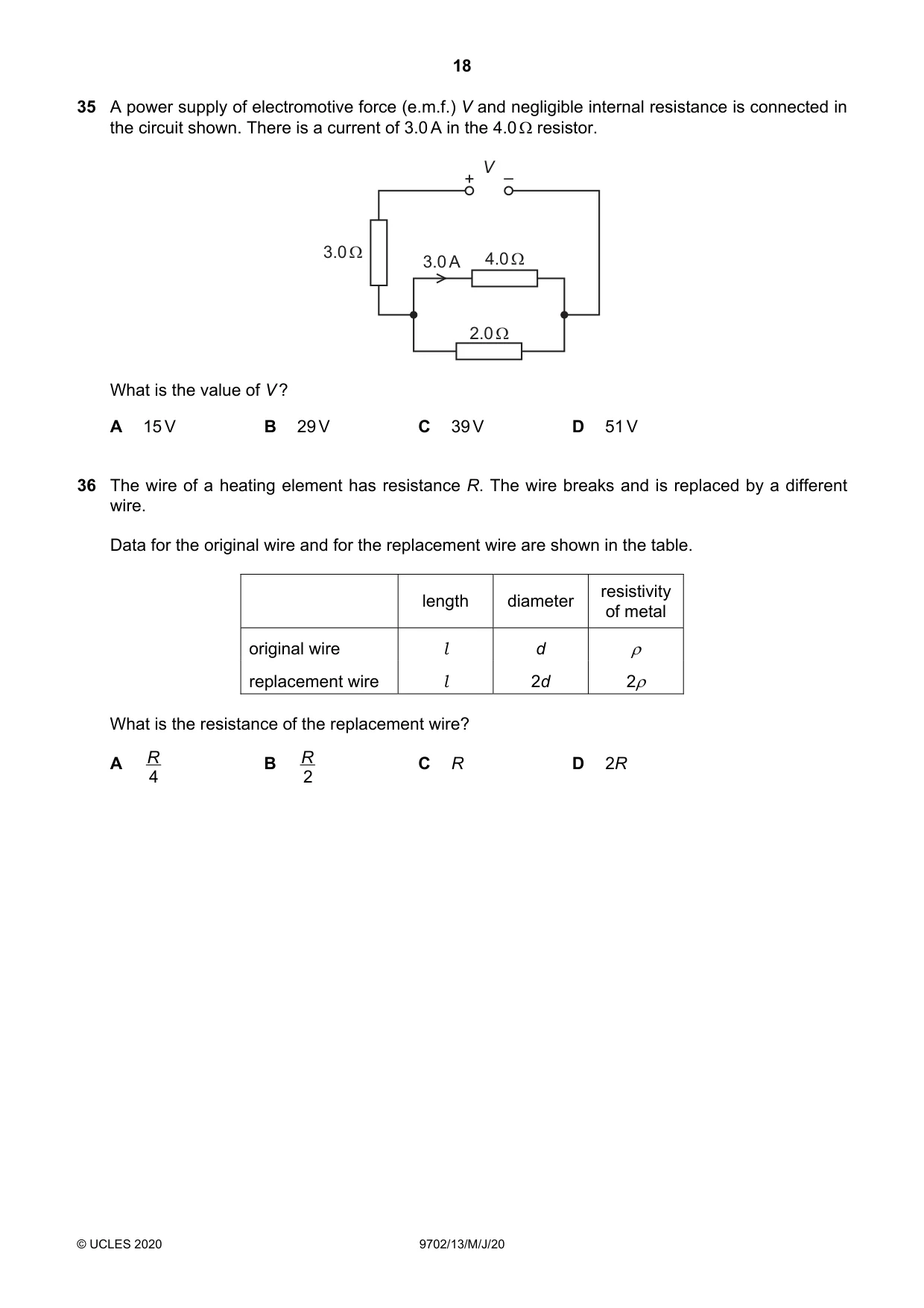

35 A power supply of electromotive force (e.m.f.) V and negligible internal resistance is connected in the circuit shown. There is a current of 3.0 A in the 4.0 Ω resistor. V + – 3.0 Ω 4.0 Ω 3.0 A 2.0 Ω What is the value of V ? A 15 V B 29 V C 39 V D 51 V

Mark scheme: C

More questions on Practical circuits

36 The wire of a heating element has resistance R. The wire breaks and is replaced by a different wire. Data for the original wire and for the replacement wire are shown in the table. resistivity length diameter of metal original wire l d ρ replacement wire l 2d 2ρ What is the resistance of the replacement wire? A R B R C R D 2R 4 2

Mark scheme: B

More questions on Resistance and resistivity

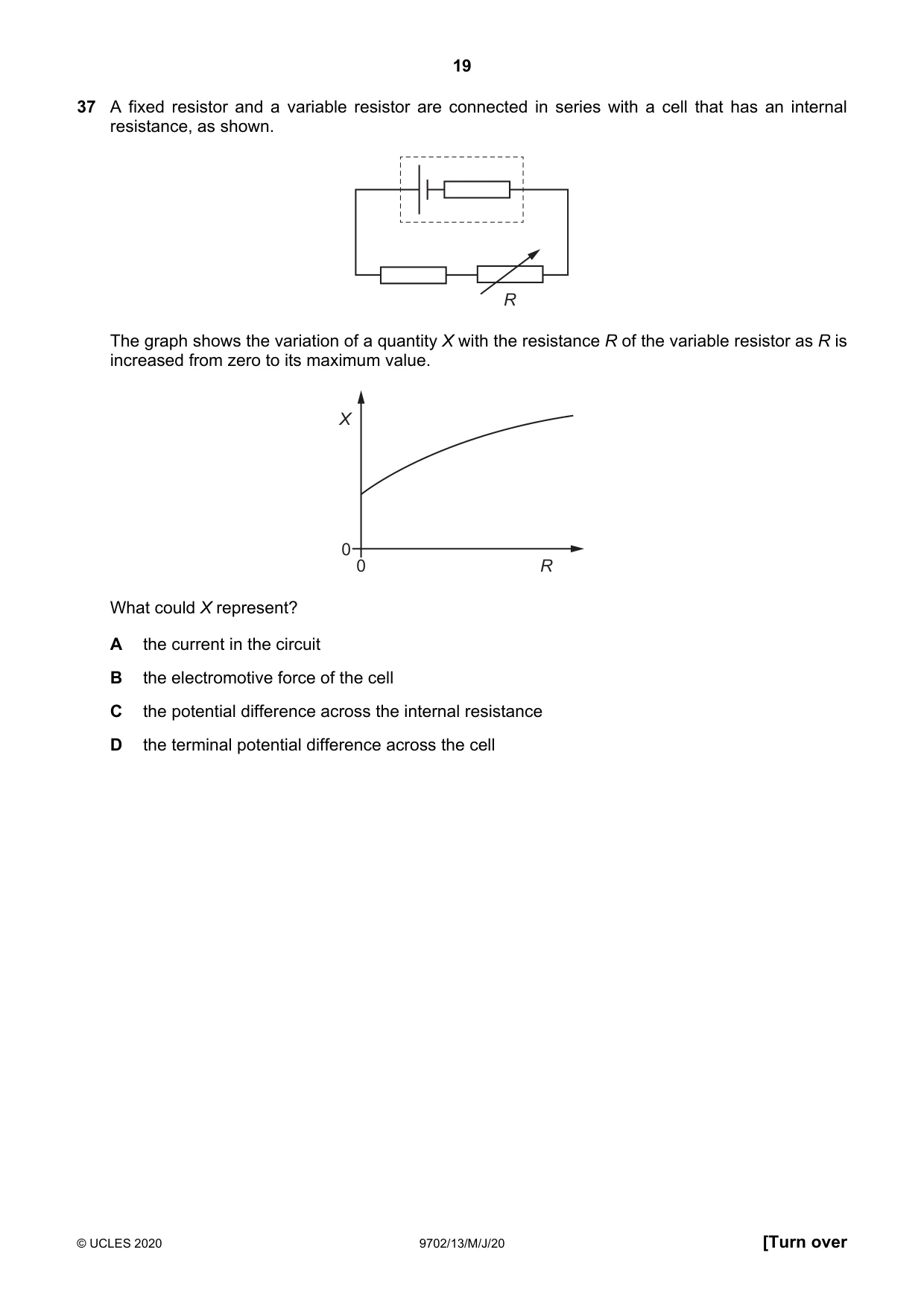

37 A fixed resistor and a variable resistor are connected in series with a cell that has an internal resistance, as shown. R The graph shows the variation of a quantity X with the resistance R of the variable resistor as R is increased from zero to its maximum value. X 0 0 R What could X represent? A the current in the circuit B the electromotive force of the cell C the potential difference across the internal resistance D the terminal potential difference across the cell

Mark scheme: D

More questions on Potential dividers

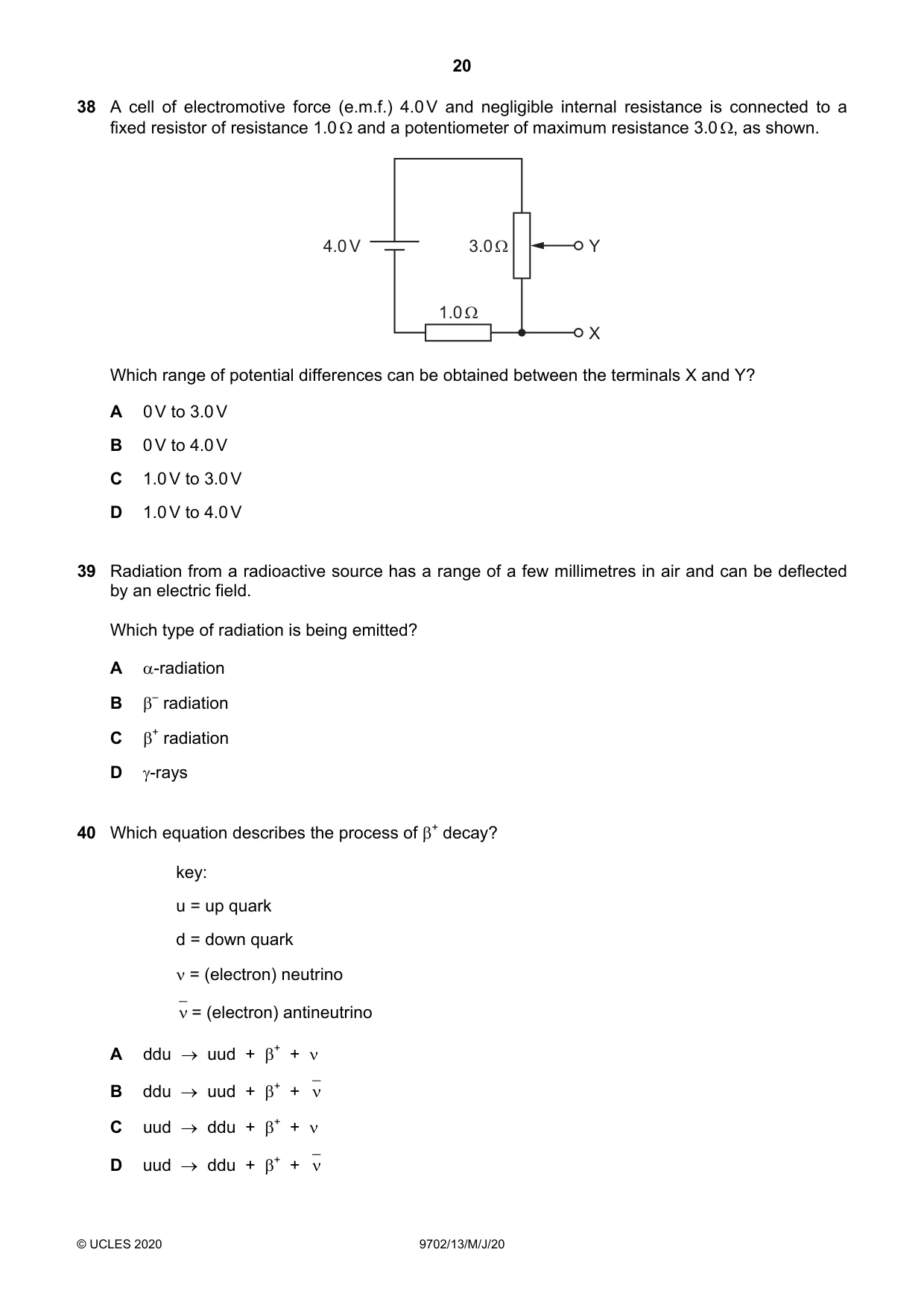

38 A cell of electromotive force (e.m.f.) 4.0 V and negligible internal resistance is connected to a fixed resistor of resistance 1.0 Ω and a potentiometer of maximum resistance 3.0 Ω, as shown. 4.0 V 3.0 Ω Y 1.0 Ω X Which range of potential differences can be obtained between the terminals X and Y? A 0 V to 3.0 V B 0 V to 4.0 V C 1.0 V to 3.0 V D 1.0 V to 4.0 V

Mark scheme: A

More questions on Potential dividers

39 Radiation from a radioactive source has a range of a few millimetres in air and can be deflected by an electric field. Which type of radiation is being emitted? A α-radiation B β– radiation C β+ radiation D γ-rays

Mark scheme: A

More questions on Atoms, nuclei and radiation

40 Which equation describes the process of β+ decay? key: u = up quark d = down quark ν = (electron) neutrino ν = (electron) antineutrino A ddu → uud + β+ + ν B ddu → uud + β+ + ν C uud → ddu + β+ + ν D uud → ddu + β+ + ν

Mark scheme: C

More questions on Fundamental particles
