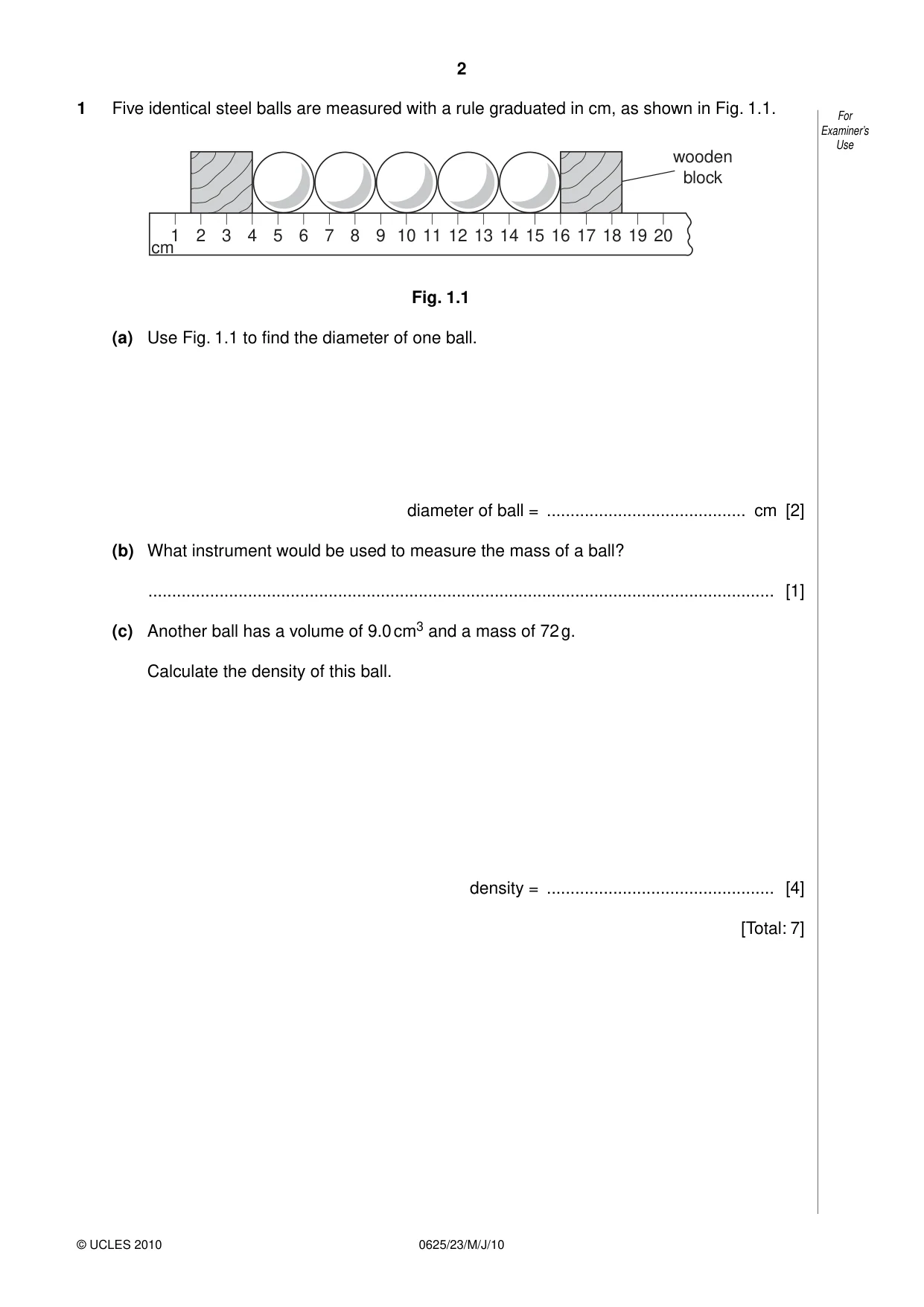

2 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 1 Five identical steel balls are measured with a rule graduated in cm, as shown in Fig. 1.1. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 cm wooden block Fig. 1.1 (a) Use Fig. 1.1 to find the diameter of one ball. diameter of ball = … cm [2] (b) What instrument would be used to measure the mass of a ball? … [1] (c) Another ball has a volume of 9.0 cm3 and a mass of 72 g. Calculate the density of this ball. density = … [4] [Total: 7]

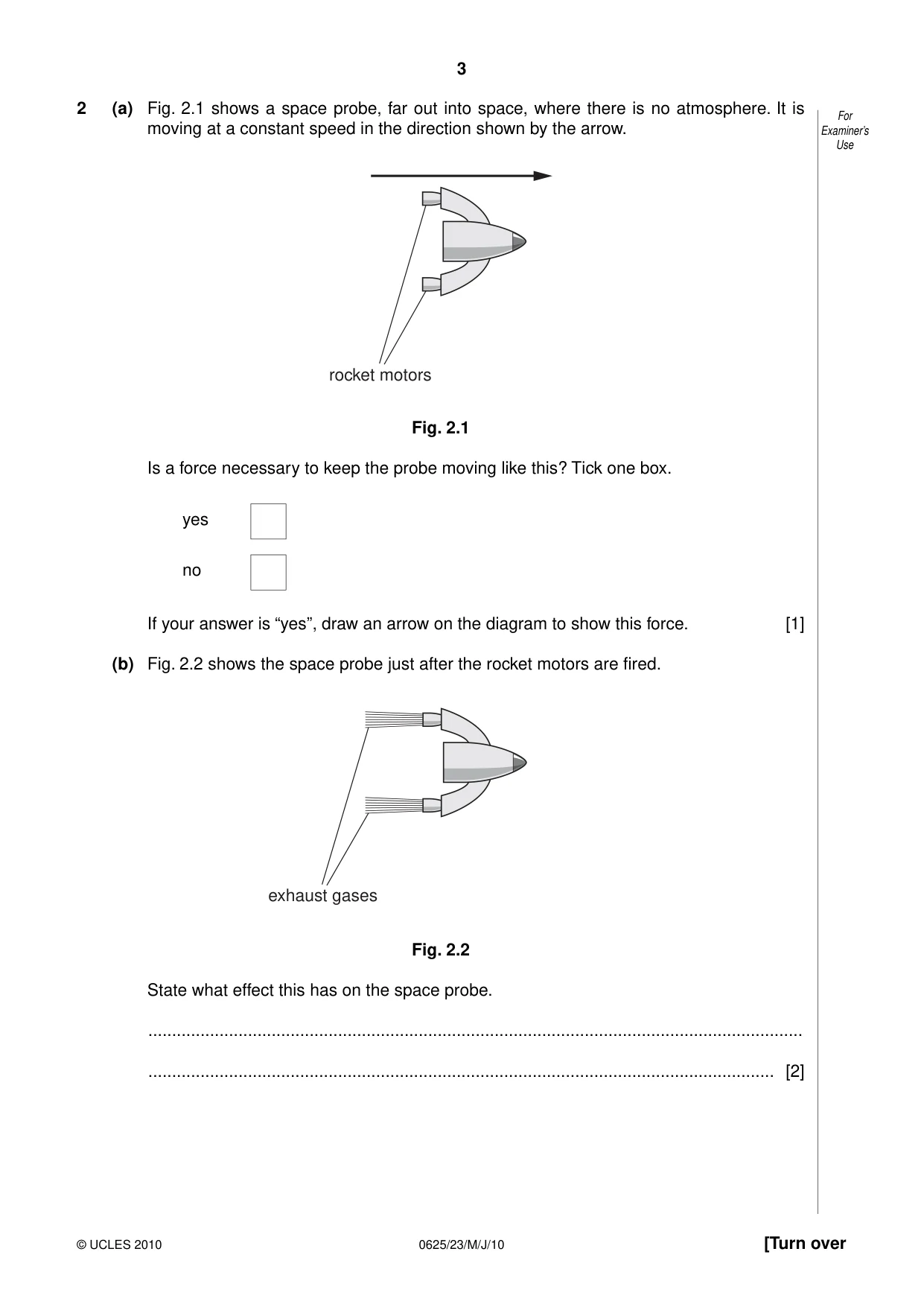

3 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use 2 (a) Fig. 2.1 shows a space probe, far out into space, where there is no atmosphere. It is moving at a constant speed in the direction shown by the arrow. rocket motors Fig. 2.1 Is a force necessary to keep the probe moving like this? Tick one box. yes no If your answer is “yes”, draw an arrow on the diagram to show this force. [1] (b) Fig. 2.2 shows the space probe just after the rocket motors are fired. exhaust gases Fig. 2.2 State what effect this has on the space probe. … … [2]

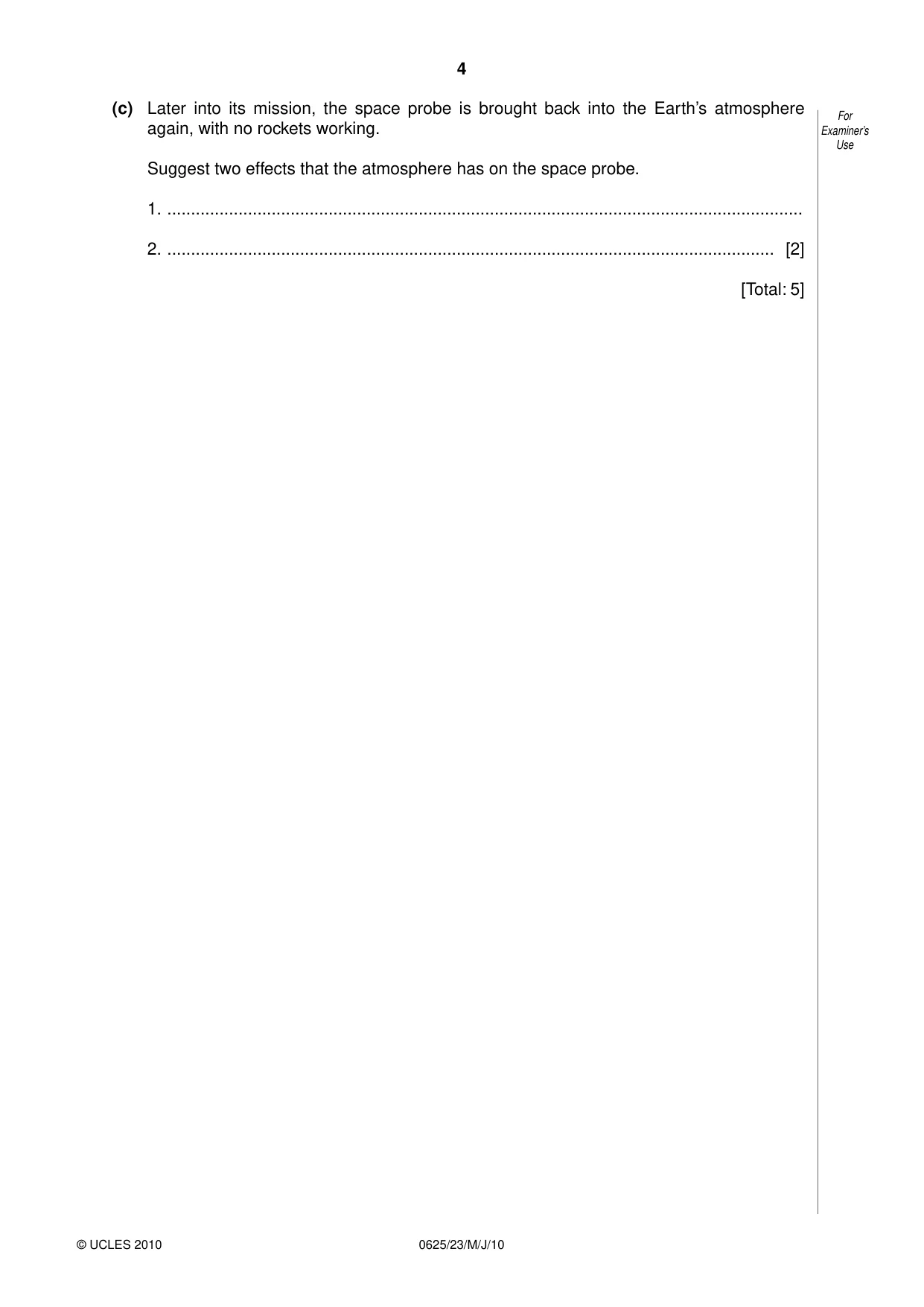

4 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use (c) Later into its mission, the space probe is brought back into the Earth’s atmosphere again, with no rockets working. Suggest two effects that the atmosphere has on the space probe. 1. … 2. … [2] [Total: 5]

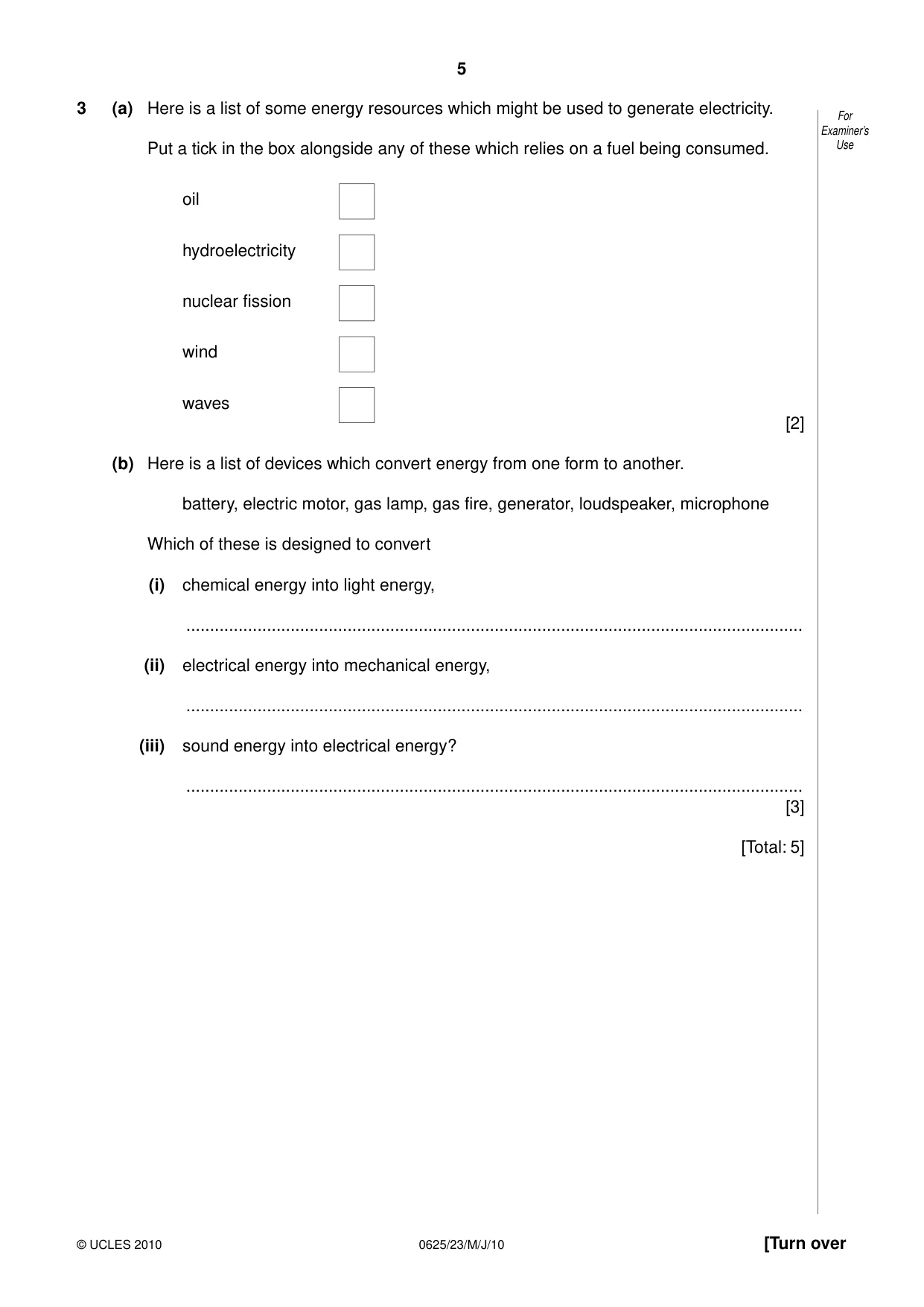

5 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use 3 (a) Here is a list of some energy resources which might be used to generate electricity. Put a tick in the box alongside any of these which relies on a fuel being consumed. oil hydroelectricity nuclear fission wind waves [2] (b) Here is a list of devices which convert energy from one form to another. battery, electric motor, gas lamp, gas fire, generator, loudspeaker, microphone Which of these is designed to convert (i) chemical energy into light energy, … (ii) electrical energy into mechanical energy, … (iii) sound energy into electrical energy? … [3] [Total: 5]

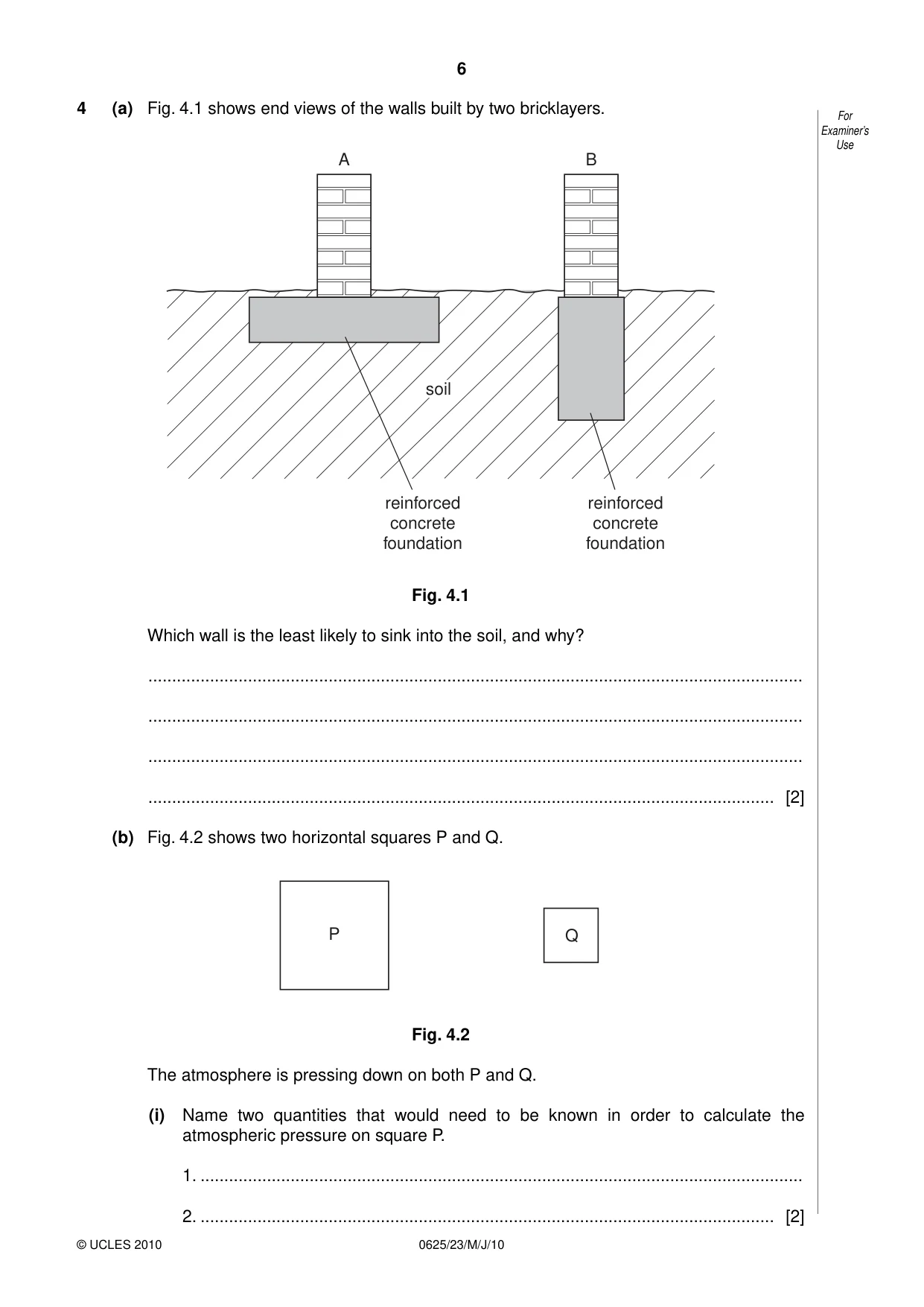

6 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 4 (a) Fig. 4.1 shows end views of the walls built by two bricklayers. A B soil reinforced concrete foundation reinforced concrete foundation Fig. 4.1 Which wall is the least likely to sink into the soil, and why? … … … … [2] (b) Fig. 4.2 shows two horizontal squares P and Q. Q P Fig. 4.2 The atmosphere is pressing down on both P and Q. (i) Name two quantities that would need to be known in order to calculate the atmospheric pressure on square P. 1. … 2. … [2]

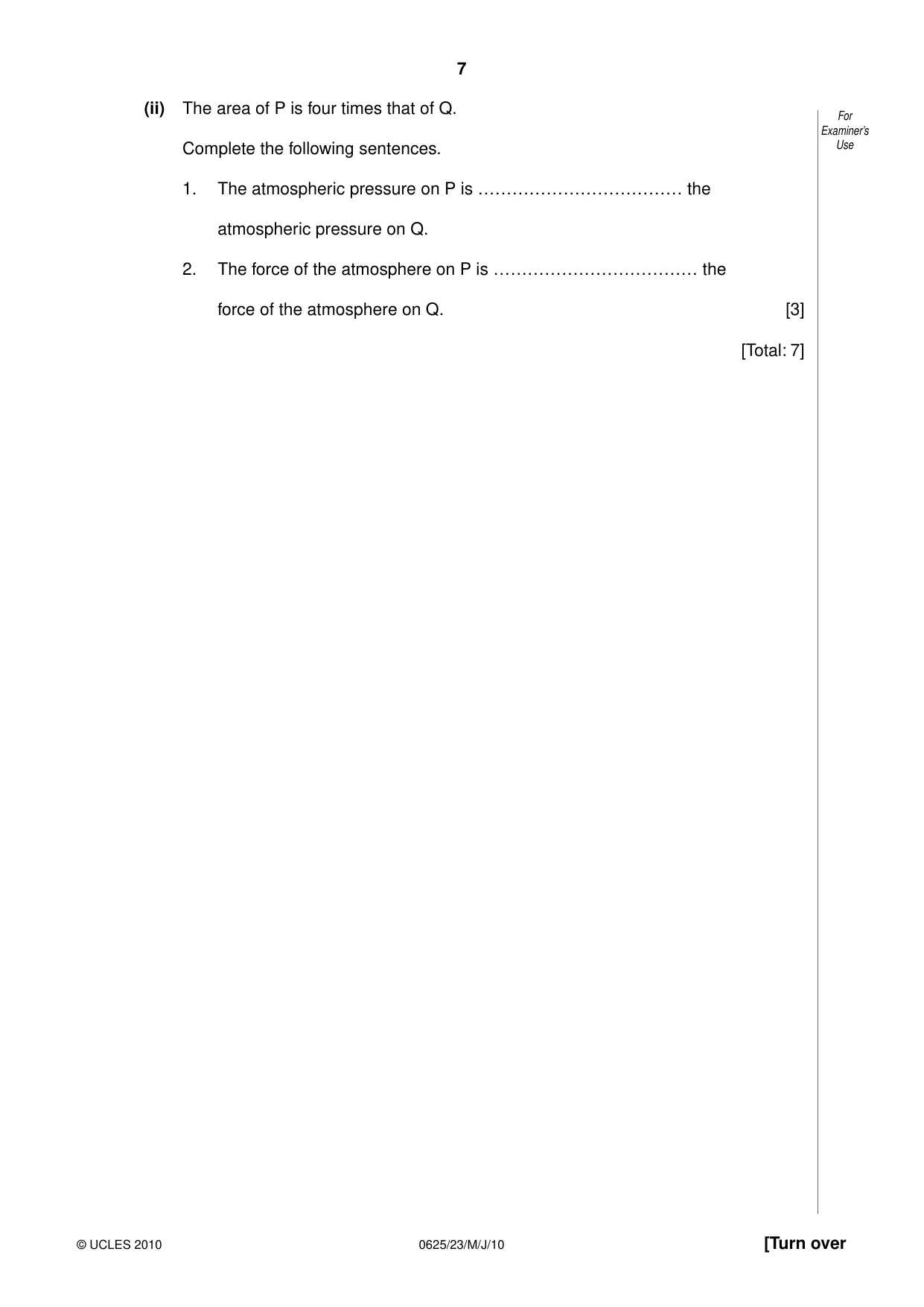

7 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use (ii) The area of P is four times that of Q. Complete the following sentences. 1. The atmospheric pressure on P is ……………………………… the atmospheric pressure on Q. 2. The force of the atmosphere on P is ……………………………… the force of the atmosphere on Q. [3] [Total: 7]

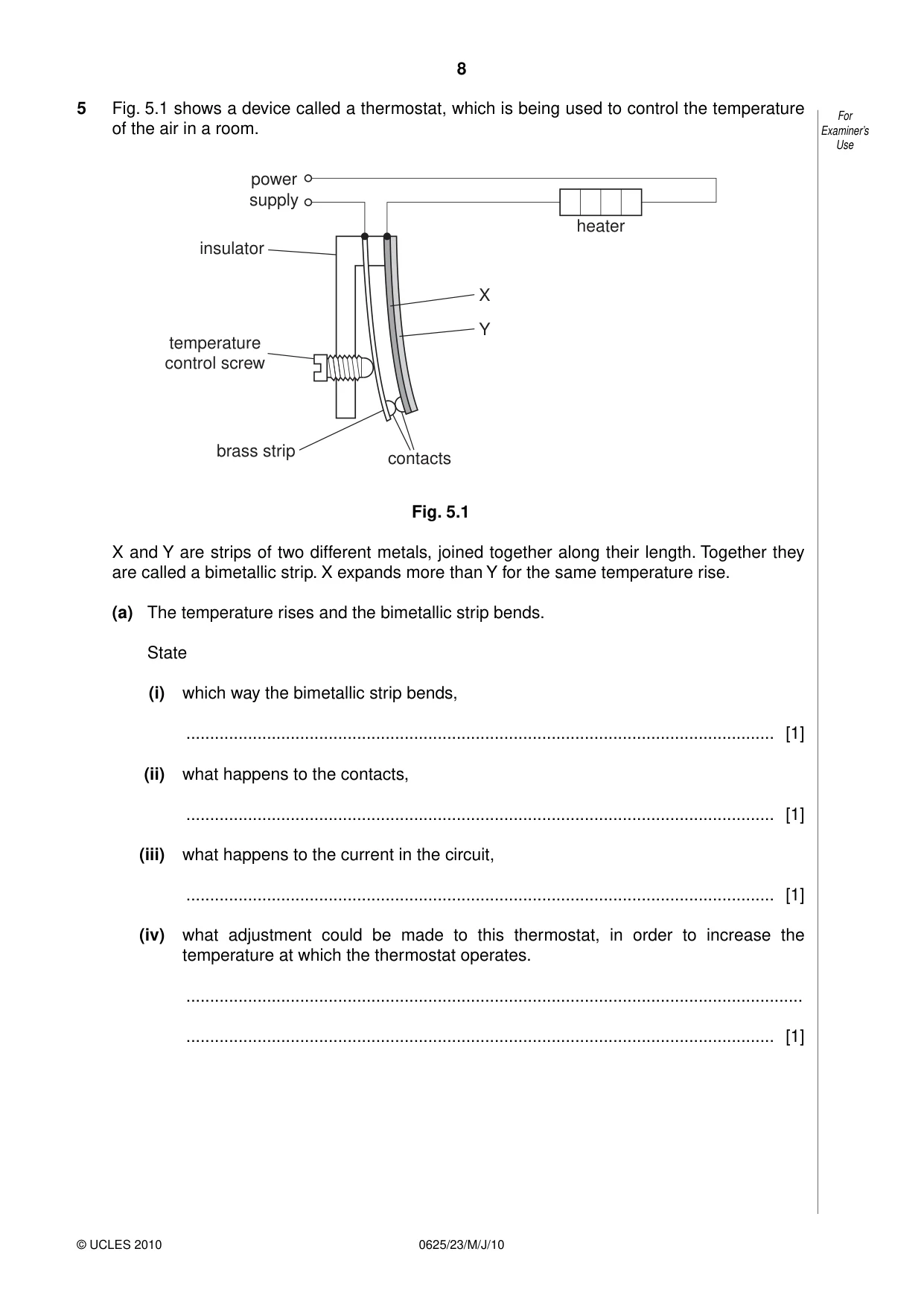

8 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 5 Fig. 5.1 shows a device called a thermostat, which is being used to control the temperature of the air in a room. brass strip temperature control screw contacts X Y insulator power supply heater Fig. 5.1 X and Y are strips of two different metals, joined together along their length. Together they are called a bimetallic strip. X expands more than Y for the same temperature rise. (a) The temperature rises and the bimetallic strip bends. State (i) which way the bimetallic strip bends, … [1] (ii) what happens to the contacts, … [1] (iii) what happens to the current in the circuit, … [1] (iv) what adjustment could be made to this thermostat, in order to increase the temperature at which the thermostat operates. … … [1]

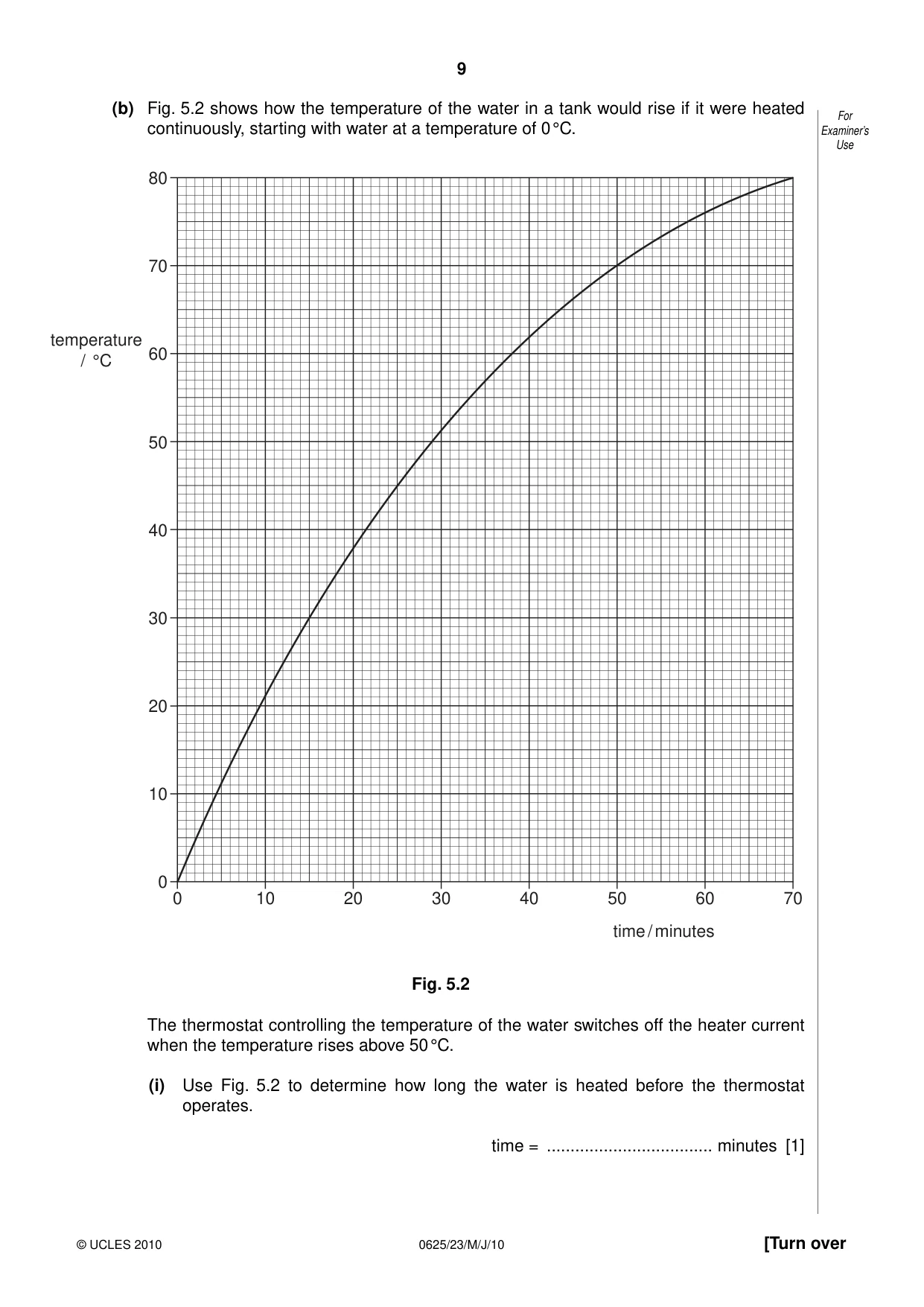

9 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use (b) Fig. 5.2 shows how the temperature of the water in a tank would rise if it were heated continuously, starting with water at a temperature of 0 °C. 0 0 time / minutes temperature / °C 10 20 30 40 50 60 70 10 20 30 40 50 60 70 80 Fig. 5.2 The thermostat controlling the temperature of the water switches off the heater current when the temperature rises above 50 °C. (i) Use Fig. 5.2 to determine how long the water is heated before the thermostat operates. time = … minutes [1]

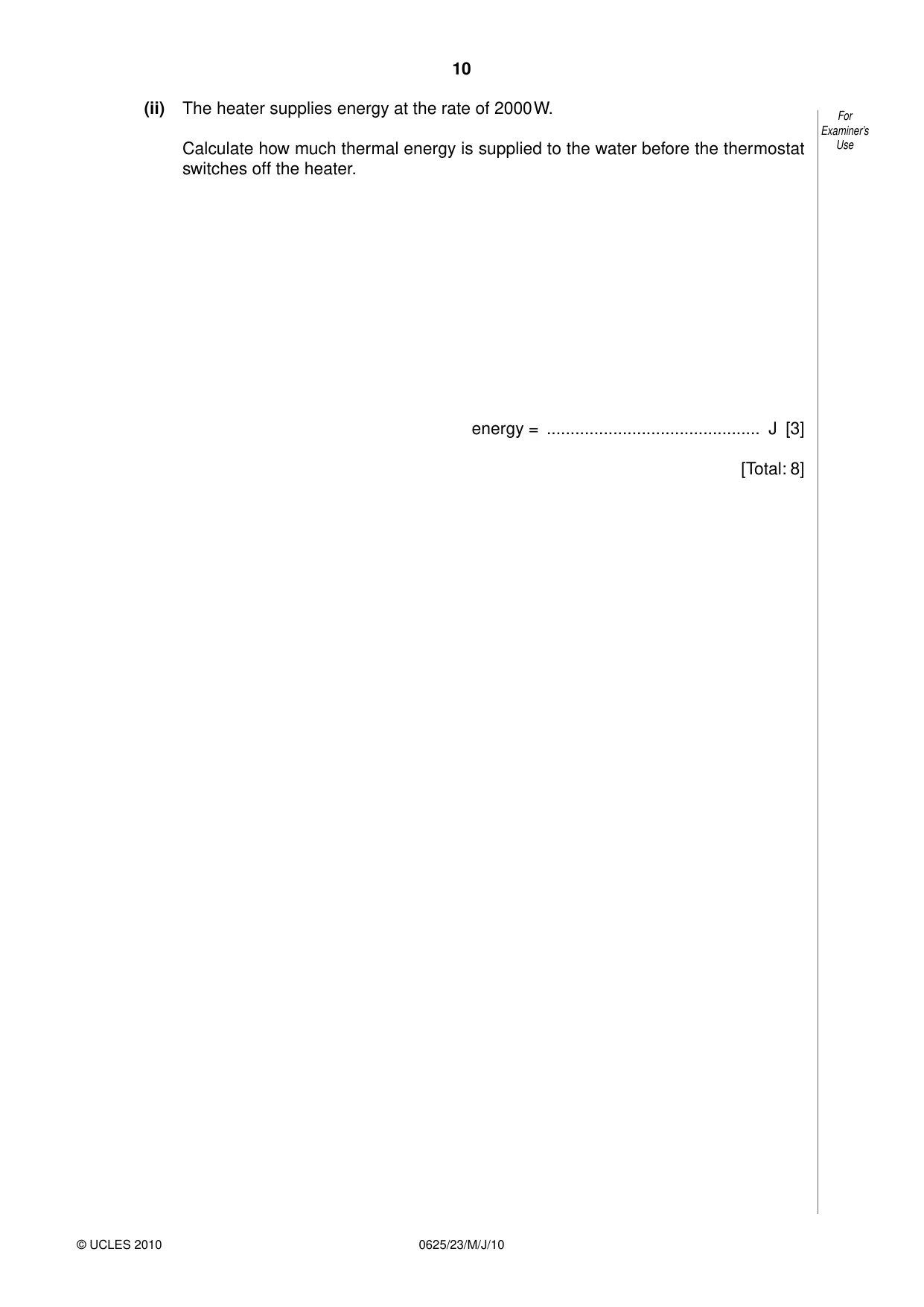

10 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use (ii) The heater supplies energy at the rate of 2000 W. Calculate how much thermal energy is supplied to the water before the thermostat switches off the heater. energy = … J [3] [Total: 8]

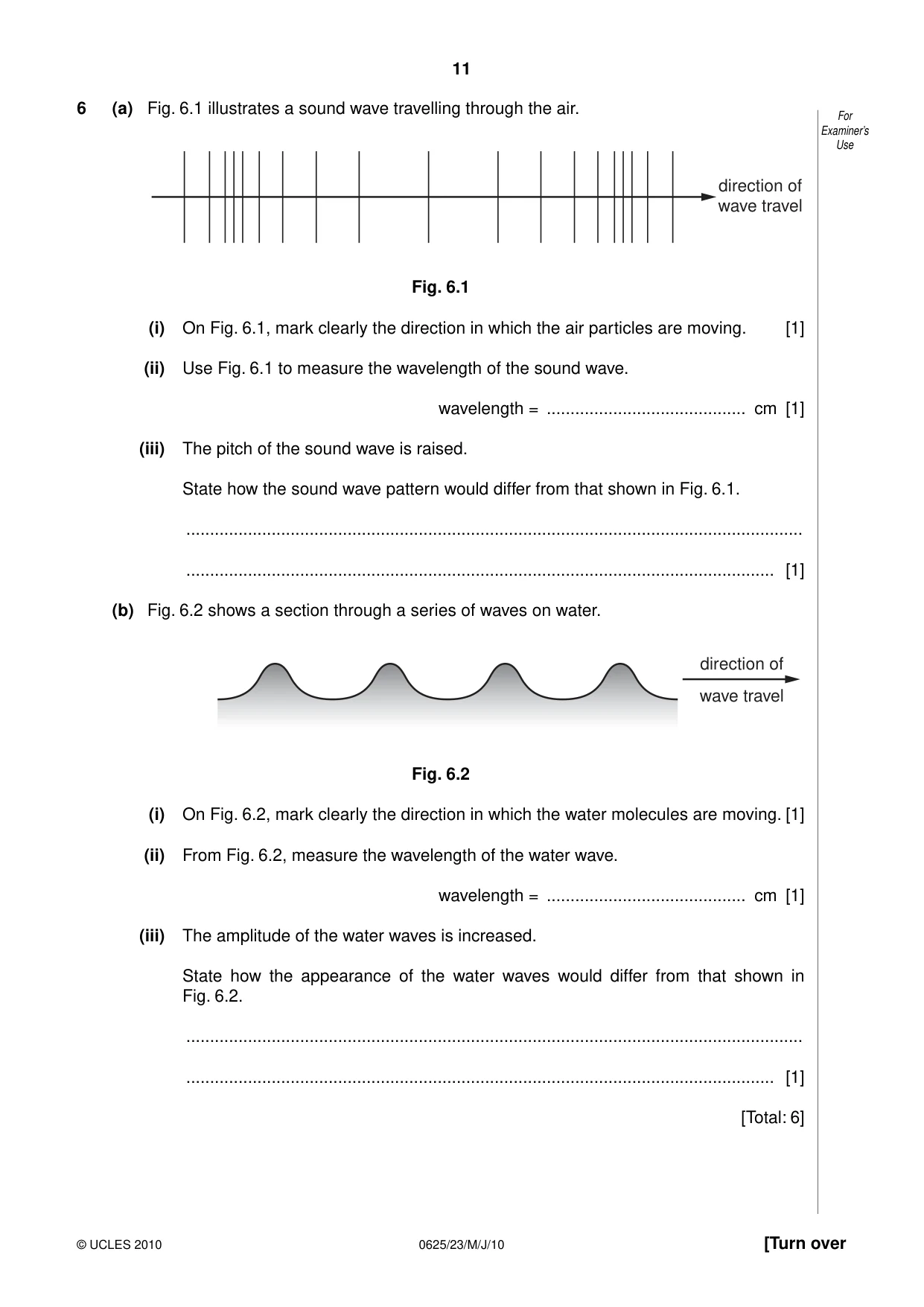

11 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use 6 (a) Fig. 6.1 illustrates a sound wave travelling through the air. direction of wave travel Fig. 6.1 (i) On Fig. 6.1, mark clearly the direction in which the air particles are moving. [1] (ii) Use Fig. 6.1 to measure the wavelength of the sound wave. wavelength = … cm [1] (iii) The pitch of the sound wave is raised. State how the sound wave pattern would differ from that shown in Fig. 6.1. … … [1] (b) Fig. 6.2 shows a section through a series of waves on water. direction of wave travel Fig. 6.2 (i) On Fig. 6.2, mark clearly the direction in which the water molecules are moving. [1] (ii) From Fig. 6.2, measure the wavelength of the water wave. wavelength = … cm [1] (iii) The amplitude of the water waves is increased. State how the appearance of the water waves would differ from that shown in Fig. 6.2. … … [1] [Total: 6]

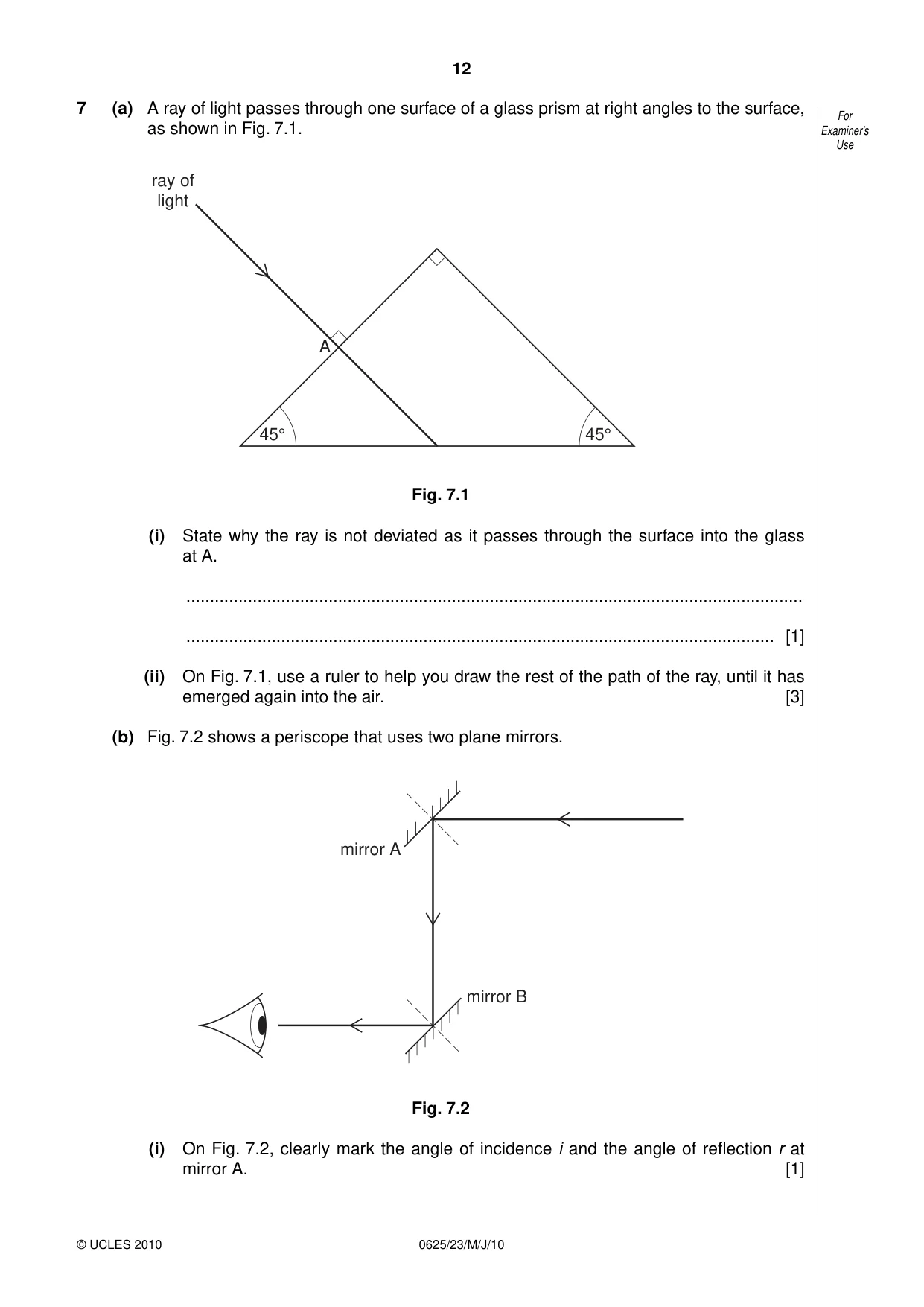

12 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 7 (a) A ray of light passes through one surface of a glass prism at right angles to the surface, as shown in Fig. 7.1. ray of light 45° 45° A Fig. 7.1 (i) State why the ray is not deviated as it passes through the surface into the glass at A. … … [1] (ii) On Fig. 7.1, use a ruler to help you draw the rest of the path of the ray, until it has emerged again into the air. [3] (b) Fig. 7.2 shows a periscope that uses two plane mirrors. mirror A mirror B Fig. 7.2 (i) On Fig. 7.2, clearly mark the angle of incidence i and the angle of reflection r at mirror A. [1]

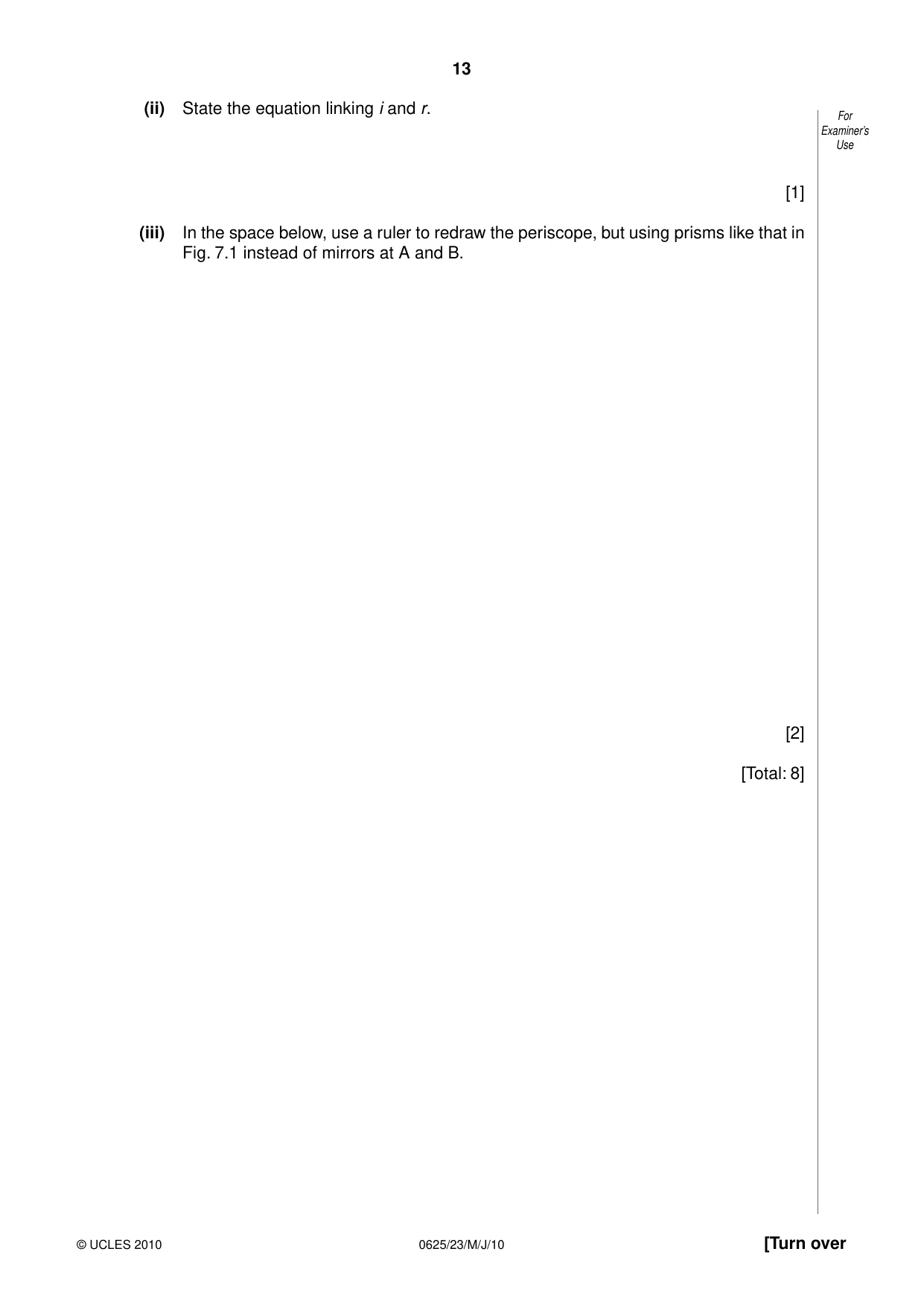

13 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use (ii) State the equation linking i and r. [1] (iii) In the space below, use a ruler to redraw the periscope, but using prisms like that in Fig. 7.1 instead of mirrors at A and B. [2] [Total: 8]

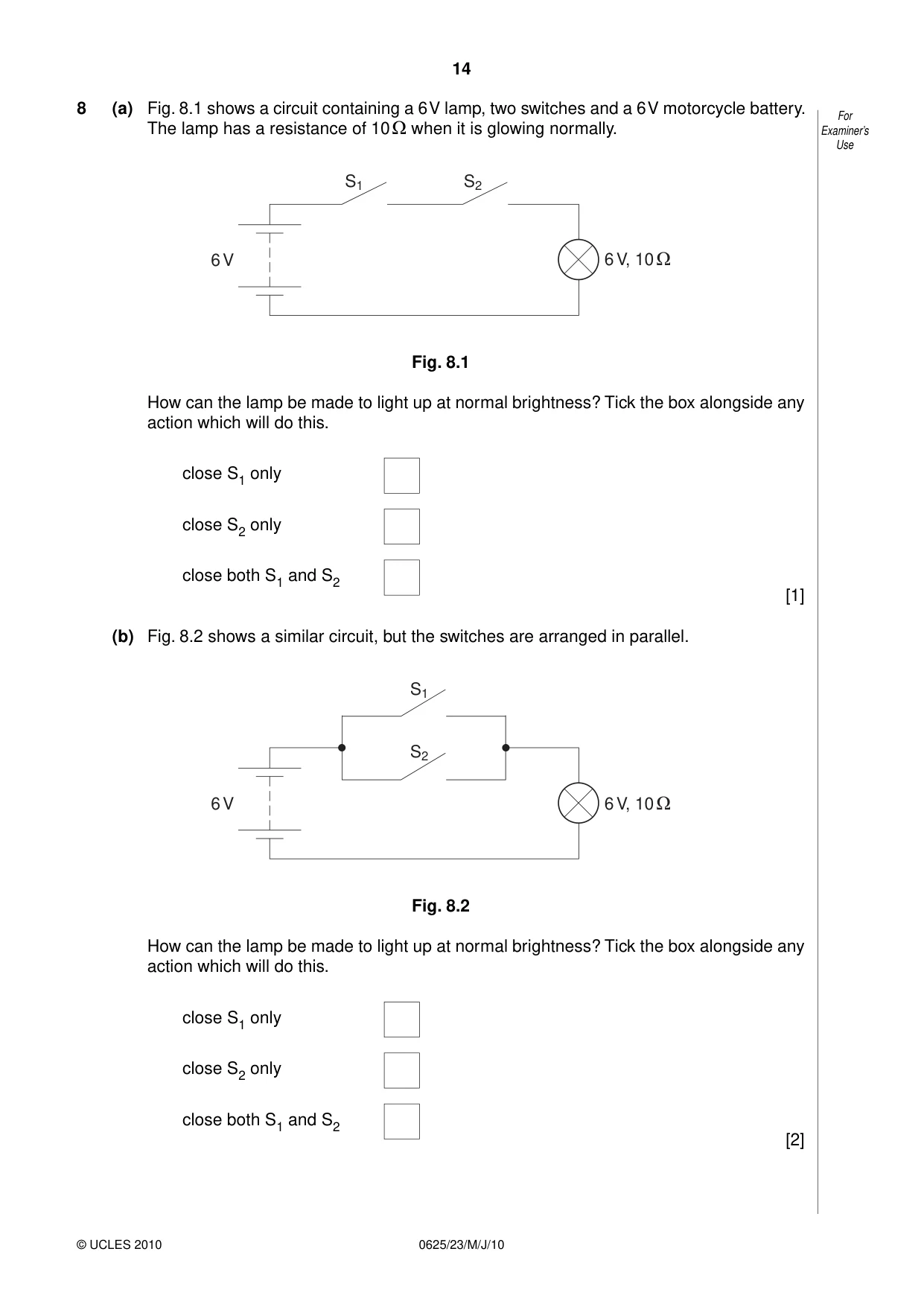

14 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 8 (a) Fig. 8.1 shows a circuit containing a 6 V lamp, two switches and a 6 V motorcycle battery. The lamp has a resistance of 10  when it is glowing normally. S1 S2 6 V 6 V, 10  Fig. 8.1 How can the lamp be made to light up at normal brightness? Tick the box alongside any action which will do this. close S1 only close S2 only close both S1 and S2 [1] (b) Fig. 8.2 shows a similar circuit, but the switches are arranged in parallel. S1 S2 6 V, 10 X 6 V Fig. 8.2 How can the lamp be made to light up at normal brightness? Tick the box alongside any action which will do this. close S1 only close S2 only close both S1 and S2 [2]

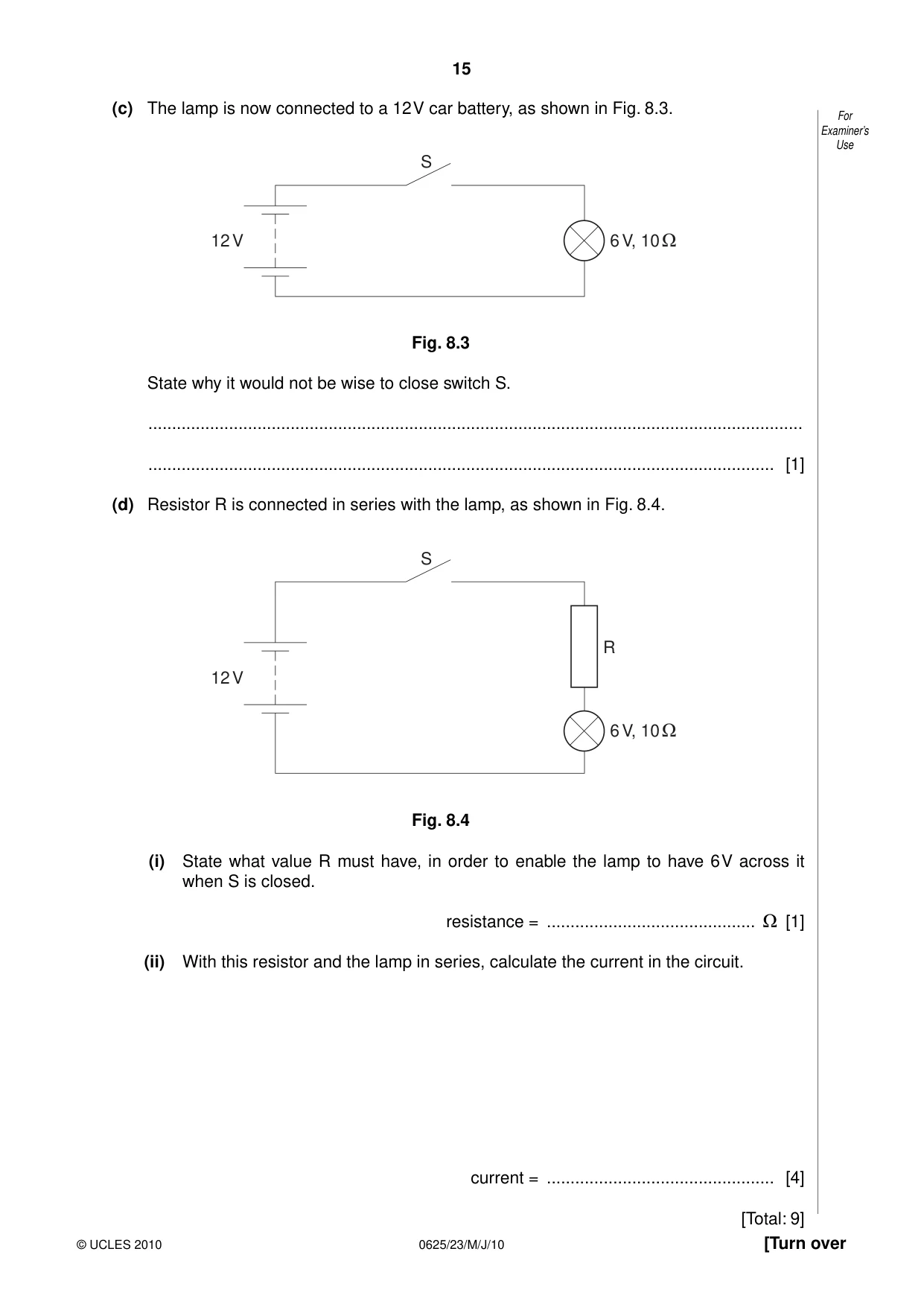

15 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use (c) The lamp is now connected to a 12 V car battery, as shown in Fig. 8.3. S 12V 6 V, 10  Fig. 8.3 State why it would not be wise to close switch S. … … [1] (d) Resistor R is connected in series with the lamp, as shown in Fig. 8.4. S 6 V, 10  R 12 V Fig. 8.4 (i) State what value R must have, in order to enable the lamp to have 6 V across it when S is closed. resistance = …  [1] (ii) With this resistor and the lamp in series, calculate the current in the circuit. current = … [4] [Total: 9]

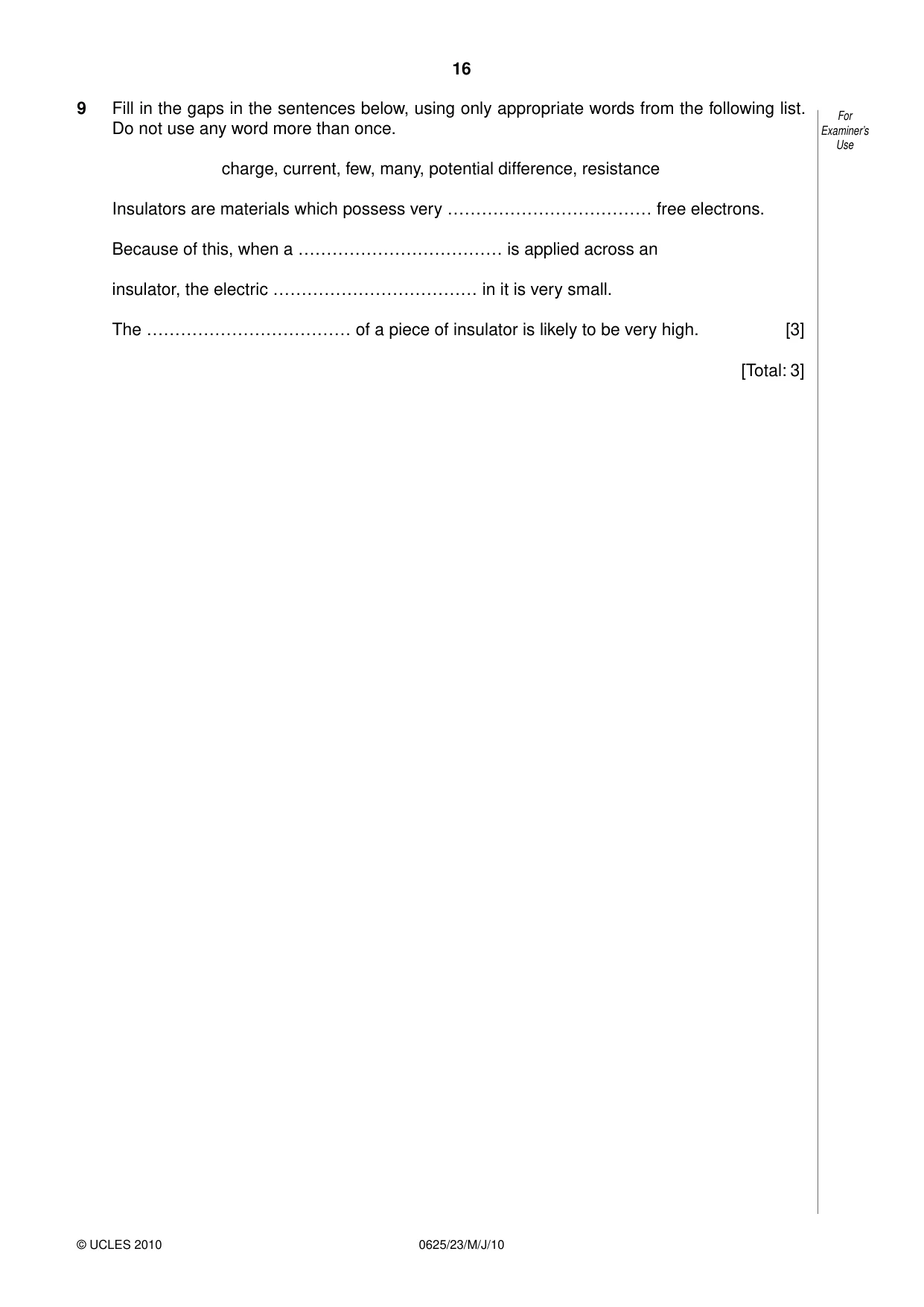

16 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 9 Fill in the gaps in the sentences below, using only appropriate words from the following list. Do not use any word more than once. charge, current, few, many, potential difference, resistance Insulators are materials which possess very ……………………………… free electrons. Because of this, when a ……………………………… is applied across an insulator, the electric ……………………………… in it is very small. The ……………………………… of a piece of insulator is likely to be very high. [3] [Total: 3]

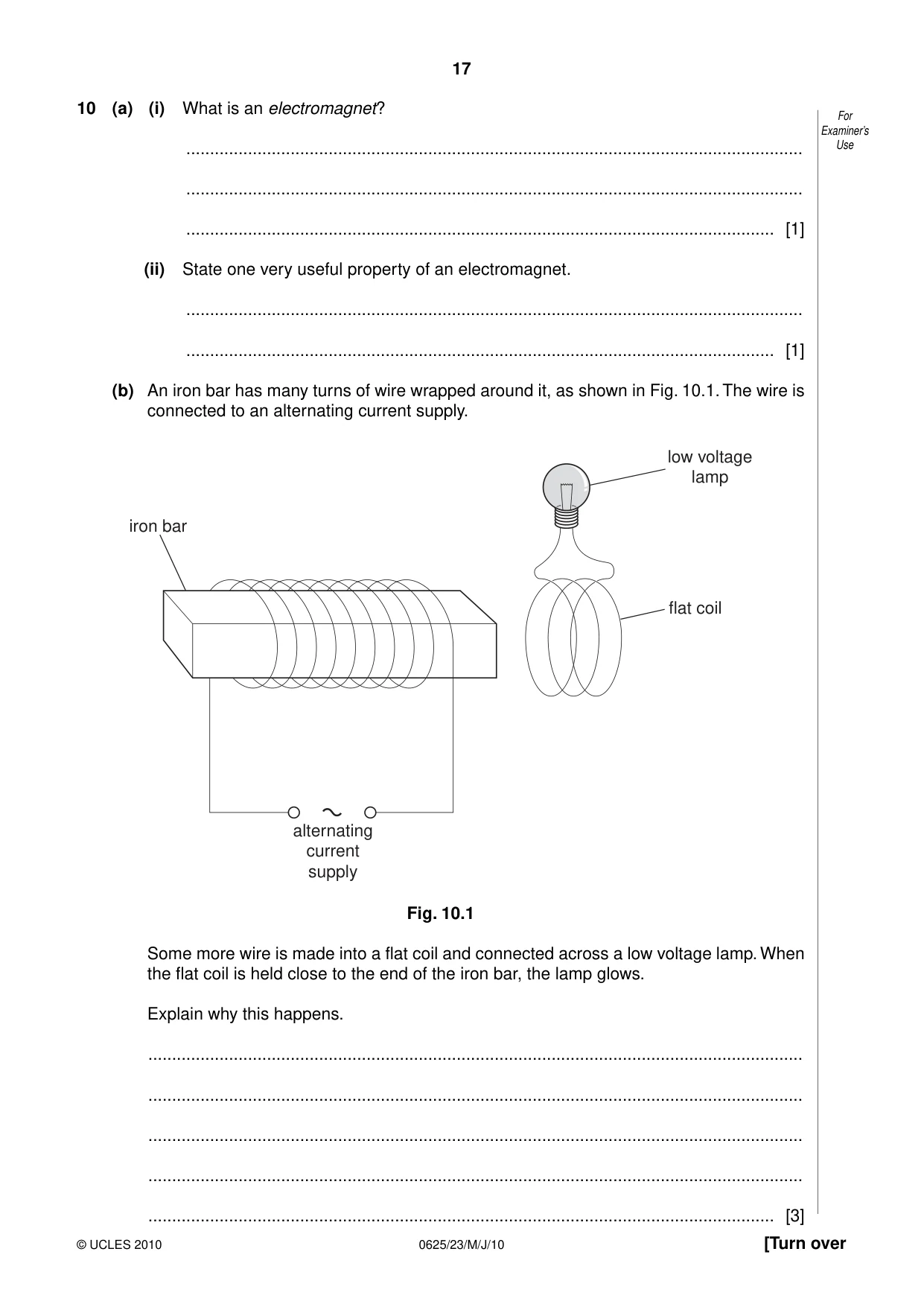

17 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use 10 (a) (i) What is an electromagnet? … … … [1] (ii) State one very useful property of an electromagnet. … … [1] (b) An iron bar has many turns of wire wrapped around it, as shown in Fig. 10.1. The wire is connected to an alternating current supply. alternating current supply iron bar flat coil low voltage lamp Fig. 10.1 Some more wire is made into a flat coil and connected across a low voltage lamp. When the flat coil is held close to the end of the iron bar, the lamp glows. Explain why this happens. … … … … … [3]

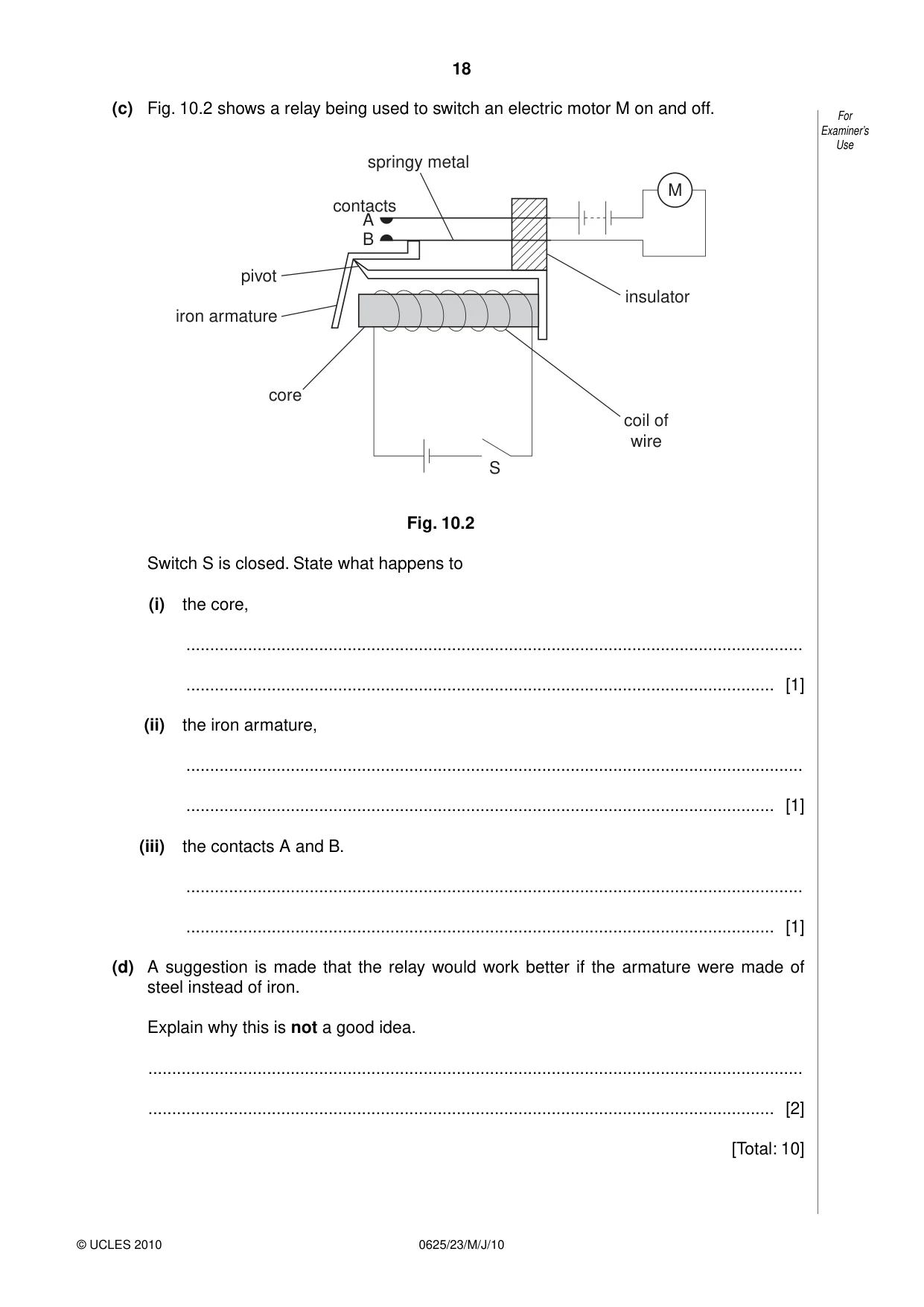

18 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use (c) Fig. 10.2 shows a relay being used to switch an electric motor M on and off. M S core springy metal contacts A B pivot iron armature insulator coil of wire Fig. 10.2 Switch S is closed. State what happens to (i) the core, … … [1] (ii) the iron armature, … … [1] (iii) the contacts A and B. … … [1] (d) A suggestion is made that the relay would work better if the armature were made of steel instead of iron. Explain why this is not a good idea. … … [2] [Total: 10]

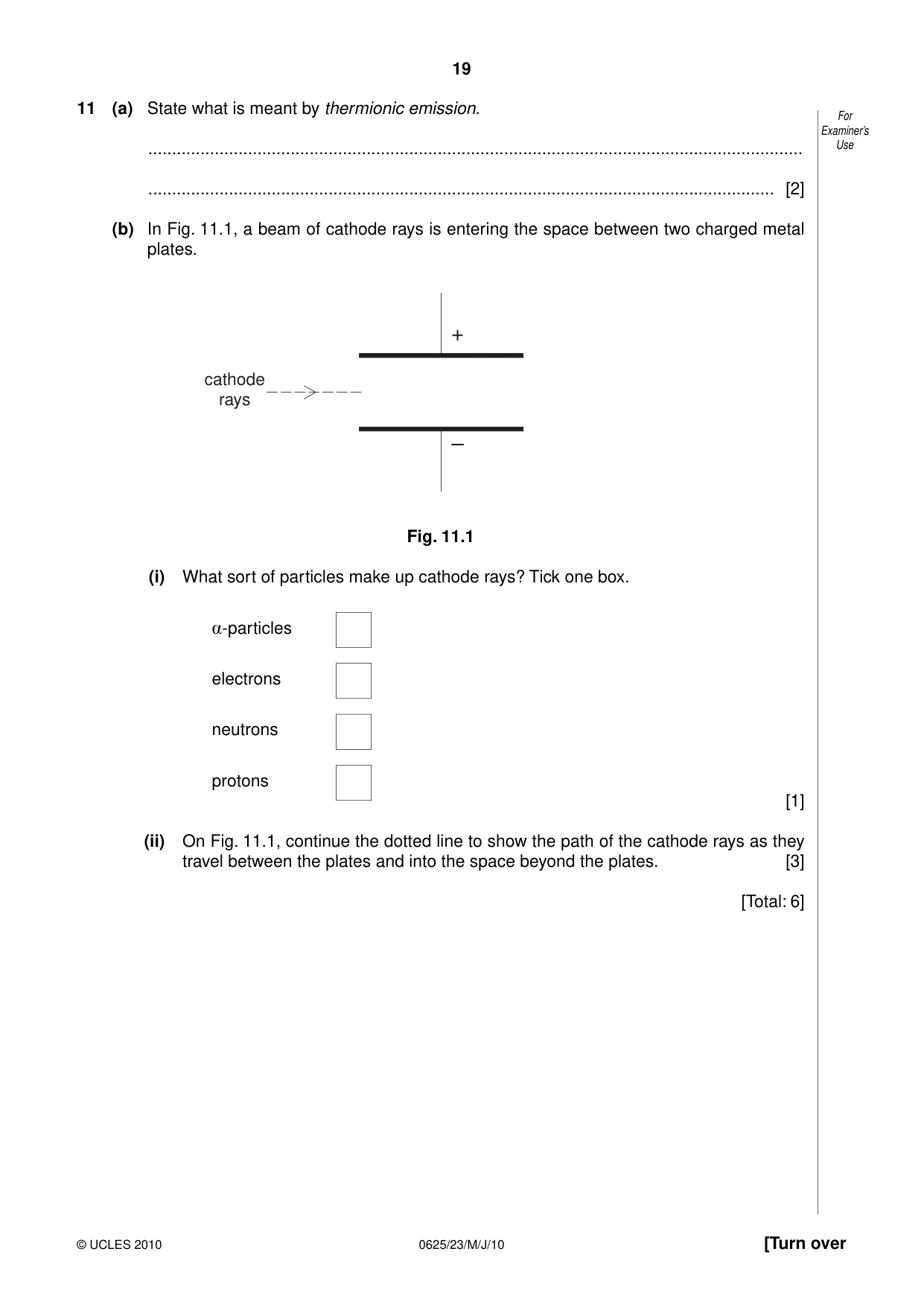

19 0625/23/M/J/10 © UCLES 2010 [Turn over For Examiner’s Use 11 (a) State what is meant by thermionic emission. … … [2] (b) In Fig. 11.1, a beam of cathode rays is entering the space between two charged metal plates. + – cathode rays Fig. 11.1 (i) What sort of particles make up cathode rays? Tick one box. -particles electrons neutrons protons [1] (ii) On Fig. 11.1, continue the dotted line to show the path of the cathode rays as they travel between the plates and into the space beyond the plates. [3] [Total: 6]

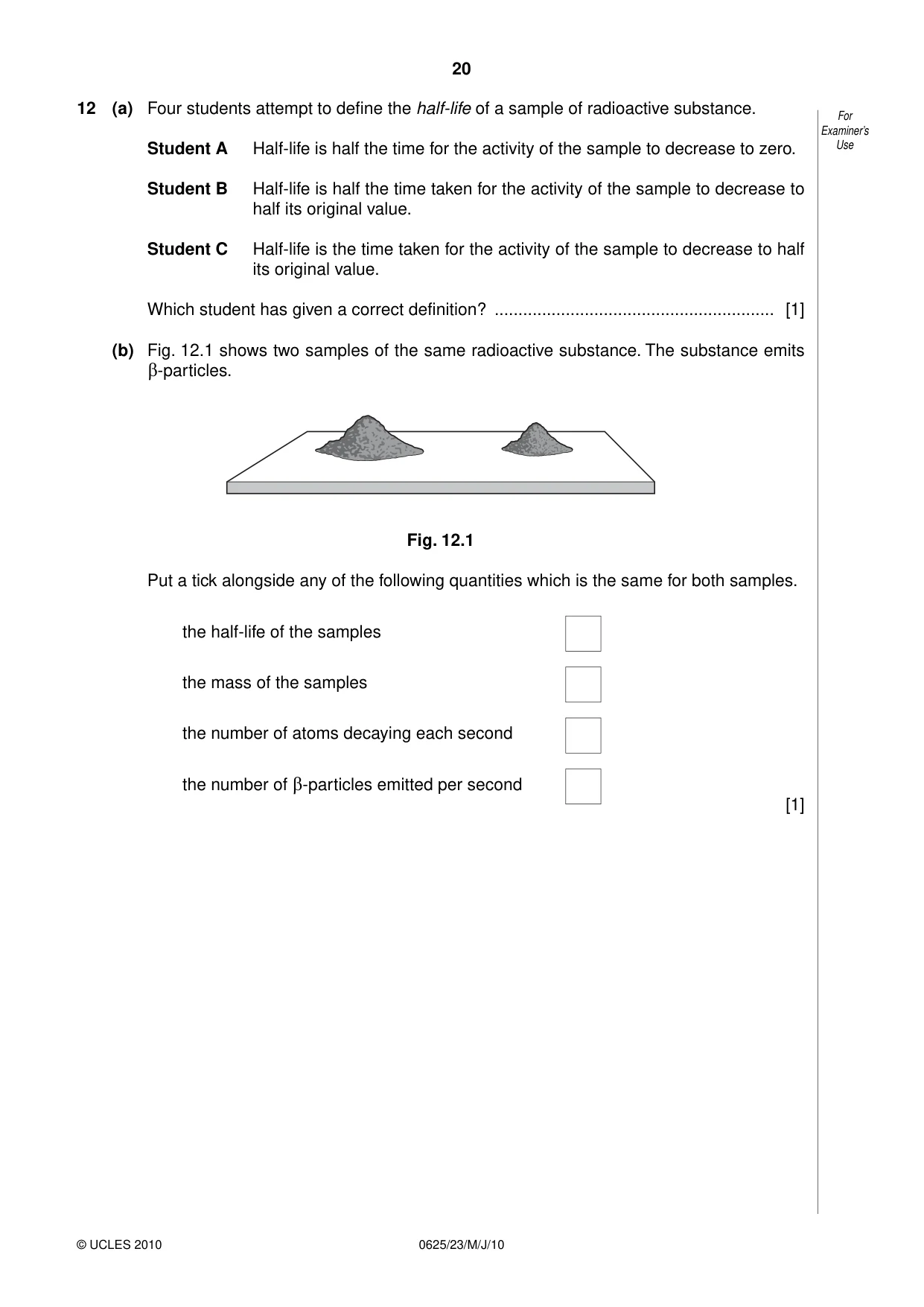

20 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use 12 (a) Four students attempt to define the half-life of a sample of radioactive substance. Student A Half-life is half the time for the activity of the sample to decrease to zero. Student B Half-life is half the time taken for the activity of the sample to decrease to half its original value. Student C Half-life is the time taken for the activity of the sample to decrease to half its original value. Which student has given a correct definition? … [1] (b) Fig. 12.1 shows two samples of the same radioactive substance. The substance emits -particles. Fig. 12.1 Put a tick alongside any of the following quantities which is the same for both samples. the half-life of the samples the mass of the samples the number of atoms decaying each second the number of -particles emitted per second [1]

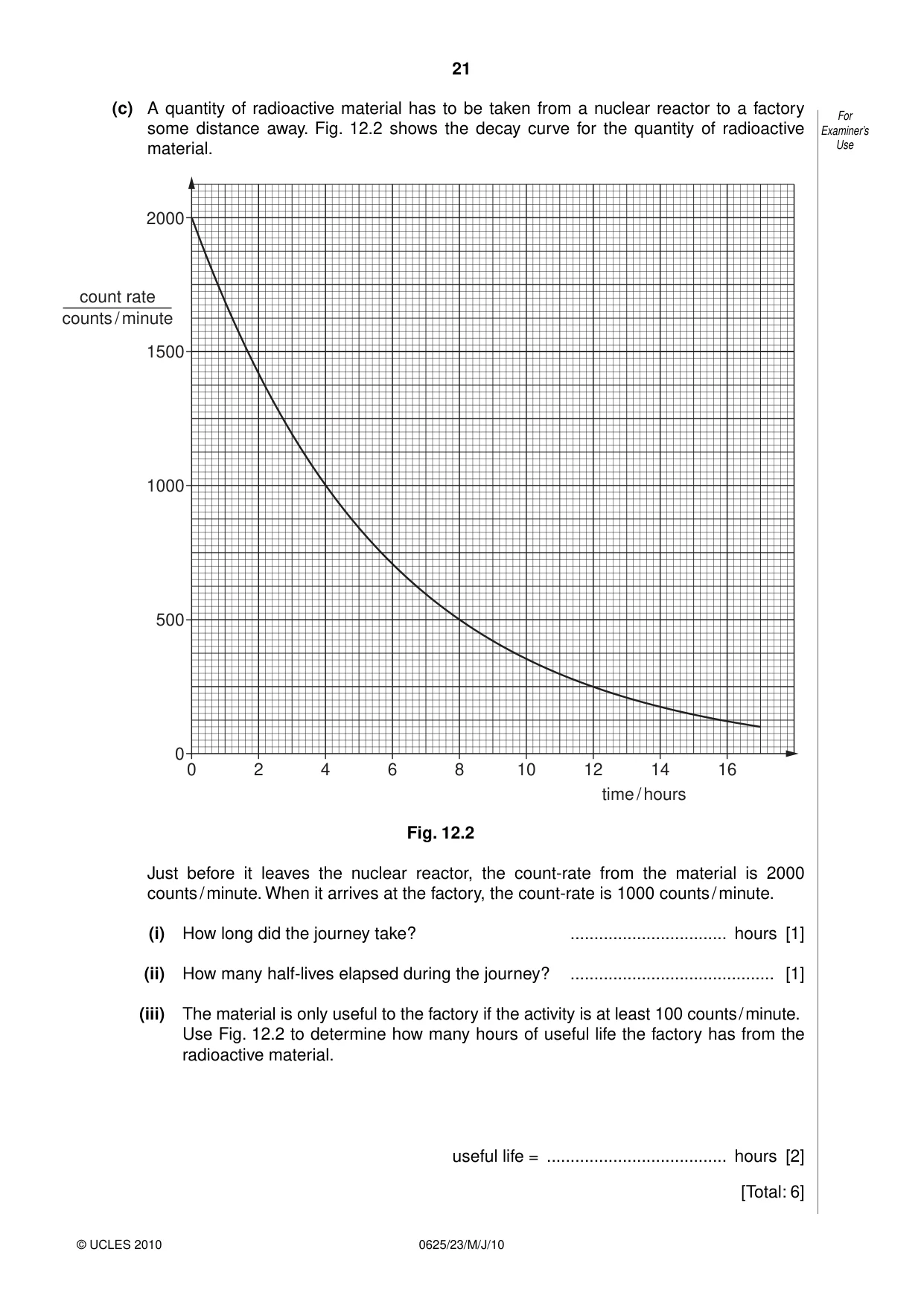

21 0625/23/M/J/10 © UCLES 2010 For Examiner’s Use (c) A quantity of radioactive material has to be taken from a nuclear reactor to a factory some distance away. Fig. 12.2 shows the decay curve for the quantity of radioactive material. 0 0 time / hours counts / minute count rate 2 4 6 8 10 12 14 16 500 1000 1500 2000 Fig. 12.2 Just before it leaves the nuclear reactor, the count-rate from the material is 2000 counts / minute. When it arrives at the factory, the count-rate is 1000 counts / minute. (i) How long did the journey take? … hours [1] (ii) How many half-lives elapsed during the journey? … [1] (iii) The material is only useful to the factory if the activity is at least 100 counts / minute. Use Fig. 12.2 to determine how many hours of useful life the factory has from the radioactive material. useful life = … hours [2] [Total: 6]

22 0625/23/M/J/10 © UCLES 2010 BLANK PAGE

23 0625/23/M/J/10 © UCLES 2010 BLANK PAGE

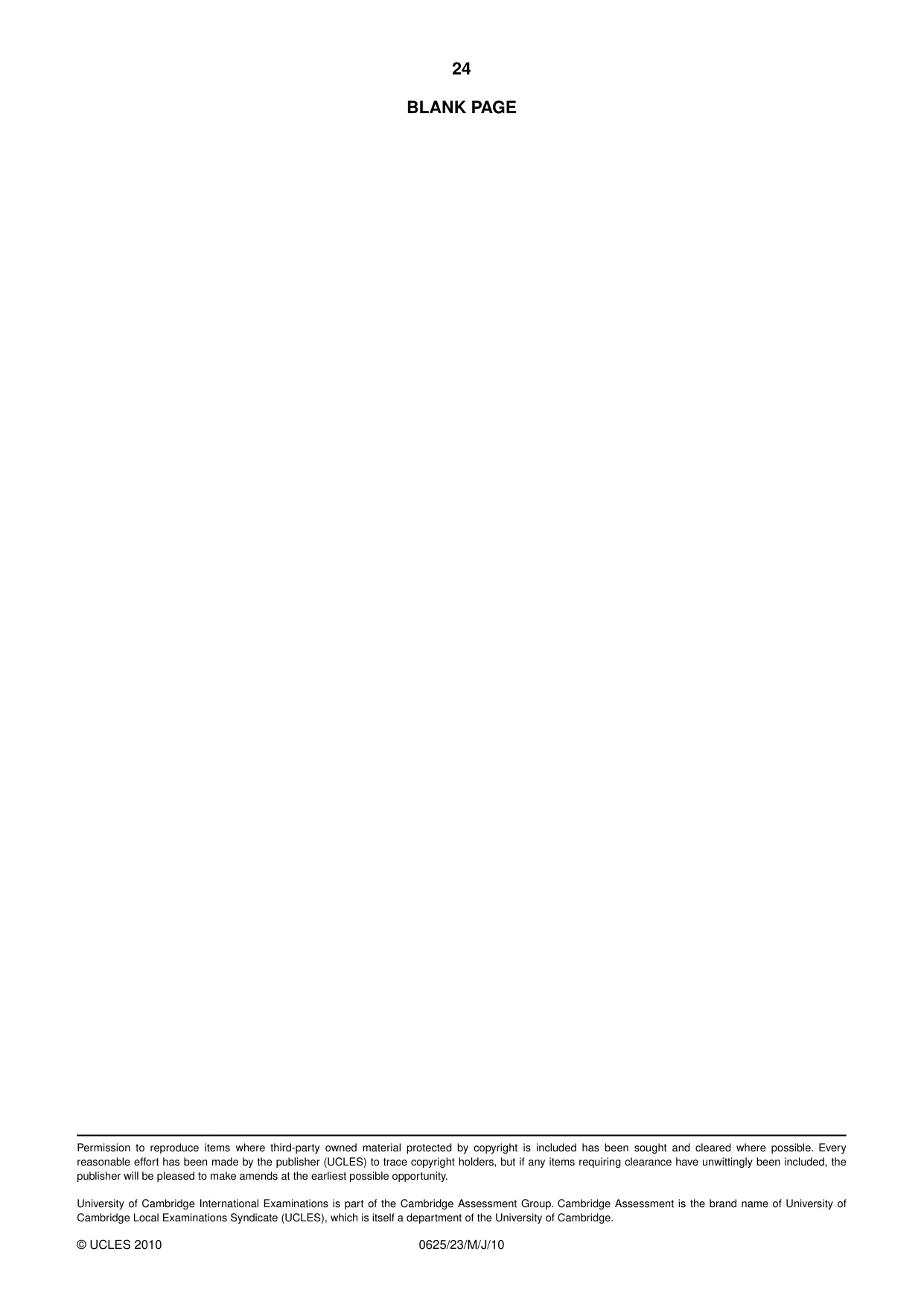

24 0625/23/M/J/10 © UCLES 2010 BLANK PAGE Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge.
