Cambridge IGCSE Physical Science 0652 — 2003 May/June Paper 3 · Variant 1

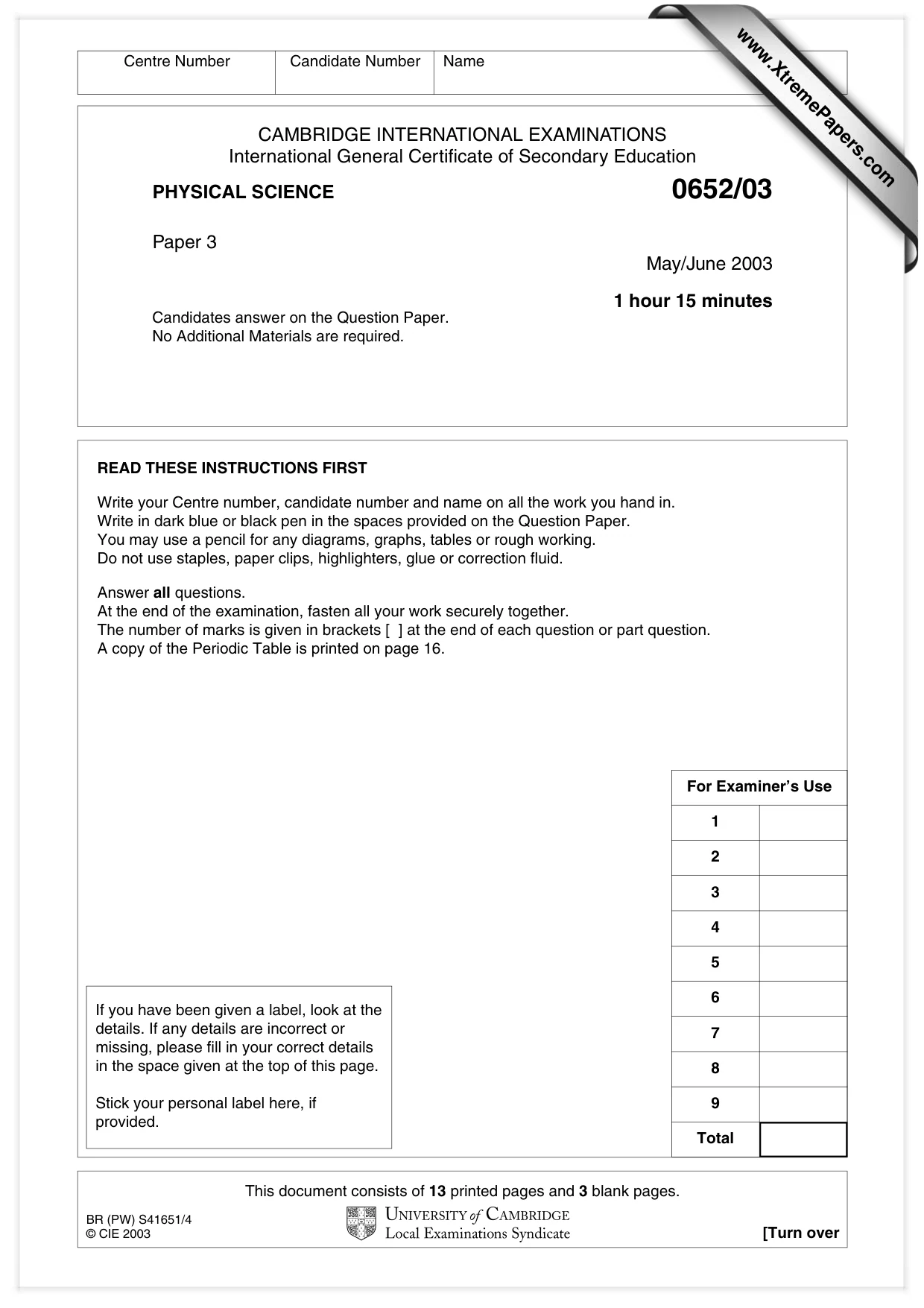

This document consists of 13 printed pages and 3 blank pages. BR (PW) S41651/4 © CIE 2003 [Turn over CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education PHYSICAL SCIENCE 0652/03 Paper 3 May/June 2003 1 hour 15 minutes Candidates answer on the Question Paper. No Additional Materials are required. READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen in the spaces provided on the Question Paper. You may use a pencil for any diagrams, graphs, tables or rough working. Do not use staples, paper clips, highlighters, glue or correction fluid. Answer all questions. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. A copy of the Periodic Table is printed on page 16. Centre Number Candidate Number Name If you have been given a label, look at the details. If any details are incorrect or missing, please fill in your correct details in the space given at the top of this page. Stick your personal label here, if provided. For Examiner’s Use 1 2 3 4 5 6 7 8 9 Total www.XtremePapers.com

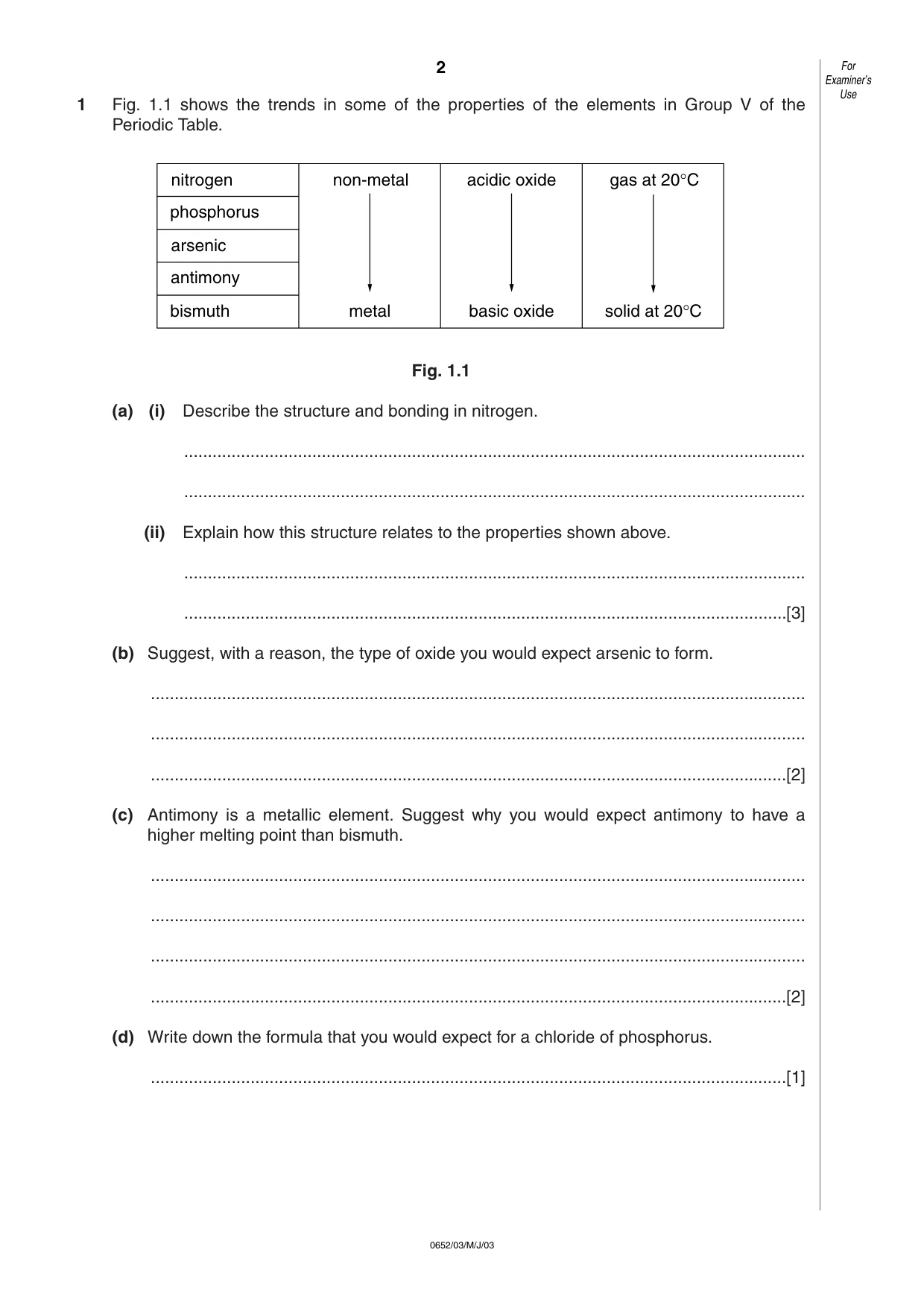

1 Fig. 1.1 shows the trends in some of the properties of the elements in Group V of the Periodic Table. Fig. 1.1 (a) (i) Describe the structure and bonding in nitrogen. … … (ii) Explain how this structure relates to the properties shown above. … …[3] (b) Suggest, with a reason, the type of oxide you would expect arsenic to form. … … …[2] (c) Antimony is a metallic element. Suggest why you would expect antimony to have a higher melting point than bismuth. … … … …[2] (d) Write down the formula that you would expect for a chloride of phosphorus. …[1] nitrogen phosphorus arsenic antimony bismuth non-metal gas at 20°C acidic oxide metal basic oxide solid at 20°C 2 0652/03/M/J/03 For Examiner’s Use

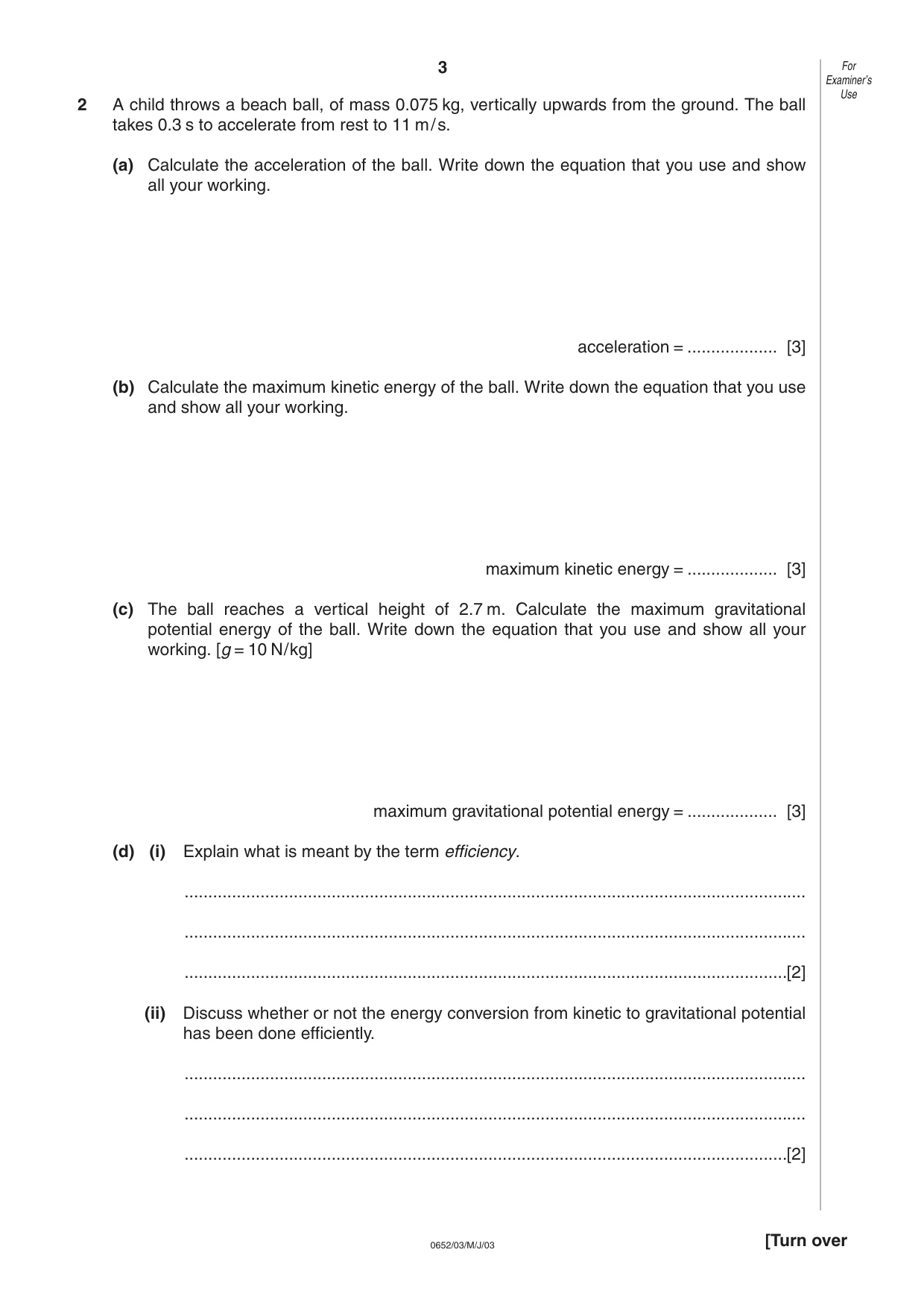

3 0652/03/M/J/03 [Turn over 2 A child throws a beach ball, of mass 0.075 kg, vertically upwards from the ground. The ball takes 0.3 s to accelerate from rest to 11 m/s. (a) Calculate the acceleration of the ball. Write down the equation that you use and show all your working. acceleration = … [3] (b) Calculate the maximum kinetic energy of the ball. Write down the equation that you use and show all your working. maximum kinetic energy = … [3] (c) The ball reaches a vertical height of 2.7 m. Calculate the maximum gravitational potential energy of the ball. Write down the equation that you use and show all your working. [g = 10 N/kg] maximum gravitational potential energy = … [3] (d) (i) Explain what is meant by the term efficiency. … … …[2] (ii) Discuss whether or not the energy conversion from kinetic to gravitational potential has been done efficiently. … … …[2] For Examiner’s Use

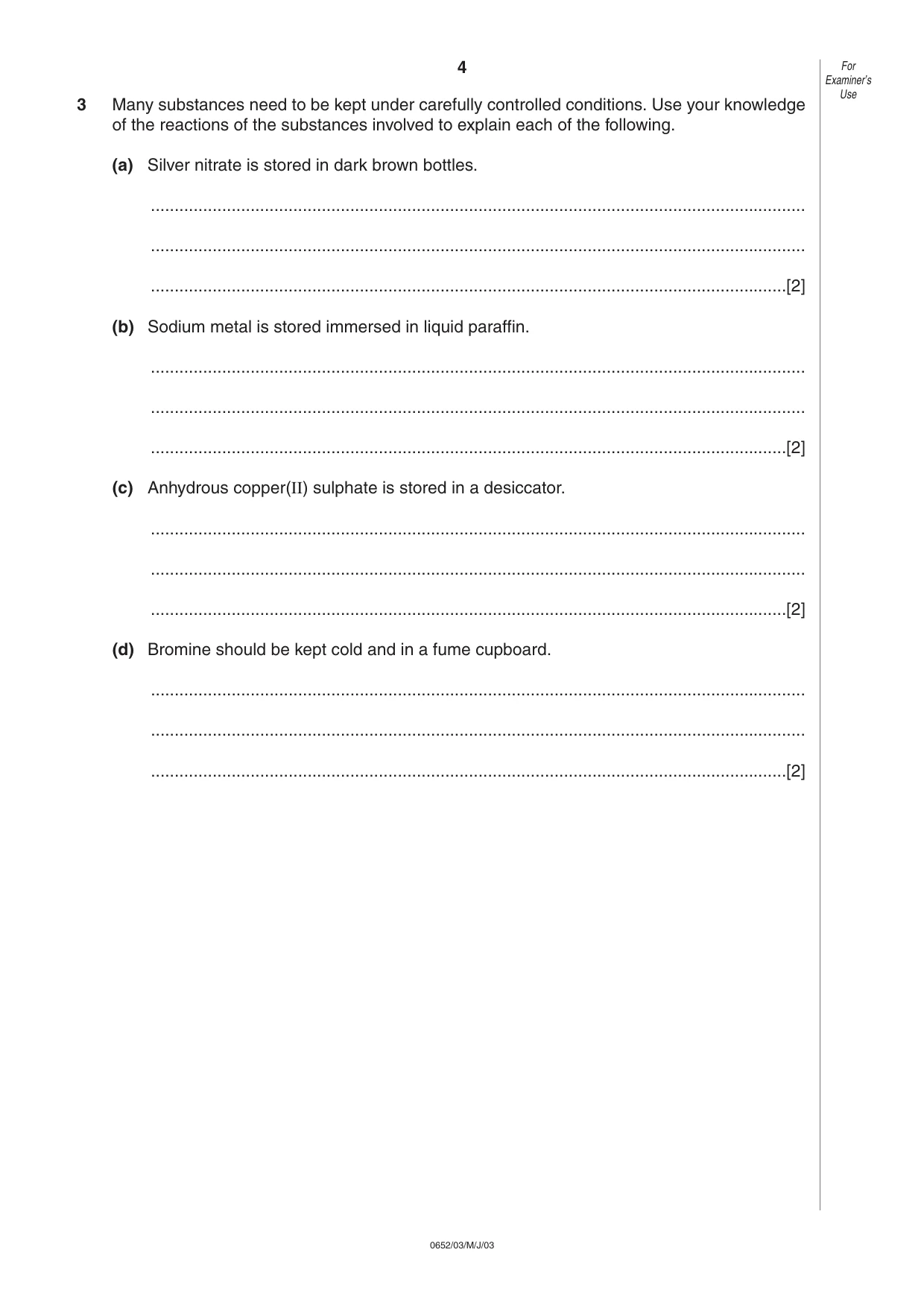

4 0652/03/M/J/03 3 Many substances need to be kept under carefully controlled conditions. Use your knowledge of the reactions of the substances involved to explain each of the following. (a) Silver nitrate is stored in dark brown bottles. … … …[2] (b) Sodium metal is stored immersed in liquid paraffin. … … …[2] (c) Anhydrous copper(II) sulphate is stored in a desiccator. … … …[2] (d) Bromine should be kept cold and in a fume cupboard. … … …[2] For Examiner’s Use

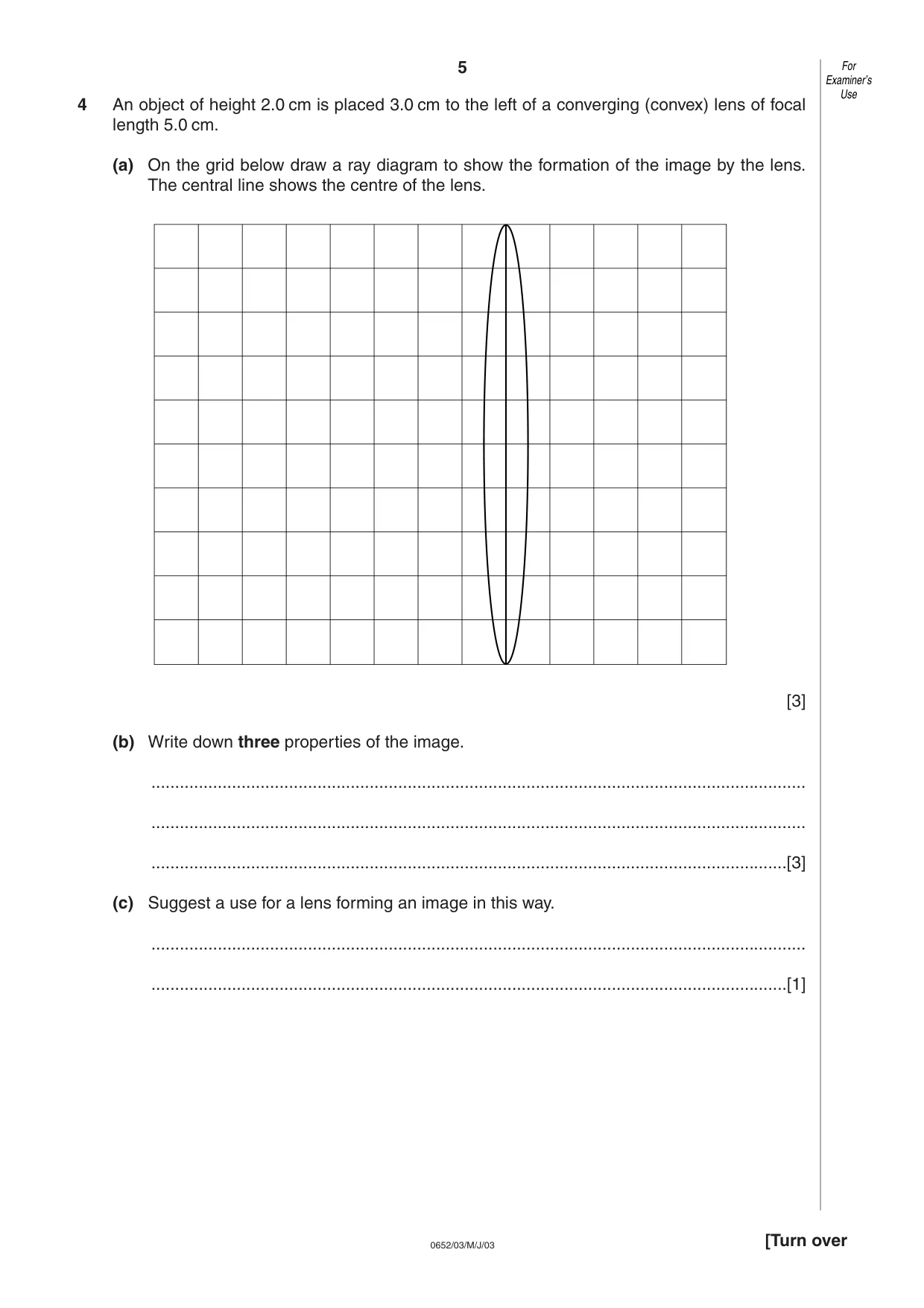

5 0652/03/M/J/03 [Turn over 4 An object of height 2.0 cm is placed 3.0 cm to the left of a converging (convex) lens of focal length 5.0 cm. (a) On the grid below draw a ray diagram to show the formation of the image by the lens. The central line shows the centre of the lens. [3] (b) Write down three properties of the image. … … …[3] (c) Suggest a use for a lens forming an image in this way. … …[1] For Examiner’s Use

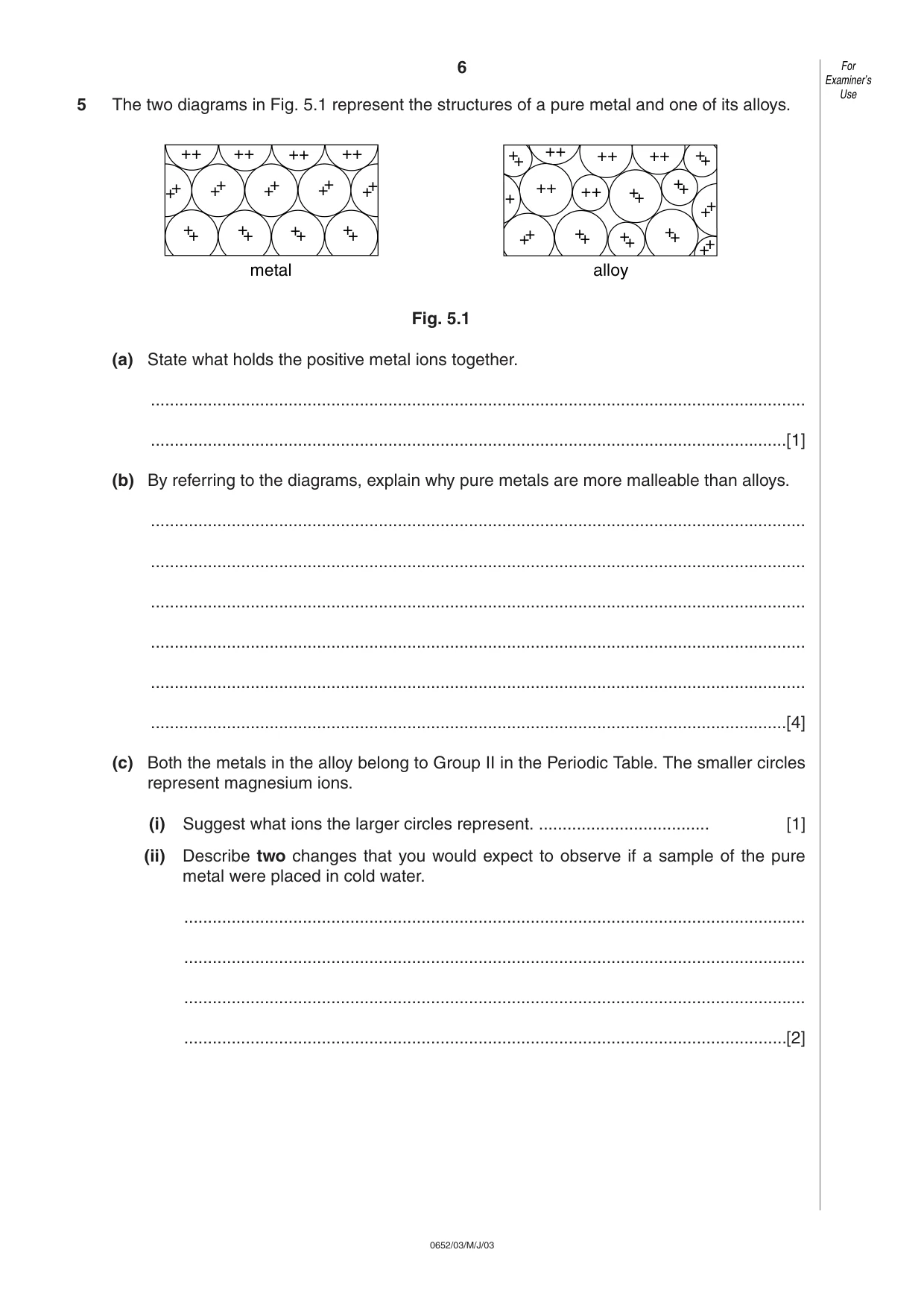

6 0652/03/M/J/03 5 The two diagrams in Fig. 5.1 represent the structures of a pure metal and one of its alloys. Fig. 5.1 (a) State what holds the positive metal ions together. … …[1] (b) By referring to the diagrams, explain why pure metals are more malleable than alloys. … … … … … …[4] (c) Both the metals in the alloy belong to Group II in the Periodic Table. The smaller circles represent magnesium ions. (i) Suggest what ions the larger circles represent. … [1] (ii) Describe two changes that you would expect to observe if a sample of the pure metal were placed in cold water. … … … …[2] ++ + + ++ ++ ++ ++ ++ + + + + + + ++ ++ ++ ++ ++ + + ++ ++ + + + + + + + + + + + + ++ ++ ++ ++ + metal alloy For Examiner’s Use

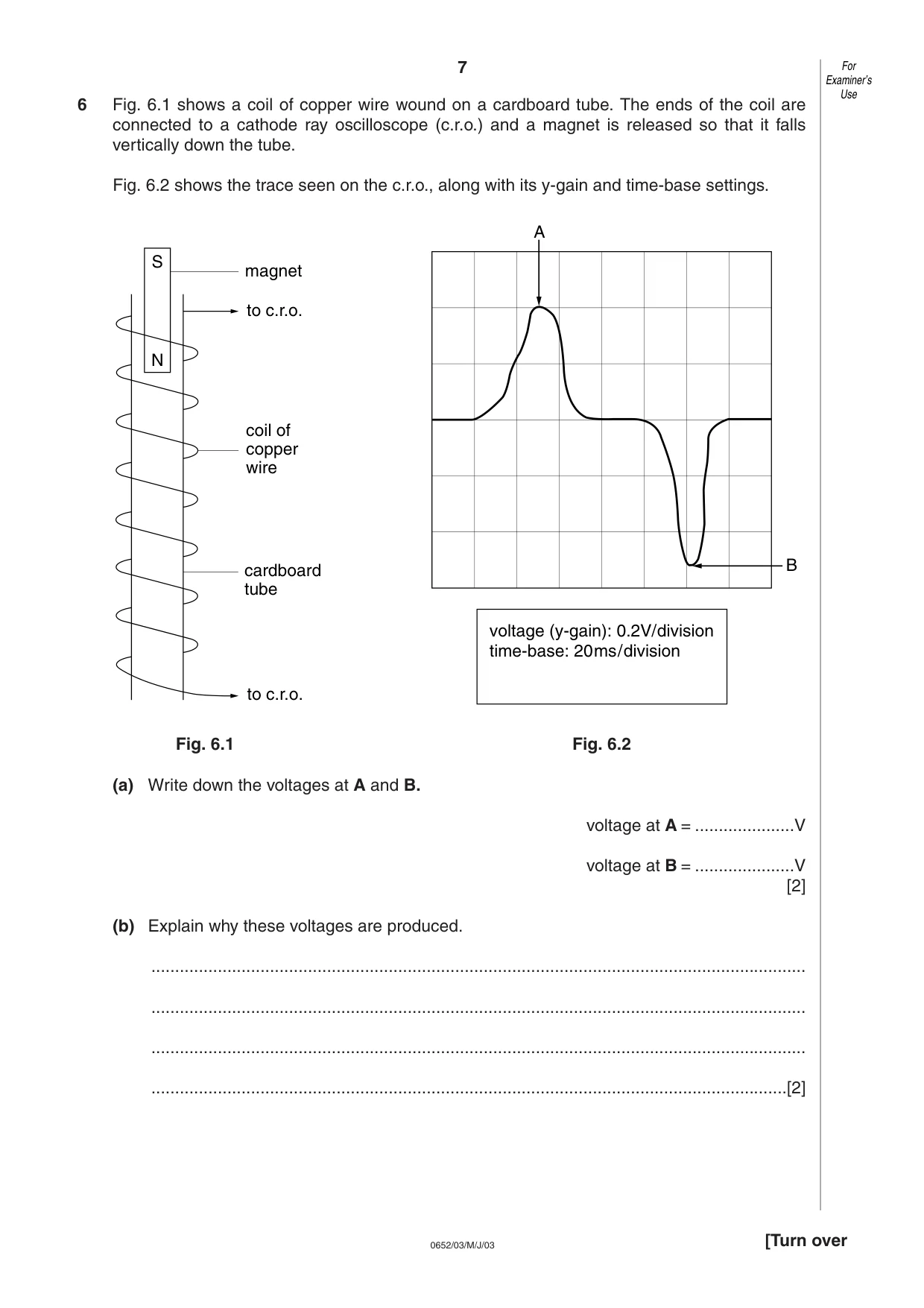

7 0652/03/M/J/03 [Turn over 6 Fig. 6.1 shows a coil of copper wire wound on a cardboard tube. The ends of the coil are connected to a cathode ray oscilloscope (c.r.o.) and a magnet is released so that it falls vertically down the tube. Fig. 6.2 shows the trace seen on the c.r.o., along with its y-gain and time-base settings. Fig. 6.1 Fig. 6.2 (a) Write down the voltages at A and B. voltage at A = …V voltage at B = …V [2] (b) Explain why these voltages are produced. … … … …[2] A B voltage (y-gain): 0.2V/division time-base: 20ms/division S N magnet to c.r.o. coil of copper wire cardboard tube to c.r.o. For Examiner’s Use

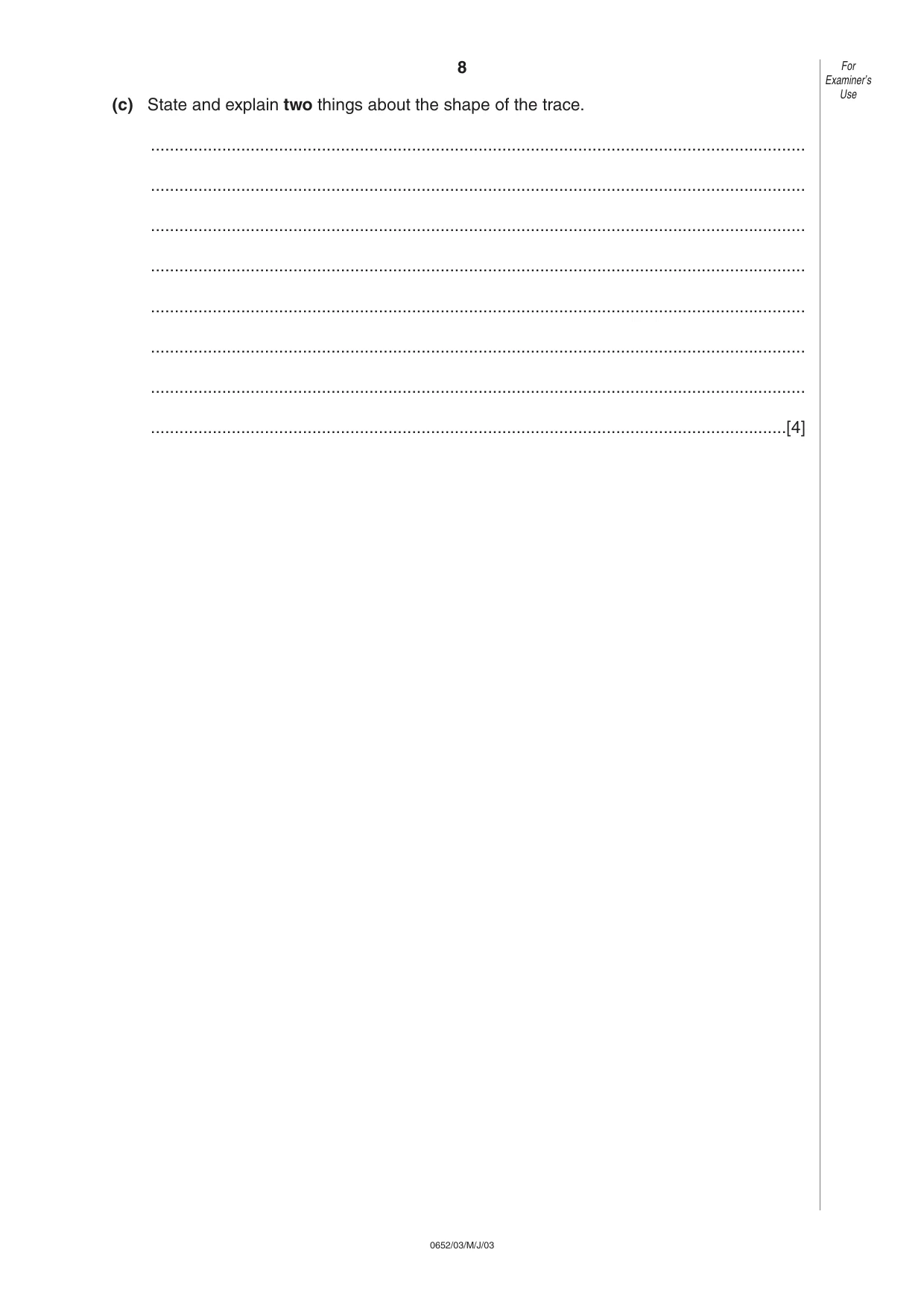

8 0652/03/M/J/03 (c) State and explain two things about the shape of the trace. … … … … … … … …[4] For Examiner’s Use

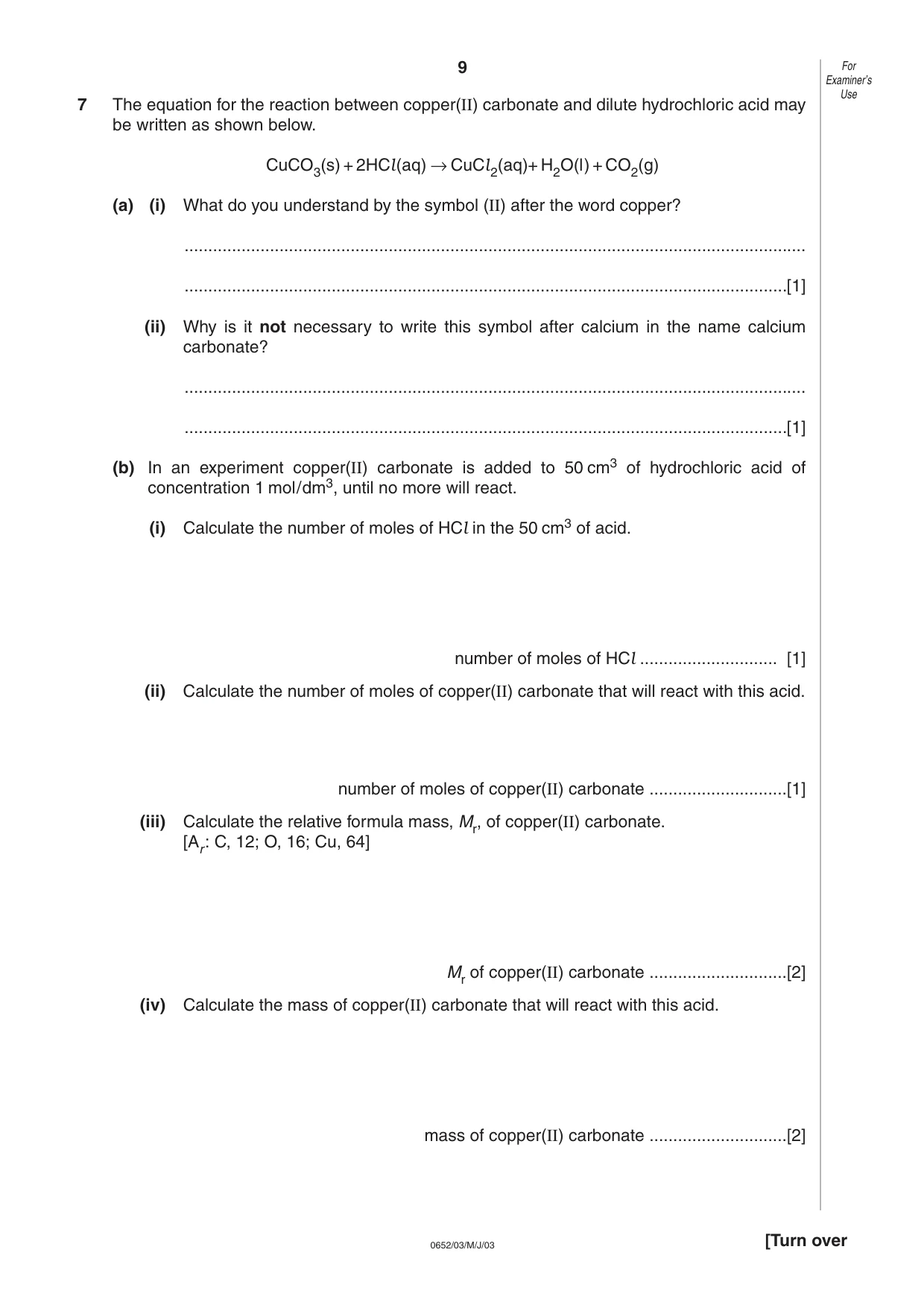

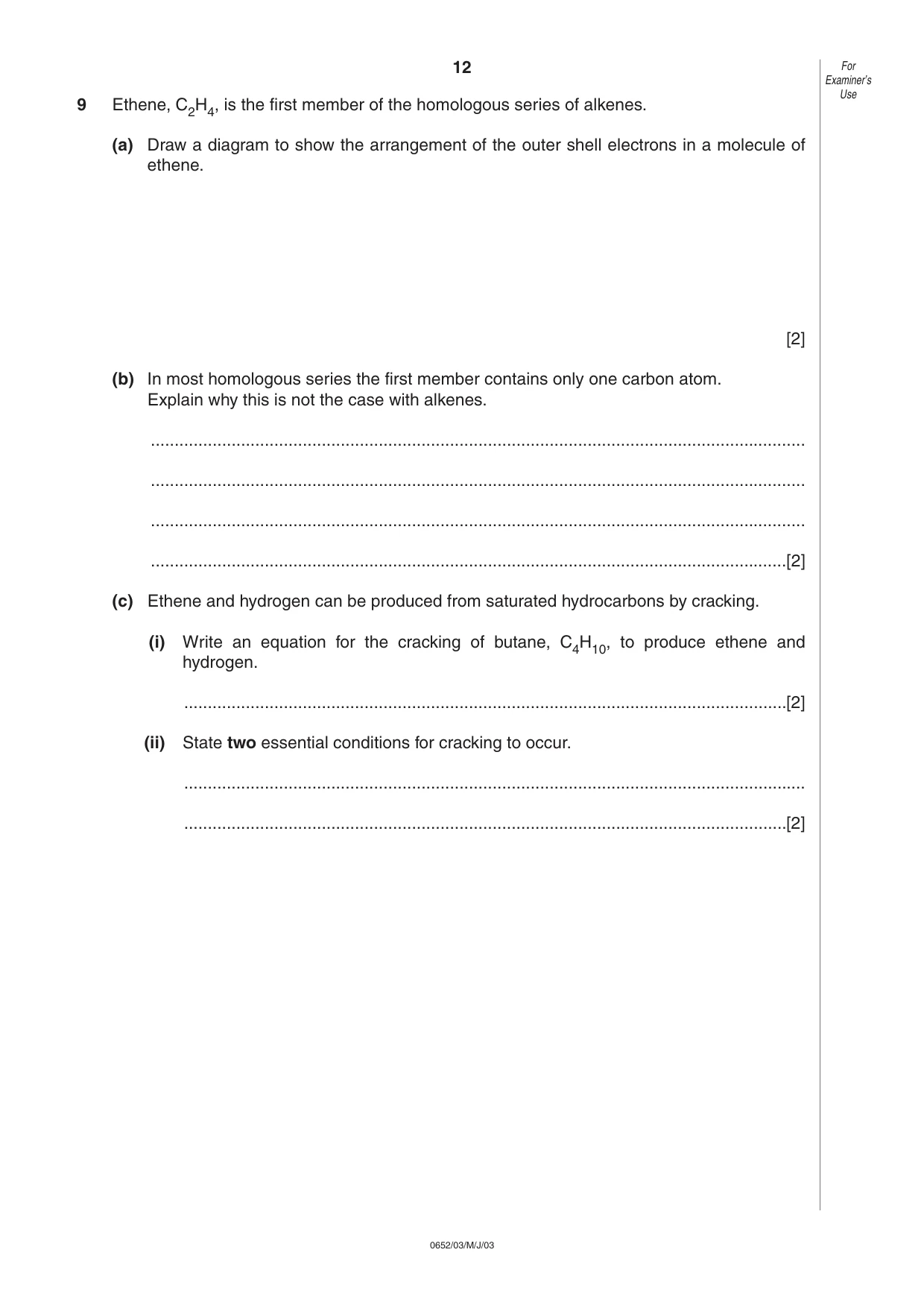

9 0652/03/M/J/03 [Turn over 7 The equation for the reaction between copper(II) carbonate and dilute hydrochloric acid may be written as shown below. CuCO3(s) + 2HCl(aq) →CuCl2(aq)+ H2O(l) + CO2(g) (a) (i) What do you understand by the symbol (II) after the word copper? … …[1] (ii) Why is it not necessary to write this symbol after calcium in the name calcium carbonate? … …[1] (b) In an experiment copper(II) carbonate is added to 50 cm3 of hydrochloric acid of concentration 1 mol/dm3, until no more will react. (i) Calculate the number of moles of HCl in the 50 cm3 of acid. number of moles of HCl … [1] (ii) Calculate the number of moles of copper(II) carbonate that will react with this acid. number of moles of copper(II) carbonate …[1] (iii) Calculate the relative formula mass, Mr, of copper(II) carbonate. [Ar: C, 12; O, 16; Cu, 64] Mr of copper(II) carbonate …[2] (iv) Calculate the mass of copper(II) carbonate that will react with this acid. mass of copper(II) carbonate …[2] For Examiner’s Use

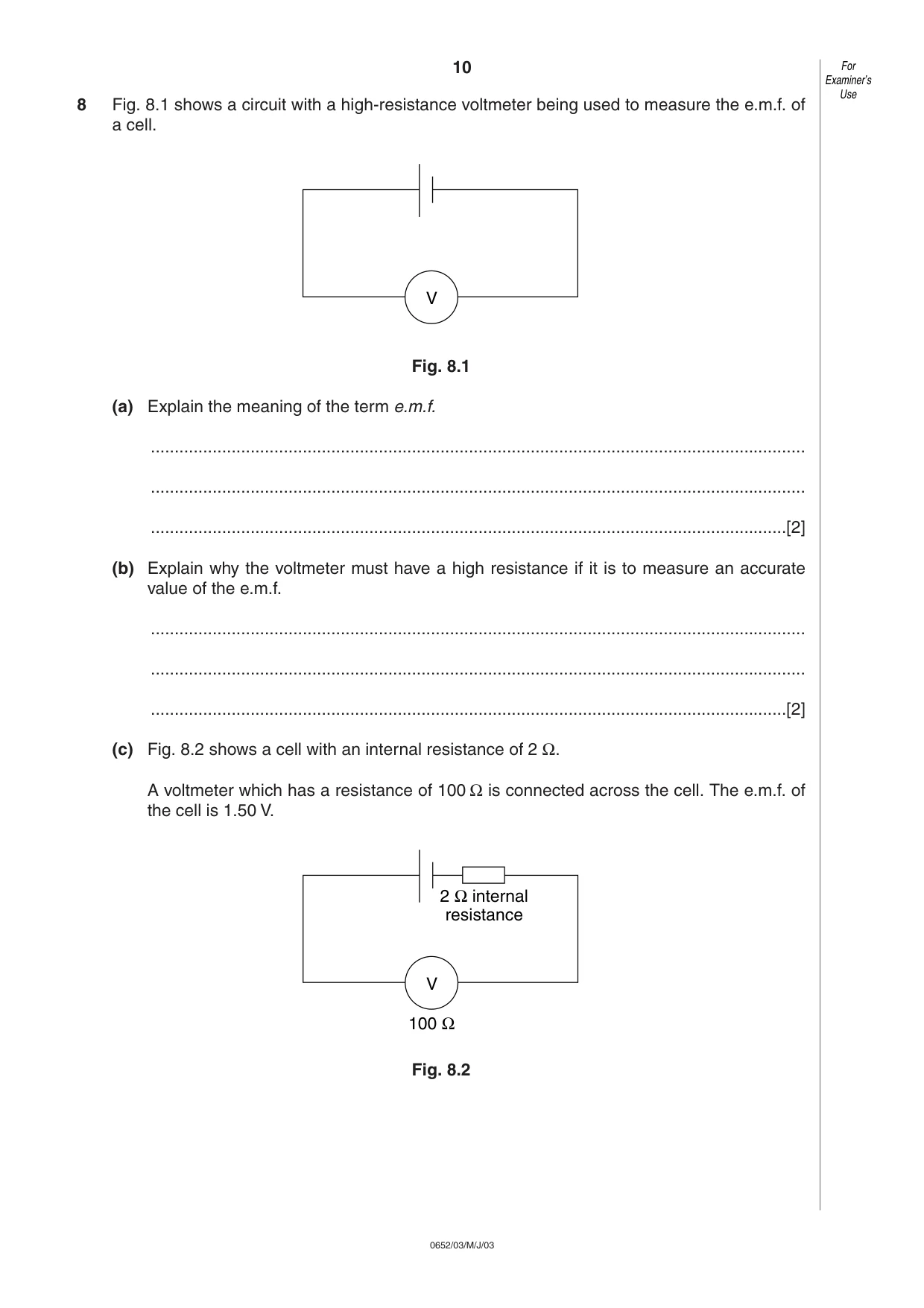

10 0652/03/M/J/03 8 Fig. 8.1 shows a circuit with a high-resistance voltmeter being used to measure the e.m.f. of a cell. Fig. 8.1 (a) Explain the meaning of the term e.m.f. … … …[2] (b) Explain why the voltmeter must have a high resistance if it is to measure an accurate value of the e.m.f. … … …[2] (c) Fig. 8.2 shows a cell with an internal resistance of 2 Ω. A voltmeter which has a resistance of 100 Ωis connected across the cell. The e.m.f. of the cell is 1.50 V. Fig. 8.2 V 2 Ω internal resistance 100 Ω V For Examiner’s Use

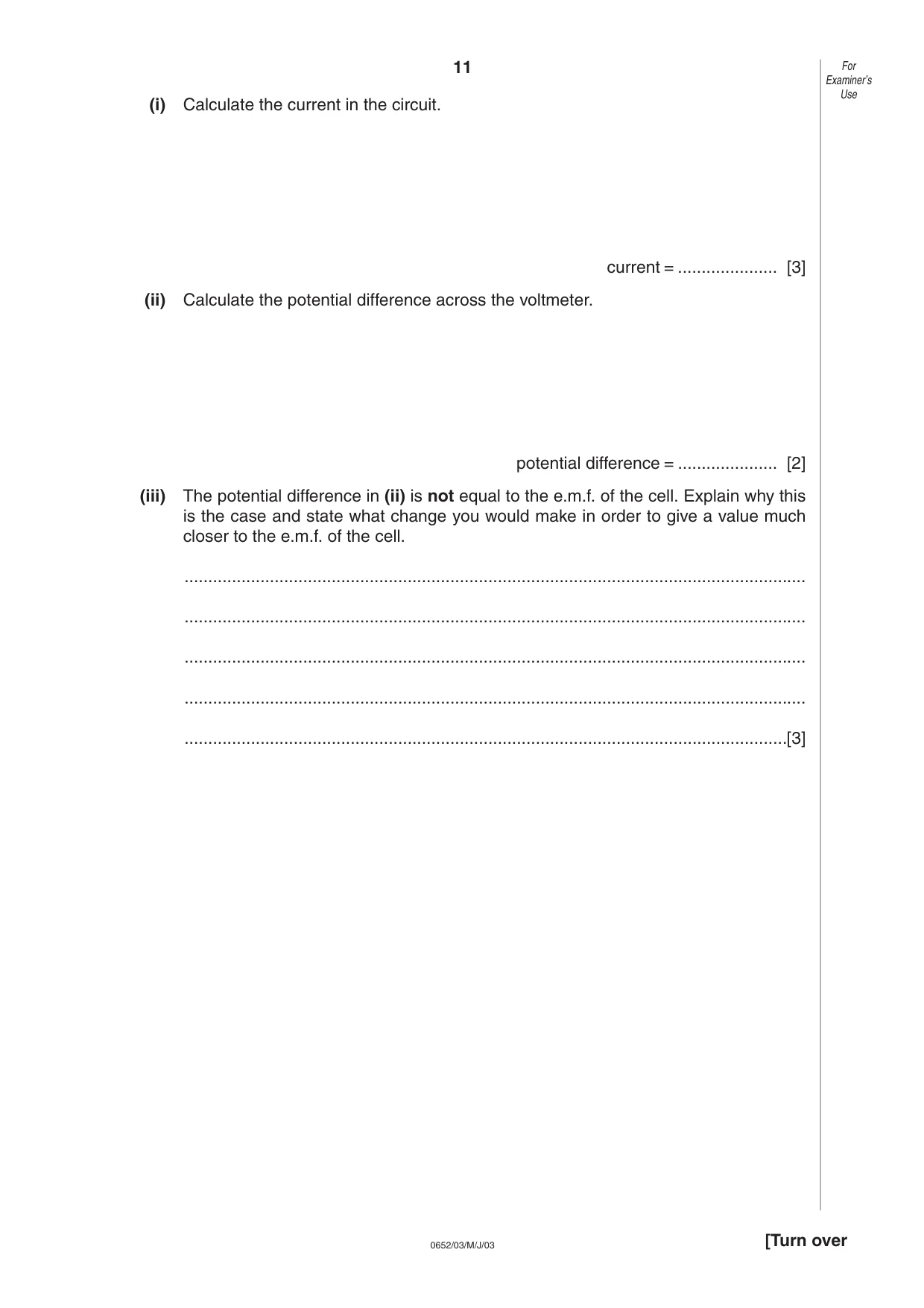

11 0652/03/M/J/03 [Turn over (i) Calculate the current in the circuit. current = … [3] (ii) Calculate the potential difference across the voltmeter. potential difference = … [2] (iii) The potential difference in (ii) is not equal to the e.m.f. of the cell. Explain why this is the case and state what change you would make in order to give a value much closer to the e.m.f. of the cell. … … … … …[3] For Examiner’s Use

12 0652/03/M/J/03 9 Ethene, C2H4, is the first member of the homologous series of alkenes. (a) Draw a diagram to show the arrangement of the outer shell electrons in a molecule of ethene. [2] (b) In most homologous series the first member contains only one carbon atom. Explain why this is not the case with alkenes. … … … …[2] (c) Ethene and hydrogen can be produced from saturated hydrocarbons by cracking. (i) Write an equation for the cracking of butane, C4H10, to produce ethene and hydrogen. …[2] (ii) State two essential conditions for cracking to occur. … …[2] For Examiner’s Use
