Cambridge IGCSE Information and Communication Technology (9-1) 0983 — 2021 May/June Paper 2 · Variant 1

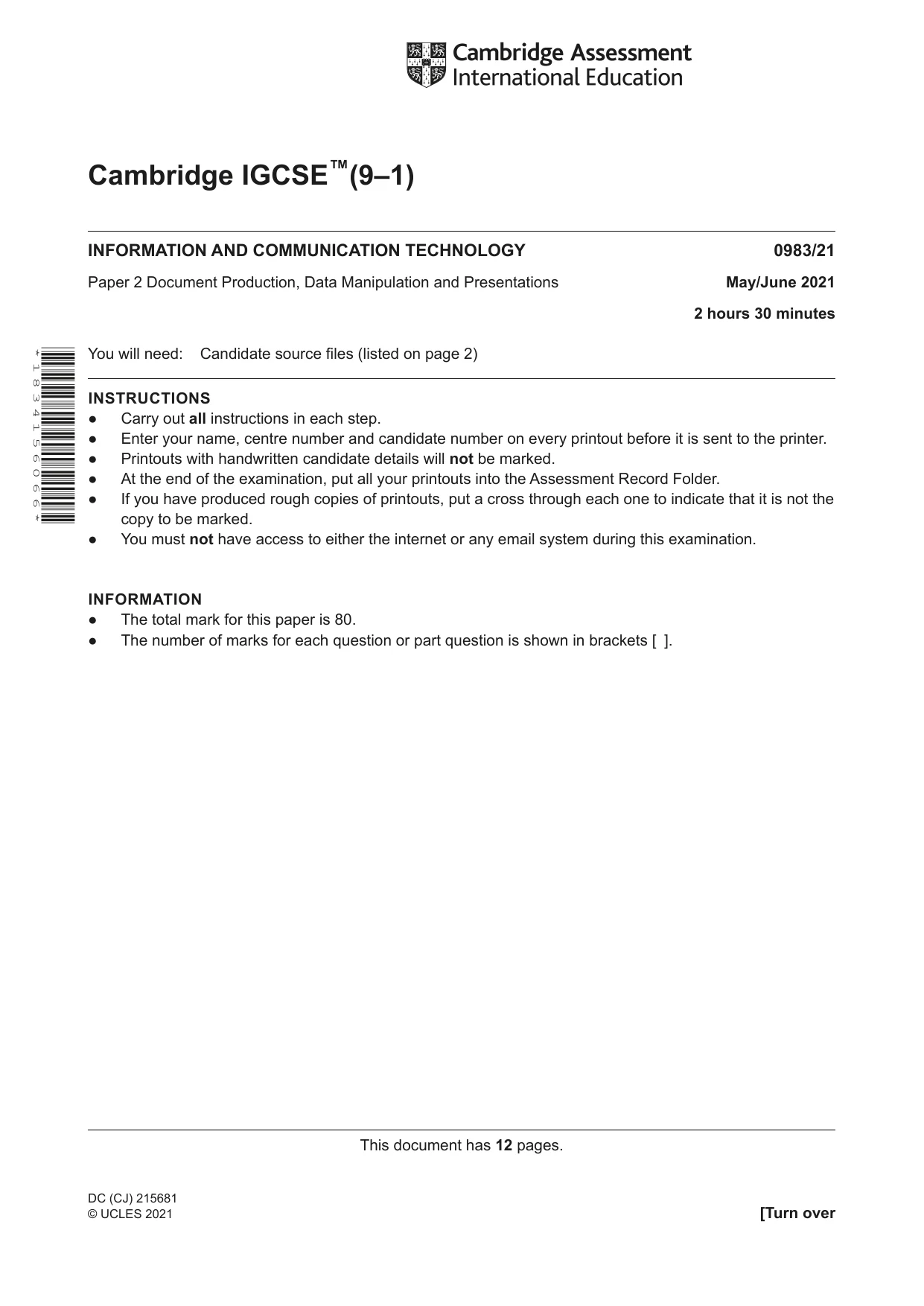

This document has 12 pages. Cambridge IGCSE™(9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/21 Paper 2 Document Production, Data Manipulation and Presentations May/June 2021 2 hours 30 minutes You will need: Candidate source files (listed on page 2) INSTRUCTIONS ● Carry out all instructions in each step. ● Enter your name, centre number and candidate number on every printout before it is sent to the printer. ● Printouts with handwritten candidate details will not be marked. ● At the end of the examination, put all your printouts into the Assessment Record Folder. ● If you have produced rough copies of printouts, put a cross through each one to indicate that it is not the copy to be marked. ● You must not have access to either the internet or any email system during this examination. INFORMATION ● The total mark for this paper is 80. ● The number of marks for each question or part question is shown in brackets [ ]. DC (CJ) 215681 © UCLES 2021 [Turn over * 1 8 3 4 1 5 6 0 6 6 *

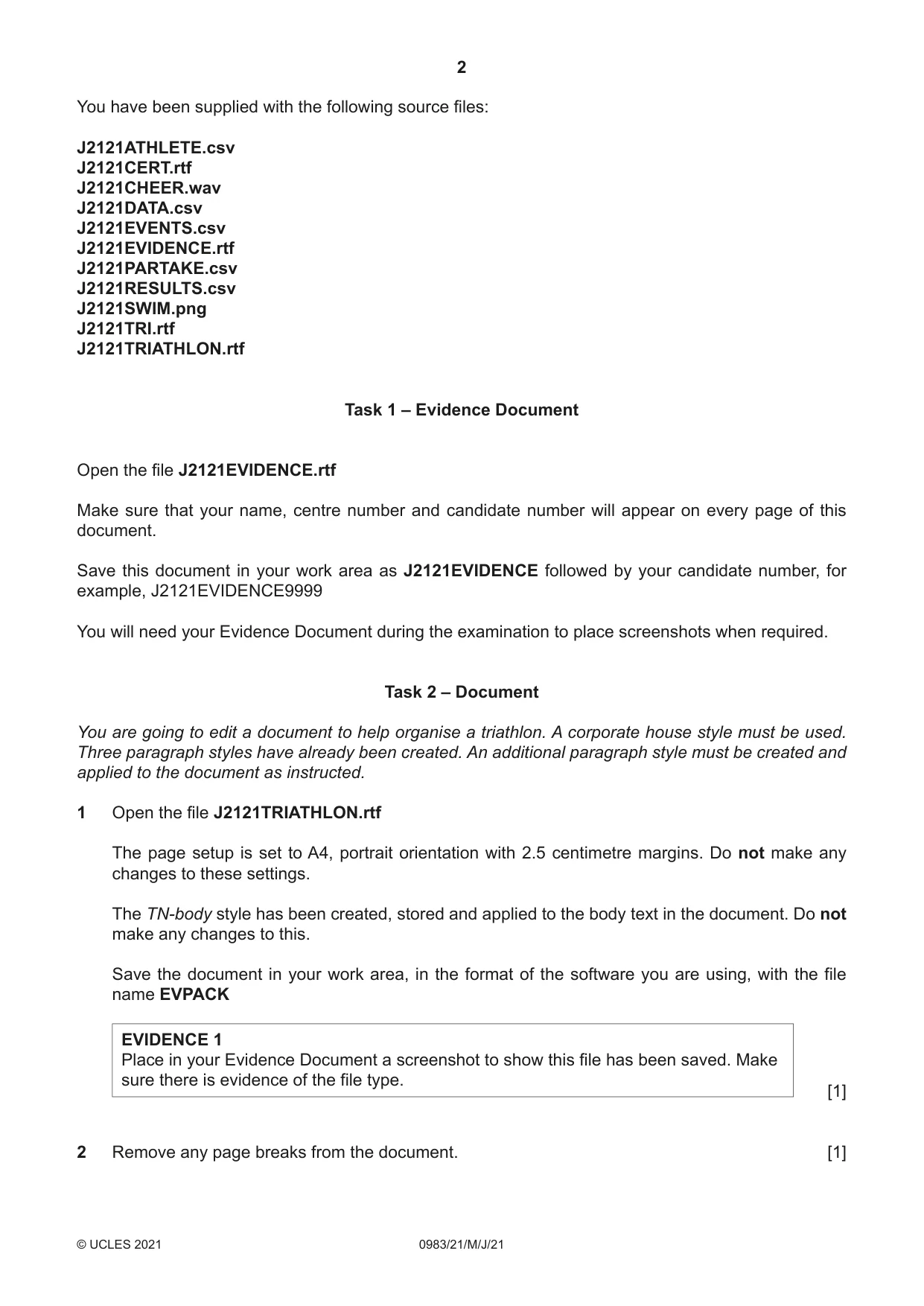

2 0983/21/M/J/21 © UCLES 2021 You have been supplied with the following source files: J2121ATHLETE.csv J2121CERT.rtf J2121CHEER.wav J2121DATA.csv J2121EVENTS.csv J2121EVIDENCE.rtf J2121PARTAKE.csv J2121RESULTS.csv J2121SWIM.png J2121TRI.rtf J2121TRIATHLON.rtf Task 1 – Evidence Document Open the file J2121EVIDENCE.rtf Make sure that your name, centre number and candidate number will appear on every page of this document. Save this document in your work area as J2121EVIDENCE followed by your candidate number, for example, J2121EVIDENCE9999 You will need your Evidence Document during the examination to place screenshots when required. Task 2 – Document You are going to edit a document to help organise a triathlon. A corporate house style must be used. Three paragraph styles have already been created. An additional paragraph style must be created and applied to the document as instructed. 1 Open the file J2121TRIATHLON.rtf The page setup is set to A4, portrait orientation with 2.5 centimetre margins. Do not make any changes to these settings. The TN-body style has been created, stored and applied to the body text in the document. Do not make any changes to this. Save the document in your work area, in the format of the software you are using, with the file name EVPACK EVIDENCE 1 Place in your Evidence Document a screenshot to show this file has been saved. Make sure there is evidence of the file type. [1] 2 Remove any page breaks from the document. [1]

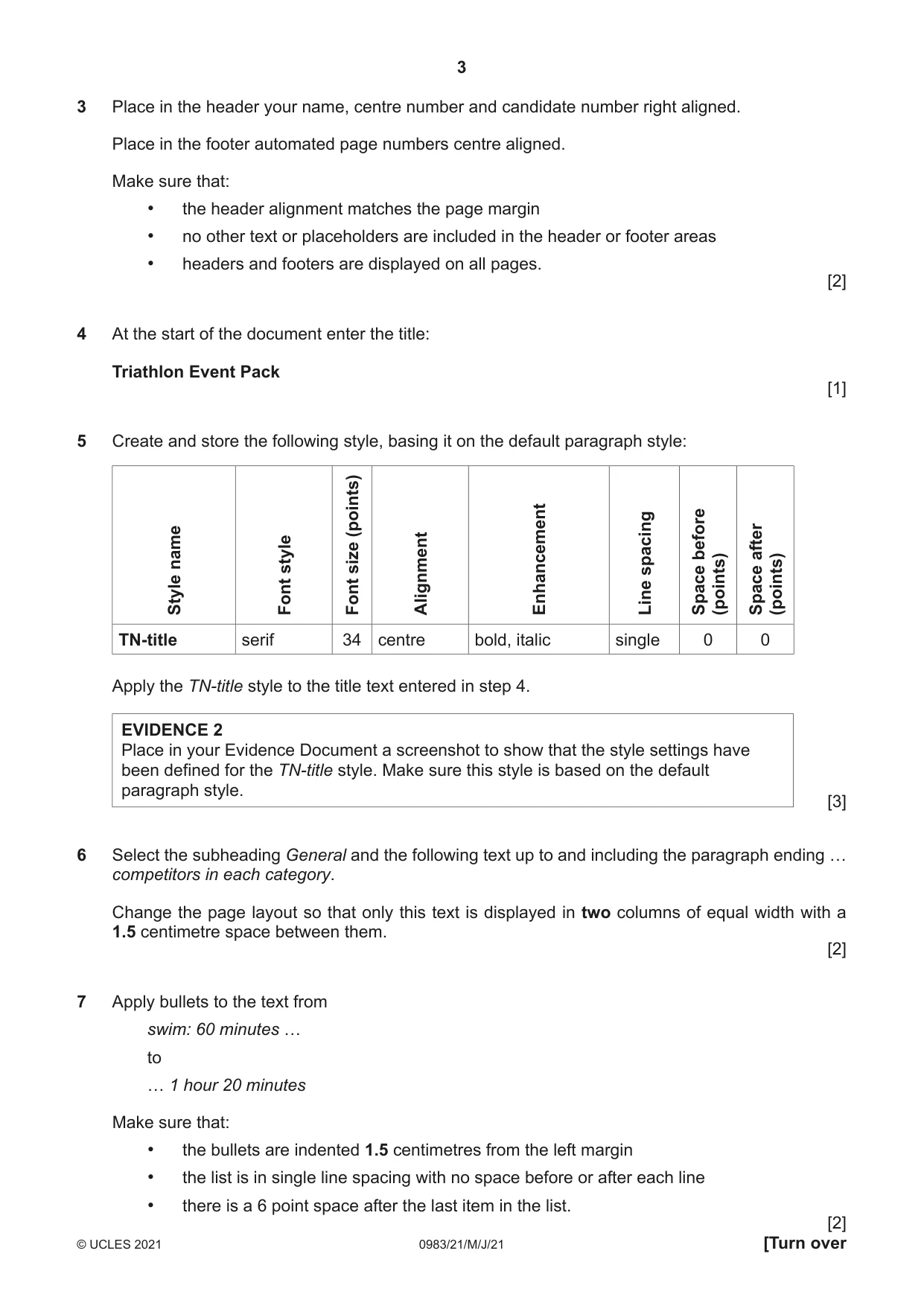

3 0983/21/M/J/21 © UCLES 2021 [Turn over 3 Place in the header your name, centre number and candidate number right aligned. Place in the footer automated page numbers centre aligned. Make sure that: • the header alignment matches the page margin • no other text or placeholders are included in the header or footer areas • headers and footers are displayed on all pages. [2] 4 At the start of the document enter the title: Triathlon Event Pack [1] 5 Create and store the following style, basing it on the default paragraph style: Style name Font style Font size (points) Alignment Enhancement Line spacing Space before (points) Space after (points) TN-title serif 34 centre bold, italic single 0 0 Apply the TN-title style to the title text entered in step 4. EVIDENCE 2 Place in your Evidence Document a screenshot to show that the style settings have been defined for the TN-title style. Make sure this style is based on the default paragraph style. [3] 6 Select the subheading General and the following text up to and including the paragraph ending … competitors in each category. Change the page layout so that only this text is displayed in two columns of equal width with a 1.5 centimetre space between them. [2] 7 Apply bullets to the text from swim: 60 minutes … to … 1 hour 20 minutes Make sure that: • the bullets are indented 1.5 centimetres from the left margin • the list is in single line spacing with no space before or after each line • there is a 6 point space after the last item in the list. [2]

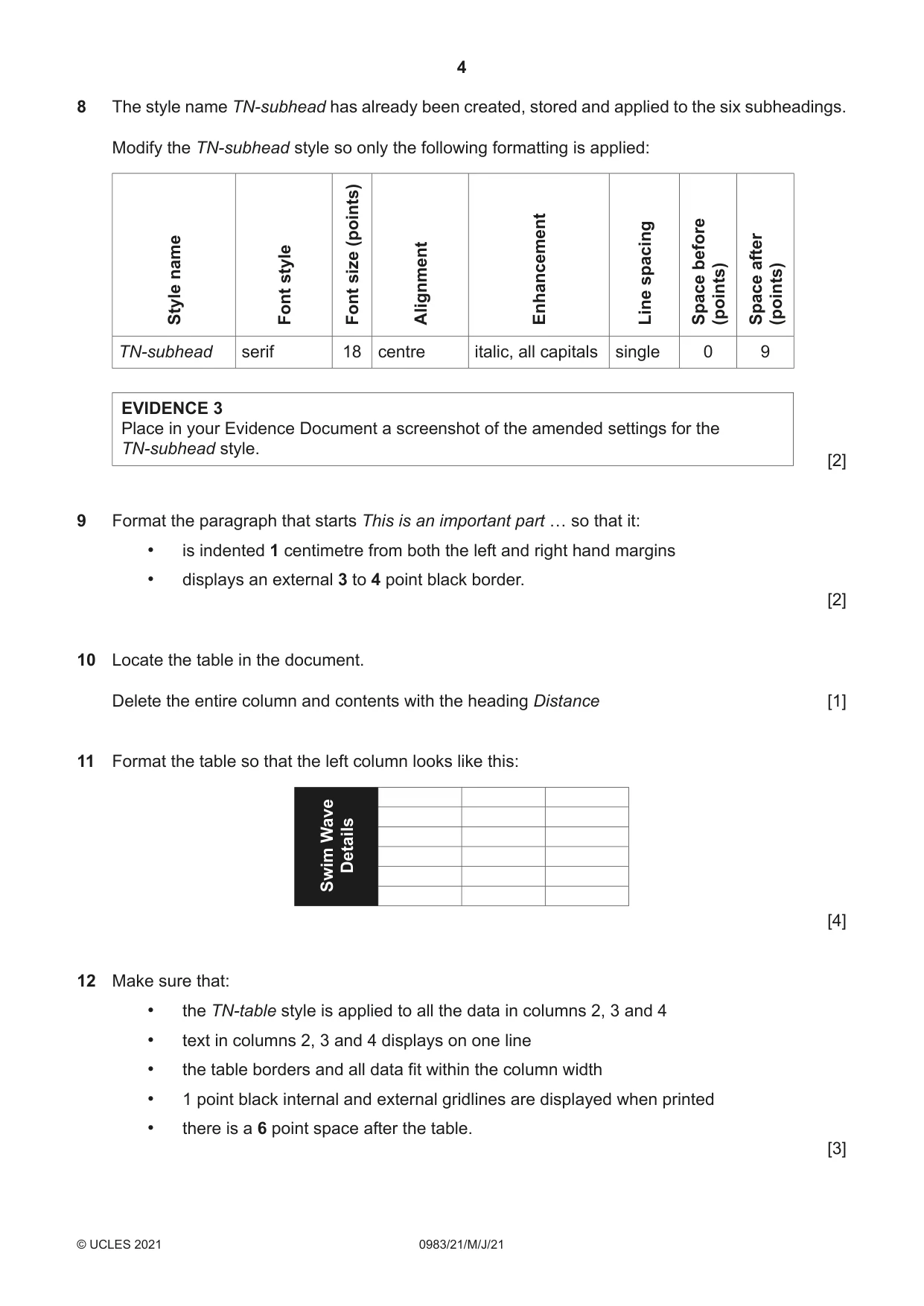

4 0983/21/M/J/21 © UCLES 2021 8 The style name TN-subhead has already been created, stored and applied to the six subheadings. Modify the TN-subhead style so only the following formatting is applied: Style name Font style Font size (points) Alignment Enhancement Line spacing Space before (points) Space after (points) TN-subhead serif 18 centre italic, all capitals single 0 9 EVIDENCE 3 Place in your Evidence Document a screenshot of the amended settings for the TN-subhead style. [2] 9 Format the paragraph that starts This is an important part … so that it: • is indented 1 centimetre from both the left and right hand margins • displays an external 3 to 4 point black border. [2] 10 Locate the table in the document. Delete the entire column and contents with the heading Distance [1] 11 Format the table so that the left column looks like this: Swim Wave Details [4] 12 Make sure that: • the TN-table style is applied to all the data in columns 2, 3 and 4 • text in columns 2, 3 and 4 displays on one line • the table borders and all data fit within the column width • 1 point black internal and external gridlines are displayed when printed • there is a 6 point space after the table. [3]

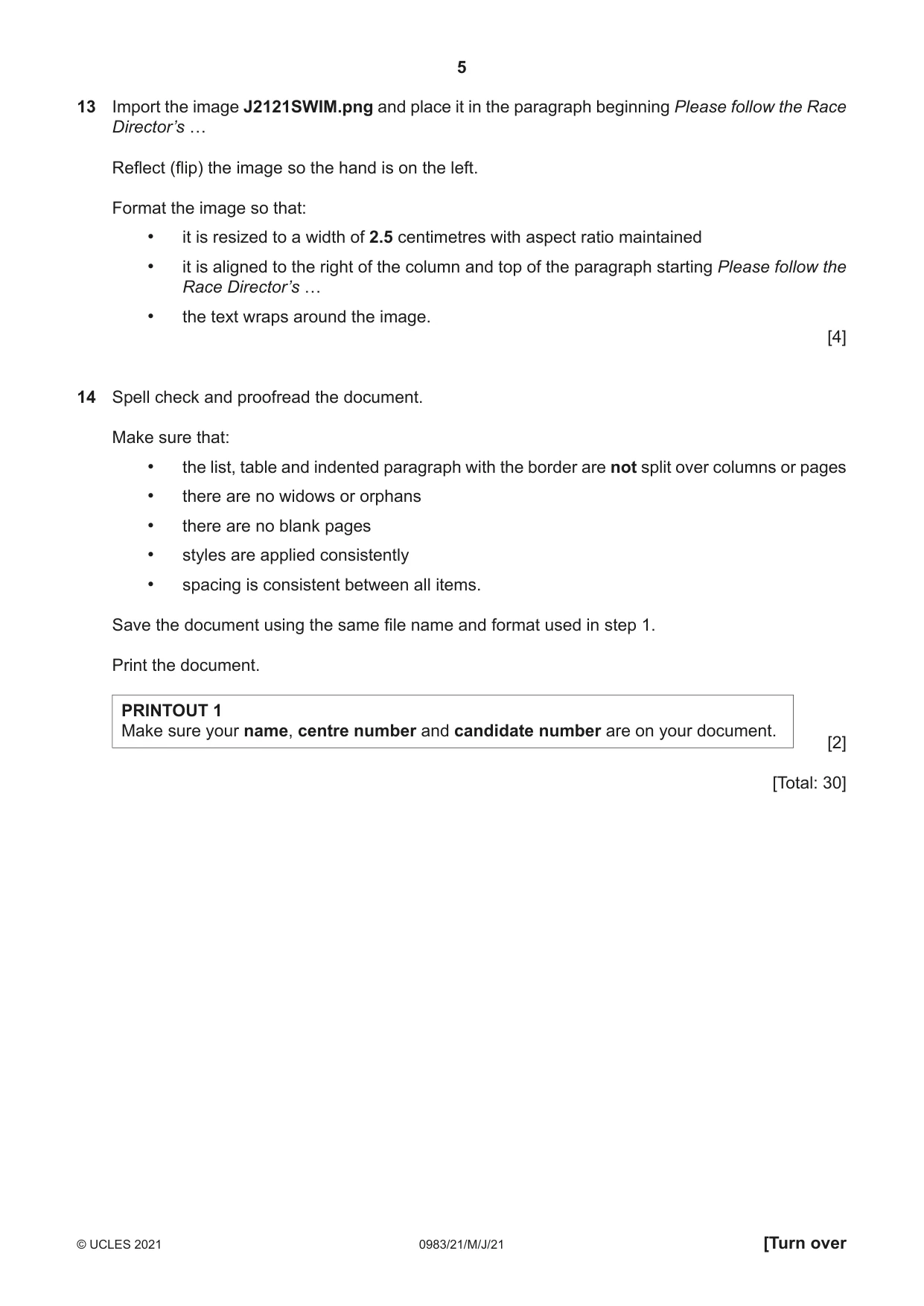

5 0983/21/M/J/21 © UCLES 2021 [Turn over 13 Import the image J2121SWIM.png and place it in the paragraph beginning Please follow the Race Director’s … Reflect (flip) the image so the hand is on the left. Format the image so that: • it is resized to a width of 2.5 centimetres with aspect ratio maintained • it is aligned to the right of the column and top of the paragraph starting Please follow the Race Director’s … • the text wraps around the image. [4] 14 Spell check and proofread the document. Make sure that: • the list, table and indented paragraph with the border are not split over columns or pages • there are no widows or orphans • there are no blank pages • styles are applied consistently • spacing is consistent between all items. Save the document using the same file name and format used in step 1. Print the document. PRINTOUT 1 Make sure your name, centre number and candidate number are on your document. [2] [Total: 30]

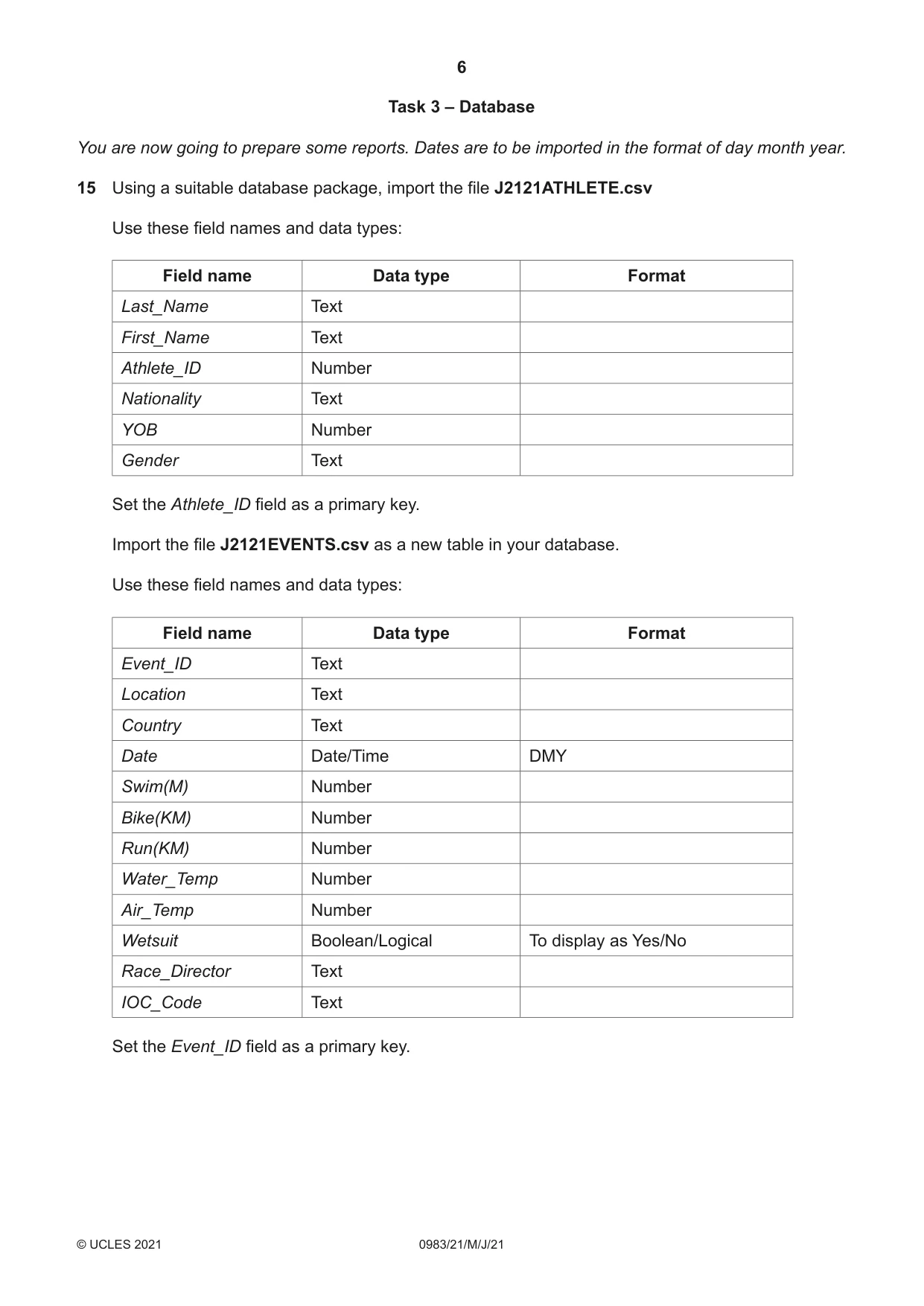

6 0983/21/M/J/21 © UCLES 2021 Task 3 – Database You are now going to prepare some reports. Dates are to be imported in the format of day month year. 15 Using a suitable database package, import the file J2121ATHLETE.csv Use these field names and data types: Field name Data type Format Last_Name Text First_Name Text Athlete_ID Number Nationality Text YOB Number Gender Text Set the Athlete_ID field as a primary key. Import the file J2121EVENTS.csv as a new table in your database. Use these field names and data types: Field name Data type Format Event_ID Text Location Text Country Text Date Date/Time DMY Swim(M) Number Bike(KM) Number Run(KM) Number Water_Temp Number Air_Temp Number Wetsuit Boolean/Logical To display as Yes/No Race_Director Text IOC_Code Text Set the Event_ID field as a primary key.

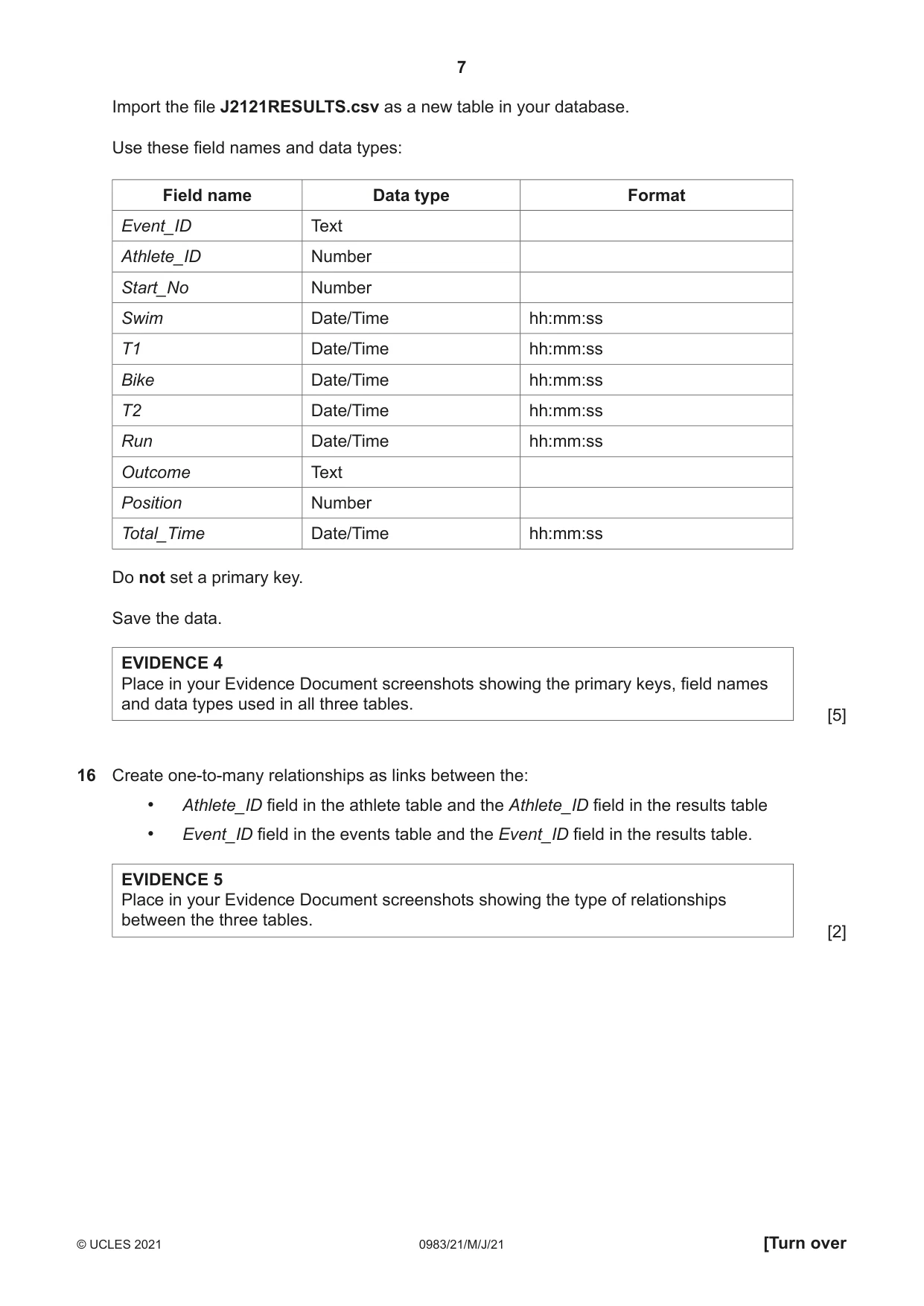

7 0983/21/M/J/21 © UCLES 2021 [Turn over Import the file J2121RESULTS.csv as a new table in your database. Use these field names and data types: Field name Data type Format Event_ID Text Athlete_ID Number Start_No Number Swim Date/Time hh:mm:ss T1 Date/Time hh:mm:ss Bike Date/Time hh:mm:ss T2 Date/Time hh:mm:ss Run Date/Time hh:mm:ss Outcome Text Position Number Total_Time Date/Time hh:mm:ss Do not set a primary key. Save the data. EVIDENCE 4 Place in your Evidence Document screenshots showing the primary keys, field names and data types used in all three tables. [5] 16 Create one-to-many relationships as links between the: • Athlete_ID field in the athlete table and the Athlete_ID field in the results table • Event_ID field in the events table and the Event_ID field in the results table. EVIDENCE 5 Place in your Evidence Document screenshots showing the type of relationships between the three tables. [2]

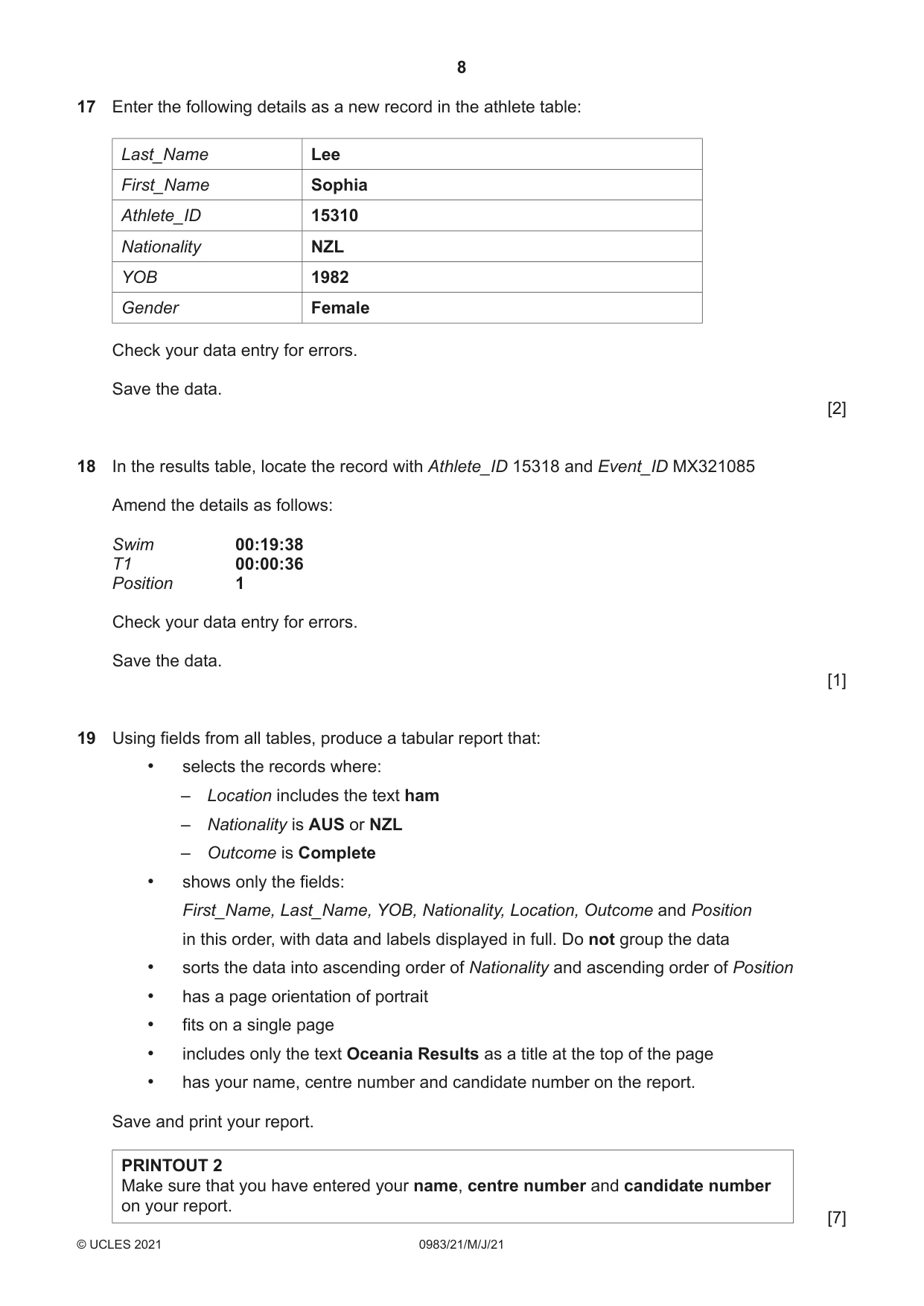

8 0983/21/M/J/21 © UCLES 2021 17 Enter the following details as a new record in the athlete table: Last_Name Lee First_Name Sophia Athlete_ID 15310 Nationality NZL YOB 1982 Gender Female Check your data entry for errors. Save the data. [2] 18 In the results table, locate the record with Athlete_ID 15318 and Event_ID MX321085 Amend the details as follows: Swim 00:19:38 T1 00:00:36 Position 1 Check your data entry for errors. Save the data. [1] 19 Using fields from all tables, produce a tabular report that: • selects the records where: – Location includes the text ham – Nationality is AUS or NZL – Outcome is Complete • shows only the fields: First_Name, Last_Name, YOB, Nationality, Location, Outcome and Position in this order, with data and labels displayed in full. Do not group the data • sorts the data into ascending order of Nationality and ascending order of Position • has a page orientation of portrait • fits on a single page • includes only the text Oceania Results as a title at the top of the page • has your name, centre number and candidate number on the report. Save and print your report. PRINTOUT 2 Make sure that you have entered your name, centre number and candidate number on your report. [7]

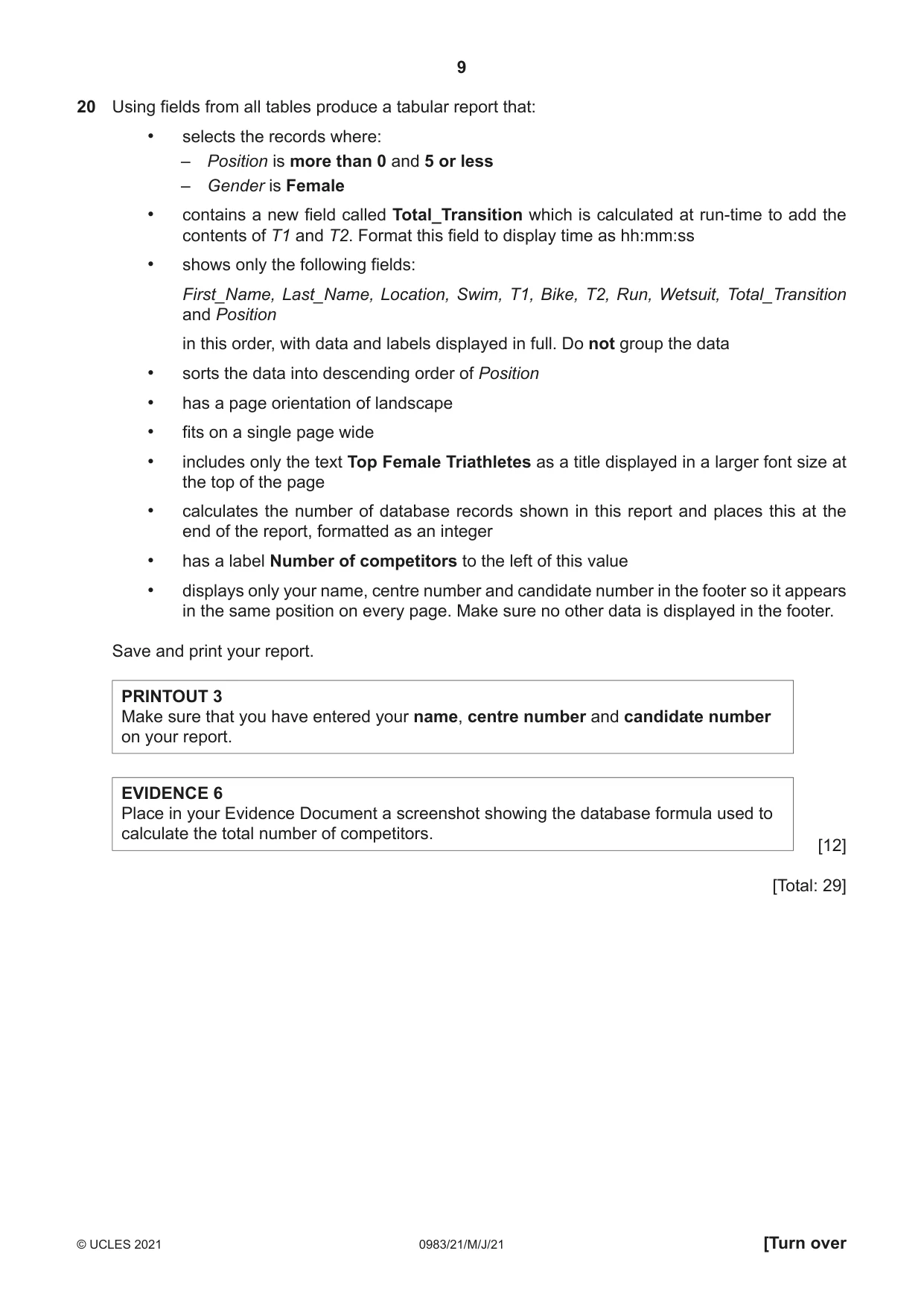

9 0983/21/M/J/21 © UCLES 2021 [Turn over 20 Using fields from all tables produce a tabular report that: • selects the records where: – Position is more than 0 and 5 or less – Gender is Female • contains a new field called Total_Transition which is calculated at run-time to add the contents of T1 and T2. Format this field to display time as hh:mm:ss • shows only the following fields: First_Name, Last_Name, Location, Swim, T1, Bike, T2, Run, Wetsuit, Total_Transition and Position in this order, with data and labels displayed in full. Do not group the data • sorts the data into descending order of Position • has a page orientation of landscape • fits on a single page wide • includes only the text Top Female Triathletes as a title displayed in a larger font size at the top of the page • calculates the number of database records shown in this report and places this at the end of the report, formatted as an integer • has a label Number of competitors to the left of this value • displays only your name, centre number and candidate number in the footer so it appears in the same position on every page. Make sure no other data is displayed in the footer. Save and print your report. PRINTOUT 3 Make sure that you have entered your name, centre number and candidate number on your report. EVIDENCE 6 Place in your Evidence Document a screenshot showing the database formula used to calculate the total number of competitors. [12] [Total: 29]

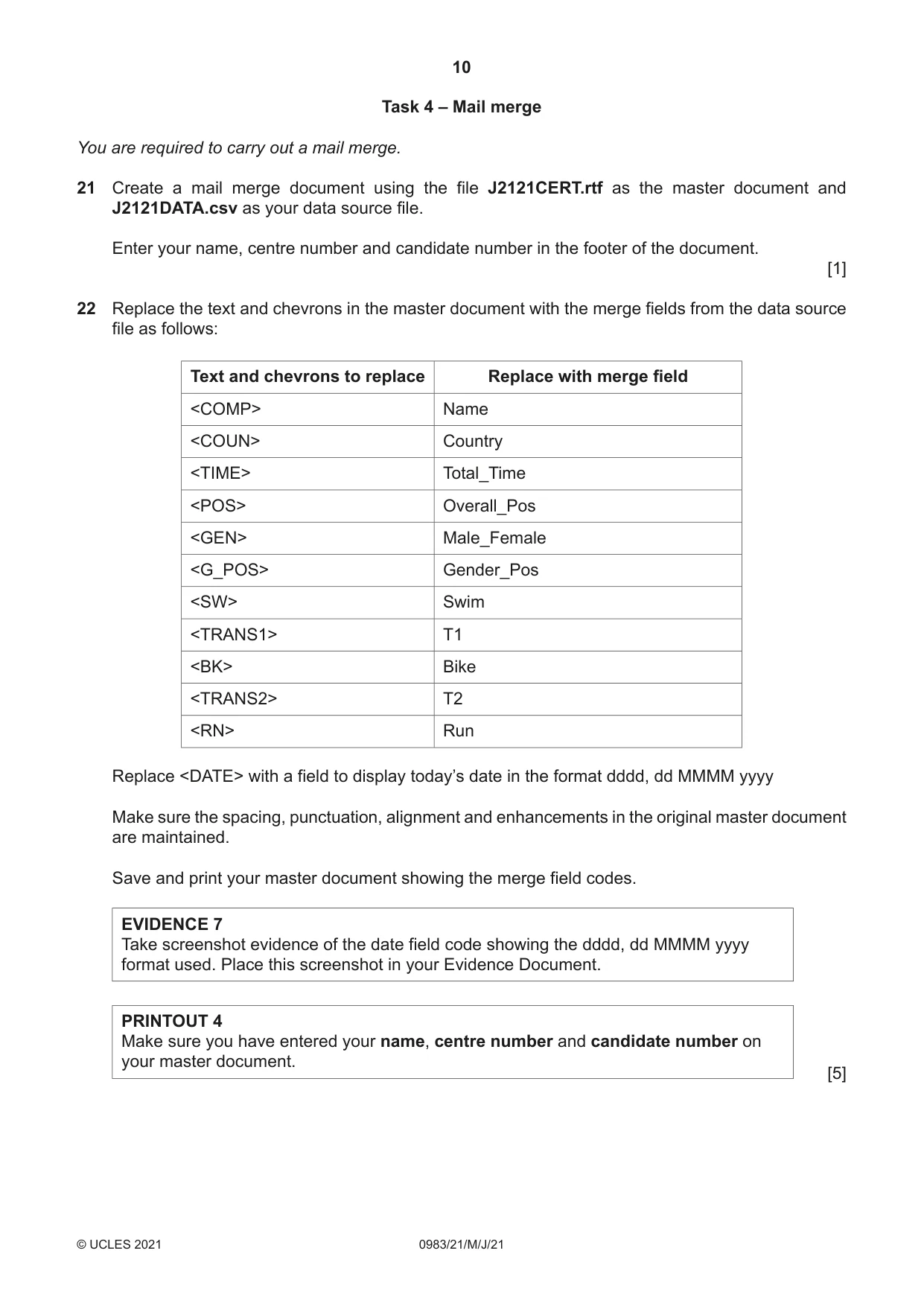

10 0983/21/M/J/21 © UCLES 2021 Task 4 – Mail merge You are required to carry out a mail merge. 21 Create a mail merge document using the file J2121CERT.rtf as the master document and J2121DATA.csv as your data source file. Enter your name, centre number and candidate number in the footer of the document. [1] 22 Replace the text and chevrons in the master document with the merge fields from the data source file as follows: Text and chevrons to replace Replace with merge field <COMP> Name <COUN> Country <TIME> Total_Time <POS> Overall_Pos <GEN> Male_Female <G_POS> Gender_Pos <SW> Swim <TRANS1> T1 <BK> Bike <TRANS2> T2 <RN> Run Replace <DATE> with a field to display today’s date in the format dddd, dd MMMM yyyy Make sure the spacing, punctuation, alignment and enhancements in the original master document are maintained. Save and print your master document showing the merge field codes. EVIDENCE 7 Take screenshot evidence of the date field code showing the dddd, dd MMMM yyyy format used. Place this screenshot in your Evidence Document. PRINTOUT 4 Make sure you have entered your name, centre number and candidate number on your master document. [5]

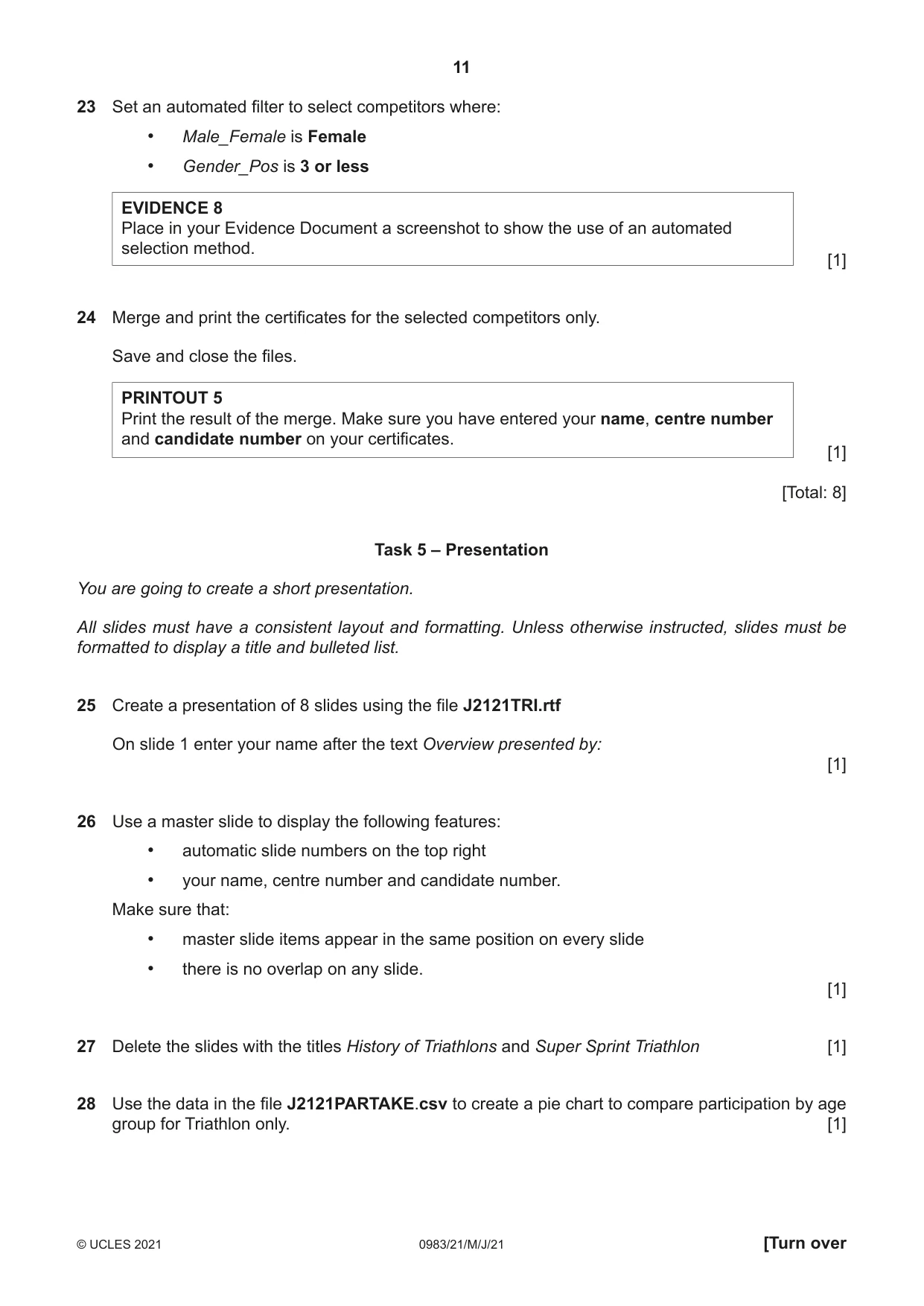

11 0983/21/M/J/21 © UCLES 2021 [Turn over 23 Set an automated filter to select competitors where: • Male_Female is Female • Gender_Pos is 3 or less EVIDENCE 8 Place in your Evidence Document a screenshot to show the use of an automated selection method. [1] 24 Merge and print the certificates for the selected competitors only. Save and close the files. PRINTOUT 5 Print the result of the merge. Make sure you have entered your name, centre number and candidate number on your certificates. [1] [Total: 8] Task 5 – Presentation You are going to create a short presentation. All slides must have a consistent layout and formatting. Unless otherwise instructed, slides must be formatted to display a title and bulleted list. 25 Create a presentation of 8 slides using the file J2121TRI.rtf On slide 1 enter your name after the text Overview presented by: [1] 26 Use a master slide to display the following features: • automatic slide numbers on the top right • your name, centre number and candidate number. Make sure that: • master slide items appear in the same position on every slide • there is no overlap on any slide. [1] 27 Delete the slides with the titles History of Triathlons and Super Sprint Triathlon [1] 28 Use the data in the file J2121PARTAKE.csv to create a pie chart to compare participation by age group for Triathlon only. [1]

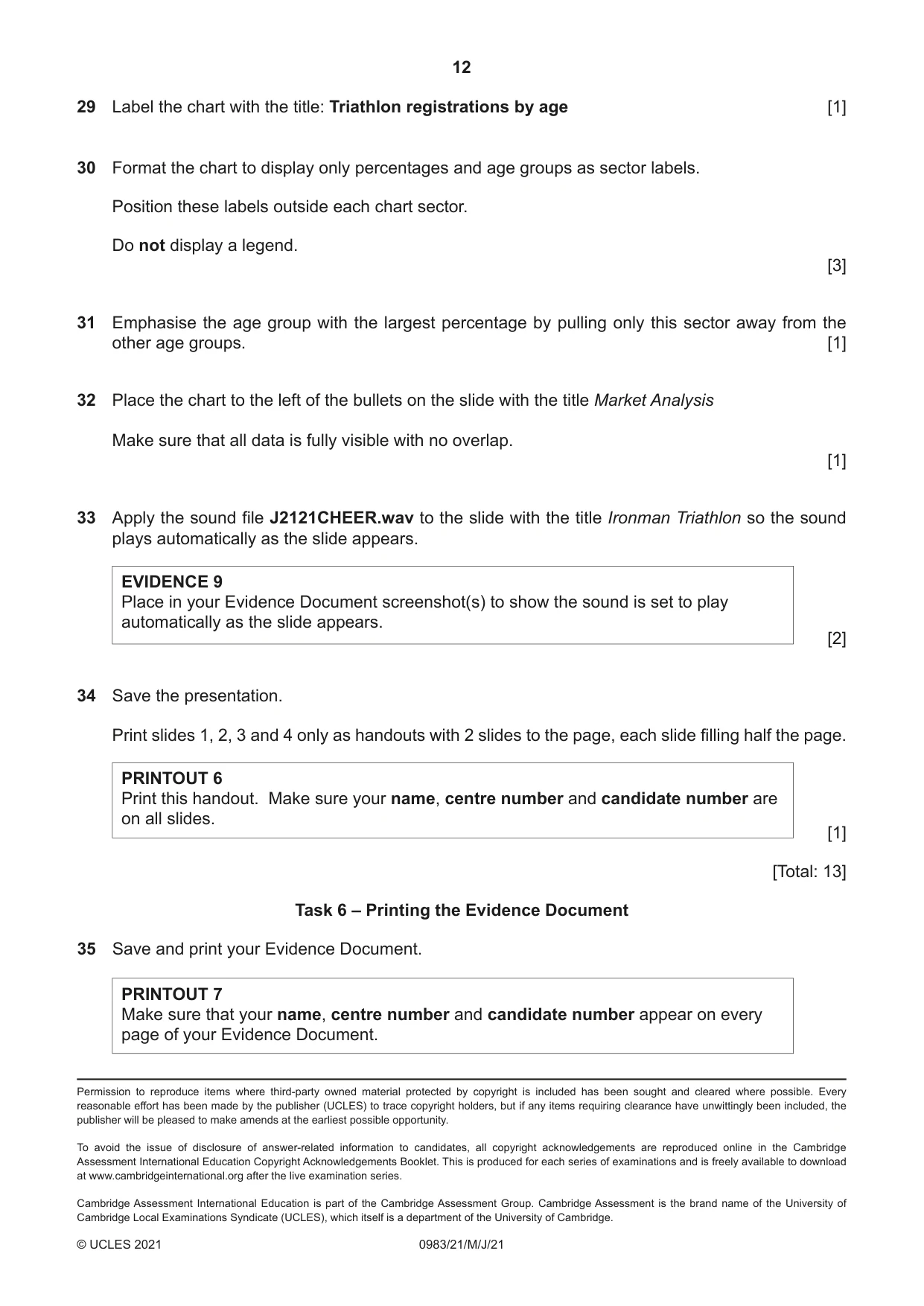

12 0983/21/M/J/21 © UCLES 2021 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. 29 Label the chart with the title: Triathlon registrations by age [1] 30 Format the chart to display only percentages and age groups as sector labels. Position these labels outside each chart sector. Do not display a legend. [3] 31 Emphasise the age group with the largest percentage by pulling only this sector away from the other age groups. [1] 32 Place the chart to the left of the bullets on the slide with the title Market Analysis Make sure that all data is fully visible with no overlap. [1] 33 Apply the sound file J2121CHEER.wav to the slide with the title Ironman Triathlon so the sound plays automatically as the slide appears. EVIDENCE 9 Place in your Evidence Document screenshot(s) to show the sound is set to play automatically as the slide appears. [2] 34 Save the presentation. Print slides 1, 2, 3 and 4 only as handouts with 2 slides to the page, each slide filling half the page. PRINTOUT 6 Print this handout. Make sure your name, centre number and candidate number are on all slides. [1] [Total: 13] Task 6 – Printing the Evidence Document 35 Save and print your Evidence Document. PRINTOUT 7 Make sure that your name, centre number and candidate number appear on every page of your Evidence Document.

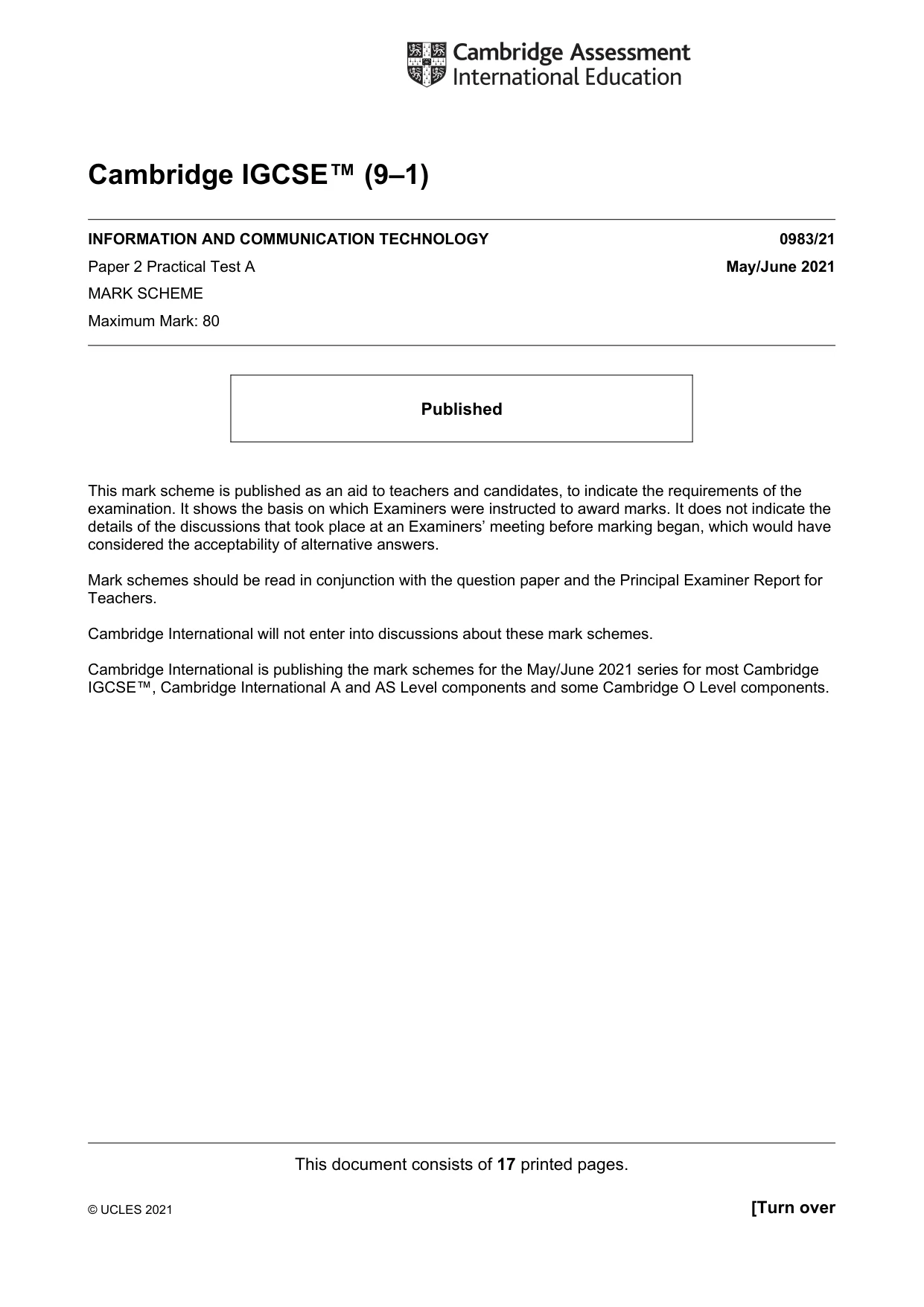

This document consists of 17 printed pages. © UCLES 2021 [Turn over Cambridge IGCSE™ (9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/21 Paper 2 Practical Test A May/June 2021 MARK SCHEME Maximum Mark: 80 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2021 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

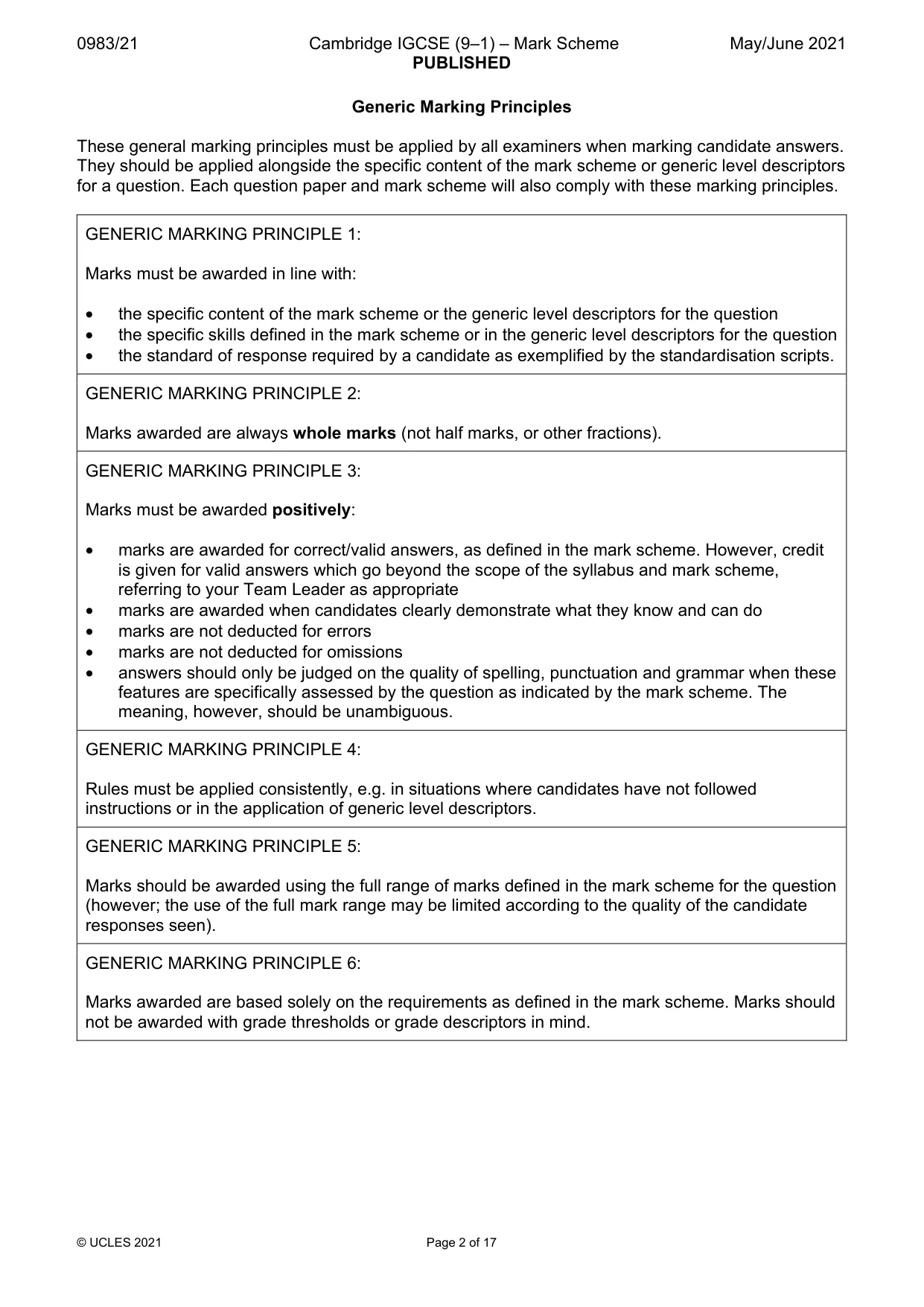

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 2 of 17 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

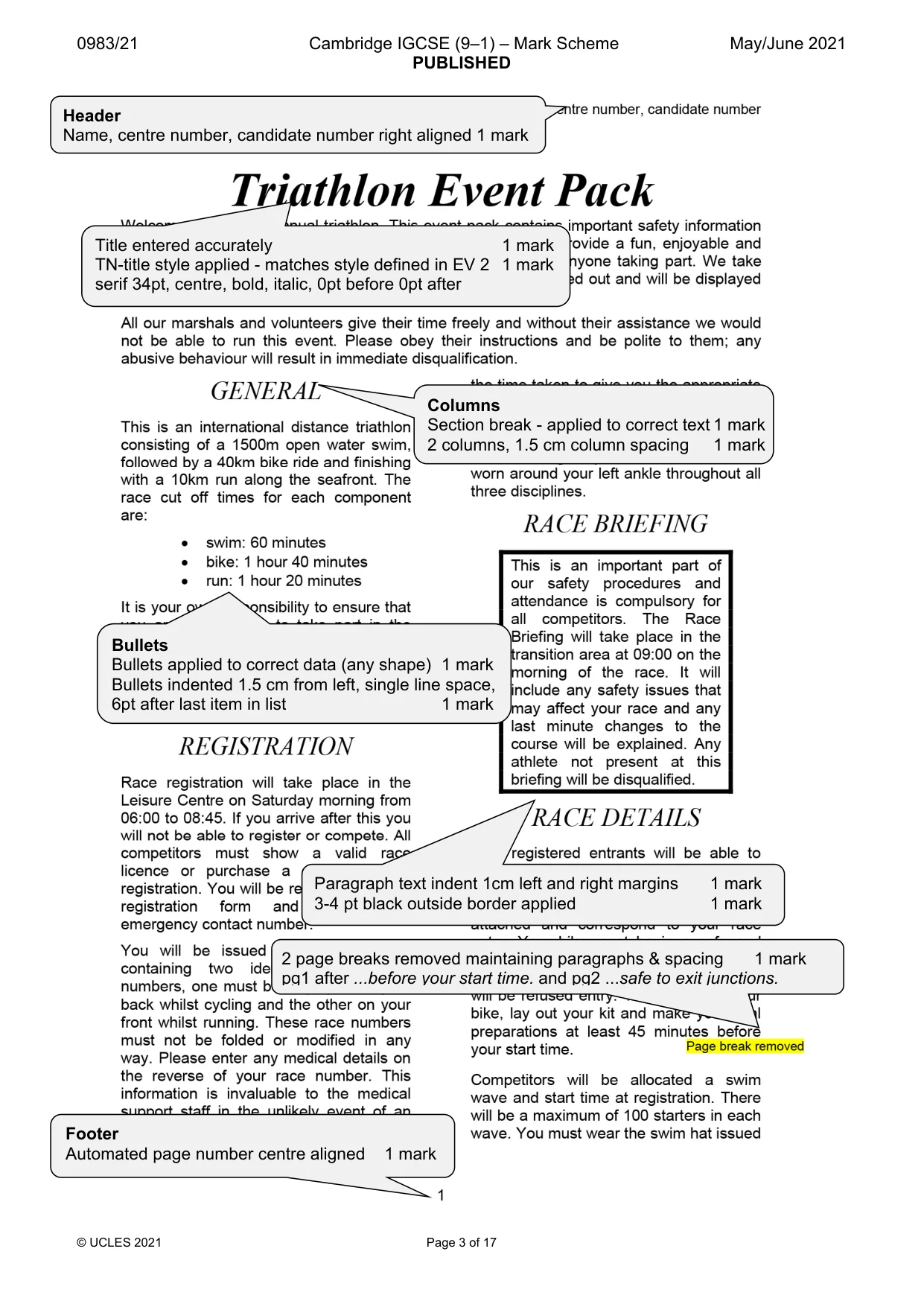

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 3 of 17 Header Name, centre number, candidate number right aligned 1 mark Bullets Bullets applied to correct data (any shape) 1 mark Bullets indented 1.5 cm from left, single line space, 6pt after last item in list 1 mark Title entered accurately 1 mark TN-title style applied - matches style defined in EV 2 1 mark serif 34pt, centre, bold, italic, 0pt before 0pt after Columns Section break - applied to correct text 1 mark 2 columns, 1.5 cm column spacing 1 mark Paragraph text indent 1cm left and right margins 1 mark 3-4 pt black outside border applied 1 mark 2 page breaks removed maintaining paragraphs & spacing 1 mark pg1 after ...before your start time. and pg2 ...safe to exit junctions. Footer Automated page number centre aligned 1 mark

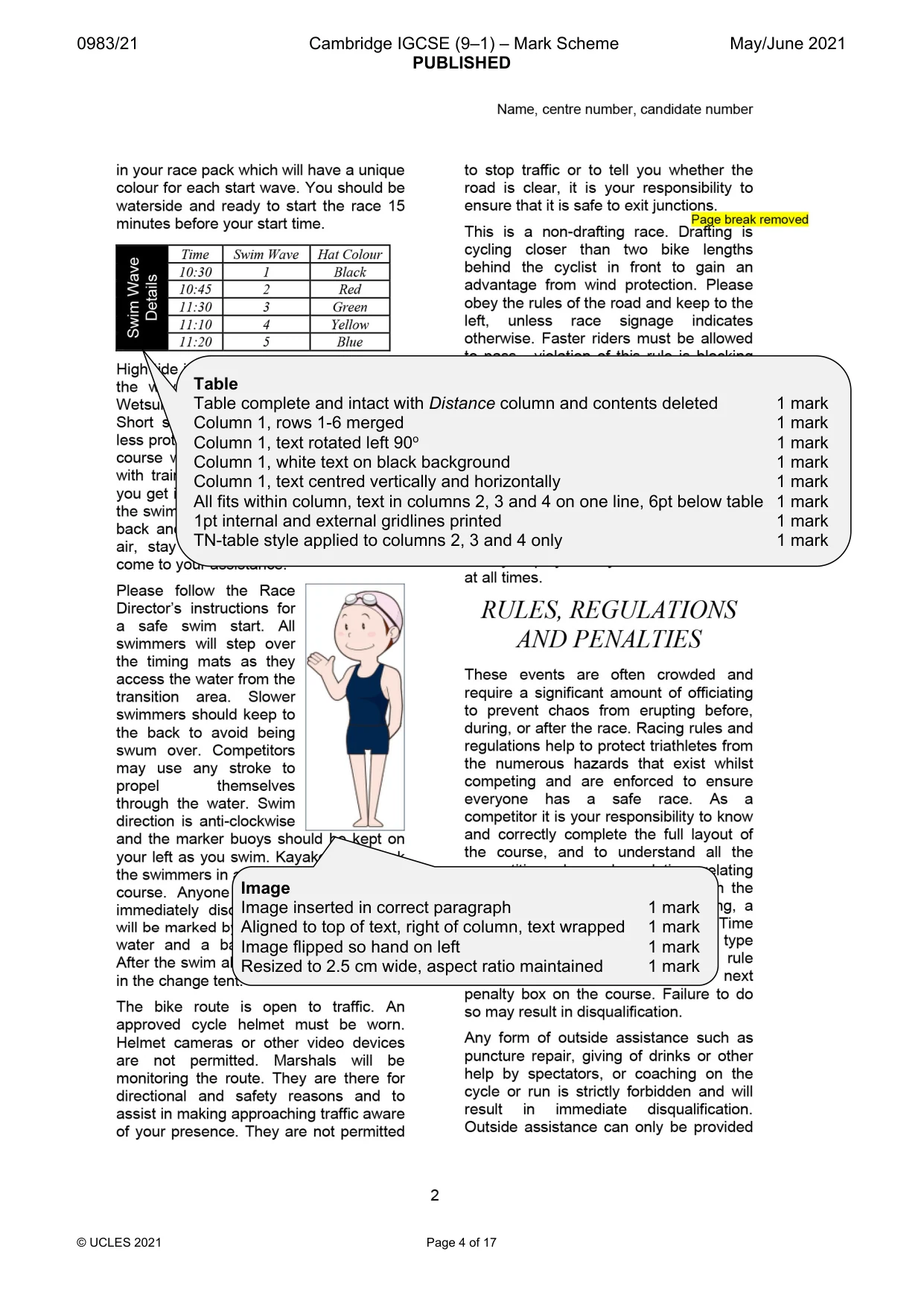

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 4 of 17 Table Table complete and intact with Distance column and contents deleted 1 mark Column 1, rows 1-6 merged 1 mark Column 1, text rotated left 90o 1 mark Column 1, white text on black background 1 mark Column 1, text centred vertically and horizontally 1 mark All fits within column, text in columns 2, 3 and 4 on one line, 6pt below table 1 mark 1pt internal and external gridlines printed 1 mark TN-table style applied to columns 2, 3 and 4 only 1 mark Image Image inserted in correct paragraph 1 mark Aligned to top of text, right of column, text wrapped 1 mark Image flipped so hand on left 1 mark Resized to 2.5 cm wide, aspect ratio maintained 1 mark

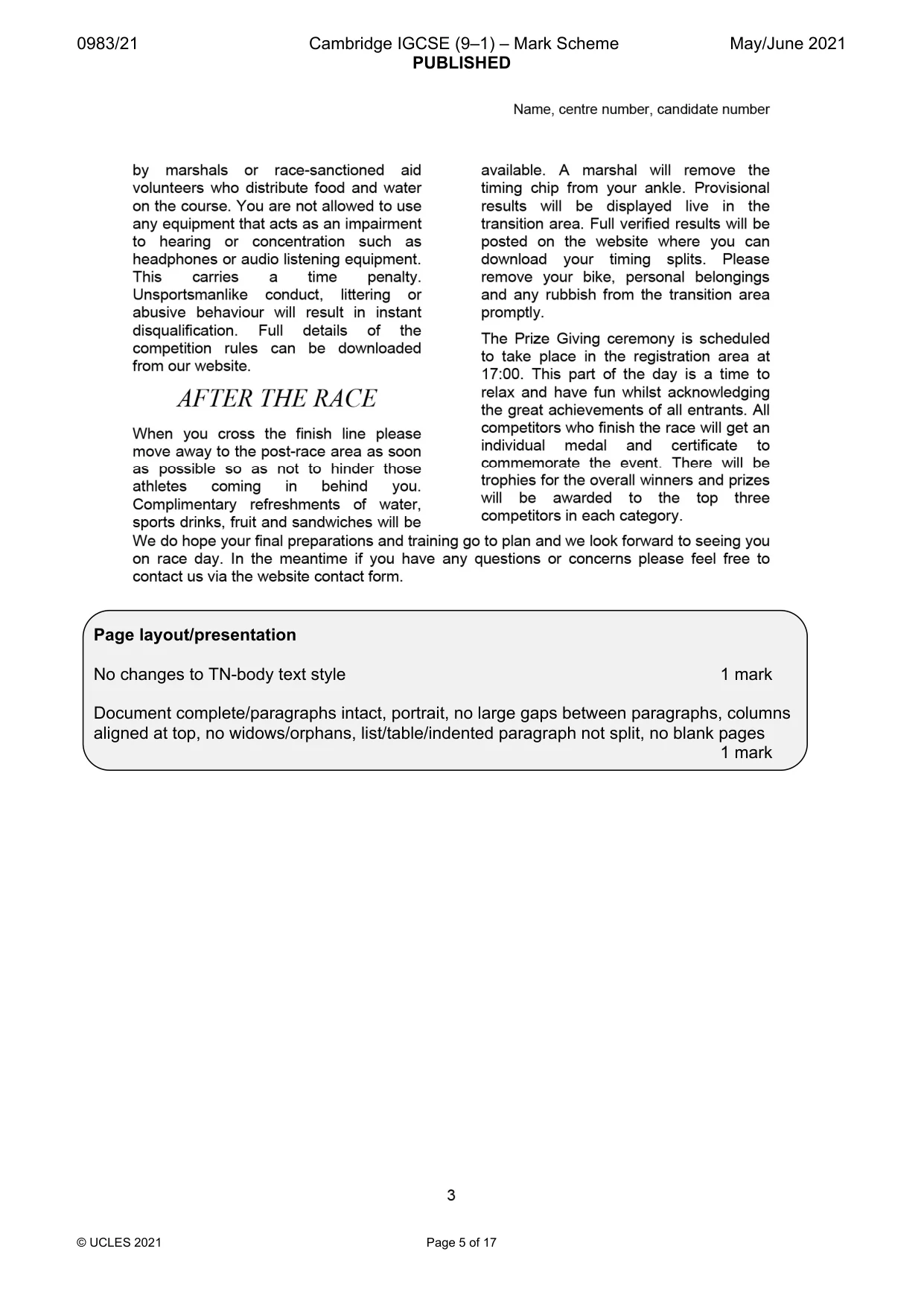

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 5 of 17 Page layout/presentation No changes to TN-body text style 1 mark Document complete/paragraphs intact, portrait, no large gaps between paragraphs, columns aligned at top, no widows/orphans, list/table/indented paragraph not split, no blank pages 1 mark

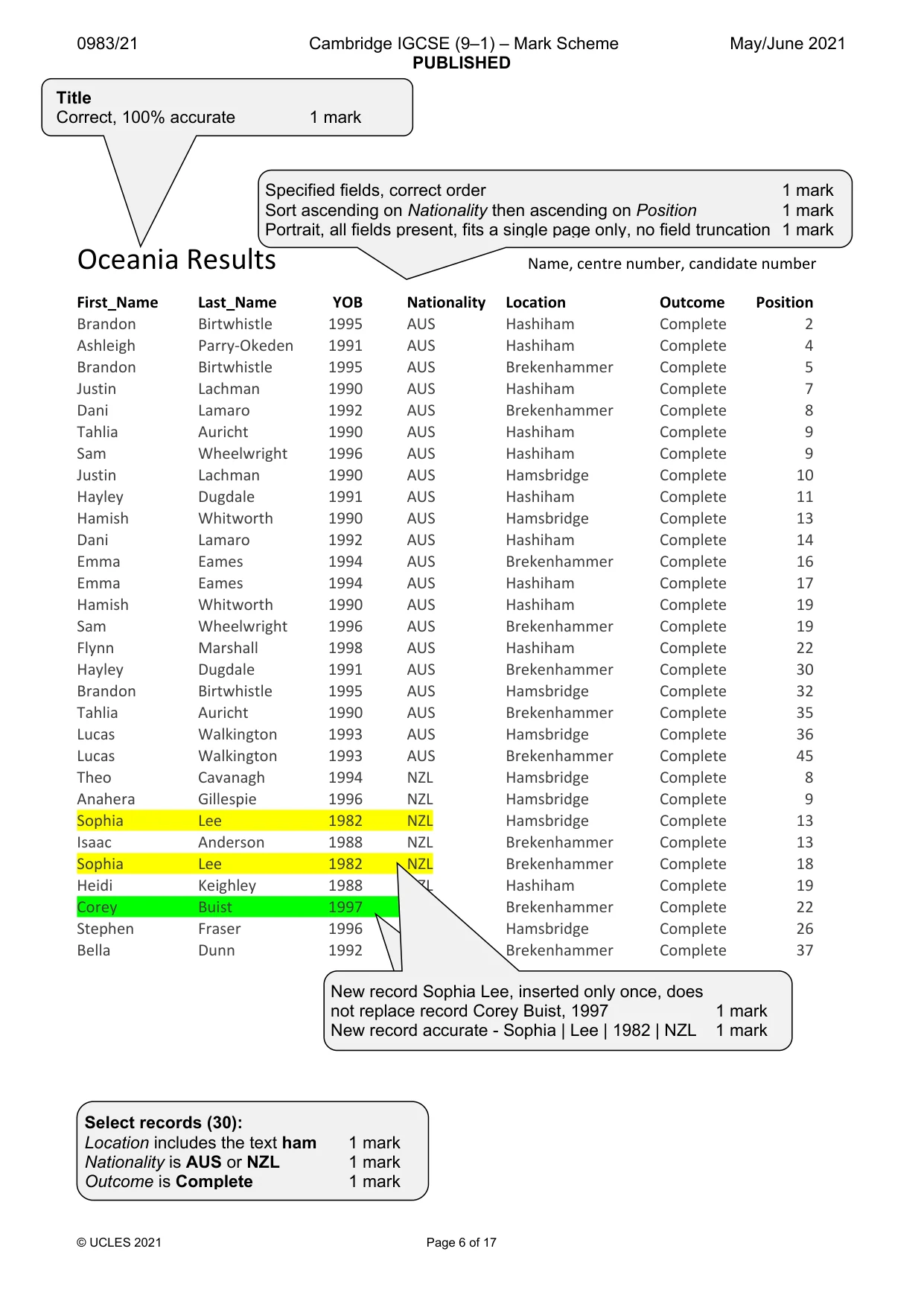

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 6 of 17 Oceania Results Name, centre number, candidate number First_Name Last_Name YOB Nationality Location Outcome Position Brandon Birtwhistle 1995 AUS Hashiham Complete 2 Ashleigh Parry-Okeden 1991 AUS Hashiham Complete 4 Brandon Birtwhistle 1995 AUS Brekenhammer Complete 5 Justin Lachman 1990 AUS Hashiham Complete 7 Dani Lamaro 1992 AUS Brekenhammer Complete 8 Tahlia Auricht 1990 AUS Hashiham Complete 9 Sam Wheelwright 1996 AUS Hashiham Complete 9 Justin Lachman 1990 AUS Hamsbridge Complete 10 Hayley Dugdale 1991 AUS Hashiham Complete 11 Hamish Whitworth 1990 AUS Hamsbridge Complete 13 Dani Lamaro 1992 AUS Hashiham Complete 14 Emma Eames 1994 AUS Brekenhammer Complete 16 Emma Eames 1994 AUS Hashiham Complete 17 Hamish Whitworth 1990 AUS Hashiham Complete 19 Sam Wheelwright 1996 AUS Brekenhammer Complete 19 Flynn Marshall 1998 AUS Hashiham Complete 22 Hayley Dugdale 1991 AUS Brekenhammer Complete 30 Brandon Birtwhistle 1995 AUS Hamsbridge Complete 32 Tahlia Auricht 1990 AUS Brekenhammer Complete 35 Lucas Walkington 1993 AUS Hamsbridge Complete 36 Lucas Walkington 1993 AUS Brekenhammer Complete 45 Theo Cavanagh 1994 NZL Hamsbridge Complete 8 Anahera Gillespie 1996 NZL Hamsbridge Complete 9 Sophia Lee 1982 NZL Hamsbridge Complete 13 Isaac Anderson 1988 NZL Brekenhammer Complete 13 Sophia Lee 1982 NZL Brekenhammer Complete 18 Heidi Keighley 1988 NZL Hashiham Complete 19 Corey Buist 1997 NZL Brekenhammer Complete 22 Stephen Fraser 1996 NZL Hamsbridge Complete 26 Bella Dunn 1992 NZL Brekenhammer Complete 37 Title Correct, 100% accurate 1 mark Select records (30): Location includes the text ham 1 mark Nationality is AUS or NZL 1 mark Outcome is Complete 1 mark Specified fields, correct order 1 mark Sort ascending on Nationality then ascending on Position 1 mark Portrait, all fields present, fits a single page only, no field truncation 1 mark New record Sophia Lee, inserted only once, does not replace record Corey Buist, 1997 1 mark New record accurate - Sophia | Lee | 1982 | NZL 1 mark

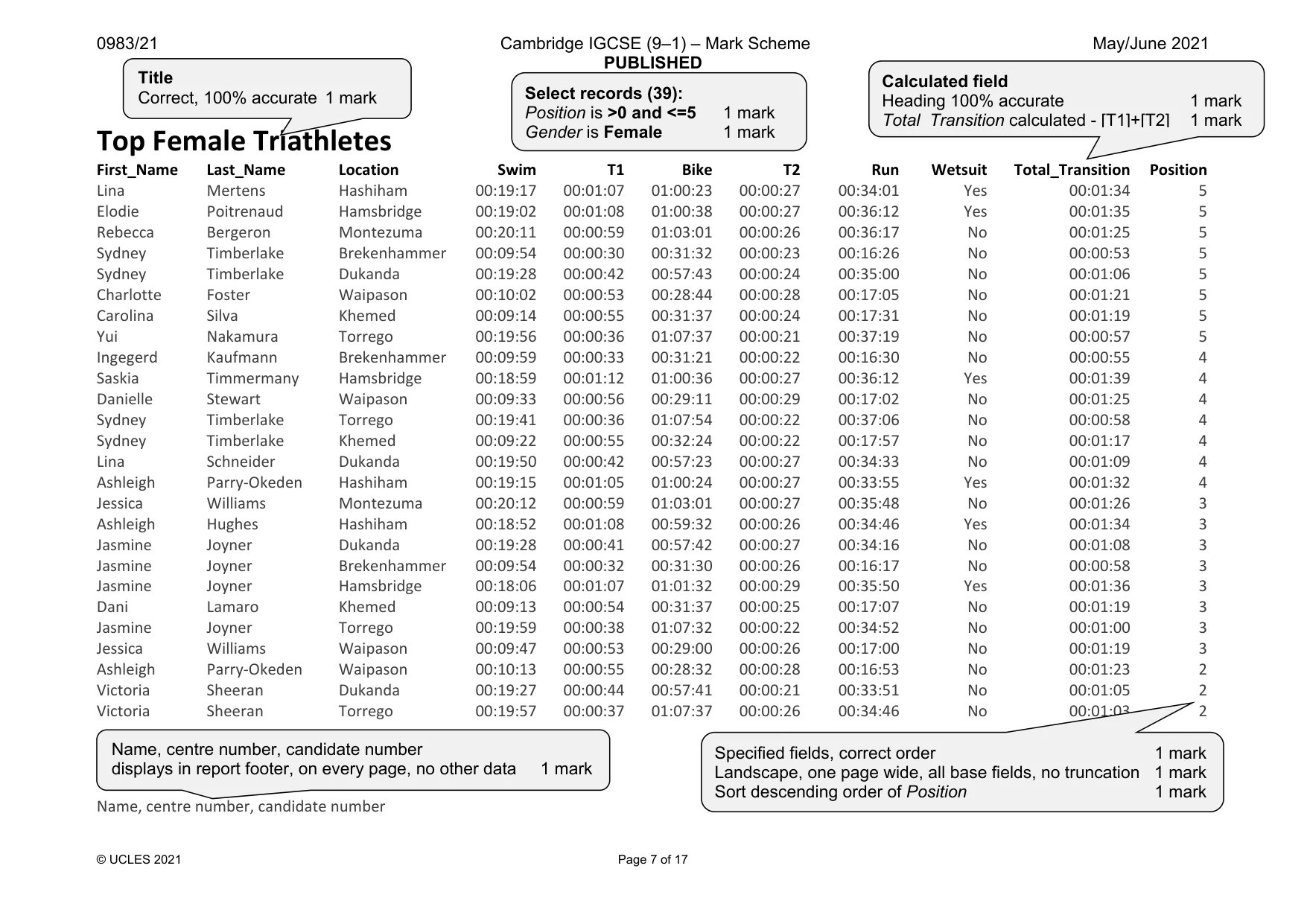

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 7 of 17 Top Female Triathletes First_Name Last_Name Location Swim T1 Bike T2 Run Wetsuit Total_Transition Position Lina Mertens Hashiham 00:19:17 00:01:07 01:00:23 00:00:27 00:34:01 Yes 00:01:34 5 Elodie Poitrenaud Hamsbridge 00:19:02 00:01:08 01:00:38 00:00:27 00:36:12 Yes 00:01:35 5 Rebecca Bergeron Montezuma 00:20:11 00:00:59 01:03:01 00:00:26 00:36:17 No 00:01:25 5 Sydney Timberlake Brekenhammer 00:09:54 00:00:30 00:31:32 00:00:23 00:16:26 No 00:00:53 5 Sydney Timberlake Dukanda 00:19:28 00:00:42 00:57:43 00:00:24 00:35:00 No 00:01:06 5 Charlotte Foster Waipason 00:10:02 00:00:53 00:28:44 00:00:28 00:17:05 No 00:01:21 5 Carolina Silva Khemed 00:09:14 00:00:55 00:31:37 00:00:24 00:17:31 No 00:01:19 5 Yui Nakamura Torrego 00:19:56 00:00:36 01:07:37 00:00:21 00:37:19 No 00:00:57 5 Ingegerd Kaufmann Brekenhammer 00:09:59 00:00:33 00:31:21 00:00:22 00:16:30 No 00:00:55 4 Saskia Timmermany Hamsbridge 00:18:59 00:01:12 01:00:36 00:00:27 00:36:12 Yes 00:01:39 4 Danielle Stewart Waipason 00:09:33 00:00:56 00:29:11 00:00:29 00:17:02 No 00:01:25 4 Sydney Timberlake Torrego 00:19:41 00:00:36 01:07:54 00:00:22 00:37:06 No 00:00:58 4 Sydney Timberlake Khemed 00:09:22 00:00:55 00:32:24 00:00:22 00:17:57 No 00:01:17 4 Lina Schneider Dukanda 00:19:50 00:00:42 00:57:23 00:00:27 00:34:33 No 00:01:09 4 Ashleigh Parry-Okeden Hashiham 00:19:15 00:01:05 01:00:24 00:00:27 00:33:55 Yes 00:01:32 4 Jessica Williams Montezuma 00:20:12 00:00:59 01:03:01 00:00:27 00:35:48 No 00:01:26 3 Ashleigh Hughes Hashiham 00:18:52 00:01:08 00:59:32 00:00:26 00:34:46 Yes 00:01:34 3 Jasmine Joyner Dukanda 00:19:28 00:00:41 00:57:42 00:00:27 00:34:16 No 00:01:08 3 Jasmine Joyner Brekenhammer 00:09:54 00:00:32 00:31:30 00:00:26 00:16:17 No 00:00:58 3 Jasmine Joyner Hamsbridge 00:18:06 00:01:07 01:01:32 00:00:29 00:35:50 Yes 00:01:36 3 Dani Lamaro Khemed 00:09:13 00:00:54 00:31:37 00:00:25 00:17:07 No 00:01:19 3 Jasmine Joyner Torrego 00:19:59 00:00:38 01:07:32 00:00:22 00:34:52 No 00:01:00 3 Jessica Williams Waipason 00:09:47 00:00:53 00:29:00 00:00:26 00:17:00 No 00:01:19 3 Ashleigh Parry-Okeden Waipason 00:10:13 00:00:55 00:28:32 00:00:28 00:16:53 No 00:01:23 2 Victoria Sheeran Dukanda 00:19:27 00:00:44 00:57:41 00:00:21 00:33:51 No 00:01:05 2 Victoria Sheeran Torrego 00:19:57 00:00:37 01:07:37 00:00:26 00:34:46 No 00:01:03 2 Name, centre number, candidate number Select records (39): Position is >0 and <=5 1 mark Gender is Female 1 mark Title Correct, 100% accurate 1 mark Name, centre number, candidate number displays in report footer, on every page, no other data 1 mark Calculated field Heading 100% accurate 1 mark Total Transition calculated - [T1]+[T2] 1 mark Specified fields, correct order 1 mark Landscape, one page wide, all base fields, no truncation 1 mark Sort descending order of Position 1 mark

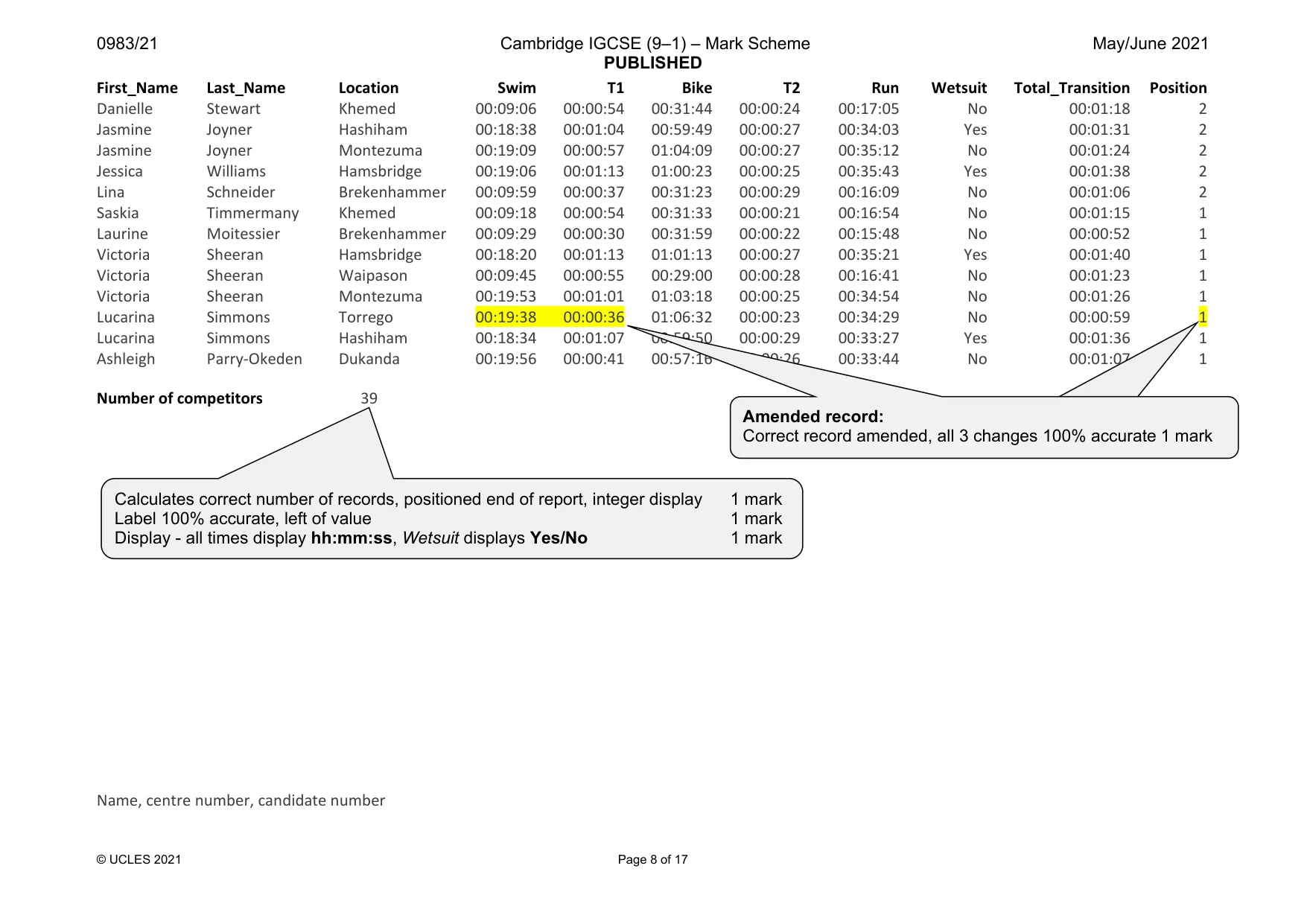

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 8 of 17 First_Name Last_Name Location Swim T1 Bike T2 Run Wetsuit Total_Transition Position Danielle Stewart Khemed 00:09:06 00:00:54 00:31:44 00:00:24 00:17:05 No 00:01:18 2 Jasmine Joyner Hashiham 00:18:38 00:01:04 00:59:49 00:00:27 00:34:03 Yes 00:01:31 2 Jasmine Joyner Montezuma 00:19:09 00:00:57 01:04:09 00:00:27 00:35:12 No 00:01:24 2 Jessica Williams Hamsbridge 00:19:06 00:01:13 01:00:23 00:00:25 00:35:43 Yes 00:01:38 2 Lina Schneider Brekenhammer 00:09:59 00:00:37 00:31:23 00:00:29 00:16:09 No 00:01:06 2 Saskia Timmermany Khemed 00:09:18 00:00:54 00:31:33 00:00:21 00:16:54 No 00:01:15 1 Laurine Moitessier Brekenhammer 00:09:29 00:00:30 00:31:59 00:00:22 00:15:48 No 00:00:52 1 Victoria Sheeran Hamsbridge 00:18:20 00:01:13 01:01:13 00:00:27 00:35:21 Yes 00:01:40 1 Victoria Sheeran Waipason 00:09:45 00:00:55 00:29:00 00:00:28 00:16:41 No 00:01:23 1 Victoria Sheeran Montezuma 00:19:53 00:01:01 01:03:18 00:00:25 00:34:54 No 00:01:26 1 Lucarina Simmons Torrego 00:19:38 00:00:36 01:06:32 00:00:23 00:34:29 No 00:00:59 1 Lucarina Simmons Hashiham 00:18:34 00:01:07 00:59:50 00:00:29 00:33:27 Yes 00:01:36 1 Ashleigh Parry-Okeden Dukanda 00:19:56 00:00:41 00:57:16 00:00:26 00:33:44 No 00:01:07 1 Number of competitors 39 Name, centre number, candidate number Amended record: Correct record amended, all 3 changes 100% accurate 1 mark Calculates correct number of records, positioned end of report, integer display 1 mark Label 100% accurate, left of value 1 mark Display - all times display hh:mm:ss, Wetsuit displays Yes/No 1 mark

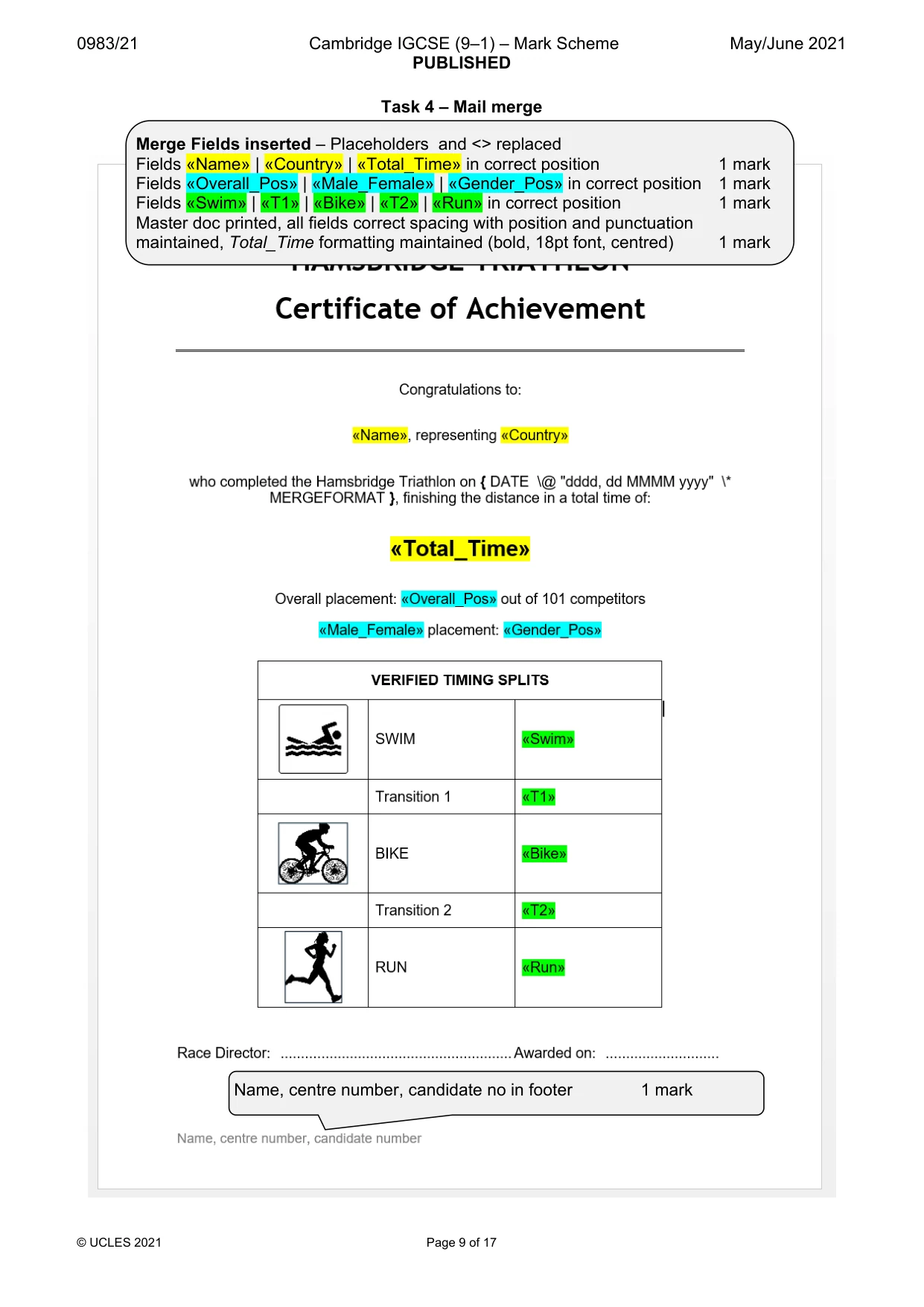

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 9 of 17 Task 4 – Mail merge Merge Fields inserted – Placeholders and <> replaced Fields «Name» | «Country» | «Total_Time» in correct position 1 mark Fields «Overall_Pos» | «Male_Female» | «Gender_Pos» in correct position 1 mark Fields «Swim» | «T1» | «Bike» | «T2» | «Run» in correct position 1 mark Master doc printed, all fields correct spacing with position and punctuation maintained, Total_Time formatting maintained (bold, 18pt font, centred) 1 mark Name, centre number, candidate no in footer 1 mark

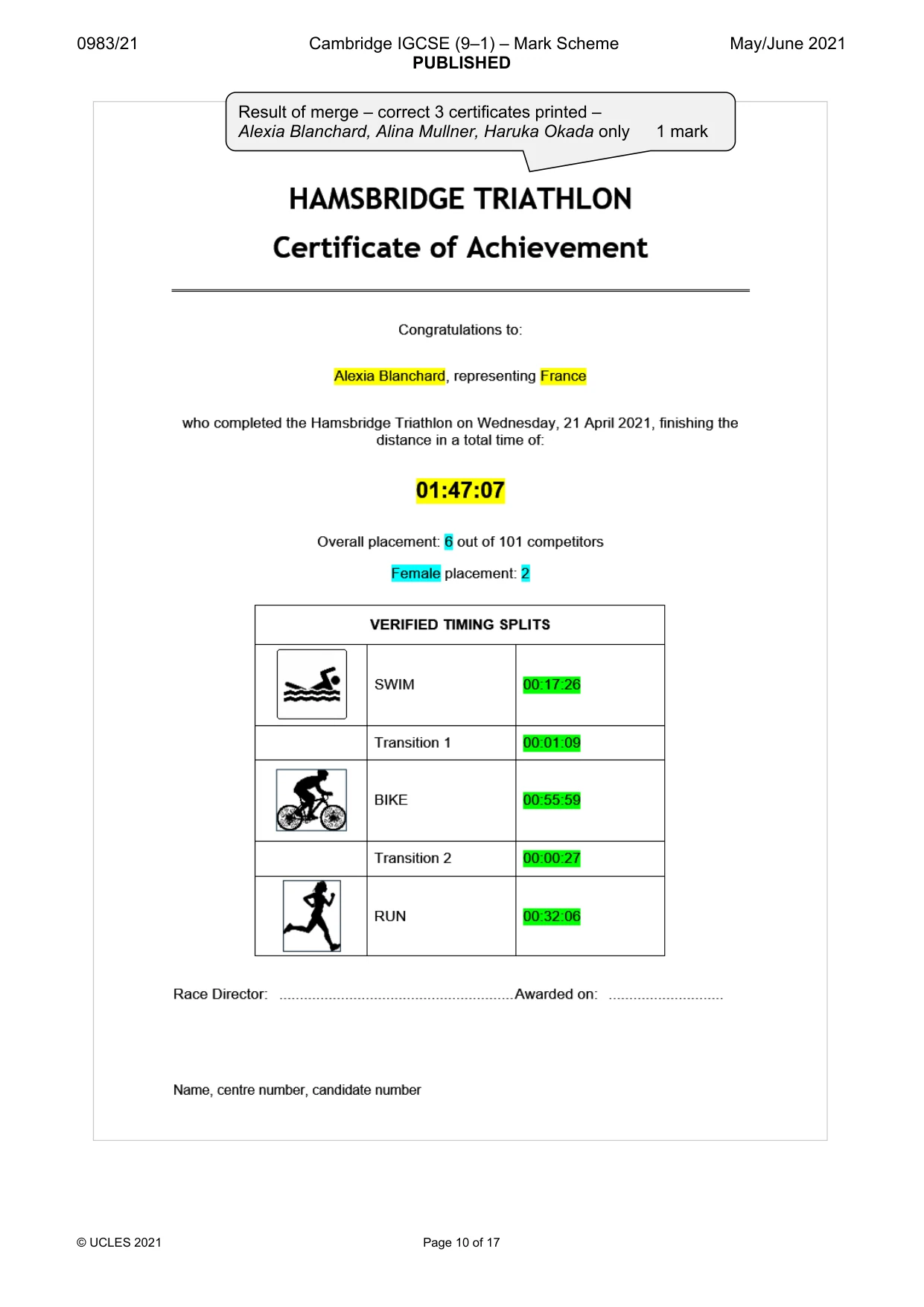

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 10 of 17 Result of merge – correct 3 certificates printed – Alexia Blanchard, Alina Mullner, Haruka Okada only 1 mark

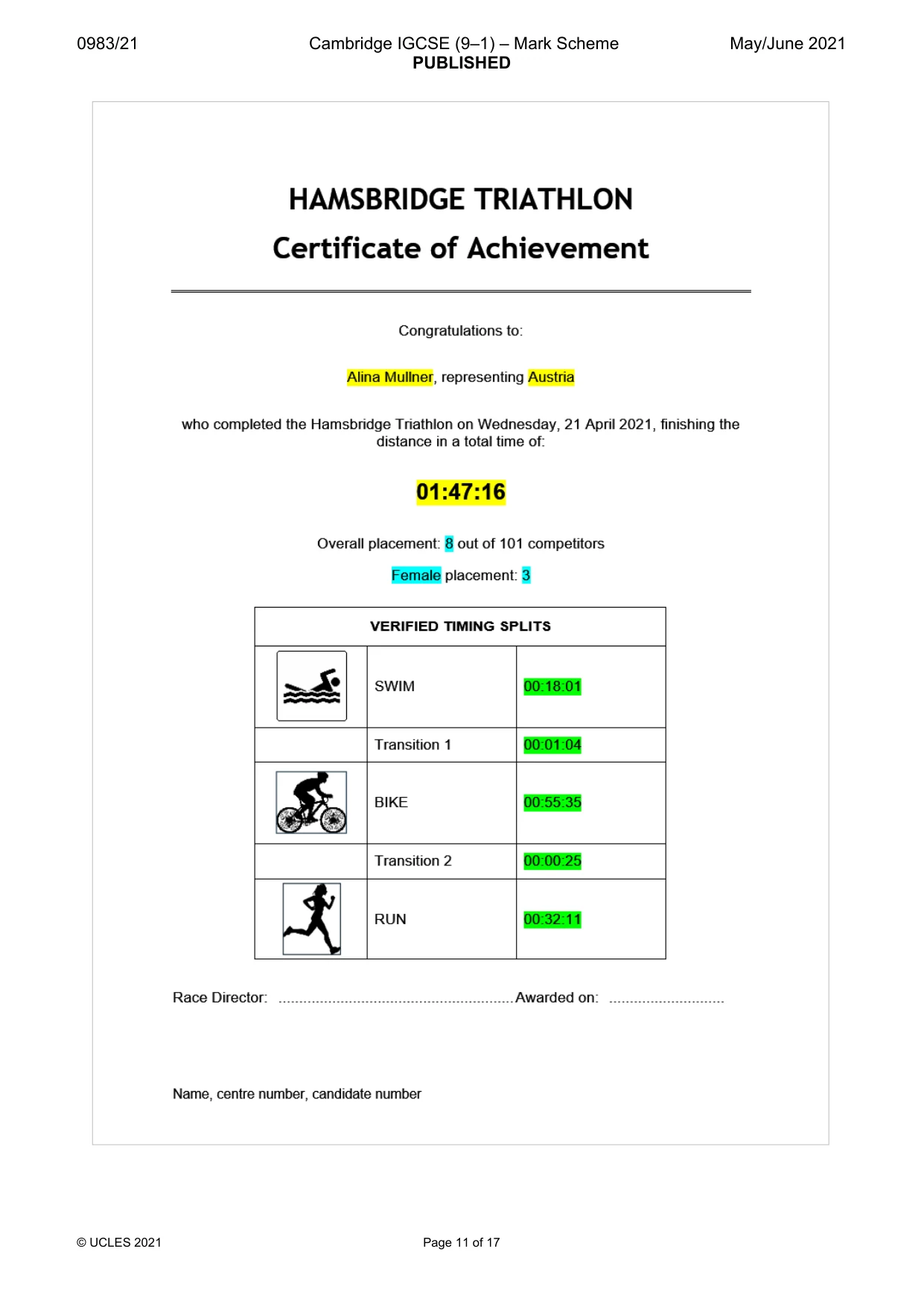

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 11 of 17

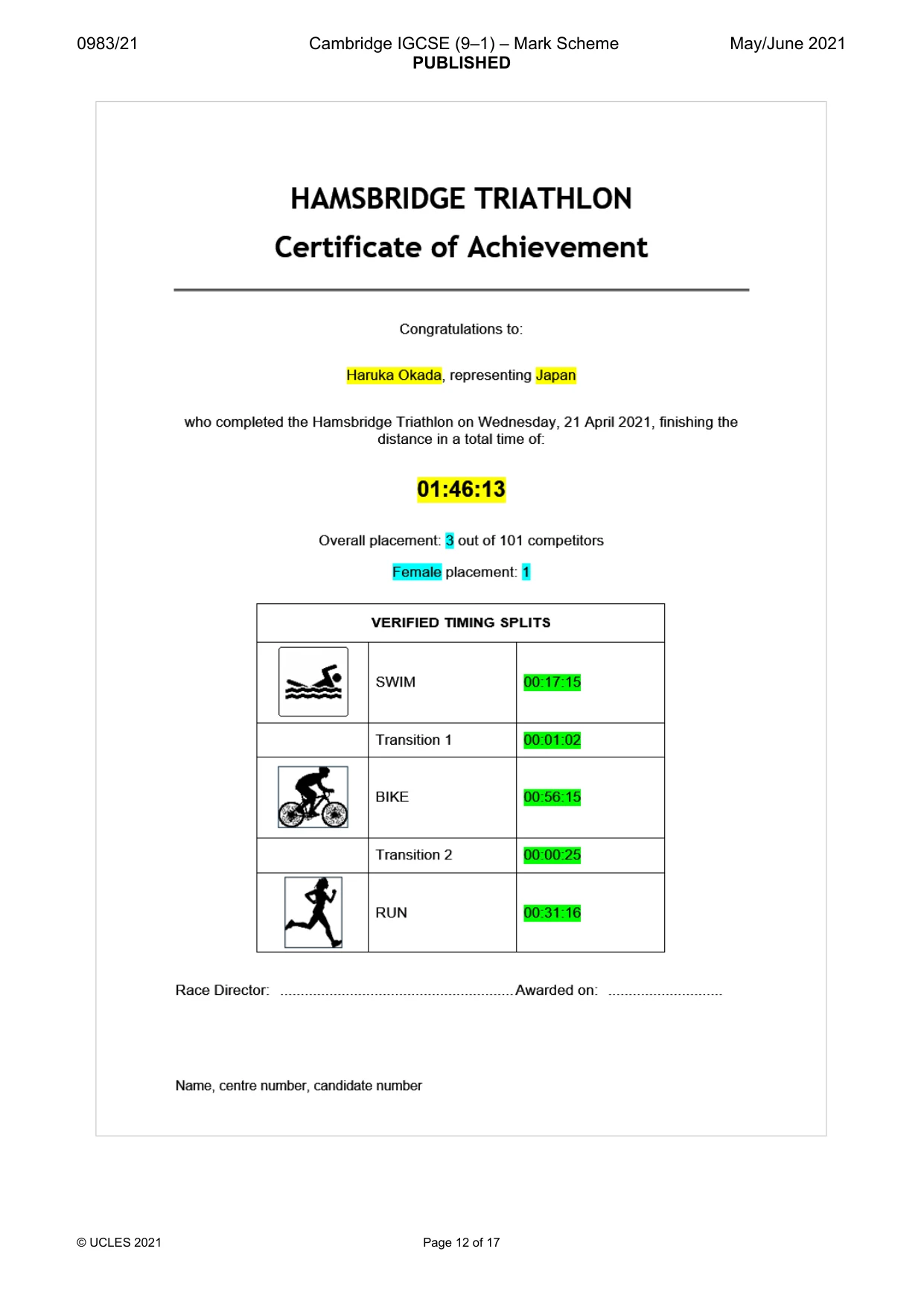

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 12 of 17

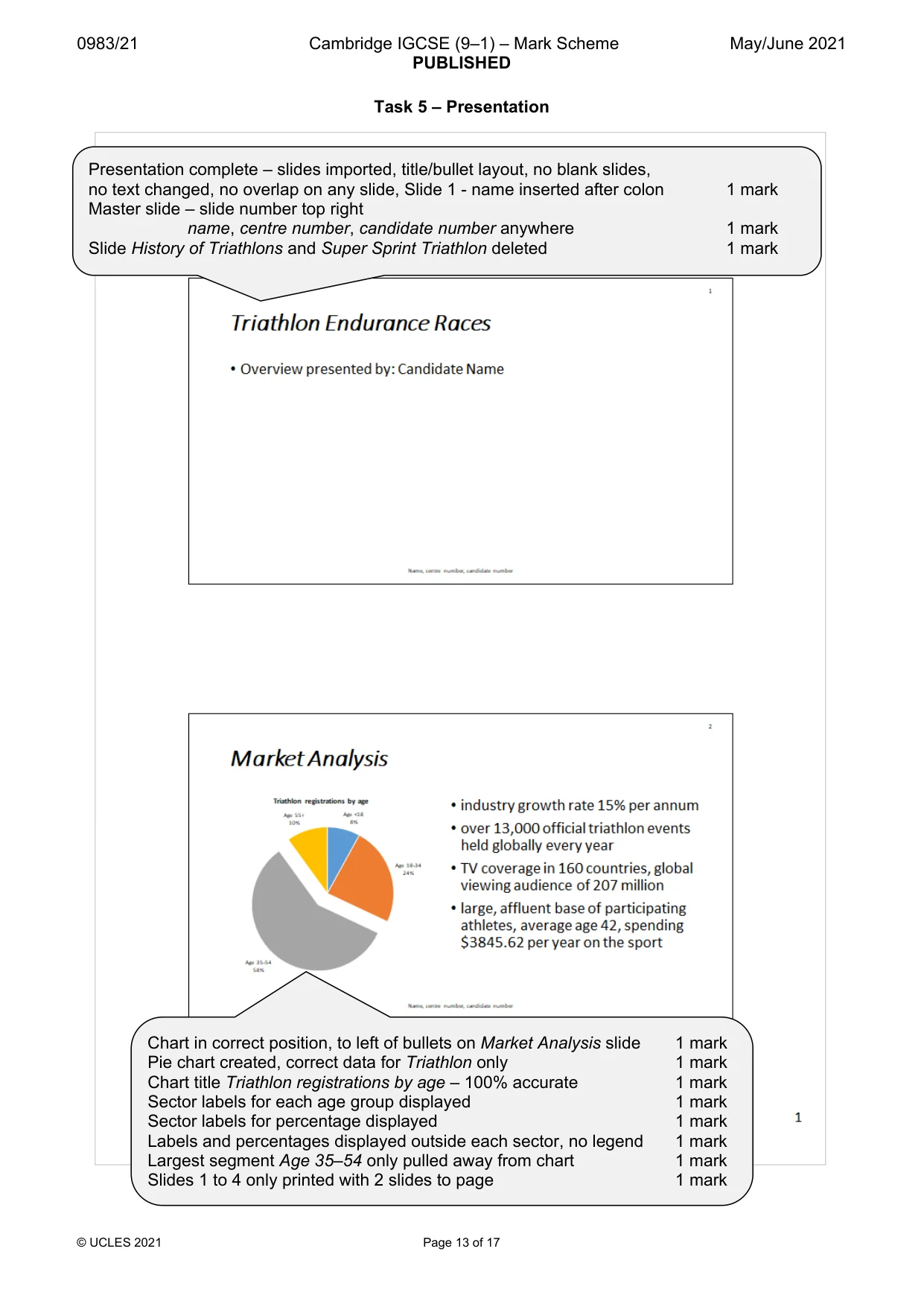

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 13 of 17 Task 5 – Presentation Presentation complete – slides imported, title/bullet layout, no blank slides, no text changed, no overlap on any slide, Slide 1 - name inserted after colon 1 mark Master slide – slide number top right name, centre number, candidate number anywhere 1 mark Slide History of Triathlons and Super Sprint Triathlon deleted 1 mark Chart in correct position, to left of bullets on Market Analysis slide 1 mark Pie chart created, correct data for Triathlon only 1 mark Chart title Triathlon registrations by age – 100% accurate 1 mark Sector labels for each age group displayed 1 mark Sector labels for percentage displayed 1 mark Labels and percentages displayed outside each sector, no legend 1 mark Largest segment Age 35–54 only pulled away from chart 1 mark Slides 1 to 4 only printed with 2 slides to page 1 mark

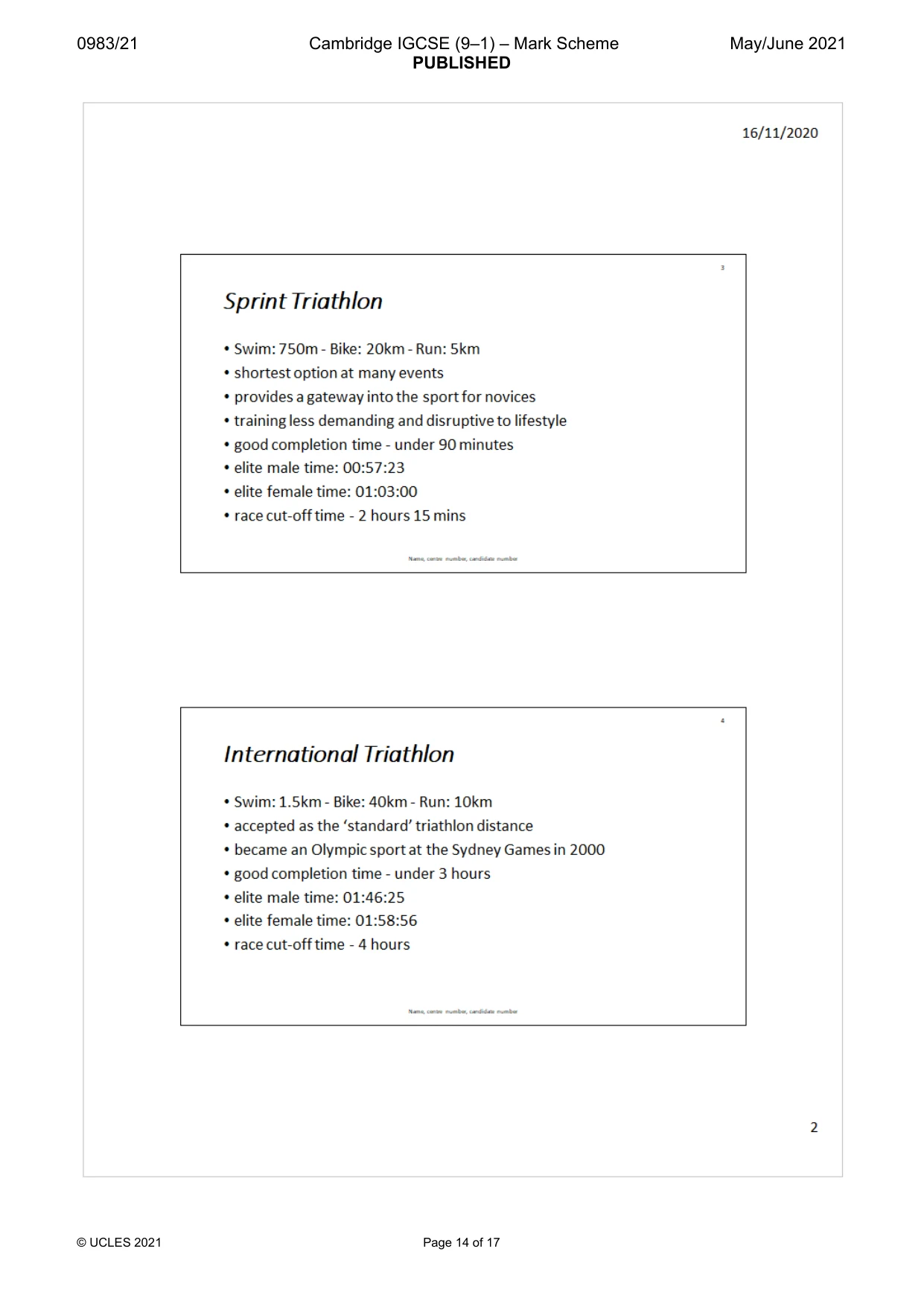

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 14 of 17

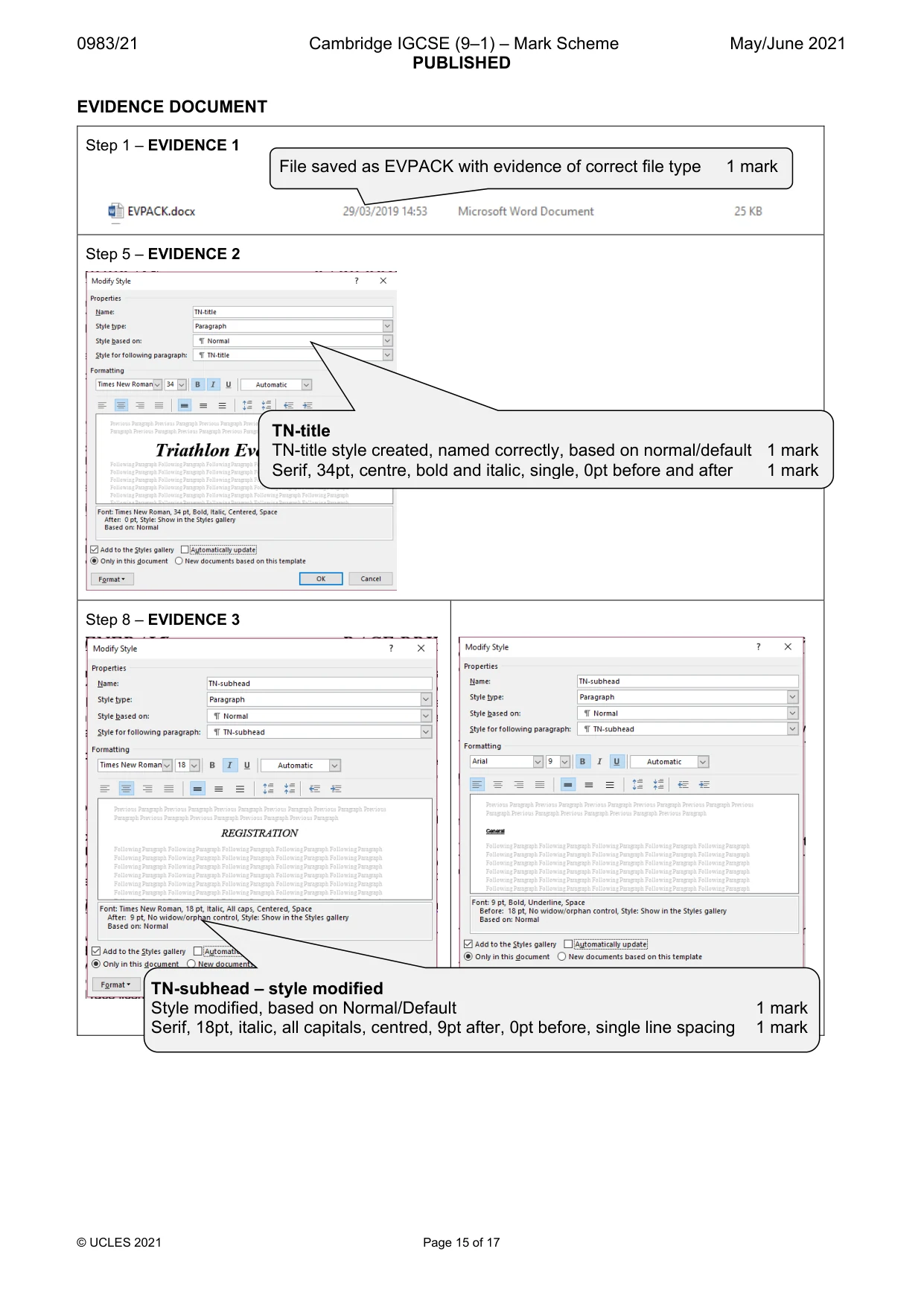

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 15 of 17 EVIDENCE DOCUMENT Step 1 – EVIDENCE 1 Step 5 – EVIDENCE 2 Step 8 – EVIDENCE 3 File saved as EVPACK with evidence of correct file type 1 mark TN-title TN-title style created, named correctly, based on normal/default 1 mark Serif, 34pt, centre, bold and italic, single, 0pt before and after 1 mark TN-subhead – style modified Style modified, based on Normal/Default 1 mark Serif, 18pt, italic, all capitals, centred, 9pt after, 0pt before, single line spacing 1 mark

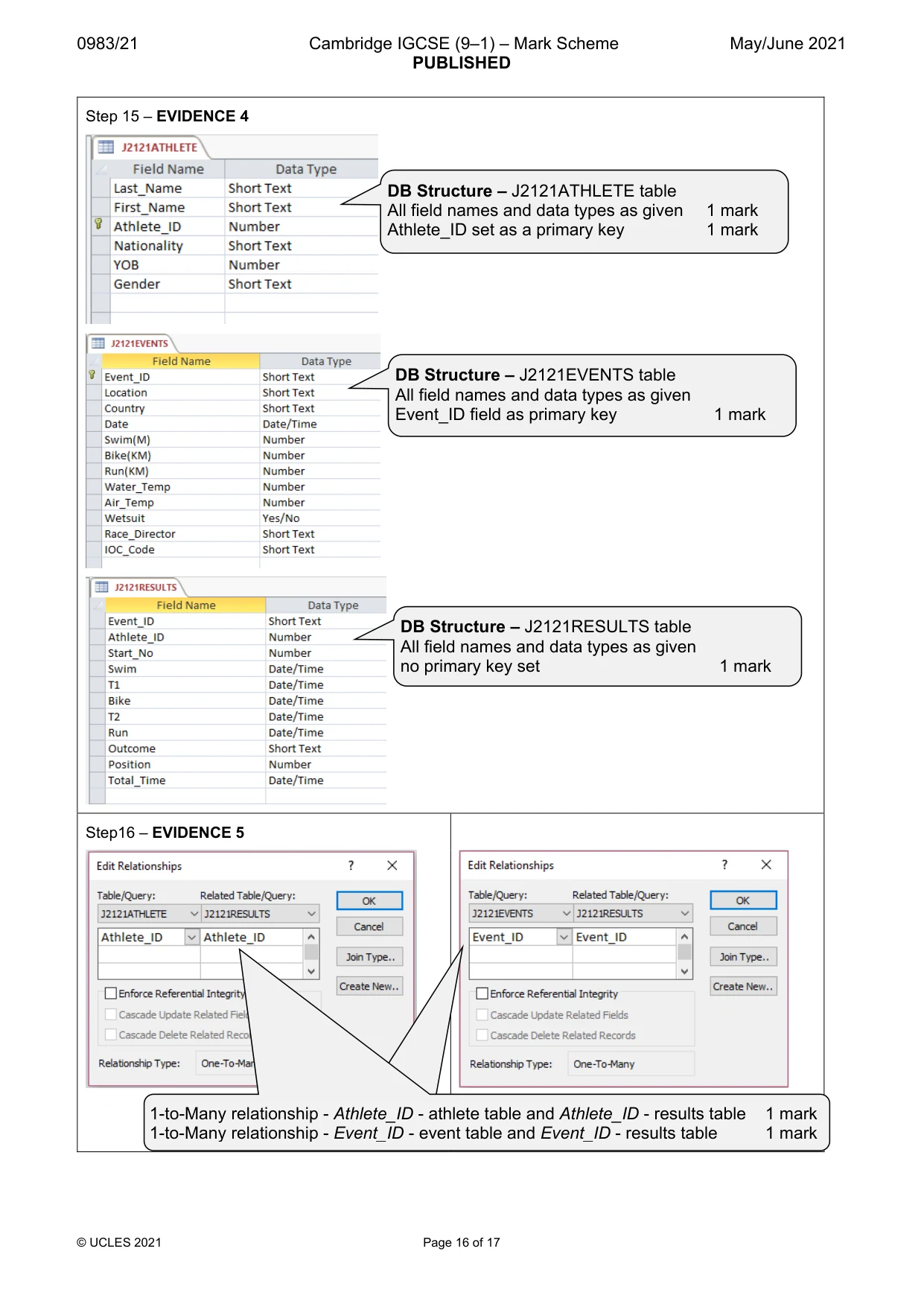

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 16 of 17 Step 15 – EVIDENCE 4 Step16 – EVIDENCE 5 DB Structure – J2121ATHLETE table All field names and data types as given 1 mark Athlete_ID set as a primary key 1 mark 1-to-Many relationship - Athlete_ID - athlete table and Athlete_ID - results table 1 mark 1-to-Many relationship - Event_ID - event table and Event_ID - results table 1 mark DB Structure – J2121EVENTS table All field names and data types as given Event_ID field as primary key 1 mark DB Structure – J2121RESULTS table All field names and data types as given no primary key set 1 mark

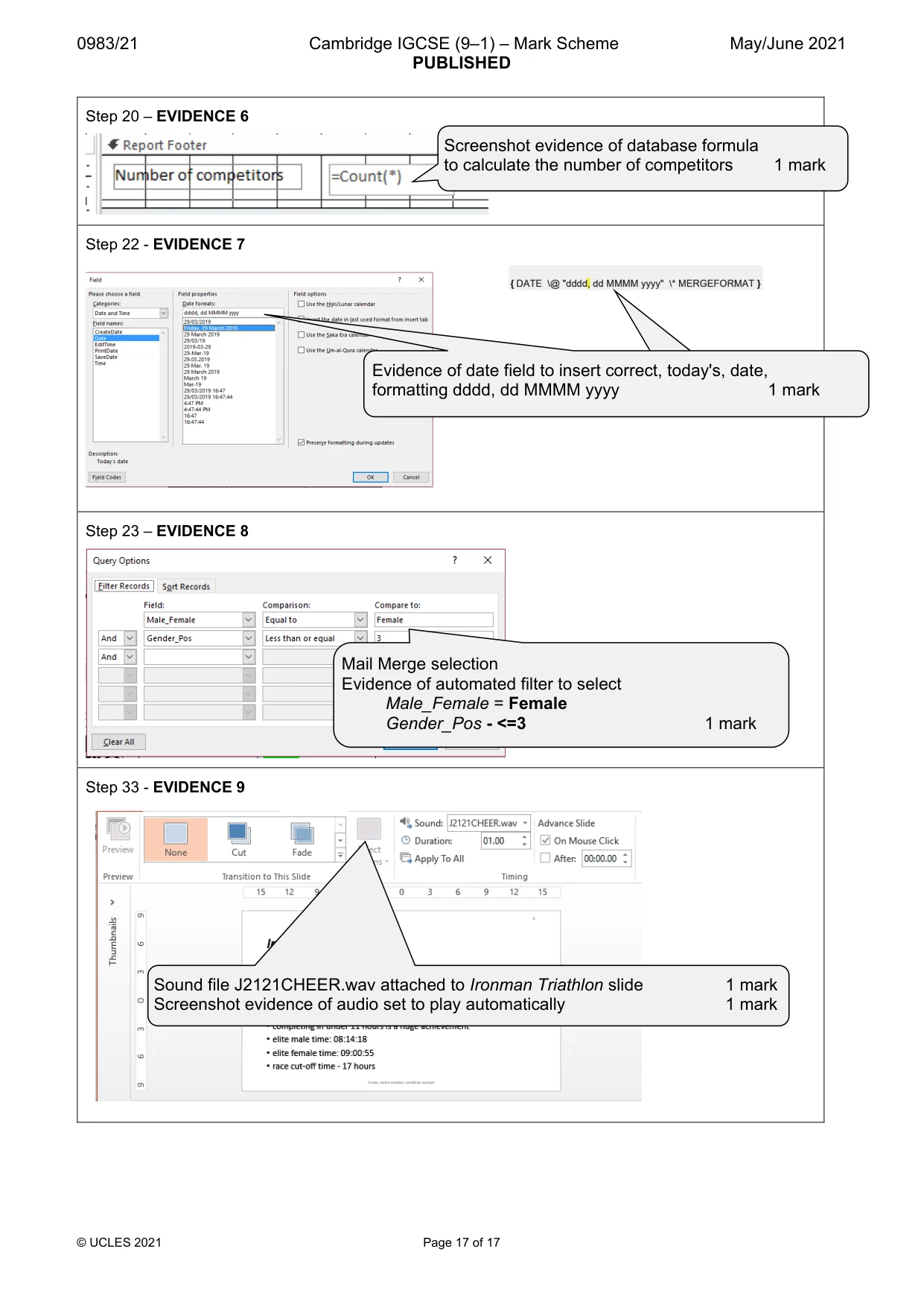

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 17 of 17 Step 20 – EVIDENCE 6 Step 22 - EVIDENCE 7 Step 23 – EVIDENCE 8 Step 33 - EVIDENCE 9 Screenshot evidence of database formula to calculate the number of competitors 1 mark Evidence of date field to insert correct, today's, date, formatting dddd, dd MMMM yyyy 1 mark Mail Merge selection Evidence of automated filter to select Male_Female = Female Gender_Pos - <=3 1 mark Sound file J2121CHEER.wav attached to Ironman Triathlon slide 1 mark Screenshot evidence of audio set to play automatically 1 mark
