Cambridge IGCSE Information and Communication Technology (9-1) 0983 — 2022 May/June Paper 2 · Variant 1

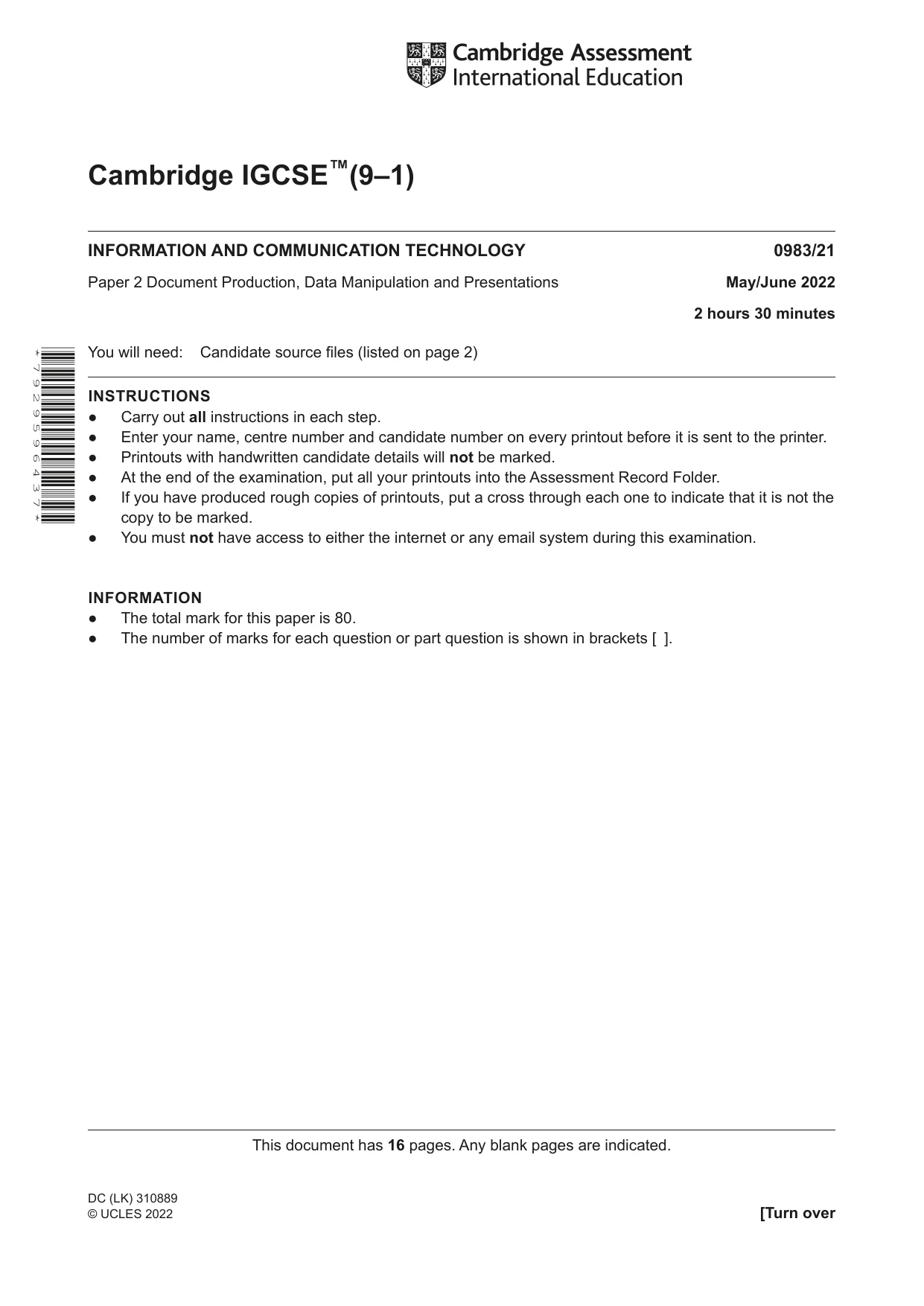

This document has 16 pages. Any blank pages are indicated. [Turn over Cambridge IGCSE™(9–1) DC (LK) 310889 © UCLES 2022 * 7 9 2 9 5 9 6 4 3 7 * INFORMATION AND COMMUNICATION TECHNOLOGY 0983/21 Paper 2 Document Production, Data Manipulation and Presentations May/June 2022 2 hours 30 minutes You will need: Candidate source files (listed on page 2) INSTRUCTIONS ● Carry out all instructions in each step. ● Enter your name, centre number and candidate number on every printout before it is sent to the printer. ● Printouts with handwritten candidate details will not be marked. ● At the end of the examination, put all your printouts into the Assessment Record Folder. ● If you have produced rough copies of printouts, put a cross through each one to indicate that it is not the copy to be marked. ● You must not have access to either the internet or any email system during this examination. INFORMATION ● The total mark for this paper is 80. ● The number of marks for each question or part question is shown in brackets [ ].

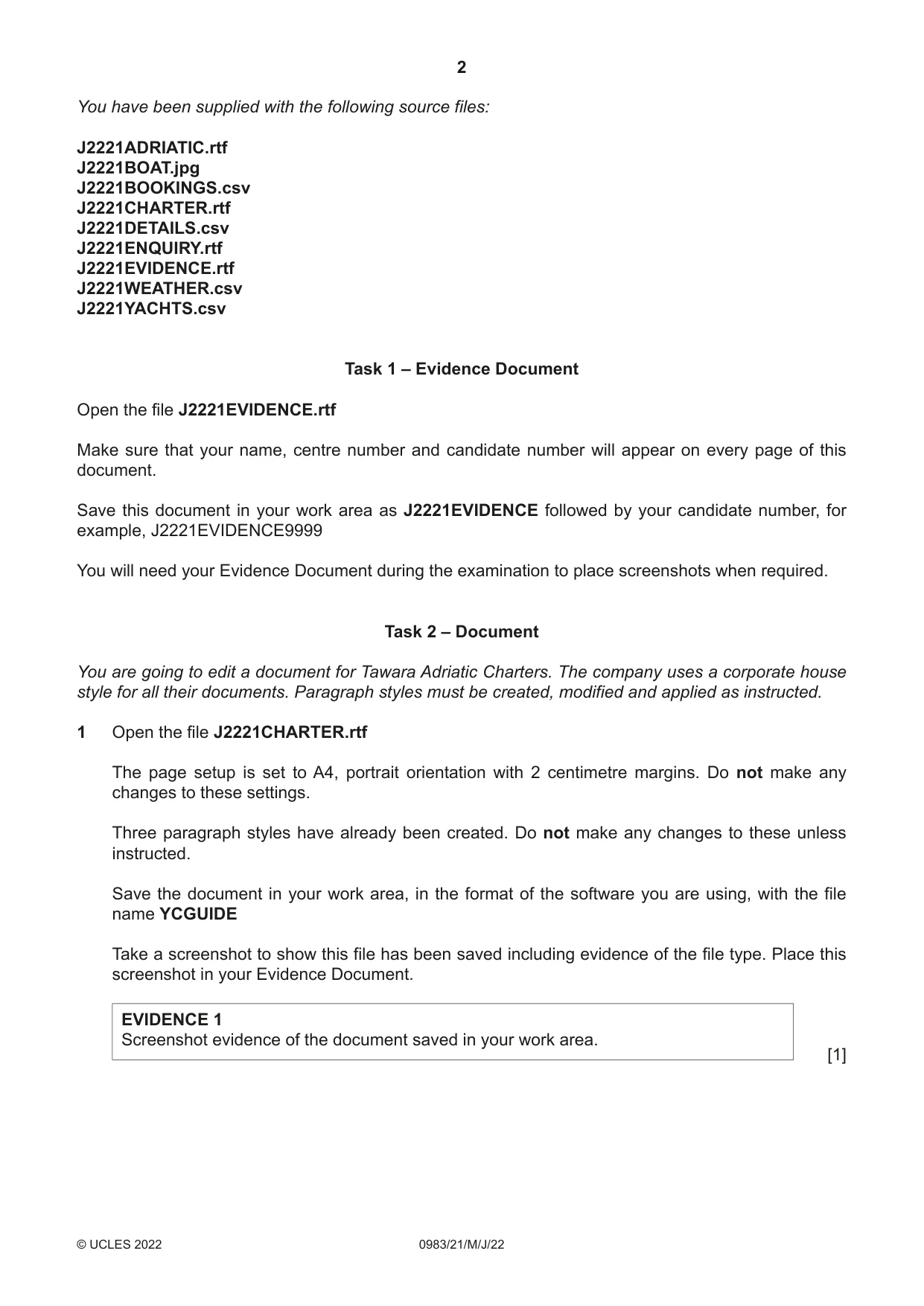

2 0983/21/M/J/22 © UCLES 2022 You have been supplied with the following source files: J2221ADRIATIC.rtf J2221BOAT.jpg J2221BOOKINGS.csv J2221CHARTER.rtf J2221DETAILS.csv J2221ENQUIRY.rtf J2221EVIDENCE.rtf J2221WEATHER.csv J2221YACHTS.csv Task 1 – Evidence Document Open the file J2221EVIDENCE.rtf Make sure that your name, centre number and candidate number will appear on every page of this document. Save this document in your work area as J2221EVIDENCE followed by your candidate number, for example, J2221EVIDENCE9999 You will need your Evidence Document during the examination to place screenshots when required. Task 2 – Document You are going to edit a document for Tawara Adriatic Charters. The company uses a corporate house style for all their documents. Paragraph styles must be created, modified and applied as instructed. 1 Open the file J2221CHARTER.rtf The page setup is set to A4, portrait orientation with 2 centimetre margins. Do not make any changes to these settings. Three paragraph styles have already been created. Do not make any changes to these unless instructed. Save the document in your work area, in the format of the software you are using, with the file name YCGUIDE Take a screenshot to show this file has been saved including evidence of the file type. Place this screenshot in your Evidence Document. EVIDENCE 1 Screenshot evidence of the document saved in your work area. [1]

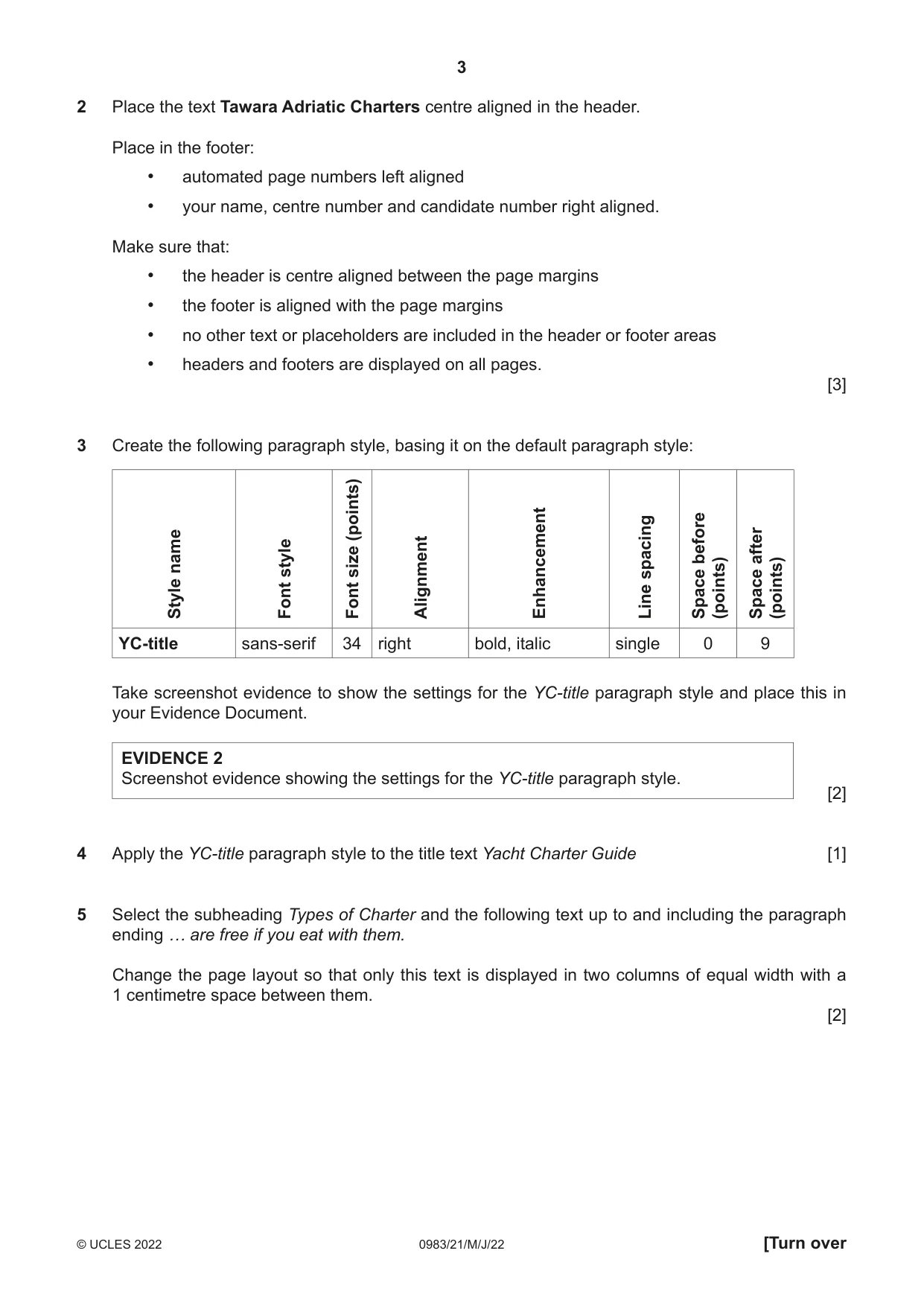

3 0983/21/M/J/22 © UCLES 2022 [Turn over 2 Place the text Tawara Adriatic Charters centre aligned in the header. Place in the footer: • automated page numbers left aligned • your name, centre number and candidate number right aligned. Make sure that: • the header is centre aligned between the page margins • the footer is aligned with the page margins • no other text or placeholders are included in the header or footer areas • headers and footers are displayed on all pages. [3] 3 Create the following paragraph style, basing it on the default paragraph style: Style name Font style Font size (points) Alignment Enhancement Line spacing Space before (points) Space after (points) YC-title sans-serif 34 right bold, italic single 0 9 Take screenshot evidence to show the settings for the YC-title paragraph style and place this in your Evidence Document. EVIDENCE 2 Screenshot evidence showing the settings for the YC-title paragraph style. [2] 4 Apply the YC-title paragraph style to the title text Yacht Charter Guide [1] 5 Select the subheading Types of Charter and the following text up to and including the paragraph ending … are free if you eat with them. Change the page layout so that only this text is displayed in two columns of equal width with a 1 centimetre space between them. [2]

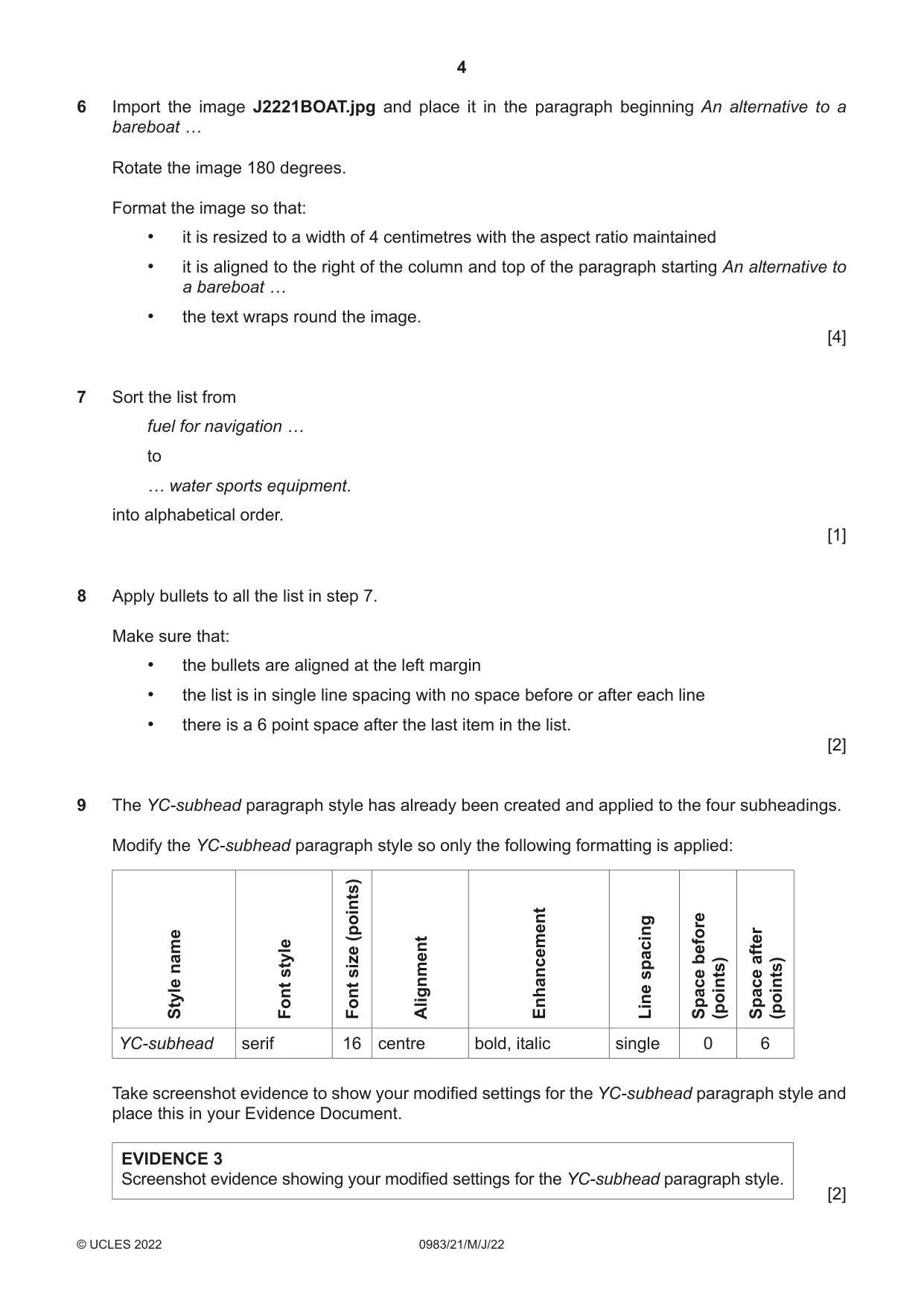

4 0983/21/M/J/22 © UCLES 2022 6 Import the image J2221BOAT.jpg and place it in the paragraph beginning An alternative to a bareboat … Rotate the image 180 degrees. Format the image so that: • it is resized to a width of 4 centimetres with the aspect ratio maintained • it is aligned to the right of the column and top of the paragraph starting An alternative to a bareboat … • the text wraps round the image. [4] 7 Sort the list from fuel for navigation … to … water sports equipment. into alphabetical order. [1] 8 Apply bullets to all the list in step 7. Make sure that: • the bullets are aligned at the left margin • the list is in single line spacing with no space before or after each line • there is a 6 point space after the last item in the list. [2] 9 The YC-subhead paragraph style has already been created and applied to the four subheadings. Modify the YC-subhead paragraph style so only the following formatting is applied: Style name Font style Font size (points) Alignment Enhancement Line spacing Space before (points) Space after (points) YC-subhead serif 16 centre bold, italic single 0 6 Take screenshot evidence to show your modified settings for the YC-subhead paragraph style and place this in your Evidence Document. EVIDENCE 3 Screenshot evidence showing your modified settings for the YC-subhead paragraph style. [2]

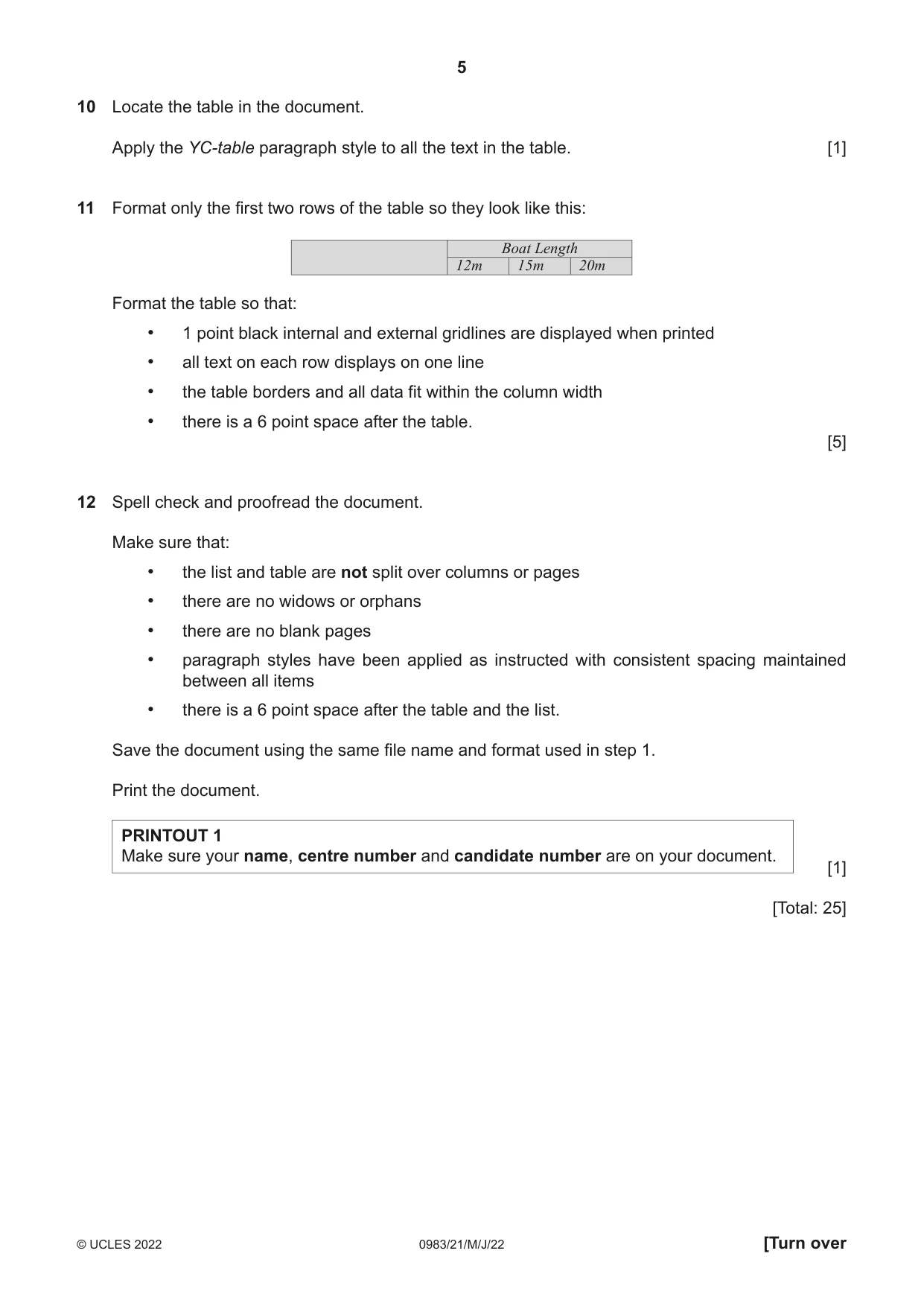

5 0983/21/M/J/22 © UCLES 2022 [Turn over 10 Locate the table in the document. Apply the YC-table paragraph style to all the text in the table. [1] 11 Format only the first two rows of the table so they look like this: Boat Length 12m 15m 20m Format the table so that: • 1 point black internal and external gridlines are displayed when printed • all text on each row displays on one line • the table borders and all data fit within the column width • there is a 6 point space after the table. [5] 12 Spell check and proofread the document. Make sure that: • the list and table are not split over columns or pages • there are no widows or orphans • there are no blank pages • paragraph styles have been applied as instructed with consistent spacing maintained between all items • there is a 6 point space after the table and the list. Save the document using the same file name and format used in step 1. Print the document. PRINTOUT 1 Make sure your name, centre number and candidate number are on your document. [1] [Total: 25]

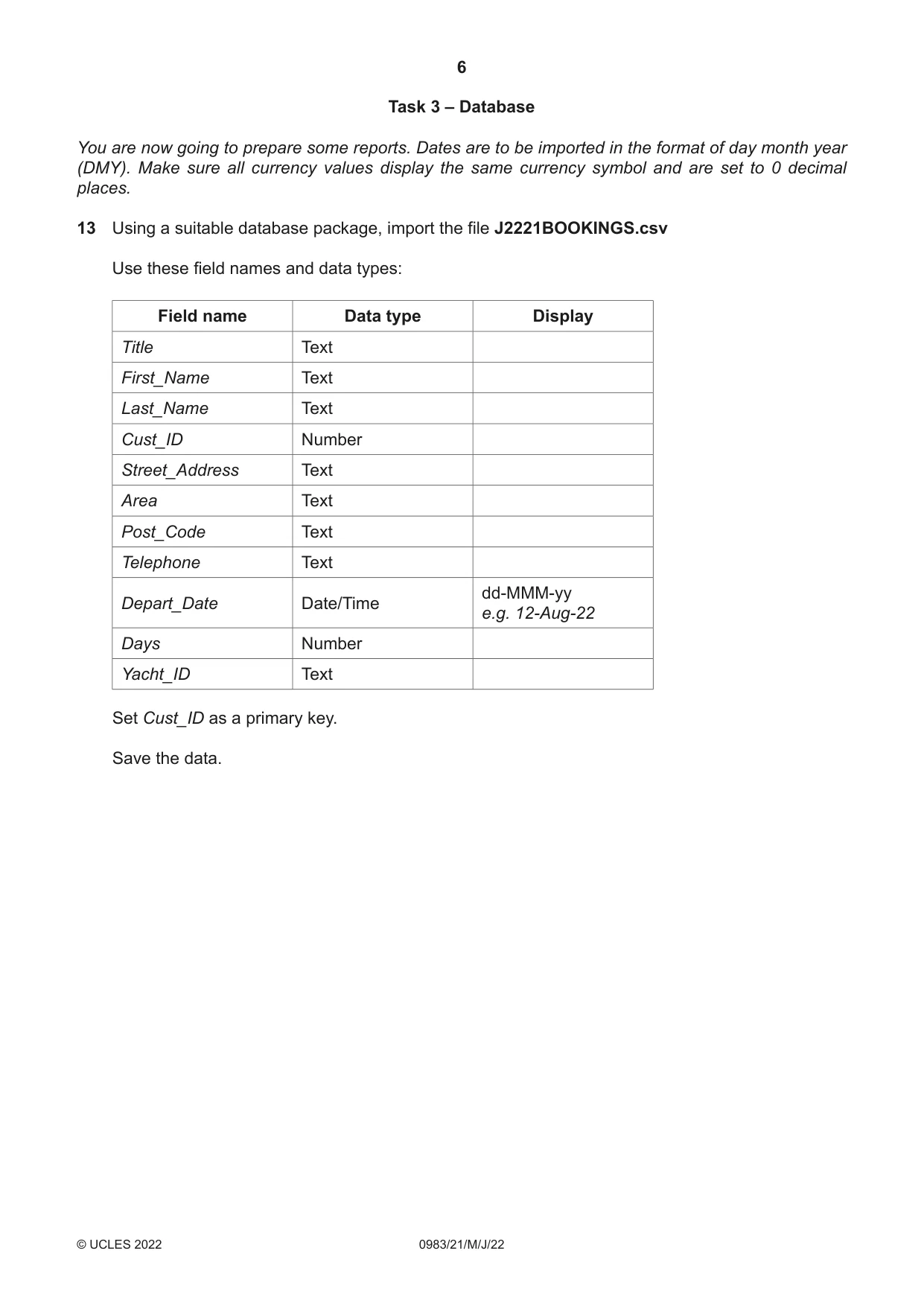

6 0983/21/M/J/22 © UCLES 2022 Task 3 – Database You are now going to prepare some reports. Dates are to be imported in the format of day month year (DMY). Make sure all currency values display the same currency symbol and are set to 0 decimal places. 13 Using a suitable database package, import the file J2221BOOKINGS.csv Use these field names and data types: Field name Data type Display Title Text First_Name Text Last_Name Text Cust_ID Number Street_Address Text Area Text Post_Code Text Telephone Text Depart_Date Date/Time dd-MMM-yy e.g. 12-Aug-22 Days Number Yacht_ID Text Set Cust_ID as a primary key. Save the data.

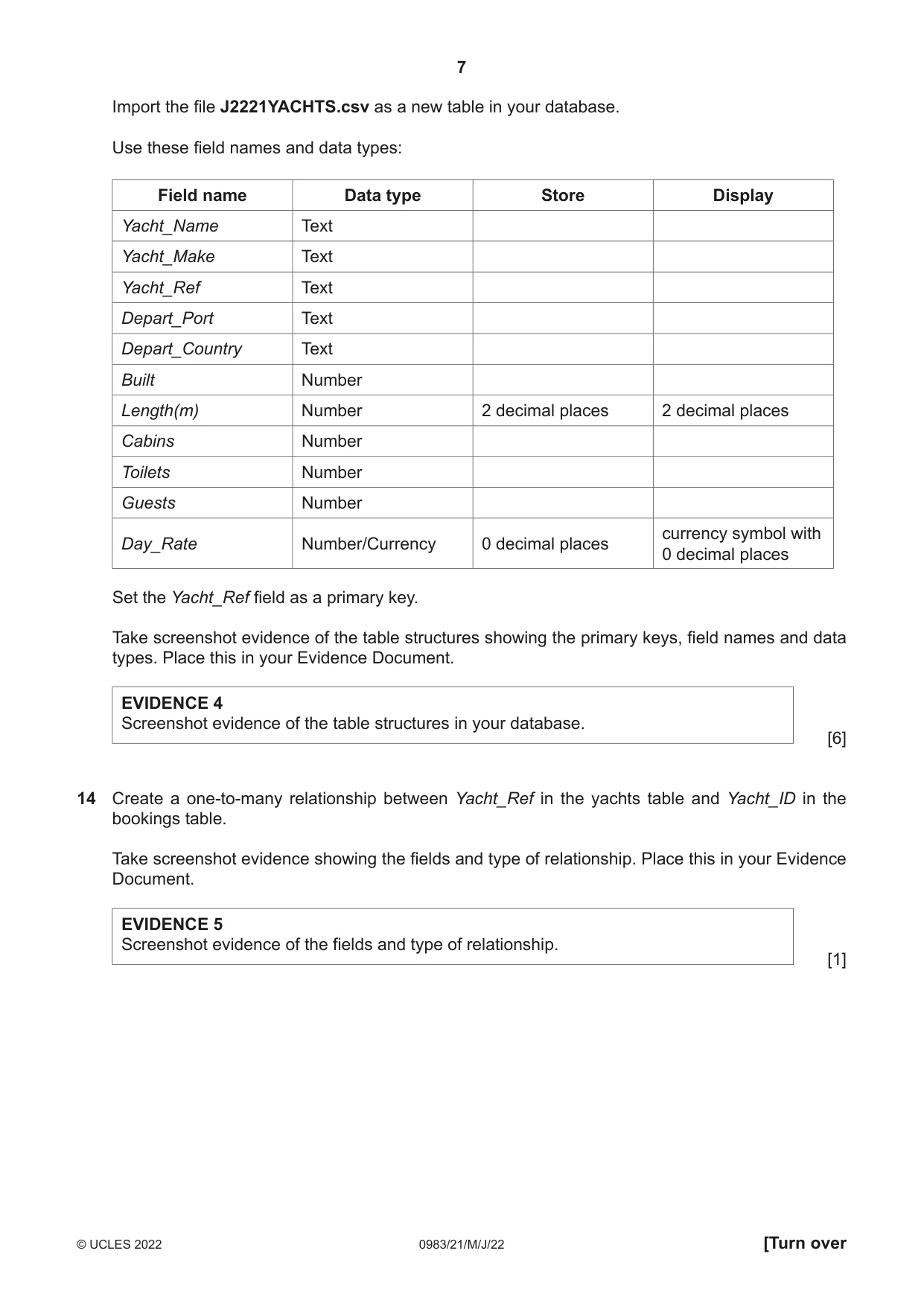

7 0983/21/M/J/22 © UCLES 2022 [Turn over Import the file J2221YACHTS.csv as a new table in your database. Use these field names and data types: Field name Data type Store Display Yacht_Name Text Yacht_Make Text Yacht_Ref Text Depart_Port Text Depart_Country Text Built Number Length(m) Number 2 decimal places 2 decimal places Cabins Number Toilets Number Guests Number Day_Rate Number/Currency 0 decimal places currency symbol with 0 decimal places Set the Yacht_Ref field as a primary key. Take screenshot evidence of the table structures showing the primary keys, field names and data types. Place this in your Evidence Document. EVIDENCE 4 Screenshot evidence of the table structures in your database. [6] 14 Create a one-to-many relationship between Yacht_Ref in the yachts table and Yacht_ID in the bookings table. Take screenshot evidence showing the fields and type of relationship. Place this in your Evidence Document. EVIDENCE 5 Screenshot evidence of the fields and type of relationship. [1]

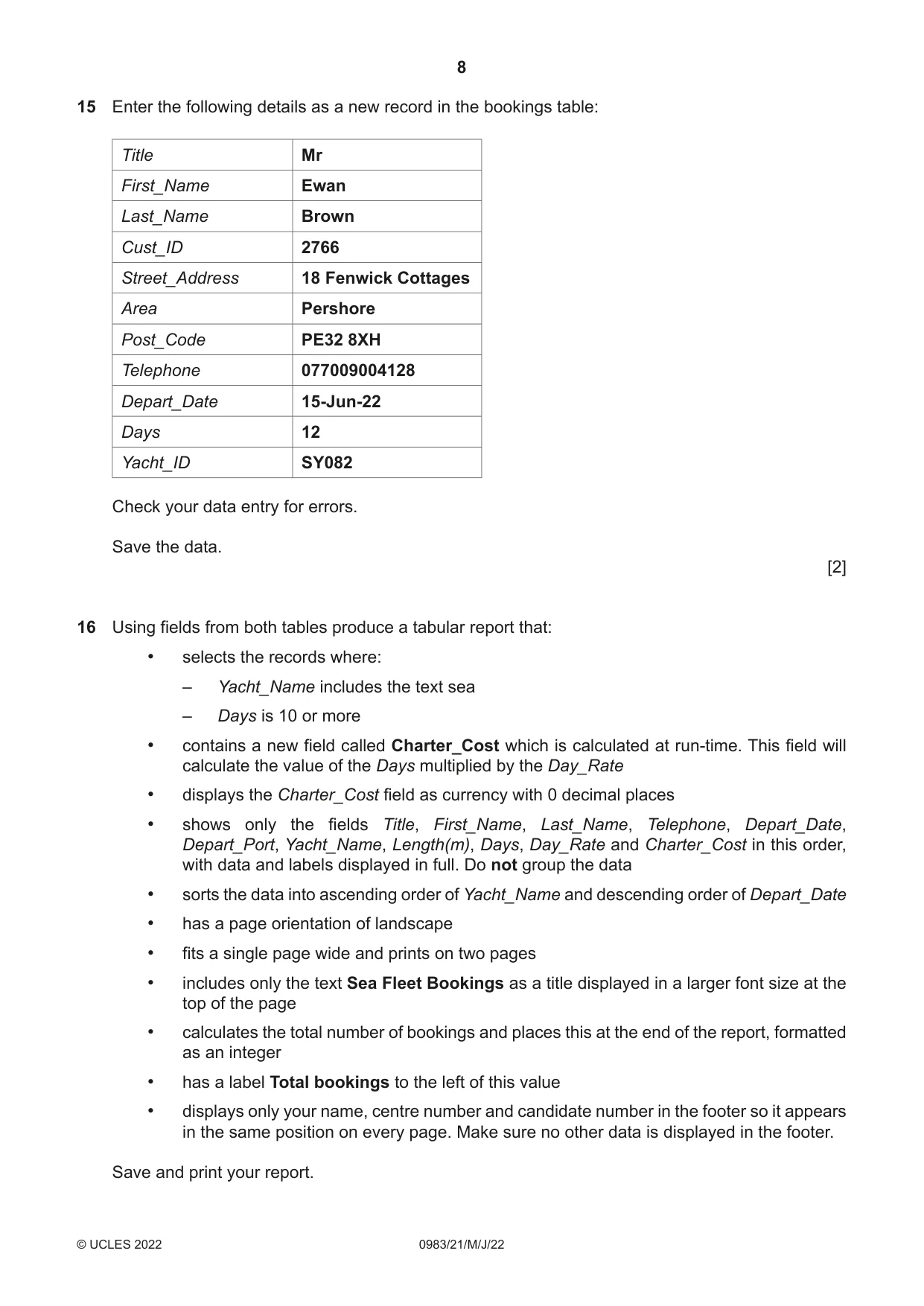

8 0983/21/M/J/22 © UCLES 2022 15 Enter the following details as a new record in the bookings table: Title Mr First_Name Ewan Last_Name Brown Cust_ID 2766 Street_Address 18 Fenwick Cottages Area Pershore Post_Code PE32 8XH Telephone 077009004128 Depart_Date 15-Jun-22 Days 12 Yacht_ID SY082 Check your data entry for errors. Save the data. [2] 16 Using fields from both tables produce a tabular report that: • selects the records where: – Yacht_Name includes the text sea – Days is 10 or more • contains a new field called Charter_Cost which is calculated at run-time. This field will calculate the value of the Days multiplied by the Day_Rate • displays the Charter_Cost field as currency with 0 decimal places • shows only the fields Title, First_Name, Last_Name, Telephone, Depart_Date, Depart_Port, Yacht_Name, Length(m), Days, Day_Rate and Charter_Cost in this order, with data and labels displayed in full. Do not group the data • sorts the data into ascending order of Yacht_Name and descending order of Depart_Date • has a page orientation of landscape • fits a single page wide and prints on two pages • includes only the text Sea Fleet Bookings as a title displayed in a larger font size at the top of the page • calculates the total number of bookings and places this at the end of the report, formatted as an integer • has a label Total bookings to the left of this value • displays only your name, centre number and candidate number in the footer so it appears in the same position on every page. Make sure no other data is displayed in the footer. Save and print your report.

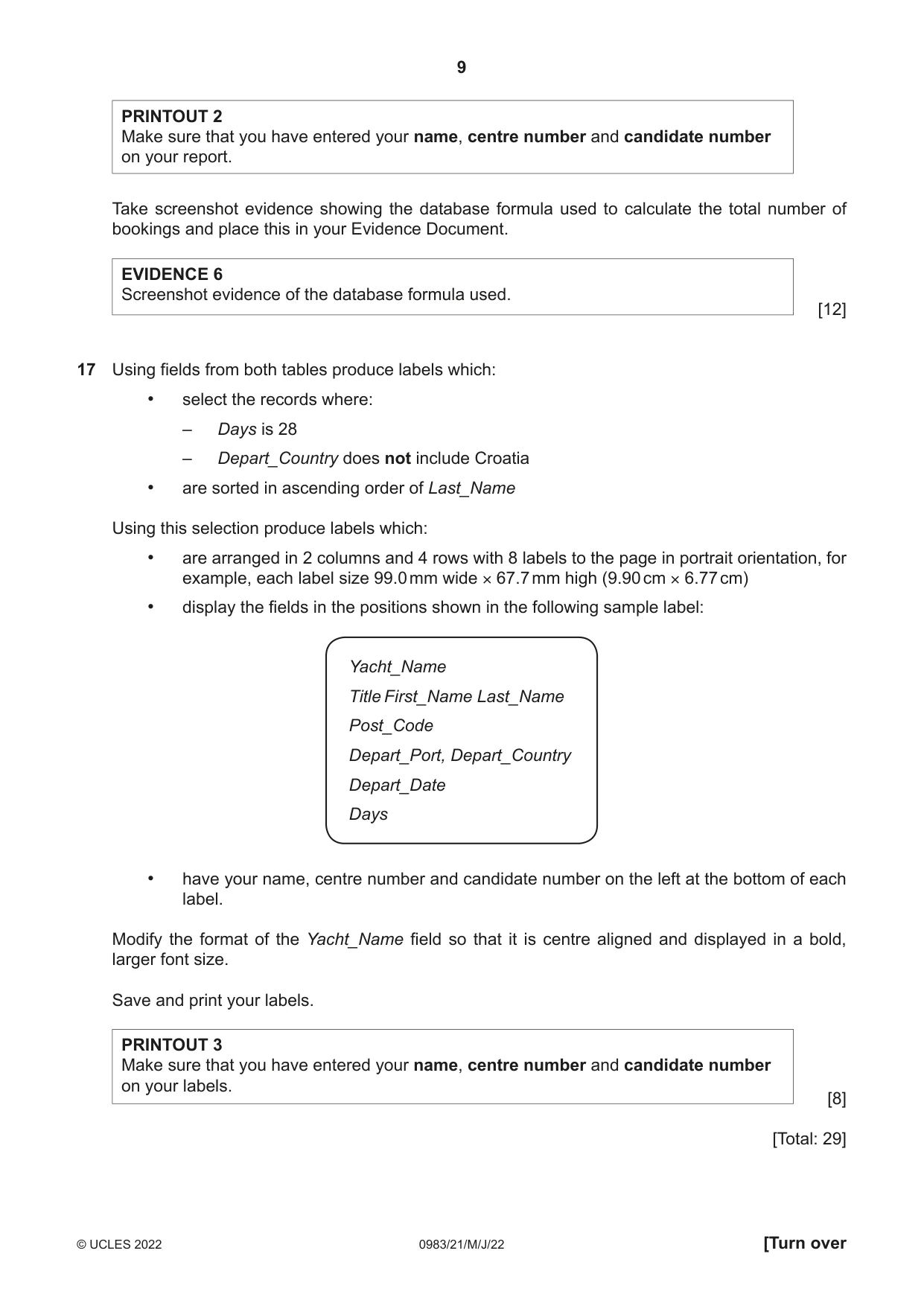

9 0983/21/M/J/22 © UCLES 2022 [Turn over PRINTOUT 2 Make sure that you have entered your name, centre number and candidate number on your report. Take screenshot evidence showing the database formula used to calculate the total number of bookings and place this in your Evidence Document. EVIDENCE 6 Screenshot evidence of the database formula used. [12] 17 Using fields from both tables produce labels which: • select the records where: – Days is 28 – Depart_Country does not include Croatia • are sorted in ascending order of Last_Name Using this selection produce labels which: • are arranged in 2 columns and 4 rows with 8 labels to the page in portrait orientation, for example, each label size 99.0 mm wide × 67.7 mm high (9.90 cm × 6.77 cm) • display the fields in the positions shown in the following sample label: Yacht_Name Title First_Name Last_Name Post_Code Depart_Port, Depart_Country Depart_Date Days • have your name, centre number and candidate number on the left at the bottom of each label. Modify the format of the Yacht_Name field so that it is centre aligned and displayed in a bold, larger font size. Save and print your labels. PRINTOUT 3 Make sure that you have entered your name, centre number and candidate number on your labels. [8] [Total: 29]

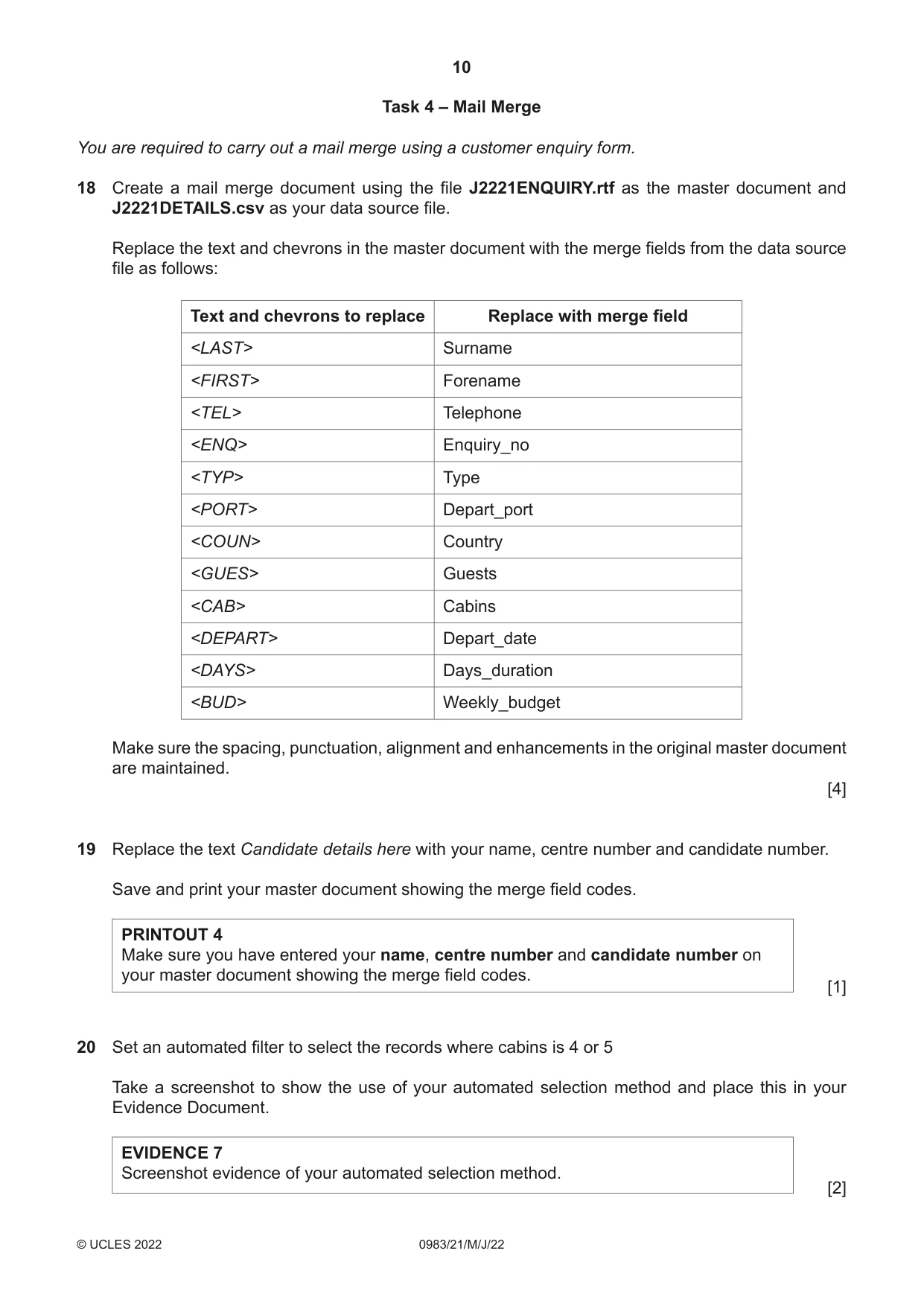

10 0983/21/M/J/22 © UCLES 2022 Task 4 – Mail Merge You are required to carry out a mail merge using a customer enquiry form. 18 Create a mail merge document using the file J2221ENQUIRY.rtf as the master document and J2221DETAILS.csv as your data source file. Replace the text and chevrons in the master document with the merge fields from the data source file as follows: Text and chevrons to replace Replace with merge field <LAST> Surname <FIRST> Forename <TEL> Telephone <ENQ> Enquiry_no <TYP> Type <PORT> Depart_port <COUN> Country <GUES> Guests <CAB> Cabins <DEPART> Depart_date <DAYS> Days_duration <BUD> Weekly_budget Make sure the spacing, punctuation, alignment and enhancements in the original master document are maintained. [4] 19 Replace the text Candidate details here with your name, centre number and candidate number. Save and print your master document showing the merge field codes. PRINTOUT 4 Make sure you have entered your name, centre number and candidate number on your master document showing the merge field codes. [1] 20 Set an automated filter to select the records where cabins is 4 or 5 Take a screenshot to show the use of your automated selection method and place this in your Evidence Document. EVIDENCE 7 Screenshot evidence of your automated selection method. [2]

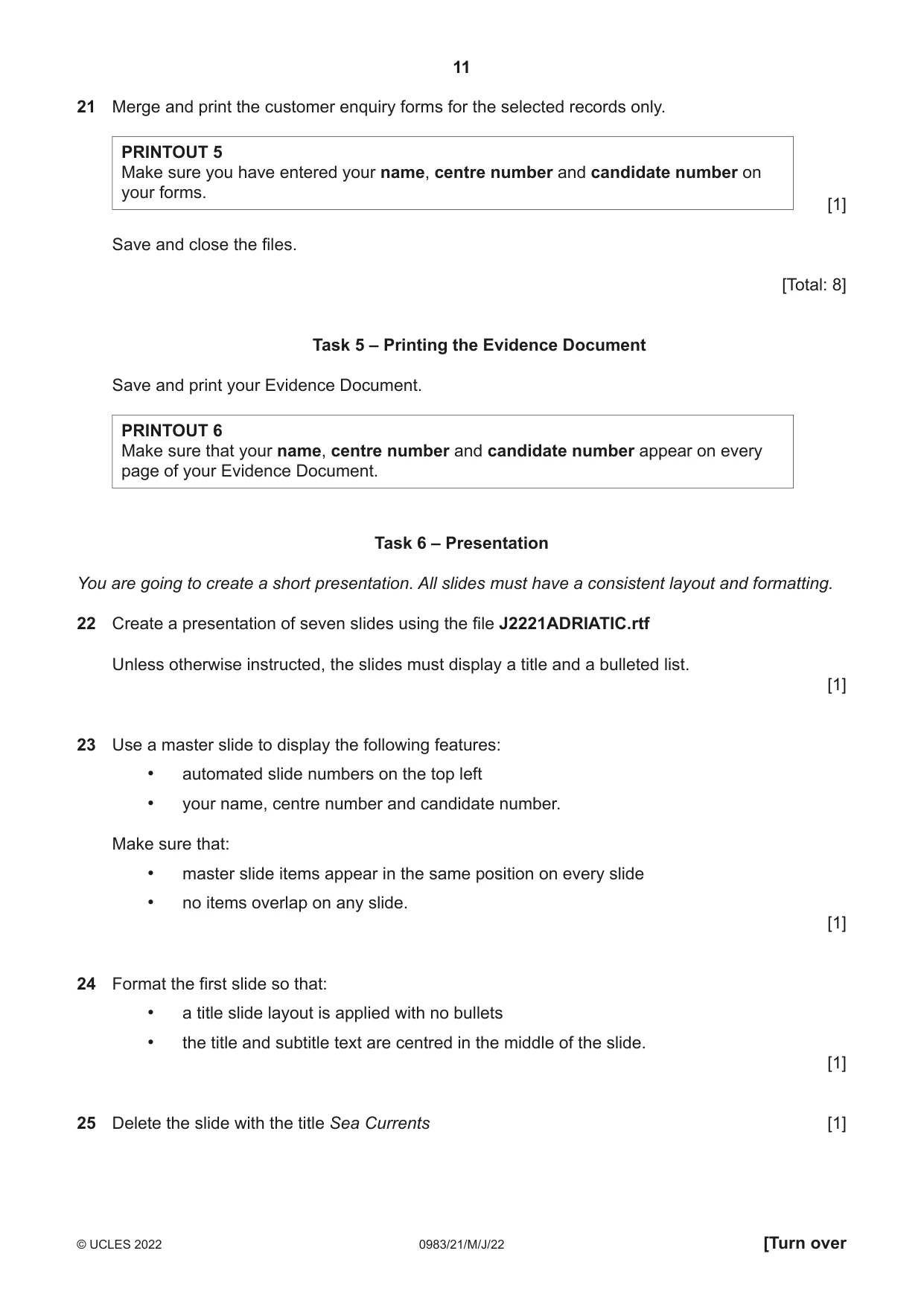

11 0983/21/M/J/22 © UCLES 2022 [Turn over 21 Merge and print the customer enquiry forms for the selected records only. PRINTOUT 5 Make sure you have entered your name, centre number and candidate number on your forms. [1] Save and close the files. [Total: 8] Task 5 – Printing the Evidence Document Save and print your Evidence Document. PRINTOUT 6 Make sure that your name, centre number and candidate number appear on every page of your Evidence Document. Task 6 – Presentation You are going to create a short presentation. All slides must have a consistent layout and formatting. 22 Create a presentation of seven slides using the file J2221ADRIATIC.rtf Unless otherwise instructed, the slides must display a title and a bulleted list. [1] 23 Use a master slide to display the following features: • automated slide numbers on the top left • your name, centre number and candidate number. Make sure that: • master slide items appear in the same position on every slide • no items overlap on any slide. [1] 24 Format the first slide so that: • a title slide layout is applied with no bullets • the title and subtitle text are centred in the middle of the slide. [1] 25 Delete the slide with the title Sea Currents [1]

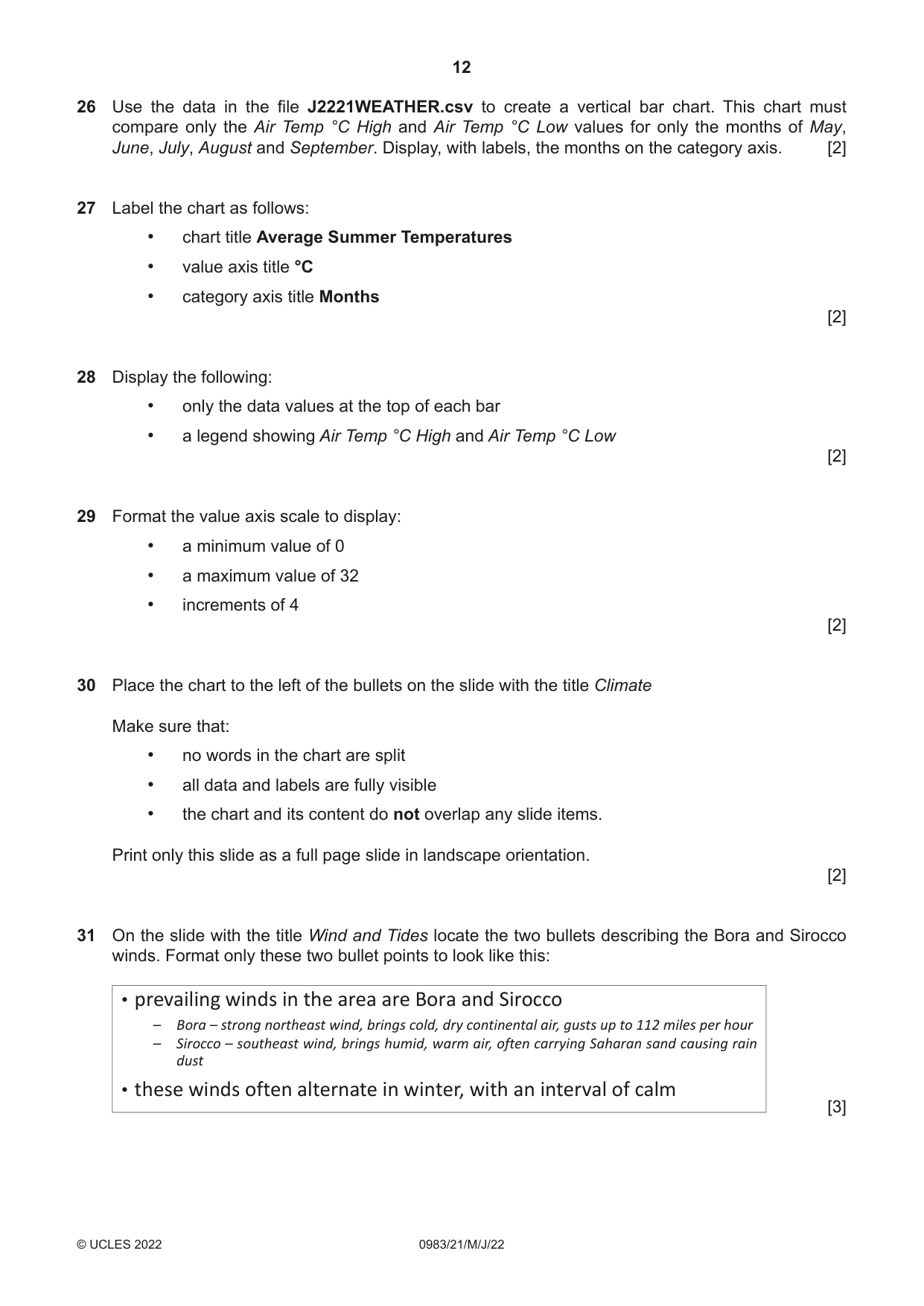

12 0983/21/M/J/22 © UCLES 2022 26 Use the data in the file J2221WEATHER.csv to create a vertical bar chart. This chart must compare only the Air Temp °C High and Air Temp °C Low values for only the months of May, June, July, August and September. Display, with labels, the months on the category axis. [2] 27 Label the chart as follows: • chart title Average Summer Temperatures • value axis title °C • category axis title Months [2] 28 Display the following: • only the data values at the top of each bar • a legend showing Air Temp °C High and Air Temp °C Low [2] 29 Format the value axis scale to display: • a minimum value of 0 • a maximum value of 32 • increments of 4 [2] 30 Place the chart to the left of the bullets on the slide with the title Climate Make sure that: • no words in the chart are split • all data and labels are fully visible • the chart and its content do not overlap any slide items. Print only this slide as a full page slide in landscape orientation. [2] 31 On the slide with the title Wind and Tides locate the two bullets describing the Bora and Sirocco winds. Format only these two bullet points to look like this: • prevailing winds in the area are Bora and Sirocco – Bora–strongnortheastwind,bringscold,drycontinentalair,gustsupto112milesperhour – Sirocco–southeastwind,bringshumid,warmair,oftencarryingSaharansandcausingrain dust • these winds often alternate in winter, with an interval of calm [3]

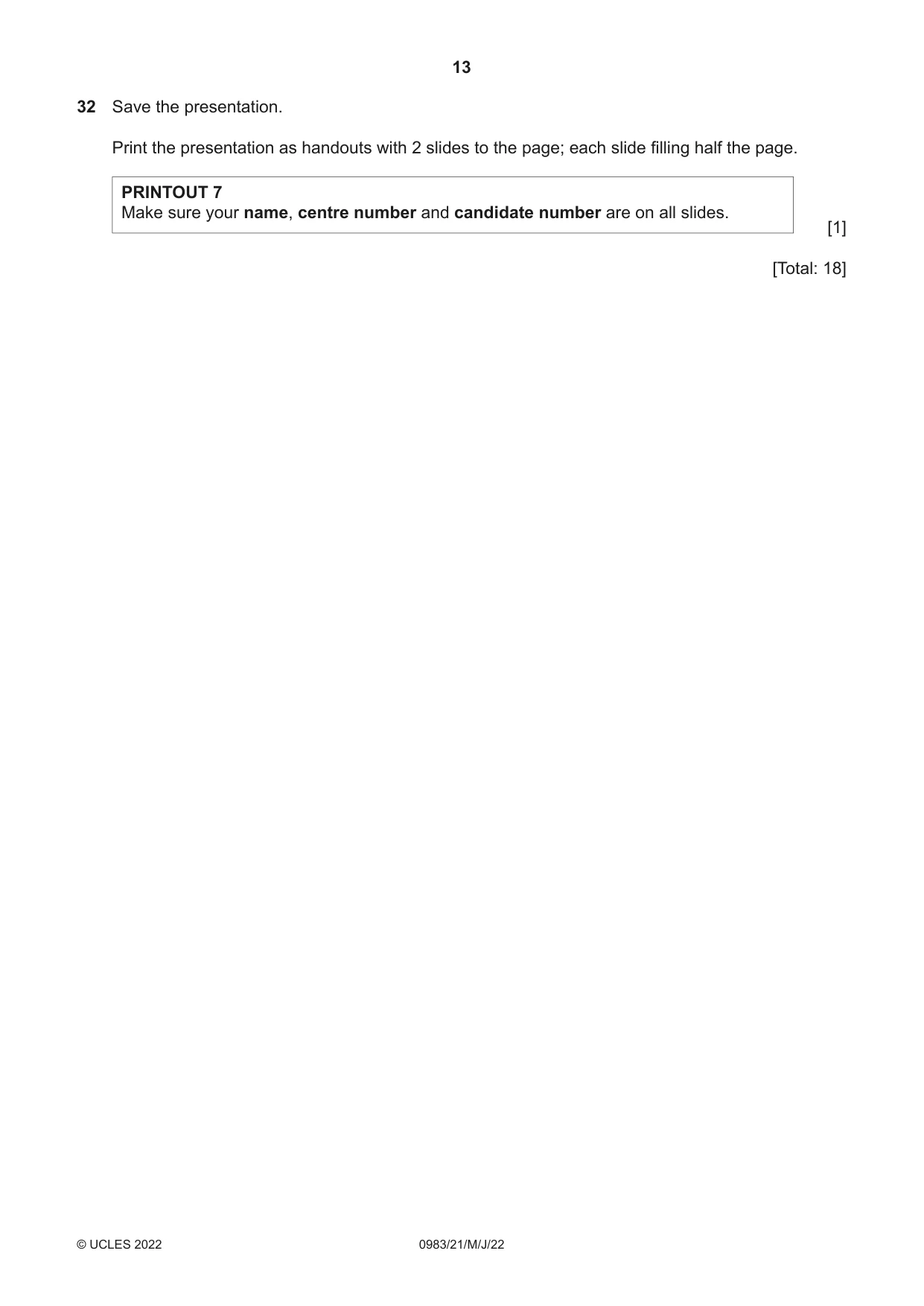

13 0983/21/M/J/22 © UCLES 2022 32 Save the presentation. Print the presentation as handouts with 2 slides to the page; each slide filling half the page. PRINTOUT 7 Make sure your name, centre number and candidate number are on all slides. [1] [Total: 18]

14 0983/21/M/J/22 © UCLES 2022 BLANK PAGE

15 0983/21/M/J/22 © UCLES 2022 BLANK PAGE

16 0983/21/M/J/22 © UCLES 2022 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

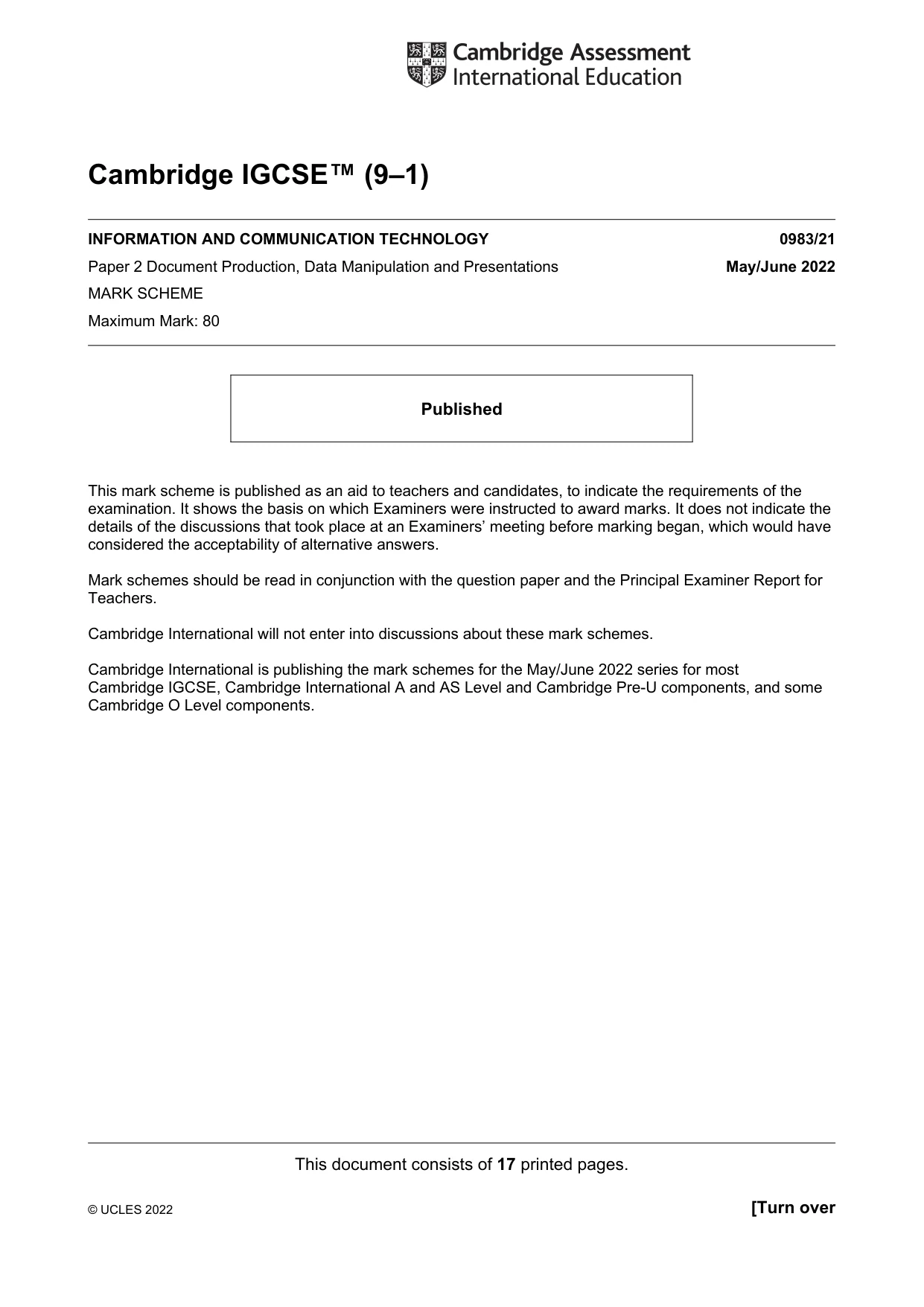

This document consists of 17 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ (9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/21 Paper 2 Document Production, Data Manipulation and Presentations May/June 2022 MARK SCHEME Maximum Mark: 80 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2022 series for most Cambridge IGCSE, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

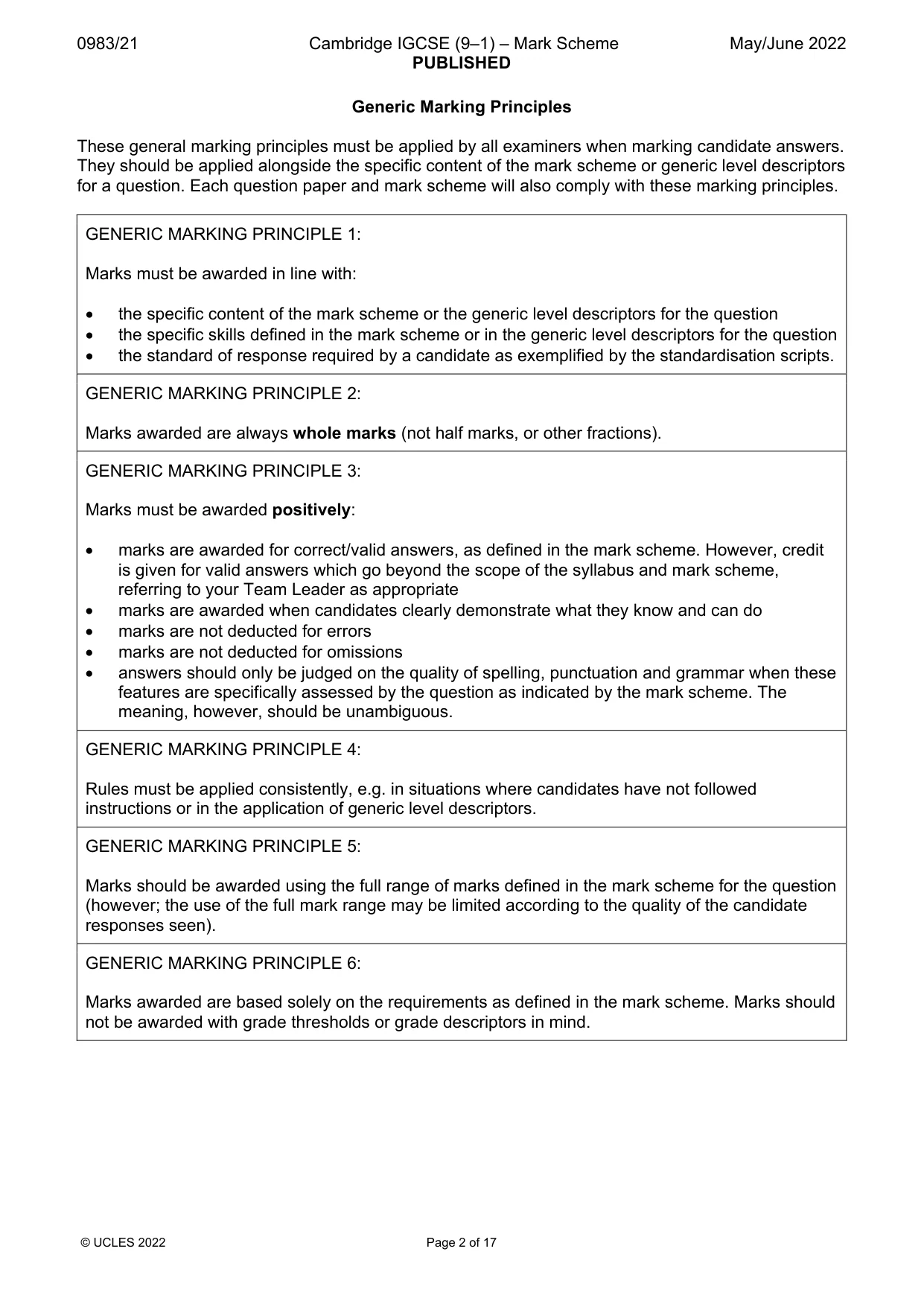

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 2 of 17 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with:  the specific content of the mark scheme or the generic level descriptors for the question  the specific skills defined in the mark scheme or in the generic level descriptors for the question  the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively:  marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate  marks are awarded when candidates clearly demonstrate what they know and can do  marks are not deducted for errors  marks are not deducted for omissions  answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

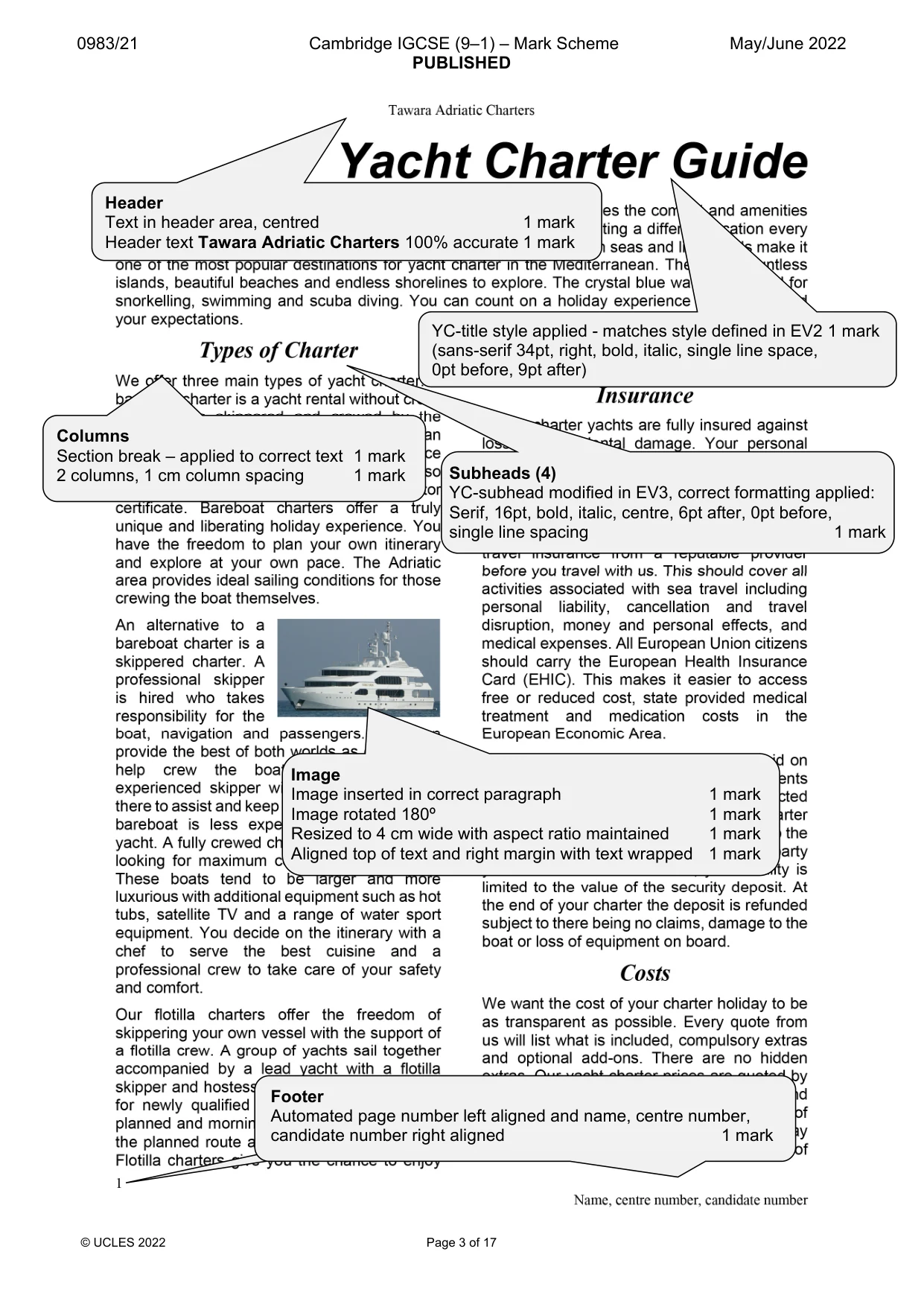

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 3 of 17 Header Text in header area, centred 1 mark Header text Tawara Adriatic Charters 100% accurate 1 mark Footer Automated page number left aligned and name, centre number, candidate number right aligned 1 mark YC-title style applied - matches style defined in EV2 1 mark (sans-serif 34pt, right, bold, italic, single line space, 0pt before, 9pt after) Columns Section break – applied to correct text 1 mark 2 columns, 1 cm column spacing 1 mark Image Image inserted in correct paragraph 1 mark Image rotated 180º 1 mark Resized to 4 cm wide with aspect ratio maintained 1 mark Aligned top of text and right margin with text wrapped 1 mark Subheads (4) YC-subhead modified in EV3, correct formatting applied: Serif, 16pt, bold, italic, centre, 6pt after, 0pt before, single line spacing 1 mark

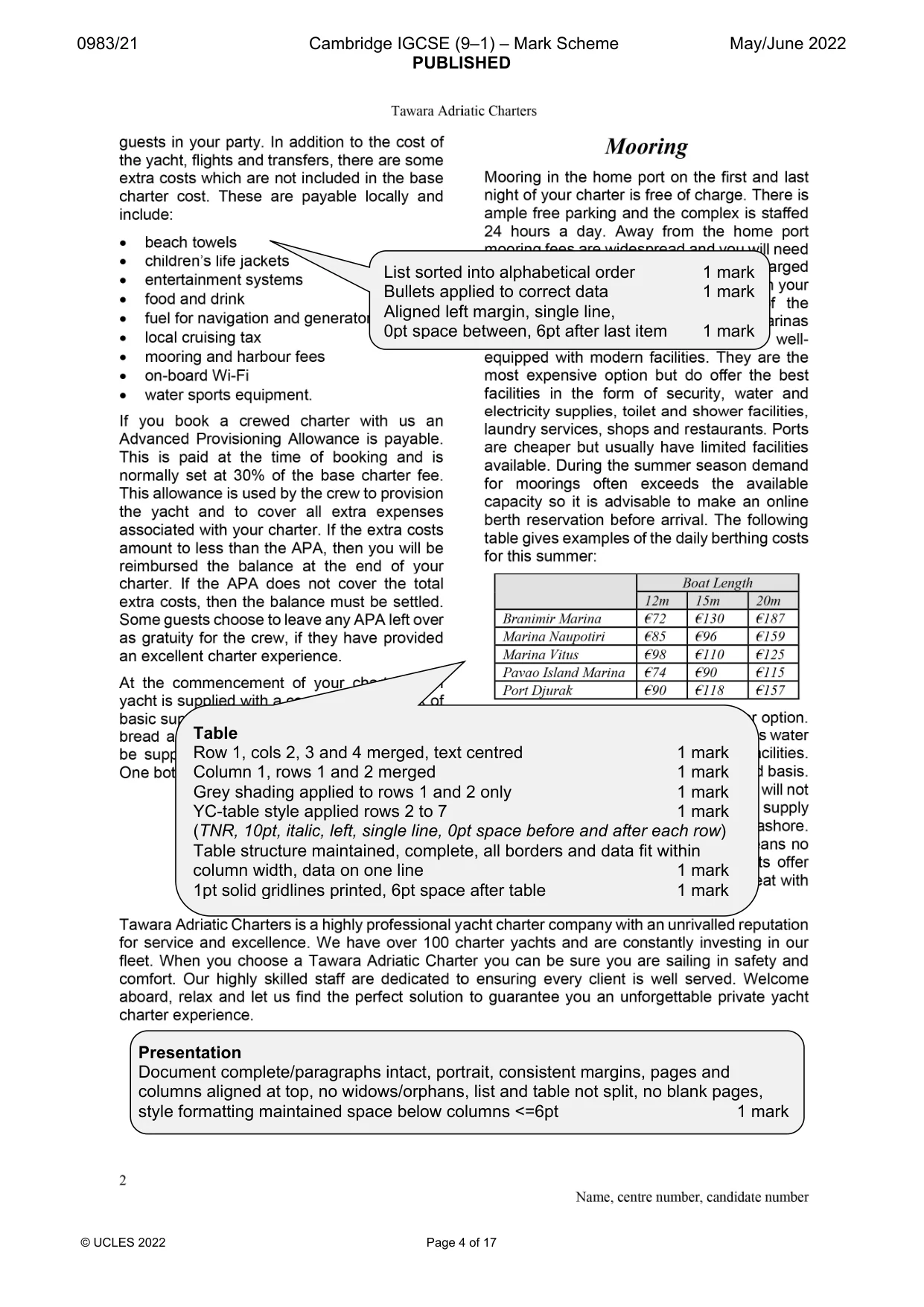

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 4 of 17 List sorted into alphabetical order 1 mark Bullets applied to correct data 1 mark Aligned left margin, single line, 0pt space between, 6pt after last item 1 mark Table Row 1, cols 2, 3 and 4 merged, text centred 1 mark Column 1, rows 1 and 2 merged 1 mark Grey shading applied to rows 1 and 2 only 1 mark YC-table style applied rows 2 to 7 1 mark (TNR, 10pt, italic, left, single line, 0pt space before and after each row) Table structure maintained, complete, all borders and data fit within column width, data on one line 1 mark 1pt solid gridlines printed, 6pt space after table 1 mark Presentation Document complete/paragraphs intact, portrait, consistent margins, pages and columns aligned at top, no widows/orphans, list and table not split, no blank pages, style formatting maintained space below columns <=6pt 1 mark

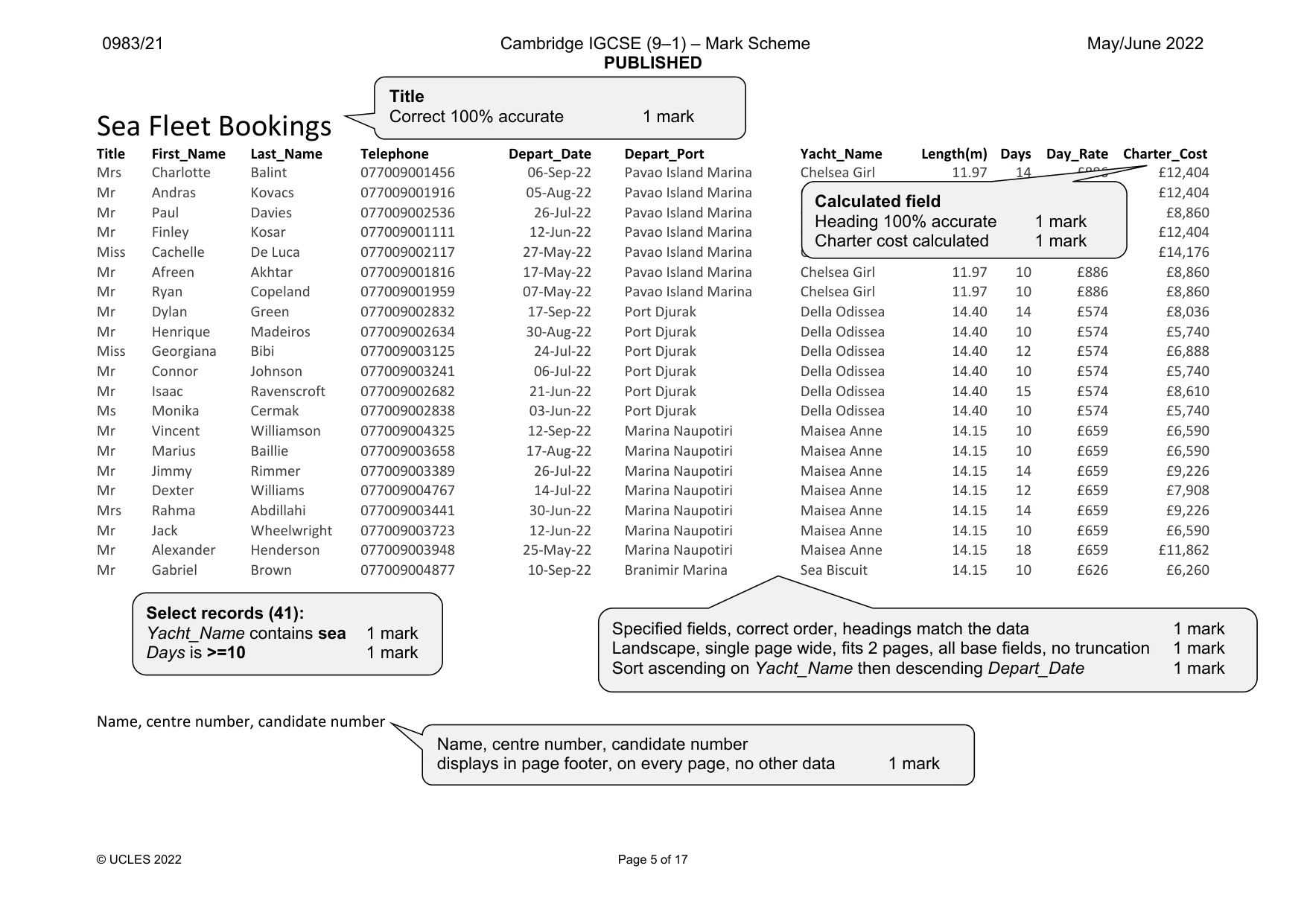

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 5 of 17 Sea Fleet Bookings Title First_Name Last_Name Telephone Depart_Date Depart_Port Yacht_Name Length(m) Days Day_Rate Charter_Cost Mrs Charlotte Balint 077009001456 06-Sep-22 Pavao Island Marina Chelsea Girl 11.97 14 £886 £12,404 Mr Andras Kovacs 077009001916 05-Aug-22 Pavao Island Marina Chelsea Girl 11.97 14 £886 £12,404 Mr Paul Davies 077009002536 26-Jul-22 Pavao Island Marina Chelsea Girl 11.97 10 £886 £8,860 Mr Finley Kosar 077009001111 12-Jun-22 Pavao Island Marina Chelsea Girl 11.97 14 £886 £12,404 Miss Cachelle De Luca 077009002117 27-May-22 Pavao Island Marina Chelsea Girl 11.97 16 £886 £14,176 Mr Afreen Akhtar 077009001816 17-May-22 Pavao Island Marina Chelsea Girl 11.97 10 £886 £8,860 Mr Ryan Copeland 077009001959 07-May-22 Pavao Island Marina Chelsea Girl 11.97 10 £886 £8,860 Mr Dylan Green 077009002832 17-Sep-22 Port Djurak Della Odissea 14.40 14 £574 £8,036 Mr Henrique Madeiros 077009002634 30-Aug-22 Port Djurak Della Odissea 14.40 10 £574 £5,740 Miss Georgiana Bibi 077009003125 24-Jul-22 Port Djurak Della Odissea 14.40 12 £574 £6,888 Mr Connor Johnson 077009003241 06-Jul-22 Port Djurak Della Odissea 14.40 10 £574 £5,740 Mr Isaac Ravenscroft 077009002682 21-Jun-22 Port Djurak Della Odissea 14.40 15 £574 £8,610 Ms Monika Cermak 077009002838 03-Jun-22 Port Djurak Della Odissea 14.40 10 £574 £5,740 Mr Vincent Williamson 077009004325 12-Sep-22 Marina Naupotiri Maisea Anne 14.15 10 £659 £6,590 Mr Marius Baillie 077009003658 17-Aug-22 Marina Naupotiri Maisea Anne 14.15 10 £659 £6,590 Mr Jimmy Rimmer 077009003389 26-Jul-22 Marina Naupotiri Maisea Anne 14.15 14 £659 £9,226 Mr Dexter Williams 077009004767 14-Jul-22 Marina Naupotiri Maisea Anne 14.15 12 £659 £7,908 Mrs Rahma Abdillahi 077009003441 30-Jun-22 Marina Naupotiri Maisea Anne 14.15 14 £659 £9,226 Mr Jack Wheelwright 077009003723 12-Jun-22 Marina Naupotiri Maisea Anne 14.15 10 £659 £6,590 Mr Alexander Henderson 077009003948 25-May-22 Marina Naupotiri Maisea Anne 14.15 18 £659 £11,862 Mr Gabriel Brown 077009004877 10-Sep-22 Branimir Marina Sea Biscuit 14.15 10 £626 £6,260 Name, centre number, candidate number Title Correct 100% accurate 1 mark Specified fields, correct order, headings match the data 1 mark Landscape, single page wide, fits 2 pages, all base fields, no truncation 1 mark Sort ascending on Yacht_Name then descending Depart_Date 1 mark Select records (41): Yacht_Name contains sea 1 mark Days is >=10 1 mark Name, centre number, candidate number displays in page footer, on every page, no other data 1 mark Calculated field Heading 100% accurate 1 mark Charter cost calculated 1 mark

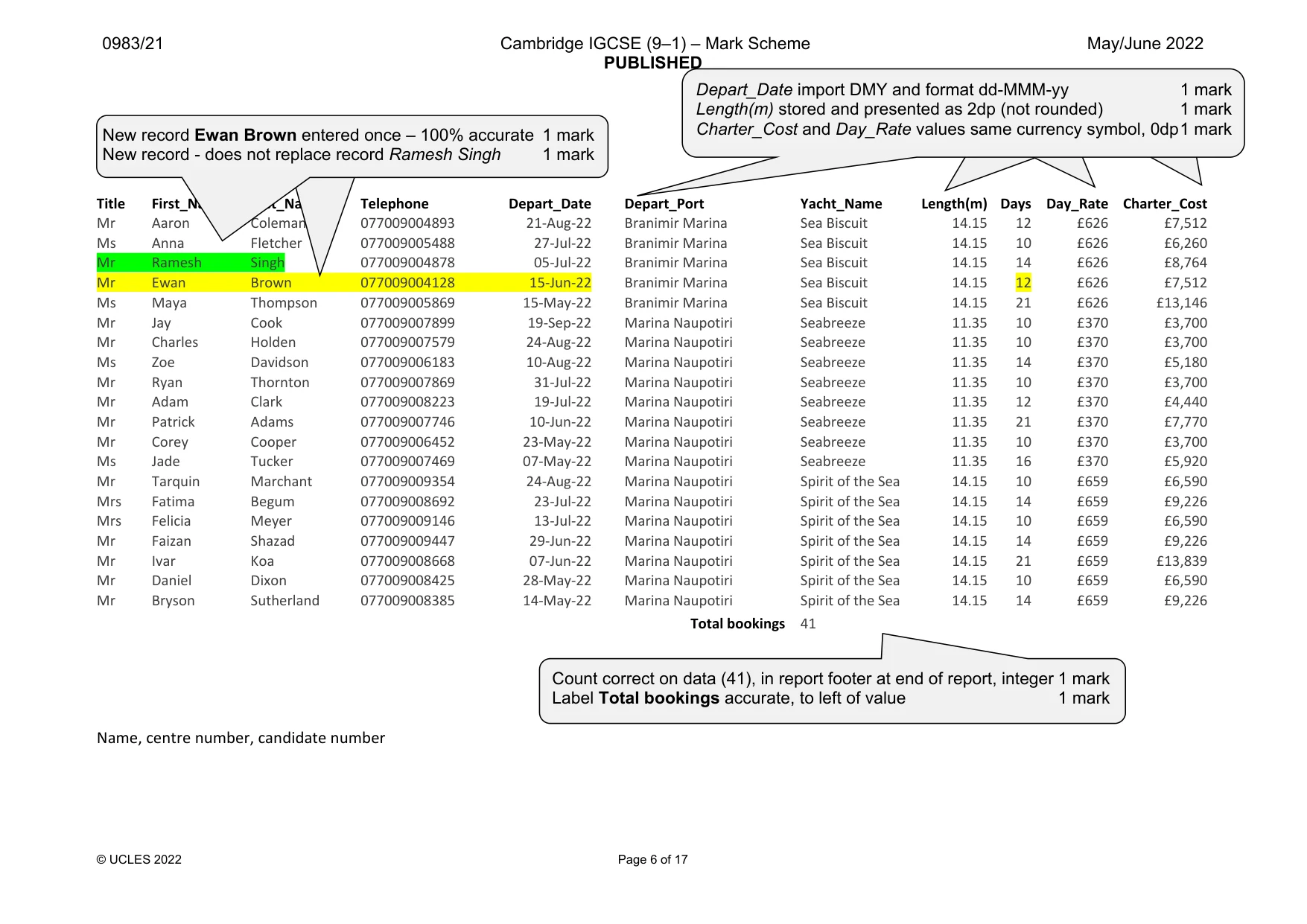

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 6 of 17 Title First_Name Last_Name Telephone Depart_Date Depart_Port Yacht_Name Length(m) Days Day_Rate Charter_Cost Mr Aaron Coleman 077009004893 21-Aug-22 Branimir Marina Sea Biscuit 14.15 12 £626 £7,512 Ms Anna Fletcher 077009005488 27-Jul-22 Branimir Marina Sea Biscuit 14.15 10 £626 £6,260 Mr Ramesh Singh 077009004878 05-Jul-22 Branimir Marina Sea Biscuit 14.15 14 £626 £8,764 Mr Ewan Brown 077009004128 15-Jun-22 Branimir Marina Sea Biscuit 14.15 12 £626 £7,512 Ms Maya Thompson 077009005869 15-May-22 Branimir Marina Sea Biscuit 14.15 21 £626 £13,146 Mr Jay Cook 077009007899 19-Sep-22 Marina Naupotiri Seabreeze 11.35 10 £370 £3,700 Mr Charles Holden 077009007579 24-Aug-22 Marina Naupotiri Seabreeze 11.35 10 £370 £3,700 Ms Zoe Davidson 077009006183 10-Aug-22 Marina Naupotiri Seabreeze 11.35 14 £370 £5,180 Mr Ryan Thornton 077009007869 31-Jul-22 Marina Naupotiri Seabreeze 11.35 10 £370 £3,700 Mr Adam Clark 077009008223 19-Jul-22 Marina Naupotiri Seabreeze 11.35 12 £370 £4,440 Mr Patrick Adams 077009007746 10-Jun-22 Marina Naupotiri Seabreeze 11.35 21 £370 £7,770 Mr Corey Cooper 077009006452 23-May-22 Marina Naupotiri Seabreeze 11.35 10 £370 £3,700 Ms Jade Tucker 077009007469 07-May-22 Marina Naupotiri Seabreeze 11.35 16 £370 £5,920 Mr Tarquin Marchant 077009009354 24-Aug-22 Marina Naupotiri Spirit of the Sea 14.15 10 £659 £6,590 Mrs Fatima Begum 077009008692 23-Jul-22 Marina Naupotiri Spirit of the Sea 14.15 14 £659 £9,226 Mrs Felicia Meyer 077009009146 13-Jul-22 Marina Naupotiri Spirit of the Sea 14.15 10 £659 £6,590 Mr Faizan Shazad 077009009447 29-Jun-22 Marina Naupotiri Spirit of the Sea 14.15 14 £659 £9,226 Mr Ivar Koa 077009008668 07-Jun-22 Marina Naupotiri Spirit of the Sea 14.15 21 £659 £13,839 Mr Daniel Dixon 077009008425 28-May-22 Marina Naupotiri Spirit of the Sea 14.15 10 £659 £6,590 Mr Bryson Sutherland 077009008385 14-May-22 Marina Naupotiri Spirit of the Sea 14.15 14 £659 £9,226 Total bookings 41 Name, centre number, candidate number Count correct on data (41), in report footer at end of report, integer 1 mark Label Total bookings accurate, to left of value 1 mark Depart_Date import DMY and format dd-MMM-yy 1 mark Length(m) stored and presented as 2dp (not rounded) 1 mark Charter_Cost and Day_Rate values same currency symbol, 0dp 1 mark New record Ewan Brown entered once – 100% accurate 1 mark New record - does not replace record Ramesh Singh 1 mark

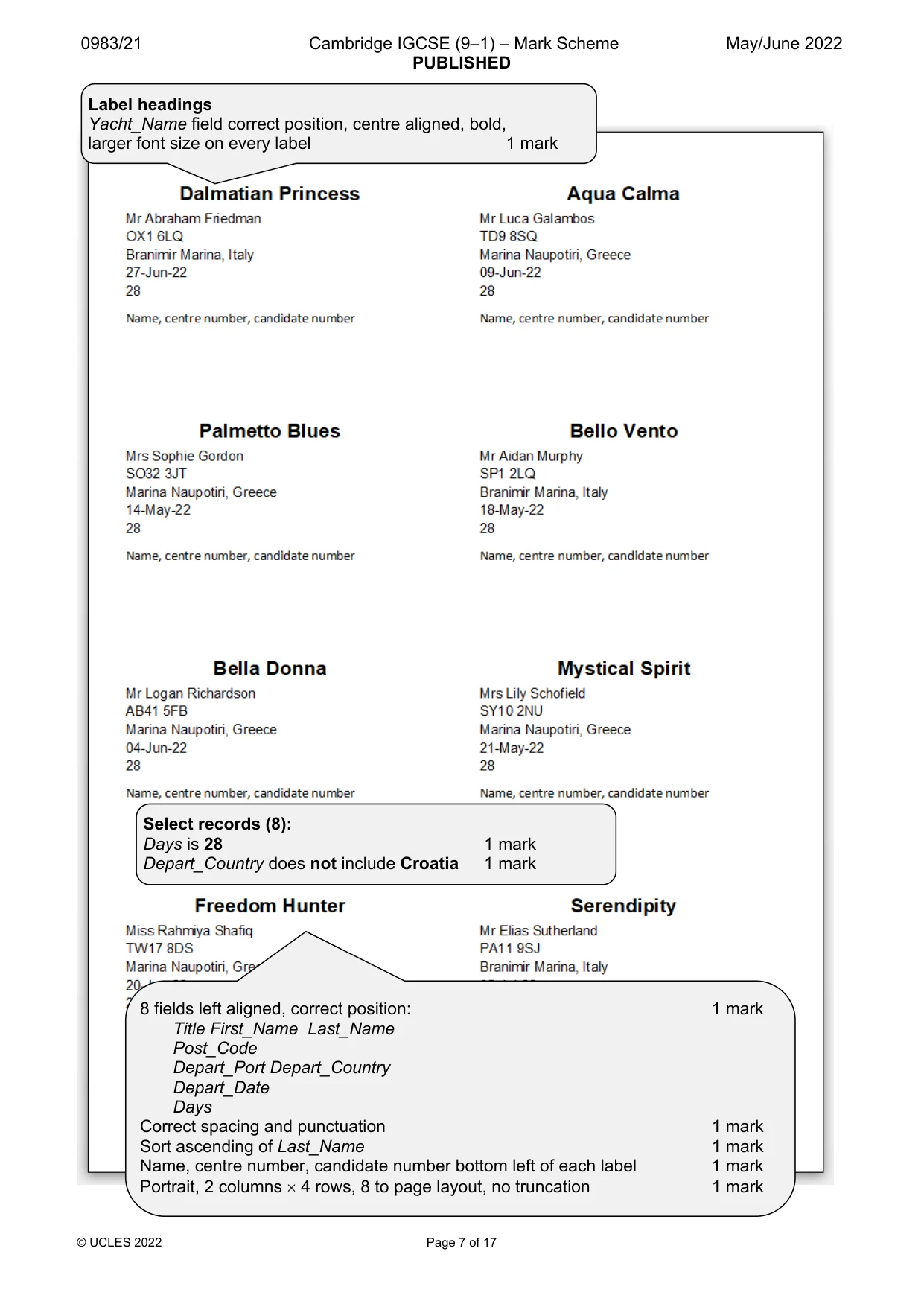

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 7 of 17 Select records (8): Days is 28 1 mark Depart_Country does not include Croatia 1 mark Label headings Yacht_Name field correct position, centre aligned, bold, larger font size on every label 1 mark 8 fields left aligned, correct position: 1 mark Title First_Name Last_Name Post_Code Depart_Port Depart_Country Depart_Date Days Correct spacing and punctuation 1 mark Sort ascending of Last_Name 1 mark Name, centre number, candidate number bottom left of each label 1 mark Portrait, 2 columns  4 rows, 8 to page layout, no truncation 1 mark

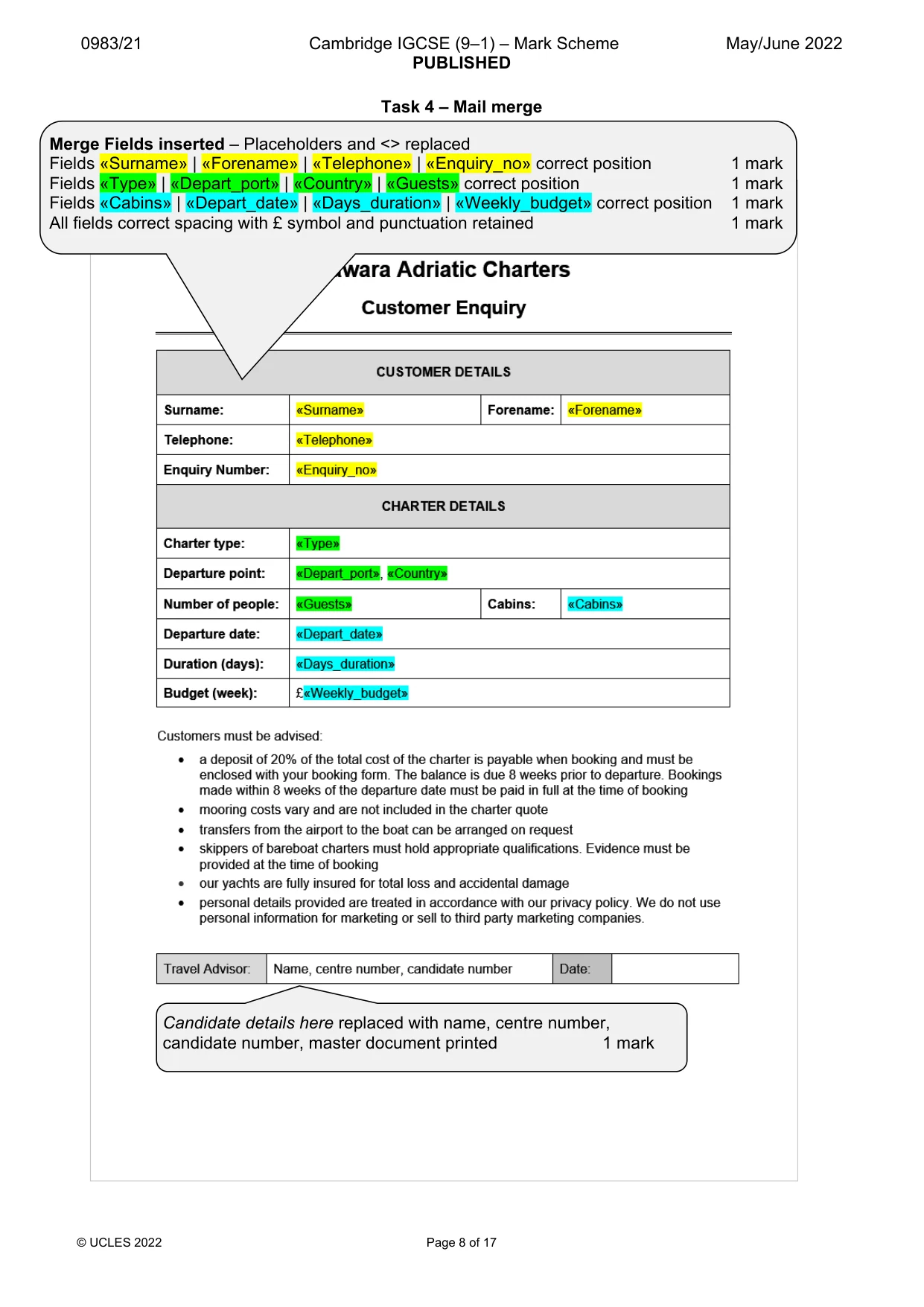

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 8 of 17 Task 4 – Mail merge Merge Fields inserted – Placeholders and <> replaced Fields «Surname» | «Forename» | «Telephone» | «Enquiry_no» correct position 1 mark Fields «Type» | «Depart_port» | «Country» | «Guests» correct position 1 mark Fields «Cabins» | «Depart_date» | «Days_duration» | «Weekly_budget» correct position 1 mark All fields correct spacing with £ symbol and punctuation retained 1 mark Candidate details here replaced with name, centre number, candidate number, master document printed 1 mark

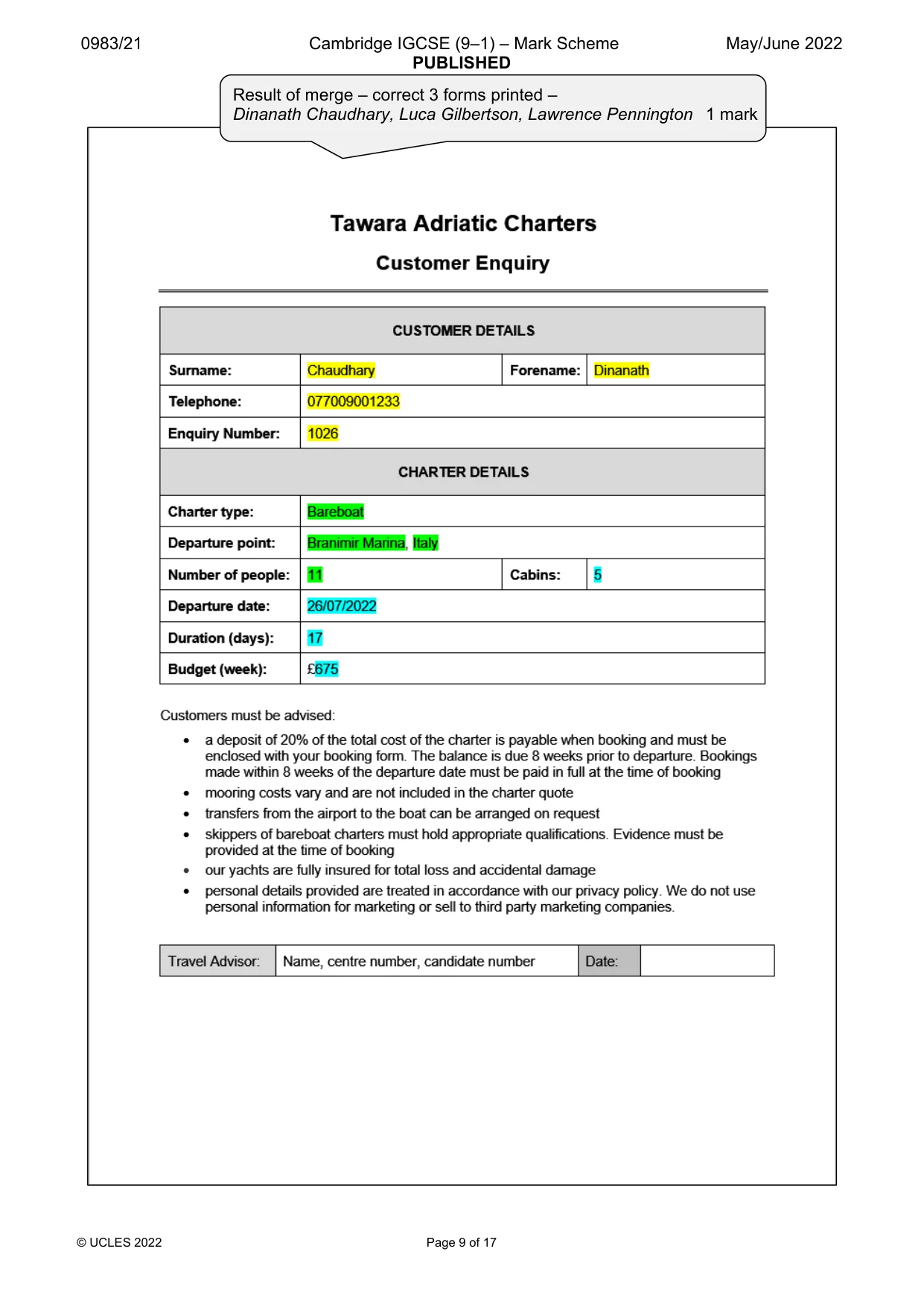

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 9 of 17 Result of merge – correct 3 forms printed – Dinanath Chaudhary, Luca Gilbertson, Lawrence Pennington 1 mark

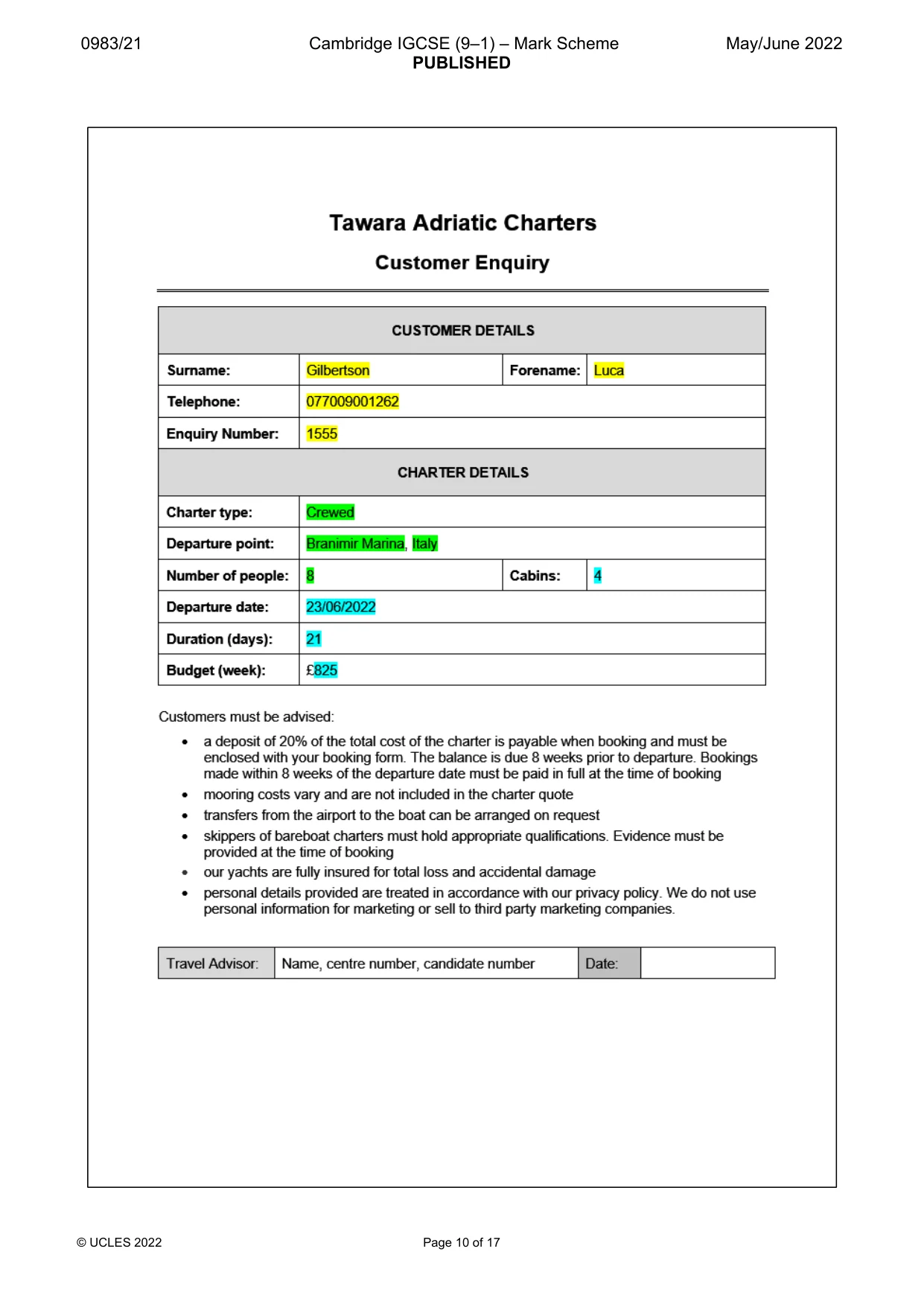

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 10 of 17

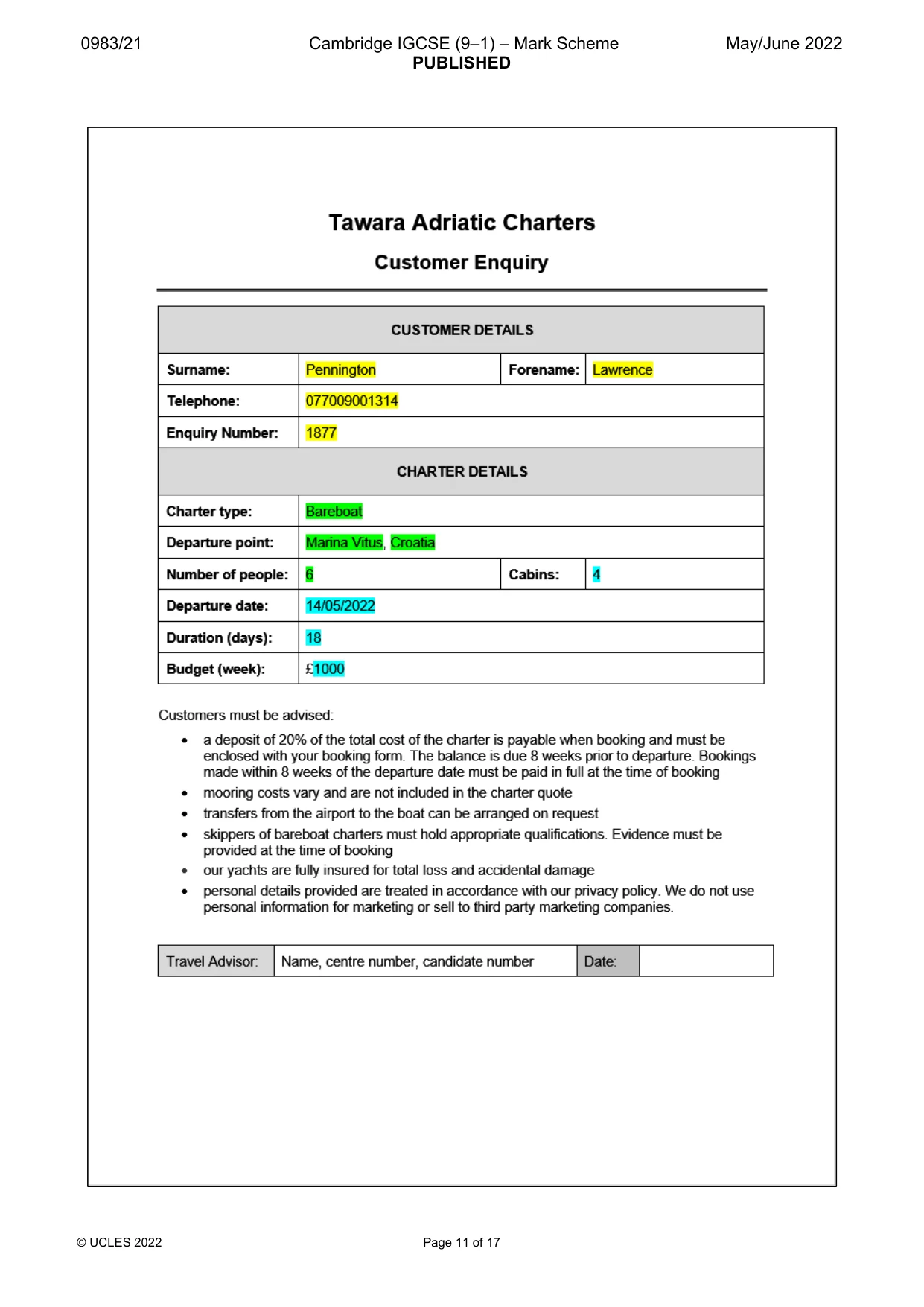

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 11 of 17

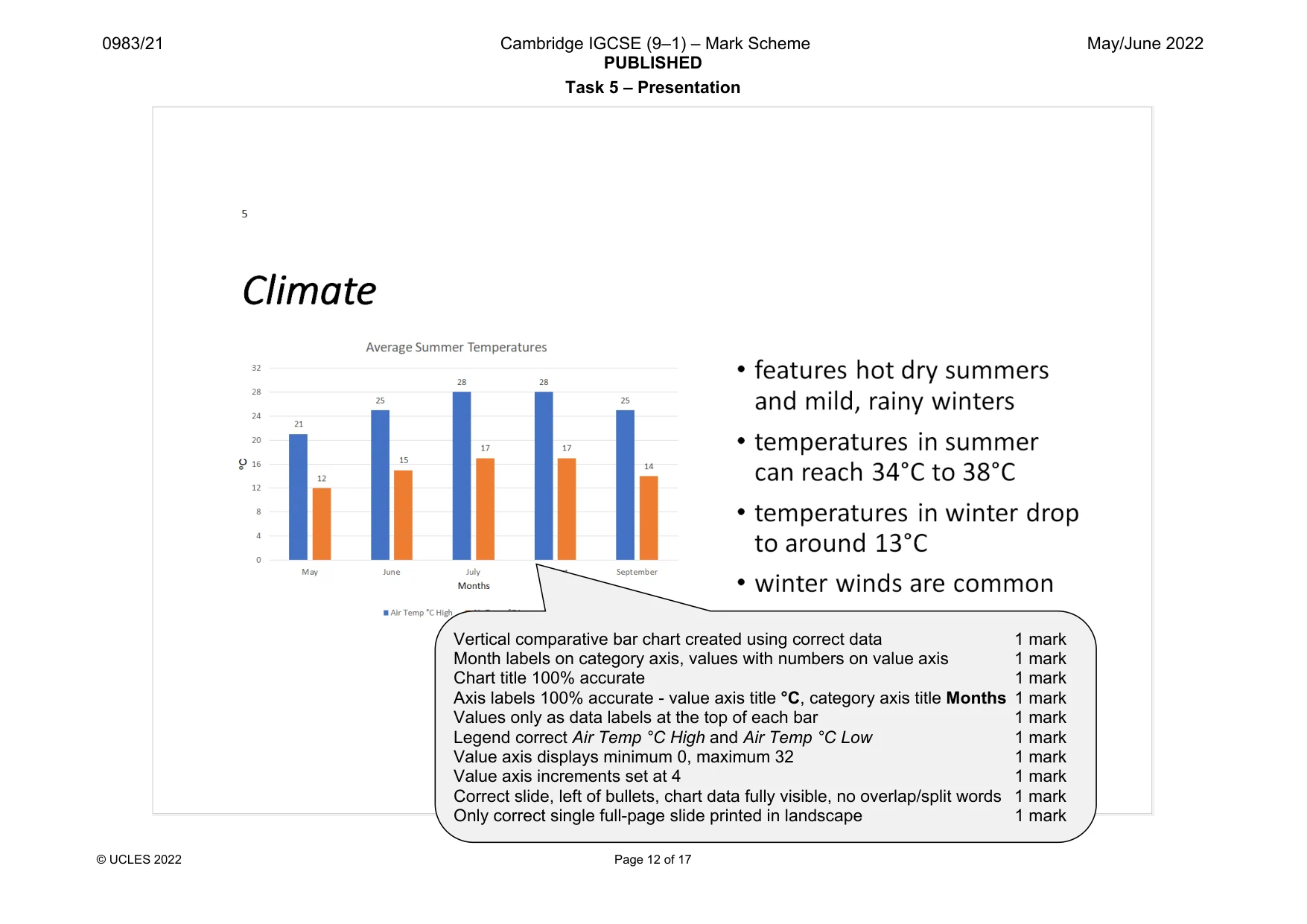

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 12 of 17 Task 5 – Presentation Vertical comparative bar chart created using correct data 1 mark Month labels on category axis, values with numbers on value axis 1 mark Chart title 100% accurate 1 mark Axis labels 100% accurate - value axis title °C, category axis title Months 1 mark Values only as data labels at the top of each bar 1 mark Legend correct Air Temp °C High and Air Temp °C Low 1 mark Value axis displays minimum 0, maximum 32 1 mark Value axis increments set at 4 1 mark Correct slide, left of bullets, chart data fully visible, no overlap/split words 1 mark Only correct single full-page slide printed in landscape 1 mark

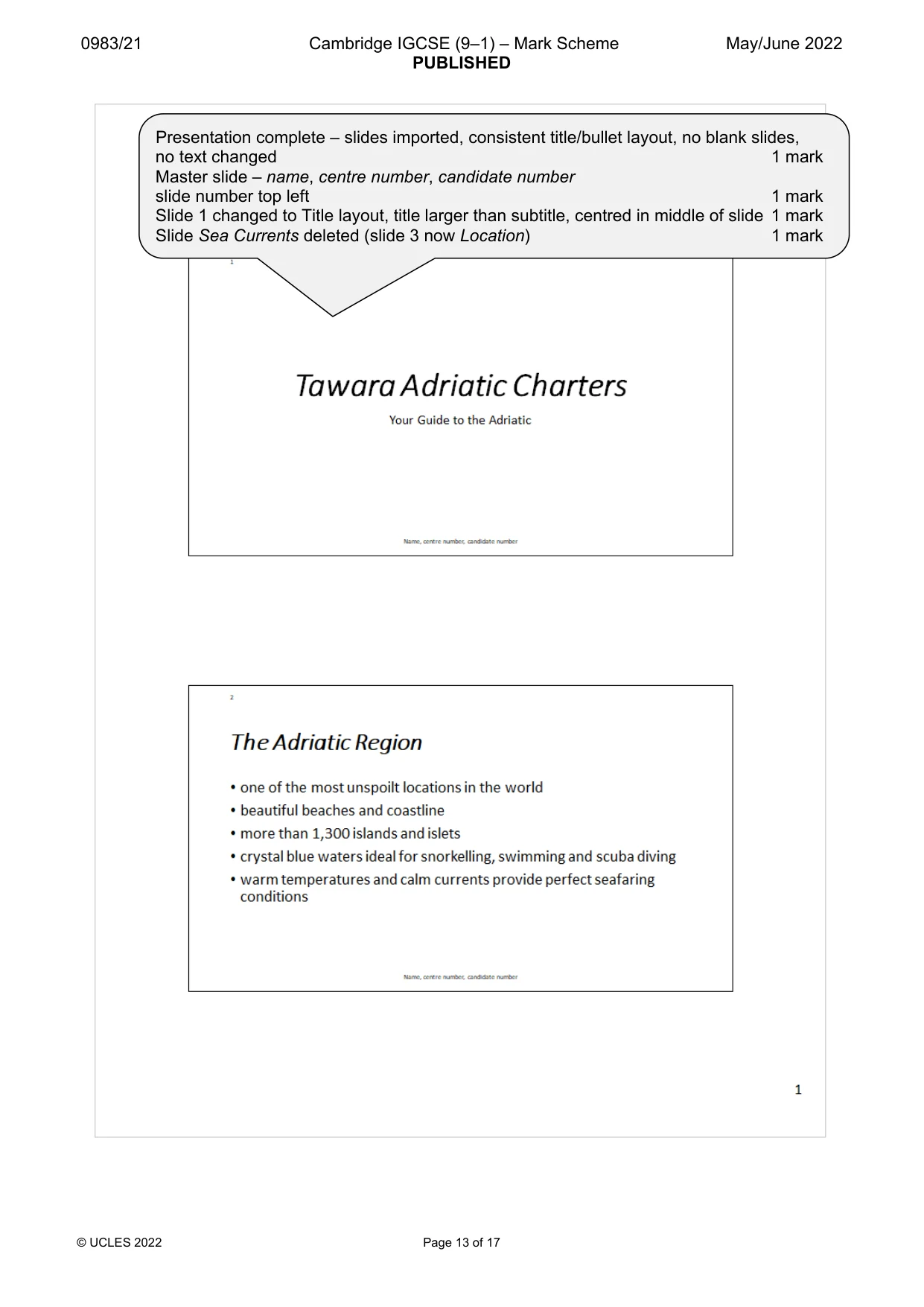

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 13 of 17 Presentation complete – slides imported, consistent title/bullet layout, no blank slides, no text changed 1 mark Master slide – name, centre number, candidate number slide number top left 1 mark Slide 1 changed to Title layout, title larger than subtitle, centred in middle of slide 1 mark Slide Sea Currents deleted (slide 3 now Location) 1 mark

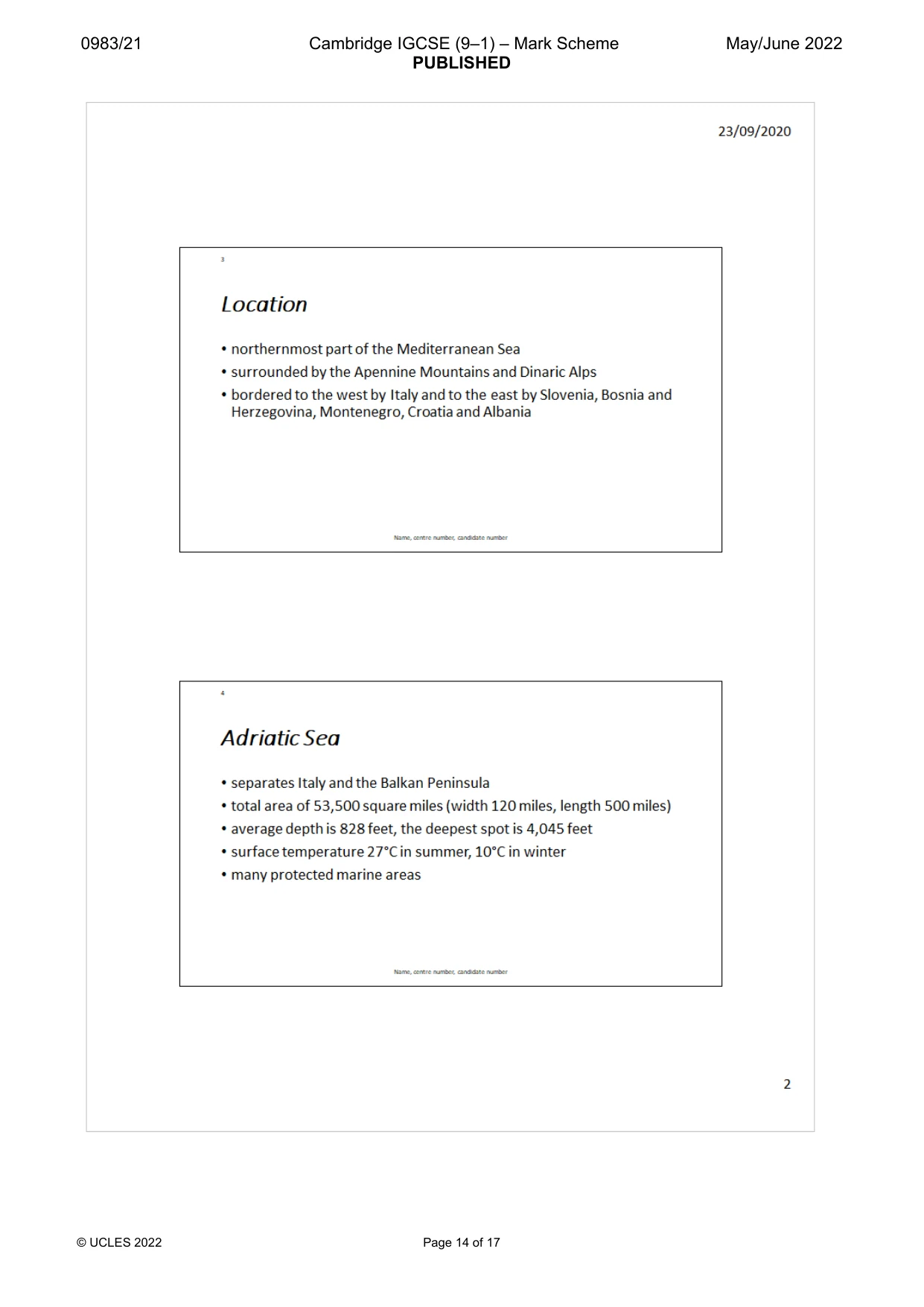

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 14 of 17

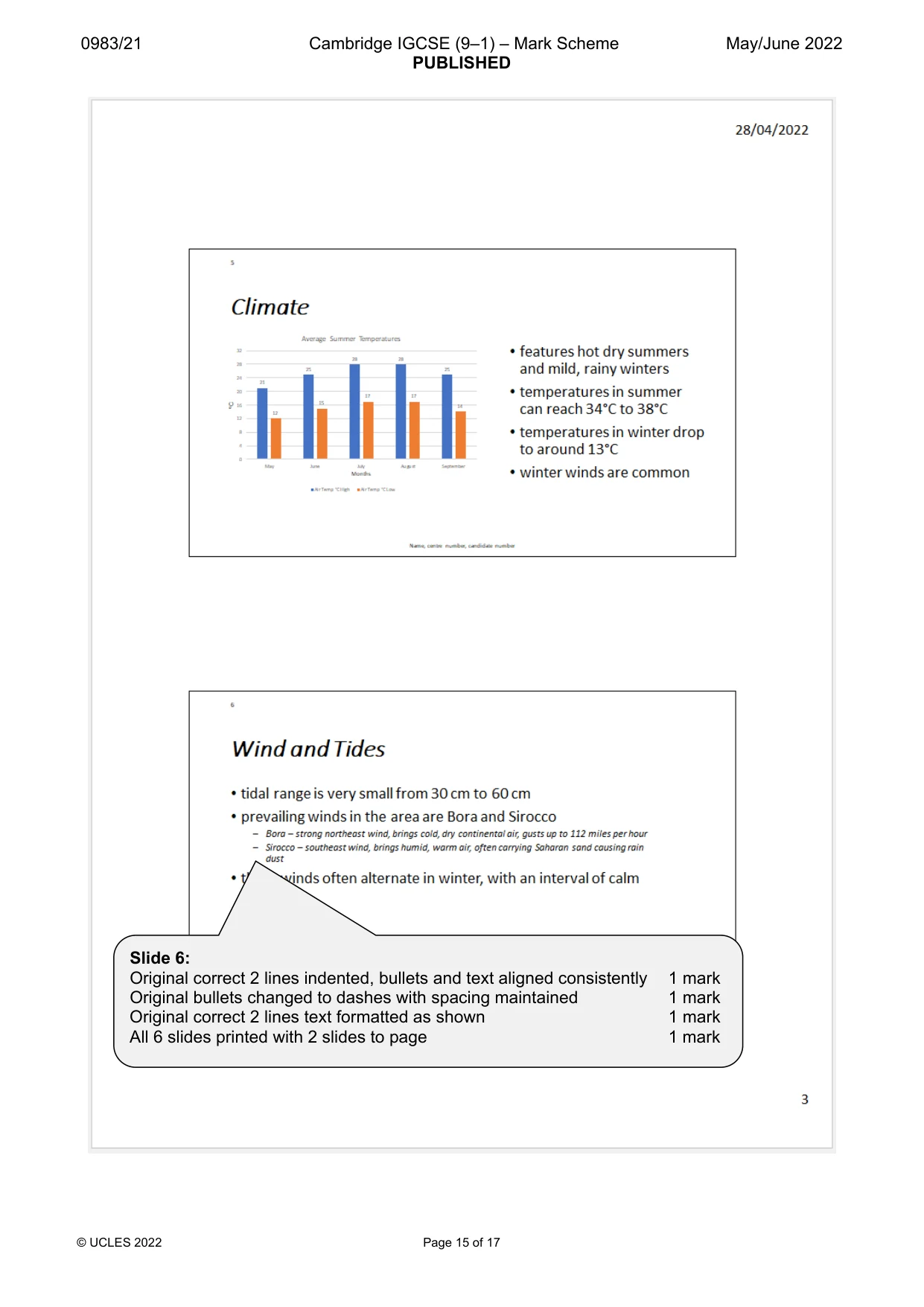

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 15 of 17 Slide 6: Original correct 2 lines indented, bullets and text aligned consistently 1 mark Original bullets changed to dashes with spacing maintained 1 mark Original correct 2 lines text formatted as shown 1 mark All 6 slides printed with 2 slides to page 1 mark

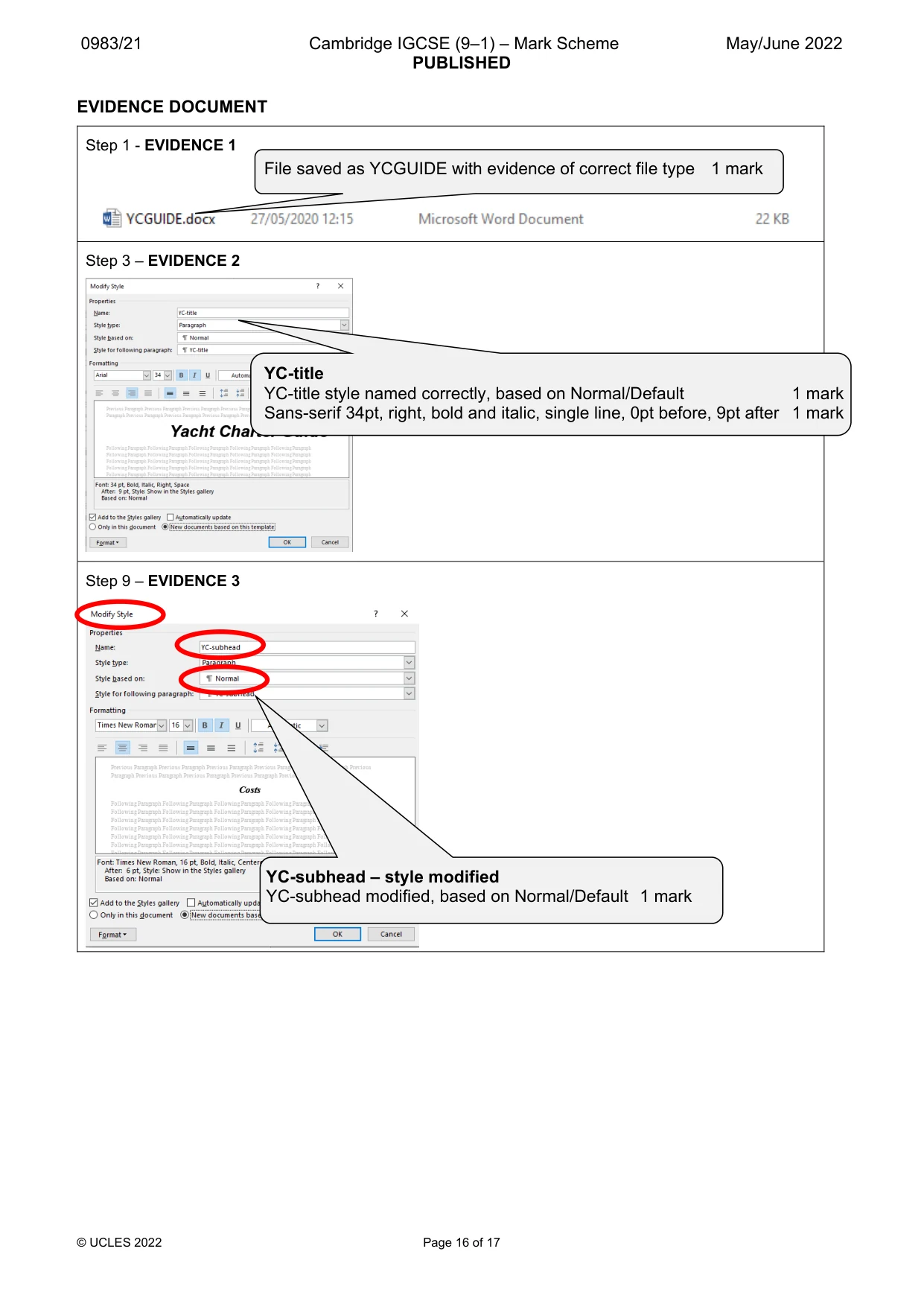

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 16 of 17 EVIDENCE DOCUMENT Step 1 - EVIDENCE 1 Step 3 – EVIDENCE 2 Step 9 – EVIDENCE 3 File saved as YCGUIDE with evidence of correct file type 1 mark YC-title YC-title style named correctly, based on Normal/Default 1 mark Sans-serif 34pt, right, bold and italic, single line, 0pt before, 9pt after 1 mark YC-subhead – style modified YC-subhead modified, based on Normal/Default 1 mark

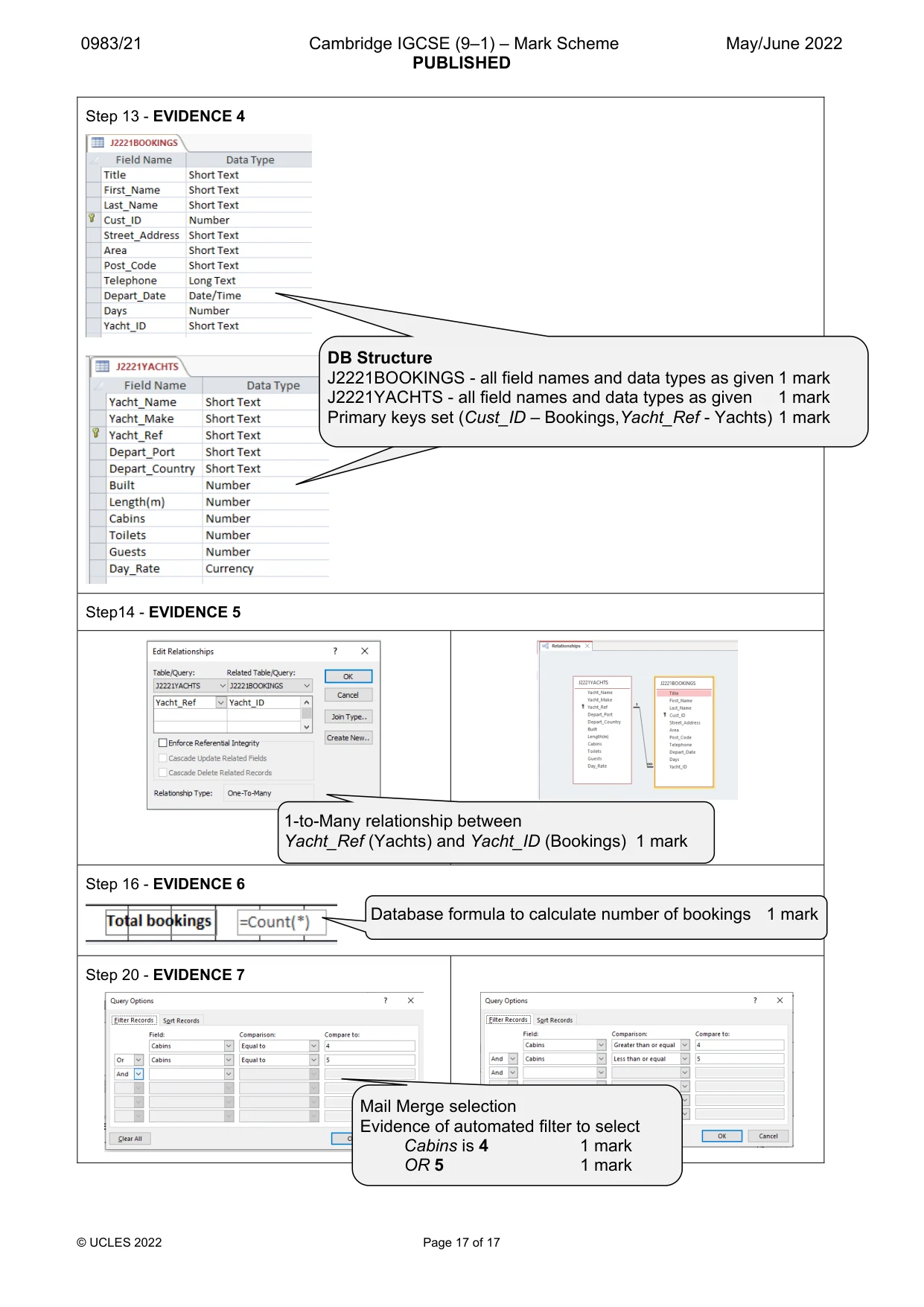

0983/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 17 of 17 Step 13 - EVIDENCE 4 Step14 - EVIDENCE 5 Step 16 - EVIDENCE 6 Step 20 - EVIDENCE 7 DB Structure J2221BOOKINGS - all field names and data types as given 1 mark J2221YACHTS - all field names and data types as given 1 mark Primary keys set (Cust_ID – Bookings,Yacht_Ref - Yachts) 1 mark Database formula to calculate number of bookings 1 mark Mail Merge selection Evidence of automated filter to select Cabins is 4 1 mark OR 5 1 mark 1-to-Many relationship between Yacht_Ref (Yachts) and Yacht_ID (Bookings) 1 mark
