Cambridge A Level Biology 9700 — 2016 Oct/Nov Paper 1 · Variant 1

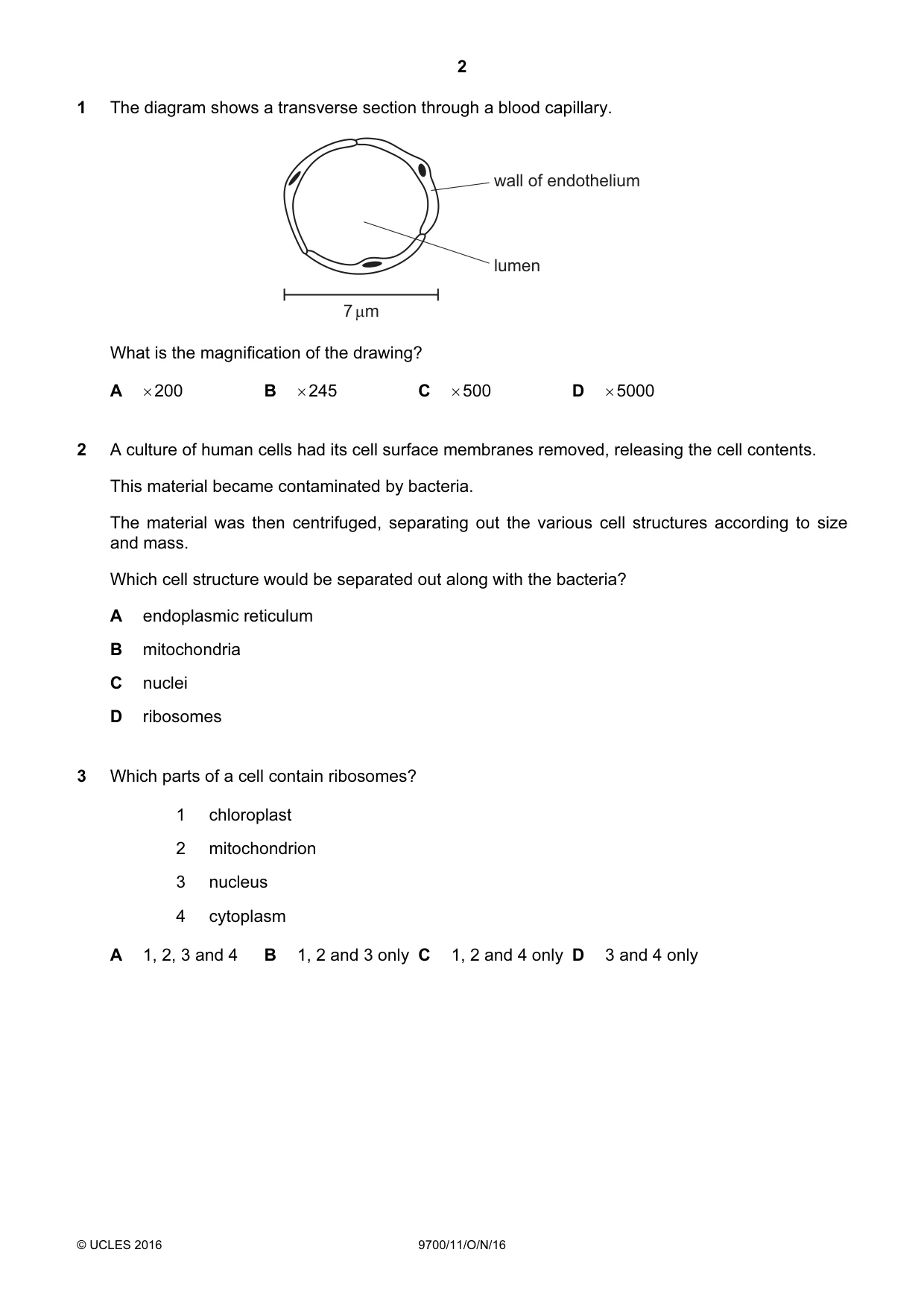

1 The diagram shows a transverse section through a blood capillary. wall of endothelium lumen 7 µm What is the magnification of the drawing? A × 200 B × 245 C × 500 D × 5000

Mark scheme: D

More questions on The microscope in cell studies

2 A culture of human cells had its cell surface membranes removed, releasing the cell contents. This material became contaminated by bacteria. The material was then centrifuged, separating out the various cell structures according to size and mass. Which cell structure would be separated out along with the bacteria? A endoplasmic reticulum B mitochondria C nuclei D ribosomes

Mark scheme: B

More questions on The microscope in cell studies

3 Which parts of a cell contain ribosomes? 1 chloroplast 2 mitochondrion 3 nucleus 4 cytoplasm A 1, 2, 3 and 4 B 1, 2 and 3 only C 1, 2 and 4 only D 3 and 4 only

Mark scheme: A

More questions on Cells as the basic units of living organisms

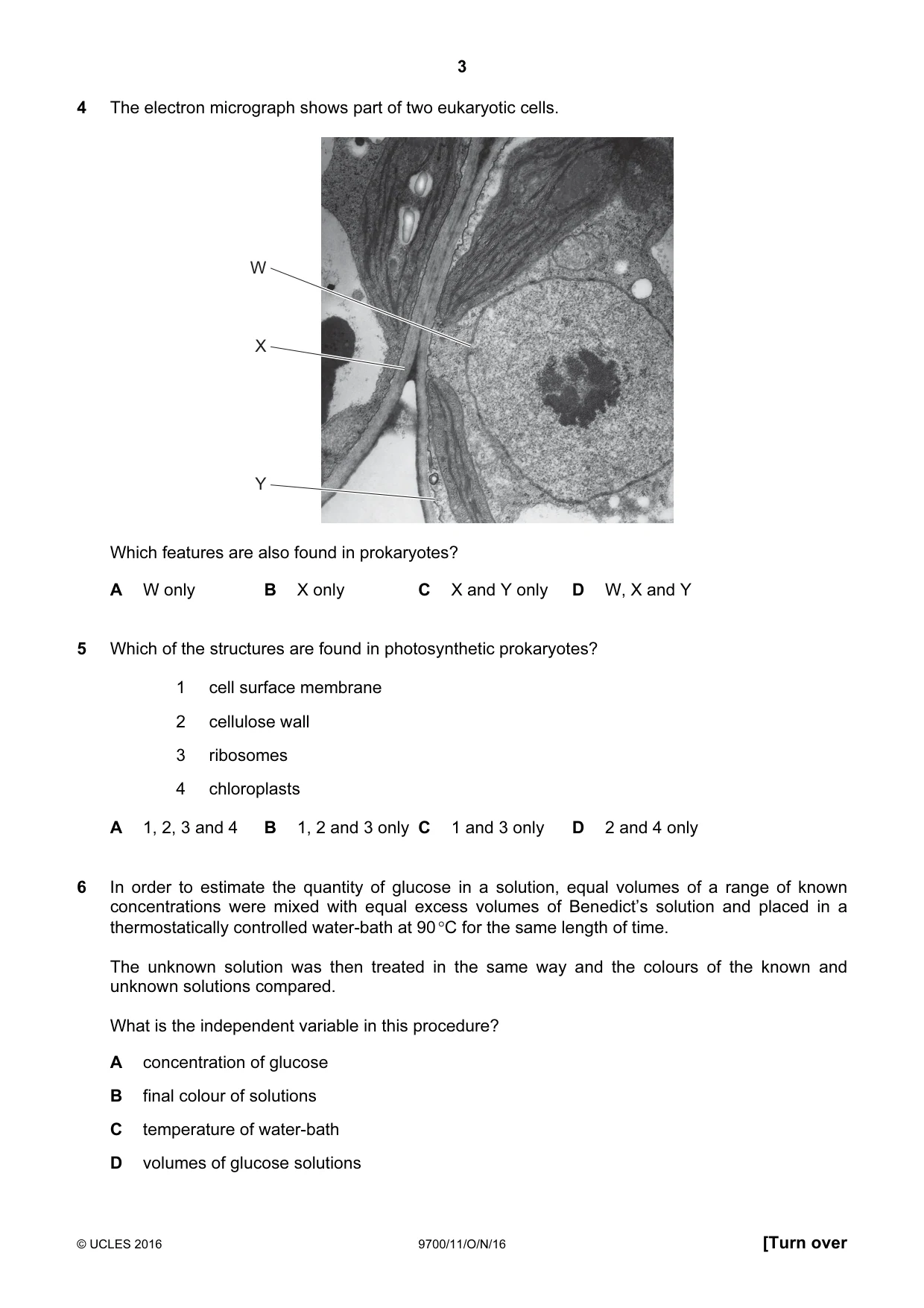

4 The electron micrograph shows part of two eukaryotic cells. W X Y Which features are also found in prokaryotes? A W only B X only C X and Y only D W, X and Y

Mark scheme: C

More questions on Cells as the basic units of living organisms

5 Which of the structures are found in photosynthetic prokaryotes? 1 cell surface membrane 2 cellulose wall 3 ribosomes 4 chloroplasts A 1, 2, 3 and 4 B 1, 2 and 3 only C 1 and 3 only D 2 and 4 only

Mark scheme: C

More questions on Cells as the basic units of living organisms

6 In order to estimate the quantity of glucose in a solution, equal volumes of a range of known concentrations were mixed with equal excess volumes of Benedict’s solution and placed in a thermostatically controlled water-bath at 90 °C for the same length of time. The unknown solution was then treated in the same way and the colours of the known and unknown solutions compared. What is the independent variable in this procedure? A concentration of glucose B final colour of solutions C temperature of water-bath D volumes of glucose solutions

Mark scheme: A

More questions on Testing for biological molecules

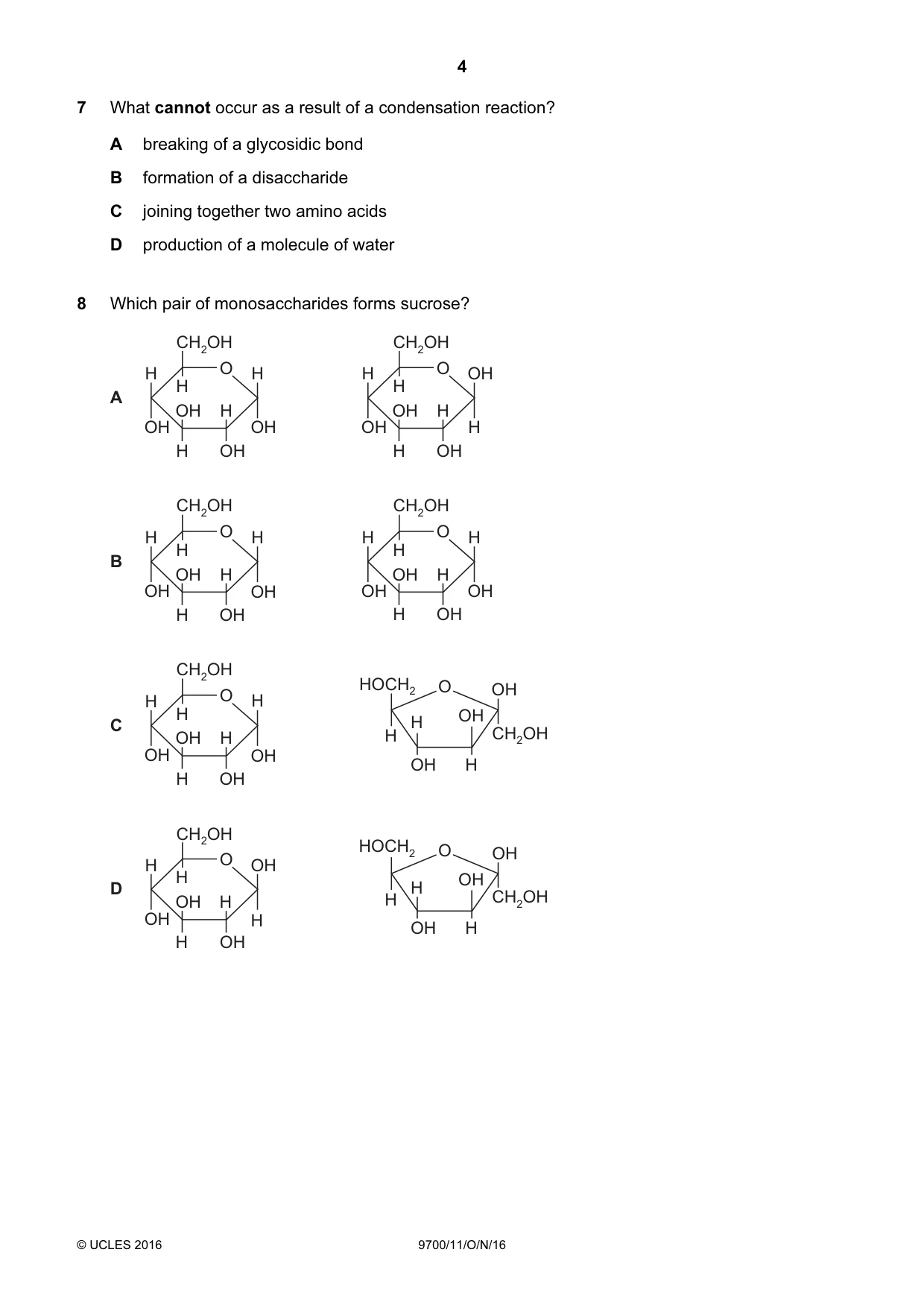

7 What cannot occur as a result of a condensation reaction? A breaking of a glycosidic bond B formation of a disaccharide C joining together two amino acids D production of a molecule of water

Mark scheme: A

More questions on Carbohydrates and lipids

8 Which pair of monosaccharides forms sucrose? CH2OH CH2OH H O H H O OH H H A OH H OH H OH OH OH H H OH H OH CH2OH CH2OH H O H H O H H H B OH H OH H OH OH OH OH H OH H OH CH2OH HOCH2 O OH H O H H OH C H OH H H CH2OH OH OH OH H H OH CH2OH HOCH2 O OH H O OH H OH D H OH H H CH2OH OH H OH H H OH

Mark scheme: C

More questions on Carbohydrates and lipids

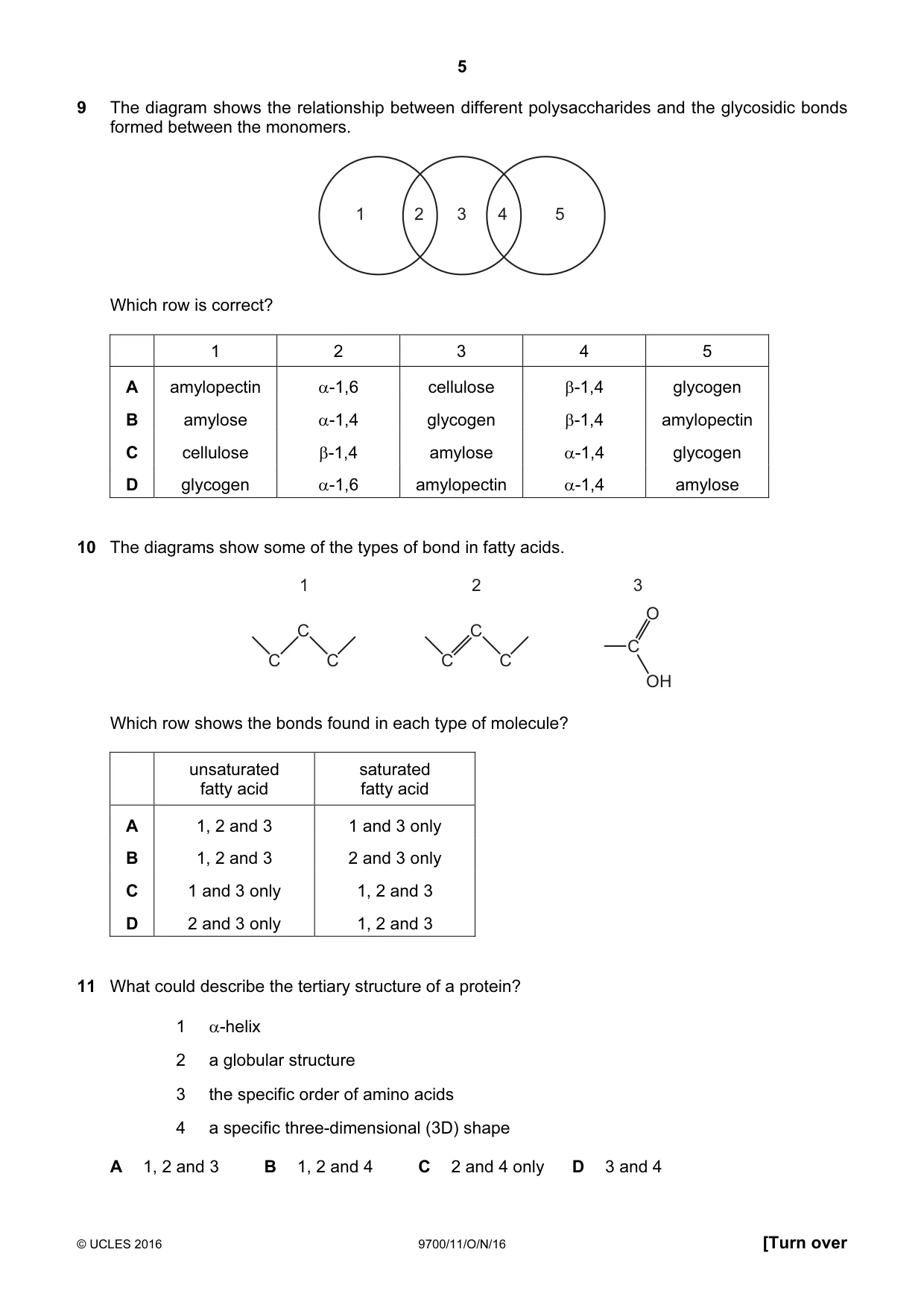

9 The diagram shows the relationship between different polysaccharides and the glycosidic bonds formed between the monomers. 1 2 3 4 5 Which row is correct? 1 2 3 4 5 A amylopectin α-1,6 cellulose β-1,4 glycogen B amylose α-1,4 glycogen β-1,4 amylopectin C cellulose β-1,4 amylose α-1,4 glycogen D glycogen α-1,6 amylopectin α-1,4 amylose

Mark scheme: D

More questions on Carbohydrates and lipids

10 The diagrams show some of the types of bond in fatty acids. 1 2 3 O C C C C C C C OH Which row shows the bonds found in each type of molecule? unsaturated saturated fatty acid fatty acid A 1, 2 and 3 1 and 3 only B 1, 2 and 3 2 and 3 only C 1 and 3 only 1, 2 and 3 D 2 and 3 only 1, 2 and 3

Mark scheme: A

More questions on Carbohydrates and lipids

11 What could describe the tertiary structure of a protein? 1 α-helix 2 a globular structure 3 the specific order of amino acids 4 a specific three-dimensional (3D) shape A 1, 2 and 3 B 1, 2 and 4 C 2 and 4 only D 3 and 4

Mark scheme: C

More questions on Proteins

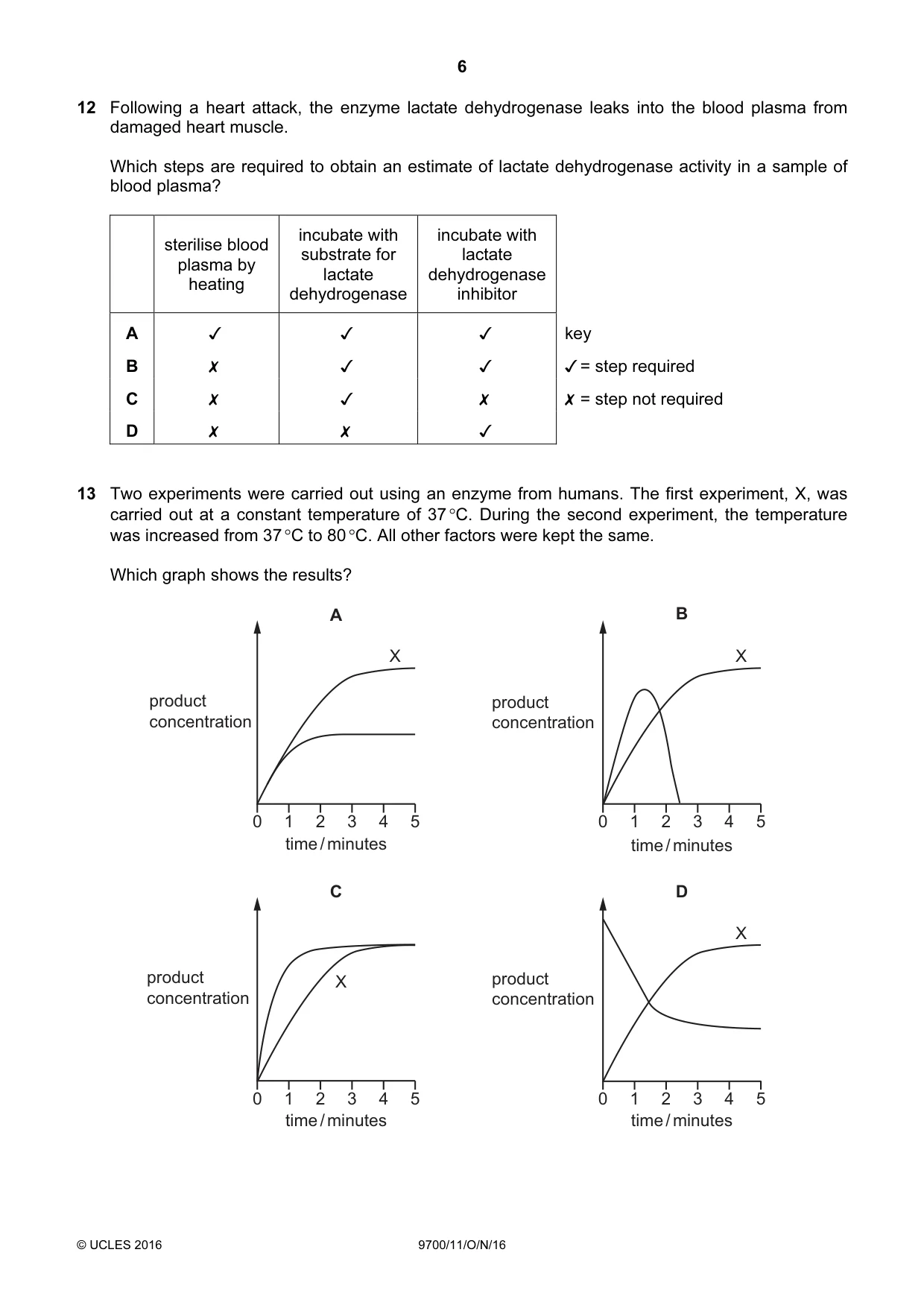

12 Following a heart attack, the enzyme lactate dehydrogenase leaks into the blood plasma from damaged heart muscle. Which steps are required to obtain an estimate of lactate dehydrogenase activity in a sample of blood plasma? sterilise blood incubate with substrate for incubate with lactate Proating lactate dehydrogenase dehydrogenase inhibitor A JV 4 V B x 4 V Cc x 4 x D x x V key /¥ = step required X = step not required

Mark scheme: C

More questions on Factors that affect enzyme action

13 Two experiments were carried out using an enzyme from humans. The first experiment, X, was carried out at a constant temperature of 37 °C. During the second experiment, the temperature was increased from 37 °C to 80 °C. All other factors were kept the same. Which graph shows the results? A B X X product product concentration concentration 0 1 2 3 4 5 0 1 2 3 4 5 time / minutes time / minutes C D X product X product concentration concentration 0 1 2 3 4 5 0 1 2 3 4 5 time / minutes time / minutes

Mark scheme: A

More questions on Factors that affect enzyme action

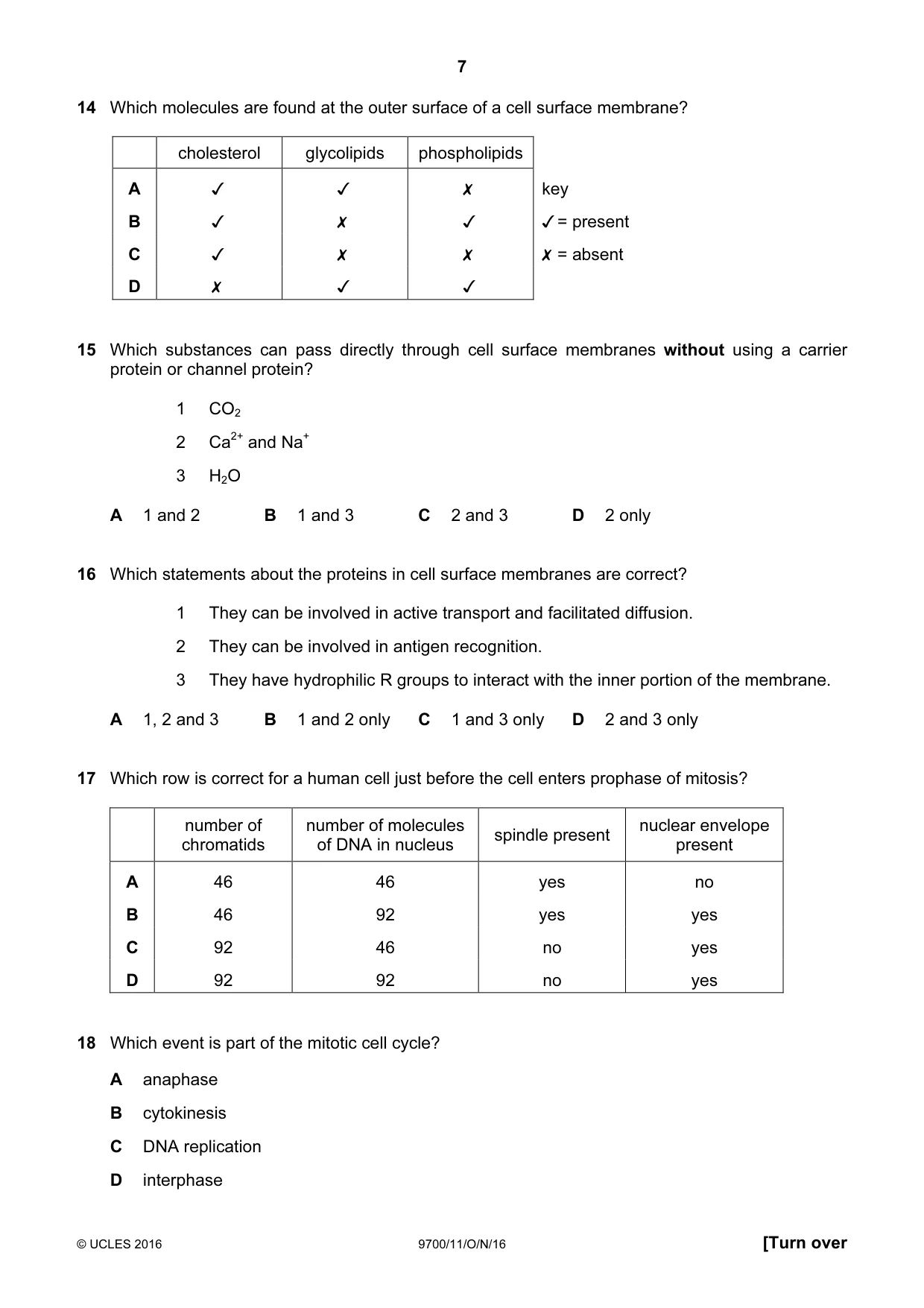

14 Which molecules are found at the outer surface of a cell surface membrane? cholesterol glycolipids phospholipids A v v Xx key B J/ = present Cc X = absent D ~ KOK \ x x Ko 4

Mark scheme: D

More questions on Fluid mosaic membranes

15 Which substances can pass directly through cell surface membranes without using a carrier protein or channel protein? 1 CO2 2 Ca2+ and Na+ 3 H2O A 1 and 2 B 1 and 3 C 2 and 3 D 2 only

Mark scheme: B

More questions on Movement into and out of cells

16 Which statements about the proteins in cell surface membranes are correct? 1 They can be involved in active transport and facilitated diffusion. 2 They can be involved in antigen recognition. 3 They have hydrophilic R groups to interact with the inner portion of the membrane. A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

Mark scheme: B

More questions on Fluid mosaic membranes

17 Which row is correct for a human cell just before the cell enters prophase of mitosis? number of number of molecules nuclear envelope spindle present chromatids of DNA in nucleus present A 46 46 yes no B 46 92 yes yes C 92 46 no yes D 92 92 no yes

Mark scheme: D

More questions on Chromosome behaviour in mitosis

18 Which event is part of the mitotic cell cycle? A anaphase B cytokinesis C DNA replication D interphase

Mark scheme: A

More questions on Replication and division of nuclei and cells

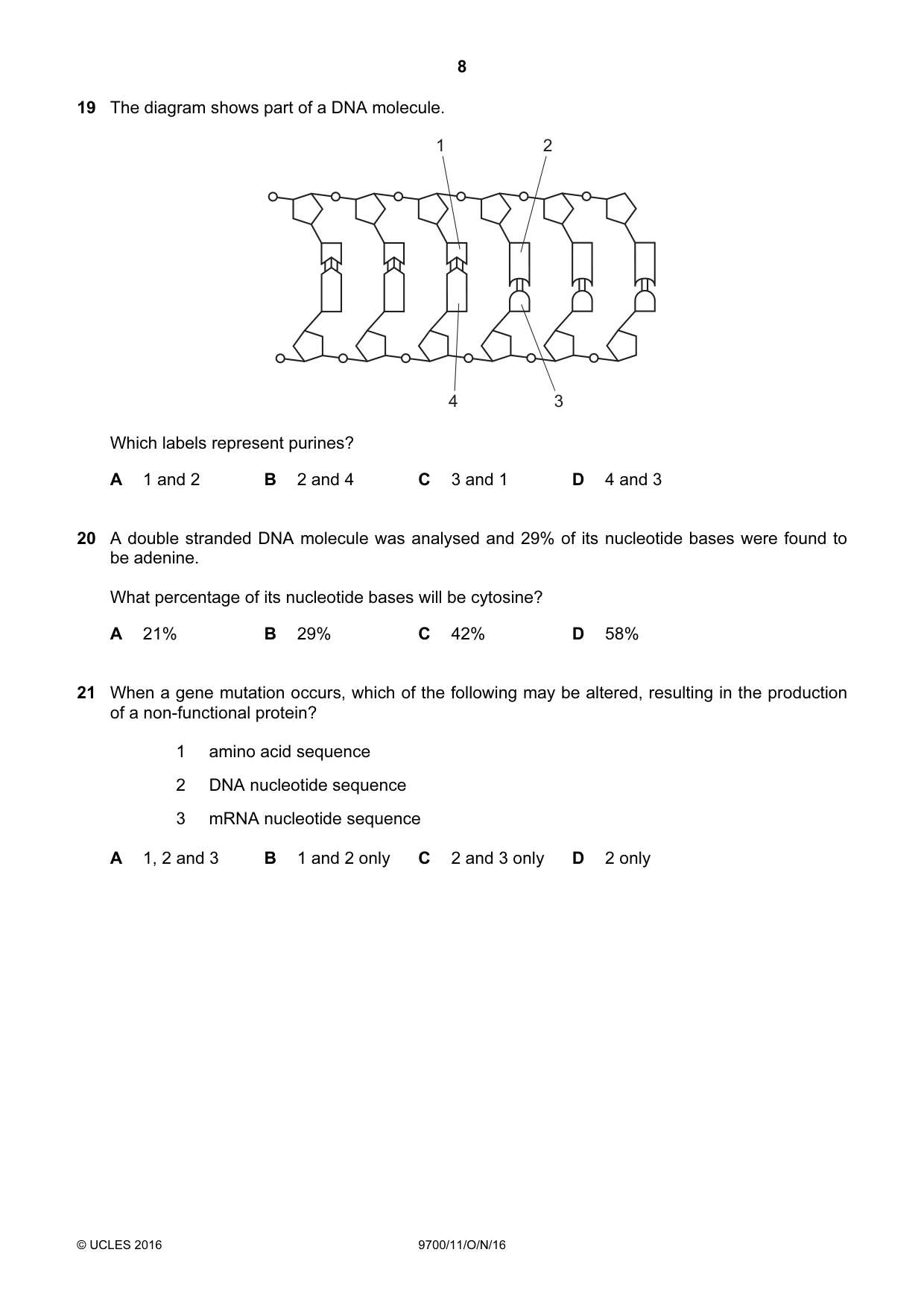

19 The diagram shows part of a DNA molecule. 1 2 4 3 Which labels represent purines? A 1 and 2 B 2 and 4 C 3 and 1 D 4 and 3

Mark scheme: B

More questions on Structure of nucleic acids and replication of DNA

20 A double stranded DNA molecule was analysed and 29% of its nucleotide bases were found to be adenine. What percentage of its nucleotide bases will be cytosine? A 21% B 29% C 42% D 58%

Mark scheme: A

More questions on Structure of nucleic acids and replication of DNA

21 When a gene mutation occurs, which of the following may be altered, resulting in the production of a non-functional protein? 1 amino acid sequence 2 DNA nucleotide sequence 3 mRNA nucleotide sequence A 1, 2 and 3 B 1 and 2 only C 2 and 3 only D 2 only

Mark scheme: A

More questions on Protein synthesis

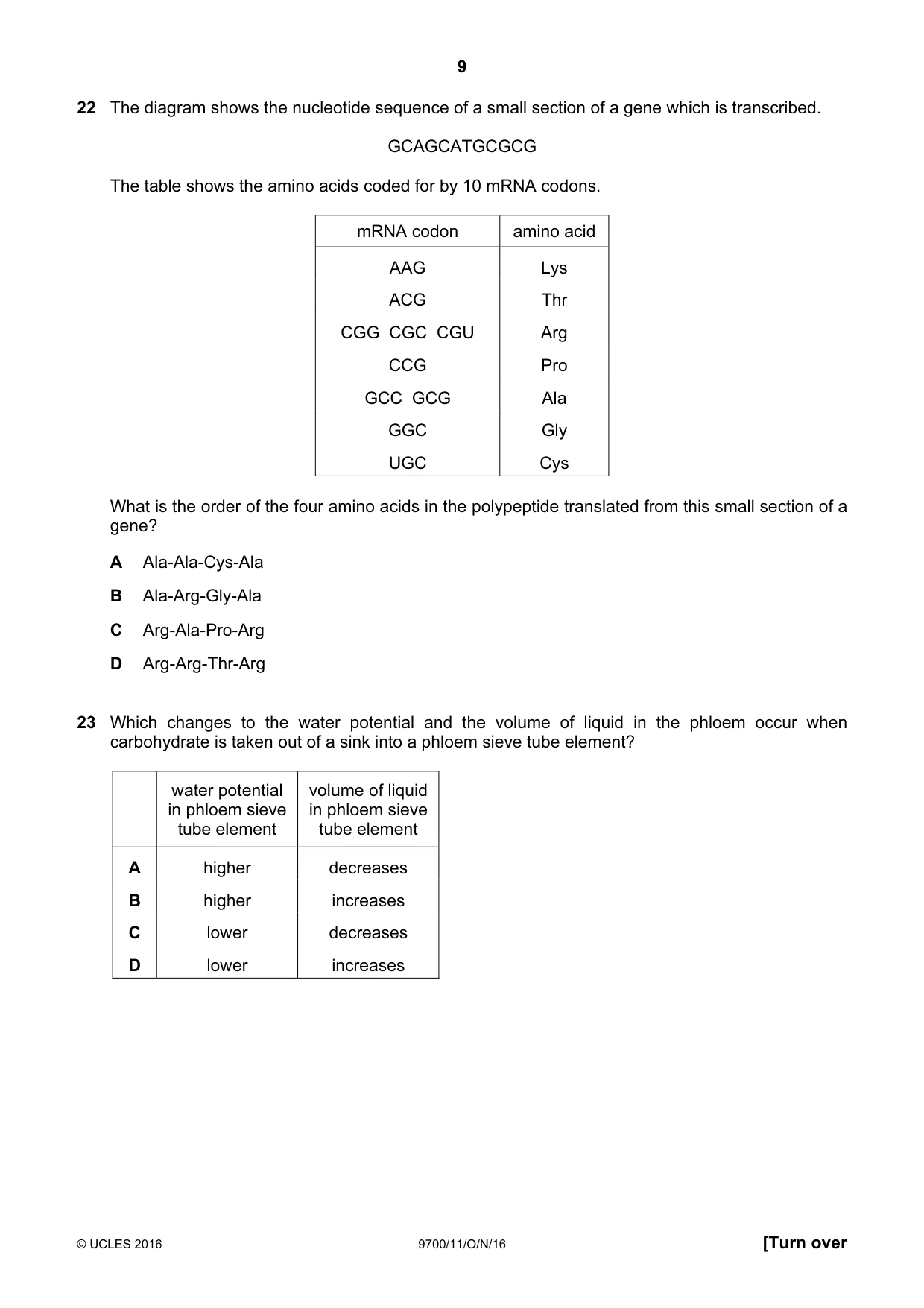

22 The diagram shows the nucleotide sequence of a small section of a gene which is transcribed. GCAGCATGCGCG The table shows the amino acids coded for by 10 mRNA codons. mRNA codon amino acid AAG Lys ACG Thr CGG CGC CGU Arg CCG Pro GCC GCG Ala GGC Gly UGC Cys What is the order of the four amino acids in the polypeptide translated from this small section of a gene? A Ala-Ala-Cys-Ala B Ala-Arg-Gly-Ala C Arg-Ala-Pro-Arg D Arg-Arg-Thr-Arg

Mark scheme: D

More questions on Protein synthesis

23 Which changes to the water potential and the volume of liquid in the phloem occur when carbohydrate is taken out of a sink into a phloem sieve tube element? water potential volume of liquid in phloem sieve in phloem sieve tube element tube element A higher decreases B higher increases C lower decreases D lower increases

Mark scheme: D

More questions on Transport mechanisms

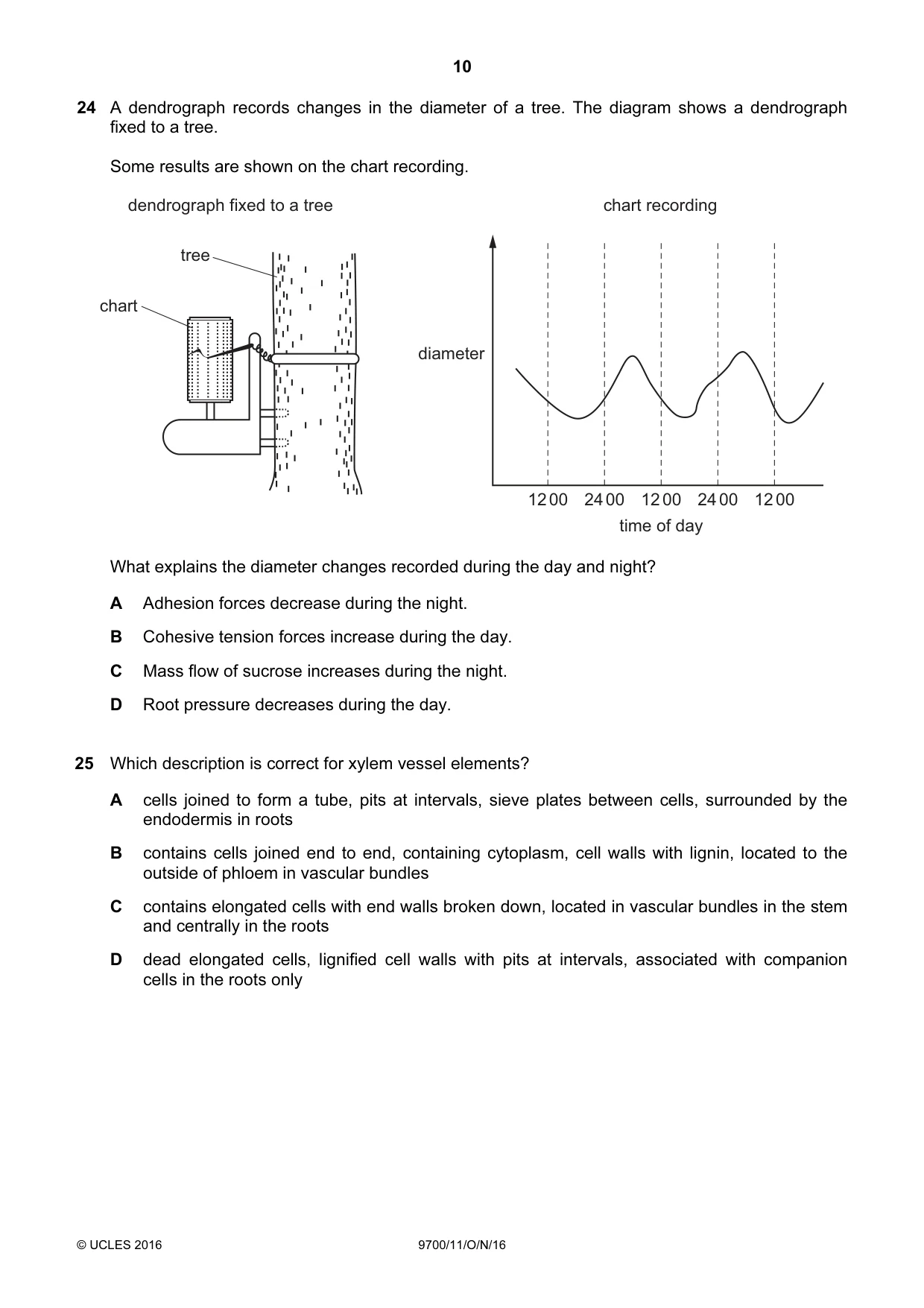

24 A dendrograph records changes in the diameter of a tree. The diagram shows a dendrograph fixed to a tree. Some results are shown on the chart recording. dendrograph fixed to a tree chart recording tree chart diameter 12 00 24 00 12 00 24 00 12 00 time of day What explains the diameter changes recorded during the day and night? A Adhesion forces decrease during the night. B Cohesive tension forces increase during the day. C Mass flow of sucrose increases during the night. D Root pressure decreases during the day.

Mark scheme: B

More questions on Transport mechanisms

25 Which description is correct for xylem vessel elements? A cells joined to form a tube, pits at intervals, sieve plates between cells, surrounded by the endodermis in roots B contains cells joined end to end, containing cytoplasm, cell walls with lignin, located to the outside of phloem in vascular bundles C contains elongated cells with end walls broken down, located in vascular bundles in the stem and centrally in the roots D dead elongated cells, lignified cell walls with pits at intervals, associated with companion cells in the roots only

Mark scheme: C

More questions on Structure of transport tissues

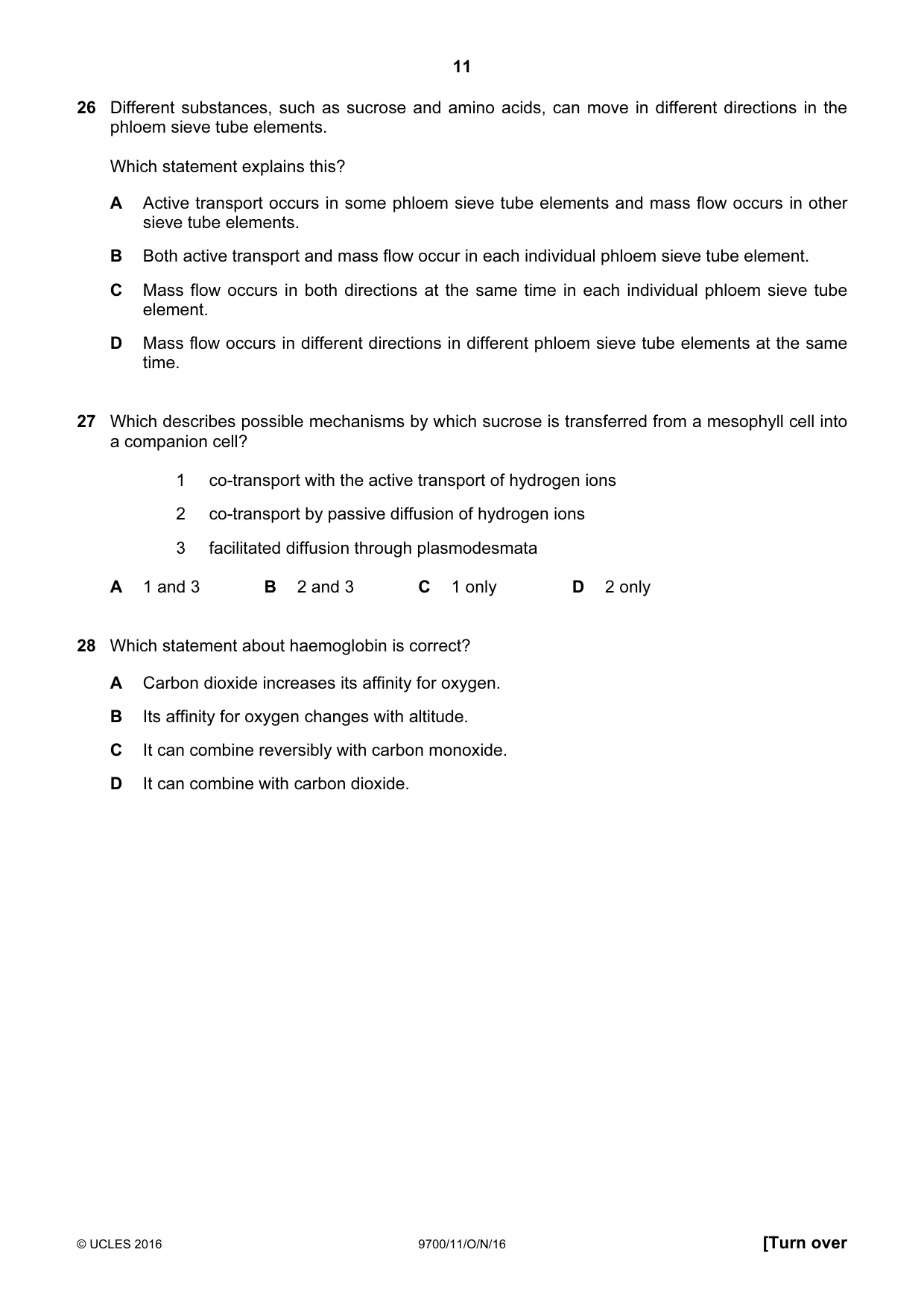

26 Different substances, such as sucrose and amino acids, can move in different directions in the phloem sieve tube elements. Which statement explains this? A Active transport occurs in some phloem sieve tube elements and mass flow occurs in other sieve tube elements. B Both active transport and mass flow occur in each individual phloem sieve tube element. C Mass flow occurs in both directions at the same time in each individual phloem sieve tube element. D Mass flow occurs in different directions in different phloem sieve tube elements at the same time.

Mark scheme: D

More questions on Transport mechanisms

27 Which describes possible mechanisms by which sucrose is transferred from a mesophyll cell into a companion cell? 1 co-transport with the active transport of hydrogen ions 2 co-transport by passive diffusion of hydrogen ions 3 facilitated diffusion through plasmodesmata A 1 and 3 B 2 and 3 C 1 only D 2 only

Mark scheme: D

More questions on Transport mechanisms

28 Which statement about haemoglobin is correct? A Carbon dioxide increases its affinity for oxygen. B Its affinity for oxygen changes with altitude. C It can combine reversibly with carbon monoxide. D It can combine with carbon dioxide.

Mark scheme: D

More questions on Transport of oxygen and carbon dioxide

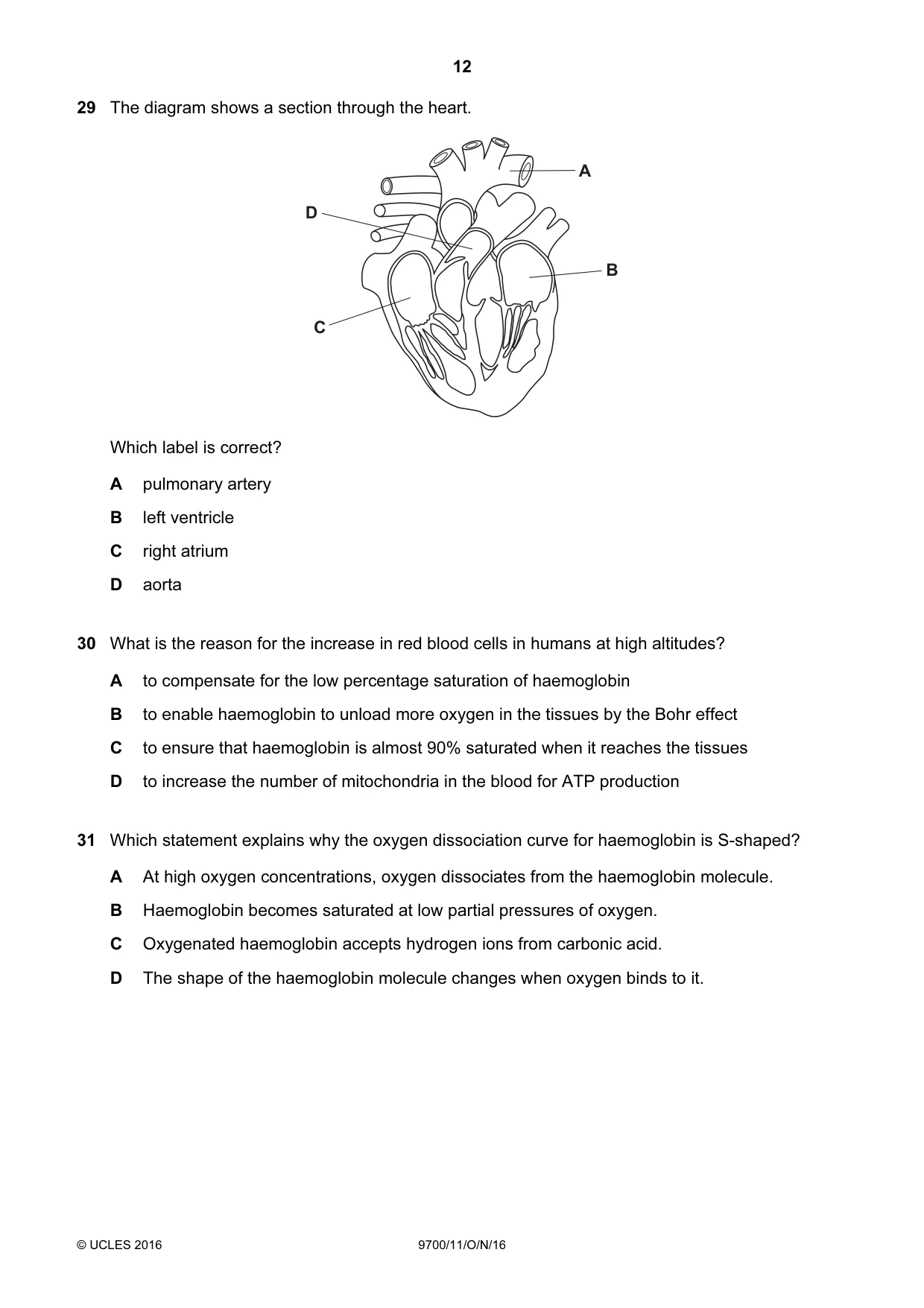

29 The diagram shows a section through the heart. A D B C Which label is correct? A pulmonary artery B left ventricle C right atrium D aorta

Mark scheme: C

More questions on The heart

30 What is the reason for the increase in red blood cells in humans at high altitudes? A to compensate for the low percentage saturation of haemoglobin B to enable haemoglobin to unload more oxygen in the tissues by the Bohr effect C to ensure that haemoglobin is almost 90% saturated when it reaches the tissues D to increase the number of mitochondria in the blood for ATP production

Mark scheme: A

More questions on Transport of oxygen and carbon dioxide

31 Which statement explains why the oxygen dissociation curve for haemoglobin is S-shaped? A At high oxygen concentrations, oxygen dissociates from the haemoglobin molecule. B Haemoglobin becomes saturated at low partial pressures of oxygen. C Oxygenated haemoglobin accepts hydrogen ions from carbonic acid. D The shape of the haemoglobin molecule changes when oxygen binds to it.

Mark scheme: D

More questions on Transport of oxygen and carbon dioxide

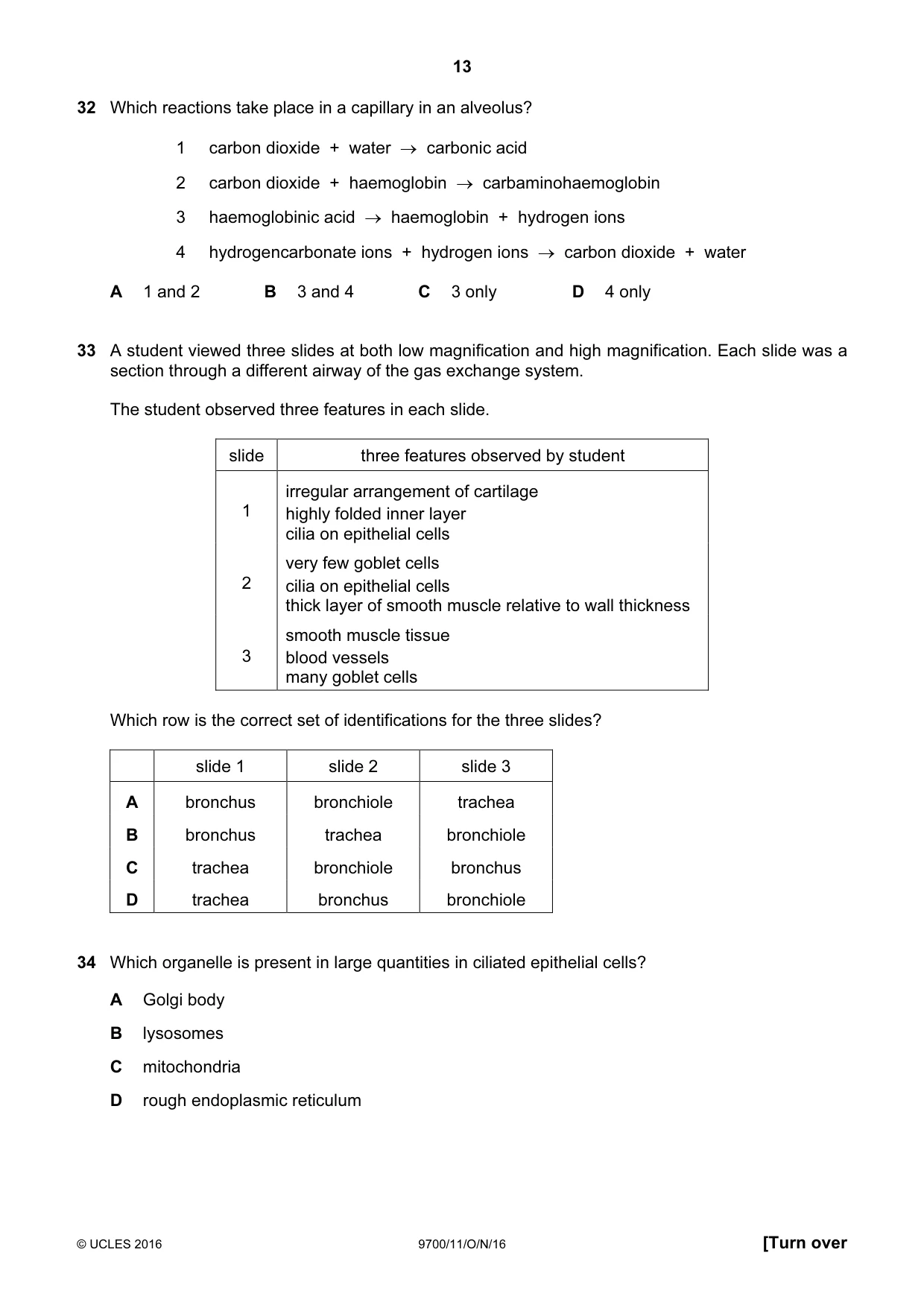

32 Which reactions take place in a capillary in an alveolus? 1 carbon dioxide + water → carbonic acid 2 carbon dioxide + haemoglobin → carbaminohaemoglobin 3 haemoglobinic acid → haemoglobin + hydrogen ions 4 hydrogencarbonate ions + hydrogen ions → carbon dioxide + water A 1 and 2 B 3 and 4 C 3 only D 4 only

Mark scheme: B

More questions on Transport of oxygen and carbon dioxide

33 A student viewed three slides at both low magnification and high magnification. Each slide was a section through a different airway of the gas exchange system. The student observed three features in each slide. slide three features observed by student irregular arrangement of cartilage 1 highly folded inner layer cilia on epithelial cells very few goblet cells 2 cilia on epithelial cells thick layer of smooth muscle relative to wall thickness smooth muscle tissue 3 blood vessels many goblet cells Which row is the correct set of identifications for the three slides? slide 1 slide 2 slide 3 A bronchus bronchiole trachea B bronchus trachea bronchiole C trachea bronchiole bronchus D trachea bronchus bronchiole

Mark scheme: A

More questions on The gas exchange system

34 Which organelle is present in large quantities in ciliated epithelial cells? A Golgi body B lysosomes C mitochondria D rough endoplasmic reticulum

Mark scheme: C

More questions on The gas exchange system

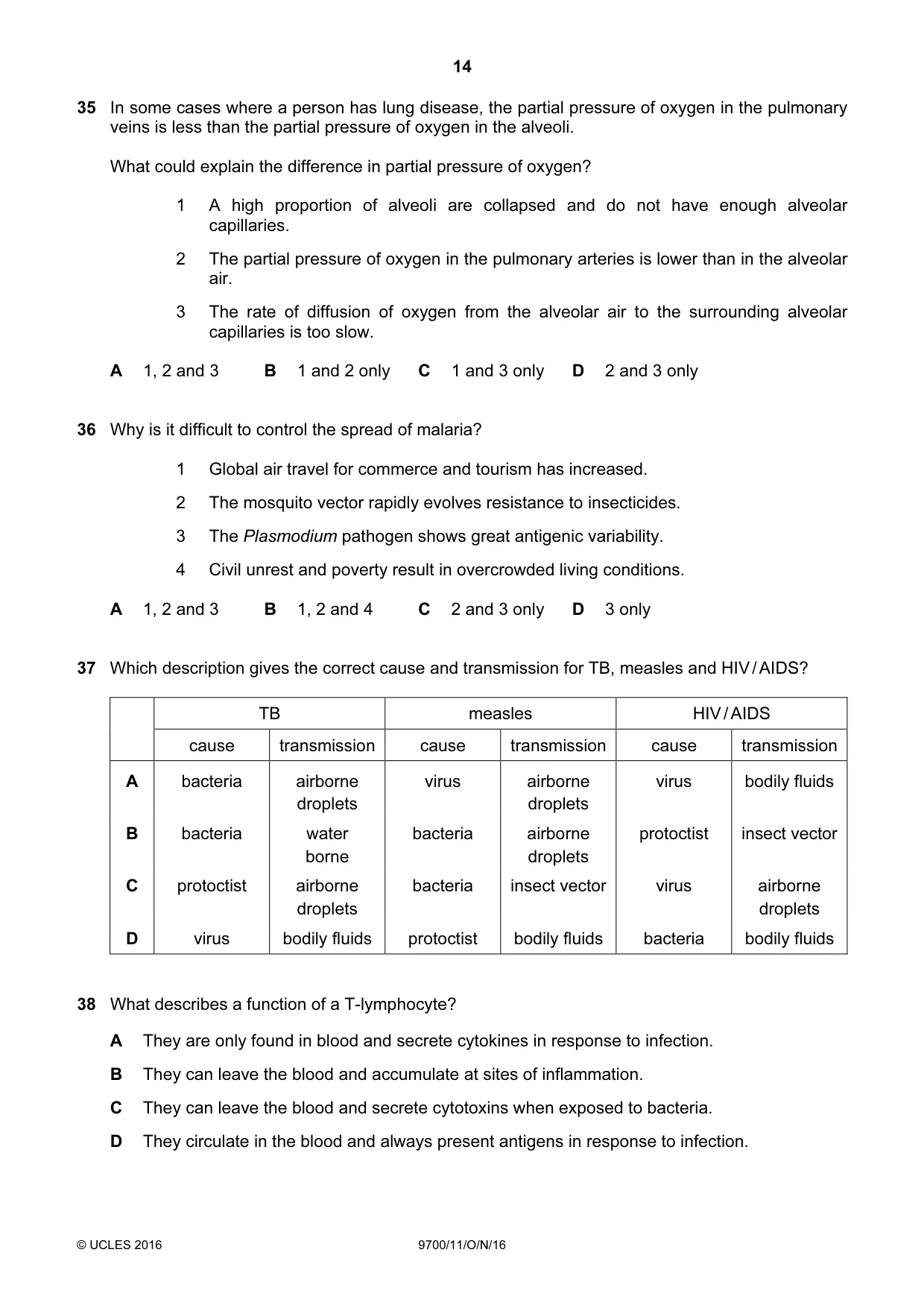

35 In some cases where a person has lung disease, the partial pressure of oxygen in the pulmonary veins is less than the partial pressure of oxygen in the alveoli. What could explain the difference in partial pressure of oxygen? 1 A high proportion of alveoli are collapsed and do not have enough alveolar capillaries. 2 The partial pressure of oxygen in the pulmonary arteries is lower than in the alveolar air. 3 The rate of diffusion of oxygen from the alveolar air to the surrounding alveolar capillaries is too slow. A 1, 2 and 3 B 1 and 2 only C 1 and 3 only D 2 and 3 only

Mark scheme: C

More questions on The gas exchange system

36 Why is it difficult to control the spread of malaria? 1 Global air travel for commerce and tourism has increased. 2 The mosquito vector rapidly evolves resistance to insecticides. 3 The Plasmodium pathogen shows great antigenic variability. 4 Civil unrest and poverty result in overcrowded living conditions. A 1, 2 and 3 B 1, 2 and 4 C 2 and 3 only D 3 only

Mark scheme: C

More questions on Infectious diseases

37 Which description gives the correct cause and transmission for TB, measles and HIV / AIDS? TB measles HIV / AIDS cause transmission cause transmission cause transmission A bacteria airborne virus airborne virus bodily fluids droplets droplets B bacteria water bacteria airborne protoctist insect vector borne droplets C protoctist airborne bacteria insect vector virus airborne droplets droplets D virus bodily fluids protoctist bodily fluids bacteria bodily fluids

Mark scheme: A

More questions on Infectious diseases

38 What describes a function of a T-lymphocyte? A They are only found in blood and secrete cytokines in response to infection. B They can leave the blood and accumulate at sites of inflammation. C They can leave the blood and secrete cytotoxins when exposed to bacteria. D They circulate in the blood and always present antigens in response to infection.

Mark scheme: B

More questions on The immune system

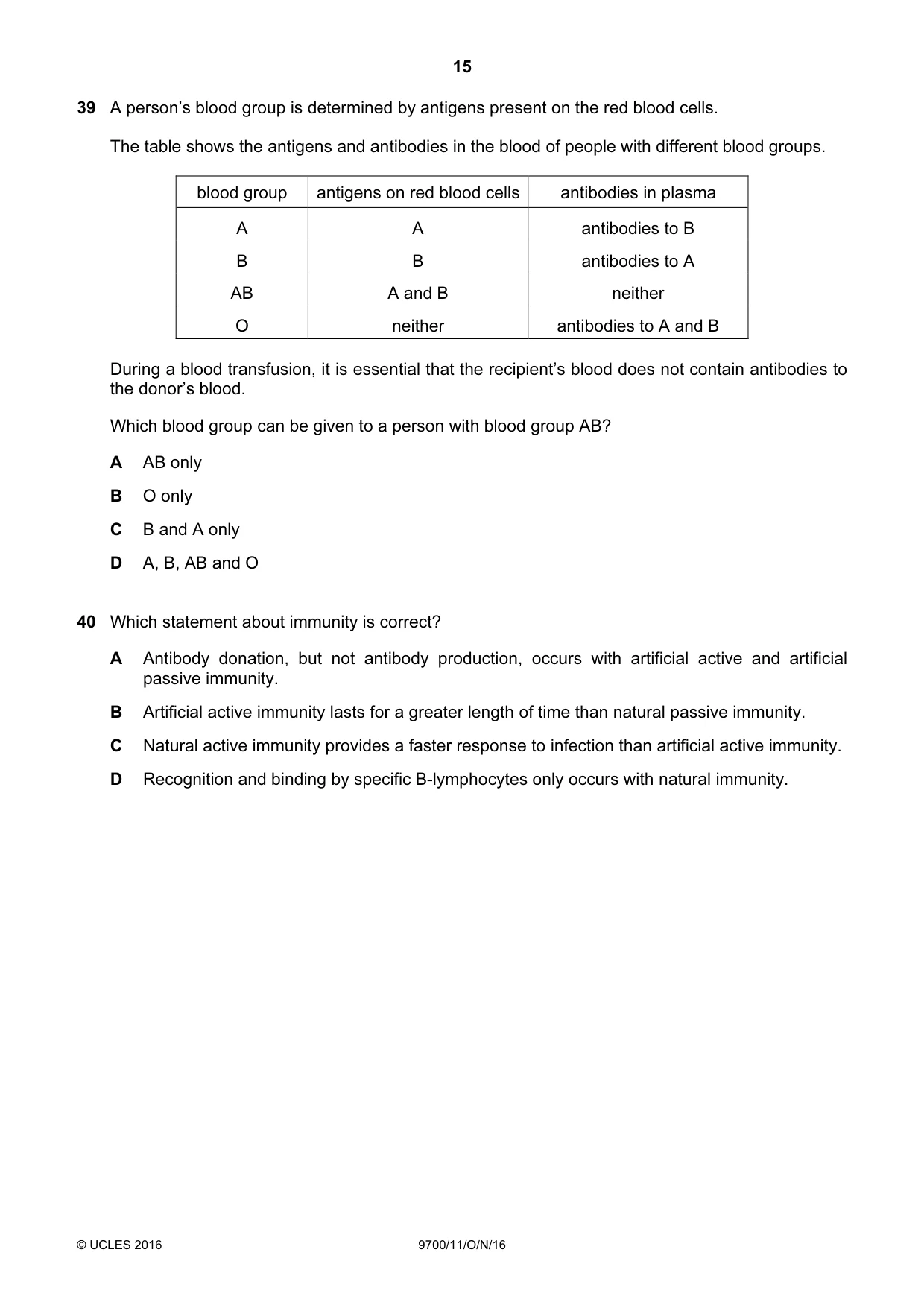

39 A person’s blood group is determined by antigens present on the red blood cells. The table shows the antigens and antibodies in the blood of people with different blood groups. blood group antigens on red blood cells antibodies in plasma A A antibodies to B B B antibodies to A AB A and B neither O neither antibodies to A and B During a blood transfusion, it is essential that the recipient’s blood does not contain antibodies to the donor’s blood. Which blood group can be given to a person with blood group AB? A AB only B O only C B and A only D A, B, AB and O

Mark scheme: D

More questions on The immune system

40 Which statement about immunity is correct? A Antibody donation, but not antibody production, occurs with artificial active and artificial passive immunity. B Artificial active immunity lasts for a greater length of time than natural passive immunity. C Natural active immunity provides a faster response to infection than artificial active immunity. D Recognition and binding by specific B-lymphocytes only occurs with natural immunity.

Mark scheme: B

More questions on Antibodies and vaccination
