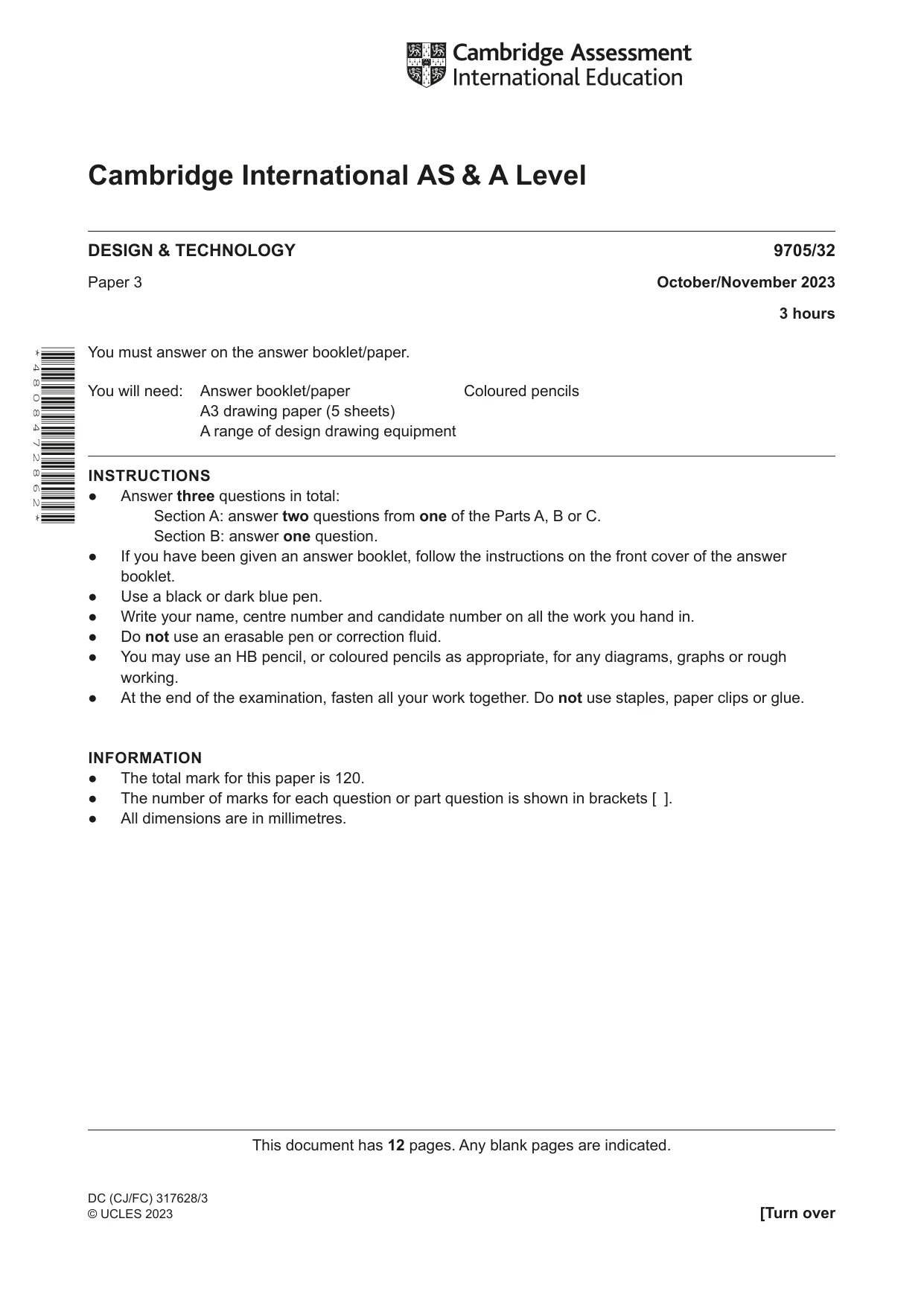

This document has 12 pages. Any blank pages are indicated. [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/32 Paper 3 October/November 2023 3 hours You must answer on the answer booklet/paper. You will need: Answer booklet/paper Coloured pencils A3 drawing paper (5 sheets) A range of design drawing equipment INSTRUCTIONS ● Answer three questions in total: Section A: answer two questions from one of the Parts A, B or C. Section B: answer one question. ● If you have been given an answer booklet, follow the instructions on the front cover of the answer booklet. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number on all the work you hand in. ● Do not use an erasable pen or correction fluid. ● You may use an HB pencil, or coloured pencils as appropriate, for any diagrams, graphs or rough working. ● At the end of the examination, fasten all your work together. Do not use staples, paper clips or glue. INFORMATION ● The total mark for this paper is 120. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 4 8 0 8 4 7 2 8 6 2 * DC (CJ/FC) 317628/3 © UCLES 2023

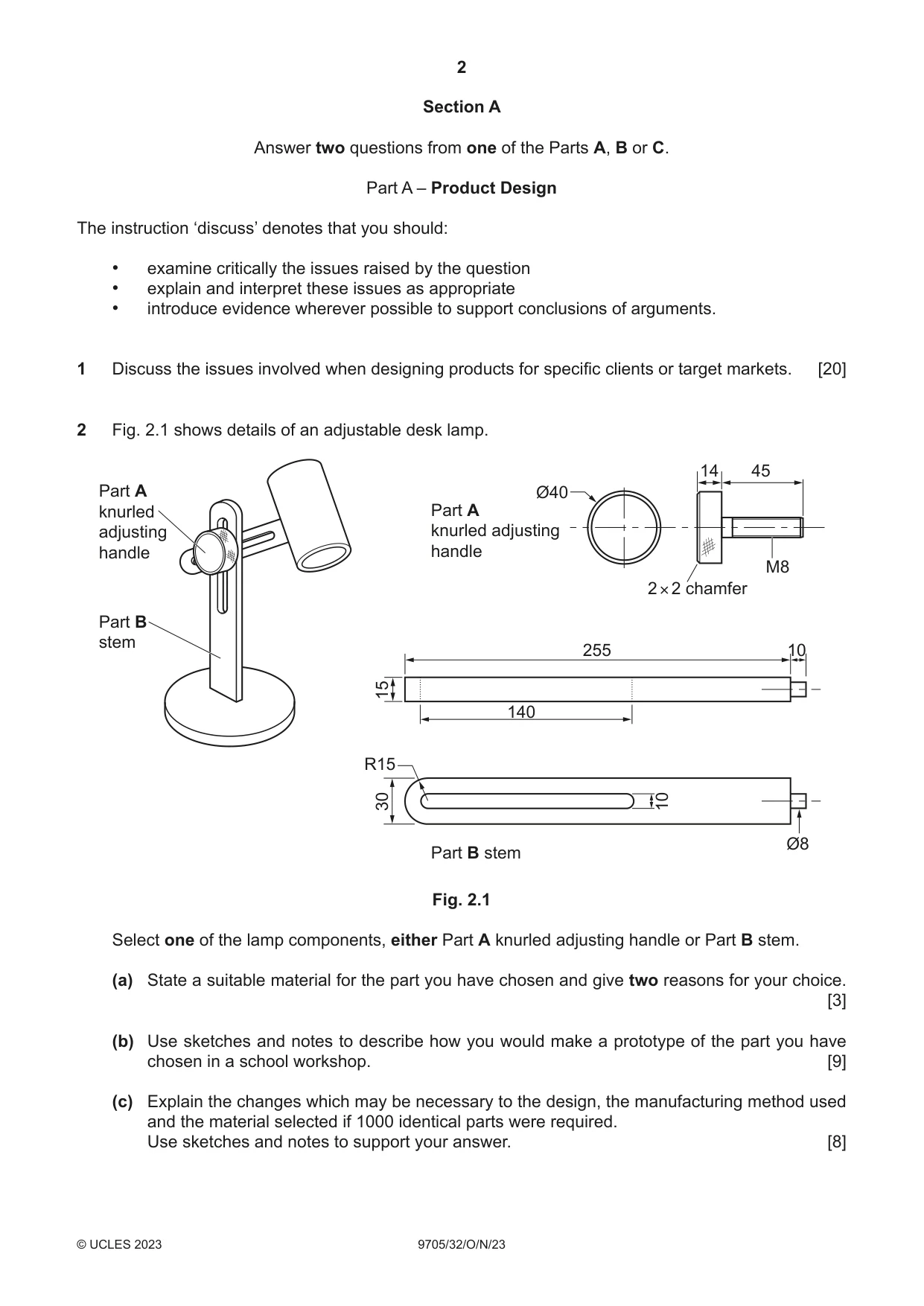

2 9705/32/O/N/23 © UCLES 2023 Section A Answer two questions from one of the Parts A, B or C. Part A – Product Design The instruction ‘discuss’ denotes that you should: • examine critically the issues raised by the question • explain and interpret these issues as appropriate • introduce evidence wherever possible to support conclusions of arguments. 1 Discuss the issues involved when designing products for specific clients or target markets. [20] 2 Fig. 2.1 shows details of an adjustable desk lamp. Part A knurled adjusting handle Part B stem Part B stem Part A knurled adjusting handle Ø40 Ø8 14 45 255 140 30 10 15 R15 10 M8 2 × 2 chamfer Fig. 2.1 Select one of the lamp components, either Part A knurled adjusting handle or Part B stem. (a) State a suitable material for the part you have chosen and give two reasons for your choice. [3] (b) Use sketches and notes to describe how you would make a prototype of the part you have chosen in a school workshop. [9] (c) Explain the changes which may be necessary to the design, the manufacturing method used and the material selected if 1000 identical parts were required. Use sketches and notes to support your answer. [8]

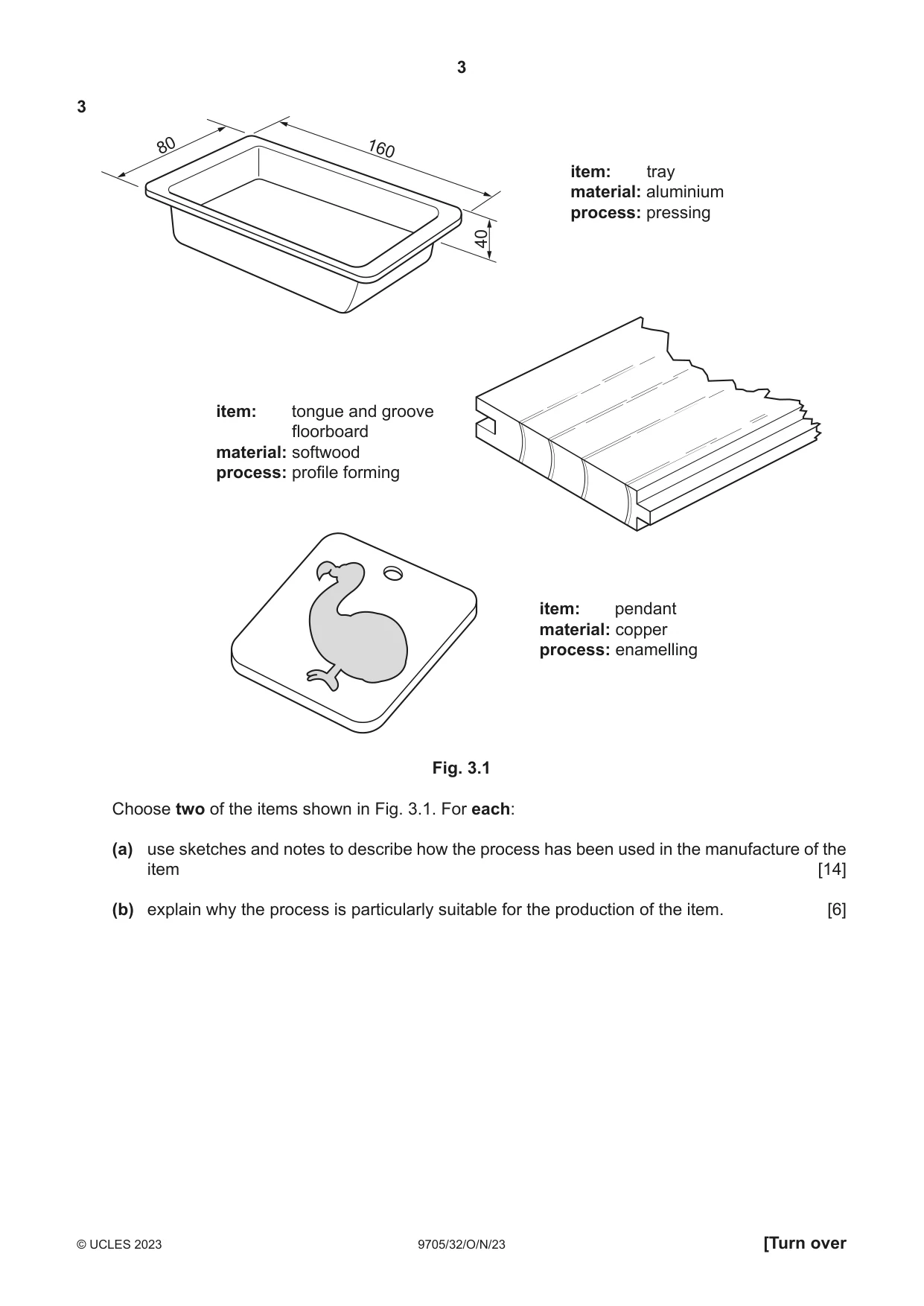

3 9705/32/O/N/23 © UCLES 2023 [Turn over 3 160 80 40 item: tray material: aluminium process: pressing item: tongue and groove floorboard material: softwood process: profile forming item: pendant material: copper process: enamelling Fig. 3.1 Choose two of the items shown in Fig. 3.1. For each: (a) use sketches and notes to describe how the process has been used in the manufacture of the item [14] (b) explain why the process is particularly suitable for the production of the item. [6]

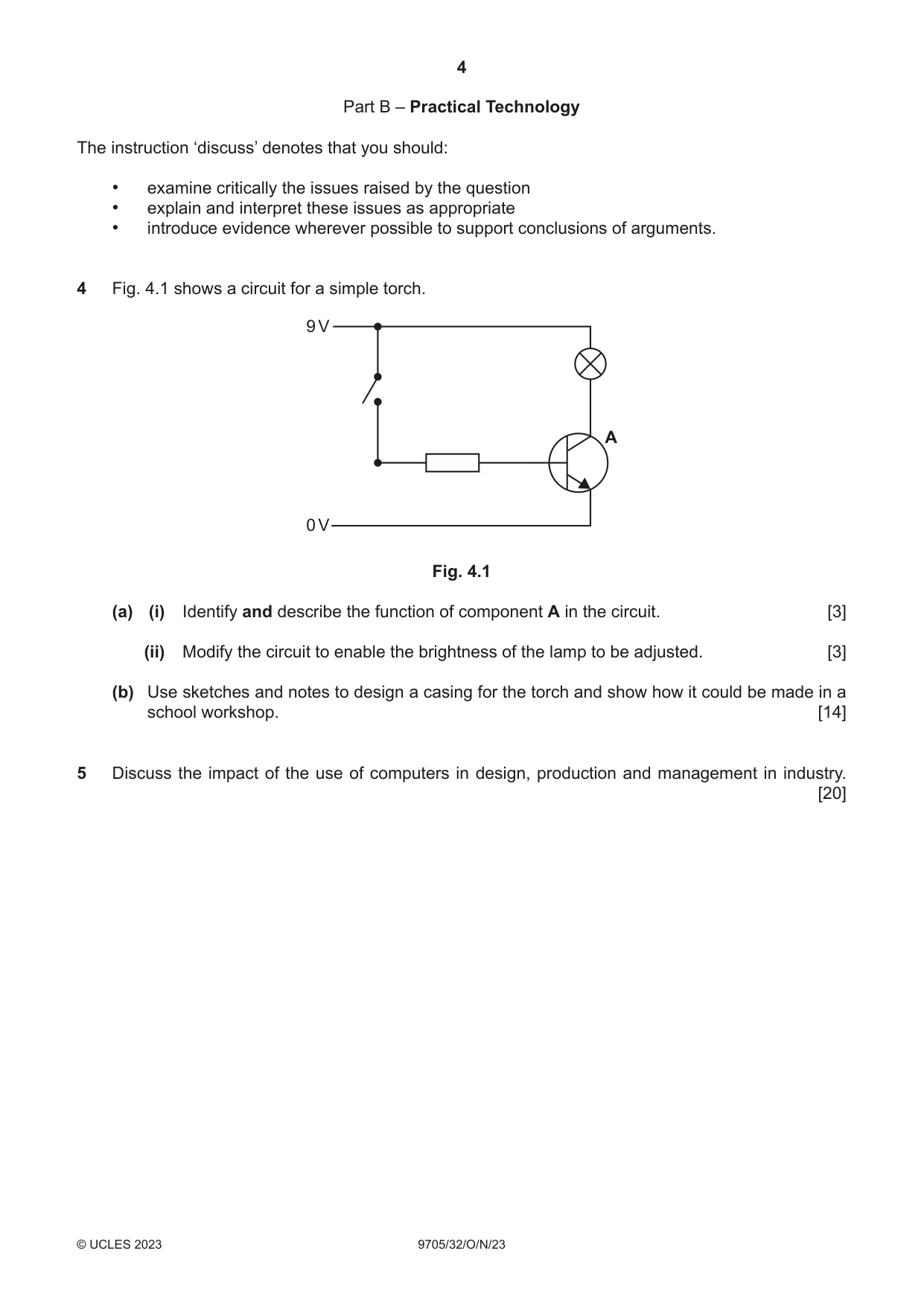

4 9705/32/O/N/23 © UCLES 2023 Part B – Practical Technology The instruction ‘discuss’ denotes that you should: • examine critically the issues raised by the question • explain and interpret these issues as appropriate • introduce evidence wherever possible to support conclusions of arguments. 4 Fig. 4.1 shows a circuit for a simple torch. 9 V 0 V A Fig. 4.1 (a) (i) Identify and describe the function of component A in the circuit. [3] (ii) Modify the circuit to enable the brightness of the lamp to be adjusted. [3] (b) Use sketches and notes to design a casing for the torch and show how it could be made in a school workshop. [14] 5 Discuss the impact of the use of computers in design, production and management in industry. [20]

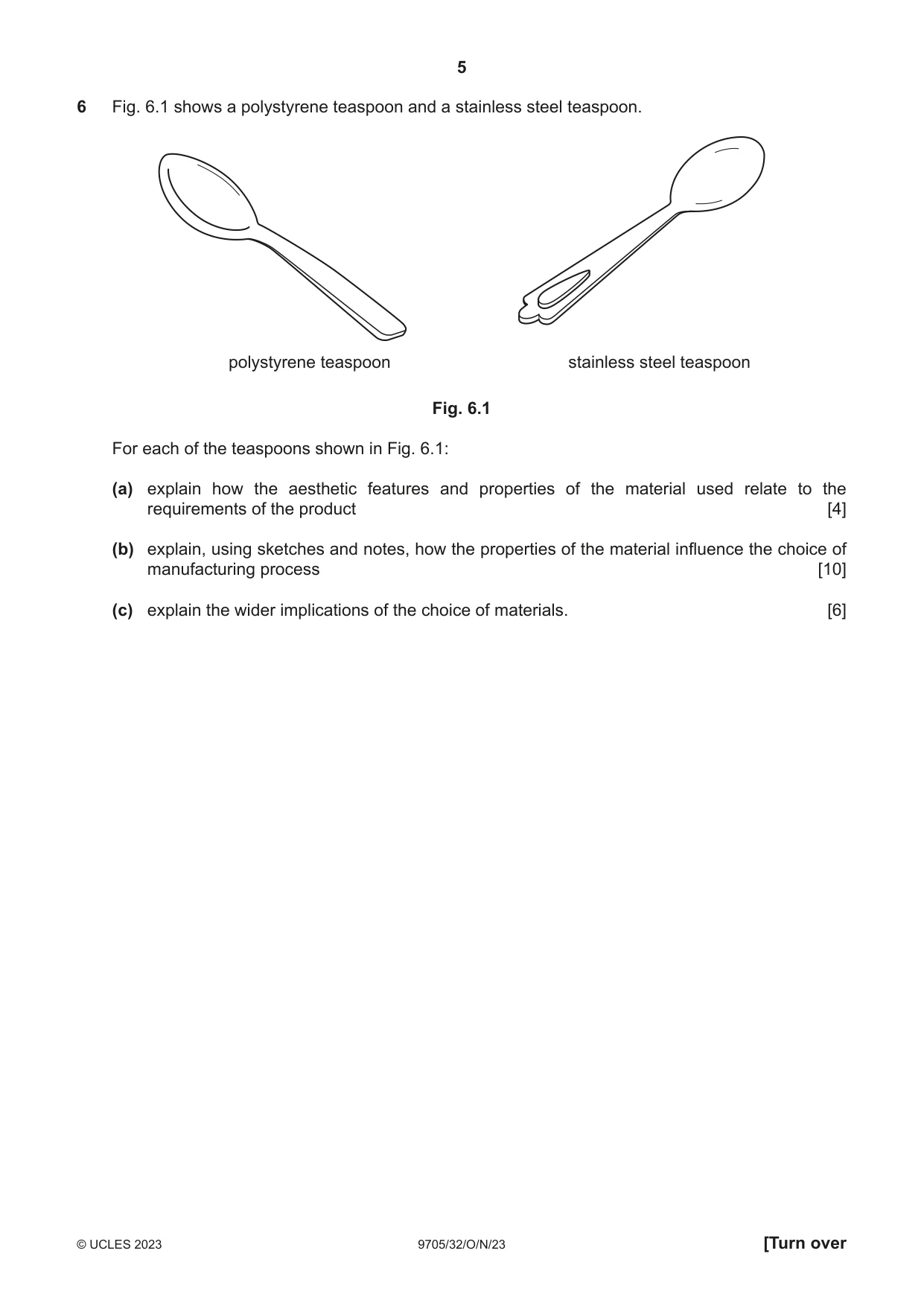

5 9705/32/O/N/23 © UCLES 2023 [Turn over 6 Fig. 6.1 shows a polystyrene teaspoon and a stainless steel teaspoon. polystyrene teaspoon stainless steel teaspoon Fig. 6.1 For each of the teaspoons shown in Fig. 6.1: (a) explain how the aesthetic features and properties of the material used relate to the requirements of the product [4] (b) explain, using sketches and notes, how the properties of the material influence the choice of manufacturing process [10] (c) explain the wider implications of the choice of materials. [6]

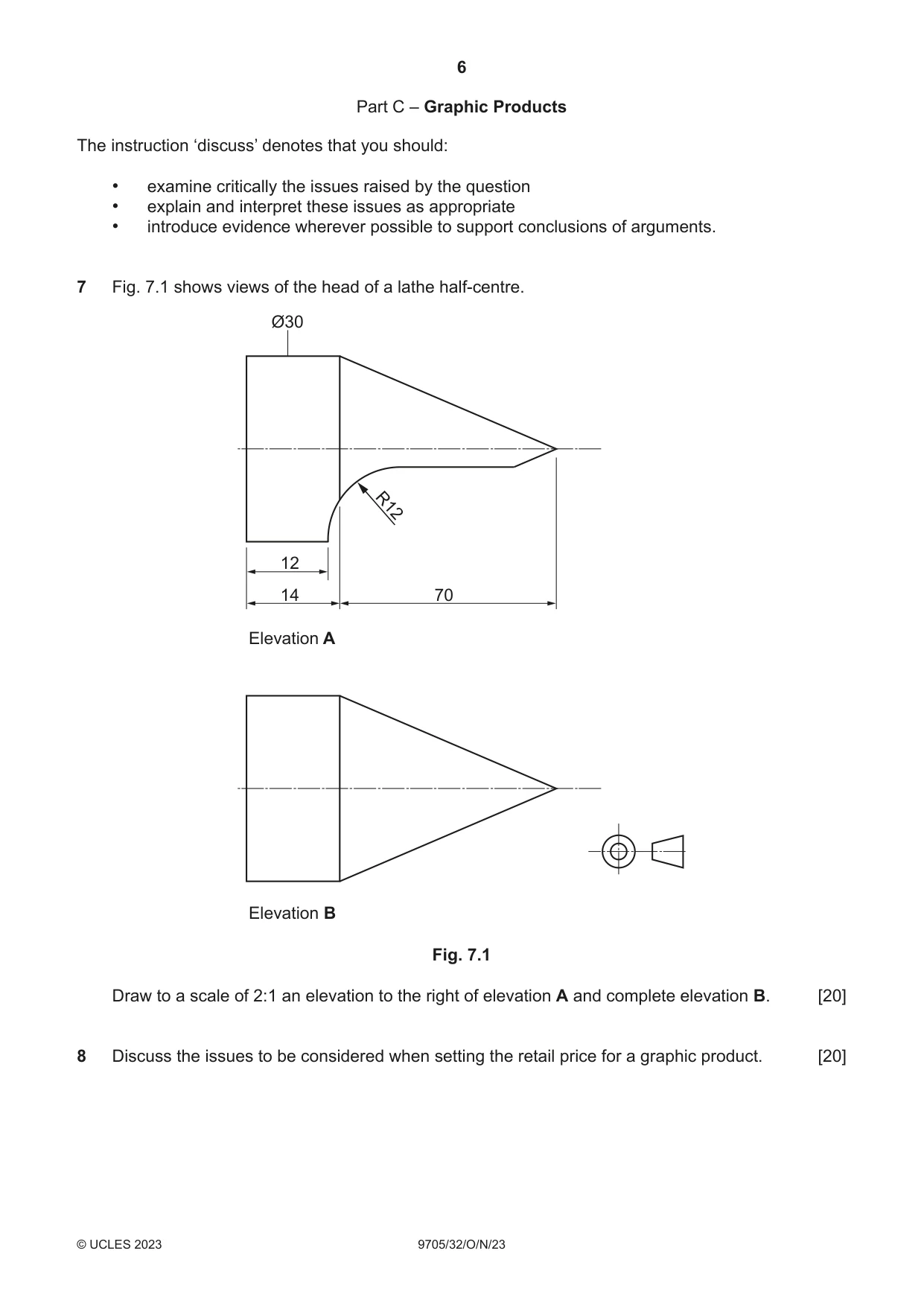

6 9705/32/O/N/23 © UCLES 2023 Part C – Graphic Products The instruction ‘discuss’ denotes that you should: • examine critically the issues raised by the question • explain and interpret these issues as appropriate • introduce evidence wherever possible to support conclusions of arguments. 7 Fig. 7.1 shows views of the head of a lathe half-centre. Elevation B Elevation A Ø30 14 70 R12 12 Fig. 7.1 Draw to a scale of 2:1 an elevation to the right of elevation A and complete elevation B. [20] 8 Discuss the issues to be considered when setting the retail price for a graphic product. [20]

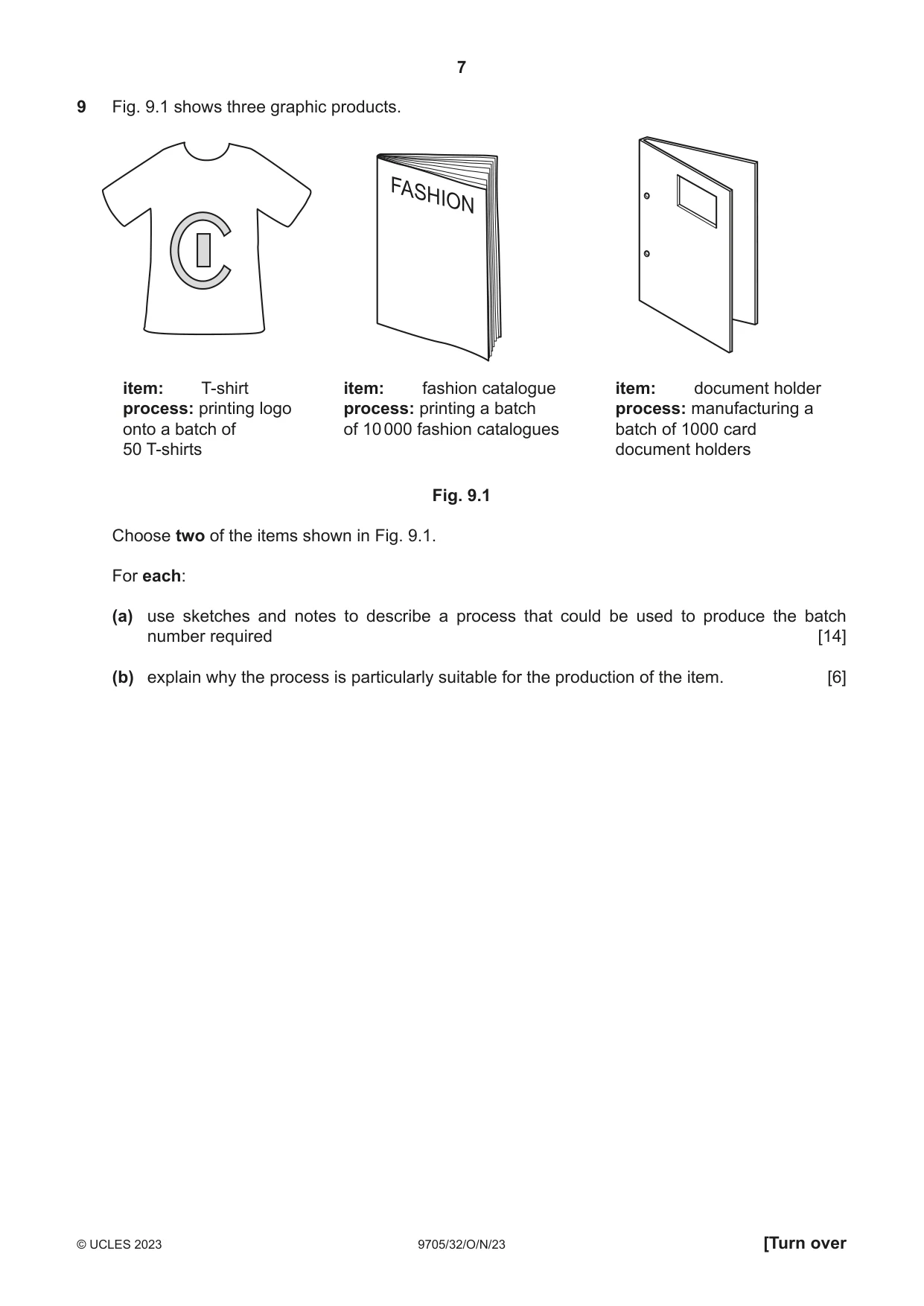

7 9705/32/O/N/23 © UCLES 2023 [Turn over 9 Fig. 9.1 shows three graphic products. item: T-shirt process: printing logo onto a batch of 50 T-shirts item: fashion catalogue process: printing a batch of 10 000 fashion catalogues item: document holder process: manufacturing a batch of 1000 card document holders FASHION Fig. 9.1 Choose two of the items shown in Fig. 9.1. For each: (a) use sketches and notes to describe a process that could be used to produce the batch number required [14] (b) explain why the process is particularly suitable for the production of the item. [6]

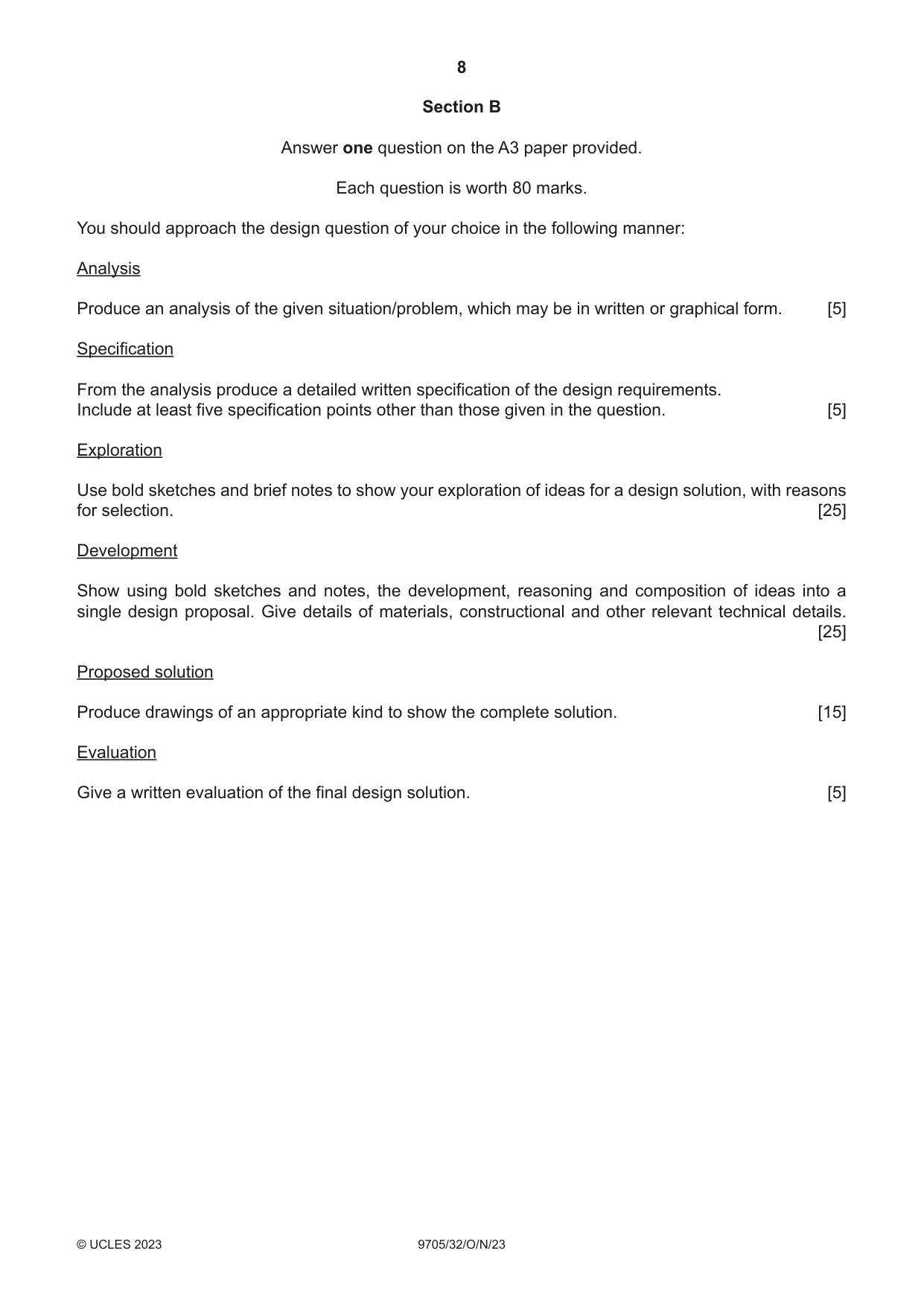

8 9705/32/O/N/23 © UCLES 2023 Section B Answer one question on the A3 paper provided. Each question is worth 80 marks. You should approach the design question of your choice in the following manner: Analysis Produce an analysis of the given situation/problem, which may be in written or graphical form. [5] Specification From the analysis produce a detailed written specification of the design requirements. Include at least five specification points other than those given in the question. [5] Exploration Use bold sketches and brief notes to show your exploration of ideas for a design solution, with reasons for selection. [25] Development Show using bold sketches and notes, the development, reasoning and composition of ideas into a single design proposal. Give details of materials, constructional and other relevant technical details. [25] Proposed solution Produce drawings of an appropriate kind to show the complete solution. [15] Evaluation Give a written evaluation of the final design solution. [5]

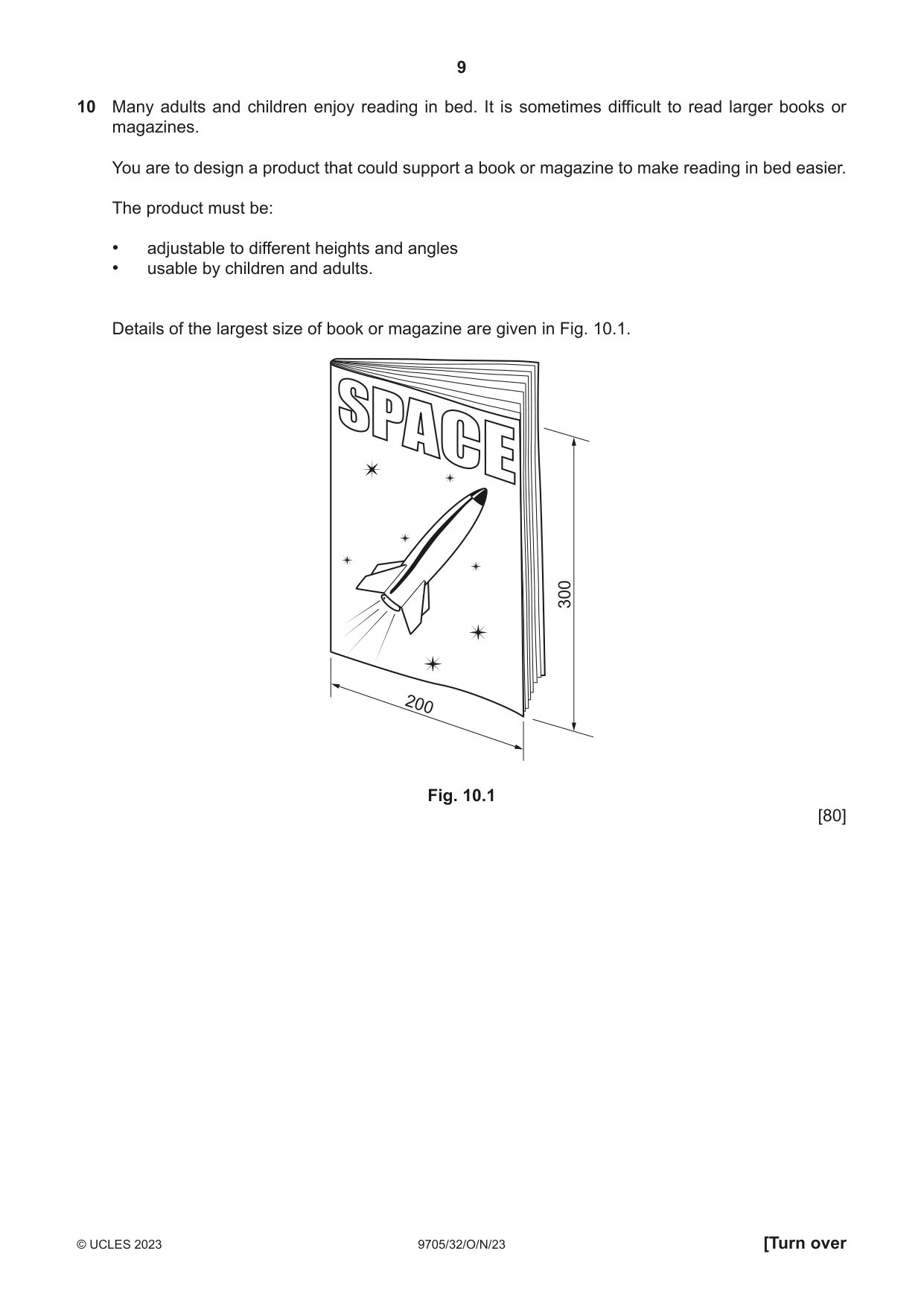

9 9705/32/O/N/23 © UCLES 2023 [Turn over 10 Many adults and children enjoy reading in bed. It is sometimes difficult to read larger books or magazines. You are to design a product that could support a book or magazine to make reading in bed easier. The product must be: • adjustable to different heights and angles • usable by children and adults. Details of the largest size of book or magazine are given in Fig. 10.1. 300 200 Fig. 10.1 [80]

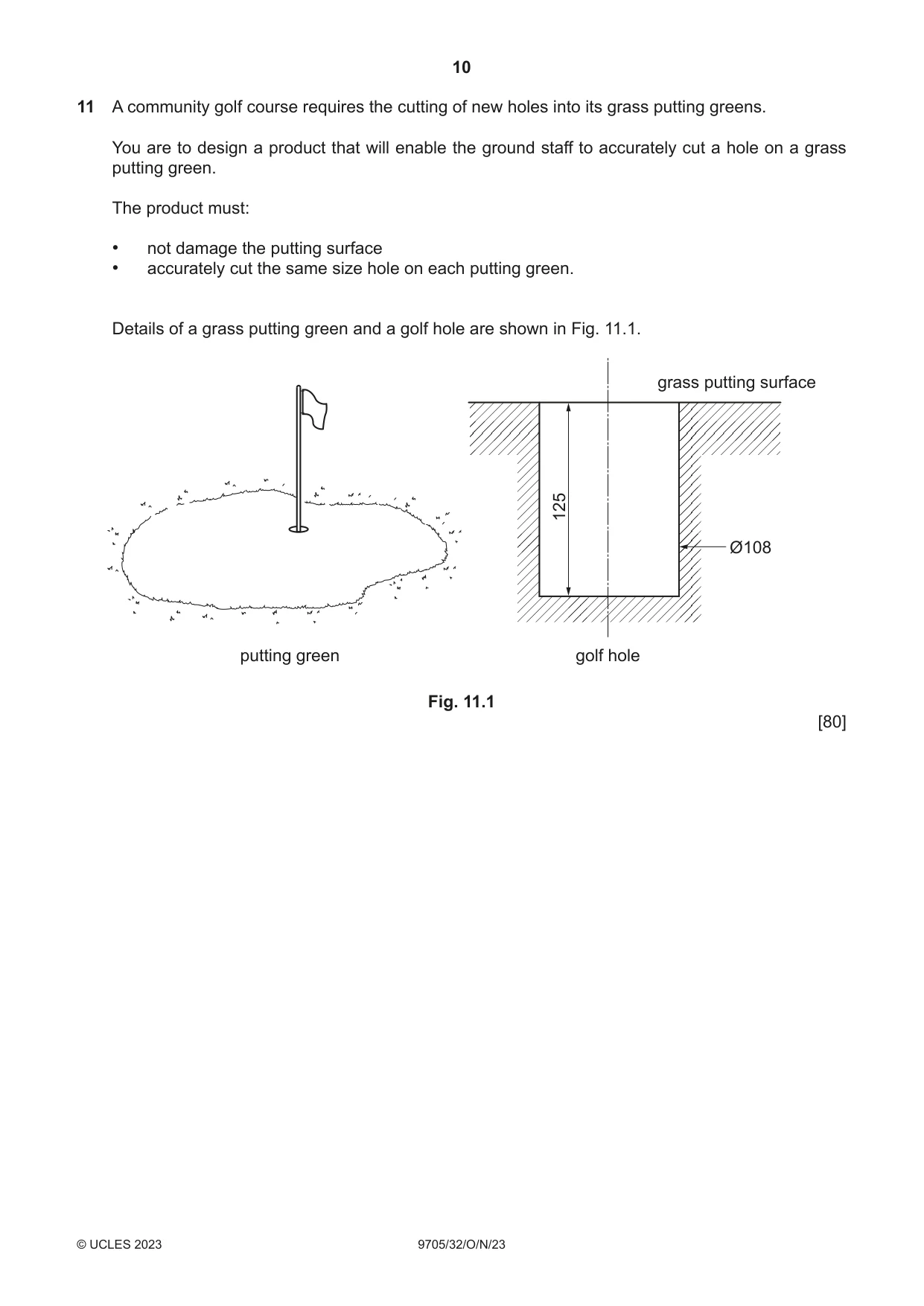

10 9705/32/O/N/23 © UCLES 2023 11 A community golf course requires the cutting of new holes into its grass putting greens. You are to design a product that will enable the ground staff to accurately cut a hole on a grass putting green. The product must: • not damage the putting surface • accurately cut the same size hole on each putting green. Details of a grass putting green and a golf hole are shown in Fig. 11.1. grass putting surface Ø108 golf hole putting green 125 Fig. 11.1 [80]

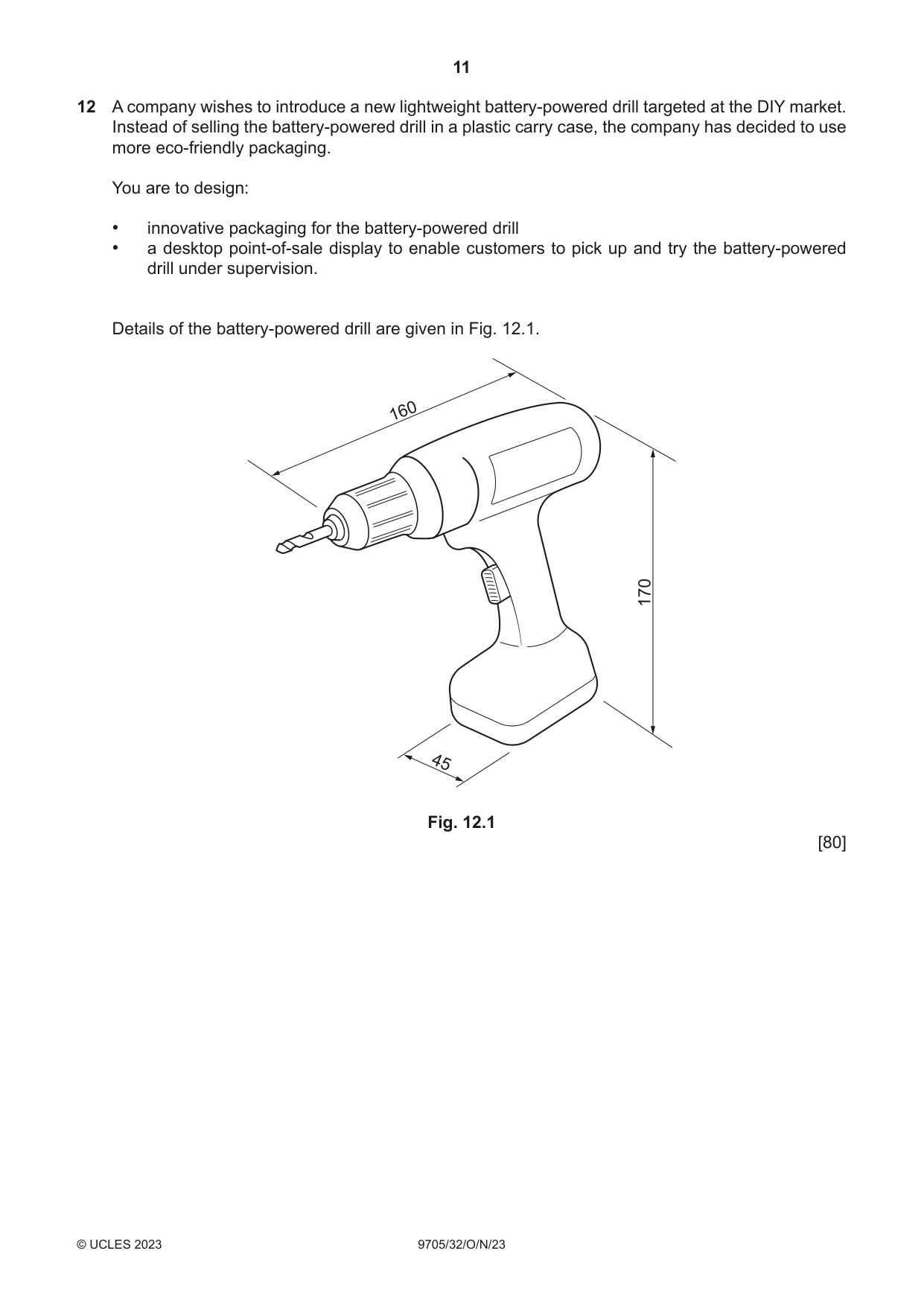

11 9705/32/O/N/23 © UCLES 2023 12 A company wishes to introduce a new lightweight battery-powered drill targeted at the DIY market. Instead of selling the battery-powered drill in a plastic carry case, the company has decided to use more eco-friendly packaging. You are to design: • innovative packaging for the battery-powered drill • a desktop point-of-sale display to enable customers to pick up and try the battery-powered drill under supervision. Details of the battery-powered drill are given in Fig. 12.1. 160 45 170 Fig. 12.1 [80]

12 9705/32/O/N/23 © UCLES 2023 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

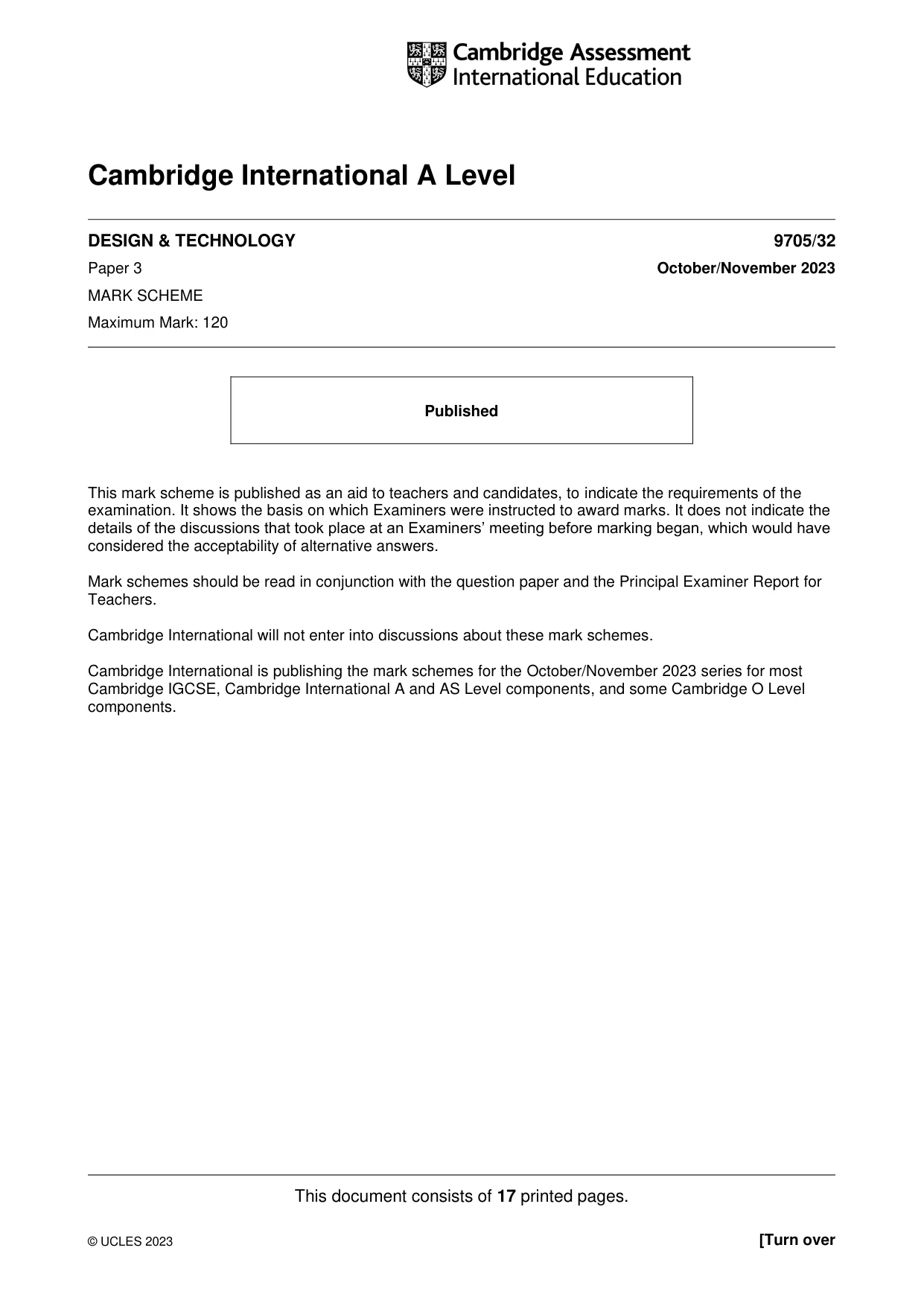

This document consists of 17 printed pages. © UCLES 2023 [Turn over Cambridge International A Level DESIGN & TECHNOLOGY 9705/32 Paper 3 October/November 2023 MARK SCHEME Maximum Mark: 120 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

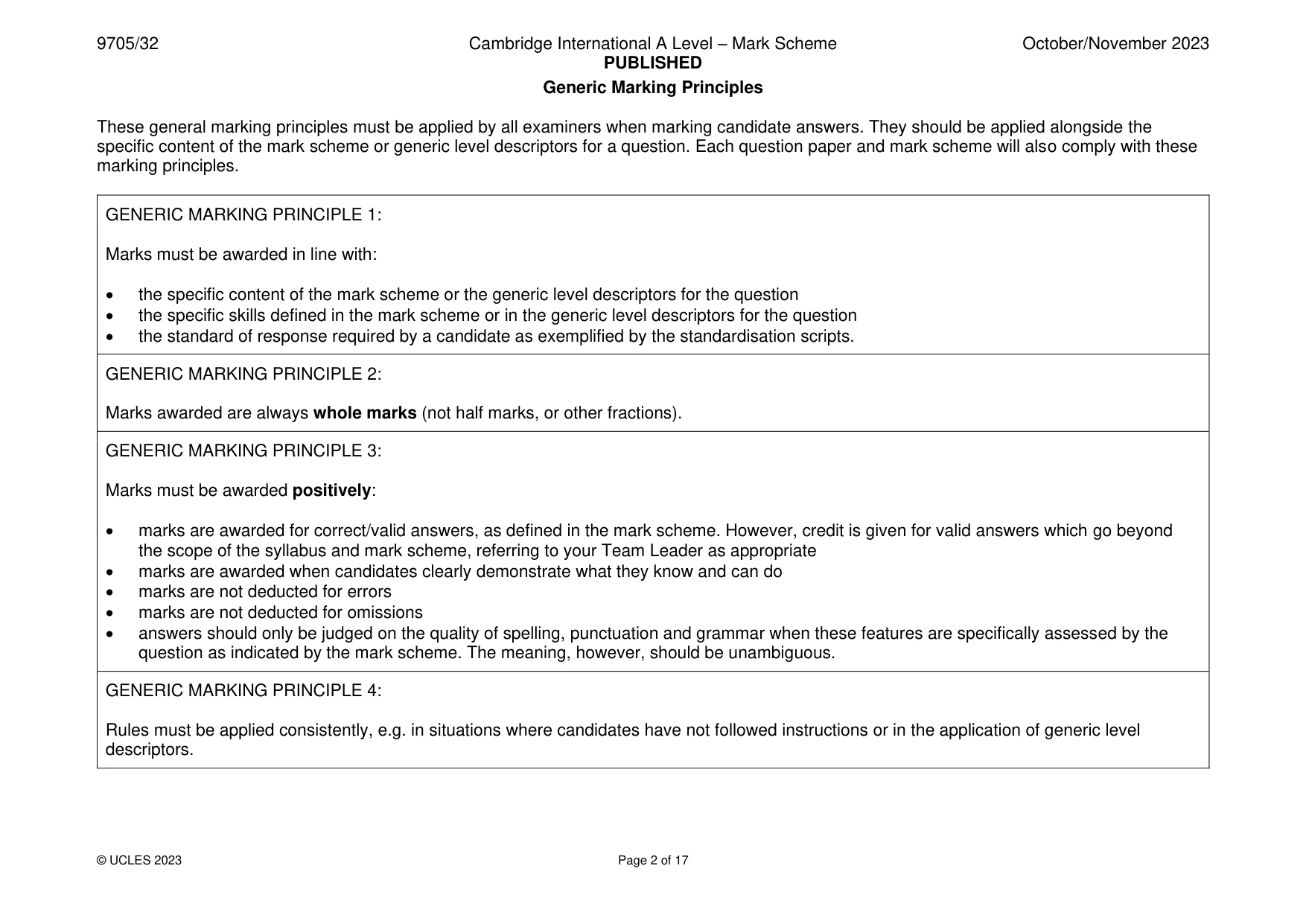

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 17 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 17 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

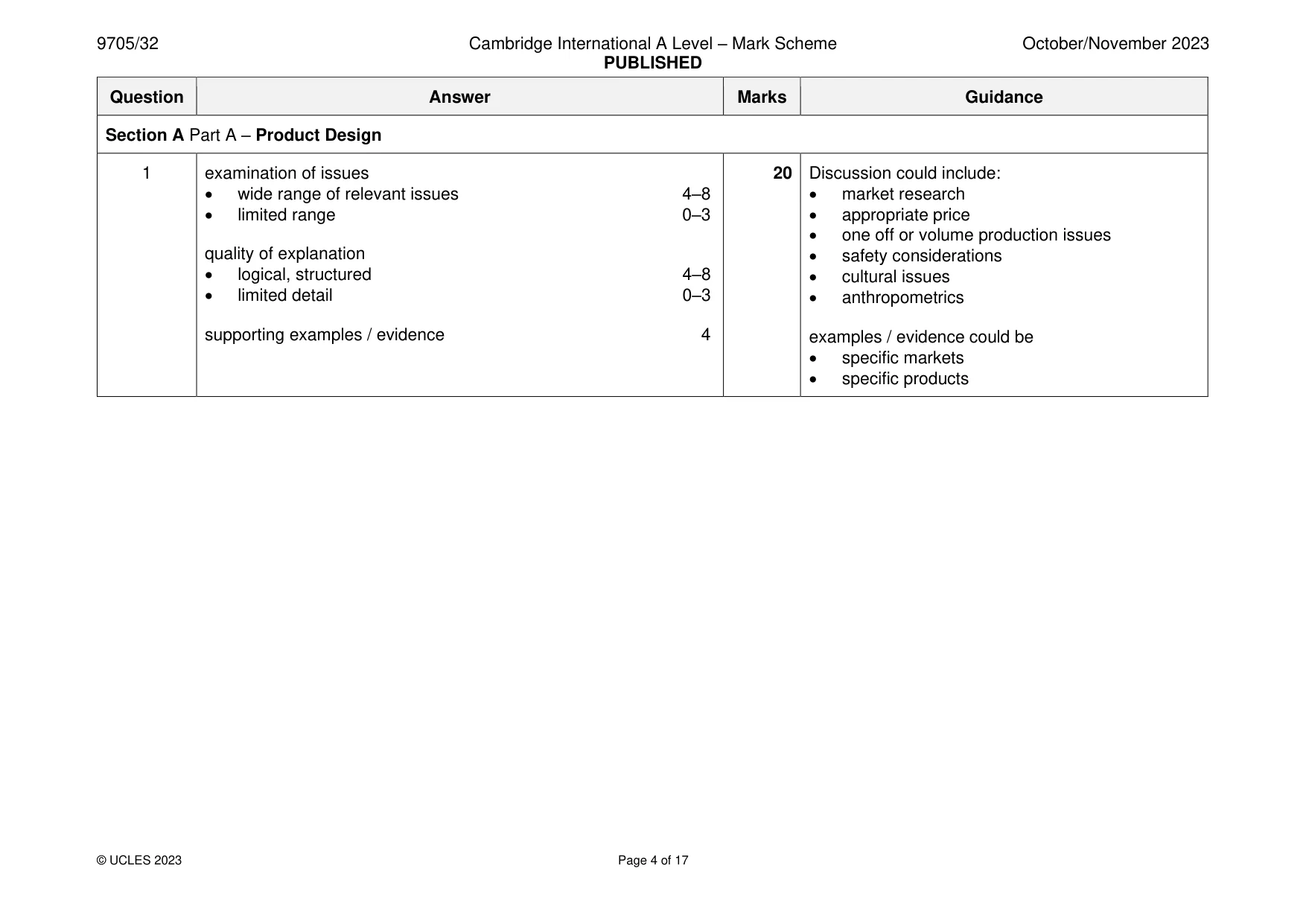

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 4 of 17 Question Answer Marks Guidance Section A Part A – Product Design 1 examination of issues • wide range of relevant issues 4–8 • limited range 0–3 quality of explanation • logical, structured 4–8 • limited detail 0–3 supporting examples / evidence 4 20 Discussion could include: • market research • appropriate price • one off or volume production issues • safety considerations • cultural issues • anthropometrics examples / evidence could be • specific markets • specific products

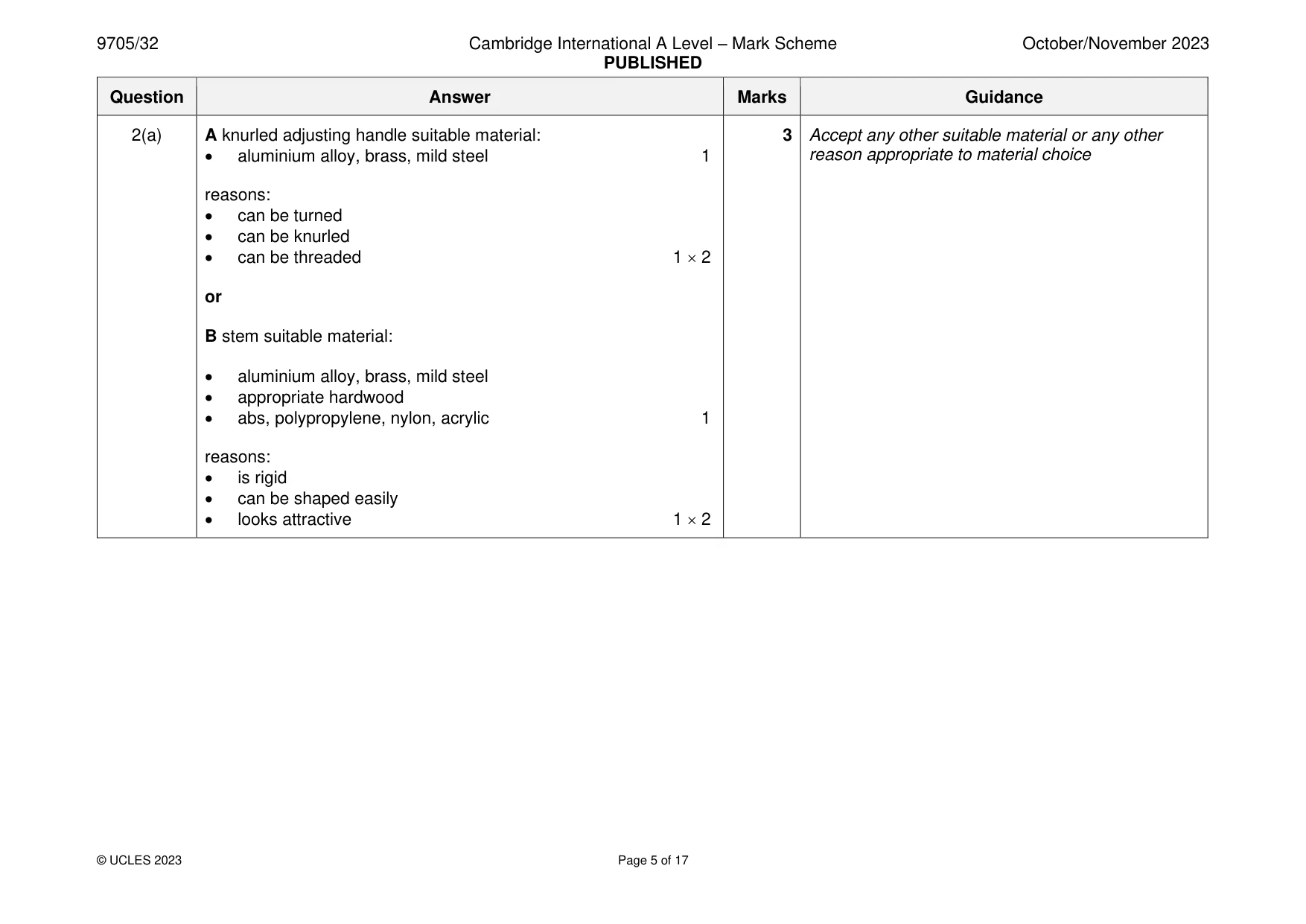

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 5 of 17 Question Answer Marks Guidance 2(a) A knurled adjusting handle suitable material: • aluminium alloy, brass, mild steel 1 reasons: • can be turned • can be knurled • can be threaded 1  2 or B stem suitable material: • aluminium alloy, brass, mild steel • appropriate hardwood • abs, polypropylene, nylon, acrylic 1 reasons: • is rigid • can be shaped easily • looks attractive 1  2 3 Accept any other suitable material or any other reason appropriate to material choice

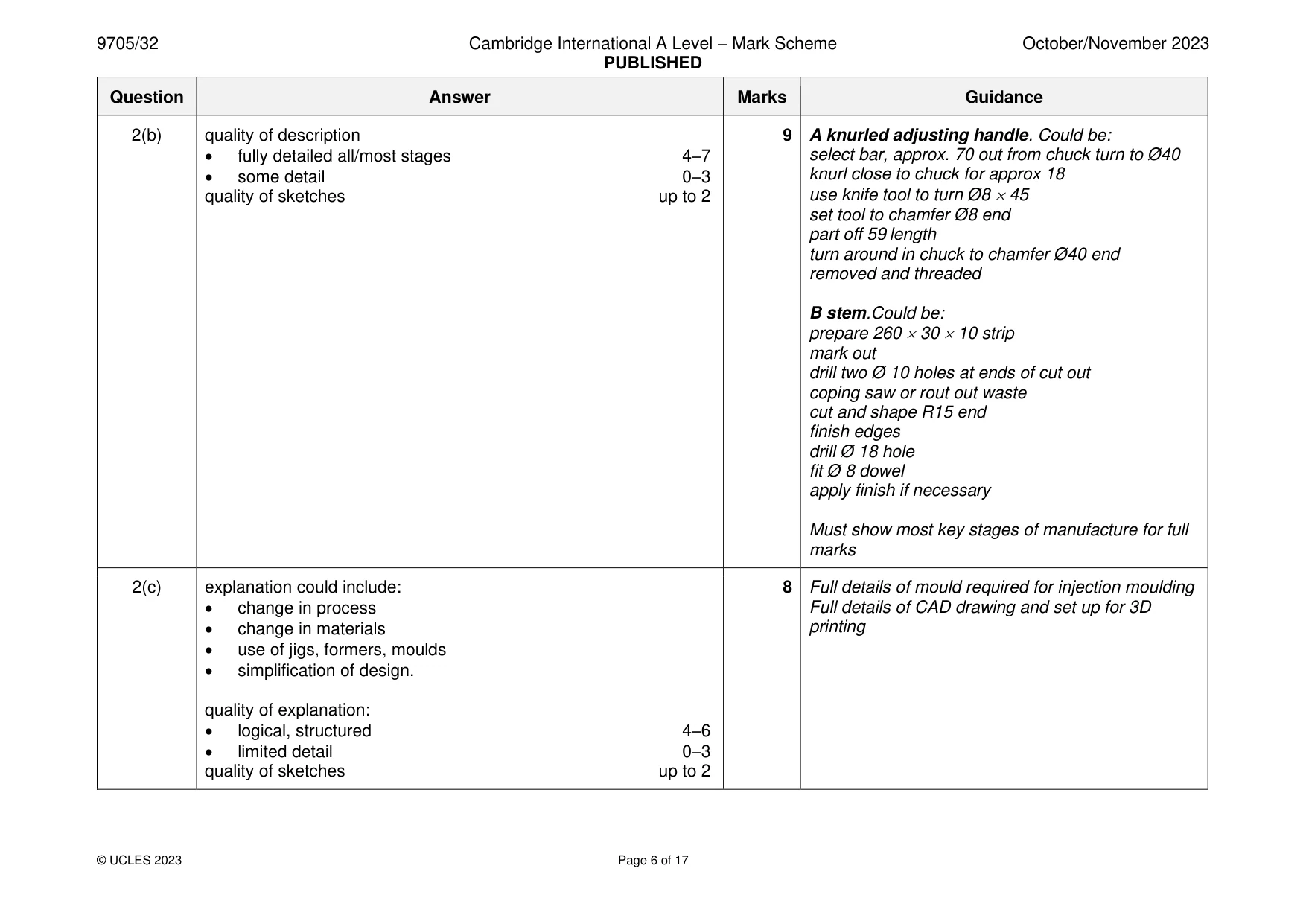

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 6 of 17 Question Answer Marks Guidance 2(b) quality of description • fully detailed all/most stages 4–7 • some detail 0–3 quality of sketches up to 2 9 A knurled adjusting handle. Could be: select bar, approx. 70 out from chuck turn to Ø40 knurl close to chuck for approx 18 use knife tool to turn Ø8  45 set tool to chamfer Ø8 end part off 59 length turn around in chuck to chamfer Ø40 end removed and threaded B stem.Could be: prepare 260  30  10 strip mark out drill two Ø 10 holes at ends of cut out coping saw or rout out waste cut and shape R15 end finish edges drill Ø 18 hole fit Ø 8 dowel apply finish if necessary Must show most key stages of manufacture for full marks 2(c) explanation could include: • change in process • change in materials • use of jigs, formers, moulds • simplification of design. quality of explanation: • logical, structured 4–6 • limited detail 0–3 quality of sketches up to 2 8 Full details of mould required for injection moulding Full details of CAD drawing and set up for 3D printing

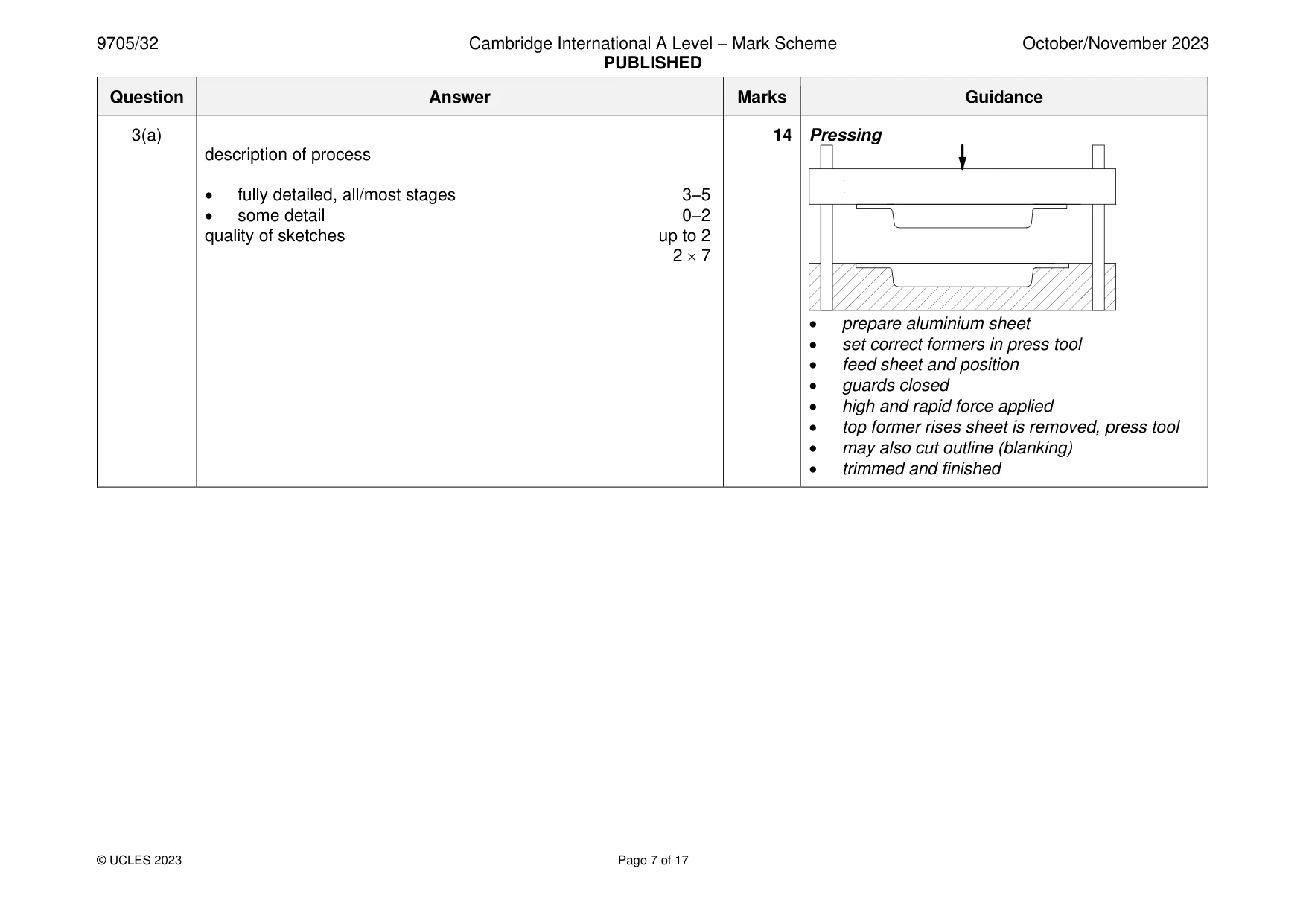

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 7 of 17 Question Answer Marks Guidance 3(a) description of process • fully detailed, all/most stages 3–5 • some detail 0–2 quality of sketches up to 2 2  7 14 Pressing • prepare aluminium sheet • set correct formers in press tool • feed sheet and position • guards closed • high and rapid force applied • top former rises sheet is removed, press tool • may also cut outline (blanking) • trimmed and finished

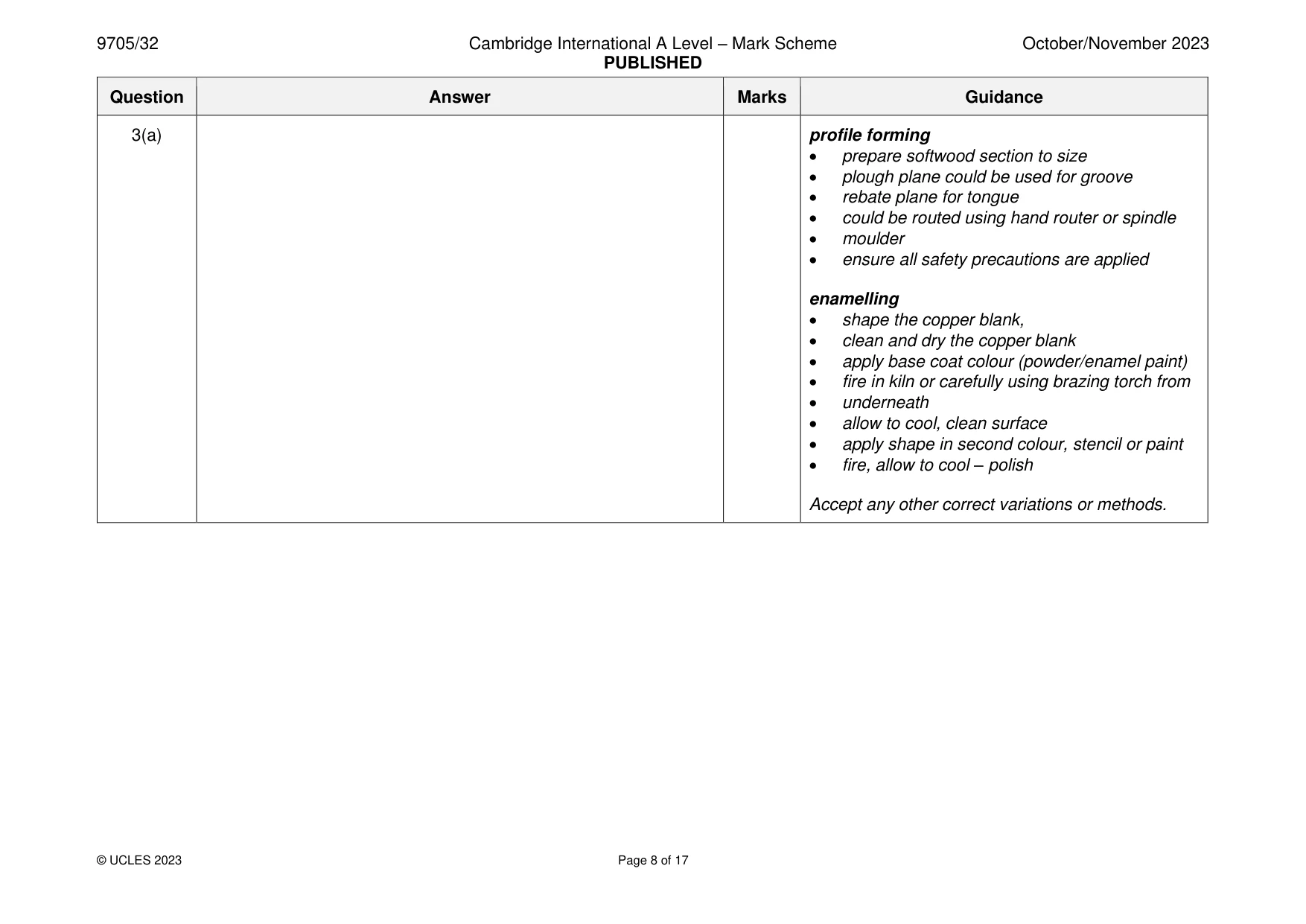

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 8 of 17 Question Answer Marks Guidance 3(a) profile forming • prepare softwood section to size • plough plane could be used for groove • rebate plane for tongue • could be routed using hand router or spindle • moulder • ensure all safety precautions are applied enamelling • shape the copper blank, • clean and dry the copper blank • apply base coat colour (powder/enamel paint) • fire in kiln or carefully using brazing torch from • underneath • allow to cool, clean surface • apply shape in second colour, stencil or paint • fire, allow to cool – polish Accept any other correct variations or methods.

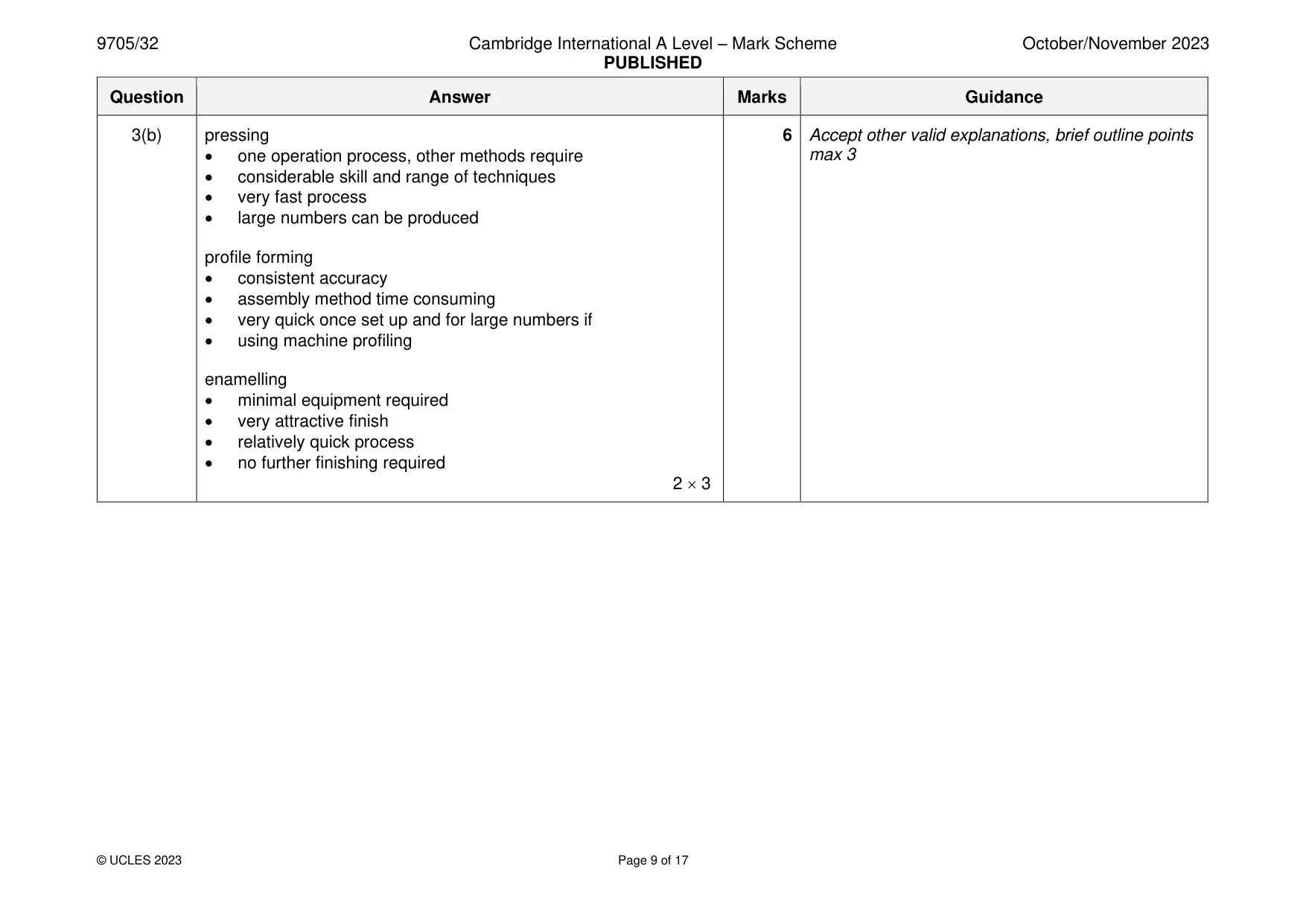

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 9 of 17 Question Answer Marks Guidance 3(b) pressing • one operation process, other methods require • considerable skill and range of techniques • very fast process • large numbers can be produced profile forming • consistent accuracy • assembly method time consuming • very quick once set up and for large numbers if • using machine profiling enamelling • minimal equipment required • very attractive finish • relatively quick process • no further finishing required 2  3 6 Accept other valid explanations, brief outline points max 3

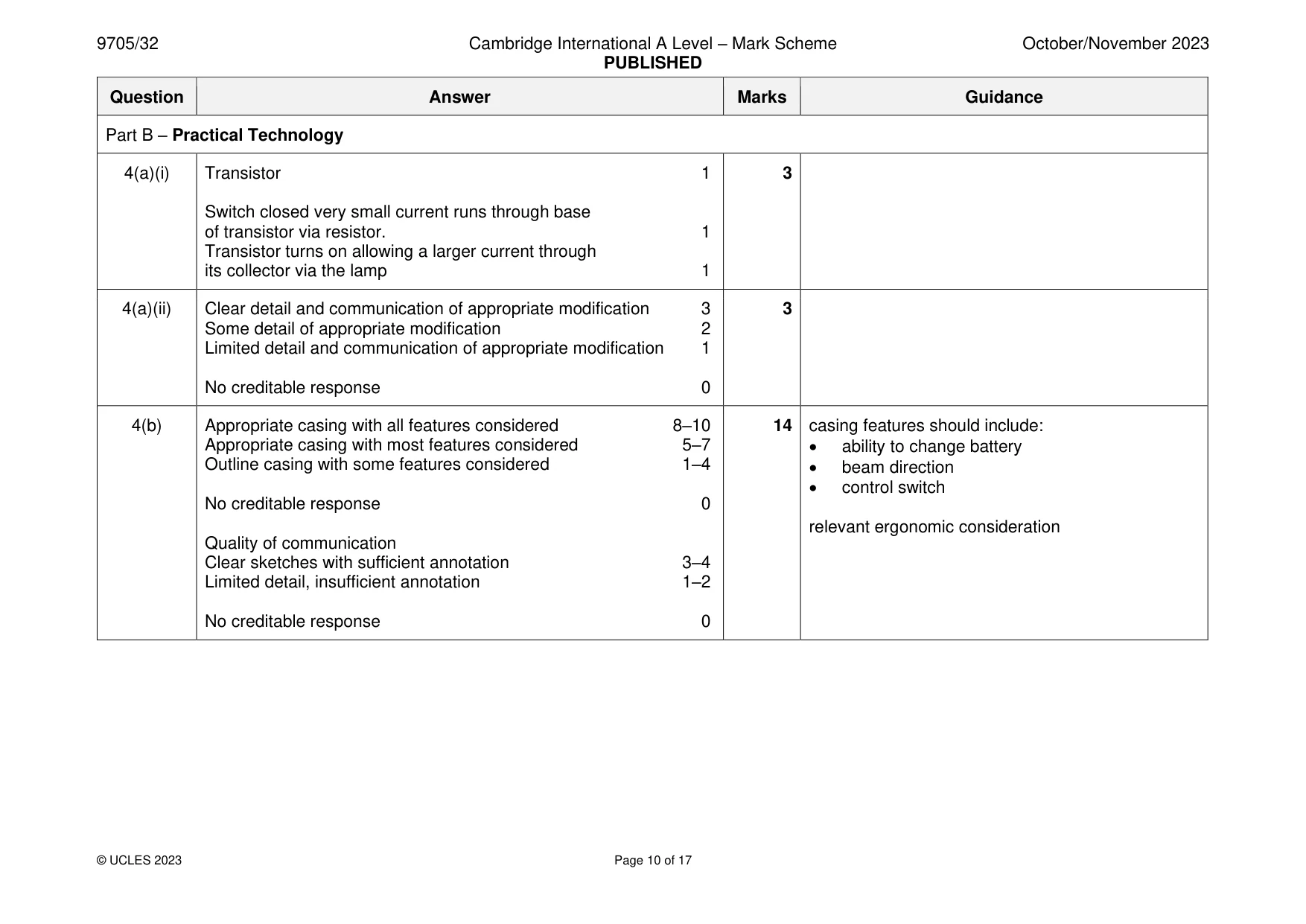

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 10 of 17 Question Answer Marks Guidance Part B – Practical Technology 4(a)(i) Transistor 1 Switch closed very small current runs through base of transistor via resistor. 1 Transistor turns on allowing a larger current through its collector via the lamp 1 3 4(a)(ii) Clear detail and communication of appropriate modification 3 Some detail of appropriate modification 2 Limited detail and communication of appropriate modification 1 No creditable response 0 3 4(b) Appropriate casing with all features considered 8–10 Appropriate casing with most features considered 5–7 Outline casing with some features considered 1–4 No creditable response 0 Quality of communication Clear sketches with sufficient annotation 3–4 Limited detail, insufficient annotation 1–2 No creditable response 0 14 casing features should include: • ability to change battery • beam direction • control switch relevant ergonomic consideration

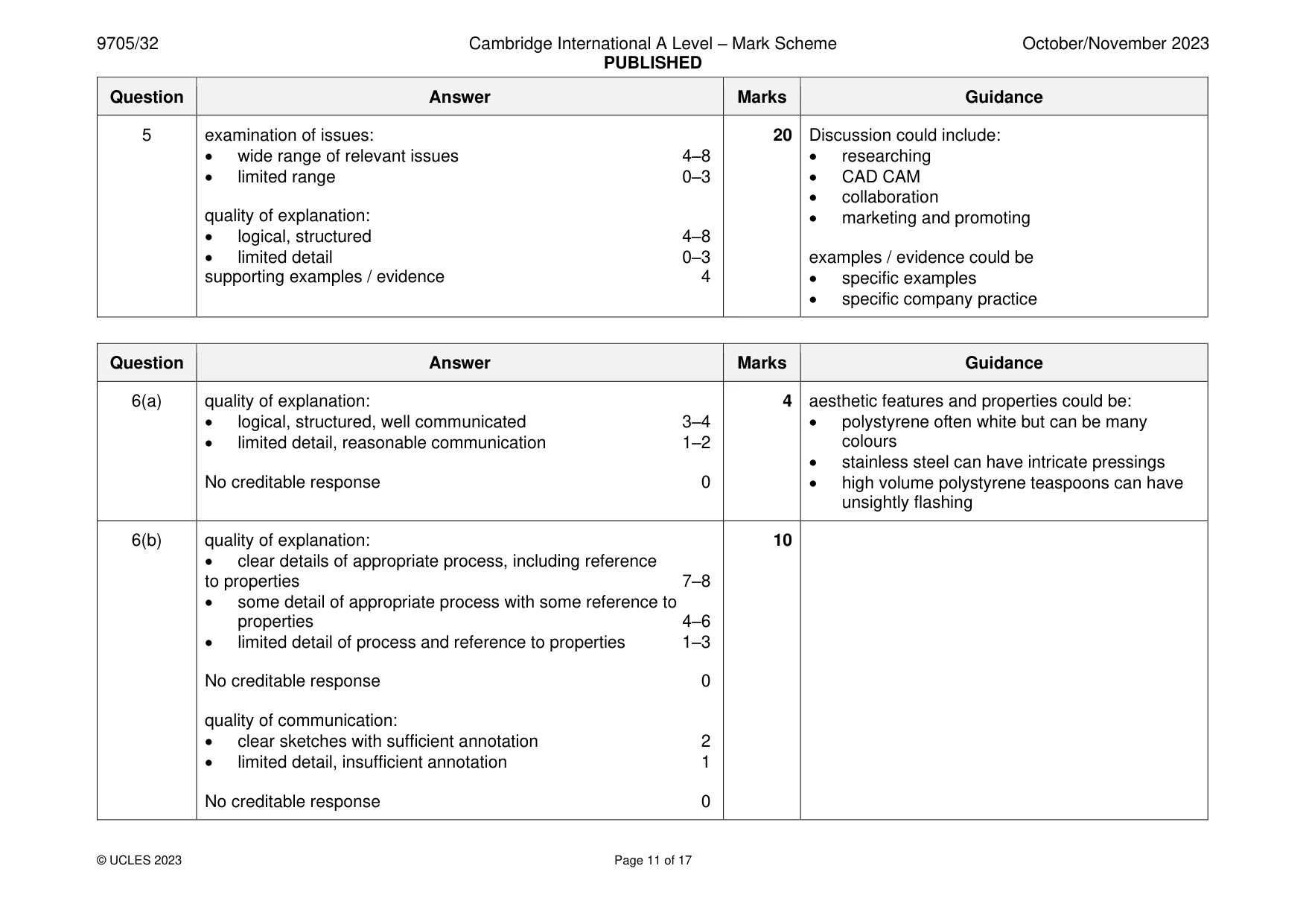

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 11 of 17 Question Answer Marks Guidance 5 examination of issues: • wide range of relevant issues 4–8 • limited range 0–3 quality of explanation: • logical, structured 4–8 • limited detail 0–3 supporting examples / evidence 4 20 Discussion could include: • researching • CAD CAM • collaboration • marketing and promoting examples / evidence could be • specific examples • specific company practice Question Answer Marks Guidance 6(a) quality of explanation: • logical, structured, well communicated 3–4 • limited detail, reasonable communication 1–2 No creditable response 0 4 aesthetic features and properties could be: • polystyrene often white but can be many colours • stainless steel can have intricate pressings • high volume polystyrene teaspoons can have unsightly flashing 6(b) quality of explanation: • clear details of appropriate process, including reference to properties 7–8 • some detail of appropriate process with some reference to properties 4–6 • limited detail of process and reference to properties 1–3 No creditable response 0 quality of communication: • clear sketches with sufficient annotation 2 • limited detail, insufficient annotation 1 No creditable response 0 10

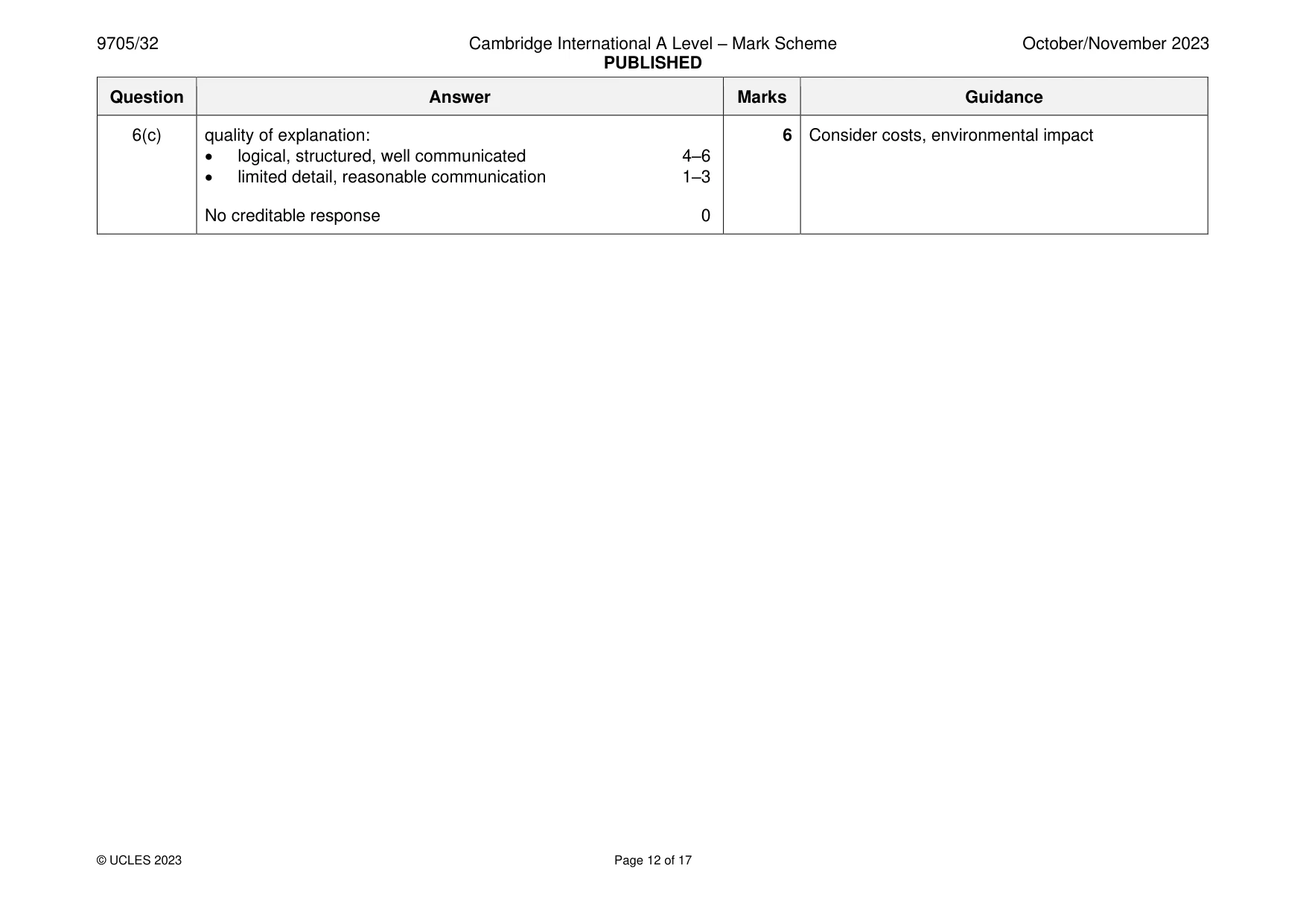

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 12 of 17 Question Answer Marks Guidance 6(c) quality of explanation: • logical, structured, well communicated 4–6 • limited detail, reasonable communication 1–3 No creditable response 0 6 Consider costs, environmental impact

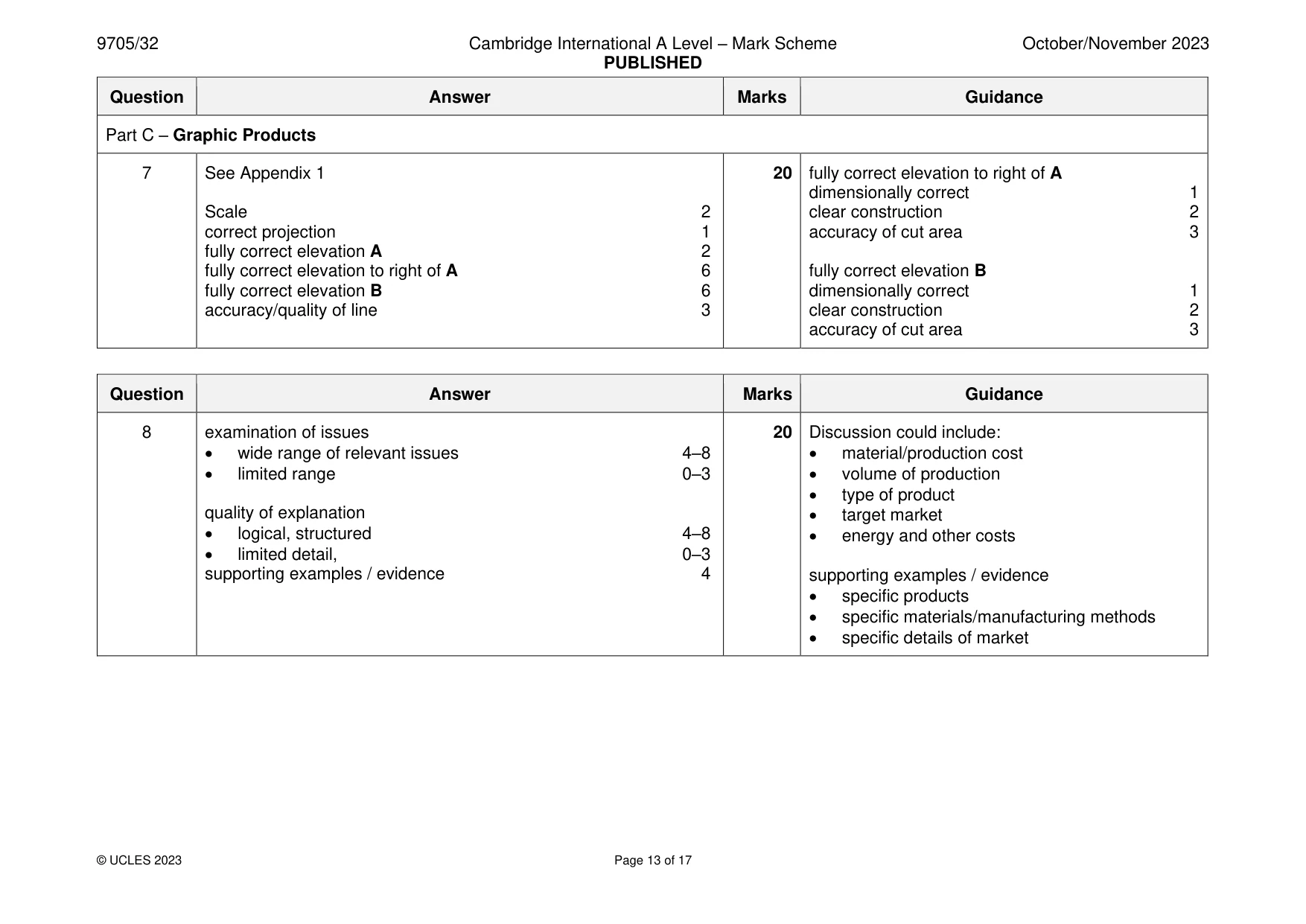

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 13 of 17 Question Answer Marks Guidance Part C – Graphic Products 7 See Appendix 1 Scale 2 correct projection 1 fully correct elevation A 2 fully correct elevation to right of A 6 fully correct elevation B 6 accuracy/quality of line 3 20 fully correct elevation to right of A dimensionally correct 1 clear construction 2 accuracy of cut area 3 fully correct elevation B dimensionally correct 1 clear construction 2 accuracy of cut area 3 Question Answer Marks Guidance 8 examination of issues • wide range of relevant issues 4–8 • limited range 0–3 quality of explanation • logical, structured 4–8 • limited detail, 0–3 supporting examples / evidence 4 20 Discussion could include: • material/production cost • volume of production • type of product • target market • energy and other costs supporting examples / evidence • specific products • specific materials/manufacturing methods • specific details of market

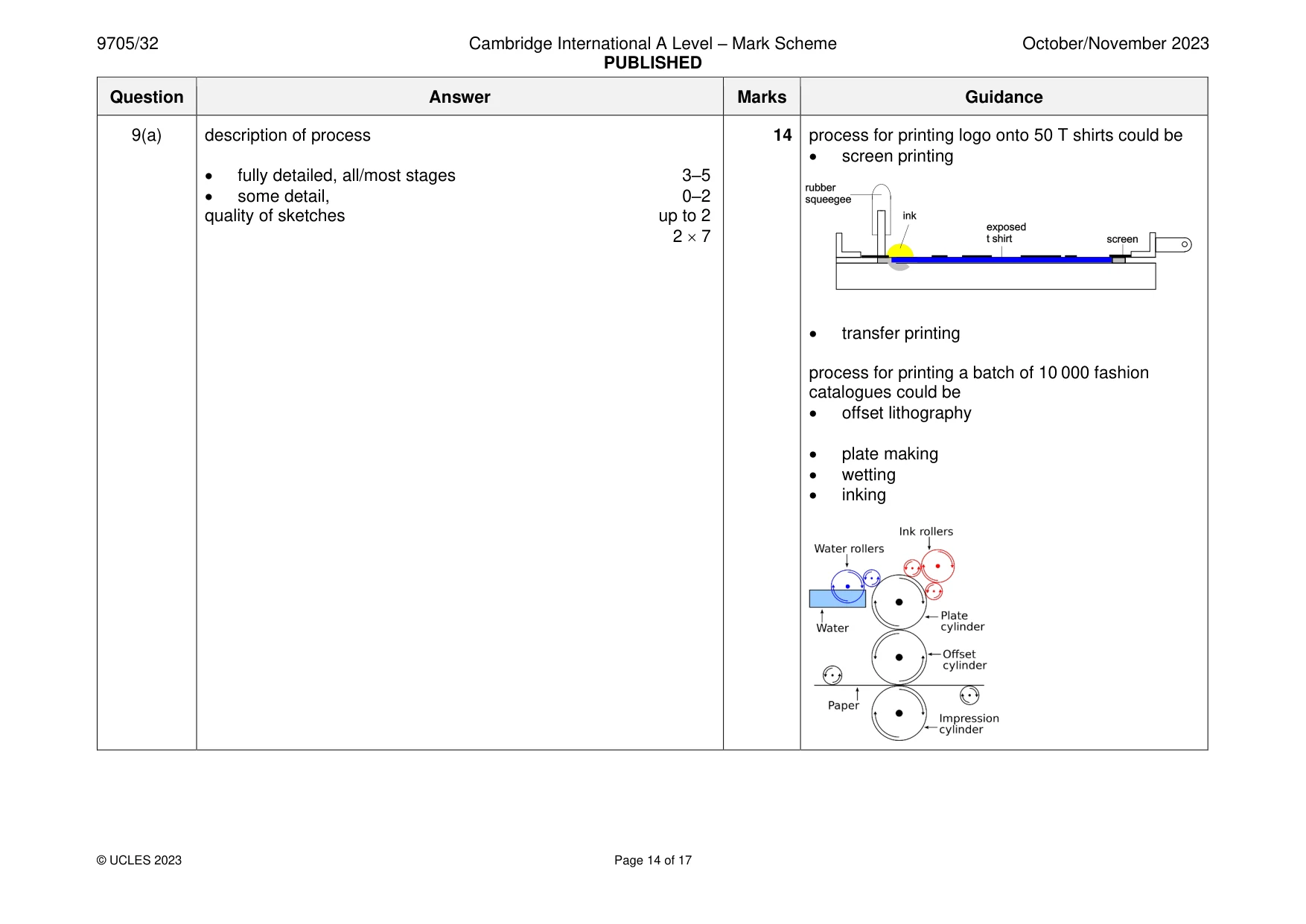

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 14 of 17 Question Answer Marks Guidance 9(a) description of process • fully detailed, all/most stages 3–5 • some detail, 0–2 quality of sketches up to 2 2  7 14 process for printing logo onto 50 T shirts could be • screen printing • transfer printing process for printing a batch of 10 000 fashion catalogues could be • offset lithography • plate making • wetting • inking

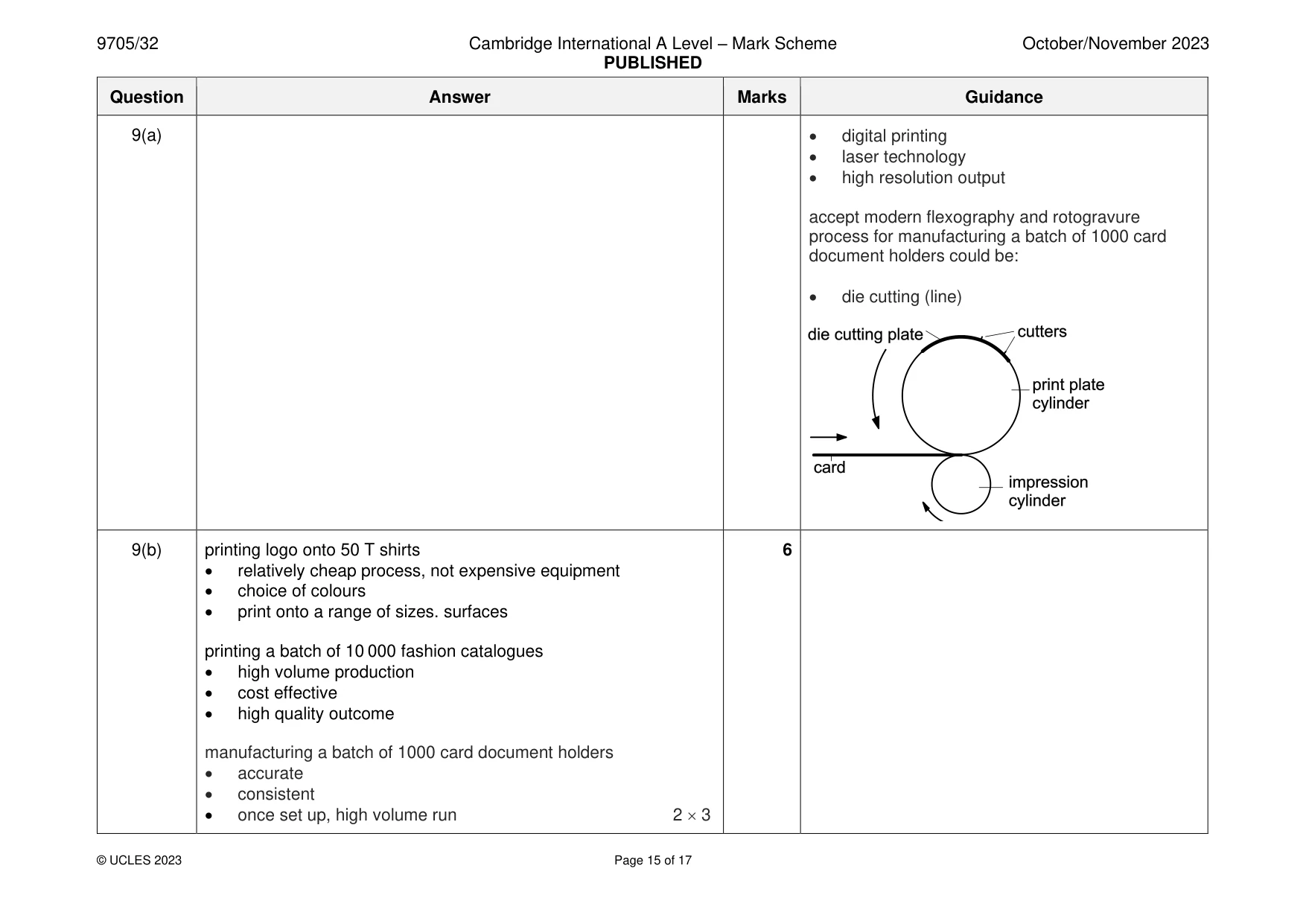

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 15 of 17 Question Answer Marks Guidance 9(a) • digital printing • laser technology • high resolution output accept modern flexography and rotogravure process for manufacturing a batch of 1000 card document holders could be: • die cutting (line) 9(b) printing logo onto 50 T shirts • relatively cheap process, not expensive equipment • choice of colours • print onto a range of sizes. surfaces printing a batch of 10 000 fashion catalogues • high volume production • cost effective • high quality outcome manufacturing a batch of 1000 card document holders • accurate • consistent • once set up, high volume run 2  3 6

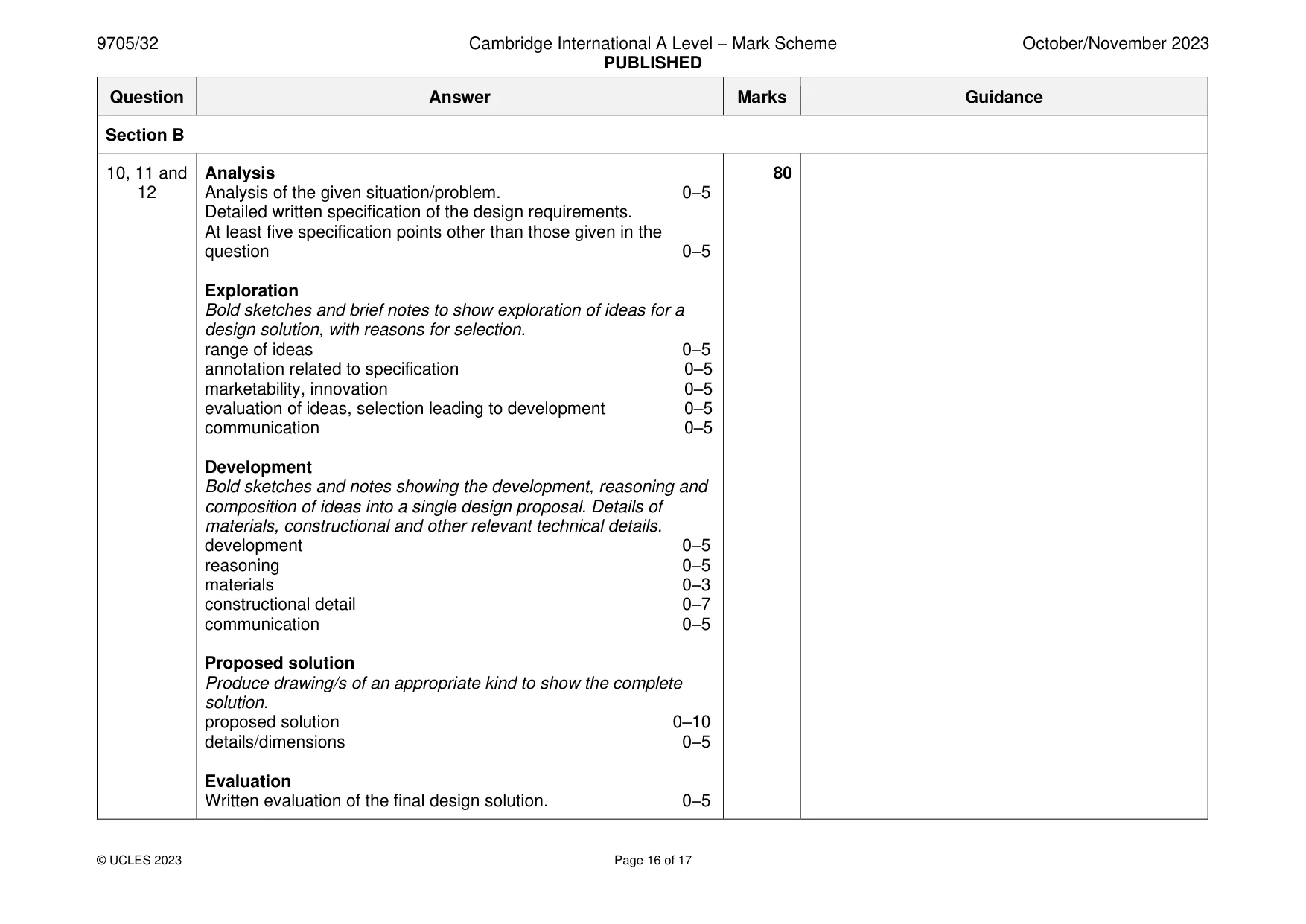

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 16 of 17 Question Answer Marks Guidance Section B 10, 11 and 12 Analysis Analysis of the given situation/problem. 0–5 Detailed written specification of the design requirements. At least five specification points other than those given in the question 0–5 Exploration Bold sketches and brief notes to show exploration of ideas for a design solution, with reasons for selection. range of ideas 0–5 annotation related to specification 0–5 marketability, innovation 0–5 evaluation of ideas, selection leading to development 0–5 communication 0–5 Development Bold sketches and notes showing the development, reasoning and composition of ideas into a single design proposal. Details of materials, constructional and other relevant technical details. development 0–5 reasoning 0–5 materials 0–3 constructional detail 0–7 communication 0–5 Proposed solution Produce drawing/s of an appropriate kind to show the complete solution. proposed solution 0–10 details/dimensions 0–5 Evaluation Written evaluation of the final design solution. 0–5 80

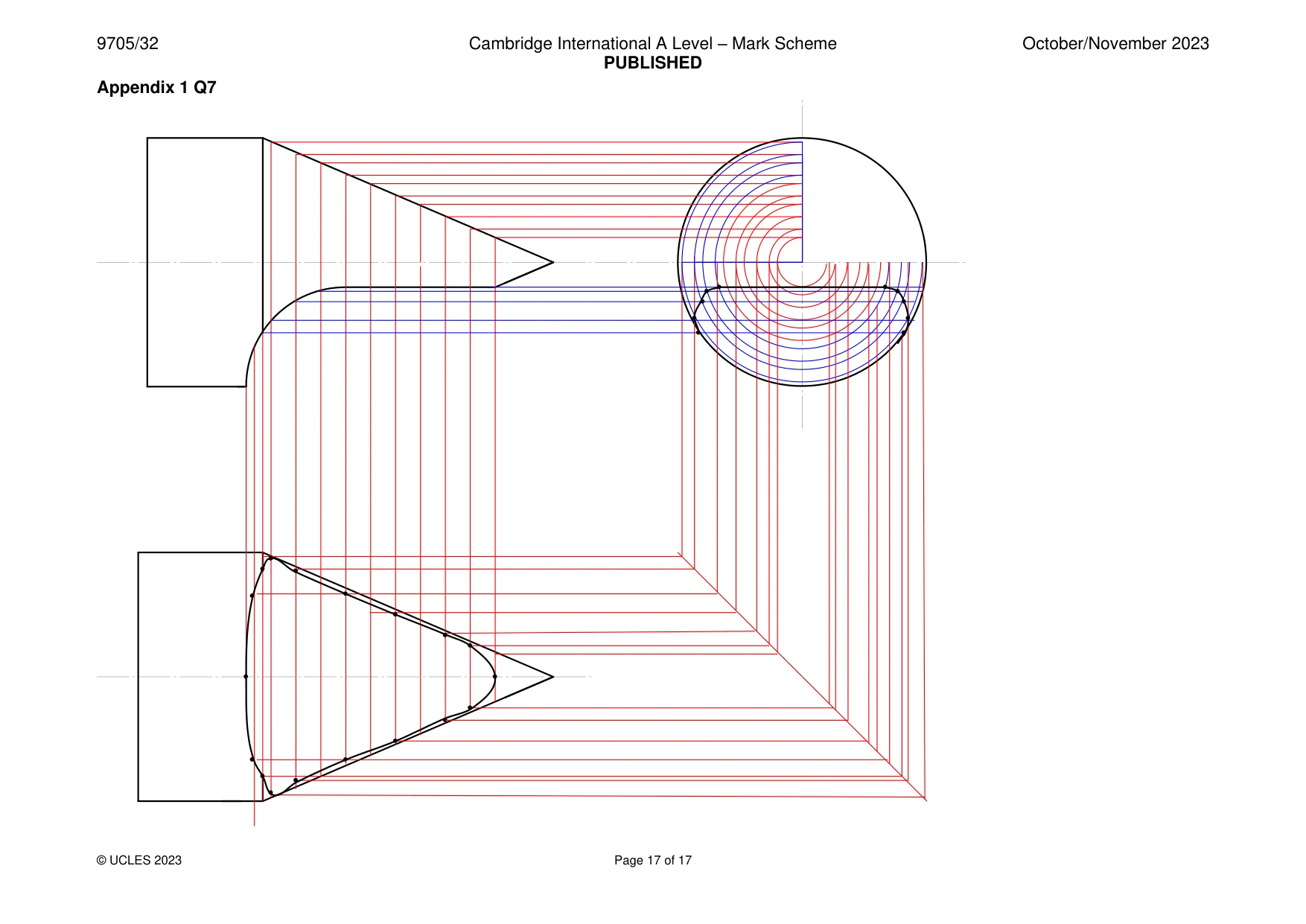

9705/32 Cambridge International A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 17 of 17 Appendix 1 Q7
