Cambridge A Level Design and Technology 9705 — 2023 Oct/Nov Paper 1 · Variant 3

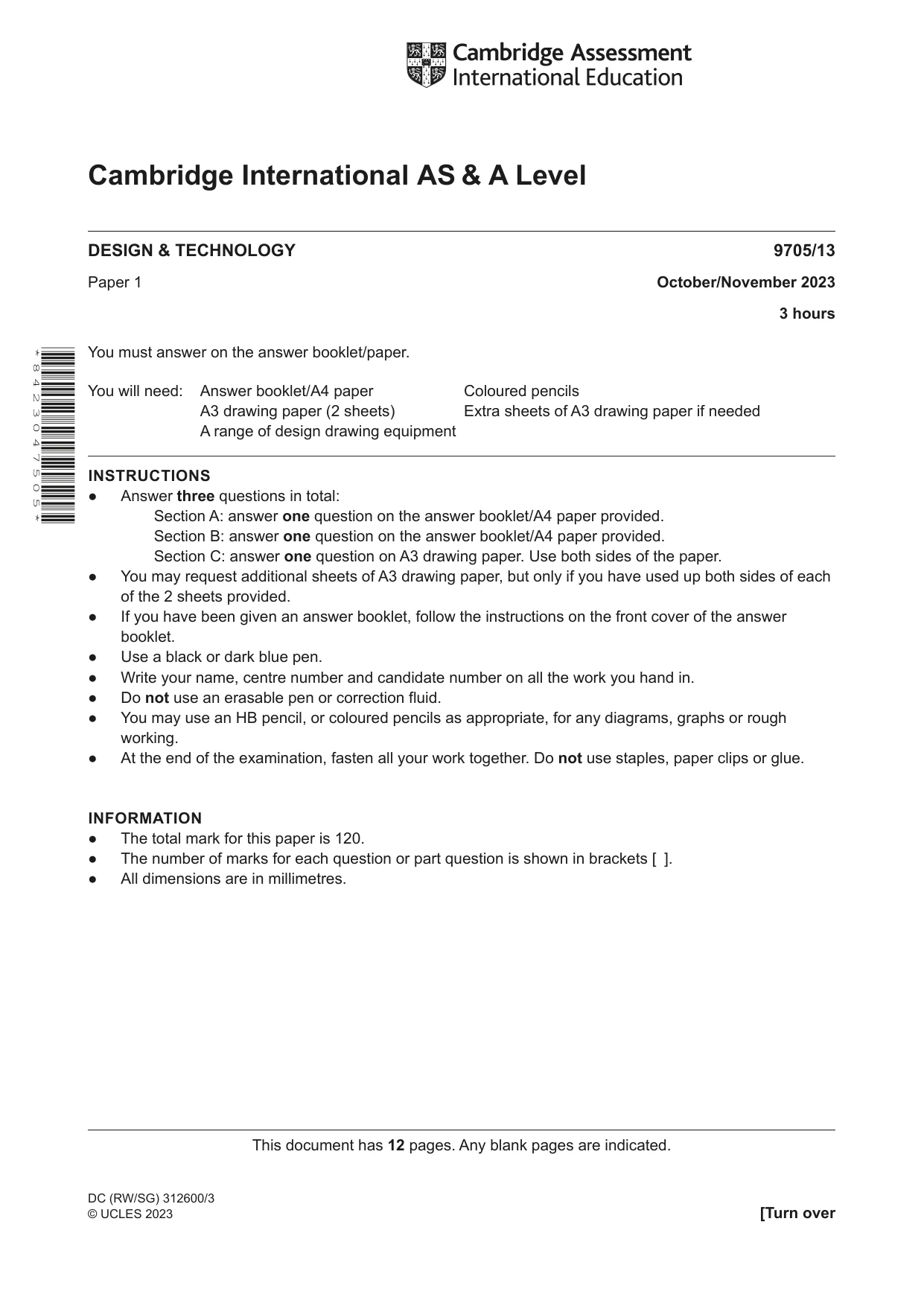

This document has 12 pages. Any blank pages are indicated. [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/13 Paper 1 October/November 2023 3 hours You must answer on the answer booklet/paper. You will need: Answer booklet/A4 paper Coloured pencils A3 drawing paper (2 sheets) Extra sheets of A3 drawing paper if needed A range of design drawing equipment INSTRUCTIONS ● Answer three questions in total: Section A: answer one question on the answer booklet/A4 paper provided. Section B: answer one question on the answer booklet/A4 paper provided. Section C: answer one question on A3 drawing paper. Use both sides of the paper. ● You may request additional sheets of A3 drawing paper, but only if you have used up both sides of each of the 2 sheets provided. ● If you have been given an answer booklet, follow the instructions on the front cover of the answer booklet. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number on all the work you hand in. ● Do not use an erasable pen or correction fluid. ● You may use an HB pencil, or coloured pencils as appropriate, for any diagrams, graphs or rough working. ● At the end of the examination, fasten all your work together. Do not use staples, paper clips or glue. INFORMATION ● The total mark for this paper is 120. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 8 4 2 3 0 4 7 5 0 5 * DC (RW/SG) 312600/3 © UCLES 2023

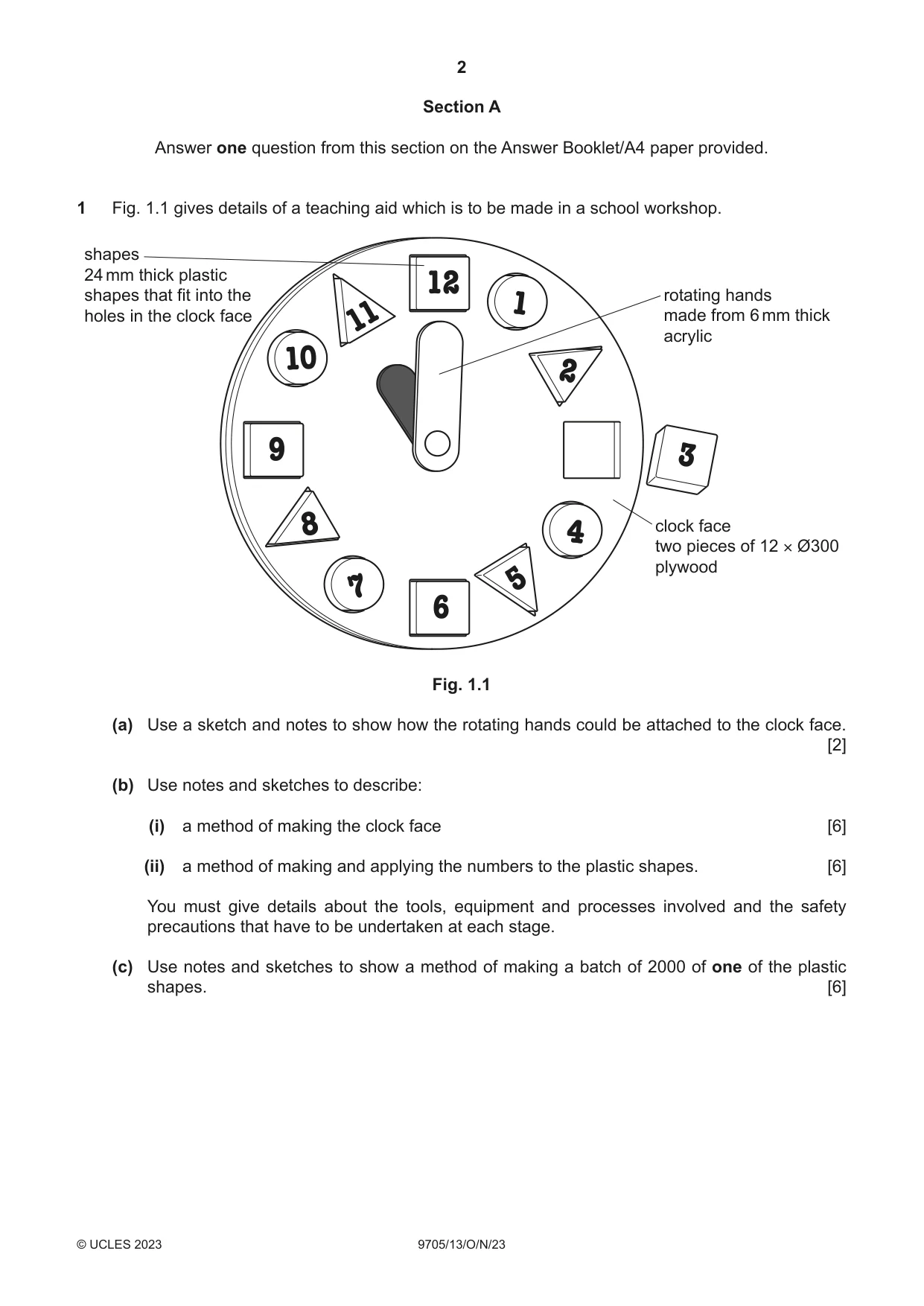

2 9705/13/O/N/23 © UCLES 2023 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1.1 gives details of a teaching aid which is to be made in a school workshop. 3 12 11 6 9 7 10 1 4 2 5 8 clock face two pieces of 12 × Ø300 plywood shapes 24 mm thick plastic shapes that fit into the holes in the clock face rotating hands made from 6 mm thick acrylic Fig. 1.1 (a) Use a sketch and notes to show how the rotating hands could be attached to the clock face. [2] (b) Use notes and sketches to describe: (i) a method of making the clock face [6] (ii) a method of making and applying the numbers to the plastic shapes. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to show a method of making a batch of 2000 of one of the plastic shapes. [6]

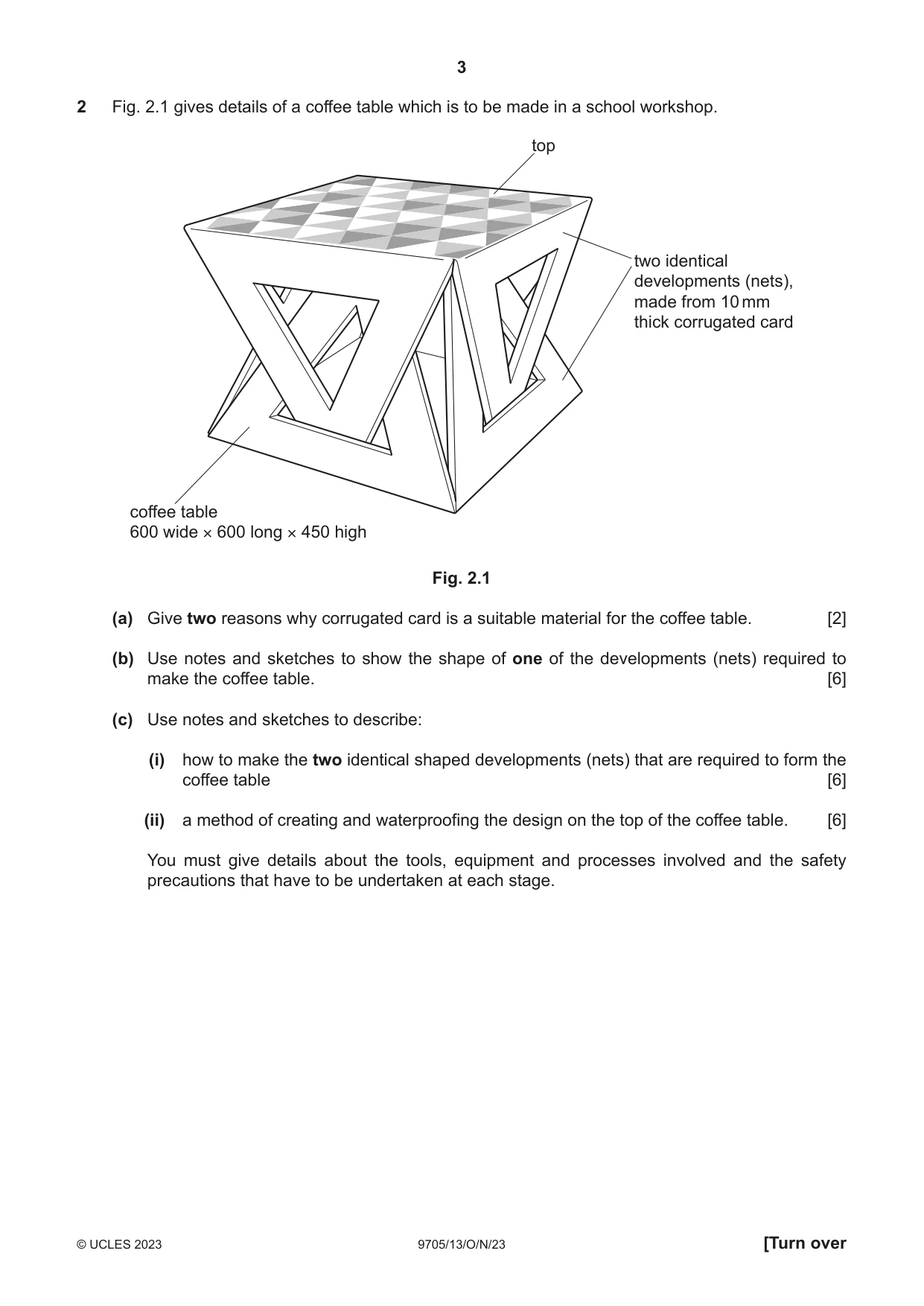

3 9705/13/O/N/23 © UCLES 2023 [Turn over 2 Fig. 2.1 gives details of a coffee table which is to be made in a school workshop. two identical developments (nets), made from 10 mm thick corrugated card top coffee table 600 wide × 600 long × 450 high Fig. 2.1 (a) Give two reasons why corrugated card is a suitable material for the coffee table. [2] (b) Use notes and sketches to show the shape of one of the developments (nets) required to make the coffee table. [6] (c) Use notes and sketches to describe: (i) how to make the two identical shaped developments (nets) that are required to form the coffee table [6] (ii) a method of creating and waterproofing the design on the top of the coffee table. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

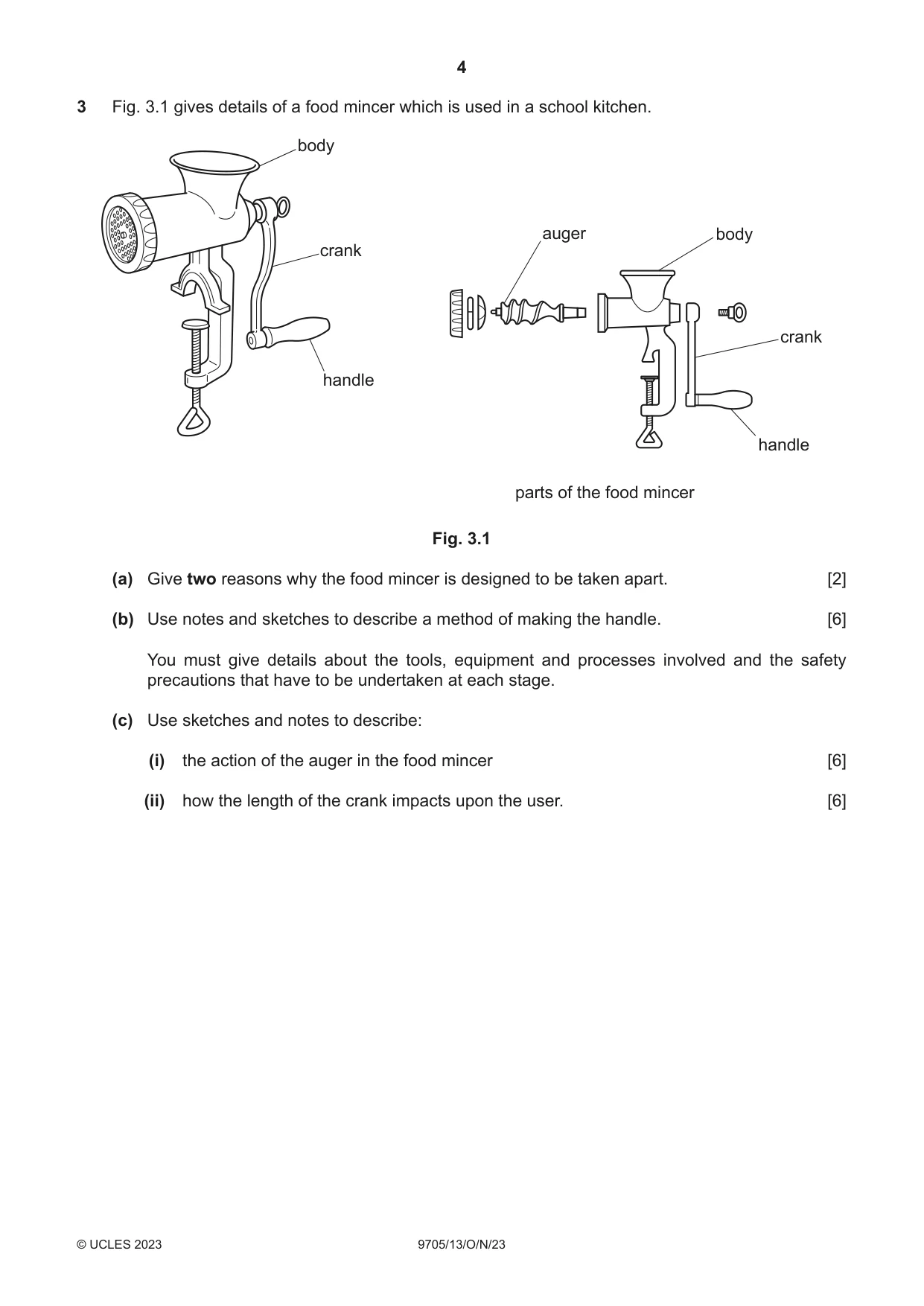

4 9705/13/O/N/23 © UCLES 2023 3 Fig. 3.1 gives details of a food mincer which is used in a school kitchen. auger body crank handle parts of the food mincer body crank handle Fig. 3.1 (a) Give two reasons why the food mincer is designed to be taken apart. [2] (b) Use notes and sketches to describe a method of making the handle. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use sketches and notes to describe: (i) the action of the auger in the food mincer [6] (ii) how the length of the crank impacts upon the user. [6]

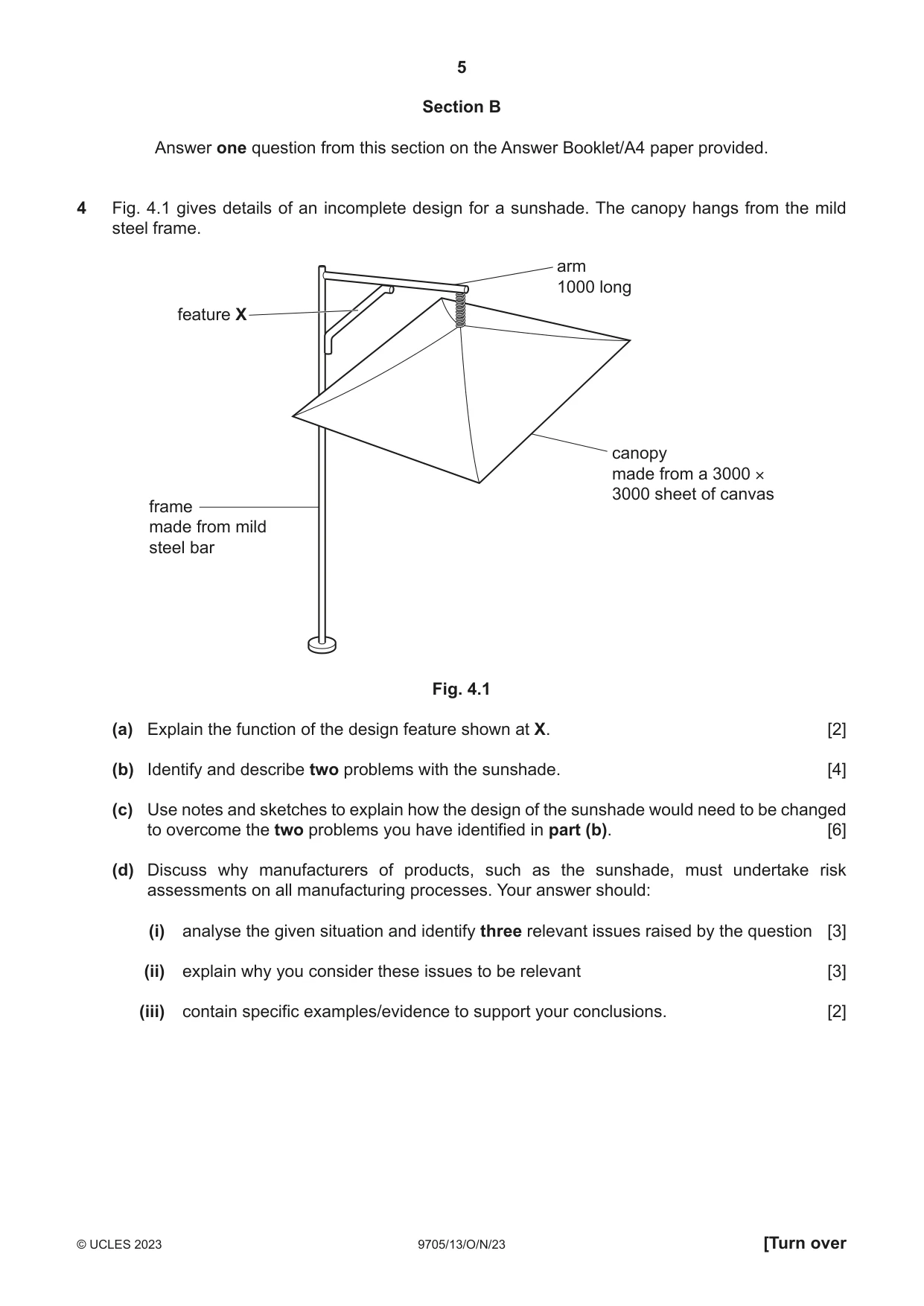

5 9705/13/O/N/23 © UCLES 2023 [Turn over Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 4.1 gives details of an incomplete design for a sunshade. The canopy hangs from the mild steel frame. arm 1000 long canopy made from a 3000 × 3000 sheet of canvas frame made from mild steel bar feature X Fig. 4.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the sunshade. [4] (c) Use notes and sketches to explain how the design of the sunshade would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why manufacturers of products, such as the sunshade, must undertake risk assessments on all manufacturing processes. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

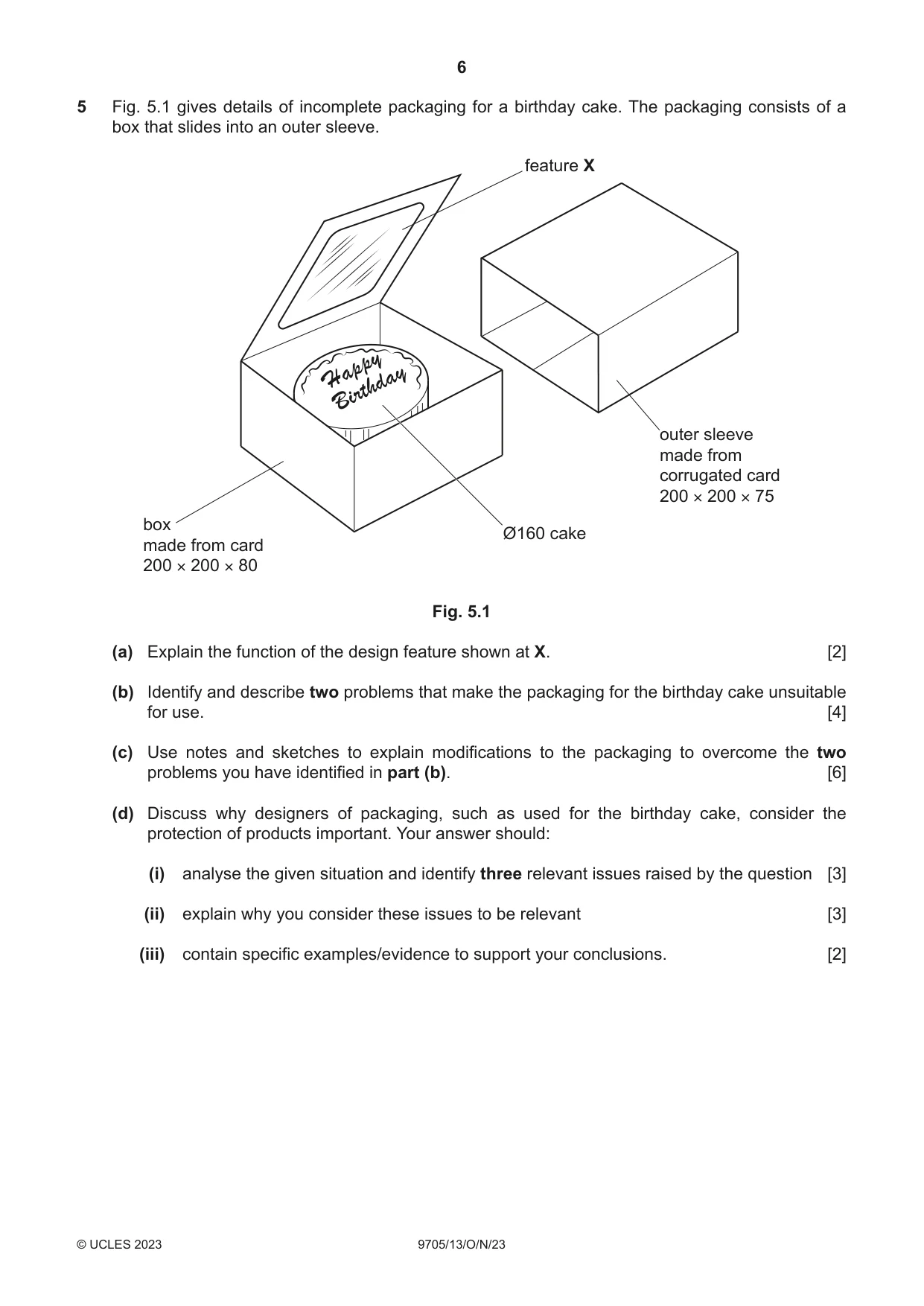

6 9705/13/O/N/23 © UCLES 2023 5 Fig. 5.1 gives details of incomplete packaging for a birthday cake. The packaging consists of a box that slides into an outer sleeve. Ø160 cake box made from card 200 × 200 × 80 outer sleeve made from corrugated card 200 × 200 × 75 feature X Happy Birthday Fig. 5.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems that make the packaging for the birthday cake unsuitable for use. [4] (c) Use notes and sketches to explain modifications to the packaging to overcome the two problems you have identified in part (b). [6] (d) Discuss why designers of packaging, such as used for the birthday cake, consider the protection of products important. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

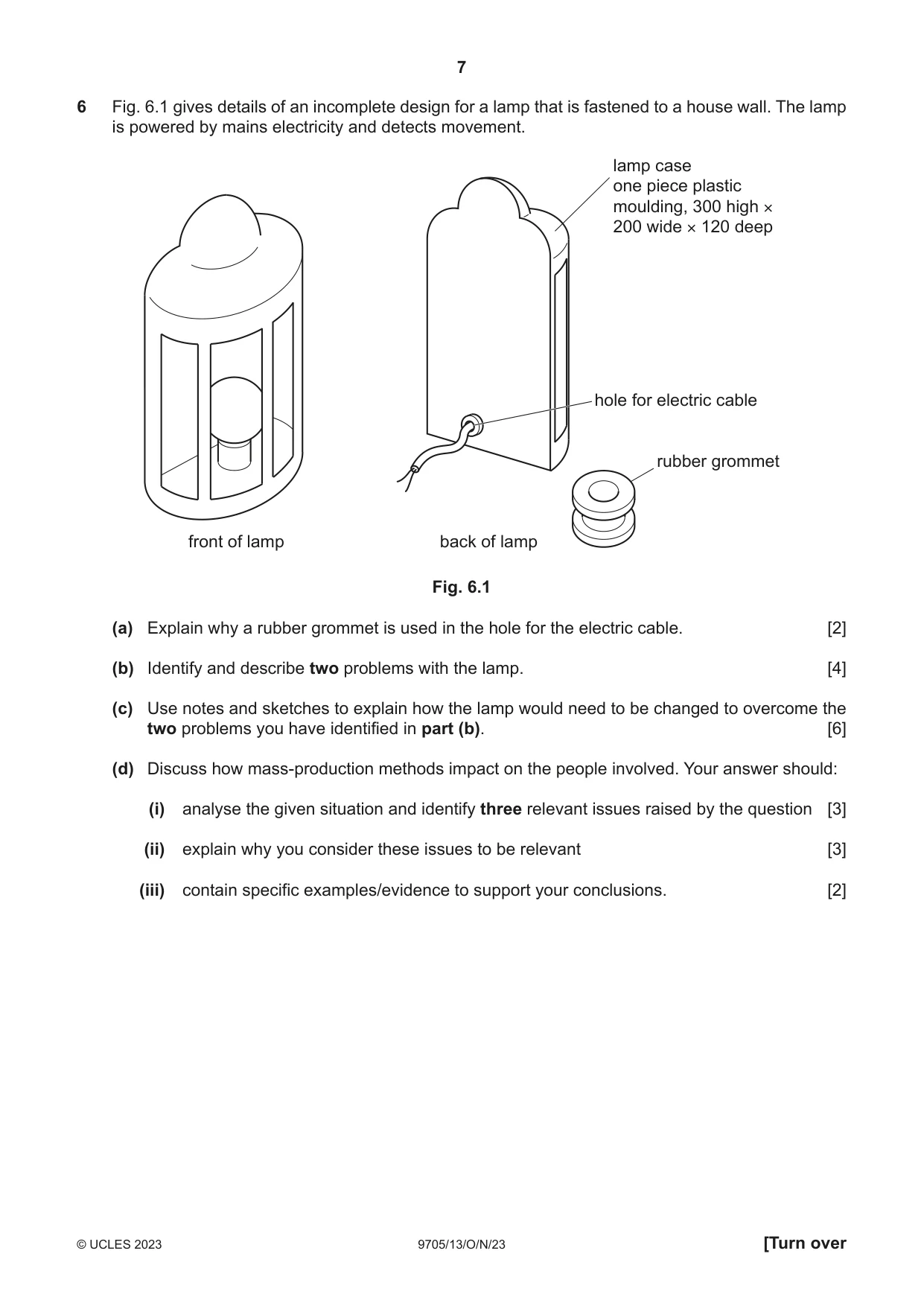

7 9705/13/O/N/23 © UCLES 2023 [Turn over 6 Fig. 6.1 gives details of an incomplete design for a lamp that is fastened to a house wall. The lamp is powered by mains electricity and detects movement. lamp case one piece plastic moulding, 300 high × 200 wide × 120 deep hole for electric cable rubber grommet front of lamp back of lamp Fig. 6.1 (a) Explain why a rubber grommet is used in the hole for the electric cable. [2] (b) Identify and describe two problems with the lamp. [4] (c) Use notes and sketches to explain how the lamp would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss how mass‑production methods impact on the people involved. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

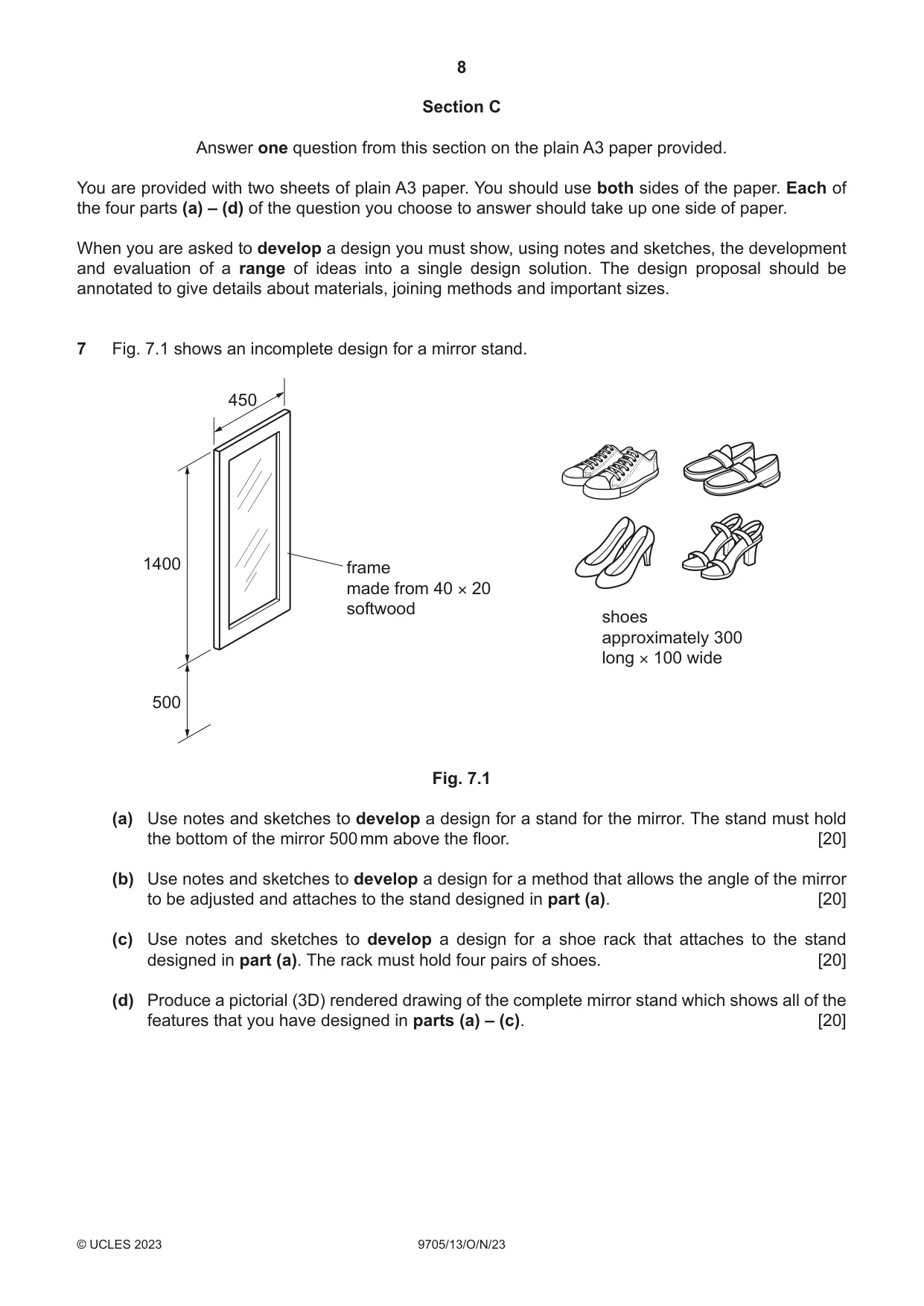

8 9705/13/O/N/23 © UCLES 2023 Section C Answer one question from this section on the plain A3 paper provided. You are provided with two sheets of plain A3 paper. You should use both sides of the paper. Each of the four parts (a) – (d) of the question you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using notes and sketches, the development and evaluation of a range of ideas into a single design solution. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 7.1 shows an incomplete design for a mirror stand. shoes approximately 300 long × 100 wide frame made from 40 × 20 softwood 500 1400 450 Fig. 7.1 (a) Use notes and sketches to develop a design for a stand for the mirror. The stand must hold the bottom of the mirror 500 mm above the floor. [20] (b) Use notes and sketches to develop a design for a method that allows the angle of the mirror to be adjusted and attaches to the stand designed in part (a). [20] (c) Use notes and sketches to develop a design for a shoe rack that attaches to the stand designed in part (a). The rack must hold four pairs of shoes. [20] (d) Produce a pictorial (3D) rendered drawing of the complete mirror stand which shows all of the features that you have designed in parts (a) – (c). [20]

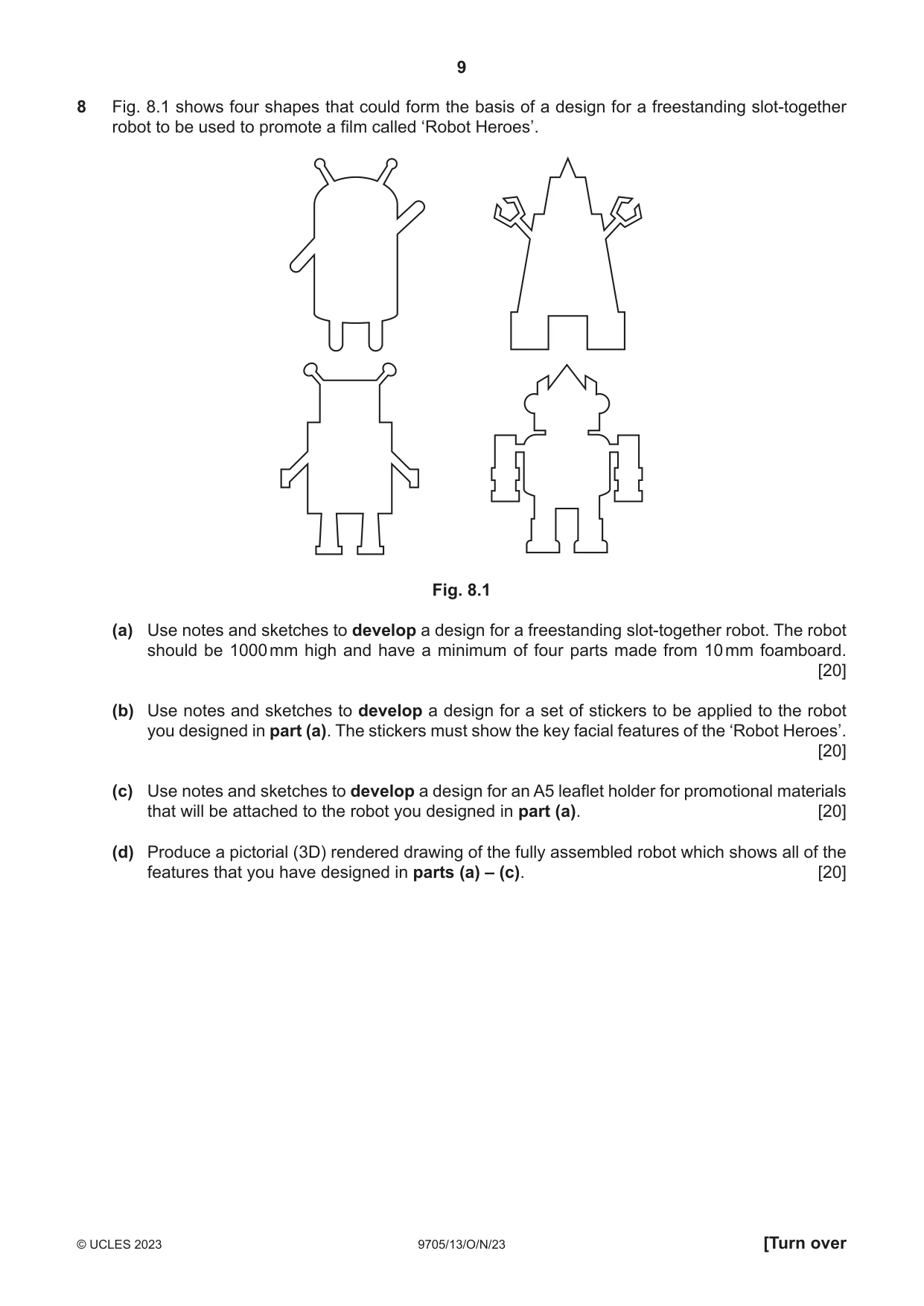

9 9705/13/O/N/23 © UCLES 2023 [Turn over 8 Fig. 8.1 shows four shapes that could form the basis of a design for a freestanding slot‑together robot to be used to promote a film called ‘Robot Heroes’. Fig. 8.1 (a) Use notes and sketches to develop a design for a freestanding slot‑together robot. The robot should be 1000 mm high and have a minimum of four parts made from 10 mm foamboard. [20] (b) Use notes and sketches to develop a design for a set of stickers to be applied to the robot you designed in part (a). The stickers must show the key facial features of the ‘Robot Heroes’. [20] (c) Use notes and sketches to develop a design for an A5 leaflet holder for promotional materials that will be attached to the robot you designed in part (a). [20] (d) Produce a pictorial (3D) rendered drawing of the fully assembled robot which shows all of the features that you have designed in parts (a) – (c). [20]

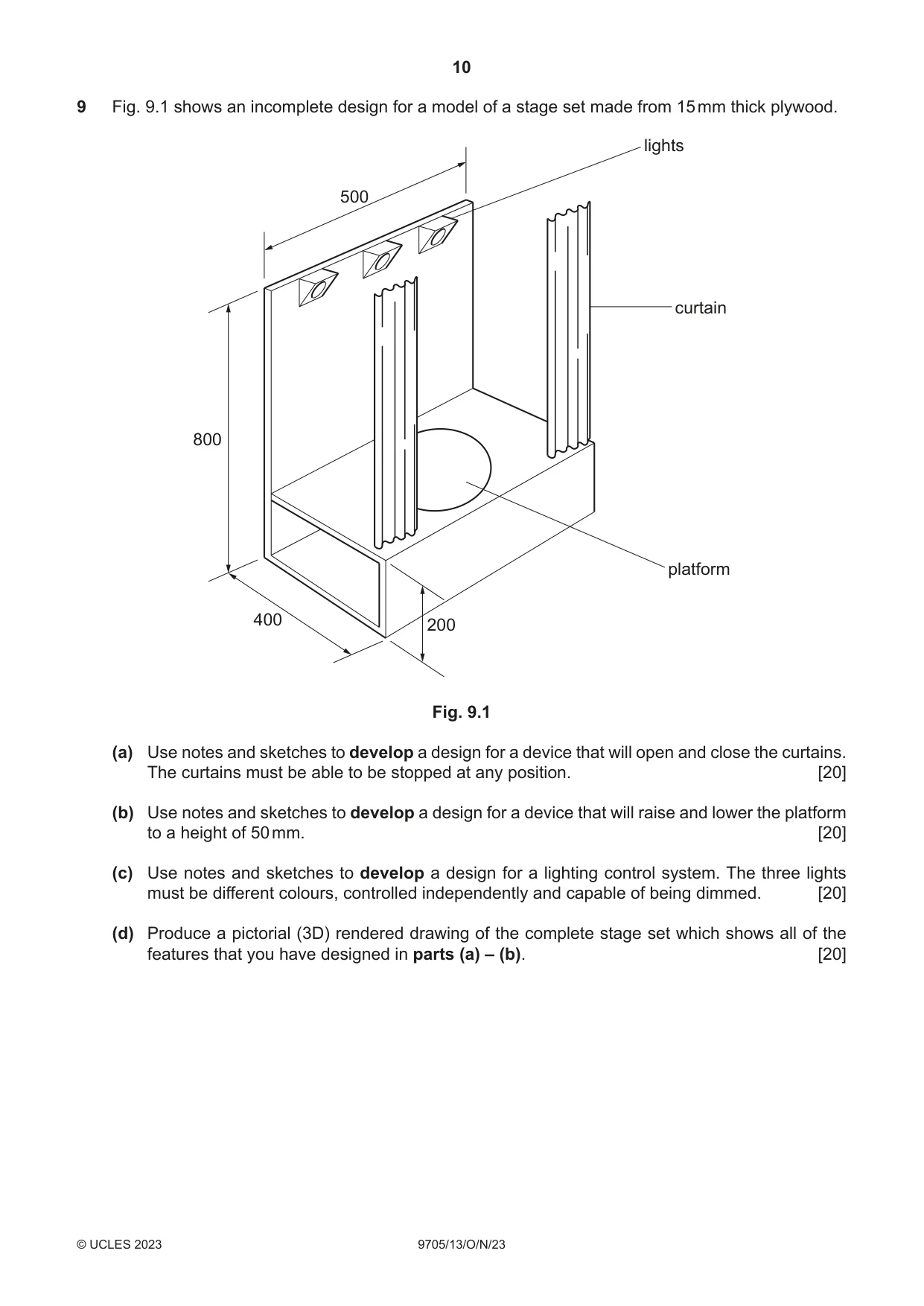

10 9705/13/O/N/23 © UCLES 2023 9 Fig. 9.1 shows an incomplete design for a model of a stage set made from 15 mm thick plywood. platform curtain lights 200 500 800 400 Fig. 9.1 (a) Use notes and sketches to develop a design for a device that will open and close the curtains. The curtains must be able to be stopped at any position. [20] (b) Use notes and sketches to develop a design for a device that will raise and lower the platform to a height of 50 mm. [20] (c) Use notes and sketches to develop a design for a lighting control system. The three lights must be different colours, controlled independently and capable of being dimmed. [20] (d) Produce a pictorial (3D) rendered drawing of the complete stage set which shows all of the features that you have designed in parts (a) – (b). [20]

11 9705/13/O/N/23 © UCLES 2023 BLANK PAGE

12 9705/13/O/N/23 © UCLES 2023 Permission to reproduce items where third‑party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer‑related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

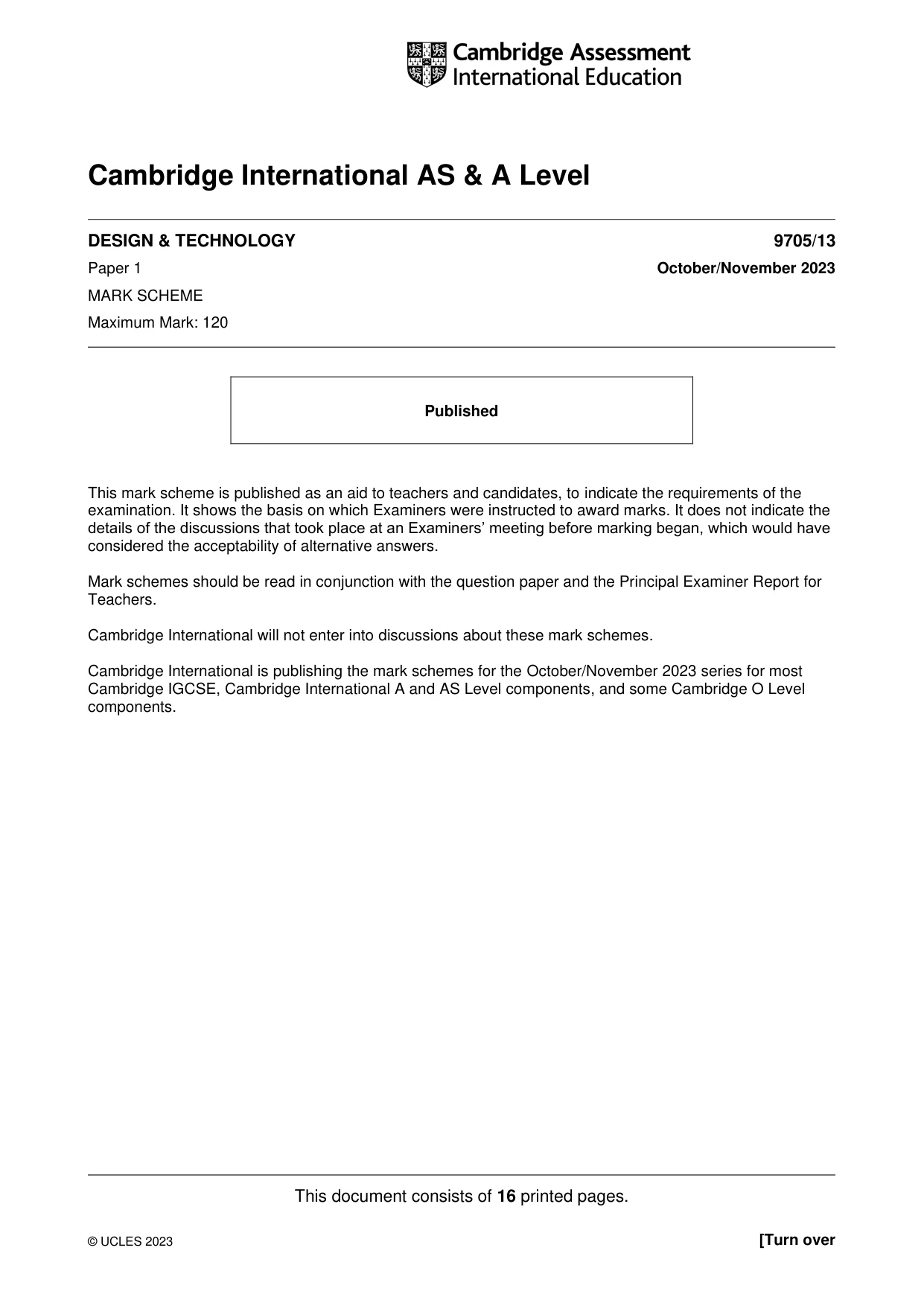

This document consists of 16 printed pages. © UCLES 2023 [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/13 Paper 1 October/November 2023 MARK SCHEME Maximum Mark: 120 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

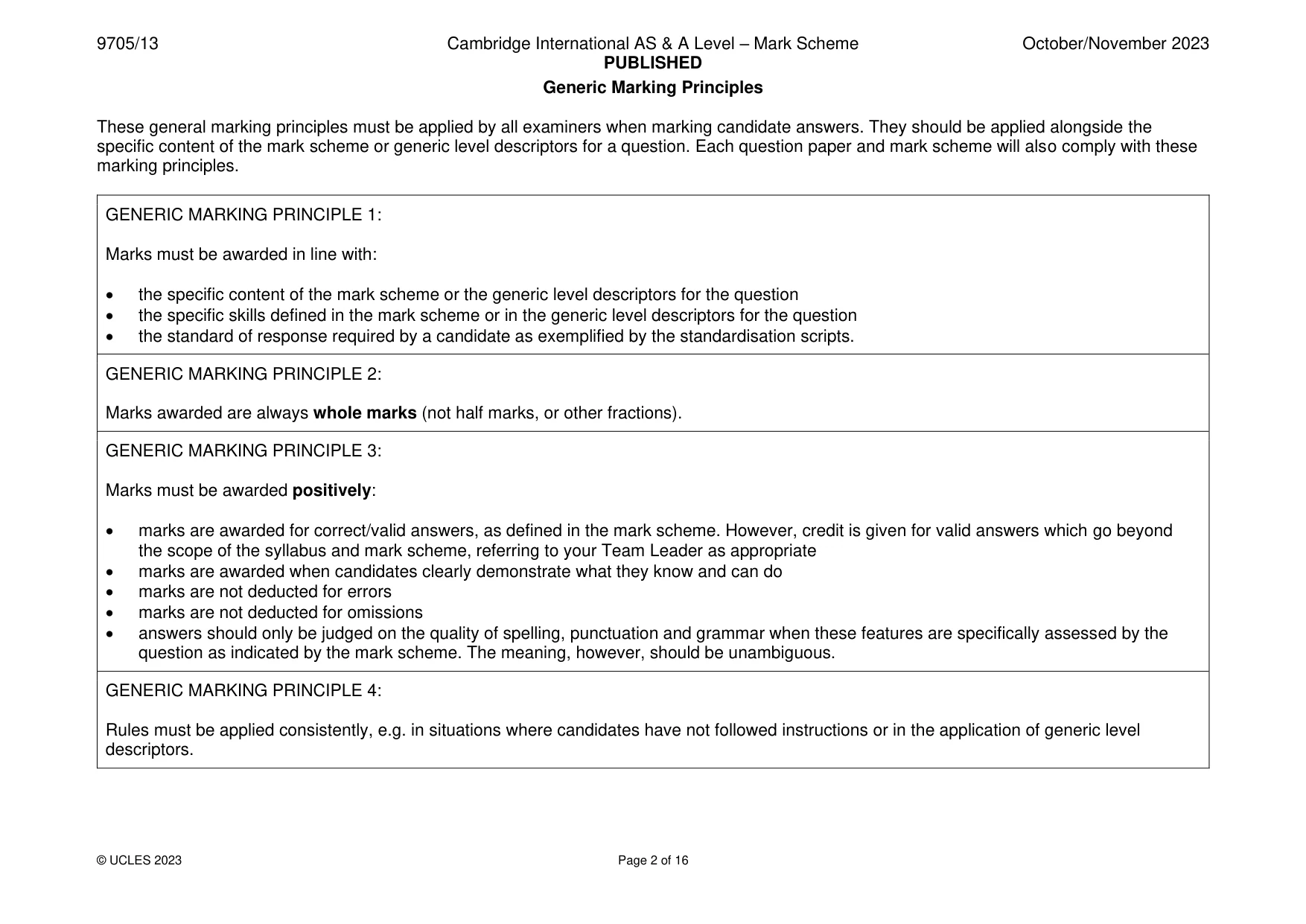

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 16 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

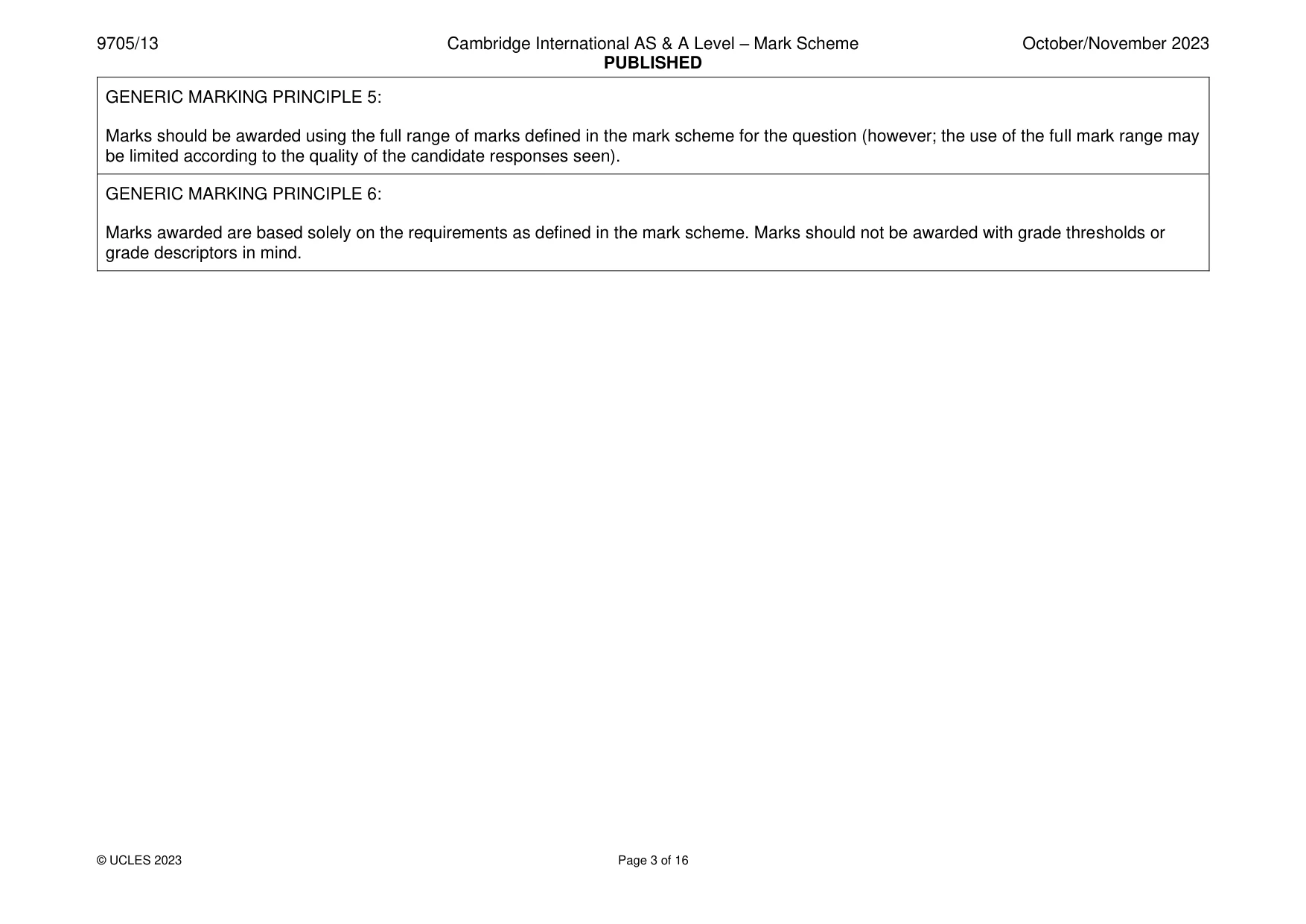

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 16 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

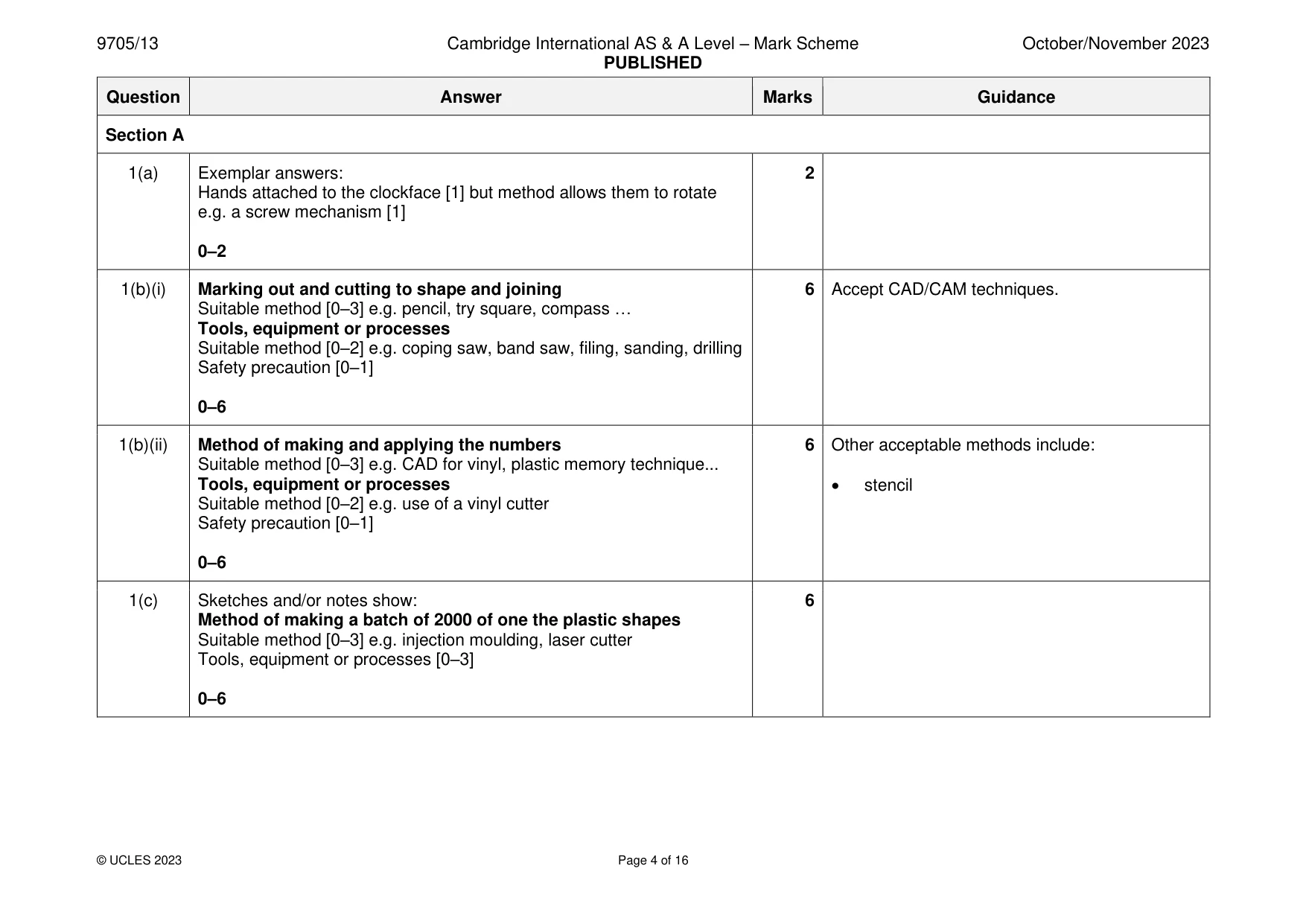

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 4 of 16 Question Answer Marks Guidance Section A 1(a) Exemplar answers: Hands attached to the clockface [1] but method allows them to rotate e.g. a screw mechanism [1] 0–2 2 1(b)(i) Marking out and cutting to shape and joining Suitable method [0–3] e.g. pencil, try square, compass … Tools, equipment or processes Suitable method [0–2] e.g. coping saw, band saw, filing, sanding, drilling Safety precaution [0–1] 0–6 6 Accept CAD/CAM techniques. 1(b)(ii) Method of making and applying the numbers Suitable method [0–3] e.g. CAD for vinyl, plastic memory technique... Tools, equipment or processes Suitable method [0–2] e.g. use of a vinyl cutter Safety precaution [0–1] 0–6 6 Other acceptable methods include: • stencil 1(c) Sketches and/or notes show: Method of making a batch of 2000 of one the plastic shapes Suitable method [0–3] e.g. injection moulding, laser cutter Tools, equipment or processes [0–3] 0–6 6

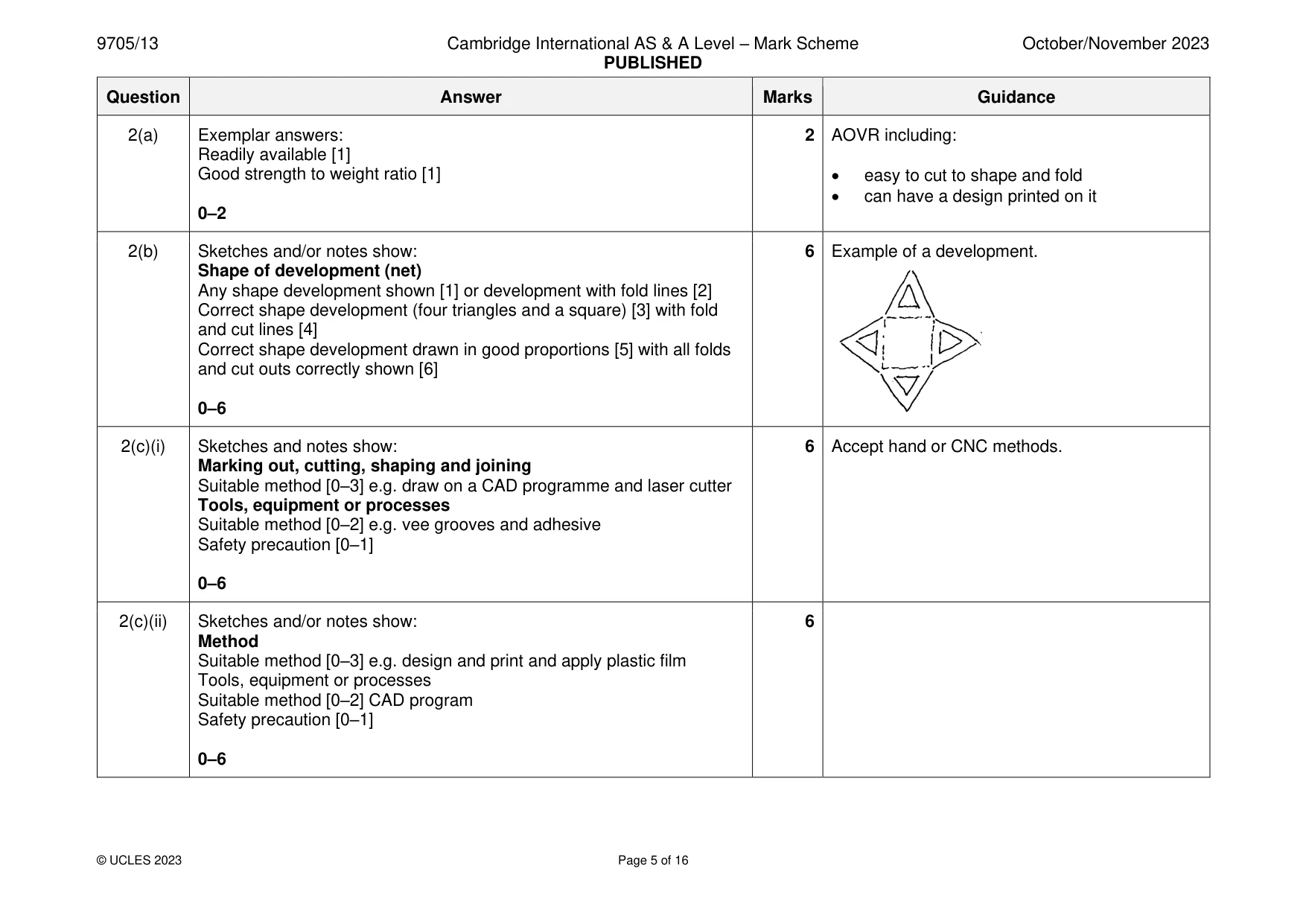

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 5 of 16 Question Answer Marks Guidance 2(a) Exemplar answers: Readily available [1] Good strength to weight ratio [1] 0–2 2 AOVR including: • easy to cut to shape and fold • can have a design printed on it 2(b) Sketches and/or notes show: Shape of development (net) Any shape development shown [1] or development with fold lines [2] Correct shape development (four triangles and a square) [3] with fold and cut lines [4] Correct shape development drawn in good proportions [5] with all folds and cut outs correctly shown [6] 0–6 6 Example of a development. 2(c)(i) Sketches and notes show: Marking out, cutting, shaping and joining Suitable method [0–3] e.g. draw on a CAD programme and laser cutter Tools, equipment or processes Suitable method [0–2] e.g. vee grooves and adhesive Safety precaution [0–1] 0–6 6 Accept hand or CNC methods. 2(c)(ii) Sketches and/or notes show: Method Suitable method [0–3] e.g. design and print and apply plastic film Tools, equipment or processes Suitable method [0–2] CAD program Safety precaution [0–1] 0–6 6

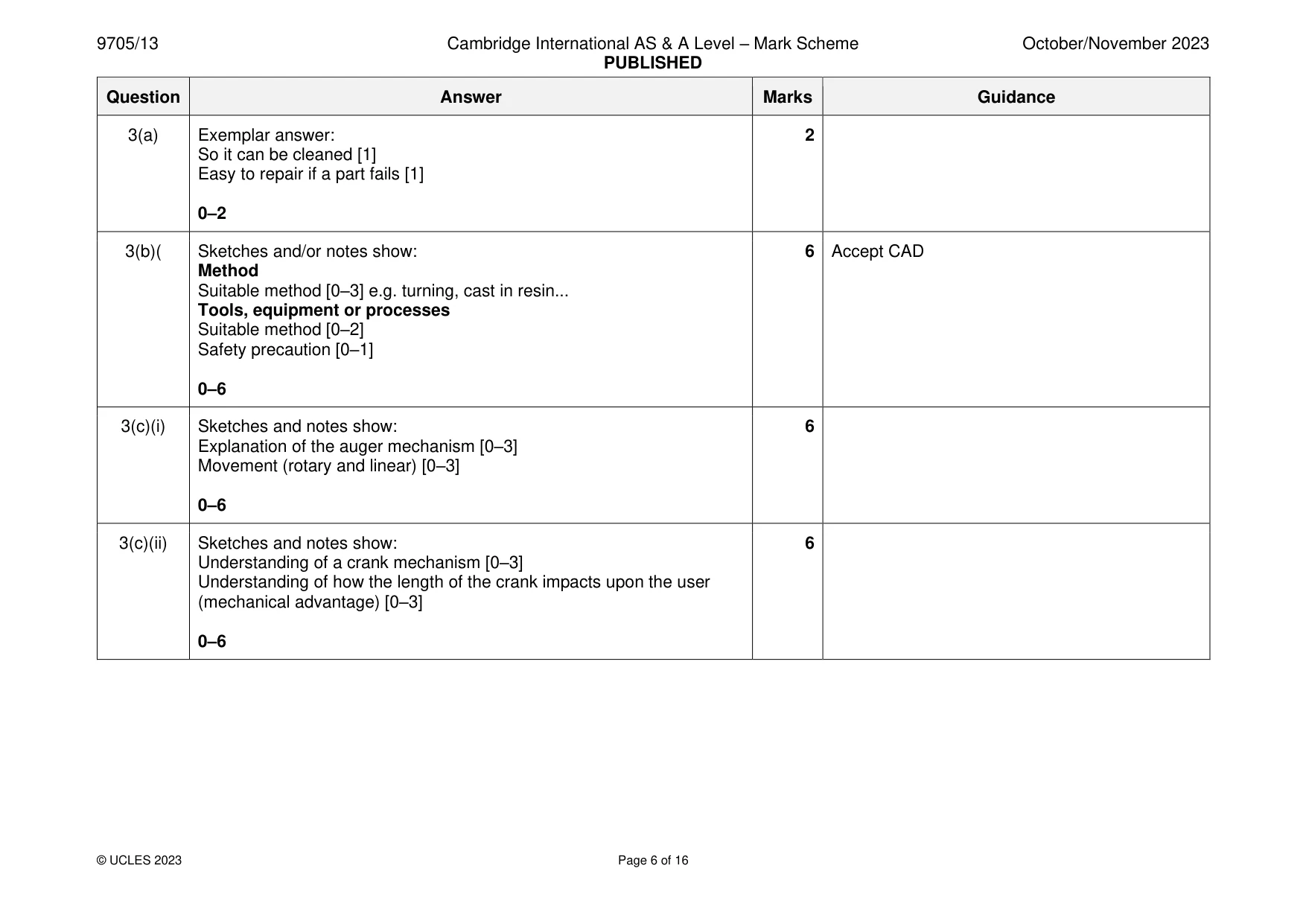

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 6 of 16 Question Answer Marks Guidance 3(a) Exemplar answer: So it can be cleaned [1] Easy to repair if a part fails [1] 0–2 2 3(b)( Sketches and/or notes show: Method Suitable method [0–3] e.g. turning, cast in resin... Tools, equipment or processes Suitable method [0–2] Safety precaution [0–1] 0–6 6 Accept CAD 3(c)(i) Sketches and notes show: Explanation of the auger mechanism [0–3] Movement (rotary and linear) [0–3] 0–6 6 3(c)(ii) Sketches and notes show: Understanding of a crank mechanism [0–3] Understanding of how the length of the crank impacts upon the user (mechanical advantage) [0–3] 0–6 6

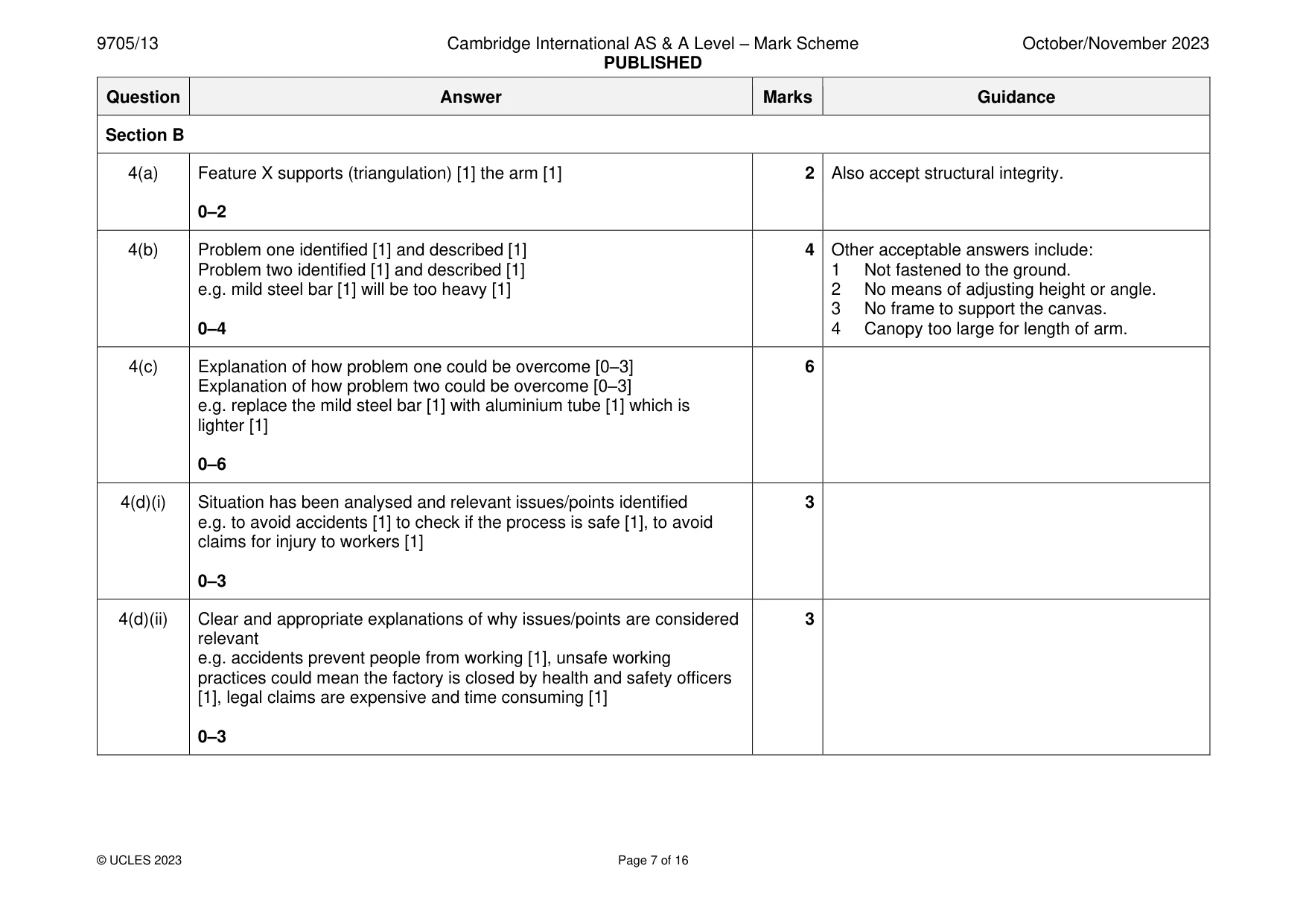

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 7 of 16 Question Answer Marks Guidance Section B 4(a) Feature X supports (triangulation) [1] the arm [1] 0–2 2 Also accept structural integrity. 4(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. mild steel bar [1] will be too heavy [1] 0–4 4 Other acceptable answers include: 1 Not fastened to the ground. 2 No means of adjusting height or angle. 3 No frame to support the canvas. 4 Canopy too large for length of arm. 4(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. replace the mild steel bar [1] with aluminium tube [1] which is lighter [1] 0–6 6 4(d)(i) Situation has been analysed and relevant issues/points identified e.g. to avoid accidents [1] to check if the process is safe [1], to avoid claims for injury to workers [1] 0–3 3 4(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. accidents prevent people from working [1], unsafe working practices could mean the factory is closed by health and safety officers [1], legal claims are expensive and time consuming [1] 0–3 3

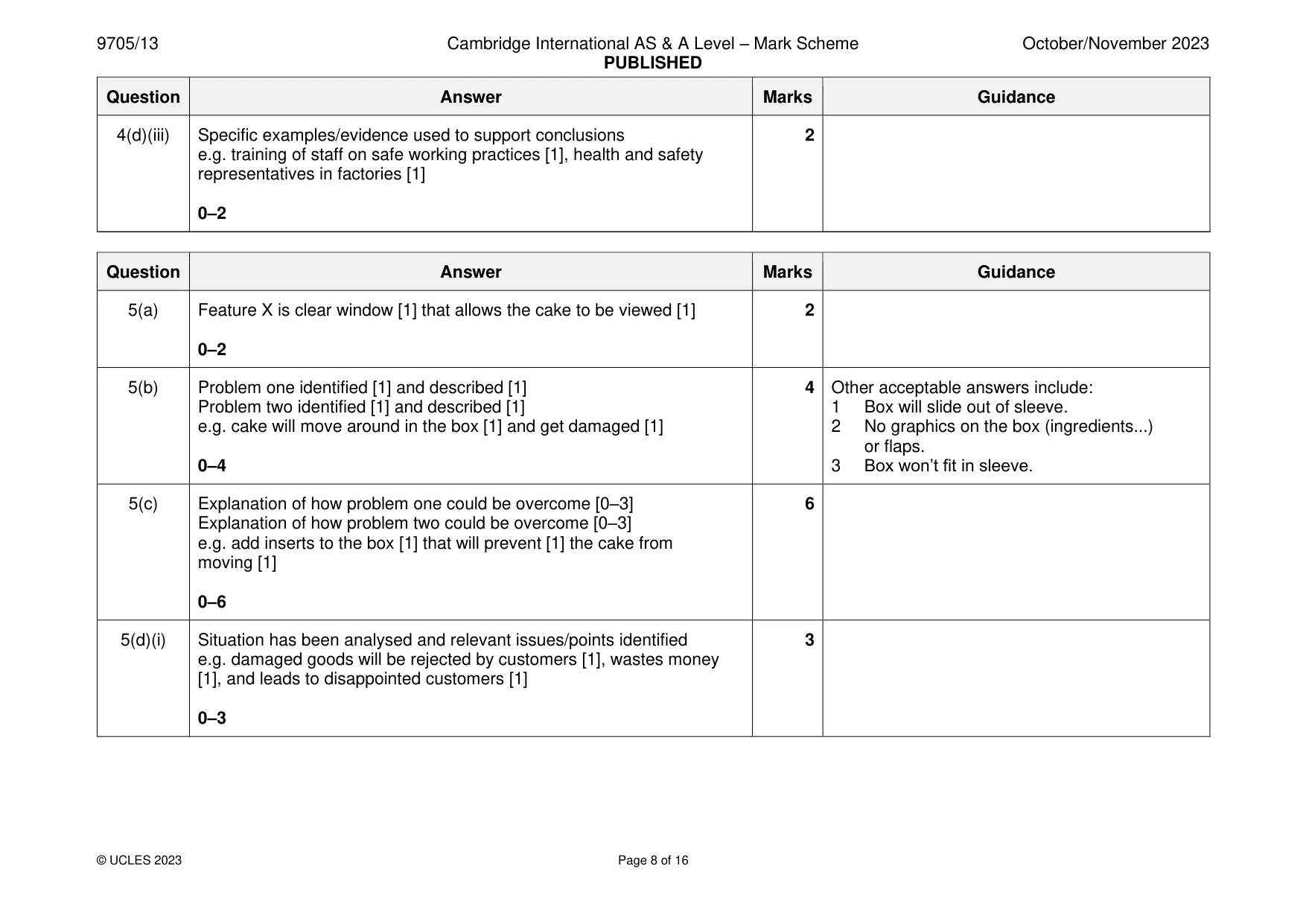

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 8 of 16 Question Answer Marks Guidance 4(d)(iii) Specific examples/evidence used to support conclusions e.g. training of staff on safe working practices [1], health and safety representatives in factories [1] 0–2 2 Question Answer Marks Guidance 5(a) Feature X is clear window [1] that allows the cake to be viewed [1] 0–2 2 5(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. cake will move around in the box [1] and get damaged [1] 0–4 4 Other acceptable answers include: 1 Box will slide out of sleeve. 2 No graphics on the box (ingredients...) or flaps. 3 Box won’t fit in sleeve. 5(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. add inserts to the box [1] that will prevent [1] the cake from moving [1] 0–6 6 5(d)(i) Situation has been analysed and relevant issues/points identified e.g. damaged goods will be rejected by customers [1], wastes money [1], and leads to disappointed customers [1] 0–3 3

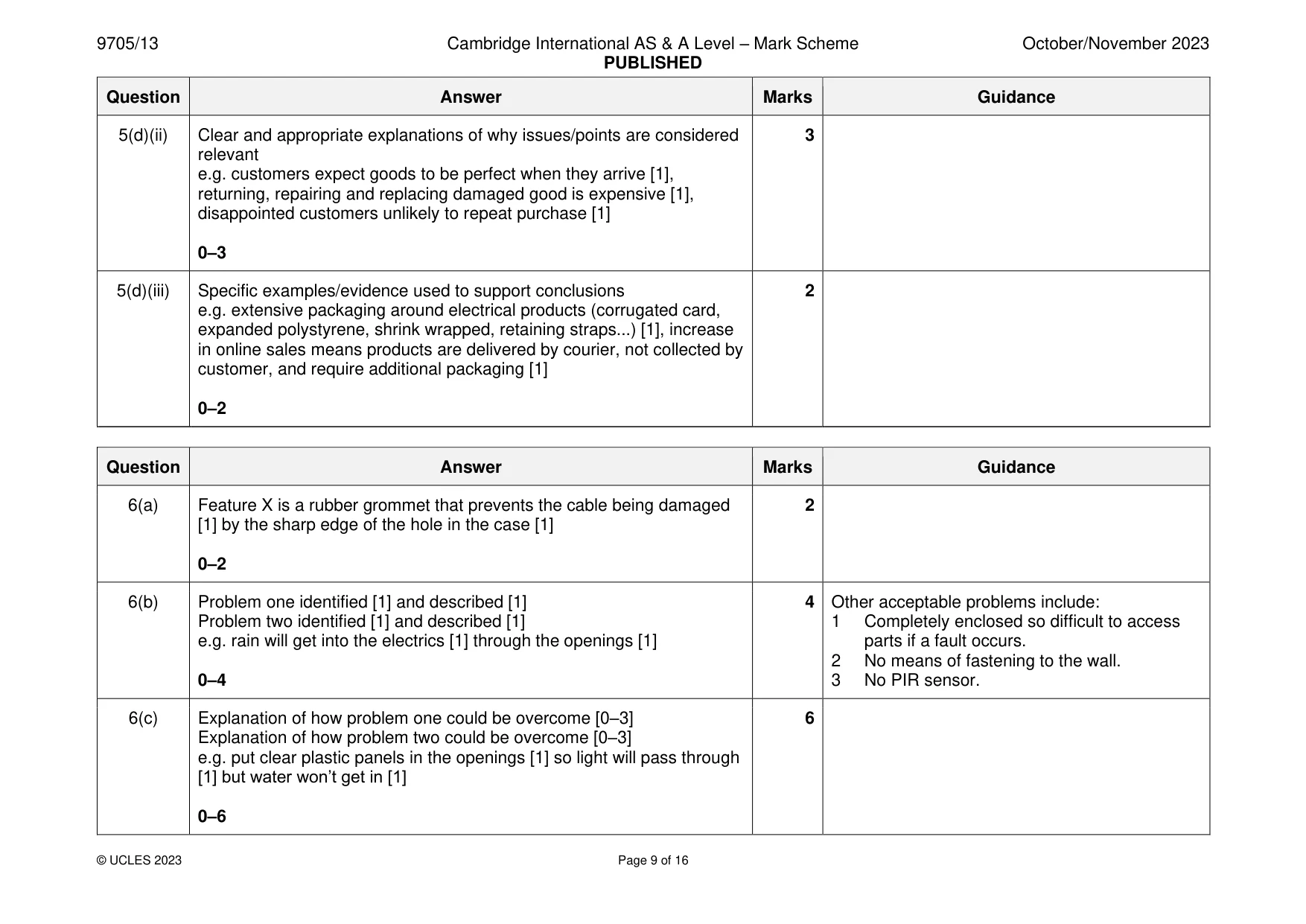

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 9 of 16 Question Answer Marks Guidance 5(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. customers expect goods to be perfect when they arrive [1], returning, repairing and replacing damaged good is expensive [1], disappointed customers unlikely to repeat purchase [1] 0–3 3 5(d)(iii) Specific examples/evidence used to support conclusions e.g. extensive packaging around electrical products (corrugated card, expanded polystyrene, shrink wrapped, retaining straps...) [1], increase in online sales means products are delivered by courier, not collected by customer, and require additional packaging [1] 0–2 2 Question Answer Marks Guidance 6(a) Feature X is a rubber grommet that prevents the cable being damaged [1] by the sharp edge of the hole in the case [1] 0–2 2 6(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. rain will get into the electrics [1] through the openings [1] 0–4 4 Other acceptable problems include: 1 Completely enclosed so difficult to access parts if a fault occurs. 2 No means of fastening to the wall. 3 No PIR sensor. 6(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. put clear plastic panels in the openings [1] so light will pass through [1] but water won’t get in [1] 0–6 6

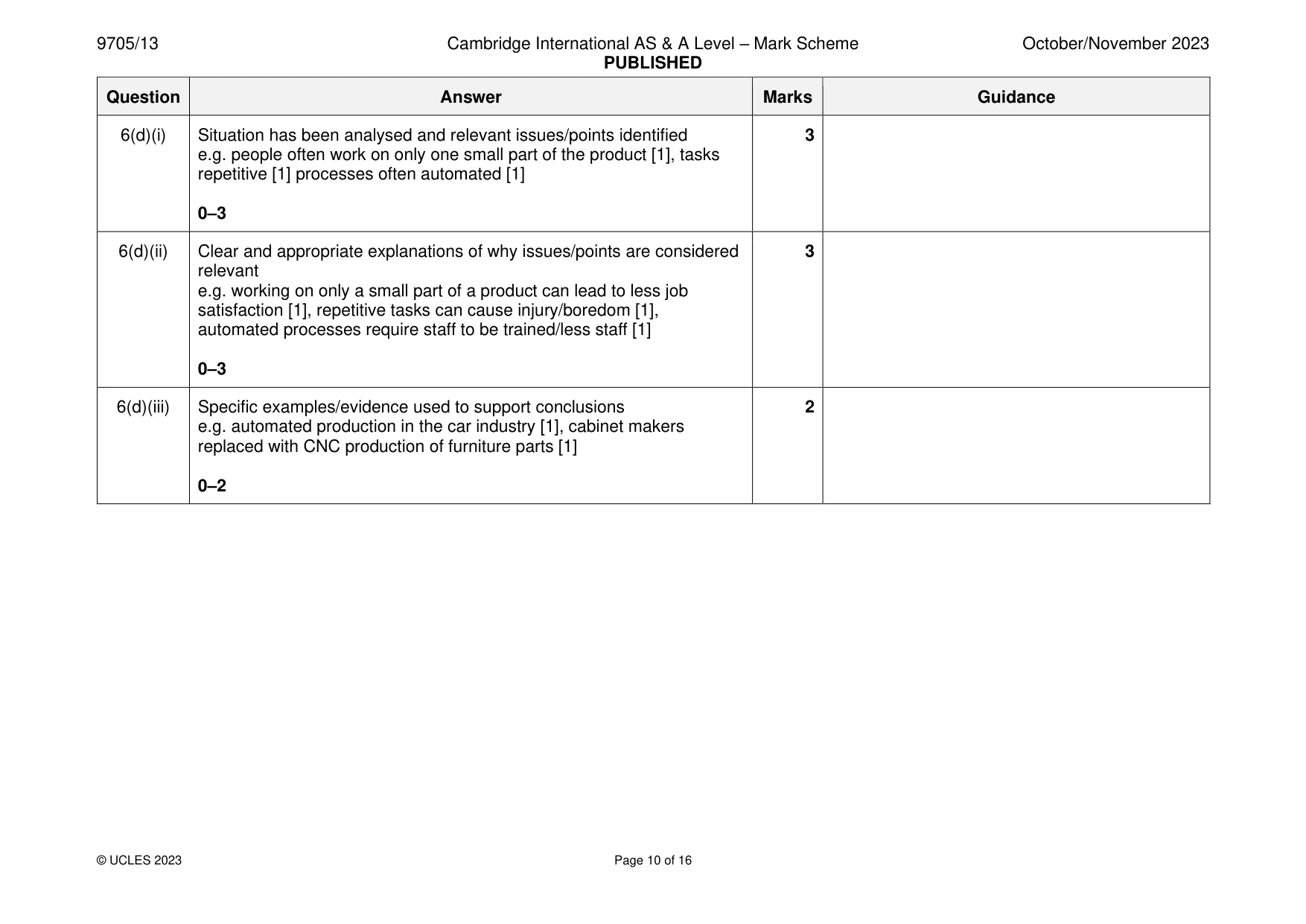

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 10 of 16 Question Answer Marks Guidance 6(d)(i) Situation has been analysed and relevant issues/points identified e.g. people often work on only one small part of the product [1], tasks repetitive [1] processes often automated [1] 0–3 3 6(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. working on only a small part of a product can lead to less job satisfaction [1], repetitive tasks can cause injury/boredom [1], automated processes require staff to be trained/less staff [1] 0–3 3 6(d)(iii) Specific examples/evidence used to support conclusions e.g. automated production in the car industry [1], cabinet makers replaced with CNC production of furniture parts [1] 0–2 2

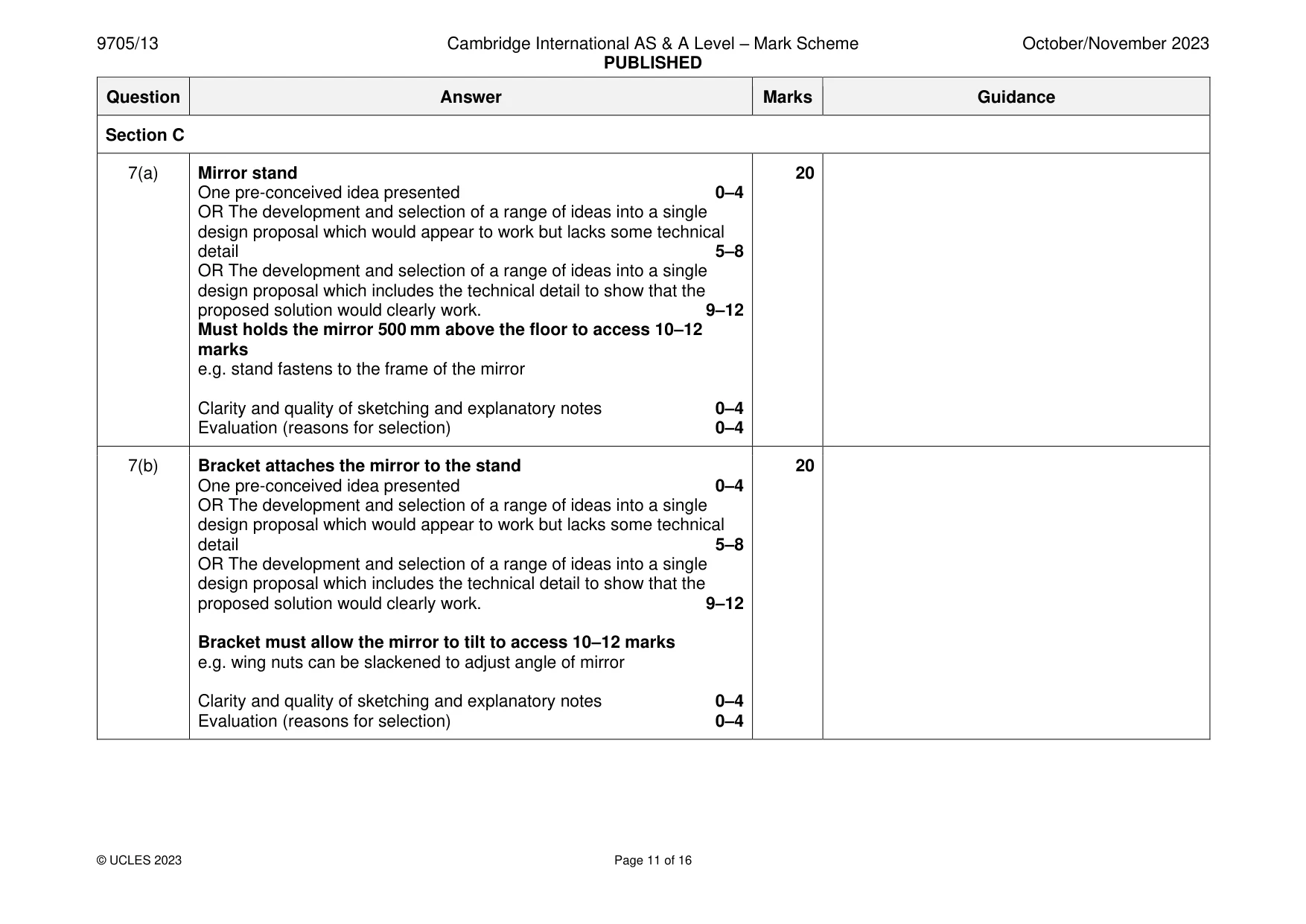

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 11 of 16 Question Answer Marks Guidance Section C 7(a) Mirror stand One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must holds the mirror 500 mm above the floor to access 10–12 marks e.g. stand fastens to the frame of the mirror Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(b) Bracket attaches the mirror to the stand One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Bracket must allow the mirror to tilt to access 10–12 marks e.g. wing nuts can be slackened to adjust angle of mirror Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

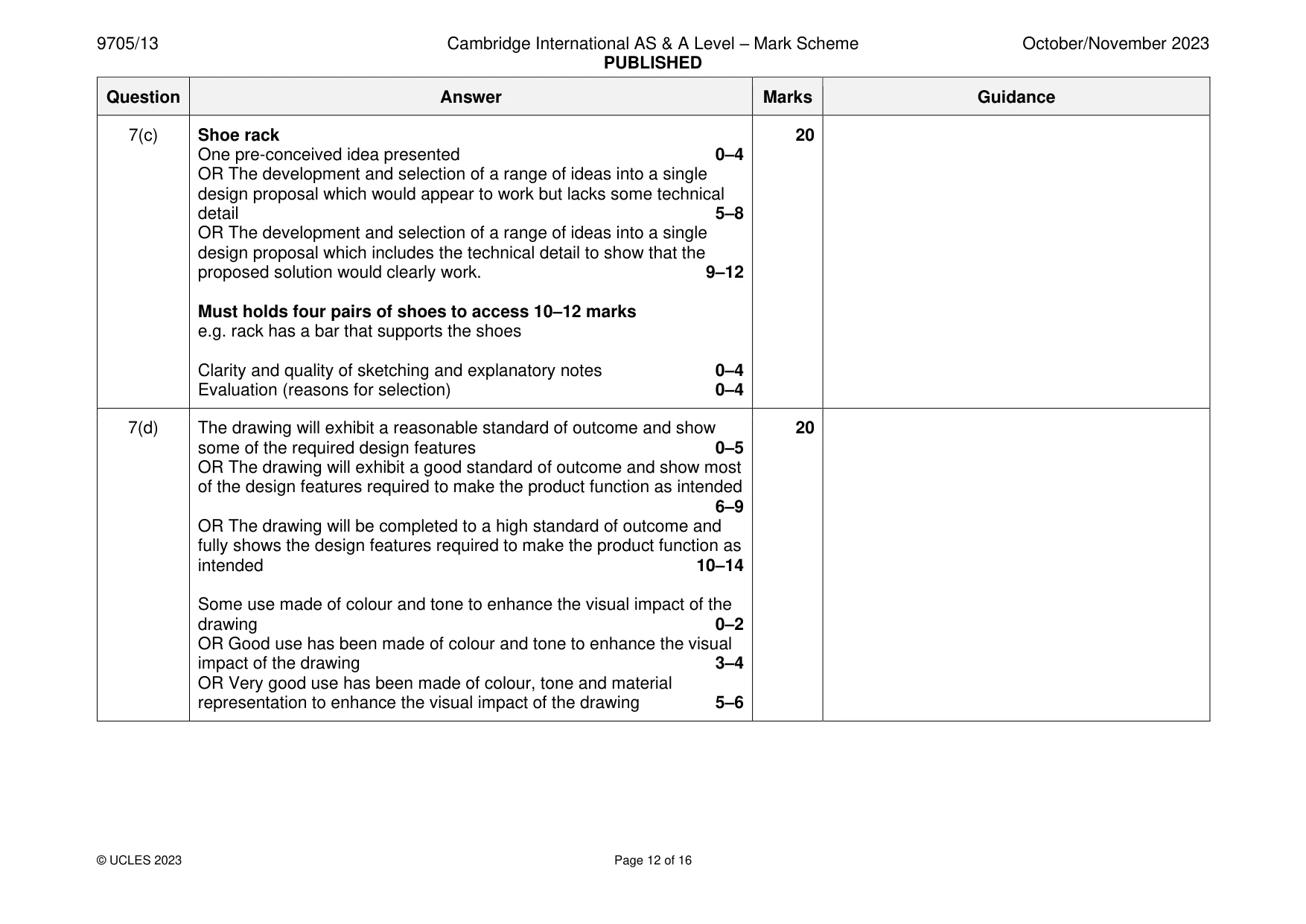

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 12 of 16 Question Answer Marks Guidance 7(c) Shoe rack One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must holds four pairs of shoes to access 10–12 marks e.g. rack has a bar that supports the shoes Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended 10–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20

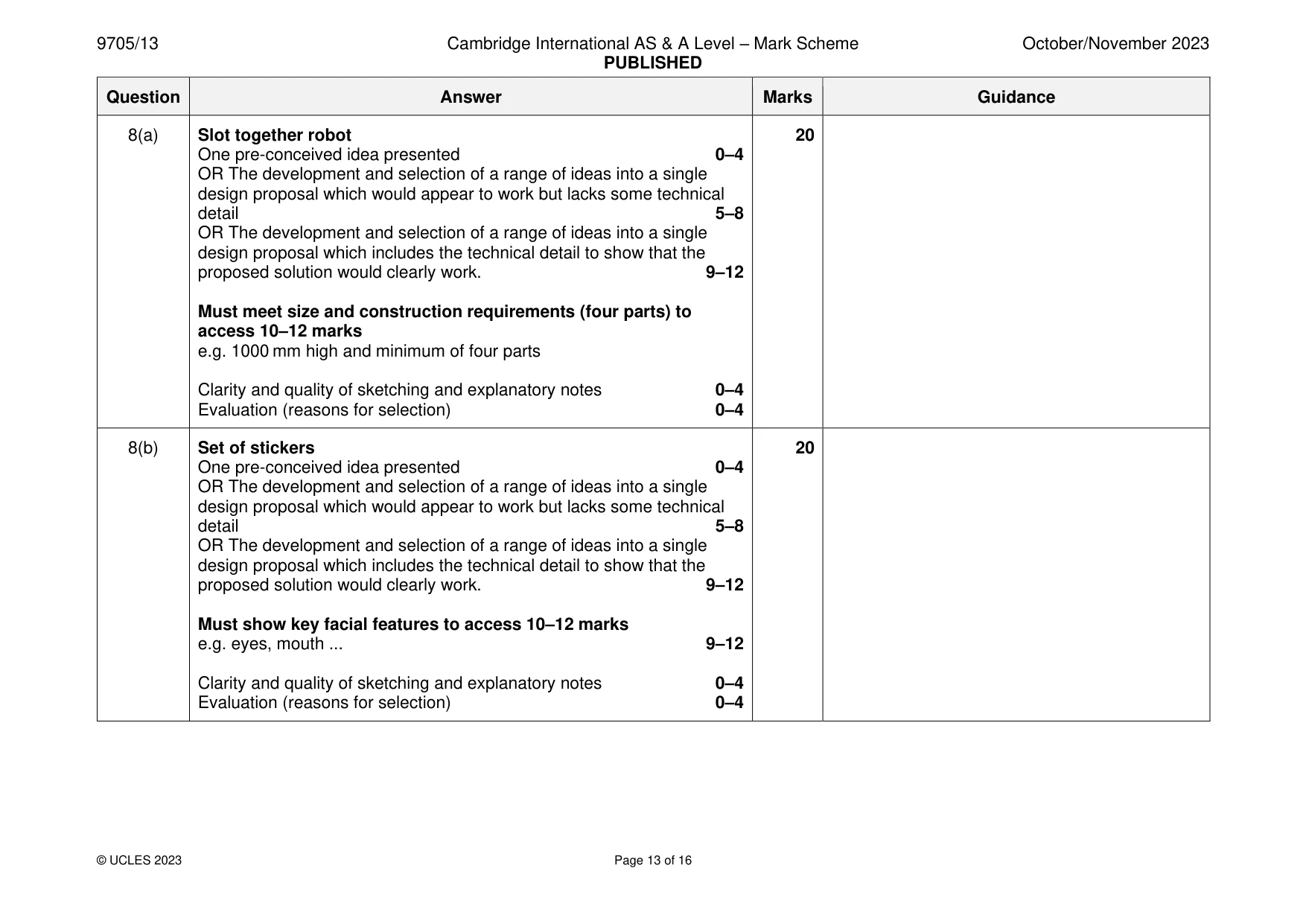

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 13 of 16 Question Answer Marks Guidance 8(a) Slot together robot One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must meet size and construction requirements (four parts) to access 10–12 marks e.g. 1000 mm high and minimum of four parts Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(b) Set of stickers One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must show key facial features to access 10–12 marks e.g. eyes, mouth ... 9–12 Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

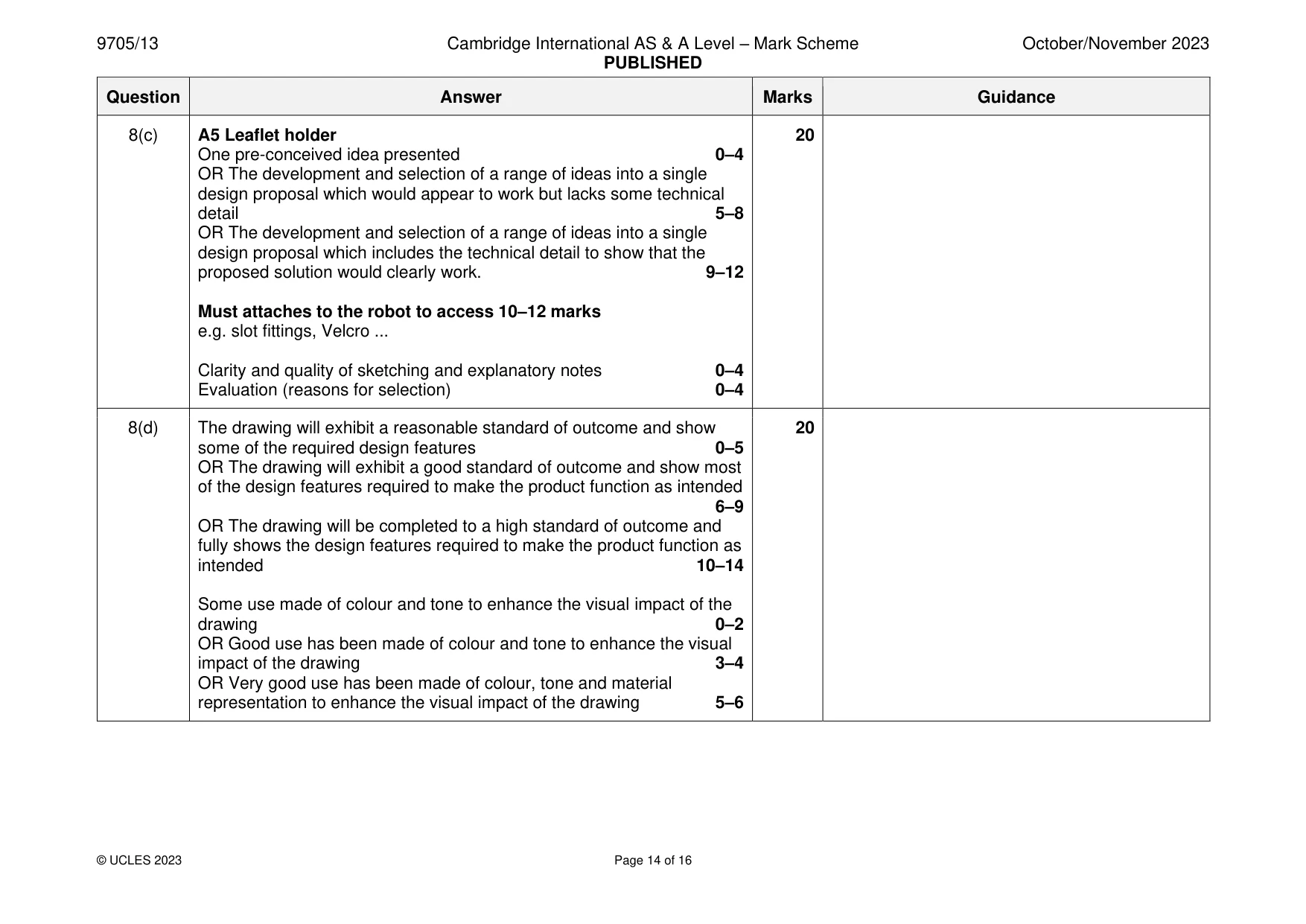

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 14 of 16 Question Answer Marks Guidance 8(c) A5 Leaflet holder One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must attaches to the robot to access 10–12 marks e.g. slot fittings, Velcro ... Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended 10–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20

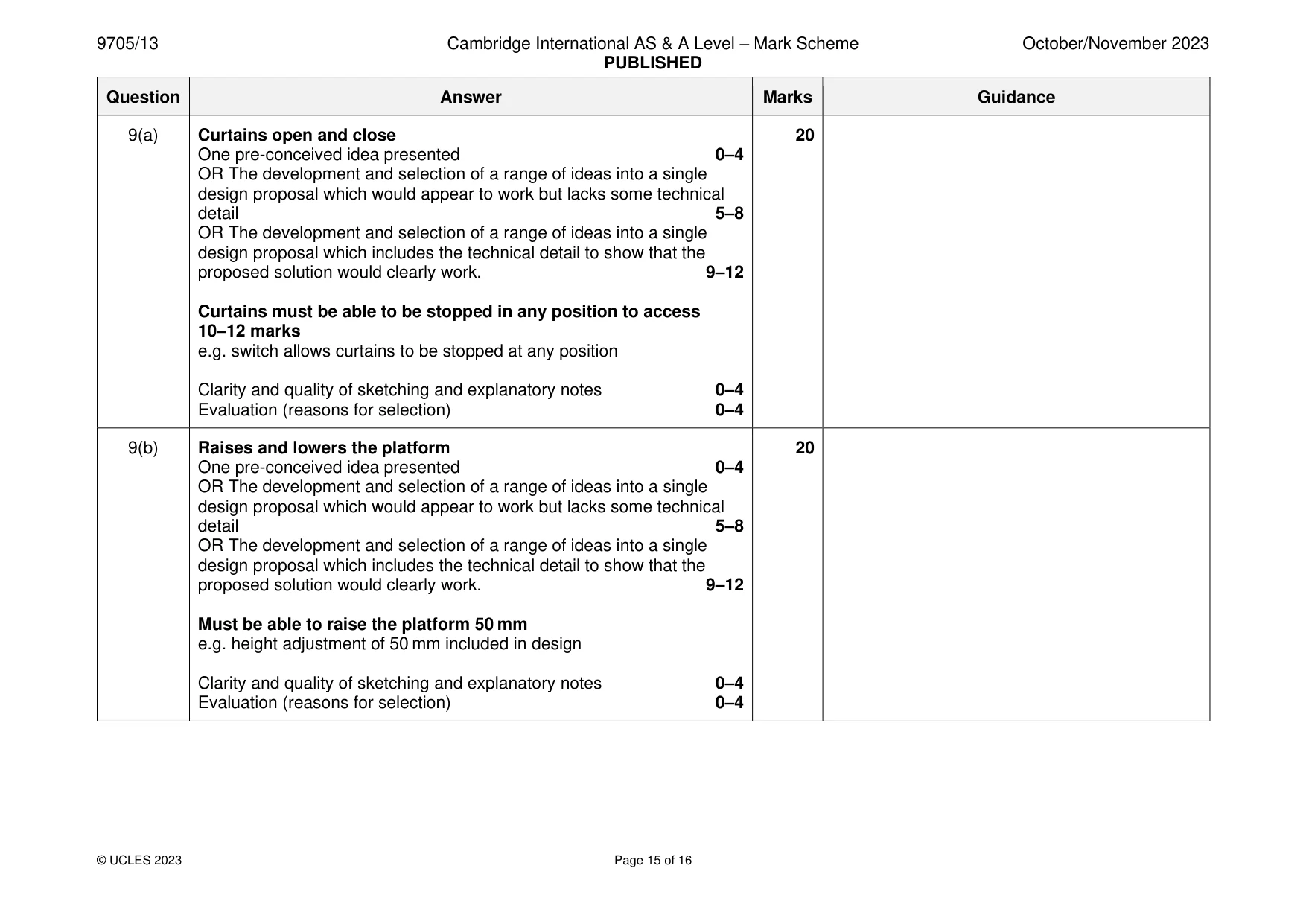

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 15 of 16 Question Answer Marks Guidance 9(a) Curtains open and close One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Curtains must be able to be stopped in any position to access 10–12 marks e.g. switch allows curtains to be stopped at any position Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 9(b) Raises and lowers the platform One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must be able to raise the platform 50 mm e.g. height adjustment of 50 mm included in design Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

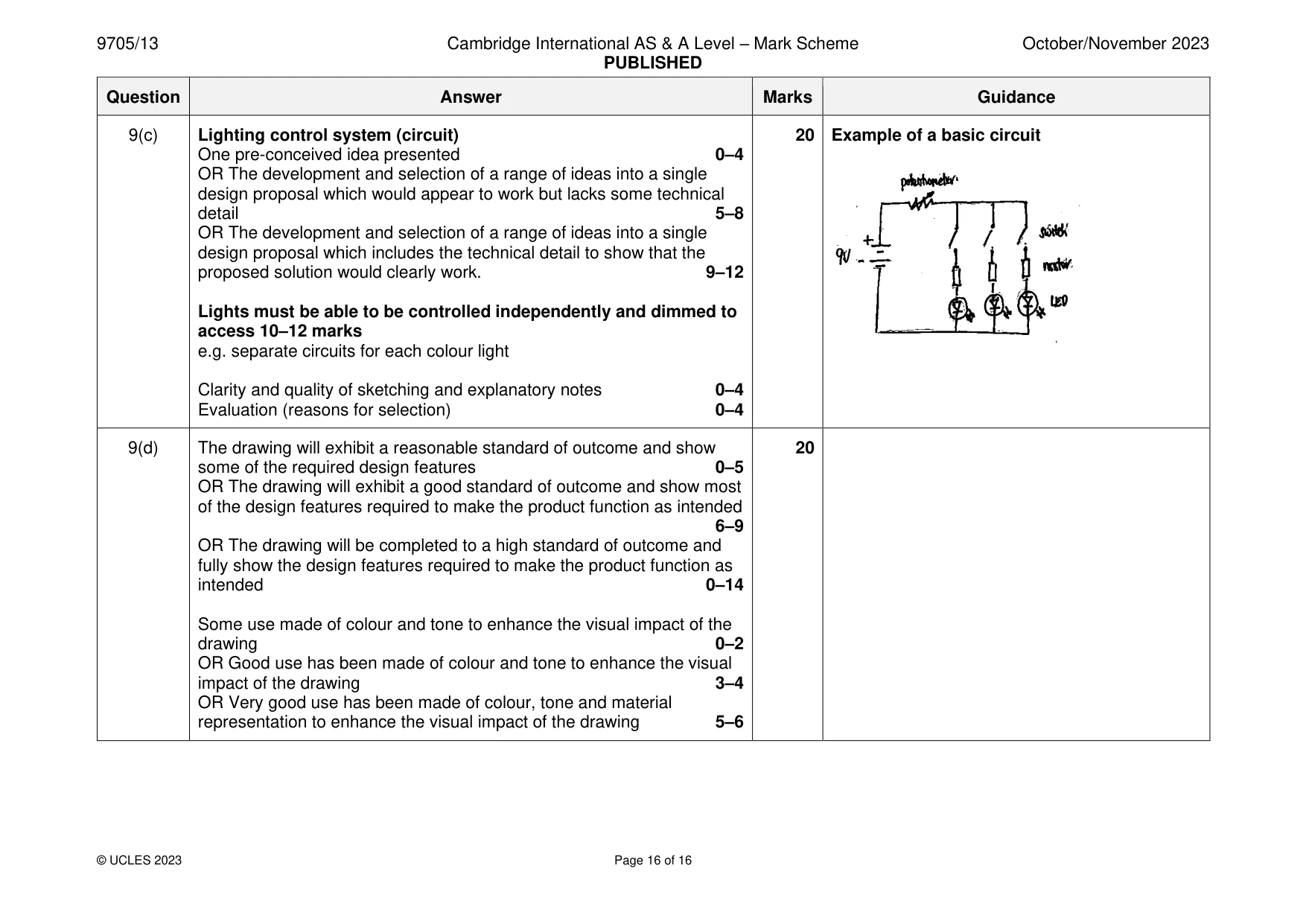

9705/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 16 of 16 Question Answer Marks Guidance 9(c) Lighting control system (circuit) One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Lights must be able to be controlled independently and dimmed to access 10–12 marks e.g. separate circuits for each colour light Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 Example of a basic circuit 9(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended 0–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20
