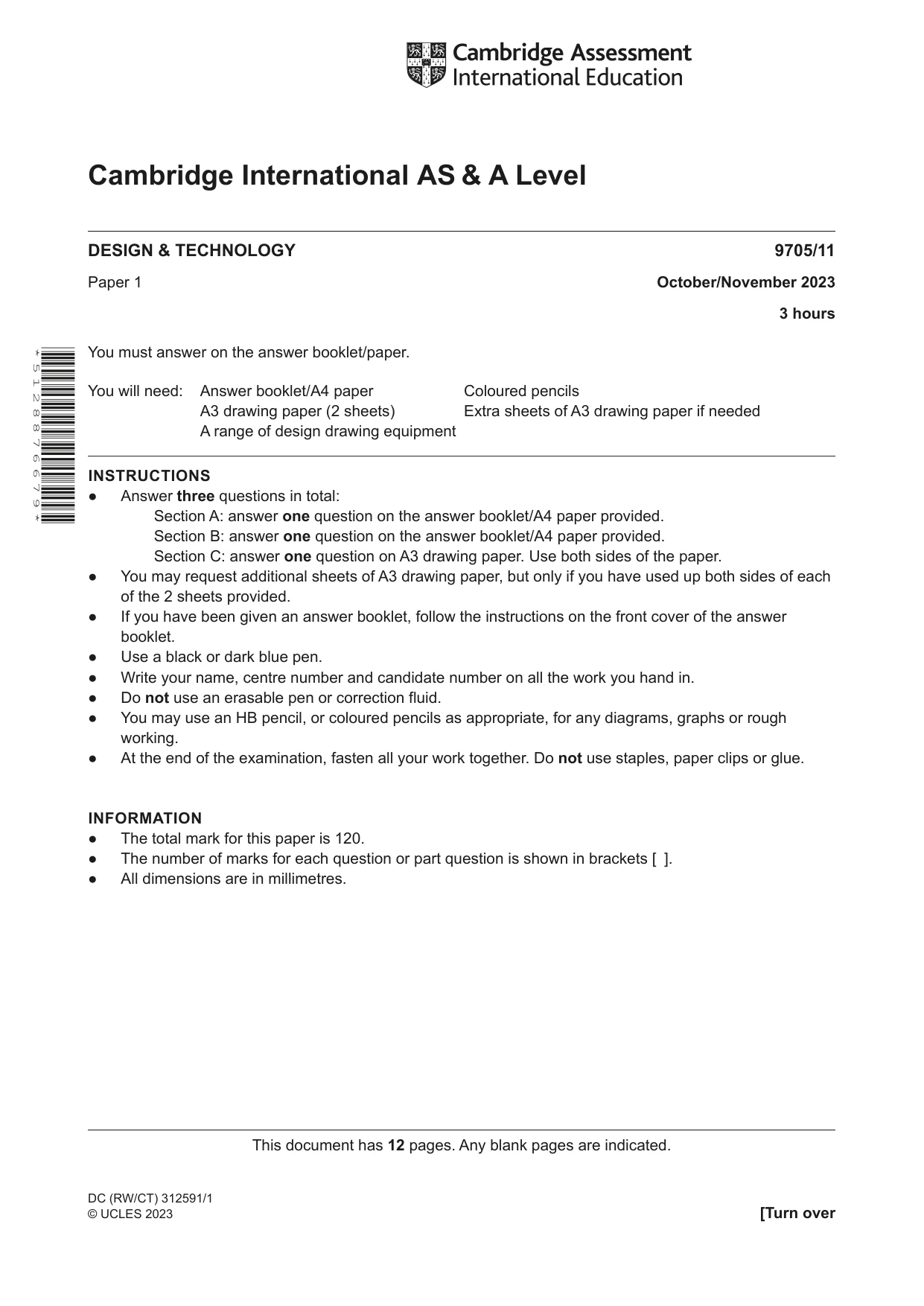

This document has 12 pages. Any blank pages are indicated. [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/11 Paper 1 October/November 2023 3 hours You must answer on the answer booklet/paper. You will need: Answer booklet/A4 paper Coloured pencils A3 drawing paper (2 sheets) Extra sheets of A3 drawing paper if needed A range of design drawing equipment INSTRUCTIONS ● Answer three questions in total: Section A: answer one question on the answer booklet/A4 paper provided. Section B: answer one question on the answer booklet/A4 paper provided. Section C: answer one question on A3 drawing paper. Use both sides of the paper. ● You may request additional sheets of A3 drawing paper, but only if you have used up both sides of each of the 2 sheets provided. ● If you have been given an answer booklet, follow the instructions on the front cover of the answer booklet. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number on all the work you hand in. ● Do not use an erasable pen or correction fluid. ● You may use an HB pencil, or coloured pencils as appropriate, for any diagrams, graphs or rough working. ● At the end of the examination, fasten all your work together. Do not use staples, paper clips or glue. INFORMATION ● The total mark for this paper is 120. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 5 1 2 8 8 7 6 6 7 9 * DC (RW/CT) 312591/1 © UCLES 2023

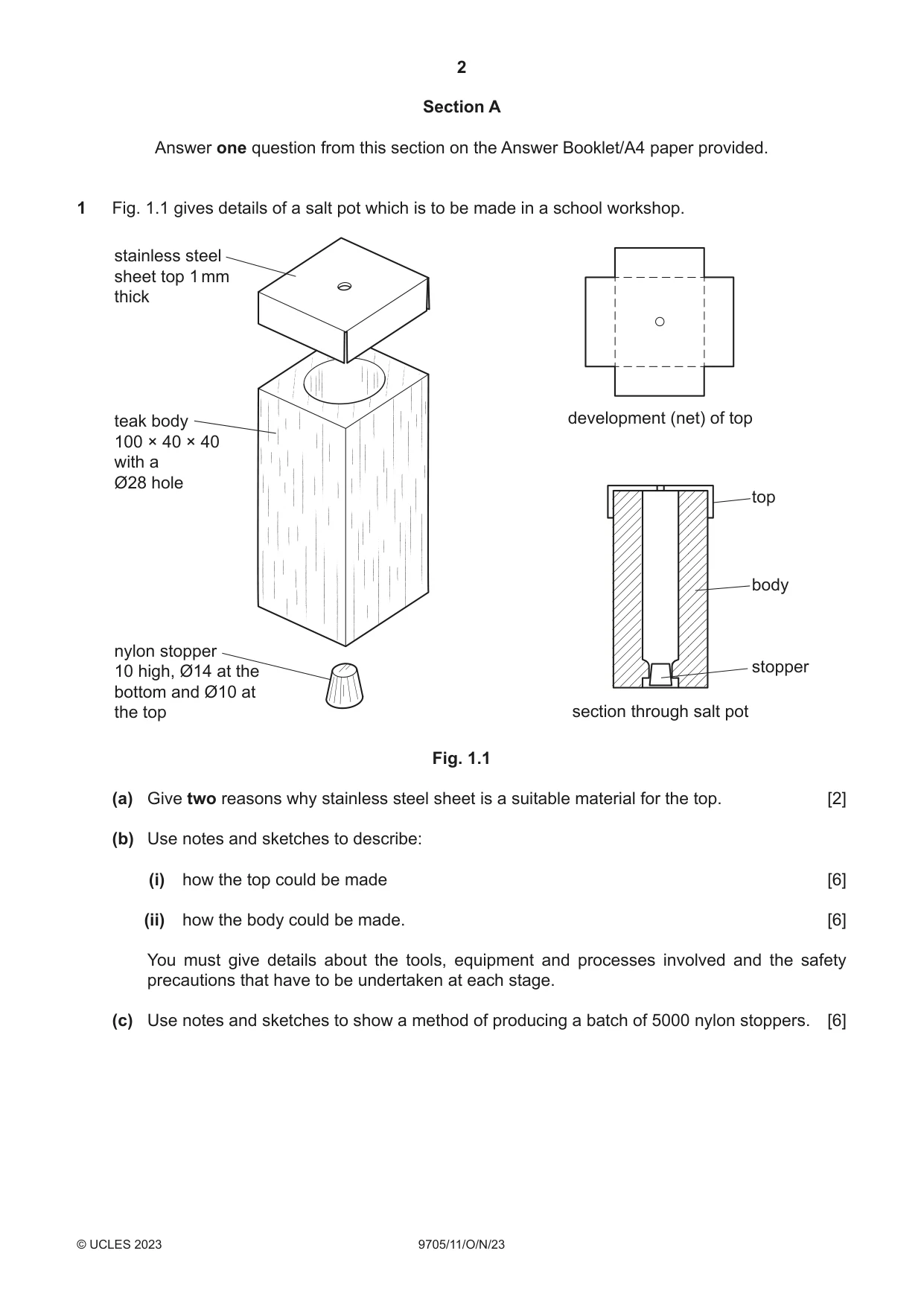

2 9705/11/O/N/23 © UCLES 2023 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1.1 gives details of a salt pot which is to be made in a school workshop. development (net) of top section through salt pot top body stopper nylon stopper 10 high, Ø14 at the bottom and Ø10 at the top teak body 100 × 40 × 40 with a Ø28 hole stainless steel sheet top 1 mm thick Fig. 1.1 (a) Give two reasons why stainless steel sheet is a suitable material for the top. [2] (b) Use notes and sketches to describe: (i) how the top could be made [6] (ii) how the body could be made. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to show a method of producing a batch of 5000 nylon stoppers. [6]

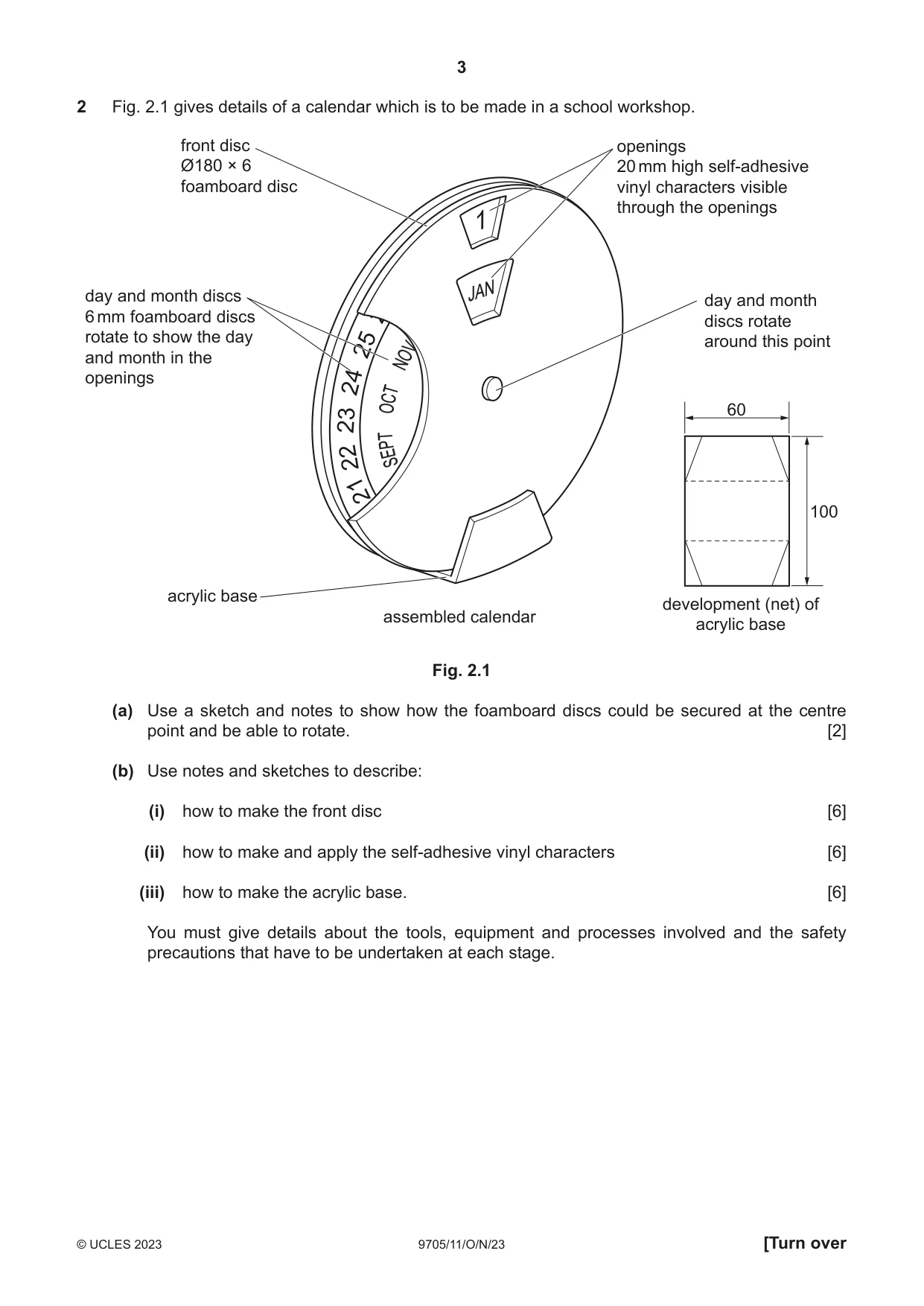

3 9705/11/O/N/23 © UCLES 2023 [Turn over 2 Fig. 2.1 gives details of a calendar which is to be made in a school workshop. 1 JAN 60 100 21 22 23 24 25 openings 20 mm high self-adhesive vinyl characters visible through the openings front disc Ø180 × 6 foamboard disc day and month discs 6 mm foamboard discs rotate to show the day and month in the openings assembled calendar day and month discs rotate around this point acrylic base development (net) of acrylic base Fig. 2.1 (a) Use a sketch and notes to show how the foamboard discs could be secured at the centre point and be able to rotate. [2] (b) Use notes and sketches to describe: (i) how to make the front disc [6] (ii) how to make and apply the self-adhesive vinyl characters [6] (iii) how to make the acrylic base. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

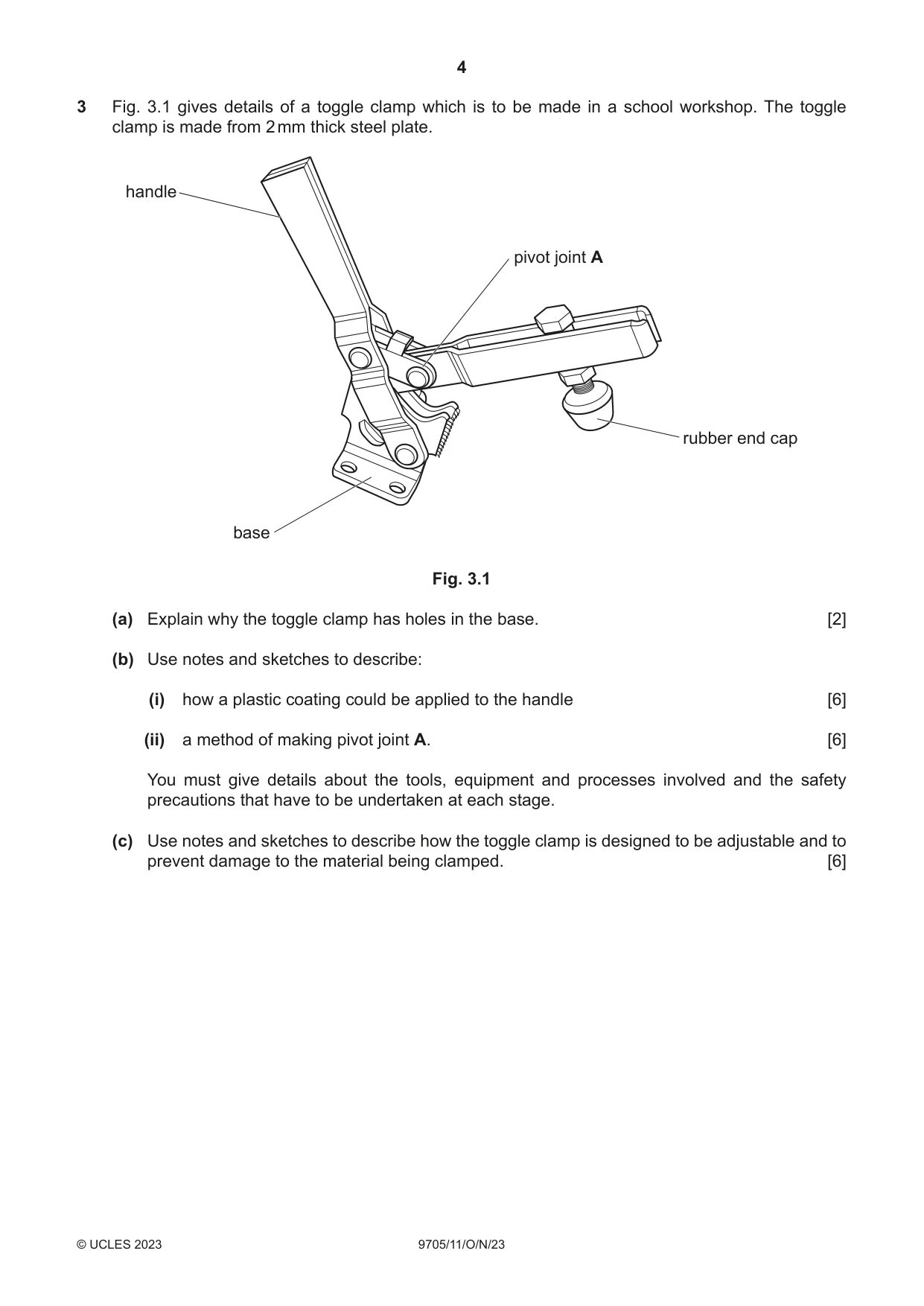

4 9705/11/O/N/23 © UCLES 2023 3 Fig. 3.1 gives details of a toggle clamp which is to be made in a school workshop. The toggle clamp is made from 2 mm thick steel plate. handle pivot joint A base rubber end cap Fig. 3.1 (a) Explain why the toggle clamp has holes in the base. [2] (b) Use notes and sketches to describe: (i) how a plastic coating could be applied to the handle [6] (ii) a method of making pivot joint A. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to describe how the toggle clamp is designed to be adjustable and to prevent damage to the material being clamped. [6]

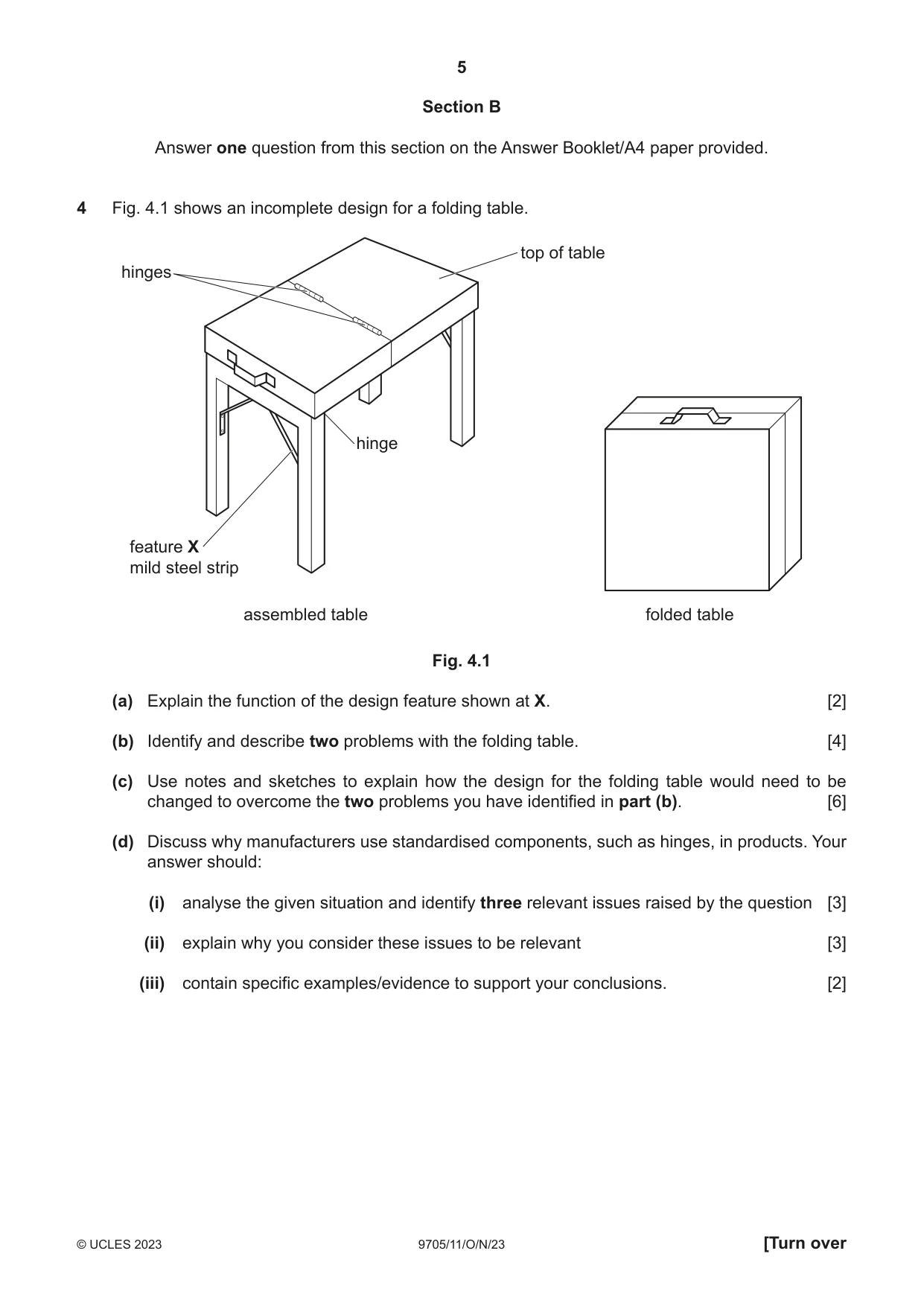

5 9705/11/O/N/23 © UCLES 2023 [Turn over Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 4.1 shows an incomplete design for a folding table. folded table assembled table hinges hinge top of table feature X mild steel strip Fig. 4.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the folding table. [4] (c) Use notes and sketches to explain how the design for the folding table would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why manufacturers use standardised components, such as hinges, in products. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

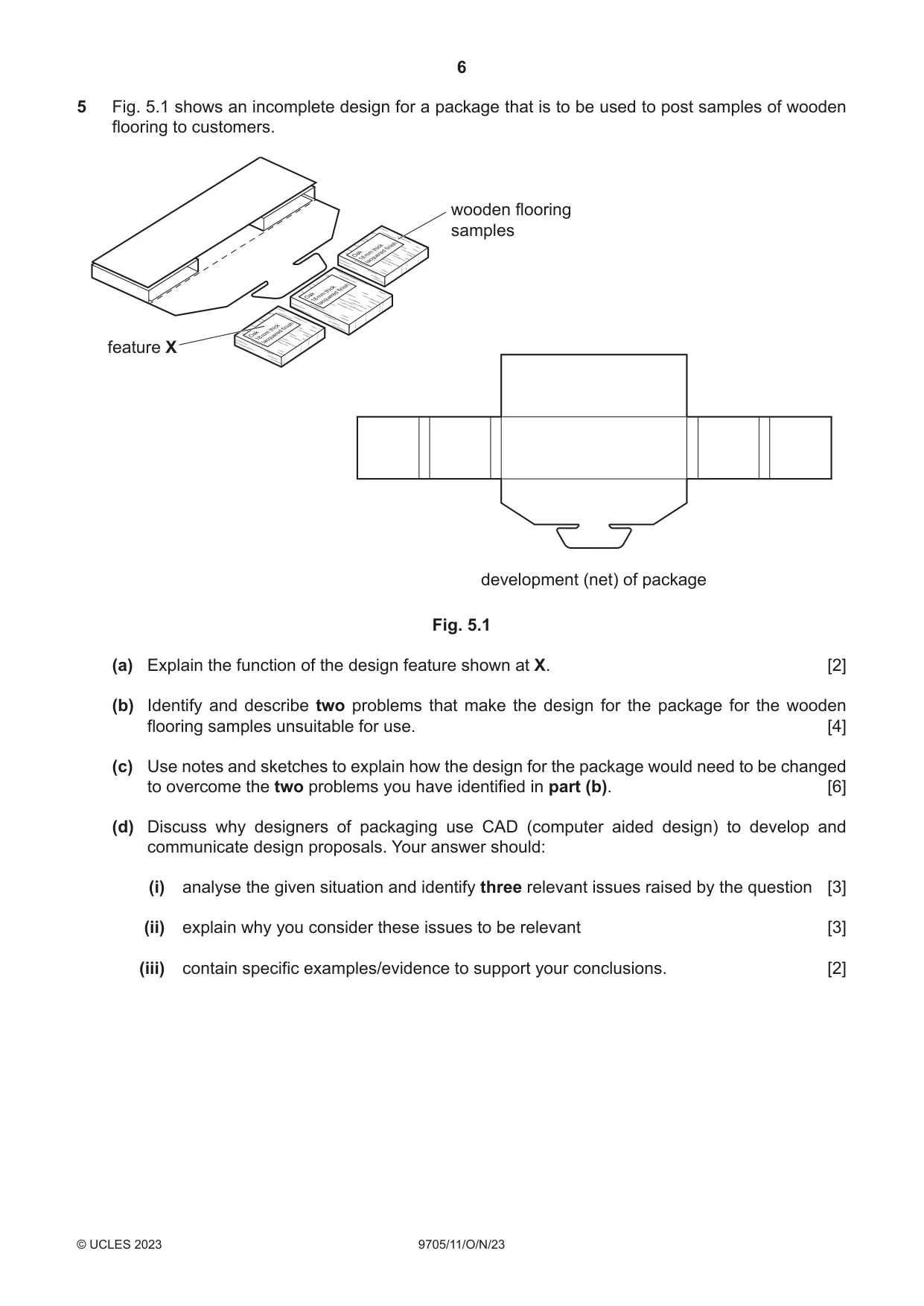

6 9705/11/O/N/23 © UCLES 2023 5 Fig. 5.1 shows an incomplete design for a package that is to be used to post samples of wooden flooring to customers. development (net) of package feature X wooden flooring samples Fig. 5.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems that make the design for the package for the wooden flooring samples unsuitable for use. [4] (c) Use notes and sketches to explain how the design for the package would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why designers of packaging use CAD (computer aided design) to develop and communicate design proposals. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

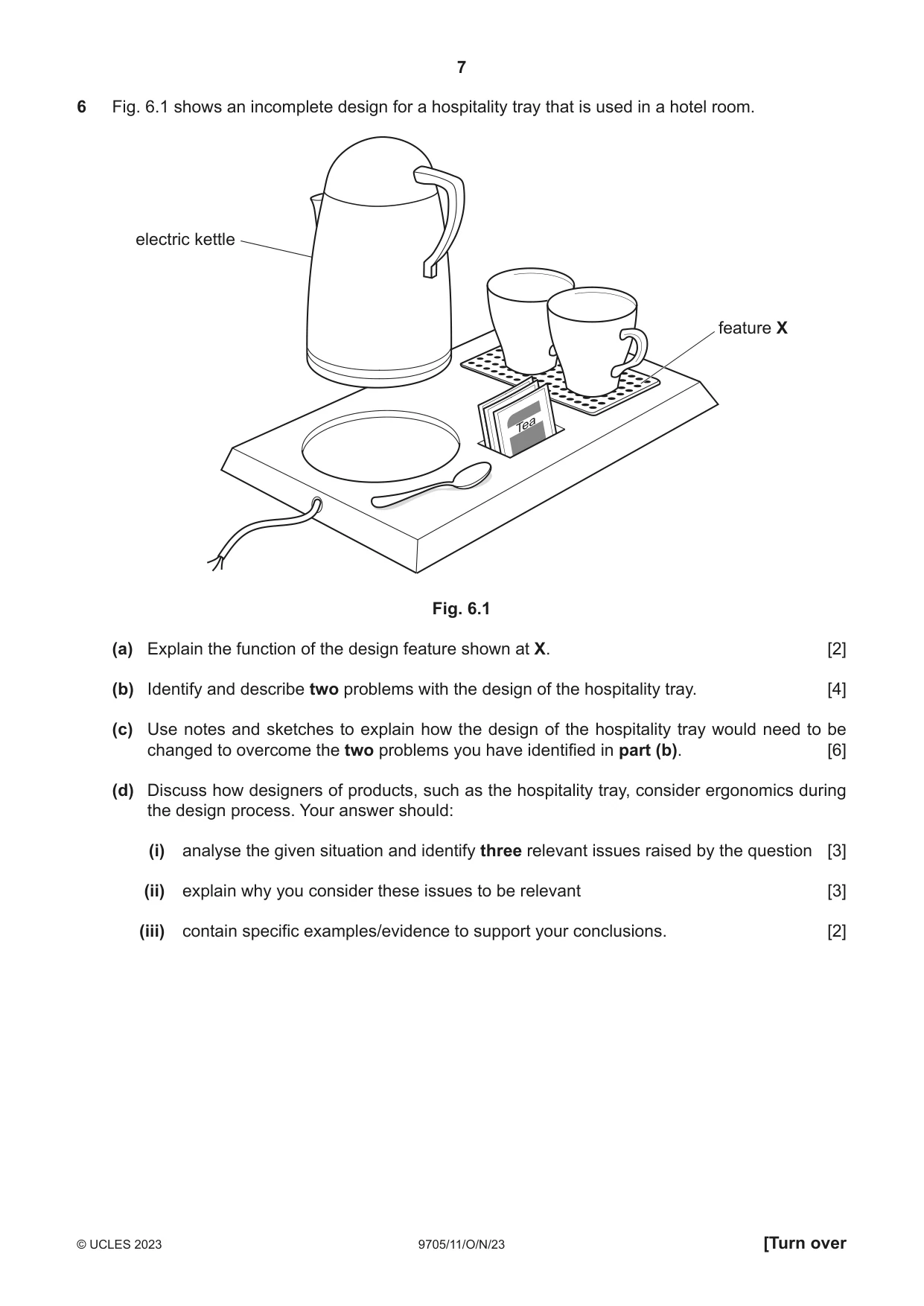

7 9705/11/O/N/23 © UCLES 2023 [Turn over 6 Fig. 6.1 shows an incomplete design for a hospitality tray that is used in a hotel room. feature X electric kettle Tea Fig. 6.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the design of the hospitality tray. [4] (c) Use notes and sketches to explain how the design of the hospitality tray would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss how designers of products, such as the hospitality tray, consider ergonomics during the design process. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

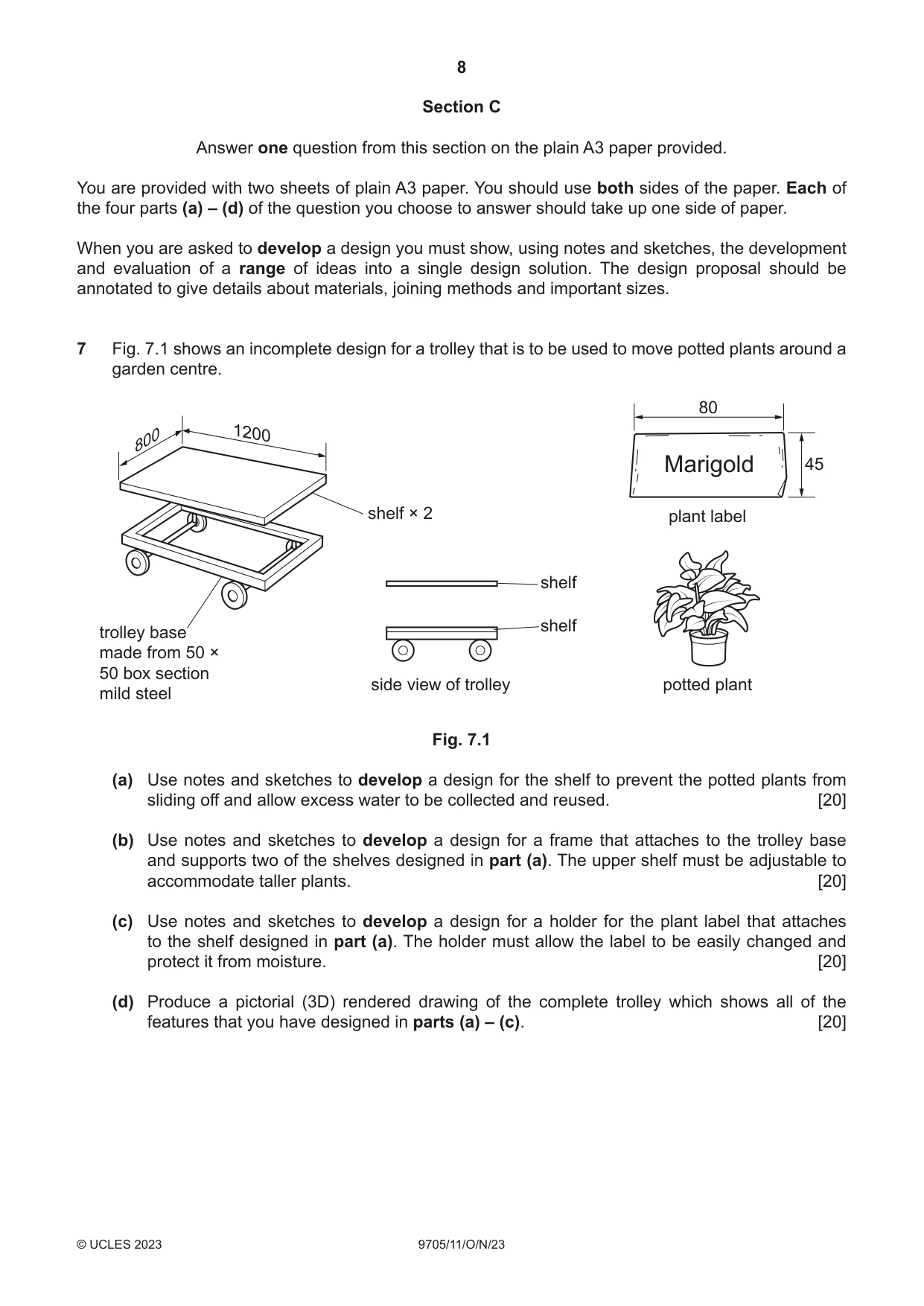

8 9705/11/O/N/23 © UCLES 2023 Section C Answer one question from this section on the plain A3 paper provided. You are provided with two sheets of plain A3 paper. You should use both sides of the paper. Each of the four parts (a) – (d) of the question you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using notes and sketches, the development and evaluation of a range of ideas into a single design solution. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 7.1 shows an incomplete design for a trolley that is to be used to move potted plants around a garden centre. 1200 800 shelf × 2 shelf shelf trolley base made from 50 × 50 box section mild steel Marigold 80 45 plant label potted plant side view of trolley Fig. 7.1 (a) Use notes and sketches to develop a design for the shelf to prevent the potted plants from sliding off and allow excess water to be collected and reused. [20] (b) Use notes and sketches to develop a design for a frame that attaches to the trolley base and supports two of the shelves designed in part (a). The upper shelf must be adjustable to accommodate taller plants. [20] (c) Use notes and sketches to develop a design for a holder for the plant label that attaches to the shelf designed in part (a). The holder must allow the label to be easily changed and protect it from moisture. [20] (d) Produce a pictorial (3D) rendered drawing of the complete trolley which shows all of the features that you have designed in parts (a) – (c). [20]

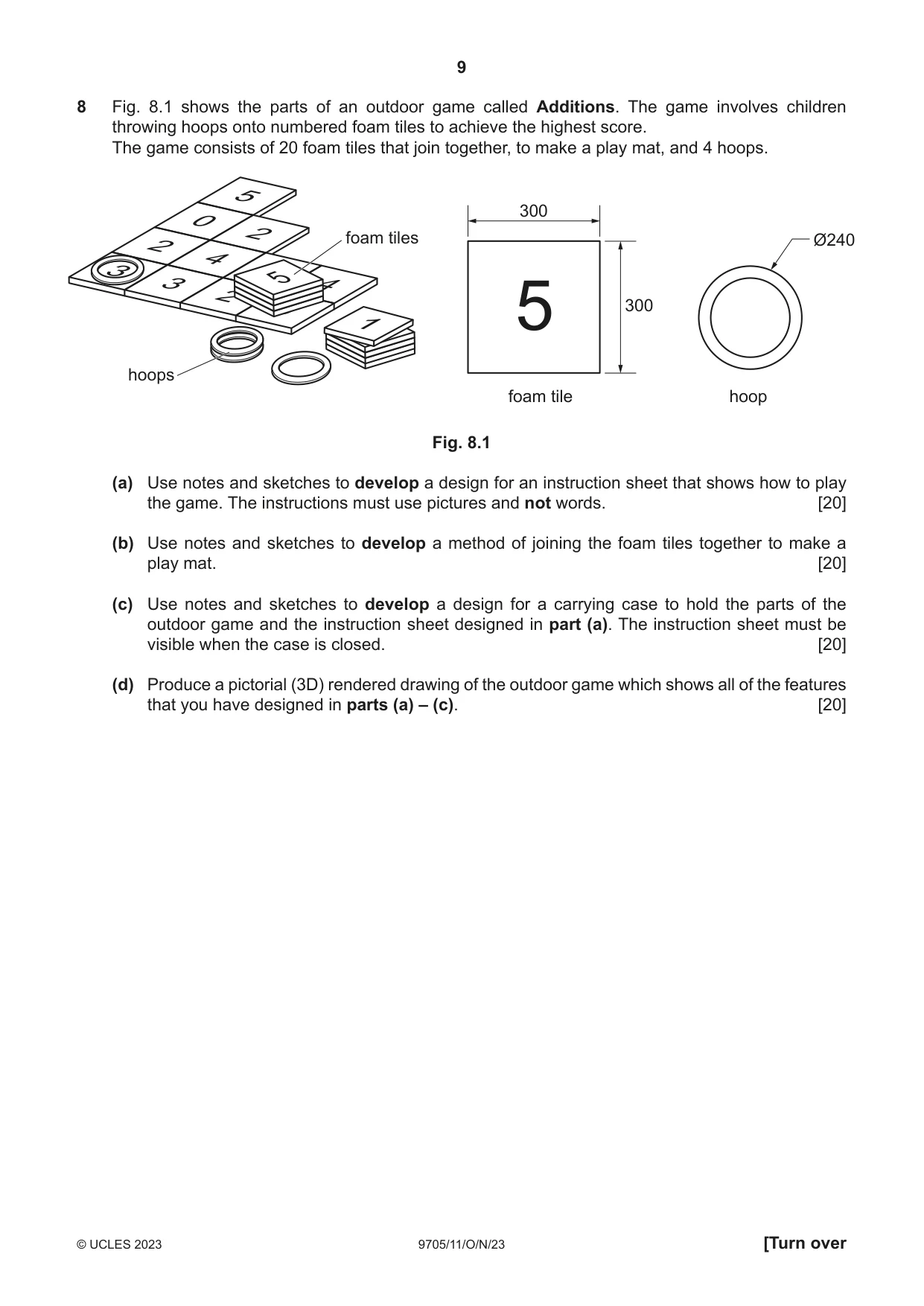

9 9705/11/O/N/23 © UCLES 2023 [Turn over 8 Fig. 8.1 shows the parts of an outdoor game called Additions. The game involves children throwing hoops onto numbered foam tiles to achieve the highest score. The game consists of 20 foam tiles that join together, to make a play mat, and 4 hoops. Ø240 300 300 hoops hoop foam tile foam tiles 5 5 0 2 2 4 4 3 3 2 2 5 5 5555 1 5 5555 Fig. 8.1 (a) Use notes and sketches to develop a design for an instruction sheet that shows how to play the game. The instructions must use pictures and not words. [20] (b) Use notes and sketches to develop a method of joining the foam tiles together to make a play mat. [20] (c) Use notes and sketches to develop a design for a carrying case to hold the parts of the outdoor game and the instruction sheet designed in part (a). The instruction sheet must be visible when the case is closed. [20] (d) Produce a pictorial (3D) rendered drawing of the outdoor game which shows all of the features that you have designed in parts (a) – (c). [20]

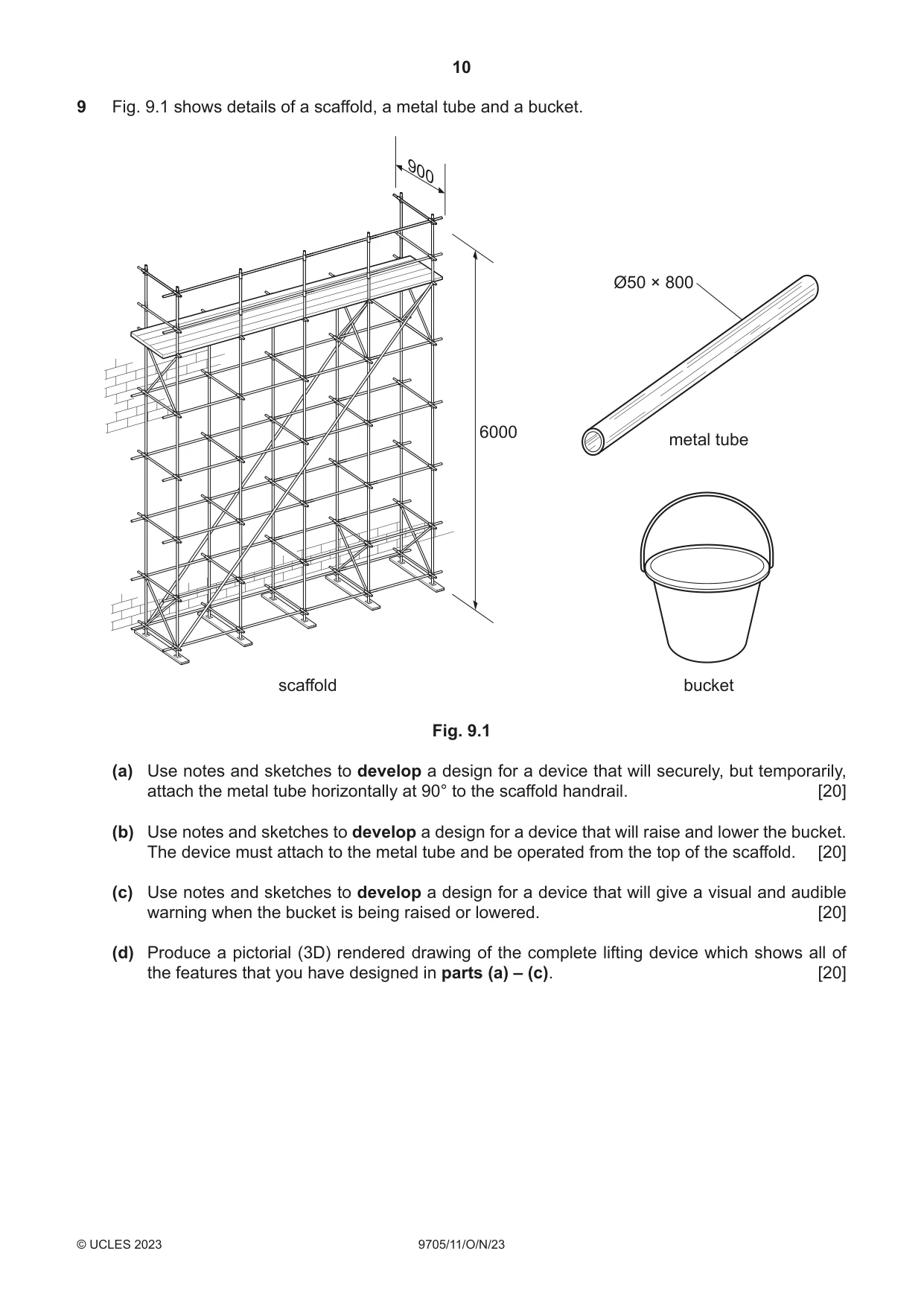

10 9705/11/O/N/23 © UCLES 2023 9 Fig. 9.1 shows details of a scaffold, a metal tube and a bucket. metal tube bucket scaffold Ø50 × 800 6000 900 Fig. 9.1 (a) Use notes and sketches to develop a design for a device that will securely, but temporarily, attach the metal tube horizontally at 90° to the scaffold handrail. [20] (b) Use notes and sketches to develop a design for a device that will raise and lower the bucket. The device must attach to the metal tube and be operated from the top of the scaffold. [20] (c) Use notes and sketches to develop a design for a device that will give a visual and audible warning when the bucket is being raised or lowered. [20] (d) Produce a pictorial (3D) rendered drawing of the complete lifting device which shows all of the features that you have designed in parts (a) – (c). [20]

11 9705/11/O/N/23 © UCLES 2023 BLANK PAGE

12 9705/11/O/N/23 © UCLES 2023 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

This document consists of 17 printed pages. © UCLES 2023 [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/11 Paper 1 October/November 2023 MARK SCHEME Maximum Mark: 120 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 17 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

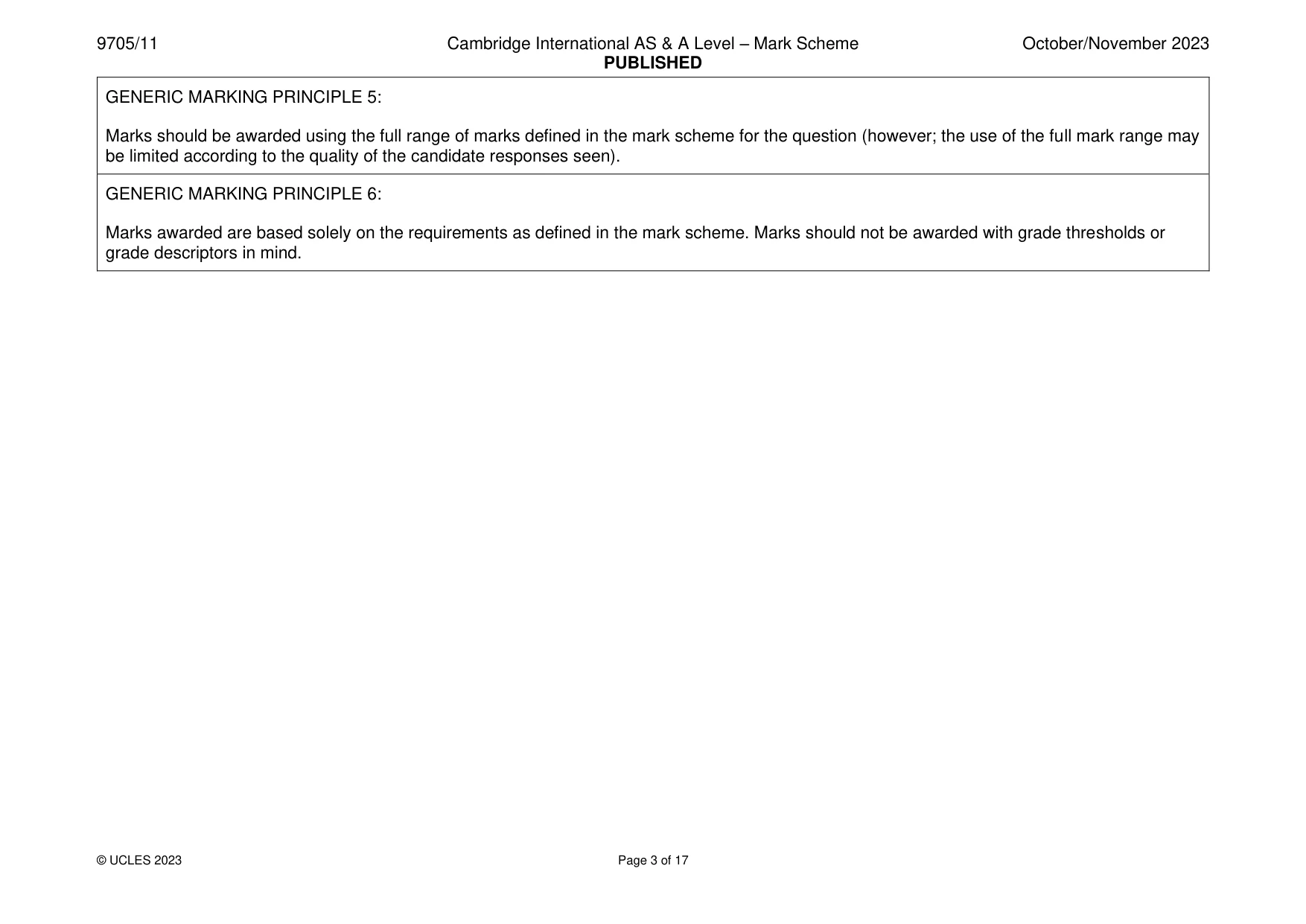

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 17 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

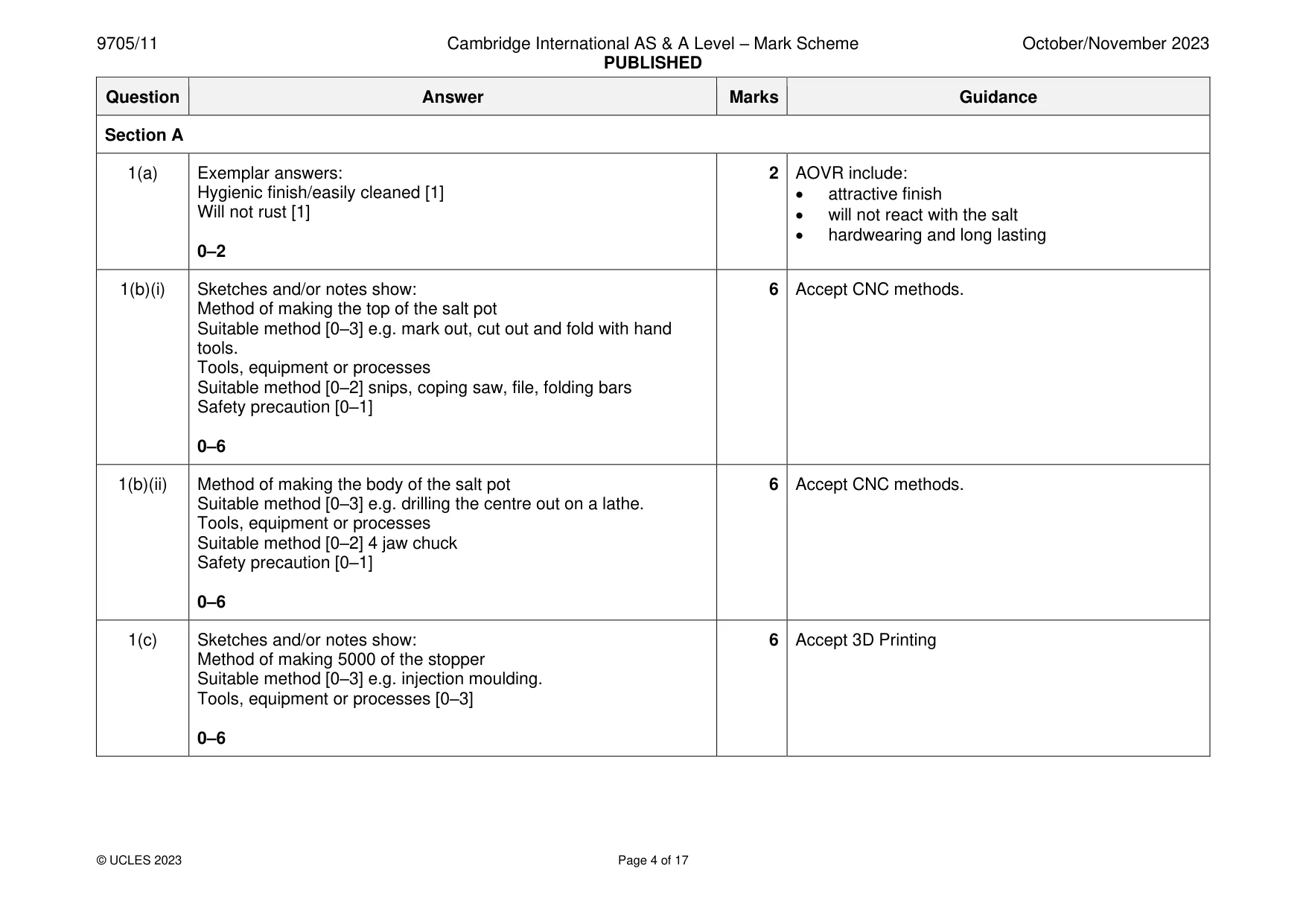

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 4 of 17 Question Answer Marks Guidance Section A 1(a) Exemplar answers: Hygienic finish/easily cleaned [1] Will not rust [1] 0–2 2 AOVR include: • attractive finish • will not react with the salt • hardwearing and long lasting 1(b)(i) Sketches and/or notes show: Method of making the top of the salt pot Suitable method [0–3] e.g. mark out, cut out and fold with hand tools. Tools, equipment or processes Suitable method [0–2] snips, coping saw, file, folding bars Safety precaution [0–1] 0–6 6 Accept CNC methods. 1(b)(ii) Method of making the body of the salt pot Suitable method [0–3] e.g. drilling the centre out on a lathe. Tools, equipment or processes Suitable method [0–2] 4 jaw chuck Safety precaution [0–1] 0–6 6 Accept CNC methods. 1(c) Sketches and/or notes show: Method of making 5000 of the stopper Suitable method [0–3] e.g. injection moulding. Tools, equipment or processes [0–3] 0–6 6 Accept 3D Printing

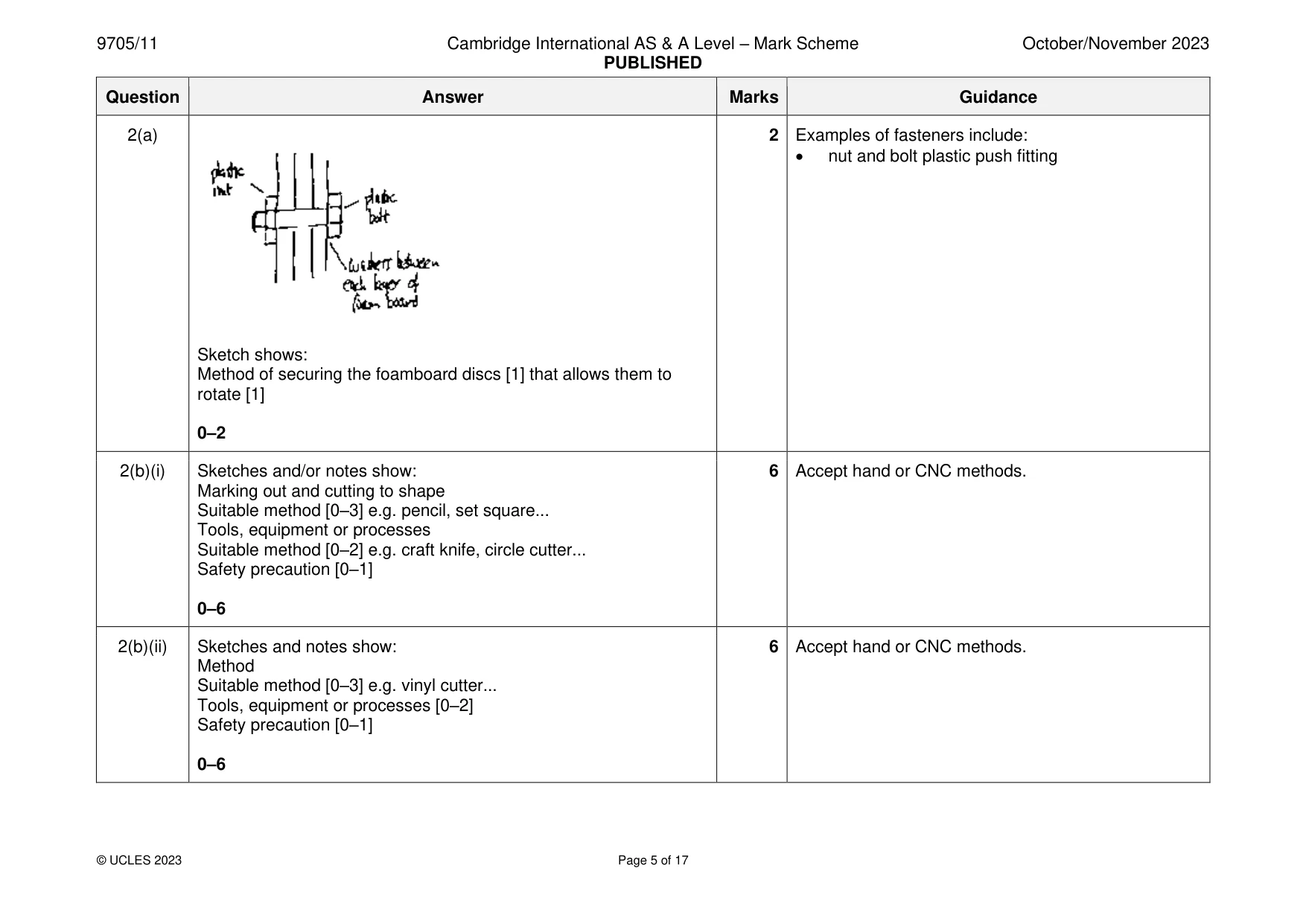

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 5 of 17 Question Answer Marks Guidance 2(a) Sketch shows: Method of securing the foamboard discs [1] that allows them to rotate [1] 0–2 2 Examples of fasteners include: • nut and bolt plastic push fitting 2(b)(i) Sketches and/or notes show: Marking out and cutting to shape Suitable method [0–3] e.g. pencil, set square... Tools, equipment or processes Suitable method [0–2] e.g. craft knife, circle cutter... Safety precaution [0–1] 0–6 6 Accept hand or CNC methods. 2(b)(ii) Sketches and notes show: Method Suitable method [0–3] e.g. vinyl cutter... Tools, equipment or processes [0–2] Safety precaution [0–1] 0–6 6 Accept hand or CNC methods.

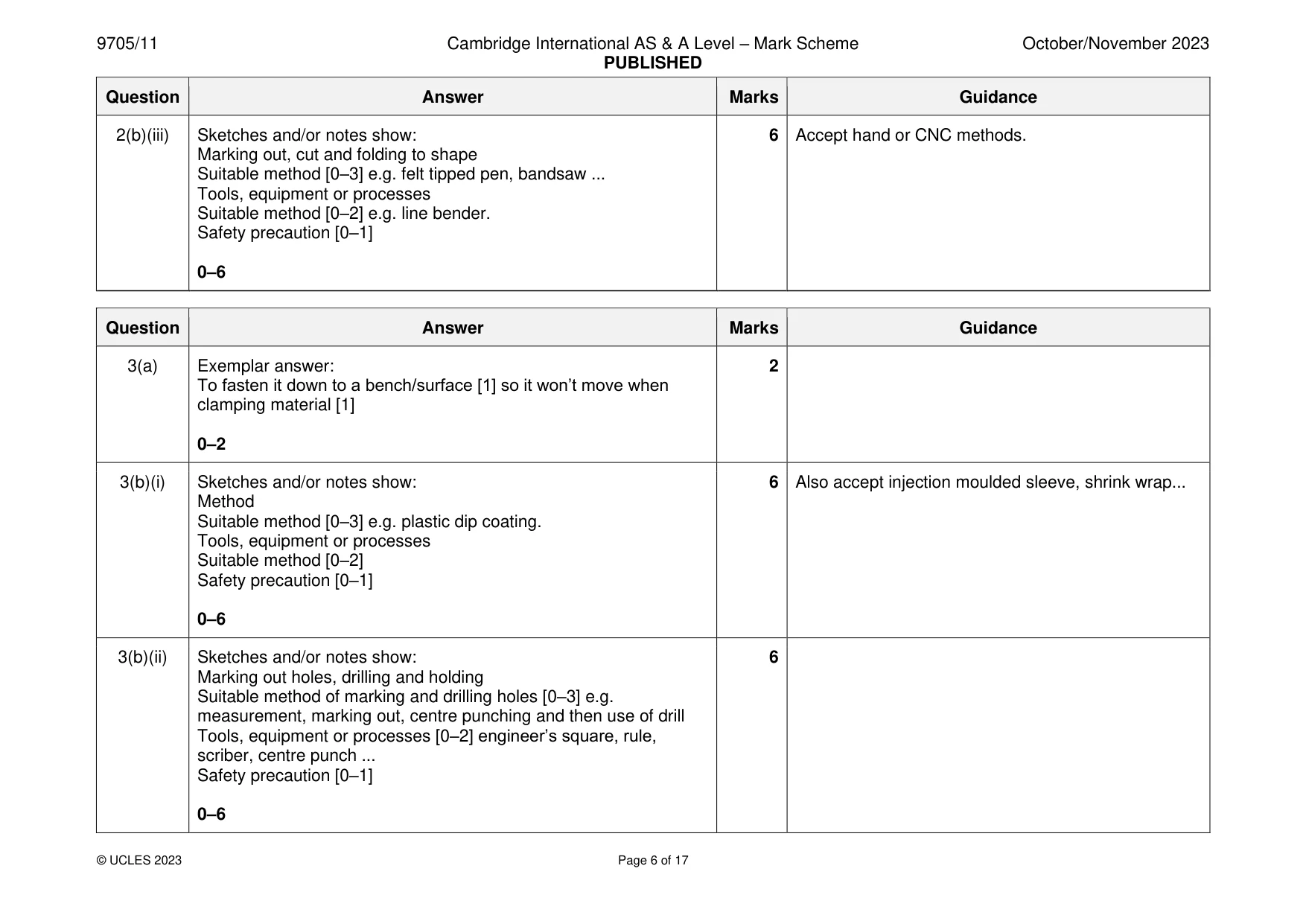

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 6 of 17 Question Answer Marks Guidance 2(b)(iii) Sketches and/or notes show: Marking out, cut and folding to shape Suitable method [0–3] e.g. felt tipped pen, bandsaw ... Tools, equipment or processes Suitable method [0–2] e.g. line bender. Safety precaution [0–1] 0–6 6 Accept hand or CNC methods. Question Answer Marks Guidance 3(a) Exemplar answer: To fasten it down to a bench/surface [1] so it won’t move when clamping material [1] 0–2 2 3(b)(i) Sketches and/or notes show: Method Suitable method [0–3] e.g. plastic dip coating. Tools, equipment or processes Suitable method [0–2] Safety precaution [0–1] 0–6 6 Also accept injection moulded sleeve, shrink wrap... 3(b)(ii) Sketches and/or notes show: Marking out holes, drilling and holding Suitable method of marking and drilling holes [0–3] e.g. measurement, marking out, centre punching and then use of drill Tools, equipment or processes [0–2] engineer’s square, rule, scriber, centre punch ... Safety precaution [0–1] 0–6 6

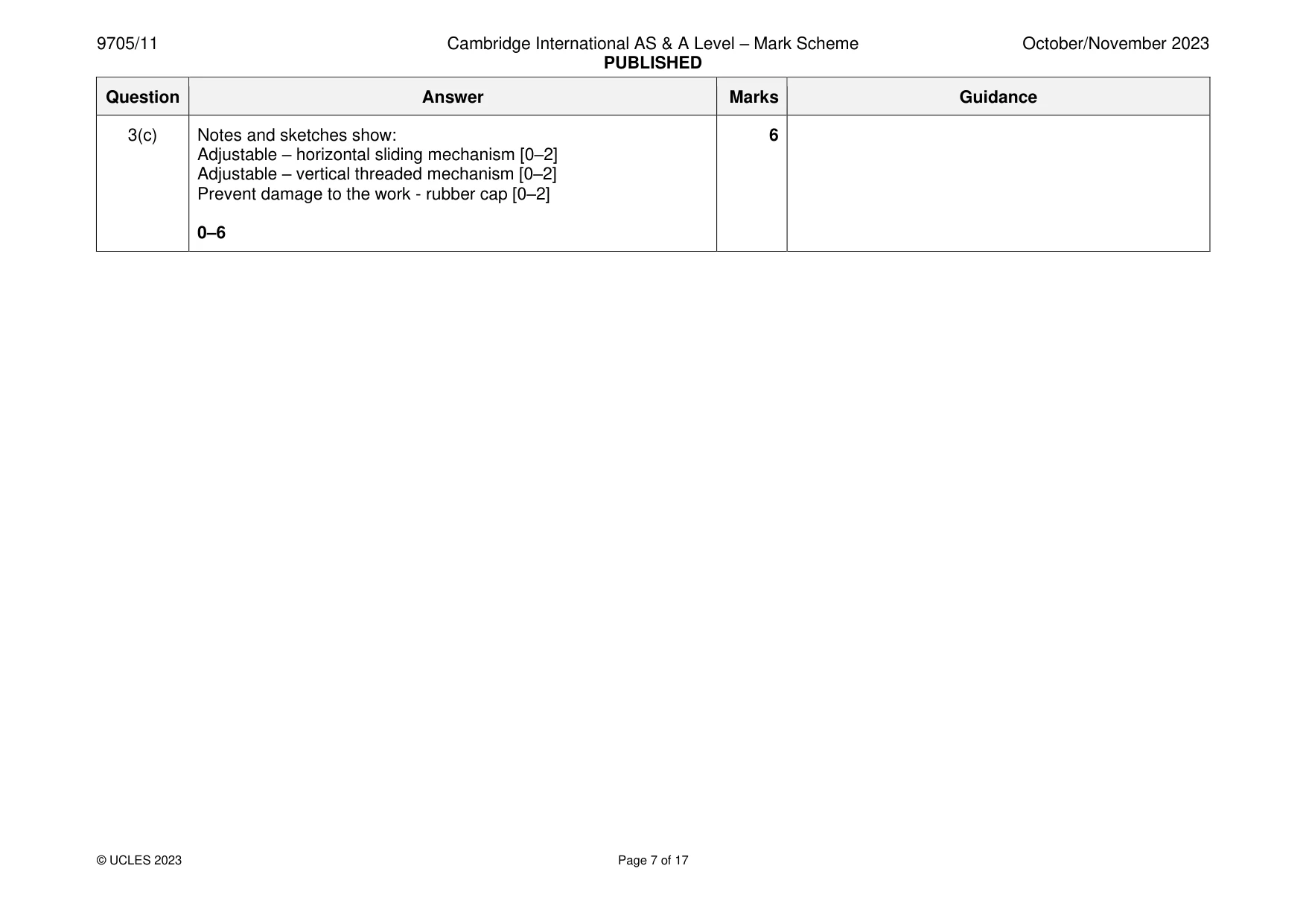

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 7 of 17 Question Answer Marks Guidance 3(c) Notes and sketches show: Adjustable – horizontal sliding mechanism [0–2] Adjustable – vertical threaded mechanism [0–2] Prevent damage to the work - rubber cap [0–2] 0–6 6

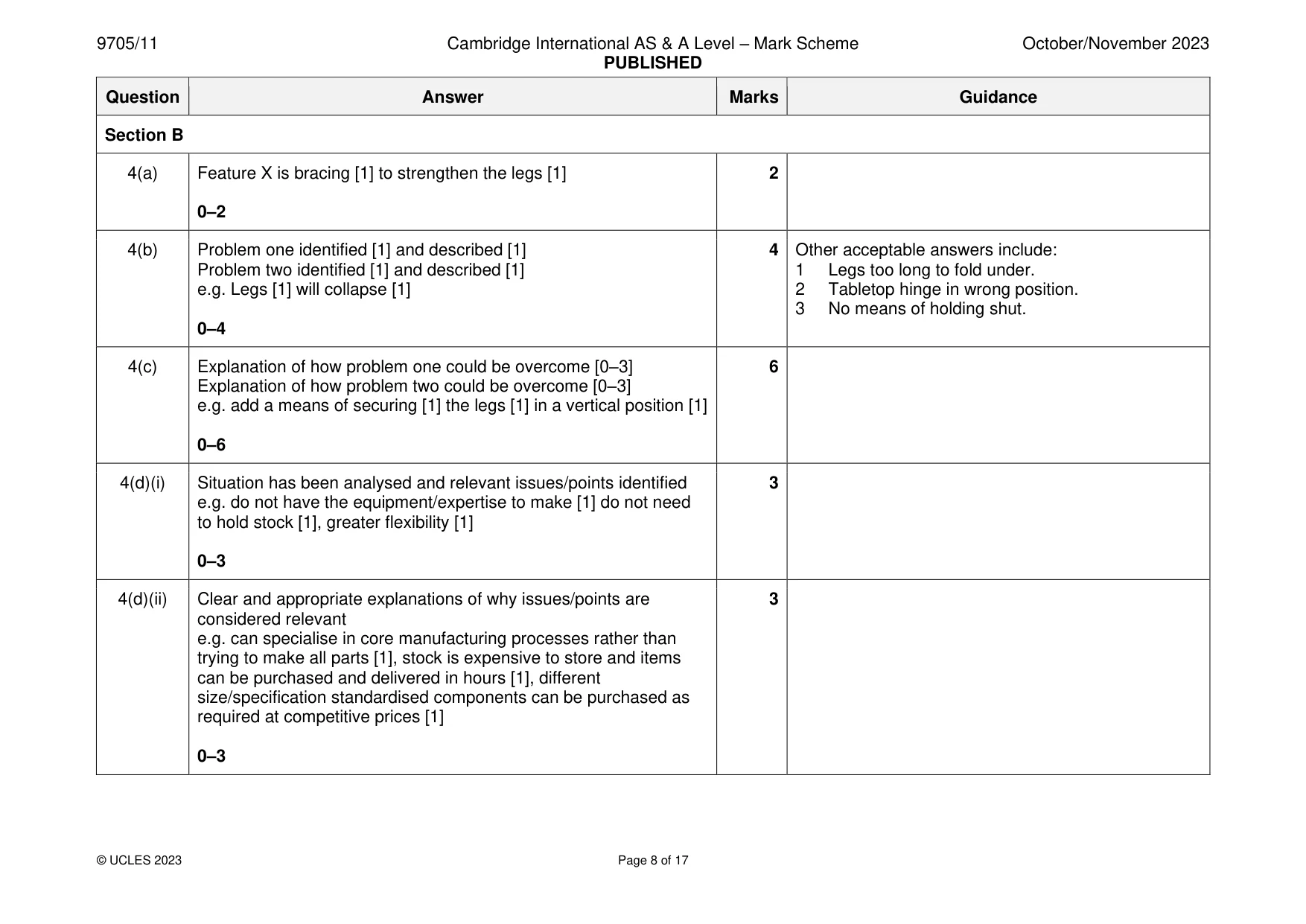

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 8 of 17 Question Answer Marks Guidance Section B 4(a) Feature X is bracing [1] to strengthen the legs [1] 0–2 2 4(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. Legs [1] will collapse [1] 0–4 4 Other acceptable answers include: 1 Legs too long to fold under. 2 Tabletop hinge in wrong position. 3 No means of holding shut. 4(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. add a means of securing [1] the legs [1] in a vertical position [1] 0–6 6 4(d)(i) Situation has been analysed and relevant issues/points identified e.g. do not have the equipment/expertise to make [1] do not need to hold stock [1], greater flexibility [1] 0–3 3 4(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. can specialise in core manufacturing processes rather than trying to make all parts [1], stock is expensive to store and items can be purchased and delivered in hours [1], different size/specification standardised components can be purchased as required at competitive prices [1] 0–3 3

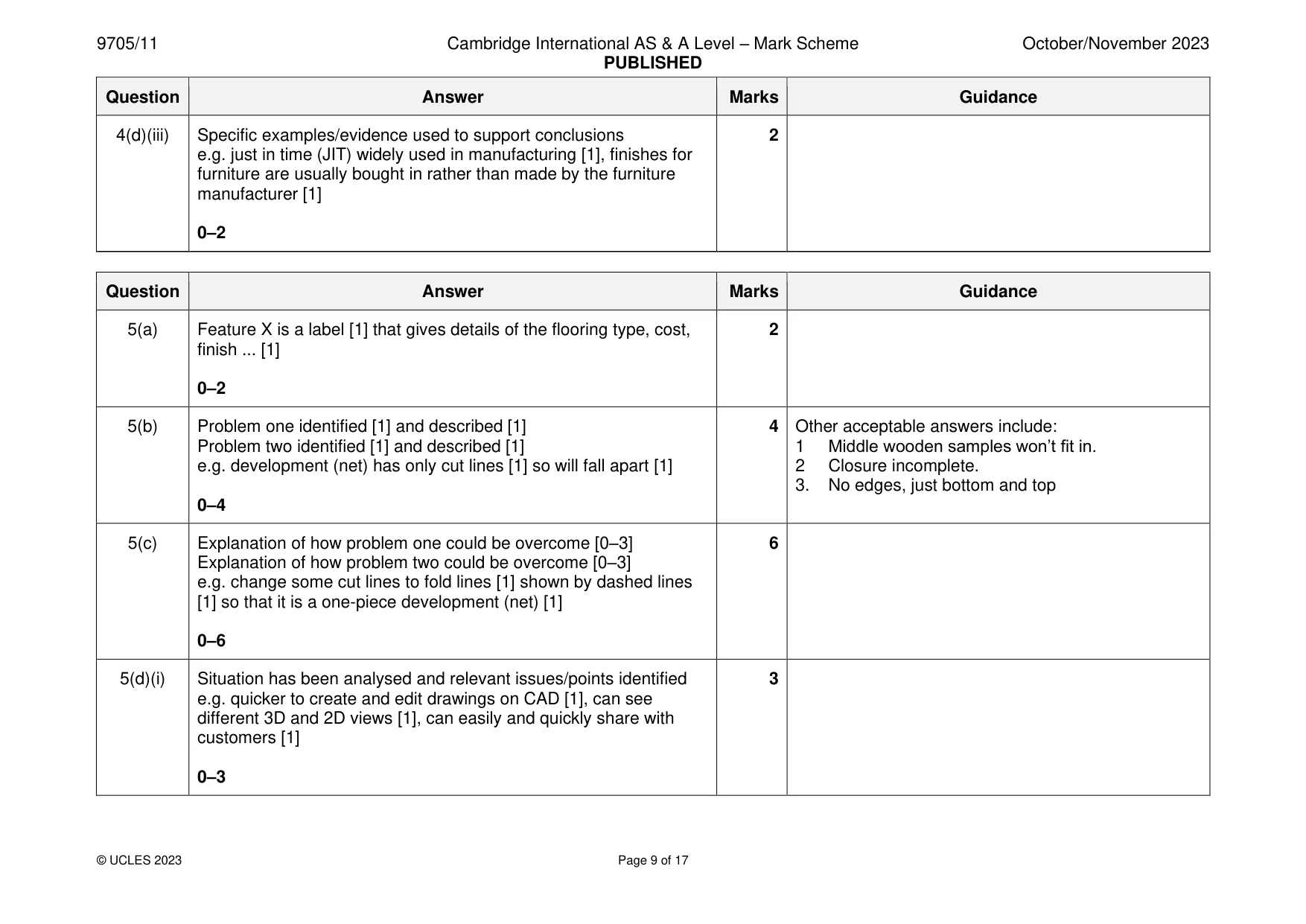

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 9 of 17 Question Answer Marks Guidance 4(d)(iii) Specific examples/evidence used to support conclusions e.g. just in time (JIT) widely used in manufacturing [1], finishes for furniture are usually bought in rather than made by the furniture manufacturer [1] 0–2 2 Question Answer Marks Guidance 5(a) Feature X is a label [1] that gives details of the flooring type, cost, finish ... [1] 0–2 2 5(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. development (net) has only cut lines [1] so will fall apart [1] 0–4 4 Other acceptable answers include: 1 Middle wooden samples won’t fit in. 2 Closure incomplete. 3. No edges, just bottom and top 5(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. change some cut lines to fold lines [1] shown by dashed lines [1] so that it is a one-piece development (net) [1] 0–6 6 5(d)(i) Situation has been analysed and relevant issues/points identified e.g. quicker to create and edit drawings on CAD [1], can see different 3D and 2D views [1], can easily and quickly share with customers [1] 0–3 3

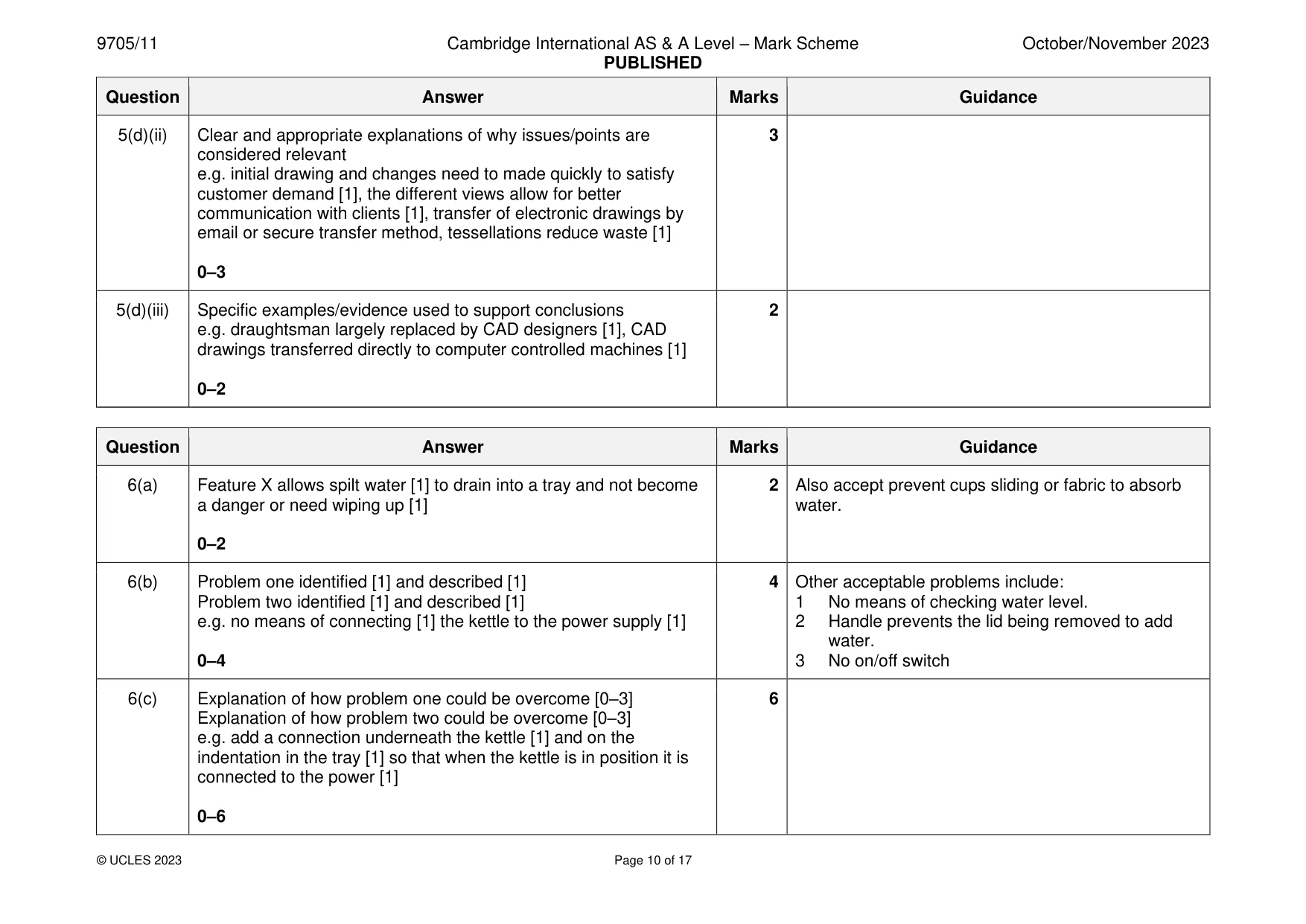

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 10 of 17 Question Answer Marks Guidance 5(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. initial drawing and changes need to made quickly to satisfy customer demand [1], the different views allow for better communication with clients [1], transfer of electronic drawings by email or secure transfer method, tessellations reduce waste [1] 0–3 3 5(d)(iii) Specific examples/evidence used to support conclusions e.g. draughtsman largely replaced by CAD designers [1], CAD drawings transferred directly to computer controlled machines [1] 0–2 2 Question Answer Marks Guidance 6(a) Feature X allows spilt water [1] to drain into a tray and not become a danger or need wiping up [1] 0–2 2 Also accept prevent cups sliding or fabric to absorb water. 6(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. no means of connecting [1] the kettle to the power supply [1] 0–4 4 Other acceptable problems include: 1 No means of checking water level. 2 Handle prevents the lid being removed to add water. 3 No on/off switch 6(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. add a connection underneath the kettle [1] and on the indentation in the tray [1] so that when the kettle is in position it is connected to the power [1] 0–6 6

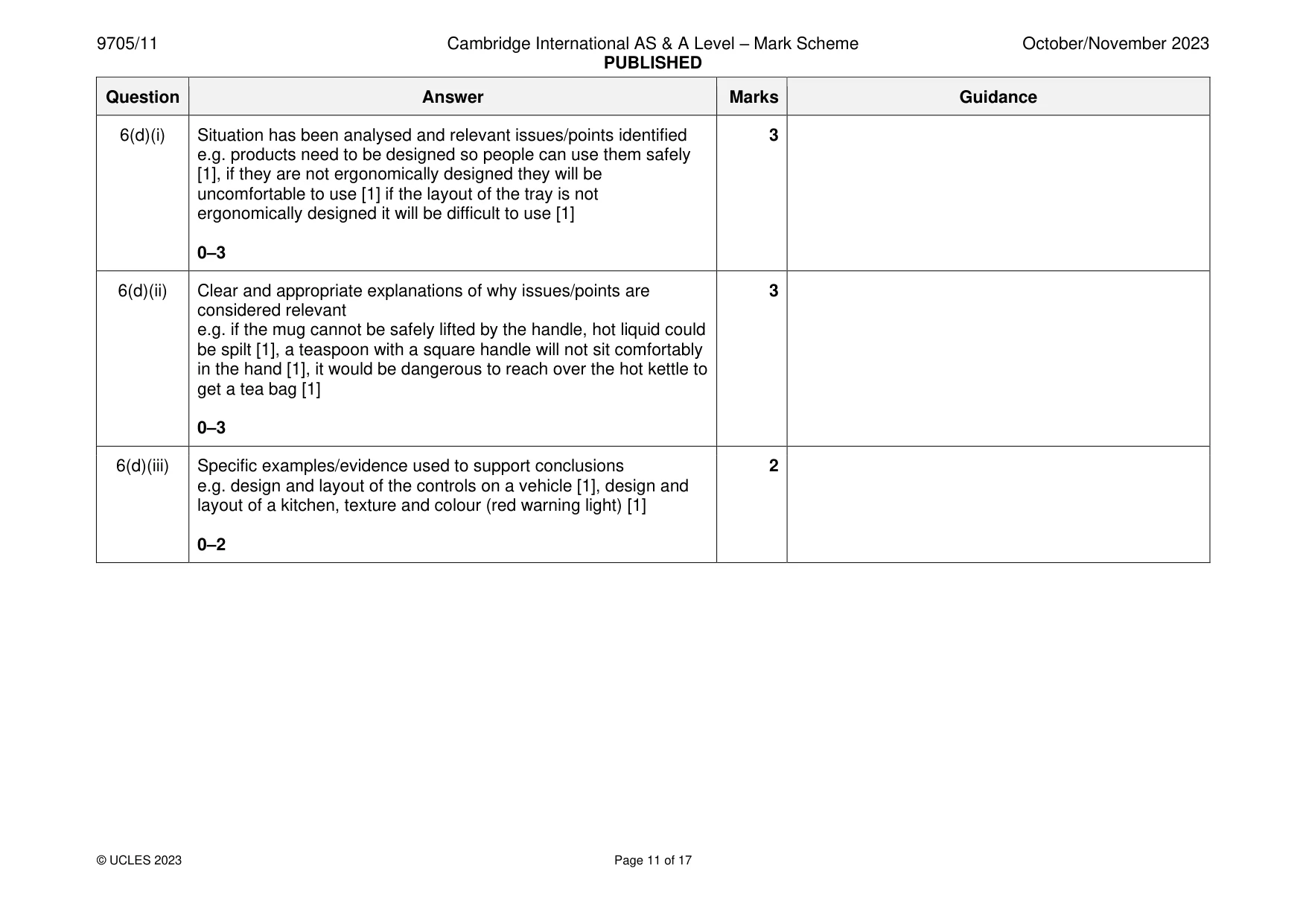

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 11 of 17 Question Answer Marks Guidance 6(d)(i) Situation has been analysed and relevant issues/points identified e.g. products need to be designed so people can use them safely [1], if they are not ergonomically designed they will be uncomfortable to use [1] if the layout of the tray is not ergonomically designed it will be difficult to use [1] 0–3 3 6(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. if the mug cannot be safely lifted by the handle, hot liquid could be spilt [1], a teaspoon with a square handle will not sit comfortably in the hand [1], it would be dangerous to reach over the hot kettle to get a tea bag [1] 0–3 3 6(d)(iii) Specific examples/evidence used to support conclusions e.g. design and layout of the controls on a vehicle [1], design and layout of a kitchen, texture and colour (red warning light) [1] 0–2 2

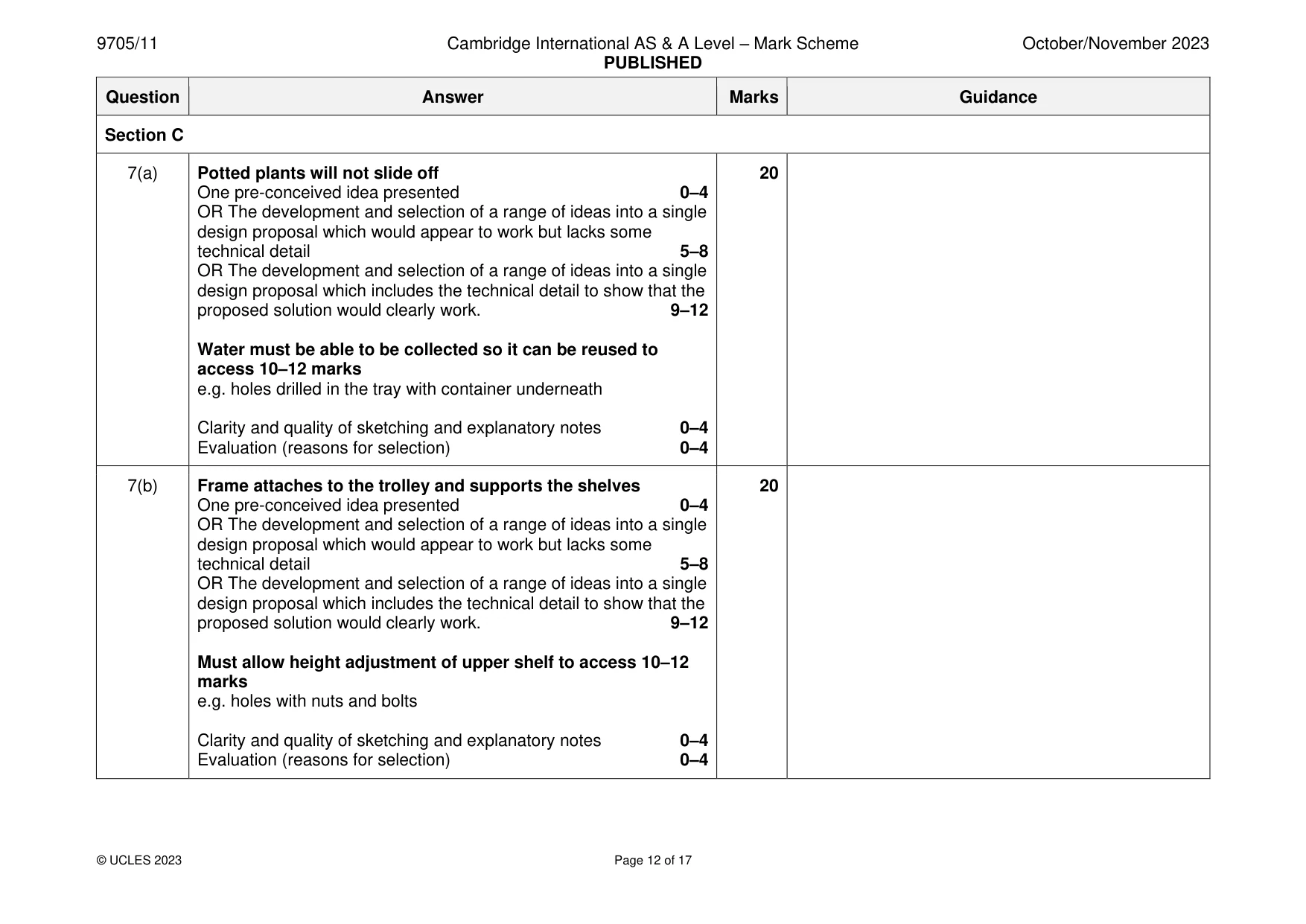

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 12 of 17 Question Answer Marks Guidance Section C 7(a) Potted plants will not slide off One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Water must be able to be collected so it can be reused to access 10–12 marks e.g. holes drilled in the tray with container underneath Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(b) Frame attaches to the trolley and supports the shelves One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must allow height adjustment of upper shelf to access 10–12 marks e.g. holes with nuts and bolts Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

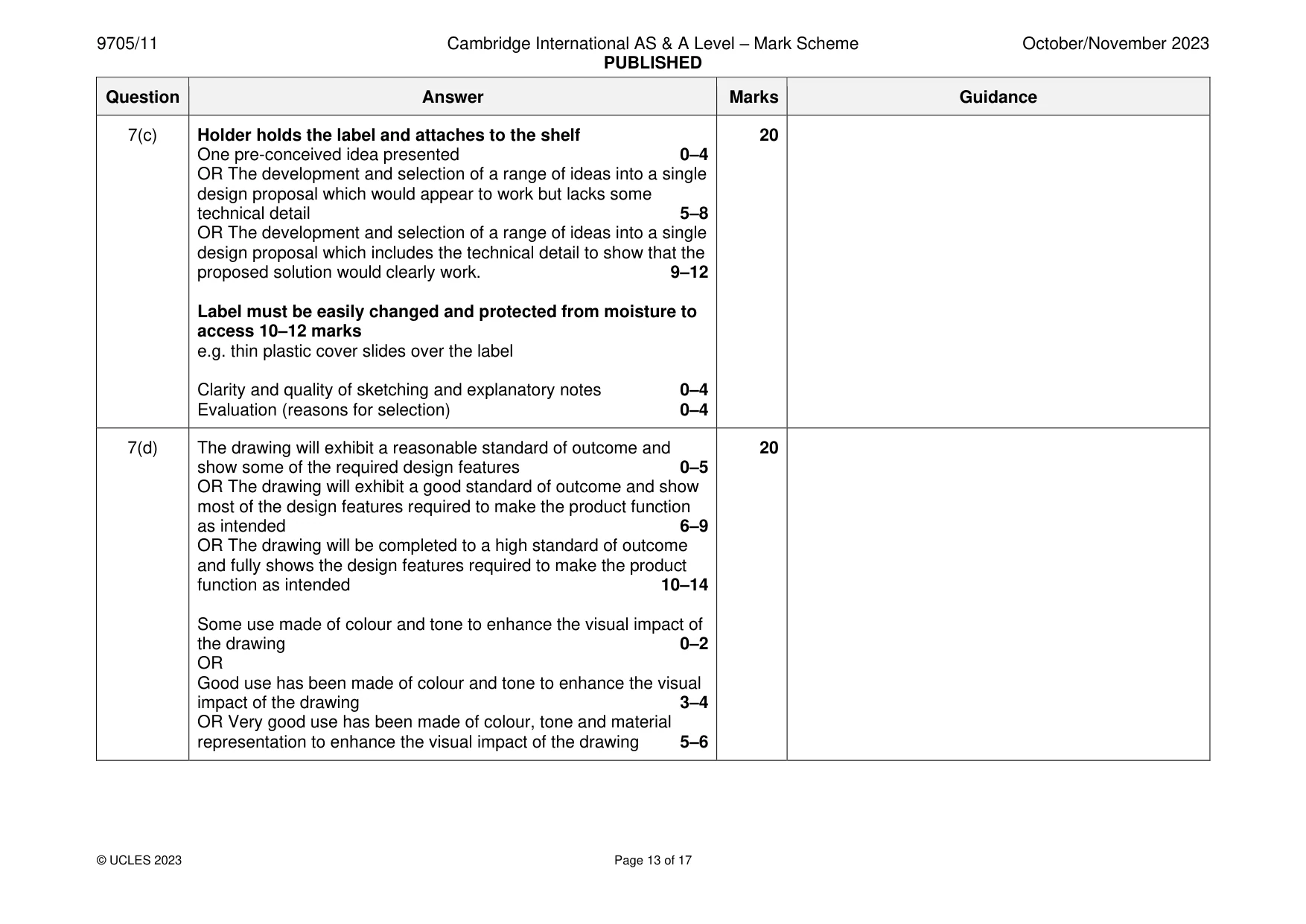

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 13 of 17 Question Answer Marks Guidance 7(c) Holder holds the label and attaches to the shelf One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Label must be easily changed and protected from moisture to access 10–12 marks e.g. thin plastic cover slides over the label Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended 10–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20

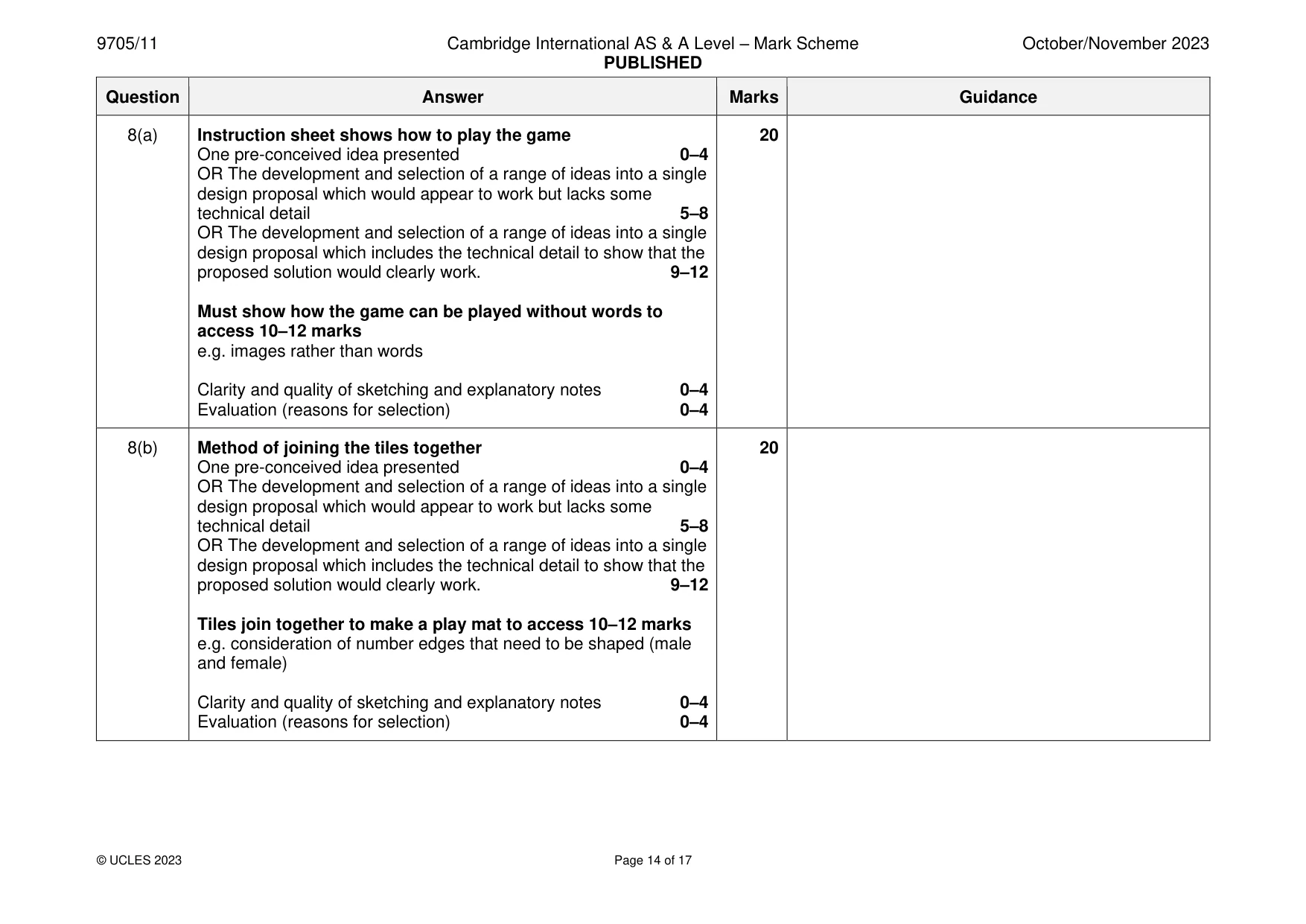

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 14 of 17 Question Answer Marks Guidance 8(a) Instruction sheet shows how to play the game One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must show how the game can be played without words to access 10–12 marks e.g. images rather than words Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(b) Method of joining the tiles together One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Tiles join together to make a play mat to access 10–12 marks e.g. consideration of number edges that need to be shaped (male and female) Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

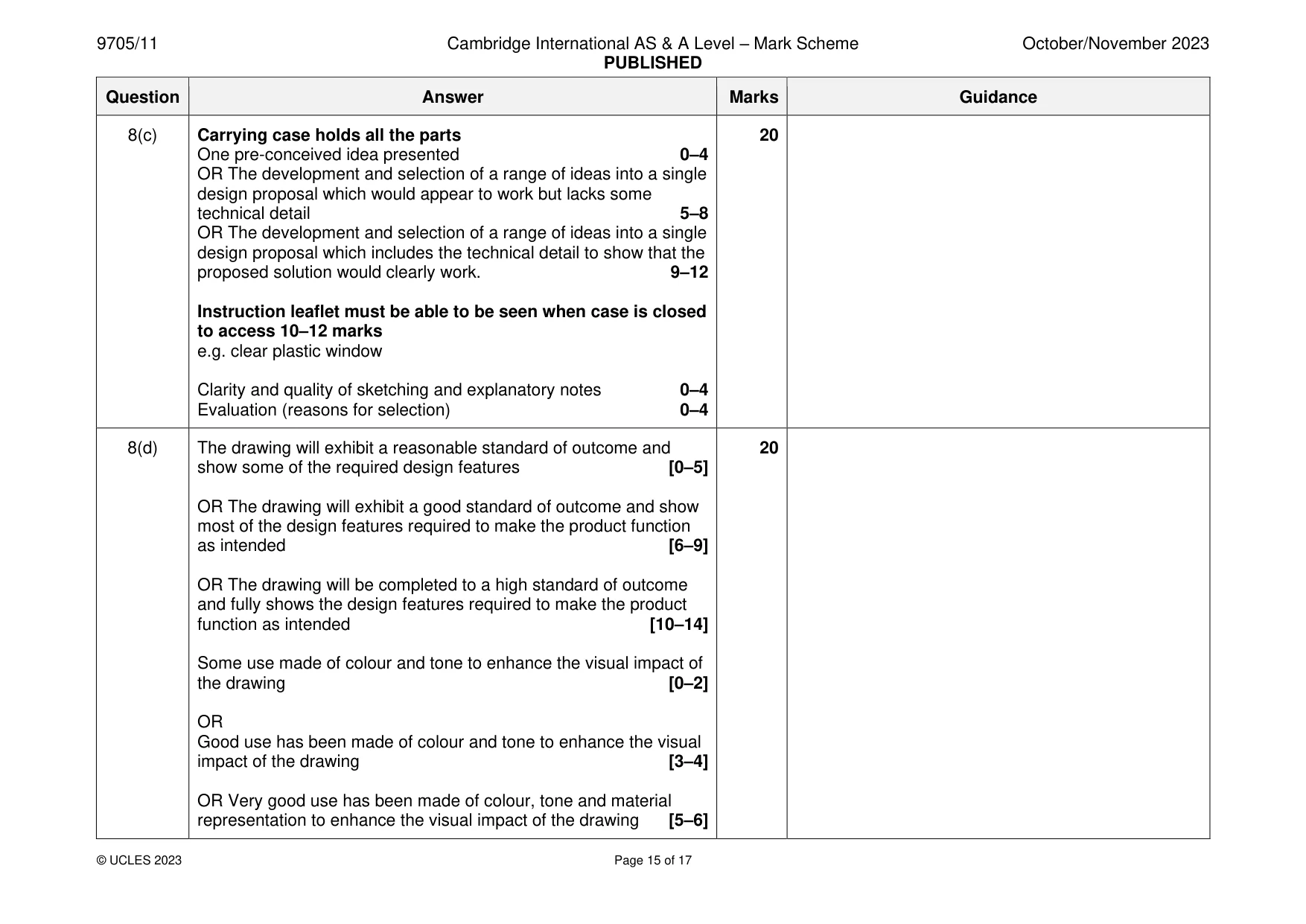

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 15 of 17 Question Answer Marks Guidance 8(c) Carrying case holds all the parts One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Instruction leaflet must be able to be seen when case is closed to access 10–12 marks e.g. clear plastic window Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features [0–5] OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended [6–9] OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended [10–14] Some use made of colour and tone to enhance the visual impact of the drawing [0–2] OR Good use has been made of colour and tone to enhance the visual impact of the drawing [3–4] OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing [5–6] 20

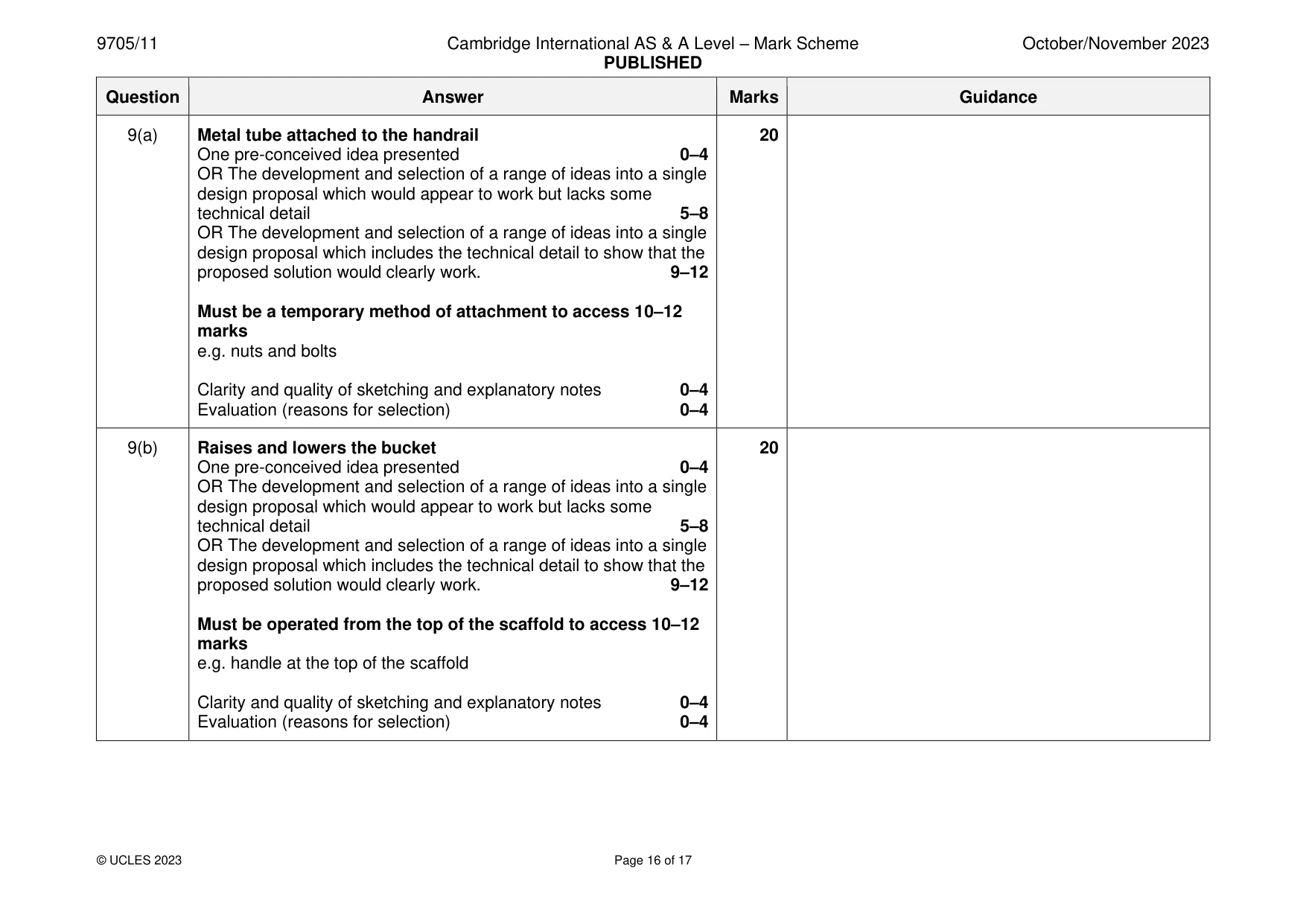

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 16 of 17 Question Answer Marks Guidance 9(a) Metal tube attached to the handrail One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must be a temporary method of attachment to access 10–12 marks e.g. nuts and bolts Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 9(b) Raises and lowers the bucket One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Must be operated from the top of the scaffold to access 10–12 marks e.g. handle at the top of the scaffold Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

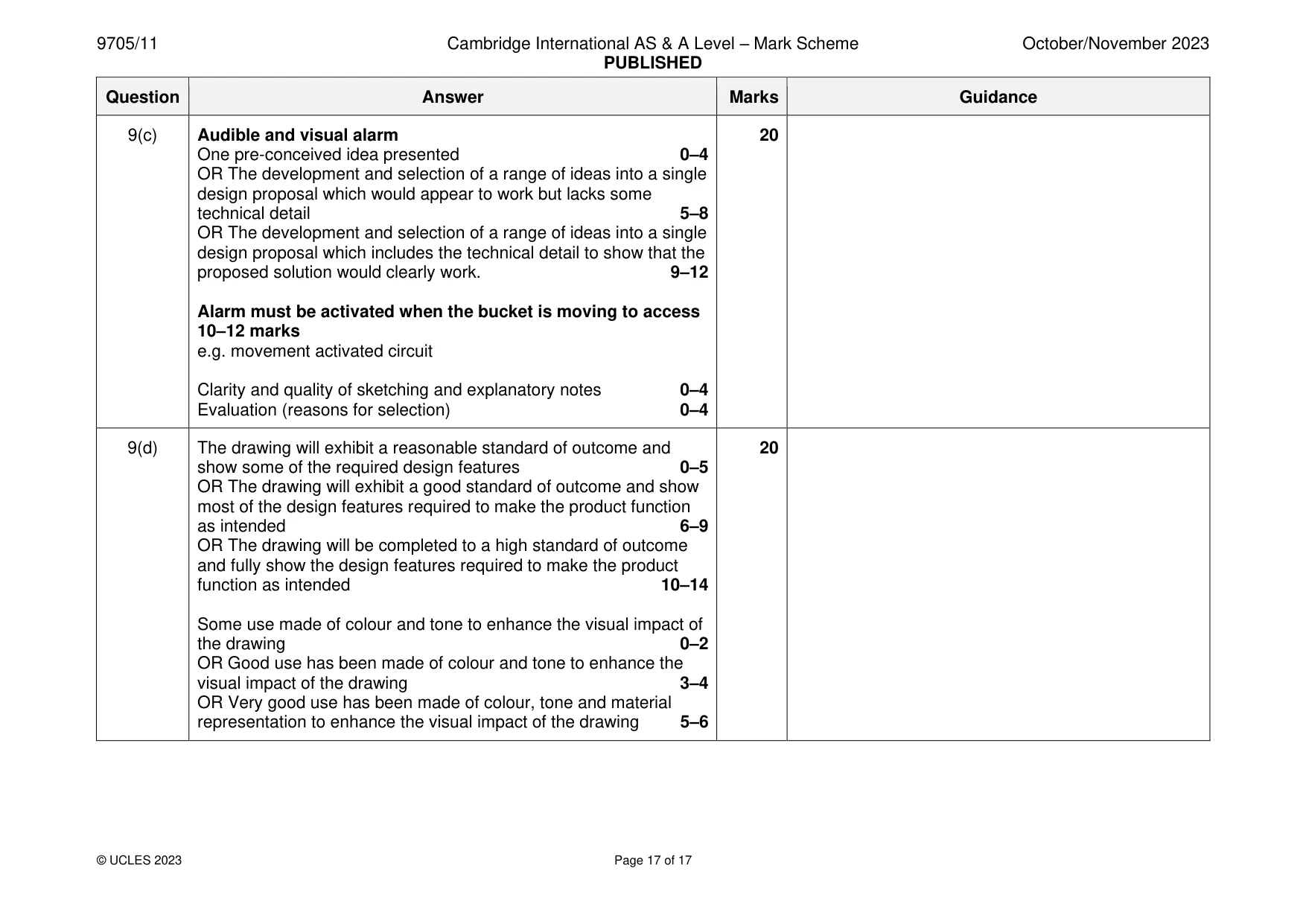

9705/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 17 of 17 Question Answer Marks Guidance 9(c) Audible and visual alarm One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which includes the technical detail to show that the proposed solution would clearly work. 9–12 Alarm must be activated when the bucket is moving to access 10–12 marks e.g. movement activated circuit Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 9(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended 10–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20
