Cambridge IGCSE Mathematics (with coursework) 0581 — 2011 Oct/Nov Paper 4 · Variant 1

This document consists of 16 printed pages. IB11 11_0581_41/FP © UCLES 2011 [Turn over *5388810781* UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education MATHEMATICS 0581/41 Paper 4 (Extended) October/November 2011 2 hours 30 minutes Candidates answer on the Question Paper. Additional Materials: Electronic calculator Geometrical instruments Mathematical tables (optional) Tracing paper (optional) READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen. You may use a pencil for any diagrams or graphs. Do not use staples, paper clips, highlighters, glue or correction fluid. DO NOT WRITE IN ANY BARCODES. Answer all questions. If working is needed for any question it must be shown below that question. Electronic calculators should be used. If the degree of accuracy is not specified in the question, and if the answer is not exact, give the answer to three significant figures. Give answers in degrees to one decimal place. For π use either your calculator value or 3.142. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. The total of the marks for this paper is 130. www.XtremePapers.com

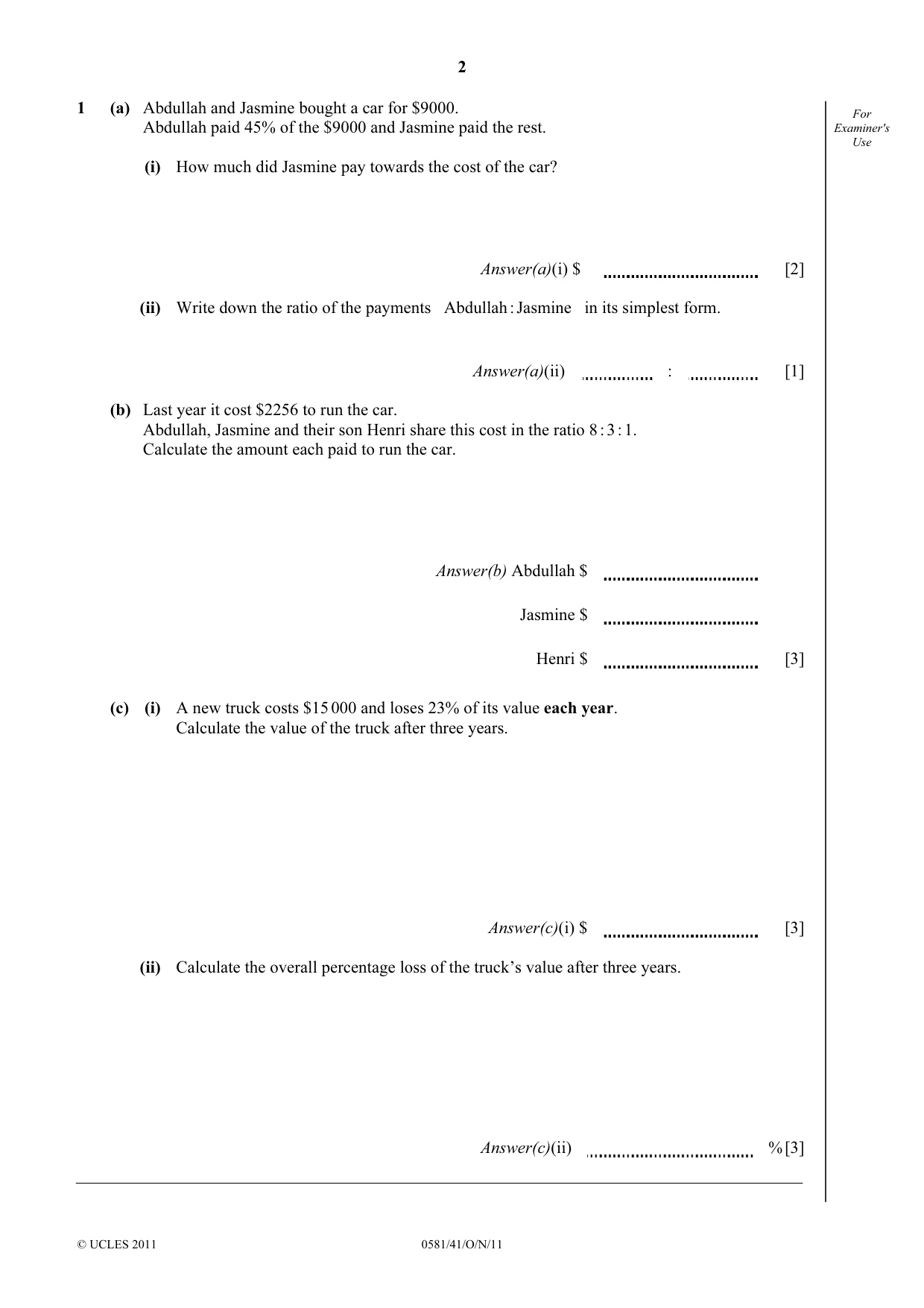

2 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 1 (a) Abdullah and Jasmine bought a car for $9000. Abdullah paid 45% of the $9000 and Jasmine paid the rest. (i) How much did Jasmine pay towards the cost of the car? Answer(a)(i) $ [2] (ii) Write down the ratio of the payments Abdullah : Jasmine in its simplest form. Answer(a)(ii) : [1] (b) Last year it cost $2256 to run the car. Abdullah, Jasmine and their son Henri share this cost in the ratio 8 : 3 : 1. Calculate the amount each paid to run the car. Answer(b) Abdullah $ Jasmine $ Henri $ [3] (c) (i) A new truck costs $15 000 and loses 23% of its value each year. Calculate the value of the truck after three years. Answer(c)(i) $ [3] (ii) Calculate the overall percentage loss of the truck’s value after three years. Answer(c)(ii) %[3]

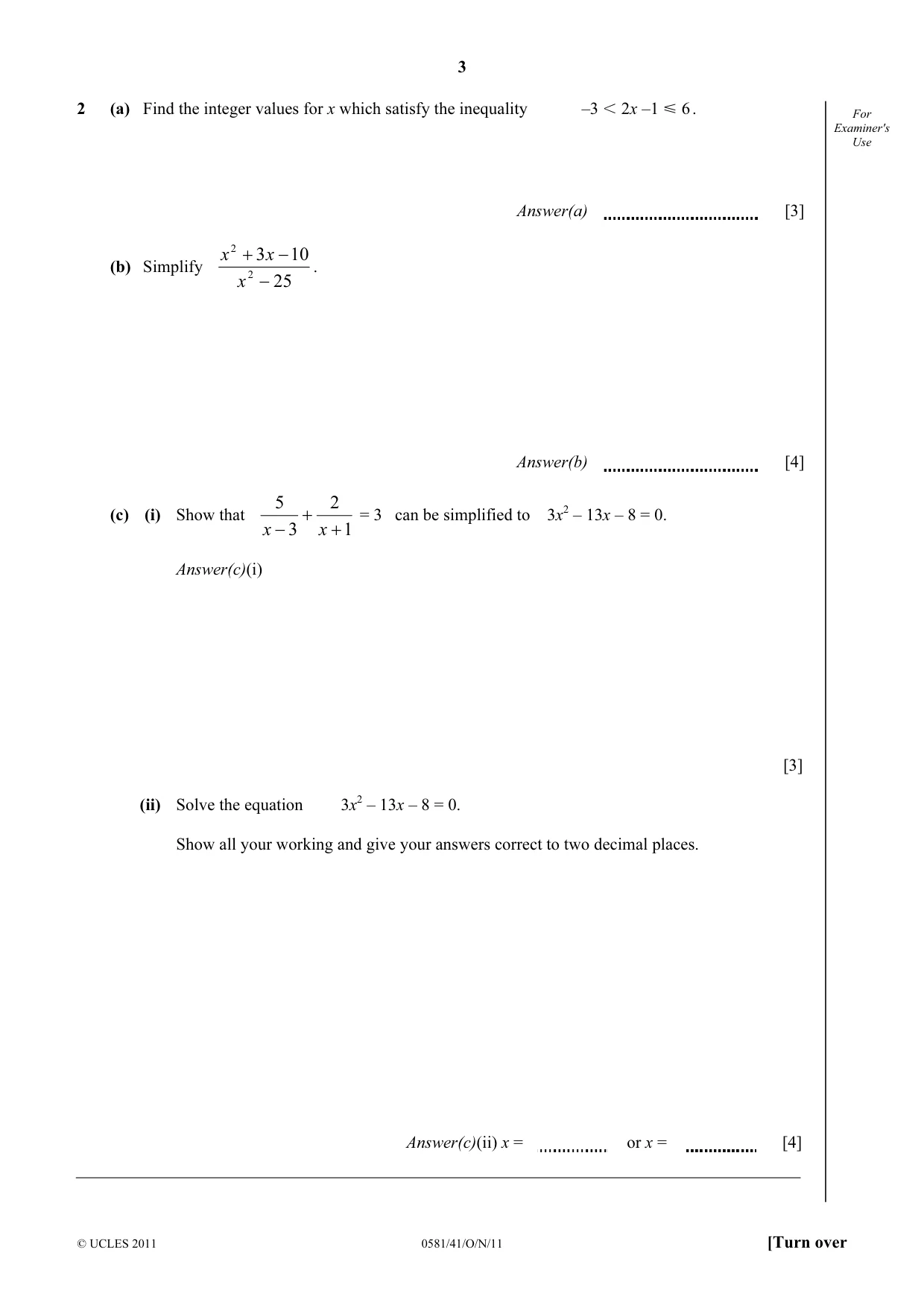

3 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use 2 (a) Find the integer values for x which satisfy the inequality –3 I 2x –1 Y 6 . Answer(a) [3] (b) Simplify 25 10 3 2 2 − − + x x x . Answer(b) [4] (c) (i) Show that 1 2 3 5 + + − x x = 3 can be simplified to 3x2 – 13x – 8 = 0. Answer(c)(i) [3] (ii) Solve the equation 3x2 – 13x – 8 = 0. Show all your working and give your answers correct to two decimal places. Answer(c)(ii) x = or x = [4]

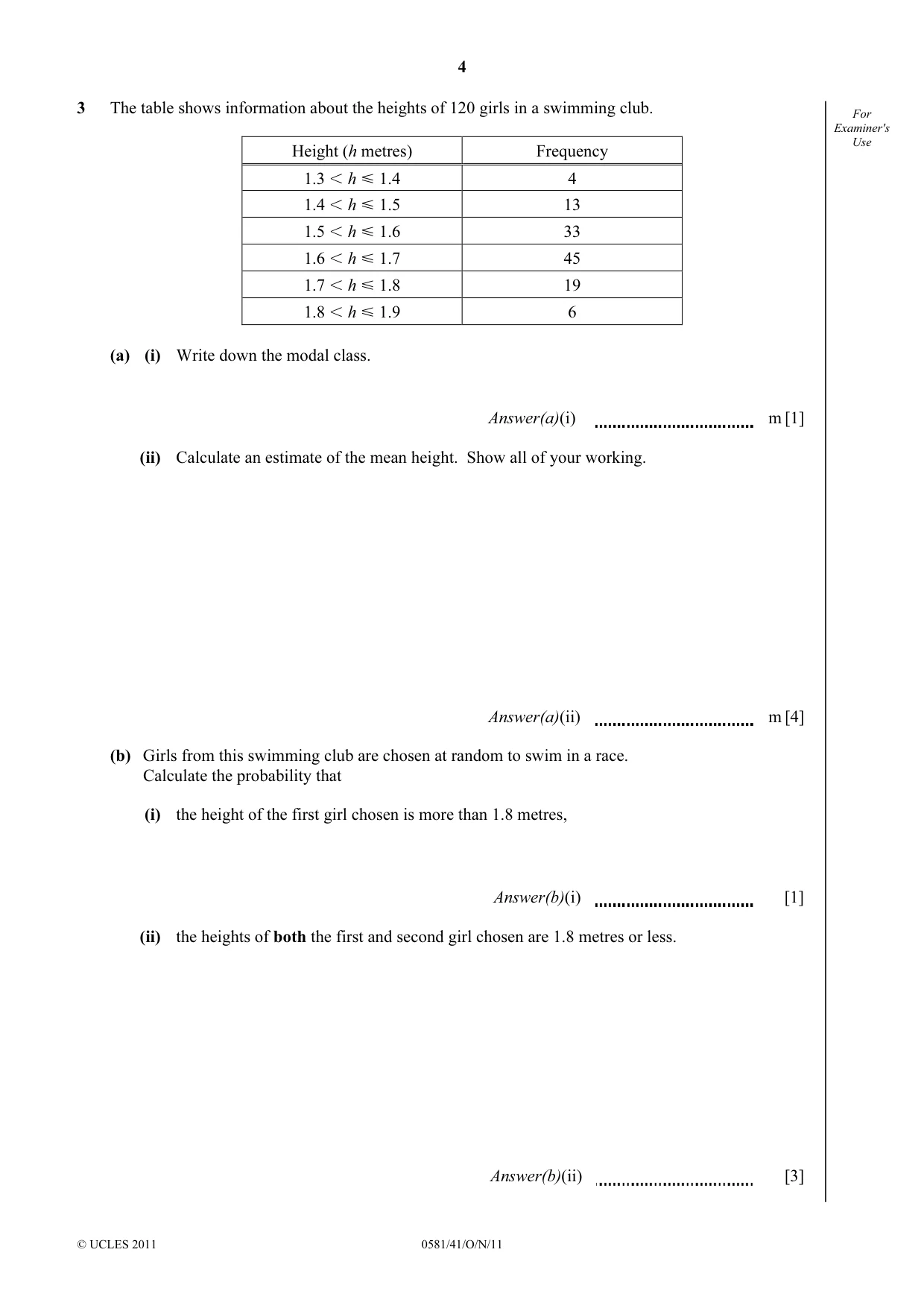

4 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 3 The table shows information about the heights of 120 girls in a swimming club. Height (h metres) Frequency 1.3 I h Y 1.4 4 1.4 I h Y 1.5 13 1.5 I h Y 1.6 33 1.6 I h Y 1.7 45 1.7 I h Y 1.8 19 1.8 I h Y 1.9 6 (a) (i) Write down the modal class. Answer(a)(i) m [1] (ii) Calculate an estimate of the mean height. Show all of your working. Answer(a)(ii) m [4] (b) Girls from this swimming club are chosen at random to swim in a race. Calculate the probability that (i) the height of the first girl chosen is more than 1.8 metres, Answer(b)(i) [1] (ii) the heights of both the first and second girl chosen are 1.8 metres or less. Answer(b)(ii) [3]

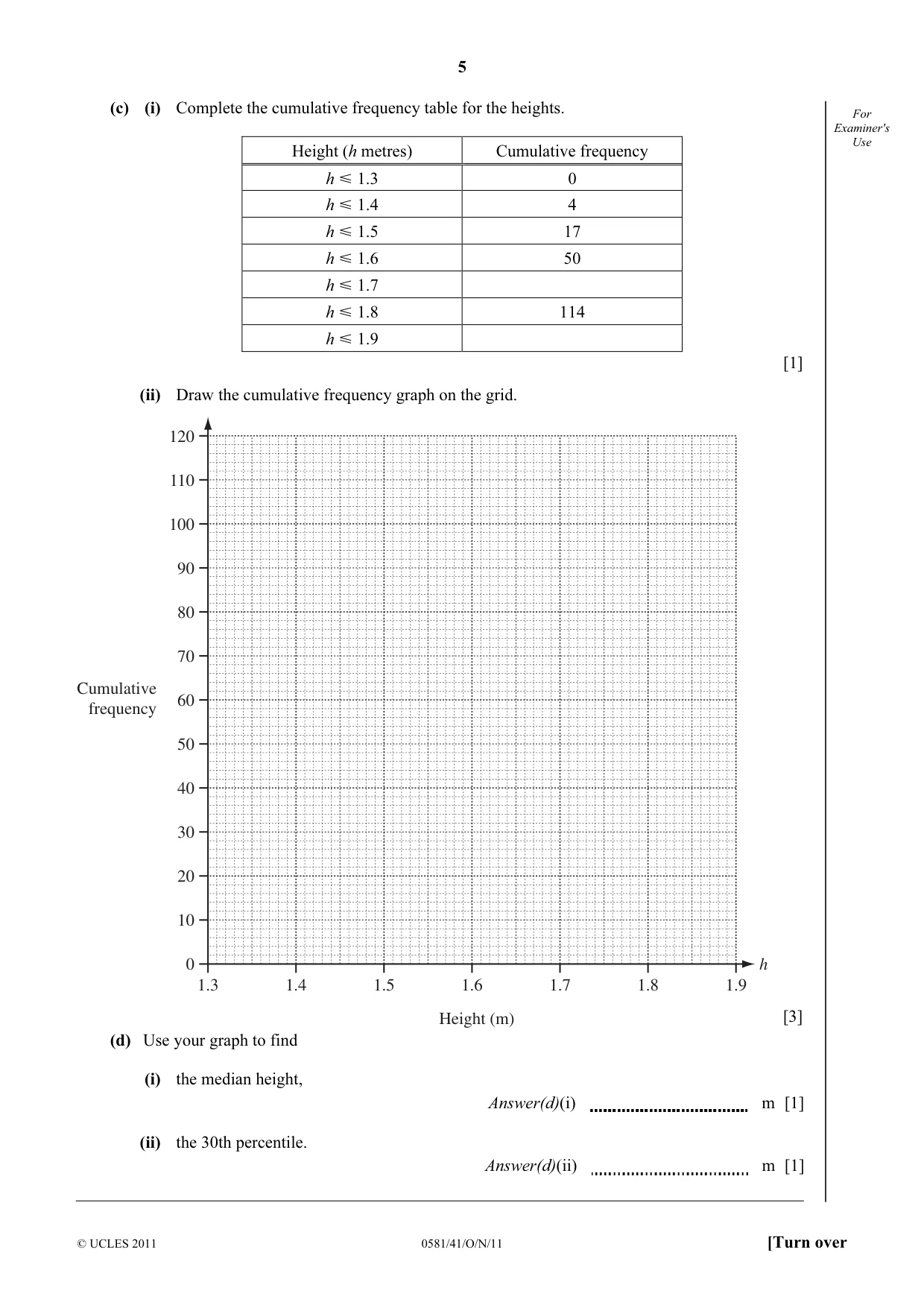

5 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (c) (i) Complete the cumulative frequency table for the heights. Height (h metres) Cumulative frequency h Y 1.3 0 h Y 1.4 4 h Y 1.5 17 h Y 1.6 50 h Y 1.7 h Y 1.8 114 h Y 1.9 [1] (ii) Draw the cumulative frequency graph on the grid. 120 110 100 90 80 70 60 50 40 30 20 10 0 1.3 1.4 1.5 1.6 1.7 1.8 1.9 h Height (m) Cumulative frequency [3] (d) Use your graph to find (i) the median height, Answer(d)(i) m [1] (ii) the 30th percentile. Answer(d)(ii) m [1]

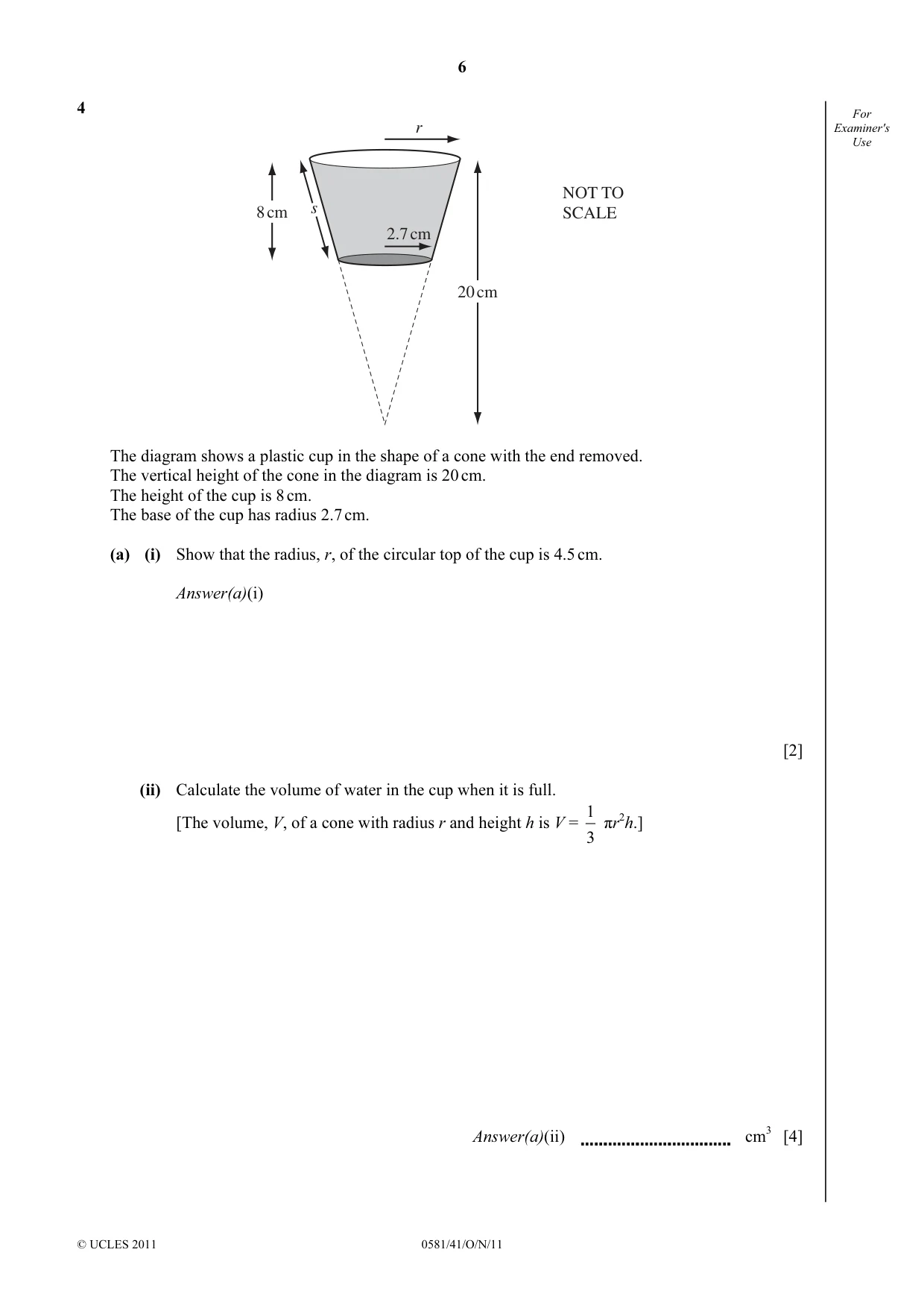

6 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 4 2.7 cm r s 8 cm 20 cm NOT TO SCALE The diagram shows a plastic cup in the shape of a cone with the end removed. The vertical height of the cone in the diagram is 20 cm. The height of the cup is 8 cm. The base of the cup has radius 2.7 cm. (a) (i) Show that the radius, r, of the circular top of the cup is 4.5 cm. Answer(a)(i) [2] (ii) Calculate the volume of water in the cup when it is full. [The volume, V, of a cone with radius r and height h is V = 3 1 πr2h.] Answer(a)(ii) cm3 [4]

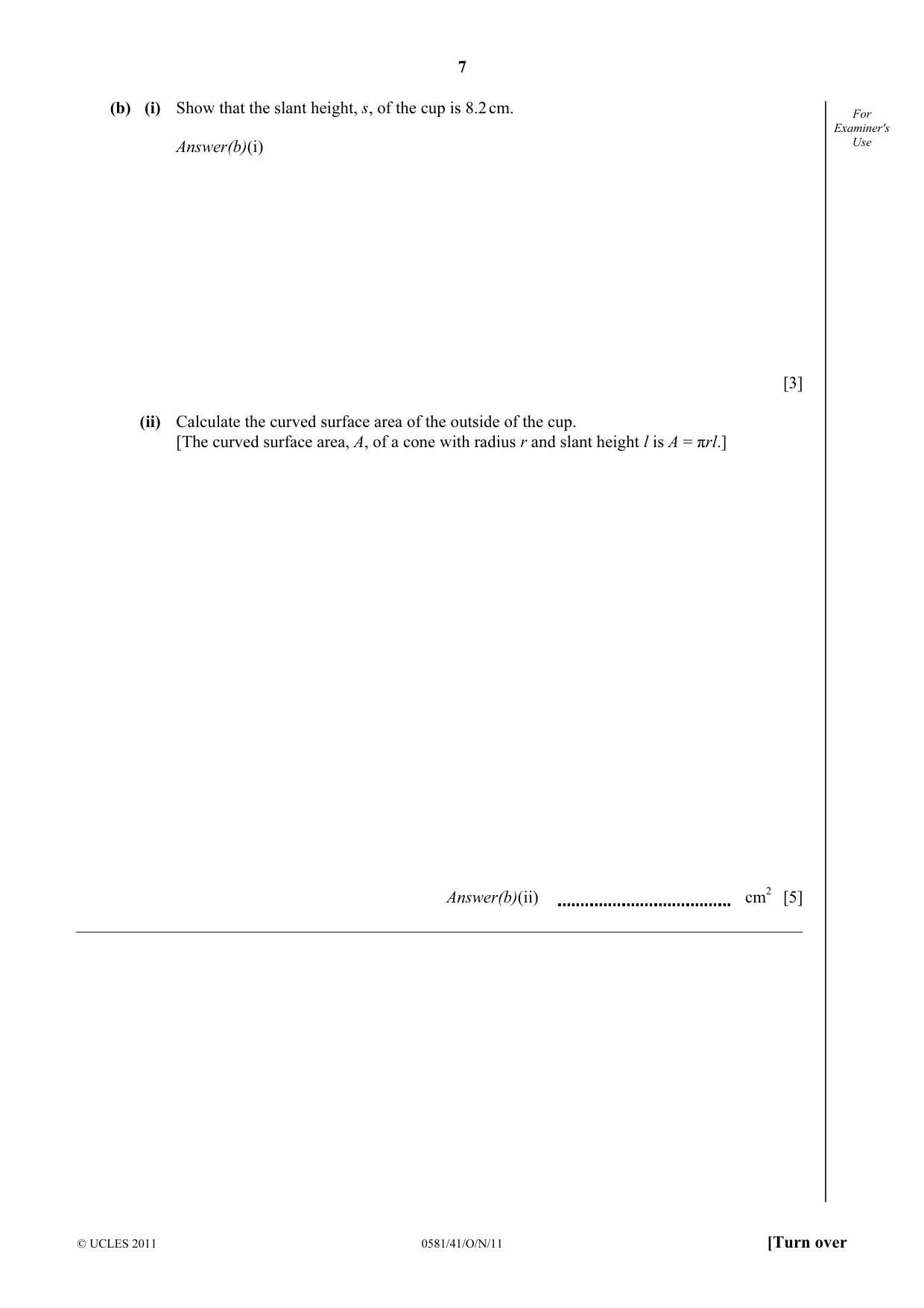

7 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (b) (i) Show that the slant height, s, of the cup is 8.2 cm. Answer(b)(i) [3] (ii) Calculate the curved surface area of the outside of the cup. [The curved surface area, A, of a cone with radius r and slant height l is A = πrl.] Answer(b)(ii) cm2 [5]

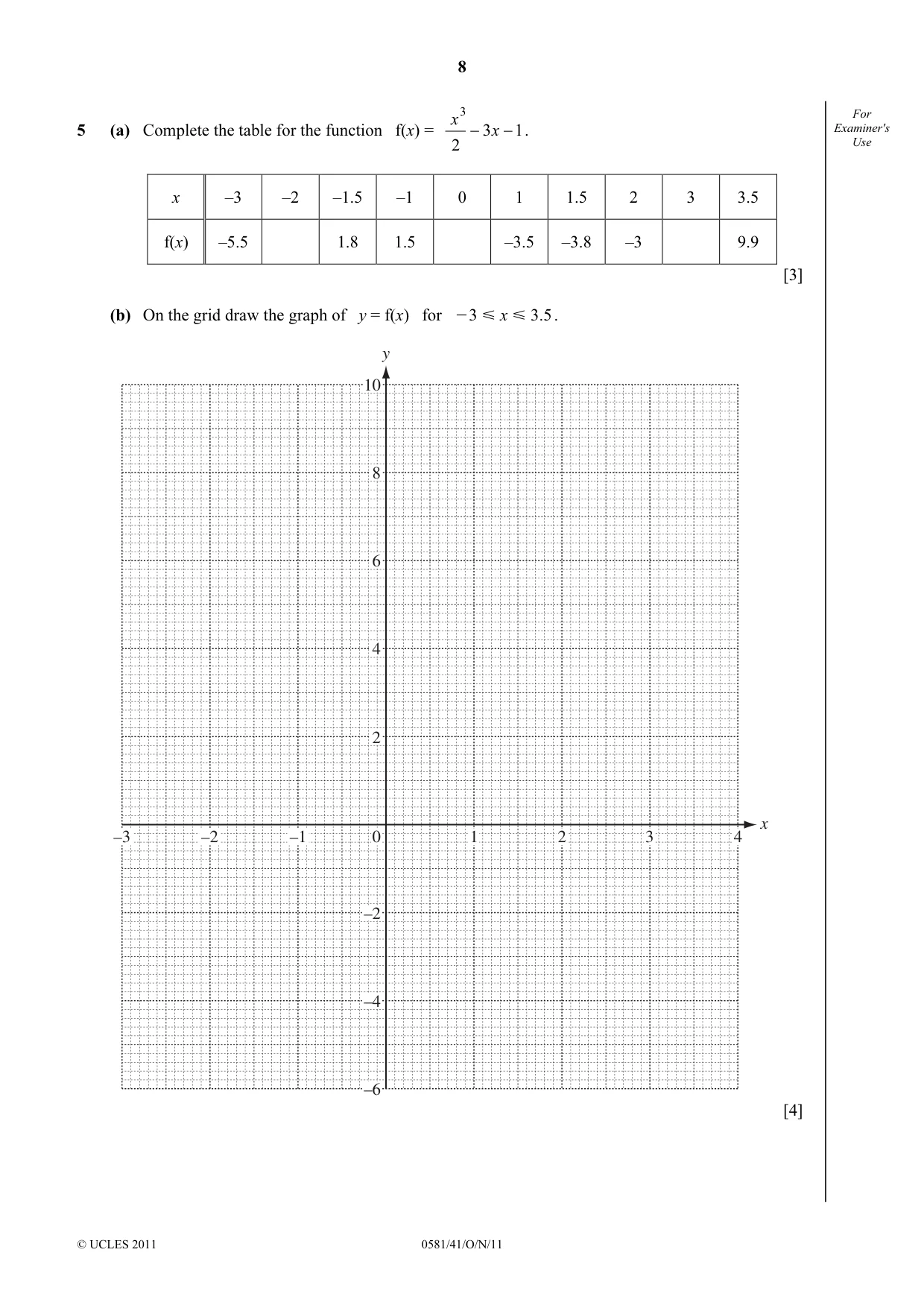

8 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 5 (a) Complete the table for the function f(x) = 1 3 2 3 − −x x . x –3 –2 –1.5 –1 0 1 1.5 2 3 3.5 f(x) –5.5 1.8 1.5 –3.5 –3.8 –3 9.9 [3] (b) On the grid draw the graph of y = f(x) for O3 Y x Y 3.5 . y x 10 8 6 4 2 –2 –4 –6 0 –3 –2 –1 1 2 3 4 [4]

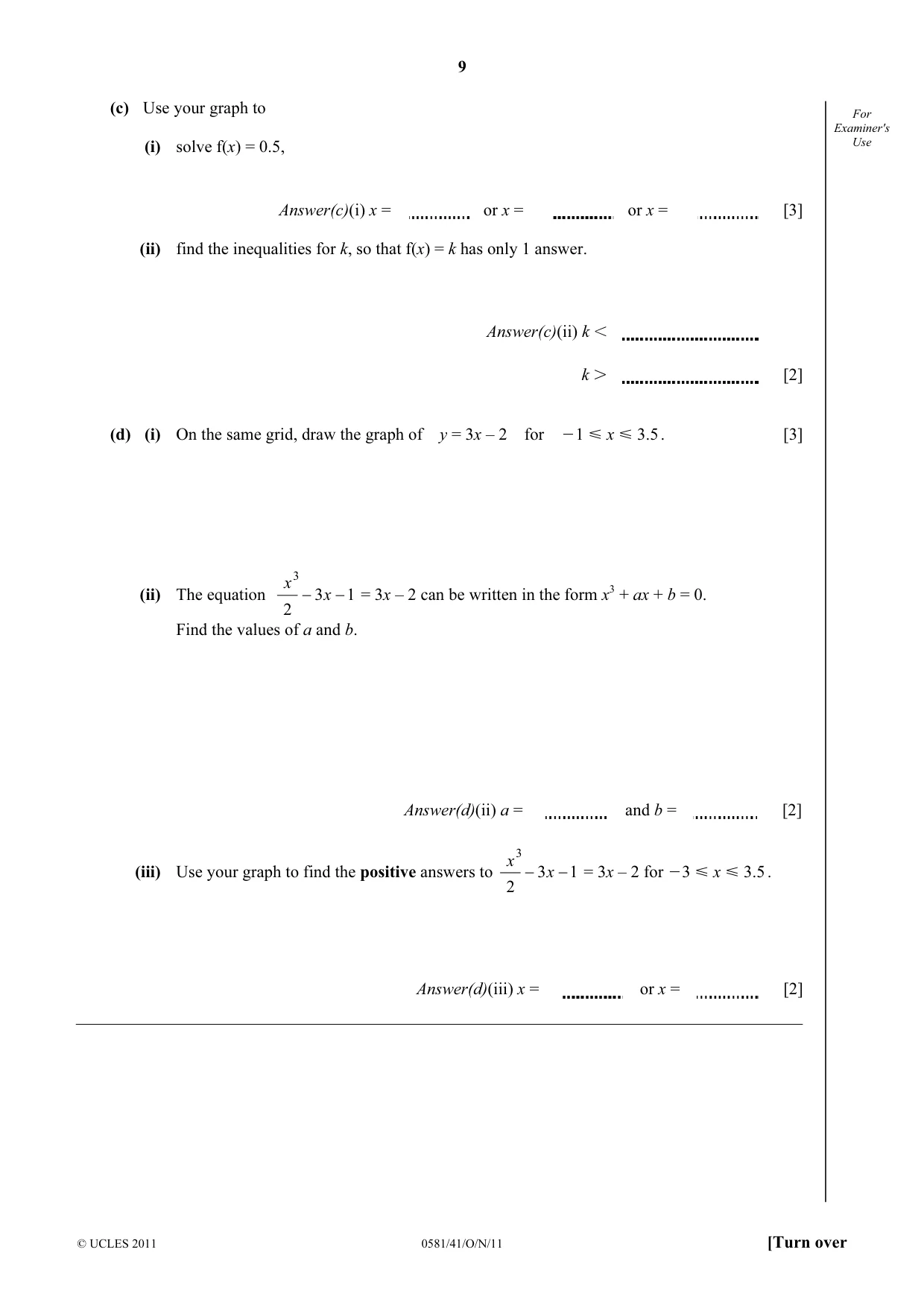

9 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (c) Use your graph to (i) solve f(x) = 0.5, Answer(c)(i) x = or x = or x = [3] (ii) find the inequalities for k, so that f(x) = k has only 1 answer. Answer(c)(ii) k I k K [2] (d) (i) On the same grid, draw the graph of y = 3x – 2 for O1 Y x Y 3.5 . [3] (ii) The equation 1 3 2 3 − −x x = 3x – 2 can be written in the form x3 + ax + b = 0. Find the values of a and b. Answer(d)(ii) a = and b = [2] (iii) Use your graph to find the positive answers to 1 3 2 3 − −x x = 3x – 2 for O3 Y x Y 3.5 . Answer(d)(iii) x = or x = [2]

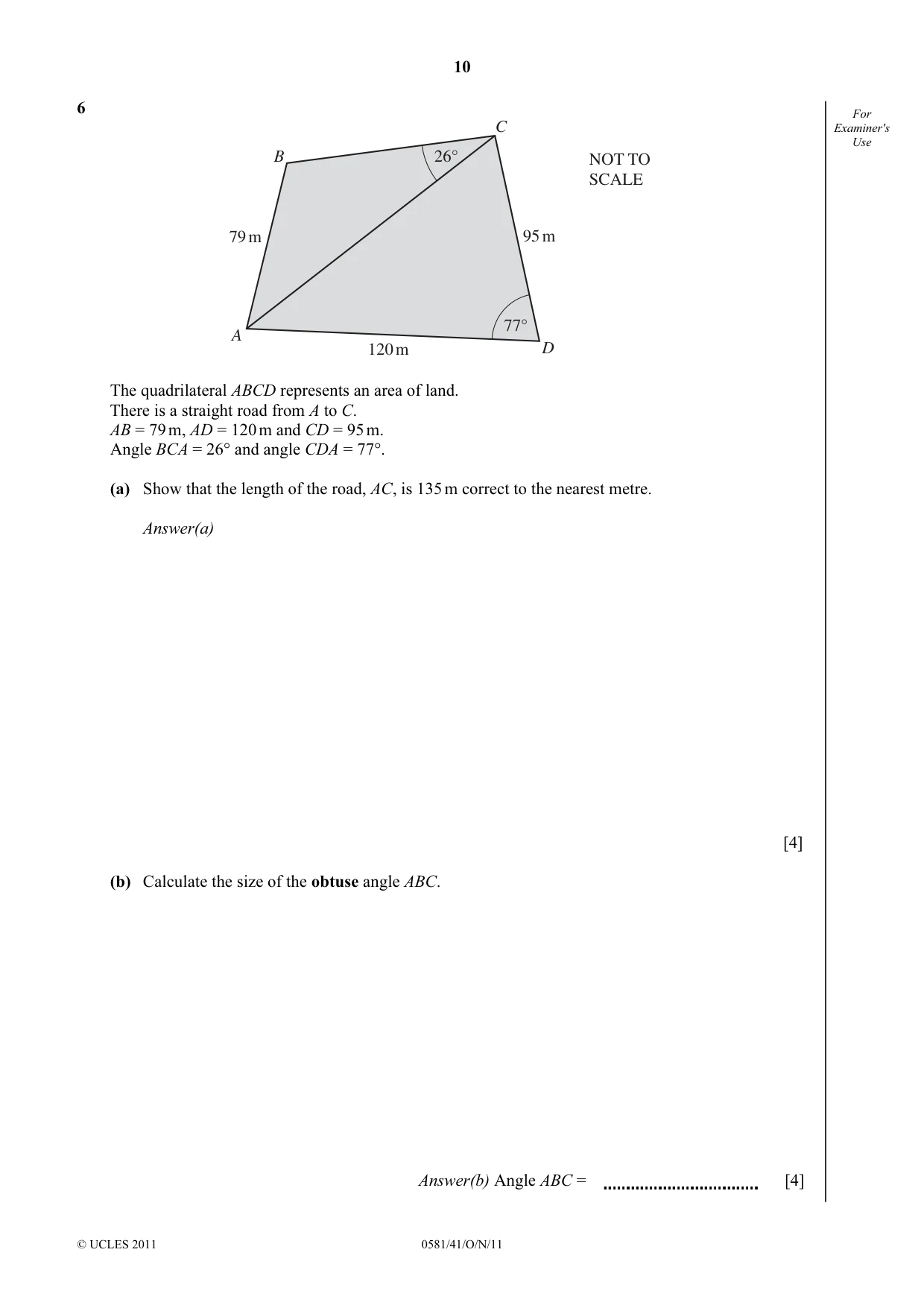

10 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 6 C B A D 77° 26° 95 m 79 m 120 m NOT TO SCALE The quadrilateral ABCD represents an area of land. There is a straight road from A to C. AB = 79 m, AD = 120 m and CD = 95 m. Angle BCA = 26° and angle CDA = 77°. (a) Show that the length of the road, AC, is 135 m correct to the nearest metre. Answer(a) [4] (b) Calculate the size of the obtuse angle ABC. Answer(b) Angle ABC = [4]

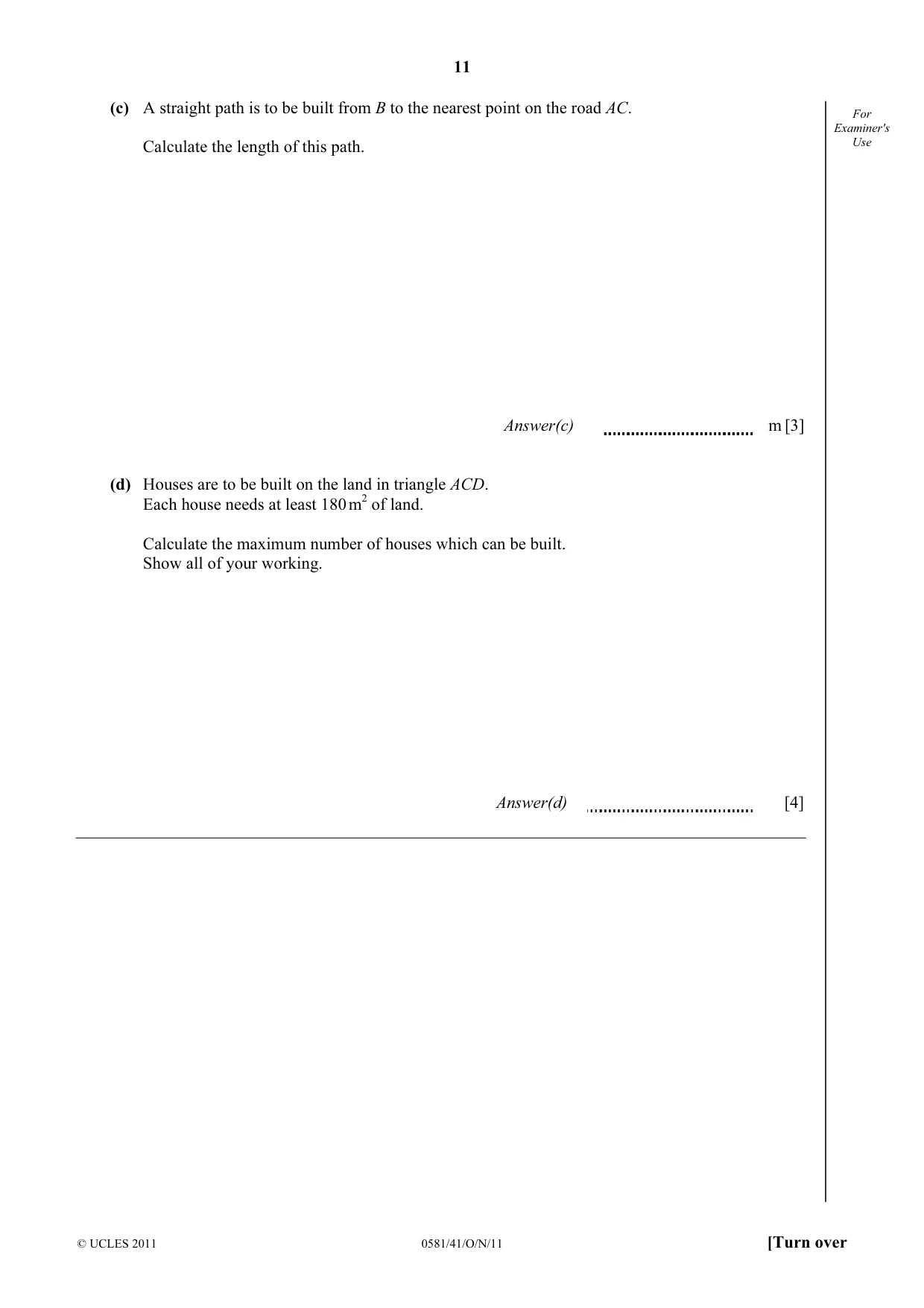

11 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (c) A straight path is to be built from B to the nearest point on the road AC. Calculate the length of this path. Answer(c) m [3] (d) Houses are to be built on the land in triangle ACD. Each house needs at least 180 m2 of land. Calculate the maximum number of houses which can be built. Show all of your working. Answer(d) [4]

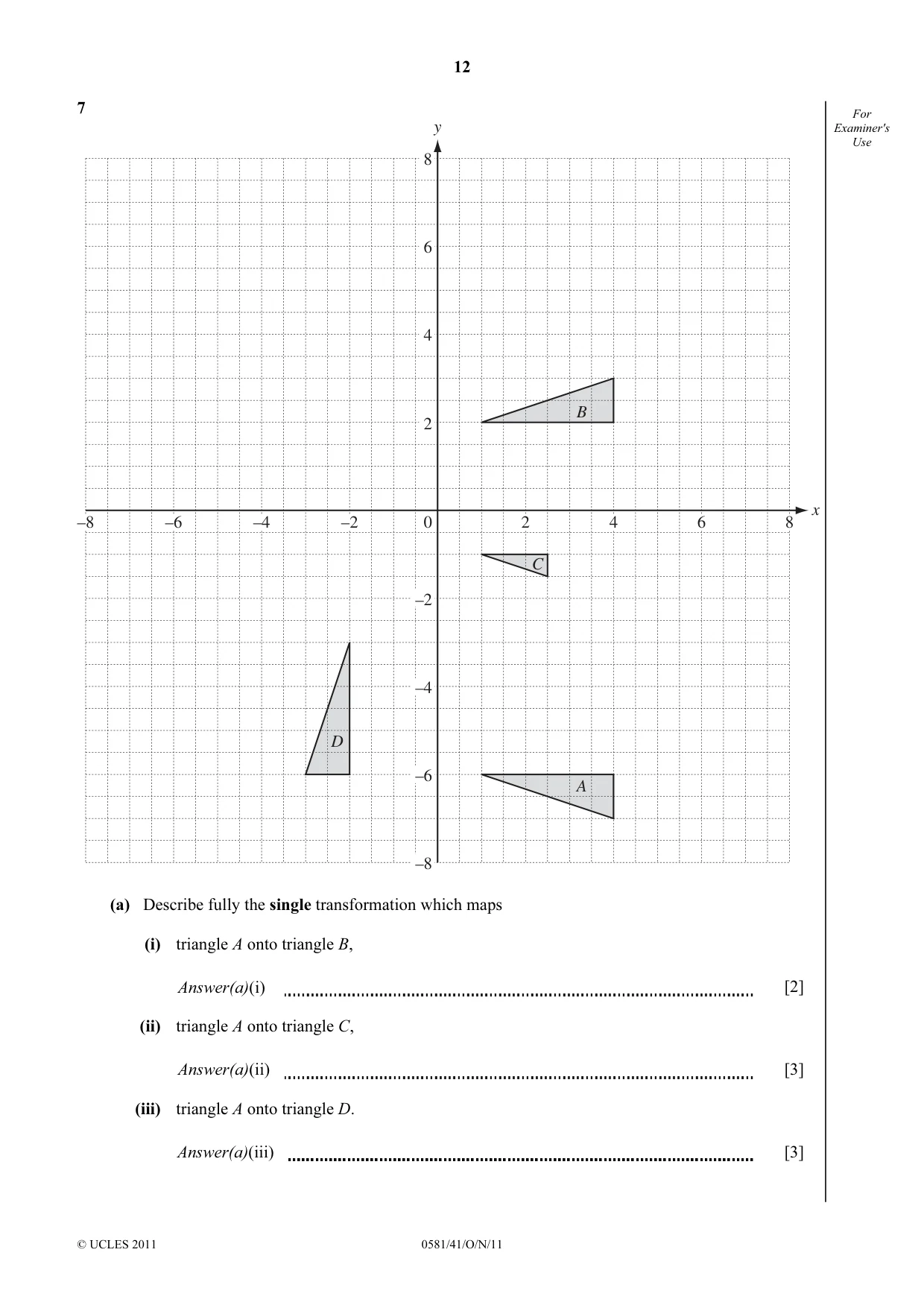

12 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 7 A B C D y x 2 0 –2 –4 –6 –8 4 6 8 8 6 4 2 –2 –4 –6 –8 (a) Describe fully the single transformation which maps (i) triangle A onto triangle B, Answer(a)(i) [2] (ii) triangle A onto triangle C, Answer(a)(ii) [3] (iii) triangle A onto triangle D. Answer(a)(iii) [3]

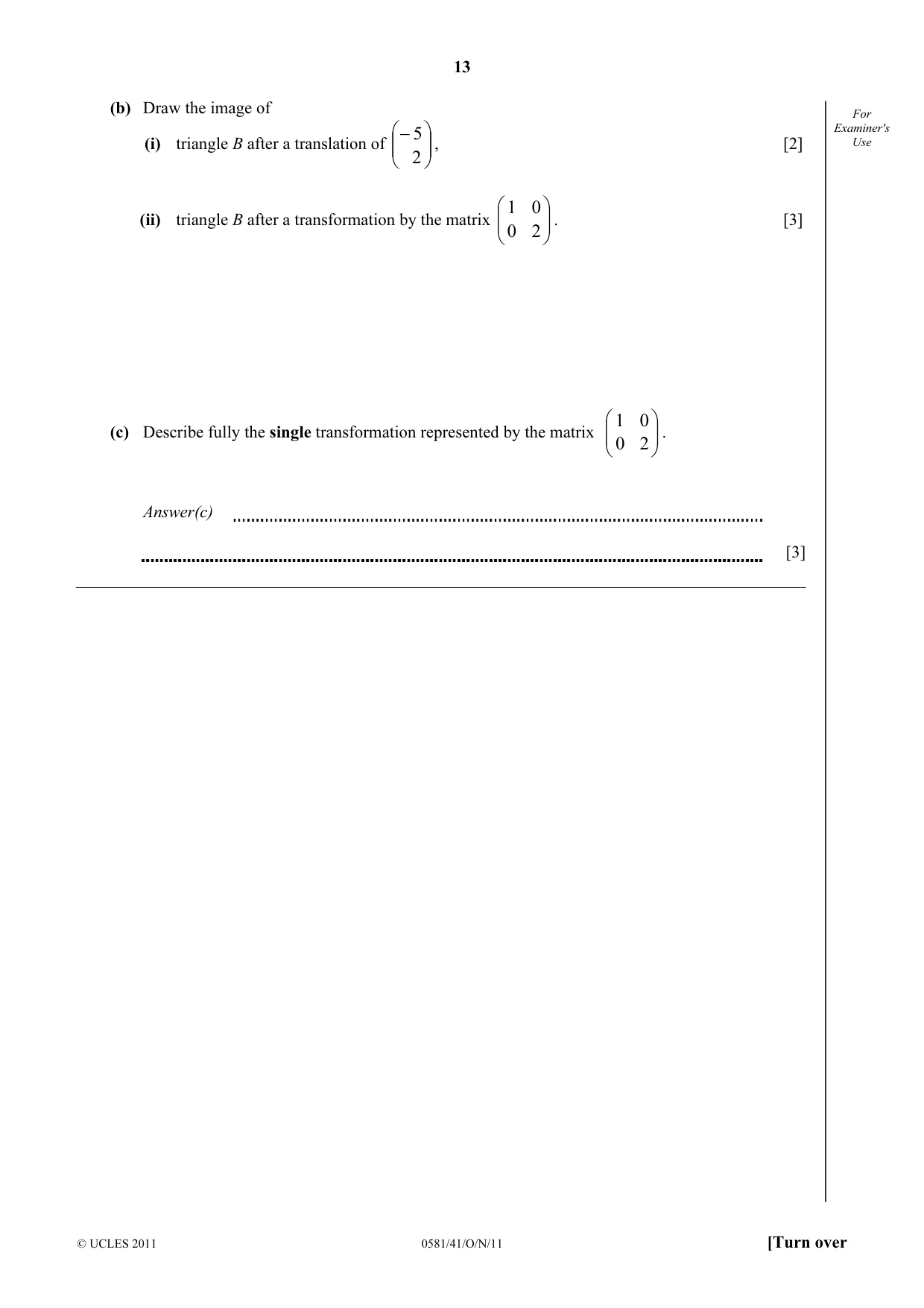

13 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (b) Draw the image of (i) triangle B after a translation of      − 2 5 , [2] (ii) triangle B after a transformation by the matrix       2 0 0 1 . [3] (c) Describe fully the single transformation represented by the matrix       2 0 0 1 . Answer(c) [3]

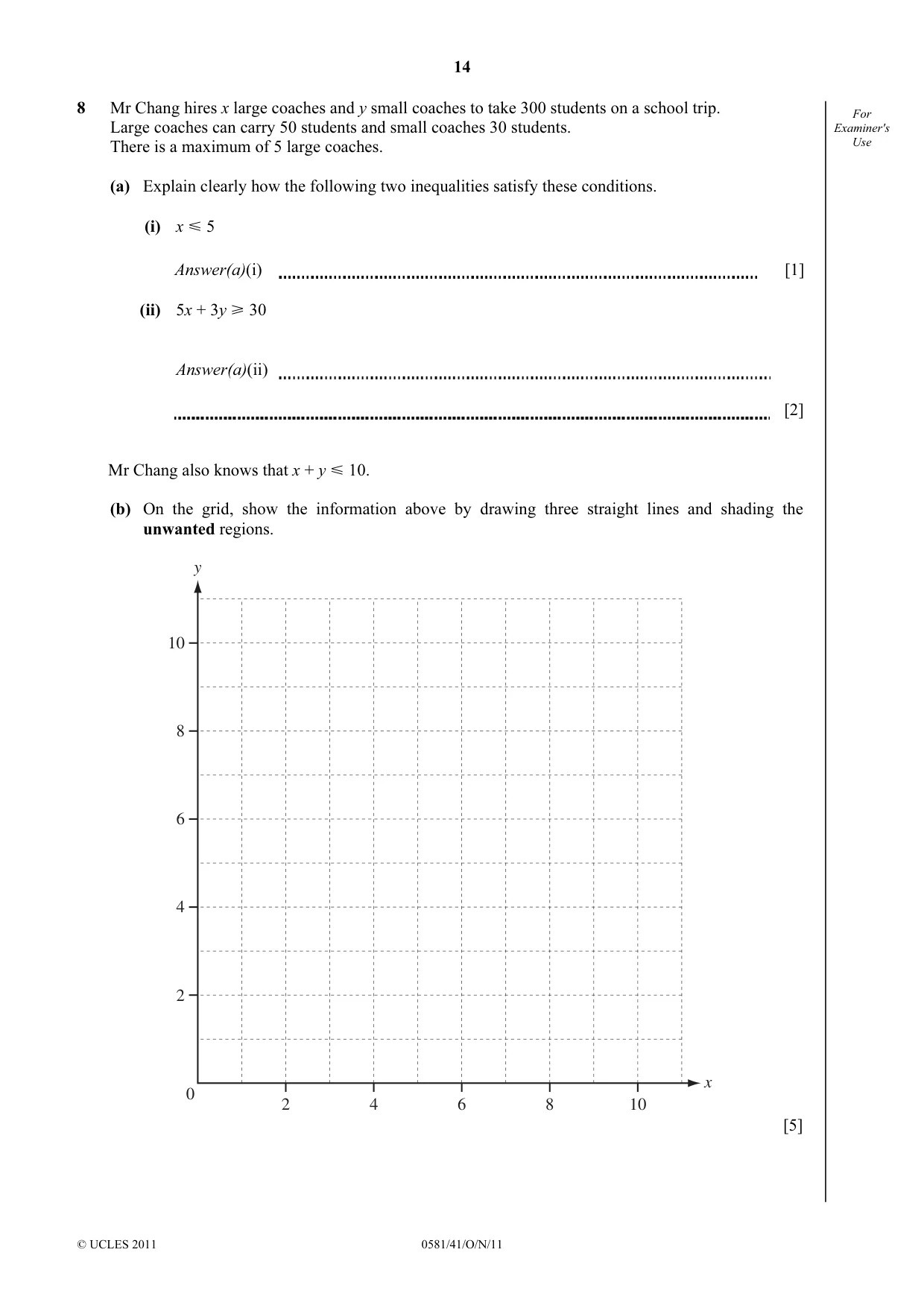

14 © UCLES 2011 0581/41/O/N/11 For Examiner's Use 8 Mr Chang hires x large coaches and y small coaches to take 300 students on a school trip. Large coaches can carry 50 students and small coaches 30 students. There is a maximum of 5 large coaches. (a) Explain clearly how the following two inequalities satisfy these conditions. (i) x Y 5 Answer(a)(i) [1] (ii) 5x + 3y [ 30 Answer(a)(ii) [2] Mr Chang also knows that x + y Y 10. (b) On the grid, show the information above by drawing three straight lines and shading the unwanted regions. 10 8 6 4 2 0 2 4 6 8 10 y x [5]

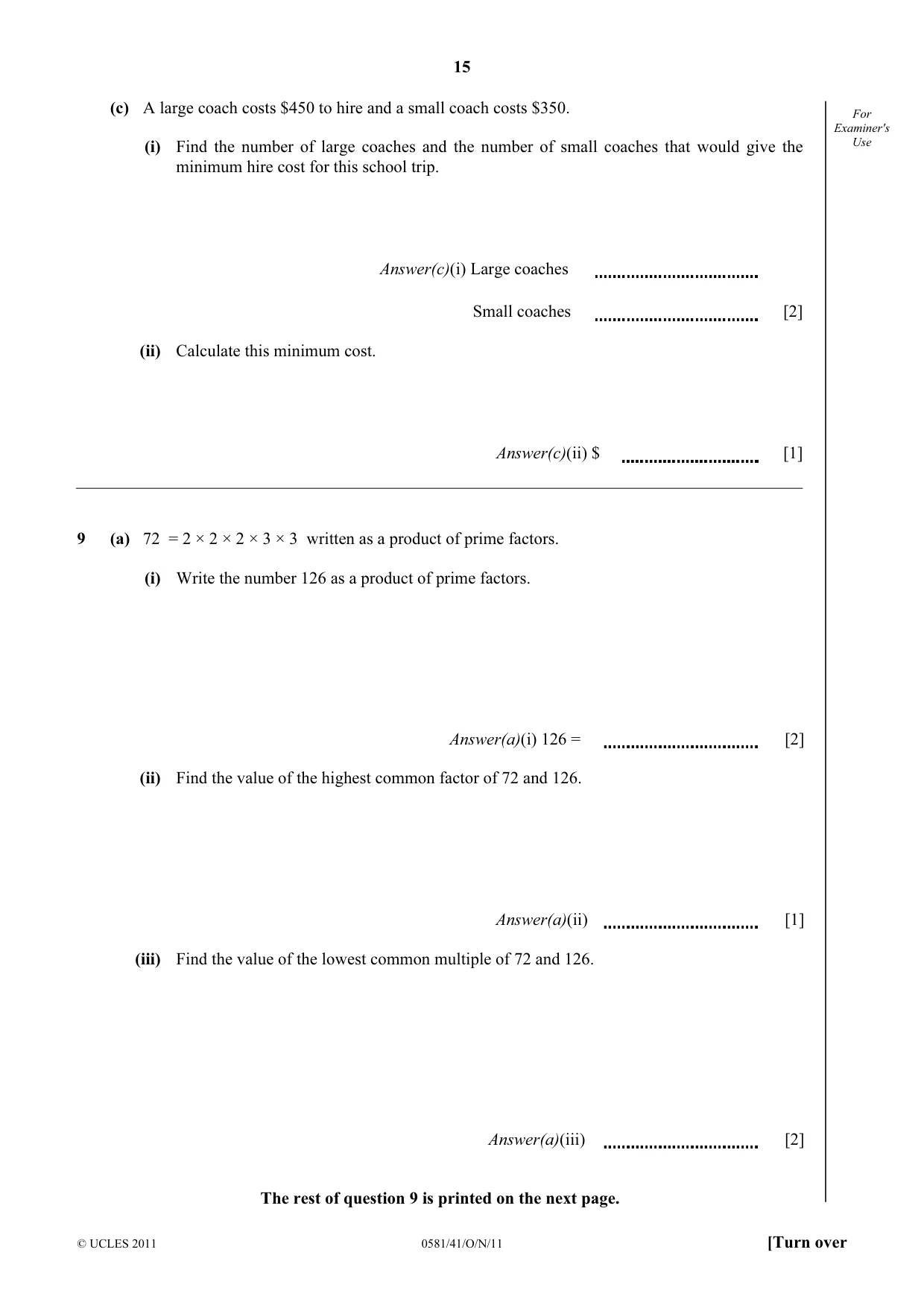

15 © UCLES 2011 0581/41/O/N/11 [Turn over For Examiner's Use (c) A large coach costs $450 to hire and a small coach costs $350. (i) Find the number of large coaches and the number of small coaches that would give the minimum hire cost for this school trip. Answer(c)(i) Large coaches Small coaches [2] (ii) Calculate this minimum cost. Answer(c)(ii) $ [1] 9 (a) 72 = 2 × 2 × 2 × 3 × 3 written as a product of prime factors. (i) Write the number 126 as a product of prime factors. Answer(a)(i) 126 = [2] (ii) Find the value of the highest common factor of 72 and 126. Answer(a)(ii) [1] (iii) Find the value of the lowest common multiple of 72 and 126. Answer(a)(iii) [2] The rest of question 9 is printed on the next page.

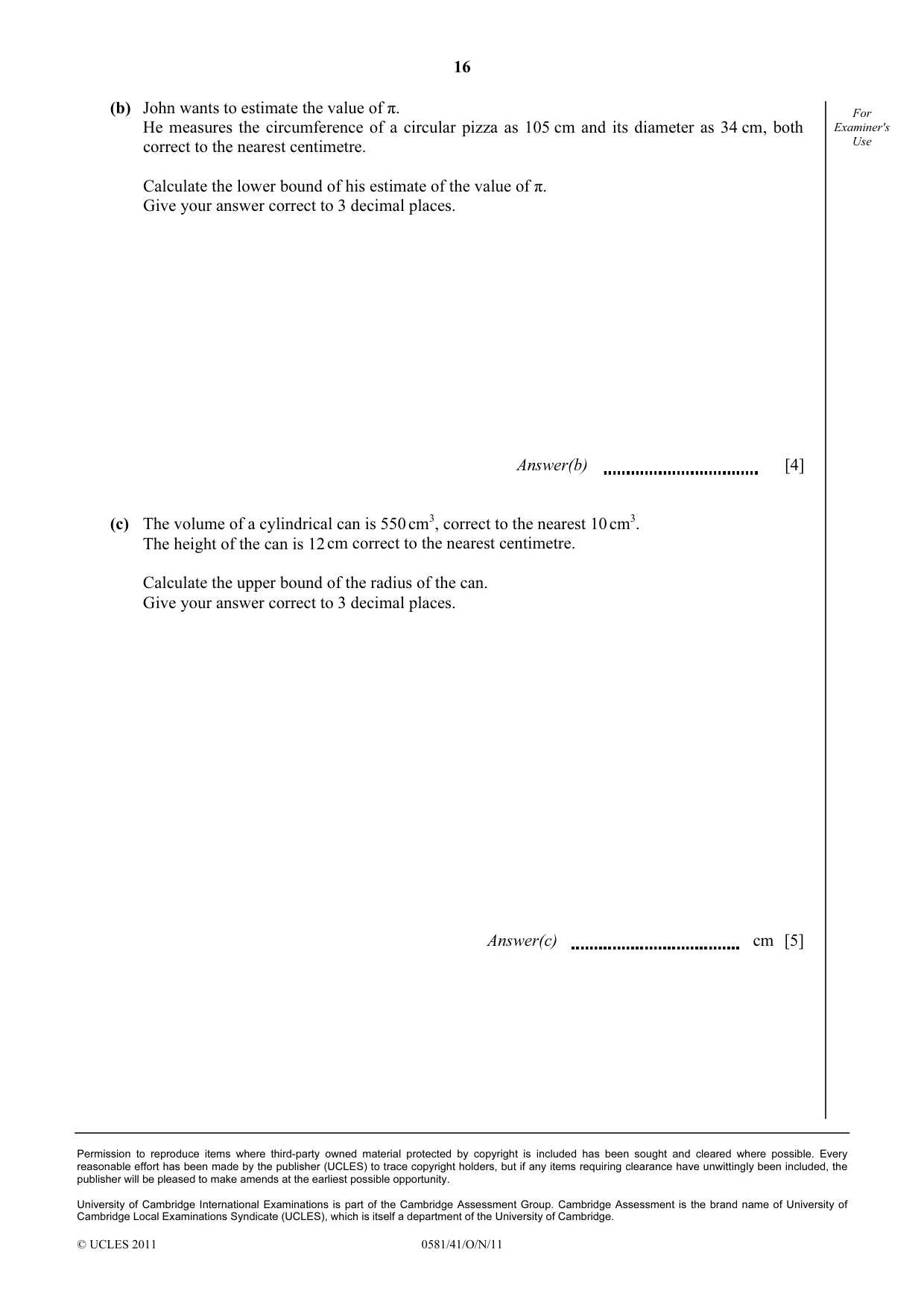

16 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. © UCLES 2011 0581/41/O/N/11 For Examiner's Use (b) John wants to estimate the value of π. He measures the circumference of a circular pizza as 105 cm and its diameter as 34 cm, both correct to the nearest centimetre. Calculate the lower bound of his estimate of the value of π. Give your answer correct to 3 decimal places. Answer(b) [4] (c) The volume of a cylindrical can is 550 cm3, correct to the nearest 10 cm3. The height of the can is 12 cm correct to the nearest centimetre. Calculate the upper bound of the radius of the can. Give your answer correct to 3 decimal places. Answer(c) cm [5]

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education MARK SCHEME for the October/November 2011 question paper for the guidance of teachers 0581 MATHEMATICS 0581/41 Paper 4 (Extended), maximum raw mark 130 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes must be read in conjunction with the question papers and the report on the examination. • Cambridge will not enter into discussions or correspondence in connection with these mark schemes. Cambridge is publishing the mark schemes for the October/November 2011 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses. www.XtremePapers.com

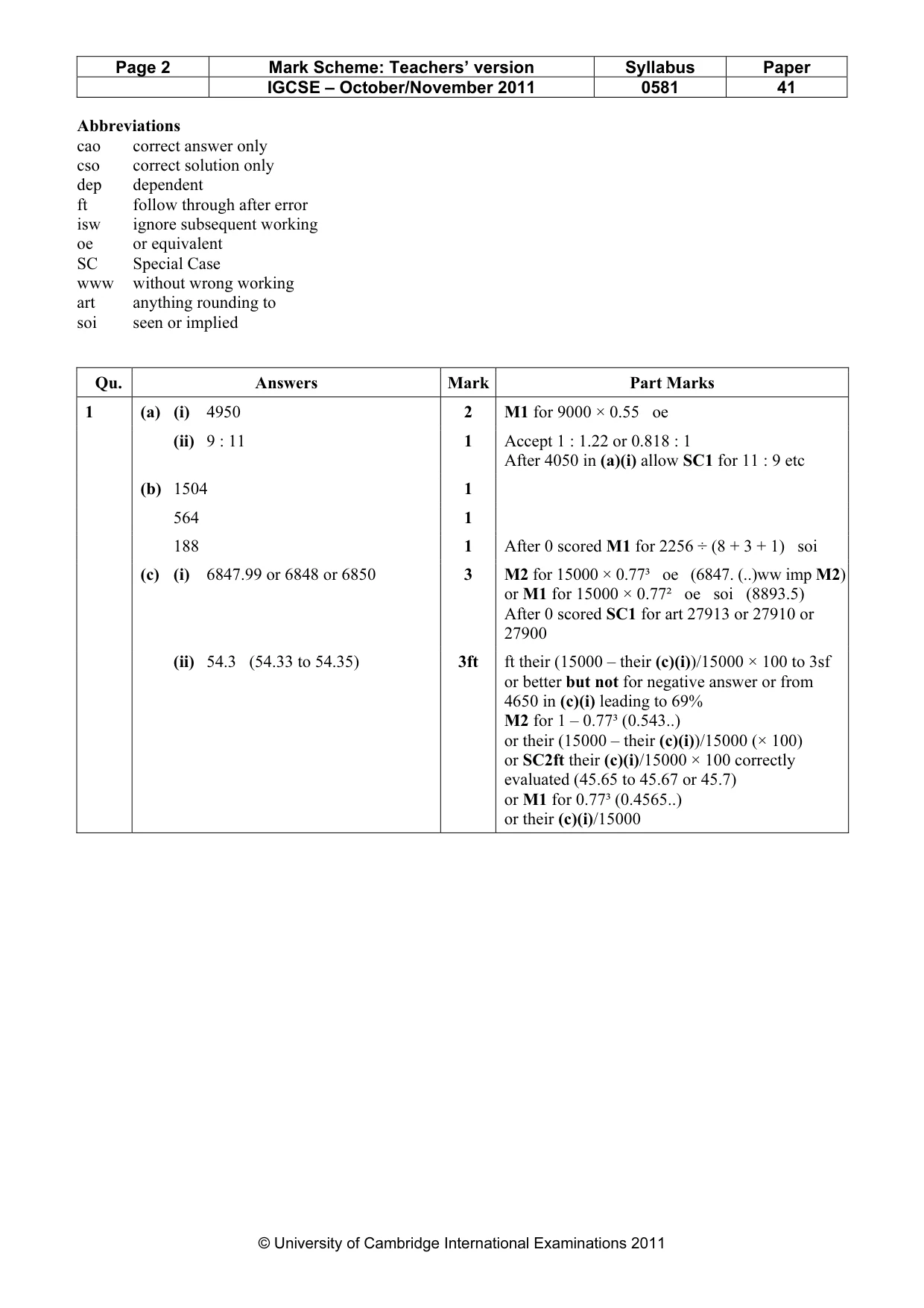

Page 2 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 Abbreviations cao correct answer only cso correct solution only dep dependent ft follow through after error isw ignore subsequent working oe or equivalent SC Special Case www without wrong working art anything rounding to soi seen or implied Qu. Answers Mark Part Marks 1 (a) (i) 4950 2 M1 for 9000 × 0.55 oe (ii) 9 : 11 1 Accept 1 : 1.22 or 0.818 : 1 After 4050 in (a)(i) allow SC1 for 11 : 9 etc (b) 1504 1 564 1 188 1 After 0 scored M1 for 2256 ÷ (8 + 3 + 1) soi (c) (i) 6847.99 or 6848 or 6850 3 M2 for 15000 × 0.77³ oe (6847. (..)ww imp M2) or M1 for 15000 × 0.77² oe soi (8893.5) After 0 scored SC1 for art 27913 or 27910 or 27900 (ii) 54.3 (54.33 to 54.35) 3ft ft their (15000 – their (c)(i))/15000 × 100 to 3sf or better but not for negative answer or from 4650 in (c)(i) leading to 69% M2 for 1 – 0.77³ (0.543..) or their (15000 – their (c)(i))/15000 (× 100) or SC2ft their (c)(i)/15000 × 100 correctly evaluated (45.65 to 45.67 or 45.7) or M1 for 0.77³ (0.4565..) or their (c)(i)/15000

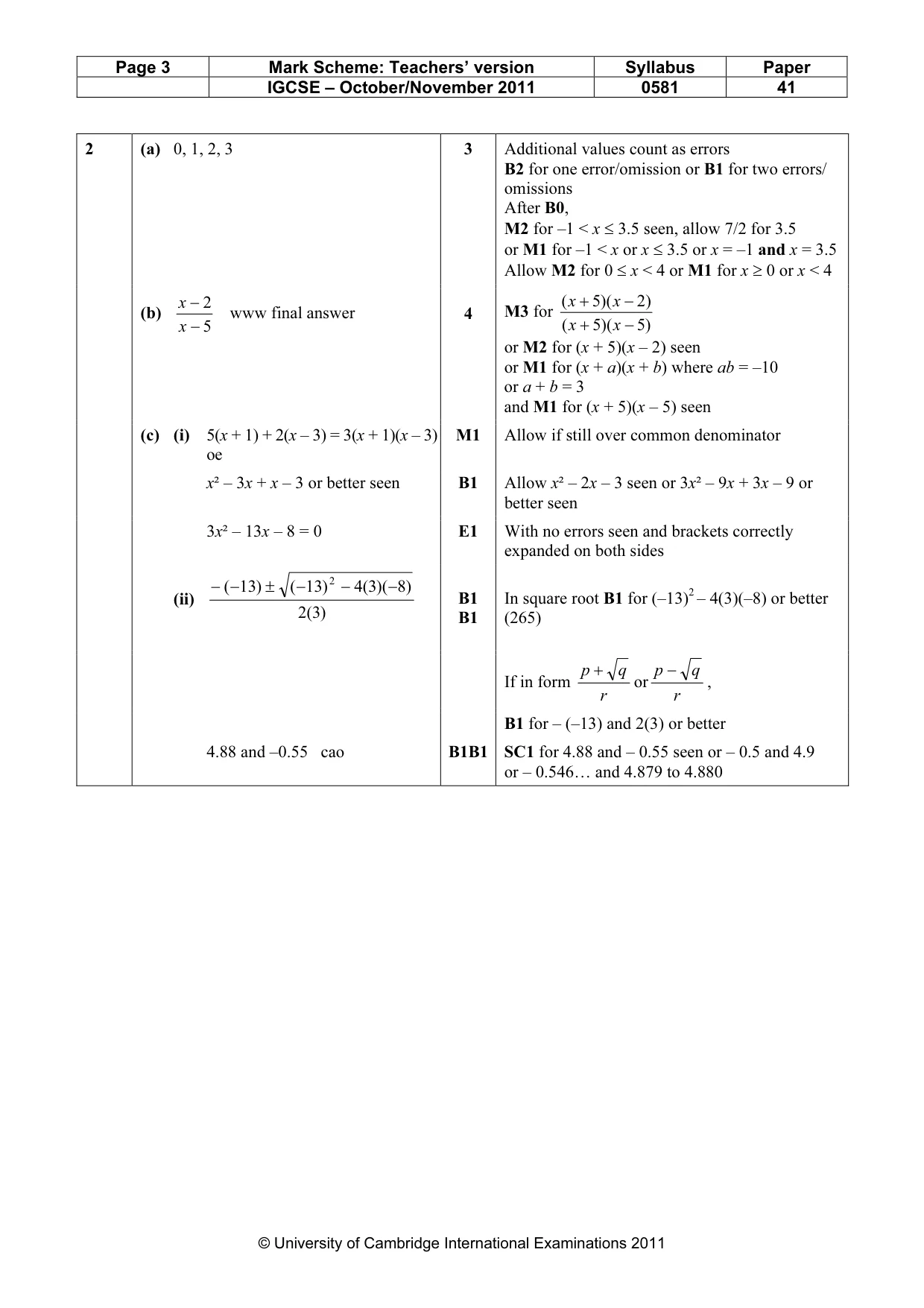

Page 3 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 2 (a) 0, 1, 2, 3 3 Additional values count as errors B2 for one error/omission or B1 for two errors/ omissions After B0, M2 for –1 < x ≤ 3.5 seen, allow 7/2 for 3.5 or M1 for –1 < x or x ≤ 3.5 or x = –1 and x = 3.5 Allow M2 for 0 ≤ x < 4 or M1 for x ≥ 0 or x < 4 (b) 5 2 − − x x www final answer 4 M3 for ) 5 )( 5 ( ) 2 )( 5 ( − + − + x x x x or M2 for (x + 5)(x – 2) seen or M1 for (x + a)(x + b) where ab = –10 or a + b = 3 and M1 for (x + 5)(x – 5) seen (c) (i) 5(x + 1) + 2(x – 3) = 3(x + 1)(x – 3) oe M1 Allow if still over common denominator x² – 3x + x – 3 or better seen B1 Allow x² – 2x – 3 seen or 3x² – 9x + 3x – 9 or better seen 3x² – 13x – 8 = 0 E1 With no errors seen and brackets correctly expanded on both sides (ii) ) 3 ( 2 ) 8 )( 3 ( 4 ) 13 ( ) 13 ( 2 − − − ± − − B1 B1 In square root B1 for (–13)2 – 4(3)(–8) or better (265) If in form r q p + or r q p − , B1 for – (–13) and 2(3) or better 4.88 and –0.55 cao B1B1 SC1 for 4.88 and – 0.55 seen or – 0.5 and 4.9 or – 0.546… and 4.879 to 4.880

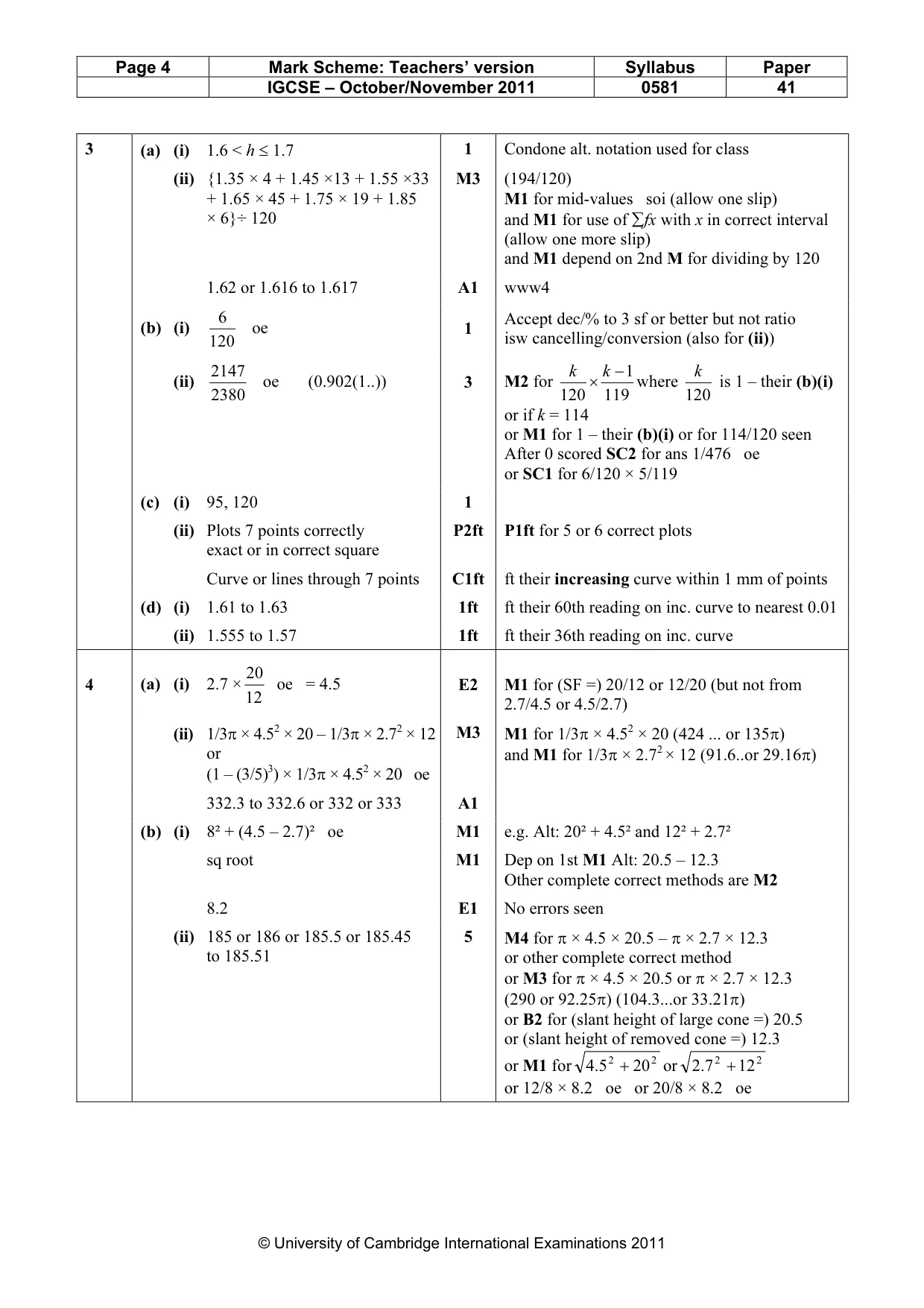

Page 4 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 3 (a) (i) 1.6 < h ≤ 1.7 1 Condone alt. notation used for class (ii) {1.35 × 4 + 1.45 ×13 + 1.55 ×33 + 1.65 × 45 + 1.75 × 19 + 1.85 × 6}÷ 120 M3 (194/120) M1 for mid-values soi (allow one slip) and M1 for use of ∑fx with x in correct interval (allow one more slip) and M1 depend on 2nd M for dividing by 120 1.62 or 1.616 to 1.617 A1 www4 (b) (i) 120 6 oe 1 Accept dec/% to 3 sf or better but not ratio isw cancelling/conversion (also for (ii)) (ii) 2380 2147 oe (0.902(1..)) 3 M2 for 119 1 120 − × k k where 120 k is 1 – their (b)(i) or if k = 114 or M1 for 1 – their (b)(i) or for 114/120 seen After 0 scored SC2 for ans 1/476 oe or SC1 for 6/120 × 5/119 (c) (i) 95, 120 1 (ii) Plots 7 points correctly exact or in correct square P2ft P1ft for 5 or 6 correct plots Curve or lines through 7 points C1ft ft their increasing curve within 1 mm of points (d) (i) 1.61 to 1.63 1ft ft their 60th reading on inc. curve to nearest 0.01 (ii) 1.555 to 1.57 1ft ft their 36th reading on inc. curve 4 (a) (i) 2.7 × 12 20 oe = 4.5 E2 M1 for (SF =) 20/12 or 12/20 (but not from 2.7/4.5 or 4.5/2.7) (ii) 1/3π × 4.52 × 20 – 1/3π × 2.72 × 12 or (1 – (3/5)3) × 1/3π × 4.52 × 20 oe M3 M1 for 1/3π × 4.52 × 20 (424 ... or 135π) and M1 for 1/3π × 2.72 × 12 (91.6..or 29.16π) 332.3 to 332.6 or 332 or 333 A1 (b) (i) 8² + (4.5 – 2.7)² oe M1 e.g. Alt: 20² + 4.5² and 12² + 2.7² sq root M1 Dep on 1st M1 Alt: 20.5 – 12.3 Other complete correct methods are M2 8.2 E1 No errors seen (ii) 185 or 186 or 185.5 or 185.45 to 185.51 5 M4 for π × 4.5 × 20.5 – π × 2.7 × 12.3 or other complete correct method or M3 for π × 4.5 × 20.5 or π × 2.7 × 12.3 (290 or 92.25π) (104.3...or 33.21π) or B2 for (slant height of large cone =) 20.5 or (slant height of removed cone =) 12.3 or M1 for 2 2 20 5.4 + or 2 2 12 2.7 + or 12/8 × 8.2 oe or 20/8 × 8.2 oe

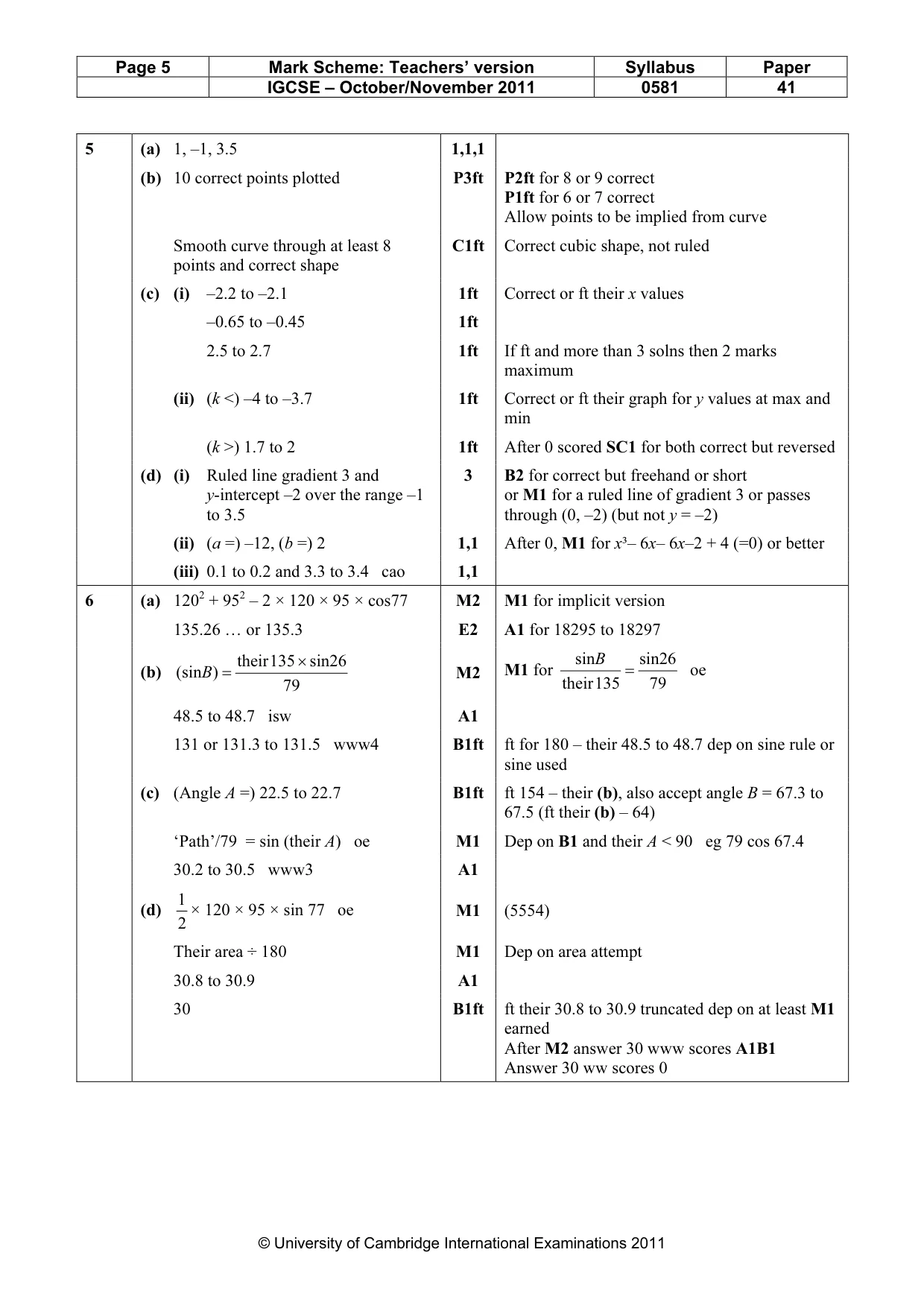

Page 5 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 5 (a) 1, –1, 3.5 1,1,1 (b) 10 correct points plotted P3ft P2ft for 8 or 9 correct P1ft for 6 or 7 correct Allow points to be implied from curve Smooth curve through at least 8 points and correct shape C1ft Correct cubic shape, not ruled (c) (i) –2.2 to –2.1 1ft Correct or ft their x values –0.65 to –0.45 1ft 2.5 to 2.7 1ft If ft and more than 3 solns then 2 marks maximum (ii) (k <) –4 to –3.7 1ft Correct or ft their graph for y values at max and min (k >) 1.7 to 2 1ft After 0 scored SC1 for both correct but reversed (d) (i) Ruled line gradient 3 and y-intercept –2 over the range –1 to 3.5 3 B2 for correct but freehand or short or M1 for a ruled line of gradient 3 or passes through (0, –2) (but not y = –2) (ii) (a =) –12, (b =) 2 1,1 After 0, M1 for x³– 6x– 6x–2 + 4 (=0) or better (iii) 0.1 to 0.2 and 3.3 to 3.4 cao 1,1 6 (a) 1202 + 952 – 2 × 120 × 95 × cos77 M2 M1 for implicit version 135.26 … or 135.3 E2 A1 for 18295 to 18297 (b) 79 sin26 135 their ) (sin × = B M2 M1 for 79 sin26 135 their sin = B oe 48.5 to 48.7 isw A1 131 or 131.3 to 131.5 www4 B1ft ft for 180 – their 48.5 to 48.7 dep on sine rule or sine used (c) (Angle A =) 22.5 to 22.7 B1ft ft 154 – their (b), also accept angle B = 67.3 to 67.5 (ft their (b) – 64) ‘Path’/79 = sin (their A) oe M1 Dep on B1 and their A < 90 eg 79 cos 67.4 30.2 to 30.5 www3 A1 (d) 2 1 × 120 × 95 × sin 77 oe M1 (5554) Their area ÷ 180 M1 Dep on area attempt 30.8 to 30.9 A1 30 B1ft ft their 30.8 to 30.9 truncated dep on at least M1 earned After M2 answer 30 www scores A1B1 Answer 30 ww scores 0

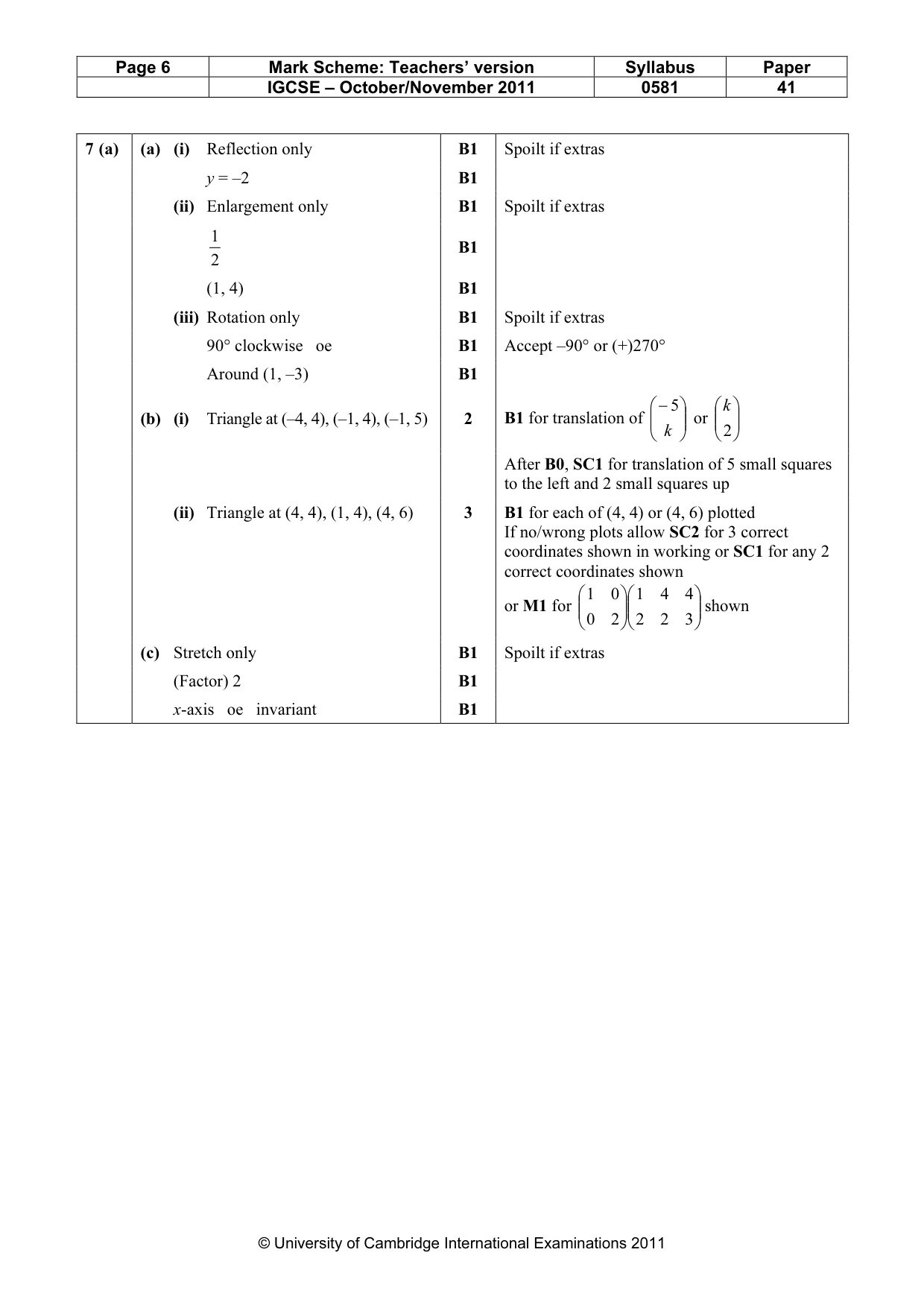

Page 6 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 7 (a) (a) (i) Reflection only B1 Spoilt if extras y = –2 B1 (ii) Enlargement only B1 Spoilt if extras 2 1 B1 (1, 4) B1 (iii) Rotation only B1 Spoilt if extras 90° clockwise oe B1 Accept –90° or (+)270° Around (1, –3) B1 (b) (i) Triangle at (–4, 4), (–1, 4), (–1, 5) 2 B1 for translation of      − k 5 or       2 k After B0, SC1 for translation of 5 small squares to the left and 2 small squares up (ii) Triangle at (4, 4), (1, 4), (4, 6) 3 B1 for each of (4, 4) or (4, 6) plotted If no/wrong plots allow SC2 for 3 correct coordinates shown in working or SC1 for any 2 correct coordinates shown or M1 for             3 2 2 4 4 1 2 0 0 1 shown (c) Stretch only B1 Spoilt if extras (Factor) 2 B1 x-axis oe invariant B1

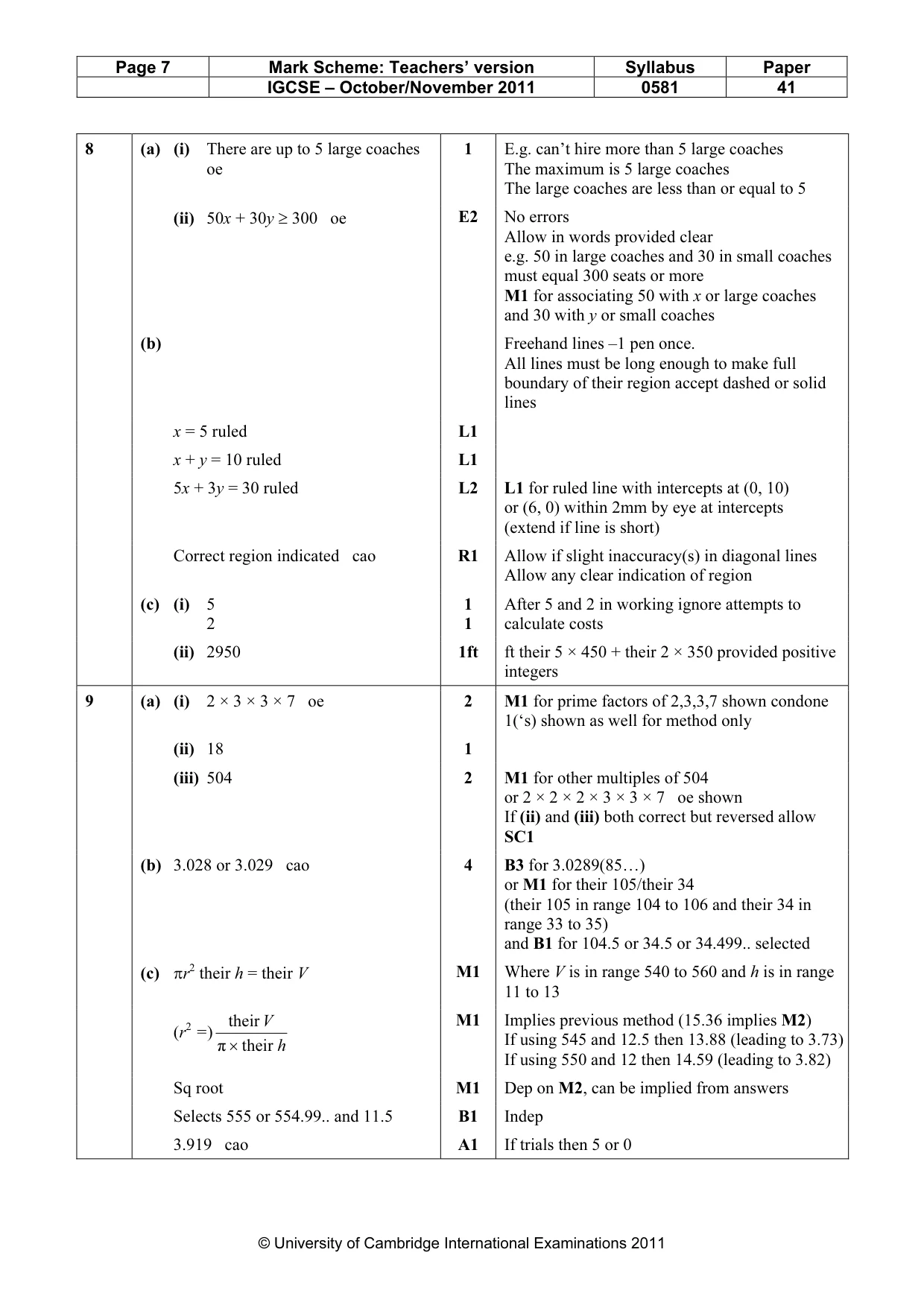

Page 7 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2011 0581 41 © University of Cambridge International Examinations 2011 8 (a) (i) There are up to 5 large coaches oe 1 E.g. can’t hire more than 5 large coaches The maximum is 5 large coaches The large coaches are less than or equal to 5 (ii) 50x + 30y ≥ 300 oe E2 No errors Allow in words provided clear e.g. 50 in large coaches and 30 in small coaches must equal 300 seats or more M1 for associating 50 with x or large coaches and 30 with y or small coaches (b) Freehand lines –1 pen once. All lines must be long enough to make full boundary of their region accept dashed or solid lines x = 5 ruled L1 x + y = 10 ruled L1 5x + 3y = 30 ruled L2 L1 for ruled line with intercepts at (0, 10) or (6, 0) within 2mm by eye at intercepts (extend if line is short) Correct region indicated cao R1 Allow if slight inaccuracy(s) in diagonal lines Allow any clear indication of region (c) (i) 5 2 1 1 After 5 and 2 in working ignore attempts to calculate costs (ii) 2950 1ft ft their 5 × 450 + their 2 × 350 provided positive integers 9 (a) (i) 2 × 3 × 3 × 7 oe 2 M1 for prime factors of 2,3,3,7 shown condone 1(‘s) shown as well for method only (ii) 18 1 (iii) 504 2 M1 for other multiples of 504 or 2 × 2 × 2 × 3 × 3 × 7 oe shown If (ii) and (iii) both correct but reversed allow SC1 (b) 3.028 or 3.029 cao 4 B3 for 3.0289(85…) or M1 for their 105/their 34 (their 105 in range 104 to 106 and their 34 in range 33 to 35) and B1 for 104.5 or 34.5 or 34.499.. selected (c) πr2 their h = their V M1 Where V is in range 540 to 560 and h is in range 11 to 13 (r2 =) h V their π their × M1 Implies previous method (15.36 implies M2) If using 545 and 12.5 then 13.88 (leading to 3.73) If using 550 and 12 then 14.59 (leading to 3.82) Sq root M1 Dep on M2, can be implied from answers Selects 555 or 554.99.. and 11.5 B1 Indep 3.919 cao A1 If trials then 5 or 0
