Cambridge IGCSE Information and Communication Technology (9-1) 0983 — 2022 May/June Paper 1 · Variant 2

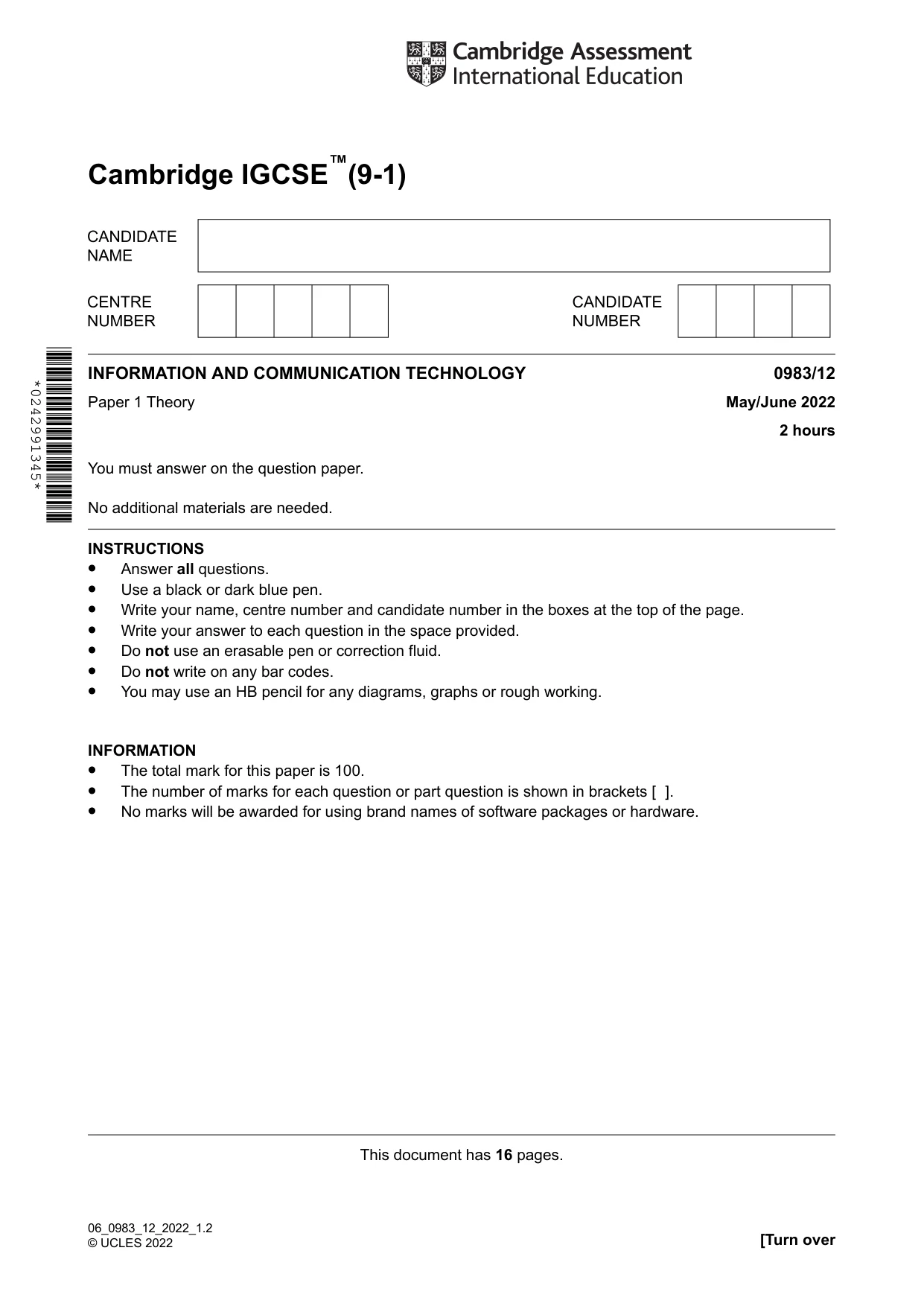

Cambridge IGCSE™(9-1) 0983/12 May/June 2022 2 hours INFORMATION AND COMMUNICATION TECHNOLOGY Paper 1 Theory You must answer on the question paper. No additional materials are needed. INSTRUCTIONS • Answer all questions. • Use a black or dark blue pen. • Write your name, centre number and candidate number in the boxes at the top of the page. • Write your answer to each question in the space provided. • Do not use an erasable pen or correction fluid. • Do not write on any bar codes. • You may use an HB pencil for any diagrams, graphs or rough working. INFORMATION • The total mark for this paper is 100. • The number of marks for each question or part question is shown in brackets [ ]. • No marks will be awarded for using brand names of software packages or hardware. This document has 16 pages. [Turn over 06_0983_12_2022_1.2 © UCLES 2022 *0242991345*

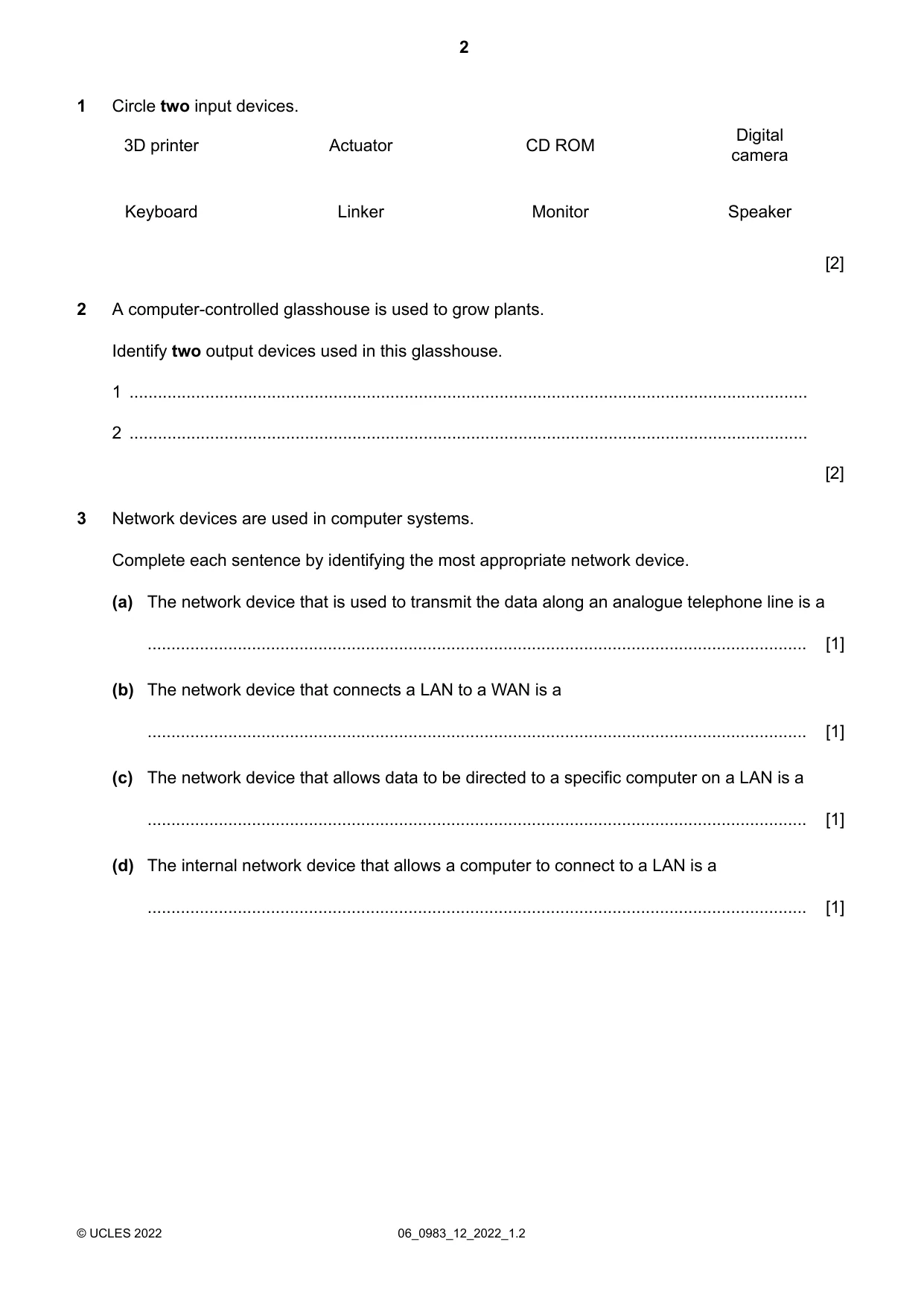

Circle two input devices. 1 Digital camera CD ROM Actuator 3D printer Speaker Monitor Linker Keyboard [2] A computer-controlled glasshouse is used to grow plants. Identify two output devices used in this glasshouse. 2 1 … 2 … [2] Network devices are used in computer systems. 3 Complete each sentence by identifying the most appropriate network device. The network device that is used to transmit the data along an analogue telephone line is a (a) … [1] The network device that connects a LAN to a WAN is a (b) … [1] The network device that allows data to be directed to a specific computer on a LAN is a (c) … [1] The internal network device that allows a computer to connect to a LAN is a (d) … [1] 06_0983_12_2022_1.2 © UCLES 2022 2

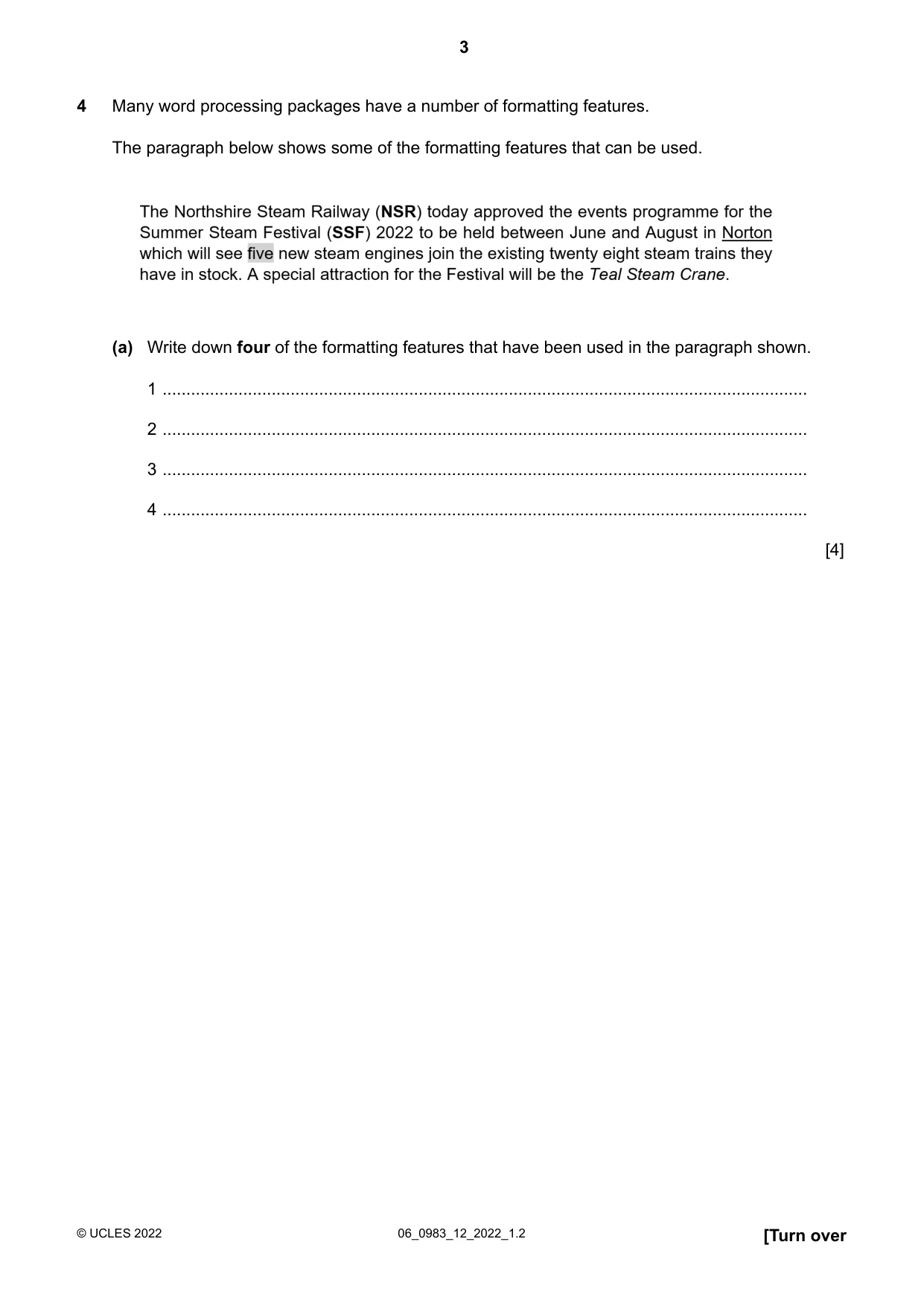

Many word processing packages have a number of formatting features. 4 The paragraph below shows some of the formatting features that can be used. Write down four of the formatting features that have been used in the paragraph shown. (a) 1 … 2 … 3 … 4 … [4] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 3

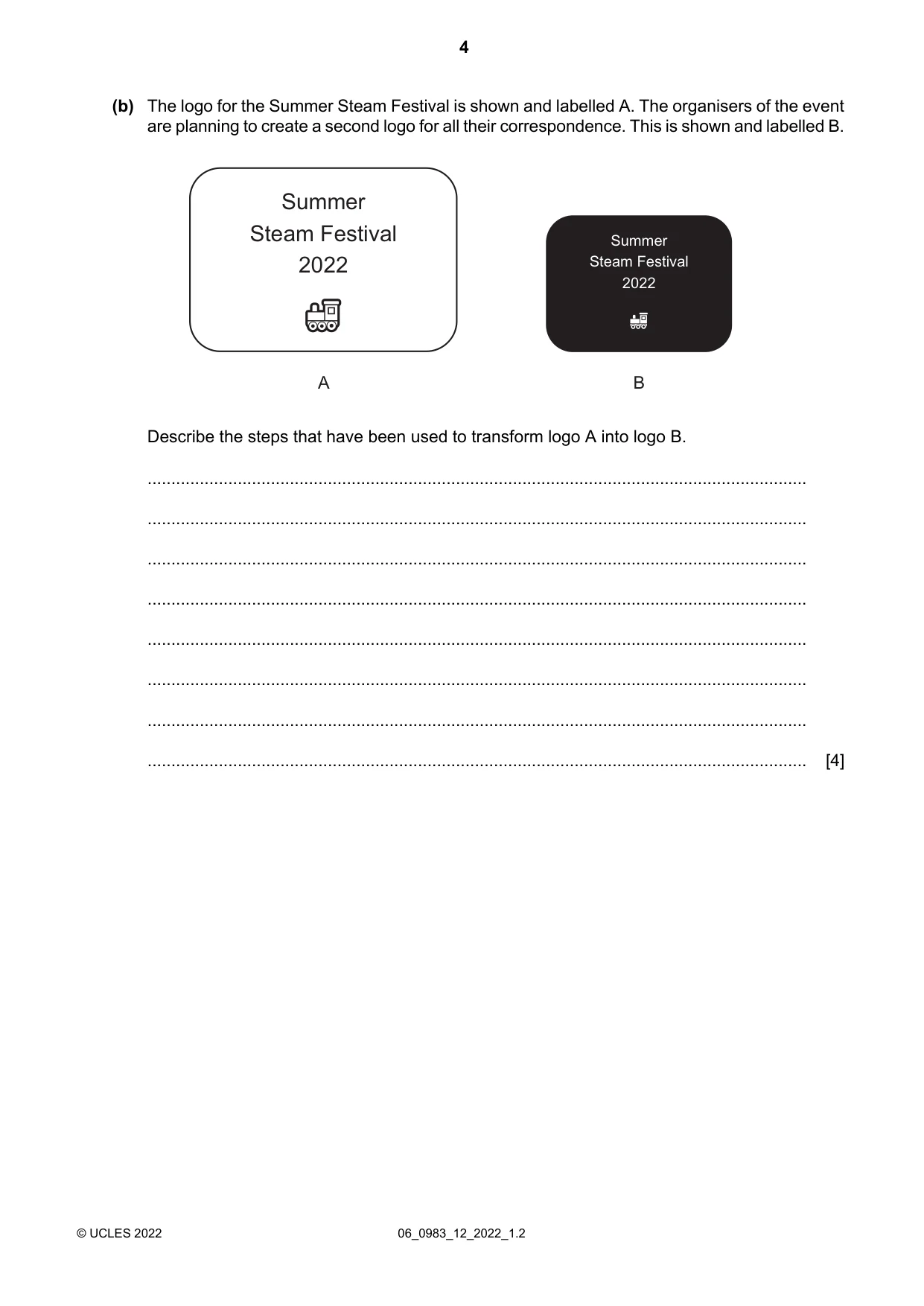

The logo for the Summer Steam Festival is shown and labelled A. The organisers of the event are planning to create a second logo for all their correspondence. This is shown and labelled B. (b) Summer Steam Festival 2022 A Summer Steam Festival 2022 B Describe the steps that have been used to transform logo A into logo B. … … … … … … … … [4] 06_0983_12_2022_1.2 © UCLES 2022 4

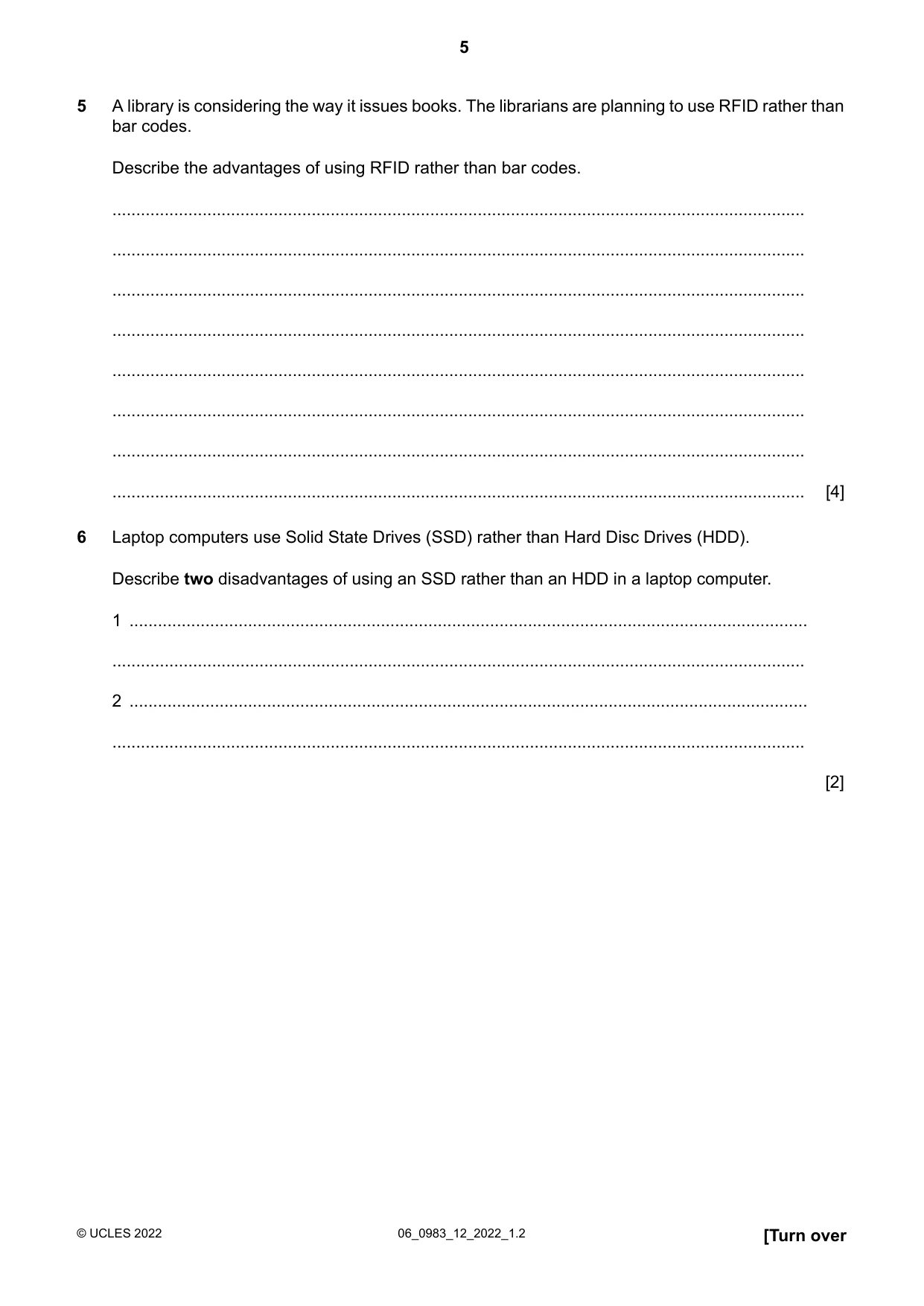

A library is considering the way it issues books. The librarians are planning to use RFID rather than bar codes. Describe the advantages of using RFID rather than bar codes. 5 … … … … … … … … [4] Laptop computers use Solid State Drives (SSD) rather than Hard Disc Drives (HDD). Describe two disadvantages of using an SSD rather than an HDD in a laptop computer. 6 1 … … 2 … … [2] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 5

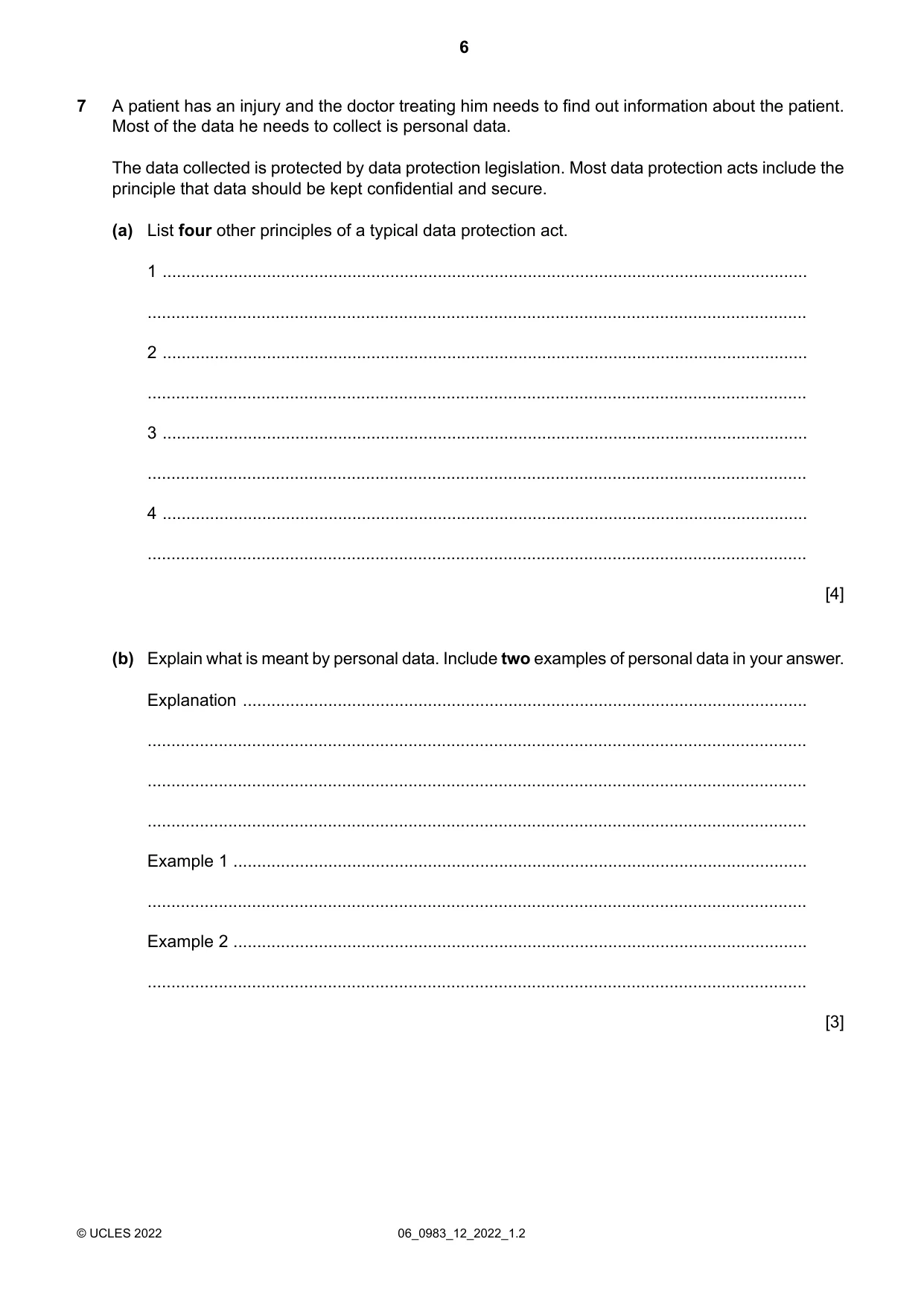

A patient has an injury and the doctor treating him needs to find out information about the patient. Most of the data he needs to collect is personal data. 7 The data collected is protected by data protection legislation. Most data protection acts include the principle that data should be kept confidential and secure. List four other principles of a typical data protection act. (a) 1 … … 2 … … 3 … … 4 … … [4] Explain what is meant by personal data. Include two examples of personal data in your answer. (b) Explanation … … … … Example 1 … … Example 2 … … [3] 06_0983_12_2022_1.2 © UCLES 2022 6

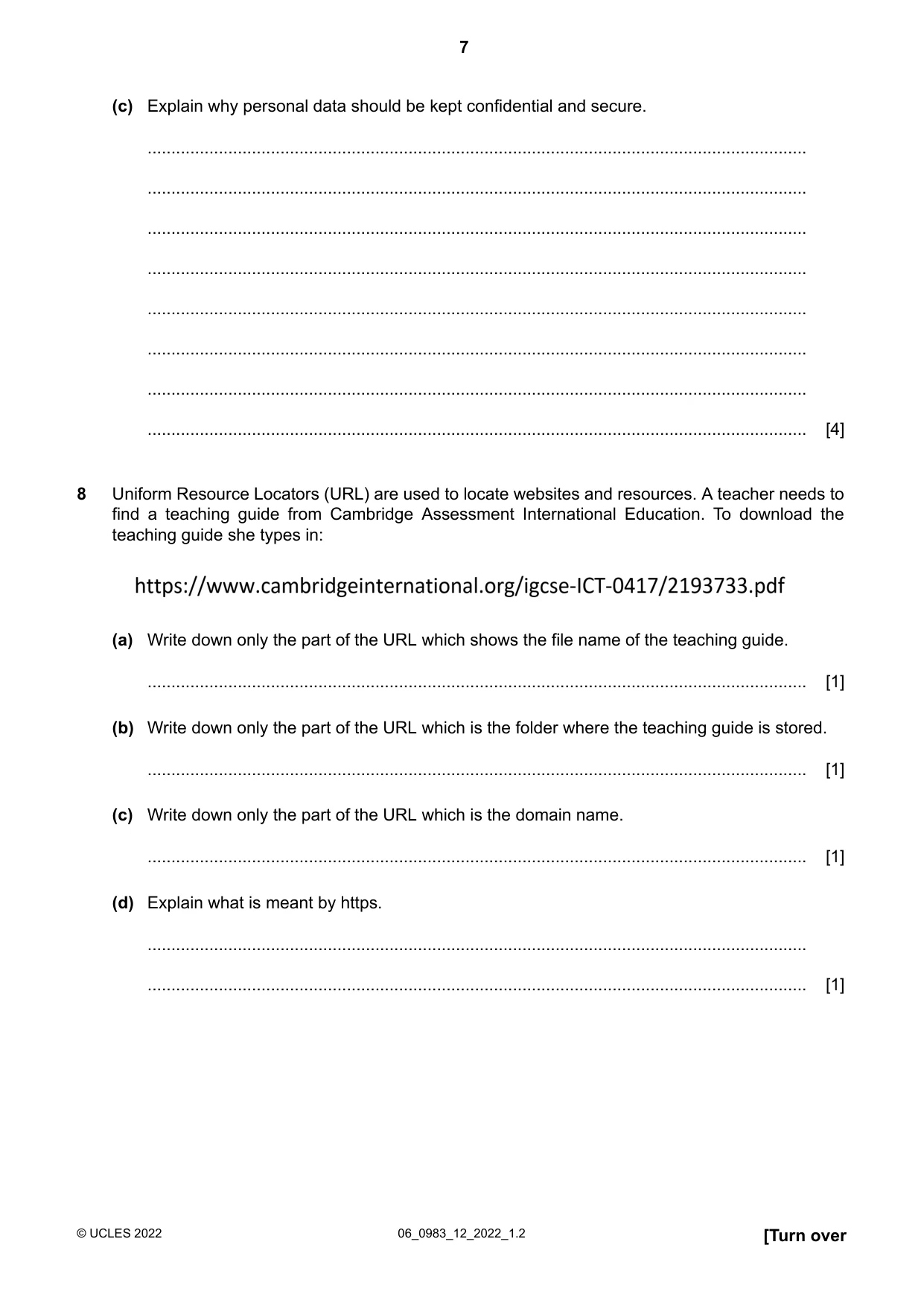

Explain why personal data should be kept confidential and secure. (c) … … … … … … … … [4] Uniform Resource Locators (URL) are used to locate websites and resources. A teacher needs to find a teaching guide from Cambridge Assessment International Education. To download the teaching guide she types in: 8 Write down only the part of the URL which shows the file name of the teaching guide. (a) … [1] Write down only the part of the URL which is the folder where the teaching guide is stored. (b) … [1] Write down only the part of the URL which is the domain name. (c) … [1] Explain what is meant by https. (d) … … [1] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 7

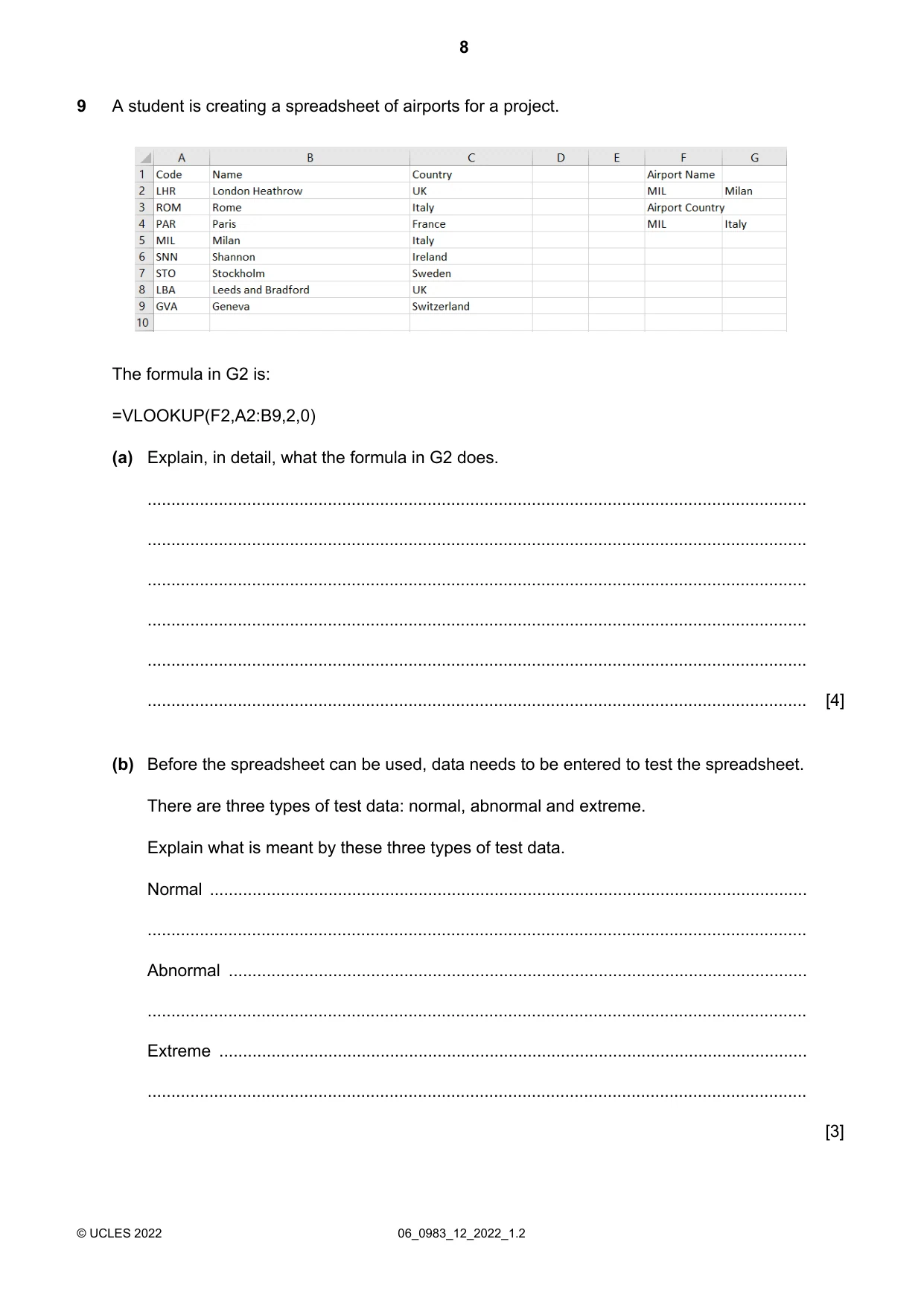

A student is creating a spreadsheet of airports for a project. 9 The formula in G2 is: =VLOOKUP(F2,A2:B9,2,0) Explain, in detail, what the formula in G2 does. (a) … … … … … … [4] Before the spreadsheet can be used, data needs to be entered to test the spreadsheet. There are three types of test data: normal, abnormal and extreme. Explain what is meant by these three types of test data. (b) Normal … … Abnormal … … Extreme … … [3] 06_0983_12_2022_1.2 © UCLES 2022 8

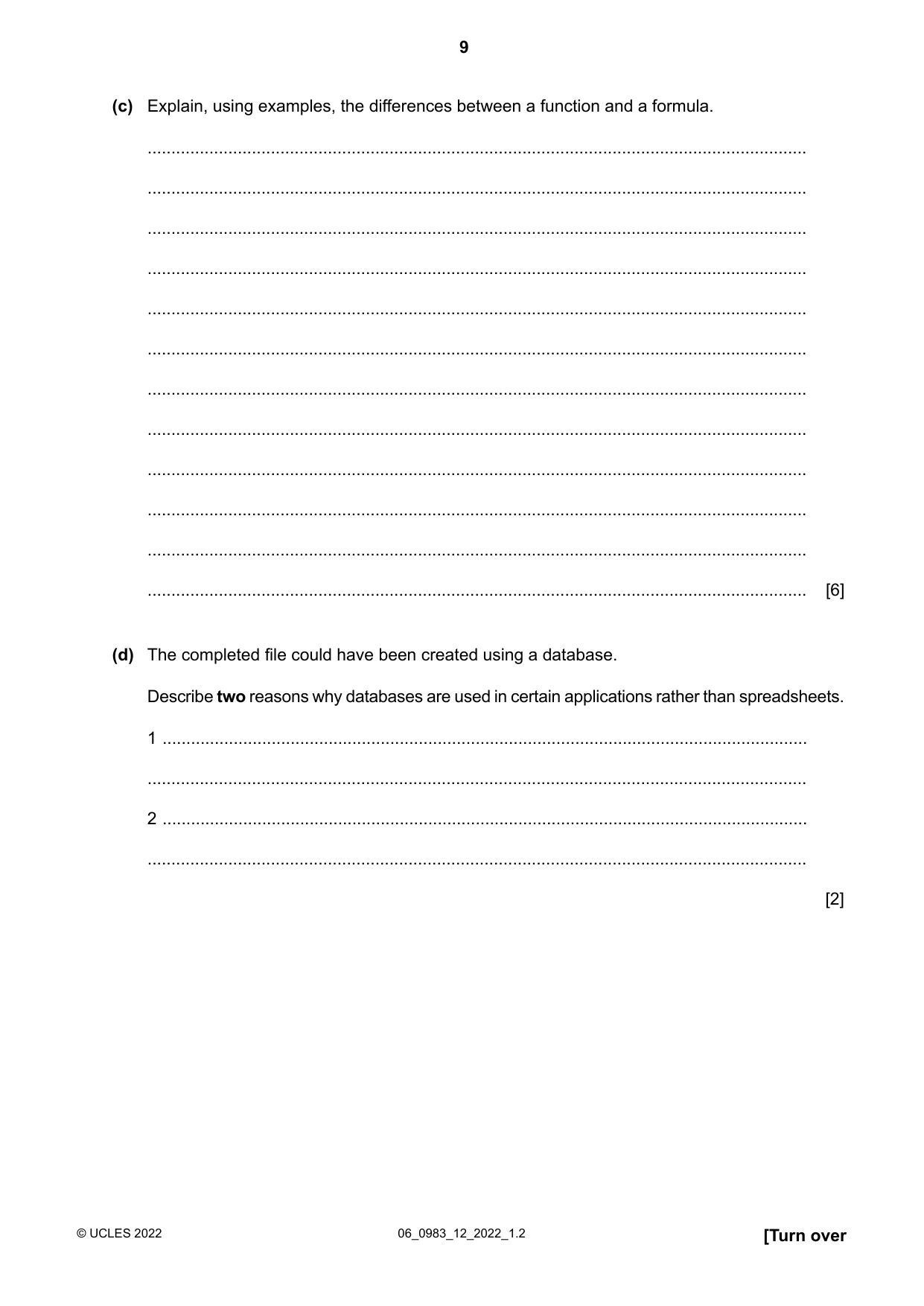

Explain, using examples, the differences between a function and a formula. (c) … … … … … … … … … … … … [6] The completed file could have been created using a database. Describe two reasons why databases are used in certain applications rather than spreadsheets. (d) 1 … … 2 … … [2] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 9

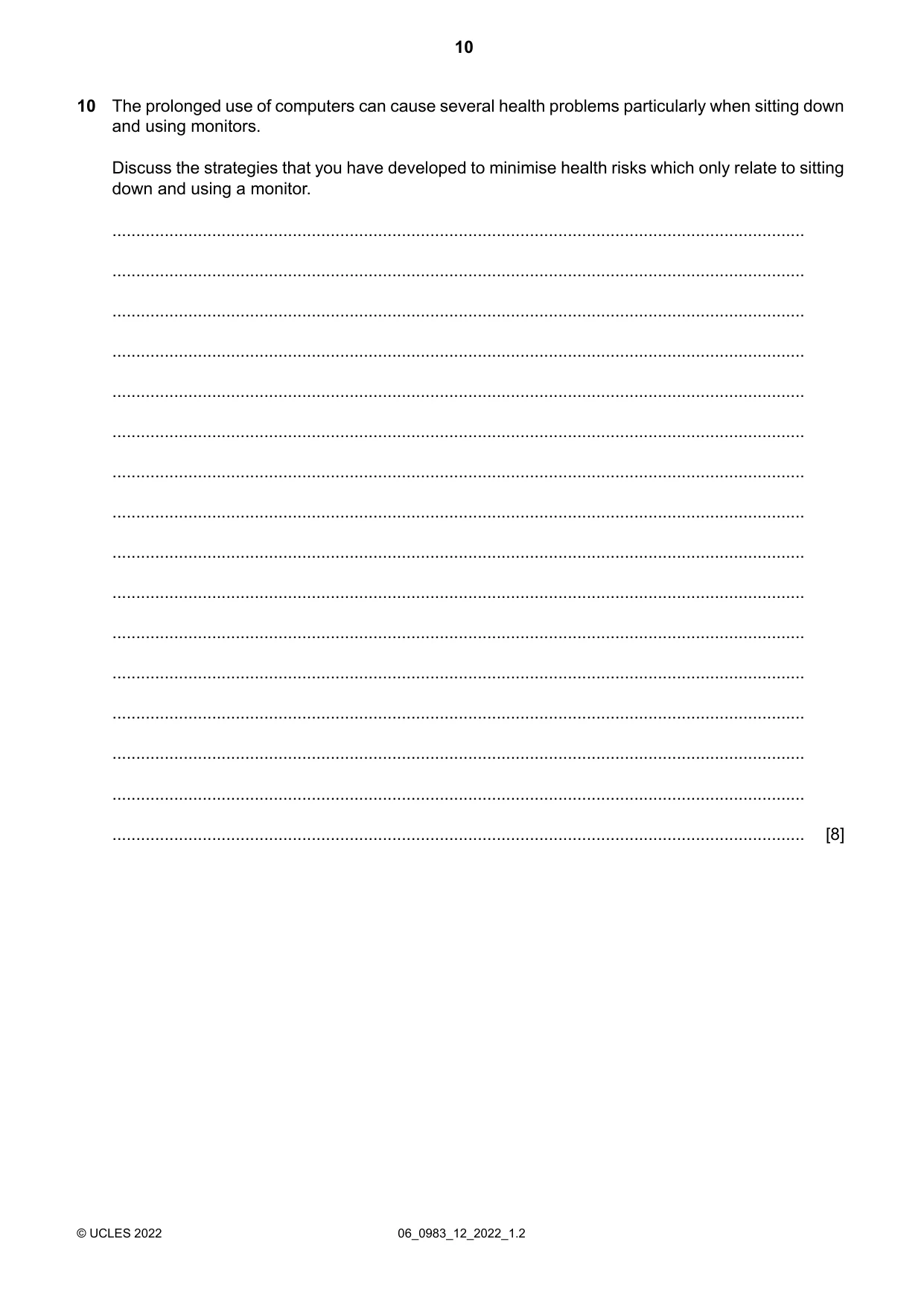

The prolonged use of computers can cause several health problems particularly when sitting down and using monitors. Discuss the strategies that you have developed to minimise health risks which only relate to sitting down and using a monitor. 10 … … … … … … … … … … … … … … … … [8] 06_0983_12_2022_1.2 © UCLES 2022 10

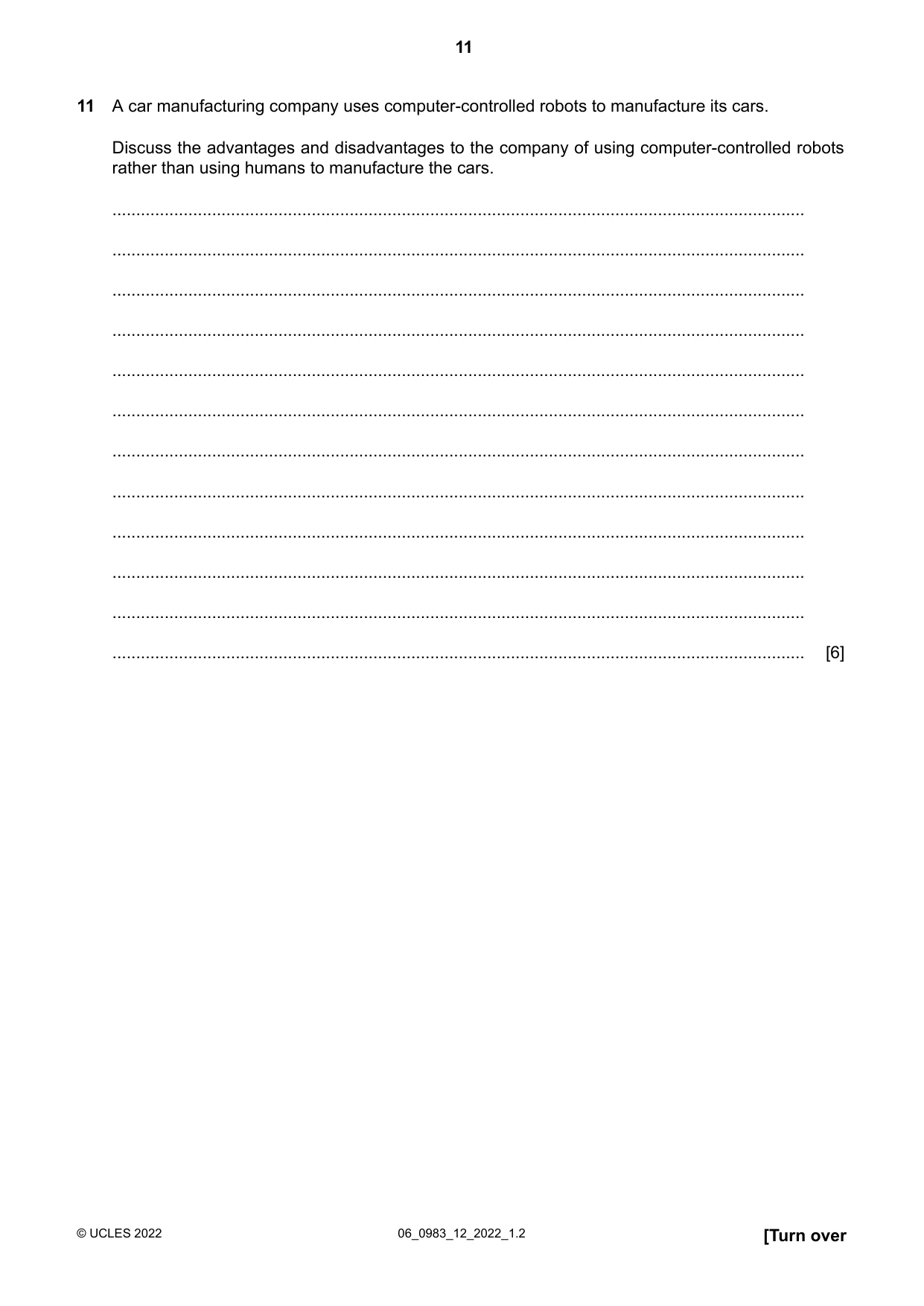

A car manufacturing company uses computer-controlled robots to manufacture its cars. Discuss the advantages and disadvantages to the company of using computer-controlled robots rather than using humans to manufacture the cars. 11 … … … … … … … … … … … … [6] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 11

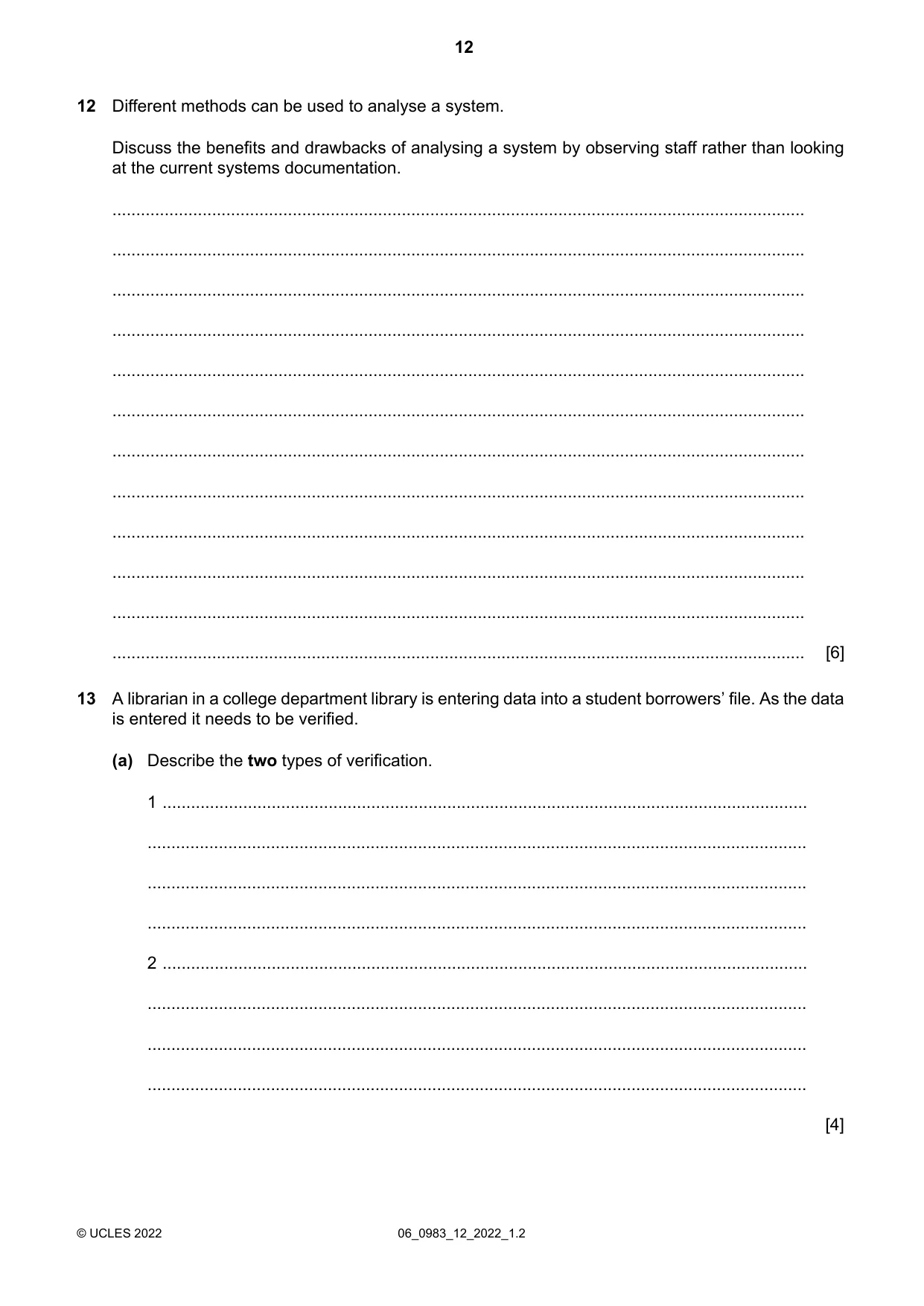

Different methods can be used to analyse a system. Discuss the benefits and drawbacks of analysing a system by observing staff rather than looking at the current systems documentation. 12 … … … … … … … … … … … … [6] A librarian in a college department library is entering data into a student borrowers’ file. As the data is entered it needs to be verified. 13 Describe the two types of verification. (a) 1 … … … … 2 … … … … [4] 06_0983_12_2022_1.2 © UCLES 2022 12

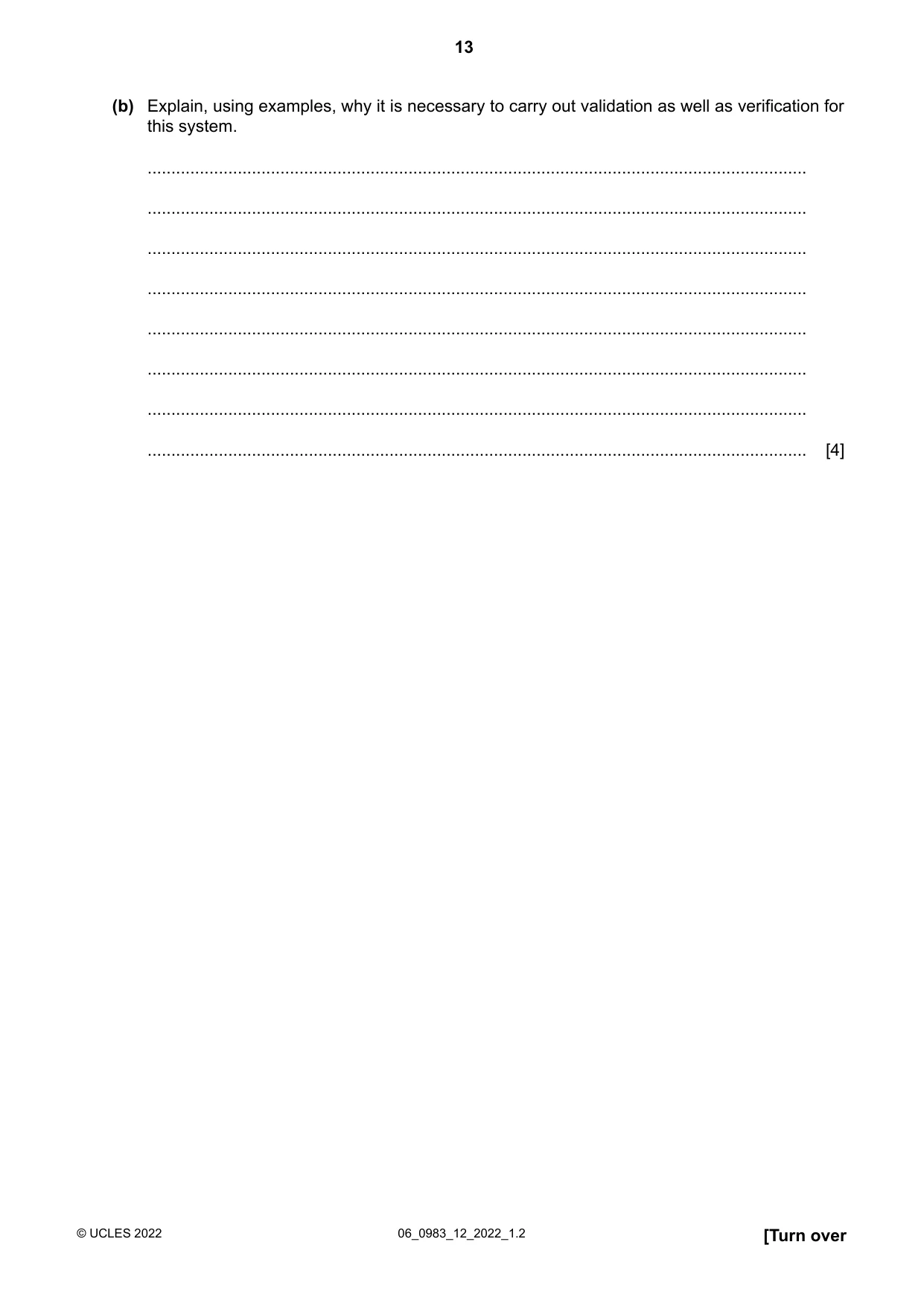

Explain, using examples, why it is necessary to carry out validation as well as verification for this system. (b) … … … … … … … … [4] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 13

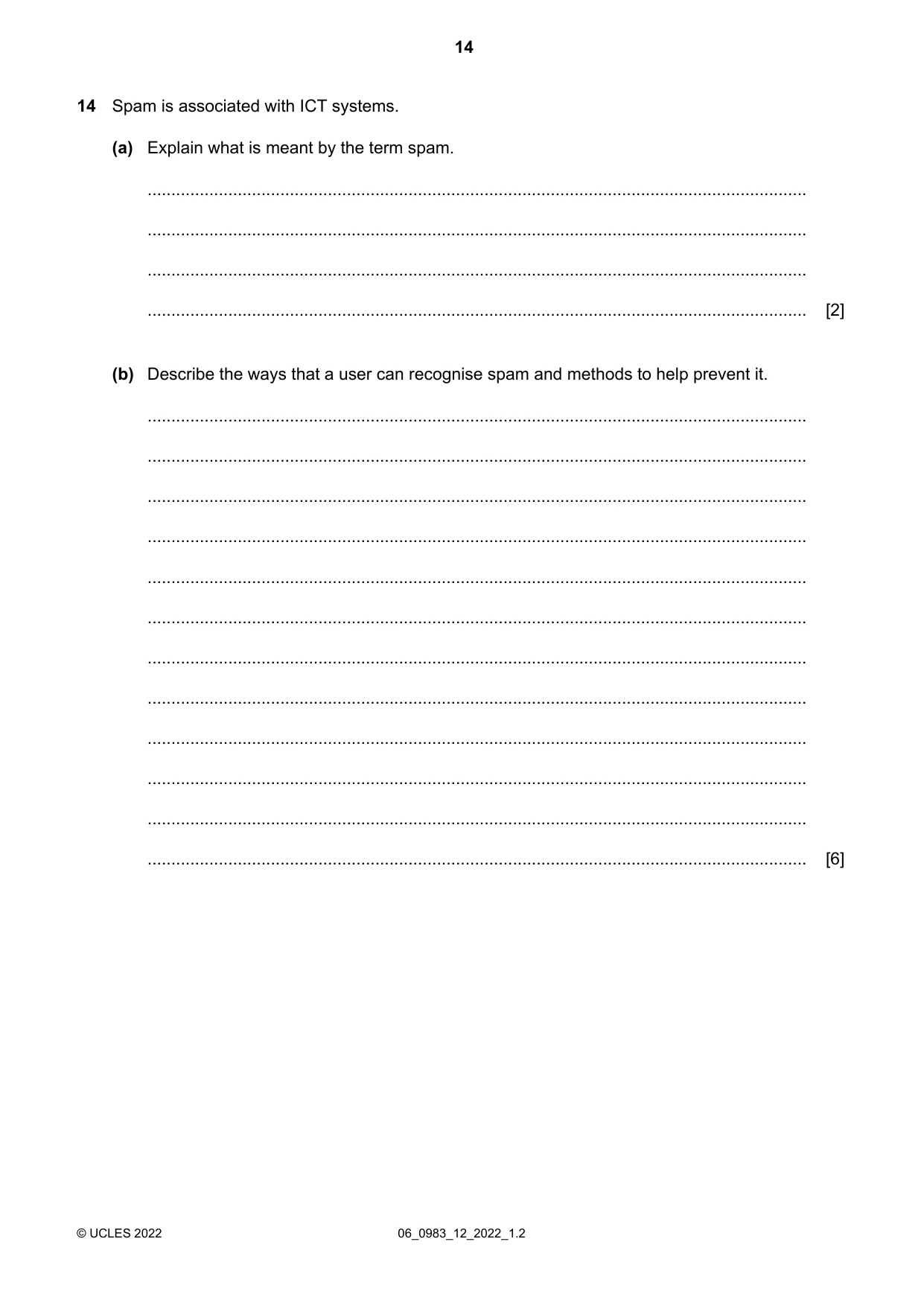

Spam is associated with ICT systems. 14 Explain what is meant by the term spam. (a) … … … … [2] Describe the ways that a user can recognise spam and methods to help prevent it. (b) … … … … … … … … … … … … [6] 06_0983_12_2022_1.2 © UCLES 2022 14

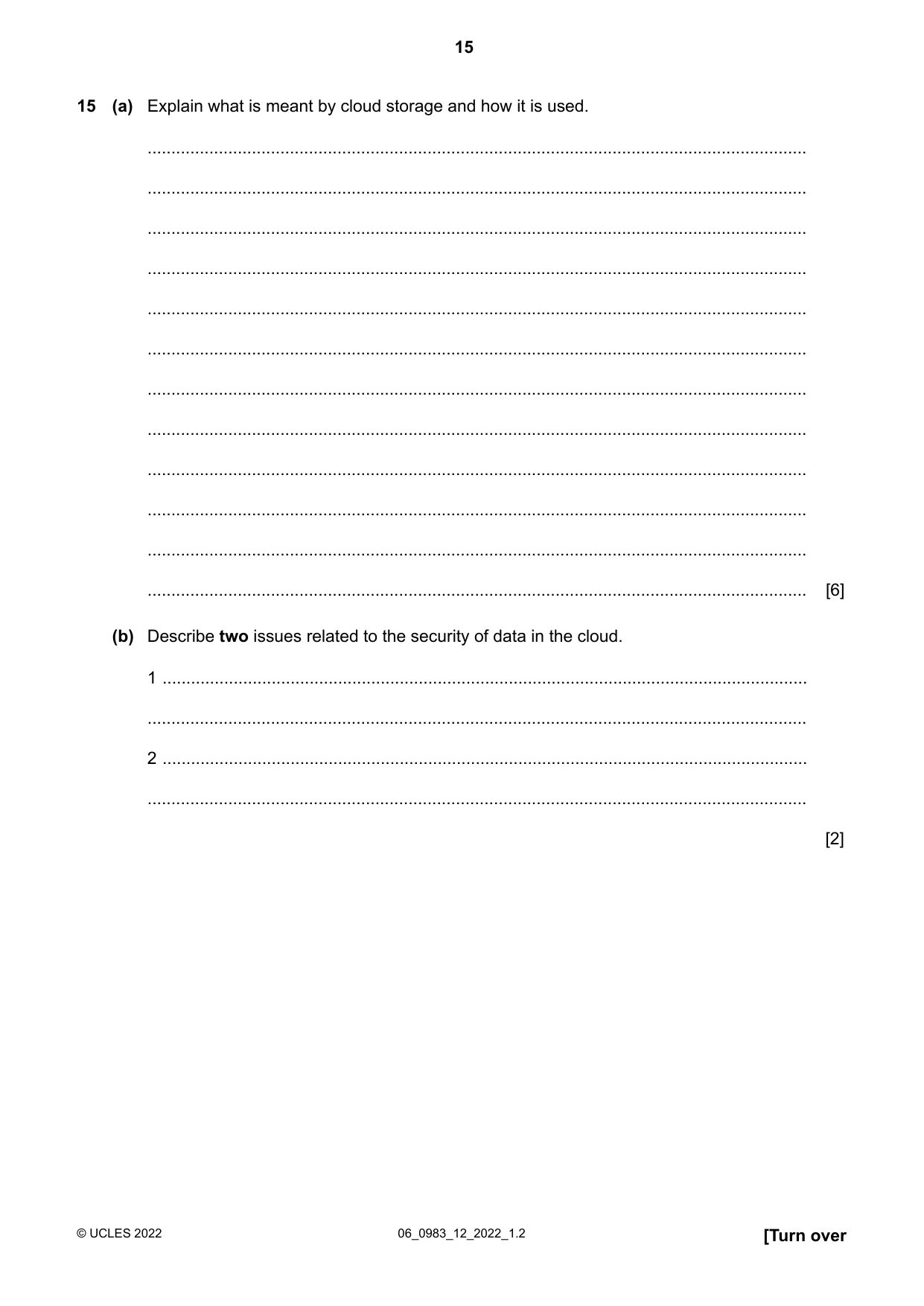

Explain what is meant by cloud storage and how it is used. (a) 15 … … … … … … … … … … … … [6] Describe two issues related to the security of data in the cloud. (b) 1 … … 2 … … [2] [Turn over 06_0983_12_2022_1.2 © UCLES 2022 15

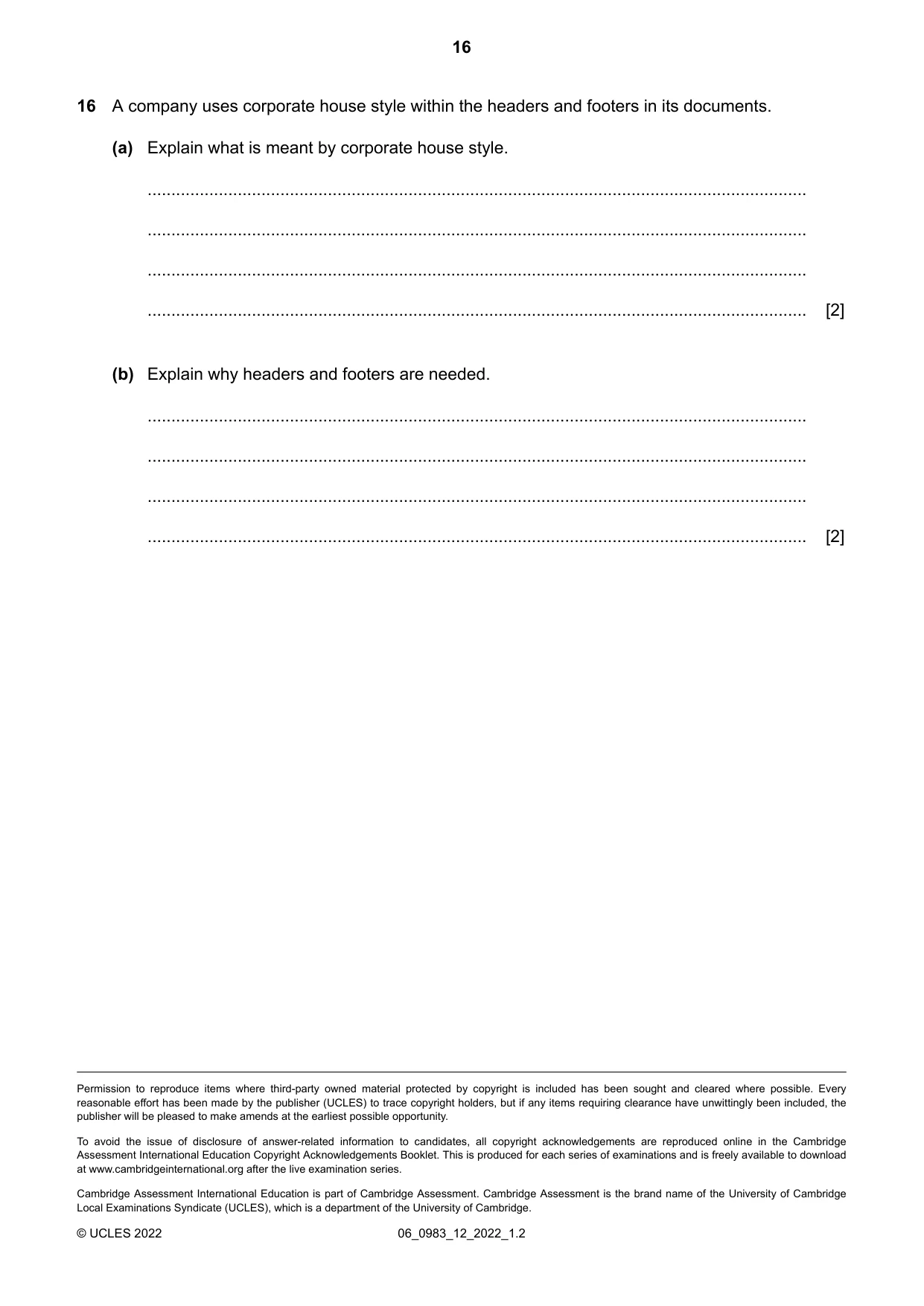

A company uses corporate house style within the headers and footers in its documents. 16 Explain what is meant by corporate house style. (a) … … … … [2] Explain why headers and footers are needed. (b) … … … … [2] Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. 06_0983_12_2022_1.2 © UCLES 2022 16

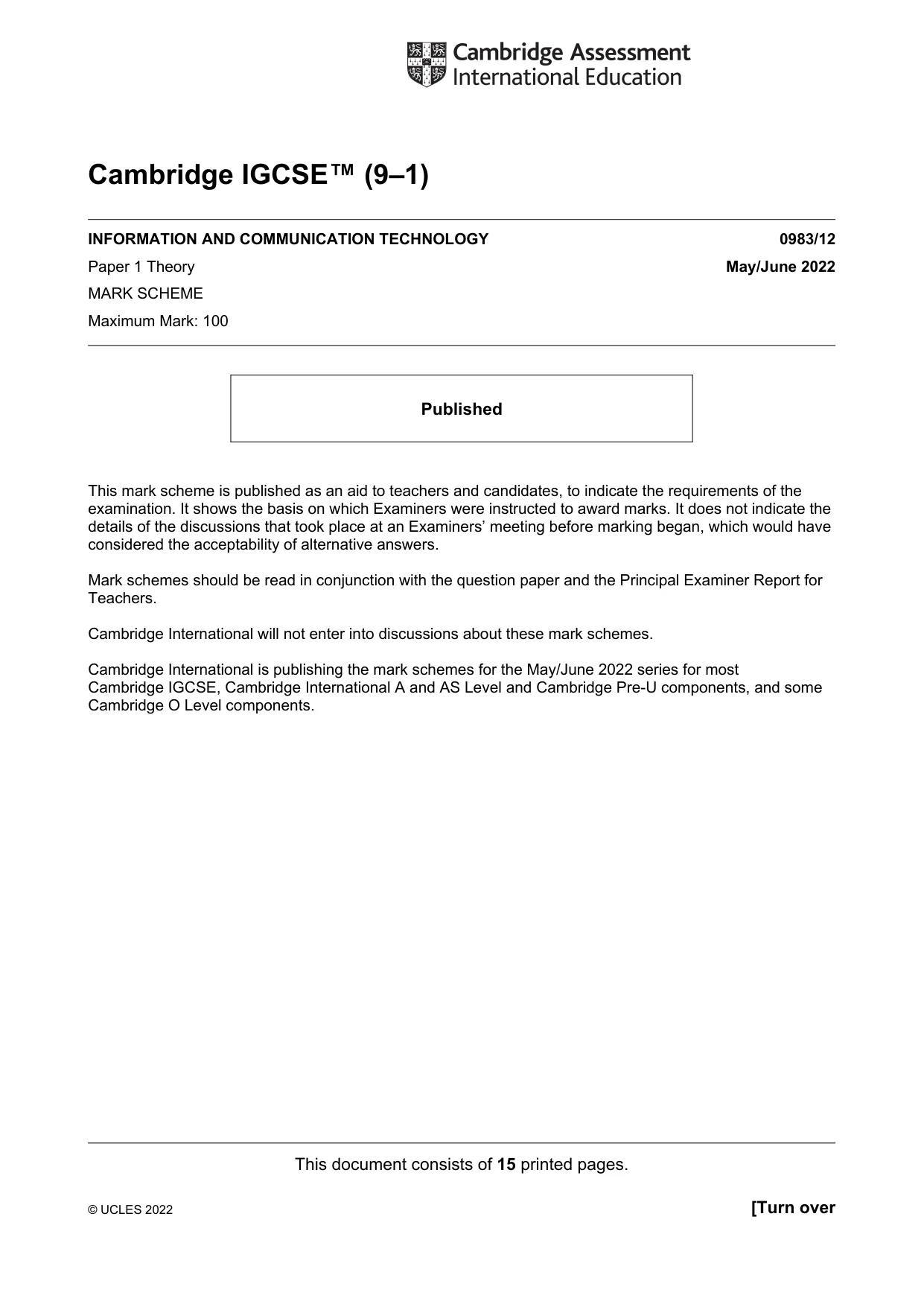

This document consists of 15 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ (9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/12 Paper 1 Theory May/June 2022 MARK SCHEME Maximum Mark: 100 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2022 series for most Cambridge IGCSE, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

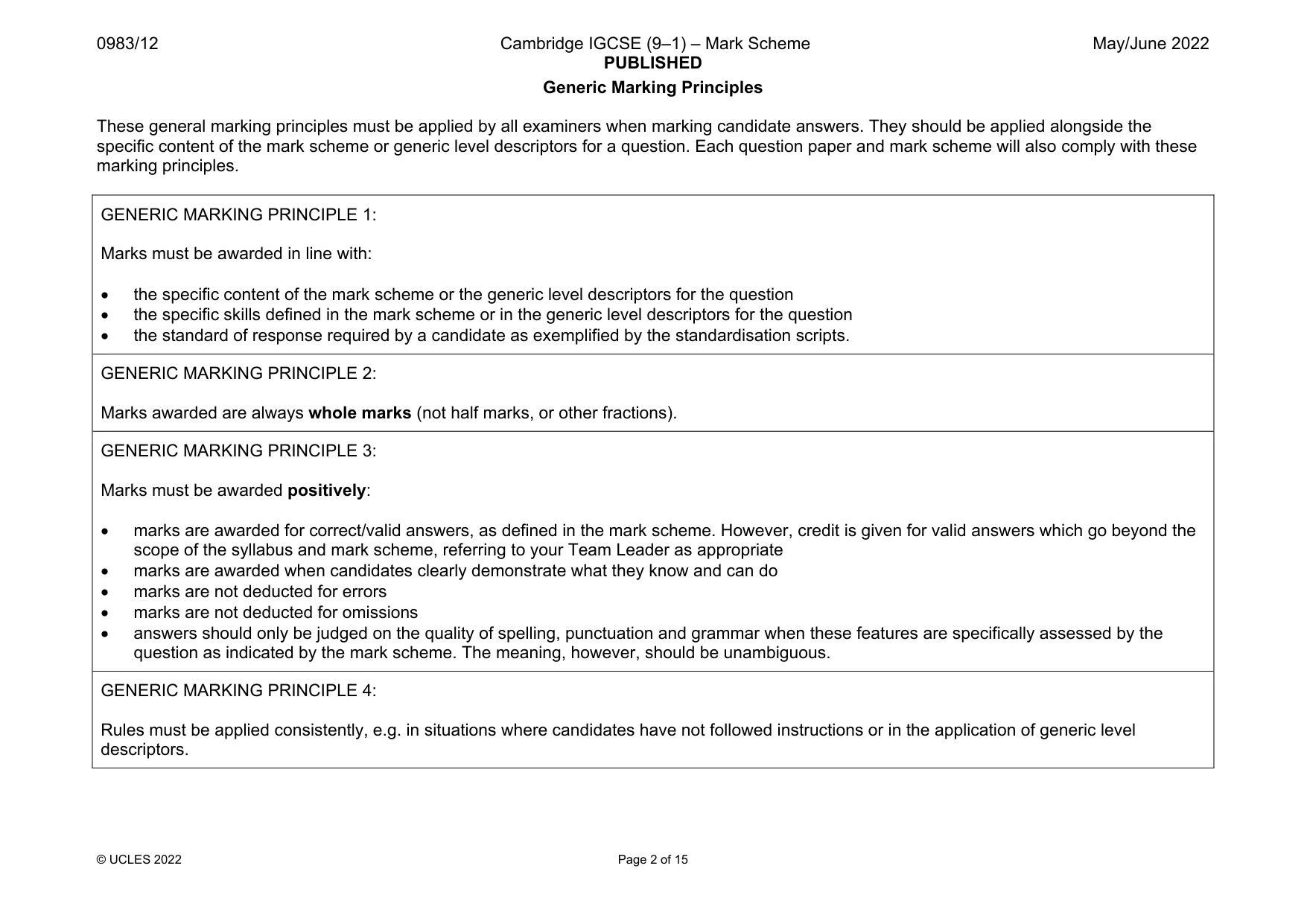

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 2 of 15 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with:  the specific content of the mark scheme or the generic level descriptors for the question  the specific skills defined in the mark scheme or in the generic level descriptors for the question  the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively:  marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate  marks are awarded when candidates clearly demonstrate what they know and can do  marks are not deducted for errors  marks are not deducted for omissions  answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

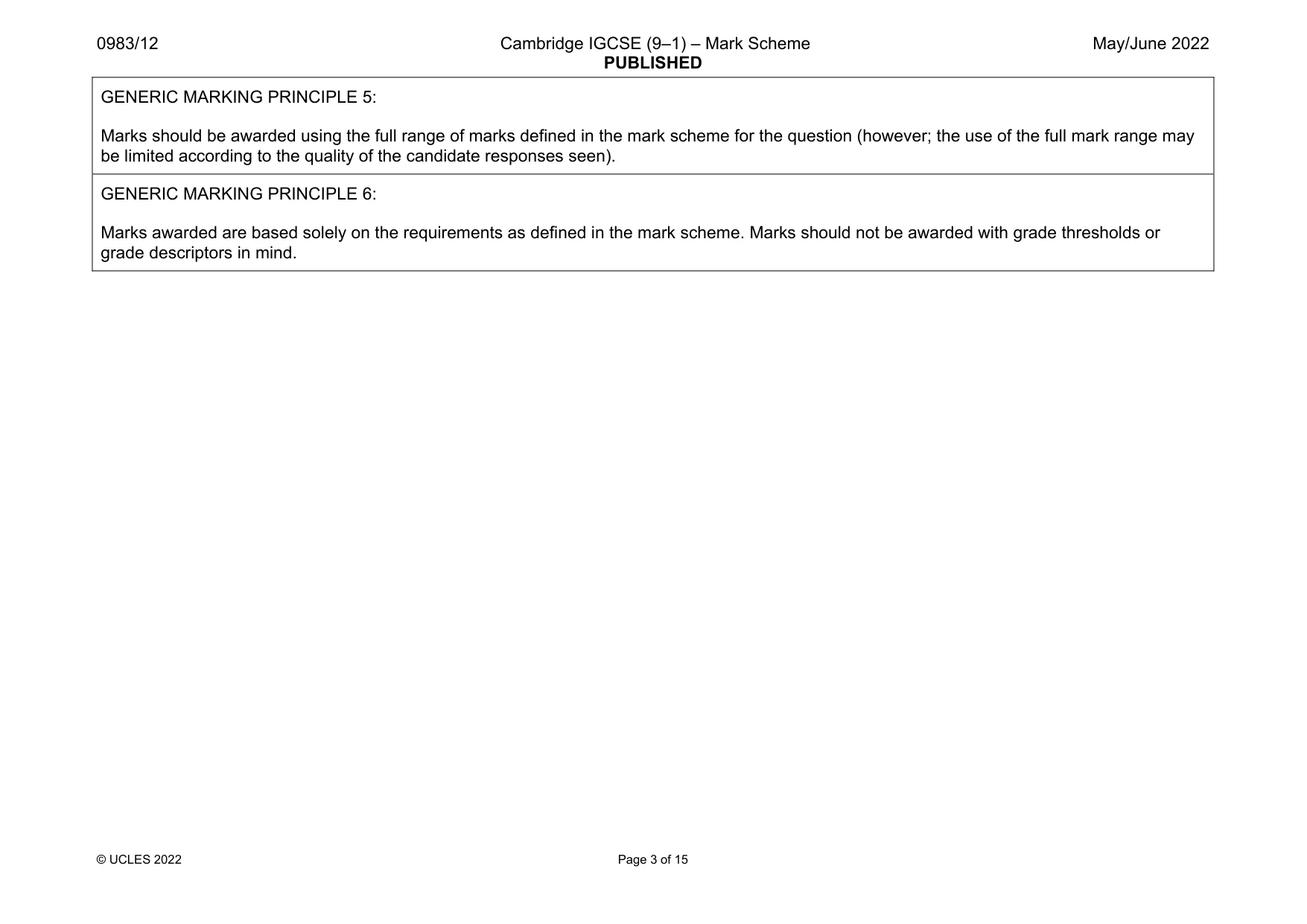

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 3 of 15 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

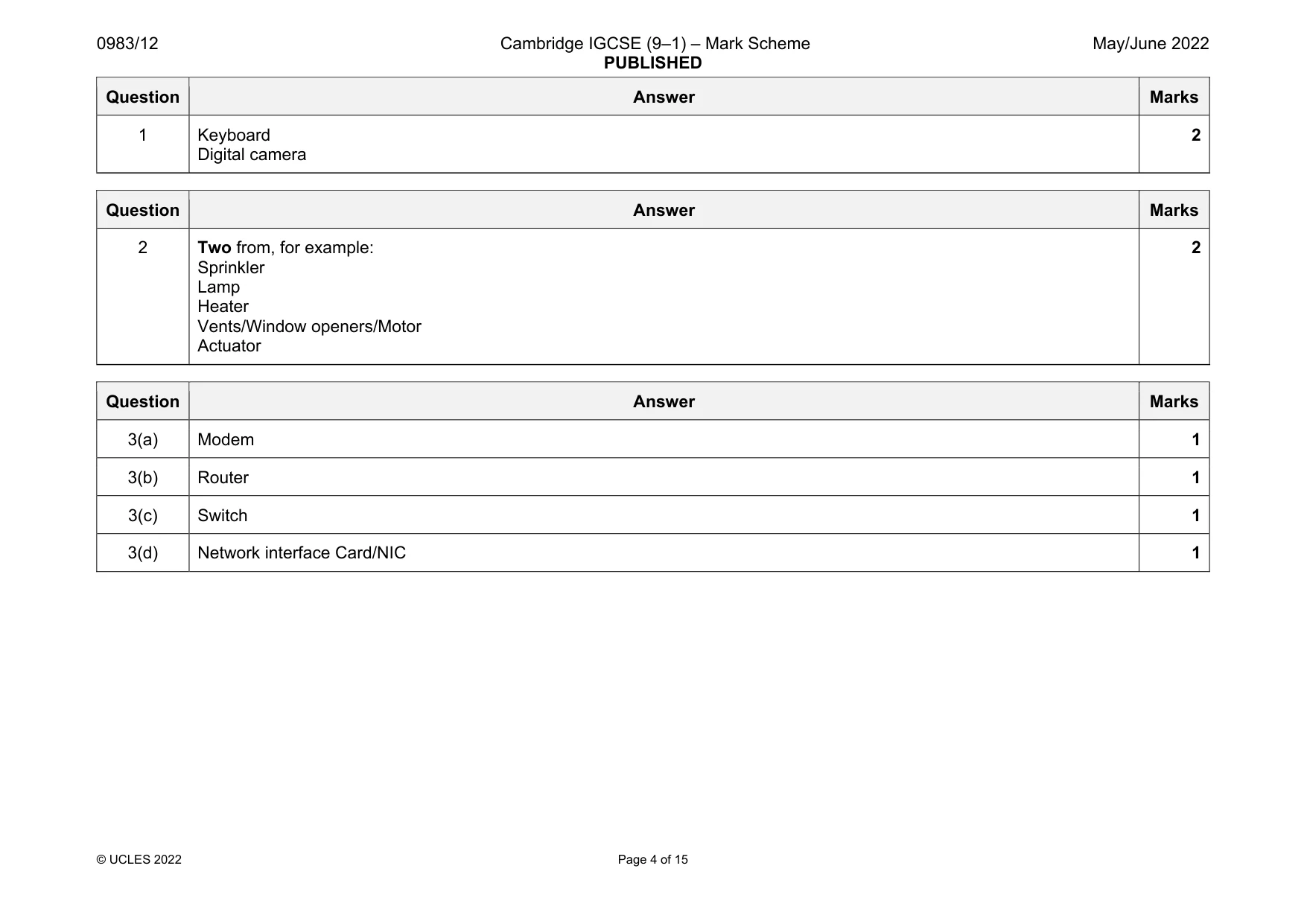

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 4 of 15 Question Answer Marks 1 Keyboard Digital camera 2 Question Answer Marks 2 Two from, for example: Sprinkler Lamp Heater Vents/Window openers/Motor Actuator 2 Question Answer Marks 3(a) Modem 1 3(b) Router 1 3(c) Switch 1 3(d) Network interface Card/NIC 1

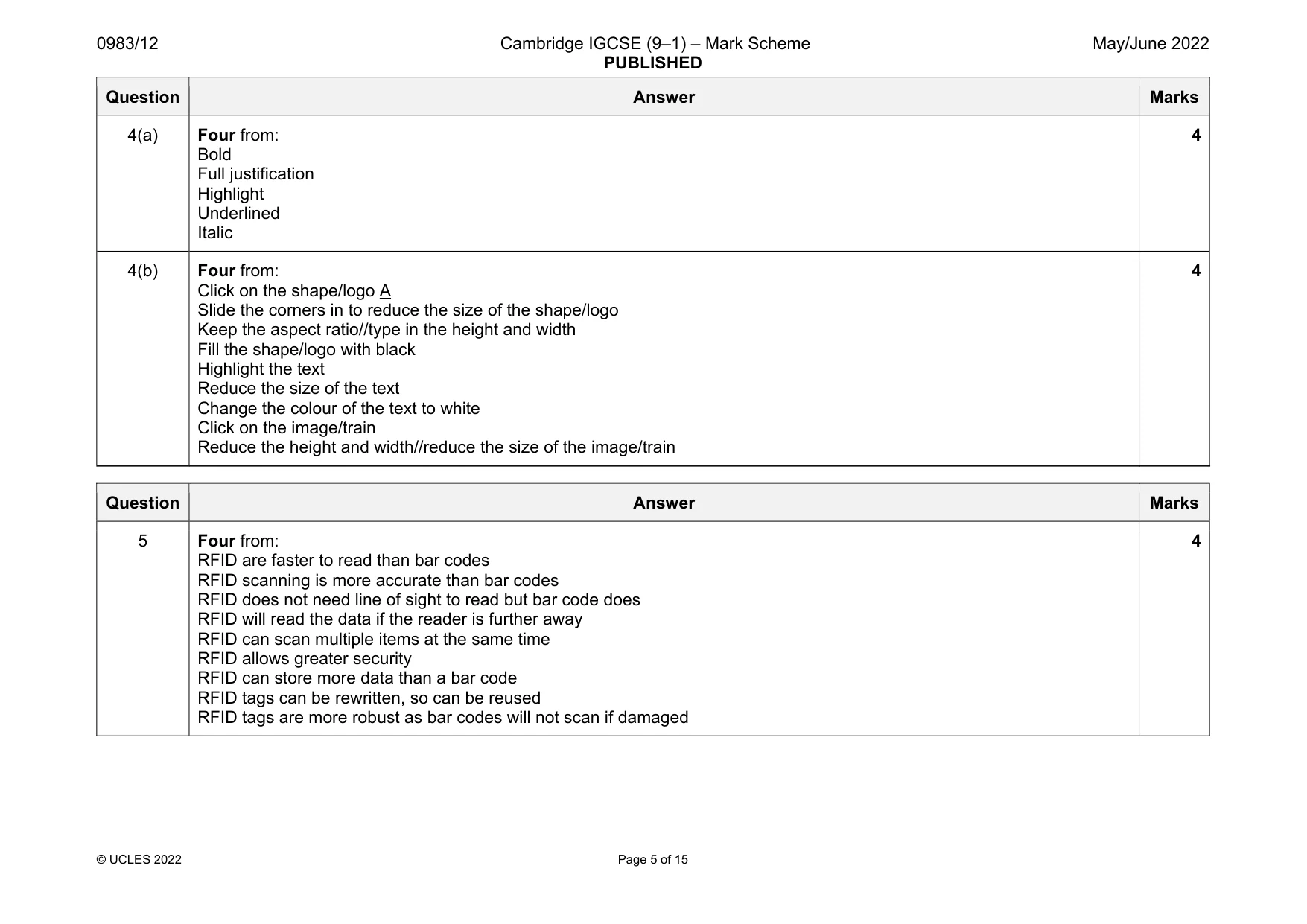

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 5 of 15 Question Answer Marks 4(a) Four from: Bold Full justification Highlight Underlined Italic 4 4(b) Four from: Click on the shape/logo A Slide the corners in to reduce the size of the shape/logo Keep the aspect ratio//type in the height and width Fill the shape/logo with black Highlight the text Reduce the size of the text Change the colour of the text to white Click on the image/train Reduce the height and width//reduce the size of the image/train 4 Question Answer Marks 5 Four from: RFID are faster to read than bar codes RFID scanning is more accurate than bar codes RFID does not need line of sight to read but bar code does RFID will read the data if the reader is further away RFID can scan multiple items at the same time RFID allows greater security RFID can store more data than a bar code RFID tags can be rewritten, so can be reused RFID tags are more robust as bar codes will not scan if damaged 4

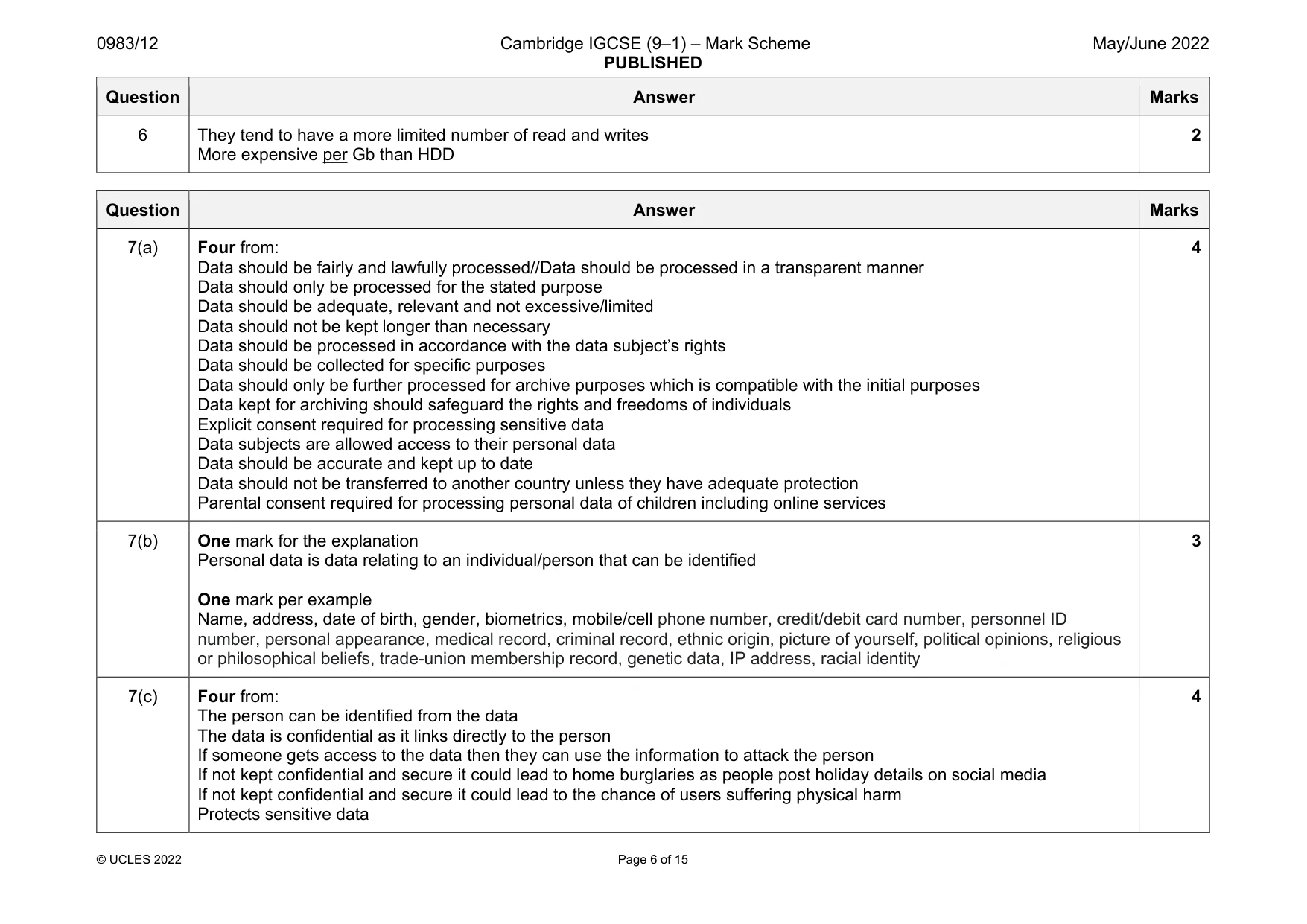

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 6 of 15 Question Answer Marks 6 They tend to have a more limited number of read and writes More expensive per Gb than HDD 2 Question Answer Marks 7(a) Four from: Data should be fairly and lawfully processed//Data should be processed in a transparent manner Data should only be processed for the stated purpose Data should be adequate, relevant and not excessive/limited Data should not be kept longer than necessary Data should be processed in accordance with the data subject’s rights Data should be collected for specific purposes Data should only be further processed for archive purposes which is compatible with the initial purposes Data kept for archiving should safeguard the rights and freedoms of individuals Explicit consent required for processing sensitive data Data subjects are allowed access to their personal data Data should be accurate and kept up to date Data should not be transferred to another country unless they have adequate protection Parental consent required for processing personal data of children including online services 4 7(b) One mark for the explanation Personal data is data relating to an individual/person that can be identified One mark per example Name, address, date of birth, gender, biometrics, mobile/cell phone number, credit/debit card number, personnel ID number, personal appearance, medical record, criminal record, ethnic origin, picture of yourself, political opinions, religious or philosophical beliefs, trade-union membership record, genetic data, IP address, racial identity 3 7(c) Four from: The person can be identified from the data The data is confidential as it links directly to the person If someone gets access to the data then they can use the information to attack the person If not kept confidential and secure it could lead to home burglaries as people post holiday details on social media If not kept confidential and secure it could lead to the chance of users suffering physical harm Protects sensitive data 4

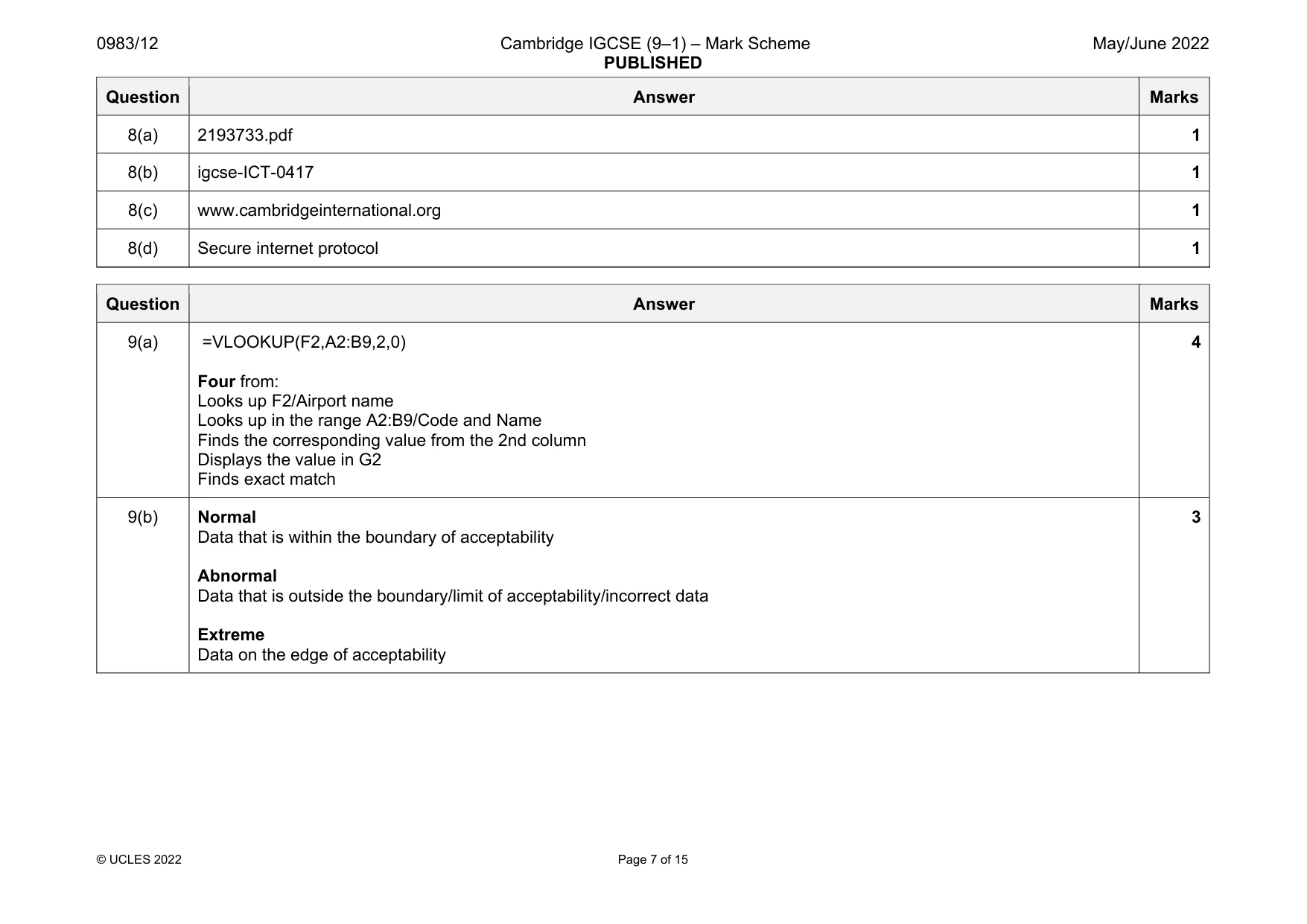

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 7 of 15 Question Answer Marks 8(a) 2193733.pdf 1 8(b) igcse-ICT-0417 1 8(c) www.cambridgeinternational.org 1 8(d) Secure internet protocol 1 Question Answer Marks 9(a) =VLOOKUP(F2,A2:B9,2,0) Four from: Looks up F2/Airport name Looks up in the range A2:B9/Code and Name Finds the corresponding value from the 2nd column Displays the value in G2 Finds exact match 4 9(b) Normal Data that is within the boundary of acceptability Abnormal Data that is outside the boundary/limit of acceptability/incorrect data Extreme Data on the edge of acceptability 3

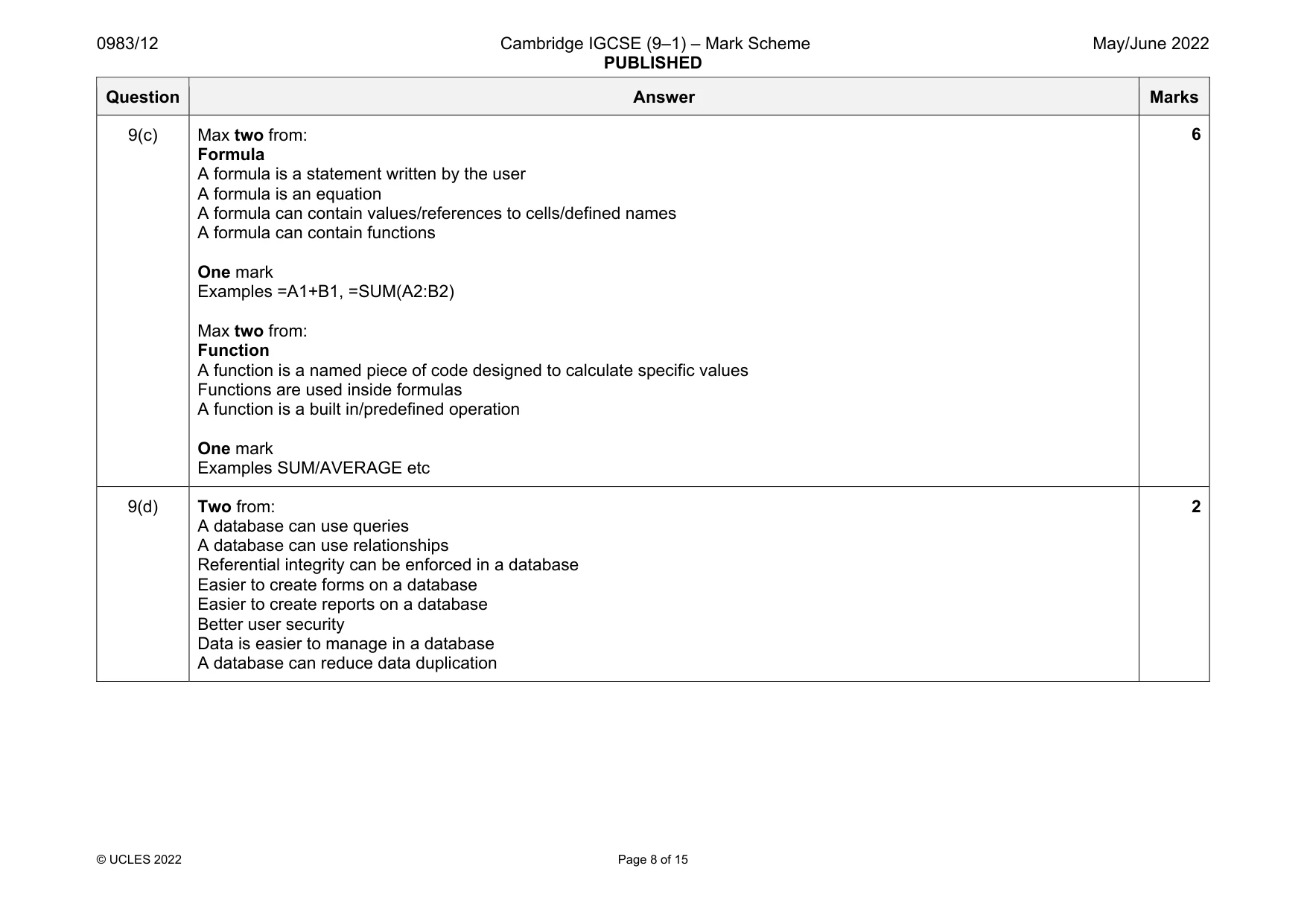

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 8 of 15 Question Answer Marks 9(c) Max two from: Formula A formula is a statement written by the user A formula is an equation A formula can contain values/references to cells/defined names A formula can contain functions One mark Examples =A1+B1, =SUM(A2:B2) Max two from: Function A function is a named piece of code designed to calculate specific values Functions are used inside formulas A function is a built in/predefined operation One mark Examples SUM/AVERAGE etc 6 9(d) Two from: A database can use queries A database can use relationships Referential integrity can be enforced in a database Easier to create forms on a database Easier to create reports on a database Better user security Data is easier to manage in a database A database can reduce data duplication 2

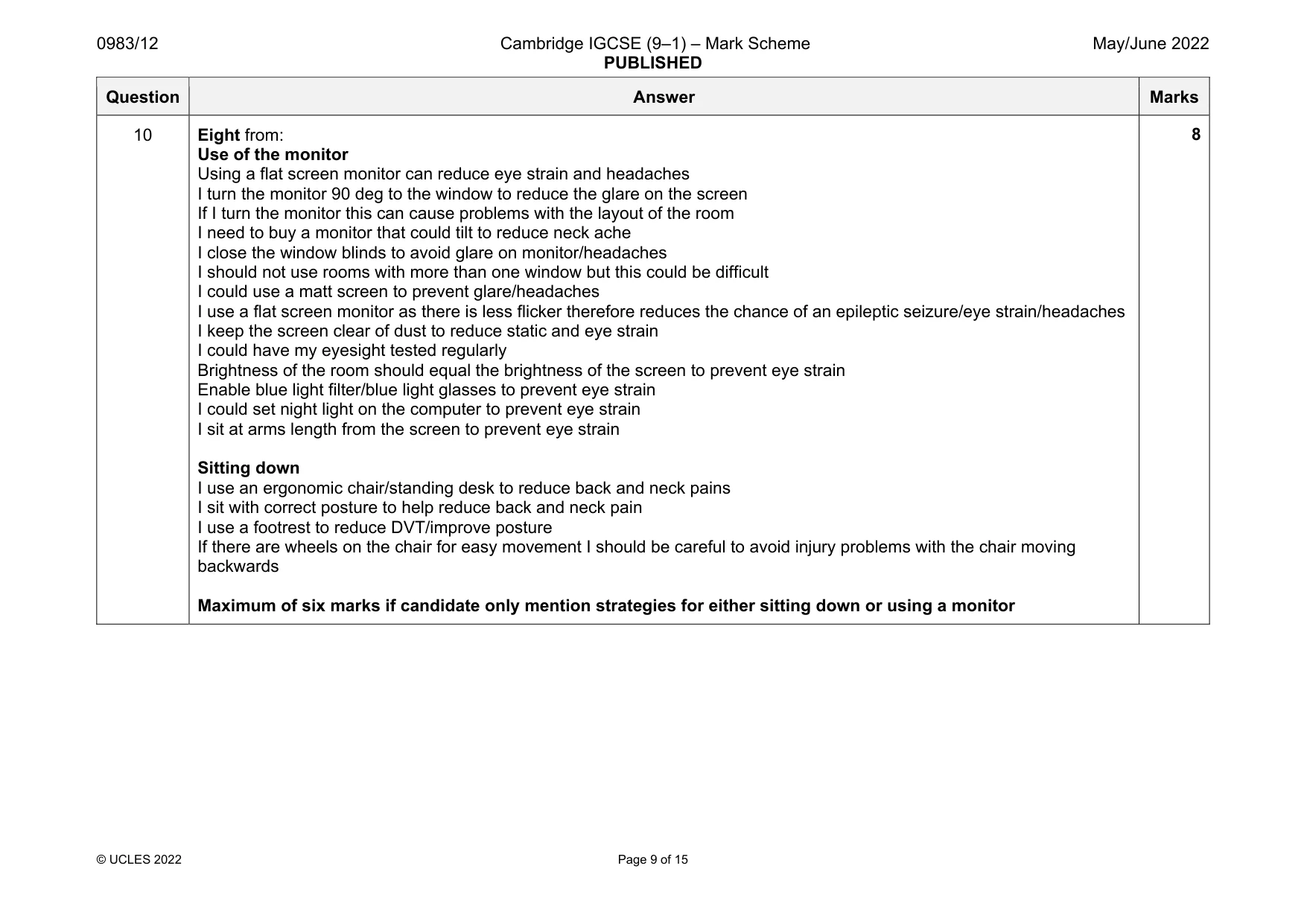

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 9 of 15 Question Answer Marks 10 Eight from: Use of the monitor Using a flat screen monitor can reduce eye strain and headaches I turn the monitor 90 deg to the window to reduce the glare on the screen If I turn the monitor this can cause problems with the layout of the room I need to buy a monitor that could tilt to reduce neck ache I close the window blinds to avoid glare on monitor/headaches I should not use rooms with more than one window but this could be difficult I could use a matt screen to prevent glare/headaches I use a flat screen monitor as there is less flicker therefore reduces the chance of an epileptic seizure/eye strain/headaches I keep the screen clear of dust to reduce static and eye strain I could have my eyesight tested regularly Brightness of the room should equal the brightness of the screen to prevent eye strain Enable blue light filter/blue light glasses to prevent eye strain I could set night light on the computer to prevent eye strain I sit at arms length from the screen to prevent eye strain Sitting down I use an ergonomic chair/standing desk to reduce back and neck pains I sit with correct posture to help reduce back and neck pain I use a footrest to reduce DVT/improve posture If there are wheels on the chair for easy movement I should be careful to avoid injury problems with the chair moving backwards Maximum of six marks if candidate only mention strategies for either sitting down or using a monitor 8

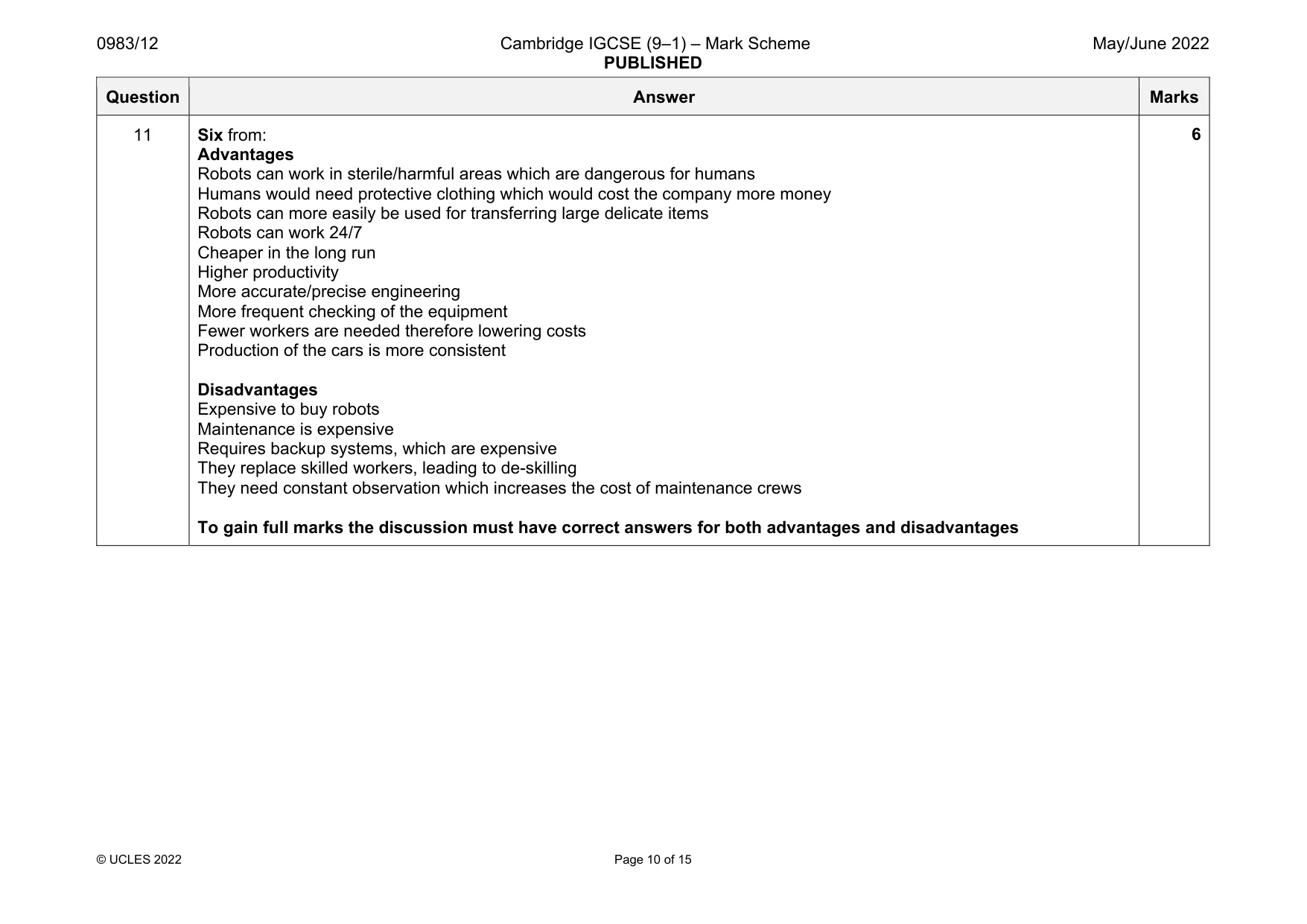

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 10 of 15 Question Answer Marks 11 Six from: Advantages Robots can work in sterile/harmful areas which are dangerous for humans Humans would need protective clothing which would cost the company more money Robots can more easily be used for transferring large delicate items Robots can work 24/7 Cheaper in the long run Higher productivity More accurate/precise engineering More frequent checking of the equipment Fewer workers are needed therefore lowering costs Production of the cars is more consistent Disadvantages Expensive to buy robots Maintenance is expensive Requires backup systems, which are expensive They replace skilled workers, leading to de-skilling They need constant observation which increases the cost of maintenance crews To gain full marks the discussion must have correct answers for both advantages and disadvantages 6

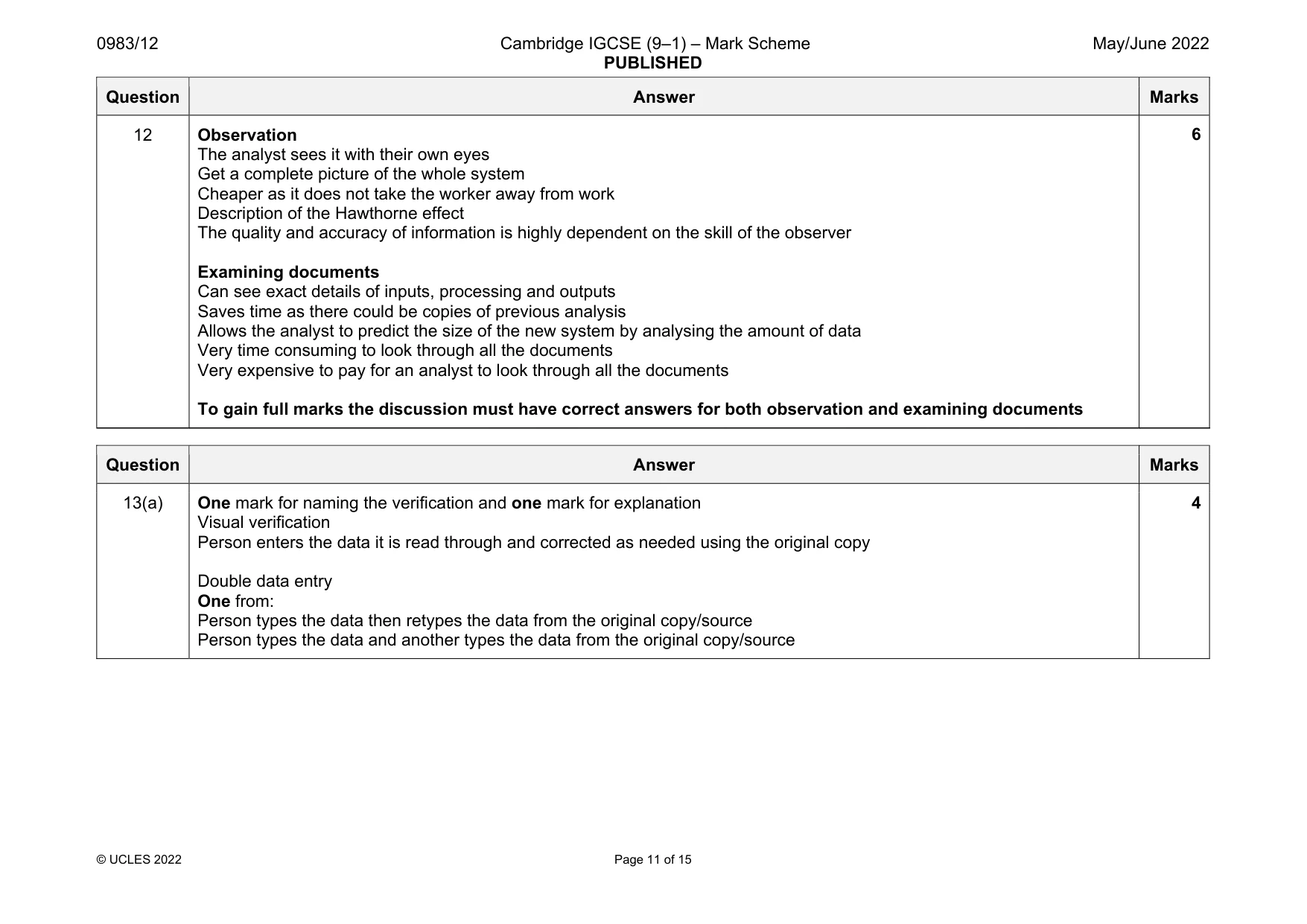

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 11 of 15 Question Answer Marks 12 Observation The analyst sees it with their own eyes Get a complete picture of the whole system Cheaper as it does not take the worker away from work Description of the Hawthorne effect The quality and accuracy of information is highly dependent on the skill of the observer Examining documents Can see exact details of inputs, processing and outputs Saves time as there could be copies of previous analysis Allows the analyst to predict the size of the new system by analysing the amount of data Very time consuming to look through all the documents Very expensive to pay for an analyst to look through all the documents To gain full marks the discussion must have correct answers for both observation and examining documents 6 Question Answer Marks 13(a) One mark for naming the verification and one mark for explanation Visual verification Person enters the data it is read through and corrected as needed using the original copy Double data entry One from: Person types the data then retypes the data from the original copy/source Person types the data and another types the data from the original copy/source 4

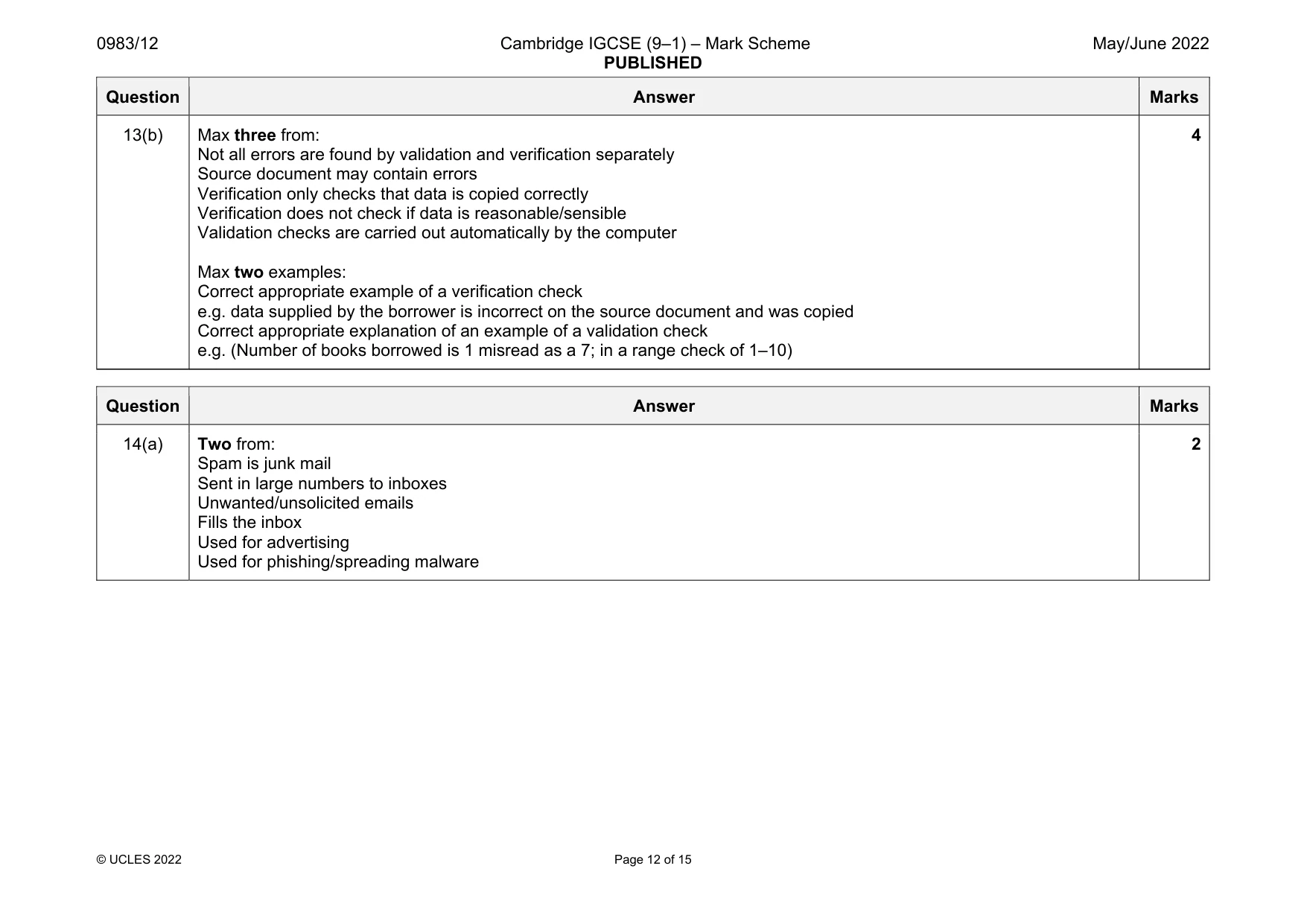

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 12 of 15 Question Answer Marks 13(b) Max three from: Not all errors are found by validation and verification separately Source document may contain errors Verification only checks that data is copied correctly Verification does not check if data is reasonable/sensible Validation checks are carried out automatically by the computer Max two examples: Correct appropriate example of a verification check e.g. data supplied by the borrower is incorrect on the source document and was copied Correct appropriate explanation of an example of a validation check e.g. (Number of books borrowed is 1 misread as a 7; in a range check of 1–10) 4 Question Answer Marks 14(a) Two from: Spam is junk mail Sent in large numbers to inboxes Unwanted/unsolicited emails Fills the inbox Used for advertising Used for phishing/spreading malware 2

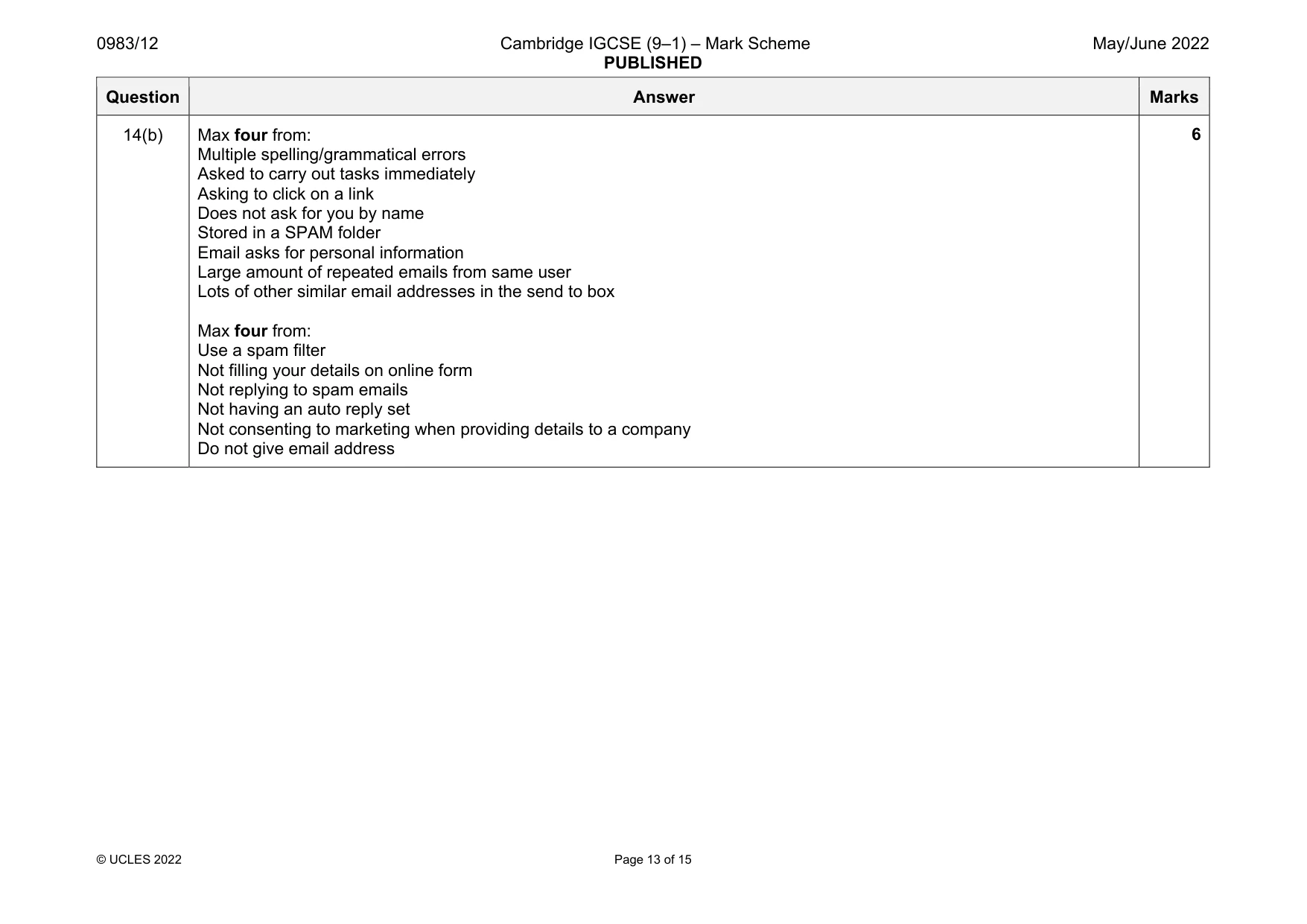

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 13 of 15 Question Answer Marks 14(b) Max four from: Multiple spelling/grammatical errors Asked to carry out tasks immediately Asking to click on a link Does not ask for you by name Stored in a SPAM folder Email asks for personal information Large amount of repeated emails from same user Lots of other similar email addresses in the send to box Max four from: Use a spam filter Not filling your details on online form Not replying to spam emails Not having an auto reply set Not consenting to marketing when providing details to a company Do not give email address 6

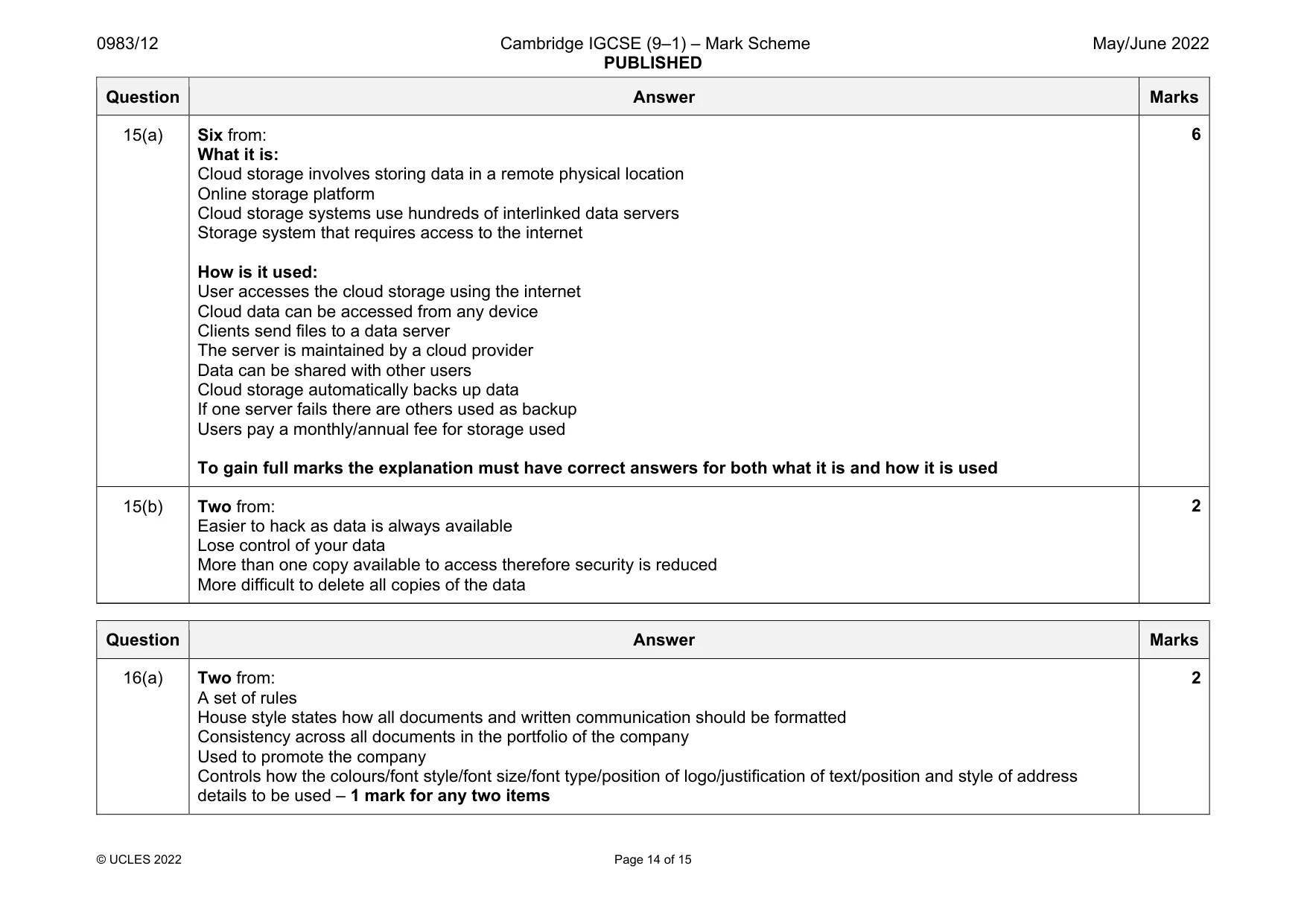

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 14 of 15 Question Answer Marks 15(a) Six from: What it is: Cloud storage involves storing data in a remote physical location Online storage platform Cloud storage systems use hundreds of interlinked data servers Storage system that requires access to the internet How is it used: User accesses the cloud storage using the internet Cloud data can be accessed from any device Clients send files to a data server The server is maintained by a cloud provider Data can be shared with other users Cloud storage automatically backs up data If one server fails there are others used as backup Users pay a monthly/annual fee for storage used To gain full marks the explanation must have correct answers for both what it is and how it is used 6 15(b) Two from: Easier to hack as data is always available Lose control of your data More than one copy available to access therefore security is reduced More difficult to delete all copies of the data 2 Question Answer Marks 16(a) Two from: A set of rules House style states how all documents and written communication should be formatted Consistency across all documents in the portfolio of the company Used to promote the company Controls how the colours/font style/font size/font type/position of logo/justification of text/position and style of address details to be used – 1 mark for any two items 2

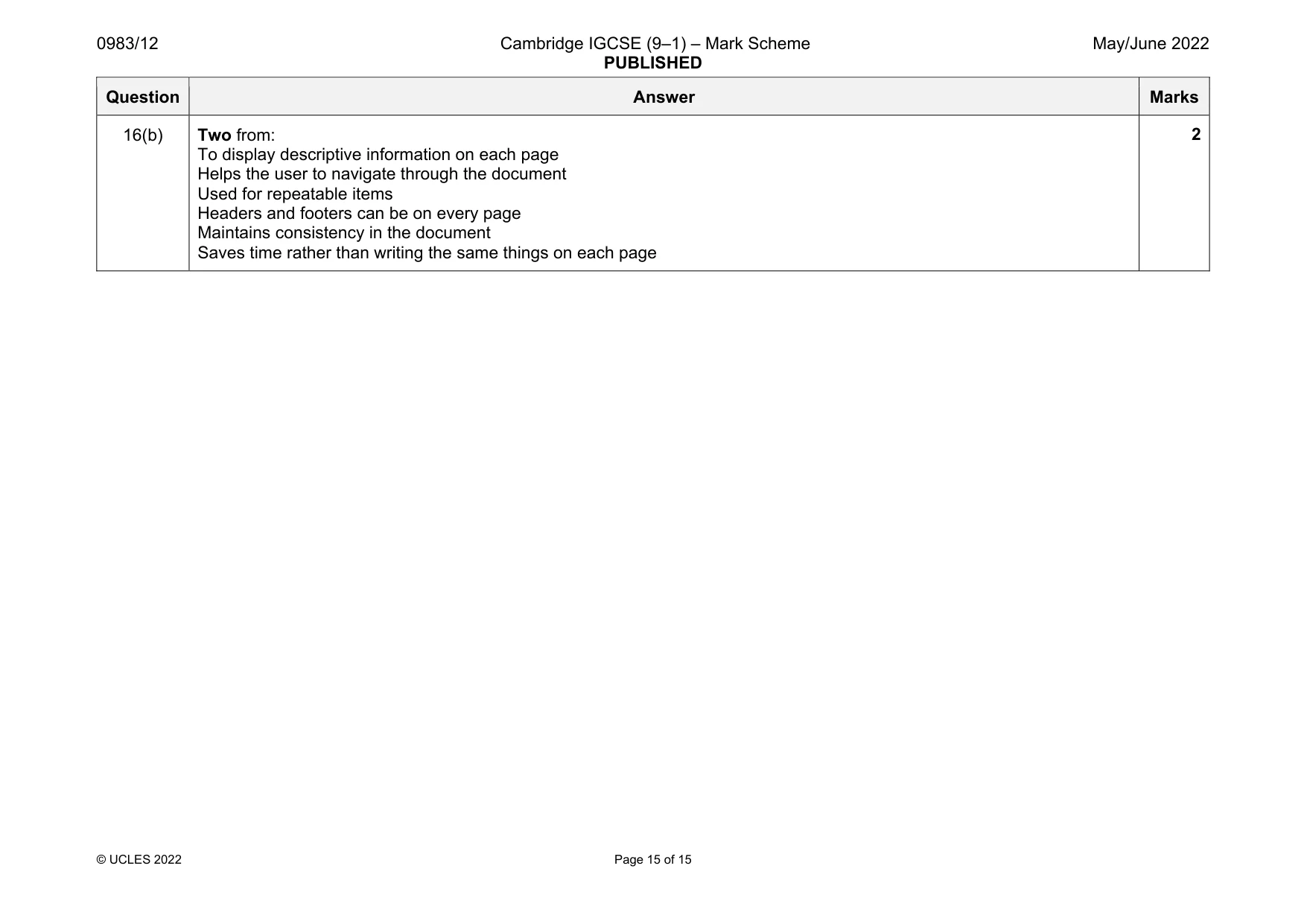

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 15 of 15 Question Answer Marks 16(b) Two from: To display descriptive information on each page Helps the user to navigate through the document Used for repeatable items Headers and footers can be on every page Maintains consistency in the document Saves time rather than writing the same things on each page 2
