Cambridge IGCSE Information and Communication Technology (9-1) 0983 — 2021 May/June Paper 1 · Variant 2

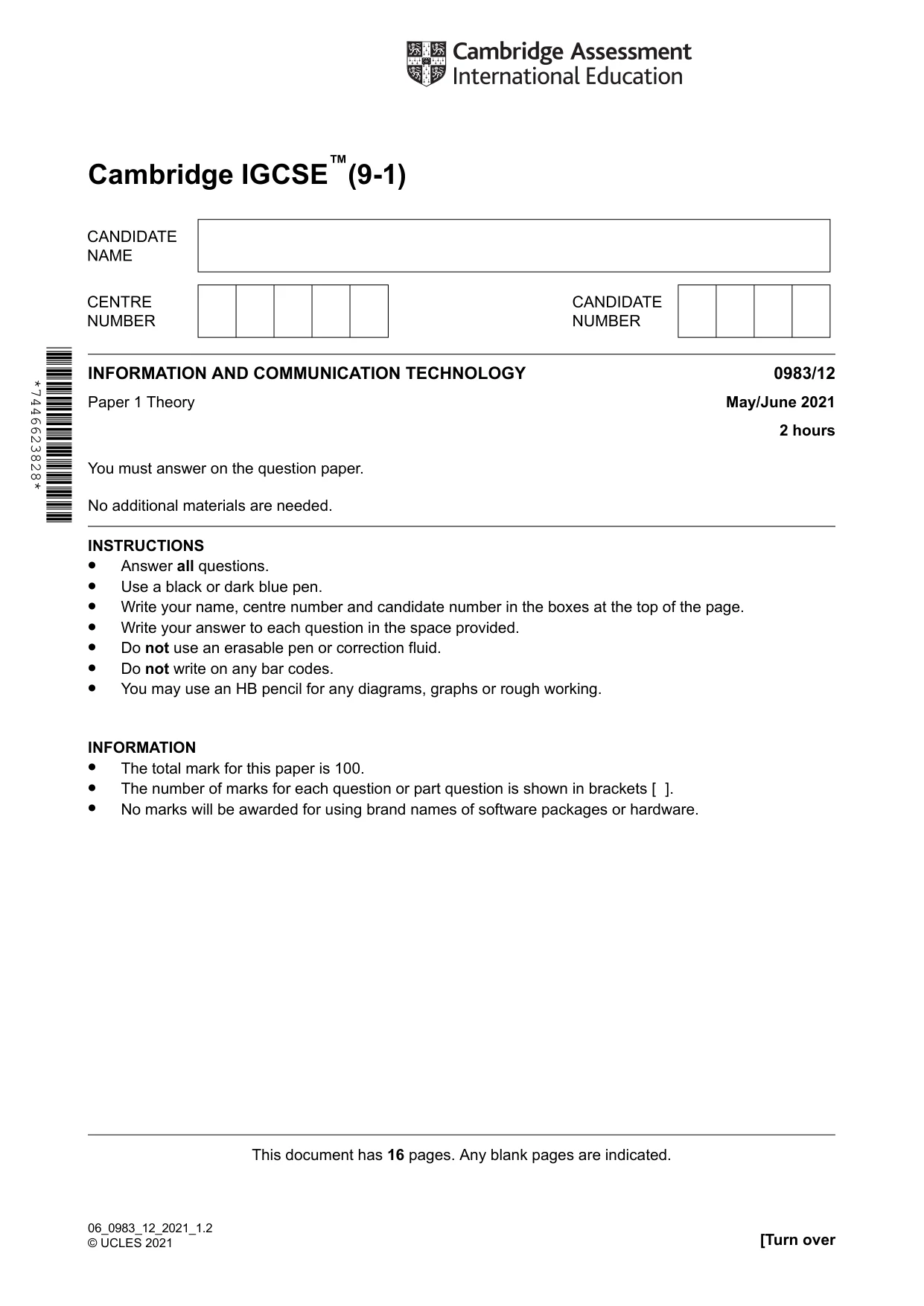

Cambridge IGCSE™(9-1) 0983/12 INFORMATION AND COMMUNICATION TECHNOLOGY May/June 2021 Paper 1 Theory 2 hours You must answer on the question paper. No additional materials are needed. INSTRUCTIONS • Answer all questions. • Use a black or dark blue pen. • Write your name, centre number and candidate number in the boxes at the top of the page. • Write your answer to each question in the space provided. • Do not use an erasable pen or correction fluid. • Do not write on any bar codes. • You may use an HB pencil for any diagrams, graphs or rough working. INFORMATION • The total mark for this paper is 100. • The number of marks for each question or part question is shown in brackets [ ]. • No marks will be awarded for using brand names of software packages or hardware. This document has 16 pages. Any blank pages are indicated. [Turn over 06_0983_12_2021_1.2 © UCLES 2021 *7446623828*

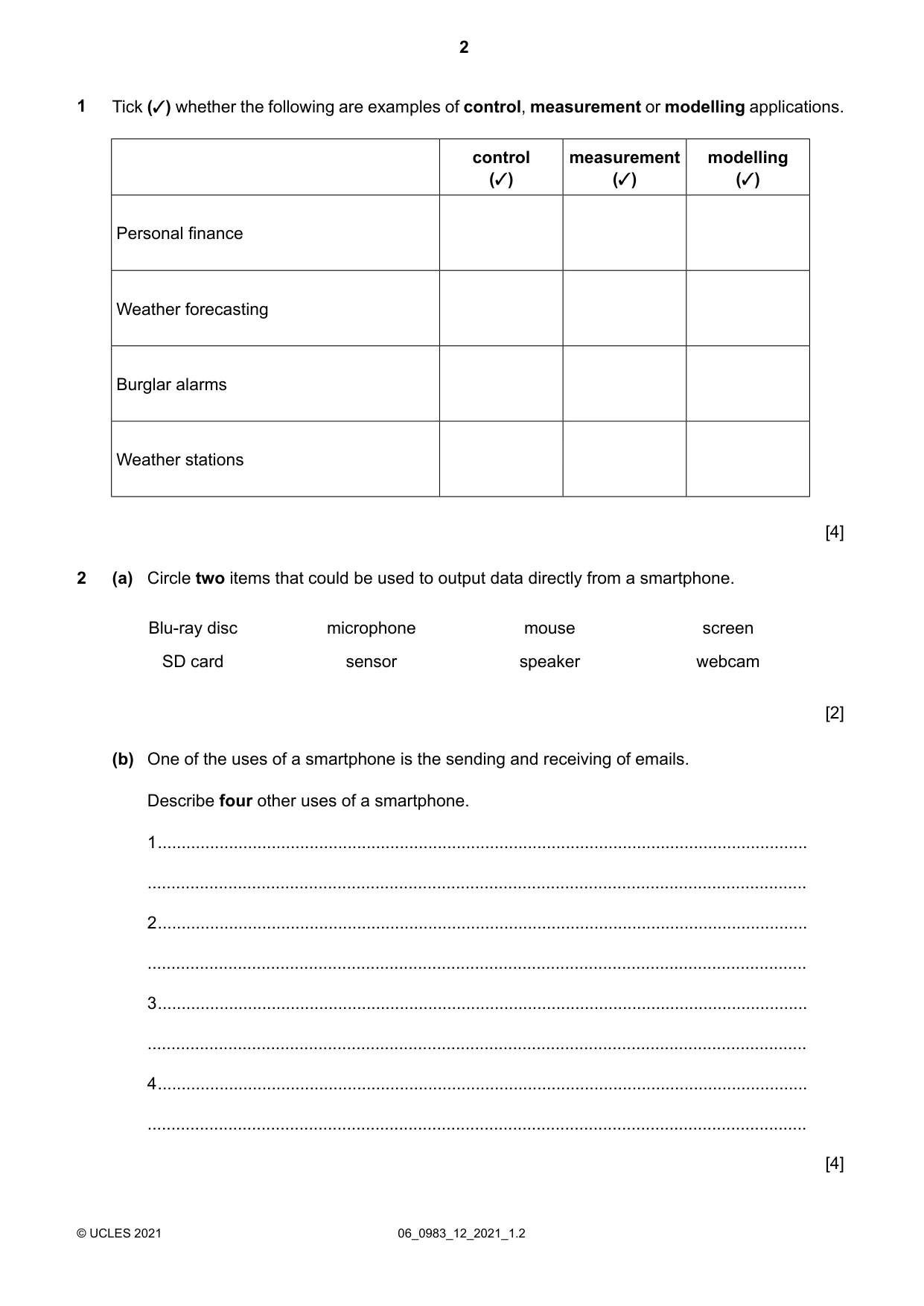

Tick (✓) whether the following are examples of control, measurement or modelling applications. 1 modelling (✓) measurement (✓) control (✓) Personal finance Weather forecasting Burglar alarms Weather stations [4] Circle two items that could be used to output data directly from a smartphone. (a) 2 screen mouse microphone Blu-ray disc webcam speaker sensor SD card [2] One of the uses of a smartphone is the sending and receiving of emails. (b) Describe four other uses of a smartphone. 1… … 2… … 3… … 4… … [4] 06_0983_12_2021_1.2 © UCLES 2021 2

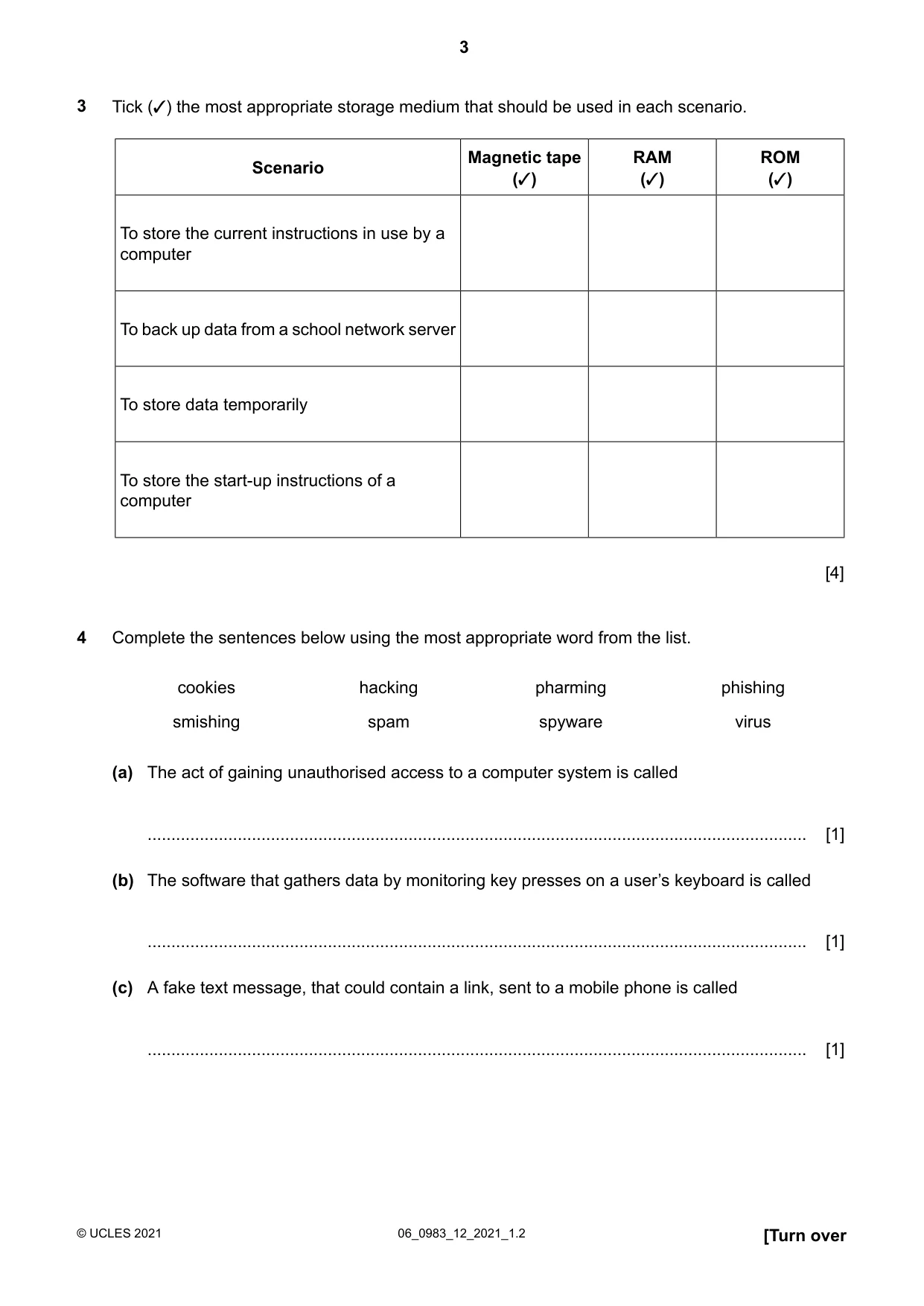

Tick (✓) the most appropriate storage medium that should be used in each scenario. 3 ROM (✓) RAM (✓) Magnetic tape (✓) Scenario To store the current instructions in use by a computer To back up data from a school network server To store data temporarily To store the start-up instructions of a computer [4] Complete the sentences below using the most appropriate word from the list. 4 phishing pharming hacking cookies virus spyware spam smishing The act of gaining unauthorised access to a computer system is called (a) … [1] The software that gathers data by monitoring key presses on a user’s keyboard is called (b) … [1] A fake text message, that could contain a link, sent to a mobile phone is called (c) … [1] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 3

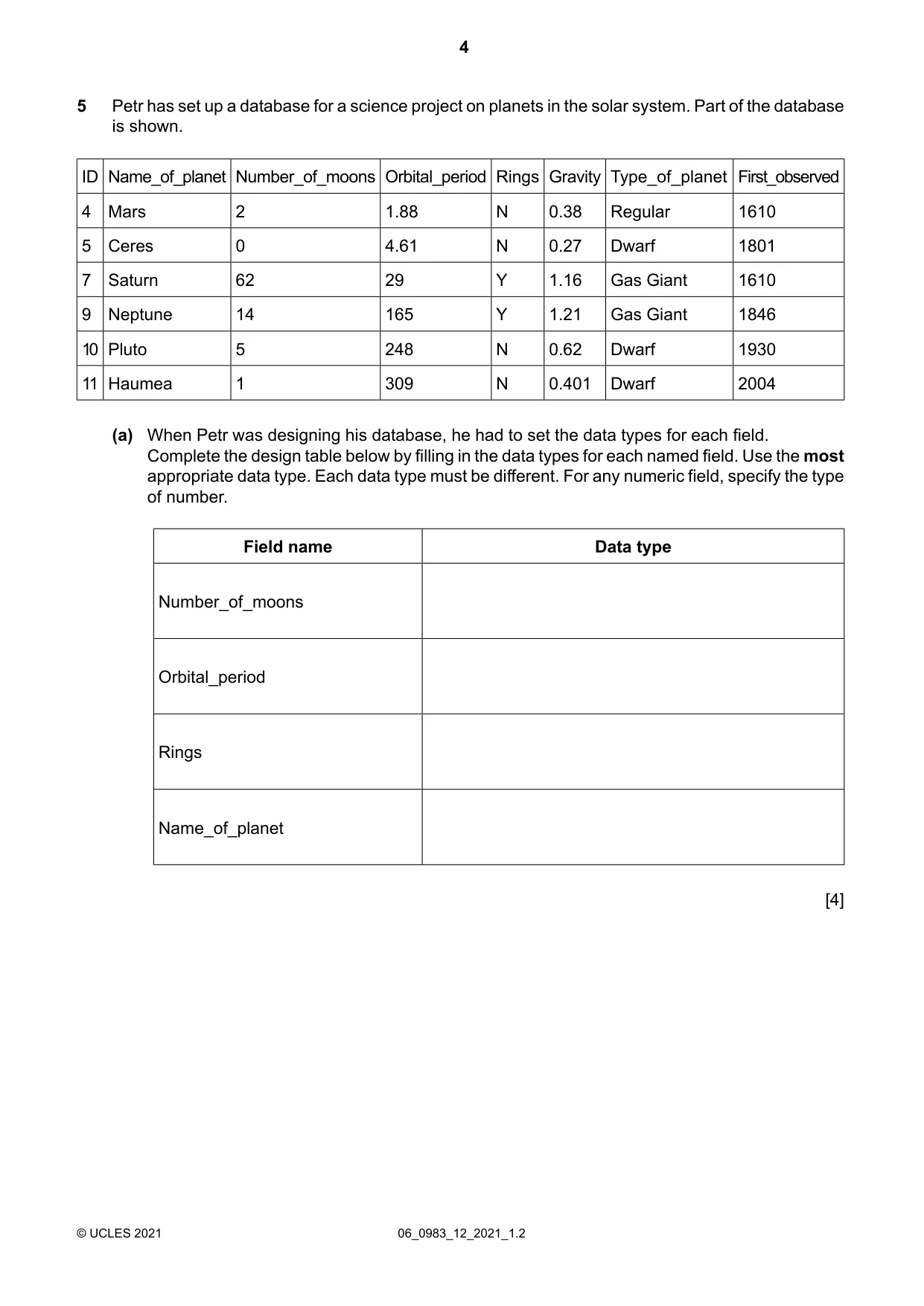

Petr has set up a database for a science project on planets in the solar system. Part of the database is shown. 5 First_observed Type_of_planet Gravity Rings Orbital_period Number_of_moons Name_of_planet ID 1610 Regular 0.38 N 1.88 2 Mars 4 1801 Dwarf 0.27 N 4.61 0 Ceres 5 1610 Gas Giant 1.16 Y 29 62 Saturn 7 1846 Gas Giant 1.21 Y 165 14 Neptune 9 1930 Dwarf 0.62 N 248 5 Pluto 10 2004 Dwarf 0.401 N 309 1 Haumea 11 When Petr was designing his database, he had to set the data types for each field. (a) Complete the design table below by filling in the data types for each named field. Use the most appropriate data type. Each data type must be different. For any numeric field, specify the type of number. Data type Field name Number_of_moons Orbital_period Rings Name_of_planet [4] 06_0983_12_2021_1.2 © UCLES 2021 4

Operators such as AND, OR, NOT, LIKE, >, >=, <, <=, =, <> can be used to search Petr’s planet database. The search criteria for all the gas giant planets with more than 20 moons would look like this: (b) Type_of_planet = ''Gas Giant'' AND Number_of_moons > 20 Write down the search criteria that will produce a list of planets that are not gas giants but have at least one moon and were first observed after 1800. … … … … [7] Write down the names of the planets that are not gas giants but have at least one moon and were first observed after 1800. (c) … … … … [2] Petr has copied the data from the Orbital_period field into a spreadsheet. The data for the orbital period for Mars, 1.88, is stored in cell A2. In cell B2 he has entered a function of: (d) ROUND(A2,0) Explain in detail the function used in cell B2. … … … … … … [2] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 5

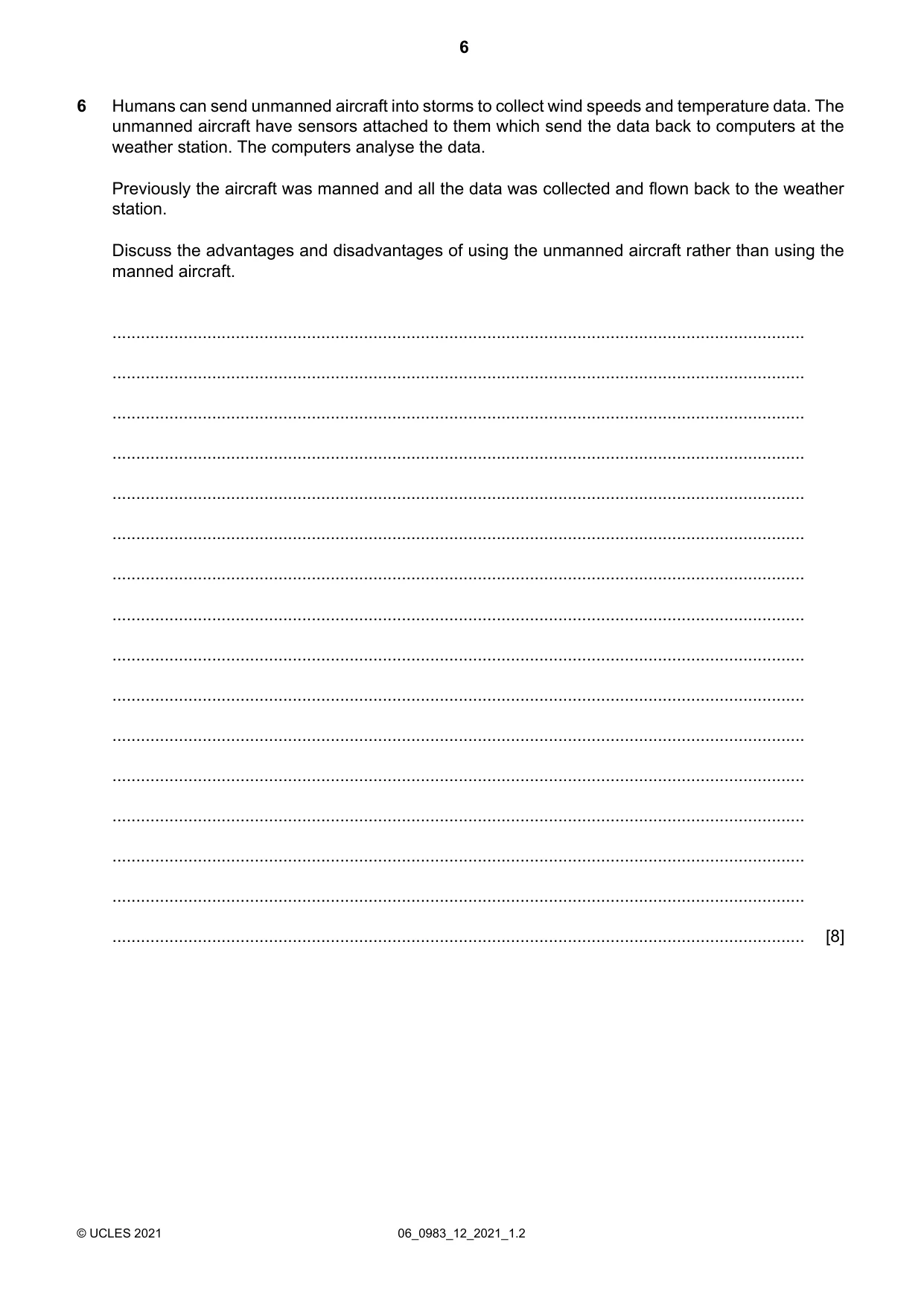

Humans can send unmanned aircraft into storms to collect wind speeds and temperature data. The unmanned aircraft have sensors attached to them which send the data back to computers at the weather station. The computers analyse the data. 6 Previously the aircraft was manned and all the data was collected and flown back to the weather station. Discuss the advantages and disadvantages of using the unmanned aircraft rather than using the manned aircraft. … … … … … … … … … … … … … … … … [8] 06_0983_12_2021_1.2 © UCLES 2021 6

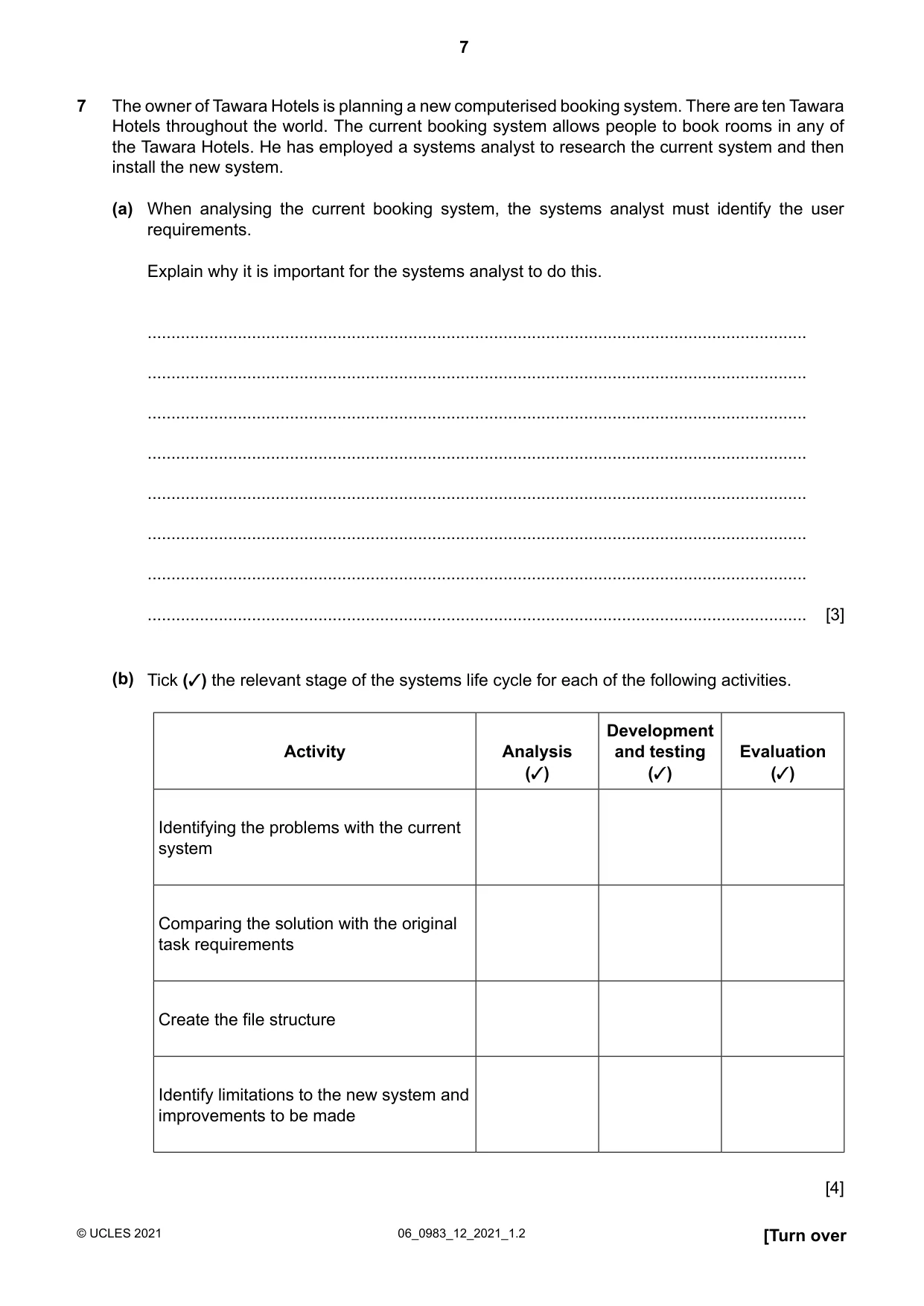

The owner of Tawara Hotels is planning a new computerised booking system. There are ten Tawara Hotels throughout the world. The current booking system allows people to book rooms in any of 7 the Tawara Hotels. He has employed a systems analyst to research the current system and then install the new system. When analysing the current booking system, the systems analyst must identify the user requirements. (a) Explain why it is important for the systems analyst to do this. … … … … … … … … [3] Tick (✓) the relevant stage of the systems life cycle for each of the following activities. (b) Evaluation (✓) Development and testing (✓) Analysis (✓) Activity Identifying the problems with the current system Comparing the solution with the original task requirements Create the file structure Identify limitations to the new system and improvements to be made [4] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 7

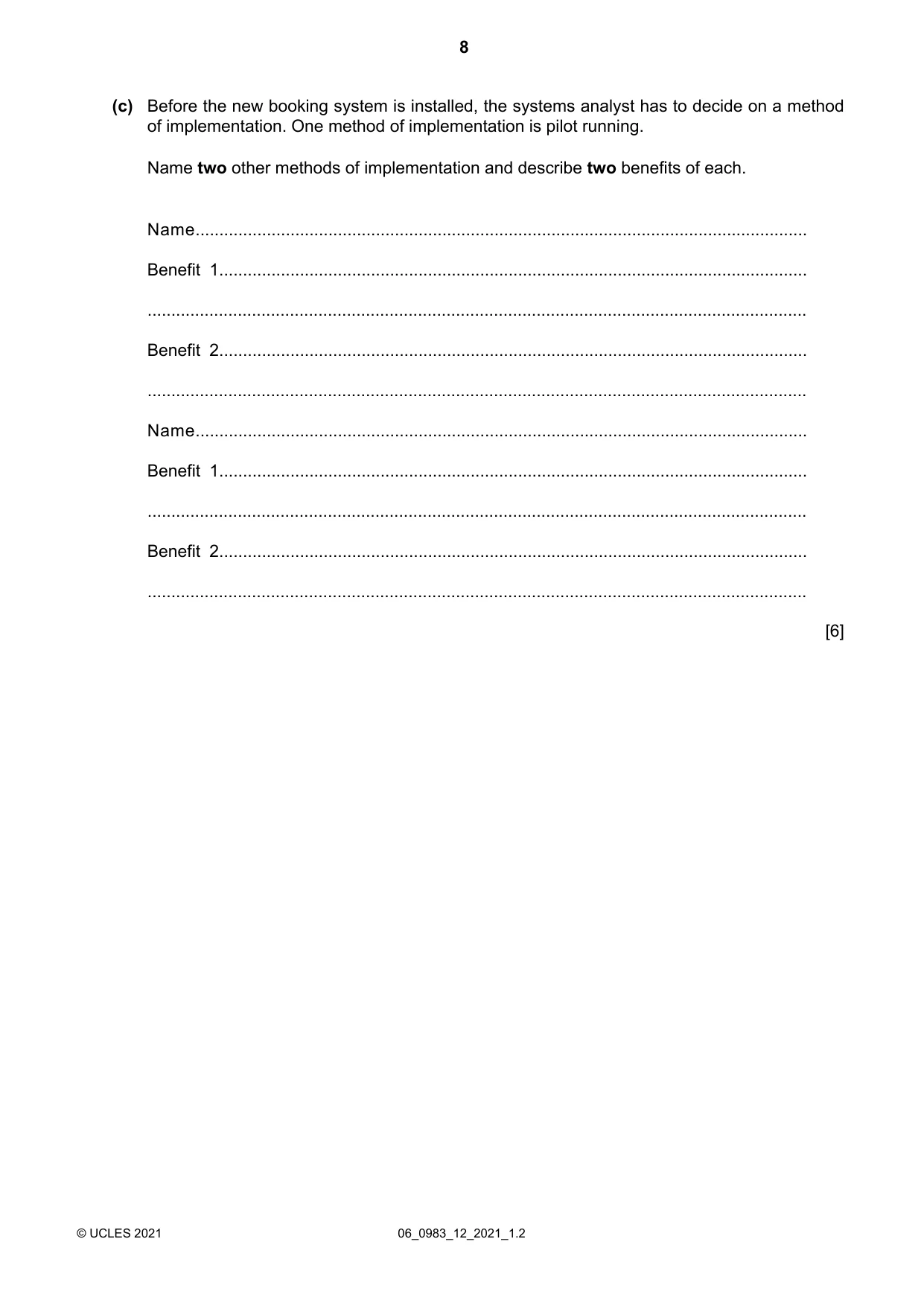

Before the new booking system is installed, the systems analyst has to decide on a method of implementation. One method of implementation is pilot running. (c) Name two other methods of implementation and describe two benefits of each. Name… Benefit 1… … Benefit 2… … Name… Benefit 1… … Benefit 2… … [6] 06_0983_12_2021_1.2 © UCLES 2021 8

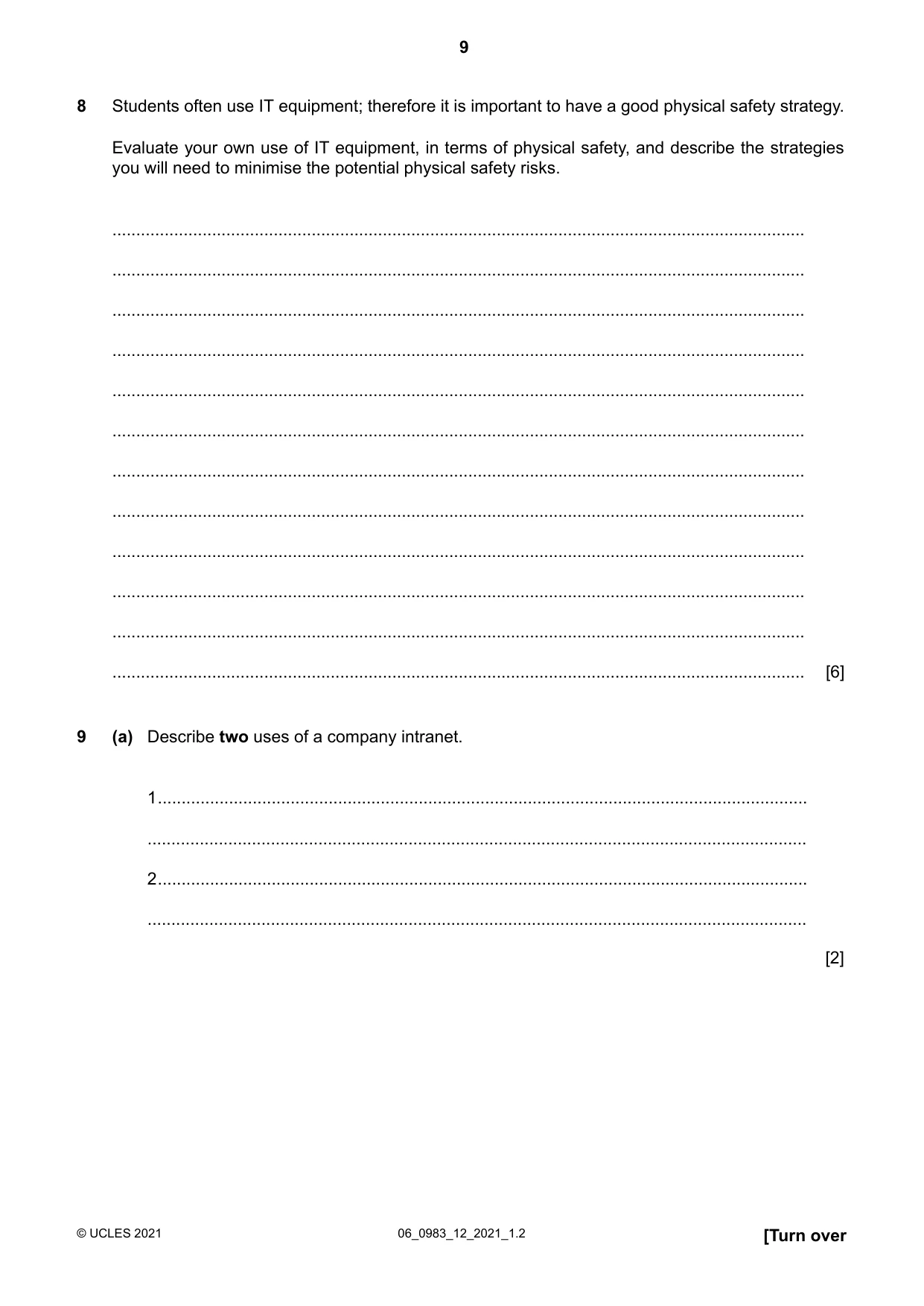

Students often use IT equipment; therefore it is important to have a good physical safety strategy. 8 Evaluate your own use of IT equipment, in terms of physical safety, and describe the strategies you will need to minimise the potential physical safety risks. … … … … … … … … … … … … [6] Describe two uses of a company intranet. (a) 9 1… … 2… … [2] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 9

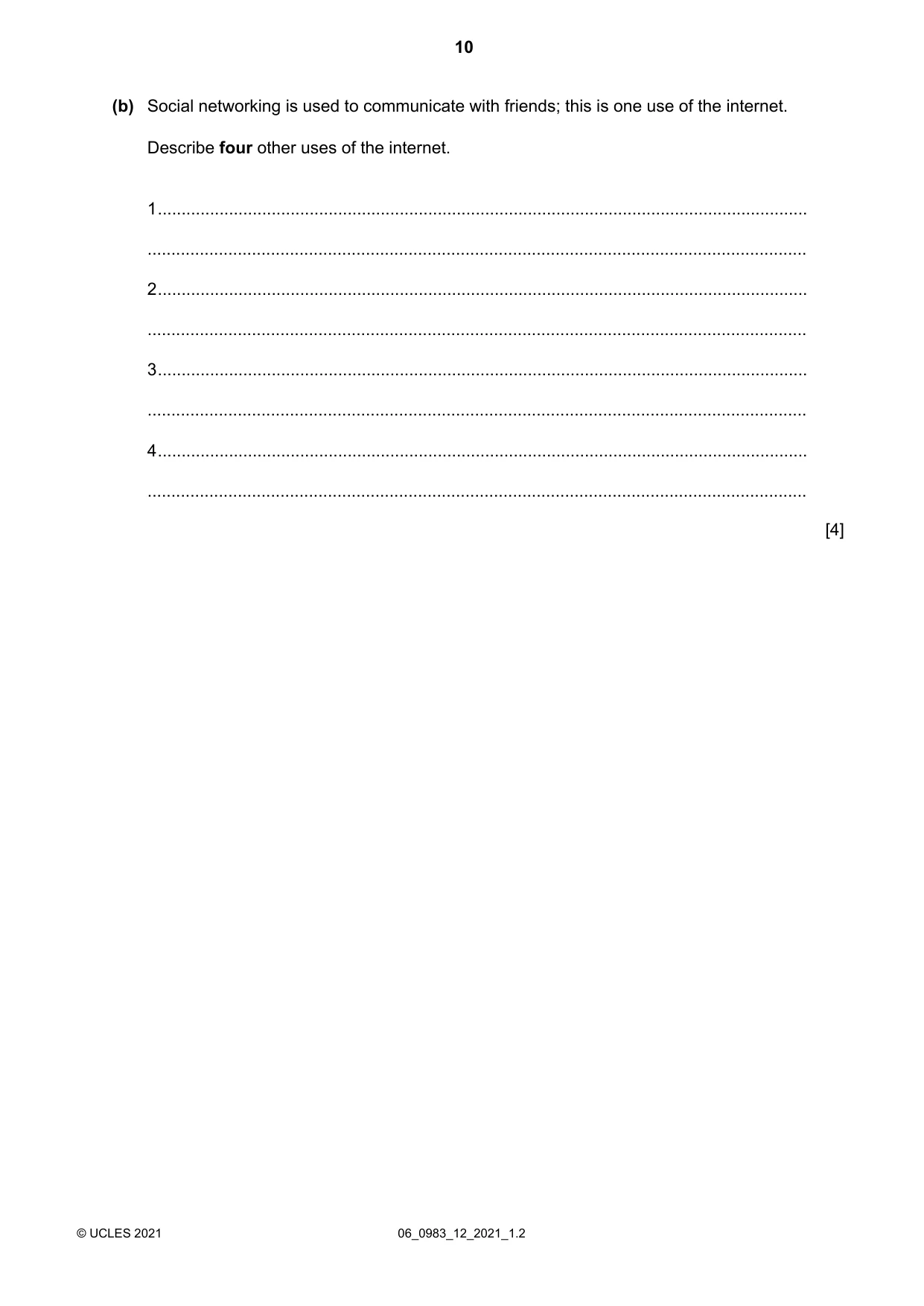

Social networking is used to communicate with friends; this is one use of the internet. (b) Describe four other uses of the internet. 1… … 2… … 3… … 4… … [4] 06_0983_12_2021_1.2 © UCLES 2021 10

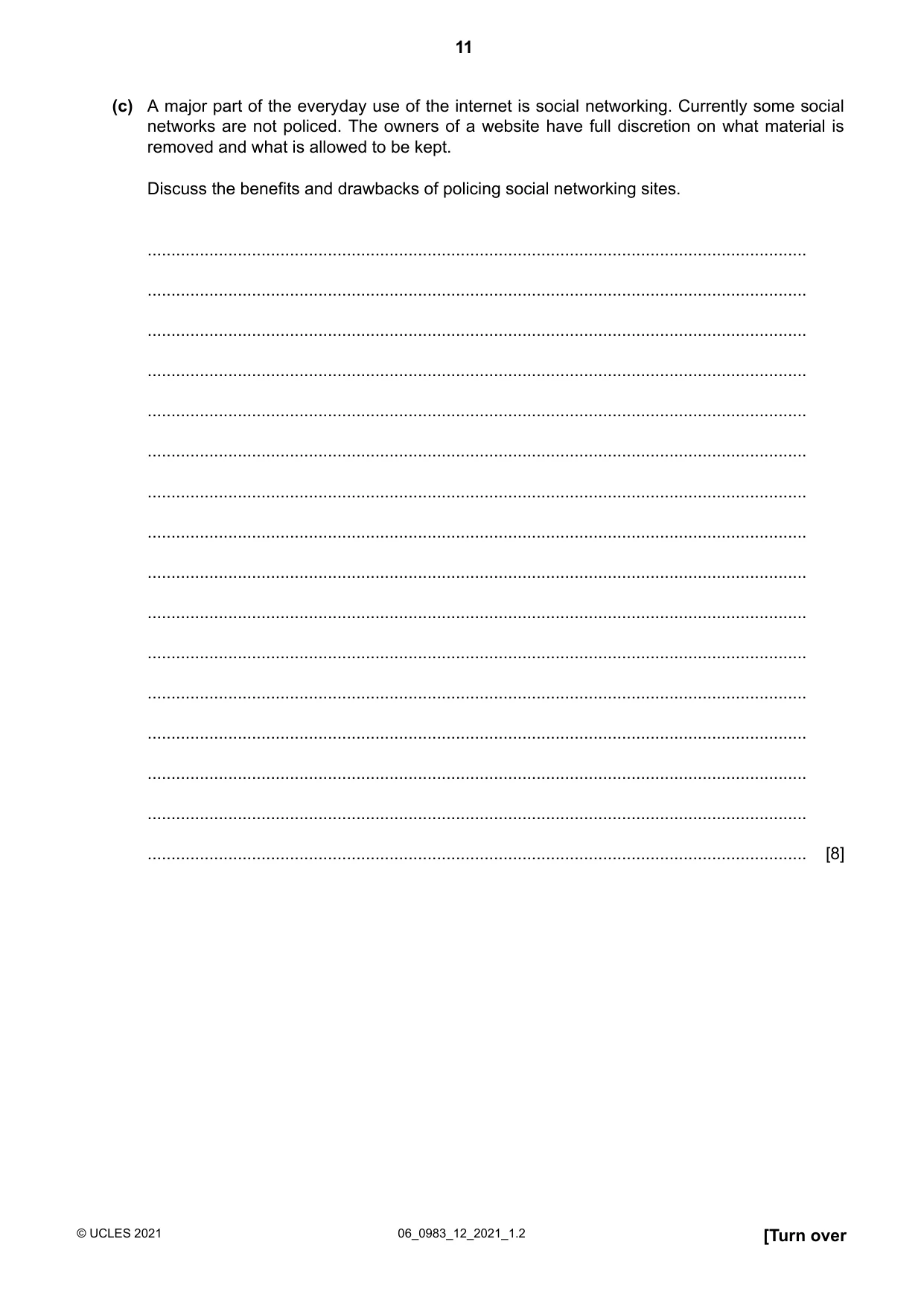

A major part of the everyday use of the internet is social networking. Currently some social networks are not policed. The owners of a website have full discretion on what material is removed and what is allowed to be kept. (c) Discuss the benefits and drawbacks of policing social networking sites. … … … … … … … … … … … … … … … … [8] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 11

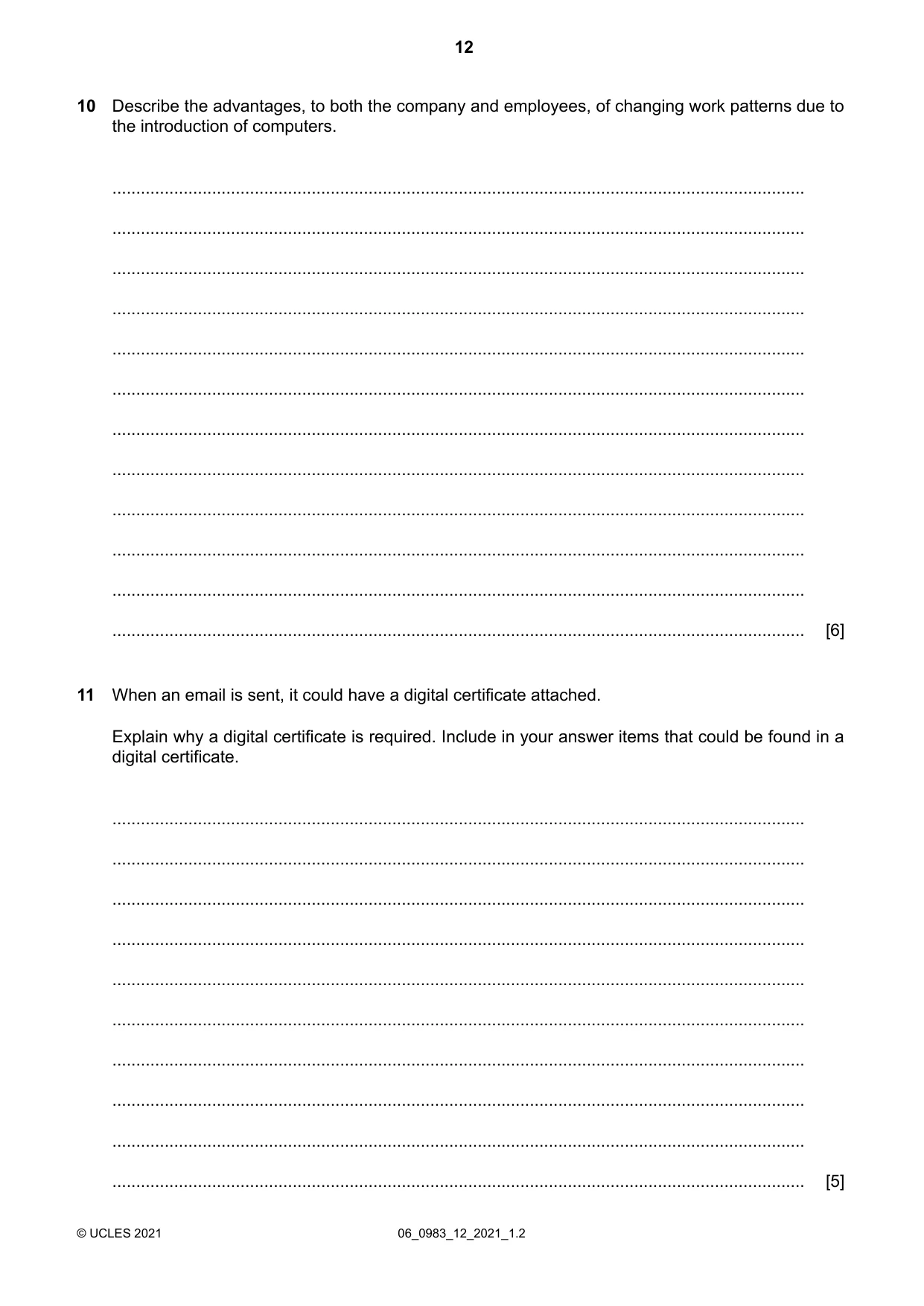

Describe the advantages, to both the company and employees, of changing work patterns due to the introduction of computers. 10 … … … … … … … … … … … … [6] When an email is sent, it could have a digital certificate attached. 11 Explain why a digital certificate is required. Include in your answer items that could be found in a digital certificate. … … … … … … … … … … [5] 06_0983_12_2021_1.2 © UCLES 2021 12

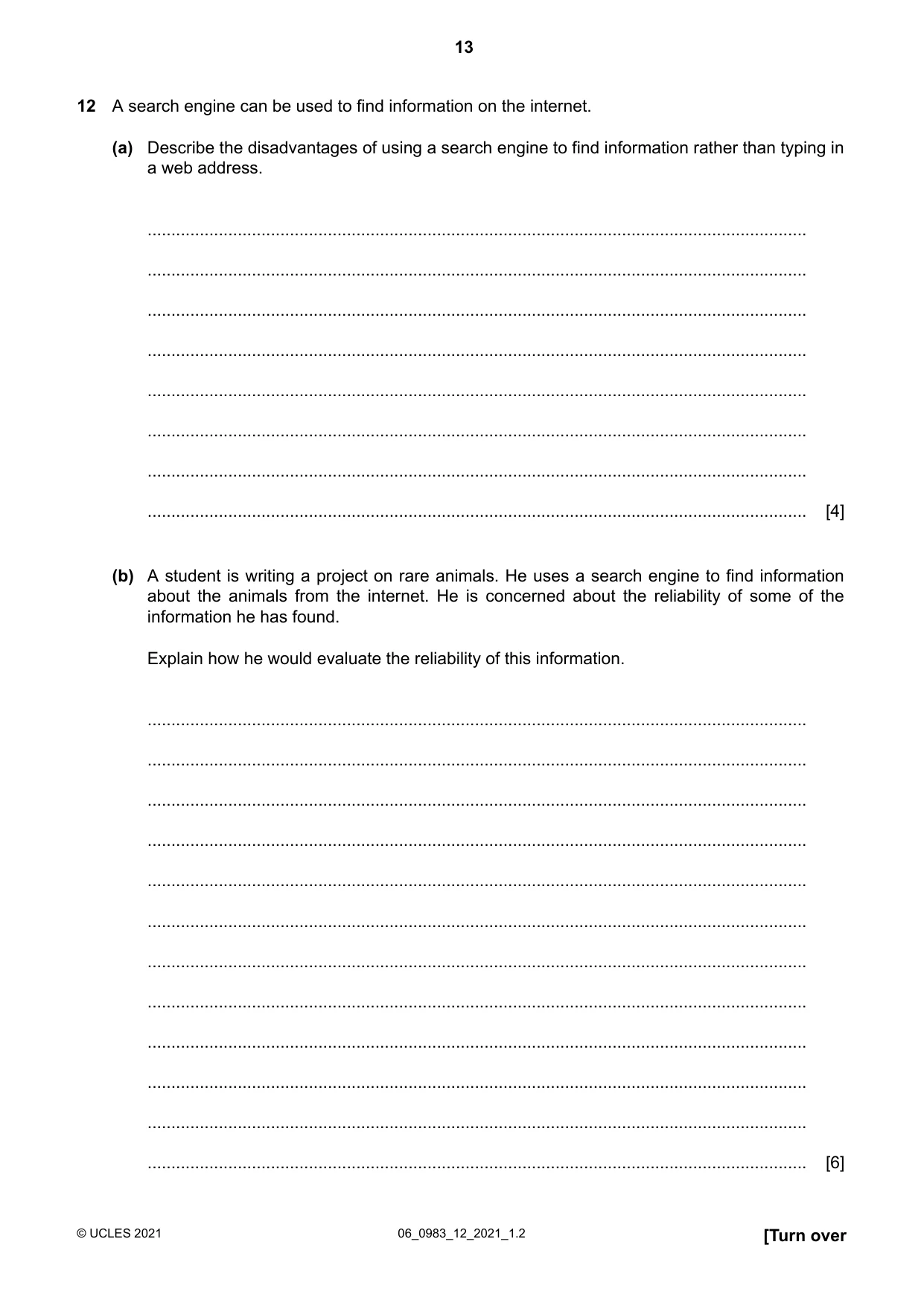

A search engine can be used to find information on the internet. 12 Describe the disadvantages of using a search engine to find information rather than typing in a web address. (a) … … … … … … … … [4] A student is writing a project on rare animals. He uses a search engine to find information about the animals from the internet. He is concerned about the reliability of some of the information he has found. (b) Explain how he would evaluate the reliability of this information. … … … … … … … … … … … … [6] [Turn over 06_0983_12_2021_1.2 © UCLES 2021 13

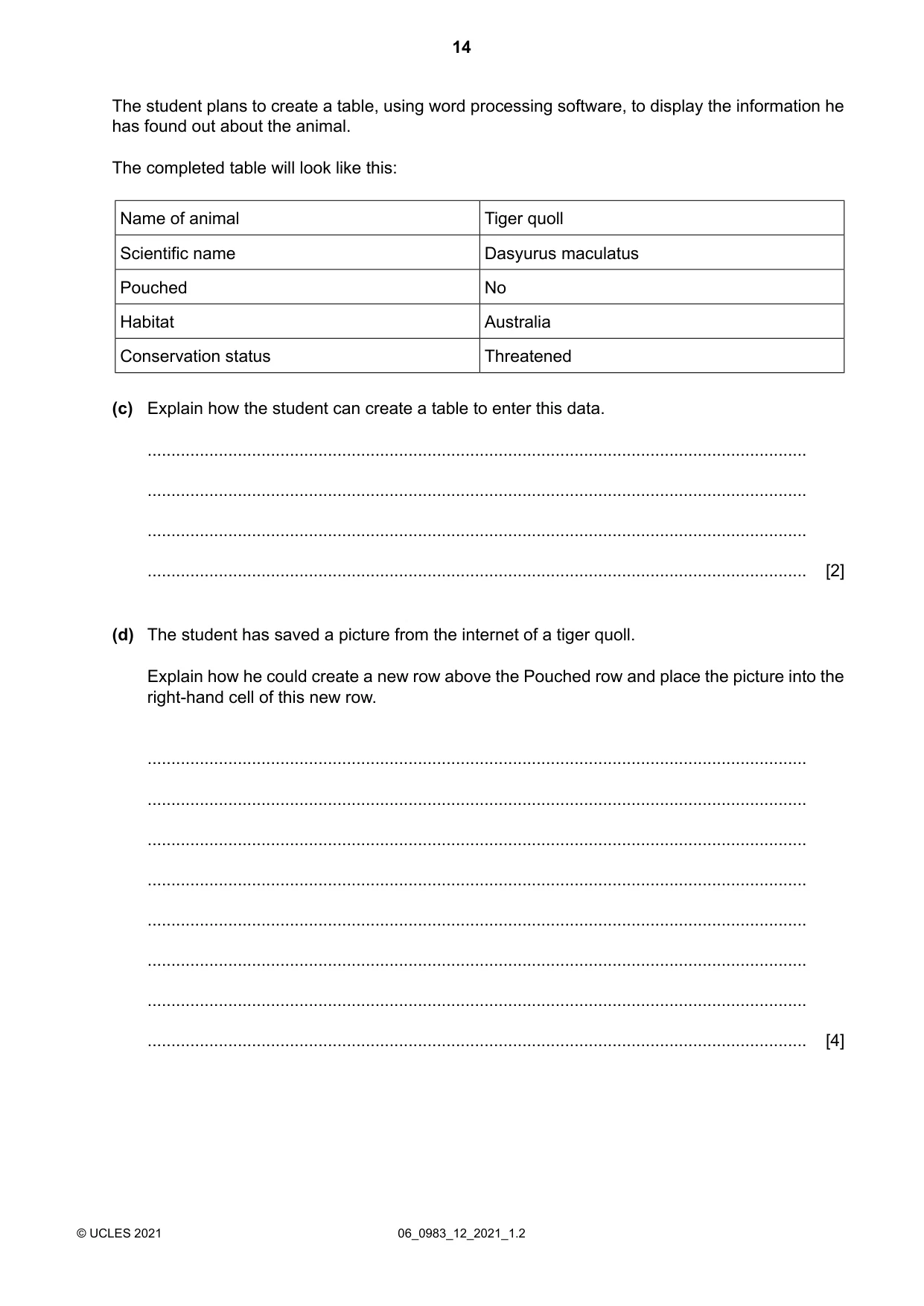

The student plans to create a table, using word processing software, to display the information he has found out about the animal. The completed table will look like this: Tiger quoll Name of animal Dasyurus maculatus Scientific name No Pouched Australia Habitat Threatened Conservation status Explain how the student can create a table to enter this data. (c) … … … … [2] The student has saved a picture from the internet of a tiger quoll. (d) Explain how he could create a new row above the Pouched row and place the picture into the right-hand cell of this new row. … … … … … … … … [4] 06_0983_12_2021_1.2 © UCLES 2021 14

BLANK PAGE 06_0983_12_2021_1.2 © UCLES 2021 15

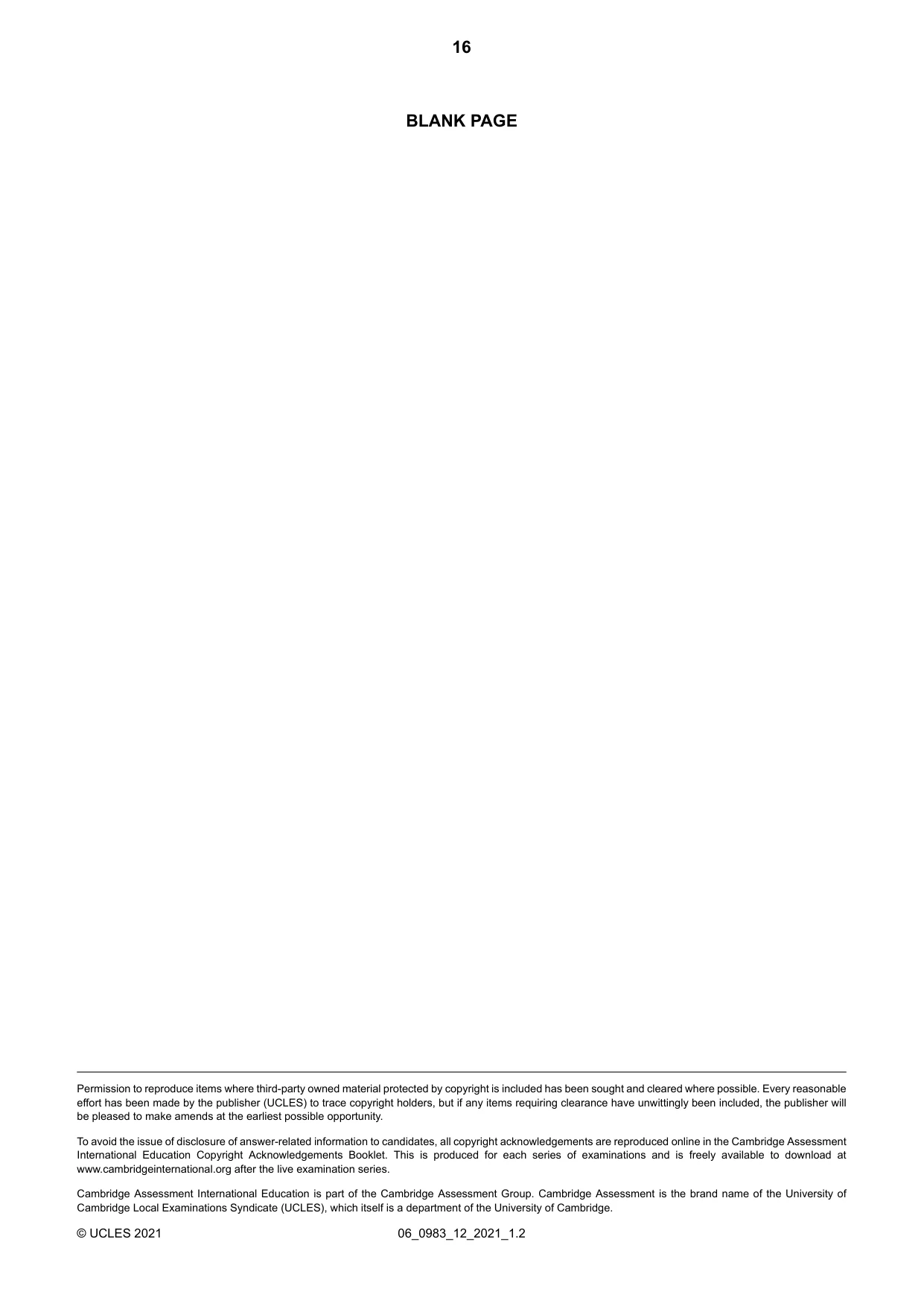

BLANK PAGE Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. 06_0983_12_2021_1.2 © UCLES 2021 16

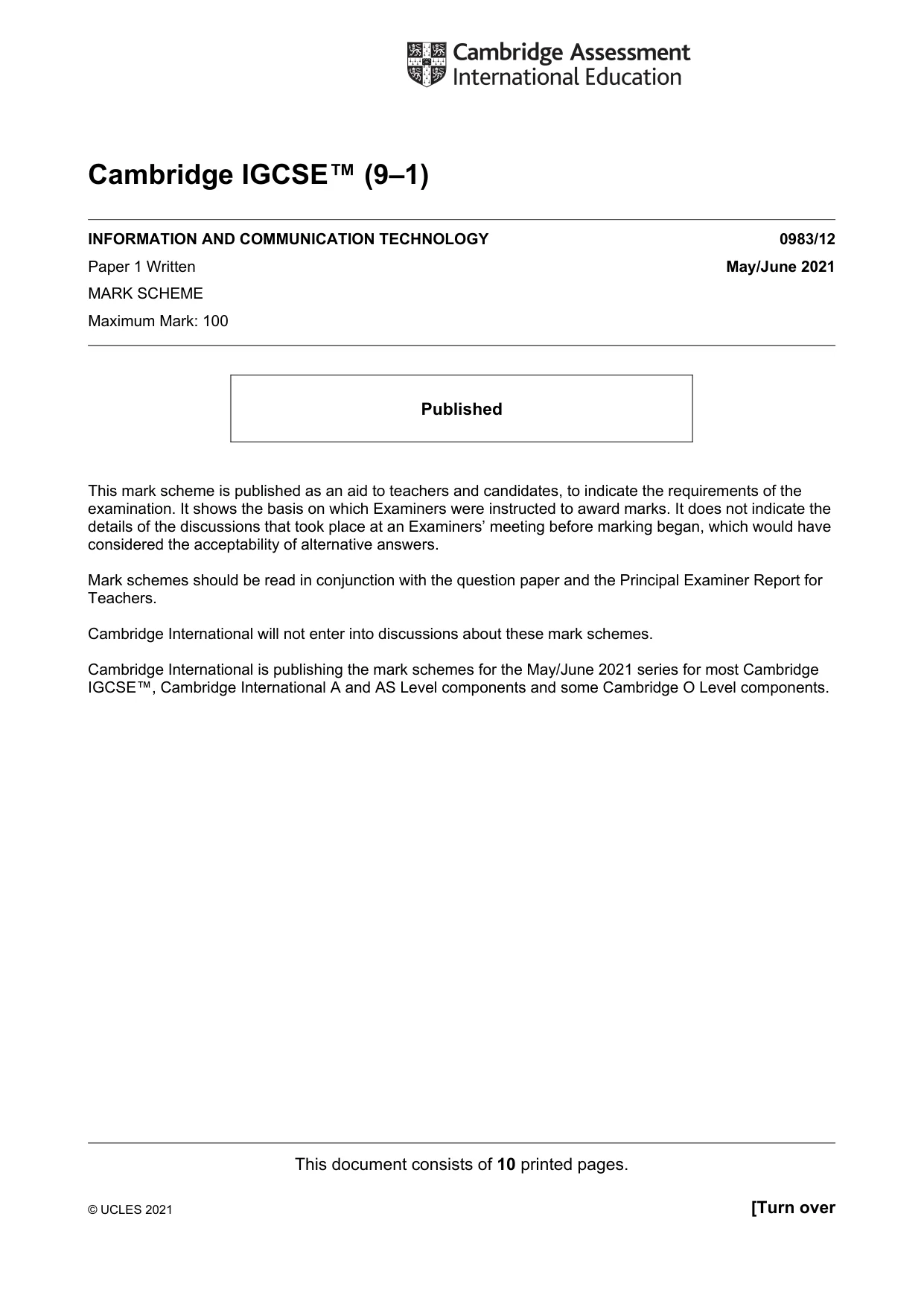

This document consists of 10 printed pages. © UCLES 2021 [Turn over Cambridge IGCSE™ (9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/12 Paper 1 Written May/June 2021 MARK SCHEME Maximum Mark: 100 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2021 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

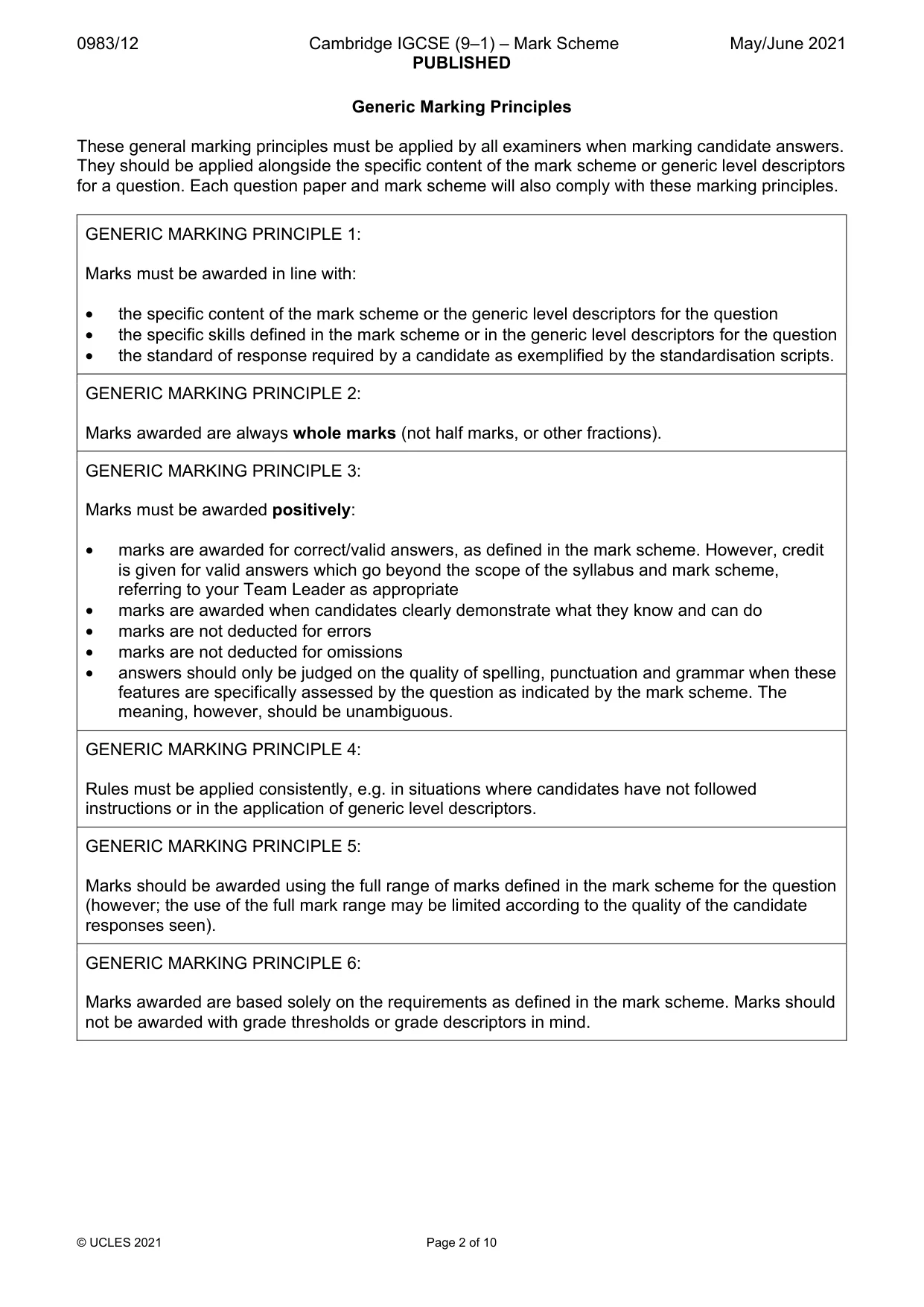

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 2 of 10 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

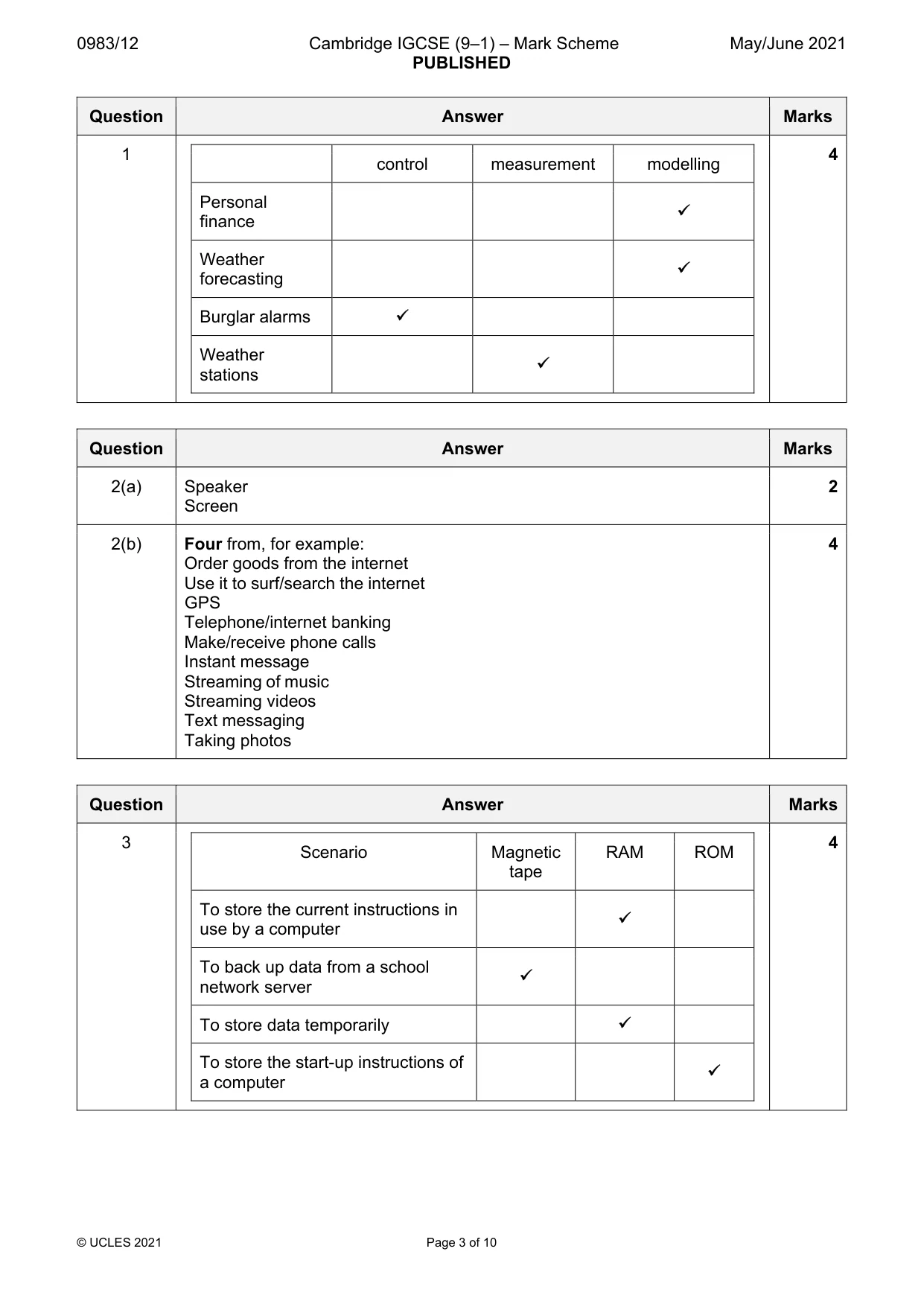

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 3 of 10 Question Answer Marks 1 control measurement modelling Personal finance  Weather forecasting  Burglar alarms  Weather stations  4 Question Answer Marks 2(a) Speaker Screen 2 2(b) Four from, for example: Order goods from the internet Use it to surf/search the internet GPS Telephone/internet banking Make/receive phone calls Instant message Streaming of music Streaming videos Text messaging Taking photos 4 Question Answer Marks 3 Scenario Magnetic tape RAM ROM To store the current instructions in use by a computer  To back up data from a school network server  To store data temporarily  To store the start-up instructions of a computer  4

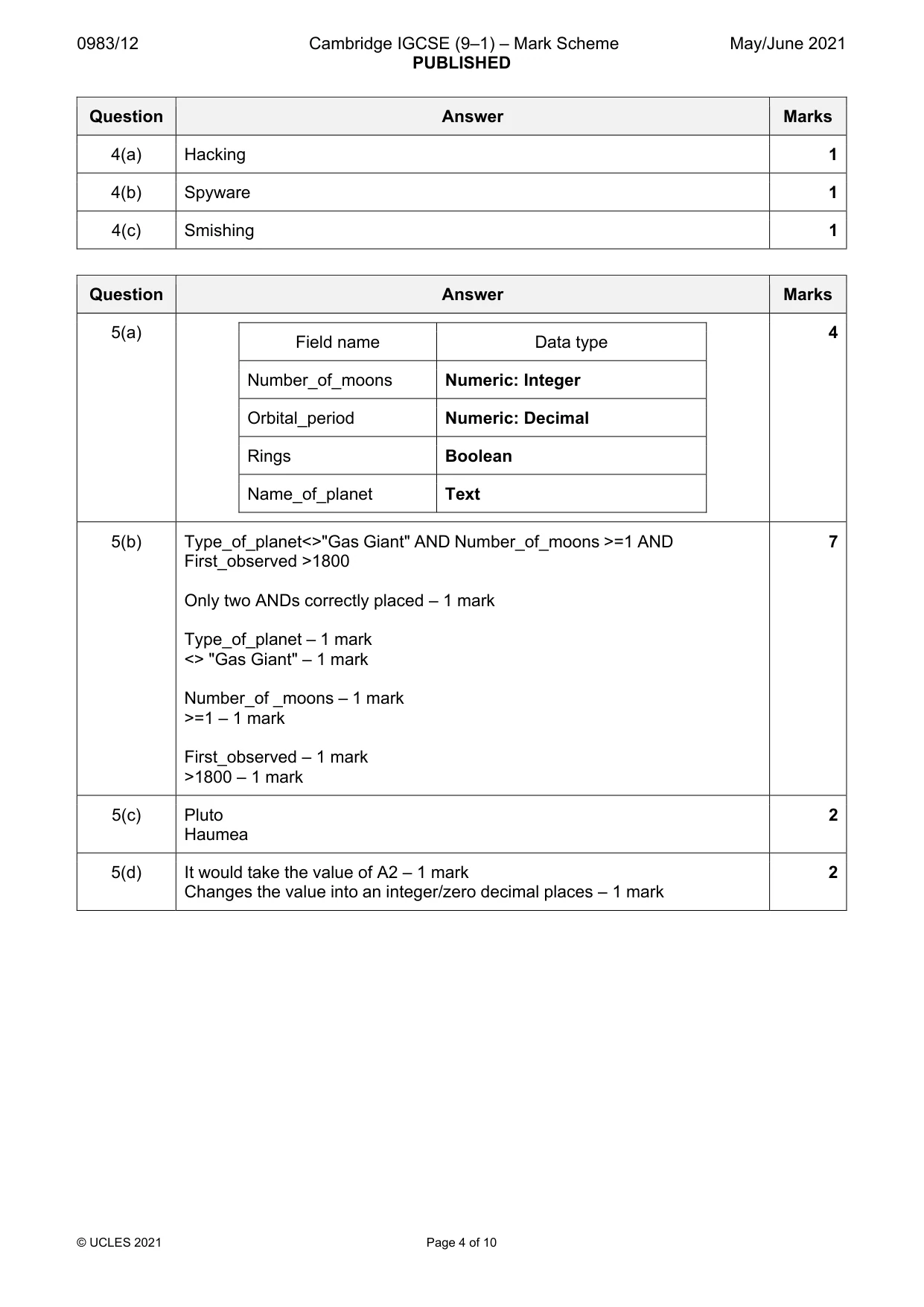

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 4 of 10 Question Answer Marks 4(a) Hacking 1 4(b) Spyware 1 4(c) Smishing 1 Question Answer Marks 5(a) Field name Data type Number_of_moons Numeric: Integer Orbital_period Numeric: Decimal Rings Boolean Name_of_planet Text 4 5(b) Type_of_planet<>"Gas Giant" AND Number_of_moons >=1 AND First_observed >1800 Only two ANDs correctly placed – 1 mark Type_of_planet – 1 mark <> "Gas Giant" – 1 mark Number_of _moons – 1 mark >=1 – 1 mark First_observed – 1 mark >1800 – 1 mark 7 5(c) Pluto Haumea 2 5(d) It would take the value of A2 – 1 mark Changes the value into an integer/zero decimal places – 1 mark 2

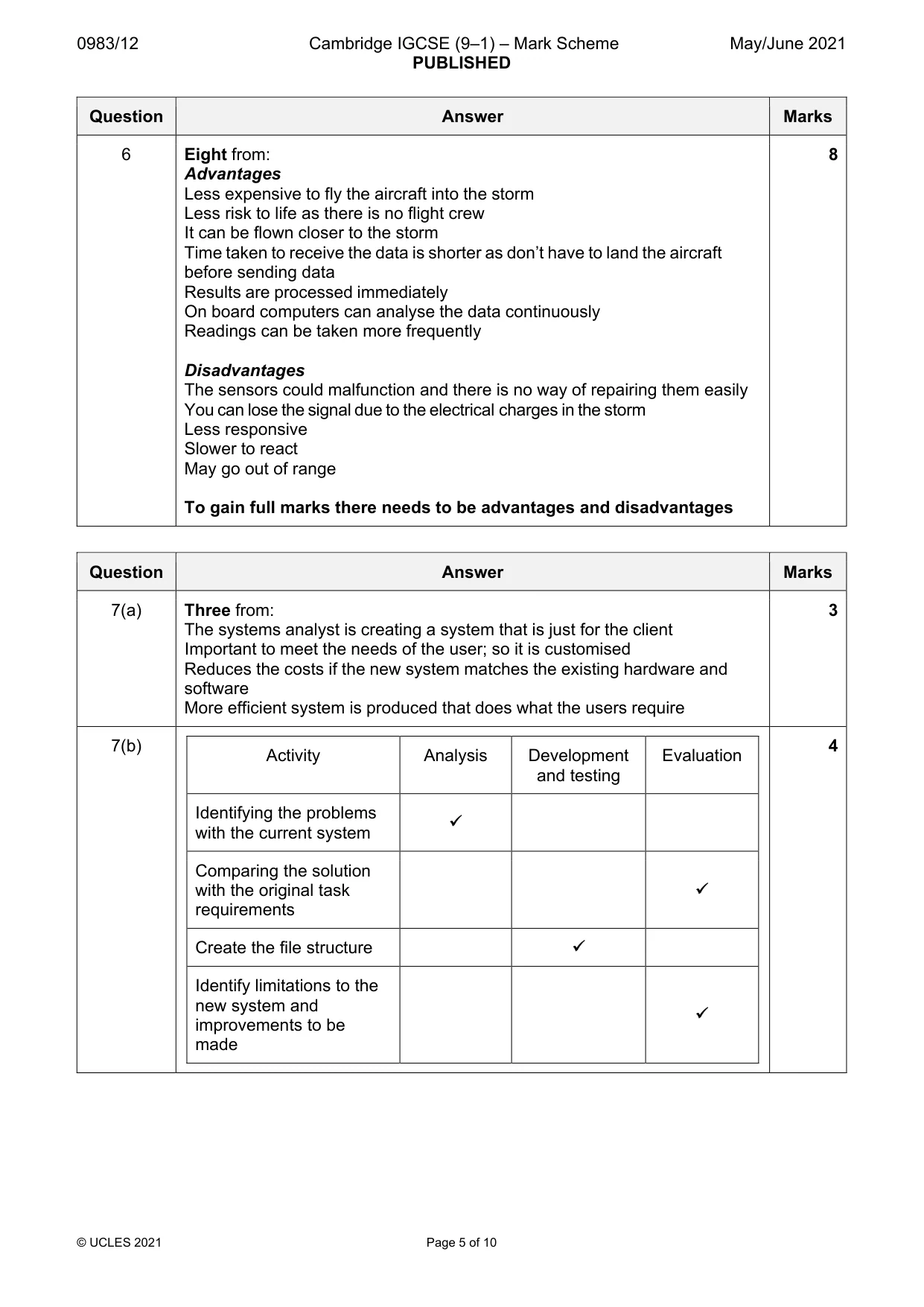

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 5 of 10 Question Answer Marks 6 Eight from: Advantages Less expensive to fly the aircraft into the storm Less risk to life as there is no flight crew It can be flown closer to the storm Time taken to receive the data is shorter as don’t have to land the aircraft before sending data Results are processed immediately On board computers can analyse the data continuously Readings can be taken more frequently Disadvantages The sensors could malfunction and there is no way of repairing them easily You can lose the signal due to the electrical charges in the storm Less responsive Slower to react May go out of range To gain full marks there needs to be advantages and disadvantages 8 Question Answer Marks 7(a) Three from: The systems analyst is creating a system that is just for the client Important to meet the needs of the user; so it is customised Reduces the costs if the new system matches the existing hardware and software More efficient system is produced that does what the users require 3 7(b) Activity Analysis Development and testing Evaluation Identifying the problems with the current system  Comparing the solution with the original task requirements  Create the file structure  Identify limitations to the new system and improvements to be made  4

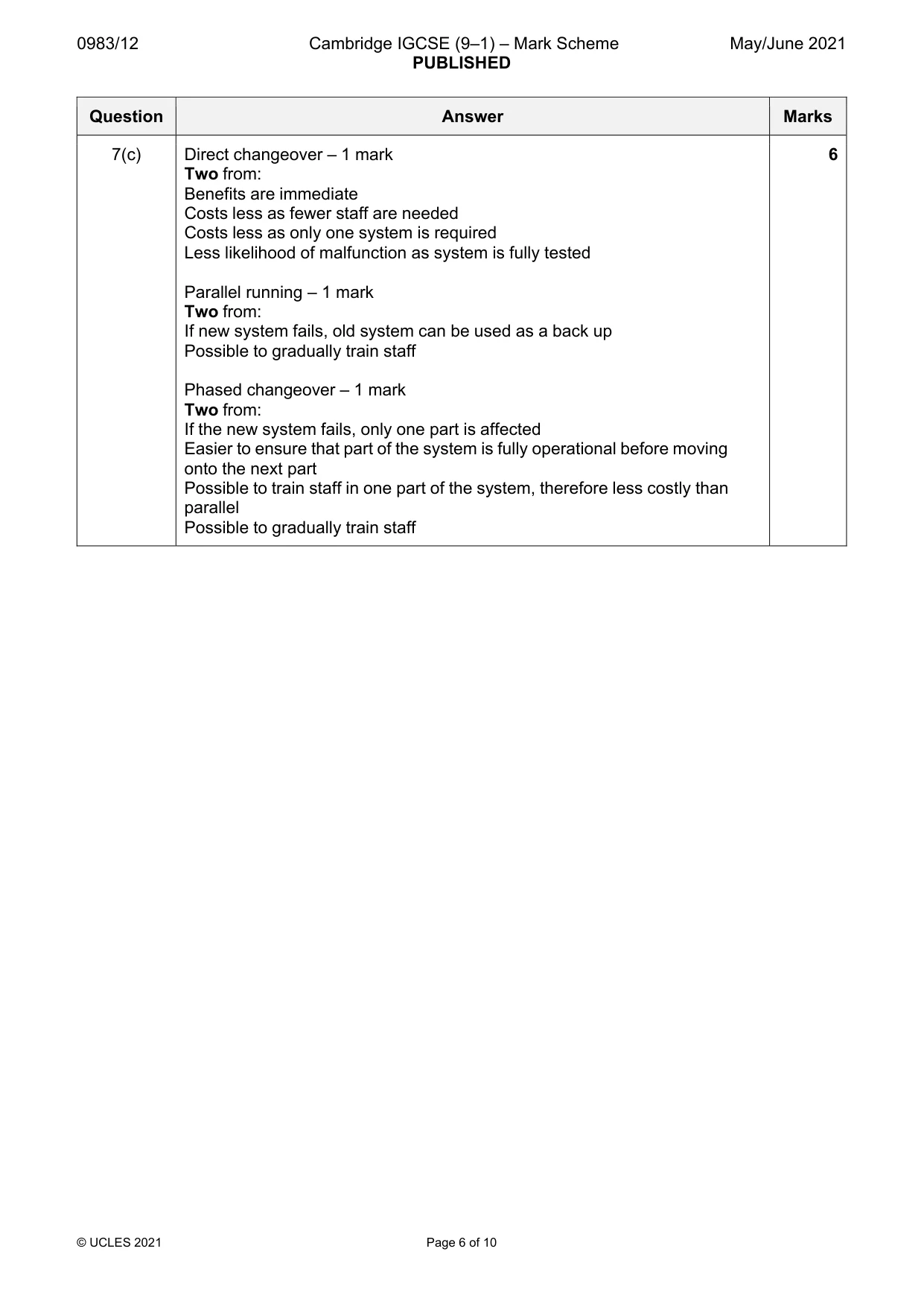

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 6 of 10 Question Answer Marks 7(c) Direct changeover – 1 mark Two from: Benefits are immediate Costs less as fewer staff are needed Costs less as only one system is required Less likelihood of malfunction as system is fully tested Parallel running – 1 mark Two from: If new system fails, old system can be used as a back up Possible to gradually train staff Phased changeover – 1 mark Two from: If the new system fails, only one part is affected Easier to ensure that part of the system is fully operational before moving onto the next part Possible to train staff in one part of the system, therefore less costly than parallel Possible to gradually train staff 6

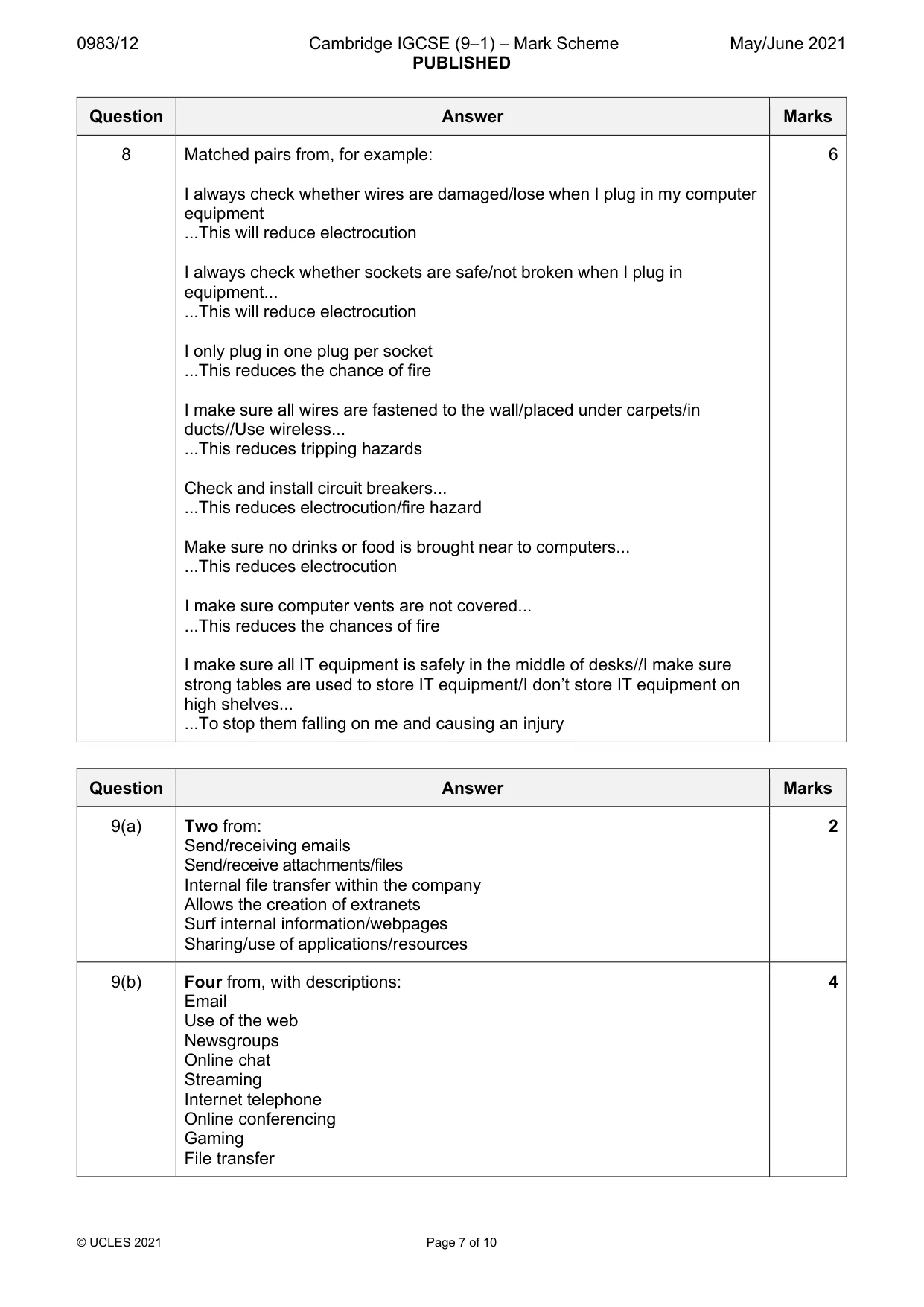

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 7 of 10 Question Answer Marks 8 Matched pairs from, for example: I always check whether wires are damaged/lose when I plug in my computer equipment ...This will reduce electrocution I always check whether sockets are safe/not broken when I plug in equipment... ...This will reduce electrocution I only plug in one plug per socket ...This reduces the chance of fire I make sure all wires are fastened to the wall/placed under carpets/in ducts//Use wireless... ...This reduces tripping hazards Check and install circuit breakers... ...This reduces electrocution/fire hazard Make sure no drinks or food is brought near to computers... ...This reduces electrocution I make sure computer vents are not covered... ...This reduces the chances of fire I make sure all IT equipment is safely in the middle of desks//I make sure strong tables are used to store IT equipment/I don’t store IT equipment on high shelves... ...To stop them falling on me and causing an injury 6 Question Answer Marks 9(a) Two from: Send/receiving emails Send/receive attachments/files Internal file transfer within the company Allows the creation of extranets Surf internal information/webpages Sharing/use of applications/resources 2 9(b) Four from, with descriptions: Email Use of the web Newsgroups Online chat Streaming Internet telephone Online conferencing Gaming File transfer 4

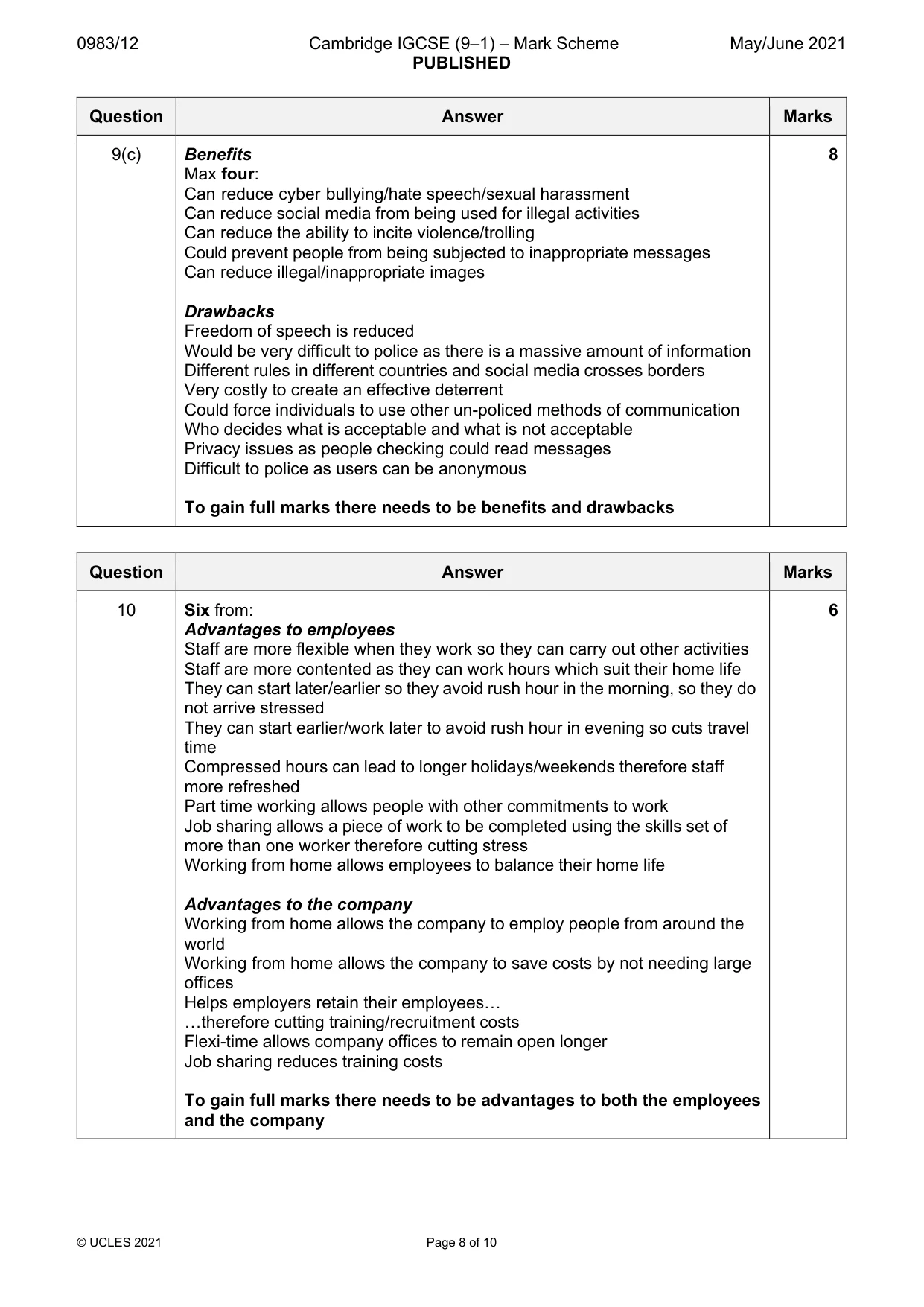

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 8 of 10 Question Answer Marks 9(c) Benefits Max four: Can reduce cyber bullying/hate speech/sexual harassment Can reduce social media from being used for illegal activities Can reduce the ability to incite violence/trolling Could prevent people from being subjected to inappropriate messages Can reduce illegal/inappropriate images Drawbacks Freedom of speech is reduced Would be very difficult to police as there is a massive amount of information Different rules in different countries and social media crosses borders Very costly to create an effective deterrent Could force individuals to use other un-policed methods of communication Who decides what is acceptable and what is not acceptable Privacy issues as people checking could read messages Difficult to police as users can be anonymous To gain full marks there needs to be benefits and drawbacks 8 Question Answer Marks 10 Six from: Advantages to employees Staff are more flexible when they work so they can carry out other activities Staff are more contented as they can work hours which suit their home life They can start later/earlier so they avoid rush hour in the morning, so they do not arrive stressed They can start earlier/work later to avoid rush hour in evening so cuts travel time Compressed hours can lead to longer holidays/weekends therefore staff more refreshed Part time working allows people with other commitments to work Job sharing allows a piece of work to be completed using the skills set of more than one worker therefore cutting stress Working from home allows employees to balance their home life Advantages to the company Working from home allows the company to employ people from around the world Working from home allows the company to save costs by not needing large offices Helps employers retain their employees… …therefore cutting training/recruitment costs Flexi-time allows company offices to remain open longer Job sharing reduces training costs To gain full marks there needs to be advantages to both the employees and the company 6

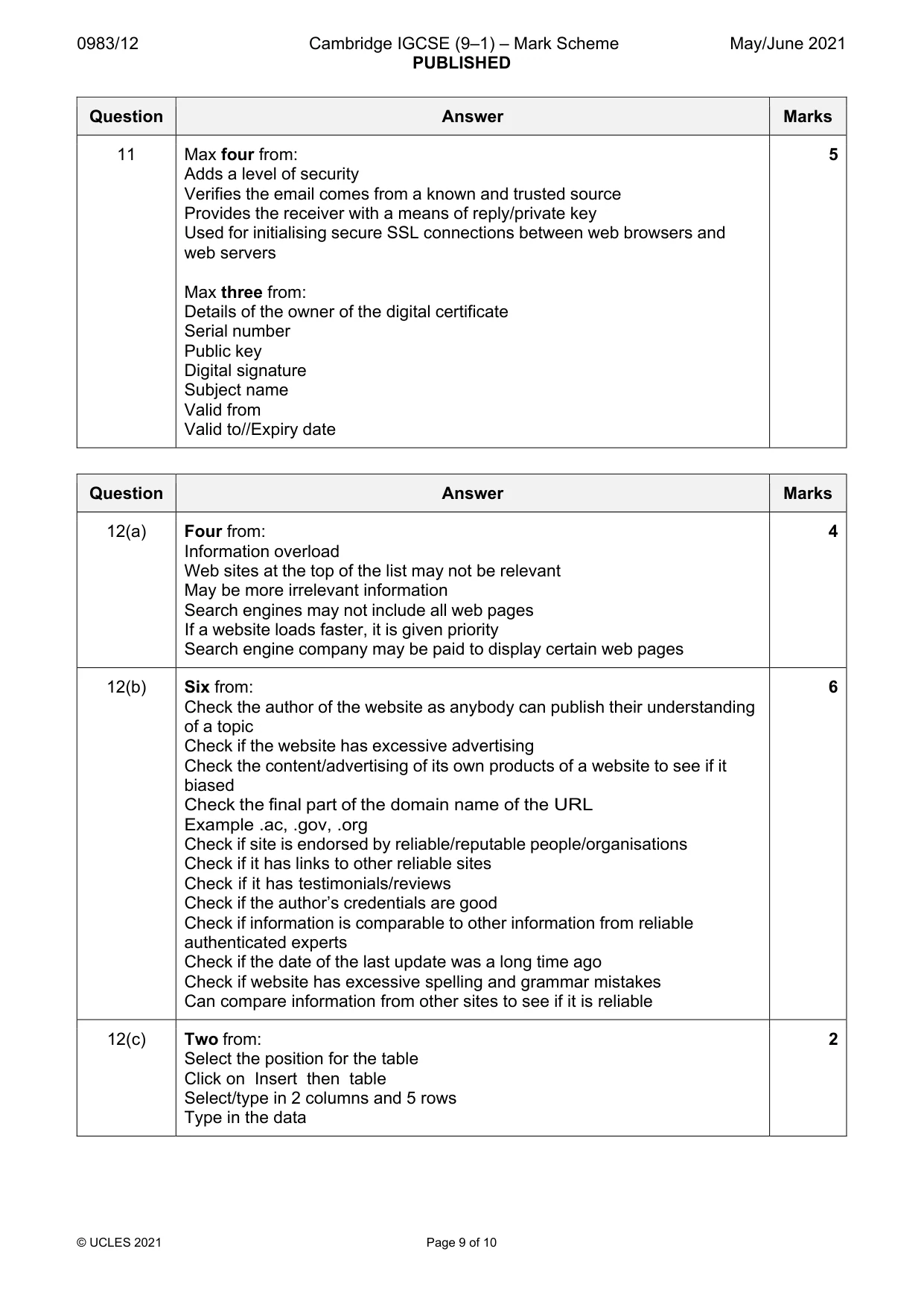

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 9 of 10 Question Answer Marks 11 Max four from: Adds a level of security Verifies the email comes from a known and trusted source Provides the receiver with a means of reply/private key Used for initialising secure SSL connections between web browsers and web servers Max three from: Details of the owner of the digital certificate Serial number Public key Digital signature Subject name Valid from Valid to//Expiry date 5 Question Answer Marks 12(a) Four from: Information overload Web sites at the top of the list may not be relevant May be more irrelevant information Search engines may not include all web pages If a website loads faster, it is given priority Search engine company may be paid to display certain web pages 4 12(b) Six from: Check the author of the website as anybody can publish their understanding of a topic Check if the website has excessive advertising Check the content/advertising of its own products of a website to see if it biased Check the final part of the domain name of the URL Example .ac, .gov, .org Check if site is endorsed by reliable/reputable people/organisations Check if it has links to other reliable sites Check if it has testimonials/reviews Check if the author’s credentials are good Check if information is comparable to other information from reliable authenticated experts Check if the date of the last update was a long time ago Check if website has excessive spelling and grammar mistakes Can compare information from other sites to see if it is reliable 6 12(c) Two from: Select the position for the table Click on Insert then table Select/type in 2 columns and 5 rows Type in the data 2

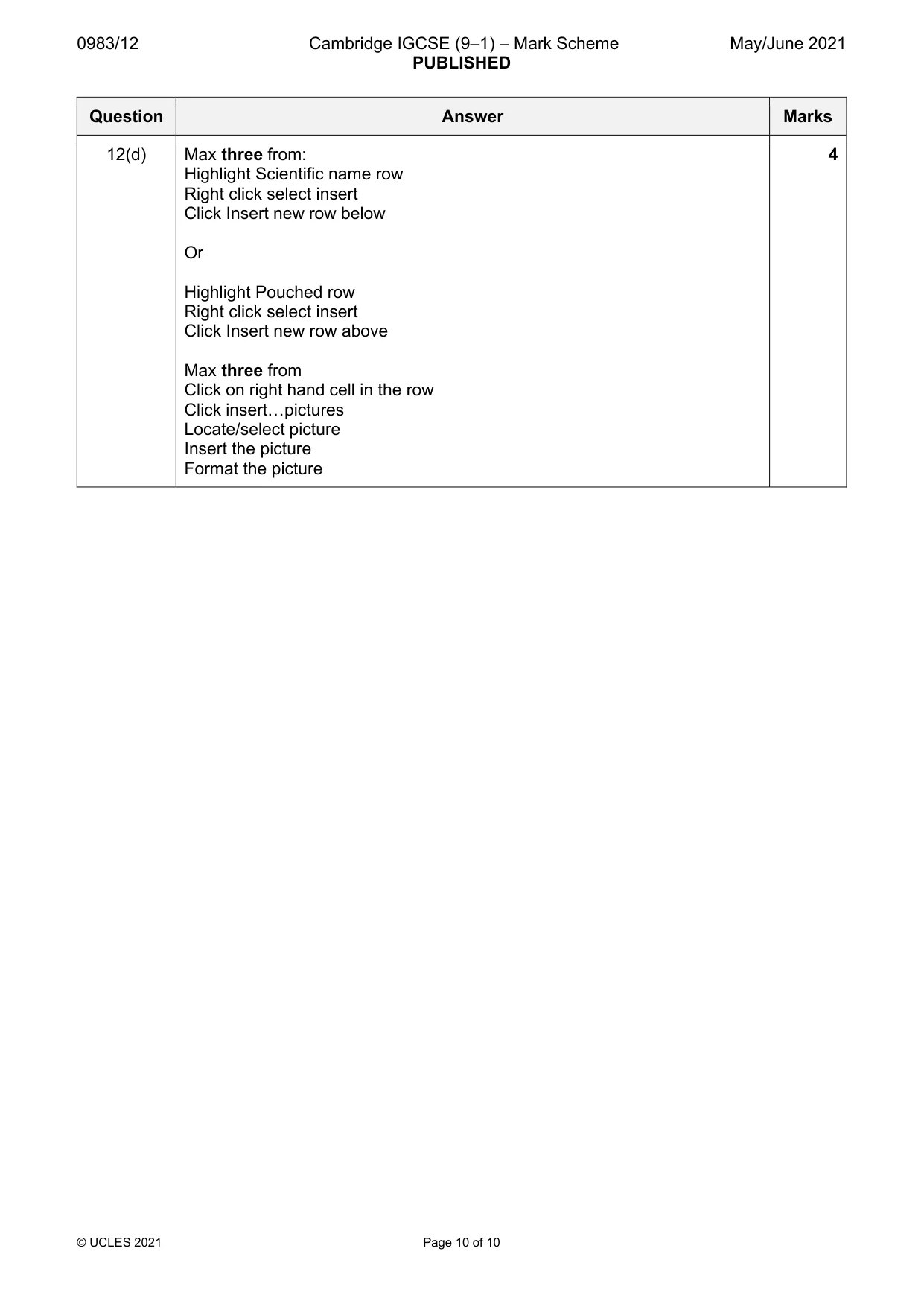

0983/12 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 10 of 10 Question Answer Marks 12(d) Max three from: Highlight Scientific name row Right click select insert Click Insert new row below Or Highlight Pouched row Right click select insert Click Insert new row above Max three from Click on right hand cell in the row Click insert…pictures Locate/select picture Insert the picture Format the picture 4
