Cambridge IGCSE Design and Technology 0445 — 2022 Oct/Nov Paper 5 · Variant 3

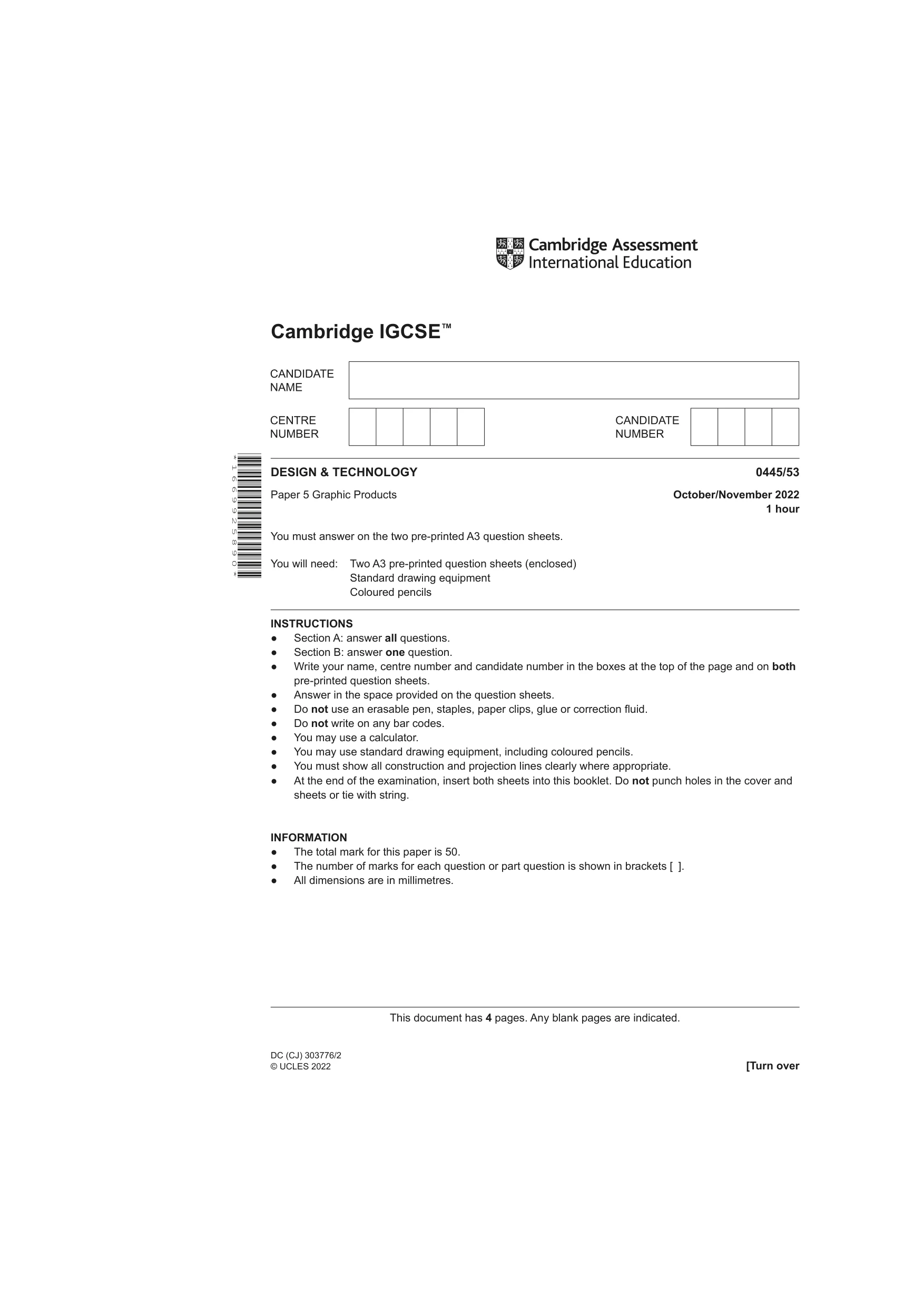

Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/53 Paper 5 Graphic Products October/November 2022 1 hour You must answer on the two pre-printed A3 question sheets. You will need: Two A3 pre-printed question sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Section A: answer all questions. ● Section B: answer one question. ● Write your name, centre number and candidate number in the boxes at the top of the page and on both pre-printed question sheets. ● Answer in the space provided on the question sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● You must show all construction and projection lines clearly where appropriate. ● At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 1 6 6 9 9 2 5 8 9 0 * DC (CJ) 303776/2 © UCLES 2022 [Turn over This document has 4 pages. Any blank pages are indicated.

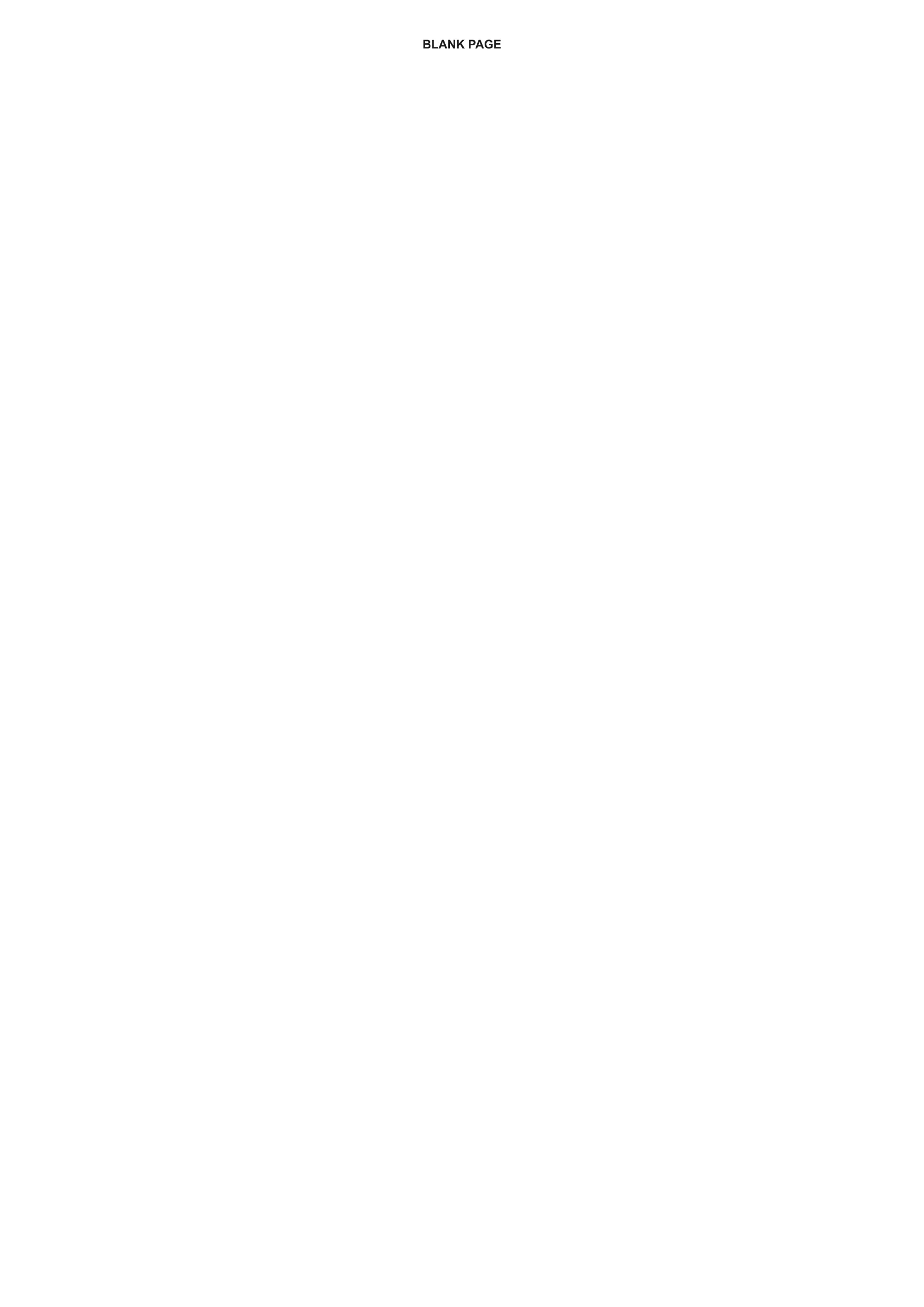

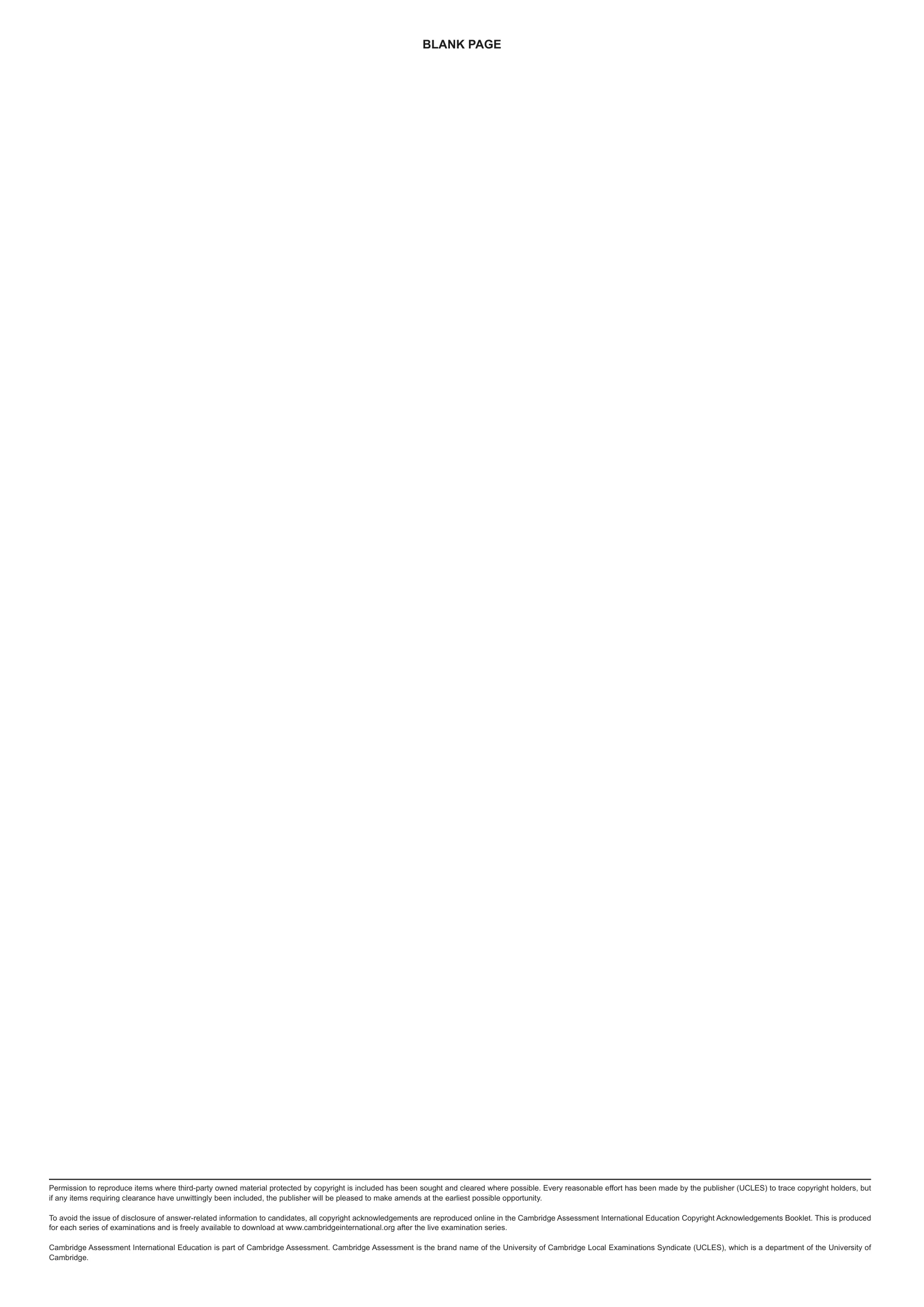

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

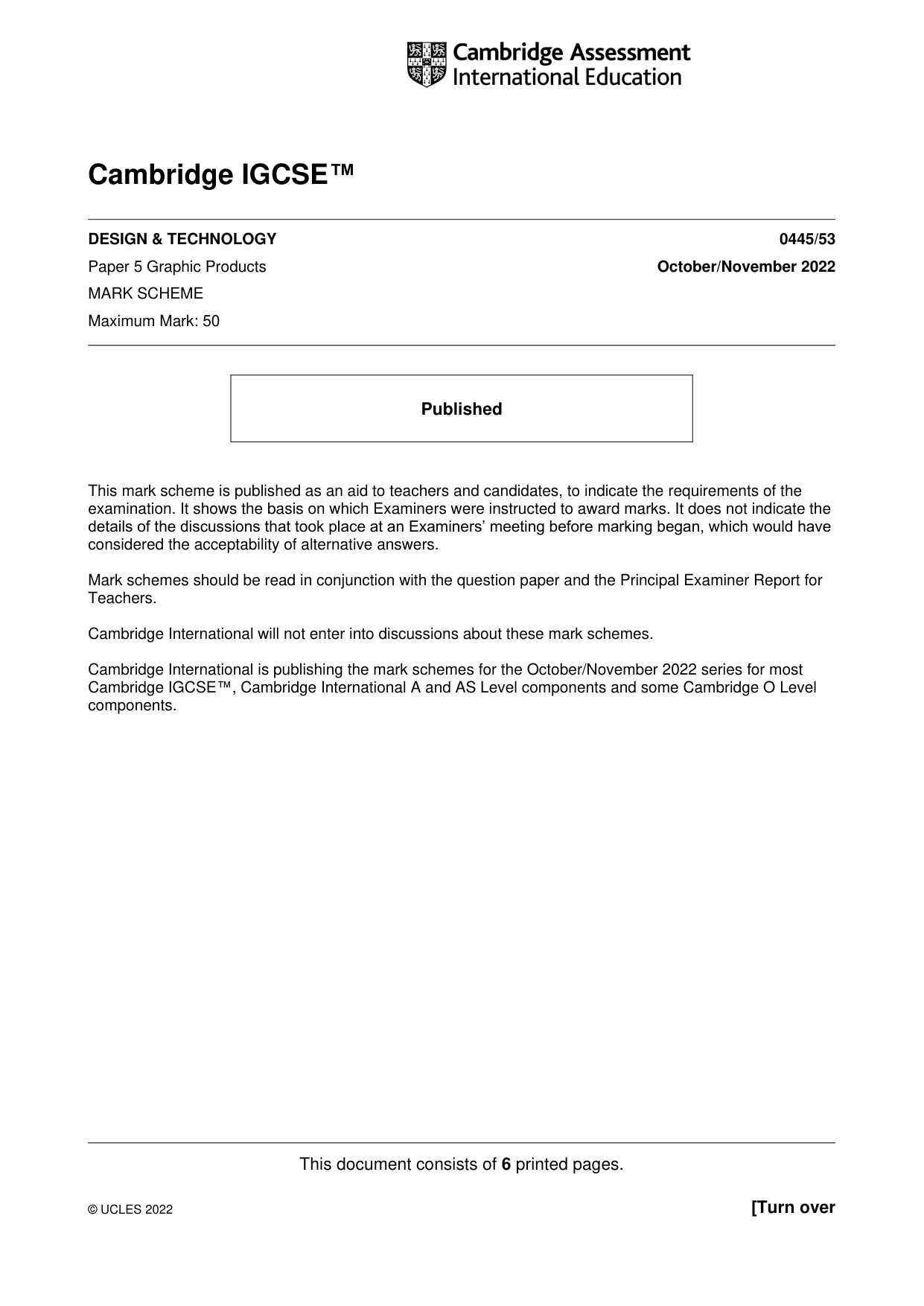

This document consists of 6 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/53 Paper 5 Graphic Products October/November 2022 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2022 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 2 of 6 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

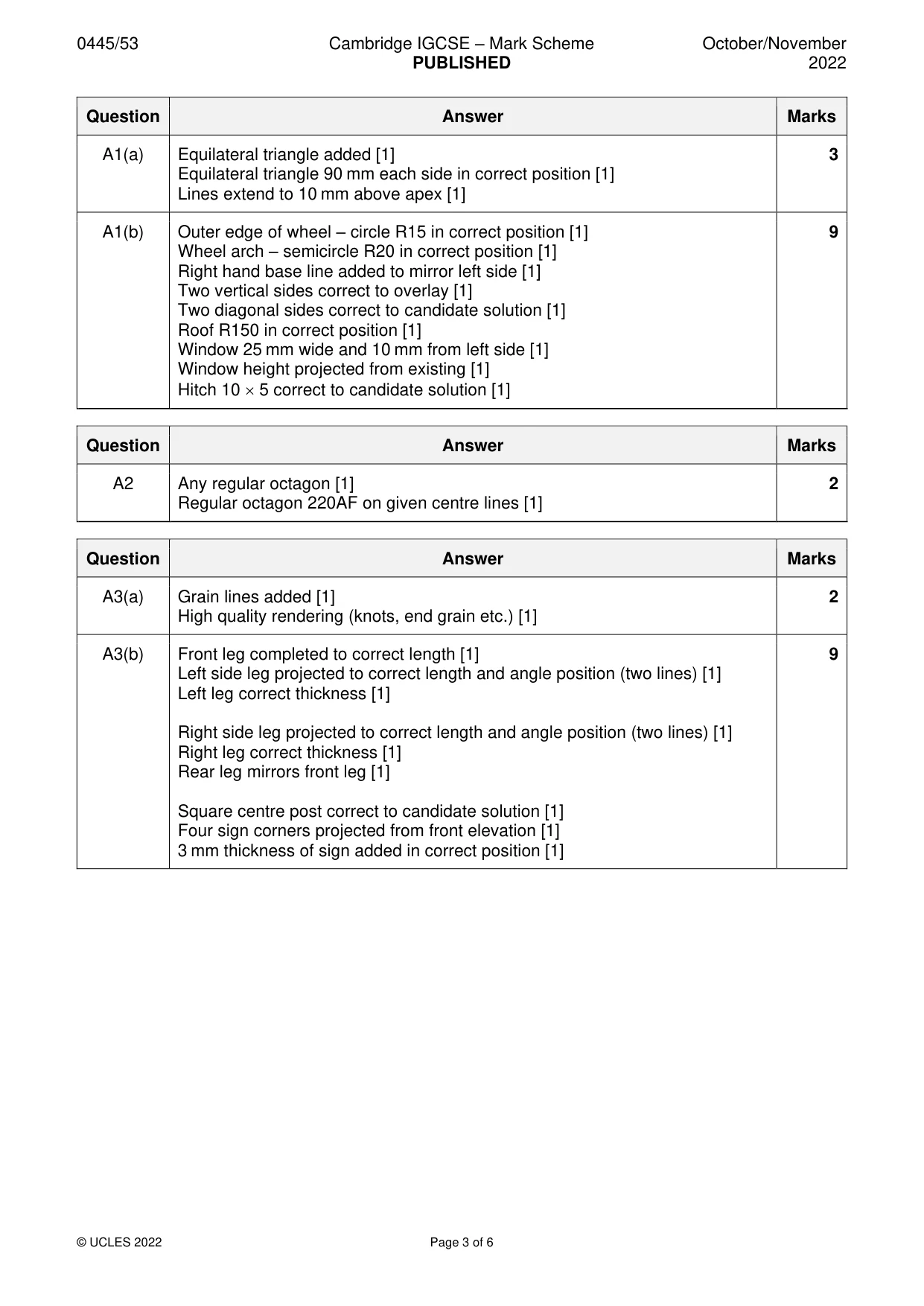

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 3 of 6 Question Answer Marks A1(a) Equilateral triangle added [1] Equilateral triangle 90 mm each side in correct position [1] Lines extend to 10 mm above apex [1] 3 A1(b) Outer edge of wheel – circle R15 in correct position [1] Wheel arch – semicircle R20 in correct position [1] Right hand base line added to mirror left side [1] Two vertical sides correct to overlay [1] Two diagonal sides correct to candidate solution [1] Roof R150 in correct position [1] Window 25 mm wide and 10 mm from left side [1] Window height projected from existing [1] Hitch 10  5 correct to candidate solution [1] 9 Question Answer Marks A2 Any regular octagon [1] Regular octagon 220AF on given centre lines [1] 2 Question Answer Marks A3(a) Grain lines added [1] High quality rendering (knots, end grain etc.) [1] 2 A3(b) Front leg completed to correct length [1] Left side leg projected to correct length and angle position (two lines) [1] Left leg correct thickness [1] Right side leg projected to correct length and angle position (two lines) [1] Right leg correct thickness [1] Rear leg mirrors front leg [1] Square centre post correct to candidate solution [1] Four sign corners projected from front elevation [1] 3 mm thickness of sign added in correct position [1] 9

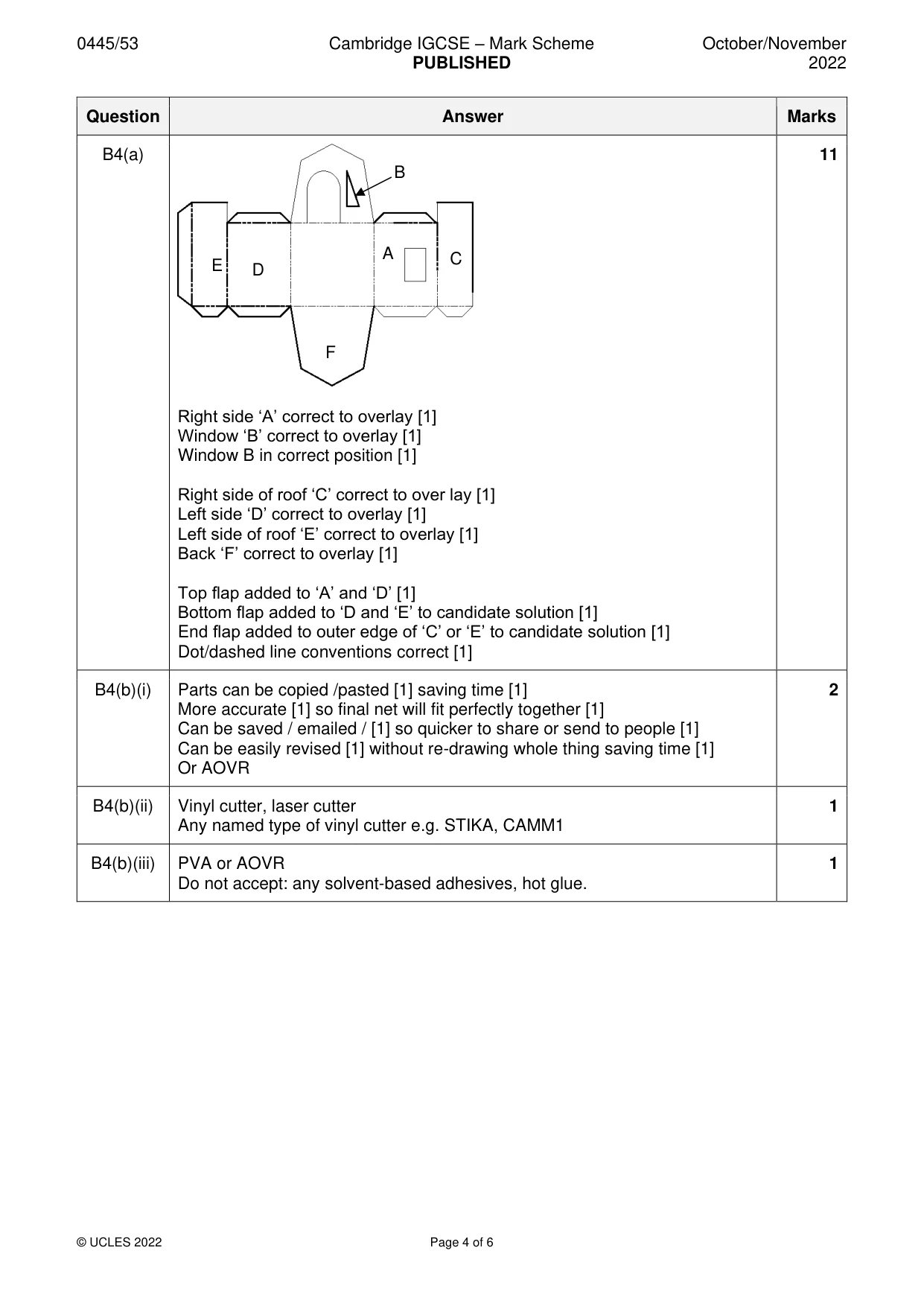

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 4 of 6 Question Answer Marks B4(a) Right side ‘A’ correct to overlay [1] Window ‘B’ correct to overlay [1] Window B in correct position [1] Right side of roof ‘C’ correct to over lay [1] Left side ‘D’ correct to overlay [1] Left side of roof ‘E’ correct to overlay [1] Back ‘F’ correct to overlay [1] Top flap added to ‘A’ and ‘D’ [1] Bottom flap added to ‘D and ‘E’ to candidate solution [1] End flap added to outer edge of ‘C’ or ‘E’ to candidate solution [1] Dot/dashed line conventions correct [1] 11 B4(b)(i) Parts can be copied /pasted [1] saving time [1] More accurate [1] so final net will fit perfectly together [1] Can be saved / emailed / [1] so quicker to share or send to people [1] Can be easily revised [1] without re-drawing whole thing saving time [1] Or AOVR 2 B4(b)(ii) Vinyl cutter, laser cutter Any named type of vinyl cutter e.g. STIKA, CAMM1 1 B4(b)(iii) PVA or AOVR Do not accept: any solvent-based adhesives, hot glue. 1 F A B C D E

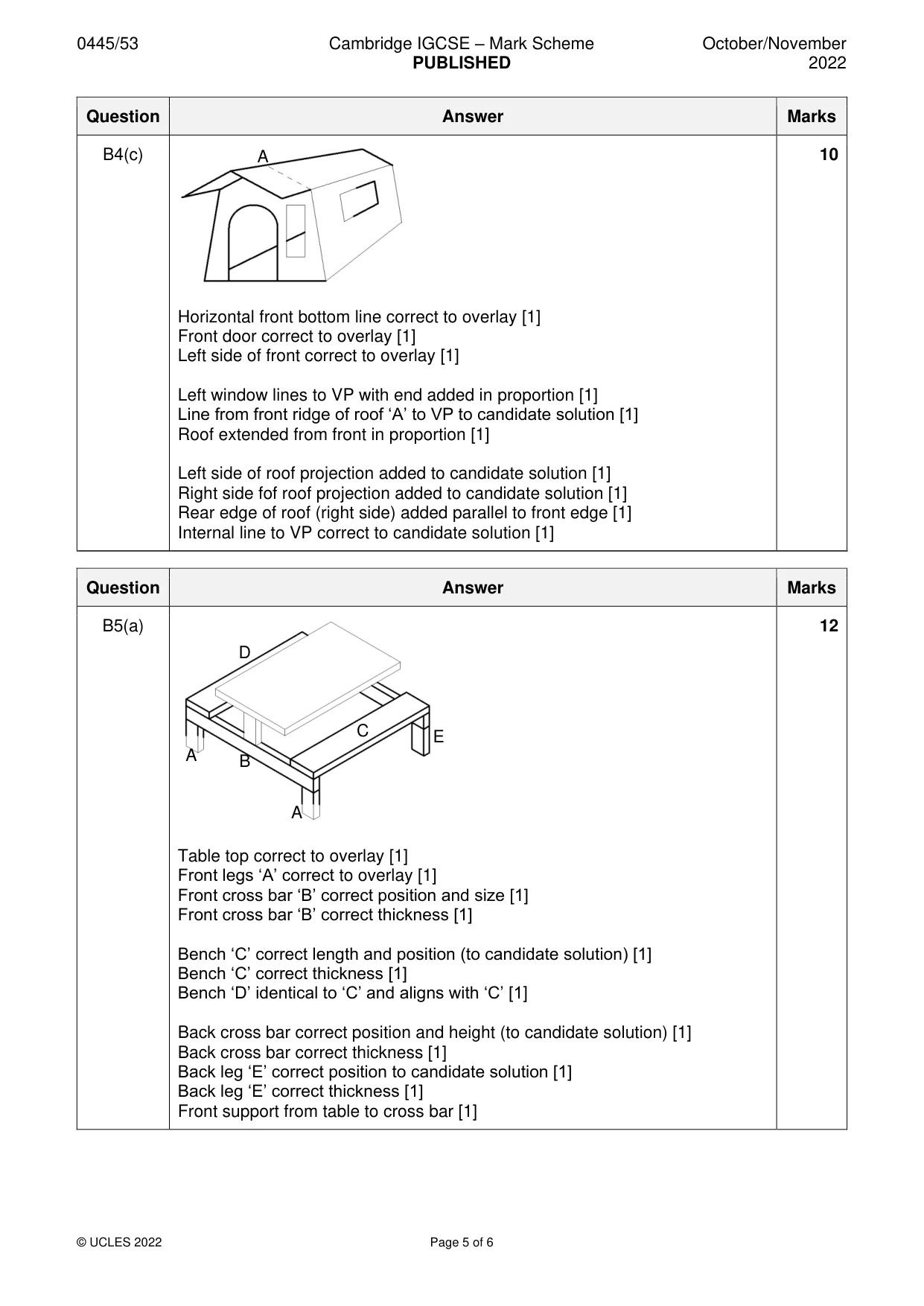

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 5 of 6 Question Answer Marks B4(c) Horizontal front bottom line correct to overlay [1] Front door correct to overlay [1] Left side of front correct to overlay [1] Left window lines to VP with end added in proportion [1] Line from front ridge of roof ‘A’ to VP to candidate solution [1] Roof extended from front in proportion [1] Left side of roof projection added to candidate solution [1] Right side fof roof projection added to candidate solution [1] Rear edge of roof (right side) added parallel to front edge [1] Internal line to VP correct to candidate solution [1] 10 Question Answer Marks B5(a) Table top correct to overlay [1] Front legs ‘A’ correct to overlay [1] Front cross bar ‘B’ correct position and size [1] Front cross bar ‘B’ correct thickness [1] Bench ‘C’ correct length and position (to candidate solution) [1] Bench ‘C’ correct thickness [1] Bench ‘D’ identical to ‘C’ and aligns with ‘C’ [1] Back cross bar correct position and height (to candidate solution) [1] Back cross bar correct thickness [1] Back leg ‘E’ correct position to candidate solution [1] Back leg ‘E’ correct thickness [1] Front support from table to cross bar [1] 12 A A A B C D E

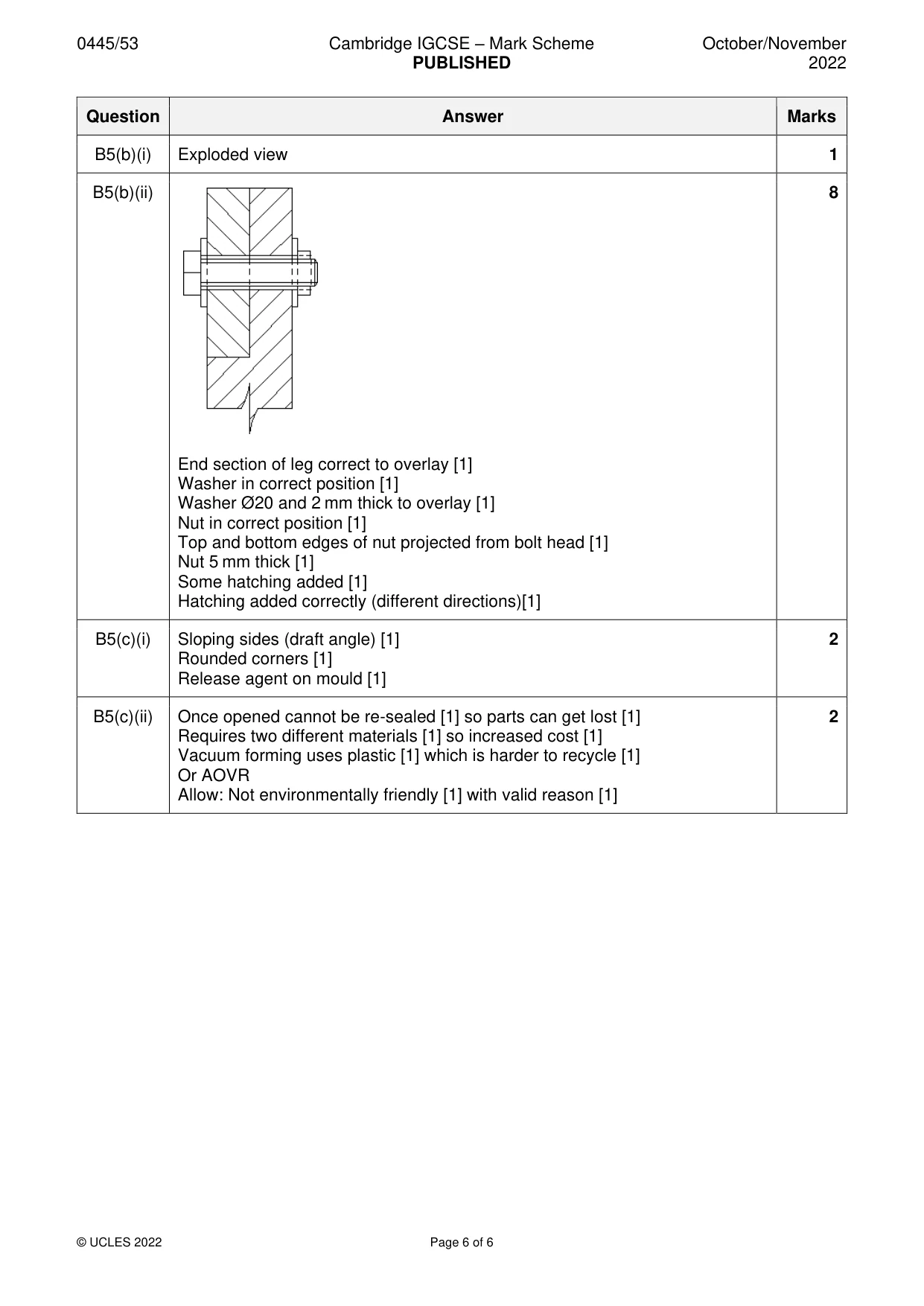

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 6 of 6 Question Answer Marks B5(b)(i) Exploded view 1 B5(b)(ii) End section of leg correct to overlay [1] Washer in correct position [1] Washer Ø20 and 2 mm thick to overlay [1] Nut in correct position [1] Top and bottom edges of nut projected from bolt head [1] Nut 5 mm thick [1] Some hatching added [1] Hatching added correctly (different directions)[1] 8 B5(c)(i) Sloping sides (draft angle) [1] Rounded corners [1] Release agent on mould [1] 2 B5(c)(ii) Once opened cannot be re-sealed [1] so parts can get lost [1] Requires two different materials [1] so increased cost [1] Vacuum forming uses plastic [1] which is harder to recycle [1] Or AOVR Allow: Not environmentally friendly [1] with valid reason [1] 2
