Cambridge IGCSE Design and Technology 0445 — 2022 Oct/Nov Paper 5 · Variant 2

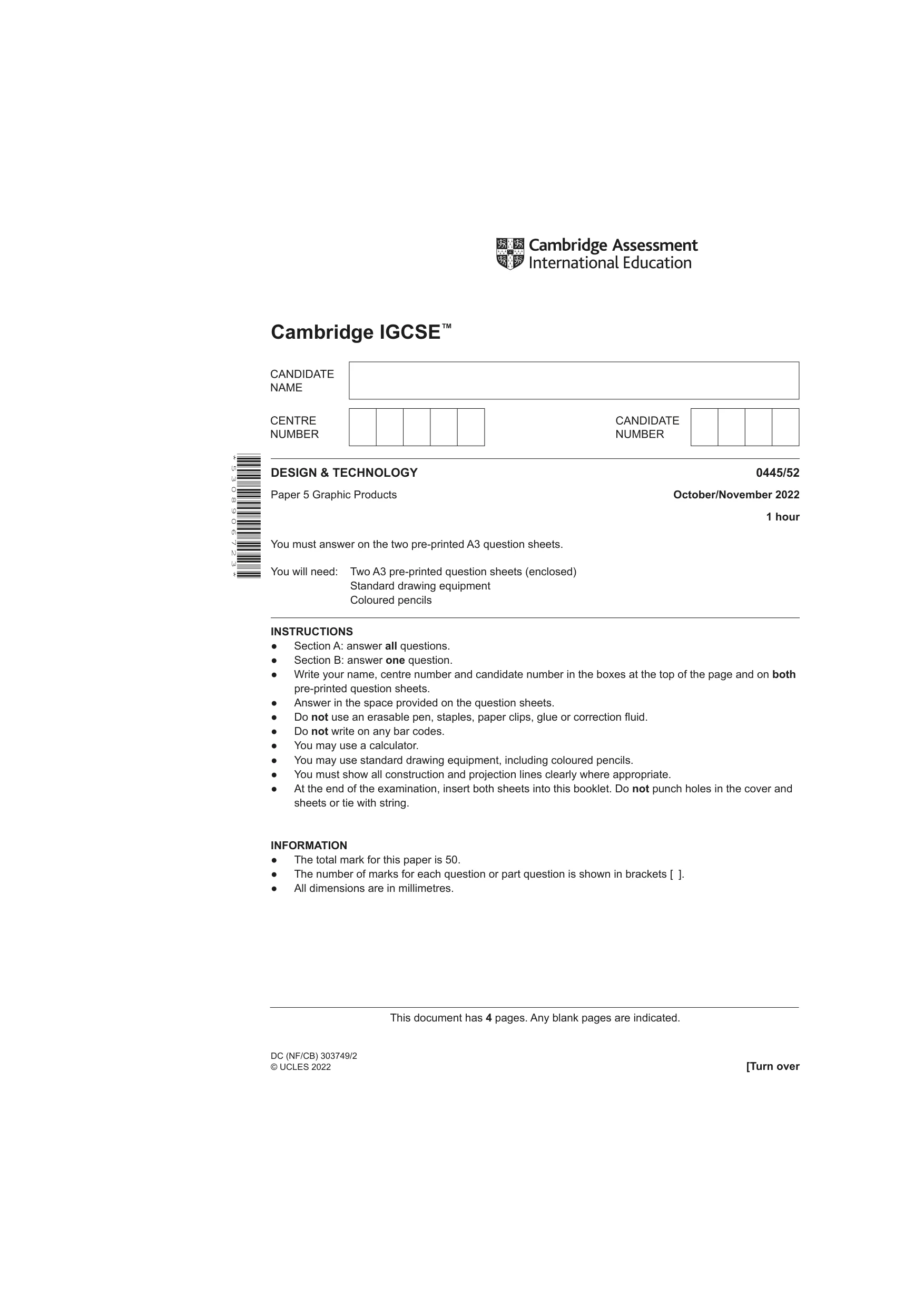

* 5 3 0 8 9 0 6 7 2 3 * DC (NF/CB) 303749/2 © UCLES 2022 [Turn over This document has 4 pages. Any blank pages are indicated. DESIGN & TECHNOLOGY 0445/52 Paper 5 Graphic Products October/November 2022 1 hour You must answer on the two pre-printed A3 question sheets. You will need: Two A3 pre-printed question sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Section A: answer all questions. ● Section B: answer one question. ● Write your name, centre number and candidate number in the boxes at the top of the page and on both pre-printed question sheets. ● Answer in the space provided on the question sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● You must show all construction and projection lines clearly where appropriate. ● At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. Cambridge IGCSE™

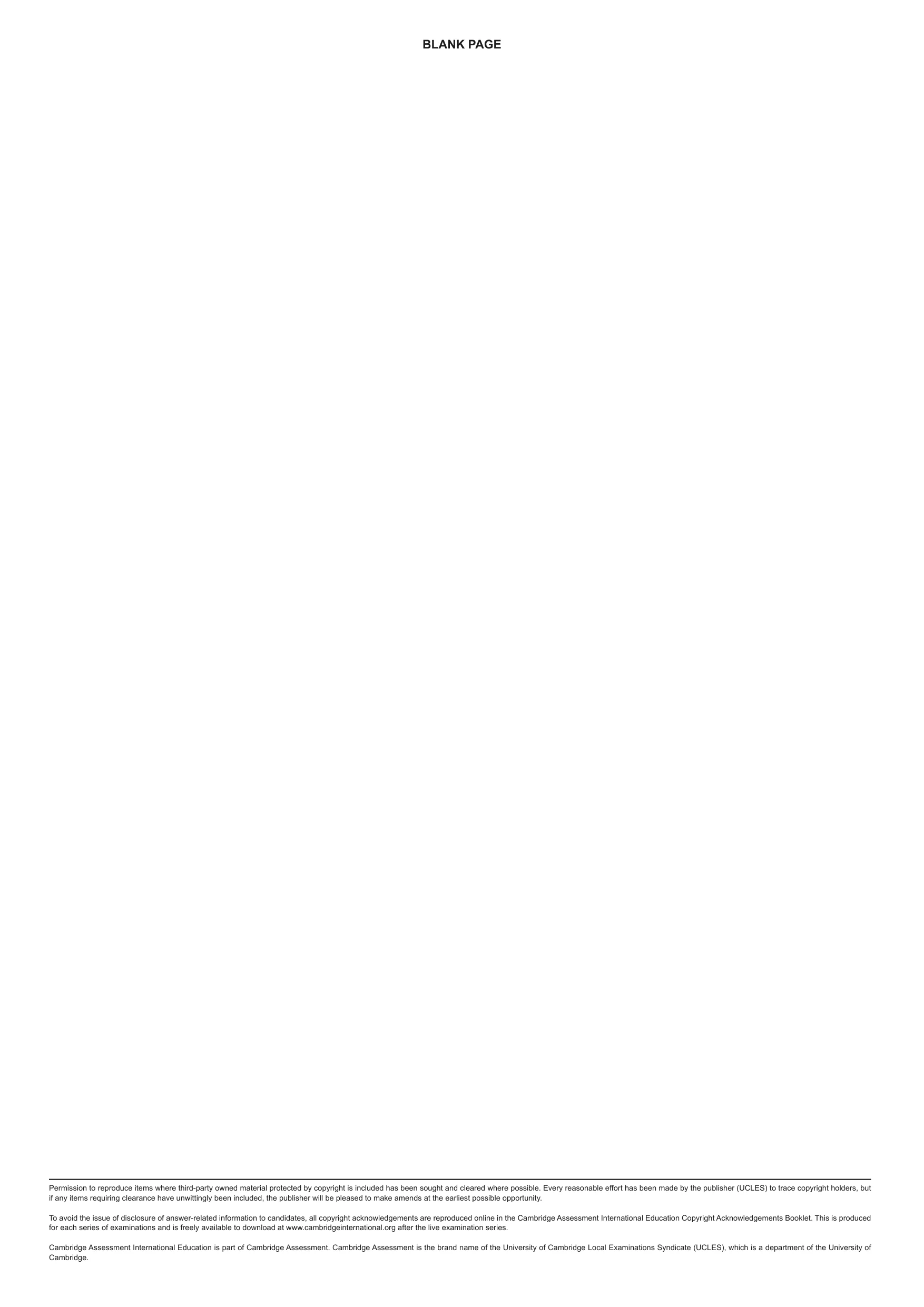

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

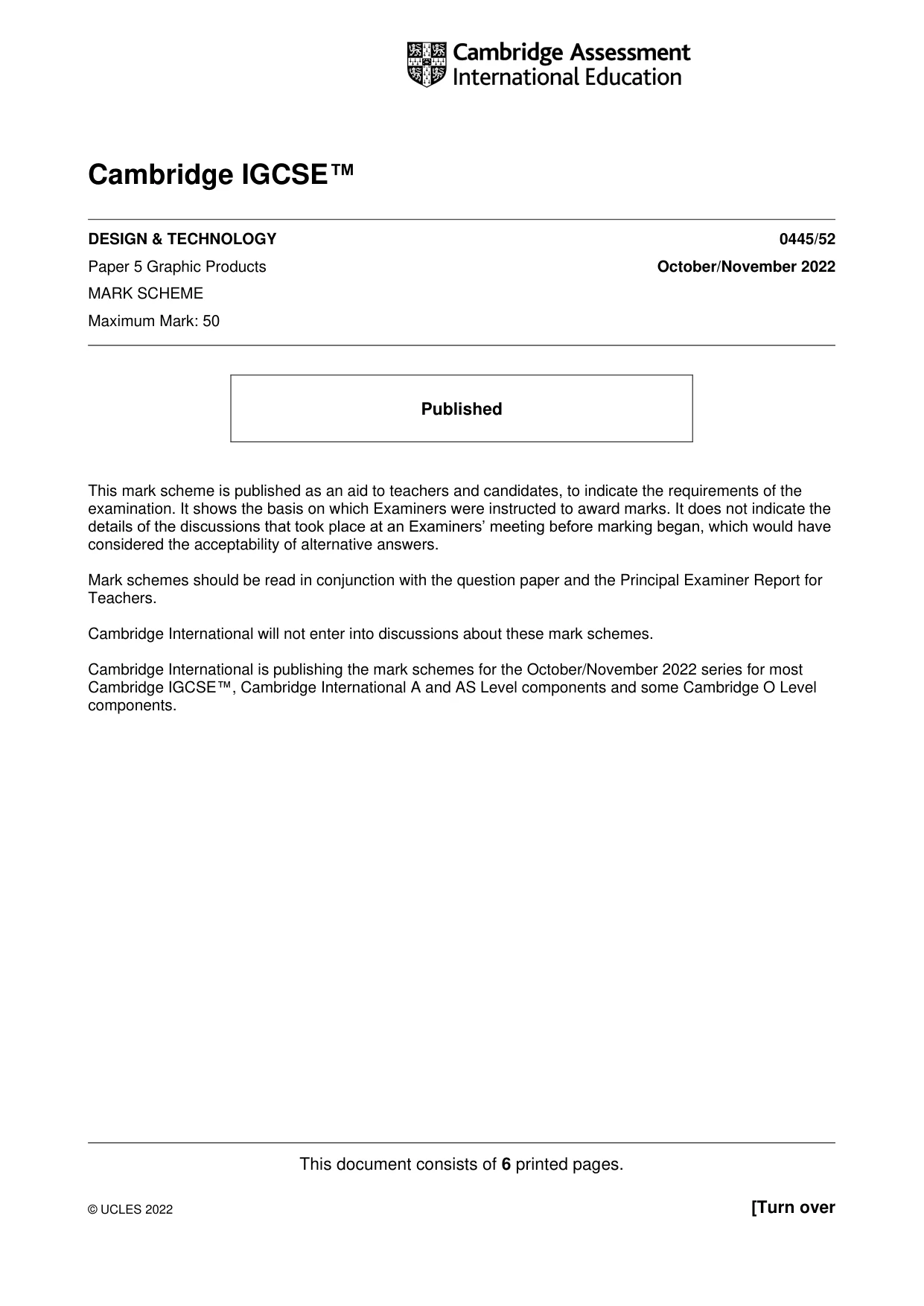

This document consists of 6 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/52 Paper 5 Graphic Products October/November 2022 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2022 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

0445/52 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 2 of 6 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

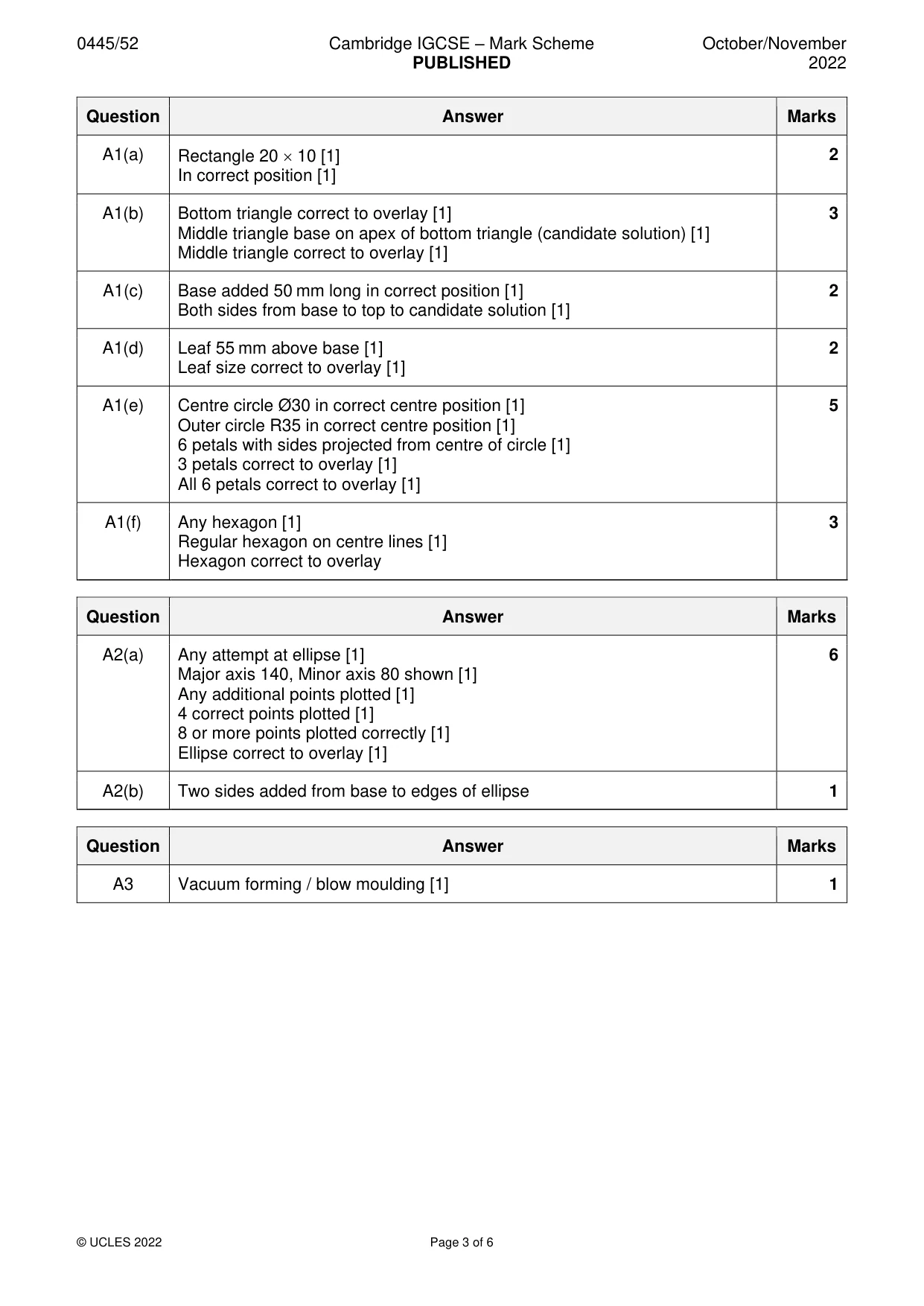

0445/52 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 3 of 6 Question Answer Marks A1(a) Rectangle 20  10 [1] In correct position [1] 2 A1(b) Bottom triangle correct to overlay [1] Middle triangle base on apex of bottom triangle (candidate solution) [1] Middle triangle correct to overlay [1] 3 A1(c) Base added 50 mm long in correct position [1] Both sides from base to top to candidate solution [1] 2 A1(d) Leaf 55 mm above base [1] Leaf size correct to overlay [1] 2 A1(e) Centre circle Ø30 in correct centre position [1] Outer circle R35 in correct centre position [1] 6 petals with sides projected from centre of circle [1] 3 petals correct to overlay [1] All 6 petals correct to overlay [1] 5 A1(f) Any hexagon [1] Regular hexagon on centre lines [1] Hexagon correct to overlay 3 Question Answer Marks A2(a) Any attempt at ellipse [1] Major axis 140, Minor axis 80 shown [1] Any additional points plotted [1] 4 correct points plotted [1] 8 or more points plotted correctly [1] Ellipse correct to overlay [1] 6 A2(b) Two sides added from base to edges of ellipse 1 Question Answer Marks A3 Vacuum forming / blow moulding [1] 1

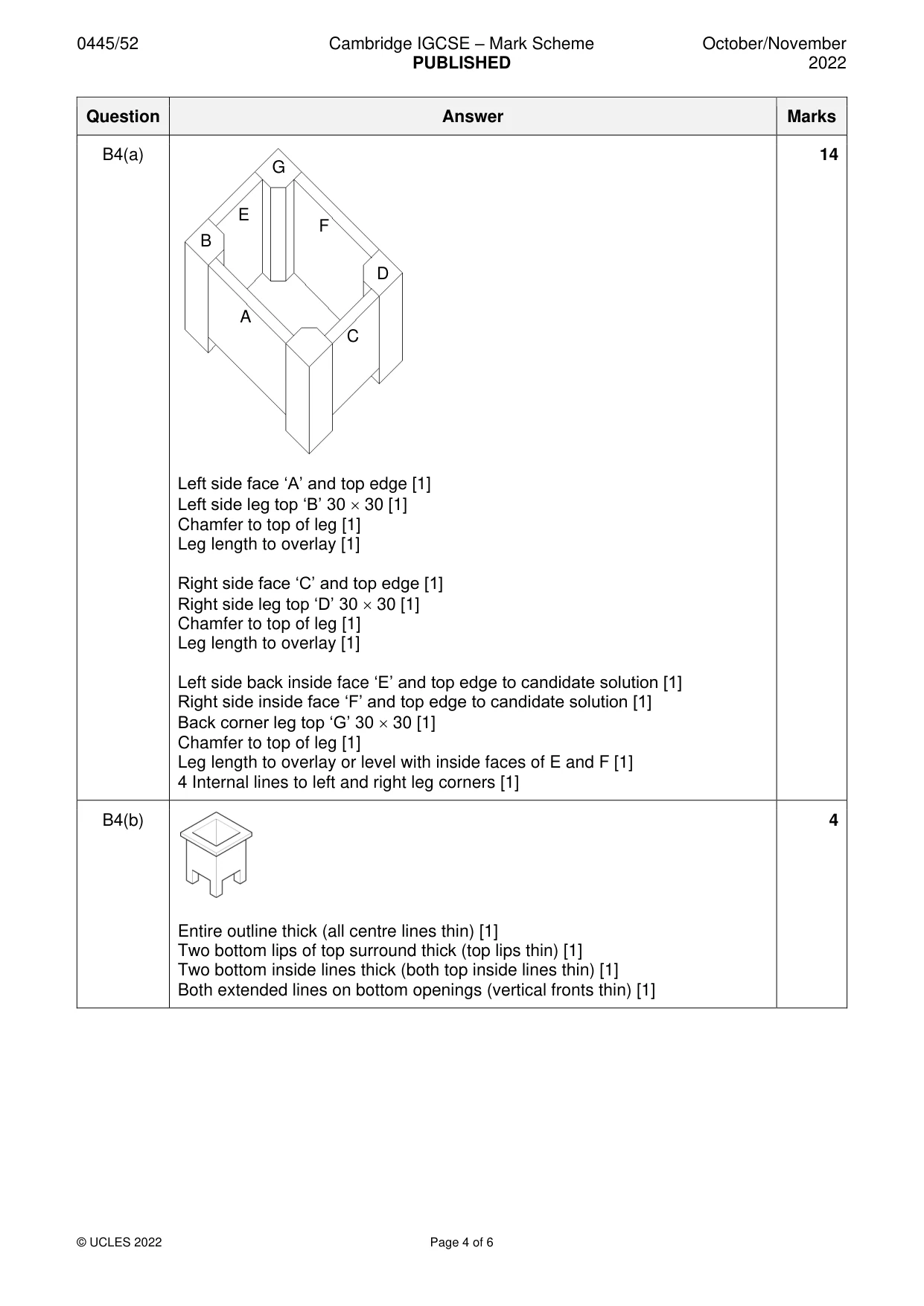

0445/52 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 4 of 6 Question Answer Marks B4(a) Left side face ‘A’ and top edge [1] Left side leg top ‘B’ 30  30 [1] Chamfer to top of leg [1] Leg length to overlay [1] Right side face ‘C’ and top edge [1] Right side leg top ‘D’ 30  30 [1] Chamfer to top of leg [1] Leg length to overlay [1] Left side back inside face ‘E’ and top edge to candidate solution [1] Right side inside face ‘F’ and top edge to candidate solution [1] Back corner leg top ‘G’ 30  30 [1] Chamfer to top of leg [1] Leg length to overlay or level with inside faces of E and F [1] 4 Internal lines to left and right leg corners [1] 14 B4(b) Entire outline thick (all centre lines thin) [1] Two bottom lips of top surround thick (top lips thin) [1] Two bottom inside lines thick (both top inside lines thin) [1] Both extended lines on bottom openings (vertical fronts thin) [1] 4 F A B C D E G

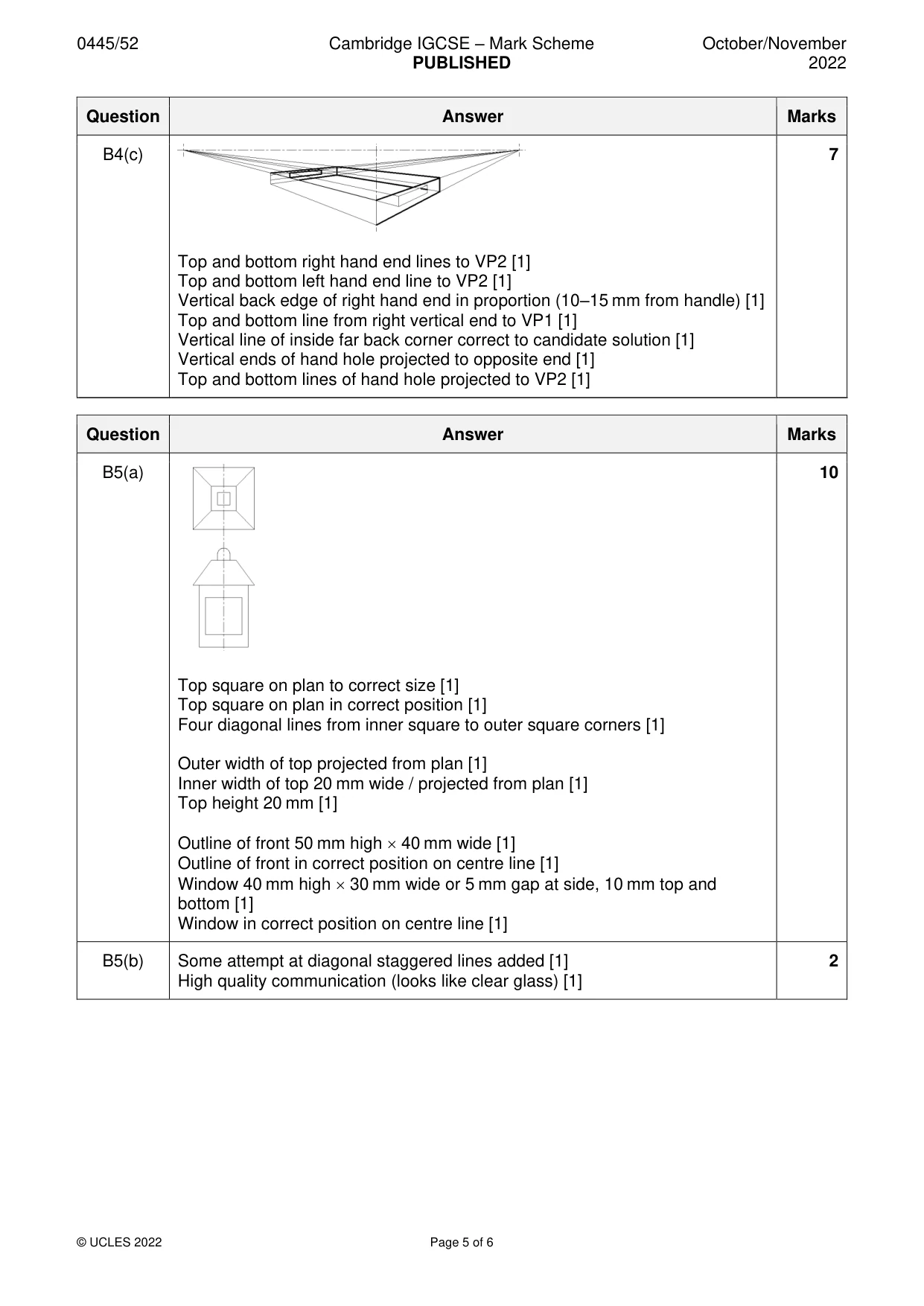

0445/52 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 5 of 6 Question Answer Marks B4(c) Top and bottom right hand end lines to VP2 [1] Top and bottom left hand end line to VP2 [1] Vertical back edge of right hand end in proportion (10–15 mm from handle) [1] Top and bottom line from right vertical end to VP1 [1] Vertical line of inside far back corner correct to candidate solution [1] Vertical ends of hand hole projected to opposite end [1] Top and bottom lines of hand hole projected to VP2 [1] 7 Question Answer Marks B5(a) Top square on plan to correct size [1] Top square on plan in correct position [1] Four diagonal lines from inner square to outer square corners [1] Outer width of top projected from plan [1] Inner width of top 20 mm wide / projected from plan [1] Top height 20 mm [1] Outline of front 50 mm high  40 mm wide [1] Outline of front in correct position on centre line [1] Window 40 mm high  30 mm wide or 5 mm gap at side, 10 mm top and bottom [1] Window in correct position on centre line [1] 10 B5(b) Some attempt at diagonal staggered lines added [1] High quality communication (looks like clear glass) [1] 2

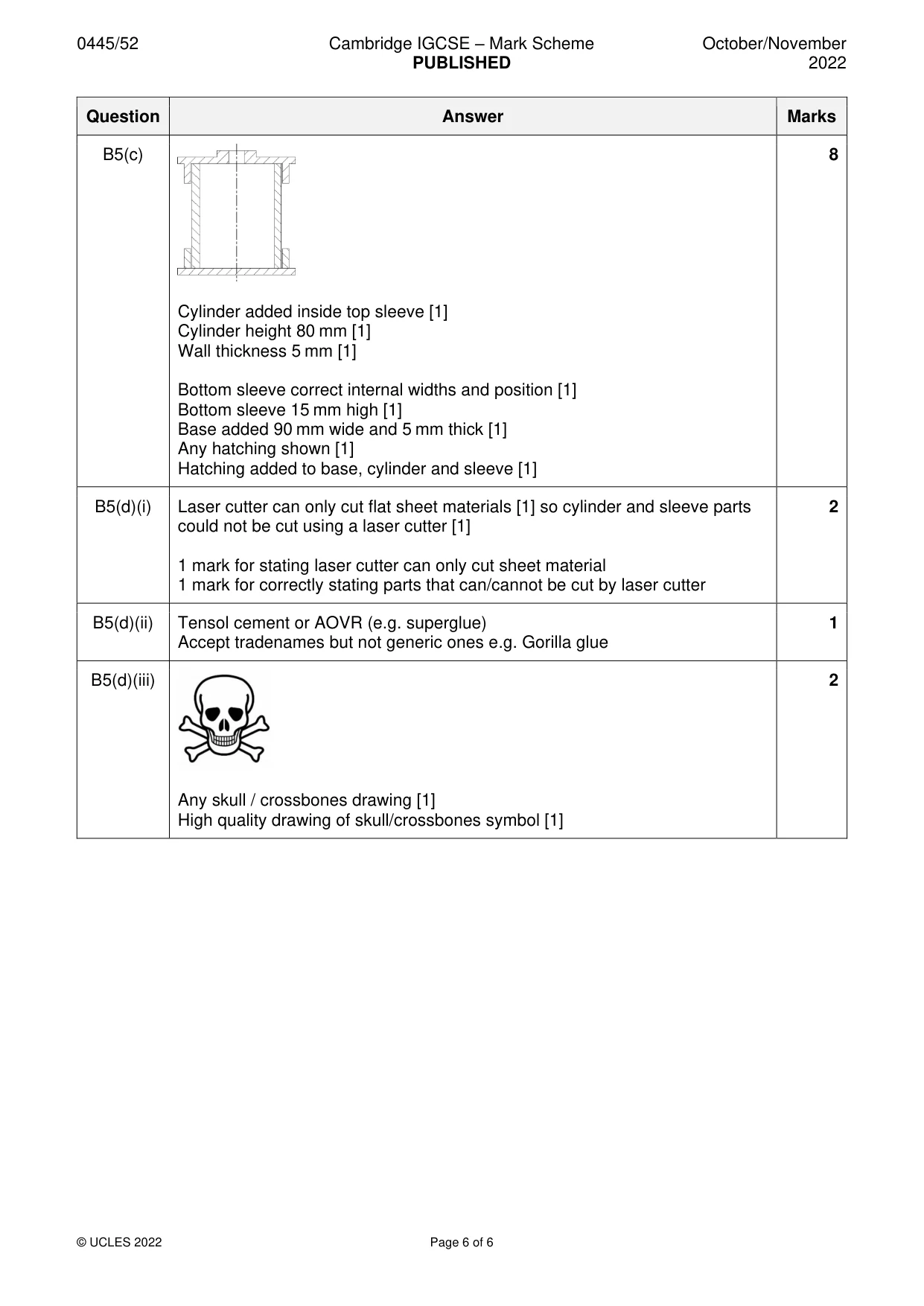

0445/52 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 6 of 6 Question Answer Marks B5(c) Cylinder added inside top sleeve [1] Cylinder height 80 mm [1] Wall thickness 5 mm [1] Bottom sleeve correct internal widths and position [1] Bottom sleeve 15 mm high [1] Base added 90 mm wide and 5 mm thick [1] Any hatching shown [1] Hatching added to base, cylinder and sleeve [1] 8 B5(d)(i) Laser cutter can only cut flat sheet materials [1] so cylinder and sleeve parts could not be cut using a laser cutter [1] 1 mark for stating laser cutter can only cut sheet material 1 mark for correctly stating parts that can/cannot be cut by laser cutter 2 B5(d)(ii) Tensol cement or AOVR (e.g. superglue) Accept tradenames but not generic ones e.g. Gorilla glue 1 B5(d)(iii) Any skull / crossbones drawing [1] High quality drawing of skull/crossbones symbol [1] 2
