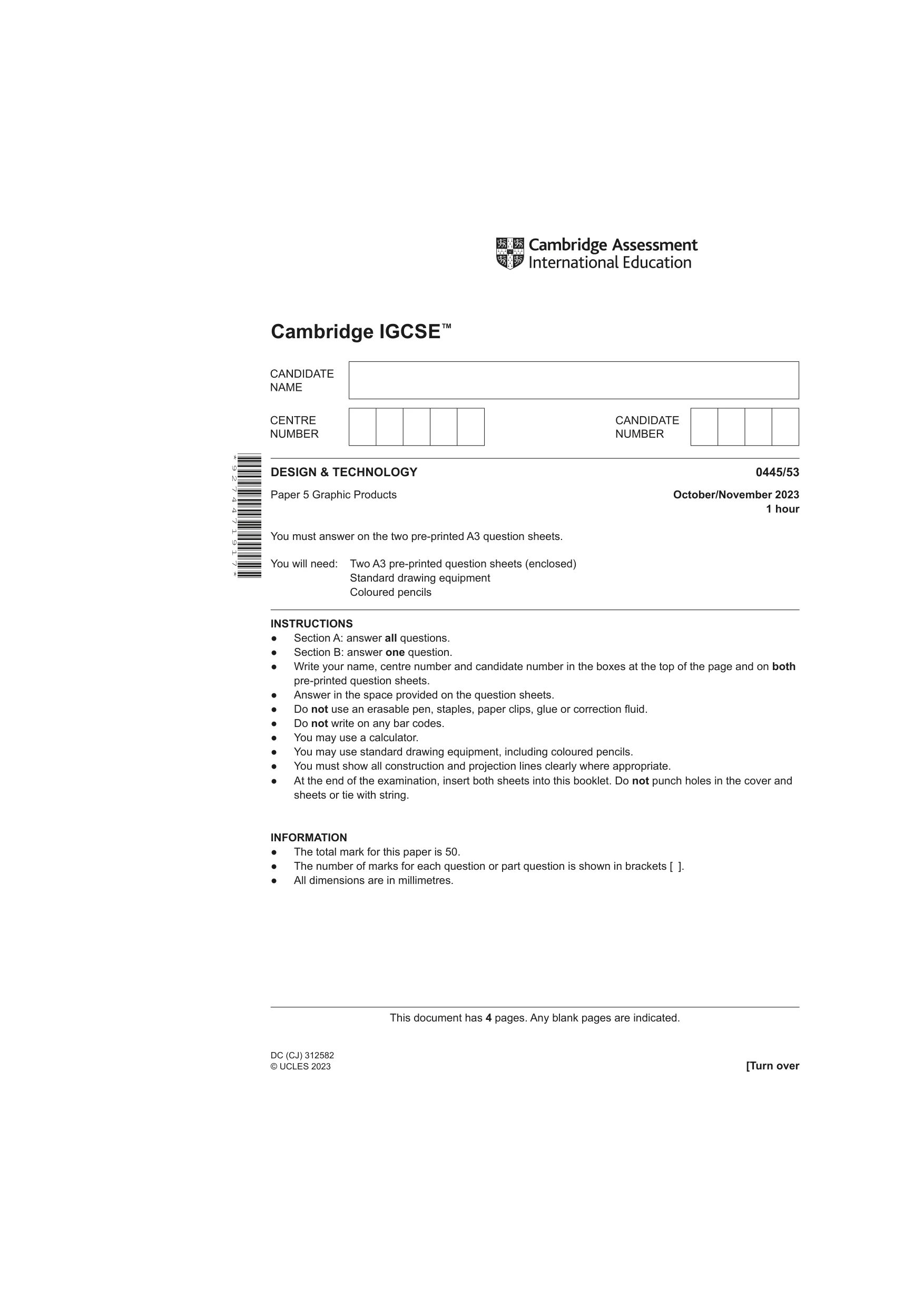

Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/53 Paper 5 Graphic Products October/November 2023 1 hour You must answer on the two pre-printed A3 question sheets. You will need: Two A3 pre-printed question sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Section A: answer all questions. ● Section B: answer one question. ● Write your name, centre number and candidate number in the boxes at the top of the page and on both pre-printed question sheets. ● Answer in the space provided on the question sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● You must show all construction and projection lines clearly where appropriate. ● At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 9 2 7 4 4 7 1 9 1 7 * DC (CJ) 312582 © UCLES 2023 [Turn over This document has 4 pages. Any blank pages are indicated.

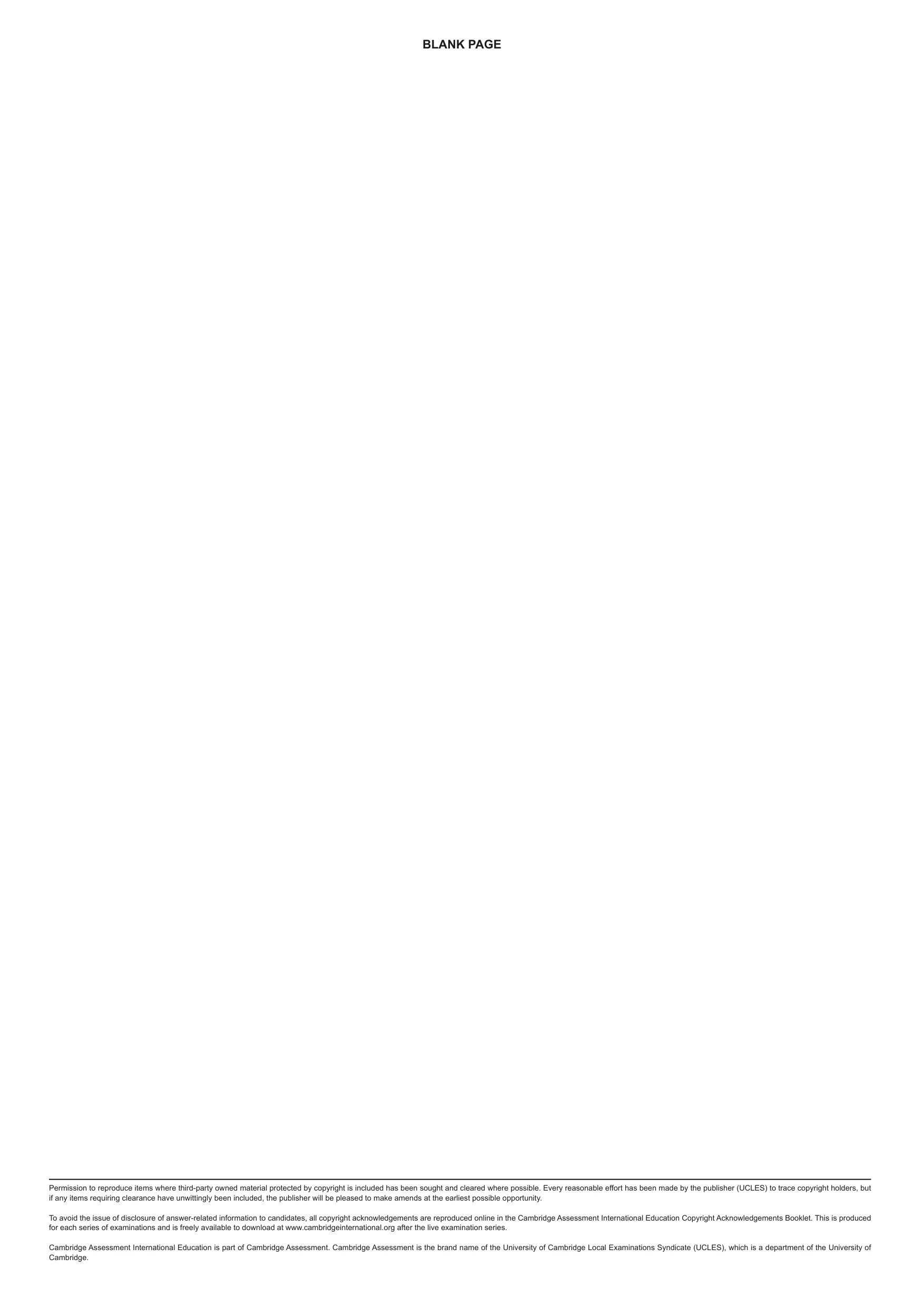

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

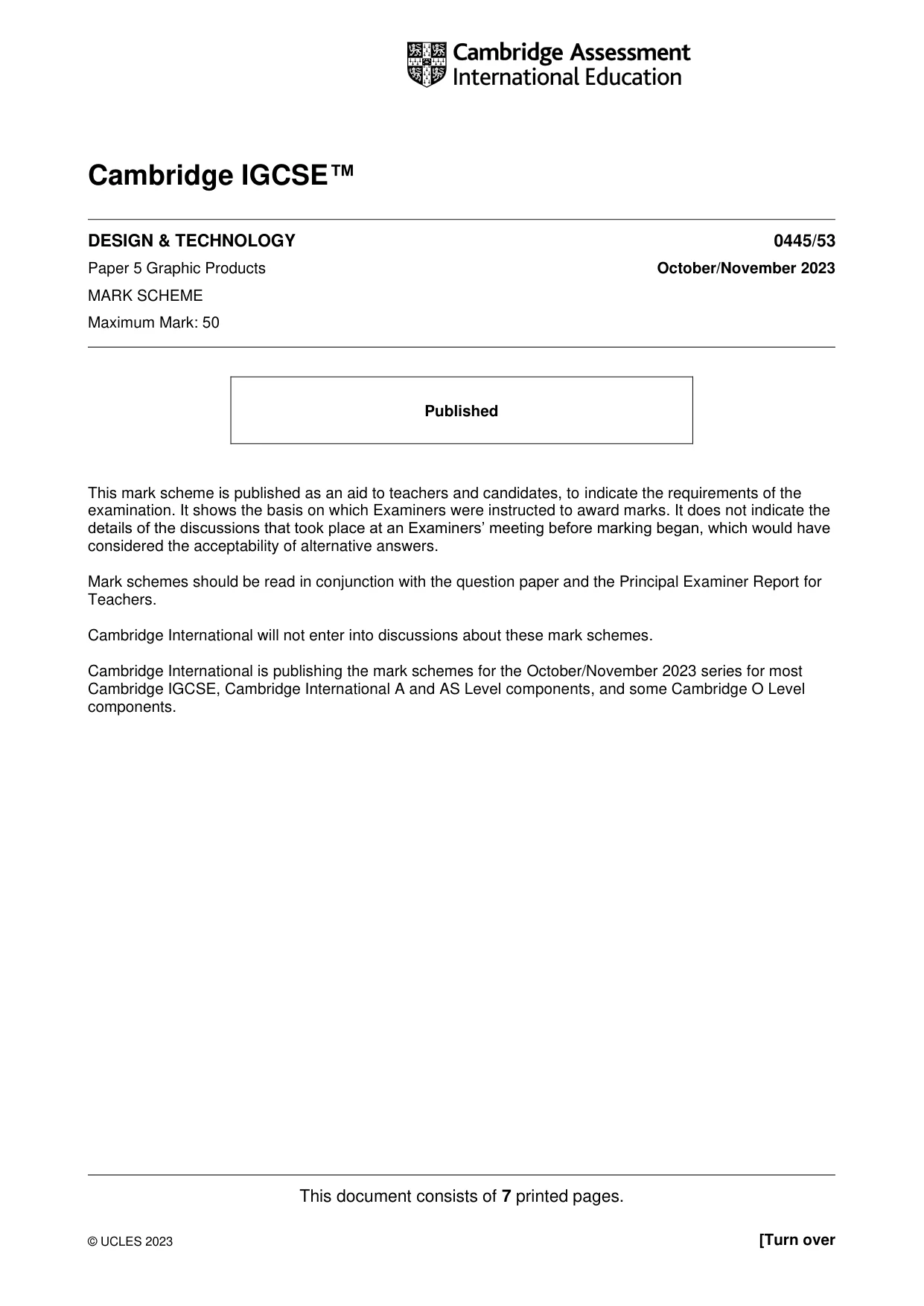

This document consists of 7 printed pages. © UCLES 2023 [Turn over Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/53 Paper 5 Graphic Products October/November 2023 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

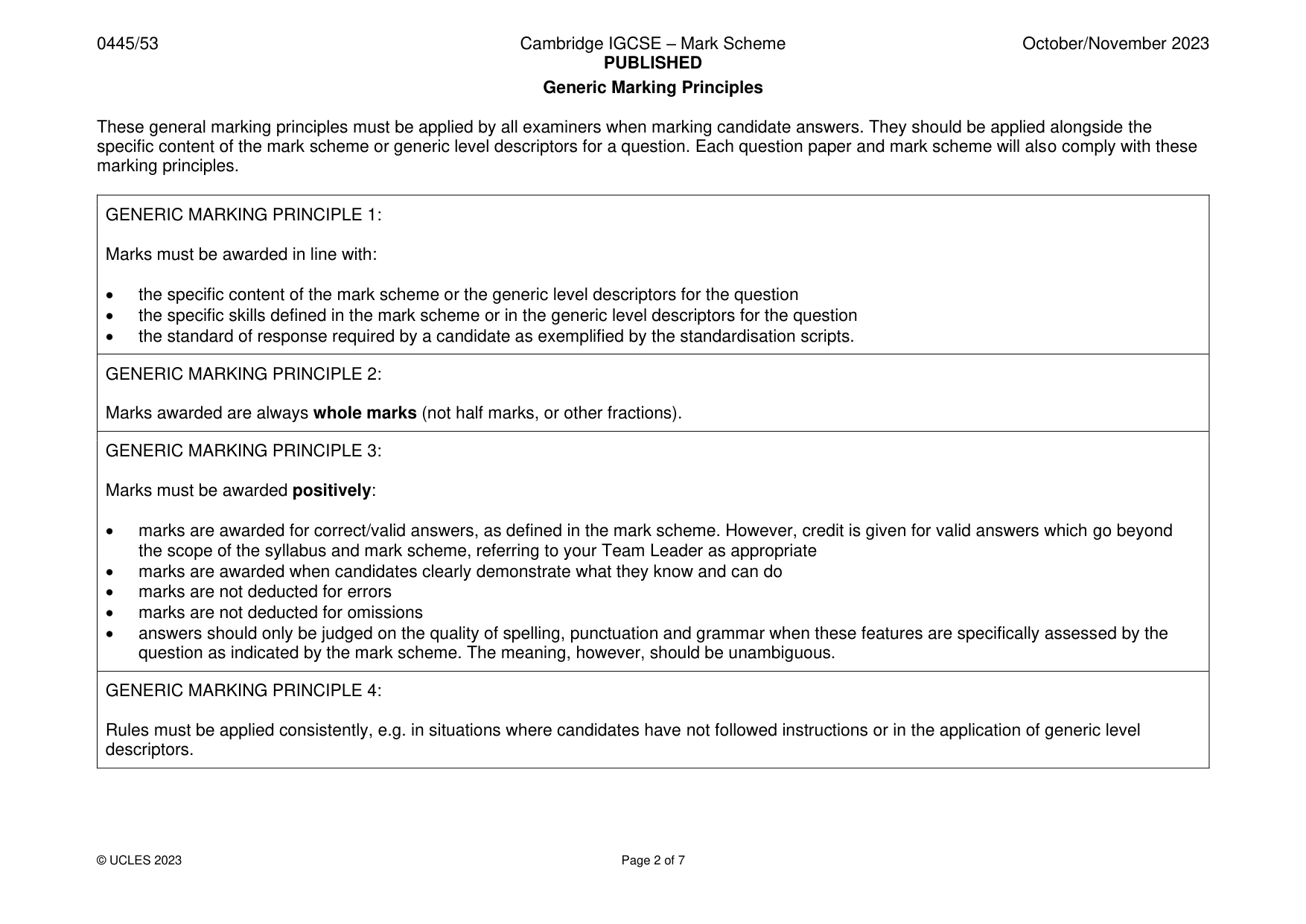

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 7 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

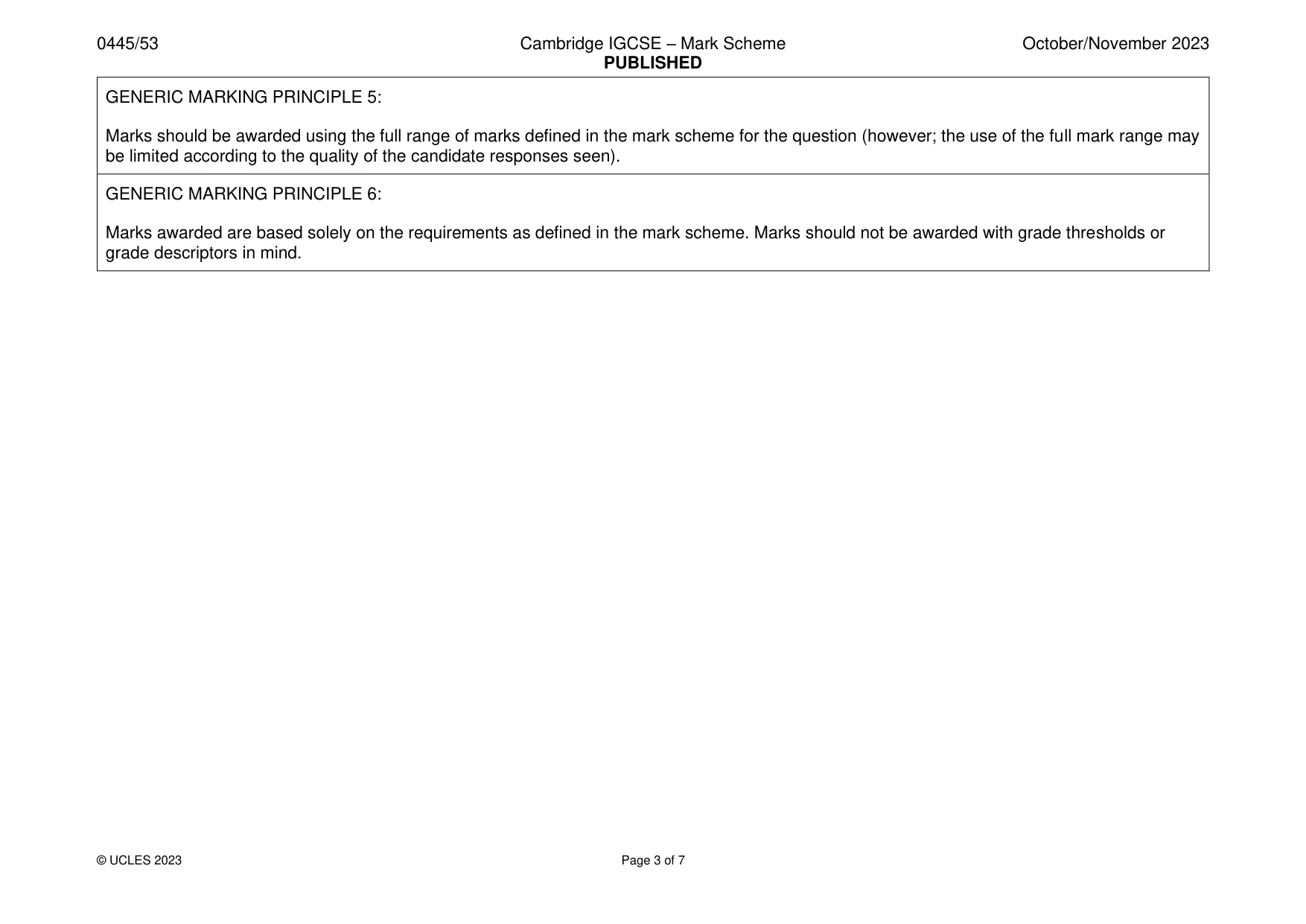

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 7 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

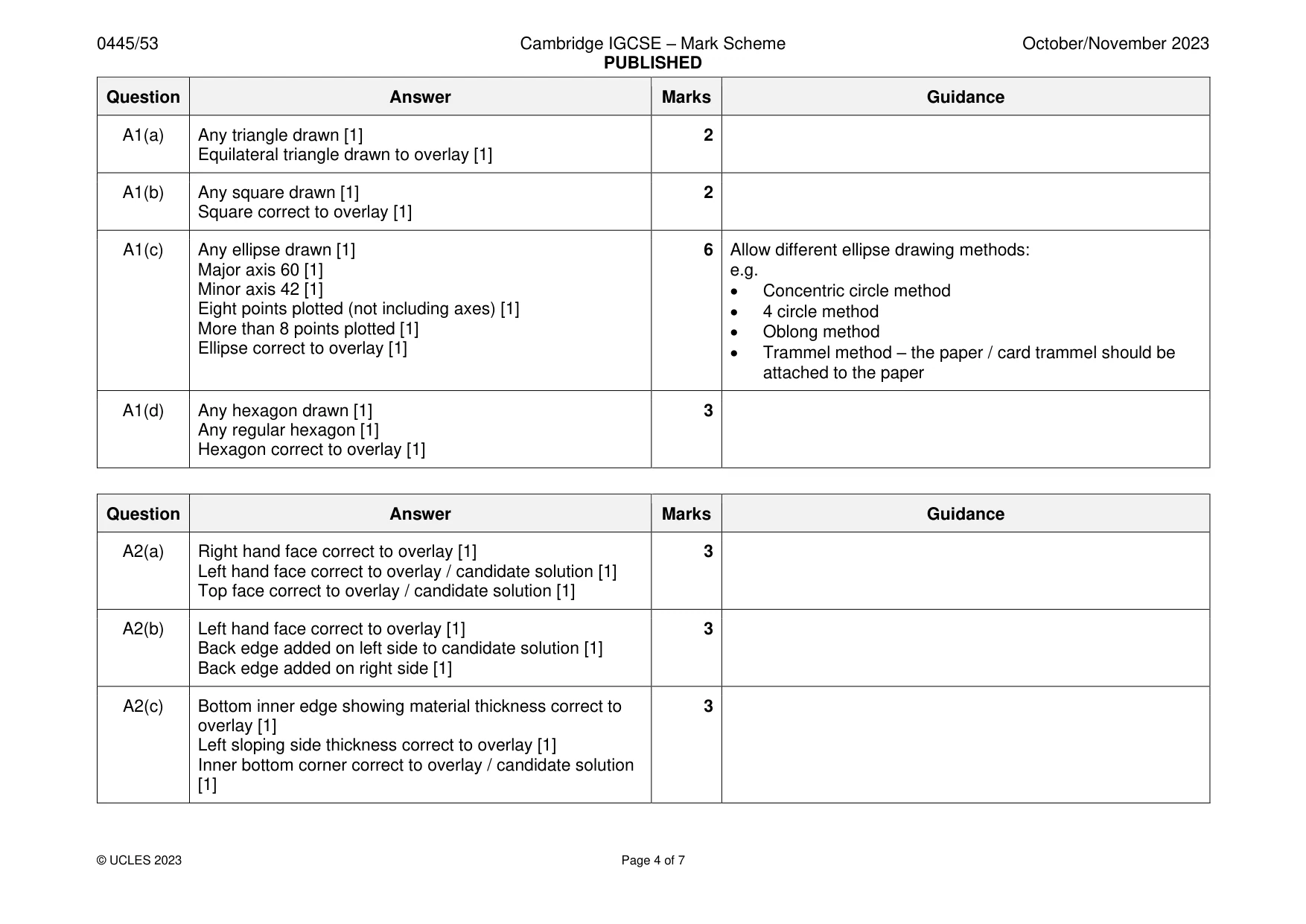

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 4 of 7 Question Answer Marks Guidance A1(a) Any triangle drawn [1] Equilateral triangle drawn to overlay [1] 2 A1(b) Any square drawn [1] Square correct to overlay [1] 2 A1(c) Any ellipse drawn [1] Major axis 60 [1] Minor axis 42 [1] Eight points plotted (not including axes) [1] More than 8 points plotted [1] Ellipse correct to overlay [1] 6 Allow different ellipse drawing methods: e.g. • Concentric circle method • 4 circle method • Oblong method • Trammel method – the paper / card trammel should be attached to the paper A1(d) Any hexagon drawn [1] Any regular hexagon [1] Hexagon correct to overlay [1] 3 Question Answer Marks Guidance A2(a) Right hand face correct to overlay [1] Left hand face correct to overlay / candidate solution [1] Top face correct to overlay / candidate solution [1] 3 A2(b) Left hand face correct to overlay [1] Back edge added on left side to candidate solution [1] Back edge added on right side [1] 3 A2(c) Bottom inner edge showing material thickness correct to overlay [1] Left sloping side thickness correct to overlay [1] Inner bottom corner correct to overlay / candidate solution [1] 3

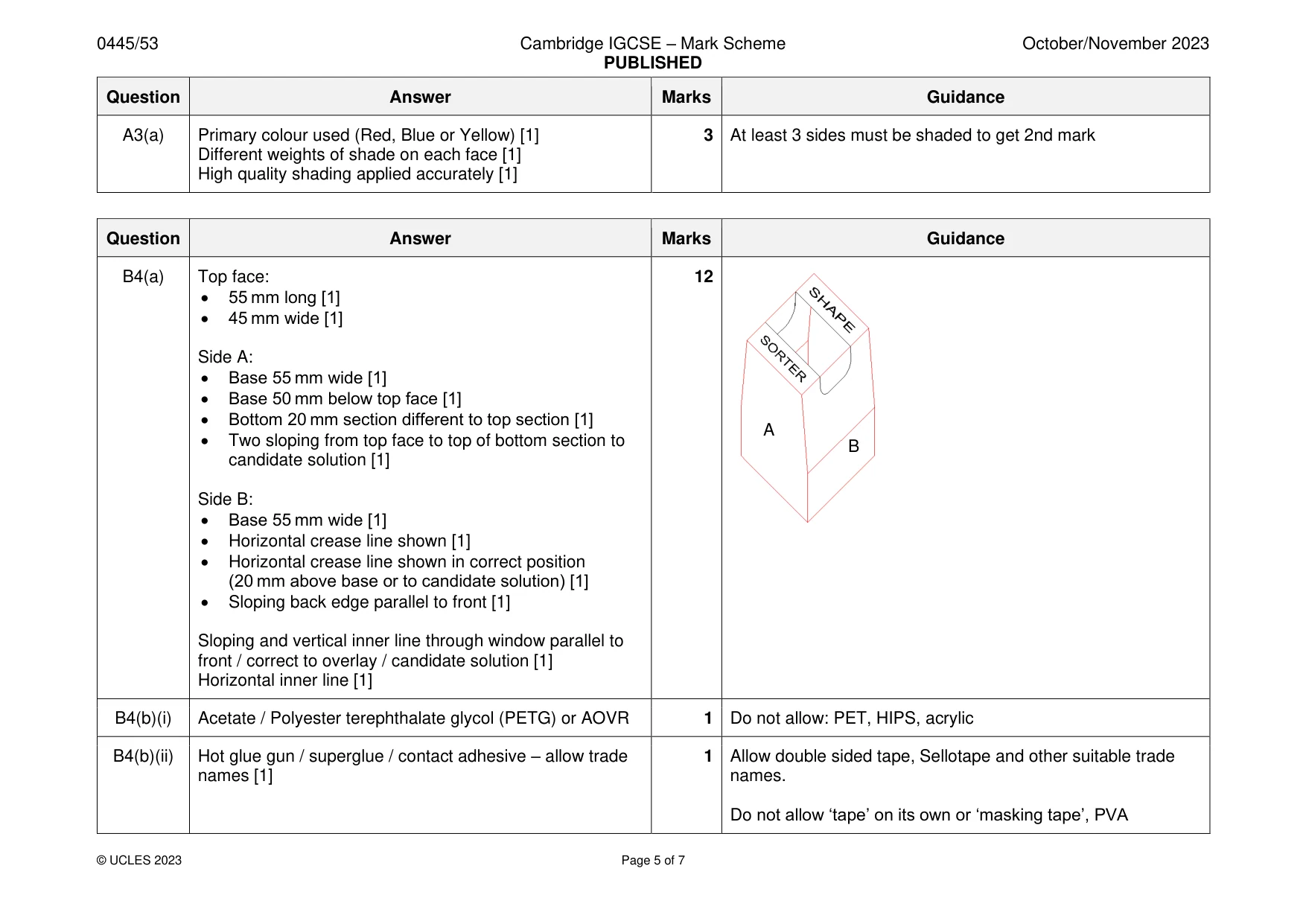

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 5 of 7 Question Answer Marks Guidance A3(a) Primary colour used (Red, Blue or Yellow) [1] Different weights of shade on each face [1] High quality shading applied accurately [1] 3 At least 3 sides must be shaded to get 2nd mark Question Answer Marks Guidance B4(a) Top face: • 55 mm long [1] • 45 mm wide [1] Side A: • Base 55 mm wide [1] • Base 50 mm below top face [1] • Bottom 20 mm section different to top section [1] • Two sloping from top face to top of bottom section to candidate solution [1] Side B: • Base 55 mm wide [1] • Horizontal crease line shown [1] • Horizontal crease line shown in correct position (20 mm above base or to candidate solution) [1] • Sloping back edge parallel to front [1] Sloping and vertical inner line through window parallel to front / correct to overlay / candidate solution [1] Horizontal inner line [1] 12 B4(b)(i) Acetate / Polyester terephthalate glycol (PETG) or AOVR 1 Do not allow: PET, HIPS, acrylic B4(b)(ii) Hot glue gun / superglue / contact adhesive – allow trade names [1] 1 Allow double sided tape, Sellotape and other suitable trade names. Do not allow ‘tape’ on its own or ‘masking tape’, PVA A B

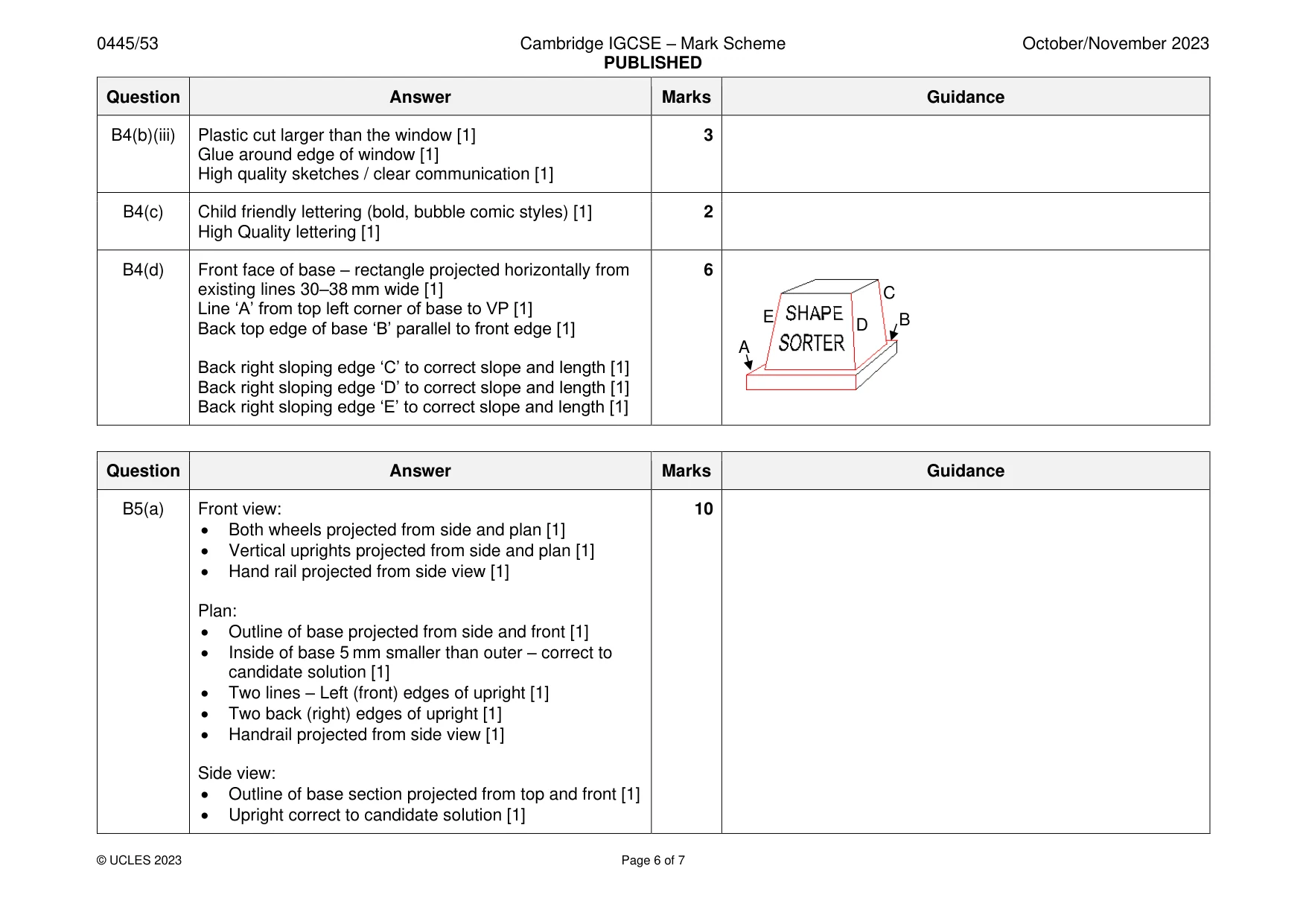

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 6 of 7 Question Answer Marks Guidance B4(b)(iii) Plastic cut larger than the window [1] Glue around edge of window [1] High quality sketches / clear communication [1] 3 B4(c) Child friendly lettering (bold, bubble comic styles) [1] High Quality lettering [1] 2 B4(d) Front face of base – rectangle projected horizontally from existing lines 30–38 mm wide [1] Line ‘A’ from top left corner of base to VP [1] Back top edge of base ‘B’ parallel to front edge [1] Back right sloping edge ‘C’ to correct slope and length [1] Back right sloping edge ‘D’ to correct slope and length [1] Back right sloping edge ‘E’ to correct slope and length [1] 6 Question Answer Marks Guidance B5(a) Front view: • Both wheels projected from side and plan [1] • Vertical uprights projected from side and plan [1] • Hand rail projected from side view [1] Plan: • Outline of base projected from side and front [1] • Inside of base 5 mm smaller than outer – correct to candidate solution [1] • Two lines – Left (front) edges of upright [1] • Two back (right) edges of upright [1] • Handrail projected from side view [1] Side view: • Outline of base section projected from top and front [1] • Upright correct to candidate solution [1] 10 A B C D E

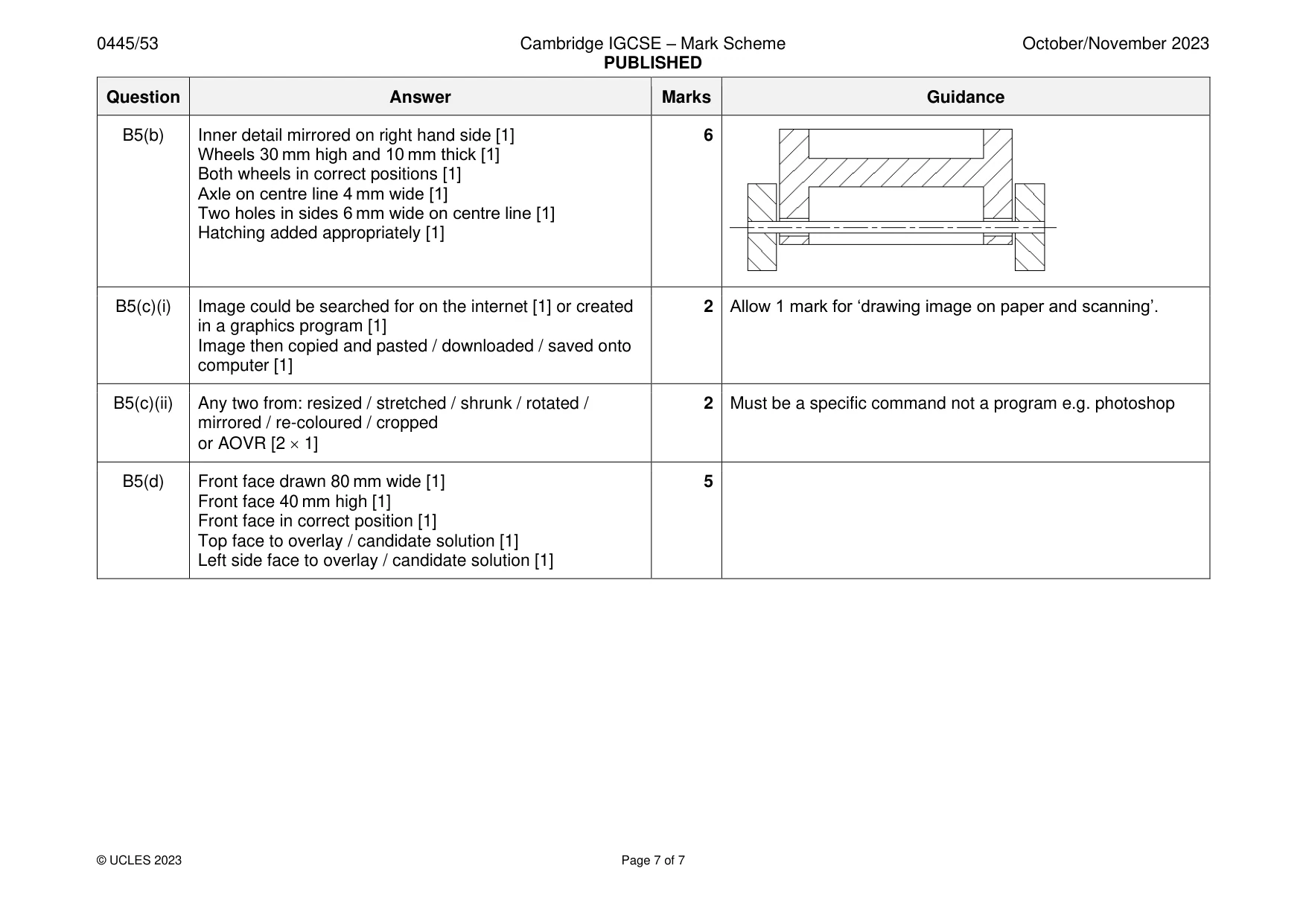

0445/53 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 7 of 7 Question Answer Marks Guidance B5(b) Inner detail mirrored on right hand side [1] Wheels 30 mm high and 10 mm thick [1] Both wheels in correct positions [1] Axle on centre line 4 mm wide [1] Two holes in sides 6 mm wide on centre line [1] Hatching added appropriately [1] 6 B5(c)(i) Image could be searched for on the internet [1] or created in a graphics program [1] Image then copied and pasted / downloaded / saved onto computer [1] 2 Allow 1 mark for ‘drawing image on paper and scanning’. B5(c)(ii) Any two from: resized / stretched / shrunk / rotated / mirrored / re-coloured / cropped or AOVR [2  1] 2 Must be a specific command not a program e.g. photoshop B5(d) Front face drawn 80 mm wide [1] Front face 40 mm high [1] Front face in correct position [1] Top face to overlay / candidate solution [1] Left side face to overlay / candidate solution [1] 5
