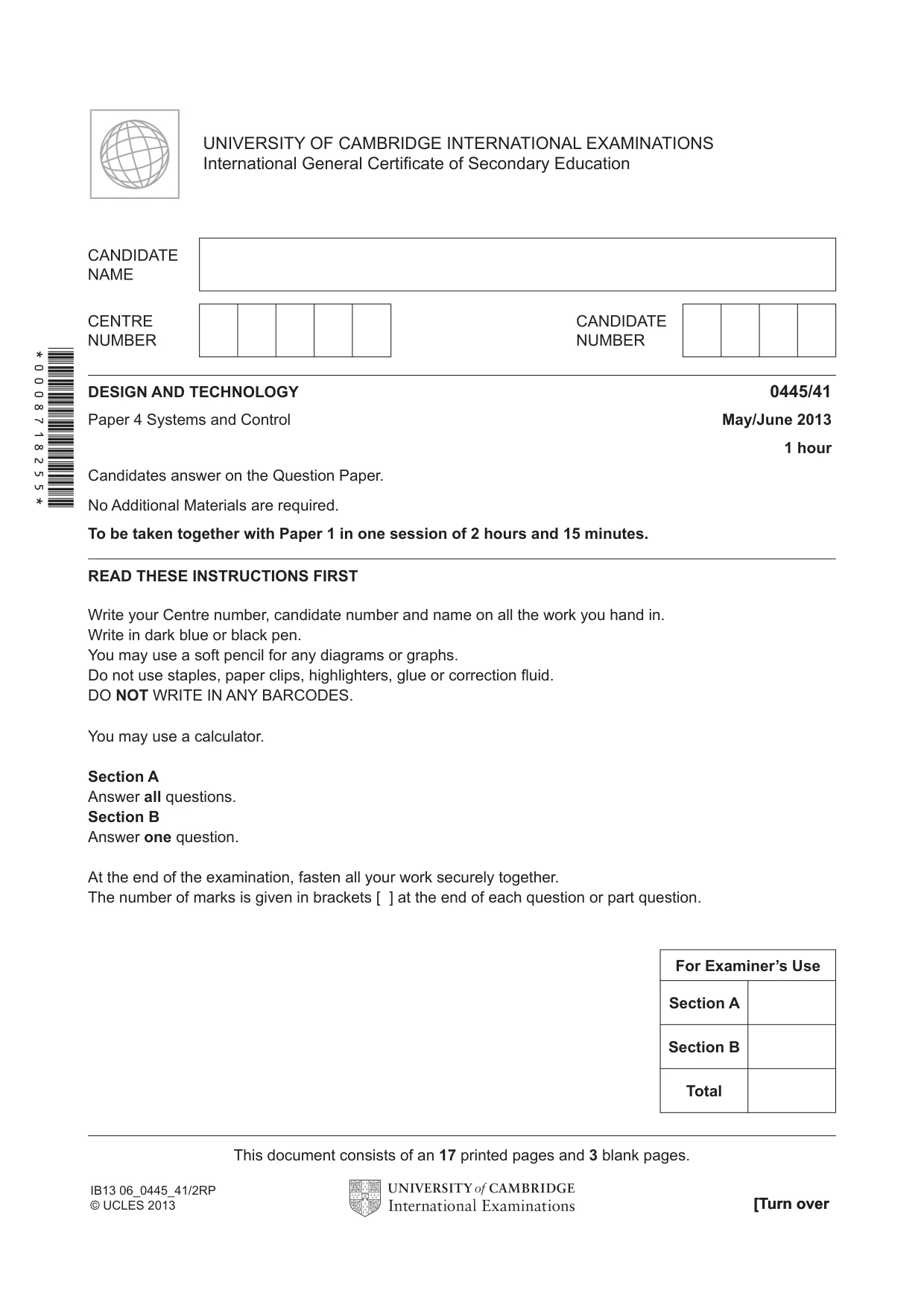

[Turn over *0008718255* READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen. You may use a soft pencil for any diagrams or graphs. Do not use staples, paper clips, highlighters, glue or correction fl uid. DO NOT WRITE IN ANY BARCODES. You may use a calculator. Section A Answer all questions. Section B Answer one question. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. For Examiner’s Use Section A Section B Total DESIGN AND TECHNOLOGY 0445/41 Paper 4 Systems and Control May/June 2013 1 hour Candidates answer on the Question Paper. No Additional Materials are required. To be taken together with Paper 1 in one session of 2 hours and 15 minutes. UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certifi cate of Secondary Education This document consists of an 17 printed pages and 3 blank pages. [Turn over IB13 06_0445_41/2RP © UCLES 2013

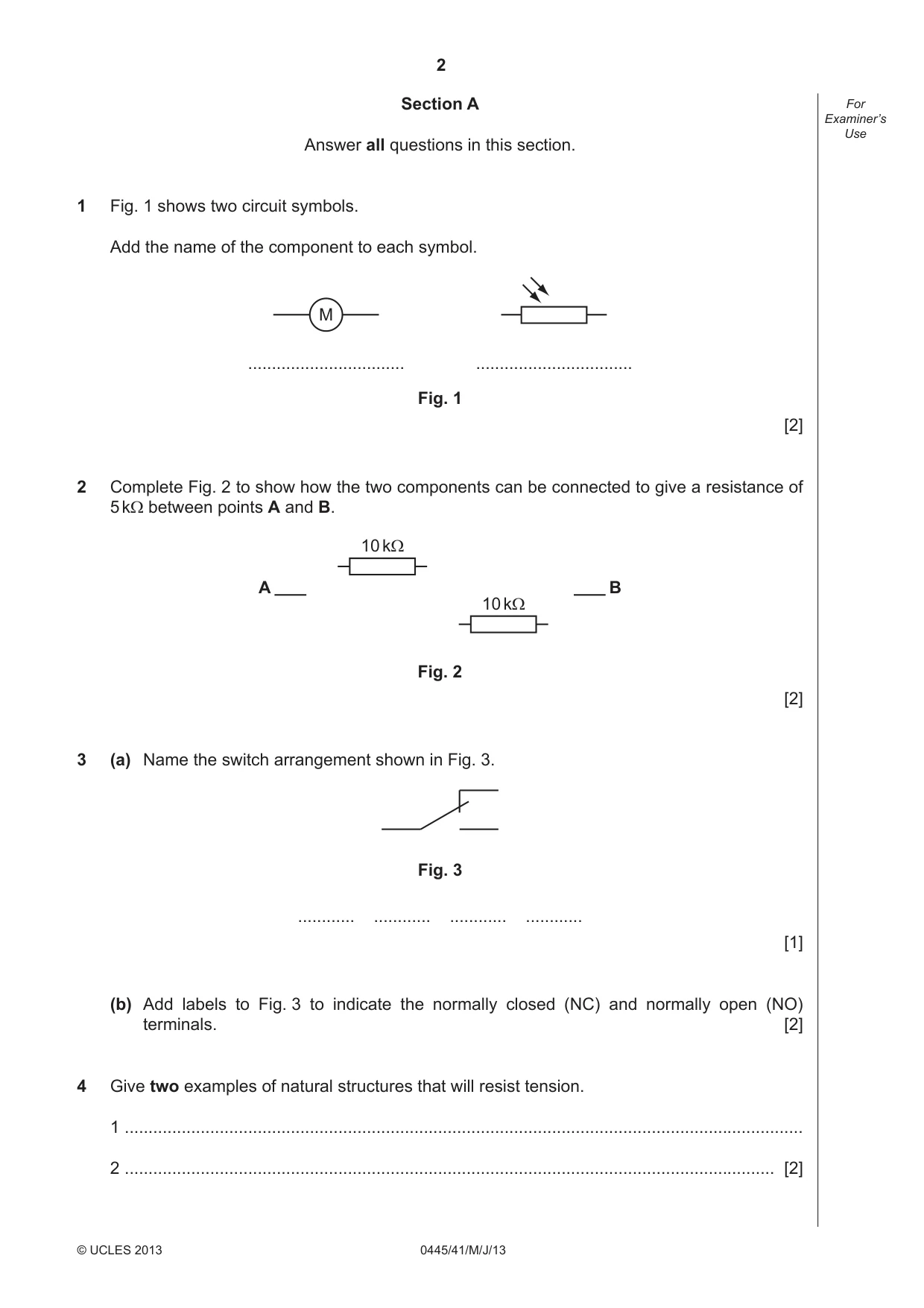

2 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use Section A Answer all questions in this section. 1 Fig. 1 shows two circuit symbols. Add the name of the component to each symbol. M … … Fig. 1 [2] 2 Complete Fig. 2 to show how the two components can be connected to give a resistance of 5 kΩ between points A and B. A B 10 kΩ 10 kΩ Fig. 2 [2] 3 (a) Name the switch arrangement shown in Fig. 3. … … … … Fig. 3 [1] (b) Add labels to Fig. 3 to indicate the normally closed (NC) and normally open (NO) terminals. [2] 4 Give two examples of natural structures that will resist tension. 1 … 2 … [2]

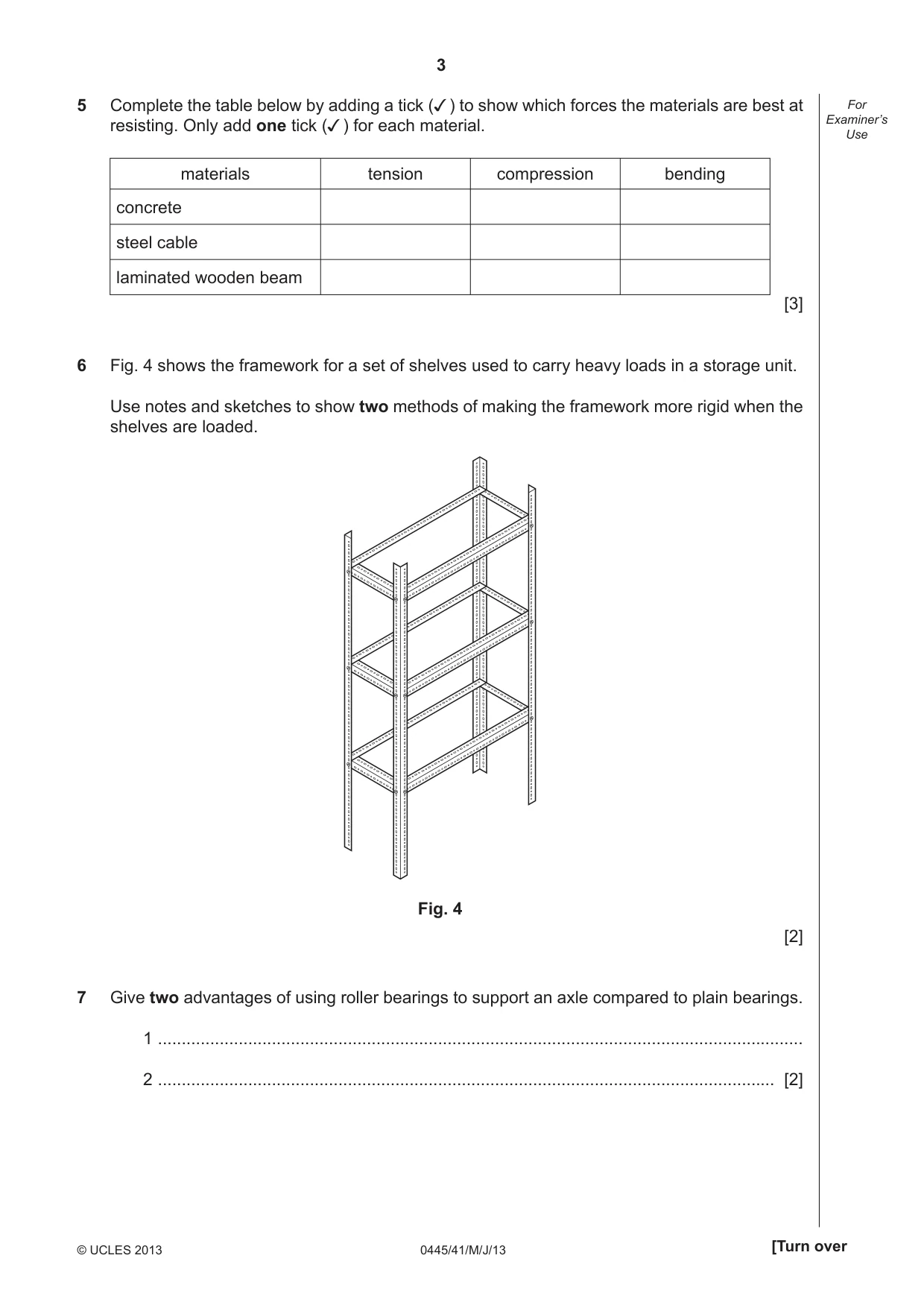

3 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use 5 Complete the table below by adding a tick () to show which forces the materials are best at resisting. Only add one tick () for each material. materials tension compression bending concrete steel cable laminated wooden beam [3] 6 Fig. 4 shows the framework for a set of shelves used to carry heavy loads in a storage unit. Use notes and sketches to show two methods of making the framework more rigid when the shelves are loaded. Fig. 4 [2] 7 Give two advantages of using roller bearings to support an axle compared to plain bearings. 1 … 2 … [2]

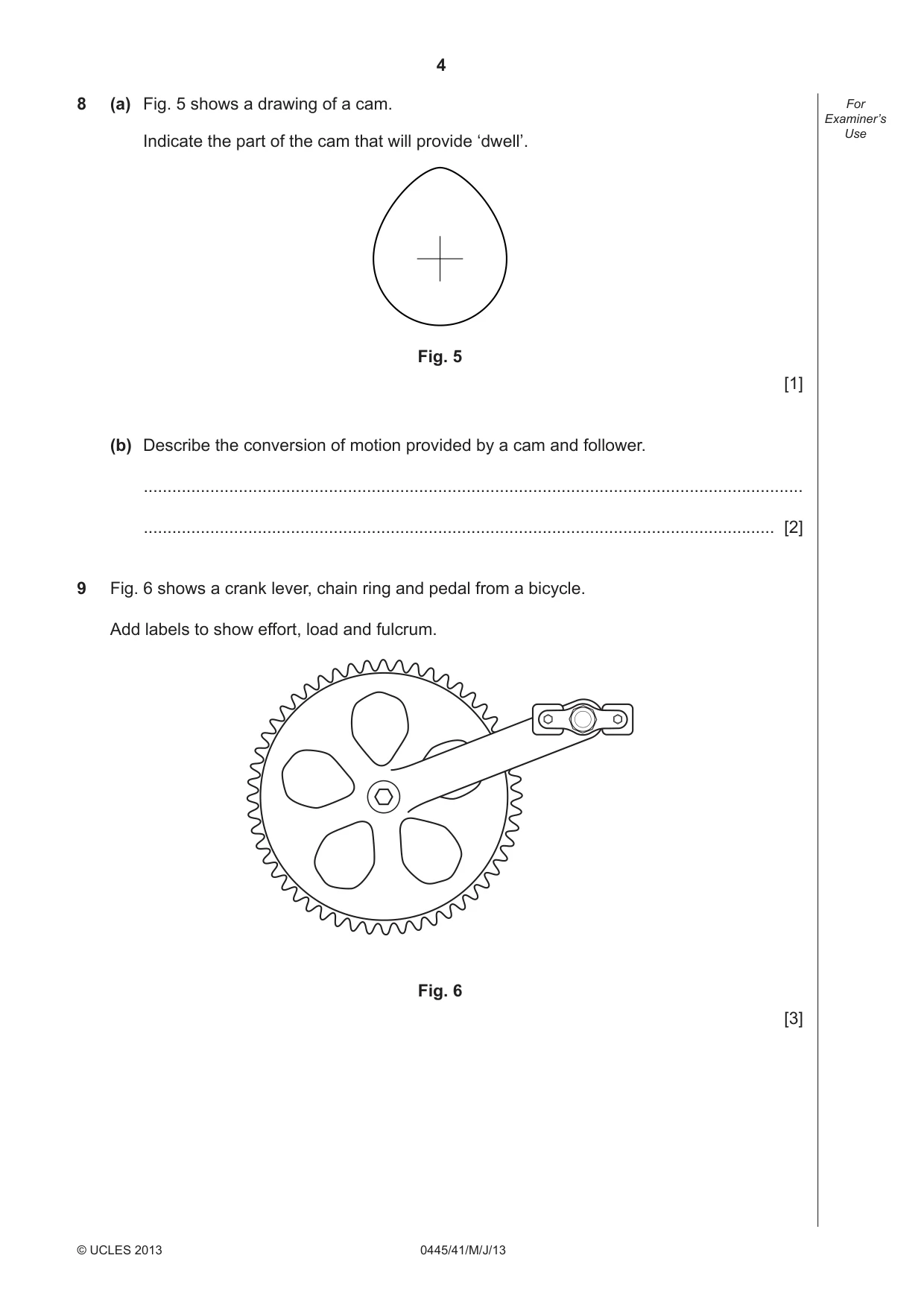

4 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use 8 (a) Fig. 5 shows a drawing of a cam. Indicate the part of the cam that will provide ‘dwell’. Fig. 5 [1] (b) Describe the conversion of motion provided by a cam and follower. … … [2] 9 Fig. 6 shows a crank lever, chain ring and pedal from a bicycle. Add labels to show effort, load and fulcrum. Fig. 6 [3]

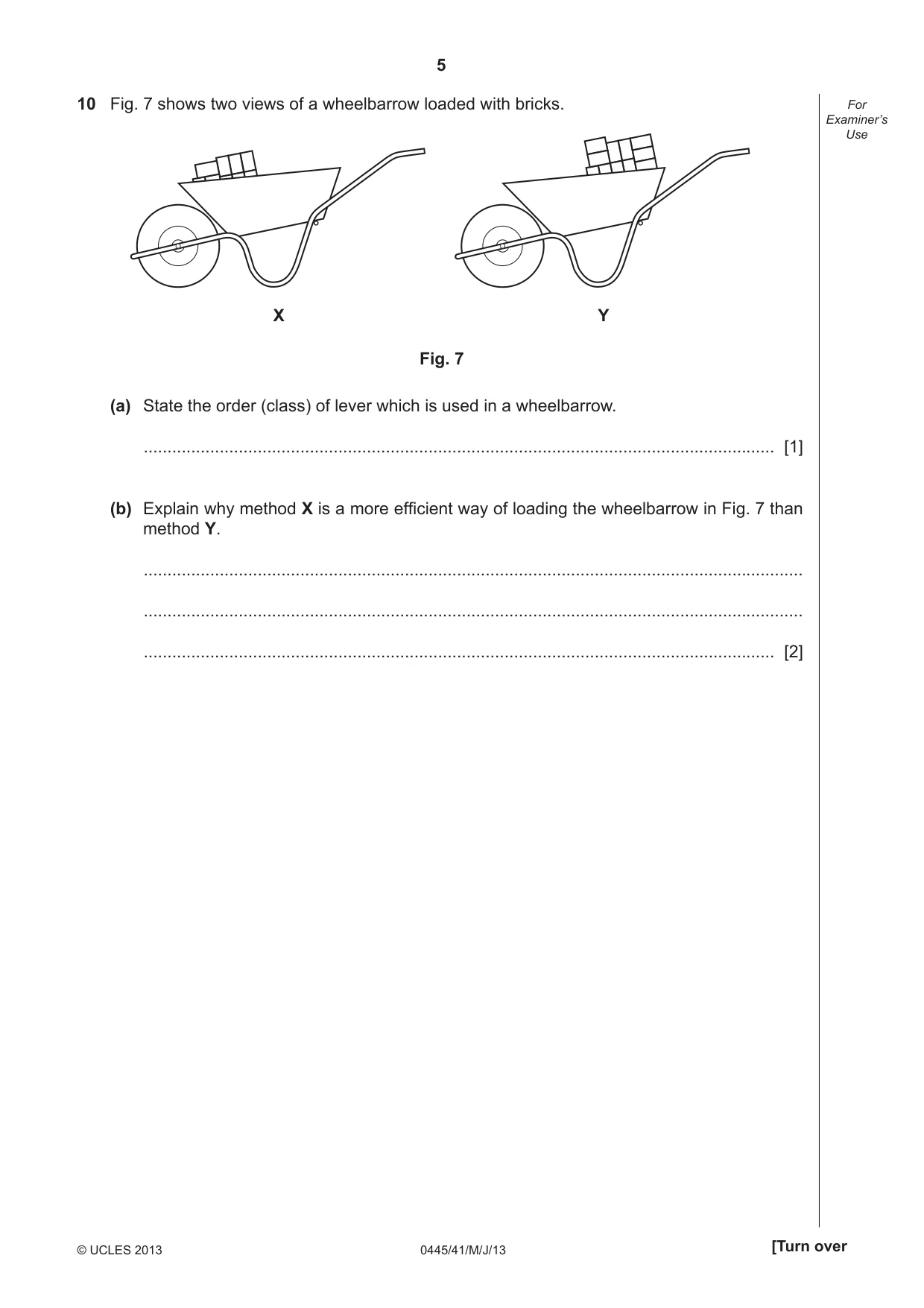

5 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use 10 Fig. 7 shows two views of a wheelbarrow loaded with bricks. X Fig. 7 Y (a) State the order (class) of lever which is used in a wheelbarrow. … [1] (b) Explain why method X is a more effi cient way of loading the wheelbarrow in Fig. 7 than method Y. … … … [2]

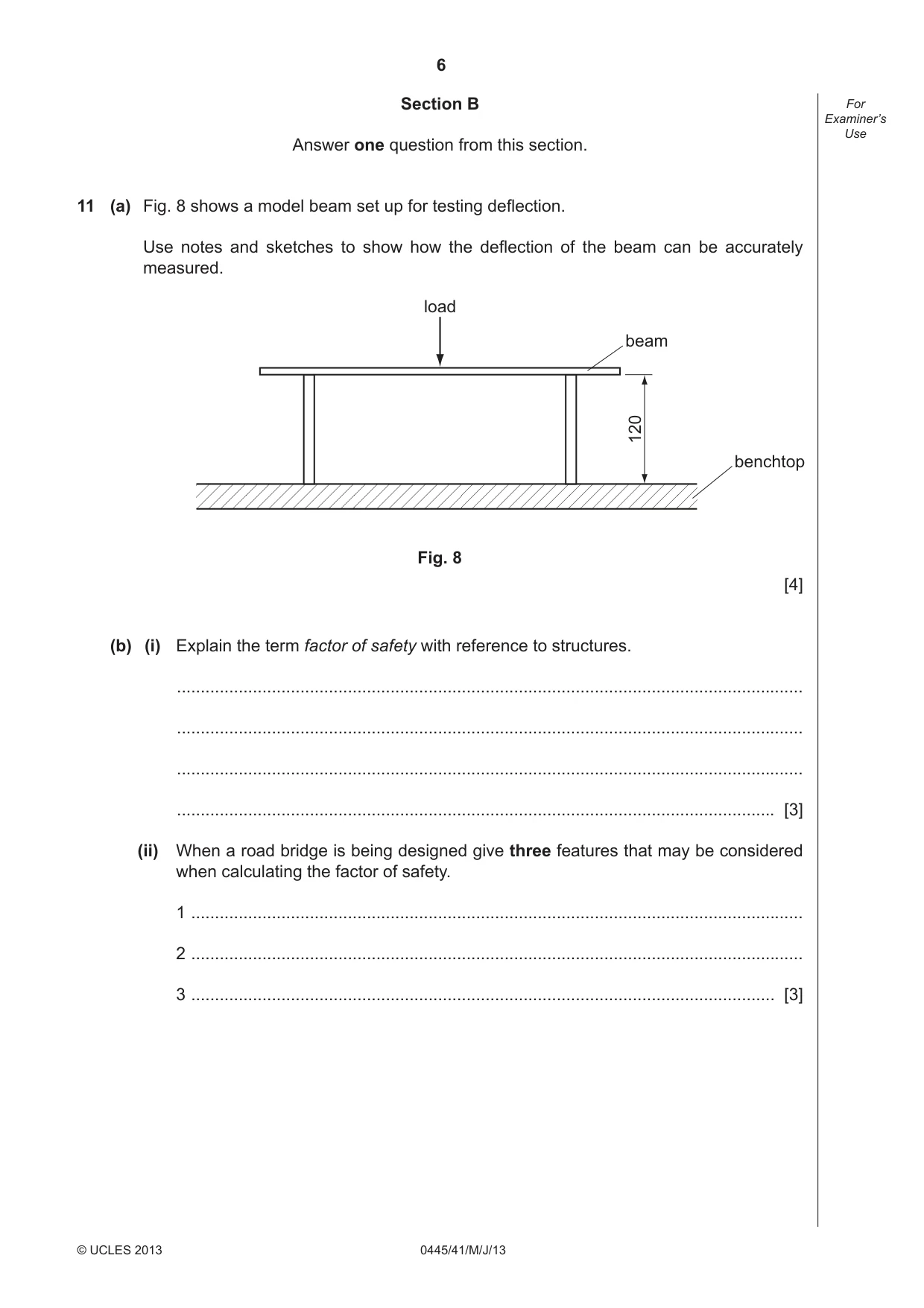

6 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use Section B Answer one question from this section. 11 (a) Fig. 8 shows a model beam set up for testing defl ection. Use notes and sketches to show how the defl ection of the beam can be accurately measured. load beam 120 benchtop Fig. 8 [4] (b) (i) Explain the term factor of safety with reference to structures. … … … … [3] (ii) When a road bridge is being designed give three features that may be considered when calculating the factor of safety. 1 … 2 … 3 … [3]

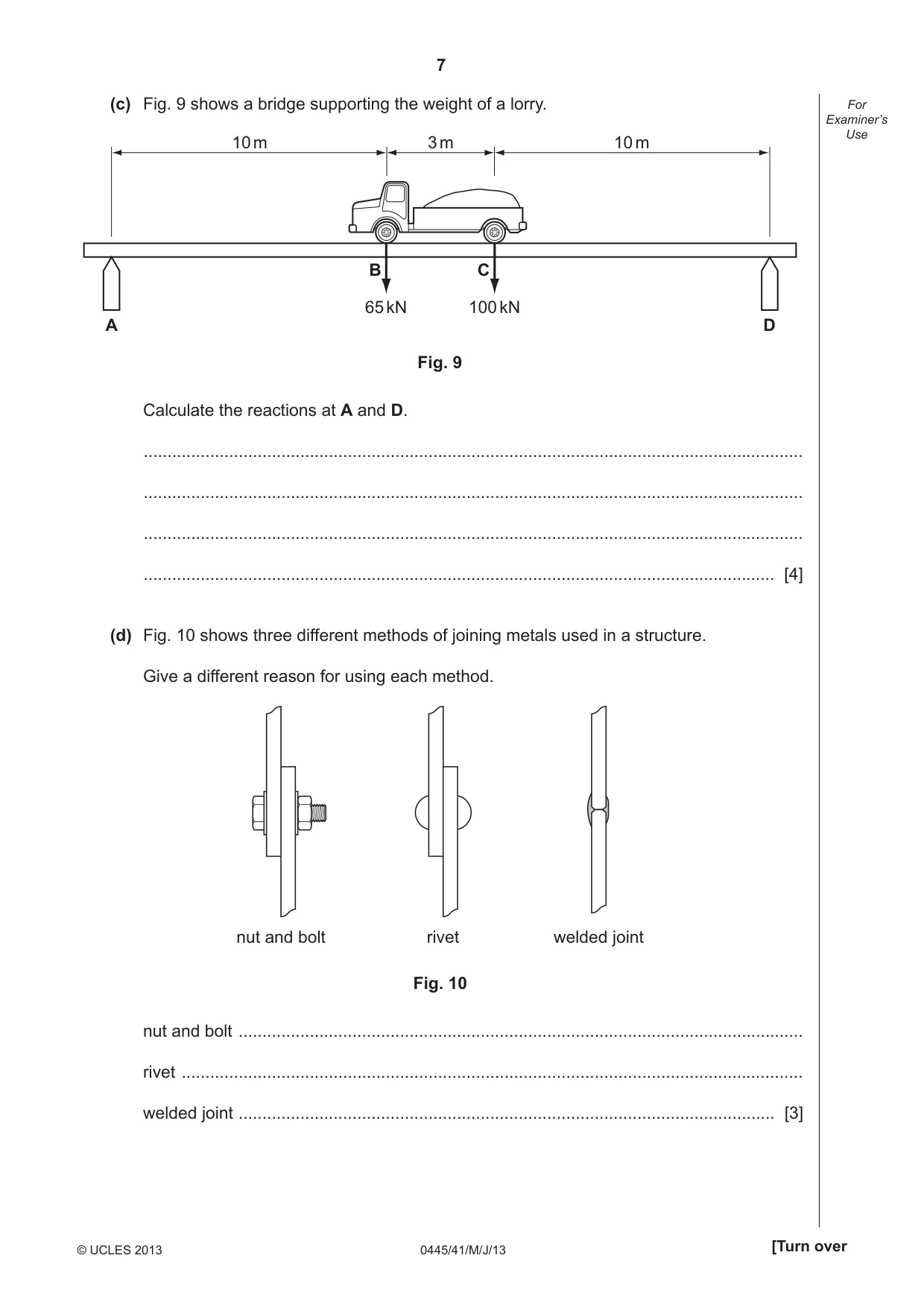

7 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (c) Fig. 9 shows a bridge supporting the weight of a lorry. A D 10 m 10 m 3 m B 65 kN C 100 kN Fig. 9 Calculate the reactions at A and D. … … … … [4] (d) Fig. 10 shows three different methods of joining metals used in a structure. Give a different reason for using each method. nut and bolt rivet welded joint Fig. 10 nut and bolt … rivet … welded joint … [3]

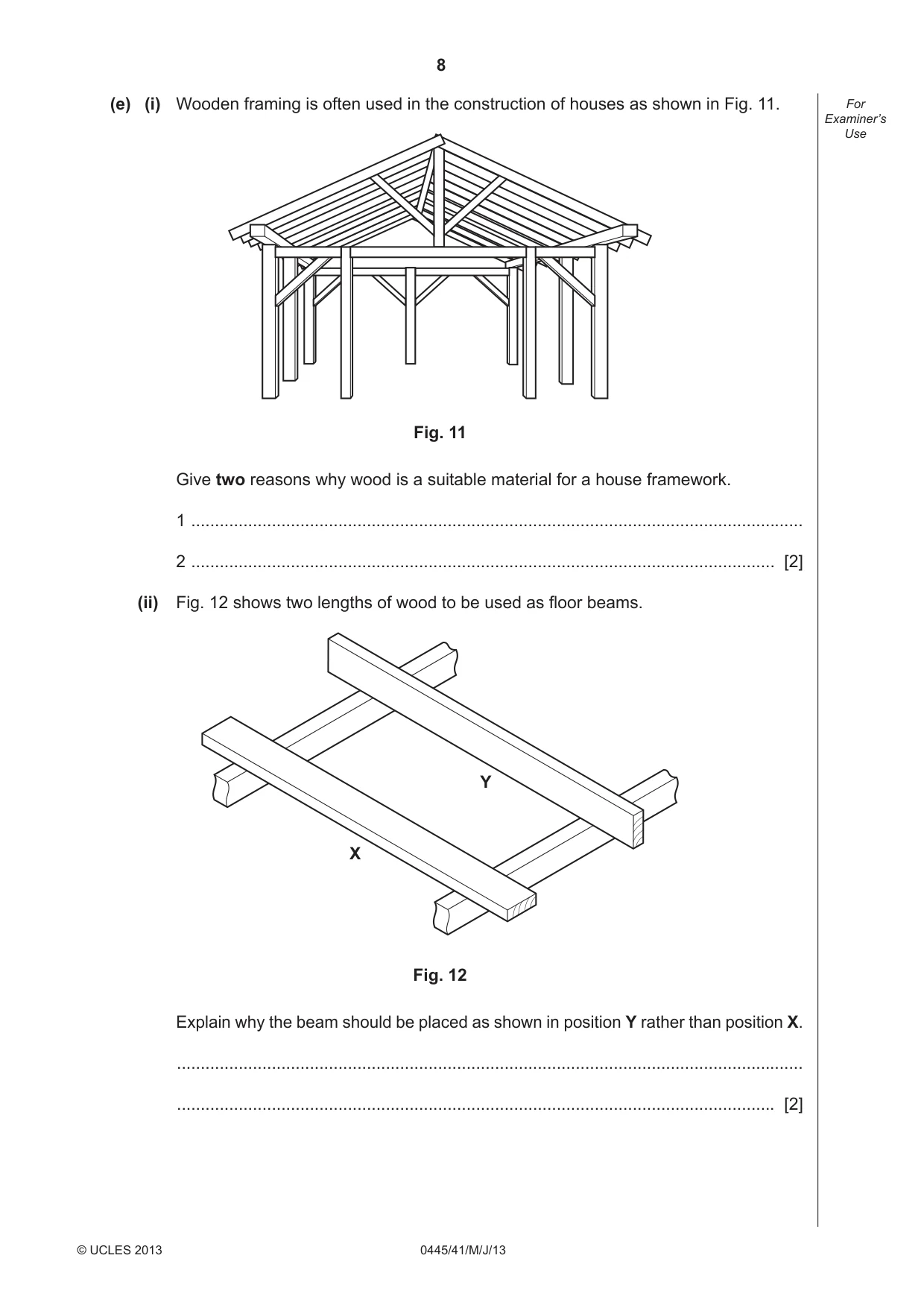

8 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use (e) (i) Wooden framing is often used in the construction of houses as shown in Fig. 11. Fig. 11 Give two reasons why wood is a suitable material for a house framework. 1 … 2 … [2] (ii) Fig. 12 shows two lengths of wood to be used as fl oor beams. Y X Fig. 12 Explain why the beam should be placed as shown in position Y rather than position X. … … [2]

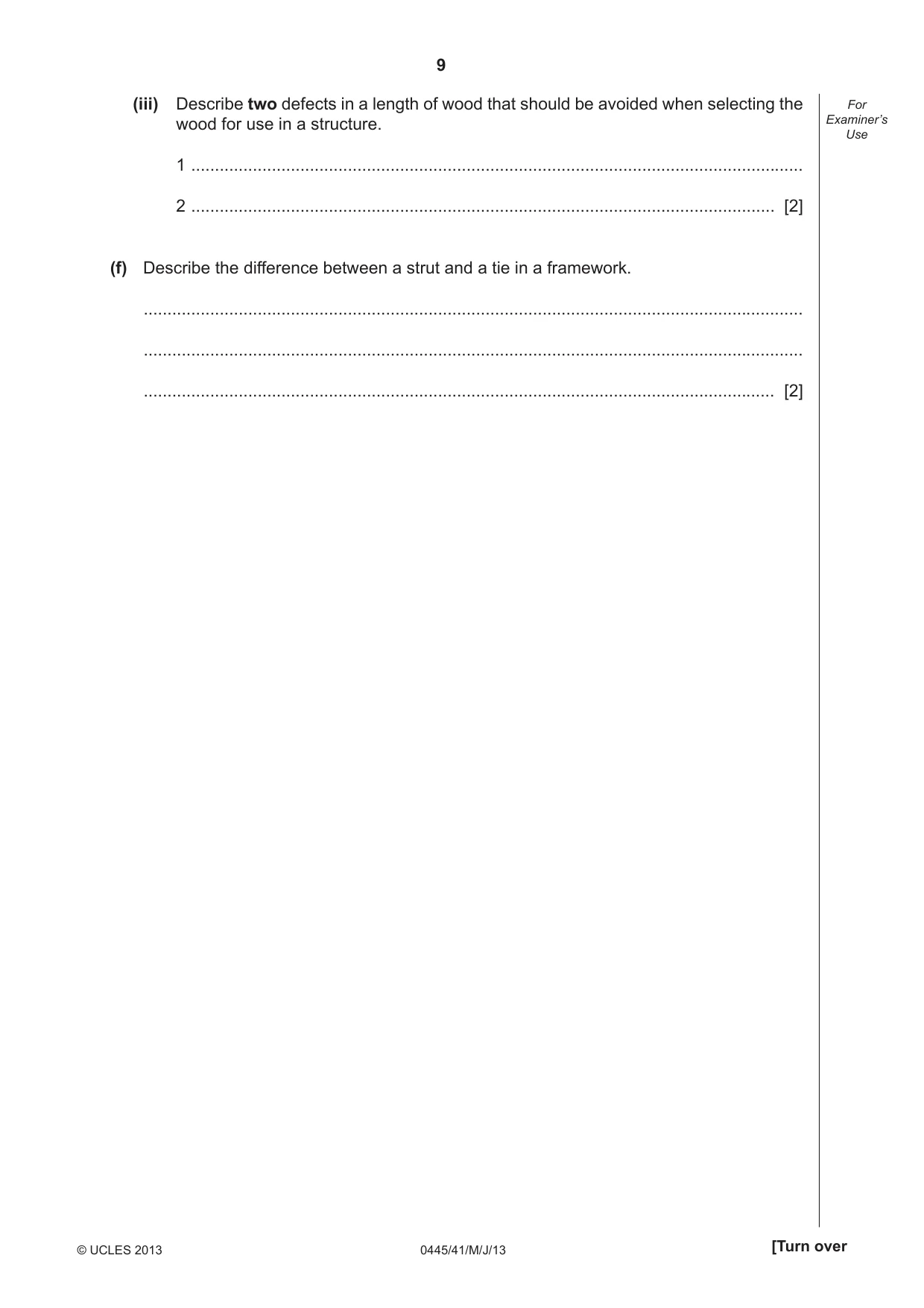

9 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (iii) Describe two defects in a length of wood that should be avoided when selecting the wood for use in a structure. 1 … 2 … [2] (f) Describe the difference between a strut and a tie in a framework. … … … [2]

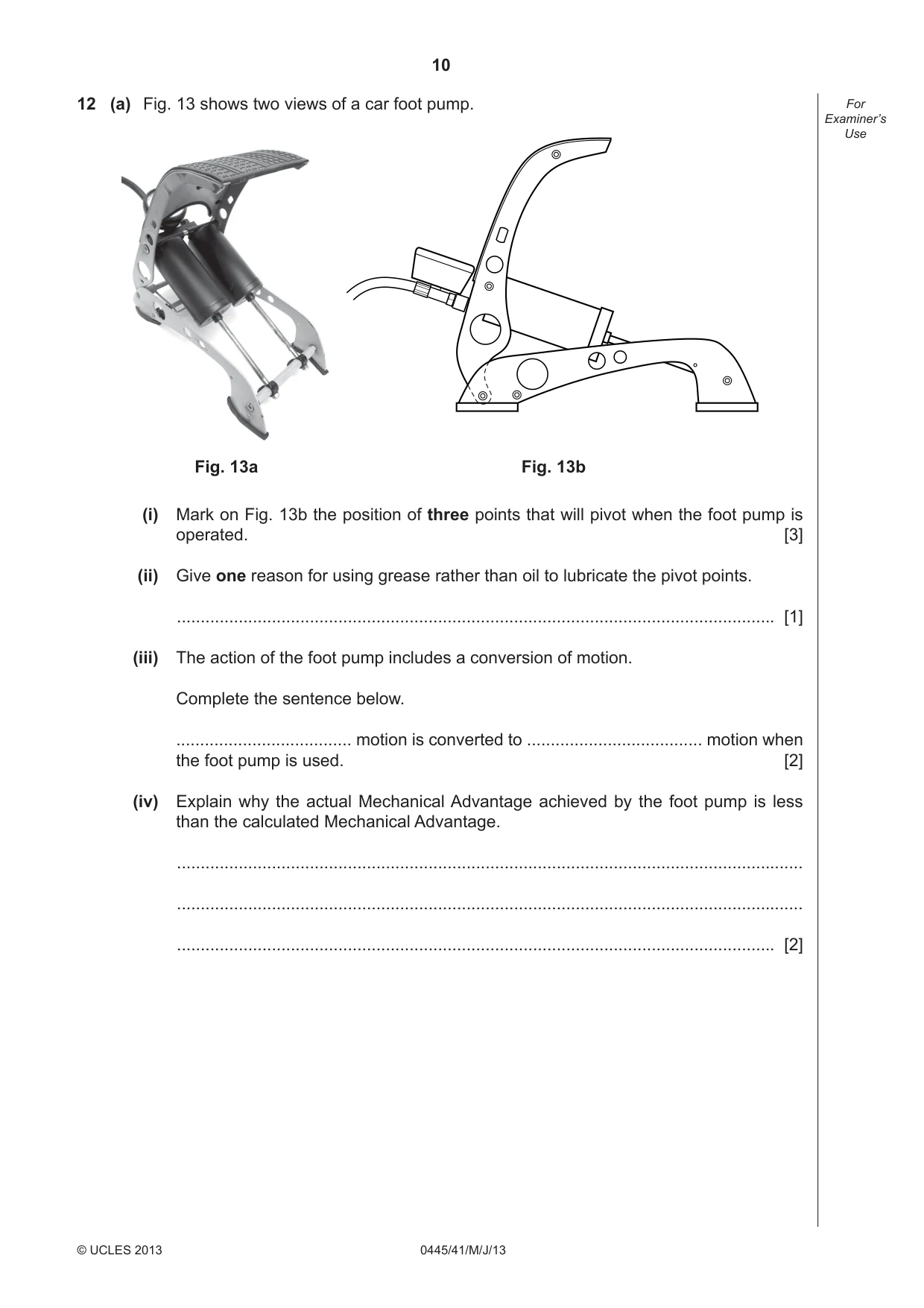

10 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use 12 (a) Fig. 13 shows two views of a car foot pump. Fig. 13b Fig. 13a (i) Mark on Fig. 13b the position of three points that will pivot when the foot pump is operated. [3] (ii) Give one reason for using grease rather than oil to lubricate the pivot points. … [1] (iii) The action of the foot pump includes a conversion of motion. Complete the sentence below. … motion is converted to … motion when the foot pump is used. [2] (iv) Explain why the actual Mechanical Advantage achieved by the foot pump is less than the calculated Mechanical Advantage. … … … [2]

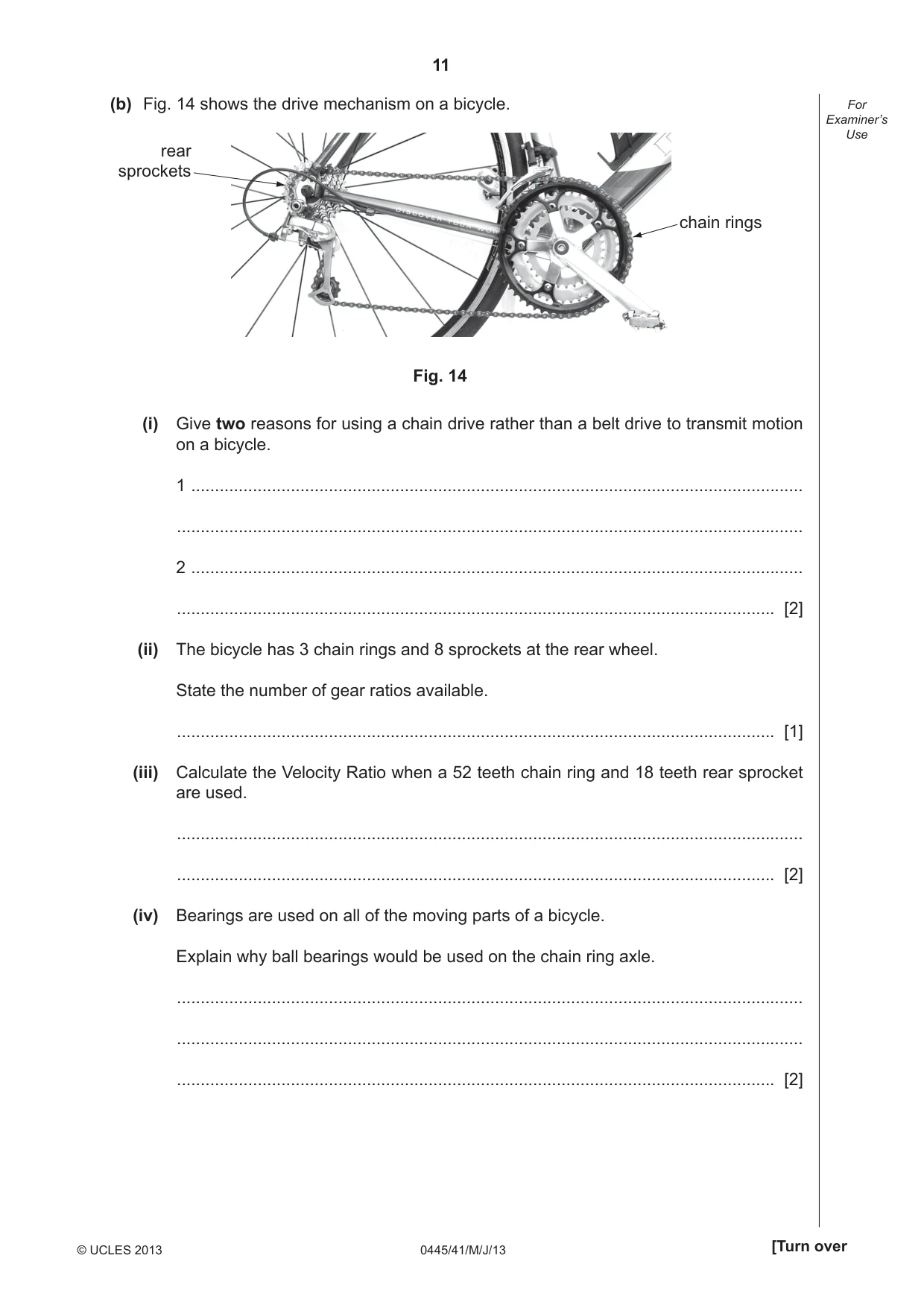

11 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (b) Fig. 14 shows the drive mechanism on a bicycle. chain rings rear sprockets Fig. 14 (i) Give two reasons for using a chain drive rather than a belt drive to transmit motion on a bicycle. 1 … … 2 … … [2] (ii) The bicycle has 3 chain rings and 8 sprockets at the rear wheel. State the number of gear ratios available. … [1] (iii) Calculate the Velocity Ratio when a 52 teeth chain ring and 18 teeth rear sprocket are used. … … [2] (iv) Bearings are used on all of the moving parts of a bicycle. Explain why ball bearings would be used on the chain ring axle. … … … [2]

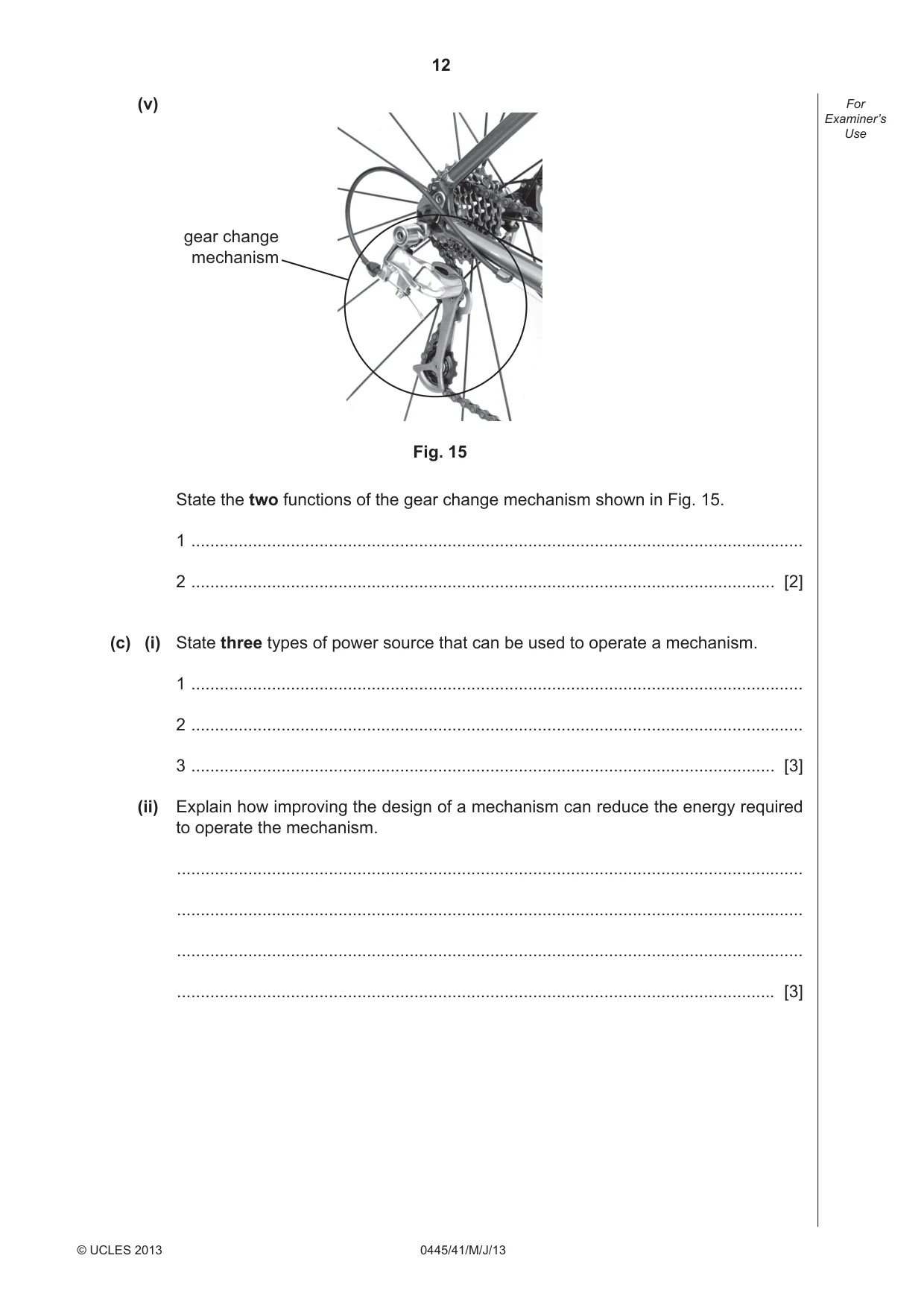

12 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use (v) gear change mechanism Fig. 15 State the two functions of the gear change mechanism shown in Fig. 15. 1 … 2 … [2] (c) (i) State three types of power source that can be used to operate a mechanism. 1 … 2 … 3 … [3] (ii) Explain how improving the design of a mechanism can reduce the energy required to operate the mechanism. … … … … [3]

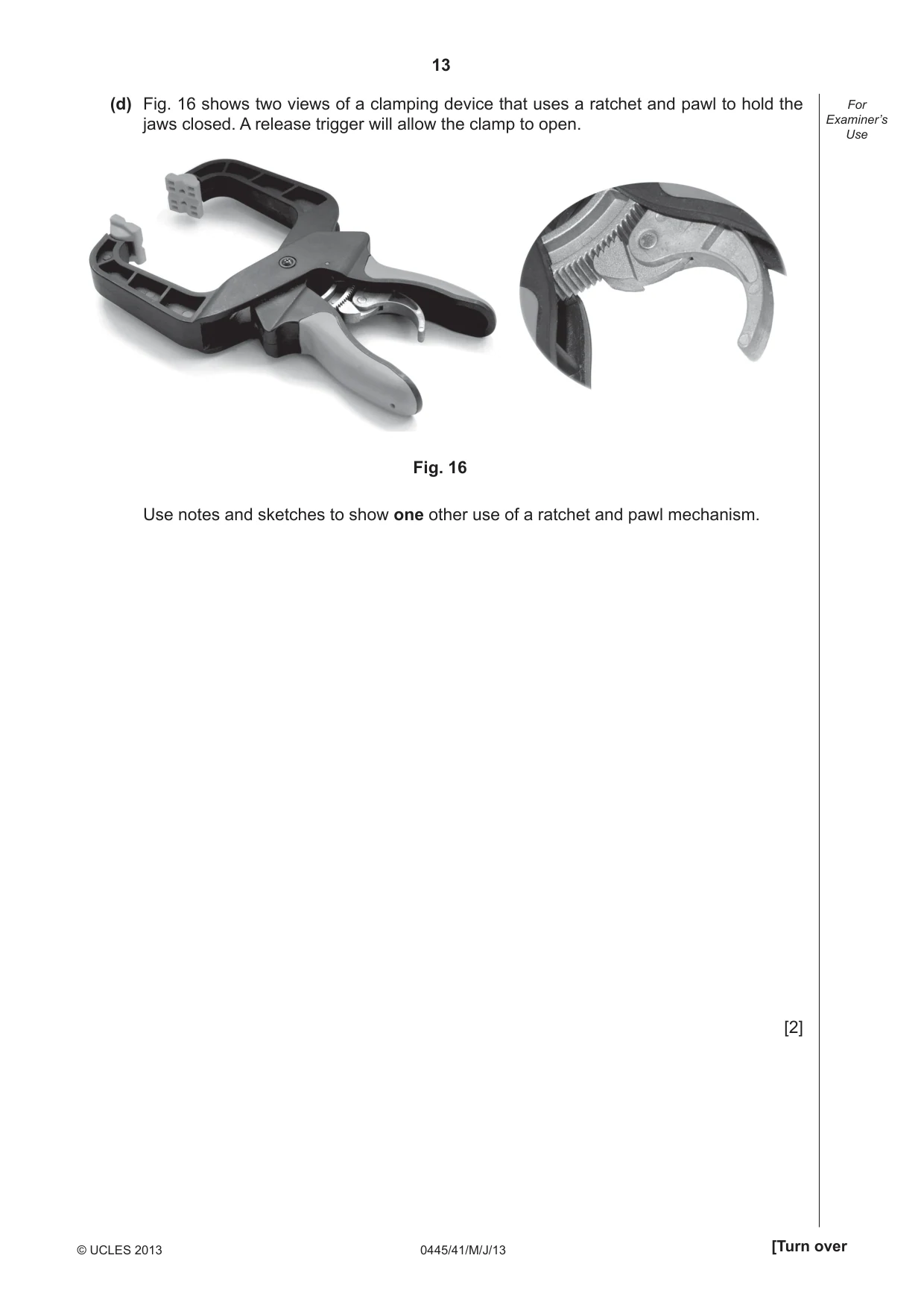

13 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (d) Fig. 16 shows two views of a clamping device that uses a ratchet and pawl to hold the jaws closed. A release trigger will allow the clamp to open. Fig. 16 Use notes and sketches to show one other use of a ratchet and pawl mechanism. [2]

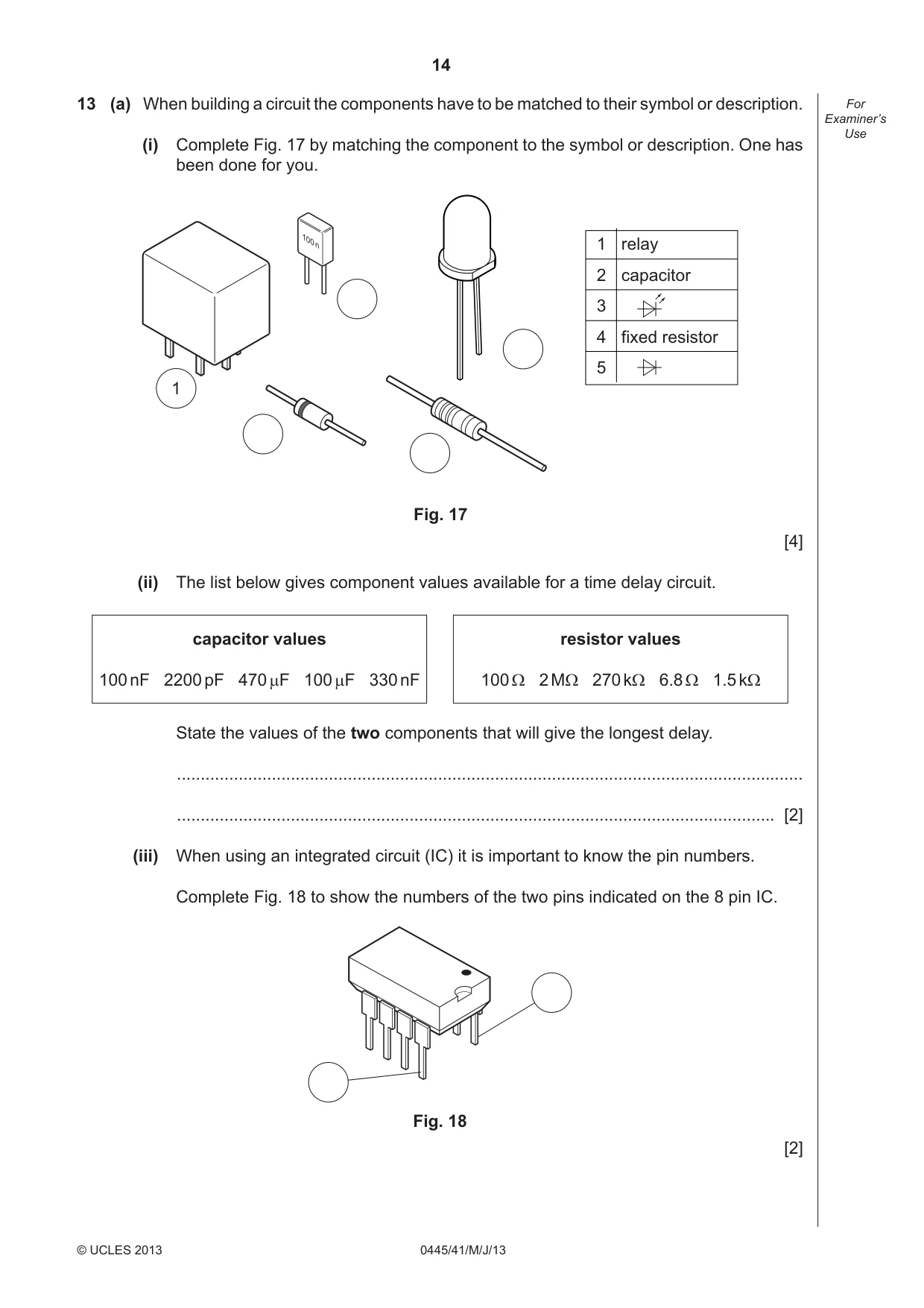

14 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use 13 (a) When building a circuit the components have to be matched to their symbol or description. (i) Complete Fig. 17 by matching the component to the symbol or description. One has been done for you. 1 1 2 3 4 relay capacitor fixed resistor 5 100 n Fig. 17 [4] (ii) The list below gives component values available for a time delay circuit. capacitor values 100 nF 2200 pF 470 µF 100 µF 330 nF resistor values 100 Ω 2 MΩ 270 kΩ 6.8 Ω 1.5 kΩ State the values of the two components that will give the longest delay. … … [2] (iii) When using an integrated circuit (IC) it is important to know the pin numbers. Complete Fig. 18 to show the numbers of the two pins indicated on the 8 pin IC. Fig. 18 [2]

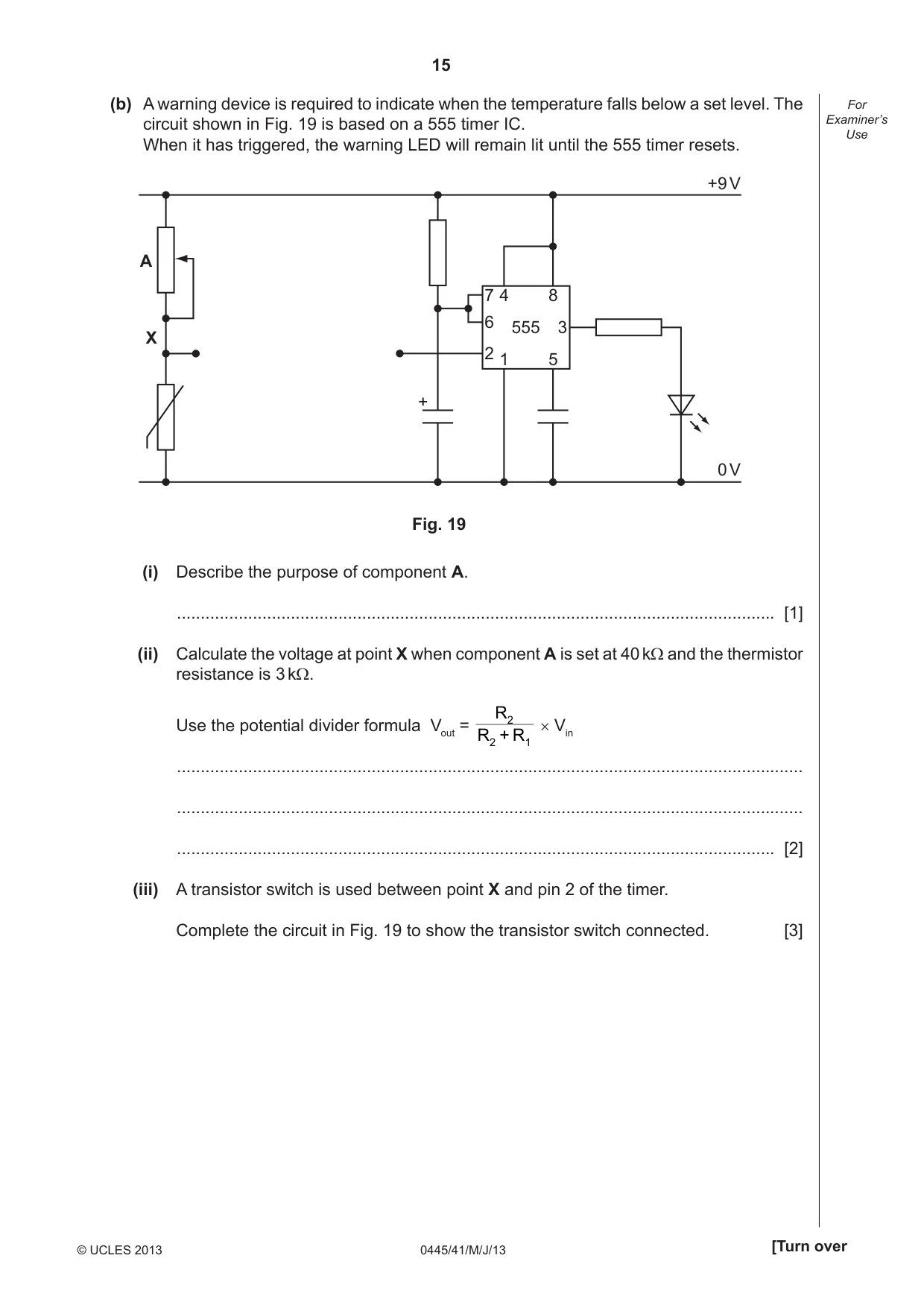

15 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (b) A warning device is required to indicate when the temperature falls below a set level. The circuit shown in Fig. 19 is based on a 555 timer IC. When it has triggered, the warning LED will remain lit until the 555 timer resets. 7 4 8 1 5 6 3 2 555 + +9 V 0 V A X Fig. 19 (i) Describe the purpose of component A. … [1] (ii) Calculate the voltage at point X when component A is set at 40 kΩ and the thermistor resistance is 3 kΩ. Use the potential divider formula Vout = R R R + 2 2 1 × Vin … … … [2] (iii) A transistor switch is used between point X and pin 2 of the timer. Complete the circuit in Fig. 19 to show the transistor switch connected. [3]

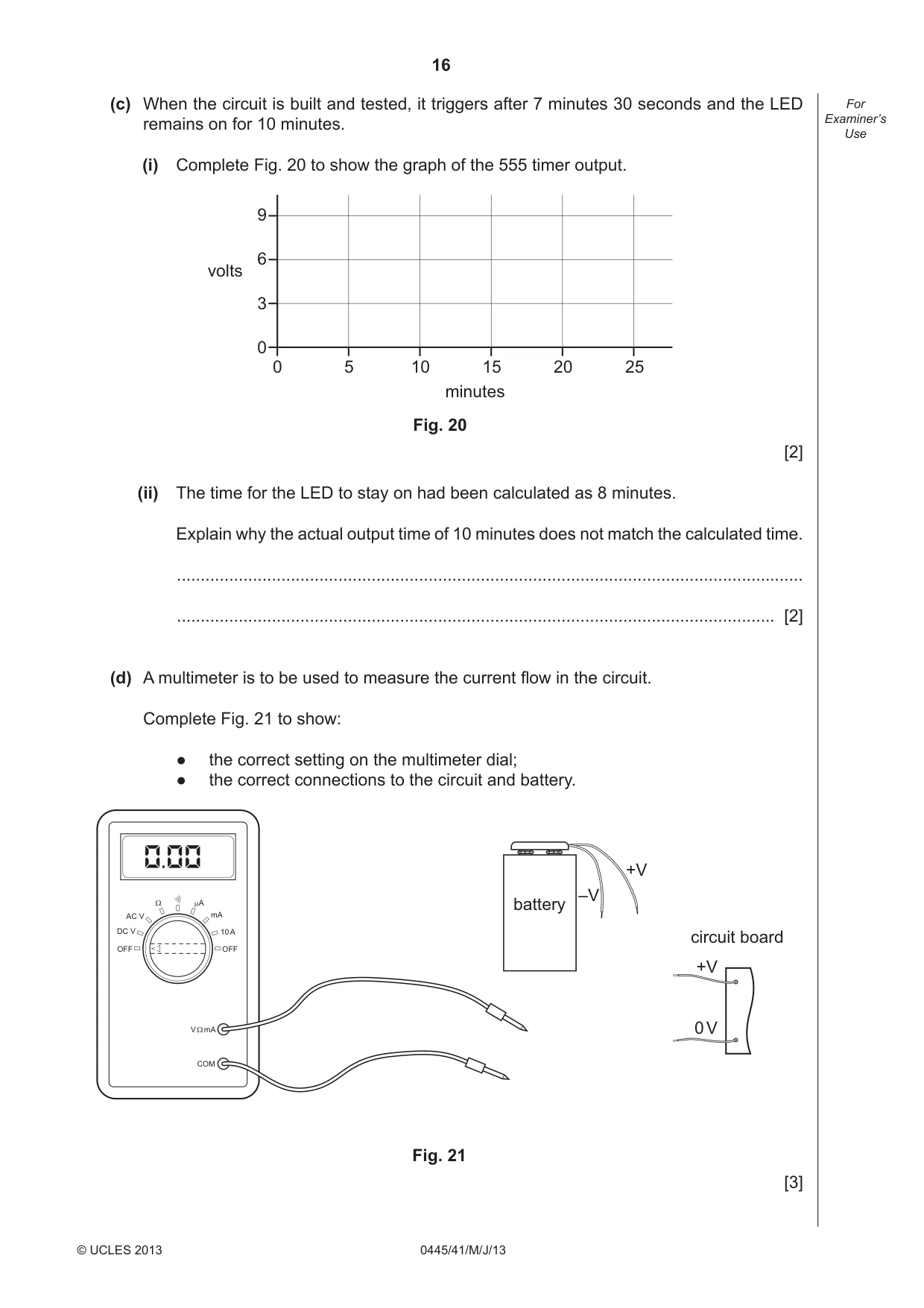

16 0445/41/M/J/13 © UCLES 2013 For Examiner’s Use (c) When the circuit is built and tested, it triggers after 7 minutes 30 seconds and the LED remains on for 10 minutes. (i) Complete Fig. 20 to show the graph of the 555 timer output. 9 6 3 0 0 5 10 15 minutes Fig. 20 volts 20 25 [2] (ii) The time for the LED to stay on had been calculated as 8 minutes. Explain why the actual output time of 10 minutes does not match the calculated time. … … [2] (d) A multimeter is to be used to measure the current fl ow in the circuit. Complete Fig. 21 to show: ● the correct setting on the multimeter dial; ● the correct connections to the circuit and battery. AC V DC V OFF OFF 10 A mA µA Ω V Ω mA COM battery –V +V +V 0 V circuit board Fig. 21 [3]

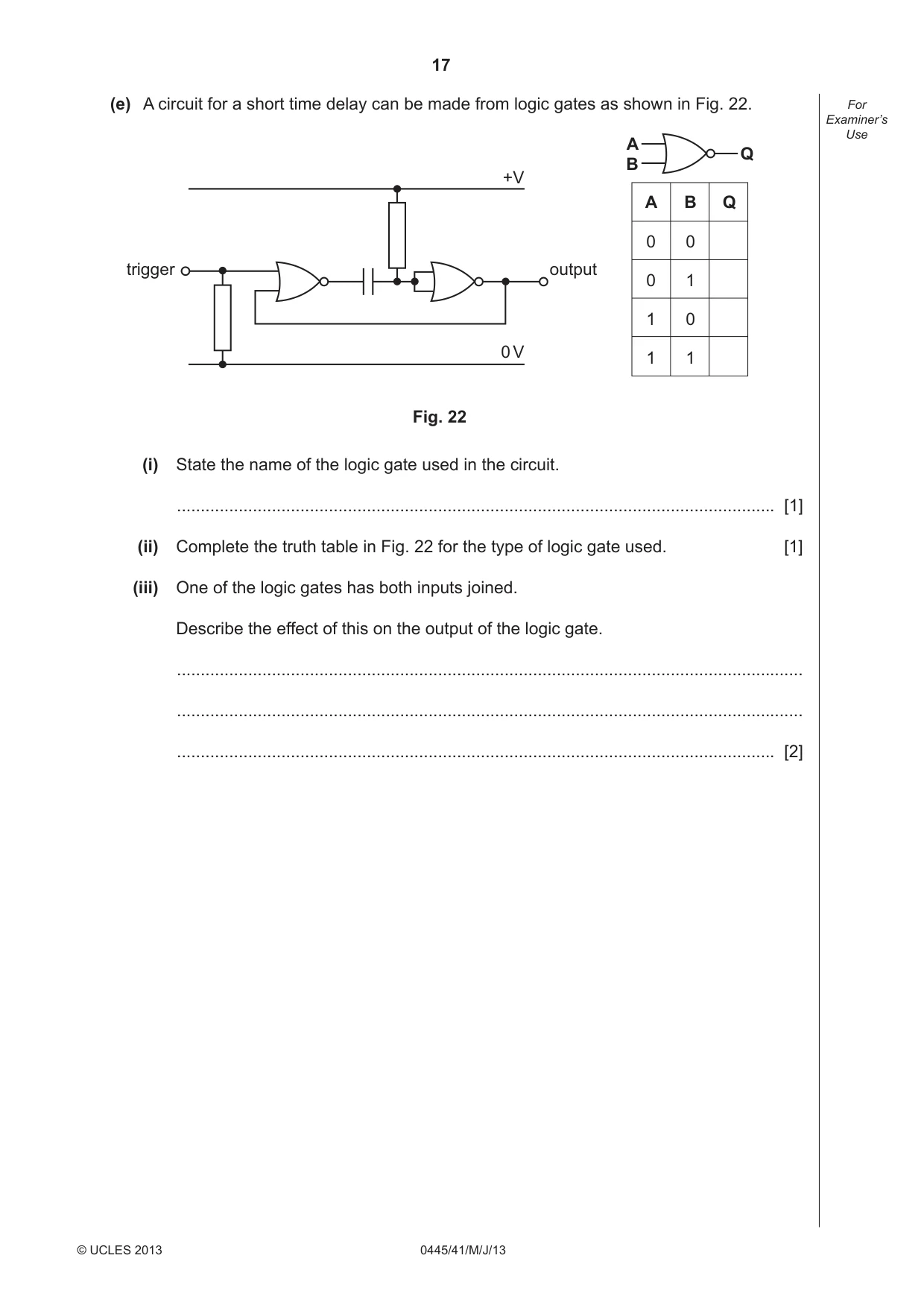

17 0445/41/M/J/13 © UCLES 2013 [Turn over For Examiner’s Use (e) A circuit for a short time delay can be made from logic gates as shown in Fig. 22. trigger output +V 0 V A B Q A 0 0 1 1 B 0 1 0 1 Q Fig. 22 (i) State the name of the logic gate used in the circuit. … [1] (ii) Complete the truth table in Fig. 22 for the type of logic gate used. [1] (iii) One of the logic gates has both inputs joined. Describe the effect of this on the output of the logic gate. … … … [2]

18 0445/41/M/J/13 BLANK PAGE © UCLES 2013

19 0445/41/M/J/13 BLANK PAGE © UCLES 2013

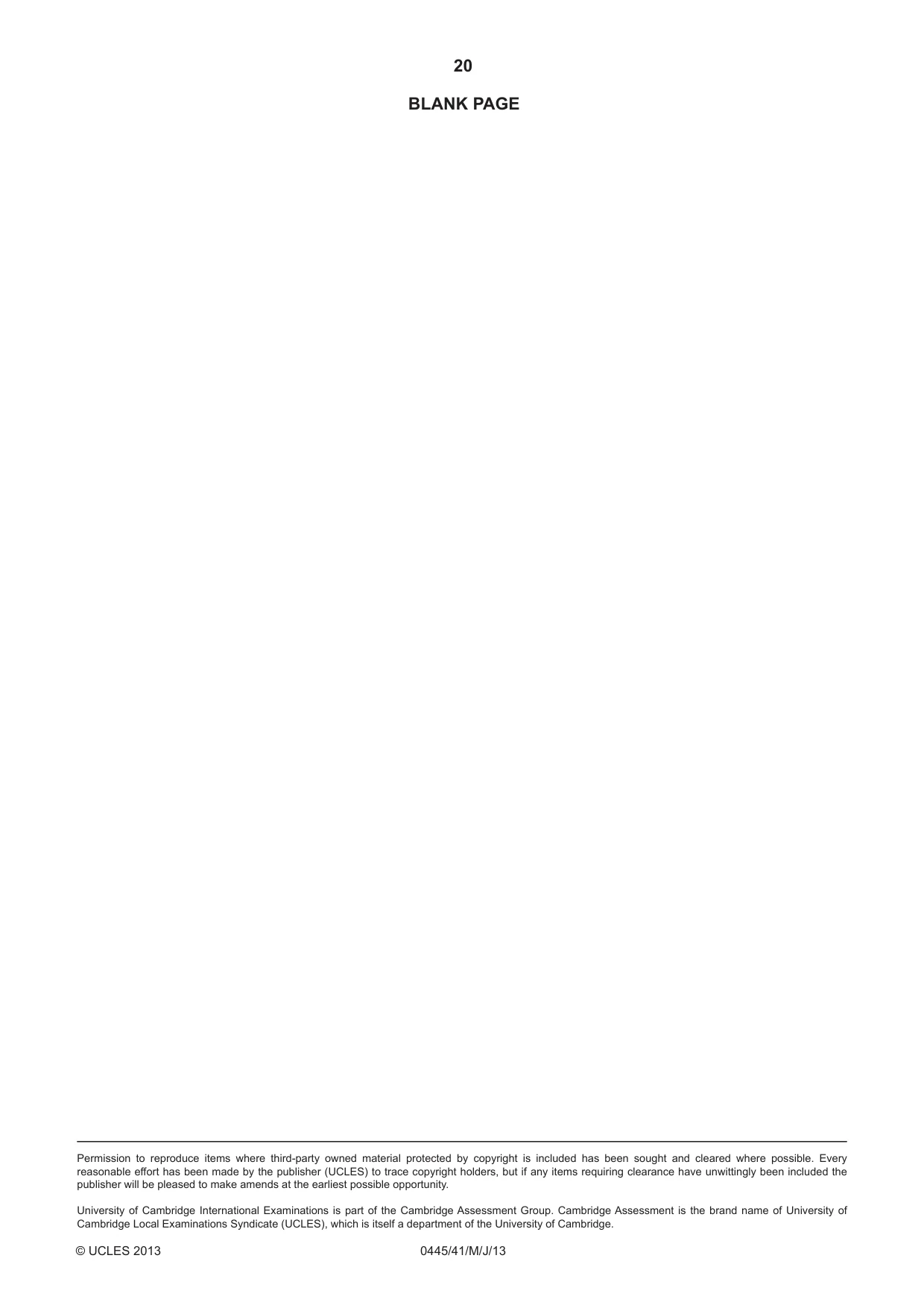

20 0445/41/M/J/13 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. BLANK PAGE © UCLES 2013
