Cambridge IGCSE Computer Science (9-1) 0984 — 2023 May/June Paper 1 · Variant 1

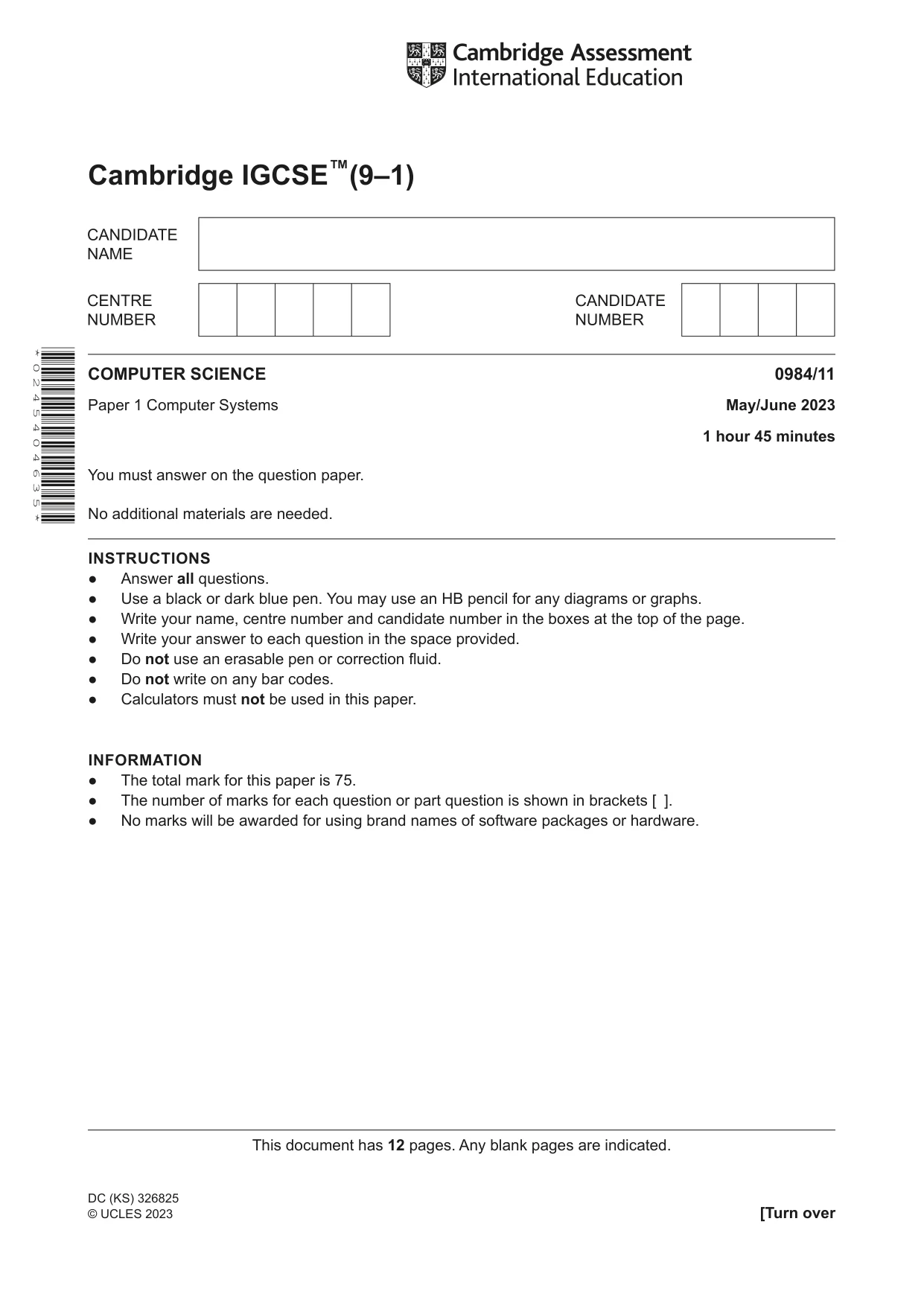

This document has 12 pages. Any blank pages are indicated. [Turn over Cambridge IGCSE™(9–1) * 0 2 4 5 4 0 4 6 3 5 * DC (KS) 326825 © UCLES 2023 COMPUTER SCIENCE 0984/11 Paper 1 Computer Systems May/June 2023 1 hour 45 minutes You must answer on the question paper. No additional materials are needed. INSTRUCTIONS ● Answer all questions. ● Use a black or dark blue pen. You may use an HB pencil for any diagrams or graphs. ● Write your name, centre number and candidate number in the boxes at the top of the page. ● Write your answer to each question in the space provided. ● Do not use an erasable pen or correction fluid. ● Do not write on any bar codes. ● Calculators must not be used in this paper. INFORMATION ● The total mark for this paper is 75. ● The number of marks for each question or part question is shown in brackets [ ]. ● No marks will be awarded for using brand names of software packages or hardware.

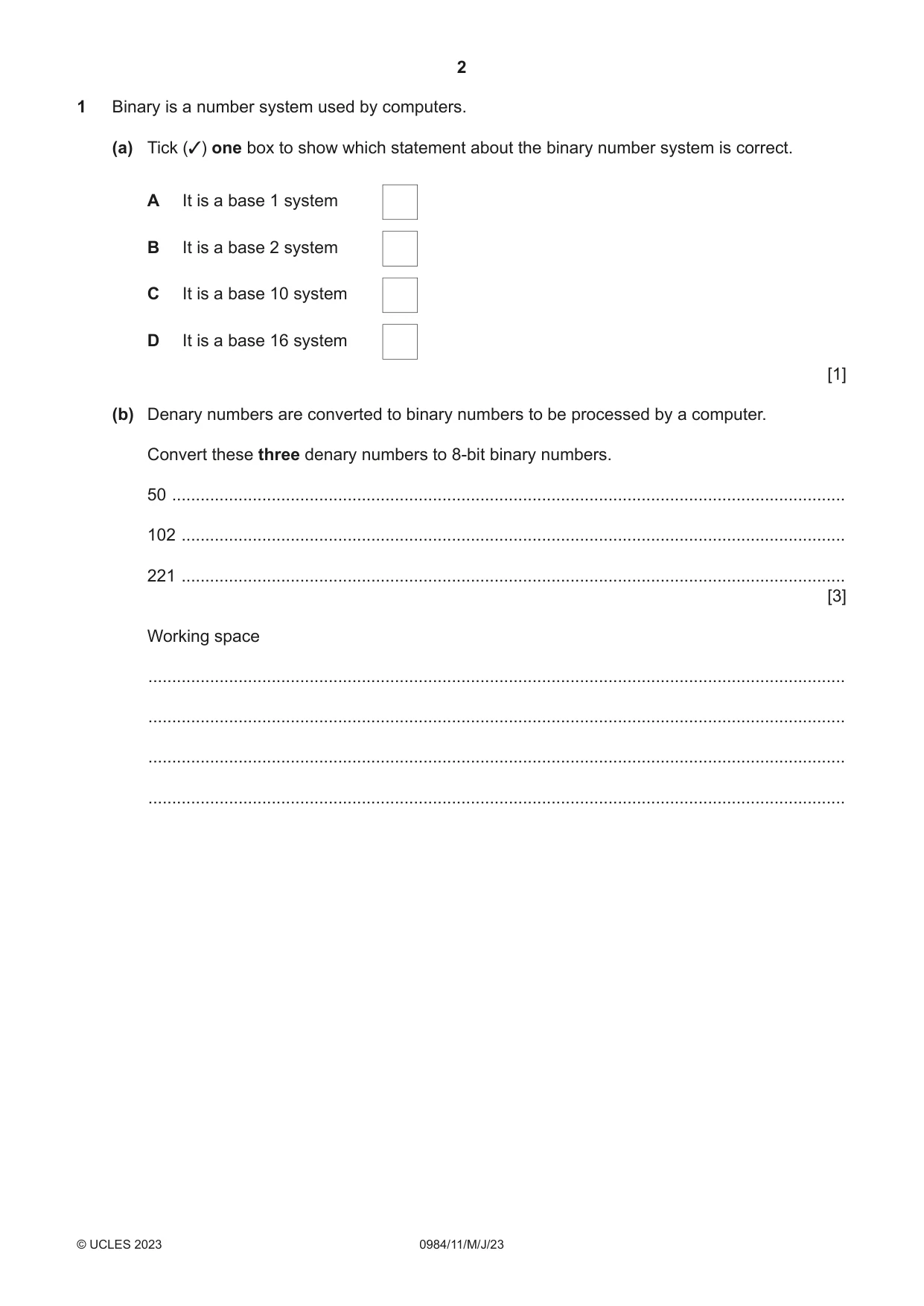

2 0984/11/M/J/23 © UCLES 2023 1 Binary is a number system used by computers. (a) Tick (3) one box to show which statement about the binary number system is correct. A It is a base 1 system B It is a base 2 system C It is a base 10 system D It is a base 16 system [1] (b) Denary numbers are converted to binary numbers to be processed by a computer. Convert these three denary numbers to 8‑bit binary numbers. 50 … 102 … 221 … [3] Working space … … … …

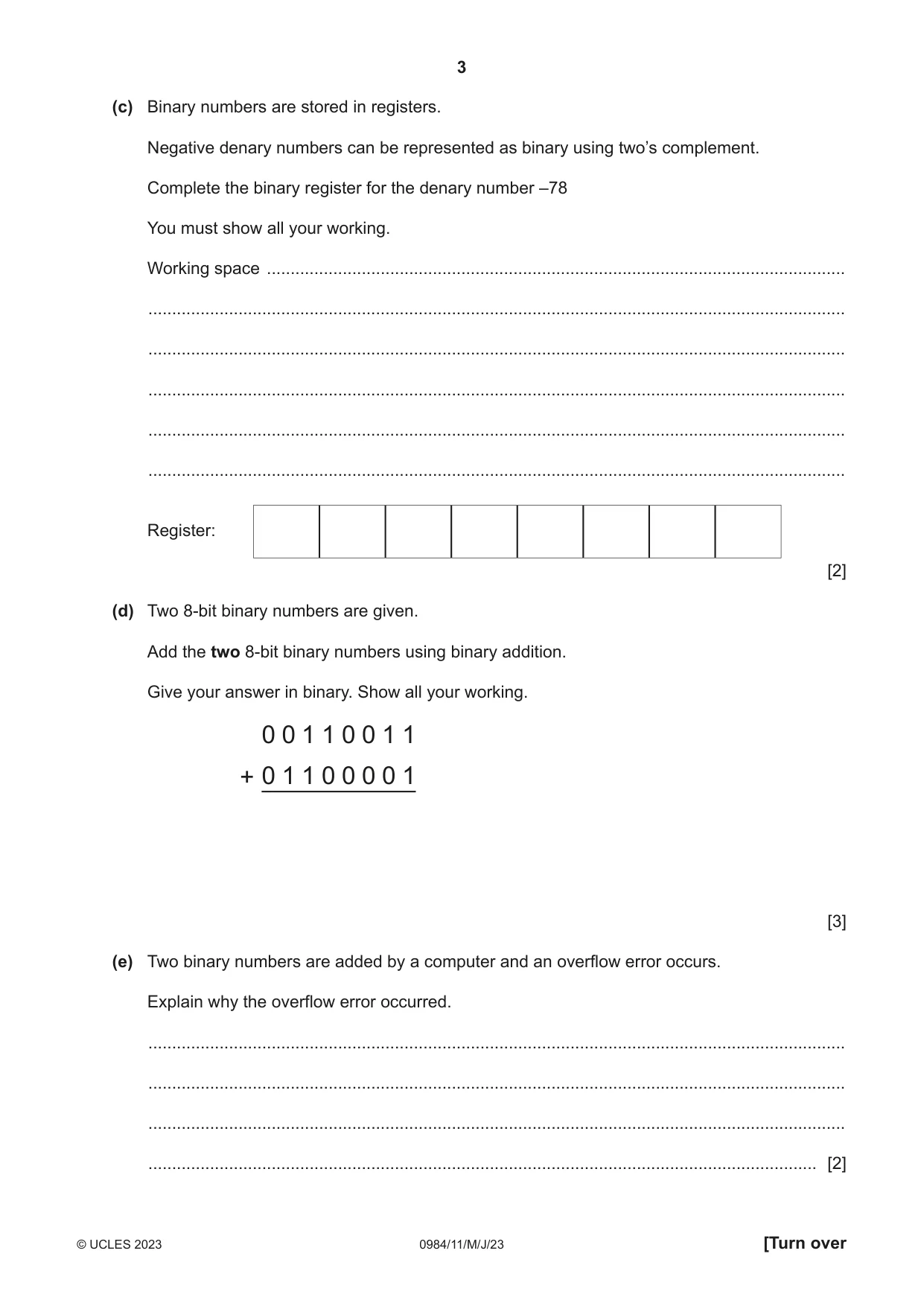

3 0984/11/M/J/23 © UCLES 2023 [Turn over (c) Binary numbers are stored in registers. Negative denary numbers can be represented as binary using two’s complement. Complete the binary register for the denary number –78 You must show all your working. Working space … … … … … … Register: [2] (d) Two 8‑bit binary numbers are given. Add the two 8‑bit binary numbers using binary addition. Give your answer in binary. Show all your working. + 0 0 1 1 0 0 1 1 0 1 1 0 0 0 0 1 [3] (e) Two binary numbers are added by a computer and an overflow error occurs. Explain why the overflow error occurred. … … … … [2]

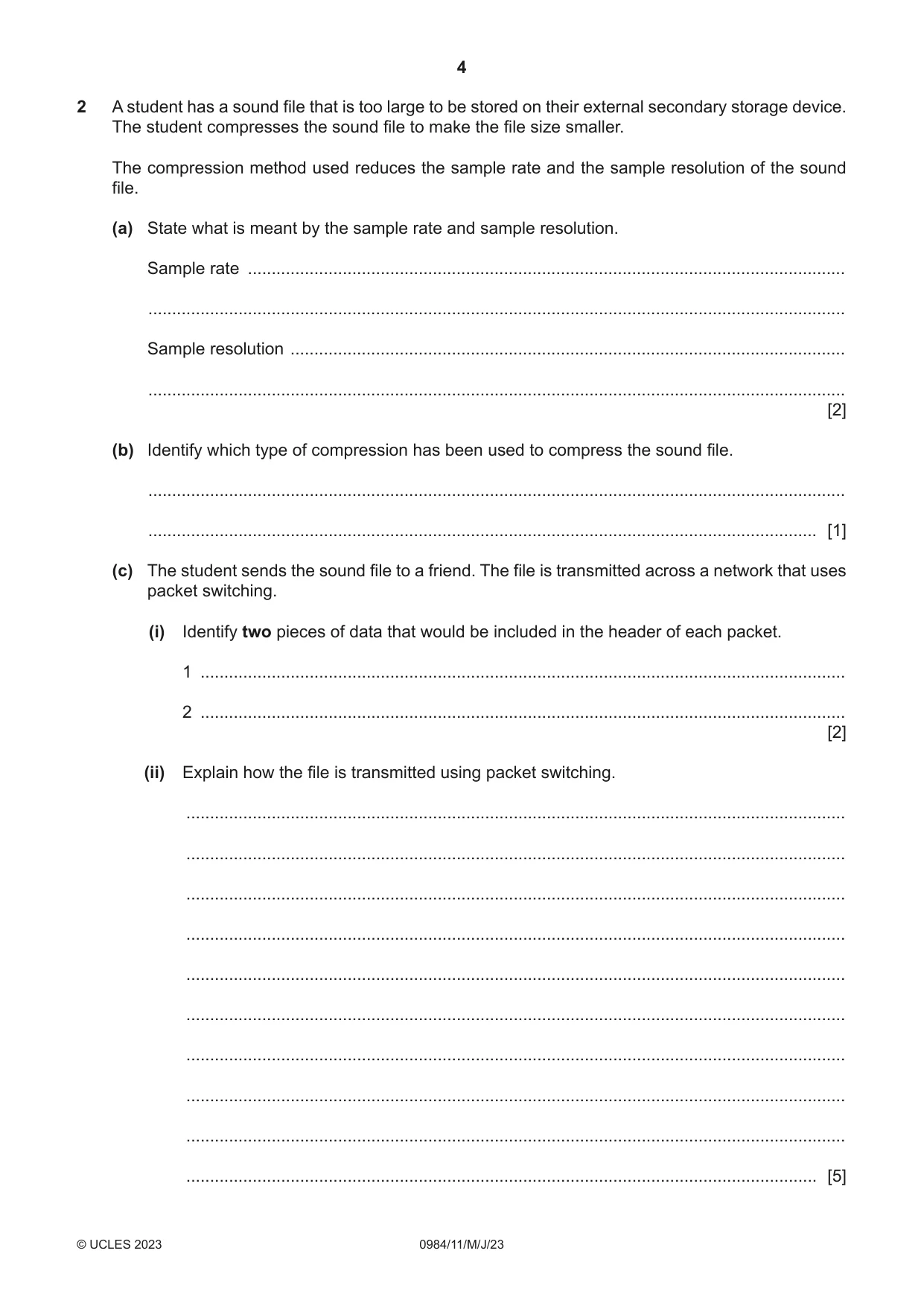

4 0984/11/M/J/23 © UCLES 2023 2 A student has a sound file that is too large to be stored on their external secondary storage device. The student compresses the sound file to make the file size smaller. The compression method used reduces the sample rate and the sample resolution of the sound file. (a) State what is meant by the sample rate and sample resolution. Sample rate … … Sample resolution … … [2] (b) Identify which type of compression has been used to compress the sound file. … … [1] (c) The student sends the sound file to a friend. The file is transmitted across a network that uses packet switching. (i) Identify two pieces of data that would be included in the header of each packet. 1 … 2 … [2] (ii) Explain how the file is transmitted using packet switching. … … … … … … … … … … [5]

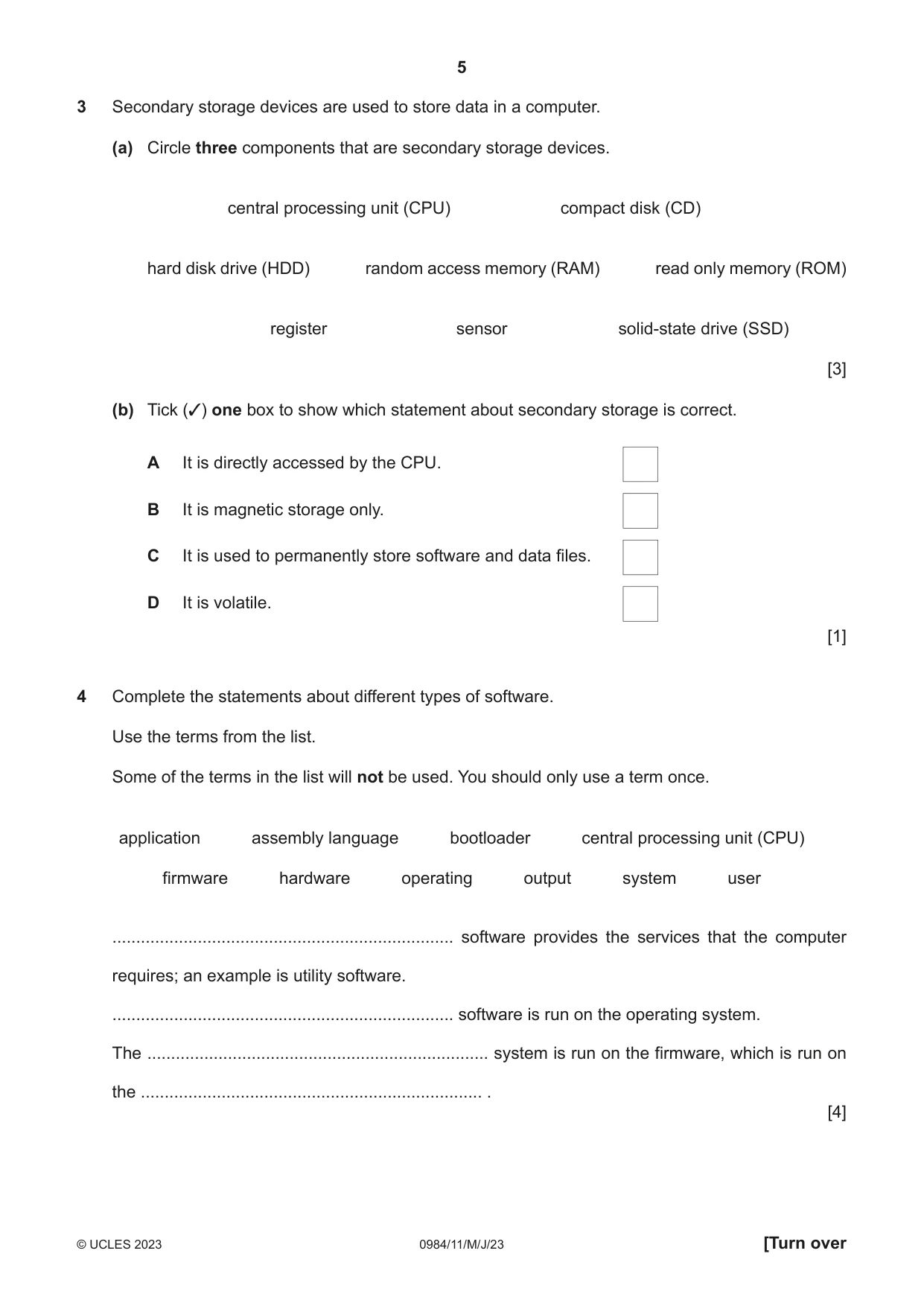

5 0984/11/M/J/23 © UCLES 2023 [Turn over 3 Secondary storage devices are used to store data in a computer. (a) Circle three components that are secondary storage devices. central processing unit (CPU) compact disk (CD) hard disk drive (HDD) random access memory (RAM) read only memory (ROM) register sensor solid‑state drive (SSD) [3] (b) Tick (3) one box to show which statement about secondary storage is correct. A It is directly accessed by the CPU. B It is magnetic storage only. C It is used to permanently store software and data files. D It is volatile. [1] 4 Complete the statements about different types of software. Use the terms from the list. Some of the terms in the list will not be used. You should only use a term once. application assembly language bootloader central processing unit (CPU) firmware hardware operating output system user … software provides the services that the computer requires; an example is utility software. … software is run on the operating system. The … system is run on the firmware, which is run on the … . [4]

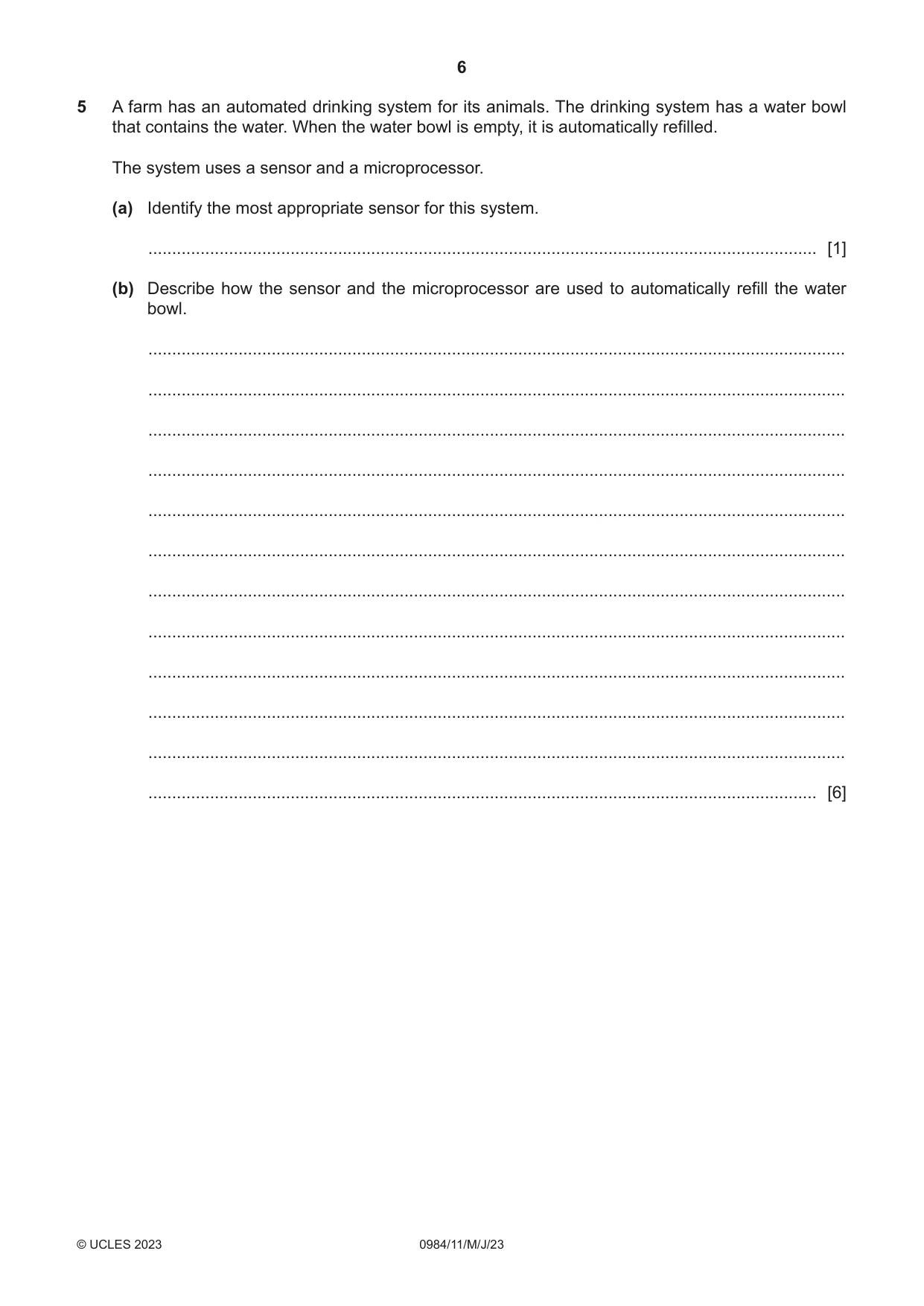

6 0984/11/M/J/23 © UCLES 2023 5 A farm has an automated drinking system for its animals. The drinking system has a water bowl that contains the water. When the water bowl is empty, it is automatically refilled. The system uses a sensor and a microprocessor. (a) Identify the most appropriate sensor for this system. … [1] (b) Describe how the sensor and the microprocessor are used to automatically refill the water bowl. … … … … … … … … … … … … [6]

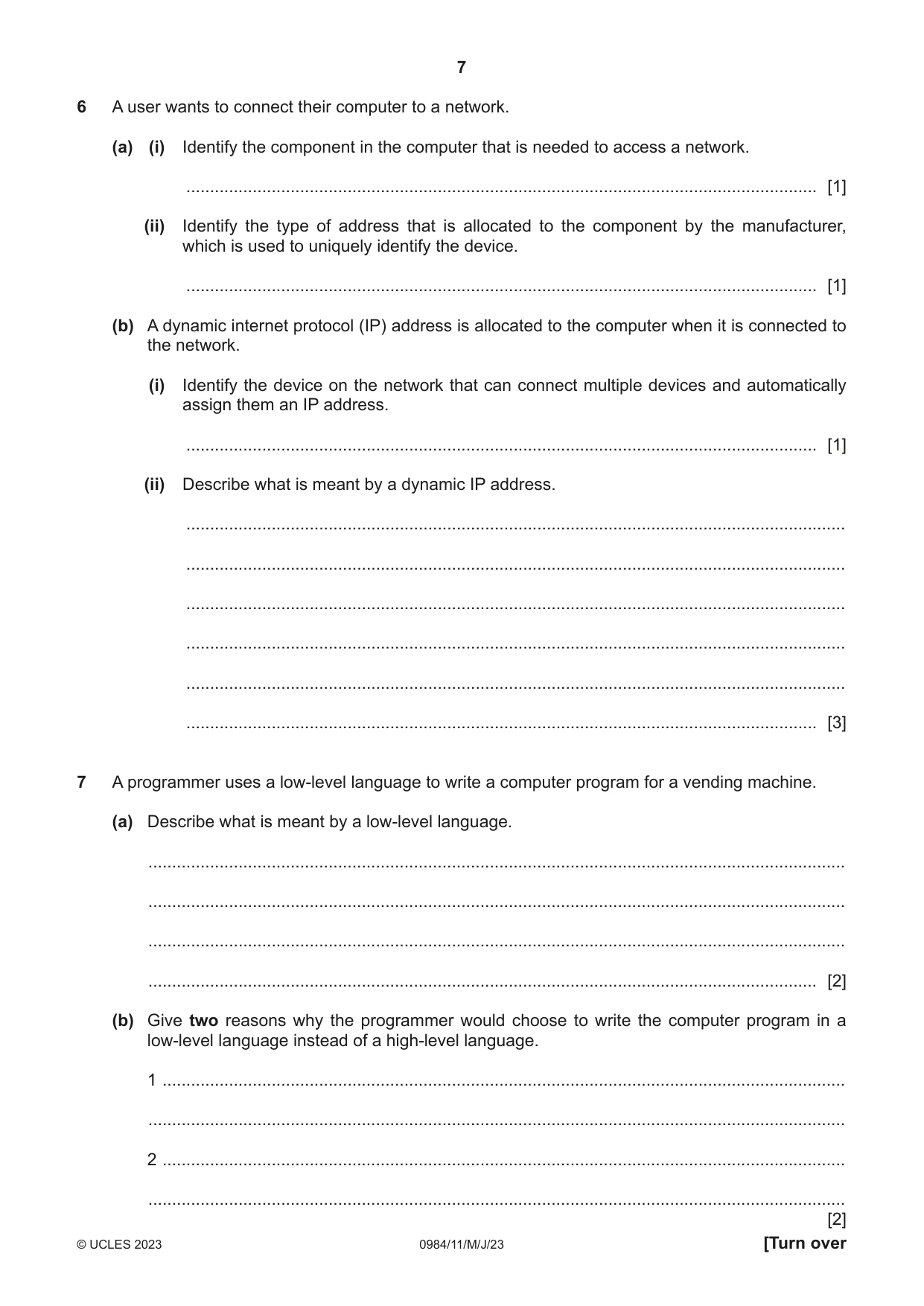

7 0984/11/M/J/23 © UCLES 2023 [Turn over 6 A user wants to connect their computer to a network. (a) (i) Identify the component in the computer that is needed to access a network. … [1] (ii) Identify the type of address that is allocated to the component by the manufacturer, which is used to uniquely identify the device. … [1] (b) A dynamic internet protocol (IP) address is allocated to the computer when it is connected to the network. (i) Identify the device on the network that can connect multiple devices and automatically assign them an IP address. … [1] (ii) Describe what is meant by a dynamic IP address. … … … … … … [3] 7 A programmer uses a low‑level language to write a computer program for a vending machine. (a) Describe what is meant by a low‑level language. … … … … [2] (b) Give two reasons why the programmer would choose to write the computer program in a low‑level language instead of a high‑level language. 1 … … 2 … … [2]

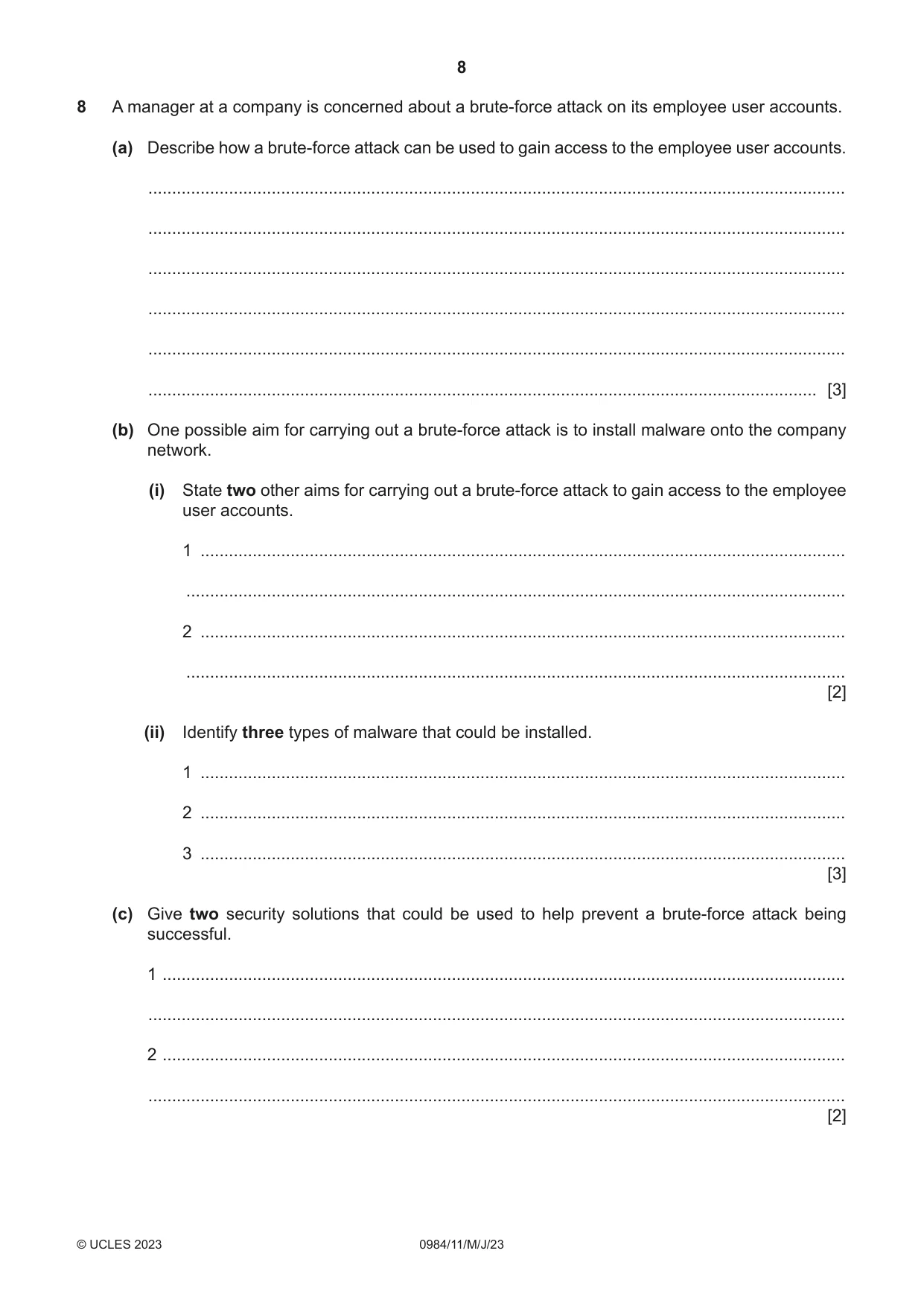

8 0984/11/M/J/23 © UCLES 2023 8 A manager at a company is concerned about a brute‑force attack on its employee user accounts. (a) Describe how a brute‑force attack can be used to gain access to the employee user accounts. … … … … … … [3] (b) One possible aim for carrying out a brute‑force attack is to install malware onto the company network. (i) State two other aims for carrying out a brute‑force attack to gain access to the employee user accounts. 1 … … 2 … … [2] (ii) Identify three types of malware that could be installed. 1 … 2 … 3 … [3] (c) Give two security solutions that could be used to help prevent a brute‑force attack being successful. 1 … … 2 … … [2]

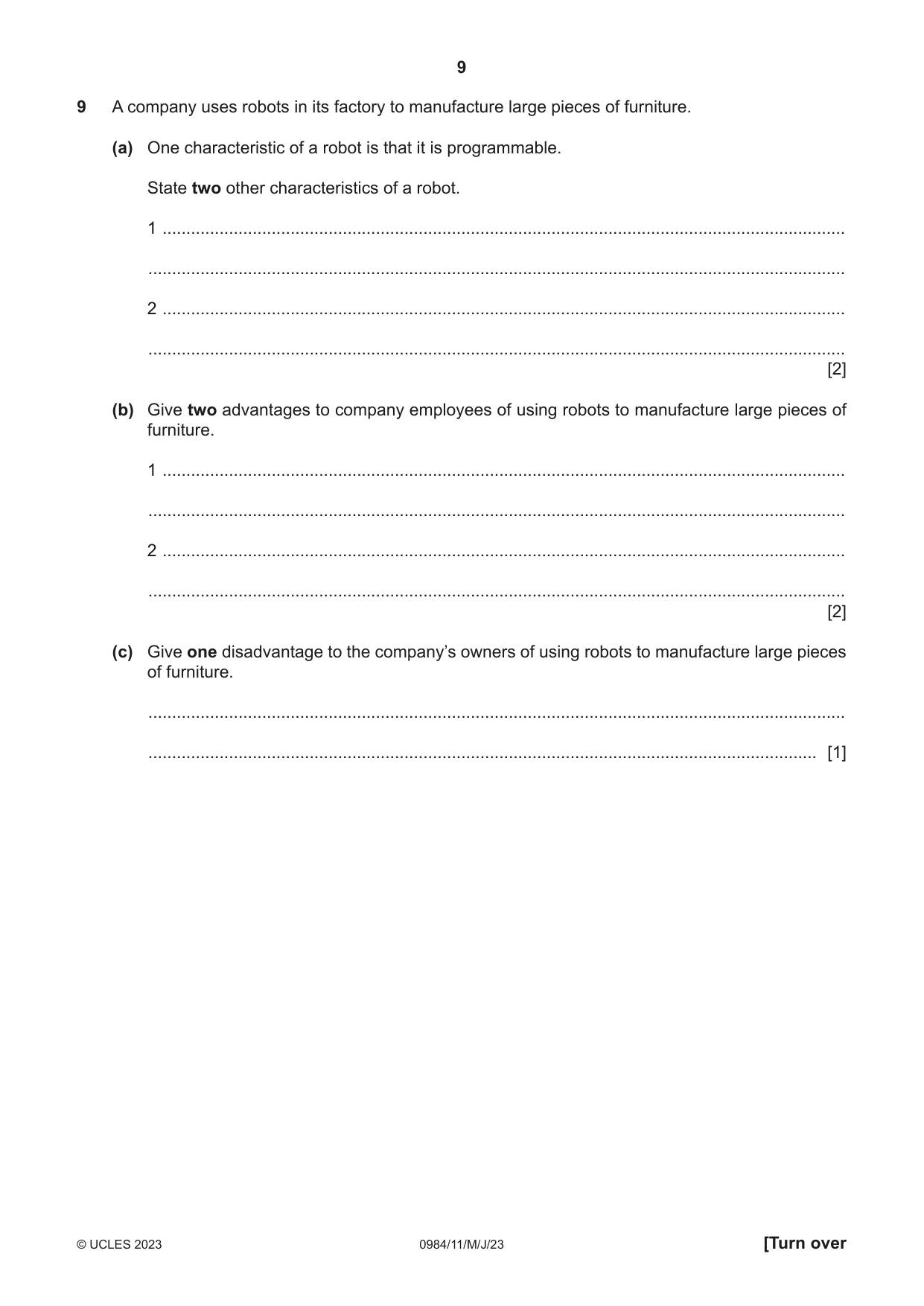

9 0984/11/M/J/23 © UCLES 2023 [Turn over 9 A company uses robots in its factory to manufacture large pieces of furniture. (a) One characteristic of a robot is that it is programmable. State two other characteristics of a robot. 1 … … 2 … … [2] (b) Give two advantages to company employees of using robots to manufacture large pieces of furniture. 1 … … 2 … … [2] (c) Give one disadvantage to the company’s owners of using robots to manufacture large pieces of furniture. … … [1]

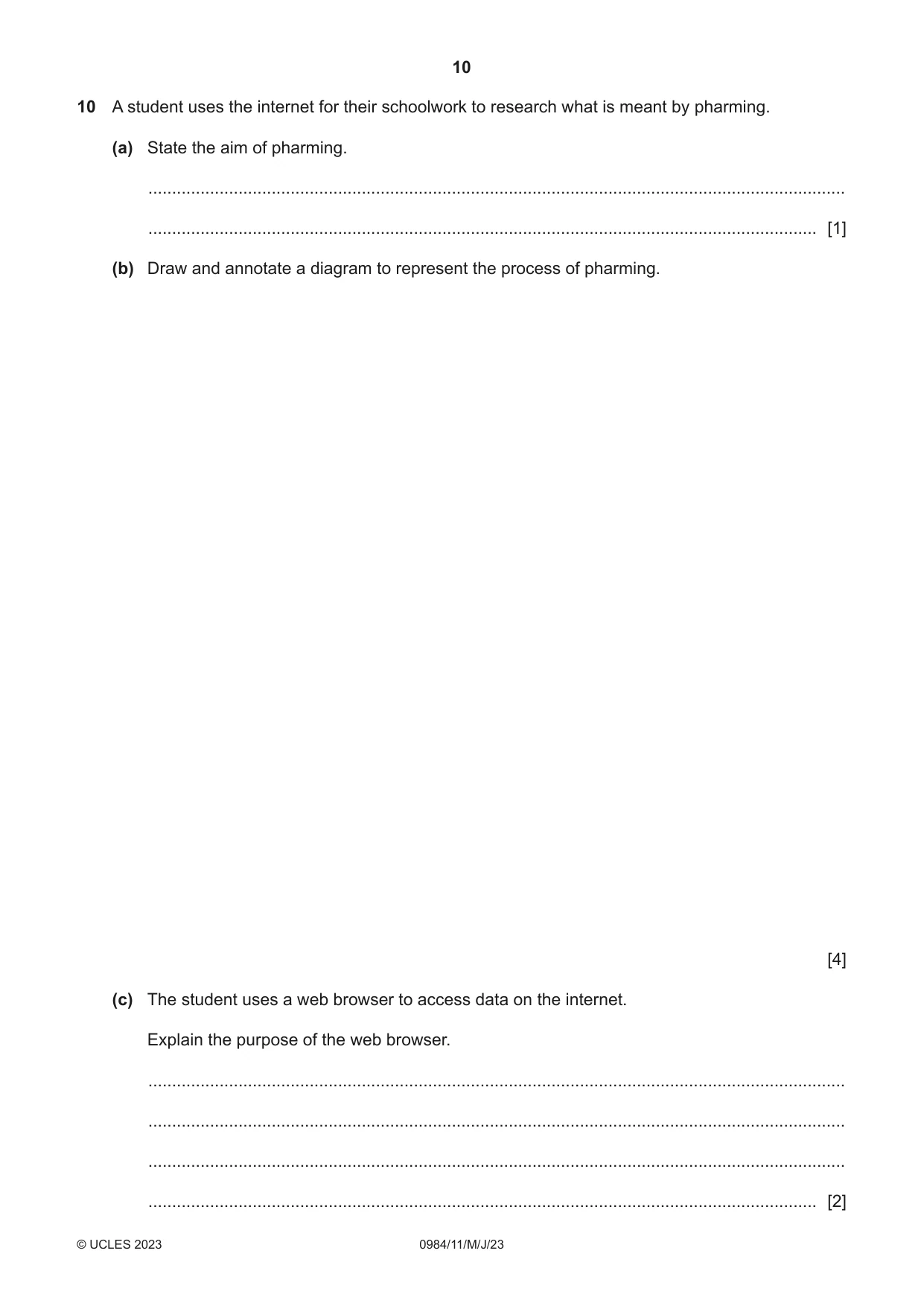

10 0984/11/M/J/23 © UCLES 2023 10 A student uses the internet for their schoolwork to research what is meant by pharming. (a) State the aim of pharming. … … [1] (b) Draw and annotate a diagram to represent the process of pharming. [4] (c) The student uses a web browser to access data on the internet. Explain the purpose of the web browser. … … … … [2]

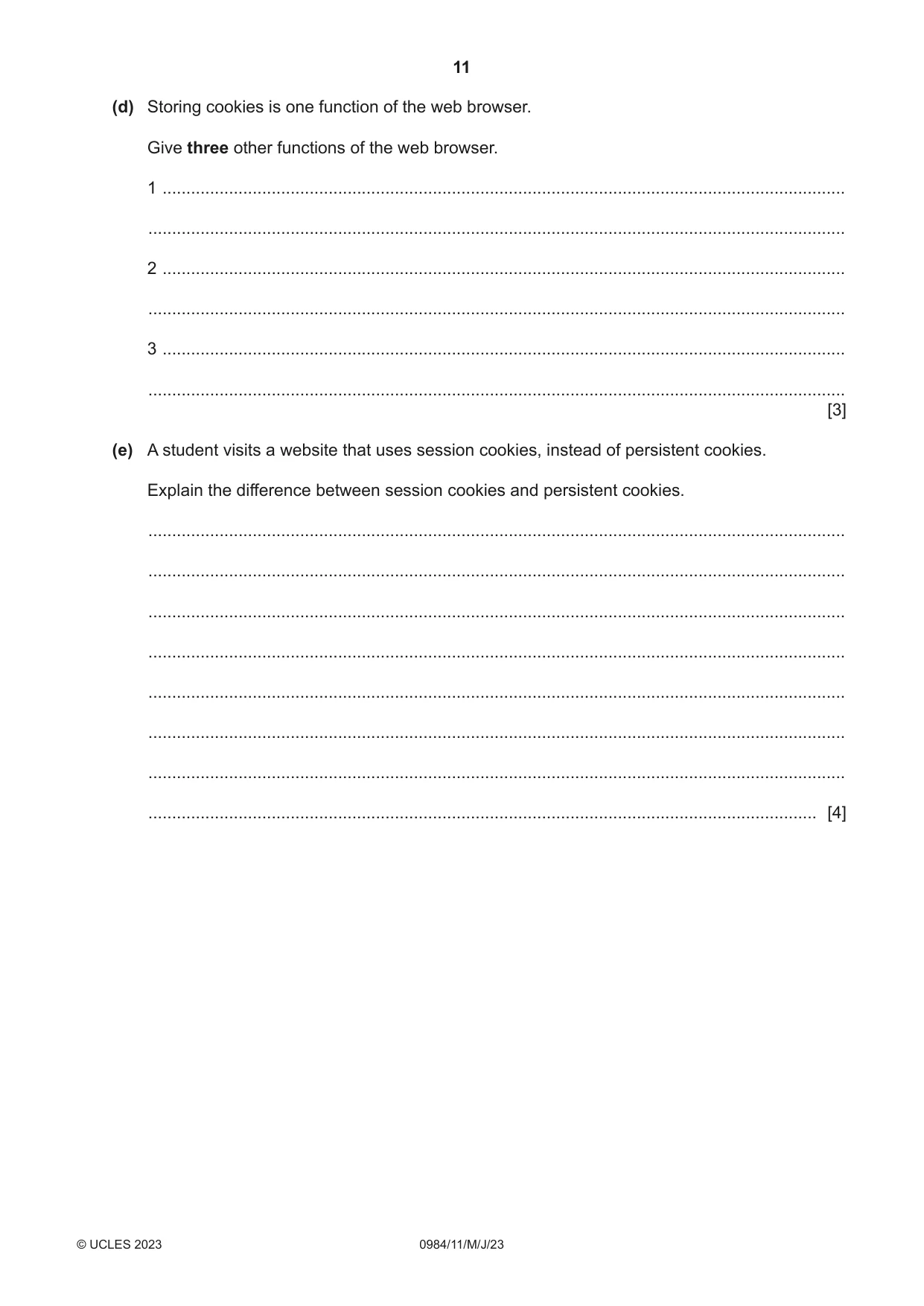

11 0984/11/M/J/23 © UCLES 2023 (d) Storing cookies is one function of the web browser. Give three other functions of the web browser. 1 … … 2 … … 3 … … [3] (e) A student visits a website that uses session cookies, instead of persistent cookies. Explain the difference between session cookies and persistent cookies. … … … … … … … … [4]

12 0984/11/M/J/23 © UCLES 2023 Permission to reproduce items where third‑party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer‑related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

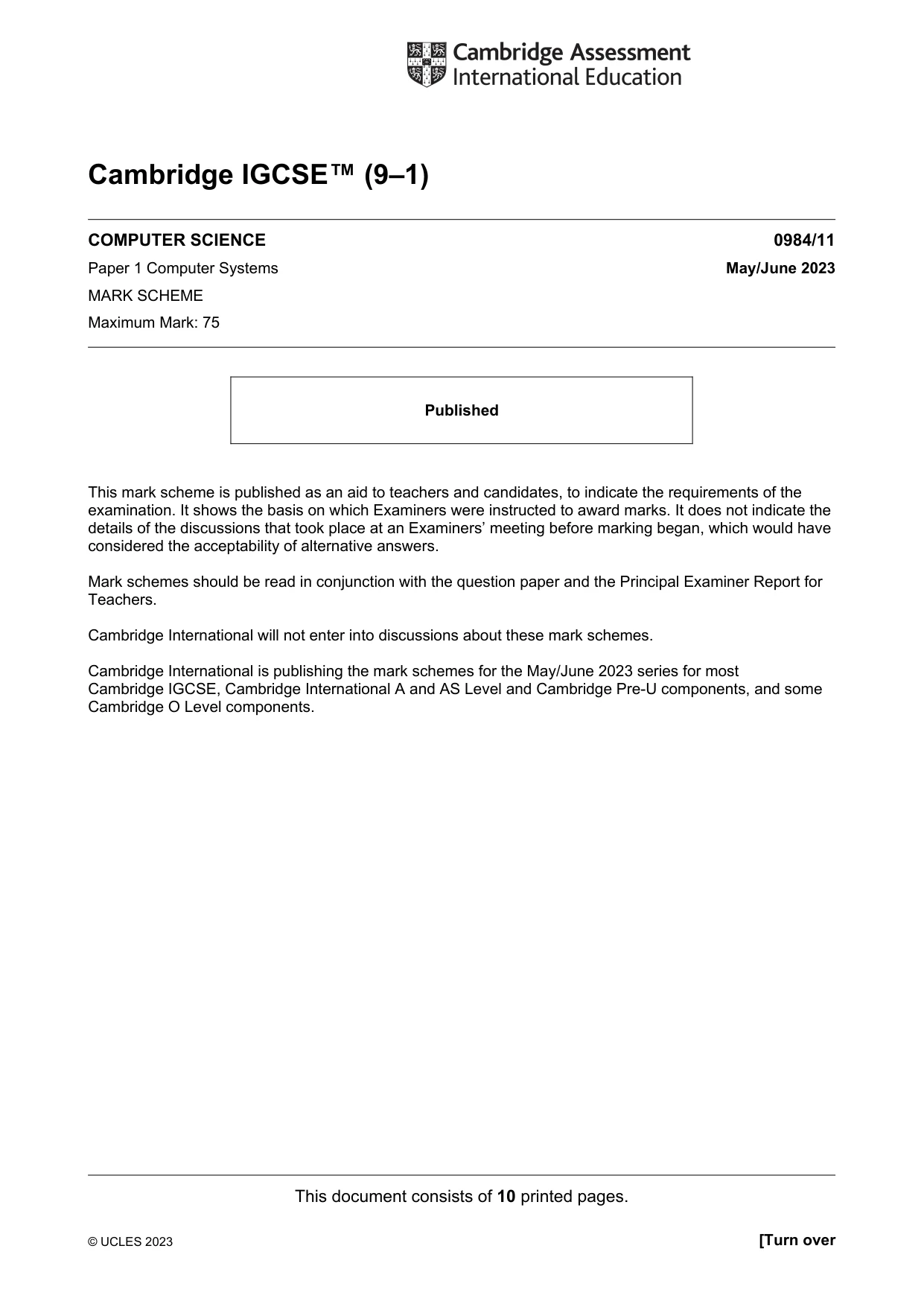

This document consists of 10 printed pages. © UCLES 2023 [Turn over Cambridge IGCSE™ (9–1) COMPUTER SCIENCE 0984/11 Paper 1 Computer Systems May/June 2023 MARK SCHEME Maximum Mark: 75 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 2 of 10 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with:  the specific content of the mark scheme or the generic level descriptors for the question  the specific skills defined in the mark scheme or in the generic level descriptors for the question  the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively:  marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate  marks are awarded when candidates clearly demonstrate what they know and can do  marks are not deducted for errors  marks are not deducted for omissions  answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

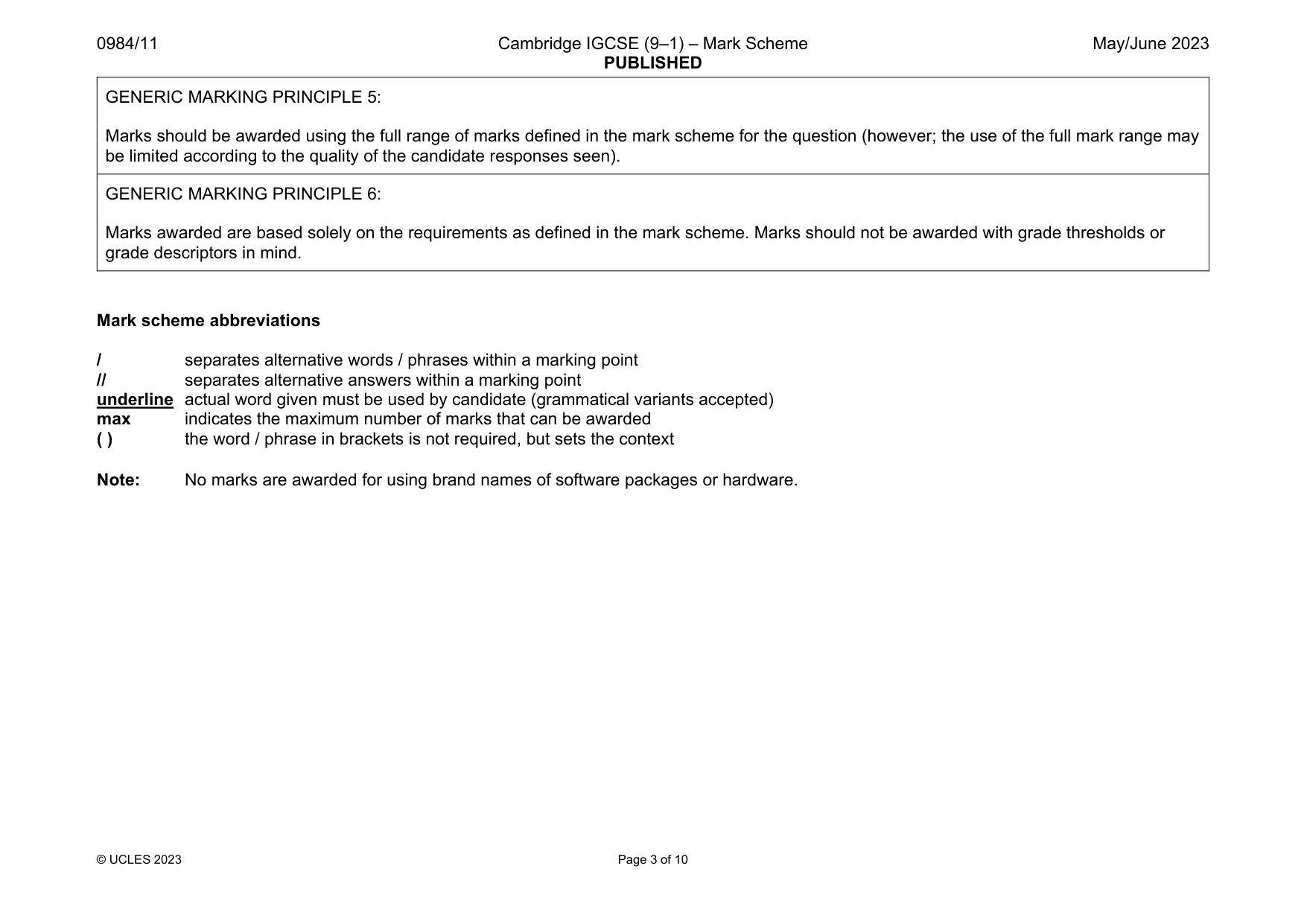

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 3 of 10 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind. Mark scheme abbreviations / separates alternative words / phrases within a marking point // separates alternative answers within a marking point underline actual word given must be used by candidate (grammatical variants accepted) max indicates the maximum number of marks that can be awarded ( ) the word / phrase in brackets is not required, but sets the context Note: No marks are awarded for using brand names of software packages or hardware.

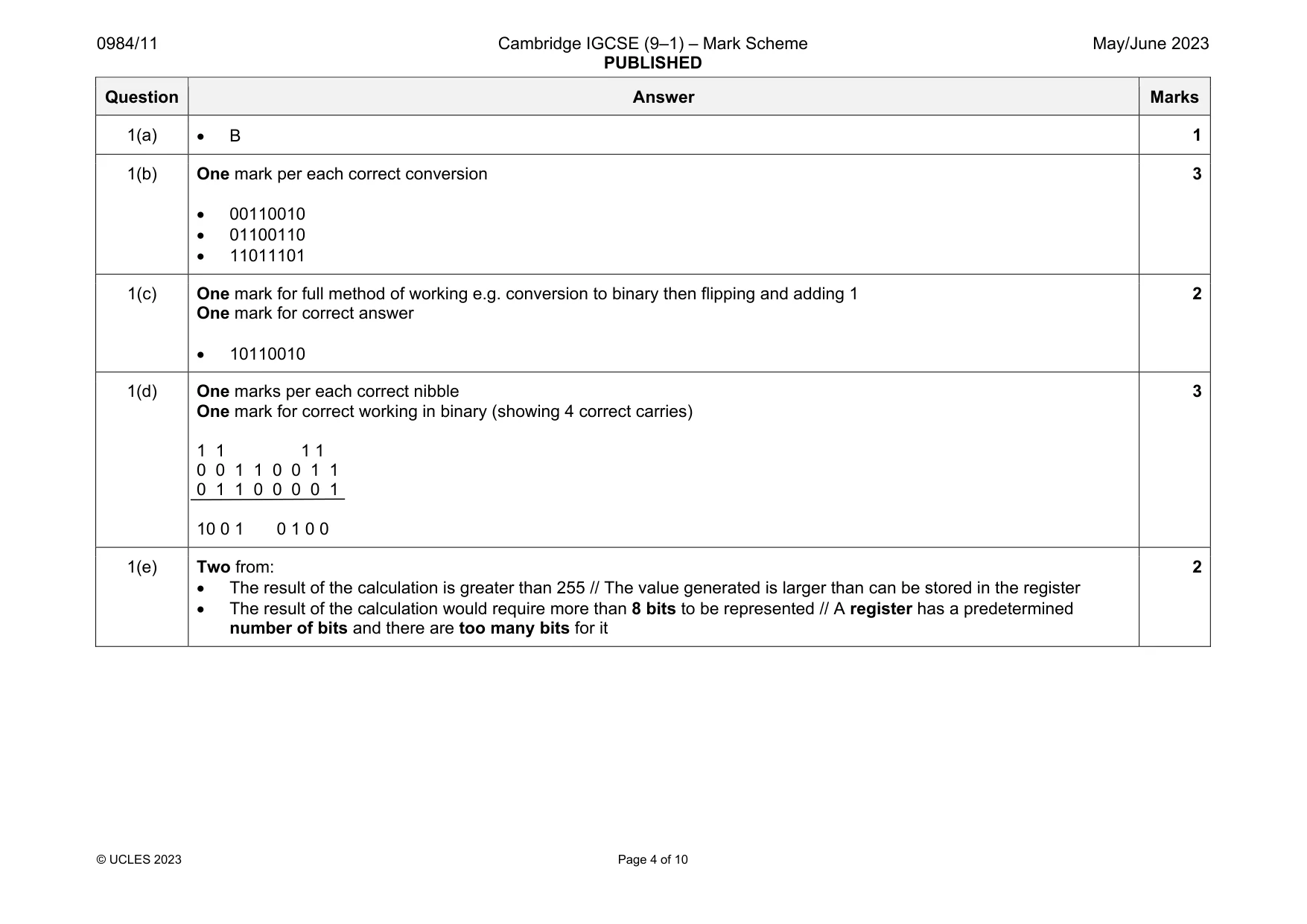

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 4 of 10 Question Answer Marks 1(a)  B 1 1(b) One mark per each correct conversion  00110010  01100110  11011101 3 1(c) One mark for full method of working e.g. conversion to binary then flipping and adding 1 One mark for correct answer  10110010 2 1(d) One marks per each correct nibble One mark for correct working in binary (showing 4 correct carries) 1 1 1 1 0 0 1 1 0 0 1 1 0 1 1 0 0 0 0 1 10 0 1 0 1 0 0 3 1(e) Two from:  The result of the calculation is greater than 255 // The value generated is larger than can be stored in the register  The result of the calculation would require more than 8 bits to be represented // A register has a predetermined number of bits and there are too many bits for it 2

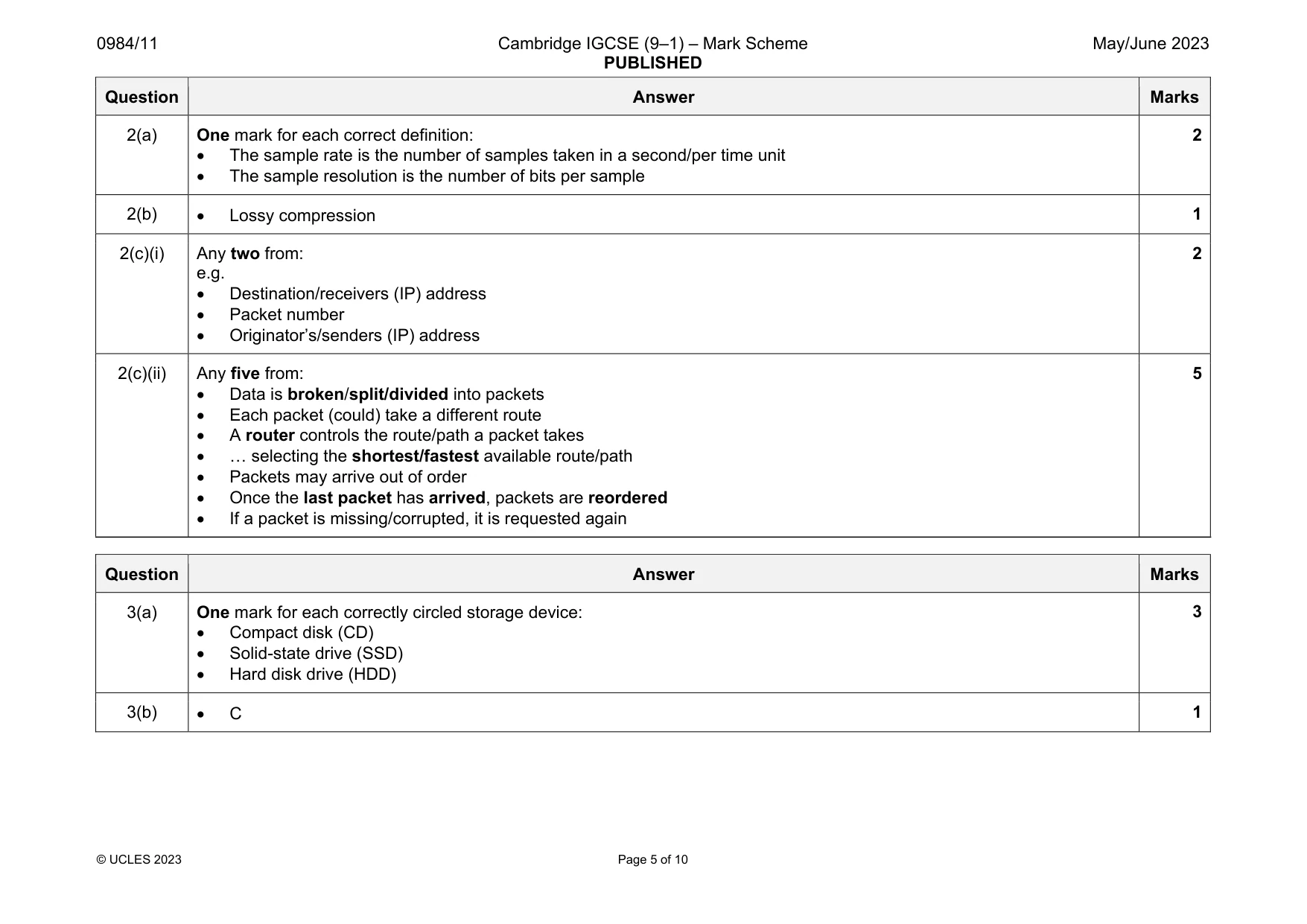

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 5 of 10 Question Answer Marks 2(a) One mark for each correct definition:  The sample rate is the number of samples taken in a second/per time unit  The sample resolution is the number of bits per sample 2 2(b)  Lossy compression 1 2(c)(i) Any two from: e.g.  Destination/receivers (IP) address  Packet number  Originator’s/senders (IP) address 2 2(c)(ii) Any five from:  Data is broken/split/divided into packets  Each packet (could) take a different route  A router controls the route/path a packet takes  … selecting the shortest/fastest available route/path  Packets may arrive out of order  Once the last packet has arrived, packets are reordered  If a packet is missing/corrupted, it is requested again 5 Question Answer Marks 3(a) One mark for each correctly circled storage device:  Compact disk (CD)  Solid-state drive (SSD)  Hard disk drive (HDD) 3 3(b)  C 1

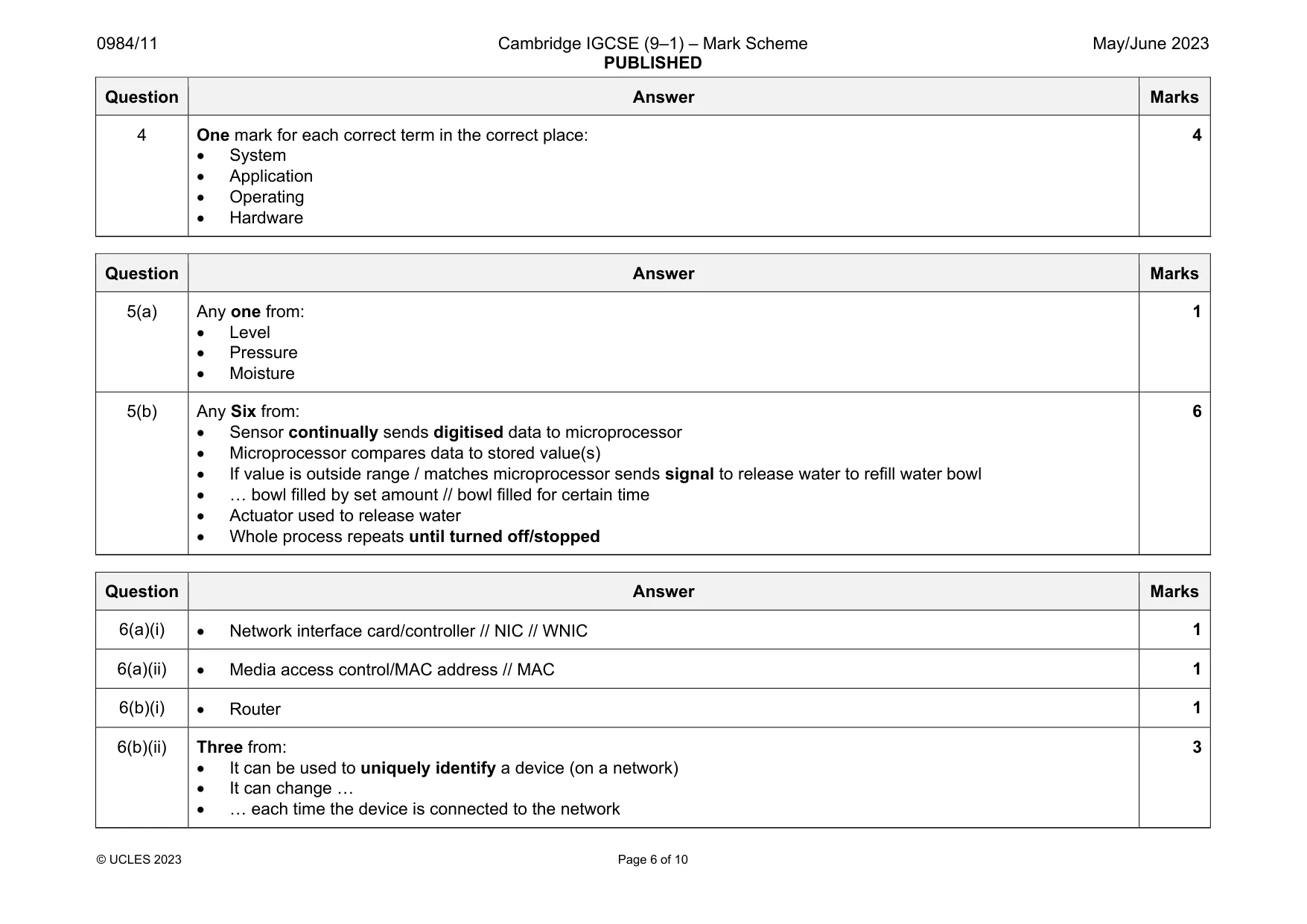

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 6 of 10 Question Answer Marks 4 One mark for each correct term in the correct place:  System  Application  Operating  Hardware 4 Question Answer Marks 5(a) Any one from:  Level  Pressure  Moisture 1 5(b) Any Six from:  Sensor continually sends digitised data to microprocessor  Microprocessor compares data to stored value(s)  If value is outside range / matches microprocessor sends signal to release water to refill water bowl  … bowl filled by set amount // bowl filled for certain time  Actuator used to release water  Whole process repeats until turned off/stopped 6 Question Answer Marks 6(a)(i)  Network interface card/controller // NIC // WNIC 1 6(a)(ii)  Media access control/MAC address // MAC 1 6(b)(i)  Router 1 6(b)(ii) Three from:  It can be used to uniquely identify a device (on a network)  It can change …  … each time the device is connected to the network 3

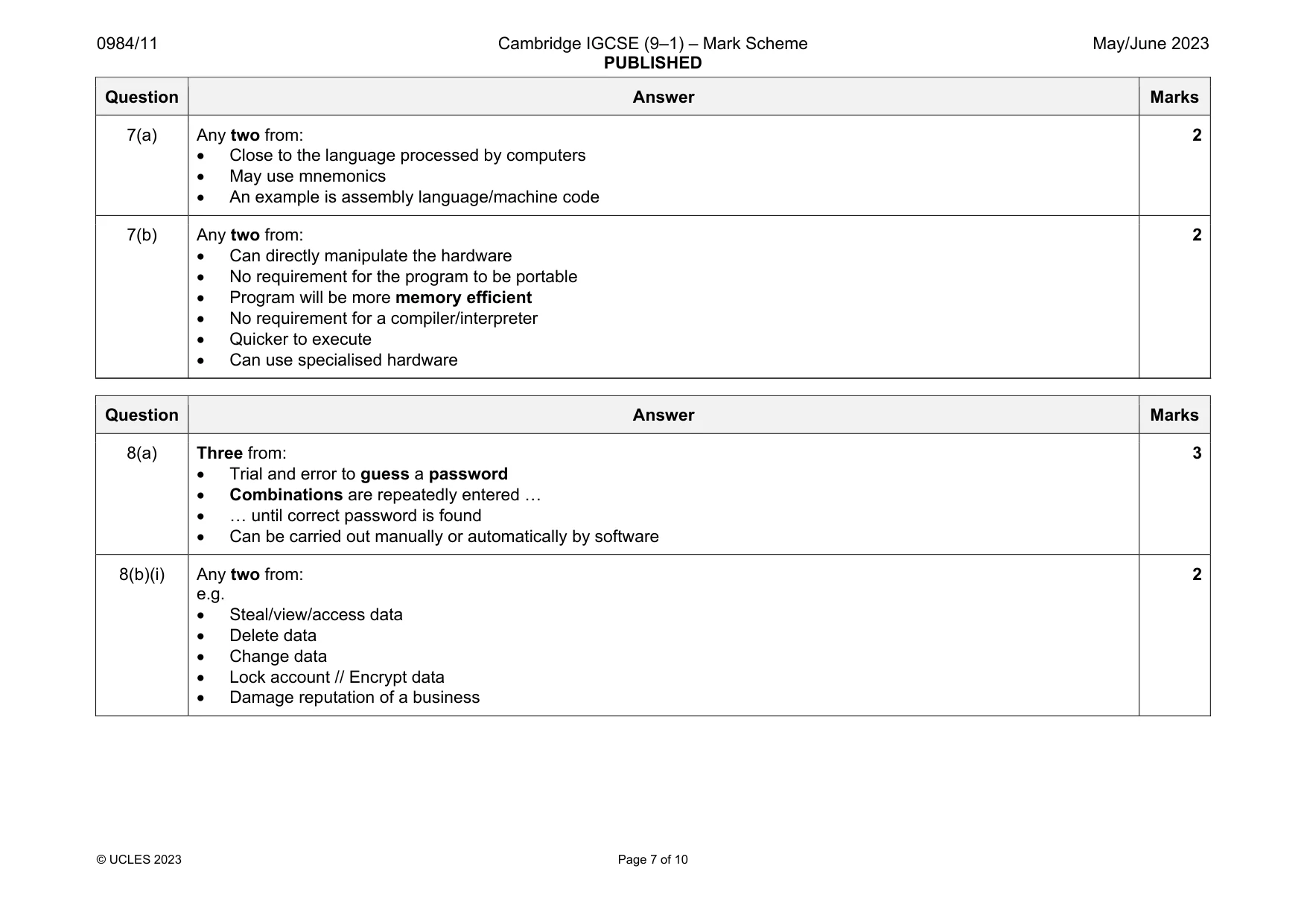

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 7 of 10 Question Answer Marks 7(a) Any two from:  Close to the language processed by computers  May use mnemonics  An example is assembly language/machine code 2 7(b) Any two from:  Can directly manipulate the hardware  No requirement for the program to be portable  Program will be more memory efficient  No requirement for a compiler/interpreter  Quicker to execute  Can use specialised hardware 2 Question Answer Marks 8(a) Three from:  Trial and error to guess a password  Combinations are repeatedly entered …  … until correct password is found  Can be carried out manually or automatically by software 3 8(b)(i) Any two from: e.g.  Steal/view/access data  Delete data  Change data  Lock account // Encrypt data  Damage reputation of a business 2

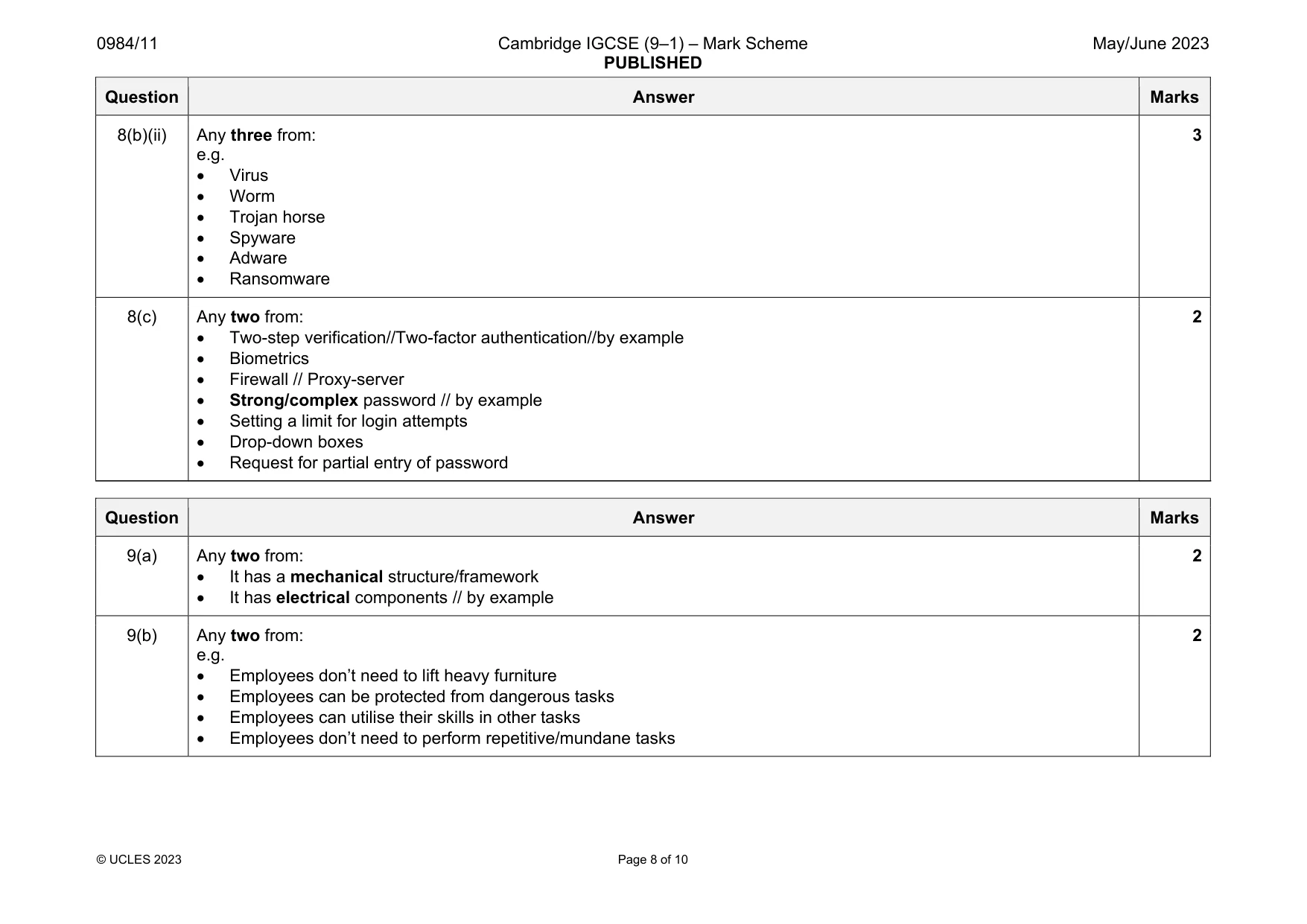

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 8 of 10 Question Answer Marks 8(b)(ii) Any three from: e.g.  Virus  Worm  Trojan horse  Spyware  Adware  Ransomware 3 8(c) Any two from:  Two-step verification//Two-factor authentication//by example  Biometrics  Firewall // Proxy-server  Strong/complex password // by example  Setting a limit for login attempts  Drop-down boxes  Request for partial entry of password 2 Question Answer Marks 9(a) Any two from:  It has a mechanical structure/framework  It has electrical components // by example 2 9(b) Any two from: e.g.  Employees don’t need to lift heavy furniture  Employees can be protected from dangerous tasks  Employees can utilise their skills in other tasks  Employees don’t need to perform repetitive/mundane tasks 2

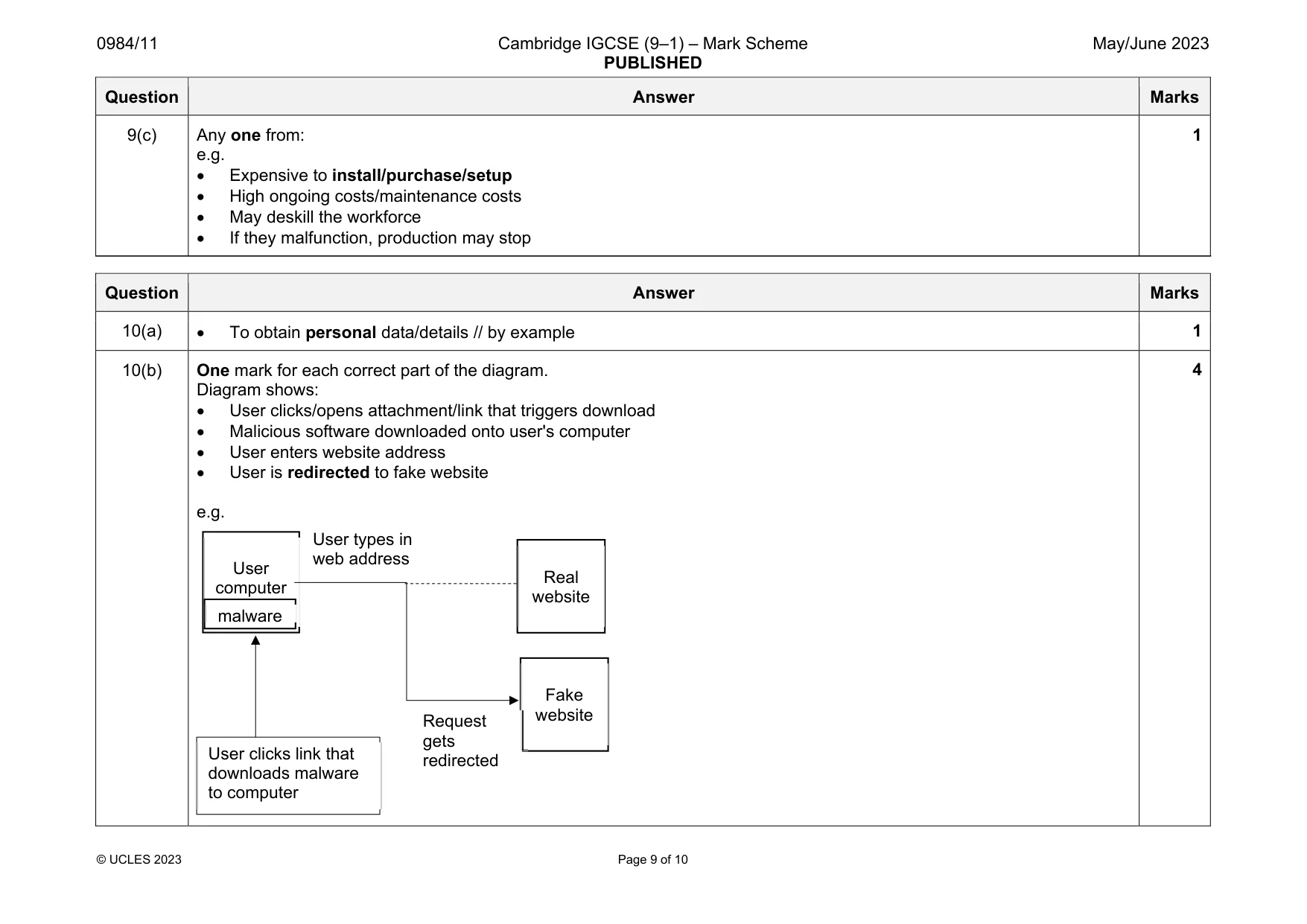

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 9 of 10 Question Answer Marks 9(c) Any one from: e.g.  Expensive to install/purchase/setup  High ongoing costs/maintenance costs  May deskill the workforce  If they malfunction, production may stop 1 Question Answer Marks 10(a)  To obtain personal data/details // by example 1 10(b) One mark for each correct part of the diagram. Diagram shows:  User clicks/opens attachment/link that triggers download  Malicious software downloaded onto user's computer  User enters website address  User is redirected to fake website e.g. 4 User computer Real website Fake website User clicks link that downloads malware to computer User types in web address Request gets redirected malware

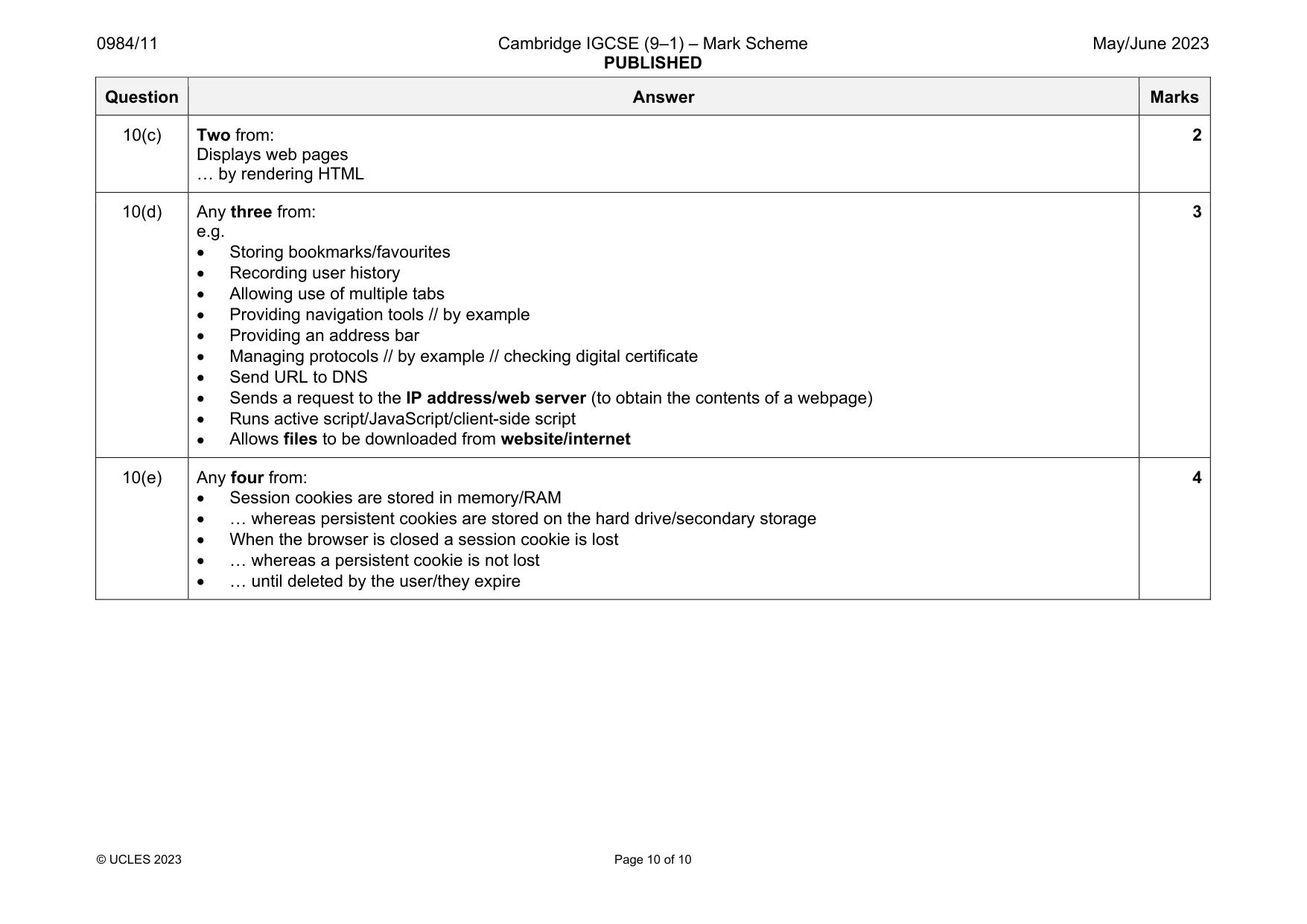

0984/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 10 of 10 Question Answer Marks 10(c) Two from: Displays web pages … by rendering HTML 2 10(d) Any three from: e.g.  Storing bookmarks/favourites  Recording user history  Allowing use of multiple tabs  Providing navigation tools // by example  Providing an address bar  Managing protocols // by example // checking digital certificate  Send URL to DNS  Sends a request to the IP address/web server (to obtain the contents of a webpage)  Runs active script/JavaScript/client-side script  Allows files to be downloaded from website/internet 3 10(e) Any four from:  Session cookies are stored in memory/RAM  … whereas persistent cookies are stored on the hard drive/secondary storage  When the browser is closed a session cookie is lost  … whereas a persistent cookie is not lost  … until deleted by the user/they expire 4
