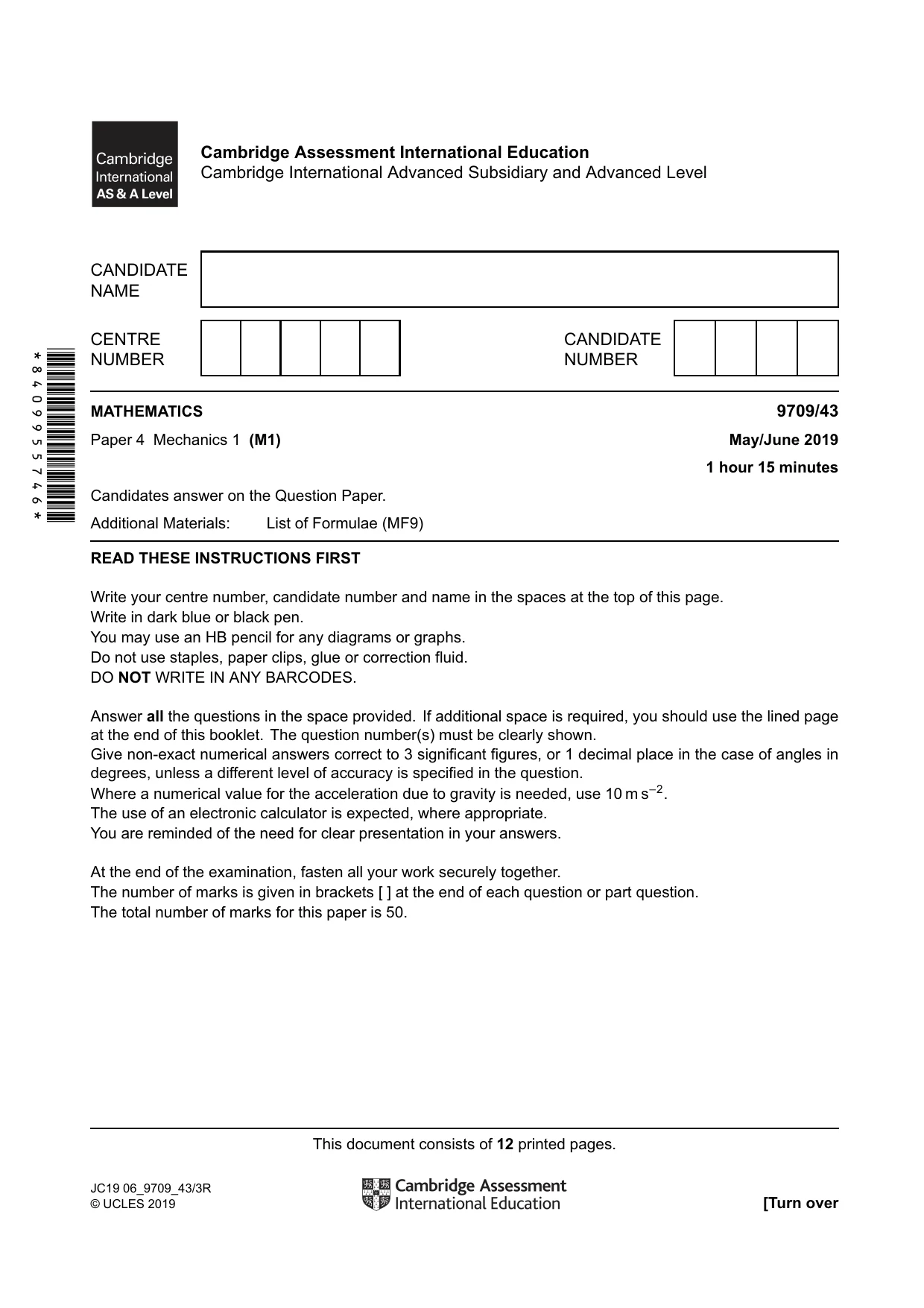

Cambridge A Level Mathematics 9709 — 2019 May/June Paper 4 · Variant 3

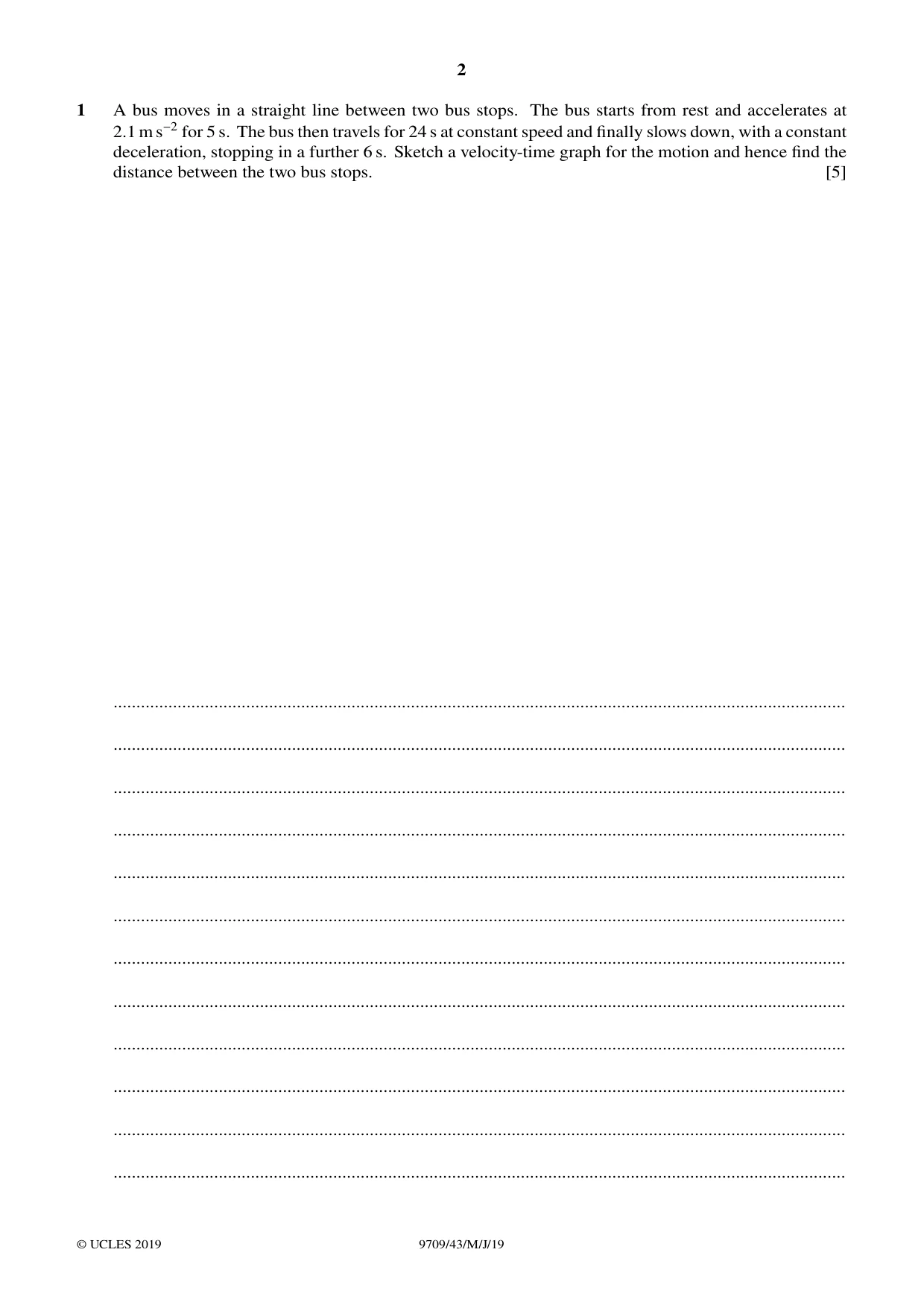

1 A bus moves in a straight line between two bus stops. The bus starts from rest and accelerates at 2.1 m s−2 for 5 s. The bus then travels for 24 s at constant speed and finally slows down, with a constant deceleration, stopping in a further 6 s. Sketch a velocity-time graph for the motion and hence find the distance between the two bus stops. [5] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

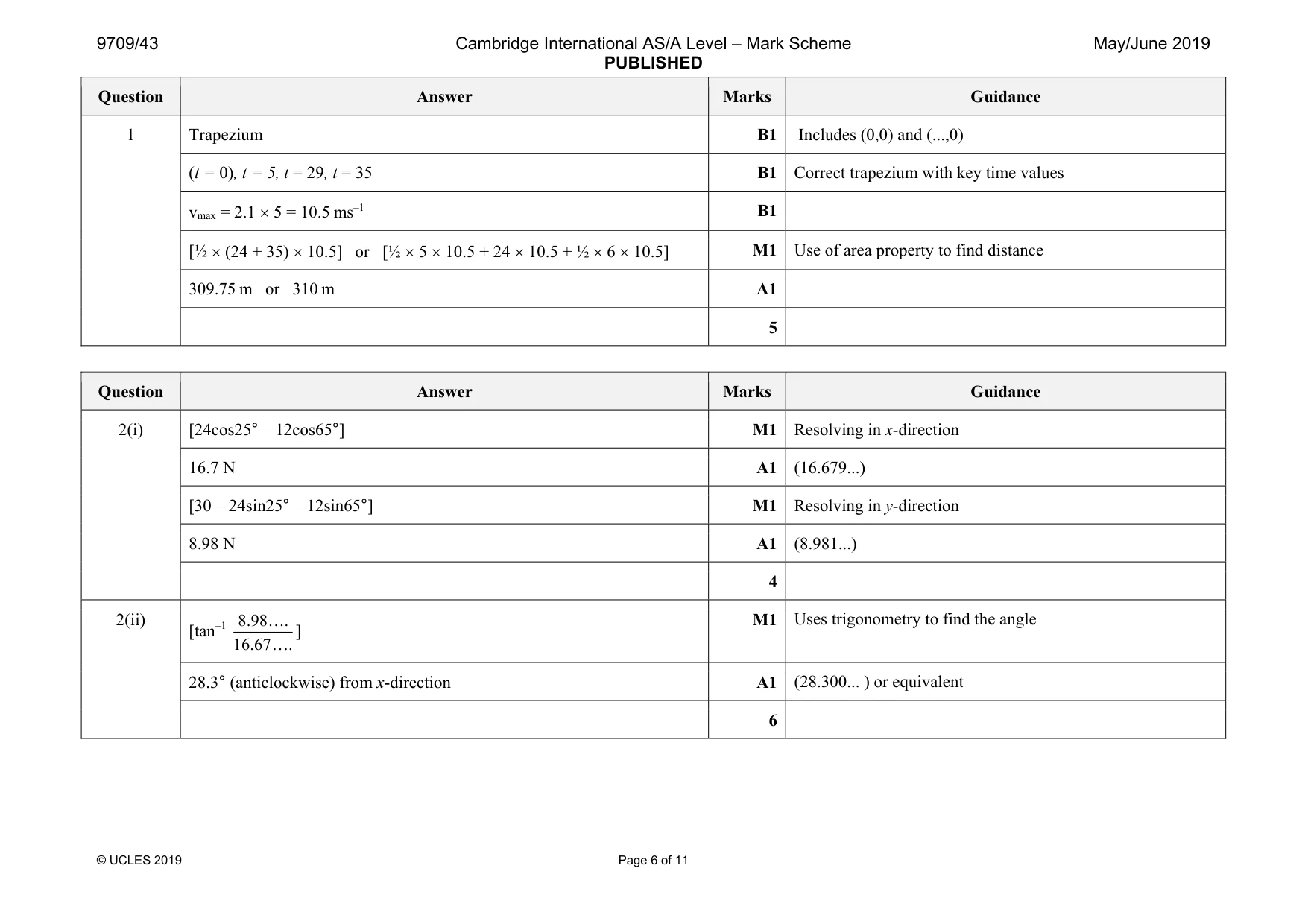

Mark scheme: 1 Trapezium B1 Includes (0,0) and (...,0) (t = 0), t = 5, t = 29, t = 35 B1 Correct trapezium with key time values vmax = 2.1 × 5 = 10.5 ms–1 B1 [½ × (24 + 35) × 10.5] or [½ × 5 × 10.5 + 24 × 10.5 + ½ × 6 × 10.5] M1 Use of area property to find distance 309.75 m or 310 m A1 5

More questions on Kinematics of motion in a straight line

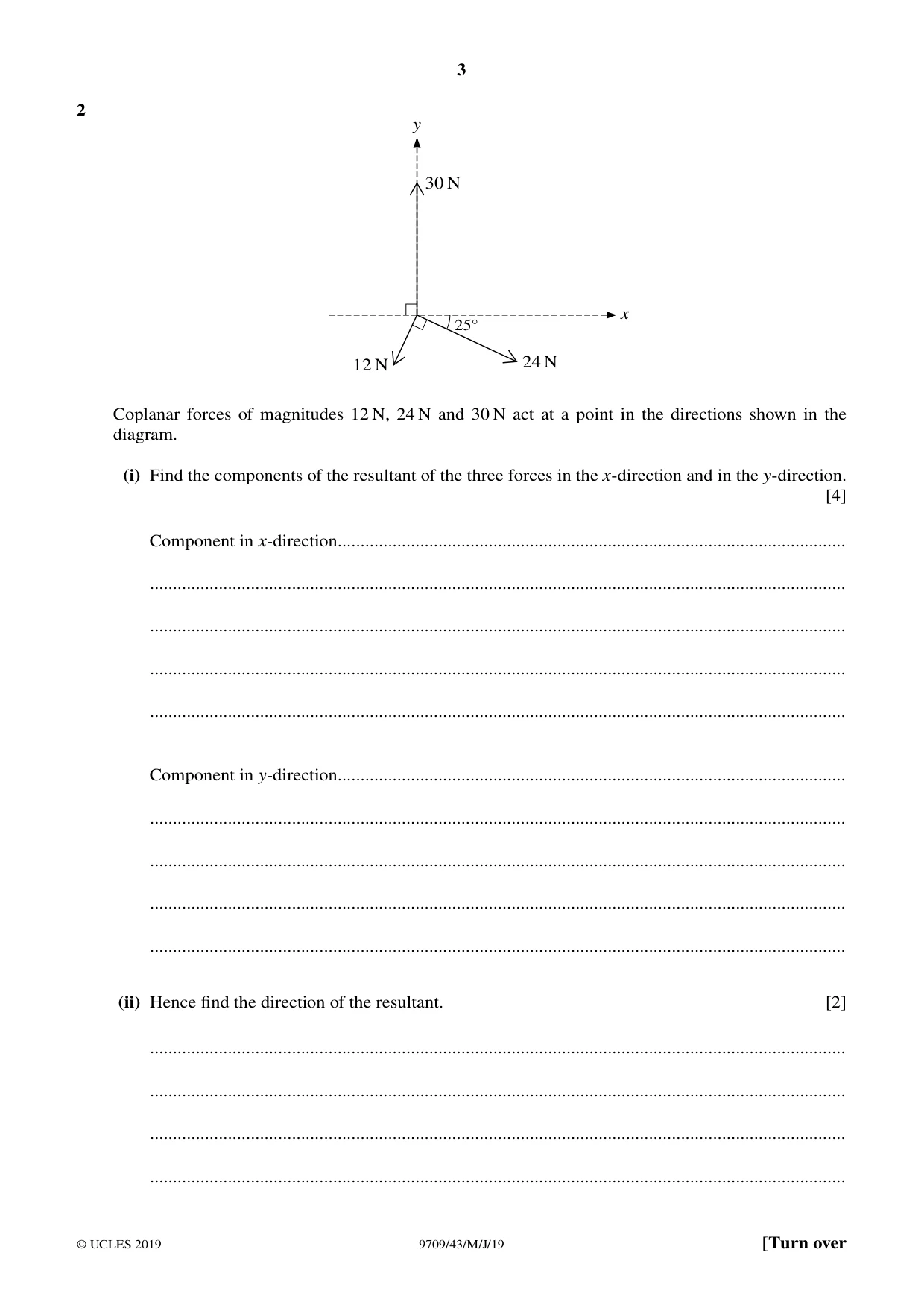

2 y 30 N x 25Å 12 N 24 N Coplanar forces of magnitudes 12 N, 24 N and 30 N act at a point in the directions shown in the diagram. (i) Find the components of the resultant of the three forces in the x-direction and in the y-direction. [4] Component in x-direction............................................................................................................... ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ Component in y-direction............................................................................................................... ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Hence find the direction of the resultant. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) M1 Resolving in x-direction 16.7 N A1 (16.679...) [30 – 24sin25° – 12sin65°] M1 Resolving in y-direction 8.98 N A1 (8.981...) 4 2(ii) [tan–1 8.98 . 16.67 . … … ] M1 Uses trigonometry to find the angle 28.3° (anticlockwise) from x-direction A1 (28.300... ) or equivalent 6

More questions on Forces and equilibrium

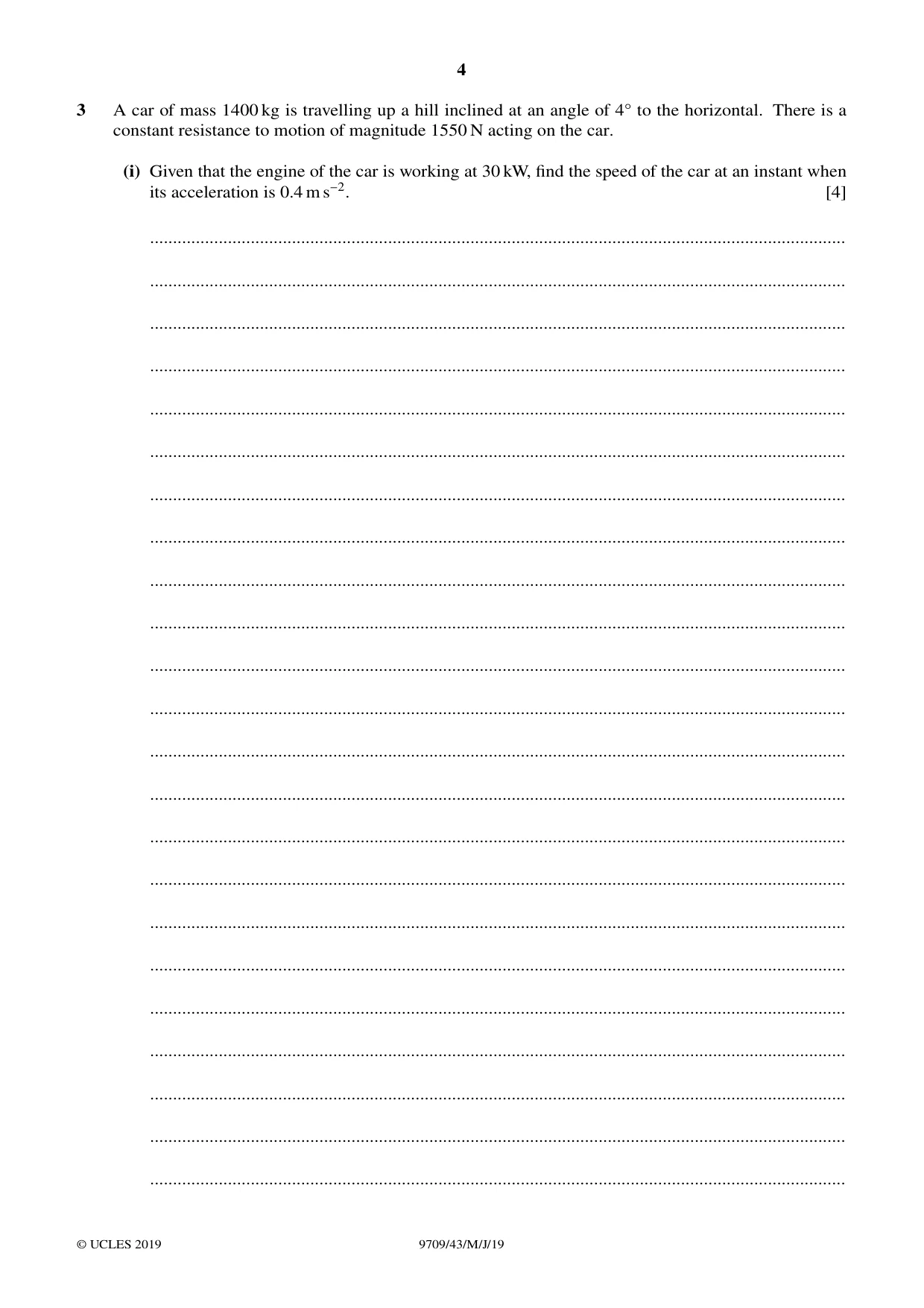

3 A car of mass 1400 kg is travelling up a hill inclined at an angle of 4Å to the horizontal. There is a constant resistance to motion of magnitude 1550 N acting on the car. (i) Given that the engine of the car is working at 30 kW, find the speed of the car at an instant when its acceleration is 0.4 m s−2. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) The greatest possible constant speed at which the car can travel up the hill is 40 m s−1. Find the maximum possible power of the engine. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

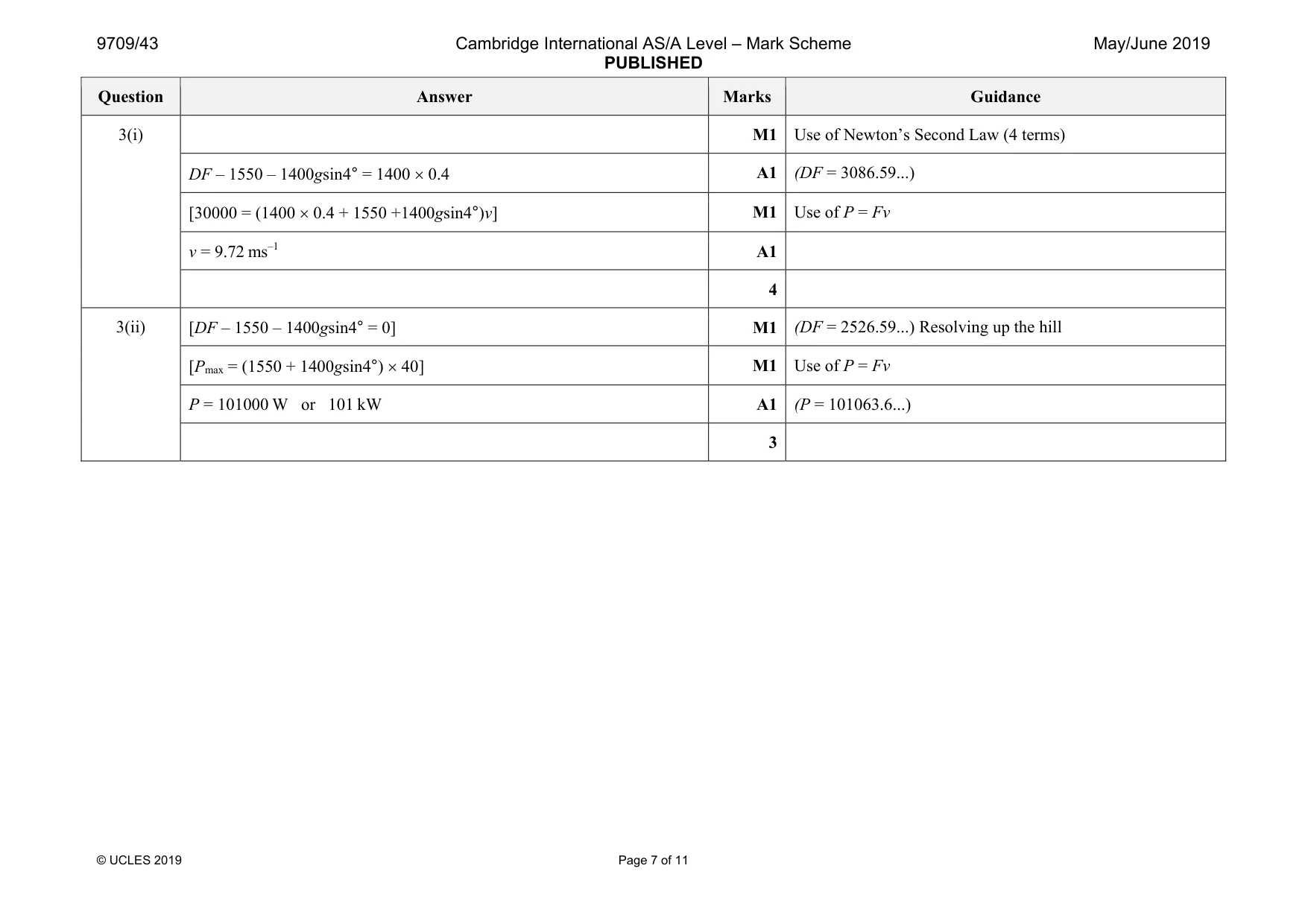

Mark scheme: 3(i) M1 Use of Newton’s Second Law (4 terms) DF – 1550 – 1400gsin4° = 1400 × 0.4 A1 (DF = 3086.59...) [30000 = (1400 × 0.4 + 1550 +1400gsin4°)v] M1 Use of P = Fv v = 9.72 ms–1 A1 4 3(ii) [DF – 1550 – 1400gsin4° = 0] M1 (DF = 2526.59...) Resolving up the hill [Pmax = (1550 + 1400gsin4°) × 40] M1 Use of P = Fv P = 101000 W or 101 kW A1 (P = 101063.6...) 3

More questions on Kinematics of motion in a straight line

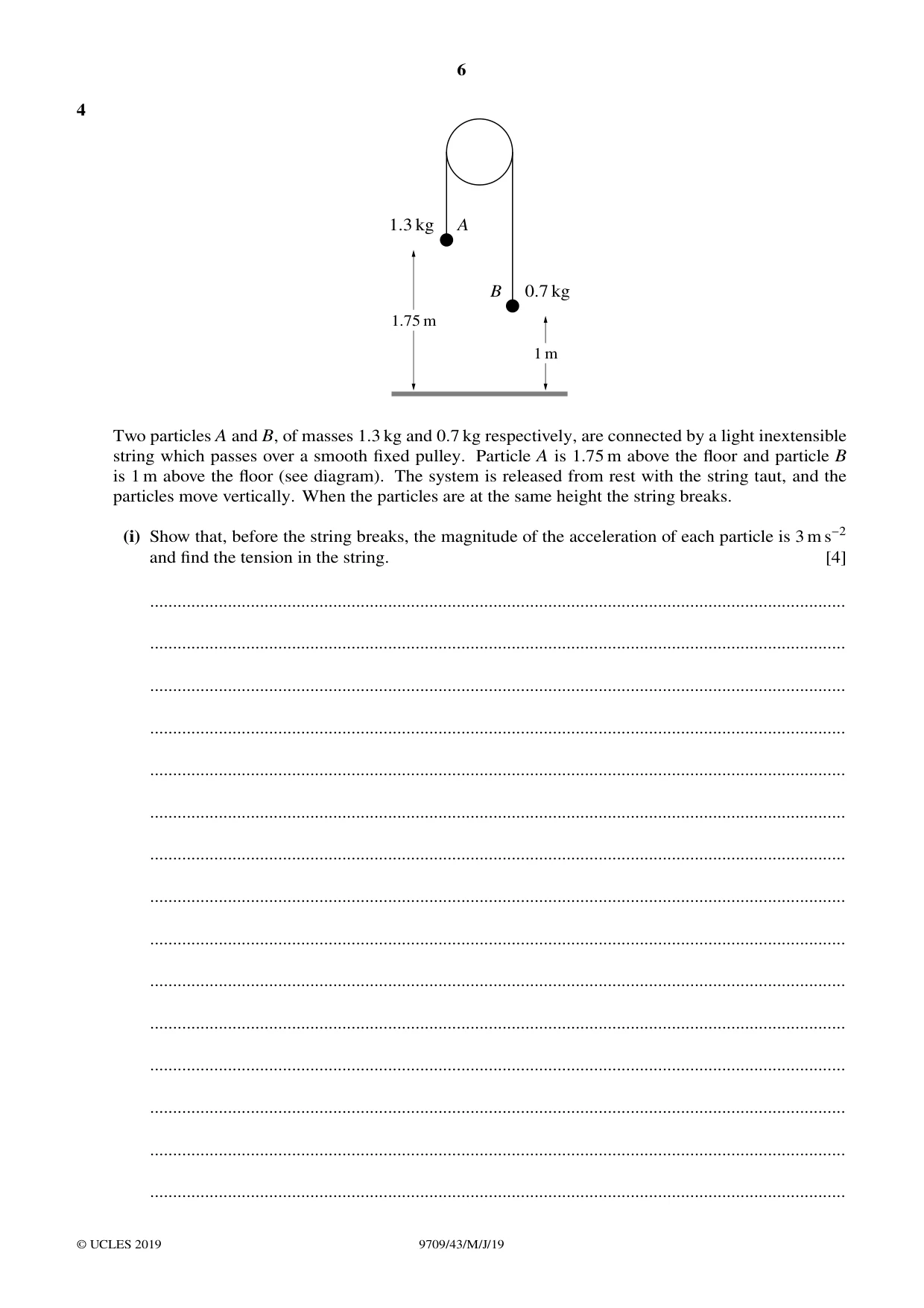

4 1.3 kg A B 0.7 kg 1.75 m 1 m Two particles A and B, of masses 1.3 kg and 0.7 kg respectively, are connected by a light inextensible string which passes over a smooth fixed pulley. Particle A is 1.75 m above the floor and particle B is 1 m above the floor (see diagram). The system is released from rest with the string taut, and the particles move vertically. When the particles are at the same height the string breaks. (i) Show that, before the string breaks, the magnitude of the acceleration of each particle is 3 m s−2 and find the tension in the string. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the difference in the times that it takes the particles to hit the ground. [6] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

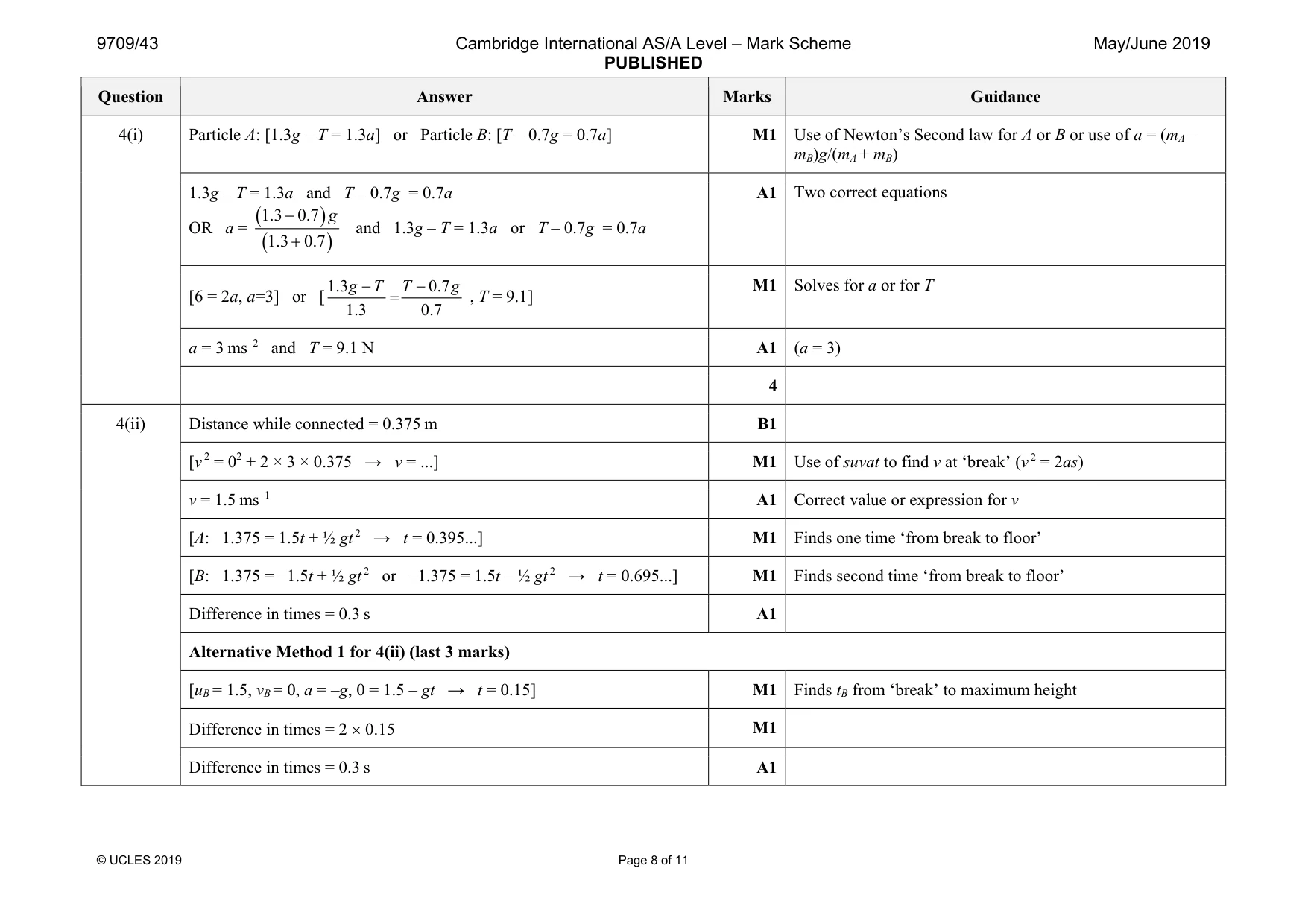

Mark scheme: 4(i) Particle A: [1.3g – T = 1.3a] or Particle B: [T – 0.7g = 0.7a] M1 Use of Newton’s Second law for A or B or use of a = (mA – mB)g/(mA + mB) 1.3g – T = 1.3a and T – 0.7g = 0.7a OR a = ( ) ( ) 1.3 0.7 1.3 0.7 − + g and 1.3g – T = 1.3a or T – 0.7g = 0.7a A1 Two correct equations [6 = 2a, a=3] or [1.3 0.7 1.3 0.7 − − = g T T g , T = 9.1] M1 Solves for a or for T a = 3 ms–2 and T = 9.1 N A1 (a = 3) 4 4(ii) Distance while connected = 0.375 m B1 [v 2 = 02 + 2 × 3 × 0.375 → v = ...] M1 Use of suvat to find v at ‘break’ (v 2 = 2as) v = 1.5 ms–1 A1 Correct value or expression for v [A: 1.375 = 1.5t + ½ gt 2 → t = 0.395...] M1 Finds one time ‘from break to floor’ [B: 1.375 = –1.5t + ½ gt 2 or –1.375 = 1.5t – ½ gt 2 → t = 0.695...] M1 Finds second time ‘from break to floor’ Difference in times = 0.3 s A1 Alternative Method 1 for 4(ii) (last 3 marks) [uB = 1.5, vB = 0, a = –g, 0 = 1.5 – gt → t = 0.15] M1 Finds tB from ‘break’ to maximum height Difference in times = 2 × 0.15 M1 Difference in times = 0.3 s A1

More questions on Kinematics of motion in a straight line

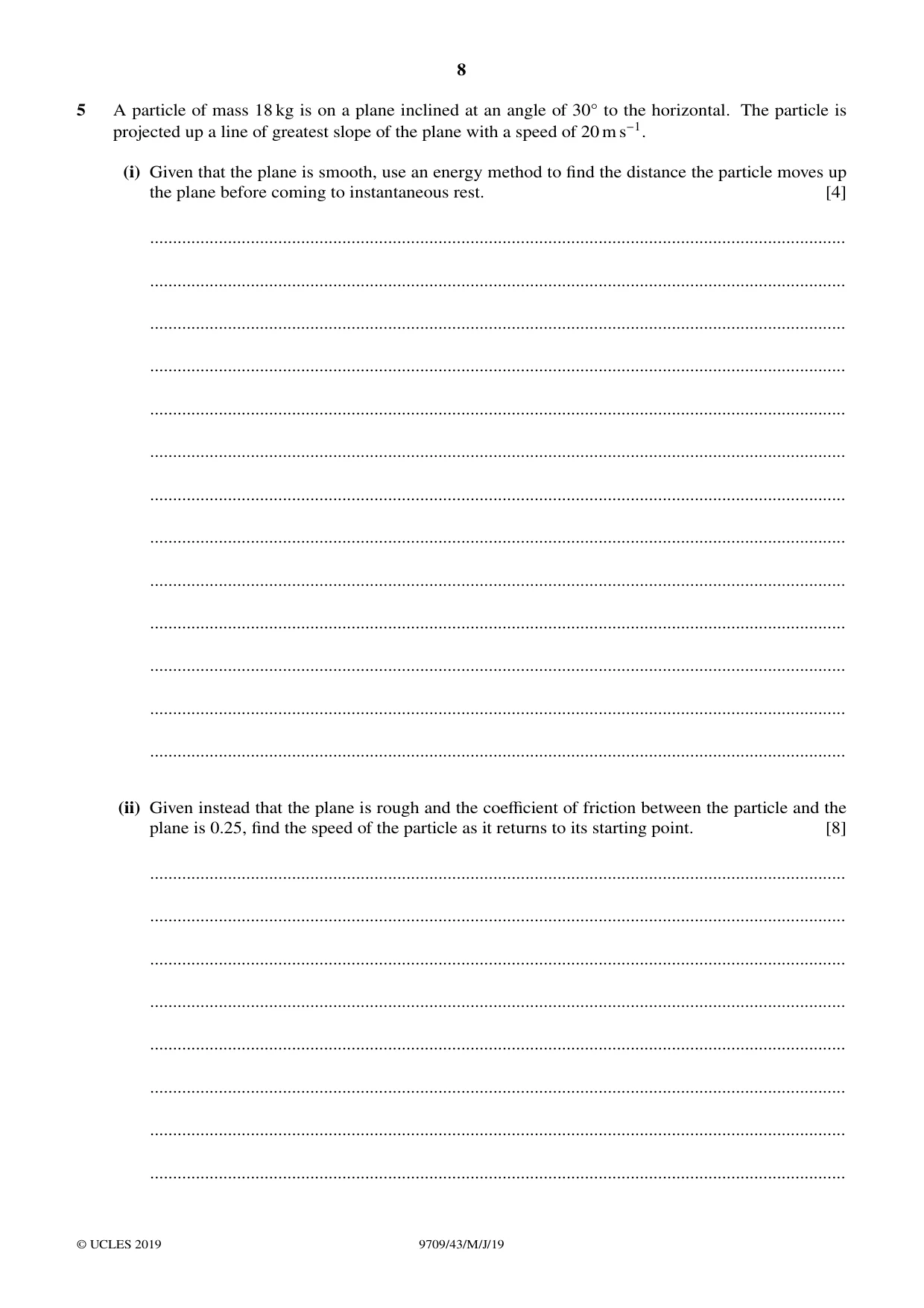

5 A particle of mass 18 kg is on a plane inclined at an angle of 30Å to the horizontal. The particle is projected up a line of greatest slope of the plane with a speed of 20 m s−1. (i) Given that the plane is smooth, use an energy method to find the distance the particle moves up the plane before coming to instantaneous rest. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Given instead that the plane is rough and the coefficient of friction between the particle and the plane is 0.25, find the speed of the particle as it returns to its starting point. [8] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

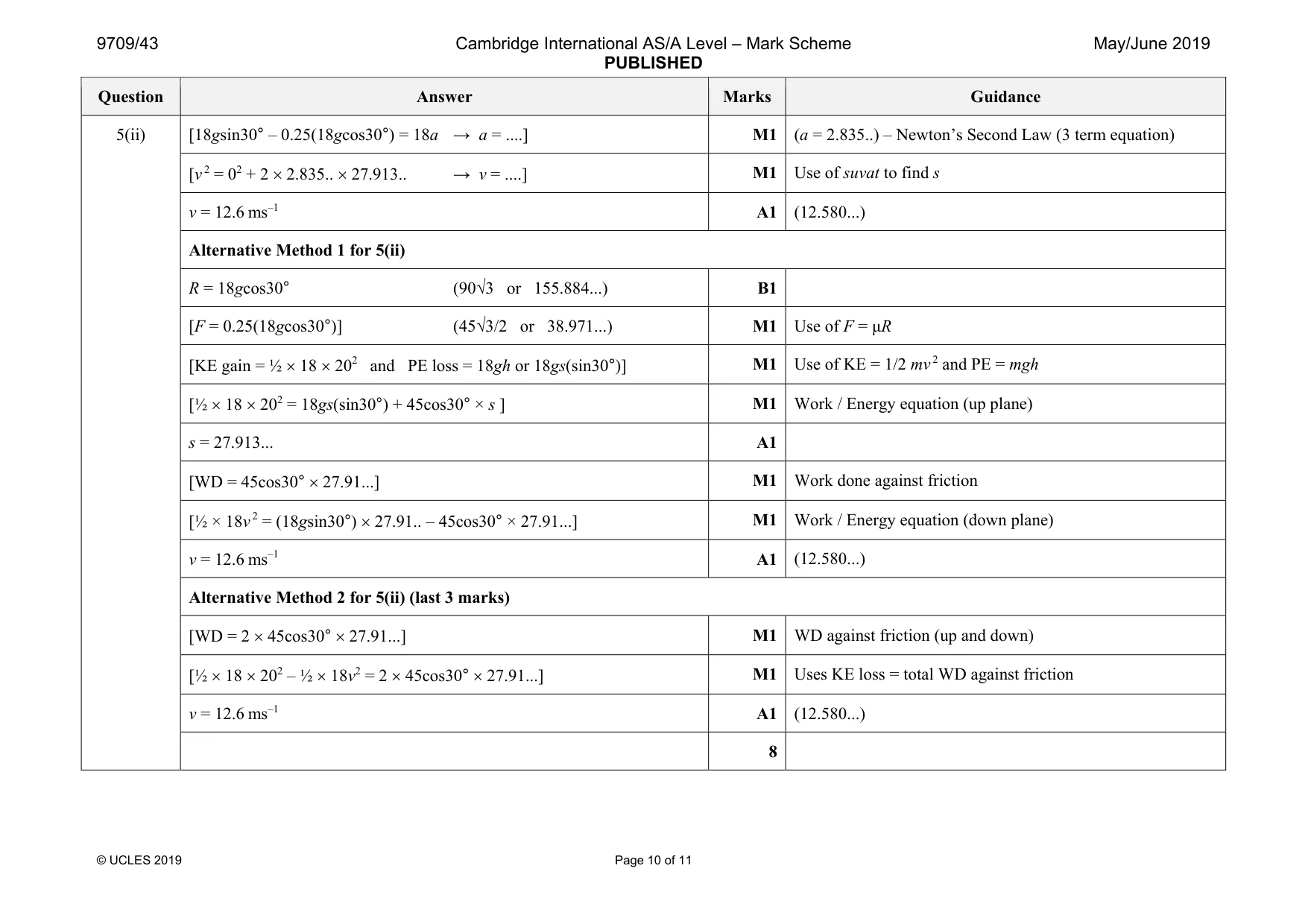

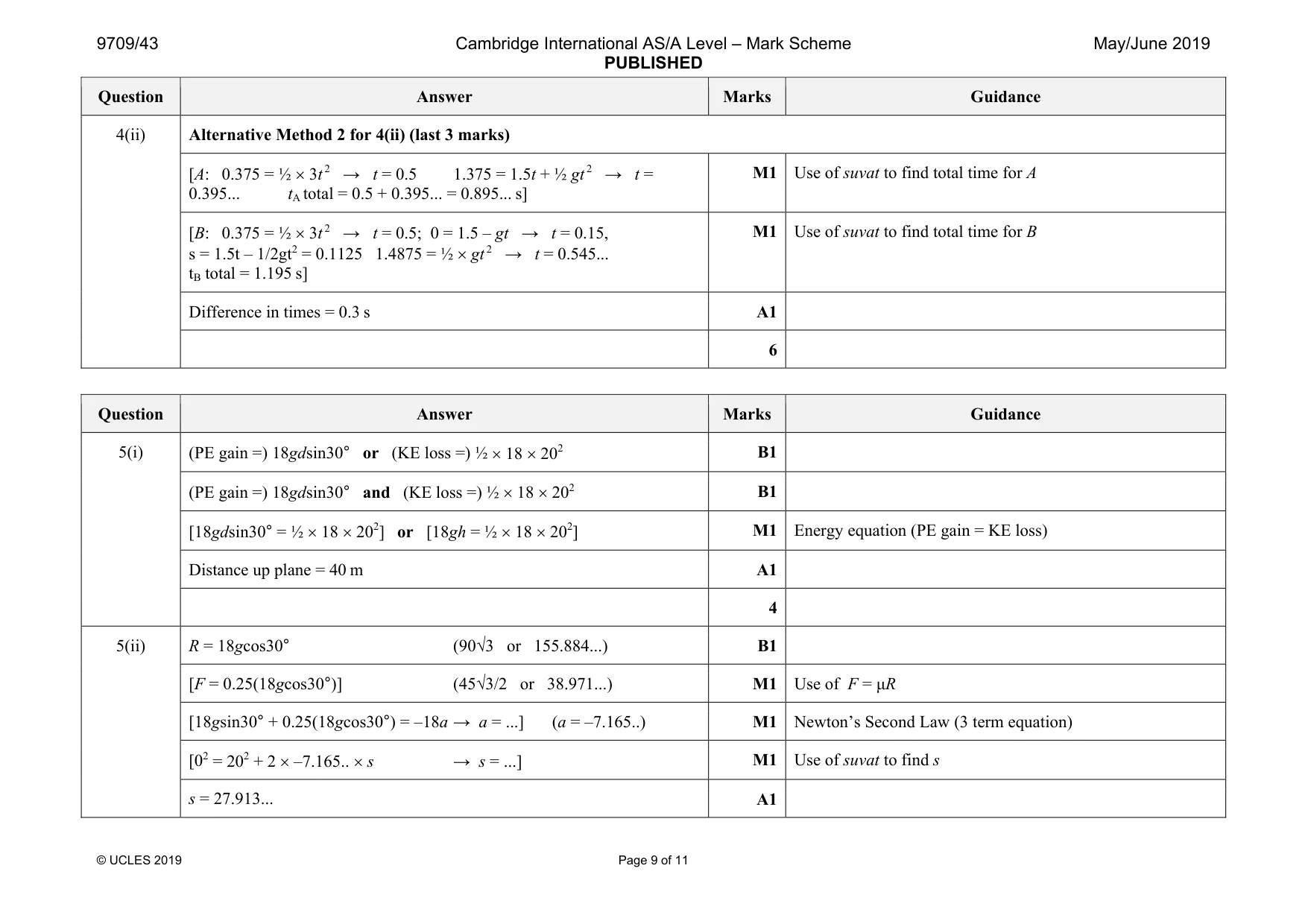

Mark scheme: 5(i) B1 (PE gain =) 18gdsin30° and (KE loss =) ½ × 18 × 202 B1 [18gdsin30° = ½ × 18 × 202] or [18gh = ½ × 18 × 202] M1 Energy equation (PE gain = KE loss) Distance up plane = 40 m A1 4 5(ii) R = 18gcos30° (90√3 or 155.884...) B1 [F = 0.25(18gcos30°)] (45√3/2 or 38.971...) M1 Use of F = µR [18gsin30° + 0.25(18gcos30°) = –18a → a = ...] (a = –7.165..) M1 Newton’s Second Law (3 term equation) [02 = 202 + 2 × –7.165.. × s → s = ...] M1 Use of suvat to find s s = 27.913... A1 Question Answer Marks Guidance 5(ii) [18gsin30° – 0.25(18gcos30°) = 18a → a = ....] M1 (a = 2.835..) – Newton’s Second Law (3 term equation) [v 2 = 02 + 2 × 2.835.. × 27.913.. → v = ....] M1 Use of suvat to find s v = 12.6 ms–1 A1 (12.580...) Alternative Method 1 for 5(ii) R = 18gcos30° (90√3 or 155.884...) B1 [F = 0.25(18gcos30°)] (45√3/2 or 38.971...) M1 Use of F = µR [KE gain = ½ × 18 × 202 and PE loss = 18gh or 18gs(sin30°)] M1 Use of KE = 1/2 mv 2 and PE = mgh [½ × 18 × 202 = 18gs(sin30°) + 45cos30° × s ] M1 Work / Energy equation (up plane) s = 27.913... A1 [WD = 45cos30° × 27.91...] M1 Work done against friction [½ × 18v 2 = (18gsin30°) × 27.91.. – 45cos30° × 27.91...] M1 Work / Energy equation (down plane) v = 12.6 ms–1 A1 (12.580...) Alternative Method 2 for 5(ii) (last 3 marks) [WD = 2 × 45cos30° × 27.91...] M1 WD against friction (up and down) [½ × 18 × 202 – ½ × 18v2 = 2 × 45cos30° × 27.91...] M1 Uses KE loss = total WD against friction v = 12.6 ms–1 A1 (12.580...) 8

More questions on Energy, work and power

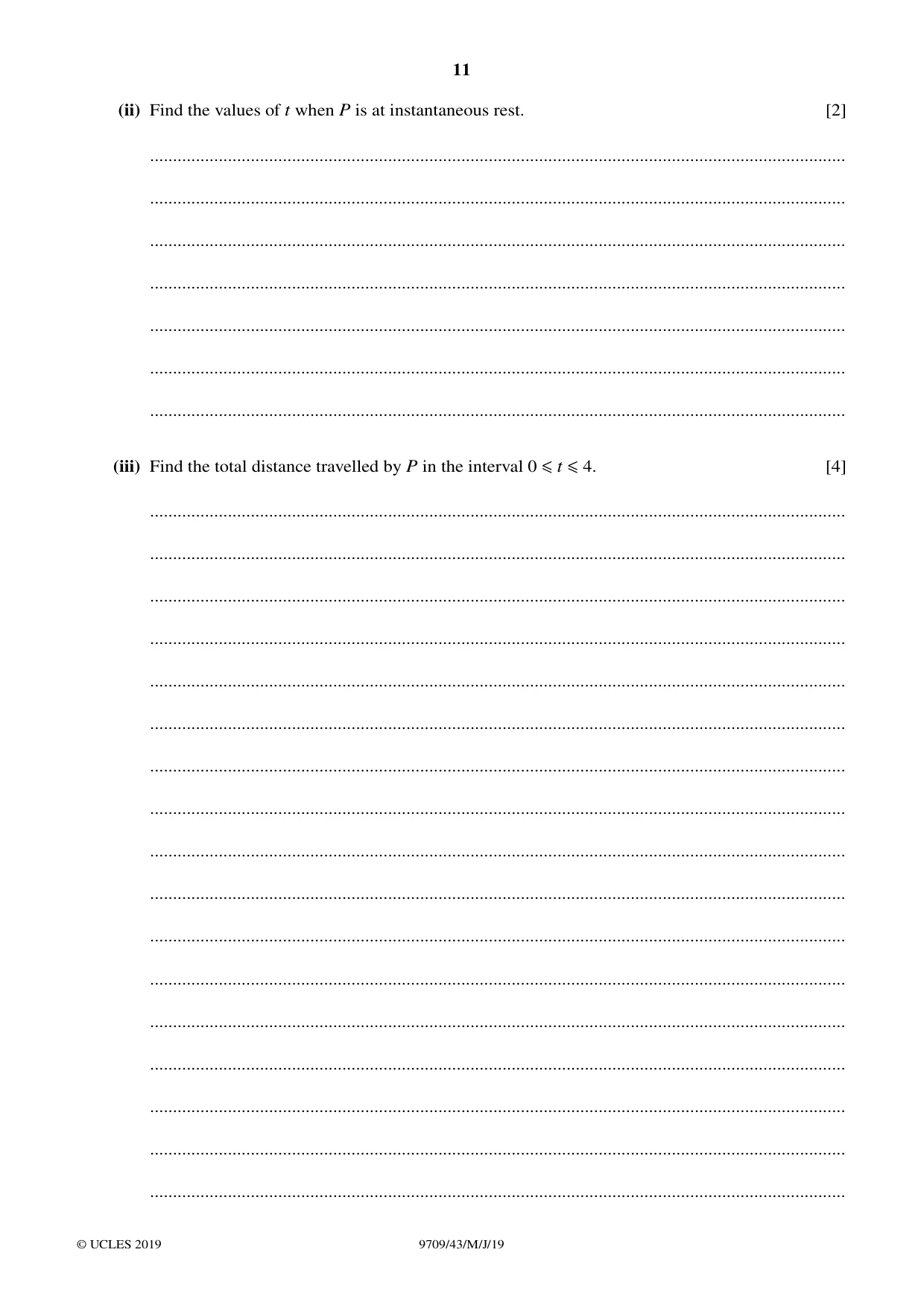

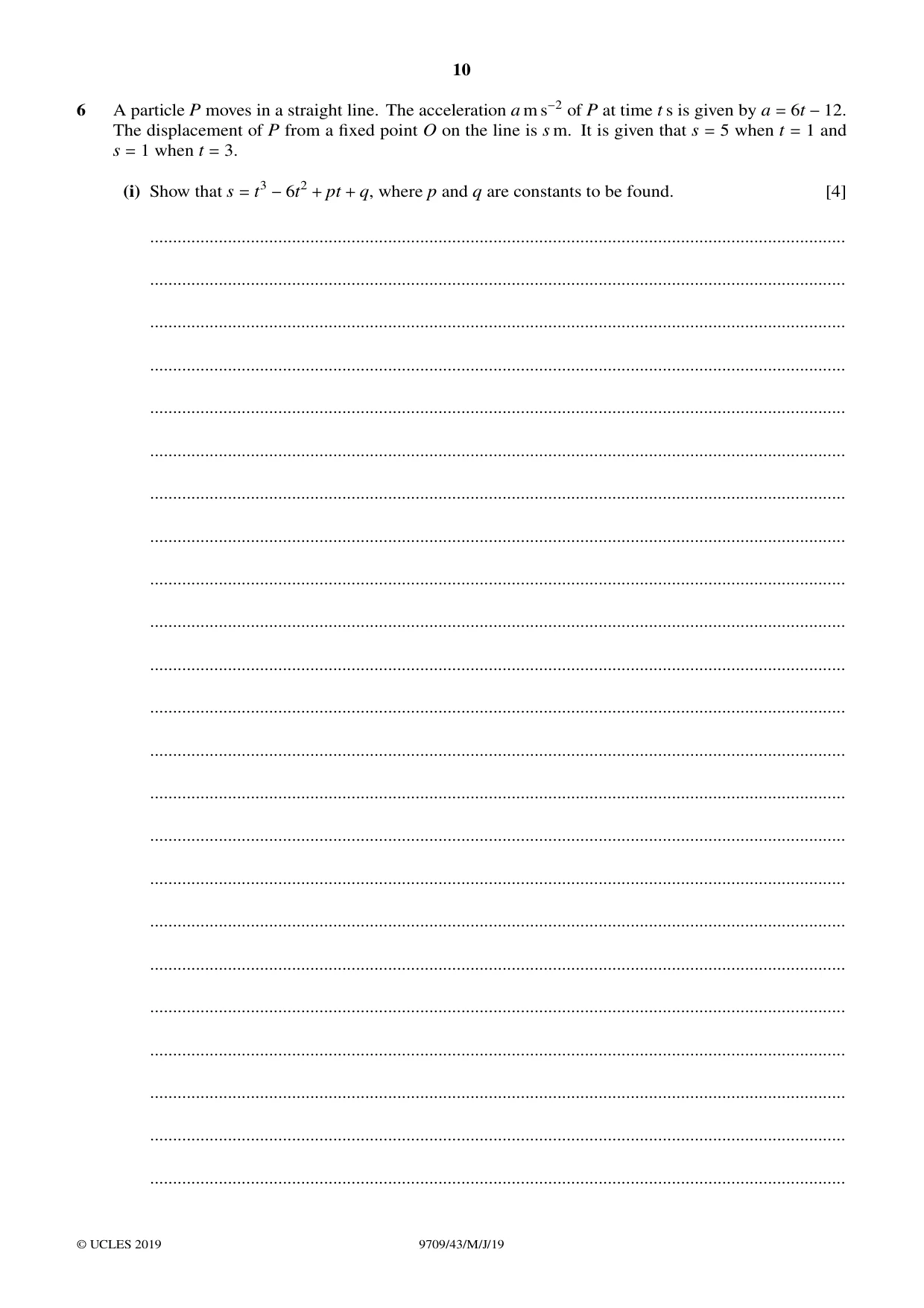

6 A particle P moves in a straight line. The acceleration a m s−2 of P at time t s is given by a = 6t −12. The displacement of P from a fixed point O on the line is s m. It is given that s = 5 when t = 1 and s = 1 when t = 3. (i) Show that s = t3 −6t2 + pt + q, where p and q are constants to be found. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the values of t when P is at instantaneous rest. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) Find the total distance travelled by P in the interval 0 ≤t ≤4. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

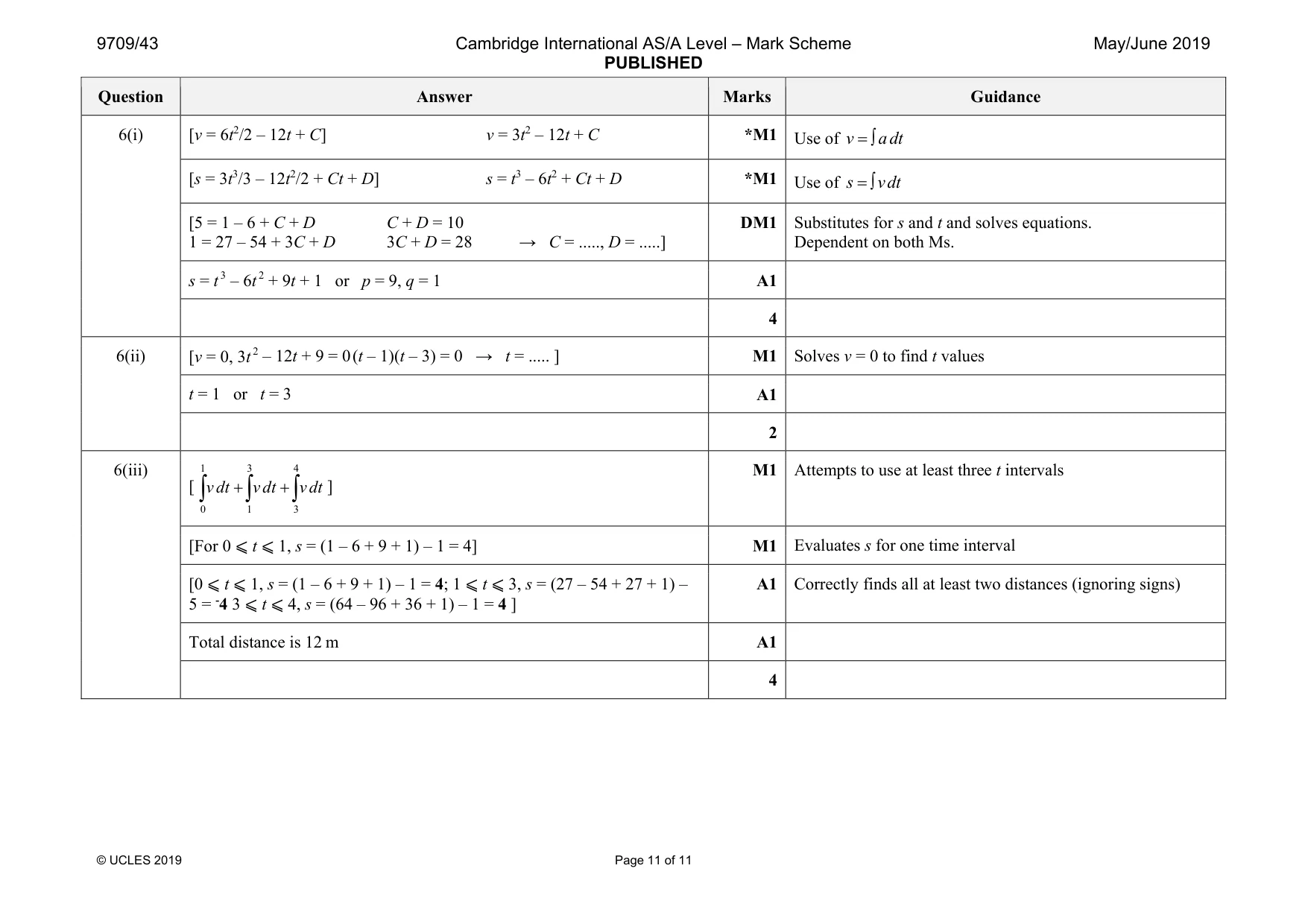

Mark scheme: 6(i) *M1 Use of = ∫ v adt [s = 3t3/3 – 12t2/2 + Ct + D] s = t3 – 6t2 + Ct + D *M1 Use of = ∫ s vdt [5 = 1 – 6 + C + D C + D = 10 1 = 27 – 54 + 3C + D 3C + D = 28 → C = ....., D = .....] DM1 Substitutes for s and t and solves equations. Dependent on both Ms. s = t 3 – 6t 2 + 9t + 1 or p = 9, q = 1 A1 4 6(ii) [v = 0, 3t 2 – 12t + 9 = 0 (t – 1)(t – 3) = 0 → t = ..... ] M1 Solves v = 0 to find t values t = 1 or t = 3 A1 2 6(iii) [ 1 3 4 0 1 3 + + ∫ ∫ ∫ vdt vdt vdt ] M1 Attempts to use at least three t intervals [For 0 ⩽ t ⩽ 1, s = (1 – 6 + 9 + 1) – 1 = 4] M1 Evaluates s for one time interval [0 ⩽ t ⩽ 1, s = (1 – 6 + 9 + 1) – 1 = 4; 1 ⩽ t ⩽ 3, s = (27 – 54 + 27 + 1) – 5 = -4 3 ⩽ t ⩽ 4, s = (64 – 96 + 36 + 1) – 1 = 4 ] A1 Correctly finds all at least two distances (ignoring signs) Total distance is 12 m A1 4
