Cambridge A Level Information Technology (from 2017) 9626 — 2021 May/June Paper 1 · Variant 3

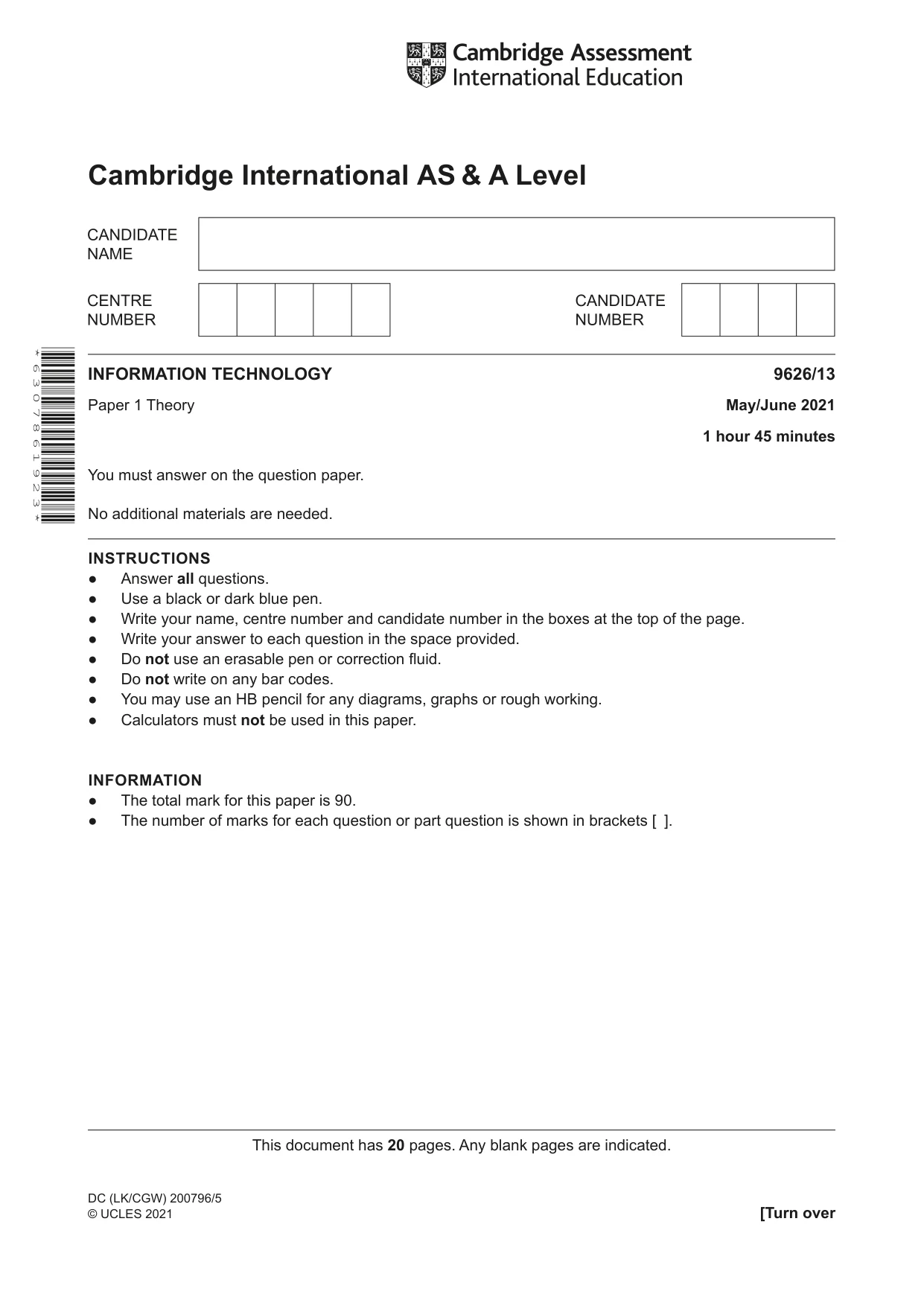

This document has 20 pages. Any blank pages are indicated. Cambridge International AS & A Level INFORMATION TECHNOLOGY 9626/13 Paper 1 Theory May/June 2021 1 hour 45 minutes You must answer on the question paper. No additional materials are needed. INSTRUCTIONS ● Answer all questions. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number in the boxes at the top of the page. ● Write your answer to each question in the space provided. ● Do not use an erasable pen or correction fluid. ● Do not write on any bar codes. ● You may use an HB pencil for any diagrams, graphs or rough working. ● Calculators must not be used in this paper. INFORMATION ● The total mark for this paper is 90. ● The number of marks for each question or part question is shown in brackets [ ]. * 6 3 0 7 8 6 1 9 2 3 * DC (LK/CGW) 200796/5 © UCLES 2021 [Turn over

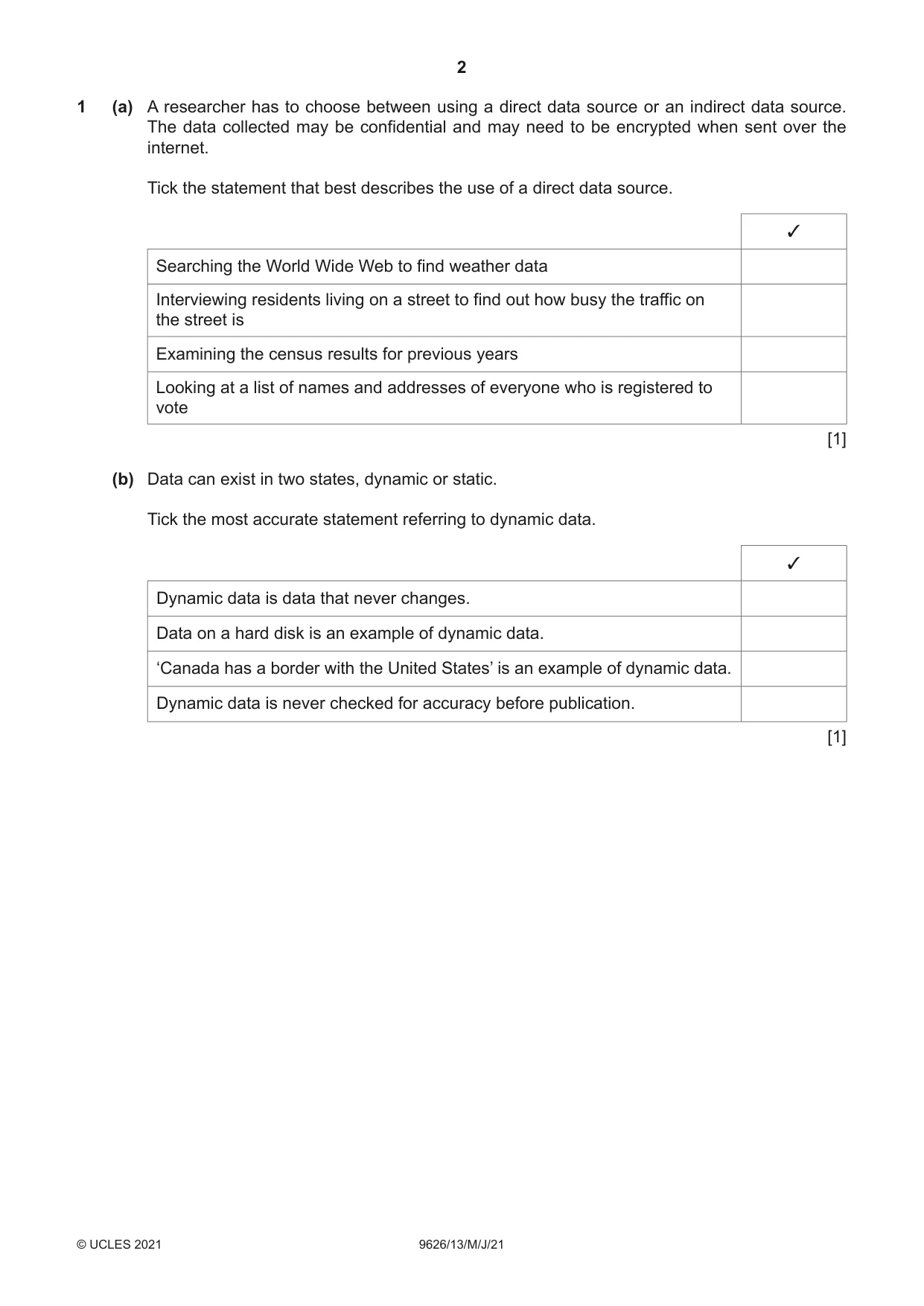

2 9626/13/M/J/21 © UCLES 2021 1 (a) A researcher has to choose between using a direct data source or an indirect data source. The data collected may be confidential and may need to be encrypted when sent over the internet. Tick the statement that best describes the use of a direct data source. ✓ Searching the World Wide Web to find weather data Interviewing residents living on a street to find out how busy the traffic on the street is Examining the census results for previous years Looking at a list of names and addresses of everyone who is registered to vote [1] (b) Data can exist in two states, dynamic or static. Tick the most accurate statement referring to dynamic data. ✓ Dynamic data is data that never changes. Data on a hard disk is an example of dynamic data. ‘Canada has a border with the United States’ is an example of dynamic data. Dynamic data is never checked for accuracy before publication. [1]

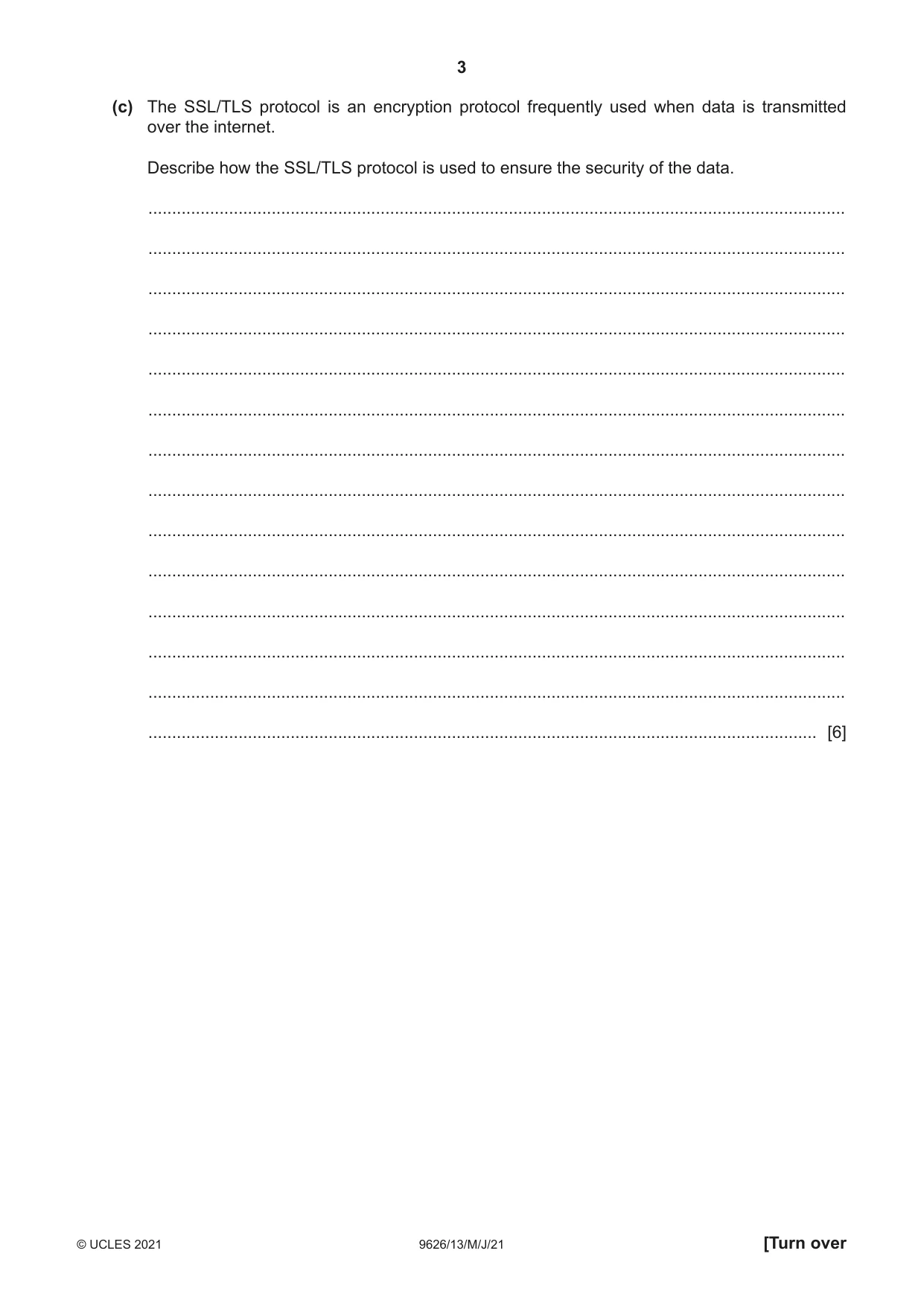

3 9626/13/M/J/21 © UCLES 2021 [Turn over (c) The SSL/TLS protocol is an encryption protocol frequently used when data is transmitted over the internet. Describe how the SSL/TLS protocol is used to ensure the security of the data. … … … … … … … … … … … … … … [6]

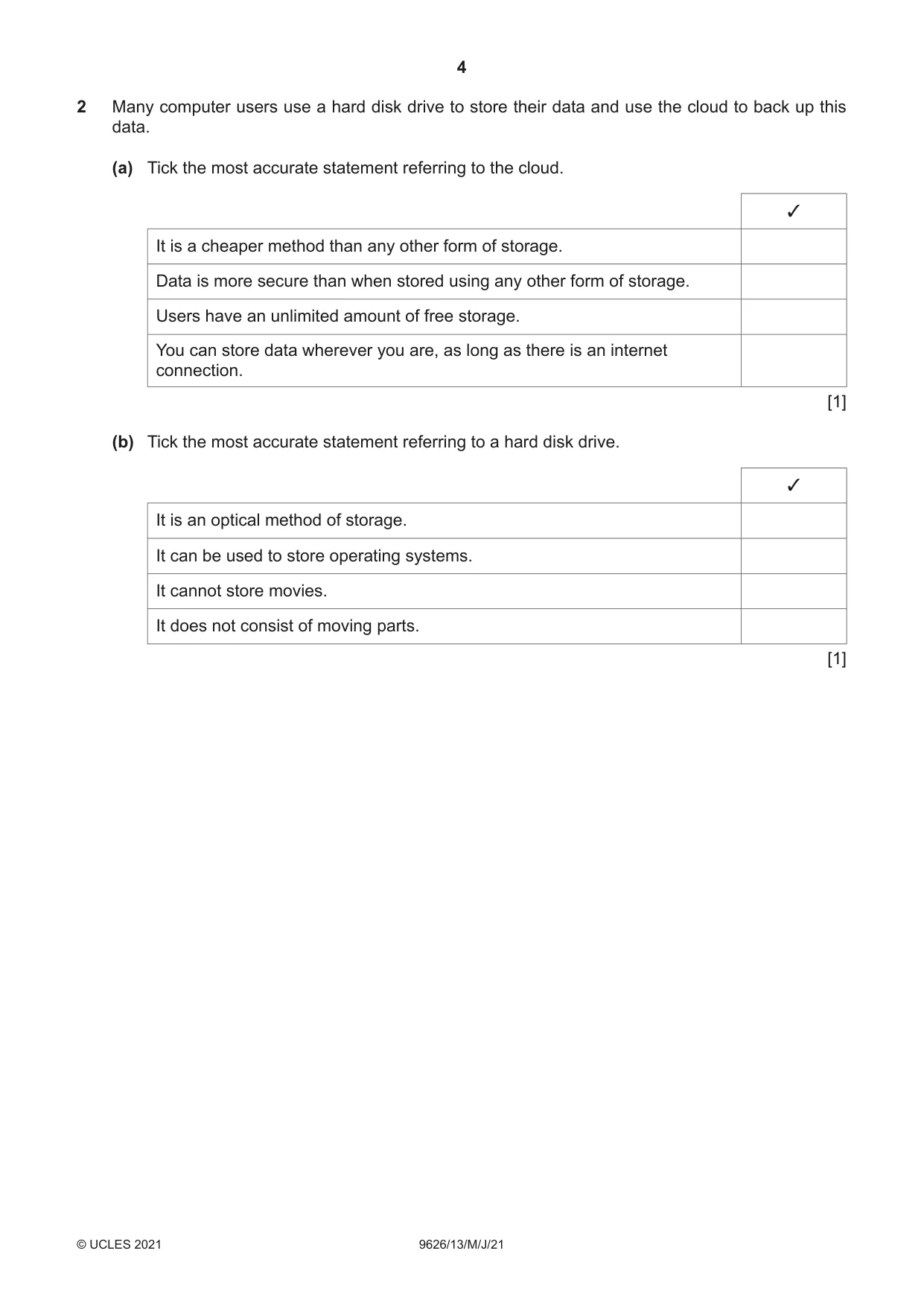

4 9626/13/M/J/21 © UCLES 2021 2 Many computer users use a hard disk drive to store their data and use the cloud to back up this data. (a) Tick the most accurate statement referring to the cloud. ✓ It is a cheaper method than any other form of storage. Data is more secure than when stored using any other form of storage. Users have an unlimited amount of free storage. You can store data wherever you are, as long as there is an internet connection. [1] (b) Tick the most accurate statement referring to a hard disk drive. ✓ It is an optical method of storage. It can be used to store operating systems. It cannot store movies. It does not consist of moving parts. [1]

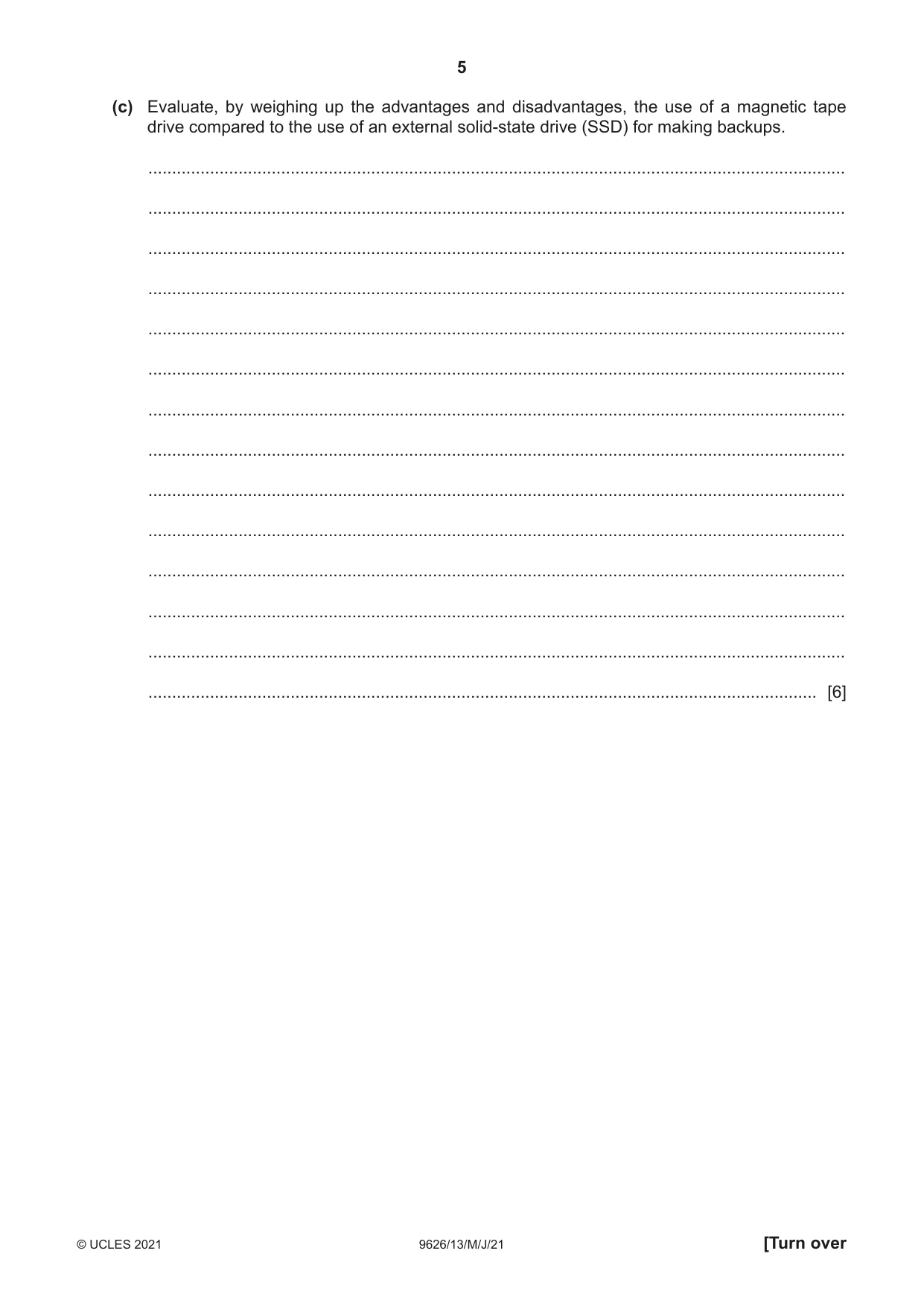

5 9626/13/M/J/21 © UCLES 2021 [Turn over (c) Evaluate, by weighing up the advantages and disadvantages, the use of a magnetic tape drive compared to the use of an external solid-state drive (SSD) for making backups. … … … … … … … … … … … … … … [6]

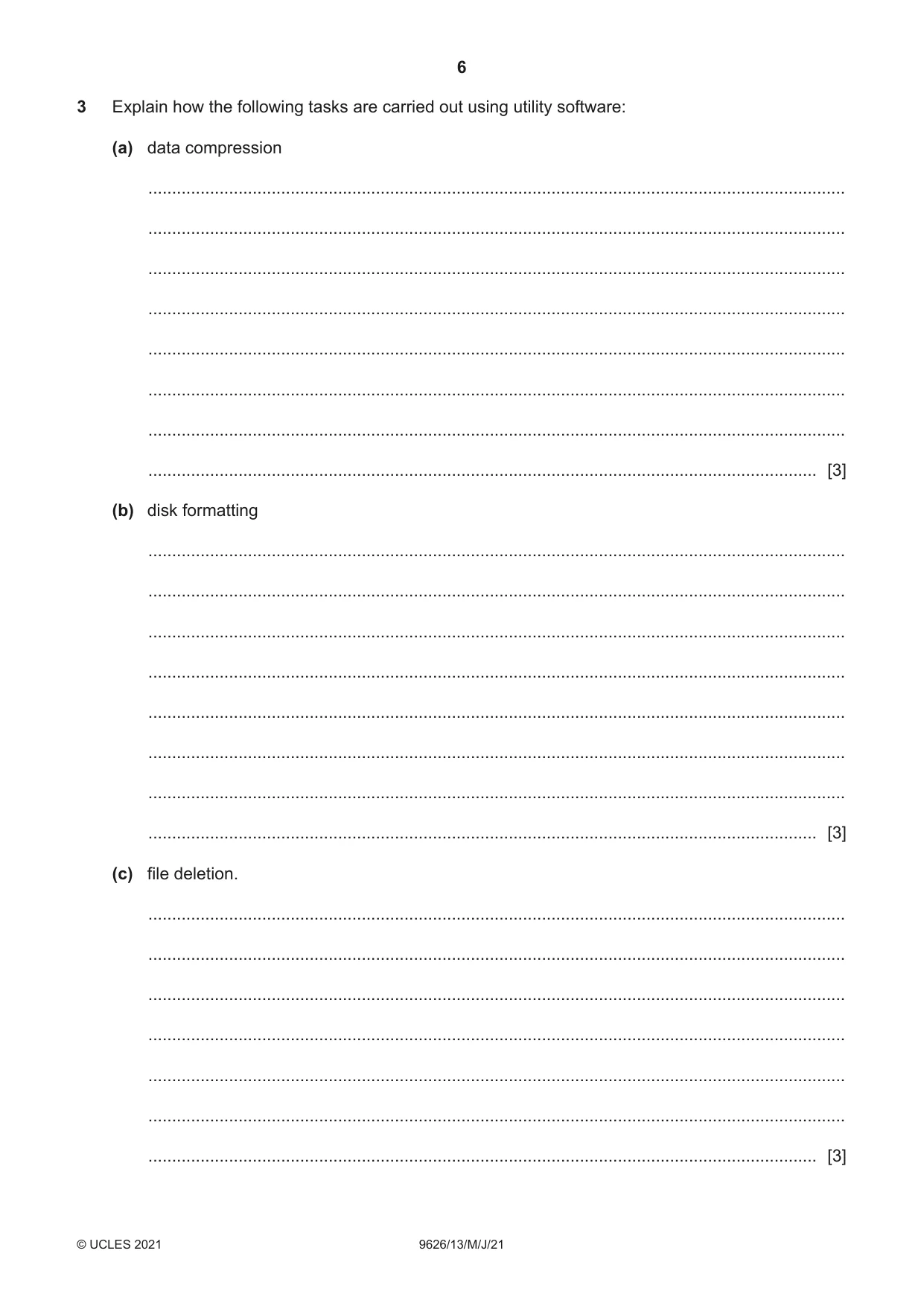

6 9626/13/M/J/21 © UCLES 2021 3 Explain how the following tasks are carried out using utility software: (a) data compression … … … … … … … … [3] (b) disk formatting … … … … … … … … [3] (c) file deletion. … … … … … … … [3]

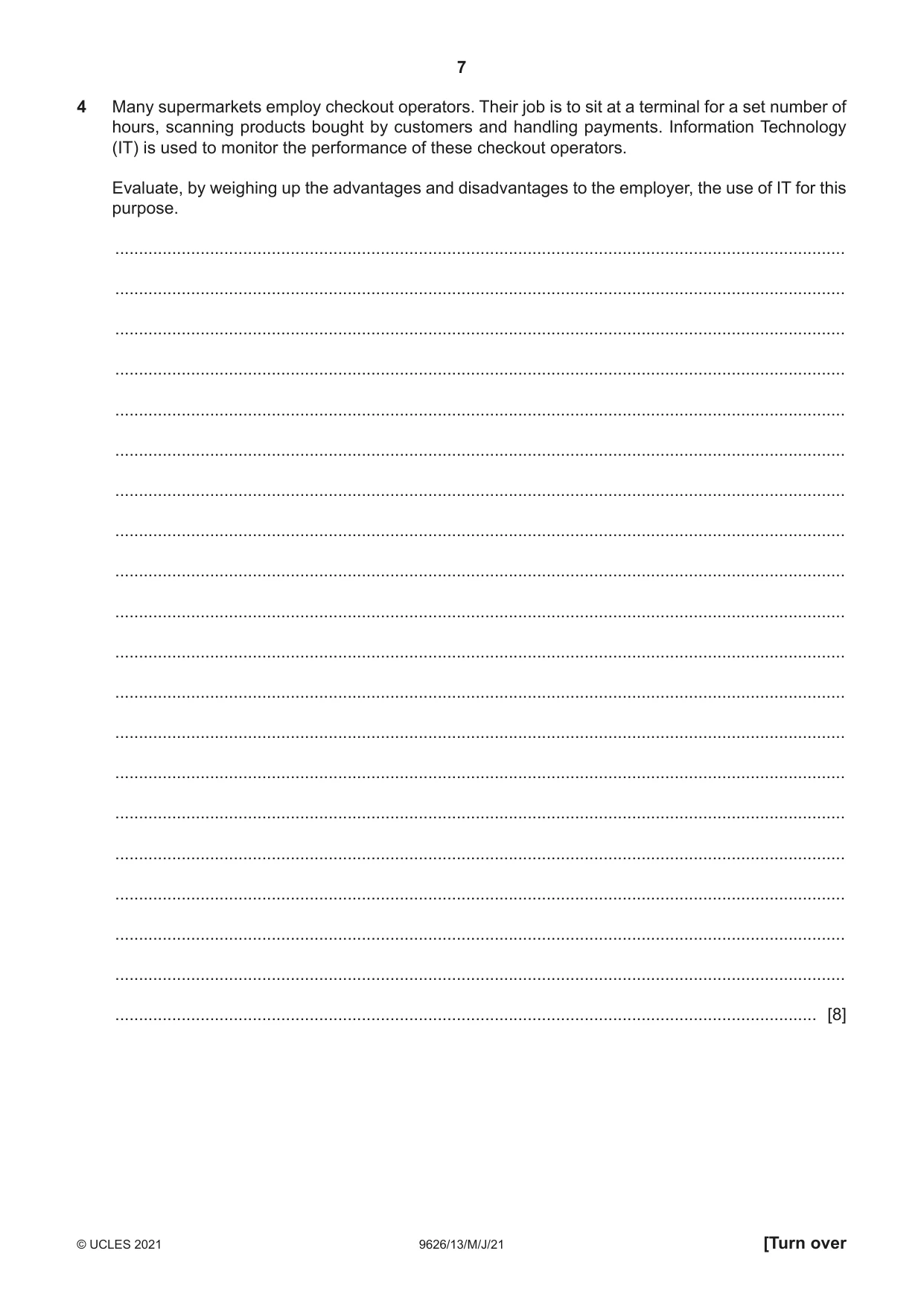

7 9626/13/M/J/21 © UCLES 2021 [Turn over 4 Many supermarkets employ checkout operators. Their job is to sit at a terminal for a set number of hours, scanning products bought by customers and handling payments. Information Technology (IT) is used to monitor the performance of these checkout operators. Evaluate, by weighing up the advantages and disadvantages to the employer, the use of IT for this purpose. … … … … … … … … … … … … … … … … … … … … [8]

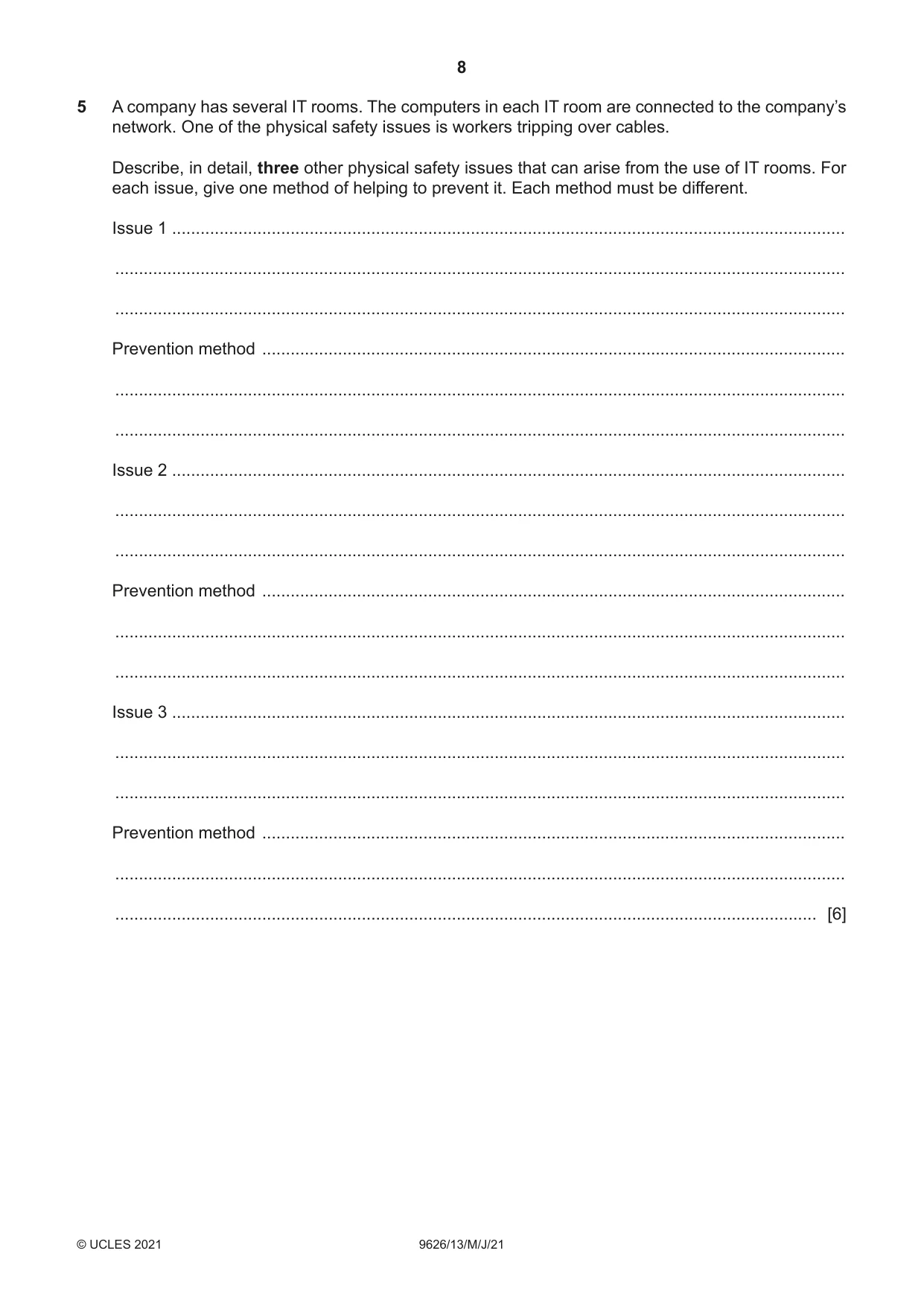

8 9626/13/M/J/21 © UCLES 2021 5 A company has several IT rooms. The computers in each IT room are connected to the company’s network. One of the physical safety issues is workers tripping over cables. Describe, in detail, three other physical safety issues that can arise from the use of IT rooms. For each issue, give one method of helping to prevent it. Each method must be different. Issue 1 … … … Prevention method … … … Issue 2 … … … Prevention method … … … Issue 3 … … … Prevention method … … … [6]

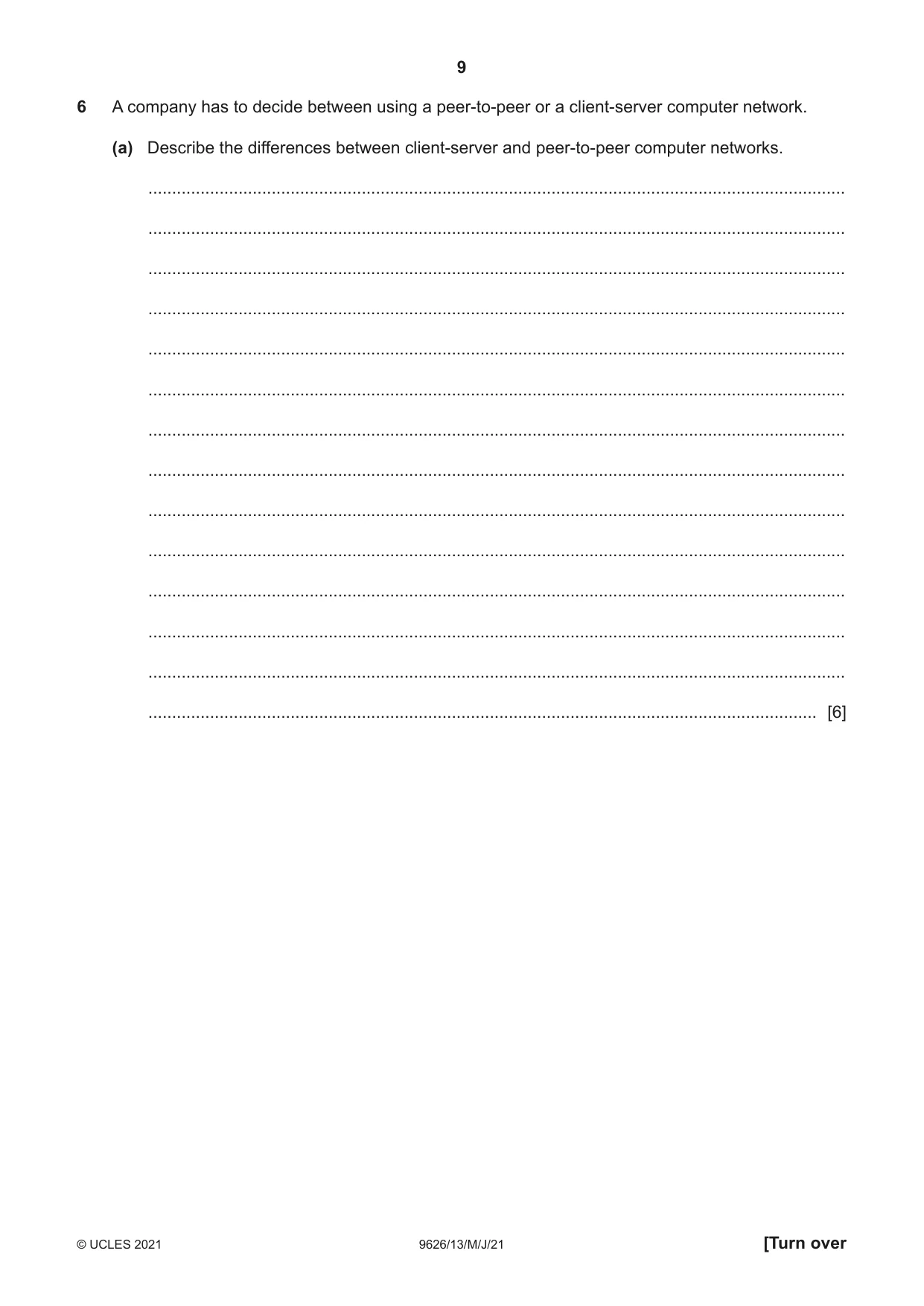

9 9626/13/M/J/21 © UCLES 2021 [Turn over 6 A company has to decide between using a peer-to-peer or a client-server computer network. (a) Describe the differences between client-server and peer-to-peer computer networks. … … … … … … … … … … … … … … [6]

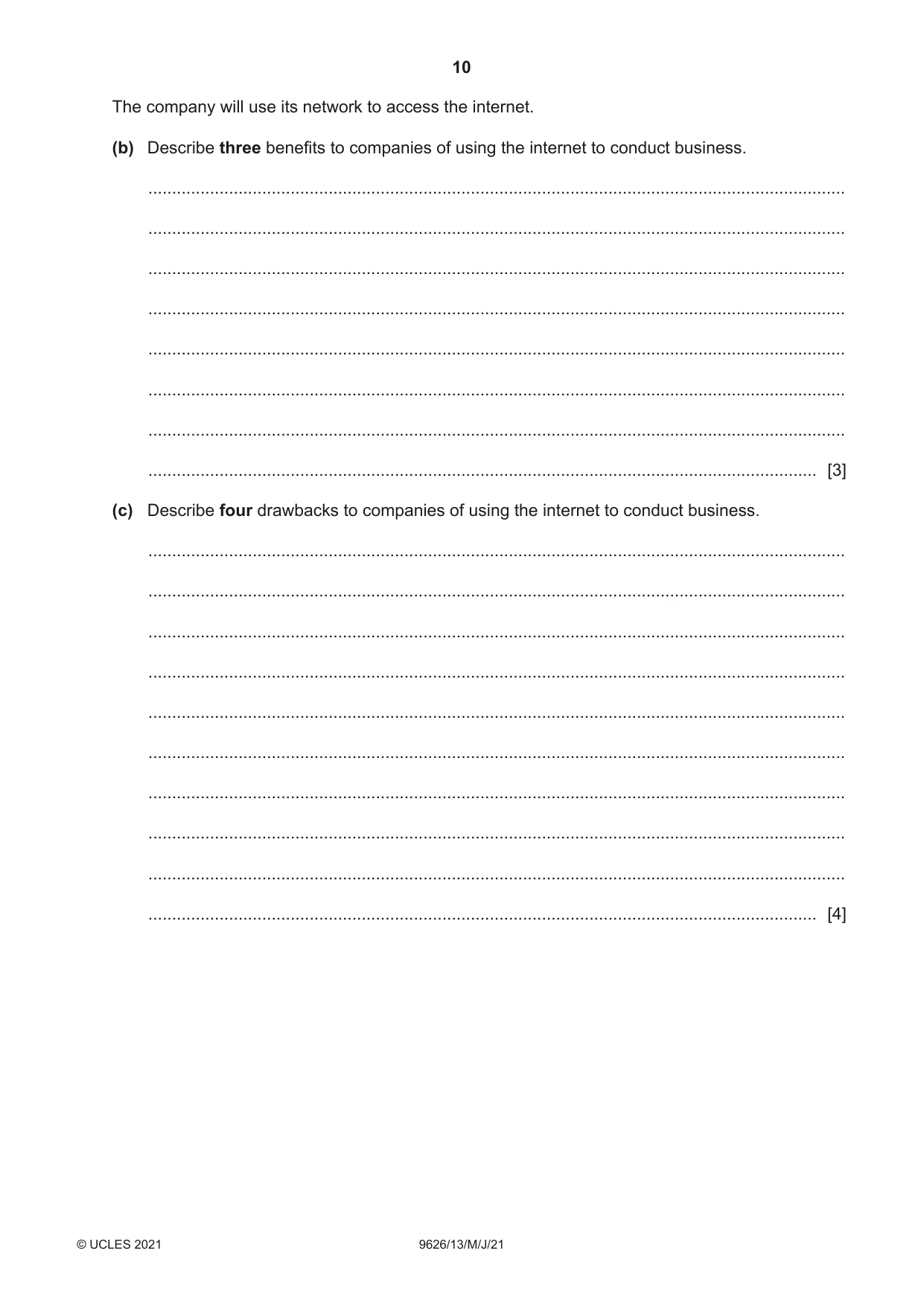

10 9626/13/M/J/21 © UCLES 2021 The company will use its network to access the internet. (b) Describe three benefits to companies of using the internet to conduct business. … … … … … … … … [3] (c) Describe four drawbacks to companies of using the internet to conduct business. … … … … … … … … … … [4]

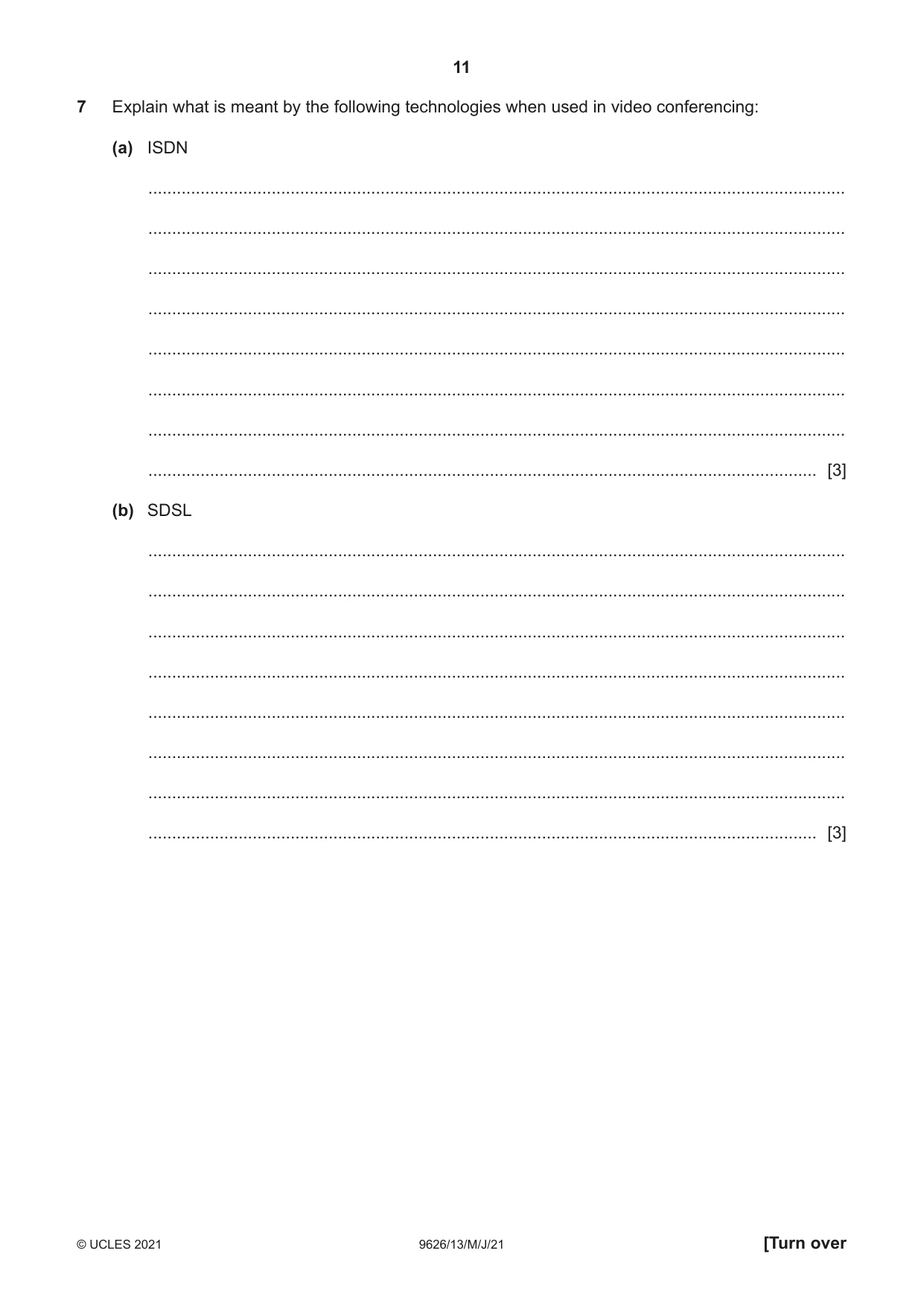

11 9626/13/M/J/21 © UCLES 2021 [Turn over 7 Explain what is meant by the following technologies when used in video conferencing: (a) ISDN … … … … … … … … [3] (b) SDSL … … … … … … … … [3]

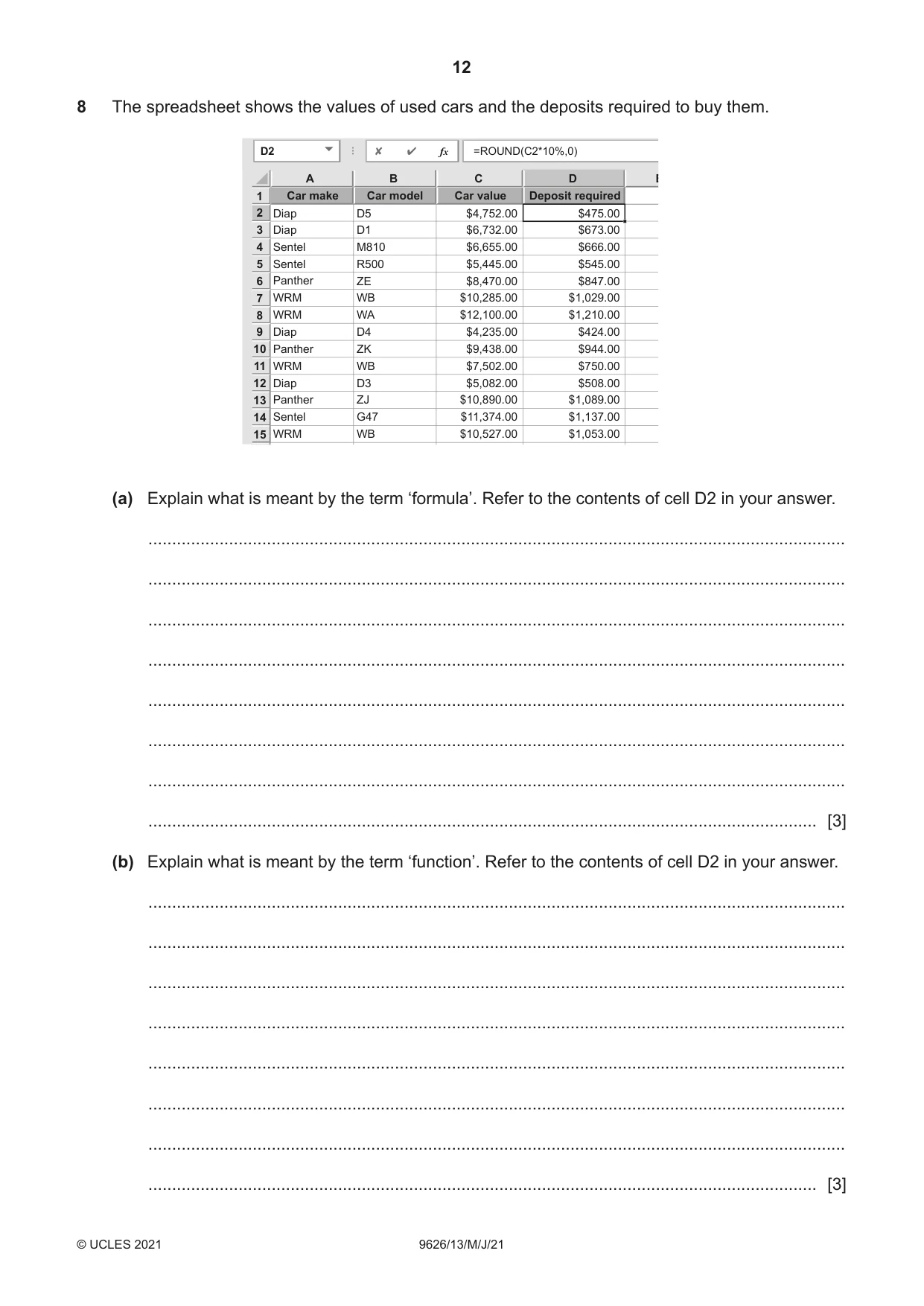

12 9626/13/M/J/21 © UCLES 2021 8 The spreadsheet shows the values of used cars and the deposits required to buy them. Car make Diap Diap Sentel Sentel Panther WRM WRM Diap Panther WRM Diap Panther Sentel WRM D5 D1 M810 R500 ZE WB WA D4 ZK WB D3 ZJ G47 WB $4,752.00 $6,732.00 $6,655.00 $5,445.00 $8,470.00 $10,285.00 $12,100.00 $4,235.00 $9,438.00 $7,502.00 $5,082.00 $10,890.00 $11,374.00 $10,527.00 $475.00 $673.00 $666.00 $545.00 $847.00 $1,029.00 $1,210.00 $424.00 $944.00 $750.00 $508.00 $1,089.00 $1,137.00 $1,053.00 Car model Car value Deposit required A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 B C D E D2 ✘ ✔ =ROUND(C2*10%,0) fx (a) Explain what is meant by the term ‘formula’. Refer to the contents of cell D2 in your answer. … … … … … … … … [3] (b) Explain what is meant by the term ‘function’. Refer to the contents of cell D2 in your answer. … … … … … … … … [3]

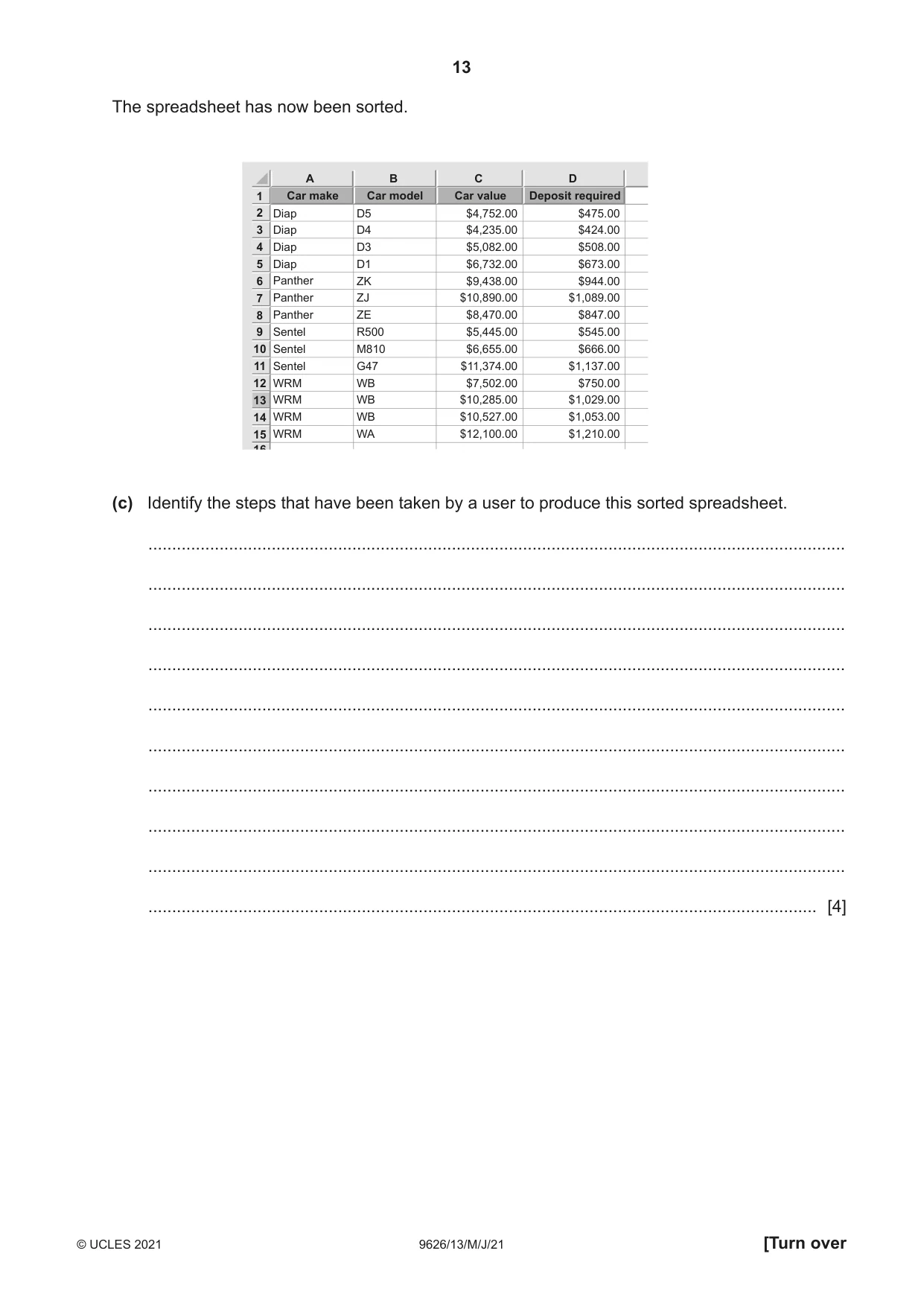

13 9626/13/M/J/21 © UCLES 2021 [Turn over The spreadsheet has now been sorted. Car make Diap Diap Diap Diap Panther Panther Panther Sentel Sentel Sentel WRM WRM WRM WRM D5 D4 D3 D1 ZK ZJ ZE R500 M810 G47 WB WB WB WA $4,752.00 $4,235.00 $5,082.00 $6,732.00 $9,438.00 $10,890.00 $8,470.00 $5,445.00 $6,655.00 $11,374.00 $7,502.00 $10,285.00 $10,527.00 $12,100.00 $475.00 $424.00 $508.00 $673.00 $944.00 $1,089.00 $847.00 $545.00 $666.00 $1,137.00 $750.00 $1,029.00 $1,053.00 $1,210.00 Car model Car value Deposit required A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 B C D E (c) Identify the steps that have been taken by a user to produce this sorted spreadsheet. … … … … … … … … … … [4]

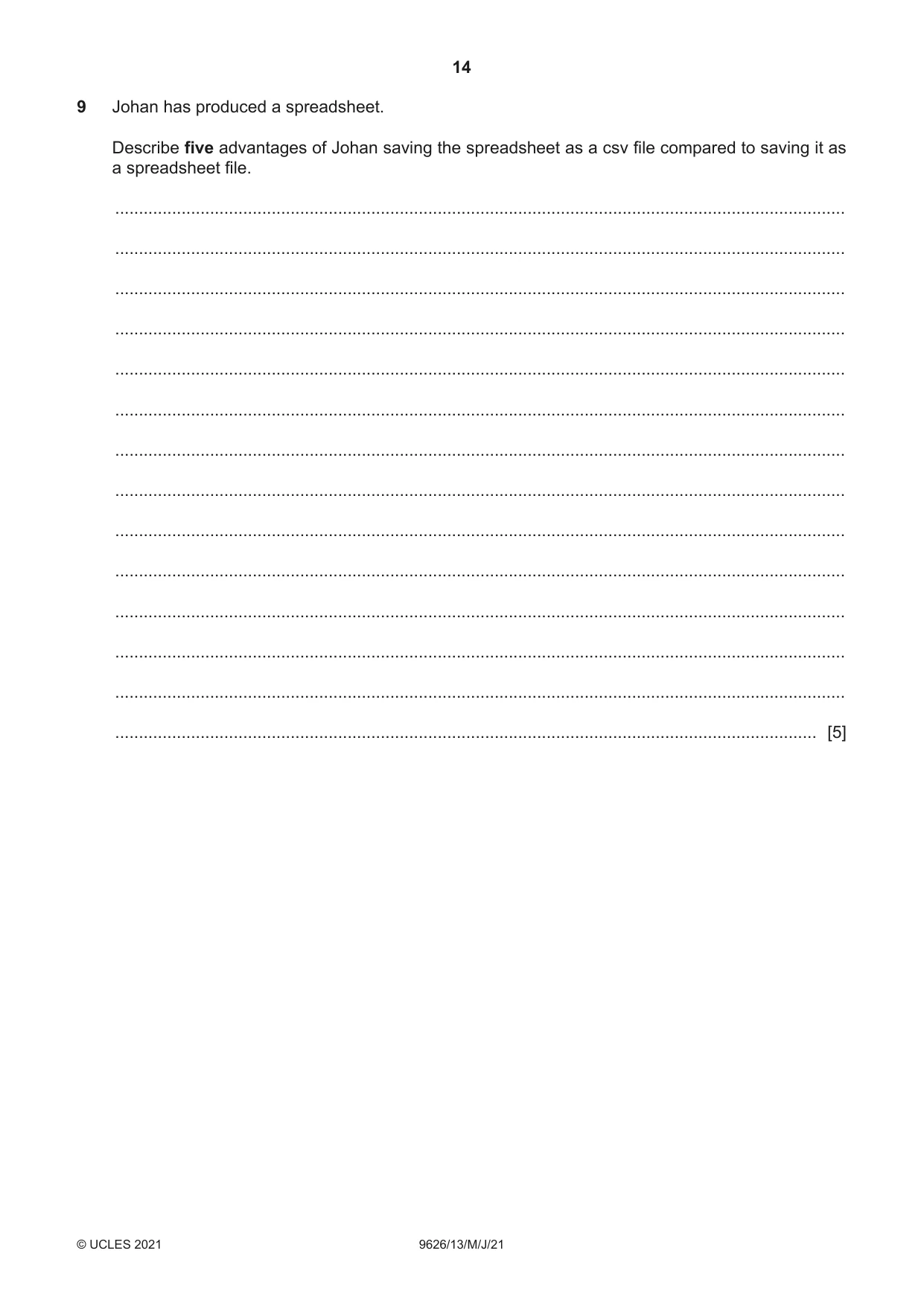

14 9626/13/M/J/21 © UCLES 2021 9 Johan has produced a spreadsheet. Describe five advantages of Johan saving the spreadsheet as a csv file compared to saving it as a spreadsheet file. … … … … … … … … … … … … … … [5]

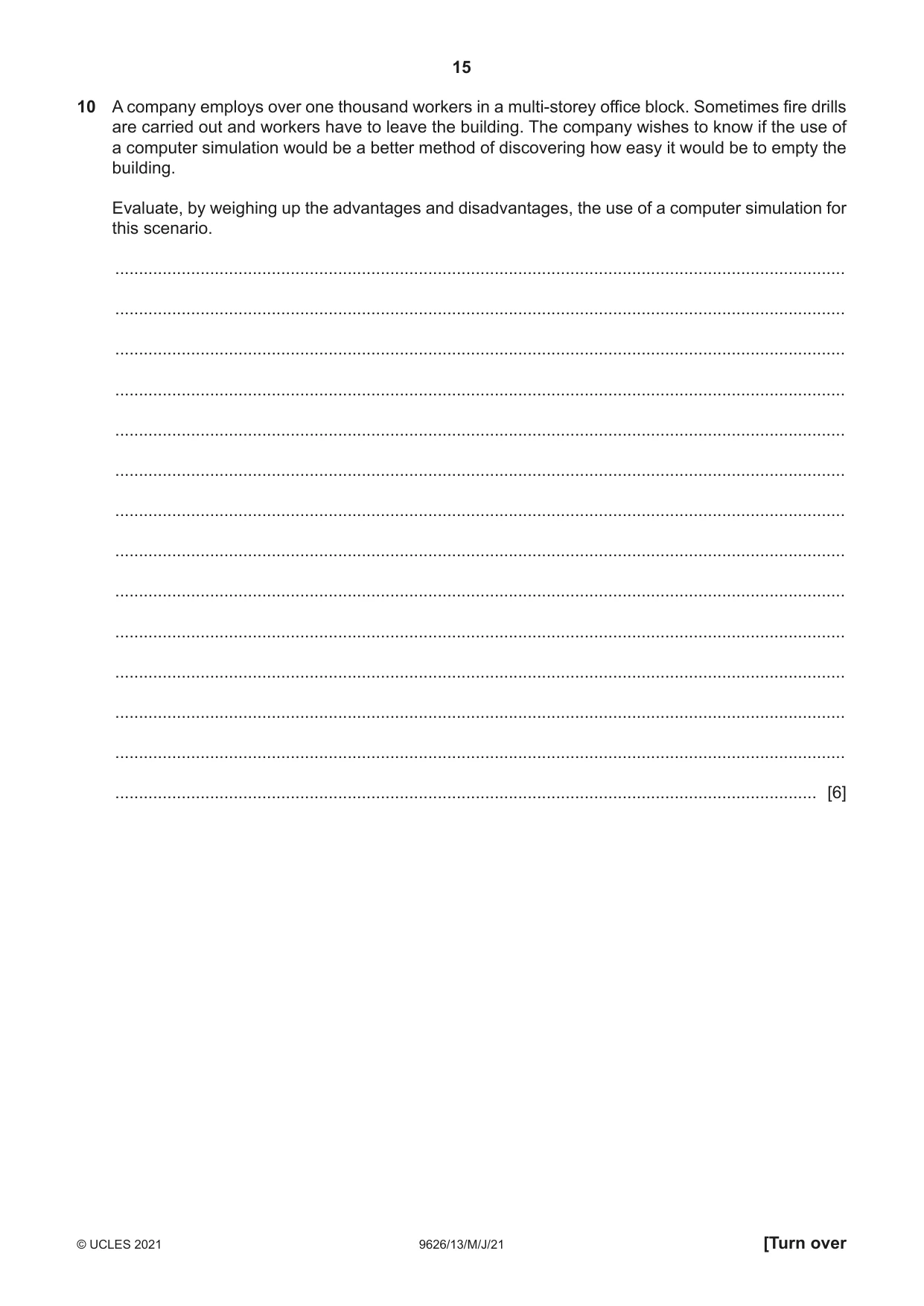

15 9626/13/M/J/21 © UCLES 2021 [Turn over 10 A company employs over one thousand workers in a multi-storey office block. Sometimes fire drills are carried out and workers have to leave the building. The company wishes to know if the use of a computer simulation would be a better method of discovering how easy it would be to empty the building. Evaluate, by weighing up the advantages and disadvantages, the use of a computer simulation for this scenario. … … … … … … … … … … … … … … [6]

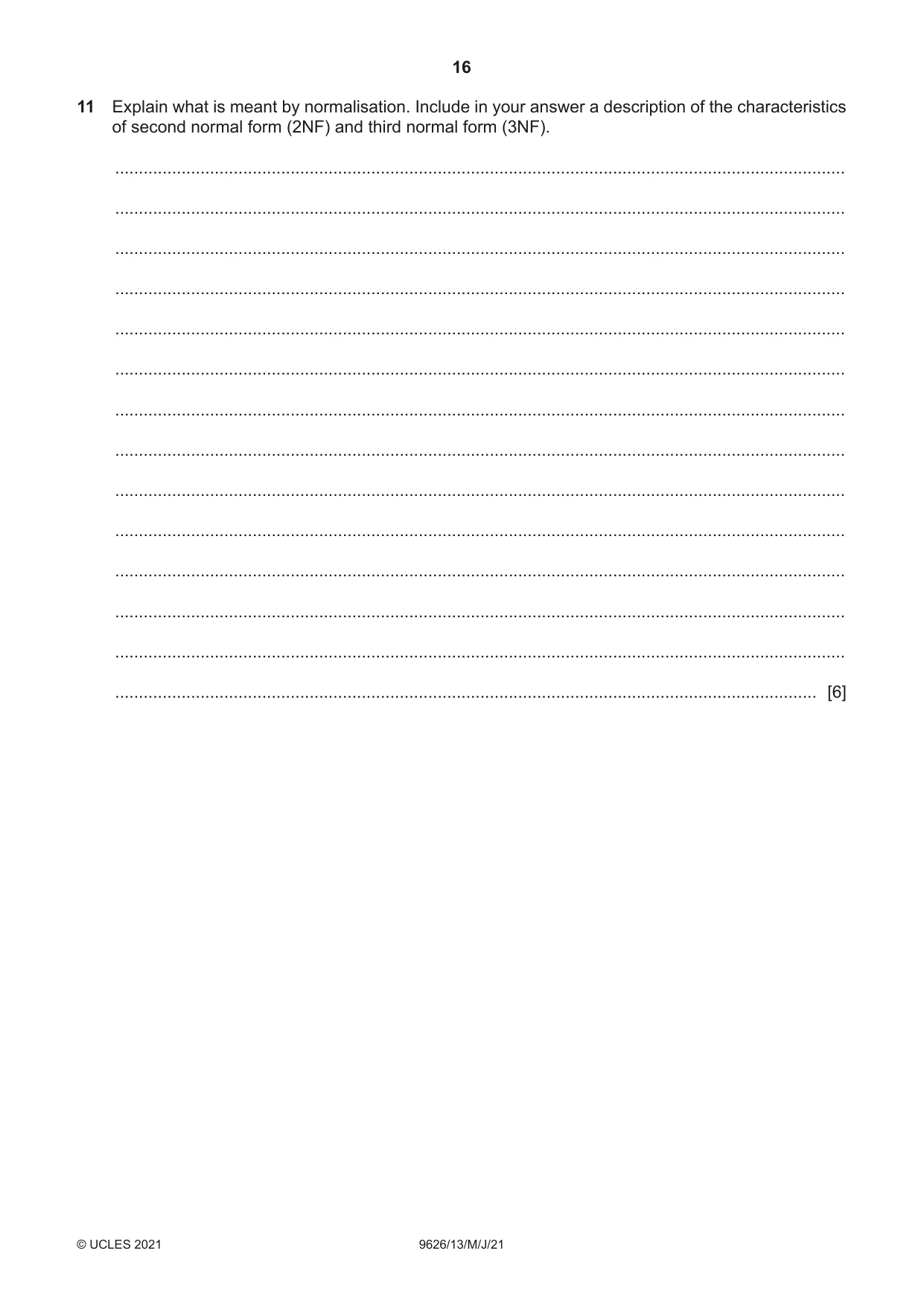

16 9626/13/M/J/21 © UCLES 2021 11 Explain what is meant by normalisation. Include in your answer a description of the characteristics of second normal form (2NF) and third normal form (3NF). … … … … … … … … … … … … … … [6]

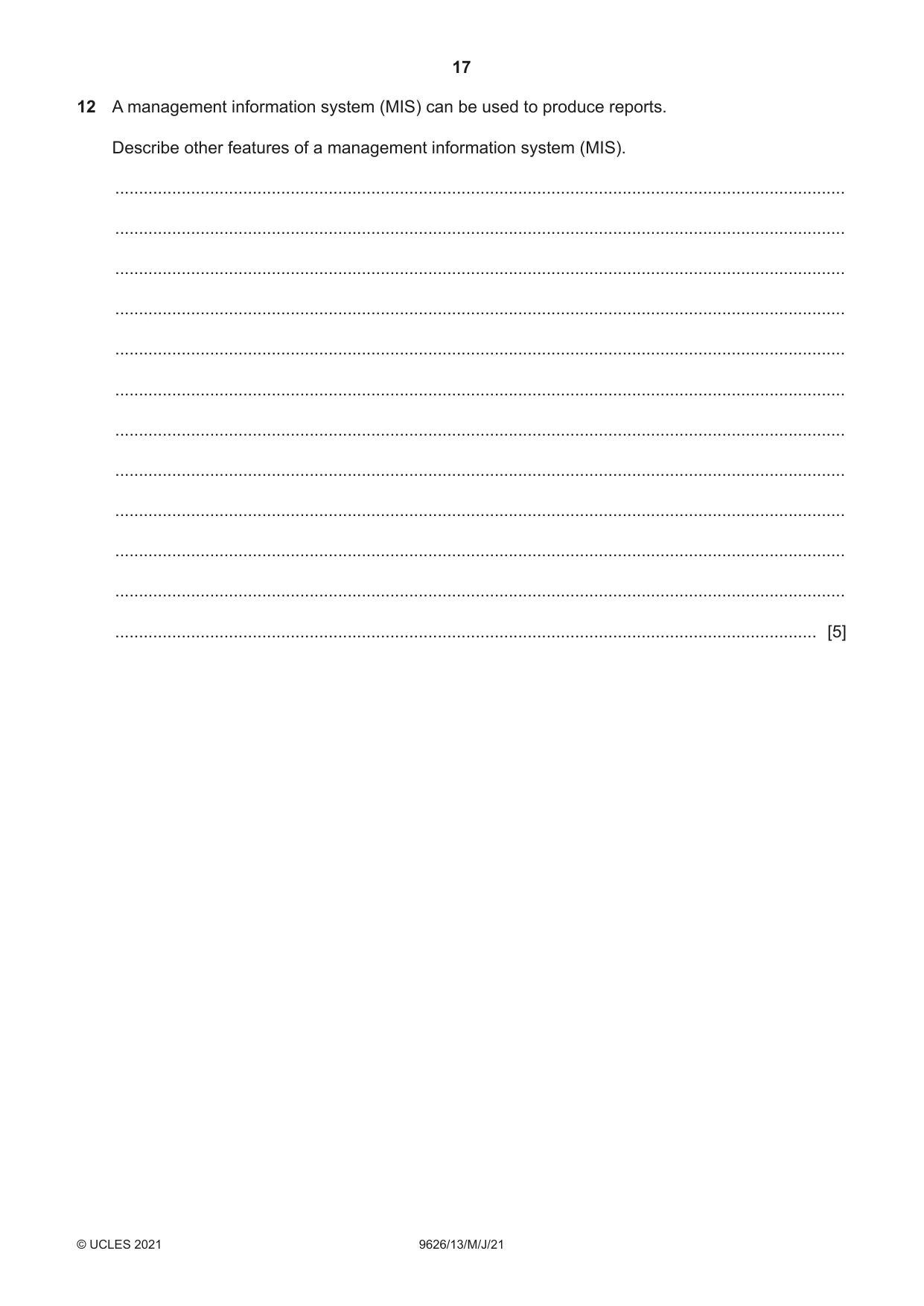

17 9626/13/M/J/21 © UCLES 2021 12 A management information system (MIS) can be used to produce reports. Describe other features of a management information system (MIS). … … … … … … … … … … … … [5]

18 9626/13/M/J/21 © UCLES 2021 BLANK PAGE

19 9626/13/M/J/21 © UCLES 2021 BLANK PAGE

20 9626/13/M/J/21 © UCLES 2021 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. BLANK PAGE

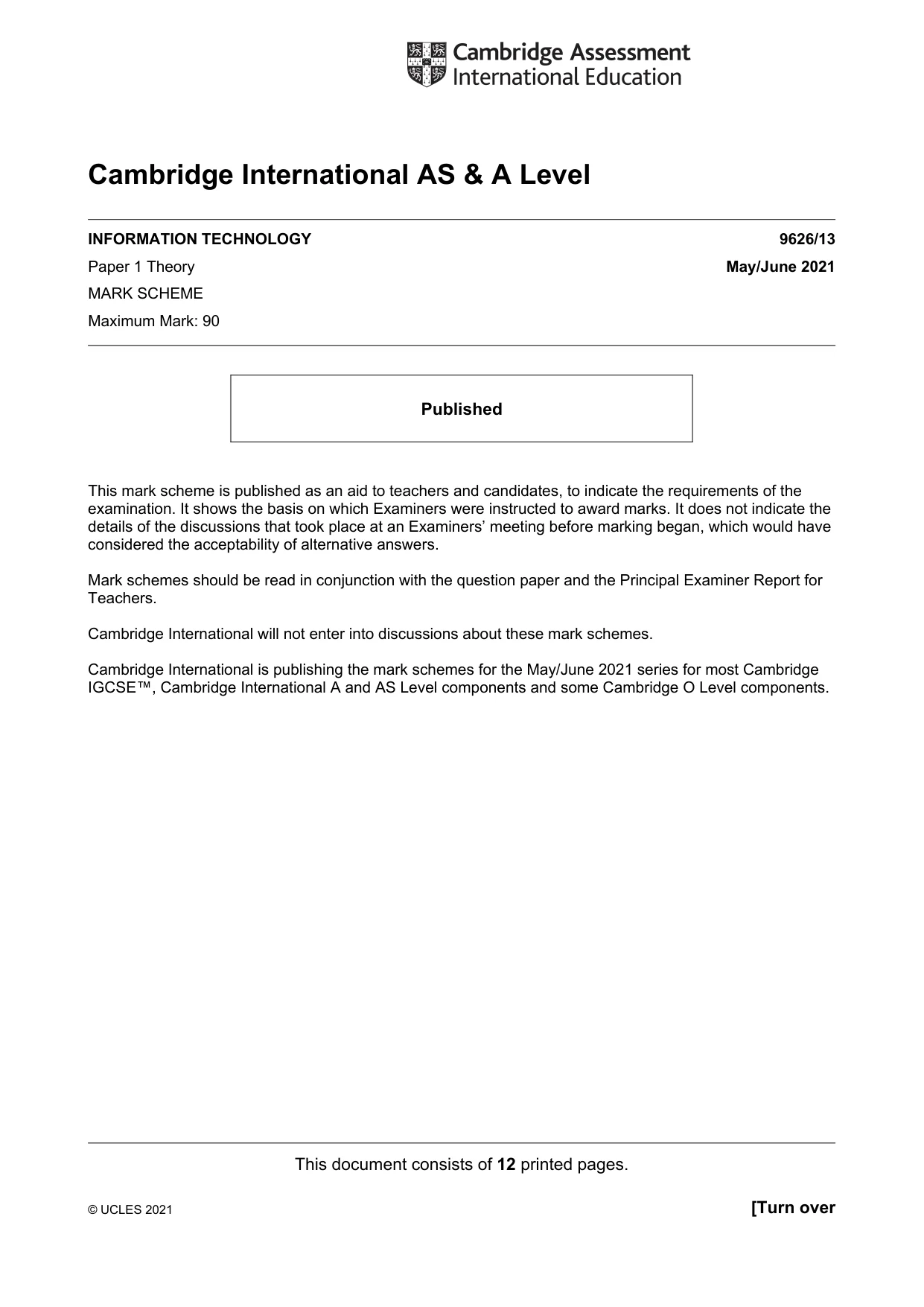

This document consists of 12 printed pages. © UCLES 2021 [Turn over Cambridge International AS & A Level INFORMATION TECHNOLOGY 9626/13 Paper 1 Theory May/June 2021 MARK SCHEME Maximum Mark: 90 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2021 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

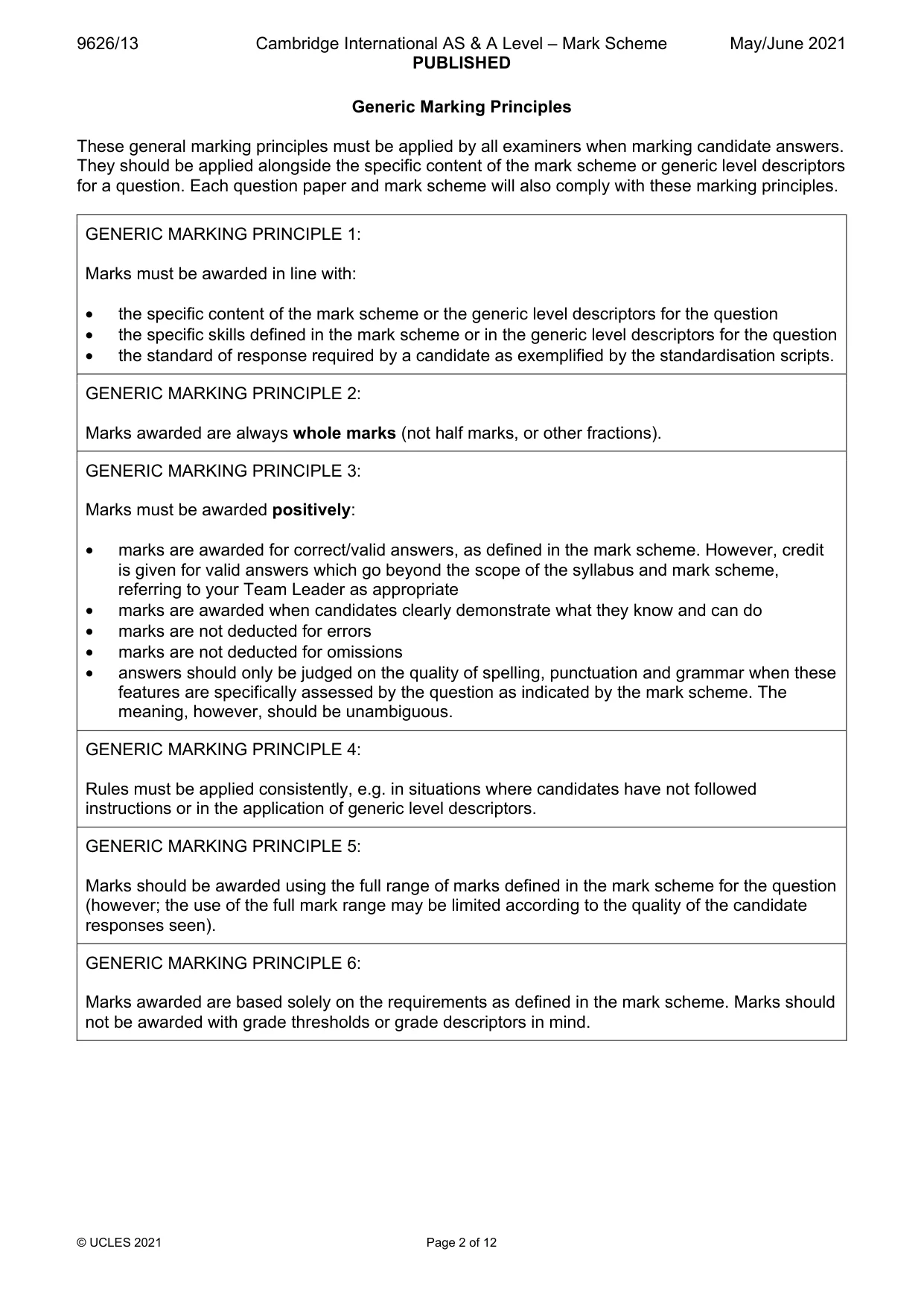

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 2 of 12 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

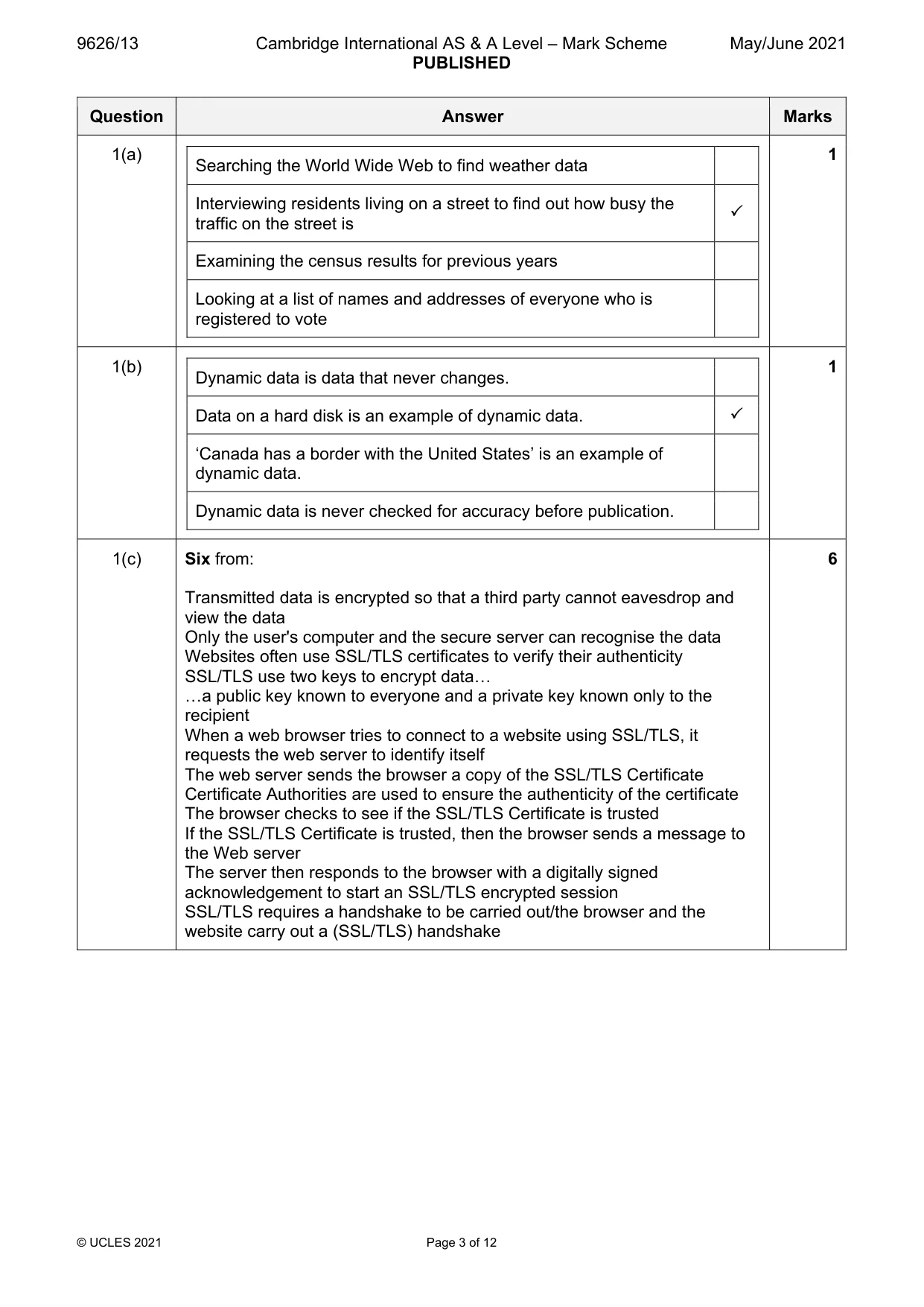

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 3 of 12 Question Answer Marks 1(a) Searching the World Wide Web to find weather data Interviewing residents living on a street to find out how busy the traffic on the street is  Examining the census results for previous years Looking at a list of names and addresses of everyone who is registered to vote 1 1(b) Dynamic data is data that never changes. Data on a hard disk is an example of dynamic data.  ‘Canada has a border with the United States’ is an example of dynamic data. Dynamic data is never checked for accuracy before publication. 1 1(c) Six from: Transmitted data is encrypted so that a third party cannot eavesdrop and view the data Only the user's computer and the secure server can recognise the data Websites often use SSL/TLS certificates to verify their authenticity SSL/TLS use two keys to encrypt data… …a public key known to everyone and a private key known only to the recipient When a web browser tries to connect to a website using SSL/TLS, it requests the web server to identify itself The web server sends the browser a copy of the SSL/TLS Certificate Certificate Authorities are used to ensure the authenticity of the certificate The browser checks to see if the SSL/TLS Certificate is trusted If the SSL/TLS Certificate is trusted, then the browser sends a message to the Web server The server then responds to the browser with a digitally signed acknowledgement to start an SSL/TLS encrypted session SSL/TLS requires a handshake to be carried out/the browser and the website carry out a (SSL/TLS) handshake 6

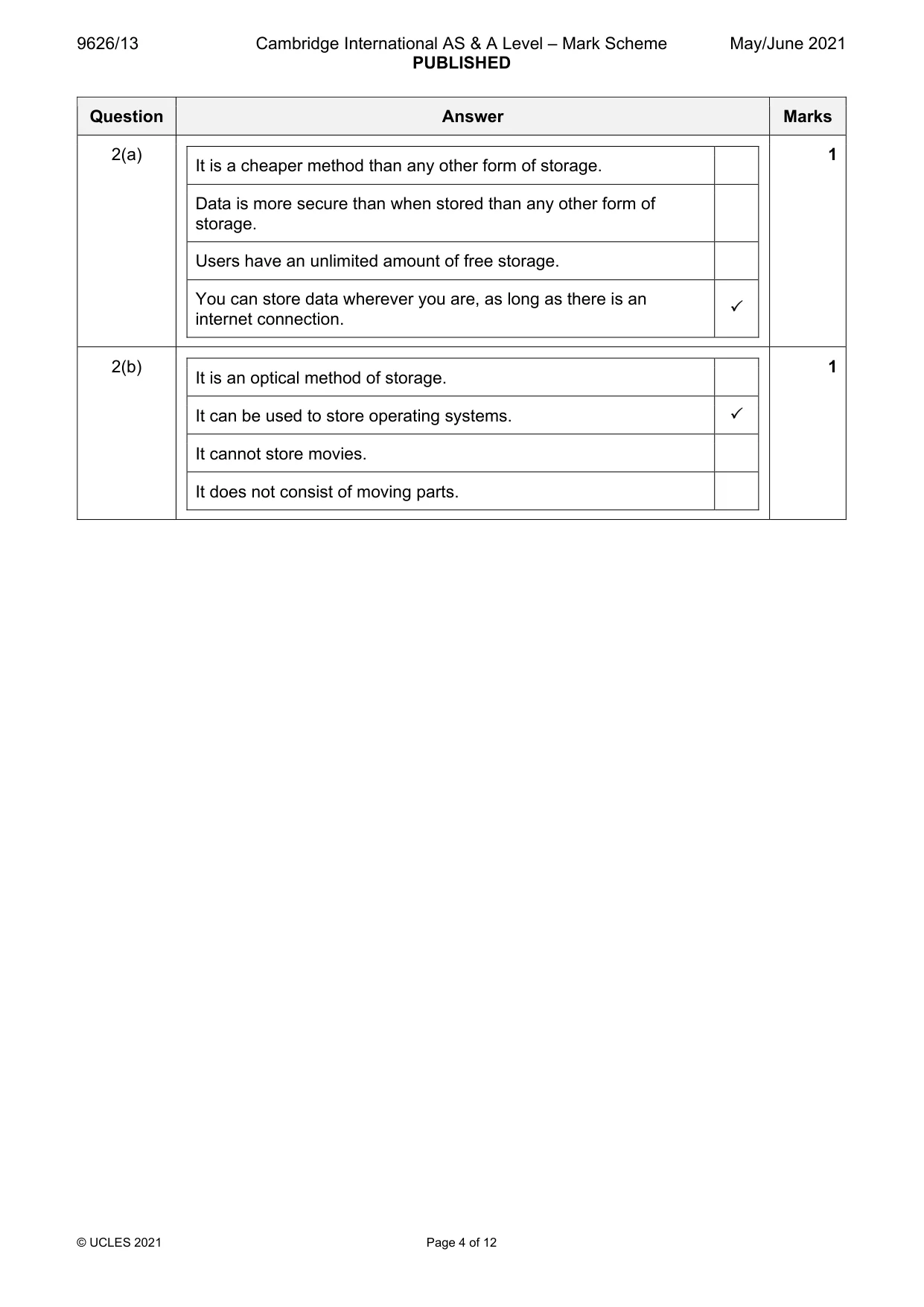

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 4 of 12 Question Answer Marks 2(a) It is a cheaper method than any other form of storage. Data is more secure than when stored than any other form of storage. Users have an unlimited amount of free storage. You can store data wherever you are, as long as there is an internet connection.  1 2(b) It is an optical method of storage. It can be used to store operating systems.  It cannot store movies. It does not consist of moving parts. 1

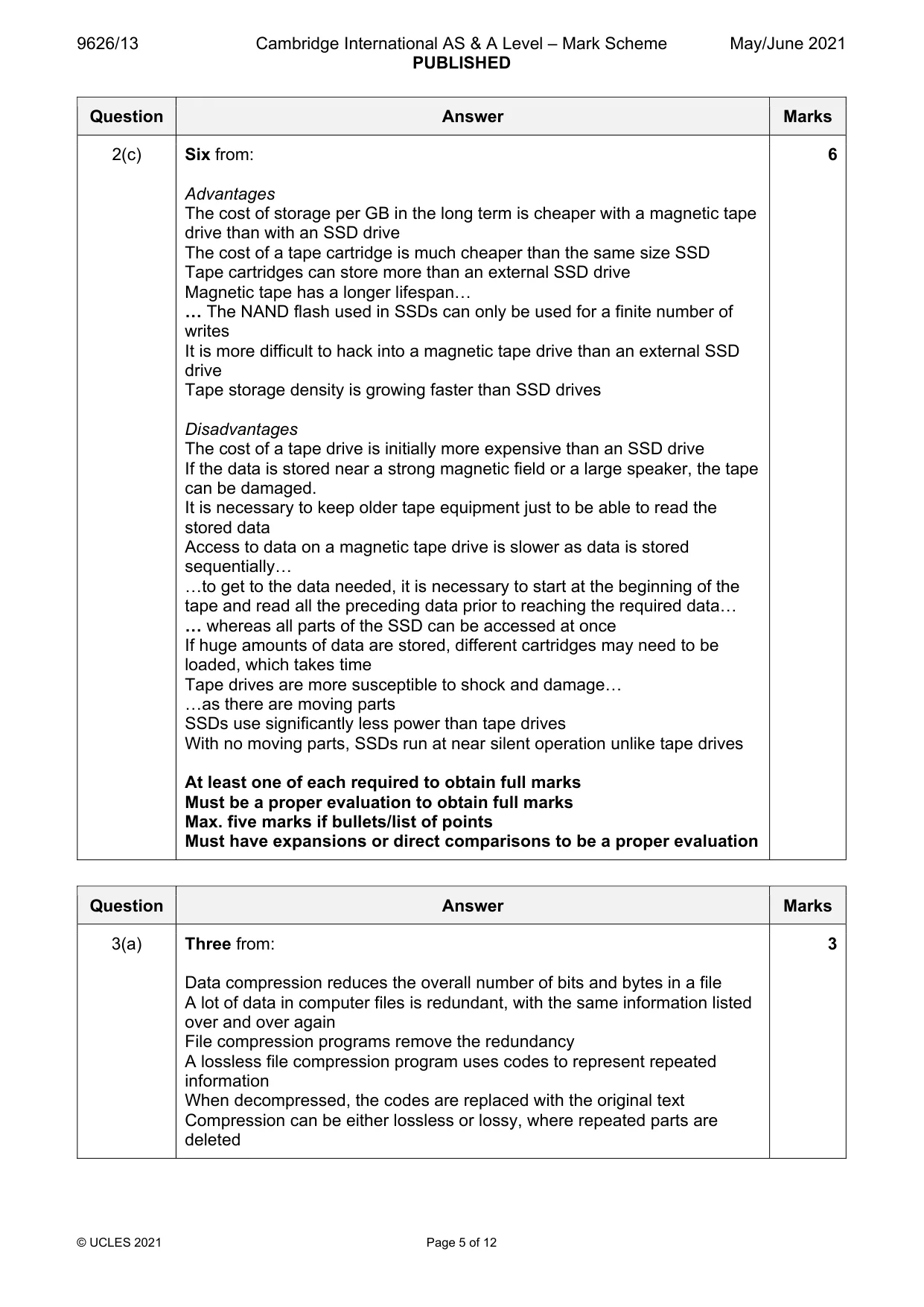

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 5 of 12 Question Answer Marks 2(c) Six from: Advantages The cost of storage per GB in the long term is cheaper with a magnetic tape drive than with an SSD drive The cost of a tape cartridge is much cheaper than the same size SSD Tape cartridges can store more than an external SSD drive Magnetic tape has a longer lifespan… … The NAND flash used in SSDs can only be used for a finite number of writes It is more difficult to hack into a magnetic tape drive than an external SSD drive Tape storage density is growing faster than SSD drives Disadvantages The cost of a tape drive is initially more expensive than an SSD drive If the data is stored near a strong magnetic field or a large speaker, the tape can be damaged. It is necessary to keep older tape equipment just to be able to read the stored data Access to data on a magnetic tape drive is slower as data is stored sequentially… …to get to the data needed, it is necessary to start at the beginning of the tape and read all the preceding data prior to reaching the required data… … whereas all parts of the SSD can be accessed at once If huge amounts of data are stored, different cartridges may need to be loaded, which takes time Tape drives are more susceptible to shock and damage… …as there are moving parts SSDs use significantly less power than tape drives With no moving parts, SSDs run at near silent operation unlike tape drives At least one of each required to obtain full marks Must be a proper evaluation to obtain full marks Max. five marks if bullets/list of points Must have expansions or direct comparisons to be a proper evaluation 6 Question Answer Marks 3(a) Three from: Data compression reduces the overall number of bits and bytes in a file A lot of data in computer files is redundant, with the same information listed over and over again File compression programs remove the redundancy A lossless file compression program uses codes to represent repeated information When decompressed, the codes are replaced with the original text Compression can be either lossless or lossy, where repeated parts are deleted 3

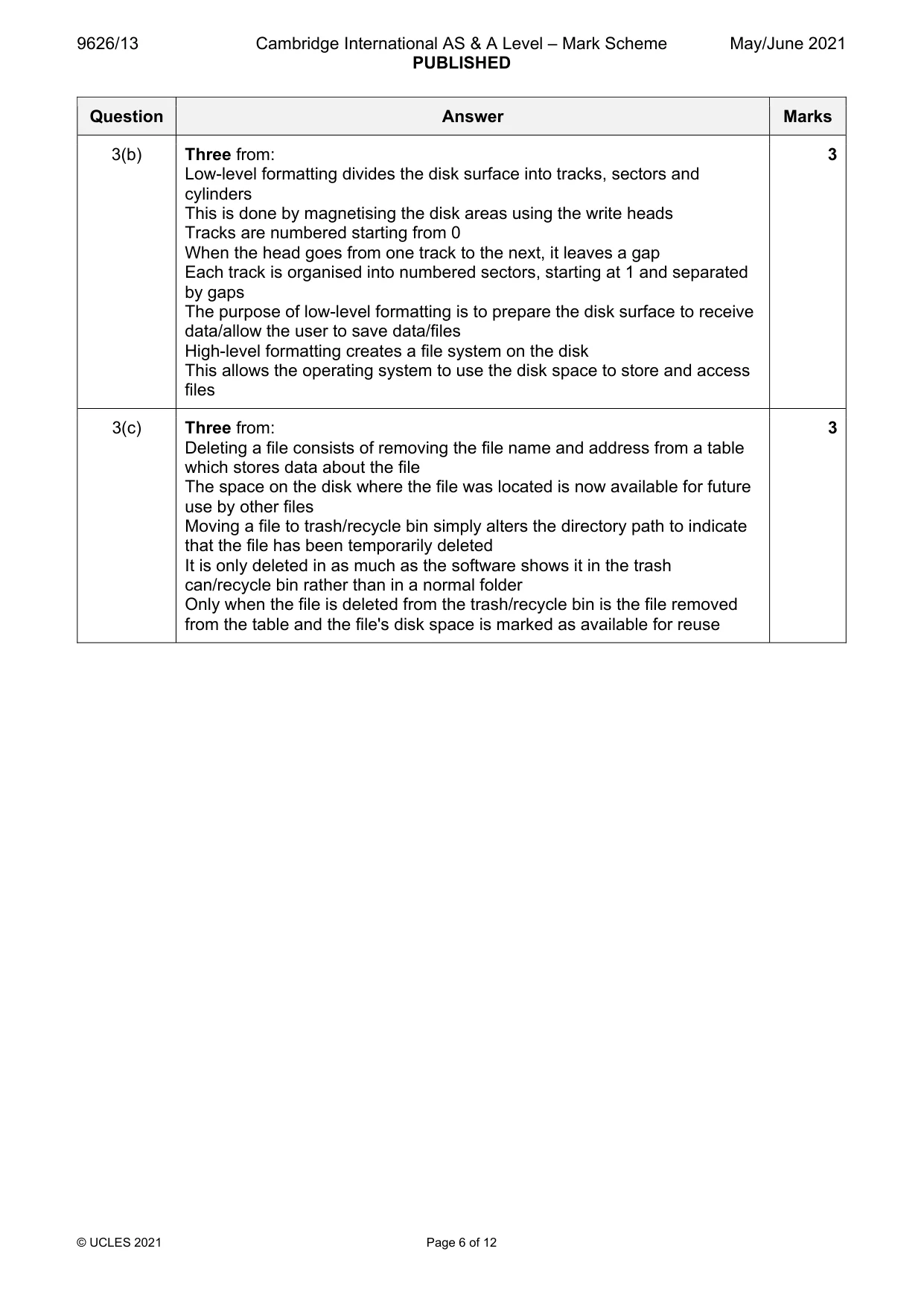

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 6 of 12 Question Answer Marks 3(b) Three from: Low-level formatting divides the disk surface into tracks, sectors and cylinders This is done by magnetising the disk areas using the write heads Tracks are numbered starting from 0 When the head goes from one track to the next, it leaves a gap Each track is organised into numbered sectors, starting at 1 and separated by gaps The purpose of low-level formatting is to prepare the disk surface to receive data/allow the user to save data/files High-level formatting creates a file system on the disk This allows the operating system to use the disk space to store and access files 3 3(c) Three from: Deleting a file consists of removing the file name and address from a table which stores data about the file The space on the disk where the file was located is now available for future use by other files Moving a file to trash/recycle bin simply alters the directory path to indicate that the file has been temporarily deleted It is only deleted in as much as the software shows it in the trash can/recycle bin rather than in a normal folder Only when the file is deleted from the trash/recycle bin is the file removed from the table and the file's disk space is marked as available for reuse 3

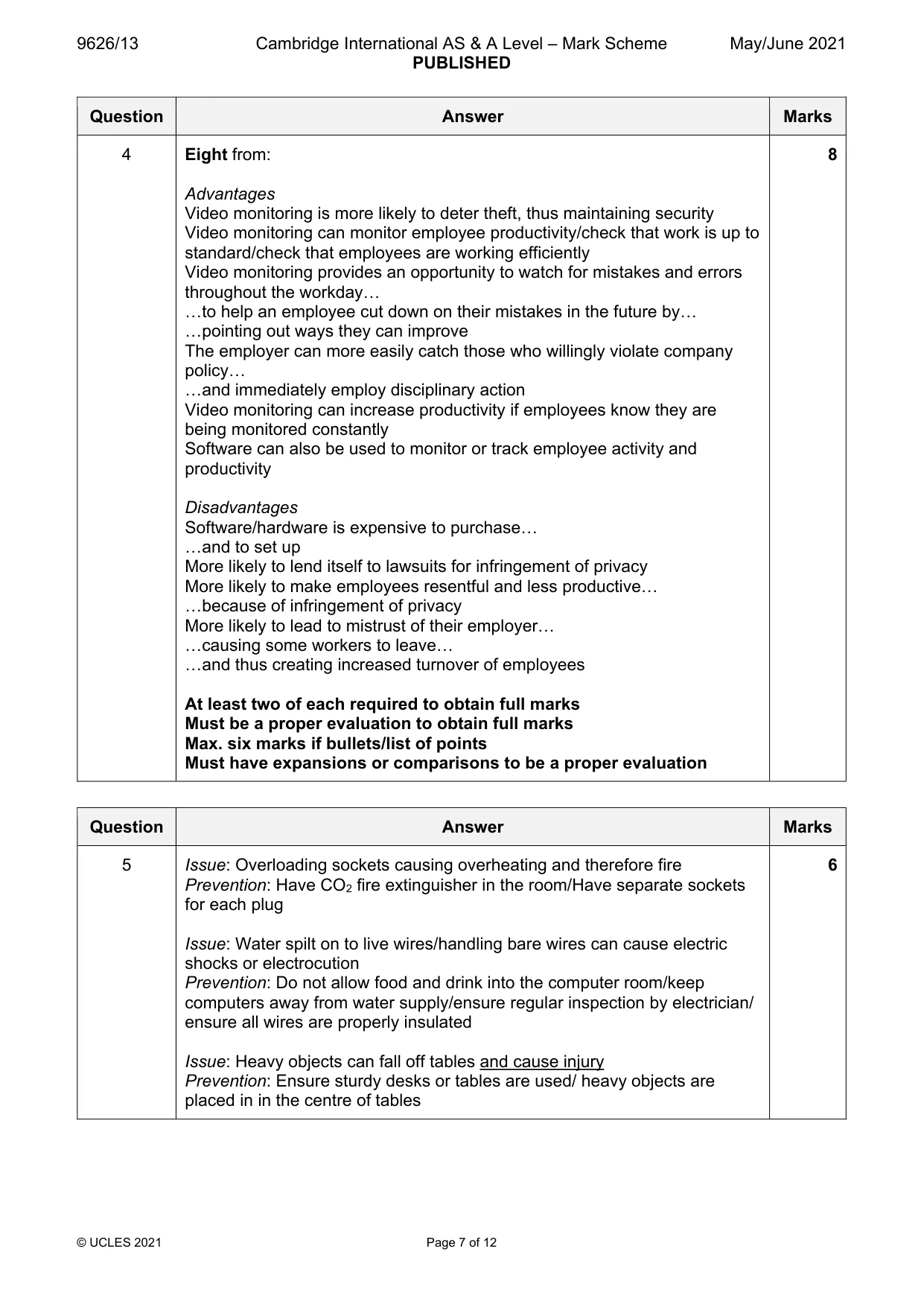

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 7 of 12 Question Answer Marks 4 Eight from: Advantages Video monitoring is more likely to deter theft, thus maintaining security Video monitoring can monitor employee productivity/check that work is up to standard/check that employees are working efficiently Video monitoring provides an opportunity to watch for mistakes and errors throughout the workday… …to help an employee cut down on their mistakes in the future by… …pointing out ways they can improve The employer can more easily catch those who willingly violate company policy… …and immediately employ disciplinary action Video monitoring can increase productivity if employees know they are being monitored constantly Software can also be used to monitor or track employee activity and productivity Disadvantages Software/hardware is expensive to purchase… …and to set up More likely to lend itself to lawsuits for infringement of privacy More likely to make employees resentful and less productive… …because of infringement of privacy More likely to lead to mistrust of their employer… …causing some workers to leave… …and thus creating increased turnover of employees At least two of each required to obtain full marks Must be a proper evaluation to obtain full marks Max. six marks if bullets/list of points Must have expansions or comparisons to be a proper evaluation 8 Question Answer Marks 5 Issue: Overloading sockets causing overheating and therefore fire Prevention: Have CO2 fire extinguisher in the room/Have separate sockets for each plug Issue: Water spilt on to live wires/handling bare wires can cause electric shocks or electrocution Prevention: Do not allow food and drink into the computer room/keep computers away from water supply/ensure regular inspection by electrician/ ensure all wires are properly insulated Issue: Heavy objects can fall off tables and cause injury Prevention: Ensure sturdy desks or tables are used/ heavy objects are placed in in the centre of tables 6

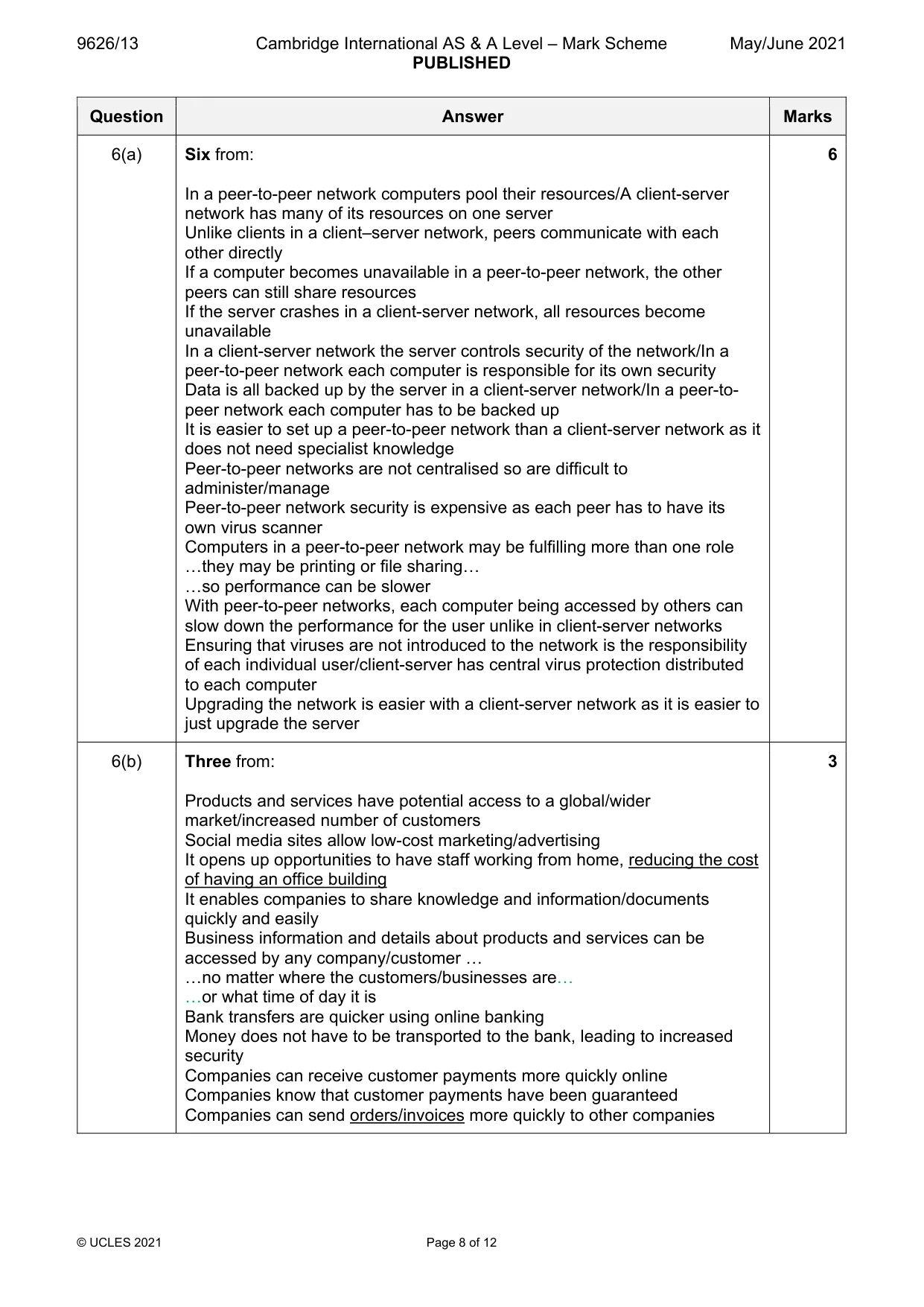

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 8 of 12 Question Answer Marks 6(a) Six from: In a peer-to-peer network computers pool their resources/A client-server network has many of its resources on one server Unlike clients in a client–server network, peers communicate with each other directly If a computer becomes unavailable in a peer-to-peer network, the other peers can still share resources If the server crashes in a client-server network, all resources become unavailable In a client-server network the server controls security of the network/In a peer-to-peer network each computer is responsible for its own security Data is all backed up by the server in a client-server network/In a peer-to- peer network each computer has to be backed up It is easier to set up a peer-to-peer network than a client-server network as it does not need specialist knowledge Peer-to-peer networks are not centralised so are difficult to administer/manage Peer-to-peer network security is expensive as each peer has to have its own virus scanner Computers in a peer-to-peer network may be fulfilling more than one role …they may be printing or file sharing… …so performance can be slower With peer-to-peer networks, each computer being accessed by others can slow down the performance for the user unlike in client-server networks Ensuring that viruses are not introduced to the network is the responsibility of each individual user/client-server has central virus protection distributed to each computer Upgrading the network is easier with a client-server network as it is easier to just upgrade the server 6 6(b) Three from: Products and services have potential access to a global/wider market/increased number of customers Social media sites allow low-cost marketing/advertising It opens up opportunities to have staff working from home, reducing the cost of having an office building It enables companies to share knowledge and information/documents quickly and easily Business information and details about products and services can be accessed by any company/customer … …no matter where the customers/businesses are… …or what time of day it is Bank transfers are quicker using online banking Money does not have to be transported to the bank, leading to increased security Companies can receive customer payments more quickly online Companies know that customer payments have been guaranteed Companies can send orders/invoices more quickly to other companies 3

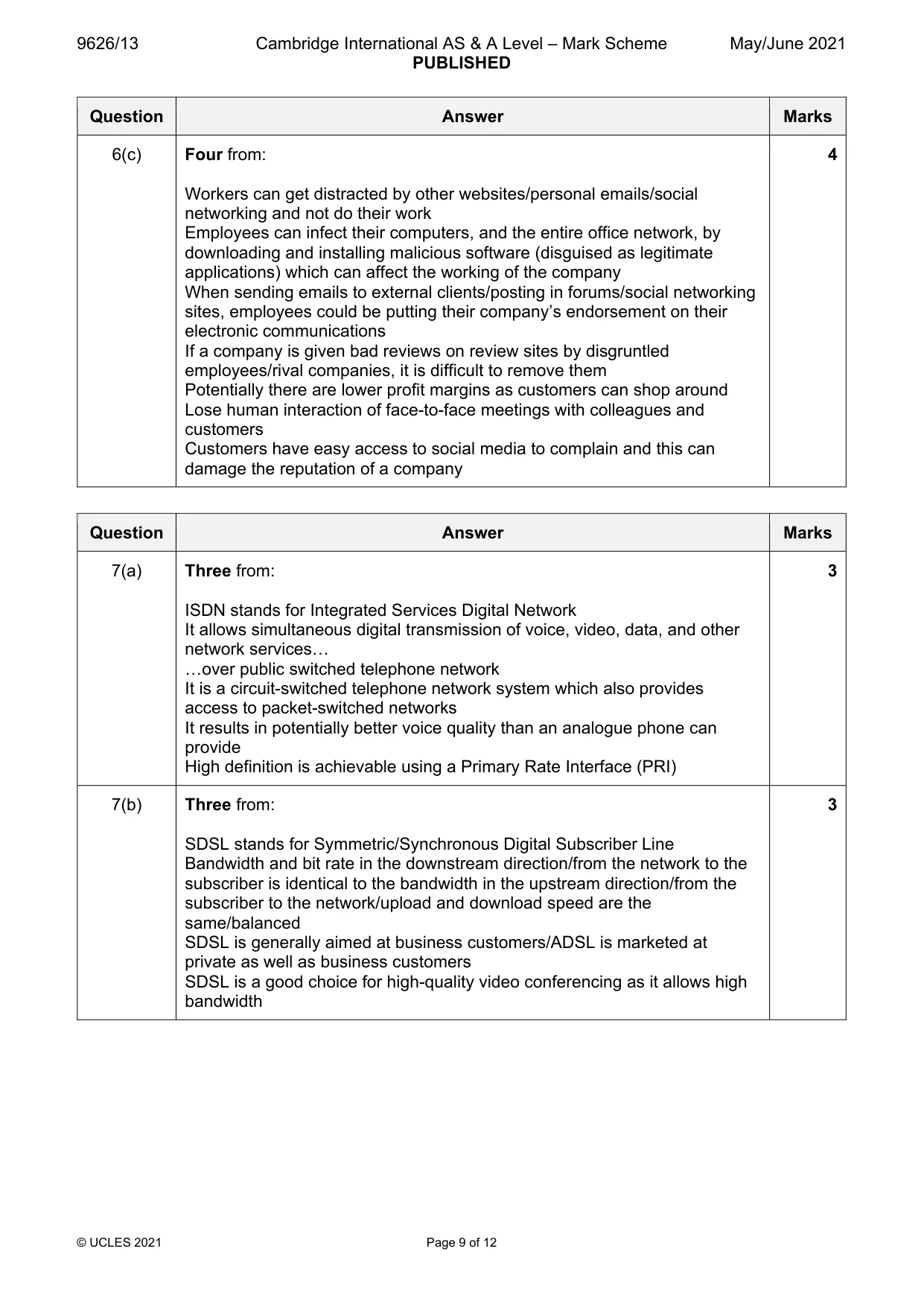

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 9 of 12 Question Answer Marks 6(c) Four from: Workers can get distracted by other websites/personal emails/social networking and not do their work Employees can infect their computers, and the entire office network, by downloading and installing malicious software (disguised as legitimate applications) which can affect the working of the company When sending emails to external clients/posting in forums/social networking sites, employees could be putting their company’s endorsement on their electronic communications If a company is given bad reviews on review sites by disgruntled employees/rival companies, it is difficult to remove them Potentially there are lower profit margins as customers can shop around Lose human interaction of face-to-face meetings with colleagues and customers Customers have easy access to social media to complain and this can damage the reputation of a company 4 Question Answer Marks 7(a) Three from: ISDN stands for Integrated Services Digital Network It allows simultaneous digital transmission of voice, video, data, and other network services… …over public switched telephone network It is a circuit-switched telephone network system which also provides access to packet-switched networks It results in potentially better voice quality than an analogue phone can provide High definition is achievable using a Primary Rate Interface (PRI) 3 7(b) Three from: SDSL stands for Symmetric/Synchronous Digital Subscriber Line Bandwidth and bit rate in the downstream direction/from the network to the subscriber is identical to the bandwidth in the upstream direction/from the subscriber to the network/upload and download speed are the same/balanced SDSL is generally aimed at business customers/ADSL is marketed at private as well as business customers SDSL is a good choice for high-quality video conferencing as it allows high bandwidth 3

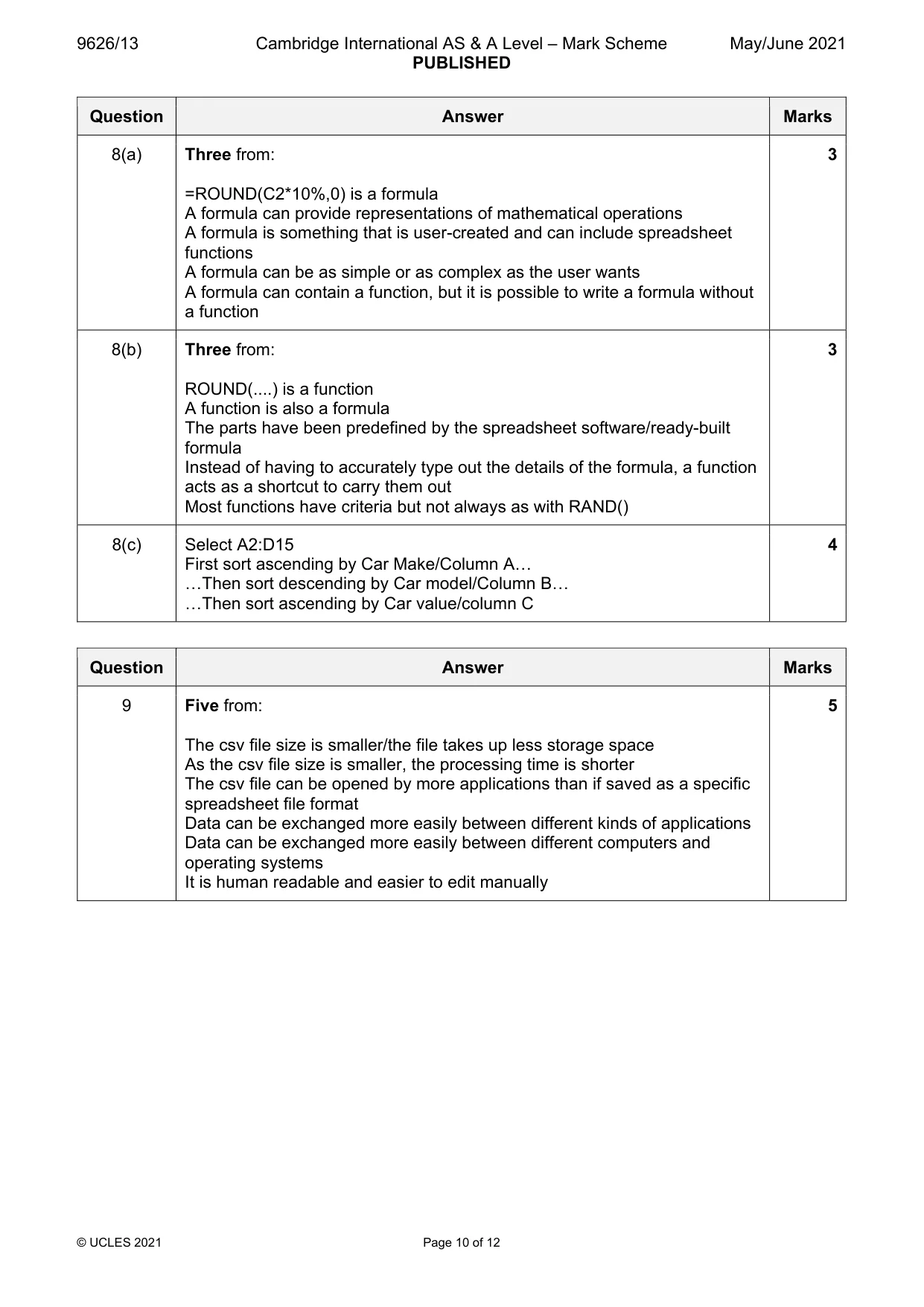

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 10 of 12 Question Answer Marks 8(a) Three from: =ROUND(C2*10%,0) is a formula A formula can provide representations of mathematical operations A formula is something that is user-created and can include spreadsheet functions A formula can be as simple or as complex as the user wants A formula can contain a function, but it is possible to write a formula without a function 3 8(b) Three from: ROUND(…) is a function A function is also a formula The parts have been predefined by the spreadsheet software/ready-built formula Instead of having to accurately type out the details of the formula, a function acts as a shortcut to carry them out Most functions have criteria but not always as with RAND() 3 8(c) Select A2:D15 First sort ascending by Car Make/Column A… …Then sort descending by Car model/Column B… …Then sort ascending by Car value/column C 4 Question Answer Marks 9 Five from: The csv file size is smaller/the file takes up less storage space As the csv file size is smaller, the processing time is shorter The csv file can be opened by more applications than if saved as a specific spreadsheet file format Data can be exchanged more easily between different kinds of applications Data can be exchanged more easily between different computers and operating systems It is human readable and easier to edit manually 5

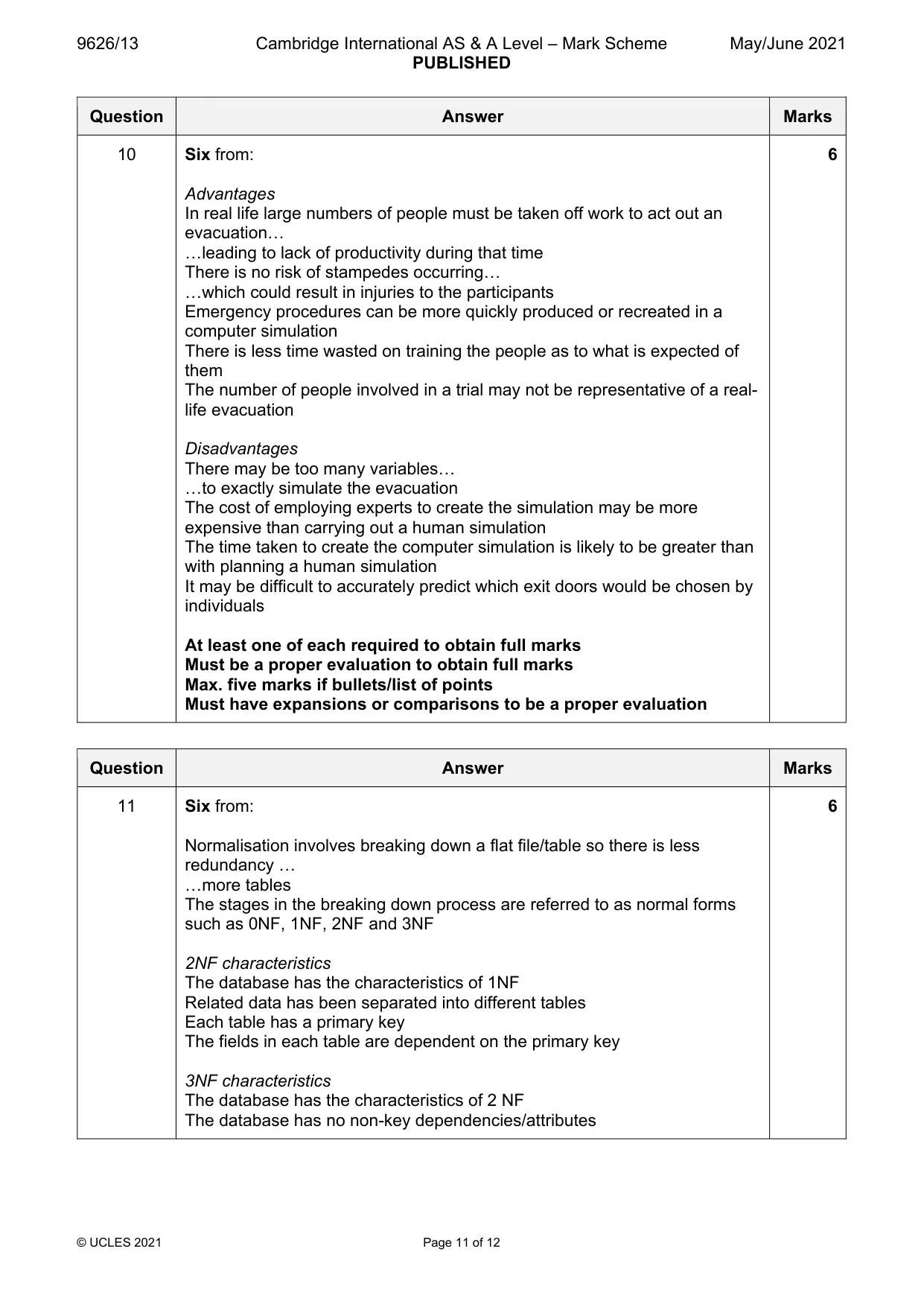

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 11 of 12 Question Answer Marks 10 Six from: Advantages In real life large numbers of people must be taken off work to act out an evacuation… …leading to lack of productivity during that time There is no risk of stampedes occurring… …which could result in injuries to the participants Emergency procedures can be more quickly produced or recreated in a computer simulation There is less time wasted on training the people as to what is expected of them The number of people involved in a trial may not be representative of a real- life evacuation Disadvantages There may be too many variables… …to exactly simulate the evacuation The cost of employing experts to create the simulation may be more expensive than carrying out a human simulation The time taken to create the computer simulation is likely to be greater than with planning a human simulation It may be difficult to accurately predict which exit doors would be chosen by individuals At least one of each required to obtain full marks Must be a proper evaluation to obtain full marks Max. five marks if bullets/list of points Must have expansions or comparisons to be a proper evaluation 6 Question Answer Marks 11 Six from: Normalisation involves breaking down a flat file/table so there is less redundancy … …more tables The stages in the breaking down process are referred to as normal forms such as 0NF, 1NF, 2NF and 3NF 2NF characteristics The database has the characteristics of 1NF Related data has been separated into different tables Each table has a primary key The fields in each table are dependent on the primary key 3NF characteristics The database has the characteristics of 2 NF The database has no non-key dependencies/attributes 6

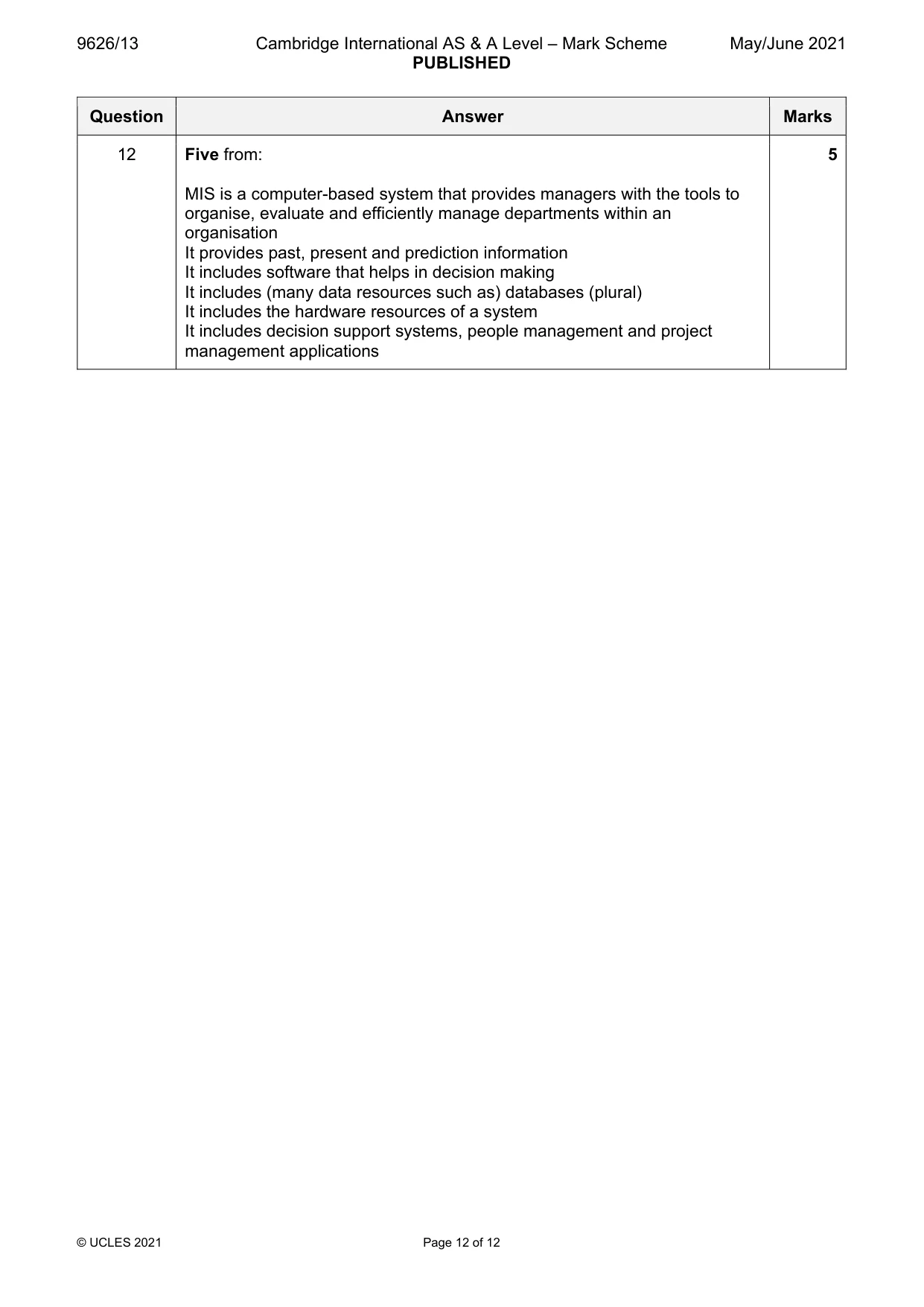

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 12 of 12 Question Answer Marks 12 Five from: MIS is a computer-based system that provides managers with the tools to organise, evaluate and efficiently manage departments within an organisation It provides past, present and prediction information It includes software that helps in decision making It includes (many data resources such as) databases (plural) It includes the hardware resources of a system It includes decision support systems, people management and project management applications 5
