Cambridge A Level Information Technology (from 2017) 9626 — 2020 May/June Paper 1 · Variant 3

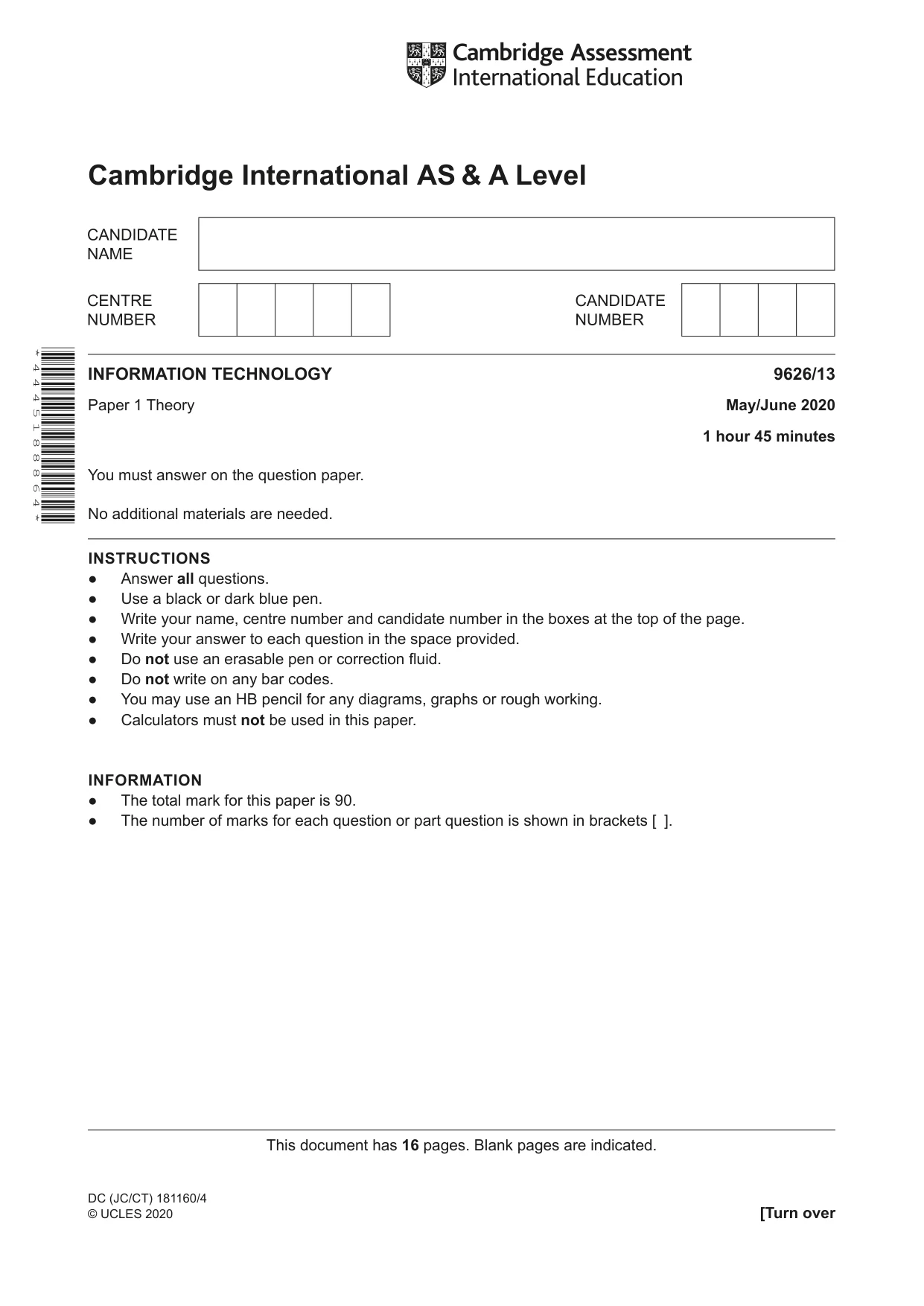

Cambridge International AS & A Level This document has 16 pages. Blank pages are indicated. DC (JC/CT) 181160/4 © UCLES 2020 [Turn over * 4 4 4 5 1 8 8 8 6 4 * INFORMATION TECHNOLOGY 9626/13 Paper 1 Theory May/June 2020 1 hour 45 minutes You must answer on the question paper. No additional materials are needed. INSTRUCTIONS ● Answer all questions. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number in the boxes at the top of the page. ● Write your answer to each question in the space provided. ● Do not use an erasable pen or correction fluid. ● Do not write on any bar codes. ● You may use an HB pencil for any diagrams, graphs or rough working. ● Calculators must not be used in this paper. INFORMATION ● The total mark for this paper is 90. ● The number of marks for each question or part question is shown in brackets [ ].

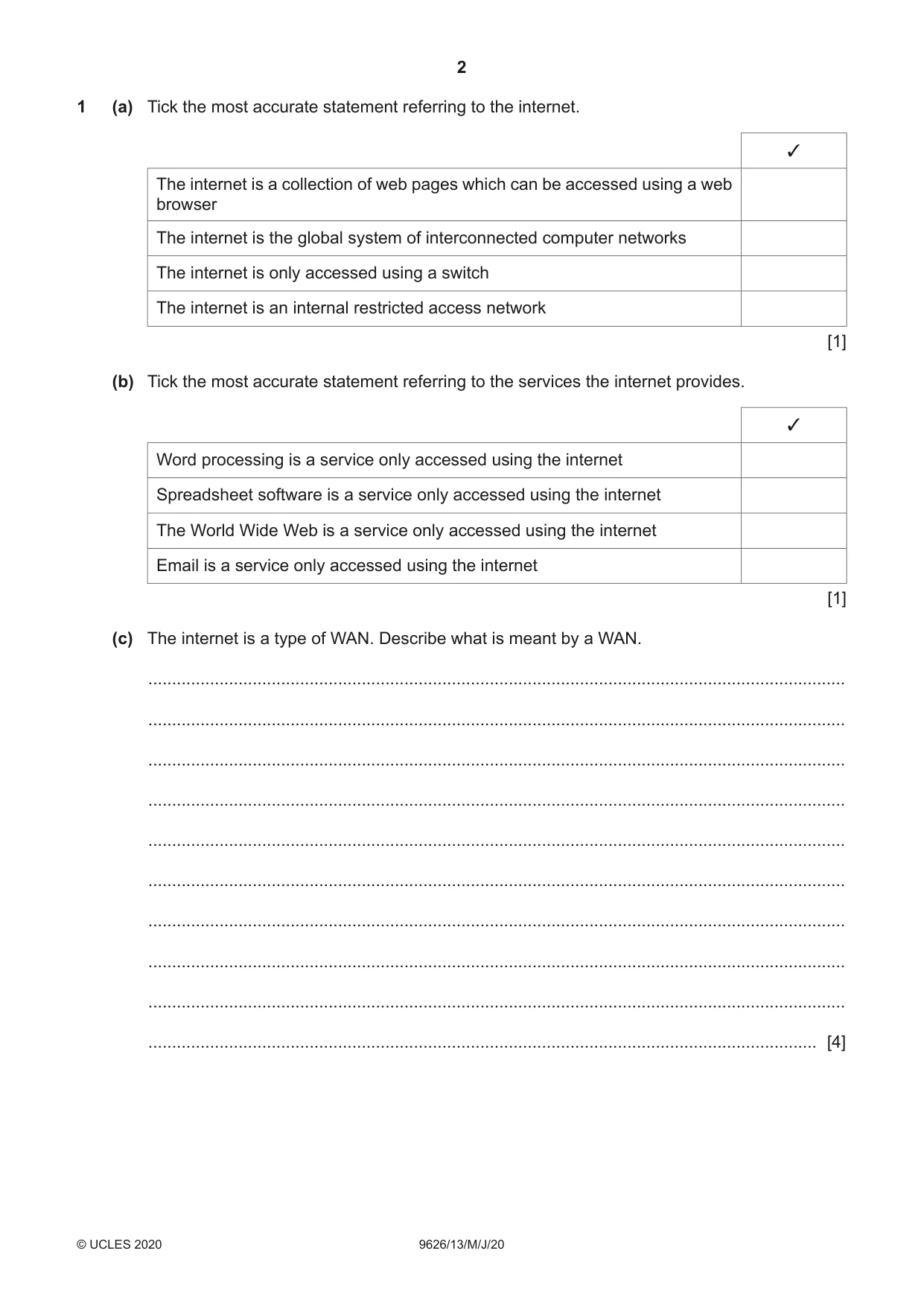

2 9626/13/M/J/20 © UCLES 2020 1 (a) Tick the most accurate statement referring to the internet. ✓ The internet is a collection of web pages which can be accessed using a web browser The internet is the global system of interconnected computer networks The internet is only accessed using a switch The internet is an internal restricted access network [1] (b) Tick the most accurate statement referring to the services the internet provides. ✓ Word processing is a service only accessed using the internet Spreadsheet software is a service only accessed using the internet The World Wide Web is a service only accessed using the internet Email is a service only accessed using the internet [1] (c) The internet is a type of WAN. Describe what is meant by a WAN. … … … … … … … … … … [4]

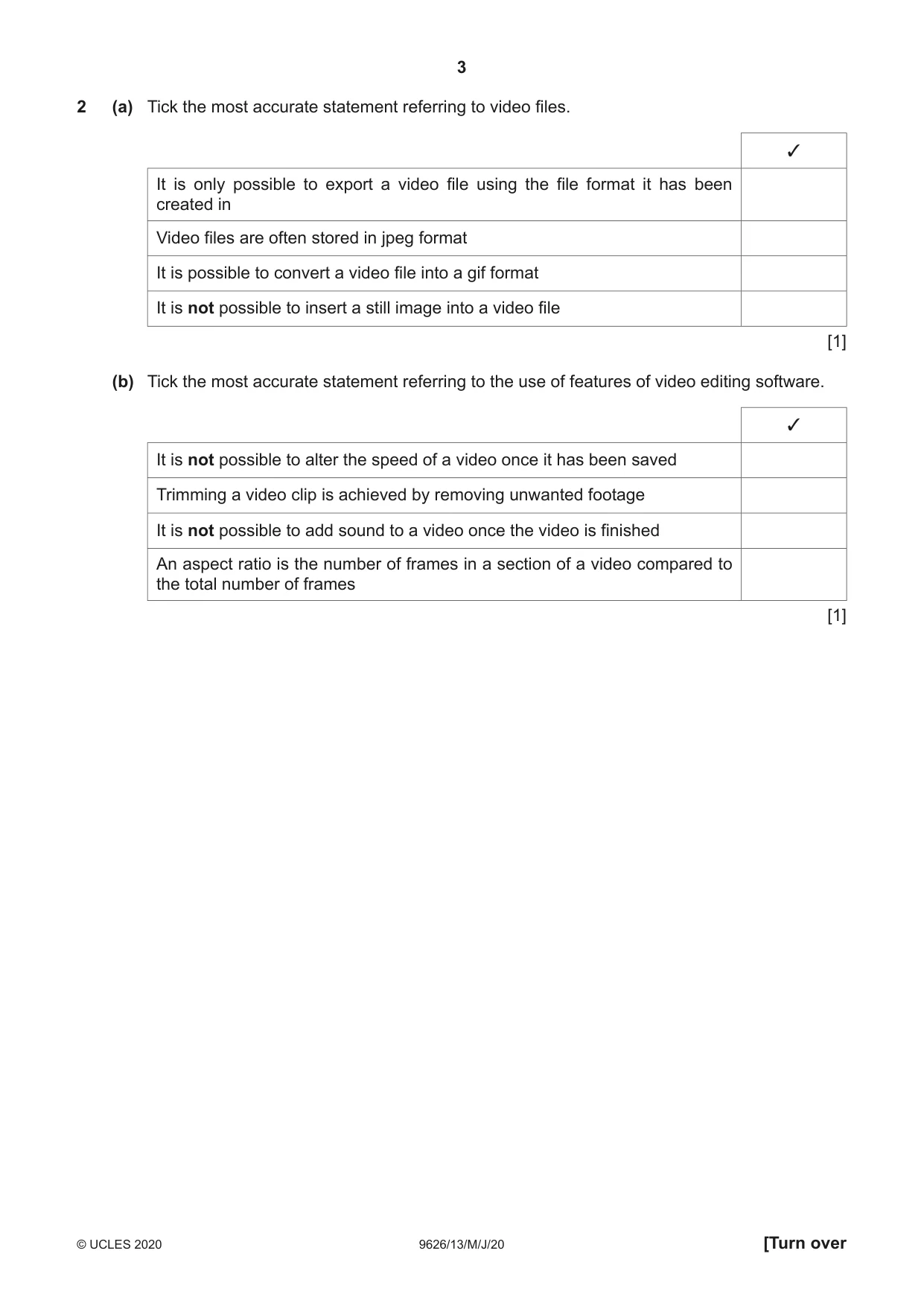

3 9626/13/M/J/20 © UCLES 2020 [Turn over 2 (a) Tick the most accurate statement referring to video files. ✓ It is only possible to export a video file using the file format it has been created in Video files are often stored in jpeg format It is possible to convert a video file into a gif format It is not possible to insert a still image into a video file [1] (b) Tick the most accurate statement referring to the use of features of video editing software. ✓ It is not possible to alter the speed of a video once it has been saved Trimming a video clip is achieved by removing unwanted footage It is not possible to add sound to a video once the video is finished An aspect ratio is the number of frames in a section of a video compared to the total number of frames [1]

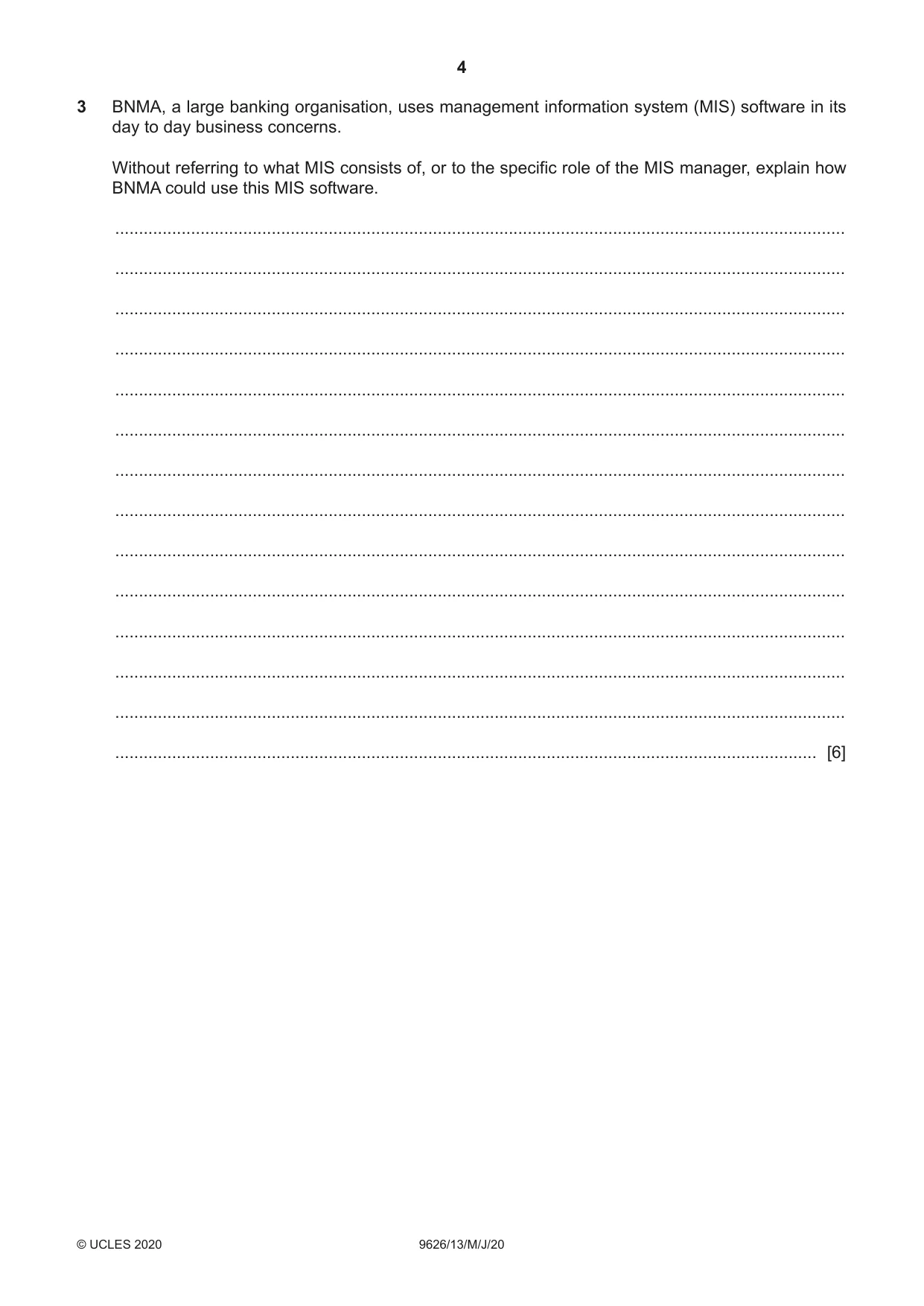

4 9626/13/M/J/20 © UCLES 2020 3 BNMA, a large banking organisation, uses management information system (MIS) software in its day to day business concerns. Without referring to what MIS consists of, or to the specific role of the MIS manager, explain how BNMA could use this MIS software. … … … … … … … … … … … … … … [6]

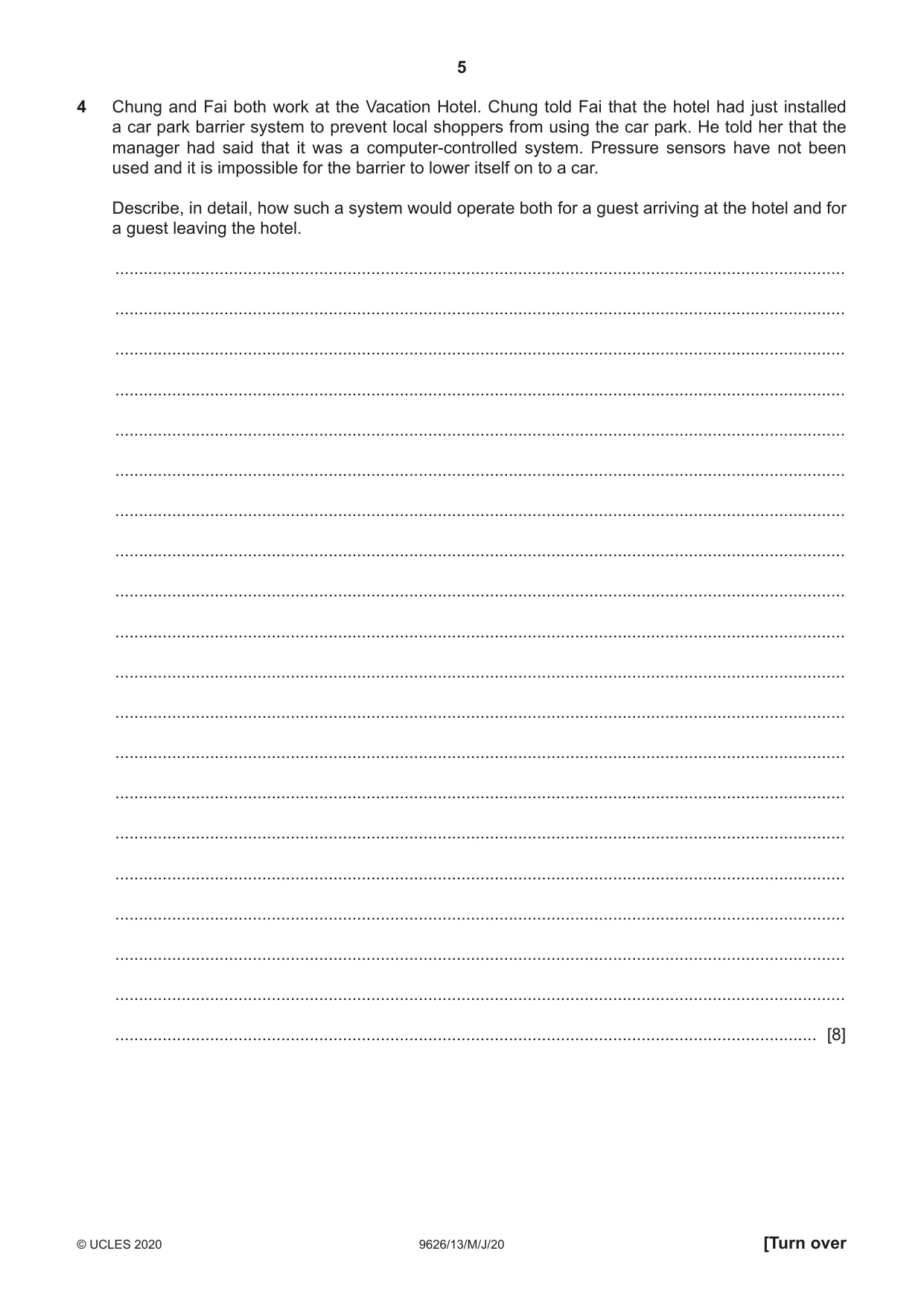

5 9626/13/M/J/20 © UCLES 2020 [Turn over 4 Chung and Fai both work at the Vacation Hotel. Chung told Fai that the hotel had just installed a car park barrier system to prevent local shoppers from using the car park. He told her that the manager had said that it was a computer-controlled system. Pressure sensors have not been used and it is impossible for the barrier to lower itself on to a car. Describe, in detail, how such a system would operate both for a guest arriving at the hotel and for a guest leaving the hotel. … … … … … … … … … … … … … … … … … … … … [8]

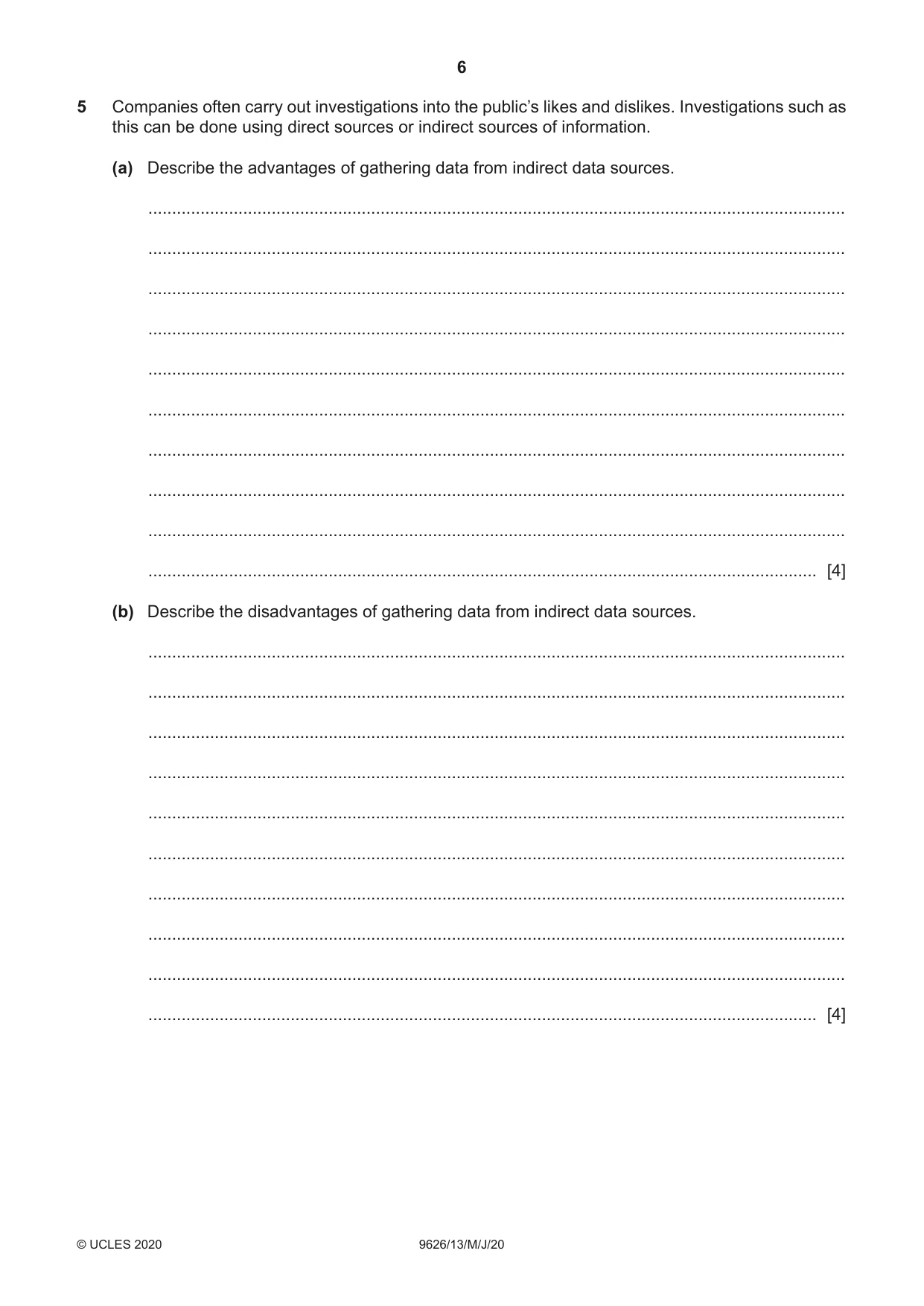

6 9626/13/M/J/20 © UCLES 2020 5 Companies often carry out investigations into the public’s likes and dislikes. Investigations such as this can be done using direct sources or indirect sources of information. (a) Describe the advantages of gathering data from indirect data sources. … … … … … … … … … … [4] (b) Describe the disadvantages of gathering data from indirect data sources. … … … … … … … … … … [4]

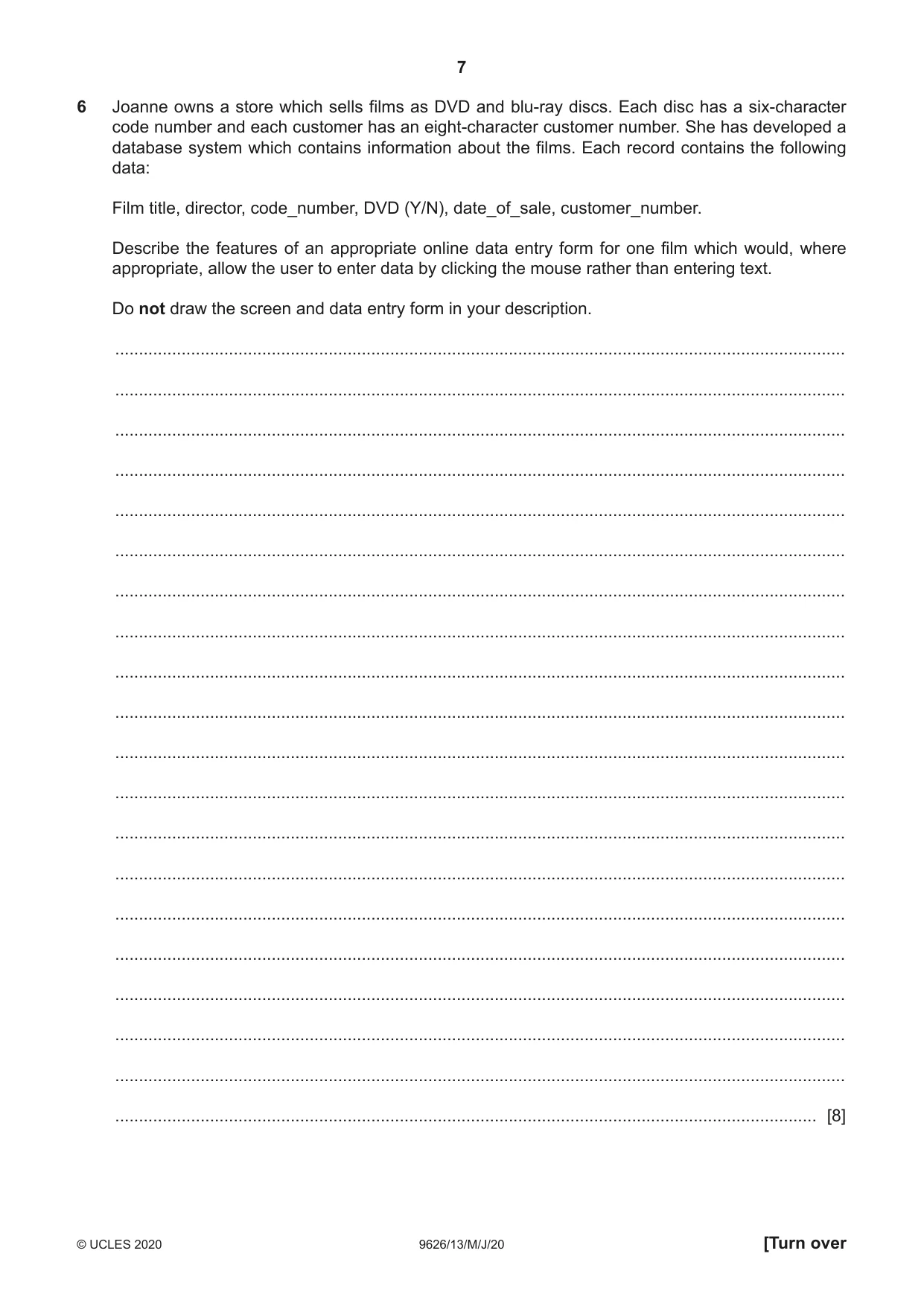

7 9626/13/M/J/20 © UCLES 2020 [Turn over 6 Joanne owns a store which sells films as DVD and blu-ray discs. Each disc has a six-character code number and each customer has an eight-character customer number. She has developed a database system which contains information about the films. Each record contains the following data: Film title, director, code_number, DVD (Y/N), date_of_sale, customer_number. Describe the features of an appropriate online data entry form for one film which would, where appropriate, allow the user to enter data by clicking the mouse rather than entering text. Do not draw the screen and data entry form in your description. … … … … … … … … … … … … … … … … … … … … [8]

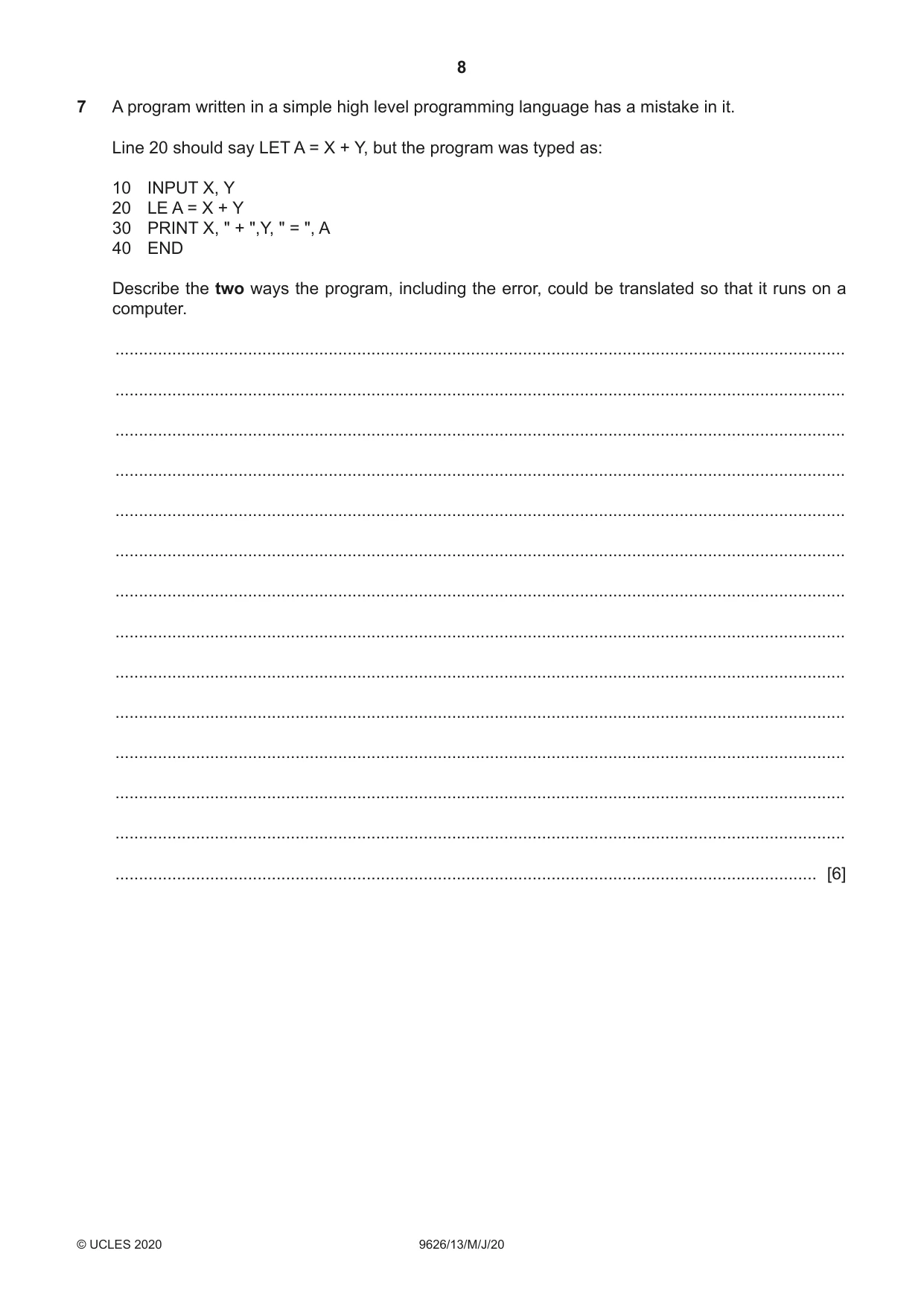

8 9626/13/M/J/20 © UCLES 2020 7 A program written in a simple high level programming language has a mistake in it. Line 20 should say LET A = X + Y, but the program was typed as: 10 INPUT X, Y 20 LE A = X + Y 30 PRINT X, " + ",Y, " = ", A 40 END Describe the two ways the program, including the error, could be translated so that it runs on a computer. … … … … … … … … … … … … … … [6]

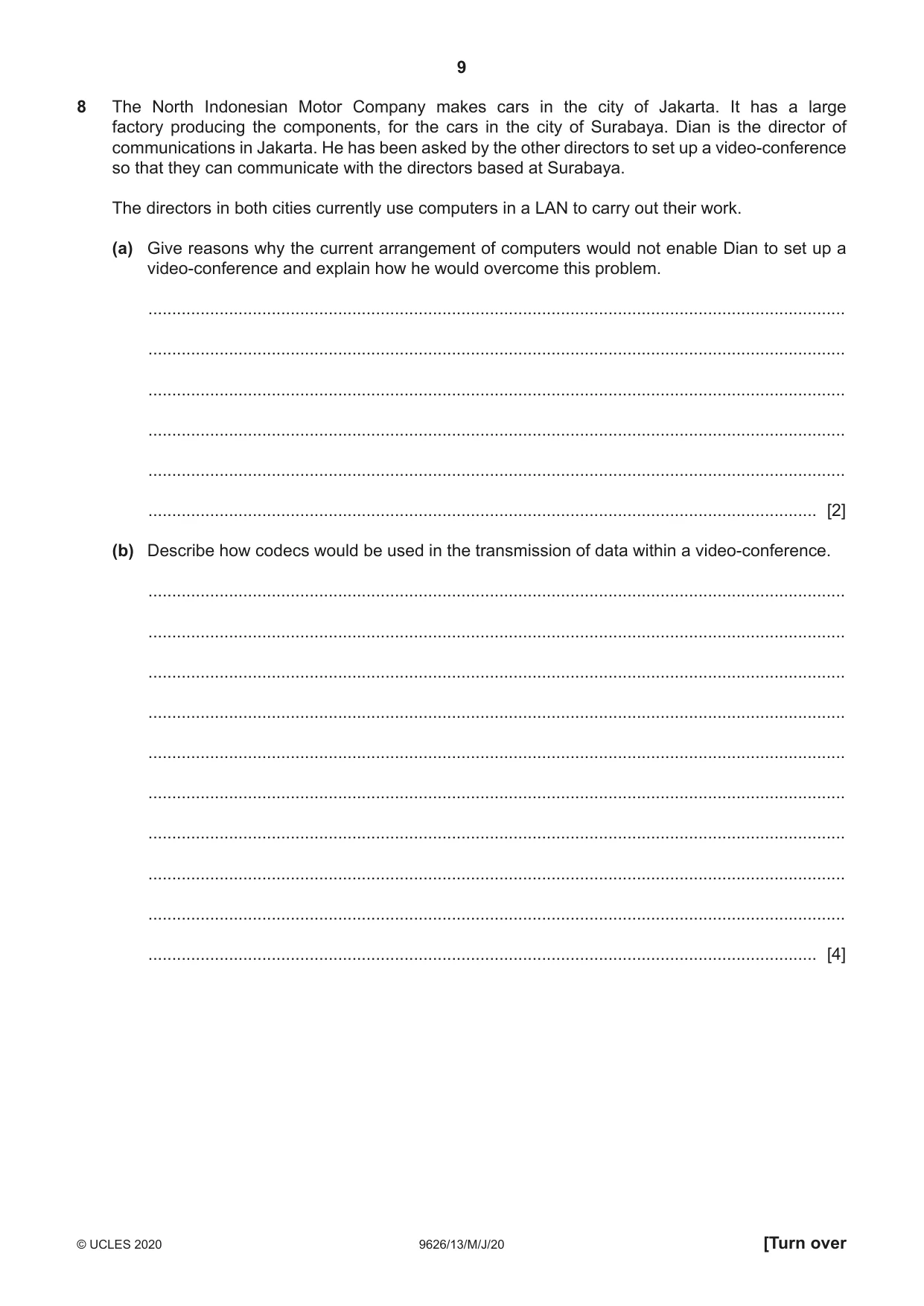

9 9626/13/M/J/20 © UCLES 2020 [Turn over 8 The North Indonesian Motor Company makes cars in the city of Jakarta. It has a large factory producing the components, for the cars in the city of Surabaya. Dian is the director of communications in Jakarta. He has been asked by the other directors to set up a video-conference so that they can communicate with the directors based at Surabaya. The directors in both cities currently use computers in a LAN to carry out their work. (a) Give reasons why the current arrangement of computers would not enable Dian to set up a video-conference and explain how he would overcome this problem. … … … … … … [2] (b) Describe how codecs would be used in the transmission of data within a video-conference. … … … … … … … … … … [4]

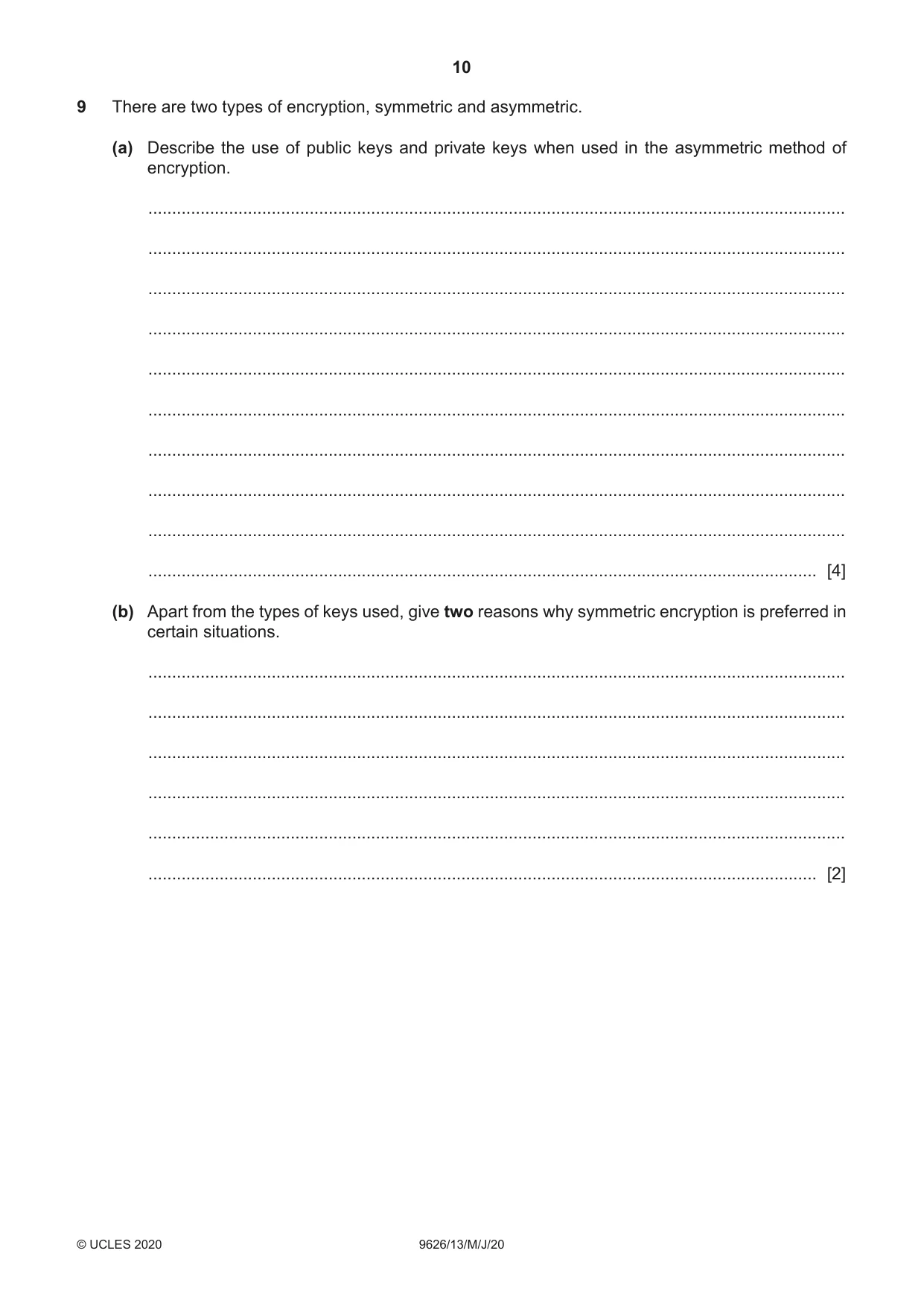

10 9626/13/M/J/20 © UCLES 2020 9 There are two types of encryption, symmetric and asymmetric. (a) Describe the use of public keys and private keys when used in the asymmetric method of encryption. … … … … … … … … … … [4] (b) Apart from the types of keys used, give two reasons why symmetric encryption is preferred in certain situations. … … … … … … [2]

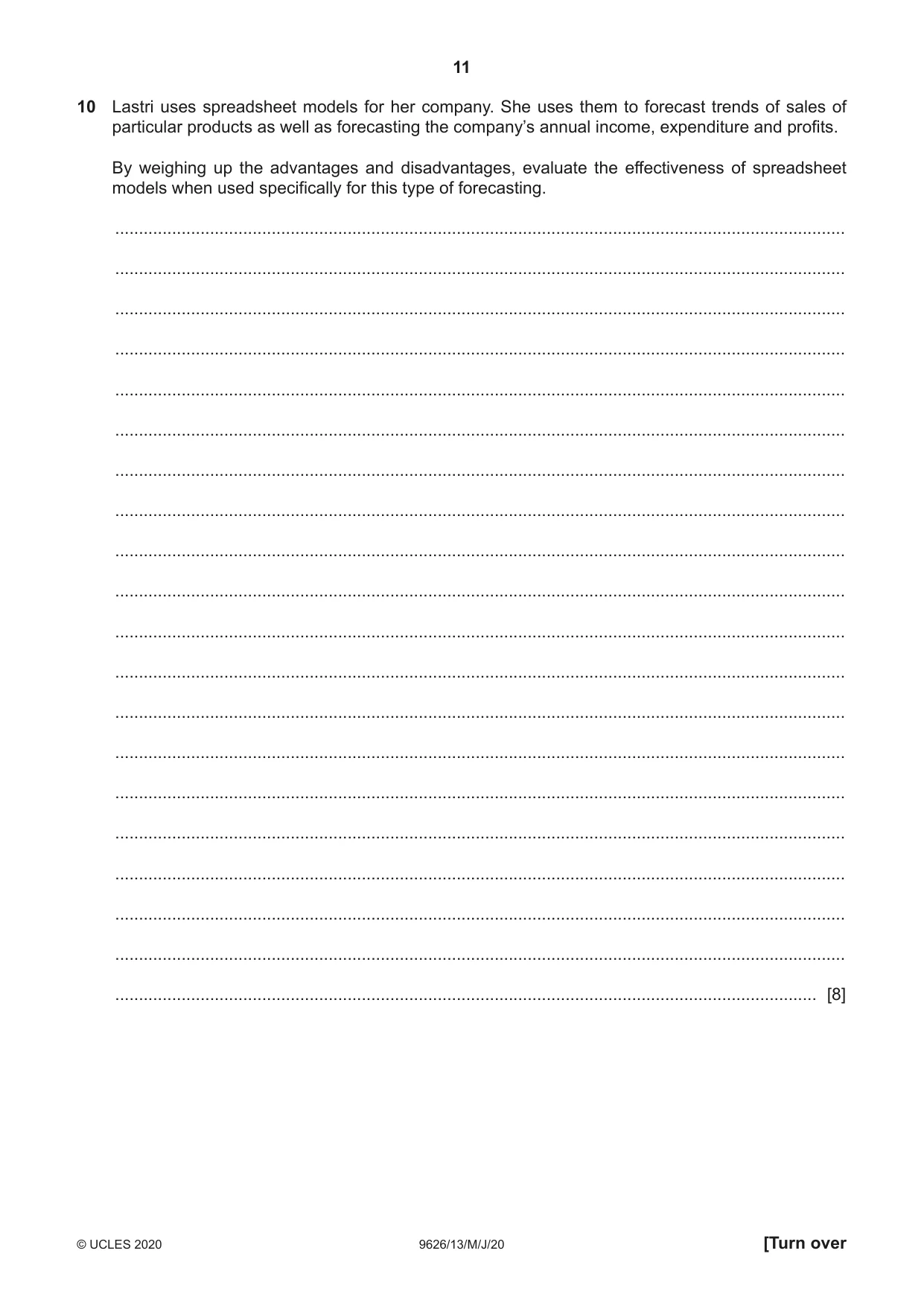

11 9626/13/M/J/20 © UCLES 2020 [Turn over 10 Lastri uses spreadsheet models for her company. She uses them to forecast trends of sales of particular products as well as forecasting the company’s annual income, expenditure and profits. By weighing up the advantages and disadvantages, evaluate the effectiveness of spreadsheet models when used specifically for this type of forecasting. … … … … … … … … … … … … … … … … … … … … [8]

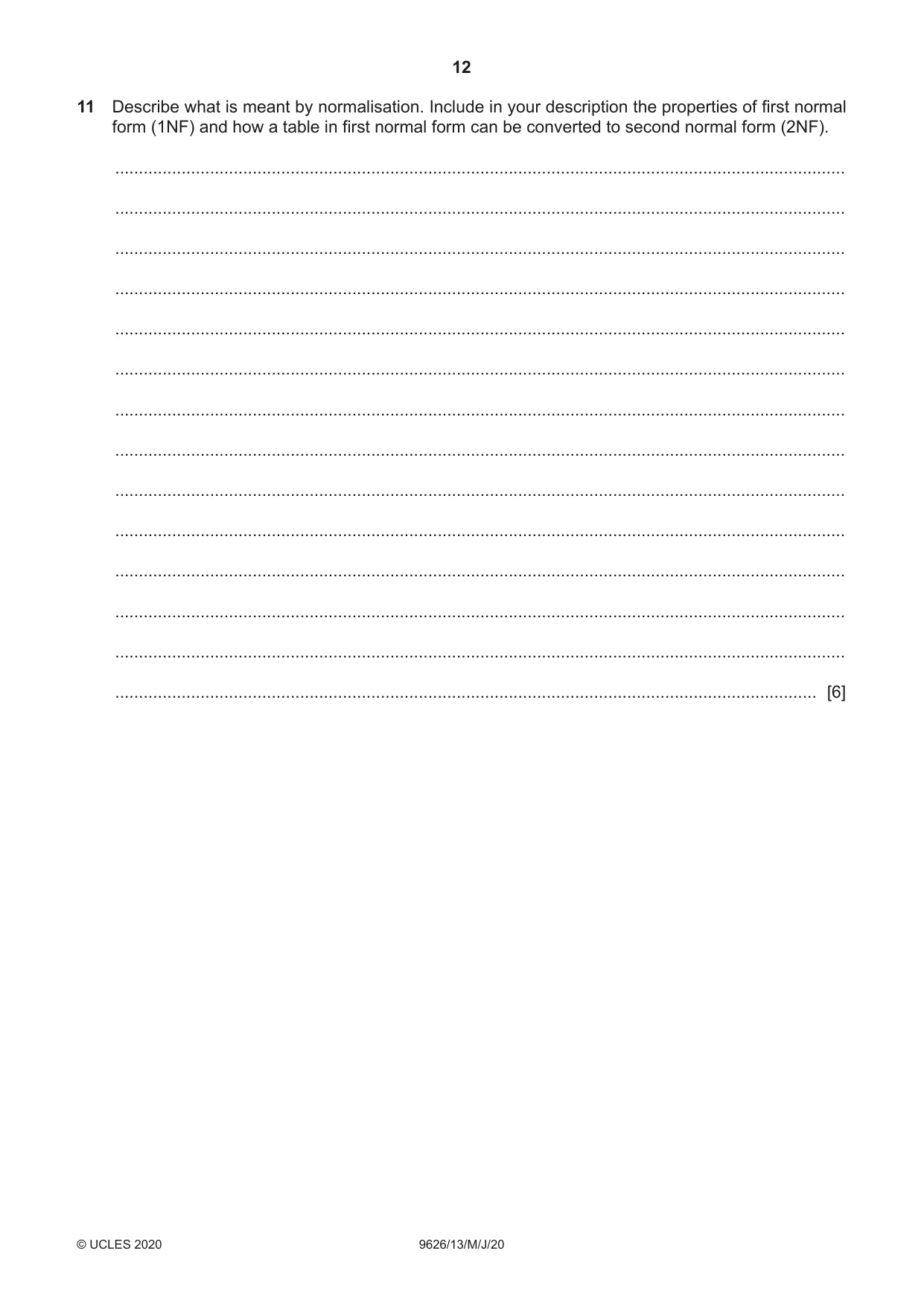

12 9626/13/M/J/20 © UCLES 2020 11 Describe what is meant by normalisation. Include in your description the properties of first normal form (1NF) and how a table in first normal form can be converted to second normal form (2NF). … … … … … … … … … … … … … … [6]

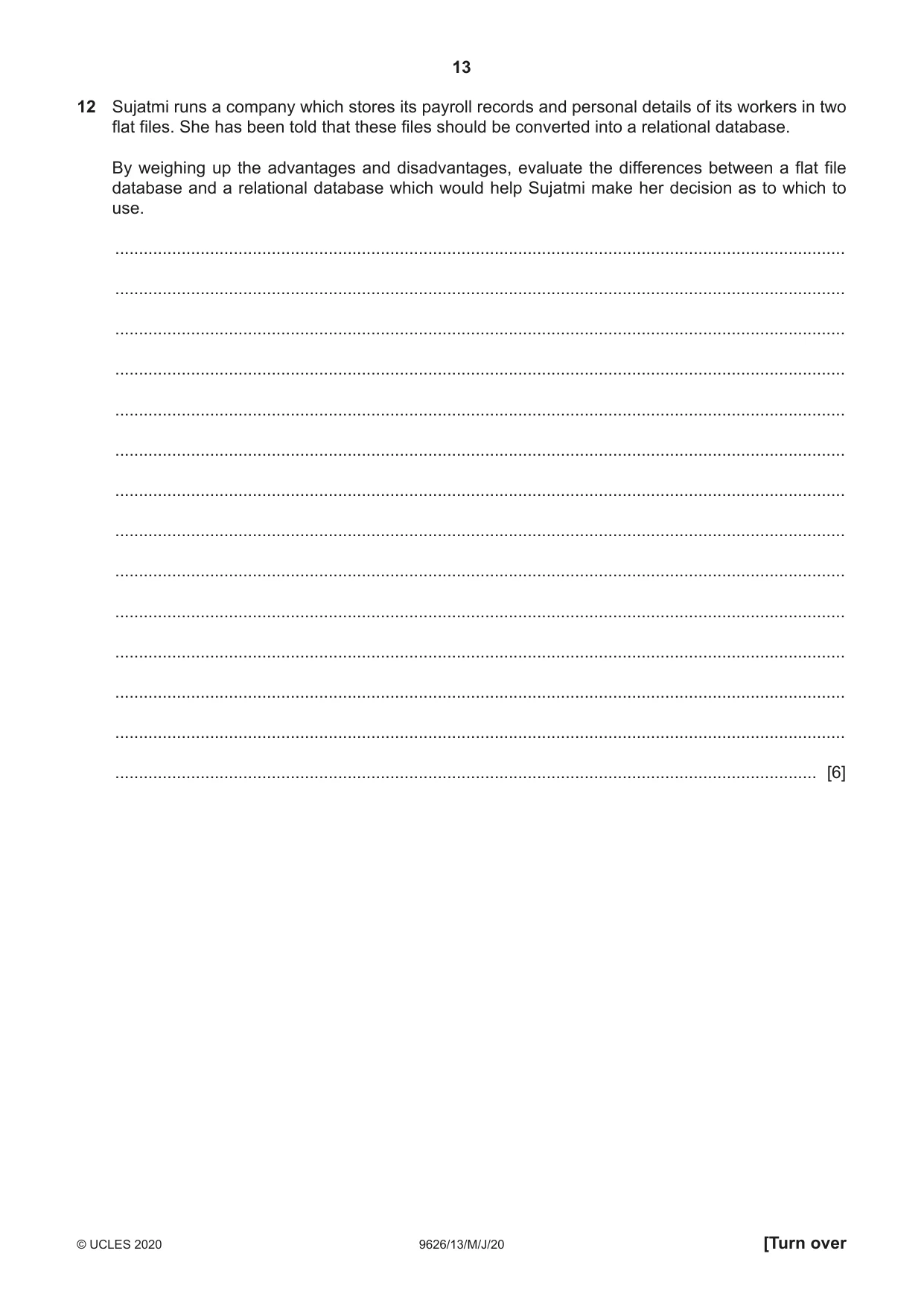

13 9626/13/M/J/20 © UCLES 2020 [Turn over 12 Sujatmi runs a company which stores its payroll records and personal details of its workers in two flat files. She has been told that these files should be converted into a relational database. By weighing up the advantages and disadvantages, evaluate the differences between a flat file database and a relational database which would help Sujatmi make her decision as to which to use. … … … … … … … … … … … … … … [6]

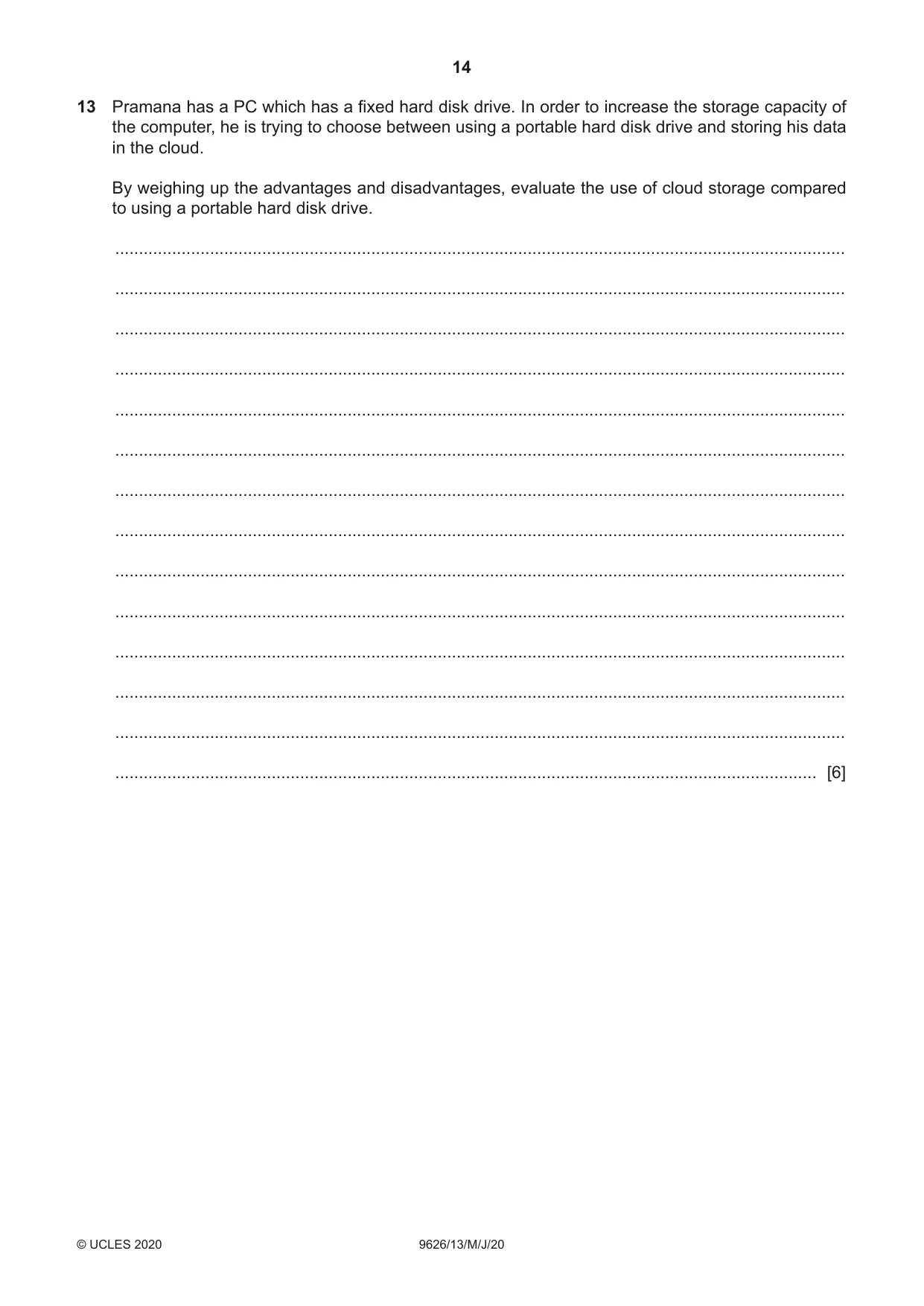

14 9626/13/M/J/20 © UCLES 2020 13 Pramana has a PC which has a fixed hard disk drive. In order to increase the storage capacity of the computer, he is trying to choose between using a portable hard disk drive and storing his data in the cloud. By weighing up the advantages and disadvantages, evaluate the use of cloud storage compared to using a portable hard disk drive. … … … … … … … … … … … … … … [6]

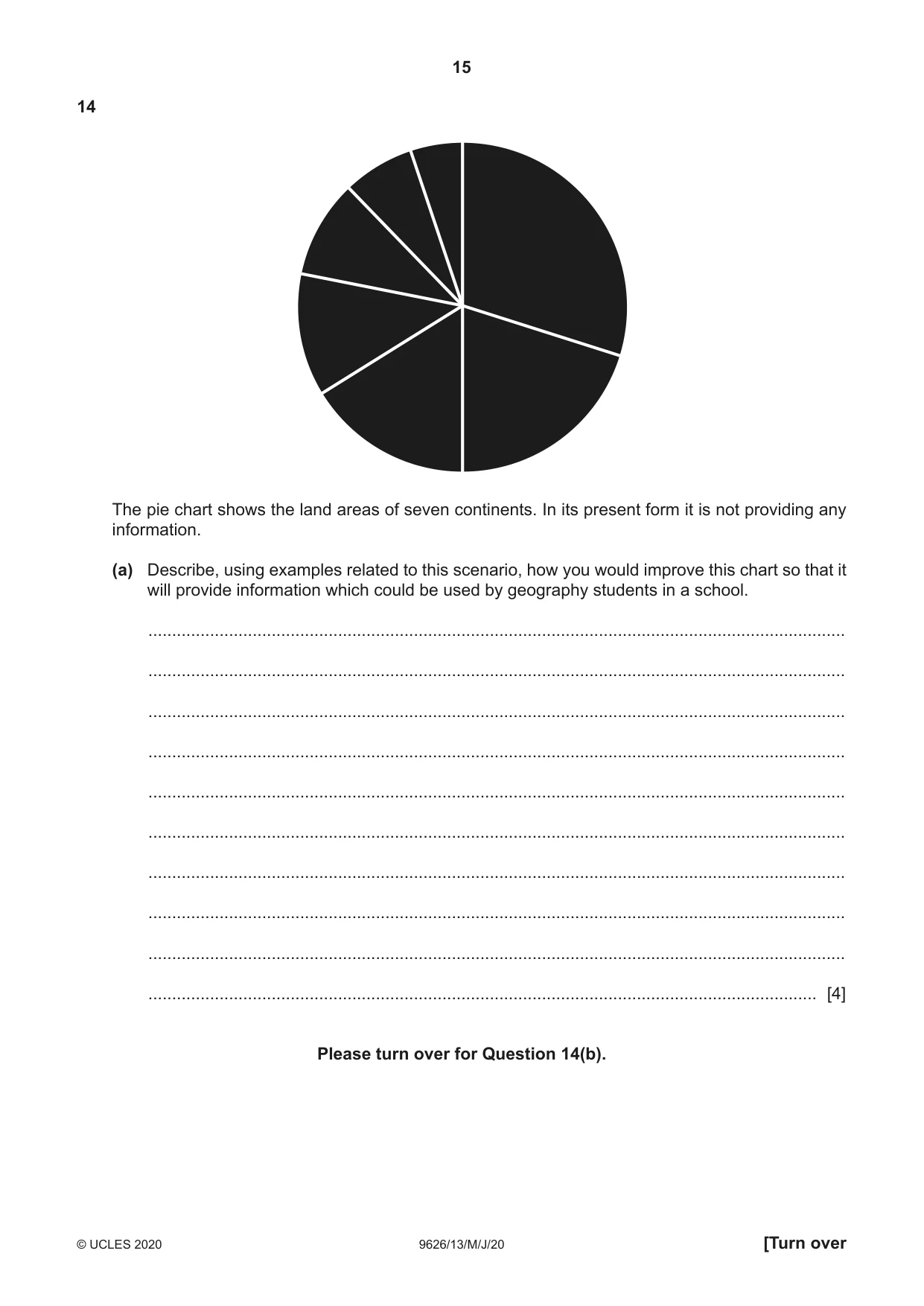

15 9626/13/M/J/20 © UCLES 2020 [Turn over 14 The pie chart shows the land areas of seven continents. In its present form it is not providing any information. (a) Describe, using examples related to this scenario, how you would improve this chart so that it will provide information which could be used by geography students in a school. … … … … … … … … … … [4] Please turn over for Question 14(b).

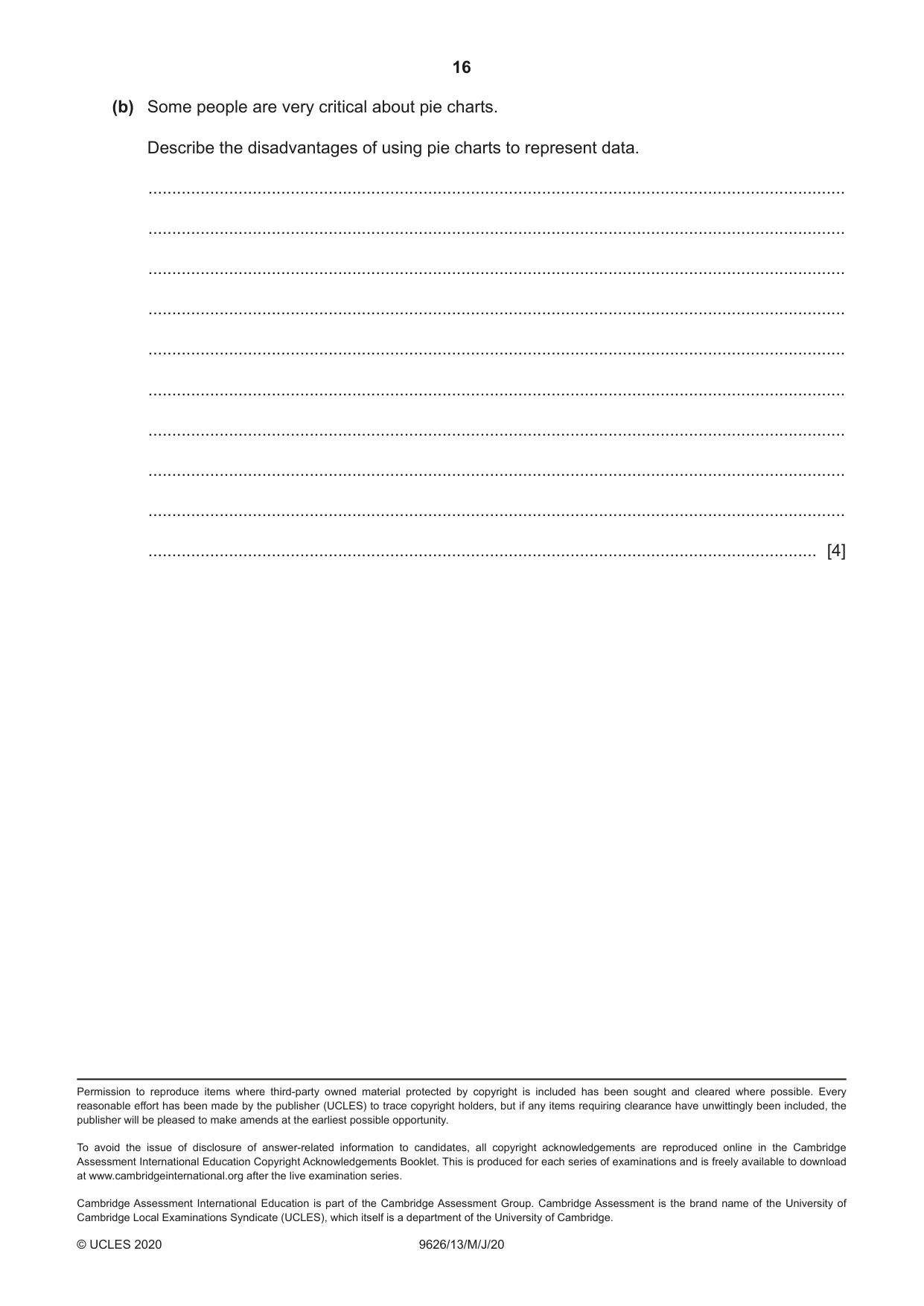

16 9626/13/M/J/20 © UCLES 2020 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. (b) Some people are very critical about pie charts. Describe the disadvantages of using pie charts to represent data. … … … … … … … … … … [4]

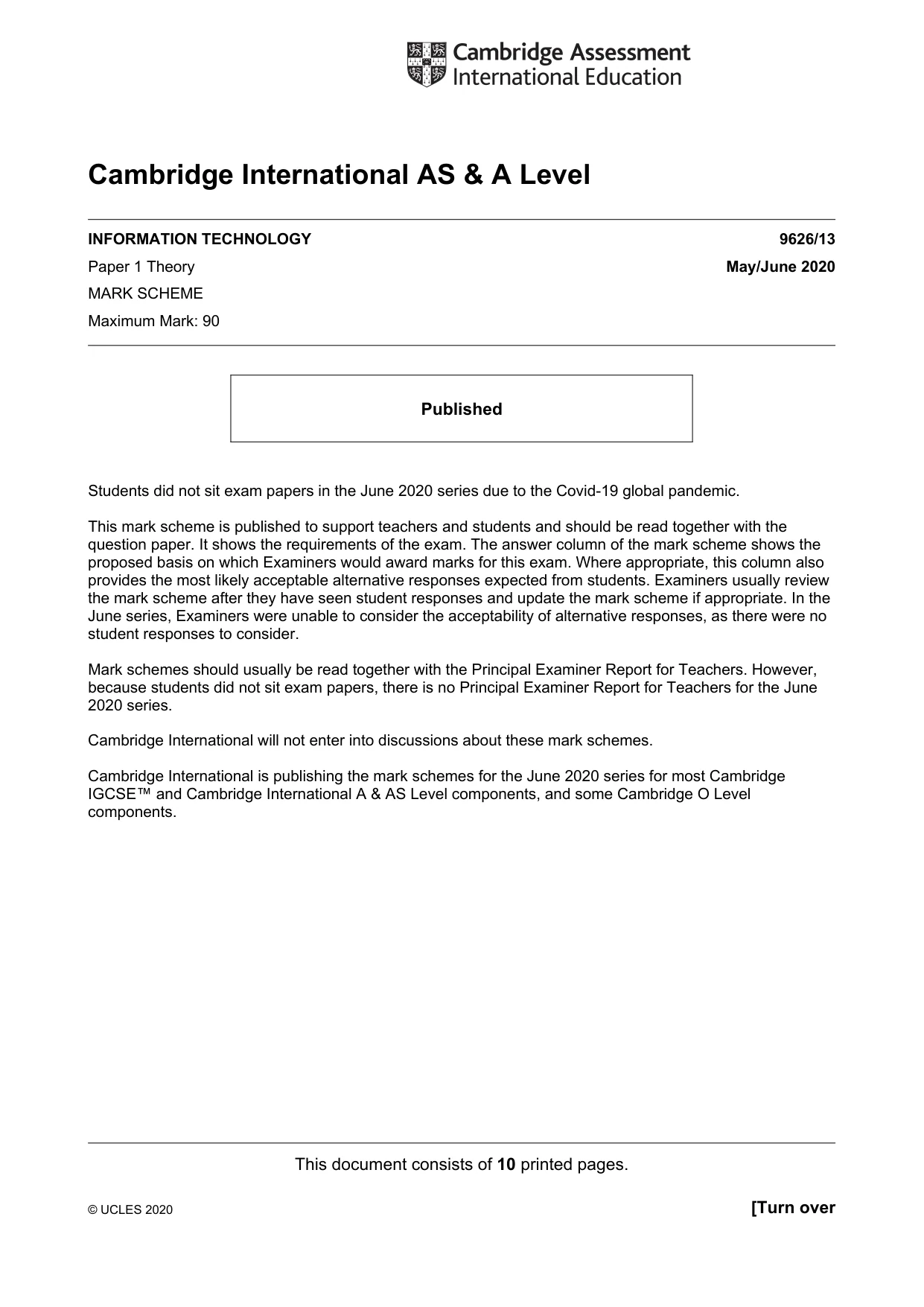

This document consists of 10 printed pages. © UCLES 2020 [Turn over Cambridge International AS & A Level INFORMATION TECHNOLOGY 9626/13 Paper 1 Theory May/June 2020 MARK SCHEME Maximum Mark: 90 Published Students did not sit exam papers in the June 2020 series due to the Covid-19 global pandemic. This mark scheme is published to support teachers and students and should be read together with the question paper. It shows the requirements of the exam. The answer column of the mark scheme shows the proposed basis on which Examiners would award marks for this exam. Where appropriate, this column also provides the most likely acceptable alternative responses expected from students. Examiners usually review the mark scheme after they have seen student responses and update the mark scheme if appropriate. In the June series, Examiners were unable to consider the acceptability of alternative responses, as there were no student responses to consider. Mark schemes should usually be read together with the Principal Examiner Report for Teachers. However, because students did not sit exam papers, there is no Principal Examiner Report for Teachers for the June 2020 series. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the June 2020 series for most Cambridge IGCSE™ and Cambridge International A & AS Level components, and some Cambridge O Level components.

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 2 of 10 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

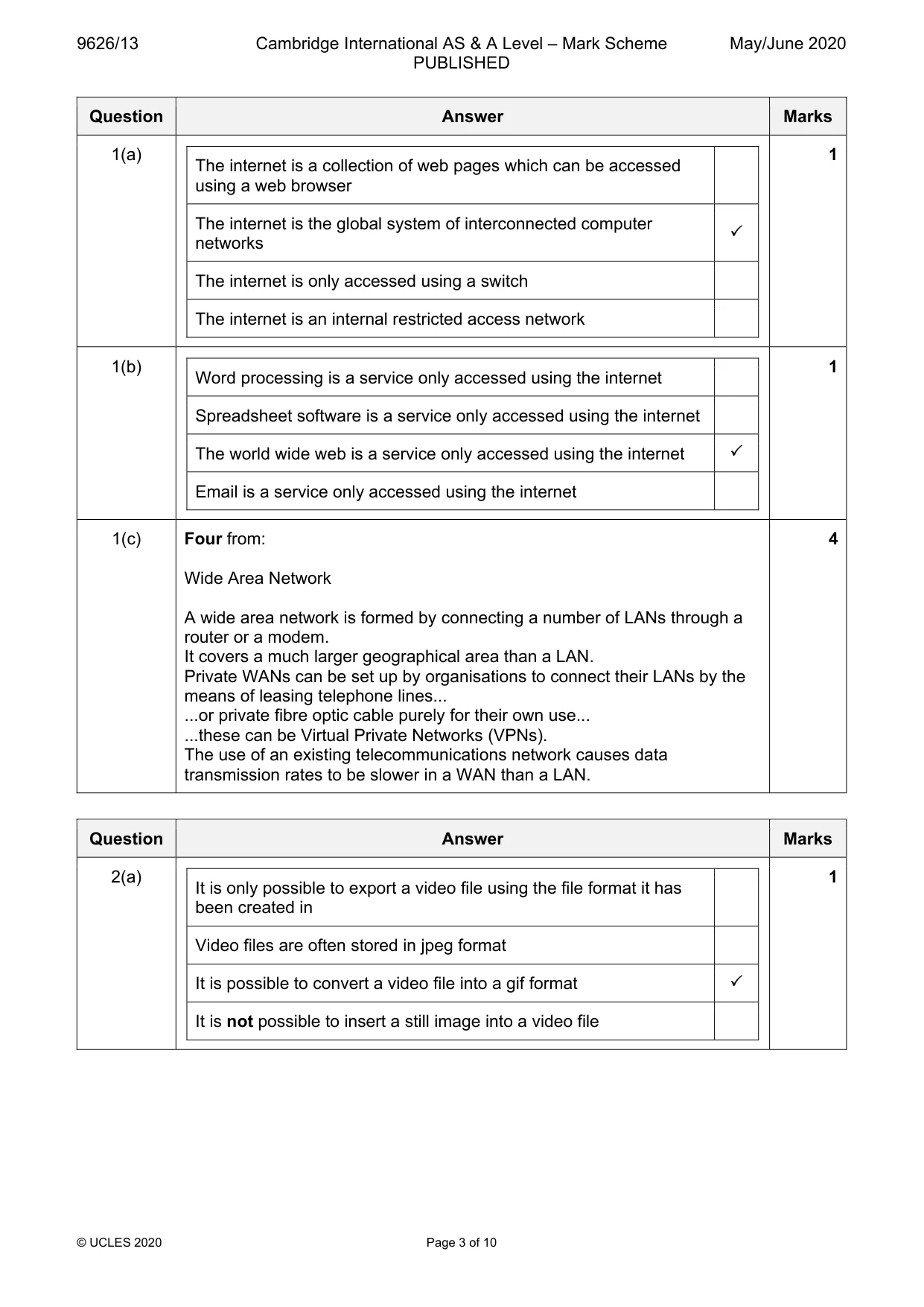

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 3 of 10 Question Answer Marks 1(a) The internet is a collection of web pages which can be accessed using a web browser The internet is the global system of interconnected computer networks  The internet is only accessed using a switch The internet is an internal restricted access network 1 1(b) Word processing is a service only accessed using the internet Spreadsheet software is a service only accessed using the internet The world wide web is a service only accessed using the internet  Email is a service only accessed using the internet 1 1(c) Four from: Wide Area Network A wide area network is formed by connecting a number of LANs through a router or a modem. It covers a much larger geographical area than a LAN. Private WANs can be set up by organisations to connect their LANs by the means of leasing telephone lines... ...or private fibre optic cable purely for their own use... ...these can be Virtual Private Networks (VPNs). The use of an existing telecommunications network causes data transmission rates to be slower in a WAN than a LAN. 4 Question Answer Marks 2(a) It is only possible to export a video file using the file format it has been created in Video files are often stored in jpeg format It is possible to convert a video file into a gif format  It is not possible to insert a still image into a video file 1

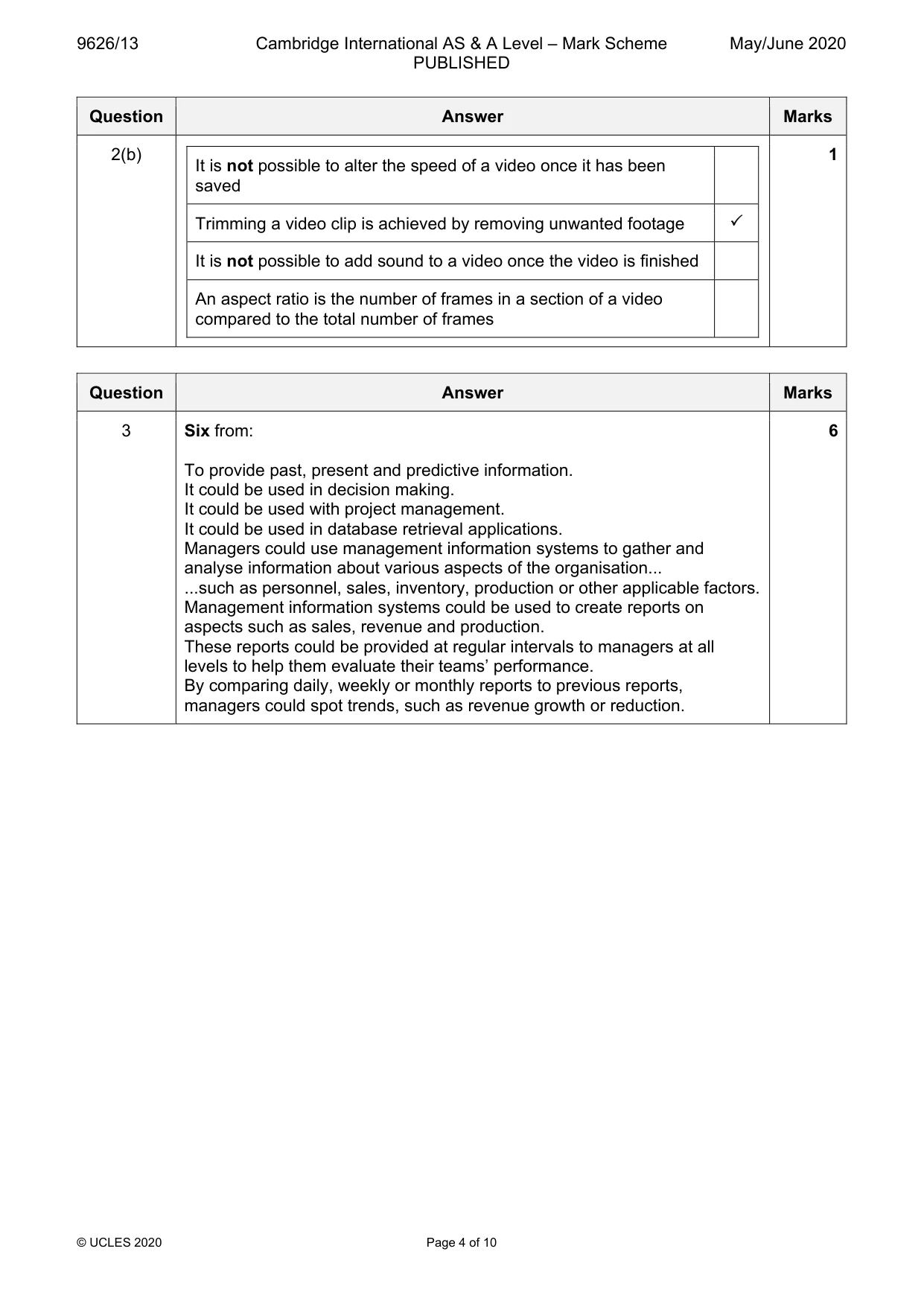

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 4 of 10 Question Answer Marks 2(b) It is not possible to alter the speed of a video once it has been saved Trimming a video clip is achieved by removing unwanted footage  It is not possible to add sound to a video once the video is finished An aspect ratio is the number of frames in a section of a video compared to the total number of frames 1 Question Answer Marks 3 Six from: To provide past, present and predictive information. It could be used in decision making. It could be used with project management. It could be used in database retrieval applications. Managers could use management information systems to gather and analyse information about various aspects of the organisation... ...such as personnel, sales, inventory, production or other applicable factors. Management information systems could be used to create reports on aspects such as sales, revenue and production. These reports could be provided at regular intervals to managers at all levels to help them evaluate their teams’ performance. By comparing daily, weekly or monthly reports to previous reports, managers could spot trends, such as revenue growth or reduction. 6

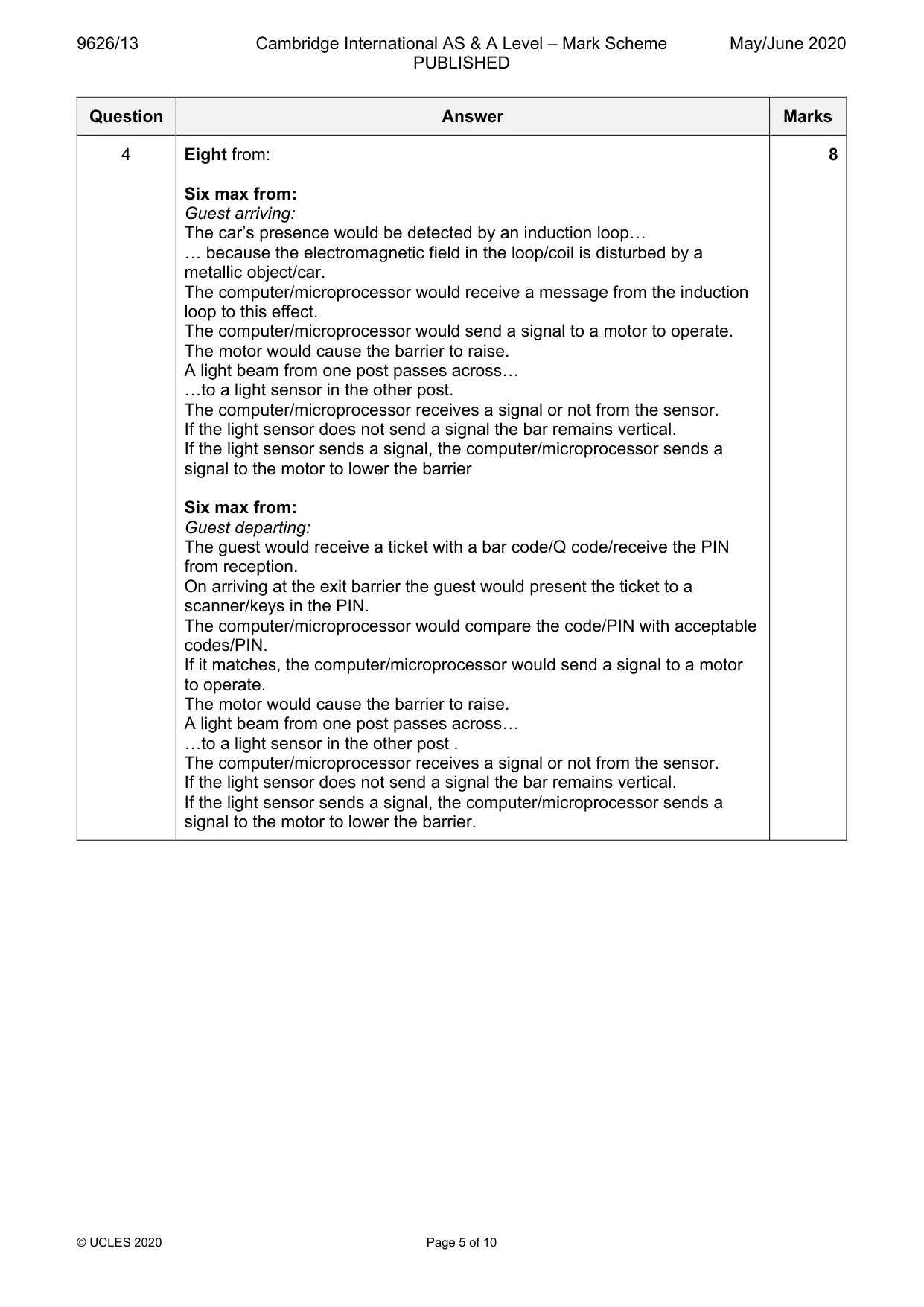

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 5 of 10 Question Answer Marks 4 Eight from: Six max from: Guest arriving: The car’s presence would be detected by an induction loop… … because the electromagnetic field in the loop/coil is disturbed by a metallic object/car. The computer/microprocessor would receive a message from the induction loop to this effect. The computer/microprocessor would send a signal to a motor to operate. The motor would cause the barrier to raise. A light beam from one post passes across… …to a light sensor in the other post. The computer/microprocessor receives a signal or not from the sensor. If the light sensor does not send a signal the bar remains vertical. If the light sensor sends a signal, the computer/microprocessor sends a signal to the motor to lower the barrier Six max from: Guest departing: The guest would receive a ticket with a bar code/Q code/receive the PIN from reception. On arriving at the exit barrier the guest would present the ticket to a scanner/keys in the PIN. The computer/microprocessor would compare the code/PIN with acceptable codes/PIN. If it matches, the computer/microprocessor would send a signal to a motor to operate. The motor would cause the barrier to raise. A light beam from one post passes across… …to a light sensor in the other post . The computer/microprocessor receives a signal or not from the sensor. If the light sensor does not send a signal the bar remains vertical. If the light sensor sends a signal, the computer/microprocessor sends a signal to the motor to lower the barrier. 8

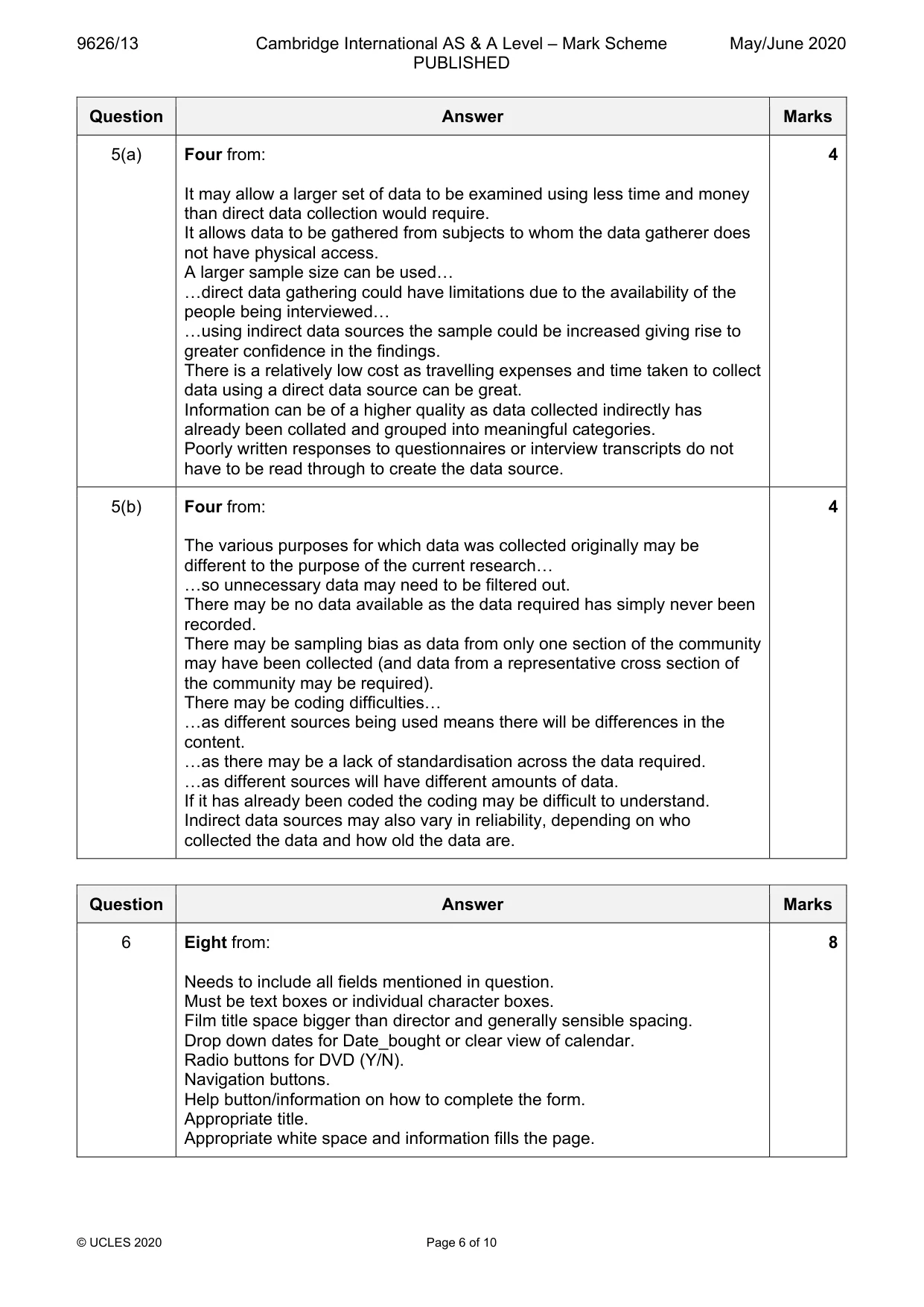

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 6 of 10 Question Answer Marks 5(a) Four from: It may allow a larger set of data to be examined using less time and money than direct data collection would require. It allows data to be gathered from subjects to whom the data gatherer does not have physical access. A larger sample size can be used… …direct data gathering could have limitations due to the availability of the people being interviewed… …using indirect data sources the sample could be increased giving rise to greater confidence in the findings. There is a relatively low cost as travelling expenses and time taken to collect data using a direct data source can be great. Information can be of a higher quality as data collected indirectly has already been collated and grouped into meaningful categories. Poorly written responses to questionnaires or interview transcripts do not have to be read through to create the data source. 4 5(b) Four from: The various purposes for which data was collected originally may be different to the purpose of the current research… …so unnecessary data may need to be filtered out. There may be no data available as the data required has simply never been recorded. There may be sampling bias as data from only one section of the community may have been collected (and data from a representative cross section of the community may be required). There may be coding difficulties… …as different sources being used means there will be differences in the content. …as there may be a lack of standardisation across the data required. …as different sources will have different amounts of data. If it has already been coded the coding may be difficult to understand. Indirect data sources may also vary in reliability, depending on who collected the data and how old the data are. 4 Question Answer Marks 6 Eight from: Needs to include all fields mentioned in question. Must be text boxes or individual character boxes. Film title space bigger than director and generally sensible spacing. Drop down dates for Date_bought or clear view of calendar. Radio buttons for DVD (Y/N). Navigation buttons. Help button/information on how to complete the form. Appropriate title. Appropriate white space and information fills the page. 8

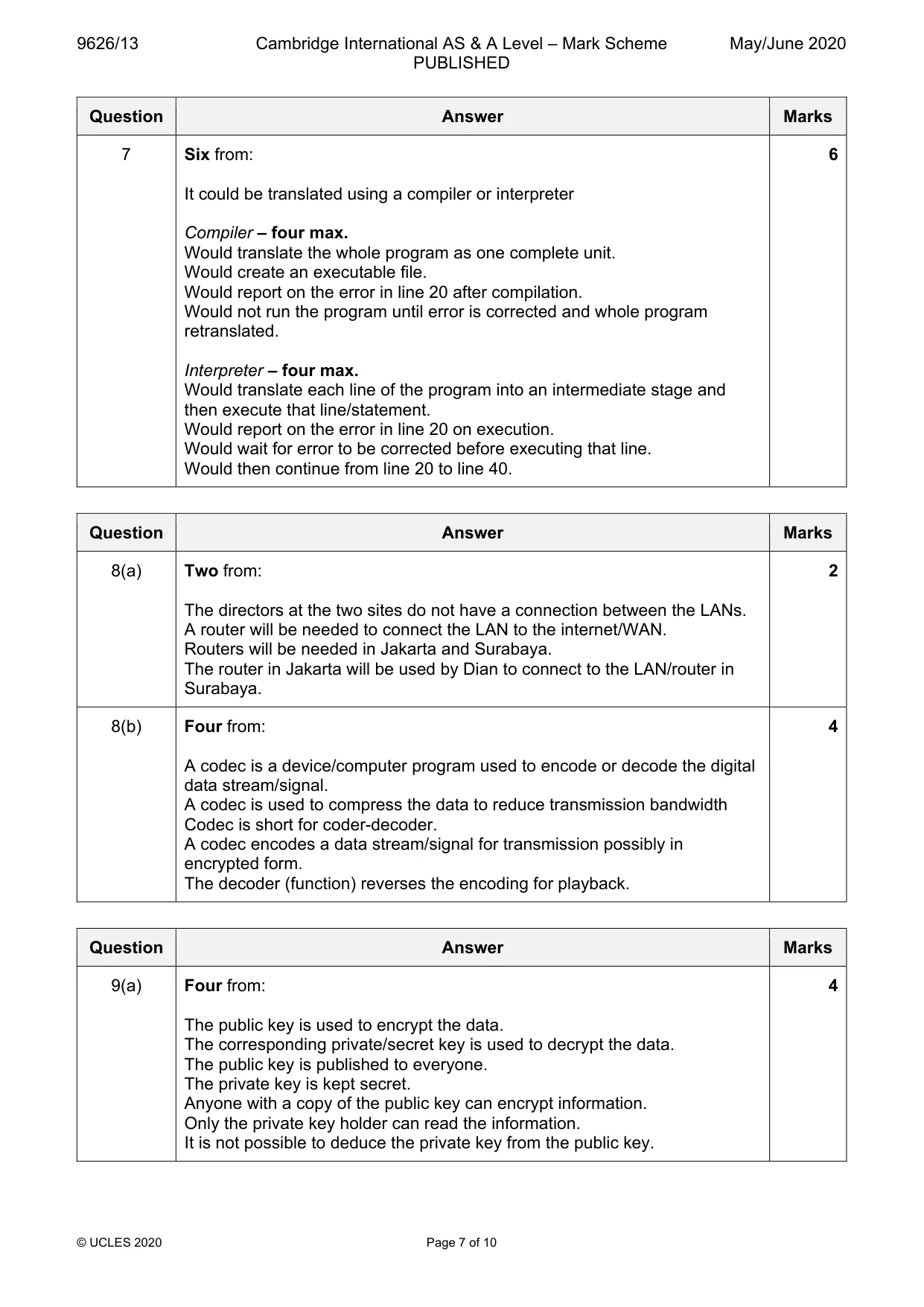

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 7 of 10 Question Answer Marks 7 Six from: It could be translated using a compiler or interpreter Compiler – four max. Would translate the whole program as one complete unit. Would create an executable file. Would report on the error in line 20 after compilation. Would not run the program until error is corrected and whole program retranslated. Interpreter – four max. Would translate each line of the program into an intermediate stage and then execute that line/statement. Would report on the error in line 20 on execution. Would wait for error to be corrected before executing that line. Would then continue from line 20 to line 40. 6 Question Answer Marks 8(a) Two from: The directors at the two sites do not have a connection between the LANs. A router will be needed to connect the LAN to the internet/WAN. Routers will be needed in Jakarta and Surabaya. The router in Jakarta will be used by Dian to connect to the LAN/router in Surabaya. 2 8(b) Four from: A codec is a device/computer program used to encode or decode the digital data stream/signal. A codec is used to compress the data to reduce transmission bandwidth Codec is short for coder-decoder. A codec encodes a data stream/signal for transmission possibly in encrypted form. The decoder (function) reverses the encoding for playback. 4 Question Answer Marks 9(a) Four from: The public key is used to encrypt the data. The corresponding private/secret key is used to decrypt the data. The public key is published to everyone. The private key is kept secret. Anyone with a copy of the public key can encrypt information. Only the private key holder can read the information. It is not possible to deduce the private key from the public key. 4

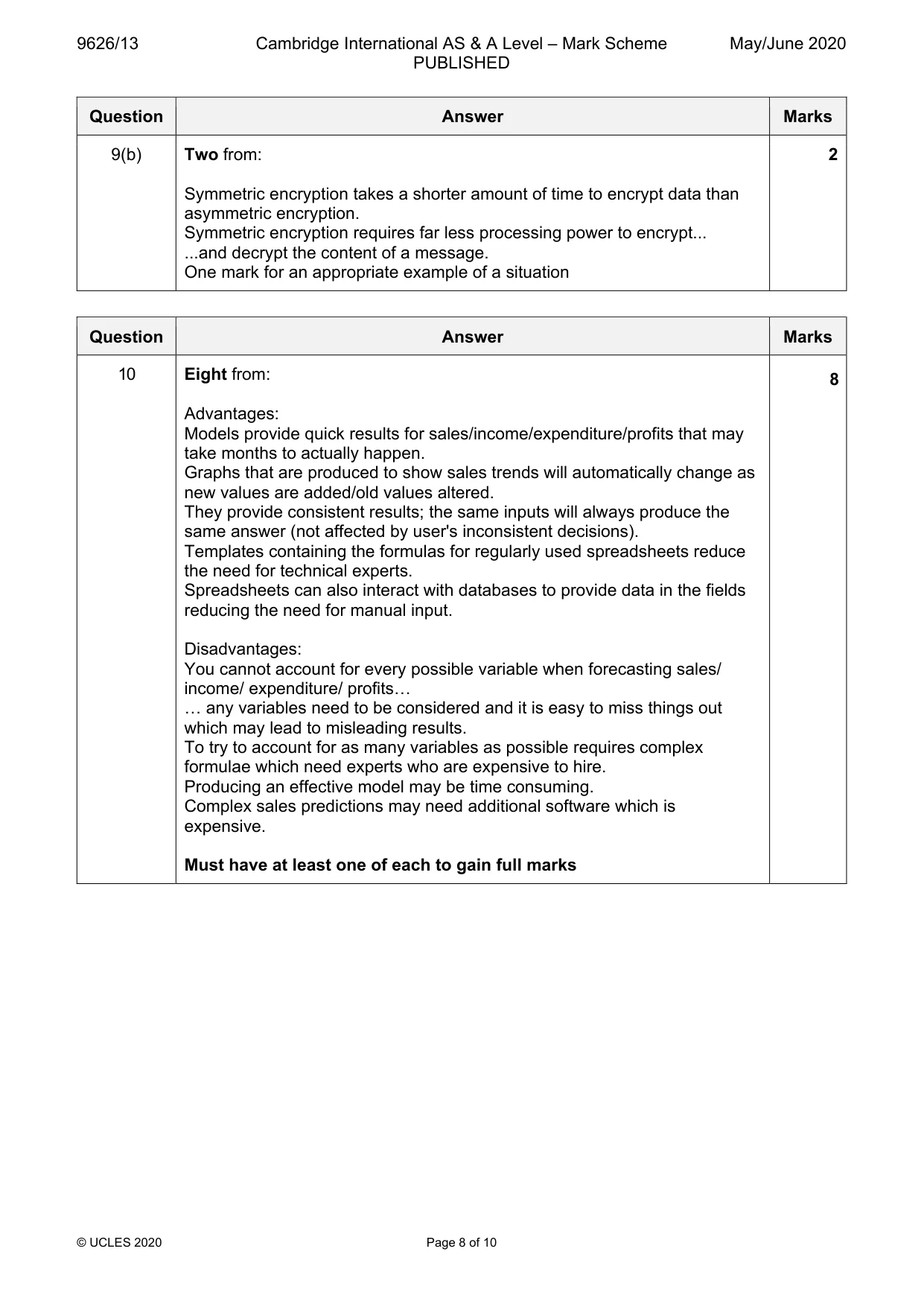

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 8 of 10 Question Answer Marks 9(b) Two from: Symmetric encryption takes a shorter amount of time to encrypt data than asymmetric encryption. Symmetric encryption requires far less processing power to encrypt... ...and decrypt the content of a message. One mark for an appropriate example of a situation 2 Question Answer Marks 10 Eight from: Advantages: Models provide quick results for sales/income/expenditure/profits that may take months to actually happen. Graphs that are produced to show sales trends will automatically change as new values are added/old values altered. They provide consistent results; the same inputs will always produce the same answer (not affected by user's inconsistent decisions). Templates containing the formulas for regularly used spreadsheets reduce the need for technical experts. Spreadsheets can also interact with databases to provide data in the fields reducing the need for manual input. Disadvantages: You cannot account for every possible variable when forecasting sales/ income/ expenditure/ profits… … any variables need to be considered and it is easy to miss things out which may lead to misleading results. To try to account for as many variables as possible requires complex formulae which need experts who are expensive to hire. Producing an effective model may be time consuming. Complex sales predictions may need additional software which is expensive. Must have at least one of each to gain full marks 8

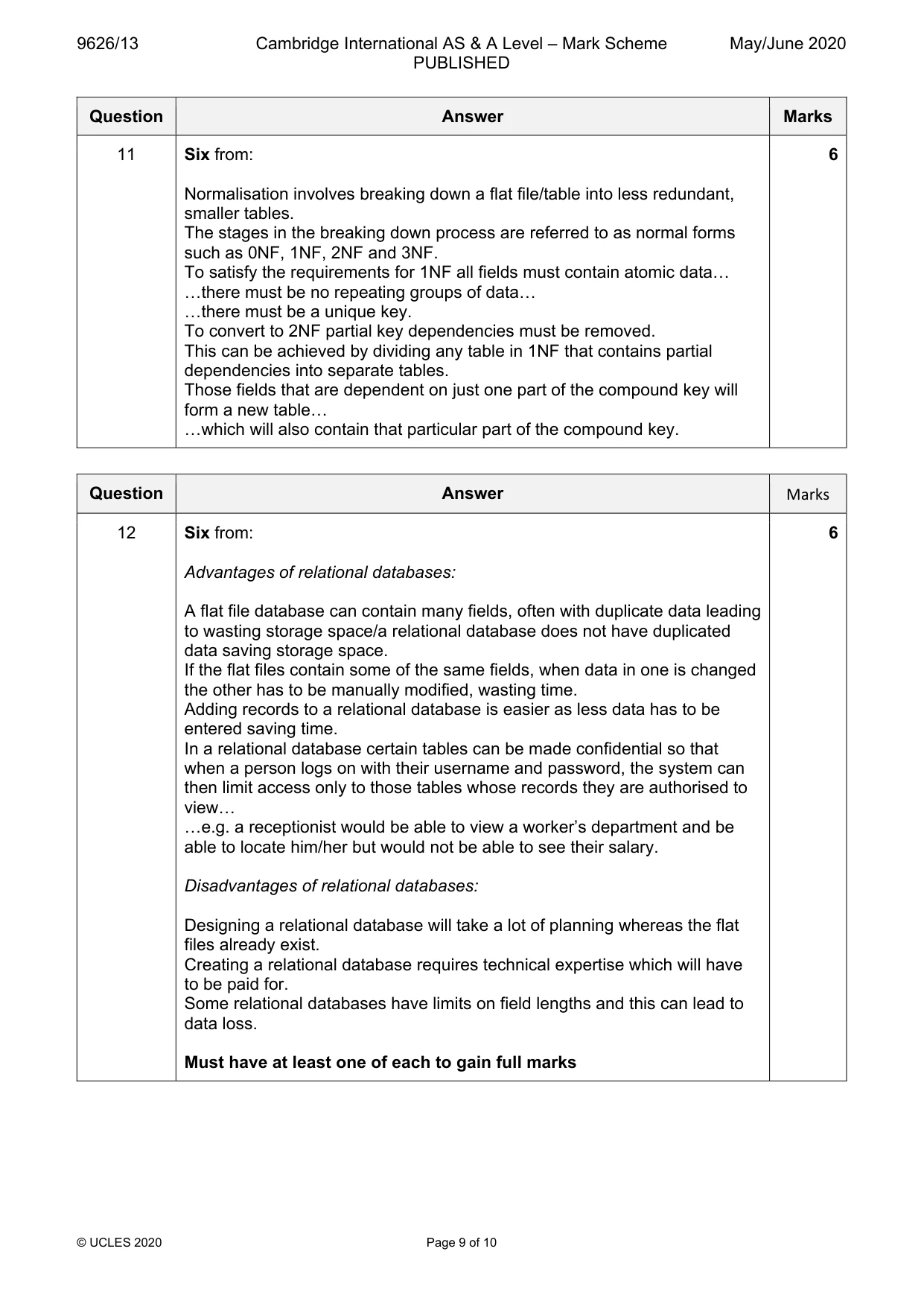

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 9 of 10 Question Answer Marks 11 Six from: Normalisation involves breaking down a flat file/table into less redundant, smaller tables. The stages in the breaking down process are referred to as normal forms such as 0NF, 1NF, 2NF and 3NF. To satisfy the requirements for 1NF all fields must contain atomic data… …there must be no repeating groups of data… …there must be a unique key. To convert to 2NF partial key dependencies must be removed. This can be achieved by dividing any table in 1NF that contains partial dependencies into separate tables. Those fields that are dependent on just one part of the compound key will form a new table… …which will also contain that particular part of the compound key. 6 Question Answer Marks 12 Six from: Advantages of relational databases: A flat file database can contain many fields, often with duplicate data leading to wasting storage space/a relational database does not have duplicated data saving storage space. If the flat files contain some of the same fields, when data in one is changed the other has to be manually modified, wasting time. Adding records to a relational database is easier as less data has to be entered saving time. In a relational database certain tables can be made confidential so that when a person logs on with their username and password, the system can then limit access only to those tables whose records they are authorised to view… …e.g. a receptionist would be able to view a worker’s department and be able to locate him/her but would not be able to see their salary. Disadvantages of relational databases: Designing a relational database will take a lot of planning whereas the flat files already exist. Creating a relational database requires technical expertise which will have to be paid for. Some relational databases have limits on field lengths and this can lead to data loss. Must have at least one of each to gain full marks 6

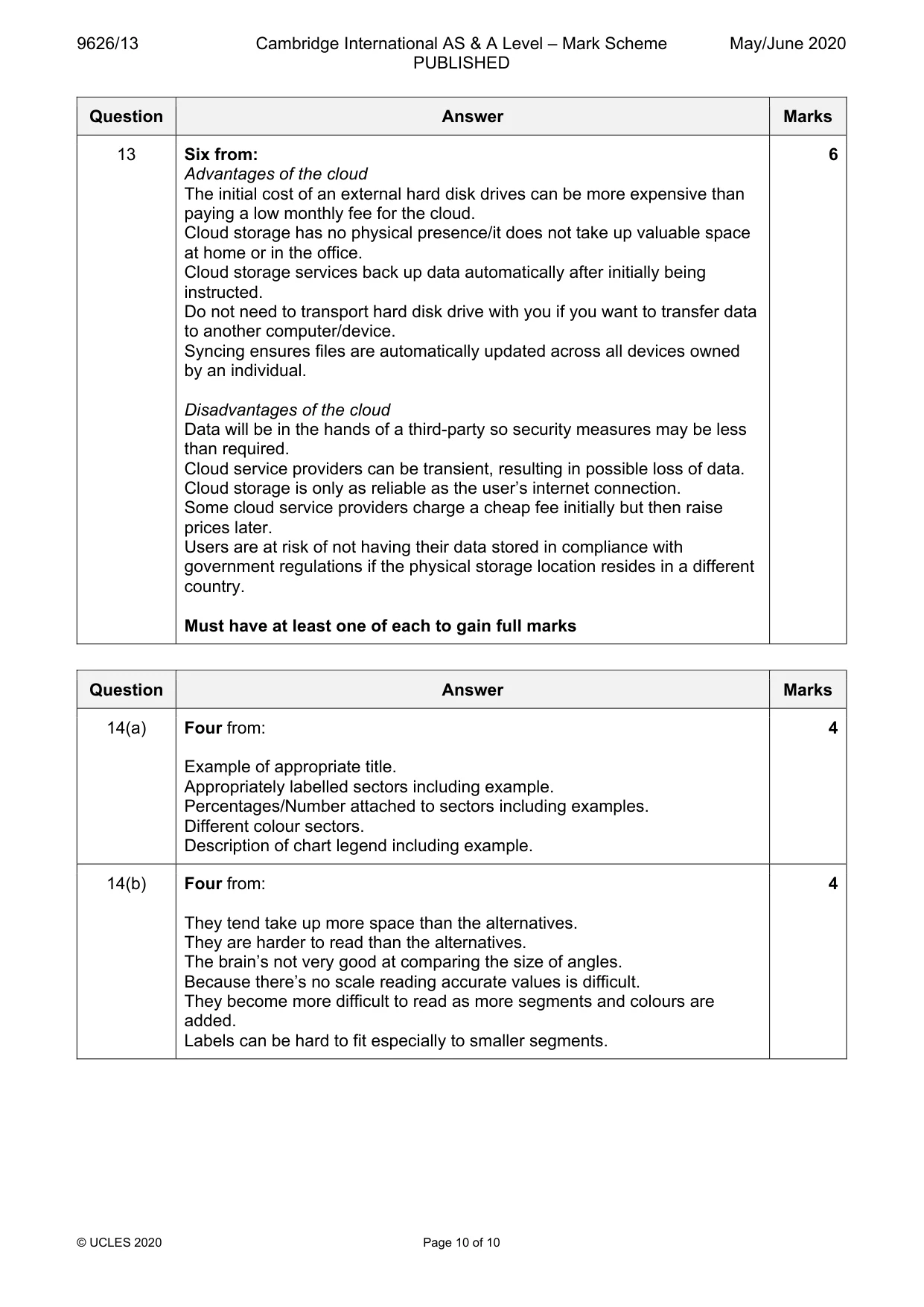

9626/13 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2020 © UCLES 2020 Page 10 of 10 Question Answer Marks 13 Six from: Advantages of the cloud The initial cost of an external hard disk drives can be more expensive than paying a low monthly fee for the cloud. Cloud storage has no physical presence/it does not take up valuable space at home or in the office. Cloud storage services back up data automatically after initially being instructed. Do not need to transport hard disk drive with you if you want to transfer data to another computer/device. Syncing ensures files are automatically updated across all devices owned by an individual. Disadvantages of the cloud Data will be in the hands of a third-party so security measures may be less than required. Cloud service providers can be transient, resulting in possible loss of data. Cloud storage is only as reliable as the user’s internet connection. Some cloud service providers charge a cheap fee initially but then raise prices later. Users are at risk of not having their data stored in compliance with government regulations if the physical storage location resides in a different country. Must have at least one of each to gain full marks 6 Question Answer Marks 14(a) Four from: Example of appropriate title. Appropriately labelled sectors including example. Percentages/Number attached to sectors including examples. Different colour sectors. Description of chart legend including example. 4 14(b) Four from: They tend take up more space than the alternatives. They are harder to read than the alternatives. The brain’s not very good at comparing the size of angles. Because there’s no scale reading accurate values is difficult. They become more difficult to read as more segments and colours are added. Labels can be hard to fit especially to smaller segments. 4
