Cambridge A Level Design and Technology 9705 — 2019 Oct/Nov Paper 1 · Variant 2

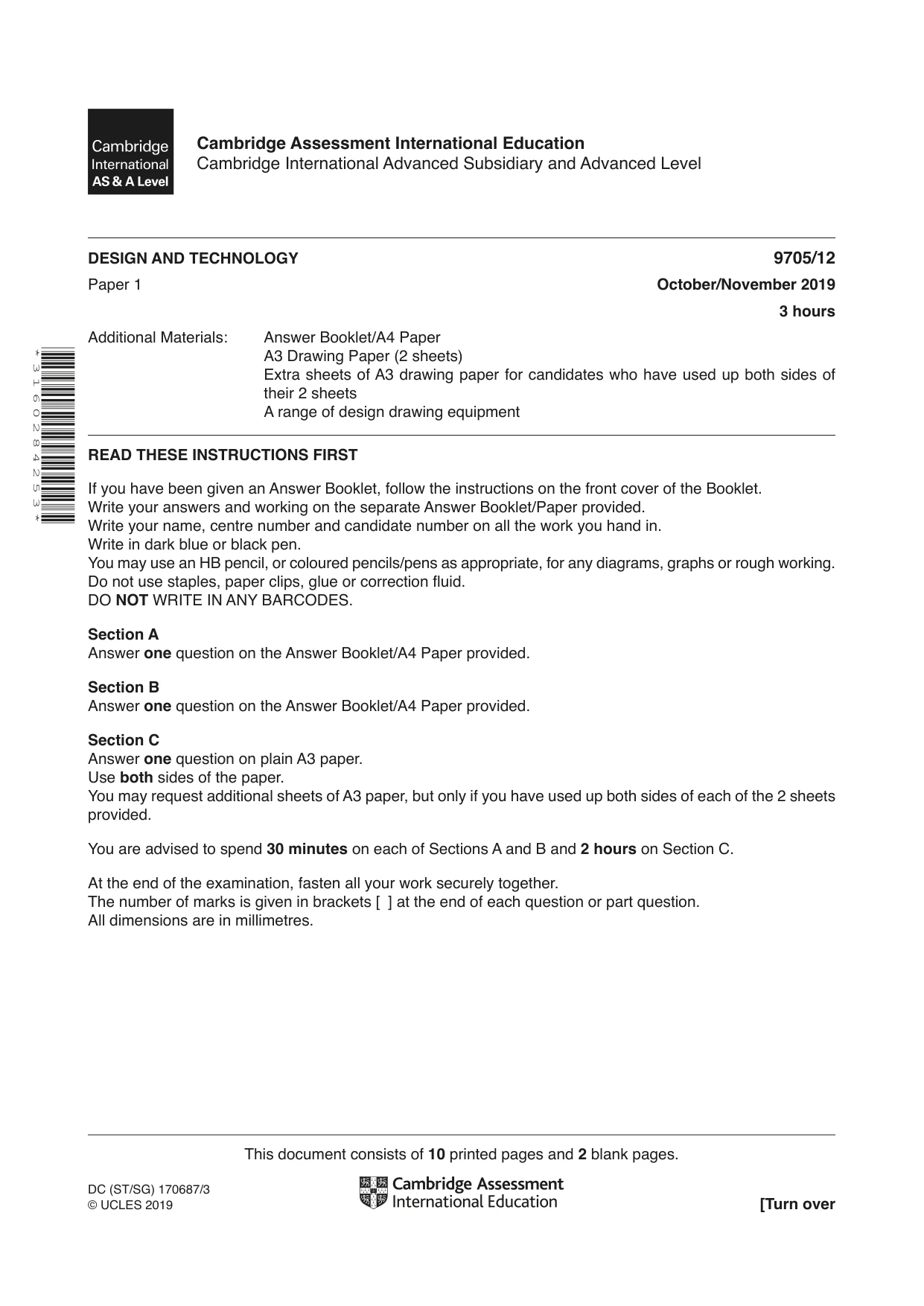

This document consists of 10 printed pages and 2 blank pages. DC (ST/SG) 170687/3 © UCLES 2019 [Turn over Cambridge Assessment International Education Cambridge International Advanced Subsidiary and Advanced Level * 3 1 6 0 2 8 4 2 5 3 * DESIGN AND TECHNOLOGY 9705/12 Paper 1 October/November 2019 3 hours Additional Materials: Answer Booklet/A4 Paper A3 Drawing Paper (2 sheets) Extra sheets of A3 drawing paper for candidates who have used up both sides of their 2 sheets A range of design drawing equipment READ THESE INSTRUCTIONS FIRST If you have been given an Answer Booklet, follow the instructions on the front cover of the Booklet. Write your answers and working on the separate Answer Booklet/Paper provided. Write your name, centre number and candidate number on all the work you hand in. Write in dark blue or black pen. You may use an HB pencil, or coloured pencils/pens as appropriate, for any diagrams, graphs or rough working. Do not use staples, paper clips, glue or correction fluid. DO NOT WRITE IN ANY BARCODES. Section A Answer one question on the Answer Booklet/A4 Paper provided. Section B Answer one question on the Answer Booklet/A4 Paper provided. Section C Answer one question on plain A3 paper. Use both sides of the paper. You may request additional sheets of A3 paper, but only if you have used up both sides of each of the 2 sheets provided. You are advised to spend 30 minutes on each of Sections A and B and 2 hours on Section C. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. All dimensions are in millimetres.

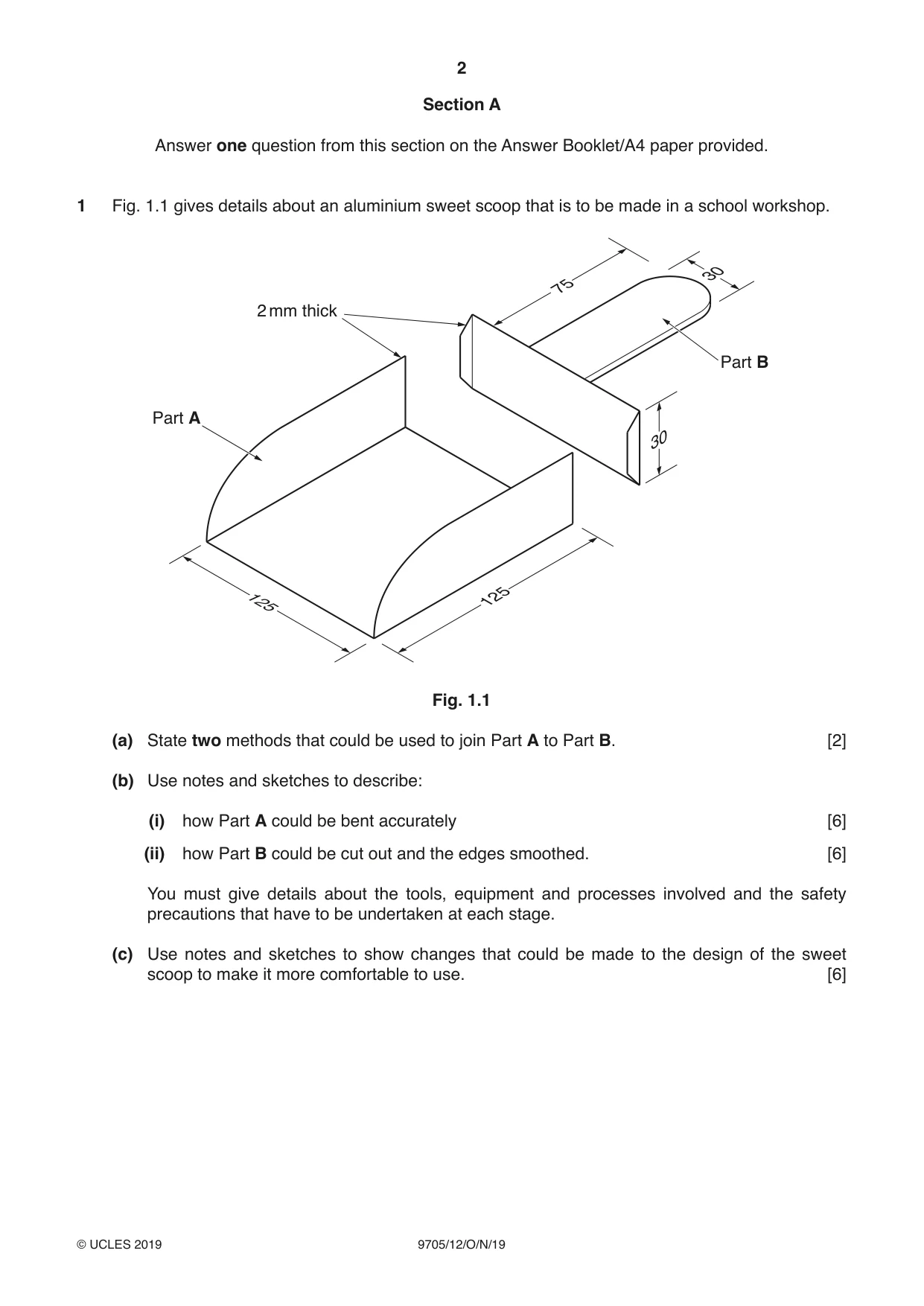

2 9705/12/O/N/19 © UCLES 2019 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1.1 gives details about an aluminium sweet scoop that is to be made in a school workshop. Part A Part B 2 mm thick 125 125 75 30 30 Fig. 1.1 (a) State two methods that could be used to join Part A to Part B. [2] (b) Use notes and sketches to describe: (i) how Part A could be bent accurately [6] (ii) how Part B could be cut out and the edges smoothed. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to show changes that could be made to the design of the sweet scoop to make it more comfortable to use. [6]

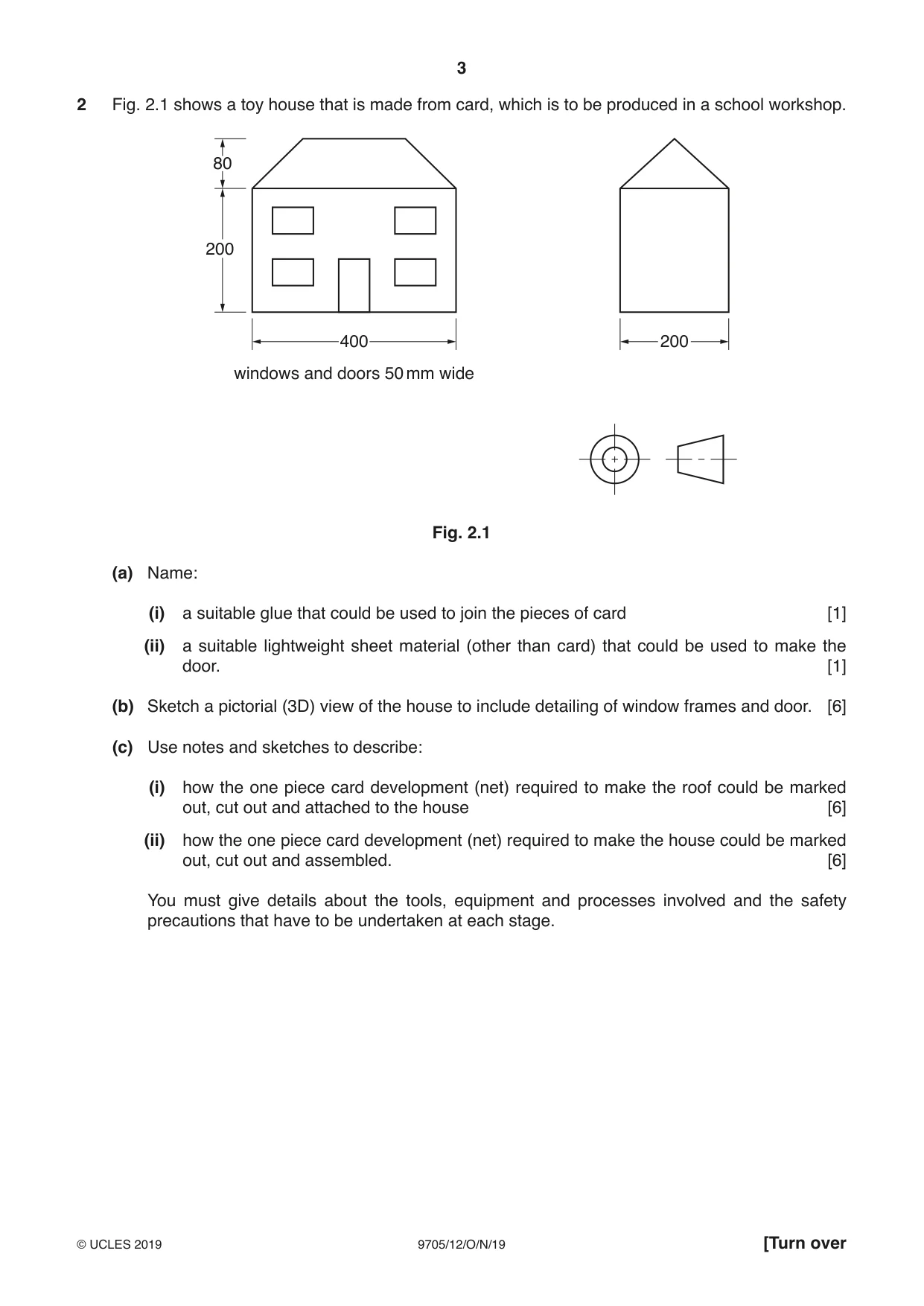

3 9705/12/O/N/19 © UCLES 2019 [Turn over 2 Fig. 2.1 shows a toy house that is made from card, which is to be produced in a school workshop. windows and doors 50 mm wide 80 200 400 200 Fig. 2.1 (a) Name: (i) a suitable glue that could be used to join the pieces of card [1] (ii) a suitable lightweight sheet material (other than card) that could be used to make the door. [1] (b) Sketch a pictorial (3D) view of the house to include detailing of window frames and door. [6] (c) Use notes and sketches to describe: (i) how the one piece card development (net) required to make the roof could be marked out, cut out and attached to the house [6] (ii) how the one piece card development (net) required to make the house could be marked out, cut out and assembled. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

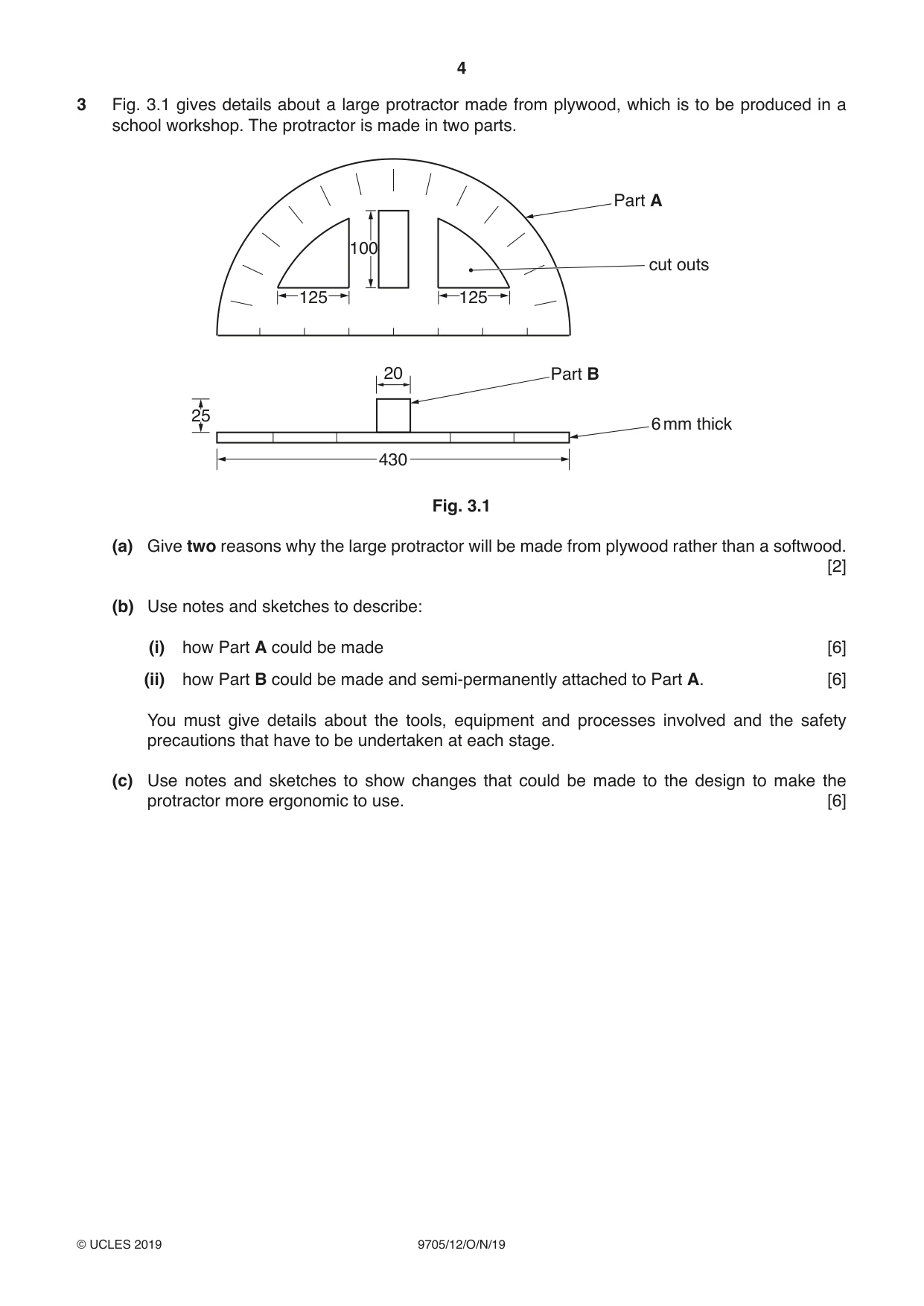

4 9705/12/O/N/19 © UCLES 2019 3 Fig. 3.1 gives details about a large protractor made from plywood, which is to be produced in a school workshop. The protractor is made in two parts. Part A 6 mm thick Part B cut outs 100 20 25 430 125 125 Fig. 3.1 (a) Give two reasons why the large protractor will be made from plywood rather than a softwood. [2] (b) Use notes and sketches to describe: (i) how Part A could be made [6] (ii) how Part B could be made and semi-permanently attached to Part A. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to show changes that could be made to the design to make the protractor more ergonomic to use. [6]

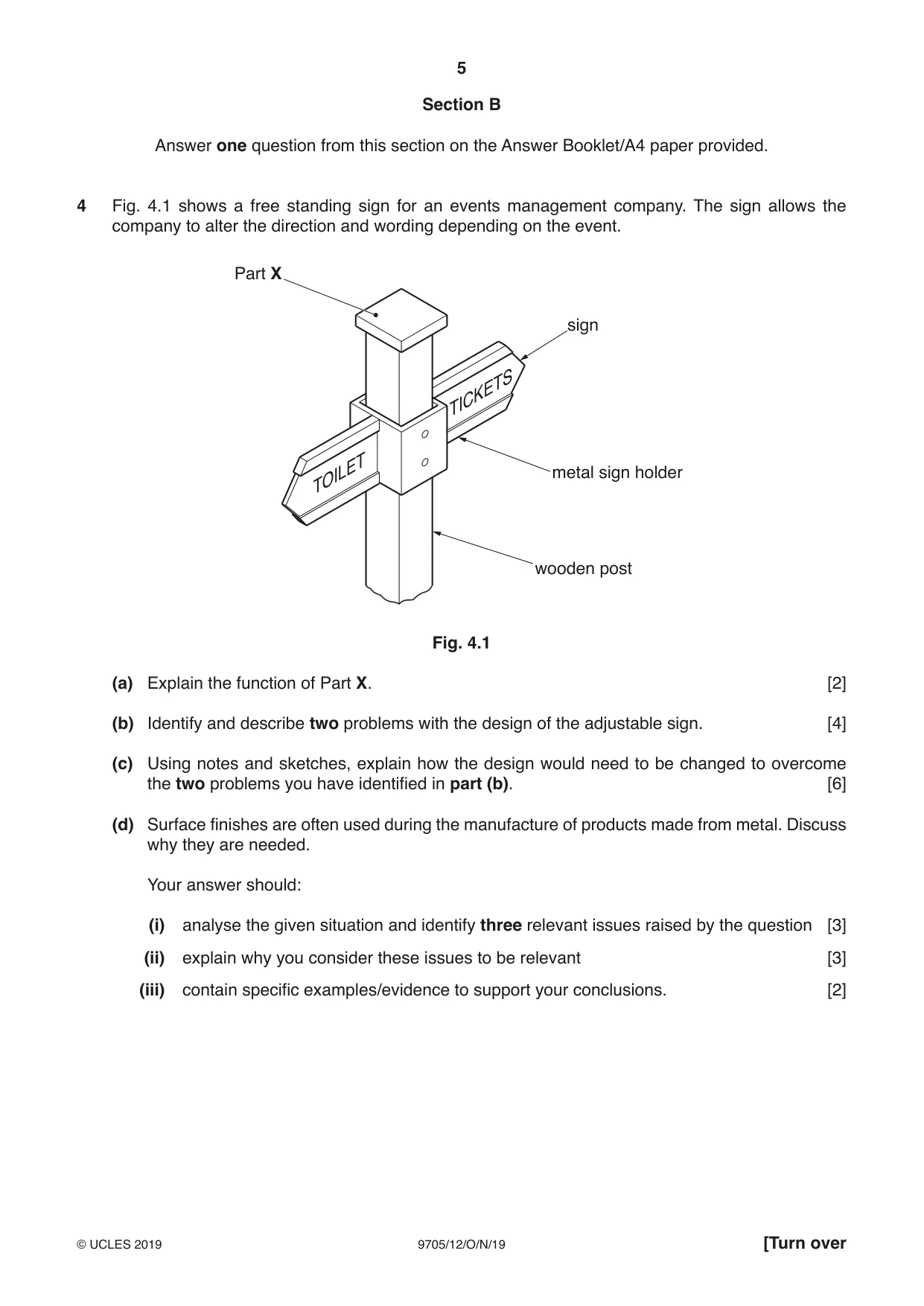

5 9705/12/O/N/19 © UCLES 2019 [Turn over Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 4.1 shows a free standing sign for an events management company. The sign allows the company to alter the direction and wording depending on the event. TOILET TICKETS Part X sign metal sign holder wooden post Fig. 4.1 (a) Explain the function of Part X. [2] (b) Identify and describe two problems with the design of the adjustable sign. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Surface finishes are often used during the manufacture of products made from metal. Discuss why they are needed. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

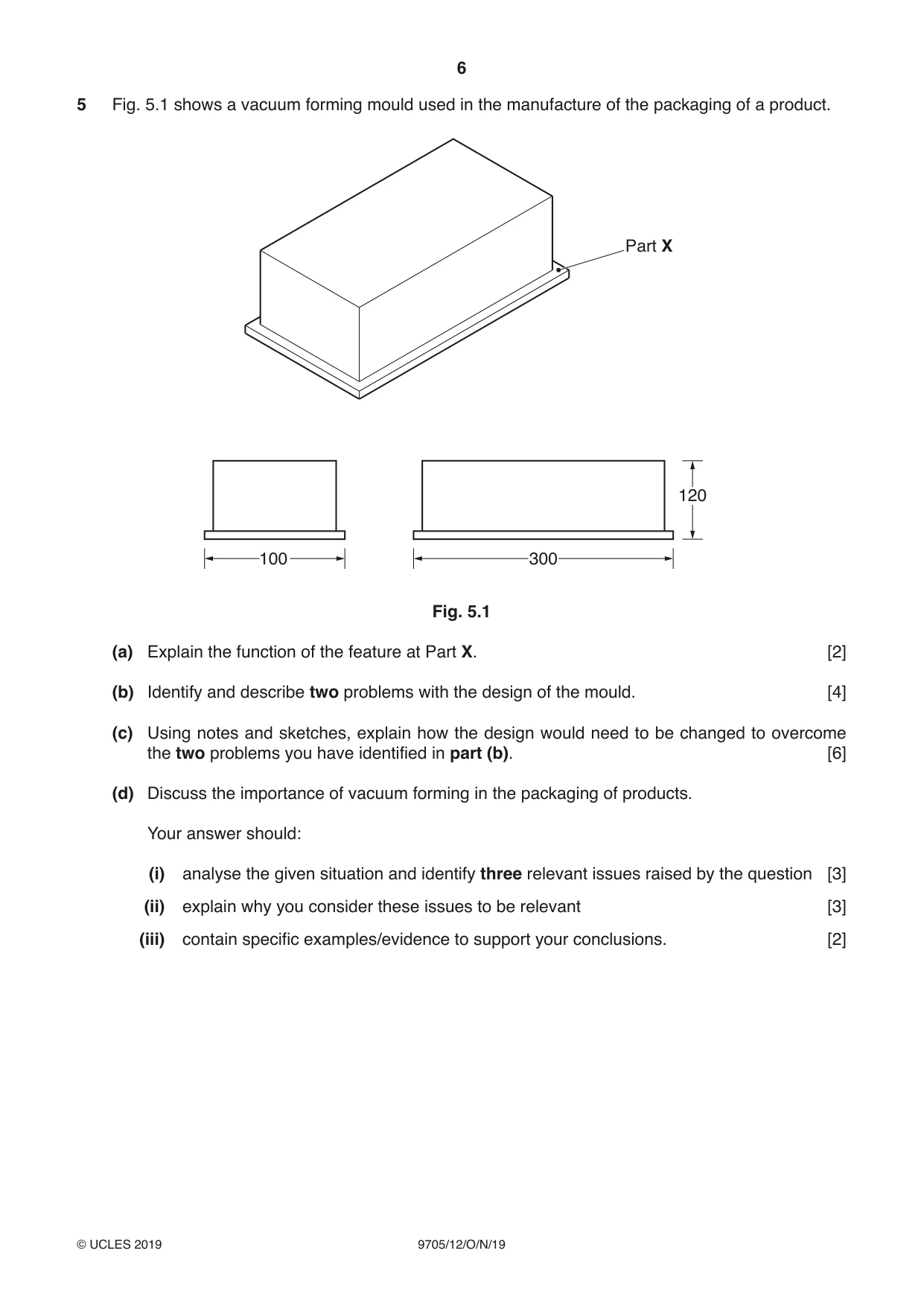

6 9705/12/O/N/19 © UCLES 2019 5 Fig. 5.1 shows a vacuum forming mould used in the manufacture of the packaging of a product. Part X 100 300 120 Fig. 5.1 (a) Explain the function of the feature at Part X. [2] (b) Identify and describe two problems with the design of the mould. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss the importance of vacuum forming in the packaging of products. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

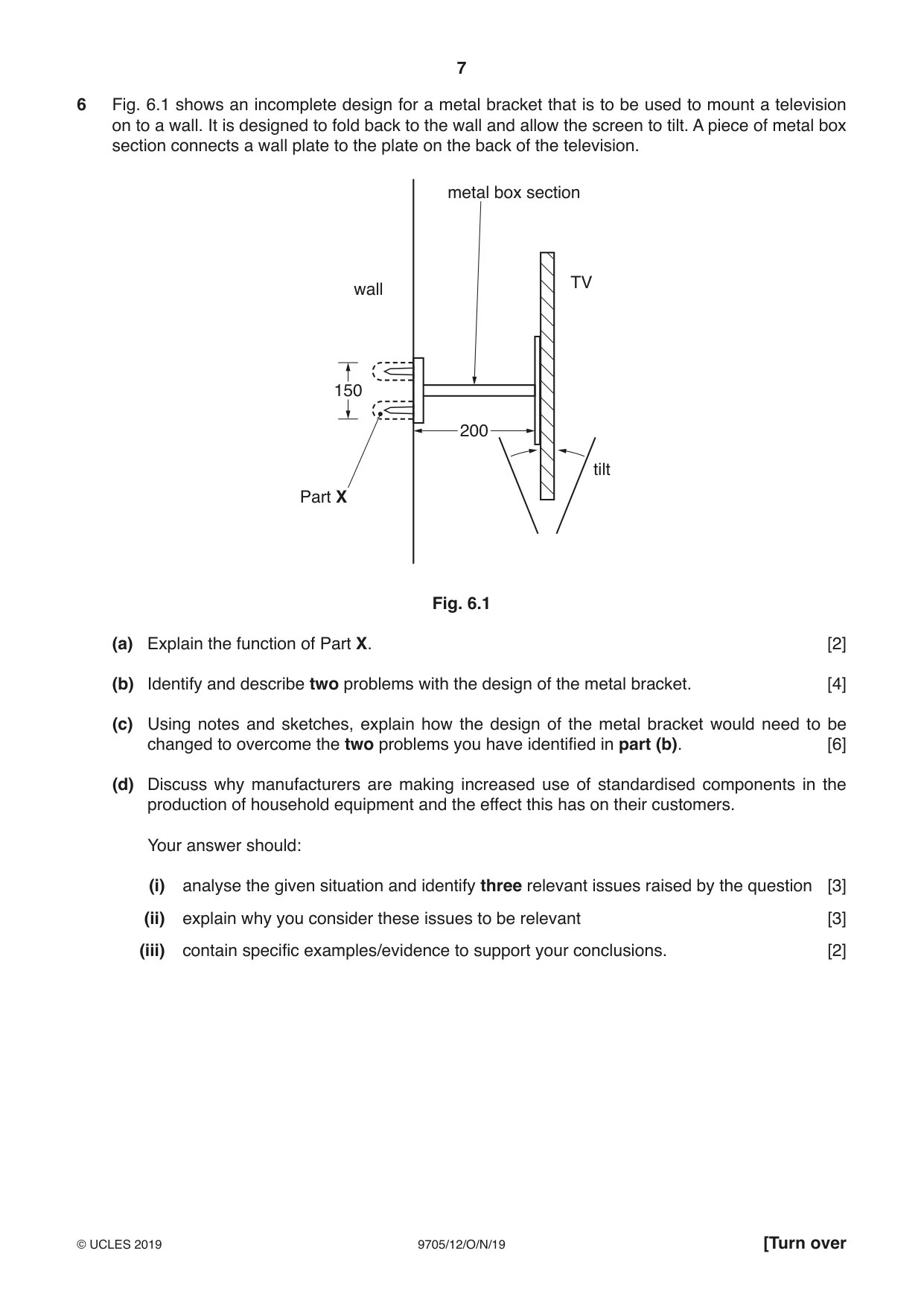

7 9705/12/O/N/19 © UCLES 2019 [Turn over 6 Fig. 6.1 shows an incomplete design for a metal bracket that is to be used to mount a television on to a wall. It is designed to fold back to the wall and allow the screen to tilt. A piece of metal box section connects a wall plate to the plate on the back of the television. tilt 200 metal box section TV wall 150 Part X Fig. 6.1 (a) Explain the function of Part X. [2] (b) Identify and describe two problems with the design of the metal bracket. [4] (c) Using notes and sketches, explain how the design of the metal bracket would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why manufacturers are making increased use of standardised components in the production of household equipment and the effect this has on their customers. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

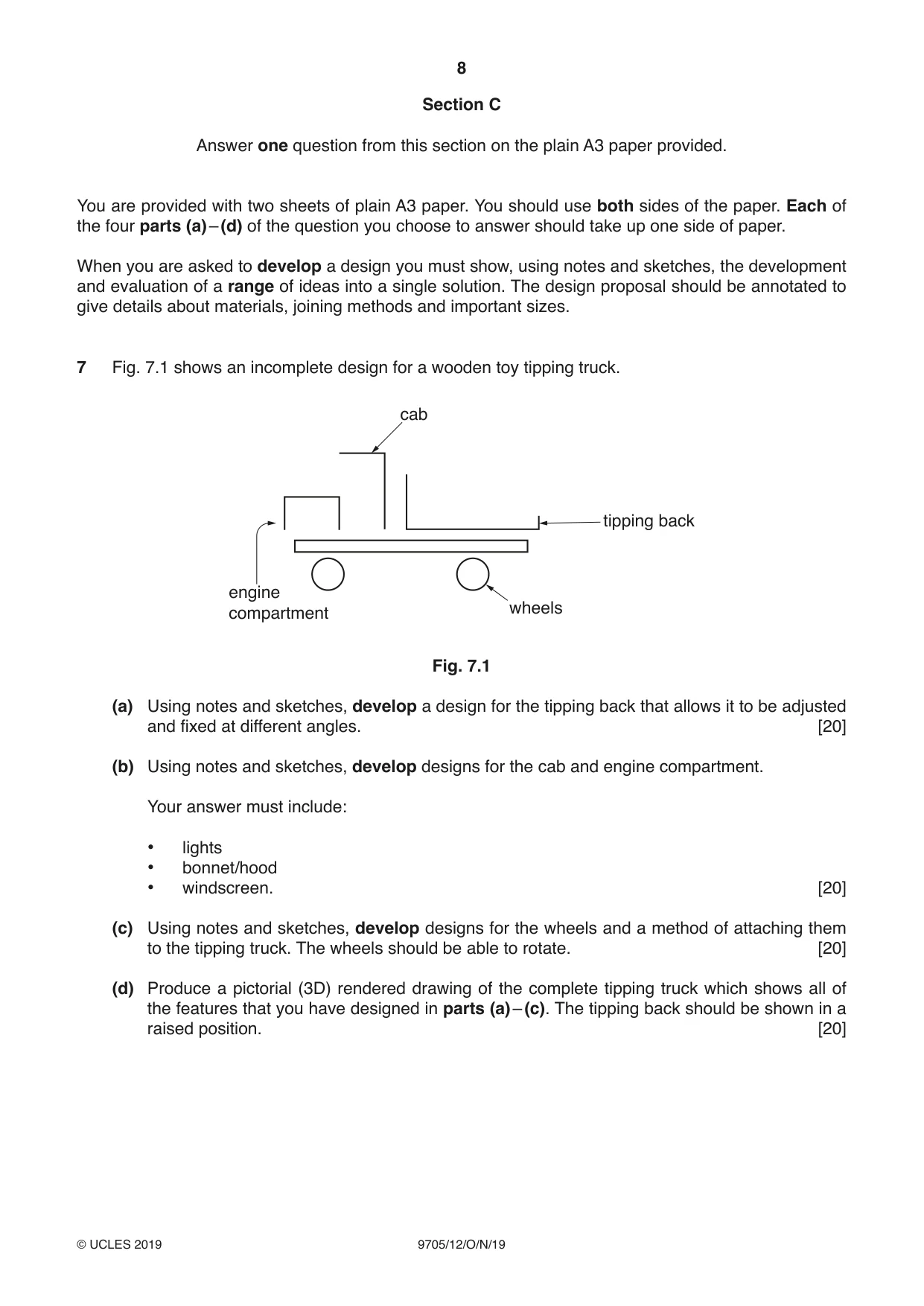

8 9705/12/O/N/19 © UCLES 2019 Section C Answer one question from this section on the plain A3 paper provided. You are provided with two sheets of plain A3 paper. You should use both sides of the paper. Each of the four parts (a) – (d) of the question you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using notes and sketches, the development and evaluation of a range of ideas into a single solution. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 7.1 shows an incomplete design for a wooden toy tipping truck. engine compartment wheels tipping back cab Fig. 7.1 (a) Using notes and sketches, develop a design for the tipping back that allows it to be adjusted and fixed at different angles. [20] (b) Using notes and sketches, develop designs for the cab and engine compartment. Your answer must include: • lights • bonnet/hood • windscreen. [20] (c) Using notes and sketches, develop designs for the wheels and a method of attaching them to the tipping truck. The wheels should be able to rotate. [20] (d) Produce a pictorial (3D) rendered drawing of the complete tipping truck which shows all of the features that you have designed in parts (a) – (c). The tipping back should be shown in a raised position. [20]

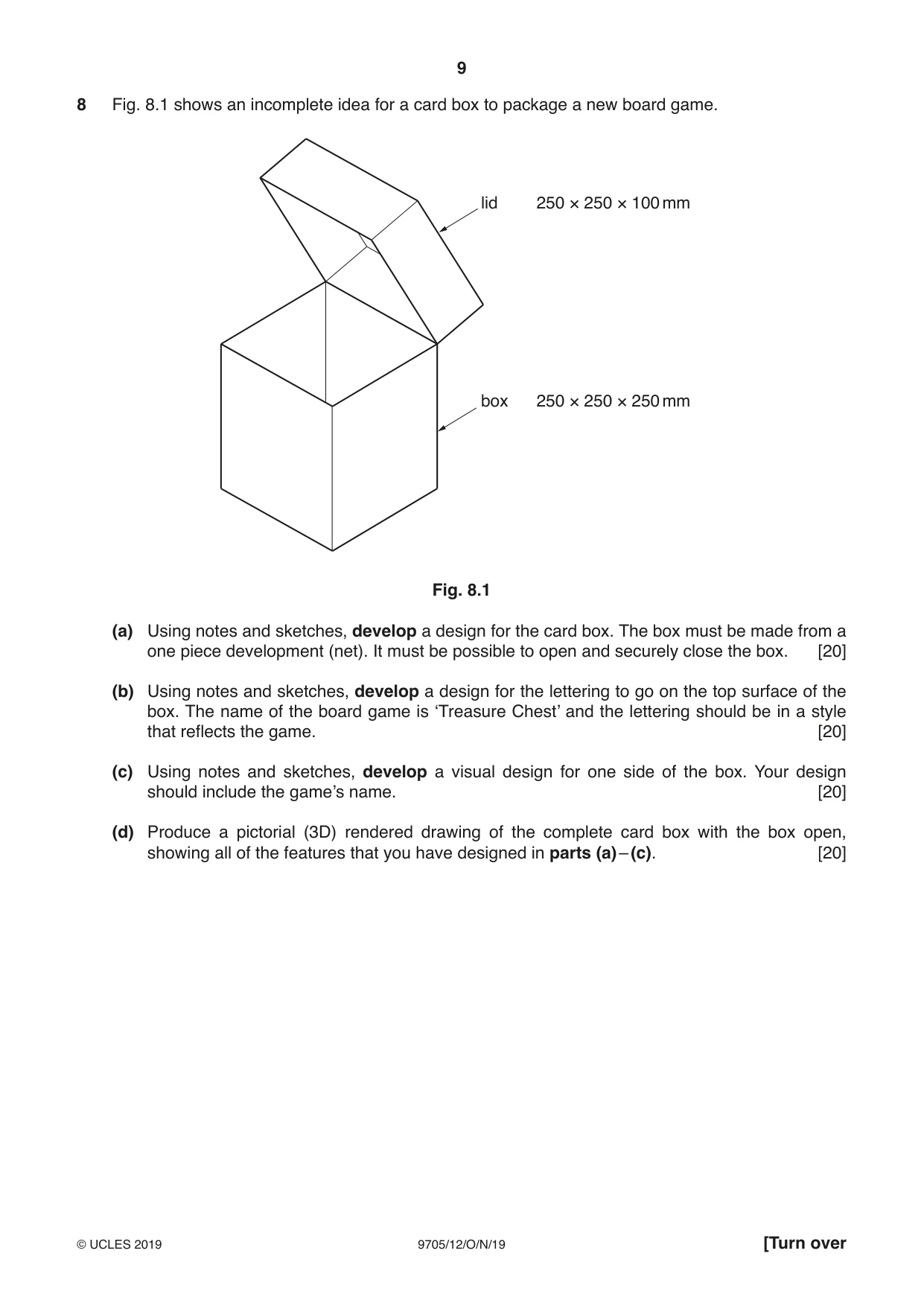

9 9705/12/O/N/19 © UCLES 2019 [Turn over 8 Fig. 8.1 shows an incomplete idea for a card box to package a new board game. box 250 × 250 × 250 mm lid 250 × 250 × 100 mm Fig. 8.1 (a) Using notes and sketches, develop a design for the card box. The box must be made from a one piece development (net). It must be possible to open and securely close the box. [20] (b) Using notes and sketches, develop a design for the lettering to go on the top surface of the box. The name of the board game is ‘Treasure Chest’ and the lettering should be in a style that reflects the game. [20] (c) Using notes and sketches, develop a visual design for one side of the box. Your design should include the game’s name. [20] (d) Produce a pictorial (3D) rendered drawing of the complete card box with the box open, showing all of the features that you have designed in parts (a) – (c). [20]

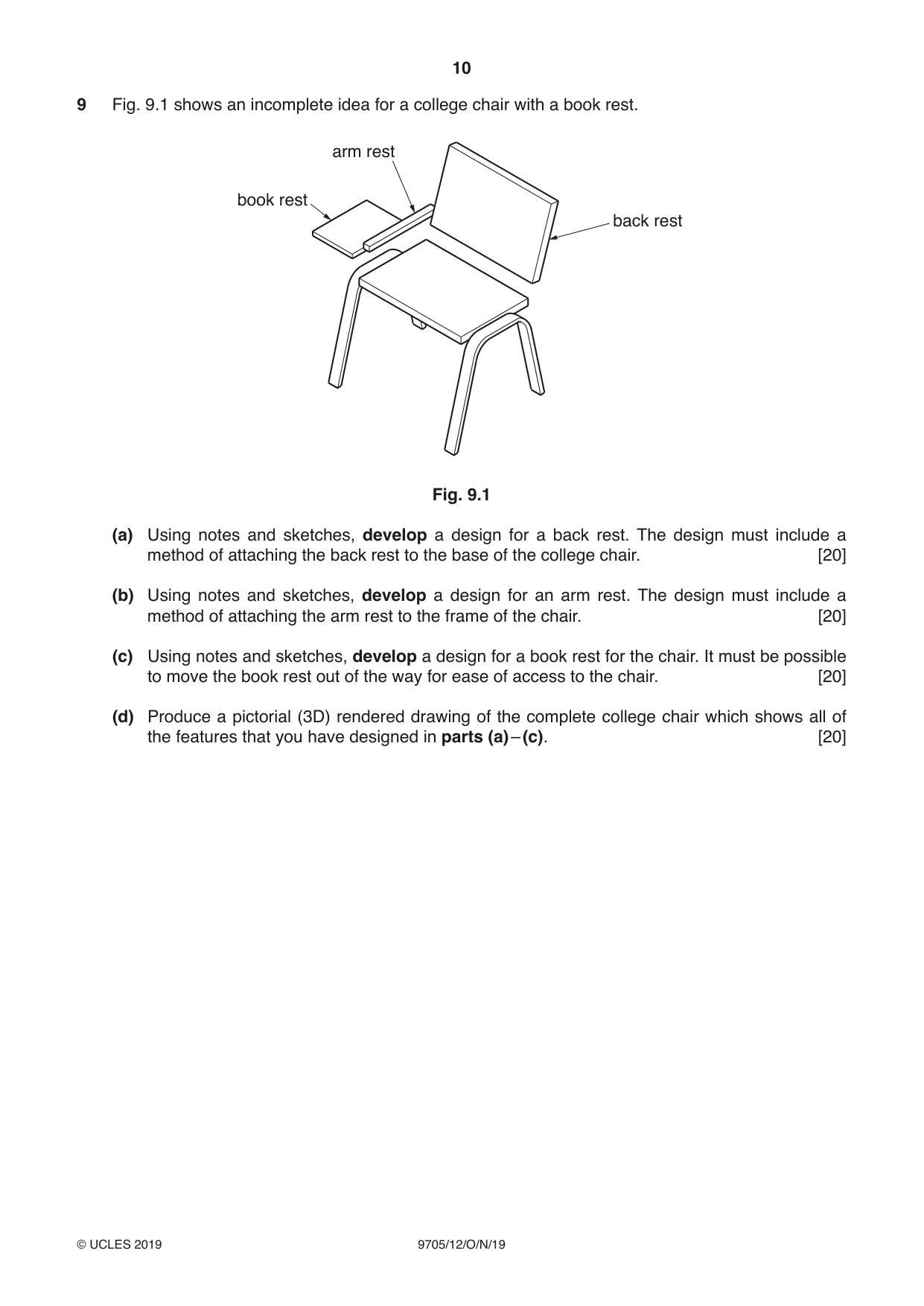

10 9705/12/O/N/19 © UCLES 2019 9 Fig. 9.1 shows an incomplete idea for a college chair with a book rest. arm rest book rest back rest Fig. 9.1 (a) Using notes and sketches, develop a design for a back rest. The design must include a method of attaching the back rest to the base of the college chair. [20] (b) Using notes and sketches, develop a design for an arm rest. The design must include a method of attaching the arm rest to the frame of the chair. [20] (c) Using notes and sketches, develop a design for a book rest for the chair. It must be possible to move the book rest out of the way for ease of access to the chair. [20] (d) Produce a pictorial (3D) rendered drawing of the complete college chair which shows all of the features that you have designed in parts (a) – (c). [20]

11 9705/12/O/N/19 © UCLES 2019 BLANK PAGE

12 9705/12/O/N/19 © UCLES 2019 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. BLANK PAGE

This document consists of 17 printed pages. © UCLES 2019 [Turn over Cambridge Assessment International Education Cambridge International Advanced Subsidiary and Advanced Level DESIGN AND TECHNOLOGY 9705/12 Paper 1 October/November 2019 MARK SCHEME Maximum Mark: 120 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2019 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

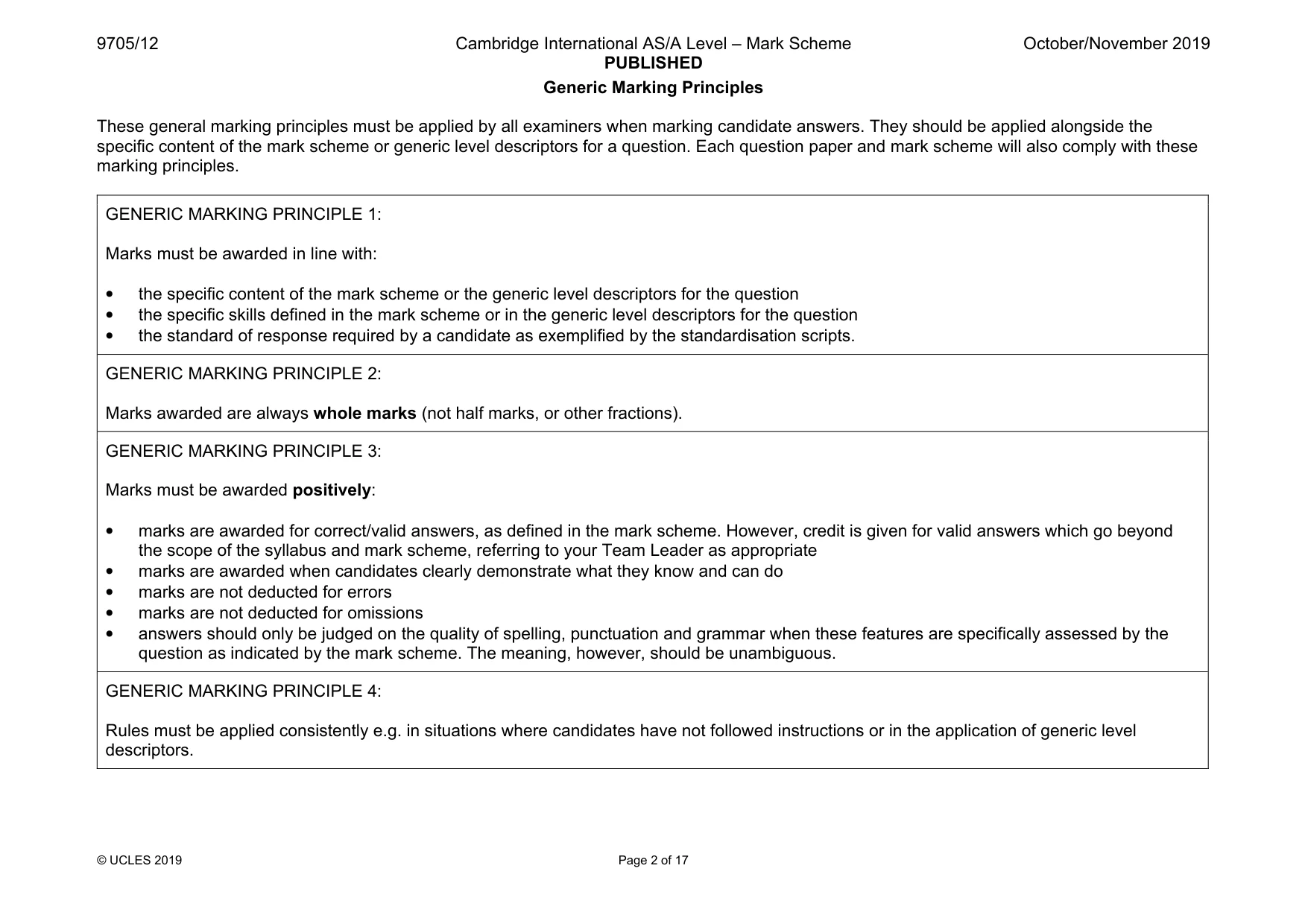

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 2 of 17 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

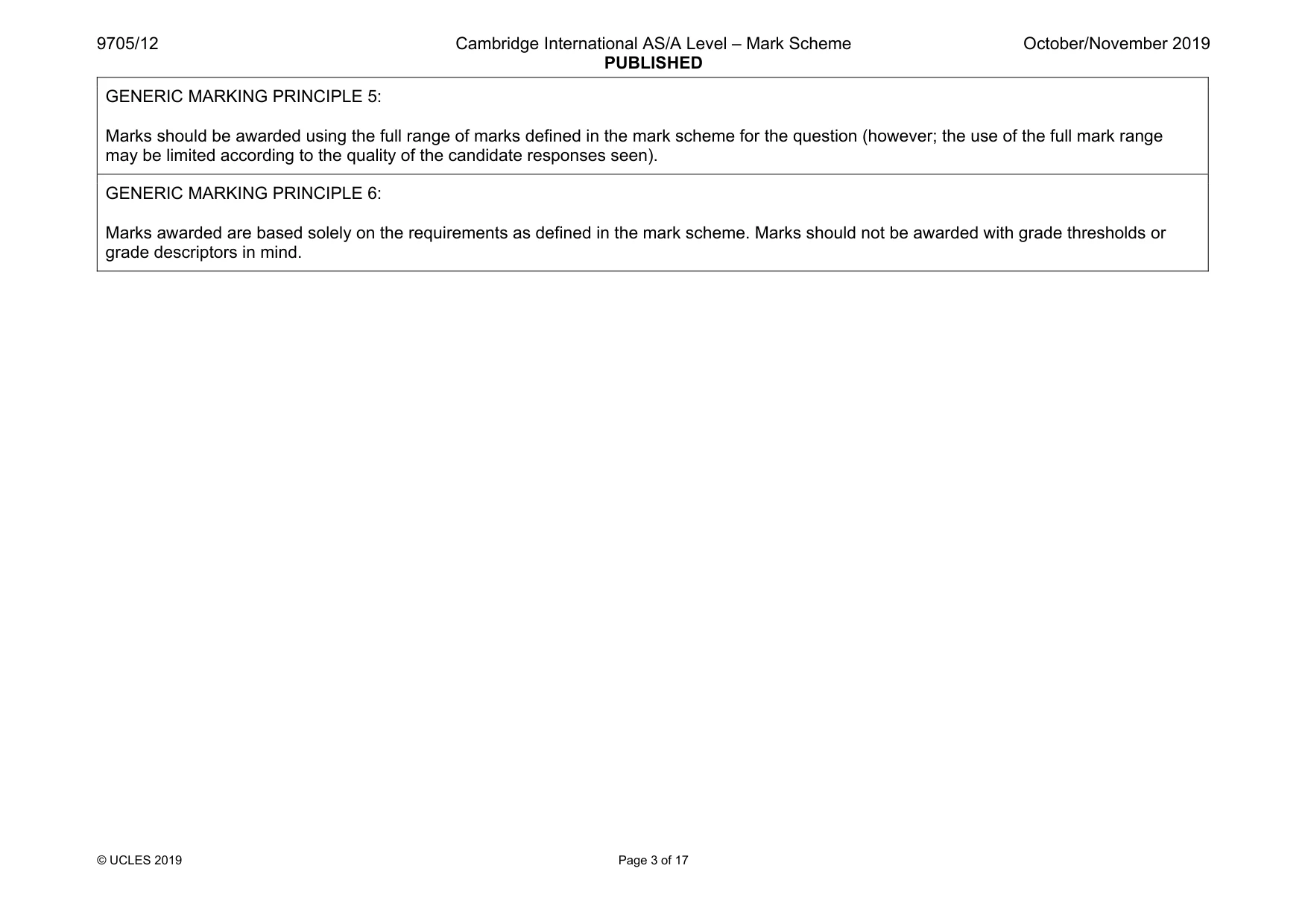

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 3 of 17 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

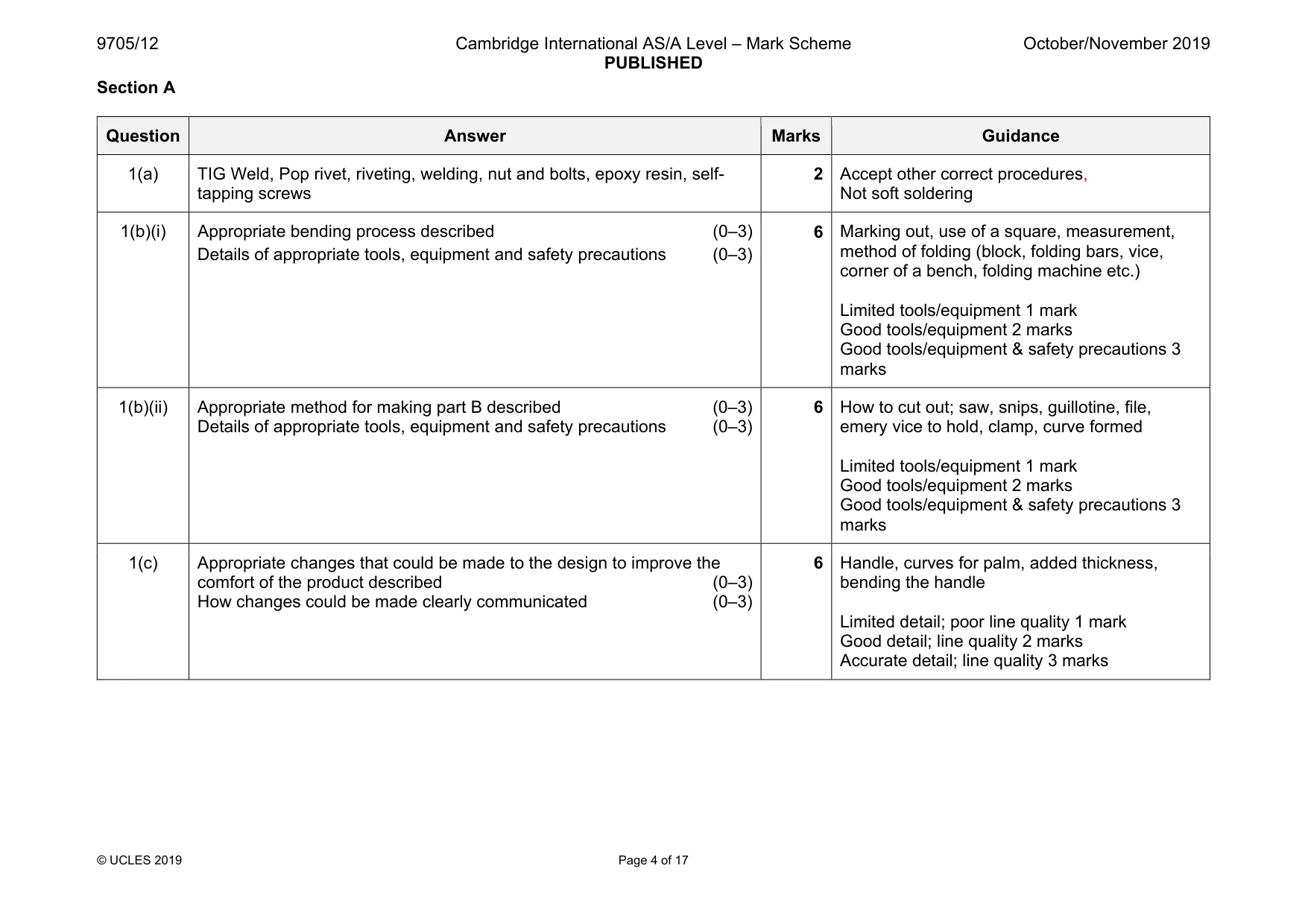

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 4 of 17 Section A Question Answer Marks Guidance 1(a) TIG Weld, Pop rivet, riveting, welding, nut and bolts, epoxy resin, self- tapping screws 2 Accept other correct procedures, Not soft soldering 1(b)(i) Appropriate bending process described (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 Marking out, use of a square, measurement, method of folding (block, folding bars, vice, corner of a bench, folding machine etc.) Limited tools/equipment 1 mark Good tools/equipment 2 marks Good tools/equipment & safety precautions 3 marks 1(b)(ii) Appropriate method for making part B described (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 How to cut out; saw, snips, guillotine, file, emery vice to hold, clamp, curve formed Limited tools/equipment 1 mark Good tools/equipment 2 marks Good tools/equipment & safety precautions 3 marks 1(c) Appropriate changes that could be made to the design to improve the comfort of the product described (0–3) How changes could be made clearly communicated (0–3) 6 Handle, curves for palm, added thickness, bending the handle Limited detail; poor line quality 1 mark Good detail; line quality 2 marks Accurate detail; line quality 3 marks

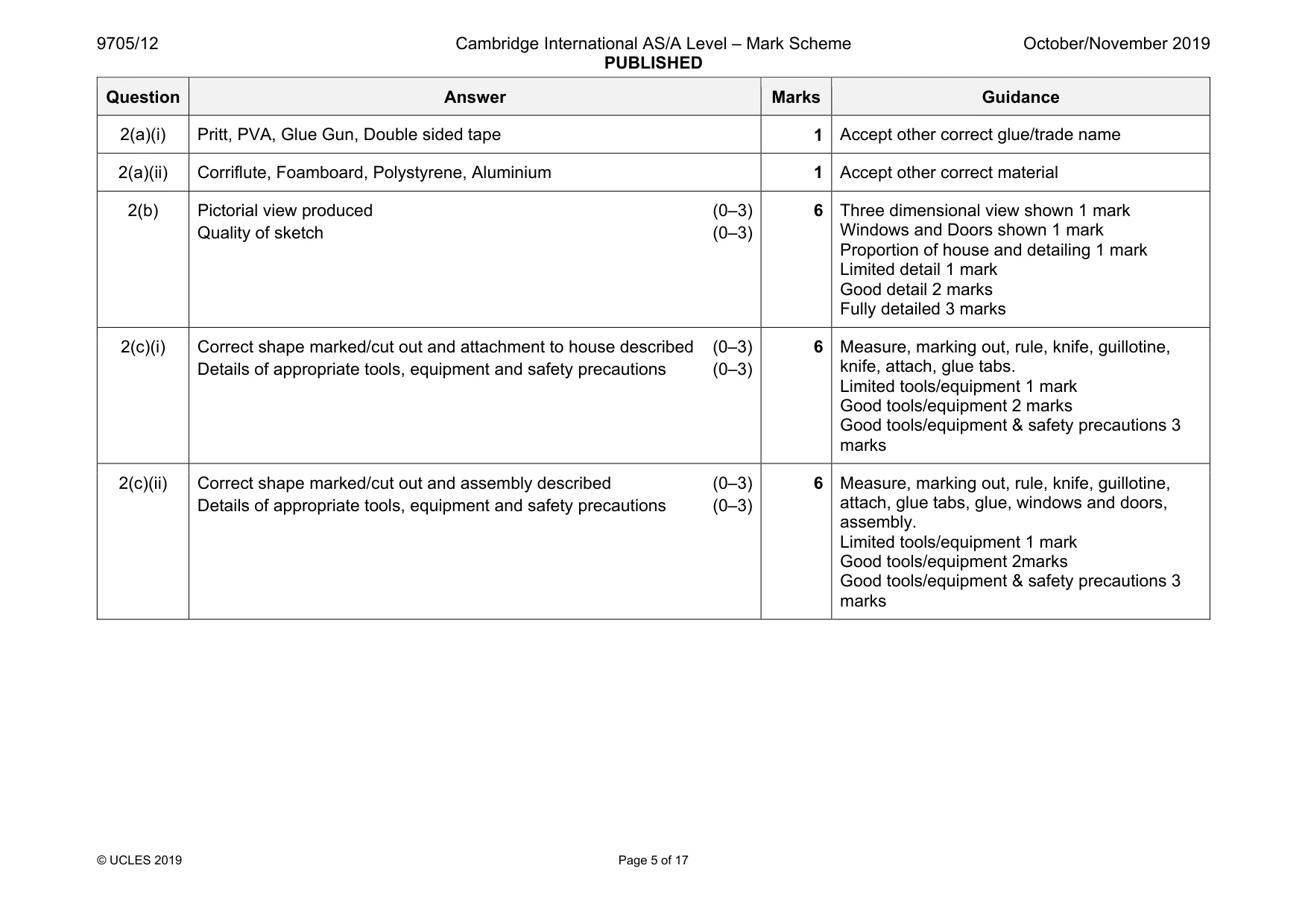

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 5 of 17 Question Answer Marks Guidance 2(a)(i) Pritt, PVA, Glue Gun, Double sided tape 1 Accept other correct glue/trade name 2(a)(ii) Corriflute, Foamboard, Polystyrene, Aluminium 1 Accept other correct material 2(b) Pictorial view produced (0–3) Quality of sketch (0–3) 6 Three dimensional view shown 1 mark Windows and Doors shown 1 mark Proportion of house and detailing 1 mark Limited detail 1 mark Good detail 2 marks Fully detailed 3 marks 2(c)(i) Correct shape marked/cut out and attachment to house described (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 Measure, marking out, rule, knife, guillotine, knife, attach, glue tabs. Limited tools/equipment 1 mark Good tools/equipment 2 marks Good tools/equipment & safety precautions 3 marks 2(c)(ii) Correct shape marked/cut out and assembly described (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 Measure, marking out, rule, knife, guillotine, attach, glue tabs, glue, windows and doors, assembly. Limited tools/equipment 1 mark Good tools/equipment 2marks Good tools/equipment & safety precautions 3 marks

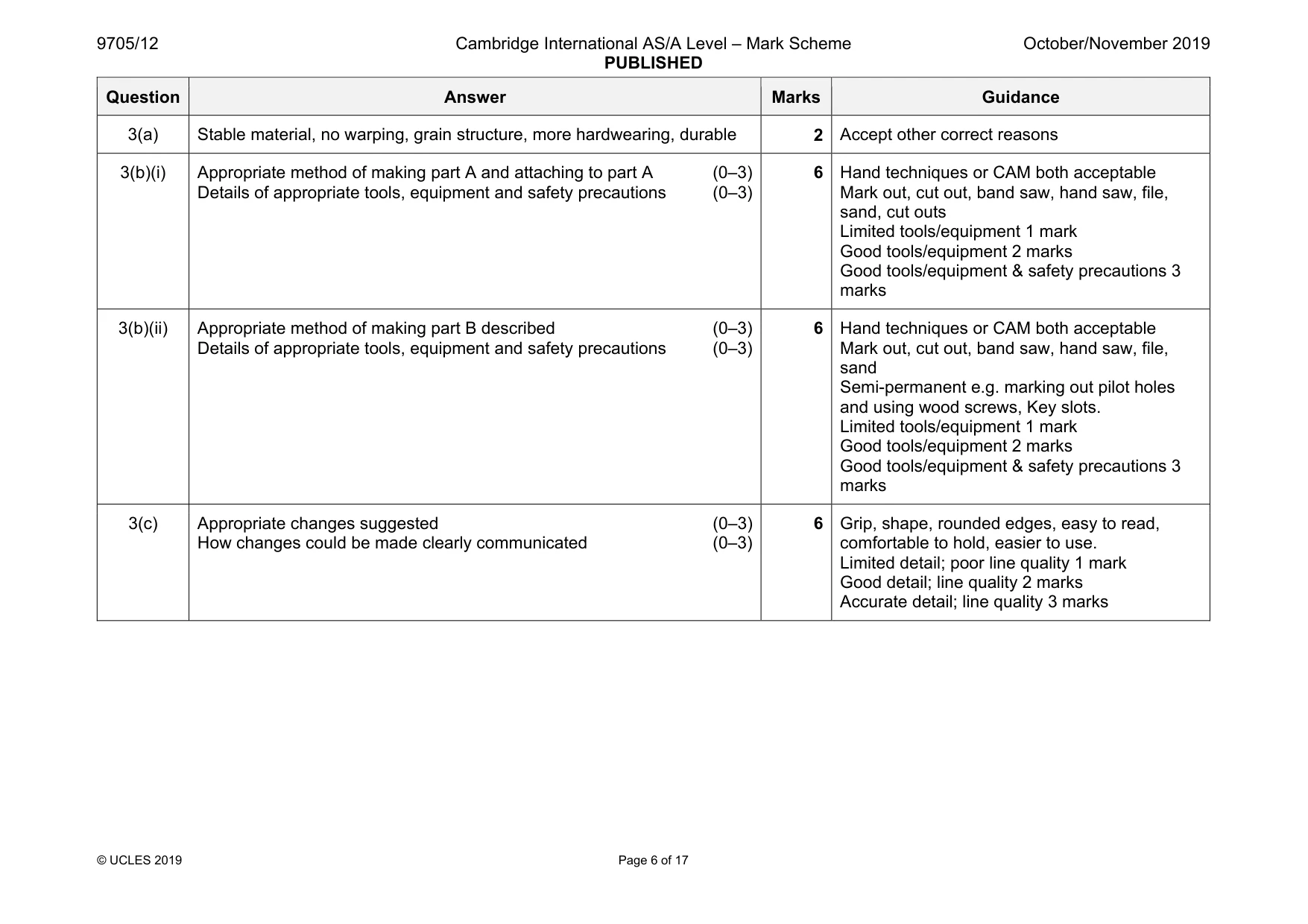

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 6 of 17 Question Answer Marks Guidance 3(a) Stable material, no warping, grain structure, more hardwearing, durable 2 Accept other correct reasons 3(b)(i) Appropriate method of making part A and attaching to part A (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 Hand techniques or CAM both acceptable Mark out, cut out, band saw, hand saw, file, sand, cut outs Limited tools/equipment 1 mark Good tools/equipment 2 marks Good tools/equipment & safety precautions 3 marks 3(b)(ii) Appropriate method of making part B described (0–3) Details of appropriate tools, equipment and safety precautions (0–3) 6 Hand techniques or CAM both acceptable Mark out, cut out, band saw, hand saw, file, sand Semi-permanent e.g. marking out pilot holes and using wood screws, Key slots. Limited tools/equipment 1 mark Good tools/equipment 2 marks Good tools/equipment & safety precautions 3 marks 3(c) Appropriate changes suggested (0–3) How changes could be made clearly communicated (0–3) 6 Grip, shape, rounded edges, easy to read, comfortable to hold, easier to use. Limited detail; poor line quality 1 mark Good detail; line quality 2 marks Accurate detail; line quality 3 marks

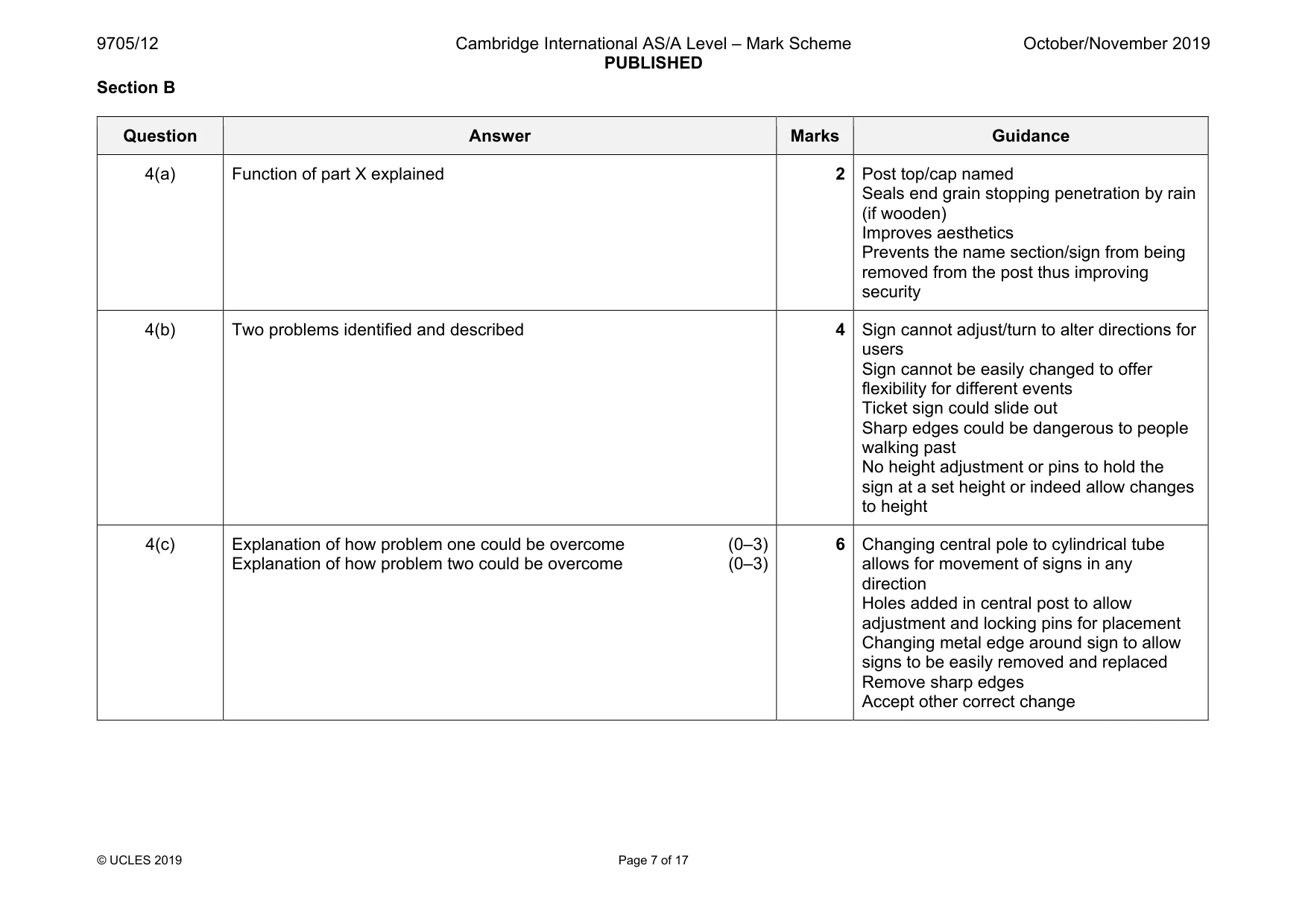

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 7 of 17 Section B Question Answer Marks Guidance 4(a) Function of part X explained 2 Post top/cap named Seals end grain stopping penetration by rain (if wooden) Improves aesthetics Prevents the name section/sign from being removed from the post thus improving security 4(b) Two problems identified and described 4 Sign cannot adjust/turn to alter directions for users Sign cannot be easily changed to offer flexibility for different events Ticket sign could slide out Sharp edges could be dangerous to people walking past No height adjustment or pins to hold the sign at a set height or indeed allow changes to height 4(c) Explanation of how problem one could be overcome (0–3) Explanation of how problem two could be overcome (0–3) 6 Changing central pole to cylindrical tube allows for movement of signs in any direction Holes added in central post to allow adjustment and locking pins for placement Changing metal edge around sign to allow signs to be easily removed and replaced Remove sharp edges Accept other correct change

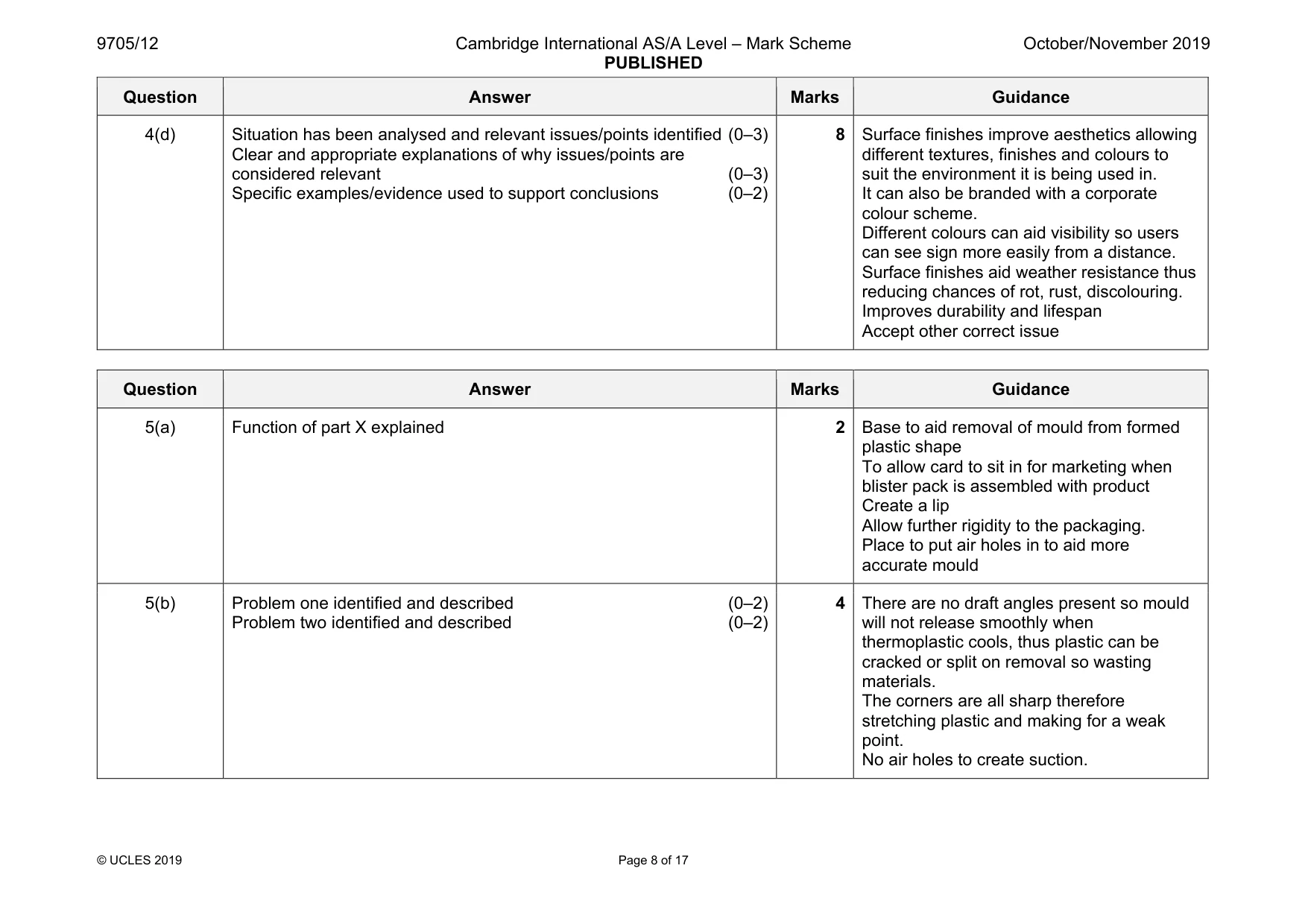

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 8 of 17 Question Answer Marks Guidance 4(d) Situation has been analysed and relevant issues/points identified (0–3) Clear and appropriate explanations of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) 8 Surface finishes improve aesthetics allowing different textures, finishes and colours to suit the environment it is being used in. It can also be branded with a corporate colour scheme. Different colours can aid visibility so users can see sign more easily from a distance. Surface finishes aid weather resistance thus reducing chances of rot, rust, discolouring. Improves durability and lifespan Accept other correct issue Question Answer Marks Guidance 5(a) Function of part X explained 2 Base to aid removal of mould from formed plastic shape To allow card to sit in for marketing when blister pack is assembled with product Create a lip Allow further rigidity to the packaging. Place to put air holes in to aid more accurate mould 5(b) Problem one identified and described (0–2) Problem two identified and described (0–2) 4 There are no draft angles present so mould will not release smoothly when thermoplastic cools, thus plastic can be cracked or split on removal so wasting materials. The corners are all sharp therefore stretching plastic and making for a weak point. No air holes to create suction.

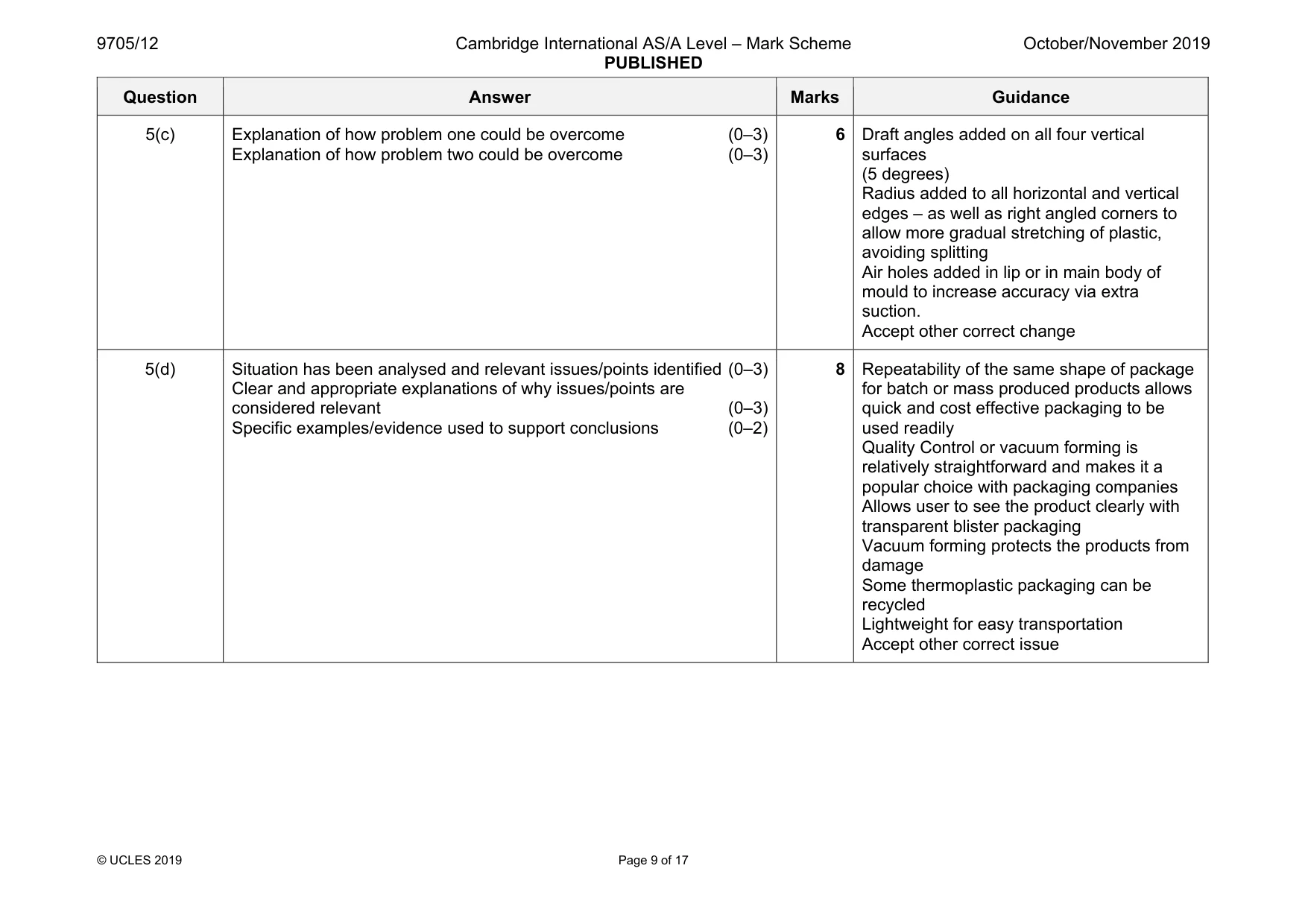

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 9 of 17 Question Answer Marks Guidance 5(c) Explanation of how problem one could be overcome (0–3) Explanation of how problem two could be overcome (0–3) 6 Draft angles added on all four vertical surfaces (5 degrees) Radius added to all horizontal and vertical edges – as well as right angled corners to allow more gradual stretching of plastic, avoiding splitting Air holes added in lip or in main body of mould to increase accuracy via extra suction. Accept other correct change 5(d) Situation has been analysed and relevant issues/points identified (0–3) Clear and appropriate explanations of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) 8 Repeatability of the same shape of package for batch or mass produced products allows quick and cost effective packaging to be used readily Quality Control or vacuum forming is relatively straightforward and makes it a popular choice with packaging companies Allows user to see the product clearly with transparent blister packaging Vacuum forming protects the products from damage Some thermoplastic packaging can be recycled Lightweight for easy transportation Accept other correct issue

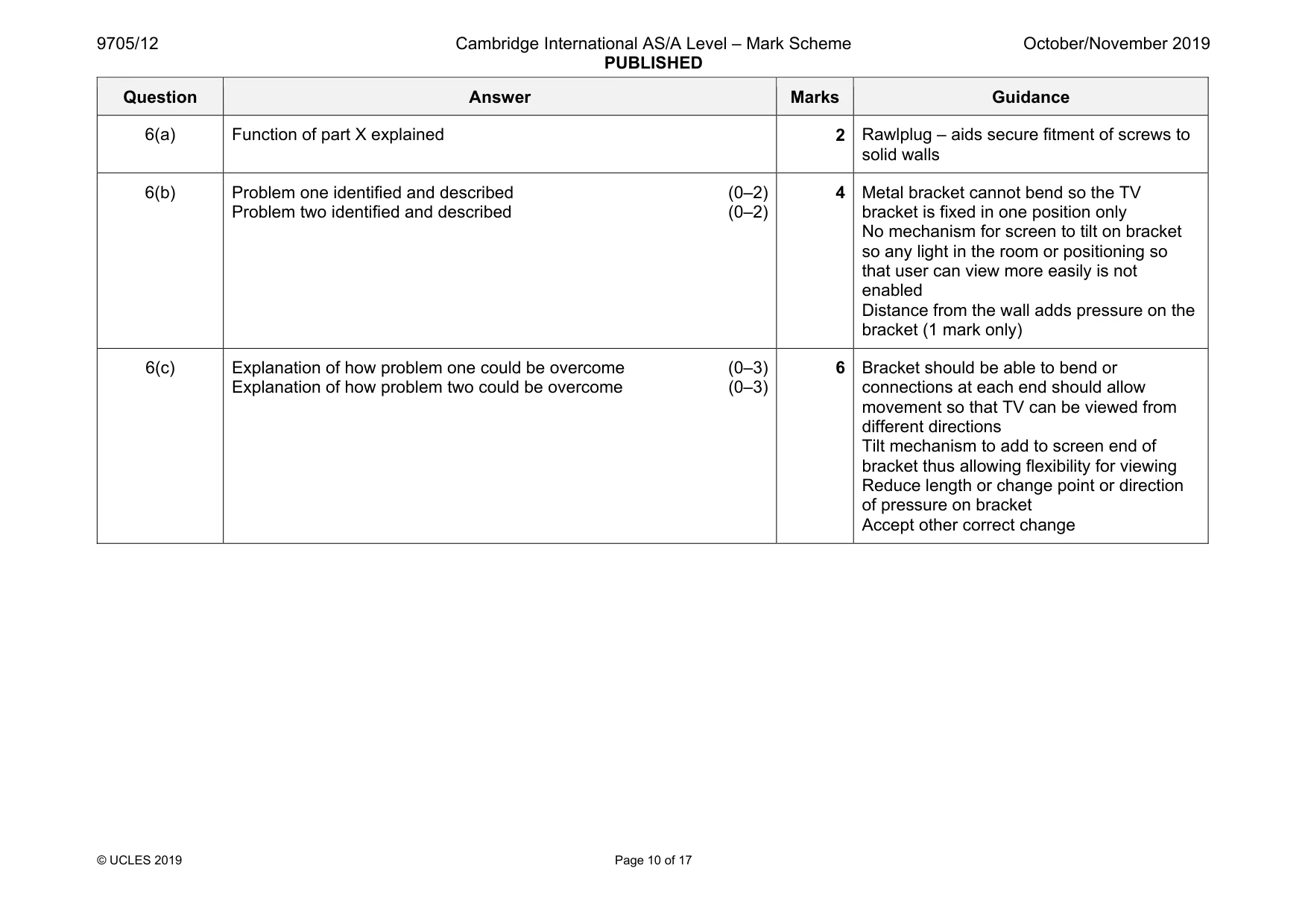

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 10 of 17 Question Answer Marks Guidance 6(a) Function of part X explained 2 Rawlplug – aids secure fitment of screws to solid walls 6(b) Problem one identified and described (0–2) Problem two identified and described (0–2) 4 Metal bracket cannot bend so the TV bracket is fixed in one position only No mechanism for screen to tilt on bracket so any light in the room or positioning so that user can view more easily is not enabled Distance from the wall adds pressure on the bracket (1 mark only) 6(c) Explanation of how problem one could be overcome (0–3) Explanation of how problem two could be overcome (0–3) 6 Bracket should be able to bend or connections at each end should allow movement so that TV can be viewed from different directions Tilt mechanism to add to screen end of bracket thus allowing flexibility for viewing Reduce length or change point or direction of pressure on bracket Accept other correct change

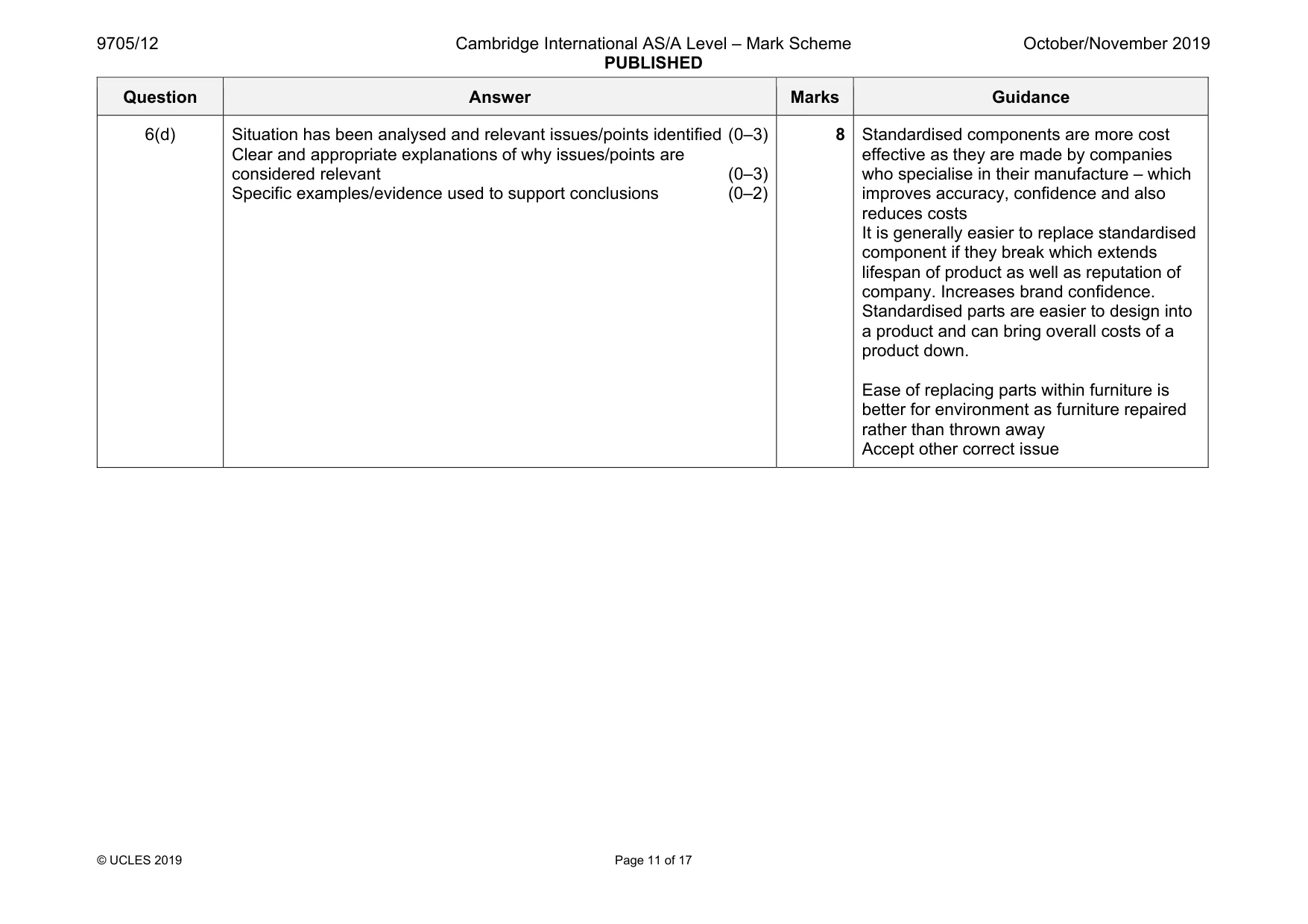

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 11 of 17 Question Answer Marks Guidance 6(d) Situation has been analysed and relevant issues/points identified (0–3) Clear and appropriate explanations of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) 8 Standardised components are more cost effective as they are made by companies who specialise in their manufacture – which improves accuracy, confidence and also reduces costs It is generally easier to replace standardised component if they break which extends lifespan of product as well as reputation of company. Increases brand confidence. Standardised parts are easier to design into a product and can bring overall costs of a product down. Ease of replacing parts within furniture is better for environment as furniture repaired rather than thrown away Accept other correct issue

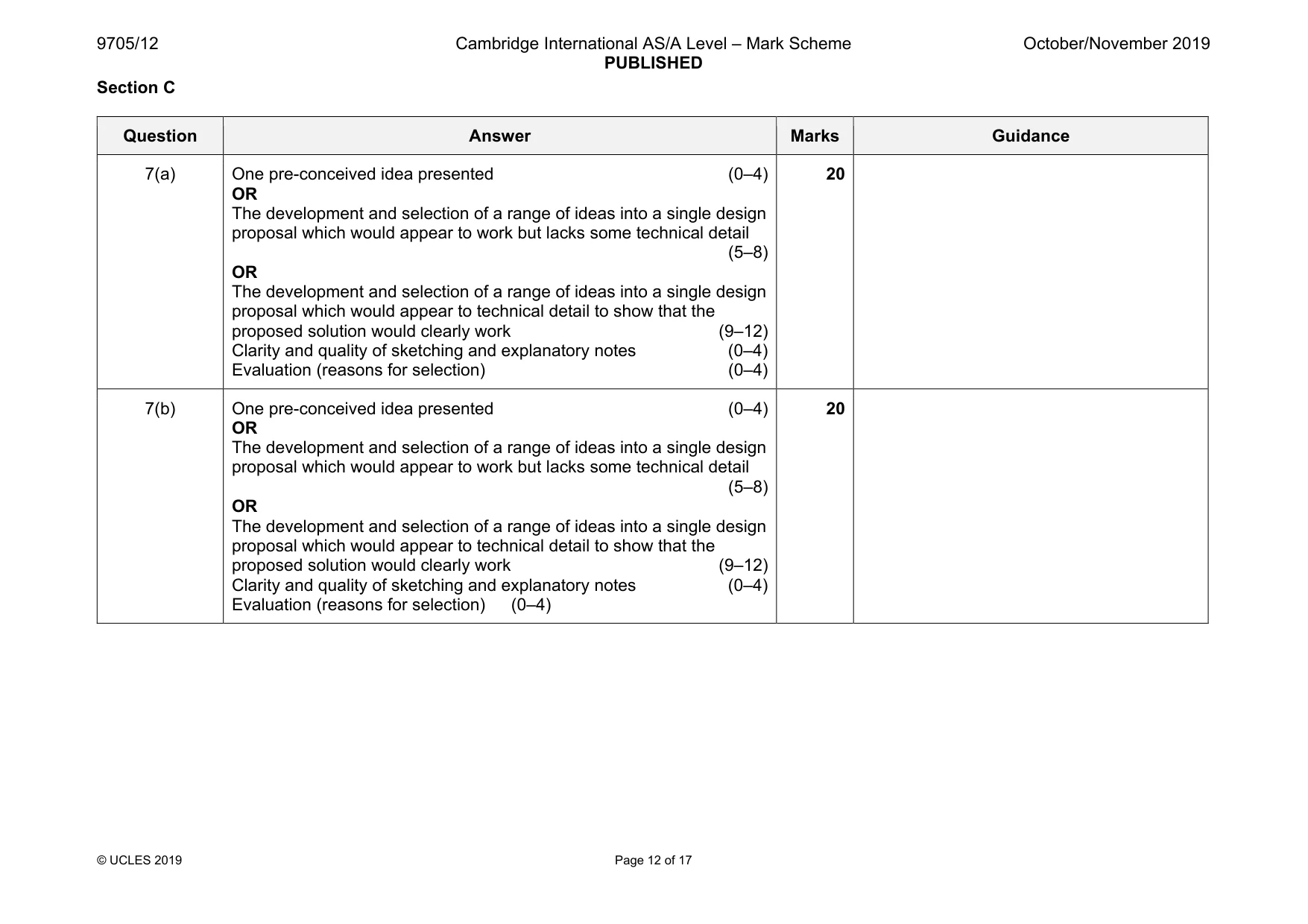

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 12 of 17 Section C Question Answer Marks Guidance 7(a) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 7(b) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20

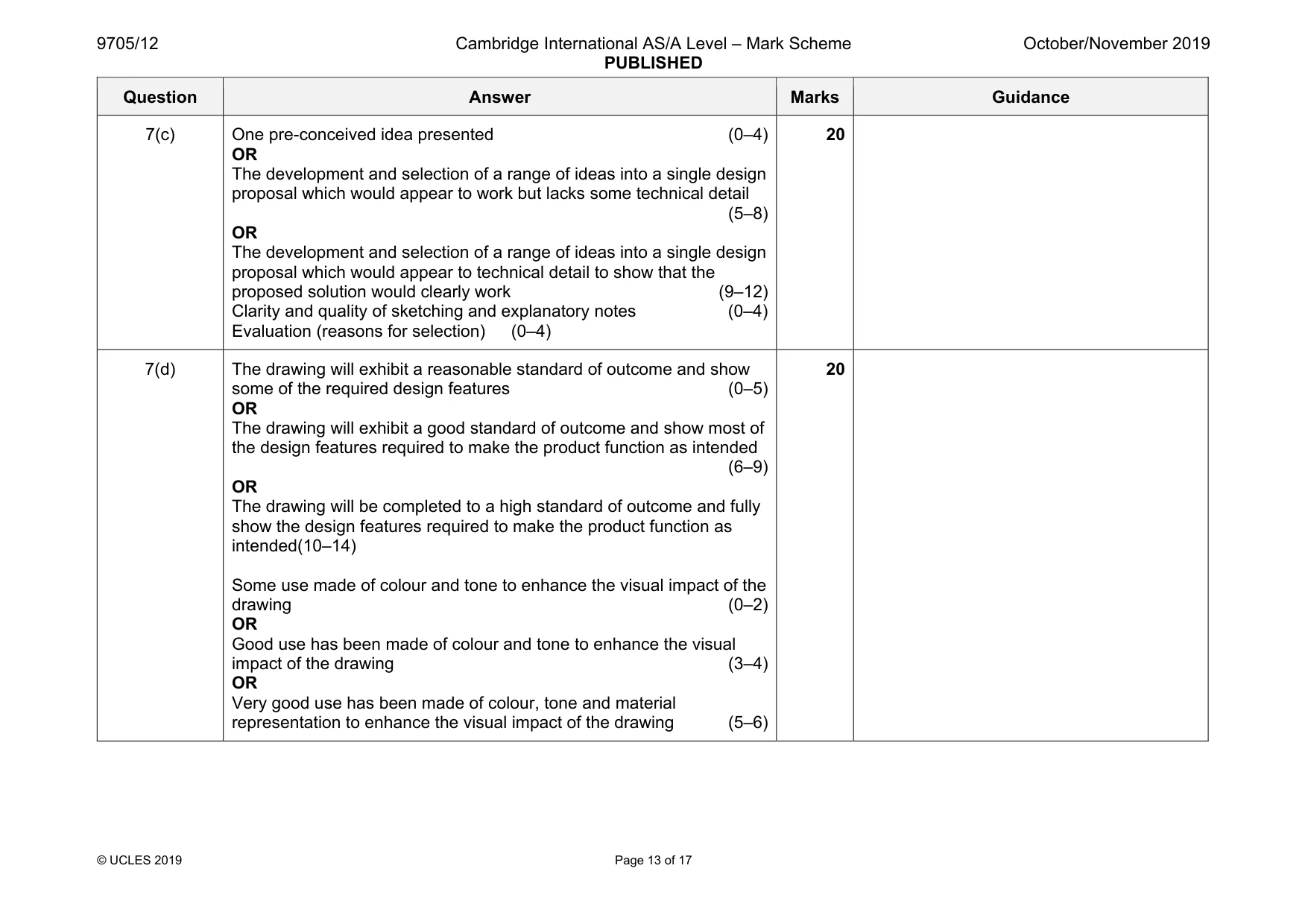

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 13 of 17 Question Answer Marks Guidance 7(c) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 7(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features (0–5) OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended (6–9) OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended(10–14) Some use made of colour and tone to enhance the visual impact of the drawing (0–2) OR Good use has been made of colour and tone to enhance the visual impact of the drawing (3–4) OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing (5–6) 20

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 14 of 17 Question Answer Marks Guidance 8(a) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 8(b) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 8(c) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20

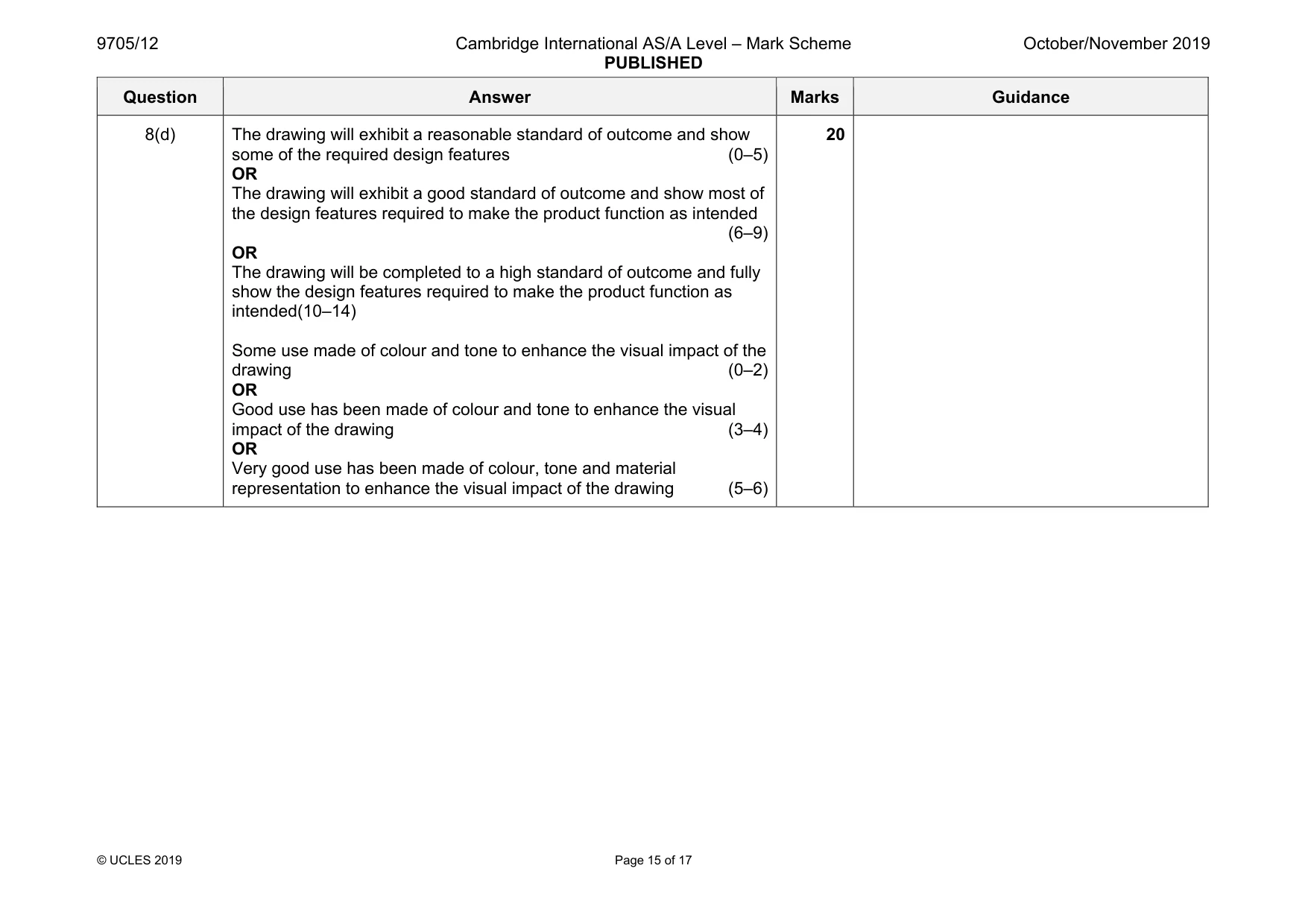

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 15 of 17 Question Answer Marks Guidance 8(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features (0–5) OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended (6–9) OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended(10–14) Some use made of colour and tone to enhance the visual impact of the drawing (0–2) OR Good use has been made of colour and tone to enhance the visual impact of the drawing (3–4) OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing (5–6) 20

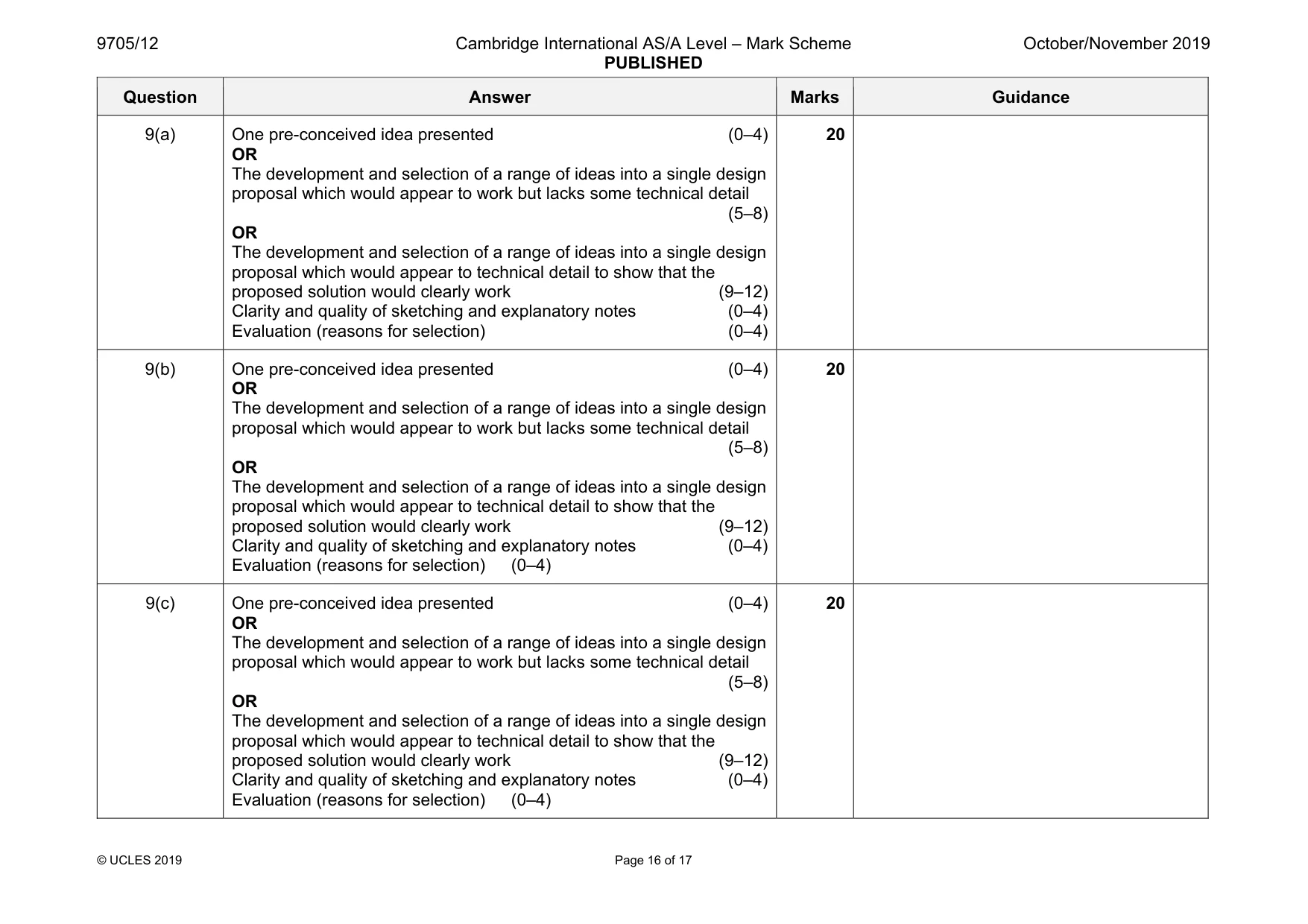

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 16 of 17 Question Answer Marks Guidance 9(a) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 9(b) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20 9(c) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) 20

9705/12 Cambridge International AS/A Level – Mark Scheme PUBLISHED October/November 2019 © UCLES 2019 Page 17 of 17 Question Answer Marks Guidance 9(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features (0–5) OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended (6–9) OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended(10–14) Some use made of colour and tone to enhance the visual impact of the drawing (0–2) OR Good use has been made of colour and tone to enhance the visual impact of the drawing (3–4) OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing (5–6) 20
