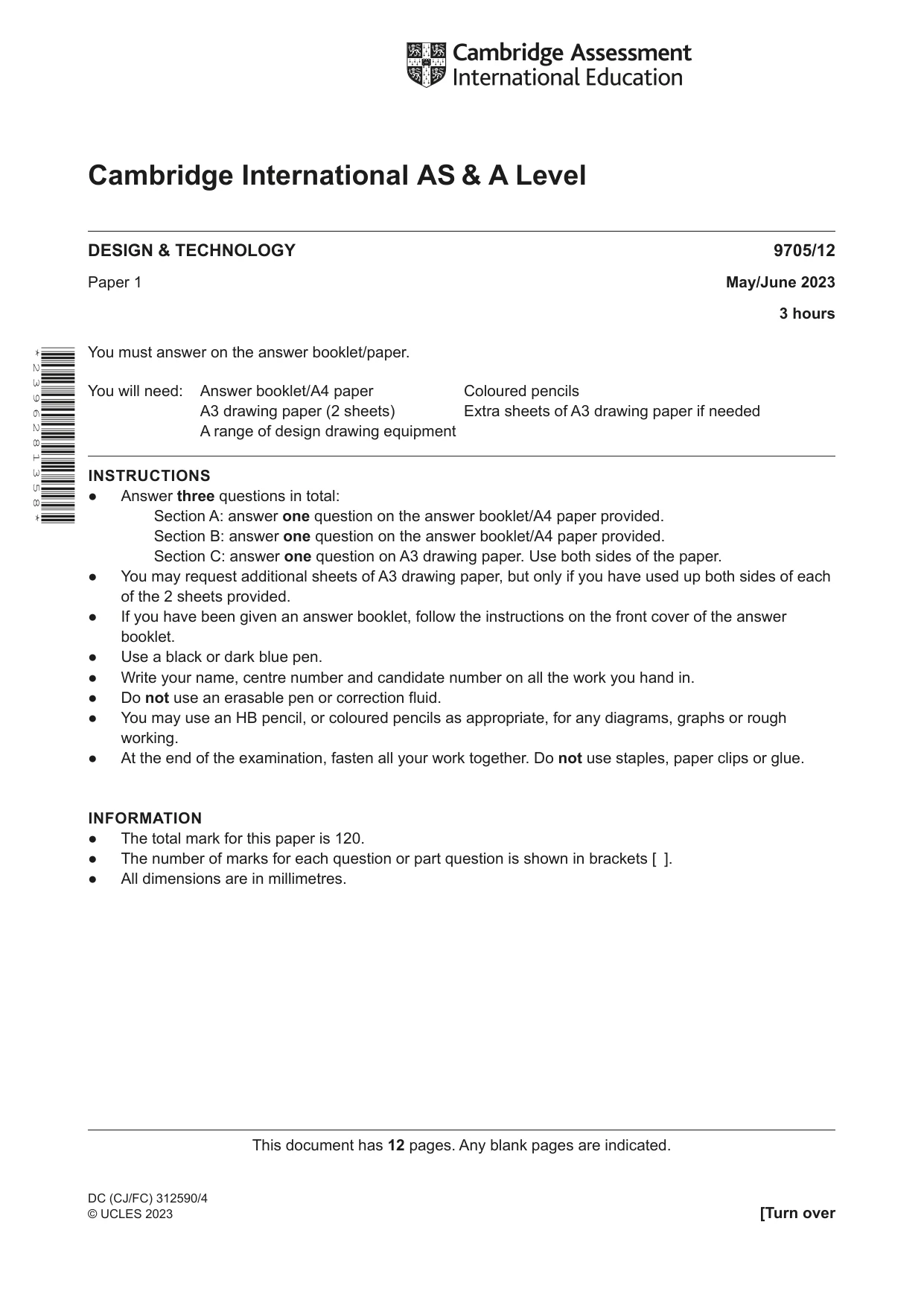

This document has 12 pages. Any blank pages are indicated. [Turn over Cambridge International AS & A Level DESIGN & TECHNOLOGY 9705/12 Paper 1 May/June 2023 3 hours You must answer on the answer booklet/paper. You will need: Answer booklet/A4 paper Coloured pencils A3 drawing paper (2 sheets) Extra sheets of A3 drawing paper if needed A range of design drawing equipment INSTRUCTIONS ● Answer three questions in total: Section A: answer one question on the answer booklet/A4 paper provided. Section B: answer one question on the answer booklet/A4 paper provided. Section C: answer one question on A3 drawing paper. Use both sides of the paper. ● You may request additional sheets of A3 drawing paper, but only if you have used up both sides of each of the 2 sheets provided. ● If you have been given an answer booklet, follow the instructions on the front cover of the answer booklet. ● Use a black or dark blue pen. ● Write your name, centre number and candidate number on all the work you hand in. ● Do not use an erasable pen or correction fluid. ● You may use an HB pencil, or coloured pencils as appropriate, for any diagrams, graphs or rough working. ● At the end of the examination, fasten all your work together. Do not use staples, paper clips or glue. INFORMATION ● The total mark for this paper is 120. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 2 3 9 6 2 8 1 3 5 8 * DC (CJ/FC) 312590/4 © UCLES 2023

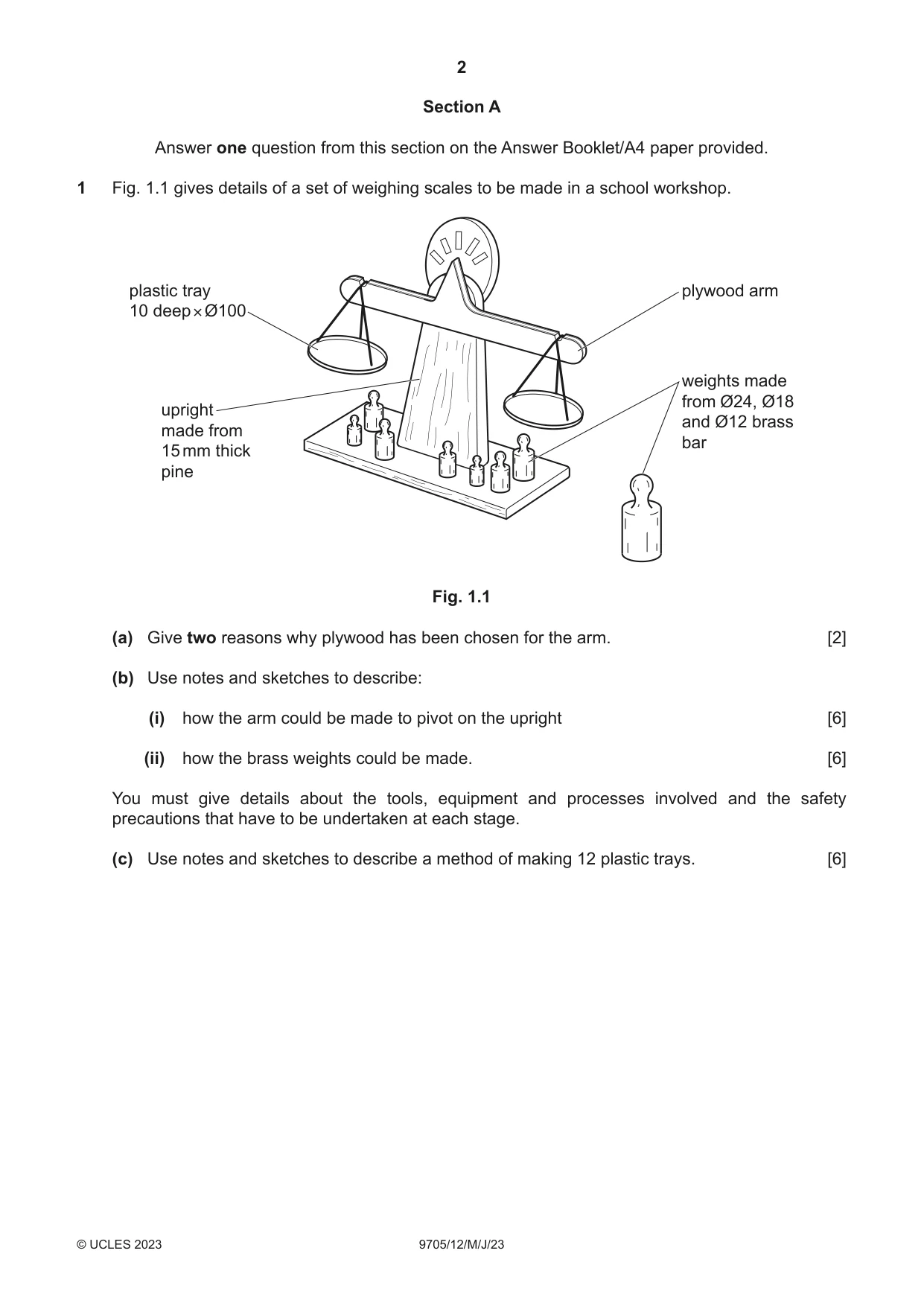

2 9705/12/M/J/23 © UCLES 2023 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1.1 gives details of a set of weighing scales to be made in a school workshop. plywood arm plastic tray 10 deep × Ø100 weights made from Ø24, Ø18 and Ø12 brass bar upright made from 15 mm thick pine Fig. 1.1 (a) Give two reasons why plywood has been chosen for the arm. [2] (b) Use notes and sketches to describe: (i) how the arm could be made to pivot on the upright [6] (ii) how the brass weights could be made. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to describe a method of making 12 plastic trays. [6]

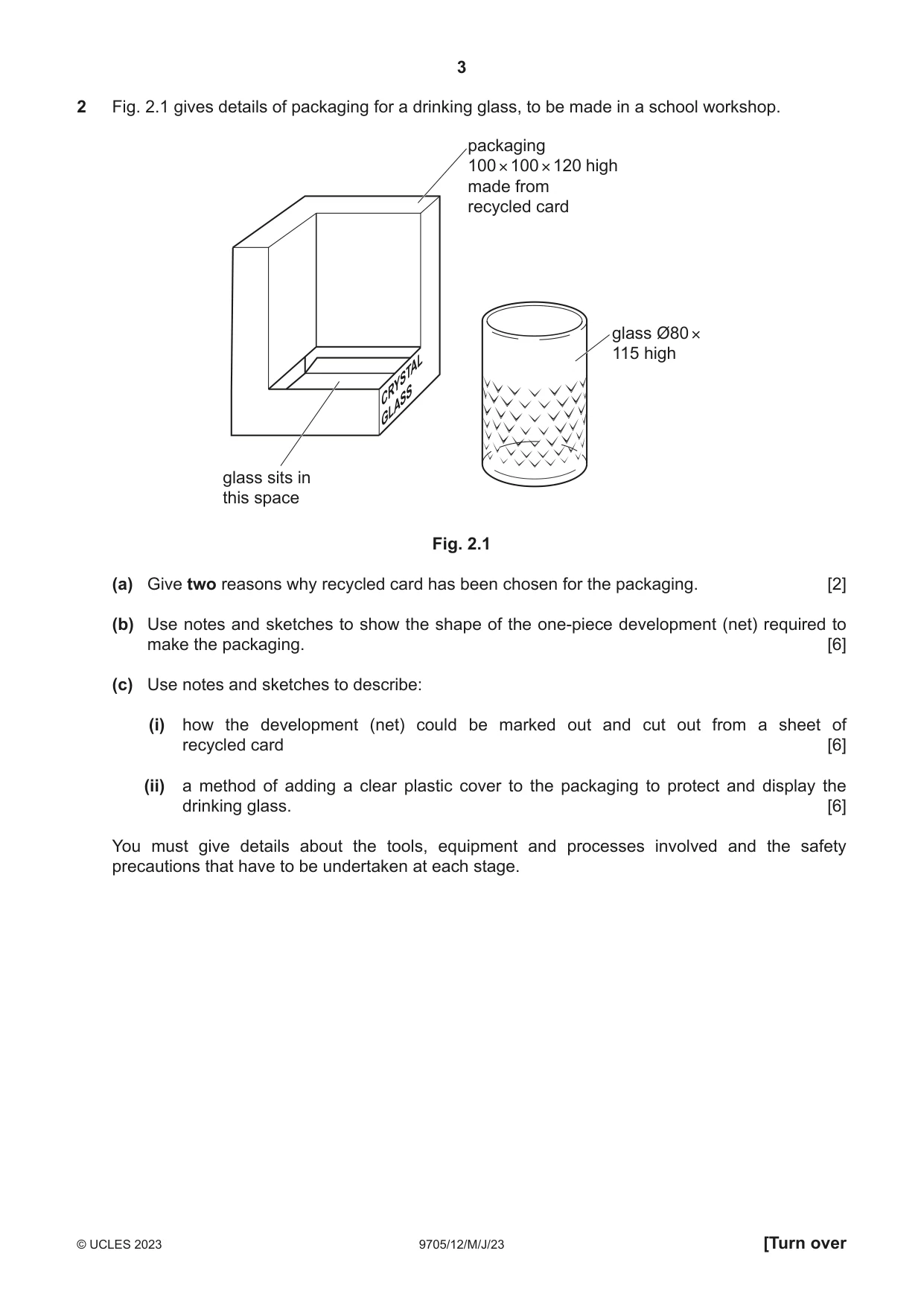

3 9705/12/M/J/23 © UCLES 2023 [Turn over 2 Fig. 2.1 gives details of packaging for a drinking glass, to be made in a school workshop. packaging 100 × 100 × 120 high made from recycled card glass sits in this space glass Ø80 × 115 high CRYSTAL GLASS Fig. 2.1 (a) Give two reasons why recycled card has been chosen for the packaging. [2] (b) Use notes and sketches to show the shape of the one-piece development (net) required to make the packaging. [6] (c) Use notes and sketches to describe: (i) how the development (net) could be marked out and cut out from a sheet of recycled card [6] (ii) a method of adding a clear plastic cover to the packaging to protect and display the drinking glass. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

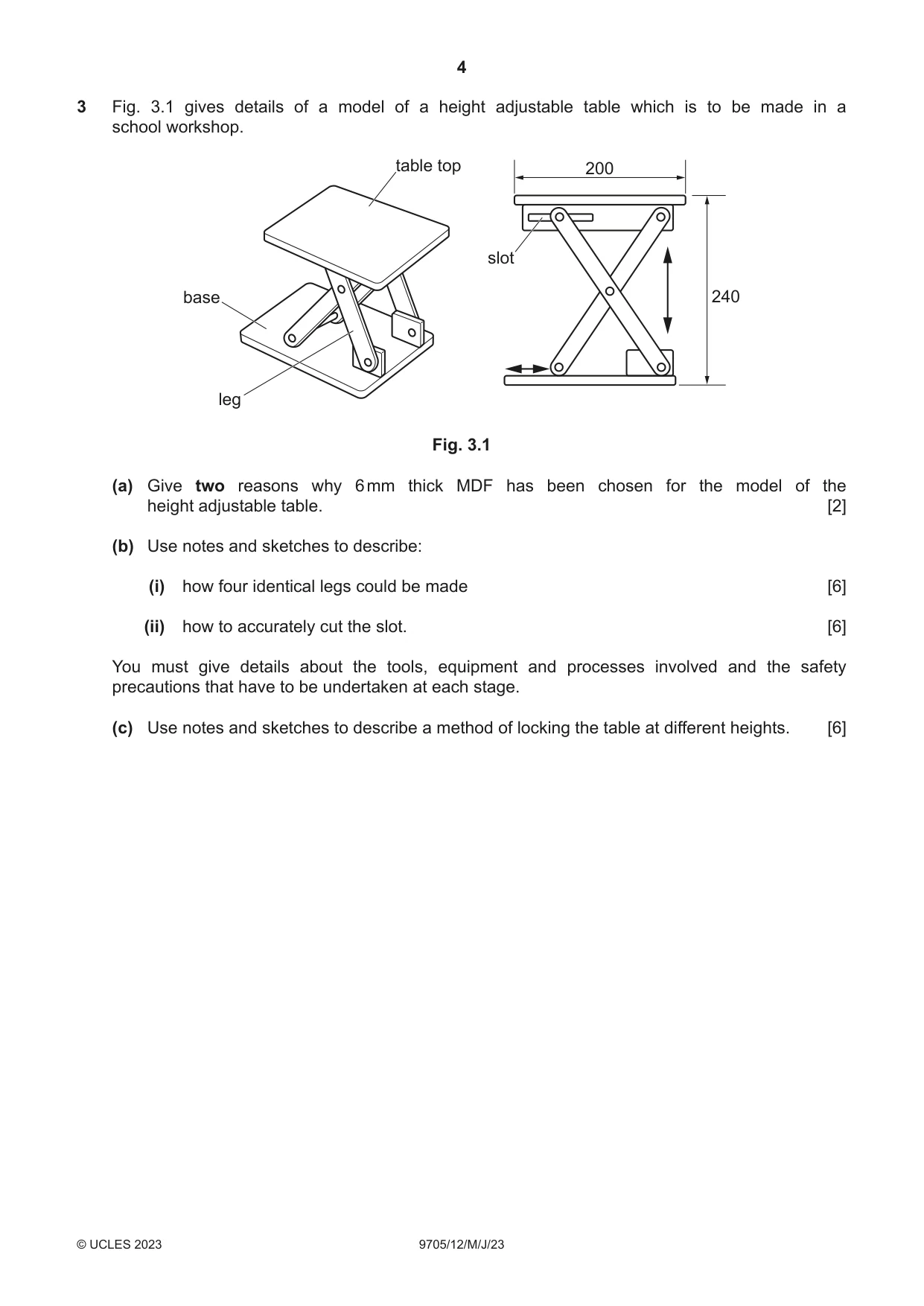

4 9705/12/M/J/23 © UCLES 2023 3 Fig. 3.1 gives details of a model of a height adjustable table which is to be made in a school workshop. 200 240 slot table top leg base Fig. 3.1 (a) Give two reasons why 6 mm thick MDF has been chosen for the model of the height adjustable table. [2] (b) Use notes and sketches to describe: (i) how four identical legs could be made [6] (ii) how to accurately cut the slot. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage. (c) Use notes and sketches to describe a method of locking the table at different heights. [6]

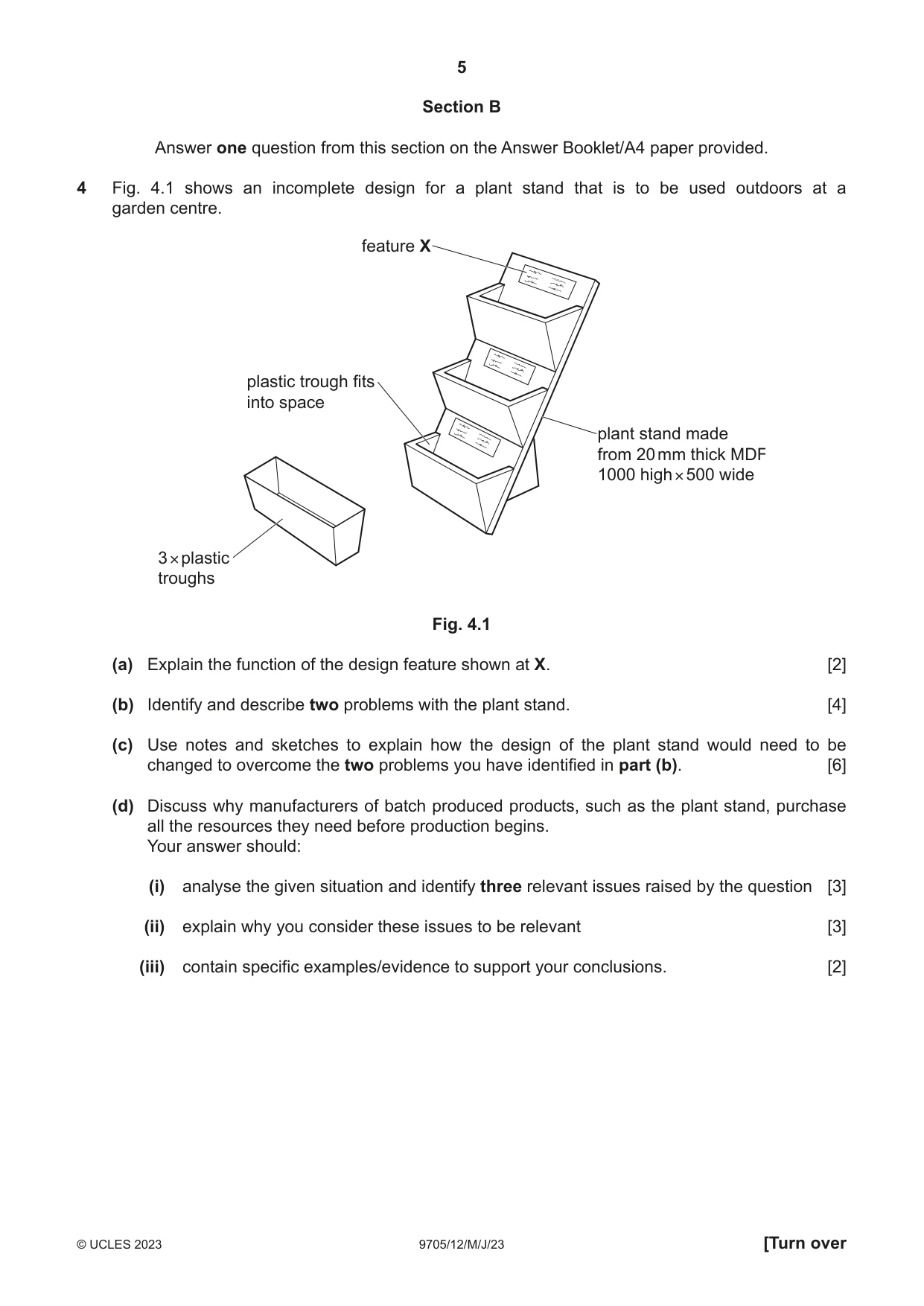

5 9705/12/M/J/23 © UCLES 2023 [Turn over Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 4.1 shows an incomplete design for a plant stand that is to be used outdoors at a garden centre. plastic trough fits into space feature X 3 × plastic troughs plant stand made from 20 mm thick MDF 1000 high × 500 wide Fig. 4.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the plant stand. [4] (c) Use notes and sketches to explain how the design of the plant stand would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why manufacturers of batch produced products, such as the plant stand, purchase all the resources they need before production begins. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

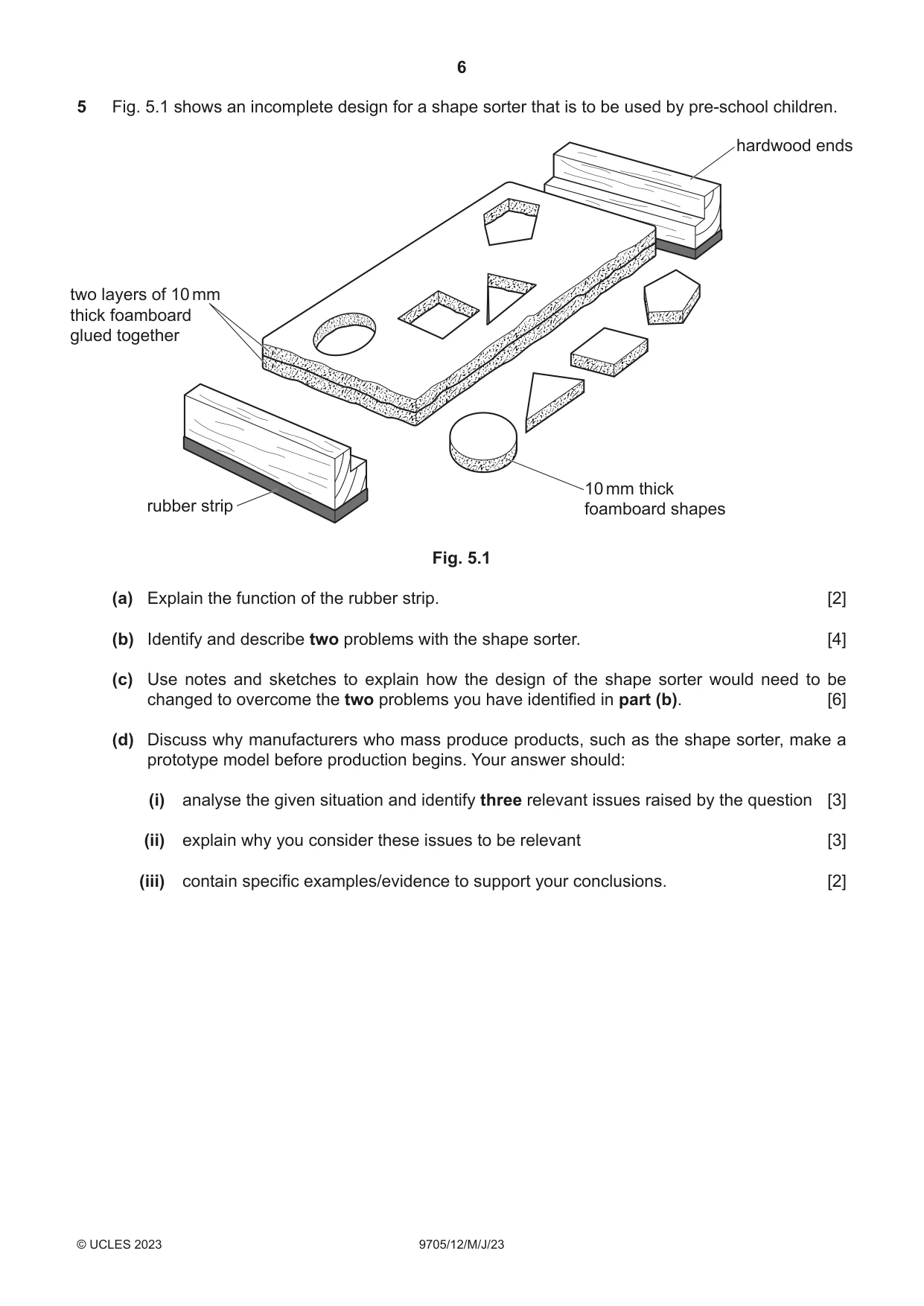

6 9705/12/M/J/23 © UCLES 2023 5 Fig. 5.1 shows an incomplete design for a shape sorter that is to be used by pre-school children. rubber strip two layers of 10 mm thick foamboard glued together 10 mm thick foamboard shapes hardwood ends Fig. 5.1 (a) Explain the function of the rubber strip. [2] (b) Identify and describe two problems with the shape sorter. [4] (c) Use notes and sketches to explain how the design of the shape sorter would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why manufacturers who mass produce products, such as the shape sorter, make a prototype model before production begins. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

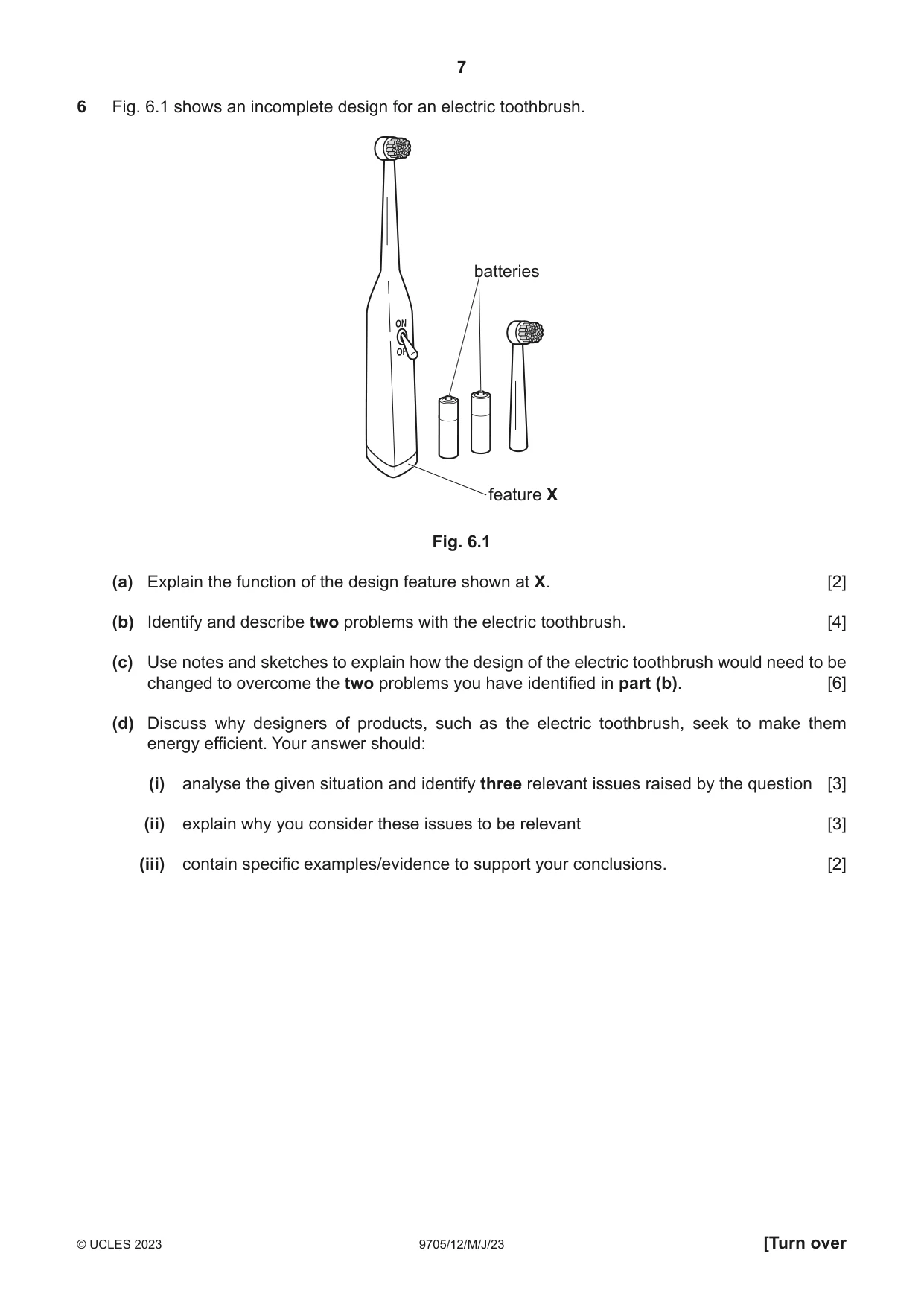

7 9705/12/M/J/23 © UCLES 2023 [Turn over 6 Fig. 6.1 shows an incomplete design for an electric toothbrush. feature X batteries Fig. 6.1 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the electric toothbrush. [4] (c) Use notes and sketches to explain how the design of the electric toothbrush would need to be changed to overcome the two problems you have identified in part (b). [6] (d) Discuss why designers of products, such as the electric toothbrush, seek to make them energy efficient. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question [3] (ii) explain why you consider these issues to be relevant [3] (iii) contain specific examples/evidence to support your conclusions. [2]

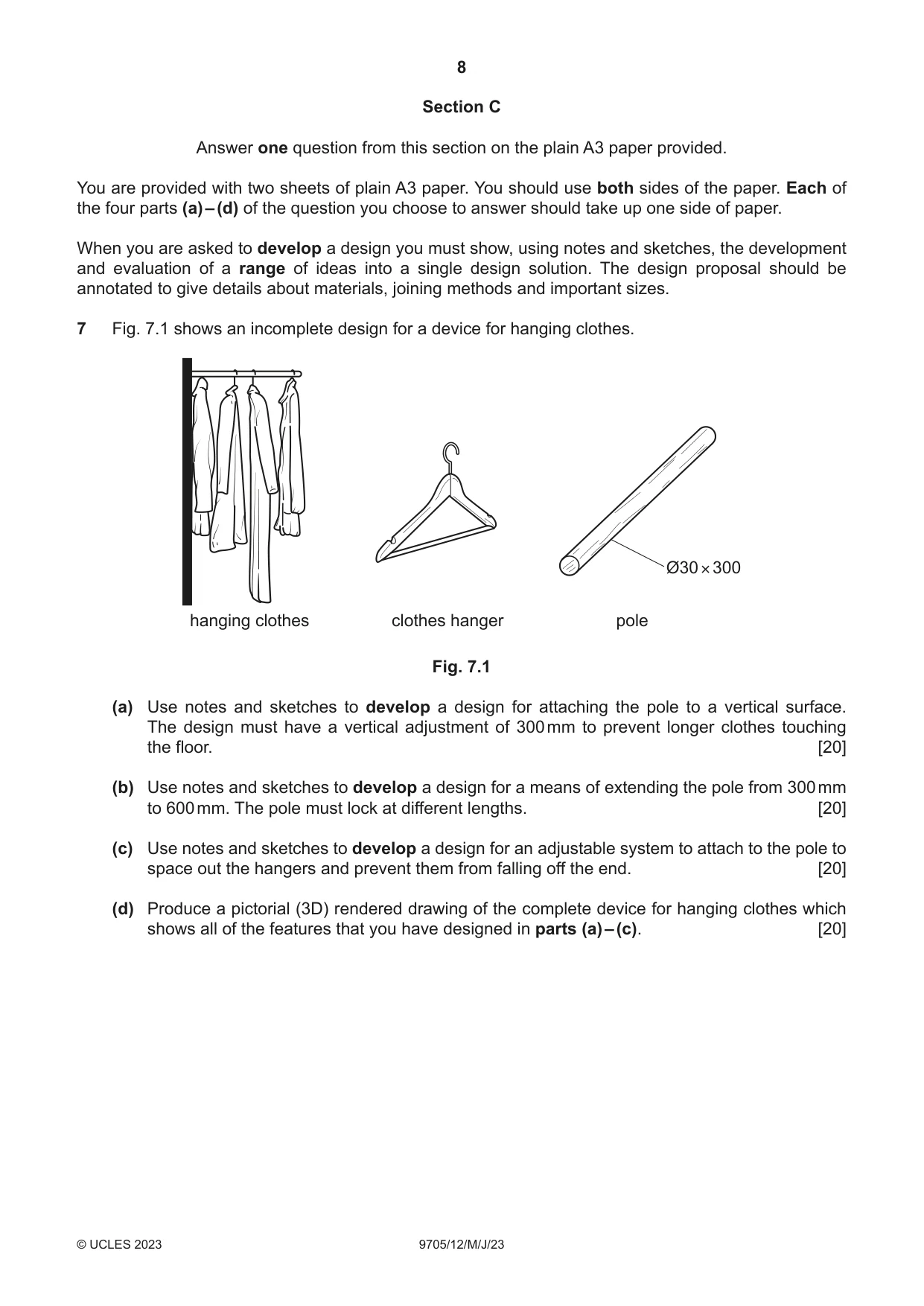

8 9705/12/M/J/23 © UCLES 2023 Section C Answer one question from this section on the plain A3 paper provided. You are provided with two sheets of plain A3 paper. You should use both sides of the paper. Each of the four parts (a) – (d) of the question you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using notes and sketches, the development and evaluation of a range of ideas into a single design solution. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 7.1 shows an incomplete design for a device for hanging clothes. hanging clothes clothes hanger pole Ø30 × 300 Fig. 7.1 (a) Use notes and sketches to develop a design for attaching the pole to a vertical surface. The design must have a vertical adjustment of 300 mm to prevent longer clothes touching the floor. [20] (b) Use notes and sketches to develop a design for a means of extending the pole from 300 mm to 600 mm. The pole must lock at different lengths. [20] (c) Use notes and sketches to develop a design for an adjustable system to attach to the pole to space out the hangers and prevent them from falling off the end. [20] (d) Produce a pictorial (3D) rendered drawing of the complete device for hanging clothes which shows all of the features that you have designed in parts (a) – (c). [20]

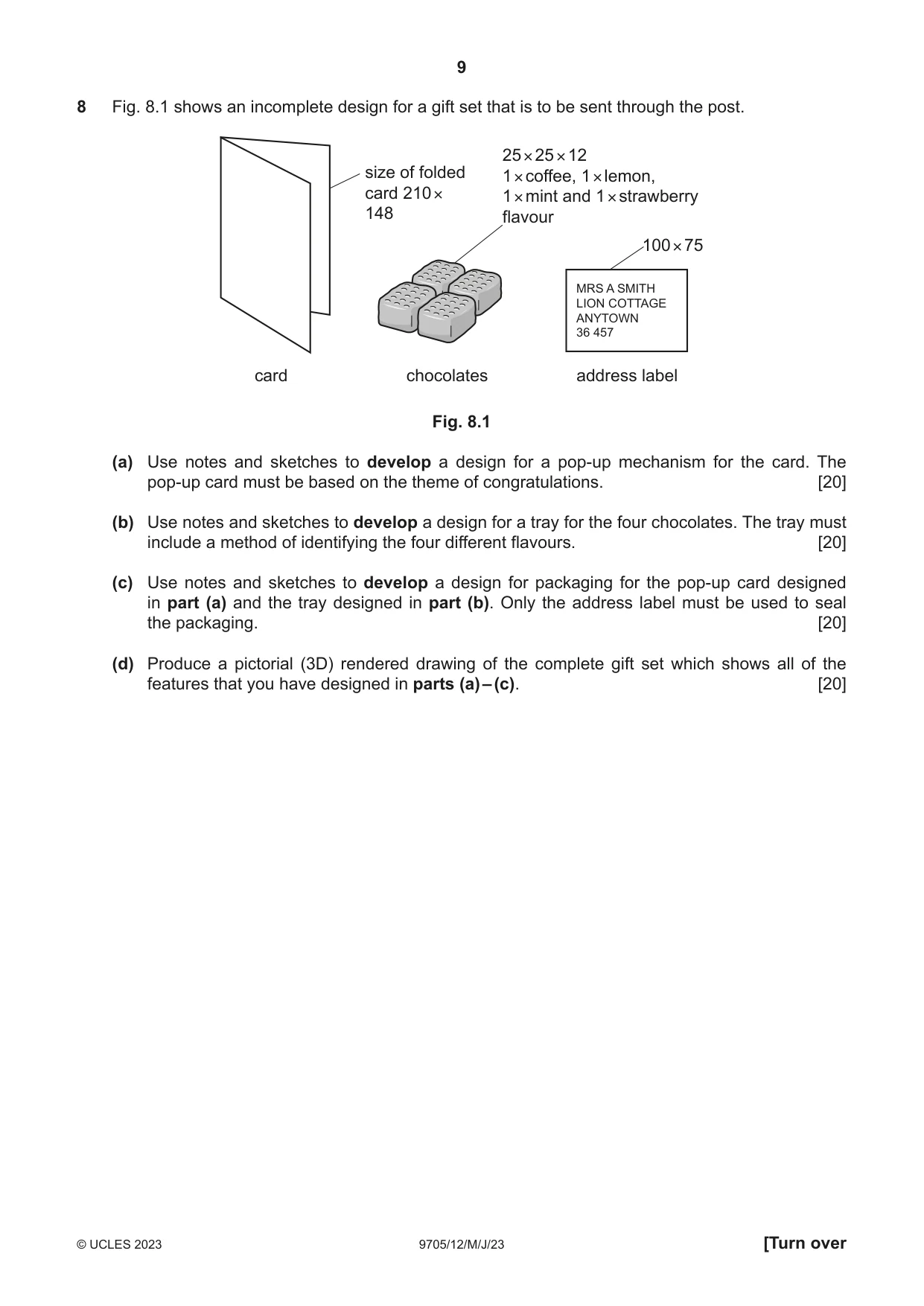

9 9705/12/M/J/23 © UCLES 2023 [Turn over 8 Fig. 8.1 shows an incomplete design for a gift set that is to be sent through the post. size of folded card 210 × 148 25 × 25 × 12 1 × coffee, 1 × lemon, 1 × mint and 1 × strawberry flavour 100 × 75 MRS A SMITH LION COTTAGE ANYTOWN 36 457 card chocolates address label Fig. 8.1 (a) Use notes and sketches to develop a design for a pop-up mechanism for the card. The pop-up card must be based on the theme of congratulations. [20] (b) Use notes and sketches to develop a design for a tray for the four chocolates. The tray must include a method of identifying the four different flavours. [20] (c) Use notes and sketches to develop a design for packaging for the pop-up card designed in part (a) and the tray designed in part (b). Only the address label must be used to seal the packaging. [20] (d) Produce a pictorial (3D) rendered drawing of the complete gift set which shows all of the features that you have designed in parts (a) – (c). [20]

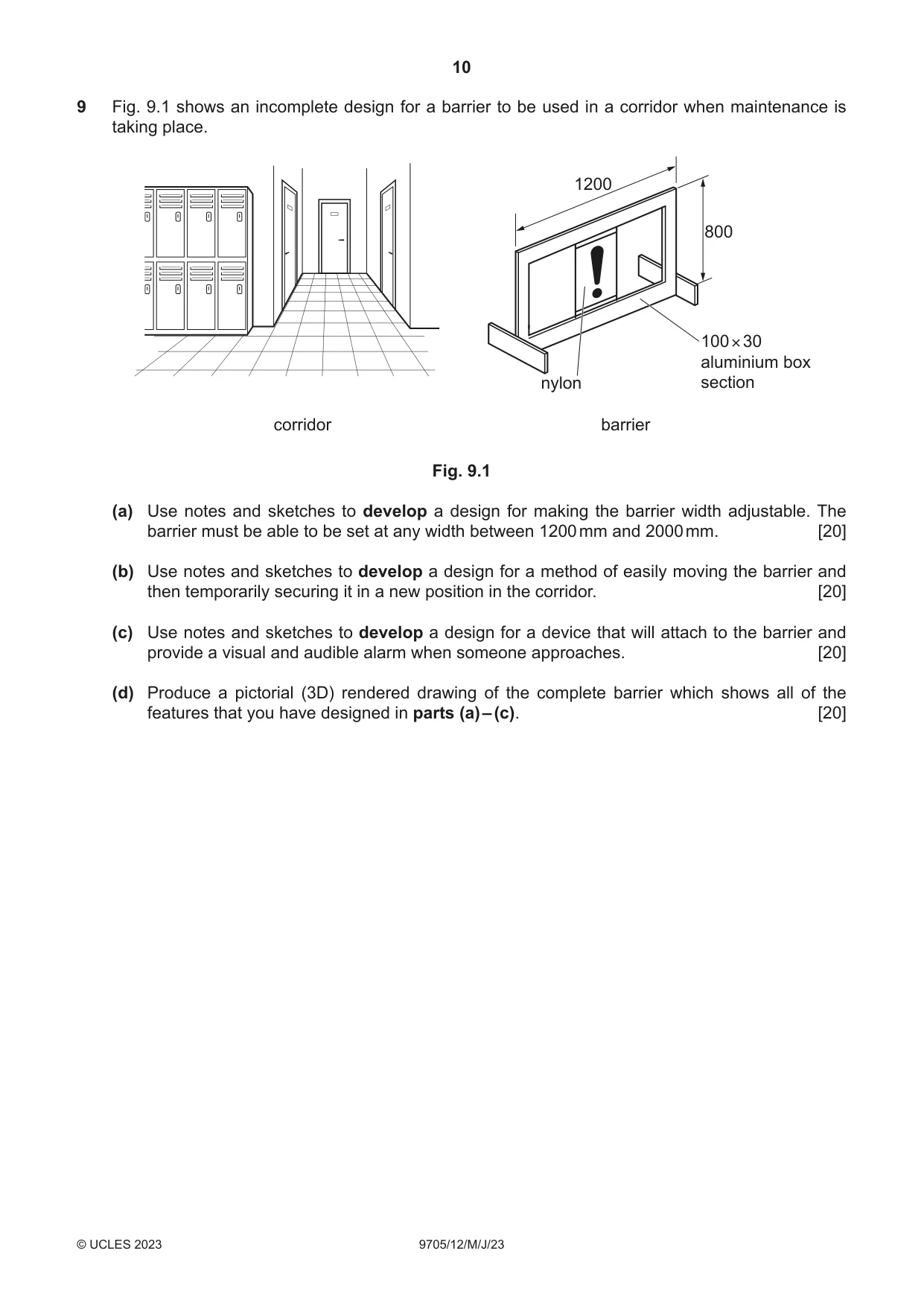

10 9705/12/M/J/23 © UCLES 2023 9 Fig. 9.1 shows an incomplete design for a barrier to be used in a corridor when maintenance is taking place. 1200 800 nylon barrier corridor 100 × 30 aluminium box section Fig. 9.1 (a) Use notes and sketches to develop a design for making the barrier width adjustable. The barrier must be able to be set at any width between 1200 mm and 2000 mm. [20] (b) Use notes and sketches to develop a design for a method of easily moving the barrier and then temporarily securing it in a new position in the corridor. [20] (c) Use notes and sketches to develop a design for a device that will attach to the barrier and provide a visual and audible alarm when someone approaches. [20] (d) Produce a pictorial (3D) rendered drawing of the complete barrier which shows all of the features that you have designed in parts (a) – (c). [20]

11 9705/12/M/J/23 © UCLES 2023 BLANK PAGE

12 9705/12/M/J/23 © UCLES 2023 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

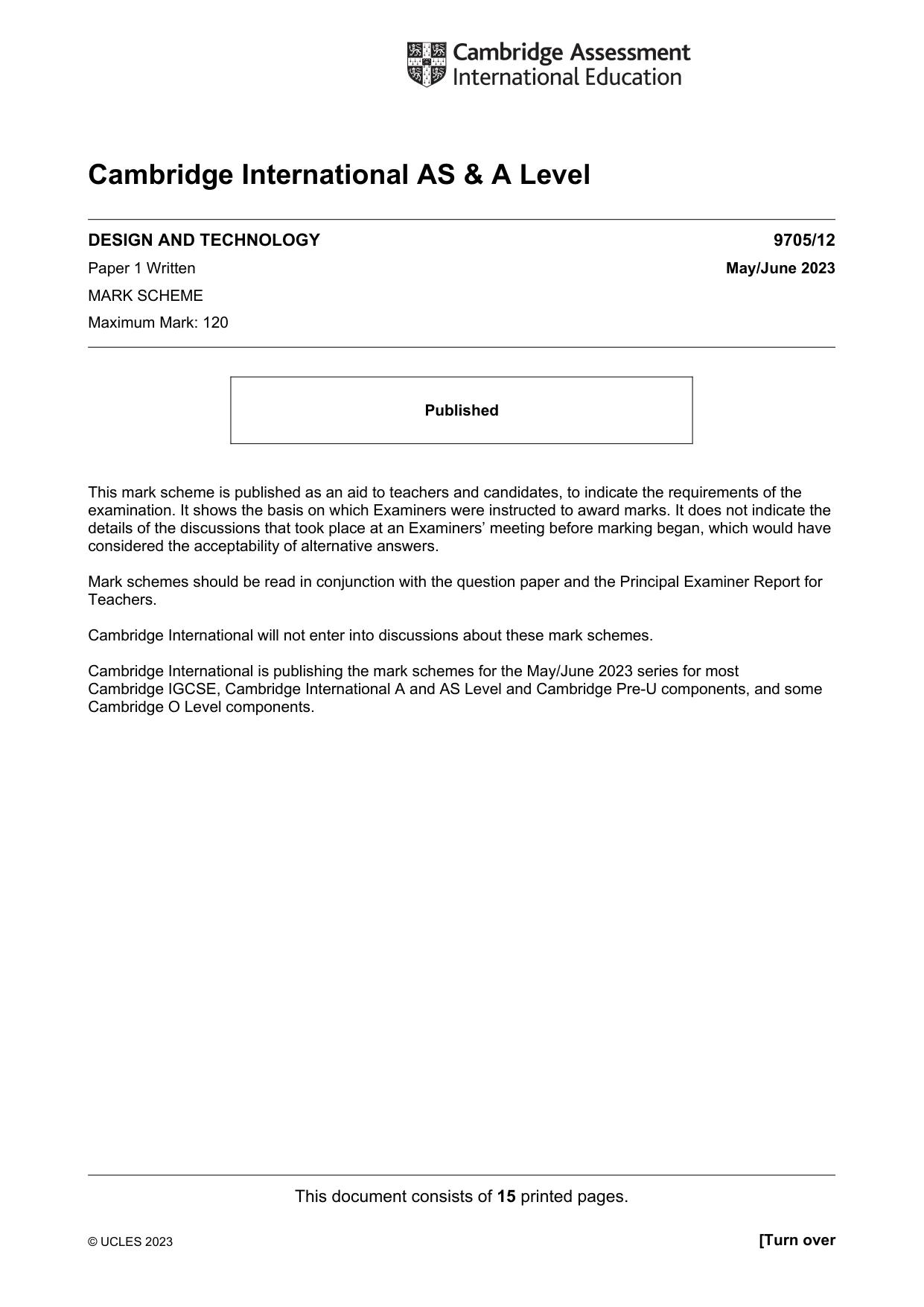

This document consists of 15 printed pages. © UCLES 2023 [Turn over Cambridge International AS & A Level DESIGN AND TECHNOLOGY 9705/12 Paper 1 Written May/June 2023 MARK SCHEME Maximum Mark: 120 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 2 of 15 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with:  the specific content of the mark scheme or the generic level descriptors for the question  the specific skills defined in the mark scheme or in the generic level descriptors for the question  the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively:  marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate  marks are awarded when candidates clearly demonstrate what they know and can do  marks are not deducted for errors  marks are not deducted for omissions  answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 3 of 15 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

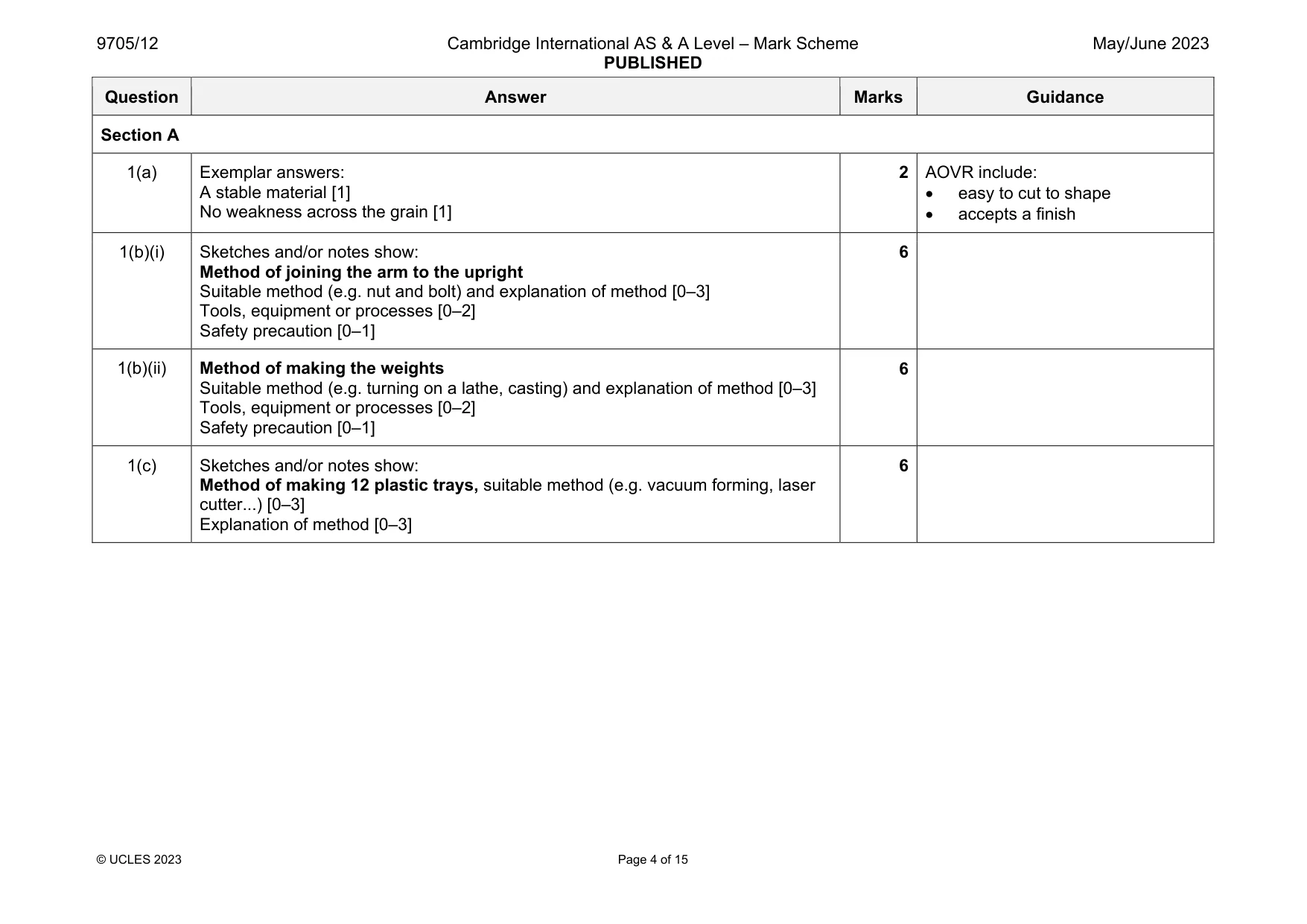

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 4 of 15 Question Answer Marks Guidance Section A 1(a) Exemplar answers: A stable material [1] No weakness across the grain [1] 2 AOVR include:  easy to cut to shape  accepts a finish 1(b)(i) Sketches and/or notes show: Method of joining the arm to the upright Suitable method (e.g. nut and bolt) and explanation of method [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 1(b)(ii) Method of making the weights Suitable method (e.g. turning on a lathe, casting) and explanation of method [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 1(c) Sketches and/or notes show: Method of making 12 plastic trays, suitable method (e.g. vacuum forming, laser cutter...) [0–3] Explanation of method [0–3] 6

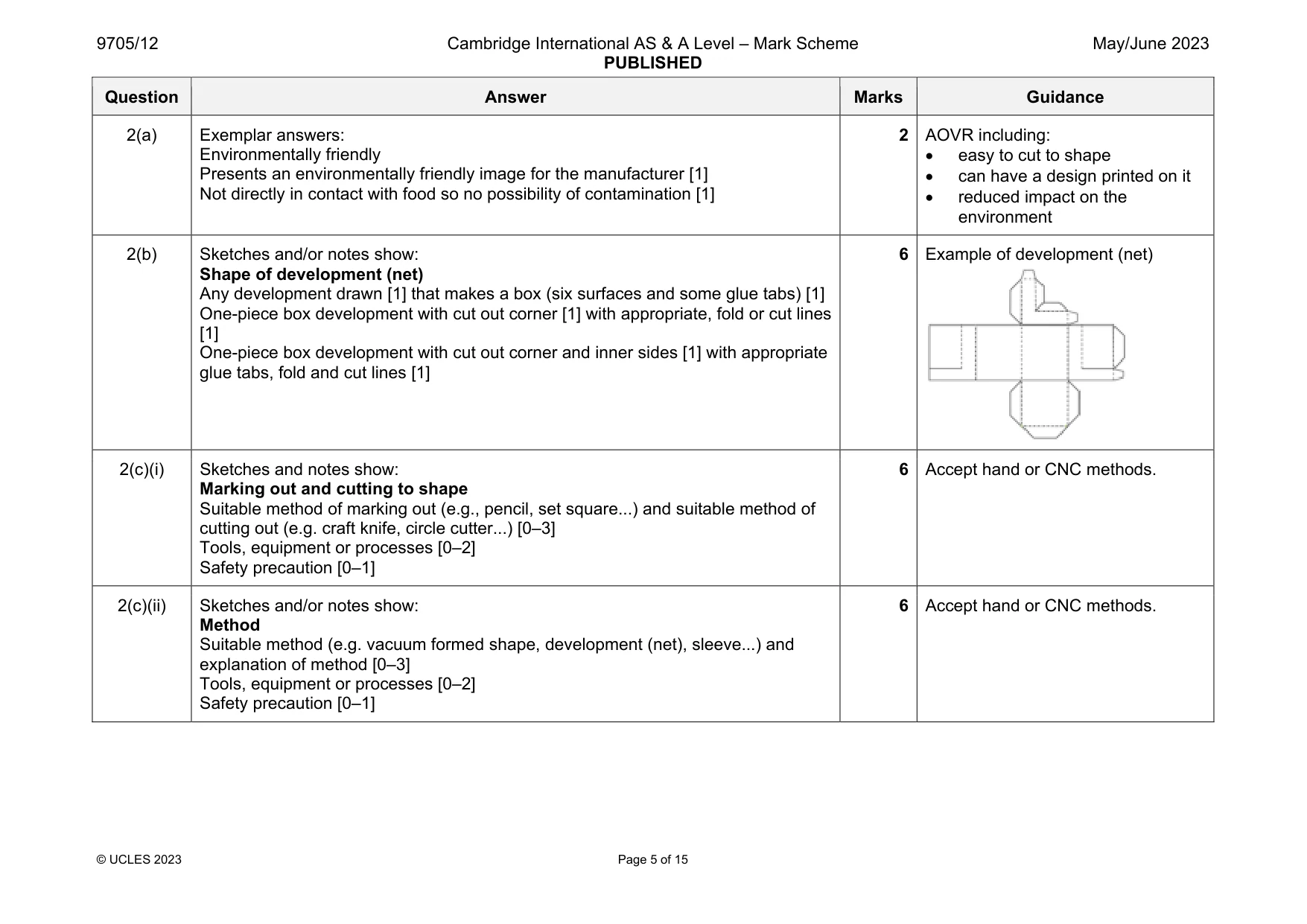

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 5 of 15 Question Answer Marks Guidance 2(a) Exemplar answers: Environmentally friendly Presents an environmentally friendly image for the manufacturer [1] Not directly in contact with food so no possibility of contamination [1] 2 AOVR including:  easy to cut to shape  can have a design printed on it  reduced impact on the environment 2(b) Sketches and/or notes show: Shape of development (net) Any development drawn [1] that makes a box (six surfaces and some glue tabs) [1] One-piece box development with cut out corner [1] with appropriate, fold or cut lines [1] One-piece box development with cut out corner and inner sides [1] with appropriate glue tabs, fold and cut lines [1] 6 Example of development (net) 2(c)(i) Sketches and notes show: Marking out and cutting to shape Suitable method of marking out (e.g., pencil, set square...) and suitable method of cutting out (e.g. craft knife, circle cutter...) [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 Accept hand or CNC methods. 2(c)(ii) Sketches and/or notes show: Method Suitable method (e.g. vacuum formed shape, development (net), sleeve...) and explanation of method [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 Accept hand or CNC methods.

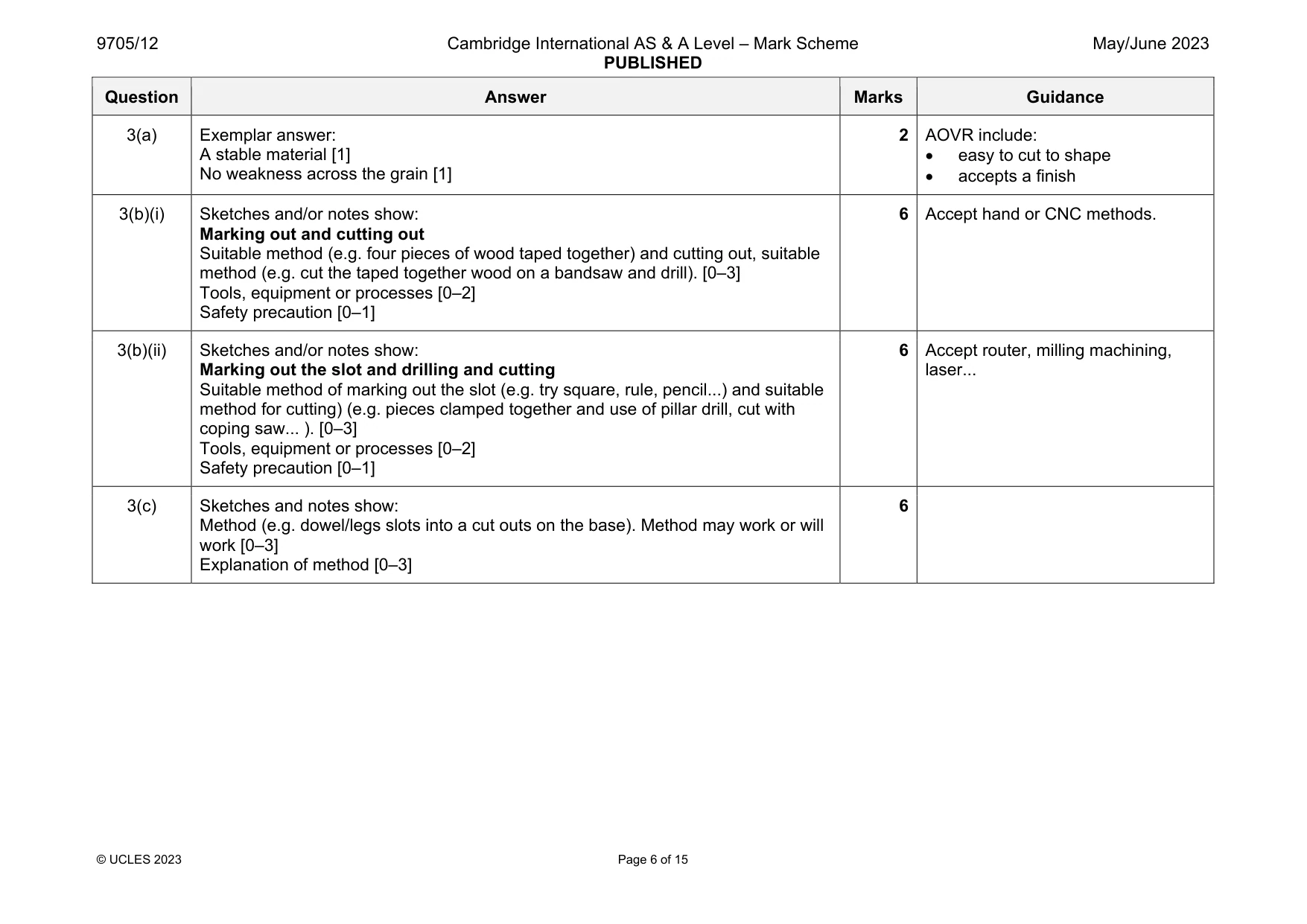

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 6 of 15 Question Answer Marks Guidance 3(a) Exemplar answer: A stable material [1] No weakness across the grain [1] 2 AOVR include:  easy to cut to shape  accepts a finish 3(b)(i) Sketches and/or notes show: Marking out and cutting out Suitable method (e.g. four pieces of wood taped together) and cutting out, suitable method (e.g. cut the taped together wood on a bandsaw and drill). [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 Accept hand or CNC methods. 3(b)(ii) Sketches and/or notes show: Marking out the slot and drilling and cutting Suitable method of marking out the slot (e.g. try square, rule, pencil...) and suitable method for cutting) (e.g. pieces clamped together and use of pillar drill, cut with coping saw... ). [0–3] Tools, equipment or processes [0–2] Safety precaution [0–1] 6 Accept router, milling machining, laser... 3(c) Sketches and notes show: Method (e.g. dowel/legs slots into a cut outs on the base). Method may work or will work [0–3] Explanation of method [0–3] 6

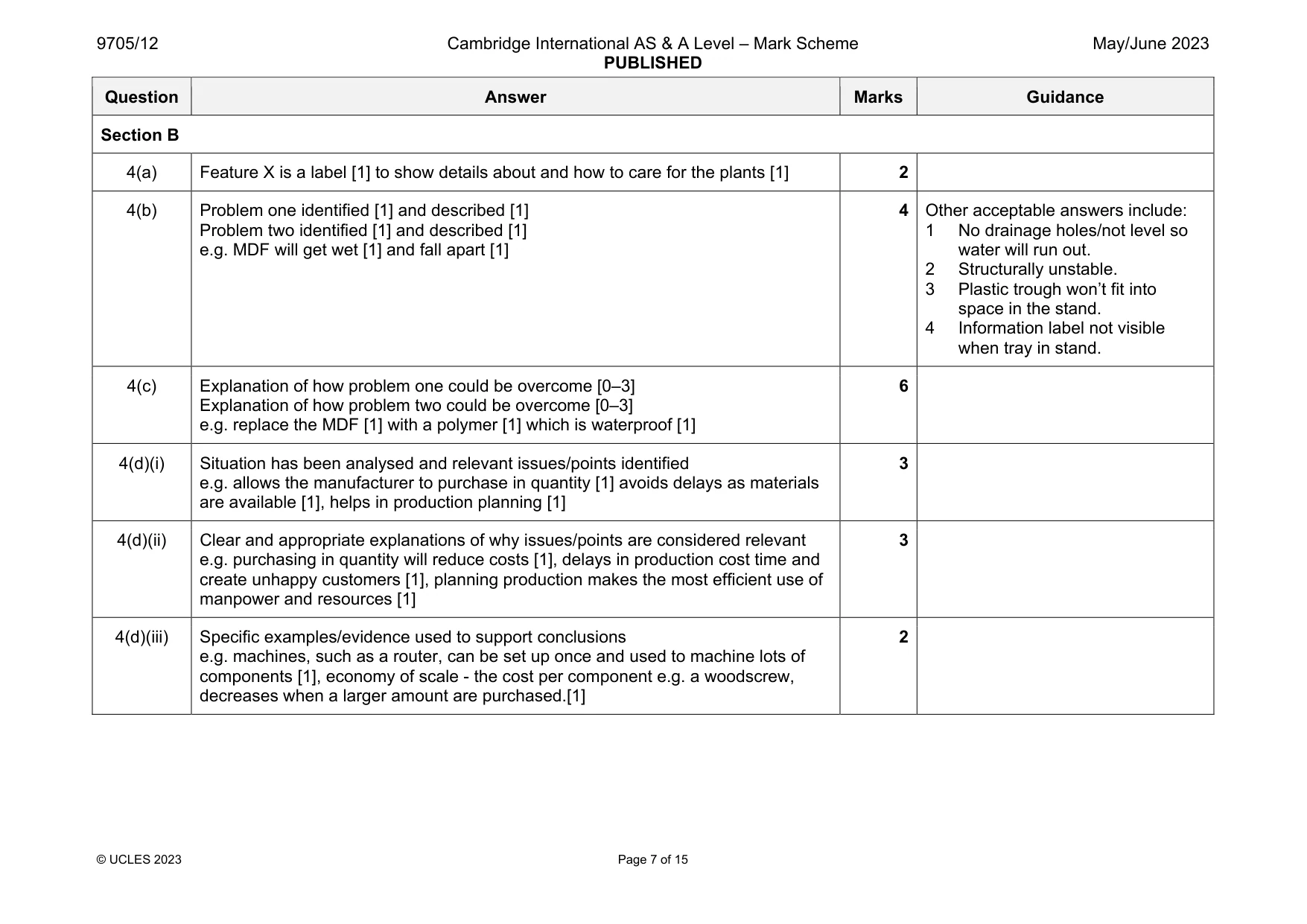

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 7 of 15 Question Answer Marks Guidance Section B 4(a) Feature X is a label [1] to show details about and how to care for the plants [1] 2 4(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. MDF will get wet [1] and fall apart [1] 4 Other acceptable answers include: 1 No drainage holes/not level so water will run out. 2 Structurally unstable. 3 Plastic trough won’t fit into space in the stand. 4 Information label not visible when tray in stand. 4(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. replace the MDF [1] with a polymer [1] which is waterproof [1] 6 4(d)(i) Situation has been analysed and relevant issues/points identified e.g. allows the manufacturer to purchase in quantity [1] avoids delays as materials are available [1], helps in production planning [1] 3 4(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. purchasing in quantity will reduce costs [1], delays in production cost time and create unhappy customers [1], planning production makes the most efficient use of manpower and resources [1] 3 4(d)(iii) Specific examples/evidence used to support conclusions e.g. machines, such as a router, can be set up once and used to machine lots of components [1], economy of scale - the cost per component e.g. a woodscrew, decreases when a larger amount are purchased.[1] 2

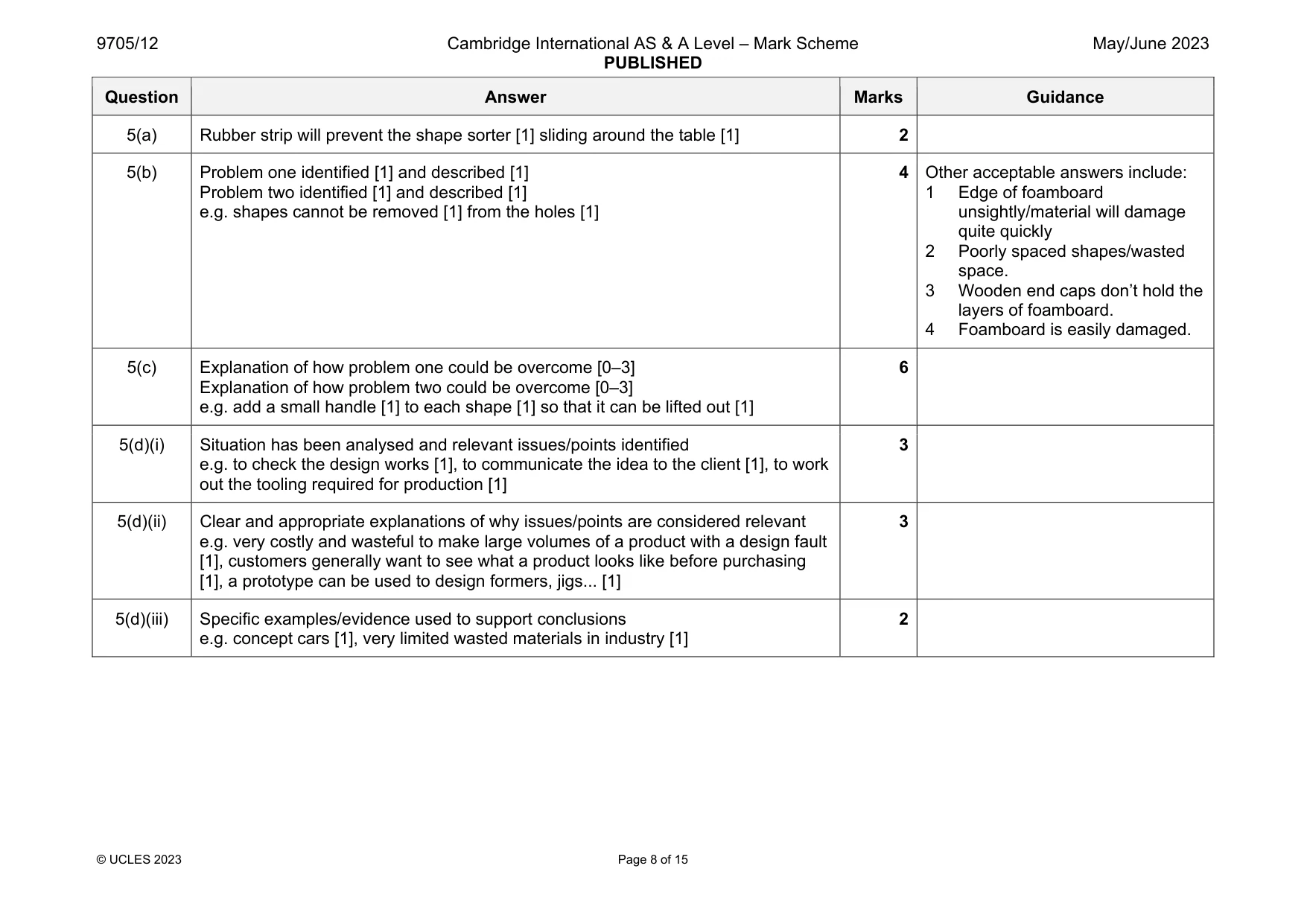

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 8 of 15 Question Answer Marks Guidance 5(a) Rubber strip will prevent the shape sorter [1] sliding around the table [1] 2 5(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. shapes cannot be removed [1] from the holes [1] 4 Other acceptable answers include: 1 Edge of foamboard unsightly/material will damage quite quickly 2 Poorly spaced shapes/wasted space. 3 Wooden end caps don’t hold the layers of foamboard. 4 Foamboard is easily damaged. 5(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. add a small handle [1] to each shape [1] so that it can be lifted out [1] 6 5(d)(i) Situation has been analysed and relevant issues/points identified e.g. to check the design works [1], to communicate the idea to the client [1], to work out the tooling required for production [1] 3 5(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. very costly and wasteful to make large volumes of a product with a design fault [1], customers generally want to see what a product looks like before purchasing [1], a prototype can be used to design formers, jigs... [1] 3 5(d)(iii) Specific examples/evidence used to support conclusions e.g. concept cars [1], very limited wasted materials in industry [1] 2

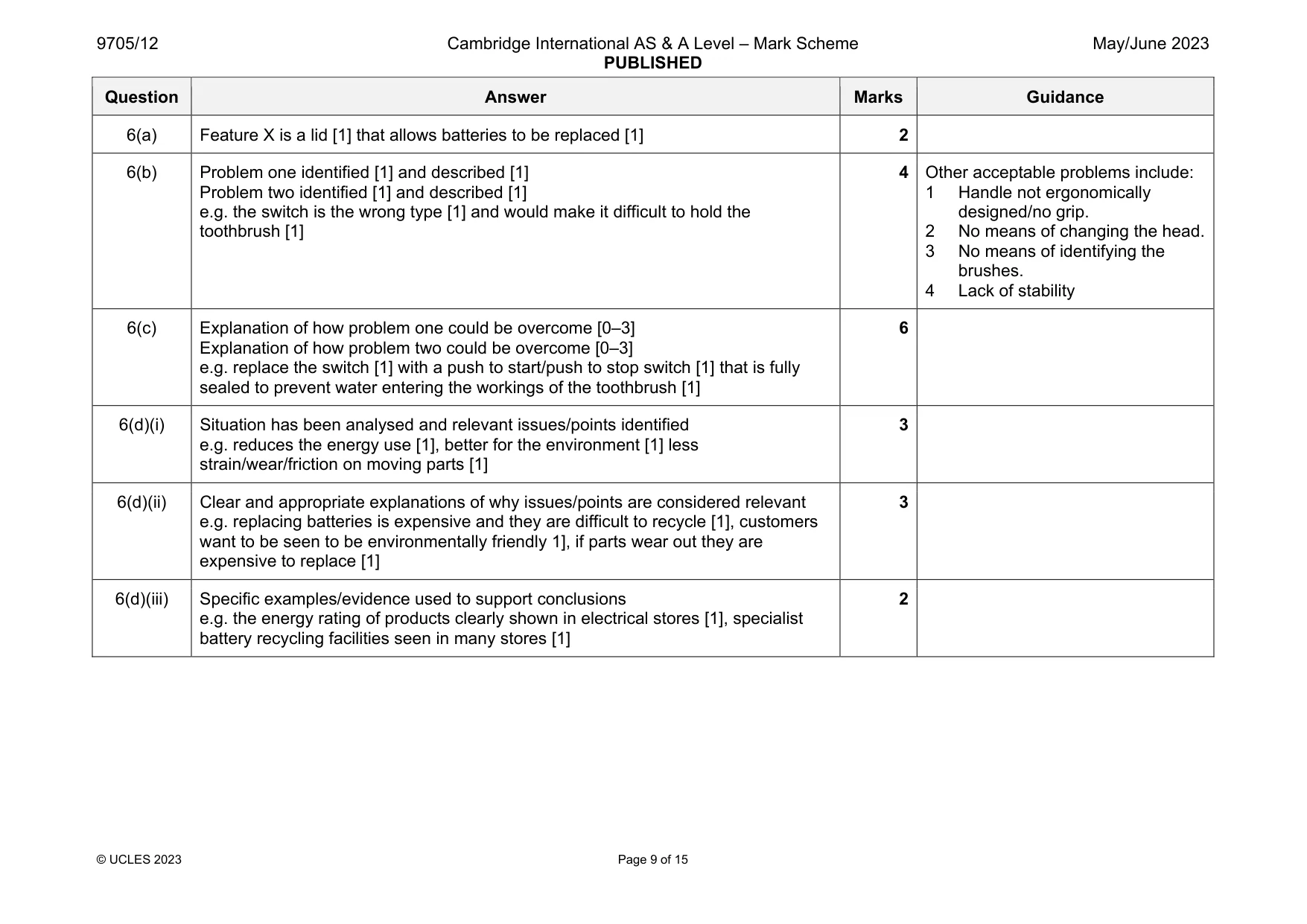

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 9 of 15 Question Answer Marks Guidance 6(a) Feature X is a lid [1] that allows batteries to be replaced [1] 2 6(b) Problem one identified [1] and described [1] Problem two identified [1] and described [1] e.g. the switch is the wrong type [1] and would make it difficult to hold the toothbrush [1] 4 Other acceptable problems include: 1 Handle not ergonomically designed/no grip. 2 No means of changing the head. 3 No means of identifying the brushes. 4 Lack of stability 6(c) Explanation of how problem one could be overcome [0–3] Explanation of how problem two could be overcome [0–3] e.g. replace the switch [1] with a push to start/push to stop switch [1] that is fully sealed to prevent water entering the workings of the toothbrush [1] 6 6(d)(i) Situation has been analysed and relevant issues/points identified e.g. reduces the energy use [1], better for the environment [1] less strain/wear/friction on moving parts [1] 3 6(d)(ii) Clear and appropriate explanations of why issues/points are considered relevant e.g. replacing batteries is expensive and they are difficult to recycle [1], customers want to be seen to be environmentally friendly 1], if parts wear out they are expensive to replace [1] 3 6(d)(iii) Specific examples/evidence used to support conclusions e.g. the energy rating of products clearly shown in electrical stores [1], specialist battery recycling facilities seen in many stores [1] 2

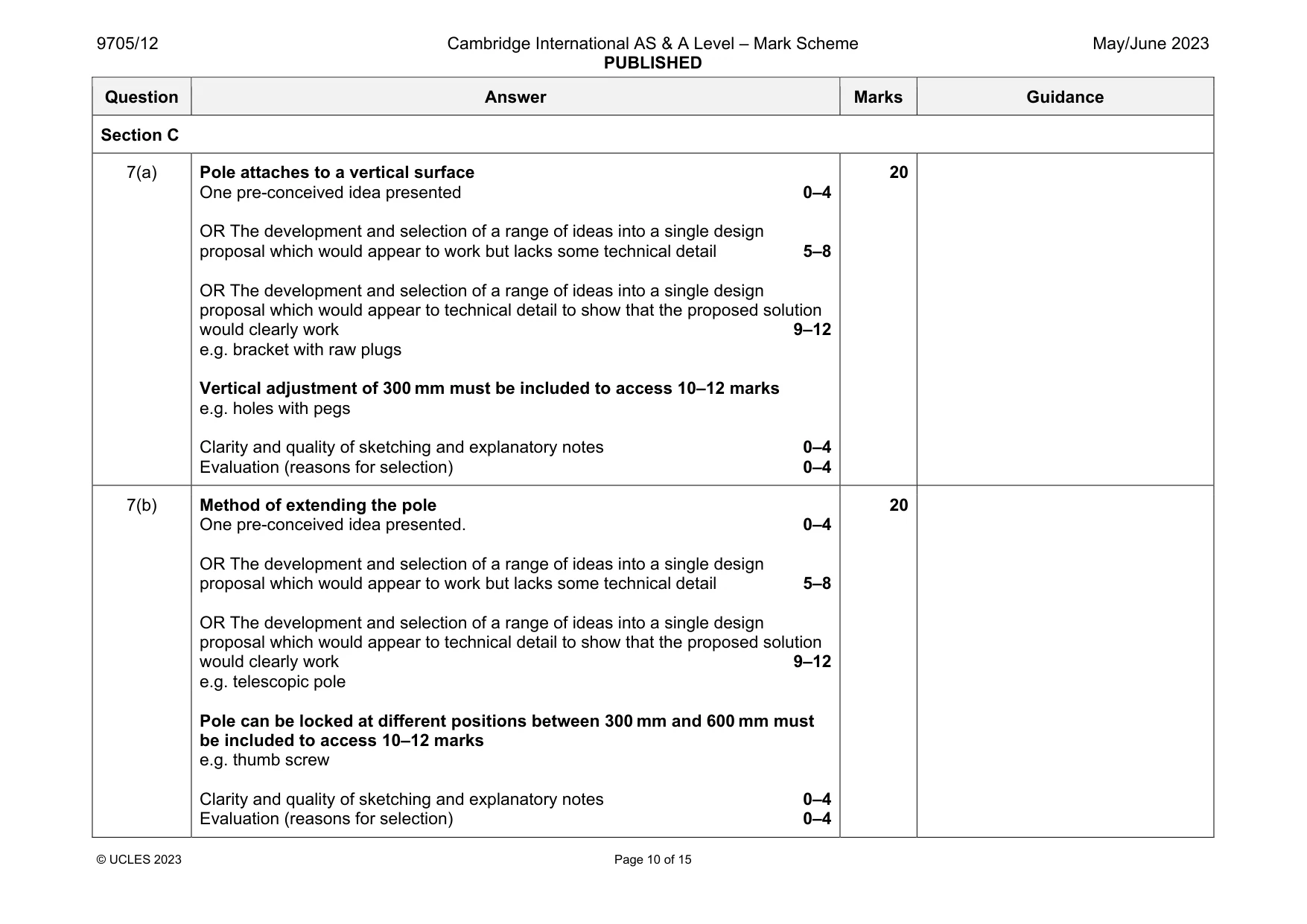

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 10 of 15 Question Answer Marks Guidance Section C 7(a) Pole attaches to a vertical surface One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. bracket with raw plugs Vertical adjustment of 300 mm must be included to access 10–12 marks e.g. holes with pegs Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(b) Method of extending the pole One pre-conceived idea presented. 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. telescopic pole Pole can be locked at different positions between 300 mm and 600 mm must be included to access 10–12 marks e.g. thumb screw Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

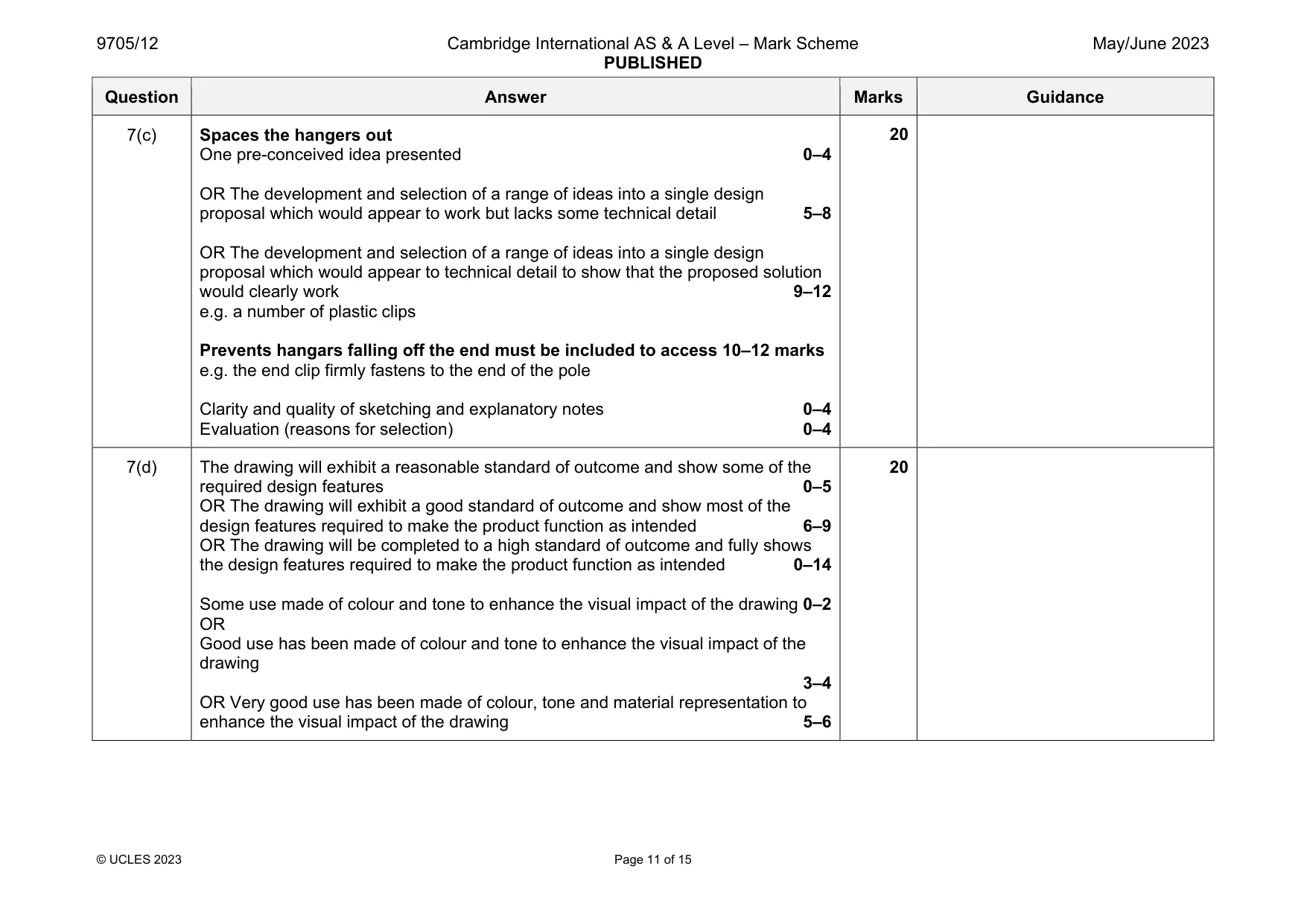

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 11 of 15 Question Answer Marks Guidance 7(c) Spaces the hangers out One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. a number of plastic clips Prevents hangars falling off the end must be included to access 10–12 marks e.g. the end clip firmly fastens to the end of the pole Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 7(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended 0–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20

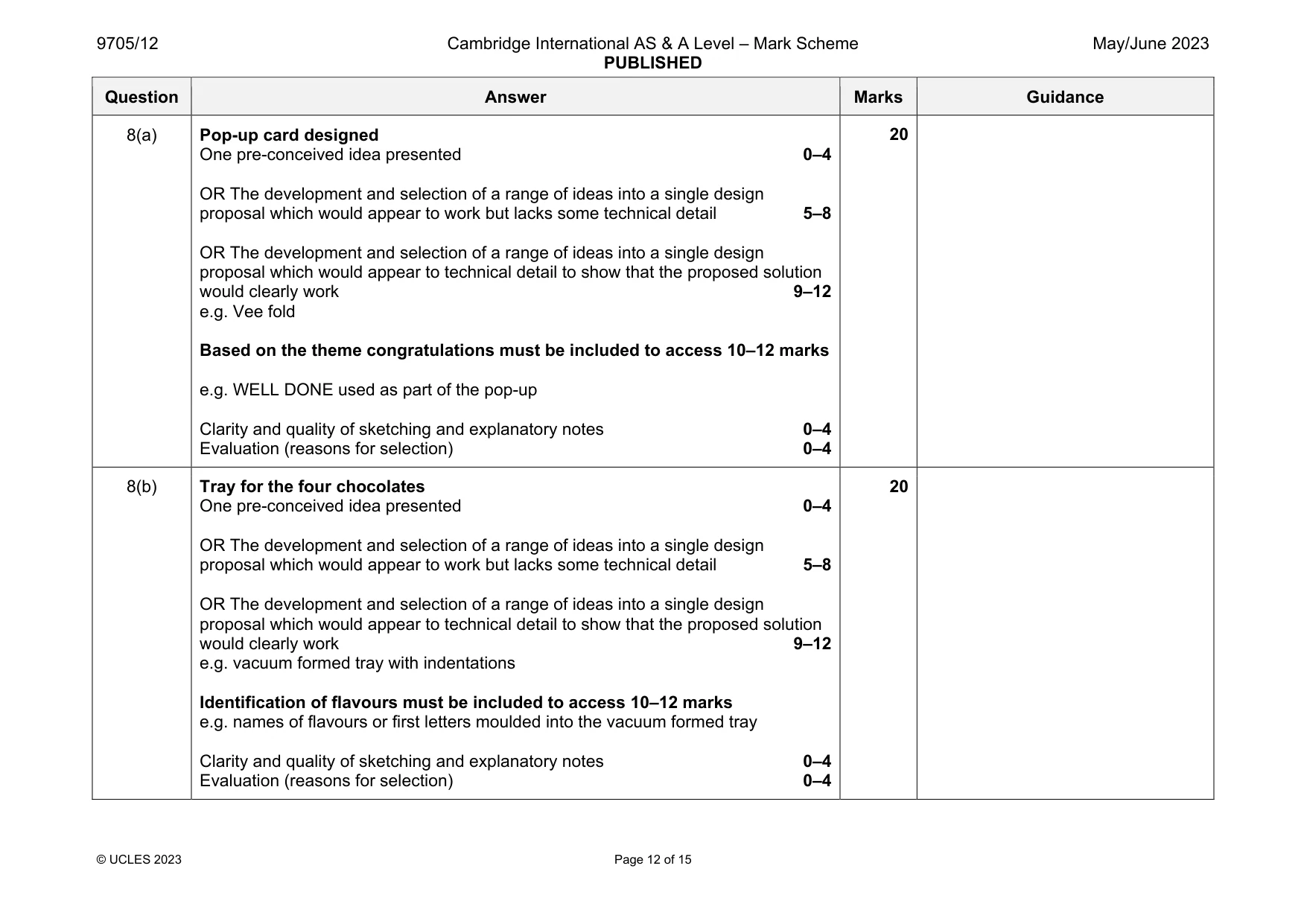

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 12 of 15 Question Answer Marks Guidance 8(a) Pop-up card designed One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. Vee fold Based on the theme congratulations must be included to access 10–12 marks e.g. WELL DONE used as part of the pop-up Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(b) Tray for the four chocolates One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. vacuum formed tray with indentations Identification of flavours must be included to access 10–12 marks e.g. names of flavours or first letters moulded into the vacuum formed tray Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

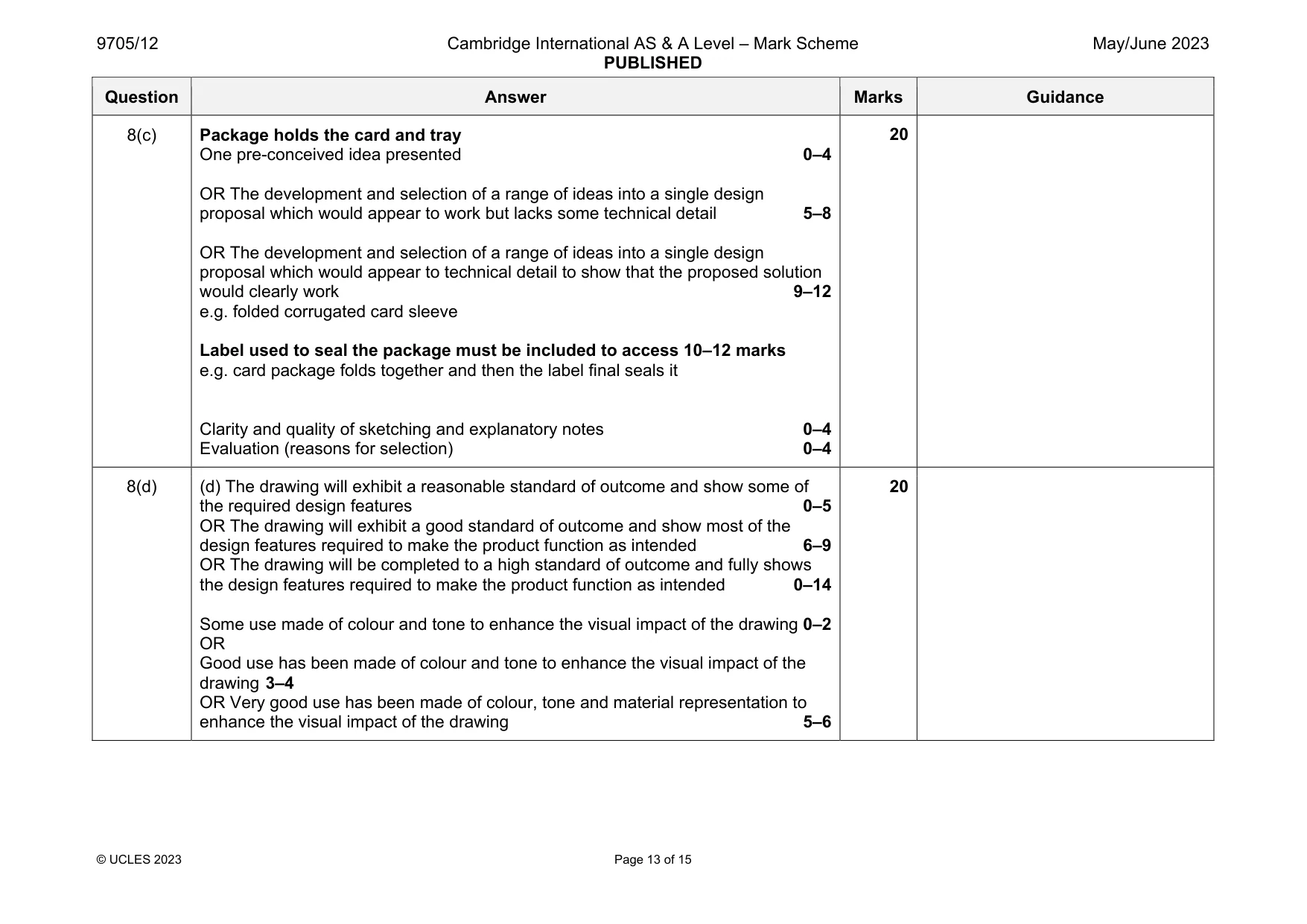

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 13 of 15 Question Answer Marks Guidance 8(c) Package holds the card and tray One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. folded corrugated card sleeve Label used to seal the package must be included to access 10–12 marks e.g. card package folds together and then the label final seals it Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 8(d) (d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully shows the design features required to make the product function as intended 0–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20

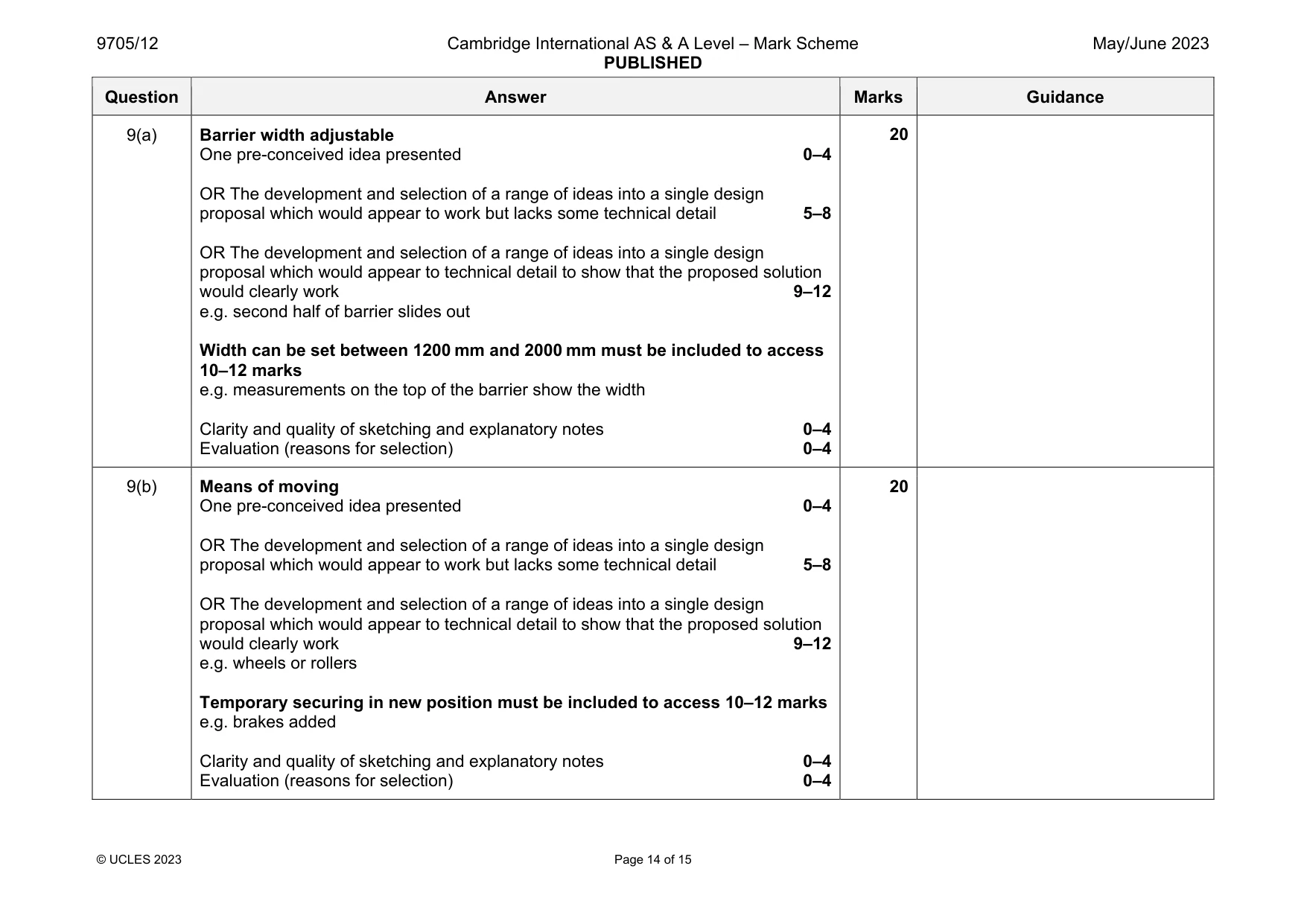

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 14 of 15 Question Answer Marks Guidance 9(a) Barrier width adjustable One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. second half of barrier slides out Width can be set between 1200 mm and 2000 mm must be included to access 10–12 marks e.g. measurements on the top of the barrier show the width Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 9(b) Means of moving One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. wheels or rollers Temporary securing in new position must be included to access 10–12 marks e.g. brakes added Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20

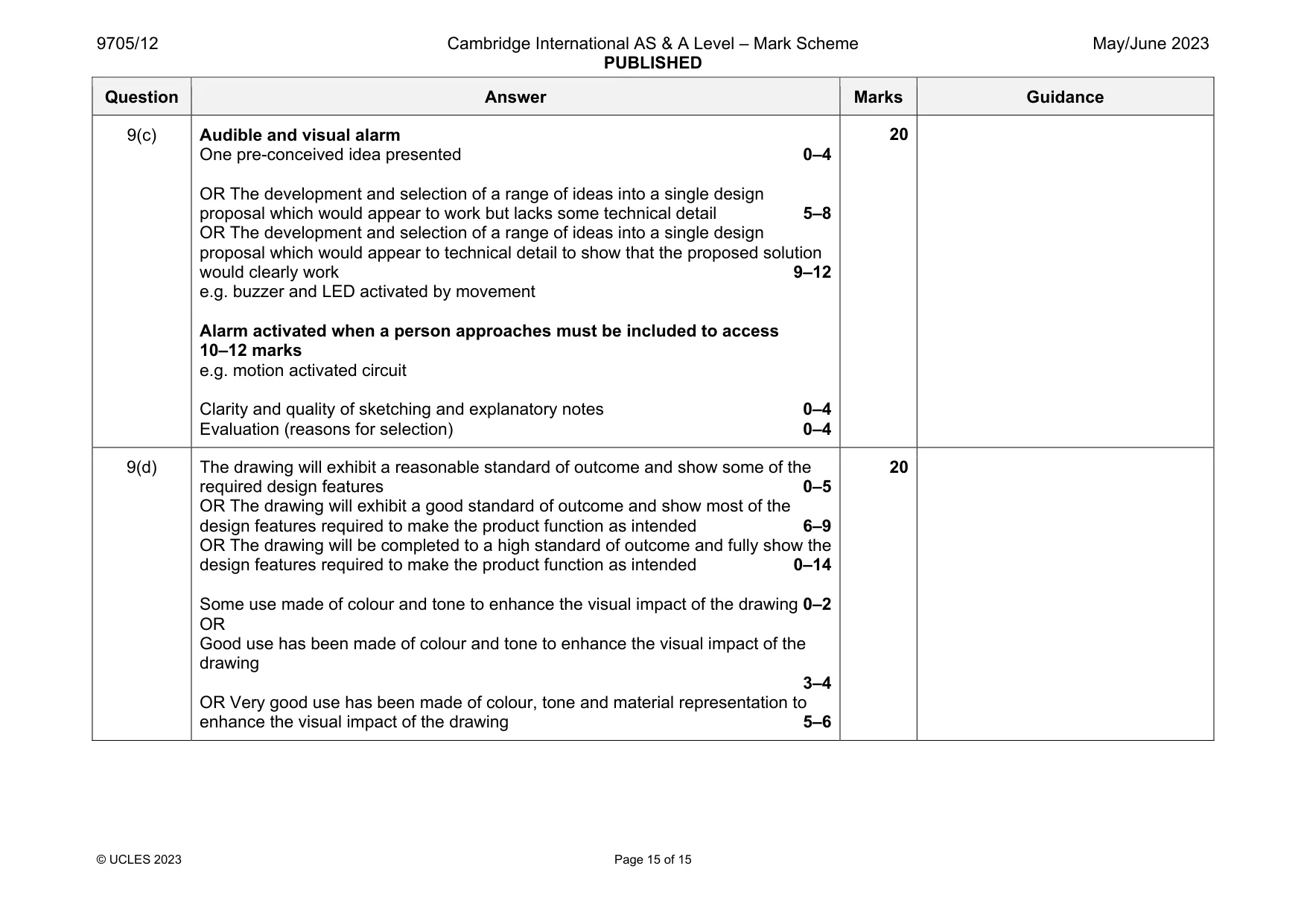

9705/12 Cambridge International AS & A Level – Mark Scheme PUBLISHED May/June 2023 © UCLES 2023 Page 15 of 15 Question Answer Marks Guidance 9(c) Audible and visual alarm One pre-conceived idea presented 0–4 OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail 5–8 OR The development and selection of a range of ideas into a single design proposal which would appear to technical detail to show that the proposed solution would clearly work 9–12 e.g. buzzer and LED activated by movement Alarm activated when a person approaches must be included to access 10–12 marks e.g. motion activated circuit Clarity and quality of sketching and explanatory notes 0–4 Evaluation (reasons for selection) 0–4 20 9(d) The drawing will exhibit a reasonable standard of outcome and show some of the required design features 0–5 OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended 6–9 OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended 0–14 Some use made of colour and tone to enhance the visual impact of the drawing 0–2 OR Good use has been made of colour and tone to enhance the visual impact of the drawing 3–4 OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing 5–6 20
