Cambridge A Level Design and Technology 9705 — 2012 Oct/Nov Paper 1 · Variant 2

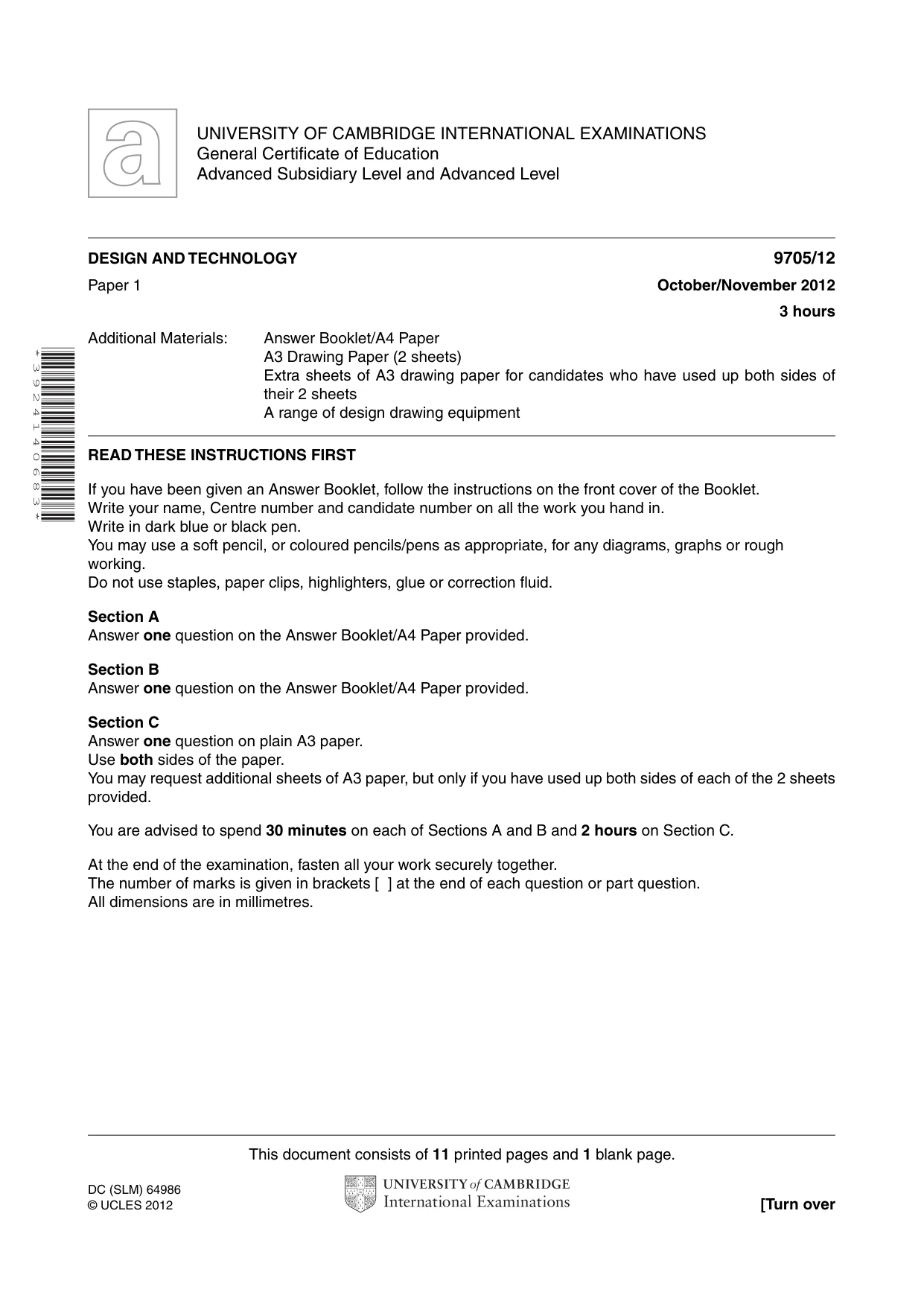

This document consists of 11 printed pages and 1 blank page. DC (SLM) 64986 © UCLES 2012 [Turn over UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Subsidiary Level and Advanced Level * 3 9 2 4 1 4 0 6 8 3 * DESIGN AND TECHNOLOGY 9705/12 Paper 1 October/November 2012 3 hours Additional Materials: Answer Booklet/A4 Paper A3 Drawing Paper (2 sheets) Extra sheets of A3 drawing paper for candidates who have used up both sides of their 2 sheets A range of design drawing equipment READ THESE INSTRUCTIONS FIRST If you have been given an Answer Booklet, follow the instructions on the front cover of the Booklet. Write your name, Centre number and candidate number on all the work you hand in. Write in dark blue or black pen. You may use a soft pencil, or coloured pencils/pens as appropriate, for any diagrams, graphs or rough working. Do not use staples, paper clips, highlighters, glue or correction fluid. Section A Answer one question on the Answer Booklet/A4 Paper provided. Section B Answer one question on the Answer Booklet/A4 Paper provided. Section C Answer one question on plain A3 paper. Use both sides of the paper. You may request additional sheets of A3 paper, but only if you have used up both sides of each of the 2 sheets provided. You are advised to spend 30 minutes on each of Sections A and B and 2 hours on Section C. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. All dimensions are in millimetres.

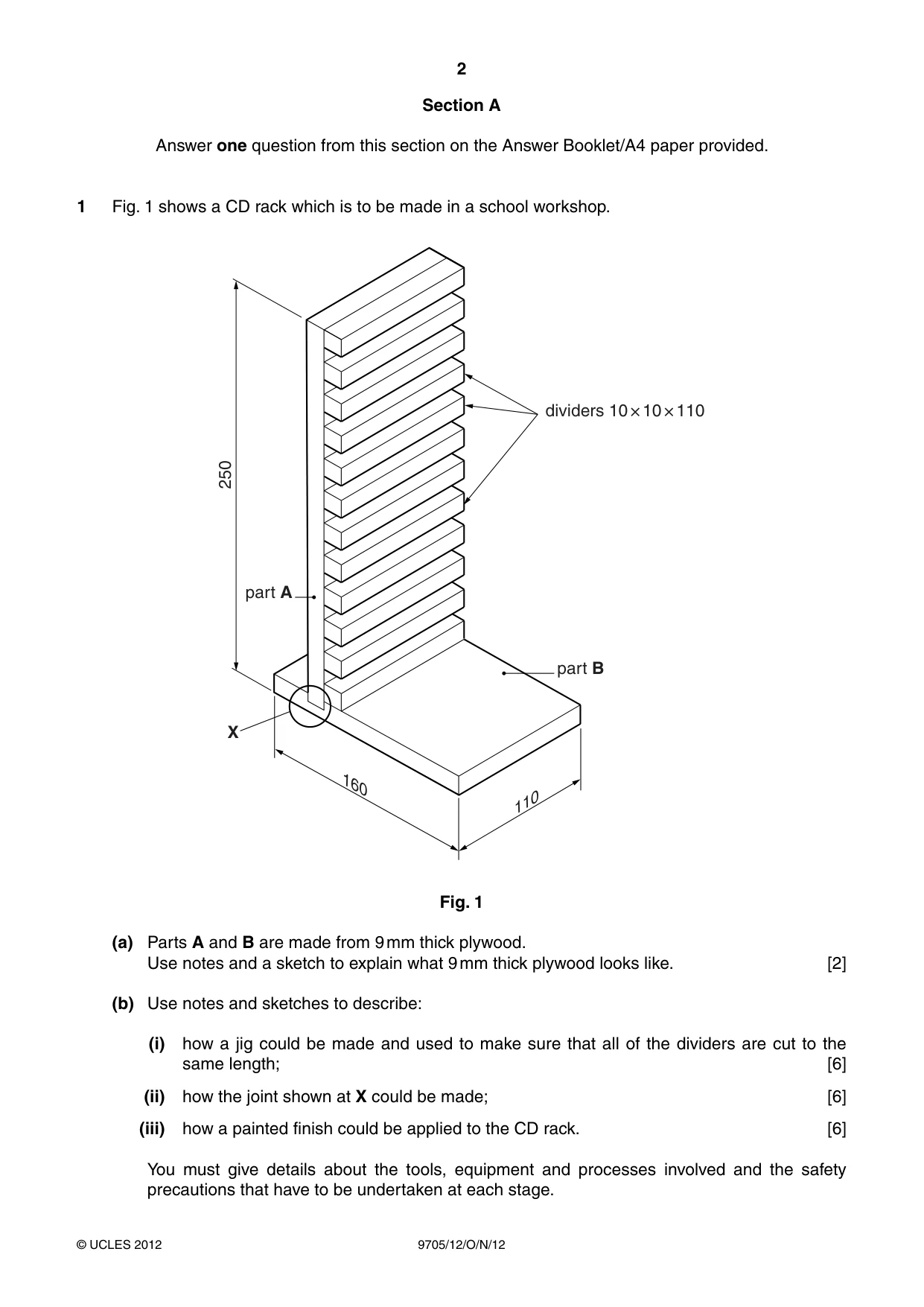

2 9705/12/O/N/12 © UCLES 2012 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1 shows a CD rack which is to be made in a school workshop. 110 part A part B 250 160 X dividers 10 × 10 × 110 Fig. 1 (a) Parts A and B are made from 9 mm thick plywood. Use notes and a sketch to explain what 9 mm thick plywood looks like. [2] (b) Use notes and sketches to describe: (i) how a jig could be made and used to make sure that all of the dividers are cut to the same length; [6] (ii) how the joint shown at X could be made; [6] (iii) how a painted finish could be applied to the CD rack. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

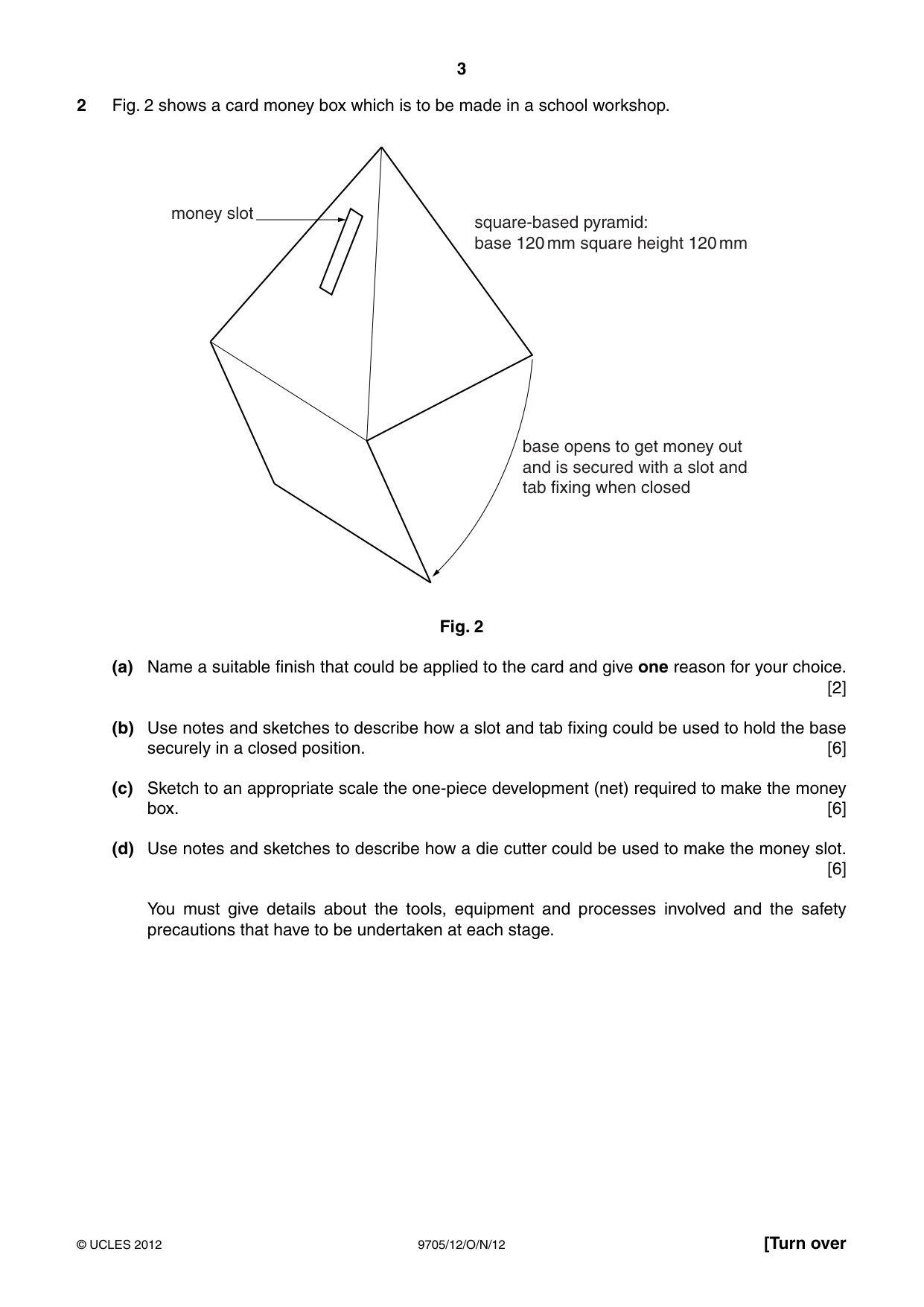

3 9705/12/O/N/12 © UCLES 2012 [Turn over 2 Fig. 2 shows a card money box which is to be made in a school workshop. square-based pyramid: base 120 mm square height 120 mm base opens to get money out and is secured with a slot and tab fixing when closed money slot Fig. 2 (a) Name a suitable finish that could be applied to the card and give one reason for your choice. [2] (b) Use notes and sketches to describe how a slot and tab fixing could be used to hold the base securely in a closed position. [6] (c) Sketch to an appropriate scale the one-piece development (net) required to make the money box. [6] (d) Use notes and sketches to describe how a die cutter could be used to make the money slot. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

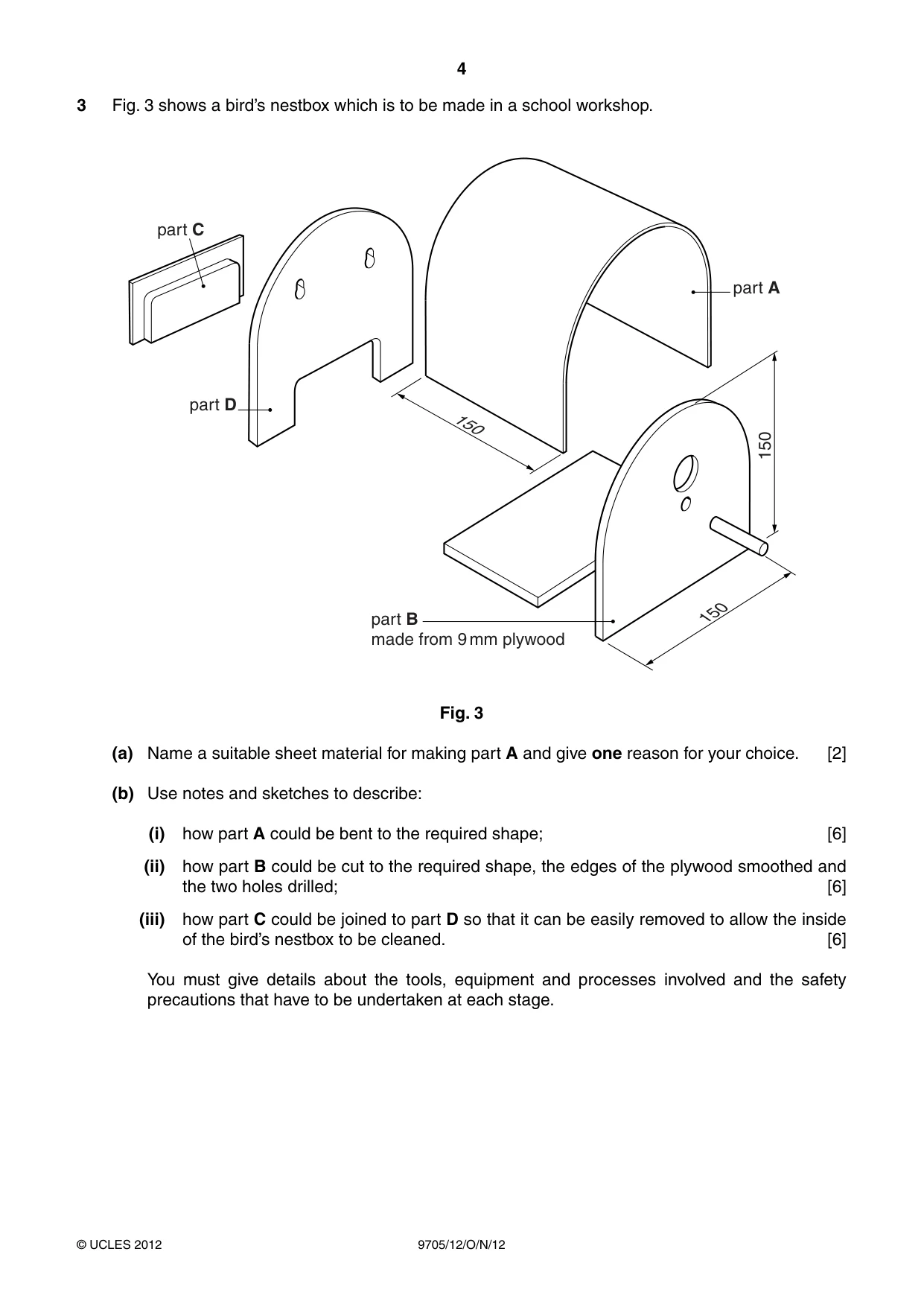

4 9705/12/O/N/12 © UCLES 2012 3 Fig. 3 shows a bird’s nestbox which is to be made in a school workshop. part A part D part B made from 9 mm plywood part C 150 150 150 Fig. 3 (a) Name a suitable sheet material for making part A and give one reason for your choice. [2] (b) Use notes and sketches to describe: (i) how part A could be bent to the required shape; [6] (ii) how part B could be cut to the required shape, the edges of the plywood smoothed and the two holes drilled; [6] (iii) how part C could be joined to part D so that it can be easily removed to allow the inside of the bird’s nestbox to be cleaned. [6] You must give details about the tools, equipment and processes involved and the safety precautions that have to be undertaken at each stage.

5 9705/12/O/N/12 © UCLES 2012 [Turn over BLANK PAGE

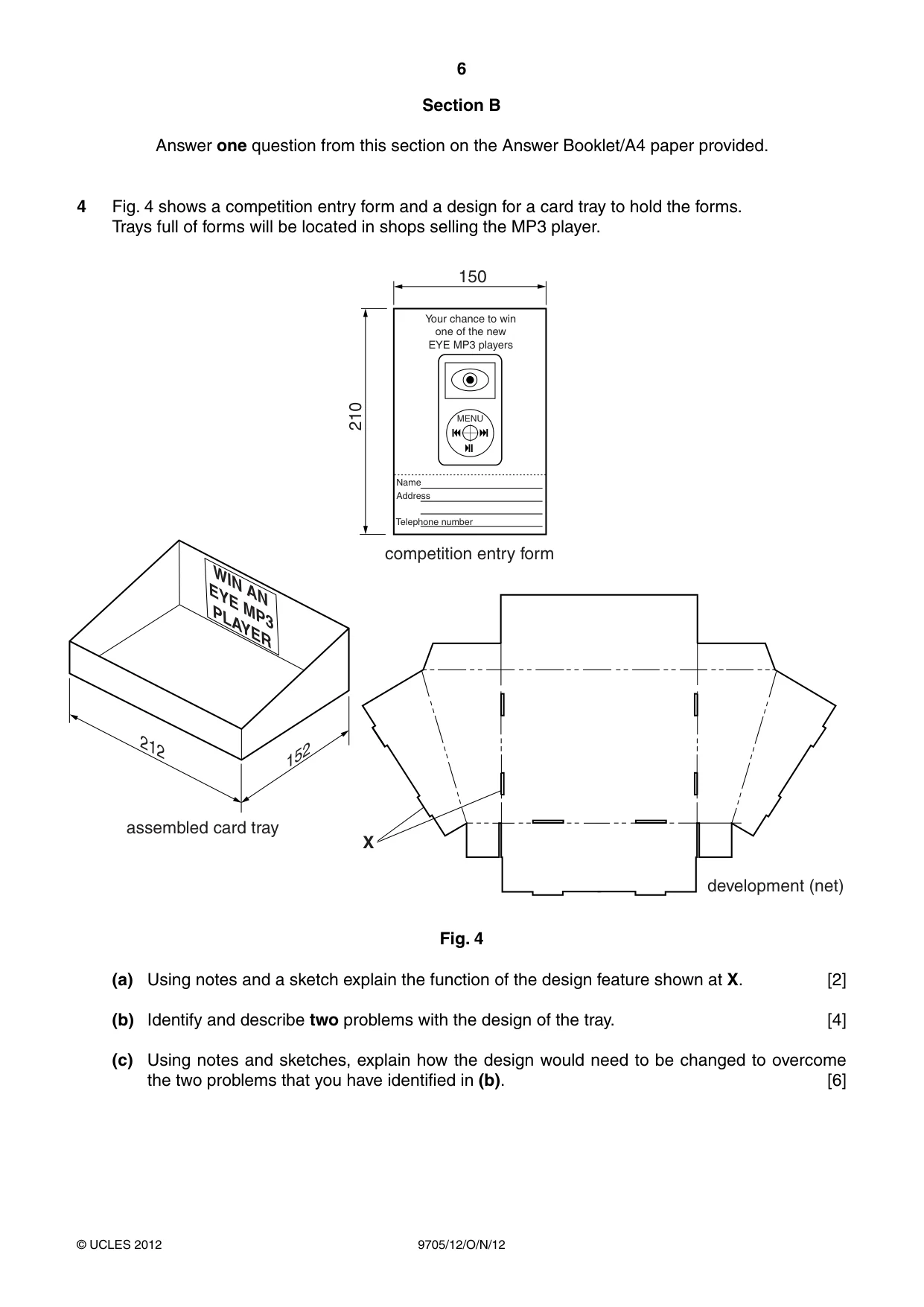

6 9705/12/O/N/12 © UCLES 2012 Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 4 shows a competition entry form and a design for a card tray to hold the forms. Trays full of forms will be located in shops selling the MP3 player. WIN AN EYE MP3 PLAYER 212 152 assembled card tray development (net) MENU Your chance to win one of the new EYE MP3 players Name Address Telephone number 150 210 competition entry form X Fig. 4 (a) Using notes and a sketch explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with the design of the tray. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems that you have identified in (b). [6]

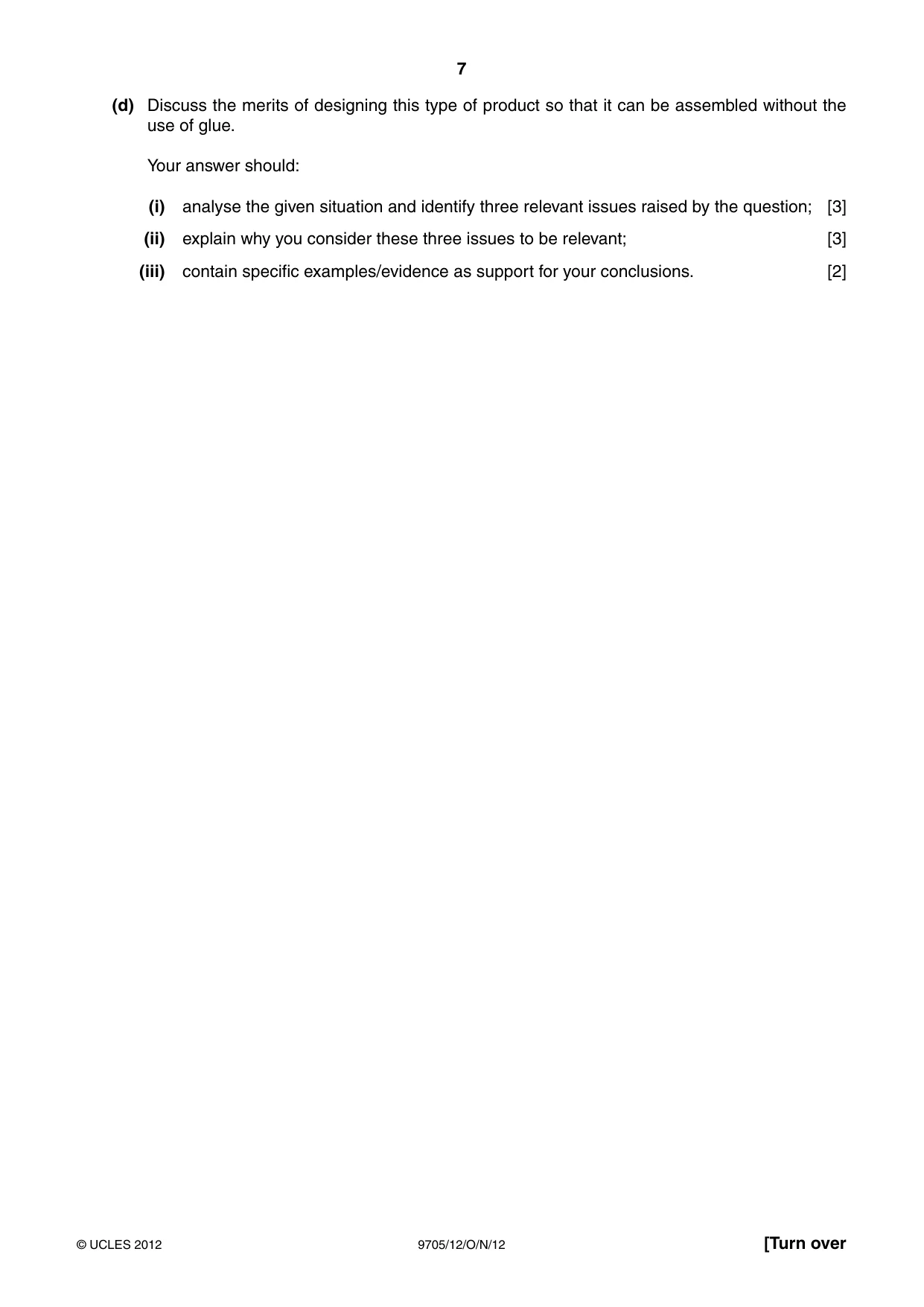

7 9705/12/O/N/12 © UCLES 2012 [Turn over (d) Discuss the merits of designing this type of product so that it can be assembled without the use of glue. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these three issues to be relevant; [3] (iii) contain specific examples/evidence as support for your conclusions. [2]

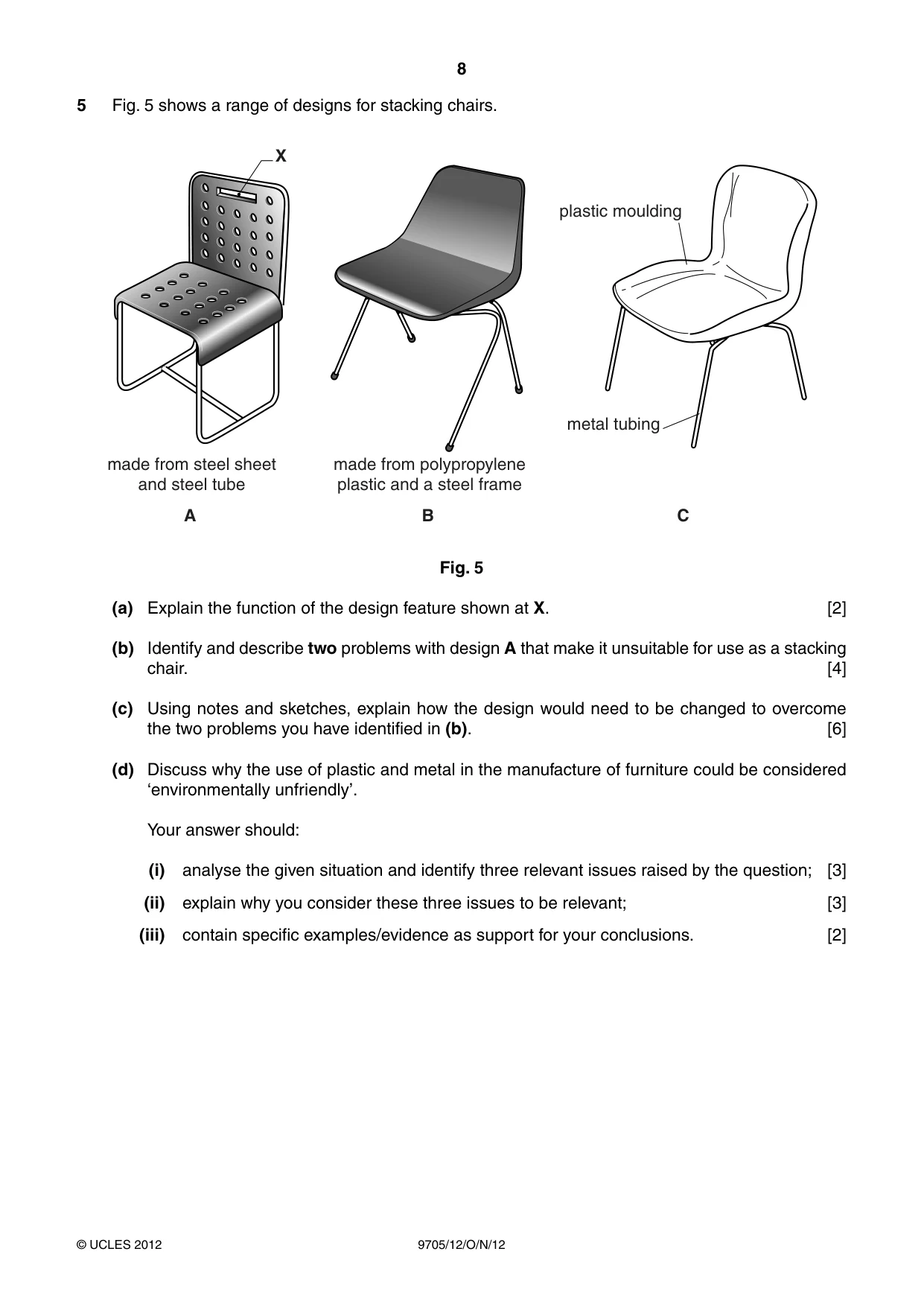

8 9705/12/O/N/12 © UCLES 2012 5 Fig. 5 shows a range of designs for stacking chairs. X made from steel sheet and steel tube A made from polypropylene plastic and a steel frame B C plastic moulding metal tubing Fig. 5 (a) Explain the function of the design feature shown at X. [2] (b) Identify and describe two problems with design A that make it unsuitable for use as a stacking chair. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in (b). [6] (d) Discuss why the use of plastic and metal in the manufacture of furniture could be considered ‘environmentally unfriendly’. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these three issues to be relevant; [3] (iii) contain specific examples/evidence as support for your conclusions. [2]

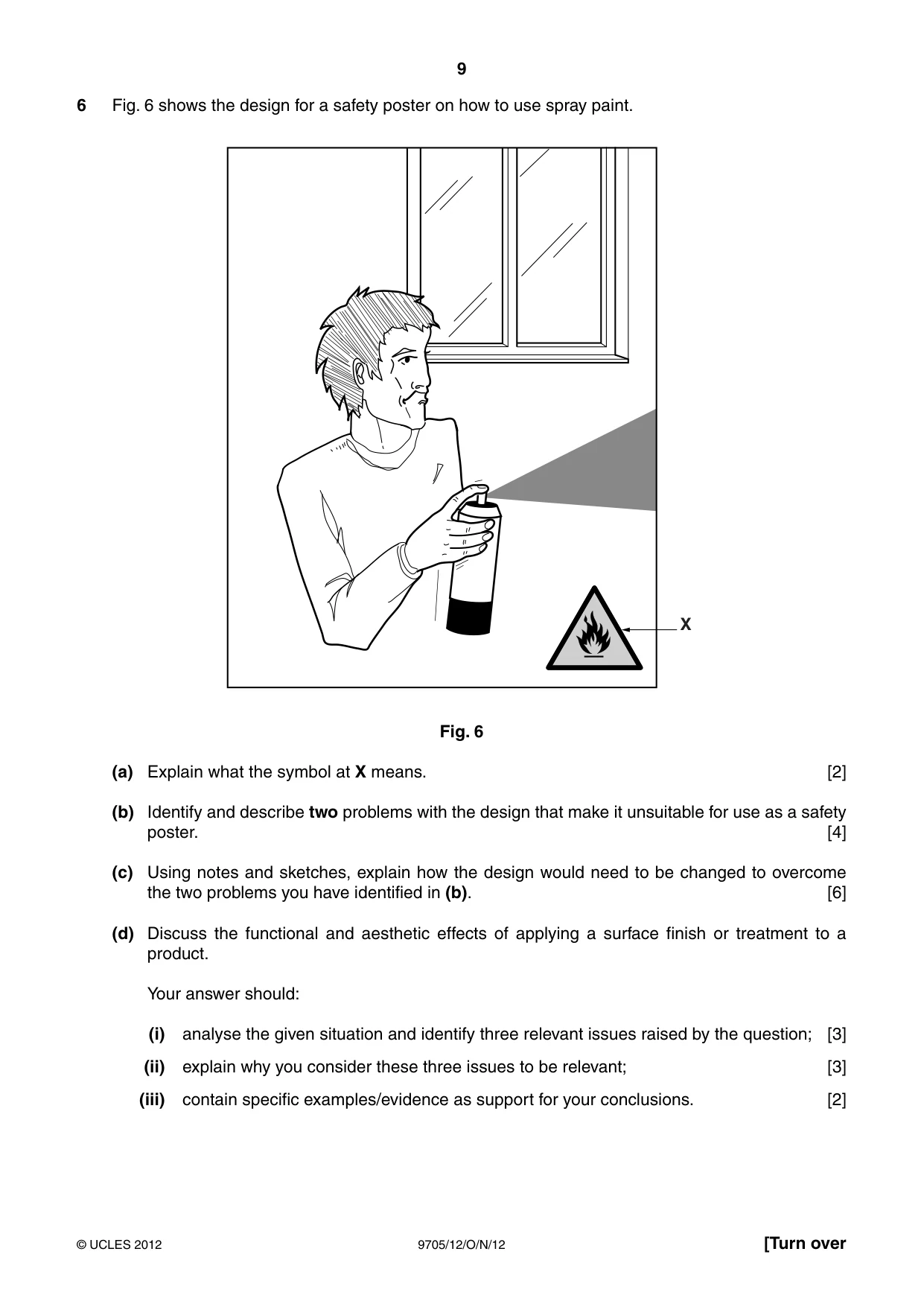

9 9705/12/O/N/12 © UCLES 2012 [Turn over 6 Fig. 6 shows the design for a safety poster on how to use spray paint. X Fig. 6 (a) Explain what the symbol at X means. [2] (b) Identify and describe two problems with the design that make it unsuitable for use as a safety poster. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in (b). [6] (d) Discuss the functional and aesthetic effects of applying a surface finish or treatment to a product. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these three issues to be relevant; [3] (iii) contain specific examples/evidence as support for your conclusions. [2]

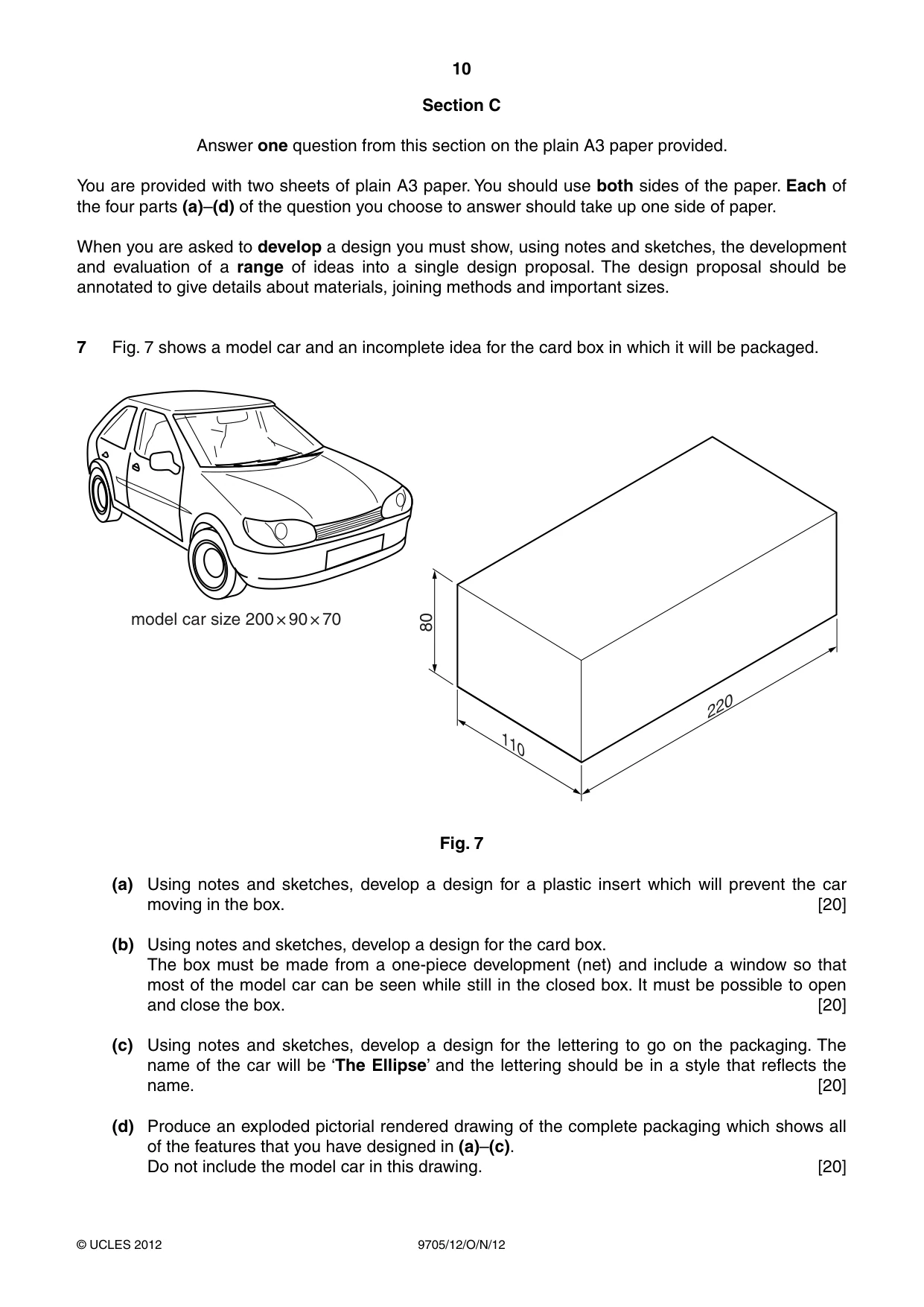

10 9705/12/O/N/12 © UCLES 2012 Section C Answer one question from this section on the plain A3 paper provided. You are provided with two sheets of plain A3 paper. You should use both sides of the paper. Each of the four parts (a)–(d) of the question you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using notes and sketches, the development and evaluation of a range of ideas into a single design proposal. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 7 shows a model car and an incomplete idea for the card box in which it will be packaged. 110 220 80 model car size 200 × 90 × 70 Fig. 7 (a) Using notes and sketches, develop a design for a plastic insert which will prevent the car moving in the box. [20] (b) Using notes and sketches, develop a design for the card box. The box must be made from a one-piece development (net) and include a window so that most of the model car can be seen while still in the closed box. It must be possible to open and close the box. [20] (c) Using notes and sketches, develop a design for the lettering to go on the packaging. The name of the car will be ‘The Ellipse’ and the lettering should be in a style that reflects the name. [20] (d) Produce an exploded pictorial rendered drawing of the complete packaging which shows all of the features that you have designed in (a)–(c). Do not include the model car in this drawing. [20]

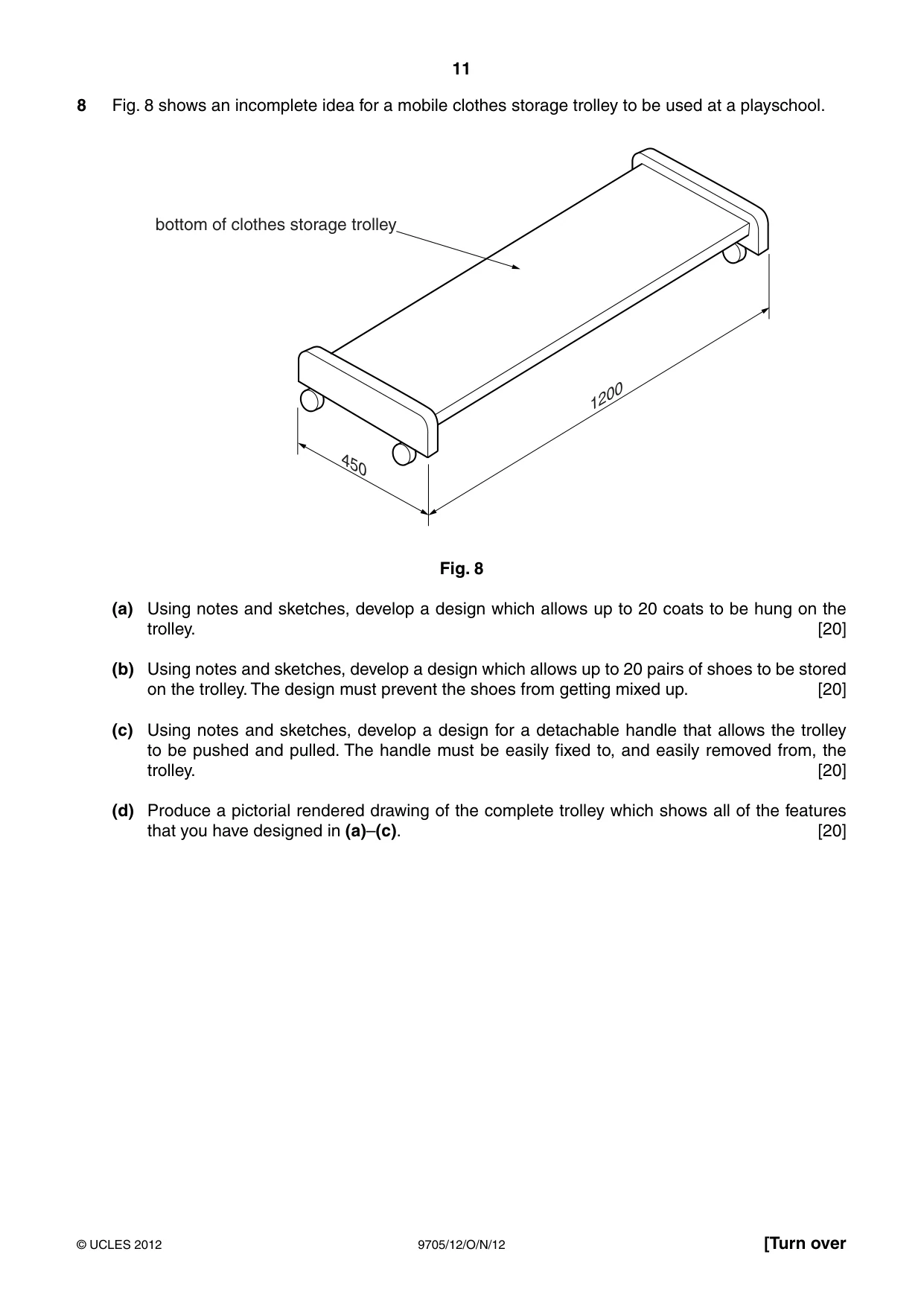

11 9705/12/O/N/12 © UCLES 2012 [Turn over 8 Fig. 8 shows an incomplete idea for a mobile clothes storage trolley to be used at a playschool. 1200 450 bottom of clothes storage trolley Fig. 8 (a) Using notes and sketches, develop a design which allows up to 20 coats to be hung on the trolley. [20] (b) Using notes and sketches, develop a design which allows up to 20 pairs of shoes to be stored on the trolley. The design must prevent the shoes from getting mixed up. [20] (c) Using notes and sketches, develop a design for a detachable handle that allows the trolley to be pushed and pulled. The handle must be easily fixed to, and easily removed from, the trolley. [20] (d) Produce a pictorial rendered drawing of the complete trolley which shows all of the features that you have designed in (a)–(c). [20]

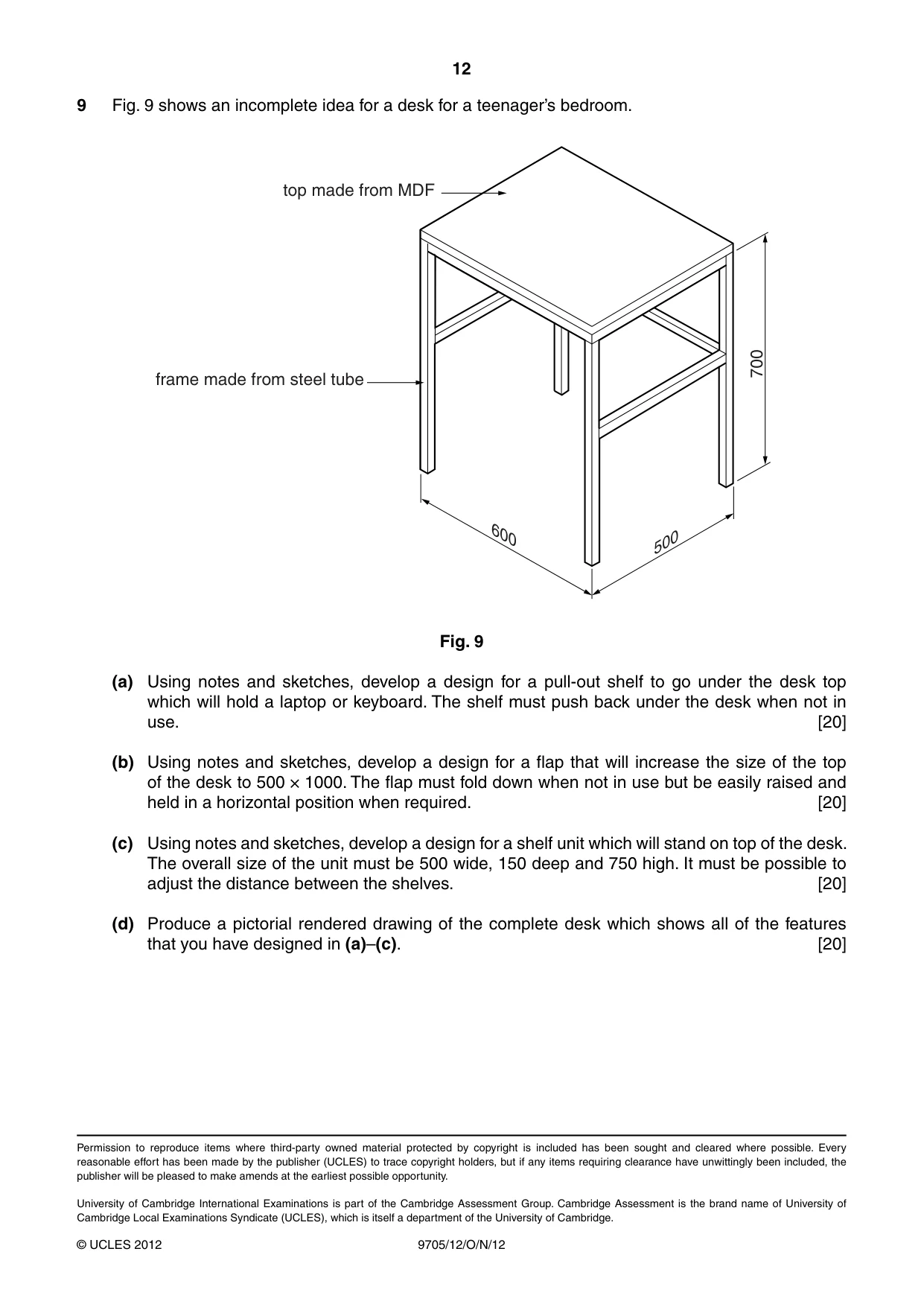

12 9705/12/O/N/12 © UCLES 2012 9 Fig. 9 shows an incomplete idea for a desk for a teenager’s bedroom. 500 600 frame made from steel tube top made from MDF 700 Fig. 9 (a) Using notes and sketches, develop a design for a pull-out shelf to go under the desk top which will hold a laptop or keyboard. The shelf must push back under the desk when not in use. [20] (b) Using notes and sketches, develop a design for a flap that will increase the size of the top of the desk to 500 × 1000. The flap must fold down when not in use but be easily raised and held in a horizontal position when required. [20] (c) Using notes and sketches, develop a design for a shelf unit which will stand on top of the desk. The overall size of the unit must be 500 wide, 150 deep and 750 high. It must be possible to adjust the distance between the shelves. [20] (d) Produce a pictorial rendered drawing of the complete desk which shows all of the features that you have designed in (a)–(c). [20] Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge.

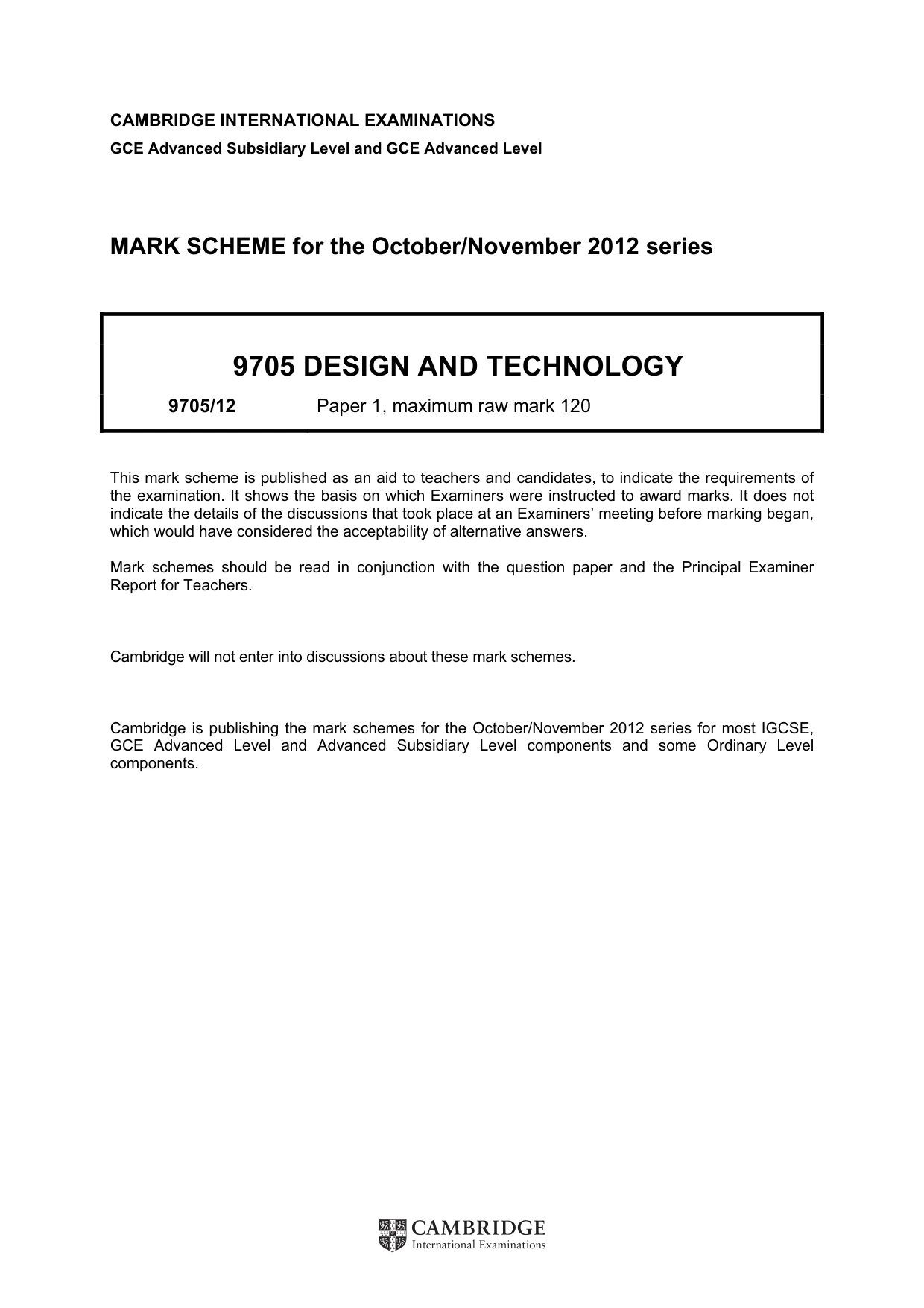

CAMBRIDGE INTERNATIONAL EXAMINATIONS GCE Advanced Subsidiary Level and GCE Advanced Level MARK SCHEME for the October/November 2012 series 9705 DESIGN AND TECHNOLOGY 9705/12 Paper 1, maximum raw mark 120 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge will not enter into discussions about these mark schemes. Cambridge is publishing the mark schemes for the October/November 2012 series for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level components and some Ordinary Level components.

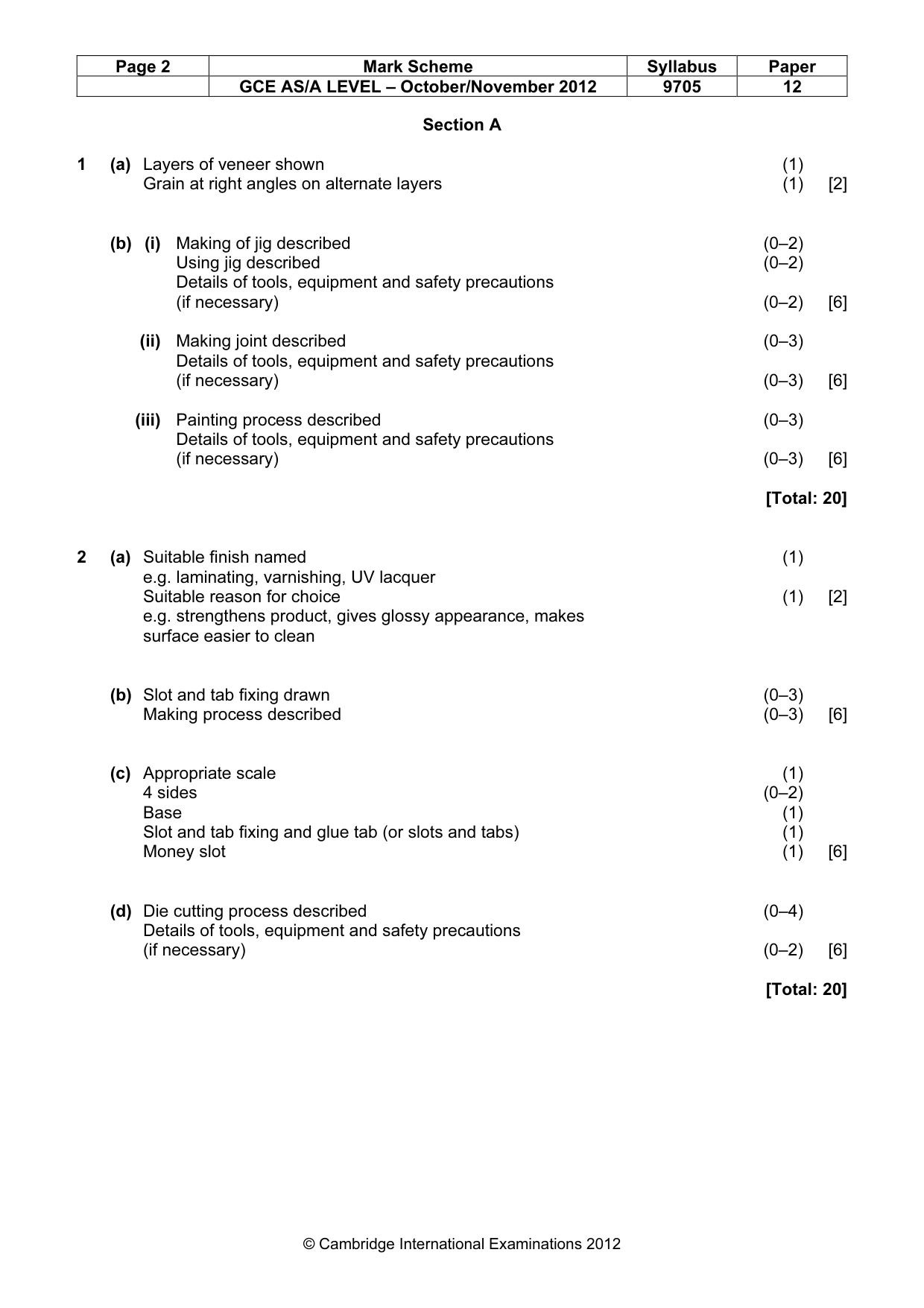

Page 2 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9705 12 © Cambridge International Examinations 2012 Section A 1 (a) Layers of veneer shown (1) Grain at right angles on alternate layers (1) [2] (b) (i) Making of jig described (0–2) Using jig described (0–2) Details of tools, equipment and safety precautions (if necessary) (0–2) [6] (ii) Making joint described (0–3) Details of tools, equipment and safety precautions (if necessary) (0–3) [6] (iii) Painting process described (0–3) Details of tools, equipment and safety precautions (if necessary) (0–3) [6] [Total: 20] 2 (a) Suitable finish named (1) e.g. laminating, varnishing, UV lacquer Suitable reason for choice (1) [2] e.g. strengthens product, gives glossy appearance, makes surface easier to clean (b) Slot and tab fixing drawn (0–3) Making process described (0–3) [6] (c) Appropriate scale (1) 4 sides (0–2) Base (1) Slot and tab fixing and glue tab (or slots and tabs) (1) Money slot (1) [6] (d) Die cutting process described (0–4) Details of tools, equipment and safety precautions (if necessary) (0–2) [6] [Total: 20]

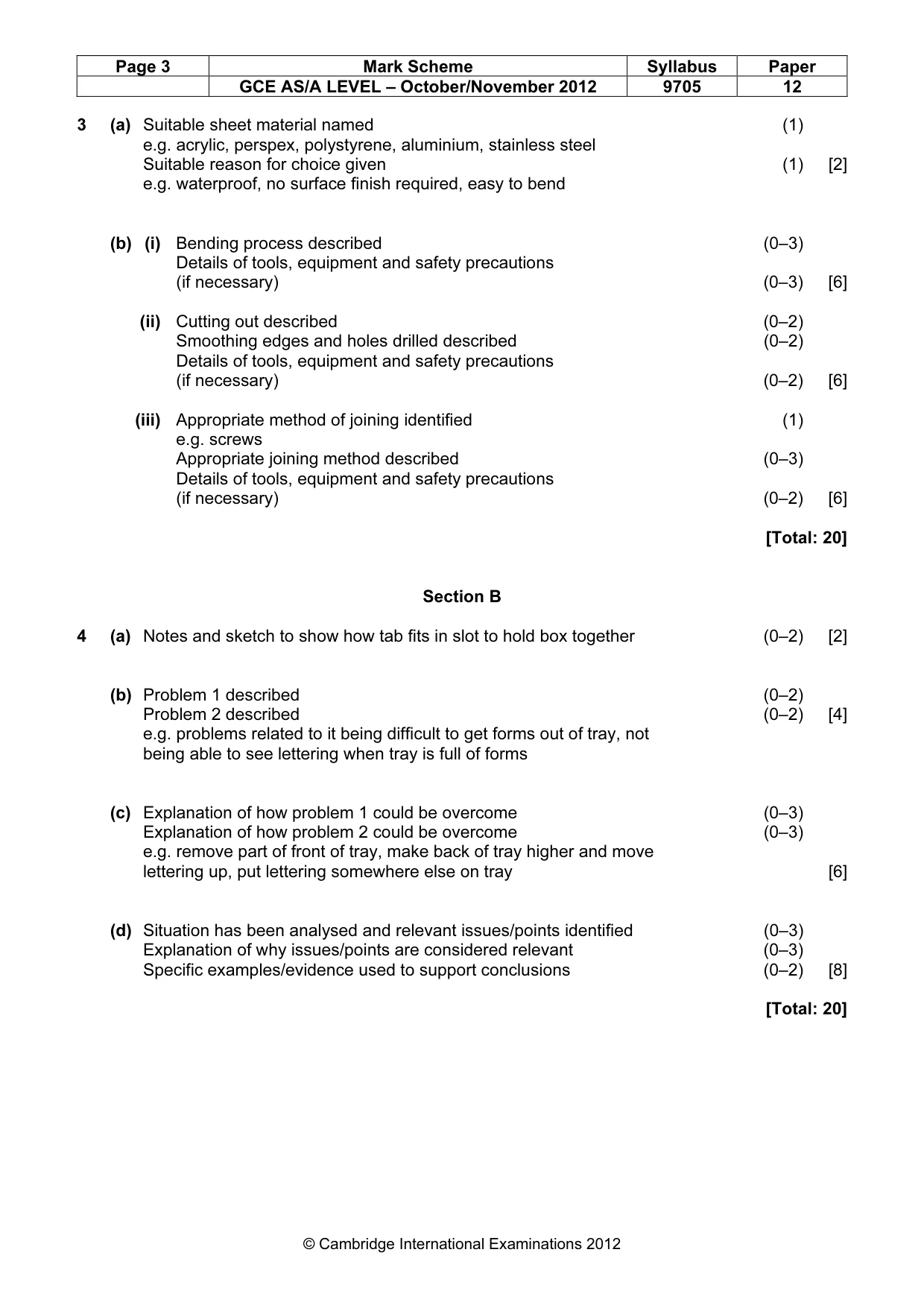

Page 3 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9705 12 © Cambridge International Examinations 2012 3 (a) Suitable sheet material named (1) e.g. acrylic, perspex, polystyrene, aluminium, stainless steel Suitable reason for choice given (1) [2] e.g. waterproof, no surface finish required, easy to bend (b) (i) Bending process described (0–3) Details of tools, equipment and safety precautions (if necessary) (0–3) [6] (ii) Cutting out described (0–2) Smoothing edges and holes drilled described (0–2) Details of tools, equipment and safety precautions (if necessary) (0–2) [6] (iii) Appropriate method of joining identified (1) e.g. screws Appropriate joining method described (0–3) Details of tools, equipment and safety precautions (if necessary) (0–2) [6] [Total: 20] Section B 4 (a) Notes and sketch to show how tab fits in slot to hold box together (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) [4] e.g. problems related to it being difficult to get forms out of tray, not being able to see lettering when tray is full of forms (c) Explanation of how problem 1 could be overcome (0–3) Explanation of how problem 2 could be overcome (0–3) e.g. remove part of front of tray, make back of tray higher and move lettering up, put lettering somewhere else on tray [6] (d) Situation has been analysed and relevant issues/points identified (0–3) Explanation of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) [8] [Total: 20]

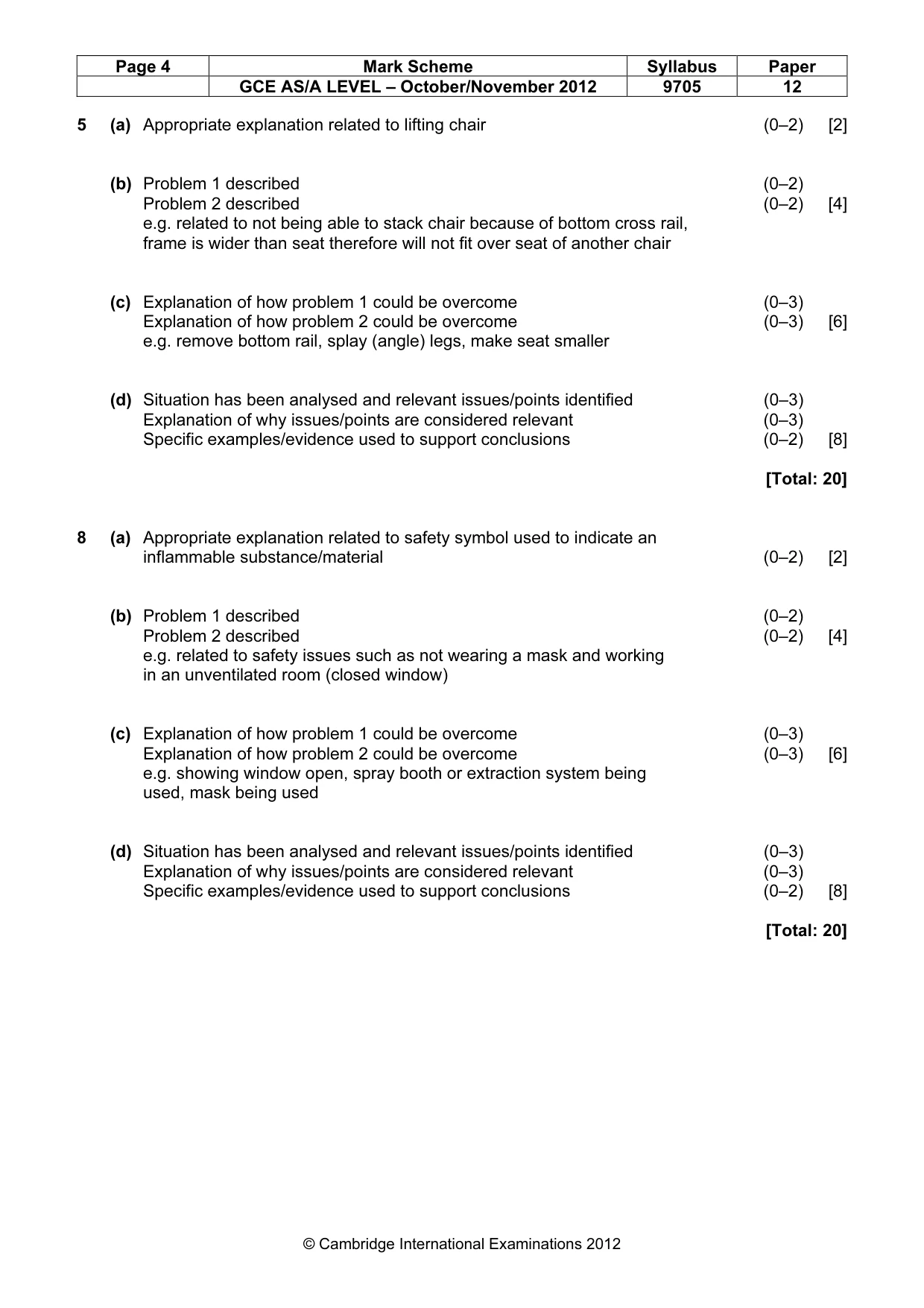

Page 4 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9705 12 © Cambridge International Examinations 2012 5 (a) Appropriate explanation related to lifting chair (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) [4] e.g. related to not being able to stack chair because of bottom cross rail, frame is wider than seat therefore will not fit over seat of another chair (c) Explanation of how problem 1 could be overcome (0–3) Explanation of how problem 2 could be overcome (0–3) [6] e.g. remove bottom rail, splay (angle) legs, make seat smaller (d) Situation has been analysed and relevant issues/points identified (0–3) Explanation of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) [8] [Total: 20] 8 (a) Appropriate explanation related to safety symbol used to indicate an inflammable substance/material (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) [4] e.g. related to safety issues such as not wearing a mask and working in an unventilated room (closed window) (c) Explanation of how problem 1 could be overcome (0–3) Explanation of how problem 2 could be overcome (0–3) [6] e.g. showing window open, spray booth or extraction system being used, mask being used (d) Situation has been analysed and relevant issues/points identified (0–3) Explanation of why issues/points are considered relevant (0–3) Specific examples/evidence used to support conclusions (0–2) [8] [Total: 20]

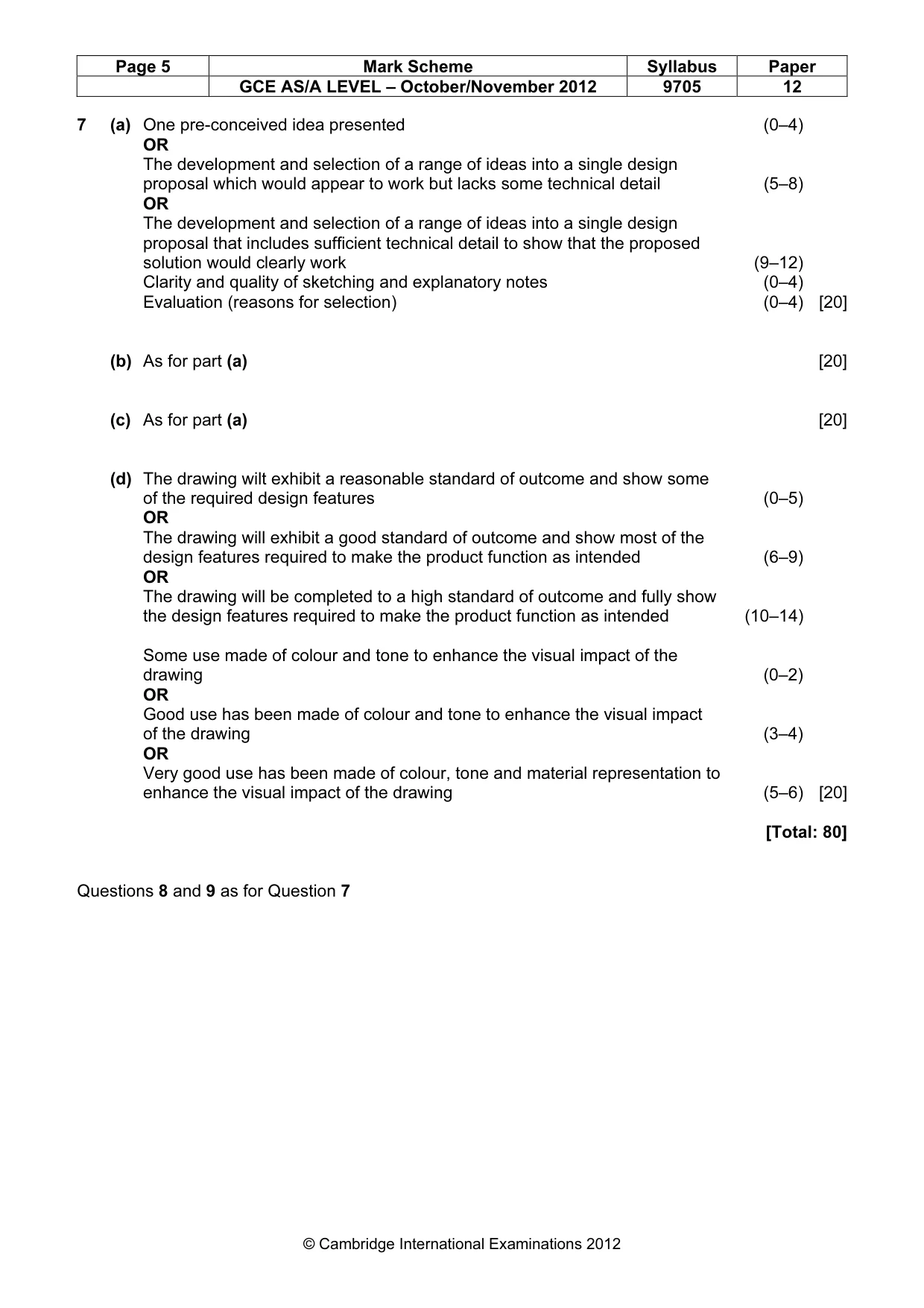

Page 5 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9705 12 © Cambridge International Examinations 2012 7 (a) One pre-conceived idea presented (0–4) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (5–8) OR The development and selection of a range of ideas into a single design proposal that includes sufficient technical detail to show that the proposed solution would clearly work (9–12) Clarity and quality of sketching and explanatory notes (0–4) Evaluation (reasons for selection) (0–4) [20] (b) As for part (a) [20] (c) As for part (a) [20] (d) The drawing wilt exhibit a reasonable standard of outcome and show some of the required design features (0–5) OR The drawing will exhibit a good standard of outcome and show most of the design features required to make the product function as intended (6–9) OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended (10–14) Some use made of colour and tone to enhance the visual impact of the drawing (0–2) OR Good use has been made of colour and tone to enhance the visual impact of the drawing (3–4) OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing (5–6) [20] [Total: 80] Questions 8 and 9 as for Question 7
