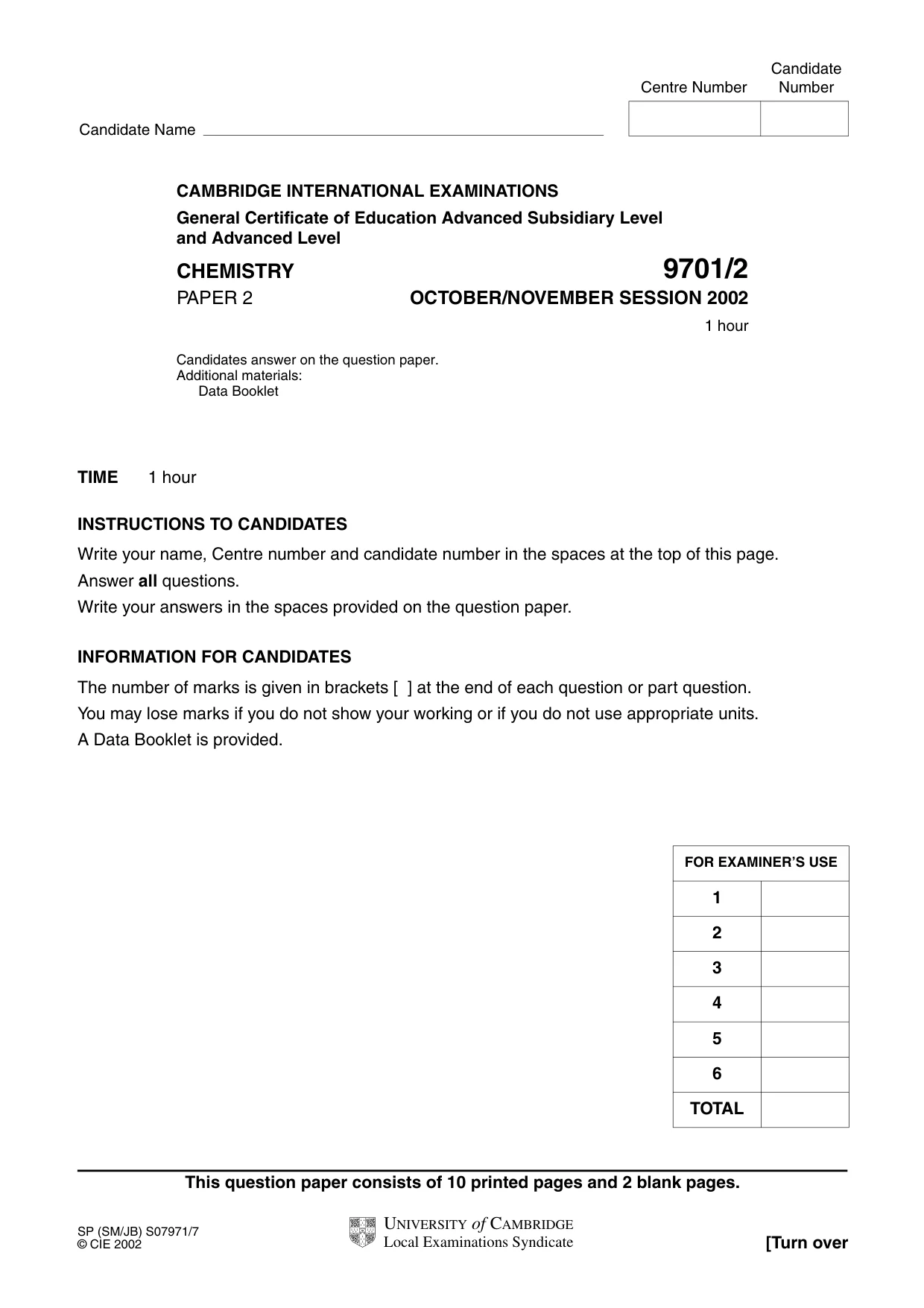

This question paper consists of 10 printed pages and 2 blank pages. SP (SM/JB) S07971/7 © CIE 2002 [Turn over CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Subsidiary Level and Advanced Level CHEMISTRY 9701/2 PAPER 2 OCTOBER/NOVEMBER SESSION 2002 1 hour Candidates answer on the question paper. Additional materials: Data Booklet TIME 1 hour INSTRUCTIONS TO CANDIDATES Write your name, Centre number and candidate number in the spaces at the top of this page. Answer all questions. Write your answers in the spaces provided on the question paper. INFORMATION FOR CANDIDATES The number of marks is given in brackets [ ] at the end of each question or part question. You may lose marks if you do not show your working or if you do not use appropriate units. A Data Booklet is provided. Candidate Centre Number Number Candidate Name FOR EXAMINER’S USE 1 2 3 4 5 6 TOTAL UNIVERSITY of CAMBRIDGE Local Examinations Syndicate

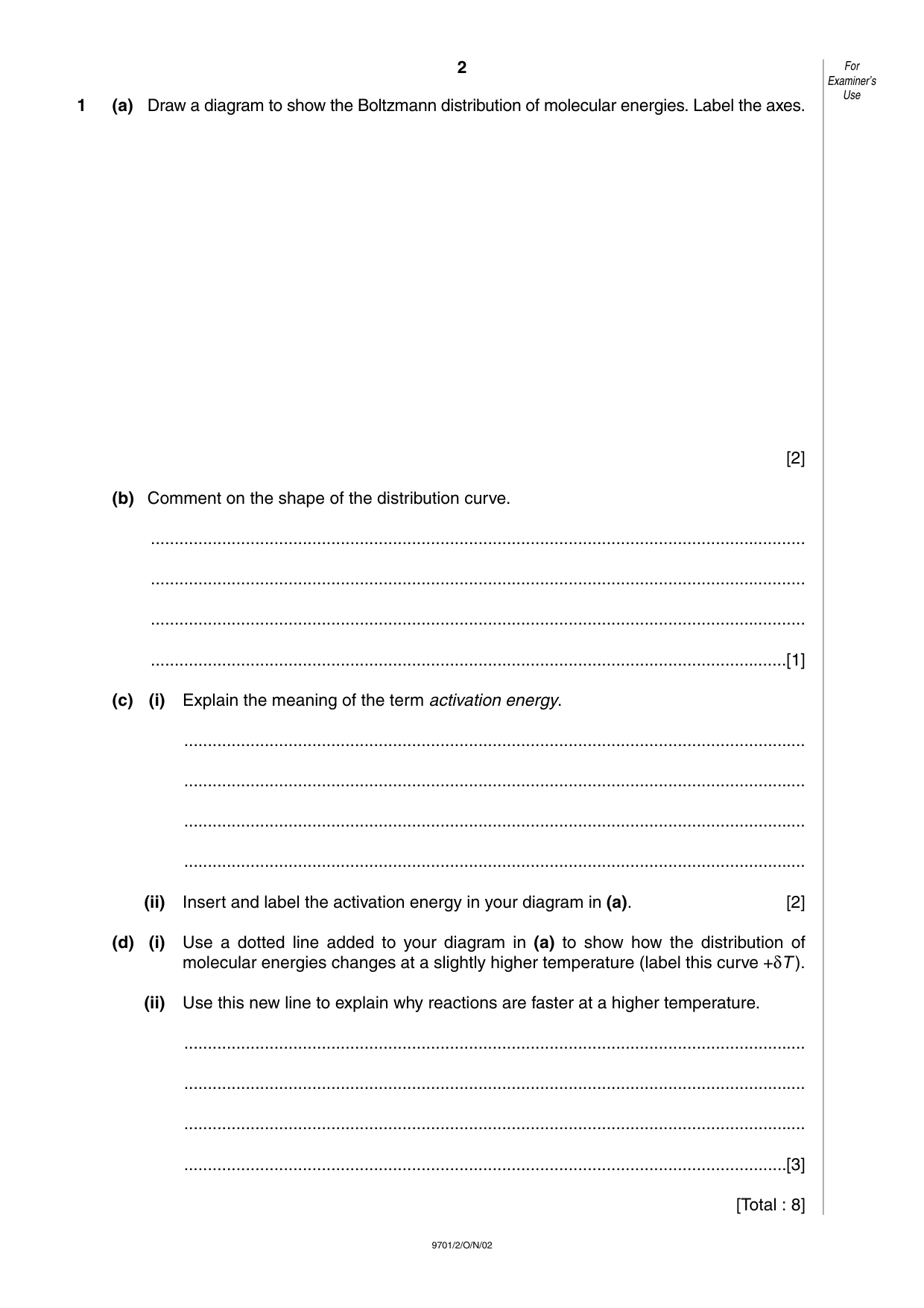

2 9701/2/O/N/02 1 (a) Draw a diagram to show the Boltzmann distribution of molecular energies. Label the axes. [2] (b) Comment on the shape of the distribution curve. … … … …[1] (c) (i) Explain the meaning of the term activation energy. … … … … (ii) Insert and label the activation energy in your diagram in (a). [2] (d) (i) Use a dotted line added to your diagram in (a) to show how the distribution of molecular energies changes at a slightly higher temperature (label this curve +δT ). (ii) Use this new line to explain why reactions are faster at a higher temperature. … … … …[3] [Total : 8] For Examiner’s Use

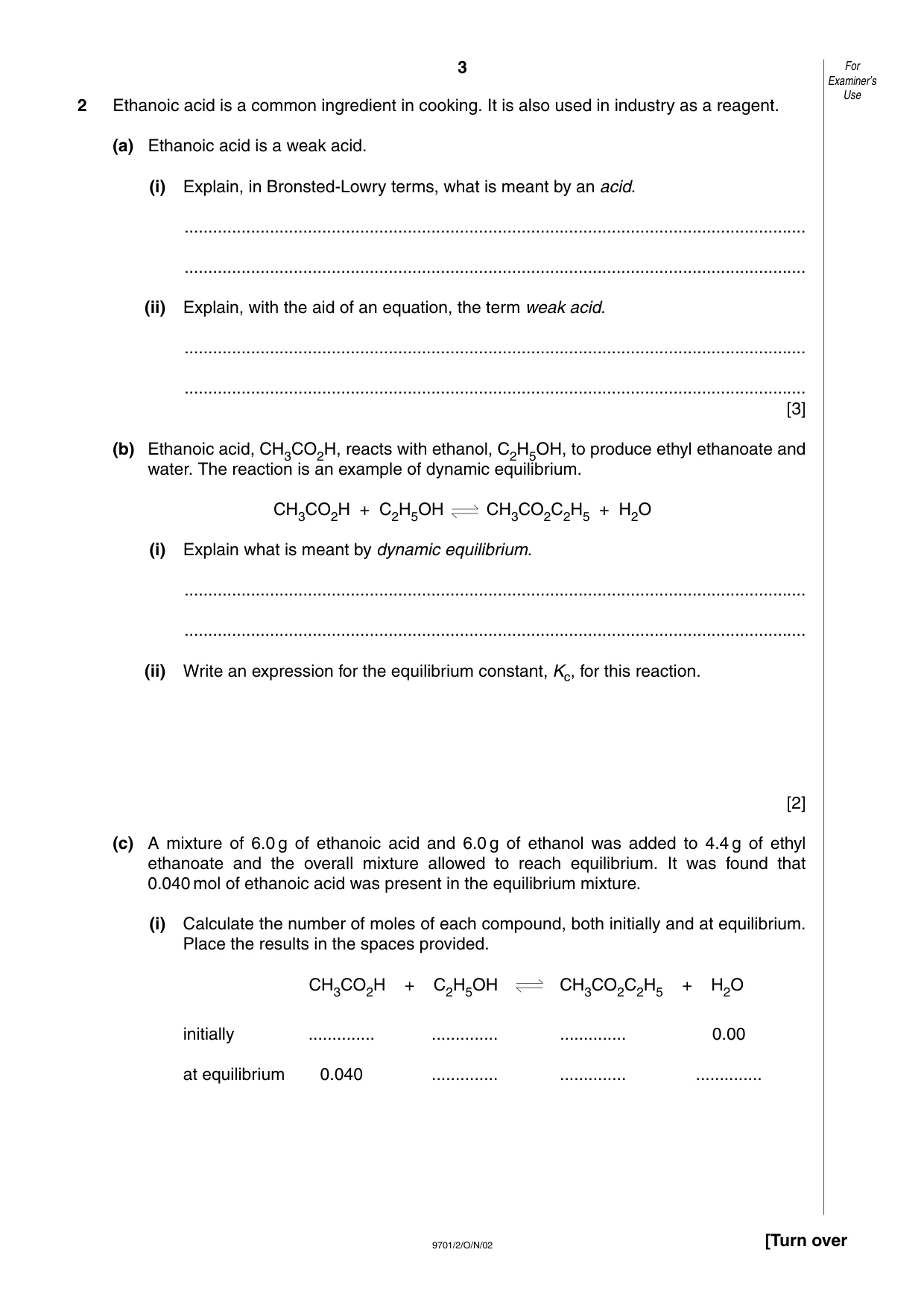

3 9701/2/O/N/02 [Turn over 2 Ethanoic acid is a common ingredient in cooking. It is also used in industry as a reagent. (a) Ethanoic acid is a weak acid. (i) Explain, in Bronsted-Lowry terms, what is meant by an acid. … … (ii) Explain, with the aid of an equation, the term weak acid. … … [3] (b) Ethanoic acid, CH3CO2H, reacts with ethanol, C2H5OH, to produce ethyl ethanoate and water. The reaction is an example of dynamic equilibrium. CH3CO2H + C2H5OH CH3CO2C2H5 + H2O (i) Explain what is meant by dynamic equilibrium. … … (ii) Write an expression for the equilibrium constant, Kc, for this reaction. [2] (c) A mixture of 6.0 g of ethanoic acid and 6.0 g of ethanol was added to 4.4 g of ethyl ethanoate and the overall mixture allowed to reach equilibrium. It was found that 0.040 mol of ethanoic acid was present in the equilibrium mixture. (i) Calculate the number of moles of each compound, both initially and at equilibrium. Place the results in the spaces provided. CH3CO2H + C2H5OH CH3CO2C2H5 + H2O initially … … … 0.00 at equilibrium 0.040 … … … For Examiner’s Use

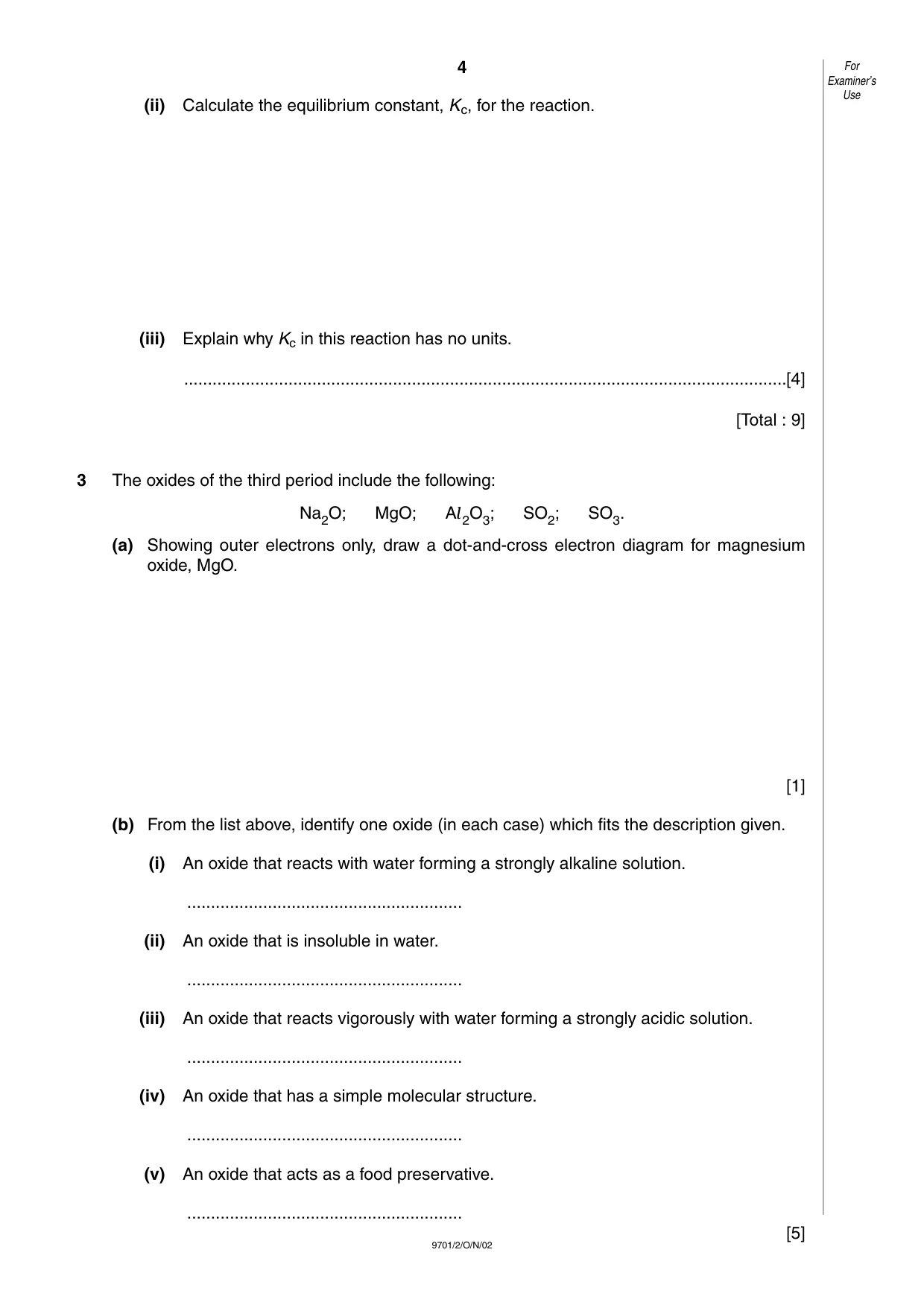

4 9701/2/O/N/02 (ii) Calculate the equilibrium constant, Kc, for the reaction. (iii) Explain why Kc in this reaction has no units. …[4] [Total : 9] 3 The oxides of the third period include the following: Na2O; MgO; Al2O3; SO2; SO3. (a) Showing outer electrons only, draw a dot-and-cross electron diagram for magnesium oxide, MgO. [1] (b) From the list above, identify one oxide (in each case) which fits the description given. (i) An oxide that reacts with water forming a strongly alkaline solution. … (ii) An oxide that is insoluble in water. … (iii) An oxide that reacts vigorously with water forming a strongly acidic solution. … (iv) An oxide that has a simple molecular structure. … (v) An oxide that acts as a food preservative. … [5] For Examiner’s Use

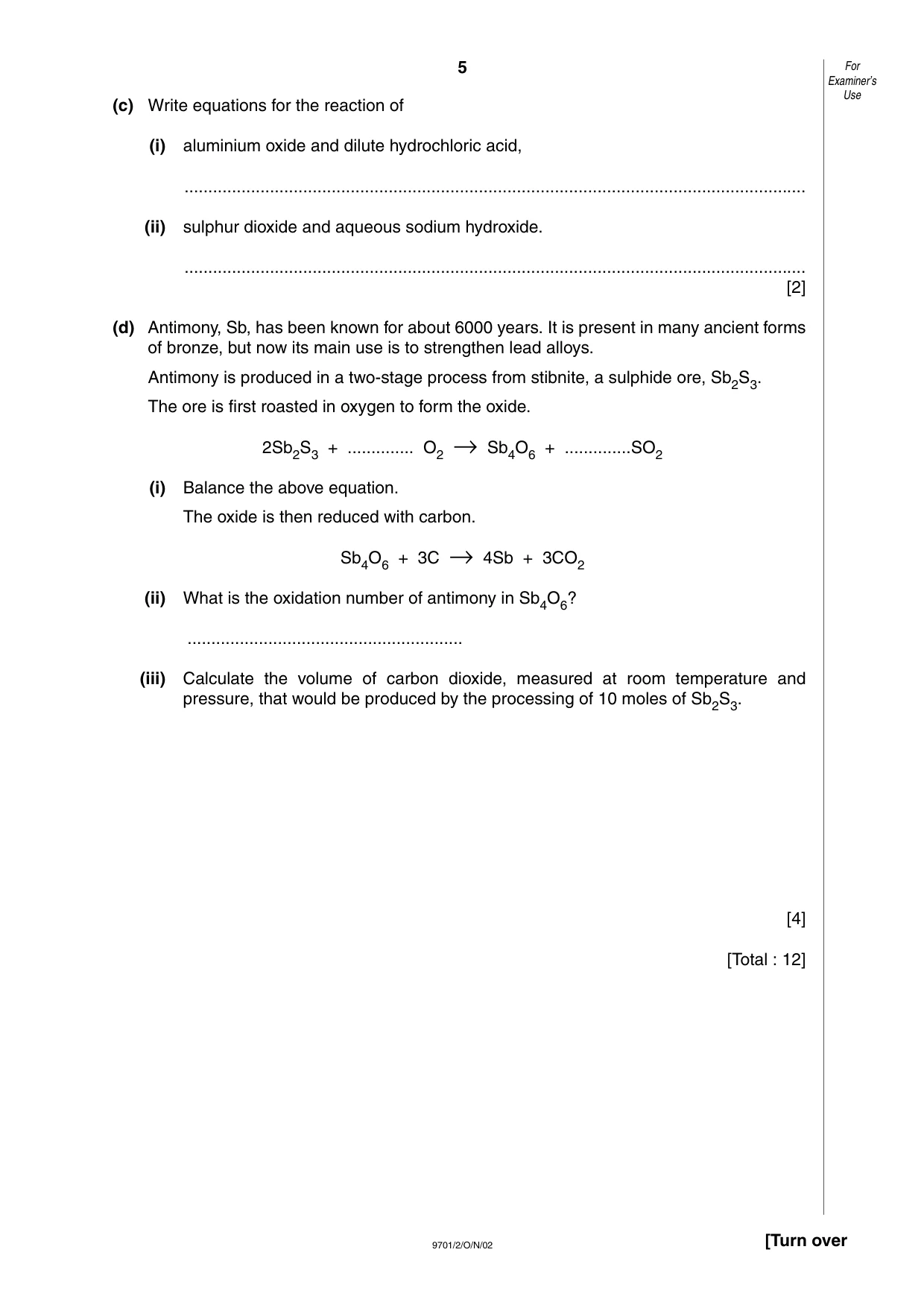

5 9701/2/O/N/02 [Turn over (c) Write equations for the reaction of (i) aluminium oxide and dilute hydrochloric acid, … (ii) sulphur dioxide and aqueous sodium hydroxide. … [2] (d) Antimony, Sb, has been known for about 6000 years. It is present in many ancient forms of bronze, but now its main use is to strengthen lead alloys. Antimony is produced in a two-stage process from stibnite, a sulphide ore, Sb2S3. The ore is first roasted in oxygen to form the oxide. 2Sb2S3 + … O2 →Sb4O6 + …SO2 (i) Balance the above equation. The oxide is then reduced with carbon. Sb4O6 + 3C →4Sb + 3CO2 (ii) What is the oxidation number of antimony in Sb4O6? … (iii) Calculate the volume of carbon dioxide, measured at room temperature and pressure, that would be produced by the processing of 10 moles of Sb2S3. [4] [Total : 12] For Examiner’s Use

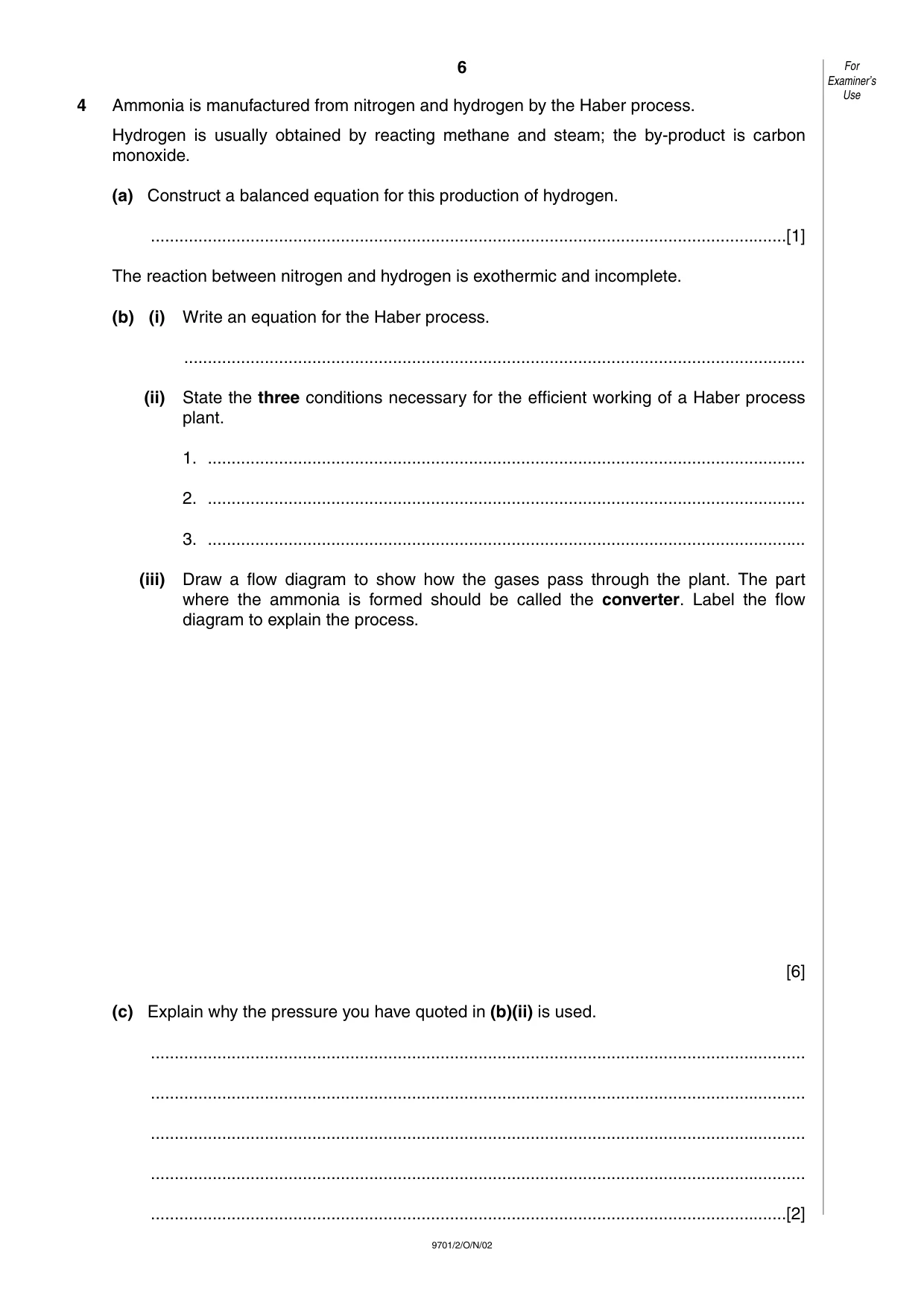

6 9701/2/O/N/02 4 Ammonia is manufactured from nitrogen and hydrogen by the Haber process. Hydrogen is usually obtained by reacting methane and steam; the by-product is carbon monoxide. (a) Construct a balanced equation for this production of hydrogen. …[1] The reaction between nitrogen and hydrogen is exothermic and incomplete. (b) (i) Write an equation for the Haber process. … (ii) State the three conditions necessary for the efficient working of a Haber process plant. 1. … 2. … 3. … (iii) Draw a flow diagram to show how the gases pass through the plant. The part where the ammonia is formed should be called the converter. Label the flow diagram to explain the process. [6] (c) Explain why the pressure you have quoted in (b)(ii) is used. … … … … …[2] For Examiner’s Use

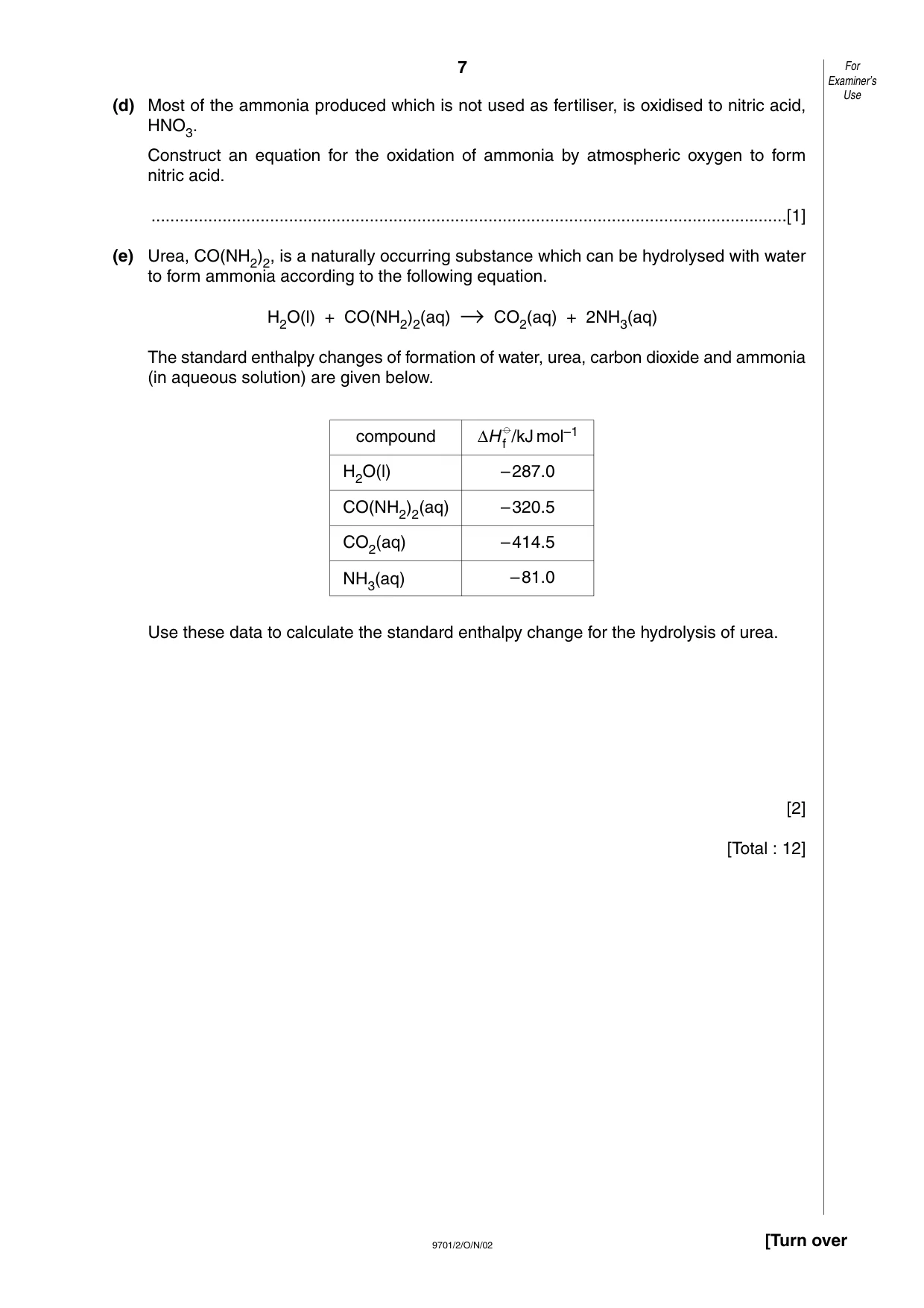

7 9701/2/O/N/02 [Turn over (d) Most of the ammonia produced which is not used as fertiliser, is oxidised to nitric acid, HNO3. Construct an equation for the oxidation of ammonia by atmospheric oxygen to form nitric acid. …[1] (e) Urea, CO(NH2)2, is a naturally occurring substance which can be hydrolysed with water to form ammonia according to the following equation. H2O(l) + CO(NH2)2(aq) →CO2(aq) + 2NH3(aq) The standard enthalpy changes of formation of water, urea, carbon dioxide and ammonia (in aqueous solution) are given below. Use these data to calculate the standard enthalpy change for the hydrolysis of urea. [2] [Total : 12] For Examiner’s Use compound H2O(l) CO(NH2)2(aq) CO2(aq) NH3(aq) ∆Hf /kJ mol–1 –287.0 –320.5 –414.5 –81.0

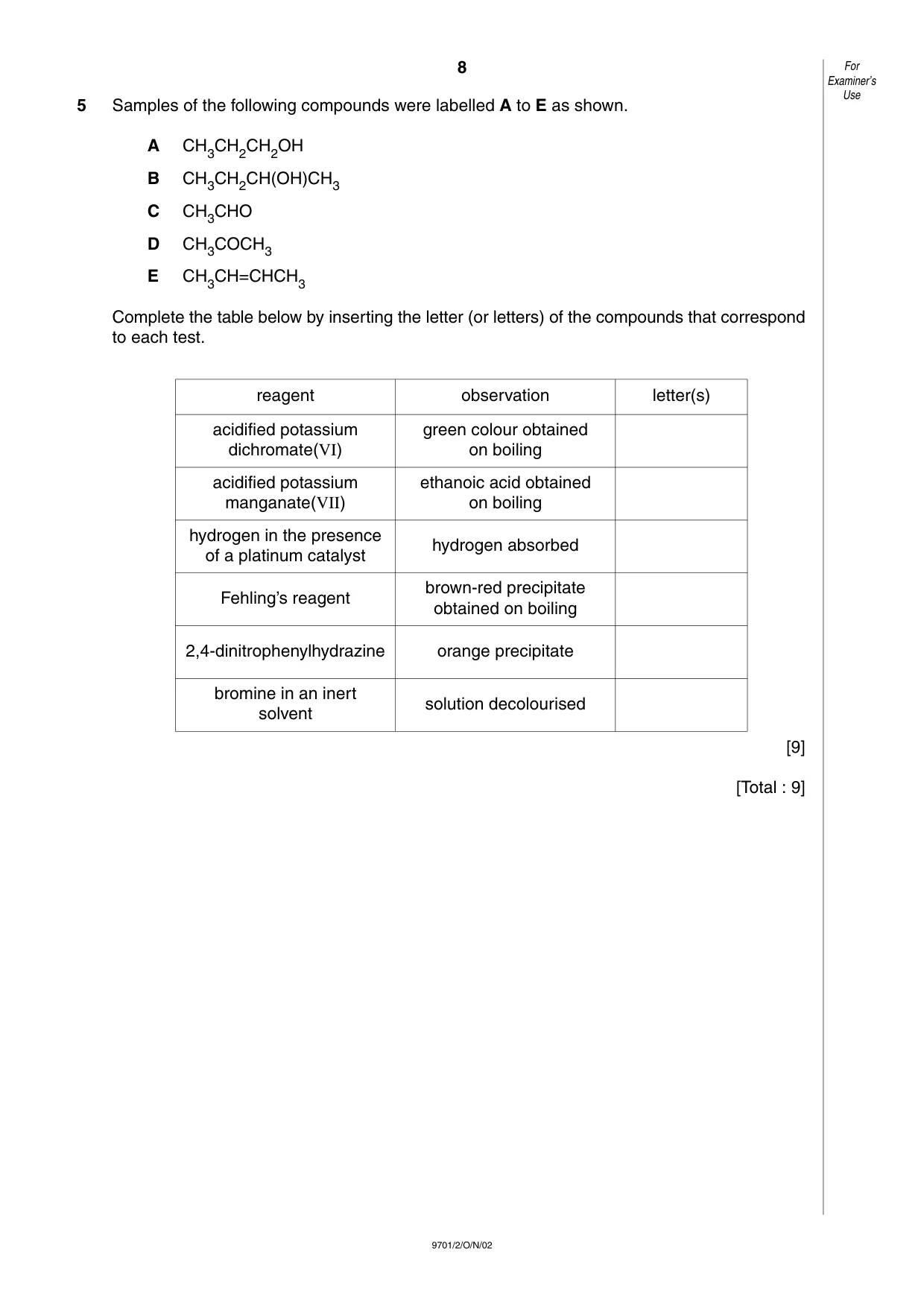

8 9701/2/O/N/02 5 Samples of the following compounds were labelled A to E as shown. A CH3CH2CH2OH B CH3CH2CH(OH)CH3 C CH3CHO D CH3COCH3 E CH3CH=CHCH3 Complete the table below by inserting the letter (or letters) of the compounds that correspond to each test. [9] [Total : 9] For Examiner’s Use reagent acidified potassium dichromate(VI) acidified potassium manganate(VII) hydrogen in the presence of a platinum catalyst Fehling’s reagent 2,4-dinitrophenylhydrazine bromine in an inert solvent observation green colour obtained on boiling ethanoic acid obtained on boiling hydrogen absorbed brown-red precipitate obtained on boiling orange precipitate solution decolourised letter(s)

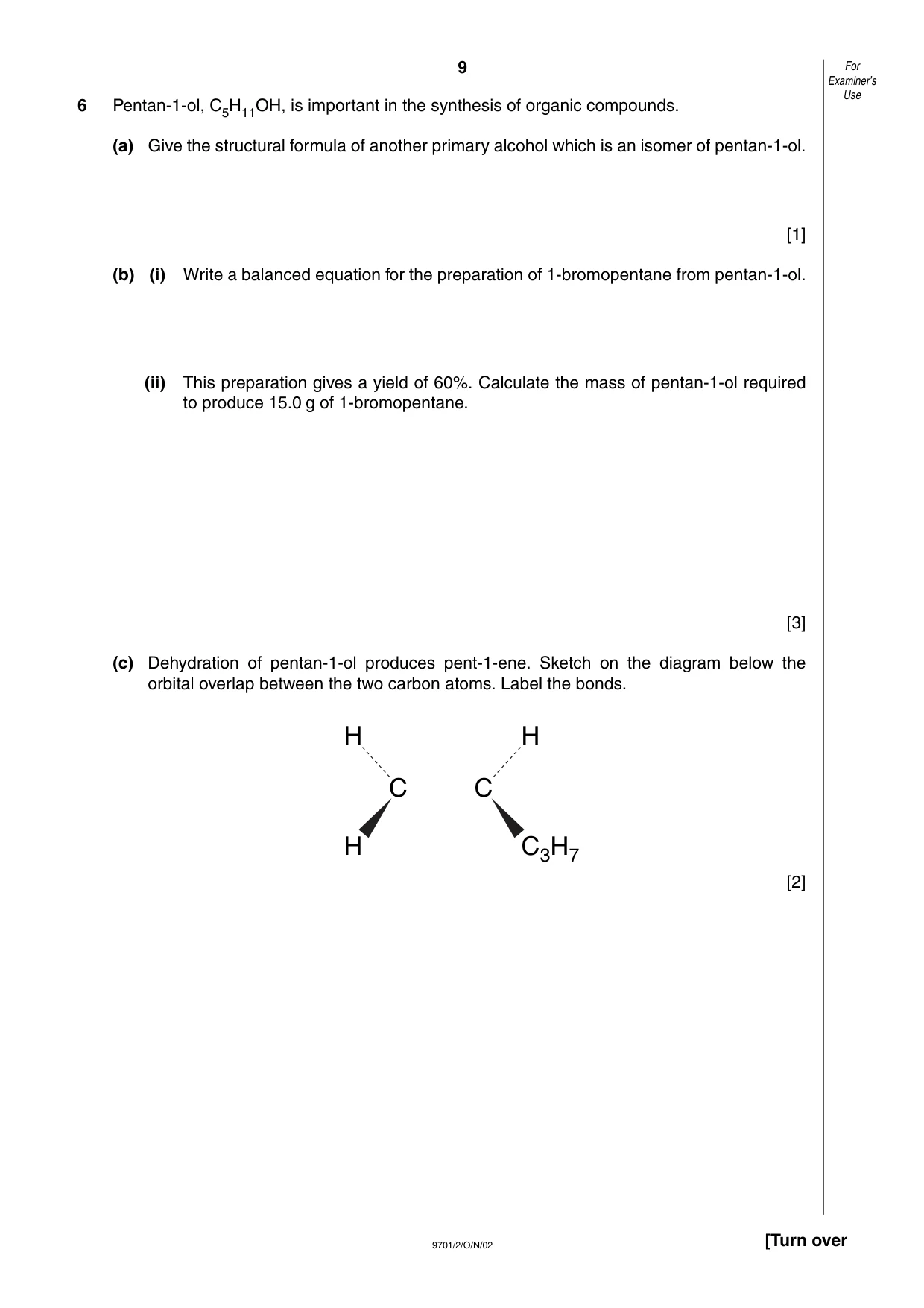

9 9701/2/O/N/02 [Turn over 6 Pentan-1-ol, C5H11OH, is important in the synthesis of organic compounds. (a) Give the structural formula of another primary alcohol which is an isomer of pentan-1-ol. [1] (b) (i) Write a balanced equation for the preparation of 1-bromopentane from pentan-1-ol. (ii) This preparation gives a yield of 60%. Calculate the mass of pentan-1-ol required to produce 15.0 g of 1-bromopentane. [3] (c) Dehydration of pentan-1-ol produces pent-1-ene. Sketch on the diagram below the orbital overlap between the two carbon atoms. Label the bonds. [2] C C H H H C3H7 For Examiner’s Use

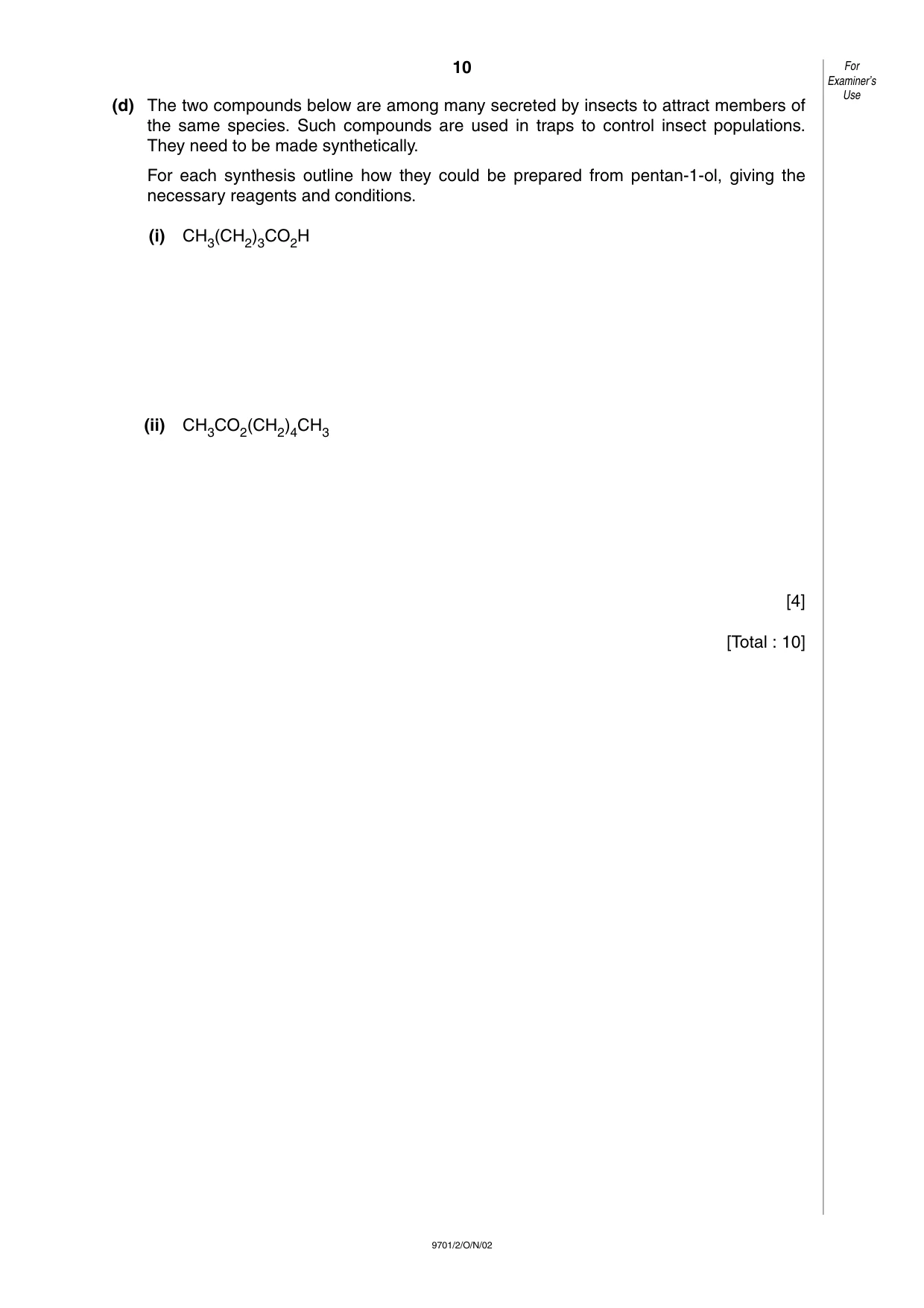

10 9701/2/O/N/02 (d) The two compounds below are among many secreted by insects to attract members of the same species. Such compounds are used in traps to control insect populations. They need to be made synthetically. For each synthesis outline how they could be prepared from pentan-1-ol, giving the necessary reagents and conditions. (i) CH3(CH2)3CO2H (ii) CH3CO2(CH2)4CH3 [4] [Total : 10] For Examiner’s Use

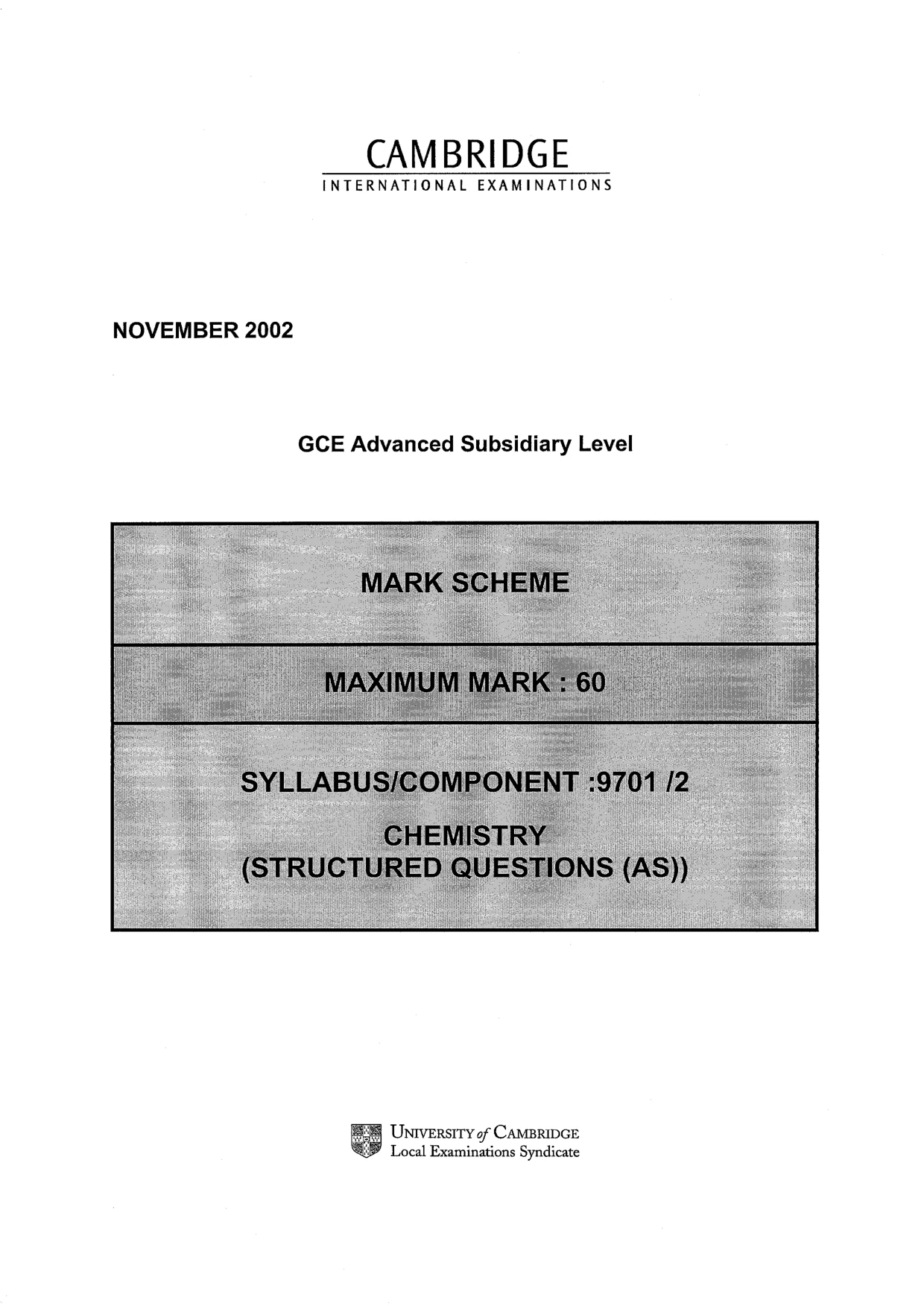

CAMBRIDGE INTERNATIONAL EXAMINATIONS NOVEMBER 2002 GCE Advanced Subsidiary Level UNIVERSITY of CAMBRIDGE Local Examinations Syndicate

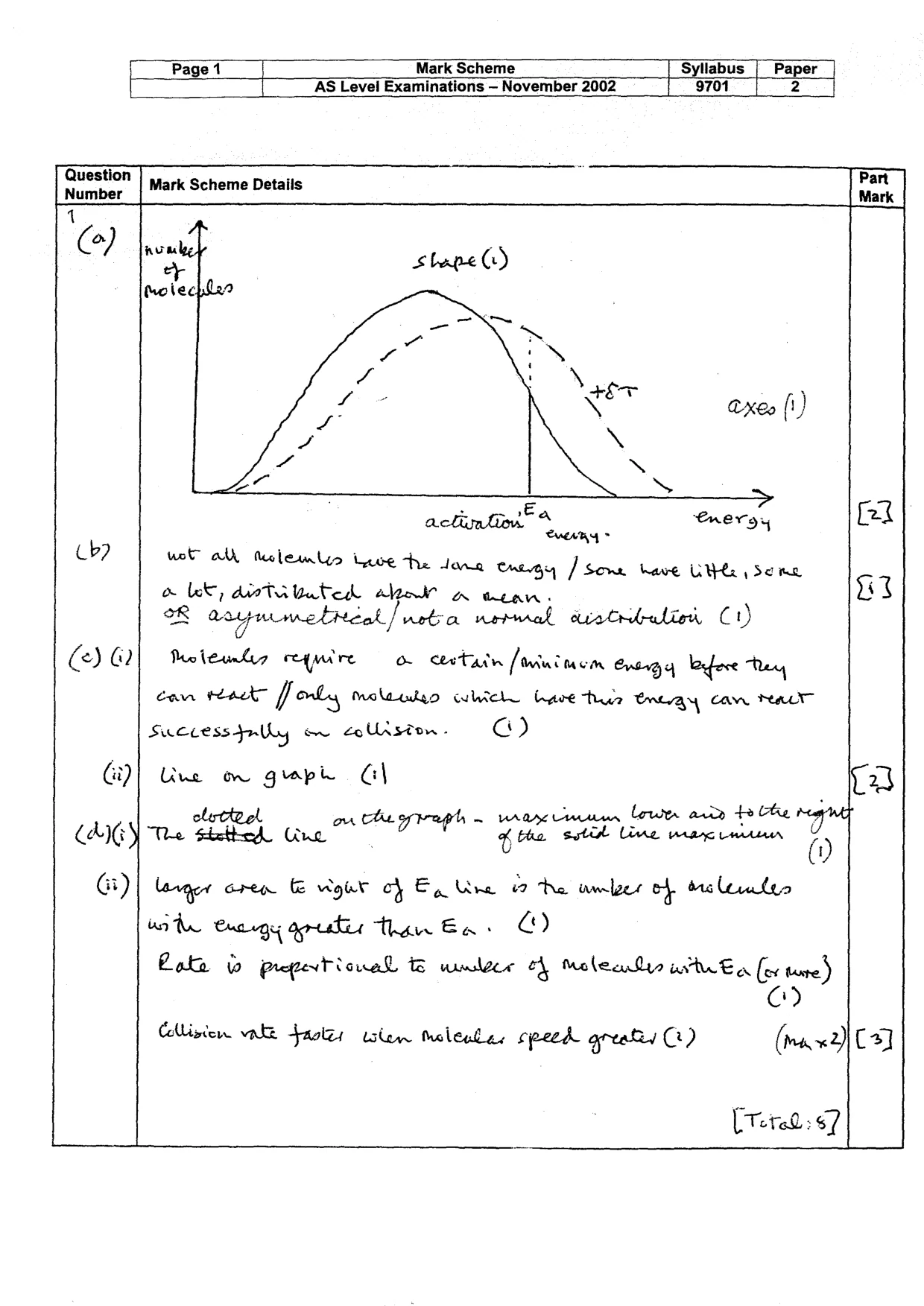

Question Page 1 Mark Scheme Syllabus Paper 2 AS Level Examinations —- November 2002 9701 Mark Scheme Details Oa ) Aig @) oa LE, Avtuiated ae vA wean. oR aoymmetrcat/ neta urrnral ecatrdection C1) Motemtis reymire oF cevtacn [twins tem entagy fee Rey Can teat” forts maolautes cilicl hare tur tmeay can nar Success jntly ow eoUAsion- @) Une Mm grup G\ olettegl gregh ~ Jan LeWtr acy +2 te rey he EE Une the Syl Ue vee CHUA ‘) lavage aren & Wout ch Ey Qre 2 De omer of iis lexates Loko wo Prpenticual te water of moleatys witrE a (or tear) oO) Cltinicn wake faotes wien moleules speed greatiy (2) (max 2)} C2] [te Tel: s?

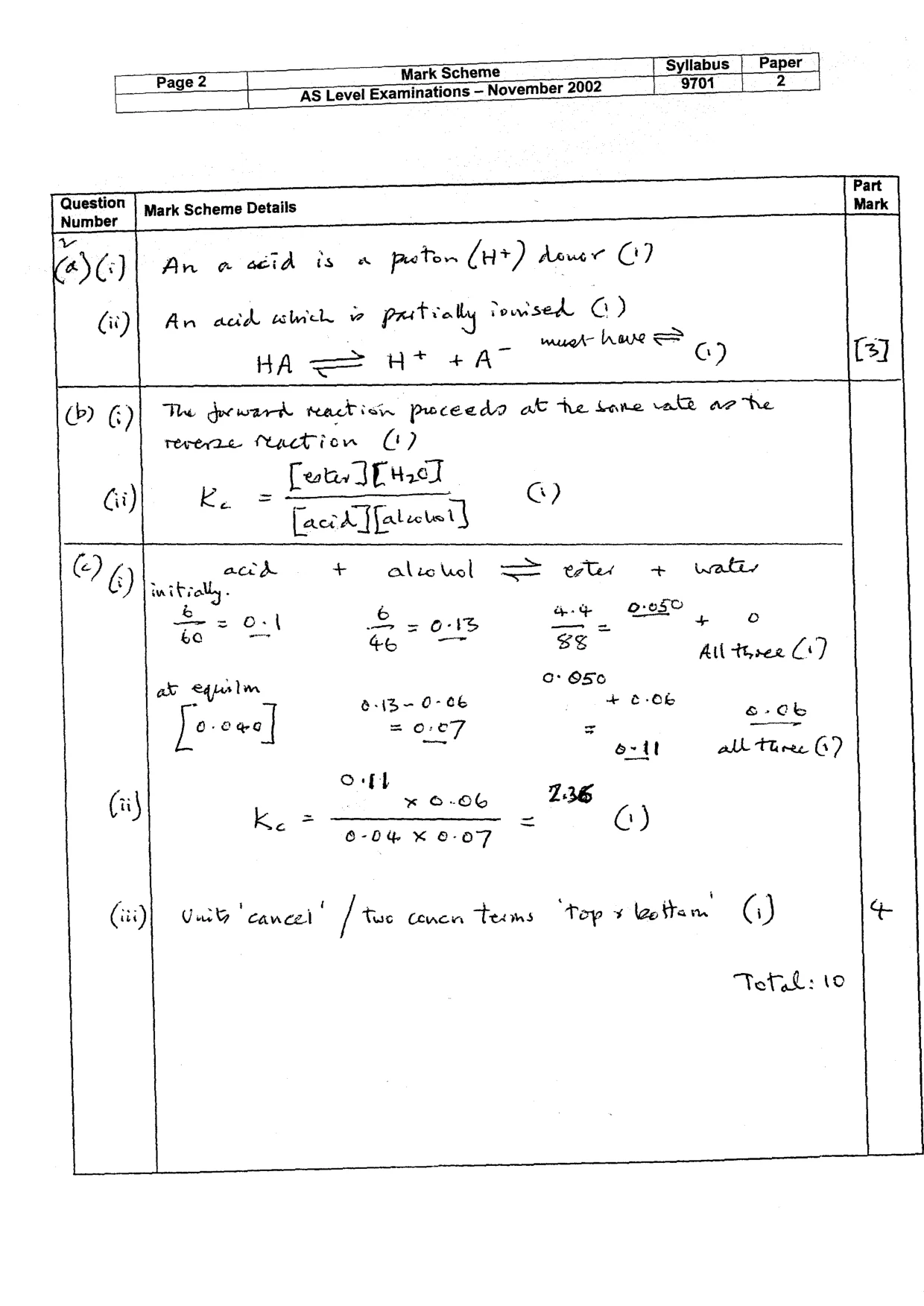

[ Page 2 Mark Scheme Syllabus | Paper if AS Level Examinations — November 2002 9701 2 Question Mark Scheme Details wv An o@ sid is a peton Cur) Asuar C7 An ach whe prt vely rovsed CG) wae Dane => oc) HA == Ht +A” Te doewark nactisn poceeda ak he Lane al ache reverze Muction (1) Gi) ko = Peter IEMoT @) QO) gamee® + abevel SE ee + vate ae el a7 ols — e080 ° — g ° Ail ther C7 at eqhalm Oo: O50 * O1Z- 0-66 + 2-06 | = 007 = 6-Ck ~~ ori all three GD (i ont 136 a oO. &, ke 7 * oo (ii) Uae ‘cance’ [te Couen tenons “Top ¥ lee tram. G) Teh: 10

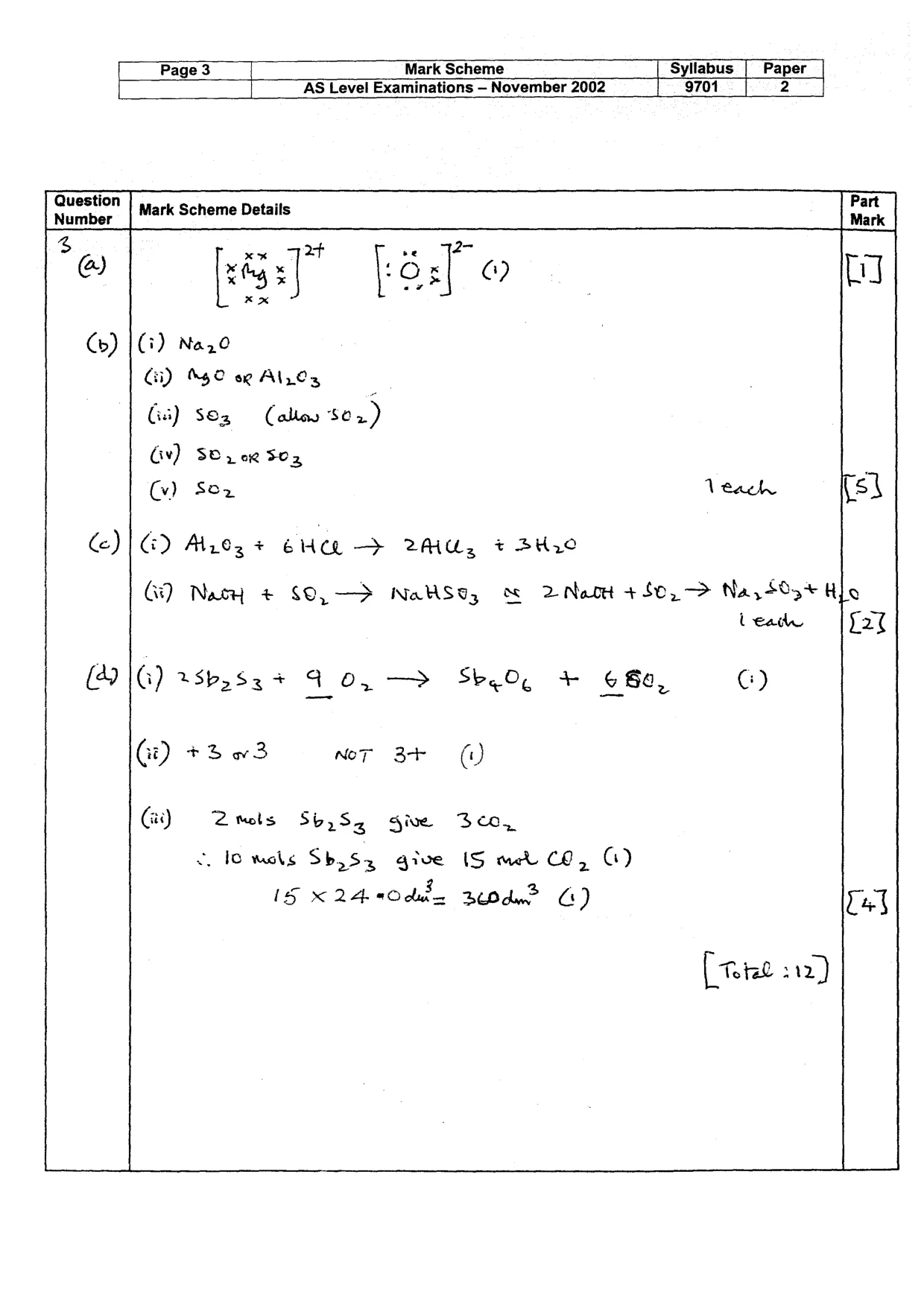

Page 3 Mark Scheme Syllabus Paper 2 AS Level Examinations — November 2002 9701 Number () «) (40 Question Mark Scheme Details Gi) Naz0 Gi) So ov Ales Gs) Sez Callas $02) Gv) S& 10g S02 () Sor Veach G) Aes + CHR > AU, * SHLC G) Nasy + $O,—> NaWSe, & 2a +0, > Na sOy* Ho Leade Gi) %Sp3$34 qo, Sb.O, + 6 Ba, @) Gz) +a3nv3 Noy 3+ (a) Gi) Zmels Sb,S2 give Beco, v. Io mols SbjS3 give IS mrt CO, C0) 15 X2AnOdis B00de?® CG)

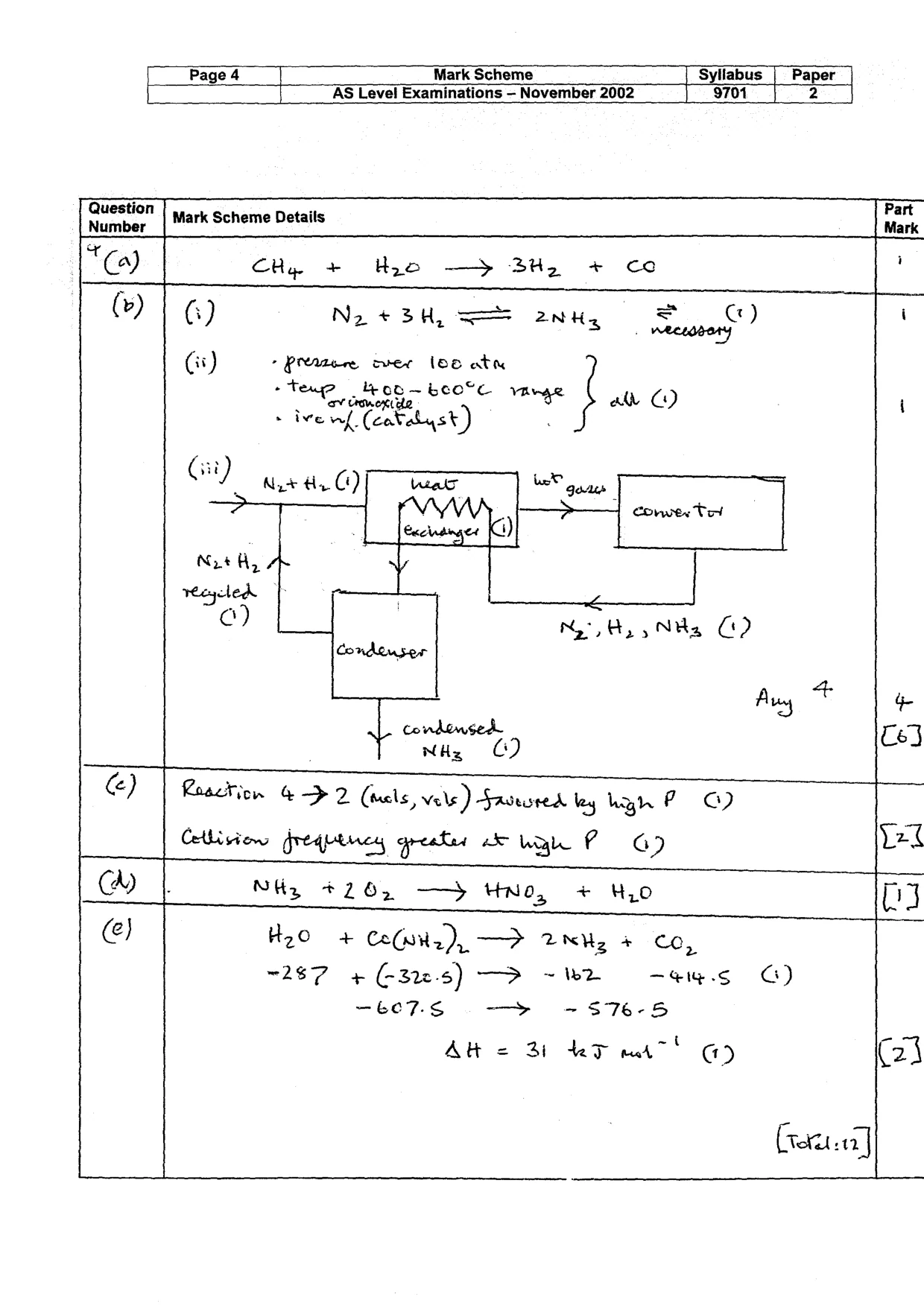

Page 4 Mark Scheme Syllabus | Paper AS Level Examinations — November 2002 9701 2 Question Number "@) Mark Scheme Details cHy + Ho —> 3BH2 + CO () (i) + Prater mer loo atu ot vob ocd reteeig PLS Cc vaye att N2+ 3H, SS 2nNue Nis 44.) Conduwsed. Naz ©) Ce} €) | esckion & 2 (mals, vols) Fasured ley hgh PC) H20 + CoQ), —> 2mUZ + Co, “267 + G32-5) —> ~b2 -au.s G) “607-6 —> ~S$76-5 At = 3 kT wt GD C23 (exc a] 4

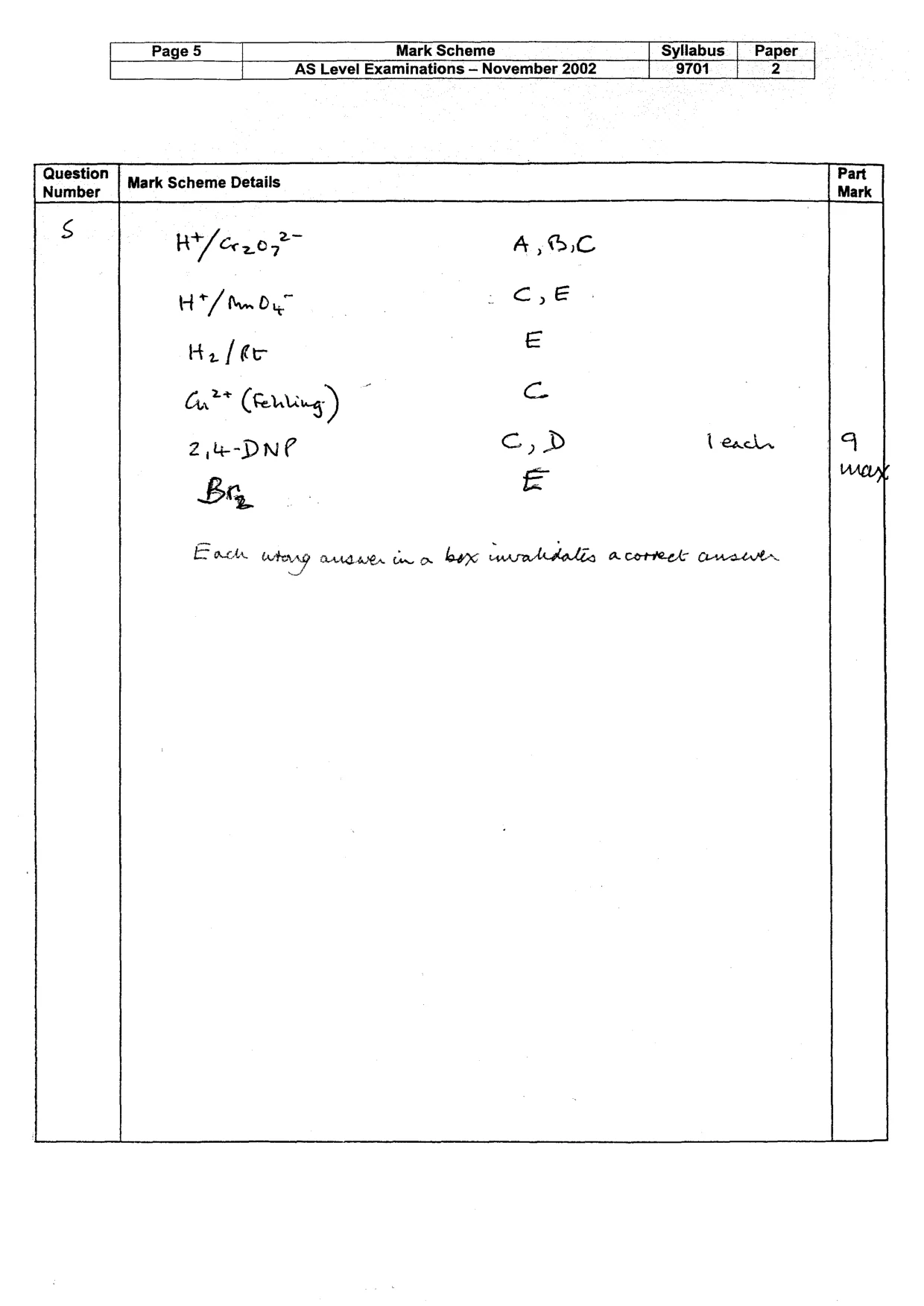

Page 5 Mark Scheme Syllabus Paper AS Level Examinations — November 2002 9701 2 [ Question Mark Scheme Details S * 2- k / ore 07 4,OC H*/ tom Dy” c,é Ha fer Ee G* (Rung) : c 2,u-DNC c,D Lead. By Ee Fac Whang OWA On oo BOX cmratdelég Acorteel Guan

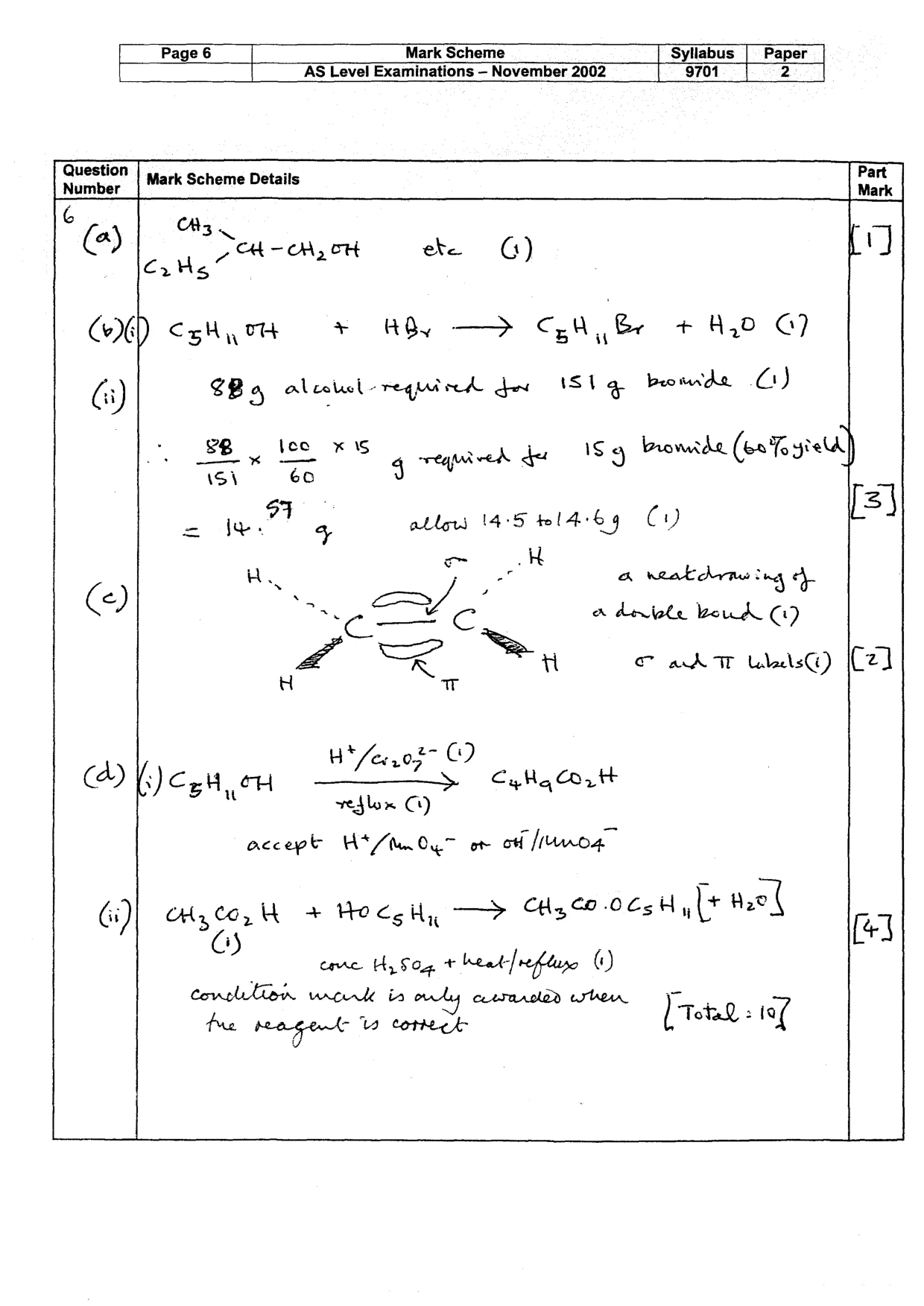

Page 6 Mark Scheme Syllabus Paper AS Level Examinations — November 2002 9701 2 Question Number (4) OG 6) Cis Gi) L _ i) Cg CH = ——————> CaHagcortt Mark Scheme Details a3 Det-odee eke G) coh ou + BOY —> CyW, Ge + 4,0 G) SB s alcolel-requiecd gw Sta beouvde C1) SB, ec *'S 4 weyrek de SQ bromide (60% yield} ASV 60 = rend 5 allo 14-5 l4o9 C1) Re ~ ae a neat chen ing of ee a device woud (1) 4 iN at o aA UlalsG) 7 H*feeog” Gq) veflox C) accepe H*/m.0g7 ot off /Mnog Ay Co, + Hocsly —? CH, 0-065 ,|+ are | C) ome Hy Sg + heat] rept ture 0) fe seaget ta torees [Teta : 16 ES)
