Cambridge A Level Applied Information and Communication Technology 9713 — 2016 Oct/Nov Paper 1 · Variant 1

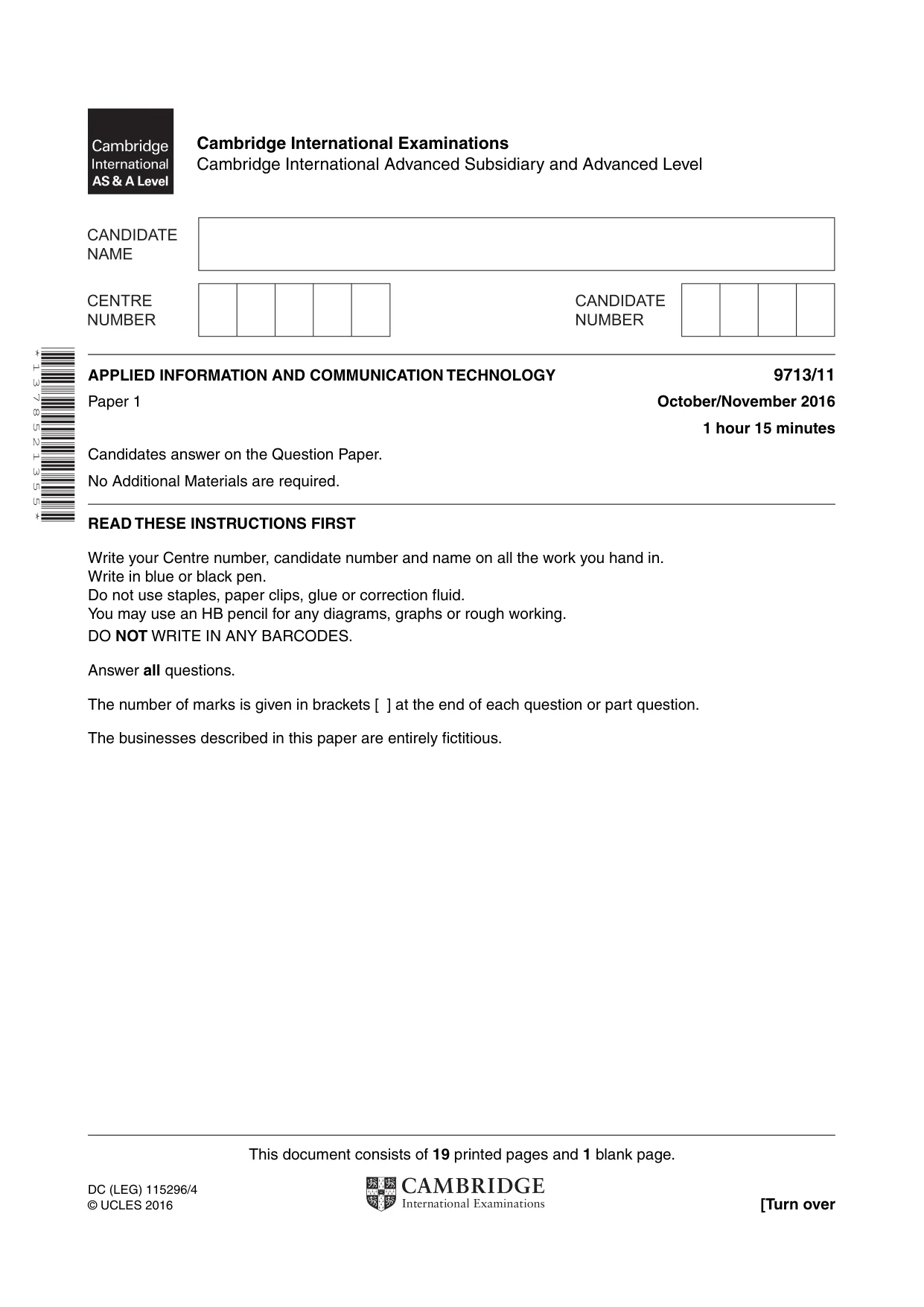

This document consists of 19 printed pages and 1 blank page. DC (LEG) 115296/4 © UCLES 2016 [Turn over Cambridge International Examinations Cambridge International Advanced Subsidiary and Advanced Level * 1 3 7 8 5 2 1 3 5 5 * APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/11 Paper 1 October/November 2016 1 hour 15 minutes Candidates answer on the Question Paper. No Additional Materials are required. READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in blue or black pen. Do not use staples, paper clips, glue or correction fluid. You may use an HB pencil for any diagrams, graphs or rough working. DO NOT WRITE IN ANY BARCODES. Answer all questions. The number of marks is given in brackets [ ] at the end of each question or part question. The businesses described in this paper are entirely fictitious.

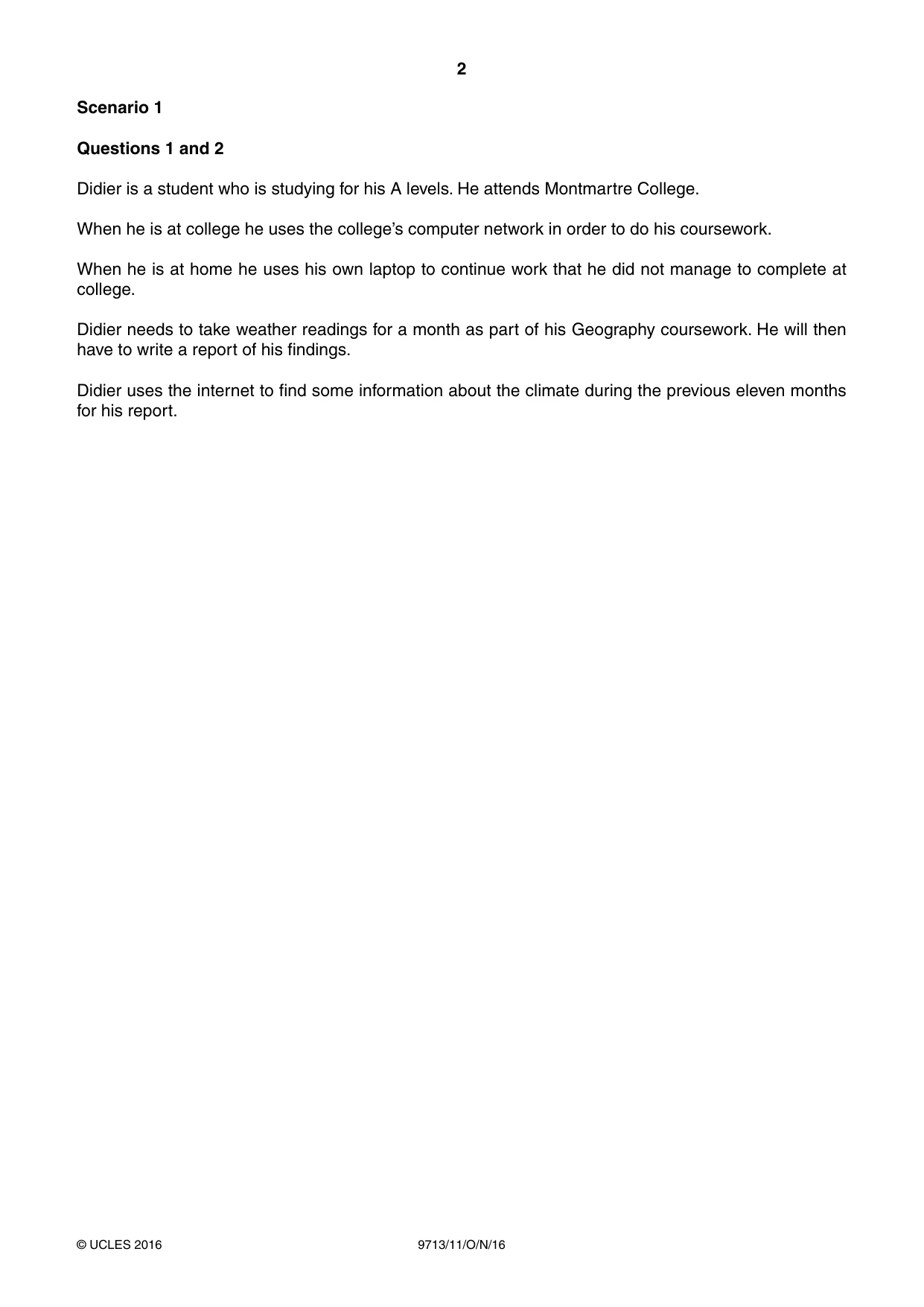

2 9713/11/O/N/16 © UCLES 2016 Scenario 1 Questions 1 and 2 Didier is a student who is studying for his A levels. He attends Montmartre College. When he is at college he uses the college’s computer network in order to do his coursework. When he is at home he uses his own laptop to continue work that he did not manage to complete at college. Didier needs to take weather readings for a month as part of his Geography coursework. He will then have to write a report of his findings. Didier uses the internet to find some information about the climate during the previous eleven months for his report.

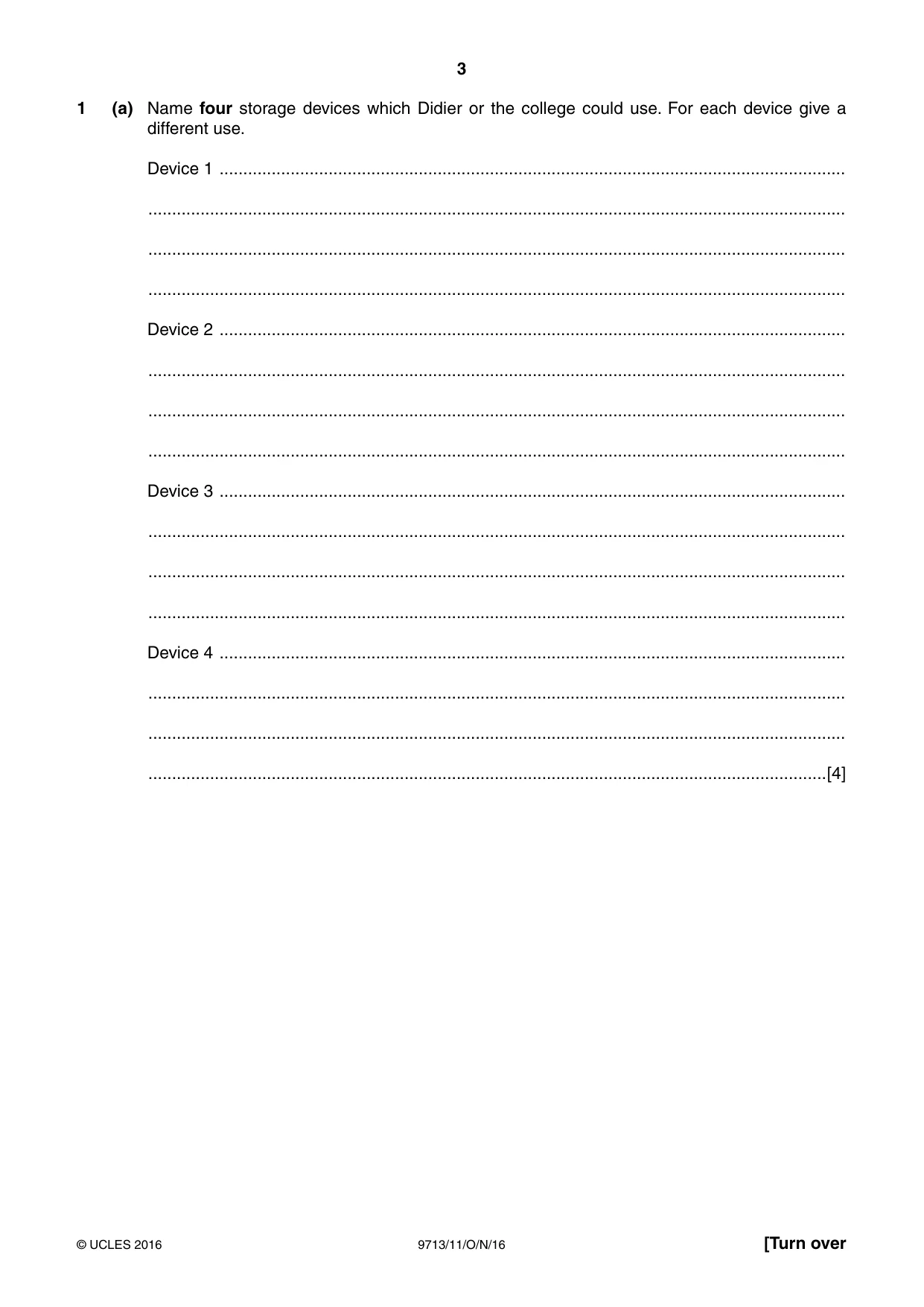

3 9713/11/O/N/16 © UCLES 2016 [Turn over 1 (a) Name four storage devices which Didier or the college could use. For each device give a different use. Device 1 … … … … Device 2 … … … … Device 3 … … … … Device 4 … … … …[4]

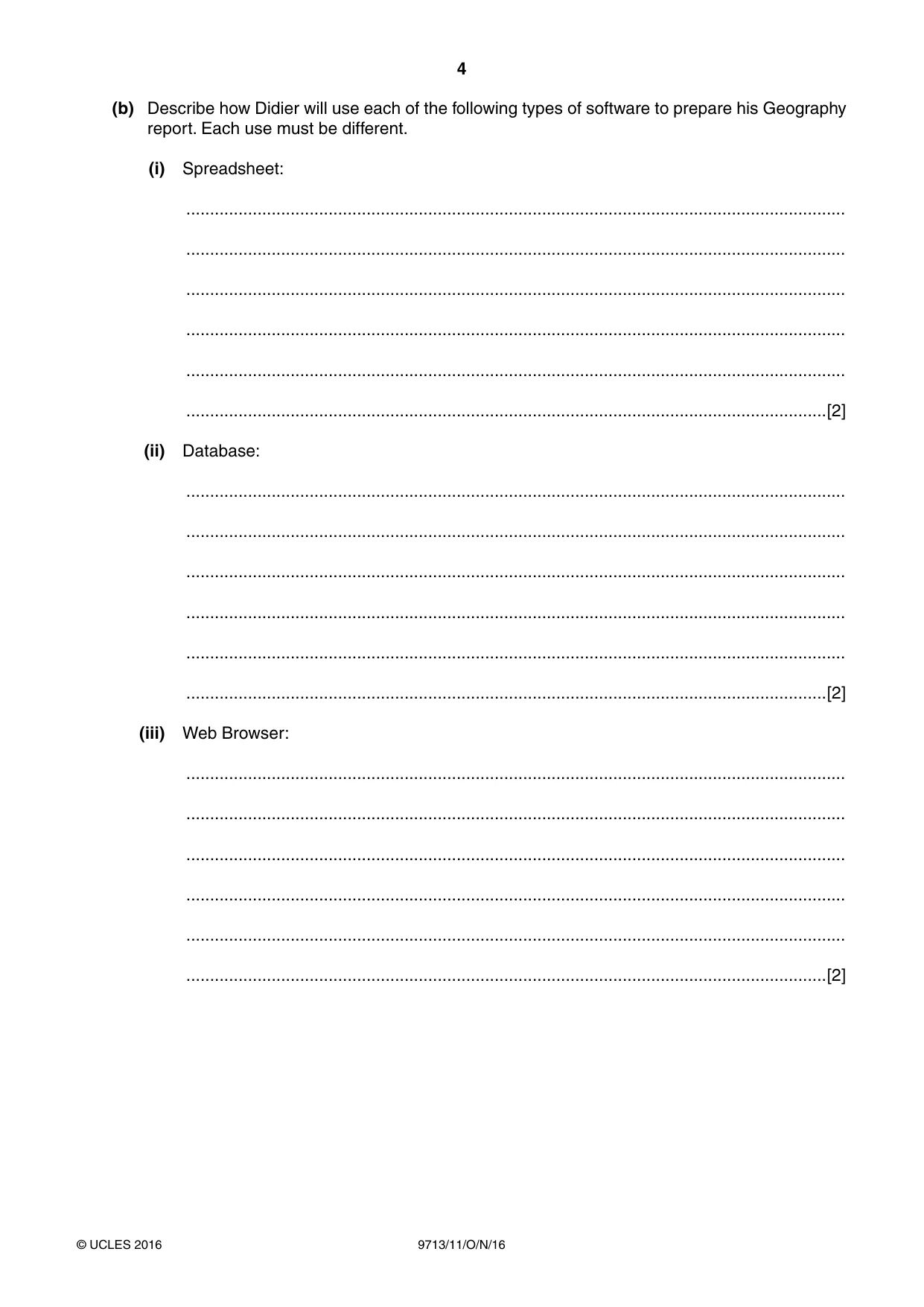

4 9713/11/O/N/16 © UCLES 2016 (b) Describe how Didier will use each of the following types of software to prepare his Geography report. Each use must be different. (i) Spreadsheet: … … … … … …[2] (ii) Database: … … … … … …[2] (iii) Web Browser: … … … … … …[2]

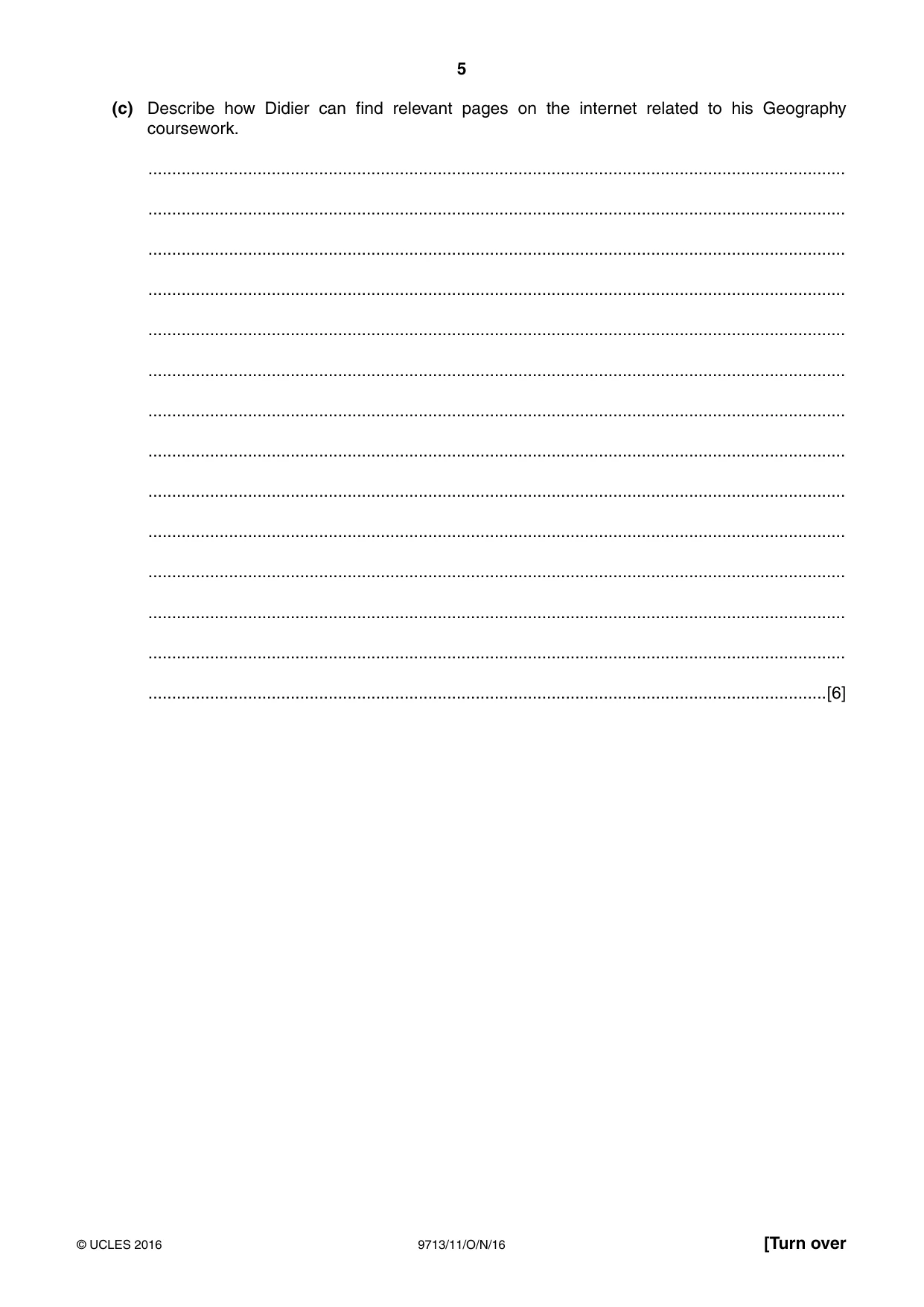

5 9713/11/O/N/16 © UCLES 2016 [Turn over (c) Describe how Didier can find relevant pages on the internet related to his Geography coursework. … … … … … … … … … … … … … …[6]

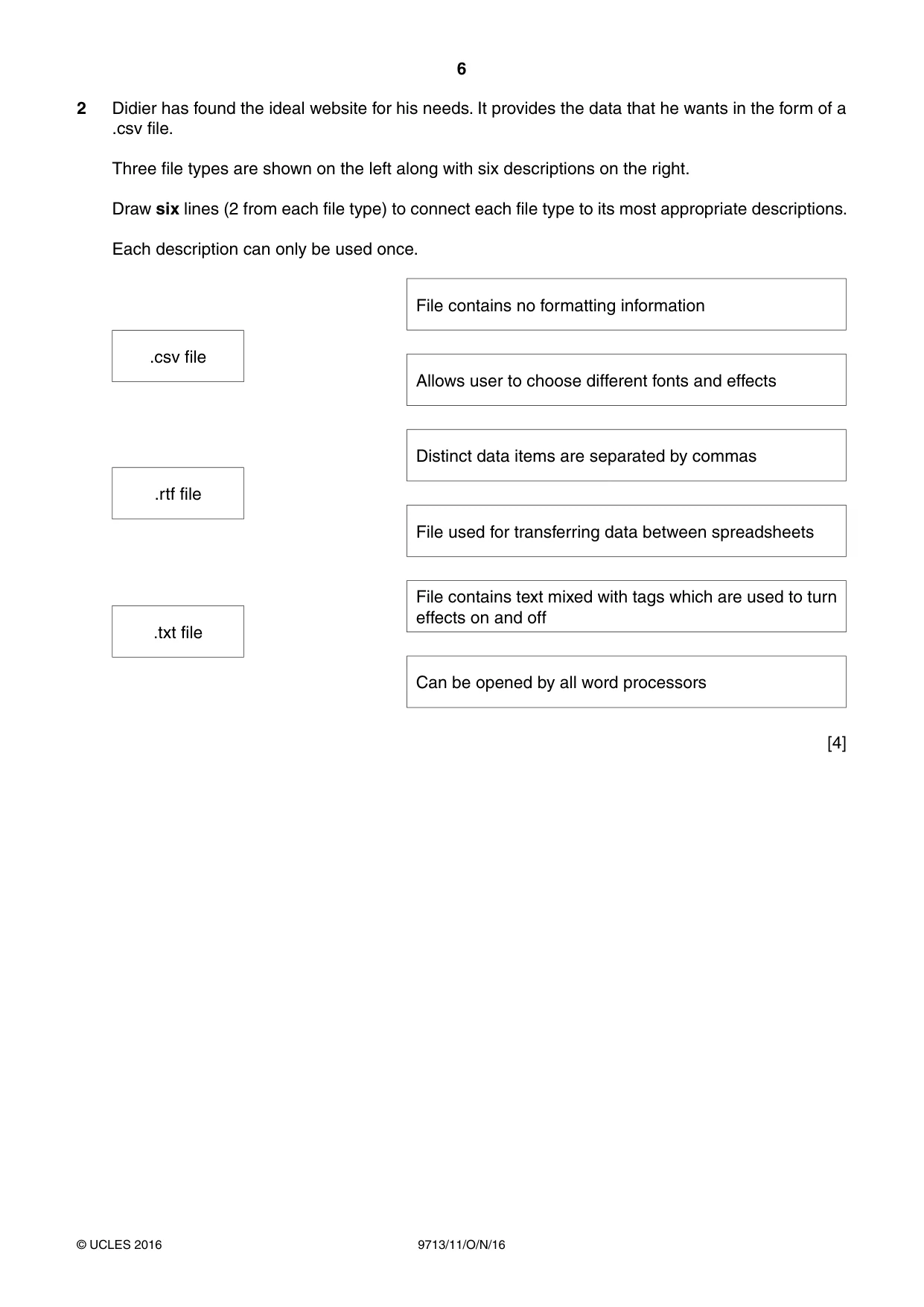

6 9713/11/O/N/16 © UCLES 2016 2 Didier has found the ideal website for his needs. It provides the data that he wants in the form of a .csv file. Three file types are shown on the left along with six descriptions on the right. Draw six lines (2 from each file type) to connect each file type to its most appropriate descriptions. Each description can only be used once. File contains no formatting information .csv file Allows user to choose different fonts and effects Distinct data items are separated by commas .rtf file File used for transferring data between spreadsheets File contains text mixed with tags which are used to turn effects on and off .txt file Can be opened by all word processors [4]

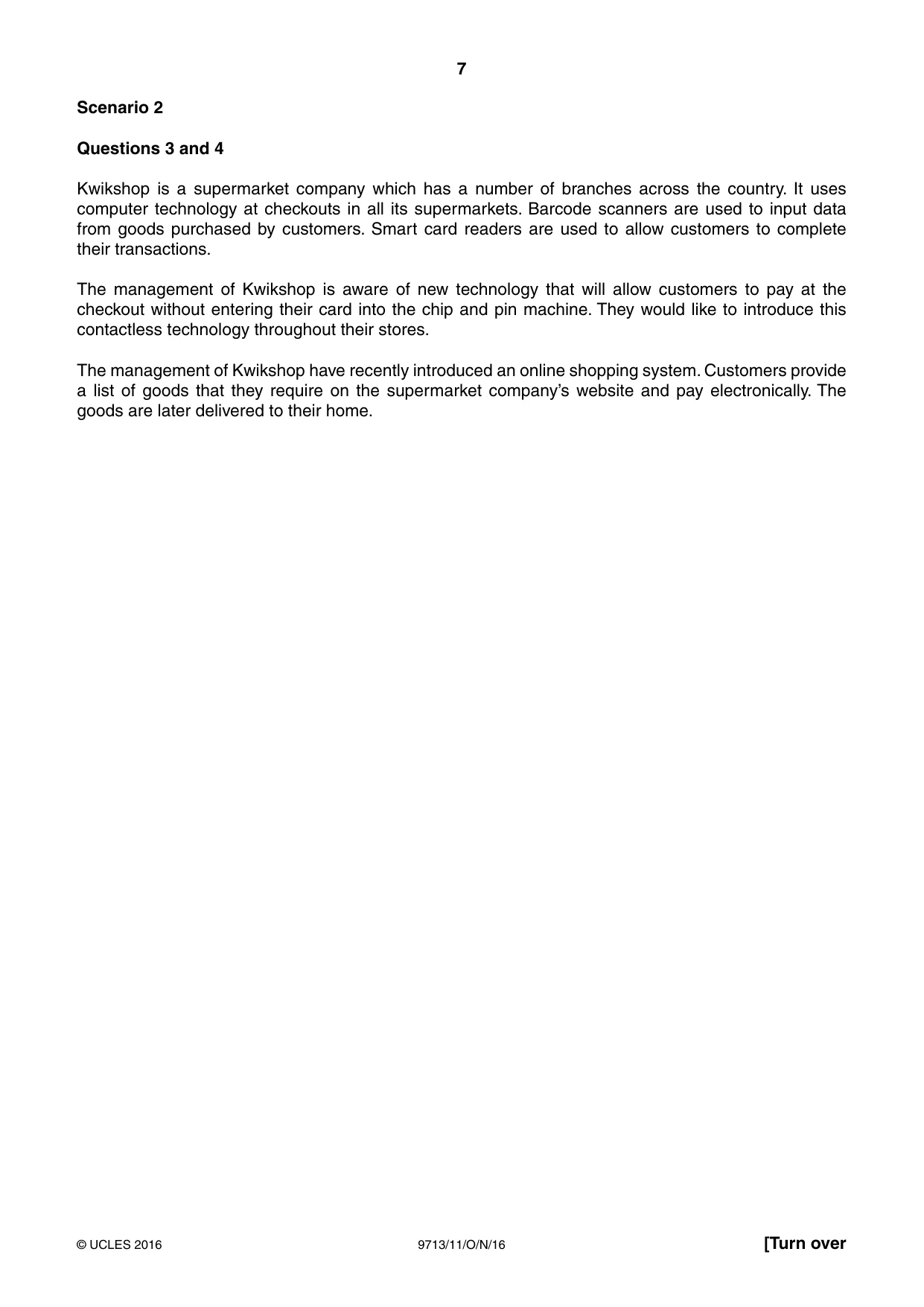

7 9713/11/O/N/16 © UCLES 2016 [Turn over Scenario 2 Questions 3 and 4 Kwikshop is a supermarket company which has a number of branches across the country. It uses computer technology at checkouts in all its supermarkets. Barcode scanners are used to input data from goods purchased by customers. Smart card readers are used to allow customers to complete their transactions. The management of Kwikshop is aware of new technology that will allow customers to pay at the checkout without entering their card into the chip and pin machine. They would like to introduce this contactless technology throughout their stores. The management of Kwikshop have recently introduced an online shopping system. Customers provide a list of goods that they require on the supermarket company’s website and pay electronically. The goods are later delivered to their home.

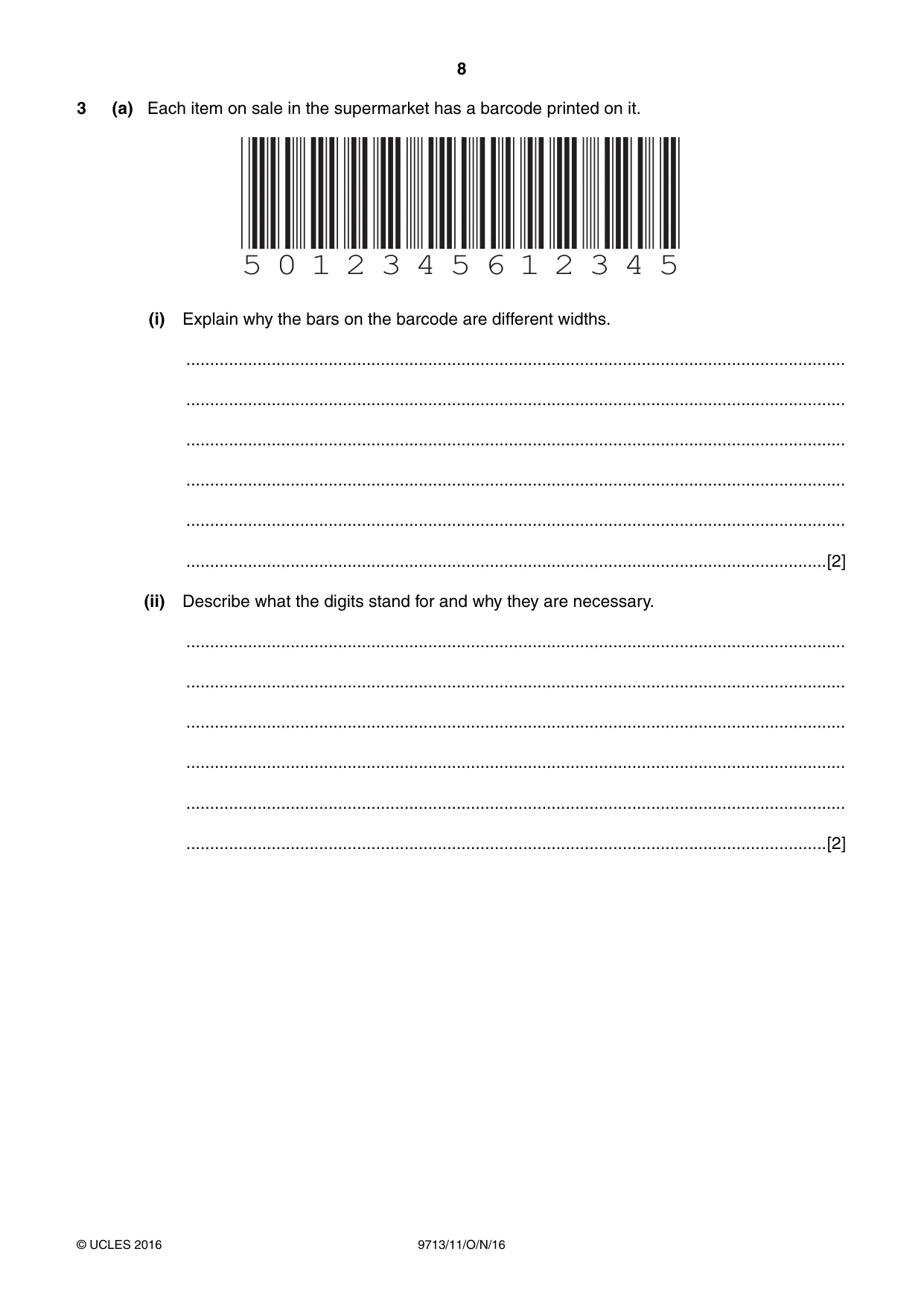

8 9713/11/O/N/16 © UCLES 2016 3 (a) Each item on sale in the supermarket has a barcode printed on it. 5 0 1 2 3 4 5 6 1 2 3 4 5 (i) Explain why the bars on the barcode are different widths. … … … … … …[2] (ii) Describe what the digits stand for and why they are necessary. … … … … … …[2]

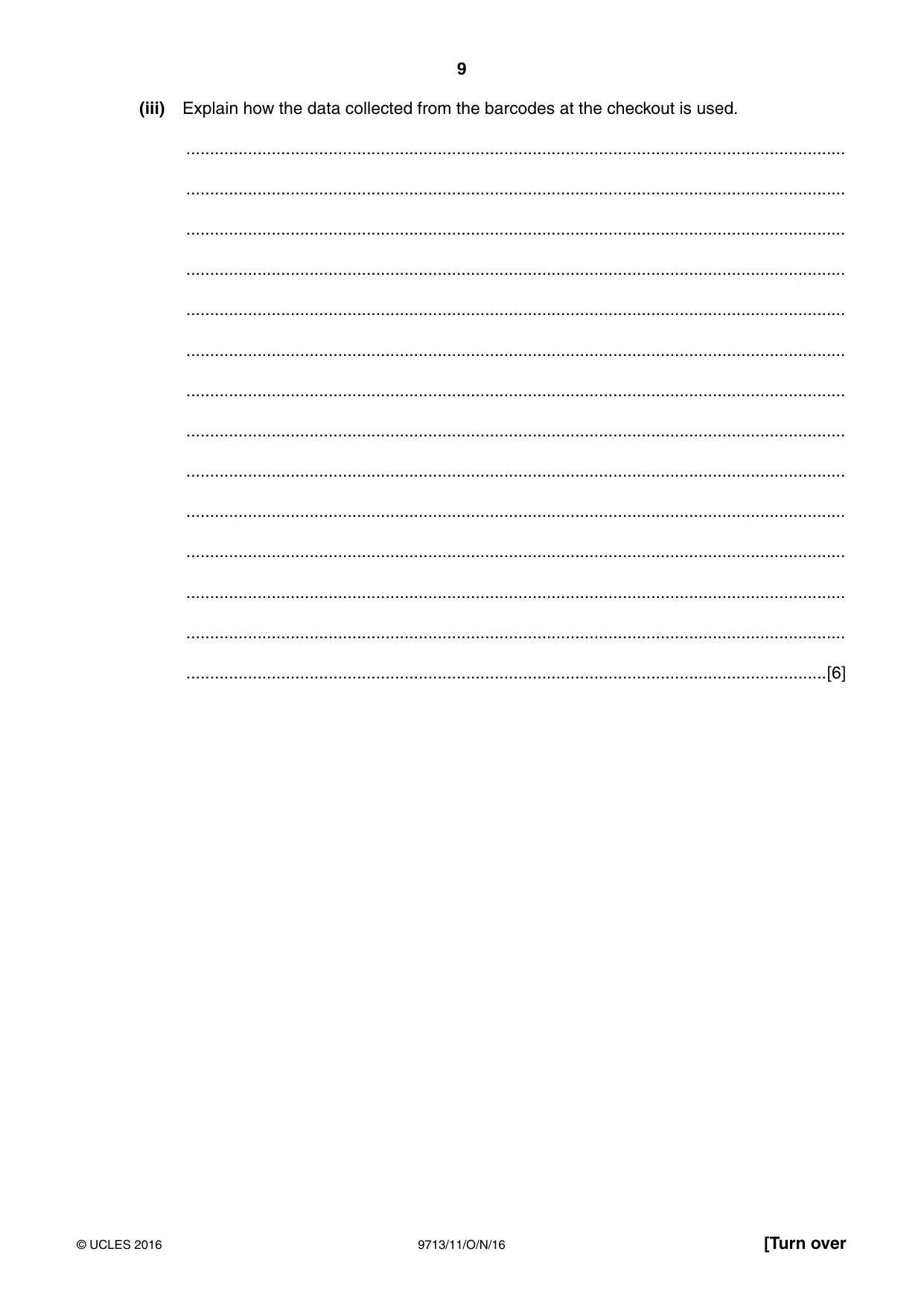

9 9713/11/O/N/16 © UCLES 2016 [Turn over (iii) Explain how the data collected from the barcodes at the checkout is used. … … … … … … … … … … … … … …[6]

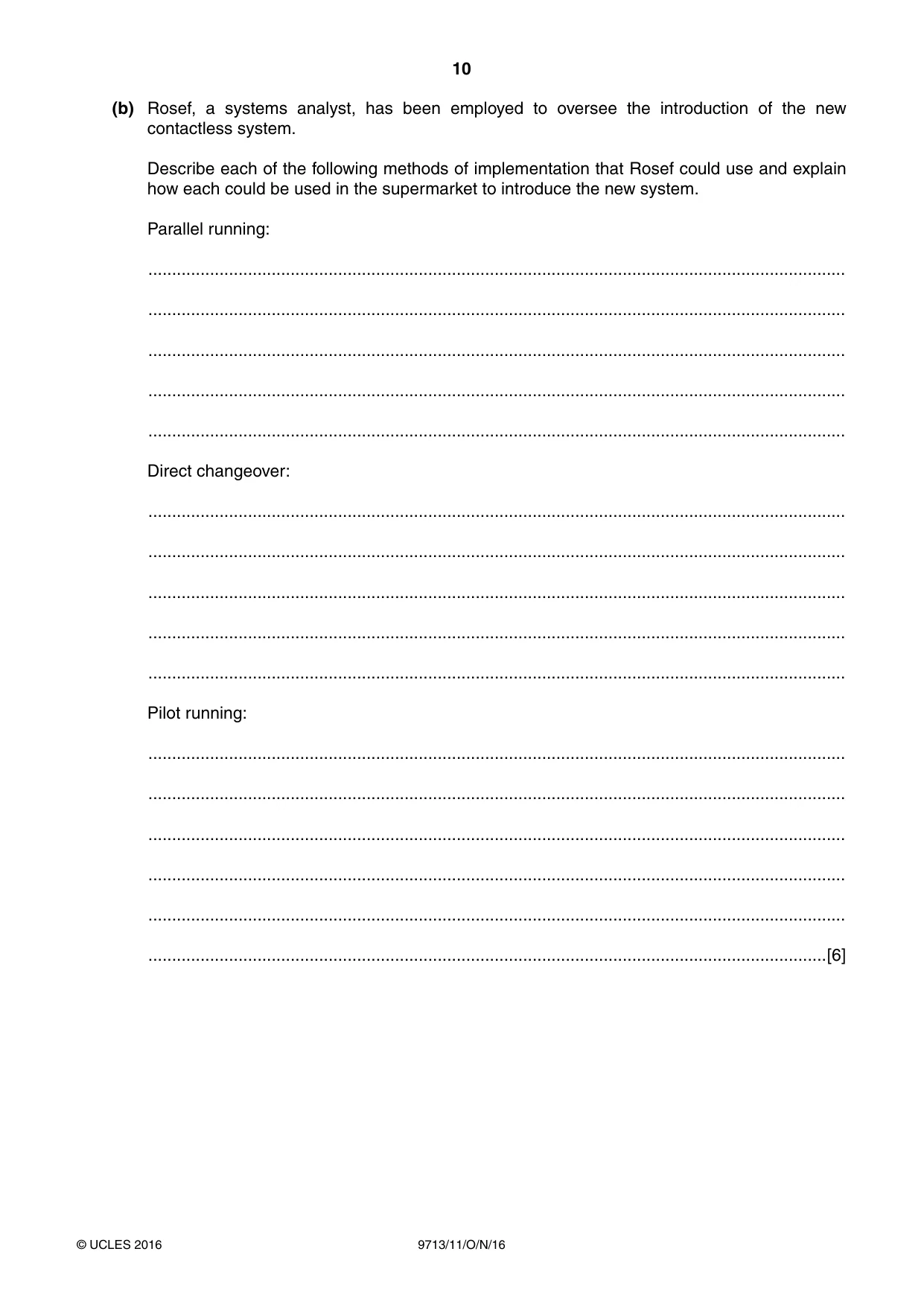

10 9713/11/O/N/16 © UCLES 2016 (b) Rosef, a systems analyst, has been employed to oversee the introduction of the new contactless system. Describe each of the following methods of implementation that Rosef could use and explain how each could be used in the supermarket to introduce the new system. Parallel running: … … … … … Direct changeover: … … … … … Pilot running: … … … … … …[6]

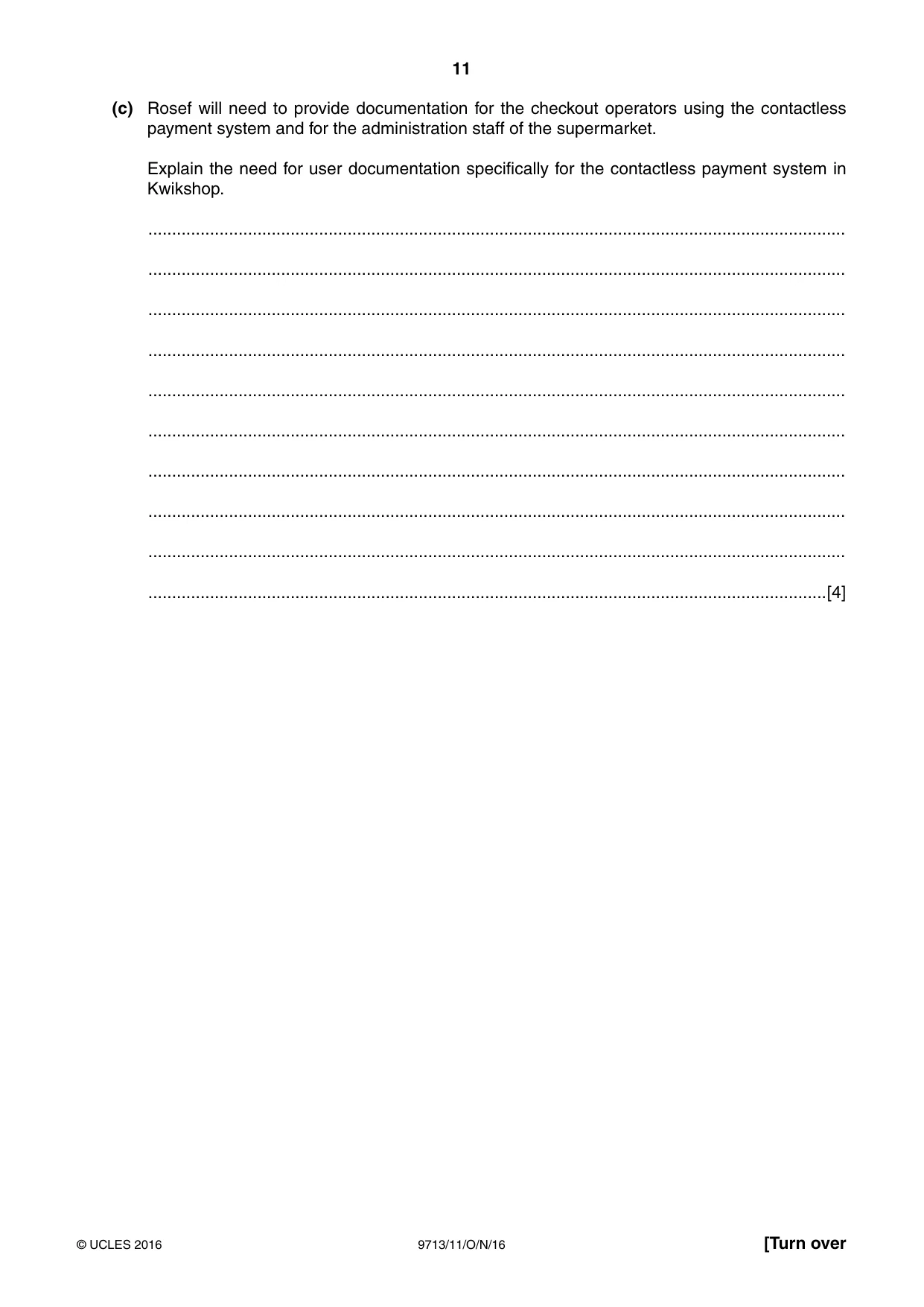

11 9713/11/O/N/16 © UCLES 2016 [Turn over (c) Rosef will need to provide documentation for the checkout operators using the contactless payment system and for the administration staff of the supermarket. Explain the need for user documentation specifically for the contactless payment system in Kwikshop. … … … … … … … … … …[4]

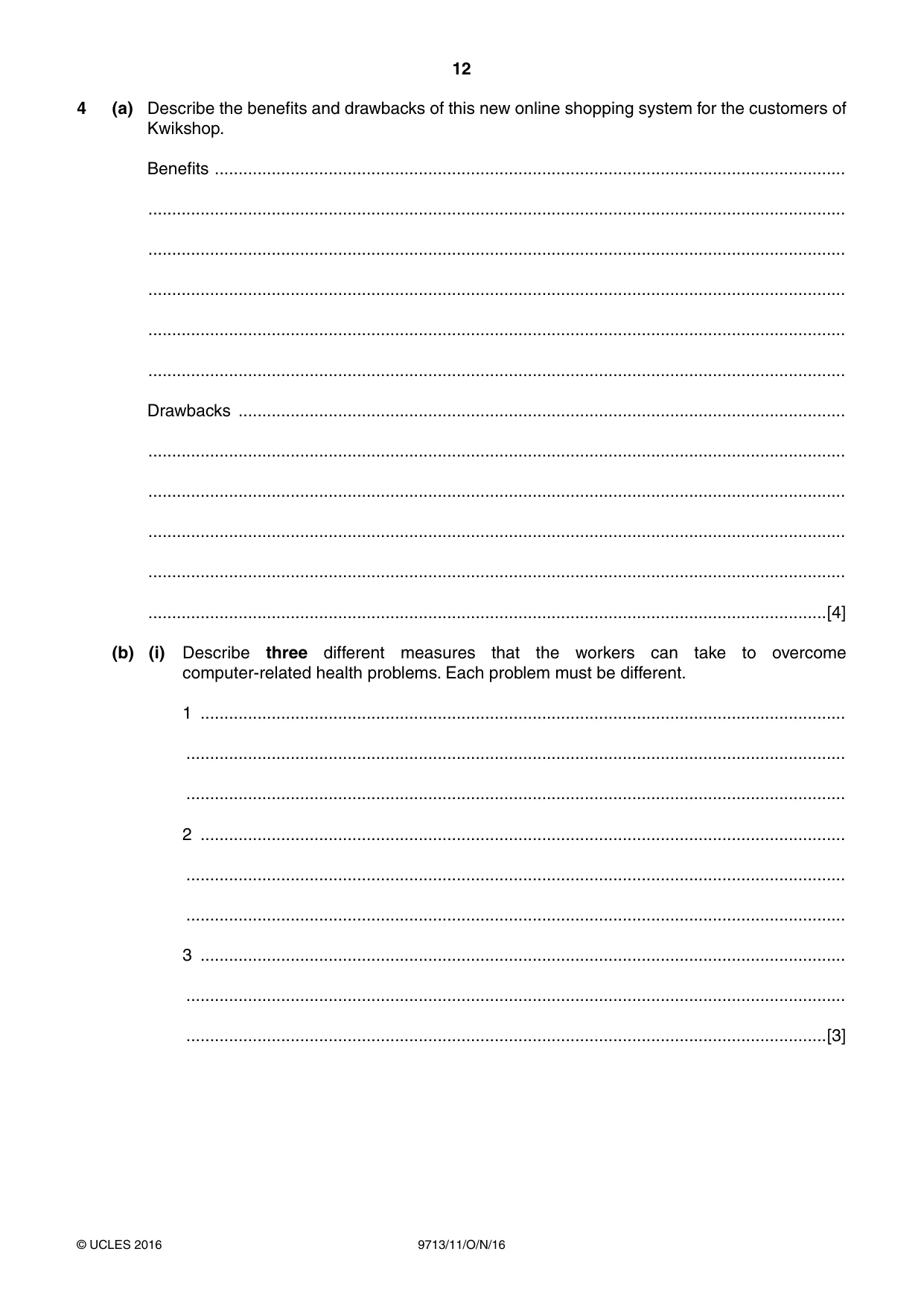

12 9713/11/O/N/16 © UCLES 2016 4 (a) Describe the benefits and drawbacks of this new online shopping system for the customers of Kwikshop. Benefits … … … … … … Drawbacks … … … … … …[4] (b) (i) Describe three different measures that the workers can take to overcome computer-related health problems. Each problem must be different. 1 … … … 2 … … … 3 … … …[3]

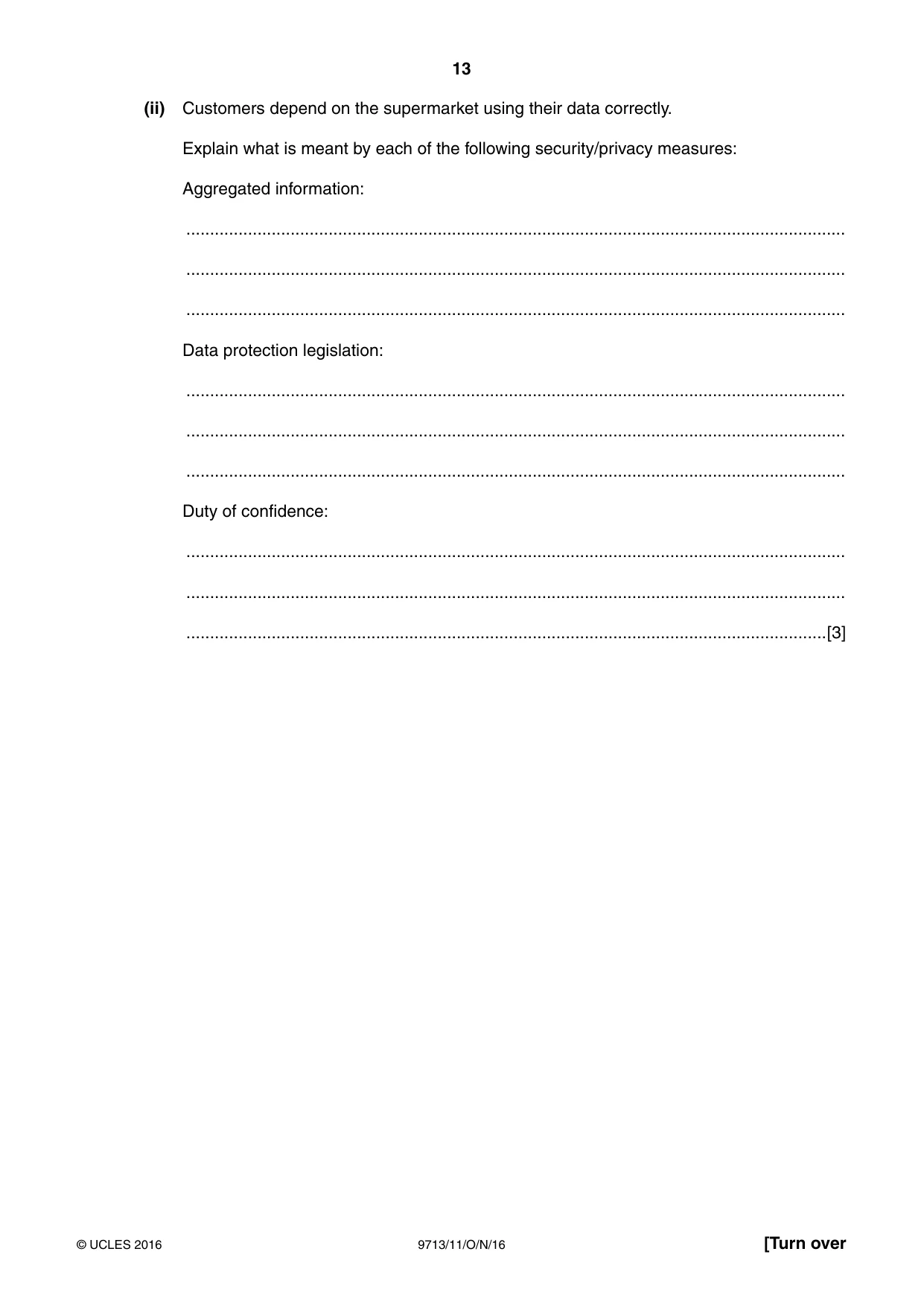

13 9713/11/O/N/16 © UCLES 2016 [Turn over (ii) Customers depend on the supermarket using their data correctly. Explain what is meant by each of the following security/privacy measures: Aggregated information: … … … Data protection legislation: … … … Duty of confidence: … … …[3]

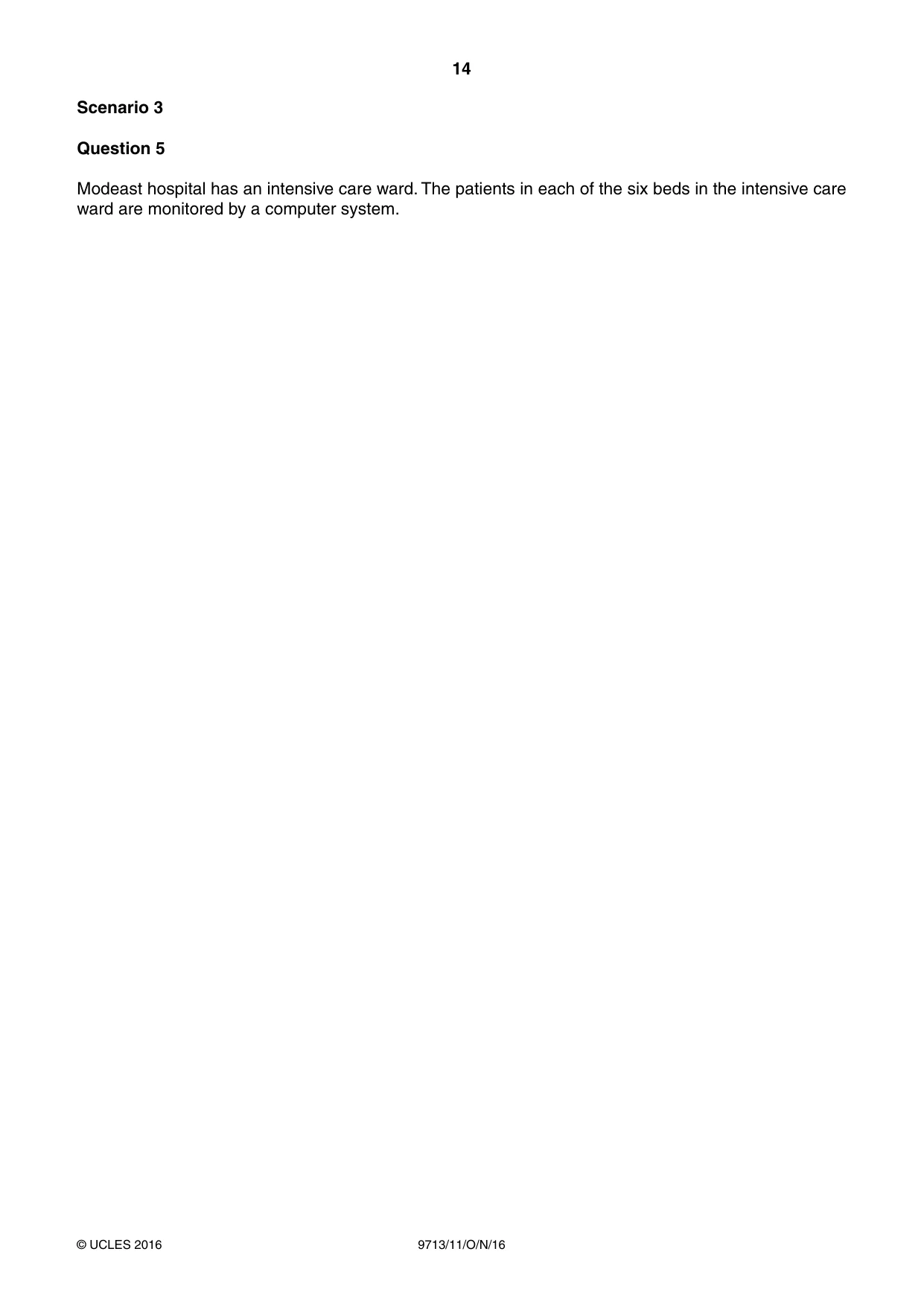

14 9713/11/O/N/16 © UCLES 2016 Scenario 3 Question 5 Modeast hospital has an intensive care ward. The patients in each of the six beds in the intensive care ward are monitored by a computer system.

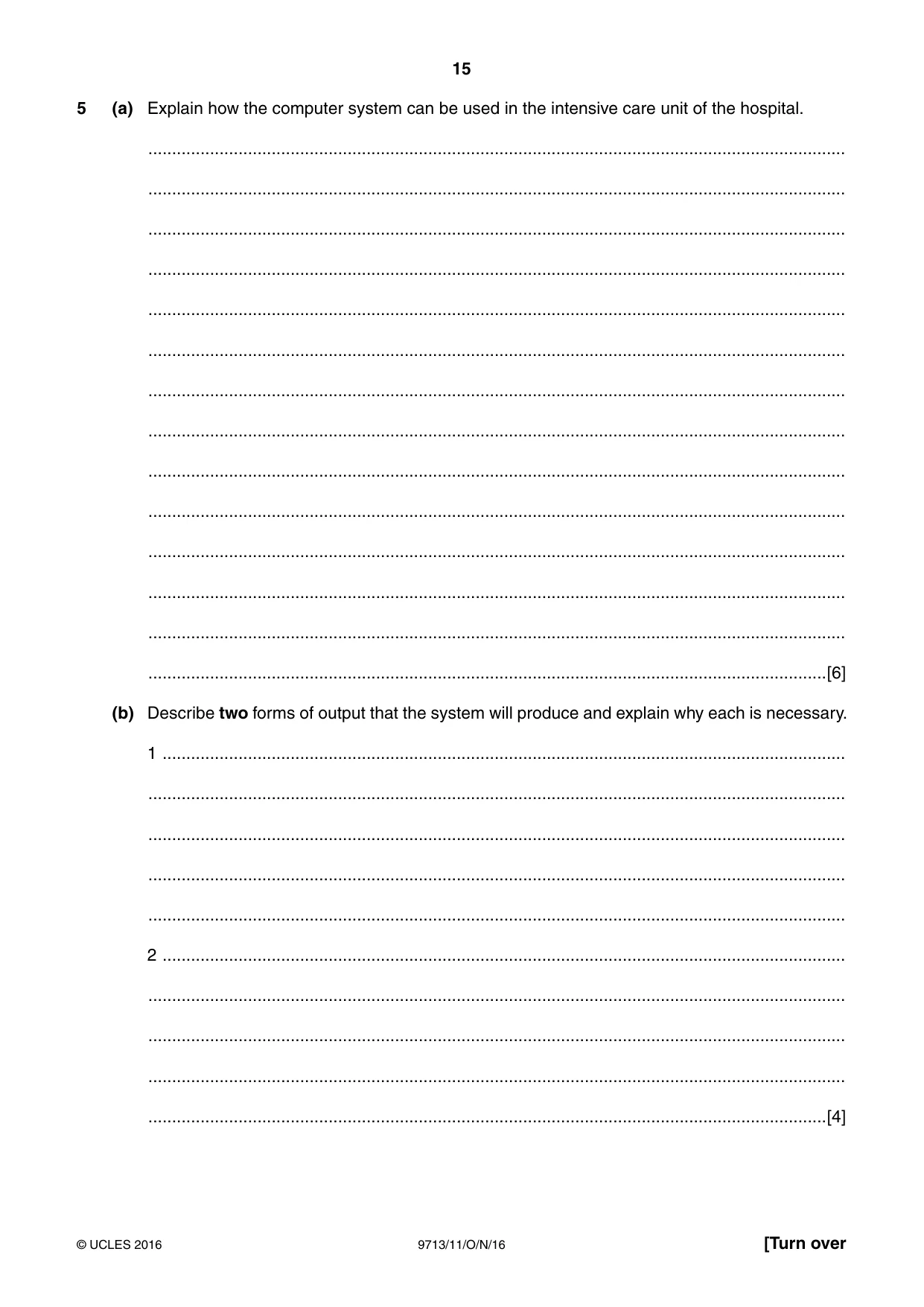

15 9713/11/O/N/16 © UCLES 2016 [Turn over 5 (a) Explain how the computer system can be used in the intensive care unit of the hospital. … … … … … … … … … … … … … …[6] (b) Describe two forms of output that the system will produce and explain why each is necessary. 1 … … … … … 2 … … … … …[4]

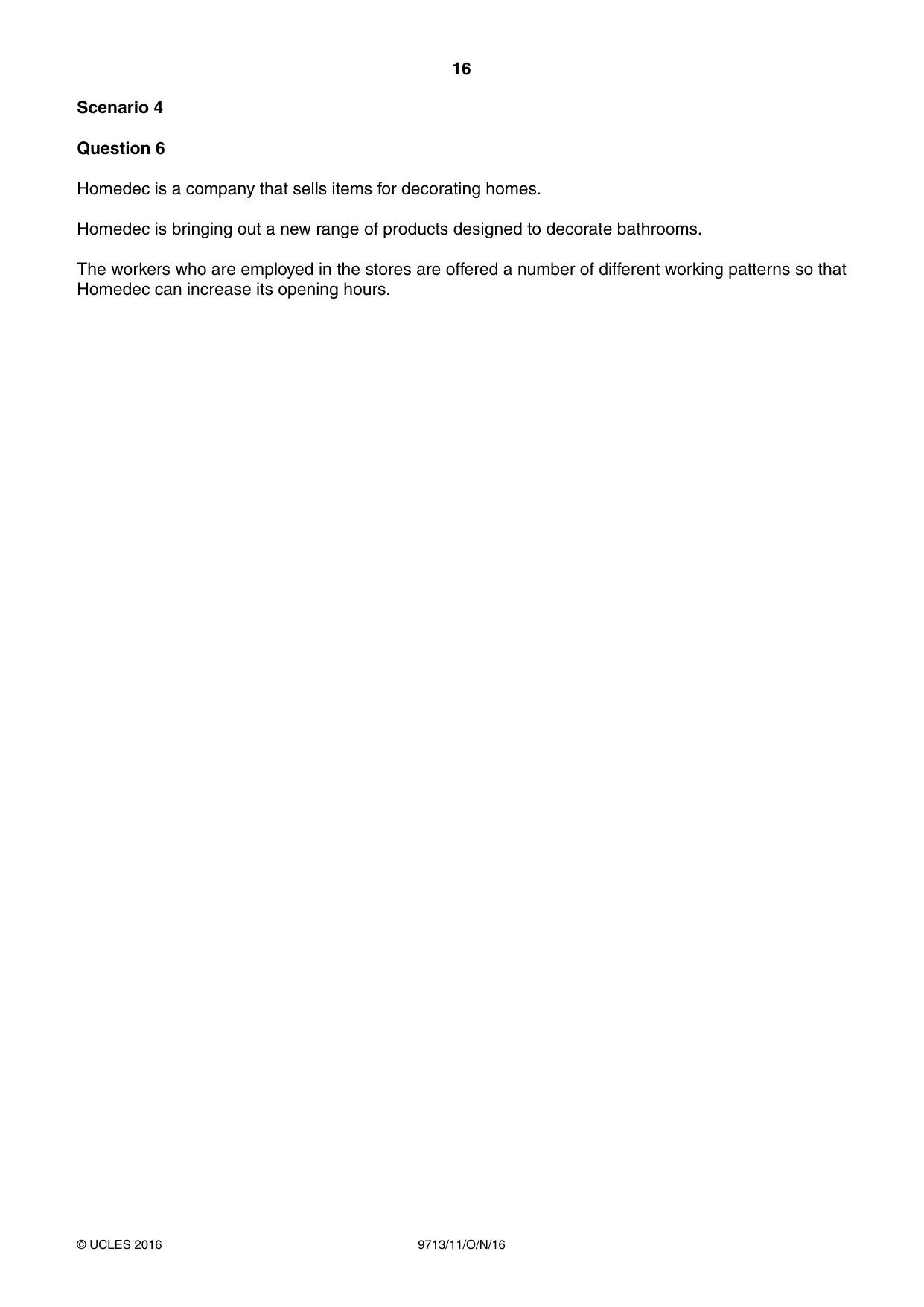

16 9713/11/O/N/16 © UCLES 2016 Scenario 4 Question 6 Homedec is a company that sells items for decorating homes. Homedec is bringing out a new range of products designed to decorate bathrooms. The workers who are employed in the stores are offered a number of different working patterns so that Homedec can increase its opening hours.

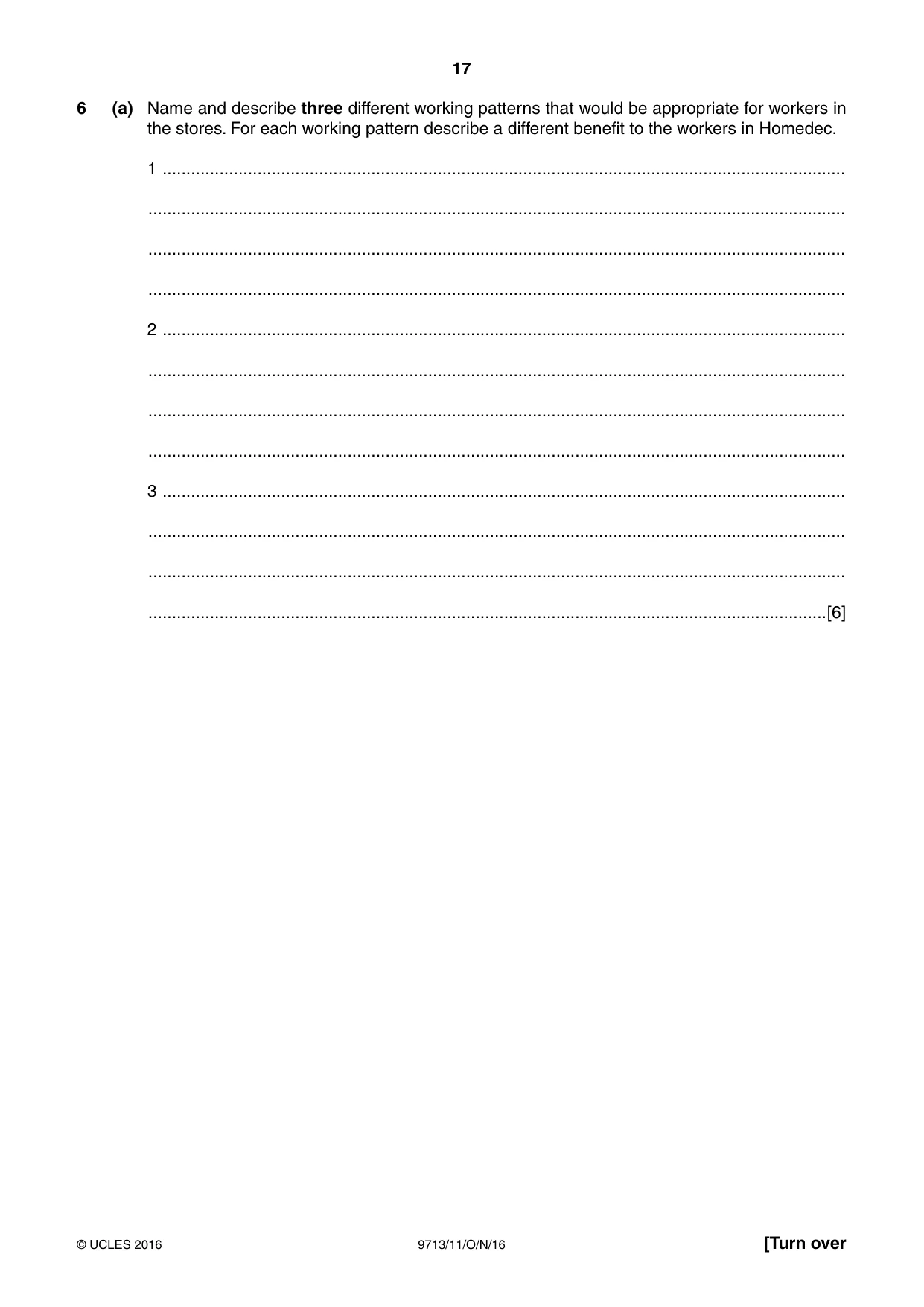

17 9713/11/O/N/16 © UCLES 2016 [Turn over 6 (a) Name and describe three different working patterns that would be appropriate for workers in the stores. For each working pattern describe a different benefit to the workers in Homedec. 1 … … … … 2 … … … … 3 … … … …[6]

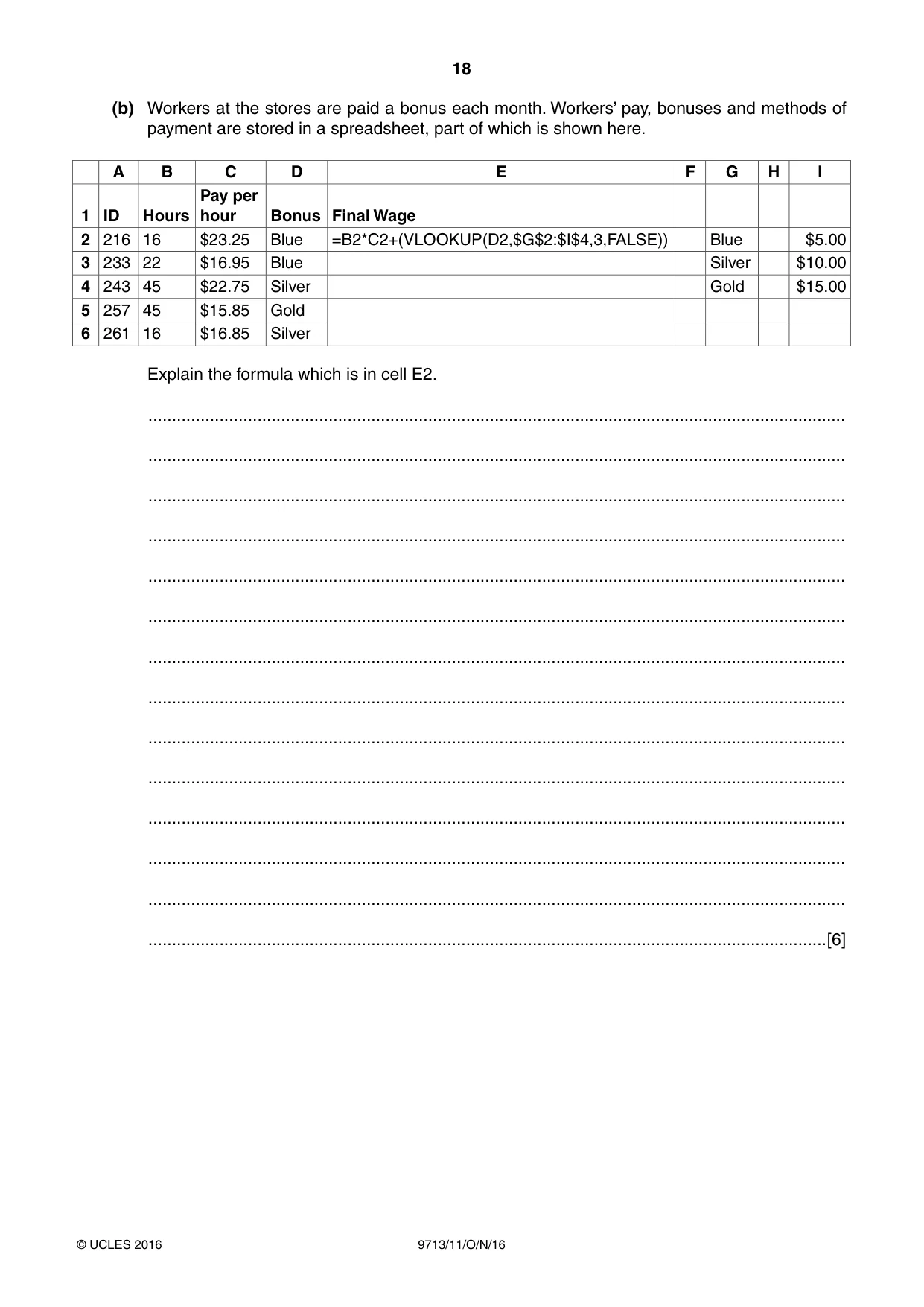

18 9713/11/O/N/16 © UCLES 2016 (b) Workers at the stores are paid a bonus each month. Workers’ pay, bonuses and methods of payment are stored in a spreadsheet, part of which is shown here. A B C D E F G H I 1 ID Hours Pay per hour Bonus Final Wage 2 216 16 $23.25 Blue =B2*C2+(VLOOKUP(D2,$G$2:$I$4,3,FALSE)) Blue $5.00 3 233 22 $16.95 Blue Silver $10.00 4 243 45 $22.75 Silver Gold $15.00 5 257 45 $15.85 Gold 6 261 16 $16.85 Silver Explain the formula which is in cell E2. … … … … … … … … … … … … … …[6]

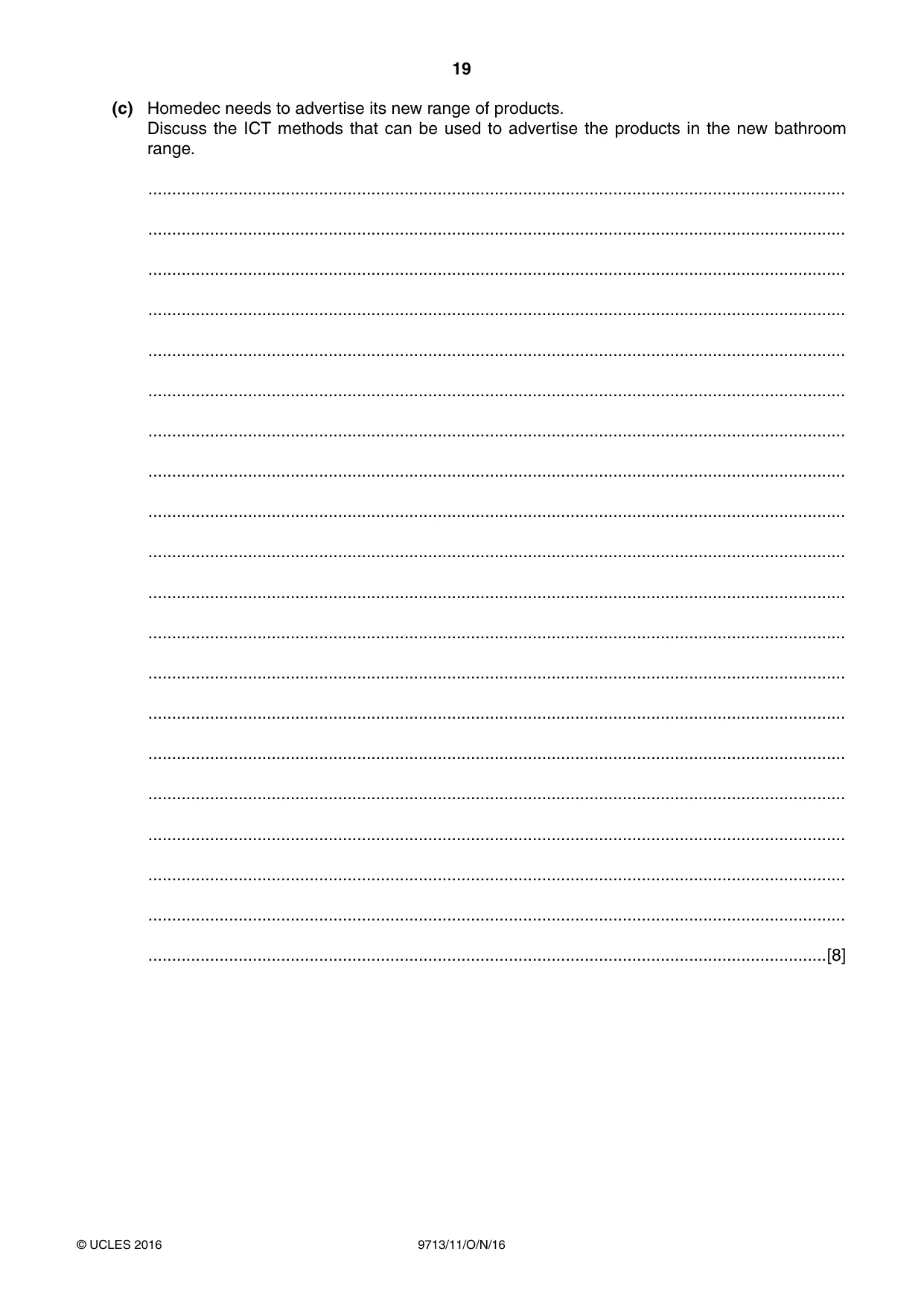

19 9713/11/O/N/16 © UCLES 2016 (c) Homedec needs to advertise its new range of products. Discuss the ICT methods that can be used to advertise the products in the new bathroom range. … … … … … … … … … … … … … … … … … … … …[8]

20 9713/11/O/N/16 © UCLES 2016 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge International Examinations Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cie.org.uk after the live examination series. Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. BLANK PAGE

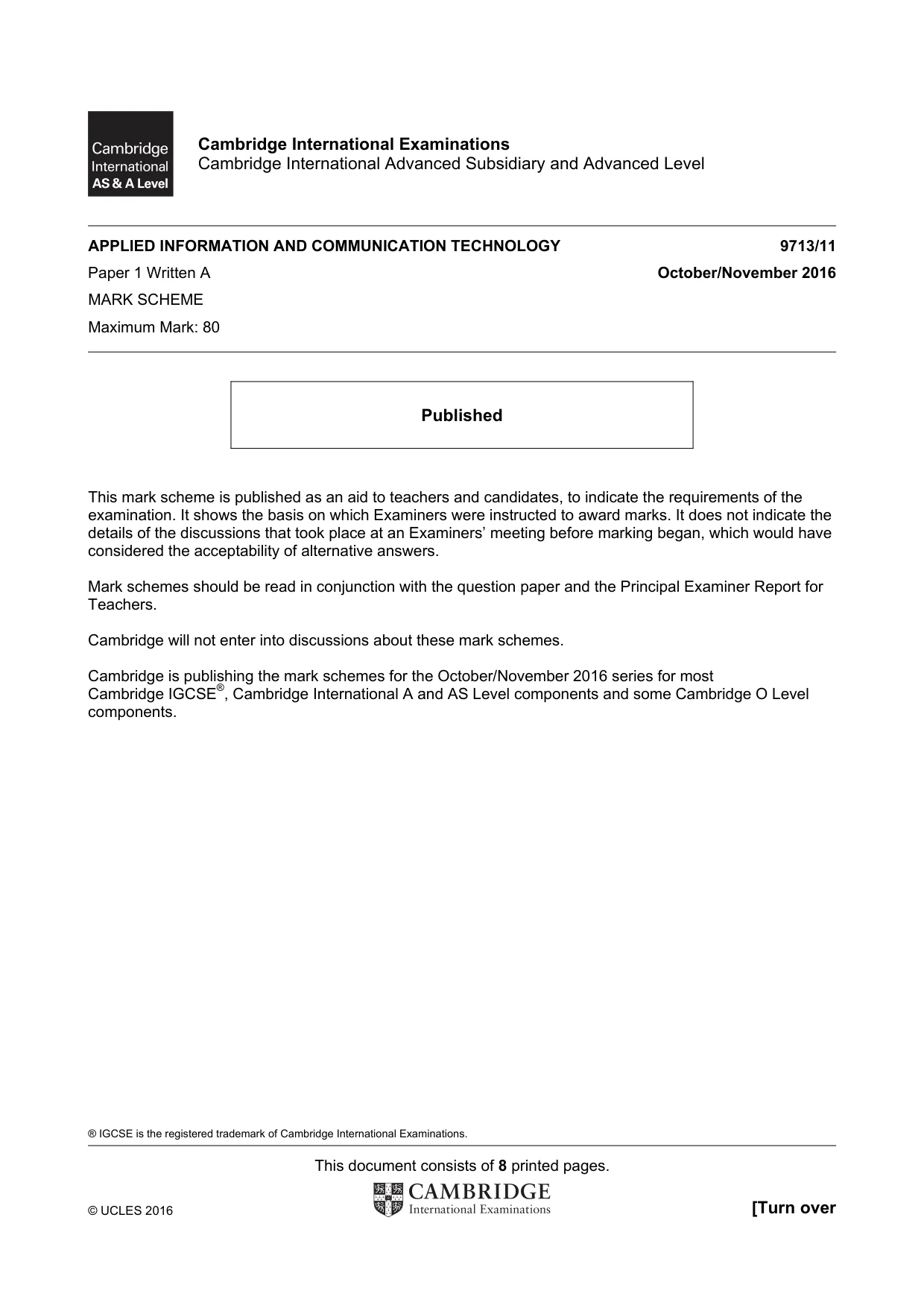

® IGCSE is the registered trademark of Cambridge International Examinations. This document consists of 8 printed pages. © UCLES 2016 [Turn over Cambridge International Examinations Cambridge International Advanced Subsidiary and Advanced Level APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/11 Paper 1 Written A October/November 2016 MARK SCHEME Maximum Mark: 80 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge will not enter into discussions about these mark schemes. Cambridge is publishing the mark schemes for the October/November 2016 series for most Cambridge IGCSE®, Cambridge International A and AS Level components and some Cambridge O Level components.

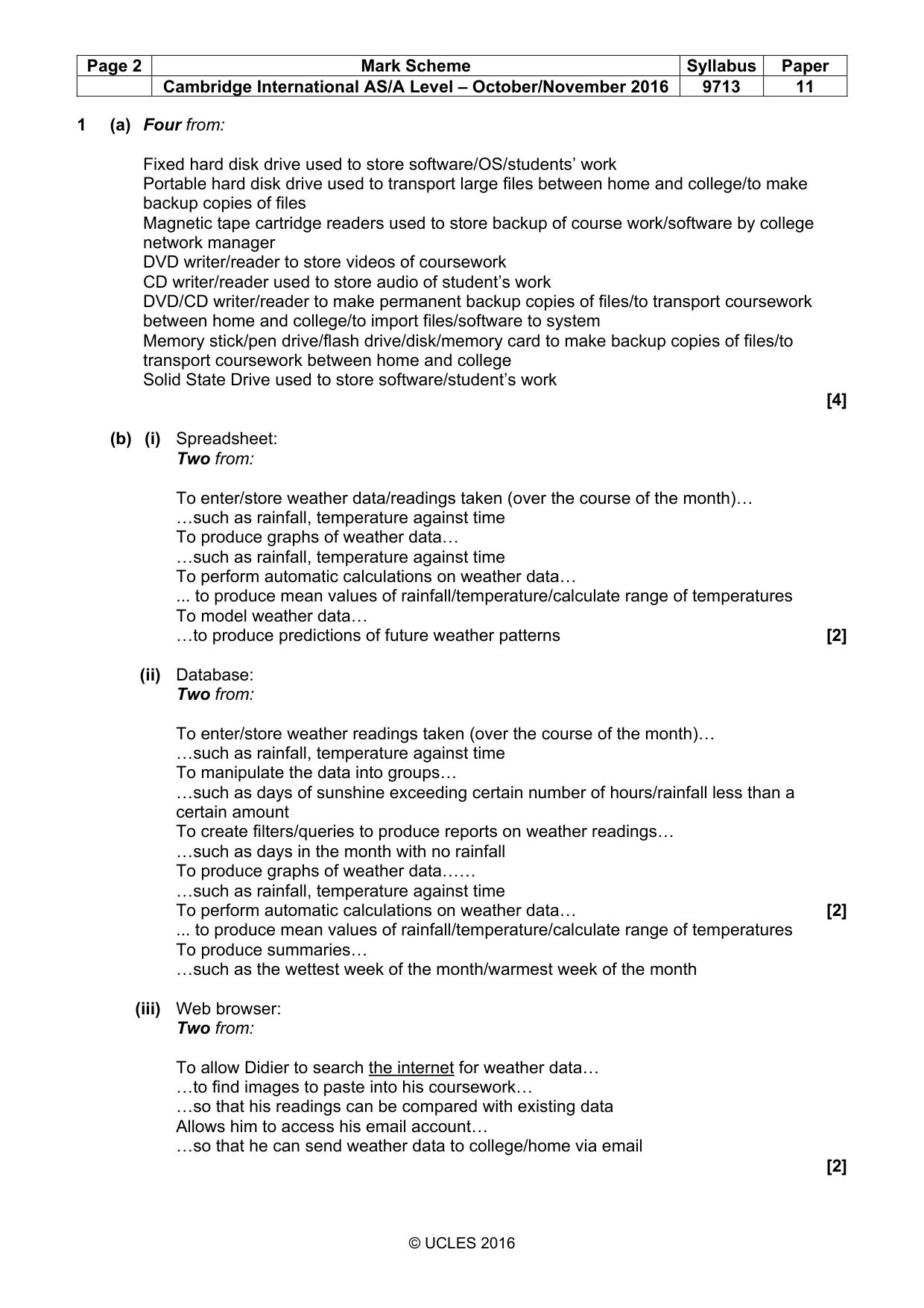

Page 2 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 1 (a) Four from: Fixed hard disk drive used to store software/OS/students’ work Portable hard disk drive used to transport large files between home and college/to make backup copies of files Magnetic tape cartridge readers used to store backup of course work/software by college network manager DVD writer/reader to store videos of coursework CD writer/reader used to store audio of student’s work DVD/CD writer/reader to make permanent backup copies of files/to transport coursework between home and college/to import files/software to system Memory stick/pen drive/flash drive/disk/memory card to make backup copies of files/to transport coursework between home and college Solid State Drive used to store software/student’s work [4] (b) (i) Spreadsheet: Two from: To enter/store weather data/readings taken (over the course of the month)… …such as rainfall, temperature against time To produce graphs of weather data… …such as rainfall, temperature against time To perform automatic calculations on weather data… ... to produce mean values of rainfall/temperature/calculate range of temperatures To model weather data… …to produce predictions of future weather patterns [2] (ii) Database: Two from: To enter/store weather readings taken (over the course of the month)… …such as rainfall, temperature against time To manipulate the data into groups… …such as days of sunshine exceeding certain number of hours/rainfall less than a certain amount To create filters/queries to produce reports on weather readings… …such as days in the month with no rainfall To produce graphs of weather data…… …such as rainfall, temperature against time To perform automatic calculations on weather data… [2] ... to produce mean values of rainfall/temperature/calculate range of temperatures To produce summaries… …such as the wettest week of the month/warmest week of the month (iii) Web browser: Two from: To allow Didier to search the internet for weather data… …to find images to paste into his coursework… …so that his readings can be compared with existing data Allows him to access his email account… …so that he can send weather data to college/home via email [2]

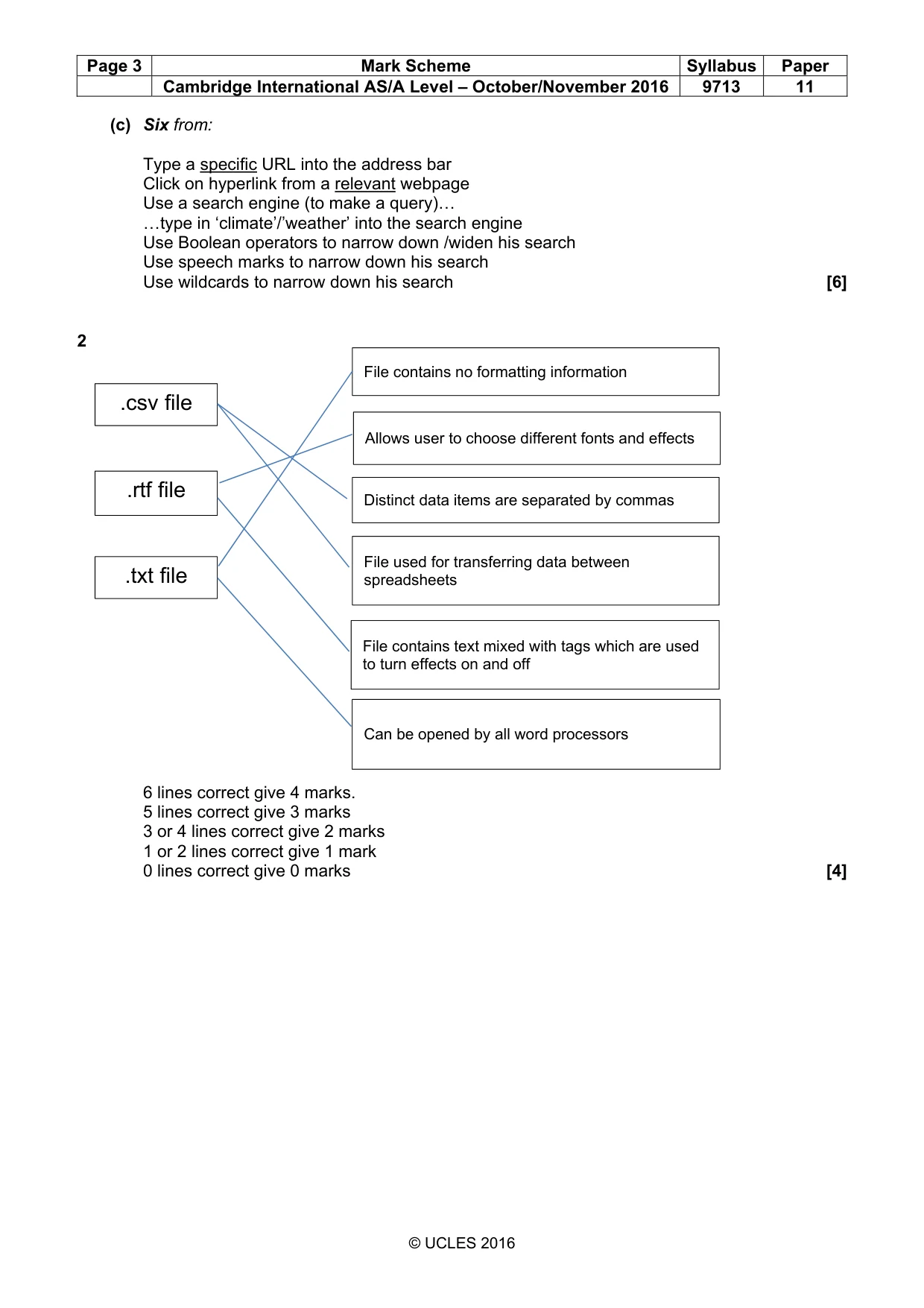

Page 3 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 (c) Six from: Type a specific URL into the address bar Click on hyperlink from a relevant webpage Use a search engine (to make a query)… …type in ‘climate’/’weather’ into the search engine Use Boolean operators to narrow down /widen his search Use speech marks to narrow down his search Use wildcards to narrow down his search [6] 2 6 lines correct give 4 marks. 5 lines correct give 3 marks 3 or 4 lines correct give 2 marks 1 or 2 lines correct give 1 mark 0 lines correct give 0 marks [4] Can be opened by all word processors .csv file .rtf file File contains no formatting information Allows user to choose different fonts and effects Distinct data items are separated by commas File used for transferring data between spreadsheets .txt file File contains text mixed with tags which are used to turn effects on and off

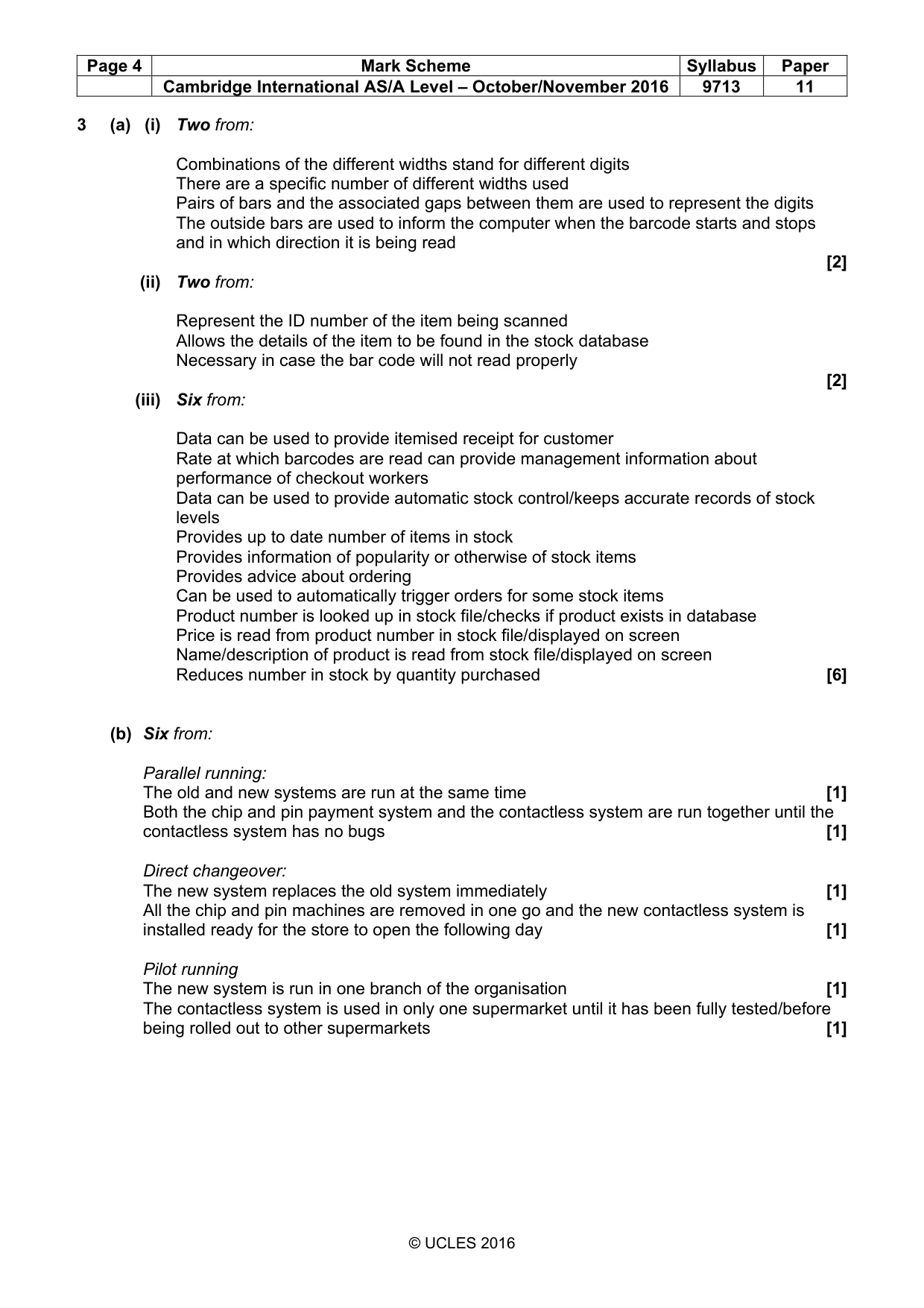

Page 4 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 3 (a) (i) Two from: Combinations of the different widths stand for different digits There are a specific number of different widths used Pairs of bars and the associated gaps between them are used to represent the digits The outside bars are used to inform the computer when the barcode starts and stops and in which direction it is being read [2] (ii) Two from: Represent the ID number of the item being scanned Allows the details of the item to be found in the stock database Necessary in case the bar code will not read properly [2] (iii) Six from: Data can be used to provide itemised receipt for customer Rate at which barcodes are read can provide management information about performance of checkout workers Data can be used to provide automatic stock control/keeps accurate records of stock levels Provides up to date number of items in stock Provides information of popularity or otherwise of stock items Provides advice about ordering Can be used to automatically trigger orders for some stock items Product number is looked up in stock file/checks if product exists in database Price is read from product number in stock file/displayed on screen Name/description of product is read from stock file/displayed on screen Reduces number in stock by quantity purchased [6] (b) Six from: Parallel running: The old and new systems are run at the same time [1] Both the chip and pin payment system and the contactless system are run together until the contactless system has no bugs [1] Direct changeover: The new system replaces the old system immediately [1] All the chip and pin machines are removed in one go and the new contactless system is installed ready for the store to open the following day [1] Pilot running The new system is run in one branch of the organisation [1] The contactless system is used in only one supermarket until it has been fully tested/before being rolled out to other supermarkets [1]

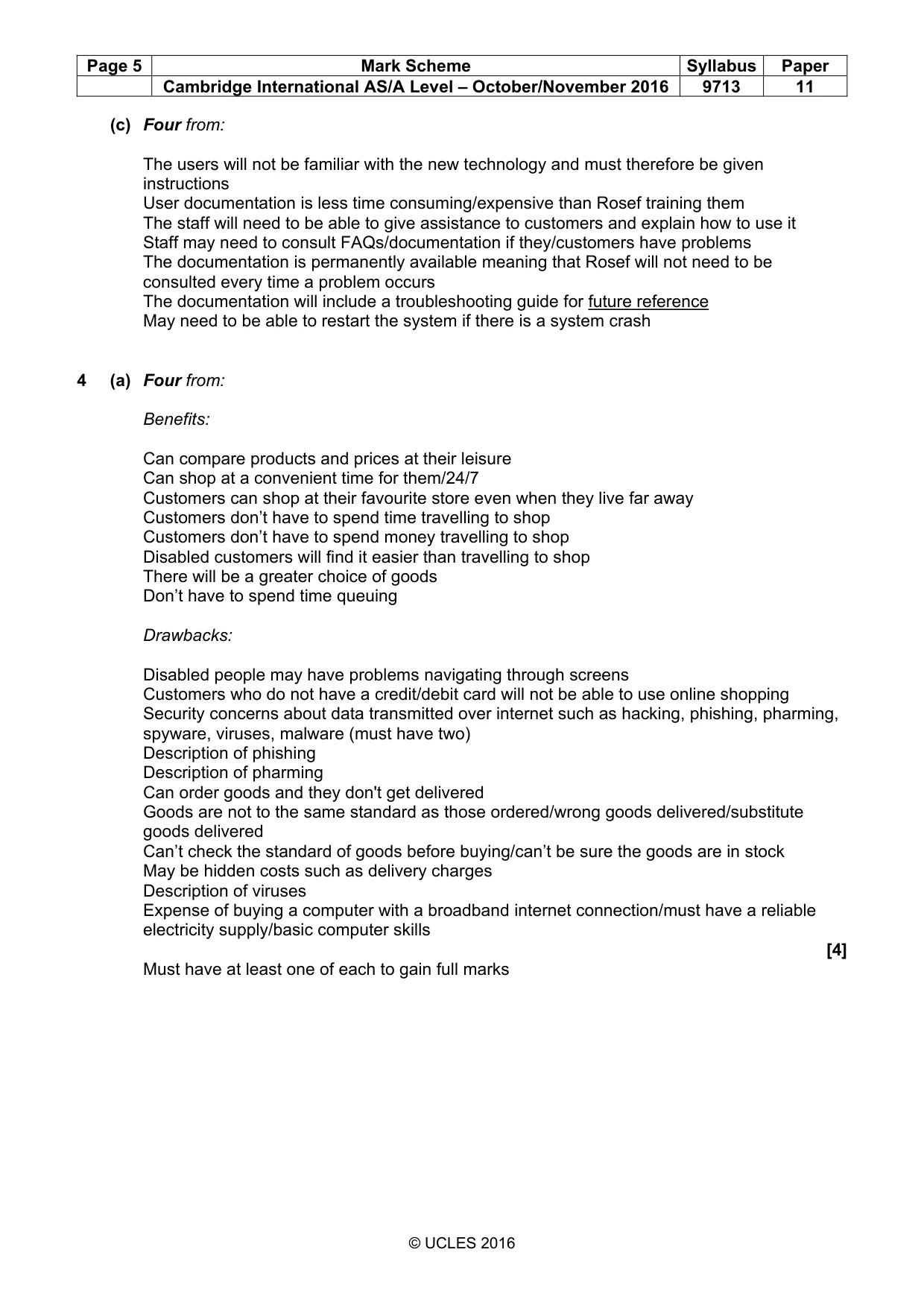

Page 5 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 (c) Four from: The users will not be familiar with the new technology and must therefore be given instructions User documentation is less time consuming/expensive than Rosef training them The staff will need to be able to give assistance to customers and explain how to use it Staff may need to consult FAQs/documentation if they/customers have problems The documentation is permanently available meaning that Rosef will not need to be consulted every time a problem occurs The documentation will include a troubleshooting guide for future reference May need to be able to restart the system if there is a system crash 4 (a) Four from: Benefits: Can compare products and prices at their leisure Can shop at a convenient time for them/24/7 Customers can shop at their favourite store even when they live far away Customers don’t have to spend time travelling to shop Customers don’t have to spend money travelling to shop Disabled customers will find it easier than travelling to shop There will be a greater choice of goods Don’t have to spend time queuing Drawbacks: Disabled people may have problems navigating through screens Customers who do not have a credit/debit card will not be able to use online shopping Security concerns about data transmitted over internet such as hacking, phishing, pharming, spyware, viruses, malware (must have two) Description of phishing Description of pharming Can order goods and they don't get delivered Goods are not to the same standard as those ordered/wrong goods delivered/substitute goods delivered Can’t check the standard of goods before buying/can’t be sure the goods are in stock May be hidden costs such as delivery charges Description of viruses Expense of buying a computer with a broadband internet connection/must have a reliable electricity supply/basic computer skills [4] Must have at least one of each to gain full marks

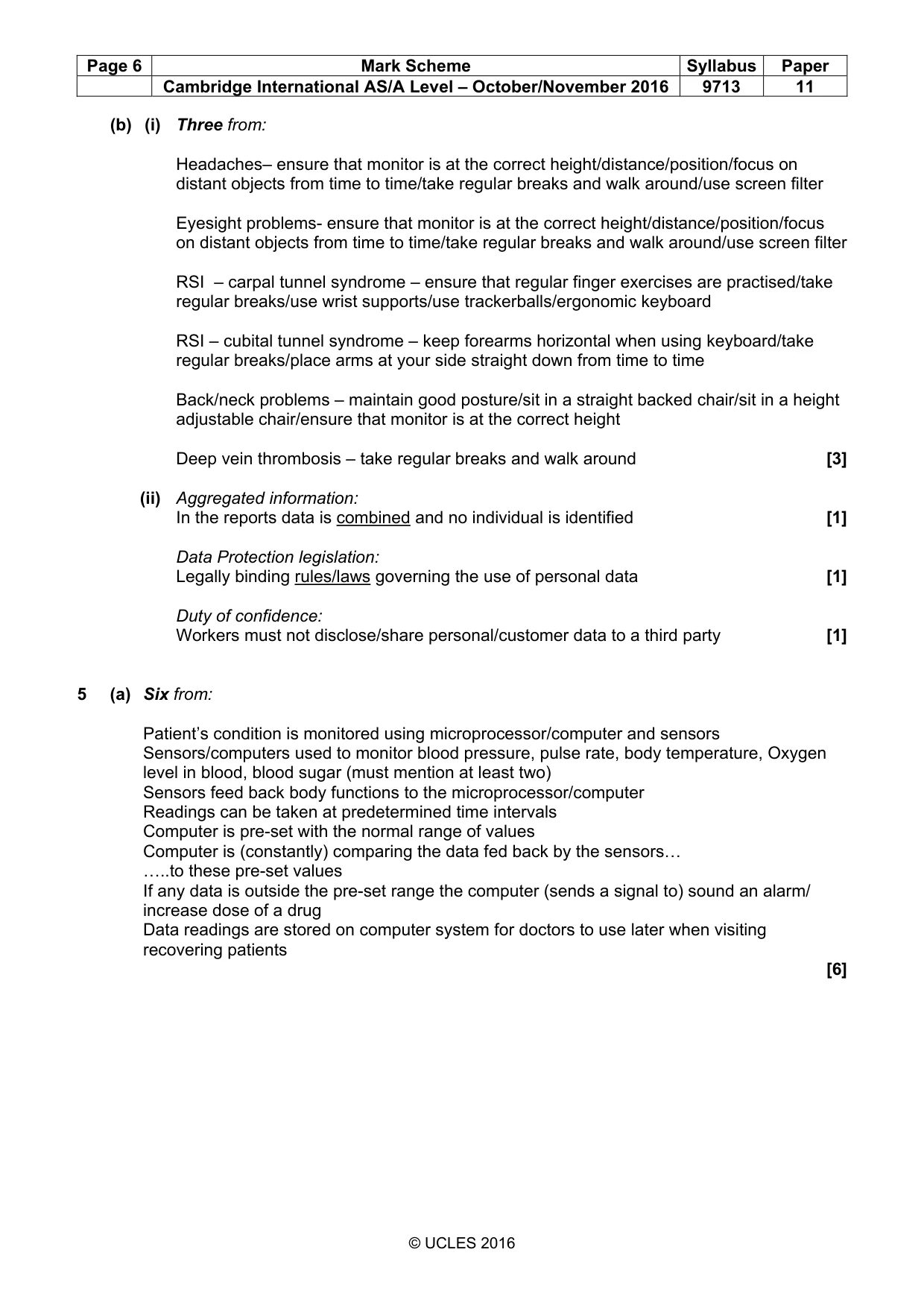

Page 6 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 (b) (i) Three from: Headaches– ensure that monitor is at the correct height/distance/position/focus on distant objects from time to time/take regular breaks and walk around/use screen filter Eyesight problems- ensure that monitor is at the correct height/distance/position/focus on distant objects from time to time/take regular breaks and walk around/use screen filter RSI – carpal tunnel syndrome – ensure that regular finger exercises are practised/take regular breaks/use wrist supports/use trackerballs/ergonomic keyboard RSI – cubital tunnel syndrome – keep forearms horizontal when using keyboard/take regular breaks/place arms at your side straight down from time to time Back/neck problems – maintain good posture/sit in a straight backed chair/sit in a height adjustable chair/ensure that monitor is at the correct height Deep vein thrombosis – take regular breaks and walk around [3] (ii) Aggregated information: In the reports data is combined and no individual is identified [1] Data Protection legislation: Legally binding rules/laws governing the use of personal data [1] Duty of confidence: Workers must not disclose/share personal/customer data to a third party [1] 5 (a) Six from: Patient’s condition is monitored using microprocessor/computer and sensors Sensors/computers used to monitor blood pressure, pulse rate, body temperature, Oxygen level in blood, blood sugar (must mention at least two) Sensors feed back body functions to the microprocessor/computer Readings can be taken at predetermined time intervals Computer is pre-set with the normal range of values Computer is (constantly) comparing the data fed back by the sensors… …..to these pre-set values If any data is outside the pre-set range the computer (sends a signal to) sound an alarm/ increase dose of a drug Data readings are stored on computer system for doctors to use later when visiting recovering patients [6]

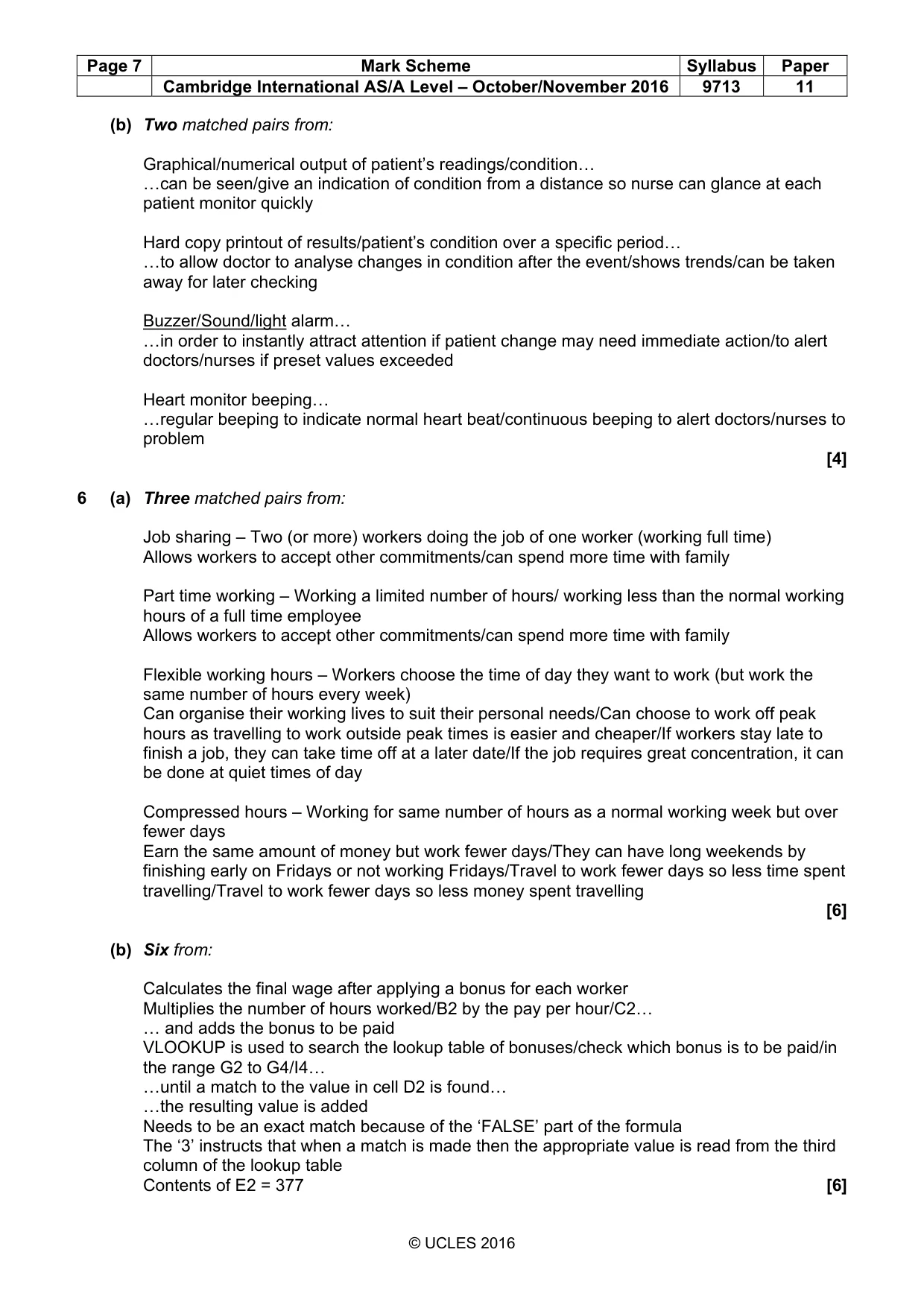

Page 7 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 (b) Two matched pairs from: Graphical/numerical output of patient’s readings/condition… …can be seen/give an indication of condition from a distance so nurse can glance at each patient monitor quickly Hard copy printout of results/patient’s condition over a specific period… …to allow doctor to analyse changes in condition after the event/shows trends/can be taken away for later checking Buzzer/Sound/light alarm… …in order to instantly attract attention if patient change may need immediate action/to alert doctors/nurses if preset values exceeded Heart monitor beeping… …regular beeping to indicate normal heart beat/continuous beeping to alert doctors/nurses to problem [4] 6 (a) Three matched pairs from: Job sharing – Two (or more) workers doing the job of one worker (working full time) Allows workers to accept other commitments/can spend more time with family Part time working – Working a limited number of hours/ working less than the normal working hours of a full time employee Allows workers to accept other commitments/can spend more time with family Flexible working hours – Workers choose the time of day they want to work (but work the same number of hours every week) Can organise their working lives to suit their personal needs/Can choose to work off peak hours as travelling to work outside peak times is easier and cheaper/If workers stay late to finish a job, they can take time off at a later date/If the job requires great concentration, it can be done at quiet times of day Compressed hours – Working for same number of hours as a normal working week but over fewer days Earn the same amount of money but work fewer days/They can have long weekends by finishing early on Fridays or not working Fridays/Travel to work fewer days so less time spent travelling/Travel to work fewer days so less money spent travelling [6] (b) Six from: Calculates the final wage after applying a bonus for each worker Multiplies the number of hours worked/B2 by the pay per hour/C2… … and adds the bonus to be paid VLOOKUP is used to search the lookup table of bonuses/check which bonus is to be paid/in the range G2 to G4/I4… …until a match to the value in cell D2 is found… …the resulting value is added Needs to be an exact match because of the ‘FALSE’ part of the formula The ‘3’ instructs that when a match is made then the appropriate value is read from the third column of the lookup table Contents of E2 = 377 [6]

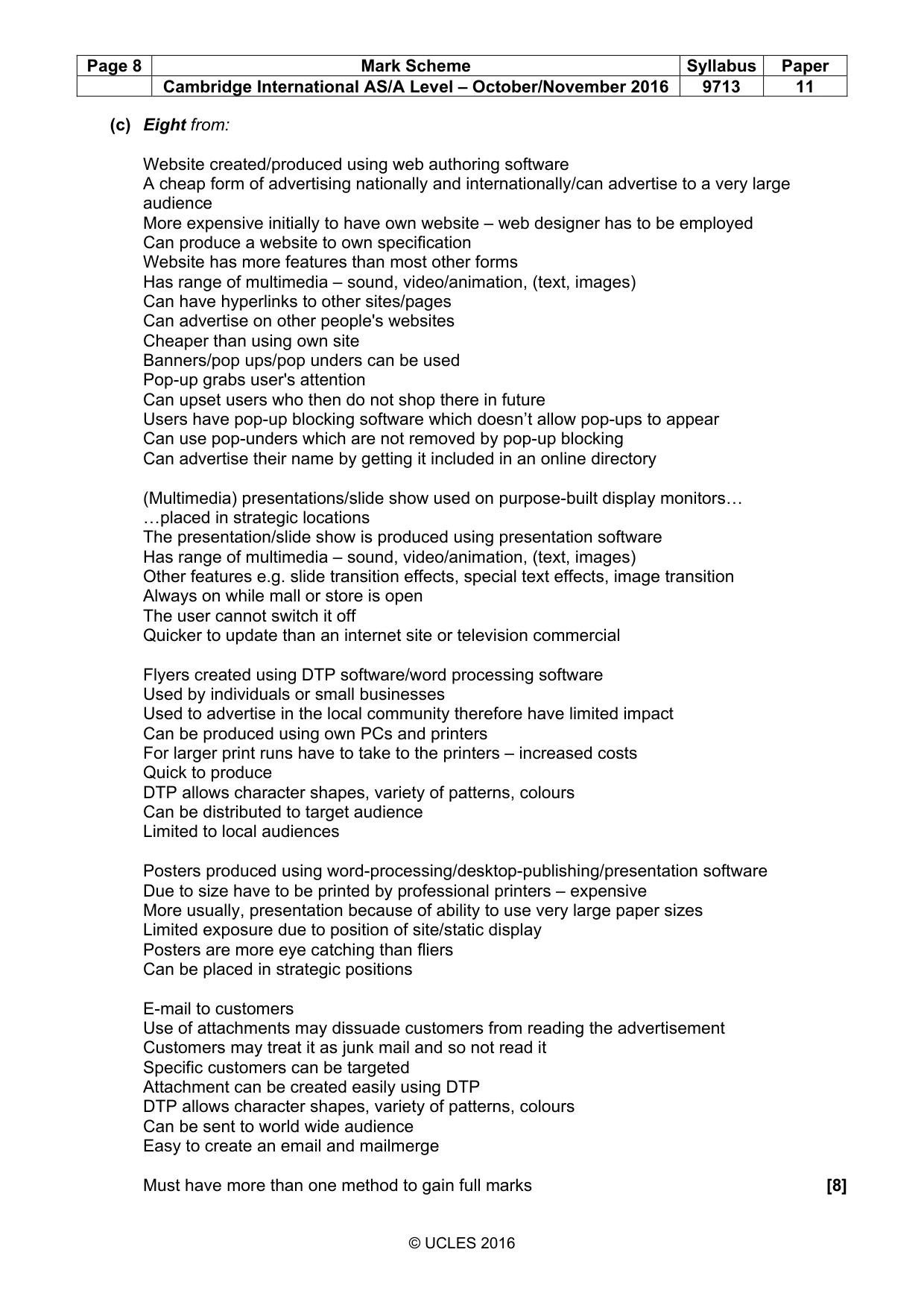

Page 8 Mark Scheme Syllabus Paper Cambridge International AS/A Level – October/November 2016 9713 11 © UCLES 2016 (c) Eight from: Website created/produced using web authoring software A cheap form of advertising nationally and internationally/can advertise to a very large audience More expensive initially to have own website – web designer has to be employed Can produce a website to own specification Website has more features than most other forms Has range of multimedia – sound, video/animation, (text, images) Can have hyperlinks to other sites/pages Can advertise on other people's websites Cheaper than using own site Banners/pop ups/pop unders can be used Pop-up grabs user's attention Can upset users who then do not shop there in future Users have pop-up blocking software which doesn’t allow pop-ups to appear Can use pop-unders which are not removed by pop-up blocking Can advertise their name by getting it included in an online directory (Multimedia) presentations/slide show used on purpose-built display monitors… …placed in strategic locations The presentation/slide show is produced using presentation software Has range of multimedia – sound, video/animation, (text, images) Other features e.g. slide transition effects, special text effects, image transition Always on while mall or store is open The user cannot switch it off Quicker to update than an internet site or television commercial Flyers created using DTP software/word processing software Used by individuals or small businesses Used to advertise in the local community therefore have limited impact Can be produced using own PCs and printers For larger print runs have to take to the printers – increased costs Quick to produce DTP allows character shapes, variety of patterns, colours Can be distributed to target audience Limited to local audiences Posters produced using word-processing/desktop-publishing/presentation software Due to size have to be printed by professional printers – expensive More usually, presentation because of ability to use very large paper sizes Limited exposure due to position of site/static display Posters are more eye catching than fliers Can be placed in strategic positions E-mail to customers Use of attachments may dissuade customers from reading the advertisement Customers may treat it as junk mail and so not read it Specific customers can be targeted Attachment can be created easily using DTP DTP allows character shapes, variety of patterns, colours Can be sent to world wide audience Easy to create an email and mailmerge Must have more than one method to gain full marks [8]
