Cambridge A Level Applied Information and Communication Technology 9713 — 2012 Oct/Nov Paper 1 · Variant 1

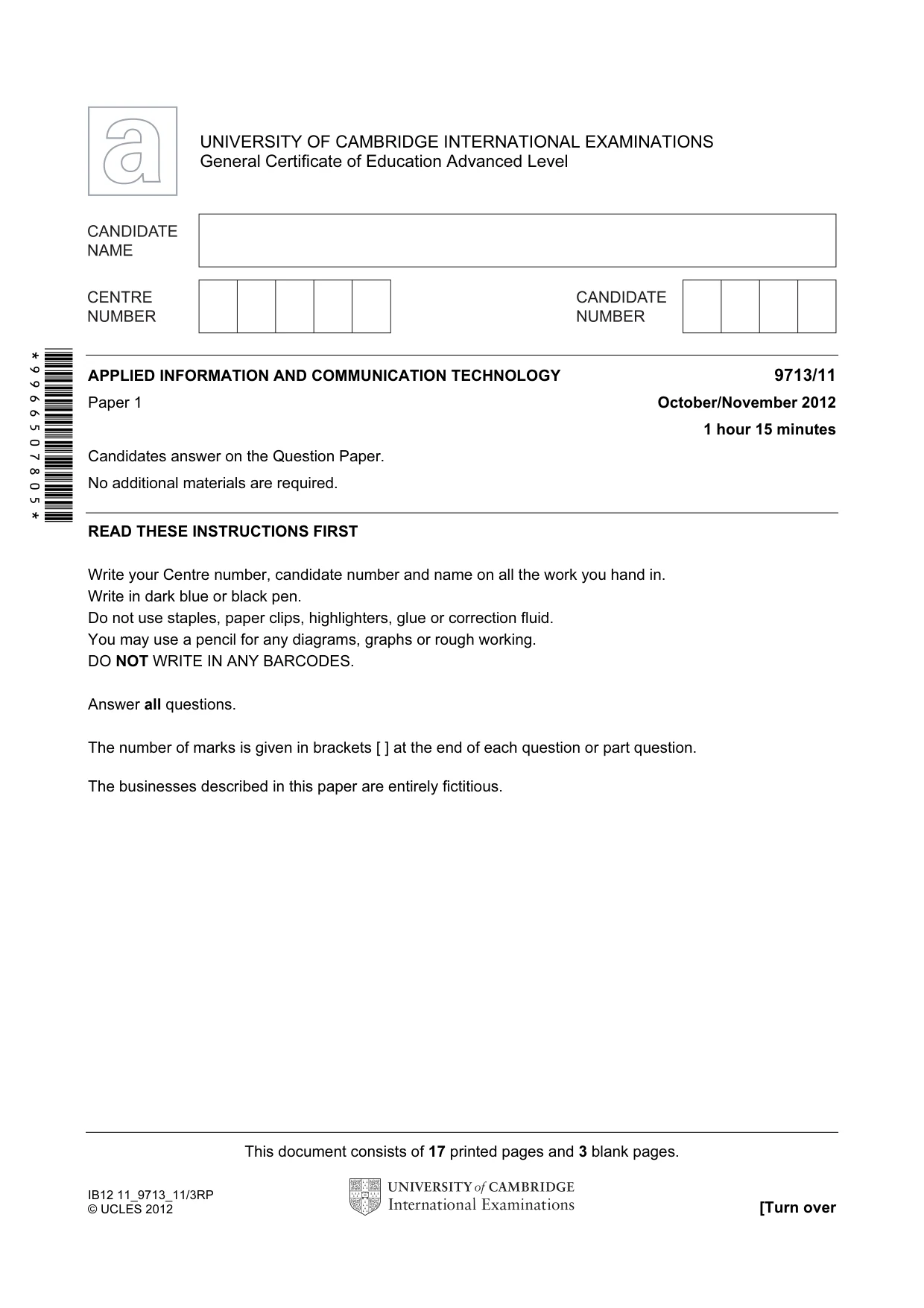

This document consists of 17 printed pages and 3 blank pages. IB12 11_9713_11/3RP © UCLES 2012 [Turn over *9966507805* UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Level APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/11 Paper 1 October/November 2012 1 hour 15 minutes Candidates answer on the Question Paper. No additional materials are required. READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen. Do not use staples, paper clips, highlighters, glue or correction fluid. You may use a pencil for any diagrams, graphs or rough working. DO NOT WRITE IN ANY BARCODES. Answer all questions. The number of marks is given in brackets [ ] at the end of each question or part question. The businesses described in this paper are entirely fictitious.

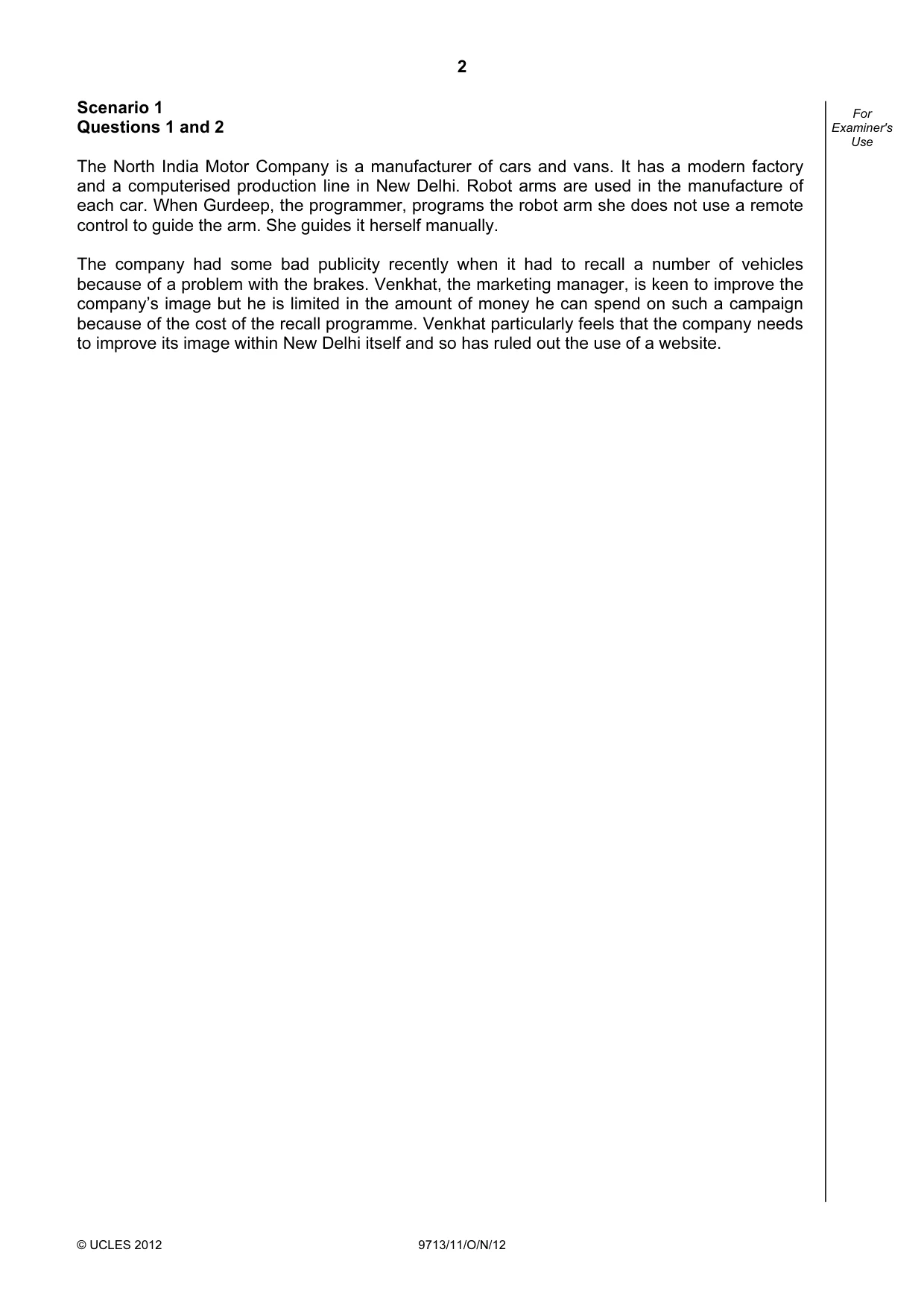

2 © UCLES 2012 9713/11/O/N/12 For Examiner's Use Scenario 1 Questions 1 and 2 The North India Motor Company is a manufacturer of cars and vans. It has a modern factory and a computerised production line in New Delhi. Robot arms are used in the manufacture of each car. When Gurdeep, the programmer, programs the robot arm she does not use a remote control to guide the arm. She guides it herself manually. The company had some bad publicity recently when it had to recall a number of vehicles because of a problem with the brakes. Venkhat, the marketing manager, is keen to improve the company’s image but he is limited in the amount of money he can spend on such a campaign because of the cost of the recall programme. Venkhat particularly feels that the company needs to improve its image within New Delhi itself and so has ruled out the use of a website.

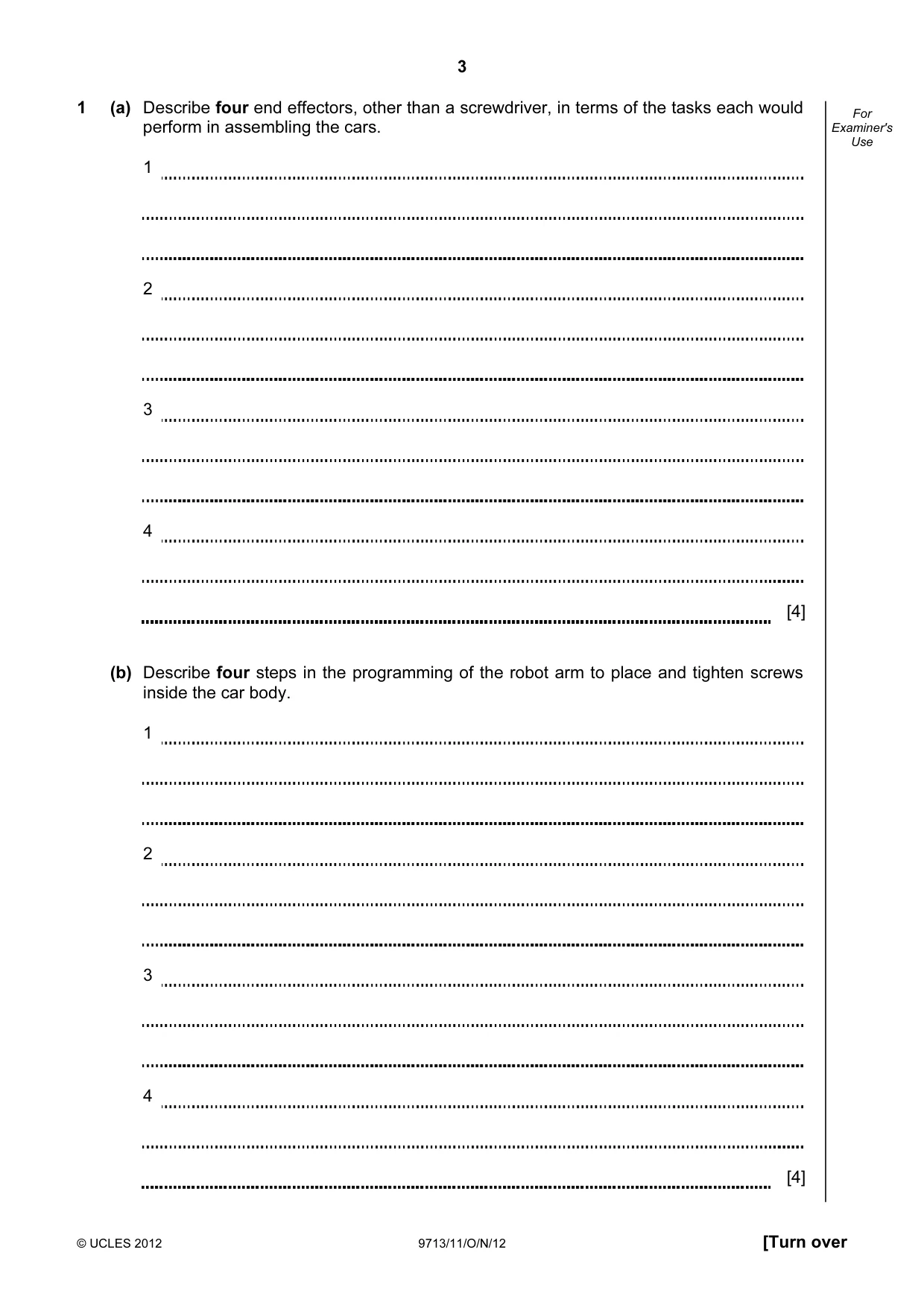

3 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use 1 (a) Describe four end effectors, other than a screwdriver, in terms of the tasks each would perform in assembling the cars. 1 2 3 4 [4] (b) Describe four steps in the programming of the robot arm to place and tighten screws inside the car body. 1 2 3 4 [4]

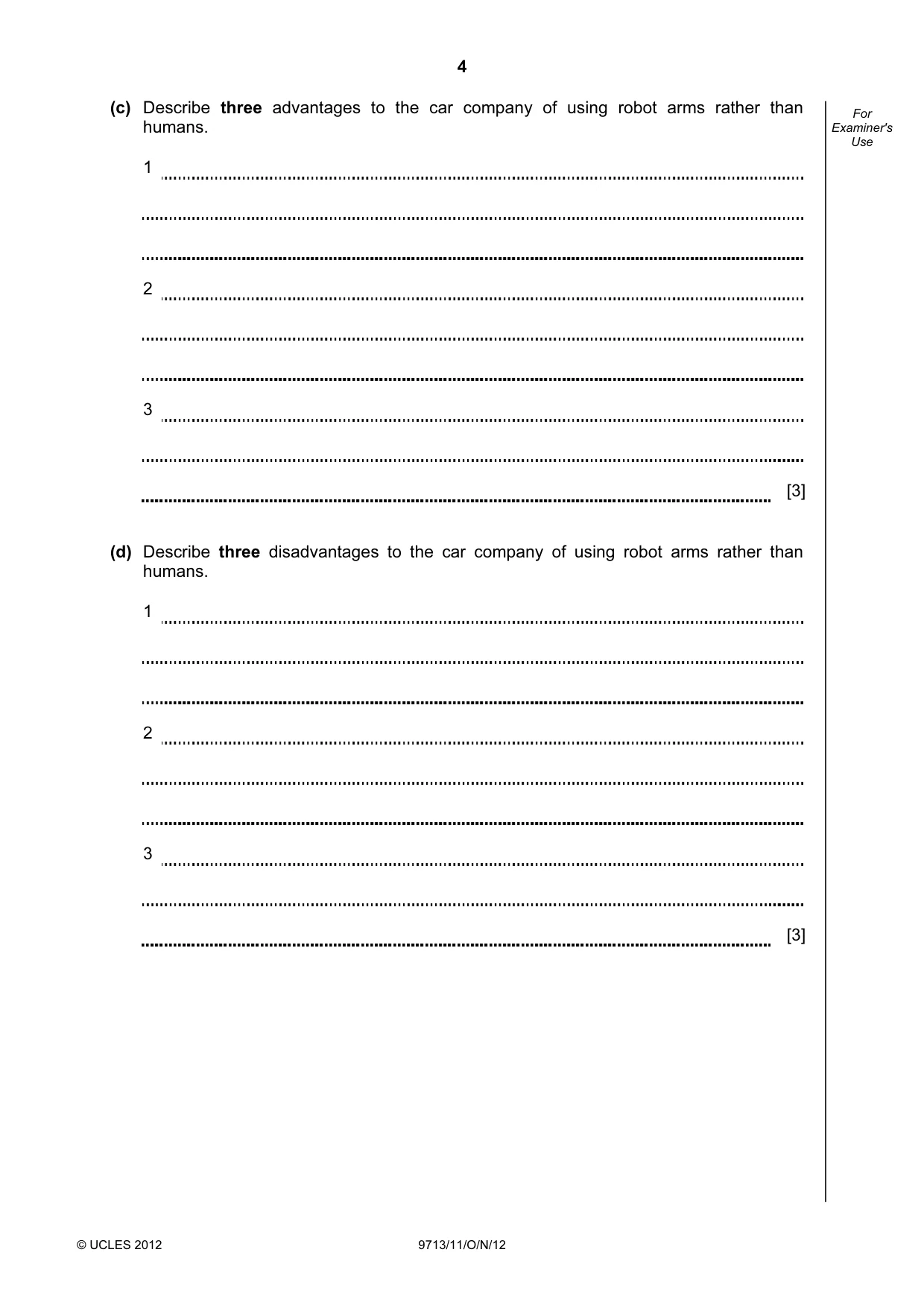

4 © UCLES 2012 9713/11/O/N/12 For Examiner's Use (c) Describe three advantages to the car company of using robot arms rather than humans. 1 2 3 [3] (d) Describe three disadvantages to the car company of using robot arms rather than humans. 1 2 3 [3]

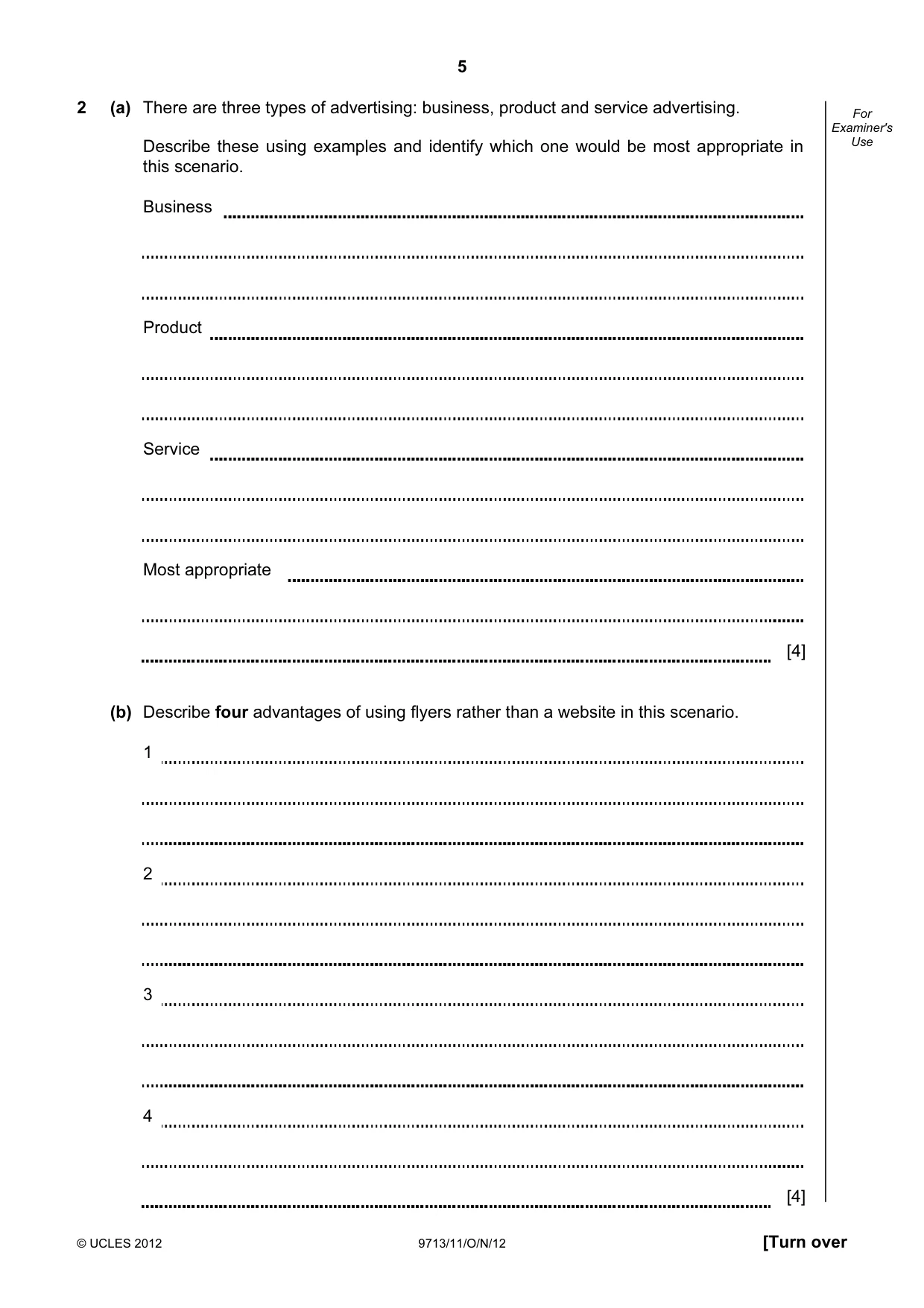

5 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use 2 (a) There are three types of advertising: business, product and service advertising. Describe these using examples and identify which one would be most appropriate in this scenario. Business Product Service Most appropriate [4] (b) Describe four advantages of using flyers rather than a website in this scenario. 1 2 3 4 [4]

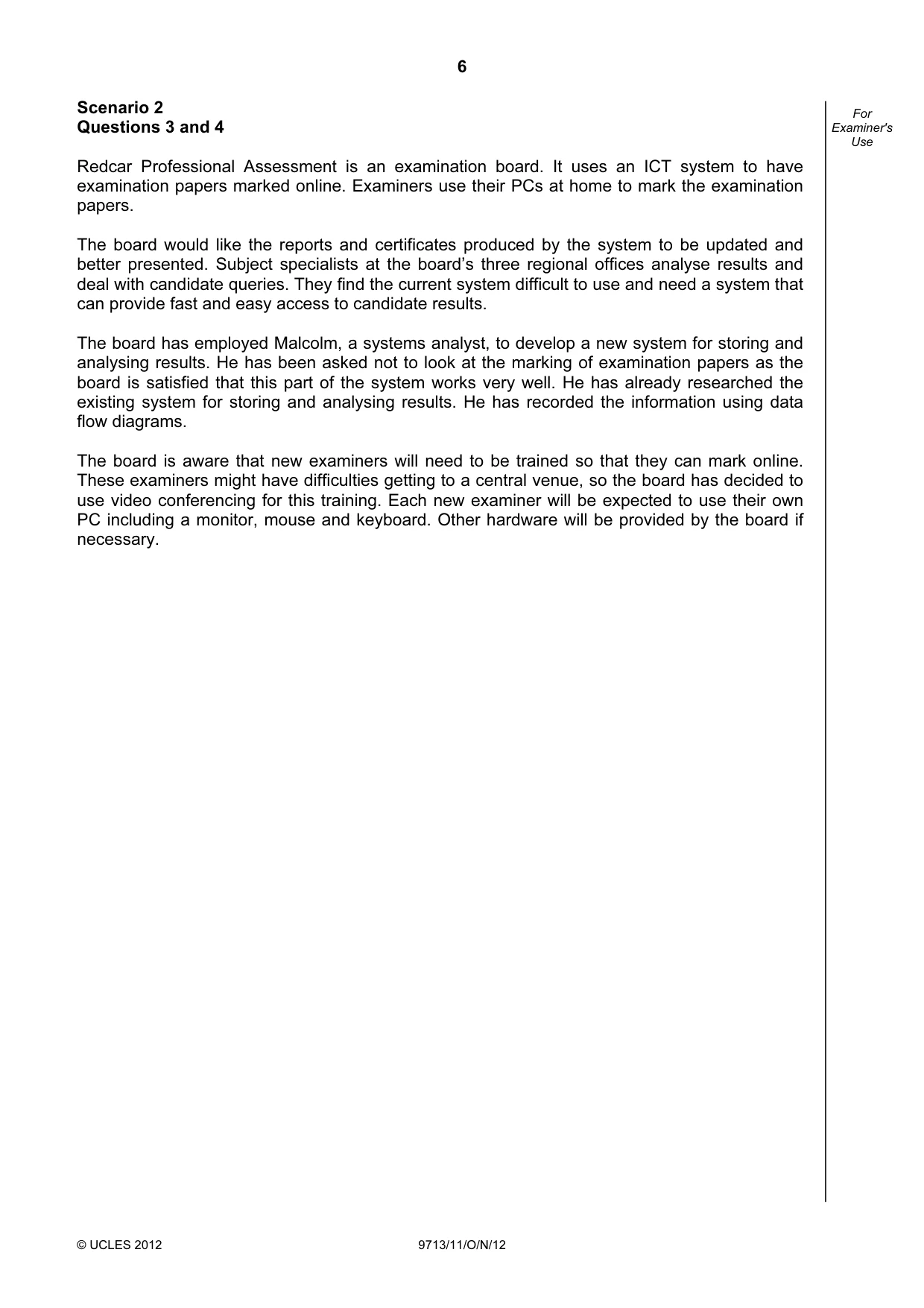

6 © UCLES 2012 9713/11/O/N/12 For Examiner's Use Scenario 2 Questions 3 and 4 Redcar Professional Assessment is an examination board. It uses an ICT system to have examination papers marked online. Examiners use their PCs at home to mark the examination papers. The board would like the reports and certificates produced by the system to be updated and better presented. Subject specialists at the board’s three regional offices analyse results and deal with candidate queries. They find the current system difficult to use and need a system that can provide fast and easy access to candidate results. The board has employed Malcolm, a systems analyst, to develop a new system for storing and analysing results. He has been asked not to look at the marking of examination papers as the board is satisfied that this part of the system works very well. He has already researched the existing system for storing and analysing results. He has recorded the information using data flow diagrams. The board is aware that new examiners will need to be trained so that they can mark online. These examiners might have difficulties getting to a central venue, so the board has decided to use video conferencing for this training. Each new examiner will be expected to use their own PC including a monitor, mouse and keyboard. Other hardware will be provided by the board if necessary.

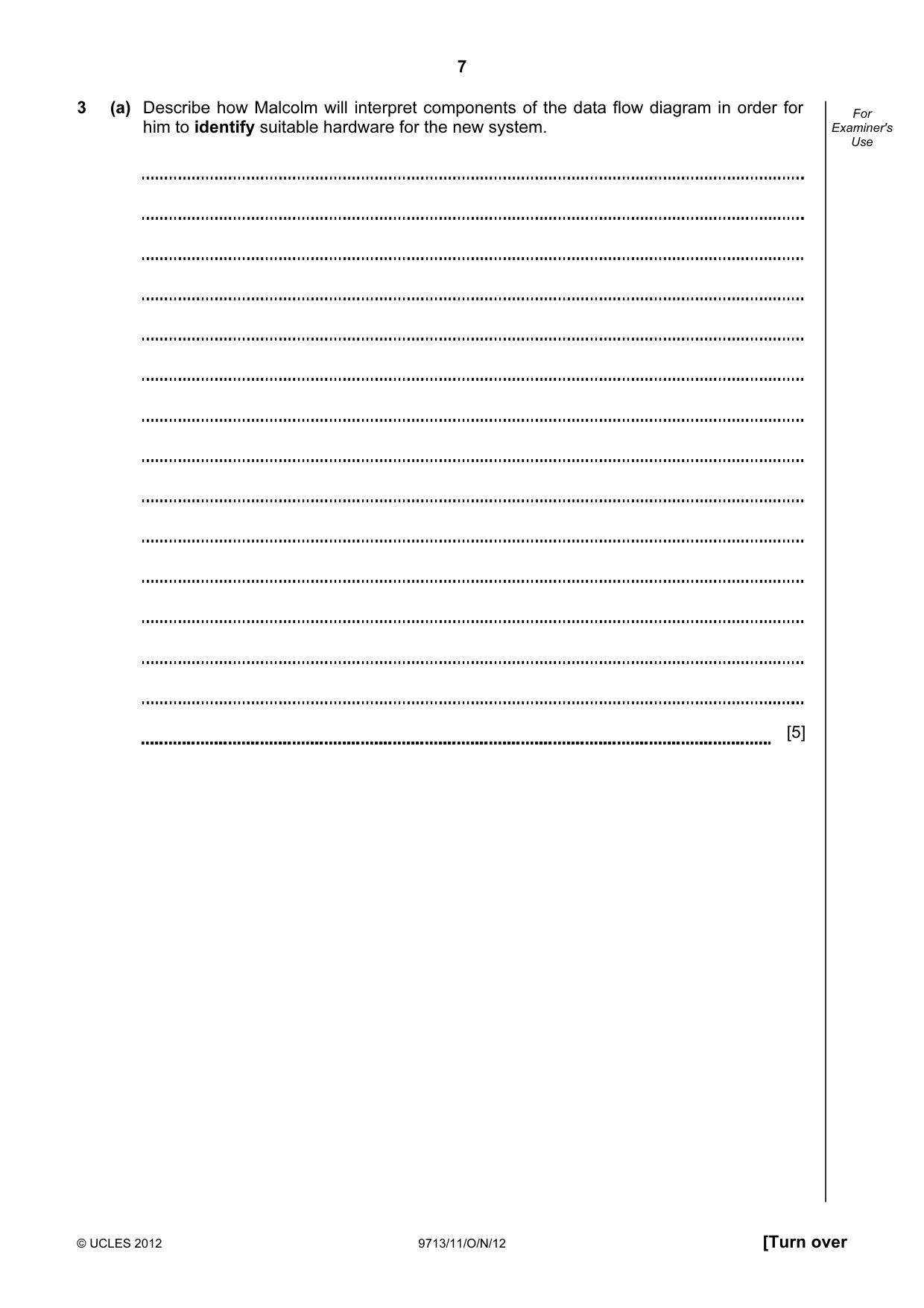

7 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use 3 (a) Describe how Malcolm will interpret components of the data flow diagram in order for him to identify suitable hardware for the new system. [5]

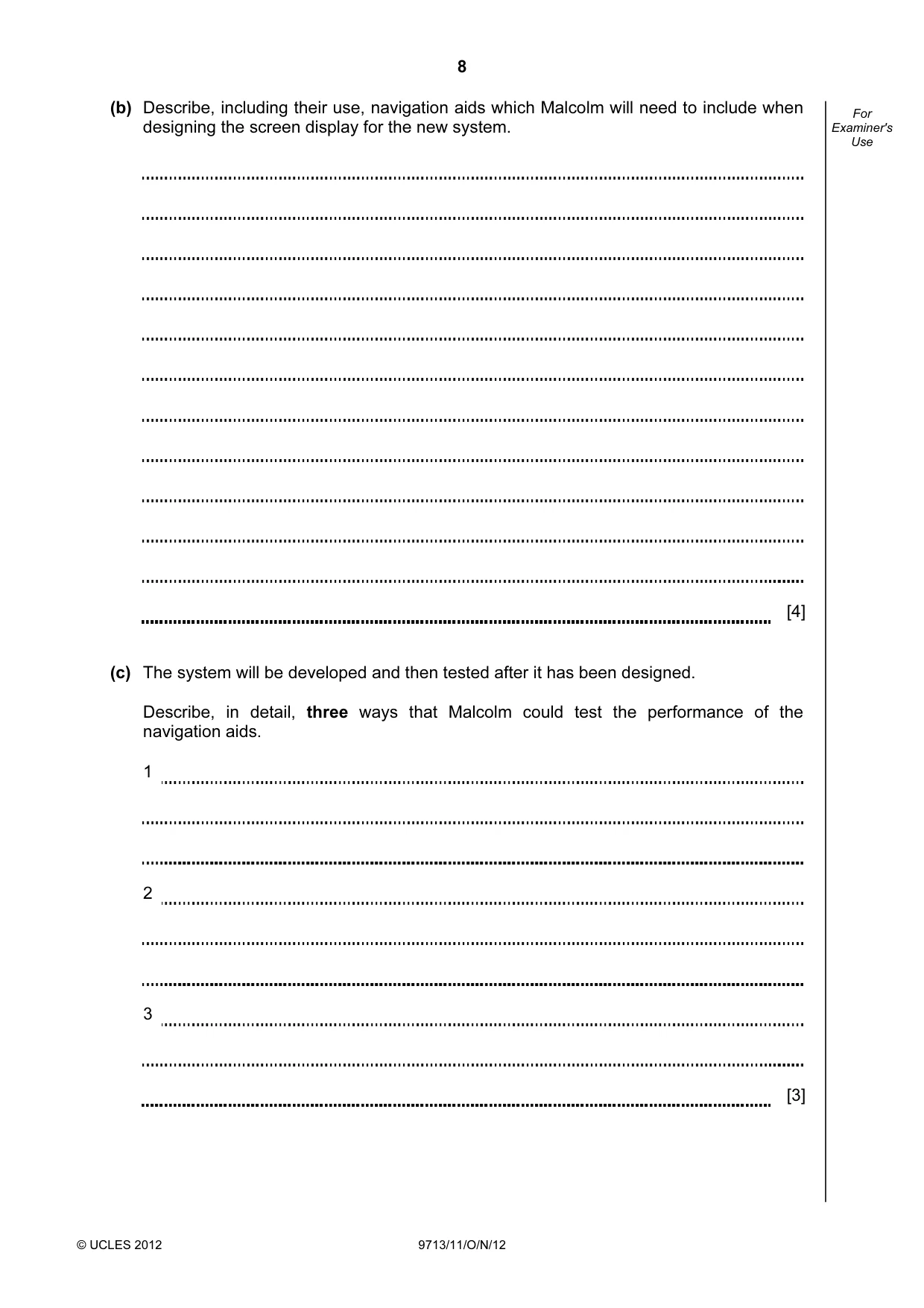

8 © UCLES 2012 9713/11/O/N/12 For Examiner's Use (b) Describe, including their use, navigation aids which Malcolm will need to include when designing the screen display for the new system. [4] (c) The system will be developed and then tested after it has been designed. Describe, in detail, three ways that Malcolm could test the performance of the navigation aids. 1 2 3 [3]

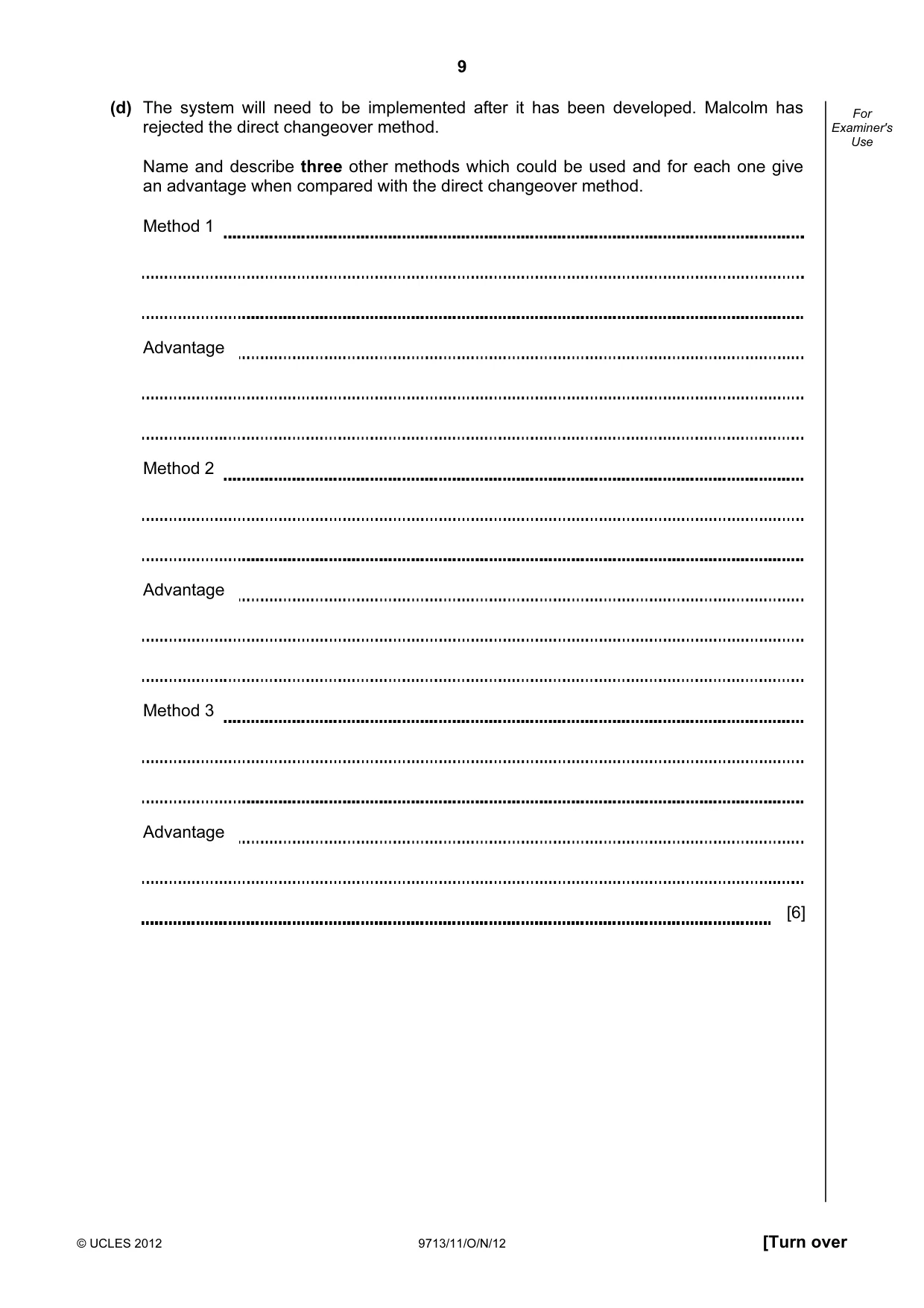

9 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use (d) The system will need to be implemented after it has been developed. Malcolm has rejected the direct changeover method. Name and describe three other methods which could be used and for each one give an advantage when compared with the direct changeover method. Method 1 Advantage Method 2 Advantage Method 3 Advantage [6]

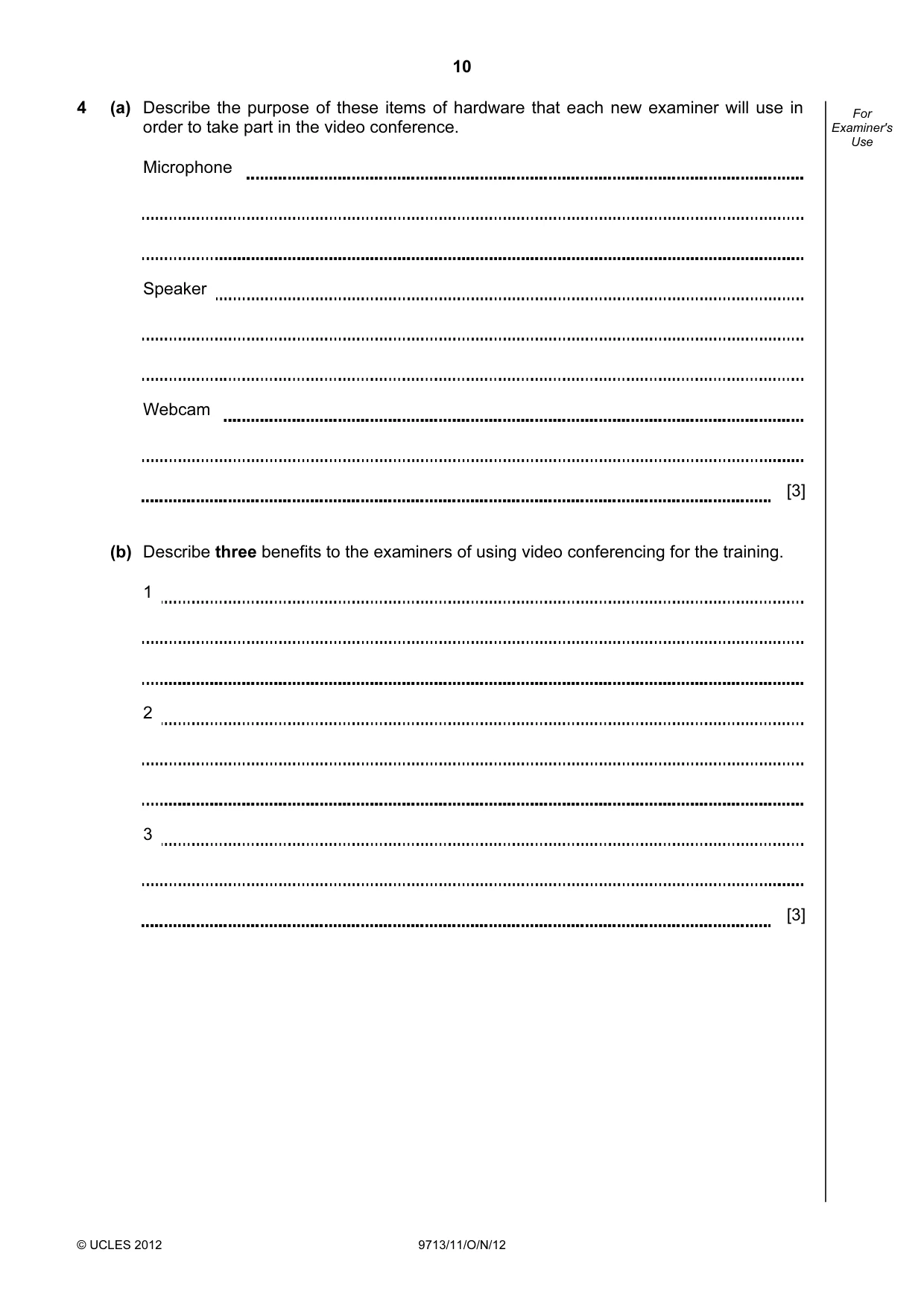

10 © UCLES 2012 9713/11/O/N/12 For Examiner's Use 4 (a) Describe the purpose of these items of hardware that each new examiner will use in order to take part in the video conference. Microphone Speaker Webcam [3] (b) Describe three benefits to the examiners of using video conferencing for the training. 1 2 3 [3]

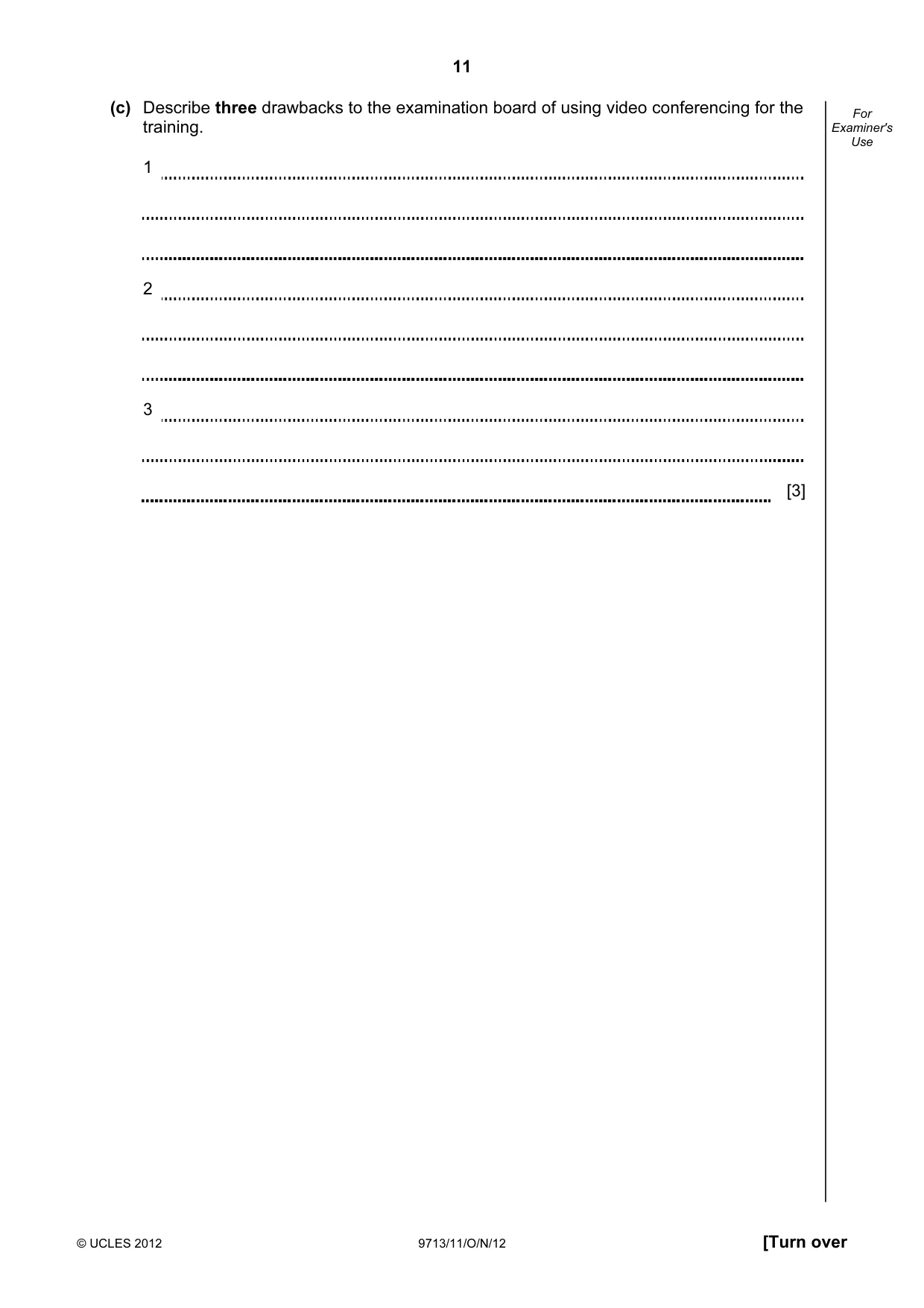

11 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use (c) Describe three drawbacks to the examination board of using video conferencing for the training. 1 2 3 [3]

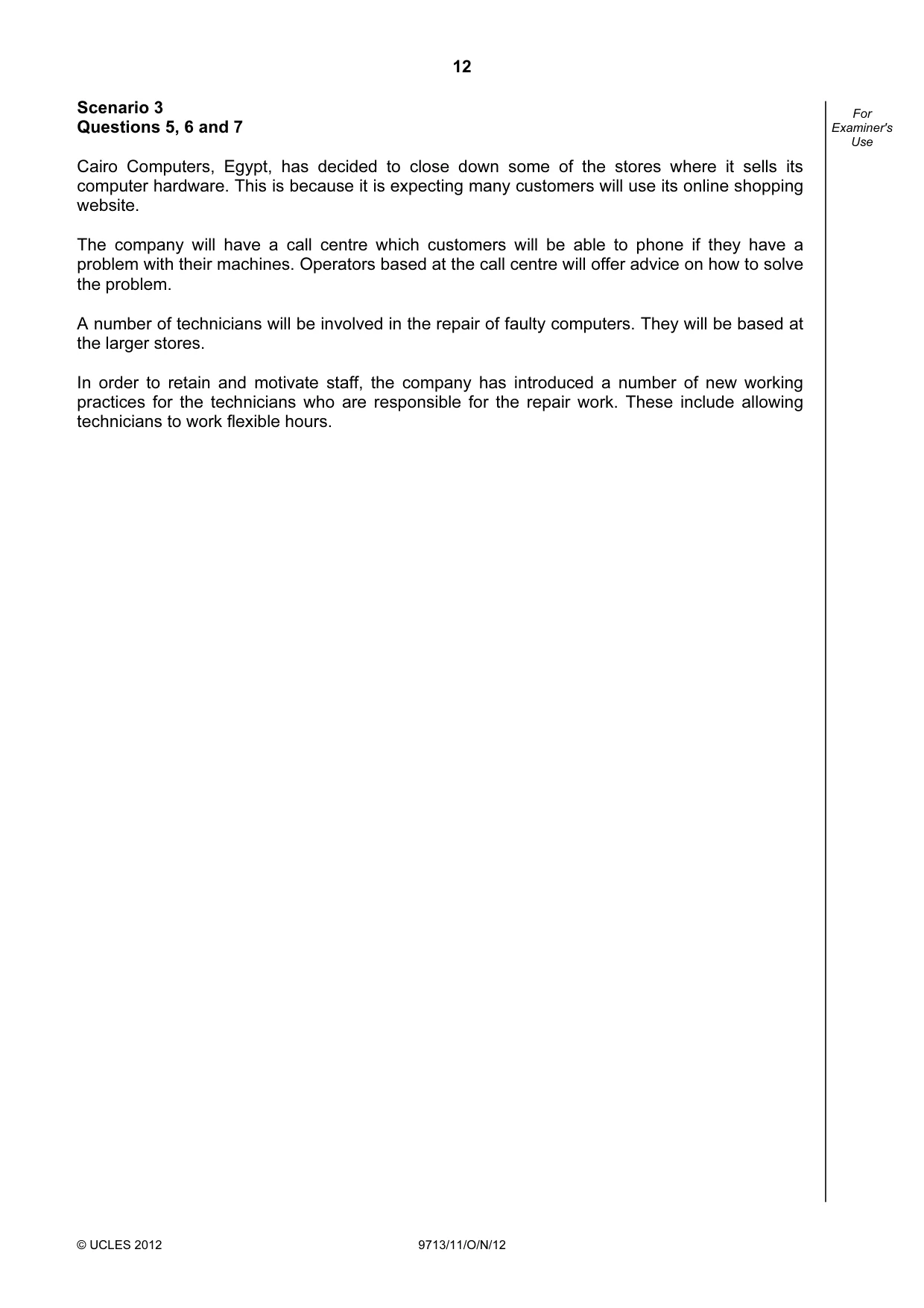

12 © UCLES 2012 9713/11/O/N/12 For Examiner's Use Scenario 3 Questions 5, 6 and 7 Cairo Computers, Egypt, has decided to close down some of the stores where it sells its computer hardware. This is because it is expecting many customers will use its online shopping website. The company will have a call centre which customers will be able to phone if they have a problem with their machines. Operators based at the call centre will offer advice on how to solve the problem. A number of technicians will be involved in the repair of faulty computers. They will be based at the larger stores. In order to retain and motivate staff, the company has introduced a number of new working practices for the technicians who are responsible for the repair work. These include allowing technicians to work flexible hours.

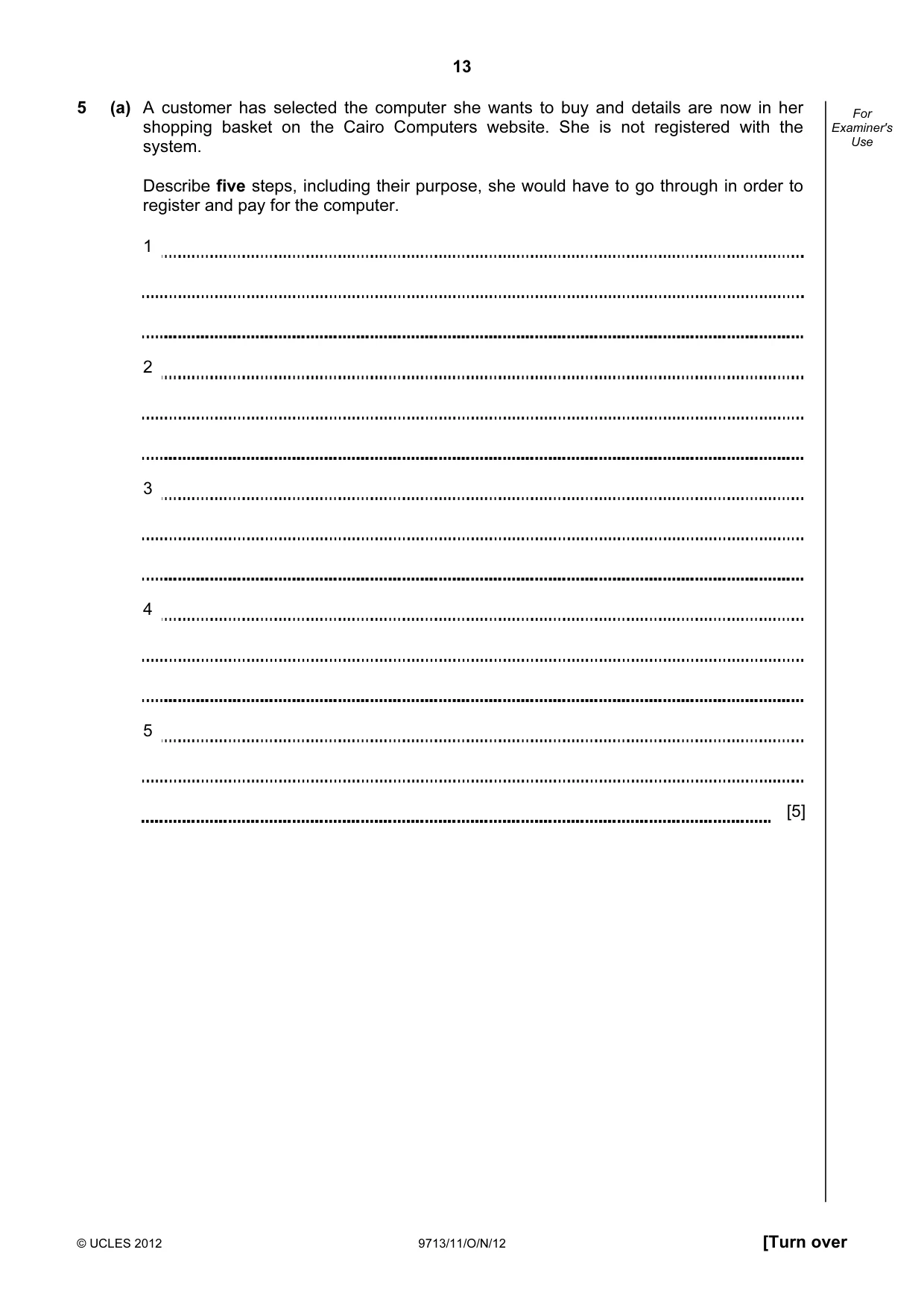

13 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use 5 (a) A customer has selected the computer she wants to buy and details are now in her shopping basket on the Cairo Computers website. She is not registered with the system. Describe five steps, including their purpose, she would have to go through in order to register and pay for the computer. 1 2 3 4 5 [5]

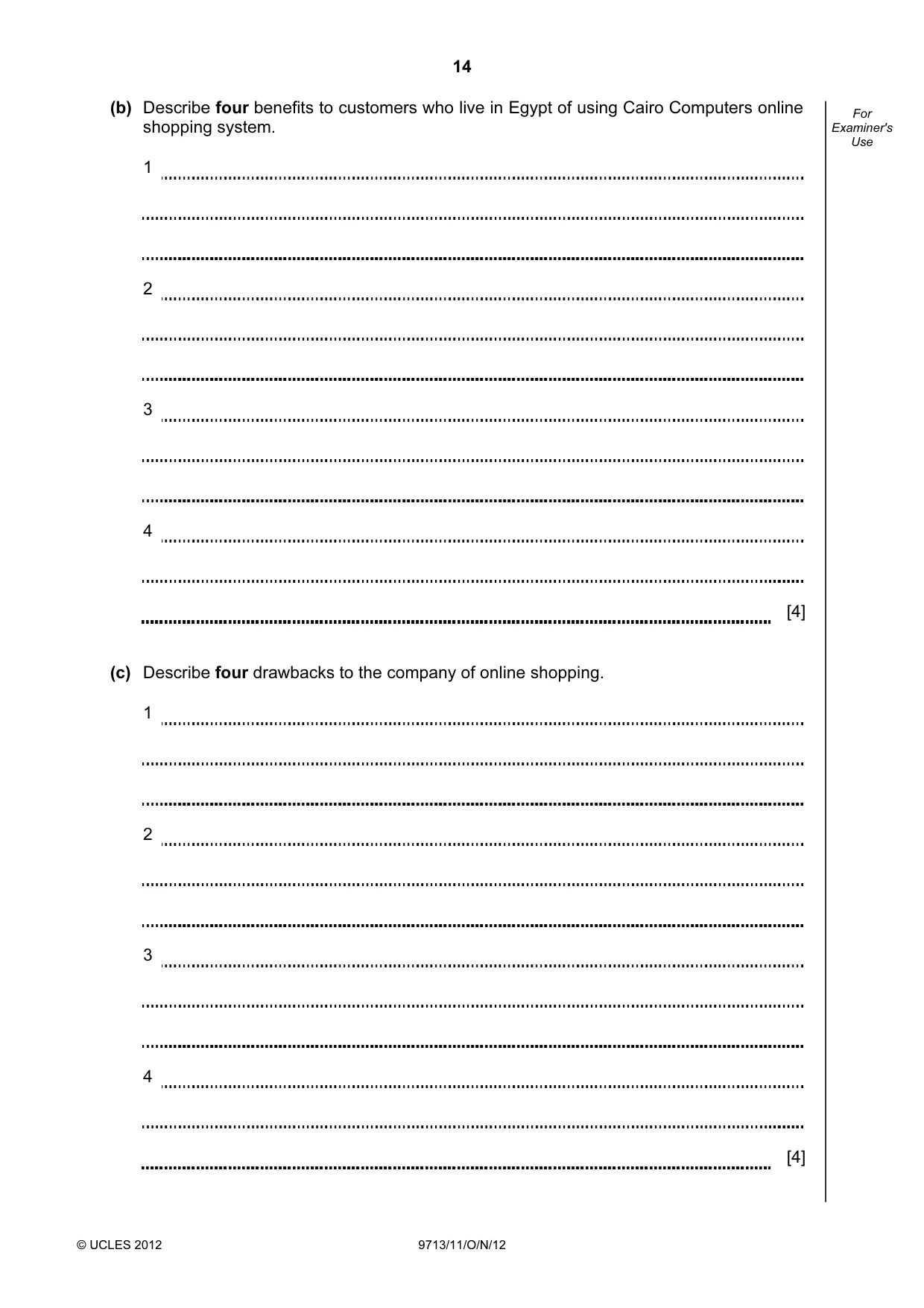

14 © UCLES 2012 9713/11/O/N/12 For Examiner's Use (b) Describe four benefits to customers who live in Egypt of using Cairo Computers online shopping system. 1 2 3 4 [4] (c) Describe four drawbacks to the company of online shopping. 1 2 3 4 [4]

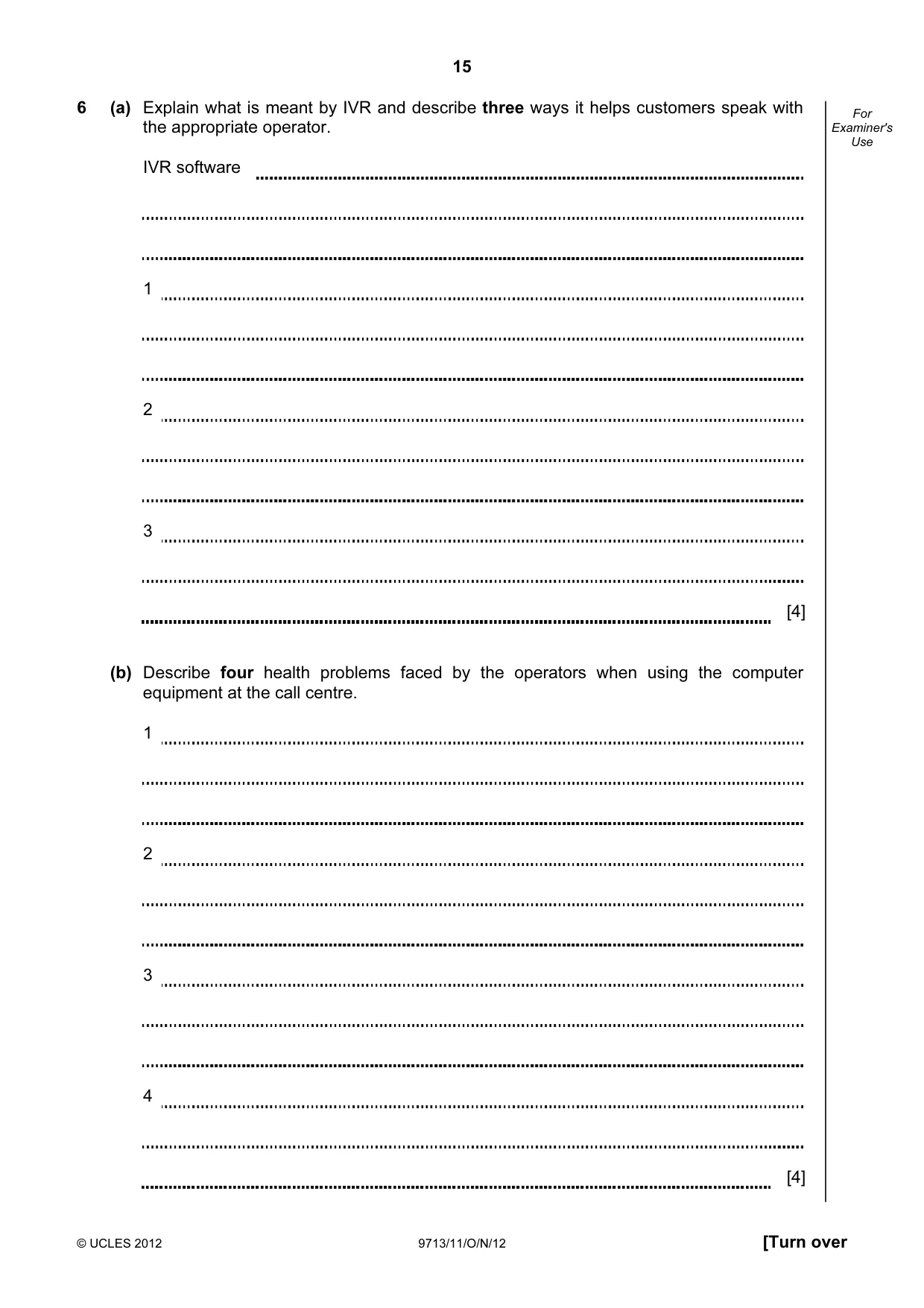

15 © UCLES 2012 9713/11/O/N/12 [Turn over For Examiner's Use 6 (a) Explain what is meant by IVR and describe three ways it helps customers speak with the appropriate operator. IVR software 1 2 3 [4] (b) Describe four health problems faced by the operators when using the computer equipment at the call centre. 1 2 3 4 [4]

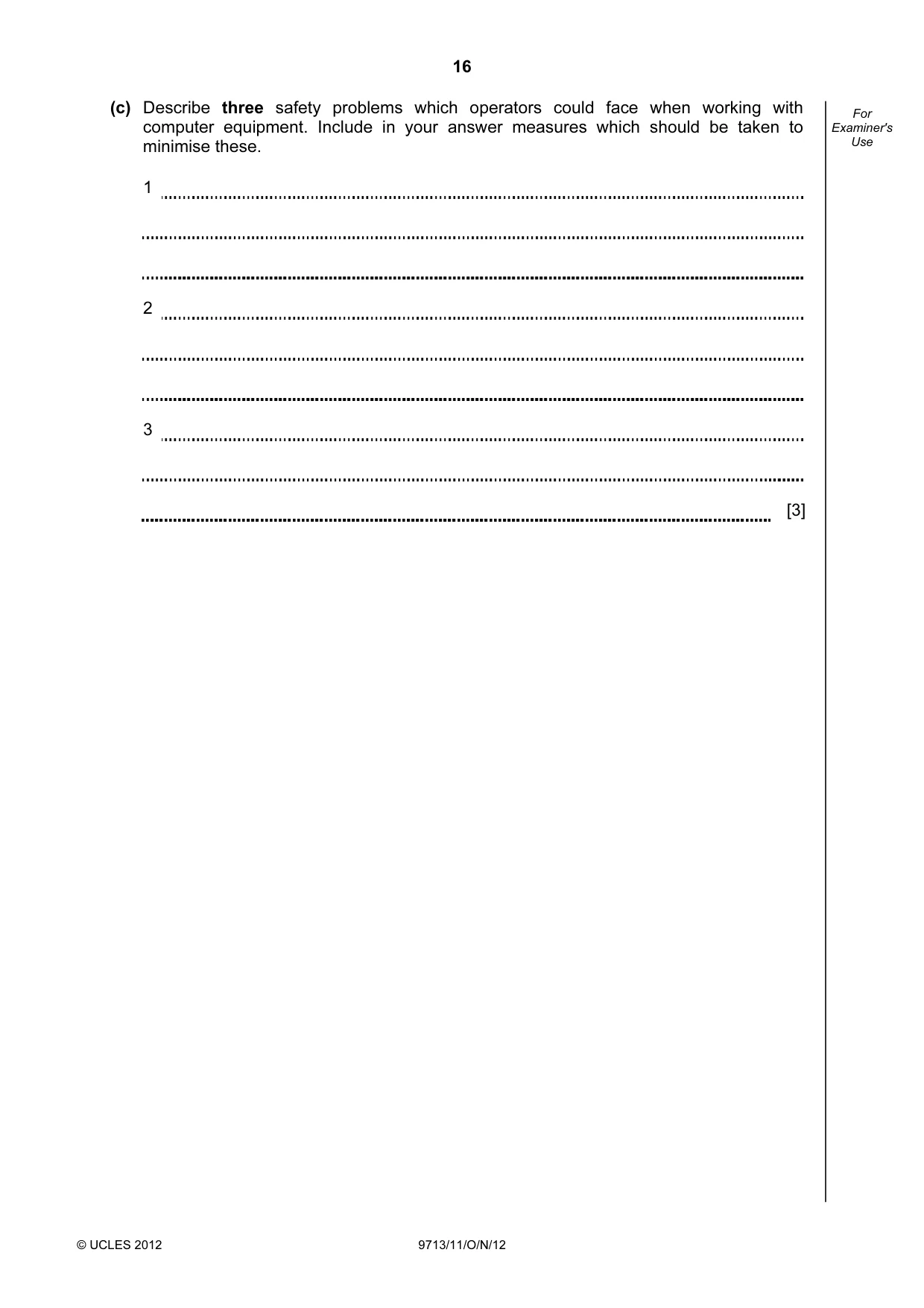

16 © UCLES 2012 9713/11/O/N/12 For Examiner's Use (c) Describe three safety problems which operators could face when working with computer equipment. Include in your answer measures which should be taken to minimise these. 1 2 3 [3]

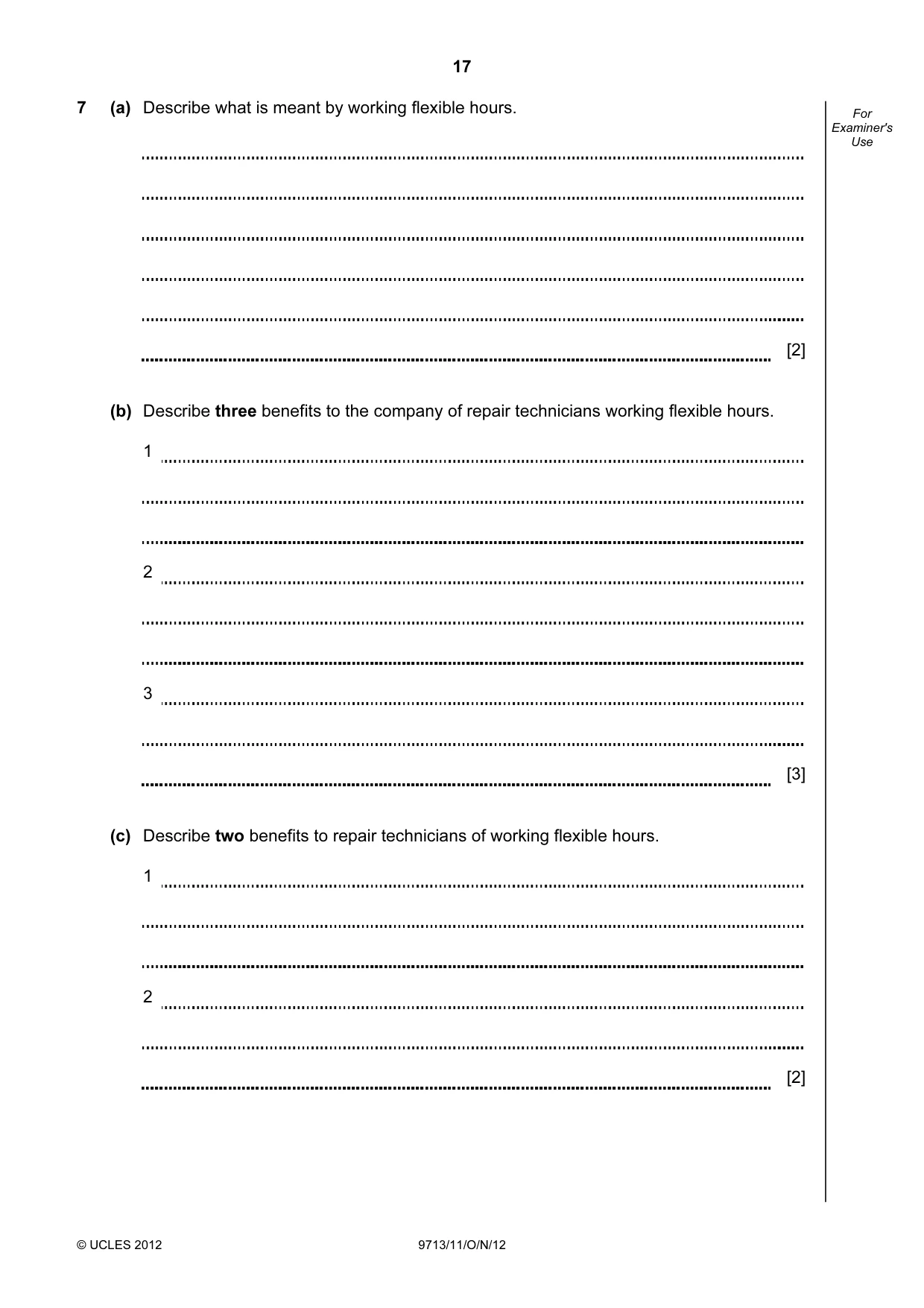

17 © UCLES 2012 9713/11/O/N/12 For Examiner's Use 7 (a) Describe what is meant by working flexible hours. [2] (b) Describe three benefits to the company of repair technicians working flexible hours. 1 2 3 [3] (c) Describe two benefits to repair technicians of working flexible hours. 1 2 [2]

18 © UCLES 2012 9713/11/O/N/12 BLANK PAGE

19 © UCLES 2012 9713/11/O/N/12 BLANK PAGE

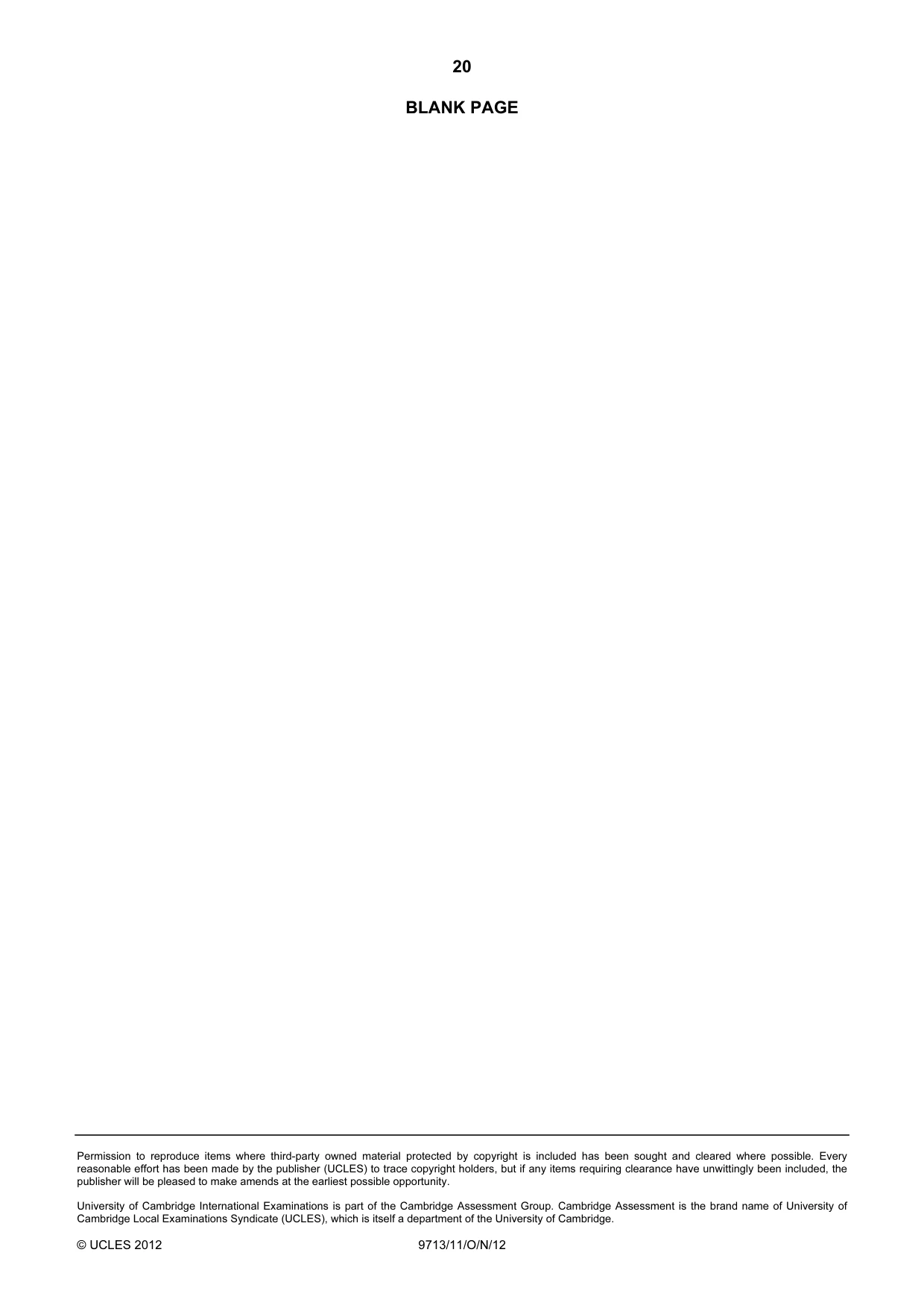

20 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. © UCLES 2012 9713/11/O/N/12 BLANK PAGE

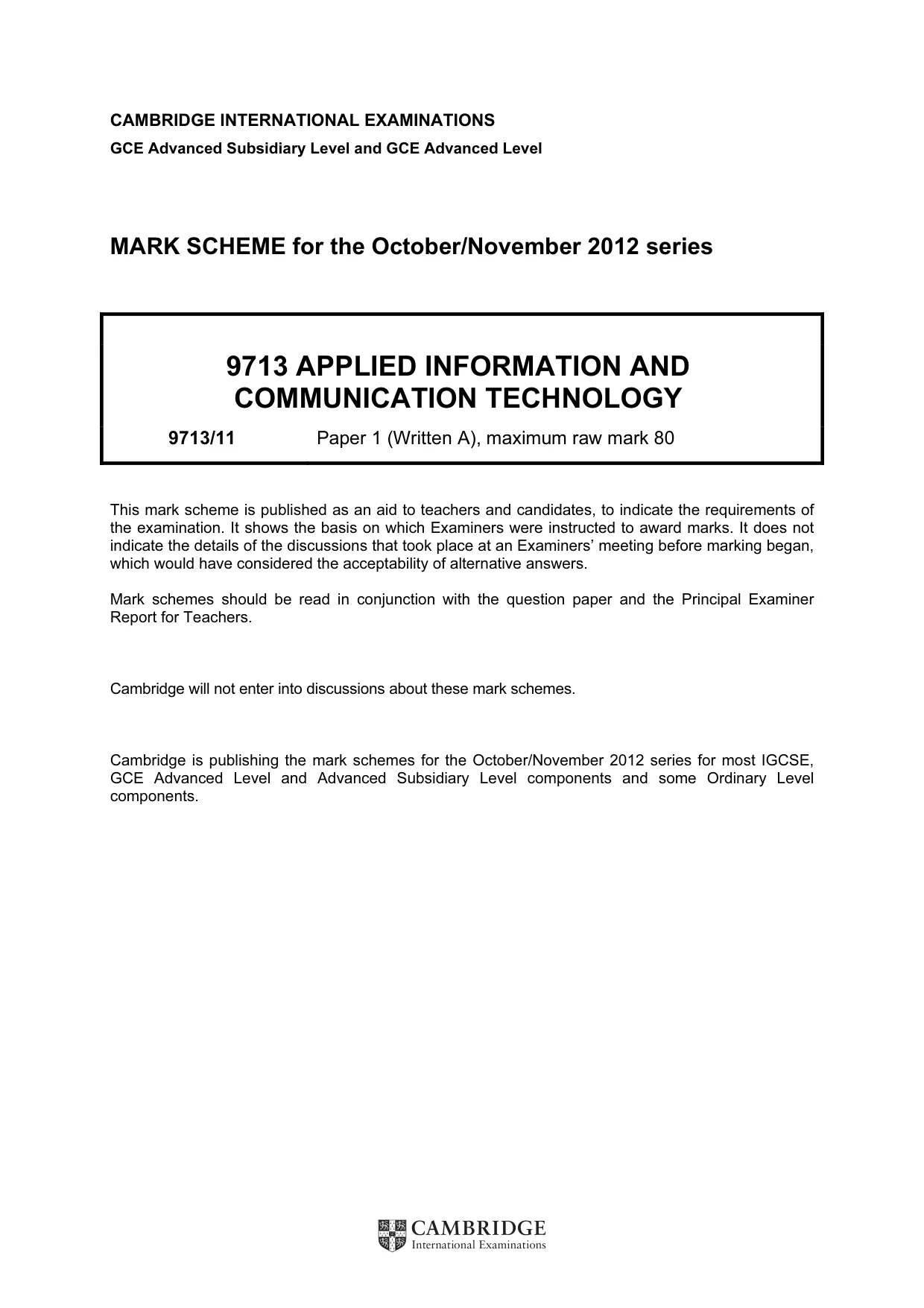

CAMBRIDGE INTERNATIONAL EXAMINATIONS GCE Advanced Subsidiary Level and GCE Advanced Level MARK SCHEME for the October/November 2012 series 9713 APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/11 Paper 1 (Written A), maximum raw mark 80 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge will not enter into discussions about these mark schemes. Cambridge is publishing the mark schemes for the October/November 2012 series for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level components and some Ordinary Level components.

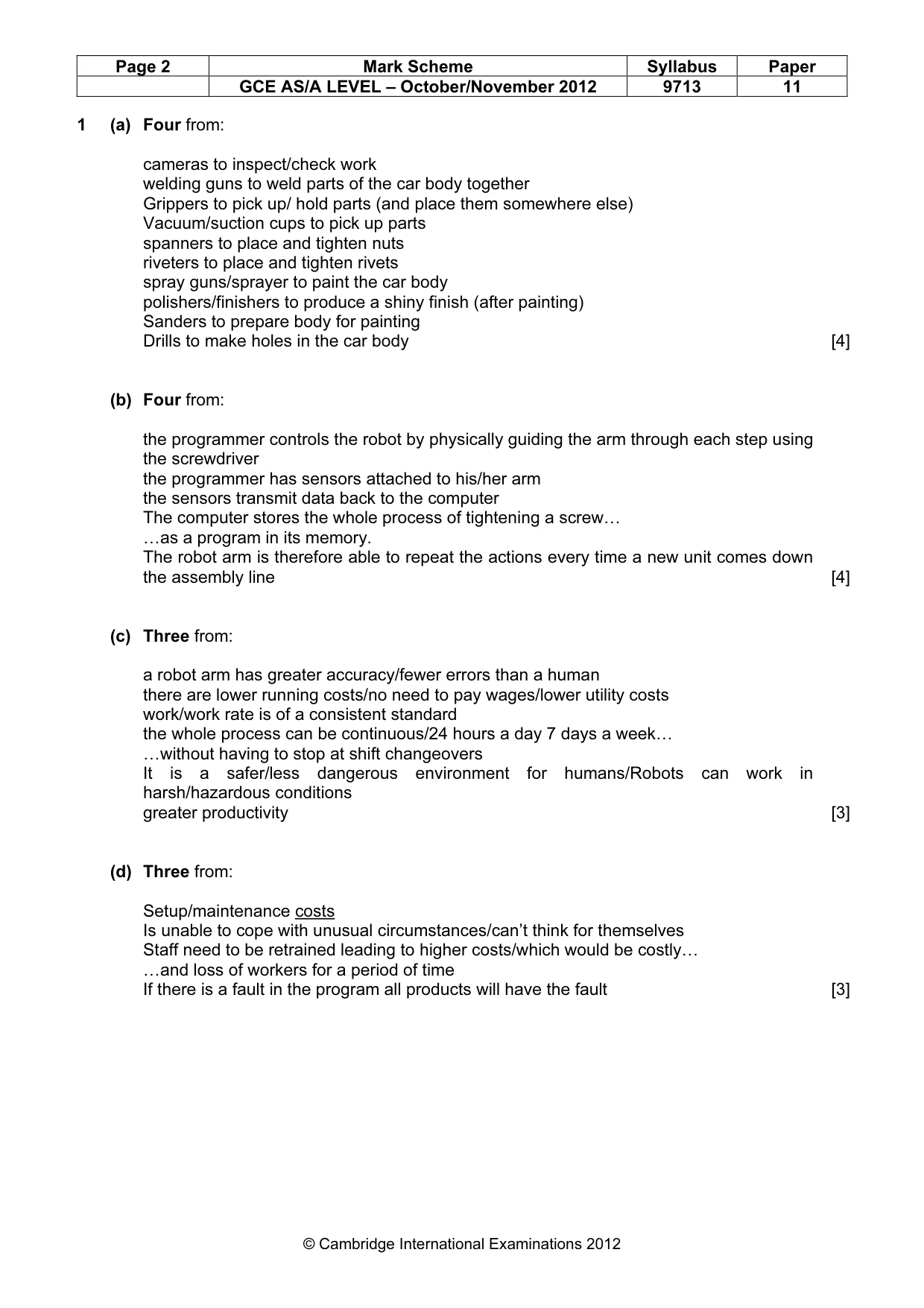

Page 2 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9713 11 © Cambridge International Examinations 2012 1 (a) Four from: cameras to inspect/check work welding guns to weld parts of the car body together Grippers to pick up/ hold parts (and place them somewhere else) Vacuum/suction cups to pick up parts spanners to place and tighten nuts riveters to place and tighten rivets spray guns/sprayer to paint the car body polishers/finishers to produce a shiny finish (after painting) Sanders to prepare body for painting Drills to make holes in the car body [4] (b) Four from: the programmer controls the robot by physically guiding the arm through each step using the screwdriver the programmer has sensors attached to his/her arm the sensors transmit data back to the computer The computer stores the whole process of tightening a screw… …as a program in its memory. The robot arm is therefore able to repeat the actions every time a new unit comes down the assembly line [4] (c) Three from: a robot arm has greater accuracy/fewer errors than a human there are lower running costs/no need to pay wages/lower utility costs work/work rate is of a consistent standard the whole process can be continuous/24 hours a day 7 days a week… …without having to stop at shift changeovers It is a safer/less dangerous environment for humans/Robots can work in harsh/hazardous conditions greater productivity [3] (d) Three from: Setup/maintenance costs Is unable to cope with unusual circumstances/can’t think for themselves Staff need to be retrained leading to higher costs/which would be costly… …and loss of workers for a period of time If there is a fault in the program all products will have the fault [3]

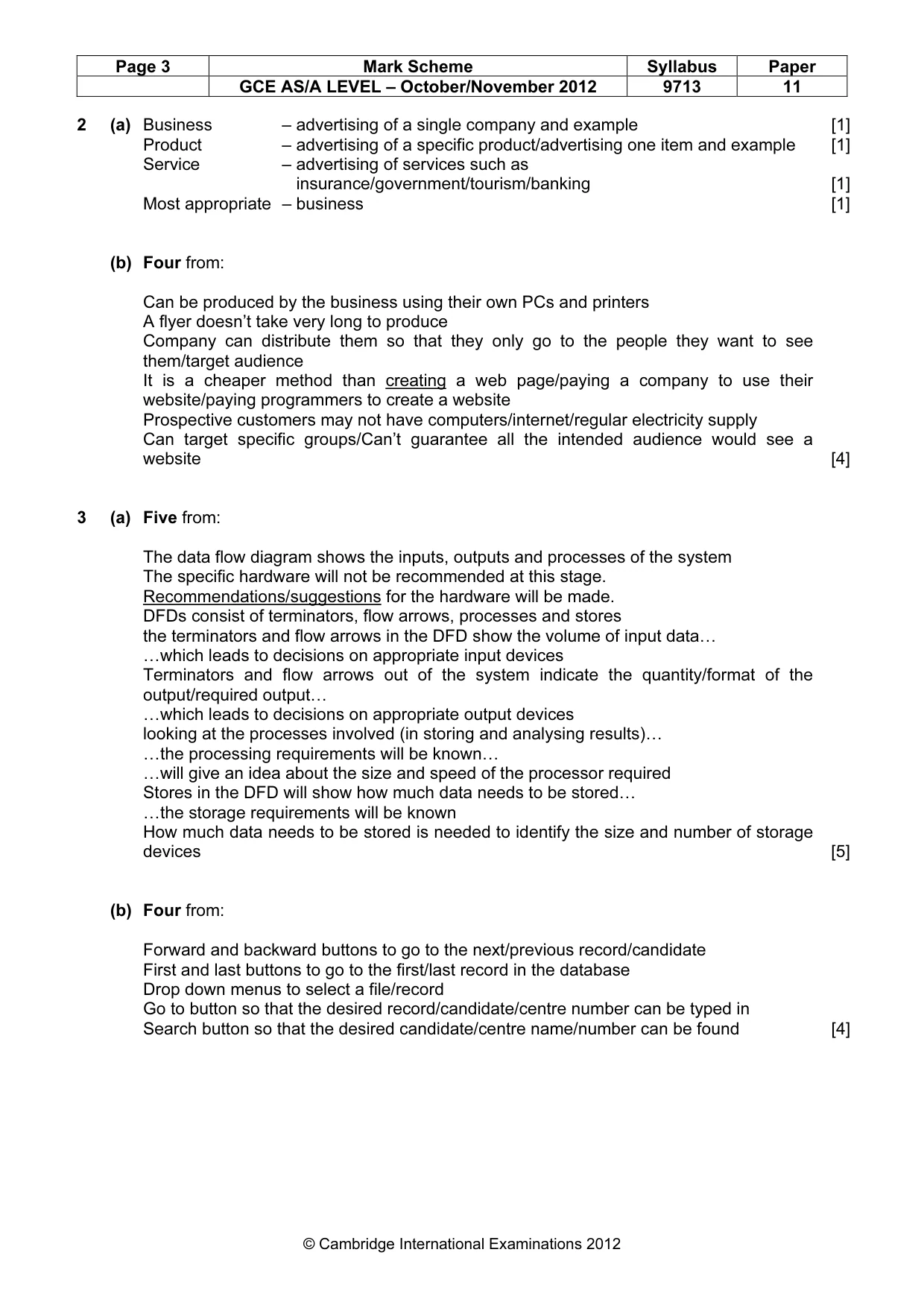

Page 3 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9713 11 © Cambridge International Examinations 2012 2 (a) Business – advertising of a single company and example [1] Product – advertising of a specific product/advertising one item and example [1] Service – advertising of services such as insurance/government/tourism/banking [1] Most appropriate – business [1] (b) Four from: Can be produced by the business using their own PCs and printers A flyer doesn’t take very long to produce Company can distribute them so that they only go to the people they want to see them/target audience It is a cheaper method than creating a web page/paying a company to use their website/paying programmers to create a website Prospective customers may not have computers/internet/regular electricity supply Can target specific groups/Can’t guarantee all the intended audience would see a website [4] 3 (a) Five from: The data flow diagram shows the inputs, outputs and processes of the system The specific hardware will not be recommended at this stage. Recommendations/suggestions for the hardware will be made. DFDs consist of terminators, flow arrows, processes and stores the terminators and flow arrows in the DFD show the volume of input data… …which leads to decisions on appropriate input devices Terminators and flow arrows out of the system indicate the quantity/format of the output/required output… …which leads to decisions on appropriate output devices looking at the processes involved (in storing and analysing results)… …the processing requirements will be known… …will give an idea about the size and speed of the processor required Stores in the DFD will show how much data needs to be stored… …the storage requirements will be known How much data needs to be stored is needed to identify the size and number of storage devices [5] (b) Four from: Forward and backward buttons to go to the next/previous record/candidate First and last buttons to go to the first/last record in the database Drop down menus to select a file/record Go to button so that the desired record/candidate/centre number can be typed in Search button so that the desired candidate/centre name/number can be found [4]

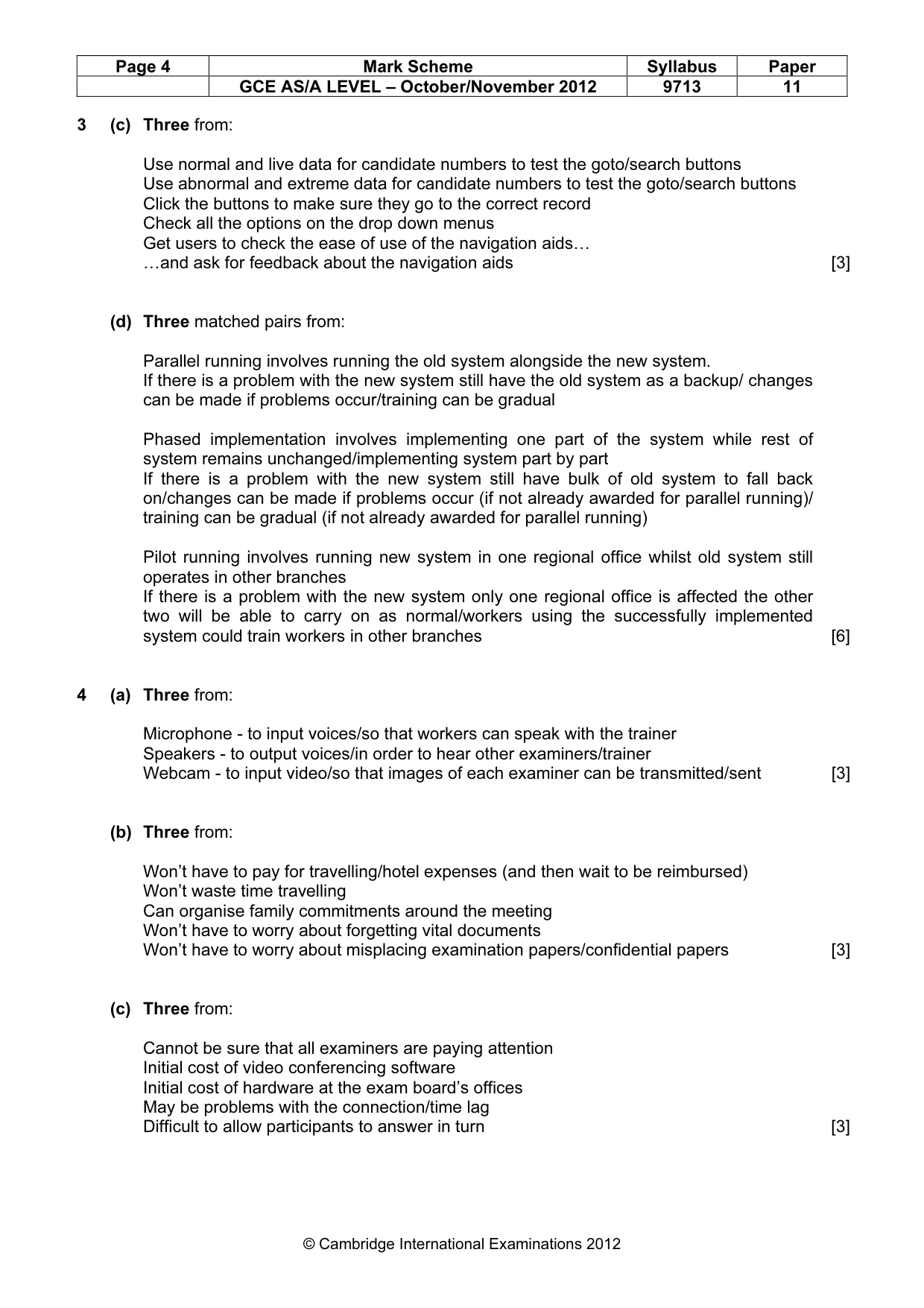

Page 4 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9713 11 © Cambridge International Examinations 2012 3 (c) Three from: Use normal and live data for candidate numbers to test the goto/search buttons Use abnormal and extreme data for candidate numbers to test the goto/search buttons Click the buttons to make sure they go to the correct record Check all the options on the drop down menus Get users to check the ease of use of the navigation aids… …and ask for feedback about the navigation aids [3] (d) Three matched pairs from: Parallel running involves running the old system alongside the new system. If there is a problem with the new system still have the old system as a backup/ changes can be made if problems occur/training can be gradual Phased implementation involves implementing one part of the system while rest of system remains unchanged/implementing system part by part If there is a problem with the new system still have bulk of old system to fall back on/changes can be made if problems occur (if not already awarded for parallel running)/ training can be gradual (if not already awarded for parallel running) Pilot running involves running new system in one regional office whilst old system still operates in other branches If there is a problem with the new system only one regional office is affected the other two will be able to carry on as normal/workers using the successfully implemented system could train workers in other branches [6] 4 (a) Three from: Microphone - to input voices/so that workers can speak with the trainer Speakers - to output voices/in order to hear other examiners/trainer Webcam - to input video/so that images of each examiner can be transmitted/sent [3] (b) Three from: Won’t have to pay for travelling/hotel expenses (and then wait to be reimbursed) Won’t waste time travelling Can organise family commitments around the meeting Won’t have to worry about forgetting vital documents Won’t have to worry about misplacing examination papers/confidential papers [3] (c) Three from: Cannot be sure that all examiners are paying attention Initial cost of video conferencing software Initial cost of hardware at the exam board’s offices May be problems with the connection/time lag Difficult to allow participants to answer in turn [3]

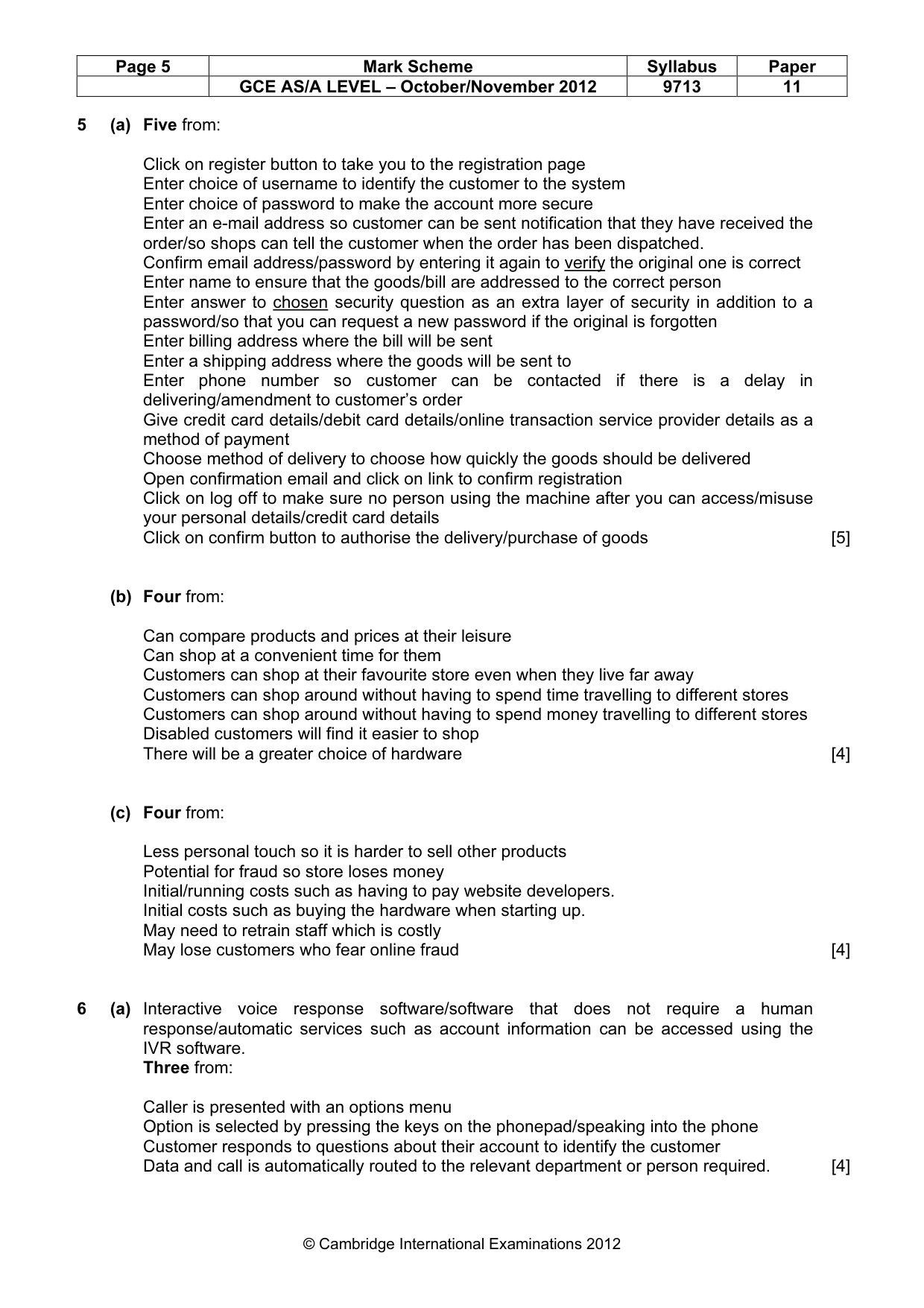

Page 5 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9713 11 © Cambridge International Examinations 2012 5 (a) Five from: Click on register button to take you to the registration page Enter choice of username to identify the customer to the system Enter choice of password to make the account more secure Enter an e-mail address so customer can be sent notification that they have received the order/so shops can tell the customer when the order has been dispatched. Confirm email address/password by entering it again to verify the original one is correct Enter name to ensure that the goods/bill are addressed to the correct person Enter answer to chosen security question as an extra layer of security in addition to a password/so that you can request a new password if the original is forgotten Enter billing address where the bill will be sent Enter a shipping address where the goods will be sent to Enter phone number so customer can be contacted if there is a delay in delivering/amendment to customer’s order Give credit card details/debit card details/online transaction service provider details as a method of payment Choose method of delivery to choose how quickly the goods should be delivered Open confirmation email and click on link to confirm registration Click on log off to make sure no person using the machine after you can access/misuse your personal details/credit card details Click on confirm button to authorise the delivery/purchase of goods [5] (b) Four from: Can compare products and prices at their leisure Can shop at a convenient time for them Customers can shop at their favourite store even when they live far away Customers can shop around without having to spend time travelling to different stores Customers can shop around without having to spend money travelling to different stores Disabled customers will find it easier to shop There will be a greater choice of hardware [4] (c) Four from: Less personal touch so it is harder to sell other products Potential for fraud so store loses money Initial/running costs such as having to pay website developers. Initial costs such as buying the hardware when starting up. May need to retrain staff which is costly May lose customers who fear online fraud [4] 6 (a) Interactive voice response software/software that does not require a human response/automatic services such as account information can be accessed using the IVR software. Three from: Caller is presented with an options menu Option is selected by pressing the keys on the phonepad/speaking into the phone Customer responds to questions about their account to identify the customer Data and call is automatically routed to the relevant department or person required. [4]

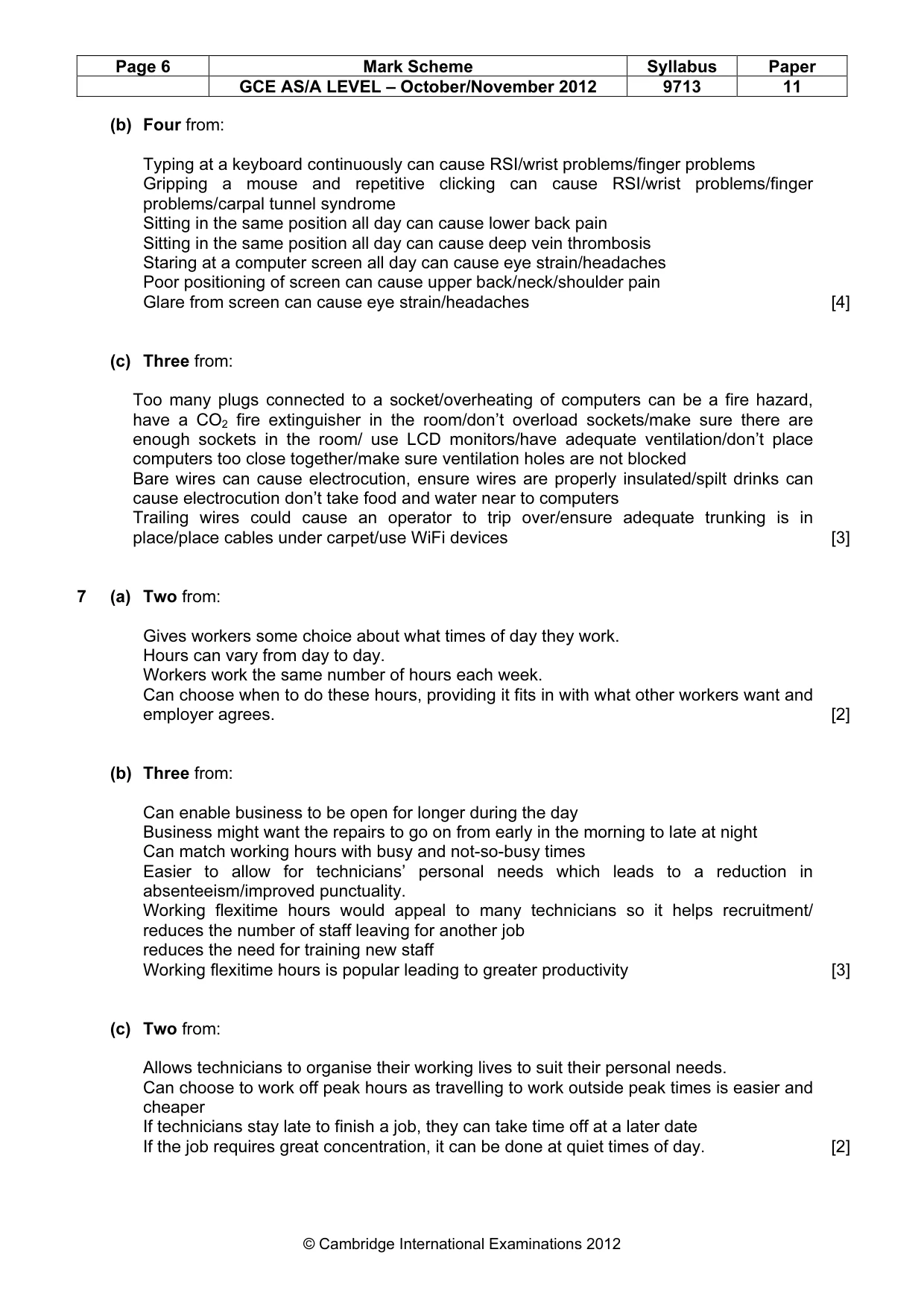

Page 6 Mark Scheme Syllabus Paper GCE AS/A LEVEL – October/November 2012 9713 11 © Cambridge International Examinations 2012 (b) Four from: Typing at a keyboard continuously can cause RSI/wrist problems/finger problems Gripping a mouse and repetitive clicking can cause RSI/wrist problems/finger problems/carpal tunnel syndrome Sitting in the same position all day can cause lower back pain Sitting in the same position all day can cause deep vein thrombosis Staring at a computer screen all day can cause eye strain/headaches Poor positioning of screen can cause upper back/neck/shoulder pain Glare from screen can cause eye strain/headaches [4] (c) Three from: Too many plugs connected to a socket/overheating of computers can be a fire hazard, have a CO2 fire extinguisher in the room/don’t overload sockets/make sure there are enough sockets in the room/ use LCD monitors/have adequate ventilation/don’t place computers too close together/make sure ventilation holes are not blocked Bare wires can cause electrocution, ensure wires are properly insulated/spilt drinks can cause electrocution don’t take food and water near to computers Trailing wires could cause an operator to trip over/ensure adequate trunking is in place/place cables under carpet/use WiFi devices [3] 7 (a) Two from: Gives workers some choice about what times of day they work. Hours can vary from day to day. Workers work the same number of hours each week. Can choose when to do these hours, providing it fits in with what other workers want and employer agrees. [2] (b) Three from: Can enable business to be open for longer during the day Business might want the repairs to go on from early in the morning to late at night Can match working hours with busy and not-so-busy times Easier to allow for technicians’ personal needs which leads to a reduction in absenteeism/improved punctuality. Working flexitime hours would appeal to many technicians so it helps recruitment/ reduces the number of staff leaving for another job reduces the need for training new staff Working flexitime hours is popular leading to greater productivity [3] (c) Two from: Allows technicians to organise their working lives to suit their personal needs. Can choose to work off peak hours as travelling to work outside peak times is easier and cheaper If technicians stay late to finish a job, they can take time off at a later date If the job requires great concentration, it can be done at quiet times of day. [2]
