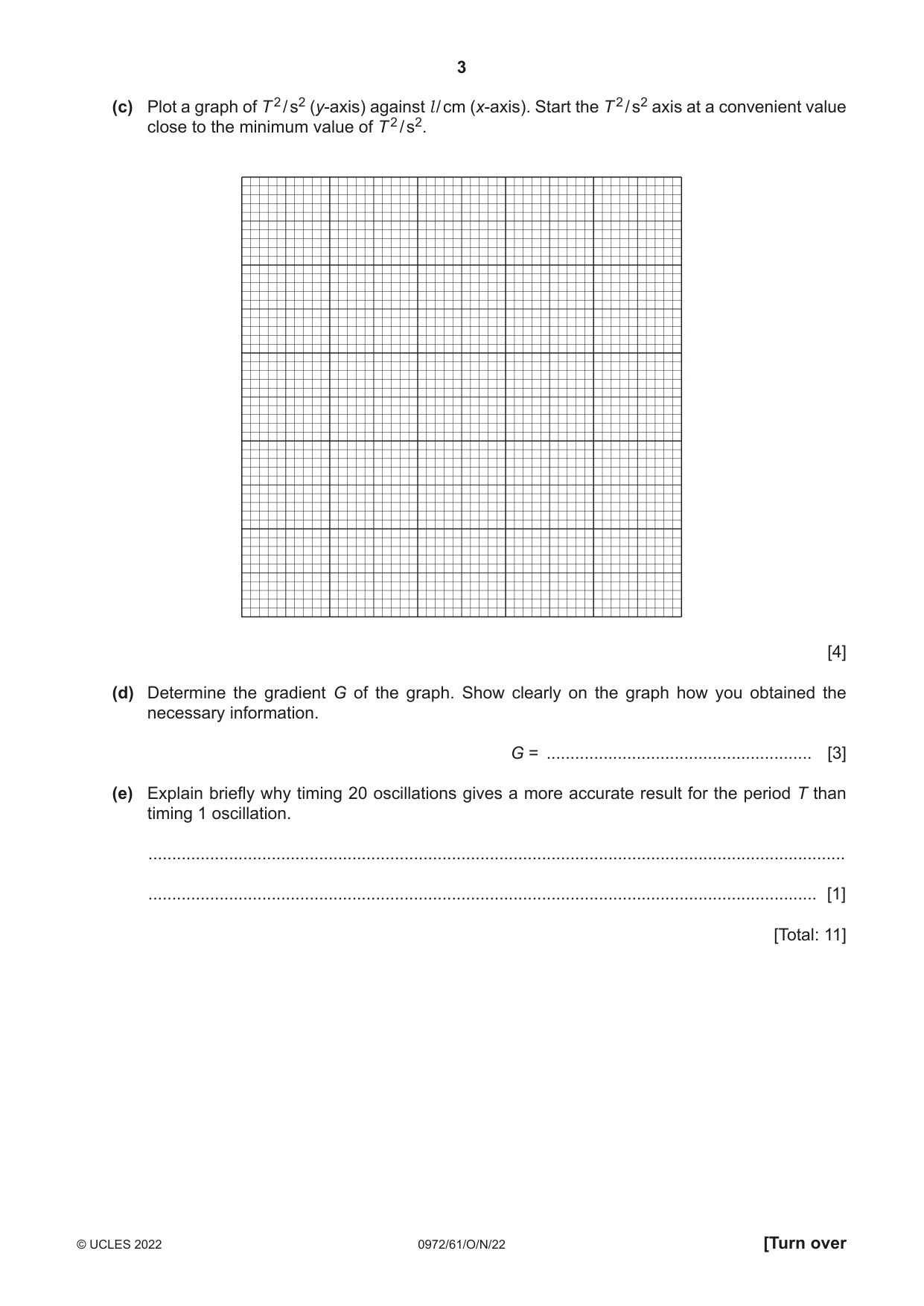

1 A student investigates the period of a pendulum. Fig. 1.1 and Fig. 1.2 show the set-up. clamp clamp l bob one complete oscillation Fig. 1.1 Fig. 1.2 (a) Explain briefly how to measure to the centre of the pendulum bob as accurately as possible. ................................................................................................................................................... ............................................................................................................................................. [1] (b) The student adjusts the length of the pendulum until the distance l , measured from the bottom of the clamp supporting the pendulum to the centre of the pendulum bob, is 50.0 cm. He displaces the bob slightly and releases it so that it swings. Fig. 1.2 shows one complete oscillation of the pendulum. He measures and records the time t for 20 complete oscillations. (i) Calculate, and record in Table 1.1, the period T of the pendulum. The period is the time for one complete oscillation. [1] (ii) Calculate, and record in Table 1.1, the value of T 2. [1] Table 1.1 l / cm t / s T / s T 2 / s2 50.0 28.2 60.0 31.2 1.56 2.43 70.0 33.6 1.68 2.82 80.0 35.8 1.79 3.20 90.0 38.2 1.91 3.65 He repeats the procedure using l values of 60.0 cm, 70.0 cm, 80.0 cm and 90.0 cm. The readings and results are shown in Table 1.1. (c) Plot a graph of T 2 / s2 (y-axis) against l / cm (x-axis). Start the T 2 / s2 axis at a convenient value close to the minimum value of T 2 / s2. [4] (d) Determine the gradient G of the graph. Show clearly on the graph how you obtained the necessary information. G = ........................................................ [3] (e) Explain briefly why timing 20 oscillations gives a more accurate result for the period T than timing 1 oscillation. ................................................................................................................................................... ............................................................................................................................................. [1] [Total: 11]

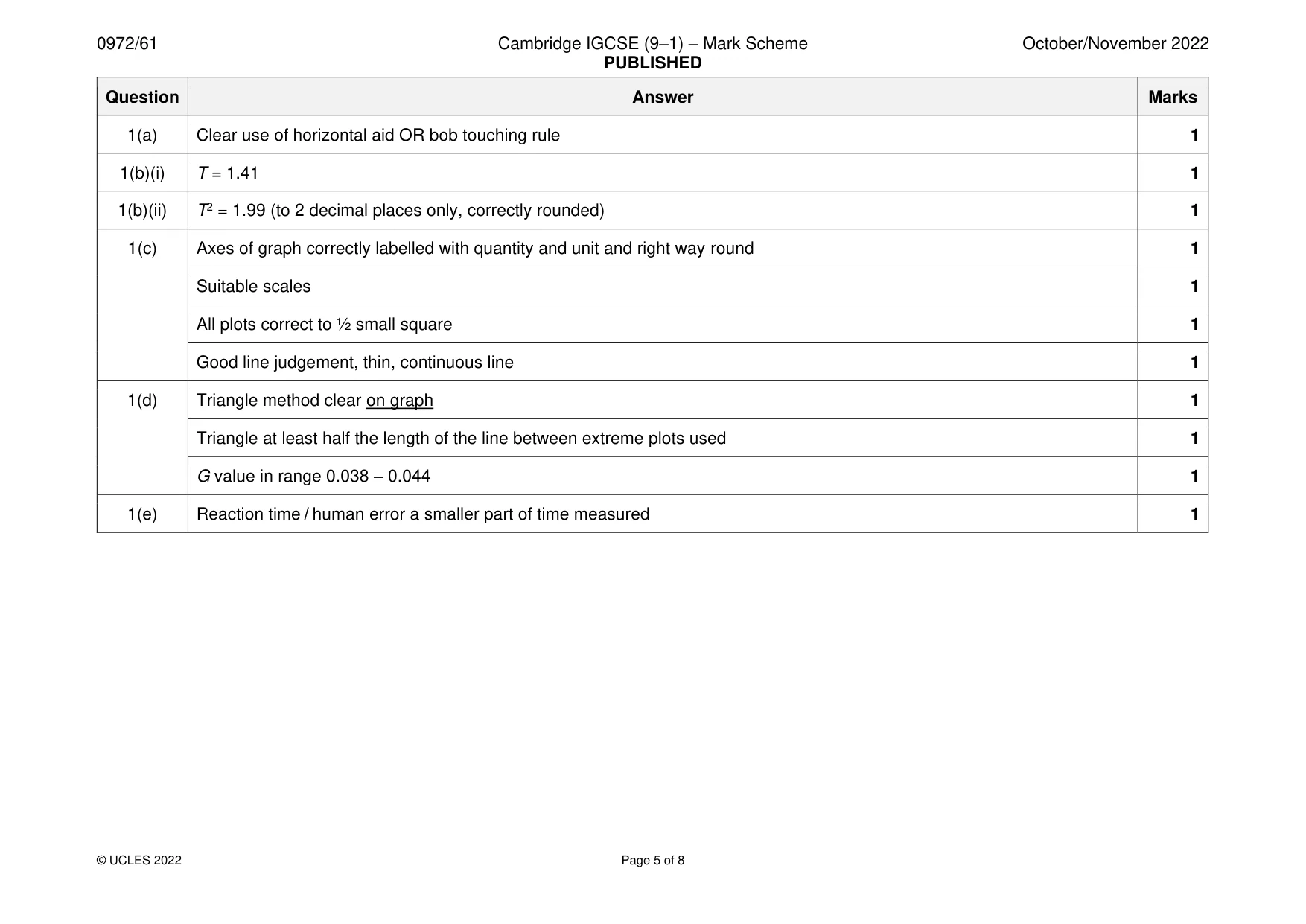

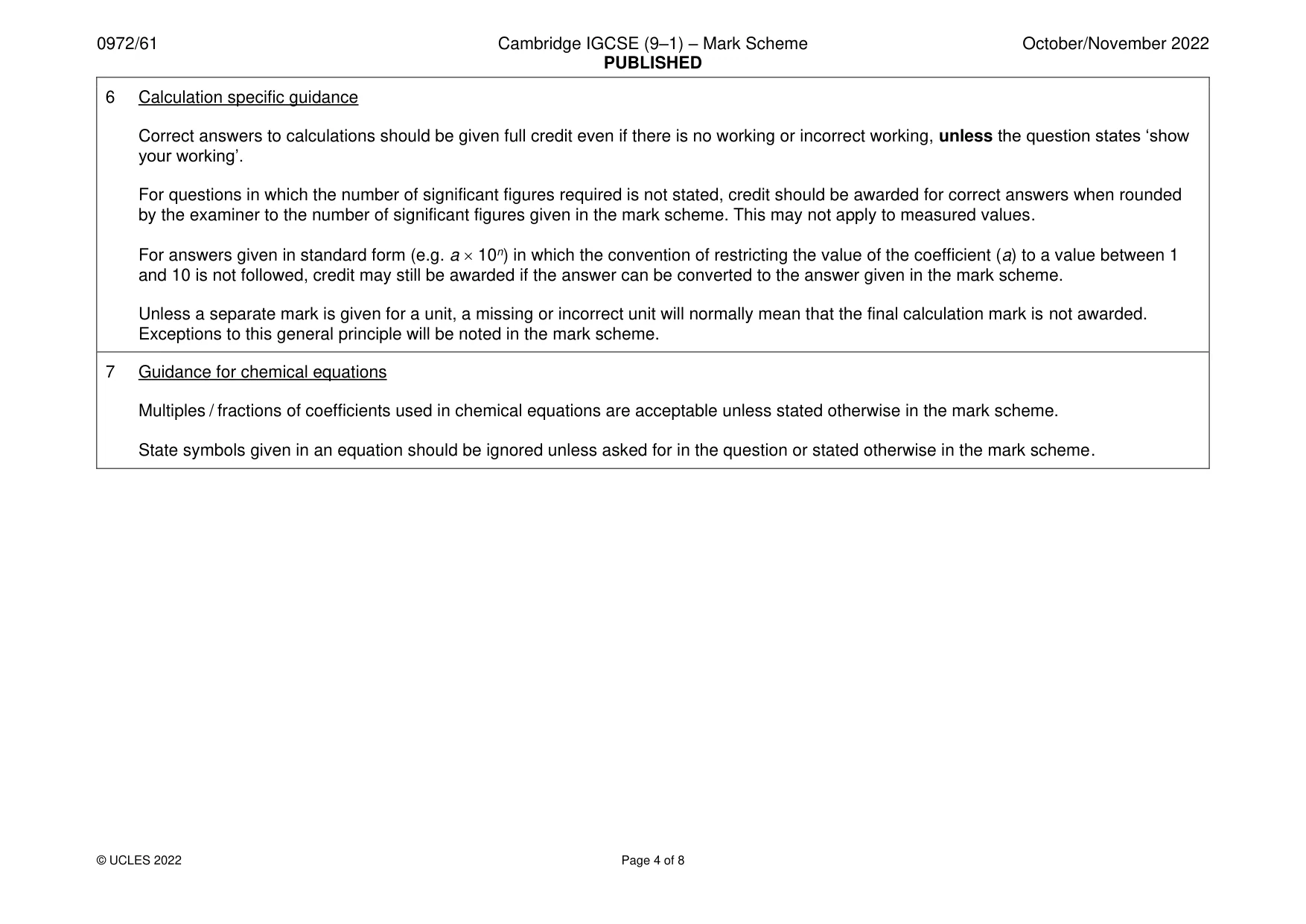

Mark scheme: Question Answer Marks 1(a) Clear use of horizontal aid OR bob touching rule 1 1(b)(i) T = 1.41 1 1(b)(ii) T2 = 1.99 (to 2 decimal places only, correctly rounded) 1 1(c) Axes of graph correctly labelled with quantity and unit and right way round 1 Suitable scales 1 All plots correct to ½ small square 1 Good line judgement, thin, continuous line 1 1(d) Triangle method clear on graph 1 Triangle at least half the length of the line between extreme plots used 1 G value in range 0.038 – 0.044 1 1(e) Reaction time / human error a smaller part of time measured 1

More questions on Physical quantities and measurement techniques

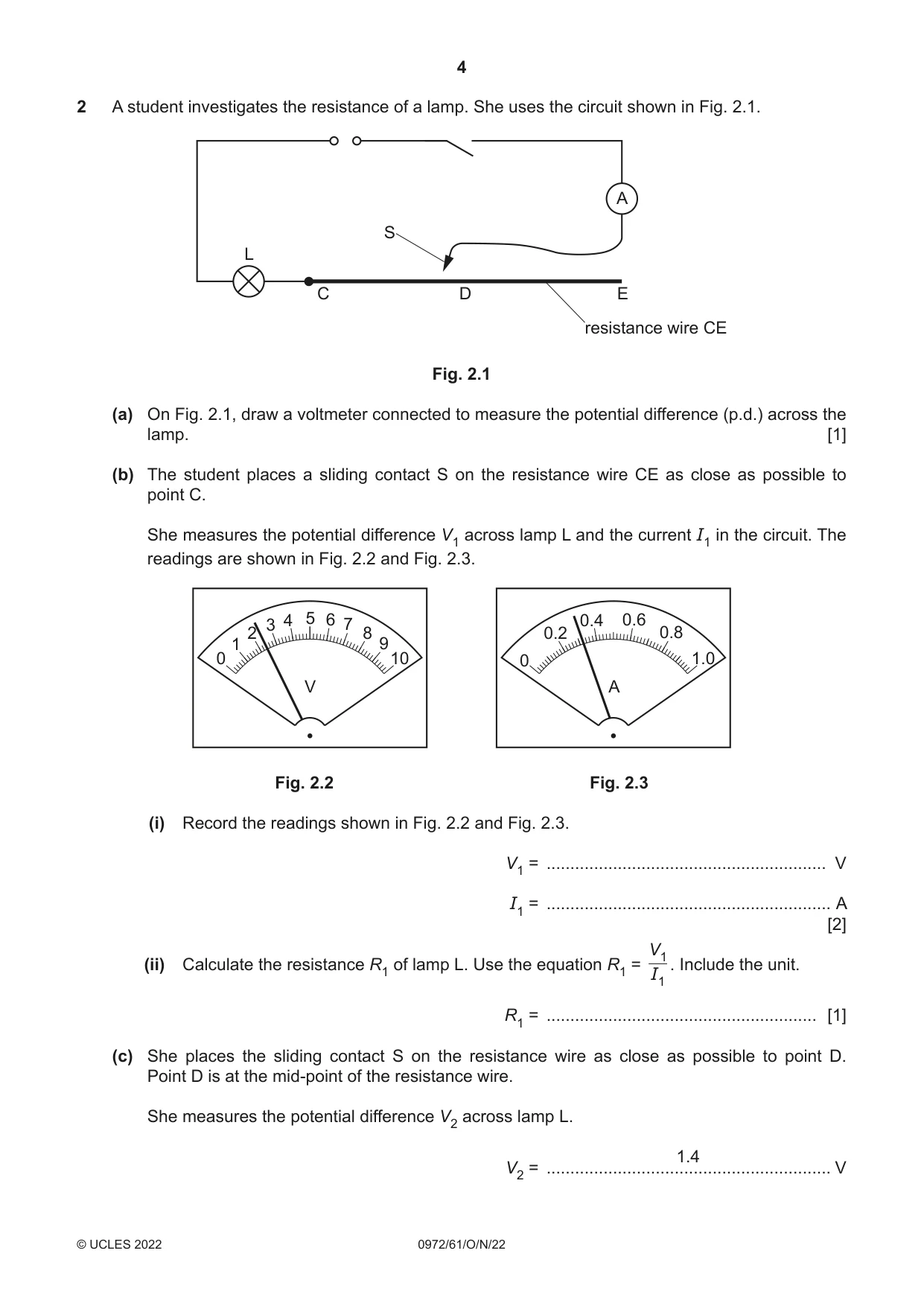

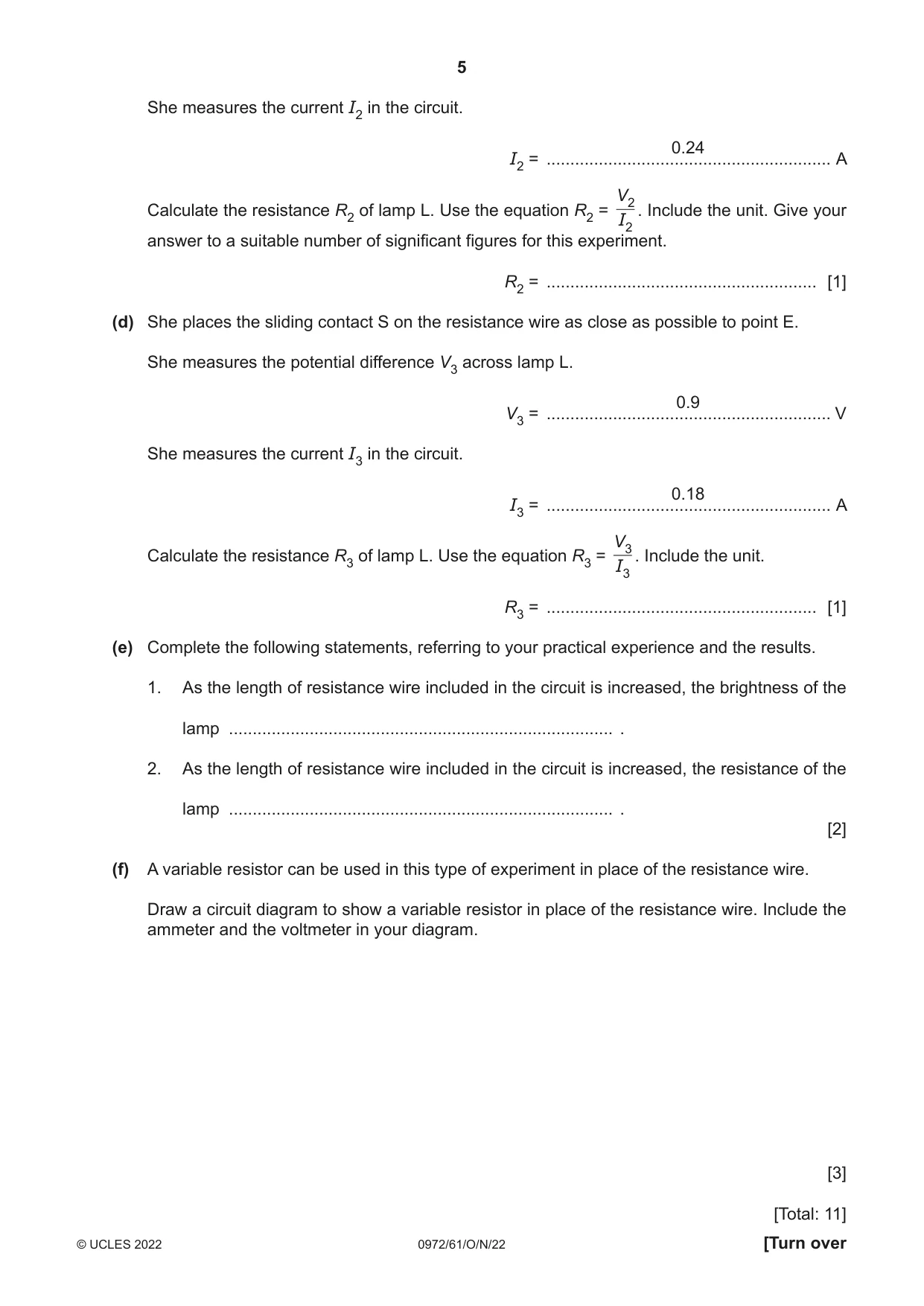

2 A student investigates the resistance of a lamp. She uses the circuit shown in Fig. 2.1. A S L C D E resistance wire CE Fig. 2.1 (a) On Fig. 2.1, draw a voltmeter connected to measure the potential difference (p.d.) across the lamp. [1] (b) The student places a sliding contact S on the resistance wire CE as close as possible to point C. She measures the potential difference V1 across lamp L and the current I1 in the circuit. The readings are shown in Fig. 2.2 and Fig. 2.3. 3 4 5 6 7 0.4 0.6 2 8 0.2 0.8 1 9 0 10 0 1.0 V A Fig. 2.2 Fig. 2.3 (i) Record the readings shown in Fig. 2.2 and Fig. 2.3. V1 = ........................................................... V I1 = ............................................................ A [2] V1 (ii) Calculate the resistance R1 of lamp L. Use the equation R1 = . Include the unit. I1 R1 = ......................................................... [1] (c) She places the sliding contact S on the resistance wire as close as possible to point D. Point D is at the mid-point of the resistance wire. She measures the potential difference V2 across lamp L. 1.4 V2 = ............................................................ V She measures the current I2 in the circuit. 0.24 I2 = ............................................................ A V2 Calculate the resistance R2 of lamp L. Use the equation R2 = . Include the unit. Give your I2 answer to a suitable number of significant figures for this experiment. R2 = ......................................................... [1] (d) She places the sliding contact S on the resistance wire as close as possible to point E. She measures the potential difference V3 across lamp L. 0.9 V3 = ............................................................ V She measures the current I3 in the circuit. 0.18 I3 = ............................................................ A V3 Calculate the resistance R3 of lamp L. Use the equation R3 = . Include the unit. I3 R3 = ......................................................... [1] (e) Complete the following statements, referring to your practical experience and the results. 1. As the length of resistance wire included in the circuit is increased, the brightness of the lamp ................................................................................. . 2. As the length of resistance wire included in the circuit is increased, the resistance of the lamp ................................................................................. . [2] (f) A variable resistor can be used in this type of experiment in place of the resistance wire. Draw a circuit diagram to show a variable resistor in place of the resistance wire. Include the ammeter and the voltmeter in your diagram. [3] [Total: 11]

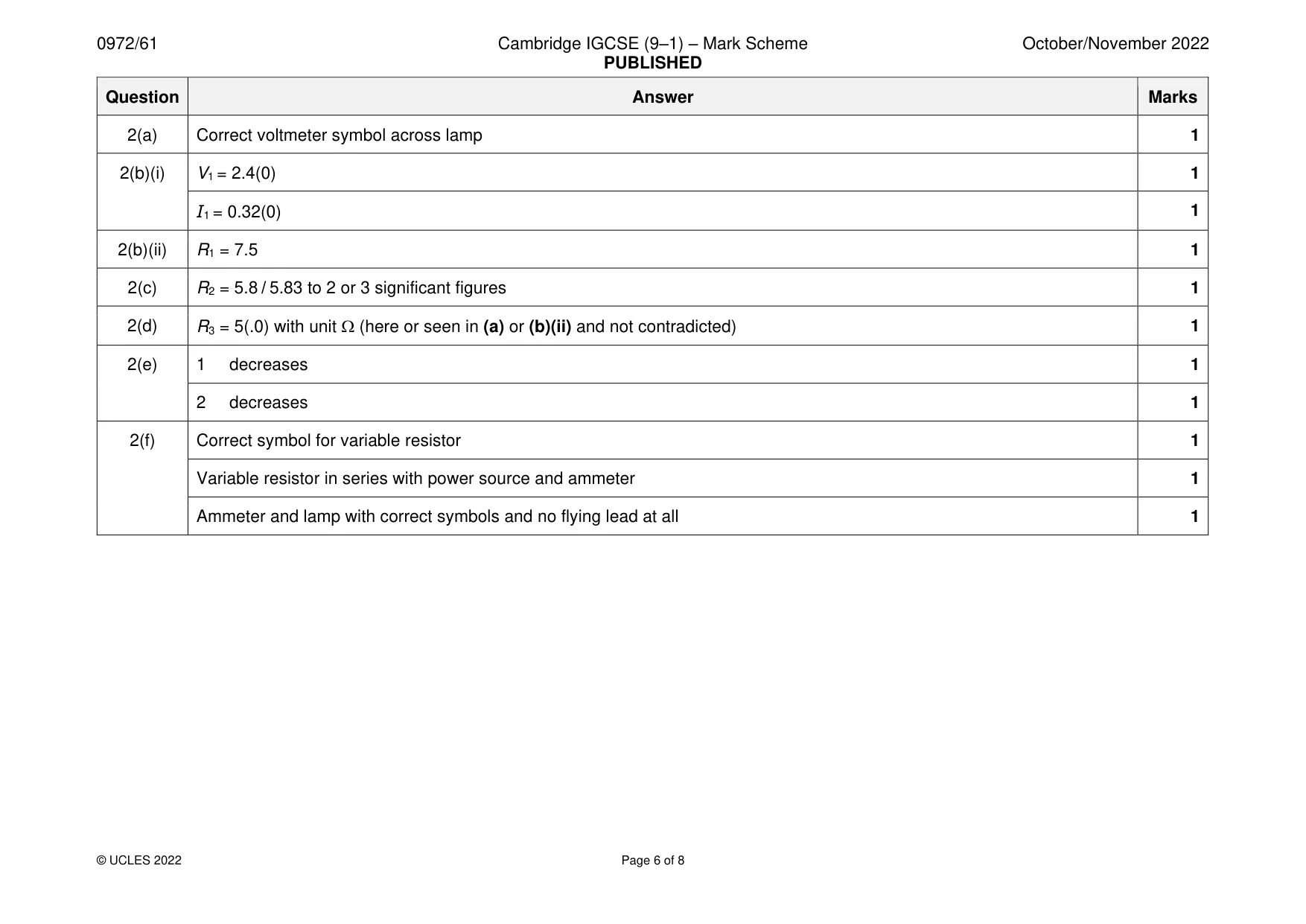

Mark scheme: 2(a) Correct voltmeter symbol across lamp 1 2(b)(i) V1 = 2.4(0) 1 I1 = 0.32(0) 1 2(b)(ii) R1 = 7.5 1 2(c) R2 = 5.8 / 5.83 to 2 or 3 significant figures 1 2(d) R3 = 5(.0) with unit  (here or seen in (a) or (b)(ii) and not contradicted) 1 2(e) 1 decreases 1 2 decreases 1 2(f) Correct symbol for variable resistor 1 Variable resistor in series with power source and ammeter 1 Ammeter and lamp with correct symbols and no flying lead at all 1

More questions on Electrical quantities

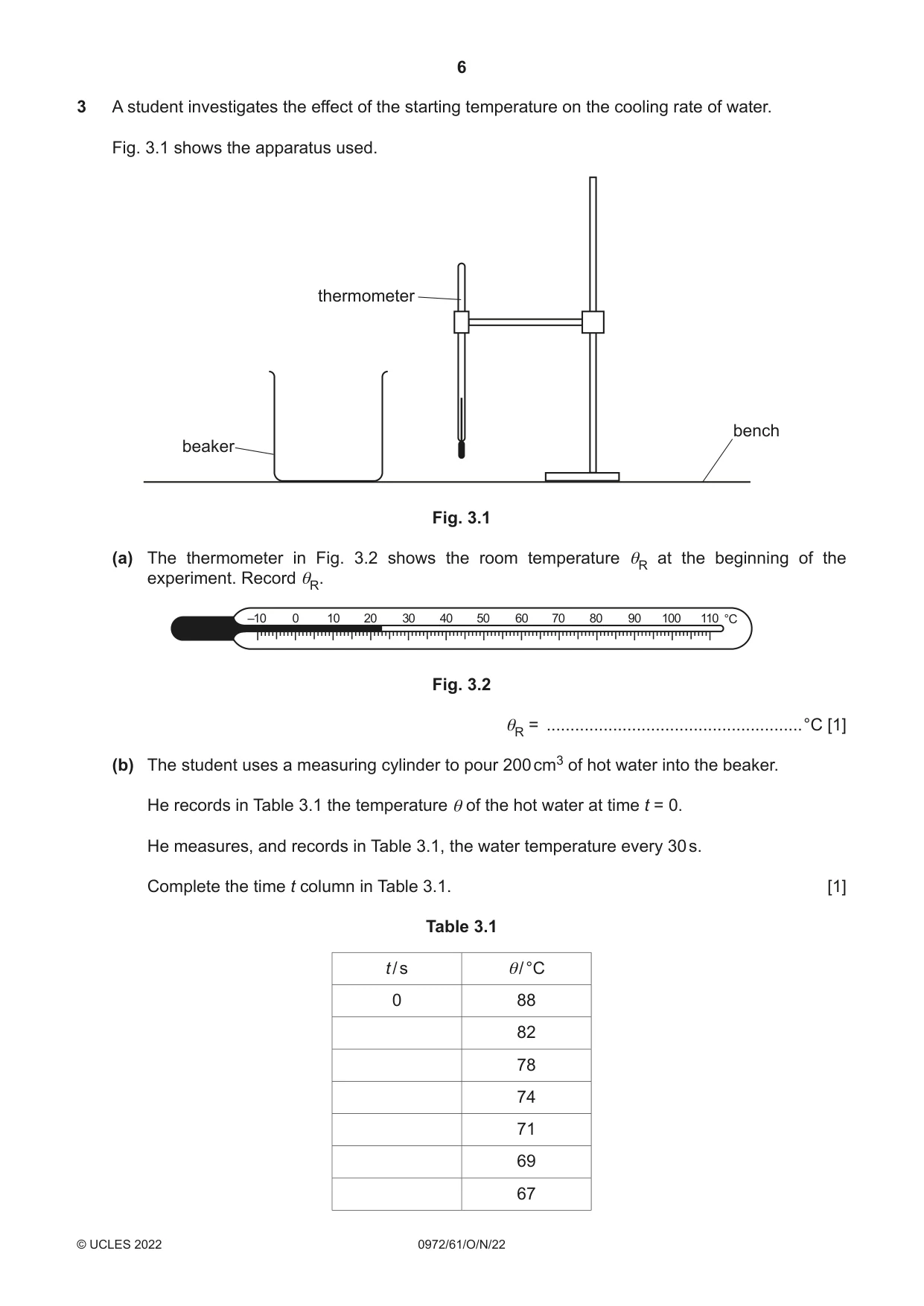

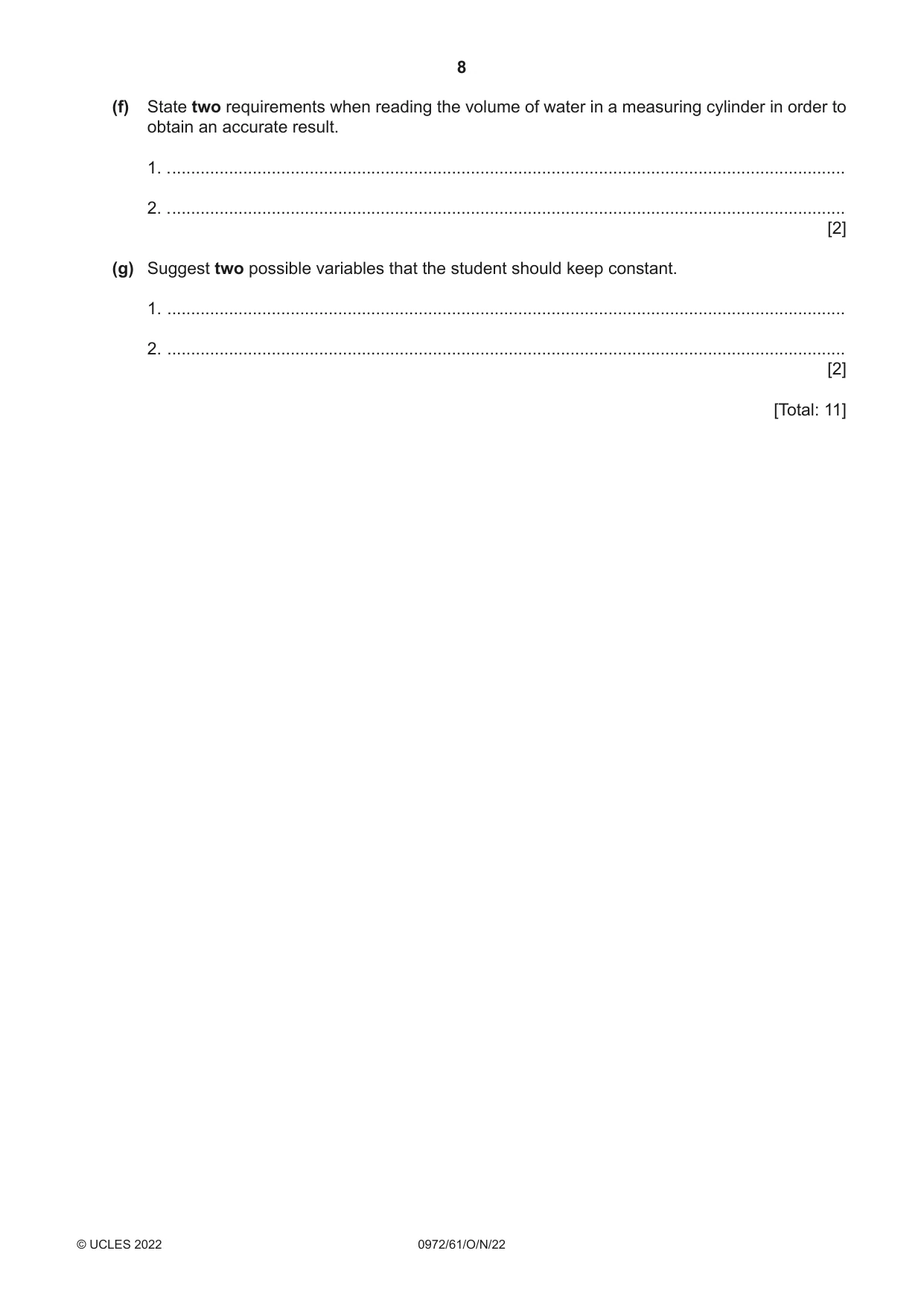

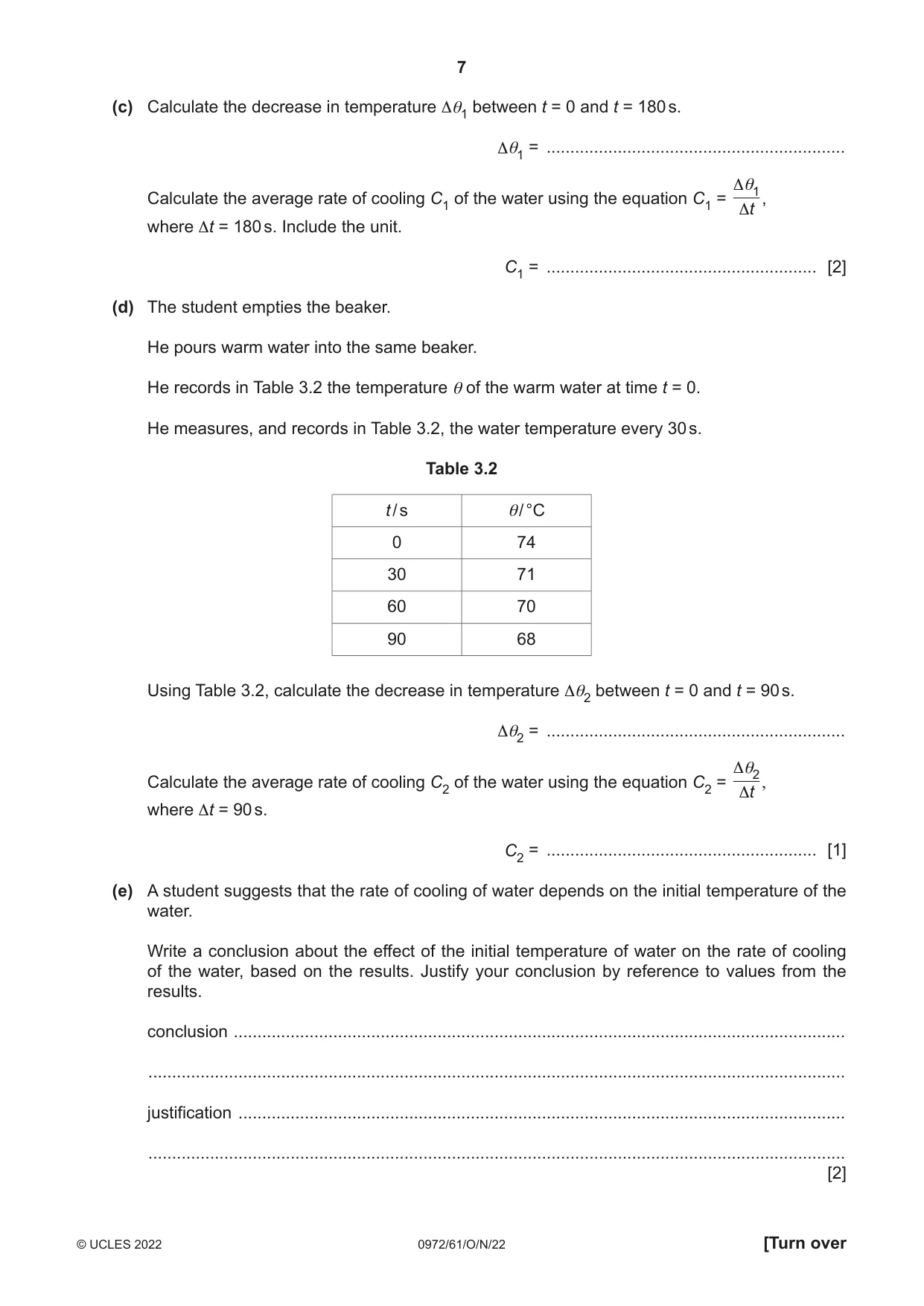

3 A student investigates the effect of the starting temperature on the cooling rate of water. Fig. 3.1 shows the apparatus used. thermometer bench beaker Fig. 3.1 (a) The thermometer in Fig. 3.2 shows the room temperature θR at the beginning of the experiment. Record θR. –10 0 10 20 30 40 50 60 70 80 90 100 110 °C Fig. 3.2 θR = ......................................................°C [1] (b) The student uses a measuring cylinder to pour 200 cm3 of hot water into the beaker. He records in Table 3.1 the temperature θ of the hot water at time t = 0. He measures, and records in Table 3.1, the water temperature every 30 s. Complete the time t column in Table 3.1. [1] Table 3.1 t / s θ/ °C 0 88 82 78 74 71 69 67 (c) Calculate the decrease in temperature Δθ1 between t = 0 and t = 180 s. Δθ1 = ............................................................... Δθ1 Calculate the average rate of cooling C1 of the water using the equation C1 = , Δt where Δt = 180 s. Include the unit. C1 = ......................................................... [2] (d) The student empties the beaker. He pours warm water into the same beaker. He records in Table 3.2 the temperature θ of the warm water at time t = 0. He measures, and records in Table 3.2, the water temperature every 30 s. Table 3.2 t / s θ/ °C 0 74 30 71 60 70 90 68 Using Table 3.2, calculate the decrease in temperature Δθ2 between t = 0 and t = 90 s. Δθ2 = ............................................................... Δθ2 Calculate the average rate of cooling C2 of the water using the equation C2 = , Δt where Δt = 90 s. C2 = ......................................................... [1] (e) A student suggests that the rate of cooling of water depends on the initial temperature of the water. Write a conclusion about the effect of the initial temperature of water on the rate of cooling of the water, based on the results. Justify your conclusion by reference to values from the results. conclusion ................................................................................................................................. ................................................................................................................................................... justification ................................................................................................................................ ................................................................................................................................................... [2] (f) State two requirements when reading the volume of water in a measuring cylinder in order to obtain an accurate result. 1. . .............................................................................................................................................. 2. . .............................................................................................................................................. [2] (g) Suggest two possible variables that the student should keep constant. 1. ............................................................................................................................................... 2. ............................................................................................................................................... [2] [Total: 11]

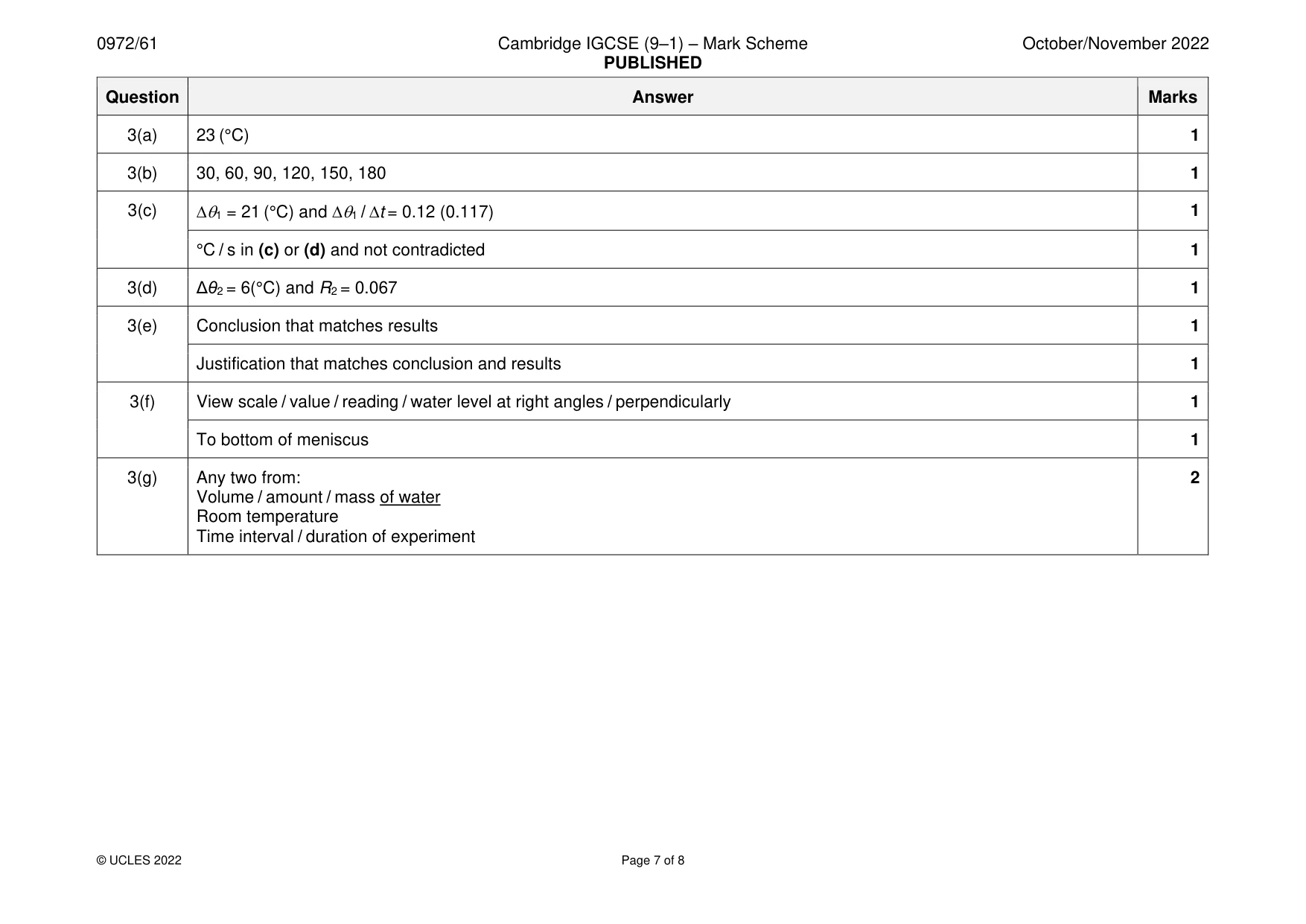

Mark scheme: 3(a) 23 (°C) 1 3(b) 30, 60, 90, 120, 150, 180 1 3(c) 1 = 21 (°C) and 1 / t = 0.12 (0.117) 1 °C / s in (c) or (d) and not contradicted 1 3(d) Δθ2 = 6(°C) and R2 = 0.067 1 3(e) Conclusion that matches results 1 Justification that matches conclusion and results 1 3(f) View scale / value / reading / water level at right angles / perpendicularly 1 To bottom of meniscus 1 3(g) Any two from: 2 Volume / amount / mass of water Room temperature Time interval / duration of experiment

More questions on Physical quantities and measurement techniques

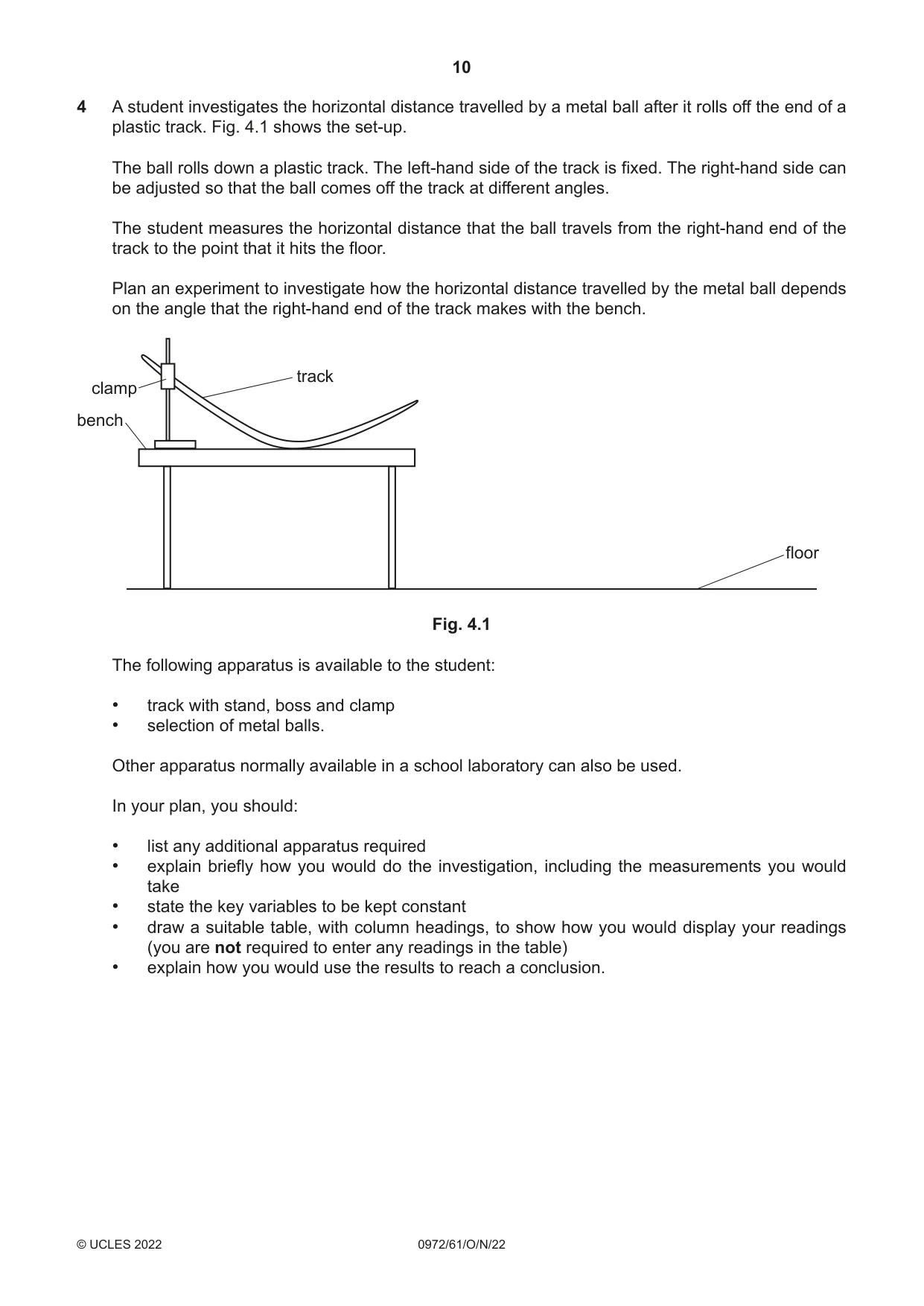

4 A student investigates the horizontal distance travelled by a metal ball after it rolls off the end of a plastic track. Fig. 4.1 shows the set-up. The ball rolls down a plastic track. The left-hand side of the track is fixed. The right-hand side can be adjusted so that the ball comes off the track at different angles. The student measures the horizontal distance that the ball travels from the right-hand end of the track to the point that it hits the floor. Plan an experiment to investigate how the horizontal distance travelled by the metal ball depends on the angle that the right-hand end of the track makes with the bench. track clamp bench floor Fig. 4.1 The following apparatus is available to the student: • track with stand, boss and clamp • selection of metal balls. Other apparatus normally available in a school laboratory can also be used. In your plan, you should: • list any additional apparatus required • explain briefly how you would do the investigation, including the measurements you would take • state the key variables to be kept constant • draw a suitable table, with column headings, to show how you would display your readings (you are not required to enter any readings in the table) • explain how you would use the results to reach a conclusion. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [7]

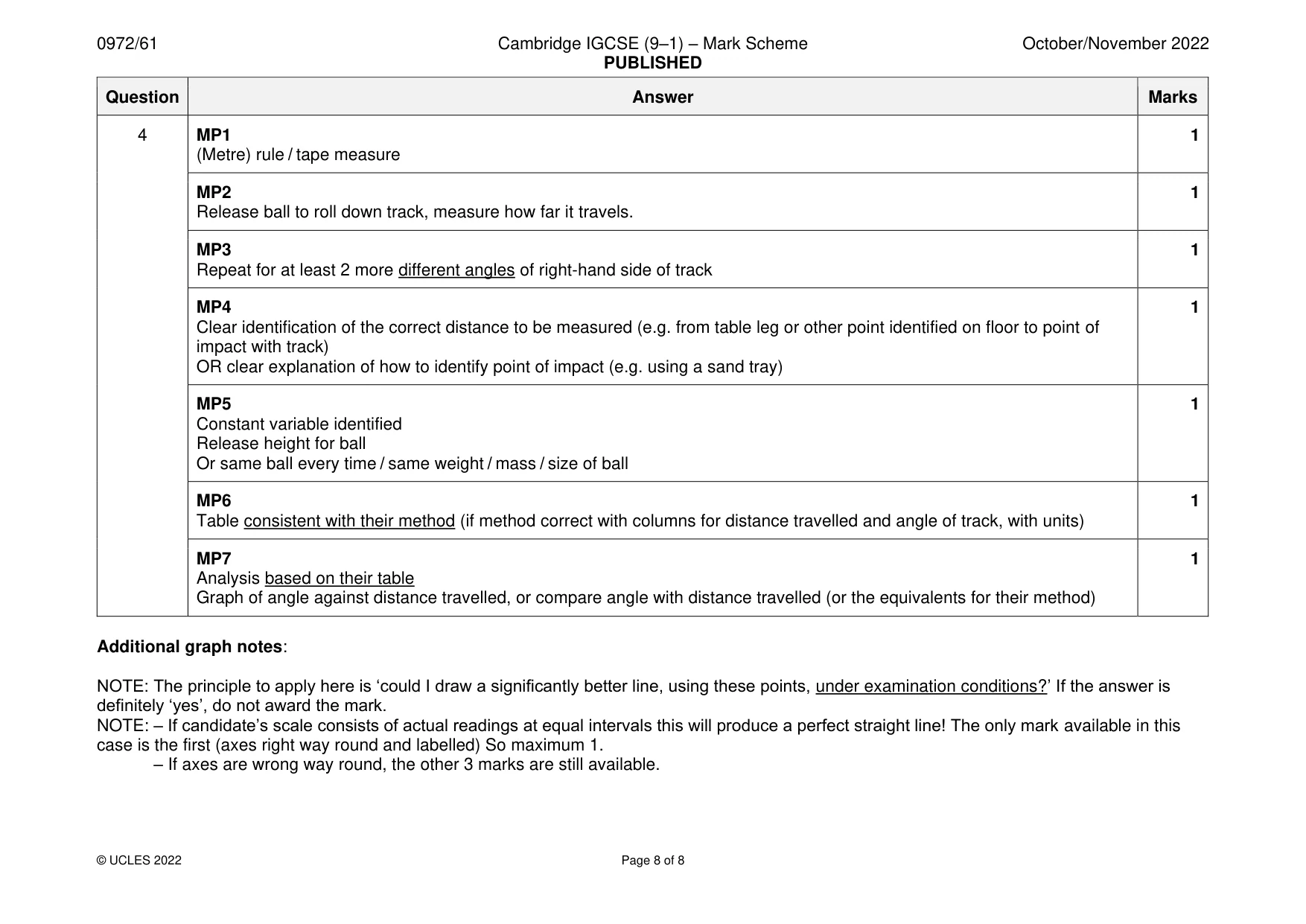

Mark scheme: 4 MP1 1 (Metre) rule / tape measure MP2 1 Release ball to roll down track, measure how far it travels. MP3 1 Repeat for at least 2 more different angles of right-hand side of track MP4 1 Clear identification of the correct distance to be measured (e.g. from table leg or other point identified on floor to point of impact with track) OR clear explanation of how to identify point of impact (e.g. using a sand tray) MP5 1 Constant variable identified Release height for ball Or same ball every time / same weight / mass / size of ball MP6 1 Table consistent with their method (if method correct with columns for distance travelled and angle of track, with units) MP7 1 Analysis based on their table Graph of angle against distance travelled, or compare angle with distance travelled (or the equivalents for their method) Additional graph notes: NOTE: The principle to apply here is ‘could I draw a significantly better line, using these points, under examination conditions?’ If the answer is definitely ‘yes’, do not award the mark. NOTE: – If candidate’s scale consists of actual readings at equal intervals this will produce a perfect straight line! The only mark available in this case is the first (axes right way round and labelled) So maximum 1. – If axes are wrong way round, the other 3 marks are still available.
